Thank you for purchasing the Belkin High-Speed Mode Wireless G
Router (the Router) with Built-In USB Print Server. Below are two short
sections, one discusses the benefits of home networking, the other
outlines best practices in order to maximize your wireless home network
range and performance. Please be sure to read through this User Manual
completely, and pay special attention to the section entitled “Placement
of your Wireless Networking Hardware for Optimal Performance” on the
next page. By following our simple setup instructions your Belkin Home
Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share a single printer with the entire family
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet e-mail,
and chat
Here are some of the advantages of setting up a
Belkin Wireless Network:
Mobility – you’ll no longer need a dedicated “computer room”— now
you can work on a networked laptop or desktop computer from virtually
anywhere within your wireless range
Easy installation –
Belkin’s Easy Installation Wizard makes setup simple
Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
Easy Expansion – the wide range of Belkin networking products let
you expand your network to include devices such as printers and
gaming consoles
No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
Widespread industry acceptance – choose from a wide range of
interoperable networking products
Introduction
2
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
8
9
10
11
12
section
13
Placement of your Wireless G Router
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer
is to your Wireless Router or Access Point. Typical indoor operating
range for your wireless devices is between 100 and 200 feet. In the
same way, your wireless connection and performance will degrade
somewhat as the distance between your Wireless Router or Access
Point and connected devices increases. This may or may not be
noticeable to you. As you move further from your Wireless Router
or Access Point, connection speed may decrease. Factors that can
weaken signals simply by getting in the way of your network’s radio
waves are metal appliances or obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and ten feet from the Wireless Router or Access
Point, in order to see if distance is the problem. If difficulties persist
even at close range, please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Wireless Router or Access Point Placement
Place your Wireless Router or Access Point, the central
connection point of your network, as close as possible to the
center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
• Ensure that your Wireless Router’s or Access Point’s
networking antennas are parallel to each other, and are
positioned vertically (toward the ceiling). If your Wireless
Router or Access Point itself is positioned vertically, point the
antennas as much as possible in an upward direction.
• In multistory homes, place the Wireless Router or Access
Point on a floor that is as close to the center of the home as
possible. This may mean placing the Wireless Router or Access
Point on an upper floor.
• Try not to place the Wireless Router or Access Point near a
cordless 2.4GHz phone.
2
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
8
9
10
11
12
section
13
2. Avoid Obstacles and Interference
Avoid placing your Wireless Router or Access Point near
devices that may emit radio “noise,” such as microwave ovens.
Dense objects that can inhibit Wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Wireless Router or Access Point).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from Wireless Routers or
Access Points and your wireless-enabled computers
• Unplug and remove the battery from any cordless phone
that operate on the 2.4GHz band (check manufacturers
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the furthest channel from your
wireless network. For example, change the phone to channel 1
and move your Wireless Router or Access Point to channel 11.
See your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
4. Choose the “quietest” channel for your wireless network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the Wireless LAN Utility
of your wireless adapter to locate any other wireless networks that
are available (see your wireless adapter’s manual), and move your
Wireless Router (or Access Point) and computers to a channel as
far away from other networks as possible.
4
Introduction
Introduction
5
Introduction
2
1
3
4
5
6
7
8
9
10
11
12
section
13
Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference from
neighboring cordless phones or other wireless devices.
For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included in your
User Guide.
These guidelines should allow you to cover the maximum
possible area with your Wireless Router or Access Point. Should
you need to cover an even wider area, we suggest the Belkin
Wireless Range Extender/Access Point.
5. Secure connections, VPNs, and AOL
Secure connections are connections that typically require a user
name and password, and are used where security is important.
Secure connections include:
• Virtual Private Network (VPN) connections, often used to
connect remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most on-line banking websites
• Many commercial websites which require a username and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The
simplest solution to avoid this is to simply reconnect by
re-running the VPN or AOL software, or by re-logging into
the secure web site.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this may
not be appropriate for portable computers. To change your power
management setting under Windows, see the “Power Options” item in
the Control Panel.
If you continue to have difficulty with Secure Connection, VPNs and
AOL please review the steps above to be sure you have addressed
these issues.
4
Introduction
Introduction
5
Introduction
2
1
3
4
5
6
7
8
9
10
11
12
section
13
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support at:
US: 877-736-5771
310-898-1100 ext.2263
Europe: 00 800 223 55 460
Australia: 1800 666 040
6
7
2
1
3
4
5
6
7
8
9
10
11
12
section
13
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that
make your new Belkin Wireless G Router an ideal solution for your
home or small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® 8.x, 9.x, X v10.x, AppleTalk®, Linux®, Windows® 95, 98,
Me, NT®, 2000, and XP, and others. All that is needed is an Internet
browser and a network adapter that supports TCP/IP (the standard
language of the Internet).
Front-Panel LED Display
Lighted LEDs on the front of the Router indicate which functions
are in operation. You’ll know at-a-glance whether your Router is
connected to the Internet. This feature eliminates the need for
advanced software and status-monitoring procedures.
Built-in USB Print Server
Your router includes a built-in USB print server that lets you print to
a USB printer from any computer on the network. The print server
is very simple to setup and convenient to use. Simply install your
printer’s drivers and software on each computer, and then run the
easy to use Print Server Setup Wizard to setup the print server. In
minutes, all of your computers will have access to the same printer.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding additional IP addresses to your
Internet service account.
Product Overview
6
7
2
1
3
4
5
6
7
8
9
10
11
12
section
13
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with
zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding,
Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding.
Integrated 10/100 4-Port Switch
The Router has a built-in, 4-port network switch to allow your wired
computers to share printers, data and MP3 files, digital photos,
and much more. The switch features automatic detection so it will
adjust to the speed of connected devices. The switch will transfer
data between computers and the Internet simultaneously without
interrupting or consuming resources.
Universal Plug-and-Play (UPnP) Compatibility
UPnP (Universal Plug-and-Play) is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is
no need for a complicated networking setup.

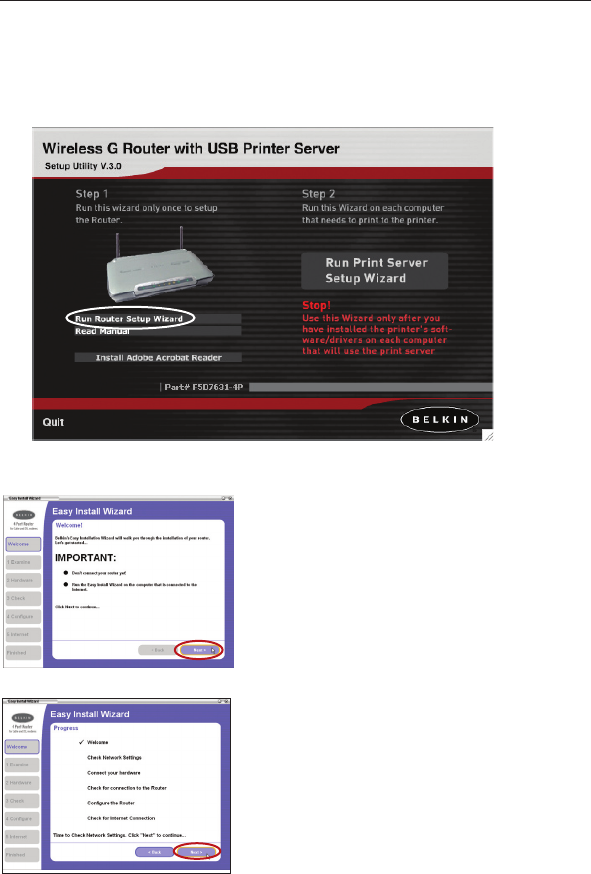

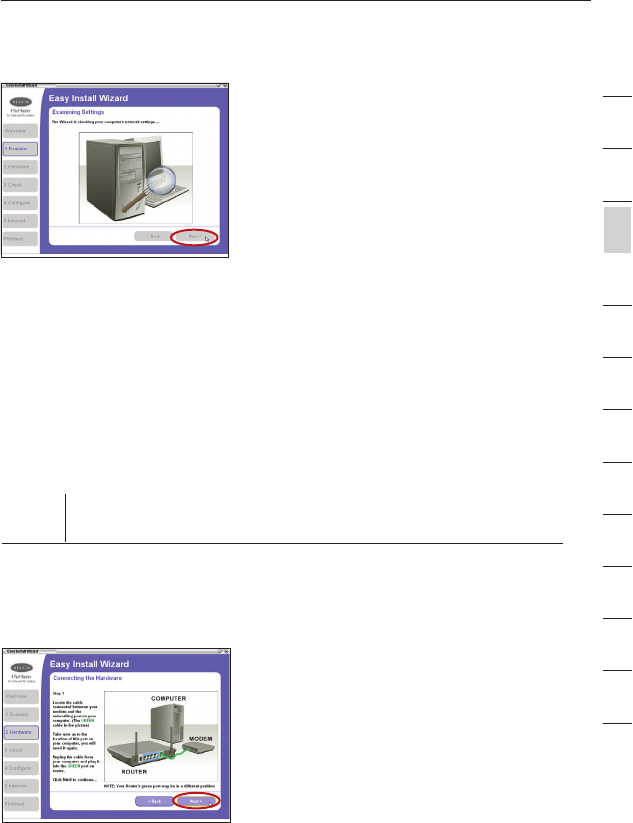

Easy Install Wizard
The Easy Install Wizard takes the guesswork out of setting up your
Router. This automatic software determines your network settings for
you and sets up the Router for connection to your Internet Service
Provider (ISP). In a matter of minutes, your Wireless Router will be up and
running on the Internet. A separate wizard is included for setup of the print
server.
Product Overview
8
Product Overview Knowing Your Router
9
section
2
1
3
4
5
6
7
8
9
10
11
12
13
NOTE: Easy Install Wizard software is compatible with Windows 98SE, Me,
2000, XP and Mac OS 9.X and Mac OS X. The Print Server Setup Wizard
software is compatible with Windows 98SE, Me, 2000, and XP. If you are
using another operating system, the Wireless Router can be set up using the
Alternative Method described in this manual (see page 34).
Integrated 802.11g Wireless Access Point
802.11g is an exciting new wireless technology that achieves data rates up to
54Mbps in 54G Mode, nearly five times faster than 802.11b.
125 High-Speed Mode
High-Speed Mode (HSM)*, a 54g™ performance enhancement, provides
the fastest wireless connectivity for 802.11g-capable networks in real-world
environments. It is designed for home networks that require additional
bandwidth for applications such as sharing digital pictures. 125HSM makes
802.11g WLANs more efficient without impacting the performance of
neighboring networks, and is compatible at high speeds with leading brands.
Integrated Parental Control Web Content Filter
Belkin has teamed with Cerberian, a leading content-filtering company, to
bring you this unique feature. Your Belkin Wireless G Router is the first home
networking solution with an integrated web content filter that allows you to
block unwanted or offensive web content before it makes it to your network.
Unlike other Parental Control solutions, Parental Control is built into the Belkin
Wireless Router, so there is no software to install on any computer and you
will never be charged a per-computer fee for the service, ever. Your Wireless
Router comes with a six-month free trial of this feature so you can take
advantage of the capabilities right away. No credit card is needed to use the
trial. You have control: Belkin Parental Control can be modified to meet your
needs. You can set up your own policies and block any website you want.
There is also an optional reporting feature (fee-based) that allows you to get a
report showing you every website that was visited from your network (refer to
your Parental Control Manual for more information).
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique client
identifiers) that are allowed access to your network. Every computer has its
own MAC address. Simply enter these MAC addresses into a list using the
web-based user interface and you can control access to your network.
*When operating in High-Speed Mode, this Wi-Fi device may achieve an actual throughput
of up to or greater than 34.1Mbps, which is the equivalent throughput of a system following
802.11g protocol and operating at a signaling rate of 125Mbps. Actual throughput will vary
depending on environmental, operational and other factors.
8
Product Overview Knowing Your Router
9
section
2
1
3
4
5
6
7
8
9
10
11
12
13
Package Contents
• Belkin High-Speed Mode Wireless G Router with Built-In USB
Print Serverr
• Quick Installation Guide
• Belkin Easy Install Wizard Software CD
• Belkin RJ45 Ethernet Networking Cable
• Power Supply
• User Manual
System Requirements
• Broadband Internet connection such as a cable or DSL modem with
RJ45 (Ethernet) connection
• At least one computer with an installed network interface adapter
• TCP/IP networking protocol installed on each computer
• RJ45 Ethernet networking cable
• Internet browser
Easy Install Wizard Software System Requirements
• A PC running Windows 98SE, Me, 2000, or XP or a Mac computer
running Mac OS 9.x or OS X
• Minimum 64MB RAM
• Internet Browser
Print Server Setup Wizard System Requirements
• A PC running Windows 98SE, Me, 2000, or XP
• Minimum 64MB RAM
10
Knowing Your Router
Knowing Your Router
11
section
2
1
3
4
5
6
7
8
9
10
11
12
13
2.4GHz • High-Speed Wireless G
The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The LED indicators are easily visible on the front of the Router
to provide you with information about network activity and status.
1. Power/Ready/Print Activity LED
When you apply power to the Router or restart it, a short period
of time elapses while the Router boots up. During this time, the
LED blinks. When the Router has completely booted up, the
Power/Ready LED becomes a SOLID light, indicating the Router
is ready for use. When data is being sent to the printer, the light
will blink fast.
OFF Router is OFF
Slow Blinking Green Router is Booting Up
Solid Green Router is Ready
Fast Blinking Green Printer Activity
2. WLAN: Wireless Network LED
OFF Wireless Network is OFF
Green Wireless Network is Ready
Blinking Indicates Wireless Activity
3. LAN Port-Status LEDs
These LEDs are labeled 1–4 and correspond to the numbered
ports on the rear of the Router. When a computer is properly
connected to one of the LAN ports on the rear of the Router, the
LED will light. GREEN means a 10Base-T device is connected,
ORANGE means a 100Base-T device is connected. When
information is being sent over the port, the LED blinks rapidly.
(1) (2) (3) (4) (5)
10
Knowing Your Router
Knowing Your Router
11
section
2
1
3
4
5
6
7
8
9
10
11
12
13
OFF No Device is Linked to the Port
Green 10Base-T Device Connected
Orange 100Base-Tx Device Connected
Blinking
(Orange or Green)
Port Activity
4. WAN Status LED
This LED lights in GREEN to indicate that your modem is
connected properly to the Router. It blinks rapidly when
information is being sent over the port between the Router and
the modem.
OFF No WAN Link
Solid Green Good WAN Link
Blinking Green WAN Activity
5. Connected LED
This unique LED shows you when the Router is connected to the
Internet. When the light is OFF, the Router is NOT connected to
the Internet. When the light is blinking, the Router is attempting
to connect to the Internet. When the light is solid GREEN, the
Router is connected to the Internet. When using the “Disconnect
after x minutes” feature, this LED becomes extremely useful in
monitoring the status of your Router’s connection.
OFF Router is not Connected to the Internet
Blinking Green Router is Attempting to Connect to the
Internet
Solid Green Router is Connected to the Internet
12
Knowing Your Router
Knowing Your Router
13
section
2
1
3
4
5
6
7
8
9
10
11
12
13

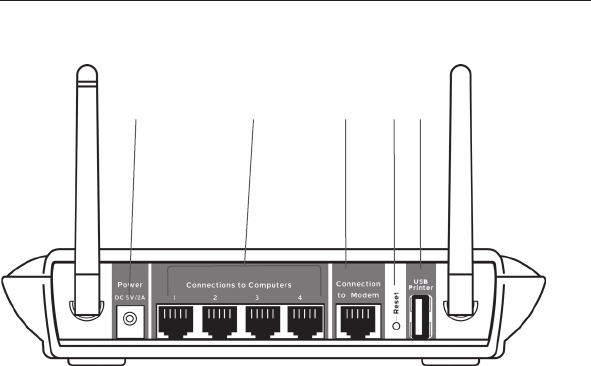

6. Power Jack - GRAY
Connect the included 5V DC power supply to this jack.
7. Connections to Computers (LAN Ports) - BLUE
Connect your wired (non-wireless) computers to these ports.
These ports are RJ45, 10/100 auto-negotiation, auto-uplinking
ports for standard UTP category 5 or 6 Ethernet cable. The ports
are labeled 1 through 4. These ports correspond to the numbered
LEDs on the front of the Router.
8. Connection to Modem (WAN Port) - GREEN
This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the cable supplied with the
cable modem may not work properly.
9. Reset Button
The Reset button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the Reset
button. Use the restore option in instances where you may have
forgotten your custom password.
a. Resetting the Router
Push and release the Reset button. The lights on the Router
will momentarily flash. The Power/Ready light will begin to
blink. When the Power/Ready light becomes solid again, the
reset is complete.
(6) (7) (8) (9)(10)
12
Knowing Your Router
Knowing Your Router
13
section
2
1
3
4
5
6
7
8
9
10
11
12
13
b. Restoring the Factory Defaults
Press and hold the Reset button for at least ten seconds
then release it. The lights on the Router will momentarily
flash. The Power/Ready light will begin to blink. When the
Power/Ready light becomes solid again, the restore
is complete.
10. USB Port - PURPLE
For USB printers only. See the section called “Connecting your
printer to Router’s print server” on page 22.
14
Connecting and Configuring Your Router
Connecting and Configuring Your Router
15
section
2
1
3
4
5
6
7
8
9
10
11
12
13
Verify the contents of your box. You should have the following:
• Belkin High-Speed Mode Wireless G Router
• Quick Installation Guide
• Belkin Easy Install Wizard Software CD
• RJ45 Ethernet Networking Cable (for connection of the
Router to the computer)
• Power Supply
• User Manual
Modem Requirements
Your cable or DSL modem must be equipped with an RJ45 Ethernet
port. Many modems have both an RJ45 Ethernet port and a USB
connection. If you have a modem with both Ethernet and USB, and
are using the USB connection at this time, you will be instructed to
use the RJ45 Ethernet port during the installation procedure. If your
modem has only a USB port, you can request a different type of
modem from your ISP, or you can, in some cases, purchase a modem
that has an RJ45 Ethernet port on it.
ALWAYS INSTALL YOUR ROUTER FIRST! IF YOU ARE INSTALLING
NUMEROUS NETWORK DEVICES FOR THE FIRST TIME, IT IS
IMPORTANT THAT YOUR ROUTER IS CONNECTED AND RUNNING
BEFORE ATTEMPTING TO INSTALL OTHER NETWORK COMPONENTS
SUCH AS NOTEBOOK CARDS AND DESKTOP CARDS.
Easy Install Wizard
Belkin has provided our Easy Install Wizard software to make
installing your Router a simple and easy task. You can use it to get
your Router up and running in minutes.
The Easy Install Wizard requires that your Windows® 98SE, Me,
2000, XP or Mac OS 9.2x, X.1.x computer be connected directly to
your cable or DSL modem and that the Internet connection is active
Ethernet USB
14
Connecting and Configuring Your Router
Connecting and Configuring Your Router
15
section
2
1
3
4
5
6
7
8
9
10
11
12
13
and working at the time of installation. If it is not, you must use the
“Alternate Setup Method” section of this manual to configure your
Router. Additionally, if you are using an operating system other than
Windows 98SE, Me, 2000, or XP, you must set up the Router using
the “Alternate Setup Method” section of this manual.
IMPORTANT: Run the Easy Install Wizard software from the
computer that is directly connected to the cable or DSL modem.
DO NOT CONNECT THE ROUTER AT THIS TIME.
Step 1 Run the Easy Install Wizard Software
1. Shut down any programs that are running on your computer at
this time.
2. Make sure you have the following items at the computer that is
now directly connected to the cable or DSL modem. DO NOT
CONNECT THE ROUTER AT THIS TIME.
• Quick Installation Guide
• The Easy Install Wizard CD-ROM
• The Router
• The Router power supply
• RJ45 Ethernet networking cable
• This User Manual
3. Turn off any firewall or Internet connection sharing software on
your computer.
4. Insert the Easy Install Wizard software CD into your CD–ROM
drive. The Installation Menu will automatically appear on your
screen within 15 seconds. If it does not, select your CD-ROM
drive from “My Computer” and double-click on the file named
“Start.exe” on the CD-ROM.
16
Connecting and Configuring Your Router
Connecting and Configuring Your Router
17
section
2
1
3
4
5
6
7
8
9
10
11
12
13
5. Click “Run Router Setup Wizard”.
Welcome Screen
The Wizard’s welcome screen will
appear. Make sure you have not
connected the Router at this point.
If you have connected your Router,
please reconnect your computer
directly to the modem. Click “Next”
when you are ready to move on.
Progress Screen
Easy Install will show you a progress
screen each time a step in the setup
has been completed. Each time you see
the progress screen, click “Next” when
you are ready to move to the next step.
16
Connecting and Configuring Your Router
Connecting and Configuring Your Router
17
section
2
1
3
4
5
6
7
8
9
10
11
12
13
Examining Settings
The Wizard will now examine your
computer’s network settings and
gather information needed to complete
the Router’s connection to the
Internet. When the Wizard is finished
examining your computer, click “Next”
to continue.
Multi-NICs Screen
If you have more than one network adapter installed in your computer
a Multi-NIC Screen will appear. If you have more than one network
adapter installed in your computer, the Wizard will need to know
which adapter is connected to your modem. Select the network card
that is connected to your modem from the list and click “Next”. If you
are not sure which adapter to choose, select the adapter at the top of
the list. If you mistakenly choose the wrong adapter now, you will be
able to choose a different one later.
Step 2 Hardware Setup
The Wizard will walk you through connecting your Router to your
computer and modem. Follow the steps on the screen using the
pictures as a guide.
2.1 This step instructs you to locate
the cable connected between your
modem and the networking port on
your computer. Unplug this cable
from the computer and plug it into
the GREEN port on the Router.
Click “Next” to continue.
18
Connecting and Configuring Your Router
Connecting and Configuring Your Router
19
section
2
1
3
4
5
6
7
8
9
10
11
12
13
2.2 This step instructs you to locate
the BLUE cable that is included
with your Router. Plug one end
of this cable into ANY one of the
BLUE ports on your Router. Plug
the other end of the cable into the
networking port on your computer.
Click “Next” to continue.
2.3 This step instructs you to locate
the power supply that is included
with your Router. Plug the power
supply’s small connector into the
GRAY port on the Router. Plug the
power supply into an empty power
outlet. Click “Next” to continue.
2.4 This step instructs you to look
at the lights on the front of your
Router. Make sure the appropriate
lights are ON. Refer to the Easy
Install software on your computer’s
screen for more details. Click
“Next” to continue.
