Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Introduction to the Precision Spectra™ Remote Control 6
How To Use Programs 19
Configuring Stimulation Areas 35
About System Settings 41
Reminders and Messages 47
Using the Remote Control 11
Troubleshooting 55
Table of Contents
Page 4
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
This manual has been color-coded to help you
use the Precision Spectra Remote Control while
referencing the manual.
Programs
P
Stimulation Areas
Main Menu
System Settings
SelectBack
Each section is labeled
and color-coded
throughout
INTRODUCTION Page 5
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
The Precision Spectra Remote Control (RC) is a handheld
device that allows you to communicate with and control
your Precision Spectra Stimulator. Designed for ease of
use, the RC puts you in control of your stimulation therapy.
Typically, you will be using the RC to turn stimulation on
and off, increase or decrease stimulation strength, and
change or modify programs that your healthcare provider
has already created for you.
Remote Control Buttons ............ 7
Remote Control Screen .............. 8
Home Screen ............................. 9
Page 6
Introduction to the Precision Spectra™ Remote Control
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

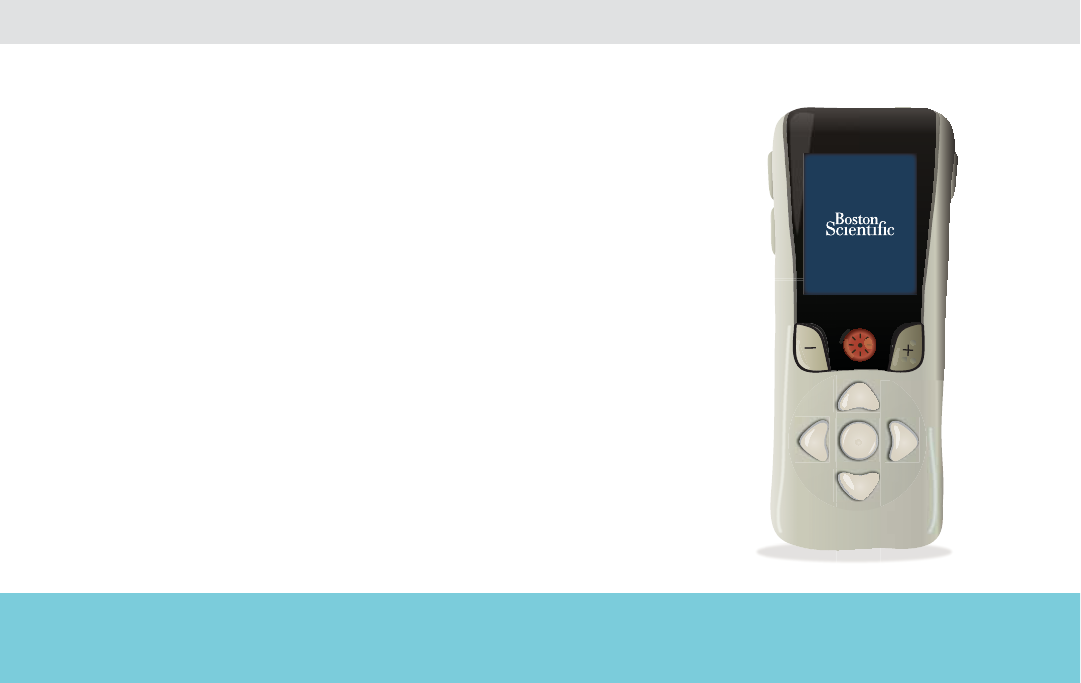

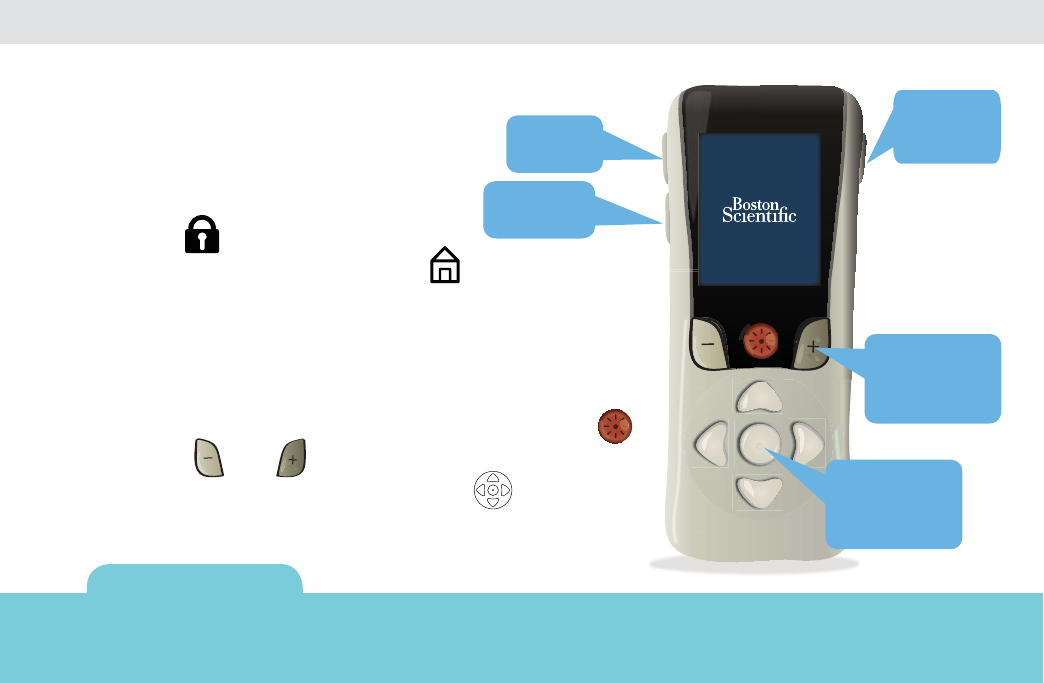

Buttons are located on the face and sides
of the RC as shown in the picture.
On the right-hand side of the
RC you will find the Lock/Unlock
button . On the left hand side
you will find the HOME button
and Programs button
P
.
On the face of the RC you will find the Stimulation
buttons closest to the screen. The Stimulation
buttons include the Stimulation ON/OFF button
and the and buttons. Below the Stimulation
buttons are the Navigation buttons , which
allow you to navigate through various menus.
n
n
Home
Programs
Lock /
Unlock
Navigation
Buttons
Stimulation
Buttons
INTRODUCTION Page 7
Remote Control Buttons
Page 8
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

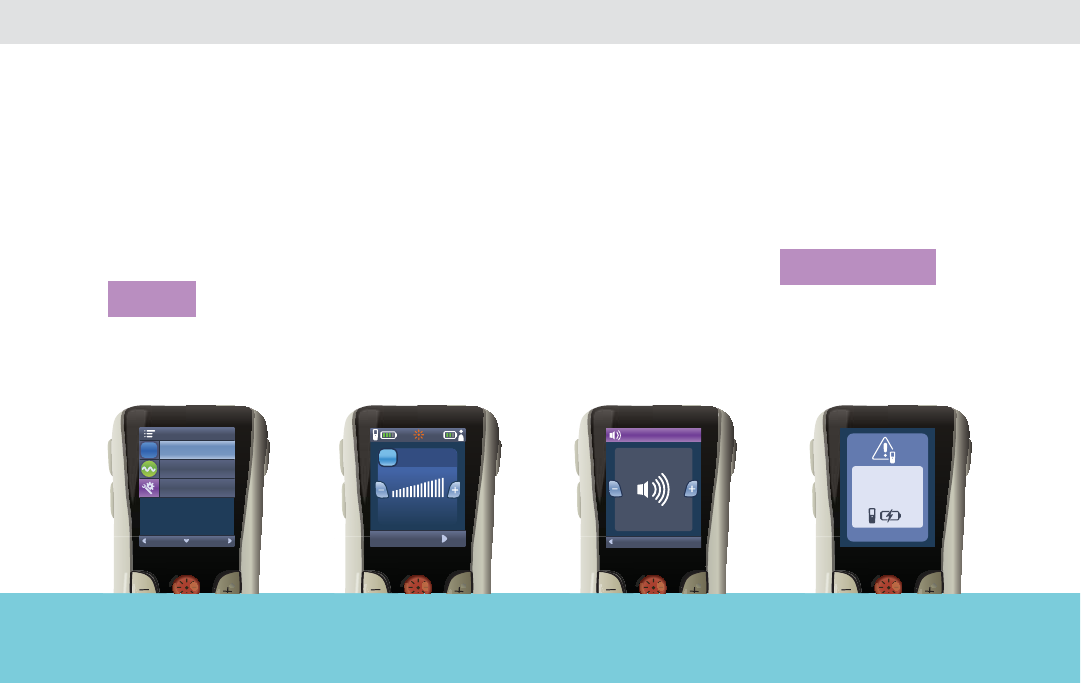

The RC screen displays menus, icons, status messages, error messages, and
other information.
When the RC is not in use (for example, the buttons are not being pressed), the
screen automatically darkens after approximately 1 minute to preserve the RC’s
battery power. The screen lights up when the RC is unlocked and remains on while
the RC is being used. To change the brightness of the screen, see About System
Settings
page 42
.
Typically, when the RC is in use, the Home screen displays.
1
Program 1
Main Menu
52.1
%
Charging
Remote
Alert Volume
Back
Programs
P
Stimulation Areas
Main Menu
System Settings
SelectBack
Remote Control Screen
INTRODUCTION Page 9
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
The Home screen displays the number and
name of the Program currently running, as well
as information about the level of stimulation
strength. Stimulation strength is displayed both
graphically and as a percentage value of the
maximum limit.
Icons at the top of the Home screen indicate the
charge level of the Stimulator battery and
the RC battery , and whether stimulation is
ON or OFF .
Note
Pressing the Home
button from almost
all other screens will
return you to the Home
Screen.
Home Screen
Page 10
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
When you press the Stimulation ON/OFF button , a large icon is displayed in
the center of the screen to indicate on/off status. After a few seconds the display
will return to the Home Screen.
Stimulation
ON
Stimulation
ON
Stimulation
OFF
Program
Number
Quick Start Guide .....................................................12
Turn Stimulation On/Off ............................................14
Adjust Stimulation Strength ......................................15
Recharging the Remote Control ................................16
Accessories ...............................................................17
Using the Remote Control
Page 12
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Release
Side Button
to Unlock
1
Program 1
Main Menu
52.1
%
Unlock Start stimulation Decrease/Increase
3
12
Stimulation
ON
Quick Start Guide
USING Page 13
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Programs
P
Stimulation Areas
Main Menu
System Settings
SelectBack
Stop stimulation Main Menu Lock
45 6
Stimulation
OFF
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

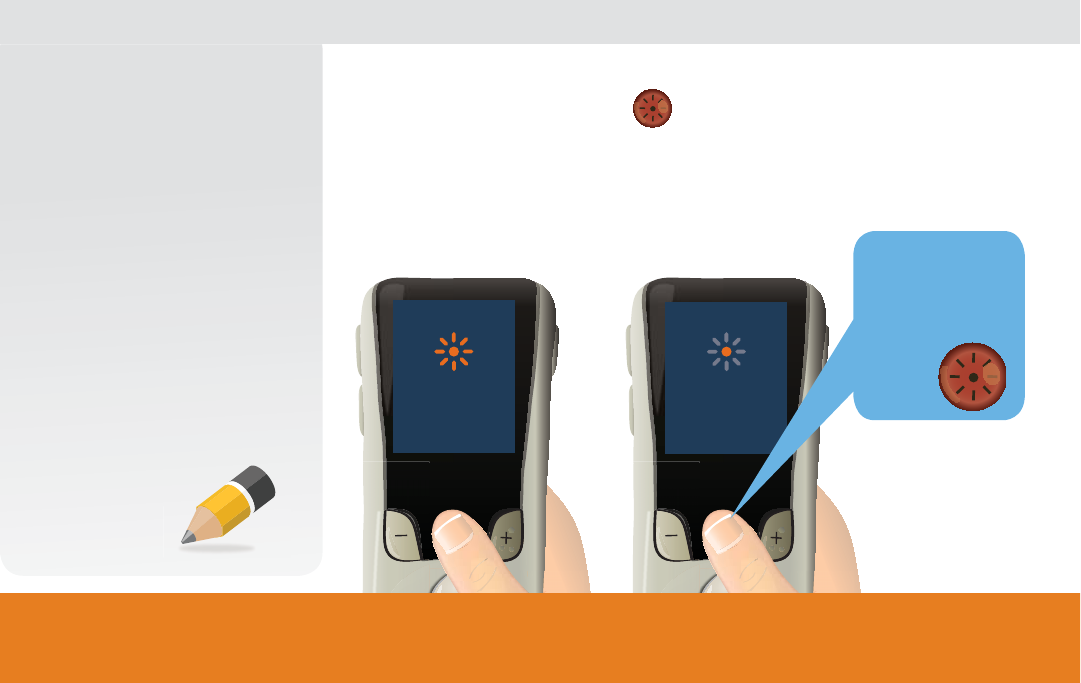

Stimulation can be turned on and off by pressing the
Stimulation ON/OFF button . To turn stimulation on, you
must unlock the RC first; then, press the Stimulation ON/
OFF button. To turn stimulation off, press the Stimulation
ON/OFF button again. Stimulation can be turned off at any
time, even when the RC is locked.
Note
Stimulation will not
automatically turn
off when the RC is
locked or when the
screen darkens to
preserve power in
the RC battery.
Stimulation
OFF
Stimulation
ON
To
START/STOP
stimulation,
press
Turn Stimulation On/Off
Page 14
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
1
Program 1
Main Menu
52.1
%
To DECREASE
stimulation,
press
To INCREASE
stimulation,
press
P
Stimulation strength can be adjusted (after
the RC is unlocked) by pressing the and
buttons from the Home Screen. This
will decrease or increase the stimulation
strength of the Program currently running.
Adjust Stimulation Strength
USING Page 15
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Page 16
The RC displays messages reminding you to
recharge the RC if the battery power is low.
Recharging the Remote Control

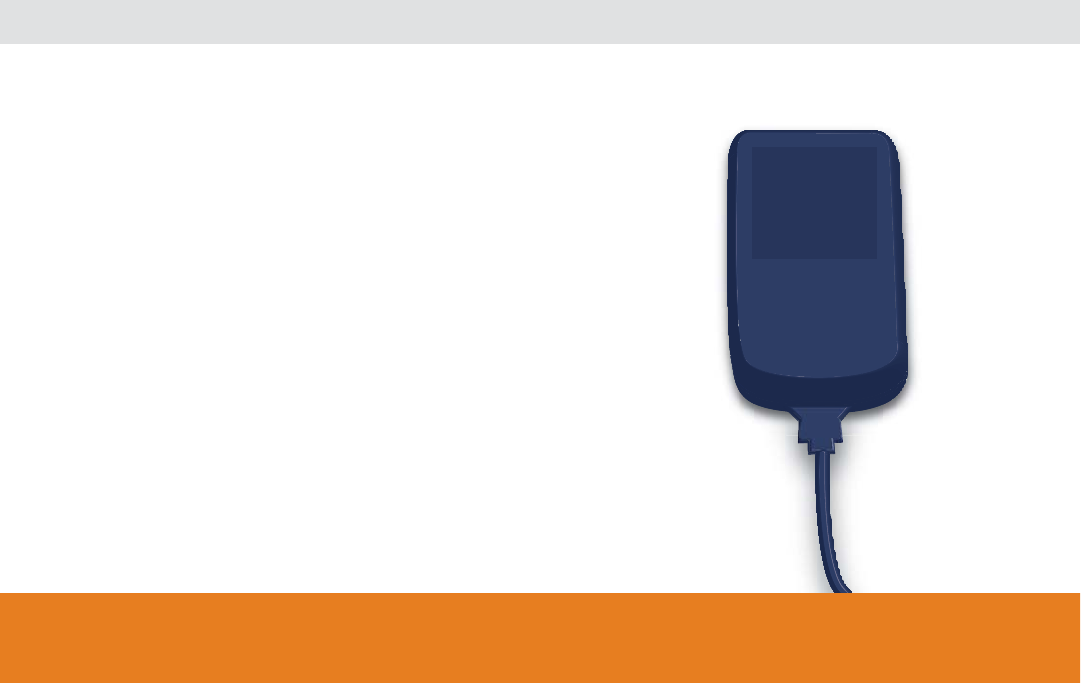

Recharge the RC battery by
connecting the RC to the USB
Power Supply provided with
the RC. Connect the power
plug end of the USB Power
Supply to a power outlet.
Charging
Remote
Charge
Remote
Now
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
USING Page 17
The following accessories are provided with the RC:
Bo
os
s
s
to
on
n
S
Sci
e
en
n
nt
i
i
c
c

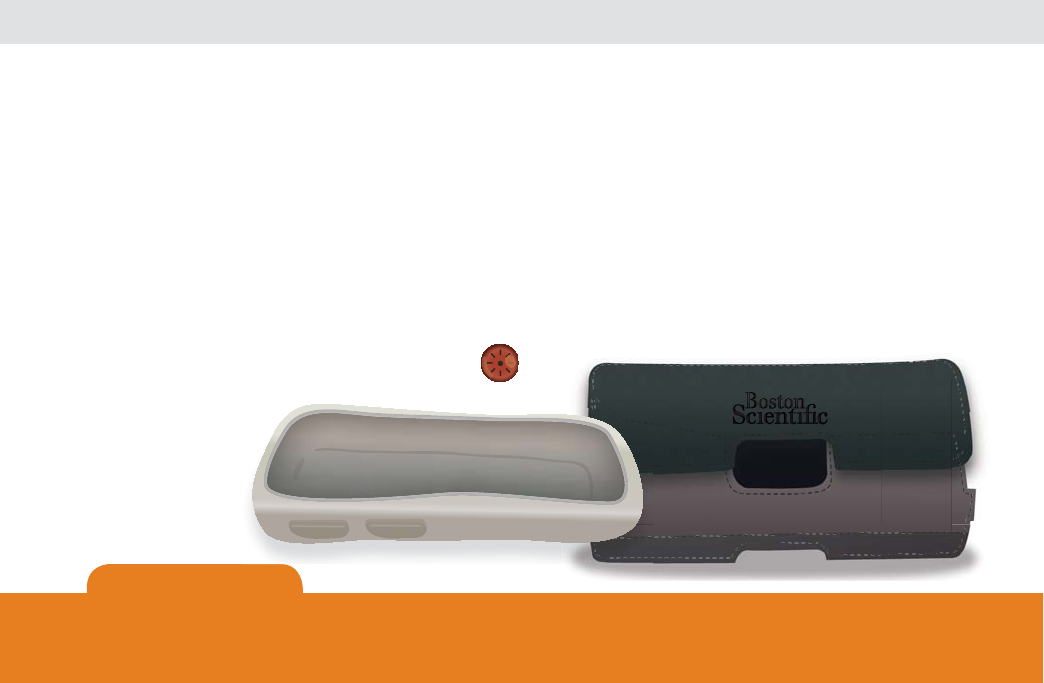

Remote Control Silicone Case - The RC
Silicone Case allows you to customize your RC.
You can access all the buttons, the USB port,
and see the screen while the device is in the
Silicone Case. The side buttons that are covered
by the Silicone Case are still available for use.
Caution: Always place the RC in the Silicone
Case so that the Stimulation button is
on the open side
of the case
and remains
uncovered.
Holster - The RC holster
allows you to carry the RC
on a belt. You can only
access the Stimulation ON/
OFF button and the USB
port of the RC while it is
enclosed in the holster.
Accessories
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
USB Power Supply - The USB Power Supply is
used to recharge the RC battery. Connect the USB
connector on the Power Supply to the RC. Then,
find a convenient electrical outlet that will not
expose the RC or Power Supply parts to water or
direct heat. Connect the power plug on the Power
Supply to a power outlet.The USB port on the RC
is designed to accept a standard 5V Mini-B USB
power supply.
Page 18
What Is a Program? ..................................................20
Accessing Programs ..................................................22
Overview of the Programs Menu ...............................23
Change to a Different Program .................................24
Save a Program .........................................................26
Restore a Program ....................................................28
Copy a Program ........................................................30
Delete a Program ......................................................32
How To Use Programs
Page 20
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
A Stimulation Program
P
is a group of configured settings that produce
the stimulation to help you manage your pain. One or more Programs were
configured by your healthcare provider (for example, at the clinic) after
consideration of your pain management needs and preferences. Whenever you
are using your Stimulator, one of these Programs is active, and stimulation is
delivered according to the configured settings. Up to 16 customizable Programs
can be configured on a Stimulator – each one identified by a number and a
name, such as
1 2
... “Program 1.”
What Is a Program?
PROGRAMS Page 21
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
1Program 1
Area
AArea
B
Area
CArea
D
Each Program
P
can include settings for one or more Stimulation Areas .
These Stimulation Areas control additional parameters that can affect your
stimulation therapy. For more information about Stimulation Areas, go to
What is a Stimulation Area?
page 36.
The image to the right illustrates the relationship
between Programs and Areas. In this example,
Program 1 is made up of four unique Stimulation
Areas:
Area A
Area B
Area C
Area D
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

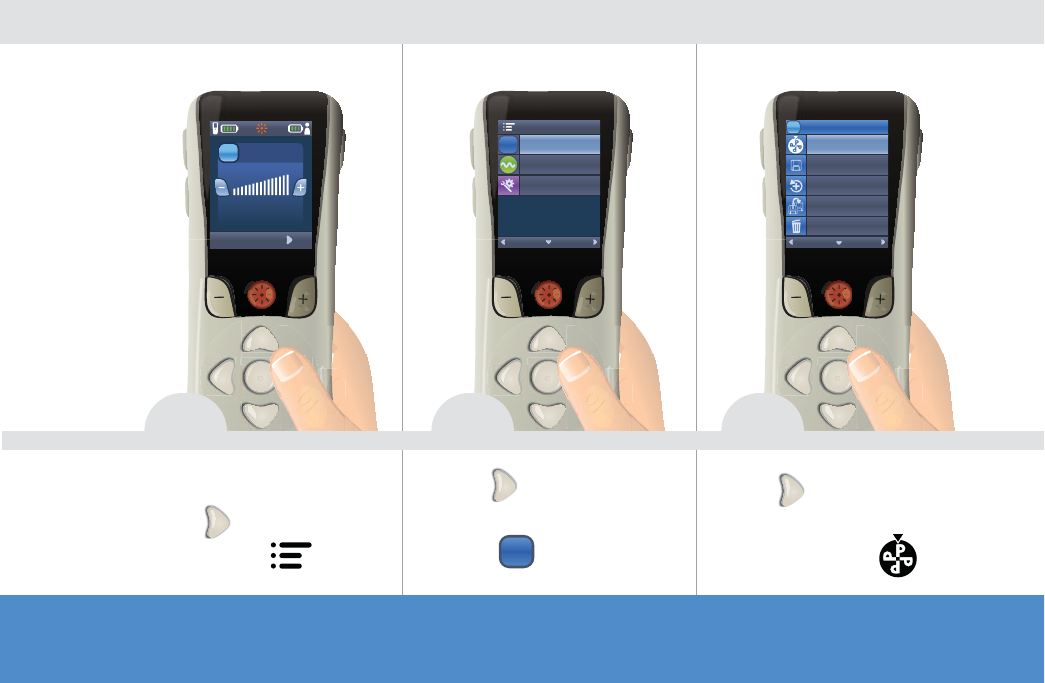

If your healthcare provider has configured Programs
that can be changed, there are two ways to view the
Programs menu:
Note
After entering the
Main Menu ,
the button can
also be pressed to
make a selection.
Change Program
Program 1
SelectBack
1
Program 2
Program 3
2
3
1
From the
Main Menu
, select
Programs
P
by
pressing .
Press the
Programs
button
P
on the left
side of
the RC.
Accessing Programs
Page 22
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
If your healthcare provider has configured Programs that can be changed, you
can do any of the following operations:
• Tur n Stimulation ON/OFF and adjust stimulation strength for the Program
currently running
• Change the currently running Program to a different Program (if available)
• Save any changes that you make to a Program
• Restore a Program to the settings that your healthcare provider last
configured for you
• Copy the settings from one Program to another Program
• Delete a Program
Overview of the Programs Menu
PROGRAMS Page 23
Page 24
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
Programs
P
Stimulation Areas
Main Menu
System Settings
SelectBack
Restore to
Clinic Settings
Programs
Change Program
Save
Copy to ...
Delete
SelectBack
1
1
Program 1
Main Menu
52.1
%
From the Home Screen,
press to display the
Main Menu .
Press again to
enter the Programs
menu
P
.
Press again to
enter the Change
Program menu .
2 31
Change to a Different Program
