Troubleshooting
Page 56
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
The RC has an effective communication range of up to 36 inches (91.4 cm) with
the Stimulator. Common sources of interference, such as televisions and computer
monitors, can affect wireless communication. If the RC is unable to communicate
with the Stimulator, the Telemeter Error message,”Communication Failed,” will
appear:
To retry communication with the Stimulator – this resends the last
command – select Retry . To cancel communication and return
to the System Settings screen, press .
Telemetry Help
Communication
Failed
SelectCancel
Retry
Telemetry Error
?
Telemetry Help
TROUBLESHOOT Page 57
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

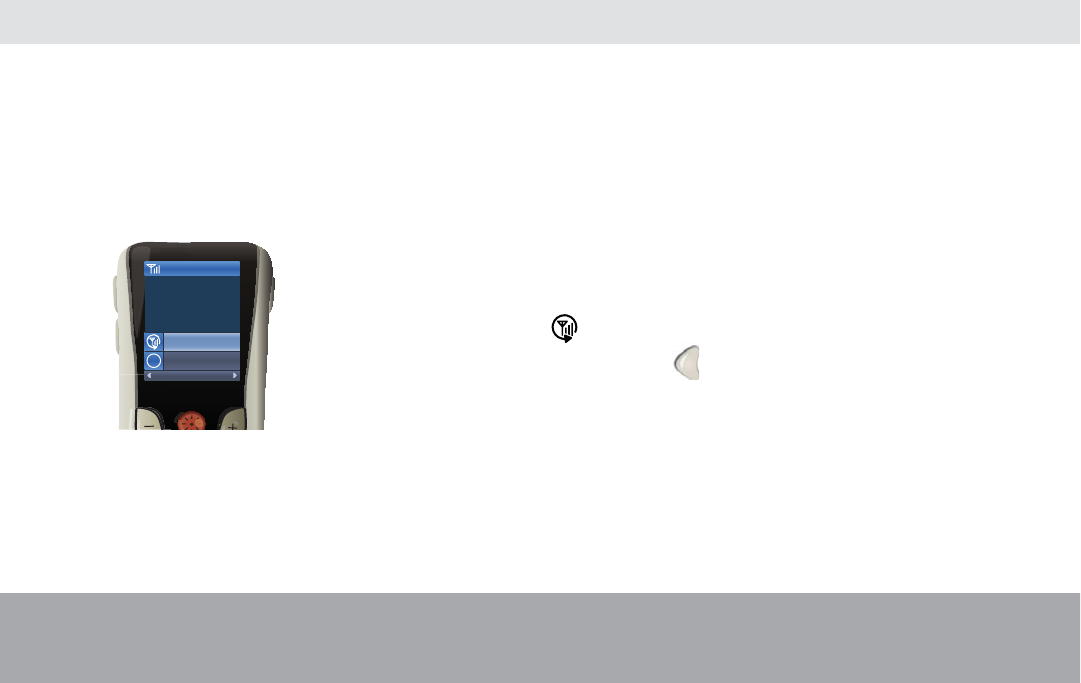

The Telemetry Help tool is also available to assist you in improving communication
between the RC and the Stimulator. To use the Telemetry Help tool, select
Telemetry Help ?. The following screen will be displayed:
The telemetry bars indicate the strength of wireless communication. The number of
bars will change depending on the distance and orientation of
the RC from the Stimulator. This tool will continue to measure
the strength of communication for 30 seconds or until is
pressed.
Test the Remote
Positions
Press to Exit
Page 58
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
The RC and Stimulator must establish a one-to-one link in order to communicate.
This prevents a RC from accidentally communicating with an undesired Stimulator.
If your RC is not linked to your Stimulator (i.e., when you have a brand new RC), the

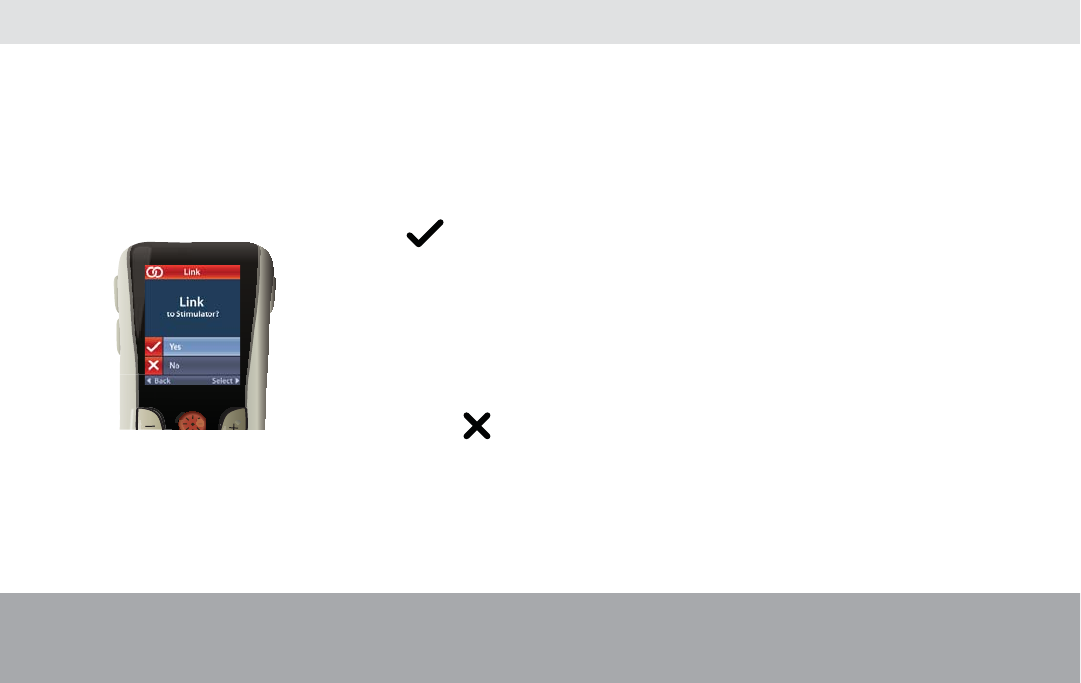

following screen will appear and will prompt you to link the RC to the Stimulator:
Select Yes to complete this link. The RC will search for
any Stimulators in the vicinity and display them on the screen.
Navigate to the desired Stimulator and select it. The RC and
Stimulator will synchronize. When the RC is ready to use, the
Home Screen will appear.
If you select No , the RC will not link to a Stimulator and will
display the System Settings screen.
Unlinked RC
TROUBLESHOOT Page 59
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

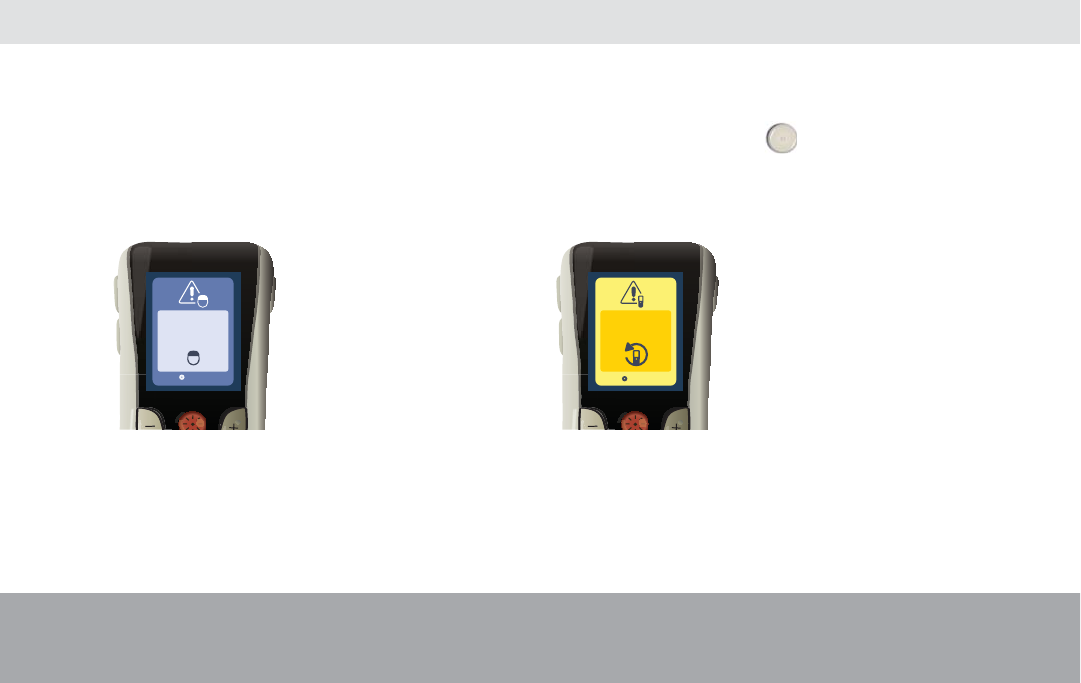

This screen is displayed when the
Stimulator has no Programs to run.
This screen is displayed when the
Stimulator attempts to run an
invalid Program.
Press to continue
No Program
to Run
PP
Invalid
Program
P
Press to continue
No Program to Run Screen
Invalid Program Screen
Page 60
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

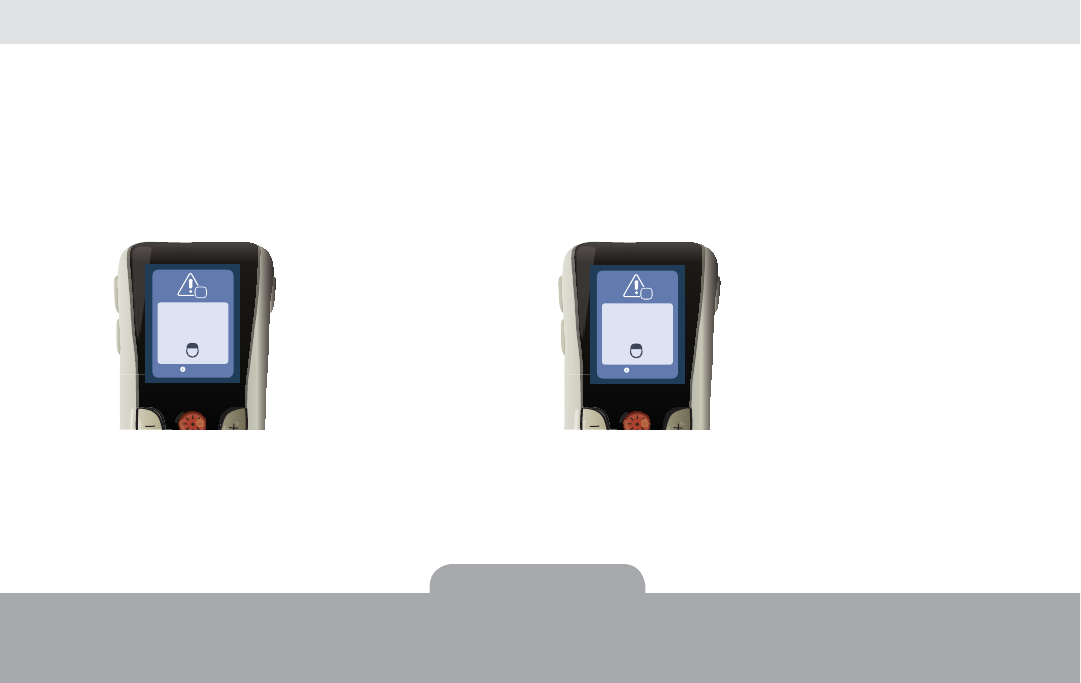

This screen is displayed when the RC
detects an incompatible Stimulator.
This screen is displayed when the RC
experiences an error and a reset of the
RC is required. Press to continue.
All RC settings will be restored to the
default factory settings.
Unsupported
Stimulator
?
Press to continue Press to continue
System Settings
Reset
Unsupported Stimulator Screen
System Settings Reset Screen
Page 60
TROUBLESHOOT Page 61
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C

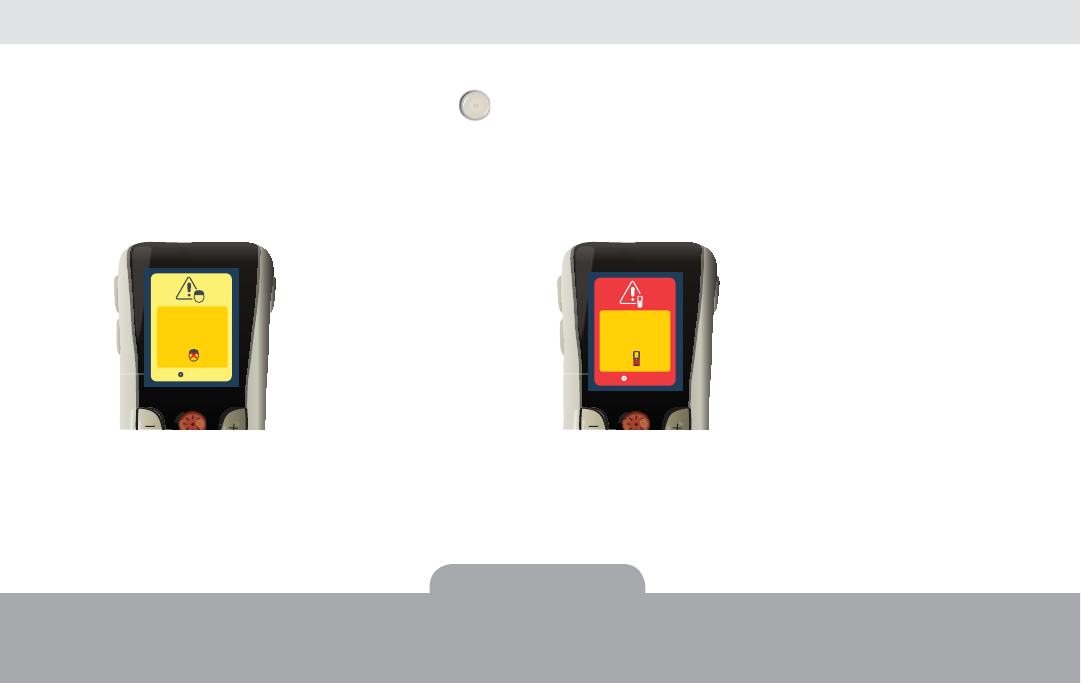

This screen is displayed when there is a
non-critical Stimulator error. Press to
acknowledge the message and continue.
This screen is displayed when there is
a critical error on the RC which causes
the RC to be unusable. Please contact
Boston Scientific or your healthcare
provider to order a replacement RC.
Stimulator
Error
Press to continue
Remote
Error
Press to continue
Stimulator Error Screen
Remote Error Screen
Page 62
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
A
Alert Volume
42, 44
Amplitude
36
A B
... Areas
36
C
Change Program
23
,
24
,
48
Clinician Menu
42
Copy to
23, 30
D
Delete Program
23
,
33
H
Home
7
,
9
L
Languages
42
M
Main Menu
22
,
44
Page 62
Index
TROUBLESHOOT Page 63
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
N
Navigation
7
No
48
,
59
P
P
Program
20
,
21
,
22
,
27
,
36
,
40
1 2
... Program Slot
20
Pulse Width
36
R
Rate
36
,
39
Remote
42
Remote Battery
9
Remote Information
45
Restore to Clinic Settings
23
,
28
,
48
Retry
57
Page 63
Page 64
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
S
Save Changes
25
,
48
Save Program
23
,
26
Screen Brightness
42
,
43
Stimulation Area
21
,
36
,
37
Stimulation OFF
9
Stimulation ON
9
Stimulator
42
Stimulator Battery
9
Stimulator Information
45
System Info
45
System Settings
42
,
43
,
44
T
Trial Stimulator Battery
49
Y
Yes
48, 58
TROUBLESHOOT Page 65
Precision Spectra™ Remote Control Handbook, 90668562-01, Rev C
This page intentionally left blank.
Page 65
