Adding or replacing a memory module
The computer has one memory module compartment, which is located on the bottom of the computer.
The memory capacity of the computer can be upgraded by adding a memory module to the vacant
expansion memory module slot or by upgrading the existing memory module in the primary memory
module slot.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the
power cord and remove all batteries before installing a memory module.
CAUTION Electrostatic discharge (ESD) can damage electronic components. Before
beginning any procedure, ensure that you are discharged of static electricity by touching a
grounded metal object.
To add or replace a memory module:
1. Save your work.
2. Shut down the computer and close the display.
If you are not sure whether the computer is off or in the Sleep state, turn the computer on by pressing
the power button. Then shut down the computer through the operating system.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface.
6. Remove the battery from the computer.
7. Loosen the 2 memory module compartment screws (1).
ENWW 1
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Vista version. If we
ship with XP, this will
say "in Standby"

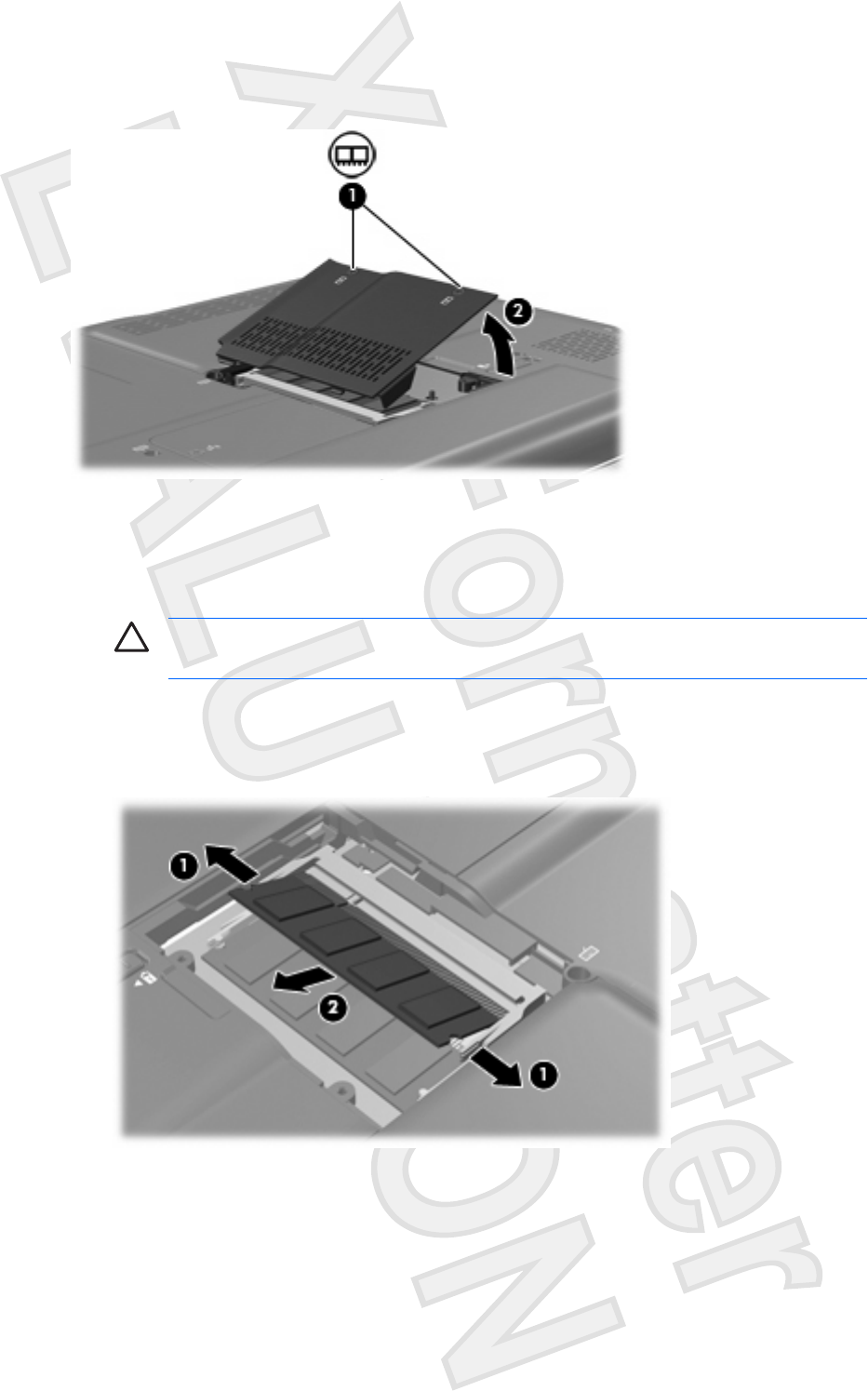

8. Lift the memory module compartment cover (2) away from the computer.
9. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
CAUTION To prevent damage to the memory module, hold the memory module by
the edges only. Do not touch the components on the memory module.
b. Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot.
To protect a memory module after removal, place it in an electrostatic-safe container.
2 Adding or replacing a memory module ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

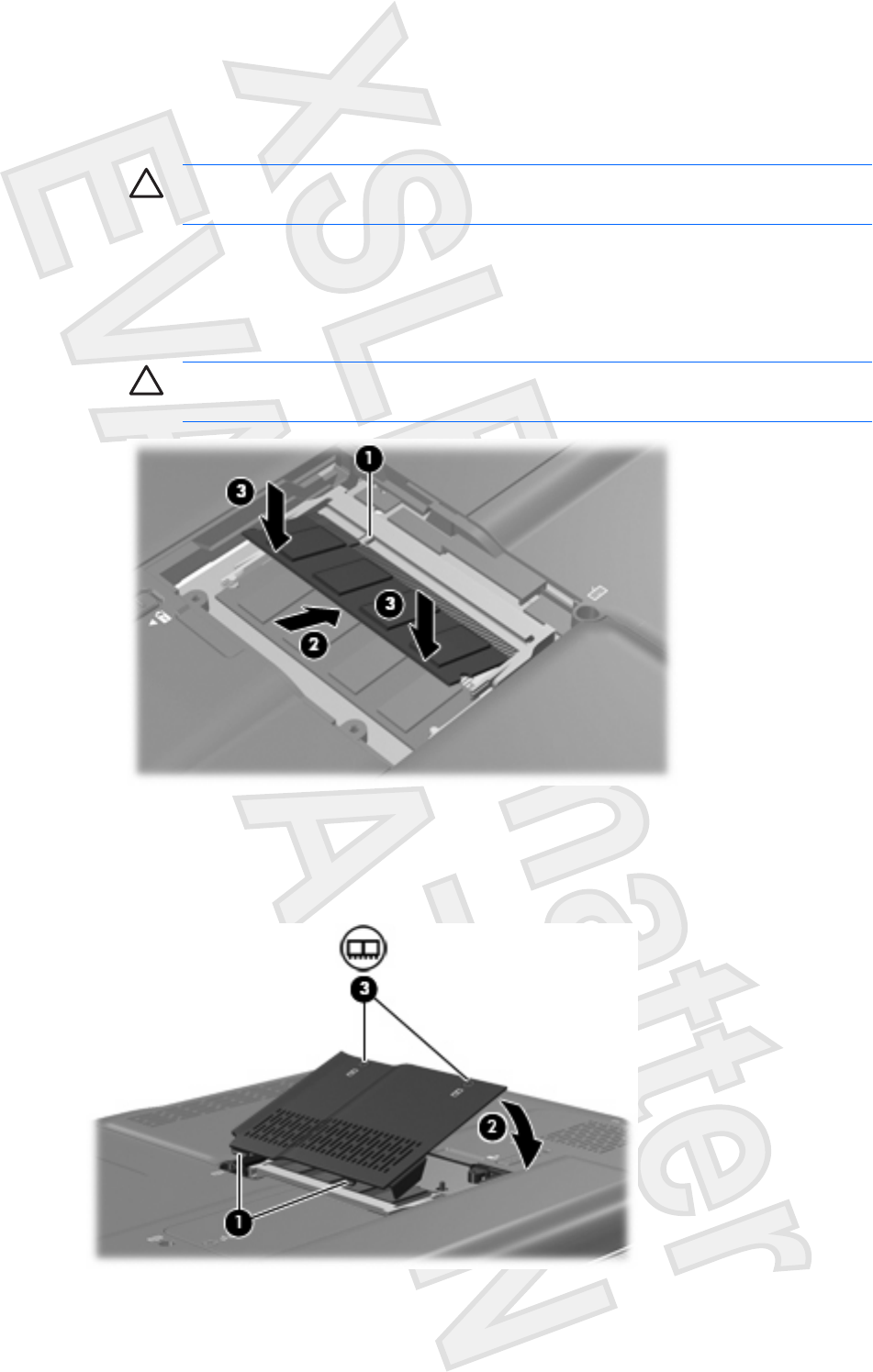

10. Insert a new memory module:
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
CAUTION To prevent damage to the memory module, hold the memory module by
the edges only. Do not touch the components on the memory module.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right edges
of the memory module, until the retention clips snap into place.
CAUTION To prevent damage to the memory module, be sure that you do not bend
the memory module.
11. Align the tabs (1) on the memory module compartment cover with the notches on the computer.
12. Close the cover (2).
13. Tighten the 2 memory module compartment screws (3).
ENWW 3
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
14. Replace the battery.
15. Reconnect external power and external devices.
16. Turn on the computer.
4 Adding or replacing a memory module ENWW
