User Guide

Chantry’s next generation of wireless networking devices

provide a truly scalable WLAN solution. Chantry’s

BeaconPoints are thin access points that are controlled

through a sophisticated network device, the BeaconMaster.

This solution provides the security and manageability

required by enterprises and service providers alike.

BeaconMaster

BeaconPoint

BeaconWorks Release 2.0

BeaconWorks User Guide – In this document

In this document The Chantry BeaconWorks Solution.................................................................. 4

What is the Chantry BeaconWorks System? ............................................... 4

Conventional Wireless LANS ....................................................................... 4

The Chantry BeaconWorks Solution ............................................................ 5

BeaconWorks and Your Enterprise Network ..................................................... 8

Network traffic flow in the BeaconWorks System......................................... 8

Network security ........................................................................................... 9

Interaction with Wired Networks: Virtual Network Services........................ 10

Static Routing and Routing Protocols......................................................... 10

Policy: Packet Filtering ............................................................................... 10

Mobility and Roaming ................................................................................. 11

Availability................................................................................................... 11

BeaconWorks Release 2.0 Features: Overview.............................................. 12

Backwards compatibility with Release 1.1 on the BeaconPoint............ 12

Backwards compatibility with Release 1.1 on the BeaconMaster......... 12

Multi-SSID: BeaconPoint radios on more than one VNS ...................... 12

Privacy using Wi-Fi Protected Access (WPA)....................................... 13

BeaconPoint software: Dual image capability ....................................... 13

BeaconPoint software: Dynamic reconfiguration (without reboot) ........ 13

BeaconPoint Statistics........................................................................... 13

Event reporting using Syslog................................................................. 13

Capacity for Redundant RADIUS servers ............................................. 14

Detection of Rogue APs ........................................................................ 14

Quality of Service (QoS) on a VNS: Spectralink Voice Protocol (SVP) 14

BeaconPoint static configuration: Branch Office, Phase 1.................... 14

BeaconMaster: Startup .................................................................................... 15

BeaconMaster Features and Installation .................................................... 15

First-Time Setup of BeaconMaster............................................................. 16

Management Port First-Time Set Up..................................................... 16

The Graphical User Interface (GUI): Overview........................................... 20

BeaconWorks Configuration Steps: Overview................................................. 22

BeaconWorks Configuration: Data Port and Routing Setup............................ 23

Setting Up the Data Ports........................................................................... 23

Port Type or Function ............................................................................ 24

Port-Level Filtering of Unauthorized Traffic........................................... 25

Setting up Static Routes ............................................................................. 26

Setting up OSPF Routing ........................................................................... 27

BeaconPoint: Startup ....................................................................................... 30

BeaconPoint (BP200) Features.................................................................. 30

Installing the BeaconPoints ........................................................................ 32

BeaconPoint: Registering ........................................................................... 33

Setting Parameters for BeaconPoint Registration................................. 33

Discovery and Registration: The DHCP and SLP Solution ................... 34

The BeaconPoint’s Discovery Process and LED Sequence ................. 35

BeaconPoint: Configuring Properties and Radios ...................................... 36

BeaconPoint: Adding Manually ............................................................. 40

BeaconPoint Radios on a VNS ............................................................. 41

BeaconPoint Static Configuration: Branch Office Deployment ............. 41

Virtual Network Services (VNS): Overview...................................................... 43

What is a VNS? .......................................................................................... 44

Topology of a VNS: Overview .................................................................... 44

Multi-SSID: BeaconPoint radios on more than one VNS ...................... 45

Other network parameters for the VNS topology .................................. 45

Network Assignment and Authentication for a VNS ................................... 45

RADIUS Server: Location and Redundancy ......................................... 46

Filtering for a VNS: How it works................................................................ 46

Privacy on a VNS: Overview of WEP and WPA......................................... 47

Setting up a new VNS................................................................................. 48

BeaconWorks User Guide – In this document

Virtual Network Configuration: A VNS for Captive Portal ................................ 50

Topology for a VNS for Captive Portal ....................................................... 50

Authentication for a VNS for Captive Portal ............................................... 53

Filtering Rules for a VNS for Captive Portal ............................................... 57

The Non-Authenticated Filter ................................................................ 57

Privacy using WEP for a VNS for Captive Portal ....................................... 59

Virtual Network Configuration: A VNS with No Authentication ........................ 61

Virtual Network Configuration: A VNS for Voice Traffic (QoS with SVP) ........ 62

Voice Data Traffic on a Wireless Network: Overview................................. 62

Setting up a VNS for Voice Traffic.............................................................. 62

Virtual Network Configuration: A VNS for AAA................................................ 65

Topology for a VNS for AAA....................................................................... 65

Authentication for a VNS for AAA............................................................... 68

VNS Topology for an AAA group........................................................... 71

Filtering Rules for a Filter ID group............................................................. 72

Filtering Rules for a Default Filter ............................................................... 74

Filtering Rules for an AAA Group VNS.................................................. 75

Filtering Rules between two wireless devices ....................................... 76

Privacy for a VNS for AAA.......................................................................... 76

Privacy for a VNS for AAA: WEP .......................................................... 76

Privacy for a VNS for AAA: Wi-Fi Protected Access (WPA) ................. 77

BeaconMaster Configuration: Availability ........................................................ 80

BeaconMaster Configuration: Mobility and the VN Manager........................... 85

BeaconMaster Configuration: Management Users.......................................... 88

BeaconMaster Configuration: Network Time................................................... 89

Setting up Third-Party Access Points .............................................................. 90

BeaconKeeper Mitigator: Detecting Rogue Access Points.............................. 93

BeaconKeeper Mitigator: Overview....................................................... 93

BeaconKeeper Mitigator: Enabling the Analysis and RFDC Engines ... 94

BeaconKeeper Mitigator: Running Scans ............................................. 95

BeaconKeeper Mitigator: How the Analysis Engine works ................... 97

BeaconKeeper Mitigator: Viewing the Scanner Status Report ........... 100

Ongoing Operation: BeaconPoint Maintenance – Software .......................... 101

BeaconPoint software: Dynamic reconfiguration (without reboot) ...... 101

BeaconPoint software: Dual image backup ........................................ 101

Ongoing Operation: BeaconPoint Access Approval ...................................... 104

Ongoing Operation: BeaconPoint Disassociate a Client ............................... 105

Ongoing Operation: BeaconMaster System Maintenance ............................ 106

Event Messages relayed to a Syslog server ....................................... 107

Ongoing Operation: BeaconWorks Logs and Traces .................................... 109

Logs and Alarms.................................................................................. 109

Traces.................................................................................................. 111

Audits................................................................................................... 111

Ongoing Operation: BeaconWorks Reports and Displays............................. 112

View Displays ........................................................................................... 112

View Statistics for BeaconPoints .............................................................. 113

View Reports ............................................................................................ 114

BeaconMaster Configuration: Setting up SNMP ........................................... 115

Appendix 1: BeaconWorks System States and LEDs ................................... 118

Appendix 2: Glossary of Terms and Acronyms ............................................. 120

Appendix 3: Index of Procedures, Screens and Figures ............................... 131

BeaconWorks User Guide – The Chantry BeaconWorks Solution

The Chantry BeaconWorks Solution

The BeaconWorks system is a highly scalable wireless local area network (WLAN)

solution developed by Chantry Networks Inc. Based on a third generation WLAN

topology, the BeaconWorks system makes wireless practical for medium and large-

scale enterprises and for service providers.

The BeaconWorks system provides a secure, highly scalable, cost-effective solution

based on the IEEE 802.11standard. The solution is intended for enterprise networks

operating on many floors in more than one building, as well as in public environments

such as airports and convention centers that require more than two access points.

This section provides an overview of the fundamental principles of the Chantry

BeaconWorks system: what it is, how it works, and its advantages.

What is the Chantry BeaconWorks System?

The BeaconWorks system replaces the conventional access points used in wireless

networking with two network devices that work as a system:

BeaconMaster A network device that provides smart centralized control over the

elements (BeaconPoints) in the wireless network.

BeaconPoints The access points for 802.11 clients (wireless devices) in the

network, controlled by the BeaconMaster. The BeaconPoint is a

“thin access point” because its wireless control is handled by the

BeaconMaster. The BeaconPoint (BP200 model) is a dual-band

access point, with both 802.11a and 802.11b/g radios.

Together, the BeaconWorks products enable a radically simplified new approach to

setting up, administering and maintaining a WLAN. BeaconWorks provides a Layer 3

IP routed WLAN architecture. This architecture can be implemented over several

subnets without requiring the configuration of virtual local area networks (VLANs).

Conventional Wireless LANS

At its simplest, wireless communication between two or more computers requires that

each one is equipped with a receiver/transmitter – a WLAN Network Interface Card

(NIC) – capable of exchanging digital information over a common radio frequency.

This is called an ad hoc configuration. An ad hoc network allows wireless devices to

communicate together. This is an independent basic service set (IBSS).

An alternative to the ad hoc configuration is the use of an access point. This may be a

dedicated hardware router or a computer running special software. Computers and

other wireless devices communicate with each other through this access point. The

802.11 standard defines Access Point communications as devices that allow wireless

devices to communicate with a “distribution system”. This is a basic service set (BSS)

or infrastructure network.

For the wireless devices to communicate with computers on a wired network, the

access points must be connected into the wired network, and provide access to the

networked computers. This is called bridging. Clearly, there are security issues and

management scalability issues in this arrangement.

BeaconWorks User Guide – The Chantry BeaconWorks Solution

RADIUS

Authentication Server

DHCP

Server

Router

Wireless

Device

Eth ern et S witch

Wireless

Device

Access

Point

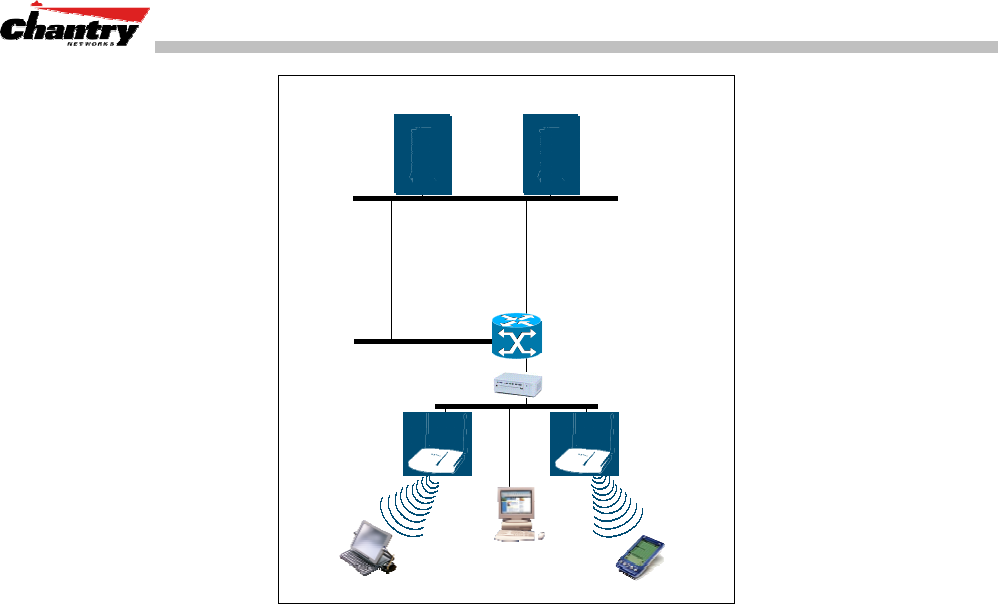

Figure 1: Standard wireless network solution

The wireless devices and the wired networks communicate with each other using

standard networking protocols and addressing schemes. Most commonly, Internet

Protocol (IP) addressing is used.

While this topology works well enough for small installations, as the network grows

the difficulty of setting up and administering all the individual access points expands

as well. When the expanding network has to cope with a large number of wireless

users all signing on and off at random times, the complexity grows rapidly. Imagine,

for example, a university library filled with professors and students – all equipped

with laptops. Or a conference full of delegates and exhibitors.

Clearly, there must be a better way than setting up each access point individually.

The Chantry BeaconWorks Solution

The Chantry Networks BeaconWorks solution consists of two devices:

The BeaconMaster controller is a rack-mountable network device designed to be

integrated into an existing wired Local Area Network (LAN). It provides centralized

control over all access points (both BeaconPoints and third-party access points) and

manages the network assignment of wireless device clients associating through access

points.

The BeaconPoint is a wireless LAN thin access point (IEEE 802.11) provided with

unique software that allows it to communicate only with a BeaconMaster. (A thin

access point handles the radio frequency (RF) communication but relies on a

controller to handle WLAN elements such as authentication.) The BeaconPoint also

provides local processing such as encryption.

This architecture allows a single BeaconMaster to control many BeaconPoints,

making the administration and management of large networks much easier.

BeaconWorks User Guide – The Chantry BeaconWorks Solution

There can be several BeaconMasters in the network, each with its set of registered

BeaconPoints. The BeaconMasters can also act as backups to each other, providing

stable network availability.

In addition to the BeaconMasters and BeaconPoints, the solution requires two other

components, which are standard for enterprise and service provider networks:

•RADIUS Server (Remote Access Dial-In User Service) (RFC2865 and RFC2866),

or other authentication server. Assigns and manages ID and Password protection

throughout the network. Used for authentication of the wireless users.

•DHCP Server (Dynamic Host Configuration Protocol) (RFC2131). Assigns IP

addresses, gateways and subnet masks dynamically. Also used by the

BeaconPoints to discover the location of the BeaconMaster during the initial

registration process.

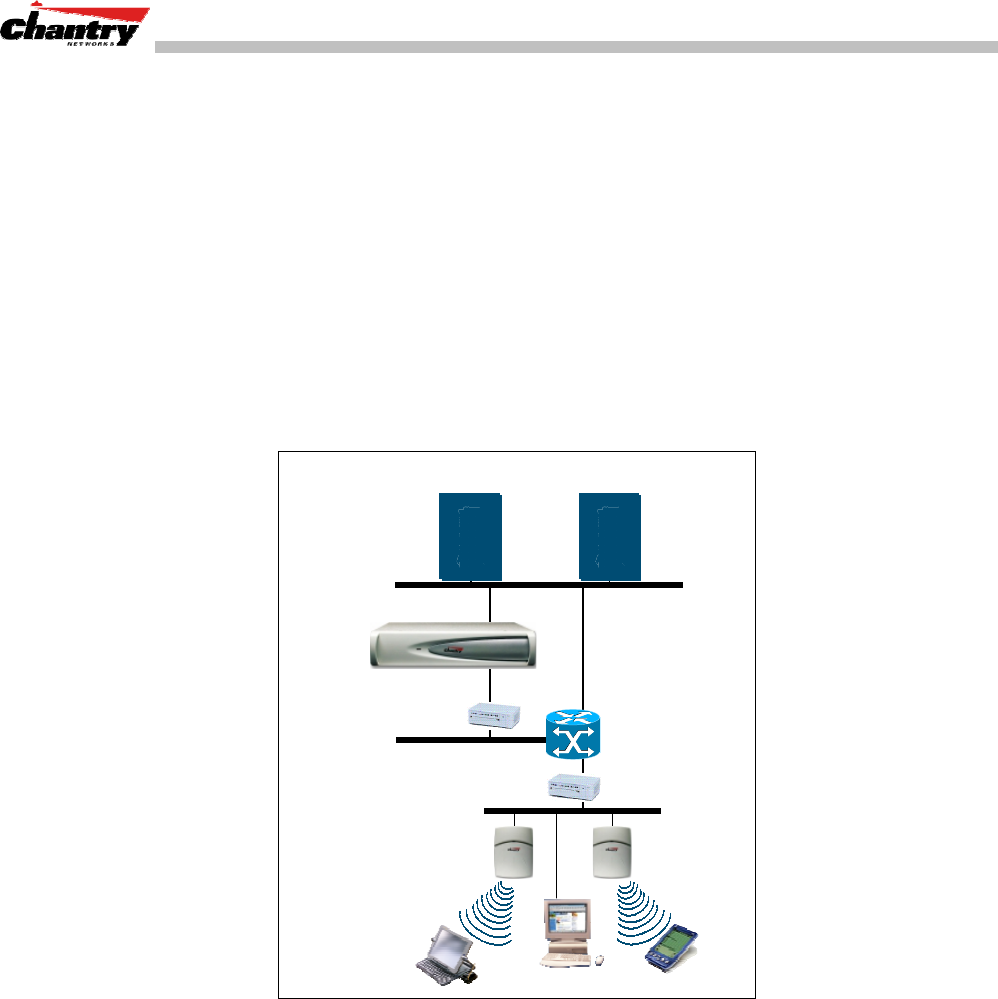

BeaconPoint

RADIUS

Authentication Server

DHCP

Server

Router

Wireless

Device

Ethernet Switch

Wireless

Device

BeaconMaster

Figure 2: Chantry BeaconWorks Solution

The BeaconMaster appears to the existing network as if it were an access point, but in

fact one BeaconMaster controls many BeaconPoints.

The BeaconMaster has built-in capabilities to recognize and manage the

BeaconPoints. The BeaconMaster activates the BeaconPoints, enables them to receive

wireless traffic from wireless devices, processes the data traffic from the

BeaconPoints and forwards or routes that data traffic out to the network. This

processing includes authenticating requests and applying access policies.

Simplifying the BeaconPoints make them:

• cost-effective

• easy to manage

• easy to deploy.

BeaconWorks User Guide – The Chantry BeaconWorks Solution

Putting control on an intelligent centralized BeaconMaster enables:

• centralized configuration, management, reporting, maintenance

• high security

• flexibility to suit enterprise

• scalable and resilient deployments with a few BeaconMasters controlling hundreds

of BeaconPoints.

Here are some of the BeaconWorks system advantages:

Scales up to Enterprise

capacity

One BeaconMaster controls as many as 200 BeaconPoints. In turn

each BeaconPoint can handle up to 254 wireless devices. With

additional BeaconMasters, the number of wireless devices the

Chantry system can support is in the thousands.

Integrates in existing

network

A BeaconMaster can be added to an existing enterprise network as

a new network device, greatly enhancing its capability without

interfering with its existing functionality. Integration of the

BeaconMasters and BeaconPoints does not require any

reconfiguration of the existing infrastructure (e.g. VLANs).

Offers centralized

management and

control

An administrator accesses the BeaconMaster in its centralized

location and uses its user interface to monitor and administer the

entire wireless network. The BeaconMaster has functionality to

recognize, configure and manage the BeaconPoints and distribute

new software releases.

Provides easy

deployment of

BeaconPoints

The initial configuration of the BeaconPoints on the centralized

BeaconMaster can be done with an automatic “discovery”

technique.

Provides security via

user authentication

BeaconWorks uses existing authentication (AAA) servers to

authenticate and authorize users.

Provides security via

filters and privileges

BeaconWorks uses virtual networking techniques to create

separate virtual networks with defined authentication and billing

services, as well as access policies and privileges.

Supports seamless

mobility and roaming

BeaconWorks supports seamless roaming of a wireless device

from one BeaconPoint to another on the same BeaconMaster or on

a different BeaconMaster.

Integrates third-party

access points

BeaconWorks can integrate legacy third-party access points, using

a combination of network routing and authentication techniques.

Prevents rogue devices Rogue devices will not be authenticated by the BeaconMaster,

preventing unproved devices from masquerading as valid

BeaconPoints.

Provides accounting

services

The BeaconMaster has software to track and log wireless user

sessions, user group activity, and other activity reporting, enabling

the generation of consolidated billing records.

Offers troubleshooting

capability

The BeaconMaster software logs system and session activity and

provides reports to aid in troubleshooting analysis.

BeaconWorks User Guide – BeaconWorks and Your Enterprise Network

BeaconWorks and Your Enterprise Network

Network traffic flow in the BeaconWorks System

The diagram below shows a simple configuration with a single BeaconMaster and two

BeaconPoints, each supporting a wireless device. A RADIUS server on the network

provides authentication, and a DHCP server is used by the BeaconPoints to discover

the location of the BeaconMaster during the initial registration process. Also present

in the network are routers and ethernet switches.

BeaconPoint

RADIUS

Authentication Server

DHCP

Server

Router

Wireless

Device

Ethernet

Switch

Ethernet

Switch

802.11

IP packet transmission

BeaconMaster /

BeaconPoint

tunnelling

802.11 beacon & probe,

wireless device associates

with a BeaconPoint by its SSID.

• BP sends data traffic to BM

through a UDP tunnel

called WASSP.

• BM controls BP through

WASSP tunnel.

• Using WASSP tunnels, BM

allow wireless clients to roam

to BPs on different BMs.

BeaconMaster authenticates

Wireless User, forwards IP

packet to wired n etwork.

BeaconMaster

control & routing

BeaconMaster

Wireless

Device

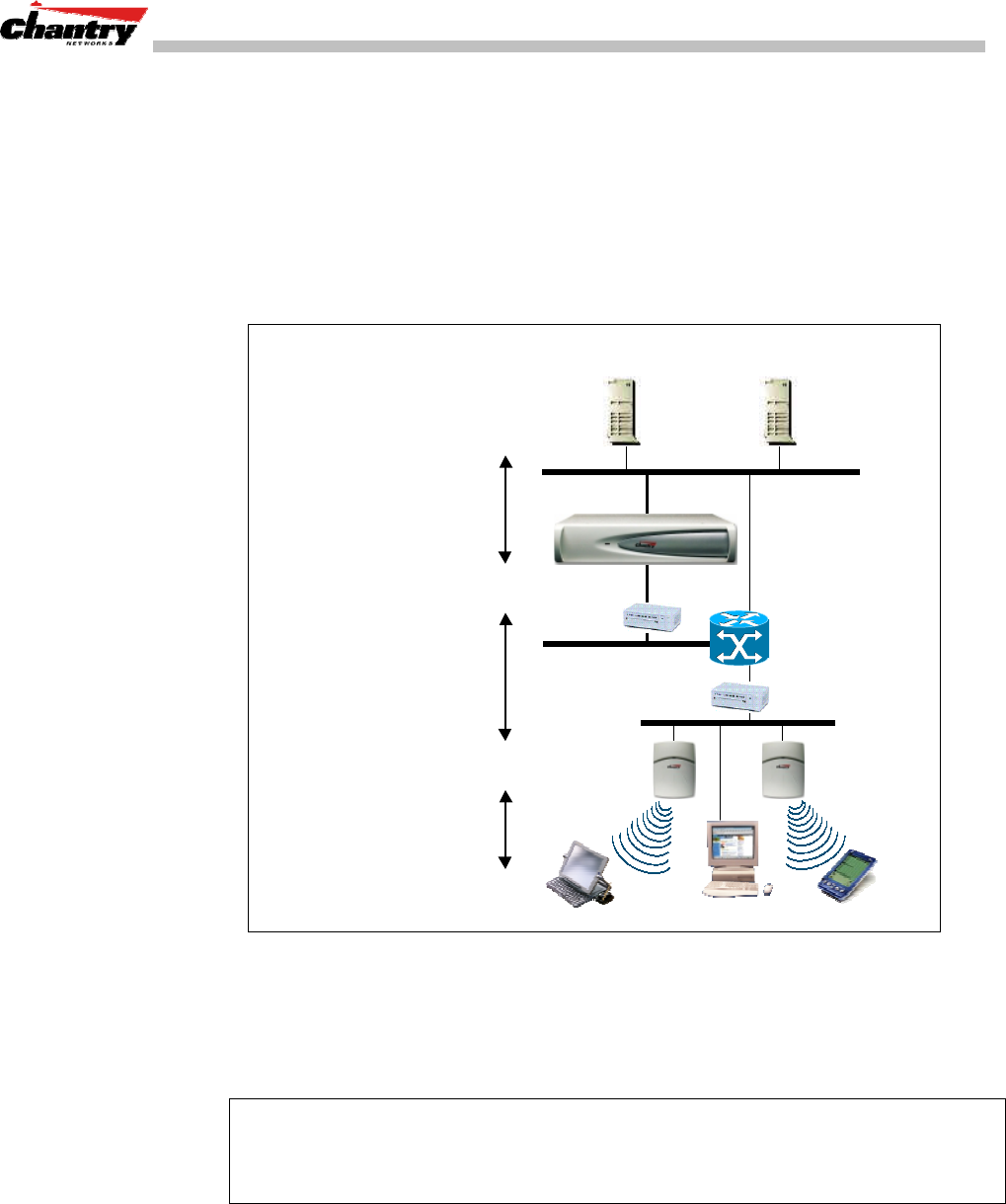

Figure 3: BeaconWorks Traffic Flow diagram

Each wireless device sends IP packets in the 802.11 standard to the BeaconPoint. The

BeaconPoint uses a UDP (User Datagram Protocol) based tunnelling protocol called

CAPWAP Tunnelling Protocol (CTP) to encapsulate the packets and forward them to

the BeaconMaster.

Note: The CTP protocol defines a mechanism for the control and provisioning of

wireless access points (CAPWAP) through centralized access controllers. In addition,

it provides a mechanism providing the option to tunnel the mobile client data between

the access point and the access controller.

The BeaconMaster decapsulates the packets, and routes these to destinations on the

network, after authentication by the RADIUS server.

The BeaconMaster functions like a standard router, except that it is configured to

route only between its ingress ports (incoming wireless device traffic via

BeaconPoints) and egress ports (traffic out to the wired network). The BeaconMaster

BeaconWorks User Guide – BeaconWorks and Your Enterprise Network

can also be configured to simply forward traffic to a default or static route if dynamic

routing is not preferred.

Network security

The Chantry BeaconWorks system provides features and functionality to control

network access. These are based on standard wireless network security practices.

Current wireless network security methods provide a degree of protection. These

methods include:

• Shared Key authentication, that relies on Wired Equivalent Privacy (WEP) keys

• Open System, that relies on Service Set Identifiers (SSIDs)

• 802.1x that is compliant with Wi-Fi Protected Access (WPA)

• Captive Portal based on Secure Sockets Layer (SSL) protocol

The Chantry BeaconWorks system supports these encryption approaches:

• Wired Equivalent Privacy (WEP), a security protocol for wireless local area

networks defined in the 802.11b standard.

• Wi-Fi Protected Access (WPA) with Temporal Key Integrity Protocol (TKIP), also

known as WPA version 1. (BeaconWorks Release 2.0)

• Advanced Encryption Standard (AES).

Authentication

The Chantry BeaconMaster relies on a RADIUS server, or authentication server, on

the enterprise network to provide the authentication information (whether the user is

to be allowed or denied access to the network).

The BeaconMaster provides authentication using:

• Captive Portal, a browser-based mechanism that forces users to a web page.

• RADIUS (using IEEE 802.1x)

The 802.1x mechanism is a standard for authentication developed within the 802.11

standard. This mechanism is implemented at the port, blocking all data traffic between

the wireless device and the network until authentication is complete. Authentication

by 802.1x standard uses Extensible Authentication Protocol (EAP) for the message

exchange between the BeaconMaster and the RADIUS server.

When 802.1x is used for authentication, the BeaconMaster provides the capability to

dynamically assign per-wireless-device WEP keys (called per-station WEP keys in

802.11).

Note: In BeaconWorks Release 2.0, a RADIUS redundancy feature is provided,

where you can define a failover RADIUS server (up to 2 servers) in the event that the

active RADIUS server fails.

Privacy

Privacy is a mechanism that protects data over wireless and wired networks, usually

by encryption techniques.

BeaconWorks User Guide – BeaconWorks and Your Enterprise Network

Chantry supports the Wired Equivalent Privacy (WEP) standard common to

conventional access points.

It also provides Wi-Fi Protected Access (WPA) encryption, based on Pairwise Master

Key (PMK) and Temporal Key Integrity Protocol (TKIP). This second option is

available when the AAA (802.1x) authentication technique is used.

Interaction with Wired Networks: Virtual Network Services

BeaconWorks provides a versatile means of mapping wireless networks to the

topology of an existing wired network. This is accomplished through the assignment

of Virtual Network Services.

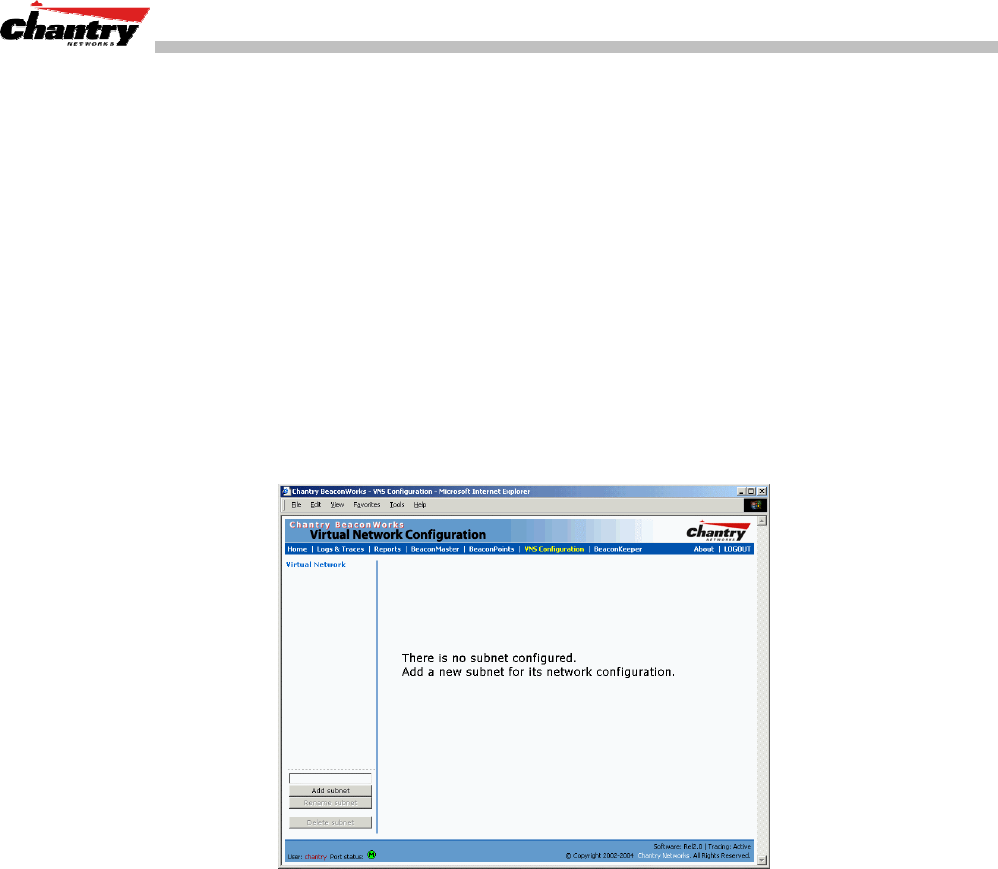

When you set up Virtual Network Services (VNS) on the BeaconMaster, you are

defining subnets for groups of wireless users. This VNS definition creates a virtual IP

subnet where the BeaconMaster acts as a default gateway for wireless devices.

This technique enables policies and authentication to be applied to the groups of

wireless users on a VNS, as well as the collecting of accounting information on user

sessions that can be used for billing.

When a VNS is set up on the BeaconMaster:

• one or more BeaconPoints (by radio) are associated with it

• a range of IP addresses is set aside for the BeaconMaster’s DHCP server to assign

to wireless devices.

If routing protocol is enabled, the BeaconMaster advertises the VNS as a routable

network segment to the wired network, and routes traffic between the wireless devices

and the wired network.

Note: In BeaconWorks Release 2.0, each radio on a BeaconPoint can participate in up

to four VNSs, via the multi-SSID function.

Static Routing and Routing Protocols

Routing can be used on the BeaconMaster to support the VNS definitions.

In the User Interface on the BeaconMaster, you can configure routing on the

BeaconMaster to use one of the following routing techniques:

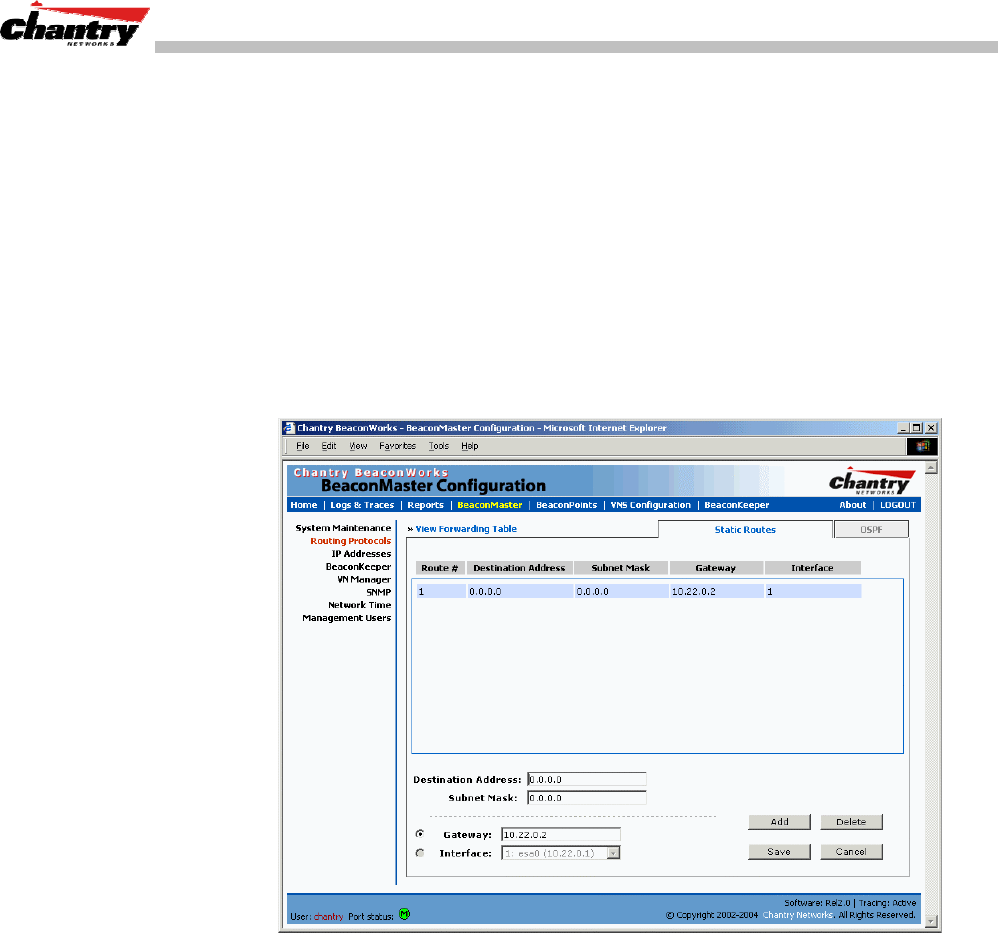

• Static routes: Use static routes to set the default route of a BeaconMaster so that

legitimate wireless device traffic can be forwarded to the default gateway.

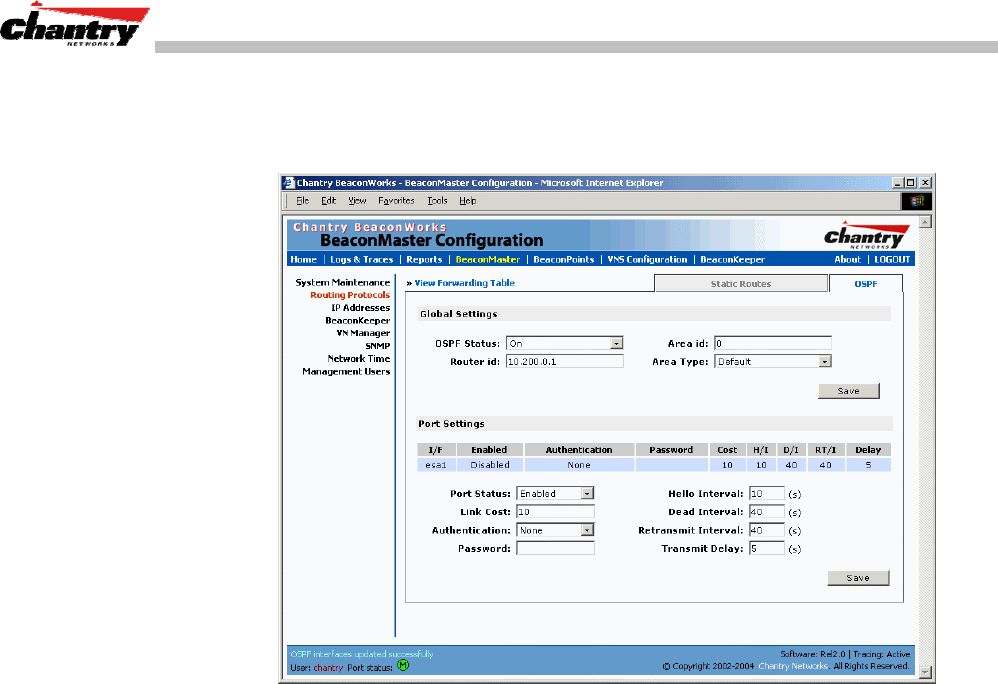

• Open Shortest Path First (OSPF) (RFC2328): Use OSPF to specify the next best

hop (route) of a BeaconMaster.

Open Shortest Path First (OSPF) is a protocol designed for medium and large IP

networks, with the ability to segment routers into different routing areas for routing

information summarization and propagation.

Policy: Packet Filtering

Policy refers to the rules that allow different network access to different groups of

users. The BeaconWorks system can link authorized users to user groups. These user

groups then can be confined to predefined portions of the network.

BeaconWorks User Guide – BeaconWorks and Your Enterprise Network

In the BeaconWorks system, policy is carried out by means of packet filtering, within

a VNS.

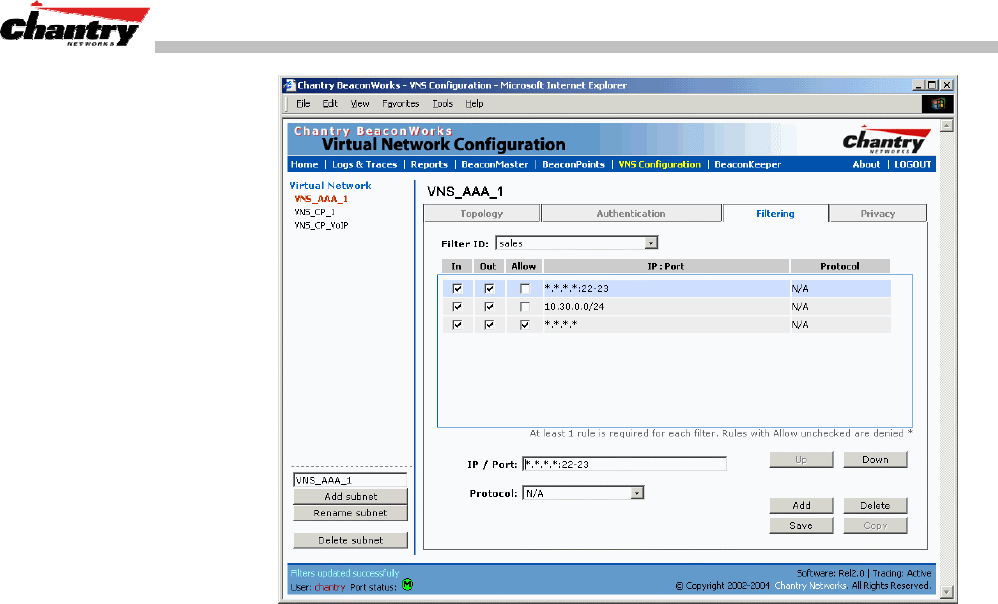

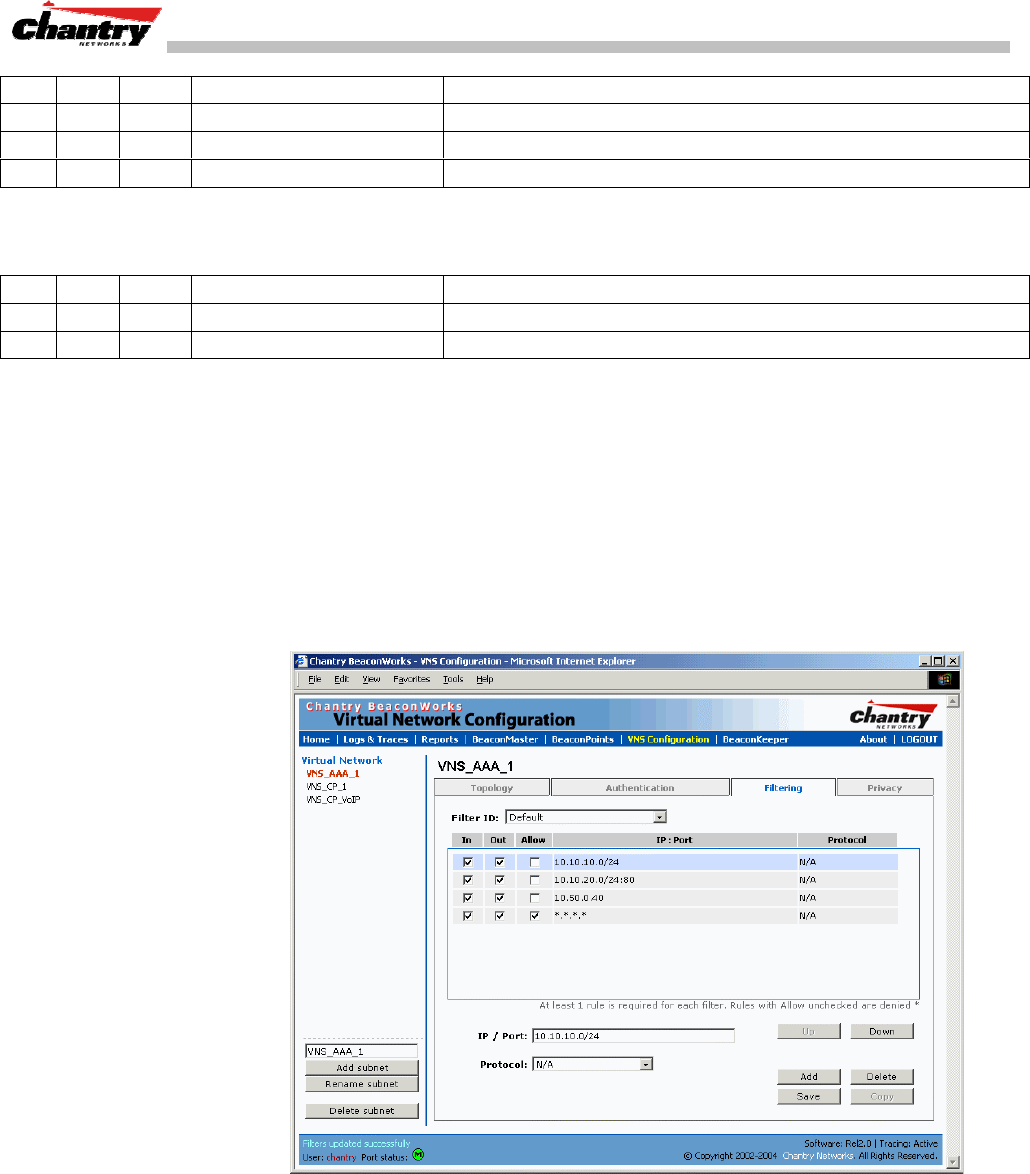

In the BeaconMaster user interface, you set up a filtering policy by defining a set of

hierarchical rules that allow (or deny) traffic to specific IP addresses, IP address

ranges, or services (ports). The sequence and hierarchy of these filtering rules must be

carefully designed, based on your enterprise’s user access plan.

The authentication technique selected determines how filtering is carried out:

• If authentication is by SSID and captive portal, a global filter will allow all users to

get as far as the Captive Portal web page, where login occurs. When authentication

is returned, then filters are applied, based on user ID and permissions.

• If authentication is by AAA (802.1x), there is no need for a global filter. Users will

already have logged in and have been authenticated before being assigned an IP

address. At this point, filters are applied, based on user ID and permissions.

Mobility and Roaming

The 802.11 standard allows a wireless device to preserve its IP connection when it

roams from one access point to another on the same subnet. However, if a user roams

to an access point on a different subnet, the user is disconnected.

Chantry BeaconWorks has functionality that supports mobility on any subnet in the

network. Wireless device users can roam between BeaconPoints on any subnet

without having to renew the IP connection

The BeaconMaster stores the wireless device’s current session information, such as IP

address and MAC address. If the wireless device has not disassociated, then when it

requests network access on a different BeaconPoint, the BeaconMaster can match its

session information and recognize it as still in a current session.

In addition, a BeaconMaster can learn about other BeaconMasters on the network, and

then exchange client session information. This enables a wireless device user to roam

seamlessly between different BeaconPoints on different BeaconMasters.

Availability

BeaconWorks provides seamless availability against BeaconPoint outages,

BeaconMaster outages, and even network outages.

For example, if one BeaconPoint fails, coverage for the wireless device is

automatically provided by the next nearest BeaconPoint.

If a BeaconMaster fails, all of its associated BeaconPoints, or access points, can

automatically migrate to another BeaconMaster that has been defined as the secondary

or backup BeaconMaster. When the original BeaconMaster returns to the network, the

BeaconPoints automatically re-establish their normal connection with their original

BeaconMaster.

BeaconWorks User Guide – BeaconWorks Release 2.0 Features: Overview

BeaconWorks Release 2.0 Features: Overview

Backwards compatibility with Release 1.1 on the BeaconPoint

In Release 2.0, the upgrading of software on the BeaconPoint is no longer automatic.

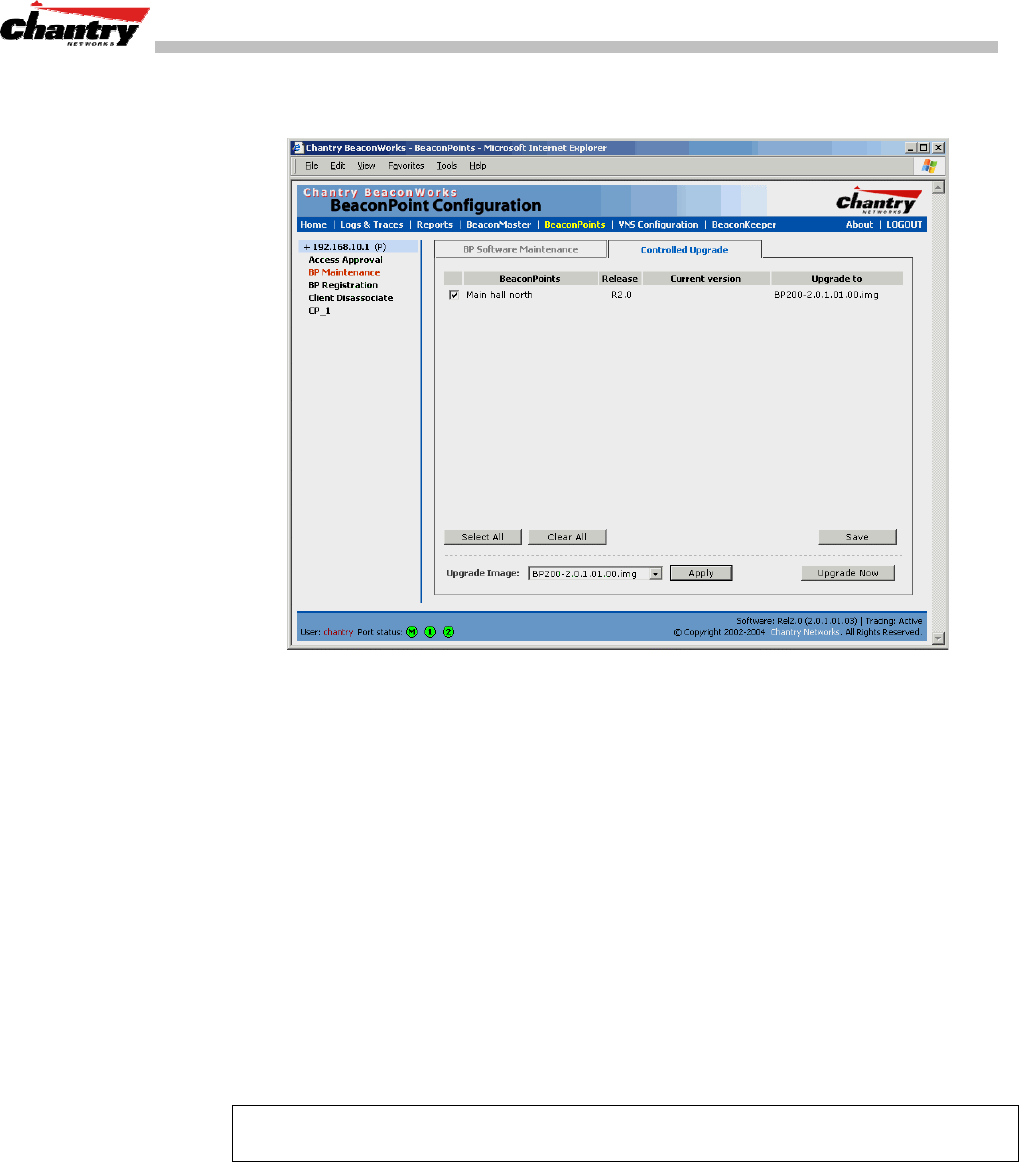

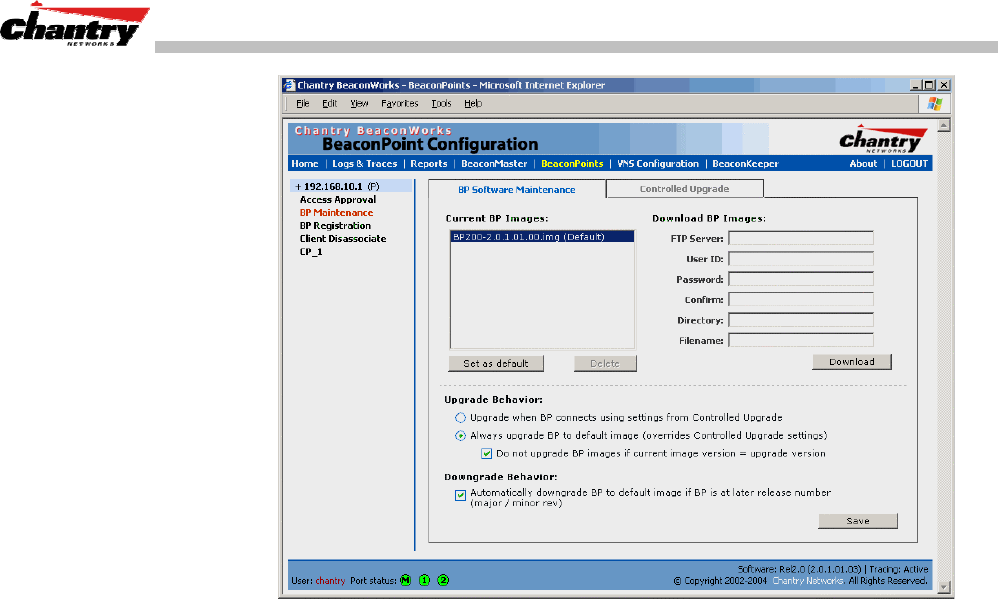

You can schedule the upgrade and select the image to be used. Use the BeaconPoint

Maintenance screen to select and schedule an upgrade.

One result of this feature is that you can continue to use BeaconPoints that still have

Release 1.1 software. However, there are certain limitations to the functions

supported. In Release 1.1, a BeaconPoint appeared as a single entity in a VNS, and

could be assigned to only one VNS. Both radios had the same properties. Privacy by

WPA was not supported. The default privacy mechanism was dynamic WEP.

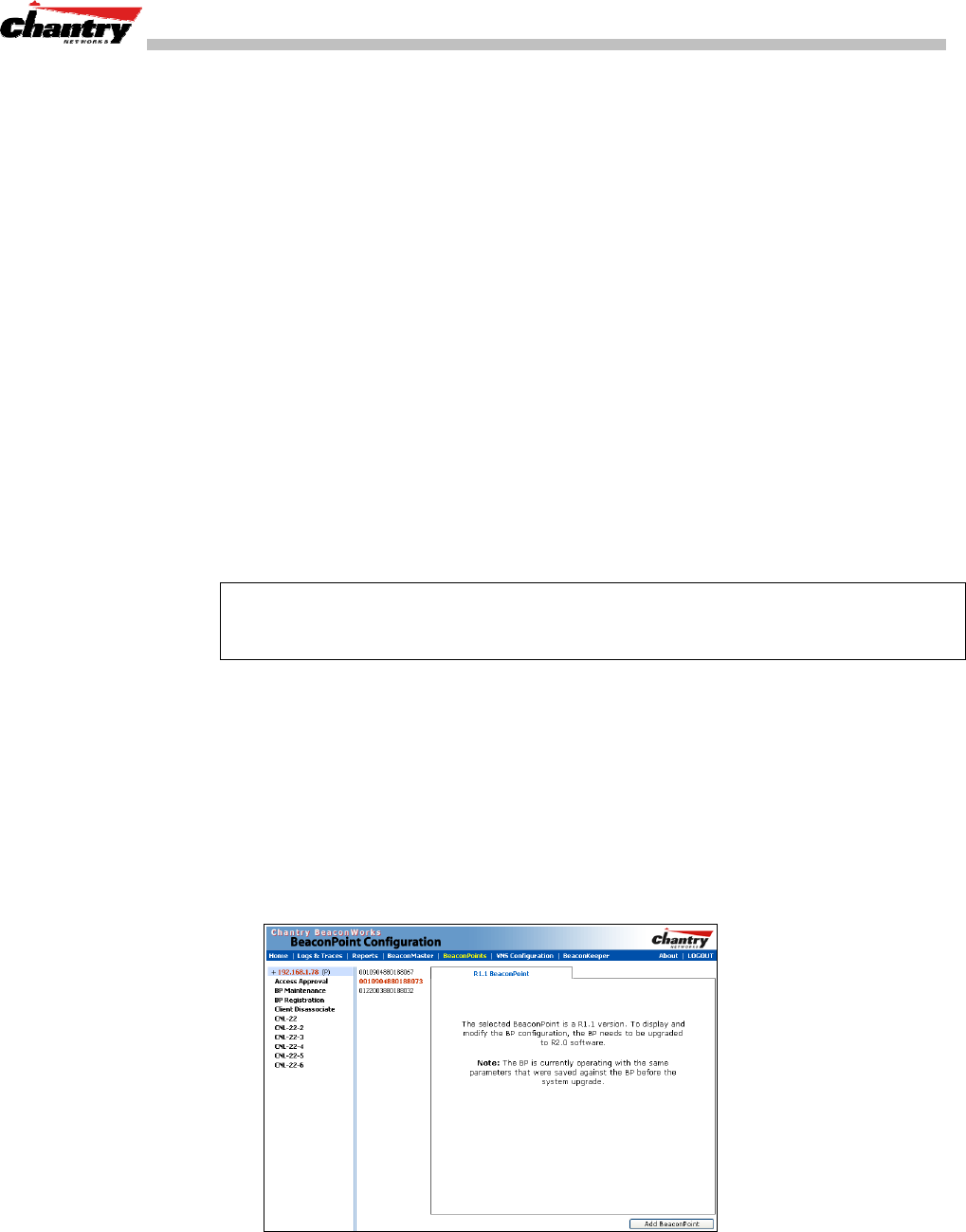

A BeaconPoint that is still running a Release 1.1 software image will therefore retain

these parameters, and these parameters are not modifiable. The new capability will

only be available when the BeaconPoint is upgraded from Release 1.1 to Release 2.0

software.

Backwards compatibility with Release 1.1 on the BeaconMaster

Upgrading to BeaconWorks 2.0 requires a migration of the database on the

BeaconMaster. In order to preserve the BeaconMaster network configurations that you

defined in Release 1.1 software, the new release provides scripts that migrate the

configuration data into the new data format.

Details of the software upgrade procedure, and the appropriate script to run are

available in Technical Release Notes.

Multi-SSID: BeaconPoint radios on more than one VNS

In Release 1.1, a BeaconPoint appeared as a single entity in a VNS, and could be

assigned to only one VNS.

In Release 2.0, each radio on a BeaconPoint BP200 can participate in up to four

VNSs, for a total of eight VNSs per BeaconPoint. This provides greater flexibility in

defining VNSs and providing support to a wide range of wireless devices.

This flexibility enables the network to support wireless devices with either:

• 802.11g radios on the 2.4 GHz band, and legacy support to 802.11b on the same

band

• 802.11a radios on the 5 GHz band.

Furthermore, a VNS can be set up to support only one type of radio, for specific types

of wireless traffic such as voice-over-internet traffic,

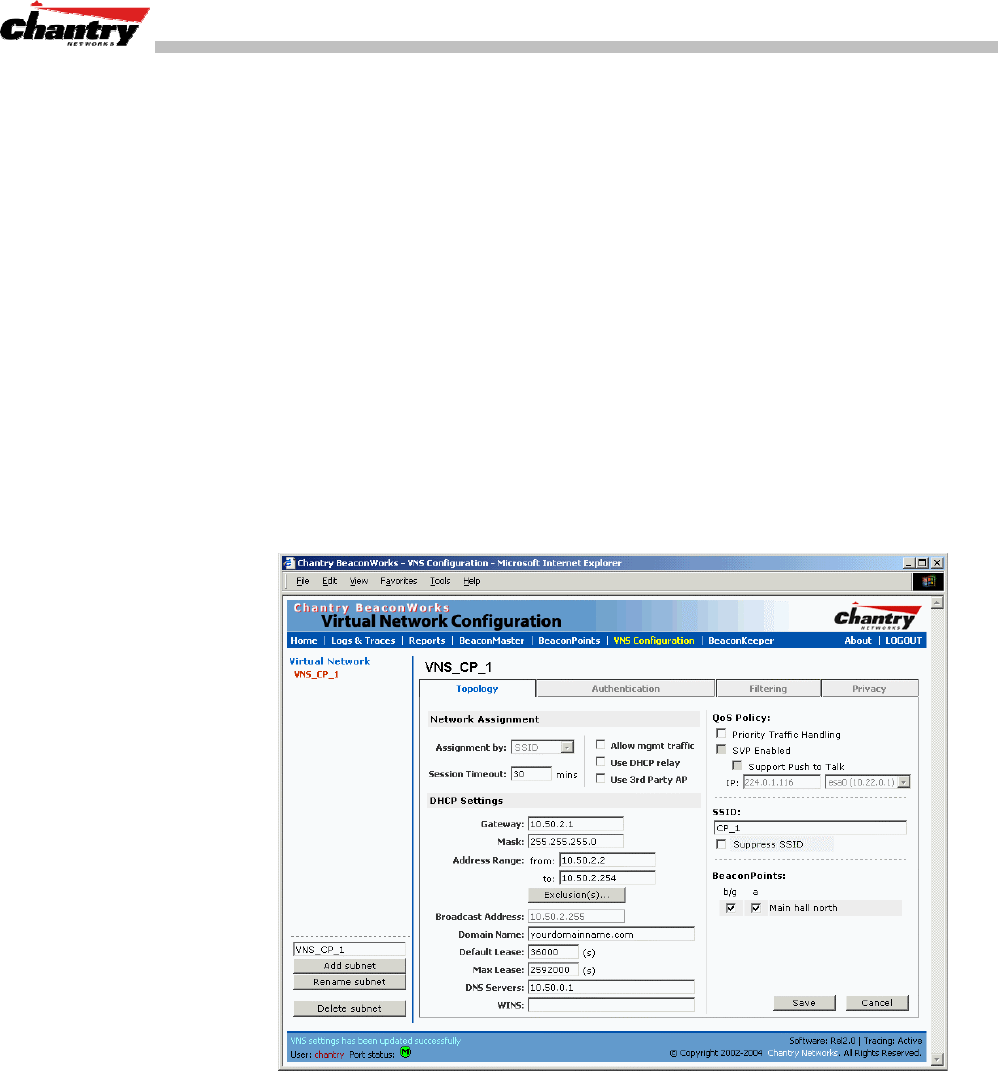

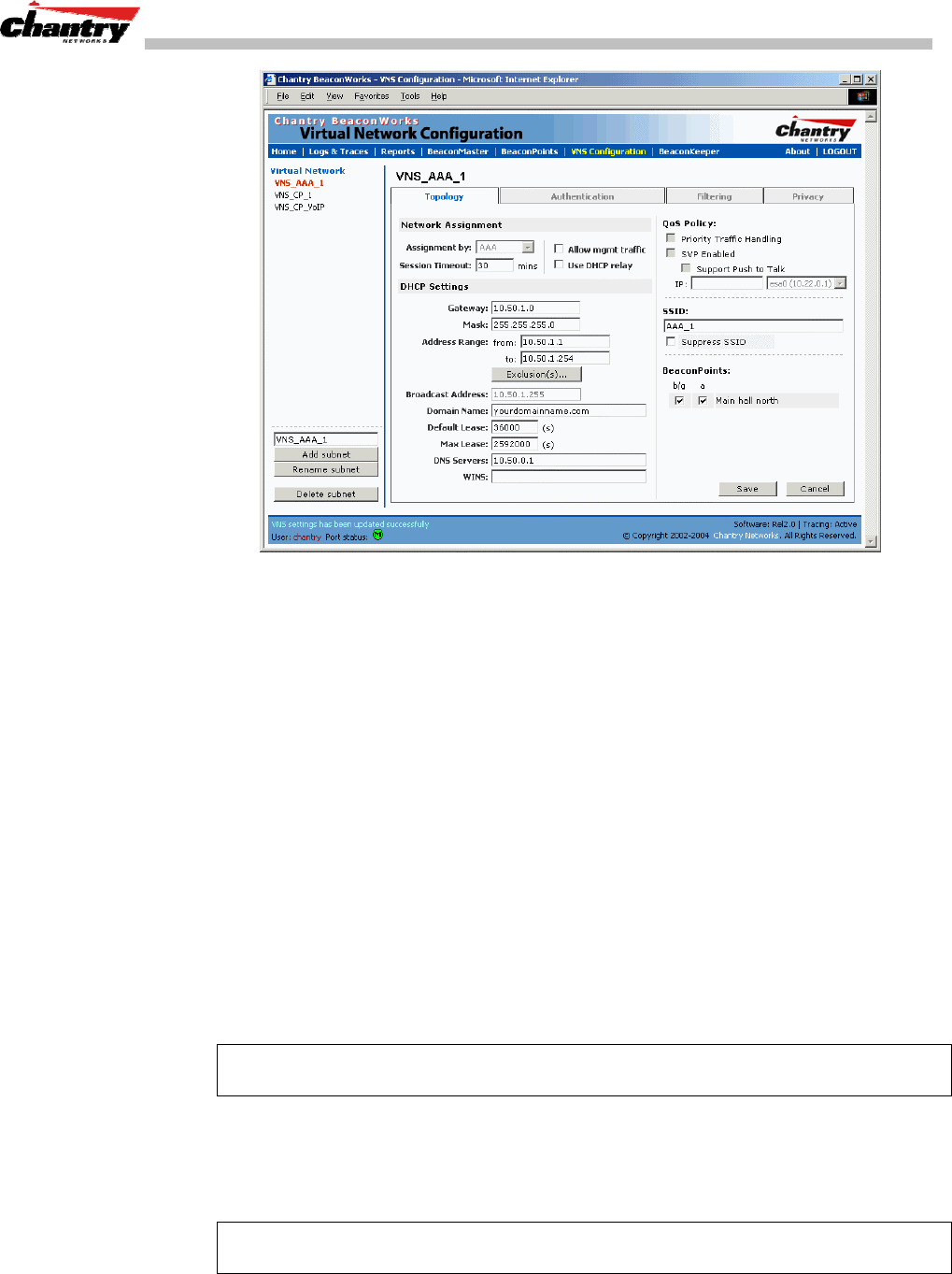

Use the Virtual Network Configuration: Topology screen to assign the BeaconPoint

radios to a VNS. The Virtual Network Configuration: Privacy screen will allow only

one WEP key to be set up. After a VNS definition has been saved, you can view (in

the BeaconPoint Configuration screen) the properties for each radio for a selected

BeaconPoint, including a list of the VNSs to which the radio has been assigned.

BeaconWorks User Guide – BeaconWorks Release 2.0 Features: Overview

Privacy using Wi-Fi Protected Access (WPA)

The VNS Privacy configuration function now includes Wi-Fi Protected Access

(WPA) privacy, a new security solution that adds authentication and enhanced WEP

encryption with key management. . WPA specifies IEEE 802.1x authentication with

Extensible Authentication Protocol (EAP).

WPA uses the Temporal Key Integrity Protocol (TKIP) mechanism, which shares a

starting key between devices, and then changes their encryption key for every packet.

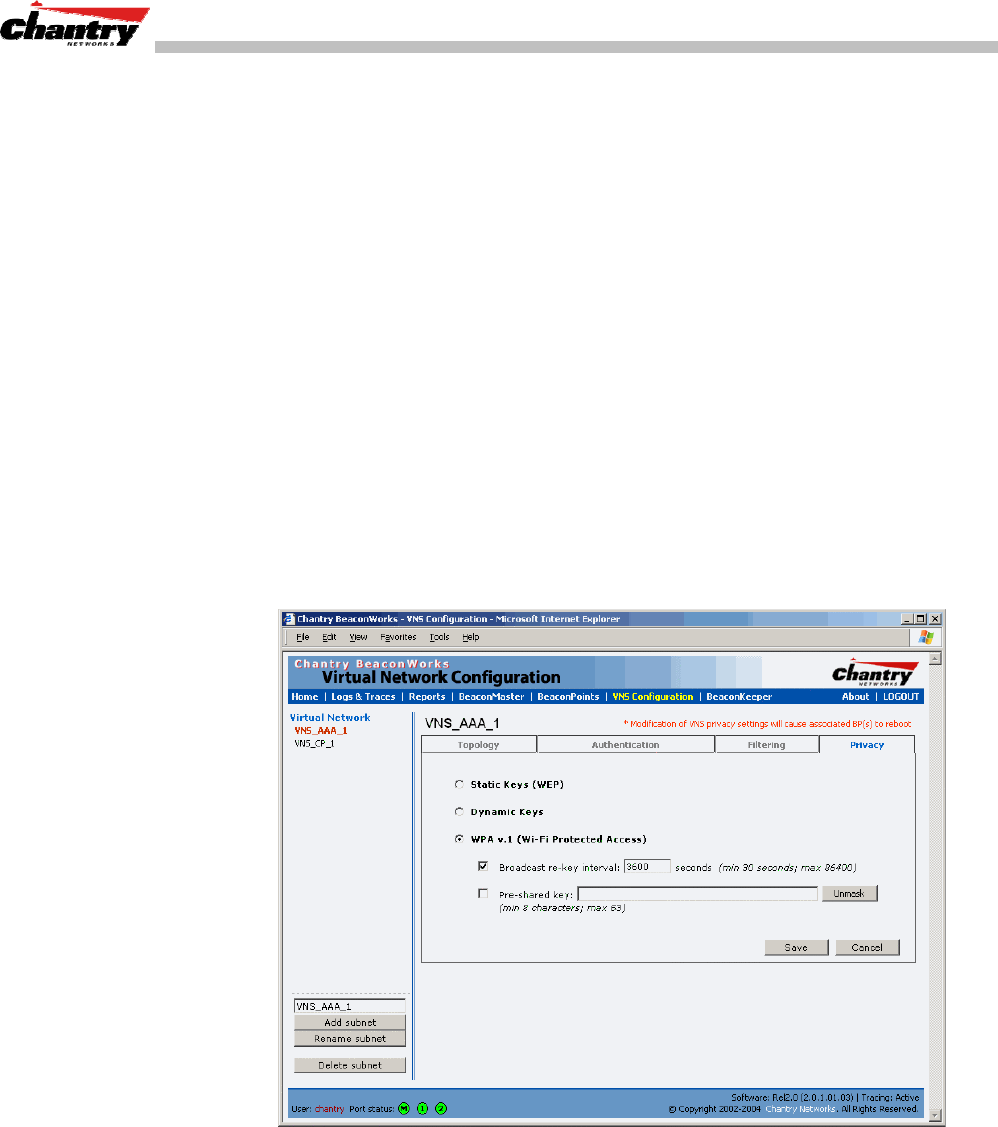

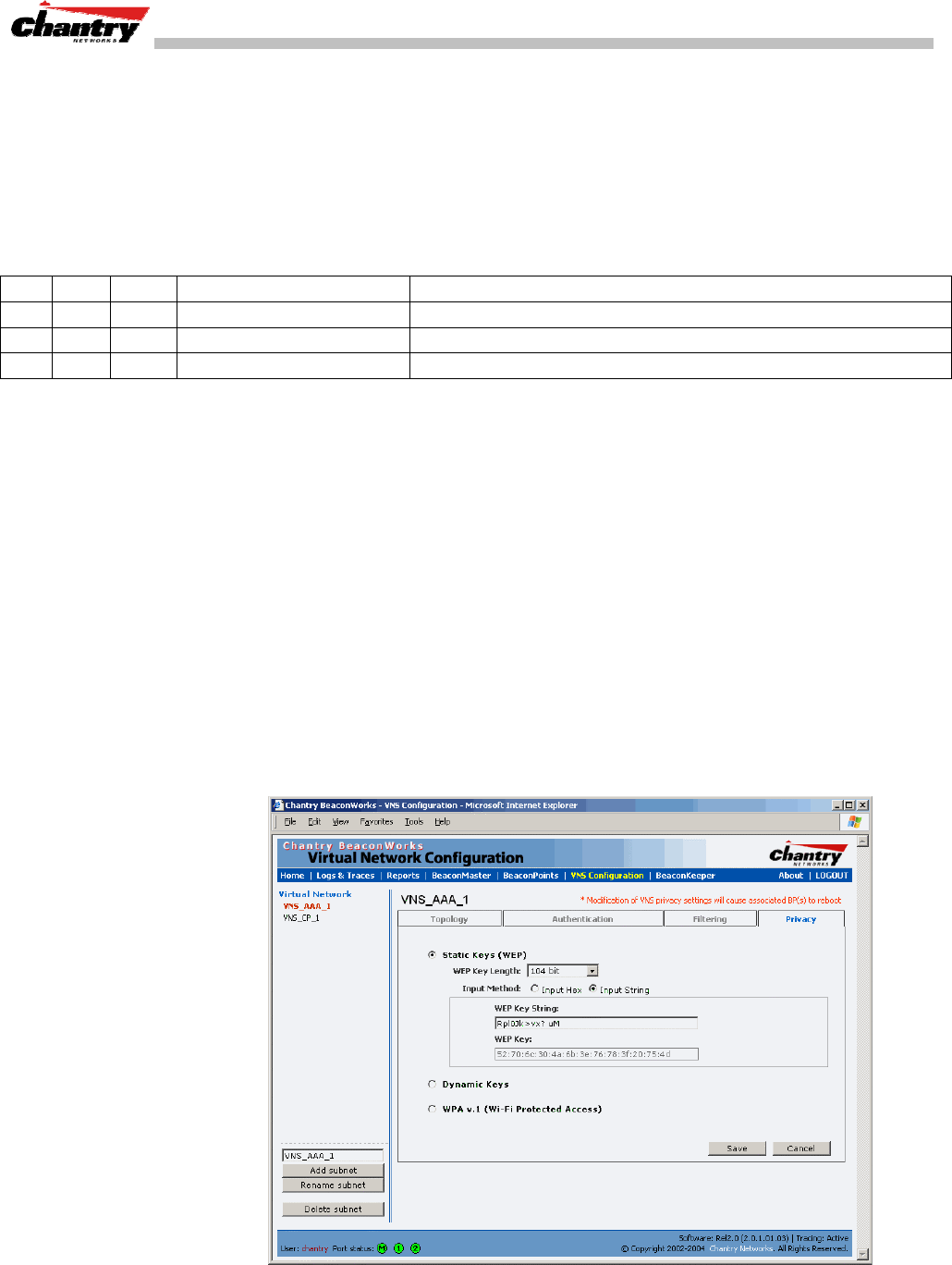

Configure the WPA option and define the initial shared key in the Virtual Network

Configuration: Privacy screen

BeaconPoint software: Dual image capability

The BeaconPoint in Release 2.0 keeps a backup copy of its software image. When a

software upgrade is sent to the BeaconPoint, the upgrade becomes the BeaconPoint’s

current image and the previous image becomes the backup. In the event of failure of

the current image, the BeaconPoint will run the backup image.

BeaconPoint software: Dynamic reconfiguration (without reboot)

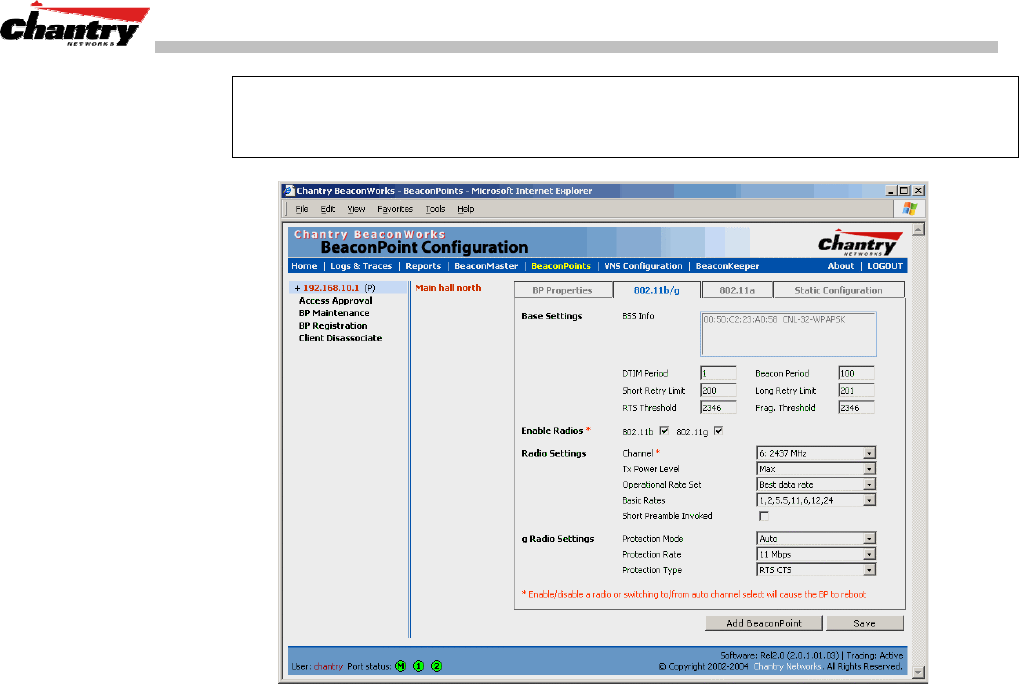

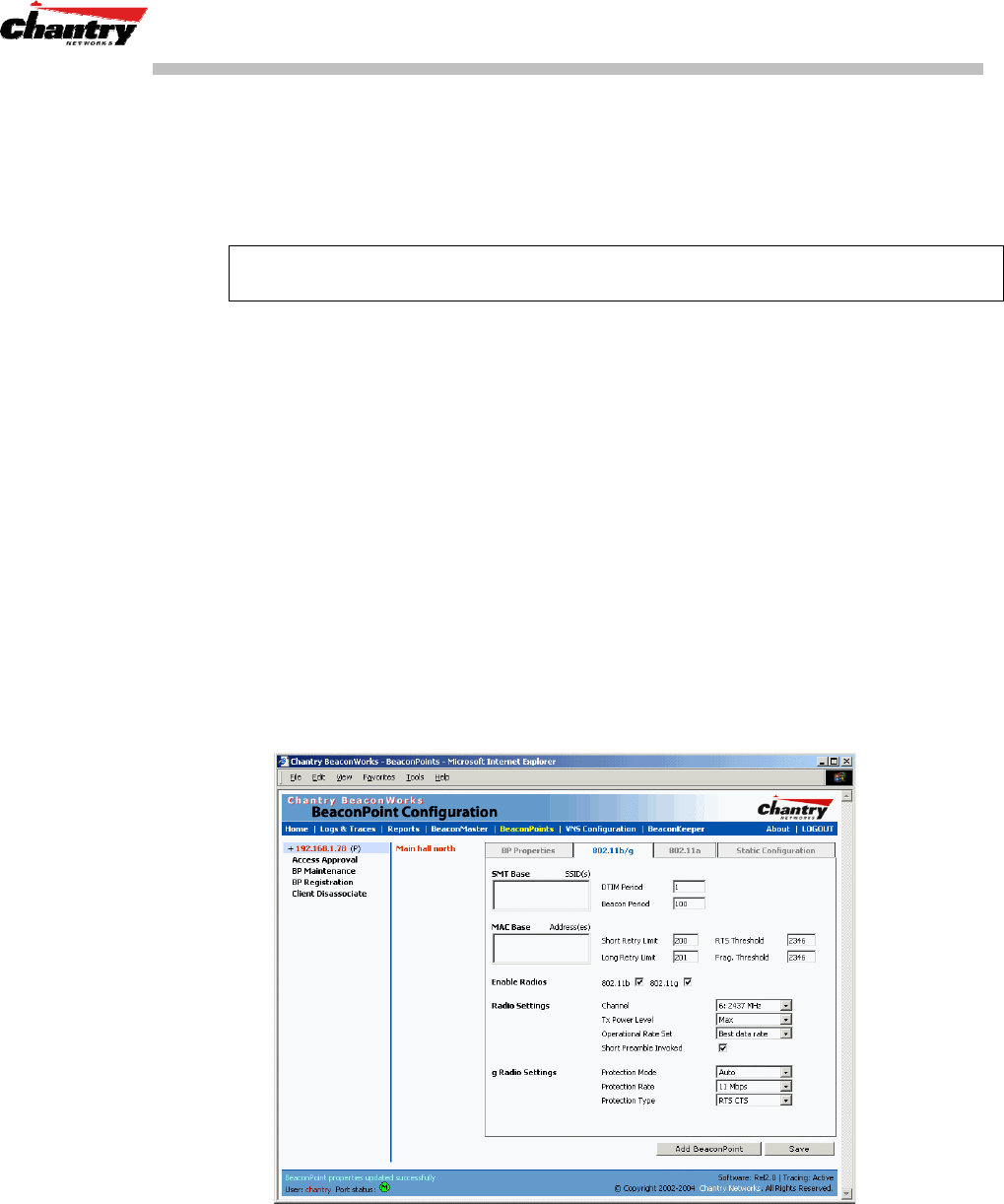

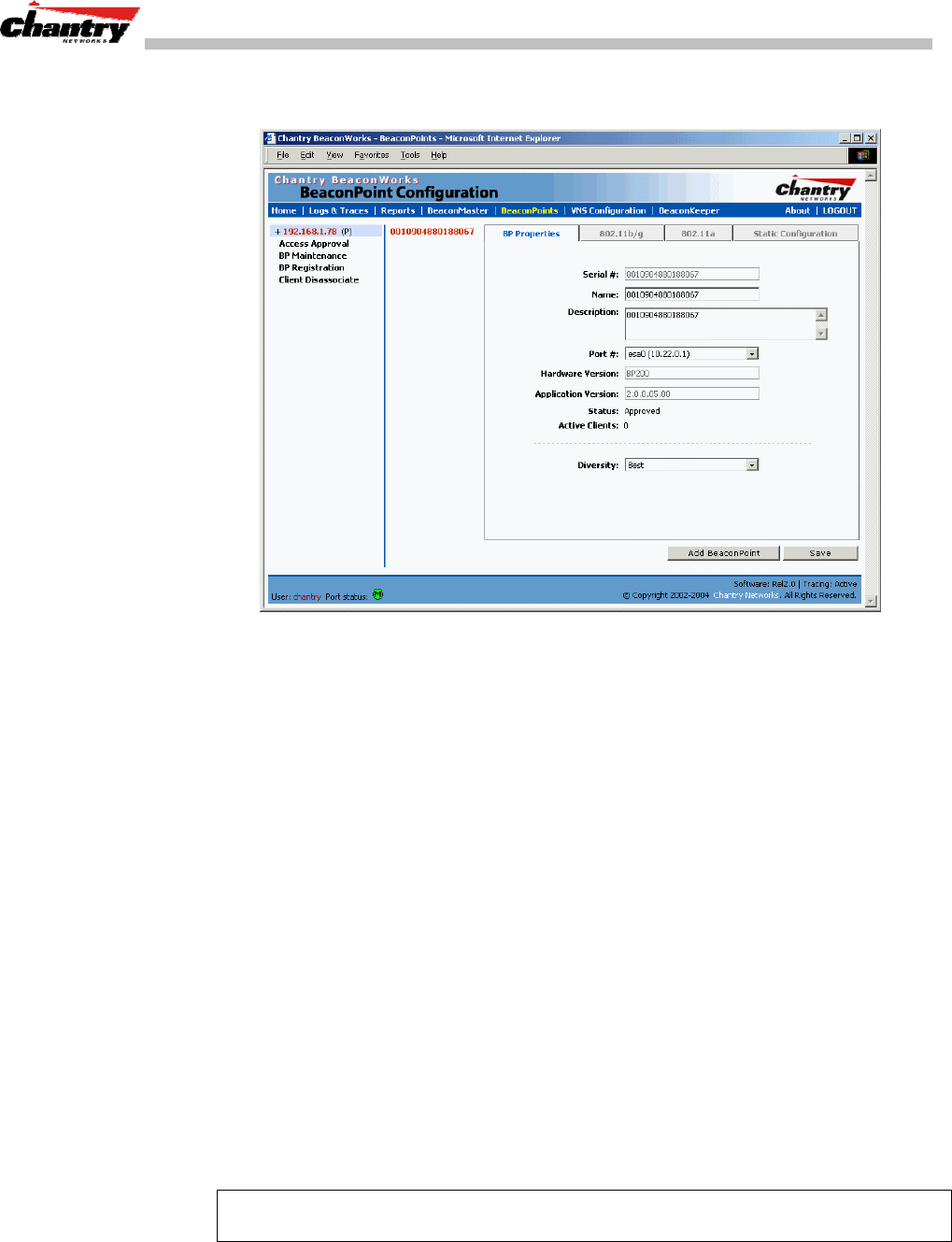

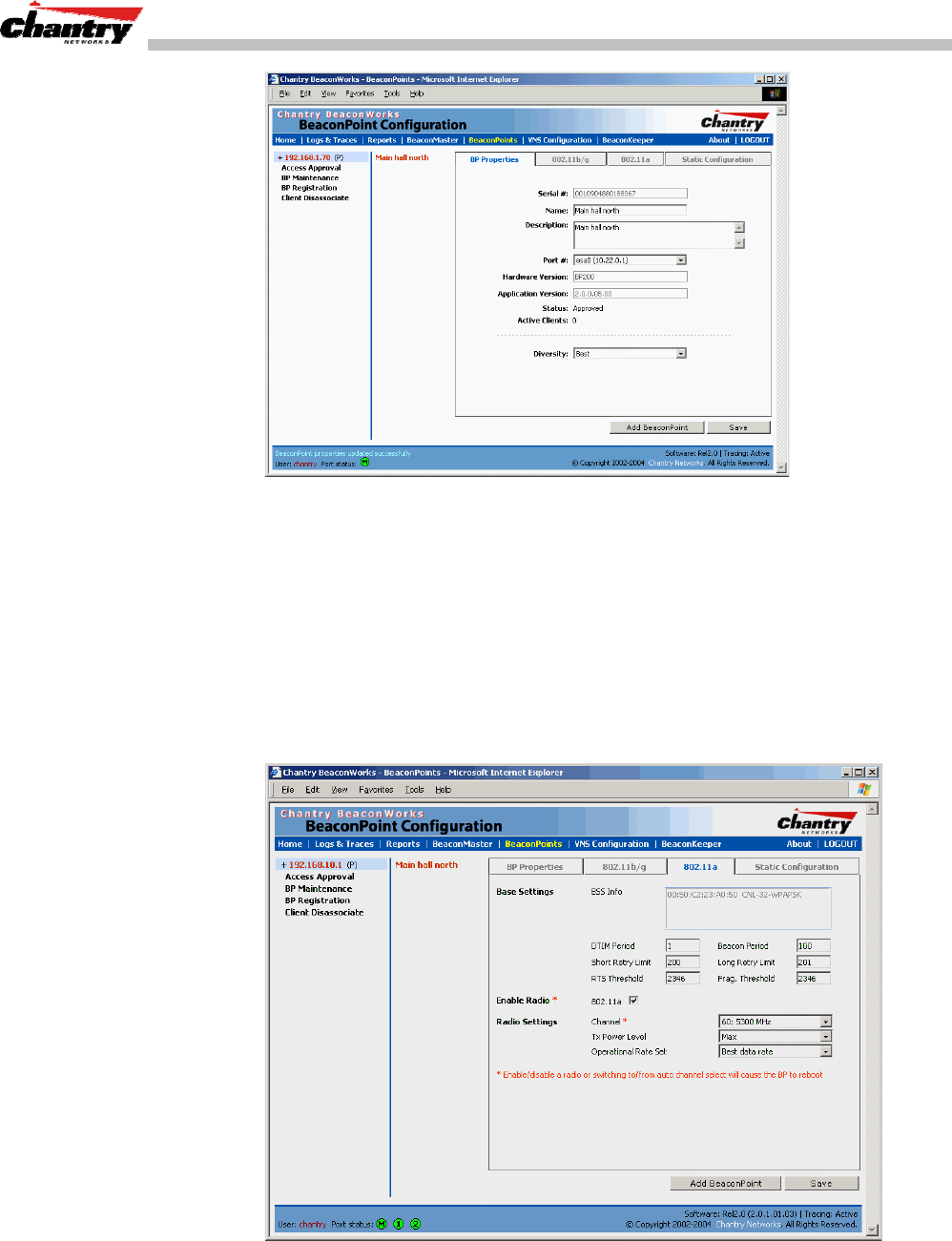

In Release 2.0, a number of the properties of each radio on a BeaconPoint can be

modified (in the BeaconPoint Configuration screen) without requiring a reboot of the

BeaconPoint. However, modifying the following properties does require a reboot:

• enabling or disabling either radio

• changing the radio channel.

In addition, the BeaconPoint must be rebooted after it has been added to a VNS, or the

radio assignment in a VNS has been changed. Any changes to security also require a

reboot of the BeaconPoint.

BeaconPoint Statistics

Radio statistics are available from a BeaconPoint running Release 2.0 software. On

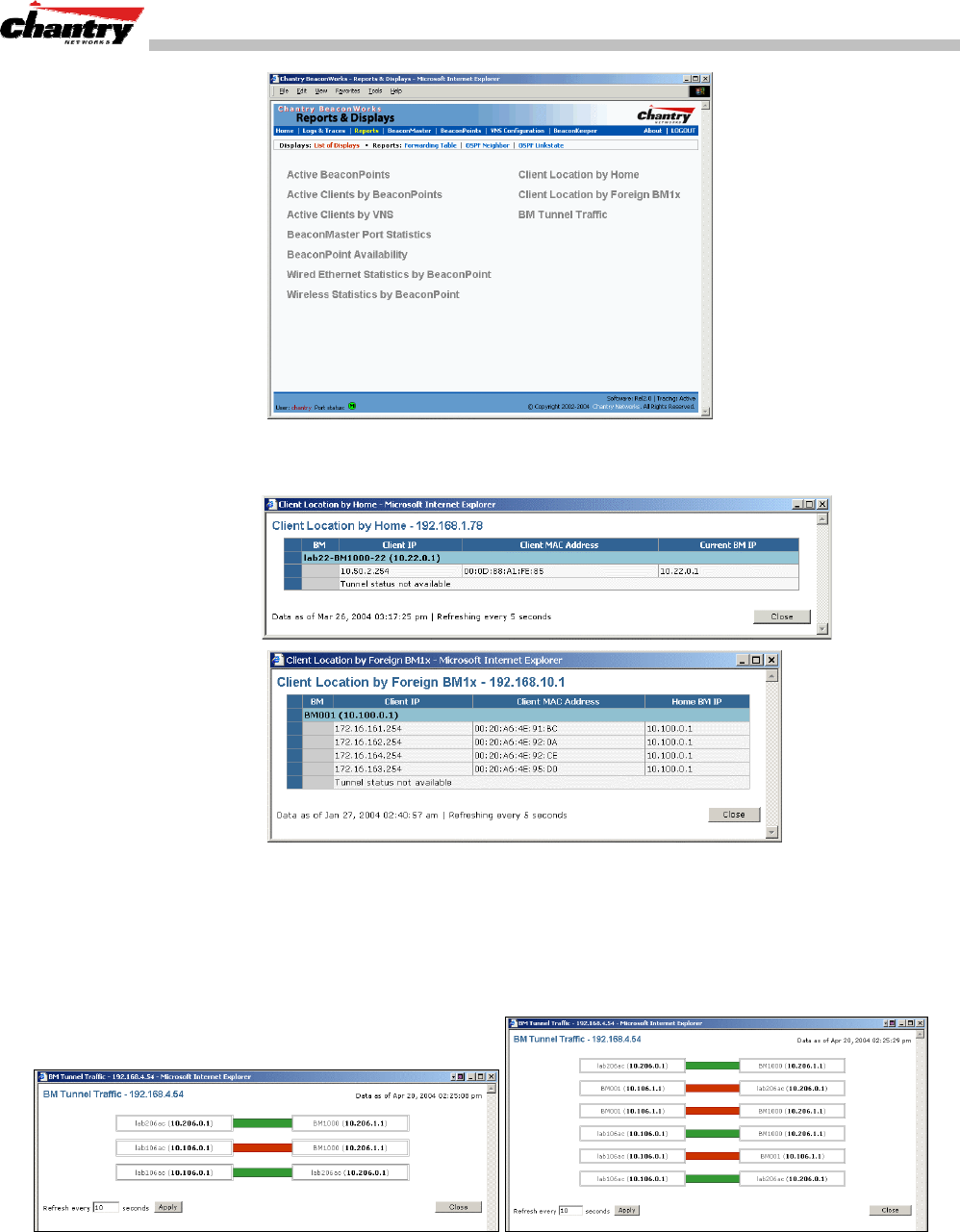

the BeaconMaster user interface, two displays (in the Reports and Displays area of the

user interface) show information about activity on a selected BeaconPoint:

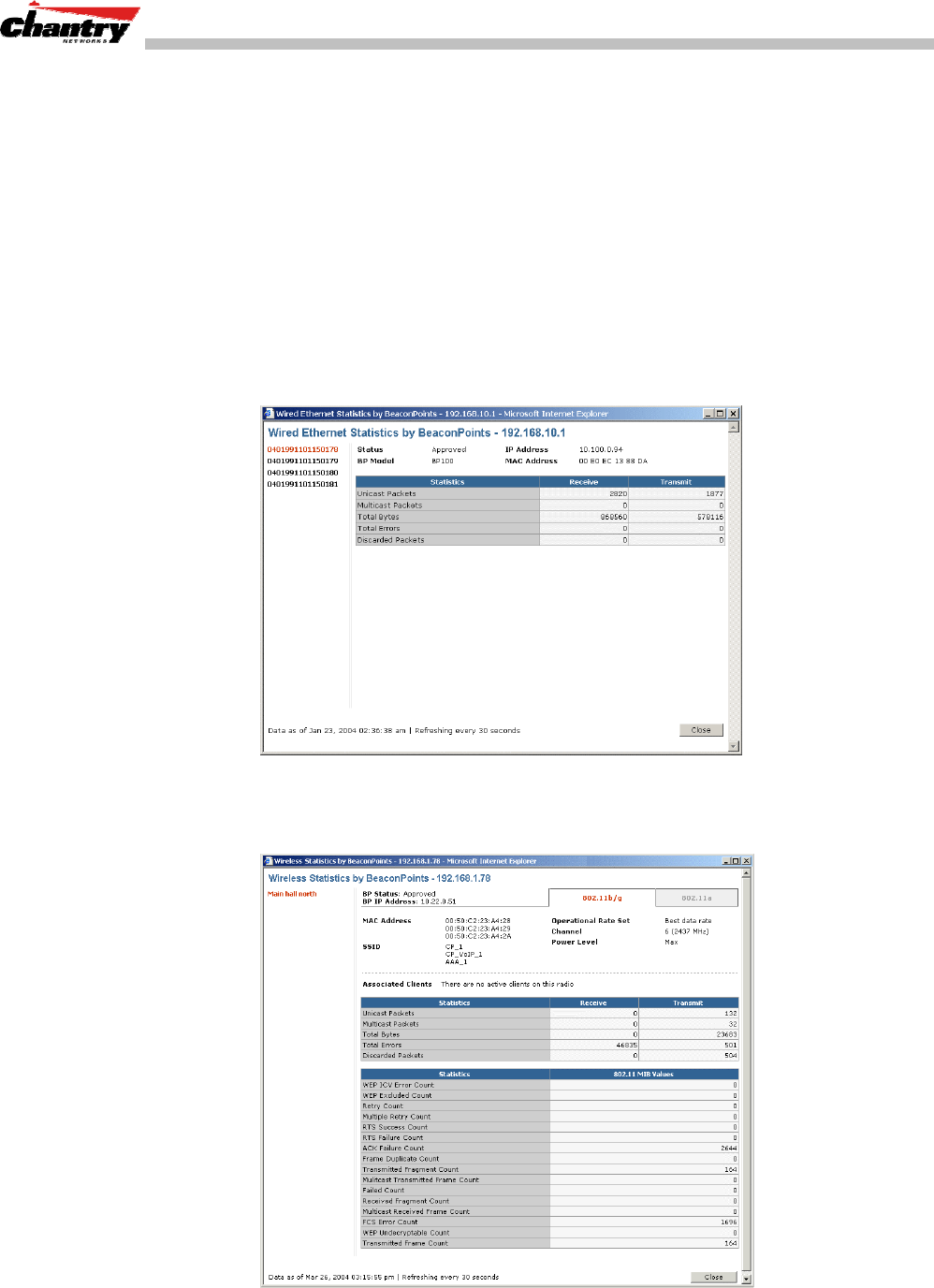

• Wired Ethernet Statistics by BeaconPoints

• Wireless Statistics by BeaconPoints, plus a subscreen that displays transmission

and association information by wireless client.

These displays are snapshots of the BeaconPoint activity at the current point in time.

The statistics displayed are those defined in the 802.11 MIB, defined in the IEEE

802.11 standard (in Section 11.4 and Annex D).

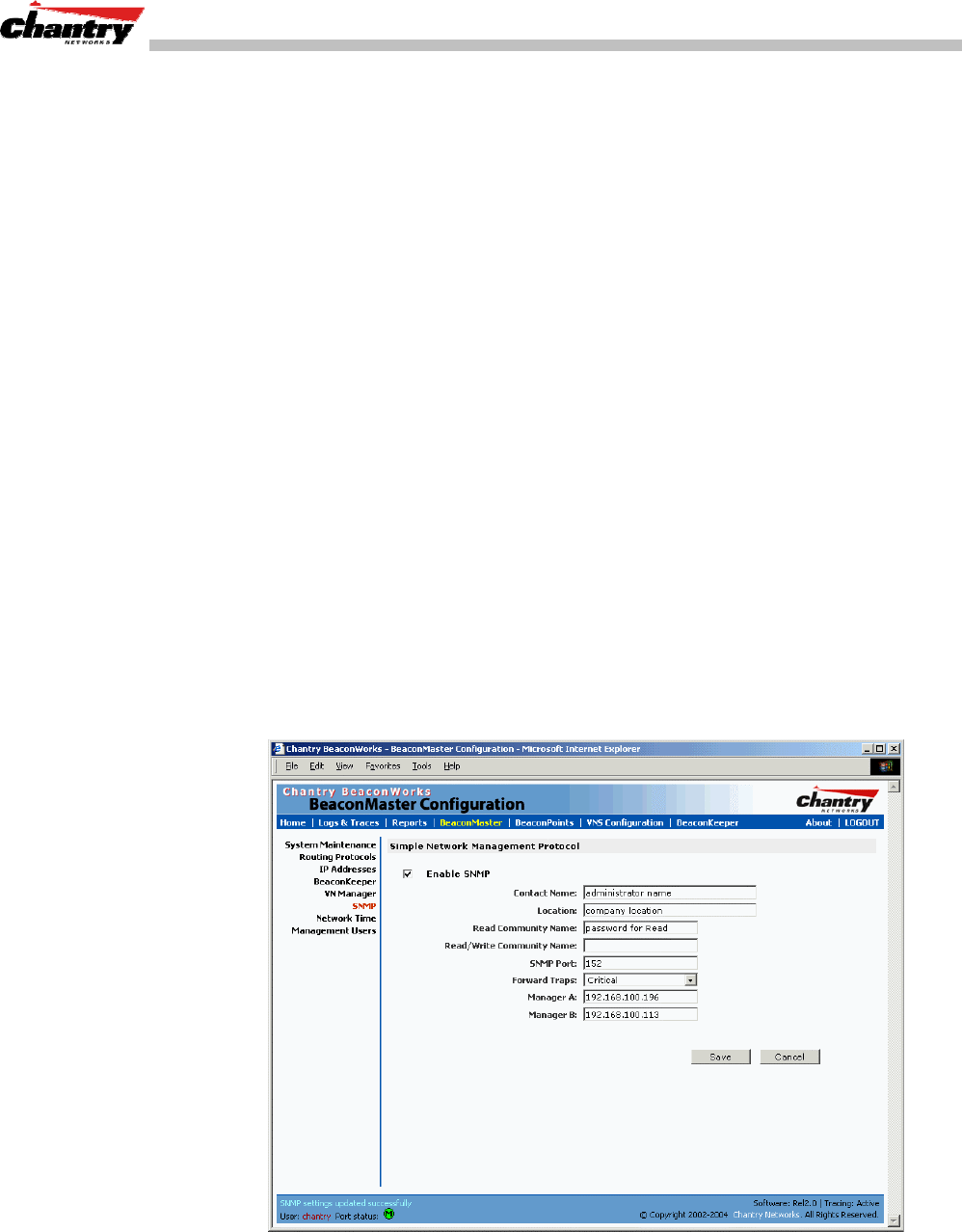

The BeaconMaster can also be configured to send these radio statistics as SNMP

messages to the SNMP monitoring machine on a network.

Event reporting using Syslog

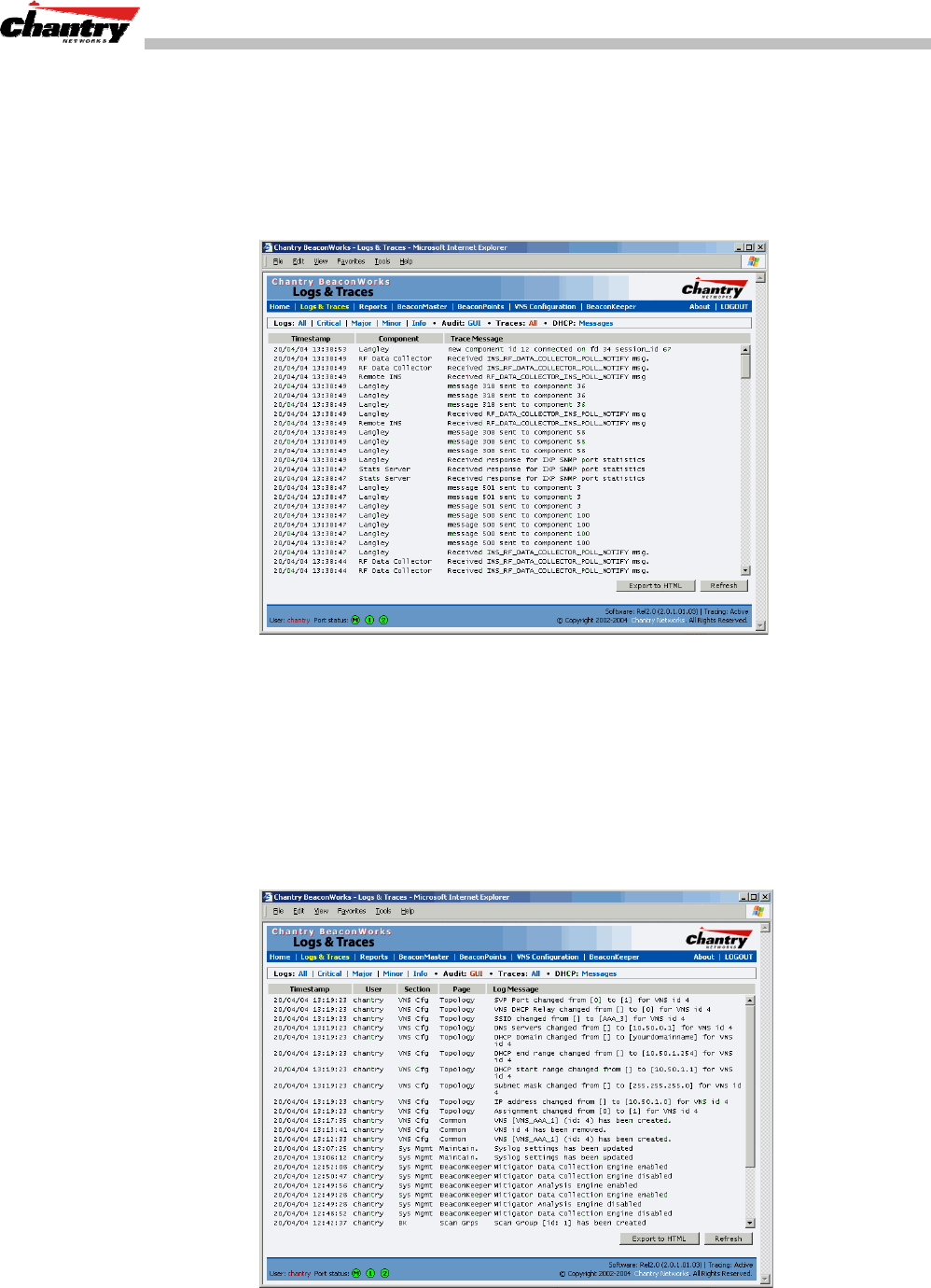

In addition to viewing BeaconWorks event messages in the BeaconWorks Reports and

Displays area of the user interface, you can also set up the BeaconMaster to relay

event messages on to a centralized Event Server on your enterprise network. The relay

is done using the syslog protocol.

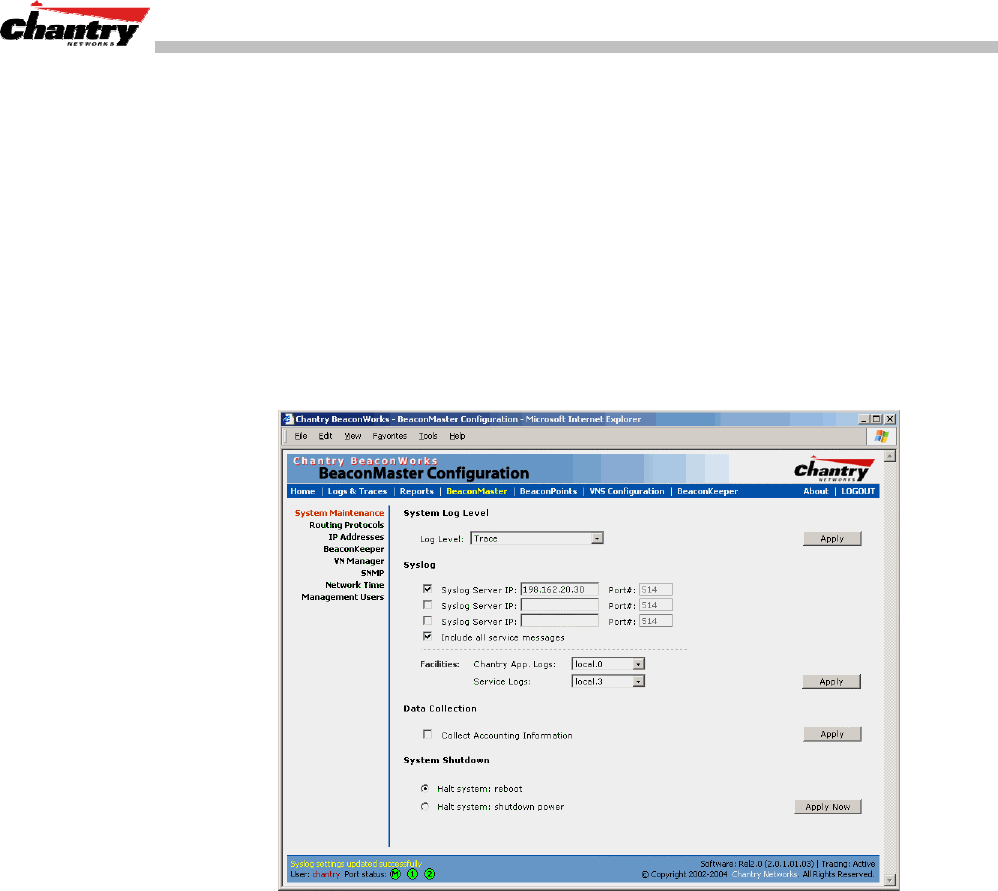

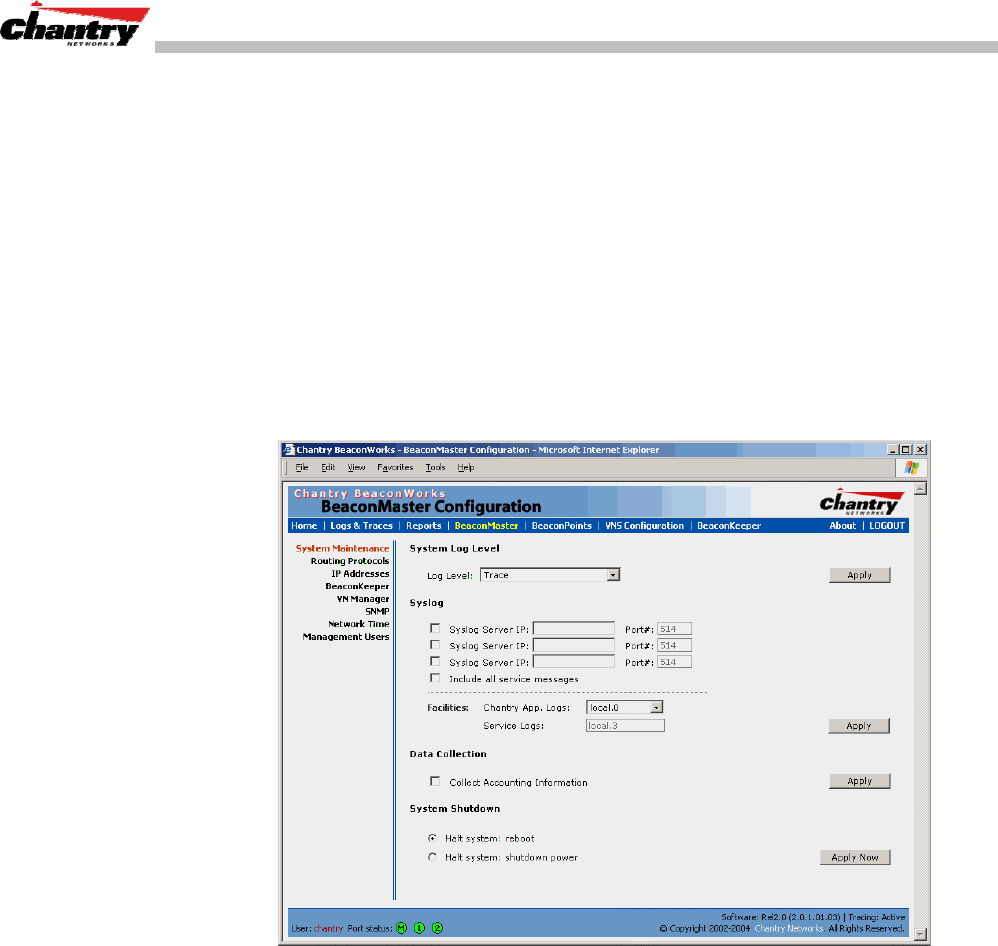

Use the BeaconMaster System Maintenance screen to enable the syslog function and

to define the location of one or more centralized Event Servers.

BeaconWorks User Guide – BeaconWorks Release 2.0 Features: Overview

Capacity for Redundant RADIUS servers

BeaconWorks Release 2.0 provides the capability to define more than one RADIUS

server for authentication, and to provide the priority of use during a failover situation.

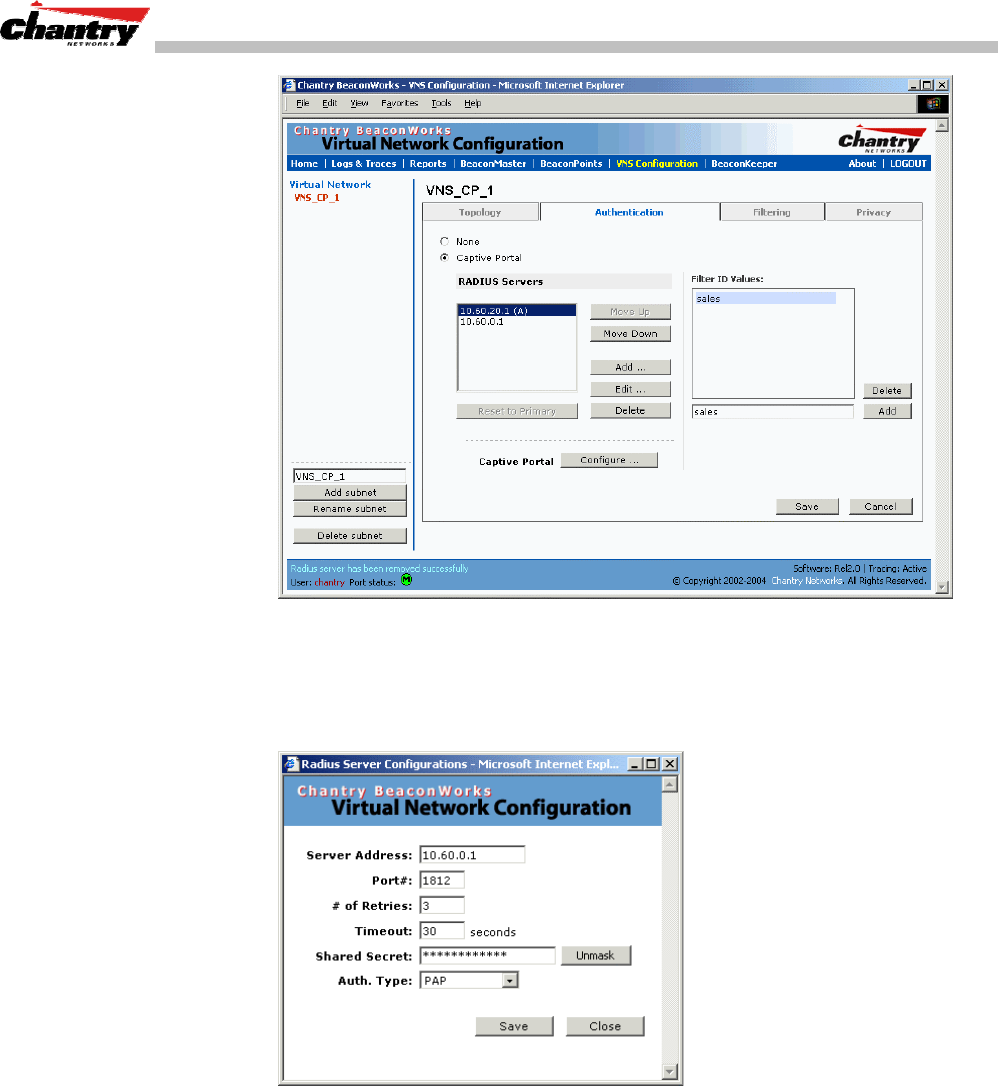

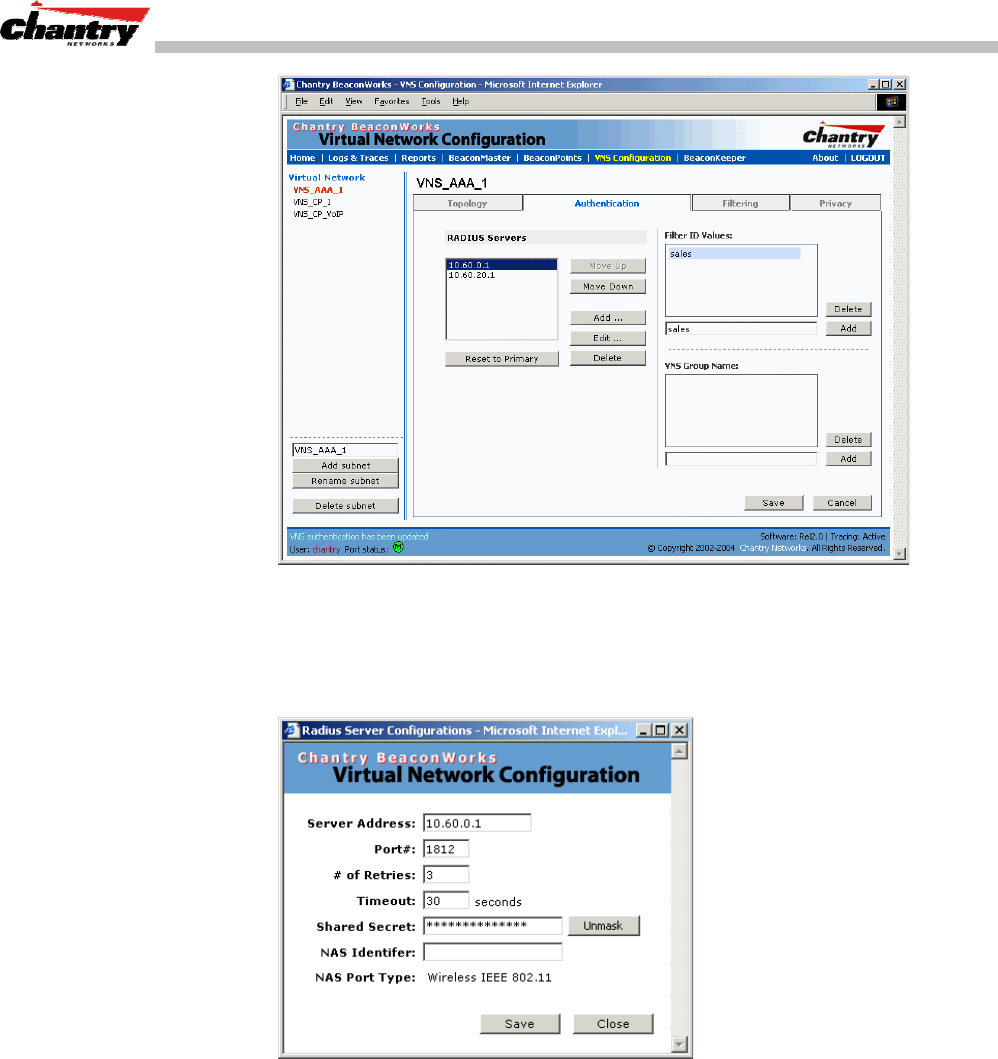

Use the Virtual Network Configuration: Authentication screen to define the RADIUS

server location and priority.

Detection of Rogue APs

BeaconWorks Release 2.0 provides a new mechanism that recognizes rogue access

points. The mechanism scans radio frequency (RF) activity on the BeaconPoints and

builds a data log of this activity. This data is then analyzed through various algorithms

that assist in distinguishing rogue access points from legitimate activity.

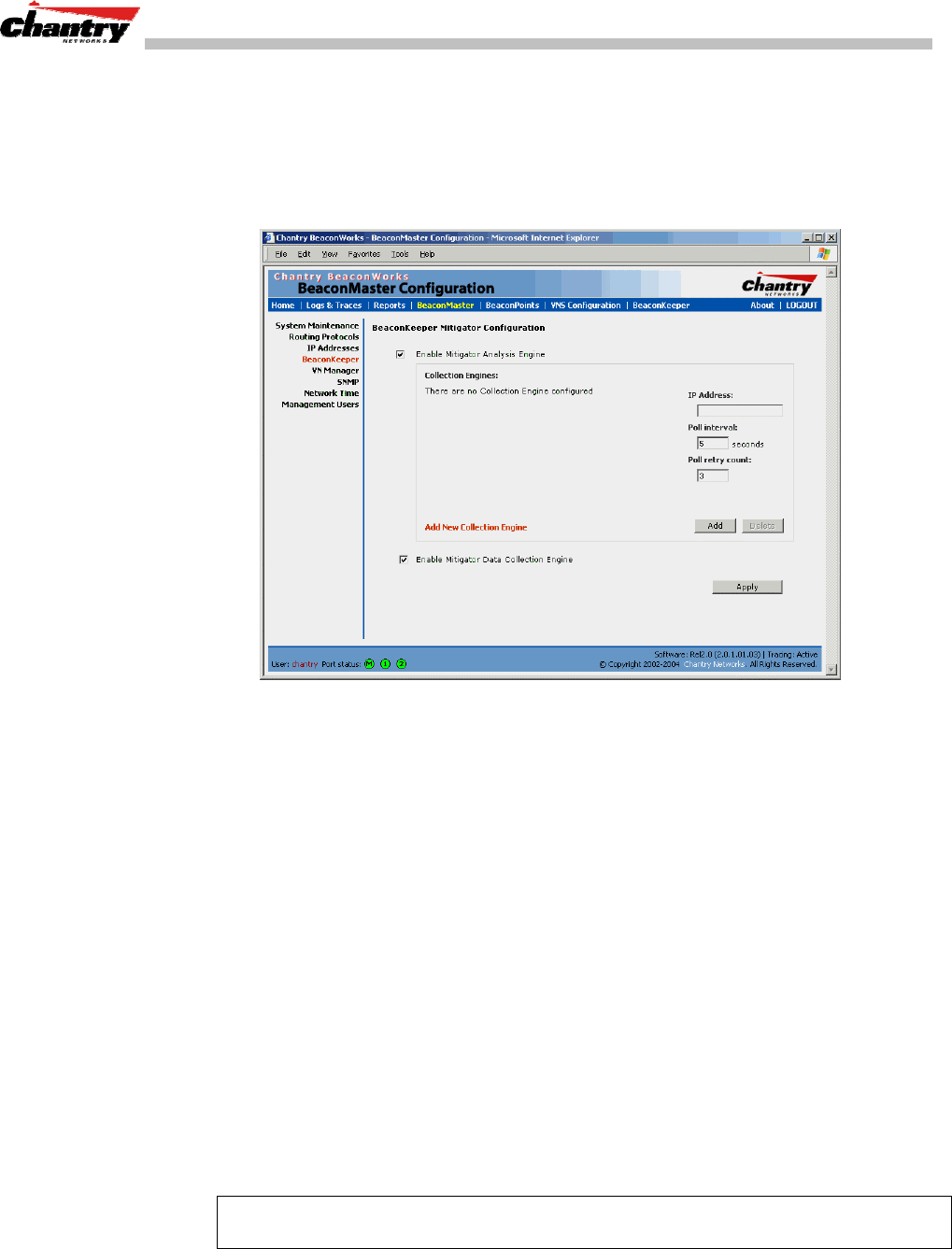

Use the BeaconKeeper function in the user interface to enable this mechanism. Once

enabled, you can configure and schedule the RF scan mechanism, maintain a list of

“friendly AP” access points, and view the detected access points for which a match is

not found in the “friendly AP” list.

Quality of Service (QoS) on a VNS: Spectralink Voice Protocol (SVP)

A VNS can be configured to handle voice-over internet traffic using SpectraLink

Voice Protocol (SVP), a protocol developed by SpectraLink for implementation on an

access point. The SVP protocol facilitates voice prioritization over an 802.11 wireless

LAN that will carry voice packets from SpectraLink wireless telephones.

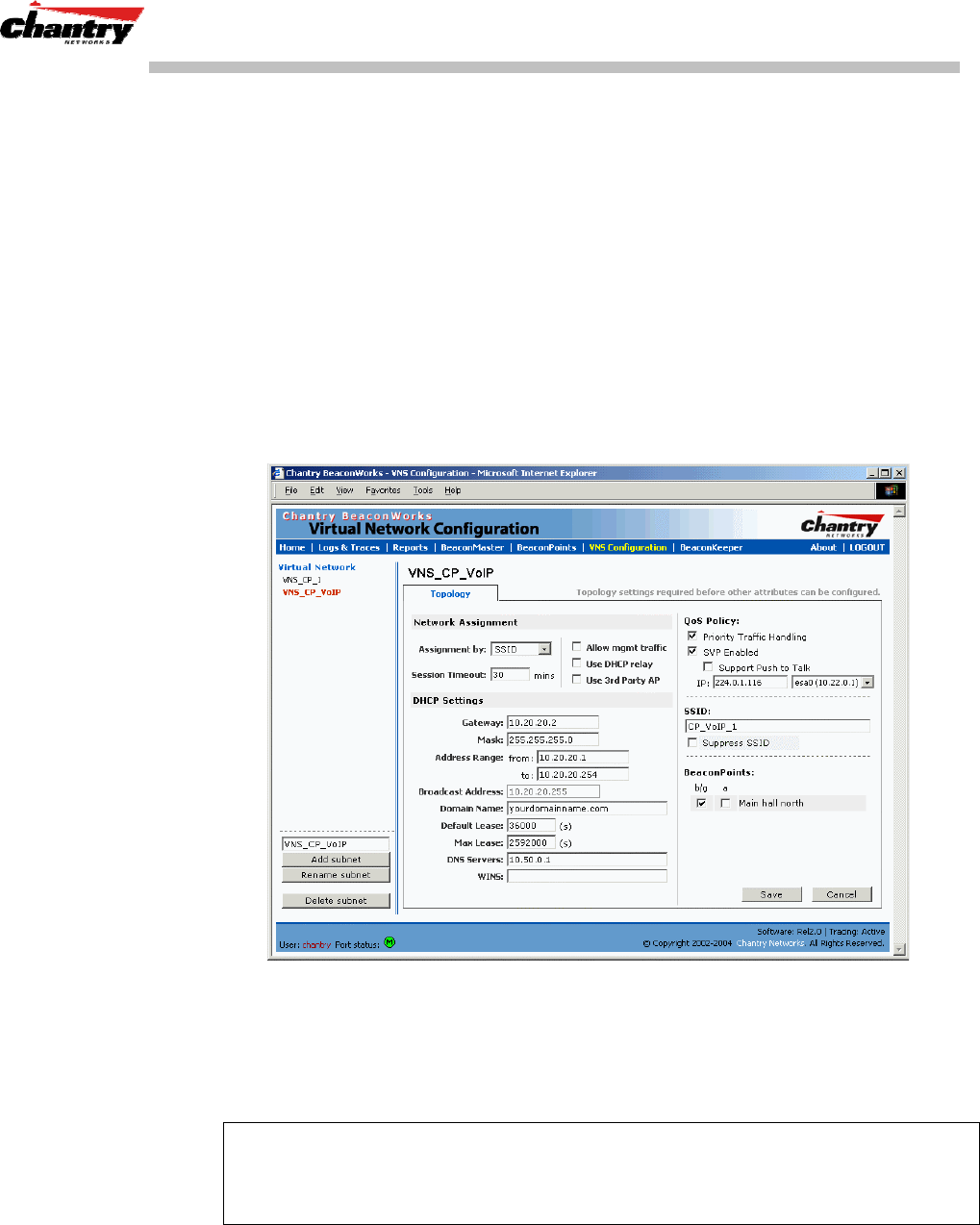

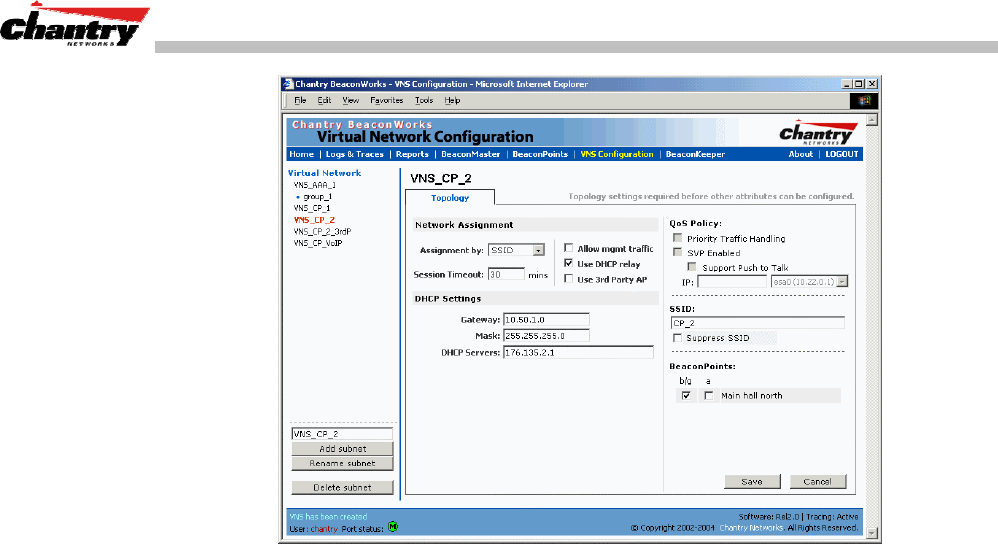

Use the Virtual Network Configuration: Topology screen to set up a VNS for voice-

over-internet traffic with SVP prioritization. A number of conditions apply to a VNS

for voice-over-internet.

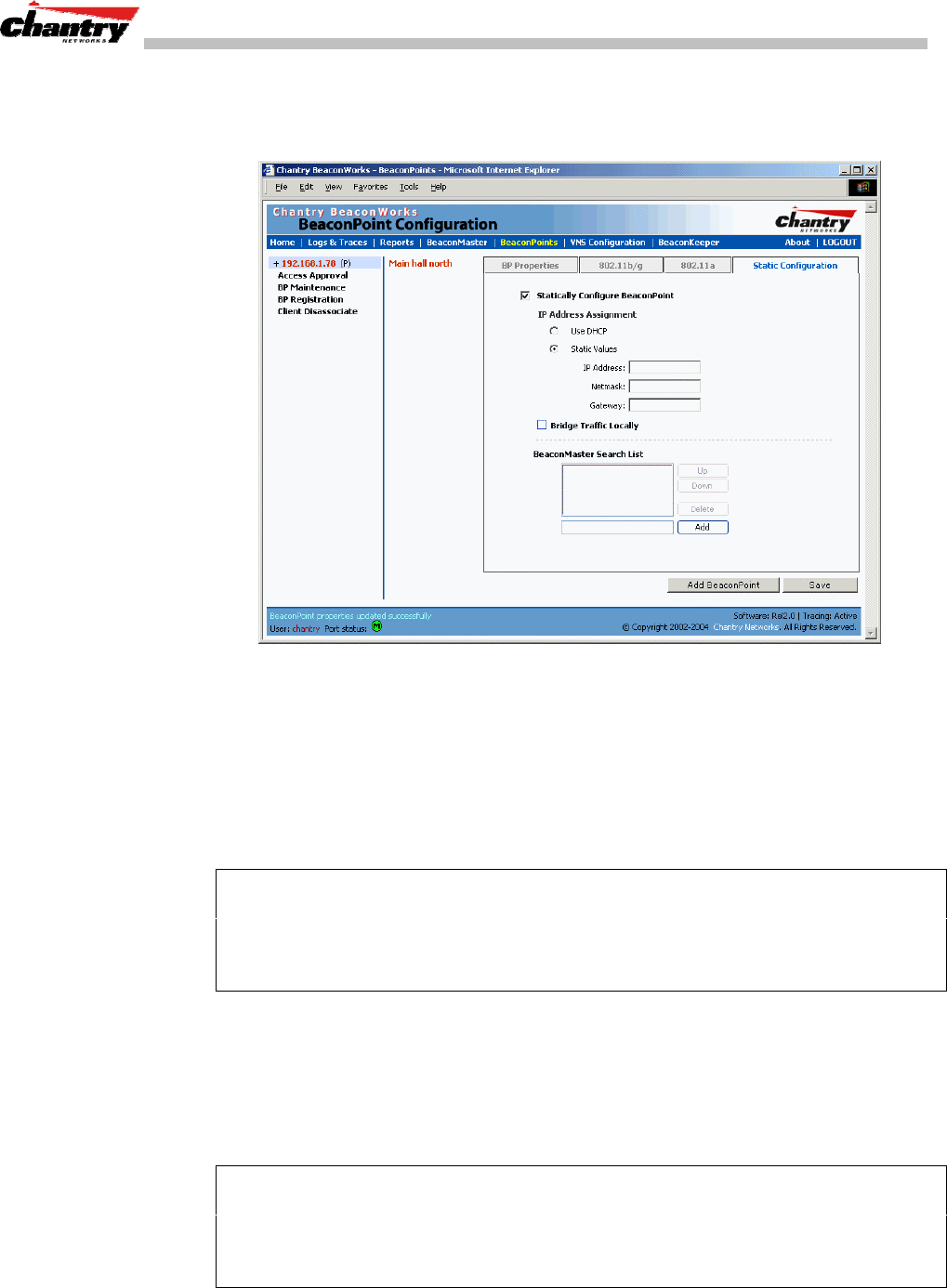

BeaconPoint static configuration: Branch Office, Phase 1

The BeaconPoint static configuration feature provides BeaconWorks capability for a

network with the central office / branch office model.

In the branch office scenario, BeaconPoints are installed in a remote site. The

BeaconPoints require the capability to interact both in the local site network and in the

central headquarters network. To achieve this, the BeaconPoint’s automatic process of

discovery and registration with the BeaconMaster is disabled, and a static

configuration is used instead.

BeaconWorks User Guide – BeaconMaster: Startup

BeaconMaster: Startup

BeaconMaster Features and Installation

The Chantry BeaconMaster is a network device designed to be integrated into an

existing wired Local Area Network (LAN).

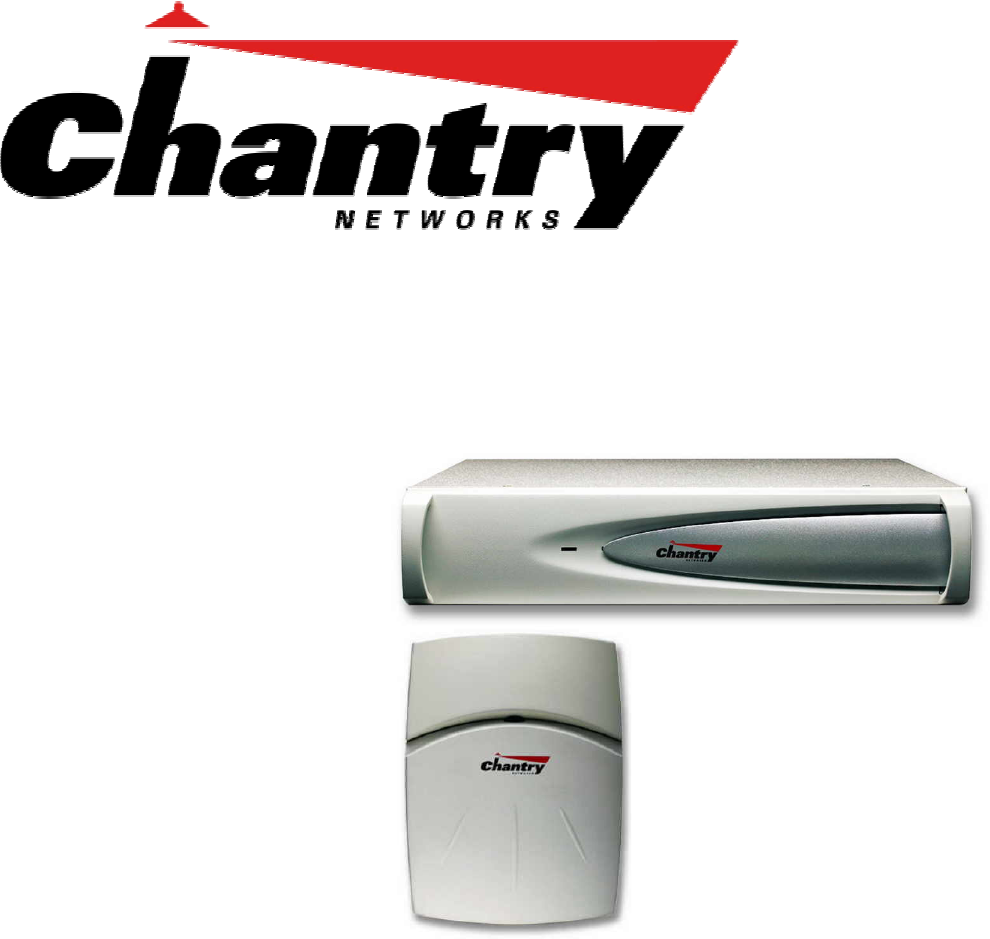

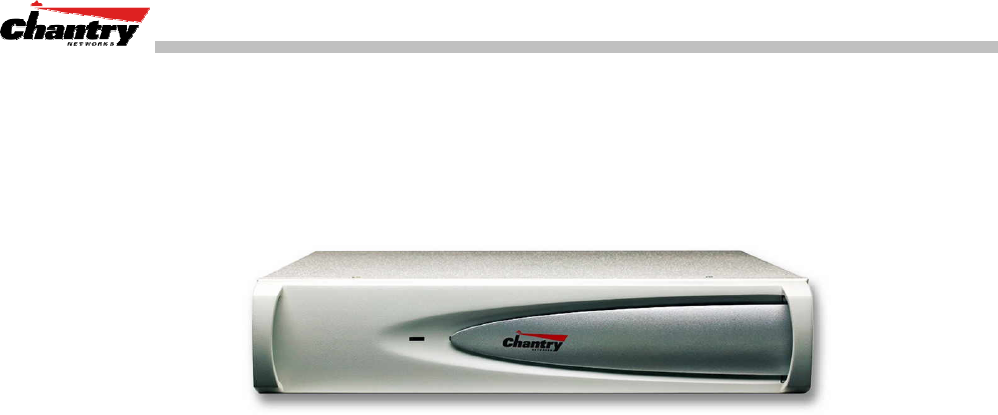

Figure 4: The Chantry BeaconMaster

The BeaconMaster provides centralized management, network access and routing to

wireless devices that are using BeaconPoints to access the network. It can also be

configured to handle data traffic from third-party access points.

The BeaconMaster performs the following functions:

• Controls and configures BeaconPoints, providing centralized management

• Authenticates wireless devices that contact a BeaconPoint

• Assigns each wireless device to a VNS when it connects

• Routes traffic from wireless devices, using VNSs, to the wired network

• Applies filtering policies to the wireless device session

• Provides session logging and accounting capability.

The BeaconMaster is rack-mountable and comes in two models:

•BeaconMaster 100 (BM100):

• Four Fast-Ethernet ports, (10/100 BaseT), supporting up to 60 BeaconPoints

• One management port, (10/100 BaseT)

• One console port (DB9 serial)

• Power supply, either standard (S), or redundant (R)

•BeaconMaster 1000 (BM1000):

• Two GigE ports (dual 1GB SX network interfaces), supporting up to 200

BeaconPoints

• One management port, (10/100 BaseT)

• One console port (DB9 serial)

• Power supply, either standard (S), or redundant (R)

Installing the BeaconMaster

Before you begin installation, make sure that a site survey has been done, to determine

the number and location of BeaconPoints and BeaconMasters required. The site

survey should take a number of factors into consideration, including:

BeaconWorks User Guide – BeaconMaster: Startup

• coverage areas

• number of users

• architectural features that affect transmission

• existing wired network and access to ethernet cabling

• type of mount (wall, ceiling, plenum) for BeaconPoints

• type of power (Power-over-Ethernet or AC adaptor) for BeaconPoints

• physical security of the BeaconMaster, including access control.

Installing the BeaconMaster

1. Unpack the BeaconMaster from its shipment carton. Follow the instructions in the

Installation Guide included with the unit to:

• Check that all parts are present, including the ethernet cross-over cable

• Install the BeaconMaster, using its rack mounts, or stand-alone table mount

• Plug in the BeaconMaster power supply (single or dual).

↑ ↑

Power supply Power On/Off switch

(single or dual)

← Data ports (4-port version)

← Management ports

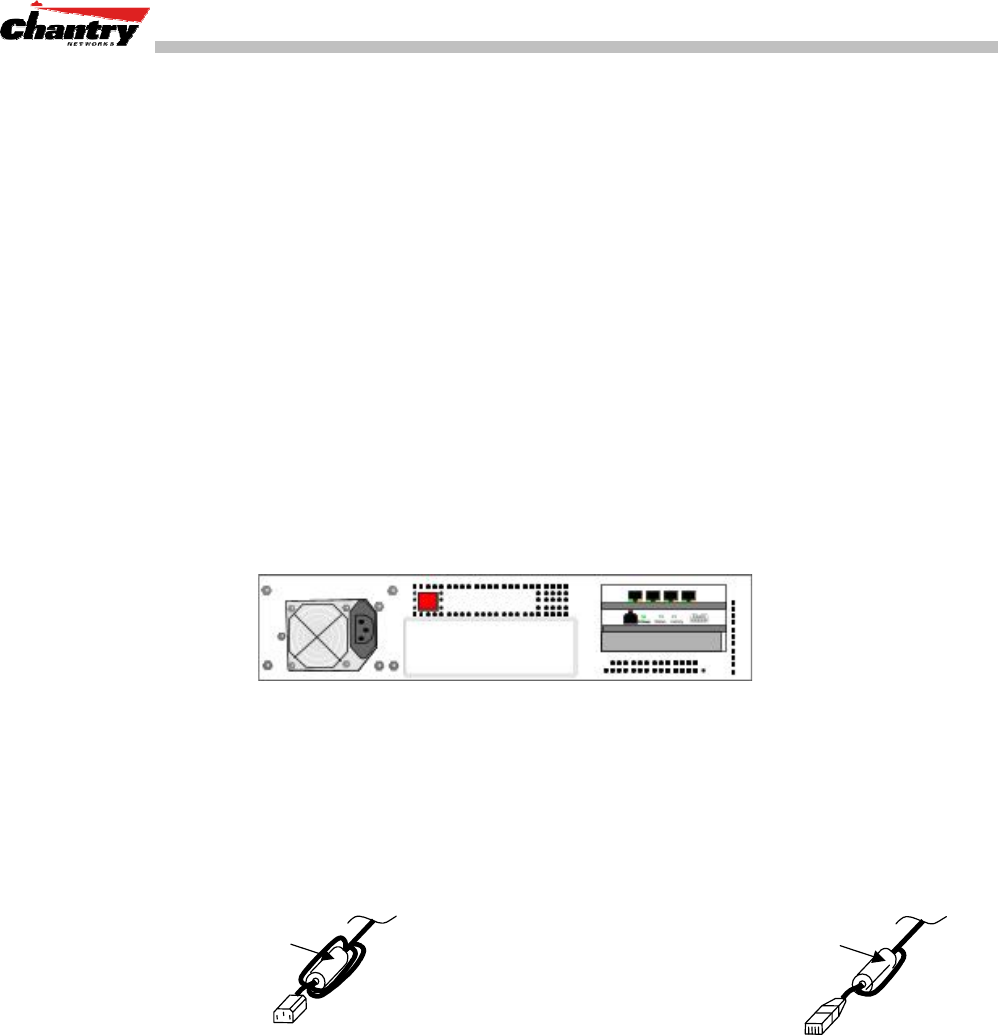

Figure 5: The Chantry BeaconMaster – back view diagram

2. Perform the First-Time Setup of the BeaconMaster, to change its factory default

IP address (see next topic)

3. After that, connect the BeaconMaster to the enterprise LAN.

Power Cord,

BeaconMaster

Steward

28A5776-0A2 Note: Install ferrite beads as shown

in the two diagrams:

← on the BeaconMaster power

supply cord, and on the

BeaconMaster ethernet cable →

RJ45 Data Cord,

BeaconMaster

Steward

28A2024-0A0

First-Time Setup of BeaconMaster

Management Port First-Time Set Up

Before you can connect the BeaconMaster to the enterprise network, you must change

the IP address of the BeaconMaster management port from its factory default to the IP

address suitable for your enterprise network.

To access the BeaconMaster for this initial setup, use a laptop computer, running

Internet Explorer 6.0 (or higher) web browser, attached to the BeaconMaster’s

ethernet Management Port (RJ45 port) via an ethernet cross-over cable (cable

provided with the BeaconMaster).

BeaconWorks User Guide – BeaconMaster: Startup

The factory default management port setup of the BeaconMaster is:

Host Name: BM0001

Management Port IP address: 192.168.10.1:5825

Management Network Mask: 255.255.255.0

Changing the Management Port IP address web browser, ethernet port method

1. Connect a cross-over ethernet cable between the ethernet port of the laptop and

ethernet Management Port of the BeaconMaster.

2. Statically assign an unused IP address in the 192.168.10.0/24 subnet for the

ethernet port of the PC (for example, 192.168.10.205).

3. Run Internet Explorer (version 6.0 or above) on the laptop.

4. Point the browser to the URL https://192.168.10.1:5825. This URL launches the

web-based GUI on the BeaconMaster.

The Chantry BeaconWorks system login screen appears.

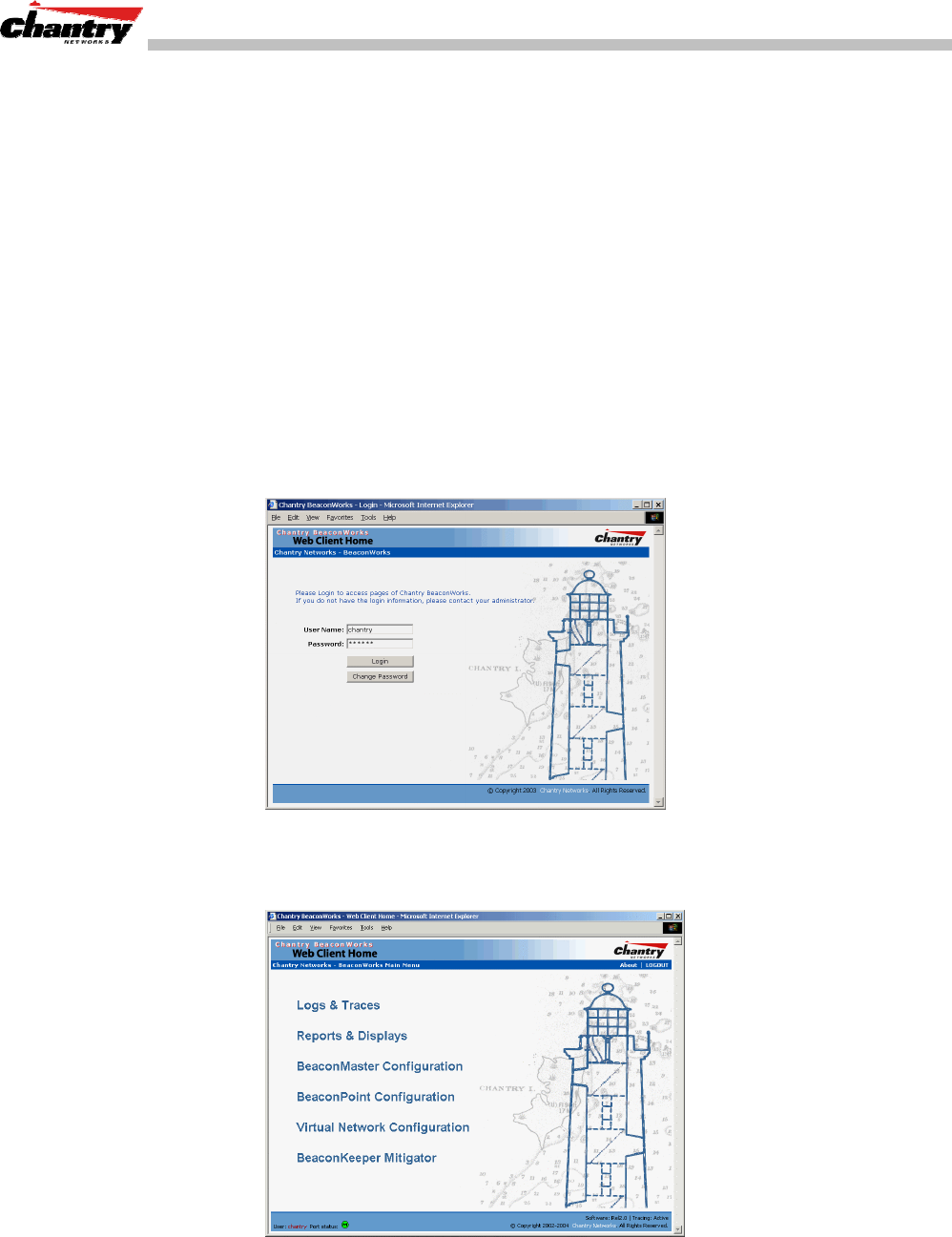

Screen 1: Chantry BeaconWorks User Interface Login

5. Key in the factory default User Name (“chantry”) and Password (“abc123”) .

Click on the Login button. The main menu screen appears.

Screen 2: Chantry BeaconWorks User Interface Main Menu

6. Click on the BeaconMaster Configuration menu option to navigate to the

BeaconMaster Configuration screen.

BeaconWorks User Guide – BeaconMaster: Startup

7. In the left-hand list, click on the IP Addresses option. The Management Port

Settings area (top portion of the screen) displays the factory settings for the

BeaconMaster.

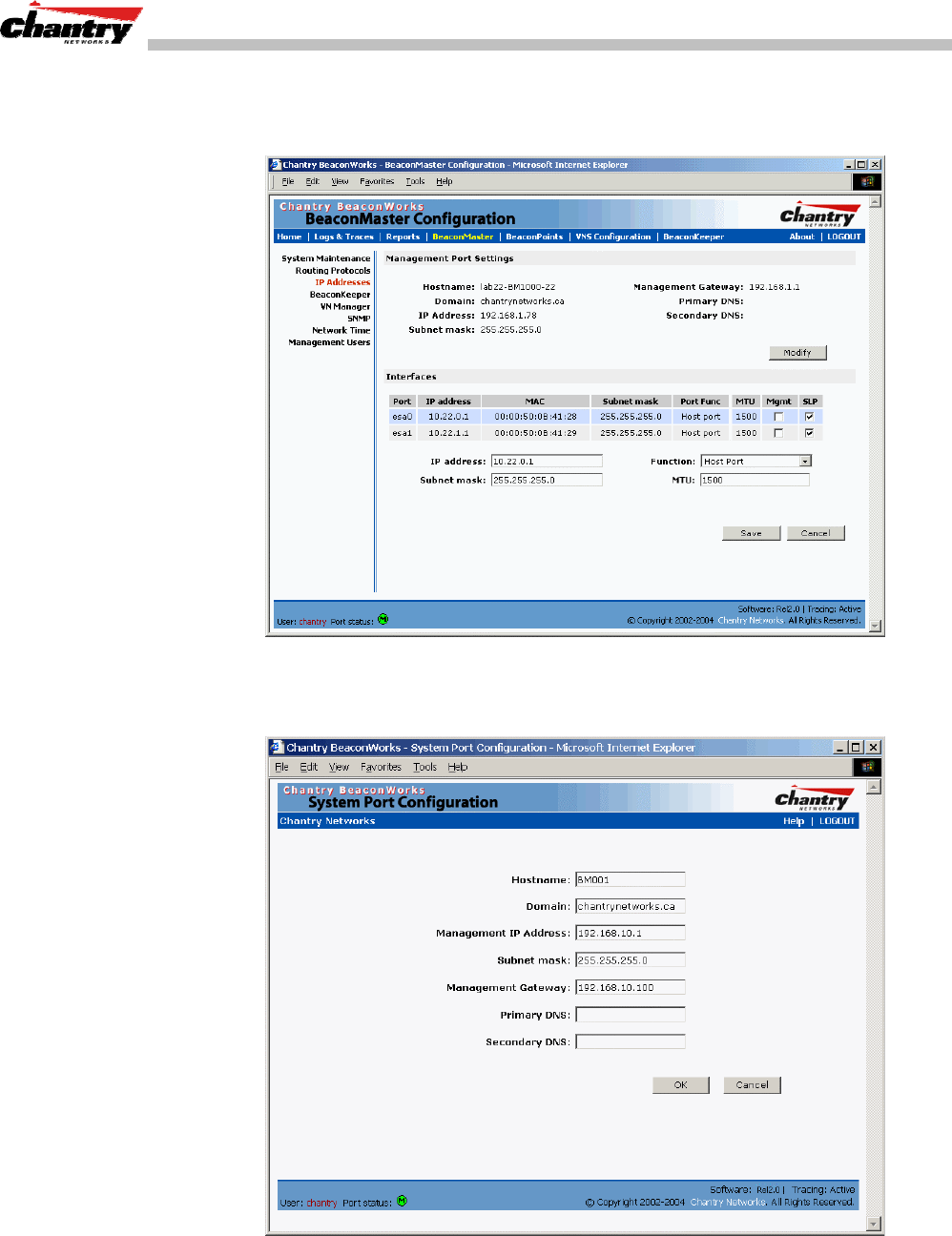

Screen 3: BeaconMaster Configuration – IP Addresses – Management Port

8. To modify Management Port Settings, click the Modify button. The System Port

Configuration screen appears.

Screen 4: Modify Management Port Settings (System Port Configuration)

BeaconWorks User Guide – BeaconMaster: Startup

9. Key in:

Hostname The name of the BeaconMaster.

Domain The IP domain name of the enterprise network

Management The new IP address for the BeaconMaster’s management

IP Address port (change this as appropriate to the enterprise network).

Subnet mask For the IP address, the appropriate subnet mask to separate

the network portion from the host portion of the address

(typically 255.255.255.0)

Management Gateway The default gateway of the network.

Primary DNS The primary name server used by the network.

Secondary DNS The secondary name server used by the network.

10. Click OK to return to the BeaconMaster Configuration screen.

11. Click on the Save button, to save the port changes.

The web connection between the laptop and the BeaconMaster is now lost, because

their IP addresses are now on different networks.

Add the BeaconMaster to your enterprise network

1. Disconnect the laptop from the BeaconMaster Management Port.

2. Connect the BeaconMaster Management Port to the enterprise ethernet LAN.

Now you will be able to launch the BeaconWorks GUI again, with the system visible

to the enterprise network.

The remaining steps in initial configuration of the BeaconWorks system are described

in the next topic, after an overview of the GUI.

BeaconWorks User Guide – BeaconMaster: Startup

The Graphical User Interface (GUI): Overview

Note: The Chantry Graphical User Interface is web-based. The only browser it

supports is Microsoft Internet Explorer 6.0 or above.

The administrator can configure and administer the BeaconWorks system using the

web-based Graphical User Interface.

To run the Graphical User interface

1. Launch Microsoft Internet Explorer (version 6.0 or above).

2. In the address bar, key in the URL https://x.x.x.x:5825

(your management gateway as defined in initial setup plus port 5825, formerly

factory default 192.168.10.1:5825)

The Chantry BeaconWorks system login screen appears.

Screen 5: Chantry BeaconWorks User Interface Login

3. Key in the factory default User Name (“chantry”) and Password (“abc123”).

Note: In the BeaconMaster Configuration: Management Users screen, you can define

which user names have full read/write access to the user interface (“Admin” users)

and which users have “read-only” privileges. This is described in a later topic.

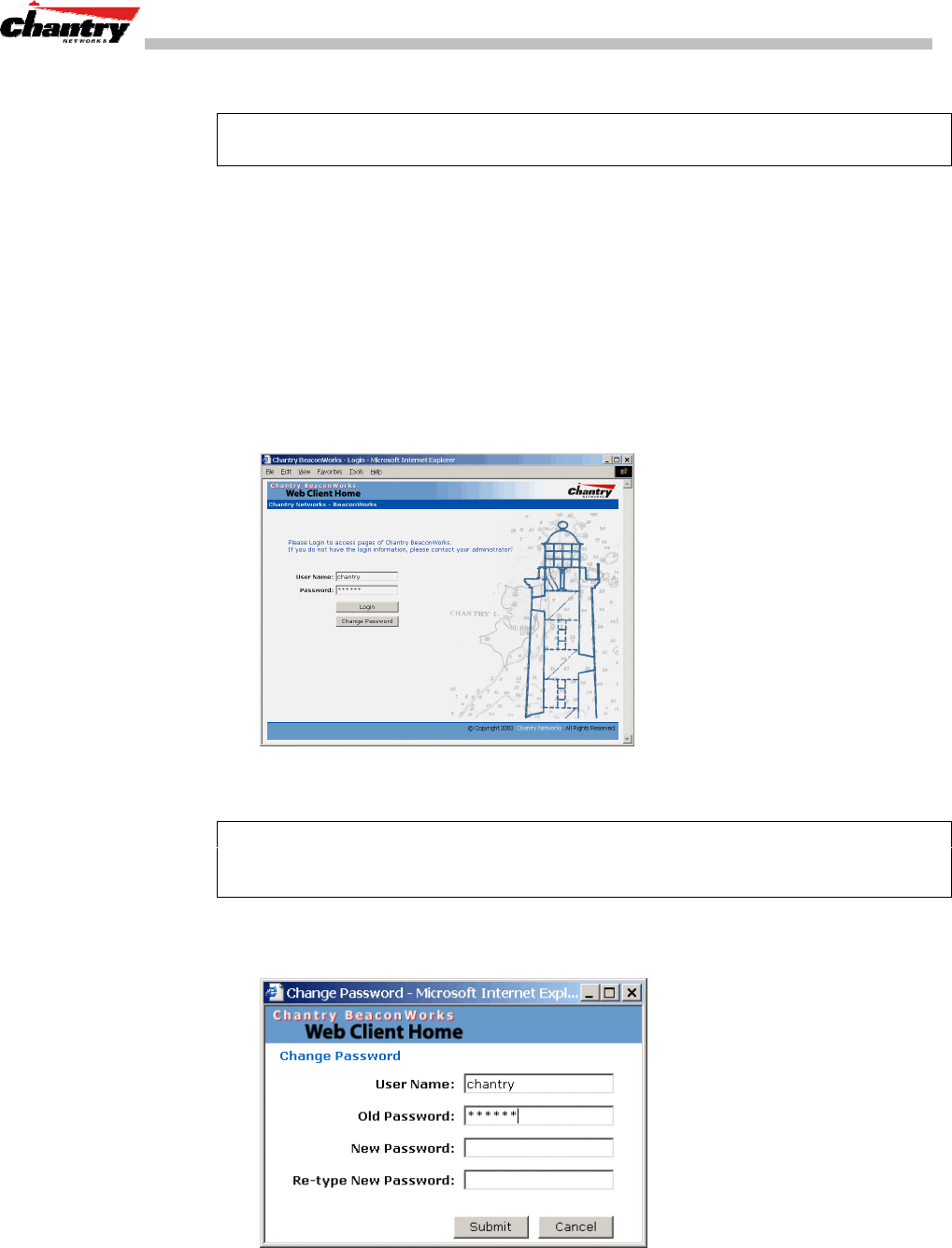

4. To change the password, click on the Password button. The Change Password

popup screen appears.

Screen 6: Change Password popup

5. Enter the new password and click on the Submit button.

BeaconWorks User Guide – BeaconMaster: Startup

6. In the Login screen, click on the Login button. The main menu screen appears.

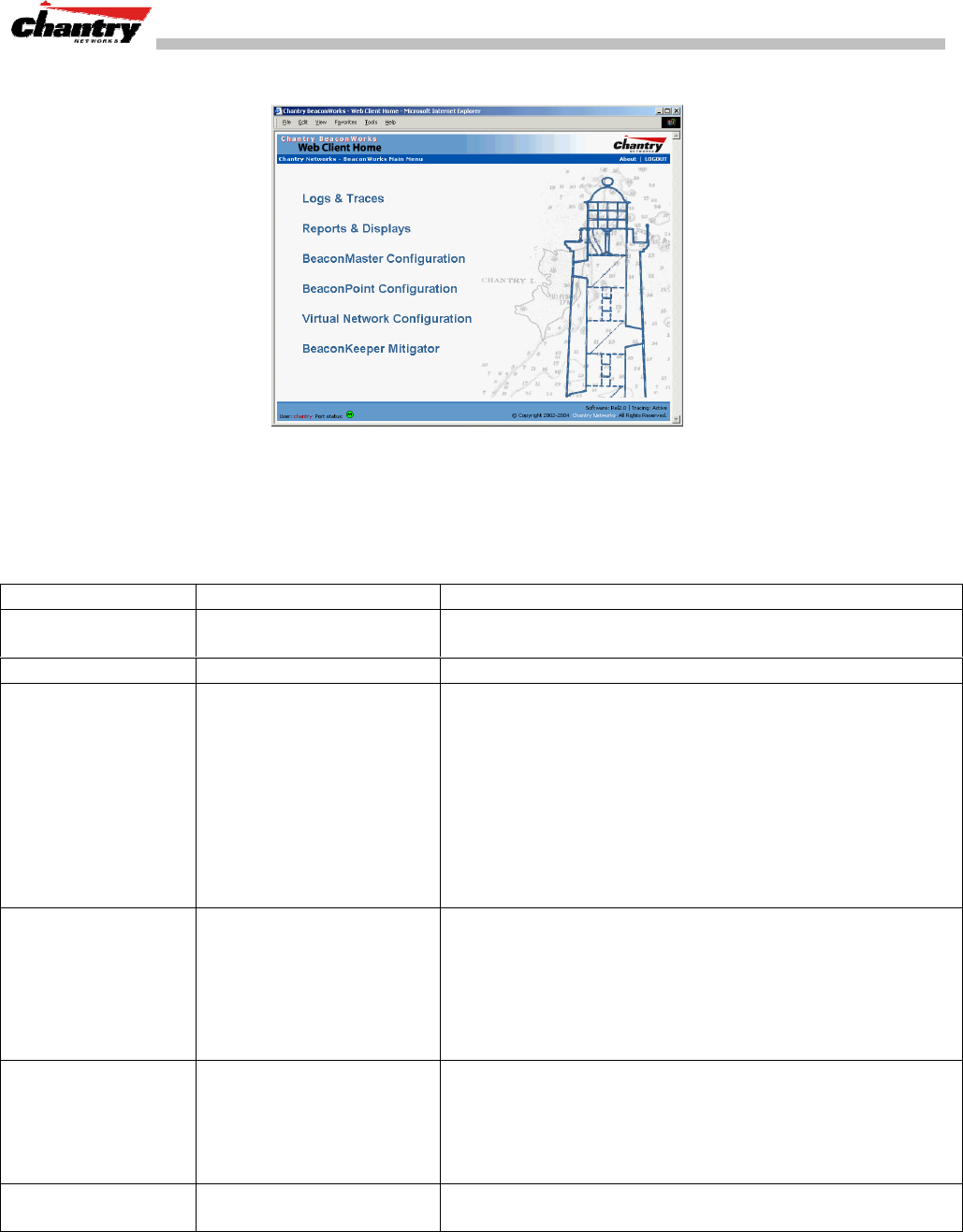

Screen 7: Chantry BeaconWorks Main Menu

The five areas in the BeaconWorks user interface are accessed from the main menu

(above) or, in each area, by clicking on the tab across the top of each screen. Within

each area, you access the associated subscreens by clicking on an item in the left-hand

list in each screen. A few subscreens are popups from buttons on the parent screen.

Tab Screen Function

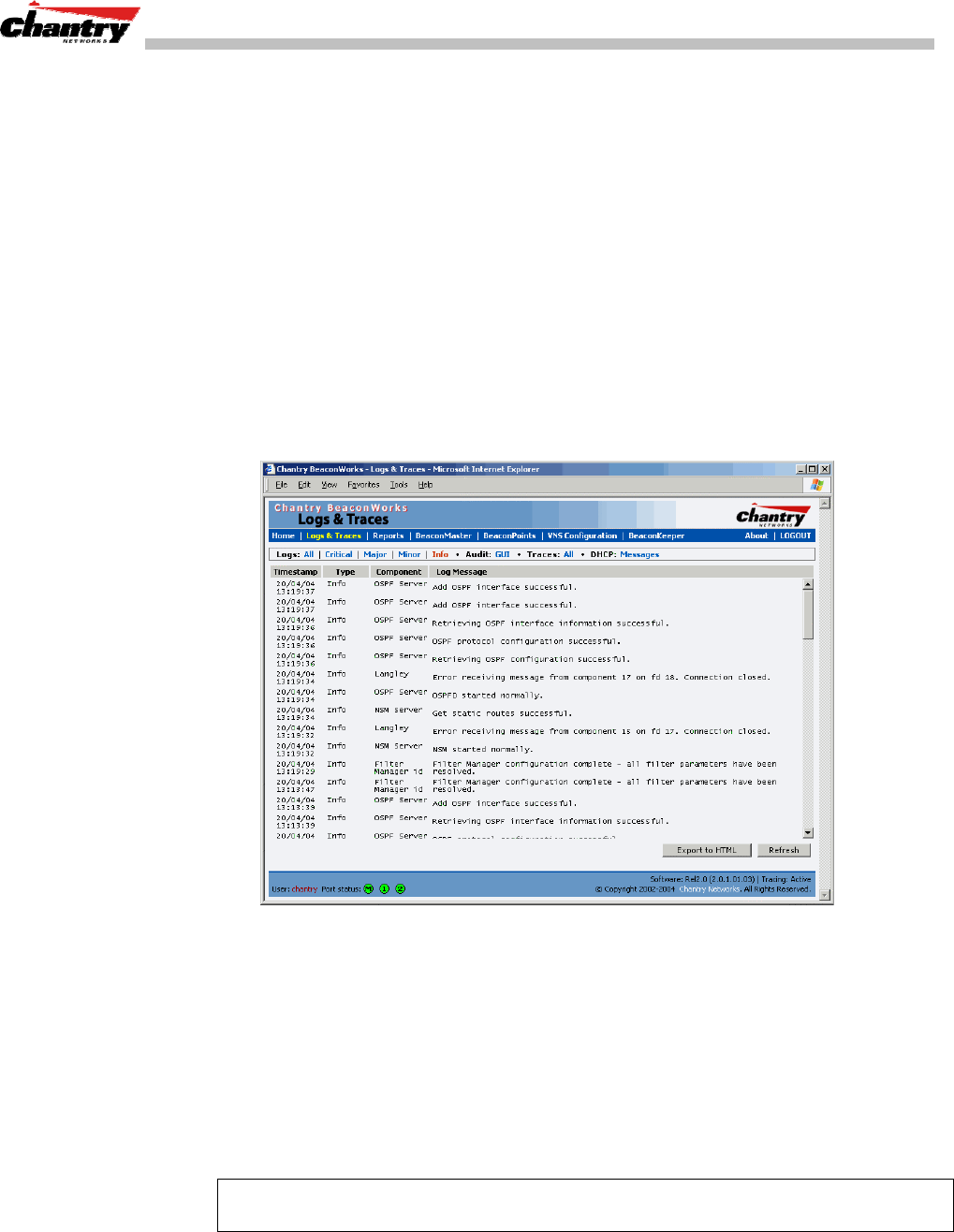

Logs & Traces Logs normal events and alarm events.

Trace logs are by component.

Reports & Displays Access to various on-screen reports

BeaconMaster

Configuration

System Maintenance

Routing Protocols

IP Addresses

BeaconKeeper

VN Manager

SNMP

Network Time

Management Users

Various: shutdown, enable syslog.

Define static routes, configure OSPF.

Set up management port (Modify screen)

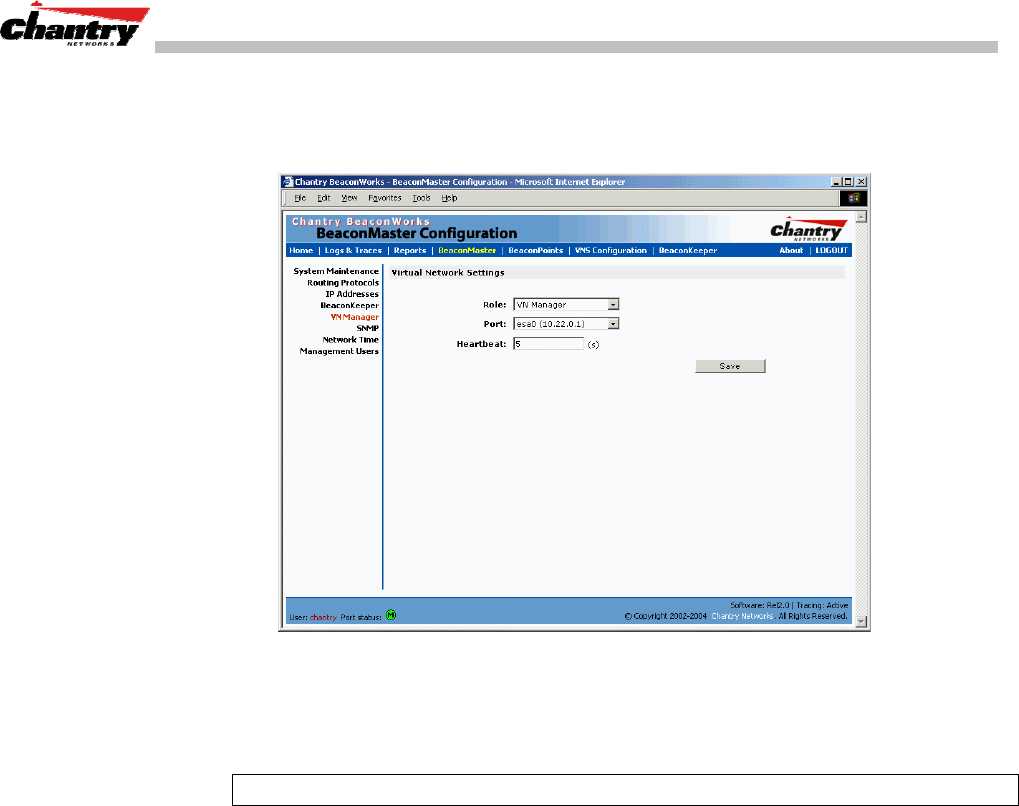

Set up the data ports.

Enable “detect rogue APs” mechanism.

Manage multiple BeaconMasters.

Enable SNMP messages to be sent.

Configure synchronized time.

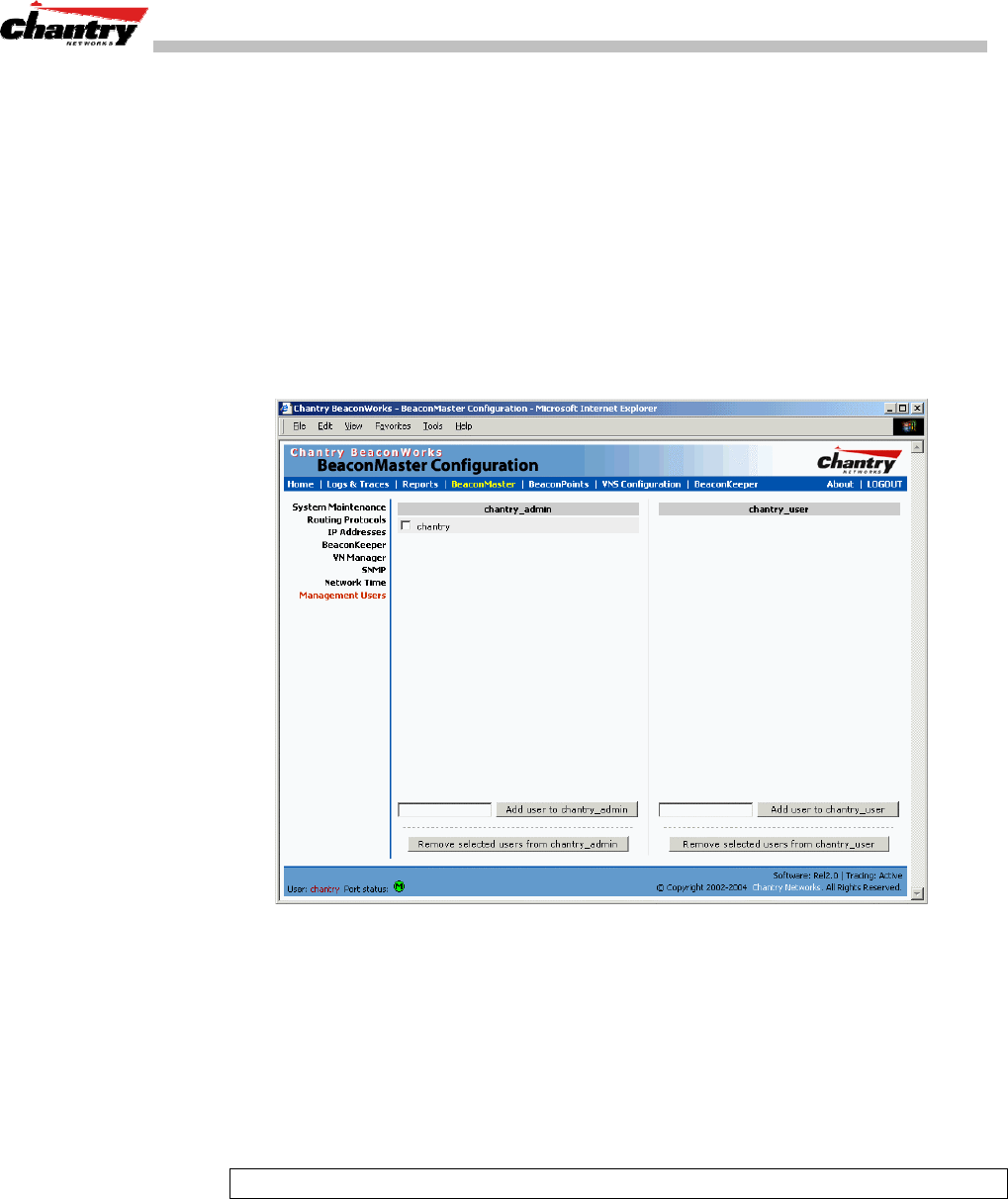

Define user level.

BeaconPoint

Configuration

Highlight a BP

Access Approval

BP Maintenance

BP Registration

BP Failover

Client Disassociate

Modify properties, radios, static config.

Modify the status of a BeaconPoint.

View and set up BP software upgrade.

Define registration mode, pairing of BPs.

View failover VNS, part of VN Manager.

Force a wireless device to disassociate

Virtual Network

Configuration

Add a subnet

VNS Topology

VNS Authentication

VNS Filtering

VNS Privacy

Left-hand list. Enter name. Click to add.

Define the VNS

Define Filter IDs

Define filtering rules to control access

Set up WEP keys or WPA privacy.

BeaconKeeper

Mitigator

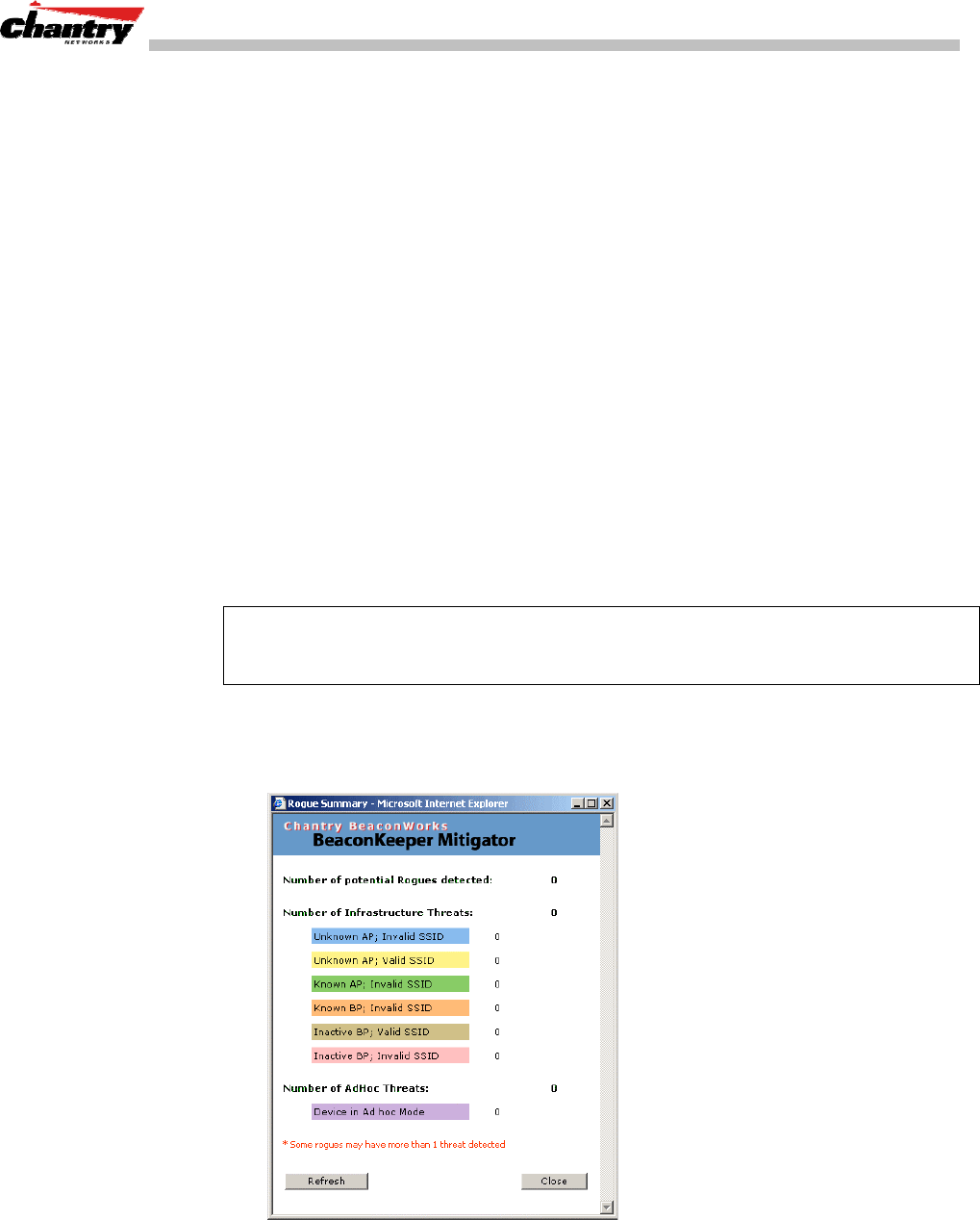

Configure and view reports for the BeaconKeeper Mitigator

(rogue access point detection)

BeaconWorks User Guide – BeaconWorks Configuration Steps: Overview

BeaconWorks Configuration Steps: Overview

To set up and configure the BeaconMaster and BeaconPoints, follow these steps:

1. First-Time Setup: Perform “First-Time Setup” of the BeaconMaster on the

physical network by configuring the Management Port (as described earlier):

• modify the Management Port IP address to suit the enterprise network.

2. Data Port Setup: Set up the BeaconMaster on the physical network by configuring

the physical data ports. Determine whether the data ports will be:

• “host port”

• “router port”

• “3rd party AP port”

3. Routing Setup: For any port defined as a “router port”, configure:

• static routes

• OSPF parameters, if appropriate to the network

4. BeaconPoint Initial Setup: Connect the BeaconPoints to the BeaconMaster:

• first determine their Registration mode (in the BeaconPoint Registration

screen)

• then power on the BeaconPoints (they will perform an automatic discovery

and registration process described in this User Guide)

5. BeaconPoint Configuration: Modify properties or settings of the BeaconPoint, if

desired.

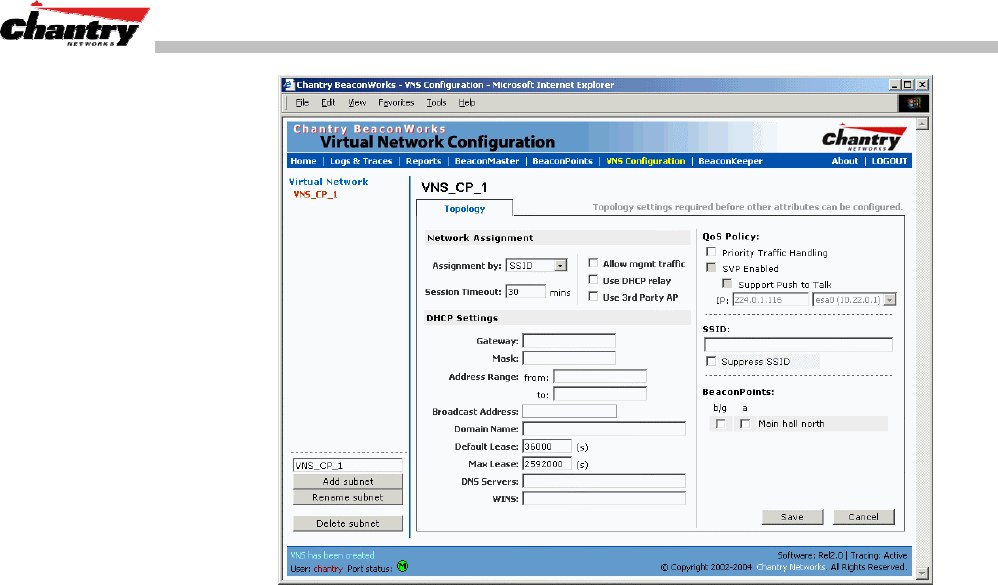

6. Virtual Network Services (VNS) Setup: Set up one or more virtual subnetworks, on

the BeaconMaster. For each VNS:

• select radios on the BeaconPoints that the VNS will use.

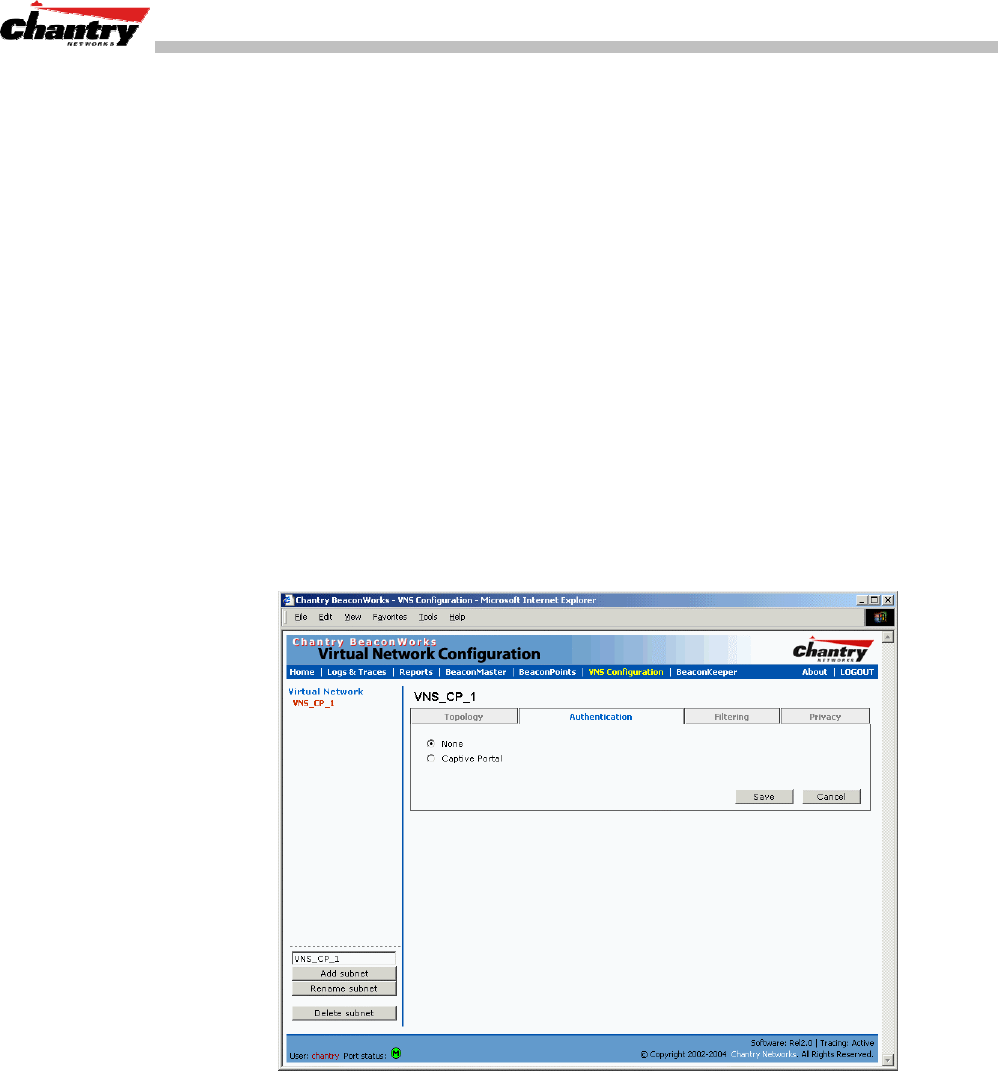

• select and configure the authentication method for the wireless device user.

• select and configure the privacy method on the VNS.

7. Filtering Rules Setup: For each VNS, define the filtering rules that will control

network access:

• define global and default filtering rules, depending on network assignment

and authentication method

• define specific filtering rules for the Filter IDs (defined user groups in your

enterprise) that you want on this VNS.

Each of these steps is described in detail in the relevant section of this User Guide.

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

BeaconWorks Configuration: Data Port and Routing Setup

Once the “First-Time Setup” described above is complete, the next step in the initial

setup of the BeaconMaster is to configure the data ports. Next, you can define routing

on a data port, if appropriate.

Setting Up the Data Ports

Configuring the data ports on the BeaconMaster

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears.

2. In the left-hand portion of the screen, click on the IP Address option. The

Management Port Settings and Interfaces screen appears.

The lower portion of the BeaconMaster Configuration screen displays the

Interfaces, either the four ethernet ports (for the BM100), or the two ports (for

the BM1000). For each port, the MAC address is displayed automatically.

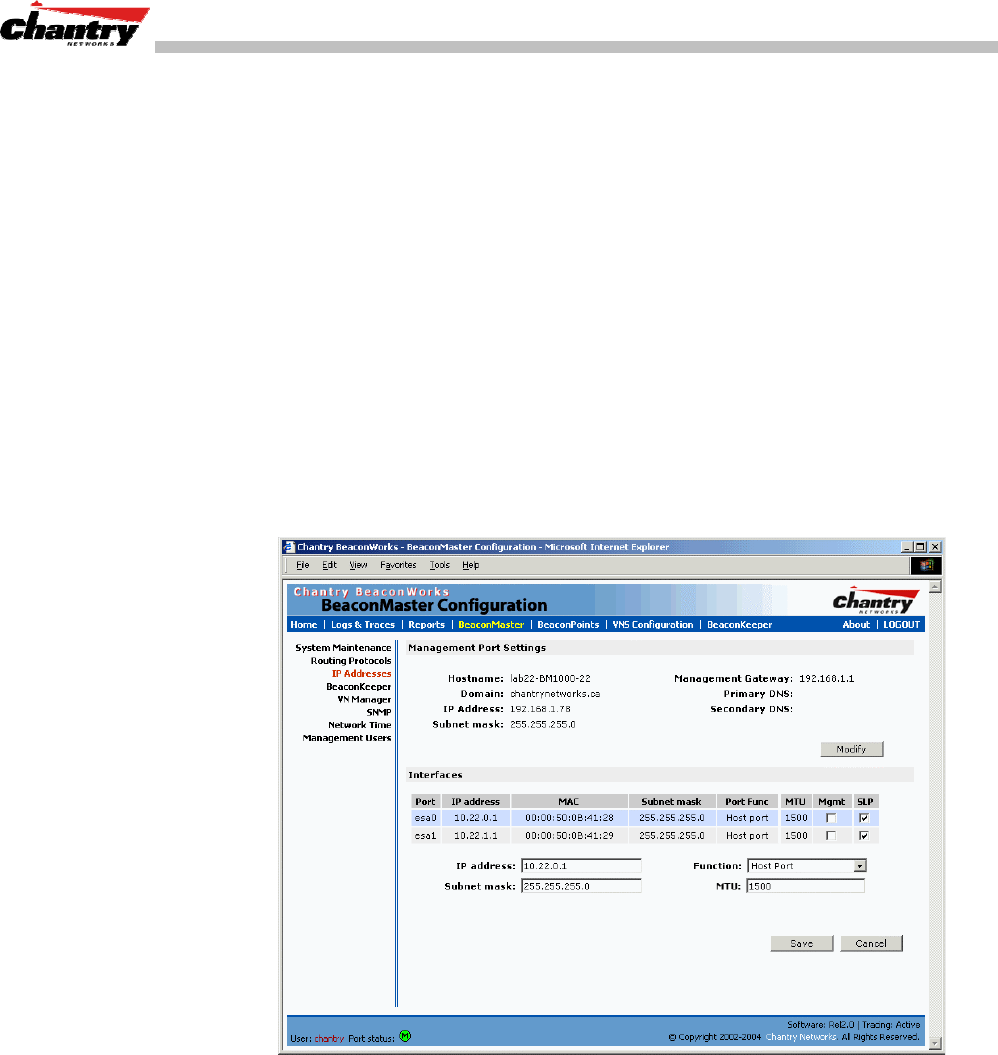

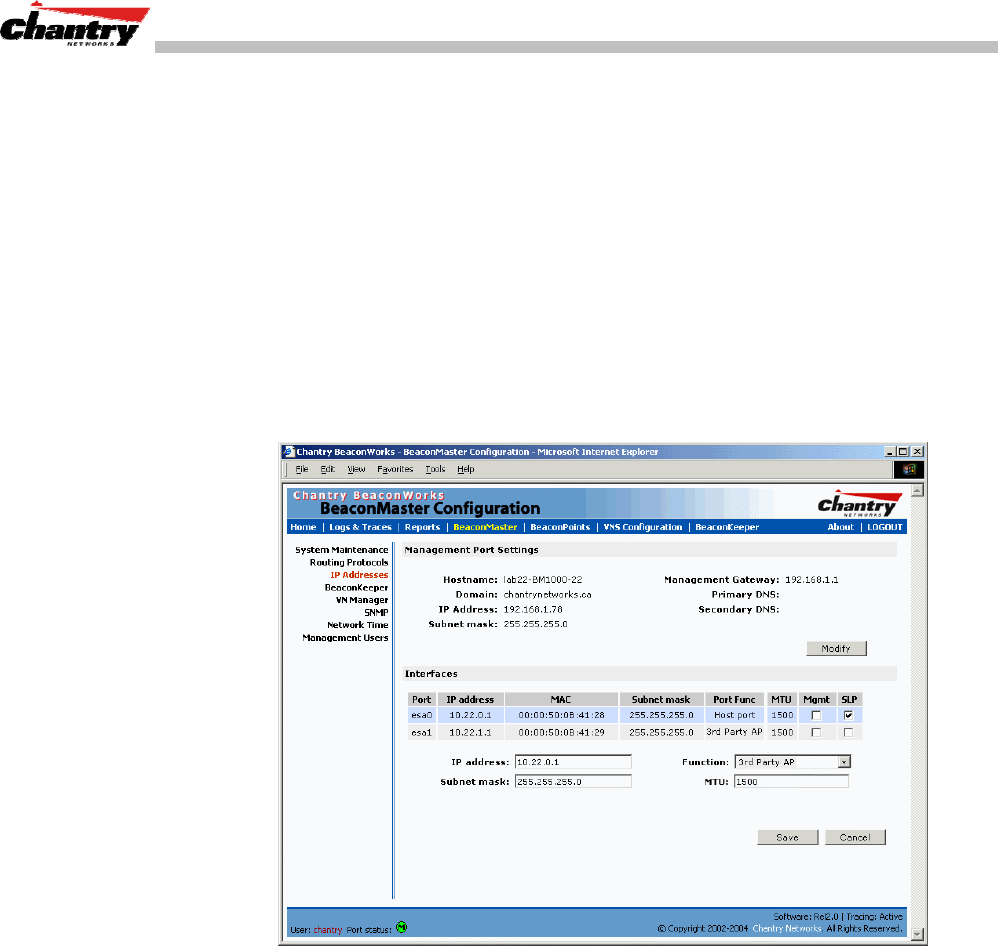

Screen 8: BeaconMaster Configuration – IP Addresses / Interfaces

3. Click in a port row to highlight it.

4. For the highlighted port, key in the:

IP address IP Address of the physical ethernet port.

Subnet mask For the IP address, the appropriate subnet mask to separate the

network portion from the host portion of the address (typically

255.255.255.0)

MTU Maximum Transmission Unit (maximum packet size for this

port). Default setting is 1500. Do not change this setting.

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

Note: In a “Branch Office” scenario, where the BeaconPoint is configured statically to

function on a local network whose MTU is lower than 1500, a mechanism on the

BeaconMaster automatically adjusts the MTU size to prevent packet fragmentation.

5. For the highlighted port, select its Function from the drop-down list: Host Port,

3rd Party AP, Router (see “Port Type” explanation below)

Note: It is recommended that one port be configured as a “Router” Port, so that static

routes and/or OSPF routing can be defined for the BeaconMaster. See next topic.

6. For the highlighted port, click the Mgmt checkbox on to allow Management

Traffic on this port.

7. For the highlighted port, click the SLP checkbox on to allow SLP protocol on this

port for BeaconPoint discovery and registration.

Note: For the implications of these two options, see Port-Level Filtering (after the

next topic).

8. To save the port configuration, click Save.

To cancel the entries without saving, click Cancel.

Port Type or Function

A new BeaconMaster is shipped from the factory with all its data ports set up as “Host

ports”, and support of management traffic disabled on all data ports.

In the user interface, you can redefine the data ports to function as one of three types:

•Host Port

Define as “Host Port” any port to which only BeaconPoints are connected, in a

typical installation. When BeaconPoints are attached to a host port and assigned to

a VNS (see later in this guide), a virtual VNS port is created and wireless device

traffic is directed to the virtual VNS port, allowing the BeaconMaster to forward

traffic. IP forwarding and routing are disabled for third-party hosts attached to a

“Host Port”.

•Third-Party Access Point Port

Define as “3rd-Party AP” any port to which you will connect only third-party

access points, in order for the BeaconMaster to manage these access points. The

BeaconMaster uses a combination of network routing and authentication

techniques to forward traffic on this port. BeaconPoints must not be attached to a

“3rd-Party AP” port.

•Router Port

Define as “Router Port” a port that you wish to connect to an upstream next-hop

router in the network. Dynamic routing protocol such as OSPF can be turned on

for this port type.

BeaconPoints can be attached to a “Router” port. The BeaconMaster will create a

virtual VNS port and handle wireless device traffic in the same manner as a “Host

port”. Third-party access points must not be directly connected to a “Router” port

(unless the BeaconMaster is not required to manage these access points).

There is a fourth port type that is not configurable in the user interface:

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

•Virtual Network Services (VNS) Interface

A VNS port is a virtual port created automatically on the BeaconMaster when a

new VNS is defined (see later in this guide.) The VNS port becomes the default

gateway for wireless devices on this VNS. No BeaconPoints can be associated

with a VNS port and no routing is permitted on this port.

Note: The Management Port is always a Host port, with management traffic support

enabled.

The chart below summarizes the port types and their functions:

Port Type IP Forwarding BeaconPoint

support

Management traffic support

(SNMP, HTTP, TELNET,

SLP, RADIUS, DHCP)

Routing protocol

support (IP,

OSPF and PIM)

Host No Yes Selectable No

Third-Party AP No No Selectable No

Router Selectable

Route wireless device

traffic only

Yes Selectable Selectable

VNS No No Selectable No

Port-Level Filtering of Unauthorized Traffic

Port-based filters on the BeaconMaster are built in to protect it from unauthorized

access to system management functions and services via the ports.

When you select a port type, you automatically activate a set of filtering rules that

allow or deny traffic seeking access to specific services. For example:

• Router and Host interfaces allow access to specific management applications

(SSH, HTTPS, SNMP) and to BeaconPoint registration mechanisms.

• Third Party AP and VNS interfaces deny access to management and BP

registration mechanisms, but allow access to captive portal (HTTP, HTTPS) and IP

assignment infrastructure (DHCP).

Only traffic allowed by the interface’s filter are allowed to reach the BeaconMaster

itself. All other traffic is dropped.

The physical Management Port that you configured in “First-Time Set-up” has a

restricted set of Management Traffic filtering rules that apply automatically. These

rules allow incoming traffic for SSH, HTTPS, FTP, SNMP, and outgoing traffic for

Syslog, NTP, and RADIUS, both directions for ICMP, and then deny all other traffic.

When you enable Management Traffic on one of the data ports (clicking the checkbox

on), you will activate the Management Traffic filter on that port. There is a second

way to enable Management Traffic, and invoke this implicit filter – in the VNS

Configuration: Topology, you can allow Management Traffic on a VNS by clicking a

checkbox on. (See later in this Guide.)

Note: These implicit or built-in filtering rules work in conjunction with the VNS

filtering rules that you can define in a VNS Configuration (described later in this

Guide). The implicit rules on a port always override the administrator-defined rules,

unless specific access is defined and allowed, as in a filter for Captive Portal.

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

Setting up Static Routes

It is recommended that one of the data ports be configured as a “Router” port. Then

you can define a default route to your enterprise network, either with a static route or

by using OSPF protocol. This will enable the BeaconMaster to forward wireless

packets to the remainder of the network.

Setting up a Static Route on the BeaconMaster

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears.

2. In the left-hand portion of the screen, click on the Routing Protocols option.

Then click the Static Routes tab. The Static Routes screen appears.

Screen 9: BeaconMaster Configuration – Static Routes

3. To add a new route, click in the Destination Address field, and key in the

destination IP address of a packet.

[The destination network IP address that this static route applies to. Packets with

this destination address will be sent to the Destination below.]

To define a default static route for any unknown address not in the routing table,

key in 0.0.0.0

4. Key in the Subnet Mask. For the IP address, the appropriate subnet mask to

separate the network portion from the host portion of the address (typically

255.255.255.0)

For the default static route for any unknown address, key in 0.0.0.0.

5. Select an outbound destination for the packets, either:

Click on the radio button in the Gateway field, and key in the IP address of the

gateway (the IP address of the specific router port or gateway, on the same subnet

as the BeaconMaster, to which to route these packets; that is, the IP address of the

next hop between the BeaconMaster and the packet’s ultimate destination) ,

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

Click on the Interface button, and select a port from the drop-down list.

6. Click on the Add button. The new route appears in the list, numbered sequentially.

7. Click on Save to update the routing table on the BeaconMaster.

Viewing the Routing Table on the BeaconMaster

To view the static routes that have been defined for the BeaconMaster, click on

the View Forwarding Table tab. This displays the Forwarding Table Screen from

the Reports & Displays area of the user interface.

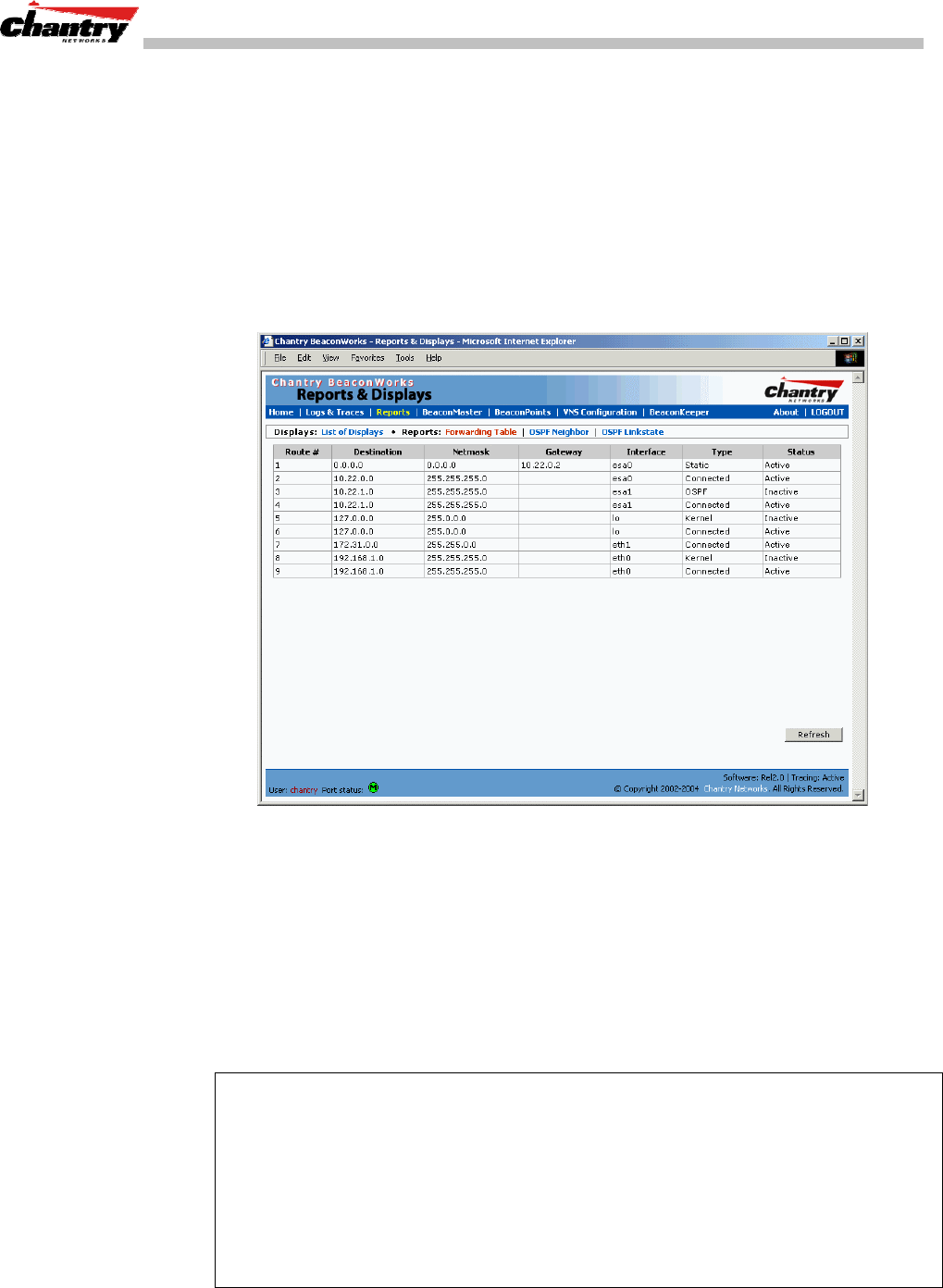

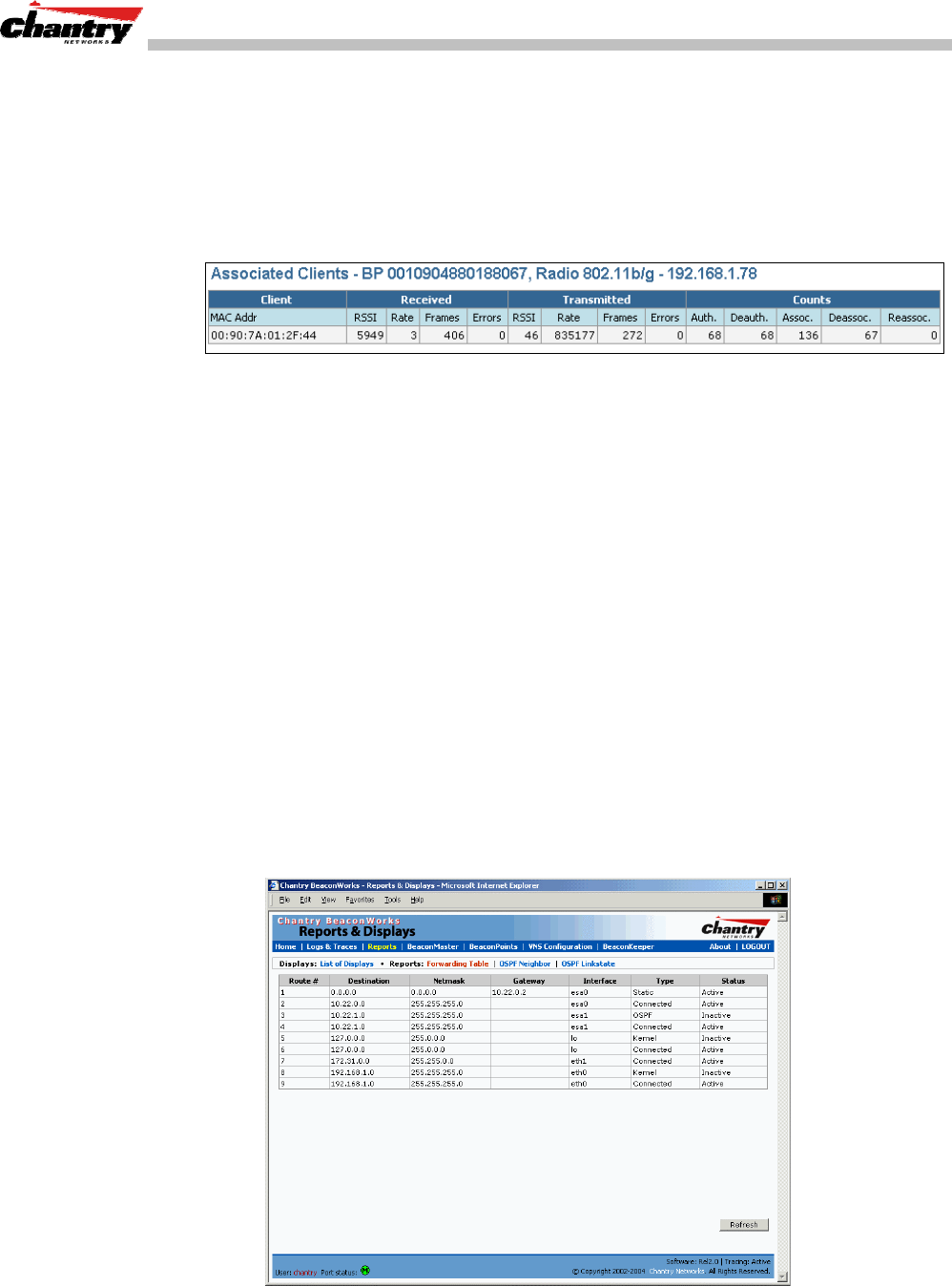

Screen 10: Report – Forwarding Table

This report displays all defined routes, whether static or OSPF, and their current

status. To update the display, click on the Refresh button.

Setting up OSPF Routing

For each data port defined as a “Router Port”, you can enable OSPF (as well as, or

instead of, defining static routes). First, you enable OSPF on the BeaconMaster, and

define the global OSPF parameters. Then you enable (or disable) OSPF on each port

that you defined as a “Router Port” in the data port setup.

Note: Ensure that the OSPF parameters defined here for the BeaconMaster are

consistent with the adjacent routers in the OSPF area. For example:

• If the peer router has different timer settings, the protocol timer settings in the

BeaconMaster must be changed to match, in order to achieve OSPF adjacency.

• The MTU of the ports on either end of an OSPF link must match. The MTU for

ports on the BeaconMaster is defined as 1500, in the Interfaces area of the IP

Addresses screen, during data port setup. This matches the default MTU in

standard routers.

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

Setting up OSPF Routing on the BeaconMaster

1. Click on the OSPF tab in Routing Protocols screen. The OSPF Settings screen

appears.

Screen 11: BeaconMaster Configuration – Routing, OSPF tab

2. In the Global Settings area, enable OSPF on the BeaconMaster by filling in the

following fields:

OSPF Status: To enable OSPF, select ON from the drop-down list.

Router ID: If left blank, the OSPF daemon will automatically pick a

router ID from one of the BeaconMaster’s interface IP

addresses.

If filled in here with the IP address of the BeaconMaster, this

ID must be unique across the OSPF area.

Area ID: 0 is the main area in OSPF

(Note: The Area ID must be the same for all ports on the

BeaconMaster defined as router ports, to avoid creating an

area boundary in the BeaconMaster.)

Area Type: Select Default (Normal), Stub or Not-so-stubby (OSPF area

types) from the drop-down list.

3. To save these settings, click on the Save button.

4. In the Port Settings area, for each data port defined as a “Router Port”, you can

enable (or disable) OSPF by filling in the following fields:

Port Status: To enable OSPF on the port, select Enabled from the drop-

down list.

Link Cost: Key in the OSPF standard for your network for this port.

Default displayed is 10. (The cost of sending a data packet

on the interface. The lower the cost, the more likely the

interface is to be used to forward data traffic.)

BeaconWorks User Guide – BeaconWorks Configuration: Data Port and Routing Setup

Note: If more than one port on the BeaconMaster is enabled for OSPF, it is desirable

to prevent the BeaconMaster from serving as a router for other network traffic (other

than the traffic from wireless device users controlled by the BeaconMaster). One

solution is to set the Link Cost to its maximum value of 65535. This will ensure that

the BeaconMaster is never the preferred OSPF route. Filters should also be defined in

the Virtual Network Configuration – Filtering screen that will drop routed packets.

Authentication: From the drop-down list, select the authentication type set up

for the OSPF on your network: None or Password.

Password: If “Password” was selected above, key it in here. This

password must match on either end of the OSPF connection.

Dead-Interval: Time in seconds (displays OSPF default).

Hello-Interval: Time in seconds (displays OSPF default).

Retransmit-Interval: Time in seconds (displays OSPF default).

Transmit delay: Time in seconds (displays OSPF default).

5. To save these settings, click on the Save button.

To confirm that the ports are set up for OSPF, and that advertised routes from the

upstream router are recognized, view the Forwarding Table report (described above

for static routes) by clicking the tab. This display shows the current routing table,

displaying the default, connected, static and OSPF routes.

Two additional reports in the Reports and Displays area of the GUI display OSPF

information when the protocol is in operation:

•OSPF Neighbor report displays the current neighbors for OSPF (routers that have

interfaces to a common network)

•OSPF Linkstate report shows the Link State Advertisements (LSAs) received by

the currently running OSPF process. The LSAs describe the local state of a router

or network, including the state of the router’s interfaces and adjacencies.

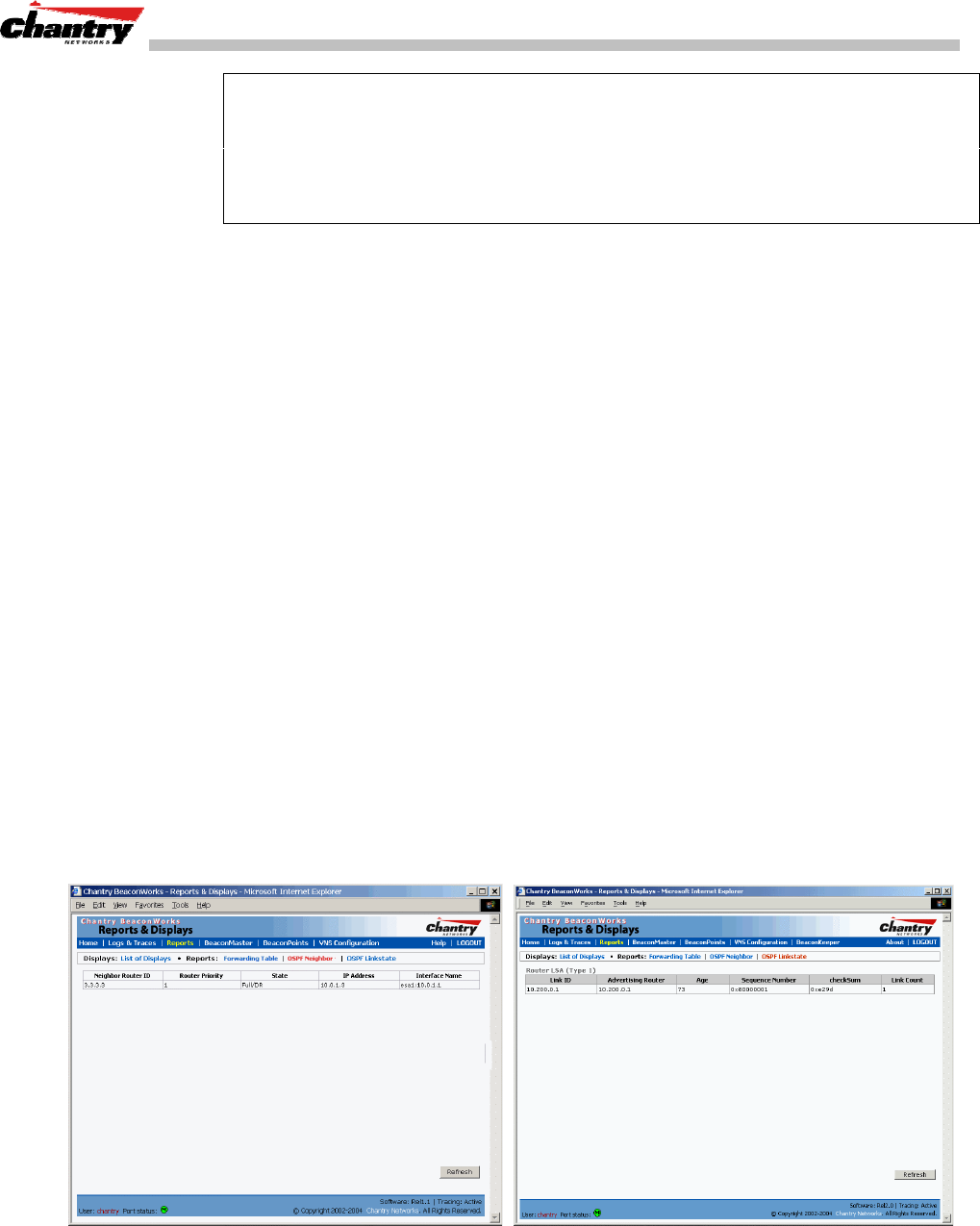

Screen 12: Reports – OSPF Neighbor and Linkstate

BeaconWorks User Guide – BeaconPoint: Startup

BeaconPoint: Startup

You are now ready to add the BeaconPoints to the BeaconWorks system and register

them with the BeaconMaster. Before the BeaconPoints can handle wireless traffic,

you will also need to assign the BeaconPoints to a VNS (see later in this Guide).

BeaconPoint (BP200) Features

The Chantry BeaconPoint is a wireless LAN access point using the 802.11 wireless

standards that allow wireless functionality comparable to ethernet (802.11a, 802.11b

and 802.11g).

The BeaconPoint is provided with proprietary software that allows it to communicate

only with the BeaconMaster.

The BeaconPoint is physically connected to a LAN infrastructure with an IP

connection to a BeaconMaster. The BeaconPoint has no user interface. The only way

to communicate with a BeaconPoint is through the BeaconMaster.

All communication with the BeaconMaster is carried out using a UDP-based protocol

called CAPWAP Tunnelling Protocol (CTP) to encapsulate IP traffic from the

BeaconPoints and direct it to the BeaconMaster. The BeaconMaster decapsulates the

packets and routes them to the appropriate destinations, while managing sessions and

applying policy.

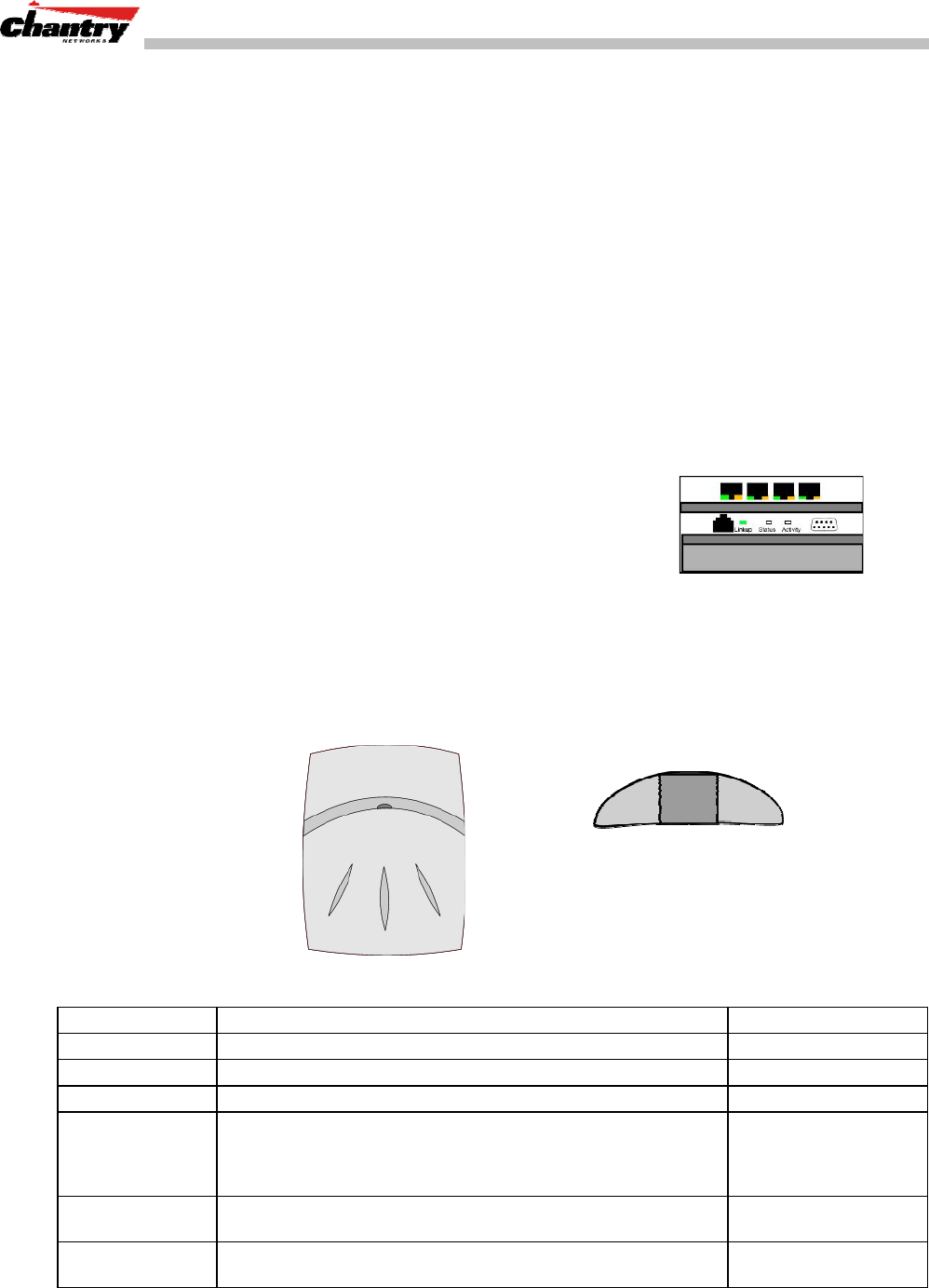

Figure 6: The Chantry BeaconPoint

The BeaconPoint BP200 has two radios:

• a radio that supports the 802.11a standard.

The 802.11a standard is an extension to 802.11 that applies to wireless LANs and

provides up to 54 Mbps in the 5-GHz band. 802.11a uses an orthogonal frequency

division multiplexing encoding scheme rather than FHSS or DSSS.

• a radio that supports the 802.11g standard (and 802.11b).

The 802.11g standard applies to wireless LANs and provides 20+ Mbps in the 2.4

GHz band. Because 802.11g uses the same communication frequency range as

802.11b (2.4 GHz), it is backwards compatible with 802.11b.

The 802.11b (High Rate) standard is an extension to 802.11 that specifies a

transmission rate of 11 Mbps (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 to

2.4835 GHz frequency band. The 802.11b standard uses direct-sequence spread

spectrum (DSSS).

Either radio on the BP200 can be enabled or disabled in the user interface.

BeaconWorks User Guide – BeaconPoint: Startup

The BP200 supports the full range of 802.11a:

5.15 to 5.25 GHz U-NII Low Band

5.25 to 5.35 GHz U-NII Middle Band

5.725 to 5.825 GHz U-NII High Band

New 5.470 GHz to 5.725 GHz Band

(when approved by FCC)

The U-NII bands (Unlicensed National Information Infrastructure) are three frequency

bands of 100 MHz each in the 5 GHz band designated for short-range, high-speed

wireless networking communication.

The BeaconPoint BP200 has two models:

• internal antenna (Model BP200s), internal dual (multimode) diversity

antennas

• external antenna (Model BP200e) (dual external antennas) RP-SMA

The BeaconPoint are powered in one of three ways:

•Power Over Ethernet (PoE)

If your network is already set up with PoE, attach the LAN ethernet cable to the

RJ45 ethernet connector in the top of the BeaconPoint.

•Power Over Ethernet: Adding PoE Injector

If your network is not set up with PoE, you can provide power to the ethernet cable

with a PoE injector. The PoE injector must be 802.3af compliant. The PoE injector

is not provided with the BeaconPoint.

•Power by AC Adaptor

An AC adaptor is not provided with the BeaconPoint. If you wish to use one, the

specifications are: BP200 – Input: 120-240 VAC, Output Voltage DC +6V, max

amps 1.50, max watts 10.

To use an adaptor, install the BeaconPoint within six feet of a wall outlet, attach

the adaptor to the BeaconPoint and then plug the adaptor into the wall outlet.

Note: For a list of recommended and tested devices (PoE Injectors or AC adaptors)

for use with the BeaconPoint, contact Chantry Networks Customer Service, or go to

www.chantrynetworks.com/site/support.html.

The BeaconPoint has a mounting bracket for wall, ceiling or plenum mount, and

security hardware (an allen key and a spreading rivet with screw, described later).

BeaconWorks User Guide – BeaconPoint: Startup

Installing the BeaconPoints

The steps to install the BeaconPoints are repeated here from the Installation Guide

packed with the units. Keep the security instructions for future reference (along with

the allen key needed to remove the BeaconPoint from its mounting bracket).

1. Unpack the BeaconPoint from its shipment carton. Check that all parts are present,

using the Installation Guide packed with the unit.

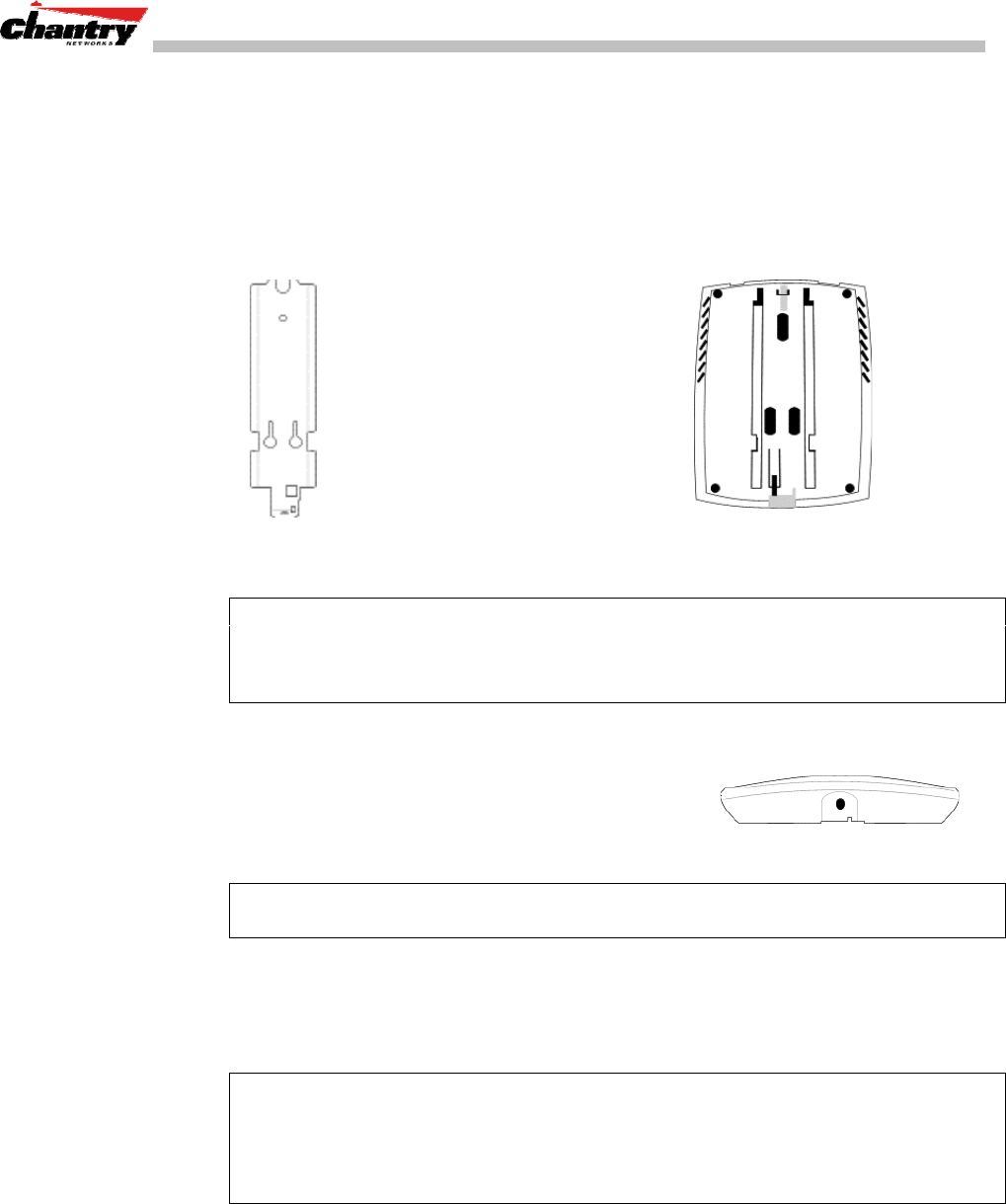

BeaconPoint

wall bracket

2. Mount the BeaconPoint

wall bracket, using 3 screws.

Make sure the top of the bracket

is near the LAN ethernet cable

plug coming from the wall.

3. Press the back of the

BeaconPoint onto the bracket,

aligning it with the open notches

in the bracket.

Then slide it downwards

until it clicks into place.

↑

Channel for allen key to spring clip

Security Note #1: A small spring clip on the BeaconPoint case has now snapped into

the bracket. To remove the BeaconPoint from the bracket, insert the allen key

(provided) into the small hole at the bottom of the bracket. Use the allen key to

depress the spring clip. Then slide the case up the bracket and lift off the BeaconPoint.

4. Insert the plastic spreading rivet through the

hole at the bottom of the bracket and into the

BeaconPoint case. Then screw in the plastic

screw. This spreads the rivet and locks the case

to the bracket.

Opening for rivet

↓

↑

Opening for allen key

Security Note #2: The spreading rivet prevents casual removal of the BeaconPoint.

You will need a screwdriver to remove it.

5. Attach the LAN ethernet cable to the ethernet port of the BeaconPoint.

6. If you are using the optional power adaptor (rather that Power-over-Ethernet),

plug in the unit.

Note: Before you power up the BeaconPoint (steps 5 or 6), you should first power up

the BeaconMaster, and then define the Registration Mode in the User Interface of the

BeaconMaster (BeaconPoint Configuration, BP Registration screen).

Powering up the BeaconPoint initiates its automatic discovery and registration process

described below. The parameters for this process should be set first. See next topic.

BeaconWorks User Guide – BeaconPoint: Startup

BeaconPoint: Registering

Setting Parameters for BeaconPoint Registration

Before the BeaconPoints are powered and begin their automatic process of

“Discovery” and “Registration”, you should define the parameters of this process.

This is done in the BeaconPoint Registration Mode screen.

In this screen you define the Security Mode: whether the BeaconMaster should

automatically allow all BeaconPoints to register, or whether only approved

BeaconPoints should be allowed.

This screen also controls the “Availability” function, whether this BeaconMaster is

paired with another BeaconMaster. If they are paired, then they share information

about BeaconPoints and if one BeaconMaster fails, the other can continue to provide

service availability. This is discussed in detail later in this Guide (BeaconMaster

Configuration: Availability).

Define the Security Mode for registering BeaconPoints

1. Select BeaconPoints tab in any screen.

2. In the left-hand list, click on BP Registration. The BeaconPoint Registration

Mode screen appears.

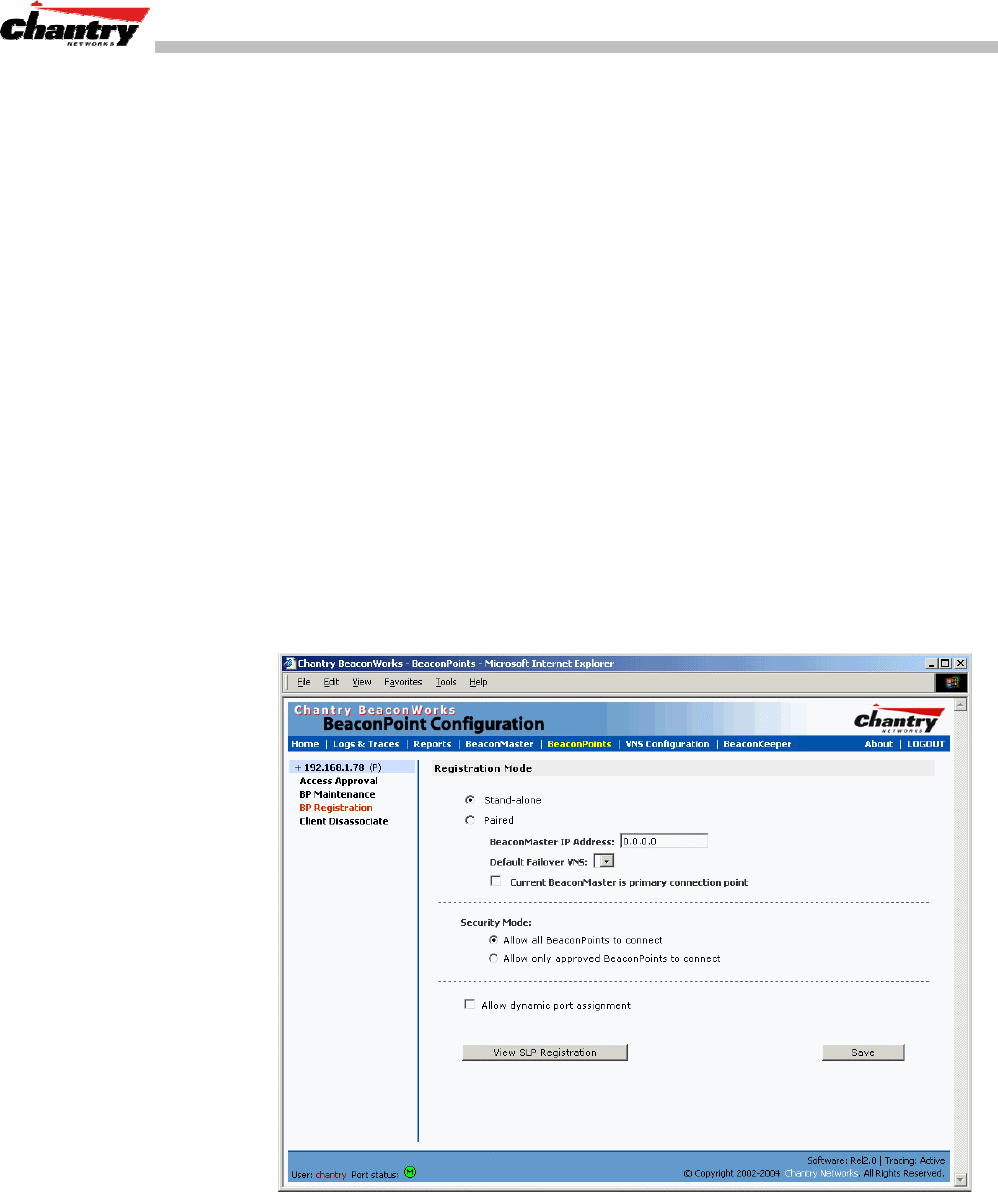

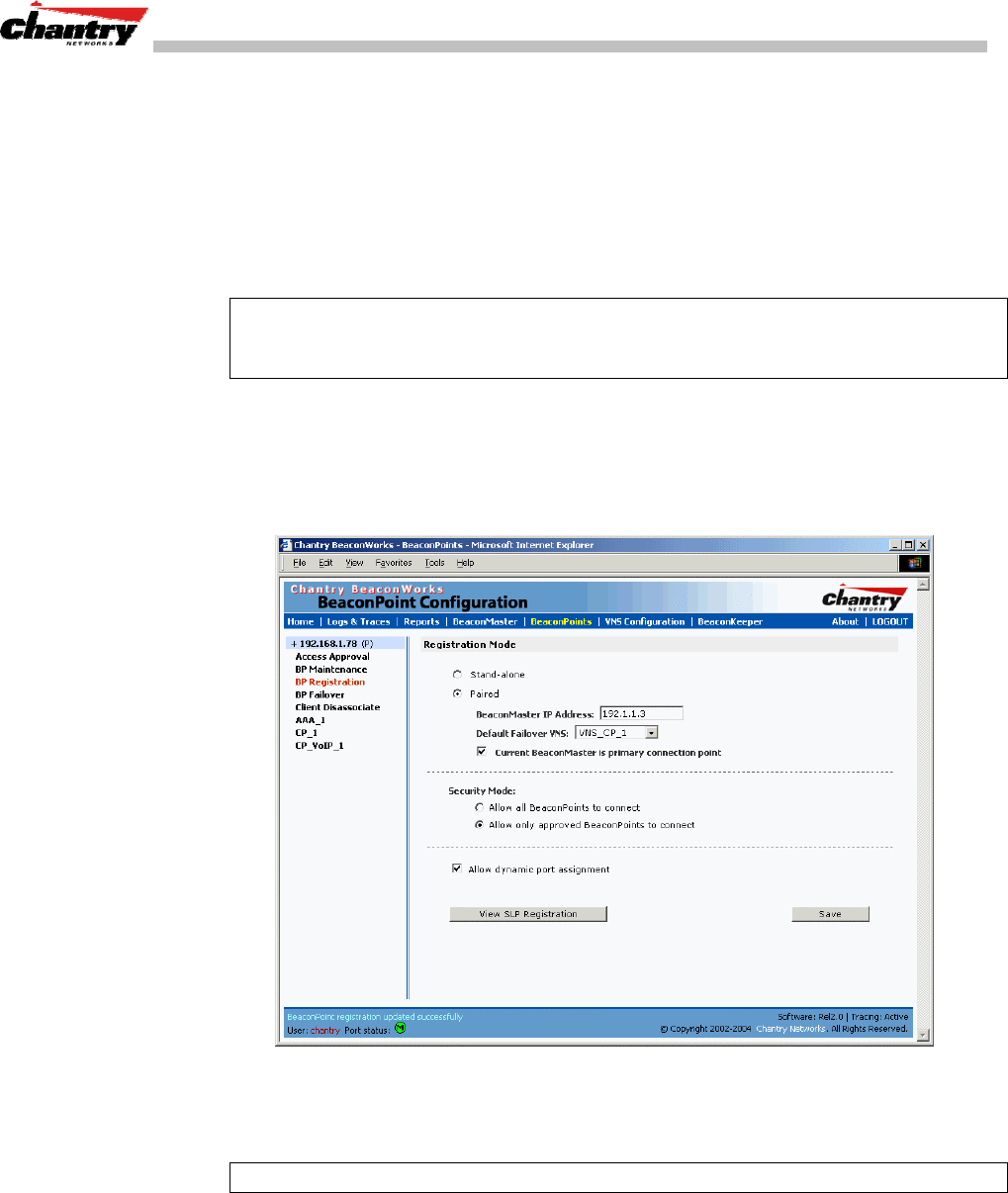

Screen 13: BeaconPoint Configuration – BP Registration Mode

3. To allow all BeaconPoints to connect, click this radio button. (The screen is in this

mode by default.)

To allow approved BeaconPoints only to connect, click on this radio button

During the “Registration” process, the BeaconMaster’s approval of the serial

number of the BeaconPoint depends on the security mode that has been set:

BeaconWorks User Guide – BeaconPoint: Startup

•Allow all

If the BeaconMaster does not recognize the serial number, it sends a default

configuration to the BeaconPoint.

If it recognizes the serial number, it sends the specific configuration (port and

binding key) set for that BeaconPoint.

•Allow approved

If the BeaconMaster does not recognize the serial number, the operator is

prompted to create a configuration.

If it recognizes the serial number, it sends the configuration for that

BeaconPoint.

Note: It may be advisable, for the initial set up of the network, to select the “Allow

All” option here. This is the most efficient way to get a large number of BeaconPoints

registered with the BeaconMaster.

However, after that, you may want to reset this option to “Allow Approved”, so that

no unapproved BeaconPoints would be able to connect. You can modify the status of

an unapproved BeaconPoint in the BeaconPoint Configuration: BP Maintenance

screen described later in this Guide.

4. To save the above parameters, click the Save button.

Note: The remaining functions in this screen are part of the “Availability” feature,

described later in this Guide. Whether this BeaconMaster is Stand-alone (the default)

or is Paired with another BeaconMaster, and whether it is the Primary or Secondary

connection, is part of the “Availability” feature. The Allow dynamic port

assignment checkbox is also used as part of the “Availability” feature.

Now you can go back to the BeaconPoints and power them on. They will begin the

automatic Discovery and Registration sequence.

Discovery and Registration: The DHCP and SLP Solution

Before you can begin to register the BeaconPoints with the BeaconMaster, you must

ensure that the DHCP server on your network supports Option 78. The BeaconPoints

rely on these to locate the BeaconMaster during the discovery process, as explained

below.

The solution to centrally configuring BeaconPoints, and to mass deployment, is to

take advantage of two services that are present on most networks: DHCP and SLP.

DHCP (Dynamic Host Configuration Protocol), is the standard means of providing IP

addresses dynamically to devices on a network.

SLP (Service Location Protocol) is a means of allowing client applications to discover

network services without knowing their location beforehand. Devices advertise their

services, using a Service Agent. In larger installations, a Directory Agent collects

information from Service Agents and creates a central repository.

A device that is searching for a service makes use of the SLP User Agent to retrieve

information from Service Agents or Directory Agents. DHCP Option 78 returns a list

of IP addresses of Directory Agents.

BeaconWorks User Guide – BeaconPoint: Startup

Meanwhile, the active BeaconMaster has management software that has registered

itself as a service. When a BeaconMaster starts up, it queries the DHCP server for

Option 78. It registers with the Directory Agents as service type “Chantry”.

This information enables the BeaconPoint to discover the location of the

BeaconMaster.

The BeaconPoint’s Discovery Process and LED Sequence

As soon as the BeaconPoint is powered and connected to the LAN, it begins its

automatic process to discover and register with the BeaconMaster.

For the BP200 the Status LED in the centre also indicates power. The Status LED is

dark when unit is off and is green (solid) when the BP has completed discovery and is

operational.

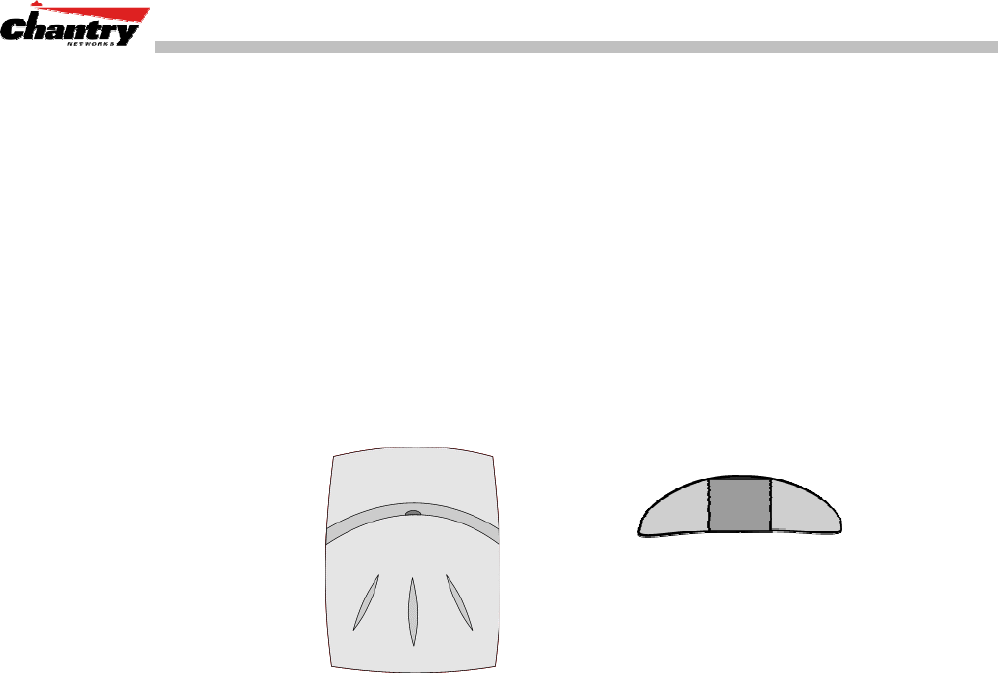

BP200

← LED→

Status LED ↓

↑ ↑

Left LED: Right LED:

2.4 GHz radio 5 GHz radio

activity activity

The BeaconPoint boot sequence is described below:

1. When powered on, the BeaconPoint status LED turns from dark to green briefly.

Status LED: green (solid) then to dark before beginning boot sequence.

2. [available in Release 2.0 only] The BeaconPoint performs a self-test.

[available in Release 2.0 only] Status LED: red (solid) if POST failed.

3. The “Discovery” mode: the BeaconPoint sends a request to the DHCP server on

the enterprise network for the location of the BeaconMaster. (This is

accomplished through a combination of Service Location Protocol (SLP) and

DHCP, as described above.)

Status LED: orange (solid) while searching (“Discovery”)

Status LED: red-orange (alternate blink) if DHCP server not found on network

Status LED: green-orange (alternate blink) if SLP issues in failed discovery.

4. The BeaconPoint “learns” the IP address of the BeaconMaster,

Status LED: orange (blink) when IP address successfully obtained

(“Registration” process underway)

Status LED: red (blink) if “Registration” fails

5. The BeaconPoint sends its serial number (a unique identifier that is hard coded

during manufacture) to the BeaconMaster.

Status LED: green (blink) when BeaconPoint finds BeaconMaster (“Standby”

status)

6. The BeaconMaster sends the BeaconPoint a port IP address and a binding key, as

follows:

• If the BeaconMaster does not recognize the serial number, it sends a default

configuration to the BeaconPoint.

BeaconWorks User Guide – BeaconPoint: Startup

• If it does recognize the serial number, it sends the specific configuration (port

and binding key) set for that BeaconPoint.

The BeaconMaster also adds the BeaconPoint to its database.

Status LED: green (blink) when BeaconPoint finds BeaconMaster (“Standby”

status)

7. When the binding key is received, the BeaconPoint’s status changes from

“Standby” to “Active”. It becomes active and is enabled to transmit data traffic.

LED: green steady (“Active”)

When the BeaconPoint has wireless traffic, you will see a green blink on the traffic

LED. On the BP200, the left LED indicates the traffic LED for activity on the 2.4

GHz radio, while the right LED indicates activity on the 5 GHz radio.

Once a BeaconPoint is registered with a BeaconMaster:

• it appears in the side list in the BeaconPoint Configuration: Properties screen,

where you can modify the properties and radio parameters.

• its two radios appear as available choices in the Virtual Network Configuration:

Topology screen, when you are setting up a VNS (for up to four VNS for each

radio).

Note: Before a registered BeaconPoint can handle wireless traffic, you must set up a

VNS definition, and assign the BeaconPoint’s radios to a VNS. See Virtual Network

Configuration.

BeaconPoint: Configuring Properties and Radios

View and modify properties of registered BeaconPoints

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears, with a list of registered BeaconPoints.

2. Highlight the appropriate BeaconPoint in the list.

3. If the selected BeaconPoint is running Release 1.1 software, the properties cannot

be modified. You will see the following message:

Screen 14: BeaconPoint Configuration: Message R1.1 version of BP software

To schedule a software upgrade for the BeaconPoint, use the BeaconPoint

Configuration: BP Maintenance screen, described later in this guide.

BeaconWorks User Guide – BeaconPoint: Startup

4. For a BeaconPoint running Release 2.0 software, click on the BP Properties tab

to view basic information about the highlighted BeaconPoint.

Screen 15: BeaconPoint Configuration – Properties

5. To modify the default information about a selected BeaconPoint, key in

information in the following fields (where appropriate):

Serial # (Display only) A unique identifier set during manufacture.

Name Change the serial number to a unique descriptive name that

more easily identifies the BeaconPoint.

Description Available for descriptive comments (optional).

Port # From the drop-down list, select the ethernet port through

which the BeaconPoint can be reached.

Hardware Version (Display only) Current version of the BeaconPoint hardware.

Application Version (Display only) Current version of the BeaconPoint software.

Status (Display only) “Approved” = BeaconPoint has received its

binding key from the BeaconMaster after the Discovery

process. “Pending” = binding key not yet received.

Active Clients (Display only) The number of wireless devices currently

active on the BeaconPoint.

Diversity From the drop-down list, select “Best,” for the best signal

from both antennas, or “Left” or “Right” to choose either of

the two diversity antennas.

Note: You can modify the status of a BeaconPoint (for example from “Pending” to

“Approved”) in the Access Approval screen.

3. To save the modified information, click on the Save button.

BeaconWorks User Guide – BeaconPoint: Startup

Screen 16: BeaconPoint Configuration – Properties (after modifications)

View and modify the radio settings of registered BeaconPoints

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears, with a list of registered BeaconPoints.

2. Highlight the appropriate BeaconPoint in the list. Then click on the appropriate

radio tab:

•802.11a (5 GHz radio)

•802.11 b/g (2.4 GHz radio)

Screen 17: BeaconPoint Configuration – Radio 802.11a (5 GHz)

The screen displays the default radio settings for each radio on the BeaconPoint.

BeaconWorks User Guide – BeaconPoint: Startup

Note: If this radio has been assigned to a VNS (or up to four VNSs), the VNS names

and MAC addresses will be displayed in the Base Settings area. (See Virtual Network

Configuration.)

Screen 18: BeaconPoint Configuration – Radio 802.11b/g (2.4 GHz)

3. Modify these

Base Settings where appropriate.

BSS Info (Display only) After VNS configuration, the Basic Service

Set (BSS) area displays the MAC address on the

BeaconPoint for each VNS and the SSIDs of the VNSs to

which this radio has been assigned.

DTIM Delivery Traffic Indication Message period. Default is 1.

Beacon Period The time units between beacon transmissions. Default is

100.

Short Retry Limit The maximum number of transmission attempts of a frame

that is less than or equal to the RTS Threshold, before a

failure condition is indicated. Default is 200.

Long Retry Limit The maximum number of transmission attempts of a frame

that is greater than the RTS Threshold, before a failure

condition is indicated. Default is 201.

RTS Threshold Request To Send Threshold, the size of a data unit below

which an RTS/CTS (RTS/Clear to Send) handshake is not

performed. Default is 2346.

Frag. Threshold The Fragmentation Threshold, the maximum size of a packet

or data unit that can be delivered. Default is 2346.

Enable Radios Click checkbox on for each radio.

BeaconWorks User Guide – BeaconPoint: Startup

Radio Settings:

Channel (Drop-down list) The wireless channel that the BeaconPoint

should use to communicate with wireless devices.

802.11a 802.11b/g

Auto Auto

36: 5180 MHz 1: 2412 MHz

40: 5200 MHz 2: 2417 MHz

44: 5220 MHz 3: 2422 MHz

48: 5240 MHz 4: 2437 MHz

52: 5260 MHz 5: 2432 MHz

56: 5280 MHz 6: 2437 MHz

60: 5300 MHz 7: 2442 MHz

64. 5320 MHz 8: 2447 MHz

149: 5745 MHz 9: 2452 MHz

153: 5765 MHz 10: 2457 MHz

157: 5785 MHz 11: 2462 MHz

161: 5805 MHz

165: 5825 MHz

Tx Power Level (Drop-down list) Min, 13%, 25%, 50%, Max.

Operational Rate Set (Drop-down list) in Mbps

A: Best data rate, 6, 9 12,18, 24, 36, 48, 54

B/G: Best data rate, 1, 2, 5.5, 11, 6, 9 12,18, 24, 36, 48, 54

Basic Rates (for b radio only) Select a set of basic rates from the drop-

down list. The best data rate from the set will be used for

current conditions (power vs range)

Short Preamble Invoked Click checkbox on to enable.

g Radio Settings:

Protection Mode (Drop-down list) None, Auto (default), Always

Protection Rate (Drop-down list) in Mbps: 1, 2, 5.5, 11 (default)

Protection Type (Drop-down list) CTS (Clear To Send),

RTS CTS (Request To Send, Clear To Send) – default.

4. To save the modified information, click on the Save button.

Note: In Release 2.0, a number of the properties of each radio on a BeaconPoint can

be modified (in the BeaconPoint Configuration screen) without requiring a reboot of

the BeaconPoint.

However, modifying the following properties will trigger a reboot of the BeaconPoint:

• enabling or disabling either radio

• changing the radio channel between “Auto” and any fixed channel number.

BeaconPoint: Adding Manually

Add and register a BeaconPoint manually

1. Select the BeaconPoint tab. In the BeaconPoint Properties screen, click on the

Add BeaconPoint button. The BeaconPoint Configuration subscreen appears.

BeaconWorks User Guide – BeaconPoint: Startup

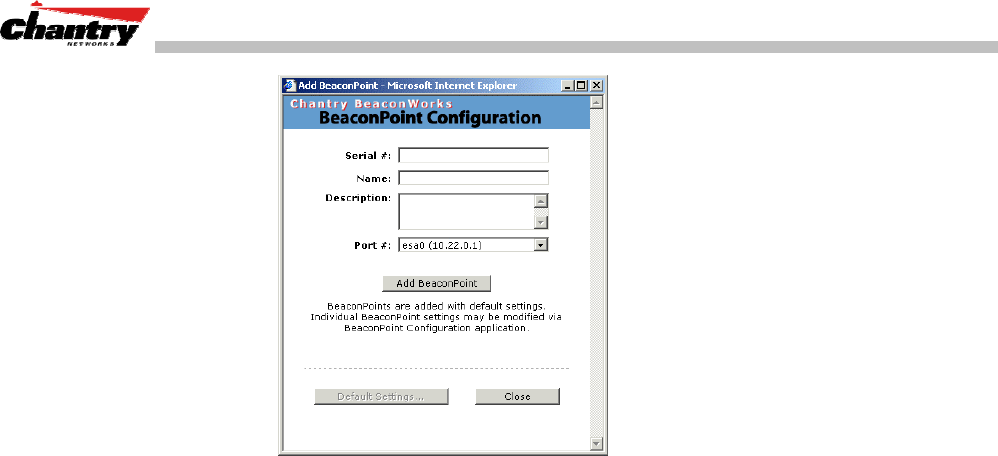

Screen 19: BeaconPoint Configuration – Add BeaconPoint

3. Key in, or select from the drop-down list, information in the following fields:

Serial # A unique identifier set during manufacture.

Name A unique name for the BeaconPoint.

Description Available for descriptive comments (optional).

Port # The ethernet port through which the BeaconPoint can be reached

4. To add the BeaconPoint, click the Add BeaconPoint button.

To return to the previous screen, click Close.

The BeaconPoint is added with default settings. To modify these settings, use the

BeaconPoint Configuration screens described earlier. You can modify the properties

and the settings for each radio on the BeaconPoint.

BeaconPoint Radios on a VNS

Before a registered BeaconPoint can handle wireless traffic, you must set up a VNS

definition, and assign one or both of the BeaconPoint’s radios to a VNS. See Virtual

Network Configuration section for details.

After you have set up Virtual Network Configuration definitions and assigned the

BeaconPoint radios to a VNS (or up to four VNSs), the VNS names and the MAC

addresses are displayed in the Base Settings: “BSS Info” area.

BeaconPoint Static Configuration: Branch Office Deployment

The BeaconPoint static configuration feature provides BeaconWorks capability for a

network with the central office / branch office model.

In the branch office scenario, BeaconPoints are installed in remote sites, while the

BeaconMaster is in the central office. The BeaconPoints require the capability to

interact both in the local site network and in the central network.

To achieve this, the BeaconPoint’s automatic process of discovery and registration

with the BeaconMaster is disabled, and a static configuration is used instead.

BeaconWorks User Guide – BeaconPoint: Startup

Set up a BeaconPoint with static configuration

1. Select the BeaconPoint tab in any screen. In the BeaconPoint Properties screen,

click on the Static Configuration tab. The Static Configuration screen appears.

Screen 20: BeaconPoint Configuration: Static Configuration

2. To enable static configuration of the BeaconPoint, click the Statically Configure

BeaconPoint checkbox on.

3. Select one of the two methods of IP address assignment for the BeaconPoint:

• to enable DHCP, click the radio button on (default), or

• to specify the IP address of the BeaconPoint, click the Static Values radio

button on and fill in the IP Address, Subnet Mask, and Gateway.

Note: For first time deployment of the BeaconPoint for a Branch Office scenario, it is

recommended that you use DHCP initially on the central office network to obtain an

IP address for the BeaconPoint.

Then enter these values in the Static Configuration screen for this BeaconPoint and

save the configuration.

4. Add a BeaconMaster IP address to the list of BeaconMasters. Click in the entry

field and key in the address of the BeaconMaster that will control this

BeaconPoint. This allows the BeaconPoint to bypass the discovery process. If this

field is not filled in, the BeaconPoint will use SLP to discover a BeaconMaster.

5. To save the static configuration, click on the Save button.

Note: In a “Branch Office” scenario, where the BeaconPoint is configured statically to

function on a local network whose MTU is lower than 1500, a mechanism on the

BeaconMaster automatically adjusts the MTU size to prevent packet fragmentation.

The MTU is set in the BeaconMaster Configuration – IP Addresses / Interfaces screen

and should not be changed.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

Virtual Network Services (VNS): Overview

Virtual Network Services (VNS) are the key to the advantages that the Chantry

BeaconWorks system has to offer. This technique provides a versatile means of

mapping wireless networks to the topology of an existing wired network.

When you set up a VNS on the BeaconMaster, you are defining a subnet for a group

of wireless device users. This VNS definition creates a virtual IP subnet where the

BeaconMaster acts as a default gateway to wireless devices.

Before you begin to define a VNS, you should have determined:

•a

user access plan for both individual users and user groups

• the RADIUS attributes that support the user access plan

• the location and identity of the BeaconPoints that will be used on the VNS

• the routing mechanism to be used on the VNS

• the network addresses that the VNS will use

• the type of authentication for wireless device users on the VNS

• the specific filters to be applied to the defined users and user groups to control

network access

• what privacy mechanisms should be employed between the BeaconPoints and the

wireless devices.

• whether the VNS is to be used for voice traffic.

The user access plan should analyze the enterprise network and identify which users

should have access to which areas of the network. What areas of the network should

be separated? Which users can go out the World Wide Web?

The BeaconWorks system relies on authenticating users via a RADIUS server (or

other authentication server). To make use of this feature, you will, of course, require

such an authentication server on the network. Make sure that the server’s database of

registered users, with login identification and passwords, is current.

Note: It is possible to deploy BeaconWorks without a RADIUS server (and without

the authentication of users on the network). In that scenario, select SSID as the

network assignment (in the Topology screen described later in this section) and then,

in the Authentication screen, click on the None radio button. That means there is no

authentication of users, but BeaconWorks is otherwise operational.

The user access plan should also identify the user groups in your enterprise, and the

business structure of the enterprise network. You could identify users for various

purposes, as in these examples:

• department (such as Engineering, Sales, Finance)

• role (such as student, teacher, library user)

• status (such as guest, administration, technician).

For each user group, you should set up a Filter ID attribute in the RADIUS server, and

then associate each user in the RADIUS server to at least one Filter ID name.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

Chantry enables you to define specific filtering rules, by Filter ID attribute, that will

be applied to user groups to control network access.

What is a VNS?

A VNS is an IP subnet that is especially designed to enable Chantry BeaconPoints to

interact with wireless devices.

In many ways, a VNS is very similar to a regular IP subnet. However, it has the

following required features:

1. Each VNS is assigned a unique identifier.

2. Each VNS is assigned an SSID. These do not have to be unique.

3. Each VNS is assigned a range of IP addresses for wireless devices. All the

wireless devices share the same IP address prefix (the part of the IP address that

identifies the network and subnet).

The IP addresses of the wireless devices are assigned dynamically by the

BeaconMaster’s DHCP server within the assigned range.

(These IP addresses are not “virtual”. They are regular IP addresses, and are

unique over the network. These IP addresses are advertised to other hosts on the

network so that they can exchange traffic with the wireless devices in the VNS.)

Note: Alternatively, you can allow the enterprise network’s DHCP server to provide

the IP addresses for the VNS, by enabling DHCP Relay in the Topology screen.

4. A single overall filtering policy applies to all the wireless devices within the VNS.

However, further filtering can be applied when the wireless user is authenticated

by the RADIUS server.

5. When the BeaconMaster creates the VNS, it also creates a virtual IP subnet for

that VNS.

Topology of a VNS: Overview

The first step in setting up a VNS is configuring the topology in the Topology screen.

The type of network assignment determines all the other factors of the VNS. The

options for network assignment are:

•SSID:

• has Captive Portal authentication, or no authentication.

• requires restricted filtering rules before authentication and, after

authentication, filtering rules for group Filter IDs.

• is used for a VNS supporting wireless voice traffic (QoS).

• is used for a VNS supporting third-party APs.

• has WEP privacy.

•AAA (Authentication, Authorization and Accounting).

• has 802.1x authentication

• requires filtering rules for group Filter IDs and default filter.

• has WEP and WPA privacy.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

The next step to assign the available BeaconPoints (by radio) to the VNS.

Multi-SSID: BeaconPoint radios on more than one VNS

In Release 2.0, each radio on a BeaconPoint BP200 can participate in up to four

VNSs, for a total of eight VNSs per BeaconPoint. The Topology screen displays a list

of registered BeaconPoints with a checkbox for each radio. A BeaconPoint radio will

appear in the list as available for VNS assignment until it has been assigned to four

VNSs. After that, it will no longer appear in the list.

After a VNS definition has been saved, the BeaconMaster updates this information on

the BeaconPoint. Each radio acquires up to four SSIDs (one for each VNS it is part

of), and broadcasts these during beacon transmission (unless the beacon is suppressed

in the VNS topology screen).

You can view (in the BeaconPoint Configuration screen) a list of defined VNSs to

which each radio has been assigned.

Other network parameters for the VNS topology

In the Topology area of VNS configuration, you also define other aspects of the VNS,

such as the parameters for DHCP for IP address assignment. You might also configure

this VNS for management traffic only, or for Third-Party Access Points, or for Voice

Traffic. (These are described in detail later in this Guide.)

Network Assignment and Authentication for a VNS

The second step is to configure the authentication mechanism for the VNS. The

authentication mechanism depends on the network assignment.

Authentication with SSID Network Assignment

If SSID was selected, there are two authentication options:

•None: The wireless device connects to the network, but can only access specified

network destinations (those defined in the Non-Authenticated Filter described in

Filtering). No authentication is performed.

•Captive Portal: The wireless device connects to the network, but can only access

specified network destinations (those defined in the Non-Authenticated Filter

described in Filtering). One of those destinations is a web page logon screen (the

portal in which he is captive), where the user must input an ID and a password.

This identification is sent by the BeaconMaster to the RADIUS server for

authentication. Four authentication types are supported by BeaconWorks for

Captive Portal:

• PAP (Password Authentication Protocol)

• CHAP (Challenge Handshake Authentication Protocol)

• MS CHAP (Windows-specific version of CHAP)

• MS CHAP v2 (Windows-specific version of CHAP, version 2)

Note: For Captive Portal, the RADIUS server must support the selected authentication

type: PAP, CHAP (RFC2484), MS-CHAP (RFC2433), MS-CHAPv2 (RFC2759).

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

Authentication with AAA (802.1x) Network Assignment

If AAA (802.1x) was selected, the wireless device user requesting network access via

BeaconWorks must first be authenticated. The wireless device’s client utility must

support 802.1x. The user’s request for network access along with login identification

or user profile will be forwarded by the BeaconMaster to a RADIUS server.

BeaconWorks supports these authentication types:

• EAP-TLS Extensible Authentication Protocol - Transport Layer Security that relies

on client-side and server-side certificates to perform authentication and can be

used to dynamically generate user-based and session-based WEP keys.

• EAP-TTLS (EAP with Tunneled Transport Layer Security) is an extension of

EAP-TLS to provide certificate-based, mutual authentication of the client and

network through an encrypted tunnel, as well as to generate dynamic, per-user,

per-session WEP keys. Unlike EAP-TLS, EAP-TTLS requires only server-side

certificates.

• PEAP (Protected Extensible Authentication Protocol) is a standard to authenticate

wireless LAN clients without requiring them to have certificates. In PEAP

authentication, first the user authenticates the authentication server, then the

authentication server authenticates the user.

Note: For 802.1x, the RADIUS server must support RADIUS extensions (RFC2869).

If the RADIUS servers sends an “access-accept” message to the BeaconMaster, the

BeaconMaster’s DHCP server assigns the device its IP address and allows network

access controlled by the filtering rules defined for the specific Filter ID associated

with the wireless device user.

RADIUS Server: Location and Redundancy

Both Captive Portal and AAA (802.1x) authentication mechanisms in BeaconWorks

rely on a RADIUS server on the enterprise network.

In BeaconWorks Release 2.0, up to three RADIUS servers can be identified and

prioritized on the BeaconMaster. This means that in the event of a failover of the

active RADIUS server, the BeaconMaster will poll the other servers in the list for a

response.

Filtering for a VNS: How it works

The Chantry VNS capability provides a technique to apply policy, to allow different

network access to different groups of users. This is done by packet filtering.

After setting up the authentication, the next step is to define the filtering rules for the

filters that apply to your network and the VNS you are setting up.

Three types of filters are applied by the BeaconMaster in the following order:

1. Non-Authenticated filter, with filtering rules that apply before authentication, to

control network access and to direct users to a Captive Portal web page for login.

2. Group filters (by Filter ID) for designated user groups, to control access to certain

areas of the network, with names that match defined RADIUS Filter ID attributes.

3. Default filter, to control access if there is no matching Filter ID for a user.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

Within each type of filter, you define a sequence of filtering rules. This sequence must

be carefully planned and arranged in the order that you want them to take effect. You

define each rule to either allow or deny traffic in either direction:

• “In”: from a wireless device in to the network

• “Out”: from the network out to the wireless unit.

Note: The final rule in any filter should be a catch-all for any traffic that did not

match a filter. This final rule should either “allow all” or “deny all” traffic, depending

on the requirements for network access. For example, the final rule in a Non-

Authenticated Filter for Captive Portal is typically “deny all”. A final “allow all” rule

in a Default Filter will ensure that a packet is not dropped entirely if no other match

can be found.

Each rule can be based on any one of the following:

• destination IP address, or any IP address within a specified range that is on the

network subnet (as a wildcard)

• ports, by number and range

• protocols (UDP, TCP, etc.)

This is how the BeaconMaster software filters traffic:

1. The BeaconMaster software attempts to match each packet of a VNS to the

filtering rules that apply to the wireless device user.

2. If a filtering rule is matched, the operation (allow or deny) is executed.

3. The next packet is fetched for filtering.

The filtering sequence depends on the type of authentication:

•No authentication (network assignment by SSID)

Only the Non-Authenticated filter will apply. Specific network access can be

defined. Since there will be no authentication, the final rule should be “deny all”.

•Authentication by Captive Portal (network assignment by SSID)

The Non-Authenticated filter will apply before authentication. Specific network

access can be defined. The filter should also include a rule to allow all users to get

as far as the Captive Portal webpage where the user can enter login identification

for authentication. When authentication is returned, then the Filter ID group filters

are applied. If no Filter ID matches are found, then the Default filter is applied.

•Authentication by AAA (802.1x)

Since users have already logged in and have been authenticated, there is no need

for a Non-Authenticated filter. When authentication is returned, then the Filter ID

group filters are applied. For AAA, a VNS can have a subgoup with Login-LAT-

group ID that has its own filtering rules. If no Filter ID matches are found, then the

Default filter is applied.

Privacy on a VNS: Overview of WEP and WPA

Privacy is a mechanism that protects data over wireless and wired networks, usually

by encryption techniques.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

BeaconWorks supports the Wired Equivalent Privacy (WEP) standard common to

conventional access points. WEP provides data confidentiality services by encrypting

the data sent between wireless nodes. Each node must use the same encryption key.

For a VNS with AAA network assignment, BeaconWorks also provides Wi-Fi

Protected Access (WPA) privacy, a solution that adds authentication and enhanced

WEP encryption with key management. WPA is available in Enterprise Mode (which

specifies 802.1x authentication and requires an authentication server) or in Pre-Shared

Key mode (which relies on a shared secret). Encryption is by Temporal Key Integrity

Protocol (TKIP), which changes the encryption key after a specified interval.

Setting up a new VNS

Click on the Virtual Network Configuration tab in any screen. The Virtual Network

Configuration screen appears. For a new BeaconWorks installation, where no VNS

has yet been defined, the screen is blank, except for the Add subnet function.

Screen 21: Virtual Network Configuration: Before any VNS definitions

Create a subnet (VNS)

1. In the entry field above the Add subnet button, key in a name that will uniquely

identify the new VNS.

2. Click on the Add subnet button. The name appears in the left-hand list. The

Topology screen appears.

3. Highlight the name of the subnet you wish to configure. Its parameters can be

configured now in the Topology screen.

BeaconWorks User Guide – Virtual Network Services (VNS): Overview

Screen 22: Virtual Network Configuration: Topology for a new VNS Subnet

Configure the new VNS (overview of basic steps)

1. Select the network assignment mechanism from the Assignment by drop-down

list:

• SSID

•AAA

2. In the SSID box at the right, key in the SSID that the wireless devices will use to

access the BeaconPoint.

3. Select the BeaconPoints (by radio) to be assigned to this VNS. The displayed list

of available BeaconPoints has a checkbox for each radio on the BeaconPoint.

Each radio on a BeaconPoint can be assigned to a maximum of four VNSs. When

this maximum is reached, the radio will no longer be available in this list.

4. Configure other options for this VNS: Allow Management Traffic, Use DHCP

Relay, Use 3rd Party APs, or Enable Priority Traffic Handling.

5. Define the DHCP settings for this VNS.

6. To save the new VNS Topology, click on the Save button.

When the new Topology has been saved, the screen changes to display tabs for

Authentication, Filtering and Privacy, for configuring these aspects of the new VNS.

The next sections explain several scenarios for possible VNS configurations:

• VNS for Captive Portal: Network Assignment by SSID and Authentication by

Captive Portal

• VNS with no Authentication: Network Assignment by SSID and no Authentication

• VNS for Voice Traffic

• VNS with 802.1x Authentication: Network Assignment by AAA (802.1x)

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

Virtual Network Configuration: A VNS for Captive Portal

This section describes how to set up a VNS for Captive Portal: its Topology,

Authentication, Filtering and Privacy.

If the authentication technique for network assignment is by Captive Portal, the

process is as follows. The wireless device requesting network access via

BeaconWorks first gets its IP network assignment from the DHCP server, but can

access only the specific IP addresses defined in the Non-Authenticated Filter.

Typically, one of these addresses is a Captive Portal web page, where the wireless

device user can log in and become authenticated.

Topology for a VNS for Captive Portal

For a VNS with Captive Portal authentication, select Network Assignment by SSID in

the Topology screen.

In the Virtual Network Configuration screen, highlight the VNS name in the left-hand

list and click on the Topology tab.

Screen 23: Virtual Network Configuration – Topology – SSID Assignment

Create an SSID for Captive Portal VNS

1. Using the Assignment by drop-down list, select SSID.

2. In the SSID box at the right, key in the SSID that the wireless devices will use to

access the BeaconPoint.

3. Click the Suppress SSID checkbox on to prevent this SSID from appearing in the

beacon message sent by the BeaconPoint. The wireless device user seeking

network access will not see this SSID as an available choice, and will need to

specify it.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

4. In the Session Timeout box, key in the number of minutes that a wireless device

can be inactive before the BeaconMaster closes the session.

Identify the BeaconPoint radios that will be assigned to this VNS

5. From the displayed list of BeaconPoint Radios that are available throughout the

network, check the ones to be assigned to this VNS.

Once you have assigned a BeaconPoint radio to four VNSs, it will not appear in

the list for another VNS setup.

Note: You can view the VNSs that each radio is participating in by clicking on the

appropriate tab for each radio in the BeaconPoint Configuration screen

Enable Management Traffic on this VNS

6. To allow Management Traffic on this VNS, click the Allow management traffic

checkbox on.

Note: This choice invokes the built-in port-based filtering rules for Management

Traffic, as described earlier in the “Port Type or Function” topic.

Enable Third Party Access Points on this VNS

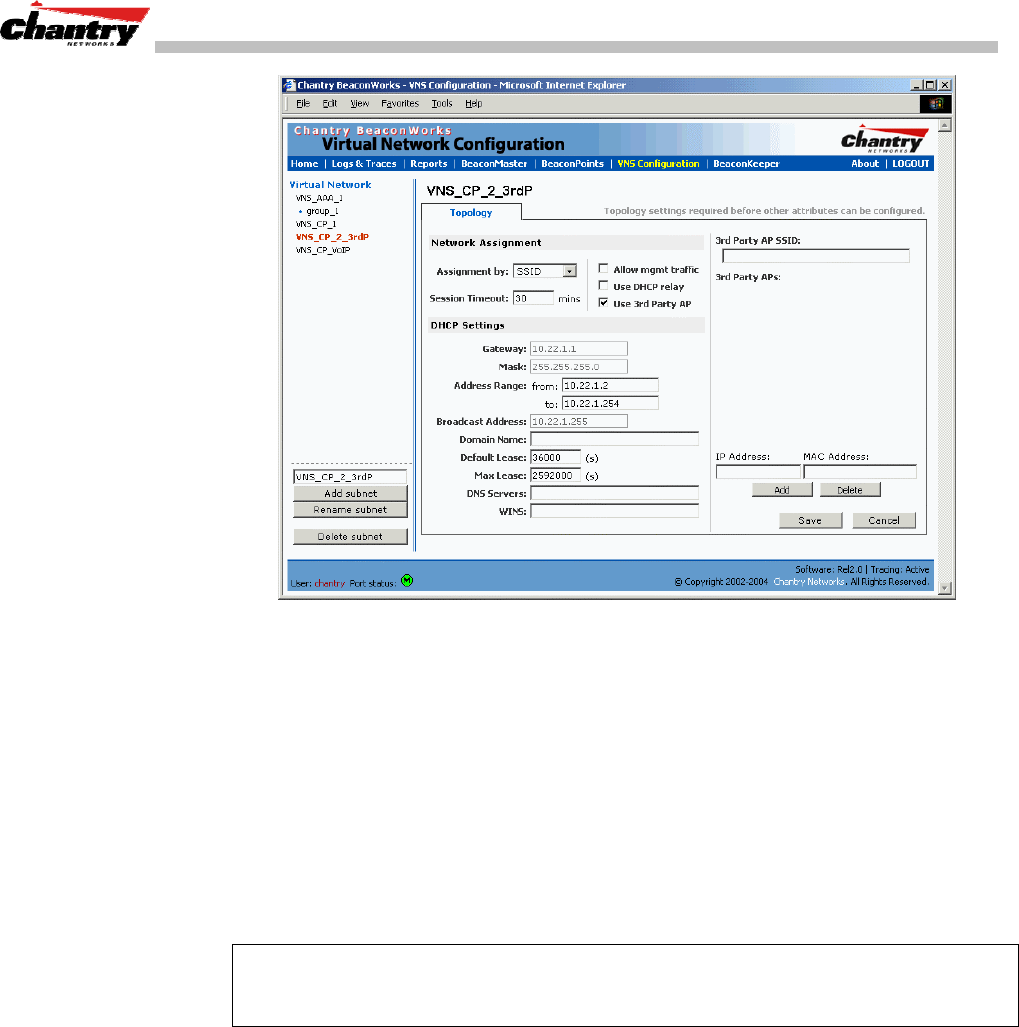

7. If this VNS is to be used for third-party access points, click the Use 3rd Party AP

checkbox on. The screen changes to include fields to enter the IP Address and

MAC Address of the third-party access point.

Note: Use this function as part of the process defined in the topic “Setting up a Third-

Party Access Point”. For further information, see that section in this Guide.

Enable QoS Policy for voice-over-internet traffic on this VNS

8. To set up this VNS to prioritize voice-over-internet traffic, click on the Priority

Traffic Handling checkbox. Enable SVP by clicking on the checkbox.

Note: There is no authentication on a voice traffic VNS. For more information about a

voice traffic VNS, see the “Quality of Service (QoS) on a VNS” in this Guide.

Set the IP address for the VNS (for the DHCP server on the BeaconMaster)

9. In the Network Address box, key in the network IP address for the VNS.

This IP address is the default gateway for the VNS. The BeaconMaster advertises

this address to the wireless devices when they sign on.

10. In the Mask box, key in the appropriate subnet mask for this IP address, to

separate the network portion from the host portion of the address (typically

255.255.255.0)

The Address Ranges fields populate automatically (based on the IP address you

keyed in) with the range of IP addresses to be assigned to wireless devices using

this VNS.

11. To modify the Address Ranges, key the first available address in the from box.

Key the last available address in the to box.

12. If there are specific IP addresses to be excluded from this range, click on the

Exclusions field. The Exclusions subscreen appears.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

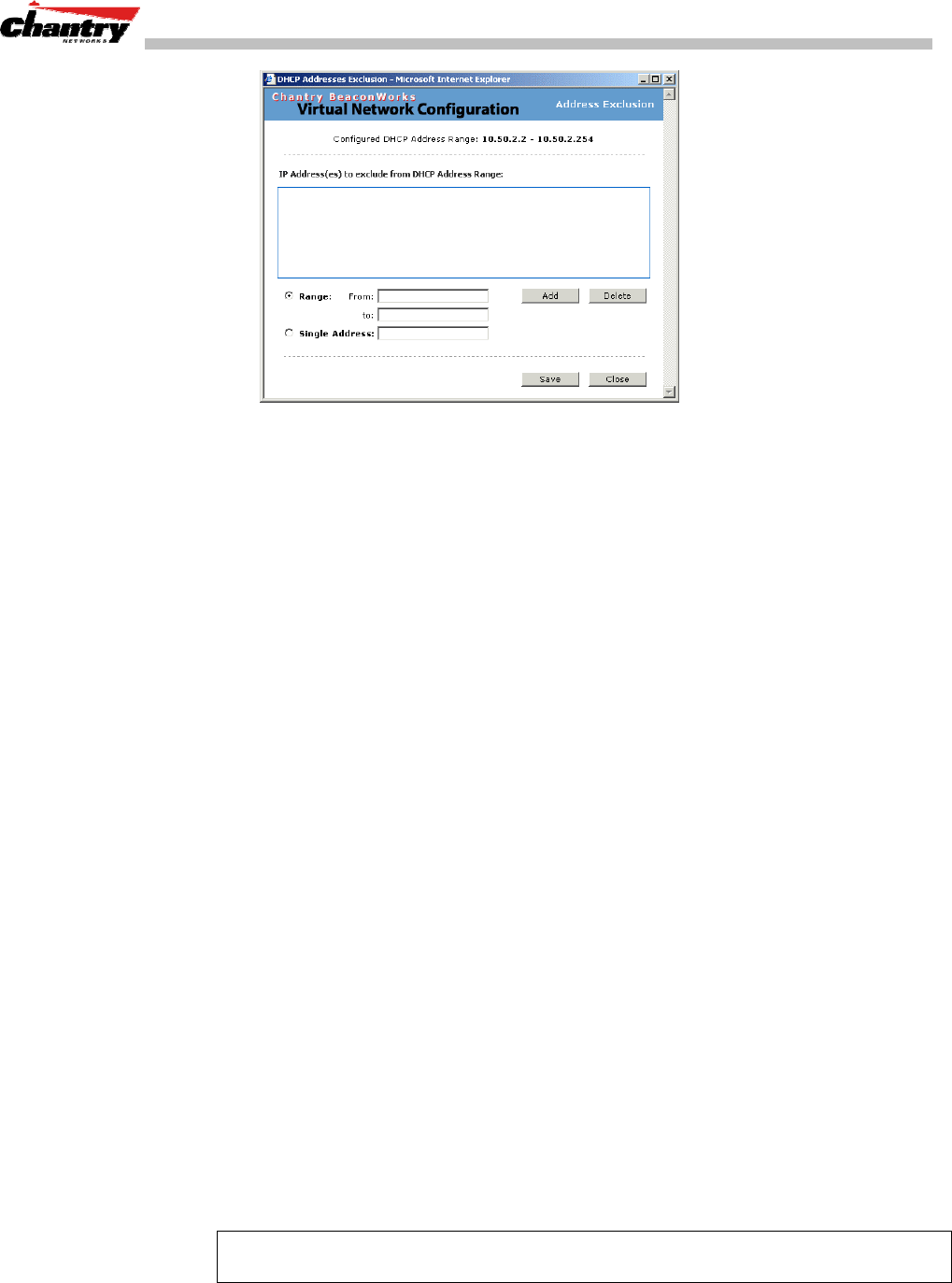

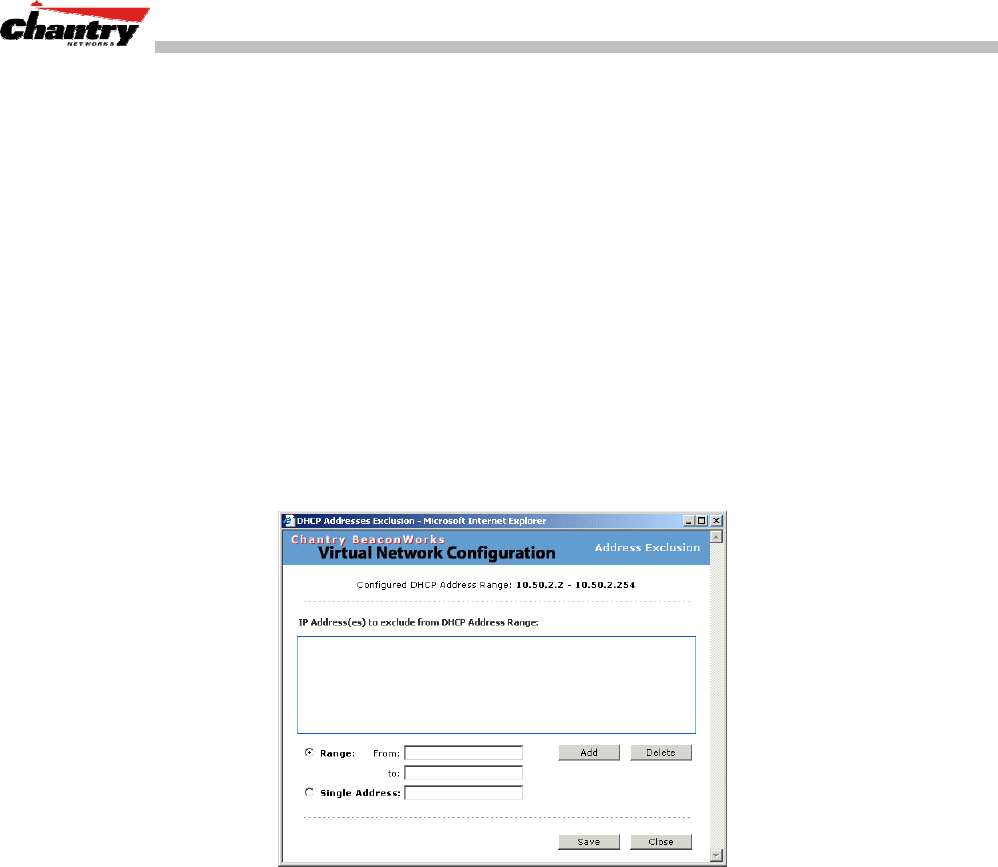

Screen 24: Virtual Network Configuration – Exclusions subscreen

13. In the Exclusions subscreen, key in the IP addresses or address ranges to exclude.

Click on the Add button after each entry. Click on the Save button to save the

changes and return to the Topology screen.

14. The Broadcast Address field populates automatically, based on the IP address

and subnet mask of the VNS. Modify this if appropriate..

15. In the Domain Name box, key in the external enterprise domain name.

Set time limits for IP assignments

16. In the Default Lease box, accept the default value of 3600 seconds (1 hour), or

modify. This is the default time limit that an IP address would be assigned by the

DHCP server to a wireless device.

In the Max Lease box, accept the default value is 24000 seconds (40 hours), or

modify. This is the maximum time that an IP address can be assigned.

Set the name server configuration

17. In the DNS Servers box, key in the IP Address of the Domain Name Server(s) to

be used.

18. If the DHCP server uses WINS (Windows Internet Naming Service), key in the IP

address in the WINS box. If not, leave it blank.

Use DHCP Relay for the VNS

Use DHCP Relay to force the BeaconMaster to forward DHCP requests to an external

DHCP server on the enterprise network. This function will bypass the local DHCP

server on BeaconMaster (to bypass steps 9 to 18 above). This function allows the

enterprise to manage IP address allocation to a VNS from its existing infrastructure.

19. To use an external DHCP server, click the Use DHCP Relay checkbox on. The

DHCP Settings area of the screen changes to display only the Gateway IP, Mask

and DHCP Server fields. Key in the appropriate IP addresses and mask to reach

the enterprise’s external DHCP server.

Note: The range of IP addresses to be assigned to the wireless device users on this

VNS should also be designated on the external DHCP server.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

Screen 25: Virtual Network Configuration – Topology – DHCP Relay

Save the new VNS

20. To save this VNS configuration, click on the Save button.

When the new Topology has been saved, the screen changes to display tabs for

Authentication, Filtering and Privacy.

Authentication for a VNS for Captive Portal

The next step is to set up the Authentication mechanism for Captive Portal.

For Captive Portal, the wireless device connects to the network, but can only access

the specific network destinations defined in the Non-Authenticated Filter (see

Filtering). One of these destinations should be a web page logon screen (the Captive

Portal). The user must input an ID and a Password. This request for authentication is

sent by the BeaconMaster to a RADIUS server.

Captive Portal authentication relies on a RADIUS server on the enterprise network.

You can define more than one RADIUS server for authentication and define the

priority of use in the event of a failover situation.

Set up authentication by Captive Portal

1. Highlight the VNS name. Click on the Authentication tab. In the Authentication

configuration screen, click the Captive Portal radio button. The Captive Portal

portion of the screen appears.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

Screen 26: Virtual Network Configuration – Authentication – Captive Portal

Define how the BeaconMaster will access the RADIUS server.

2. For each RADIUS server to be defined, click on the Add button. The RADIUS

Server Configuration popup window appears.

Screen 27: Virtual Network Configuration – Authentication CP – Add RADIUS Server

3. For each server, fill in the following fields:

Server Address The IP address of the RADIUS server.

Port # The port used to access the RADIUS server (default: 1812)

# of Retries Number of times the BeaconMaster will attempt to access

the RADIUS server

Timeout The maximum time that a BeaconMaster will wait for a

response from the RADIUS server, before attempting again

(up to the maximum number of retries).

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

4. Key in the Shared Secret (a password that is required in both directions) that is

set up on the RADIUS Server. This password is used to validate the connection

between the BeaconMaster and the RADIUS Server.

To display the shared secret (in order to proofread your entry before saving the

configuration), click on the Unmask button. To mask the shared secret again,

click on the button again (the button toggles between Mask and Unmask).

Note: This precautionary step is recommended at this point in order to avoid an error

later when the BeaconMaster attempts to communicate with the RADIUS server.

5. Select the authentication protocol to be used by the RADIUS server to

authenticate the users of the wireless devices (for Captive Portal authentication).

PAP (Password Authentication Protocol)

CHAP (Challenge Handshake Authentication Protocol)

MS CHAP (Windows-specific version of CHAP)

MS CHAP v2 (Windows-specific version of CHAP, version 2)

6. To save these settings and return to the main Authentication screen, click on the

Save button.

To return to the main Authentication screen without saving, click on the Close

button.

Define the RADIUS server priority for RADIUS Redundancy

After setting up a RADIUS server, its IP address will appear in the RADIUS Servers

box. To allow for RADIUS server redundancy, set up one or two additional server, as

described above (three is the maximum).

7. To define the priority of the servers, highlight a RADIUS server in the list and use

the Move Up or Move Down key to change the order.

The first server in the list is the active one.

In the event of a failover of the main RADIUS server (if no response after the set

number of retries), then the other servers in the list will be polled on a round-robin

basis until one responds.

If one of the other servers becomes the active one during a failover, an “A” will

appear after that server name.

Note: If all defined RADIUS servers fail to respond, a critical message will be

generated in the logs.

8. To remove a defined server from the list, highlight it and click on the Delete

button.

9. To modify the parameters of a defined server, highlight it and click on the Edit

button. In the RADIUS Server popup screen, follow steps 2 to 6 described above.

Note: It is recommended that the RADIUS databases with names, logins, and

attributes be kept synchronous on all RADIUS servers.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

Define the Filter ID Values on this VNS.

10. In the Filter ID Values entry field, key in the name of a group that you want to

define specific filtering rules for, to control network access. Click on the Add

button. The Filter ID name appears in the list above.

Repeat for additional Filter ID names.

These Filter ID names will appear in the Filter ID list in the Filtering screen.

Note: These names must match the Filter ID attribute names in the RADIUS server.

11. To save the authentication parameters for this VNS, click on the Save button.

Configure the appearance of the Captive Portal page

1. To design how the Captive Portal authentication page will display for Captive

Portal, click on the Configure button in the Authentication screen. The Captive

Portal Configuration subscreen appears.

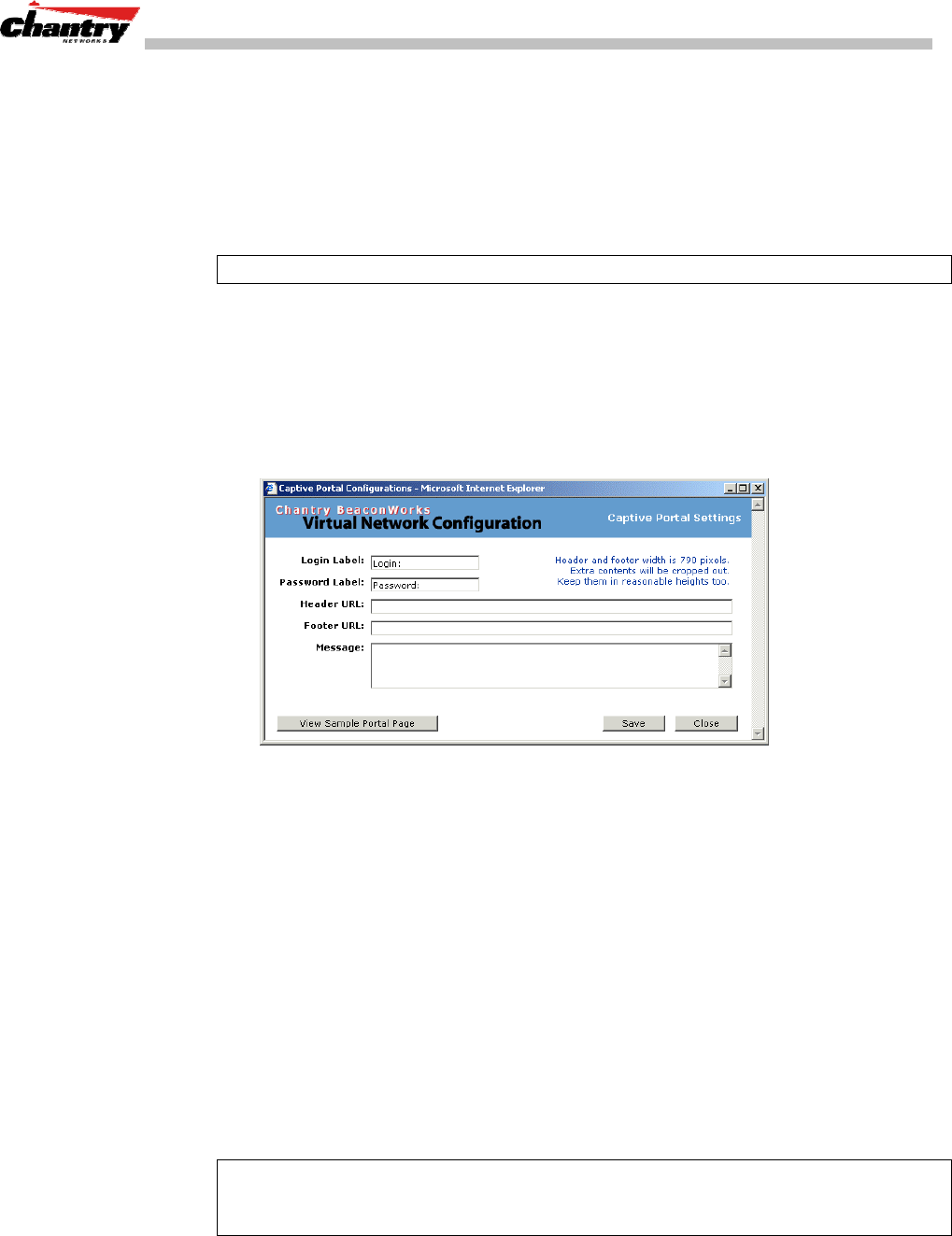

Screen 28: Captive Portal login configuration

2. Key in the text that will appear on the Captive Portal page.

the Captive Portal screen.

Password Label The text that will appear as a label for the user password

field

3. Key in the locations of the header and footers.

Header URL The location of the file to be displayed in the Header portion

of the Captive Portal screen. This page can be customized to

suit your company, with logos or other graphics. (Caution:

Ensure that such graphics in the header are not so large that

they push the login area out of view.)

Footer URL The location of the file to be displayed in the Footer portion

of the Captive Portal screen.

Note: You can also add URLs in the header and footer that link to other websites, to

allow the wireless device user to access to some specific areas of your enterprise, or to

the World Wide Web, before authentication.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

4. In the Message field, key in the message that will appear above the login field to

greet the user. For example, this could explain why this Captive Portal page is

appearing, and what the user should do.

5. To save this configuration, click on Save.

6. To see how the Captive Portal page you have designed will look (after saving the

configuration), click on the View Sample Portal Page button.

Filtering Rules for a VNS for Captive Portal

The next step is to configure the filtering rules for a Captive Portal VNS. Three types

of filters are required:

• Non-Authenticated Filter, with restrictive filtering rules that apply to all wireless

device users before authentication.

• Filter ID filtering rules that apply after authentication, when the RADIUS server

returns the “access-accept” message along with associated Filter ID for the user.

• Default filtering rules that apply after authentication, to control network access if

there are no Filter ID matches for the user.

The Non-Authenticated Filter

The Non-Authenticated Filter should allow access to the Captive Portal page IP

address, as well as to any URLs for the header and footer of the Captive Portal page.

The filter should also allow network access to the IP address of the DNS server and to

the Network Address, the Gateway, of the VNS (the VNS Gateway is used as the IP

for the Captive Portal page).

You can also set up filtering rules to allow access, before authentication, to explicitly

defined areas of the network. Then you must deny all other access.

Redirection and captive portal credentials only apply to HTML traffic, that is, if a

wireless device user is attempting to reach websites other than those specifically

allowed in the Non-Authenticated Filter, they will be redirected to the allowed

destinations.

All other network access will be controlled after the user is authenticated, when the

Filter ID or Default filtering rules are applied. The wireless device user who does not

authenticate will not get a wireless session.

Define filtering rules for a Non-Authenticated Filter

1. In the Virtual Network Configuration screen, click on the Filtering tab. The

Filtering screen appears. Click on the subnet name in the left-hand list. The right

portion of the screen displays the filtering screen for the selected subnet.

2. Using the Filter ID drop-down list, select Non-Authenticated.

Note: If you defined specific Filter ID Values in the Authentication screen, these

Filter IDs will appear in Filter ID drop-down list.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

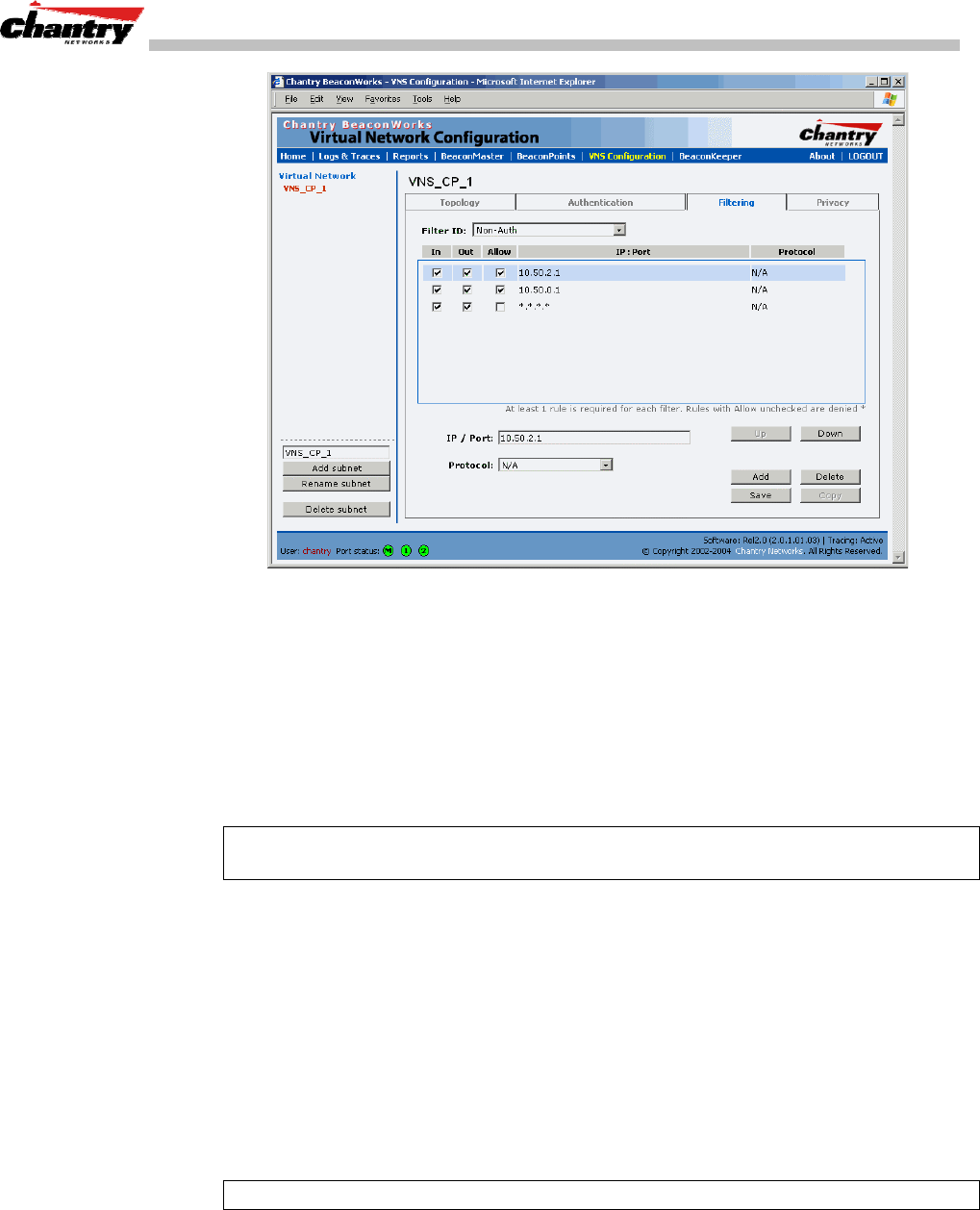

Screen 29: Virtual Network Configuration – Non-Authenticated Filter for Captive Portal

The Filtering screen automatically provides a “Deny All” rule already in place.

Use this rule as the final rule in the Non-Authenticated Filter for Captive Portal.

3. For each filtering rule you are defining:

IP / Port: Type in the destination IP address. You can also specify an IP

range, a port designation or a port range on that IP address.

Protocol: Default is N/A. To specify a protocol, select from the drop-down

list (may include UDP, TCP, IPsec-ESP, IPsec-AH, ICMP).

Note: For Captive Portal, select IP / Port and key in the IP address you defined as the

Network Address in the Topology screen for this VNS (its default gateway)

4. Click on the Add button.

The information appears in a new line in the Filter Rules area of the screen.

5. Highlight the new filtering rule and fill in (or leave unchecked) the three

checkboxes in the combinations that define the traffic access:

In: Click checkbox on to refer to traffic from the wireless device that

is trying to get on the network (“going to” the network)

Out: Click checkbox on to refer to traffic from the network host that is

trying to get to a wireless device. (“coming from” the network)

Allow Click checkbox on to allow. Leave unchecked to disallow.

Note: For Captive Portal, to allow access to the IP address, check all three boxes on.

6. Edit the order of a filtering rule by highlighting the line and clicking on the Up

and Down button. The filtering rules are executed in the order defined here.

7. To save the filtering rules, click on the Save button.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

Non-Authenticated Filters: Examples

A basic Non-Authenticated Filter for Captive Portal should have three rules in the

following order:

In Out Allow IP / Port Description

x x x IP address of the Default

Gateway

Allow all incoming wireless devices access to the default gateway of

the VNS.

xx x IP address of the DNS

Server

Allow all incoming wireless devices access to the DNS server of the

VNS.

x x *.*.*.* Deny everything else.

Note: If you put URLs in the header and footer of the Captive Portal page, you must

include a filtering rule to allow traffic to each of these URLs. Put this rule above the

“deny everything” rule.

Here is another example of a Non-Authenticated Filter that adds two more filtering

rules: one denies access to a specific IP address, and the next rule allows only HTML

traffic, before denying all other access:

In Out Allow IP / Port Description

x x x IP address of the Default

Gateway

Allow all incoming wireless devices access to the default gateway of

the VNS.

xx x IP address of the DNS

Server

Allow all incoming wireless devices access to the DNS server of the

VNS.

x x [a specific IP address, or

address plus range]

Deny all traffic to a specific IP address,

or to a specific range within an IP address (such as :0/24)

x x x *.*.*.*:80 Allow all port 80 (HTML) traffic.

x x *.*.*.*. Deny everything else.

Once a wireless device user has logged in on the Captive Portal page, and has been

authenticated by the RADIUS server, then the following filters will apply:

• Filter ID Filter, if a Filter ID associated with this user was returned the

authentication server

• Default Filter, if no matching Filter ID was returned from the authentication server.

These filters are described in detail in the Filtering for an AAA VNS.

Privacy using WEP for a VNS for Captive Portal

Use the Privacy screen to set up the static Wired Equivalent Privacy (WEP) keys for a

selected VNS, so that it matches the WEP mechanism used on the rest of the network.

In BeaconWorks Release 2.0, you can assign each radio on a BeaconPoint to up to

four VNSs by SSID. For each VNS, only one WEP key can be specified.

BeaconWorks always uses the first key (key index 0).

Set up a Static WEP key for a selected VNS

1. In the Virtual Network Configuration screen, click on the Privacy tab. The

Privacy screen appears.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Captive Portal

2. Click on the VNS subnet name in the left-hand list. The right portion of the screen

displays the privacy parameters for the selected subnet.

3. For no privacy mechanism on this VNS, click on the None radio button.

4. To configure static keys for WEP, click on the Static Keys (WEP) radio button.

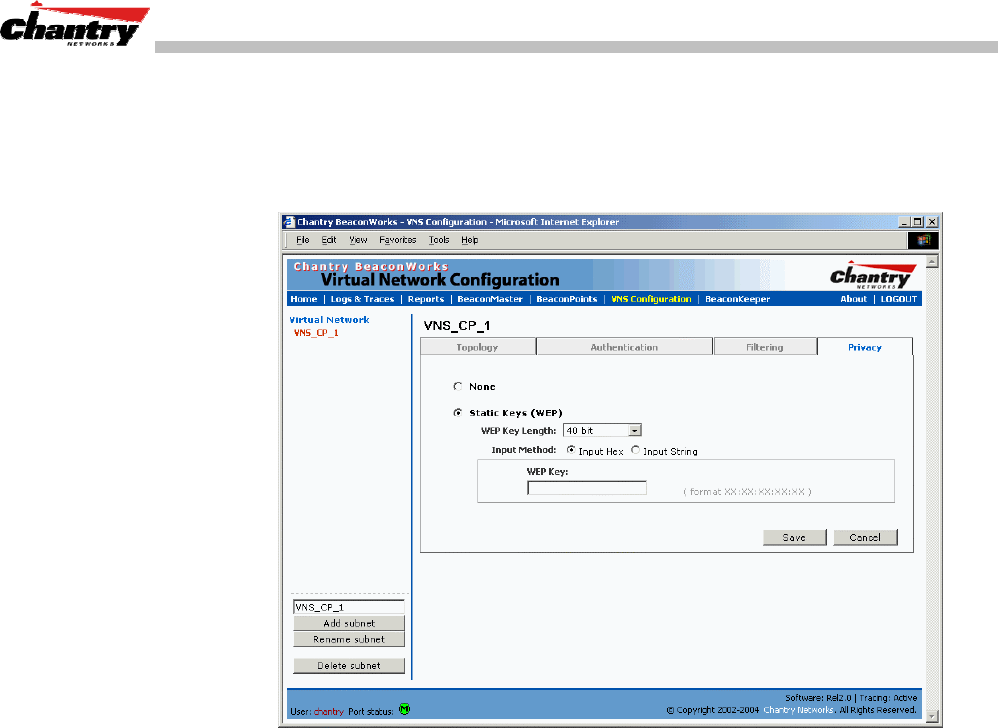

Screen 30: Virtual Network Configuration – Privacy – Captive Portal VNS

5. From the drop-down list, select the WEP Key Length: 40-bit, 104-bit, 128-bit

6. Click on the appropriate radio button to select the Input Method:

Input Hex, Input String.

7. Type in the WEP key input, as appropriate to the technique selected. The key is

generated automatically, based on the input.

8. To save these settings, click on the Save button.

BeaconWorks User Guide – Virtual Network Configuration: A VNS with No Authentication

Virtual Network Configuration: A VNS with No Authentication

You can choose to set up a VNS that will bypass all Chantry authentication

mechanisms and run BeaconWorks with no authentication of a wireless device user.

On such a VNS, however, you can still control network access with filtering rules. See

the Filtering Rules: Non-Authenticated Filter for Captive Portal topic for information

on how to set up filtering rules that allow access only to specified IP addresses and

ports.

Set up a VNS with no authentication

1. In the Virtual Network Configuration screen, highlight the VNS name in the left-

hand list and click on the Topology tab.

2. In the Topology screen, select Network Assignment by SSID.

For the remaining Topology parameters, follow the steps described above for a

VNS for Captive Portal.

Save the new VNS Topology by clicking on the Save button..

3. Then click on the Authentication tab for this VNS.

Screen 31: Virtual Network Configuration – Authentication – None

4. Select the None radio button, for no authentication on this VNS. Click on the

Save button.

5. In the Filtering screen, define a Non-Authenticated Filter that will control specific

network access for any wireless device users on this VNS. These rules should be

very restrictive. The final rule should be a “Deny All” rule.

See “Filtering Rules for a VNS for Captive Portal” for more information.

The Non-Authenticated Filter for a VNS with no authentication will not have a

Captive Portal page for login.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Voice Traffic (QoS with

SVP)

Virtual Network Configuration: A VNS for Voice Traffic (QoS with SVP)

Voice Data Traffic on a Wireless Network: Overview

New developments are enabling the integration of internet telephony technology on

wireless networks – Voice over Internet Protocol (VoIP) using 802.11 wireless local

area networks (WLANs).

VoIP over 802.11 WLANs raises various issues including quality-of-service (QoS),

call control, network capacity, and network architecture.

Wireless voice data requires a constant transmission rate and must be delivered within

a time limit. This type of data is called isochronous data. This requirement for

isochronous data is in contradiction to the concepts in the 802.11 standard that allow

for data packets to wait their turn, to avoid data collisions. (Regular traffic on a

wireless network is an asynchronous process in which data streams are broken up by

random intervals.)

The solution is to add mechanisms to the network that give voice data traffic priority

over all other traffic, and allow for continuous transmission of voice traffic.

One such mechanism is SpectraLink Voice Protocol (SVP), a protocol developed by

SpectraLink for implementation on an access point. The SVP protocol facilitates voice

prioritization over an 802.11 wireless LAN that will carry voice packets from

SpectraLink wireless telephones.

In BeaconWorks Release 2.0, you can configure a VNS that supports wireless voice-

over-internet devices. Specifically, you can enable SpectraLink Voice Protocol (SVP)

on the VNS in order to provide priority queuing on the BeaconPoint.

This feature is part of the development of Quality of Service (QoS) mechanisms in

BeaconWorks. Such techniques match the needs of specific applications to the

network resources available, in order to provide better network traffic flow.

Setting up a VNS for Voice Traffic

In order to set up a VNS for voice-over-internet traffic, a number of factors should be

taken into account, on the enterprise network and in the BeaconWorks system.

On the enterprise network, the wireless telephone users will require access to:

• a private branch exchange (PBX), a private telephone system within an enterprise,

with such features as voicemail.

• a Telephony Gateway, for access to an external standard telephone network, such

as the wireless cellular network or the public switched telephone network (PSTN).

Note: The Telephony Gateway should be located on the same subnet as the

BeaconMaster.

For large deployments, an SVP server is required on the enterprise network.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Voice Traffic (QoS with

SVP)

In BeaconWorks, the VNS that is dedicated voice-over-internet traffic should be

configured as follows:

• Network assignment by SSID

• Authentication set to None, since wireless telephone users do not have a user

interface in which they can enter authentication identification

• Filtering rules that allow access to the DNS server, to the Telephony Gateway, and

then deny all other traffic.

• Privacy using 104-bit WEP key (recommended for greater security).

Set up a VNS for voice traffic

1. In the Virtual Network Configuration screen, add a new VNS, as described earlier.

Then configure the VNS as described below.

Screen 32: Virtual Network Configuration: Topology – QoS for Voice Traffic

2. In the Topology screen, in the Assignment by field, select SSID from the drop-

down list.

3. In the QoS Policy area of the screen, enable Priority Traffic Handling by clicking

the checkbox on.

Note: It is possible to enable only the Priority Traffic Handling on a VNS without

using SVP. The Priority Traffic Handling mode sets the BeaconPoint to give priority

to traffic on this VNS. There is no multicast on with this feature.

However, this mode is usually used together with SVP enabled (the next feature)

4. To enable SVP on the VNS, click the SVP Enabled checkbox on.

When SVP is enabled, multicast traffic is also automatically enabled.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for Voice Traffic (QoS with

SVP)

5. Define parameters for multicast. The IP entry field displays an IP address that

SVP can use for multicast. The next field displays one of the BeaconMaster

physical data ports for multicast. You can modify these if required.

6. To allow this VNS to handle Push-To-Talk wireless communication, click the

Support Push-To-Talk checkbox on.

Note: The Push-To-Talk feature on wireless telephones allows direct communication

between any devices open on the same handset channel (like a walkie-talkie).

7. Define the remaining parameters of the VNS topology as described earlier for

network assignment by SSID.

8. To save this VNS configuration, click on the Save button.

9. In the Authentication screen, set the Authentication method for this VNS to None.

Click on the Save button.

10. In the Filtering screen, define filtering rules in the Non-Authenticated Filter that

allow access to the DNS server, to the Telephony Gateway, and then deny all

other traffic. Click on the Save button.

11 In the Privacy screen, set up Privacy using a 104-bit WEP key. Click on the Save

button.

Configure the BeaconPoint radio for a voice traffic VNS

In the BeaconPoint Configuration screen, make the following changes on the

BeaconPoint radio for this VNS, to support SVP requirements:

Screen 33: BeaconPoint Configuration for QoS VNS (need screen with correct settings)

1. Set the 2.4 Ghz radio to support only B mode (G mode not supported)

2. Set the operational radio rate to Best data rate.

3. The save these modifications, click on the Save button.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Virtual Network Configuration: A VNS for AAA

This section describes how to set up a VNS for AAA (802.1x): its Topology,

Authentication, Filtering and Privacy.

If network assignment is by AAA (802.1x) with 802.1x authentication, the process is

as follows. The wireless device user requesting network access via BeaconWorks

must first be authenticated. The wireless device’s client utility must support 802.1x.

The user’s request for network access along with login identification or user profile

will be forwarded by the BeaconMaster to a RADIUS server. BeaconWorks supports

these authentication types:

• EAP-TLS Extensible Authentication Protocol - Transport Layer Security that relies

on client-side and server-side certificates to perform authentication and can be

used to dynamically generate user-based and session-based WEP keys.

• EAP-TTLS (EAP with Tunneled Transport Layer Security) is an extension of

EAP-TLS to provide certificate-based, mutual authentication of the client and

network through an encrypted tunnel, as well as to generate dynamic, per-user,

per-session WEP keys. Unlike EAP-TLS, EAP-TTLS requires only server-side

certificates.

• PEAP (Protected Extensible Authentication Protocol) is a standard to authenticate

wireless LAN clients without requiring them to have certificates. In PEAP

authentication, first the user authenticates the authentication server, then the

authentication server authenticates the user.

Note: For 802.1x, the RADIUS server must support RADIUS extensions (RFC2869).

If the RADIUS servers sends an “access-accept” message to the BeaconMaster, the

BeaconMaster’s DHCP server assigns the wireless device its IP address.

The BeaconMaster controls network access by means of the filtering rules defined for

the specific Filter ID associated with the wireless device user, as defined in the

Filtering screen.

For a VNS with AAA (802.1x), privacy by Wi-Fi Protected Access (WPA) is

available.

Topology for a VNS for AAA

For a VNS with 802.1x authentication, select Network Assignment by AAA

(Authentication, Authorization, Accounting) in the Topology screen.

In the Virtual Network Configuration screen, highlight the VNS name in the left-hand

list and click on the Topology tab.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Screen 34: Virtual Network Configuration – Topology – AAA Assignment

Create an AAA topology

1. Using the Assignment by drop-down list, select AAA.

2. In the SSID box at the right, key in the SSID that the wireless devices will use to

access the BeaconPoint.

3. Click the Suppress SSID checkbox on to prevent this SSID from appearing in the

beacon message sent by the BeaconPoint. The wireless device user seeking

network access will not see this SSID as an available choice, and will need to

specify it.

4. In the Session Timeout box, key in the number of minutes that a wireless device

can be inactive before the BeaconMaster closes the session.

Identify the BeaconPoint radios that will be assigned to this VNS

5. From the displayed list of BeaconPoint Radios that are available throughout the

network, check the ones to be assigned to this VNS.

Once you have assigned a BeaconPoint radio to four VNSs, it will not appear in

the list for another VNS setup.

Note: You can view the VNSs that each radio is participating in by clicking on the

appropriate tab for each radio in the BeaconPoint Configuration screen

Enable Management Traffic on this VNS

6. To allow Management Traffic on this VNS, click the Allow management traffic

checkbox on.

Note: This choice invokes the built-in port-based filtering rules for Management

Traffic, as described earlier in the “Port Type or Function” topic.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Set the IP address for the VNS (for the DHCP server on the BeaconMaster)

7. In the Network Address box, key in the network IP address for the VNS.

This IP address is the default gateway for the VNS. The BeaconMaster advertises

this address to the wireless devices when they sign on.

8. In the Mask box, key in the appropriate subnet mask for this IP address, to

separate the network portion from the host portion of the address (typically

255.255.255.0)

The Address Ranges fields populate automatically (based on the IP address you

keyed in) with the range of IP addresses to be assigned to wireless devices using

this VNS.

9. To modify the Address Ranges, key the first available address in the from box.

Key the last available address in the to box.

10. If there are specific IP addresses to be excluded from this range, click on the

Exclusions field. The Exclusions subscreen appears.

Screen 35: Virtual Network Configuration – Exclusions subscreen

11. In the Exclusions subscreen, key in the IP addresses or address ranges to exclude.

Click on the Add button after each entry. Click on the Save button to save the

changes and return to the Topology screen.

12. The Broadcast Address field populates automatically, based on the IP address of

the VNS. Modify this if appropriate..

13. In the Domain Name box, key in the external enterprise domain name.

Set time limits for IP assignments

14. In the Default Lease box, accept the default value of 3600 seconds (1 hour), or

modify. This is the default time limit that an IP address would be assigned by the

DHCP server to a wireless device.

In the Max Lease box, accept the default value is 24000 seconds (40 hours), or

modify. This is the maximum time that an IP address can be assigned.

Set the name server configuration

15. In the DNS Servers box, key in the IP Address of the Domain Name Server(s) to

be used.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

16. If the DHCP server uses WINS (Windows Internet Naming Service), key in the IP

address in the WINS box. If not, leave it blank.

Use DHCP Relay for the VNS

Use DHCP Relay to force the BeaconMaster to forward DHCP requests to an external

DHCP server on the enterprise network. This function will bypass the local DHCP

server on BeaconMaster (to bypass steps 9 to 18 above). This function allows the

enterprise to manage IP address allocation to a VNS from its existing infrastructure.

17. To use an external DHCP server, click the Use DHCP Relay checkbox on. The

DHCP Settings area of the screen changes to display only the Gateway IP, Mask

and DHCP Server fields. Key in the appropriate IP addresses and mask to reach

the enterprise’s external DHCP server.

Note: The range of IP addresses to be assigned to the wireless device users on this

VNS should also be designated on the external DHCP server.

Save the new VNS for AAA

18. To save this VNS configuration, click on the Save button.

When the new Topology has been saved, the screen changes to display tabs for

Authentication, Filtering and Privacy.

Authentication for a VNS for AAA

The next step is to set up the Authentication mechanism for AAA (802.1x).

This type of authentication relies on a RADIUS server on the enterprise network. You

can define more than one RADIUS server for authentication and define the priority of

use in the event of a failover situation.

Set up authentication by AAA (802.1x) method

1. Highlight the VNS name. Click on the Authentication tab. For an AAA VNS, the

AAA version of the Authentication screen appears.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Screen 36: Virtual Network Configuration – Authentication – AAA

Define how the BeaconMaster will access the RADIUS Server.

2. For each RADIUS server to be defined, click on the Add button. The RADIUS

Server Configuration popup window appears.

Screen 37: Virtual Network Configuration – Authentication AAA – RADIUS Server Configuration

3. For each server, fill in the following fields:

Server Address The IP address of the RADIUS Server.

Port # The port used to access the RADIUS Server (default: 1812)

# of Retries Number of times the BeaconMaster will attempt to access

the RADIUS Server

Timeout The maximum time that a BeaconMaster will wait for a

response from the RADIUS server, before attempting again

(up to the maximum number of retries).

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

4. Key in the Shared Secret (a password that is required in both directions) that is

set up on the RADIUS Server. This password is used to validate the connection

between the BeaconMaster and the RADIUS Server.

To display the shared secret (in order to proofread your entry before saving the

configuration), click on the Unmask button. To mask the shared secret again,

click on the button again (the button toggles between Mask and Unmask).

Note: This precautionary step is recommended at this point in order to avoid an error

later when the BeaconMaster attempts to communicate with the RADIUS server.

5. In the NAS Identifier field, type in the Network Access Server (NAS) identifier, a

RADIUS attribute that identifies the server responsible for passing information to

designated RADIUS Servers and then acting on the response returned. [Optional]

6. To save these settings and return to the main Authentication screen, click on the

Save button. To return to the main Authentication screen without saving, click on

the Close button.

Define the RADIUS server priority for RADIUS Redundancy

After setting up a RADIUS server, its IP address appears in the RADIUS Servers box.

To allow for RADIUS server redundancy, set up a second server, as described above.

7. To define the priority of the servers, highlight a RADIUS server in the list and use

the Move Up or Move Down key to change the order.

The first server in the list is the active one.

In the event of a failover of the main RADIUS server (if no response after the set

number of retries), then the other servers in the list will be polled on a round-robin

basis until one responds.

If one of the other servers becomes the active one during a failover, an “A” will

appear after that server name.

Note: If all defined RADIUS servers fail to respond, a critical message will be

generated in the logs.

8. To remove a defined server from the list, highlight it and click on the Delete

button.

9. To modify the parameters of a defined server, highlight it and click on the Edit

button. In the RADIUS Server popup screen, follow steps 2 to 6 described above.

Note: It is recommended that the RADIUS databases with names, logins, and

attributes be kept synchronous on all RADIUS servers.

Define the Filter ID Values on this VNS.

10. In the Filter ID Values entry field, key in the name of a group that you want to

define specific filtering rules for, to control network access. Click on the Add

button. The Filter ID name appears in the list above.

Repeat for additional Filter ID names.

These Filter ID names will appear in the Filter ID list in the Filtering screen.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Note: These names must match the Filter ID attribute names in the RADIUS server.

11. To save the authentication parameters for this VNS, click on the Save button.

VNS Topology for an AAA group

You can set up a group within a VNS that relies on the RADIUS attribute Login-LAT-

Group (RFC2865). For each group, you can define filtering rules to control access to

the network.

If you define a group within an AAA VNS, the group (or child) definition acquires the

same authentication and privacy parameters as the parent VNS. However, you need to

define a different topology and filtering rules for this group.

Set up an AAA Group

1. Highlight the VNS name for which you selected AAA as the Assignment method

in the Topology screen. Click on the Authentication tab. For an AAA VNS, the

AAA version of the Authentication screen appears.

2. To create and define a VNS Group within the selected parent VNS, key in the

name in the VNS Group Name field. Then click on the Add button.

The Group Name that you defined will appear as a child of the parent VNS in the

left-hand list. (To configure the Topology of a group, see the next topic.)

3. To save these settings and create the group VNS definition, click on Save.

Configure the VNS Topology for an AAA Group

1. To configure the VNS topology for an AAA Group, click on its name in the left-

hand list. The Group version of the Topology screen appears.

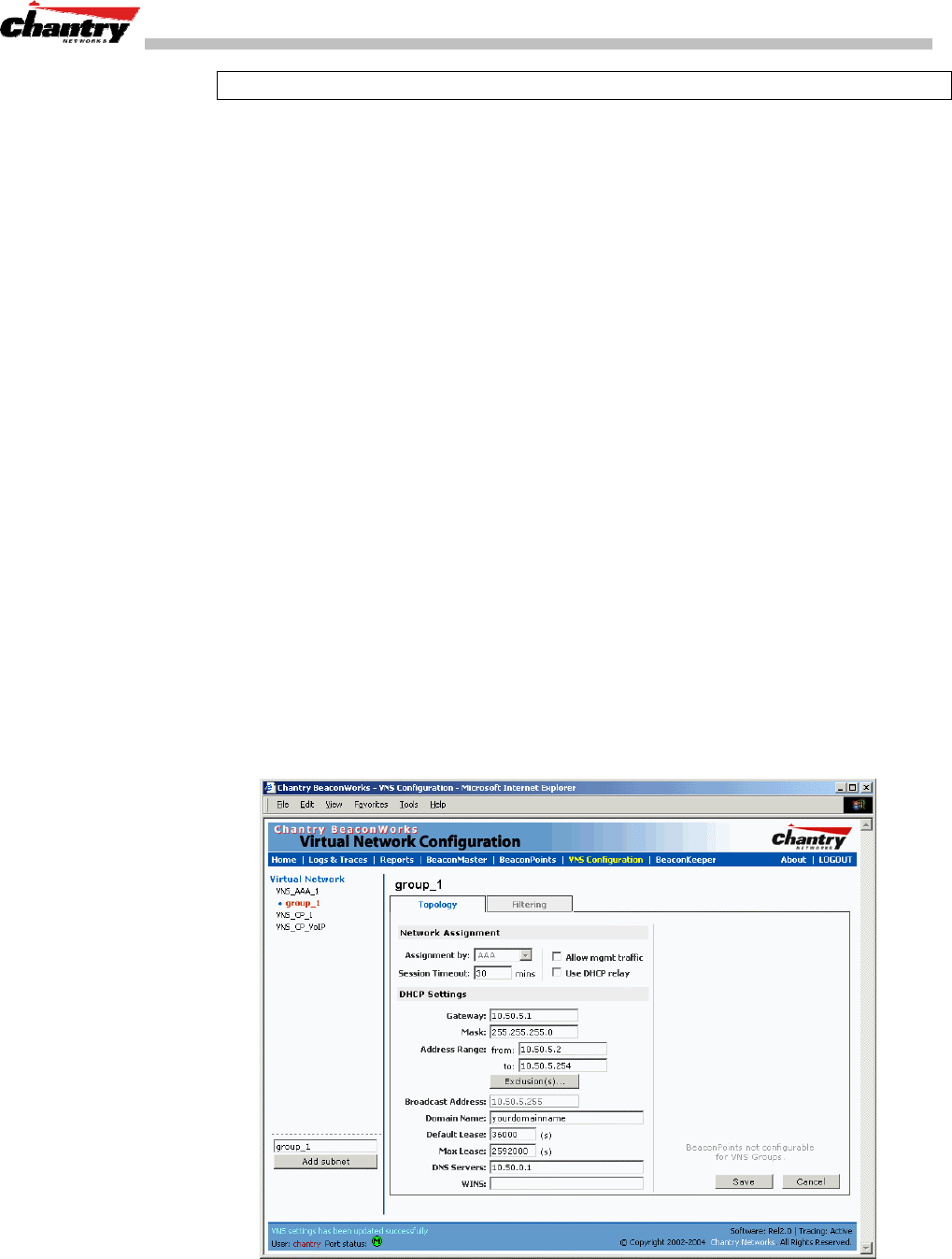

Screen 38: Virtual Network Configuration – Topology – AAA Group

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

2. Define the DHCP settings for this VNS, as described above for the parent VNS.

The Gateway and DHCP Ranges must be different than those of the parent VNS.

3. To save the modifications, click on Save.

The filtering screen for an AAA Group is described at the end of the Filtering topic.

Filtering Rules for a Filter ID group

After setting up RADIUS parameters for Authentication and the Filter ID Values, the

next step is to define the filtering rules for the Filter ID Values on the VNS for AAA.

When the wireless device user enters a login identification, that identification is sent

by the BeaconMaster to the RADIUS server or other authentication server, through a

sequence of exchanges depending on the type of authentication protocol used.

When the server allows this request for authentication (sends an “access-accept”

message), the RADIUS server may also send back to the BeaconMaster a Filter ID

attribute associated with the user, or a Login-LAT-Group identifier for the user.

If the Filter ID attribute (or Login-LAT-Group attribute) from the RADIUS server

matches a Filter ID Value that you have set up on the BeaconMaster, the

BeaconMaster applies to the wireless device user the filtering rules that you defined

for that Filter ID Value.

Note: The BeaconMaster’s Filter ID Values must match the Filter ID attribute names

in the RADIUS server.

If no Filter ID is returned by the authentication server, or no match is found on the

BeaconMaster, then the Default Filter and its filtering rules will apply to the wireless

device user.

Define filtering rules for a Filter ID group

1. In the Virtual Network Configuration screen, highlight the VNS name in the list

and click on the Filtering tab. The Filtering screen for this VNS appears.

2. Using the Filter ID drop-down list, select one of the names you defined in the

Filter ID Values field in the Authentication screen [one of your enterprise’s user

groups, such as Sales, Engineering, Teacher, Guest....]

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Screen 39: Virtual Network Configuration –Filter ID Value filtering rules

The screen automatically provides a “Deny All” rule already in place. This can be

modified to “Allow All”, if appropriate to the network access needs for this VNS.

3. Select one of the following as the basis for each filtering rule you are defining:

IP / Port: Type in the destination IP address, and if desired, the port

designation on that IP address.

Protocol: Select from the drop-down list (may include UDP, TCP, IPsec-

ESP, IPsec-AH, ICMP)

4. Click on the Add button.

The information appears in a new line in the Filter Rules area of the screen.

5. Highlight the new filtering rule and fill in (or leave unchecked) the three

checkboxes in the combinations that define the traffic access:

In: Click checkbox on to refer to traffic from the wireless device that

is trying to get on the network (“going to” to network)

Out: Click checkbox on to refer to traffic from the network host that is

trying to get to a wireless device. (“coming from” the network)

Allow Click checkbox on to allow. Leave unchecked to disallow..

6. Edit the order of a filtering rule by highlighting the line and clicking on the Up

and Down button. The filtering rules are executed in the order defined here

7. To save the filtering rules, click on the Save button.

Filtering Rules by Filter ID: Examples

Below are two examples of possible filtering rules for a Filter ID. The first disallows

only some specific access before allowing everything else.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

In Out Allow IP / Port Description

x x *.*.*.*:22-23 Deny all telnet sessions

x x [specific IP address, range] Deny all traffic to a specific IP address, or address range

x x x *.*.*.*. Allow everything else.

The second example does the opposite of the first example. It allows only some

specific access and denies everything else.

In Out Allow IP / Port Description

x x x [specific IP address, range] Allow all traffic to a specific IP address, or address range

x x *.*.*.*. Deny everything else.

Filtering Rules for a Default Filter

If, after authentication of the wireless device user, no Filter ID attribute is returned by

the authentication server for this user, or no match is found on the BeaconMaster for a

Filter ID Value, then the Default Filter will apply.

Define the filtering rules for a Default Filter

1. In the Virtual Network Configuration – Filtering screen, using the Filter ID drop-

down list, select Default.

Screen 40: Virtual Network Configuration – Default Filter

2. Follow Steps 2 to 5, as described above.

3. To save the filtering rules, click on the Save button.

Default Filter: Examples

Here is an example of filtering rules for a Default Filter:

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

In Out Allow IP / Port Description / Purpose

x x Intranet IP, range Deny all access to an IP range

x x Port 80 (HTTP) Deny all access to web browsing.

x x Intranet IP Deny all access to a specific IP

x x x *.*.*.*. Allow everything else.

Here is another example of filtering rules for a Default Filter:

In Out Allow IP / Port Description / Purpose

x Port 80 (HTTP) on host IP Deny all incoming wireless devices access to web browsing the host.

xIntranet IP 10.3.0.20, ports

10-30

Deny all traffic from the network to the wireless devices on the port

range, such as TELNET (port 23) or FTP (port 21).

x x Intranet IP 10.3.0.20 Allow all other traffic from the wireless devices to the Intranet network.

x x Intranet IP 10.3.0.20 Allow all other traffic from Intranet network to wireless devices.

x x x *.*.*.*. Allow everything else.

Filtering Rules for an AAA Group VNS

If you defined a child group for an AAA VNS, it will have the same authentication

parameters and Filter IDs as the parent VNS. However, you can define different

filtering rules for these Filters IDs in the child configuration than in the parent

configuration.

1. In the Virtual Network Configuration screen, highlight the VNS group name in the

list and click on the Filtering tab. The Filtering screen for this VNS group

appears.

Screen 41: Virtual Network Configuration – Filtering – AAA Group

2. Follow Steps 2 to 5, as described above for a parent VNS.

3. To save the filtering rules, click on the Save button.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Filtering Rules between two wireless devices

Traffic from two wireless devices that are on the same VNS and are connected to the

same BeaconPoint will pass through the BeaconMaster and therefore be subject to

filtering policy.

You can set up filtering rules that allow each wireless device access to the default

gateway, but prevent each device from communicating each other. Add the following

two rules to a Filter ID filter before allowing everything else:

In Out Allow IP / Port Description / Purpose

x x x [Intranet IP] Allow access to the Gateway IP address of the VNS only

x x [Intranet IP, range] Deny all access to the VNS subnet range 0/24

x x x *.*.*.*. Allow everything else.

Privacy for a VNS for AAA

Use the Privacy screen to set up privacy mechanisms for a VNS with authentication

by 802.1x (AAA). There are three options

• Static keys (WEP)

• Dynamic keys

• Wi-Fi Protected Access (WPA) version 1, with Temporal Key Integrity Protocol

(TKIP).

Privacy for a VNS for AAA: WEP

Set up static WEP privacy for a selected AAA VNS

1. In the Virtual Network Configuration screen, highlight the VNS name in the list

and click on the Privacy tab. The Privacy screen for the selected VNS appears.

Screen 42: Virtual Network Configuration – Privacy – AAA VNS: Static Keys

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

2. To use static keys, click on the Static Keys (WEP) radio button.

3. From the drop-down list, select the WEP Key Length: 40-bit, 104-bit, 128 bit

4. Click on the appropriate radio button to select the Input Method:

Input Hex, Input String.

5. Type in the WEP key input, as appropriate to the technique selected. The key is

generated automatically, based on the input.

6. To save these settings, click on the Save button.

Set up dynamic WEP privacy for a selected AAA VNS

The dynamic key WEP mechanism changes to key for each user and each session.

1. To use dynamic keys, click on the Dynamic Keys radio button.

2. To save these settings, click on the Save button.

Privacy for a VNS for AAA: Wi-Fi Protected Access (WPA)

The VNS Privacy configuration function now includes Wi-Fi Protected Access

(WPA) privacy, a new security solution that adds authentication to enhanced WEP

encryption and key management.

The authentication portion of WPA has two modes:

• Enterprise Mode:

• Specifies 802.1x with Extensible Authentication Protocol (EAP)

• Requires a RADIUS or other authentication server

• Uses RADIUS protocols for authentication and key distribution

• Centralizes management of user credentials

• Pre-Shared Key (PSK) Mode: Pre-Shared Key for authentication:

• Does not require an authentication server (suitable for home or small office)

• Uses a Pre-Shared Key (shared secret) used for authentication to the access

point

The encryption portion of WPA is Temporal Key Integrity Protocol (TKIP). TKIP

includes:

• a per-packet key mixing function that shares a starting key between devices, and

then changes their encryption key for every packet or after the specified re-key

time interval.

• a extended WEP key length of 256-bits

• an enhanced Initialization Vector (IV) of 48 bits, instead of 24 bits, making it

more difficult to compromise.

• a Message Integrity Check or Code (MIC), an additional 8-byte code that is

inserted before the standard WEP 4-byte Integrity Check Value (ICV). These

integrity codes are used to calculate and compare, between sender and receiver,

the value of all bits in a message, to ensure that the message has not been

tampered with.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

The steps in the WPA authentication and encryption process are as follows:

1. The wireless device client associates with BeaconPoint.

2. BeaconPoint blocks the client’s network access while the authentication process is

carried out (the BeaconMaster sends the authentication request to the RADIUS

authentication server)

3. The wireless client provides credentials that are forwarded by the BeaconMaster

to the authentication server.

4. If the wireless device client is not authenticated, the wireless client stays blocked

from network access.

5. If the wireless device client is authenticated, the BeaconMaster distributes

encryption keys to the BeaconPoint and the wireless client.

6. The wireless device client gains network access via the BeaconPoint, sending and

receiving encrypted data. The traffic is controlled with permissions and policy

applied by the BeaconMaster.

Set up Wi-Fi Protected Access privacy (WPA) for an AAA VNS

1. To set up WPA privacy on the VNS, click on the WPA radio button.

Screen 43: Virtual Network Configuration – Privacy – AAA VNS: WPA

Specify a re-key interval for WPA Privacy

2. To enable re-keying after a time interval, click the Broadcast re-key interval

checkbox on (the default is on). Type in the re-key time interval (the time after

which the broadcast encryption key is changed automatically) in seconds.

If the box is unchecked, the Broadcast encryption key is never changed and the

BeaconPoint will always use the same broadcast key for Broadcast/Multicast

transmissions. Note that this reduces the level of security for wireless

communications.

BeaconWorks User Guide – Virtual Network Configuration: A VNS for AAA

Enable WPA in PSK mode if there is no authentication server

3. To enable WPA-PSK, for authentication on a network without an authentication

server, click the Pre-Shared Key checkbox on.

4. Type in the Pre-Shared Key (PSK), or shared secret, to be used between the

wireless device and BeaconPoint. The key should be between 8 and 63 characters.

It is used to generate the 256-bit key.

5. To display the Pre-Shared Key (in order to proofread your entry before saving the

configuration), click on the Unmask button. To mask the key again, click on the

button again (the button toggles between Mask and Unmask).

Save the privacy parameters for this VNS

6. To save the privacy parameters for the new VNS, click on the Save button.

BeaconWorks User Guide – BeaconMaster Configuration: Availability

BeaconMaster Configuration: Availability

The BeaconWorks system provides a feature that maintains service availability in the

event of a BeaconMaster outage.

The Availability feature links two BeaconMasters as a pair, so that they share

information about their BeaconPoints. If one BeaconMaster in a pair fails, then its

BeaconPoints are allowed to connect instead to the second BeaconMaster. The second

BeaconMaster provides the wireless network and a pre-assigned VNS for the

BeaconPoint.

From the viewpoint of a BeaconPoint, if its home BeaconMaster fails, the

BeaconPoint reboots and begins its discovery process. The BeaconPoint will be

directed to the appropriate second BeaconMaster of the pair.

Note: The Availability feature relies on SLP and a DHCP server that supports Option

78, as described earlier in the BeaconPoint discovery and registration process. The

Availability feature controls how the paired BeaconMasters register as services with

SLP, in normal operations and in the event of an outage.

The wireless device users that were on the BeaconPoint must log in again and become

authenticated on the second BeaconMaster.

The Availability feature is set up in the BeaconPoint Registration Mode screen.

Prepare for setting up the Availability feature

Before you begin, the following preparation should be done:

• choose which BeaconMaster is the primary and which is the secondary

• determine the physical communication link for the TCP/IP connection between the

two BeaconMasters (this is done over TCP port 13907), and ensure that the

interfaces used for this connection are routable

• set up DHCP to support Option 78 for SLP, so that it points to the IP addresses of

both BeaconMasters

Now set up each BeaconMaster separately. One method is as follows:

1. In the BP Registration screen, set up each BeaconMaster in “Stand-alone Mode”

and “Secure Mode” (allow only approved BeaconPoints to connect)

2. In the VNS Configuration, Topology screen, define a VNS on each BeaconMaster

with the same SSID (but different IP addresses)

3. Associate the appropriate BeaconPoints to each BeaconMaster. The BeaconPoints

will appear on each BeaconMaster as “Pending” in the Access Approval screen.

4. In the BP Registration screen, now enable the two BeaconMasters as a pair, as

described below.

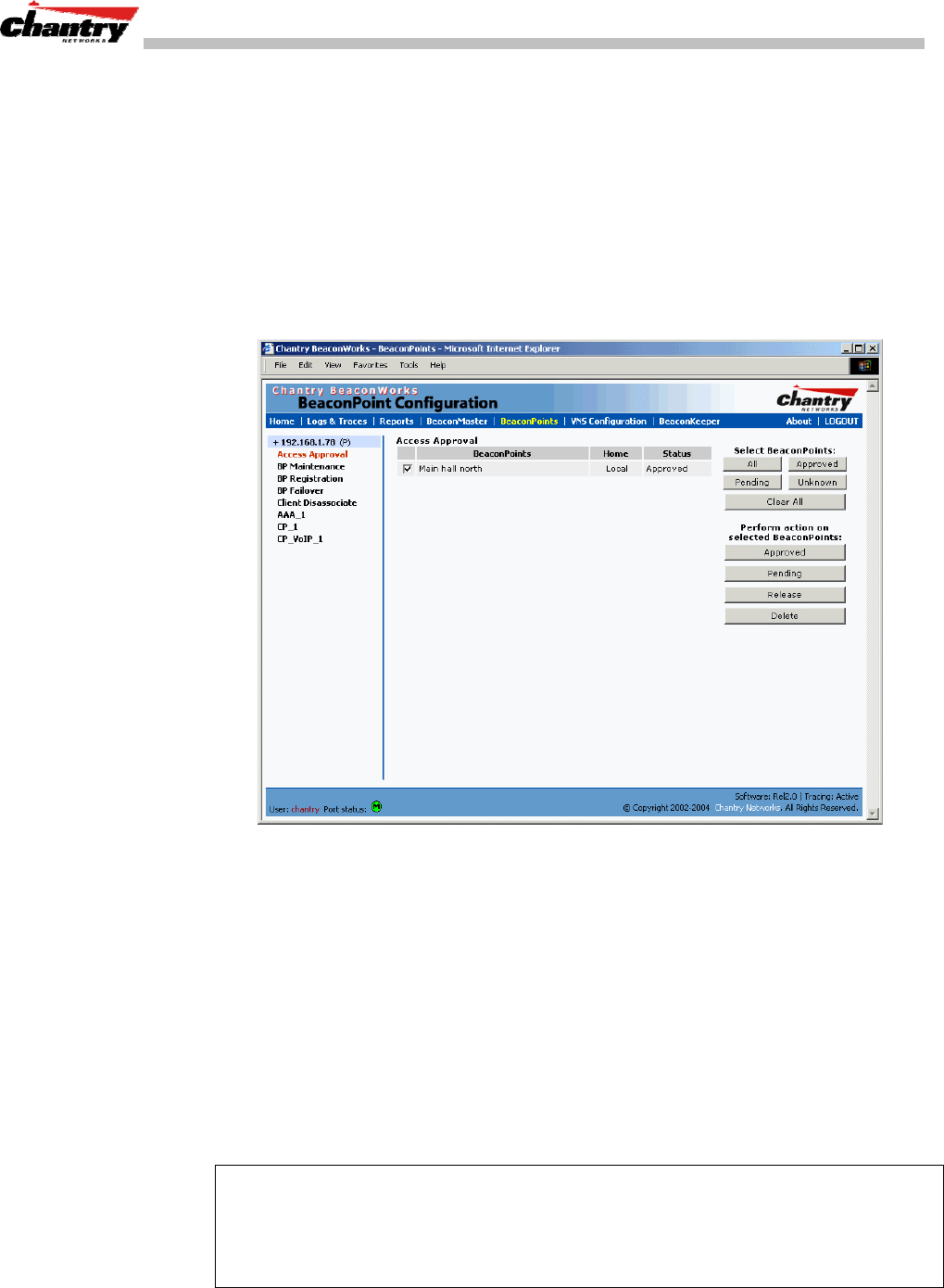

5. On each BeaconMaster in the Access Approval screen, change the status of the

relevant BeaconPoints from “Pending” to “Approved”.

BeaconWorks User Guide – BeaconMaster Configuration: Availability

A second method to set up the BeaconMasters is as follows:

1. In the BP Registration screen, enable the two BeaconMasters as a pair, as

described below.

2. Add each BeaconPoint manually to each BeaconMaster. (Select the BeaconPoint

tab. In the BeaconPoint Properties screen, click on the Add BeaconPoint button.

The BeaconPoint Configuration subscreen appears. Define the BeaconPoint and

click on the Add BeaconPoint button.)

Note: Caution: If two Beacon Masters are paired and one BeaconMaster has the

“Allow All” option set for BeaconPoint registration, all BeaconPoints will register

with that BeaconMaster.

Set up two BeaconMasters as a pair, for availability

1. On the BeaconMaster that is to be the primary, select BeaconPoints tab in any

screen. Then, in the left-hand list, click on BP Registration. The BeaconPoint

Registration Mode screen appears.

Screen 44: BeaconPoint Configuration – Paired BeaconMasters for Availability

2. Click the Paired radio button.

3. Enter the IP address of the physical port of the secondary BeaconMaster.

Note: This IP must be on a routable subnet between the two BeaconMasters.

4. Select a Default Failover VNS on the other BeaconMaster from the drop-down

list of VNS’s (this list will be populated only after a VNS has been defined).

5. Since this BeaconMaster is to be the primary connection point, click the

checkbox on.

6. Set the Security Mode to “Allow Approved” by clicking the radio button.

[recommended after initial set up for paired BeaconMasters]

BeaconWorks User Guide – BeaconMaster Configuration: Availability

7. Click the Allow dynamic port assignment checkbox on. This ensures that the

BeaconPoint will always find a port for the return connection to its home

BeaconMaster after a failover.

8. To save these settings, click on the Save button.

On the BeaconMaster that is to be the secondary one, repeat Steps 1 to 8, with these

exceptions:

• In Step 3, enter the IP address of the Management port or physical port of the

primary BeaconMaster.

• In Step 5, leave the primary connection point checkbox unchecked.

Modifying BP Failover selections for availability

When you have enabled a pair of BeaconMasters as described above, BP Failover is

added as an option in the BeaconPoint Configuration left-hand list.

1. Click on BP Failover option. The BeaconPoint Failover – Paired BM screen

appears.

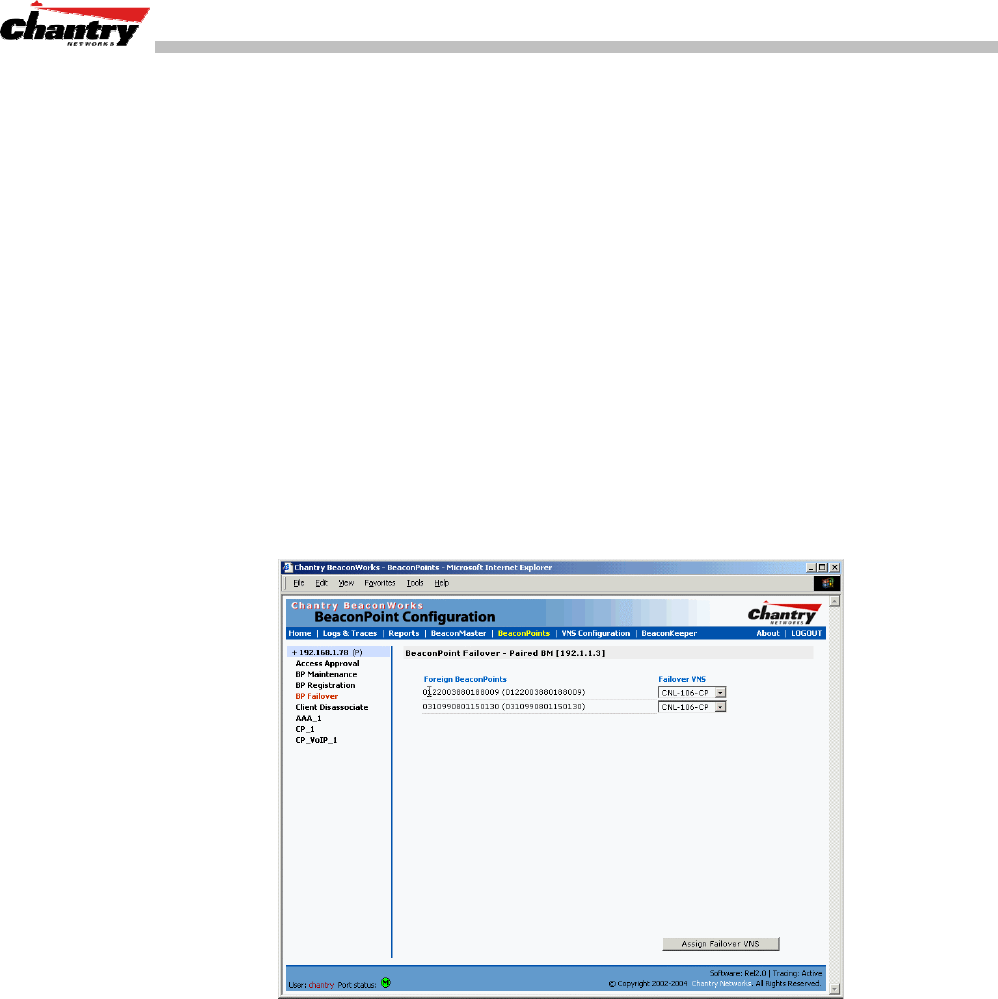

Screen 45: BeaconPoint Configuration – BP Failover for Paired BM

This screen displays the BeaconPoints registered on the other BeaconMaster of the

pair.

2. For each BeaconPoint, select a Failover VNS from the drop-down list.

This selection overrides the Default Failover VNS selected in the BeaconPoint

Registration Mode screen. If no VNS is assigned in here in the BeaconPoint

Failover – Paired BM screen, then the Default Failover VNS will be used.

View the BeaconPoint Availability Report

When the BeaconPoint Configuration: BP Registration Mode screen has been saved

for the BeaconMaster in Paired Mode, the BeaconPoint Availability report will show

the status of both “local” and “foreign” BeaconPoints for that BeaconMaster.

BeaconWorks User Guide – BeaconMaster Configuration: Availability

In normal operations, when Availability is enabled, the “local” BeaconPoints are

green, and the “foreign” BeaconPoints are red. If the other BeaconMaster fails, and

the “foreign” BeaconPoints connect to the current BeaconMaster, then the display will

show all BeaconPoints as green. If the BeaconPoints are not attached they do not

appear in the report.

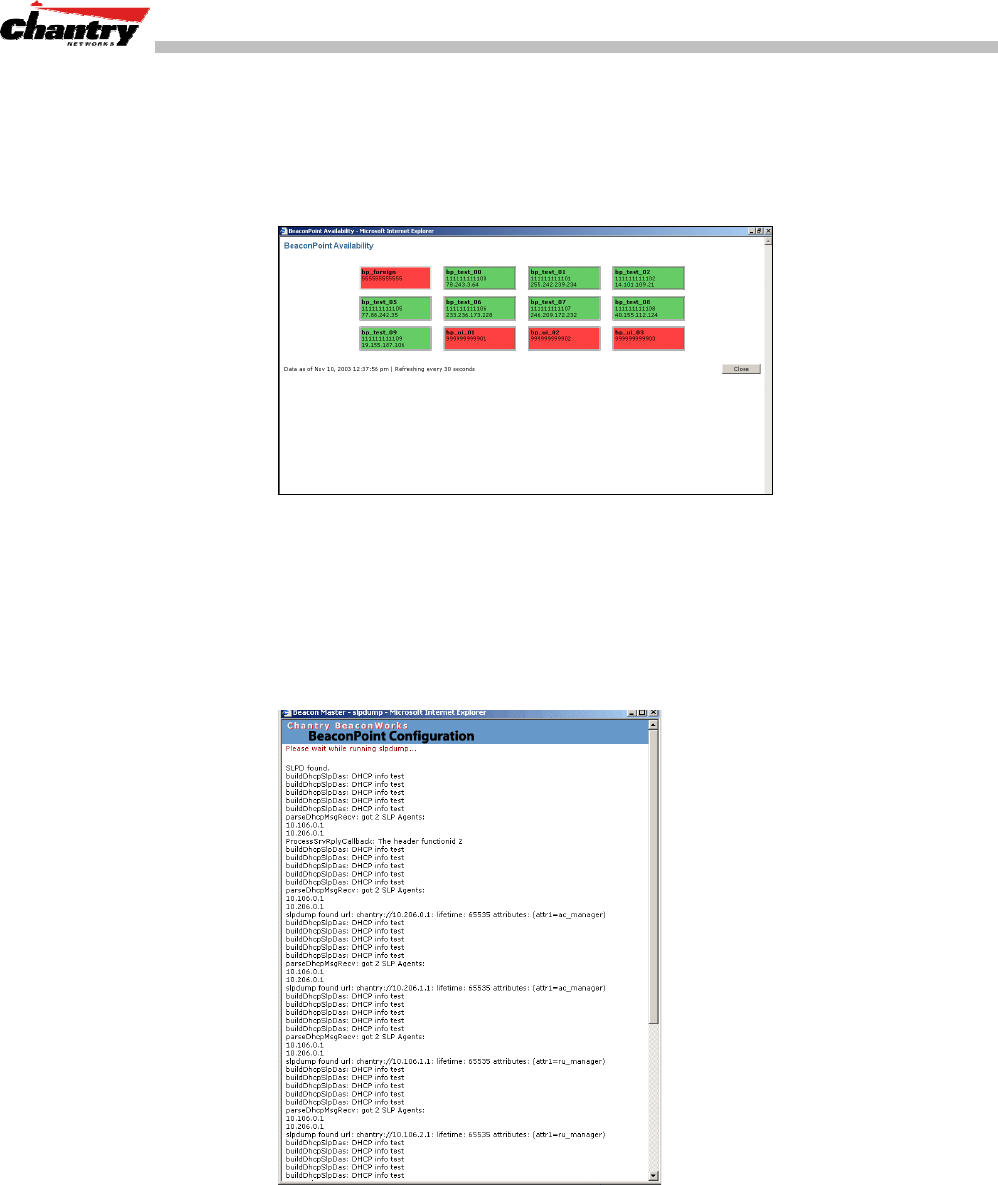

Screen 46: Report – BeaconPoint Availability

View the SLP activity with the “slpdump tool”

1. Select

BeaconPoints tab in any screen. Then, in the left-hand list, click on BP

Registration. The BeaconPoint Registration Mode screen appears.

2. Click on the View SLP Registration button. A popup screen displays the results

of the “slpdump tool”, showing the recent SLP activity:

Screen 47: BeaconPoint configuration – View SLP Registration

In normal operations, the primary BeaconMaster registers as an SLP service called

“ac_manager” and directs the BeaconPoints to the appropriate BeaconMaster of a

pair. During an outage, if the remaining BeaconMaster is the secondary one, it will

BeaconWorks User Guide – BeaconMaster Configuration: Availability

Events and actions during a Failover

If one of the BeaconMasters in a pair fails, then the connection between the two

BeaconMasters is lost. This triggers a “Failover mode” condition, and a critical

message appears in the information log of the remaining BeaconMaster.

After the BeaconPoint on the failed BeaconMaster loses its connection, it will attempt

a reboot. Because of the pairing of the two BeaconMasters, the BeaconPoint will then

Note: A BeaconPoint connects first to a BeaconMaster registered as “ac_manager”

and, if not found, then seeks an “ru_manager”. If the primary BeaconMaster fails, the

secondary one registers as an SLP service “ru_manager”. This enables the secondary

BeaconMaster to be found by BeaconPoints after they reboot.

When the BeaconPoints connect to the second BeaconMaster, they will be assigned to

the Failover VNS defined in setup in that BeaconMaster. The wireless device users

will log in again and be authenticated on the second BeaconMaster.

When the failed BeaconMaster recovers, each BeaconMaster in the pair goes back to

normal mode. They exchange information that includes the latest lists of registered

BeaconPoints. The administrator will release the BeaconPoints on the second

BeaconMaster, so that they may re-register with their home BeaconMaster.

To support the Availability feature during a “Failover” event, administrator will need

to perform the following actions:

1. Monitor the critical messages in the information log of the remaining

BeaconMaster for the “Failover mode” message (in the Reports and Displays area

of the user interface).

2. After recovery, on the BeaconMaster that did not fail, select the “foreign”

BeaconPoints and click on the Release button (in the BeaconPoint Configuration

– BP Maintenance screen).

BeaconWorks User Guide – BeaconMaster Configuration: Mobility and the VN Manager

BeaconMaster Configuration: Mobility and the VN Manager

The BeaconWorks system has a technique by which multiple BeaconMasters on a

network can discover each other and exchange information about a client session. This

enables a wireless device user to roam seamlessly between different BeaconPoints on

different BeaconMasters.

The solution introduces the concept of a “VN Manager”. This means that one

BeaconMaster on the network must be designated as the “VN Manager”. All other

BeaconMasters are designated as “VN Agents”. To define whether the BeaconMaster

is a Manager or an Agent, use the VN Manager screen in the BeaconMaster

Configuration area.

The wireless device will keep the IP address, VNS assignment and filtering rules that

it received from the BeaconMaster that it first connected to – its “home”

BeaconMaster. (This information is collected in the Active Clients by VNS display on

the home BeaconMaster.) The VNS on each BeaconMaster must have the same SSID.

If the VNS has static WEP, it is recommended that the same key be used.

Note: The “VN Manager” concept relies on SLP and DHCP. Before you begin, you

must ensure that the DHCP server on your network supports Option 78. These are also

used during the BeaconPoint discovery process, and are explained in that topic earlier

in this Guide.

VN Manager and VN Agent: Background

The BeaconMaster that is the “VN Manager”:

• uses SLP to register itself as a service with the SLP Directory Agent

• listens for connection attempts from “VN Agents”

• if it receives a connection attempt from “VN Agent”, it establishes connection and

sends a message to the “VN Agent” specifying the Heartbeat interval, and the VN

Manager’s IP address.

• sends regular Heartbeat messages (which contain wireless device session changes

and Agent changes) to the VN Agents and waits for an Update message back

• if it fails to receive an Update from the VN Agent after three Heartbeat messages,

it sends a Disconnect message to the VN Agent, removes all wireless device users

associated with that VN Agent BeaconMaster from its tables and closes down the

connection.

The BeaconMaster that is a “VN Agent”:

• uses SLP to find the location of the VN Manager

• attempts to establish a TCP/IP connection with the VN Manager

• when it receives the connection-established message (see above), it updates its

tables, and sets up data tunnels to and between all BeaconMasters it has been

informed of

• after every Heartbeat massage received, it uses the information to update its own

tables and then sends an Update message to the VN Manager, with updates on

wireless device users and data tunnels it is managing.

BeaconWorks User Guide – BeaconMaster Configuration: Mobility and the VN Manager

Set up a BeaconMaster as a VN Manager

1. In the BeaconMaster Configuration screen, click on the VN Manager option. The

Virtual Network Settings for VN Manager screen appears.

Screen 48: BeaconMaster Configuration – VN Manager

2. From the Role drop-down list, select VN Manager (other options: None, Agent).

3. From the drop-down list, select the Port on the BeaconMaster to be used by the

VN Manager process.

Note: Ensure that the port selected is routable on the network.

4. In the

Heartbeat field, type in the time interval at which the VN Manager sends a

Heartbeat message to a VN Agent. The default is 5 seconds.

5. To save these settings, click on the Save button.

If you set up one BeaconMaster on the network as a “VN Manager”, then all other

BeaconMasters must be set up as “VN Agents”. In the VN Manager screen, in the

Role drop-down list, select Agent. The Heartbeat value, for a “VN Agent”, is how

long to wait for a connection establishment response before trying again.

View displays when VN Managers is enabled

When a BeaconMaster has been configured as a VN Manager, three additional

displays are available in the List of Displays screen:

BeaconWorks User Guide – BeaconMaster Configuration: Mobility and the VN Manager

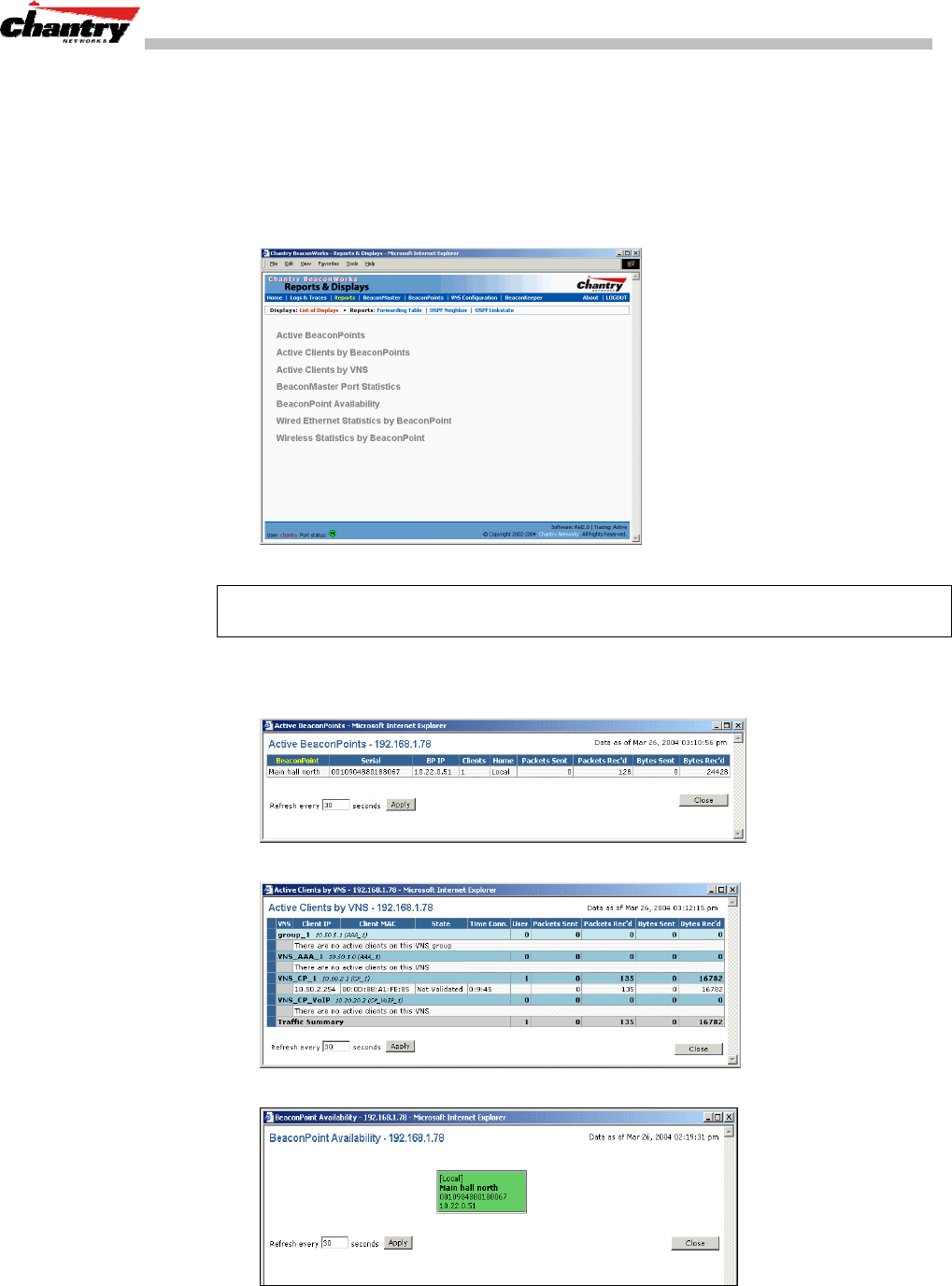

Screen 49: Reports and Displays for a VN Manager: Menu

Screen 50: Reports and Displays for a VN Manager: Examples

To view the status of the tunnels between the BeaconMasters, click on the BM Tunnel

Traffic display option. This screen displays the BeaconMasters known to the VN

Manager. If a tunnel is active, a green band is displayed between BeaconMasters. A

red band indicates that there is no traffic on the tunnel. If the BeaconMasters are not

displayed, the tunnel is inactive.

Screen 51: Reports and Displays for a VN Manager: BM Tunnel Traffic

The Active Clients by VNS display also collects information on the VN Manager

BeaconMasters of for all BeaconPoints, and for the wireless devices that travel, if they

are on the same SSID.

BeaconWorks User Guide – BeaconMaster Configuration: Management Users

BeaconMaster Configuration: Management Users

In this screen you define the login usernames that have access to the GUI, either for

Administrators with “read/write” privileges, or other users with “read only”

privileges.

Designate BeaconMaster management users

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears.

2. In the left-hand portion of the screen, click on the Management Users option.

The Management Users screen appears. .

Screen 52: BeaconMaster Configuration – Management Users

The list on the left is for “Admin” users who have read/write privileges. The right-

hand list is for users who have “read only” privileges.

To add a User ID, type it in the entry field (on the appropriate side) and click on the

Add user... button.

To delete a User ID, click in its checkbox to select it, and then click on the Remove

selected user... button.

Note: A User ID can only be used once, in only one of these two lists.

BeaconWorks User Guide – BeaconMaster Configuration: Network Time

BeaconMaster Configuration: Network Time

Use the Network Time screen to synchronize the elements on the network to a

universal clock. This ensures accuracy in usage logs.

The Network Time screen synchronizes in one of two ways:

• using system time

• using Network Time Protocol (NTP), an Internet standard protocol that

synchronizes client workstation clocks.

Set Network Time parameters

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears.

2. In the left-hand portion of the screen, click on the Network Time option. The

Network Time screen appears.

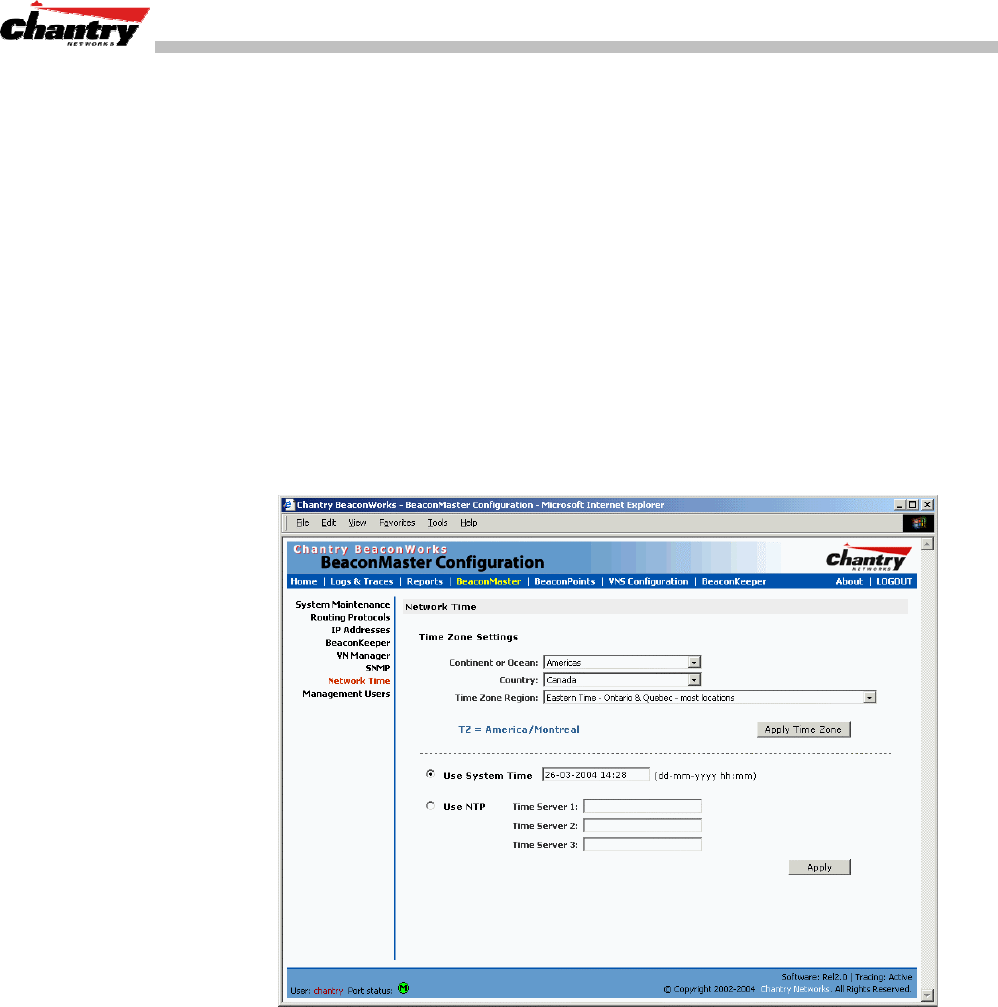

Screen 53: BeaconMaster Configuration – Network Time

3. From the drop-down list, select the Continent or Ocean, the large-scale

geographic grouping.

4. From the drop-down list, select the Country, within the previous group (the

contents of the list will change based on the selection in the previous field).

5. From the drop-down list, select the Time Zone Region for the country selected.

6. To apply these time zone settings, click on the Apply Time Zone button.

7. To use System Time, click on its radio button. Type in the time setting.

8. To use Network Time Protocol, click on the NTP radio button. Then fill in the

location (IP address) of up to three standard NTP Time Servers.

9. To apply these settings, click on the Apply button

BeaconWorks User Guide – Setting up Third-Party Access Points

Setting up Third-Party Access Points

Your enterprise’s WLAN may have existing third-party access points that you would

like to integrate into the Chantry WLAN solution. You can set up the BeaconMaster

to handle wireless device traffic from third-party access points, providing the same

policy and network access control.

Set up third-party access points on the BeaconMaster

1. Define one data port as a “3rd-party AP” port:

In the BeaconMaster Configuration screen, click on the IP Address option. The

Management Port Settings and Interfaces screen appears. Highlight the

appropriate port, and in the Function field, select “3rd-party AP” from the drop-

down list. Make sure that Management Traffic and SLP are disabled for this port.

Screen 54: BeaconMaster Configuration – IP Addresses / Interfaces

2. Connect the third-party access point to this port, via a switch.

3. Define a static route to the access point:

In the BeaconMaster Configuration screen, click on the Routing Protocols

option. Then click the Static Routes tab. The Static Routes screen appears.

Define a static route to the access point (see Routing topic earlier).

4. Set up a VNS for the “3rd-party AP” port:

In the Virtual Network Configuration screen, add a new VNS. Then highlight the

VNS name in the left-hand list and click on the Topology tab.

BeaconWorks User Guide – Setting up Third-Party Access Points

Screen 55: Virtual Network Configuration – Topology for Third-Party APs

In the Topology screen, select Assignment by SSID.

Click on the Use 3rd Party AP checkbox to select it.

Fill in the IP Address and MAC Address entry fields that appear on the right (the

addresses of the third party access points, and click on the Add button. They will

appear in the list of access points known to the BeaconMaster.

Follow the remaining steps described in the setting up a VNS for Captive Portal

earlier in this Guide.

5. Set up Authentication by Captive Portal for the “3rd-party AP” VNS:

Click on the Authentication tab. In the Authentication configuration screen, click

the Captive Portal radio button. In the Captive Portal portion of the screen, define

the RADIUS Attributes and the Filter IDs to match those in RADIUS..

Note: Alternatively, for third-party APs, you can define network assignment by AAA,

and authentication by 802.1x. The RADIUS requests from the third-party access point

will flow through the BeaconMaster.

6. Set up filtering rules for Filter IDs for the 3rd-Party APs:

In the Virtual Network Configuration screen, click on the Filtering tab. The

Filtering screen appears. Click on the subnet name in the left-hand list.

Define filtering rules that allow access to other services and protocols on the

network such as HTTP, FTP, Telnet, SNMP.

In addition, modify the following functions on the third-party access point:

• Disable the access point’s DHCP server, so that the IP address assignment for any

wireless device on the AP is from the DHCP server at the BeaconMaster with VNS

information

• Disable the third-party access point’s layer 3 IP routing capability and set the

access point to work as a layer 2 bridge.

BeaconWorks User Guide – Setting up Third-Party Access Points

Here are the differences between third-party access points and BeaconPoints on the

BeaconWorks system:

• An access point exchanges data with the BeaconMaster’s data port using standard

IP over ethernet protocol. The third-party access points do not support the

CAPWAP Tunnelling Protocol (CTP) header for encapsulation.

• For third-party access points, the VNS is mapped to the physical data port and this

is the default gateway for mobile units supported by the third-party access points.

• A BeaconMaster cannot directly control or manage the configuration of an access

point.

• Access points are required to broadcast an SSID unique to their segment. This

SSID cannot be used by any other VNS.

• Roaming from access points to BeaconPoints not supported.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

BeaconKeeper Mitigator: Detecting Rogue Access Points

BeaconKeeper Mitigator: Overview

The BeaconWorks system (Release 2.0) includes a mechanism that assists in the

detection of rogue access points. The function is called the BeaconKeeper Mitigator.

Th BeaconKeeper Mitigator feature has three components:

•a

radio frequency (RF) scanning task that runs on the BeaconPoint. The

BeaconPoint itself functions as a scan device. Its scan function alternates with

providing its regular service the wireless devices on the network. You set up the

scan parameters in the BeaconKeeper user interface.

• an application called the RF Data Collector (RFDC) on the BeaconMaster that

receives and manages the RF scan messages sent by the BeaconPoint. The scan

data includes lists of all connected BeaconPoints, third Party APs and other

friendly APs and the RF scan information that has been collected from the

BeaconPoints.

•an

Analysis Engine on the BeaconMaster that processes the scan data from the

RFDC through algorithms that make decisions about whether a detected access

point is a rogue access point.

Note: In a network with more than one BeaconMaster, the analysis engine should be

active on only one BeaconMaster that communicates with the RFDC applications

running on itself and on the other BeaconMasters on the network.

The BeaconKeeper Mitigator function must be enabled in the user interface. Before it

is enabled, the BeaconKeeper menu item in the main menu, or the BeaconKeeper

tab in any screen will only access a popup Rogue Summary report screen:

Screen 56: BeaconKeeper Mitigator – Rogue Summary Report

To enable the BeaconKeeper Mitigator, use the menu option in the BeaconMaster

Configuration area of the user interface.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

BeaconKeeper Mitigator: Enabling the Analysis and RFDC Engines

Enable and configure the BeaconKeeper Mitigator Analysis Engine

1. Click on BeaconMaster tab in any screen. The BeaconMaster Configuration area

of the user interface appears. In the left-hand list, click on the BeaconKeeper

option. The BeaconKeeper Mitigator Configuration screen appears.

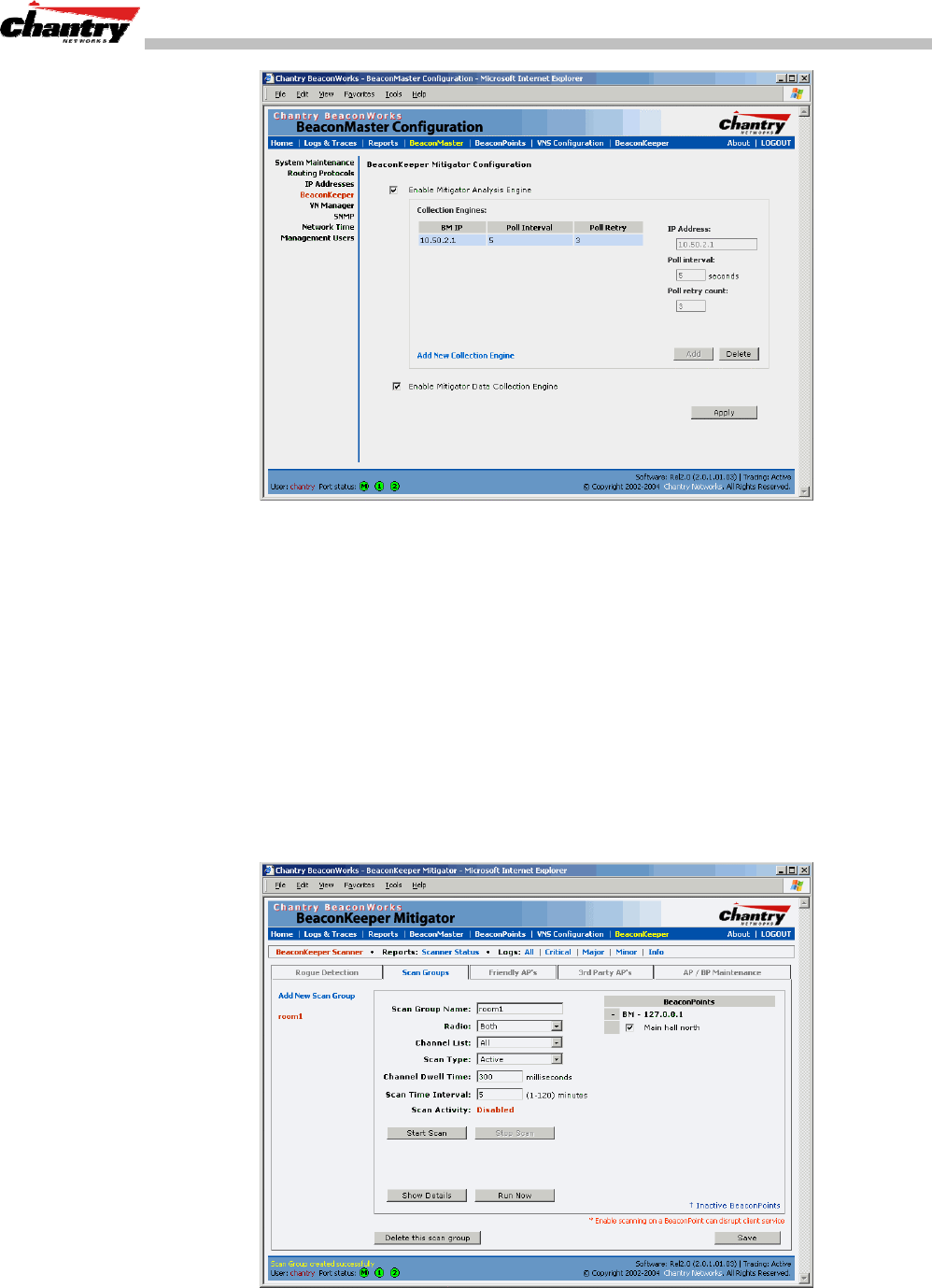

Screen 57: BeaconMaster Configuration – BeaconKeeper Mitigator Configuration

2. To enable the Mitigator Analysis Engine, click the checkbox on.

Define the BeaconKeeper Mitigator RF Data Collector Engines

3. To enable the Mitigator Data Collection Engine on this BeaconMaster click the

checkbox on.

4. Identify the remote RF Data Collector Engines that the Analysis Engine will poll

for data: In the Collection Engine IPs entry field, key in the IP address of the

BeaconMaster on which the remote RFDC resides. (For this BeaconMaster, the

local IP address is displayed by default.)

5. For each data collection engine, enter:

•In the Poll interval field (he interval that the Analysis Engine polls the RF

Data Collector for data), key in the time in seconds. Default is 30 seconds.

•In the Poll retry count field, key in the number of times the Analysis Engine

will attempt to poll the RF Data Collector for data before it stops sending

requests. Default is 2 attempts.

6. Click on the Add button. The IP address of the Data Collection Engine, with its

Poll Interval and Poll Retry parameters, appears in the list.

Note: For each remote RF Data Collection Engine you define here, you must also

enable it (click the checkbox on) in the same screen on the remote BeaconMaster.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

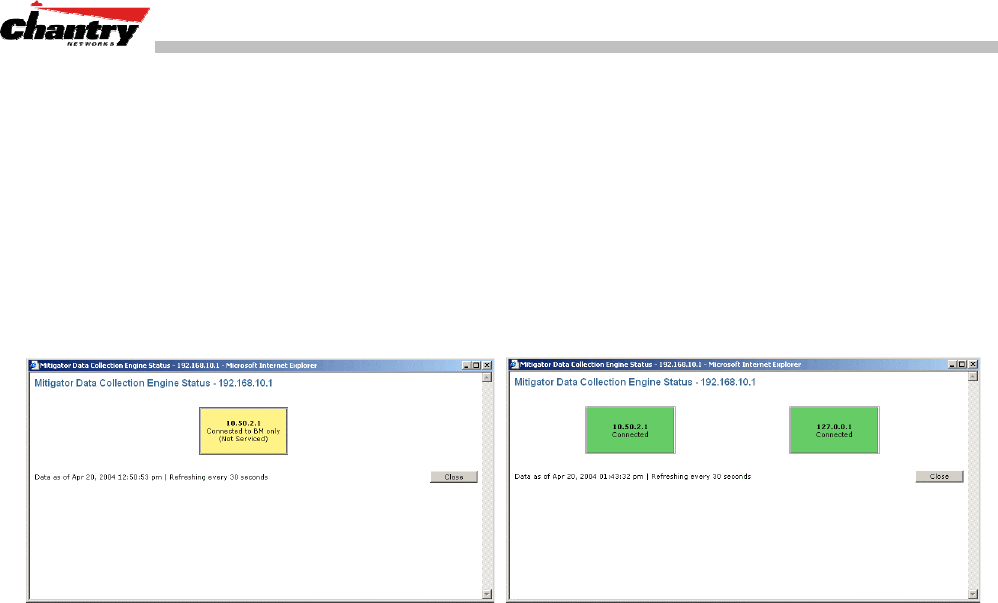

Screen 58: BeaconMaster Configuration – BeaconKeeper Mitigator: Collection Engines

7. To clear the entry fields and add a new Collection Engine, click on the Add

Collection Engine option. Repeat steps 4 to 6 above.

8. To save these settings, click on the Apply button.

BeaconKeeper Mitigator: Running Scans

After enabling the BeaconKeeper engines (as described above), click the

BeaconKeeper menu item in the main menu, or the BeaconKeeper tab in any

screen. The BeaconKeeper Scanner screen appears, with five tabs.

Set up and run the BeaconKeeper Mitigator scan task mechanism:

1. To set up the parameters of the scan task mechanism, click on the Scan Groups

tab. The Scan Groups screen appears.

Screen 59: BeaconKeeper Mitigator Scanner – Scan Groups

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

3. In the Scan Group Name entry field, key in a name for this Scan Group.

4. In the BeaconPoints area, clicking the checkbox on to select the BeaconPoint (or

BeaconPoints) that will be included in this Scan Group and will perform the scan

function.

Note: A BeaconPoint can participate in only one Scan Group at a time.

It is recommended that the Scan Groups represent geographical groupings of

BeaconPoints.

5. In the Radio field, from the drop-down list select which radios on the

BeaconPoint are to perform the scan function Both, A only, B/G only.

6. In the Channel List field, from the drop-down list select the radio channels to

scan on: All, or Current.

7. In the Scan Type field, from the drop-down list select either Active or Passive.

• Active: the BeaconPoint sends out ProbeRequests and waits for

ProbeResponse messages from any access points.

• Passive: the BeaconPoint listens for 802.11 beacons

8. In the Channel Dwell Time field, key in the time in milliseconds that the scanner

waits for a response (either for 802.11 beacons in passive scanning, or

ProbeResponse in active scanning).

9. In the Scan Time Interval field, key in the time in minutes {1 to 120}, to define

the frequency at which a BeaconPoint within the Scan Group will initiate a scan

of the RF space.

10. To start a scan, using the periodic scanning parameters defined above, click on the

Start Scan button

11. To initiate an immediate scan on request, click on the Run Now button.

12. To stop the scan, click on the Stop Scan button.

Note: You must stop the scan before modifying any parameters of the Scan Group, or

before adding or removing a BeaconPoint from a Scan Group.

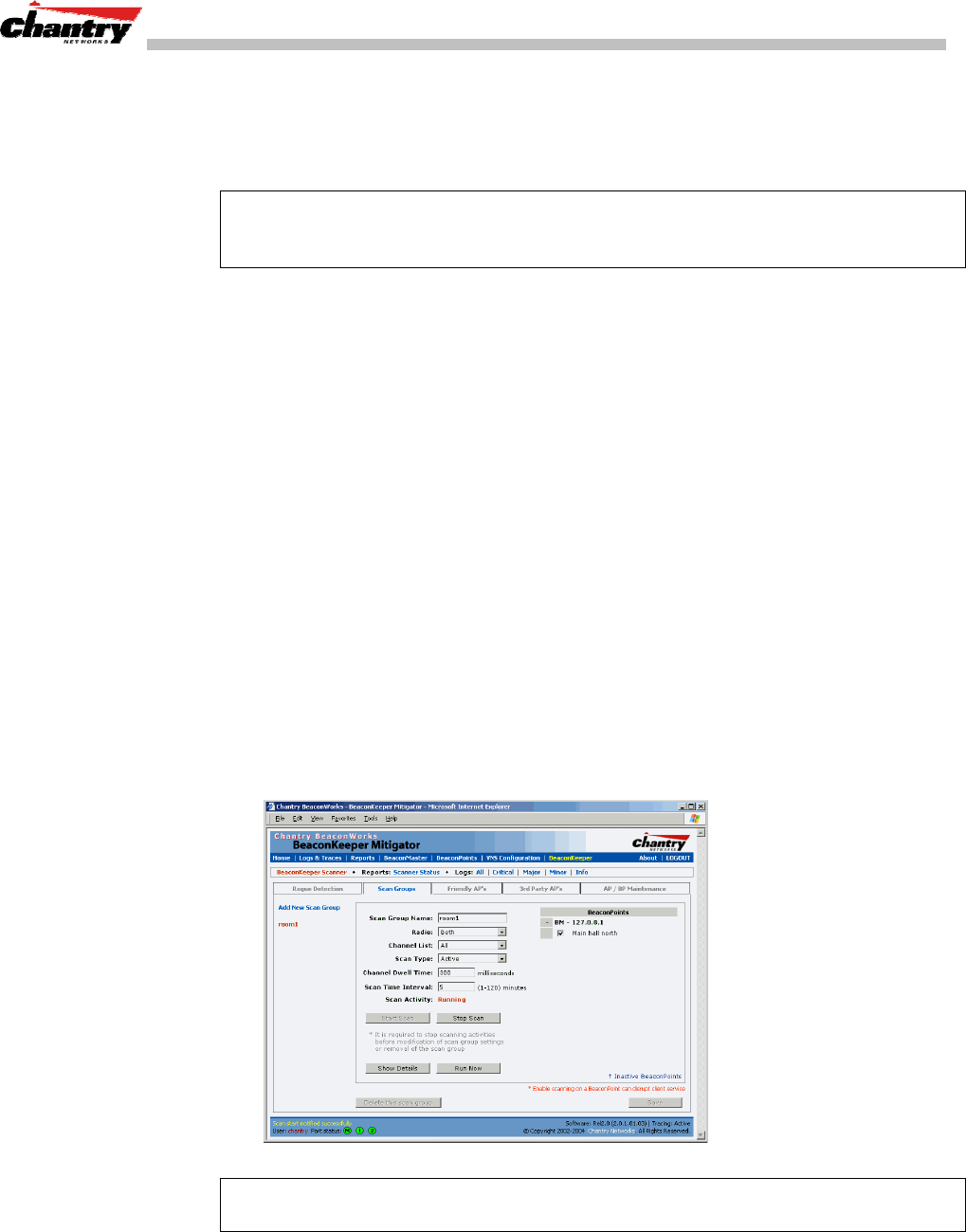

13. The Scan Activity field displays the current state of the scan engine.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

14. To view a popup report showing the timeline of scan activity and results, click on

the Show Details button.

BeaconKeeper Mitigator: How the Analysis Engine works

The Analysis Engine relies on a database of known devices on the BeaconWorks

system as follows:

• BeaconPoints registered with any BeaconMaster that has its RF Data Collector

enables and has been associated with the Analysis Engine on this BeaconMaster.

• Third-Party Access Points that have been defined and assigned to a VNS (as

described earlier in this Guide).

• Friendly APs, a list created in the BeaconKeeper Mitigator user interface as

potential rogue access points are designated by the administrator as “Friendly”.

The Analysis Engine compares the data from the RF Data Collector with the above

database of known devices.

The Analysis Engine looks for access points with seven conditions:

• unknown MAC address and unknown SSID (critical alarm)

• unknown MAC, with a valid SSID – a known SSID is being broadcast by the

unknown access point (critical alarm)

• known MAC, with an unknown SSID – a rogue may be spoofing a MAC address

(critical alarm)

• inactive BeaconPoint with valid SSID (critical alarm)

• inactive BeaconPoint with unknown SSID (critical alarm)

• known BeaconPoint with an unknown SSID (major alarm)

• in ad-hoc mode (major alarm).

Note: In Release 2.0, there is no capability to initiate a DoS attack on the detected

rogue access point. Containment of a detected rogue will require an inspection of the

geographical location of its Scan Group area (where its RF activity has been found).

View the BeaconKeeper scan results and build list of Friendly APs

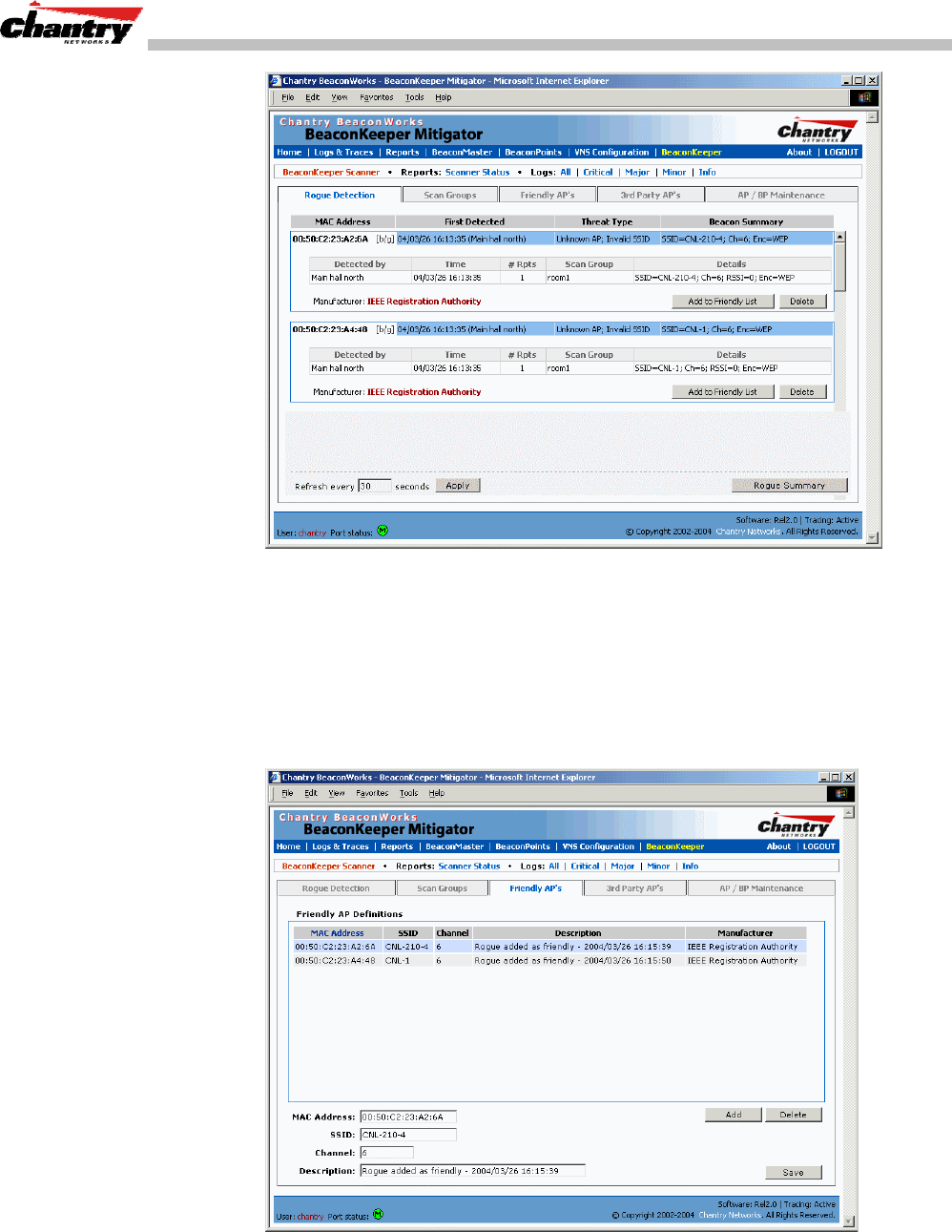

1. Click on the BeaconKeeper tab in any screen Then click on the Rogue

Detection tab. The Rogue Detection screen appears displaying all access points

and BeaconPoints that were found in the scan but are not in the database of known

devices (as defined above).

2. To modify the rate that this information is refreshed, key in a time in seconds and

click on the Apply button.

Note: The Rogue Summary button accesses the Rogue Summary popup report

described earlier in this Guide.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

Screen 60: BeaconKeeper Mitigator Scanner – Rogue Detection

3. To remove an access point from this list, click on the Delete button.

4. To add an access point or BeaconPoint to the Friendly APs list, click on the Add

to Friendly List button. The access point item will be removed from this list and

will appear in the Friendly APs list.

5. To view the Friendly list, click on the Friendly APs tab. The Friendly AP

Definitions screen appears.

Screen 61: BeaconKeeper Mitigator Scanner – Friendly APs

6. To add friendly access points manually to the Friendly AP Definitions list, key in

the MAC Address, SSID, Channel and a text description of the access point.

Click on the Add button. The new access point appears in the list above.

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

7. To delete an access point from the list, highlight it and click on the Delete button.

8. To modify an access point in the list, highlight it and make the appropriate

changes in the entry fields. Click on the Save button.

View the BeaconKeeper list of Third-Party APs

To view the list of the known third-party access points, click on the 3rd Party APs

tab. The 3rd Party APs screen appears.

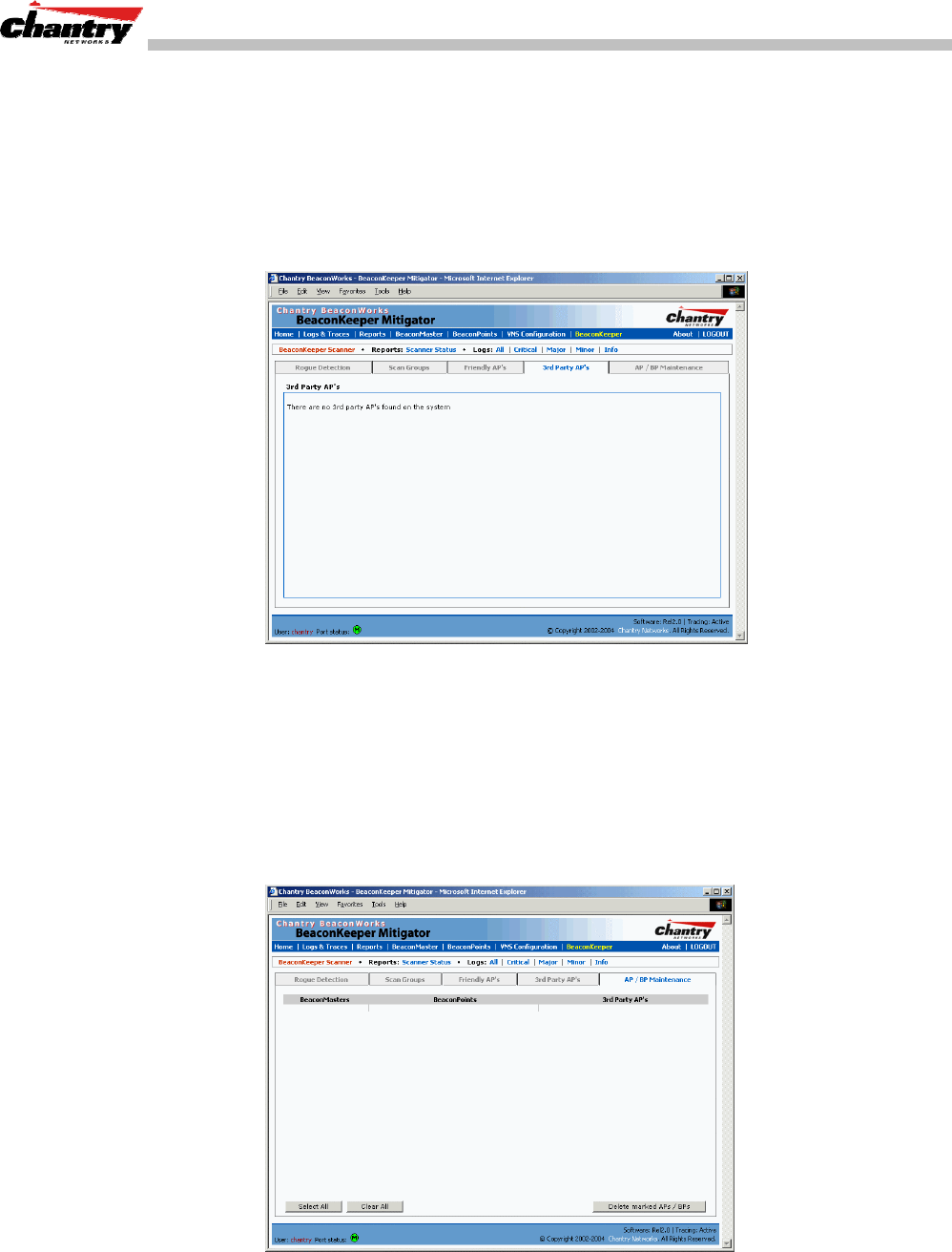

Screen 62: BeaconKeeper Mitigator Scanner – 3rd Party APs

Maintain the BeaconKeeper list of access points and BeaconPoints

When BeaconPoints or Third-Party Access Points are deleted in the BeaconWorks

user interface on a BeaconMaster has its RFDC running and is in communication with

the Analysis Engine, this information will also be displayed in the BeaconKeeper

Mitigator’s AP / BP Maintenance screen.

1. To view the AP / BP Maintenance screen, click on the AP / BP Maintenance tab..

Screen 63: BeaconKeeper Mitigator Scanner – AP / BP Maintenance

The deleted access points and BeaconPoints will be marked with a “Deleted” flag

BeaconWorks User Guide – BeaconKeeper Mitigator: Detecting Rogue Access Points

2. To delete the marked access points and BeaconPoints from the BeaconKeeper

Mitigator’s database, click on the Delete marked AP / BPs button.

BeaconKeeper Mitigator: Viewing the Scanner Status Report

When the BeaconKeeper Mitigator is enabled, you can view a report on the

connection status of the RF Data Collector Engines with the Analysis Engine.

View the BeaconKeeper scanner engine status display

1. Click the BeaconKeeper tab in any screen, and then click on the Scanner Status

tab. Examples of the connection reports are shown below.

Screen 64: BeaconKeeper Mitigator – Scanner Status Report

The IP address of the RFDC engine is displayed, with its status:

• Connected (green box) – the Analysis Engine has connection with the RFDC on

that BeaconMaster.

• Connected but not serviced (yellow box) – the Analysis Engine has connection

with the RFDC but is not synchronized with it yet.

• Not connected (red box) – the Analysis Engine is aware of the RFDC and

attempting connection.

BeaconWorks User Guide – Ongoing Operation: BeaconPoint Maintenance – Software

Ongoing Operation: BeaconPoint Maintenance – Software

Periodically, the software used by the BeaconPoints is altered, either for reasons of

upgrade or security. The new version of the software is installed from the

BeaconMaster, using the BeaconPoint Maintenance area of the user interface.

You prepare the version of software for each BeaconPoint that will be uploaded to the

BeaconPoint in one of time scenarios:

• the next time the BeaconPoint connects. Part of the BeaconPoint boot sequence is

to seek and install its software from the BeaconMaster.

• an immediate upgrade and reboot.

BeaconPoint software: Dynamic reconfiguration (without reboot)

In Release 2.0, a number of the properties of each radio on a BeaconPoint can be

modified (in the BeaconPoint Configuration screen) without requiring a reboot of the

BeaconPoint. However, modifying the following properties does require a reboot:

• enabling or disabling either radio

• changing the radio channel between “Auto” and any fixed channel number.

In addition, the BeaconPoint must be rebooted after it has been added to a VNS, or the

radio assignment in a VNS has been changed. Any changes to security also require a

reboot of the BeaconPoint.

BeaconPoint software: Dual image backup

The BeaconPoint in Release 2.0 keeps a backup copy of its software image. When a

software upgrade is sent to the BeaconPoint, the upgrade becomes the BeaconPoint’s

current image and the previous image becomes the backup. In the event of failure of

the current image, the BeaconPoint will run the backup image.

Maintain the list of current BeaconPoint software images

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears. Click on the BP Maintenance option in the left-hand list.

2. To maintain the list of current BeaconPoint software images, click on the BP

Software Maintenance tab. The BP Software Maintenance screen appears.

BeaconWorks User Guide – Ongoing Operation: BeaconPoint Maintenance – Software

Screen 65: BeaconPoint Configuration – BP Maintenance: Software Maintenance

The Current BP Images area displays the list of BP software versions that have

been downloaded and are available. (This list appears in the drop-down list of

available images in the Controlled Upgrade screen.)

3. To select an image as the default image to be used for software upgrade, highlight

the image name in the list and click on the Set as default button.

4. To delete a software image from the list, highlight the version in the displayed list

of Current BP Images and click on the Delete button.

5. To download a new image to be added to the list, fill in the fields in the

Download BP Images area with parameters for FTP transfer: FTP server, User

ID, Password, Confirm password, Directory, Filename.

Click on the Download button.

6. In the Upgrade Behavior area, select one of these radio buttons:

• Upgrade when BP connects using setting from Controlled Upgrade

• Always upgrade BP to default image (overrides Controlled Upgrade settings)

For either choice, click the checkbox on to prevent an upgrade if current image

version is the same as the upgrade version (this overrides Upgrade Now behavior)

7. In the Upgrade Behavior area, click the checkbox on to automatically downgrade

BP to default image if BP is at later release number (major/minor rev)

8. To save these parameters, click on the Save button.

Define the parameters for a BeaconPoint software upgrade

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears. Click on the BP Maintenance option in the left-hand list.

BeaconWorks User Guide – Ongoing Operation: BeaconPoint Maintenance – Software

2. To set the software upgrade parameters, click on the Controlled Upgrade tab.

The Controlled Upgrade screen appears.

Screen 66: BeaconPoint Configuration – BP Maintenance: Controlled Upgrade

The top portion of the screen displays a list of the registered BeaconPoints and the

current software image on each one.

3. Select a BeaconPoint for software upgrade by clicking its checkbox on. Use the

Select All or Clear All buttons to modify your selections.

To save the BeaconPoint selections, click on Save button.

4. In the Upgrade Image field, from the drop-down list, select the software version

you wish to use for the upgrade. (This list is maintained in the BP Software

Maintenance screen, described above.) Click on Apply button.

The selected image now appears in the Upgrade To column beside the selected

BeaconPoint.

5. To run the software upgrade immediately, click on the Upgrade Now button.

This will force the selected BeaconPoint to reboot, during which the new software

version will be loaded.

Note: Some of the settings defined in the BP Software Maintenance screen will

override the Upgrade Now function. See previous screen.

BeaconWorks User Guide – Ongoing Operation: BeaconPoint Access Approval

Ongoing Operation: BeaconPoint Access Approval

You can also view and modify the status of registered BeaconPoints. Use this function

to modify the status of a BeaconPoint from “Pending” to “Approved” for a manual

registration.

Modify a BeaconPoint’s registration status (approve access)

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears. Click on the Access Approval option in the left-hand list. The

Access Approval screen appears.

Screen 67: BeaconPoint Configuration – Access Approval

The screen displays the current registered BeaconPoints and their current

registration status.

The Home field displays “Local” (this BeaconMaster) or “Foreign” (other

BeaconMaster), if you have set up two BeaconMasters in Paired Mode, as

described in the BeaconMaster Configuration: Availability topic.

2. Select the BeaconPoints for status change, either by:

• clicking the checkbox on to select a specific BeaconPoint, or

• using one of the Select BeaconPoints buttons to select by category.

3. To perform an action on the selected BeaconPoints, click on one of the Action

buttons: Approved, Pending, Release, Delete.

Note: A typical use of this function is to change a BeaconPoint’s status from

“Pending” to “Approved”, if the BeaconMaster was set to register only approved

BeaconPoints, in the BeaconPoint Configuration: BP Registration screen.

Use the “Release” function to release “foreign” BeaconPoints after recovery from a

Failover, as described in the BeaconMaster Configuration: Availability topic.

BeaconWorks User Guide – Ongoing Operation: BeaconPoint Disassociate a Client

Ongoing Operation: BeaconPoint Disassociate a Client

There are times when you want to cut the connection with a particular wireless device,

for service reasons or to deal with a security issue. Using the BeaconMaster user

interface, you can disassociate any wireless device from its BeaconPoint.

Disassociate a Wireless Device Client

1. Select the BeaconPoints tab in any screen. The BeaconPoint Configuration

screen appears.

2. Click on the Client Disassociate option in the left-hand portion the BeaconPoint

Configuration screen. The Wireless Unit Disassociate screen appears.

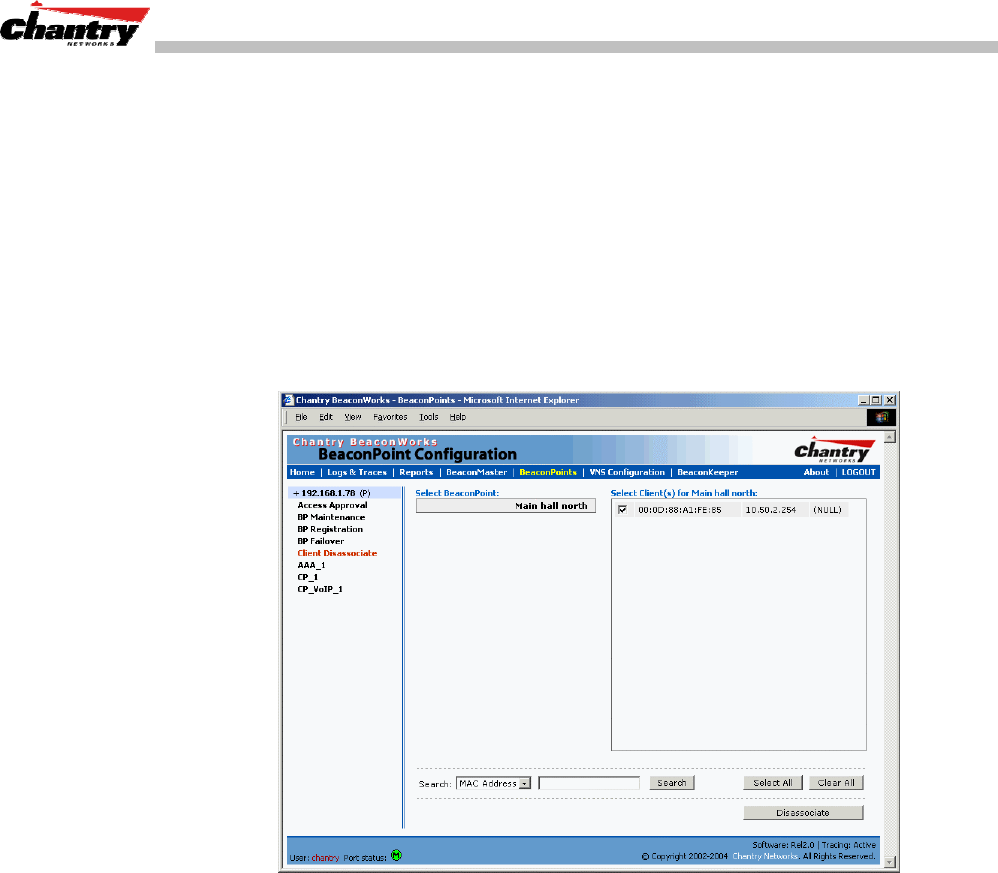

Screen 68: BeaconPoint Configuration – Wireless Unit (Client) Disassociate

The Client Disassociate screen displays the current active sessions, the wireless

devices that are currently active for each BeaconPoint.

3. Click on the checkbox to select the wireless device to be disassociated.

4. To search for a client by MAC Address, IP Address or User ID, select one and

then key in the parameters and click on the Search button.

5. Click on the Disassociate button to terminate the client’s session immediately.

BeaconWorks User Guide – Ongoing Operation: BeaconMaster System Maintenance

Ongoing Operation: BeaconMaster System Maintenance

Use the System Maintenance screen to perform various maintenance tasks, including:

• change the log level

• enable and define parameters for Syslog event reporting (see next topic)

• enable or disable the collecting of accounting information

• force an immediate system shutdown, with or without reboot.

Performing BeaconMaster maintenance functions

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears. In the left-hand portion of the screen, click on the System

Maintenance option. The System Maintenance screen appears. .

Screen 69: BeaconMaster Configuration – System Maintenance

Change the System Log Level

2. From the drop-down list, select the desired log level (Trace, Info, Minor, Major,

Critical). Click on the Apply button.

Enable Data Collection for Accounting

3. Click the checkbox on to enable the collecting of accounting data. Click on the

Apply button.

Perform a System Shutdown

4. To shut down the BeaconWorks system, with its BeaconPoints, click on the

appropriate radio button:

• Halt system, reboot

• Halt system, shutdown power

Click on the Apply Now button.

BeaconWorks User Guide – Ongoing Operation: BeaconMaster System Maintenance

Event Messages relayed to a Syslog server

In addition to viewing BeaconWorks events generated by its internal event server in

the Reports and Displays area of the user interface, you can also relay those messages

to a centralized event server on your enterprise network.

The relay is done using the syslog protocol, a protocol used for the transmission of

event notification messages across networks. In the protocol a device generates a

messages, a relay receives and forwards the messages, and a collector (a syslog

server) receives the messages without relaying them.

Use the System Maintenance screen, Syslog area, to enable the syslog function and to

define the location of one or more centralized Event Servers (syslog servers).

Screen 70: BeaconMaster Configuration – System Maintenance: Syslog enabled

1. Click the checkbox on to enable the Syslog function for up to three syslog

servers.

2. For each enabled syslog server, key in a valid IP address for the server on the

network. The default port for syslog is 514.

3. In the Facilities area, in the Chantry App. Logs drop-down list, select the log

level (“local.0” to “local.6”) to be sent to the syslog server. (This will apply to all

three servers.)

4. To include additional system messages as well as the standard component

messages, click the Include all service messages checkbox on. If the box is left

unchecked, only BeaconWorks component messages (logs and traces) are relayed.

(This will apply to all three servers.)

The system messages that can be included in Release 2.0 are:

• DHCP messages reporting users receiving IP addresses

• Startup Manager Task messages reporting component startup and failure.

BeaconWorks User Guide – Ongoing Operation: BeaconMaster System Maintenance

If you clicked the Include all service messages checkbox on, the Facilities

drop-down list for Service Logs become selectable. Select a log level from the

list.

5. To activate the above settings, click on the Apply button.

The log level mapping between syslog and BeaconWorks event logging is shown

below:

Syslog BeaconWorks

LOG_CRIT Critical

LOG_ERR Major

LOG_WARNING Minor

LOG_INFO Information

LOG_DEBUG Trace

Note: The syslog daemon must be running on both the BeaconMaster and on the

remote syslog server before the logs can be synchronized. If you change the log level

on the BeaconMaster, you must also modify the appropriate setting in the syslog

configuration on remote syslog server.

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Logs and Traces

Ongoing Operation: BeaconWorks Logs and Traces

BeaconWorks Log and Data Files

The Chantry BeaconWorks system stores configuration data and log files in flat files.

These files include:

• event and alarm logs (triggered by events, described below)

• trace logs (triggered by component activity, described below)

• accounting files (created on a half-hourly basis, up to six files).

The files are stored in the operating system and have a maximum size of 1 GB.

The accounting files are stored in a directory that is created every day. Eight

directories are maintained in a circular buffer (when all are full, the most recent

replaces the earliest).

The BeaconMaster generates three types of messages (Logs, Traces and Audits). To

view these, select the Logs & Traces tab in any screen.

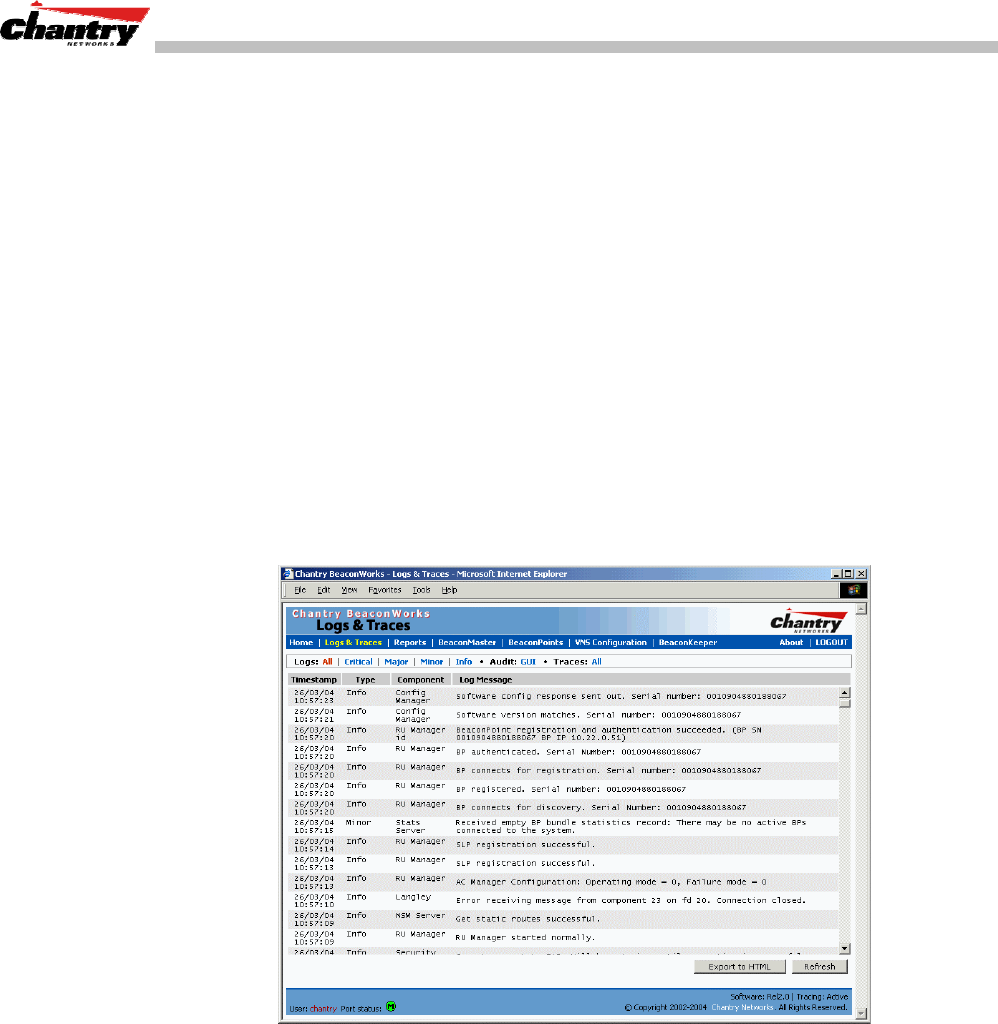

Screen 71: Logs & Traces: Log Display – All

The details for each type of message are described below.

Logs and Alarms

Log messages are triggered by events. The log messages contain the time of event,

severity, source component and any details generated by the source component. The

messages are classified at four levels of severity:

• Informational, the activity of normal operation

•Minor (alarm)

• Major (alarm)

• Critical (alarm)

The alarm messages (minor, major or critical log messages) are triggered by activities

that meet certain conditions that should be known and dealt with.

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Logs and Traces

On the BeaconMaster, conditions such as the following generate an alarm message:

• Reboot due to failure

• Software upgrade failure on the BeaconMaster

• Software upgrade failure on the BeaconPoint

• Detection of rogue access point activity without valid ID

If SNMP is enabled on the BeaconMaster, alarm conditions will trigger a trap in

SNMP (Simple Network Management Protocol). An SNMP trap is an event

notification sent by the managed agent (a network device) to the management system

to identify the occurrence of conditions. (See BeaconMaster Configuration: Setting up

SNMP for more information on enabling this function on the BeaconMaster.)

View the Logs

1. Select the Logs & Traces tab in any screen. In the Navigation bar, to view all

logs, click on one of the Log tabs. The Log screen appears (Info shown below).

Screen 72: Logs & Traces: Log Display – Info

The events are displayed in chronological order, sorted by the Timestamp

column.

2. To sort the display by Type or Component, click on the column heading.

3. To filter the logs by severity, in order to display only Info, Minor, Major or

Critical logs, click on the appropriate Log tab at the top of the screen.

4. To refresh the information in any display, click on the Refresh button.

5. To export the displayed information from any display as an HTML file, click on

the button.

Note: The component called “Langley” is Chantry’s term for the inter-process

messaging infrastructure on the BeaconMaster.

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Logs and Traces

Traces

Trace messages display activity by component. These can be used for system

debugging, troubleshooting and internal monitoring of software.

View the Traces

1. To view the list of Traces, messages by component, click on its tab.

Screen 73: Logs & Traces: Trace Messages

You can sort, refresh and export the Trace information, as described for Log displays.

Audits

Audit files record administrative changes made to the system. For example, the GUI

Audit displays changes to the Graphical User Interface on the BeaconMaster.

View the Audits

1. To view the GUI Audit display, click on the GUI Audit tab.

Screen 74: Logs & Traces: GUI Audit

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Reports and Displays

Ongoing Operation: BeaconWorks Reports and Displays

View Displays

To view BeaconWorks reports and displays, click on the Reports tab in any screen.

The List of Displays screen appears, with a menu of available displays. The navigation

bar across the top of the screen shows the available Reports.

Screen 75: Reports and Displays – List of Displays

Note: If a BeaconMaster has been configured as a VN Manager, three additional

reports are available in the List of Displays screen. (See the VN Manager topic.)

Click on an option in the menu to view its display screen, with current information

about BeaconMaster and BeaconPoint activity. Some examples are illustrated below.

Screen 76: Displays – Active BeaconPoints

Screen 77: Displays – Active Clients by VNS

Screen 78: Displays – BeaconPoint Availability

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Reports and Displays

View Statistics for BeaconPoints

Two displays show information about activity on a selected BeaconPoint:

• Wired Ethernet Statistics by BeaconPoints

• Wireless Statistics by BeaconPoints

These displays are snapshots of the BeaconPoint activity at that point in time. The

statistics displayed are those defined in the 802.11 MIB, defined in the IEEE 802.11

standard (in Section 11.4 and Annex D).

To view the Wired Ethernet Statistics by BeaconPoints display, click on its option

in the List of Displays menu. The displays lists the registered BeaconPoints in the

left-hand list. Click on the selected BeaconPoint to display its information.

Screen 79: Display – Wired Ethernet Statistics by BeaconPoints

To view the Wireless Statistics by BeaconPoints display, click on its option in the

List of Displays menu.

Screen 80: Display – Wireless Statistics by BeaconPoints

BeaconWorks User Guide – Ongoing Operation: BeaconWorks Reports and Displays

The displays lists the registered BeaconPoints in the left-hand list. Click on the

selected BeaconPoint. Then click on the appropriate tab to display information for

each radio on the BeaconPoint

If there are associated clients on this radio, you can view information on a selected

client. Click on the View Client button. The Associated Clients popup window

appears.

Screen 81: Display – Wireless Statistics by BeaconPoints: Clients

View Reports

To view BeaconWorks reports and displays, click on the Reports tab in any screen.

The List of Displays screen appears, with a menu of available displays.

To access a Report, click on one of the options in the navigation bar across the top of

the screen. The following reports are currently available in BeaconWorks:

To access a Report, click on one of the options in the navigation bar across the top of

the screen. The following reports are currently available in BeaconWorks:

• Forwarding Table (routes defined in the BeaconMaster Routing Protocols screen)

• OSPF Neighbor (available is OSPF is enabled in the BeaconMaster Routing

Protocols screen)

• OSPF Linkstate (available is OSPF is enabled in the BeaconMaster Routing

Protocols screen)

For example, to view the routing table report, click on Forwarding Table tab.

Screen 82: Forwarding Table Report

BeaconWorks User Guide – BeaconMaster Configuration: Setting up SNMP

BeaconMaster Configuration: Setting up SNMP

SNMP: Background

The Chantry BeaconWorks system supports Simple Network Management Protocol

(SNMP), Version 1 and 2c, for retrieving BeaconMaster statistics and configuration

information.

Simple Network Management Protocol, a set of protocols for managing complex

networks, sends messages, called protocol data units (PDUs), to different parts of a

network. Devices on the network that are SNMP-compliant, called agents, store data

about themselves in Management Information Bases (MIBs) and return this data to the

SNMP requesters.

The Chantry system accepts SNMP “Set”, “Get” and “Trap” commands. In Release

2.0 support is provided for retrieving information from the router MIB-II

(SNMP_GET) as well as SNMP traps. Release 2.0 supports the retrieval of wireless

information (802.11 MIB).

In BeaconWorks Release 2.0, the MIB support includes:

1. MIB-II (RFC1213), for the following groups for the router characteristics of the

BeaconMaster:

• System Group

• Interfaces Group

• Address Translation Group

• IP Group

• ICMP Group

•TCP Group

• UDP Group

Note: Because of limitations in data captured in the control / data planes, MIB II

compliance is incomplete. For example, esa/IXP ports can only provide the interface

statistics.

2. The Chantry Enterprise MIB, which includes:

• 802.11 MIB (IEEE 802.11 standard)

• IANAif Type-MIB

•IF-MIB

• INET-ADDRESS-MIB

•IP-FORWARD-MIB

•SNMPv2-MIB

• SNMPv2-SMI

•SNMPv2-TC

The Chantry MIB also includes:

• CHANTRY-AC-MIB

BeaconWorks User Guide – BeaconMaster Configuration: Setting up SNMP

• CHANTRY-PRODUCTS-MIB

• CHANTRY-SMI

• CHANTRY-VNS-MIB

The MIB is provided for compilation into an external NMS.

No support has been provided for automatic device discovery by an external NMS.

The BeaconMaster is the only point of SNMP access for the entire system. In effect,

the BeaconMaster will proxy sets and gets and alarms from the associated

BeaconPoints.

SNMP: Enabling on the BeaconMaster

The Chantry BeaconWorks system also supports the Simple Network Management

Protocol (SNMP), version 1 and 2c, standard, for system monitoring and alarm

reporting. If your enterprise network uses SNMP, you can enable SNMP on the

BeaconMaster and define where the BeaconMaster should send the SNMP messages.

Setting SNMP Parameters

1. Click on the BeaconMaster tab in any screen. The BeaconMaster Configuration

screen appears.

2. In the left-hand portion of the screen, click on the SNMP option. The Simple

Network Management Protocol screen appears.

Screen 83: BeaconMaster Configuration – SNMP Setup

BeaconWorks User Guide – BeaconMaster Configuration: Setting up SNMP

3. Key in:

Contact Name The name of SNMP administrator.

Location Location of the SNMP administration machine

(descriptive).

Read Community Key in the password for Read activity.

Name

Read/Write Key in the password for Read/Write activity.

Community Name

SNMP Port: Key in the destination port for SNMP traps. The industry

standard is 162.

[If left blank, no traps are generated.]

Forward Traps From the drop-down list, select the severity level of the

traps to be forwarded: Informational, Minor, Major,

Critical.

Manager A: The IP address of the specific machine on the network

where the SNMP traps are monitored.

Manager B: The IP address of a second specific machine on the

network where the SNMP traps are monitored, if Manager

A is not available.

To enable SNMP traps, ensure that the following three fields are defined:

• SNMP port

• Read Community

• Manager A and/or Manager B

The list of SNMP traps supported can be found in the Chantry MIB.

BeaconWorks User Guide – Appendix 1: BeaconWorks System States and LEDs

Appendix 1: BeaconWorks System States and LEDs

BeaconMaster System States and LEDs

The BeaconMaster has the two system states:

• Enters “Standby” when shut down in the BeaconMaster Configuration – System

Maintenance screen. The BeaconMaster:

• sends control message to BeaconPoint to enter “Standby” state

• will not handle any wireless traffic or sessions

• disables DHCP, Policy Manager, Security Manager, BeaconPoint Manager,

Redirector.

• remains on the wired network.

• Enters “Active” state on startup in the user interface. The BeaconMaster can now

respond to the BeaconPoint’s “discover” message by returning a message that the

BeaconPoint can enter the “active” state.

The activity and traffic on the BeaconMaster can be

monitored via three LEDs on the back of the

BeaconMaster.

BeaconPoint BP200 System States

For the BP200 the Status LED in the centre also indicates power The Status LED is

dark when unit is off and is green (solid) when the BP has completed discovery and is

operational.

BP200

← LED→

Status LED ↓

↑ ↑

Left LED: Right LED:

2.4 GHz radio 5 GHz radio

activity activity

The chart below shows states and corresponding Status LED displays on the BP200:

State / Process Description LEDs

Power BeaconPoint not powered. off

Power Start up: Power On Self Test (POST) steady green (briefly)

Power Power On Self Test (POST) successful off (briefly)

Discovery If he POST self test is successful, the BP begins “Discovery”

process. BeaconPoint is powered on and searching for an active

BeaconMaster. It sends a “discover” message and waits for a

response.

orange (steady)

Fail to find DHCP BeaconPoint failed to find DHCP (will stay in this state until a

route appears)

red-orange

(alternate blink)

Failed discovery If there are SLP issues in failed discovery, the LED display

changes.

green-orange

(alternate blink)

BeaconWorks User Guide – Appendix 1: BeaconWorks System States and LEDs

Registration BeaconPoint learns the BeaconMaster’s IP address, and can

begin the Registration process

orange (blink)

Failed

Registration

BeaconPoint fails to learn the BeaconMaster’s IP address. red (blink)

Standby 1. BeaconPoint enters this state from “Discovery” when it

encounters an active BeaconMaster and completes the

Registration process.

2. BeaconPoint enters this state from “Active” when it receives a

control message from the BeaconMaster to enter this state. If the

BeaconPoint has any wireless device traffic, it will drop the traffic.

green (blink)

BeaconPoint fails to register. It will wait 5 seconds and try again. red (slow blink)

Firmware download from the BeaconMaster is in progress orange + green (blink)

Active (Ready) BeaconPoint has received a control message from an active

BeaconMaster to enter “active” or “ready” state. It is ready to

receive wireless traffic.

Note: The two Traffic LEDs on either side of the Status LED

display a green (blink) if there is active wireless traffic. The left

LED is for the 2.4 GHz radio. The right LED is for the 5 GHz radio.

green (steady)

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

AAA Authentication, Authorization and Accounting. A system in IP-based networking to

control what computer resources users have access to and to keep track of the activity

of users over a network.

Access Point (AP) A wireless LAN transceiver or “base station” that can connect a wired LAN to one or

many wireless devices.

Ad-hoc mode An 802.11 networking framework in which devices or stations communicate directly

with each other, without the use of an access point (AP). (Compare Infrastructure

Mode)

AES Advanced Encryption Standard (AES) is an algorithm for encryption that works at

multiple network layers simultaneously

ARP Address Resolution Protocol. A protocol used to obtain the physical addresses (such

as MAC addresses) of hardware units in a network environment. A host obtains such a

physical address by broadcasting an ARP request, which contains the IP address of

the target hardware unit. If the request finds a unit with that IP address, the unit replies

with its physical hardware address.

Association A connection between a wireless device and an Access Point.

asynchronous Asynchronous transmission mode (ATM). A start/stop transmission in which each

character is preceded by a start signal and followed by one or more stop signals. A

variable time interval can exist between characters. ATM is the preferred technology

for the transfer of images.

BSS Basic Service Set. A wireless topology consisting of one Access Point connected to a

wired network and a set of wireless devices. Also called an infrastructure network. See

also IBSS.

Captive Portal A browser-based authentication mechanism that forces unauthenticated users to a

web page. Sometimes called a “reverse firewall”.

CHAP Challenge-Handshake Authentication Protocol. One of the two main authentication

protocols used to verify a user’s name and password for PPP Internet connections.

CHAP is more secure than PAP because it performs a three-way handshake during

the initial link establishment between the home and remote machines. It can also

repeat the authentication anytime after the link has been established.

CLI Command Line Interface.

Collision Two Ethernet packets attempting to use the medium simultaneously. Ethernet is a

shared media, so there are rules for sending packets of data to avoid conflicts and

protect data integrity. When two nodes at different locations attempt to send data at the

same time, a collision will result. Segmenting the network with bridges or switches is

one way of reducing collisions in an overcrowded network.

Datagram A datagram is “a self-contained, independent entity of data carrying sufficient

information to be routed from the source to the destination computer without reliance

on earlier exchanges between this source and destination computer and the

transporting network.” (RFC1594). The term has been generally replaced by the term

packet. Datagrams or packets are the message units that the Internet Protocol deals

with and that the Internet transports.

Decapsulation See tunnelling.

Device Server A specialized, network-based hardware device designed to perform a single or

specialized set of server functions. Print servers, terminal servers, remote access

servers and network time servers are examples of device servers.

DHCP Dynamic Host Configuration Protocol. A protocol for assigning dynamic IP addresses

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

to devices on a network.

With dynamic addressing, a device can have a different IP address every time it

connects to the network. In some systems, the device’s IP address can even change

while it is still connected. DHCP also supports a mix of static and dynamic IP

addresses.

DHCP consists of two components: a protocol for delivering host-specific configuration

parameters from a DHCP server to a host and a mechanism for allocation of network

addresses to hosts. (Compliant with IETF RFC1531.)

Directory Agent

(DA)

A component of Service Location Protocol (SLP) (RFC 2608) that stores and maintains

a cache of service advertisements that are sent by the Service Agent (SA). When

deployed, the DA resolves User Agent (UA) service requests.

Diversity antenna

and receiver

Diversity wireless systems are those with two antennas and receivers. A diversity

receiver can choose the strongest signal and therefore can avoid signal conflicts such

as a partial phase cancellation (multipath) or a total phase cancellation (drop-out) from

a transmitter with two microphones.

DSSS Direct-Sequence Spread Spectrum. A transmission technology used in Local Area

Wireless Network (LAWN) transmissions where a data signal at the sending station is

combined with a higher data rate bit sequence, or chipping code, that divides the user

data according to a spreading ratio. The chipping code is a redundant bit pattern for

each bit that is transmitted, which increases the signal’s resistance to interference. If

one or more bits in the pattern are damaged during transmission, the original data can

be recovered due to the redundancy of the transmission. (Compare FHSS)

DTIM DTIM delivery traffic indication message (in 802.11 standard)

EAP-TLS

EAP-TTLS

EAP-TLS Extensible Authentication Protocol - Transport Layer Security. A general

protocol for authentication that also supports multiple authentication methods, such as

token cards, Kerberos, one-time passwords, certificates, public key authentication and

smart cards. IEEE 802.1x specifies how EAP should be encapsulated in LAN frames.

In wireless communications using EAP, a user requests connection to a WLAN through

an access point, which then requests the identity of the user and transmits that identity

to an authentication server such as RADIUS. The server asks the access point for

proof of identity, which the access point gets from the user and then sends back to the

server to complete the authentication.

EAP-TLS provides for certificate-based and mutual authentication of the client and the

network. It relies on client-side and server-side certificates to perform authentication

and can be used to dynamically generate user-based and session-based WEP keys.

EAP-TTLS (Tunneled Transport Layer Security) is an extension of EAP-TLS to provide

certificate-based, mutual authentication of the client and network through an encrypted

tunnel, as well as to generate dynamic, per-user, per-session WEP keys. Unlike EAP-

TLS, EAP-TTLS requires only server-side certificates.

(See also PEAP)

ELA (OPSEC) Event Logging API (Application Program Interface) for OPSEC, a module in Check

Point used to enable third-party applications to log events into the Check Point VPN-

1/FireWall-1 management system.

Encapsulation See tunnelling.

ESS Extended Service Set (ESS). Several Basic Service Sets (BSSs) can be joined

together to form one logical WLAN segment, referred to as an extended service set

(ESS). The SSID is used to identify the ESS. (See BSS and SSID.)

FHSS Frequency-Hopping Spread Spectrum. A transmission technology used in Local Area

Wireless Network (LAWN) transmissions where the data signal is modulated with a

narrowband carrier signal that “hops” in a random but predictable sequence from

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

frequency to frequency as a function of time over a wide band of frequencies. This

technique reduces interference. If synchronized properly, a single logical channel is

maintained. (Compare DSSS)

FQDN Fully Qualified Domain Name. A “friendly” designation of a computer, of the general

form computer.[subnetwork.].organization.domain. The FQDN names must be

translated into an IP address in order for the resource to be found on a network,

usually performed by a Domain Name Server.

FTM Forwarding Table Manager.

FTP File Transfer Protocol.

Gateway In the wireless world, an access point with additional software capabilities such as

providing NAT and DHCP. Gateways may also provide VPN support, roaming,

firewalls, various levels of security, etc.

Gigabit Ethernet The high data rate of the Ethernet standard, supporting data rates of 1 gigabit (1,000

megabits) per second.

GUI Graphical User Interface

Heartbeat message A heartbeat message is a UDP data packet used to monitor a data connection, polling

to see if the connection is still alive.

In general terms, a heartbeat is a signal emitted at regular intervals by software to

demonstrate that it is still alive. In networking, a heartbeat is the signal emitted by a

Level 2 Ethernet transceiver at the end of every packet to show that the collision-

detection circuit is still connected.

Host (1) A computer (usually containing data) that is accessed by a user working on a

remote terminal, connected by modems and telephone lines.

(2) A computer that is connected to a TCP/IP network, including the Internet. Each

host has a unique IP address.

HTTP Hypertext Transfer Protocol is the set of rules for transferring files (text, graphic

images, sound, video, and other multimedia files) on the World Wide Web. A Web

browser makes use of HTTP. HTTP is an application protocol that runs on top of the

TCP/IP suite of protocols. (RFC2616: Hypertext Transfer Protocol -- HTTP/1.1)

HTTPS Hypertext Transfer Protocol over Secure Socket Layer, or HTTP over SSL, is a Web

protocol that encrypts and decrypts user page requests as well as the pages that are

returned by the Web server. HTTPS uses Secure Socket Layer (SSL) as a sublayer

under its regular HTTP application layering. (HTTPS uses port 443 instead of HTTP

port 80 in its interactions with the lower layer, TCP/IP.) SSL uses a 40-bit key size for

the RC4 stream encryption algorithm, which is considered an adequate degree of

encryption for commercial exchange.

IBSS Independent Basic Service Set, see BSS. An IBSS is the 802.11 term for an adhoc

network. See adhoc network.

ICMP Internet Control Message Protocol, an extension to the Internet Protocol (IP) defined

by RFC792. ICMP supports packets containing error, control, and informational

messages. The PING command, for example, uses ICMP to test an Internet

connection.

ICV ICV (Integrity Check Value) is a 4-byte code appended in standard WEP to the 802.11

message. Enhanced WPA inserts an 8-byte MIC just before the ICV. (See WPA and

MIC)

IE Internet Explorer.

IEEE Institute of Electrical and Electronics Engineers, a technical professional association,

involved in standards activities.

IETF Internet Engineering Task Force, the main standards organization for the Internet.

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

Infrastructure Mode An 802.11 networking framework in which devices communicate with each other by

first going through an Access Point (AP). In infrastructure mode, wireless devices can

communicate with each other or can communicate with a wired network. (See ad-hoc

mode and BSS.)

Internet or IP

telephony

IP or Internet telephony are communications, such as voice, facsimile, voice-

messaging applications, that are transported over the Internet, rather than the public

switched telephone network (PSTN). IP telephony is the two-way transmission of audio

over a packet-switched IP network (TCP/IP network).

An Internet telephone call has two steps: (1) converting the analog voice signal to

digital format, (2) translating the signal into Internet protocol (IP) packets for

transmission over the Internet. At the receiving end, the steps are reversed.

Over the public Internet, voice quality varies considerably. Protocols that support

quality of service (QoS) are being implemented to improve this.

IP Internet Protocol is the method or protocol by which data is sent from one computer to

another on the Internet. Each computer (host) on the Internet has at least one IP

address that uniquely identifies it. Internet Protocol specifies the format of packets,

also called datagrams, and the addressing scheme. Most networks combine IP with a

higher-level protocol called Transmission Control Protocol (TCP), which establishes a

virtual connection between a destination and a source.

IPC Interprocess Communication. A capability supported by some operating systems that

allows one process to communicate with another process. The processes can be

running on the same computer or on different computers connected through a network.

IPsec

IPsec-ESP

IPsec-AH

Internet Protocol security (IPSec),

Internet Protocol security Encapsulating Security Payload (IPsec-ESP). The

encapsulating security payload (ESP) encapsulates its data, enabling it to protect data

that follows in the datagram.

Internet Protocol security Authentication Header (IPsec-AH). AH protects the parts of

the IP datagram that can be predicted by the sender as it will be received by the

receiver.

IPsec is a set of protocols developed by the IETF to support secure exchange of

packets at the IP layer. IPsec has been deployed widely to implement Virtual Private

Networks (VPNs).

IPsec supports two encryption modes: Transport and Tunnel. Transport mode encrypts

only the data portion (payload) of each packet, but leaves the header untouched. The

more secure Tunnel mode encrypts both the header and the payload. On the receiving

side, an IPSec-compliant device decrypts each packet.

For IPsec to work, the sending and receiving devices must share a public key. This is

accomplished through a protocol known as Internet Security Association and Key

Management Protocol/Oakley (ISAKMP/Oakley), which allows the receiver to obtain a

public key and authenticate the sender using digital certificates.

isochronous Isochronous data is data (such as voice or video) that requires a constant transmission

rate, where data must be delivered within certain time constraints. For example,

multimedia streams require an isochronous transport mechanism to ensure that data is

delivered as fast as it is displayed and to ensure that the audio is synchronized with

the video. Compare: asynchronous processes in which data streams can be broken by

random intervals, and synchronous processes, in which data streams can be delivered

only at specific intervals.

ISP Internet Service Provider.

IV IV (Initialization Vector), part of the standard WEP encryption mechanism that

concatenates a shared secret key with a randomly-generated 24-bit initialization

vector. WPA with TKIP uses 48-bit IVs, an enhancement that significantly increases

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

the difficulty in cracking the encryption. (See WPA and TKIP)

LAN Local Area Network.

LSA Link State Advertisements received by the currently running OSPF process. The LSAs

describe the local state of a router or network, including the state of the router’s

interfaces and adjacencies. See also OSPF.

MAC Media Access Control layer. One of two sublayers that make up the Data Link Layer of

the OSI model. The MAC layer is responsible for moving data packets to and from one

Network Interface Card (NIC) to another across a shared channel.

MAC address Media Access Control address. A hardware address that uniquely identifies each node

of a network.

MIB Management Information Base is a formal description of a set of network objects that

can be managed using the Simple Network Management Protocol (SNMP). The format

of the MIB is defined as part of the SNMP. A MIB is a collection of definitions defining

the properties of a managed object within a device. Every managed device keeps a

database of values for each of the definitions written in the MIB. Definition of the MIB

conforms to RFC1155 (Structure of Management Information).

MIC Message Integrity Check or Code (MIC), also called “Michael”, is part of WPA and

TKIP. The MIC is an additional 8-byte code inserted before the standard 4-byte

integrity check value (ICV) that is appended in by standard WEP to the 802.11

message. This greatly increases the difficulty in carrying out forgery attacks.

Both integrity check mechanisms are calculated by the receiver and compared against

the values sent by the sender in the frame. If the values match, there is assurance that

the message has not been tampered with. (See WPA, TKIP and ICV).

MTU Maximum Transmission Unit. The largest packet size, measured in bytes, that a

network interface is configured to accept. Any messages larger than the MTU are

divided into smaller packets before being sent.

MU Mobile Unit, a wireless device such as a PC laptop.

multicast,

broadcast, unicast

Multicast: transmitting a single message to a select group of recipients. Broadcast:

sending a message to everyone connected to a network. Unicast: communication over

a network between a single sender and a single receiver.

NAS Network Access Server, a server responsible for passing information to designated

RADIUS Servers and then acting on the response returned. A NAS-Identifier is a

RADIUS attribute identifying the NAS server. (RFC2138)

NAT Network Address Translator. A network capability that enables a group of computers to

dynamically share a single incoming IP address. NAT takes the single incoming IP

address and creates new IP address for each client computer on the network.

Netmask In administering Internet sites, a netmask is a string of 0’s and 1’s that mask or screen

out the network part of an IP address, so that only the host computer part of the

address remains. A frequently-used netmask is 255.255.255.0, used for a Class C

subnet (one with up to 255 host computers). The “.0” in the “255.255.255.0” netmask

allows the specific host computer address to be visible.

NIC Network Interface Card. An expansion board in a computer that connects the computer

to a network.

NMS Network Management System. The system responsible for managing a network or a

portion of a network. The NMS talks to network management agents, which reside in

the managed nodes.

NTP Network Time Protocol, an Internet standard protocol (built on top of TCP/IP) that

assures accurate synchronization to the millisecond of computer clock times in a

network of computers. Based on UTC, NTP synchronizes client workstation clocks to

the U.S. Naval Observatory Master Clocks in Washington, DC and Colorado Springs

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

CO. Running as a continuous background client program on a computer, NTP sends

periodic time requests to servers, obtaining server time stamps and using them to

adjust the client’s clock. (RFC1305)

OFDM Orthogonal frequency-division multiplexing, a method of digital modulation in which a

signal is split into several narrowband channels at different frequencies. OFDM is

similar to conventional frequency-division multiplexing (FDM). The difference lies in the

way in which the signals are modulated and demodulated. Priority is given to

minimizing the interference, or crosstalk, among the channels and symbols comprising

the data stream. Less importance is placed on perfecting individual channels.

OFDM is used in European digital audio broadcast services. It is also used in wireless

local area networks.

OID Object Identifier.

OPSEC OPSEC (Open Platform for Security) is a security alliance program created by Check

Point to enable an open industry-wide framework for interoperability of security

products and applications. Products carrying the "Secured by Check Point" seal have

been tested to guarantee integration and interoperability.

OS Operating system.

OSI Open System Interconnection. An ISO standard for worldwide communications that

defines a networking framework for implementing protocols in seven layers. Control is

passed from one layer to the next, starting at the application layer in one station, down

through the presentation, session, transport, network, data link layer to the physical

layer at the bottom, over the channel to the next station and back up the hierarchy.

OSI Layer 3 The Network layer (OSI Layer 3) provides switching and routing technologies, creating

logical paths, known as virtual circuits, for transmitting data from node to node. Routing

and forwarding are functions of this layer, as well as addressing, internetworking, error

handling, congestion control and packet sequencing.

OSPF Open Shortest Path First, an interior gateway routing protocol developed for IP

networks based on the shortest path first or link-state algorithm. Routers use link-state

algorithms to send routing information to all nodes in an internetwork by calculating the

shortest path to each node based on a topography of the Internet constructed by each

node. Each router sends that portion of the routing table (keeps track of routes to

particular network destinations) that describes the state of its own links, and it also

sends the complete routing structure (topography).

Using OSPF, a host that obtains a change to a routing table or detects a change in the

network immediately multicasts the information to all other hosts in the network so that

all will have the same routing table information. The host using OSPF sends only the

part that has changed, and only when a change has taken place. (RFC2328)

OUI Organizationally Unique Identifier (used in MAC addressing).

Packet The unit of data that is routed between an origin and a destination on the Internet or

any other packet-switched network. When any file is sent from one place to another on

the Internet, the Transmission Control Protocol (TCP) layer of TCP/IP divides the file

into packets. Each packet is separately numbered and includes the Internet address of

the destination. The individual packets for a given file may travel different routes

through the Internet. When they have all arrived, they are reassembled into the original

file (by the TCP layer at the receiving end).

PAP Password Authentication Protocol is the most basic form of authentication, in which a

user’s name and password are transmitted over a network and compared to a table of

name-password pairs. Typically, the passwords stored in the table are encrypted. (See

CHAP).

PDU Protocol Data Unit. A data object exchanged by protocol machines (such as

management stations, SMUX peers, and SNMP agents) and consisting of both

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

protocol control information and user data. PDU is sometimes used as a synonym for

``packet’’.

PEAP PEAP (Protected Extensible Authentication Protocol) is an IETF draft standard to

authenticate wireless LAN clients without requiring them to have certificates. In PEAP

authentication, first the user authenticates the authentication server, then the

authentication server authenticates the user. If the first phase is successful, the user is

then authenticated over the SSL tunnel created in phase one using EAP-Generic

Token Card (EAP-GTC) or Microsoft Challenged Handshake Protocol Version 2

(MSCHAP V2). (See also EAP-TLS)

PHP server Hypertext Preprocessor.

PKI Public Key Infrastructure

PoE Power over Ethernet. The Power over Ethernet standard (802.3af) defines how power

can be provided to network devices over existing Ethernet connection, eliminating the

need for additional external power supplies.

POST Power On Self Test, a diagnostic testing sequence performed by a computer to

determine if its hardware elements are present and powered on. If so, the computer

begins its boot sequence.

push-to-talk (PTT) The push-to-talk (PTT) is feature on wireless telephones that allows them to operate

like a walkie-talkie in a group, instead of standard telephone operation. The PTT

feature requires that the network be configured to allow multicast traffic.

A PTT call is initiated by selecting a channel and pressing the “talk” key on the wireless

telephone. All wireless telephones on the same network that are monitoring the

channel will hear the transmission. On a PTT call you hold the button to talk and

release it to listen.

QoS Quality of Service. A term for a number of techniques that intelligently match the needs

of specific applications to the network resources available, using such technologies as

Frame Relay, Asynchronous Transfer Mode (ATM), Ethernet and 802.1 networks,

SONET, and IP-routed networks. QoS features provide better network service by

supporting dedicated bandwidth, improving loss characteristics, avoiding and

managing network congestion, shaping network traffic, setting traffic priorities across

the network.

Quality-of-Service (QoS): A set of service requirements to be met by the network while

transporting a flow. (RFC2386)

RADIUS Remote Authentication Dial-In User Service. An authentication and accounting system

that checks UserName and Password and authorizes access to a network. The

RADIUS specification is maintained by a working group of the IETF (RFC2865,

RFC2866.)

RFC Request for Comments, a series of notes about the Internet, submitted to the IETF and

designated by an RFCnumber, that may evolve into an Internet standard.

Roaming In 802.11, roaming occurs when a wireless device (a station) moves from one Access

Point to another (or BSS to another) in the same Extended Service Set (ESS) –

identified by its SSID.

RP-SMA Reverse Polarity-Subminiature version A, a type of connector used with wireless

antennas

RSN Robust Security Network. A new standard within IEEE 802.11 to provide security and

privacy mechanisms. The RSN (and related TSN) both specify IEEE 802.1x

authentication with Extensible Authentication Protocol (EAP).

RSSI RSSI received signal strength indication (in 802.11 standard)

RTS / CTS RTS request to send, CTS clear to send (in 802.11 standard)

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

Segment In ethernet networks, a section of a network that is bounded by bridges, routers or

switches. Dividing a LAN segment into multiple smaller segments is one of the most

common ways of increasing available bandwidth on the LAN.

SLP Service Location Protocol. A method of organizing and locating the resources (such as

printers, disk drives, databases, e-mail directories, and schedulers) in a network. Using

SLP, networking applications can discover the existence, location and configuration of

networked devices. (From RFC2165)

SMI Structure of Management Information. A hierarchical tree structure for information that

underlies Management Information Bases (MIBs), and is used by the SNMP protocol.

Defined in RFC1155 and RFC1442 (SNMPv2).

SMT (802.11) Station ManagemenT. The object class in the 802.11 MIB that provides the necessary

support at the station to manage the processes in the station such that the station may

work cooperatively as a part of an IEEE 802.11 network. The four branches of the

802.11 MIB are:

• dot11smt - objects related to station management and local configuration

• dot11mac - objects that report/configure on the status of various MAC parameters

• dot11res – Objects that describe available resources

• dot11phy – Objects that report on various physical items.

SNMP Simple Network Management Protocol. A set of protocols for managing complex

networks. SNMP works by sending messages, called protocol data units (PDUs), to

different parts of a network. SNMP-compliant devices, called agents, store data about

themselves in Management Information Bases (MIBs) and return this data to the

SNMP requesters.

SNMP includes a limited set of management commands and responses. The

management system issues Get, GetNext and Set messages to retrieve single or

multiple object variables or to establish the value of a single variable. The managed

agent sends a Response message to complete the Get, GetNext or Set.

SNMP trap An event notification sent by the SNMP managed agent to the management system to

identify the occurrence of conditions (such as a threshold that exceeds a

predetermined value).

SSH Secure Shell, sometimes known as Secure Socket Shell, is a Unix-based command

interface and protocol for securely getting access to a remote computer. SSH is a suite

of three utilities - slogin, ssh, and scp - secure versions of the earlier UNIX utilities,

rlogin, rsh, and rcp. With SSH commands, both ends of the client/server connection

are authenticated using a digital certificate, and passwords are protected by being

encrypted.

SSID Service Set Identifier. A 32-character unique identifier attached to the header of

packets sent over a Wireless LAN that acts as a password when a wireless device tries

to connect to the Basic Service Set (BSS). Several BSSs can be joined together to

form one logical WLAN segment, referred to as an extended service set (ESS). The

SSID is used to identify the ESS.

In 802.11 networks, each Access Point advertises its presence several times per

second by broadcasting beacon frames that carry the ESS name (SSID). Stations

discover APs by listening for beacons, or by sending probe frames to search for an AP

with a desired SSID. When the station locates an appropriately-named Access Point, it

sends an associate request frame containing the desired SSID. The AP replies with an

associate response frame, also containing the SSID.

Some APs can be configured to send a zero-length broadcast SSID in beacon frames

instead of sending their actual SSID. The AP must return its actual SSID in the probe

response.

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

SSL Secure Sockets Layer. A protocol developed by Netscape for transmitting private

documents via the Internet. SSL works by using a public key to encrypt data that’s

transferred over the SSL connection. URL’s that require an SSL connection start with

https: instead of http.

SSL uses a program layer located between the Internet’s Hypertext Transfer Protocol

(HTTP) and Transport Control Protocol (TCP) layers. The “sockets” part of the term

refers to the sockets method of passing data back and forth between a client and a

server program in a network or between program layers in the same computer. SSL

uses the public-and-private key encryption system from RSA, which also includes the

use of a digital certificate.

SSL has recently been succeeded by Transport Layer Security (TLS), which is based

on SSL.

Subnet mask (See “netmask”)

Subnets Portions of networks that share the same common address format. A subnet in a

TCP/IP network uses the same first three sets of numbers (such as 198.63.45.xxx),

leaving the fourth set to identify devices on the subnet. A subnet can be used to

increase the bandwidth on the network by breaking the network up into segments.

SVP SpectraLink Voice Protocol, a protocol developed by SpectraLink to be implemented

on access points in order to facilitate voice prioritization over an 802.11 wireless LAN

that will carry voice packets from SpectraLink wireless telephones.

Switch In networks, a device that filters and forwards packets between LAN segments.

Switches operate at the data link layer (layer 2) and sometimes the network layer

(layer 3) of the OSI Reference Model and therefore support any packet protocol. LANs

that use switches to join segments are called switched LANs or, in the case of Ethernet

networks, switched Ethernet LANs.

syslog A protocol used for the transmission of event notification messages across networks,

originally developed on the University of California Berkeley Software Distribution

(BSD) TCP/IP system implementations, and now embedded in many other operating

systems and networked devices. A device generates a messages, a relay receives and

forwards the messages, and a collector (a syslog server) receives the messages

without relaying them.

Syslog uses the user datagram protocol (UDP) as its underlying transport layer

mechanism. The UDP port that has been assigned to syslog is 514. (RFC3164)

TCP / IP Transmission Control Protocol. TCP, together with IP (Internet Protocol), is the basic

communication language or protocol of the Internet. Transmission Control Protocol

manages the assembling of a message or file into smaller packets that are transmitted

over the Internet and received by a TCP layer that reassembles the packets into the

original message. Internet Protocol handles the address part of each packet so that it

gets to the right destination.

TCP/IP uses the client/server model of communication in which a computer user (a

client) requests and is provided a service (such as sending a Web page) by another

computer (a server) in the network.

TFTP Trivial File Transfer Protocol. An Internet software utility for transferring files that is

simpler to use than the File Transfer Protocol (FTP) but less capable. It is used where

user authentication and directory visibility are not required. TFTP uses the User

Datagram Protocol (UDP) rather than the Transmission Control Protocol (TCP). TFTP

is described formally in Request for Comments (RFC) 1350.

Thin AP

(Lightweight AP)

A thin AP architecture uses two components: an access point that is essentially a

stripped-down radio and a centralized management controller that handles the other

WLAN system functions. Wired network switches are also required.

A fat (or thick) AP architecture concentrates all the WLAN intelligence in the access

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

point. The AP handles the radio frequency (RF) communication, as well as

authenticating users, encrypting communications, secure roaming, WLAN

management, and in some cases, network routing.

TKIP Temporal Key Integrity Protocol (TKIP) is an enhancement to the WEP encryption

technique that uses a set of algorithms that rotates the session keys. TKIP’s enhanced

encryption includes a per-packet key mixing function, a message integrity check (MIC),

an extended initialization vector (IV) with sequencing rules, and a re-keying

mechanism. The encryption keys are changed (rekeyed) automatically and

authenticated between devices after the rekey interval (either a specified period of

time, or after a specified number of packets has been transmitted).

TLS Transport Layer Security. (See EAP, Extensible Authentication Protocol)

ToS Type of Service. An attribute used in Quality of Service (QoS).

TSN Transition Security Network. A subset of Robust Security Network (RSN), which

provides an enhanced security solution for legacy hardware. The Wi-Fi Alliance has

adopted a solution called Wireless Protected Access (WPA), based on TSN. RSN and

TSN both specify IEEE 802.1x authentication with Extensible Authentication Protocol

(EAP).

Tunnelling Tunnelling (or encapsulation) is a technology that enables one network to send its data

via another network’s connections. Tunnelling works by encapsulating packets of a

network protocol within packets carried by the second network. The receiving device

then decapsulates the packets and forwards them in their original format.

UDP User Datagram Protocol. A connectionless protocol that, like TCP, runs on top of IP

networks. Unlike TCP/IP, UDP/IP provides very few error recovery services, offering

instead a direct way to send and receive packets over an IP network. It is used

primarily for broadcasting messages over a network.

U-NII Unlicensed National Information Infrastructure. Designated to provide short-range,

high-speed wireless networking communication at low cost, U-NII consists of three

frequency bands of 100 MHz each in the 5 GHz band: 5.15-5.25GHz (for indoor use

only), 5.25-5.35 GHz and 5.725-5.825GHz. The three frequency bands were set aside

by the FCC in 1997 initially to help schools connect to the Internet without the need for

hard wiring. U-NII devices do not require licensing.

VLAN Virtual Local Area Network. A network of computers that behave as if they are

connected to the same wire when they may be physically located on different

segments of a LAN. VLANs are configured through software rather than hardware,

which makes them extremely flexible. When a computer is physically moved to another

location, it can stay on the same VLAN without any hardware reconfiguration.

The standard is defined in IEEE 802.1Q - Virtual LANs, which states that “IEEE 802

Local Area Networks (LANs) of all types may be connected together with Media

Access Control (MAC) Bridges, as specified in ISO/IEC 15802-3. This standard defines

the operation of Virtual LAN (VLAN) Bridges that permit the definition, operation and

administration of Virtual LAN topologies within a Bridged LAN infrastructure.”

VNS Virtual Network Services (VNS). A Chantry-specific technique that provides a means of

mapping wireless networks to a wired topology.

VoIP Voice Over Internet Protocol. An internet telephony technique. With VoIP, a voice

transmission is cut into multiple packets, takes the most efficient path along the

Internet and is reassembled when it reaches the destination.

VPN Virtual Private Network. A private network that is constructed by using public wires to

connect nodes. These systems use encryption and other security mechanisms to

ensure that only authorized users can access the network and that the data cannot be

intercepted.

Walled Garden A restricted subset of network content that wireless devices can access.

BeaconWorks User Guide – Appendix 2: Glossary of Terms and Acronyms

TERM Explanation

WEP Wired Equivalent Privacy. A security protocol for wireless local area networks (WLANs)

defined in the 802.11b standard. WEP aims to provide security by encrypting data over

radio waves so that it is protected as it is transmitted from one end point to another.

Wi-Fi Wireless fidelity. A term referring to any type of 802.11 network, whether 802.11b,

802.11a, dual-band, etc. Used in reference to the Wi-Fi Alliance, a nonprofit

international association formed in 1999 to certify interoperability of wireless Local

Area Network products based on IEEE 802.11 specification.

WINS Windows Internet Naming Service. A system that determines the IP address

associated with a particular network computer, called name resolution. WINS supports

network client and server computers running Windows and can provide name

resolution for other computers with special arrangements. WINS supports dynamic

addressing (DHCP) by maintaining a distributed database that is automatically updated

with the names of computers currently available and the IP address assigned to each

one.

DNS is an alternative system for name resolution suitable for network computers with

fixed IP addresses.

WLAN Wireless Local Area Network.

WPA Wireless Protected Access, or Wi-Fi Protected Access is a security solution adopted by

the Wi-Fi Alliance that adds authentication to WEP’s basic encryption. For

authentication, WPA specifies IEEE 802.1x authentication with Extensible

Authentication Protocol (EAP). For encryption, WPA uses the Temporal Key Integrity

Protocol (TKIP) mechanism, which shares a starting key between devices, and then

changes their encryption key for every packet. Certificate Authentication (CA) can also

be used. Also part of the encryption mechanism are 802.1X for dynamic key

distribution and Message Integrity Check (MIC) a.k.a. “Michael”

WPA requires that all computers and devices have WPA software.

WPA-PSK Wi-Fi Protected Access with Pre-Shared Key, a special mode of WPA for users without

an enterprise authentication server. Instead, for authentication, a Pre-Shared Key is

used. The PSK is a shared secret (passphrase) that must be entered in both the

wireless access point or router and the WPA clients.

This preshared key should be a random sequence of characters at least 20 characters

long or hexadecimal digits (numbers 0-9 and letters A-F) at least 24 hexadecimal digits

long. After the initial shared secret, the Temporal Key Integrity Protocol (TKIP) handles

the encryption and automatic rekeying.

BeaconWorks User Guide – Appendix 3: Index of Procedures, Screens and Figures

Appendix 3: Index of Procedures, Screens and Figures

List of Procedures:

Installing the BeaconMaster ............................................................................................. 16

Changing the Management Port IP address web browser, ethernet port method ........... 17

Add the BeaconMaster to your enterprise network .......................................................... 19

To run the Graphical User interface.................................................................................. 20

Configuring the data ports on the BeaconMaster ............................................................. 23

Setting up a Static Route on the BeaconMaster............................................................... 26

Viewing the Routing Table on the BeaconMaster ............................................................ 27

Setting up OSPF Routing on the BeaconMaster .............................................................. 28

Define the Security Mode for registering BeaconPoints ................................................... 33

View and modify properties of registered BeaconPoints .................................................. 36

View and modify the radio settings of registered BeaconPoints....................................... 38

Add and register a BeaconPoint manually........................................................................ 40

Set up a BeaconPoint with static configuration ................................................................ 42

Create a subnet (VNS)...................................................................................................... 48

Configure the new VNS (overview of basic steps) ........................................................... 49

Create an SSID for Captive Portal VNS ........................................................................... 50

Identify the BeaconPoint radios that will be assigned to this VNS ................................... 51

Enable Management Traffic on this VNS.......................................................................... 51

Enable Third Party Access Points on this VNS ................................................................ 51

Enable QoS Policy for voice-over-internet traffic on this VNS.......................................... 51

Set the IP address for the VNS (for the DHCP server on the BeaconMaster) ................. 51

Set time limits for IP assignments..................................................................................... 52

Set the name server configuration.................................................................................... 52

Use DHCP Relay for the VNS .......................................................................................... 52

Save the new VNS............................................................................................................ 53

Set up authentication by Captive Portal............................................................................ 53

Define how the BeaconMaster will access the RADIUS server........................................ 54

Define the RADIUS server priority for RADIUS Redundancy........................................... 55

Define the Filter ID Values on this VNS............................................................................ 56

Configure the appearance of the Captive Portal page ..................................................... 56

Define filtering rules for a Non-Authenticated Filter.......................................................... 57

Set up a Static WEP key for a selected VNS.................................................................... 59

Set up a VNS with no authentication ................................................................................ 61

Set up a VNS for voice traffic............................................................................................ 63

Configure the BeaconPoint radio for a voice traffic VNS.................................................. 64

Create an AAA topology ................................................................................................... 66

Identify the BeaconPoint radios that will be assigned to this VNS ................................... 66

Enable Management Traffic on this VNS.......................................................................... 66

Set the IP address for the VNS (for the DHCP server on the BeaconMaster) ................. 67

Set time limits for IP assignments..................................................................................... 67

Set the name server configuration.................................................................................... 67

Use DHCP Relay for the VNS .......................................................................................... 68

Save the new VNS for AAA .............................................................................................. 68

Set up authentication by AAA (802.1x) method................................................................ 68

Define how the BeaconMaster will access the RADIUS Server....................................... 69

Define the RADIUS server priority for RADIUS Redundancy........................................... 70

Define the Filter ID Values on this VNS............................................................................ 70

Set up an AAA Group ....................................................................................................... 71

Configure the VNS Topology for an AAA Group .............................................................. 71

Define filtering rules for a Filter ID group .......................................................................... 72

Define the filtering rules for a Default Filter ...................................................................... 74

Set up static WEP privacy for a selected AAA VNS ......................................................... 76

Set up dynamic WEP privacy for a selected AAA VNS .................................................... 77

Set up Wi-Fi Protected Access privacy (WPA) for an AAA VNS ...................................... 78

BeaconWorks User Guide – Appendix 3: Index of Procedures, Screens and Figures

Specify a re-key interval for WPA Privacy ........................................................................ 78

Enable WPA in PSK mode if there is no authentication server ........................................ 79

Save the privacy parameters for this VNS........................................................................ 79

Prepare for setting up the Availability feature ................................................................... 80

Set up two BeaconMasters as a pair, for availability ........................................................ 81

Modifying BP Failover selections for availability............................................................... 82

View the BeaconPoint Availability Report......................................................................... 82

View the SLP activity with the “slpdump tool” ................................................................... 83

Events and actions during a Failover................................................................................ 84

Set up a BeaconMaster as a VN Manager ....................................................................... 86

View displays when VN Managers is enabled.................................................................. 86

Designate BeaconMaster management users ................................................................. 88

Set Network Time parameters .......................................................................................... 89

Set up third-party access points on the BeaconMaster .................................................... 90

Enable and configure the BeaconKeeper Mitigator Analysis Engine ............................... 94

Define the BeaconKeeper Mitigator RF Data Collector Engines...................................... 94

Set up and run the BeaconKeeper Mitigator scan task mechanism:................................ 95

View the BeaconKeeper scan results and build list of Friendly APs ................................ 97

View the BeaconKeeper list of Third-Party APs ............................................................... 99

Maintain the BeaconKeeper list of access points and BeaconPoints............................... 99

View the BeaconKeeper scanner engine status display................................................. 100

Maintain the list of current BeaconPoint software images.............................................. 101

Define the parameters for a BeaconPoint software upgrade.......................................... 102

Modify a BeaconPoint’s registration status (approve access)........................................ 104

Disassociate a Wireless Device Client ........................................................................... 105

Performing BeaconMaster maintenance functions......................................................... 106

Change the System Log Level........................................................................................ 106

Enable Data Collection for Accounting ........................................................................... 106

Perform a System Shutdown .......................................................................................... 106

View the Logs ................................................................................................................. 110

View the Traces .............................................................................................................. 111

View the Audits ............................................................................................................... 111

Setting SNMP Parameters.............................................................................................. 116

List of Screens:

Screen 1: Chantry BeaconWorks User Interface Login.................................................... 17

Screen 2: Chantry BeaconWorks User Interface Main Menu........................................... 17

Screen 3: BeaconMaster Configuration – IP Addresses – Management Port ................. 18

Screen 4: Modify Management Port Settings (System Port Configuration) ..................... 18

Screen 5: Chantry BeaconWorks User Interface Login.................................................... 20

Screen 6: Change Password popup ................................................................................. 20

Screen 7: Chantry BeaconWorks Main Menu................................................................... 21

Screen 8: BeaconMaster Configuration – IP Addresses / Interfaces ............................... 23

Screen 9: BeaconMaster Configuration – Static Routes .................................................. 26

Screen 10: Report – Forwarding Table............................................................................. 27

Screen 11: BeaconMaster Configuration – Routing, OSPF tab ....................................... 28

Screen 12: Reports – OSPF Neighbor and Linkstate....................................................... 29

Screen 13: BeaconPoint Configuration – BP Registration Mode ..................................... 33

Screen 14: BeaconPoint Configuration: Message R1.1 version of BP software .............. 36

Screen 15: BeaconPoint Configuration – Properties ........................................................ 37

Screen 16: BeaconPoint Configuration – Properties (after modifications) ....................... 38

Screen 17: BeaconPoint Configuration – Radio 802.11a (5 GHz) ................................... 38

Screen 18: BeaconPoint Configuration – Radio 802.11b/g (2.4 GHz) ............................. 39

Screen 19: BeaconPoint Configuration – Add BeaconPoint............................................. 41

Screen 20: BeaconPoint Configuration: Static Configuration ........................................... 42

Screen 21: Virtual Network Configuration: Before any VNS definitions ........................... 48

BeaconWorks User Guide – Appendix 3: Index of Procedures, Screens and Figures

Screen 22: Virtual Network Configuration: Topology for a new VNS Subnet................... 49

Screen 23: Virtual Network Configuration – Topology – SSID Assignment ..................... 50

Screen 24: Virtual Network Configuration – Exclusions subscreen ................................. 52

Screen 25: Virtual Network Configuration – Topology – DHCP Relay ............................. 53

Screen 26: Virtual Network Configuration – Authentication – Captive Portal................... 54

Screen 27: Virtual Network Configuration – Authentication CP – Add RADIUS Server... 54

Screen 28: Captive Portal login configuration................................................................... 56

Screen 29: Virtual Network Configuration – Non-Authenticated Filter for Captive Portal 58

Screen 30: Virtual Network Configuration – Privacy – Captive Portal VNS ..................... 60

Screen 31: Virtual Network Configuration – Authentication – None................................. 61

Screen 32: Virtual Network Configuration: Topology – QoS for Voice Traffic .................. 63

Screen 33: BeaconPoint Configuration for QoS VNS (need screen with correct settings)

.................................................................................................................................. 64

Screen 34: Virtual Network Configuration – Topology – AAA Assignment ...................... 66

Screen 35: Virtual Network Configuration – Exclusions subscreen ................................. 67

Screen 36: Virtual Network Configuration – Authentication – AAA .................................. 69

Screen 37: Virtual Network Configuration – Authentication AAA – RADIUS Server

Configuration ............................................................................................................ 69

Screen 38: Virtual Network Configuration – Topology – AAA Group ............................... 71

Screen 39: Virtual Network Configuration –Filter ID Value filtering rules ......................... 73

Screen 40: Virtual Network Configuration – Default Filter ................................................ 74

Screen 41: Virtual Network Configuration – Filtering – AAA Group ................................. 75

Screen 42: Virtual Network Configuration – Privacy – AAA VNS: Static Keys................. 76

Screen 43: Virtual Network Configuration – Privacy – AAA VNS: WPA........................... 78

Screen 44: BeaconPoint Configuration – Paired BeaconMasters for Availability............. 81

Screen 45: BeaconPoint Configuration – BP Failover for Paired BM............................... 82

Screen 46: Report – BeaconPoint Availability .................................................................. 83

Screen 47: BeaconPoint configuration – View SLP Registration ..................................... 83

Screen 48: BeaconMaster Configuration – VN Manager ................................................. 86

Screen 49: Reports and Displays for a VN Manager: Menu............................................. 87

Screen 50: Reports and Displays for a VN Manager: Examples...................................... 87

Screen 51: Reports and Displays for a VN Manager: BM Tunnel Traffic ......................... 87

Screen 52: BeaconMaster Configuration – Management Users ...................................... 88

Screen 53: BeaconMaster Configuration – Network Time ............................................... 89

Screen 54: BeaconMaster Configuration – IP Addresses / Interfaces ............................. 90

Screen 55: Virtual Network Configuration – Topology for Third-Party APs...................... 91

Screen 56: BeaconKeeper Mitigator – Rogue Summary Report...................................... 93

Screen 57: BeaconMaster Configuration – BeaconKeeper Mitigator Configuration ........ 94

Screen 58: BeaconMaster Configuration – BeaconKeeper Mitigator: Collection Engines95

Screen 59: BeaconKeeper Mitigator Scanner – Scan Groups ......................................... 95

Screen 60: BeaconKeeper Mitigator Scanner – Rogue Detection ................................... 98

Screen 61: BeaconKeeper Mitigator Scanner – Friendly APs.......................................... 98

Screen 62: BeaconKeeper Mitigator Scanner – 3rd Party APs ........................................ 99

Screen 63: BeaconKeeper Mitigator Scanner – AP / BP Maintenance............................ 99

Screen 64: BeaconKeeper Mitigator – Scanner Status Report ...................................... 100

Screen 65: BeaconPoint Configuration – BP Maintenance: Software Maintenance...... 102

Screen 66: BeaconPoint Configuration – BP Maintenance: Controlled Upgrade........... 103

Screen 67: BeaconPoint Configuration – Access Approval............................................ 104

Screen 68: BeaconPoint Configuration – Wireless Unit (Client) Disassociate ............... 105

Screen 69: BeaconMaster Configuration – System Maintenance .................................. 106

Screen 70: BeaconMaster Configuration – System Maintenance: Syslog enabled ....... 107

Screen 71: Logs & Traces: Log Display – All ................................................................. 109

Screen 72: Logs & Traces: Log Display – Info ............................................................... 110

Screen 73: Logs & Traces: Trace Messages ................................................................. 111

Screen 74: Logs & Traces: GUI Audit............................................................................. 111

Screen 75: Reports and Displays – List of Displays....................................................... 112

Screen 76: Displays – Active BeaconPoints................................................................... 112

Screen 77: Displays – Active Clients by VNS................................................................. 112

BeaconWorks User Guide – Appendix 3: Index of Procedures, Screens and Figures

Screen 78: Displays – BeaconPoint Availability ............................................................. 112

Screen 79: Display – Wired Ethernet Statistics by BeaconPoints.................................. 113

Screen 80: Display – Wireless Statistics by BeaconPoints ............................................ 113

Screen 81: Display – Wireless Statistics by BeaconPoints: Clients ............................... 114

Screen 82: Forwarding Table Report.............................................................................. 114

Screen 83: BeaconMaster Configuration – SNMP Setup............................................... 116

List of Figures:

Figure 1: Standard wireless network solution..................................................................... 5

Figure 2: Chantry BeaconWorks Solution........................................................................... 6

Figure 3: BeaconWorks Traffic Flow diagram .................................................................... 8

Figure 4: The Chantry BeaconMaster............................................................................... 15

Figure 5: The Chantry BeaconMaster – back view diagram............................................. 16

Figure 6: The Chantry BeaconPoint ................................................................................. 30

Chantry Networks BP200E ACCESS POINT WITH WLAN AND UNII User Manual Chantry Networks Inc BeaconWorks User Guide

Chantry Networks Inc. (a Siemens Company) ACCESS POINT WITH WLAN AND UNII Chantry Networks Inc BeaconWorks User Guide

Contents

USERS MANUAL 1

Navigation menu

Namespaces

Views

Navigation
