Contents
User manual -1
CAR MULTIMEDIA SYSTEM
USER'S MANUAL
D5EUH04
(영어 | 미국) 표준5세대
Read the following safety precautions
for your safety
Before using the product, read the contents of this user's manual
carefully and use this product safely.
※ The design and specifications of this product may change without prior
notification for product and service improvement.
The actual features in the vehicle may differ from the illustrations.
For more accurate information about the vehicle, please refer to the
catalogue.
※ This Audio system contains open source software, including without
limitation, software distributed and/or modified under the GNU General
Public license, Version 2, June 1991, and the GNU lesser General Public
License, Version 2.1, February 1999.
For additional information and to obtain related materials including
without limitation, the previous referred to licenses and software, please
contact us at MOBIS_OSSrequest@mobis.co.kr
Notations used within this User's Manual
WARNING
• Failure to observe the instructions within this category could result in death
or serious injury or damage to the vehicle.
CAUTION
• Information on matters that could potentially lead to injury or vehicle
damage/malfunction Information that could lead to higher user safety
i
Information
• Information and tips that provide additional user convenience in using the
product
NOTICE
• Information on specific features that facilitate proper product use and
functional understanding
• Information on terminology used within this manual
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth
®
Wireless Technology
A compatible
Bluetooth
®
Wireless Technology-enabled cell phone is
required to use
Bluetooth
®
Wireless Technology.
The
Bluetooth
® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kia is under license.
Other trademarks and trade names are those of their respective owners.
A Bluetooth® enabled cell phone is required to use
Bluetooth
®
Wireless
Technology.
Bluetooth
®
Wireless Technology phone compatibility can be checked by
visiting http://www.kia.com.
HD Radio™ Technology
HD Radio™ Technology manufactured under license from iBiquity Digital
Corporation. U.S. and Foreign Patents.
For patents see http://patents.dts.com/. HD Radio™ and the HD, HD
Radio™, and "ARC" logos are registered trademarks or trademarks of
iBiquity Digital Corporation in the United States and/or other countries.
Wi-Fi®
The Wi-Fi CERTIFIED™ Logo is a certifi cation mark of Wi-Fi Alliance.
Warnings and Cautions
Key Product Features
Component Names and Functions
Starting the System for the First Time
part.1 Basic
1-2 I Basic
Safety Warnings
• Even when receiving route guidance
from the Navigation system, please
abide by actual traffic and road regu-
lations. Following only the Navigation
route guidance may lead to violations of
actual traffic and road regulations and
lead to traffic accidents.
• Do not stare at the screen while driving.
Staring at the screen for prolonged peri-
ods of time could lead to traffic accidents.
• Do not operate the Navigation system
while driving, such as entering POIs or
conducting route searches. Such acts
could lead to accidents, fire, or electric
shock. Park the vehicle before operating
the device.
• Do not disassemble, assemble, or modify
the Multimedia system. Such acts could
result in accidents, fire, or electric shock.
• Heed caution not to spill water or intro-
duce foreign objects into the device.
Such acts could lead to smoke, fire, or
product malfunction.
• If you use phone related functions while
driving, you will find it difficult to concen-
trate on operating the vehicle and the
current traffic conditions, so the possibility
of an accident may increase. Please
use phone related functions only when
parked.
• Please refrain from use if the screen
is blank or no sound can be heard as
these signs may indicate product mal-
function. Continued use in such con-
ditions could lead to accidents (fires,
electric shock) or product malfunctions.
• Do not touch the antenna during thun-
der or lightening as such acts may lead
to lightning induced electric shock.
• Do not stop or park in parking-restricted
areas to operate the product. Such acts
could lead to traffic accidents.
• For most Audio and multimedia modes,
the display will not operate when the
vehicle is in motion. For your safety, first
park the vehicle to watch or view the
screen.(The screen will only operate
when the parking brake is ON for man-
ual transmission vehicles and when the
parking brake is ON or the gearshift is in
the P (PARK) position for automatic.)
• Some functions other than the one
mentioned above cannot be used while
driving. These functions operate only
when the vehicle is parked.
Basic
Warnings and Cautions I 1-3
01
Safety Cautions
Pay attention to traffic conditions while
driving.
• In some instances, the navigation may
provide guidance through restricted
areas.
• Operating the device while driving could
lead to accidents due to a lack of atten-
tion to external surroundings. First park
the vehicle before operating the device.
In addition, the touch screen may not
work for some functions when the vehi-
cle is in motion. The touch screen fea-
ture will be supported once the vehicle
has stopped.
• Adjust the volume to levels that allow
the driver to hear sounds from outside
of the vehicle. Driving in a state where
external sounds cannot be heard may
lead to accidents.
• Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. (Adjust the volume to a suitable
levels before turning off the device.)
• Turn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations
may lead to battery discharge.
• Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
• Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD or touch screen.
• When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns, inquire
with your place of purchase or service
maintenance center.
• Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
1-4 I Basic
Key Product Features
This device is a Multimedia system equipped with a multi-
functional player that supports Radio (FM, AM), HD Radio™,
SiriusXM™, USB, iPod, AUX and Bluetooth Audio features. The
WIDE VGA LCD provides a high quality resolution while the pow-
erful and rich sound system adds to the driving enjoyment.
Display
Wide TFT-LCD Display
• Provides high quality video through a Wide
TFT-LCD Display using an LED Back Light.
• Touch screen for maximum user convenience.
Radio
Digital Tuner Feature
• Digital Tuner using PLL method that supports
memory of 40 broadcast stations.
Radio broadcast station name
• Displays broadcast station names.
Multimedia
Player
Support for various Media Formats
• Support for various media formats, including
Radio, USB, iPod, AUX and Bluetooth
®
Audio
Streaming modes
Navigation
Voice Guidance
• Voice route guidance to safely and conve-
niently reach set destinations.
• Various map scales that enable drivers to
accurately view map and surrounding areas.
Automatic Correction for Current Location
• Automatically corrects current position using
map matching and GPS information.
Miscellaneous
Bluetooth
®
Wireless Technology
• Convenient use of Bluetooth
®
Handsfree by
using buttons within the steering wheel control
Digital Screen Control Features
• Easy control of features through touch screen
options
Steering Wheel Control
• Control over audio features, voice recognition
and Bluetooth
®
through the steering wheel
control for maximum convenience
Component Names and Functions I 1-5
01
Component Names and Functions
Head Unit
Name Description
POWER/
VOL
• When power is off, press to turn power on.
•When power is on, press and hold (more than
0.8 seconds) to turn the power off.
• When power is on, press quickly (less than 0.8
seconds) to turn Audio off.
• Turn left/right to adjust the volume.
RADIO
Selects FM/AM/SiriusXM™ mode
•Each time this is pressed, the mode is changed
in the following order: FM → AM → SiriusXM™
→ FM.
Name Description
MEDIA
Selects MEDIA mode.
• If the media is not connected MEDIA mode will
not be activated.
Moves to the function set by the user.
1-6 I Basic
Name Description
TRACK
SEEK
When pressed quickly (less than 0.8 seconds),
•FM/AM mode: Plays the previous/next fre-
quency.
• SiriusXM™ mode: Changes the channel.
•MEDIA mode: Changes the track, file or title
(except for AUX).
When pressed and held down (more than 0.8 sec-
onds),
• FM/AM mode: Moves quickly through all of the
frequencies. The moment that you release the
button, the system seeks the next available fre-
quency.
•MEDIA mode: Rewinds or fast forwards the
track or file (except for AUX, Bluetooth Audio).
Name Description
MAP
Displays the map for the current position.
NAV
Takes you to the menu screen where you can find
your destination and set the route.
SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• SiriusXM™ mode: Changes the channel.
•MEDIA mode: Changes the track, file or title
(except for AUX, Bluetooth Audio).
SD Card insert slot.
RESET Resets the system settings. (Preset radio channels
and other data will not be deleted)
※ The actual image in the vehicle may differ from the illustration.
Component Names and Functions I 1-7
01
Name Description
When pressed quickly (less than 0.8 seconds),
• Activates voice recognition.
When pressed and held (more than 0.8 seconds),
• Ends voice recognition.
•If iOS device is connected through Bluetooth,
activates or ends Siri Eyes Free.
Name Description
MODE
• Each time this is pressed, the mode is changed
in the following order: FM → AM → SiriusXM™ →
USB or iPod → AUX → Bluetooth Audio → FM
i
You can select which mode to use in
Advanced settings.
• If the media is not connected, the corresponding
modes will be disabled
•Press and hold (more than 0.8 seconds) to turn
the Audio system on/off
•When power is off, press button to turn power
back on
+
,
-
Controls the volume
When pressed quickly (less than 0.8 seconds),
•FM/AM mode: searches broadcast frequencies
saved to Presets
•SiriusXM™ mode: searches broadcast channels
saved to Presets
•MEDIA mode: changes the track, file or title
(except for AUX)
When pressed and held (more than 0.8 seconds),
•FM/AM mode: automatically searches broadcast
frequencies
• SiriusXM™ mode: automatically searches broad-
cast channels
• MEDIA mode: quickly looks up songs (except for
AUX, Bluetooth Audio)
Steering Wheel Controls
1-8 I Basic
Name Description
When pressed quickly (less than 0.8 seconds),
• When pressed in the dial screen, makes a call
•When pressed in the incoming call screen,
answers the call
•When pressed during call waiting, switches to
waiting call (Call Waiting)
When pressed and held (more than 0.8 seconds),
•When pressed in Bluetooth
®
Hands-free, redials
the last dialed call
•When pressed during a Bluetooth
®
Hands-free
call, switches call back to mobile phone (Private)
• When pressed while calling on the mobile phone,
switches call back to Bluetooth
®
Hands-free
(operates only when Bluetooth
®
Hands-free is
connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects
the call
※ The actual image in the vehicle may differ from the illustration.
Starting the System for the First Time I 1-9
01
Starting the System for
the First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the safety guide. To change the
system language between English,
French, Spanish and Korean, select the
Language
button.
NOTICE
• You cannot operate the system while it is
booting up. It may take some time for all of
features of the system, particularly the voice
recognition system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
i
Information
• If you turn off the system during a phone call
using the Hands-free feature, then the call will
automatically switch to your mobile phone.
NOTICE
• Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET key for a sec-
ond or longer. (It is recommended that you
press the RESET key using a tool, such as
a pin or a clip.)
1-10 I Basic
Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.
NOTICE
• If you use the system for a long time with
the engine off, the battery may become
completely discharged.
Restrictions on Features for
Safety Measures
Several features are limited while driving.
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
WARNING
- Blank Screen
• Refrain from use if the screen is blank or
no sound can be heard as these signs may
indicate product malfunction. Continued use in
such conditions could lead to accidents (fires,
electric shock).
WARNING
- Touching the Antenna During A
Thunder Storm
• Do not touch the antenna during thunder or
lightning as such acts may lead to lightning
induced electric shock.
Starting the System for the First Time I 1-11
01
Home Screen
Controls Menu Configuration for the Home Screen
Tap the icon on any screen to display the Home Screen below.
Features Description
Navigation
Widget
• Provides a brief view of the navigation map
and the route screen.
•Touch any area on the screen to move to the
navigation screen.
AV Widget
•Shows brief information on the radio or
media that is now playing.
•Tap the area to move to the mode that you
are listening to.
All Menus Shows all of the items in the system menu.
Phone Displays user to phone screen.
My Menu Add your favorite menus to have quick and easy
access to them.
Information Display on the Status Bar
Displays the date and time, along with the system status shown by
the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
Icon Description
Displayed when the audio is muted.
Displayed when the navigation sound is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and
handsfree.
Displayed when downloading contacts or recent calls from the
Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth or UVO phone is muted.
Displays the signal strength of the Bluetooth phone.
Displays the signal strength of the UVO.
Displayed when connected to Wi-Fi.
Displayed when 911 connect is available.
1-12 I Basic
Adding a Feature to My Menu
Select
My Menu
on the Home Screen to
add the most frequently used menus,
change the menu order, or delete menus.
i
Information
• Up to 24 menus can be added to My Menu.
On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
• The system will not recognize your touch if
you wear a glove or other non-conductive
material. Touch the screen using your finger,
an electrostatic touch-screen glove, or a stylus
pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from.
Starting the System for the First Time I 1-13
01
Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE
• Moving the list when there are many items will
display a handler on the right of the display.
You can easily move many items at a time
with the handler.
Press and Hold
Pressing the and buttons
in the music player will fast forward/rewind
the music.
MEMO
FM/AM
HD Radio™ Technology
SiriusXM™
USB
iPod
AUX
Bluetooth® Audio
part.2 Radio/Media
2-2 I Radio/Media

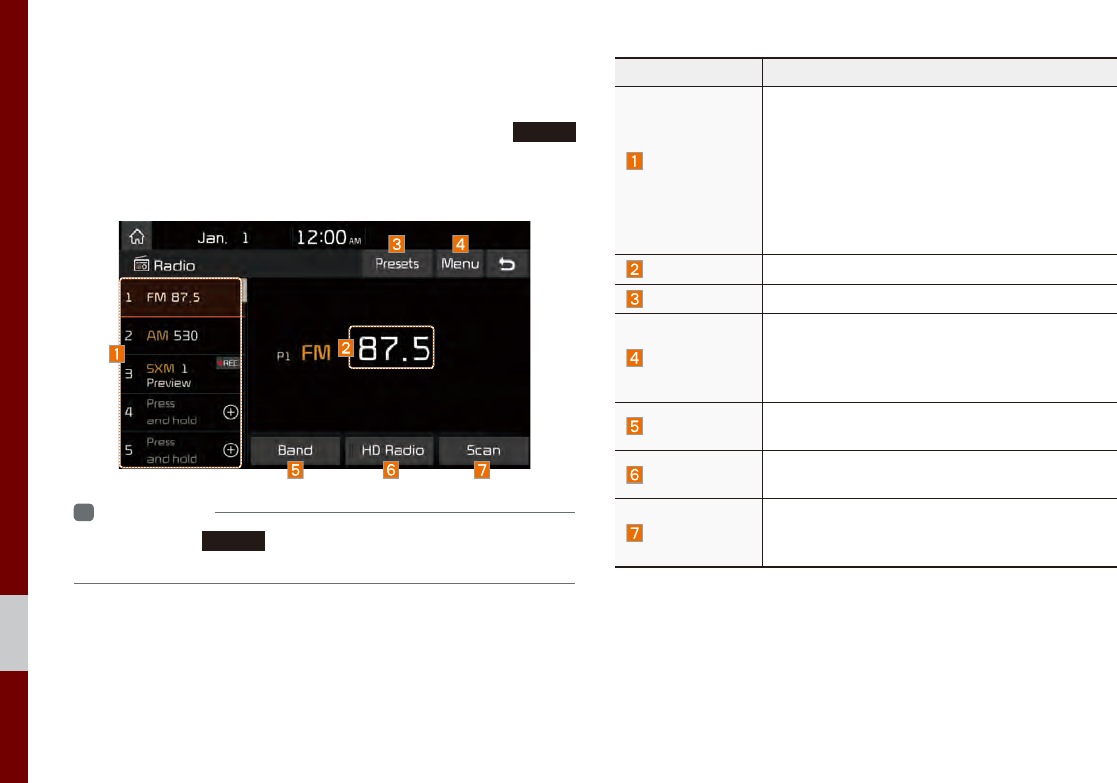

FM/AM
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu from All Menus on the Home
screen.
i
Information
• If you press the
RADIO
key when power is off, the power will turn on
and a radio broadcast will be tuned from the current mode.
Features Description
Preset
Frequencies
•The stored preset frequencies are displayed
for user selection.
• After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
• Flick the preset frequencies up/down to scroll
quickly through presets.
Frequency Displays the current frequency.
Presets Shows the stored presets for user selection.
Menu
• List: Moves to the frequency list.
• Info: Turns the Radio text information transmit-
ted from the broadcasting station on and off.
•Sound Settings: Moves to the Sound Settings.
Band Changes to the desired band from among FM,
AM, and SiriusXM™.
HD Radio Used to set whether to turn HD Radio™ recep-
tion On or Off.
Scan
Shortly plays the broadcasts for the frequen-
cies with superior reception for 10 seconds
per item.
Radio/Media
02
FM/AM I 2-3
Features Description
SEEK/TRACK
•When pressed quickly (less than 0.8 sec-
onds): Seeks the previous/next frequency.
• When pressed and held (more than 0.8 sec-
onds): Moves quickly through all of the fre-
quencies. The moment that you release the
button, the system seeks the next available
frequency.
TUNE
Turn the
TUNE
knob to manually seek avail-
able frequencies.
• FM: Increment/decrement by 200 kHz
• AM: Increment/decrement by 10 kHz
2-4 I Radio/Media
If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
i
Information
• The
HD Radio™
screen is displayed only
when a HD Radio™ broadcast is being
received.

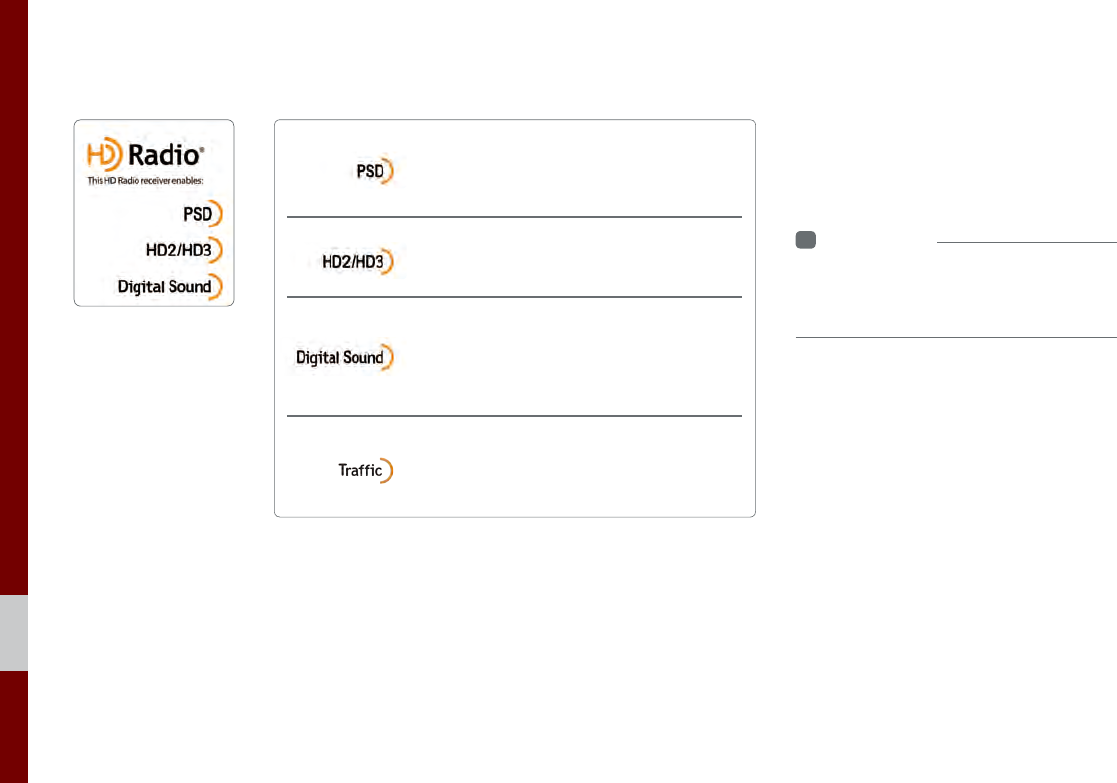

HD Radio™ Technology
Program Service Data: Presents song name,
artist, station IDs, and other relevant data
streams.
FM stations can provide additional digital-only
audio programming on HD2/HD3 Channels.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean
digital signal. AM sounds like today’s FM and FM
sounds like a CD.
Real-Time Traffic reports, alerts, and flow data
displayed on screen via interactive traffic maps
and/or data.
HD Radio™ Technology I 2-5
02
HD Radio™
Features Description
HD Radio™
Reception &
Channel buttons
Displays main HD Radio™ channels and
used to directly select the current available
channels.
The HD Radio™ related icon display
becomes active within regions where an
HD Radio™ signal can be received.
HD Channel
Number
Analog station and corresponding HD
Radio™ channel number saved in the pre-
set list.
HD Radio™
Broadcast Info
Displays detailed information about the cur-
rent broadcast (the details of the information
shown are different depending on whether
the Info button is selected)
HD Radio
When the HD Radio™ soft button is ON
(the red indicator on the HD Radio™ button
is illuminated), HD Radio™ signals will be
received.
2-6 I Radio/Media

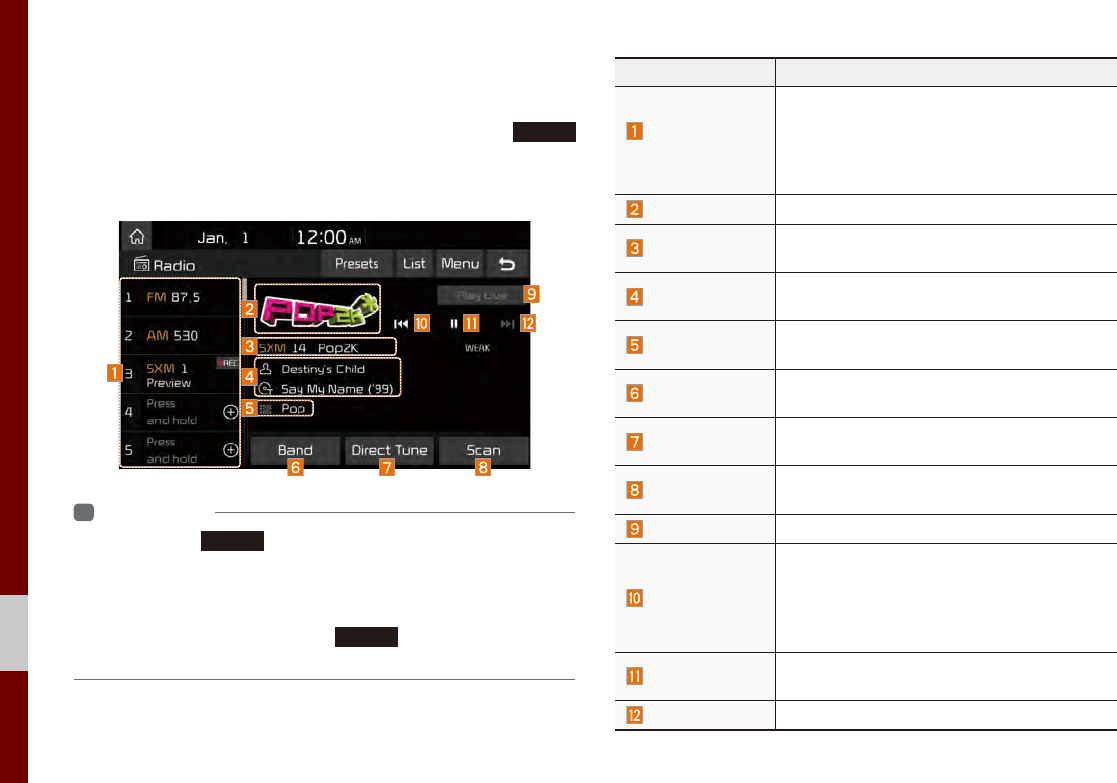

SiriusXM™
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu option from All Menus on the
Home screen. Select the SiriusXM™ band from the radio player.
i
Information
• If you press the
RADIO
key when the power is off, the power will turn
on and a radio broadcast will be tuned from the current mode.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget
from the Home screen to access the radio player.
• When the power is off, pressing the
RADIO
key will turn the power on
and play a SiriusXM™ Radio broadcast.
Features Description
Preset
Frequencies
• Shows the stored presets for user selection.
• After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
Channel Logo Displays the current channel logo.
Channel Info Displays the current channel number and
name.
Content Info Displays the artist, title and other information
about the current playing song.
Category Info Displays the category of the currently playing
song.
Band Changes to the desired band from among FM,
AM, and SiriusXM™.
Direct Tune Used to search for the desired channel by
entering the channel number.
Scan Plays all receivable channels for 10 seconds
per item.
Play Live Switches to the live broadcast mode.
Skip Backward
Repeats the previously broadcasted program.
• Holding for less than 0.8 seconds: Moves to
the previous segment.
•Holding for more than 0.8 seconds: Moves
to the previous 5 seconds.
Play/Pause Pauses/plays the current broadcasting pro-
gram.
Skip Forward Moves to the next segment.
SiriusXM™ I 2-7
02
Features Description
Weak Signal Displays the weak radio reception.
Presets Shows the stored presets for user selection.
List Moves to the channel list.
Menu
• What is on My Presets?
The program schedule saved in my preset. (For
more details, see Section 3.10. Viewing Menu.)
•Featured Favorites: Theme channels recom-
mended by SiriusXM™. (For more details,
see Section 3.10. Viewing Menu.)
•Sound Settings: Moves to the Sound Settings.
SEEK/TRACK
•When pressed quickly (less than 0.8 sec-
onds): Plays the previous/next channel.
• When pressed and held (more than 0.8 sec-
onds): Continuously changes the channel
until the key is released and plays the current
channel.
TUNE Changes the channel.
