Welcome

Thank you for purchasing a Juno T41/5 rugged handheld computer! This

user manual will help you configure and use your device.

Important information for using the user manual

This user manual has been prepared to guide you through the

configuration and operation of your device, which includes:

1. Initial configuration of the device

2. Operating basics

3. Navigating the operating system and software

4. Securing your device

Please read this user manual carefully before using your device for

the first time. In particular, read the Important Safety Information and

all of Chapter 1 before using your device.

This user manual describes features and functionality that may not

be present on your particular device, as features vary by model.

Document conventions

It is important to understand the typographical conventions used in

this user manual. The formatting of the text identifies special

information:

1. CAPITAL — indicates the hardware items on the device.

Example: press the POWER button.

2. Bold — indicates the items displayed on the screen, including

icons, tiles, buttons, headings, field names and options.

Example: tap the E-mail icon.

3. Italic — indicates the name of a screen/window as shown in the

upper left corner of the display.

Example: the Settings screen.

4. > — describes a procedure or a navigation path.

5. Example: Tap > Settings > System > System Information >

Wireless is equivalent to:

1. Tap the (Start) icon or press the (Start) button

2. Tap the Settings icon

3. Tap the System icon

4. Tap the System Information icon

5. On the System Information screen, slide left or right until the

Wireless tab is displayed. You can also tap the < or > in the

horizontal scroll bar to activate different tabs in the System

Information screen.

Terms

The following terms are used throughout this user manual to

describe user actions.

1. Press — press and quickly release a hardware button.

2. Tap — touch and quickly release an item displayed on the

screen.

3. Select — tap an item in a list or tap a command from a menu.

4. Drag — tap and hold on the item and then move it to the target

position without releasing your fingertip.

5. Slide — touch and drag to the left/right/up/down to move to the

next item on the list.

Important safety information

• THE DEVICE BATTERY IS PARTIALLY CHARGED WHEN

SHIPPED NEW FROM THE FACTORY.

• BEFORE INSERTING OR REMOVING A SIM CARD, THE

PHONE MODULE MUST BE POWERED OFF. To do this,

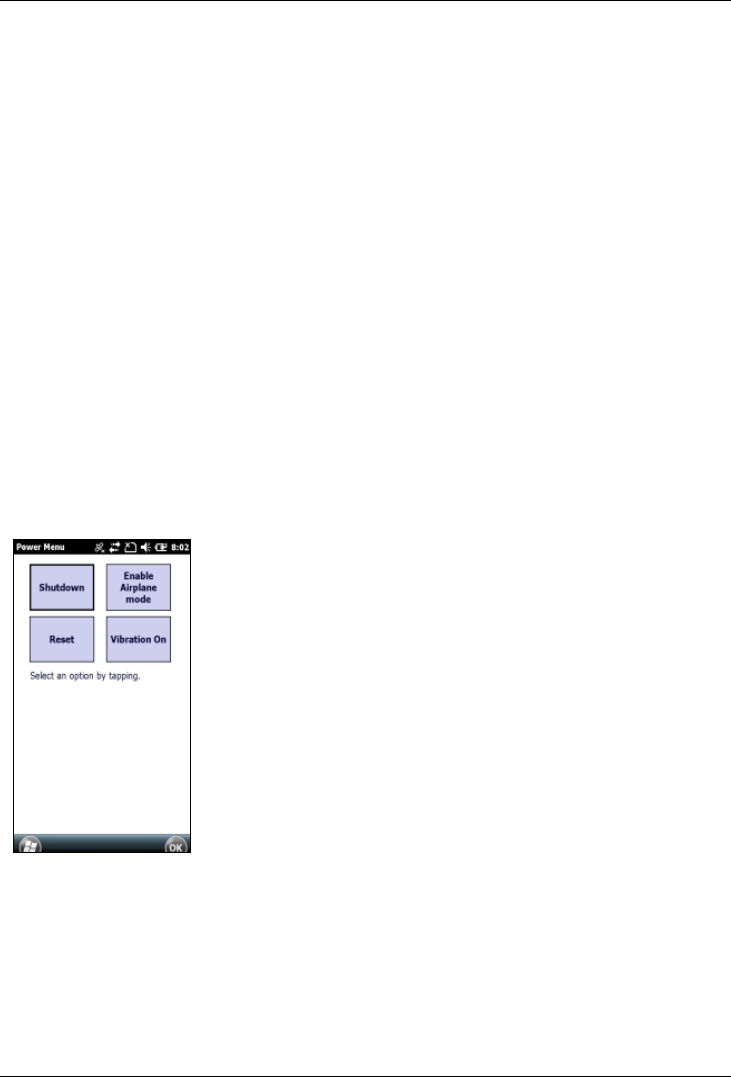

press and hold the POWER button for two seconds to

display the Power Menu, then tap Enable Airplane mode.

Alternatively, use the Wireless Manager to disable only the

Phone module.

iii

• DO NOT OPERATE THE DEVICE WITHOUT THE CARD

SLOT COVER PROPERLY INSTALLED.

• IN MANY COUNTRIES YOU ARE REQUIRED BY LAW TO

TURN OFF YOUR PHONE WHEN YOU FLY. THE MOST

SECURE METHOD TO ACCOMPLISH THIS IS TO ENABLE

AIRPLANE MODE. To do this, press and hold the POWER

button for two seconds to display the Power Menu, then tap

Enable Airplane mode.

WARNING: TURNING OFF YOUR DEVICE DOES NOT

TURN OFF THE PHONE; YOU MUST USE AIRPLANE MODE.

• YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR

TAMPER WITH THE OUTER CASING OF THE DEVICE.

Unapproved modifications or operations beyond or in

conflict with these instructions for use may void

authorization by the authorities to operate the equipment.

• ONLY APPROVED ACCESSORIES MAY BE USED WITH THIS

EQUIPMENT. IN GENERAL, ALL CABLES MUST BE HIGH

QUALITY, SHIELDED, CORRECTLY TERMINATED AND

NORMALLY RESTRICTED TO TWO METERS IN LENGTH. THE

POWER SUPPLY APPROVED FOR THIS PRODUCT EMPLOYS

SPECIAL PROVISIONS TO AVOID RADIO INTERFERENCE

AND SHOULD NOT BE ALTERED OR SUBSTITUTED.

Disclaimers

The manufacturer operates a policy of ongoing product development.

The manufacturer reserves the right to make changes and

improvements to any of the hardware and software products

described in this document without prior notice.

The screenshots and other presentations shown in this user manual

may differ from the actual screens and presentations generated by

the actual product. The manufacturer does not warrant that this

document is error-free.

Not all models are available in all regions of the world. Depending on

the specific model purchased, the color and look of your device and

accessories may not exactly match the graphics shown in this

document. Not all models contain all of the hardware features and

software applications described in this user manual.

All such differences are minor and the actual product will deliver the

described functionality as presented in this User Manual in all

material respects, subject to limitations of the particular model

operated by the user.

Limited Warranty & Liability Limitations

This unit and battery are limited warranted against defects in

materials and workmanship for twelve (12) months from the original

date of purchase. All accessories and peripherals are limited

warranted against defects in materials and workmanship for twelve

(12) months from the original date of purchase. If notice is received

of such defects during the limited warranty period, the proven

defective product(s) will either be repaired or replaced, at the

manufacturer’s option. Replacement products may be either new or

like new.

The manufacturer does not warrant that the operation of the

products will be uninterrupted or error free. If the product is not,

within a reasonable time, repaired or replaced to a condition as

limited warranted, the customer will be entitled to a refund of the

purchase price upon prompt return of the product.

Limited warranty does not apply to defects resulting from (a)

improper or inadequate maintenance or calibration, (b) software,

interfacing, parts, or supplies not supplied by manufacturer, (c)

unauthorized modification, or misuse, (d) operation in conditions

outside of the published environmental specifications for the product,

or (e) physical damage due to external causes, including accident,

abuse, misuse or problems with electrical power. Water damage

caused by improper installation of the accessories and service parts

is not covered by warranty. Removal of or tampering with the back

case voids the limited warranty. There are important seals that will be

compromised and the device will no longer be water resistant

(IP65(grey units)) or waterproof (IP68(yellow units)).

To the extent allowed by local law, the above limited warranties are

exclusive and no other warranty or condition, whether written or oral,

is expressed or implied, specifically disclaiming any implied

warranties or conditions of merchantability, satisfactory quality, and

fitness for a particular purpose.

To the extent allowed by local law, the remedies in this limited

warranty statement are the customer’s sole and exclusive

remedies. Except as indicated above, in no event will the

manufacturer or its suppliers be liable for loss of data or for

direct, special, incidental, consequential (including lost profit or

data), or other damage, whether based in contract, tort, or

otherwise.

Standard Warranty Addendum

Trimble Navigation Limited

935 Stewart Drive

Sunnyvale, California 94085

United States of America

Notice to Australian Purchasers

The Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or

refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to

have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.

Trimble's warranty, as set out in the user manual accompanying this

statement, or as described in the warranty card accompanying the

Product you purchased, is in addition to any mandatory rights and

remedies that you may have under the Australian Consumer Law.

All brand and product names are trademarks or registered

trademarks of their respective companies.

Revision:2.0

(05/2013)

vii

Contents

Welcome ......................................................................................................... i

Important information for using the user manual ..................................... i

Document conventions............................................................................. i

Terms ...................................................................................................... ii

Important safety information.................................................................... ii

Disclaimers............................................................................................. iv

Limited Warranty & Liability Limitations ................................................. iv

Standard Warranty Addendum................................................................ v

Contents....................................................................................................... vii

Chapter 1 Getting Started ............................................................................ 1

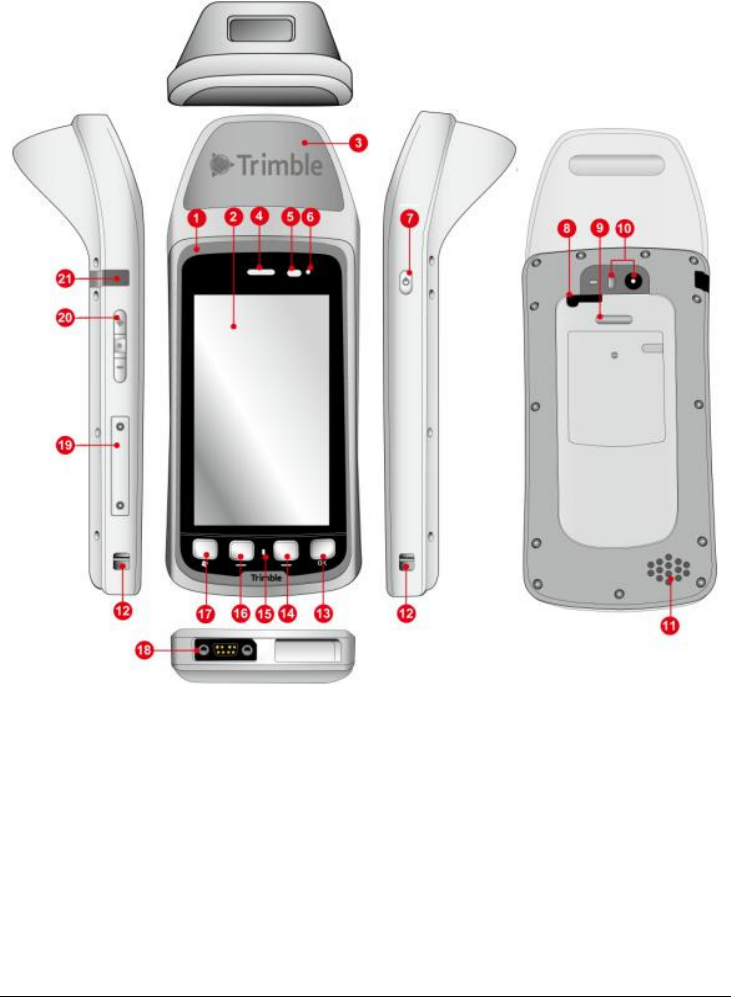

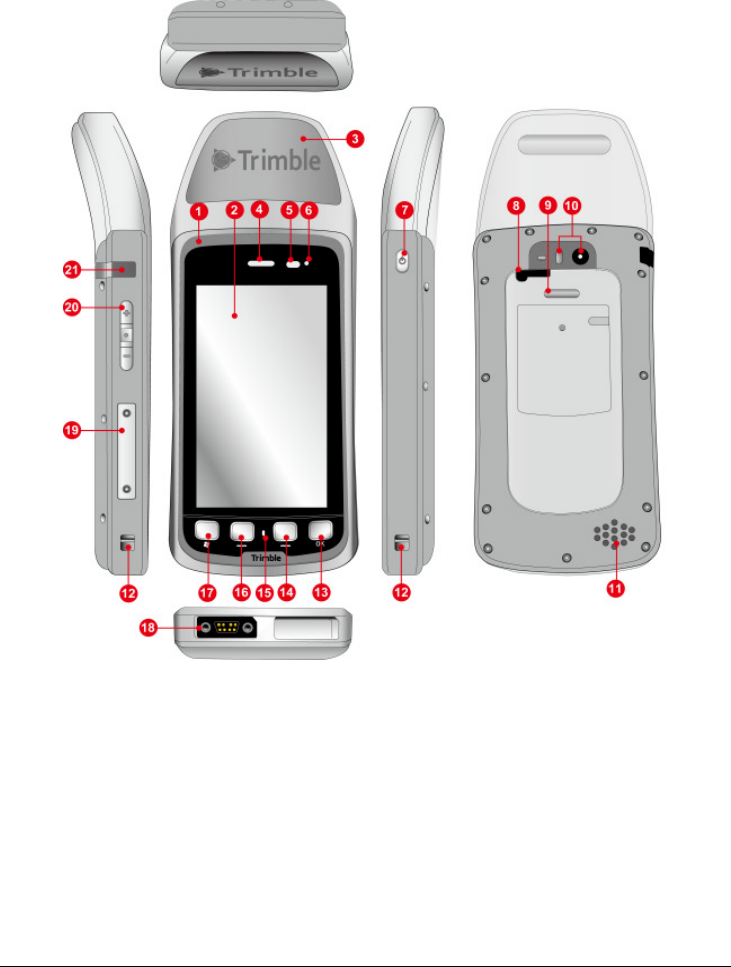

1.1 Device components........................................................................... 1

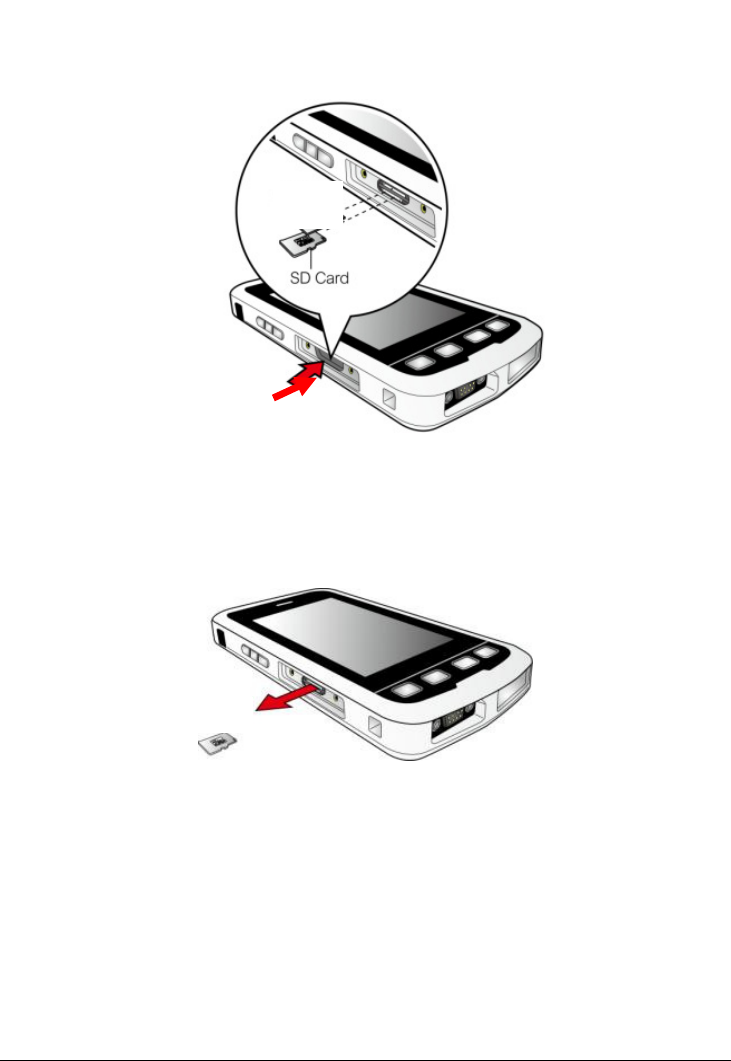

1.2 Inserting a storage card .................................................................... 6

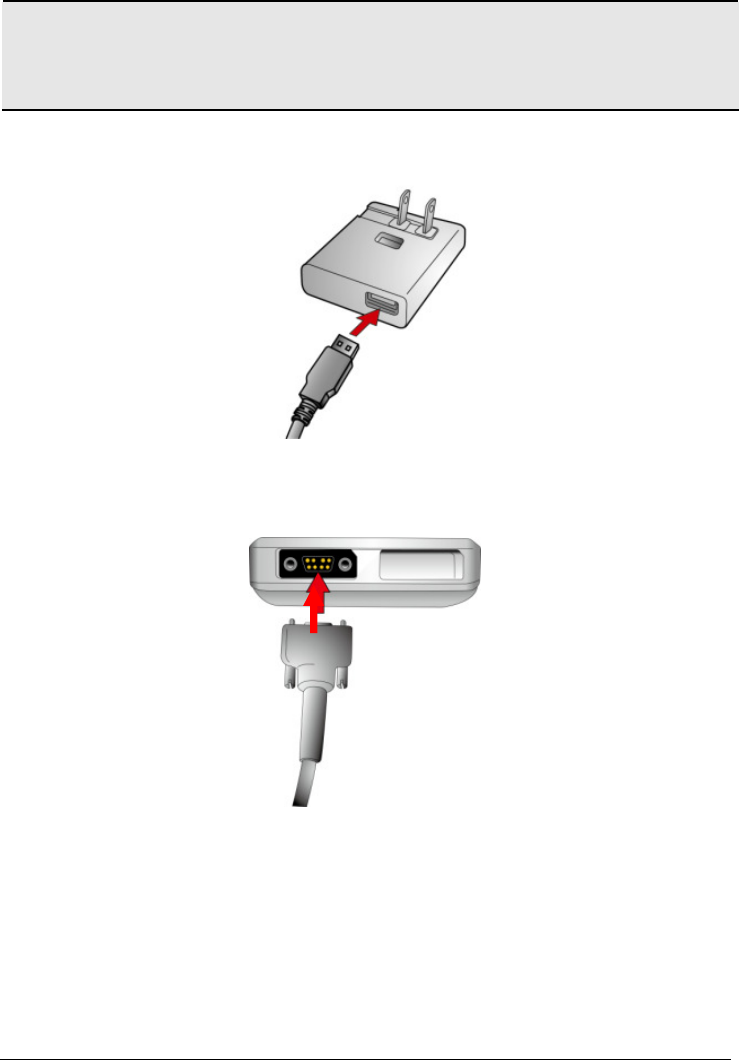

1.3 Charging the battery.......................................................................... 8

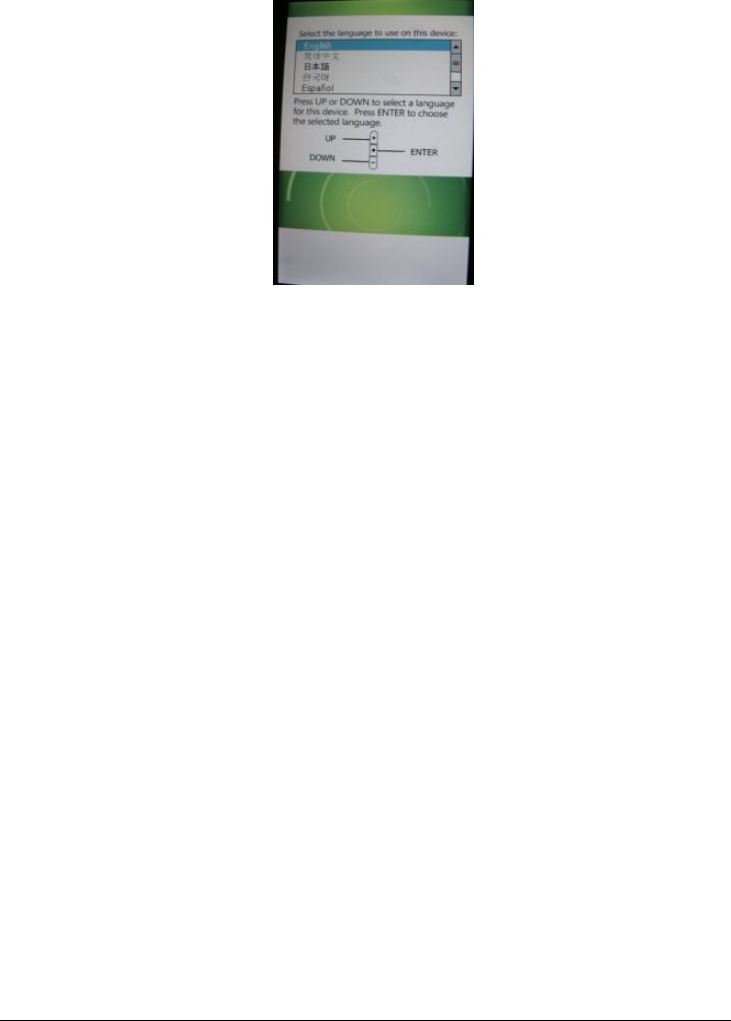

1.4 Turning your device on and choosing your language ..................... 10

Chapter 2 Operating Basics....................................................................... 12

2.1 Home screen................................................................................... 12

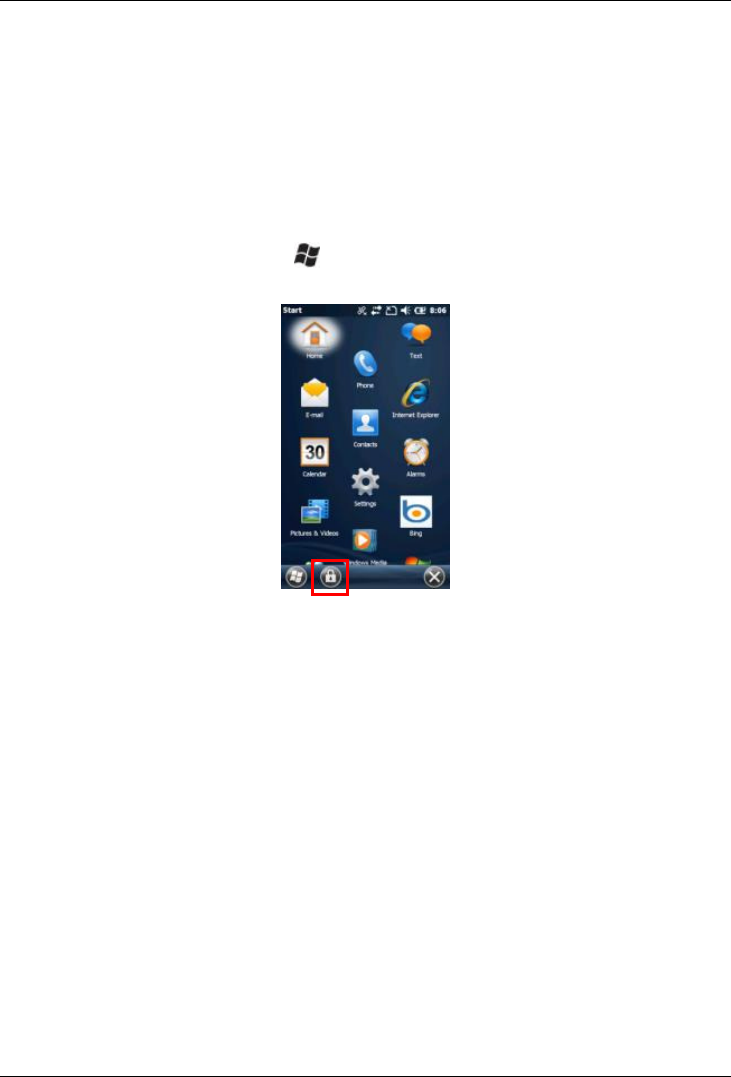

2.2 Start screen ..................................................................................... 14

2.3 Title bar ........................................................................................... 14

2.3.1 Title bar status indicators ..................................................................................................... 14

2.4 Tile bar ............................................................................................ 16

2.5 Power menu .................................................................................... 16

2.6 Securing your device....................................................................... 17

Lock the keypad............................................................................................................................. 17

Lock your device............................................................................................................................ 18

2.7 Configuring the Onscreen Keyboard............................................... 19

2.8 Perform a Clean Boot / Factory Reset ............................................ 19

2.9 Absolute Power Off mode ............................................................... 20

Chapter 3 Managing and Caring for Your Device.................................... 21

3.1 Changing basic settings ..................................................................21

Personalizing the Home screen .................................................................................................... 21

Setting the date, time, and alarms................................................................................................. 21

Setting regional options ................................................................................................................. 21

3.2 Customizing sounds and notifications............................................. 22

Specifying the sound for an event ................................................................................................. 22

Setting the ring tone for incoming calls ......................................................................................... 22

Copying a sound to your device .................................................................................................... 22

3.3 Managing battery power and data storage ..................................... 23

Battery Life..................................................................................................................................... 23

Changing the power management settings................................................................................... 24

Managing low battery .................................................................................................................... 24

Checking the phone memory ........................................................................................................ 25

3.4 Working with files ............................................................................ 26

viii

Copying files to your computer...................................................................................................... 26

Using File Explorer ........................................................................................................................ 26

3.5 Adding and removing programs...................................................... 27

Installing a program from your computer ...................................................................................... 27

Removing a program ..................................................................................................................... 27

3.6 Using Task Manager ....................................................................... 28

3.7 Checking the Device System information ....................................... 28

3.8 Caring for your Device ....................................................................28

3.9 Safe Use of your Device ................................................................. 30

Chapter 4 Connecting to a PC and Synchronizing Information............. 32

4.1 Setting up Windows Mobile

Device Center ................................... 32

Using Windows Mobile Device Center .......................................................................................... 33

4.2 Setting up ActiveSync

................................................................... 34

Setting up synchronization in ActiveSync ..................................................................................... 34

4.3 Synchronizing with your computer .................................................. 35

Starting and stopping synchronization .......................................................................................... 35

Selecting information to synchronize............................................................................................. 35

Troubleshooting sync connection problems.................................................................................. 36

Chapter 5 Using Additional Hardware Features ...................................... 37

5.1 Flashlight ......................................................................................... 37

5.2 Assigning Buttons (hardware buttons) ............................................ 37

5.3 Compass Calibration....................................................................... 37

5.4 Working with Bluetooth ................................................................... 38

5.5 Working with Wi-Fi .......................................................................... 39

Using the Summit Utilities.............................................................................................................. 43

Accessing the Summit Client Utility............................................................................................... 43

Main Window ................................................................................................................................. 44

Profile Window............................................................................................................................... 45

Status Window............................................................................................................................... 45

Diags Window................................................................................................................................ 45

Global Window............................................................................................................................... 46

5.6 Working with the Camera................................................................ 46

User Interface ................................................................................................................................ 47

Thumbnail Window ........................................................................................................................ 47

Capturing Images .......................................................................................................................... 48

Capturing Videos ........................................................................................................................... 48

Closing application ........................................................................................................................ 49

Image Camera Application Features..................................................... 49

Image Delete and Switch to Camera in Image review mode ........................................................ 54

Video Camera Application Features ..................................................... 54

5.7 Working with GPS ........................................................................... 56

GPS settings:................................................................................................................................. 56

Exiting GPS applications ............................................................................................................... 56

5.8 SatViewer ........................................................................................ 57

5.9 Battery Logger................................................................................. 57

5.10 RFID tag Reading (For RFID version only)...................................67

Appendix A: Regulatory Compliance ....................................................... 60

U.S.A. - FCC Statement........................................................................ 60

Exposure to Radio Frequency (RF) Signals ......................................... 60

Telecommunications & Internet Association (TIA) information ............. 61

Canada Compliance, Industrie Canada (IC) ......................................... 61

RoHS Statement ................................................................................... 62

European Conformity Statement........................................................... 63

Europe................................................................................................... 63

Environmental Hazards......................................................................... 64

Toxic and Hazardous Substances and Elements ................................. 64

Taiwan................................................................................................... 65

Chapter 1 Getting Started

1.1 Device components

GPS Model

GPS + RFID Model

1. Color Band

The color band surrounding the screen is yellow or grey, and

indicates IP65(grey units) or IP68(yellow units), respectively.

2. Touchscreen

The capacitive touchscreen enables handwriting, drawing and

making selections with your finger. An optional T41/5 Capacitive

Stylus, sold separately, is available.

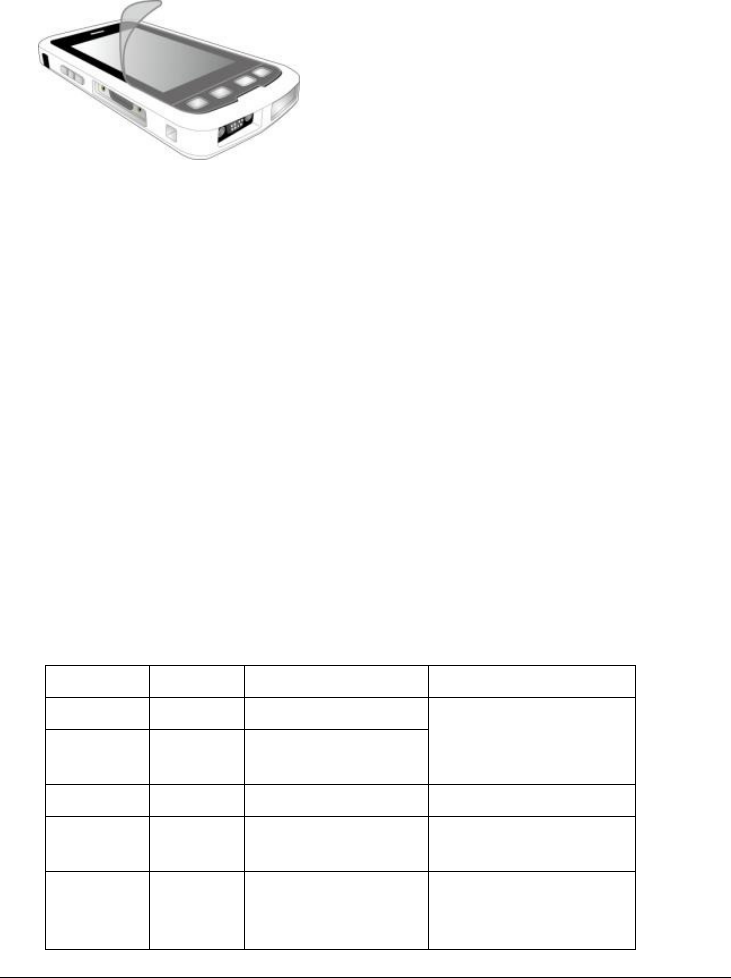

The touchscreen is on a rugged Gorilla

Glass panel, and to

prevent cosmetic scratches, a screen protector is recommended.

Follow the instruction below to apply the Screen Protector.

3. Expanded feature location

Combo of Imager and/or enhanced GPS.

4. Phone Receiver (Ear)

When using the optional phone, place the receiver to your ear to

hear the other participant(s) to the phone call.

5. Light Sensor

The Light Sensor detects ambient light in your environment. If the

Backlight control is configured to use the Light Sensor, the screen

brightness dims in a dark environment and brightens in a lighted

environment.

6. Notification LED

One tri-color LED (Red/Amber/Green) indicator is provided for

user notifications. These include battery status and other

operating system (OS) notifications. This indicator is capable of

operating even when the device is in Shutdown mode.

The LED status behavior is as follows:

Color Pattern

Condition Notes

Red Solid Low battery

Red Blinking

Low battery and

OS notification

Connect device to

charger before

pressing POWER.

Amber Solid Charging

Amber Blinking

Charging and OS

notification

Amber Blinking

OS notification,

medium battery

charge

Color Pattern

Condition Notes

Green Solid Fully charged

Green Blinking

Fully charged and

OS notification

<Off> n/a Battery not low,

no OS notification

7. POWER button

 When the device is on, press and release to suspend or

resume the device.

 Press and hold for 2 seconds to open the Power Menu.

 Press and hold for 6 to 8 seconds to force the device to

Reset.

8. MCX port

The MCX port enables connecting an optional External GPS

Antenna to provide improved GPS signal reception when

operating the Juno T41/5 inside a vehicle or in other situations

where the sky visibility is limited.

9. Accessory Latch

The accessory latch is designed to lock the connection of

Extended Battery Pack.

10. Camera and Flash

 The camera takes pictures and records videos.

 The flash assists the camera in low-light conditions.

11. Speaker

Listen to audio media or a phone call from here.

12. Wrist Strap tie point

Wrist strap tie points are provide on both sides of the device to

accommodate left- and right-handed users.

13. OK button

Press to confirm your selection. Pressing this button is typically

equivalent to tapping the X tile or OK tile on the Tile bar.

14. RIGHT button ( )

Press to activate the associated tile (if any) on the Tile bar.

15. Microphone

Speak here when talking during a phone call.

16. LEFT button ( )

Press to activate the associated tile (if any) on the Tile bar.

17. button

Press to access the Start screen. Press again to access the

Home screen.

18. T41/5 Custom Port

Connect the T41/5 Custom USB Client cable to this port to

charge the device or connect to the device from a desktop or

laptop computer.

Two optional accessories are available, the T41/5 USB Host

Cable and the T41/5 9-Pin Serial Cable.

19. microSD storage card and SIM card slots

Use the SD/SIM Card Access Tool to loosen the protective cover.

A microSD storage card provides additional file storage.

A SIM card provides access to a GSM cellular network, enabling

the device to place and receive phone calls, send and receive

text messages and to connect to 3.75G mobile data services.

(Contact a GSM cellular service provider in your area to obtain

services and a SIM card.)

20. VOLUME control and ACTION buttons

Press the + / - button to increase/decrease the volume for your

device.

Press the ACTION button (between the + / - buttons) to select an

option.

21. Headphone or Headset connector

Connect a 3.5 mm stereo headphone to listen to audio media or

use the hands-free kit.

Connect a 3.5 mm stereo headset to listen to audio media and to

use the phone in hands-free mode.

1.2 Inserting a storage card and a SIM card

To install a microSD storage card and a SIM card in your device, you need

to remove the cover on the left side using the SD/SIM Card Access Tool

included with the device accessories.

NOTE: The device supports up to 32 GB SDHC microSD storage cards.

SDXC cards are not supported.

WARNING: Insert or remove a SIM card ONLY when the Phone module

is completely off.

WARNING: Only insert a SIM card on devices with Phone/WWAN

capability.

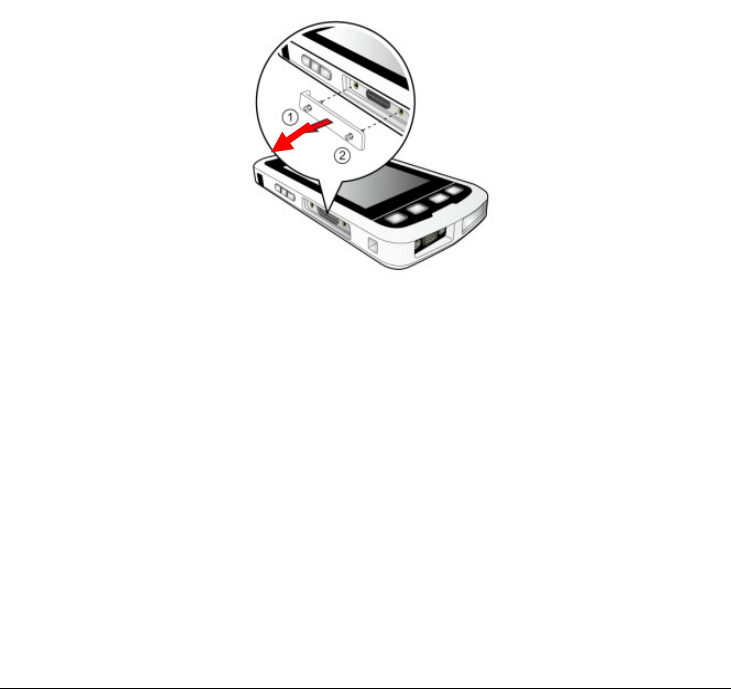

1. Remove the cover on the left side of the device by unscrewing

the screws.

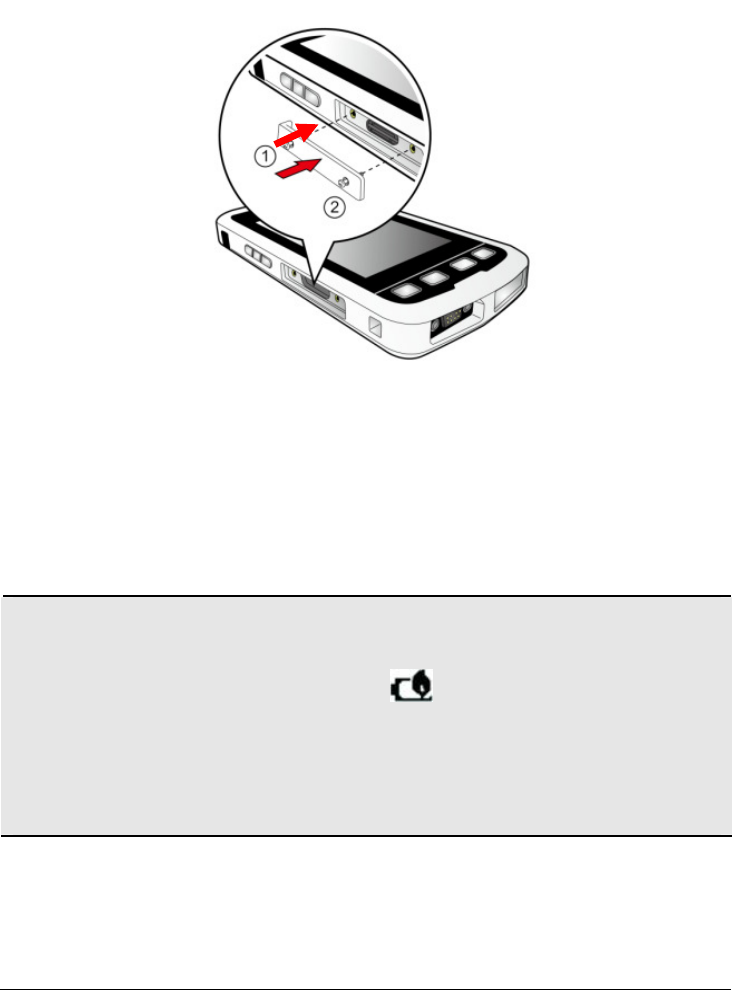

2. Follow the illustration below to insert the storage card and the

SIM card:

 To insert the SIM card: push the card into the slot with its

metal contacts facing the back of your device.

 To insert the storage card: hold the card by the edges and

gently insert it into the slot with the label facing the front of

your device. Do not apply pressure to the center of the

storage card while inserting the card.

3. To remove a card, push the card to release from the slot.

NOTE: Make sure you have saved any data in open programs

before removing the storage card.

4. Replace the cover and then secure it with the screws.

1.3 Charging the battery

IMPORTANT: Before using the Juno T41/5 for the first time, charge the

device for at least 4 hours. The notification LED will turn green when fully

charged.

CAUTION: Avoid Extreme Heat

• The battery is designed to stop operating at or above 149

°F (65 °C). If this status icon

appears, the battery has

overheated to 140 °F (60 °C) or more.

• If the battery temperature exceeds 158 °F (70 °C), the

battery will be disabled and the device must be sent to an

Authorized Service Provider to have the battery replaced.

Operating Temperature Range: -22 °F to 140 °F (-30 °C to 60 °C)

Storage Temperature Range: -40 °F to 158 °F (-40 °C to 70 °C)

CAUTION: Do not exceed specified storage temperature.

1. Connect the USB end of the T41/5 Custom USB Client cable to

the AC charger.

2. Connect the custom end of the T41/5 Custom USB Client cable

to the connector on the bottom face of your device.

3. Plug the AC charger into a wall outlet. If needed, attach a plug

converter onto the AC charger.

Tips for extending the battery life:

See Chapter 3.3 for tips on extending battery life.

1.4 Turning your device on and choosing your

language

WARNING! BEFORE TURNING THE DEVICE ON, THE DEVICE

MUST BE PLUGGED IN TO AN EXTERNAL POWER SOURCE.

COMPLETE ALL STEPS IN 1.3 CHARGING THE BATTERY.

1. Once you begin to charge your device, the device turns on

automatically.

2. The Welcome Wizard will lead you through the setup process.

3. Select your preferred language by using the + or - (shown as UP

or DOWN on the Wizard) buttons on the left side of the device,

then press the ACTION (shown as ENTER on the Wizard) button

to choose the language (the touchscreen is not enabled in the

Wizard).

4. Use the + button to highlight the box next to Yes, I want to use

<language > as the language on the device.

a. Press the ACTION (ENTER) button to check the box.

b. Press the - (DOWN) button 2 times to highlight the Next >

box.

c. Press the ACTION (ENTER) button to select Next >.

Wait while your device is being configured for the

language you selected.

WARNING: The only way to change the language you have

selected is to re-install the firmware using the Firmware update

utility.

NOTE: Only Microsoft applications and messages will be

translated into languages other than English. All other error

messages, notifications and other applications may appear in

English.

5. Tap the screen to set up your device with a Security PIN

(optional).

6. See Chapter 3 for instructions on setting the date and time on

your device.

Chapter 2 Operating Basics

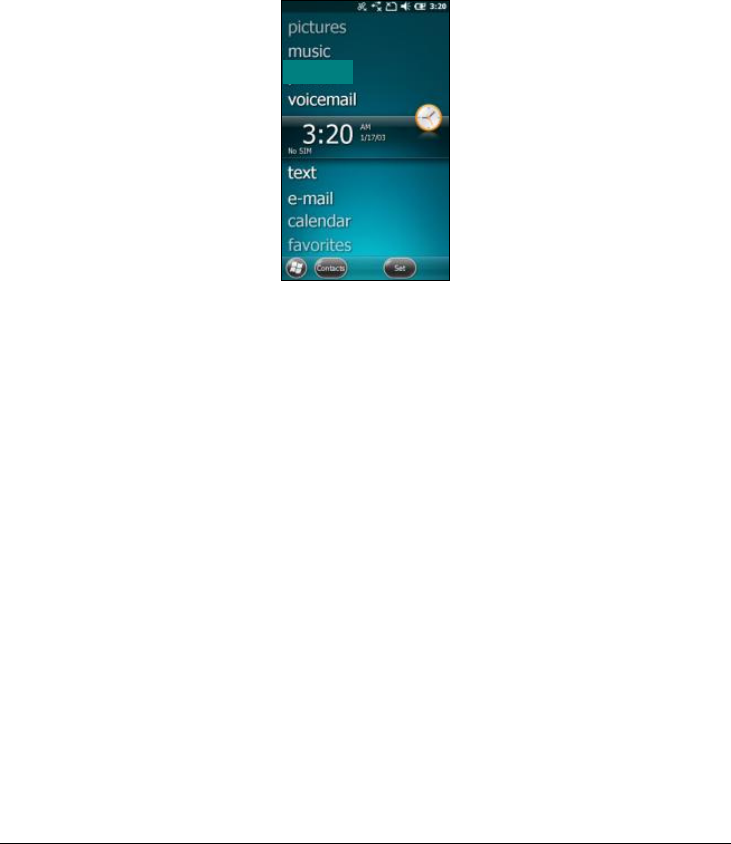

2.1 Home screen

The Home Screen is an easy way to launch common activities, such as

using the phone, checking text messages or checking e-mail. You can view

high-level information at a glance, with notifications for Live services,

e-mail, voicemail, SMS/MMS and more.

To navigate the Home screen, touch and slide your fingertip up or down on

the screen; or drag the highlight bar to the desired item on the screen. The

programs provided on the Home screen include:

• pictures: Select your photos from this menu.

• music: Select your music from this menu.

• voicemail: If your device has the phone feature, select this item

to access your voicemail.

• time: Select your time zone, set the time and date and set

alarms.

• text: If your device has the phone feature, select this item to

compose and read text messages.

• e-mail: Select this item to read and compose e-mail.

• calendar: Select this item to manage appointments.

• favorites: Select this item to use Internet Explorer Mobile.

You can change to the classic Windows Mobile Today screen by tapping

> Settings > Home.

1. On the Appearance tab, change the theme to Classic Blue.

2. On the Items tab, uncheck Windows Default and select the

items that you would like to appear on the Home screen.

Juno T41/5

User Manual

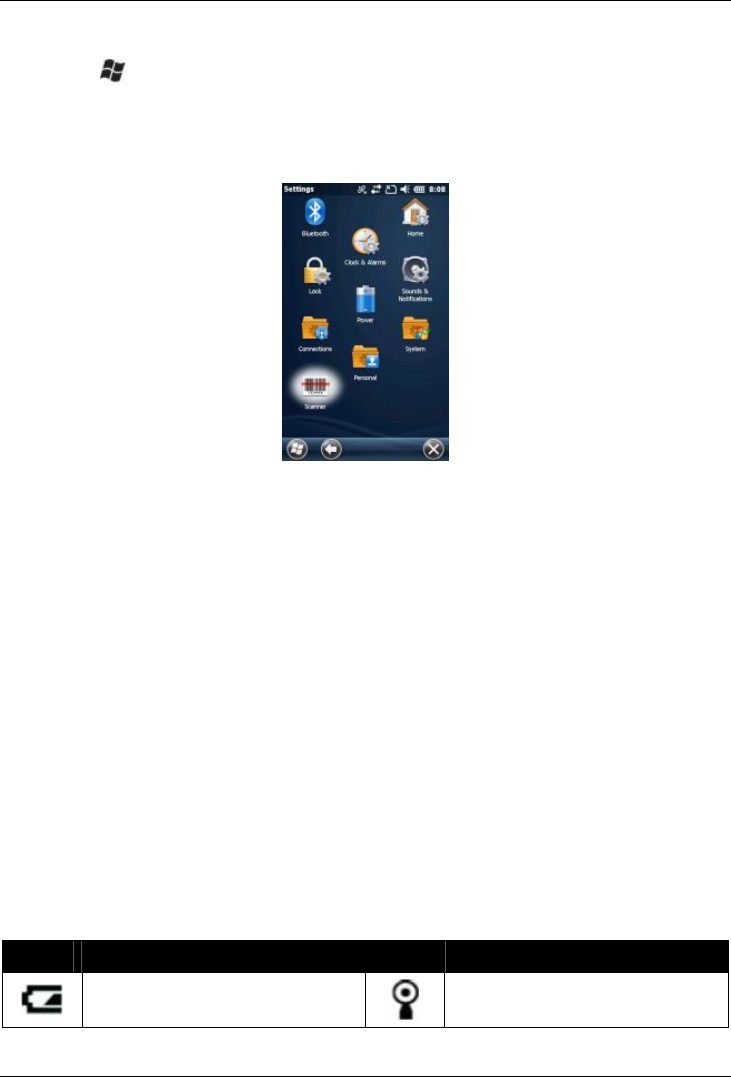

2.2 Start screen

Press the button to access the Start screen where you can easily access

the software installed on your device. Slide your fingertip up/down on the

Start screen to browse more items and then access an item by tapping on

the item.

2.3 Title bar

In Windows Embedded Handheld, the title bar is located at the top of the

screen and it is touchable. Tap anywhere on the title bar to reveal a list of

vertical icon slots, representing different categories of icons. Tap an icon to

get additional notification or status information. The title bar also provides

access to the Magnify tool, providing a closer look at the data on the screen.

Simply tap the Magnify icon on the right end of the title bar to end

magnify mode.

The Start, OK, and Close (X) icons have been moved from the Title bar to

the Tile bar to improve consistency. Now, all navigation controls—Start,

OK and Close—are in one place.

2.3.1 Title bar status indicators

The following table lists common status indicators seen in the Title bar.

Icon Description Icon Description

Battery power is low

Other networks are detected. Tap

to access an available network

Juno T41/5

User Manual

Battery power is very low

Wireless network connected

Battery communication error

Active connection, but not

currently synchronizing

Battery charging

Inactive connection to computer

or wireless network

Battery level Synchronizing

Battery out of temperature range

WARNING

Synchronizing error

Instant messages received

Pending alarm

Speaker is on E-mail has been received

Speaker is off (or in mute

position)

Tap to view more notifications

GPS receiver is off. Data call is in progress

Vibrate mode is on Roaming mode

GPS receiver is on.

Juno T41/5

User Manual

2.4 Tile bar

The Tile bar is located at the bottom of the screen and the information

displayed there is more uniform than on earlier versions of Windows®

Mobile operating systems. The Tile bar uses touchable tiles, and these tiles

can be activated by pressing the corresponding buttons on front keypad of

your device.

Touchable tiles can be text strings or icons, depending on the screen, and

they are at fixed positions on the Tile bar. For example, the Start icon is

always in the far left position, and the OK or Close icon is always on the

far right. If the Tile bar has a Keyboard icon, it is always in the third, or

center position; if it has additional menu or feature access icons, they will

be on either side of the Keyboard icon.

The buttons on the bezel below the screen correspond to the touchable tiles

on the Tile bar. Press a button to activate the associated tile.

2.5 Power menu

Press and hold the POWER button for about 3 seconds until the Power

Menu appears. Tap an option or OK to exit.

• Shutdown: Turn off the device.

• Enable Airplane mode: Enable the

Airplane mode for the device.

• Disable Airplane mode: Disable the

Airplane mode for the device.

• Reset: Restart the device.

• Vibration On: Enable the Vibration

mode for the device.

NOTE: If the Power Menu does not appear

when the POWER button is held down,

and/or if you continue to hold down the

POWER button for at least 7 seconds, the

device will perform a hardware reset. It may

take a few seconds for the device to start

after the POWER button has been released.

Juno T41/5

User Manual

2.6 Securing your device

You can customize the level of security you want to have on your device

by locking the keypad or the entire device.

Lock the keypad

The keypad lock turns off the keypad functionality. This is a helpful feature

if, for example, your device is turned off and in your pocket, and you want

to prevent accidental button presses from activating the device.

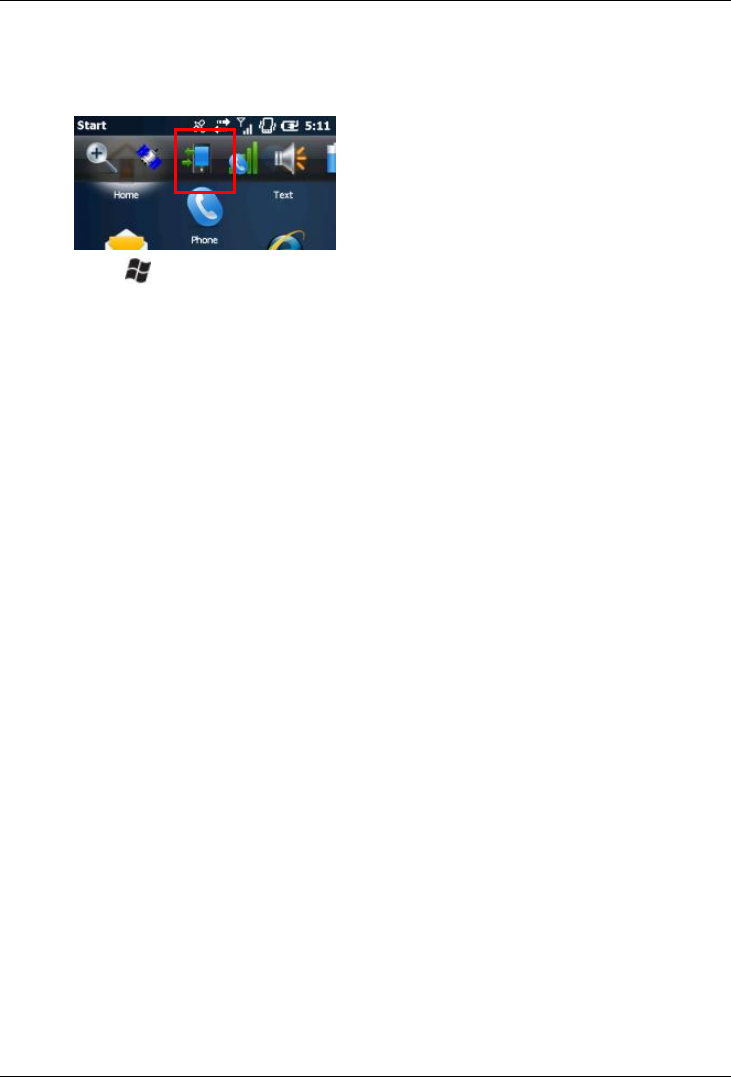

To lock the keypad, press the button to access the Start screen, then

press the LEFT button or tap the padlock tile on the Tile bar.

Juno T41/5

User Manual

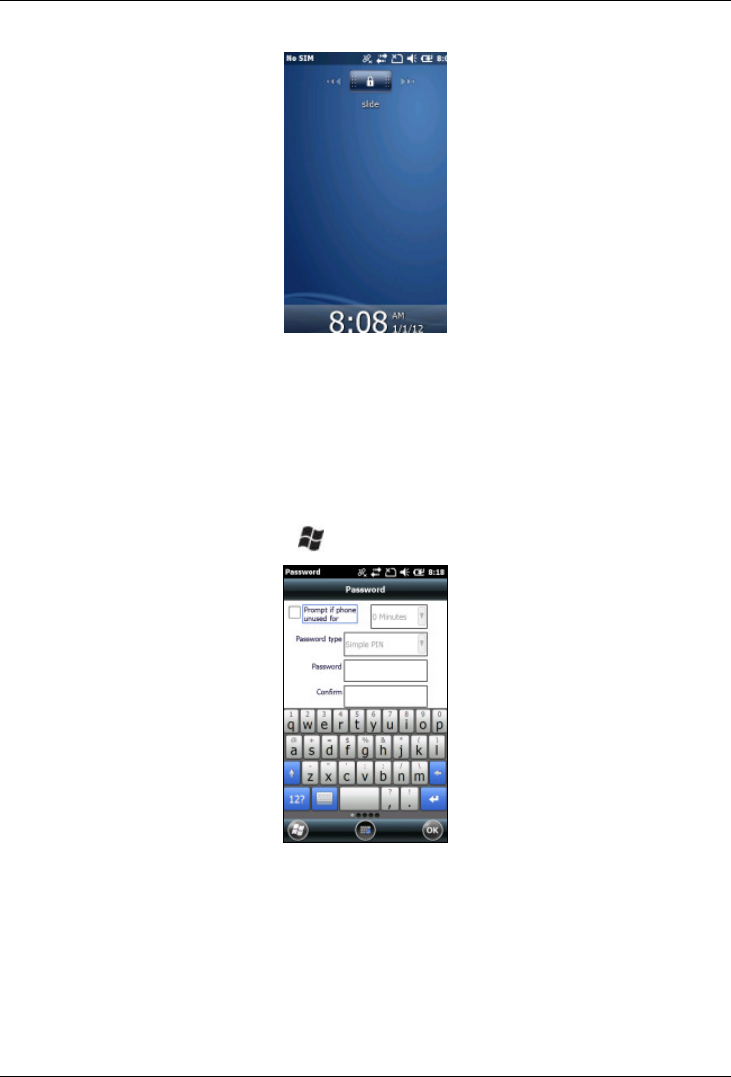

You will then see the following screen:

To unlock the keypad, slide the lock symbol.

Lock your device

Locking your device prevents access to personal data. When you enable

this feature, your device will automatically lock after a specified time of

inactivity. A screen will be displayed requiring your device lock password

before access is granted.

To access the Lock menu, tap > Settings > Lock

WARNING: BE CERTAIN TO REMEMBER THE PASSWORD.

The only way to recover from a forgotten password is to perform a

Clean Boot. However, you will LOSE all application software, licenses,

settings and data on your device. For instructions on how to Perform a

Clean Boot, see below..

Juno T41/5

User Manual

2.7 Configuring the Onscreen Keyboard

The Soft Input Panel (also called S.I.P.) is a special on-screen keyboard for

devices which do not have standard keyboards. The Juno T41/5 includes a

custom S.I.P. application called Resco Keyboard Pro. To configure it, tap

> Resco Keyboard Pro.

Resco Keyboard Pro allows you to customize your device for fast insertion

of frequently used phrases, and to customize various features including

haptic or audio feedback, basic or advanced gestures and more. Resco

Keyboard Pro supports 39 languages.

2.8 Perform a Clean Boot / Factory Reset

WARNING: Application software installed by the customer and some

licenses, settings and user data will be cleared if this function is

performed!

1. Press and hold the POWER button to display the Power Menu.

2. Tap Reset.

3. When you see the screen goes completely black, press and hold

the button.

4. When you see the Juno T41/5 screen, press the RIGHT button

while still holding the button. Let go of both buttons.

5. Press the ACTION button on the left side of the device to clear

the persistent store. Press any other button to cancel and

continue booting normally.

Juno T41/5

User Manual

2.9 Absolute Power Off mode

The Juno T41/5 features a battery cut-off mode that enables the device to

enter the absolute lowest power mode possible, even lower than the

SHUTDOWN power state. In this mode, the draw on the battery is less

than 20 uA.

The primary purpose for this mode is to prolong the shelf life of the battery

while the product is between the production factory and the customer. A

secondary purpose is to ensure the device is completely powered down

before shipping the product via air freight, or when putting the product into

storage for an extended period, typically longer than a week.

NOTE: The sole method for exiting this mode is to charge the battery.

To activate the Absolute Power Off mode, follow these steps:

1. Disconnect the T41/5 USB Client cable, if connected.

2. Press and hold the POWER button to display the Power Menu.

3. Tap Reset. The screen will go black as the unit goes through

reset.

4. When it comes out of reset, indicated by the Juno T41/5 splash

screen appearing, press and hold the LEFT button ( ) and the

RIGHT button ( ).

5. A message will appear: “Please remove AC. System is turning

off”

6. The device is now in Absolute Power Off mode.

7. Please note that the device will need to be reconnected to AC to

power back on from this mode.

Juno T41/5

User Manual

Chapter 3 Managing and Caring for Your

Device

3.1 Changing basic settings

Personalizing the Home screen

The Home screen is the starting place for most of the tasks you perform on

your device and gives you access to all the features and software programs

of your device.

1. Tap > Settings > Home > Appearance.

2. Select the available option from the list.

3. When done, tap OK.

4. To set a picture as the Home screen background:

a. Select the Use this picture as the background option.

b. Tap Browse to select the picture you want to use.

c. When done, tap OK.

Setting the date, time, and alarms

1. Tap > Settings > Clock & Alarms > Time.

2. Set the Time zone, Date, and Time.

3. When done, tap OK.

4. To set an alarm:

a. On the Clock & Alarms screen, go to the Alarms tab.

b. Tap on the alarm item to display the Alarm Settings screen,

allowing you to change the Alarm settings. Tap OK to save

the settings.

c. Tap the checkbox on each available alarm item to enable

or disable the alarm.

d. When you enable an alarm, an Alarm icon appears on the

Home screen.

e. You may also need to check the Sound alarms even

when the device is set to silent or vibrate checkbox.

Setting regional options

Your device comes with the regional settings that are appropriate for your

Juno T41/5

User Manual

locale.

1. On the Home screen, tap > Settings > System > Regional

Settings.

2. On the Regional Settings screen, select the Region tab and then

select your preferred language from the list.

3. If desired, you can specify the locale, date and time style, as

well as number and currency formatting options applicable to

your region.

4. When done, tap OK.

3.2 Customizing sounds and notifications

You can choose how to be notified for incoming calls, reminders, new

messages, alarms, and more.

Specifying the sound for an event

1. On the Home screen, tap > Settings > Sounds &

Notifications.

2. From the Sounds tab, select the desired sound for each event.

3. When done, tap OK.

Setting the ring tone for incoming calls

1. On the Home screen, tap > Settings > Sounds &

Notifications.

2. From the Notifications tab, select a ringtone in the Ring tone list.

3. When done, tap OK.

NOTE: If you select Vibrate, the sound mutes and the phone will vibrate

when you receive a call. The Vibrate status icon appears in the title bar.

Copying a sound to your device

You can use a .wav, .mid, .wma, or .mp3 audio file on your device as a ring

tone, notification, or reminder.

1. Connect the device to your PC using the T41/5 Custom USB

Client cable.

2. On your PC, copy the sound file you want.

3. Explore the phone’s contents:

Juno T41/5

User Manual

 In Windows Mobile Device Center on your PC, tap File

Management > Browse the contents of your device.

 In ActiveSync on your PC, tap Explore and double-tap My

Windows Mobile-Based Device.

4. Navigate to your device’s Application Data > Sounds folder and

then paste the audio file.

3.3 Managing battery power and data storage

Battery Life

The Lithium-ion polymer battery life is dependent upon the application and

operating environment. For example, estimated battery life for a new

battery is approximately 12 hours with the device turned on but idle,

backlight at 15% and all radios and compass off.

Tips for extending the battery life:

- Display backlight: Tap > Settings > System > Backlight to

minimize the amount of time the backlight stays on and dim it to only as

bright as required to view the display.

Alternatively, verify that the backlight brightness is auto-adjusting based

on the Light Sensor, by tapping > Settings > System > Backlight >

Brightness and checking the box for Use Light Sensor to adjust the

brightness.

- Wi-Fi, Bluetooth and camera: Turn off when not needed.

- WWAN: Turn the phone off when not in use.

- GPS: Ensure that the GPS-aware applications that communicate with the

GPS are closed when not in use.

- Flashlight: Use the flashlight only when needed.

- Cold temperatures: Keep the device as close to room ambient

temperature (77 °F or 25 °C) as possible. If feasible, keep it inside your

coat or a vehicle when not in use.

- Auto features: Tap > Settings > Power > Advanced. Specify your

device to turn off in a short time if not in use. Tap > Settings >

Bluetooth > Wake Settings. Turn off Allow Bluetooth activity to turn

the device on. Bluetooth could turn on your device, transfer data and

drain the battery.

- CPU: Applications requiring significant computations by the CPU may

Juno T41/5

User Manual

have some impact on battery life, but this is typically less significant

than managing the hardware features.

Changing the power management settings

You can use Power Management to check the battery, and configure

settings that prolong battery life.

1. Tap > Settings > Power.

2. On the Power screen, you can:

 Select the Battery tab to check the amount of battery life

remaining.

 Select the Advanced tab to change the screen power

settings.

3. To optimize battery usage, you can adjust the backlight settings:

 Tap > Settings > System > Backlight.

 From the Brightness tab, adjust the proper backlight level

and enable the Light Sensor to automatically adjust the

backlight brightness.

4. From the Battery Power tab and External Power tab, set the

backlight off settings

5. When done, tap OK.

Managing low battery

When the low-battery warning appears, do the following:

1. Immediately save your current data. All of your data is stored in

non-volatile persistent storage memory. Losing power will not

impact saved data or configurations other than the real-time clock.

As with any computer system, we recommend that you regularly

backup your data to removable media or to a PC.

2. Synchronize with your PC or use the AC adapter to charge the

battery.

3. Turn off your device while it is charging, especially if it is charging

from the PC USB power and not from the AC adapter power. Turn

on Juno T41/5 only when you need to use it, until the battery is

recharged.

Juno T41/5

User Manual

Checking the phone memory

1. Tap > Settings > System > Memory.

2. From the Main tab and Storage Card tab, check the available

memory and the available storage on your device.

Juno T41/5

User Manual

3.4 Working with files

You can copy files between your device and computer, or copy files to a

storage card installed on your device. You can also efficiently manage your

files and folders using File Explorer.

Copying files to your computer

1. Connect your device to your PC.

2. Do one of the following, as appropriate to your PC:

 In Windows Mobile Device Center on your PC, tap File

Management > Browse the contents of your device.

 In ActiveSync on your PC, tap Explore. This opens the

Mobile Device folder for your device.

3. Browse your device for files that you want to copy to your PC.

4. Select and copy the files [Ctrl + C] and then paste them [Ctrl + V]

to the destination folder in the PC.

Using File Explorer

File Explorer provides many easy-to-use features for file and folder

management. File Explorer lets you browse and manage the contents of

your device.

1. Tap > File Explorer. The root folder on the device is named

My Device, and contains the following folders: My Documents,

Program Files, Windows, and more.

2. Tap a folder or file to open it.

3. To return to an upper level folder, tap Up.

4. To copy files to a storage card:

a. Verify the storage card is properly installed on your device.

b. On the File Explorer screen, navigate to the appropriate

folder.

c. Select the file you want to copy, and then tap Menu > Edit

> Copy.

d. Tap Menu > Storage Card.

e. Tap Menu > Edit > Paste.

Juno T41/5

User Manual

NOTE: Unlike Windows

PC’s, Windows Embedded Handheld does not

feature a Recycle Bin. Once a file is deleted, it cannot be recovered.

3.5 Adding and removing programs

Before you purchase additional programs for your device, make sure that

they are compatible with the Windows Embedded Handheld operating

system. Also, before you launch the program installer, check first whether

the installer can directly run on Windows Embedded Handheld or needs to

be run on a Windows PC.

Follow the setup instructions that came with your software. If prompted,

perform a reset to complete the installation.

Installing a program directly on your device

1. If the installation file is a .cab file, download the file directly to

your device, or download it to your PC and copy it to your device.

2. On your device, tap > File Explorer and navigate to the

installation file.

3. Tap the file to start the installation process.

4. Choose whether to install the program into the main memory or

your storage card, if you have the storage card inserted on your

device.

5. Wait for the installation to complete.

Installing a program from your computer

1. If the installer is an .exe file such as Setup.exe, most likely, the

installer needs to be run on a Windows PC. Download or copy it

to your computer.

2. Connect your device to your computer using the USB cable, and

then double-click the installation file on your computer to start the

installation process.

3. Follow the on-screen instructions on your computer and your

device to complete the installation.

Removing a program

1. Tap > Settings > System > Remove Programs.

2. Scroll to the program to remove and then tap Remove.

Juno T41/5

User Manual

3.6 Using Task Manager

Task Manager allows you to view or stop the programs currently running

on your device.

1. Tap > Task Manager.

2. On the Task Manager screen, select a program on the list and

then tap End Task.

3. To stop all running programs, tap Menu > End All Tasks.

4. Tap Menu to open a menu where you can change the view,

sorting order, refresh the screen, and more.

3.7 Checking the Device System information

Tap > Settings > System > System Information. Firmware version,

serial number, processor speed, RAM and Flash size, wireless

configurations, battery and card port information can be found here.

3.8 Caring for your Device

Cleaning the device

Use a soft, dampened cloth with either water or a diluted mild detergent. If

a mild detergent is used, ensure all soap residue is removed. Do not use

any chemical cleaners and do not put the device in the dishwasher.

Care of the touchscreen

Use only your finger, the T41/5 stylus or other stylus devices specifically

designed for use with capacitive touchscreens.

The use of ballpoint pens, nails or other sharp objects to operate the

touchscreen will scratch and/or damage the device. Keep the touchscreen

clean by gently wiping the display, using a soft, dampened cloth with either

clean water or glass cleaner. Use a screen protector at all times, and change

the screen protector according to manufacturer recommendations.

Do not use abrasive cleaners directly on the display. Doing so may void

your warranty. Use the screen protectors included with the device to keep

the touchscreen clean and protected, following the instructions provided on

the screen protector package.

Juno T41/5

User Manual

Mechanical shock

The device is designed to resist damage for drops up to 4 ft (1.22 meters).

However, you should protect the display from impact, pressure, or abrasive

substances that can scratch it or crack it. The device should not be dropped

unnecessarily.

Environmental considerations

The device’s rugged design allows you to run your device in harsh outdoor

environments. Here are some considerations that will help you get the most

out of your device when working in very wet, hot or cold conditions.

Water: This device is designed to IP65 (grey units) or IP68 (yellow units).

IPx5 is defined as resistant to driving rain and water spray. IPx8 is

defined as resistant to submersion in water up to 1 meter deep for up to 2

hours.

WARNING: Removal of the back case screws could cause leakage and

will void your warranty.

NOTE: Although an optional accessory for the port cover is available and

the audio jack has a protective cover, these are not required to maintain the

seal against water. The covers are intended to keep mud, sand and other

materials from blocking these ports.

Temperature range: The operational temperature range is from -22 °F to

+144 °F (-30 °C to +60 °C). Although the device is designed to be rugged,

do not leave it in direct sunlight in excessive heat or in a vehicle in the

sunlight for extended periods as the internal temperature may exceed the

operating or storage temperature limits.

Batteries perform best at room temperature. The battery has a stable

capacity as temperatures rise; however, the colder the temperature, the

greater the reduction in available battery capacity. Under very cold

conditions (-4 °F / -20°C and below), the battery capacity is noticeably

reduced. To improve the battery performance in very cold conditions,

consider increasing the load on the battery, such as by adjusting the

backlight to full brightness. Increasing the battery load causes the battery

to generate heat, thus warming the battery and improving the performance.

There are limits to how hard to push the battery before you reduce the

run-time instead of increasing it.

Juno T41/5

User Manual

3.9 Safe Use of your Device

Repair: Do not attempt to dismantle the device for repair. There are no

user-serviceable parts inside. For service, use the contact details listed on

the cover of this manual or contact your local dealer.

Battery safety: Lithium-ion polymer batteries are classified by the U. S.

Federal Government as non-hazardous waste and are safe for disposal in

the normal municipal waste stream except where prohibited by local or

regional regulations. These batteries contain recyclable materials and are

accepted for recycling.

NOTE: In the event of a battery failure, return the device to Trimble or an

Authorized Service Provider to have the battery replaced. Trimble

disposes used batteries in accordance with local regulations.

1. Do not disassemble or open, crush, bend or deform, puncture, or

shred the battery assembly. There are no user-serviceable parts

in the battery assembly.

2. Do not use battery if plastic case is cracked, compromised or

punctured.

3. Do not attempt to separate the battery from the device.

4. Do not modify or remanufacture, attempt to insert foreign objects

into the battery, immerse or expose to water or other liquids.

5. Do not expose to fire, explosion, or other hazard. Do not expose

to temperatures above +158 °F (+70 °C). The battery is designed

to stop functioning if it reaches an unsafe temperature.

6. Only use a charging system that has been qualified for use with

the device.

7. In the event of a battery leak, do not allow the liquid to come in

contact with the skin or eyes. If contact has been made, flush the

affected area with water and seek medical advice.

Power supply safety: Use only AC and vehicle adapters intended for the

device. Other external power sources may damage your product and void

the warranty. Certification of this Class III product is only valid with the

power supply – PSA10F-050Q.

Juno T41/5

User Manual

 Ensure the input voltage on the power supply matches the

voltage in your location. Ensure the power supply has prongs

compatible with your outlets.

 The power supply is designed for indoor use only. Avoid using

the power supply in wet areas.

 Unplug the power supply from power when not connected to

the device.

 Do not create a short circuit in the power output connector.

Juno T41/5

User Manual

Chapter 4 Connecting to a PC and

Synchronizing Information

You can take information from your computer wherever you go by

synchronizing them to your device. The following types of information can

be synchronized:

 Microsoft Outlook

information, which includes Outlook e-mail,

contacts, calendar, tasks, and notes

 Notes, which are created using Microsoft

Office OneNote

2007

 Media, such as pictures, music and video

 Favorites, which are the bookmarked links to your favorite

web sites

 Files, such as documents and other files

Before you can synchronize, you will first need to install and set up either

ActiveSync or Windows Mobile Device Center on your computer.

After installing the synchronization software on your computer, connect

the phone to your computer using the T41/5 USB Client cable. Upon

connecting the client cable to your device and your computer, choose to

start the synchronization process.

ActiveSync or Windows Mobile Device Center only synchronizes data on

your computer and phone. If you have installed a storage card and you

want to back up files from the storage card, use Windows Explorer on your

computer to copy files from the storage card to your computer.

If you are sending your device to your local dealer or service center for

repair or a hard reset, data from your device will be lost. It is recommended

that you sync your device to your computer to back up your files. To back

up files from the storage card to your computer, use Windows Explorer to

copy files from the storage card to the computer.

4.1 Setting up Windows Mobile

Device Center

Microsoft Windows Mobile

Device Center is the replacement for

Microsoft

ActiveSync

on Windows Vista

and newer. Some versions of

Juno T41/5

User Manual

Windows Vista

come with Windows Mobile Device Center already

installed. If Windows Mobile Device Center is not available on your

Windows Vista

, you can download it from the Microsoft website. Go to

http://www.microsoft.com and search for Windows Mobile Device Center.

When you connect your device to your computer and start Windows

Mobile Device Center for the first time, you are asked to create a Windows

Mobile partnership with your device. To create a partnership:

1. Connect your device to your PC. Windows Mobile Device Center

configures itself and then opens.

2. You are given the option to Register Online, Remind me Later,

or Don’t Register.

3. On the Windows Mobile Device Home screen, click Set up your

device.

NOTE: Choose Connect without setting up your device if you only want

to transfer media files, check for updates, and explore your device but not

sync Outlook information.

1. Select the information types that you want to synchronize then

click Next.

2. Enter a name for your device and click Set Up.

When you finish the wizard, Windows Mobile Device Center synchronizes

your device automatically. Notice that Outlook e-mail messages and other

information will appear on your device after synchronization.

Using Windows Mobile Device Center

To open Windows Mobile Device Center, click > All Programs >

Windows Mobile Device Center on your Windows Vista or newer

computer.

Juno T41/5

User Manual

On Windows Mobile Device Center, you can do the following:

 Click Mobile Device Settings to change synchronization

settings.

 When you click Pictures > Music and Video > <XX> new

pictures/video clips are available for import, a wizard

guides you to tag and transfer photos from your device to the

Photo Gallery on your computer.

 Click Pictures > Music and Video > Add media to your

device from Windows Media Player to synchronize music and

video files using Windows Media

Player.

 Click File Management > Browse the contents of your

device to view documents and files on your device.

NOTE: See Windows Mobile Device Center Help for more information.

4.2 Setting up ActiveSync

On a Windows

XP computer, you need to use Microsoft ActiveSync

4.5

or later. If you do not have this software on your computer, you can

download it from the Microsoft website. Go to http://www.microsoft.com

and search for ActiveSync.

Setting up synchronization in ActiveSync

1. Connect your device to your computer. The Synchronization

Setup Wizard automatically starts and guides you to create a

synchronization partnership. Click Next to proceed.

2. To synchronize your device with your computer, clear the

Synchronize directly with a server running Microsoft Exchange

check box, and then click Next.

3. Select the information types that you want to synchronize, then

click Next.

4. Select or clear the Allow wireless data connections check box

according to your preference.

5. Click Finish.

When you finish the wizard, ActiveSync synchronizes your device

automatically. Notice that Outlook e-mail messages and other information

Juno T41/5

User Manual

appear on your device after synchronization.

4.3 Synchronizing with your computer

Connect your device to your PC to synchronize the information between

your device and PC. While your device is connected, ActiveSync (or

Windows Mobile Device Center on your PC) synchronizes every time you

make a change on either the PC or your device.

Starting and stopping synchronization

You can manually synchronize either from your device or computer.

From your device:

1. Click > ActiveSync, and then click Sync.

2. To end synchronization before it completes, click Stop.

TIP: To delete a partnership with one computer completely, disconnect

your device from that computer first. In ActiveSync on your device, tap

Menu > Options, select the computer name, then tap Menu > Delete.

From Windows Mobile Device Center:

1. Click > All Programs > Windows Mobile Device Center.

2. Click at the lower left of the Windows Mobile Device

Center.

3. To end synchronization before it completes, click .

From ActiveSync on your computer:

When you connect your device to your computer, ActiveSync

automatically opens on your computer and synchronizes.

1. To manually start synchronization, click .

2. To end synchronization before it completes, click .

Selecting information to synchronize

You can change the information types and the amount of information to

synchronize for each type either on your device or your computer. Follow

the steps below to change synchronization settings on your device.

Before changing synchronization settings on your device, disconnect it

from your computer.

Juno T41/5

User Manual

NOTE: It is not possible to set ActiveSync Options if your device has not

yet synchronized with your PC.

1. In ActiveSync on your device, tap Menu > Options.

2. Select the check box for any items you want to synchronize.

If you cannot select a check box, you might have to clear the

check box for the same information type elsewhere in the

list.

3. To change synchronization settings for an information type,

for instance, E-mail, select it and tap Settings.

4. You can then set the download size limit, specify the time

period of information to download, and more.

Some information types such as Favorites, Files and Media cannot be

selected in ActiveSync Options on your device. You can only select or

clear these items from your computer’s Windows Mobile Device Center or

ActiveSync.

A computer can have sync partnerships with many different Windows

Mobile powered phones, but a phone can have sync partnerships with at

most two computers. To ensure that your device will synchronize properly

with both computers, set up the second computer using the same

synchronization settings you used on the first computer.

Outlook e-mail can be synchronized with only one computer.

Troubleshooting sync connection problems

In some cases, when the computer connects to the Internet or a local

network, it may disconnect the connection with your device in favor of the

Internet or network connection.

If this happens, on the device, click > Settings > Connections > USB

to PC, then clear the Enable advanced network functionality check box.

Juno T41/5

User Manual

Chapter 5 Using Additional Hardware

Features

5.1 Flashlight

The dual LEDs for the camera flash can also be used as a flashlight. Tap

> Flashlight to toggle the Flashlight on and off.

5.2 Assigning Buttons (hardware buttons)

Tap > Settings > Personal > Buttons. Under Program Buttons, your

favorite programs can be assigned to several of the device buttons. The list

of assignable buttons is shown on the left hand side with the program that

is assigned by default on the right. To reassign a button, select the button in

section 1 and change to the desired program or action from the pull-down

list in section 2.

You can customize the way your Up/Down control repeats by changing the

settings under the Up/Down Control tab.

CAUTION: Assigning a button to activate a program may disable the use

of that button for specific uses in other programs. For example, if the

ACTION button is assigned to open a specific program, it will no longer

trigger the camera application to capture an image.

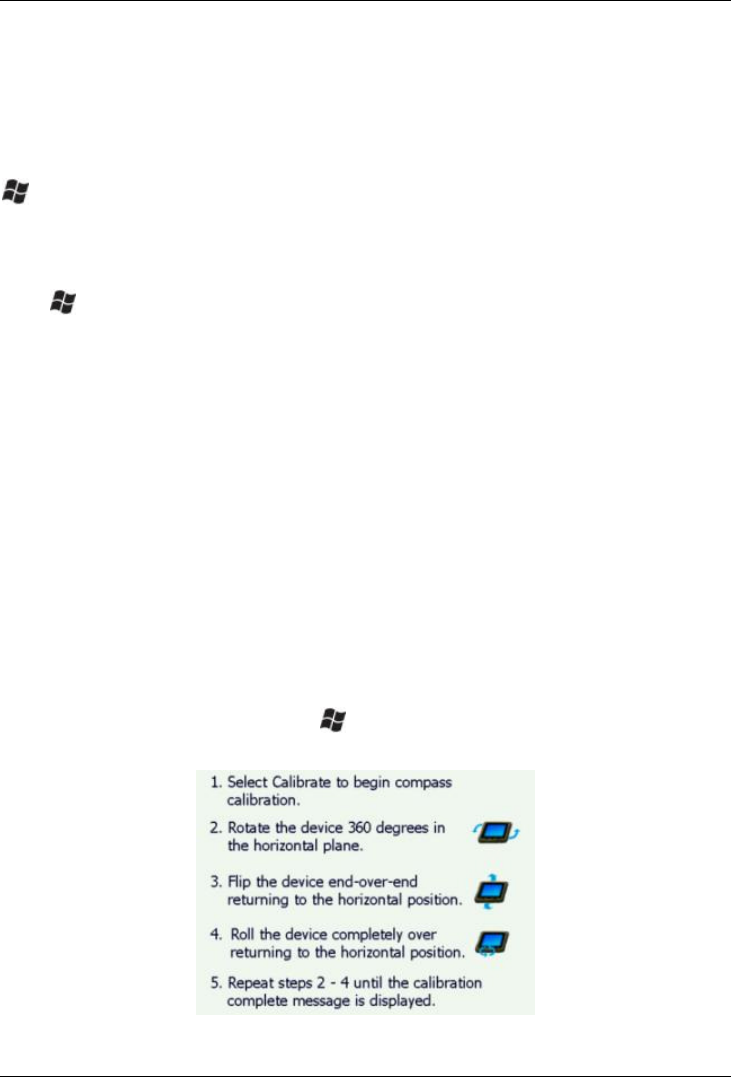

5.3 Compass Calibration

To re-calibrate the compass, tap > Settings > System > Compass

Calibration. Follow the instructions on the screen.

Juno T41/5

User Manual

5.4 Working with Bluetooth

If your device comes with built-in Bluetooth capability, you can wirelessly

transmit data to and from your device by connecting to available Bluetooth

enabled devices. To find out if you have Bluetooth installed in your device,

tap > Settings > System > System Information > Wireless.

Bluetooth capability is a short-range wireless communication technology

that exchanges information (beam) over a distance of up to 30 feet (10

meters) without requiring a physical connection.

Bluetooth settings: tap > Settings > Bluetooth.

Mode: To enable Bluetooth, select the check box Turn on Bluetooth. If

you want other Bluetooth devices to find your device, also check the Make

this device visible to other devices checkbox.

Devices: Tap Add new device to search for other Bluetooth devices. For

enhanced security, use passcodes.

COM Ports: Available only for Bluetooth-connected devices that support

serial (COM) connections.

Wake Settings: Allow Bluetooth activity to turn the device on. When

this check box is selected, another Bluetooth device can send data and your

device will turn on and reply if necessary, but only if Bluetooth is enabled.

NOTE: It is recommended that your device be configured to automatically

turn off when not in use. Otherwise, another Bluetooth device could turn

on your device, transfer data and if Juno T41/5 does not turn off again,

drain the battery.

Receiving Beams: To allow the device to receive incoming beams, tap

> Settings > Connections > Beam to open the Beam screen. Check the

Receive all incoming beams checkbox and tap OK.

Creating a Bluetooth Partnership: Bluetooth partnerships are required

for connections to some PC’s, printers, and headphones.

Configuring Bluetooth connections vary depending upon how each

Bluetooth device works. Refer to all device documentation.

1. Tap > Settings > Bluetooth > Mode. Ensure that both

devices have Bluetooth turned on in the Mode area, are visible

and within close range.

2. Tap Devices > Add new device… Wait a few moments while

Juno T41/5

User Manual

your device searches for Bluetooth devices.

3. Tap the name of the other Bluetooth device and tap Next. For

enhanced security, use passcodes. Enter the same passcode on

the other device.

4. Under Advanced, you can change the name of the other device

and add additional services, if available. Tap Save.

Creating a Bluetooth connection with a PC:

1. Ensure that your PC has connectivity software installed and has

Bluetooth hardware.

2. Set up a partnership between your device and the PC. Refer to

your PC documentation for instructions.

3. Once shown, select the PC from the Device list and tap Next.

4. Enter the passcode, if necessary and tap Next.

5. Confirm that ActiveSync service is available and place a check in

the check box and tap Finish.

6. Tap > ActiveSync > Menu > Connect via Bluetooth.

Bluetooth-enabled headphone: You can use Bluetooth stereo headphones

(A2DP) or a Bluetooth headset (HFP/HSP). Any Bluetooth audio device

supporting the A2DP, HFP, or HSP profiles should be compatible. Many

Bluetooth headphones do not require a passcode to pair with your device.

Troubleshooting Bluetooth connection problems: If your device cannot

find another Bluetooth device, confirm that the device is within range (less

than 30 feet / 10 meters) and no large objects obstruct the path of other

Bluetooth-enabled devices. Confirm that the device is turned on and has

been configured to be discoverable.

5.5 Working with Wi-Fi

If your device comes with built-in Wi-Fi capability, you can wirelessly

transmit data to and from your device by connecting to available access

points or hot spots. To find out if you have Wi-Fi installed in your device,

tap > Settings > System > System Information > Wireless.

The Wi-Fi is off by default; however the on/off state will persist after a

reset. To turn the Wi-Fi on or off, do one of the following procedures:

Juno T41/5

User Manual

 Touch the Title bar, tap the Connectivity icon and tap

Wireless Manager to open the Wireless Manager screen,

and tap Wi-Fi.

 Tap > Settings > Connections > Wireless Manager and

tap Wi-Fi.

Once the Wi-Fi is turned on, it detects the wireless networks in the vicinity

and gives you the option to connect to one. Turn Wi-Fi off when not in use

to save battery power and possibly speed up other processes.

1. Wi-Fi by default is off. Tap Wi-Fi on the Wireless Manager screen

to enable Wi-Fi as necessary.

2. After a few seconds, a Multiple Networks Detected or Network

Detected pop-up window appears.

3. Tap the network to connect to and tap OK.

4. If the network requires authentication, the Network Log On dialog

will open. For networks that require network keys, enter the

network key into the dialog box and tap Connect to begin using

the network.

5. Under Network Adapters tab, changes can be made to what

your network card connects to and to modify adapter settings.

Juno T41/5

User Manual

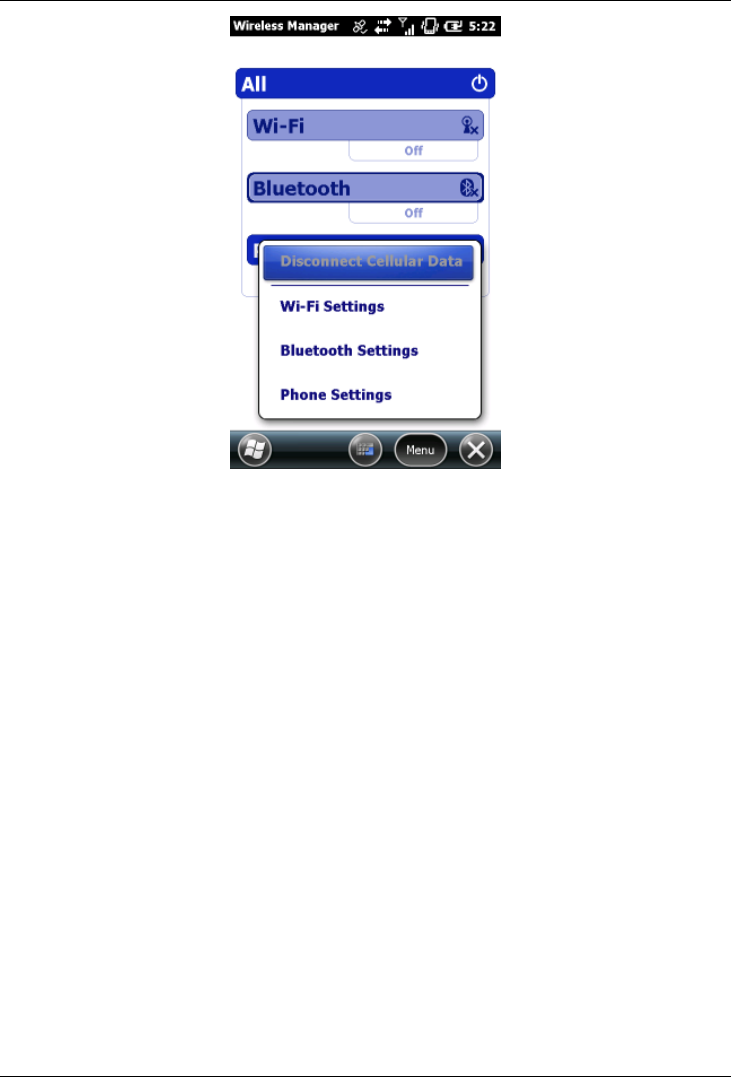

To update Wi-Fi connection settings:

1. On the Wireless Manager screen, tap Menu > Wi-Fi Settings.

2. Tap the name of the network to update the settings for.

3. The Configure Wireless Network wizard appears. Update

settings and tap Next as needed to progress through the wizard.

4. Tap Finish to close the wizard and save the settings.

NOTE: If your device is connected to a PC that is connected to the

Internet, the device will use the PC’s Internet connection and Wi-Fi will

not appear on the Wireless Manager screen. You may allow the

simultaneous use of the PC and the Wi-Fi module by doing one of the

following:

 In the ActiveSync software on your PC, select File >

Connection Settings and check the Allow wireless

connection on the device when connected to the desktop

checkbox.

 In Windows Mobile Device Center software on your PC, click

Mobile Device Settings > Connection Settings and check

Juno T41/5

User Manual

the Allow data connections on device when connected to

PC checkbox.

Using ActiveSync via Wi-Fi

Exchange ActiveSync, a component of Exchange Server, facilitates data

synchronization between your device and an Exchange server. This

synchronization can occur over a network connection, allowing you to

update calendars, contacts, tasks and the Inbox on your device without

directly connecting to a PC. The server must be running Exchange Server

2003 SP2 or later.

To use Exchange ActiveSync, confirm with your system administrator that

an Exchange Server is available. The administrator will provide you with a

Exchange ActiveSync on your device:

1. Tap > ActiveSync > Menu > Add Server Source.

2. Enter your email address and tap Next.

3. Enter the User name, Password and Domain and tap Next.

4. The Automatic Configuration dialog will appear while the device

attempts to connect to Exchange Server. If the system

encounters difficulty, follow the directions of the dialogs that

appear, such as the Edit Server Settings dialog.

5. Choose the data types you want to synchronize and tap Finish.

Enter the server address and confirm with your administrator

whether the Exchange server requires an encrypted (SSL)

connection. Tap Next.

Troubleshooting Wi-Fi connection problems: If the device seems to be

connected to the network, but you are having difficulty using the network

connection, tap > Settings > Connections > Wi-Fi. The Network

Cards window will open and allow you to confirm that the connection is

appropriately configured as either a Work or Internet connection. If you are

unable to connect to a network, try connecting to another network without

any security, such as a Wi-Fi hotspot, to determine if the issue is the

hardware or the network.

Juno T41/5

User Manual

Using the Summit Utilities

The Juno T41/5 software includes a Wi-Fi connection management and

monitoring utility called the Summit Client Utility (SCU). SCU allows you

to view all radio and security settings, and status; and enables you to

troubleshoot connectivity issues.

The SCU software is useful for establishing network connections on

networks that require more complex settings than the Configure Wireless

Network wizard provided in the Windows Embedded Handheld operating

system.

For more information how to use the SCU, please visit:

http://www.summitdata.com/documentation.html and click on the User’s

Guide.

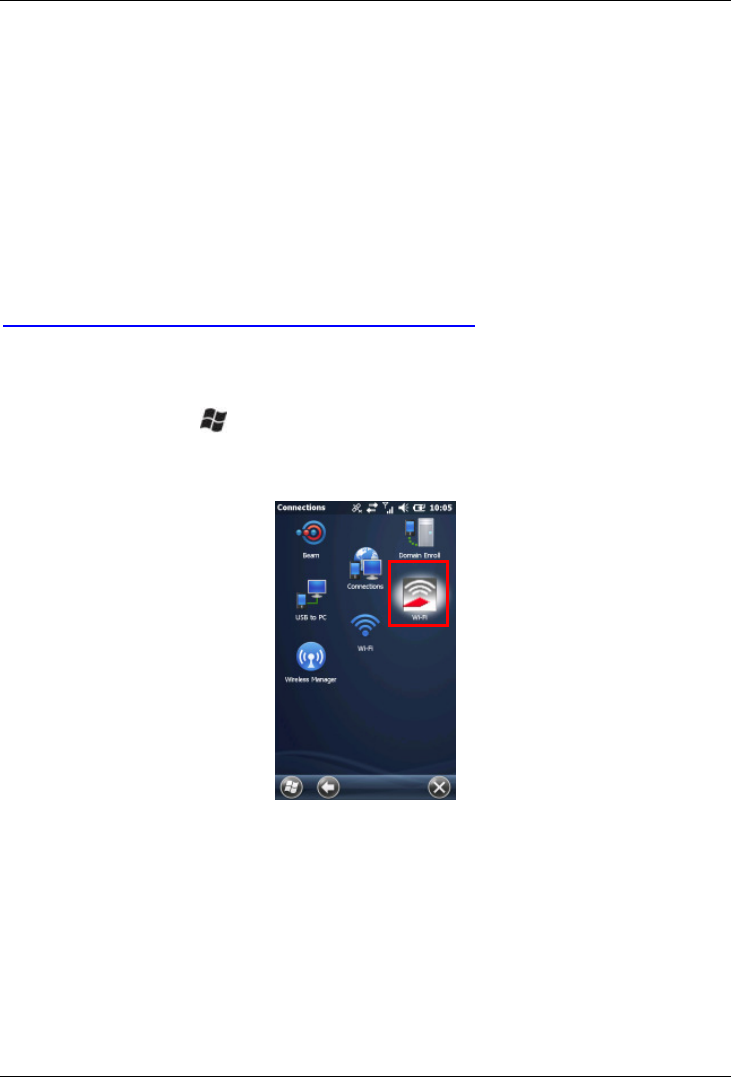

Accessing the Summit Client Utility

To access SCU, tap > Settings > Connections > Wi-Fi. The Summit

Client Utility window appears.

NOTE: There are two icons labeled Wi-Fi.

SCU has five tabs which may be accessed from the top of the screen:

 Main

 Profile

 Status

 Diags (for troubleshooting)

 Global

Juno T41/5

User Manual

To view a tab, tap the tab bar at the top of the screen, or slide your finger

left or right to view the next tab.

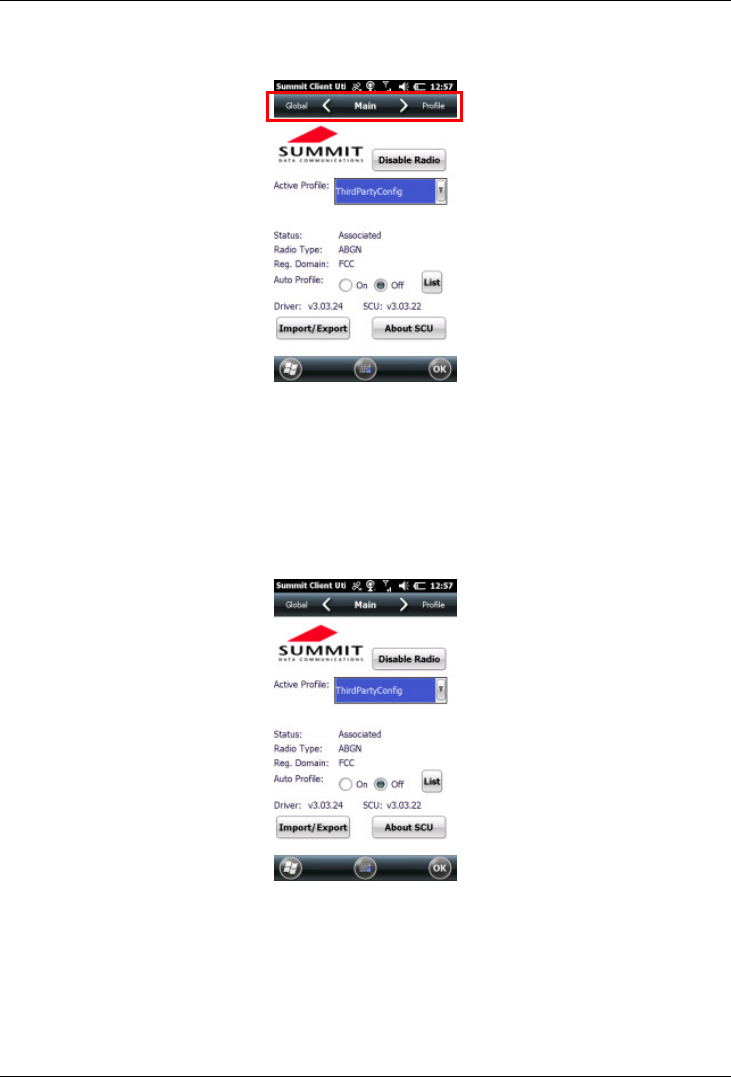

Main Window

The Main window provides an overview of the current wireless network

connection configuration (Active Profile), a snapshot of connection

information, and additional information regarding SCU (About SCU). You

can also import and export settings configurations, which is useful if you

have multiple devices to configure to access your local networks.

Juno T41/5

User Manual

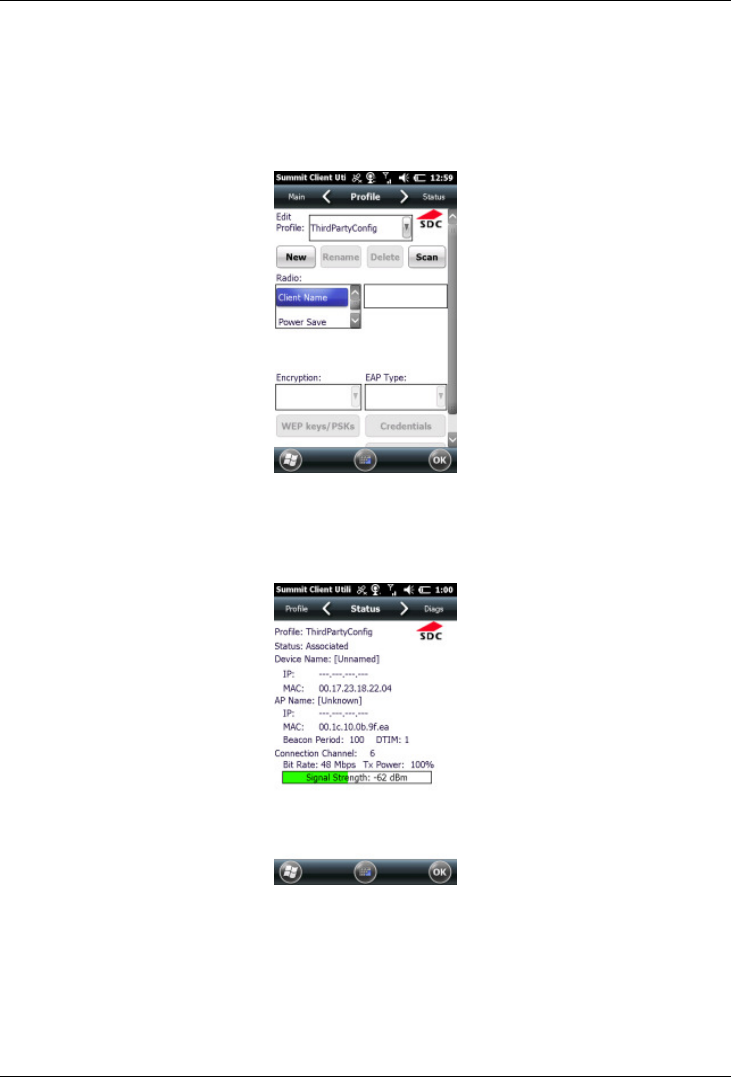

Profile Window

Profile settings are radio and security settings that are stored for each

configuration profile. Tap New to create a new Profile and enter in the

necessary connection settings for a Wi-Fi network access point. Scroll

down to find the Commit button to save changes to the Profile.

Status Window

The Status window provides status information on the radio connection

between the client device and the associated access point.

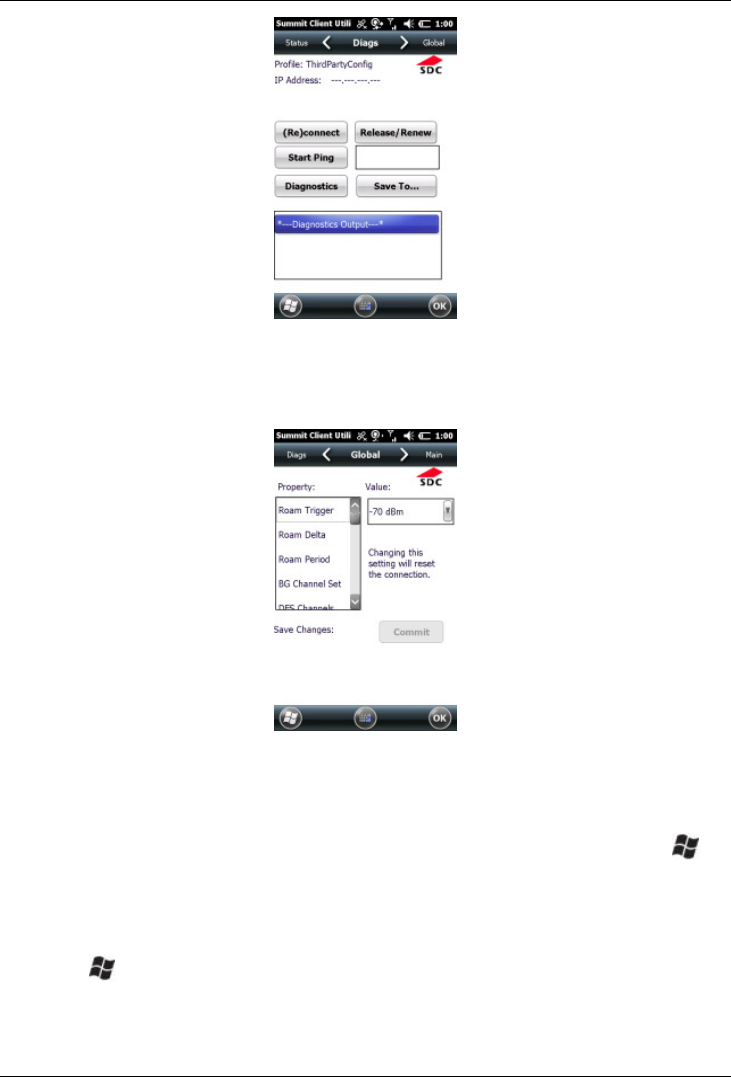

Diags Window

The Diags window enables you to troubleshoot connection issues with

SCU.

Juno T41/5

User Manual

Global Window

Global settings include radio and security settings that apply to all profiles

and settings managed by SCU.

5.6 Working with the Camera

If your device comes with the built-in camera, you can capture photos and

videos. To find out if you have a camera installed in your device, tap >

Pictures & Videos. If you see the Camera icon, your device has the

camera feature.

To capture pictures and videos, open the camera application:

1. Tap > Pictures & Videos.

2. Tap the Camera icon or the Camera tile, or press the LEFT

button to activate the Camera tile.

Juno T41/5

User Manual

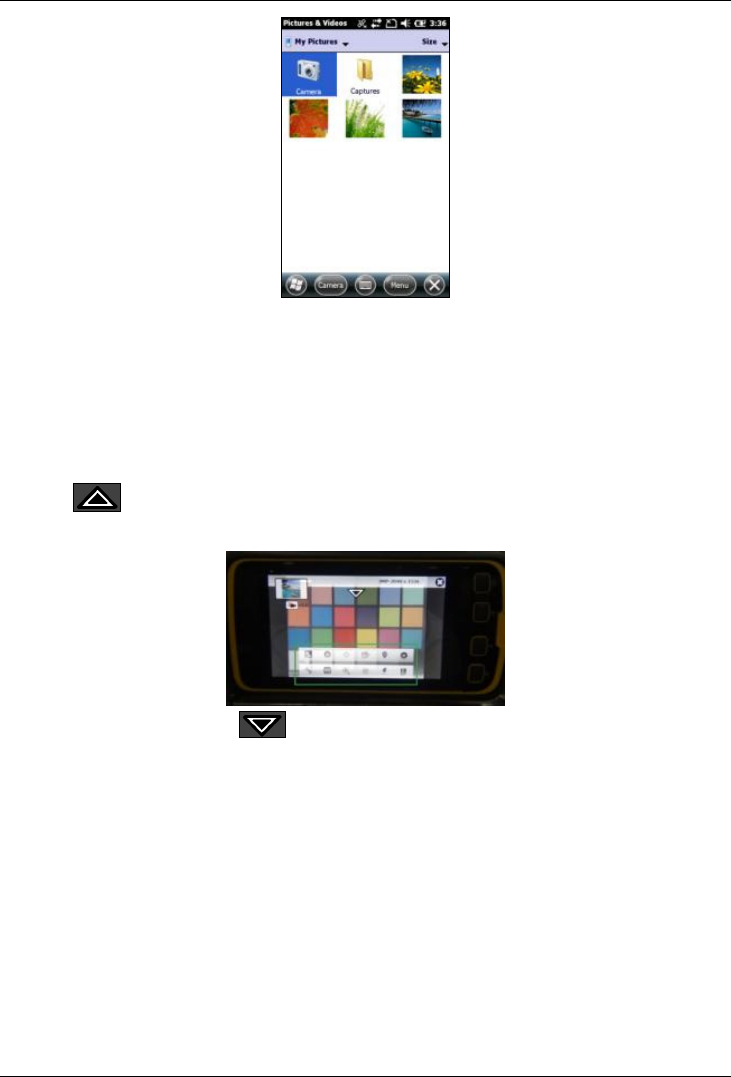

The camera application starts and soon displays a camera preview on the

entire display screen. The camera will be in either in Portrait or Landscape

mode as per the camera settings or according to the device orientation. The

Title bar and Tile bar will not be visible.

User Interface

Once the Camera icon is tapped, the preview screen shows. Tap on the up

arrow ( ) to display the pop-up menu system and to access various

camera features and settings.

Tap on the down arrow ( ) to exit the menus.

Thumbnail Window

A thumbnail image is shown on top of the preview screen. This is the most

recent image captured using the camera application. Tap on the thumbnail

to return to Microsoft Pictures & Videos window and display a thumbnail

preview of saved image and video files.

Juno T41/5

User Manual

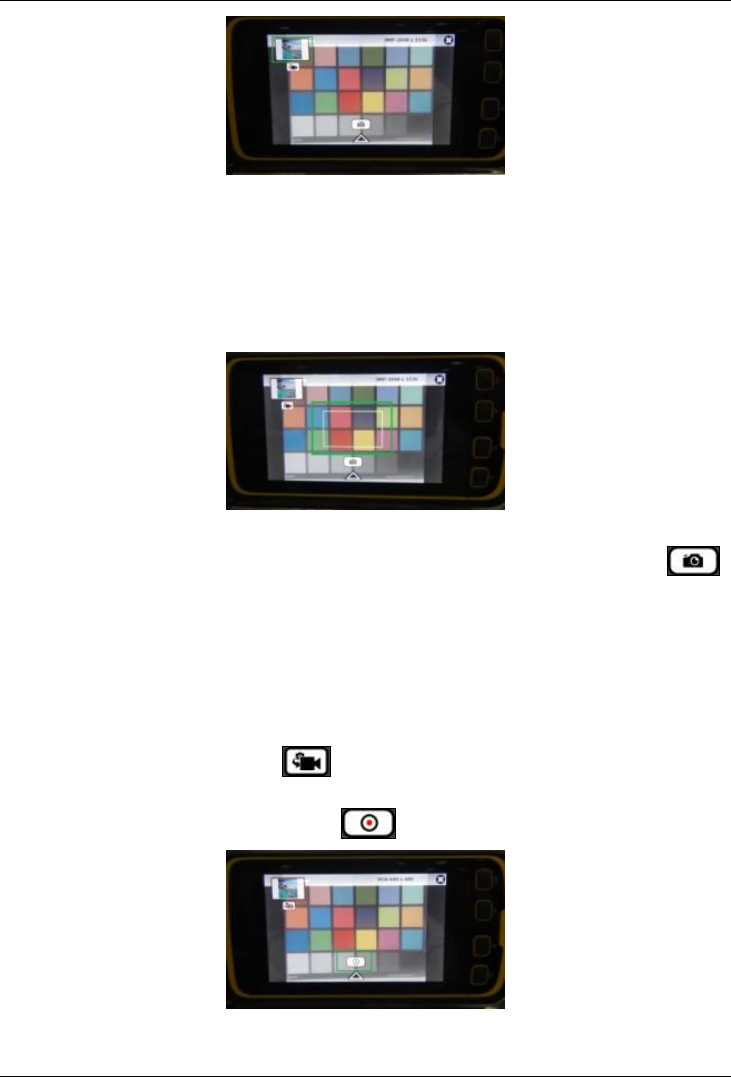

Capturing Images

If preview not focused, a quick double-tap on the preview screen focuses

the image (if focus is enabled in settings menu). Focus success is indicated

by a green box displayed at center of the screen.

The image can be captured after this by tapping on the Camera icon ( )

when the user interface is viewable on the image preview. You can also use

the ACTION button to trigger the image capture.

Captured images are saved with the file extension of .JPG.

Capturing Videos

The camera application will switch from image mode to video mode

by tapping the video icon ( ) below the thumbnail window. In

video mode, the similar icon is used to switch to Image mode.

A tap of the capture/record button ( ) will start capturing the video.

Captured video files are saved with the file extension of .WMV.

Juno T41/5

User Manual

Closing application

To close the camera application, tap on the close (X) mark at the top right

corner of the preview or press the OK button.

Image Camera Application Features

Tap on the up arrow ( ) to display the pop-up menu system to access

various features and settings. The features and settings are described below.

White Balance ( )

A tap on the White Balance icon, displays the following options.

 Auto: Select this option to adjust the White Balance

automatically while taking pictures and videos in different

lighting conditions.

 Sunny: Select this option when taking pictures and videos in

full sunlight.

 Incandescent: Select this option when taking pictures and

videos in places lit with Incandescent lighting.

 Fluorescent: Select this option when taking pictures and

videos in places lit with Fluorescent lighting.

Selection of any option applies that setting to camera preview and to

images captured.

Zoom Levels ( )

A tap on the Zoom icon displays the levels of digital zoom supported by

camera application.

 1.0x [Minimum Zoom]

 1.5x

 2.0x

 2.5x

 3.0x

 3.5x

 4.0x [Maximum Zoom]

Selection of any option applies that setting to camera preview and to

images captured.

NOTE: The Image Tagging of date-time and GPS on the image is not

compatible with a Digital Zoom setting other than 1.0x. The EXIF tagging

Juno T41/5

User Manual

is not affected by Digital Zoom.

Brightness ( )

A tap on the Brightness icon enables adjustment of the Brightness offset.

 +3 [Maximum Brightness]

 +2

 +1

 0 [Normal Brightness]

 -1

 -2

 -3 [Minimum Brightness]

Selection of any option applies that setting to camera preview and to

images captured. Increase the Brightness if the subject is underexposed, or

decrease the Brightness if the subject is overexposed. A common situation

requiring adjustment to Brightness is capturing a scene with high contrast

caused by direct exposure of light sources or areas of shading or shadows.

Flash Settings ( )

A tap on the Flash Settings icon displays the following options.

 On: Selection of this option enable the flash icon ( ) on the

screen and dual LEDs will flash while capturing images.

 Off: Selection of this option disables the LED flash.

 Auto: Selection of this option enable the LEDs to flash if

needed to illuminate the scenes with low-light. The auto flash

icon ( ) will display on the screen.

Image Quality ( )

A tap on the Image Quality icon displays the following options.

 Economy: Select this option should save the captured image

with low quality (high compression).

 Normal: Select this option should save the captured image

with medium quality (medium compression).

 Fine: Select this option should save the captured image with

good quality (low compression).

 Super Fine: Select this option should save the captured

image with very good quality (very low compression).

Juno T41/5

User Manual

Images will be stored with the selected quality and the file size of

the image increases as quality increases.

Camera Settings ( )

A tap on the Settings icon displays the sub menu which has Still

Resolution, Storage Selection, Focus, Image Review, Image Tagging

and Application Settings. These sub menu options are explained in

further detail below.

Still Resolution

The still image resolution displays on the top right corner of the

preview window when the camera user interface is visible.

Two aspect ratios are available on the Juno T41/5:

 4:3

 5:3

4:3 ( )

The 4:3 image resolutions available are:

 1.3MP - 1280x960

 3MP - 2048x1536

 5MP - 2560x1920

 8MP - 3264x2448

Select the desired image resolution.

5:3 ( )

The 5:3 image resolutions available are:

 WVGA - 800x480

 WXGA - 1280x768

 2.4MP - 2000x1200

 3.9MP - 2560x1536

 6MP - 3264x1960

Select the desired image resolution.

Storage Select ( )

Tap on the Storage Select icon to display the following options:

 Main Memory: Save images to the on-board storage.

Juno T41/5

User Manual

 SD Card: Save the images to the microSD card. This item is

not selectable if no microSD card is installed.

Focus ( )

Tap on the Focus icon to display the following options.

 Enable: This enables the Auto Focus feature, which is

activated with double-tap on the image preview.

 Disable: This disables the Auto Focus feature.

Image Review ( )

A tap on the Image Review icon will display the following options.

 2 Seconds: The captured image is displayed for 2 seconds.

 3 Seconds: The captured image is displayed for 3 seconds.

 User Prompted: The captured image is displayed until the

user indicates to delete or save the image. See below for

further information.

 Off: The captured image is not displayed. This mode is useful

for capturing images as quickly as possible.

Image Tagging ( )

Image tagging is the capture of date, time and location data on your

images. The data may be stored in the EXIF data or both the EXIF data

and on the visible image.

A tap on the Image Tagging icon will display the following sub menu and

options.

 Date

Date Source:

 Device Date-Time: Fetch the date-time from the device real-time

clock.

 GPS Date-Time: Fetch the current GPS date-time.

NOTE: If the current GPS time is not available (due to lack of

GPS signal), the Device Date-Time is used.

Stamp Settings:

 EXIF: Store the date-time information as EXIF data.

 EXIF & Stamp: Store the date-time information as EXIF data and

embedded on the visible image.

Juno T41/5

User Manual

 Off: Do not store date-time information.

 GPS

Format:

 Deg/Min/Sec: Format in Degrees, Minutes, Seconds.

 Decimal Degree: Format in Degrees with decimal precision.

Stamp Settings:

 EXIF: Store the location information as EXIF data.

 EXIF & Stamp: Store the location information as EXIF data and

embedded on the visible image.

 Off: Do not store date-time information.

APP Settings ( )

Tap on the APP Settings icon to display a sub menu with the options

described below.

 UI Orientation

 Rotation on Tilt: Enable the automatic rotation of the camera

user interface based on device orientation/tilt.

 Fixed Landscape: Lock the camera application in landscape

mode.

 Fixed Portrait: Lock the camera application in portrait mode.

NOTE: This option only applies to the image capture and does not

apply to video capture, which is only available in fixed landscape

mode.

 Sounds

 Enable: This option enables the beep sound while focusing and

click sound for capturing the images.

 Disable: This option disables the sound while focusing and

capturing the images.

 Modify Prefix

Select the Modify Prefix option to display the prefix window enabling

you to edit the prefix of Image and Video files. By default, Image files

append with prefix IMG and video files append with VID.

The file is saved with a name that is auto generated with the prefix

followed by a four digit number. The number is sequential.

Juno T41/5

User Manual

Image Delete and Switch to Camera in Image review mode

When the Image Review mode is User Prompted, the camera application

will display the capture image and show two icons.

• DELETE ( )

Tap the delete icon to delete the image from the storage.

• CAMERA ( )

Tap the camera icon to save the image and return to image preview mode.

Video Camera Application Features

Tap on the up arrow ( ) to display the pop-up menu system to access

various features and settings. The features and settings are described below.

Many of the settings for image capture are the same for video capture, and

these include White Balance, Brightness and Focus. Settings unique to

video recording are as follows:

• Audio settings ( )

Tap the Audio Settings icon to display the following

options:

 Enable: Audio capture from the MICROPHONE is enabled while

recording.

 Disable: The video that is recorded does NOT include any sound

from the MICROPHONE.

• Video Settings ( )

 Resolution ( )

Tap the Video Resolution icon to display the following options:

 QVGA - 320x240

 VGA - 640x480

 WVGA - 800x480

Selection of any option applies that setting to camera preview

and to videos captured.

 Storage Select ( )

Tap the Storage Select icon to display the following options:

 Main Memory: Save videos to the on-board storage.

Juno T41/5

User Manual

 SD Card: Save the videos to the microSD card. This item is not

selectable if no microSD card is installed.

• Video Review ( )

Tap the Video Review icon to display the following options:

 On: If selected, the video review mode is enabled. After video

capturing is completed, video review window enables the user to

review the capture video by playing it back. Also, DELETE and

VIDEO icons are enabled in the review window. A tap on the

Delete ( ) icon, will delete the video file and return to the

video preview window. A tap on the Video ( ) icon will save

the video file and return to the video preview window.

 Off: If selected, the video review feature is disabled. The

application will return to the preview window after capturing the

video and storing the video file.

• Pause Time-out ( )

Tap the Pause Time-out icon to display the following options:

 10 seconds

 20 seconds

 60 seconds

 Disable

Select an option to specify the timeout duration of the PAUSE

feature while recording.

While recording has the option to be STOPPED (and saved) or

being PAUSED and continued. If paused, the video recording

pauses for the selected time-out. Then the pause icon changes to a

record icon, enabling the user to resume recording. The Stop icon

ends the recording and saves the video file.

Juno T41/5

User Manual

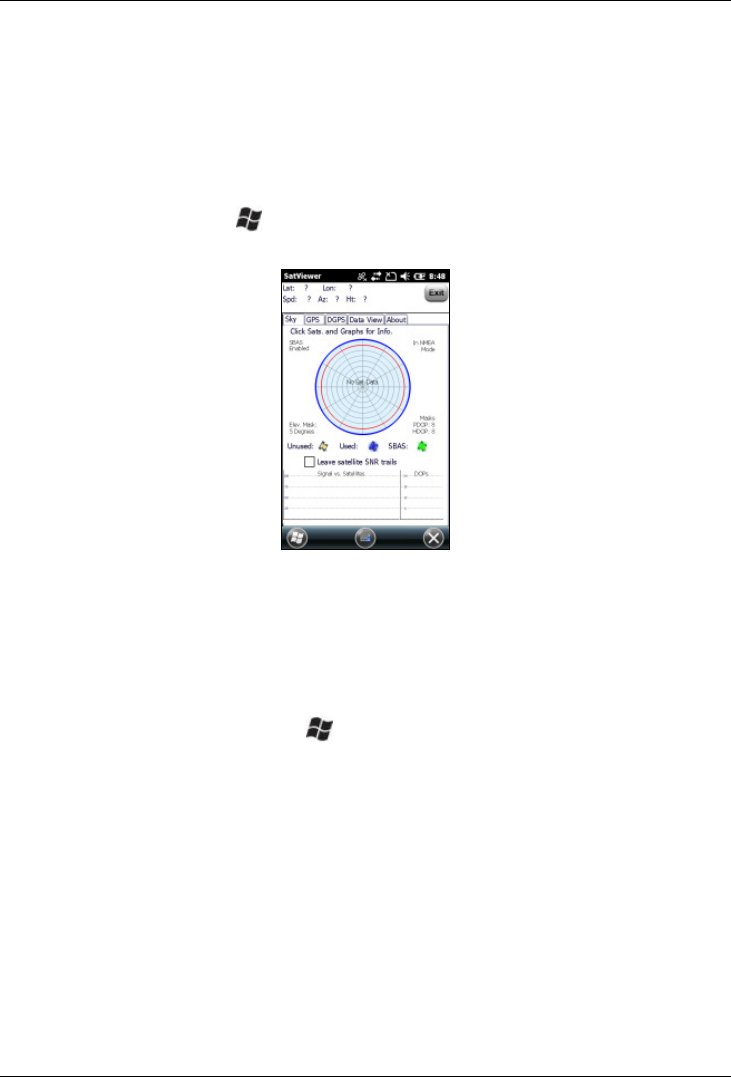

5.7 Working with GPS

Tap > Settings > System > System Information > Wireless to see if

your device has GPS installed. COM2 is the dedicated hardware port for

the built-in GPS (COM1 is dedicated to the external 9-pin).

The GPS is compatible with applications that accept the NMEA position

information using a default baud rate of 38400.

GPS settings:

If you are using only one GPS-aware application, these settings do not

need to be changed. However, to use multiple GPS-aware applications, tap

> Settings > System > GPS and select the following tabs:

 Access: The GPS Intermediate Driver (GPSID) allows

multiple applications to access the GPS receiver. If the check

box is unchecked, the GPSID is disabled.

 Hardware: COM2 is the hardware port dedicated for the

built-in GPS. Verify that COM2 is selected. The internal GPS

communicates at 38400 baud by default. If it has been

modified by a third-party program, adjust to match the

receiver baud rate.

 Programs: Programs that use GPS need to know which COM

port to use to access GPS data. When using more than one

GPS-aware application, the same GPSID port must be used

in each application. Ensure that the COM port on the

GPS-aware application(s) is set to the same GPSID port as

shown in the Programs tab of the GPS applet. The program

port must be a different port than the hardware port. By

default, the GPS program port is COM3 and should not be

modified unless directed by Technical Support.

NOTE: Some GPS-aware applications may not communicate over GPS

program ports.

Exiting GPS applications

Any time you exit a GPS application (such as SatViewer) it is advisable to

close the port gracefully, e.g. tap Disconnect from GPS and then exit the

Juno T41/5

User Manual

application. Failure to do so may leave the port open and hinder the next

GPS operation.

5.8 SatViewer

SatViewer provides information such as your current longitude, latitude,

elevation, how many GPS satellites are visible and the quality of the

computed coordinates.

To open SatViewer, tap > SatViewer. To begin monitoring GPS

satellites, tap the GPS tab and the Connect to GPS button.

NOTE: External GPS receivers, Bluetooth GPS receivers or other external

GPS devices are not supported and may not work correctly with SatViewer.

5.9 Battery Logger

The battery logger is useful for monitoring battery performance under

certain user scenarios or to check if the battery has a performance issue.

To run the Battery Logger, tap > File Explorer. In the Windows folder,

find batlog and tap it to start the program. Tap File > Start Battery

Logging. The software will prompt you to specify where to log the data

file.

The program analyzes and logs the following information about the

battery:

- Charge cycles begun and % capacity at initiation

- Charge cycles fully completed

- Aborted charge cycles and % capacity at termination

- Provide notification when the number of charge cycles reaches 90%

of the max

Juno T41/5

User Manual

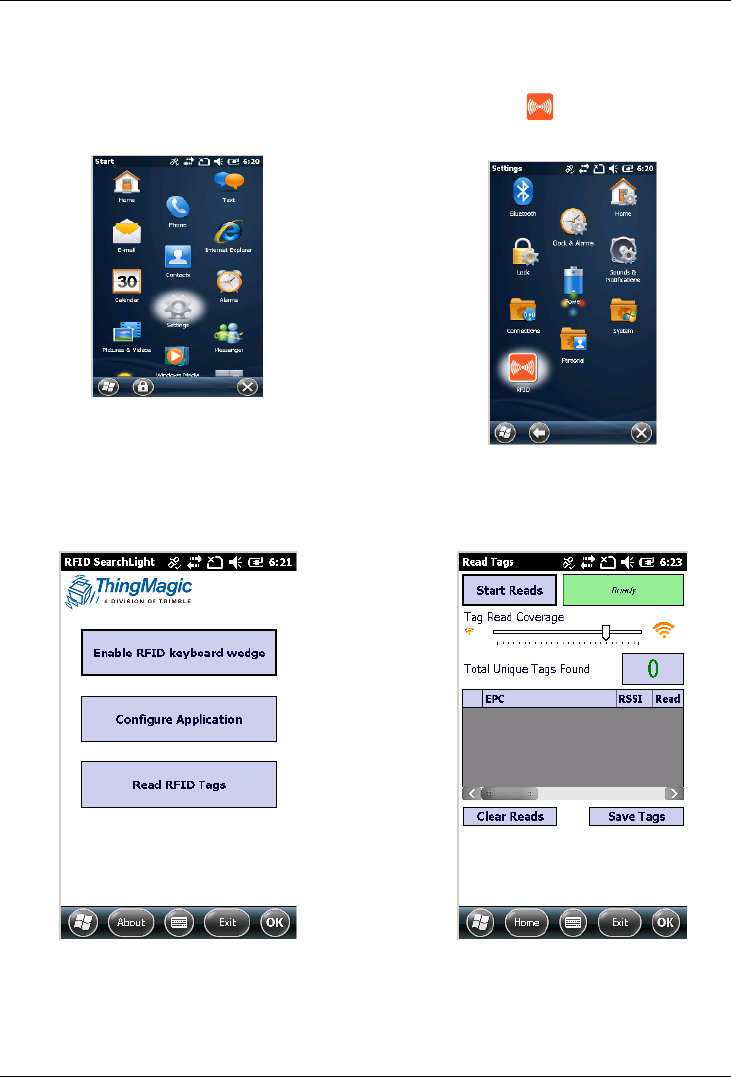

5.10 RFID tag Reading (For RFID version only)

1. On the desktop, tap Settings icon.

2. Tap RFID icon.

3. Tap Read RFID tags button.

4. Tap Start Reading button.

Juno T41/5

User Manual

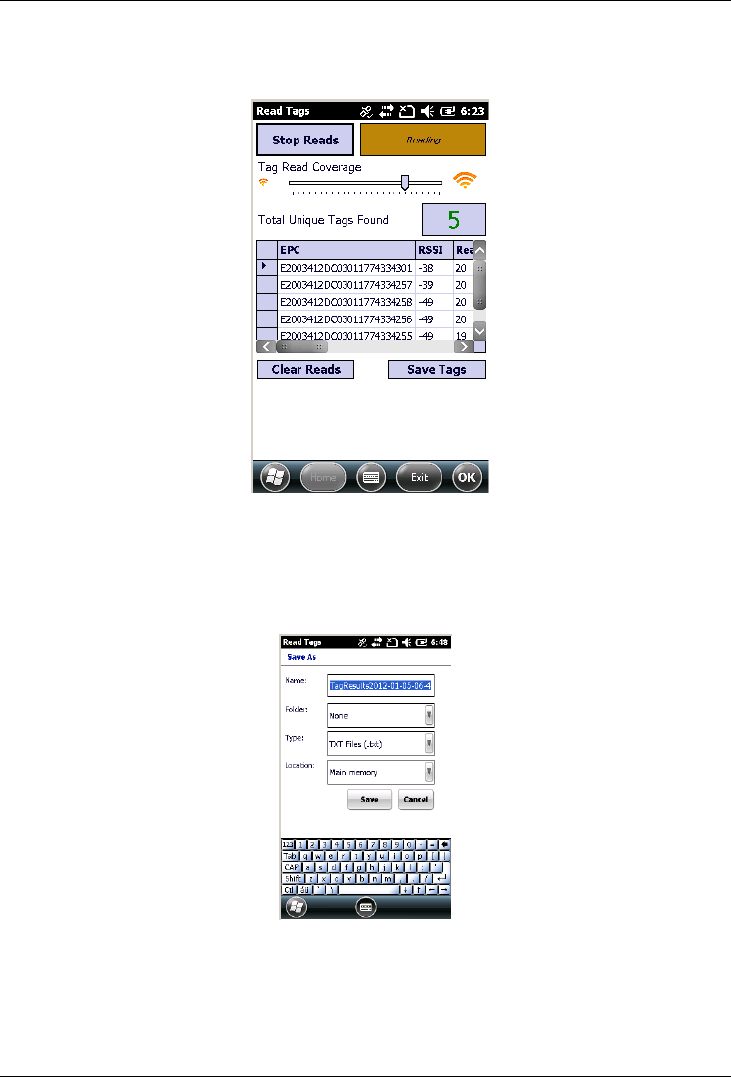

5. All RFID tag found will be listed. You can cancel the procedure

by clicking Stop Reads.

6. To save all reading results:

a. Tap Save Tags.

b. Enter all information into fields under Save as dialogue box as

necessary and tap Save button.

Juno T41/5

User Manual

Appendix A: Regulatory Compliance

U.S.A. - FCC Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

Exposure to Radio Frequency (RF) Signals

Your device contains a radio transmitter and receiver. The radiated output

power is far below the international radio frequency exposure limits. These

limits are part of comprehensive guidelines and establish permitted levels

of RF energy for the general population. The guidelines are based on the

safety standards previously set by international standards bodies:

• American National Standards Institute (ANSI) IEEE.

C95.1-1992.

• National Council on Radiation Protection and Measurement

(NCRP). Report 86. 1986.

• Int’l Commission on Non-Ionizing Radiation Protection

(ICNIRP) 1996.

• Ministry of Health (Canada), Safety Code 6. The standards

include a substantial safety margin designed to assure the

safety of all persons, regardless of age and health.

Juno T41/5

User Manual

SAR: 0.36w/kg

Use of unauthorized or modified antennas may impair call quality and

damage the phone, causing loss of performance. To assure optimal phone

performance and ensure human exposure to RF energy is within the

guidelines set forth in the relevant standards; always use your device only

in its normal-use position.

Avoiding contact with the antenna area when the phone is IN USE

optimizes the antenna performance.

Telecommunications & Internet Association (TIA) information

Hearing Aids: Some digital wireless phones may interfere with some

hearing aids. In the event of such interference, you may want to consult

your wireless service provider, or call customer service to discuss

alternatives.

Pacemakers and Other Medical Devices: The Health Industry

Manufacturers Association recommends a minimum separation of six

inches be maintained between a handheld wireless phone and a pacemaker

to avoid potential interference with the pacemaker. These

recommendations are consistent with the independent research by and

recommendations of Wireless Technology Research. Persons with

pacemakers should use the ear opposite the pacemaker to minimize the

potential for interference. Persons with pacemakers should exercise great

caution if using a hands-free device such as a headset, as these persons

may be at greater risk of the device not maintaining the recommended

minimum six inches of separation from the pacemaker. If you have any

reason to suspect that interference is taking place, turn the phone OFF

immediately.

If you use any other personal medical device, consult the manufacturer of

your device to determine if they are adequately shielded from external RF

energy. Your physician may be able to assist you in obtaining this

information.

Turn the phone OFF in health care facilities when any regulations posted in

these areas instruct you to do so. Hospitals or health care facilities may be

using equipment that could be sensitive to external RF energy.

Canada Compliance, Industrie Canada (IC)

This Class B digital apparatus complies with Canadian CAN ICES-3(B)/NMB-3(B).

Cet appareil numérique de classe B est conforme à la norme NMB-3.

Juno T41/5

User Manual

This device complies with Industry Canada licence-exempt RSS standard(s). Operation

is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s).

Son fonctionnement est soumis aux deux conditions suivantes:

(1) cet appareil ne peut pas provoquer d'interférences et

(2) cet appareil doit accepter toute interférence, y compris les interférences pouvant

entraîner un mauvais fonctionnement de la appareil.

RF Radiation Exposure Statement:

For body worn operation, this phone has been tested and meets RF exposure guidelines

when used with an accessory that contains no metal and that positions the handset a

minimum of 1.0 cm from the body.

Use of other accessories may not ensure compliance with RF exposure guidelines.

Déclaration de l'exposition aux radiations RF:

Pour le fonctionnement du corps, ce téléphone a été testé et répond aux directives

d'exposition RF lorsqu'il est utilisé avec un accessoire qui ne contient pas de métal et qui

place le combiné d'un minimum de 1.0 cm du corps.

Utilisation d'autres accessoires peut ne pas assurer le respect des directives d'exposition

RF.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause

undesired operation of the device.

RF exposure

This device was tested according to FCC SAR procedure, and was tested 10mm away

from the Body.

RoHS Statement

This device conforms to RoHS (Reduction Of Hazardous

Sub-stances) European Union regulations that set

maximum concentration limits on hazardous materials

used in electrical and electronic equipment.

CAUTION: RISK OF EXPLOSION IF BATTERY IS DISPOSED OF

INCORRECTLY. DISPOSE OF THE DEVICE AND THE BATTERY

Juno T41/5

User Manual

ACCORDING TO INSTRUCTIONS FOR ELECTRONIC WASTE.

European Conformity Statement

Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC

directives.

Europe

According to ISO / IEC Guide 22 and EN 450 14

Manufacturer’s Name: Trimble Navigation Limited.

Manufacturer’s Address: PO Box 947, Corvallis, OR 97339 USA

Declares, under our sole responsibility, that the product:

Product Name: Rugged Handheld Computer (JUNO/T41/5)

Model Number: JUNO/T41/5-BWRF

Regulatory Name: JUNO/T41/5-BWRF

Product Options: ALL

Conforms to the following Product Specifications:

EN 300 328: V1.7.1:2006

EN 301 489-1: V1.9.2:2011

EN 301 489-3: V1.4.1:2002

EN 301 489-7 V1.3.1:2011

EN 301 489-17: V2.2.1:2012

EN 301 489-24 V1.5.1:2010

EN 301 511:V9.0.2:2003

EN 301 908-1&2:V4.2.1:2010

EN 55022:2010/AC:2011

EN 55024:2010

CISPR 22:2005, Amendments A1:2005, A2:2006

R&TTE Directive 1999/5/EC

CFR 47, Part 15, Subpart B

EN302 208-2:V1.4.1:2011

EN 61000-3-2:2006+A1:2009

+A2:2009

EN 61000-3-3:2008

EN 61000-4-2:2009

EN 61000-4-3:2006+A1:2008

+A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2006

EN 61000-4-6:2009

EN 61000-4-11:2004

EN 60950-1:2006+A11:

2009+A1:2010+A12:2011

Juno T41/5

User Manual

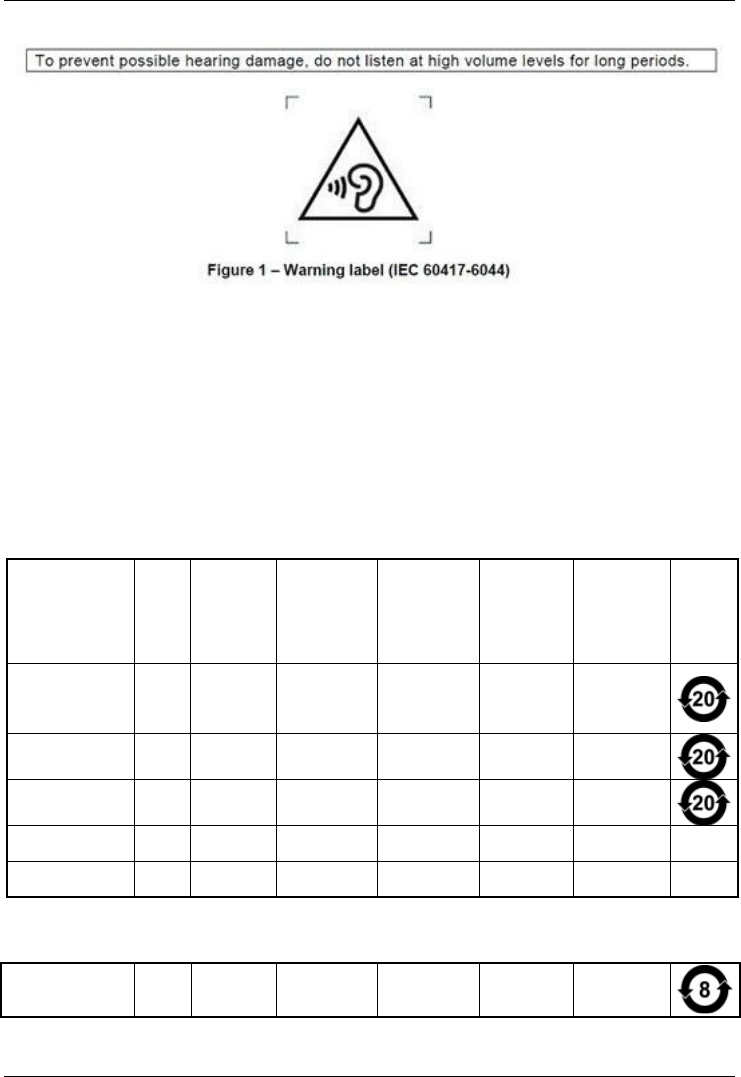

Exposure to Loud Audio:

Importer of Record: Trimble European Regional Fulfillment Center,

Logistics Manager, Meerheide 45, 5521DZ Eersel,

Netherlands.

Environmental Hazards

The product complies with international RoHS regulations.

Toxic and Hazardous Substances and Elements

Part Name Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Poly-bromi

nated

biphenyls

(PBB)

Poly-bromi

nated

diphenyl

ethers

(PBDE)

Printed

Circuit

Assemblies

X O O O O O

Display

X O O O O O

Keypad

X O O O O O

Housing

O O O O O O

Hardware

O O O O O O

Product Period does not include these items

Battery

X O O O O O

Juno T41/5

User Manual

Power supply

X O O O O O

Cable O O O O O O

Manual O O O O O O

Hand strap O O O O O O

Stylus pkg. O O O O O O

Companion

CD O O O O O O

Taiwan

低功率電波輻射性電機管理辦法

第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商

號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功

能。

第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通

信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續

使用。低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻

射性電機設備之干擾。

SAR 標準值 2.0W/Kg，送測產品實測值為 0.36w/Kg

JADAK a business unit of Novanta MERCURY6E-M Juno T41/5 User Manual
