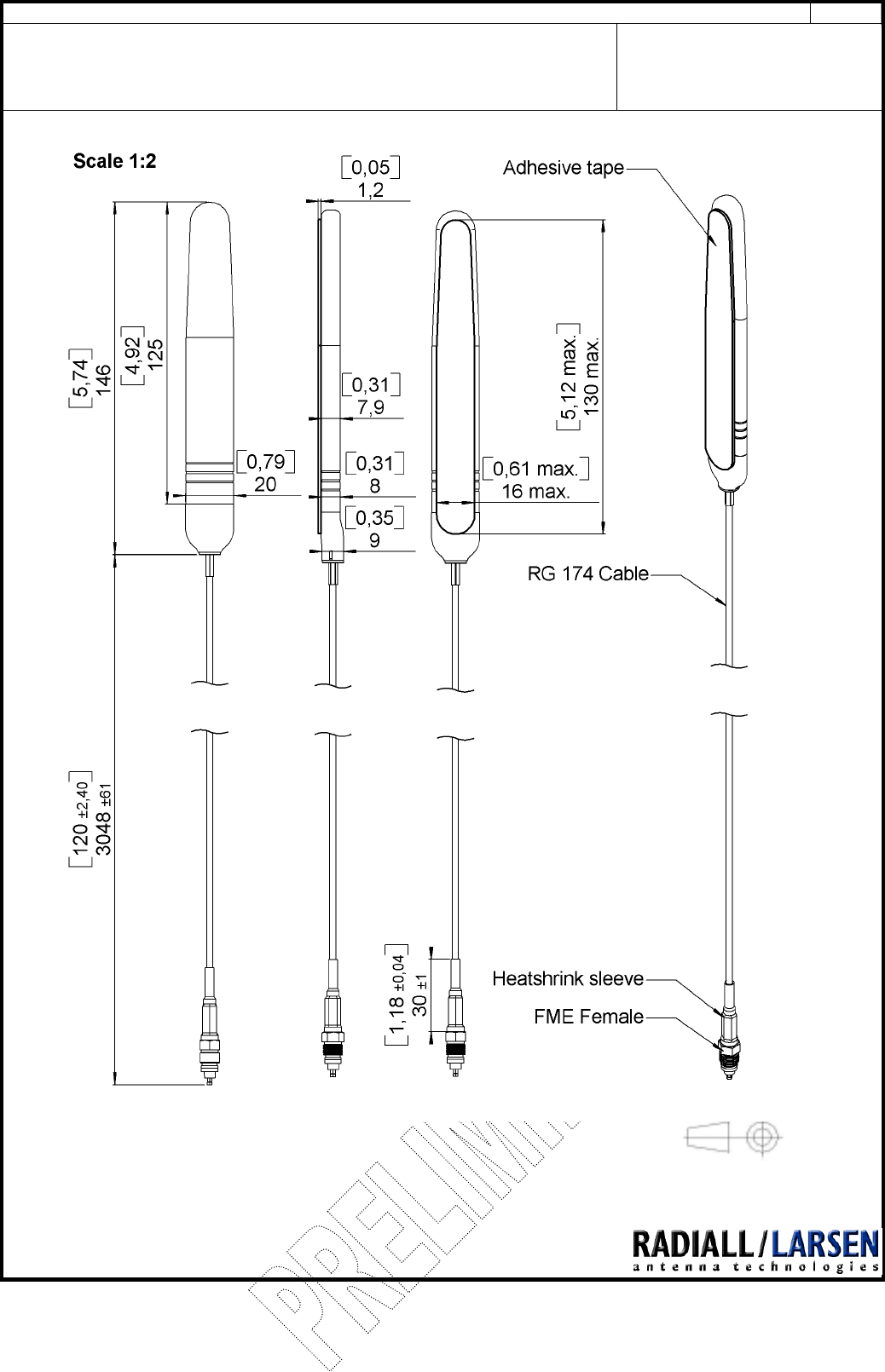

TECHNICAL DATA SHEET 1/2
DUAL BAND AMPS/PCS DIPOLE R380.900.318
OMNIDIRECTIONAL ANTENNA Series : ANTENNA
Issue : 0338 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
All dimensions are in mm [inch].
..
po ao
TECHNICAL DATA SHEET 2/2
DUAL BAND AMPS/PCS DIPOLE R380.900.318
OMNIDIRECTIONAL ANTENNA Series : ANTENNA
Issue : 0338 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
ELECTRICAL CHARACTERISTICS
AMPS PCS
Frequency : .................... 806-890 MHz 1.85-1.99 GHz
Nominal Impedance : .... 50 Ω50 Ω
VSWR : .......................... 1.5:1Max 1.5:1Max
Gain (Radiating element) : 2dBi Max 2dBi Max
Gain (including the cable
losses) : .......................... -1 dBi Max -1 dBi Max
Radiation Pattern Omni-directional in the horizontal plane
Polarization :.................. VERTICAL VERTICAL
Power withstanding : ..... 3W3W
Connector type :............. FME (Female) R280.354.000
Cable type :.................... RG 174 BLACK
Length :.................. 3048 mm ±61 mm [10 ft]
MECHANICAL CHARACTERISTICS
Plastic radome : ................ POLYURETHANE
Color :............................... BLACK RAL 9004
Weight : ............................ 60 g
Overall length : ................ 146 x 20 x 9 mm
Cable retention :
Pull off................... 40 Nmini
Mounting system : ........... Adhesive tape
ENVIRONMENTAL CHARACTERISTICS
Operating temperature :.... -20/+50 °C
