Install Manual part 1 of 3
Traffic Advisory System
SKY497
Installation
Manual
This manual contains installation instructions and
recommended flightline maintenance information for the
SKY429 Traffic Advisory System. This information is
supplemented and kept current by Change Notices and
Service Bulletins published by BFGoodrich Avionics
Systems.
009-10800-001 (Rev. C)
BFGoodrich Avionics Systems, Inc. 23 February 2001
5353 52nd Street, S.E.
Grand Rapids, MI USA 49512
A
Rev. C
ABOUT THIS MANUAL
Chapter 1 – General Information
This chapter includes equipment specifications and a functional description. It describes the various
hardware configurations and includes a list of items furnished and items required but not supplied
with the equipment.
Chapter 2 - Installation
This chapter contains instructions for unpacking the equipment and inspection for in-shipment
damage. It also includes information required to locate, assemble and install the equipment.
Chapter 3 – Installation Checkout
This chapter contains instructions for doing post-installation and return to service checkout of the
SKY497 using the BFGoodrich Avionics Systems TT391 Flightline Tester.
Chapter 4 – Maintenance
This chapter contains general flightline maintenance procedures. It includes periodic maintenance and
troubleshooting; instructions for calibrating the directional antenna and instructions for the return of
defective components.
Appendix A – Signal and Cable Characteristics
This appendix defines the electrical characteristics of all input and output signals.
Appendix B – Installation Checkout Using The TCAS-201 Ramp Test Set
This appendix contains instructions for doing post-installation and return to service checkout of the
SKY497 using the IFR Systems TCAS-201 Ramp Test Set (with TCAS I firmware).
Appendix C – Installation Checkout Using The TIC T-49C Flightline Tester
This appendix contains instructions for doing post-installation and return to service checkout of the
SKY497 using the TIC T-49C Flightline Tester.
Appendix D – Using The Terminal Device
This appendix contains instructions for using the Terminal Device for installation, testing or
troubleshooting of the SKY497.
Appendix E – Installation Checkout Using an Alternate Display
This appendix contains instructions for doing post-installation and return to service checkout of the
SKY497 using an Alternate Display.
© Copyright 1997-2001
BFGoodrich Avionics Systems
____________________________
Trademarks
Loctite® is a registered trademark of Loctite Corporation.
Mylar® and Teflon® are registered trademarks of DuPont.
Flamemaster® is a registered trademark of Flamemaster Corporation.
Rivnut® is a registered trademark of Rivnut Engineered Products, Inc.
SKYWATCH® and Stormscope® are registered trademarks of BFGoodrich Avionics Systems, Inc.
SKY497
Installation Manual
i
Rev. C
LIST OF EFFECTIVE PAGES
Dates of original and changed pages are: Original (Rev. A)............................. 25 April 1997
Republished (Rev. B)...........28 September 1998
Republished (Rev. C)..............23 February 2001
NOTE
A vertical line in the outer margins of the page indicates the portion of the
text affected by the change. Changes to illustrations (other than diagrams
and schematics) are identified with a miniature pointing hand. Shading is
used to highlight the area of diagrams and schematics containing a change.
Total number of pages in this publication consists of the following:
Page Change
No. No.
Title Page ................................................0
A Page ....................................................0
i thru viii....................................................0
1-1 thru 1-16 ............................................0
2-1 thru 2-30 ............................................0
3-1 thru 3-8 .............................................0
Page Change
No. No.
4-1 thru 4-20 ........................................ 0
A-1 thru A-10 ........................................ 0
B-1 thru B-6........................................... 0
C-1 thru C-4 .......................................... 0
D-1 thru D-6 ......................................... 0
E-1 thru E-6 .......................................... 0
INSERT LATEST CHANGED PAGES DESTROY SUPERSEDED PAGES.
Those responsible for maintaining this publication should ensure that all previous changes have been
received and incorporated.
SKY497
Installation Manual
ii
Rev. C
FOREWORD
This manual provides information intended for use by persons who, pursuant to current regulatory
requirements, are qualified to install this equipment. Because installations vary depending on a particular
aircraft, this manual is intended as a guideline. Standard installation practices prescribed in FAA
Advisory Circular No. 43.13 must be followed. If further information is required, contact:
BFGoodrich Avionics Systems
Attn: Field Service Engineering
5353 52nd Street, S.E.
Grand Rapids, MI USA 49512
Tel. (800) 453-0288 or (616) 949-6600
We welcome your comments concerning this manual. Although every effort has been made to keep it free
of errors, some may occur. When reporting a specific problem, please describe it briefly and include the
manual part number, the paragraph/figure/table number, and the page number. Send your comments to:
BFGoodrich Avionics Systems
Attn: Technical Publications
5353 52nd Street, S.E.
Grand Rapids, MI USA 49512
REVISION C HIGHLIGHTS
Revision C is a republication. This republication completely replaces the exiting book. Materials for the
alternate display and the configuration jumper’s have been added in addition to new and revised material
of the SKY497. Discard previous editions of the old publication.
This revision will be kept current by change notices, replace changed pages with the corresponding
numbered page. A new list of effective pages will be issued with each change. The list shall reflect the
current changes in addition to the tabulation of all previous changes, thus providing a complete history of
the manual.
SKY497
Installation Manual
iii
Rev. C
TABLE OF CONTENTS
Paragraph Page
Chapter 1
GENERAL INFORMATION
1.1 INTRODUCTION ............................................................................................................ 1-1

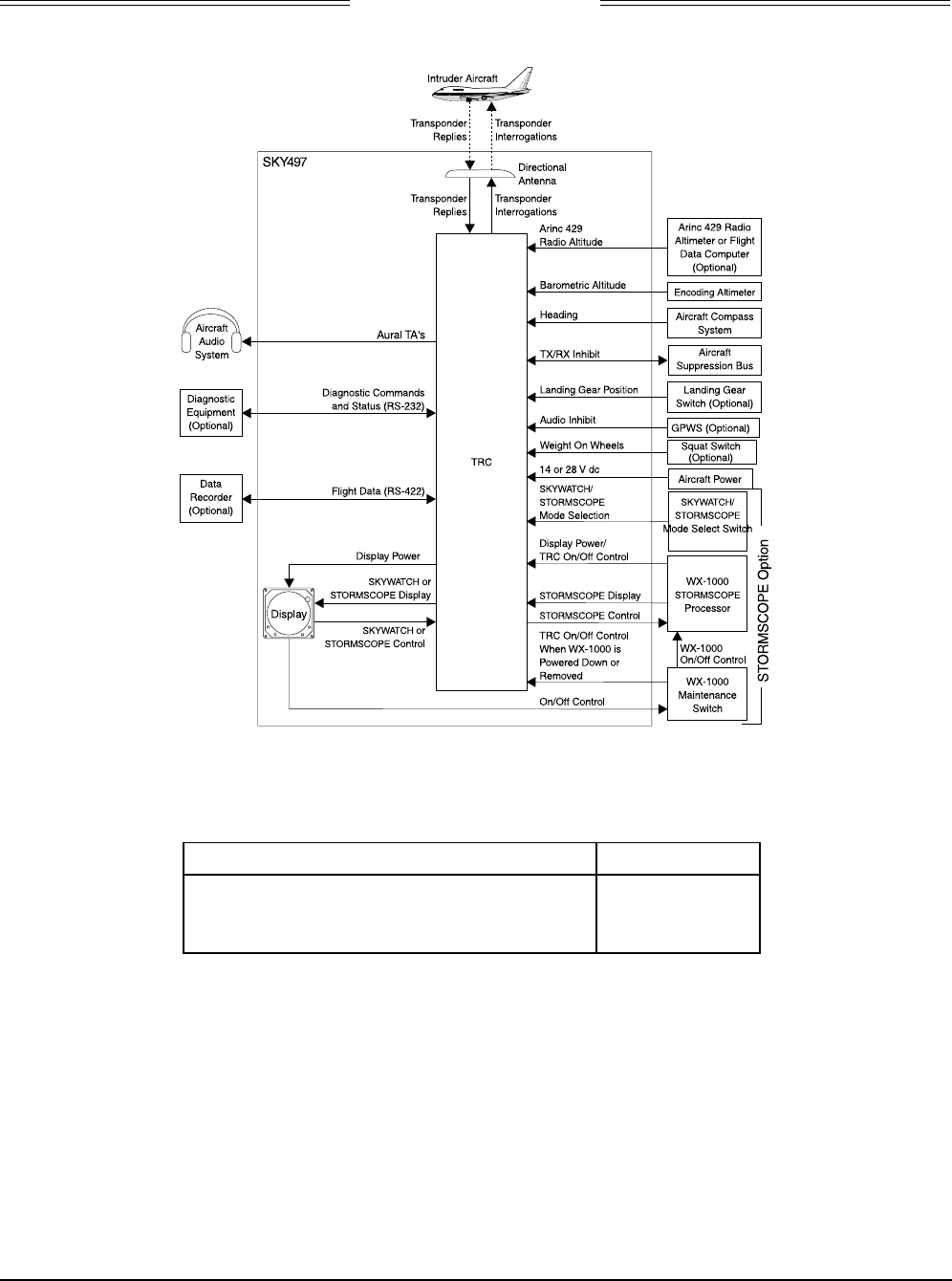

1.2 FUNCTIONAL DESCRIPTION ..................................................................................... 1-1
1.3 PHYSICAL DESCRIPTION............................................................................................ 1-2
1.3.1 TRC497 Transmitter Receiver Computer P/N 805-10800-xxx...................................... 1-3
1.3.2 Display.............................................................................................................................. 1-7

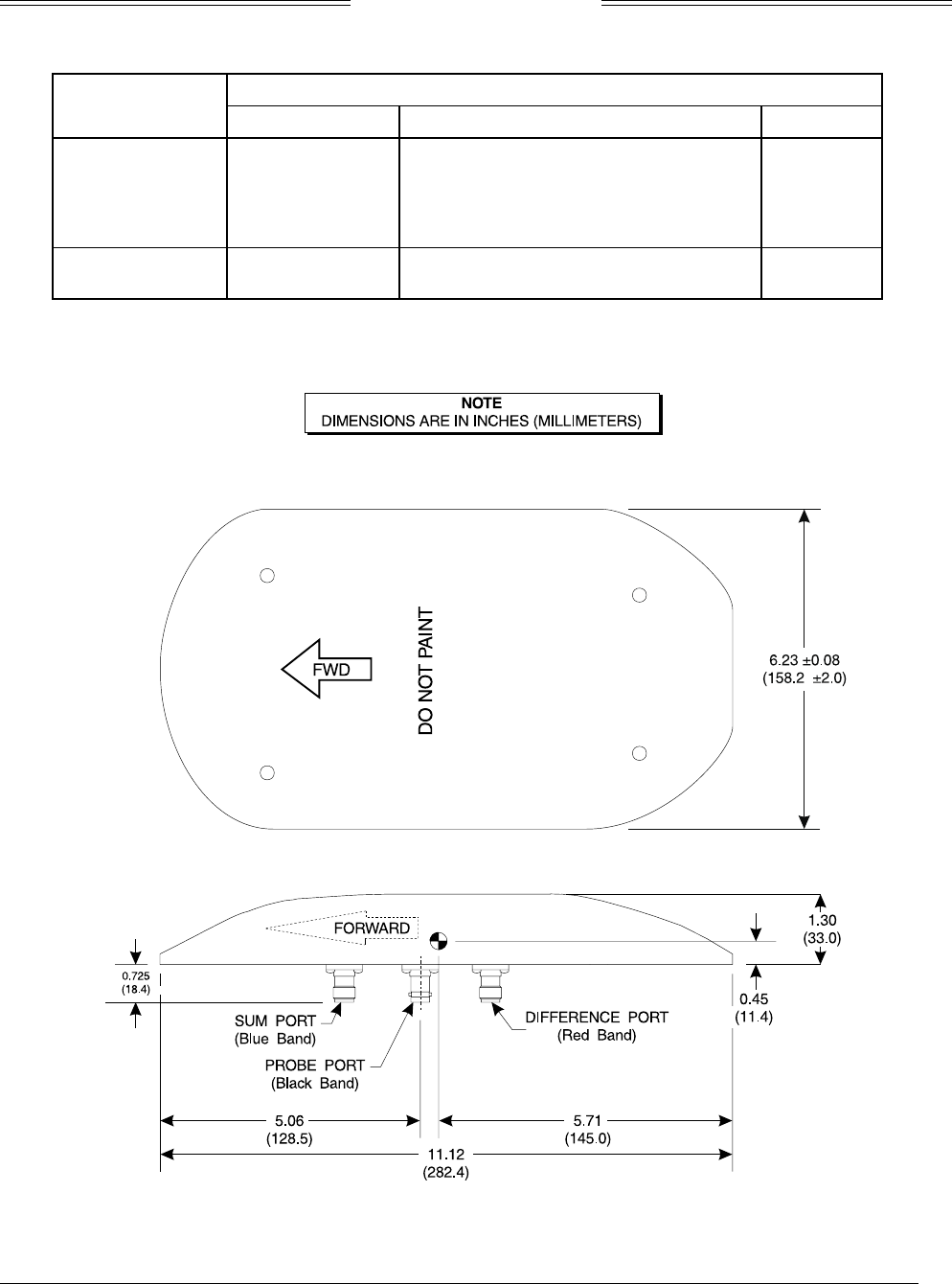

1.3.3 NY164 Directional Antenna P/N 805-10890-001........................................................... 1-9
1.4 SPECIFICATIONS ........................................................................................................ 1-11

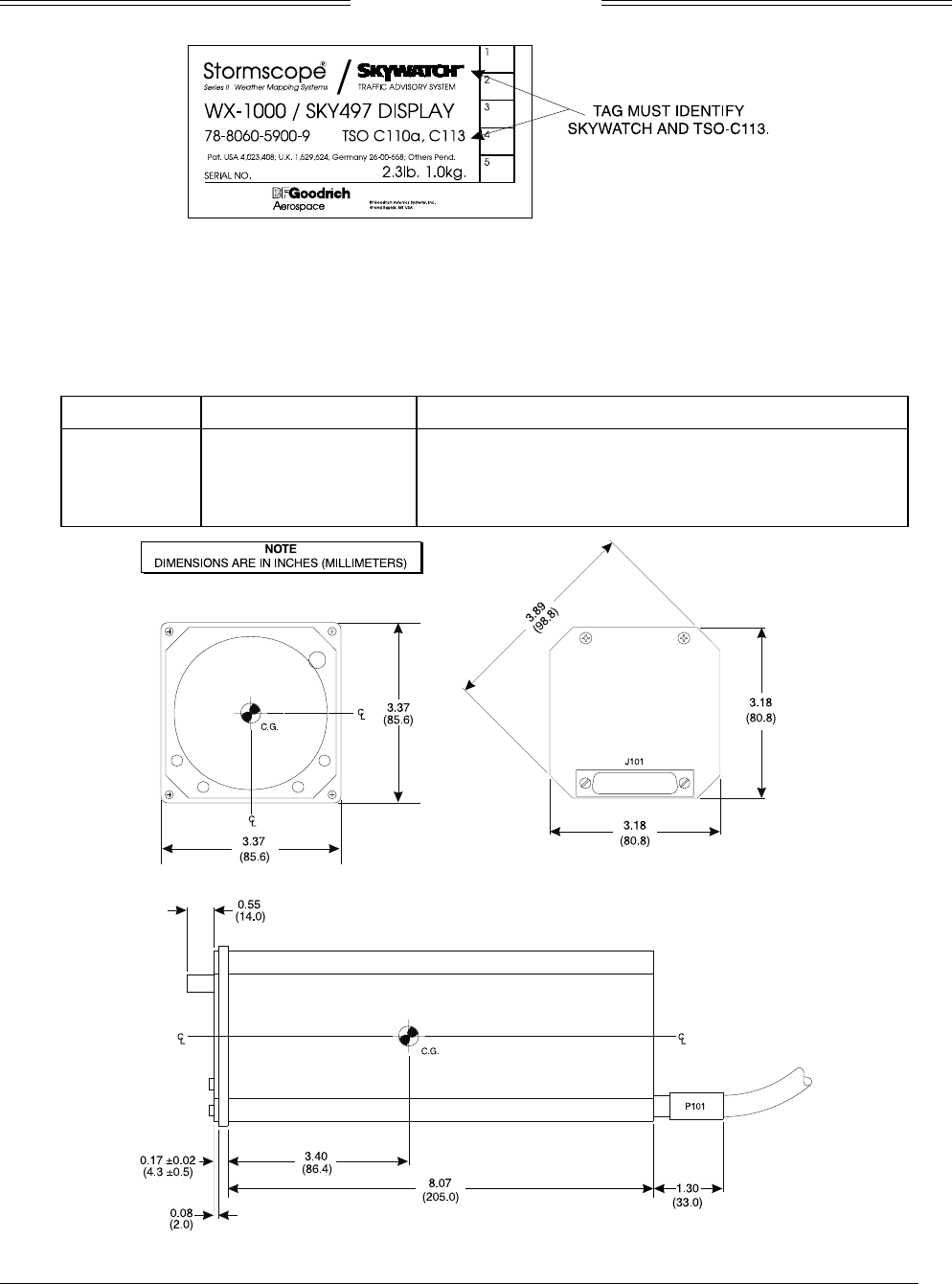

1.4.1 WX-1000/SKY497 Display............................................................................................. 1-11

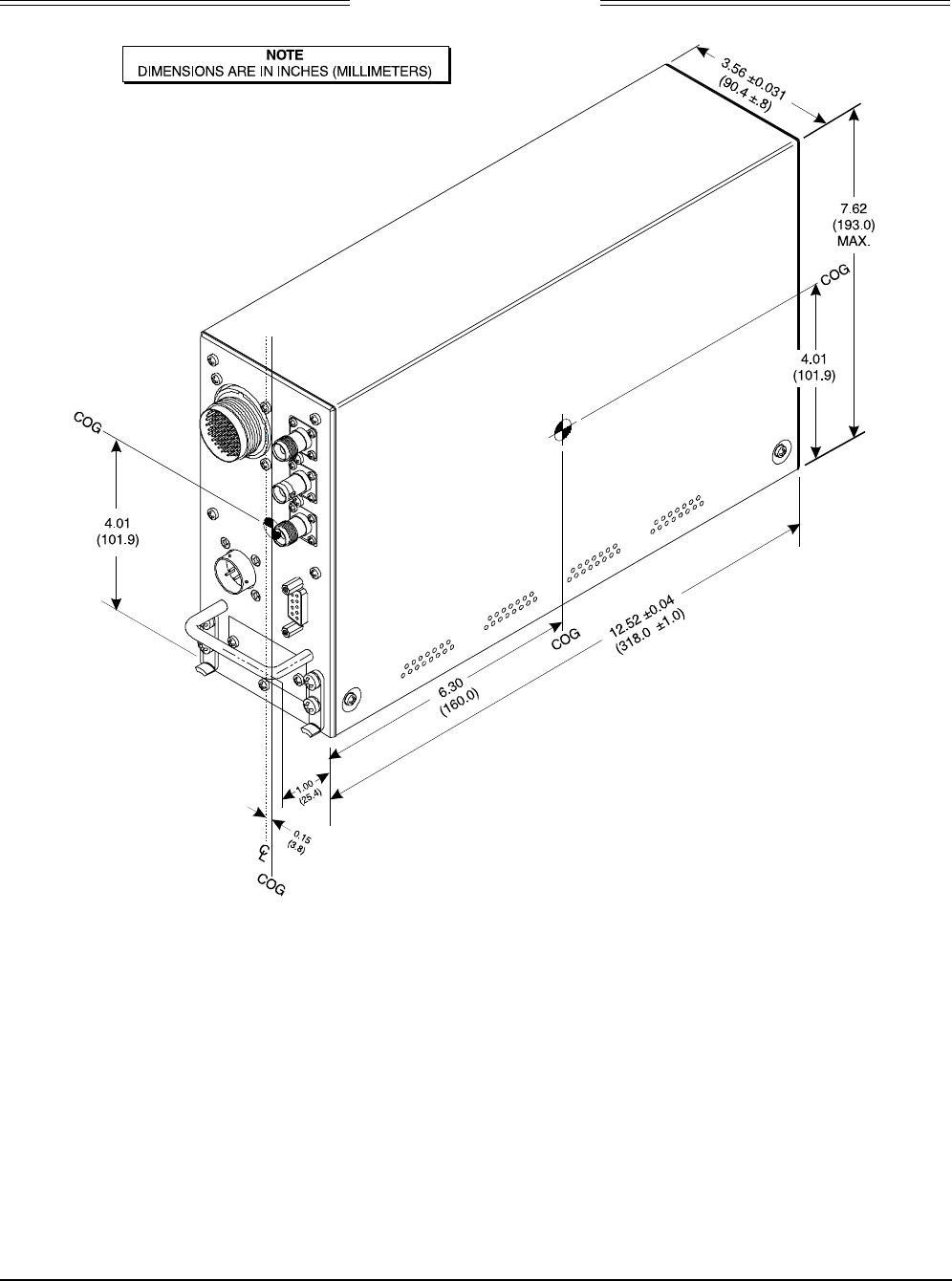

1.4.2 Transmitter Receiver Computer (TRC)........................................................................ 1-12
1.4.3 Directional Antenna ...................................................................................................... 1-13
1.5 INTERFACE .................................................................................................................. 1-13
1.6 EQUIPMENT REQUIRED NOT SUPPLIED.............................................................. 1-13
1.7 INSTALLATION APPROVAL ...................................................................................... 1-14
1.8 WARRANTY INFORMATION...................................................................................... 1-15
1.8.1 Warranty Statement...................................................................................................... 1-15
1.8.2 Related Policies and Procedures................................................................................... 1-15
Chapter 2
INSTALLATION
2.1 INTRODUCTION ............................................................................................................ 2-1
2.2 UNPACKING, INSPECTION AND STORAGE ............................................................ 2-1

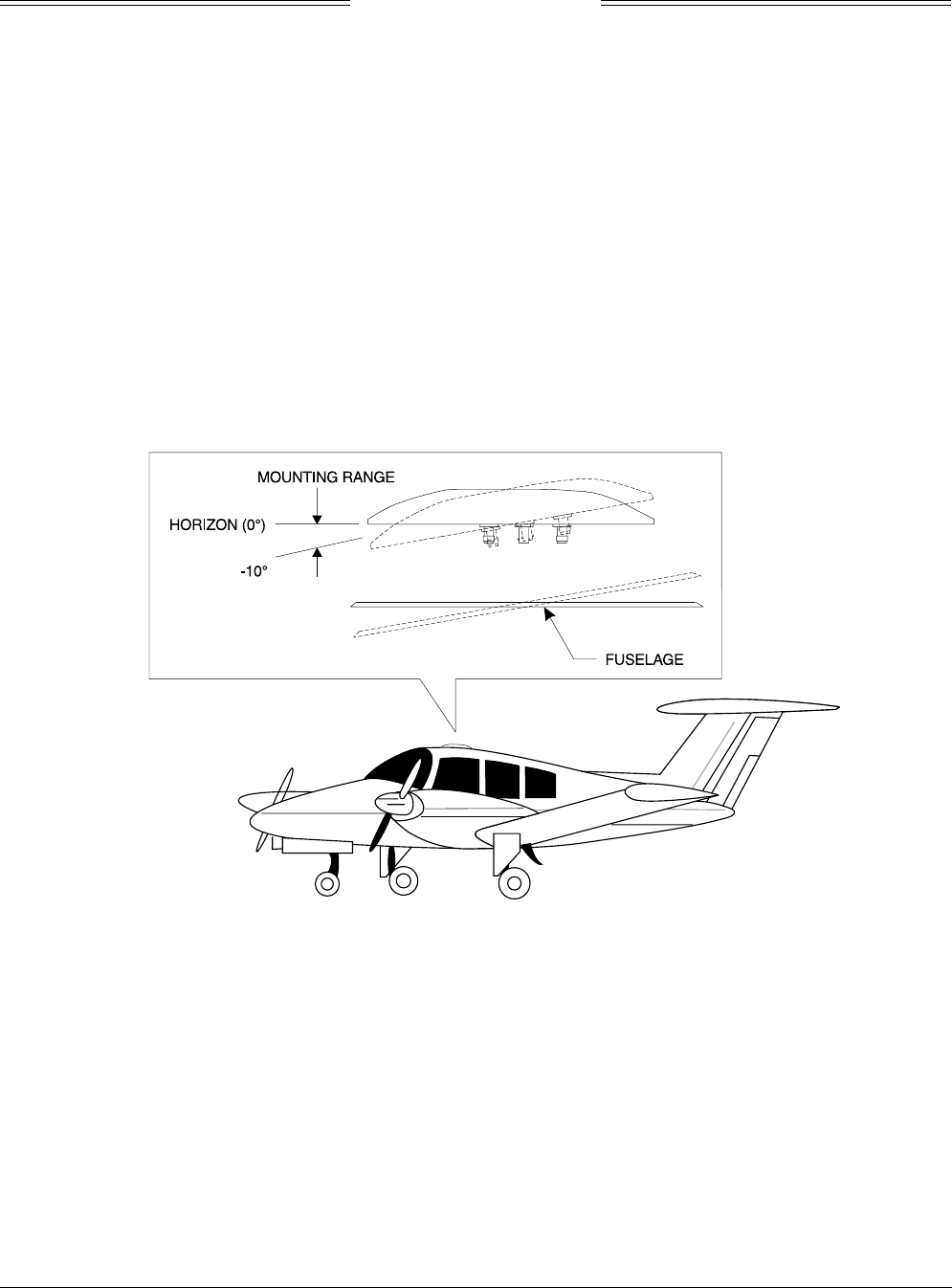

2.3 ANTENNA LOCATION .................................................................................................. 2-1
2.4 TRC LOCATION.............................................................................................................. 2-2
2.5 DISPLAY LOCATION................................................................................................... 2-11
2.6 CABLE REQUIREMENTS AND FABRICATION ...................................................... 2-11
2.6.1 Antenna Cables.............................................................................................................. 2-12
2.6.2 Configuration Jumpers ................................................................................................. 2-14
2.6.3 Display Cable ................................................................................................................. 2-15
2.6.4 Heading Input Cable ..................................................................................................... 2-18
2.6.5 ARINC 429 Data Cables................................................................................................ 2-20
2.6.6 Altimeter Input Cable ................................................................................................... 2-21
2.6.7 Audio Alert Output Cable ............................................................................................. 2-21
2.6.8 Suppression Bus I/O...................................................................................................... 2-21
2.6.9 Ground Proximity Warning System (GPWS) Input .................................................... 2-22
2.6.10 SKYWATCH® /Stormscope® Display Mode Switch.................................................... 2-22
2.6.11 WX-1000 Maintenance Switch...................................................................................... 2-22
2.6.12 Squat Switch Input........................................................................................................2-22
2.6.13 Landing Gear Switch Input .......................................................................................... 2-23
2.6.14 Power Cable ................................................................................................................... 2-23
2.7 ANTENNA INSTALLATION........................................................................................ 2-23

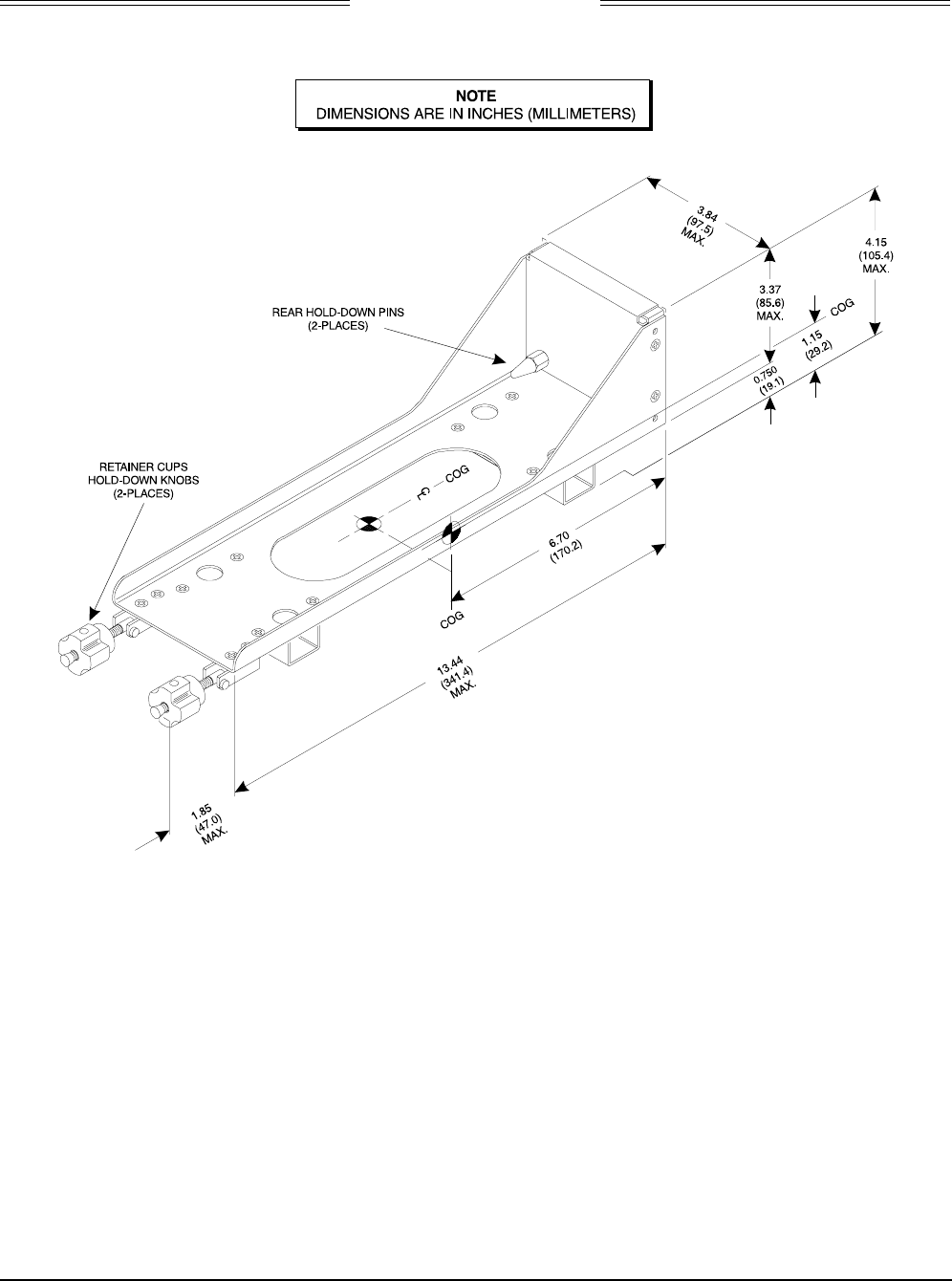

2.8 TRC MOUNTING TRAY INSTALLATION ................................................................. 2-25
2.9 TRC INSTALLATION ................................................................................................... 2-26
2.10 MOUNTING THE WX-1000/SKY497 DISPLAY ......................................................... 2-28
2.10.1 Panel Cutout .................................................................................................................. 2-28
2.10.2 Display Installation ....................................................................................................... 2-29
SKY497
Installation Manual
iv
Rev. C
TABLE OF CONTENTS
(Continued)
Paragraph Page
Chapter 3
INSTALLATION CHECKOUT
3.1 INTRODUCTION.............................................................................................................3-1
3.2 CONTROLS ......................................................................................................................3-1
3.3 CHECKOUT PROCEDURE ............................................................................................3-2
3.4 SELF TEST.......................................................................................................................3-6
Chapter 4
MAINTENANCE
4.1 INTRODUCTION.............................................................................................................4-1
4.2 CONTINUED AIRWORTHINESS..................................................................................4-1
4.3 PERIODIC MAINTENANCE ..........................................................................................4-1
4.3.1 WX-1000/SKY497 Display ...............................................................................................4-1
4.3.2 TRC ...................................................................................................................................4-1
4.3.3 Antenna.............................................................................................................................4-1
4.4 SERVICE MENU .............................................................................................................4-2
4.4.1 Calibration ........................................................................................................................4-3
4.4.2 System Log........................................................................................................................4-4
4.4.3 System Data......................................................................................................................4-5
4.4.3.1 Software Version ..............................................................................................................4-6
4.4.3.2 Configuration....................................................................................................................4-6
4.4.3.3 Data Monitor ....................................................................................................................4-9
4.4.4 Ground Test ....................................................................................................................4-13
4.5 TROUBLESHOOTING ..................................................................................................4-14
4.6 ERROR MESSAGES......................................................................................................4-15
4.7 TRC497/WX-1000 ADAPTER PLUG.............................................................................4-18
4.8 DISPOSITION OF FAILED ITEMS .............................................................................4-19
Appendix A
SKY497 INTERFACE SIGNAL & CABLE CHARACTERISTICS
A.1 INTRODUCTION............................................................................................................A-1
Appendix B
INSTALLATION CHECKOUT USING THE TCAS-201 RAMP TEST SET
B.1 INTRODUCTION............................................................................................................B-1
B.2 CONTROLS .....................................................................................................................B-1
B.3 CHECKOUT PROCEDURE ...........................................................................................B-2
Appendix C
INSTALLATION CHECKOUT USING THE TIC T-49C FLIGHTLINE TESTER
C.1 INTRODUCTION............................................................................................................C-1
C.2 CONTROLS .....................................................................................................................C-1
C.3 CHECKOUT PROCEDURE ...........................................................................................C-2
Appendix D
USING THE TERMINAL DEVICE
USING THE TERMINAL DEVICE ............................................................................................D-1
SKY497
Installation Manual
v
Rev. C
TABLE OF CONTENTS
(Continued)
Paragraph Page
Appendix E
INSTALLATION CHECKOUT USING AN ALTERNATE DISPLAY
E.1 INTRODUCTION ............................................................................................................E-1
E.2 CONTROLS......................................................................................................................E-1
E.3 CHECKOUT PROCEDURE............................................................................................E-1
E.3.1 Self Test............................................................................................................................E-5
SKY497
Installation Manual
vi
Rev. C
LIST OF ILLUSTRATIONS
Figure Page
1-1 Surveillance Zone .............................................................................................................1-2
1-2 Main Components ............................................................................................................1-3
1-3 Standard TRC Mounting Tray (P/N 805-10870-001) .....................................................1-5
1-4 Ruggedized TRC Mounting Tray (P/N 805-10870-003)..................................................1-6
1-5 P1 Connector Dimensions (Reference Only)...................................................................1-6
1-6 TRC Transmitter Receiver Computer (TRC)..................................................................1-7
1-7 WX-1000/SKY497 Display Equipment Tag ....................................................................1-8
1-8 WX-1000/SKY497 Display ...............................................................................................1-8
1-9 NY164 Directional Antenna ..........................................................................................1-10
2-1 Directional Antenna Mounting Location ........................................................................2-2
2-2 Interconnect Wiring Without WX-1000 ..........................................................................2-3
2-3 Interconnect Wiring With WX-1000................................................................................2-7
2-4 Connector P1 Contact Arrangement .............................................................................2-14
2-5 Display Cable..................................................................................................................2-17
2-6 KCS55 Heading Flag Connection..................................................................................2-18
2-7 Heading Input Cable......................................................................................................2-19
2-8 Antenna Mounting Holes...............................................................................................2-24
2-9 Directional Antenna Installation ..................................................................................2-24
2-10 Mounting Holes for Standard Mount Tray, P/N 805-10870-001 .................................2-25
2-11 Mounting Holes for Ruggedized Mount Tray, P/N 805-10870-003 .............................2-25
2-12 TRC Installation.............................................................................................................2-27
2-13 Instrument Panel Cutout and Mounting Holes............................................................2-28
2-14 Display Installation........................................................................................................2-29
3-1 Controls.............................................................................................................................3-1
3-2 Start-up Screen.................................................................................................................3-2
3-3 Standby Screen.................................................................................................................3-3
3-4 Typical Patch Antenna Tripod Mount.............................................................................3-5
3-5 Self Test Screen ................................................................................................................3-6
3-6 Self Test Failed Screen ....................................................................................................3-7
4-1 Service Menu ....................................................................................................................4-2
4-2 Calibration Screen............................................................................................................4-3
4-3 Successful Re-Calibration................................................................................................4-3
4-4 Failed Calibration ............................................................................................................4-4
4-5 System Log........................................................................................................................4-4
4-6 System Data......................................................................................................................4-5
4-7 Software Version ..............................................................................................................4-6
4-8 Configuration - Page 1 .....................................................................................................4-7
4-9 Configuration - Page 2 .....................................................................................................4-8
4-10 Configuration - Page 3 .....................................................................................................4-8
4-11 Configuration - Page 4 .....................................................................................................4-9
4-12 Data Monitor - Page 1 ....................................................................................................4-10
4-13 Data Monitor - Page 2 ....................................................................................................4-10
4-14 Data Monitor - Page 3 ....................................................................................................4-11
4-15 Data Monitor - Page 4 ....................................................................................................4-12
4-16 Data Monitor - Page 5 ....................................................................................................4-12
4-17 Ground Test....................................................................................................................4-13
4-18 Adapter Plug Jumper Installation ................................................................................4-18
4-19 Adapter Plug Assembly..................................................................................................4-18
SKY497
Installation Manual
vii
Rev. C
LIST OF ILLUSTRATIONS
(Continued)
Figure Page
B-1 Controls ............................................................................................................................B-1
B-2 Start-up Screen................................................................................................................B-3
B-3 Standby Screen ................................................................................................................B-3
C-1 Controls ............................................................................................................................C-1
C-2 Start-up Screen................................................................................................................C-2
C-3 Standby Screen ................................................................................................................C-3
E-1 Typical Patch Antenna Tripod Mount............................................................................E-3
LIST OF TABLES
Table Page
1-1 SKY497 Configuration .................................................................................................... 1-3
1-2 TRC Installation Kit P/N 817-10800-xxx ....................................................................... 1-4
1-3 WX-1000/SKY497 Display Installation Kit P/N 817-10802-001 ................................... 1-8
1-4 Airframe Installation Kits............................................................................................... 1-9
1-5 Directional Installation Kit 817-10009-xxx.................................................................. 1-10
2-1 Directional Antenna SIGMA and DELTA Port Cable Vendors.................................. 2-12
2-2 Cable to Connector Reference....................................................................................... 2-13
2-3 Configuration Jumpers ................................................................................................. 2-14
2-4 Heading Flag Action...................................................................................................... 2-15
2-5 WX-1000/SKY497 Display Connection......................................................................... 2-15
2-6 WX-1000 Processor Connection .................................................................................... 2-16
2-7 Display Cable Vendors .................................................................................................. 2-16
2-8 Heading Input Cable Vendors ...................................................................................... 2-19
4-1 Fault Isolation................................................................................................................ 4-14
4-2 Installation Related Error Messages............................................................................ 4-15
4-3 Informational Error Messages...................................................................................... 4-17
4-4 Adapter Plug Jumpers................................................................................................... 4-18
B-1 IFR Systems TCAS-201 Ramp Test Set Setup Data .....................................................B-2
SKY497
Installation Manual
viii
Rev. C
This page intentionally left blank.
SKY497
Installation Manual
1-1
Rev. C
CHAPTER 1
GENERAL INFORMATION
1.1 INTRODUCTION
This section contains a functional description of the SKY497, describes the various hardware and software
configurations, outlines the main features of the system, and provides a system block diagram.
NOTES
1. This section provides installation information for the BFGoodrich Avionics Systems
SKY497 using the WX-1000/SKY497 Display.
2. The SKY497 does not track intruder aircraft approaching at a closure rate greater
than 900 knots.
3. The SKY497 can be interfaced to an alternate display device (i.e., MFD, weather
radar indicator), contact BFGoodrich Avionics Systems Field Service Engineering at
1-800-453-0288 or 1-616-949-6600 for approved displays and software version
required for the TRC497.
4. The SKY497 can be interfaced to a weather radar indicator in place of the
WX-1000/SKY497 display, by using the BFGoodrich Avionics Systems RGC250
(Radar Graphics Computer). Refer to the RGC250 Installation Manual for details.
5. An alternate display device can be used in place of the WX-1000/SKY497 display as
the primary means of displaying traffic information. Refer to manufacturer
instructions for installation details.
6. When an alternate display device is installed the service menu can not be accessed,
therefore a terminal device (i.e., laptop) is required for post-installation checkout
(refer to appendix E).
1.2 FUNCTIONAL DESCRIPTION
The BFG Avionics Systems SKY497 is an airborne traffic advisory system that advises the flight crew
where to look for aircraft that may pose a collision threat. It is intended for use by corporate and general
aviation aircraft. SKY497 alerts the flight crew to nearby transponder equipped aircraft and assists the
pilot in the visual acquisition of aircraft that may represent a danger.
Traffic information, out to a selected range of either 2 or 6 nautical miles, is graphically displayed on the
CRT. Using shapes (i.e., Traffic Advisory = solid circle; Other Traffic = open diamond) and text, the display
shows the relative position of threat aircraft.
SKY497
Installation Manual
1-2
Rev. C

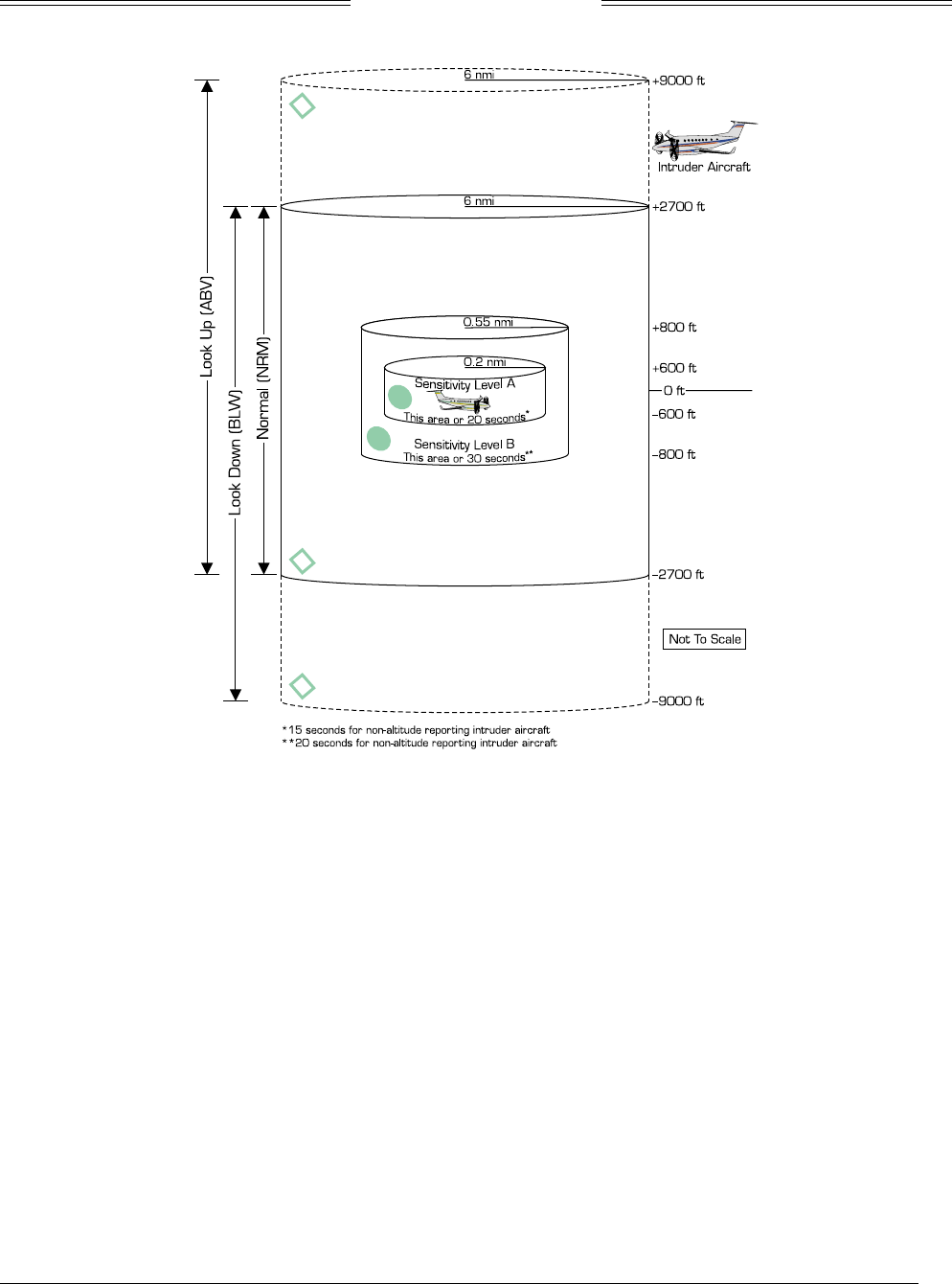

Figure 1-1. Surveillance Zone
1.3 PHYSICAL DESCRIPTION
The SKY497 System consists of the following main components:
• Transmitter Receiver Computer
• Display
• Directional Antenna, NY164, or equivalent (e.g., NY156)
SKY497 is an active system that operates as an aircraft-to-aircraft interrogation device. The SKY497
equipment interrogates transponders in the surrounding airspace similar to ground based radars. When
replies to these active interrogations are received, the responding aircraft’s range, altitude, and closure
rates are computed to plot traffic location and predict collision threats. Figure 1-1 shows the SKY497
surveillance zone for intruding aircraft. A simplified block diagram of the main components and their
relationships is shown in figure 1-2.
SKY497
Installation Manual
1-3
Rev. C
Figure 1-2. Main Components
The following table identifies the components which make-up the configurations.
Table 1-1. SKY497 Configuration
COMPONENT PART NUMBER
WX-1000/SKY497 Display 78-8060-5900-x*
Directional Antenna
NY164 805-10890-001
TRC497 Transmitter Receiver Computer 805-10800-001
* Dash numbers identify different versions (refer to paragraph 1.4.1).
1.3.1 TRC497 Transmitter Receiver Computer P/N 805-10800-xxx
The TRC is mounted in a mounting tray supplied with the installation kit (see table 1-2). The standard
tray (figure 1-3) will meet the requirements for fixed wing aircraft. A ruggedized version of the tray (figure
1-4) is required for rotorcraft installations.
To meet different space requirements, the I/O signal connector (P1) will accommodate either a straight or
right-angle backshell. TRC installation kits (see table 1-2) include either a straight backshell or right-angle
backshell (see figure 1-5).
SKY497
Installation Manual
1-4
Rev. C
Table 1-2. TRC Installation Kit P/N 817-10800-xxx
KIT P/N DESCRIPTION QUANTITY PART NUMBER
For Installation on Fixed-Wing Aircraft with Straight Backshell
Consists of:
Mounting Tray Assembly 805-10870-001
4.75 In. Straight Backshell 613-10042-001
I/O Connector, 100-Position, Female, (Mil-C-38999 Series III) 1 605-10205-001
(Includes #22D Crimp Terminals)
Spare Terminals for I/O Connector 10 M39029/56-348
Power Connector, 3-Position, Straight Plug 1 MS3126F12-3S
(Includes #16 Crimp Terminals)
817-10800-002
Spare Terminals for Power Connector (M39029/32-247) 2 607-10018-001
For Installation on Fixed-Wing Aircraft with Right-Angle Backshell
Consists of:
Mounting Tray Assembly 805-10870-001
Right-Angle Backshell 613-10043-001
I/O Connector, 100-Position, Female, (Mil-C-38999 Series III) 1 605-10205-001
(Includes #22D Crimp Terminals)
Spare Terminals for I/O Connector 10 M39029/56-348
Power Connector, 3-Position, Straight Plug 1 MS3126F12-3S
(Includes #16 Crimp Terminals)
817-10800-003
Spare Terminals for Power Connector (M39029/32-247) 2 607-10018-001
For Installation on Rotorcraft with Straight Backshell
Consists of:
Mounting Tray Assembly 805-10870-003
4.75 In. Straight Backshell 613-10042-001
I/O Connector, 100-Position, Female, (Mil-C-38999 Series III) 1 605-10205-001
(Includes #22D Crimp Terminals)
Spare Terminals for I/O Connector 10 M39029/56-348
Power Connector, 3-Position, Straight Plug 1 MS3126F12-3S
(Includes #16 Crimp Terminals)
817-10800-004
Spare Terminals for Power Connector (M39029/32-247) 2 607-10018-001
For Installation on Rotorcraft with Right-Angle Backshell
Consists of:
Mounting Tray Assembly 805-10870-003
Right-Angle Backshell 613-10043-001
I/O Connector, 100-Position, Female, (Mil-C-38999 Series III) 1 605-10205-001
(Includes #22D Crimp Terminals)
Spare Terminals for I/O Connector 10 M39029/56-348
Power Connector, 3-Position, Straight Plug 1 MS3126F12-3S
(Includes #16 Crimp Terminals)
817-10800-005
Spare Terminals for Power Connector (M39029/32-247) 2 607-10018-001
SKY497
Installation Manual
1-5
Rev. C
Figure 1-3. Standard TRC Mounting Tray (P/N 805-10870-001)
SKY497
Installation Manual
1-6
Rev. C

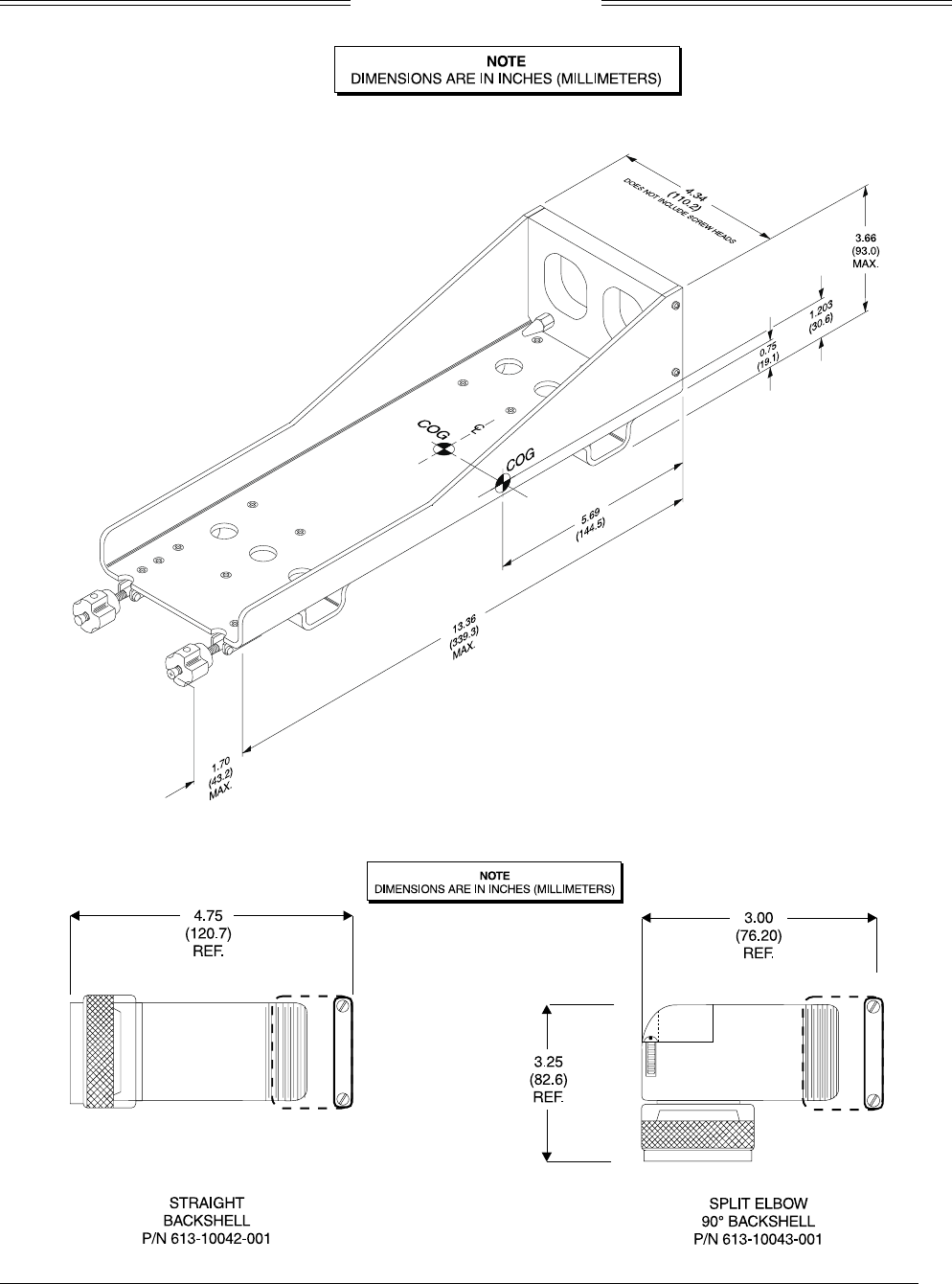

Figure 1-4. Ruggedized TRC Mounting Tray (P/N 805-10870-003)
Figure 1-5. P1 Connector Dimensions (Reference Only)
SKY497
Installation Manual
1-7
Rev. C
Figure 1-6. TRC497 Transmitter Receiver Computer (TRC)
1.3.2 Display
The SKY497 can be used with a WX-1000/SKY497 display, an alternate display device or both. When
interfaced to both displays (WX-1000/SKY497 display and alternate display), display functions are
independent from each other. When installing an alternate display device the service menu cannot be
accessed, even if a WX-1000/SKY497 display is installed, therefore a terminal device (i.e., laptop) is
required for post-installation checkout (see appendix E).
The SKY497 is designed to transmit traffic information to the alternate display device via our ARINC-429
bus interface. Refer to display manufacturer instructions for installation details.
WX-1000/SKY497 Display P/N 78-8060-5900-x. To operate with SKYWATCH, existing WX-1000 displays
must conform to TSO-C113. If the equipment tag on the back of the unit (see figure 1-7) does not identify
SKYWATCH and TSO-C113, return the display to the factory for modification. To schedule workload and
ensure a quick turn around, a return authorization will be required. Call BFG Avionics Systems Customer
Service (1-800-453-0288 or 1-616-949-6600) for details.
SKY497
Installation Manual
1-8
Rev. C
Figure 1-7. WX-1000/SKY497 Display Equipment Tag
The display unit mounts in a standard 3ATI panel cutout. All connections to the display are made through
a single 25-position male D-subminiature connector on the back panel. Figure 1-8 depicts the indicator
dimensions. The last digit of the part number identifies the different versions (refer to paragraph 1.4.1).
Table 1-3 lists the contents of an installation kit supplied with each unit.
Table 1-3. WX-1000/SKY497 Display Installation Kit P/N 817-10802-001
QUANTITY PART NUMBER DESCRIPTION
4 26-1001-6374-5 Screw, Machine, 6-32 x 3/4 in. Phillips Pan Head, Black Oxide
1 M24308/2-283F Connector, 25 Position Recpt. Shell
1 26-1006-2426-6 Connector Backshell, DB25
2 26-1006-1089-3 Connector Lock Post Assembly
25 M39029/63-368 Connector Socket, Screw Machine
Figure 1-8. WX-1000/SKY497 Display
SKY497
Installation Manual
1-9
Rev. C
1.3.3 NY-164 Directional Antenna P/N 805-10890-001
The directional antenna is a teardrop-shaped antenna. Connections are made through two TNC and one
BNC connector. The antenna is sealed against environmental extremes and is non-repairable. To ensure a
tight seal between the airframe and antenna, an O-ring seal (i.e., an O-ring groove for an MS28775-044 O-
ring) has been incorporated into the design. An O-ring is supplied with each antenna. To fit specific
airframes, a special adapter plate is also required. The adapter plate is included in the installation kit
shipped with each system. Refer to table 1-4 for a list of installation kits associated with various airframes.
For aircraft not listed, contact the aircraft manufacturer for information relative to the radius of the area
where the antenna is to be mounted. Table 1-5 lists the contents of each installation kit. The installation
kits differ only in the size of the special airframe adapter plate. Figure 1-9 depicts the antenna dimensions.
Table 1-4. Airframe Installation Kits
MANUFACTURER AIRFRAME
INSTALLATION KIT
PART NUMBER
AEROSPATIALE ATR-42 817-10009-001
AGUSTA A109 817-10009-006
BAE/RAYTHEON HAWKER 400, 600, 700, 800, and 1000 817-10009-004
BEECH BEECHJET, KING AIR 90, 100, 200, 300, and
350
BARON 33, 35, 36, 55, 58, BE-99, 1300, &
1900C/D
817-10009-001
817-10009-002
BELL 206, 407, 427 817-10009-006
CANADAIR CHALLENGER 600 and 601 817-10009-005
CESSNA CITATION III, VI, VII
CITATIONJET, CITATION I, II, V
182, 210, 337, 401, 414, 425, 441
817-10009-001
817-10009-004
817-10009-006
COMMANDER 114 817-10009-006
DASSAULT FALCON 10, 20, 50
FALCON 900
817-10009-001
817-10009-005
DEHAVILLAND Dash 7/8 817-10009-001
EMBREAR EMB 110, 120 817-10009-001
EUROCOPTER EC135 817-10009-006
FAIRCHILD METROLINER, METROLINER III, MERLIN 817-10009-001
FOKKER F28 817-10009-003
GULFSTREAM G-I, G-II, and G-III 817-10009-001
IAI WESTWIND 1125 817-10009-001
LEARJET LEARJET 31, 35, 36, 55, and 60 817-10009-004
MITSUBISHI MU-2 Marquise 817-10009-002
MOONEY M20 817-10009-006
PILATIS PC-12 817-10009-001
PIPER CHEYENNE 400LS
NAVAJO
MIRAGE, MALIBU
SARATOGA, SENECA
817-10009-001
817-10009-002
817-10009-005
817-10009-006
SAAB SF-340 817-10009-001
SABRELINER SABRE 65 817-10009-001
SHORTS 360 817-10009-001
SIKORSKY S-76 817-10009-006
SOCATA TBM-700
TB20
817-10009-001
817-10009-006
SKY497
Installation Manual
1-10
Rev. C
Table 1-5. Directional Antenna Installation Kit 817-10009-xxx
SUPPLIED PARTS *
KIT PART NUMBER PART NUMBER DESCRIPTION QUANTITY
817-10009-001 800-10066-001 Special Adapter Plate, 40 Inch Radius 1
817-10009-002 800-10066-002 Special Adapter Plate, 63 Inch Radius 1
817-10009-003 800-10066-004 Special Adapter Plate, 80 Inch Radius 1
817-10009-004 800-10066-003 Special Adapter Plate, 32 Inch Radius 1
817-10009-005 800-10066-005 Special Adapter Plate, 47 Inch Radius 1
817-10009-006
(No Adapter Plate)
100-10022-001*
101-10027-001*
Screw, 10-32 x 1 PPH SS (MS51958-67)
Stop Nut, 10-32 (MS21044C3)
4
4
* Hardware supplied with all kits.
Figure 1-9. NY164 Directional Antenna
SKY497
Installation Manual
1-11
Rev. C
1.4 SPECIFICATIONS
1.4.1 WX-1000/SKY497 Display
PART NUMBER DEFINITION:
78-8060-5900-8 (Black Bezel)
78-8060-5900-9 (Gray Bezel)
SIZE:
Height: 3.37 inches (8.56 centimeters)
Width: 3.37 inches (8.56 centimeters)
Depth: 8.24 inches (20.92 centimeters)
WEIGHT:
2.3 lb (1.0 kg)
OPERATING TEMPERATURE:
-20 to +55 degrees Celsius (-4 to +131 degrees Fahrenheit)
STORAGE TEMPERATURE:
-55 to +70 degrees Celsius (-67 to +158 degrees Fahrenheit)
OPERATING ALTITUDE:
55,000 feet (Maximum)
TSO COMPLIANCE:
C110a & C113
RTCA COMPLIANCE:
DO-160C F1-CA(NBM)XXXXXXZXXXZUAXXXXXX
POWER REQUIREMENTS:
+15/-15 V dc, 0.7 A (Maximum)
SKY497
Installation Manual
1-12
Rev. C
1.4.2 Transmitter Receiver Computer (TRC)
PART NUMBER: 805-10800-001 - TRC497, ARINC-429
SIZE: 12.52 inches (31.90 centimeters) Deep
3.56 inches (9.04 centimeters) Wide
7.62 inches (19.36 centimeters) High
WEIGHT: 8.94 lb (4.06 kg) Not Including Mounting Tray
9.82 lb (4.45 kg) With Standard Mounting Tray
10.95 lb (4.97 kg) With Ruggedized Mounting Tray
OPERATING TEMPERATURE: -55 to +70 degrees Celsius (-67 to +158 degrees Fahrenheit)
STORAGE TEMPERATURE: -55 to +85 degrees Celsius (-67 to +185 degrees Fahrenheit)
OPERATING ALTITUDE: 55,000 feet (Maximum)
COOLING: Conduction and Forced Air (Internal Fan) Convection
POWER REQUIREMENTS: 11 to 34 V dc, 70 Watts (Maximum)
TRACKING CAPABILITY: Up to 30 intruder aircraft (displays only the 8 highest priority aircraft)
SURVEILLANCE RANGE: Horizontal tracking radius:
11 nmi Maximum
Relative altitude tracking range:
±10,000 ft maximum
DISPLAY RANGES: Horizontal display ranges:
2 & 6 nmi
Relative altitude display ranges:
±2,700 ft (normal mode)
+9,000 ft to -2,700 ft (above mode/look up)
+2,700 ft to -9,000 ft (below mode/look down)
RANGE ACCURACY: ± 0.05 nmi (Typical)
BEARING ACCURACY: 5° RMS (Typical), 30° Peak Error
ALTITUDE ACCURACY: ±200 ft
CERTIFICATION: * USA (FAA) TSO C147 (Refer to FSAW 98-04B for Flight Standards Service policy
concerning follow-on field approvals.)
UK (CAA) VC01164
Germany (LBA) 10.941/1 NTSO
Italy (ENAC) 00/PC/002/MAE
Denmark (DCAA) 72-2003-2
France (DGCA) E.IM.016
RTCA COMPLIANCE: Software DO178-B Level D
DO-160D Category F2XBAB[(SBM)(UFF1)]XXXXXXZBABA(UUX)L[XXXX]XXX
* Listed are current certifications at time of publication, contact BFGoodrich Avionics Systems Field
Service Engineering at 1-800-453-0288 or 1-616-949-6600 for latest certification information.
SKY497
Installation Manual
1-13
Rev. C
1.4.3 Directional Antenna
PART NUMBER: 805-10890-001
SIZE: 1.3 inches (3.25) cm high
6.23 in (15.82 cm) wide
11.12 in (28.24 cm) deep
WEIGHT: 2.3 lb (1.04 kg)
SPEED: Rated to 600 knots (0.9 Mach) @ 25,000 feet.
FREQUENCY: 1030-1090 MHz
TSO CATEGORY: C118
ENVIRONMENTAL
CATEGORY: DO-160C F2-AC(CLM)XSFDFSXXXXXXXL(2A)X
FINISH: Gloss white Skydrol resistant polyurethane paint
1.5 INTERFACE
The electrical characteristics of all input and output signals are detailed in Appendix A.
1.6 EQUIPMENT REQUIRED NOT SUPPLIED
Antenna Sealant For pressurized aircraft, use a sealant that meets the requirements of SAE
AMS-S-8802 such as Flamemaster® CS3204 class B. For non-pressurized
aircraft, use a non-corrosive sealant that meets the physical requirements
of MIL-A-46146 such as General Electric RTV162.
System Cables The installer will supply all system cables. Cable requirements and
fabrication are detailed in para 2.6.
Connector Installation Antenna Cables See Table 2-2.
Tool M22520/5-01
Die M22520/5-19 (EMTEQ Cable PFLX195-100)
Die M22520/5-43 (EMTEQ Cable PFLX240-100)
Die M22520/5-35 (EMTEQ Cable PFLX340-100)
Die M22520/5-19 (ECS Cable 311601)
Die M22520/5-61 (ECS Cable 311201)
Die M22520/5-21 (ECS Cable 310801)
Die 190318 (PIC Cable S33141)
Die 190418 (PIC Cable S22089)
Die 190618 (PIC Cable S55122)
P1 Interconnect Crimping Tool M22520/2-01
Positioner M22520/2-07
Insertion MS27495 A22M
Removal MS27495 R22M
SKY497
Installation Manual
1-14
Rev. C
Connector Installation (Continued)
P8 Power Crimping Tool M22520/1-01
Positioner M22520/1-02
Insertion MS24256A16
Removal MS24356R16
P101 Display Crimping Tool M22520/2-01
Positioner M22520/2-08
Insertion/Removal M81969/1-02
Circuit Breaker For 14 V aircraft systems a 7.5 A circuit breaker is required and for 28 V
systems a 5 A circuit breaker is required. The circuit breaker may be
selected to match components of the individual aircraft.
Switches If the final configuration includes a WX-1000 Stormscope Weather Mapping
System, two external switches will be required. A SPST switch will be
required for the SKYWATCH/Stormscope display mode switch (SW1). A
DPDT switch will be required for the WX-1000 maintenance switch (SW2).
Any general purpose toggle switch (3 A @ 28 V dc) may be used.
Miscellaneous Hardware The installer must provide suitable hardware to attach the TRC Mounting
Tray. The following stainless steel fasteners are recommended:
Channel Mount: Four 8-32 UNC-2A pan head machine screws per ANSI
B18.6.3. (Six are required for the ruggedized tray.)
or
Four 8-32 UNC-2A hex socket cap machine screws per
ANSI/ASME B18.3. (Six are required for the ruggedized
tray.)
Four No. 8 helical spring lockwasher per ANSI/ASME
B18.21.1. (Six are required for the ruggedized tray.)
Flat Mount Eight 6-32 UNC-2A 100 degree flat head machine screws
per B18.6.3.
Oscilloscope Required to verify SKY497 suppression pulse (100 µs ±5µs, +28 V dc).
Flightline Tester Either the BFG TT391 Flightline Tester, IFR Systems TCAS-201 (with
TCAS I firmware) Ramp Test Set, or TIC T-49C Flightline Tester. The test
set is required to do the post installation checkout.
RS-232 Terminal Device
(e.g., Laptop Computer)
Required only if using an alternate display, (see Appendix D for
instructions). Terminal device is used for post installation checkout and
troubleshooting.
1.7 INSTALLATION APPROVAL
The SKY497 must be treated as a major alteration on F.A.A. form 337, if not installed under a type
certificate or supplemental type certificate. Application for approval may be made at any F.A.A. Flight
Standards District Office.
SKY497
Installation Manual
1-15
Rev. C
1.8 WARRANTY INFORMATION
The SKY497 Traffic Advisory System is warranted for two years from the date of installation (not to
exceed 30 months from the date of shipment from BFGoodrich Avionics Systems) subject to the following
limitations.
1.8.1 Warranty Statement
BFGoodrich Avionics Systems, (hereinafter called BFGAS), warrants each item of new equipment
manufactured or sold by BFGAS to be free from defects in material and workmanship, under normal use
as intended, for a period of 30 months from date of shipment by BFGAS to an authorized facility, or 24
months from date of installation by an authorized facility, whichever occurs first. No claim for breach of
warranties will be allowed unless BFGAS is notified thereof, in writing, within thirty (30) days after the
material or workmanship defect is found.
The obligation of BFGAS shall be limited to replacing or repairing at its factory the equipment found
defective under terms of this warranty certificate; providing that such equipment is returned in an
approved shipping container, transportation charges prepaid, to BFGAS, Grand Rapids, Michigan, or such
other location as BFGAS may authorize. BFGAS reserves the right to have necessary repairs performed by
an authorized agency.
This warranty shall not apply to any unit or part thereof which has not been installed or maintained in
accordance with BFGAS instructions, or has been repaired or altered in any way so as to adversely affect
its performance or reliability, or which has been subjected to misuse, negligence or accident.
This warranty is exclusive and is accepted by buyer in lieu of all other guaranties or warranties express or
implied, including without limitation the implied warranties of merchantability and fitness for a particular
purpose. Buyer agrees that in no event will BFGAS liability for all losses from any cause, whether based in
contract, negligence, strict liability, other tort or otherwise, exceed buyer’s net purchase price, nor will
BFGAS be liable for any special, incidental, consequential, or exemplary damages.
BFGAS reserves the right to make changes in design or additions to or improvements in its equipment
without the obligation to install such additions or improvement in equipment theretofore manufactured.
1.8.2 Related Policies and Procedures
1. If the original registered owner of a SKY497 system sells the aircraft in which the system is installed
during the warranty period, the remaining warranty may be transferred. Written notification of the
transaction must be submitted by the initial recipient of the warranty to:
ATTENTION: WARRANTY ADMINISTRATOR
BFGoodrich Avionics Systems
5353 52nd Street, S.E.
Grand Rapids, MI 49588-0873
U.S.A.
2. Equipment must be installed by a BFG Avionics Systems authorized dealer or installer. Installation of
equipment by facilities not specifically authorized will void the equipment warranty.
3. Notice of a claimed product defect must be given to BFG Avionics Systems or a designated BFG
Avionics Systems Service Agency within the specified warranty period.
SKY497
Installation Manual
1-16
Rev. C
4. A product which is defective in workmanship and/or material shall be returned to BFG Avionics
Systems via any Authorized Dealer with transportation charges prepaid. After correction of such
defects, the equipment will be returned to the Dealer, transportation prepaid by BFG Avionics
Systems via surface transportation. Any other means of transportation must be paid by the customer.
The risk of loss or damage to all products in transit shall be assumed by the party initiating the
transportation of such products. All items repaired or replaced hereunder shall be warranted for the
unexpired portion of the original warranty.
5. BFG Avionics Systems is in no way obligated or responsible for supporting or participating in the
costs of the installation warranty. The entire responsibility lies with the BFG Avionics Systems
Authorized Dealer making the installation. BFG Avionics Systems is only responsible for the product
warranties outlined in paragraph 1.8.1.
6. BFG Avionics Systems cannot authorize warranty credit for troubleshooting of other systems in the
aircraft in order to reduce noise interference with the SKY497 system.
SKY497
Installation Manual
2-1
Rev. C
CHAPTER 2
INSTALLATION
2.1 INTRODUCTION
The information and instructions provided in this section are directed toward fixed-wing aircraft. The
complex nature of rotorcraft installations (e.g., antenna placement; composite versus metal blades,
available ground plane, rotor mast interference, strike kits, etc.) requires that each installation be
evaluated on a case-by-case basis. Before starting a rotorcraft installation, contact BFGoodrich Avionics
Systems Field Service Engineering at 1-800-453-0288 or 1-616-949-6600.
NOTE
Installation instructions for the WX-1000 processor are detailed in the
WX-1000 Installation Manual.
Installation must be made by qualified personnel, in conformance with applicable government regulations.
This information furnished is for convenience only.
NOTE
Tolerances (unless otherwise indicated):
ANGLES ARE ± 1°
.00 TWO PLACE DECIMALS ARE ± .02
.000 THREE PLACE DECIMALS ARE ±. 010
2.2 UNPACKING, INSPECTION AND STORAGE
CAUTION
The display and TRC are sensitive to electrostatic discharge (ESD) and may
be damaged if not handled correctly. Do not remove protective covers from
electrical connectors during unpacking. Touching an exposed connector may
cause electrostatic damage to equipment.
Carefully unpack the system and note any damage to shipping containers or equipment. Visually inspect
each component for evidence of damage. Compare the equipment received with that noted on the packing
list. Immediately report any missing items or evidence of damage to the carrier making the delivery. To
justify a claim, retain the original shipping container and all packing materials.
Every effort should be made to retain the original shipping containers for storage. If the original
containers are not available, a separate cardboard container should be prepared that is large enough to
accommodate sufficient packing material to prevent movement. The ambient temperature of the storage
area should not fall below -55 °C (-67 °F) or rise above 85 °C (185 °F).
2.3 ANTENNA LOCATION
Location is an important factor for maximum antenna performance. Optimum location for a particular
aircraft type is usually available from the aircraft manufacturer. In selecting a location, consider the
following:
SKY497
Installation Manual
2-2
Rev. C
Directional Antenna The mounting site should be on the top forward fuselage, as close to the
centerline as possible, and within -10° of the in-flight horizon (see figure
2-1). The optimum mounting point for maximum coverage is as far forward
as possible without exceeding the -10° forward pitch. If necessary,
consideration should be given to relocating other antennas to obtain the
furthest forward location for the directional antenna. The antenna should
be mounted on the aircraft with at least 20 dB isolation (about 30 inches)
from other L-band frequency antennas and 24 inches from other antennas
or obstructions. The ground-plane should be as large as possible,
BFGoodrich Avionics Systems recommends a 30-inch ground-plane
diameter.
The directional antenna can be bottom mounted only if a suitable top
mount location is not available. Each bottom mount installation must be
evaluated on a case-by-case basis. Before starting a bottom mount
installation, contact BFGoodrich Avionics Systems Field Service
Engineering at 1-800-453-0288 or 1-616-949-6600.
Figure 2-1. Directional Antenna Mounting Location
2.4 TRC LOCATION
Typically the TRC is installed in the electronics bay. In selecting a location, consider the following:
Cable Length Cable runs should be as short as practicable in order to minimize potential
electrical interference. Cable length to antennas must not exceed the
values listed in table 2-1.
Cooling While the TRC has no special cooling requirements, it should be mounted
to permit adequate ventilation. Caution should be observed to not inhibit
airflow from the rear mounted fan. Allow at least three inches (8 cm) of
rear clearance.
Pressurized Aircraft The TRC may mount inside or outside the pressure vessel. The TRC
contains no batteries or potentially explosive components and will operate
up to 55,000 ft.
