Units & Time

You can specify units of measure and adjust

the time as displayed on your Navigator.

1. Touch > > .

2. Touch the desired items.

-: Displays and announces in

kilometers.

-: Displays and announces in miles.

Displays the current local time based on

GPS time in the time zone selected on

your device.

Automatically adjusts the time when day-

light saving time is in use.

Note

It is shown only in some time zones, which

countries or regions adopt the daylight

saving times.

Language

1. Touch > > .

2. Touch the desired items.

You can select the language text.

You can select voice travel messages and

driving directions. You can hear the voice of

language through speakers while driving.

3. Touch .

Guidance

You can select the types of voice and visual

notifications that you would like to use while

navigating as follows.

1. Touch > > .

2. Touch the desired items.

Warns you when your car exceeds the

speed limit. This prompt is not active by

default.

Activated when the Navigator recalculates

a new route.

This prompt is not active by default.

Note

Languages noted with (Spoken Streets)

are synthesized speeches, which have an

extensive vocabulary and pronunce the

street names as you approach turns, the

pre recorded voices have a limited vocab-

ulary.

Warns that the GPS signal is too low and

unreliable for navigation.

This prompt is active by default.

Reminder at the start of each journey.

This prompt is active by default.

You can set the type of the guidance

name that you will use to navigate the

route.

3. Touch .

Navigation menu

GPS Status

The Navigator uses the GPS receiver to

pinpoint your location. GPS signals are

automatically acquired and your vehicle's

location and position are constantly updated.

The GPS receiver may take a few minutes to

find its initial location.

For best results, ensure that the GPS receiver

has a clear vertical view of the sky.

1. Touch > > .

The following GPS information is displayed:

The angular distance east or west

on the earth's surface.

The location of a place north or

south on the earth's surface.

The rate of movement, as expressed

by kilometers or miles per hour.

The height above sea level.

You can check reception

signals from the GPS

satellite.

Note

If GPS signal can not be detected for a long

time, please restart whole navigation system

by pressing .

GPS not found

When you first start the navigator you will

hear the message “Signal too low”. This mes-

sage means that your navigation device has-

n’t yet located a reliable GPS signal. Check

that your device is connected to the cigarette

lighter and has a clear view of the sky.

The “GPS not found” message means that

there is no GPS antenna or the antenna is not

properly installed.

Please check that:

•The GPS antenna has a clear view of the

sky for uninterrupted GPS reception. The

navigator cannot calculate the route if there

is no GPS reception (for example, in a tun-

nel).

•The navigation device is charged or con-

nected to the cigarette lighter.

Map Setup

You can tap the “Map Setup” button to cus-

tomize your map display.

1. Touch > > .

2. Touch the desired items.

When this option is selected, the zoom is

speed dependent. The map zooms out at

higher speeds, displaying a larger map

area, and zooms in at slower speeds, dis-

playing a smaller map area.

If you manually change the zoom, the

Automatic Zoom returns to a system

defined zoom level after several seconds

of inactivity.

This option increases the size of street

names to make the text easier to read.

3. Touch .

Navigation menu

Tutorial

When you first start the Navigator, a message

box appears prompting you to open the

Navigator Guided Tour program.

The Guided Tour is an excellent way of

becoming familiar with the different navigation

features available. You can also start the

Navigator Guided Tour any time, by touching

the “Tutorial” button from the “Extras” menu.

1. Touch > > > .

2. Touch the desired items.

Help

You can display Navigator technical support

information.

Touch >>>.

Start Demo

This lets the Navigator display a

simulated route. Many of the navigation fea-

tures are disabled when the Demo is running.

Touch >>>.

Touch >to end the Demo.

Note

The demo route is set, and depending on the

current map data, the demo function may dif-

fer somewhat from the map data.

Select Map

This feature lets you change the currently

selected map to another map saved on built-

in memory.

1. Touch > > > .

You can touch the “Select Map” button to dis-

play the maps saved on your built in memory.

The Select Map screen displays map details

and version numbers. The map currently used

appears at the top of the list.

:Lets you refresh the screen when a

new memory card is inserted into the

device.

:Lets you permanently remove a

selected map.

Note

You cannot delete the current map.

Select lets you designate a selected map as

the current map.

Initialise

1. Touch > > > .

You can delete all list from the memory.

You can set all the function to their factory

settings.

2. Touch .

Navigation menu

Playing music

Playing the files in “All Music” folder

1. Touch > > .

The “Music List” screen appears.

There are two kinds of music list: All

Music, My Music

2. Touch the folder or file you want to play.

Playing the files in “My Music” folder

1. Touch during playback.

The mark indicates playing music file.

2. Touch in the left position of the screen.

The mark appears and the file you

touch is stored in “My Music” folder.

To cancel it, touch .

3. Touch and then touch the

desired file to play music in “My Music”

folder.

•Touch / on the screen to move to the

previous/next page.

•Touch on the screen to move to the

upper folder.

•Touch on the screen to move to the

previous screen.

Note

If there is no supported file, an error message

is displayed on the screen and the next music

file will be played.

Music player

Pause

1. Touch during playback.

2. To return to playback, touch again.

Skip the next music

Touch briefly to move to the next music.

Skip the previous music

Touch briefly to move to the previous

music.

Touch and hold the or during play-

back and then release at the point you want.

You can use the slide bar to search for the

music.

Repeat

You can set the repeat playback mode by

touching or .

: Plays repeatedly the current selected file.

: Plays repeatedly all music files in your

device.

Shuffle

You can set the random playback mode by

touching or .

: Returns to the normal playback.

: Plays randomly all the files in your

device.

Viewing the information of

music file

1. Touch during playback.

The information of music file appears.

(If you touch the information screen, it

moves to the previous screen.)

If there is no information of music file,

appears.

Adjusting the Volume/Brightness

1. Touch during playback.

The “Handy Setup” screen appears.

2. Set the volume ( ) and brightness ( )

by touching / and then touch .

Mute

Touch on the “Handy Setup” screen to

mute the sound .To cancel it, touch again.

Music player

Viewing photo

1. Turn the unit on.

The map screen appears.

2. Touch > > .

The “Photo List” screen appears.

3. Touch the folder or file you want to play

and then touch .

The slide show starts automatically.

Browse an image

1. Touch the screen during slide show and

then touch .

2. Touch the folder icon to display its sub-

folders and thumbnail images.

•Touch / on the screen to move to the

previous/next page.

•Touch on the screen to move to the

upper folder.

•Touch on the screen to move to the

previous screen.

Pause

1. Touch the screen during slide show.

2. Touch to pause slide show.

3. To return to slide show, touch again.

Skip to the next photo

Touch to move to the next photo in the

selected folder.

Skip to the previous photo

Touch to move to the previous photo in

the selected folder.

Repeat

You can set the repeat playback mode by

touching or .

: Plays repeatedly all photo files in your

device.

: Plays repeatedly all the photos within

folder.

Rotation

Press repeatedly to rotate the photo

clockwise.

Adjusting the Volume/Brightness

1. Touch during playback.

The “Handy Setup” screen appears.

2. Set the volume ( ) and brightness ( )

by touching / and then touch .

Photo viewer

Bluetooth wireless technology

If you have a phone with Bluetooth wireless

technology and it is compatible with your

device (Please refer to the list of available

phones on the page 48-50), you can use the

following features in your device: Hands-free

Calling, Audio streaming for mp3, and

Phonebook sync and edit.

Hands free feature is to make or receive a

phone call using microphone and speaker

built in your device. Audio streaming feature is

to enable to listen to music (especially, mp3

file) in your stereo headset and to enable to

handle playing music such as play, pause, or

skip. Lastly, phonebook sync and edit feature

is to transfer your phonebook in your phone to

your device, and to add and edit new phone

numbers on your device. These features on

your device are only available if your phone

supports these features using Bluetooth wire-

less technology. To use these features, you

must connect your phone with your device.

You may initiate this connection from your

phone or from your device. Please refer to

phone’s guidebook for more information.

Connecting your unit and blue-

tooth phone

To connect using the unit settings

1. Press POWER ( ) briefly in power on sta-

tus. The “Handy Setup” screen appears.

2. Touch .

3. Touch .

4. Touch .

The “Searching for available devices.”

pop-up screen appears on the screen.

It will take about 30-60 seconds, to contin-

ue the process.

To cancel, touch .

5. Touch a bluetooth phone you desire from

the “Search Results” screen.

The “Please enter the below PIN code in

your phone” pop-up screen appears.

6. Input the PIN code (0000) in your phone

when the pop-up screen is displayed on

the screen.

When it is successfully connected, the

mark is displayed in the "Handsfree -

available devices" screen.

When it is not connected, the connection

failure message appears.

Note

Before connecting, check the PIN code set-

tings. Refer to “Setting the Bluetooth” on the

page 36.

Bluetooth (Optional)

Map/Photo mode Music mode

To connect using the phone settings

Your phone’s Bluetooth feature may be set to

off by default. To use the Bluetooth feature,

Bluetooth must be turned on in your phone.

Refer to your phone’s user guide.

1. Enable the phone’s Bluetooth component.

This might be in a menu called Settings,

Bluetooth, Connections, or Hands-free.

2. Initiate a search for Bluetooth devices.

These settings might be located in a menu

called Bluetooth, Connections, or Hands-

free.

3. Select the your device from the list of

phone.

4. Input the PIN code (0000) in your phone.

When it is successfully connected, the

mark is displayed in the "Handsfree -

available devices" screen.

Setting the Bluetooth

You must select to connect successfully

your unit and bluetooth phone.

1. Touch in the “Handsfree -

available devices” screen. And then touch

2. Check the PIN code. Change the PIN

code using the number buttons if you

want to change the PIN code. And then

touch .

3. If the visibility option has set as .

Other Bluetooth devices can’t find your

device.

Disconnecting/Deleting/Connect

-ing again the bluetooth phone

1. Touch the connected phone. And then

touch .

Touch . Your phone is disconnected

and the mark disappears.

2. Touch the disconnected phone again to

connect again or delete your phone.

When you touch , the disconnect-

ed phone is connected again to the unit.

The mark appears again.

When you touch , the disconnected

phone is deleted.

Bluetooth (Optional)

Making a call with phone number

Connect your unit and bluetooth phone before

you make a call.

1. Press POWER ( ) briefly. And then touch

> .

2. Input the phone number you want to call,

by touching the number buttons. And then

touch .

Note

•If you make a mistake while dialling,

touch to erase one digit at a time.

•Touch if you want to store the

phone number. It is stored in the phone

book.

3. Touch to finish the telephone

conversations.

If you want to store the phone number,

touch , then input the name using key

board. And then touch and it is stored

in the phone book.

Touch if you want to make a call

again.

If there is not any touch for about 10 sec-

onds, the screen moves to the “MENU”

screen.

Storing the phone number

1. Input the phone number in the “Dial”

screen. And then touch .

2. Input the name. And then touch .

It is stored in the phone book.

Adjusting the Volume/Microphone level

1. Touch

during a call.

The “Volume & Microphone” screen

appears.

2. Set the volume ( ) and microphone

level ( ) by touching / and then

touch .

Note

•Touch to cut the microphone sound .To

cancel it, touch again.

•If there is not any touch for about 5 sec-

onds, the screen moves to the previous

screen.

Switching the sound path during a call

You can hear sound through the speaker of

unit or phone by touching / .

Note

If you want to send the touch tones, touch .

Bluetooth (Optional)

Call History

Your unit keeps a record of your recently

received and dialling calls.

1. Press POWER ( ) briefly. And then touch

> .

2. Touch the list you want to call. And then

touch .

Using your phone book

1. Press POWER ( ) briefly. And then touch

> .

2. Touch the list you want to call. And then

touch .

Adding the phone number

1. Touch in the “Phone Book” screen.

And then Touch after inputting the

number buttons.

2. Touch after changing the name.

Receiving all list in your phone

Touch in the “Phone Book” screen. And

then touch .

- Your device will receive the contact(s) via

Bluetooth in your phone. If your phone is

not connected, it needs to enter the PIN

code in the phone.

- With receiving phone book from your

phone, and the data will be stored in the

resident memory of your device.

Bluetooth (Optional)

Getting all list from you phone

If your phone supports the synchronization of

phone book, you can get all list from the

phone.

* If the phone hasn't been registered to avail-

able list on your device, you will meet the

below pop-up, "Do you want to get the

phonebook from your phone?", after con-

necting your phone with the your device.

Touch in the “Phone Book” screen. And

then touch .

The synchronisation with your phone book will

begin automatically, the data will be stored in

the resident memory of your device. (It will

takes a few minutes according to the number

of phone book in your phone.)

Deleting all list in the phone book

1. Touch in the “Phone Book” screen.

And then touch .

2. Touch .

Deleting the phone number

Touch the list to delete in the “Phone Book”

screen. And then touch .

Editing the phone number

1. Touch the list to edit in the “Phone Book”

screen. And then touch .

2. Touch after changing the number.

And then touch after changing the

name.

Using voice Dial

You can make a call by speaking the contact’s

name.

1. Press POWER ( ) briefly. And then touch

> .

Bluetooth (Optional)

2. Speak the contact name from your phone.

And then speak name, number or

command.

3. Touch to finish the telephone

conversations.

Incoming calls

1. If there is an incoming call, your phone

rings and the “Call from” pop-up screen is

displayed on the screen.

2. Touch to answer the call.

If you want to reject a call, touch .

Ending calls

When you are calling on the map, music, or

photo mode, appears in the screen.

Touch to finish the telephone conversa-

tions.

Listening to music files

You can control and hear the music (especial-

ly, mp3) files saved on your device via the

your stereo headset with Bluetooth wireless

technology.

Touch in the “Handy Setup” screen.

Notes

•You can hear the sound through the speak-

er of unit or Bluetooth stereo headsets by

touching / .

•The sound quality depends on Radio

Frequency (RF) conditions and the sam-

pling rate of audio.

•Sampling rate of MP3 file that can hear the

music using Bluetooth stereo headset

16 KHz , 32 KHz , 44.1 KHz , and 48 KHz

- The sound quality may be poor on the

sampling rate of 16 KHz , 32 KHz.

Bluetooth (Optional)

Map modeMusic mode

Photo mode

Installing the Navigator “PC

Portal”

Installation the Microsoft .Net Framework 2.0

for computer can be done by following the

instructions.

1. Insert the Navigator CD into the PC's CD-

ROM drive. The “PC Portal” Installation

wizard prompts you to select the language

used for the installation process. When you

have selected a language, click “OK”.

2. Read the Welcome message and click

“Next”.

3. From the Select Directory screen, either

accept the recommended default directory

or browse to a different directory to install

the “PC Portal”.

Click “Next”.

4. If you want to change the directory location

before installing, click “Back”. When you

are ready to install the “PC Portal”, click

“Next”.

The installation status box displays the

progress of the installation process.

5. When the installation is complete, click the

“Finish” button.

6. After finishing installing PC Portal, install

the “Maps installer’ program. This proce-

dures is simillar to PC Portal install.

7. When the installation is complete, click the

“Finish”button, The Select Language box

appears.

8. From the Select Language dialog box, you

can select the display language for the “PC

Portal”. Select the Launch “PC Portal”

checkbox for “PC Portal” to immediately

start and click “OK”. Alternatively, you can

start the “PC Portal” from the Microsoft®

Windows® Programs menu.

9. Select from up to two connected devices.

(LN830/LN835/LN835R)

Note

Please pay close attention to all the programs

before installing the CD to your personal

computer.

Please pay close attention especially for anti-

virus programs like spyware.

Recommended PC System

Requirements

Please review the following system require-

ments before installing “PC Portal”:

• CPU: AMD/Intel® Processor 300 MHz or

faster

• Operating System: Windows® 2000/XP/Vista

• Memory: 128 MB RAM (minimum)

• Hard drive free space: 500 MB (minimum)

• CD-ROM: 4x drive or higher

• ActiveSync Version 3.8 to 4.2 supported

under Windows 2000 and XP

• USB Version 1.1 or 2.0 connection (compati-

ble 2.0)

• Microsoft .Net Framework 2.0

Installation

Starting the “PC Portal” Wizard

The first time you start the “PC Portal”, the

“PC Portal” Wizard automatically starts, letting

you install navigator software, supported lan-

guages and voice prompts, and maps.

For a complete description of the “PC Portal”,

see Using the “PC Portal” on the page 42-43.

1. Click the Microsoft® Windows® Start but-

ton.

2. Click the Programs > LGE > “PC Portal”.

The “LGE PC Portal for (LN840/LN840R/

LN845/LN845R/LN855/LN855R)” appears.

3. If this is your first time using “PC Portal”,

the “PC Portal” wizard automatically starts

and displays the Welcome screen.

4. Make sure that your device is connected by

USB cable to a port on your PC. You will

see Connected on the “PC Portal” screen.

5. Click the buttons to move to

the previous or next screen.

6. Select software components to install to

your device.

Note

• If you want to start the wizard, click

from the “PC Portal” Main screen.

• If you want to stop the wizard, click

The “PC Portal” Main screen is displayed.

• If after selecting component, software, and

voice options, you want to return to the origi-

nal selections, click .

Using the “PC Portal”

Click “Install Software” and select from the fol-

lowing components to install to your device:

• LGE: GPS navigation software

• Tutorial: Tutorial guide

To install navigator components:

1. From the Install Software screen, select

from the list of components, as described

above.

2. Click the Install button.

3. Navigator “PC Portal” installs the selected

components to the device’s main memory.

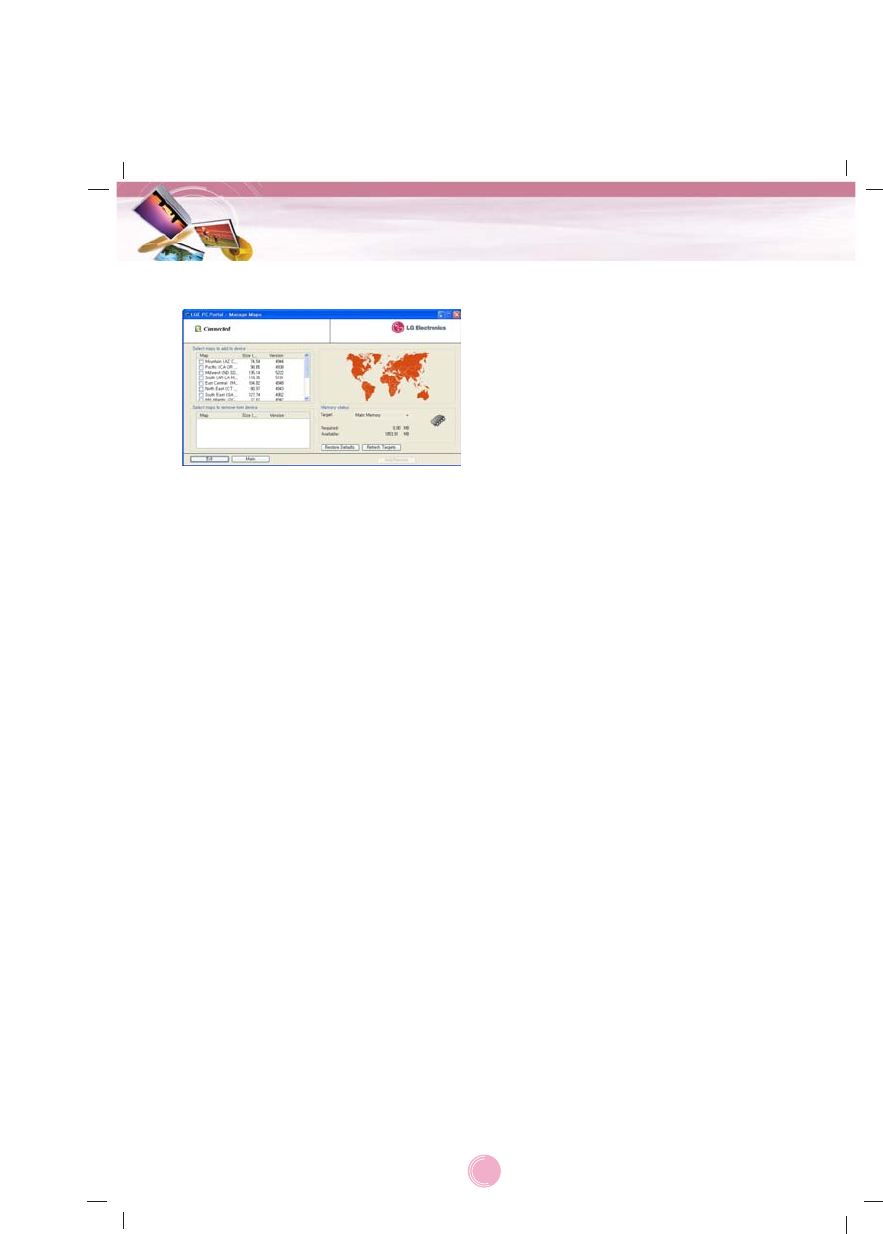

Click “Manage Maps” to install or remove a

map.

For more information, see “Installing Maps” on

the page 44.

Click the “User Manual” button to see a user

manual.

Click the “Select Language” button to show a

list of languages that you can choose from to

display the “PC Portal”.

Click the “About” button to check software

version.

Installation/Using software

Click the “Backup/Restore” button to backup

the following Navigator items:

• Favorites: All locations that are displayed in

Navigator’s Favorites screens.

• Trips: All locations that appear in Navigator’s

Multistops screens.

• LGE Settings: Setting configurations, such

as map views (2D/3D and Day/Night),

prompts, units of measurement, and map

and route setting preferences.

When you select Backup, “PC Portal” makes

a copy and stores the information to your

computer.

To backup Navigator data to your PC:

1. From the Backup/Restore screen, select

Backup.

2. Select the items that you want to make a

copy of and save to your computer.

3. Click the “Backup” button.

4. “PC Portal” saves the selected items to

your computer.

Click the Backup/Restore button to restore

Favorites, Multistops, and My Navigator data

to a navigation device. When you select

Restore, “”PC Portal” recovers the information

stored on your computer.

To restore stored Navigator data to a naviga-

tion device:

1. From the Backup/Restore screen, select

Restore.

2. Select the items that you want to restore.

3. Click the “Restore” button.

4. “PC Portal” restores the selected items.

Click Install Languages to install a language

to your device.

To install languages:

1. From the Install Languages screen, select

the languages to be installed to the device.

2. Click the Install button.

3. Navigator PC Portal installs the selected

languages to the device’s main memory.

4. You can display the Navigator interface in

the language of your choice by tapping the

Language Settings button on the Setup

menu and selecting the language in

Navigator.

Using software

Installing Maps

1. From the Desktop Maps pane, select a

map.

2. From the “Target” context box, select the

main memory.

3. When you select a Target option (Storage

Card, Main Memory) the “PC Portal” dis-

plays the following information:

• Required: The amount of free space nec-

essary to install the map on the selected

Target option.

• Available: The amount of free space avail-

able for the selected Target option.

Note: If the free space required is equal or

greater than the free space available, “PC

Portal” will not install the selected map.

4. Select a map to add or remove.

5. Click the “Add/Remove” button.

6. The selected map is installed and displayed

in the Device Maps panel.

Removing Maps

You can remove a map by selecting a map in

the Device Maps pane and clicking the

“Add/Remove” button.

Using software

General Warning Messages

The following warning messages can appear

when you’re working with navigator “PC

Portal”.

Lost connection transfer

If at any point during the installation or data

transfer, the connection to the device is lost,

the following message is displayed:

"Connection to the device has been lost.

Please check your connection."

Uninstalling Navigator Console

When a version of navigator programme (ver-

sions prior to the “PC Portal”) is located on

your computer, the following message is dis-

played:

"A previous version of “PC Portal” was found.

Do you wish to uninstall?"

It is recommended to uninstall the previous

progam before installing “PC Portal”.

Uninstalling “PC Portal”

When an earlier version of navigator “PC

Portal” is located on your computer, the fol-

lowing message is displayed:

"A previous version of “PC Portal” was found.

Do you wish to uninstall? "

It is recommended to uninstall a previous ver-

sion of “PC Portal” before installing the cur-

rent version.

Updates to “PC Portal”

If there are updates in navigator, you are

prompted to download them in the following

message:

"There are updates to “PC Portal”, do you

wish to download and install them?"

Previous maps

If maps from a previous version are located

on your computer, the following message is

displayed:

"Existing maps data found. Do you want to

keep it?"

Clicking “Yes” lets you install maps from previ-

ous versions.

Remove maps

The following message appears when you

have selected an installed map and clicked

the Actions

button:

"Selected maps shall be removed from your

device. Are you sure you wish to continue?"

Data Transfer

If you close the PC Portal while install naviga-

tor software, a map, importing or exporting a

Favorite location, or backing up data. the fol-

lowing message appears. : “if you will close

the PC Portal now, the [process] shall not be

completed. Are you sure you wish to close?”.

Backup Data

If stored data is located on your computer, the

following message appears:

"Navigator Backup data found. Do you want to

keep it?" It is recommended to keep backup

data.

Using software

Navigation program and map data

protection

• If you want to operate this product properly,

navigation program and map data provided by

LGE should be in LGE folder on your naviga-

tion device.

• Don't erase or modify any contents in the LGE

folder using USB mass storage connection.

(All contents are important to operate

navigation. Deleting this data may cause navi-

gation to lead to malfunction.)

Audio streaming

To enjoy high quality music using Bluetooth

stereo headsets, we recommend over 16-bit

audio with sampling rates of 48 KHz and 44.1

KHz. (The sound quality depends on sampling

rates of audio and your headset.)

Picture format

JPG: Image file size should be less than 1600

MP (megapixels).

Cannot identify the current location. (GPS

not receiving)

GPS cannot be used indoors and must be con-

nected to the power with ACC to a vehicle in a

location where the sky can be seen well.

When initially connecting the GPS, it usually

takes about 10 minutes to operate normally, but

the connection speed can differ depending on

the weather condition, and surrounding obsta-

cles.

If the GPS connection is unstable for a long peri-

od of time, try the following.

• Check if the power is connected to the product.

• Check if the back of the GPS product is in a

location where the sky can be seen well.

• If there are high buildings or if you are under a

tree, move to a location where there aren’t any

obstacles.

• Check the GPS receiving condition from the

GPS menu.

Cannot hear the voice guide.

You can hear the voice guide when you select

“Guidance” in “Setup”.

But during actual driving, the voice guide is pro-

vided.

If the volume is too low, adjust the volume on

the right unit.

Cannot see the map.

This is when you cannot see the map even

when you have executed the navigation

menu.

This happens when the data within the

memory is damaged. Delete all the data

within the memory and reinstall the data.

If the problem persists after the installation,

contact the Customer Service Center.

Map data and dangerous area information

are not updated.

You must periodically update the map data.

Refer to the homepage for details on how to

update the data.

The path guide can be different from the

actual path. (Path guide error)

• When the road is closely parallel.

• When the splitting road angle is very small.

• When there is an adjacent road when

turning.

• When driving on a road that is narrowing

fast.

• When driving through the mountain or where

the road is too curvy.

• When the starting, passing and arriving

locations are too close within 10 km.

• When you have set the starting, passing or

arriving location more than 1 km away from

the road.

• When driving through the tunnel.

• When driving through high buildings.

Troubleshooting

There is a difference between the driving

road and the road on the map in the product.

Even though GPS is usually very accurate, it

has an error range.

When GPS receiver is installed, there can be an

error of about 5 to 15m. But for newly construct-

ed roads, the problem could be from the data

update to the map.

What is GPS?

The Global Positioning System (GPS) is a

satellite-based navigation system made up of

a network of 24 satellites placed into orbit by

the U.S.

Department of Defence. GPS was originally

intended for military applications, but in the

1980s, the government made the system

available for civilian use.

GPS works in any weather conditions, any-

where in the world, 24 hours a day.

There are no subscription fees or setup

charges to use GPS.

Map matching

The GPS used by this Mobile Navigation

System is susceptible to certain errors. Their

calculations may on occasion place you in a

location on the map where no road exists. In

this situation, the processing system

understands that vehicles travel only on

roads, and is able to correct your

position by adjusting it to a near road. This is

called map matching.

Basic operation tips

1.After charging or connecting to a power

source, turn the unit on.

2.Make sure you are stopped (not moving) in

a location with a clear view of the sky.

3.You will see your current location within a

few minutes and then you can start navigat-

ing.

4.If the correct location is not found within 6

minutes, restart the unit using the ON/OFF

button on the side of the unit.

Troubleshooting

GPS

GPS GPS

GPS

With map matching.

With no map matching.

Bluetooth phone compatibility list

• If even a phone as described in this list meets requirements of Bluetooth Hand-free Profile

1.5 and Object Push Profile 1.1, it can operate. However, it is noted that we cannot assure

for operation by function.

• As difference in functional operation by model is mainly resulted from feature of a hand-free

phone, consult manufacturer of a phone if you have any question.

• There may be restrictions on using Bluetooth technology depending on some locations or

wireless environment. Due to the variety of Bluetooth phones and their firmware version, your

device may respond differently when performing over Bluetooth.

Manufacturer

BLACK BERRY

MOTOROLA

NOKIA

Model

8100

8800

HW6915

H6315

KE970

KE850

CU500

ME970

MG320

MG280

KE500

KG290

KU380

CU575

KU580

KU970

KG245

KG800

M4410

U890

RIZR Z80

ROKR E6

RAZR V3i

V360

KRZR K1

ROKR E2

SLVR L7

V195

V600

RAZR V3X

E1000

A1000

E550

V525

V600

6230i

6230

8910i

N77

Year

2007

2005

2007

2006

2007

2006

2005

2004

2005

2004

2007

Hansfree

Calling

YES

Display

Caller ID

YES

Voice

Dial

YES

Phone Book

Sync

YES

Object Push

(vCard)

YES

Bluetooth phone compatibility list

Manufacturer

NOKIA

PALM

PANTECH

SAMSUNG

SHARP

SIEMENS

Model

N95

N91

8600

N91

6103

6131

7370

7380

6280

E60

E61

N70

5300

5500

6670

E50

E62

E70

N73

N80

N92

6670

3230

6680

7610

9500

3650

6600

6820a

N-GAGE

6650

TREO750V

PG6200

D900

i600

A707

D600

D820

Z540V

T509

GX15

SL75

SK65

SX1

S65

Year

2007

2006

2005

2004

2007

2006

2007

2006

2004

2006

2004

Hansfree

Calling

YES

Display

Caller ID

YES

Voice

Dial

YES

Phone Book

Sync

YES

Object Push

(vCard)

YES

Bluetooth phone compatibility list

Manufacturer

SONY

Model

V800

M600i

K750i

W810i

V600i

W710i

W850i

K800i

K700i

S700i

T610

Z600

Year

2005

2007

2006

2005

2004

Hansfree

Calling

YES

Display

Caller ID

YES

Voice

Dial

YES

Phone Book

Sync

YES

Object Push

(vCard)

YES

Specifications

ITEM SPECIFICATION

CPU

MEMORY

Win CE 5.0

ARM9 400 MHz

2GB

DISPLAY 4.3 inch TFT LCD

Resolution 480 X 272

LED type Backlight

Touch Screen

AUDIO Mono, Internal Speaker

REMARK

Built-in Memory

Analog resisitive type

Typical 1.0W (1EA)

GPS SiRF star III,

Internal Antenna

NAVI North America

[TMC: FM Traffic Receiver

(Optional)]

Voice Guidance

MAP Navteq

POWER DC 5V/1A Vehicle Power

Cigar-jack Input

(12-24V)

TEMPERATURE Operating : -10 °C to 60 °C

Storing : -30 °C to 80 °C

Built-in BATTERY DC 3.7 V (Li-Ion), 1100mAh

- MP3:

4 hours [Brightness: Minimum, Volume: 5 (Center)]

- Navigation:

3.5 hours [Brightness: 5 (Center) , Volume: 5 (Center)]

- Photo:

4 hours [Brightness: 5 (Center) , Volume: 5 (Center)]

INTERFACE Mini-USB Port

External GPS Jack

USB 2.0

Multimedia Image

Audio

JPG

MP3

“The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by LG Electronics is under license. Other trademarks and trade names are those of their

respective owners.”

P/N: AFN32793967-1

Bluetooth

LG Electronics USA 9QK-N41 Portable Navigation User Manual N41 MANUAL 3

LG Electronics USA Portable Navigation N41 MANUAL 3

Contents

User manual 3 of 3

Navigation menu

Namespaces

Views

Navigation
