Maxtronic Co INDY2600 Disk Array User Manual Indy2600 Ch5

Maxtronic International Co Ltd Disk Array Indy2600 Ch5

users manual 6

Advanced Information
The RAID capacity can be expanded by add one or more Disk
Drive into the existing RAID group and properly setup procedures.
1. Add new HDD into the RAID system.

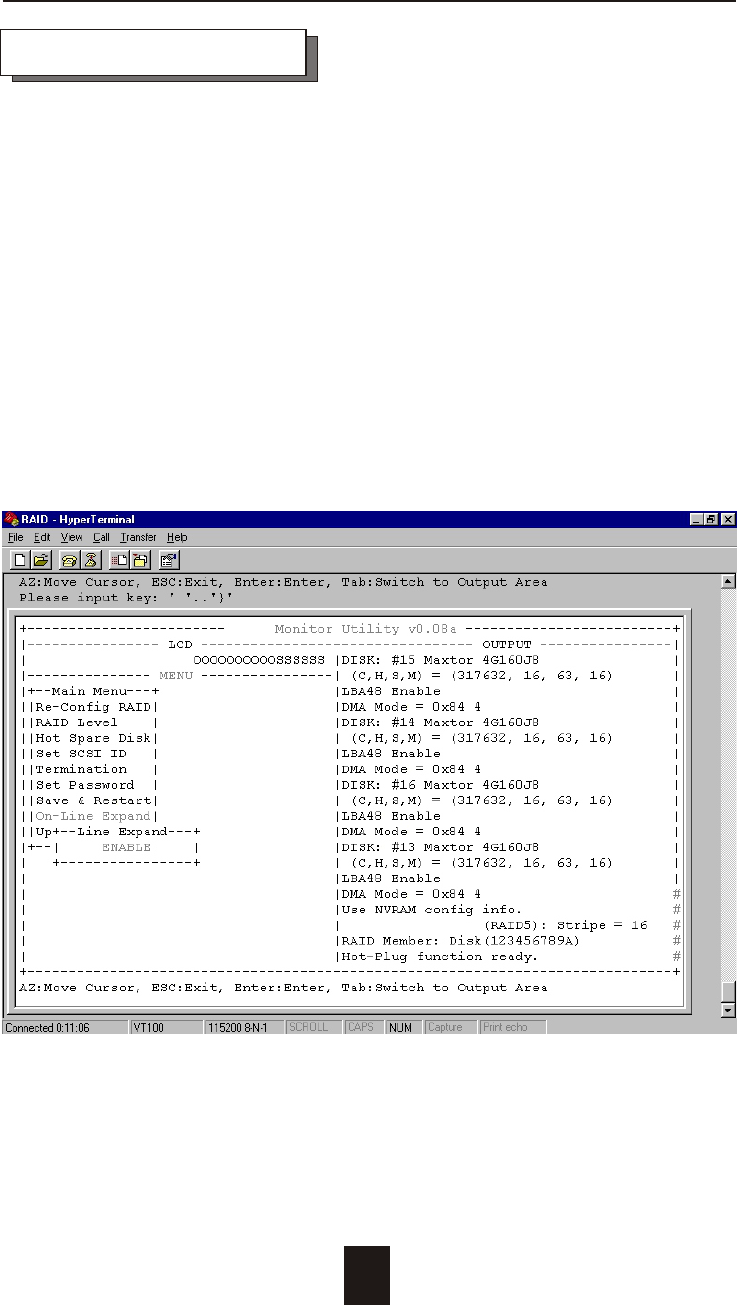

2. Configuration through the RS-232 Terminal mode, move the
cursor to " On-Line Expand " and " Enable " and press " Enter "
to confirm it.
( If you have not add any new HDD into the RAID group the
" Enable " item will not show up. )
4-22
Capacity Expansion
Chapter 5 : " Hot Swap "
This chapter explains how to remove and install the "Hot-Swap" parts
without interrupting the data access while the disk array is on.
The "Hot-Swap" parts include :
Hard Disk Drives
Redundant Power Supply Units
Cooling Fans
Follow the steps below and refer to the diagrams to remove and
install the "Hot-Swap" parts.
5-1
Hot Swap
5-2
Removing / Installing Hard Disk drives

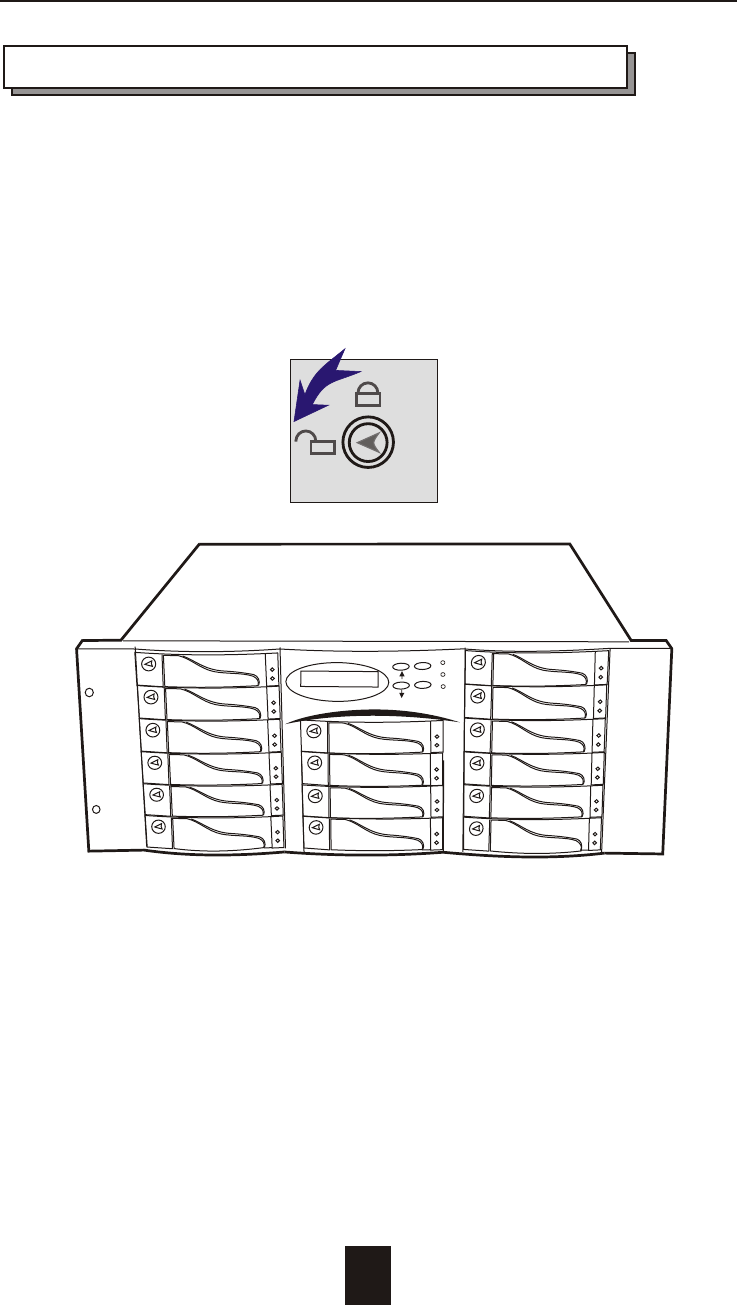

a. Unlock the HDD tray
(When a HDD error occurs, the HDD LED indicator lights up "RED")
Figure : Swap HDD ( Unlock )
ESC
Enter
5-3
Hot Swap

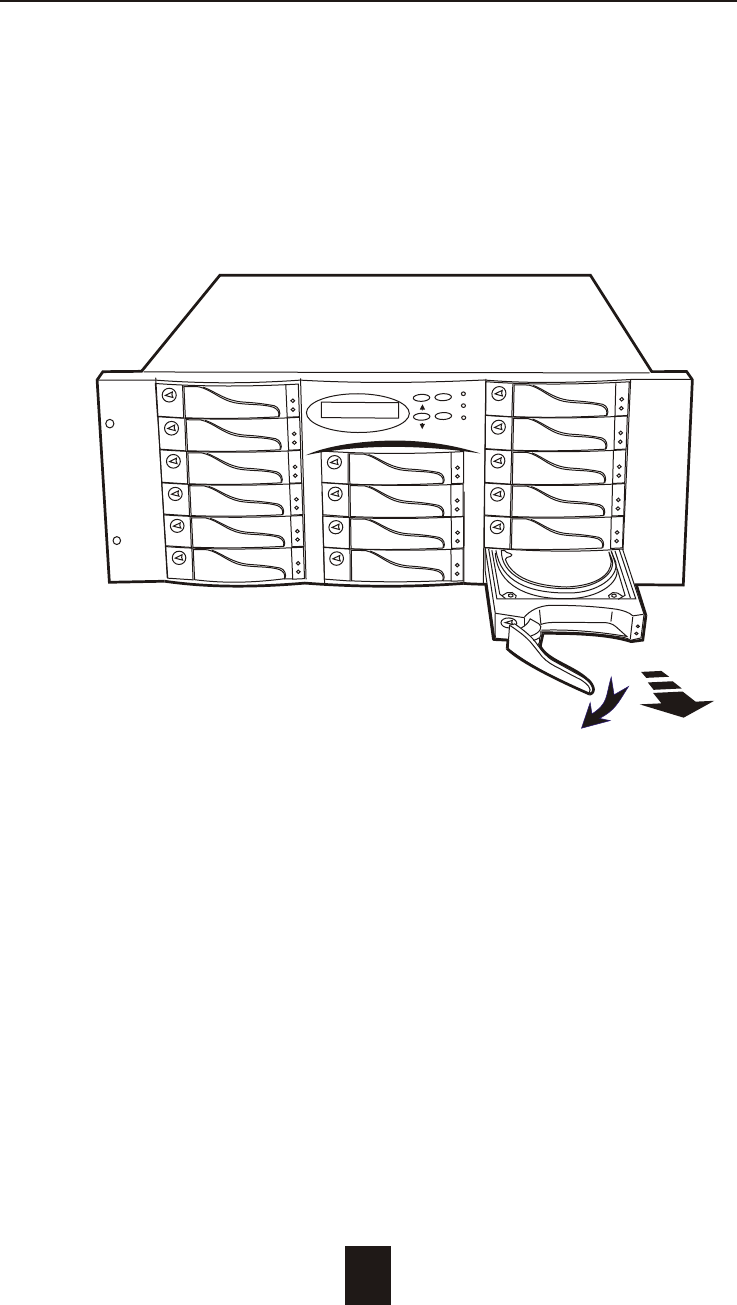

b. Gently pull-out the HDD tray
Figure : Swap HDD ( Pull-out )
ESC
Enter
Hot Swap
5-4
c. Unscrew and unplug the cables
Figure : Swap HDD ( Unplug cables )
Unscrew
Unplug Cables
Figure : Swap HDD ( Lock Up )
Hot Swap
5-5
d. Replace with a new Hard Disk Drive
It must be same capacity or greater than the faulty drive, if you
replace with a Hard disk Drive of insufficient capacity, the Disk
Array's built-in buzzer will sound and the intelligent Auto-Rebuild
function will not be started.
* For best performance, we recommend you swap with an
identical Hard Disk Drive.
e. Gently Slide-in the HDD tray and lock up to start
the Auto-Rebuild
When you have installed the replacement disk drive, screw in all
the screws and plug in the cables, you may now gently slide in
the HDD tray into the chassis and lock up it.
* Data Auto-Rebuild will be started automatically when you lock
up the HDD tray.
ESC
Enter
Removing / Installing the Redundant P/S Unit
There are two LED indicators on the front panel which display the
status of the redundant power supplies. While the power supply
is power-on the #1st LED indicators lights up " Green ", if any one
them fail, the #2nd LED indicator will lights up " Red " and the
power supply's buzzer alarm will sound.
When you need to replace the redundant power supply unit ,
refer to the redundant power supply status LED indicator on the
power supply to find the failed power supply unit ( LED indicator
go off ) and follow these steps to swap it.
a. Unscrew the faulty unit
(For Safety reasons, you should switch off the faulty unit's
power switch)
5-6
Switch off
Hot Swap
Figure : Swap P/S unit ( Unscrew )
Unscrew

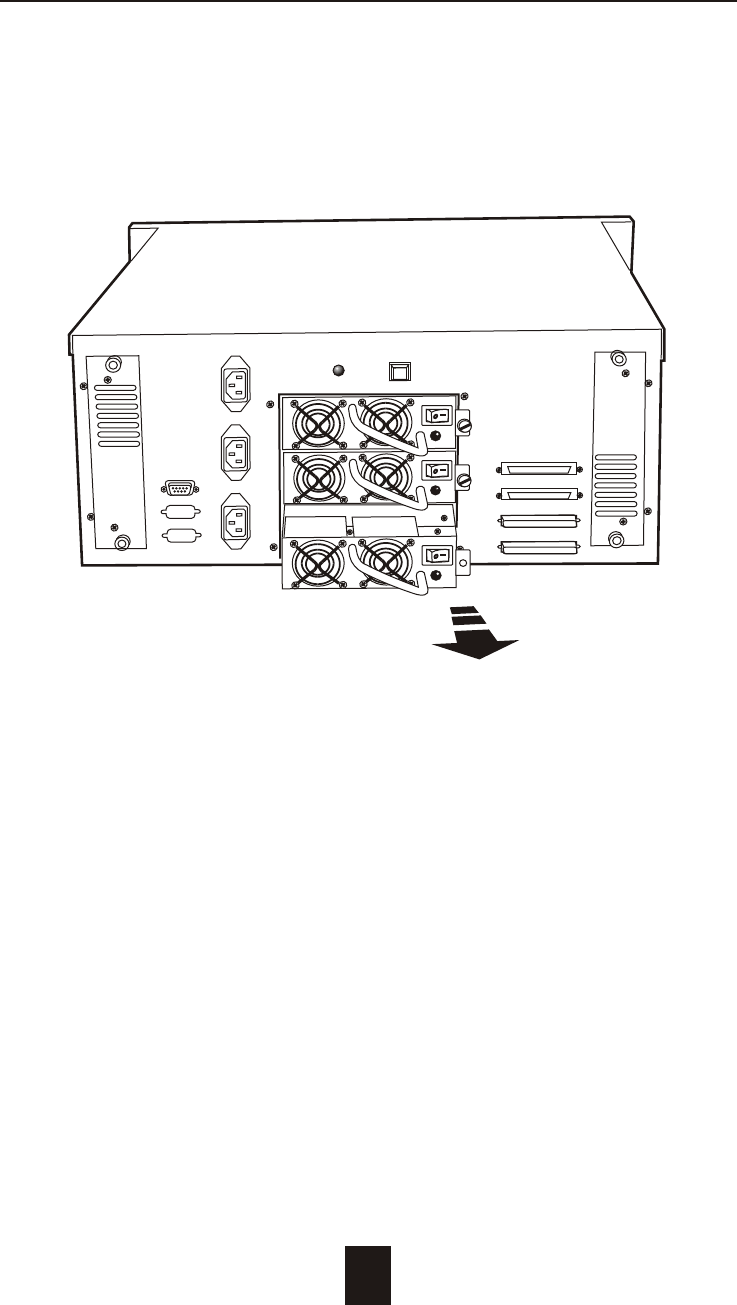

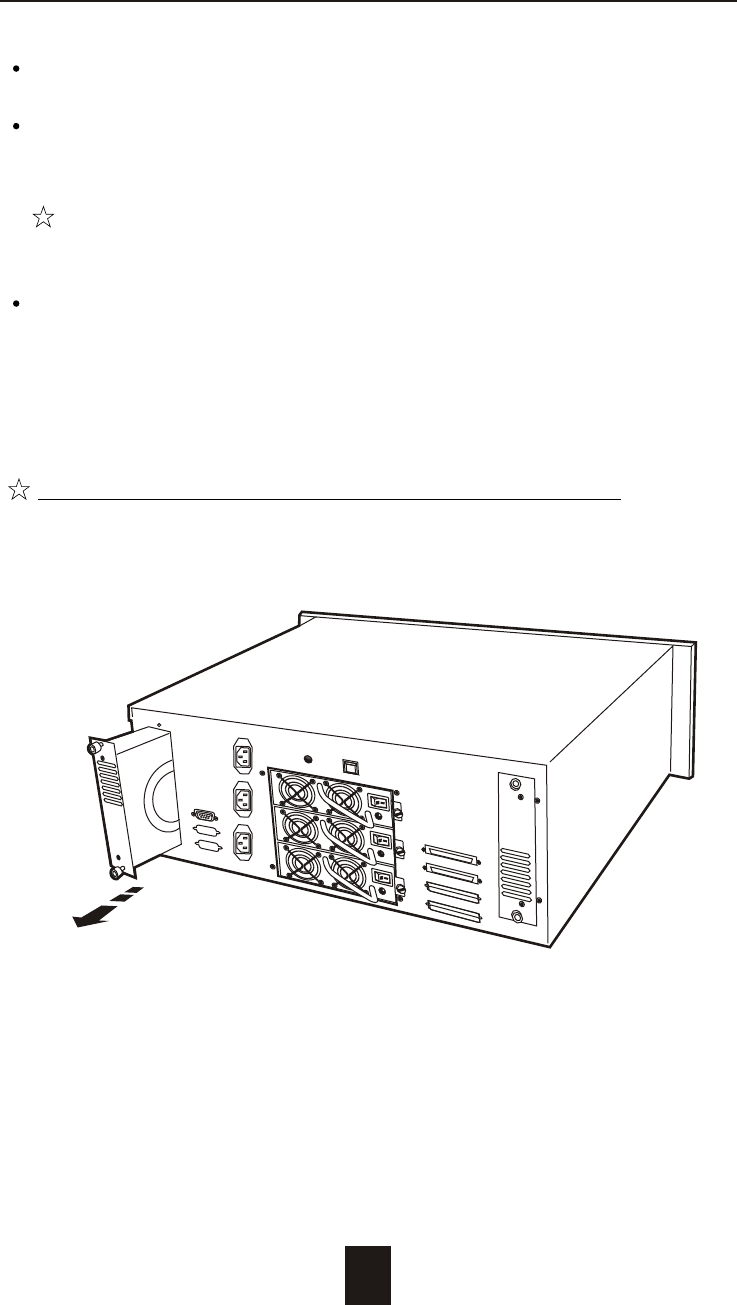

b. Replace with a new power supply unit
5-7
Hot Swap
Figure : Swap P/S unit ( swap with a new unit )

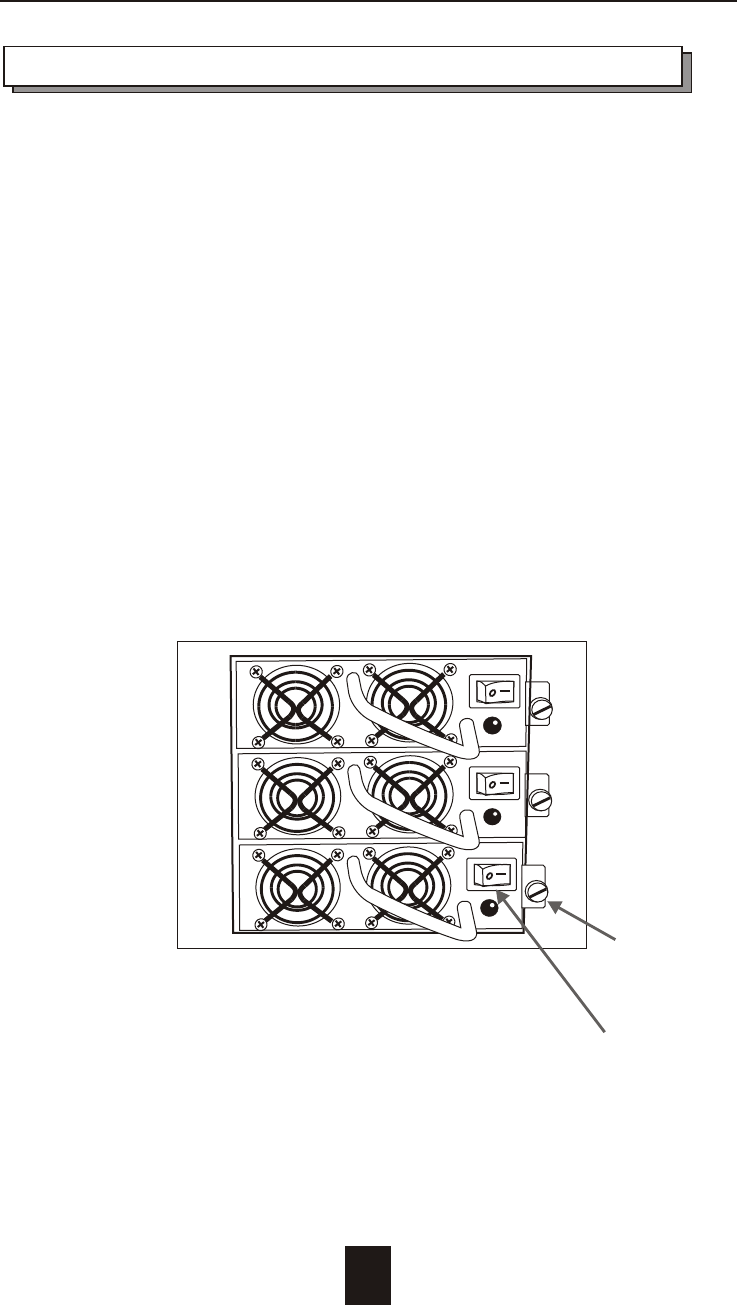

c. Press the Power Supply Alarm Reset switch
When you replace a new power supply unit, you should then
push the power supply reset switch to stop the buzzer alarm and
link the two power supply units together.
The new power supply unit will link with the other unit
immediately and will start working after you press the power
supply reset switch, and the buzzer warning noise will stop.

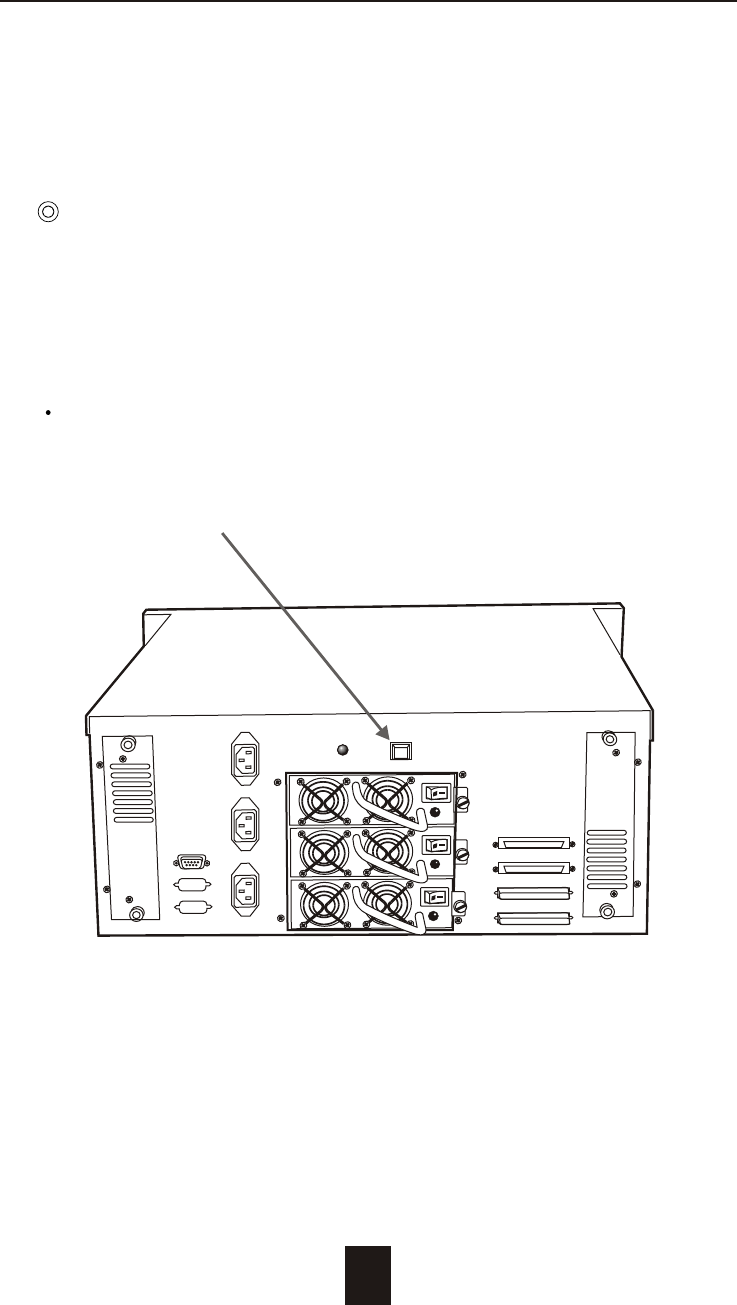

Reset from the rear panel
5-8
Hot Swap
Reset Here
Removing / Installing Cooling Fans

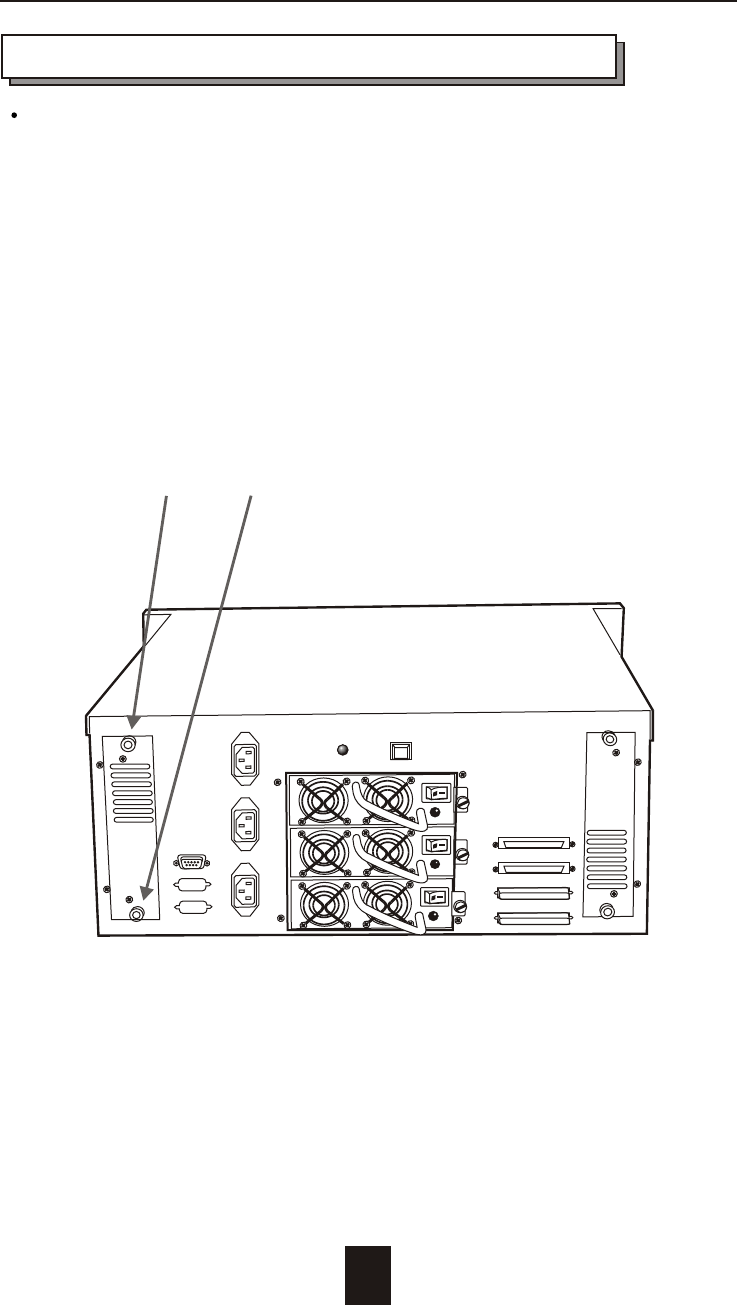

Unscrew the Fan door and open the door.
: Be careful , the high speed rotating fans may harm
you. Don't touch the rotating Fans, If necessary,
Unplug the Fan power connector first.
! Caution
5-9
Hot Swap
Unscrew
Figure : Swap cooling Fan ( Unscrew )
Unplug the Fan connector
Unscrew the faulty cooling fan and replace with a
good one
Important ! The cooling fan's air flow must point to the fan
door, please refer to the label on the cooling fan.
Plug in the fan connector, close the fan door
and screw it in
! Caution : The cooling fan will rotate immediately when you
plug in the fan power connector.
The Cooling Fan will only fit in one orientation.
5-10
Hot Swap
Figure : Swap Cooling Fan ( swap with a new Fan )
A-1
Appendix
Microprocessor Intel i80303 (64-bit RISC processor)
Cache Memory 128MB*
Maximum 512MB
DRAM Slots One
Module Type 144 Pin DIMM
DRAM Type SDRAM
DRAM Speed PC100/133
Parity Non-Parity
Read Cache Read-Ahead
Write Cache Write Back*
Firmware Flash EEPROM ,256K x 8
SCSI I/O Processor LSI SYM53C1010
Serial Port 1x RS232 (Asynchronous) Port
Ba ud Rate 115,200 (Bits Per Second)
Da ta Bits 8
Sto p Bit 1
Pari ty None
RAID Levels 0 , 1 , 0+1, 3 or 5
Data Transfer Rate Up to 160MB/s (Synchronous)
SCSI ID Assignment 0 ~ 14 ( 0* )
Tagged-command queuing Up to 255 simultaneous data
requests
Technical Specifications
A-2
Interface : Host Channel 2* Ultra 160 LVD SCSI (68 pin)
Disk Channels 16* EIDE ATA-100
Drives Hot Swap, User Replaceable
Up to Sixteen 3.5" drives ( 1" height )
Maximum Fault >2TB
Tolerant Capacity
Drive MTBF >1,000,000 hrs
Host Requirement Host Independent
Operating Systems O/S Independent and Transparent
Data Rebuild Automatic Data Regeneration
LCD Display Panel 2 x 16 Characters
Cooling Fans 12cm DC-Blowe r
2 Fans
Power Supply Capacity 320W *3 Independent Power
Supplies
AC Input Voltage 90V ~ 260 V ( +/10% ) , 60/50 Hz
Environmental
Relative Humidity 10% to 85% Non-condensing
Temperature Operating : 5 ~ 40
Storage : -25 ~ 60
Safety testing Under apply UL, CE and FCC Class B
Dimensions 483mm(W) * 500mm(D) * 176mm(H)
Weight 25 kgs ( W/O Disk Drive )
" * " Default Settings
*** Various trademarks belong to their respective owners.
Appendix
How to Setup Active Terminator
For better data integrity, we suggest you always add an active
terminator on the Disk Array.
Please follow the Steps below :
1. Plug-in the Terminator before Power-On :
You can find two ports for the host channel adapter on the back
of Disk Array. You can connect the top one with your Host
Computer, and plug in the active terminator on the second one.
2. Turn the Software Termination OFF :
You must "disable" the SCSI terminator on the Disk Array built-in
configuration program.
A. Press the "Enter" button on the front panel to access the built
-in configuration program.
B. Go to " Termination " and select "Disable" than "Save & Restart"
the Disk Array.
2-7

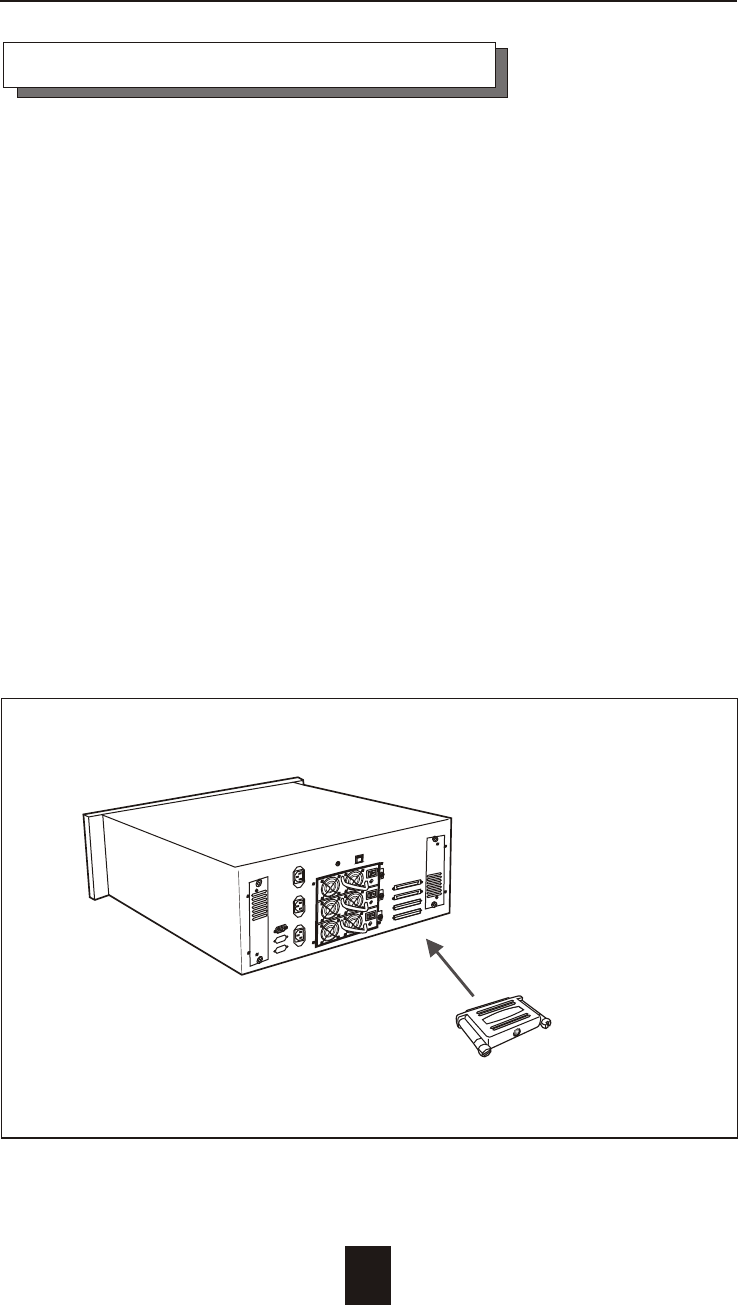

Figure : Active Terminator
Active Terminator
Appendix
A-3
