JAN 2002 SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Chapter 7: Optimization and Optional Acceptance Test Procedures (ATP)

Table of Contents

ATP Overview 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Preparation 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Equipment 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

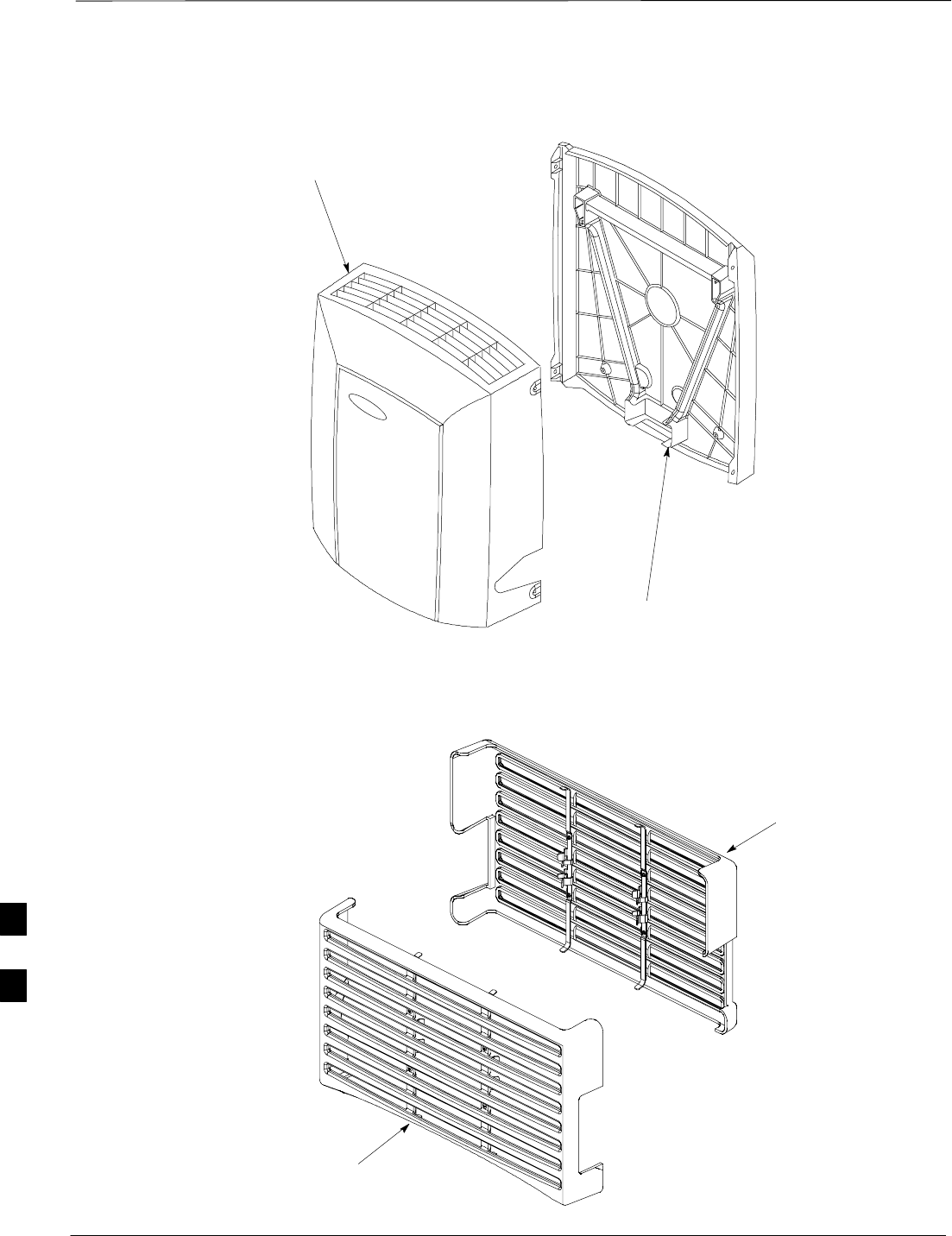

Procedure to Remove the Solar Cover 7-2. . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Power Up 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Remove Diagnostic Access Cover 7-4. . . . . . . . . . . . . . . . . .

Connect LMF to BTS 7-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 7-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LMF to BTS Connection 7-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

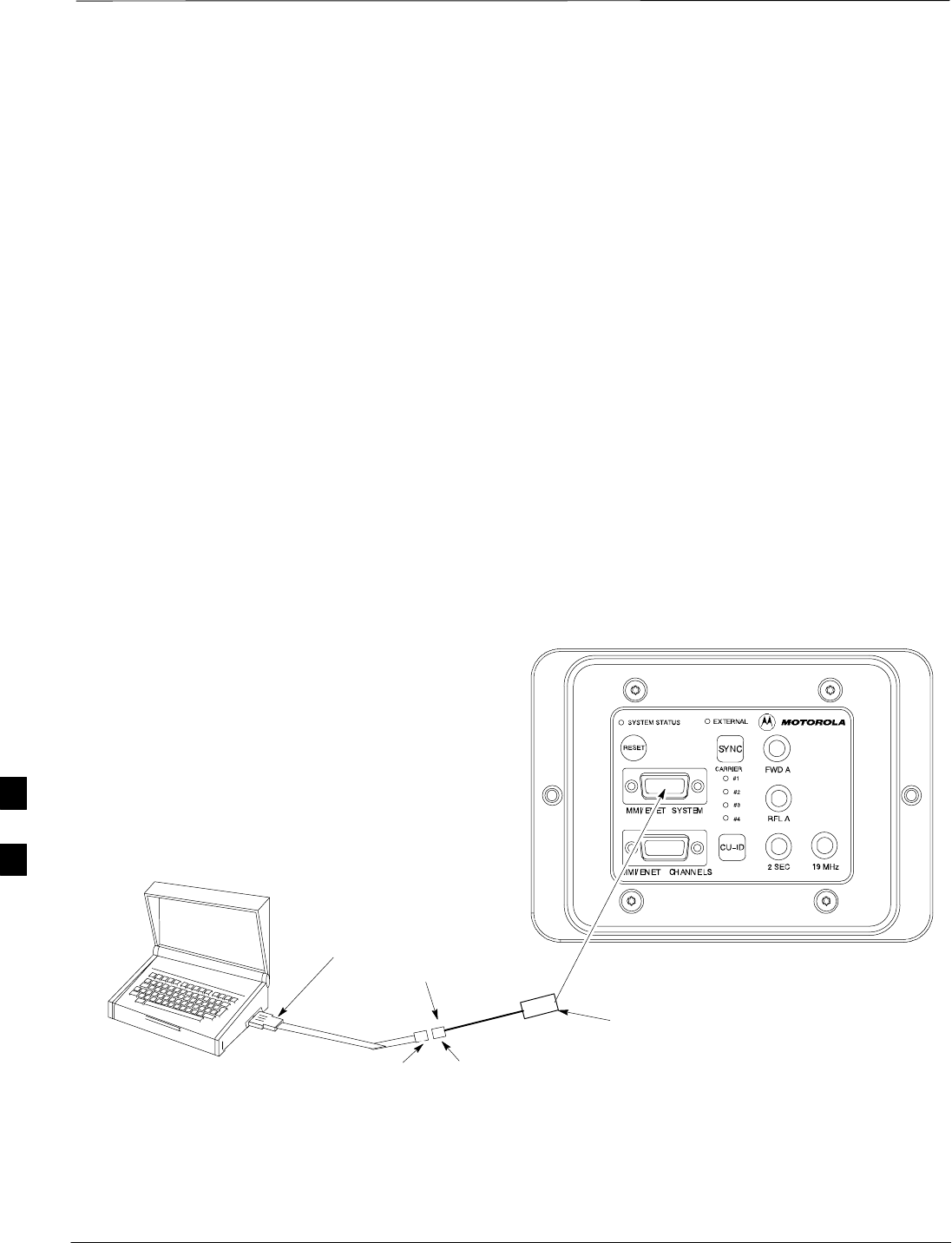

Procedure to Connect LMF to BTS via Serial Port Connection 7-6. . . . . .

Procedure to Connect LMF to BTS via Ethernet Connection 7-7. . . . . . . .

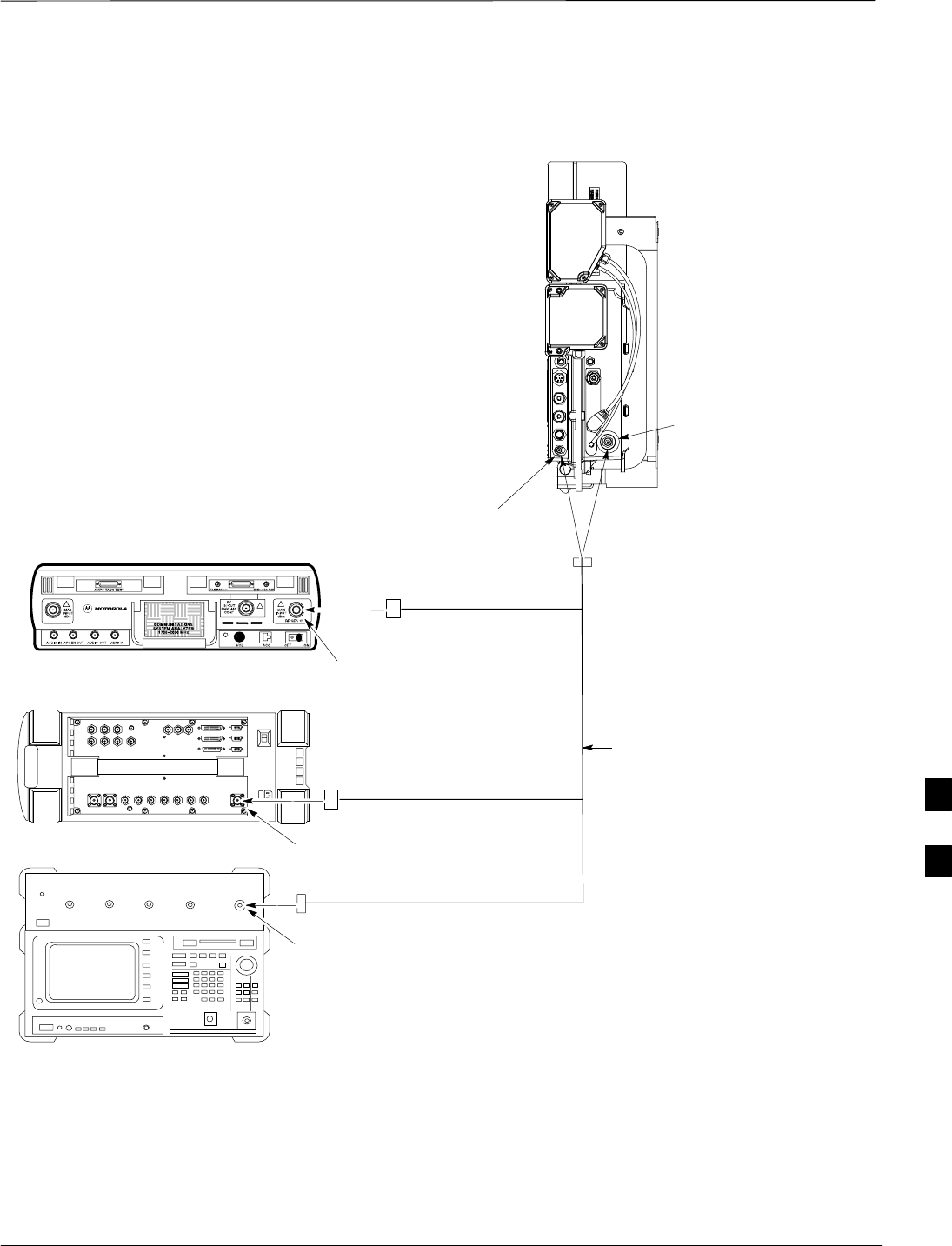

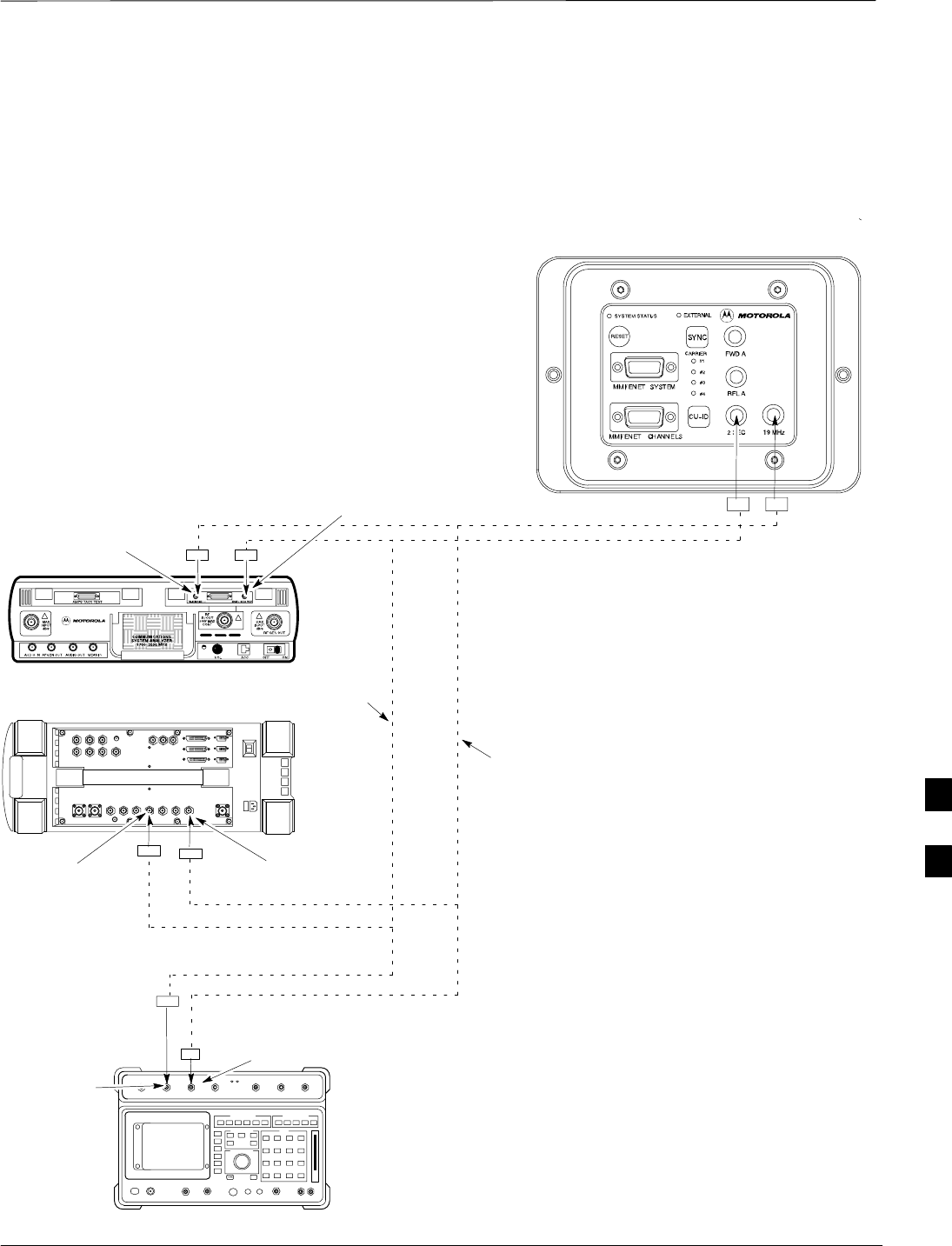

Connect Test Equipment to BTS 7-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 7-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

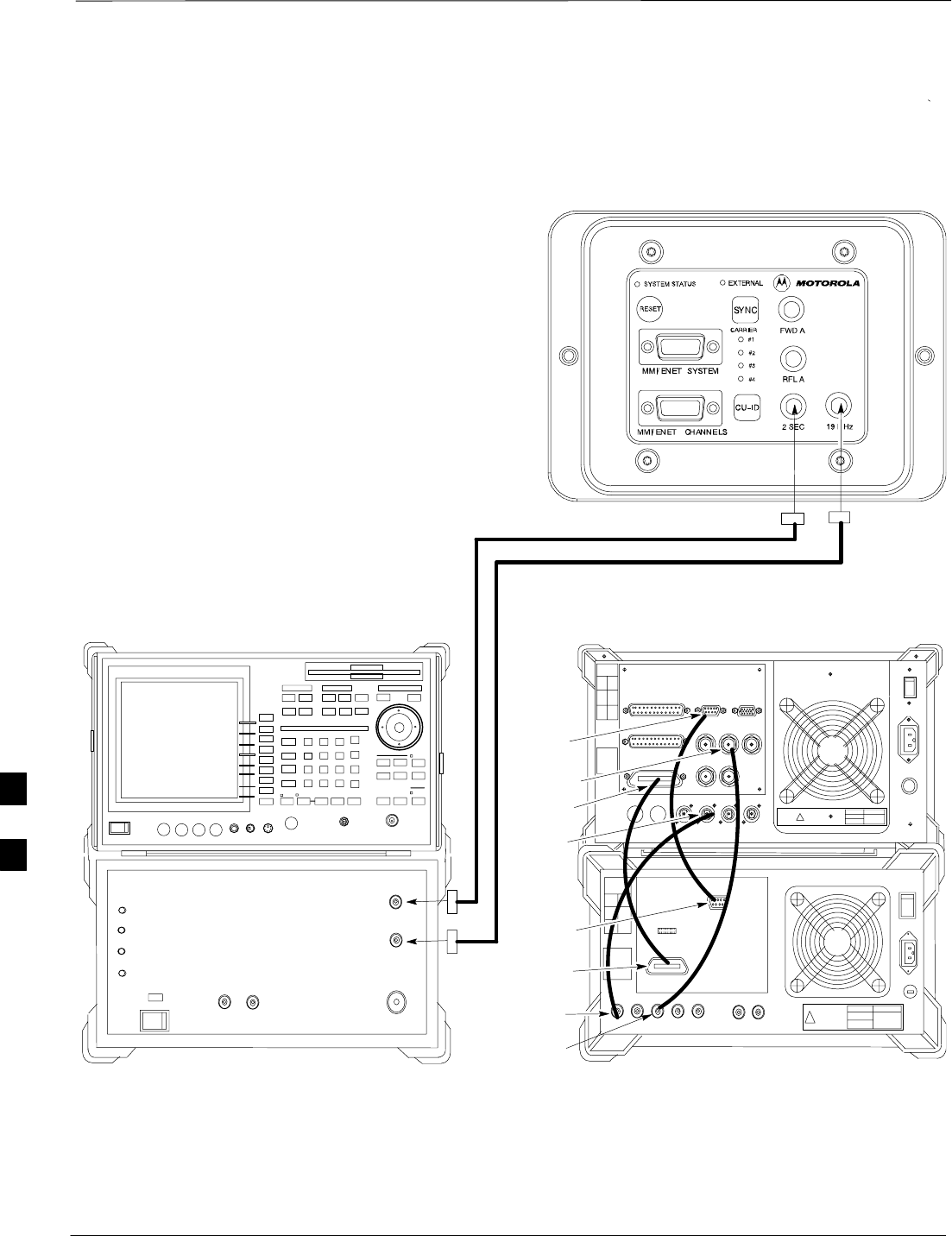

Procedure to Connect Advantest R3465 to BTS 7-11. . . . . . . . . . . . . . . . .

Procedure to Connect Advantest R3267 to BTS 7-13. . . . . . . . . . . . . . . . . .

Procedure to Connect the Motorola CyberTest, HP 8935, and

HP 8921 to BTS 7-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

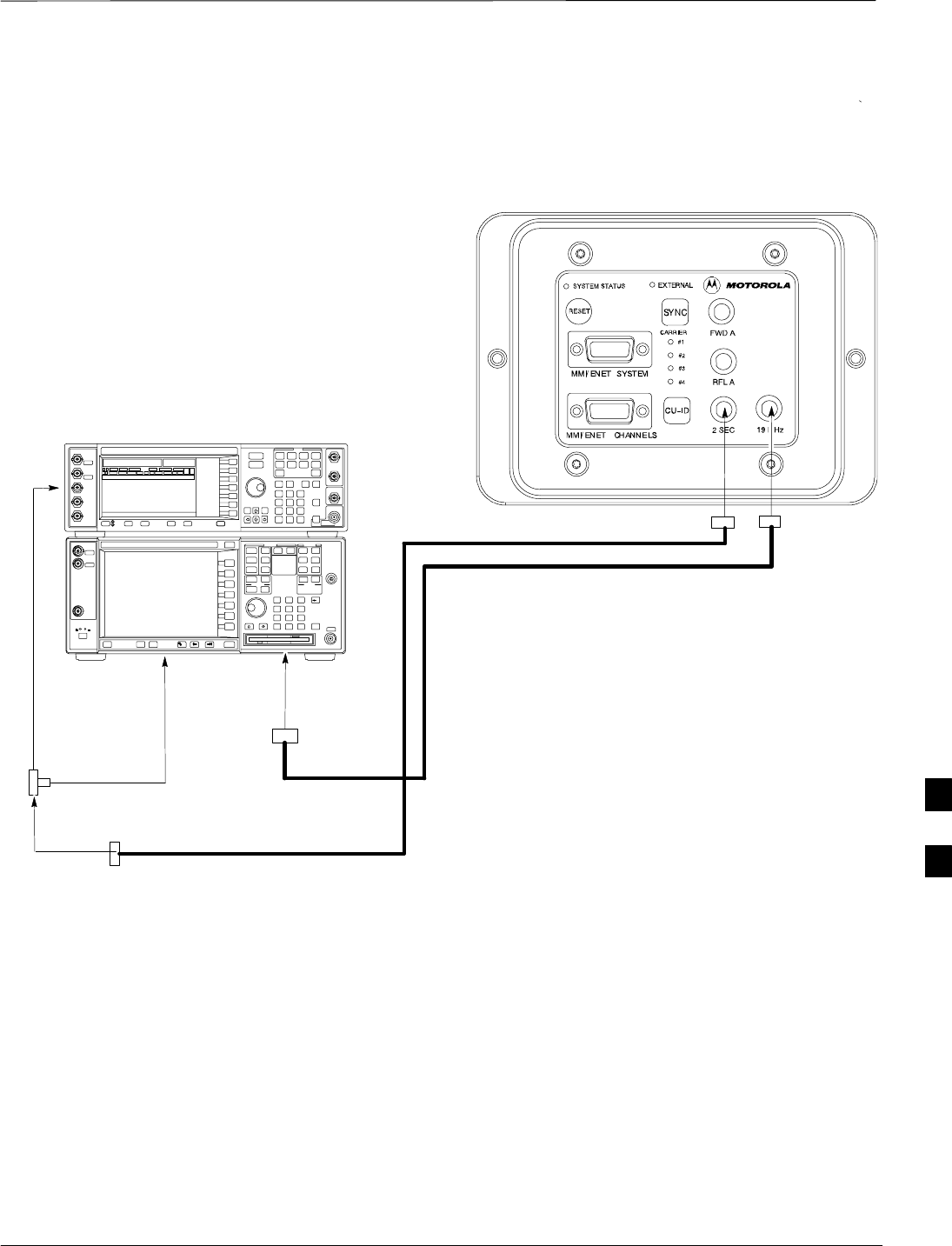

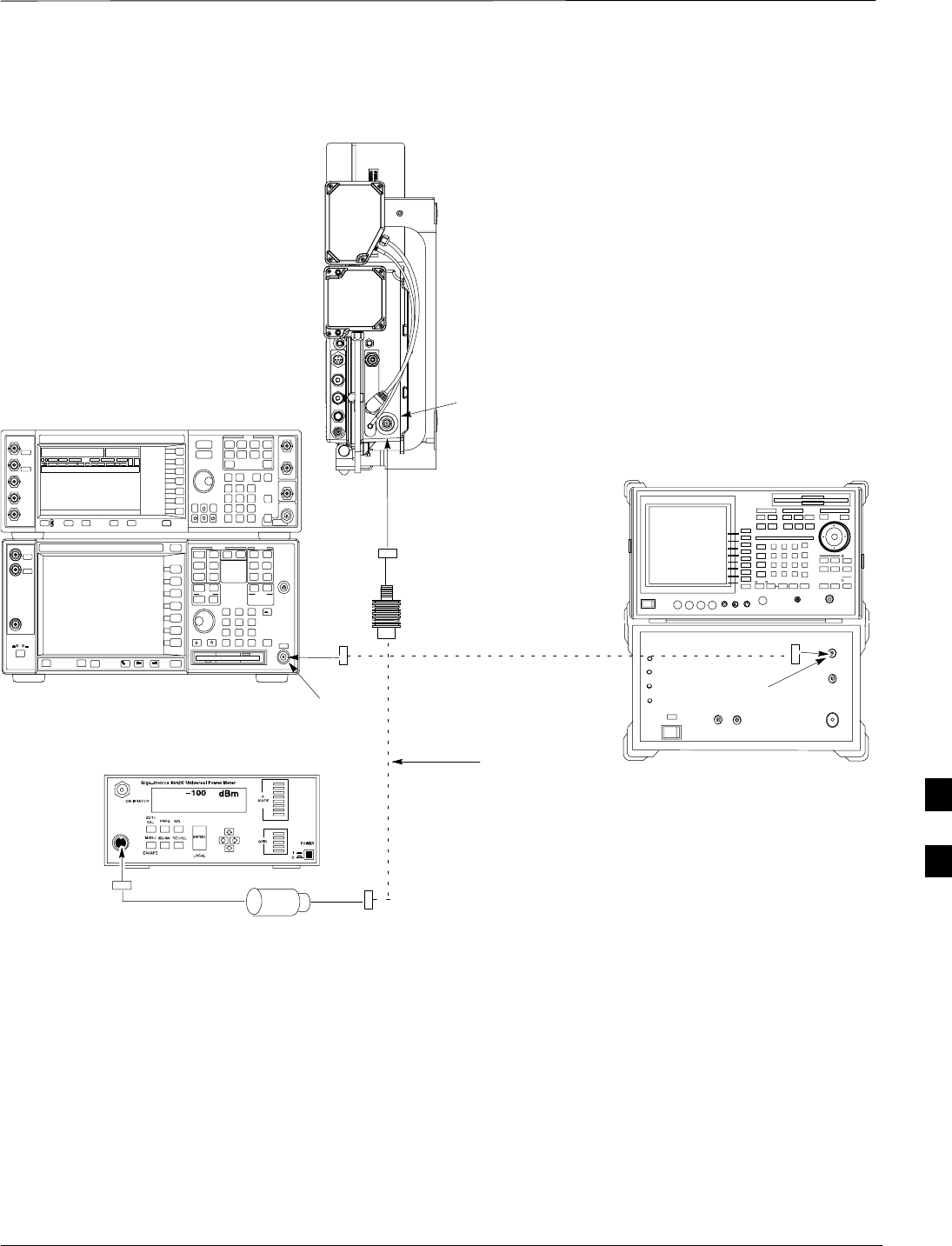

Procedure to Connect the Agilent E4406A/E4432B to BTS 7-16. . . . . . . . .

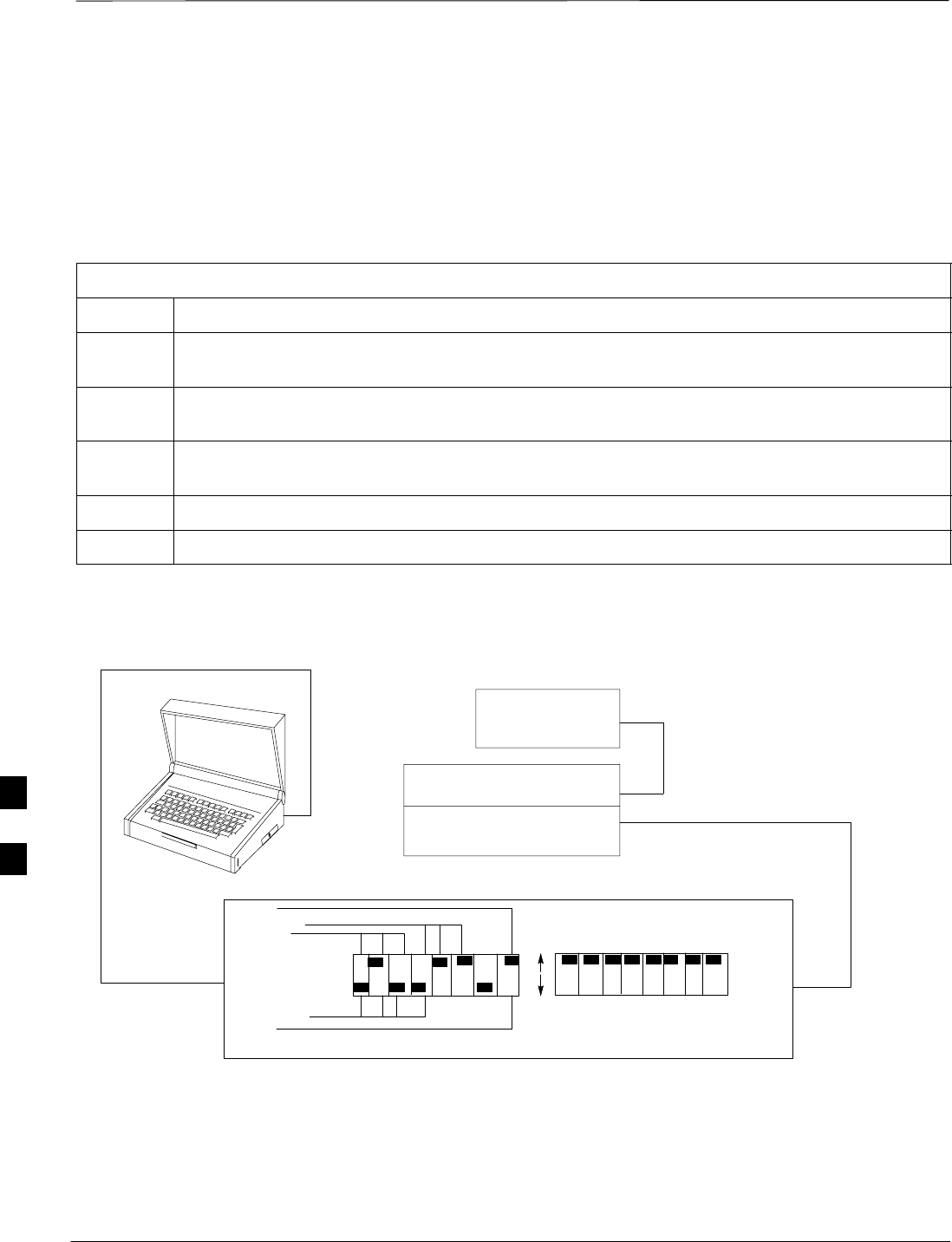

Connect Test Set and Power Meter to LMF 7-18. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Connect the Communication Test Set and

Power Meter to the LMF 7-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

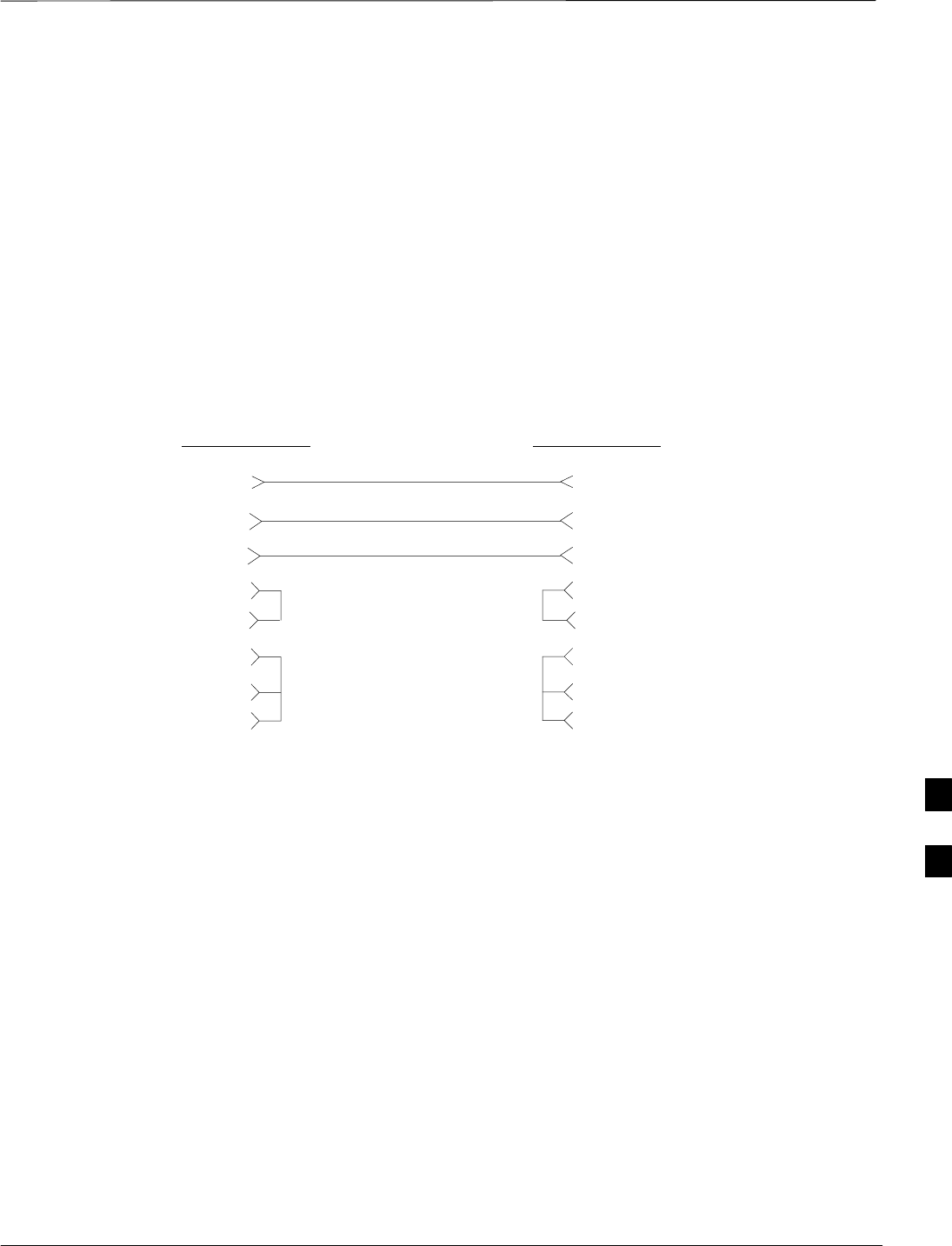

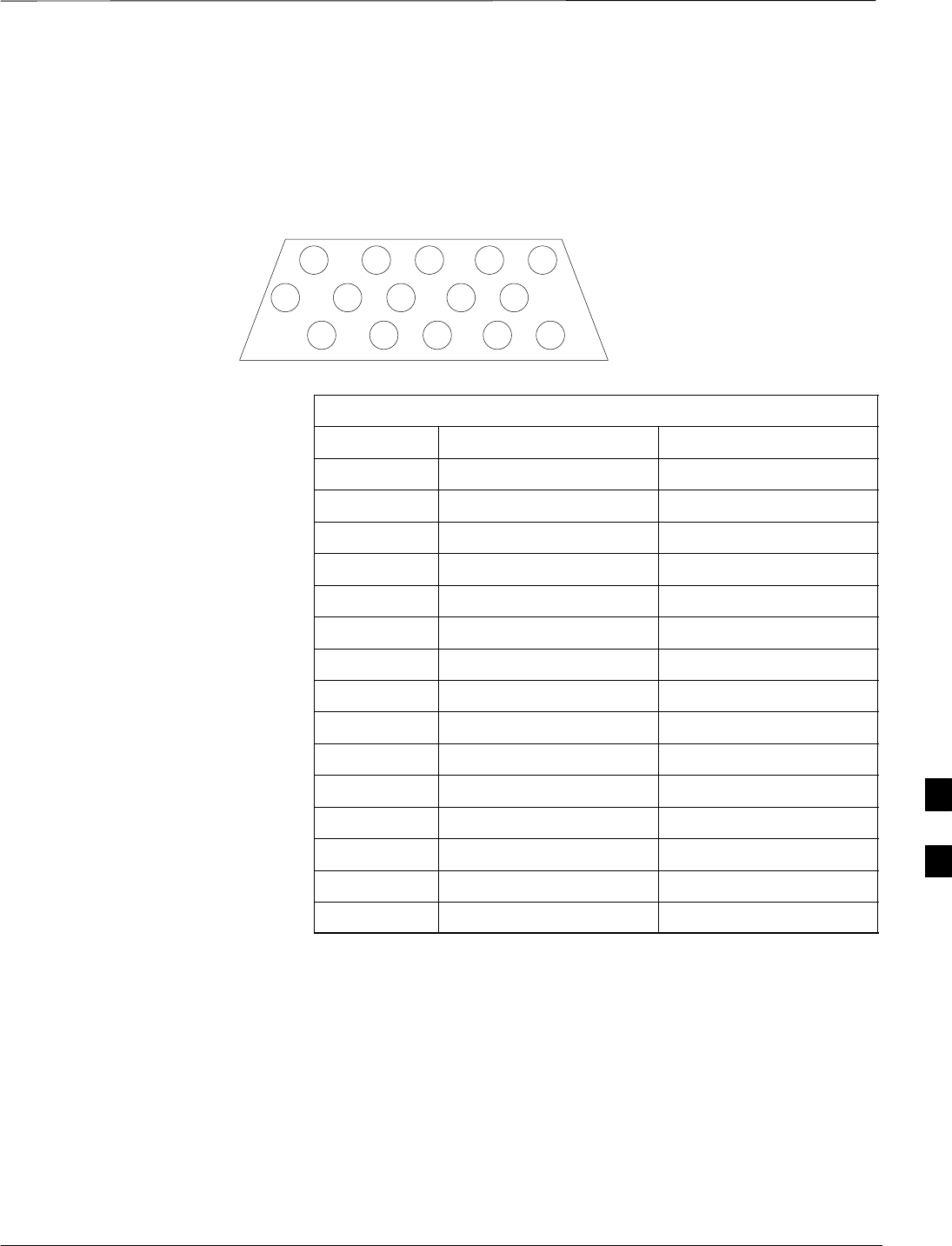

RS232 Cable Configuration 7-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Configuration 7-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Create a Named HyperTerminal Connection for MMI

Communication 7-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Establish an MMI Communication Session 7-22. . . . . . . . . . .

Procedure to Set IP Address 7-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Simulate an LMF Session 7-24. . . . . . . . . . . . . . . . . . . . . . . .

Updating Default Channel Setting to Customer Operating Channel 7-25. . .

Synchronization Background 7-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Verify and Change BTS Synchronization Mode 7-27. . . . . . .

Procedure to Verify DPLL Tracking (RGPS/HSO) 7-28. . . . . . . . . . . . . . . .

Procedure to Verify and Modify Default Location Coordinates 7-29. . . . . .

Table of Contents – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

Procedure to Set Frame ID for Multi–Unit Logical BTS Configuration 7-31

BTS Software 7-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Install the LMF Program and BTS Binaries 7-32. . . . . . . . . . . . . . . . . . . . .

Create a Site–Specific BTS Directory 7-32. . . . . . . . . . . . . . . . . . . . . . . . . .

Start the LMF and Login to the BTS 7-32. . . . . . . . . . . . . . . . . . . . . . . . . . .

Update BTS Specific CDF File Device Load Version 7-33. . . . . . . . . . . . .

Download/Enable MAWI 7-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configuration Data File (CDF) 7-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Status LED States 7-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Verify and Set Span Line Settings 7-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Span Line Settings 7-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Verify and Set Span Line Settings 7-37. . . . . . . . . . . . . . . . . .

SPAN_CONFIG Parameters 7-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GPIB Addresses 7-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 7-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

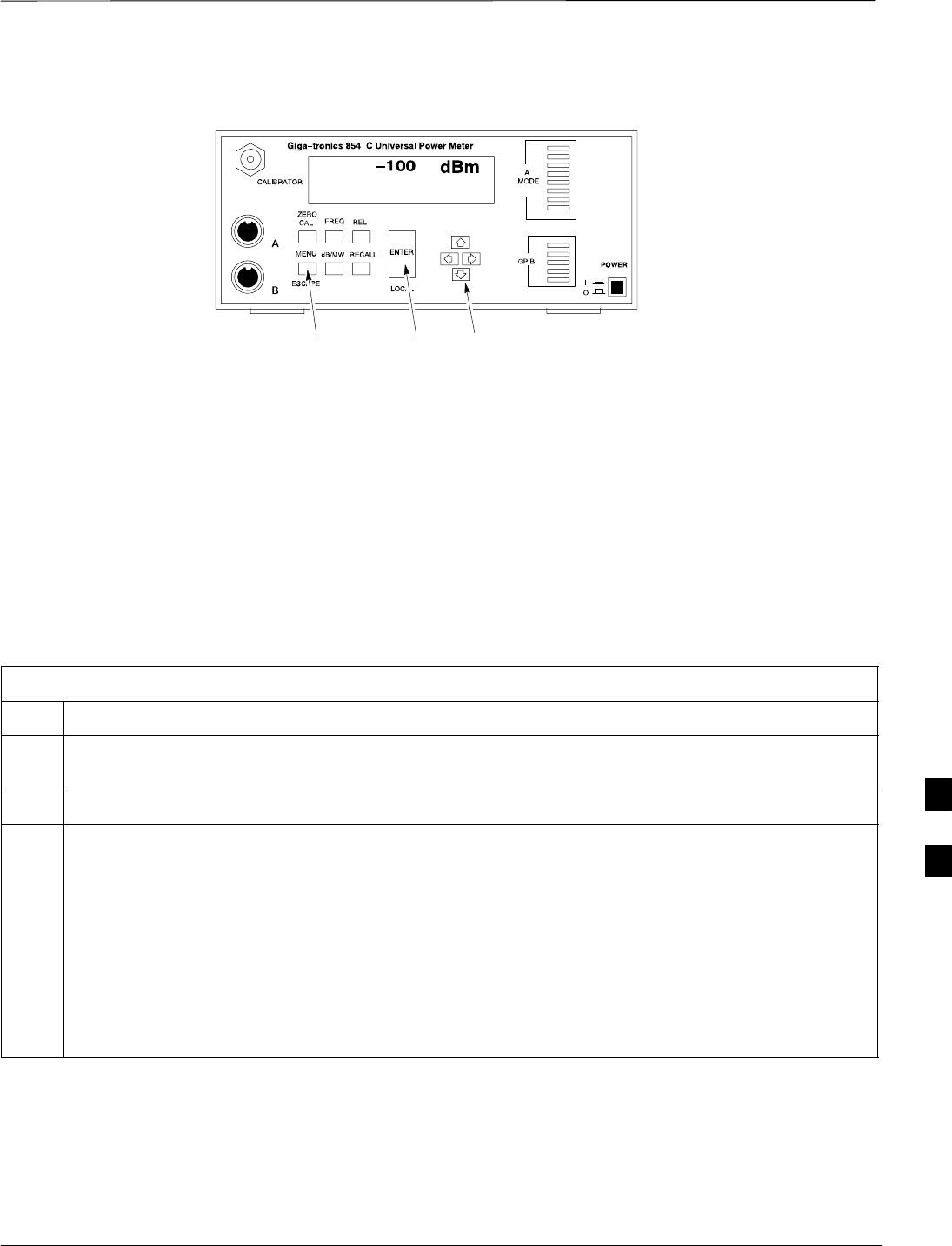

Verify the Gigatronics 8541C Power Meter GPIB Address 7-40. . . . . . . . .

Verify and Set Motorola CyberTest GPIB Address 7-41. . . . . . . . . . . . . . . .

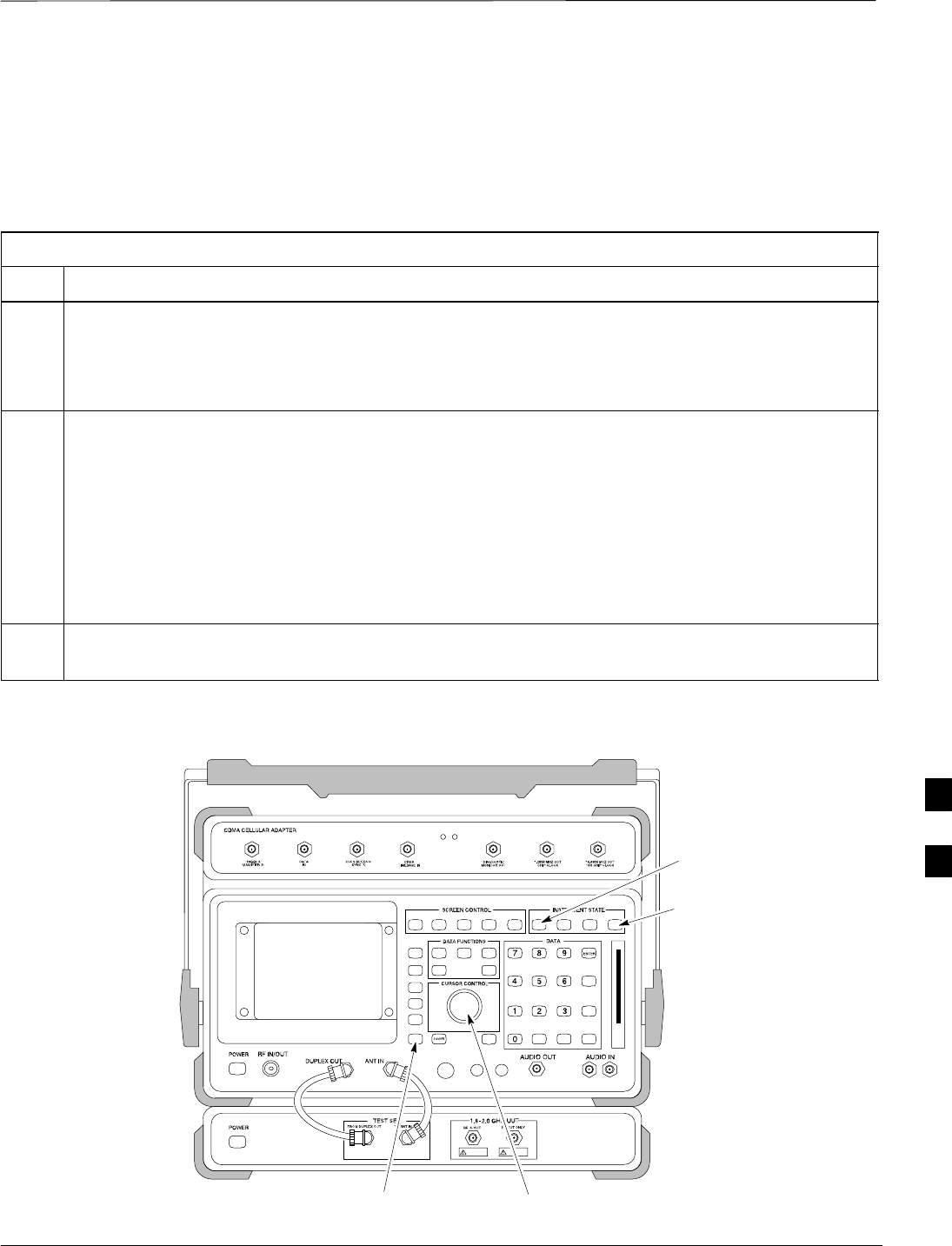

Verify and Set HP8935 Test Set GPIB Address 7-42. . . . . . . . . . . . . . . . . .

Verify and Set the HP8921A and HP83236A/B GPIB Addresses 7-43. . . .

Verify and Set Advantest R3465 GPIB Address 7-44. . . . . . . . . . . . . . . . . .

RS232 GPIB Interface Box 7-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Verify and Set Advantest R3267 GPIB Address 7-45. . . . . . . . . . . . . . . . .

Verify and Set Advantest R3562 Signal Generator GPIB Address 7-47. . . .

Verify and Set Agilent E4406A Transmitter Tester GPIB Address 7-47. . . .

Verify and Set Agilent E4432B Signal Generator GPIB Address 7-49. . . . .

Test Equipment Calibration 7-51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 7-51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Calibrate Test Equipment 7-52. . . . . . . . . . . . . . . . . . . . . . . . .

Calibration Without the LMF 7-52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Calibrate R3465 Test Set 7-53. . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Calibrate R3267 Test Set 7-53. . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Calibrate Agilent E4406A 7-54. . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Setup Advantest R3465 Test Equipment 7-55. . . . . . . . . . . . .

Procedure to Setup Advantest R3267 Test Equipment 7-56. . . . . . . . . . . . .

Test Equipment Selection 7-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prerequisites 7-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Select Test Equipment 7-57. . . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting Test Equipment Automatically or Manually 7-58. . . . . . . . . . . . .

Procedure to Manually Select Test Equipment in a

Serial Connection Tab 7-58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Automatically Select Test Equipment in a

Serial Connection Tab 7-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Meter Calibration 7-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents – continued

JAN 2002 SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective 7-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prerequisites 7-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Calibrate the Power Meter 7-60. . . . . . . . . . . . . . . . . . . . . . . .

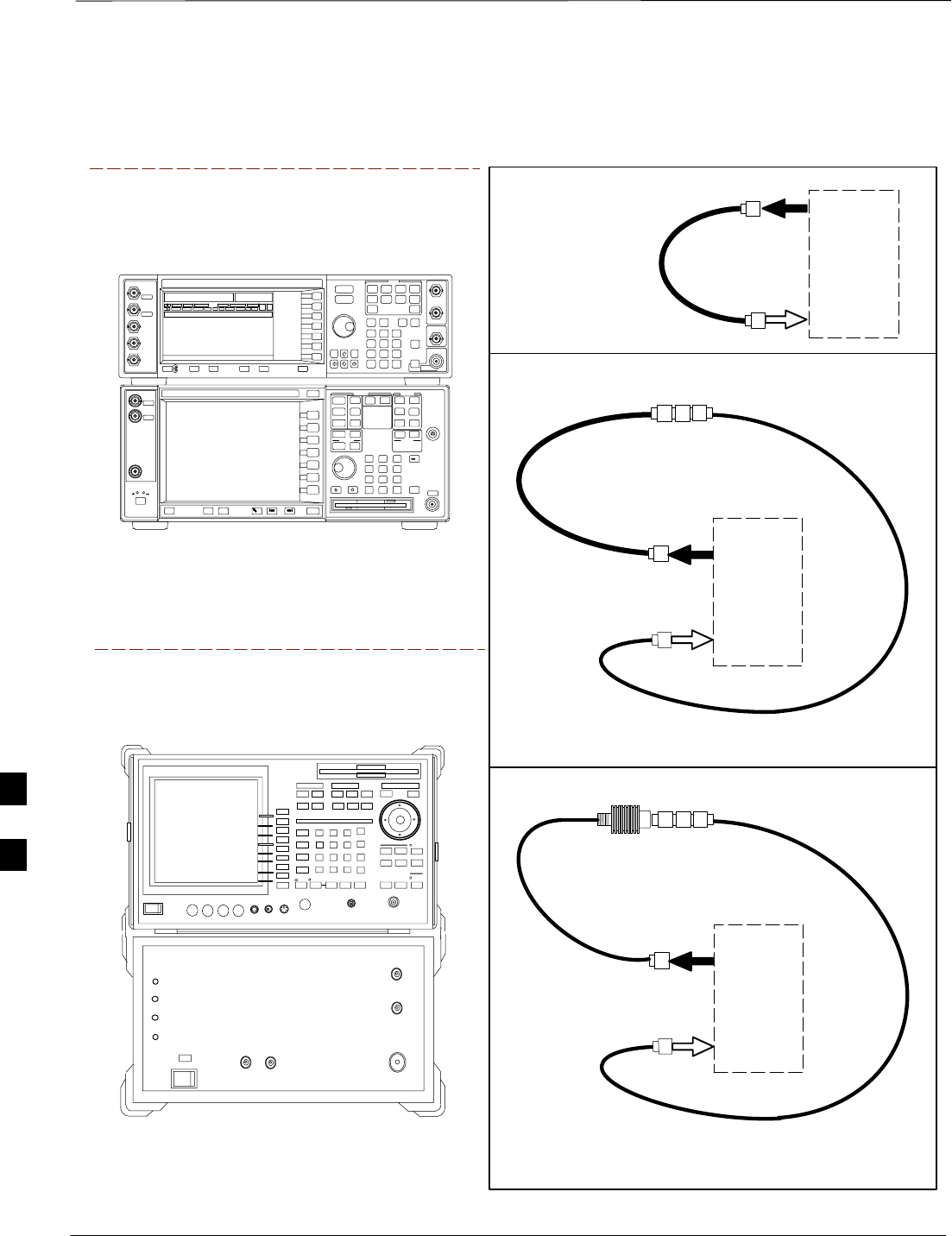

Test Cable Calibration 7-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 7-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Purpose of Cable Calibration 7-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to do an Automated Cable Calibration 7-62. . . . . . . . . . . . . . . . .

Create CAL File 7-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 7-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Create a CAL File 7-66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Acceptance Tests 7-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 7-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Test Objective 7-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Tests 7-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RX Test Objective 7-68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RX Tests 7-68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Subscriber Unit (SU) Test and Setup 7-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 7-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Test and Verify SU 7-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Program SU NAM Parameters 7-71. . . . . . . . . . . . . . . . . . . . .

CDMA Operating Frequency Programming Information – North American

Cellular Bands 7-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

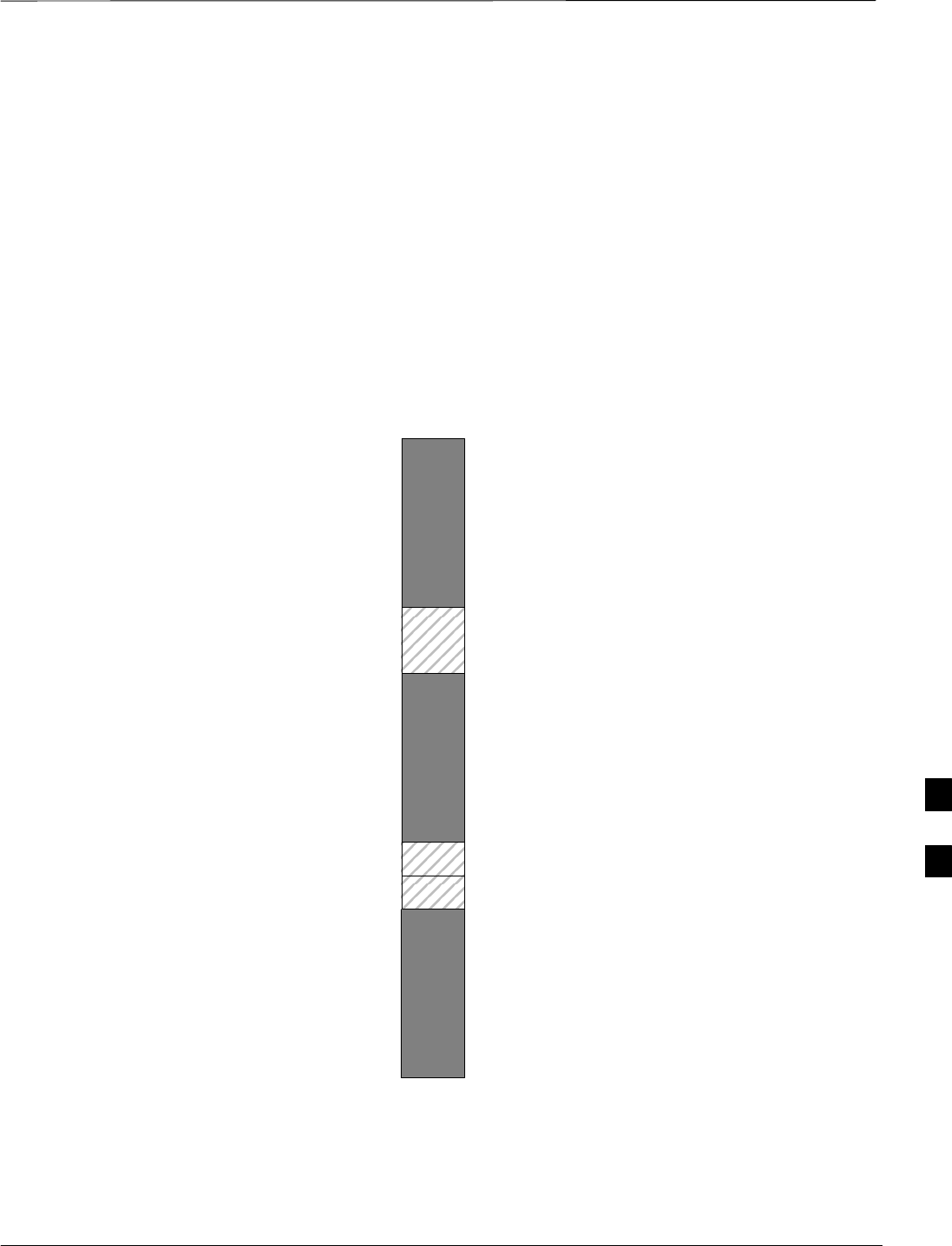

1900 MHz PCS Channels 7-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calculating 1900 MHz Center Frequencies 7-74. . . . . . . . . . . . . . . . . . . . . .

800 MHz CDMA Channels 7-76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calculating 800 MHz Center Frequencies 7-76. . . . . . . . . . . . . . . . . . . . . . .

TX Acceptance Tests 7-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prerequisites 7-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Run TX ATP Test 7-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Run TX Tests Using Backup Synchronization

(Sites Equipped With GPS) 7-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RX Acceptance Tests 7-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prerequisites 7-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Run RX ATP Test 7-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Generate an ATP Report 7-88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 7-88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATP Report 7-88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Run ATP Report 7-88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Copy LMF CAL File to CBSC 7-89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 7-89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

Background 7-89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Copy CAL Files from LMF to a Diskette 7-89. . . . . . . . . . . .

Procedure to Copy CAL Files from Diskette to the CBSC 7-90. . . . . . . . . .

Prepare to Leave the Site 7-91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Remove External Test Equipment 7-91. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reset and Initialize Site Remotely 7-91. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bring BTS into Service with the CDMA LMF 7-91. . . . . . . . . . . . . . . . . . .

Terminate LMF Session/Remove Terminal 7-92. . . . . . . . . . . . . . . . . . . . . .

Replace Diagnostic Access Cover 7-93. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replace Solar Cover 7-93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATP Overview

JAN 2002 7-1

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Overview

The purpose of this procedure is to outline the optimization and ATP

after a BTS installation. Calibration of the BTS is performed in the

factory and is not required. The ATP is also performed in the factory

and is optional.

All the procedures in this chapter are to be performed with the BTS out

of service or under LMF control. If necessary, refer to the “Shut Down

and Restoring BTS Signaling” procedure in Chapter 7.

For a complete listing of the required tools and equipment, refer to the

“ATP Tools and Equipment” list in Chapter 1.

You must run the ATP with LMF Software Release

2.15.0.1.10 or higher.

IMPORTANT

BTS Preparation

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-2

Overview

The purpose of this procedure is to prepare the BTS for the ATP. This

procedure consists of:

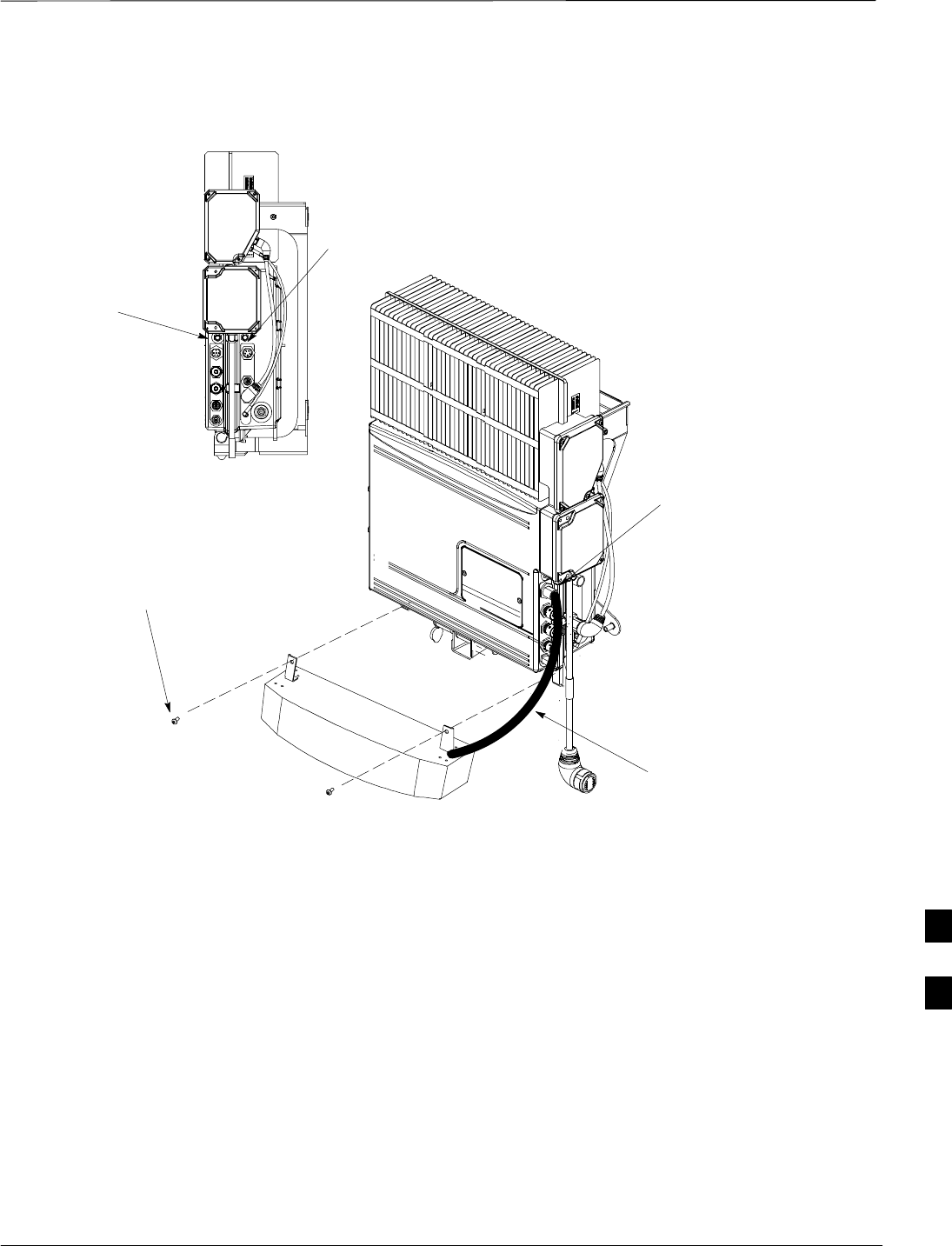

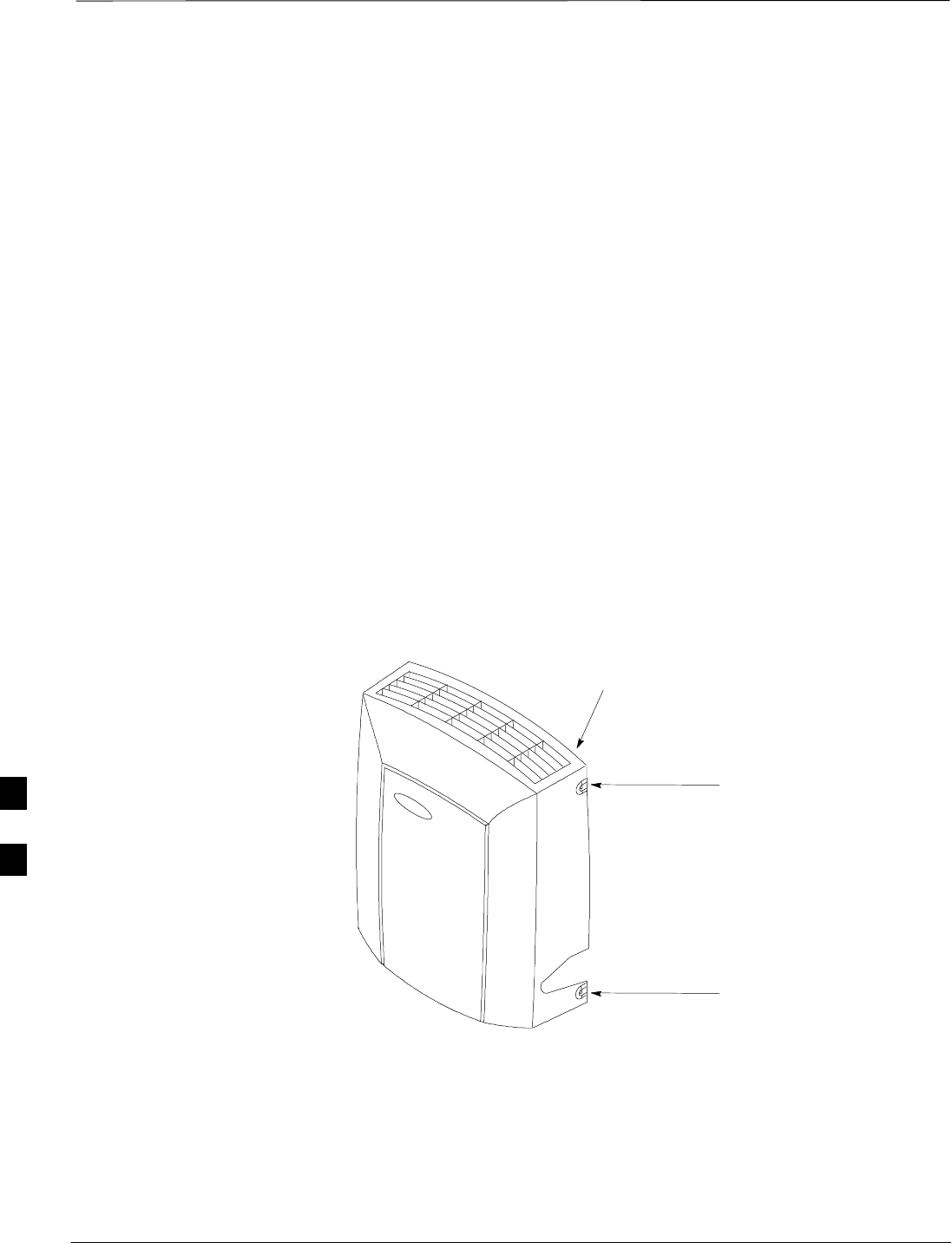

1. Solar Cover Removal

2. BTS Power Up

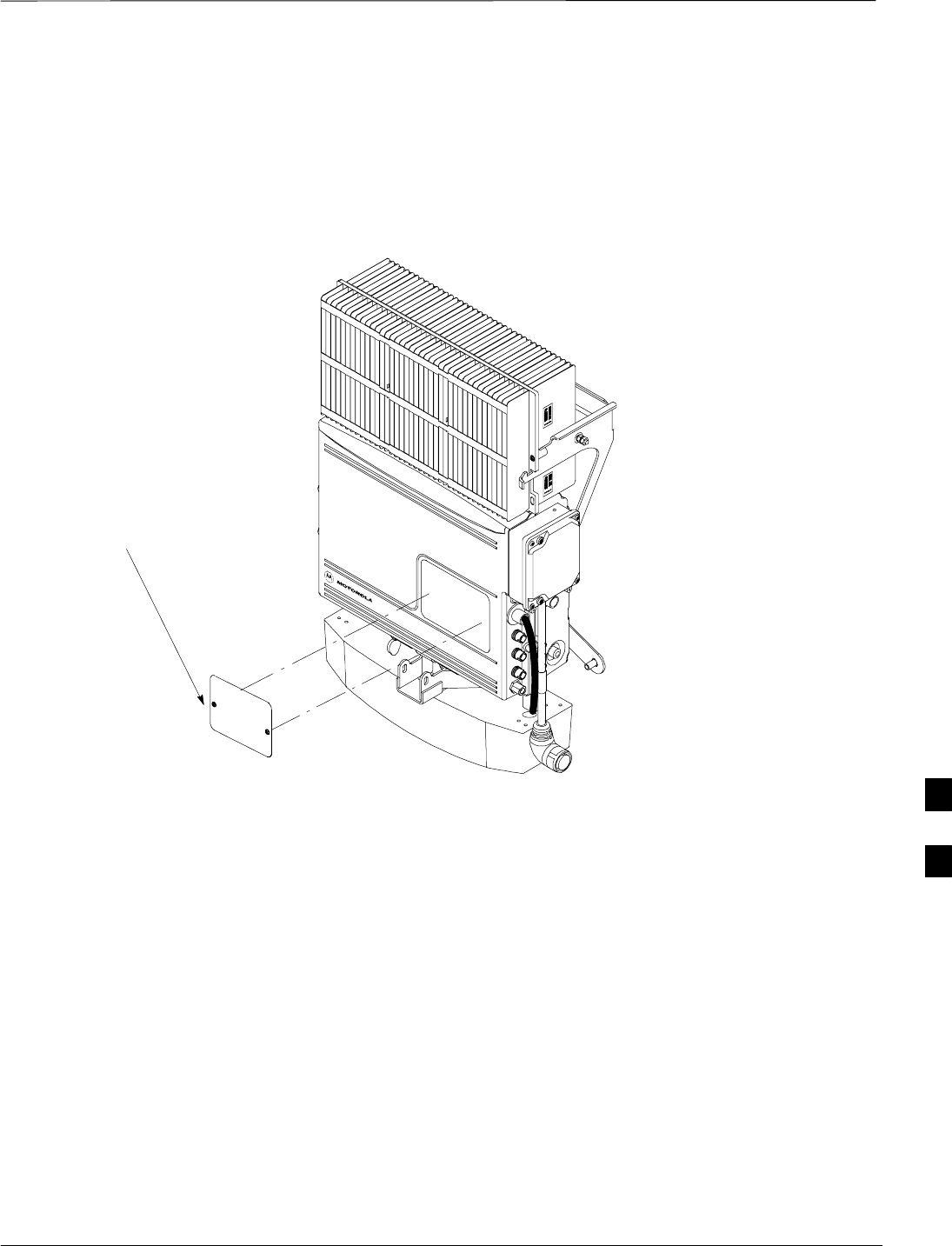

3. Diagnostic Access Cover Removal

Required Tools and Equipment

The following tools and materials are necessary to do this procedure:

STorque driver wrench, 1/4–in. hex female drive, 0–10 N–M

ST20 Torx tamper bit

Procedure to Remove the Solar

Cover

If you did not mount the solar cover during the unit installation, then this

procedure is not necessary.

Remove the four captive screws (two on each side) that hold the front

solar cover. Refer to Figure 7-1.

Figure 7-1: Front Solar Cover

FRONT COVER

CAPTIVE SCREWS

BTS Power Up

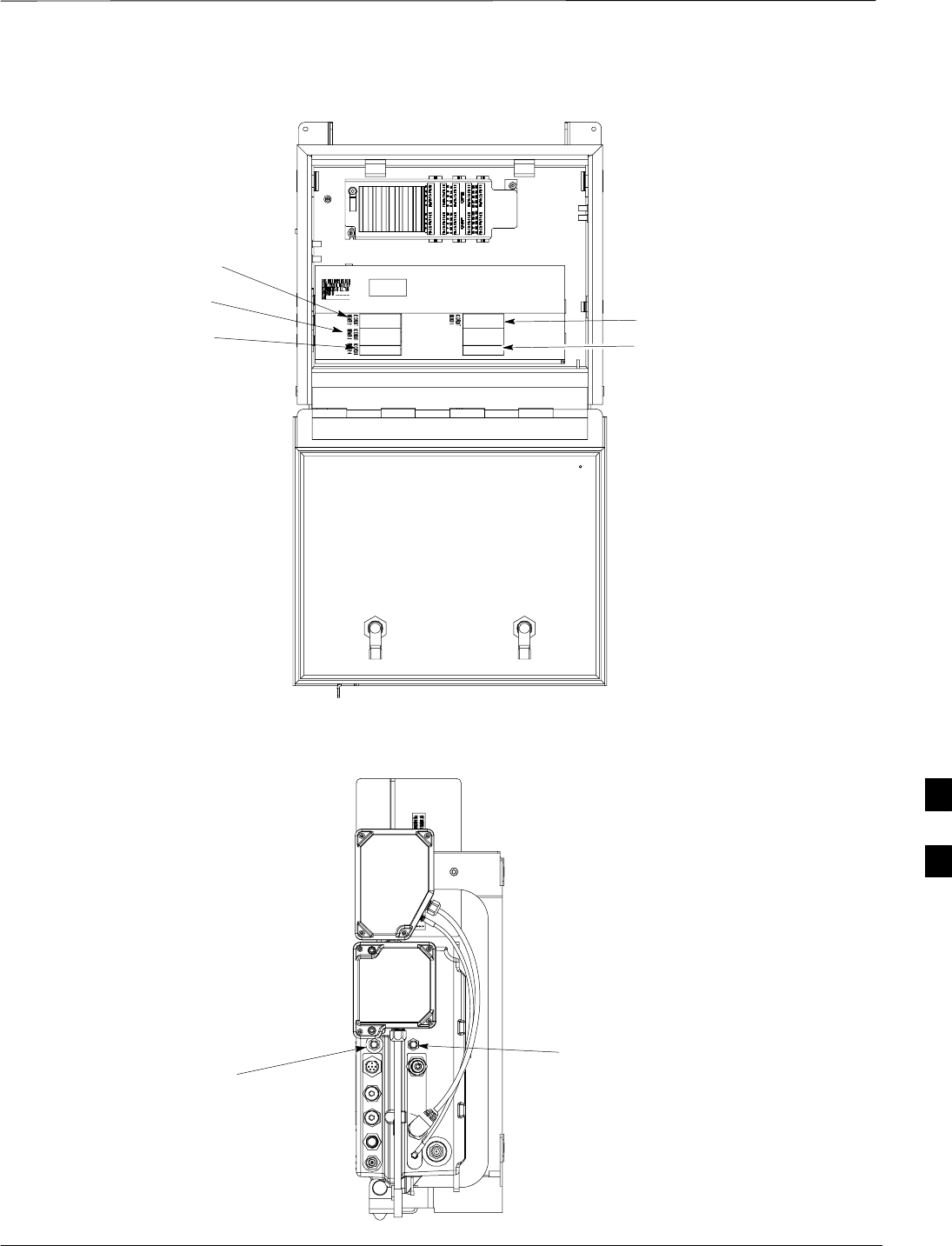

Figure 7-2 shows the location of the AC power breakers inside the

optional Primary Surge Suppressor. The AC breakers must be closed

before you power up the MicroCell unit.

Figure 7-3 shows the location of the AC and DC Power breakers on the

unit. Push both the AC and DC breakers in to power up the unit.

BTS Preparation – continued

JAN 2002 7-3

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-2: Location of AC Power Breakers Inside Primary Surge Suppressor

AC POWER BREAKER

CARRIER 1

AC POWER BREAKER

CARRIER 2

AC POWER BREAKER

CARRIER 3

AC POWER BREAKER

CARRIER 4

MAIN INPUT BREAKER

Figure 7-3: Location of AC and DC Power Breakers

AC POWER BREAKER

DC POWER BREAKER

BTS Preparation – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-4

Procedure to Remove

Diagnostic Access Cover

The screws are captivated. Do not attempt to remove them

from the cover.

NOTE

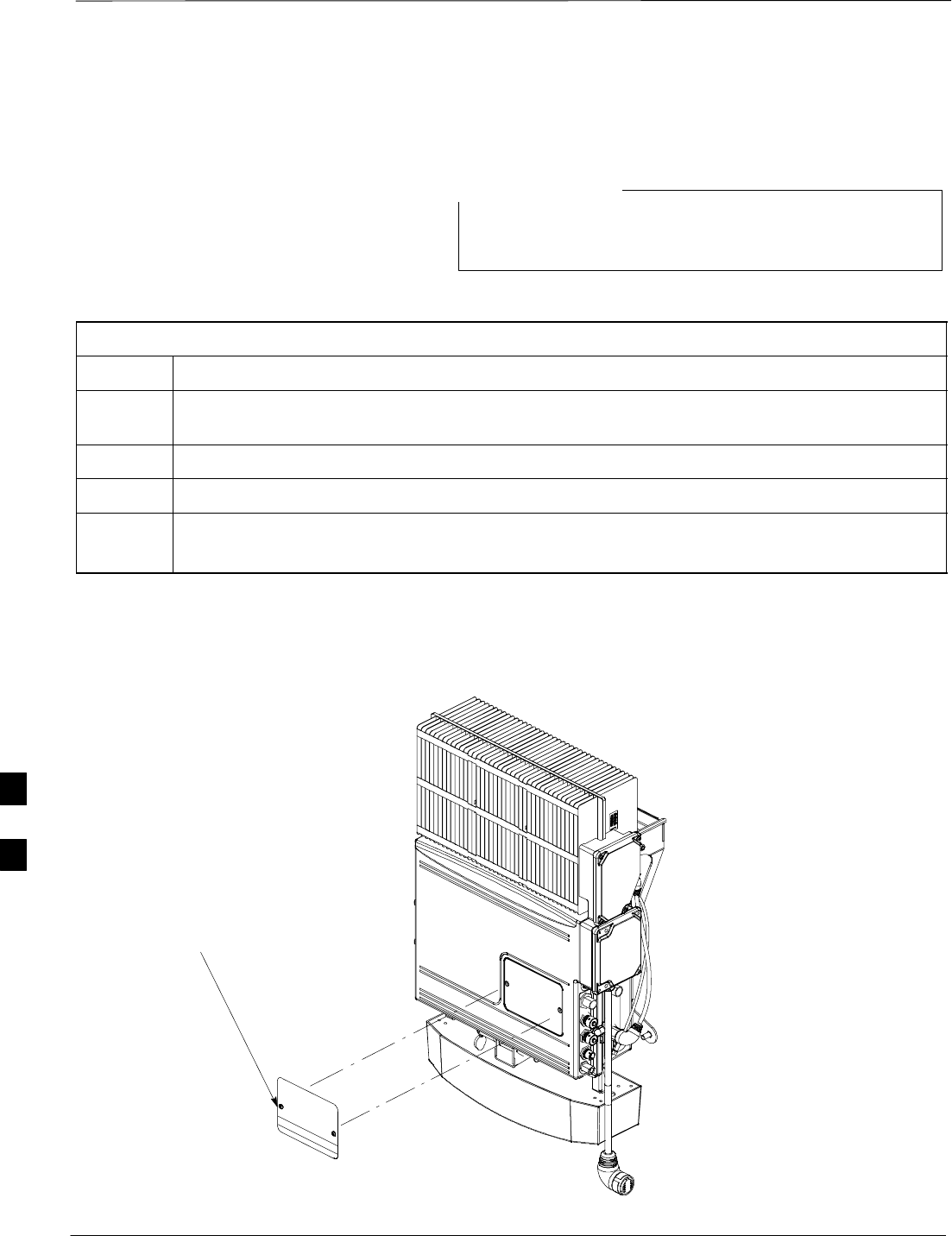

Table 7-1: Procedure for Removing Diagnostic Access Cover

Step Action

1Using a T20 Torx tamper bit, loosen the two tamper resistant M4 screws holding the cover. See

Figure 7-4.

2Gently tap the cover to loosen if required.

3Remove the cover and set inside a secure place.

NOTE

The 19 MHz and 2 SEC connectors should not be terminated with a 50 ohm terminator.

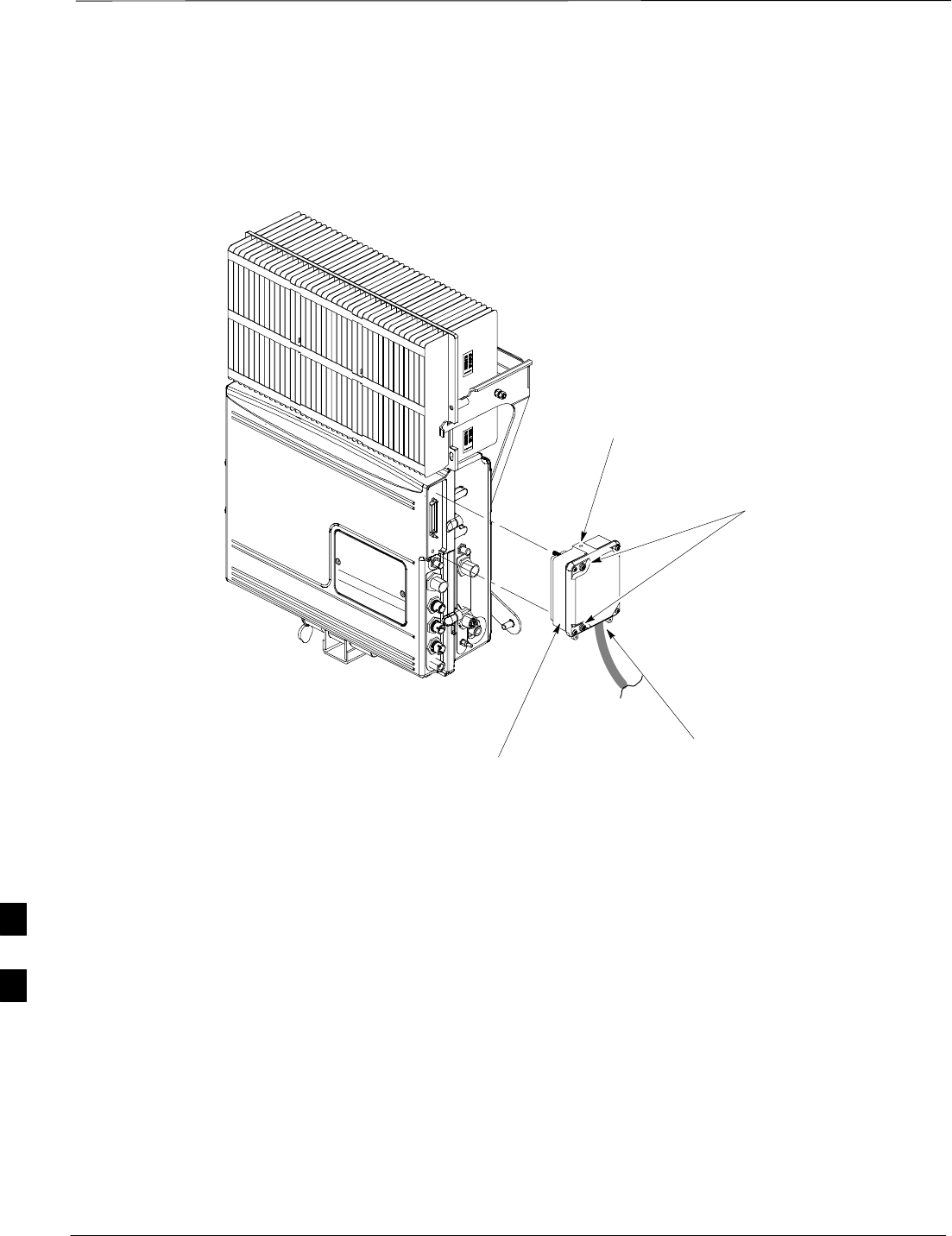

Figure 7-4: How To Remove The Diagnostic Access Cover

SCREWS IN DIAGNOSTIC

ACCESS COVER ARE CAPTIVE

BTS Preparation – continued

JAN 2002 7-5

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

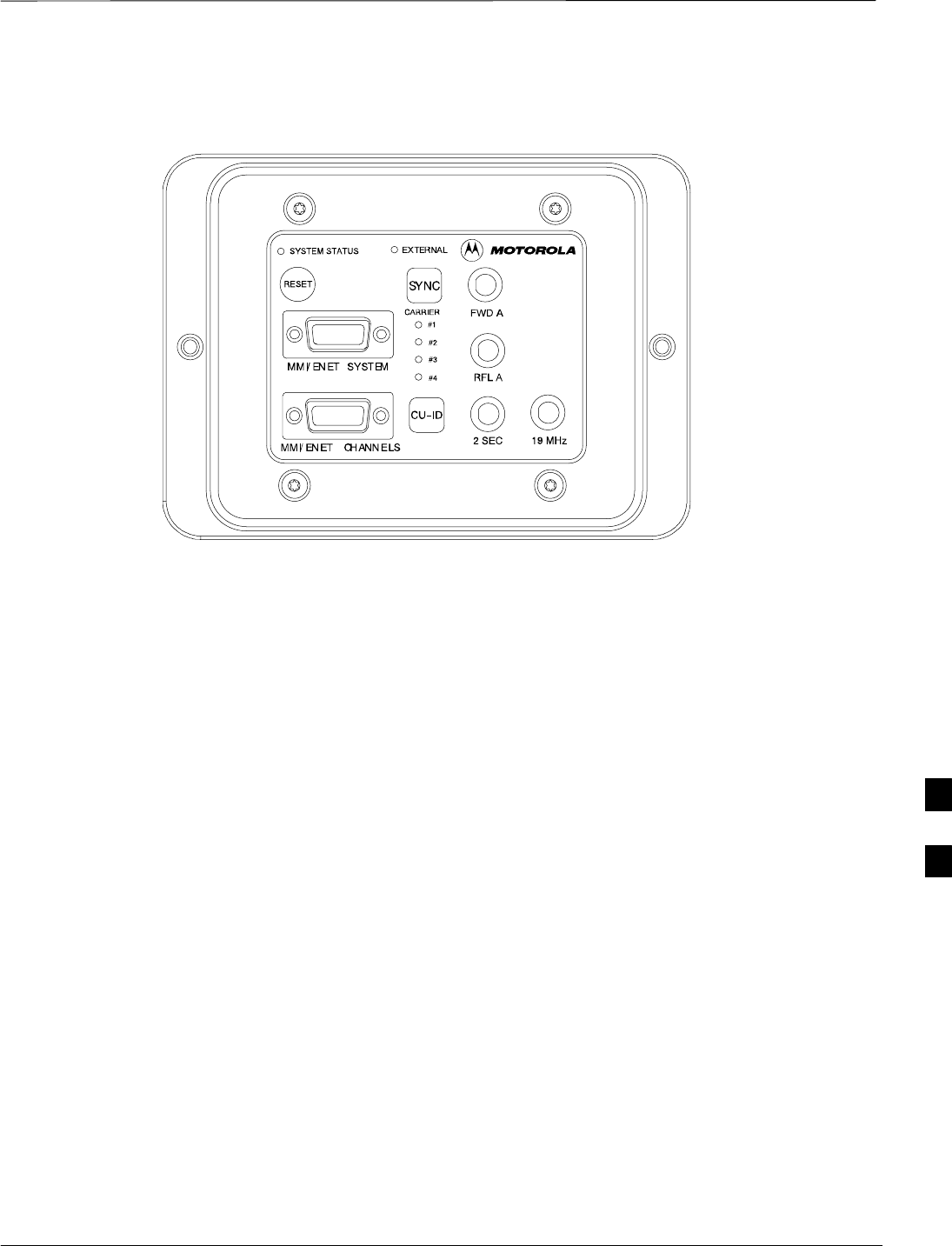

Figure 7-5: Detail Location of the Diagnostic Access Area

Connect LMF to BTS

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-6

Overview

This procedure gives instructions to connect the LMF to the BTS.

LMF to BTS Connection

The LMF is connected to the MMI/LMF connector on the diagnostic

access area.

The LMF serial port, or PCMCIA (Personal Computer Memory Card

International Association) Serial Adapter provides the connection

between the LMF and the MMI/LMF connector located on the

diagnostic access area.

There are three different methods to connect the LMF to the BTS: serial

port to DB9, Ethernet via Ethernet hub, and Ethernet via crossover

connection.

Procedure to Connect LMF to

BTS via Serial Port Connection

Connect the LMF to the BTS. Refer to Figure 7-6, Figure 7-10, and

Table 7-2.

Figure 7-6: Serial to DB9 BTS to LMF connection

DB9 DB9

LMF

DB9 TO DB9 CABLE

CONNECT 15 TO 9–PIN MMI TO SERIAL

CONNECTOR TO MMI/ENET SYSTEM PORT

CONNECT TO

PCMCIA SERIAL I/O

OR SERIAL I/O PORT

Connect LMF to BTS – continued

JAN 2002 7-7

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Connect LMF to

BTS via Ethernet Connection

You can connect the LMF to the BTS via an Ethernet connection.

Depending upon site configuration, you can use an Ethernet connection

with or without an Ethernet hub. For example, if your BTS is mounted

on a pole and there is no power connection available for the Ethernet

hub, then you can connect to the BTS via a RJ45 crossover cable or a

MMI to LAN crossover adapter. In either case, you must configure

either the RJ45 cable or the adapter to a crossover configuration.

Ethernet connection via Ethernet hub

To connect the LMF to the BTS via an Ethernet connection using an

Ethernet hub, refer to Figure 7-7, Figure 7-10, and Table 7-2.

Figure 7-7: Ethernet BTS to LMF Connection Using an Ethernet Hub

LMF

4–PORT 10 BASE T

ETHERNET HUB

CONNECT PCMCIA

LAN CARD TO

ETHERNET HUB RJ45 ETHERNET TO

15–PIN MMI TO LAN

ADAPTER

RJ45 ETHERNET CABLE

Ethernet connection via crossover cable

To connect the LMF to the BTS via an Ethernet connection using a

crossover cable or adapter, you must configure the RJ45 cable or the

MMI to LAN adapter as a crossover. Refer to Figure 7-8 for information

on how to configure the cable or adapter. Refer to Figure 7-9,

Figure 7-10, and Table 7-2 to connect the LMF to the BTS.

Connect LMF to BTS – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-8

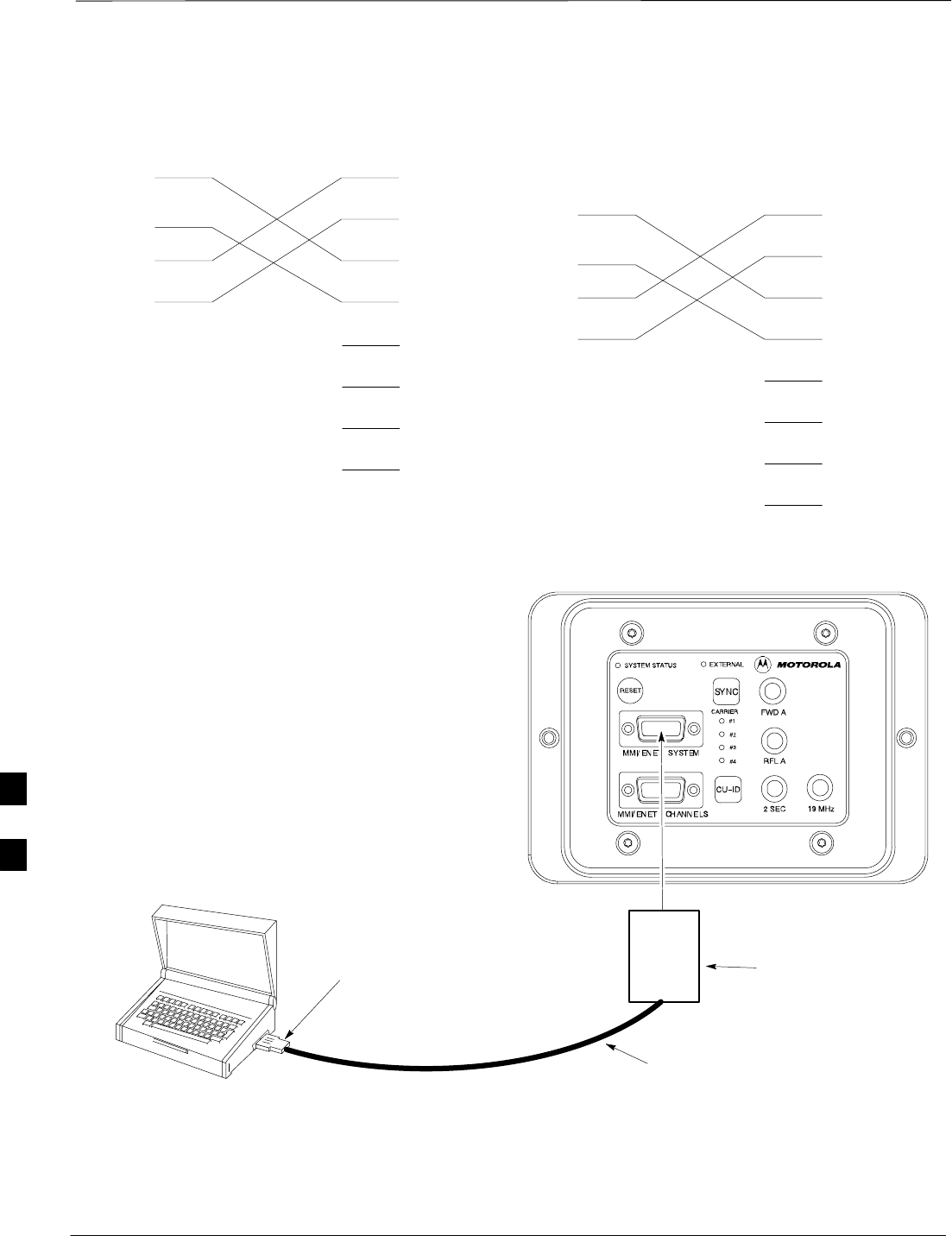

Figure 7-8: Ethernet Crossover Cable and Adapter Wiring

RJ45 ETHERNET CABLE CROSSOVER CONFIGURATION

TX+

TX–

RX+

RX–

MMI/LAN ADAPTER CROSSOVER CONFIGURATION

TX+

TX–

RX+

RX–

BLUE

ORANGE

BLACK

YELLOW

RED

GREEN

BROWN

GRAY

15–PIN D–SUB RJ–45

RED

GREEN

BROWN

GRAY

YELLOW

BLACK

ORANGE

BLUE

Figure 7-9: Ethernet BTS to LMF Connection Using Crossover Cable or Adapter

LMF

CONNECT PCMCIA

LAN CARD TO

ETHERNET HUB RJ45 ETHERNET TO

15–PIN MMI TO LAN

ADAPTER

(SEE NOTE)

RJ45 ETHERNET CABLE

(SEE NOTE)

NOTE: YOU MUST CONFIGURE EITHER THE RJ45

CABLE OR THE MMI TO LAN ADAPTER AS A

CROSSOVER TO CONNECT THE LMF TO THE BTS IN

THIS FASHION.

Connect LMF to BTS – continued

JAN 2002 7-9

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

MMI/LMF serial connector information

Refer to Figure 7-10 and Table 7-2 for information for the 15–pin

MMI/LMF connector.

Figure 7-10: 15–Pin MMI/LMF Serial Connector

11 12 13 14 15

678910

12345

Table 7-2: 15–Pin MMI/LMF Serial Cable Information

Pin# Abbreviation Description

1RTS Request to Send

2 TXD Transmit Data

3 RXD Receive Data

4 TX+ Ethernet Transmit +

5 TX–Ethernet Transmit –

6 CTS Clear to Send

7 CTS Clear to Send

8 CTS Clear to Send

9–Open

10 RI Ring Indicator

11 RI Ring Indicator

12 RX+ Ethernet Receive +

13 CTS Clear to Send

14 GND Ground

15 RX–Ethernet Receive –

Connect Test Equipment to BTS

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-10

Overview

The following test equipment setup applies to the BTS Acceptance Test

Procedure (ATP).

The SCt300 BTS supports the following test sets for IS95 A/B testing:

1. Advantest R3465 with R3561 Signal Generator.

2. Motorola CyberTest

3. HP 8921A (for 800 MHz testing only)

4. Aglient 8935 Series E6380A (formally HP8935)

The 1X SCt300 BTS supports the following test sets for CDMA2000

1X testing:

1. Advantest R3267 with R3562 Signal Generator

2. Agilent E4406A with E4432B Signal Generator

If you are not going to perform the ATP, then proceed to

the “Creating a Named HyperTerminal Connection for

MMI Communication” procedure in this chapter.

NOTE

Equipment warm-up

Warm-up BTS equipment site for a minimum of 60

minutes prior to the BTS ATP. This assures BTS site

stability and contributes to test accuracy.

(Time spent running initial power–up, hardware/firmware

audit, and BTS download counts as warm–up time).

IMPORTANT

Warm-up test equipment for a minimum of 60 minutes

prior to their use in the BTS ATP. This assures maximum

equipment measurement accuracy and consistency during

testing.

IMPORTANT

All test equipment is controlled by the LMF via a Serial Cable/GPIB

bus. The LMF expects each piece of test equipment to have a factory-set

GPIB address. If there is a communications problem between the LMF

and any piece of test equipment, you should verify that the GPIB

addresses have been set correctly.

Connect Test Equipment to BTS – continued

JAN 2002 7-11

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

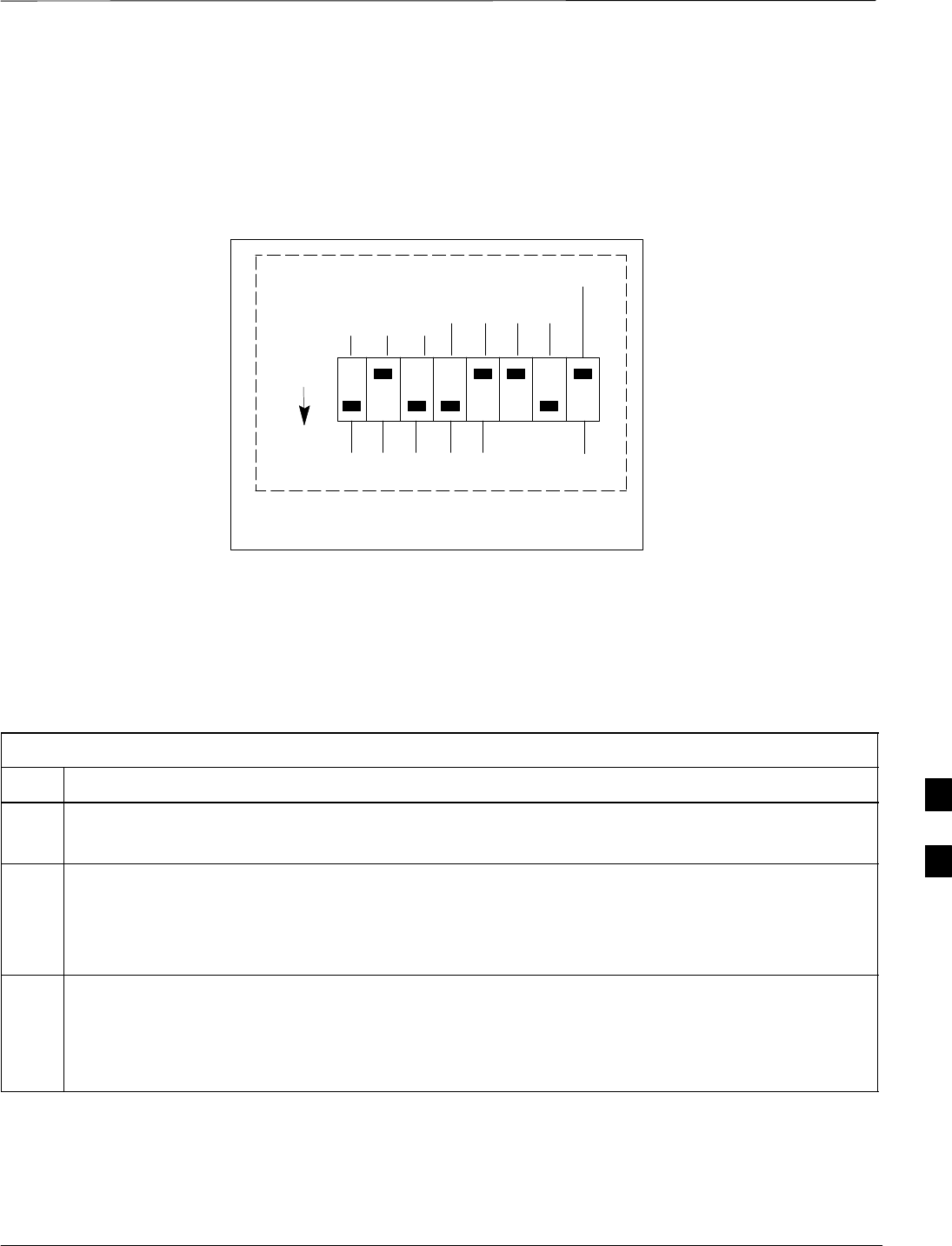

In the following procedure and illustrations, typical DIP

switch positions and/or configurations are shown. If

required, refer to the test equipment OEM user manuals for

additional information.

NOTE

Procedure to Connect

Advantest R3465 to BTS

Follow the procedure in Table 7-3 to connect the Advantest R3465 to the

BTS. Refer to Figure 7-11.

Table 7-3: Connecting Advantest R3465 to the BTS

Step Action

1Connect an SMA/BNC coax cable between the following points:

–BNC on the Advantest CDMA TIMEBASE IN port.

–SMA on the 19 MHz port on the diagnostic access area of the BTS.

2Connect an SMA/BNC cable between the following points:

–BNC to one end of the BNC “T.”

–SMA on the 2 Sec port on the diagnostic access area of the BTS.

3Connect a BNC/BNC cable between the following points:

–BNC to one end of the BNC “T.”

–BNC to the EXT TRIG port on the rear panel of the Advantest R3465.

4Connect the BNC “T” to the EVEN SEC/SYNC IN port of the Advantest R356IL.

5Verify the R3561 and R3465 rear panel connections are in place (These are common connections and

should already be installed):

–Serial cable between 3465A rear panel SERIAL I/O port and R3561 SERIAL I/O port.

–SMA cable between 3465A rear panel 1ST LO OUT port and R3561 LOCAL IN port.

Connect Test Equipment to BTS – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-12

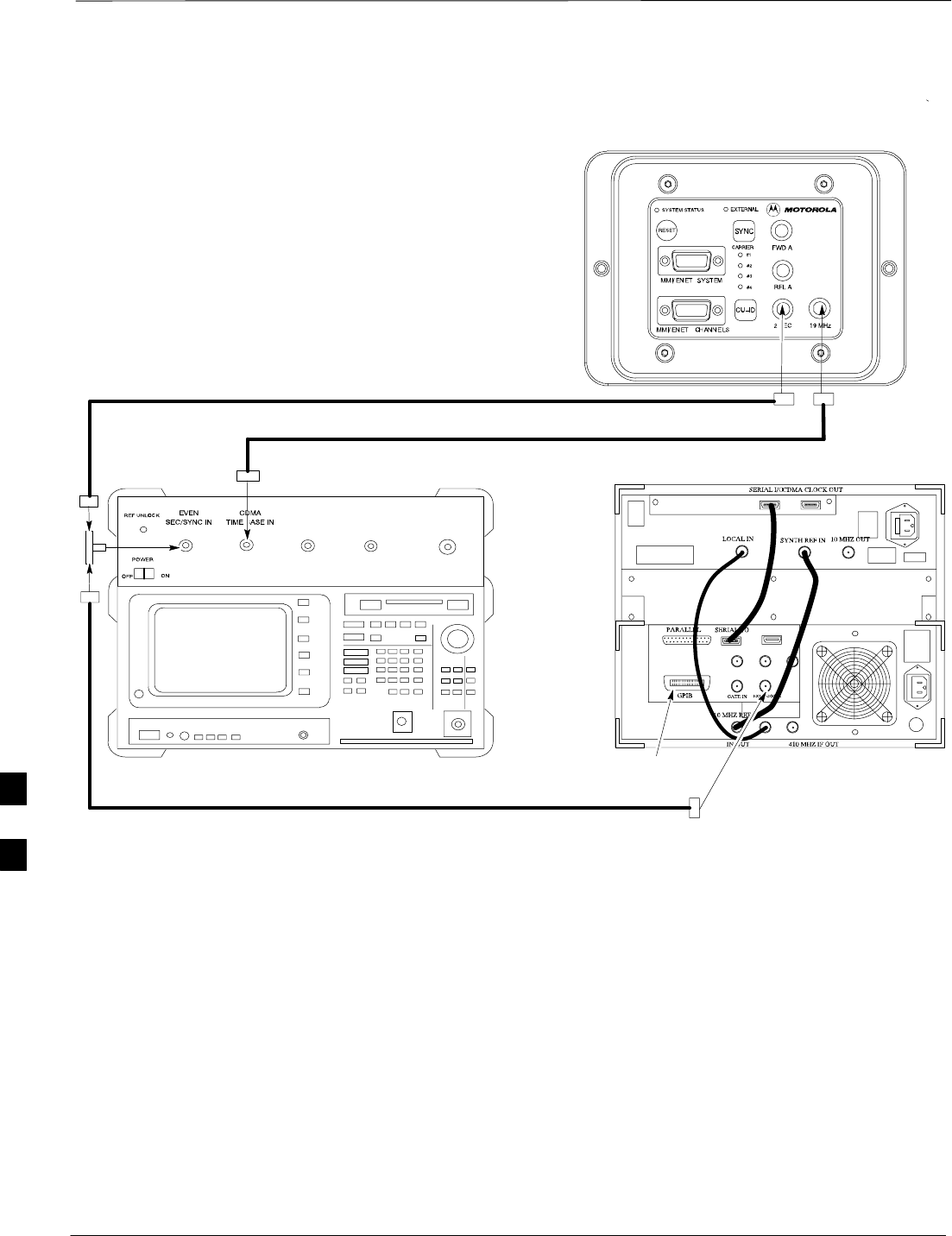

Advantest R3465

front panel Advantest R3465

rear panel

BNC

“T”

CONNECTIONS DEPICTED BY HEAVY BOLD LINES ARE

STATIONARY AND SHOULD REMAIN INSTALLED DURING

TEST EQUIPMENT TRANSPORT FROM SITE TO SITE.

19.6608 MHZ REFERENCE

2 SECOND REFERENCE

GPIB

CONNECTOR

FROM EVEN

SEC/SYNC IN

Figure 7-11: Communications Test Set Timing Signal Detail (Advantest R3465)

BTS DIAGNOSTIC ACCESS AREA

Connect Test Equipment to BTS – continued

JAN 2002 7-13

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Connect

Advantest R3267 to BTS

Use the procedures in Table 7-4 to connect the Advantest R3267 to the

BTS. Refer to Figure 7-12.

The Advantest R3267 test set is used for 1X system

testing.

NOTE

Table 7-4: Procedure to Connect Advantest R3267 to the BTS

Step Action

1Connect an SMA/BNC coax cable between the following points:

–BNC on the MOD TIMEBASE IN port on the front panel of the Advantest R3562 Test

Source.

–SMA on the 19 MHz port on the diagnostic access area of the BTS.

2Connect an SMA/BNC cable between the following points:

–SMA on the 2 Sec port on the diagnostic access area of the BTS.

–BNC to the EXT TRIG IN port on the front panel of the Advantest R3562 Test Source.

3Verify the R3267 and R3562 rear panel connections are in place (These are common connections

and should already be installed):

–Serial cable between R3267 rear panel SERIAL I/O port and R3562 rear panel SERIAL I/O

port.

–SMA cable between R3267 rear panel 10MHZ REF OUT port and R3562 rear panel

SYNTHE REF IN port.

–SMA cable between R3267 rear panel EXT TRIG port and R3562 rear panel CLOCK OUT

1 port.

–Parallel cable between R3267 rear panel GPIB port and R3562 GPIB port. 7

Connect Test Equipment to BTS – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-14

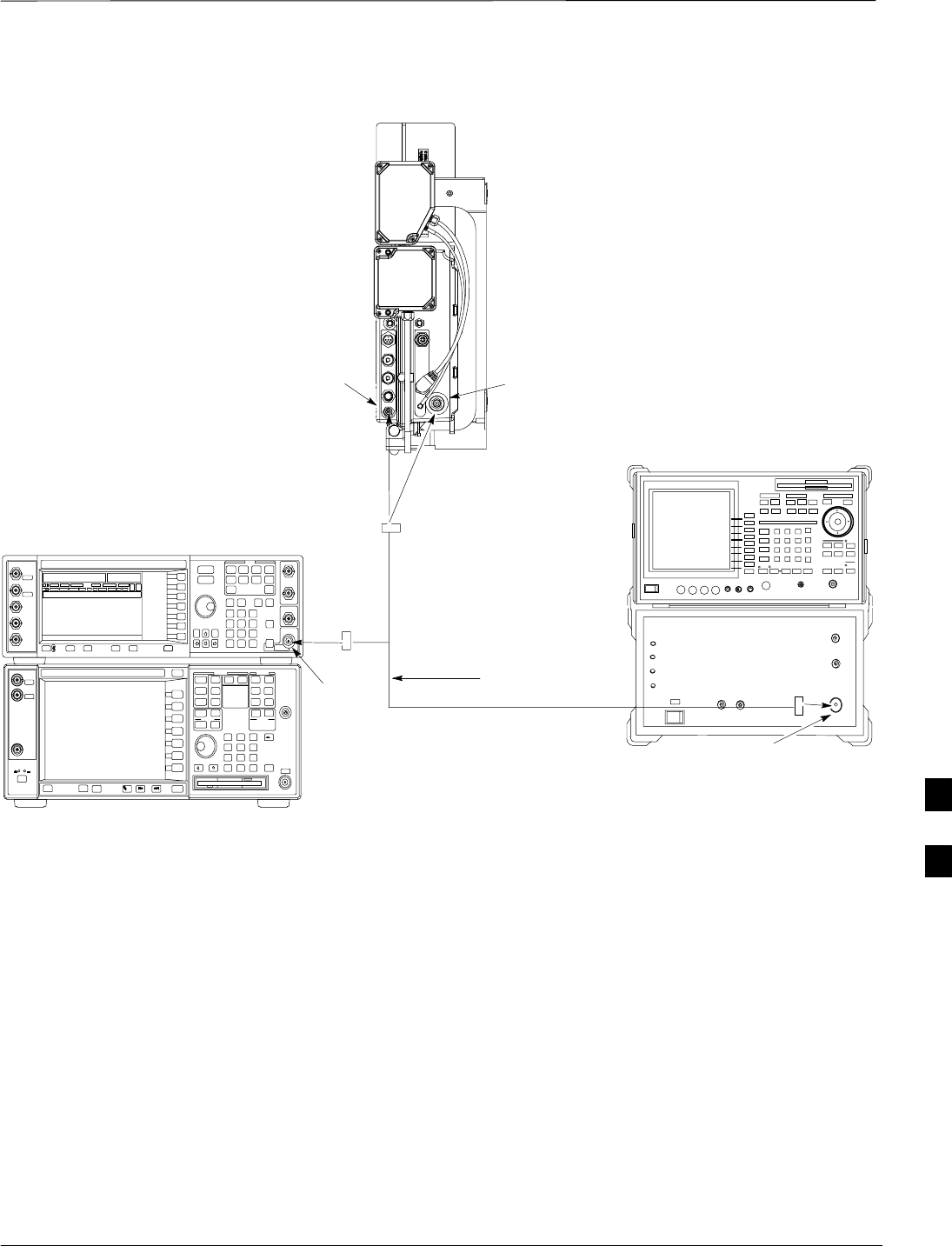

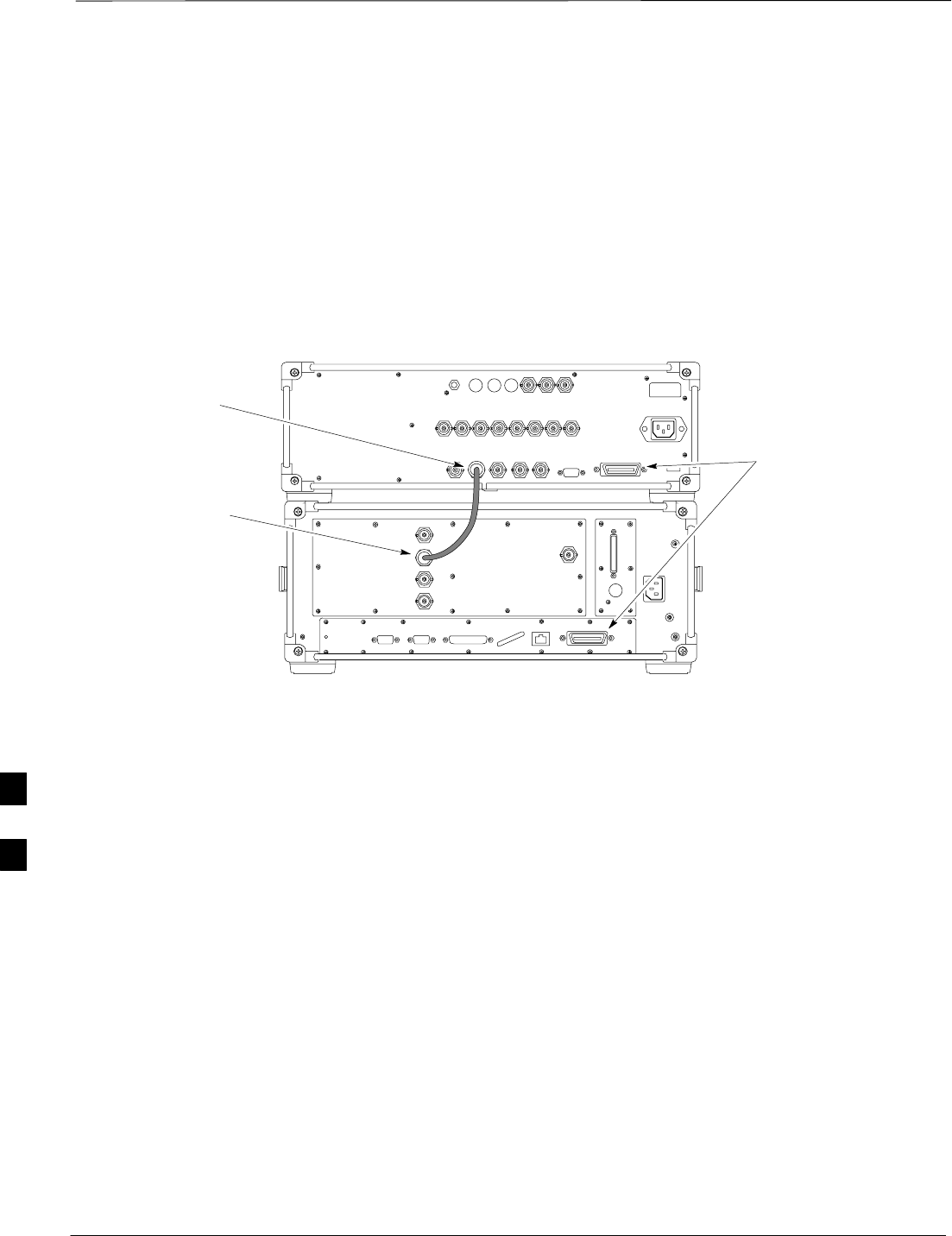

ADVANTEST R3267 FRONT PANEL ADVANTEST R3267 REAR PANEL

CONNECTIONS DEPICTED BY HEAVY BOLD

LINES ARE STATIONARY AND SHOULD REMAIN

INSTALLED DURING TEST EQUIPMENT

TRANSPORT FROM SITE TO SITE.

19.6608 MHZ REFERENCE

2 SECOND REFERENCE

Figure 7-12: R3267 Communications Test Set Timing Signal Detail

BTS DIAGNOSTIC ACCESS AREA

ADVANTEST R3267 SPECTRUM ANALYZER 100Hz –

8GHz

ADVANTEST R3562 RECEIVER TEST SOURCE

ADVANTEST R3562 TEST SOURCE

FRONT PANEL

ADVANTEST R3562 TEST SOURCE

REAR PANEL

EXT TRIG IN

MOD TIME BASE IN

SYNTHE

REF IN

10 MHZ

RF OUT

SERIAL I/O

EXT TRIG

CLOCK

OUT 1

GPIB

Connect Test Equipment to BTS – continued

JAN 2002 7-15

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Connect the

Motorola CyberTest, HP 8935,

and HP 8921 to BTS

CONNECTIONS DEPICTED BY DOTTED LINES ARE

STATIONARY AND SHOULD REMAIN INSTALLED DURING

TEST EQUIPMENT TRANSPORT FROM SITE TO SITE.

19.6608 MHZ REFERENCE

2 SECOND REFERENCE

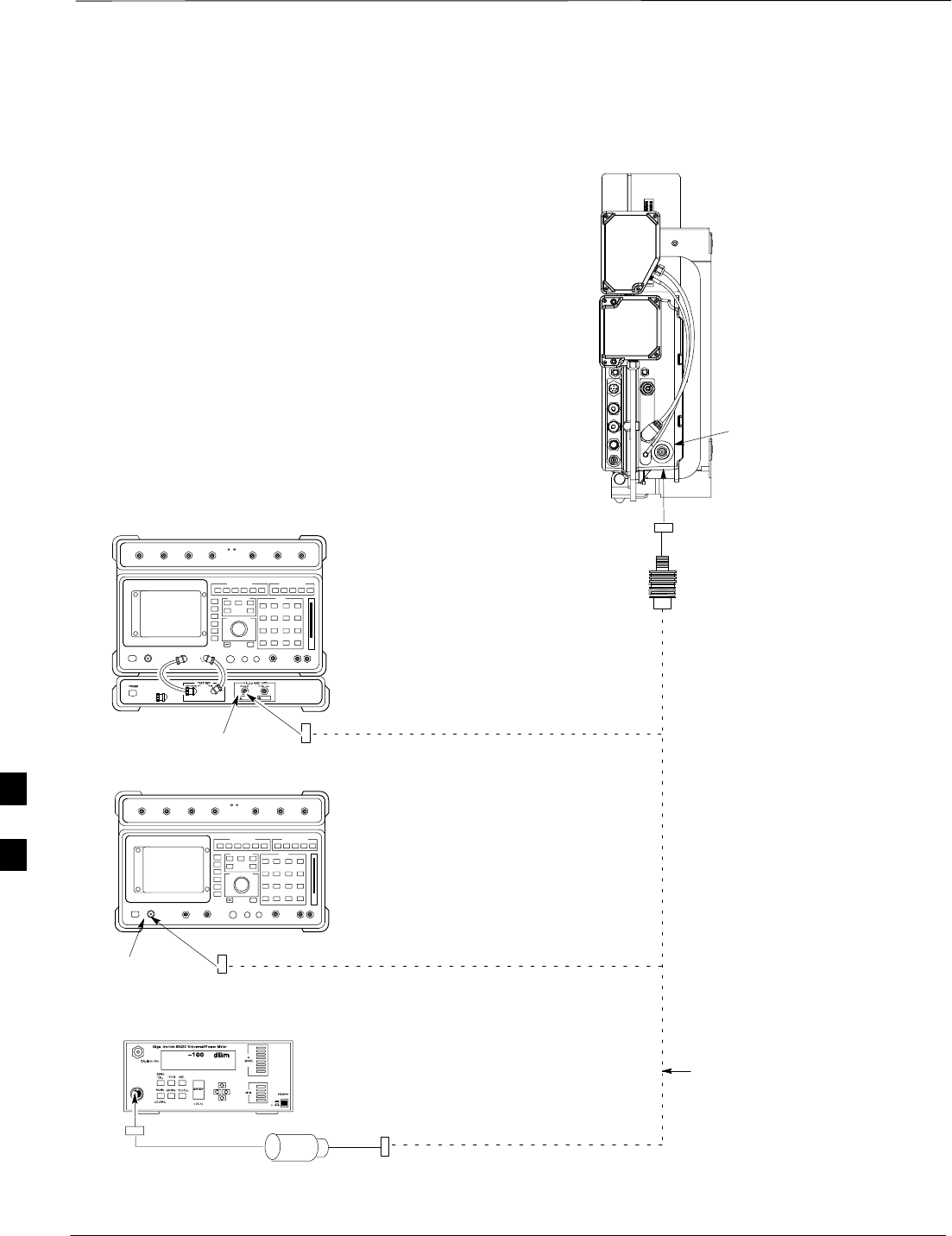

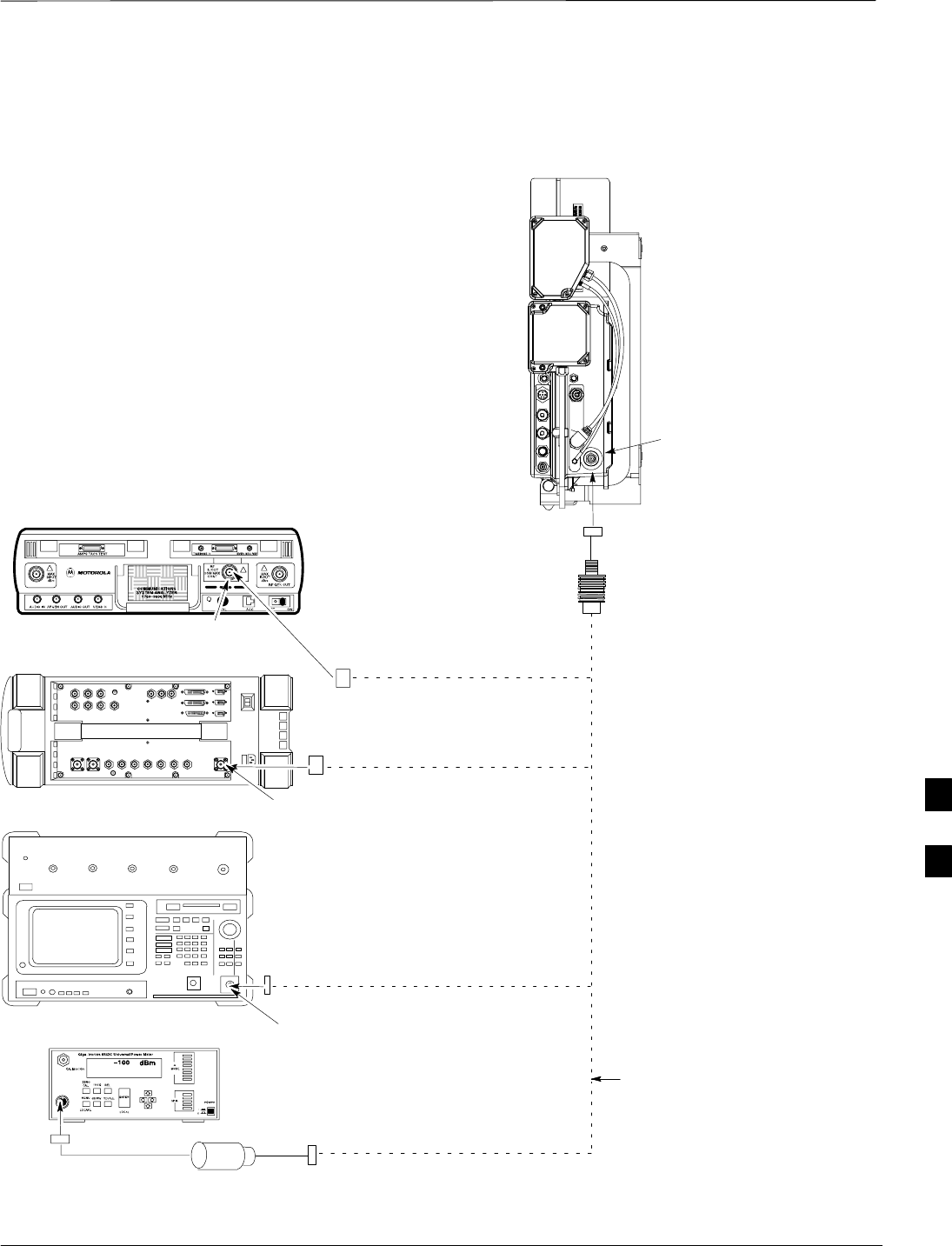

Figure 7-13: Communications Test Set Timing Signal Detail (CyberTest, HP 8935, and HP 8921)

BTS DIAGNOSTIC ACCESS AREA

MOTOROLA CYBERTEST

AGILENT 8935 SERIES E6380A

(FORMALLY HP 8935)

HP 8921

COMMUNICATIONS TEST SET

FREQ MONITOR 19.6608

MHZ CLOCK REFERENCE

FROM DIAGNOSTIC

ACCESS AREA

FREQ MONITOR 19.6608 MHZ CLOCK

REFERENCE FROM DIAGNOSTIC

ACCESS AREA

FREQ MONITOR 19.6608 MHZ CLOCK

REFERENCE FROM DIAGNOSTIC

ACCESS AREA

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE FROM

DIAGNOSTIC ACCESS AREA

SYNC MONITOR EVEN

SEC TICK PULSE

REFERENCE FROM

DIAGNOSTIC ACCESS

AREA

SYNC MONITOR

EVEN SEC TICK

PULSE REFERENCE

FROM DIAGNOSTIC

ACCESS AREA

Connect Test Equipment to BTS – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-16

Procedure to Connect the

Agilent E4406A/E4432B to BTS

Agilent E4406A/E4432B test equipment interconnection

To provide proper operation during testing when both units are required,

the 10 MHz reference signal from the E4406A transmitter test set must

be provided to the E4432B signal generator. Connect a BNC (M)–BNC

(M) cable from the E4406A 10 MHz OUT (SWITCHED) connector to

the E4432B 10MHz IN connector as shown in Figure 7-14.

Figure 7-14: Agilent 10 MHz Reference Connections

E4406A

10 MHz OUT

(SWITCHED)

E4432B

10 MHz IN

TO GPIB BOX

Connect Test Equipment to BTS – continued

JAN 2002 7-17

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

CONNECTIONS DEPICTED BY HEAVY BOLD

LINES ARE STATIONARY AND SHOULD REMAIN

INSTALLED DURING TEST EQUIPMENT

TRANSPORT FROM SITE TO SITE.

19.6608 MHZ REFERENCE

2 SECOND REFERENCE

Figure 7-15: Agilent E4406A/E4432B Communications Test Set Timing Signal Detail

BTS DIAGNOSTIC ACCESS AREA

Agilent E4432B (Top) and E4406A (Bottom)

FREQ MONITOR

19.6608 MHZ CLOCK

REFERENCE FROM

CSM BOARD

SYNC MONITOR

EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

BNC

“T”

TO TRIGGER IN

ON REAR OF

TRANSMITTER

TESTER

TO PATTERN TRIG IN

ON REAR OF SIGNAL

GENERATOR

TO EXT REF IN

ON REAR OF

TRANSMITTER

TESTER

NOTE:

10 MHZ IN ON REAR OF SIGNAL GENERATOR IS CONNECTED TO

10 MHZ OUT (SWITCHED) ON REAR OF TRANSMITTER TESTER

(FIGURE 7-14).

Connect Test Set and Power Meter to LMF

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-18

Procedure to Connect the

Communication Test Set and

Power Meter to the LMF

Use the following procedure in Table 7-5 to connect the communication

test set to the power meter and to the LMF. Refer to Figure 7-16.

Table 7-5: Procedure to Connect the Communication Test Set and Power Meter to the LMF

Step Action

1Connect the RS232–IEEE488 converter serial cable between the COM1 port of the LMF and the

RS232 port of the RS232–IEEE488 converter.

2Connect a GPIB cable between the RS232–IEEE488 converter and the GPIB port on the

communication test set.

3Connect a GPIB cable between the GPIB port on the communication test set and the GPIB port of

the power meter.

4Set the DIP switches on the RS232–IEEE488 converter as shown in Figure 7-16.

5Power on the communication test set, power meter and RS232–IEEE488 converter.

Figure 7-16: LMF to Test Equipment Connection

LMF

OFF

S MODE

DATA FORMAT

BAUD RATE

GPIB ADDRESS

G MODE

RS232–IEEE488 CONVERTER

GIGATRONICS

POWER METER

SIGNAL GENERATOR

(IF EQUIPPED)

COMMUNICATION TEST SET

GPIB CABLE(S) TO GPIB

CONNECTOR ON TEST

EQUIPMENT

RS–232 CABLE

TO COMM1 PORT ON CDMA

LMF NOTEBOOK

Connect Test Set and Power Meter to LMF – continued

JAN 2002 7-19

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

RS232 Cable Configuration

One National Instruments GPIB–232–CT with Motorola

CGDSEDN04X RS232 serial cable or equivalent is used to interface the

LMF to the test equipment.

A Standard RS–232 cable can be used with the following modifications:

SPin 8 (CTS) does not have to be jumpered/shorted to the others as it is

a driver output. The DTR is already a driver output signal. The other

pins are to receivers. Short pins 7, 1, 4, 6 on each cable end:

Figure 7-17 shows the cable configuration for the RS232–IEEE488

converter serial cable.

9–pin D (female) 9–pin D (female)

GND 5 5 GND

RX 3

3 RXTX 2

2 TX

RTS 7 7 RTS

RSD/DCD 1 1 RSD/DCD

DTR 4 4 DTR

DSR 6 6 DSR

Figure 7-17: RS232–IEEE488 Converter Serial Cable Configuration

CTS 8 8 CTS

ON BOTH CONNECTORS SHORT

PINS 7 AND 8;

SHORT PINS 1, 4 AND 6

BTS Configuration

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-20

Objective

The objective of this procedure is to configure the BTS and establish

communication sessions between the LMF and BTS. This procedure

consists of:

1. Creating a named hyperterminal connection for MMI

communication

2. Establishing an MMI communication session

3. Verify and set IP address

4. Programming customer operating channel

5. Verifying BTS synchronization mode

6. Verifying DPLL tracking

7. Setting frame_id

Procedure to Create a Named

HyperTerminal Connection for

MMI Communication

Confirming or changing the configuration data of certain BTS Field

Replaceable Units (FRU) requires establishing an MMI communication

session between the CDMA LMF computer and the FRU. Using features

of the Windows operating system, the connection properties for an MMI

session can be saved on the CDMA LMF computer as a named Windows

HyperTerminal connection. This eliminates the need for setting up

connection parameters each time an MMI session is required to support

optimization.

Once the named connection is saved, a shortcut for it can be created on

the Windows desktop. Double–clicking the shortcut icon will start the

connection without the need to negotiate multiple menu levels.

Follow the procedures in Table 7-6 to establish a named HyperTerminal

connection and create a Windows desktop shortcut for it.

Table 7-6: Procedure to Create a Named HyperTerminal Connection for MMI Communication

Step Action

1From the Windows Start menu, select:

Programs > Accessories

2 Select Communications, double click the Hyperterminal folder, and then double click on the

Hypertrm.exe icon in the window which opens.

NOTE

SIf a Location Information Window appears, enter the required information, then click on the

Close button. (This is required the first time, even if a modem is not to be used.)

SIf a You need to install a modem..... message appears, click on NO.

. . . continued on next page

BTS Configuration – continued

JAN 2002 7-21

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-6: Procedure to Create a Named HyperTerminal Connection for MMI Communication

Step Action

3When the Connection Description box opens:

–Type a name for the connection being defined (e.g., MMI Session) in the Name: window,

–Highlight any icon preferred for the named connection in the Icon: chooser window, and

–Click OK.

NOTE

For CDMA LMF computer configurations where COM1 is used by another interface such as test

equipment and a physical port is available for COM2, select COM2 in the following step to prevent

conflicts.

4From the Connect using: pick list in the Connect To box displayed, select Direct to Com 1 or

Direct to Com 2 for the RS–232 connection port, and click OK.

5In the Port Settings tab of the COM# Properties window displayed, configure the RS–232 port

settings as follows:

SBits per second: 9600

SData bits: 8

SParity: None

SStop bits: 1

SFlow control: None

6 Click OK.

7Save the defined connection by selecting:

File > Save

8Close the HyperTerminal window by selecting:

File > Exit

9Click the Yes button to disconnect when prompted.

10 If the Hyperterminal folder window is still open, proceed to step 12.

11 Select Communications and double click the Hyperterminal folder.

12 Highlight the newly–created connection icon by clicking on it.

13 Right click and drag the highlighted connection icon to the Windows desktop and release the right

mouse button.

14 From the popup menu which appears, select Create Shortcut(s) Here.

15 If desired, reposition the shortcut icon for the new connection by dragging it to another location on the

Windows desktop.

16 Close the Hyperterminal folder window by selecting:

File > Close

BTS Configuration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-22

Procedure to Establish an MMI

Communication Session

For those procedures which require MMI communication between the

CDMA LMF and the BTS, follow the procedures in Table 7-7 to initiate

the communication session.

If an LMF session is in progress, logout of the LMF prior

to establishing an MMI communication session. Refer to

steps 1 and 2 of the “Remove LMF” procedure in

Table 7-54.

NOTE

Table 7-7: Procedure to Establish an MMI Communication Session

Step Action

1Connect the CDMA LMF computer to the BTS. Refer to the “Connecting the LMF to the BTS”

procedure in this chapter.

2Start the named HyperTerminal connection for MMI sessions by double clicking on its Windows

desktop shortcut.

3NOTE

If a Windows desktop shortcut was not created for the MMI connection, access the connection from

the Windows Start menu by selecting:

Programs > Accessories > Hyperterminal > HyperTerminal > <Named HyperTerminal

Connection (e.g., MMI Session)>

Once the connection window opens, establish MMI communication with the BTS FRU by pressing

the CDMA LMF computer Enter key until the prompt identified in the applicable procedure is

obtained.

Every command is entered at the SC300> prompt unless otherwise specified.

BTS Configuration – continued

JAN 2002 7-23

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Set IP Address

You must set an IP address on the unit before you can begin an LMF

Ethernet (LAN) session. Follow the instructions in Table 7-8 to set the

IP address.

Table 7-8: Procedure to Set IP Address

Step Action

1Enter the following command to check the ethernet IP address:

sc300>ether getip

Observe the following typical response (if the IP address was not set):

COMMAND ACCEPTED: ether getip

Current IP ADDRESS: 0.0.0.0

2Enter the following command to check the ethernet gateway address:

sc300>ether getgw

Observe the following typical response (if the IP address was not set):

COMMAND ACCEPTED: ether getgw

GW address: 0.0.0.0

3Enter the following command to check the ethernet netmask value:

sc300>ether getnm

Observe the following typical response (if the IP address was not set):

COMMAND ACCEPTED: ether getnm

NETMASK: 0.0.0.0

4If the IP address is set, then you are finished with this procedure. If you must set the IP address,

then proceed with steps 5 through 7.

NOTE

The default LMF IP address is 128.0.0.2.

5Enter the following command to set the IP address:

sc300>ether setip 128.0.0.2

The system will display the following output:

COMMAND ACCEPTED: ether setip 128.0.0.2

THESE ARE THE BYTES READ IN: 128.0.0.2

SETTING IP: 128.0.0.2

Completed flashing of IP address

CONFIRM NEW IP: 128.0.0.2

SETTING Ethernet Address: 8:0:80:0:0:2

Completed flashing of Ether address

CONFIRM NEW Ethernet Address: 8:0:80:0:0:2

New parameters will take affect after next reset.

. . . continued on next page

BTS Configuration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-24

Table 7-8: Procedure to Set IP Address

Step Action

6Enter the following command at the sc300> prompt:

sc300>ether setgw 128.0.0.2

The system will display the following output:

COMMAND ACCEPTED: ether setgw 128.0.0.2

”128” ”0” ”0” ”2”

THESE ARE THE BYTES READ IN: 128.0.0.2

SETTING GW: 128.0.0.2

Completed flashing of Gateway address

CONFIRM NEW GW: 128.0.0.2

New parameters will take affect after next reset.

7Enter the following command at the sc300> prompt:

sc300>ether setnm 255.255.255.255

The system will display the following output:

COMMAND ACCEPTED: ether setnm 255.255.255.255

”255” ”255” ”255” ”255”

THESE ARE THE BYTES READ IN: 255.255.255.255

SETTING NETMASK: 255.255.255.255

Completed flashing of SubnetMask address

CONFIRM NEW NETMASK: 255.255.255.255

New parameters will take affect after next reset.

8Repeat steps 1 through 3 to verify your entries.

9If your entries are correct, then press the red RESET button on the diagnostic access area to reset

the unit.

Procedure to Simulate an LMF

Session

You must start a simulated LMF session when you enter MMI

commands. Enter the following command at the MMI prompt to

simulate an LMF link:

sndtype 0xa178

You should enter this command at the beginning of every simulated

MMI Communication Session.

BTS Configuration – continued

JAN 2002 7-25

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Updating Default Channel

Setting to Customer Operating

Channel

A non–volatile database containing the default channel and default

power level of the site must be programmed. The default channel is the

customer operating channel for this site. The default power level must

be set to –50 dBm which will be overwritten by the MM/OMCR when

the site comes on–line.

It is imperative that the customer frequency be programmed into this

database. Failure to do so may result in the RF interference to other

RF–emitting devices in the local area whenever the site is powered up.

Table 7-9: Procedure to Update Default Channel Setting to Customer Operating Channel

Step Action

1Connect the LMF computer terminal to the MMI/LMF connector. Refer to Figure 7-6.

2If you have not already done so, logout of the BTS and exit the LMF. Wait 10 seconds before

proceeding.

3Establish an MMI connection session with the BTS. Refer to Table 7-7.

4Simulate an LMF connection by issuing the sndtype 0xa178 command.

5Verify that the BTS is in OOS_RAM status by issuing the status command.

6Enter the op_param –w –50 chan# command. The command parameters are as follows:

–winstructs the BTS to write the values into non–volatile memory.

–50 defaults the power to –50dBm

chan# the customer operating channel (refer to Table 7-43 for 1.9 GHz systems and

Table 7-44 for 800 MHz systems).

If the command is successful, the following response will display:

PASSED: TRX EEPROM updated for power level = –50 (dBm) and channel =

chan#

7If no additional MMI sessions are required at this time, exit the MMI session and HyperTerminal

connection by selecting File>Exit.

If you are continuing the MMI session, proceed to Table 7-10.

BTS Configuration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-26

Synchronization Background

GPS

GPS is typically used as the primary timing reference for CDMA BTSs.

In applications where RGPS is used, the BTS is said to be synchronous

with CDMA system time. The RGPS provides a 1 Pulse Per Second

timing reference and Time Of Day information to allow the BTS to

synchronize to CDMA system time.

HSO

A High Stability Oscillator (HSO) within the BTS provides a backup

timing reference in the event of a GPS outage. Using only the HSO, the

BTS can maintain CDMA system time for up to 24 hours. The BTS can

also use the HSO as the primary timing reference (non–synchronous

operation). However, synchronization to CDMA system time is not

possible. The HSO provides a 1 Pulse Per Second timing reference to

allow the BTS to remain synchronized to CDMA system time in the

event of a GPS outage (synchronous operation) or to provide a stable

frequency reference (non–synchronous operation).

The HSO must be installed with GPS tracking for at least

24 hours before the HSO can provide 24 hours of backup

for CDMA system time synchronization.

NOTE

BTS

The BTS uses a Digital Phase Locked Loop (DPLL) to track the RGPS

and/or HSO and generate a 19.6608 MHz CDMA timing reference. This

timing reference, in conjunction with Time Of Day information provided

by the RGPS, allows the BTS to synchronize to CDMA system time. A

2 Second reference is also generated by the BTS to allow alignment of

Pilot offsets for the BTS and external test equipment. Both the 19.6608

MHz (19 MHz) and 2 Second (2 Sec) references are available via SMA

connectors located in the Diagnostic Access Area.

In order for the DPLL to begin the RGPS tracking process, the RGPS

must be tracking GPS satellites. In order for the DPLL to begin the

HSO tracking process, the BTS must be powered up (warmed) for at

least 15 minutes.

The DPLL status is defined as being in one of five states: Init, Warm,

A1, A2 and TK.

SThe Init state is the starting state of the DPLL.

SThe Warm state is the condition during the 15 minute BTS warm up

time.

SThe A1 and A2 states are acquisition states when the DPLL is

adjusting the 19.6608 MHz frequency based on the available reference

BTS Configuration – continued

JAN 2002 7-27

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

sources (RGPS or HSO). Under normal operating conditions, the

acquisition states last about 5 minutes.

SThe TK state is the DPLL tracking state and is entered at the end of

the acquisition states. The TK state is required for performing ATP.

Procedure to Verify and

Change BTS Synchronization

Mode

The Sync button in the Diagnostic Access Area is used to toggle the

RGPS or HSO as the primary timing reference for the BTS. If the

External indicator in the Diagnostic Access Area is illuminated, the BTS

expects an RGPS to be present for use as the primary timing reference.

If the External indicator is not illuminated, the BTS will use the internal

HSO as the primary timing reference.

Use the procedure in Table 7-10 to verify and, if necessary change the

BTS Sync mode.

Table 7-10: Procedure to Verify and Change BTS Sync Mode

Step Action

1If an MMI session was established, proceed to step 7. If no MMI session is running, proceed to

step 2.

2Connect the MMI/LMF.

3Open an MMI Communication session.

4Simulate an LMF connection by issuing the sndtype 0xa178 command.

5Verify that the BTS is in OOS_RAM status by issuing the status command.

6Enter the sndtype 0x4003 command to change the state to OOS_RAM.

7Observe the condition of the External indicator.

8No further action is required if the BTS is in the desired Sync mode. Continue with Step 9 if the

Sync mode needs to be altered.

9Push the Sync button to change the BTS Sync mode.

10 Reset the BTS using the Reset button in the Diagnostic Access Area.

11 If no additional MMI sessions are required at this time, exit the MMI session and HyperTerminal

connection by selecting File>Exit.

If you are continuing the MMI session, proceed to Table 7-11.

BTS Configuration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-28

Procedure to Verify DPLL

Tracking (RGPS/HSO)

The DPLL within the BTS must be tracking either RGPS or HSO in

order to perform ATP. Use the procedure in Table 7-11 to verify DPLL

tracking.

Table 7-11: Procedure to Verify DPLL Tracking

Step Action

1If an MMI session was established, proceed to step 6. If no MMI session is running, proceed to

step 2.

2Connect the MMI/LMF.

3Open an MMI Communication session.

4Simulate an LMF connection by issuing the sndtype 0xa178 command.

5Verify that the BTS is in OOS_RAM status by issuing the status command.

6If an RGPS is not present, go to Step 9.

7Enter the gps_status command to display the current state of the RGPS. Observe the following

typical response:

gps_status

GPS Receiver Identification:

Current GPS Time :8 03 1999 23:01:12

Current GPS Receiver Status :8

Number of Satellites Currently visible :11

Number of Satellites Currently received :5

Number of Satellites Currently tracked :5

GPS Receiver Type :UT

Current GPS Task State :GPS_TRACK

Current Dilution of Precision (HDOP (2D)/antenna ok [0x01]): 0

Chan: 0, SVID: 9, Mode: 8, RSSI: 44, Status: 0xaa

Chan: 1, SVID: 4, Mode: 8, RSSI: 46, Status: 0xaa

Chan: 2, SVID: 10, Mode: 8, RSSI: 44, Status: 0xaa

Chan: 3, SVID: 6, Mode: 8, RSSI: 41, Status: 0xaa

Chan: 4, SVID: 7, Mode: 8, RSSI: 43, Status: 0xaa

Chan: 5, SVID: 24, Mode: 8, RSSI: 47, Status: 0xaa

Chan: 6, SVID: 30, Mode: 8, RSSI: 45, Status: 0xaa

Chan: 7, SVID: 5, Mode: 8, RSSI: 48, Status: 0xaa

Current Longitude: –350250952

Current Latitude: 118244730

Current Height: 24019

8The RGPS must have a Current GPS Task State of GPS_TRACK to proceed.

NOTE

GPS tracking times vary depending on location and installation.

. . . continued on next page

BTS Configuration – continued

JAN 2002 7-29

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-11: Procedure to Verify DPLL Tracking

Step Action

9Issue the dpll_status command to display the current state of the DPLL. Observe the following

typical response:

Current source set to: GPS reference

DPLL control task state: DPLL track.

DPLL status (not valid if using even sec src):

c:0000 off: –8639450,6736579,7204904 TK

(Note: This must say TK. A1 and A2 states will have preceded it)

Mode cntr: 120

ip: 9, iq: 4

aip1: 9, aiq1: 4

aip2: 6, aiq2: –2

tip: 3, tiq: –9

integrator: 4096

10 Verify that the DPLL is “tracking” either the RGPS or HSO. The DPLL must have a Current

source set to of GPS reference or HSO reference. The DPLL must also have a

DPLL control task state of DPLL track.

11 If no additional MMI sessions are required at this time, exit the MMI session and HyperTerminal

connection by selecting File>Exit.

If you are continuing the MMI session, proceed to Table 7-12.

Procedure to Verify and Modify

Default Location Coordinates

The BTS supplies the RGPS with default startup coordinates (latitude

and longitude) in order to assist the RGPS in tracking satellites. The

default startup coordinates can be modified and saved into non–volatile

memory to speed the tracking of satellites.

Use the procedure in Table 7-12 to verify and, if necessary, modify the

default startup coordinates. The procedure in Table 7-12 is only

applicable to sites equipped with an RGPS.

Table 7-12: Procedure to Verify Default Startup Coordinates

Step Action

1If an MMI session was established, proceed to step 6. If no MMI session is running, proceed to

step 2.

2Connect the LMF/MMI.

3Open an MMI Communication session.

4Simulate an LMF connection by issuing the sndtype 0xa178 command.

5Verify that the BTS is in OOS_RAM status by issuing the status command.

. . . continued on next page

BTS Configuration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-30

Table 7-12: Procedure to Verify Default Startup Coordinates

Step Action

6Issue the dpll_status command to display the current state of the DPLL. Verify that the DPLL

has a ”Current source set to” of GPS reference and a ”DPLL control task state” of DPLL

track. The DPLL must be tracking GPS in order to complete this procedure.

7* IMPORTANT

The values for longitude and latitude in response to the gps_status command are given in units

of milli–arcseconds. Be careful to record the values accurately including any leading negative (–)

signs. The value of Current Height is given in units of centimeters.

Enter the gps_status command.

8Record the values displayed for Current Longitude, Current Latitude and

Current Height.

9* IMPORTANT

The gps_config command displays the default startup coordinates for the BTS. Note that

latitude is displayed first, followed by longitude. This is in reverse order compared to

the response of the gps_status command. The values for latitude and longitude are given in

units of milli–arcseconds. The value of Current Height is given in units of centimeters.

Enter the gps_config command to display the default startup coordinates for the BTS. Observe

the following typical response:

GPS Configuration data:

latitude: 151679715 msec

longitude: –316791269 msec

height: 19740 centi

–

meters

height

19740

enti

–

meters

height_type: 0

cable_delay: 0 nsec

accuracy: 0

If the default startup coordinates need to be modified, the gps_config command can be issued

with additional parameters. Using the Current Longitude, Current Latitude and

Current Height values recorded in step 8, issue the following command:

gps_config <latitude> <longitude> <height> 0 0 0

Be careful to input the latitude and longitude in the proper order along with any leading negative

(–) signs.

The GPS Height Type Configuration should be set to “0.”

10 Issue the gps_config to verify that the coordinates are set.

11 Reset the BTS to save the new coordinates.

12 Repeat the steps in Table 7-11 to verify the DPLL status prior to performing ATP.

13 If no additional MMI sessions are required at this time, exit the MMI session and HyperTerminal

connection by selecting File>Exit.

BTS Configuration – continued

JAN 2002 7-31

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Set Frame ID for

Multi–Unit Logical BTS

Configuration

Do the following procedure in Table 7-13 to setup the hardware for a

multi–unit logical BTS configuration.

Table 7-13: Procedure to Set Frame ID for Multi–Unit Logical BTS Configuration

Step Action

1Establish an MMI session with the BTS. Refer to Table 7-7.

2Enter the following command at the SC300> prompt to set the frame ID to “1” on the first frame:

frame_id 1

You can also set the frame_id to 1 by pressing the CU–ID button on the diagnostic access area to

the “CARRIER #1” state.

3Enter the following command at the SC300> prompt to set the frame ID to “2” on the second

frame:

frame_id 2

You can also set the frame_id to 2 by pressing the CU–ID button on the diagnostic access area to

the “CARRIER #2” state.

4If you have three or more units, enter the following command at the SC300> prompt to set the

frame ID to “3” on the third frame:

frame_id 3

You can also set the frame_id to 3 by pressing the CU–ID button on the diagnostic access area to

the “CARRIER #3” state.

5If you have four units, enter the following command at the SC300> prompt to set the frame ID to

“4” on the second frame:

frame_id 4

You can also set the frame_id to 4 by pressing the CU–ID button on the diagnostic access area to

the “CARRIER #4” state.

6Press the SYNC button on the diagnostic access area on all of the units to switch them to the

“EXTERNAL” mode.

7If the frame_id of unit #1 is already set to “1” prior to the setup of the BTS, then you do not need

to reset it.

If the frame_id is not “1,” then you must press the RESET button on the diagnostic access area to

reset unit #1.

8Press the RESET buttons on the diagnostic access areas of units #2, #3 (if equipped), and #4 (if

equipped).

BTS Software

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-32

Objective

This objective of this procedure is to:

1. Install the LMF program.

2. Create a site specific BTS directory.

3. Start the LMF.

4. Login to the BTS

5. Update the BTS–specific CDF file.

6. Download and enable the MAWI

Install the LMF Program and

BTS Binaries

Install the LMF and BTS binaries on the PC to be used if they are not already

installed. Refer to the CDMA LMF Operator’s Guide, 68P64114A78 for

the installation procedure.

Create a Site–Specific BTS

Directory

Follow the steps in Table 7-14 to create a bts–bts# directory, to which

the bts–bts#.cdf, cbsc–1.cdf, and ATP report files will

reside.

Table 7-14: Procedure to Create Site–Specific BTS Directory

Step Action

1Use MS Windows Explorer to create a bts–# folder under the wlmf\cdma folder (where # is

the BTS number).

2Get the bts–#.cdf file and cbsc–#.cdf file from the CBSC and put a copy of the files in the

wlmf\cdma\bts–# folder. Refer to the LMF help screens or the CDMA LMF Operator’s Guide,

68P64114A21 for the copy file procedure.

Start the LMF and Login to the

BTS

Use the following procedure in Table 7-15 to start the LMF and login to

the BTS.

Prerequisites

1. A bts–# folder with a correct CDF and CBSC file exists.

2. The LMF notebook is correctly set up and connected to the BTS.

Refer to Figure 7-6.

The Refresh button can be used to update the Available

Base Stations pick list to include any new bts–#

folders added/created after the LMF was started. To logout

of the BTS, click on Select>Logout. A confirm logout

pop–up message will appear.

NOTE

BTS Software – continued

JAN 2002 7-33

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-15: Procedure to Start the LMF and Login to the BTS

Step Action

1Click on the LMF desktop icon. The LMF window should appear.

2Click on the Login tab if it is not already displayed.

3 Double–click on CDMA in the Available Base Stations pick list if the list of available BTSs is

not displayed.

4Click on the desired BTS.

5Is all of the information in the Serial Login tab and Equipage Information box list correct?

–If YES, go to step 7.

–If NO, go to step 6.

6Click on the Serial Login tab if it is not in the forefront. Select the correct Comm Port (normally

COM2) and select the desired Baud Rate (normally 9600 for tests and 38400 for downloads).

NOTE

This step is not necessary if you are using the Ethernet LAN connection from the LMF to the BTS.

7Click on the Login button. The system will display a graphic of the SC300 BTS.

Update BTS Specific CDF File

Device Load Version

Follow the steps in Table 7-16 to update the existing BTS specific CDF

file NextLoad parameter to reflect the current device load version to be

downloaded.

The NextLoad version parameter in the CDF file for a BTS can be

updated to one of the existing version numbers in the

wlmf>cdma>loads folder. When code is downloaded the code file

used is determined by the NextLoad parameter in the CDF file. If a

version number folder that has the same number as the NextLoad

parameter is not found when the download code function is used the

LMF will not automatically select the code and data files to be

downloaded.

Device load version in the CDF file does not have to match

the current version loaded at the OMCR/CBSC.

NOTE

Table 7-16: Procedure to Update BTS–Specific CDF File Device Load Version

Step Action

1Click on the Tools menu item.

2Select the Update NextLoad item.

. . . continued on next page

BTS Software – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-34

Table 7-16: Procedure to Update BTS–Specific CDF File Device Load Version

Step Action

3 Select CDMA.

4Select the BTS number from the list of available base stations.

5Select the radio button next to the desired version number.

6Click on the Save button. A pop–up message will appear indicating that “This action may

take a few seconds.” Click on the OK button.

7A pop–up message will appear indicating that the NextLoad file has been updated.

NOTENOTE

At this point, a backup copy of the original CDF is created with a _bak extension, (e.g.,

bts–812.cdf_bak ).

8Click on the OK button to dismiss the pop–up message.

Download/Enable MAWI

The objective of this procedure is to download and enable the BTS.

The BTS software platform is based on the Motorola Advanced

Wideband Interface (MAWI). The term MAWI is used to refer to the

MicroCell from the LMF’s point of view.

The BTS is shipped from the factory with all the software

downloaded. Use the load procedure only when new

software is loaded.

NOTE

Follow the steps outlined in Table 7-17 to download the code and data to

enable the MAWI.

Before the download/enable process, use the status function and verify

the MAWI responds with status information. Use this information to get

the current code loaded in MAWI.

Table 7-17: Procedure to Download/Enable MAWI

Step Action

1If the ATP is going to be run, the MAWI has to have the same code load as the LMF CDF or the site

specific information cannot be loaded to MAWI (PN offset, etc.) for ATP to complete.

2If downloading code, insure the LMF is logged into the BTS at 38400 Baud Rate for timely

download (20 minutes vs 2+ hours).

3Click on the MAWI and select Device>Download>Code Manual.

A status report is displayed that confirms the change in device status. Click OK to close status

window.

. . . continued on next page

BTS Software – continued

JAN 2002 7-35

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-17: Procedure to Download/Enable MAWI

Step Action

4Click on the MAWI and select Device>Download>Code Data. A status report is displayed that

confirms the change in device status. Click OK to close status window.

5Click on the MAWI and select Device>Enable to enable the MAWI. The MAWI changes to green

(INS–ACT test mode).

NOTENOTE

The LMF may fail this step. After you enable the MAWI, verify that the LED on the SC300 changes

to a solid green, then click on the STOP radio button to halt the ENABLE command. Run the

STATUS MAWI command and the display will change to the INS_ACT (green) state.

Configuration Data File (CDF)

The Configuration Data File (CDF) includes the CDMA channel element

allocation plan. This plan indicates how each CDMA carrier is

configured, and how the paging, sync, traffic, and access channel

elements (and associated gain values) are assigned.

The CDF file also contains a table for the Effective Rated Power (ERP)

for each transmit antenna. Motorola System Engineering specifies the

ERP of a transmit antenna based on site geography, antenna placement,

and government regulations. Working from this ERP requirement, the

antenna gain, (dependent on the units of measurement specified) and

antenna feed line loss can be combined to determine the required power

at the BTS TX output.

Refer to the CDMA LMF Operators Guide; 68P64114A78

for additional information on the layout of the LMF

directory structure (including cdf file locations and

formats).

NOTE

Site equipage verification

If you have not already done so, use an editor to view the CDF, and

review the site documentation. Verify the site engineering equipage data

in the CDF to the actual site hardware.

If the current LMF or BTS binaries need to be installed on

the LMF PC, or for more information on viewing CDF

files, refer to the CDMA LMF Operators Guide;

68P64114A78.

NOTE

BTS Software – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-36

System Status LED States

Table 7-18 lists all of the possible system status LED states.

Table 7-18: System Status LED States

System Status LED Status Indication

Steady Green INS_ACT# or INS_SBY$, no alarms

Slow Flashing Red/Green

(0.2s Red, 1.4s Green) INS_ACT or INS_SBY w/alarms(s)

Fast Flashing Green/Off

(0.2s Green, 0.2s Off) OOS_RAM! with no alarms

Fast Flashing Red/Green

(0.2s Red, 0.2s Green) OOS_RAM with alarms(s)

Slow Flashing Green/Off

(0.2s Green, 1.4s Off) OOS_ROM@ with no alarms

Slow Flashing Green/Red

(0.2s Green, 1.4s Red) OOS_ROM with alarm(s)

Steady Red Critical hardware failure

Fast Flashing Red/Off

(0.25s Red/0.25s Off)%

NOTE

The MAWI has powered up in boot code because

the ROM code is either corrupt or not present.

This condition may indicate a MAWI hardware

failure.

#1: RAM test failure

#2: FLASH 1 (512K) manufacture/device ID mismatch

#3: FLASH 2 (512K) manufacture/device ID mismatch

#4: FLASH 3 (512K) manufacture/device ID mismatch

#5: Modem present but untrained

#6: Unknown interrupt event

#7: Reset by hardware watchdog timeout

#8: Reset by software watchdog timeout

#9: Reset by double bus fault

#10: Reset by loss of clock

#11: Reset by RESET instruction

#12: Reset by soft reset pin

Off No DC Power applied to module

!OOS_RAM refers to a MAWI that is loaded but not enabled

@OOS_ROM refers to a MAWI that is not loaded.

#INS_ACT refers to a MAWI that is in service and active.

$INS_SBY refers to a MAWI that is in service but on standby.

%The number of flashes equals the alarm #, with a three–second pause between flashes.

Verify and Set Span Line Settings

JAN 2002 7-37

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The following procedure is to verify and configure the BTS Span line

interface for T–1 or E–1 configurations.

Span Line Settings

The following are the span line settings for the BTS span line interface.

SSpan A: Primary span

SSpan B: Downstream span used for daisy–chaining.

Procedure to Verify and Set

Span Line Settings

Use the procedure in Table 7-19 to verify and set (if necessary) the span

line settings.

Both spans A and B must be set to either T–1 or E–1. The

spans must match the parameters of the CBSC.

IMPORTANT

Table 7-19: Procedure to Verify and Set Span Line Settings

Step Action

1If you have not already done so, connect the LMF computer terminal to the MMI/LMF connector.

Refer to Table 7-7.

2Open an MMI communications session. Refer to Table 7-6.

3Enter the following command at the SC300> prompt to verify the current span settings:

span_config a

The system will display the following output:

Span A data:

Span type: 5 – T1_2 (B8ZS, DS1 AT&T ESF 4 to 1 packing, 64K link)

Link Speed: 64K

Span EQ: 0 – T1_6 (T1, J1:longhaul, same as choice 10)

LAPD slot: 0

4Enter the following command at the SC300> prompt to verify the current span settings:

span_config b

The system will display the following output:

Span B data:

Span type: 1 – E1_2 (HDB3)

Link Speed: 64K

Span EQ: 16 – E1 (Long haul: 120 Ohm)

LAPD slot: 1

. . . continued on next page

Verify and Set Span Line Settings – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-38

Table 7-19: Procedure to Verify and Set Span Line Settings

Step Action

5If the span line settings are not the same for spans A and B, then enter the SPAN_CONFIG

command for span A. Refer to the SPAN_CONFIG parameters in Table 7-20.

SC300>span_config <link speed> <span

equalization> <LAPD channel>

The SPAN_CONFIG parameters shown below are an example and may not be applicable to your

configuration.

SC300>span_config a 5 64 0 0

The system will return to the SC300> prompt:

6Enter the SPAN_CONFIG command for span B. Use the same parameters that you used in step

5. Refer to the SPAN_CONFIG parameters in Table 7-20.

SC300>span_config <link speed> <span

equalization> <LAPD channel>

The SPAN_CONFIG parameters shown below are an example and may not be applicable to your

configuration.

SC300>span_config b 5 64 0 0

The system will return to the SC300> prompt:

7Enter the following command at the SC300> prompt to verify the changes to the span A settings:

SC300>span_config a

The system will display the following typical output.

Span A data:

Span type: 5 – T1_2 (B8ZS, DS1 AT&T ESF 4 to 1 packing, 64K link)

Link Speed: 64K

Span EQ: 0 – T1_6 (T1, J1:longhaul, same as choice 10)

LAPD slot: 0

8Enter the following command at the SC300> prompt to verify the changes to the span B settings:

SC300>span_config b

The system will display the following typical output.

Span B data:

Span type: 5 – T1_2 (B8ZS, DS1 AT&T ESF 4 to 1 packing, 64K link)

Link Speed: 64K

Span EQ: 0 – T1_6 (T1, J1:longhaul, same as choice 10)

LAPD slot: 0

Verify and Set Span Line Settings – continued

JAN 2002 7-39

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

SPAN_CONFIG Parameters

The following parameters in Table 7-20 are for the SPAN_CONFIG

command.

Table 7-20: SPAN_CONFIG Command Parameters

Parameter Values

A or B

0 = E1_1 (HDB3, CRC–4)

1 = E1_2 (HDB3)

2 = E1_3 (HDB3, CRC–4, TS16)

3 = E1_4 (HDB3, TS16)

4 = T1_1 (AMI, DS1 AT&T D4, Ext ZCS, 3 to 1 packing, Group 0 unusable)

5 = T1_2 (B8ZS, DS1 AT&T ESF 4 to 1 packing, 64K link)

6 = J1_1 (B8ZS, J1 AT&T ESF, Japan CRC6, 4 to 1 packing)

7 = J1_2 (B8ZS, J1 AT&T ESF, US CRC6, 4 to 1 packing)

8 = T1_3 (AMI, DS1vAT&T D4, Int ZCS, 3 to 1 packing, Group 0 unusable)

<span

equalization>

0 = T1_6 (T1,J1: long haul, same as choice 10)

1 = T1_4 (T1,J1:393–524 feet)

2 = T1_2 (T1,J1:131–262 feet)

3 = E1_75 (E1:120 Ohm / 75 Ohm coax)

4 = T1_1 (T1,J1:0–131 feet)

5 = T1_5 (T1,J1:524–655 feet)

6 = T1_3 (T1,J1:262–393 feet)

7 = E1_120 (E1:120 Ohm)

8 = T1 (T1,J1: long haul pulse 0 dB, gain 36 dB)

9 = T1 (T1,J1: long haul pulse –7.5 dB, gain 36 dB)

10 = T1 (T1,J1: long haul pulse –15 dB, gain 36 dB)

11 = T1 (T1,J1: long haul pulse –22 dB, gain 36 dB)

12 = T1 (T1,J1: long haul pulse 0 dB, gain 26 dB)

13 = T1 (T1,J1: long haul pulse –7.5 dB, gain 26 dB)

14 = T1 (T1,J1: long haul pulse –15 dB, gain 26 dB)

15 = T1 (T1,J1: long haul pulse –22 dB, gain 26 dB)

16 = E1 (Long haul: 120 Ohm)

17 = E1 (Long haul: 120 Ohm / 75 Ohm coax)

<LAPD

channel>

0–31

GPIB Addresses

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-40

Introduction

Use the following procedures to verify and/or change the GPIB

addresses of the applicable test equipment.

GPIB addresses can range from 1 through 30. The LMF will accept any

address in that range, but the numbers in the GPIB address boxes must

match the addresses of the test equipment. Motorola recommends that

you use 1 for a CDMA signal generator, 13 for a power meter, and 18 for

a CDMA analyzer.

The following procedures assume that the test equipment is

set up and ready for testing.

NOTE

Verify the Gigatronics 8541C

Power Meter GPIB Address

Follow the steps in Table 7-21 to verify and, if necessary, change the

Gigatronics 8541C power meter GPIB address.

Table 7-21: Verify and/or Change Gigatronics 8541C Power Meter GPIB Address

Step Action

1! CAUTION

Do not connect/disconnect the power meter sensor cable with AC power applied to the meter.

Disconnection could result in destruction of the sensing element or miscalibration.

Press MENU (refer to Figure 7-18).

2Use the b arrow key to select CONFIG MENU and press ENTER.

3Use the b arrow key to select GPIB and press ENTER.

The system displays the current Mode and GPIB Address.

4If the Mode is not set to 8541C, perform the following to change it:

–Use the a ' arrow keys as required to select MODE.

–Use the by arrow keys as required to set MODE to 8541C.

5If the GPIB address is not set to 13, perform the following to change it:

–Use the ' arrow key to select ADDRESS.

–Use the by arrow keys as required to set the GPIB address to 13.

6 Press ENTER to return to normal operation.

GPIB Addresses – continued

JAN 2002 7-41

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

MENU ENTER ARROW

KEYS

Figure 7-18: Gigatronics 8541C Power Meter Detail

Verify and Set Motorola

CyberTest GPIB Address

Follow the steps in Table 7-22 to verify and, if necessary, change the

GPIB address on the Motorola CyberTest. Changing the GPIB address

requires the following items:

SMotorola CyberTest communications analyzer.

SComputer running Windows 3.1/Windows 95.

SMotorola CyberTAME software program “TAME”.

SParallel printer port cable (shipped with CyberTest).

Table 7-22: Verify and/or Change Motorola CyberTest GPIB Address

Step Action

1On the LMF desktop, locate the CyberTAME icon. Double click on the icon to run the CyberTAME

application.

2In the CyberTAME window taskbar, under Special, select IEEE.488.2.

3CyberTAME software will query the CyberTest Analyzer for its current GPIB address. It will then

open the IEEE 488.2 dialog box. If the current GPIB address is not 18, perform the following steps to

change it:

–Use the up or down increment arrows, or double–click in the field and type the number.

–Click on the OK button. The system will write and save the new address to the CyberTest via the

parallel port.

NOTE

Repeat steps 2 and 3 to verify that the address was set. The new address should now appear in the

IEEE 488.2 dialog box Address field.

GPIB Addresses – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-42

Verify and Set HP8935 Test Set

GPIB Address

Follow the procedure in Table 7-23 to verify and, if necessary, change

the HP8935 GPIB address.

Table 7-23: Verify and/or Change HP8935 GPIB Address

Step Action

1* IMPORTANT

The HP I/O configuration MUST be set to Talk & Listen, or NO device on the GPIB bus will be

accessible (if necessary, consult test equipment OEM documentation for additional information).

To verify that the GPIB addresses are set correctly, press Shift and LOCAL on the HP8935 (refer

to Figure 7-19). The current HP–IB address will display at the top of the screen.

NOTE

HP–IB is the same as GPIB.

2If the current GPIB address is not set to 18, perform the following steps to change it:

–Press Shift and Inst Config.

–Turn the Cursor Control knob to move the cursor to the HP–IB Adrs field.

–Press the Cursor Control knob to select the field.

–Turn the Cursor Control knob as required to change the address to 18.

–Press the Cursor Control knob to set the address.

3 Press Preset to return to normal operation.

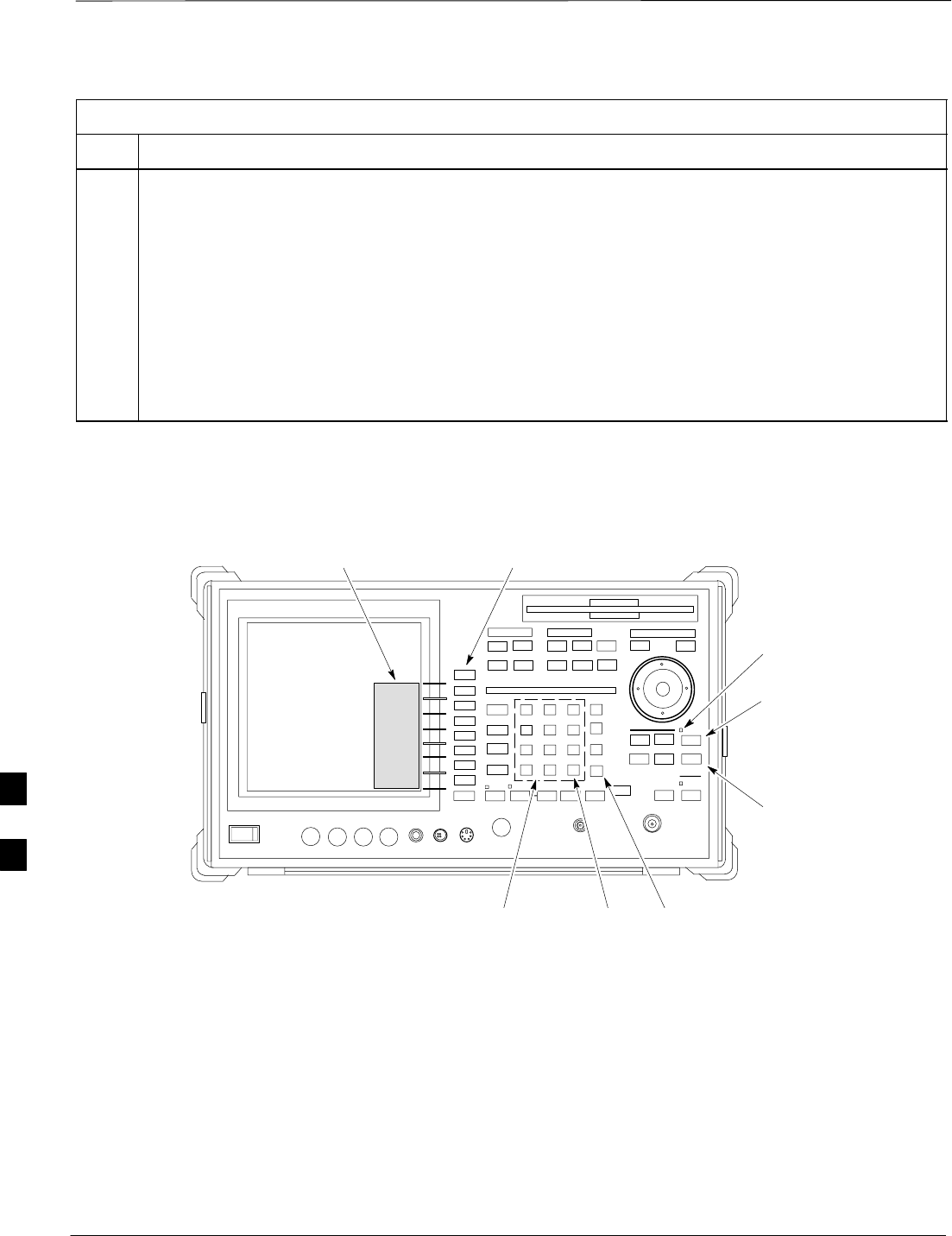

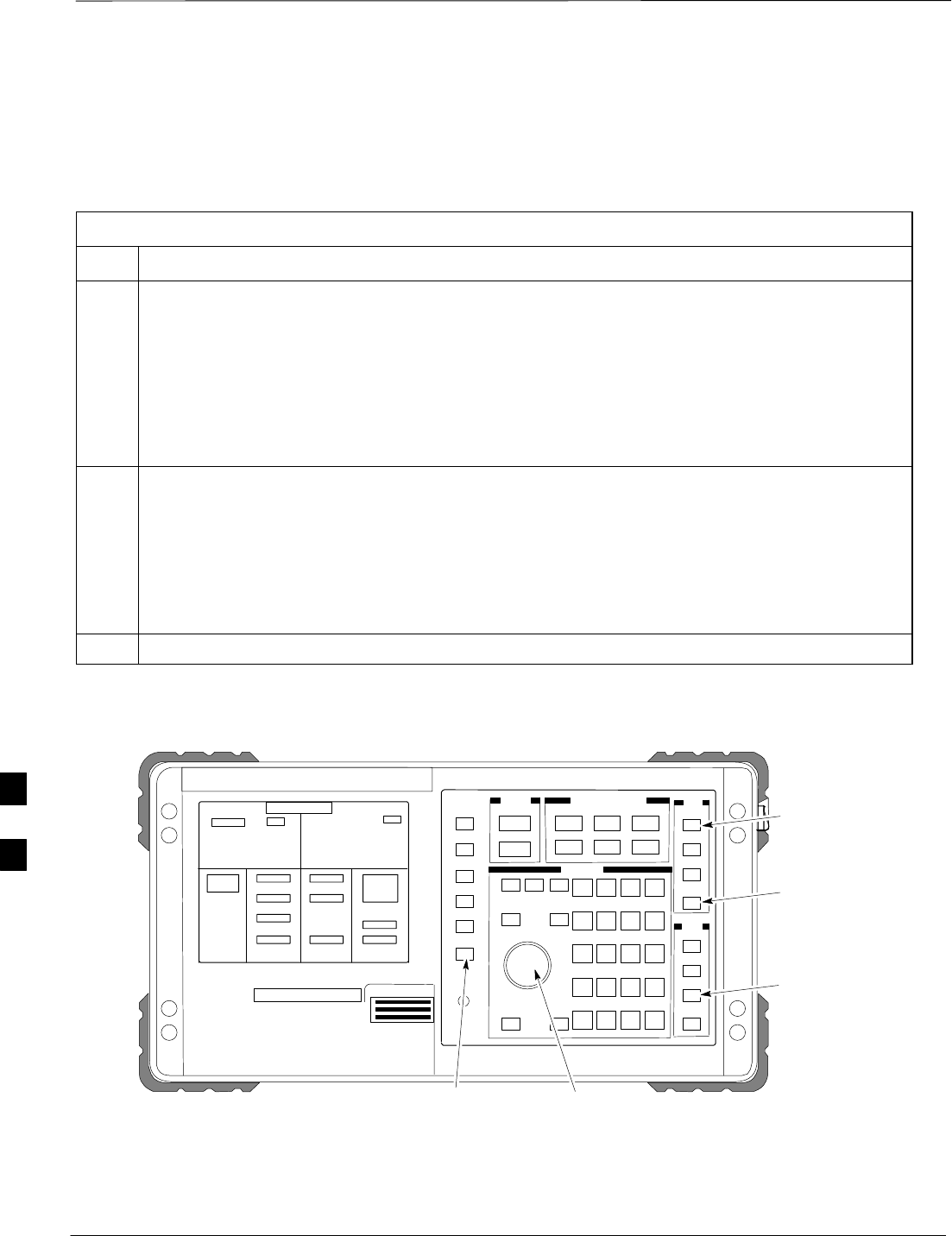

Figure 7-19: HP8935 Test Set

FW00885

Preset

Cursor Control

Shift

Inst Config

Local

GPIB Addresses – continued

JAN 2002 7-43

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

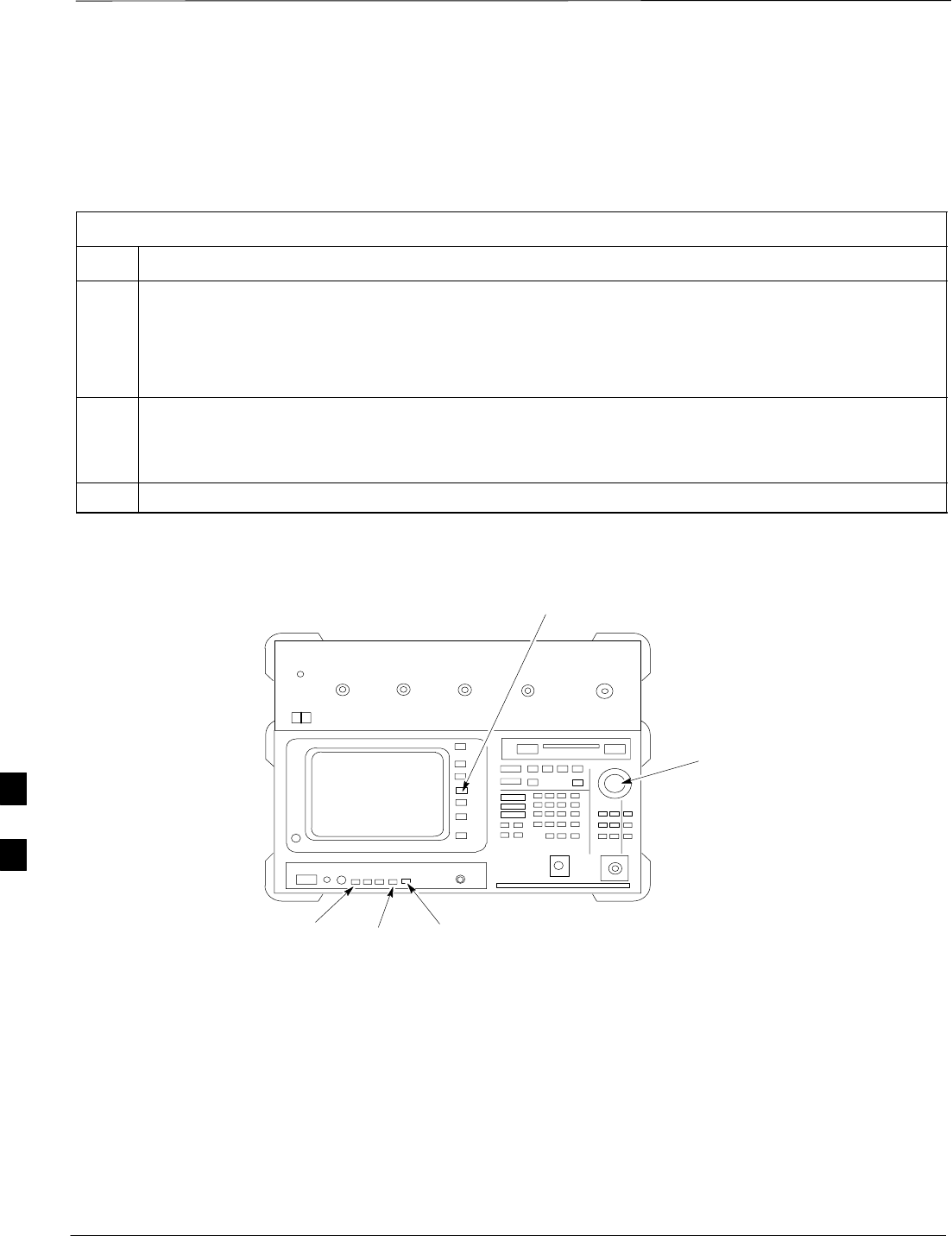

Verify and Set the HP8921A

and HP83236A/B GPIB

Addresses

Follow the procedure in Table 7-24 to verify and, if necessary, change

the HP8921A/HP83236A GPIB addresses.

Table 7-24: Verify and/or Change HP8921A and HP83236A GPIB Addresses

Step Action

1To verify that the GPIB addresses are set correctly, press Shift and LOCAL on the HP8921A (refer to

Figure 7-20). The current HP–IB address is displayed at the top of the screen.

NOTE

HP–IB is the same as GPIB.

2If the current HP–IB address is not set to 18, perform the following to change it:

–Turn the Cursor Control knob to move the cursor to More and press the knob to select the field.

–Turn the Cursor Control knob to move the cursor to I/O Config and press the knob to select the

field.

–Turn the Cursor Control knob to move the cursor to Adrs and press the knob to select the field.

–Turn the Cursor Control knob to change the HP–IB address to 18 and press the knob to set the

address.

–Press Shift and Preset to return to normal operation.

3To set the HP83236A (or B) PCS Interface GPIB address=19, set the dip switches as follows:

–A1=1, A2=1, A3=0, A4=0, A5=1, HP–IB/Ser = 1

Preset

Cursor Control

Shift

Local

Figure 7-20: HP8921A and HP83236A/B

GPIB Addresses – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-44

Verify and Set Advantest R3465

GPIB Address

Table 7-25 describes the steps to verify and, if necessary, change the

GPIB address for the Advantest R3465.

Table 7-25: Verify and/or Change Advantest R3465 GPIB Address

Step Action

1Perform the following procedure to verify that the GPIB address is set correctly:

–Press SHIFT then PRESET (see Figure 7-21).

–Press LCL.

–Press the GPIB and Others CRT menu key to view the current address.

2If the current GPIB address is not set to 18, perform the following to change it:

–Turn the vernier knob as required to select 18.

–Press the vernier knob to set the address.

3To return to normal operation, press Shift and Preset.

Figure 7-21: R3465 Communications Test Set

BNC

“T”

REF UNLOCK EVEN

SEC/SYNC IN CDMA

TIME BASE IN

POWER

OFF ON

REF FW00337

LCL Shift Preset

GPIB and others

Vernier

Knob

GPIB Addresses – continued

JAN 2002 7-45

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

RS232 GPIB Interface Box

Ensure that the RS232 GPIB interface box dip switches are set as shown

in Figure 7-22.

RS232–GPIB

INTERFACE BOX

S MODE

DATA FORMAT

BAUD RATE

GPIB ADRS

DIP SWITCH SETTINGS

G MODE

Figure 7-22: RS232 GPIB Interface Box

Verify and Set Advantest R3267

GPIB Address

Perform the procedure in Table 7-26 and refer to Figure 7-23 to verify

and, if necessary, change the Advantest R3267 spectrum analyzer GPIB

address.

Table 7-26: Verify and Change Advantest R3267 GPIB Address

Step Action

1If the REMOTE LED is lighted, press the LCL key.

–The LED extinguishes.

2Press the CONFIG key.

–The CONFIG softkey labels will appear in the softkey label display area of the instrument

display.

–The current GPIB address will be displayed below the GPIB Address softkey label.

3If the current GPIP address is not set to 18, perform the following to change it:

3a Press the GPIB Address softkey.

–A GPIB Address entry window will open in the instrument display showing the current GPIB

address.

. . . continued on next page

GPIB Addresses – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-46

Table 7-26: Verify and Change Advantest R3267 GPIB Address

Step Action

3b Enter 18 on the keypad in the ENTRY section of the instrument front panel.

–Characters typed on the keypad will replace the address displayed in the GPIB Address entry

window.

NOTE

To correct an entry, press the BS (backspace) key at the lower right of the keypad to delete one

character at a time.

3c Press the ENTR key to the lower right of the keypad to enter the address.

–The GPIB Address entry window closes.

–The new address is displayed in the bottom portion of the GPIB Address softkey label.

Figure 7-23: Setting Advantest R3267 GPIB Address

onREMOTE

LED

LCL Key

CONFIG

Key

Softkey Label

Display Area Softkey

Buttons

Keypad BS

Key ENTR

Key

GPIB Addresses – continued

JAN 2002 7-47

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Verify and Set Advantest R3562

Signal Generator GPIB

Address

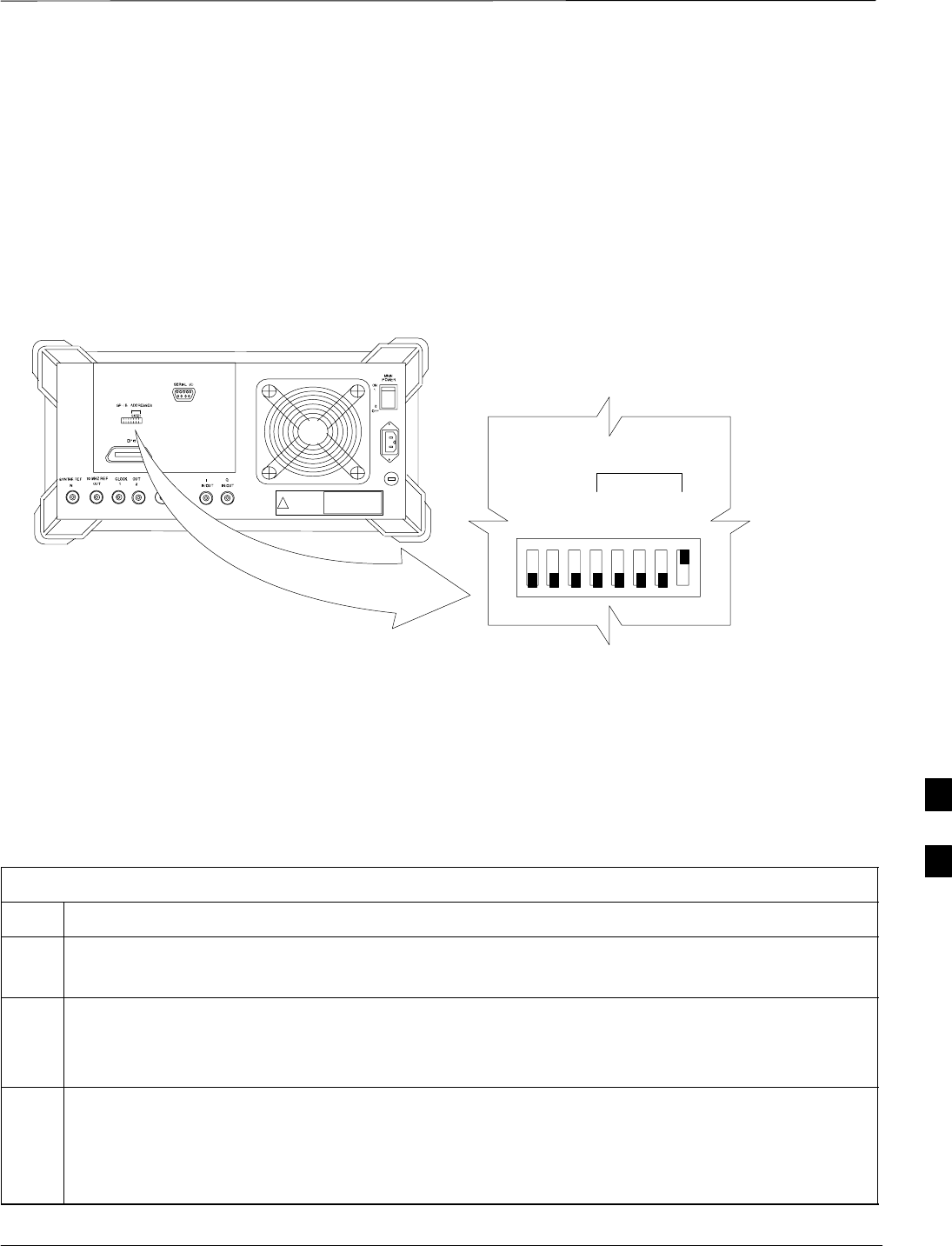

Set the GP–IP ADDRESS switch on the rear of the Advantest R3562

signal generator to address 1 as shown in Figure 7-24.

Figure 7-24: Advantest R3562 GPIB Address Switch Setting

123 45678

54321

GP–IP ADDRESS

GPIB Address set to “1”

Verify and Set Agilent E4406A

Transmitter Tester GPIB

Address

Follow the procedure in Table 7-27 and refer to Figure 7-25 to verify

and, if necessary, change the Agilent E4406A GPIB address.

Table 7-27: Verify and Change Agilent E4406A GPIB Address

Step Action

1In the SYSTEM section of the instrument front panel, press the System key.

The softkey labels displayed on the right side of the instrument screen will change.

2Press the Config I/O softkey button to the right of the instrument screen.

–The softkey labels will change.

–The current instrument GPIB address will display below the GPIB Address softkey label.

3If the current GPIB address is not set to 18, perform the following to change it:

3a Press the GPIB Address softkey button.

In the on–screen Active Function Area, GPIB Address will be displayed followed by the current

GPIB address.

. . . continued on next page

GPIB Addresses – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-48

Table 7-27: Verify and Change Agilent E4406A GPIB Address

Step Action

3b On the front panel Data Entry keypad, enter the communications system analyzer GPIB address of 18.

–The GPIB Address label will change to Enter.

–Digits entered with the keypad will replace the current GPIB address in the display.

NOTE

To correct an entry, press the Bk Sp key at the upper right of the keypad to delete one character at a

time.

3c Press the Enter softkey button or the keypad Enter key to set the new GPIB address.

–The Config I/O softkey labels will re–appear.

–The new GPIB address will display under the GPIB Address softkey label.

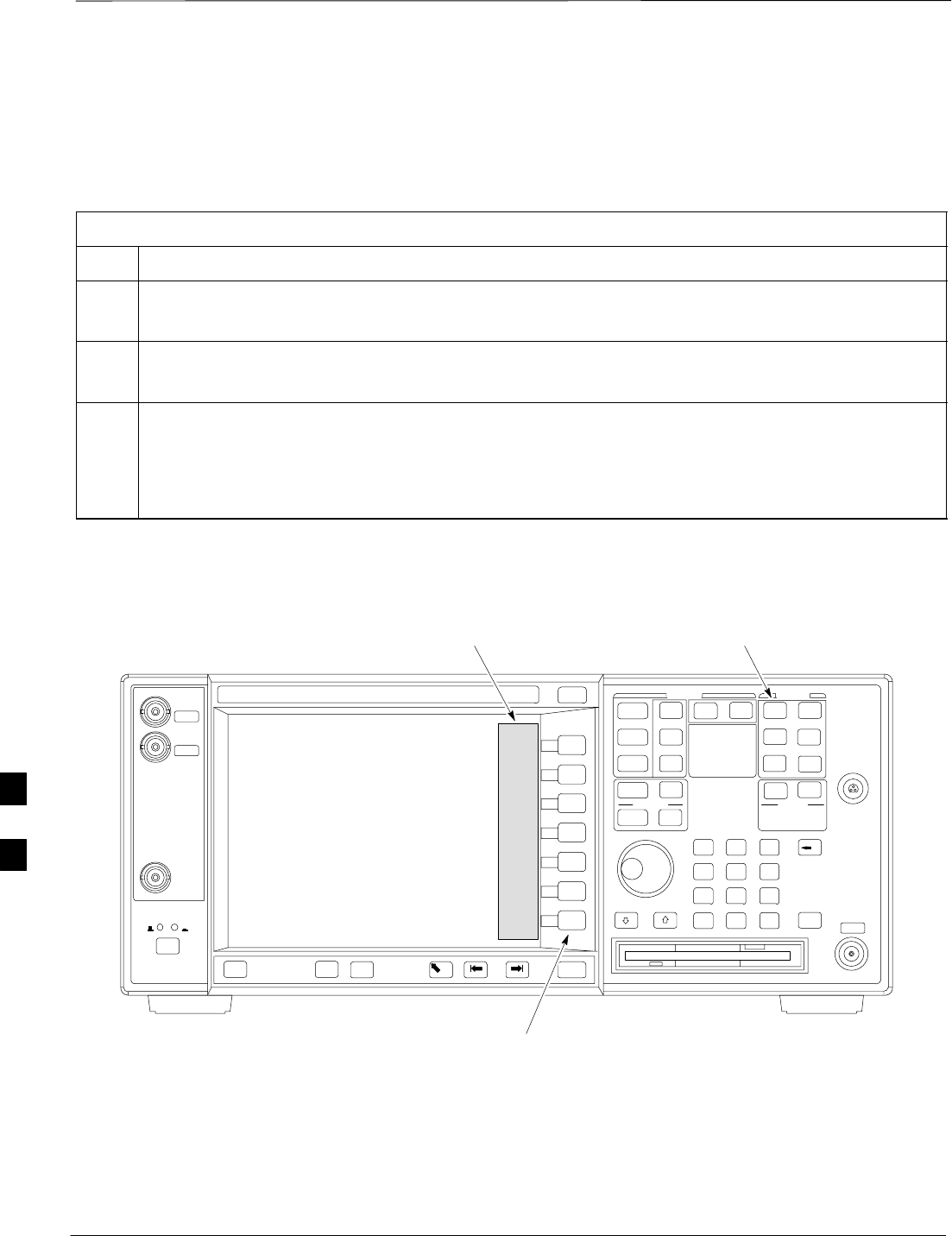

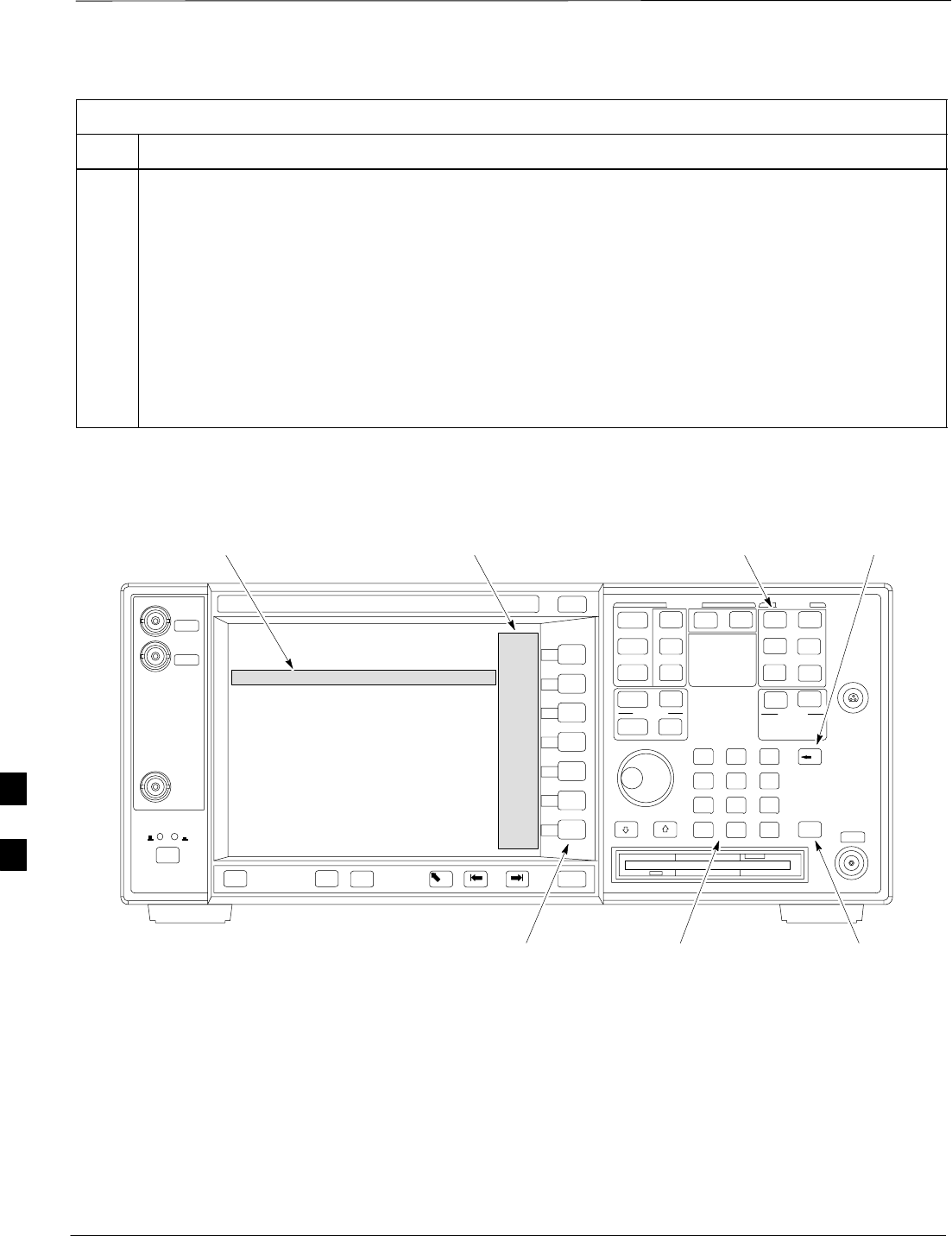

Figure 7-25: Setting Agilent E4406A GPIB Address

System

Key Bk Sp

Key

Enter

Key

Data Entry

Keypad

Softkey

Buttons

Softkey Label

Display Area

Active Function

Area

GPIB Addresses – continued

JAN 2002 7-49

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Verify and Set Agilent E4432B

Signal Generator GPIB

Address

Refer to Figure 7-26 and follow the procedure in Table 7-28 to verify

and, if necessary, change the Agilent E4432B GPIB address.

Table 7-28: Verify and Change Agilent E4432B GPIB Address

Step Action

1In the MENUS section of the instrument front panel, press the Utility key.

–The softkey labels displayed on the right side of the instrument screen will change.

2Press the GPIB/RS232 softkey button to the right of the instrument screen.

–The softkey labels will change.

–The current instrument GPIB address will be display below the GPIB Address softkey label.

3If the current GPIB address is not set to 1, perform the following to change it:

3a Press the GPIB Address softkey button.

–The GPIB Address label and current GPIB address will change to boldface.

–In the on–screen Active Entry Area, Address: and the current GPIB address will display.

3b On the front panel Numeric keypad, enter the signal generator GPIB address of 1.

–The GPIB Address label will change to Enter.

–Digits entered with the keypad will replace the current GPIB address in the Active Entry display.

NOTE

To correct an entry, press the backspace key at the lower right of the keypad to delete one character at

a time.

3c Press the Enter softkey button to set the new GPIB address.

–The new GPIB address will be display under the GPIB Address softkey label.

GPIB Addresses – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-50

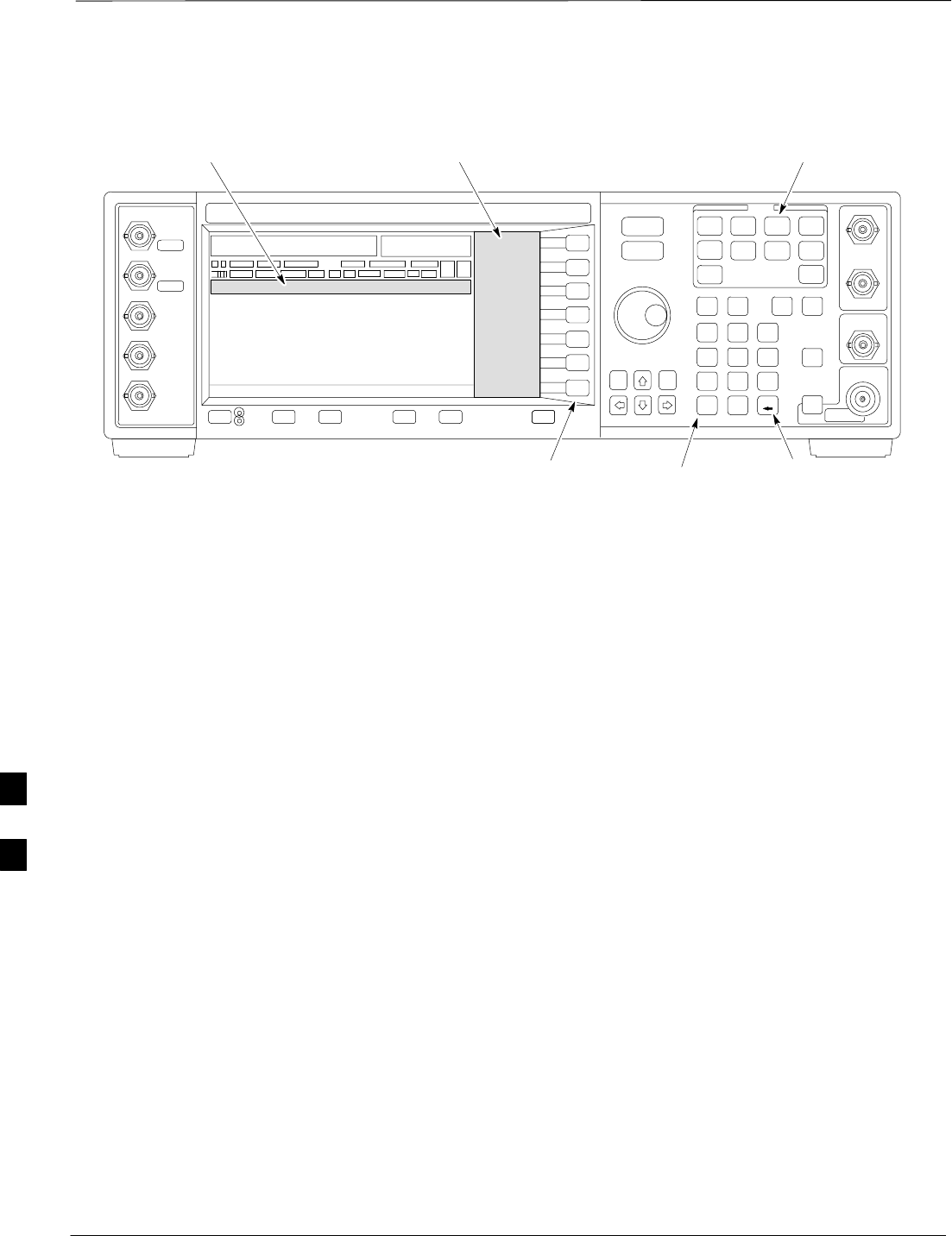

Figure 7-26: Setting Agilent E4432B GPIB Address

Numeric

Keypad

Softkey

Buttons

Softkey Label

Display Area

Active Entry

Area

Backspace

Key

Utility

Key

Test Equipment Calibration

JAN 2002 7-51

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Background

To prevent damage to the test equipment, all Microcell

transmit (TX) tests must be made using the 30 dB

attenuator.

CAUTION

Proper test equipment calibration ensures that the test equipment and

associated test cables do not introduce measurement errors, and that

measurements are correct.

If the test set being used to interface with the BTS has been

calibrated and maintained as a set, this procedure does not

need to be performed. (Test Set includes LMF terminal,

communications test set, additional test equipment,

associated test cables, and adapters.)

NOTE

This procedure must be performed prior to beginning the optimization.

Verify all test equipment (including all associated test cables and

adapters actually used to interface all test equipment and the BTS) has

been calibrated and maintained as a set.

If any piece of test equipment, test cable, or RF adapter,

that makes up the calibrated test equipment set, has been

replaced, re-calibration must be performed. Failure to do so

can introduce measurement errors, resulting in incorrect

measurements and degradation to system performance.

CAUTION

Calibration of the communications test set (or equivalent

test equipment) must be performed at the site before

calibrating the overall test set. Calibrate the test equipment

after it has been allowed to warm–up and stabilize for a

minimum of 60 minutes.

IMPORTANT

These procedures access the LMF automated calibration routine used to

determine the path losses of the supported communications analyzer,

power meter, associated test cables, and (if used) antenna switch that

make up the overall calibrated test set. After calibration, the gain/loss

offset values are stored in a test measurement offset file on the LMF.

Test Equipment Calibration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-52

Procedure to Calibrate Test

Equipment

The calibrate test equipment function zeros the power measurement level

of the test equipment item that is to be used for TX calibration and audit.

If both a power meter and an analyzer are connected, only the power

meter is zeroed.

Use the Calibrate Test Equipment menu item from the Util menu to

calibrate test equipment. The test equipment must be selected before

calibration can begin. Follow the procedure in Table 7-29 to calibrate the

test equipment.

Prerequisites

Ensure the following prerequisites have been met before proceeding:

STest equipment to be calibrated has been connected correctly for tests

that are to be run.

STest equipment has been selected.

Table 7-29: Procedure to Calibrate Test Equipment

Step Action

1From the Util menu, select Calibrate Test Equipment.

A Directions window is displayed.

2Follow the directions provided.

3Click on Continue to close the Directions window.

A status report window is displayed.

4Click on OK to close the status report window.

Calibration Without the LMF

Several test equipment items used in the optimization process require

pre–calibration actions or calibration verification which are not

supported by the LMF. Procedures to perform these activities for the

applicable test equipment items are covered in this section.

Test Equipment Calibration – continued

JAN 2002 7-53

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Calibrate R3465

Test Set

Follow the steps inTable 7-30 to configure and calibrate the R3465

communication test set.

Table 7-30: Procedure to Calibrate R3465

Step Action

1* IMPORTANT

–Perform this calibration only after the analyzer has warmed–up and stabilized for a minimum

of 60 minutes. Test equipment warm–up may vary depending on operating environment or

initial temperature of unit upon turn–on. Consult test equipment OEM documentation for

additional information as required.

Connect the male BNC to male N cable between the CAL OUT connector and the INPUT 50 W

connector.

2 Select CW.

3Push the SHIFT and CAL pushbuttons.

4 Select Cal All in CRT menu.

Internal calibration should complete in about 6 minutes.

Procedure to Calibrate R3267

Test Set

Follow the steps in Table 7-31 to configure and calibrate the R3267

communication test set.

Table 7-31: Procedure to Calibrate R3267

Step Action

1* IMPORTANT

–Perform this calibration only after the analyzer has warmed–up and stabilized for a minimum

of 60 minutes. Test equipment warm–up may vary depending on operating environment or

initial temperature of unit upon turn–on. Consult test equipment OEM documentation for

additional information as required.

Connect the male BNC to male N cable between the CAL OUT connector and the INPUT 50 W

connector.

2 Select CW.

3Push the SHIFT and CAL pushbuttons.

4 Select Cal All in CRT menu.

Internal calibration should complete in about 6 minutes.

Test Equipment Calibration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-54

Procedure to Calibrate Agilent

E4406A

Refer to Figure 7-27 and follow the procedure in Table 7-32 to perform

the Agilent E4406A self–alignment (calibration).

Table 7-32: Perform Agilent E4406A Self–alignment (Calibration)

Step Action

1In the SYSTEM section of the instrument front panel, press the System key.

–The softkey labels displayed on the right side of the instrument screen will change.

2Press the Alignments softkey button to the right of the instrument screen.

–The softkey labels will change.

3Press the Align All Now softkey button.

–All other instrument functions will be suspended during the alignment.

–The display will change to show progress and results of the alignments performed.

–The alignment will take less than one minute.

Figure 7-27: Performing Agilent E4406A Self–alignment (Calibration)

System

Key

Softkey

Buttons

Softkey Label

Display Area

Test Equipment Calibration – continued

JAN 2002 7-55

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Setup Advantest

R3465 Test Equipment

Follow the steps outlined in Table 7-33 (for Advantest R3465) or

Table 7-34 (for Advantest R3267) to set up test equipment prior to

performing ATP tests.

LMF based measurements factor in cable and attenuator

loss between the BTS and test equipment. No additional

attenuation can be inserted as the additional losses would

not be factored in.

IMPORTANT

If you are logged in to the BTS, you must log out prior to

loading the special JCDMA software on a PCMCIA RAM

card and inserting it in the Advantest R3465 PCMCIA slot.

This must be done before using the Advantest R3465 test

set for JCDMA tests.

IMPORTANT

Table 7-33: Procedure to Setup Advantest R3465 Test Equipment

Step Action

1If you have not already done so, interface the CDMA LMF computer to the BTS and login to the BTS.

2Perform the following steps for the manual test procedure for Automated TX verification.

Set up the communication test set by inserting the Automatic TX test PCMCIA card into the

Advantest PCMCIA card reader slot A. (software version=97.10.07 rev 0001 or later).

Perform the following steps to access and use the Advantest Automatic TX test screen:

3Press the Remote LCL button (located below the CRT).

4Press the Loader ON button (located below the CRT).

5Press the LOAD CRT menu button.

6Use the DISPLAY CONTROL knob to select CDMA_BSR.BAS and then press the knob.

7Press the RUN CRT menu button after the LOAD pop–up disappears.

8Wait for *Idle Free space to appear at the bottom of the CRT.

9Refer to Figure 7-34 to set up test equipment.

Verify that the coaxial cable from the appropriate TX connector on the BTS is connected to the test

equipment RF input port via the in line 30 dB high power attenuator for MicroCell BTSs.

Test Equipment Calibration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-56

Procedure to Setup Advantest

R3267 Test Equipment

Table 7-34: Procedure to Setup Advantest R3267 Test Equipment

Step Action

1If you have not already done so, interface the CDMA LMF computer to the BTS and login to the BTS.

2Perform the following steps for the manual test procedure for Automated TX verification.

Set up the communication test set by inserting the Automatic TX test PCMCIA card into the

Advantest PCMCIA card reader slot A. (software revision 0.0.0.4 or later).

Perform the following steps to access and use the Advantest Automatic TX test screen:

3Press the Remote LCL button (located below the CRT).

4Press the Loader ON button (located below the CRT).

5 Select LOAD on the CRT screen (button #6).

6Use the DISPLAY CONTROL knob to select the REMOTE.BAS file, then press the knob.

7 Select RUN on the CRT screen (button #1).

8Wait for *Idle Free space to appear at the bottom of the CRT.

9Refer to Figure 7-34 to set up test equipment.

Verify that the coaxial cable from the appropriate TX connector on the BTS is connected to the test

equipment RF input port via the in line 30 dB high power attenuator for MicroCell BTSs.

Test Equipment Selection

JAN 2002 7-57

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The objective of this procedure is to select the test equipment used for

BTS testing. The LMF must select the test equipment before it is used

for BTS testing.

Prerequisites

The following are prerequisites for test equipment selection:

1. Test equipment to be used has been connected as shown in

Figure 7-16.

2. Power for the test equipment and GPIB box has been turned on.

3. LMF has been started (do not have to be logged in to the BTS).

Procedure to Select Test

Equipment

Follow the steps in Table 7-35 for test equipment selection

The test equipment can also be selected via a manual or

automatic connection. Refer to the CDMA LMF

Operator’s Guide, 68P64114A78 for the procedures.

NOTE

Table 7-35: Procedure to Select Test Equipment

Step Action

1 Select Tools>Options from the menu. A LMF Options window appears.

2Select the correct COM port from the Comm Port pick list (normally COM1).

3Click on the Auto–Detection button if it is not enabled.

4If the GPIB addresses are not displayed, enter the GPIB addresses in the box labeled GPIB

addresses to search.

NOTE

When both a power meter and a communication test set are selected, the first item listed in the

GPIB addresses to search box will be used for RF power measurements, e.g., TX calibration and

audit. The address for a power meter is 13 and the address for a communications test set is 18.

The numbers 13 and 18 must be included in the GPIB address to search box so the power meter

(13) will be used for TX calibration and audit.

5Click on the Apply button. The button will darken until the selection has been committed. A

check mark will appear in the Manual Configuration section for detected test equipment items.

6Click on the Dismiss button to close the LMF Options window.

Test Equipment Selection – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-58

Selecting Test Equipment

Automatically or Manually

Use LMF Options from the Tools>Options menu list to select test

equipment automatically (using the autodetect feature) or manually.

A Serial Connection and a Network Connection tab are provided for

test equipment selection. The Serial Connection tab is used when the

test equipment items are connected directly to the LMF computer via a

GPIB box (normal setup). The Network Connection tab is used when

the test equipment is to be connected remotely via a network connection.

Procedure to Manually Select

Test Equipment in a Serial

Connection Tab

Test equipment can be manually specified before, or after, the test

equipment is connected. The LMF does not check to see if the test

equipment is actually detected for manual specification. Follow the

procedure in Table 7-36 to select test equipment manually.

Table 7-36: Procedure to Manually Select Test Equipment in a Serial Connection Tab

Step Action

1 Select Tools>Options. The LMF Options window appears.

2Click on the Serial Connection tab (if not in the forefront).

3Select the correct serial port in the COMM Port pick list (normally COM1).

4Click on the Manual Specification button (if not enabled).

5Click on the check box corresponding to the test item(s) to be used.

6Type the GPIB address in the corresponding GPIB address box (the default address is “1”).

Recommended Addresses

1 = R3562 Test Source

13 = Power Meter

18 = CDMA Analyzer

7Click on Apply (the button darkens until the selection has been committed).

NOTE

With manual selection, the LMF does not detect the test equipment to see if it is connected and

communicating with the LMF.

8Click on Dismiss to close the test equipment window.

Test Equipment Selection – continued

JAN 2002 7-59

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Automatically

Select Test Equipment in a

Serial Connection Tab When using the auto-detection feature to select test equipment, the LMF

examines which test equipment items are actually communicating with

the LMF. Follow the procedure in Table 7-37 to use the auto-detect

feature.

Table 7-37: Procedure to Select Test Equipment Using Auto-Detect

Step Action

1 Select Tools>Options. The LMF Options window appears.

2Click on the Serial Connection tab (if not in the forefront).

3Select the correct serial port in the COMM Port pick list (normally COM1).

4Click on Auto–Detection (if not enabled).

5Type in the GPIB addresses in the box labeled GPIB addresses to search (the default address is

“1”).

NOTE

When both a power meter and analyzer are selected, the first item listed in the GPIB addresses to

search box is used for RF power measurements (i.e., TX calibration). The address for a the test

source is 1; the address for the power meter is normally 13; and the address for a CDMA analyzer

is normally 18. If 1, 13,18 are included in the GPIB addresses to search box, the power meter

(13) is used for RF power measurements. If the test equipment items are manually selected, the

CDMA analyzer is used only if a power meter is not selected.

6Click on Apply.

NOTE

The button darkens until the selection has been committed. A check mark appears in the Manual

Configuration section for detected test equipment items.

7 Click Dismiss to close the LMF Options window. 7

Power Meter Calibration

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-60

Objective

This procedure calibrates the power meter that will be used for cable

calibration and BTS testing.

Prerequisites

The following are prerequisites for power meter calibration:

1. The power meter is connected. Refer to Figure 7-16 in the “Test

Equipment Selection” procedure.

2. Test equipment has been selected.

Procedure to Calibrate the

Power Meter

Follow the steps in Table 7-38 to calibrate the power meter.

Table 7-38: Procedure to Calibrate the Power Meter

Step Action

1Click on Util>Calibrate Test Equipment. A cable connection direction pop–up is displayed.

2Follow the directions provided.

3Click on the OK button to close the status results window.

Test Cable Calibration

JAN 2002 7-61

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Background

Proper test equipment setup ensures that all measurements are correct,

and that test equipment and associated test cables do not introduce

measurement errors. Motorola recommends repeating cable calibration

prior to testing at each BTS site.

If not already done so, this procedure needs to be performed prior to

beginning the ATP. Verify that all test equipment (including all

associated test cables and adapters actually used to interface all test

equipment and the BTS together) has been calibrated.

In the event that any piece of test equipment, test cable, or

RF adaptor is replaced that makes up the calibrated test

equipment set, re–calibration should be performed. Failure

to do so can introduce measurement errors, resulting in

incorrect measurements or degradation to system

performance.

CAUTION

Calibration of the communications test set (or equivalent

test equipment) must be performed at the site before

calibrating the overall test set after it has been allowed to

warm–up and stabilize for a minimum of 60 minutes.

IMPORTANT

Purpose of Cable Calibration

This procedure accesses the LMF automated calibration routine used to

determine the path losses of the supported communications analyzer,

power meter, associated test cables, and (if used) RF Network making up

the overall calibrated test set. After calibration, the gain/loss offset

values are stored in a test measurement offset file on the LMF.

If you have obtained the test cable insertion loss values previously, you

can manually enter them using the Util>Edit>CableLoss>TX or RX

menu.

Do not use the manual method if you plan to run/have already run the

cable calibration procedure.

Test Cable Calibration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-62

Procedure to do an Automated

Cable Calibration

This procedure calibrates the cables that will be used for BTS testing.

Follow the steps in Table 7-39 to calibrate the test cables. Refer to

Figure 7-28.

Prerequisites

1. Test equipment has been connected as shown in Figure 7-16.

2. Power for the test equipment and GPIB box has been turned on.

3. LMF has been started and BTS has been logged into.

4. Inspect and verify the TX and RX antenna cabling for your BTS.

Refer to the applicable “Antenna Cabling” procedure in chapter 6.

Table 7-39: Automated Cable Calibration

Step Action

1Click on the Util>Cable Calibration menu item.

2Select one of the following options in the Cable Calibration menu: TX and RX CABLE

CAL, TX CABLE CAL, or RX CABLE CAL.

NOTENOTE

Normally, the option TX and RX CABLE CAL is used so both the TX and RX cable

configurations are calibrated. Use the TX CABLE CAL and RX CABLE CAL options only if

one of the cable configurations needs to be calibrated.

3Enter a channel value into the Channel box. The channel value is the channel that the BTS is

being calibrated on, e.g., 170.

4Click the OK button. A Directions pop–up is displayed for each step of the cable calibration.

5Follow the directions displayed for each step. A status report window is displayed with the

results of the cable calibration.

6Click on OK to close the status report window.

Test Cable Calibration – continued

JAN 2002 7-63

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-28: Cable Calibration Test Setup (Motorola CyberTest, HP 8935, HP 8921, and Advantest R3465)

Motorola CyberTest

Hewlett–Packard Model HP 8935

Advantest Model R3465

DUPLEX

OUT

RF OUT

50–OHM

INPUT

50–OHM

RF GEN OUTANT IN

ANT

SUPPORTED TEST SETS

TEST

SET

A. SHORT CABLE CAL

SHORT

CABLE

B. RX TEST SETUP

C. TX TEST SETUP

CALIBRATION SET UP

Note: The Directional Coupler is not used with the

Cybertest Test Set. The TX cable is connected

directly to the Cybertest Test Set.

A 10dB attenuator must be used with the short test

cable for cable calibration with the CyberTest Test

Set. The 10dB attenuator is used only for the cable

calibration procedure, not with the test cables for

TX calibration and ATP tests.

TEST

SET

CABLE

SHORT

CABLE

FW00089

Note: For 800 MHZ only. The HP8921A cannot

be used to calibrate cables for PCS frequencies.

Hewlett–Packard Model HP 8921A

N–N FEMALE

ADAPTER

TEST

SET

CABLE

SHORT

CABLE

N–N FEMALE

ADAPTER

30 DB 10W RF

ATTENUATOR

Test Cable Calibration – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-64

Figure 7-29: Cable Calibration Test Setup (Advantest R3267 and Agilent E4406A)

SUPPORTED TEST SETS

TEST

SET

A. SHORT CABLE CAL

SHORT

CABLE

B. RX TEST SETUP

C. TX TEST SETUP

CALIBRATION SET UP

TEST

SET

CABLE

SHORT

CABLE

N–N FEMALE

ADAPTER

TEST

SET

CABLE

SHORT

CABLE

N–N FEMALE

ADAPTER

30 DB 10W RF

ATTENUATOR

Agilent E4406A with E4432B

Signal Generator

ADVANTEST R3267 SPECTRUM ANALYZER

100Hz – 8GHz

ADVANTEST R3562 RECEIVER TEST SOURCE

Advantest Model R3267 with

R3562 Signal Generator

Create CAL File

JAN 2002 7-65

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

Use this procedure to create a CAL file for the Calibration audit. You

must do this procedure before the RF path audit.

Background

The Create CAL File function gets the BLO data from the MAWI and

creates/updates the CAL file for the BTS. If a CAL file does not exist, a

new one is created. If a CAL file already exists, it is updated. The BTS

is calibrated at the factory and normally does not require calibration after

installation, so you must use the Create CAL File function to create a

CAL file since TX calibration is not performed.

The Create CAL File function only applies to selected

(highlighted) MAWIs.

NOTE

The CBSC does not require a calibration file for operation

of an SC300 BTS.

NOTE

The user is not encouraged to edit the CAL file as this

action can cause interface problems between the BTS and

the LMF. To manually edit the CAL file, you must first

logout of the BTS. If you manually edit the CAL file and

then use the Create CAL File function, the edited

information is lost.

NOTE

Prerequisites

The following must be done before you run this test:

SThe MAWI has the correct code load and data load.

SThe MAWI is INS.

SThe LMF is logged on to the BTS.

Create CAL File – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-66

Procedure to Create a CAL File

Use the following procedure in Table 7-40 to create a CAL file.

Table 7-40: Procedure to Create a CAL File

Step Action

1Log on to the BTS if you have not already done so.

2Select the MAWI.

3Click on the Device menu.

4Click on the Create Cal File menu item.

The status report window displays the results of the action.

5 Click OK.

The bts–#.cal is located in the wlmf\cdma\bts–#

folder (where # is the number of the BTS).

NOTE

Acceptance Tests

JAN 2002 7-67

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Overview

This chapter describes the various TX and RX acceptance tests.

TX Test Objective

The following tests will verify the TX antenna path. Output power

control will also be verified. All tests will be performed using the power

meter and communication test set. Measurements will be via the

Antenna B connectors.

You must remove the antenna cables before you perform

the ATP.

NOTE

The BTS is keyed up to generate a CDMA carrier at 31 dBm.

TX Tests

The following TX tests will be performed to verify the CDMA Forward

Link.

Near band & in band spurious emissions and occupied

bandwidth

You will verify that the transmitted CDMA carrier waveform generated

meets the Spurious Emissions specification (transmit spectral mask and

Occupied Bandwidth as defined in IS95A/B) with respect to either a

pre–determined test pattern or test pattern generated by using assigned

cdf file values.

–+/– 750 kHz from center frequency to +/– 1980 kHz from center

frequency – at least –45 dBc

–+/– 1980 kHz from center frequency and out – at least –60 dBc

–all near band and out of band spurious emissions are verified to be

less than or equal to –60 dBc relative to reference power (measured

previously as total power).

Waveform quality (Rho) and pilot time tolerance (offset)

You will verify that the transmitted Pilot channel waveform quality (rho)

exceeds the minimum specified value in ARIB STD T53. Rho

represents the correlation between actual and perfect CDMA modulation

spectrum. 1.0000 represents 100% (or perfect correlation).

–Waveform quality (Rho) should be > 0.912 (–0.4 dB).

The Pilot Time Tolerance (Offset) is the difference between the CDMA

analyzer measurement interval (based on the BTS system time reference)

and the incoming block of transmitted data from the BTS (Pilot only,

Walsh code 0).

–Pilot Time Tolerance (Offset) should be < 10 uS. (< 3 uS typical).

Acceptance Tests – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-68

CDMA carrier frequency verification

You will verify the frequency of the transmitted CDMA carrier signal to

be within 0.05 ppm.

Code domain power noise, pilot power, and total power

You will verify that the code domain noise floor of all unused Walsh

codes within the CDMA spectrum measures < –27 dB (with respect to

total power). Pilot power will be verified to measure –7.04 dB +/–0.5

dB (with respect to standard test patterns). Total power will be verified

to measure +2/–4 dB (with respect to CDF specific file parameters).

BTS frequency accuracy

BTS frequency accuracy can be verified manually during normal

operation by monitoring the 19.6608 MHz reference (19 MHz) from the

Diagnostic Access Area. A frequency counter with an accuracy of +/–

0.005 ppm can be used to check the BTS frequency accuracy.

RX Test Objective

The following test will verify the RX antenna path(s).

All tests will be performed using the communication test set.

Measurements will be via the Antenna A and Antenna B connectors.

RX Tests

The following RX test will be performed to verify the CDMA Reverse

Link.

BTS RX sensitivity/frame erasure rate

The default test verifies the BTS sensitivity on all Traffic Channel

elements (fullrate at 1% FER) at an RF input level of –117 dBm on the

RX antenna path.

There are no pass/fail criteria associated with FER readings

taken at level below –117 dBm; other than to verify that

the FER measurement reflects changes in RX input signal

level.

NOTE

Subscriber Unit (SU) Test and Setup

JAN 2002 7-69

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The following procedure is to test and verify the operation of the

Subscriber Unit (SU). This procedure also contains instructions to

program the NAM parameters into the SU prior to operation.

Background

The integral Subscriber Unit (SU) provides a controlled method of

terminating calls within the local BTS for diagnostic purposes. The

SU’s RF is connected to the forward port of the antenna directional

couplers via distribution components to provide a hard–wired path. The

SU performs a system–level test call with audio loopback functionality.

Control of the SU is only available remotely via the dial up modem (or

locally via the MMI). The OMCR–based SALT script is not supported.

The Subscriber Unit Distribution (SUD) is the board that provides RF

splitting and attenuation for the subscriber unit RF signal. The SUD is

an internal module.

Procedure to Test and Verify

Follow the instructions in Table 7-41 to test and verify the operation of

the SU.

Table 7-41: Procedure to Test and Verify the Subscriber Unit

Step Action

1Connect the LMF computer to the MMI/LMF connector. Refer to Figure 7-6.

2If you have not already done so, logout of the BTS and exit the LMF. Wait 10 seconds before

proceeding.

3Establish an MMI communications session with the BTS. Refer to NO TAG.

4Enter the sndtype 0xa178 command to simulate an LMF session.

5Make sure the unit has booted into the OOS_RAM state.

6Enter the following command at the sc300’x–1> prompt to enable SU response printing in the

MMI session:

printf on

. . . continued on next page

Subscriber Unit (SU) Test and Setup – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-70

Table 7-41: Procedure to Test and Verify the Subscriber Unit

Step Action

7Enter the following command at the sc300’x–1> prompt to view the ESN number of the SU

and the CAMPS version:

su version

The system will display the following output. Note that the ESN numbers will be different, but

everything else will remain as shown below.

sc300’x–1>su version

COMMAND ACCEPTED: su version

***************su version***************

Model :+GMM: C401M

GMIinfo :+GMI: SANYO Electric Co., Ltd.

GMRinfo :+GMR: 1.310

GOI_id :+GOI:

GSN_id :+GSN: 1869FE88

GCAP_format :+GCAP: +CIS707, +MS, +ES, +FCLASS

ESN: 0x1869FE88

8Press ENTER once to return to the sc300’x–1> prompt. Proceed to the “Subscriber Unit

Programming” procedure in Table 7-42.

Subscriber Unit (SU) Test and Setup – continued

JAN 2002 7-71

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Procedure to Program SU NAM

Parameters

Follow the instructions in Table 7-42 to program the SU NAM

parameters.

Table 7-42: Procedure to Program the SU NAM Parameters

Step Action

1Enter the following command at the sc300’x–1> prompt to turn the power to the SU on:

su power on

2Enter the following command at the sc300’x–1> prompt to view the NAM parameters stored

in the SU:

su nam show

The system will display the following typical output:

sc300’x–1>su nam show

COMMAND ACCEPTED: su nam show

SU NAM CONFIG

–––––––––––––––––––––––

Phone Number 8476324677

Station Class Mark 34

Access Overload Code 0

Si d 8

Security Code 48

Lock Code 123

Slot Cycle Index 2

System Id 1

Network Id 65535

IMSI 11 & 12 11

IMSI MCC 111

CDMA Pri Channel A 76

CDMA Pri Channel B 76

CDMA Sec Channel A 872

CDMA Sec Channel B 872

NOTE

The NAM values shown above are for example only. You must enter site–specific NAM

parameter values into the following commands.

3Enter the following command at the sc300’x–1> prompt to program the Mobile Phone

Number:

su nam min <phone number>

4Enter the following command at the sc300’x–1> prompt to program the Access Overload

Code:

su nam aoc <access overload code>

5Enter the following command at the sc300’x–1> prompt to program the Slot Cycle Index:

su nam si <slot cycle index>

. . . continued on next page

Subscriber Unit (SU) Test and Setup – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-72

Table 7-42: Procedure to Program the SU NAM Parameters

Step Action

6Enter the following command at the sc300’x–1> prompt to program the System ID:

su nam sid <system ID>

7Enter the following command at the sc300’x–1> prompt to program the Mobile Country Code

(MCC) and IMSI 11&12 (MNC) code:

su nam imsi <mcc & IMSI>

For example, if the MCC code is “11” and the MNC code is “23,” you would enter:

su nam imsi 1123

8Enter the following command at the sc300’x–1> prompt to view the changes to the NAM

table:

su nam show

9Enter the following command at the sc300’x–1> prompt to download the NAM information

into the mobile:

su nam update

Downloading the NAM parameters into the Mobile may take a few minutes.

CDMA Operating Frequency Programming Information – North American

Cellular Bands

JAN 2002 7-73

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The following tables show each of the valid operating channels for North

American PCS Bands and their corresponding transmit and receive

frequencies.

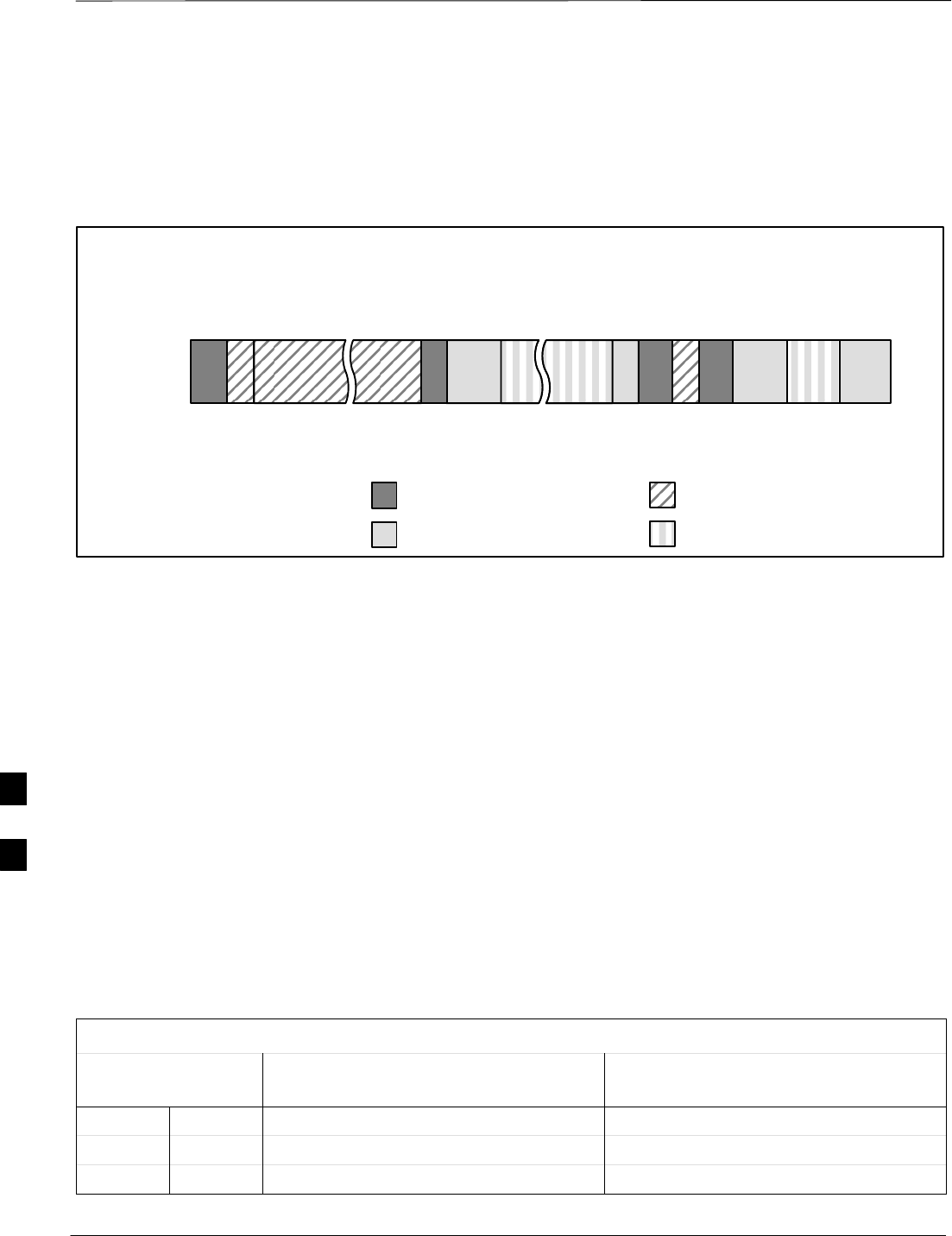

1900 MHz PCS Channels

Figure 7-30 shows the valid channels for the North American PCS

1900 MHz frequency spectrum.

FREQ (MHz)

RX TX

275

1175

CHANNEL

1863.75

925

1851.2525

1871.25425

675 1883.75

1896.25

1908.75

1943.75

1931.25

1951.25

1963.75

1976.25

1988.75

FW00463

Figure 7-30: North America PCS Frequency Spectrum (CDMA Allocation)

CDMA Operating Frequency Programming Information – North American

Cellular Bands – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-74

Calculating 1900 MHz Center

Frequencies

Table 7-43 shows selected 1900 MHz CDMA candidate operating

channels, listed in both decimal and hexadecimal, and the corresponding

transmit, and receive frequencies. Center frequencies (in MHz) for

channels not shown in the table may be calculated as follows:

STX = 1930 + 0.05 * Channel#

Example: Channel 262

TX = 1930 + 0.05*262 = 1943.10 MHz

SRX = TX – 80

Example: Channel 262

RX = 1943.10 – 80 = 1863.10 MHz

Actual frequencies used depend on customer CDMA system frequency

plan.

Each CDMA channel requires a 1.77 MHz frequency segment. The

actual CDMA carrier is 1.23 MHz wide, with a 0.27 MHz guard band on

both sides of the carrier.

Minimum frequency separation required between any CDMA carrier and

the nearest NAMPS/AMPS carrier is 900 kHz (center-to-center).

Table 7-43: 1900 MHz TX and RX Frequency vs. Channel

Channel Number

Decimal Hex Transmit Frequency (MHz)

Center Frequency Receive Frequency (MHz)

Center Frequency

25 0019 1931.25 1851.25

50 0032 1932.50 1852.50

75 004B 1933.75 1853.75

100 0064 1935.00 1855.00

125 007D 1936.25 1856.25

150 0096 1937.50 1857.50

175 00AF 1938.75 1858.75

200 00C8 1940.00 1860.00

225 00E1 1941.25 1861.25

250 00FA 1942.50 1862.50

275 0113 1943.75 1863.75

300 012C 1945.00 1865.00

325 0145 1946.25 1866.25

350 015E 1947.50 1867.50

375 0177 1948.75 1868.75

400 0190 1950.00 1870.00

425 01A9 1951.25 1871.25

450 01C2 1952.50 1872.50

475 01DB 1953.75 1873.75

500 01F4 1955.00 1875.00

525 020D 1956.25 1876.25

550 0226 1957.50 1877.50

575 023F 1958.75 1878.75

. . . continued on next page

CDMA Operating Frequency Programming Information – North American

Cellular Bands – continued

JAN 2002 7-75

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-43: 1900 MHz TX and RX Frequency vs. Channel

Channel Number

Decimal Hex Receive Frequency (MHz)

Center Frequency

Transmit Frequency (MHz)

Center Frequency

600 0258 1960.00 1880.00

625 0271 1961.25 1881.25

650 028A 1962.50 1882.50

675 02A3 1963.75 1883.75

700 02BC 1965.00 1885.00

725 02D5 1966.25 1886.25

750 02EE 1967.50 1887.50

775 0307 1968.75 1888.75

800 0320 1970.00 1890.00

825 0339 1971.25 1891.25

850 0352 1972.50 1892.50

875 036B 1973.75 1893.75

900 0384 1975.00 1895.00

925 039D 1976.25 1896.25

950 03B6 1977.50 1897.50

975 03CF 1978.75 1898.75

1000 03E8 1980.00 1900.00

1025 0401 1981.25 1901.25

1050 041A 1982.50 1902.50

1075 0433 1983.75 1903.75

1100 044C 1985.00 1905.00

1125 0465 1986.25 1906.25

1150 047E 1987.50 1807.50

1175 0497 1988.75 1908.75

CDMA Operating Frequency Programming Information – North American

Cellular Bands – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-76

800 MHz CDMA Channels

Figure 7-31 shows the valid channels for the North American cellular

telephone frequency spectrum.

Figure 7-31: North American Cellular Telephone System Frequency Spectrum (CDMA Allocation).

RX FREQ

(MHz)

991

1023

333

334

666

667

716

717

799

CHANNEL

OVERALL NON–WIRELINE (A) BANDS

OVERALL WIRELINE (B) BANDS

824.040

825.000

825.030

834.990

835.020

844.980

845.010

846.480

846.510

848.970

869.040

870.000

870.030

879.990

880.020

889.980

890.010

891.480

891.510

893.970

TX FREQ

(MHz)

1013

694

689

311

356

644

739

777

CDMA NON–WIRELINE (A) BAND

CDMA WIRELINE (B) BAND

FW00402

Calculating 800 MHz Center

Frequencies

Table 7-44 shows selected 800 MHz CDMA candidate operating

channels, listed in both decimal and hexadecimal, and the corresponding

transmit, and receive frequencies. Center frequencies (in MHz) for

channels not shown in the table may be calculated as follows:

SChannels 1–777

TX = 870 + 0.03 * Channel#

Example: Channel 262

TX = 870 + 0.03*262 = 877.86 MHz

SChannels 1013–1023

TX = 870 + 0.03 * (Channel# – 1023)

Example: Channel 1015

TX = 870 +0.03 *(1015 – 1023) = 869.76 MHz

SRX = TX – 45 MHz

Example: Channel 262

RX = 877.86 –45 = 832.86 MHz

Table 7-44: 800 MHz TX and RX Frequency vs. Channel

Channel Number

Decimal Hex Transmit Frequency (MHz)

Center Frequency Receive Frequency (MHz)

Center Frequency

1 0001 870.0300 825.0300

25 0019 870.7500 825.7500

50 0032 871.5000 826.5000

. . . continued on next page

CDMA Operating Frequency Programming Information – North American

Cellular Bands – continued

JAN 2002 7-77

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-44: 800 MHz TX and RX Frequency vs. Channel

Channel Number

Decimal Hex Receive Frequency (MHz)

Center Frequency

Transmit Frequency (MHz)

Center Frequency

75 004B 872.2500 827.2500

100 0064 873.0000 828.0000

125 007D 873.7500 828.7500

150 0096 874.5000 829.5000

175 00AF 875.2500 830.2500

200 00C8 876.0000 831.0000

225 00E1 876.7500 831.7500

250 00FA 877.5000 832.5000

275 0113 878.2500 833.2500

300 012C 879.0000 834.0000

325 0145 879.7500 834.7500

350 015E 880.5000 835.5000

375 0177 881.2500 836.2500

400 0190 882.0000 837.0000

425 01A9 882.7500 837.7500

450 01C2 883.5000 838.5000

475 01DB 884.2500 839.2500

500 01F4 885.0000 840.0000

525 020D 885.7500 840.7500

550 0226 886.5000 841.5000

575 023F 887.2500 842.2500

600 0258 888.0000 843.0000

625 0271 888.7500 843.7500

650 028A 889.5000 844.5000

675 02A3 890.2500 845.2500

700 02BC 891.0000 846.0000

725 02D5 891.7500 846.7500

750 02EE 892.5000 847.5000

775 0307 893.2500 848.2500

NOTE

Channel numbers 778 through 1012 are not used.

1013 03F5 869.7000 824.7000

1023 03FF 870.0000 825.0000

TX Acceptance Tests

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-78

Objective

Refer to Table 7-45 to perform a TX ATP test. This procedure assumes

that the site specific CDF file is in the wlmf\cdma\bts–# folder.

The ALL TX list performs the following ATP tests:

1. TX Mask

2. Rho

3. Pilot Time Offset

4. Code Domain Power

Prerequisites

You must successfully complete all the procedures outlined in previous

chapters before you attempt to run an ATP.

Procedure to Run TX ATP Test

Table 7-45: Procedure to Run TX ATP Test

Step Action

1Set up test equipment for TX tests per Figure 7-32 or Figure 7-33.

2Perform the following to run TX Acceptance Tests:

–Select the MAWI.

–Click on the Tests menu

–Select ALL TX.

* IMPORTANT

The DPLL must be tracking either GPS or HSO.

Procedure to Run TX Tests

Using Backup Synchronization

(Sites Equipped With GPS)

Follow the steps in Table 7-46 to perform the TX test using backup

synchronization.

Table 7-46: Procedure to Run TX Test Using Backup Synchronization

Step Action

1If logged into the BTS with the LMF, disable the MAWI and logout. Enter the sndtype 0x4003

command to change the state to OOS_RAM.

2Open an MMI Communication session.

3Enter the status command to verify that the BTS is in OOS_RAM status.

4Enter the sndtype 0xa178 command to simulate an LMF connection.

. . . continued on next page

TX Acceptance Tests – continued

JAN 2002 7-79

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 7-46: Procedure to Run TX Test Using Backup Synchronization

Step Action

5At the MMI prompt, enter dpll_info and verify that GPS and HSO are good reference sources.

Observe the following typical response.

current dpll task state info:

dpll task state: DPLL_LOCKED

global cdma time: enabled

local cdma time: disabled

Reference Ref_Status Ref_select Even_select(DPLL’s Ref source)

GPS TRUE TRUE TRUE

HSO TRUE FALSE FALSE

FREERUN FALSE FALSE FALSE

2SEC FALSE FALSE FALSE

The Ref_Status for the GPS and HSO must be TRUE. The Ref_select must be TRUE and

FALSE for the GPS and HSO, respectively.

6Verify that the HSO takes over for the GPS by simulating a failure of the GPS through software.

Enter the gps_rx_debug nosats on command at the MMI prompt to simulate the GPS losing

all tracked satellites. Observe the following typical response.

FM: #2716 Ticks=00140aab pc=08137df4 nid=30003004 org=6

info=09e200270000 file=gps_misc.c line=3904

send gps no sats SET –seeing no tracked sats.

7 Enter dpll_info at the MMI prompt to verify that the BTS is now using the HSO as the primary

reference source. The Ref_select must be FALSE and TRUE for the GPS and HSO,

respectively.

8Enter the dpll_status command to display the current state of the DPLL. Observe the following

typical response.

Current source set to: HSO reference

DPLL control task state: DPLL track

DPLL status (not valid if using even sec src):

c:6CD6 off: –9697314,25154,8669797 TK

Mode cntr: 60

ip: 3, iq: –9

aip1: 9, aiq1: 4

aip2: 6, aiq2: –2

tip: 3, tiq: –9

integrator: –2511864

9Verify that the DPLL is “tracking” the HSO. The Current source set to field should

read HSO reference. The DPLL control task state field should read DPLL

track.

10 Exit the MMI communication session and login to the BTS with the LMF.

11 Select Tests>TX>Pilot Time Offset to verify that the BTS passes using the HSO as the backup

synchronization source.

12 Logout of the BTS.

. . . continued on next page

TX Acceptance Tests – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-80

Table 7-46: Procedure to Run TX Test Using Backup Synchronization

Step Action

13 If logged into the BTS with the LMF, then logout.

14 Open an MMI Communication session.

15 Enter the status command to verify that the BTS is in OOS_RAM status.

16 Enter the sndtype 0xa178 command to simulate an LMF connection.

17 Enter the gps_rx_debug nosats off command at the MMI prompt to disable the simulation of

the GPS losing tracked satellites.

NOTENOTE

The gps_rx_debug command simulates the “No Satellites Tracked” condition. In reality, the

receiver is tracking satellites. However, the software is masking that information. Be sure to turn

off the “No Satellites” condition after completing this test.

18 Follow the procedure in Table 7-11 (Synchronization Verification) to make sure the BTS is

tracking the RGPS.

TX Acceptance Tests – continued

JAN 2002 7-81

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-32: TX ATP Setup (CyberTest, HP 8935 and Advantest R3465)

COMMUNICATIONS TEST SET

MICROCELL

UNIT

ANTENNA B

30DB IN-LINE

ATTENUATOR

TRANSMIT RF

TEST CABLE

POWER SENSOR

NOTE: THE DOTTED LINES REPRESENT THAT

EITHER TX RF TEST CABLE CONNECTS TO

BOTH COMMUNICATIONS TEST SET AND

POWER METER

MOTOROLA CYBERTEST

AGILENT 8935 SERIES E6380A

(FORMERLY HP 8935)

ADVANTEST MODEL R3465

RF IN/OUT

INPUT

50–OHM

POWER METER: GIGATRONICS

8541C OR HP 437B

TX Acceptance Tests – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-82

Figure 7-33: TX ATP Setup (HP 8921A)

COMMUNICATIONS TEST SET

MICROCELL

UNIT

ANTENNA B

POWER METER: GIGATRONICS

8541C OR HP 437B

30DB IN-LINE

ATTENUATOR

TRANSMIT RF

TEST CABLE

POWER SENSOR

NOTE: THE DOTTED LINES REPRESENT THAT

EITHER TX RF TEST CABLE CONNECTS TO

BOTH COMMUNICATIONS TEST SET AND

POWER METER

HEWLETT–PACKARD MODEL HP 8921A W/PCS

INTERFACE (FOR 1700 AND 1900 MHz)

IN/OUT

HEWLETT–PACKARD MODEL HP

8921A (FOR 800 MHz)

IN/OUT

TX Acceptance Tests – continued

JAN 2002 7-83

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-34: TX ATP Setup (Advantest R3267 and Agilent E4406A)

ANTENNA B

POWER METER

30DB IN-LINE ATTENUATOR

TRANSMIT RF

TEST CABLE

POWER SENSOR

NOTE: THE DOTTED LINES REPRESENT THAT

EITHER TX RF TEST CABLE CONNECTS TO

BOTH COMMUNICATIONS TEST SET AND

POWER METER

ADVANTEST R3267 SPECTRUM

ANALYZER 100Hz – 8GHz

ADVANTEST R3562 RECEIVER TEST

SOURCE

ADVANTEST R3267 (TOP)

AND R3562 (BOTTOM)

RF INPUT INPUT 50 OHM

AGILENT E4432B (TOP)

AND E4406A (BOTTOM)

RX Acceptance Tests

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-84

Objective

This procedure assumes that the site specific CDF file is in the

wlmf\cdma\bts–# folder.

Prerequisites

You must successfully complete all the procedures outlined in previous

chapters before you attempt to run an ATP.

Procedure to Run RX ATP Test

Refer to Table 7-47 to perform an RX ATP test. This procedure assumes

that the site specific CDF file is in the wlmf\cdma\bts–# folder.

Table 7-47: Procedure to Run RX ATP Test

Step Action

1Set up test equipment per Figure 7-35, Figure 7-36, or Figure 7-37.

2Terminate diversity RX antenna inputs on the unit.

3Enter the following commands to run the RX Acceptance Tests.

–Select the MAWI.

–Select Tests>ALL RX.

NOTE

The LMF refers to the antennas as Main and Diversity. The Main is Antenna B and the Diversity

is Antenna A.

NOTE

Select Both in the RX Branch pick list if a diversity antenna is used.

RX Acceptance Tests – continued

JAN 2002 7-85

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-35: RX ATP Setup (CyberTest, HP 8935, and Advantest R3465)

COMMUNICATIONS TEST SET

MICROCELL

UNIT

ANTENNA B

(MAIN)

RECEIVE RF

TEST CABLE

MOTOROLA CYBERTEST

ADVANTEST MODEL R3465

RF GEN OUT

RF IN/OUT

RF OUT

ANTENNA A

(DIVERSITY)

AGILENT 8935 SERIES E6380A

(FORMERLY HP 8935)

RX Acceptance Tests – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-86

Figure 7-36: RX ATP Setup (HP 8921A)

COMMUNICATIONS TEST SET

MICROCELL

UNIT

ANTENNA B

(MAIN)

RECEIVE RF

TEST CABLE

ANTENNA A

(DIVERSITY)

RF OUT ONLY

RF IN/OUT

HEWLETT–PACKARD MODEL HP 8921A W/PCS

INTERFACE (FOR 1700 AND 1900 MHz)

HEWLETT–PACKARD MODEL HP

8921A (FOR 800 MHz)

RX Acceptance Tests – continued

JAN 2002 7-87

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 7-37: RX ATP Setup (Advantest R3267 and Agilent E4406A)

ANTENNA B

(MAIN)

RECEIVE RF

TEST CABLE

ADVANTEST R3267 SPECTRUM

ANALYZER 100Hz – 8GHz

ADVANTEST R3562 RECEIVER TEST

SOURCE

ADVANTEST R3267 (TOP)

AND R3562 (BOTTOM)

OUTPUT

RF OUT

AGILENT E4432B (TOP)

AND E4406A (BOTTOM)

ANTENNA A

(DIVERSITY)

Generate an ATP Report

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-88

Background

Each time an ATP test is run, an ATP report is updated to include the

results of the most recent ATP tests if the Save Results button is used

to close the status report window. The ATP report will not be updated if

the status reports window is closed with use of the Dismiss button.

ATP Report

A separate report is created for each BTS and includes the following for

each test:

STest name

SPASS or FAIL

SDescription information (if applicable)

SMAWI number

SChannel number

SCarrier number

SSector number

SUpper test limit

SLower test limit

STest result

STime stamp

SDetails/Warning information (if applicable)

Procedure to Run ATP Report

Follow the procedures in Table 7-48 to view and create a printable file

for the ATP report of a BTS.

Table 7-48: Procedure to Generate an ATP Report

Step Action

1Click on the Login tab if it is not in the forefront.

2Select the desired BTS from the Available Base Stations pick list.

3Click on the Report button.

4Start the report if desired by clicking on a column heading.

5Click on the Dismiss button if you do not want to create a printable file copy.

6To create a printable file, select the desired file type in the picklist and then click on the Save

button.

Refer to the LMF help screens, or the CDMA LMF

Operator’s Guide, 68P64114A21, for information on how

to print an ATP report.

NOTE

Copy LMF CAL File to CBSC

JAN 2002 7-89

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The following procedure is to copy the LMF CAL file to the CBSC after

performing an ATP.

Background

After you perform the ATP you must move a copy of the CAL file for

the BTS from the LMF to the CBSC. This is normally done by putting a

copy of the CAL file on a floppy disk and then using the floppy disk to

move the CAL file to the CBSC.

Prerequisites

SA DOS formatted 1.44 MB 3 1/2–in. floppy disk is necessary to do

this procedure.

SThe ATP and Audit procedures have successfully been performed.

SThe Create CAL File procedure was performed.

SYou logged out of the BTS.

Procedure to Copy CAL Files

from LMF to a Diskette

Follow the procedure in Table 7-49 to copy CAL files from an LMF

computer to a 3.5 diskette.

Table 7-49: Procedure to Copy CAL Files from LMF to a Diskette

Step Action

1Insert a diskette into your Windows A: drive.

NOTE

If your diskette has not been formatted, format it using Windows. The diskette must be DOS

formatted before copying any files. Consult your Windows/DOS documentation or online help on

how to format diskettes.

2Click on the bold Start button to launch the Windows Explorer program from your

Programs menu list.

3Click on your C: drive

4Double click on the wlmf folder.

5 Double–click on the CDMA folder

6Double click on the bts–# folder for the file you want to copy.

7Drag the file (for example, BTS–#.cal, BTS–#.txt, BTS–#.htm, BTS–#.xls) to the

3–1/2–in. floppy (A:) icon on the top left of the screen and release the mouse button.

8Repeat step 6 and 7 until you have copied each file desired and close the Windows Explorer

program by selecting Close from the File menu option.

Copy LMF CAL File to CBSC – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-90

Procedure to Copy CAL Files

from Diskette to the CBSC

Follow the procedures in Table 7-50 to copy CAL file from a diskette to

the CBSC.

Table 7-50: Procedure to Copy CAL Files from Diskette to the CBSC

Step Action

1Log in to the CBSC on the OMC–R Unix workstation using your account name and password.

2Place your diskette containing calibration file(s) in the workstation diskette drive.

3Type in eject –q and press the Enter key.

4Type in mount and press the Enter key.

NOTE

SCheck to see that the message floppy/no_name is displayed on the last line.

SIf the eject command was previously entered, floppy/no_name will be appended with a

number. Use the explicit floppy/no_name reference displayed.

5Type in cd /floppy/no_name and press the Enter key.

6Type in ls –lia and press the Enter key. Verify that the bts–#.cal file is on the diskette.

7Type in cd and press the Enter key.

8Type in pwd and press the Enter key. Verify you are in your home directory (/home/<name>).

9 With Solaris versions of Unix, create a Unix–formatted version of the bts–#.cal file in your home

directory by entering the following command:

dos2unix /floppy/no_name/bts–#.cal bts–#.cal and press the Enter key

(where # is BTS number).

NOTE

Other versions of Unix do not support the dos2unix command. In these cases, use the Unix cp

(copy) command. The copied files will contain DOS line feed characters which must be edited out

with a Unix text editor.

10 Type in ls –l *.cal and press the Enter key. Verify the cal files have been copied.

11 Type in eject and press the Enter key.

12 Remove the diskette from the workstation.

Prepare to Leave the Site

JAN 2002 7-91

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Remove External Test

Equipment Perform the procedure in Table 7-51 to disconnect the test equipment

and prepare the BTS for active service.

Table 7-51: Remove External Test Equipment

Step Action

1Disconnect all test equipment from the antenna connectors on the BTS.

2Reconnect and visually inspect all antenna feed lines on the BTS.

3Disconnect all test equipment from the diagnostic access area.

Reset and Initialize Site

Remotely

The BTS should not be left with data and code loaded from the CDMA

LMF. The configuration data and code loads used for normal operation

could be different from those stored in the CDMA LMF files. By

resetting the BTS, the required data and code can be loaded from the

CBSC when spans are again active.

To reset the BTS and have the OMCR/CBSC bring up the site remotely,

perform the procedure in Table 7-52.

Table 7-52: Reset BTS and Remote Site Initialization

Step Action

1Terminate the CDMA LMF session by following the procedures in Table 7-54.

2Use the AC and DC power breakers to cycle BTS power off and on.

3Notify the OMCR/CBSC to take control of the site and download code and data to the BTS.

4Verify the CBSC can communicate with the MAWI.

Bring BTS into Service with the

CDMA LMF

Whenever possible, have the OMCR/CBSC enable the

BTS.

IMPORTANT

If code and/or data could not be loaded remotely from the

OMCR/CBSC, follow the steps outlined in Table 7-53 as required to

bring the BTS from the OOS to INS mode.

Prepare to Leave the Site – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-92

Table 7-53: Procedure to Bring BTS into Service

Step Action

1On the CDMA LMF, select the MAWI.

2Click on Device from the menu bar.

3Click on Enable from the Device menu. A status report window is displayed.

4 Click Cancel to close the transceiver parameters window, if applicable.

5 Click OK to close the status report window.

The selected devices that successfully change to INS change color to green.

Terminate LMF

Session/Remove Terminal

Perform the procedure in Table 7-54 to terminate the LMF session and

remove the CDMA LMF computer.

Table 7-54: Procedure to Remove LMF

Step Action

! CAUTION

Do not power down the CDMA LMF terminal without performing the procedure below.

Corrupted/lost data files may result.

1Log out of all BTS sessions and exit CDMA LMF by clicking on the File selection in the menu bar

and selecting Exit from the File menu list.

2 Click Yes in the Confirm Logout pop–up message which appears.

3In the Windows Task Bar, click Start and select Shutdown.

4 Click Yes when the Shut Down Windows message appears.

5Wait for the system to shut down and the screen to go blank.

6Disconnect the CDMA LMF terminal serial cable from the BTS.

7Disconnect the CDMA LMF terminal serial port, the RS–232–IEEE488 converter and the GPIB

cables as required for equipment transport.

Prepare to Leave the Site – continued

JAN 2002 7-93

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Replace Diagnostic Access

Cover

Use a T20 Torx tamper bit to tighten the two tamper–resistant M4

screws holding the cover. Torque to 10 in–lb. Refer to Figure 7-38.

Figure 7-38: How To Replace The Diagnostic Access Cover

SCREWS IN DIAGNOSTIC

ACCESS COVER ARE CAPTIVE

Replace Solar Cover

Replace the solar cover. Refer to the “Powering on Unit and Mounting

the Solar Cover” procedure in Chapter 5.

Prepare to Leave the Site – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

7-94

Notes

JAN 2002 SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Chapter 8: Field Replaceable Unit (FRU) Procedures

Table of Contents

Field Replaceable Unit (FRU) Overview 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of FRUs 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shut Down & Restoring BTS Signaling 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accessing the OMCR CLI window 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shut Down Signaling Functions 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Restore Signaling Operations 8-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site I/O Junction Box Replacement Procedure 8-14. . . . . . . . . . . . . . . . . . . . . . . . .

Objective 8-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Impact/Considerations 8-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials 8-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Replace Site I/O Junction Box 8-14. . . . . . . . . . . . . . . . . . . . .

Site I/O Junction Box Location Diagram 8-16. . . . . . . . . . . . . . . . . . . . . . .

Short Duration Battery Replacement Procedures 8-17. . . . . . . . . . . . . . . . . . . . . . . .

Objective 8-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials 8-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Replace Short Duration Battery 8-17. . . . . . . . . . . . . . . . . . . .

Remote GPS Replacement Procedure 8-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 8-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials 8-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Replace Remote GPS 8-19. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Full Unit Replacement Procedures 8-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 8-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Impact/Considerations 8-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials 8-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Replace Failed Unit 8-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

Notes

Field Replaceable Unit (FRU) Overview

JAN 2002 8-1

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Overview

The purpose of this chapter is to provide the Field Replaceable Unit

(FRU) replacement procedures for the unit. Figure 8-1, Figure 8-2 and

Figure 8-3 show the FRUs associated with the unit.

List of FRUs

The following is a list of FRUs for the unit:

1. Site I/O Junction Box with Primary Surge Suppressor – Kit T450AE

2. Site I/O Junction Box without Primary Surge Suppressor – Kit

T450AA

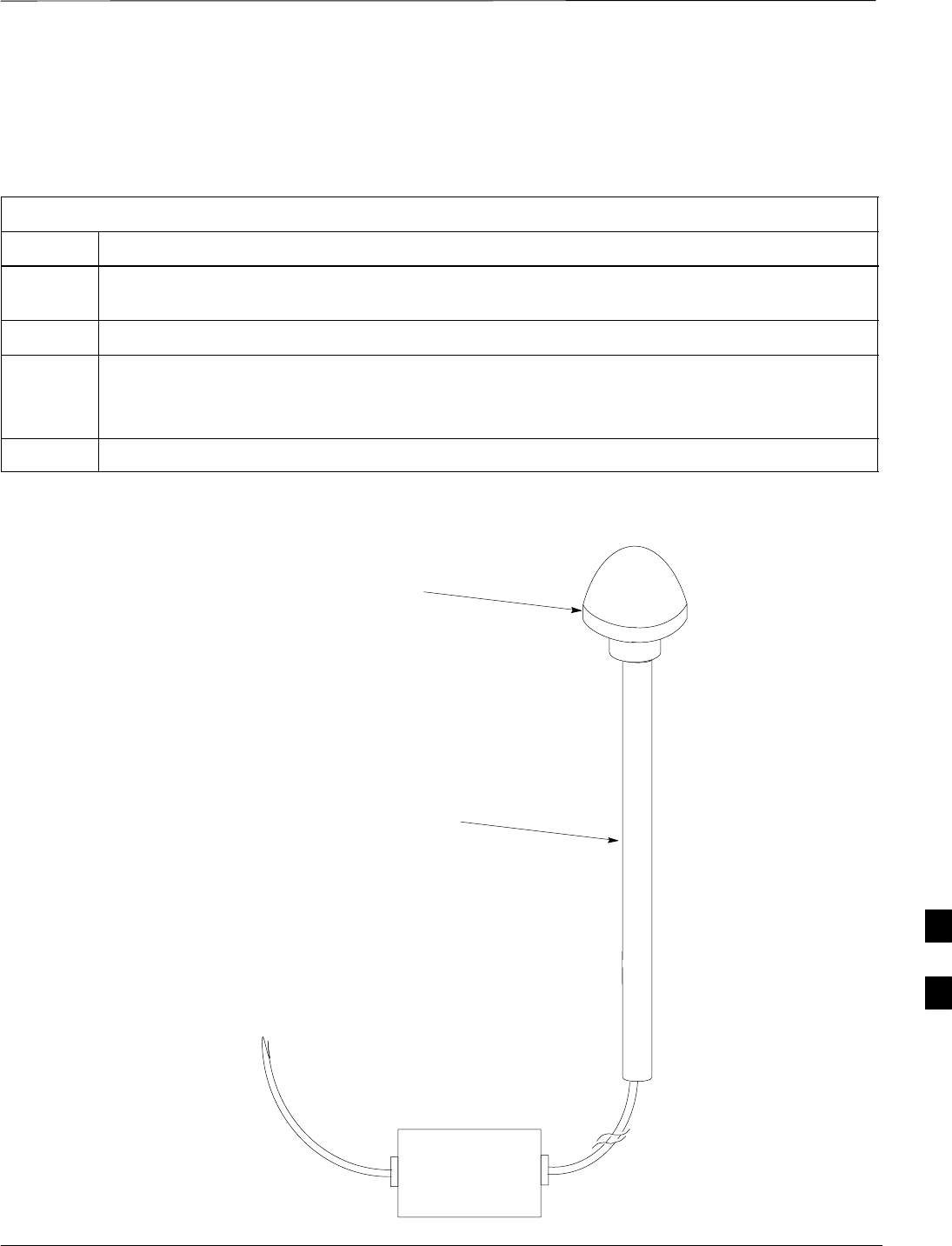

3. RGPS Head – Kit T472AP

4. Short Duration Battery – Kit T348AE

5. Primary Surge Suppressor – Kit T449AA

6. AC Installation Box – Kit T449AB

MicroCell units

1. A Band BTS with HSO – Kit SG1478AA

2. A Band BTS without HSO – Kit SG1479AA

3. B Band BTS with HSO – Kit SG1486AA

4. B Band BTS without HSO – Kit SG1487AA

5. Solar Cover – Kit T451AA

6. Fin Cover – Kit T389AB

Figure 8-1: FRU Items

UNIT

SHORT DURATION BATTERY

SITE I/O INTERFACE

RGPS HEAD

SITE I/O

JUNCTION

BOX

SUBSCRIBER

UNIT

Field Replaceable Unit (FRU) Overview – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-2

Figure 8-2: Front and Back Solar Covers for MicroCell

FRONT COVER

BACK COVER

Figure 8-3: Front and Back Fin Covers

BACK COVER

FRONT COVER

Shut Down & Restoring BTS Signaling

JAN 2002 8-3

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The FRU procedures require the shut down of BTS signalling functions.

Accessing the OMCR CLI

window

The commands to manipulate the BTS in the following replacement

procedure must be entered via UNO or OMCR (Operations and

Maintenance Center – Radio).

Should there be any issues which affect CLI operations or

the UNO/OMCR, this replacement procedure cannot be

performed.

IMPORTANT

Accessing the OMCR CLI window

The commands used in the following replacement procedure in Table 8-1

are entered at the OMCR.

Table 8-1: Procedure to Login and Access Alarm Window

Step Action

1Login by entering the user name.

2Enter the password at the system prompt.

3Open an Alarm Manager window and an OMCR CLI window from the pull down menu using the

mouse button.

4Verify that the filter display is set to ALL. This is so that any alarms which may be encountered

while installing the hardware can be observed and rectified.

Shut Down Signaling Functions

Table 8-2 contains steps for shutting down the signaling functions for the

sector/site.

The BTS acts like a single sector and all sector commands

operate on the BTS carrier.

NOTE

Shut Down & Restore BTS Signaling – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-4

The EDIT SECTOR REDIRECT or REDIRECT2

command does NOT affect calls in progress and will NOT

move these calls to another sector/carrier. The command

only prevents future calls from being originated on the

targeted sector/carrier. If active call processing is still

taking place in the target sector/carrier, it is advisable to

wait for any active calls to terminate prior to disabling the

sector.

IMPORTANT

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

1Open a CLI window. Refer to Table 8-1.

2* IMPORTANT

Record the values shown in the following system display response. These values will be used to

answer the prompts for the EDIT SECTOR REDIRECT command when restoring signaling

operations at the end of the replacement procedure.

View the status of the sector signaling redirect parameters for all carriers equipped for the sector

by entering the following command at the prompt:

000000 bt # t#

omc–000000>display sector–<bts#>–<sector#> redirect

Observe the following typical system display response (this example shows initial standard

values):

Access Overload Class Redirect Flags ROTATE

CARRIER ID RETURN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 TIMER RECORD EXP IGNORE SYS

(bts–sector–carrier) IF FAIL 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 (SEC) TYPE SID CDMA ORDERING

–––––––––––––––––––– ––––––– – – – – – – – – – – – – – – – – ––––– –––– ––– –––– –––––––

CARRIER–1–1–1 N N N N N N N N N N N N N N N N N 4 1 0 N CUSTOM

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

JAN 2002 8-5

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

3NOTE

This step edits the redirect parameters so that the Global Service Redirect Message broadcast on

the paging channel redirects all subscribers away from the sector with the failed equipment and

onto a different system.

Enter the following command at the prompt:

omc–000000>edit sector–<bts#>–<sector#> redirect !

The system will prompt you to enter each command parameter value one at a time. Answer the

prompts in the following order:

<accolc0> enter Y, <accolc1> enter Y, ... <accolc15> enter Y

All Access Overload Classes must be set to Y (yes) to ensure that all subscribers are redirected.

<returniffail> , enter N

Must be set to no to ensure that subscribers do not return if redirect is unsuccessful.

<recordtype> , enter 1 or 2

A value of 2 will invoke REDIRECT2 which is used to redirect subscribers to a CDMA channel

at a neighbor site. A value of 1 redirects subscribers to an 800 MHz analog site. This example

uses 2.

expe

tedsid

> , enter 13

Use the Area ID the subscriber units should expect to find on the system they are being redirected

to. This example uses 13.

<ignorecdma> , enter Y

<sysordering> , enter custom

The system acquisition ordering value tells the mobiles the order to use when attempting to obtain

service on the different analog systems. The valid values are: custom – use custom system

selection (default selection); aonly – try the A system only; bonly – use the B system only;

afirst – try the A system first. If unsuccessful, enter bfirst to try the B system first. If

unsuccessful, enter aorb to try the A or B. If unsuccessful, enter custom to try the alternative

system.

<rotatetimer> , enter 4

Call processing continuously rotates, circular right–shifts, the Y/N values of Access Overload

Class Redirect Flags 0 to 9. Values are shifted one flag at the end of the timer period; then timer

re–starts. Valid values are 0–255; 4 is default.

The system will display the command that will be sent. Verify the command syntax.

omc–000000>Accept [yes/no]?

Enter Y to accept the command.

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-6

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

4View the status of the sector signaling redirect parameters to verify that the sector is ready for

maintenance.

omc–000000>display sector–<bts#>–<sector#> redirect

Ensure that the values in the system display response match the values input in step 3 (see

example below).

Access Overload Class Redirect Flags ROTATE

CARRIER ID RETURN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 TIMER RECORD EXP IGNORE SYS

(bts–sector–carrier) IF FAIL 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 (SEC) TYPE SID CDMA ORDERING

–––––––––––––––––––– ––––––– – – – – – – – – – – – – – – – – ––––– –––– –––– ––– ––––––––

CARRIER–1–1–1 N Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y 4 4 13 Y CUSTOM

5If you entered 2 for <recordtype> in step 3, go to step 6.

If you entered 1 for <recordtype> in step 3, go to step 9.

6* IMPORTANT

Record the values shown in the following system display response. These values will be used to

answer the prompts for the EDIT SECTOR REDIRECT2 command when restoring signaling

operations at the end of the replacement procedure.

View the status of the BTS signaling redirect parameters for all carriers equipped for the BTS.

Enter the following command at the prompt:

omc–000000>display sector–<bts#>–<sector#> redirect2

omc 000000>

display sector–

<bts#> <sector#>

redirect2

Ensure that the values in the system display response match the values input in step 3.

Observe the following typical system output:

Access Overload Class Redirect Flags

CARRIER ID EXP BAND 123456 789101112131415

(bts–sector–carrier) NID CLASS

–––––––––––––––––––– –––– ––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––

CARRIER–1–1–1 65535 AMPS –––––– –––––––––

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

JAN 2002 8-7

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

7NOTE

This step edits the REDIRECT2 parameters so that the Global Service Redirect Message

broadcast on the paging channel redirects all subscribers away from the BTS with the failed

equipment and onto a CDMA channel at a neighbor site.

Enter the following command at the prompt:

omc–000000>edit sector–<bts#>redirect2!

The system prompts you to enter each command parameter value one at a time. Answer the

prompts in the following order:

expecting an integer number (from 0 to 65535)

<EXPNID= ?>

Use the Network ID the subscriber units should expect to find on the system they are being

redirected to. This example uses 555.

expecting an integer number (from 0 to 2047)

<CHAN1=?>, <CHAN2=?>...<CHAN15=?>

A list of CDMA channels for neighbor sites that the subscriber units can use for redirection. This

example uses 200, 350, 400, 725, 75, 175, 100, 575, and 950.

expecting an enumerated value:

CDMA1900 CDMA800 CDMA900 JAPANCDMA

<BANDCLASS=?>

Use CDMA1900 for 1.9 GHz systems and CDMA800 for 800 MHz systems. This example uses

CDMA1900.

The system displays the command to be sent. Verify the command syntax.

omc–000000>Accept [yes/no]?

Enter Y to accept the command or N to go back and enter the correct value(s).

8View the status of the BTS signalling REDIRECT2 parameters to verify that the BTS is ready for

maintenance.

omc–000000>display sector–<bts#> redirect2

Make sure that the values in the system display response match the values input in step 7 (see

example below):

Access Overload Class Redirect Flags ROTATE

CARRIER ID RETURN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 TIMER RECORD EXP IGNORE SYS

(bts–sector–carrier) IF FAIL 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 (SEC) TYPE SID CDMA ORDERING

CARRIER–1–1–1 N Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y 4 4 13 Y CUSTOM

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-8

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

9View the existing congestion control parameters for all carriers equipped for the sector by entering

the following command at the prompt:

omc–000000>display sector–<bts#>–<sector#> congestconf

Observe the following typical system display response:

CARRIER NEWCALL REG AGG

(bts#–sector#–carrier#) SET ALARMFLAG ALARMFLAG ALARMFLAG ANALOGREDIRECT GLOBALREDIRECT

––––––––––––––––––––––– ––– ––––––––– –––––––––– –––––––––– –––––––––––––– ––––––––––––––

300–1–4 1 ENABLE ENABLE ENABLE DISABLE DISABLE

10 NOTE

In this step, you will change the value of the Global Service Redirection Flag

(GLOBALREDIRECT) in the congestion control parameters so that the Global Service Redirect

Message is broadcast on the sector paging channel.

Enter the following command at the prompt:

omc–000000>edit sector–<bts#>–<sector#> congestconf !

The system will prompt you to enter each control parameter value one at a time. Skip through the

prompts until you get to the following:

lobalredirect> , enter enable

<globalredire

, enter enable

(This will force the Global Service Redirect Message to be broadcast on the sector paging

channel.)

The system will display the values of the control parameters. Verify that only the

globalredirect value changed.

omc–000000>Accept [yes/no]?

Enter Y to accept the change.

Now the Global Service Redirection Message is sent over the sector paging channels. All

subscribers are redirected away from the sector and onto a different system. This effectively shuts

down the sector.

11 Display the status of the MAWI at the BTS by entering the following command at the prompt:

omc–000000>display bts–<bts#> status

Observe the following typical system response for the entry of: DISPLAY BTS – 300 STATUS

DEVSYNC

Config Calibration Calibration ISO RELATED

DEVICE CBSC STATUS Data Data Sync STATE

–––––––––––––––––– –––– –––––– –––– –––– ––––––– ––––––––––––

BTS–300 1 INS n/a n/a UNLOCKED UNLOCKED

BTSSPAN–300–1 1 INS n/a n/a n/a n/a

BTSLINK–300–1 1 INS n/a n/a n/a n/a

LPA–300–1 1 OOS_PARENT n/a n/a n/a n/a

MDM–300–1 1 PRECUT n/a n/a n/a n/a

MAWI–300–1 1 INS GOOD GOOD GOOD KEYED

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

JAN 2002 8-9

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-2: Procedure to Shut Down Signaling Functions

Step Action

12 Display the status of the MAWI at the BTS to verify the status of the MAWI (which CEs are

INS_IDLE or INS_BUSY) by entering the following command at the prompt:

omc–000000>status mawi–<bts#>–<mawi#> add

Observe the following typical system response:

MAWI–300–1 00–05–24 15:10:31 omcr5 MM–5 M000109.00046 045519/479457

INFO:42 ”Mawi Status Response”

TELSTATE=INS_ACTIVE PROCEDURE=NONE

PHYSTATE=INS_ACTIVE HDWR_TYPE=MAWI

DEVICE_ASSUMED=NONE CLOCK_SRC=REMOTE_GPS

LATITUDE=”+032:50:41.502”LONGITUDE=”–097:17:38.645”

ALTITUDE=”+0019865”NUM_SATELLITES=”8”

CF MMCONF MMSTATE MMSECTOR PHYCONF PHYSTATE PHYREASON PHYSECTOR

–– –––––– –––––––– –––––––– ––––––– –––––––– ––––––––– –––––––––

0 PCH_ACH INS_BUSY 1 PCH_ACH INS_BUSY NONE 1

1 SCH INS_BUSY 1 SCH INS_BUSY NONE 1

2 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

3 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

4 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

5 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

6 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

7 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

8 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

9 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

10 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

11 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

12 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

13 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

14 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

15 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

13 Disable the MAWI in the INS–IDLE or the INS–BUSY state (predetermine number of active calls

remaining to be terminated prematurely) by entering the following command at the prompt:

omc–000000>disable mawi–<bts#>–<mawi#> unc

14 Disable the BTS where the replacement procedure will be performed by entering the following

command at the prompt:

omc–000000>disable bts–<bts#> unc 8

Shut Down & Restore BTS Signaling – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-10

Restore Signaling Operations

Follow the steps in Table 8-3 to restore signaling operations to the site.

Table 8-3: Procedure to Restore Signaling Operations

Step Action

1Open a CLI window. Refer to Table 8-1.

2Enable the BTS by entering the following command at the prompt:

omc–000000>enable bts–<bts#> unc

3Enable the MAWI by entering the following command at the prompt:

omc–000000>enable mawi–<bts#> unc

4View the status of the sector signaling redirect parameters for all carriers equipped for the sector

by entering the following command at the prompt:

omc–000000>display sector–<bts#>–<sector#> redirect

Observe that the values in the system display response should match the values input in step 3 of

the shut down signaling functions table.

Access Overload Class Redirect Flags ROTATE

CARRIER ID RETURN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 TIMER RECORD EXP IGNORE SYS

(bts–sector–carrier) IF FAIL 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 (SEC) TYPE SID CDMA ORDERING

CARRIER–1–1–1 N Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y 4 4 13 Y CUSTOM

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

JAN 2002 8-11

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-3: Procedure to Restore Signaling Operations

Step Action

5* IMPORTANT

In this step, use the values recorded in step 2 of the shut down signaling functions table to answer

the prompts for the EDIT SECTOR REDIRECT command; except for record type enter 2.

NOTE

This step shows the entry of initial standard values which is consistent with the original example;

except record type must be 2. Your entries may be different.

Restore the values of all redirect parameters by entering the following command at the prompt:

omc–000000>edit sector–<bts#>–<sector#> redirect !

The system will prompt you to enter each command parameter one at a time. Answer the prompts

in the following order (Note that the following specified values are consistent with the original

example. Yours may be different):

<accolc0> Enter N, <accolc1> Enter N, ... <accolc15> enter N

<returniffail> , enter N

<recordtype> , enter 2

<expecte

> , enter 0

<ignorecdma> , enter N

<sysordering> , enter custom

<rotatetimer> , enter 4

The system will display the command that will be sent. Verify the command syntax.

omc–000000>Accept [yes/no]?

Enter Y to accept the command.

6View the status of the sector signaling redirect parameters to verify that the sector is ready for

maintenance.

omc–000000>display sector–<bts#>–<sector#> redirect

Ensure that the values in the system display response match the values input by the operator in

step 5 (see example below).

Access Overload Class Redirect Flags ROTATE

CARRIER ID RETURN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 TIMER RECORD EXP IGNORE SYS

(bts–sector–carrier) IF FAIL 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 (SEC) TYPE SID CDMA ORDERING

CARRIER–1–1–1 N N N N N N N N N N N N N N N N N 4 2 0 N CUSTOM

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-12

Table 8-3: Procedure to Restore Signaling Operations

Step Action

7View the congestion control parameters for all carriers equipped for the sector by entering the

following command at the prompt:

omc–000000>display sector–<bts#>–<sector#> congestconf

Observe the following typical system display response:

CARRIER NEWCALL REG AGG

(bts#–sector#–carrier#) SET ALARMFLAG ALARMFLAG ALARMFLAG ANALOGREDIRECT GLOBALREDIRECT

––––––––––––––––––––––– ––– ––––––––– ––––––––– ––––––––– –––––––––––––– ––––––––––––––

300–1–4 1 ENABLE ENABLE ENABLE DISABLE ENABLE

8NOTE

In this step, you will change the value of the Global Service Redirection Flag

(GLOBALREDIRECT) in the congestion control parameters so that the Global Service Redirect

Message is only broadcast on the sector paging channel when there is traffic congestion in the

sector.

Enter the following command at the prompt:

omc–000000>edit sector–<bts#>–<sector#> congestconf !

The system will prompt you to enter each control parameter value one at a time. Skip through the

prompts until you get to the following:

<globalredirect> , enter disable

(This will revert the Global Service Redirect Message to congestion control.)

The system will display the values of the control parameters. Verify that only the

GLOBALREDIRECT value changed.

omc–000000>Accept [yes/no]?

Enter Y to accept the change.

Now the Global Service Redirection Message will only be sent over the sector paging channels

when there is traffic congestion in the sector.

9Display the status of the MAWI at the BTS by entering the following command at the prompt:

omc–000000>display bts–<bts#> status

Observe the following typical system response:

DEVSYNC

Config Calibration Calibration ISO RELATED

DEVICE CBSC STATUS Data Data Sync STATE

–––––––––––––––––– –––– –––––– –––– –––– ––––––– ––––––––––––

BTS–300 1 INS n/a n/a UNLOCKED UNLOCKED

BTSSPAN–300–1 1 INS n/a n/a n/a n/a

BTSLINK–300–1 1 INS n/a n/a n/a n/a

LPA–300–1 1 OOS_PARENT n/a n/a n/a n/a

MDM–300–1 1 PRECUT n/a n/a n/a n/a

MAWI–300–1 1 INS GOOD GOOD GOOD KEYED

. . . continued on next page

Shut Down & Restore BTS Signaling – continued

JAN 2002 8-13

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-3: Procedure to Restore Signaling Operations

Step Action

10 Display the status of the MAWI in the BTS by entering the following command at the prompt:

omc–000000>status mawi–<bts#>–<mawi#> add

Observe the following typical system response for entry of: STATUS MAWI – 300 –1 ADD

MAWI–300–1 00–05–24 15:10:31 omcr5 MM–5 M000109.00046 045519/479457

INFO:42 ”Mawi Status Response”

TELSTATE=INS_ACTIVE PROCEDURE=NONE

PHYSTATE=INS_ACTIVE HDWR_TYPE=MAWI

DEVICE_ASSUMED=NONE CLOCK_SRC=REMOTE_GPS

LATITUDE=”+032:50:41.502”LONGITUDE=”–097:17:38.645”

ALTITUDE=”+0019865”NUM_SATELLITES=”8”

CF MMCONF MMSTATE MMSECTOR PHYCONF PHYSTATE PHYREASON PHYSECTOR

–– –––––– –––––––– –––––––– ––––––– –––––––– ––––––––– –––––––––

0 PCH_ACH INS_BUSY 1 PCH_ACH INS_BUSY NONE 1

1 SCH INS_BUSY 1 SCH INS_BUSY NONE 1

2 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

3 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

4 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

5 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

6 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

7 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

8 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

9 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

10 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

11 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

12 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

13 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

14 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

15 TCH INS_IDLE FLOAT TCH INS_IDLE NONE FLOAT

Site I/O Junction Box Replacement Procedure

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-14

Objective

The objective of this procedure is to replace the Site I/O junction box.

System Impact/Considerations

The removal of the failed Site I/O junction box will require system

downtime. The BTS cannot report alarms without the Site I/O junction

box. The other system level alarms are too numerous and outside the

scope of this document.

Required Tools and Materials

The following tools are required to remove the solar cover and install the

new Site I/O junction box.

Tools

STorque driver wrench, 1/4–in. hex female drive, 0–10 N–M

ST20 Torx tamper bit

ST30 Torx tamper bit

Replacement units

One Site I/O junction box is required – Kit T396AA

Procedure to Replace Site I/O

Junction Box

Before you begin

Before you begin, enter the following information into the following

replacement list table.

Table 8-4: Item Number Replacement List

Item Number

BTS number

Failed Site I/O Junction Box

number

Site I/O Junction Box Replacement Procedure – continued

JAN 2002 8-15

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Remove the failed site I/O junction box

Follow the steps in Table 8-5 to remove the failed Site I/O junction box.

Table 8-5: Remove the Failed Site I/O Junction Box

Step Action

1Place the BTS out of service using the “Shut Down Signaling Functions” procedure shown in

Table 8-2.

2Using a T20 Torx tamper bit, remove the Solar Cover if one is present and locate the failed Site

I/O junction box.

3If DC power is being supplied to the unit or if the battery backup is present, open (pull) the DC

power breaker. The white collar on the breaker is visible when the breaker is opened.

4If AC power is being supplied to the unit, open (pull) the AC power breaker. The white collar on

the breaker is visible when the breaker is open.

5Disconnect the unit ground cable from the Site I/O junction box.

6Using a T30 Torx tamper bit, remove the two tamper resistant captive screws to disconnect the

Site I/O junction box from the unit. See Figure 8-4.

7If your BTS is equipped with the customer–supplied Site I/O interface, then proceed to step 8. If

your BTS is equipped with the optional Primary Surge Suppressor, then proceed to step 9.

8Disconnect the Site I/O cable from the Deutsche connector on the Site I/O cable. Location of Site

I/O interface is site– dependent.

9Disconnect the Site I/O cable from the Primary Surge Suppressor.

Install the replacement Site I/O junction box

Follow the steps in Table 8-6 to install the replacement Site I/O junction

box.

Table 8-6: Install the Replacement Site I/O Junction Box

Step Action

1Reconnect the Site I/O cable according to the “Site I/O, Span Line, RGPS and Modem Cabling”

procedure in Chapter 4.

2Install the replacement Site I/O junction box according to the “Mounting the Site I/O Junction

Box to the Unit” procedure in Chapter 5.

3Attach the ground cable from the mounting bracket to the Site I/O junction box.

4If AC power is being supplied to the unit, close (push) the AC power breaker. The white collar on

the breaker is not visible when the breaker is closed.

5If DC power is being supplied to the unit or if battery backup is present, close (push) the DC

power breaker. The white collar on the breaker is not visible when the breaker is closed.

6Install the Solar Cover if one is present according to the “Mounting Solar Cover and Powering on

Unit” procedure in Chapter 5.

7Place the BTS back in service using the “Restore Signaling Operations” procedure in Table 8-3.

Site I/O Junction Box Replacement Procedure – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-16

Site I/O Junction Box Location

Diagram

Figure 8-4: Site I/O Junction Box Replacement

REMOVE TWO M6

CAPTIVE SCREWS

SITE I/O

JUNCTION BOX

DISCONNECT SITE I/O

CABLE FROM SITE I/O

INTERFACE

DISCONNECT GROUND

NOTE: SU REMOVED FOR CLARITY

Short Duration Battery Replacement Procedures

JAN 2002 8-17

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

The objective of this procedure is to replace the short duration battery.

Required Tools and Materials

The following tools are required to remove the solar cover and install the

new battery.

Tools

Attaching the battery to the unit requires:

ST20 Torx tamper bit, 1/4–in. hex

ST30 Torx tamper bit, 1/4–in. hex

STorque driver wrench, 1/4–in. hex female drive, 0–10 N–M

STwo (2) Screws M6x19 (Motorola Part Number 0387541C03)

Replacement units

One Battery – Kit T392AA is necessary for this procedure.

Procedure to Replace Short

Duration Battery

Before you begin

Before you begin, enter the following information into the following

replacement list table.

Table 8-7: Item Number Replacement List

Item Number

BTS number

Failed Battery number

Remove the failed battery

Follow the steps in Table 8-8 to remove the failed battery. Refer to

NO TAG.

The short duration battery is designed to be replaced with

the DC breaker closed (pushed). If the DC breaker is

opened (pulled) during this procedure, the BTS must be

taken off–line and restarted to ensure proper battery fault

management.

NOTE

Table 8-8: Procedure to Remove the Failed Short Duration Battery

Step Action

1Turn the DC Power Breaker off.

2Use a T20 Torx tamper bit to remove the Solar Cover (if one is present) and locate the battery.

. . . continued on next page

Short Duration Battery Replacement Procedure – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-18

Table 8-8: Procedure to Remove the Failed Short Duration Battery

Step Action

3Turn the connector on the short duration battery cable counterclockwise to disconnect the cable

from the unit. See NO TAG. An alarm will be generated.

4Using a T30 Torx tamper bit remove the two screws that are holding the battery to the unit. See

NO TAG.

Install the replacement battery

Follow the steps in Table 8-8 to install the replacement short duration

battery. Refer to NO TAG.

Table 8-9: Procedure to Install the Replacement Short Duration Battery

Step Action

1Install the replacement battery according to the “Attaching the Battery to the Unit” installation

procedure in Chapter 5.

2 Re–connect the short–duration battery cable to DC input connector. See Figure 8-5. The alarm

will clear.

3 Re–install the Solar Cover if one is present.

Short Duration Battery Replacement Procedure – continued

JAN 2002 8-19

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Figure 8-5: Short Duration Battery Replacement

REMOVE TWO SCREWS HOLDING

BATTERY TO THE UNIT

CABLE IS PART OF

THE BATTERY

ASSEMBLY

TURN

COUNTERCLOCKWISE

TO REMOVE CABLE

DC POWER BREAKER

AC POWER BREAKER

Remote GPS Replacement Procedure

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-20

Objective

The objective of this procedure is to replace the RGPS head.

Required Tools and Materials

Replacement units

One RGPS head with cable attached (Motorola Kit T472AP) is required

to do this procedure.

Procedure to Replace Remote

GPS

Before you begin

Before you begin, enter the following information into the following

replacement list table.

Table 8-10: Item Number Replacement List

Item Number

BTS number

Failed RGPS head number

Remove the failed RGPS head

Follow the steps in Table 8-11 to remove the failed RGPS head. Refer to

Figure 8-6.

Table 8-11: Procedure to Remove the Failed RGPS Head

Step Action

1NOTE

To prevent twisting of cables, do not unscrew or screw the RGPS head while holding the

pipe/conduit.

Loosen the pipe/conduit mounting hardware until the pipe/conduit is free to be unscrewed from

the RGPS head.

2Grasp the RGPS head with one hand and the pipe/conduit with the other hand.

Unscrew the pipe/conduit from the head and separate the head from the pipe/conduit.

Grasp the cable just below the head and pull about 16 inches of cable out of the pipe/conduit until

the mating cable connectors are exposed.

3Separate the mating cable connectors to disconnect the RGPS head from the RGPS cable.

Remote GPS Replacement Procedures – continued

JAN 2002 8-21

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Install the replacement RGPS head

Follow the steps in Table 8-12 to install the replacement RGPS head.

Refer to Figure 8-6.

Table 8-12: Procedure to Install the Replacement RGPS Head

Step Action

1Connect the cable connector of the replacement RGPS head to the RGPS cable connector. Secure

the connection by tightening the spinning connector flange.

2Feed the cable slack into the RGPS head end of the mounting pipe/conduit.

3Grasp the RGPS head with one hand and the pipe/conduit with the other hand.

Be careful not to cross–thread the fitting on the RGPS head, screw the pipe/conduit into the head.

Hand tighten only!

4Tighten the pipe/conduit mounting hardware until the pipe/conduit is securely mounted.

Figure 8-6: RGPS Head Replacement

SITE I/O INTERFACE

UNSCREW PIPE, PULL CABLE THROUGH AND

DISCONNECT CABLE CONNECTOR

CABLE CONNECTOR LOCATED

INSIDE PIPE

Full Unit Replacement Procedures

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-22

Objective

The objective of this procedure is to replace a Microcell unit. See

NO TAG.

System Impact/Considerations

The removal of the failed unit will require system downtime.

Required Tools and Materials

The following tools and materials are required to do this procedure:

Tools

The following tools are required to do this procedure:

STorque driver wrench, 1/4–in. hex female drive, 0–10 N–M

ST20 TORX Tamper Bit, 1/4–in. hex

ST30 TORX Tamper Bit, 1/4–in. hex

S13 mm torque wrench set to 5.0 N–M

S5/16 breakaway torque wrench 9–in. lb.

S13/16 breakaway torque wrench 38–in. lb

SKey for lock (optional)

SHandles for unit (optional)

Replacement units

One Microcell unit is required to do this procedure.

Procedure to Replace Failed

Unit

Before you begin

Before you begin, enter the following information into the following

replacement list table.

Table 8-13: Item Number Replacement List

Item Description

BTS Number

Failed Unit Number

Remove the failed unit

Follow the steps in Table 8-14 to remove the failed unit.

Table 8-14: Procedure to Remove the Failed Unit

Step Action

1Place the BTS out of service. Refer to the “Shut Down Signaling Functions” procedure in

Table 8-2.

2If necessary, use a T20 TORX Tamper bit to remove the Solar Cover.

. . . continued on next page

Full Unit Replacement Procedures – continued

JAN 2002 8-23

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table 8-14: Procedure to Remove the Failed Unit

Step Action

3If DC power is being supplied to the unit or if battery backup is present, open (pull) the DC power

breaker. The white collar on the breaker is visible when the breaker is opened.

4If AC power is being supplied to the unit, open (pull) the AC power breaker. The white collar on

the breaker is visible when the breaker is opened.

5Turn the power off at the main power source (AC and/or DC).

6Use a T30 TORX tamper bit to remove the two tamper–resistant screws that hold the site I/O

junction box (or site I/O cap) to the BTS. Refer to Figure 8-4 in the “Site I/O Junction Box

Replacement” procedure.

7Disconnect the AC input cable from the unit. Refer to NO TAG.

8Disconnect the DC input cable from the unit. Refer to NO TAG.

9Disconnect the antenna cable(s) from the unit. Refer to NO TAG.

10 Disconnect the MIB cables from the unit (if equipped). Refer to NO TAG.

11 Disconnect the SU cables from the unit (if equipped). Refer to NO TAG.

12 Remove the two mounting screws that hold the short duration battery (if present) to the unit.

Refer to Table 8-8 in the “Short Duration Battery Replacement Procedures” procedure and

NO TAG.

13 Attach the installation handles to the unit. Refer to the “Attaching Installation Handles to the

Unit” procedure in Chapter 6.

14 Use a T30 Tamper bit to remove the two screws that hold the unit to the mounting bracket.

15 Remove the pin or lock (if equipped) from the unit.

16 Remove the unit from the mounting bracket.

Full Unit Replacement Procedures – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-24

Install the replacement unit

Follow the steps in Table 8-15 to install the replacement unit.

Table 8-15: Procedure to Install the New Unit

Step Action

1Attach the installation handles to the replacement unit. Refer to the “Attaching Installation

Handles to Unit” procedure in Chapter 6.

2Mount the replacement unit to the bracket. Refer to the “Attaching Unit to the Mounting

Bracket” procedure in Chapter 6.

3Once the replacement unit has been secured to the mounting bracket, remove the installation

handles (reverse the installation order of the “Attaching Installation Handles to the Unit”

procedure in Chapter 6).

4Attach the site I/O junction box or site I/O cap to the unit. Refer to the “Attaching the Site I/O

Junction Box to the Unit” procedure in Chapter 6 and Figure 8-4.

5Attach the short duration battery (if present) to the unit. Refer to Table 8-9 in the “Short Duration

Battery Replacement Procedure” and NO TAG.

6Connect the AC input cable. Refer to the “AC Power Cabling” procedure in Chapter 6.

7Connect the DC input cable. Refer to the “DC Power Cabling” procedure in Chapter 6.

8Connect the antenna cable(s). Refer to the “Antenna Cabling” procedure in Chapter 6.

9Connect the MIB cables (if equipped). Refer to the “MIB Cabling” procedure in Chapter 6.

10 Connect the SU cables (if equipped). Refer to the “SU Cabling” procedure in Chapter 6.

11 Turn power on at the main power source (AC and/or DC).

12 If AC power is being supplied to the unit, close (push) the AC power breaker. The white collar on

the breaker is not visible when the breaker is closed.

13 If DC power is being supplied to the unit or if battery backup is present, close (push) the DC

power breaker. The white collar is not visible when the breaker is closed.

14 Perform the ATP, if necessary. Refer to the ATP procedures in Chapter 7.

15 Install the Solar Covers (if necessary).

16 Place the BTS back in service using the “Restore Signaling Operations” procedure in Table 8-3.

Full Unit Replacement Procedures – continued

JAN 2002 8-25

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

REMOVE SCREWS USED TO

HOLD UNIT ON BRACKET

REMOVE SCREWS TO

REMOVE SITE I/O

JUNCTION BOX OR SITE

I/O CAP (IF EQUIPPED)

REMOVE DC INPUT CABLE

REMOVE SCREWS TO REMOVE SHORT DURATION BATTERY

REMOVE ANTENNA B

Figure 8-7: Unit Replacement

REMOVE SU CABLE

(IF EQUIPPED)

REMOVE MIB

CABLES (OPTIONAL)

REMOVE

ANTENNA A

CABLE

REMOVE

LOCK

NOTE: REMOVE THE SITE I/O JUNCTION BOX (OR SITE I/O CAP), SUBSCRIBER UNIT, AND

BATTERY FROM THE FAILED UNIT AND RE–MOUNT THEM ON THE REPLACEMENT UNIT

REMOVE AC

INPUT POWER

CABLE

REMOVE SCREWS TO

REMOVE SUBSCRIBER

UNIT (IF EQUIPPED)

Full Unit Replacement Procedures – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

8-26

Notes

JAN 2002 SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Appendix A: Outdoor Grounding Guidelines Overview

Appendix Content

Outdoor Grounding Guidelines Summary A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chassis Isolation A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Master Ground Plate A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main AC Power A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chassis A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

T1 Span Lines A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Modem A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Customer I/O A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

Notes

Outdoor Grounding Guidelines Summary

JAN 2002 A-1

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Background

This is a summary of the outdoor grounding guidelines. Outdoor

installations should be based on this summary and site specific

documentation. Motorola publication 68P81150E62 should also be

followed to ground an antenna tower.

This guideline assumes that auxiliary equipment is co–located at the

installation site. All of the equipment referenced may not be present at

every site.

Because outdoor MicroCell installations will involve a variety of

methods, this information is not meant to represent actual physical

layout. It is meant to act as an aid to understanding an effective ground

system.

Chassis Isolation

Regardless of the type of installation (wall, frame, pole), the grounding

plan must have a single point ground to prevent surge/transient currents

from passing through the BTS and auxiliary equipment. The BTS

includes insulation hardware to insure that the chassis will be grounded

by the intended ground path and not through the mounting structure

(frame, pole, or wall).

Master Ground Plate

The Master Ground Plate (MGP) is the key to the outdoor grounding

scheme. The MGP is the single grounding point for all BTS input and

output and provides a uniform ground potential through out the site.

Although the MGP may be implemented differently at each installation,

it must be a plate that is big enough to attach to all the lightning arrestors

and have a ground stud.

The MGP ground stud is the only connection to earth ground for the

BTS hardware.

Main AC Power

The AC power input is single–phase and connects to the BTS by a three

conductor cable. The cable is insulated and connects to the BTS on one

end and the AC source on the other end. The AC power source should

be ground referenced to the MGP at a point closest to the access point.

The line and neutral conductors must be protected by lightning arrestors.

The lightning arrestors connect to the MGP at the same point as the AC

ground reference.

If an external circuit breaker or an uninterruptible power supply are used,

install them between the AC power lightning arrestor and the BTS.

Antenna

Coaxial cables are used to connect to the antenna(s). The ground

conductor (shield) of the coaxial cable must be ground referenced to the

Outdoor Grounding Guidelines Summary – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

A-2

MGP at the antenna access point. The signal (center) conductor must be

protected by a lightning arrestor. The lightning arrestor connects to the

MGP at the same point as the ground conductor (shield) of the antenna

cable.

Chassis

The ground stud of the BTS chassis connects to the MGP.

T1 Span Lines

The BTS can connect to two T1 span lines. For many applications the

T1 cable is derived from an optical fiber interconnect. For cases where

the optical interconnect is non–metallic, no special grounding is needed.

If the optical fiber is encased in a metallic sheath, the sheath must be

grounded to the MGP. If the span lines are metallic, the conductors must

be protected by lightning arrestors which connect to the MGP at a point

closest to the demarcation point.

Modem

A single tip and ring pair is used for a dial–up modem connection. The

tip and ring pair must be protected by a lightning arrestor which

connects to the MGP at a point closest to the demarcation point.

Customer I/O

The BTS provides eight customer defined inputs. These connections are

internal to the cell site and do not require special grounding unless they

originate from an area not protected by the MGP.

Example: Signal light in tower configuration

JAN 2002 SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Appendix B: Alarm List

Appendix Content

Release 15 Alarm List B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Alarms B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

Notes

Release 15 Alarm List

JAN 2002 B-1

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Objective

Table B-1 lists all the alarms which can be generated by an SCt300

BTS. Additional Data field values are not shown. The list of alarms is

based on R15 SCt300 functionality.

List of Alarms

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm Name Alarm Description

400 Traffic Channel

Element Failure This trouble notification indicates the availability of a single channel

element or a set of channel elements. It is generated whenever the BTS

detects an alarm condition on a DSP, its internal path connection, or its

associated span. It is never displayed or latched in the MM and it is only

used to update the MM’s call processing resource list. This trouble

notification contains the address of the channel card along with the list of

affected channel elements.

1200 BTS LAN Connection

Error This alarm causes the MM to take the BTS out of service. The MM

converts the alarm ID from 1200 to 12–60 (MAWI out of service).

Call Overload Alarms

1950 BTS Overload: New

Calls Threshold 1

Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1951 BTS Overload: New

Calls Threshold 2

Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1952 BTS Overload: New

Calls Threshold 3

Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-2

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

1953 BTS Overload:

Registration Threshold

1 Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1954 BTS Overload:

Registration Threshold

2 Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1955 BTS Overload:

Registration Threshold

3 Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1956 BTS Overload:

Aggregate Access

Threshold 1 Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

1957 BTS Overload:

Aggregate Access

Threshold 2 Reached

A capacity overload alarm indicates that the new calls capacity ceiling

was reached and mobile restrictions associated with the alarm will be in

effect for the call setups. This alarm is cleared when the overload

condition is no longer in effect. The reporting mechanism is disabled by

default for all overload alarms in this category and can be changed via the

Recent Change command EDIT CARRIER/SECTOR/BTS

CONGESTCONF at the OMCR. Supplemental data represents the state

of the system after the alarm actions have taken place.

Release 15 Alarm List – continued

JAN 2002 B-3

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

1958 BTS Overload:

Aggregate Access

Threshold 3 Reached

A capacity overload alarm indicates that the aggregate of both call setups

and registration capacity ceiling was reached and mobile restrictions

associated with the alarm will be in effect for the mobile originations and

registrations. This alarm is cleared when the overload condition is no

longer in effect. The reporting mechanism is disabled by default for all

overload alarms in this category and can be changed via Recent Change

command EDIT CARRIER/SECTOR/BTS CONGESTCONF at

OMCR. Supplemental data represents the state of the system after the

alarm actions have taken place.

1959 Global Service

Redirection Threshold

Reached: New Calls

This alarm indicates that all mobiles in the affected access class will be

redirected to an overlaid analog system or to another CDMA system until

the rate drops below the threshold level for new calls. This alarm is

cleared when the overload condition is no longer in effect. The default is

set to DISABLED for all overload alarms in this category and can be

changed via the Recent Change command EDIT CARRIER/SECTOR/

BTS CONGESTCONF at the OMCR. Supplemental data represents the

state of the system after the alarm actions have taken place.

1960 Global Service

Redirection Threshold

Reached: Registrations

This alarm indicates that all mobiles in the affected access class will be

redirected to an overlaid analog system or to another CDMA system until

the rate drops below the threshold level for new calls. This alarm is

cleared when the overload condition is no longer in effect. The default is

set to DISABLED for all overload alarms in this category and can be

changed via the Recent Change command EDIT CARRIER/SECTOR/

BTS CONGESTCONF at the OMCR. Supplemental data represents the

state of the system after the alarm actions have taken place.

1961 Global Service

Redirection Threshold

Reached: Aggregate

This alarm indicates that all mobiles in the affected access class will be

redirected to an overlaid analog system or to another CDMA system until

the rate drops below the threshold level for new calls. This alarm is

cleared when the overload condition is no longer in effect. The default is

set to DISABLED for all overload alarms in this category and can be

changed via the Recent Change command EDIT CARRIER/SECTOR/

BTS CONGESTCONF at the OMCR. Supplemental data represents the

state of the system after the alarm actions have taken place.

LPAC Alarms

3901 LPAC: High Power

Over Limit Alarm –

Unit A

The output detector on the unit monitors the output power. An alarm

generates when the output power surpasses a preset threshold. At this

point, the PA is outputting more power than it can sustain, and damage

will result if the PA continues to operate. A typical scenario that would

cause a high power over limit alarm would be when power into the PA is

more than it can safely sustain. This would cause an input overload,

which is detected by the output detector, and the BTS would

automatically reduce its output power. The BTS will remain in service

after this alarm. Some calls may be dropped.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-4

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

3921 LPAC: Very High

Temperature Alarm –

Unit A

This alarm is generated when the temperature on the PA unit exceeds the

threshold value for very high temperatures. This is either an equipment

alarm suggesting a hardware failure, or an alarm indicating environmental

extremes. To avoid equipment damage, the PA will automatically shut

down. This will also cause the BTS to reboot.

3931 LPAC: High

Temperature Alarm –

Unit A

This alarm is generated when the temperature on the PA unit exceeds the

threshold value for very high temperature. This is either an equipment

alarm suggesting a hardware failure, or an alarm indicating environmental

extremes. The BTS will reboot automatically to avoid equipment

damage.

3941 LPAC: VSWR Alarm

– Unit A This alarm indicates a VSWR alarm was detected on the PA unit. This is

an equipment alarm, suggesting a hardware failure of the antenna system,

which is external to the PA.

This alarm is considered capacity–limiting because the BTS will reboot

automatically.

3961 LPAC: IM Loop Not

Converged Alarm –

Unit A

This alarm is generated when the convergence loop on the PA unit is

unable to cancel the distortion components created by the PA such that the

PA meets proper specifications. This alarm is detected by monitoring and

measuring IM products. An alarm will generate if the readings fall below

a preset threshold. The BTS will reboot automatically.

3980 LPAC Combination

Alarm, Complete

Sector Failure

This alarm is generated when the LPAC reports at least one of the

following alarms:

SVery High Temperature Alarm,

SIM Loop Not Converged Alarm,

SVSWR Alarm

A combination alarm indicates a complete BTS reboot. Therefore, the

sector has lost power and is no longer transmitting. Calls will neither

originate to the failed sector, nor will existing calls hand off.

RF Related Alarms

9141 Forward Power Very

High Alarm: Sector 1 This alarm is generated whenever the P out of N forward gain samples

(where N and P may be configured) exceed a configurable forward gain

threshold. Two alarm levels can be specified: a very high (first level) and

a high (second level). The order of alarming by increasing severity is

normal condition, then high (second level), followed by very high (first

level). A forward power very high alarm clear is generated whenever P

out of N forward gain samples fall below the forward threshold minus a

forward gain Delta.

Release 15 Alarm List – continued

JAN 2002 B-5

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

9151 Reverse Noise Rise

Very High Alarm:

Sector 1

This alarm is generated whenever a reverse noise rise measurement

(rolling average over a configurable number of samples) exceeds a reverse

noise rise threshold. Two alarm levels can be specified: a very high (first

level) and a high (second level). The order of alarming by increasing

severity is normal condition, then high (second level), followed by very

high (first level). A Reverse Noise Rise Very High Alarm clear is

generated whenever the reverse noise rise measurement recedes below the

reverse noise rise threshold minus a Delta.

9161 Forward Power High

Alarm: Sector 1 This alarm is generated whenever the P out of N forward gain samples

(where N and P may be configured) exceed a configurable forward gain

threshold. Two alarm levels can be specified: a very high (first level) and

a high (second level). The order of alarms listed by increasing severity is:

normal condition, high (second level), and very high (first level). A

Forward Power High Alarm Clear is generated whenever P out of N

forward gain samples fall below the forward threshold minus a forward

gain Delta.

9171 Reverse Noise Rise

High Alarm: Sector 1 This alarm is generated whenever a reverse noise rise measurement

(rolling average over a configurable number of samples) exceeds a reverse

noise rise threshold. Two alarm levels can be specified: a very high (first

level) and a high (second level). The order of alarms listed by increasing

severity are: normal condition, high (second level), and very high (first

level). A Reverse Noise Rise High Alarm Clear is generated whenever

the reverse noise rise measurement recedes below the reverse noise rise

threshold minus a delta.

9210 Forward Power

Limiting Alarm When the Forward Power Limiting alarm is activated, the BTS controller

will instruct the CDMA transceiver to limit the forward power at or below

the current peak power level (or at a fixed power level) or to reduce the

forward gain by a fixed amount. A Forward Power Limiting Alarm is

generated whenever the forward power exceeds the user definable fixed

power threshold (fixed limit mode), or the forward gain measurement

exceeds the forward gain limiting threshold (self–calibrating limit mode).

A Forward Power Limiting Alarm Clear is generated whenever the

forward power falls below the power limit threshold minus a clear event

delta (fixed limit mode) or the forward gain measurement falls below the

forward gain limiting threshold minus a forward gain limiting delta

(self–calibrating limit mode).

9211 Forward Power

Limiting Alarm –

Recovery Attempts

Exceeded

This alarm is generated when the system has tried to recover the LPA

over–driven condition for the user–configurable maximum number of

times and the over–driven condition still exist. This alarm is only

applicable for the self–calibrating limit mode.

Synchronization Alarms

10030 Lost Phase Lock This alarm is generated when the active BTS DPLL loses phase lock and

re–enters acquisition mode. If the BTS does not regain phase lock, or

repeatedly gains and loses phase lock, the problem is most likely a

hardware problem in the unit.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-6

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

10040 GPS Reference Source

Failure This alarm is generated when the BTS detects a failure (missing clock

pulses or associated device not ready) of its GPS reference source. The

additional alarm data will include information about the reference source

priority. The reference source priority is the priority of the GPS reference

source in relation to the other available reference sources.

This alarm will report when local conditions prevent proper GPS

reception or when the GPS system is taken down for configuration. If the

GPS reference source does not recover or repeatedly fails, a problem may

exist in the GPS receiver hardware. This alarm is only reported after the

GPS is lost for more than 30 seconds. The loss of GPS for shorter periods

of time is not considered unusual, especially if the antenna placement is

less than optimum. Short losses of GPS will have no impact on the

performance of the BTS.

10060 GPS Message Failure This alarm is generated when the BTS receives a message from the GPS

receiver that cannot be processed. The additional info will indicate if the

message problem was due to an unknown type, checksum failure, format

failure, incomplete message (timeout during message reception) or remote

GPS cable delay compensation failure. This alarm is provided to allow

additional status to be tracked.

10091 HSO Reference Source

Failure This alarm is generated when the BTS detects a failure (missing clock

pulses) of its High Stability Oscillator (HSO) reference source. The

additional alarm data will include information about the reference source

priority. The reference source priority is the priority of the Rubidium

reference source in relation to the other available reference sources.

If the Rubidium reference source does not recover or repeatedly fails, a

problem may exist in the Rubidium Reference Source hardware.

10100 No Reference Source

Available This alarm is generated when the BTS detects a failure of all of its

available reference sources.

10110 Reference Source

Switch This alarm is generated when the BTS switches to an alternate reference

source. The additional alarm data will identify the alternate reference

source type (GPS, HSO, HSO2 – if sync daisy chain is used or freerun).

A reference source switch occurs when a reference source fails and an

alternate reference source is available. The reference source switch is

seamless and does not cause degradation in system performance

10111 Reference Source

Unreliable This alarm is generated when the reporting device expires a given time

period during which its reference source is known to provide a reliable

clock for the maintenance of CDMA system time. Once the alarm is

generated, it is possible that the reporting device is running with a clock

that has drifted from CDMA system time. If so, the reporting device will

continue to support call originations and maintenance, but cannot

guarantee hand–off capability. The additional data will identify the

reference source the device is currently using as a timing reference.

Release 15 Alarm List – continued

JAN 2002 B-7

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

HW Specific Alarms

1701–

1708 BTS Relay #n –

Contact Alarm This alarm is active when a BTS input relay has opened or closed. The

relay number “n” will be 1–8. This is an equipment alarm and suggests a

possible hardware failure or operator–defined condition.

1800 BTS Controller

Disabled Device This alarm is active when the BTS Controller has detected a faulty device

and is requesting that the device be disabled. The device is not

responding to an update or has been implicated by a series of alarms.

12040 TRX Failure This alarm is generated when a BTS detects a failure in its TRX. The

additional data specifies the TRX failure. If the BTS is not a master

device, the BTS will de–key its TRX and Ram Boot itself. If the BTS is

a master device and it is in service, the master BTS shall de–key its

troubled TRX and stay in service. Since there is a one–to–one relation

between a BTS and its TRX, this will result in the sector going out of

service.

12050 TRX Warning This alarm is generated when a BTS detects a high temperature in its

TRX. The additional data indicates the specific problem. The BTS will

not de–key the TRX as a result of this alarm.

12060 Cabinet Temperature This alarm is generated when a BTS detects a temperature threshold

violation or a problem with the temperature sensing mechanism. The

reason code indicates the exact error.

12071

–

12072

RXDC Failure Unit

A/B This alarm is generated when a BTS detects a failure in a particular

RXDC unit. This is reported thru the RX and indicates a diversity

problem within the site.

CE Alarms

12100

–

12131

Channel Element

Failure #n This alarm is generated when a BTS detects an unrecoverable error for a

particular channel element (CE). The additional data indicates the specific

error. The CE will be disabled automatically.

NOTE

SC340 device has 16 channel elements, thus it does not detect and

generate alarms 12116–12131.

12200

–

12231

Channel Element

Recovered #n This alarm is generated when a BTS detects a recoverable error for a

particular Channel Element (CE). The additional data indicates the

specific error. The CE has been recovered automatically. While in

recovery mode, all active calls at the CE could be lost.

NOTE

SC340 device has 16 channel elements, thus it does not detect and

generate alarms 12216–12231.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-8

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

12300

–

12331

Channel Element TSI

Mapping Failure #n This alarm is generated when a BTS detects a problem internally

allocating a SRCHAN to a particular channel element (CE). The

additional data indicates the specific error. The CE is unusable for call

processing.

NOTE

The SC340 device has 16 channel elements, thus it does not detect and

generate alarms 12316–12331.

Span Alarms

18001/

18002 SPAN Degraded –

Remote Fault Daily

Threshold Exceeded

(source)/(sink)

This alarm indicates that the count of remote faults exceeded the alarm

threshold (default threshold = 16) within a 24–hour period. This alarm is

caused by the transmit span line path fading in and out. This alarm

condition will have an insignificant impact on system performance and

call quality. This alarm may provide an early warning of a more serious

condition.

This alarm will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18004/

18005 SPAN Degraded –

Remote Fault Hourly

Threshold Exceeded

(source)/(sink)

This alarm indicates that the count of remote alarms exceeded the alarm

threshold (default threshold = 20) within a 1–hour period. This alarm is

caused by the transmit span line path fading in and out. This alarm

condition may have a minor impact on system performance and call

quality. This alarm may provide an early warning of a more serious

condition. This alarm will be sent by one of the two devices at the end of

the span. In some cases, a second alarm will be sent by the device at the

other end of the span. One alarm will have “(source)” to indicate that

it came from the source end point, and the other will have “(sink)” to

indicate that it came from the sink end point.

18007/

18008 SPAN Degraded –

Remote Fault Critical

Threshold Exceeded

(source)/(sink)

This alarm indicates that the count of remote faults exceeded the alarm

threshold (default threshold = 511) within a 24–hour period. This alarm is

caused by the transmit span line path fading in and out. This alarm

indicates that system performance and call quality is seriously degraded.

This alarm will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

JAN 2002 B-9

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18010/

18011 SPAN Out–of–Service

– Continuous Remote

Faults (source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

remote faults being received for more than 0.5 seconds. This alarm

indicates that the transmit span line signal was lost at the remote end, or

the transmit framing words were corrupted at the remote end. This alarm

will be sent by one of the two devices at the end of the span. In some

cases, a second alarm will be sent by the device at the other end of the

span. One alarm will have “(source)” to indicate that it came from the

source end point, and the other will have “(sink)” to indicate that it

came from the sink end point.

18013/

18014 SPAN Degraded –

Frame Slip Daily

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of frame slips exceeded the alarm

threshold (default threshold = 4) within a 24–hour period. This alarm is

caused by the master unit in the BTS not being synchronized with the

inbound span line. This alarm condition will have an insignificant impact

on system performance and call quality. This alarm may provide an early

warning of a more serious condition. This alarm will be sent by one of

the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18016/

18017 SPAN Degraded –

Frame Slip Hourly

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of frame slips exceeded the alarm

threshold (default threshold = 10) within a 1–hour period. This alarm is

caused by the BTS unit not being synchronized with the inbound span

line. This alarm condition may have a minor impact on system

performance and call quality. This alarm may provide an early warning of

a more serious condition. This alarm will be sent by one of the two

devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18019/

18020 SPAN Degraded –

Frame Slip Critical

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of frame slips exceeded the alarm

threshold (default threshold = 255) within a 24–hour period. This alarm

is caused by the BTS unit not being synchronized with the inbound span

line. This alarm indicates that system performance and call quality is

seriously degraded. This alarm will be sent by one of the two devices at

the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-10

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18031/

18032 SPAN Out–of–Service

– Continuous Framed

AIS Faults

(source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

Framed Alarm Indication Signal (AIS) faults being received for more than

2.5 seconds. This alarm indicates that the receive span signal was lost,

the receive framing words were corrupted, or an incompatible remote span

interface was detected by the network. This alarm will be sent by one of

the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18034/

18035 SPAN Degraded –

Unframed AIS Daily

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Unframed Alarm Indication

Signal (AIS) alarms exceeded the alarm threshold (default threshold = 16)

within a 24–hour period. This alarm is caused by the receive span fading

in and out. This alarm condition will have an insignificant impact on

system performance and call quality. This alarm may provide an early

warning of a more serious condition. This alarm will be sent by one of the

two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18037/

18038 SPAN Degraded –

Unframed AIS Hourly

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Unframed Alarm Indication

Signal (AIS) alarms exceeded the alarm threshold (default threshold = 20)

within a 1–hour period. This alarm is caused by the receive span fading

in and out. This alarm condition may have a minor impact on system

performance and call quality. This alarm may provide an early warning of

a more serious condition. This alarm will be sent by one of the two

devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18040/

18041 SPAN Degraded –

Unframed AIS Critical

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Unframed Alarm Indication

Signal (AIS) alarms exceeded the alarm threshold (default threshold =

511) within a 24–hour period. This alarm indicates that system

performance and call quality is seriously degraded. This alarm will be

sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

JAN 2002 B-11

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18043/

18044 SPAN Out–of–Service

– Continuous

Unframed AIS Faults

(source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

Unframed Alarm Indication Signal (AIS) faults being received for more

than 2.5 seconds. This alarm indicates that the receive span signal was

lost, the receive framing words were corrupted, or an incompatible remote

span interface was detected by the network. This alarm will be sent by

one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18046/

18047 SPAN Degraded –

REC Fault Daily

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Receive Error Condition (REC)

alarms exceeded the alarm threshold (default threshold = 16) within a

24–hour period. This alarm condition will have an insignificant impact

on system performance and call quality. This alarm may provide an early

warning of a more serious condition. This alarm will be sent by one of

the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18049/

18050 SPAN Degraded –

REC Fault Hourly

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Receive Error Condition (REC)

alarms exceeded the alarm threshold (default threshold = 20) within a

1–hour period. This alarm condition may have a minor impact on system

performance and call quality. This alarm may provide an early warning of

a more serious condition. This alarm will be sent by one of the two

devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18052/

18053 SPAN Degraded –

REC Fault Critical

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of Receive Error Condition (REC)

alarms exceeded the alarm threshold (default threshold = 511) within a

24–hour period. This alarm indicates that system performance and call

quality is seriously degraded. This alarm will be sent by one of the two

devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-12

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18055/

18056 SPAN Out–of–Service

– Continuous REC

Faults (source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

Receive Error Condition (REC) faults being received for more than 2.5

seconds. This alarm indicates that the receive span signal was lost, the

receive framing words were corrupted, or an incompatible remote span

interface was detected by the network. This alarm will be sent by one of

the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18058/

18059 SPAN Degraded –

RED Fault Daily

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of RED faults exceeded the alarm

threshold (default threshold = 16) within a 24–hour period. A RED

Alarm Event is generated when there is a Loss of Signal, Loss of Frame

Alignment or the Bit Error Rate <= 10E–3. This alarm is caused by the

receive span fading in and out. This alarm condition will have an

insignificant impact on system performance and call quality. This alarm

may provide an early warning of a more serious condition. This alarm

will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18061/

18062 SPAN Degraded –

RED Fault Hourly

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of RED alarms exceeded the alarm

threshold (default threshold = 20) within a 1–hour period. A RED Alarm

Event is generated when there is a Loss of Signal, Loss of Frame

Alignment or the Bit Error Rate <= 10E–3. This alarm condition may

have an minor impact on system performance and call quality. This alarm

may provide an early warning of a more serious condition. This alarm

will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18064/

18065 SPAN Degraded –

RED Fault Critical

Threshold Exceeded

(source)/(sink)

This alarm indicates that the number of RED alarms exceeded the alarm

threshold (default threshold = 511) within a 24–hour period. A RED

Alarm Event is generated when there is a Loss of Signal, Loss of Frame

Alignment or the Bit Error Rate <= 10E–3. This alarm indicates that

system performance and call quality is seriously degraded. This alarm

will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

JAN 2002 B-13

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures

DRAFT

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18067/

18068 SPAN Out–of–Service

– Continuous RED

Faults (source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

RED faults being received for more than 2.5 seconds. A RED Alarm

Event is generated when there is a Loss of Signal, Loss of Frame

Alignment or the Bit Error Rate >= 10E–3. This alarm indicates that the

receive span signal was lost, the receive framing words were corrupted, or

an incompatible remote span interface was detected by the network. This

alarm will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18070/

18071 SPAN Degraded –

Sync Loss Daily

Threshold Exceeded

(source)/(sink)

The alarm indicates that the count of synch loss alarms has exceeded the

alarm threshold (default threshold = 16) within a 24 hour period. This

alarm condition will have an insignificant impact on system performance

and call quality. This alarm may provide an early warning of a more

serious condition. This alarm will be sent by one of the two devices at the

end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18073/

18074 SPAN Degraded –

Sync Loss Hourly

Threshold Exceeded

(source)/(sink)

The alarm indicates that the count of synch loss alarms has exceeded the

alarm threshold (default threshold = 20) within a 1 hour period. This

alarm condition may have an minor impact on system performance and

call quality. This alarm may provide an early warning of a more serious

condition. This alarm will be sent by one of the two devices at the end of

the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18076/

18077 SPAN Degraded –

Sync Loss Critical

Threshold Exceeded

(source)/(sink)

The alarm indicates that the count of synch loss alarms has exceeded the

alarm threshold (default threshold = 511) within a 24 hour period. This

alarm indicates that system performance and call quality is seriously

degraded. This alarm will be sent by one of the two devices at the end of

the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

Release 15 Alarm List – continued

DRAFT

SCt300 1X BTS Hardware Installation, ATP, and FRU Procedures JAN 2002

B-14

Table B-1: List of Alarms (Software Release 15)

Alarm

#Alarm DescriptionAlarm Name

18079/

18080 SPAN Degraded –

BER Daily Threshold

Exceeded

(source)/(sink)

This error indicates that the Bit Error Rate (BER) has risen above the

alarm threshold (default threshold = 10E–6). This alarm condition will

have an insignificant impact on system performance and call quality. This

alarm may provide an early warning of a more serious condition. This

alarm will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18082/

18083 SPAN Degraded –

BER Hourly Threshold

Exceeded

(source)/(sink)

This error indicates that the Bit Error Rate (BER) has risen above the

alarm threshold (default threshold = 10E–4). This alarm condition may

have an minor impact on system performance and call quality. This alarm

may provide an early warning of a more serious condition. This alarm

will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18085/

18086 SPAN Degraded –

BER Critical

Threshold Exceeded

(source)/(sink)

This error indicates that the Bit Error Rate (BER) has risen above the

alarm threshold (default threshold = 10E–3). This alarm indicates that

system performance and call quality is seriously degraded. This alarm

will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.

18090 Span Type Mismatch This error indicates that the span type configuration downloaded from the

OMC–R is not the same as the type programmed into the BTSs in the

modem cage where the span terminates. The span is operational while the

alarm is present but may prevent a span from returning to service if a BTS

fails or goes out of service for any reason.

18091/

18092 SPAN Out–of–Service

– Continuous Sync

Loss (source)/(sink)

This alarm indicates that the span is out–of–service due to continuous

sync loss faults being detected. This alarm indicates that the receive span

signal was lost, the receive framing words were corrupted, or an

in–compatible remote span interface was detected by the network. This

alarm will be sent by one of the two devices at the end of the span.

In some cases, a second alarm will be sent by the device at the other end

of the span. One alarm will have “(source)” to indicate that it came

from the source end point, and the other will have “(sink)” to indicate

that it came from the sink end point.
