User Manual 3

Troubleshooting 101
THE FILE BEING COPIED IS TOO LARGE FOR THE DESTINATION DRIVE —The file
that you are trying to copy is too large to fit on the disk, or the disk is full. Try
copying the file to a different disk or use a larger capacity disk.
AFILENAME CANNOT CONTAIN ANY OF THE FOLLOWING CHARACTERS: \ / : * ? “ <
> | — Do not use these characters in filenames.
GATE A20 FAILURE —A memory module may be loose. Reinstall the memory
modules and, if necessary, replace them (see "Memory" on page 137).
GENERAL FAILURE —The operating system is unable to carry out the
command. The message is usually followed by specific information—for
example, Printer out of paper. Take the appropriate action.
HARD-DISK DRIVE CONFIGURATION ERROR —The computer cannot identify the
drive type. Shut down the computer, remove the hard drive (see "Hard Drive"
on page 129), and boot the computer from a CD. Then, shut down the
computer, reinstall the hard drive, and restart the computer. Run the Hard
Disk Drive tests in the Dell Diagnostics (see "Dell Diagnostics" on page 91).
HARD-DISK DRIVE CONTROLLER FAILURE 0—The hard drive does not respond
to commands from the computer. Shut down the computer, remove the hard
drive (see "Hard Drive" on page 129), and boot the computer from a CD.
Then, shut down the computer, reinstall the hard drive, and restart the
computer. If the problem persists, try another drive. Run the Hard Disk Drive
tests in the Dell Diagnostics (see "Dell Diagnostics" on page 91).
HARD-DISK DRIVE FAILURE —The hard drive does not respond to commands
from the computer. Shut down the computer, remove the hard drive (see
"Hard Drive" on page 129), and boot the computer from a CD. Then, shut
down the computer, reinstall the hard drive, and restart the computer. If the
problem persists, try another drive. Run the Hard Disk Drive tests in the
Dell Diagnostics (see "Dell Diagnostics" on page 91).
HARD-DISK DRIVE READ FAILURE —The hard drive may be defective. Shut
down the computer, remove the hard drive (see "Hard Drive" on page 129),
and boot the computer from a CD. Then, shut down the computer, reinstall
the hard drive, and restart the computer. If the problem persists, try another
drive. Run the Hard Disk Drive tests in the Dell Diagnostics (see "Dell
Diagnostics" on page 91).
INSERT BOOTABLE MEDIA —The operating system is trying to boot to
nonbootable media, such as a floppy disk or CD. Insert bootable media.
INVALID CONFIGURATION INFORMATION-PLEASE RUN SYSTEM SETUP
102 Troubleshooting
PROGRAM —The system configuration information does not match the
hardware configuration. The message is most likely to occur after a memory
module is installed. Correct the appropriate options in the system setup
program (see "Using the System Setup Program" on page 175).
KEYBOARD CLOCK LINE FAILURE —For external keyboards, check the cable
connection. Run the Keyboard Controller test in the Dell Diagnostics (see
"Dell Diagnostics" on page 91).
KEYBOARD CONTROLLER FAILURE —For external keyboards, check the cable
connection. Restart the computer, and avoid touching the keyboard or the
mouse during the boot routine. Run the Keyboard Controller test in the Dell
Diagnostics (see "Dell Diagnostics" on page 91).
KEYBOARD DATA LINE FAILURE —For external keyboards, check the cable
connection. Run the Keyboard Controller test in the Dell Diagnostics (see
"Dell Diagnostics" on page 91).
KEYBOARD STUCK KEY FAILURE —For external keyboards or keypads, check the
cable connection. Restart the computer, and avoid touching the keyboard or
keys during the boot routine. Run the Stuck Key test in the Dell Diagnostics
(see "Dell Diagnostics" on page 91).
LICENSED CONTENT IS NOT ACCESSIBLE IN MEDIADIRECT —Dell MediaDirect™
cannot verify the Digital Rights Management (DRM) restrictions on the file,
so the file cannot be played (see "Dell MediaDirect problems" on page 108).
MEMORY ADDRESS LINE FAILURE AT ADDRESS,READ VALUE EXPECTING VALUE —
A memory module may be faulty or improperly seated. Reinstall the memory
modules and, if necessary, replace them (see "Memory" on page 137).
MEMORY ALLOCATION ERROR —The software you are attempting to run is
conflicting with the operating system, another program, or a utility. Shut
down the computer, wait 30 seconds, and then restart it. Try to run the
program again. If the error message still appears, see the software
documentation.
MEMORY DATA LINE FAILURE AT ADDRESS,READ VALUE EXPECTING VALUE —A
memory module may be faulty or improperly seated. Reinstall the memory
modules and, if necessary, replace them (see "Memory" on page 137).
MEMORY DOUBLE WORD LOGIC FAILURE AT ADDRESS,READ VALUE EXPECTING
VALUE —A memory module may be faulty or improperly seated. Reinstall the
memory modules and, if necessary, replace them (see "Memory" on
page 137).
Troubleshooting 103
MEMORY ODD/EVEN LOGIC FAILURE AT ADDRESS,READ VALUE EXPECTING
VALUE —A memory module may be faulty or improperly seated. Reinstall the
memory modules and, if necessary, replace them (see "Memory" on
page 137).
MEMORY WRITE/READ FAILURE AT ADDRESS,READ VALUE EXPECTING VALUE —A
memory module may be faulty or improperly seated. Reinstall the memory
modules and, if necessary, replace them (see "Memory" on page 137).
NO BOOT DEVICE AVAILABLE —The computer cannot find the hard drive. If
the hard drive is your boot device, ensure that the drive is installed, properly
seated, and partitioned as a boot device.
NO BOOT SECTOR ON HARD DRIVE —The operating system may be corrupted.
Contact Dell (see "Contacting Dell" on page 164).
NO TIMER TICK INTERRUPT —A chip on the system board may be
malfunctioning. Run the System Set tests in the Dell Diagnostics (see "Dell
Diagnostics" on page 91).
NOT ENOUGH MEMORY OR RESOURCES. EXIT SOME PROGRAMS AND TRY AGAIN —
You have too many programs open. Close all windows and open the program
that you want to use.
OPERATING SYSTEM NOT FOUND —Reinstall the hard drive (see "Hard Drive"
on page 129). If the problem persists, contact Dell (see "Contacting Dell" on
page 164).
OPTIONAL ROM BAD CHECKSUM —The optional ROM has failed. Contact
Dell (see "Contacting Dell" on page 164).
AREQUIRED .DLL FILE WAS NOT FOUND —The program that you are trying to
open is missing an essential file. Remove and then reinstall the program.
1
Click
Start →
Control Panel
.
2
Under
Programs
, click
Uninstall a Program
.
3
Select the program you want to remove.
4
Click
Uninstall
and follow the prompts on the screen.
5
See the program documentation for installation instructions.
SECTOR NOT FOUND —The operating system cannot locate a sector on the
hard drive. You may have a defective sector or corrupted FAT on the hard
drive. Run the Windows error-checking utility to check the file structure on
104 Troubleshooting
the hard drive. See Windows Help and Support for instructions
(click
Start
→Help and Support). If a large number of sectors are
defective, back up the data (if possible), and then reformat the hard drive.
SEEK ERROR —The operating system cannot find a specific track on the
hard drive.
SHUTDOWN FAILURE —A chip on the system board may be malfunctioning.
Run the System Set tests in the Dell Diagnostics (see "Dell Diagnostics" on
page 91).
TIME-OF-DAY CLOCK LOST POWER —System configuration settings are
corrupted. Connect your computer to an electrical outlet to charge the
battery. If the problem persists, try to restore the data by entering the system
setup program, then immediately exit the program (see "Using the System
Setup Program" on page 175). If the message reappears, contact Dell (see
"Contacting Dell" on page 164).
TIME-OF-DAY CLOCK STOPPED —The reserve battery that supports the system
configuration settings may require recharging. Connect your computer to an
electrical outlet to charge the battery. If the problem persists, contact Dell
(see "Contacting Dell" on page 164).
TIME-OF-DAY NOT SET-PLEASE RUN THE SYS TE M SETUP PROGRAM —The time
or date stored in the system setup program does not match the system clock.
Correct the settings for the Date and Time options (see "Using the System
Setup Program" on page 175).
TIMER CHIP COUNTER 2 FAILED —A chip on the system board may be
malfunctioning. Run the System Set tests in the Dell Diagnostics (see "Dell
Diagnostics" on page 91).
UNEXPECTED INTERRUPT IN PROTECTED MODE —The keyboard controller may
be malfunctioning, or a memory module may be loose. Run the System
Memory tests and the Keyboard Controller test in the Dell Diagnostics (see
"Dell Diagnostics" on page 91).
X:\ IS NOT ACCESSIBLE. THE DEVICE IS NOT READY —Insert a disk into the
drive and try again.
WARNING: BATTERY IS CRITICALLY LOW —The battery is running out of
charge. Replace the battery, or connect the computer to an electrical outlet;
otherwise, activate hibernate mode or shut down the computer.
Troubleshooting 105
ExpressCard Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CHECK THE EXPRESSCARD —Ensure that the ExpressCard is properly inserted
into the connector.
CHECK THAT THE CARD IS RECOGNIZED BY WINDOWS —Double-click the Safely
Remove Hardware icon in the Windows taskbar. Some cards do not support
this feature. If the card supports this Windows feature, the card will be listed.
IF YOU HAVE PROBLEMS WITH A DELL-PROVIDED EXPRESSCARD —Contact Dell
(see "Contacting Dell" on page 164). Also, for Mobile Broadband (WWAN)
ExpressCards, see "Mobile Broadband (Wireless Wide Area Network
[WWAN])" on page 111.
IF YOU HAVE PROBLEMS WITH AN EXPRESSCARD NOT PROVIDED BY DELL —
Contact the ExpressCard manufacturer.
IEEE 1394 Device Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
ENSURE THAT THE IEEE 1394 DEVICE IS RECOGNIZED BY WINDOWS —
1
Click
Start
→
Control Panel
→
System and Maintenance
→
Device
Manager
.
NOTE: The User Account Control window may appear. If you are an
administrator on the computer, click Continue; otherwise, contact your
administrator to continue the desired action.
If your IEEE 1394 device is listed, Windows recognizes the device.
IF YOU HAVE PROBLEMS WITH A DELL-PROVIDED IEEE 1394 DEVICE —Contact
Dell or the IEEE 1394 device manufacturer (see "Contacting Dell" on page 164).
IF YOU HAVE PROBLEMS WITH AN IEEE 1394 DEVICE NOT PROVIDED BY DELL —
Contact Dell or the IEEE 1394 device manufacturer (see "Contacting Dell" on
page 164).
Ensure that the IEEE 1394 device is properly inserted into the connector
106 Troubleshooting
Keyboard Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
Fill out the "Diagnostics Checklist" on page 163 as you perform the
various checks.
NOTE: Use the integrated keyboard when running the Dell Diagnostics or the
system setup program. When you attach an external keyboard, the integrated
keyboard remains fully functional.
External Keyboard problems
NOTE: When you attach an external keyboard, the integrated keyboard remains
fully functional.
CHECK THE KEYBOARD CABLE —Shut down the computer, disconnect the
keyboard cable and check it for damage, then firmly reconnect the cable.
If you are using a keyboard extension cable, disconnect it and connect the
keyboard directly to the computer.
CHECK THE EXTERNAL KEYBOARD —
1
Shut down the computer, wait 1 minute, and then turn it on again.
2
Verify that the numbers, capitals, and scroll lock lights on the keyboard
blink during the boot routine.
3
From the Windows desktop, click
Start
→
All Programs
→
Accessories
→
Notepad
.
4
Type some characters on the external keyboard and verify that they appear
on the display.
If you cannot verify these steps, you may have a defective external
keyboard.
TO VERIFY THAT THE PROBLEM IS WITH THE EXTERNAL KEYBOARD,CHECK THE
INTEGRATED KEYBOARD —
1
Shut down the computer.
2
Disconnect the external keyboard.
3
Turn on the computer.
Troubleshooting 107
4
From the Windows desktop, click
Start
→
All Programs
→
Accessories
→
Notepad
.
5
Type some characters on the internal keyboard and verify that they appear
on the display.
If the characters appear now, but did not with the external keyboard, you
may have a defective external keyboard. Contact Dell
(see "Contacting
Dell
" on page 164
).
RUN THE KEYBOARD DIAGNOSTICS TESTS —Run the PC-AT Compatible
Keyboards tests in the Dell Diagnostics (see "Dell Diagnostics" on page 91).
If the tests indicate a defective external keyboard, contact Dell (see
"Contacting Dell" on page 164).
Unexpected characters
DISABLE THE NUMERIC KEYPAD —Press <Num Lk> to disable the numeric
keypad if numbers are displayed instead of letters. Verify that the numbers
lock light is not lit.
Lockups and Software Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
The computer does not start
CHECK THE AC ADAPTER —Ensure that the AC adapter is firmly connected to
the computer and to the electrical outlet.
The AC adapter shuts down when there is a fault. The green light turns off
when this happens. To bring it back on, disconnect the AC adapter from the
power source for 10 seconds, and then connect it back on.
The computer stops responding
NOTICE: You might lose data if you are unable to perform an operating system
shutdown.
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a
key on your keyboard or moving your mouse, press and hold the power button
for at least 8 to 10 seconds until the computer turns off, then restart your
computer.
108 Troubleshooting
A program stops responding or crashes repeatedly
END THE PROGRAM —
1
Press <Crtl><Shift><Esc> simultaneously.
2
Click the
Applications
tab and select the program that is no longer
responding.
3
Click
End Task
.
NOTE: The chkdsk program may run when you restart the computer. Follow the
instructions on the screen.
CHECK THE SOFTWARE DOCUMENTATION —If necessary, uninstall and then
reinstall the program. Software usually includes installation instructions in its
documentation or on a floppy disk or CD.
A program is designed for an earlier Microsoft®Windows® operating
system
RUN THE PROGRAM COMPATIBILITY WIZARD —Program compatibility is a
mode in Windows that lets you run programs written for earlier versions of
Windows. For more information, sea
rch for the keyword
program compatibility
wizard
in Windows Help and Support.
A solid blue screen appears
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a
key on your keyboard or moving your mouse, press and hold the power button
for at least 8 to 10 seconds until the computer turns off, then restart your
computer.
Dell MediaDirect problems
CHECK THE DELL MEDIADIRECT HELP FILE FOR INFORMATION —Use the Help
menu to access Dell MediaDirect Help.
TO PLAY MOVIES WITH DELL MEDIADIRECT,YOU MUST HAVE A DVD DRIVE AND
THE DELL DVD PLAYER —If you purchased a DVD drive with your computer,
this software should already be installed.
VIDEO QUALITY PROBLEMS —Turn off the Use Hardware Acceleration option.
This feature takes advantage of the special processing in some graphics cards
to reduce processor requirements when playing DVDs and certain types of
video files.
Troubleshooting 109
CANNOT PLAY SOME MEDIA FILES —Because Dell MediaDirect provides access
to media files outside the Windows operating system environment, access to
licensed content is restricted. Licensed content is digital content that has
Digital Rights Management (DRM) applied to it. The Dell MediaDirect
environment cannot verify the DRM restrictions, so the licensed files cannot
be played. Licensed music and video files have a lock icon next to them. You
can access licensed files in the Windows operating system environment.
ADJUSTING THE COLOR SETTINGS FOR MOVIES THAT CONTAIN SCENES THAT ARE
TOO DARK OR TOO BRIGHT —Click EagleVision to use a video enhancement
technology that detects video content and dynamically adjusts the
brightness/contrast/saturation ratios.
NOTICE: You cannot reinstall the Dell MediaDirect feature if you voluntarily
reformat the hard drive. Contact Dell for assistance (see "Contacting Dell" on
page 164).
Other software problems
CHECK THE SOFTWARE DOCUMENTATION OR CONTACT THE SOFTWARE
MANUFACTURER FOR TROUBLESHOOTING INFORMATION —
• Ensure that the program is compatible with the operating system installed
on your computer.
• Ensure that your computer meets the minimum hardware requirements
needed to run the software. See the software documentation for information.
• Ensure that the program is installed and configured properly.
• Verify that the device drivers do not conflict with the program.
• If necessary, uninstall and then reinstall the program.
BACK UP YOUR FILES IMMEDIATELY
USE A VIRUS-SCANNING PROGRAM TO CHECK THE HARD DRIVE,FLOPPY DISKS,OR CDS
SAVE AND CLOSE ANY OPEN FILES OR PROGRAMS AND SHUT DOWN YOUR
COMPUTER THROUGH THE START MENU
110 Troubleshooting
SCAN THE COMPUTER FOR SPYWARE —If you are experiencing slow computer
performance, you frequently receive pop-up advertisements, or you are having
problems connecting to the Internet, your computer might be infected with
spyware. Use an anti-virus program that includes anti-spyware protection
(your program may require an upgrade) to scan the computer and remove
spyware. For more information, go to support.dell.com and search for the
keyword spyware.
RUN THE DELL DIAGNOSTICS —If all tests run successfully, the error condition
is related to a software problem (see "Dell Diagnostics" on page 91).
Memory Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
IF YOU RECEIVE AN INSUFFICIENT MEMORY MESSAGE —
• Save and close any open files and exit any open programs you are not using
to see if that resolves the problem.
• See the software documentation for minimum memory requirements. If
necessary, install additional memory
(see "Memory
" on page 137
)
.
• Reseat the memory modules to ensure that your computer is successfully
communicating with the memory
(see "Memory
" on page 137
)
.
• Run the Dell Diagnostics
(see "Dell Diagnostics
" on page 91
)
.
IF YOU EXPERIENCE OTHER MEMORY PROBLEMS —
• Reseat the memory modules to ensure that your computer is successfully
communicating with the memory
(see "Memory
" on page 137
)
.
• Ensure that you are following the memory installation guidelines
(see
"Memory
" on page 137
)
.
• Run the Dell Diagnostics
(see "Dell Diagnostics
" on page 91
)
.
Troubleshooting 111
Network Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CHECK THE NETWORK CABLE CONNECTOR —Ensure that the network cable is
firmly inserted into both the network connector on the back of the computer
and the network jack.
CHECK THE NETWORK LIGHTS ON THE NETWORK CONNECTOR —No light
indicates that no network communication exists. Replace the network cable.
RESTART THE COMPUTER AND LOG ON TO THE NETWORK AGAIN
CHECK YOUR NETWORK SETTINGS —Contact your network administrator or
the person who set up your network to verify that your network settings are
correct and that the network is functioning.
Mobile Broadband (Wireless Wide Area Network [WWAN])
NOTE: The Dell Mobile Broadband Card Utility user’s guide and the Mobile
Broadband ExpressCard user’s guide are available through Windows Help and
Support (click Start →Help and Support). You can also download the Dell
Mobile Broadband Card Utility user’s guide from support.dell.com.
NOTE: The icon appears in the notification area if the computer has a Dell
WWAN device installed. Double-click the icon to launch the utility.
ACTIVATE THE MOBILE BROADBAND EXPRESSCARD —You must activate the
Mobile Broadband ExpressCard before you can connect to the network.
Position the mouse over the icon in the notification area to verify the
status of the connection. If the card is not activated, follow the card
activation instructions located within the Dell Mobile Broadband Card
Utility. To access the utility, double-click the icon located in the taskbar,
at the lower-right corner of your screen. If your ExpressCard is not a Dell-
branded card, see the manufacturer’s instructions for your card.
112 Troubleshooting
CHECK NETWORK CONNECTION STATUS IN THE DELL MOBILE BROADBAND CARD
UTILITY —Double-click the icon to launch the Dell Mobile Broadband
Card Utility. Check the status in the main window:
•
No card detected
— Restart the computer, and launch the
Dell Mobile
Broadband Card Utility
again.
•
Check your WWAN service
— Contact your cellular service provider to
verify your plan coverage and supported services.
Power Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CHECK THE POWER LIGHT —When the power light is lit or blinking, the
computer has power. If the power light is blinking, the computer is in Sleep
state—press the power button to exit Sleep state. If the light is off, press the
power button to turn on the computer.
NOTE: For information on Sleep power state, see "Using the Sleep Power State" on
page 47.
CHARGE THE BATTERY —The battery charge may be depleted.
1
Reinstall the battery.
2
Use the AC adapter to connect the computer to an electrical outlet.
3
Turn on the computer.
NOTE: Battery operating time (the time the battery can hold a charge) decreases
over time. Depending on how often the battery is used and the conditions under
which it is used, you may need to purchase a new battery during the life of your
computer.
CHECK THE BATTERY STATUS LIGHT —If the battery status light flashes amber
or is a steady amber, the battery charge is low or depleted. Connect the
computer to an electrical outlet.
If the battery status light flashes blue and amber, the battery is too hot to
charge. Shut down the computer, disconnect the computer from the electrical
outlet, and then let the battery and computer cool to room temperature.
Troubleshooting 113
If the battery status light rapidly flashes amber, the battery may be defective.
Contact Dell (see "Contacting Dell" on page 164).
CHECK THE BATTERY TEMPERATURE —If the battery temperature is below 0°C
(32°F), the computer will not start.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the
AC adapter has a light, ensure that the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power
protection devices, power strips, and extension cables to verify that the
computer turns on.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights,
halogen lamps, or other appliances.
ADJUST THE POWER PROPERTIES —See "Configuring Power Management
Settings" on page 46.

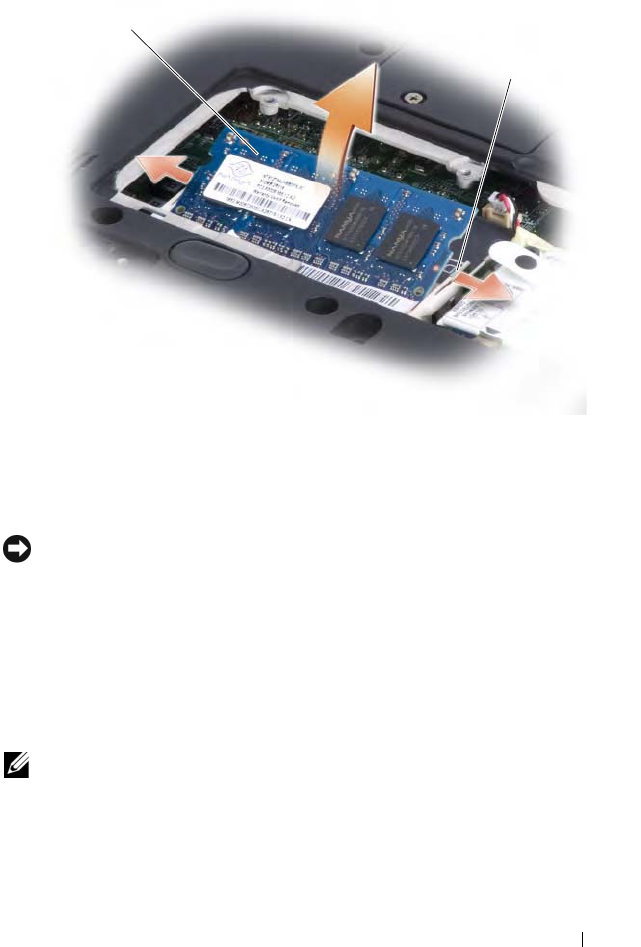

RESEAT THE MEMORY MODULES —If the computer power light turns on, but
the display remains blank, reinstall the memory modules (see "Memory" on
page 137).
Printer Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: If you need technical assistance for your printer, contact the printer’s
manufacturer.
CHECK THE PRINTER DOCUMENTATION —See the printer documentation for
setup and troubleshooting information.
ENSURE THAT THE PRINTER IS TURNED ON
CHECK THE PRINTER CABLE CONNECTIONS —
• See the printer documentation for cable connection information.
• Ensure that the printer cables are securely connected to the printer and
the computer.
114 Troubleshooting
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
VERIFY THAT THE PRINTER IS RECOGNIZED BY WINDOWS —
1
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
2
Right-click the printer icon.
3
Click
Properties
, and then click the
Ports
tab. For a parallel printer, ensure
that the
Print to the following port(s):
setting is
LPT1 (Printer Port)
. For
a USB printer, ensure that the
Print to the following port(s):
setting is
USB
.
REINSTALL THE PRINTER DRIVER —See the printer documentation for
instructions.
Scanner Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: If you need technical assistance for your scanner, contact the scanner’s
manufacturer.
CHECK THE SCANNER DOCUMENTATION —See the scanner documentation for
setup and troubleshooting information.
UNLOCK THE SCANNER —Ensure that your scanner is unlocked.
RESTART THE COMPUTER AND TRY THE SCANNER AGAIN
CHECK THE CABLE CONNECTIONS —
• See the scanner documentation for cable connection information.
• Ensure that the scanner cables are securely connected to the scanner and
the computer.
VERIFY THAT THE SCANNER IS RECOGNIZED BY MICROSOFT WINDOWS —
Click Start →Control Panel→Hardware and Sound→Scanners and
Cameras. If your scanner is listed, Windows recognizes the scanner.
REINSTALL THE SCANNER DRIVER —See the scanner documentation for
instructions.
Troubleshooting 115
Sound and Speaker Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
No sound from integrated speakers
ADJUST THE WINDOWS VOLUME CONTROL —Double-click the speaker icon in
the lower-right corner of your screen. Ensure that the volume is turned up and
that the sound is not muted. Adjust the volume, bass, or treble controls to
eliminate distortion.
ADJUST THE VOLUME USING KEYBOARD SHORTCUTS —Press <Fn><End> to
disable (mute) or re-enable the integrated speakers.
REINSTALL THE SOUND (AUDIO)DRIVER —See "Reinstalling Drivers and
Utilities" on page 120.
No sound from external speakers
ENSURE THAT THE SUBWOOFER AND THE SPEAKERS ARE TURNED ON —See the
setup diagram supplied with the speakers. If your speakers have volume
controls, adjust the volume, bass, or treble to eliminate distortion.
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker
icon in the lower-right corner of your screen. Ensure that the volume is turned
up and that the sound is not muted.
DISCONNECT HEADPHONES FROM THE HEADPHONE CONNECTOR —Sound from
the speakers is automatically disabled when headphones are connected to the
headphone connector.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights,
or halogen lamps to check for interference.
REINSTALL THE AUDIO DRIVER —See "Reinstalling Drivers and Utilities" on
page 120.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 91.
NOTE: The volume control in some MP3 players overrides the Windows volume
setting. If you have been listening to MP3 songs, ensure that you did not turn the
player volume down or off.
116 Troubleshooting
No sound from headphones
CHECK THE HEADPHONE CABLE CONNECTION —Ensure that the headphone
cable is securely inserted into the headphone connector (see "ExpressCard
slot" on page 26).
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker
icon in the lower-right corner of your screen. Ensure that the volume is turned
up and that the sound is not muted.
Remote Control Problems
APPLICATION DOES NOT RESPOND TO REMOTE CONTROL WITHIN THE SPECIFIED
MAXIMUM RANGE
• Check that the battery is placed correctly with the "+" side facing up.
Check that the battery is also not weak.
• Point your remote control to the receiver. The receiver is underneath the
touch pad of your computer.
• Move the remote control closer to your computer.
REMOTE CONTROL IS STUCK IN THE SLOT
Check that you have not incorrectly stored the remote control into a non-
Express Card slot. Contact Dell Technical Support for removing it.
Touch Pad or Mouse Problems
CHECK THE TOUCH PAD SETTINGS —
1
Click
Start
→
Control Panel
→
Hardware and Sound
→
Mouse
.
2
Adjust the settings, as needed.
CHECK THE MOUSE CABLE —Shut down the computer, disconnect the mouse
cable and check it for damage, then firmly reconnect the cable.
If you are using a mouse extension cable, disconnect it and connect the
mouse directly to the computer.
TO VERIFY THAT THE PROBLEM IS WITH THE MOUSE,CHECK THE TOUCH PAD —
1
Shut down the computer.
2
Disconnect the mouse.
Troubleshooting 117
3
Turn on the computer.
4
At the Windows desktop, use the touch pad to move the cursor around,
select an icon, and open it.
If the touch pad operates correctly, the mouse may be defective.
CHECK THE SYSTEM SETUP PROGRAM SETTINGS —Verify that the system setup
program lists the correct device for the pointing device option (the computer
automatically recognizes a USB mouse without making any setting adjustments).
TEST THE MOUSE CONTROLLER —To test the mouse controller (which affects
pointer movement) and the operation of the touch pad or mouse buttons,
run the Mouse test in the Pointing Devices test group in the "Dell
Diagnostics" on page 91.
REINSTALL THE TOUCH PAD DRIVER —See "Reinstalling Drivers and Utilities"
on page 120.
Video and Display Problems
Fill out the "Diagnostics Checklist" on page 163 as you complete these checks.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
If the display is blank
NOTE: If you are using a program that requires a higher resolution than your
computer supports, it is recommended that you attach an external monitor to your
computer.
CHECK THE BATTERY —If you are using a battery to power your computer, the
battery charge may be depleted. Connect the computer to an electrical outlet
using the AC adapter, and then turn on the computer.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the
AC adapter has a light, ensure that the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power
protection devices, power strips, and extension cables to verify that the
computer turns on.
118 Troubleshooting
ADJUST THE POWER PROPERTIES —Search for the keyword sleep in Windows
Help and Support.
SWITCH THE VIDEO IMAGE —If your computer is attached to an external
monitor, press <Fn><F8> to switch the video image to the display.
If the display is difficult to read
ADJUST THE BRIGHTNESS —Press <Fn> and the up- or down-arrow key.
MOVE THE EXTERNAL SUBWOOFER AWAY FROM THE COMPUTER OR MONITOR —If
your external speaker system includes a subwoofer, ensure that the subwoofer
is at least 60 cm (2 ft) away from the computer or external monitor.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights,
halogen lamps, or other appliances.
ROTATE THE COMPUTER TO FACE A DIFFERENT DIRECTION —Eliminate sunlight
glare, which can cause poor picture quality.
ADJUST THE WINDOWS DISPLAY SETTINGS —
1
Click
Start
→
Control Panel
→
Appearance and Personalization
→
Personalization
→
Display Settings
.
2
Click the area you want to change or click the
Display
icon.
Try different settings for
Resolution
and
Colors
.
RUN THE VIDEO DIAGNOSTICS TESTS —If no error message appears and you
still have a display problem, but the display is not completely blank, run the
Video device group in the "Dell Diagnostics" on page 91, then contact Dell
(see "Contacting Dell" on page 164).
SEE "ERROR MESSAGES"—If an error message appears, see "Error Messages"
on page 100.
If only part of the display is readable
CONNECT AN EXTERNAL MONITOR —
1
Shut down your computer and connect an external monitor to the
computer.
2
Turn on the computer and the monitor, and then adjust the monitor
brightness and contrast controls.
If the external monitor works, the computer display or video controller
may be defective. Contact Dell (
see "Contacting Dell
" on page 164
).
Troubleshooting 119
Drivers
What Is a Driver?
A driver is a program that controls a device such as a printer, mouse, or
keyboard. All devices require a driver program.
A driver acts like a translator between the device and any other programs that
use the device. Each device has its own set of specialized commands that only
its driver recognizes.
Dell ships your computer to you with required drivers already installed—no
further installation or configuration is needed.
NOTICE: Your Drivers and Utilities media may contain drivers for operating systems
that are not on your computer. Ensure that you are installing software appropriate
for your operating system.
Many drivers, such as the keyboard driver, come with your Microsoft®
Windows® operating system. You may need to install drivers if you:
• Upgrade your operating system.
• Reinstall your operating system.
• Connect or install a new device.
Identifying Drivers
If you experience a problem with any device, identify whether the driver is the
source of your problem and, if necessary, update the driver.
1
Click
Start
, and then right-click
Computer
.
2
Click
Properties
, and then click
Device Manager
.
NOTE: The User Account Control window may appear. If you are an
administrator on the computer, click Continue; otherwise, contact your
administrator to continue.
Scroll down the list of devices and check for an exclamation point (a circle with
a [
!]
) next to the device name
. If an exclamation point is next to the device
name, you may need to reinstall the driver or install a new driver (see
"Reinstalling Drivers and Utilities" on page 120).
120 Troubleshooting
Reinstalling Drivers and Utilities
NOTICE: The Dell Support website at support.dell.com and your Drivers and
Utilities media provide approved drivers for Dell computers. If you install drivers
obtained from other sources, your computer might not work correctly.
Using Windows Device Driver Rollback
If a problem occurs on your computer after you install or update a driver, use
Windows Device Driver Rollback to replace the driver with the previously
installed version.
1
Click
Start
, and then right-click
Computer
.
2
Click
Properties
, and then click
Device Manager
.
NOTE: The User Account Control window may appear. If you are an
administrator on the computer, click Continue; otherwise, contact your
administrator to enter the Device Manager.
3
Right-click the device for which the new driver was installed and click
Properties
.
4
Click the
Drivers
tab, and then click
Roll Back Driver
.
If Device Driver Rollback does not resolve the problem, use System Restore
(see "Restoring Your Operating System" on page 122) to return your
computer to the operating state that existed before you installed the new
driver.
Using the Drivers and Utilities Media
If using Device Driver Rollback or System Restore (see "Restoring Your
Operating System" on page 122) does not resolve the problem, reinstall the
driver from your Drivers and Utilities media.
1
With the Windows desktop displayed, insert your
Drivers and Utilities media
.
If this is your first time to use your
Drivers and Utilities media
, continue
to step 2. If not, proceed to step 5.
2
When the
Drivers and Utilities
installation program starts, follow the
prompts on the screen.
NOTE: In most cases, the Drivers and Utilities program starts running
automatically. If it does not, start Windows Explorer, click your media drive
directory to display the media contents, and then double-click the autorcd.exe file.
Troubleshooting 121
3
When the
InstallShield Wizard Complete
window appears, remove the
Drivers and Utilities disc
and click
Finish
to restart the computer.
4
When you see the Windows desktop, reinsert the
Drivers and Utilities disc
.
5
At the
Welcome Dell System Owner
screen, click
Next
.
NOTE: The Drivers and Utilities program displays drivers only for hardware
that came installed in your computer. If you installed additional hardware, the
drivers for the new hardware might not be displayed. If those drivers are not
displayed, exit the Drivers and Utilities program. For drivers information, see
the documentation that came with the device.
A message stating that the
Drivers and Utilities program
is detecting
hardware in your computer appears.
The drivers that are used by your computer are automatically displayed in
the
My Drivers—The ResourceCD has identified these components in
your system
window.
6
Click the driver that you want to reinstall and follow the instructions on
the screen.
If a particular driver is not listed, then that driver is not required by your
operating system.
Manually Reinstalling Drivers
NOTE: If your computer has a Consumer IR port and you are reinstalling a
Consumer IR driver, you must first enable the Consumer IR port in the system setup
program (see "Using the System Setup Program" on page 175) before continuing
with the driver installation (see "Reinstalling Drivers and Utilities" on page 120).
For information about components installed on your computer, see "Determining
Your Computer’s Configuration" on page 19.
1
After extracting the driver files to your hard drive, as described in the
previous section, click
Start ,
and then right-click
Computer
.
2
Click
Properties
, and then click
Device Manager
.
3
Double-click the type of device for which you are installing the driver (for
example,
Modems
or
Infrared devices
).
4
Double-click the name of the device for which you are installing the driver.
5
Click
Driver
tab, and then click
Update Driver
.
6
Click
Install from a list or specific location (Advanced)
, and then click
Next
.
122 Troubleshooting
7
Click
Browse
and browse to the location to which you previously copied
the driver files.
8
When the name of the appropriate driver appears, click
Next
.
9
Click
Finish
, and then restart your computer.
Troubleshooting Software and Hardware
Problems
If a device is either not detected during the operating system setup or is
detected but incorrectly configured, use
Windows Vista Help and Support
to
resolve the incompatibility:
1
Click
Start
→
Help and Support
.
2
Type
hardware troubleshooter
in the search field, then press
<Enter>.
3
In the search results, select the option that best describes the problem and
follow the remaining troubleshooting steps.
Restoring Your Operating System
You can restore your operating system in the following ways:
• Windows Vista System Restore returns your computer to an earlier
operating state without affecting data files. Use System Restore as the first
solution for restoring your operating system and preserving data files. For
instructions, see "Using Microsoft Windows System Restore" on page 123.
• If you received
Operating System
media with your computer, you can use it
to restore your operating system. However, using the
Operating System
media also deletes all data on the hard drive. Use the media
only
if System
Restore did not resolve your operating system problem. For instructions,
see "Using the Operating System Media" on page 123.
Troubleshooting 123
Using Microsoft Windows System Restore
The Windows operating system provides System Restore to allow you to
return your computer to an earlier operating state (without affecting data files)
if changes to the hardware, software, or other system settings have left the
computer in an undesirable operating state. Any changes that System Restore
makes to your computer are completely reversible.
NOTICE: Make regular backups of your data files. System Restore does not
monitor your data files or recover them.
NOTE: The procedures in this document were written for the Windows default view,
so they may not apply if you set your Dell computer to the Windows Classic view.
1
Click
Start
→
Help and Support
.
2
Type
System Restore
in the search field, then press <Enter>.
NOTE: The User Account Control window may appear. If you are an
administrator on the computer, click Continue; otherwise, contact your
administrator to continue the desired action.
3
Click
Next
and follow the remaining prompts on the screen.
In the event that System Restore did not resolve the issue, you may undo the
last system restore.
Undoing the Last System Restore
NOTICE: Before you undo the last system restore, save and close all open files and
exit any open programs. Do not alter, open, or delete any files or programs until the
system restoration is complete.
1
Click
Start
→
Help and Support
.
2
Type
System Restore
in the search field and press <Enter>.
3
Click
Undo my last restoration
, and then click
Next
.
Using the Operating System Media
Before You Begin
If you are considering reinstalling the Windows operating system to correct a
problem with a newly installed driver, first try using Windows Device Driver
Rollback (see "Using Windows Device Driver Rollback" on page 120).
If Device Driver Rollback does not resolve the problem, then use System
124 Troubleshooting
Restore to return your operating system to the operating state it was in before
you installed the new device driver (see "Using Microsoft Windows System
Restore" on page 123).
NOTICE: Before performing the installation, back up all data files on your primary
hard drive. For conventional hard drive configurations, the primary hard drive is the
first drive detected by the computer.
Troubleshooting 125
To reinstall Windows, you need the following items:
•Dell
Operating System
media
•Dell
Drivers and Utilities
media
NOTE: Your Drivers and Utilities media contains drivers that were installed during
assembly of the computer. Use your Drivers and Utilities media to load any required
drivers, including the drivers required if your computer has a RAID controller.
Reinstalling Windows
The reinstallation process can take 1 to 2 hours to complete. After you
reinstall the operating system, you must also reinstall the device drivers, virus
protection program, and other software.
NOTICE: The Operating System media provides options for reinstalling Windows.
The options can overwrite files and possibly affect programs that are installed on
your hard drive. Therefore, do not reinstall Windows unless a Dell technical support
representative instructs you to do so.
1
Save and close any open files and exit any open programs.
2
Insert the
Operating System
media.
3
Click
Exit
if the
Install Windows
message appears.
4
Restart the computer.
When the DELL logo appears, press <F12> immediately.
NOTE: If you wait too long and the operating system logo appears, continue
to wait until you see the Microsoft Windows desktop, then shut down your
computer and try again.
NOTE: The next steps change the boot sequence for one time only. On the
next start-up, the computer boots according to the devices specified in the
system setup program.
5
When the boot device list appears, highlight
CD/DVD/CD-RW Drive
,
and then press <Enter>.
6
Press any key to
Boot from CD-ROM
.
7
Follow the instructions on the screen to complete the installation.
NOTE: You cannot reinstall Dell MediaDirect if you voluntarily reformat the hard
drive. You need the installation software to reinstall Dell MediaDirect. Contact Dell
for assistance (see "Contacting Dell" on page 164).
126 Troubleshooting
Adding and Replacing Parts 127
Adding and Replacing Parts
Before You Begin
This chapter provides procedures for removing and installing the components
in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
• You have performed the steps in "Turning Off Your Computer" on
page 127 and "Before Working Inside Your Computer" on page 128.
• You have read the safety information in your Dell
Product Information
Guide
.
• A component can be replaced—or if purchased separately—installed by
performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• Phillips screwdriver
• Small plastic scribe
• Flash BIOS update (see the Dell Support website at
support.dell.com
)
Turning Off Your Computer
NOTICE: To avoid losing data, save and close any open files and exit any open
programs before you turn off your computer.
1
Save and close any open files and exit any open programs.
2
Click
Start
, click the arrow
,
and then click
Shut Down
.
The computer turns off after the operating system shutdown process finishes.
3
Ensure that the computer and any attached devices are turned off. If your
computer and attached devices did not automatically turn off when you
shut down your operating system, press and hold the power button for at
least 8 to 10 seconds until the computer turns off.
128 Adding and Replacing Parts
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from
potential damage and to help ensure your own personal safety.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components
or contacts on a card. Hold a card by its edges or by its metal mounting bracket.
Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell is not covered by
your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief
loop, not on the cable itself. Some cables have a connector with locking tabs; if you
are disconnecting this type of cable, press in on the locking tabs before you
disconnect the cable. As you pull connectors apart, keep them evenly aligned to
avoid bending any connector pins. Also, before you connect a cable, ensure that
both connectors are correctly oriented and aligned.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
1
Ensure that the work surface is flat and clean to prevent the computer
cover from being scratched.
2
Turn off your computer (see "Turning Off Your Computer" on page 127).
NOTICE: To disconnect a network cable, first unplug the cable from your
computer, and then unplug it from the network wall jack.
3
Disconnect any telephone or network cables from the computer.
4
Disconnect your computer and all attached devices from their electrical
outlets.
NOTICE: To help prevent damage to the system board, you must remove the
battery from the battery bay before you service the computer.
NOTE: To avoid damage to the computer, use only the battery designed for this
particular Dell computer. Do not use batteries designed for other Dell computers.
5
Turn the computer over.
6
Slide and click the battery release latches.
Adding and Replacing Parts 129
7
Slide the battery out of the battery bay.
8
Turn the computer top-side up, open the display, and press the power
button to ground the system board.
9
Remove any installed cards from the ExpressCard slot (see "Removing an
ExpressCard or Blank" on page 75) and the 8-in-1 memory card reader (see
"Removing a Memory Card or Blank" on page 78).
Hard Drive
CAUTION: If you remove the hard drive from the computer when the drive is hot,
do not touch the metal housing of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To prevent data loss, turn off your computer (see "Turning Off Your
Computer" on page 127) before removing the hard drive. Do not remove the hard
drive while the computer is on or in Sleep state.
NOTICE: Hard drives are extremely fragile. Exercise care when handling the
hard drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives
from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to
install an operating system, drivers, and utilities on the new hard drive (see
"Restoring Your Operating System" on page 122 and "Reinstalling Drivers and
Utilities" on page 120).

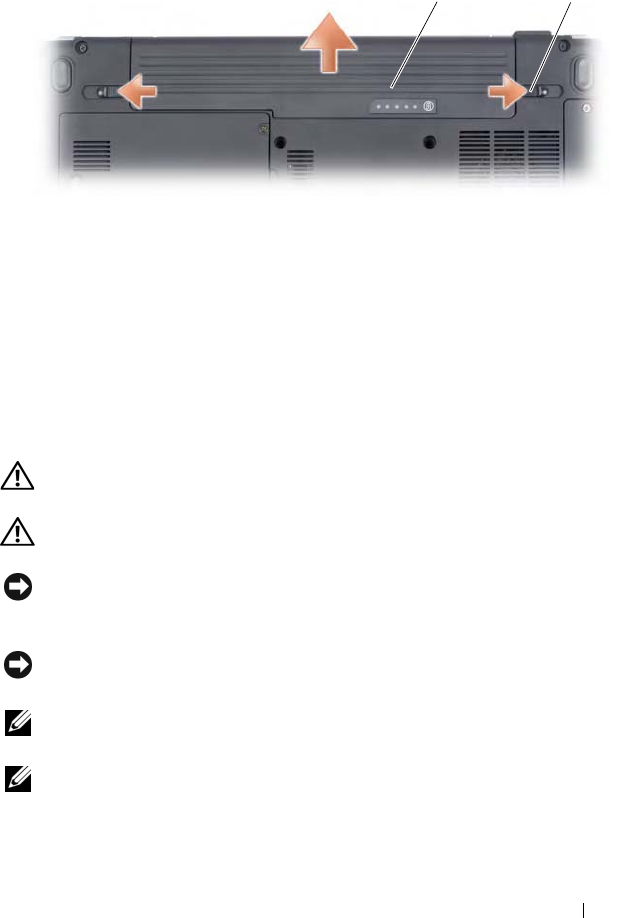

1battery 2battery release latch (2)
21
130 Adding and Replacing Parts
Removing the Hard Drive
1
Follow the procedures in "Before You Begin" on page 127.
2
Turn the computer over.
3
Loosen the two captive screws securing the hard drive cover and then
remove the cover.
4
Remove the hard drive assembly by using the pull-tab.

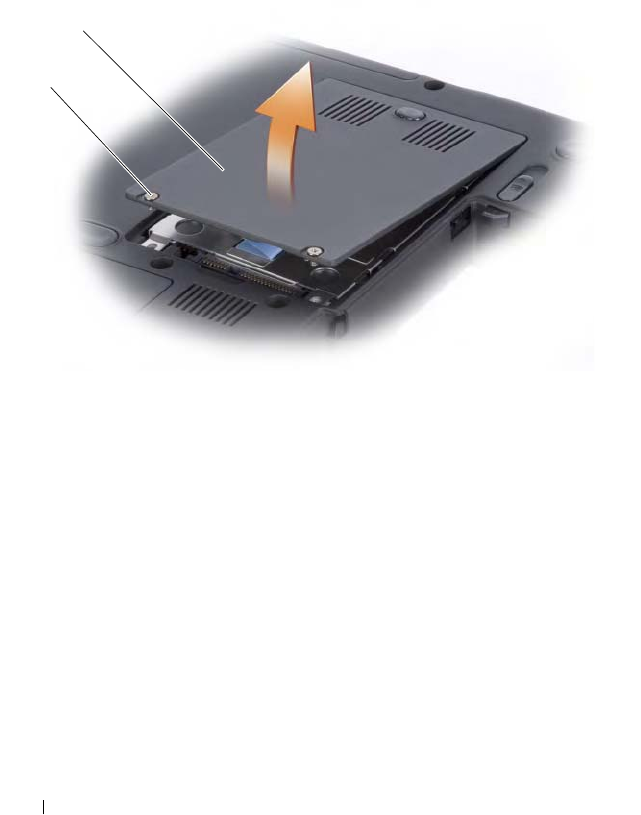

1hard drive cover 2screws (2)
1
2
Adding and Replacing Parts 131
NOTICE: When the hard drive is not in the computer, store it in protective antistatic
packaging (see "Protecting Against Electrostatic Discharge" in the Product
Information Guide).
Replacing the Hard Drive
1
Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you use
excessive force, you may damage the connector.
2
Place the hard drive assembly in the hard drive bay by aligning the tabs on
the hard drive assembly with the slots in the bay and pressing the
connector end down.
3
Replace the hard drive door and tighten the screws.
4
Install the operating system for your computer, as needed (see "Restoring
Your Operating System" on page 122).
5
Install the drivers and utilities for your computer, as needed (see
"Reinstalling Drivers and Utilities" on page 120).

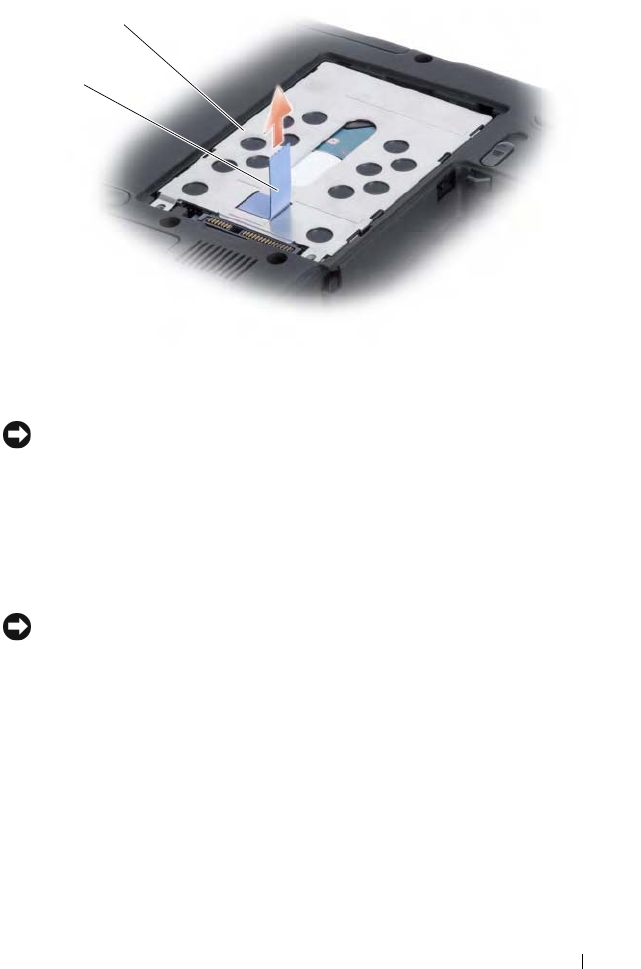

1hard drive assembly 2pull-tab
1
2
132 Adding and Replacing Parts
Returning a Hard Drive to Dell
Return your old hard drive to Dell in its original, or comparable, foam
packaging. Otherwise, the hard drive may be damaged in transit.
Optical Drive
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
Removing the Optical Drive
1
Follow the procedures in "Before You Begin" on page 127.
2
Turn the computer over.
3
Remove the locking screw from the optical drive.
4
Using a plastic scribe, push the notch to release the optical drive from the
bay.
5
Slide the optical drive out of the bay.

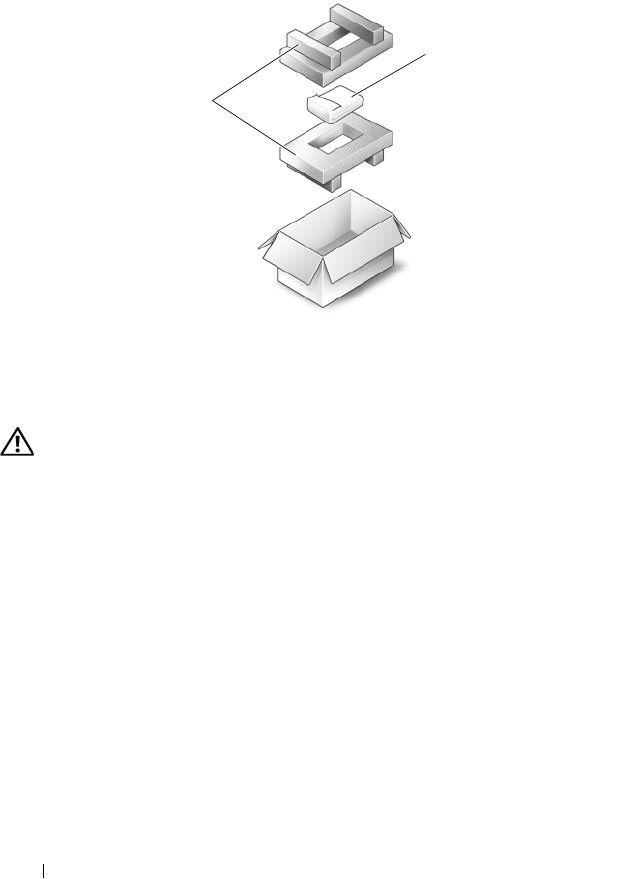

1foam packaging 2hard drive
2
1
Adding and Replacing Parts 133
Replacing the Optical Drive
1
Slide the optical drive into the bay.
2
Replace and tighten the locking screw.
Hinge Cover
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the
battery from the battery bay before you begin working inside the computer.

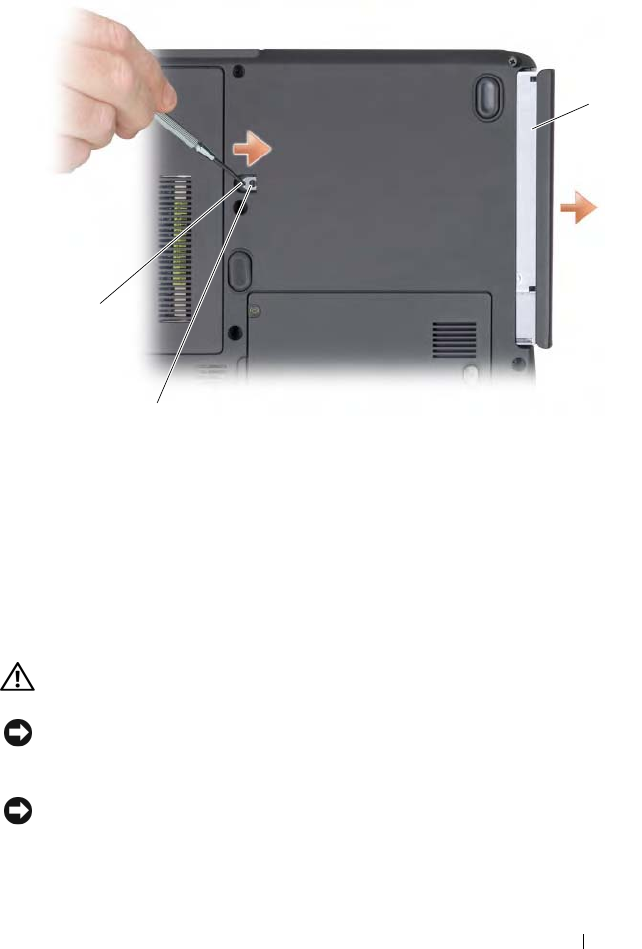

1optical drive 2locking screw 3notch
1
2
3
134 Adding and Replacing Parts
Removing the Hinge Cover
1
Follow the procedures in "Before You Begin" on page 127.
2
Open the display as far as it will open.
NOTICE: To avoid damage to the hinge cover, do not lift the cover on both sides
simultaneously.
3
Insert a plastic scribe into the indent to lift the hinge cover on the right
side.
4
Ease the hinge cover up, moving from right to left, and remove it.
Replacing the Hinge Cover
1
Insert the left edge of the hinge cover.
2
Press from left to right until the cover snaps into place.

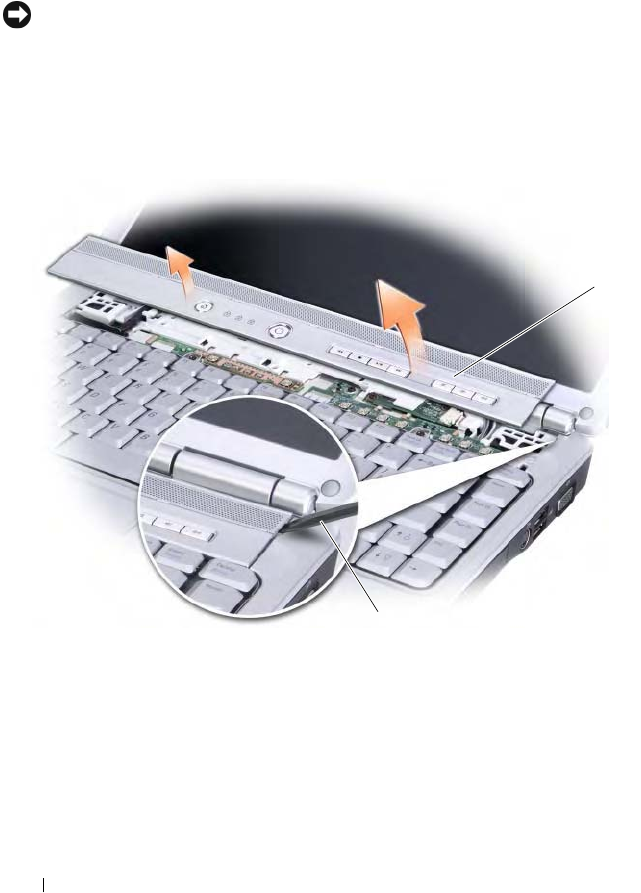

1hinge cover 2scribe
1
2
Adding and Replacing Parts 135
Keyboard
For more information about the keyboard, see "Using the Keyboard and
Touch Pad" on page 39.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the
battery from the battery bay before you begin working inside the computer.
Removing the Keyboard
1
Follow the procedures in "Before You Begin" on page 127.
2
Remove the hinge cover (see "Hinge Cover" on page 133).
3
Remove the two screws at the top of the keyboard.
NOTICE: The key caps on the keyboard are fragile, easily dislodged, and time-
consuming to replace. Be careful when removing and handling the keyboard.
4
Lift the keyboard and hold it up and slightly forward to access the
keyboard connector.
5
Rotate the keyboard connector latch towards the front of the computer to
disconnect the keyboard cable from the keyboard connector on the system
board.
6
Slide the keyboard cable out of the keyboard connector.
136 Adding and Replacing Parts
Replacing the Keyboard
1
Slide the keyboard cable into the keyboard connector.
2
Rotate the keyboard connector latch to secure the cable.
3
Hook the tabs along the front edge of the keyboard into the palmrest.
4
Press on the right edge near the top to snap the keyboard into place.
5
Replace the two screws to secure the keyboard.

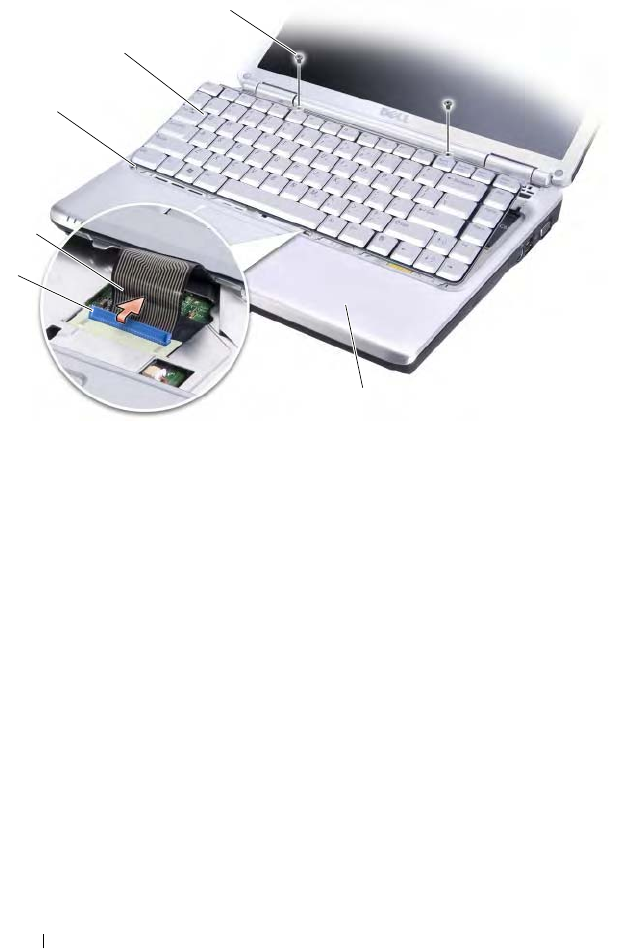

1screws (2) 2keyboard
3tabs (5) 4keyboard cable
5cable connector latch 6palmrest
1
2
4
5
3
6
Adding and Replacing Parts 137
Memory
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
You can increase your computer memory by installing memory modules on
the system board. See "Specifications" on page 165 for information on the
memory supported by your computer. Install only memory modules that are
intended for your computer.
NOTE: Memory modules purchased from Dell are covered under your computer
warranty.
Your computer has two user-accessible SODIMM sockets, DIMM A and
DIMM B accessed from the bottom of the computer.
NOTICE: If your computer has only one memory module, install the memory module
in the connector labeled “DIMMA.”
NOTICE: If you need to install memory modules in two connectors, install a
memory module in the connector labeled “DIMMA” before you install a module in
the connector labeled “DIMMB.”
Removing the Memory Module
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
1
Follow the procedures in "Before You Begin" on page 127.
2
Turn the computer over.
3
Loosen the captive screws from the memory module cover.
4
Lift the memory module cover and set it aside.
138 Adding and Replacing Parts
NOTICE: To prevent damage to the memory module connector, do not use tools to
spread the memory module securing clips.
5
Use your fingertips to carefully spread apart the securing clips on each end
of the memory module connector until the module pops up.
6
Remove the module from the connector.

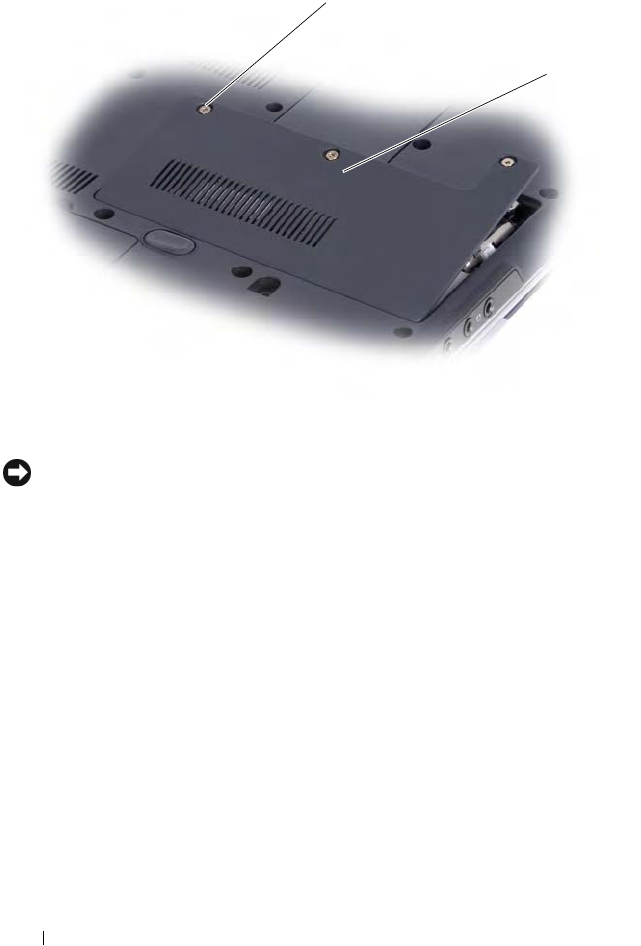

1screws (3) 2memory module cover
2
1
Adding and Replacing Parts 139
Replacing the Memory Module
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
1
Align the notch in the module edge connector with the tab in the
connector slot.
2
Slide the module firmly into the slot at a 45-degree angle, and rotate the
module down until it clicks into place. If you do not feel the click, remove
the module and reinstall it.
NOTE: If the memory module is not installed properly, the computer may not boot.
No error message indicates this failure.
1memory module 2securing clips (2)
2
1
140 Adding and Replacing Parts
3
Replace the memory module cover and tighten the three screws.
4
Insert the battery into the battery bay or connect the AC adapter to your
computer and an electrical outlet.
5
Turn on the computer.
As the computer boots, it detects the additional memory and automatically
updates the system configuration information.
To confirm the amount of memory installed in the computer, click
Start
→
Help and Support
→
Dell System Information.
Modem
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
1
Follow the procedures in "Before You Begin" on page 127.
2
Turn the computer over, loosen the three captive screws on the modem
cover, and then remove the cover.
3
Remove the screw securing the modem to the system board.
4
Remove the modem cable.
5
Remove the modem by using the pull-tab.

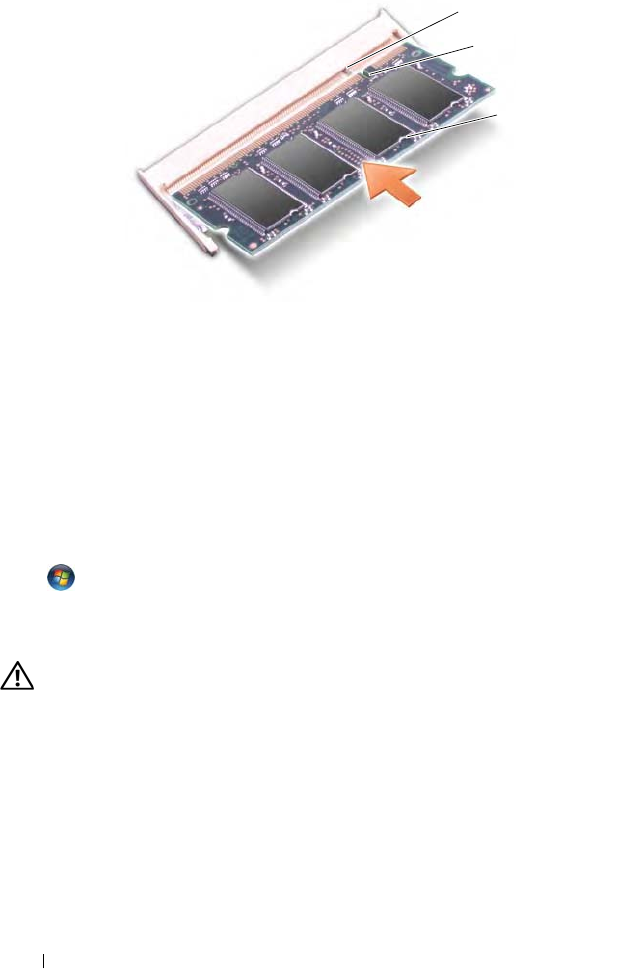

1tab 2notch 3memory module
1
3
2
Adding and Replacing Parts 141
6
Install the replacement modem by pressing the modem into the connector
on the system board.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors and realign the card.
7
Connect the modem cable.
8
Tighten the three screws and replace the modem cover.

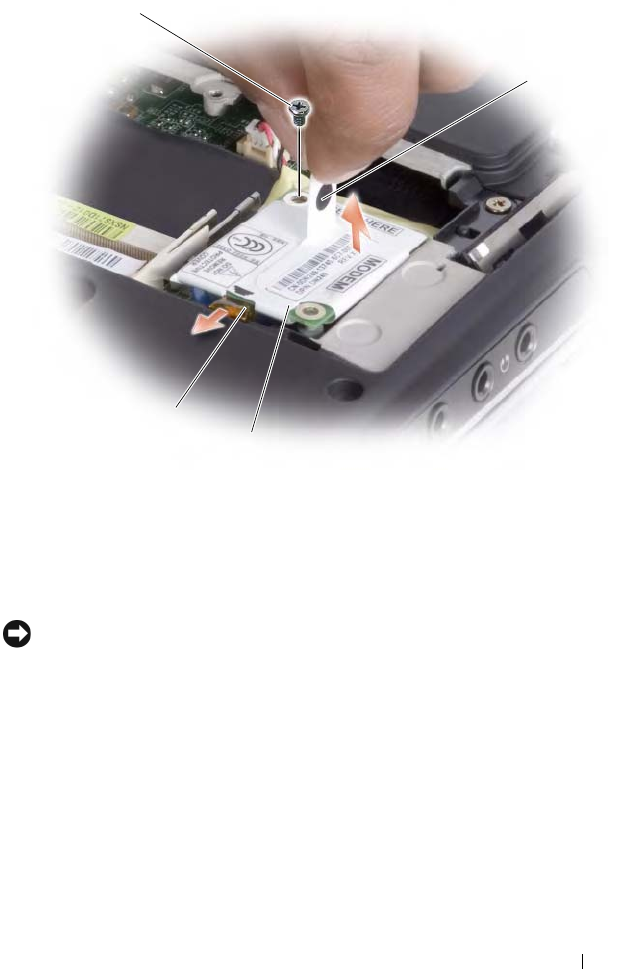

1screw 2pull-tab
3modem cable 4modem
3
4
1
2
142 Adding and Replacing Parts
Subscriber Identity Module
Subscriber Identity Modules (SIM) identify users uniquely through an
International Mobile Subscriber Identity.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: Only GSM (HSDPA) type cards need a SIM. EVDO cards do not use a SIM.
1
Follow the procedures in "Before You Begin" on page 127.
2
In the battery bay, locate the SIM compartment at the base.
3
Slide in the SIM into the compartment with the cut-off corner of the card
aligning with the cut-off corner in the SIM compartment.

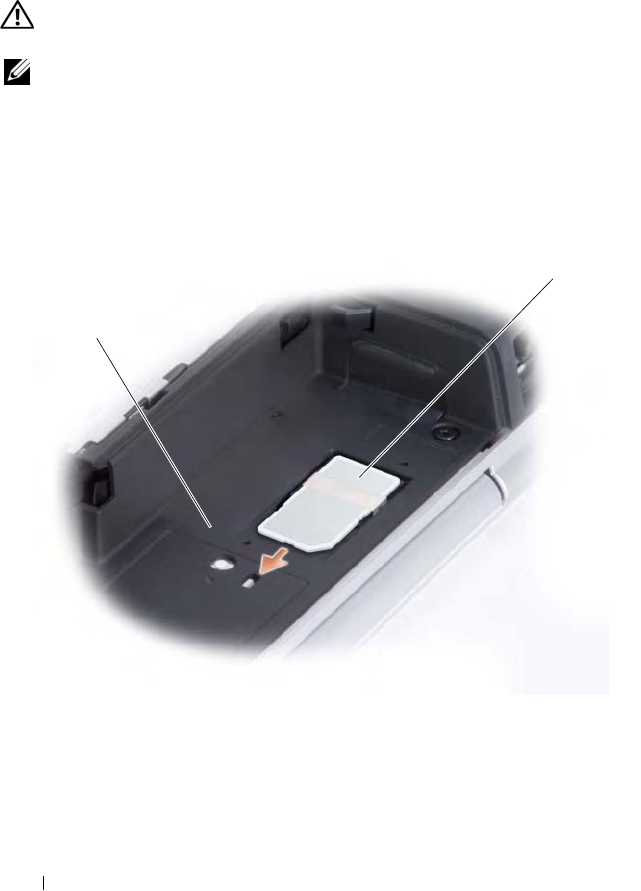

1battery bay 2SIM
1
2
Adding and Replacing Parts 143
Wireless Mini Cards
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To help prevent damage to the system board, you must remove the
battery from the battery bay before you begin working inside the computer.
If you ordered a wireless Mini Card with your computer, the card is already
installed. Your computer supports three types of wireless Mini Cards:
• Wireless Local Area Network (WLAN)
• Mobile Broadband or Wireless Wide Area Network (WWAN)
• Internal card with Bluetooth
®
wireless technology
Removing a WLAN Card
1
Follow the procedures in "Before You Begin" on page 127.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 134).
3
Remove the keyboard (see "Removing the Keyboard" on page 135).
4
Loosen the screw that secures the Mini Card to the system board.
5
Disconnect the antenna cables from the
WLAN
card.
144 Adding and Replacing Parts
6
Pull the
WLAN card
out of its system board connector.

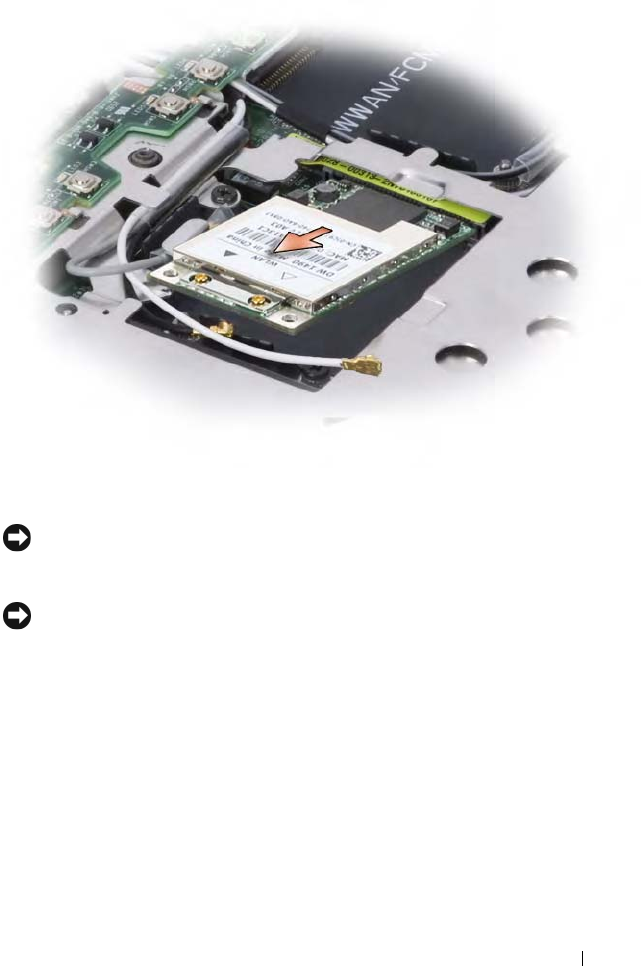

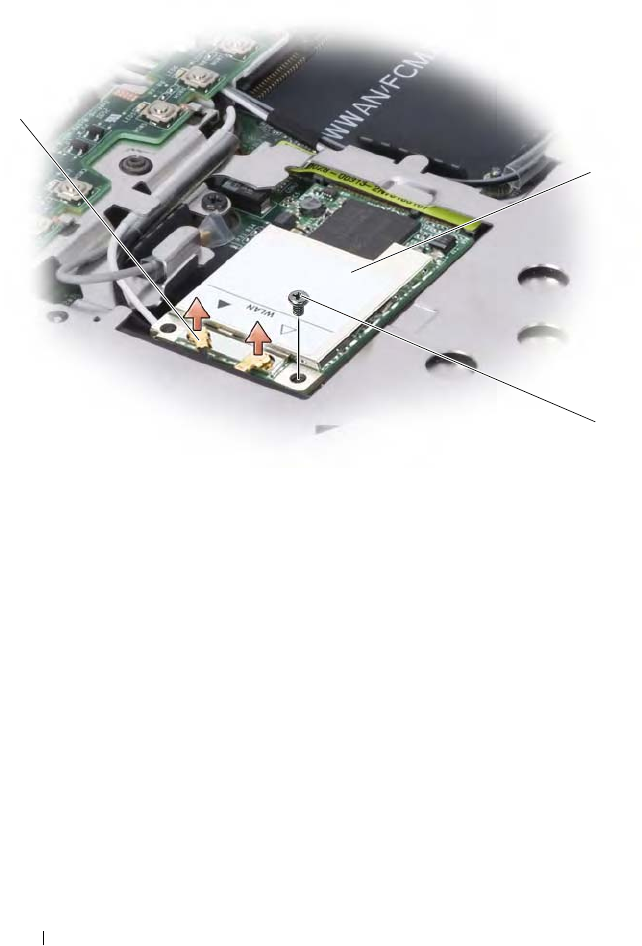

1antenna cable connectors 2WLAN card 3screw
1
2
3
Adding and Replacing Parts 145
Replacing a WLAN Card
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors on the card and on the system board, and realign
the card.
NOTICE: To avoid damage to the WLAN card, never place cables under the card.
1
Insert the
WLAN
card connector into the system board connector labeled
"WLAN" at a 45-degree angle by aligning the notch on the WLAN card to
the slot on the system board connector.
2
Press down the other end of the WLAN card and tighten the screw
securing the card to the system board.
146 Adding and Replacing Parts
3
Connect the appropriate antenna cables to the
WLAN
card you are
installing:
If the WLAN card has two triangles on the label (white and black),
connect the white antenna cable to the connector labeled "main" (white
triangle), and connect the black antenna cable to the connector labeled
"aux" (black triangle).
If the WLAN card has three triangles on the label (white, black, and gray),
connect the white antenna cable to the white triangle, connect the black
antenna cable to the black triangle, and connect the gray antenna cable to
the gray triangle.
4
Secure unused antenna cables in the protective mylar sleeve.
5
Replace the keyboard (see "Replacing the Keyboard" on page 136).
6
Replace the hinge cover (see "Replacing the Hinge Cover" on page 134).
Internal Card with Bluetooth® Wireless Technology
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
computer.
If you ordered an internal card with Bluetooth wireless technology with your
computer, it is already installed.
1
Follow the procedures in "Before You Begin" on page 127.
2
Remove the memory module cover (see "Memory" on page 137).
Adding and Replacing Parts 147
NOTICE: Be careful when removing the card to avoid damaging the card, card
cable, or surrounding components.
3
While grasping the card cable with one hand, use a plastic scribe to gently
pry the card out from underneath the metal tab with the other hand
.
4
Lift the card from the compartment, ensuring that you do not pull on the
card cable with excessive force.
5
Disconnect the card from the cable and remove the card from the
computer.
Removing a Mobile Broadband or WWAN Card
NOTE: WWAN is also available on an ExpressCard (see "ExpressCards" on
page 73).
NOTE: WWAN card and FCM share the same slot. You can install only one card at
a time.
1
Follow the procedures in "Before You Begin" on page 127.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 134).
3
Remove the keyboard (see "Removing the Keyboard" on page 135).

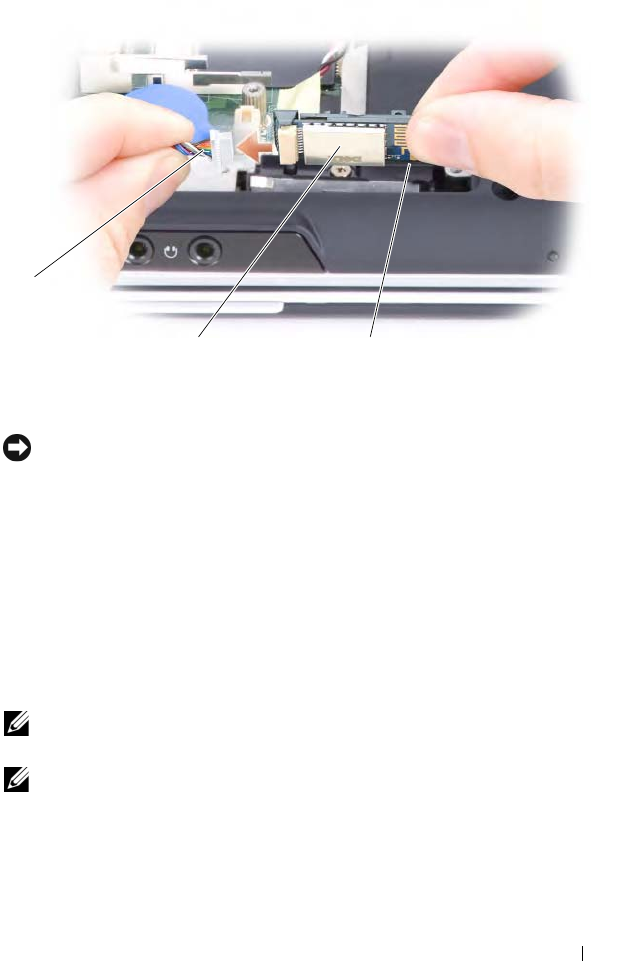

1card cable 2card 3metal tab
32
1
148 Adding and Replacing Parts
4
Loosen the screw that secures the Mini Card to the system board.
5
Disconnect the antenna cables from the
WWAN
card.
6
Pull the
WWAN card
out of its system board connector.

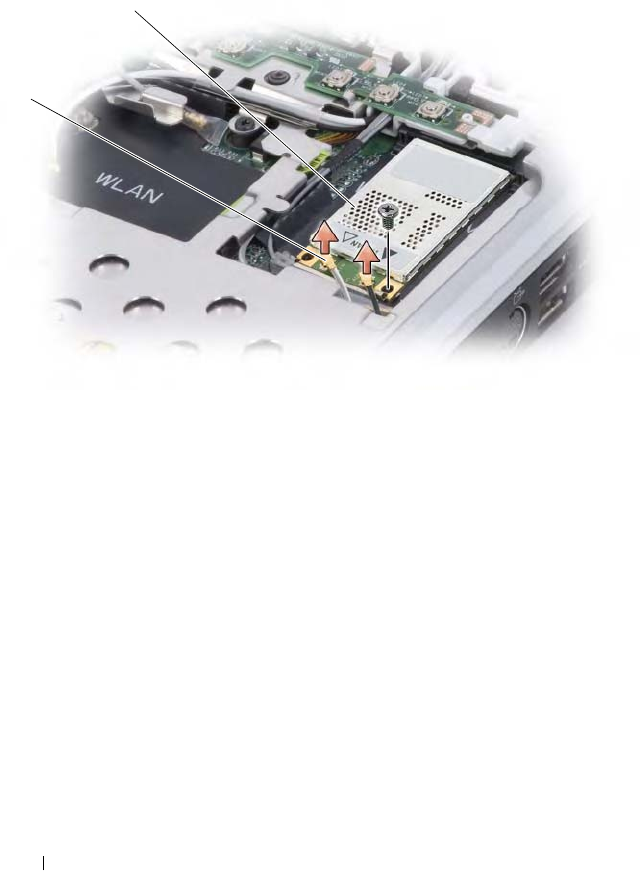

1WWAN card 2antenna cables (2)
1
2
Adding and Replacing Parts 149

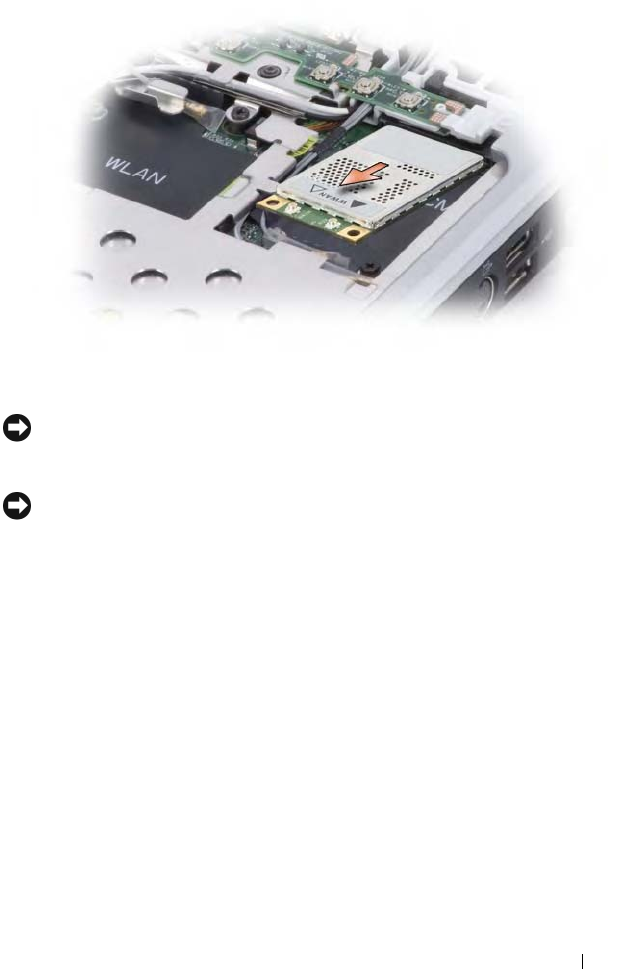

Replacing a WWAN Card
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors on the card and on the system board, and realign
the card.
NOTICE: To avoid damage to the WWAN card, never place cables under the card.
1
Insert the
WWAN
card connector into the system board connector labeled
"WWAN" at a 45-degree angle by aligning the notch on the WWAN card
to the slot on the system board connector.
2
Press down the other end of the WWAN card and tighten the screw
securing the card to the system board.
3
Connect the appropriate antenna cables to the
WWAN
card you are
installing.
Connect the white striped cable to the connector on the card marked with
a white triangle. Connect the black striped cable to the connector on the
card marked with a black triangle.
4
Secure unused antenna cables in the protective mylar sleeve.
5
Replace the keyboard (see "Replacing the Keyboard" on page 136).
6
Replace the hinge cover (see "Replacing the Hinge Cover" on page 134).
150 Adding and Replacing Parts
Flash Cache Module
The Flash Cache Module (FCM), is an internal flash drive that helps improve
the performance of your computer.
NOTE: This card is only compatible with the Windows Vista™ operating system.
NOTE: If you ordered a FCM with your computer, the card is already
installed.
NOTE: WWAN card and FCM share the same slot. You can install only one card at
a time.
Removing the FCM
1
Follow the procedures in "Before You Begin" on page 127.
2
Remove the hinge cover (see "Hinge Cover" on page 133).
3
Remove the keyboard (see "Keyboard" on page 135).
4
Ground yourself by touching one of the metal connectors on the back of
the computer.
NOTE: If you leave the area, ground yourself again when you return to the
computer.
5
Remove the screw securing the FCM to the system board.
6
Lift the card out of its connector.

Navigation menu
