3. Making Configuration
AirLive GW-300NAS User’s Manual 37

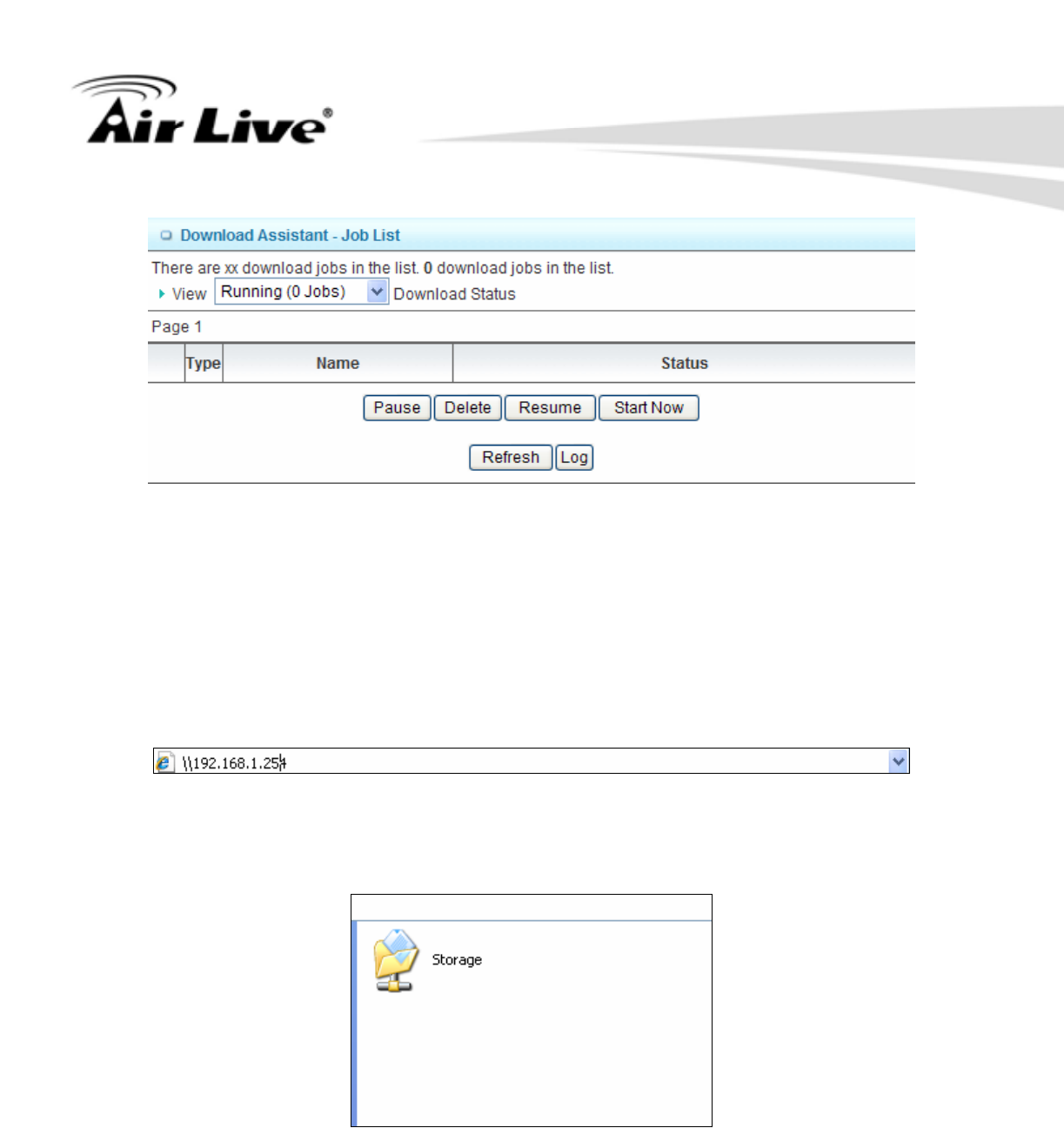

Download Status
At this page, you could check the download jobs of HTTP and FTP.
How to access data on the NAS?
Windows User
By network place
Then start your “file manager”, type the IP with “\\” on the beginning, as follow picture shown.
Then press enter.
You could find a folder named “Storage”. It is what you are looking for.
3. Making Configuration
AirLive GW-300NAS User’s Manual
38

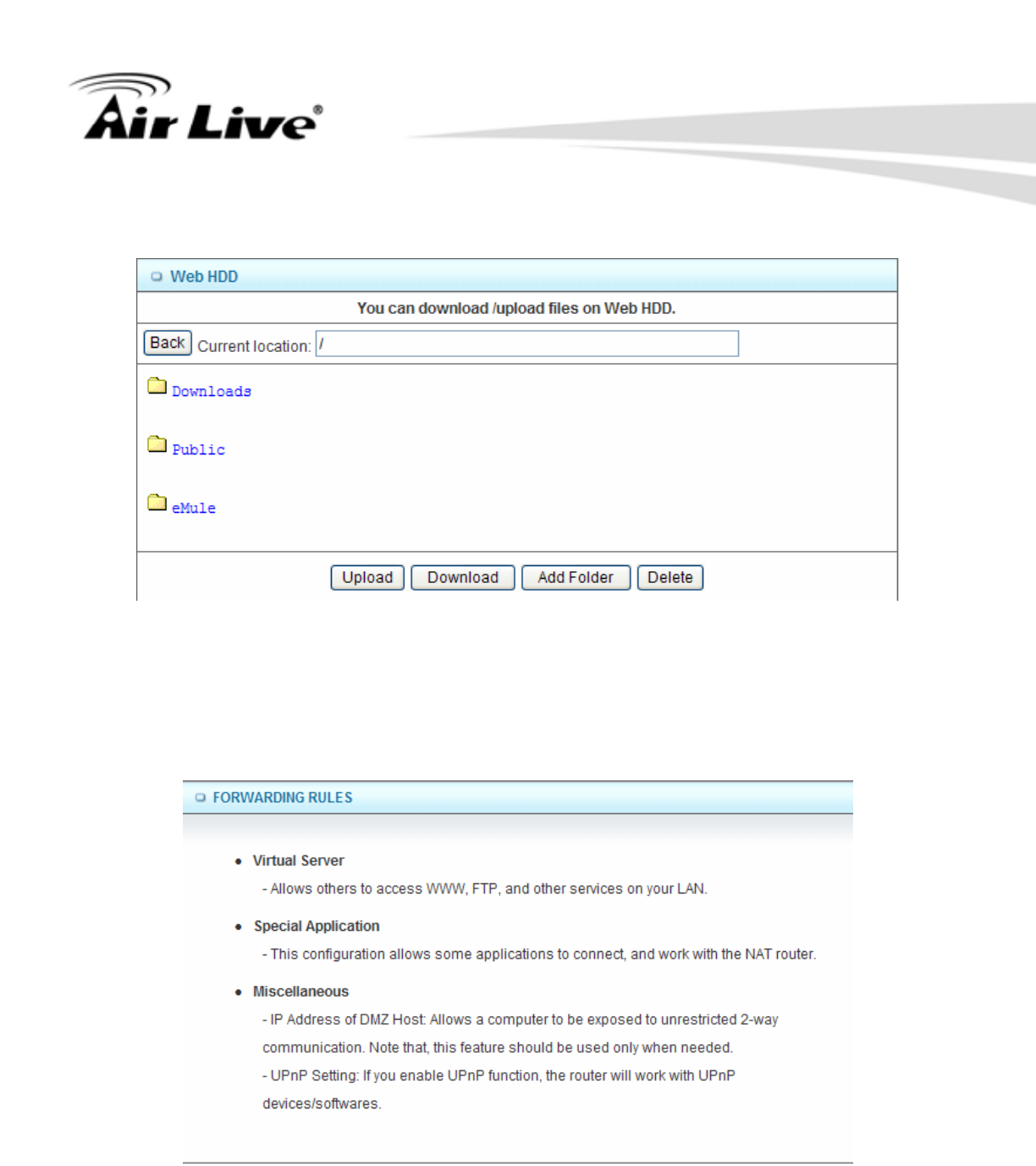

By Web HDD
This Web HDD can allow you to enter HDD by web UI, and also can allow you to
let ‘guest’ to enter the ‘public’ area only.
Unix User
We do not provide NFS support, so the only way for UNIX to get files is FTP.
Use your FTP client to connect the FTP server.
3.2 Forwarding Rules
3. Making Configuration
AirLive GW-300NAS User’s Manual 39
Virtual Server
This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all
hosts behind this product are invisible to the outside world. If you wish, you can make some of
them accessible by enabling the Virtual Server Mapping.
A virtual server is defined as a Service Port, and all requests to this port will be redirected to
the computer specified by the Server IP. Virtual Server can work with Scheduling Rules, and
give user more flexibility on Access control. For the details, please refer to Scheduling Rule.
For example, if you have an FTP server (port 21) at 192.168.1.1, a Web server (port 80) at
192.168.1.2, and a VPN server at 192.168.1.6, then you need to specify the following virtual
server mapping table:
Service Port Server IP Enable
21 192.168.1.1 V
80 192.168.1.2 V
1723 192.168.1.6 V
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
3. Making Configuration
AirLive GW-300NAS User’s Manual
40

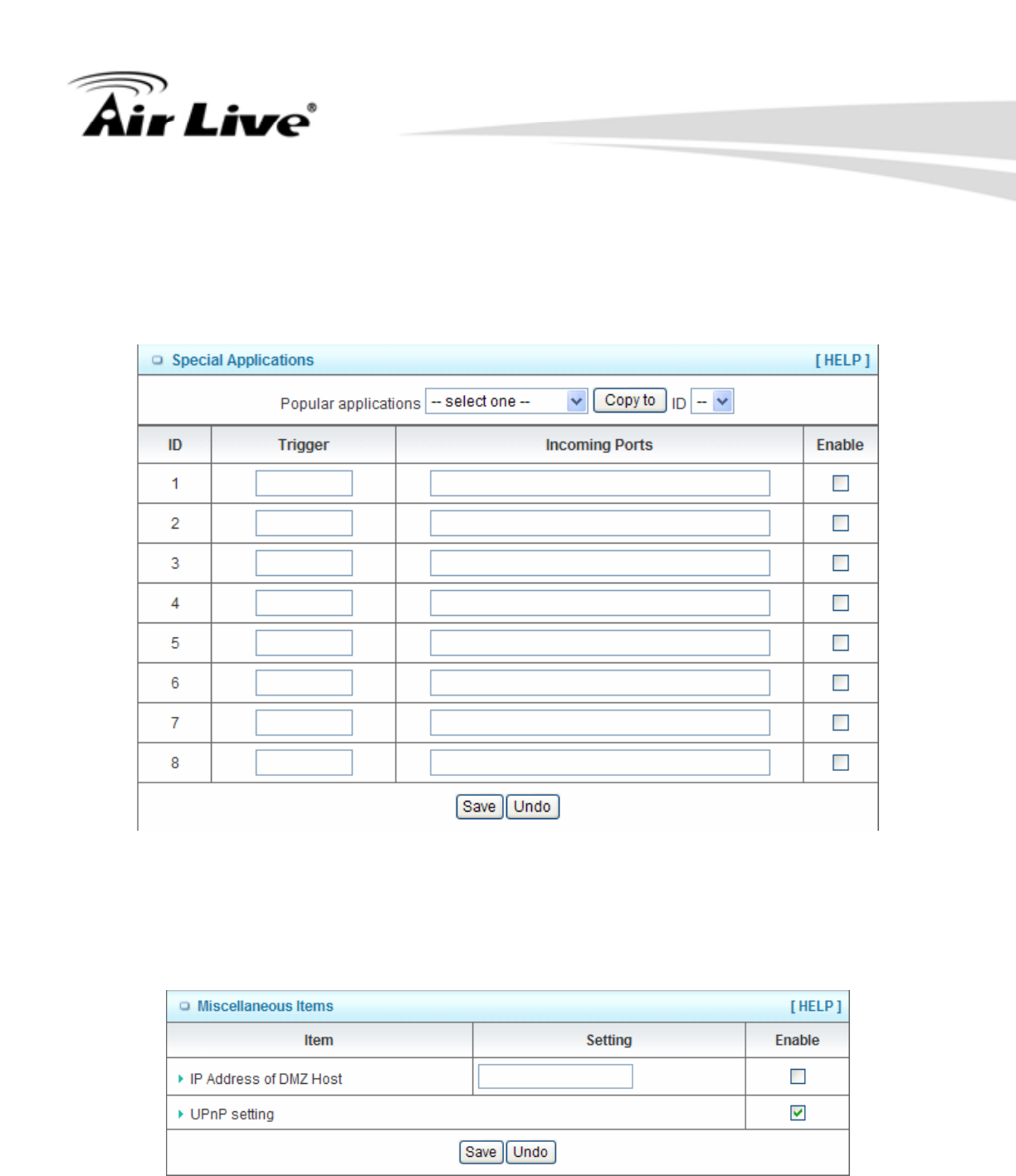

Special AP
Some applications require multiple connections, like Internet games, Video conferencing,
Internet telephony, etc. Because of the firewall function, these applications cannot work with a
pure NAT router. The Special Applications feature allows some of these applications to work
with this product. If the mechanism of Special Applications fails to make an application work,
try setting your computer as the DMZ host instead.
This device provides some predefined settings. Select your application and click “Copy to” to
add the predefined setting to your list.
Trigger: The outbound port number issued by the application.
Incoming Ports: When the trigger packet is detected, the inbound packets sent to the specified
port numbers are allowed to pass through the firewall.
Afterwards, Click on “Save” to store your settings or click “Undo” to give up the changes.
Miscellaneous
3. Making Configuration
AirLive GW-300NAS User’s Manual 41
IP Address of DMZ Host
DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a computer
to be exposed to unrestricted 2-way communication for Internet games, Video conferencing,
Internet telephony and other special applications.
UPnP Setting
The device supports the UPnP function. If the OS of your client computer supports this function,
and you enabled it, like Windows XP, you can see the following icon when the client computer
gets IP from the device.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
3.3 Security Setting
3. Making Configuration
AirLive GW-300NAS User’s Manual
42

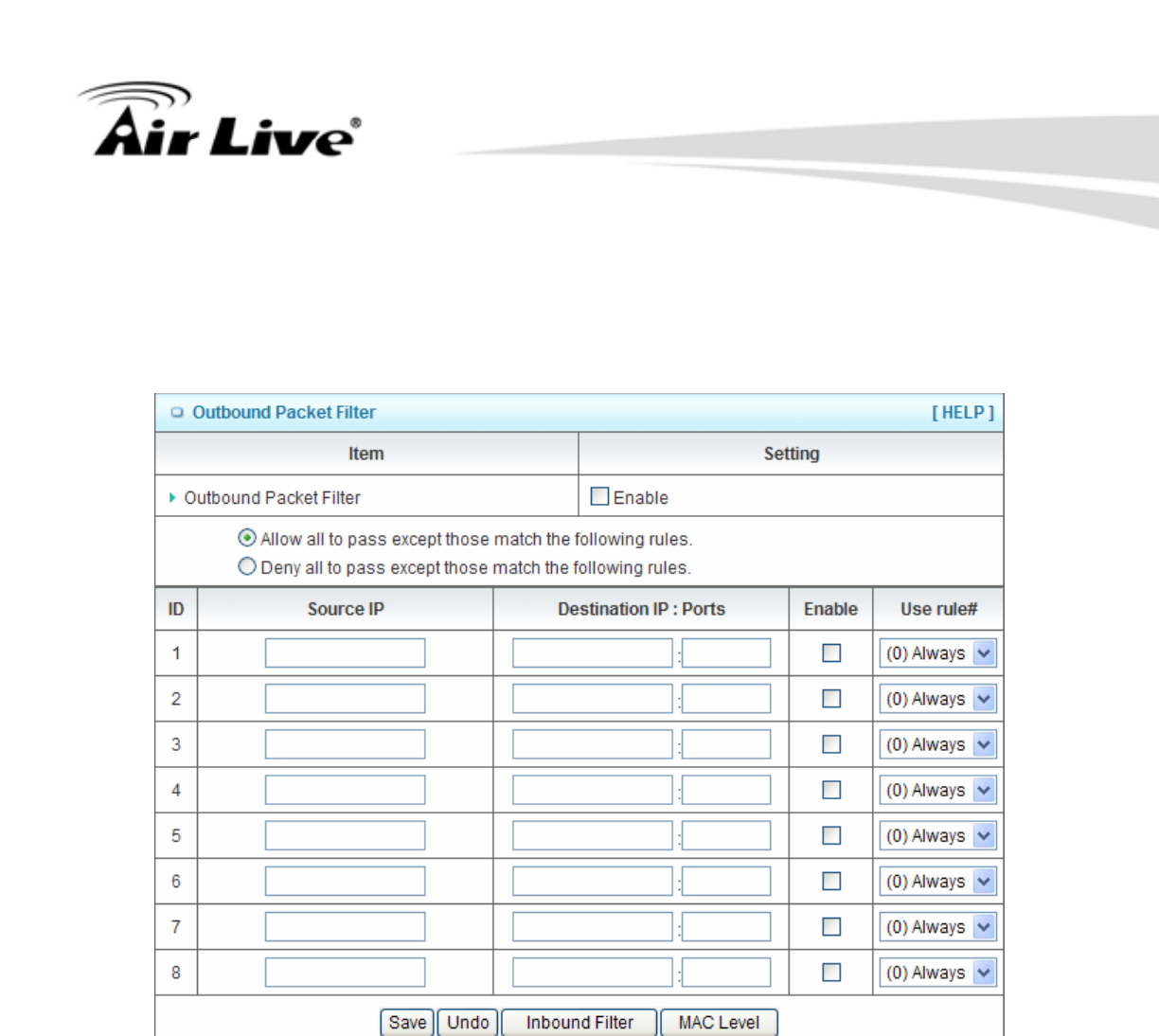

Packet Filters
Packet Filter includes both outbound filter and inbound filter. And they have same way to
setting. It enables you to control what packets are allowed to pass the router. Outbound filter
applies on all outbound packets. However, inbound filter applies on packets that destined to
Virtual Servers or DMZ host only. You can select one of the two filtering policies:
Allow all to pass except those match the specified rules.
Deny all to pass except those match the specified rules.
You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define
the following:
Source IP address
Source port
Destination IP address
Destination port
Protocol: TCP or UDP or both.
Use Rule#
For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of
IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.
3. Making Configuration
AirLive GW-300NAS User’s Manual 43
For source or destination port, you can define a single port (80) or a range of ports
(1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53,
U2000-2999, No prefix indicates both TCP and UDP are defined. An empty implies all port
addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on
Access control. For Detail, please refer to Scheduling Rule.
Each rule can be enabled or disabled individually.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

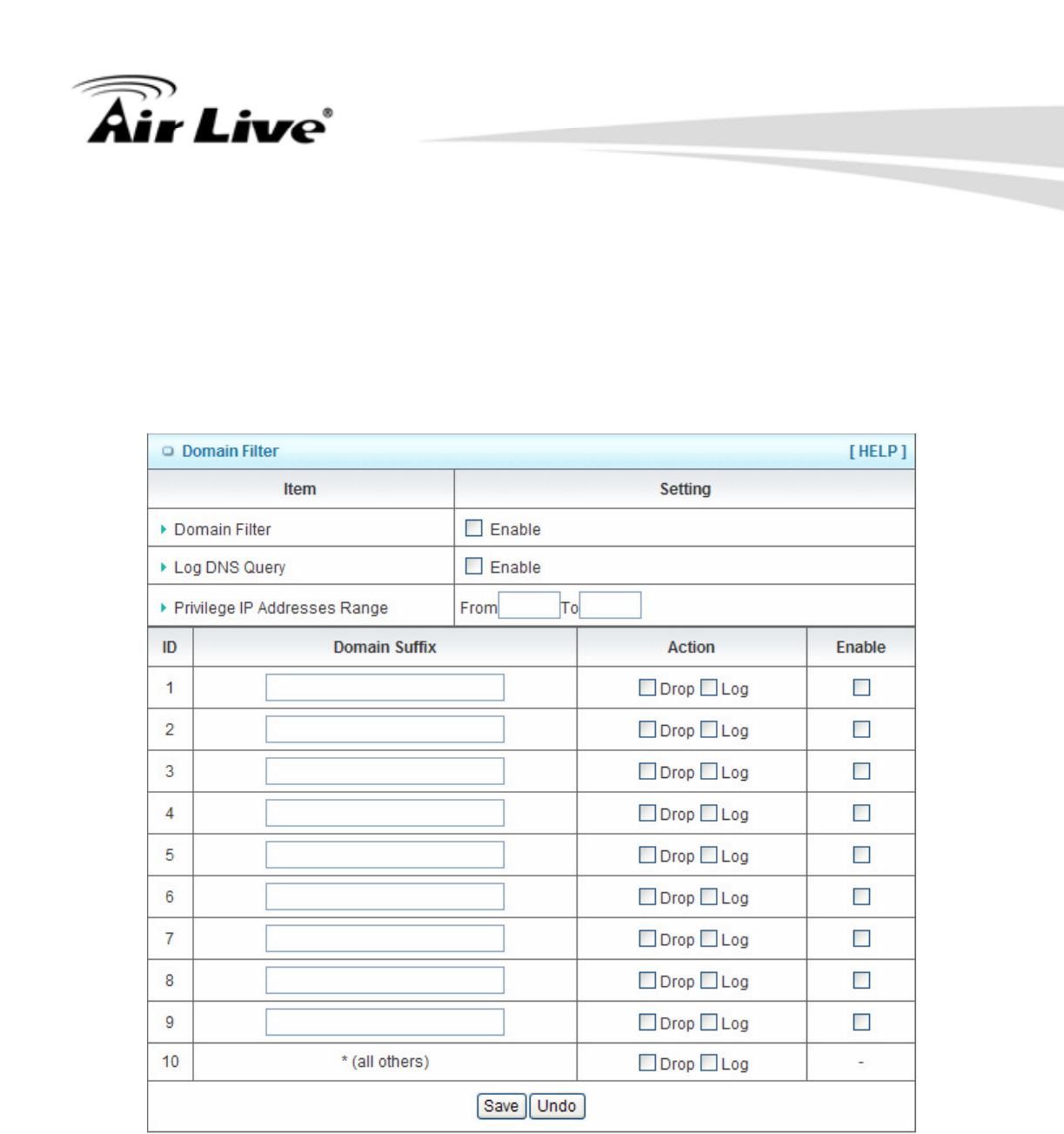

Domain Filters
Domain Filter prevents users under this device from accessing specific URLs.
Domain Filter: Check if you want to enable Domain Filter.
Log DNS Query: Check if you want to log the action when someone accesses the specific
URLs.
3. Making Configuration
AirLive GW-300NAS User’s Manual
44
Privilege IP Address Range: Setting a group of hosts and privilege these hosts to access
network without restriction.
Domain Suffix: A suffix of URL can be restricted, for example, ".com", "xxx.com".
Action: When someone is accessing the URL met the domain-suffix, what kind of action you
want.
Check “Drop” to block the access. Check “Log” to log these access.
Enable: Check to enable each rule.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

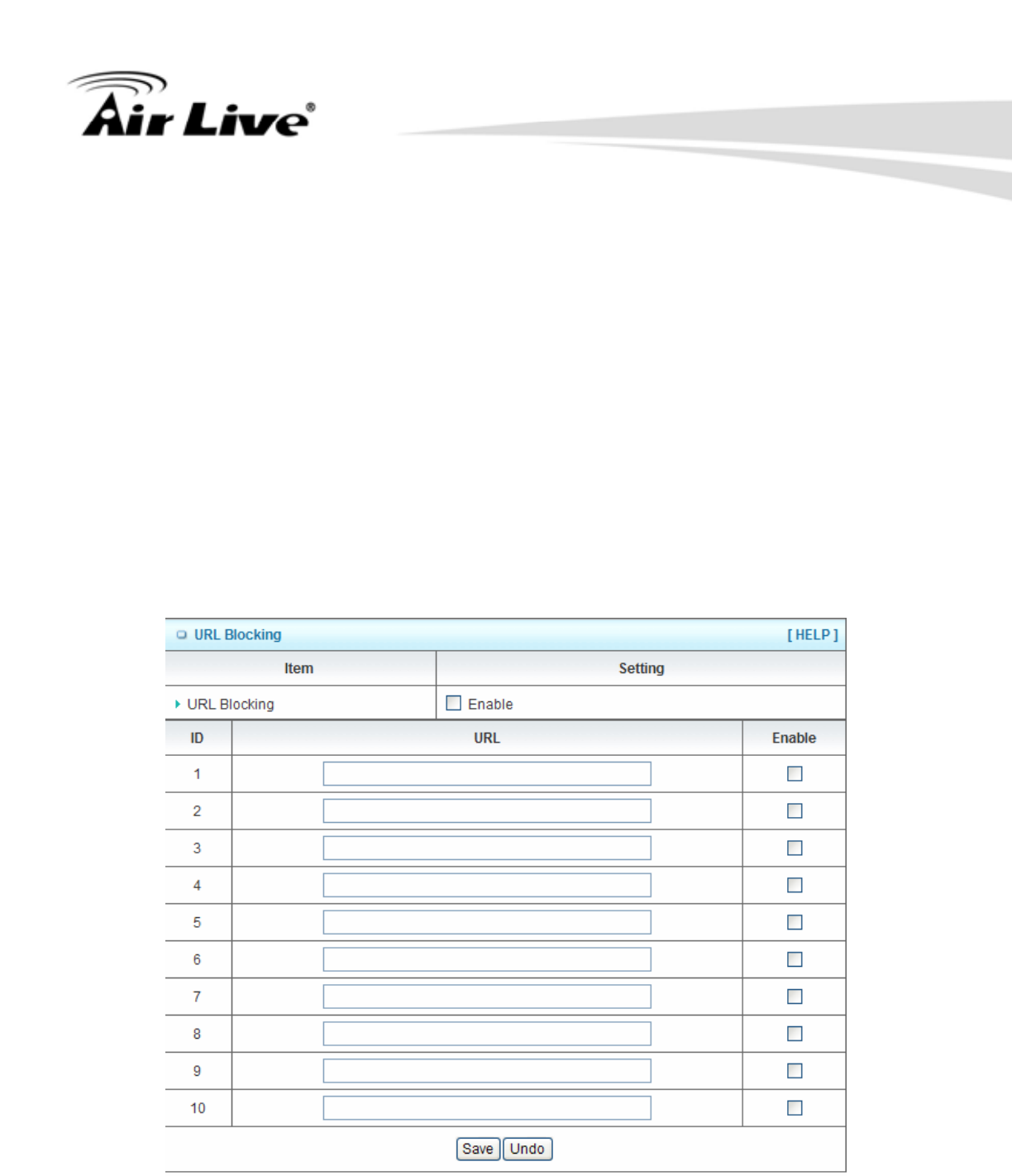

URL Blocking
URL Blocking will block LAN computers to connect with pre-define Websites. The major
difference between “Domain filter” and “URL Blocking” is Domain filter requires user to input
suffix (like .com or .org, etc), while URL Blocking requires user to input a keyword only. In other
words, Domain filter can block specific website, while URL Blocking can block hundreds of
websites by simply a keyword.
3. Making Configuration
AirLive GW-300NAS User’s Manual 45
URL Blocking: Check if you want to enable URL Blocking.
URL: If any part of the Website's URL matches the pre-defined word, the connection will be
blocked.
For example, you can use pre-defined word "sex" to block all websites if their URLs contain
pre-defined word "sex".
Enable: Check to enable each rule.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
MAC Control
MAC Address Control allows you to assign different access right for different users and to
assign a specific IP address to a certain MAC address.
MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of the settings
in this page will take effect only when “Enable” is checked.
3. Making Configuration
AirLive GW-300NAS User’s Manual
46
Connection control: Check "Connection control" to enable the controlling of which wired and
wireless clients can connect with this device. If a client is denied to connect with this device, it
means the client can't access to the Internet either. Choose "allow" or "deny" to allow or deny
the clients, whose MAC addresses are not in the "Control table" (please see below), to connect
with this device.
Association control: Check "Association control" to enable the controlling of
which wireless client can associate to the wireless LAN. If a client is denied to associate to the
wireless LAN, it means the client can't send or receive any data via this device. Choose "allow"
or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control table", to
associate to the wireless LAN.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

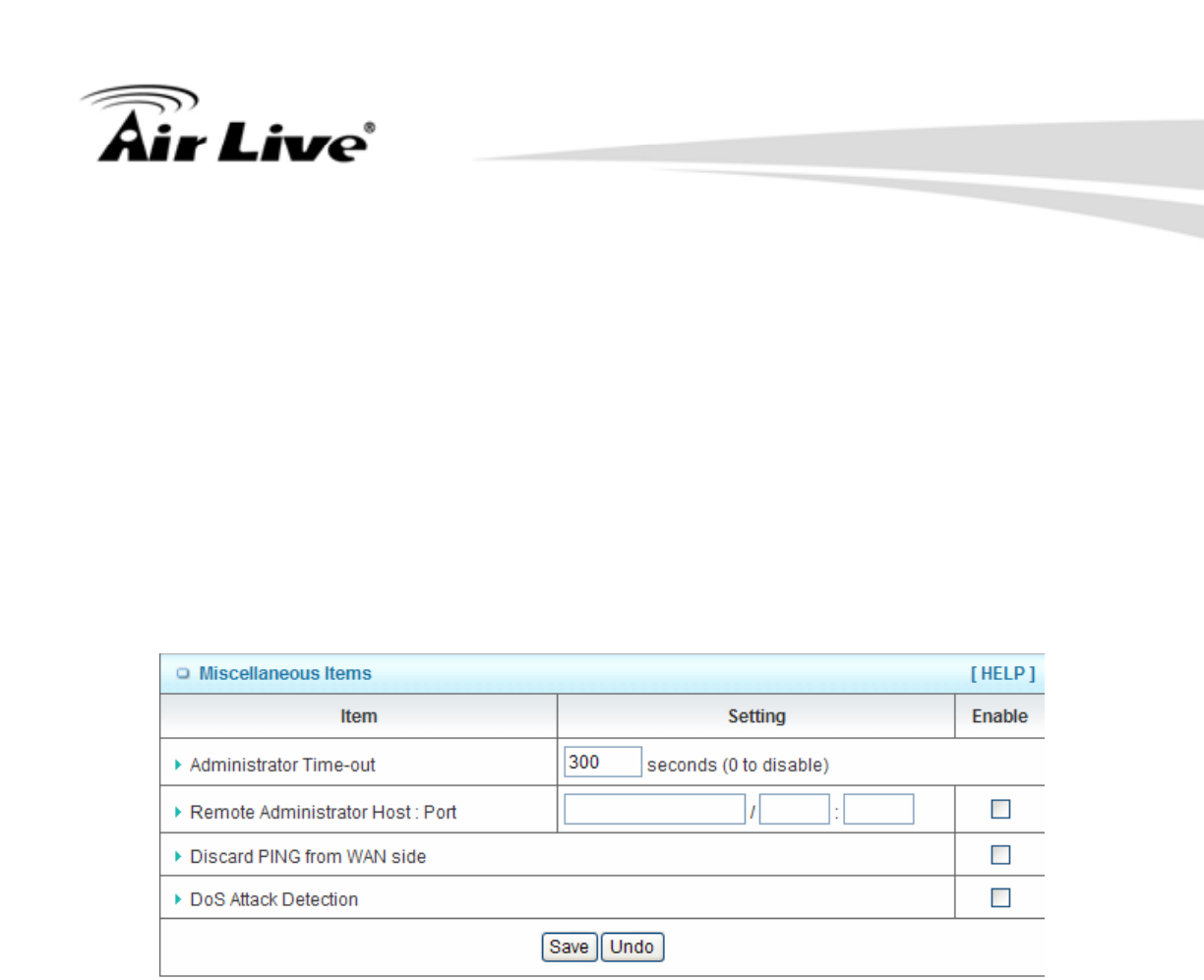

Miscellaneous
Administrator Time-out: The time of no activity to logout automatically, you may set it to zero to
disable this feature.
Remote Administrator Host/Port
In general, only Internet user can browse the built-in web pages to perform administration task.
This feature enables you to perform administration task from remote host. If this feature is
enabled, only the specified IP address can perform remote administration. If the specified IP
address is 0.0.0.0, any host can connect with this product to perform administration task. You
can use subnet mask bits "/nn" notation to specified a group of trusted IP addresses for
example, "10.1.2.0/24".
NOTE: When Remote Administration is enabled, the web server port will be shifted to 80. You
can change web server port to other port, too.
Discard PING from WAN side: When this feature is enabled, any host on the WAN cannot ping
this product.
3. Making Configuration
AirLive GW-300NAS User’s Manual 47
DoS Attack Detection: When this feature is enabled, the router will detect and log the DoS
attack coming from the Internet. Currently, the router can detect the following DoS attack: SYN
Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

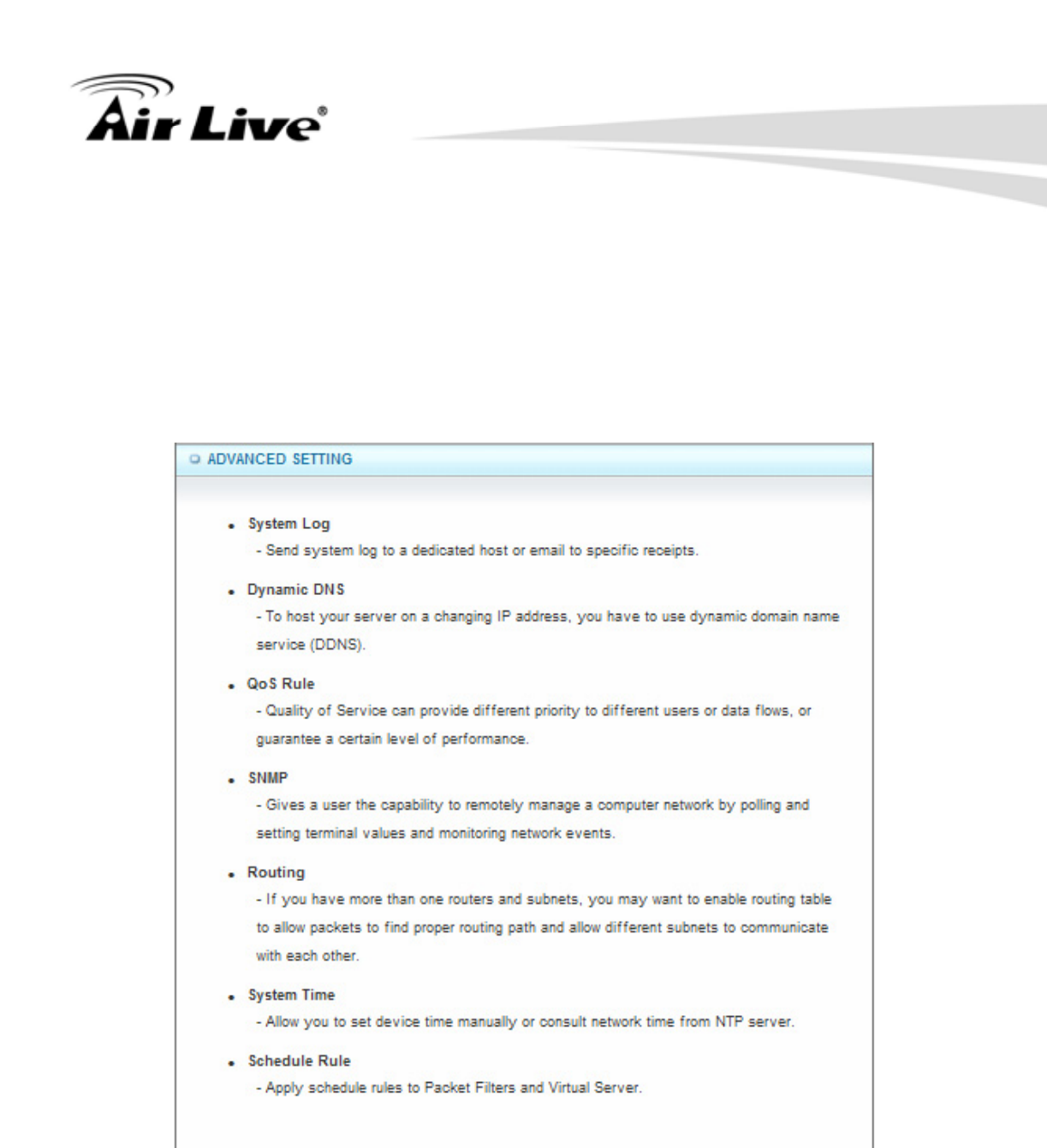

3.4 Advanced Setting
3. Making Configuration
AirLive GW-300NAS User’s Manual
48

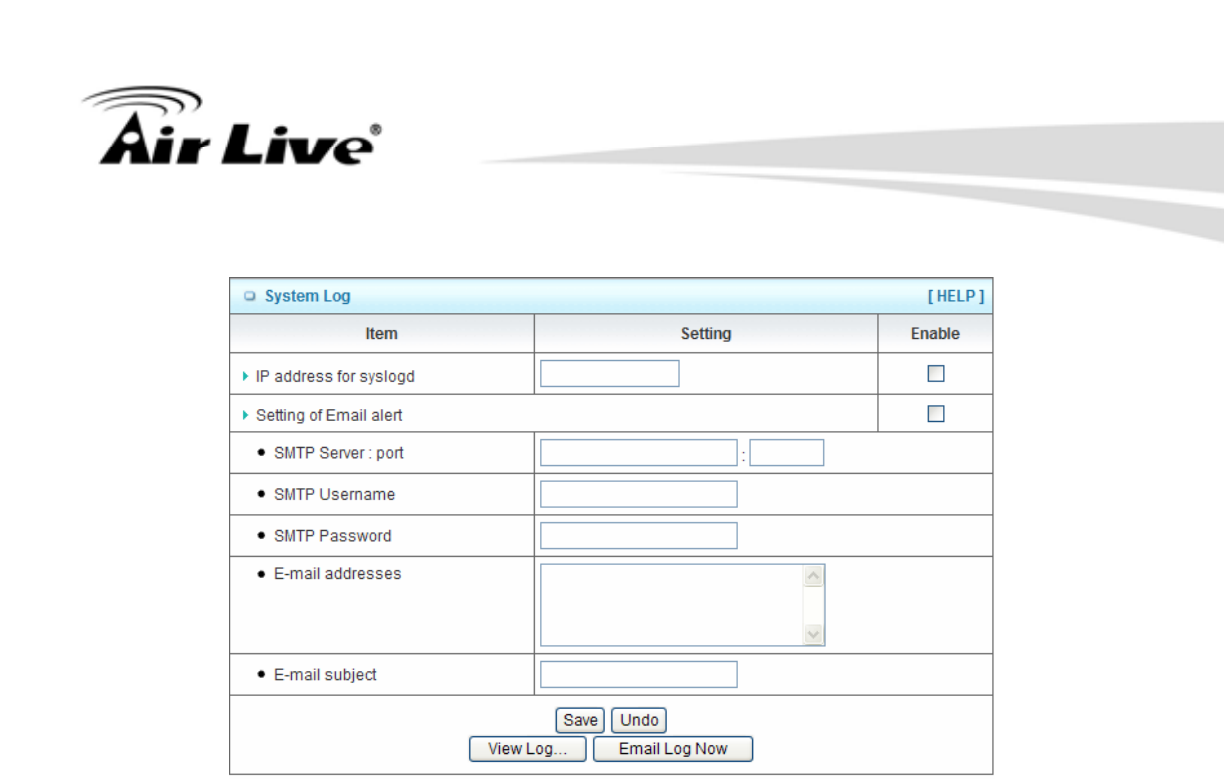

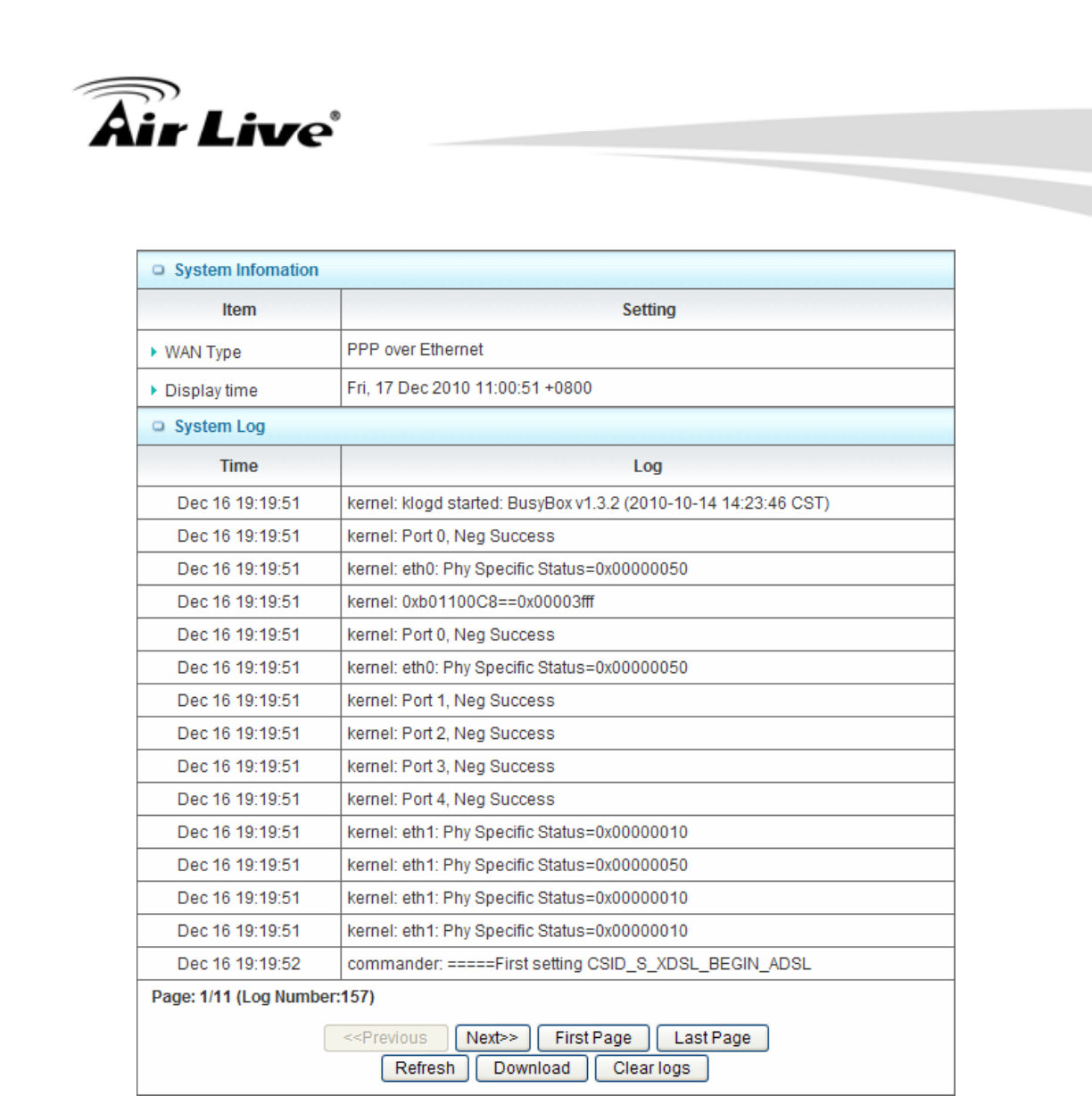

System Log
This page supports two methods to export system logs to specific destination by means of
syslog (UDP) and SMTP(TCP). The items you have to setup include:
IP Address for Syslog: Host IP of destination where syslog will be sent to. Check Enable to
enable this function.
Setting of Email alert: Check if you want to enable Email alert (send syslog via email).
SMTP Server: Port: Input the SMTP server IP and port, which are connected with ':'. If you do
not specify port number, the default value is 25.
For example, "mail.your_url.com" or "192.168.1.100:26".
SMTP Username: Enter the Username offered by your ISP.
SMTP Password: Enter the User name offered by your ISP.
E-mail Addresses: The recipients are the ones who will receive these logs. You can assign
more than 1 recipient, using ';' or ',' to separate these email addresses.
E-mail Subject: The subject of email alert is optional.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

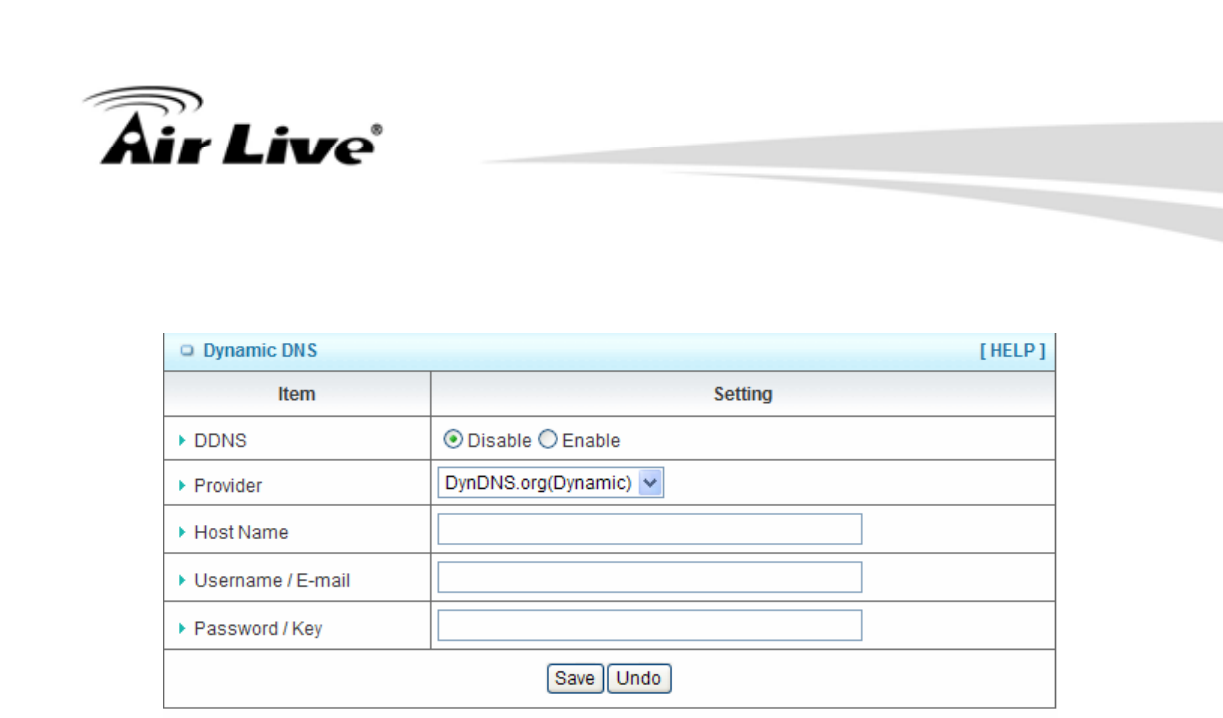

Dynamic DNS
To host your server on a changing IP address, you have to use dynamic domain name service
(DDNS). Therefore, anyone wishing to reach your host only needs to know the name of it.
Dynamic DNS will map the name of your host to your current IP address, which changes each
time you connect your Internet service provider.
3. Making Configuration
AirLive GW-300NAS User’s Manual 49
Before you enable Dynamic DNS, you need to register an account on one
of these Dynamic DNS servers that we list in Provider field.
DDNS: Select enable if you would like to trigger this function.
Provider: The DDNS provider supports service for you to bind your IP(even private IP) with a
certain Domain name. You could choose your favorite provider.
Host Name: Register a domain name to the DDNS provider. The fully domain name is
concatenated with hostname(you specify) and a suffix(DDNS provider specifies).
Username/E-mail: Input username or E-mail based on the DDNS provider you select.
Password/Key: Input password or key based on the DDNS provider you select.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
3. Making Configuration
AirLive GW-300NAS User’s Manual
50
QoS
QoS provide different priority to different users or data flows, or guarantee a certain level of
performance.
QoS Control: Check Enable to enable this function.
Bandwidth of Upstream: Set the limitation of upstream bandwidth.
Local IP : Ports: Define the Local IP address and ports of packets.
Remote IP : Ports: Define the Remote IP address and ports of packets.
QoS Priority : This defines the priority level of the current Policy Configuration. Packets
associated with this policy will be serviced based upon the priority level set. For critical
applications High or Normal level is recommended. For non-critical applications select a Low
level.
Enable: Check to enable the corresponding QOS rule.
User Rule#: The QoS rule can work with Scheduling Rule number#. Please refer to the Section
3.4.1.7 Schedule Rule.
3. Making Configuration
AirLive GW-300NAS User’s Manual 51
Afterwards, Click on “Save” to store your settings or click “Undo” to give up the changes.
SNMP
In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a
user the capability to remotely manage a computer network by polling and setting terminal
values and monitoring network events.
Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If “Local”
is checked, this device will respond request from LAN. If “Remote” is checked, this device will
respond request from WAN.
Get Community: The community of GetRequest is that this device will respond.
Set Community: The community of SetRequest is that this device will accept.
IP 1, IP 2, IP 3, IP 4: Enter the IP addresses of your SNMP Management PCs. User has to
configure where this device should send SNMP Trap message.
SNMP Version: Select proper SNMP Version that your SNMP Management software supports.
WAN Access IP Address: If you want to limit the remote SNMP access to specific computer,
please enter the PC’s IP address. The default value is 0.0.0.0, and it means that any Internet
connected computer can get some information of the device with SNMP protocol.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
3. Making Configuration
AirLive GW-300NAS User’s Manual
52

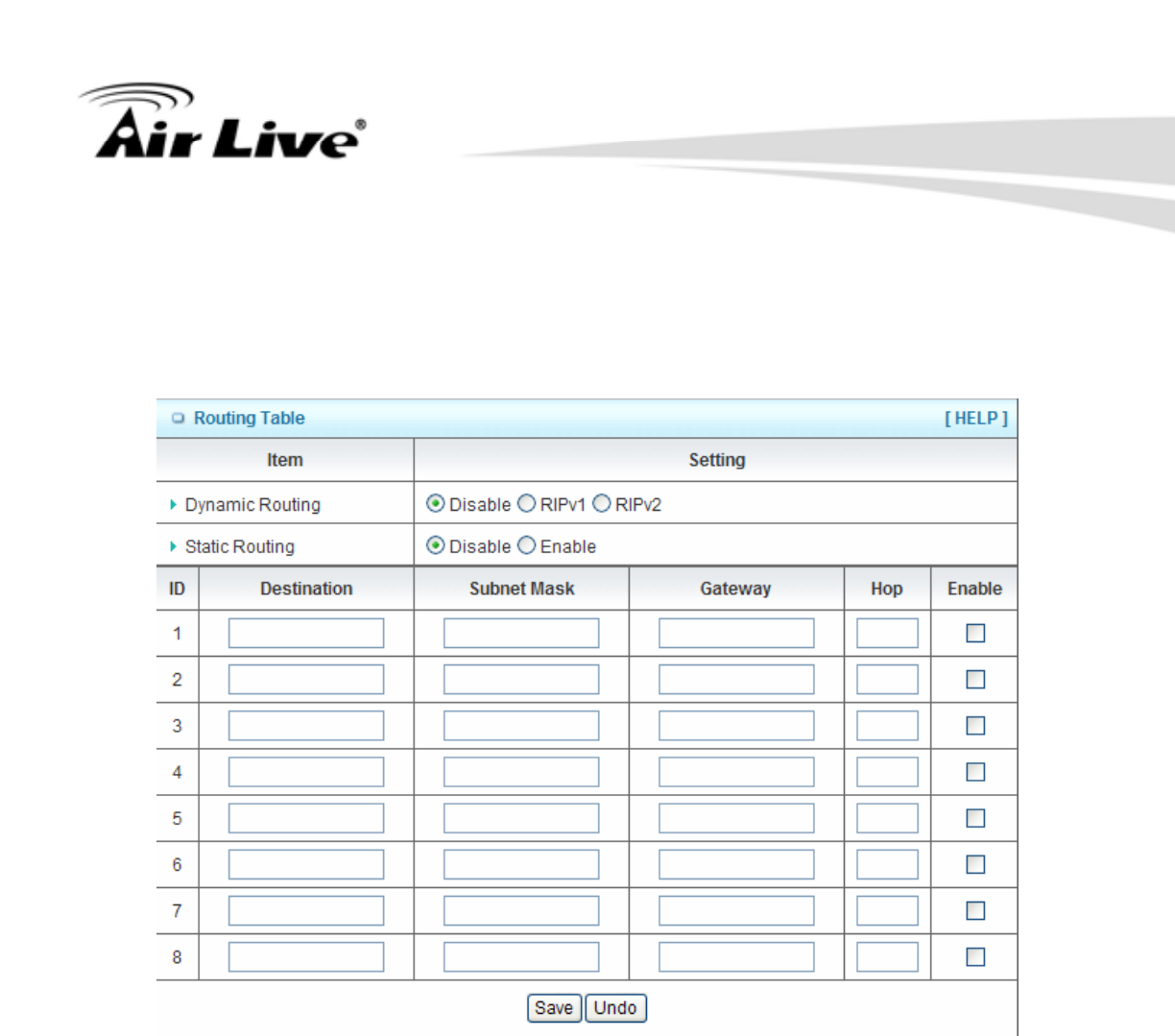

Routing
If you have more than one routers and subnets, you will need to enable routing table to allow
packets to find proper routing path and allow different subnets to communicate with each other.
The routing table allows you to determine which physical interface addresses are utilized for
outgoing IP data grams.
Dynamic Routing: Routing Information Protocol (RIP) will exchange information about
destinations for computing routes throughout the network. Please select RIPv2 only if you
have different subnets in your network. Otherwise, please select RIPv1 if you need this
protocol.
Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the
destination IP address, subnet mask, gateway, and hop for each routing rule, and then enable
or disable the rule by checking or un-checking the Enable checkbox.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
3. Making Configuration
AirLive GW-300NAS User’s Manual 53

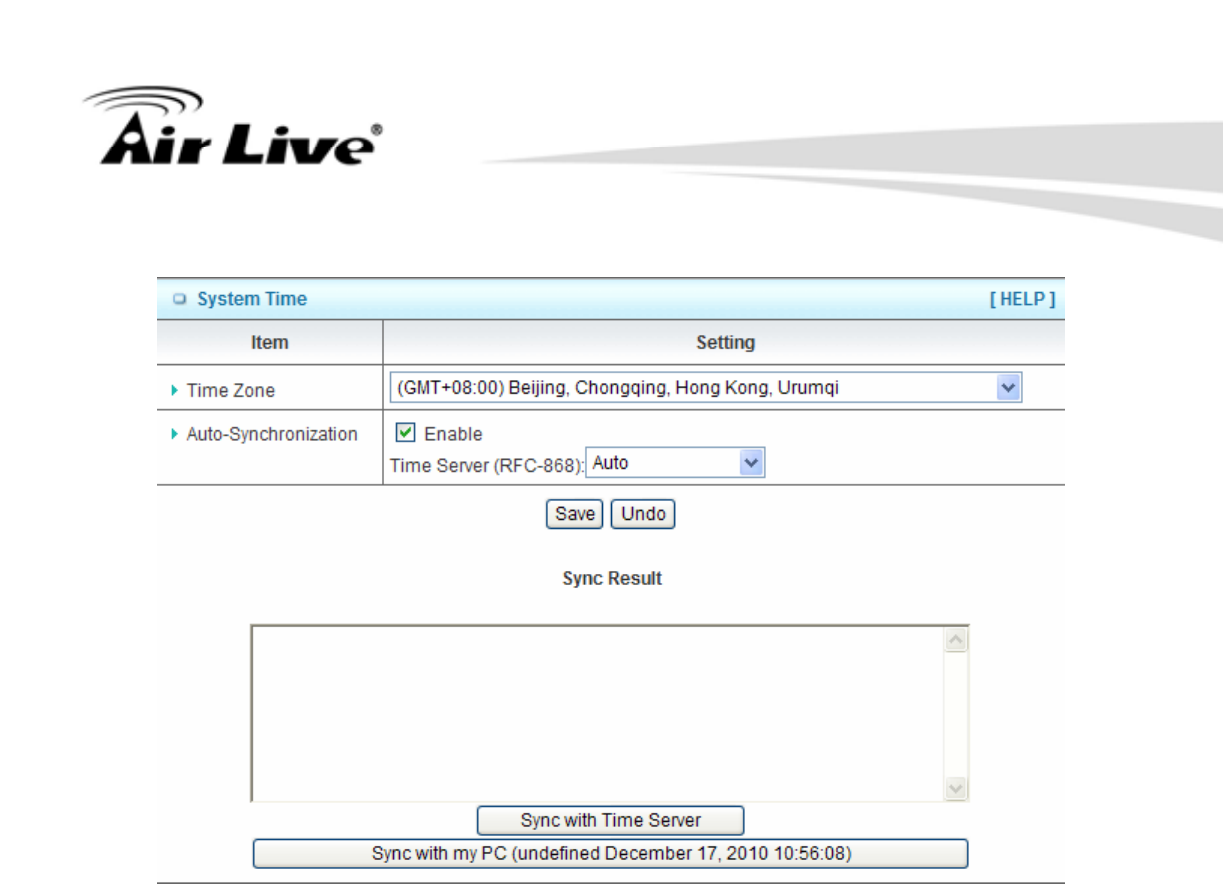

System Time
Time Zone: Select a time zone where this device locates.
Auto-Synchronization: Check the “Enable” checkbox to enable this function. Besides, you can
select a NTP time server to consult UTC time.
Sync with Time Server: Click on the button if you want to set Date and Time by NTP Protocol .
Sync with my PC: Click on the button if you want to set Date and Time using PC’s Date and
Time.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

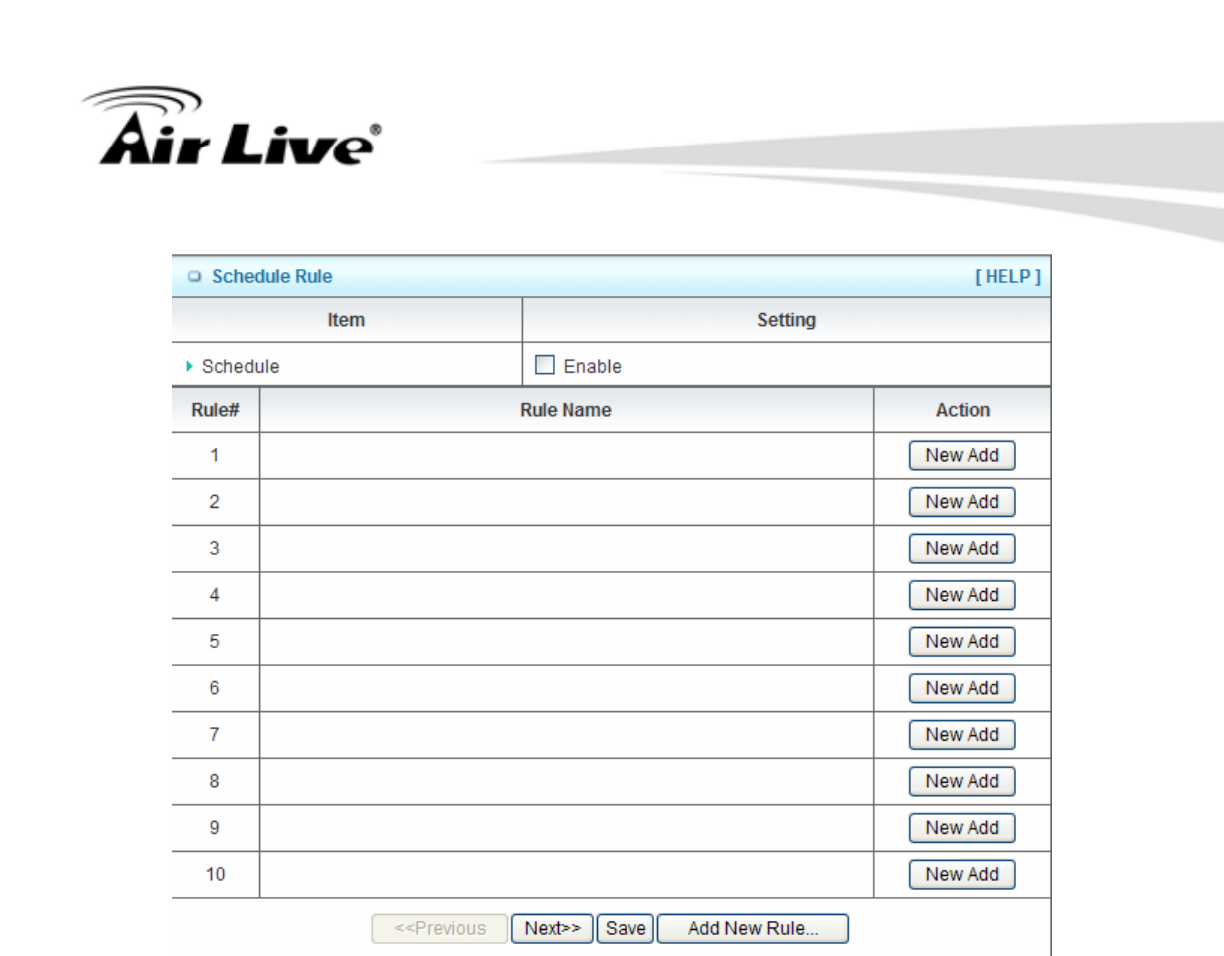

Scheduling
You can set the schedule time to decide which service will be turned on or off.
3. Making Configuration
AirLive GW-300NAS User’s Manual
54

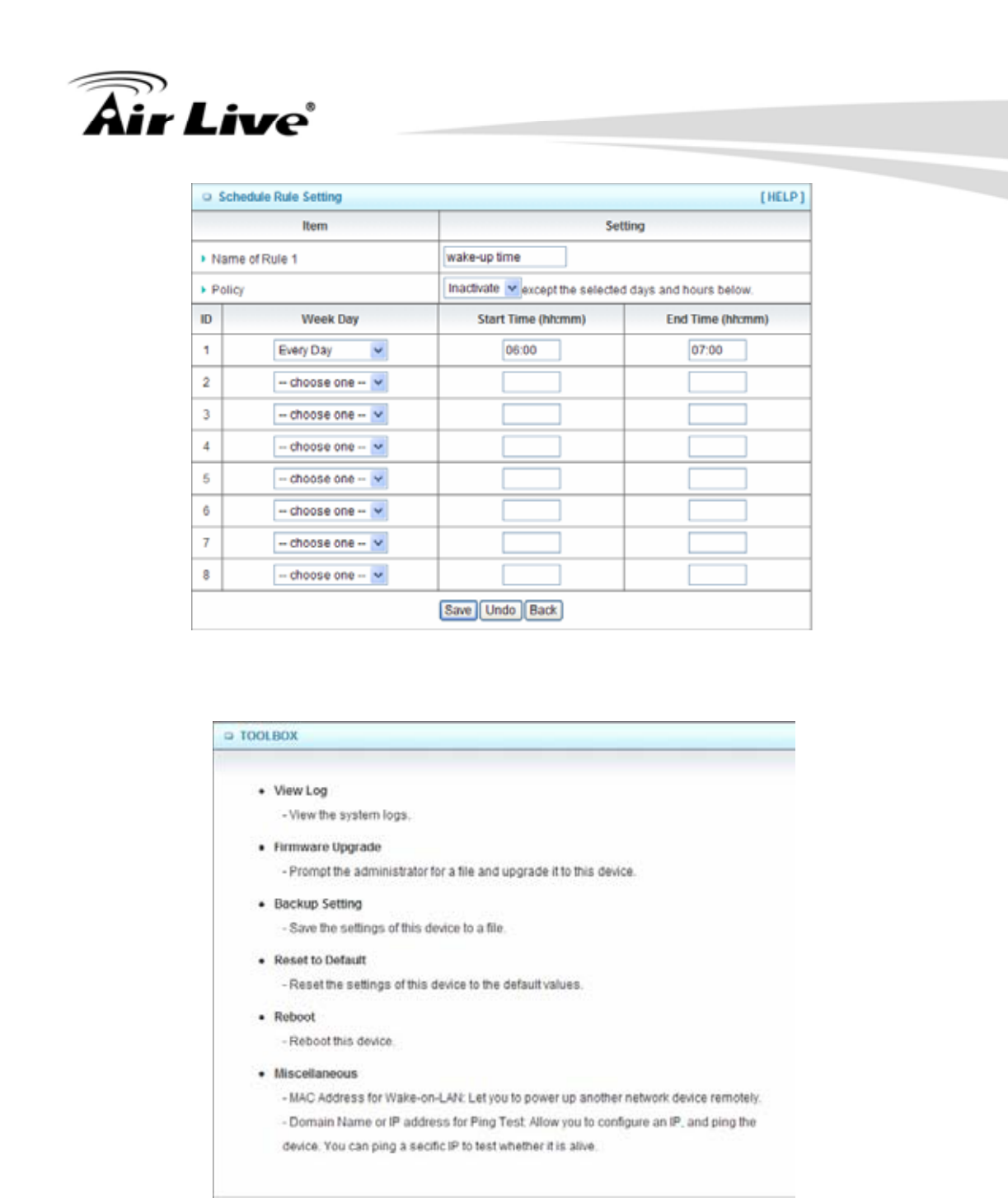

Schedule: Check to enable the schedule rule settings.
Add New Rule: To create a schedule rule, click the “New Add” button. You can edit the Name
of Rule, Policy, and set the schedule time (Week day, Start Time, and End Time). The following
example configures “wake-up time“ everyday from 06:00 to 07:00.
3. Making Configuration
AirLive GW-300NAS User’s Manual 55
Afterwards, click save” to store your settings or click “Undo” to give up the changes.
Tool Box
3. Making Configuration
AirLive GW-300NAS User’s Manual
56
System Info
You can view the System Information and System log, and download/clear the System log, in
this page.
3. Making Configuration
AirLive GW-300NAS User’s Manual 57

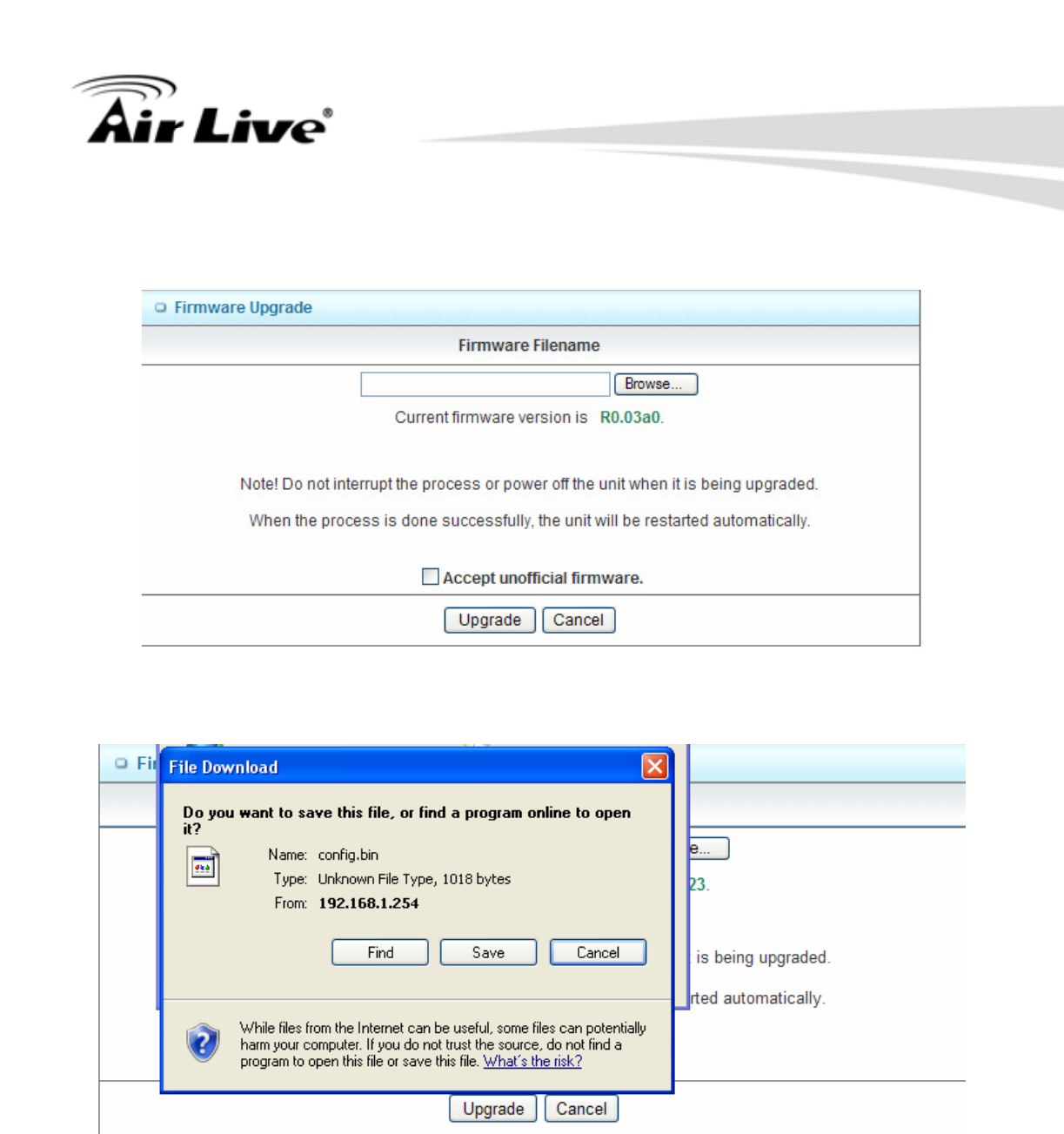

Firmware Upgrade
You can upgrade firmware by clicking “Upgrade” button.
Backup Setting
You can backup your settings by clicking the “Backup Setting” function item and save it as a
bin file. Once you want to restore these settings, please click Firmware Upgrade button and
use the bin file you saved.
3. Making Configuration
AirLive GW-300NAS User’s Manual
58

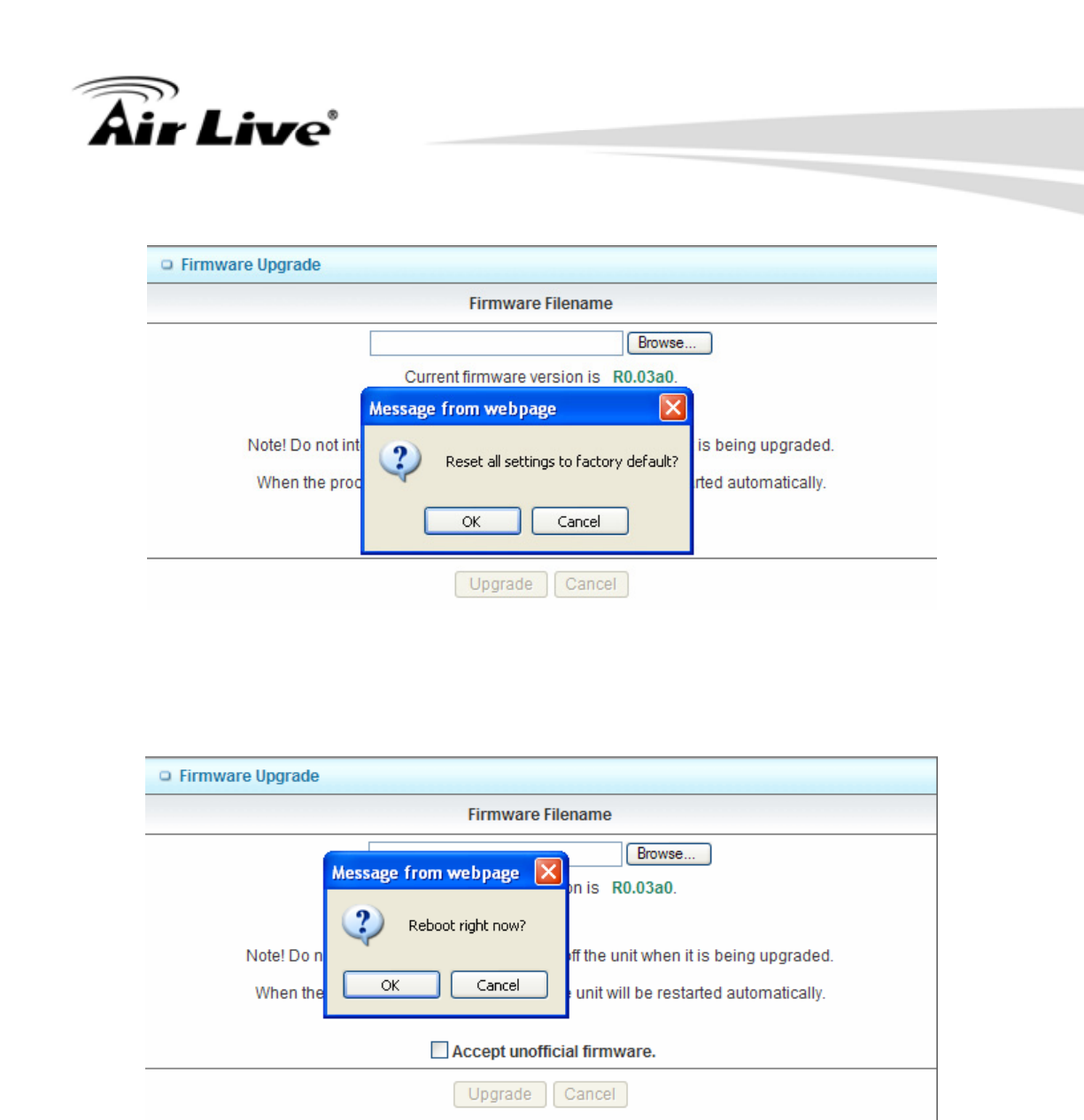

eset to Default R
ou can also reset this device to factory default settings by clicking the Reset to default
eboot
Y
function item.
R
ou can also reboot this device by clicking the Reboot function item. Y
3. Making Configuration
AirLive GW-300NAS User’s Manual 59

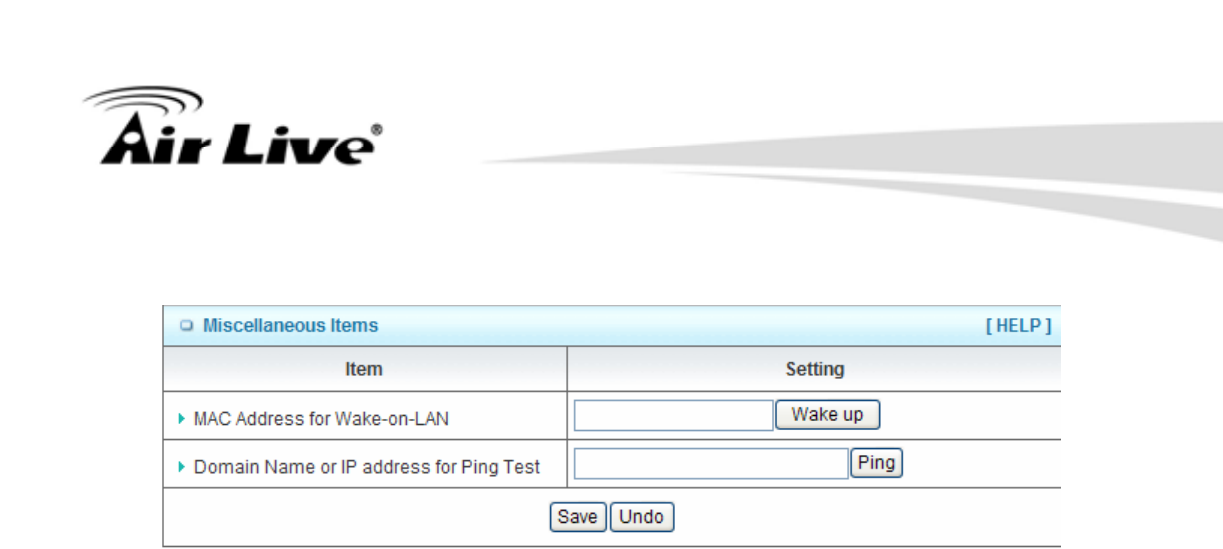

iscellaneousM
AC Address for Wake-on-LAN: It enables you to power up a networked device remotely. If
or instance if the MAC address is 00-11-22-33-44-55, enter it into the blank of MAC Address
omain Name or IP address for Ping Test: Allow you to configure an IP, and ping the device.
fterwards, click on “Save” to store your settings or click “Undo” to give up the changes.
M
you would like to trigger this function, you have to know the MAC address of this device.
F
for Wake-on-LAN. Afterwards. Afterwards, click "Wake up" button which makes the router to
send the wake-up frame to the target device immediately.
D
You can ping a specific IP to test whether it is alive.
A
4. Troubleshooting
AirLive GW-300NAS User’s Manual
60
Note: It is recommended that you use an
Ethernet connection to confi
g
ure it
44.Troubleshooting
This Chapter provides solutions to problems for the installation and operation of the WiFi
Broadband Router. You can refer to the following if you are having problems.
Why can’t I configure the router even the cable is plugged and the LED is lit?
Do a Ping test to make sure that the WiFi
Broadband Router is responding.
Go to Start > Run.
Type cmd.
Press OK.
Type ipconfig to get the IP of default gateway.
Type “ping 192.168.1.254”. Assure that you ping the correct IP Address assigned to the WiFi
Broadband Router. It will show four replies if you ping correctly.
Ensure that your Ethernet Adapter is working, and that all network drivers are installed properly.
Network adapter names will vary depending on your specific adapter. The installation steps
listed below are applicable for all network adapters.
4. Troubleshooting
AirLive GW-300NAS User’s Manual 61
Go to ight click on
Select the Hardware Tab.
Click anager.
Doub n “Network Adapters”.
ight Wireless Card bus Adapter or your specific network adapter.
elect Properties to ensure that all drivers are installed properly.
hat can I do if my Ethernet connection does not work properly?
Start > R
Device M
le-click o
-click on
“My Computer” > Properties.
R
S
Look under Device Status to see if the device is working properly.
Click “OK”.
W
ake sure the RJ45 cable connects with the router.
rfa
e, not all
rk Interface Cards are MDI/MDIX compatible, and use a p
doesn’t work properly, then you can reset it to default.
omething wrong with the wireless connection?
M
Ensure that the setting on your Network Inte ce Card adapter is “Enabled”.
rnet cabl
atch cable is recommended.
If settings are correct, ensure that you are not using a crossover Ethe
Netwo
If the connection still
S
Can’t setup a wireless connection?
Ensure that the SSID and the encryption settings are exactly the same to the Clients.
Move the WiFi Broadband Router and the wireless client into the same room, and then test the
wireless connection.
Disable all security settings such as WEP, and MAC Address Control.
Turn off the WiFi Broadband Router and the client, then restart it and then turn on the client
gain.
the LEDs are indicating normally. If not, make sure that the power and Ethernet
you are using other wireless device, home security systems or ceiling fans, lights in your
home, your wireless connection may degrade dramatically. Keep your product away from
electrical devices that generate RF noise such as microwaves, monitors, electric motors…
What can I do if my wireless client can not access the Internet?
a
Ensure that
cables are firmly connected.
Ensure that the IP Address, subnet mask, gateway and DNS settings are correctly entered for
the network.
If
Out of range: Put the router closer to your client.
Wrong SSID or Encryption Key: Check the SSID or Encryption setting.
Connect with wrong AP: Ensure that the client is connected with the correct Access Point.
e
eset the WiFi Broadband Router to default setting
Right-click on the Local Area Connection icon in the taskbar.
Select View Available Wireless Networks in Wireless Configure. Ensure you have selected th
correct available network.
R
4. Troubleshooting
AirLive GW-300NAS User’s Manual
62
Why does my wireless connection keep dropping?
Antenna Orientation.
Try different antenna orientations for the WiFi Broadband Router.
.
r Access Point and Wireless
eep your product away from electrical devices that generate RF noise, like microwaves,
Try to keep the antenna at least 6 inches away from the wall or other objects
Try changing the channel on the WiFi Broadband Router, and you
adapter to a different channel to avoid interference.
K
monitors, electric motors, etc.
What to do if I forgot my encryption key?
Go back to advanced setting to set up your Encryption key again.
Reset the WiFi Broadband Router to default setting
How to reset to default?
nsure the WiFi Broadband Router is powered on
e
ress the Reset button for 8 seconds and then release.
E
Find the Reset button on the right sid
P
After the WiFi Broadband Router reboots, it has back to the factory default settings.
Appendix A. Spec Summary Table
-300NAS User’s Manual 63
able
AirLive GW
Appendix A. Spec Summary T
Device Interface
Ethernet WAN RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX 1
Ethernet LAN RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX 4
USB Sharing USB 2.0 for file sharing Ɣ
Antenna 3.23 dBi detachable antenna 2
WPS / USB
OFF Button
For WPS connection and USB storage remove
button 1
Reset Button Reset router setting to factory default 1
LED Indication B/ WAN / LAN1 ~ LAN4/ Ɣ
Power/Status / US
WiFi
Power Jack DC 12V/1.5A switching power adapter 1
Wireless LAN (WiFi)
Standard IEEE 802.11b/g/n compliance Ɣ
SSID SSID broadcast or in stealth mode Ɣ
Channel Auto-selection, manually Ɣ
Security WEP, WPA, WPA-PSK, WPA2, Ɣ
WPA2-PSK
WPS WPS (Wi-Fi Protected Setup) Ɣ
WMM WMM (Wi-Fi Multimedia) Ɣ
Functionality
Ethernet WAN PPPoE, DHCP client, Static IP, PPTP,
L2TP Ɣ
WAN Connection Auto-reconnect, dial-on-demand,
manually Ɣ
One-to-Many NAT Virtual server, special application, DMZ Ɣ
NAT Session Support NAT session 20000
SPI Firewall IP/Service filter, URL blocking, MAC
control Ɣ
DoS Protection DoS (Deny of Service) detection and
protection Ɣ
Routing Protocol Static route, dynamic route (RIP v1/v2) Ɣ
Storage/File Sharing FAT16/FAT32, EXT2, NTFS ( Read only)
Samba server, FTP server Ɣ
Appendix A. Spec Summary Table
AirLive GW-300NAS User’s Manual
64
Media server UPnP AV media server, iTunes server Ɣ
Scheduling FTP
HTTPDownload
management BitTorrent / emule
Ɣ
Management SNMP, UPnP IGD, syslog, DDNS Ɣ
Administration te login, Web-based UI, remo
backup/restore setting
Ɣ
Environment & Certification
Package Conten ick
Installation Guide, CD
t GW-300NAS, Power adapter, Qu Ɣ
Package Information Device dimension (mm) 112x25 185x
Package dimension (246x210x62mm)
SP/MP/ZP Ɣ
Package dimension (214x146x69mm)
PP ż
Package dimension (290x234x1
AP
00mm) ż
Operation Temp. ~90%Temp.: 0~40oC, Humidity 10%
non-condensing Ɣ
Storage Temp. emp.: -10~70oC, Humidity: 0~95%
on-condensing
T
nƔ
Home Networking DLNA compliance Ɣ
EMI Certification CE/FCC compliance Ɣ
RoHS RoHS compliance Ɣ
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual 65
dix rmation
This product includes copyrighted third-party software licensed under the terms of the GNU
Gener se. Pleas General Public License below to check the
detailed terms of this license.
The fo this pro L, and thos oftware packages
are copyright by their respecti
Linux nel GPLv2 | Linux-2.6.21
Busybox GPLv2 | busybox_1.3.2
bridge-utils GPLv2 | bridge-utils 1.1
udhc .9.9
udhc
fdisk | util
mke2 2f
samb a
wireless tools GPLv2 | wir
vsfptd GPLv2 | vsftpd-2
Transmission MIT | Tra
mt-daapd GNUv2 | mt
dnrd GNUv2 | DN
libcurl cURL-7.19.6
Open | o
ntfs-3g GNUv2 | ntfs-3
Zebr | zebra
Snmp mp-
Pptp | p
Pppo ppoe
Pppd BSD | p
l2tpd GPLv2 | l2tp-0.4
iptables GNUv2 | iptables-1.4.2
tc GNUv2 | iproute2-2.6.11
Availability of source code
Please visit our web site or contact us to obtain more information.
Appen B. Licensing info
al Public Licen e refer to the GNU
llowing parts of duct are subject to the GNU GP
ve authors.
e s
Ker
p server GPLv2 | udhcp-0
p client
GPLv2 -linux 2.12q
fs, e2fsck GPLv2 | e
a GNUv2 | samb
sprogs v1.40.2
3.0.20
eless tools
.0.3
nsmission-1.74
-daapd-0.2.4
RD-2.17
SSL BSD penssl-1.00b3
g-2009.4.4
a GNUv2 -0.95a
4.1.2 d CMU | sn
GNUv2 ptp-1.7.1
e GPLv2 | p -3.8
pp-2.4
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual
66
GNU GENERAL PUBLIC LICENSE
Versio
opyr
hanging it is not allowed.
ake away your freedom to share and change it.
se is intended to guarantee your freedom to share
ftware is free for all its users. This General
p tware Foundation's software and to any other
u ome other Free Software Foundation software is
ense instead.) You can apply it to your
erring to freedom, not price. Our General Public
ave the freedom to distribute copies of free
), that you receive source code or can get it if
use pieces of it in new free programs; and that
s
estrictions translate to certain responsibilities for
r if you modify it.
a program, whether gratis or for a fee, you must
ave. You must make sure that they, too, receive or
them these terms so they know their rights.
opyright the software, and (2) offer you this license
giv s y , distribute and/or modify the software.
ction and ours, we want to make certain that everyone
oftware is modified by
riginal, so that any problems introduced by others will not reflect on the original authors'
putations.
n 2, June 1991
ight (C) 1989, 1991 Free Software Foundation, Inc. C
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies
f this license document, but co
Preamble
d t tThe licenses for most software are designe o
By contrast, the GNU General Public Licen
and change free software--to make sure the so
lies to most of the Free SofPublic License ap
ho aprogram w se thors commit to using it. (S
covered by the GNU Library General Public Lic
programs, too.
efWhen we speak of free software, we are r
Licenses are designed to make sure that you h
software (and charge for this service if you wish
oryou want it, that you can change the software
ou ings. you know y can do these th
strictions that forbid anyone to deny you these rightTo protect your rights, we need to make re
or to ask you to surrender the rights. These r
you if you distribute copies of the software, o
f suchFor example, if you distribute copies o
give the recipients all the rights that you h
can get the source code. And you must show
cWe protect your rights with two steps: (1)
hich e ou legal permission to copyw
Also, for each author's prote
understands that there is no warranty for this free software. If the s
omeone else and passed on, we want its recipients to know that what they have is not the s
o
re
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual 67
m is threatened constantly by software patents. We wish to avoid the
anger that redistributors of a free program will individually obtain patent licenses, in effect
ade it clear that any patent must be
modification follow.
RAL PUBLIC LICENSE
say,
g the Program or a portion of it, either verbatim or with modifications and/or
anslated into another language. (Hereinafter, translation is included without limitation in the
its contents constitute a work based on the Program
ndependent of having been made by running the Program). Whether that is true depends on
's source code as you receive it,
any medium, provided that you conspicuously and appropriately publish on each copy an
. You may modify your copy or copies of the Program or any portion of it, thus forming a work
terms of
s
Finally, any free progra
d
making the program proprietary. To prevent this, we have m
licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and
GNU GENE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License.
The "Program", below, refers to any such program or work, and a "work based on the
Program" means either the Program or any derivative work under copyright law: that is to
a work containin
tr
term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License;
they are outside its scope. The act of running the Program is not restricted, and the output
from the Program is covered only if
(i
what the Program does.
1. You may copy and distribute verbatim copies of the Program
in
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other recipients of the Program
a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2
based on the Program, and copy and distribute such modifications or work under the
Section 1 above, provided that you also meet all of these conditions:
You must cause the modified files to carry prominent notices stating that you changed the file
and the date of any change.
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual
68
ou must cause any work that you distribute or publish, that in whole or in part contains or is
d
ractively when run, you must cause it,
hen started running for such interactive use in the most ordinary way, to print or display an
no warranty
r else, saying that you provide a warranty) and that users may redistribute the program under
ese conditions, and telling the user how to view a copy of this License. (Exception: if the
not normally print such an announcement, your work
ased on the Program is not required to print an announcement.)
hese requirements apply to the modified work as a whole. If identifiable sections of that work
ns as
hus, it is not the intent of this section to claim rights or contest your rights to work written
e
Program) on a volume of a storage or distribution medium does not
ring the other work under the scope of this License.
t
ccompany it with the complete corresponding machine-readable source code, which must be
itten offer, valid for at least three years, to give
ny third party, for a charge no more than your cost of physically performing source distribution,
t code or executable form with such an offer, in accord with
ubsection b above.)
Y
derived from the Program or any part thereof, to be licensed as a whole at no charge to all thir
parties under the terms of this License.
If the modified program normally reads commands inte
w
announcement including an appropriate copyright notice and a notice that there is
(o
th
Program itself is interactive but does
b
T
are not derived from the Program, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms, do not apply to those sections
when you distribute them as separate works. But when you distribute the same sectio
part of a whole which is a work based on the Program, the distribution of the whole must be on
the terms of this License, whose permissions for other licensees extend to the entire whole,
and thus to each and every part regardless of who wrote it.
T
entirely by you; rather, the intent is to exercise the right to control the distribution of derivativ
or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or
with a work based on the
b
3. You may copy and distribute the Program (or a work based on it, under Section 2) in objec
code or executable form under the terms of Sections 1 and 2 above provided that you also do
one of the following:
A
distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,Accompany it with a wr
a
a complete machine-readable copy of the corresponding source code, to be distributed under
the terms of Sections 1 and 2 above on a medium customarily used for software interchange;
or,Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in objec
S
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual 69
t.
efinition files, plus the scripts used to control
ompilation and installation of the executable. However, as a special exception, the source
parties are not compelled to
opy the source along with the object code.
. You are not required to accept this License, since you have not signed it. However, nothing
se
on the Program), you indicate your acceptance of
is License to do so, and all its terms and conditions for copying, distributing or modifying the
k based on the Program), the recipient
utomatically receives a license from the original licensor to copy, distribute or modify the
arties to this License.
. If, as a consequence of a court judgment or allegation of patent infringement or for any other
you
The source code for a work means the preferred form of the work for making modifications to i
For an executable work, complete source code means all the source code for all modules it
contains, plus any associated interface d
c
code distributed need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the operating system
on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a
designated place, then offering equivalent access to copy the source code from the same
place counts as distribution of the source code, even though third
c
4. You may not copy, modify, sublicense, or distribute the Program except as expressly
provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute
the Program is void, and will automatically terminate your rights under this License. However,
parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
5
else grants you permission to modify or distribute the Program or its derivative works. The
actions are prohibited by law if you do not accept this License. Therefore, by modifying or
distributing the Program (or any work based
th
Program or works based on it.
6. Each time you redistribute the Program (or any wor
a
Program subject to these terms and conditions. You may not impose any further restrictions
on the recipients' exercise of the rights granted herein. You are not responsible for enforcing
compliance by third p
7
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and this License would be to refrain
entirely from distribution of the Program.
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual
70
any portion of this section is held invalid or unenforceable under any particular circumstance,
t
ting
istributed through that system in reliance on consistent application of that system; it is up to
r system
lear what is believed to be a consequence of the
st of this License.
t thus excluded. In
uch case, this License incorporates the limitation as if written in the body of this License.
ishing version number. If the Program specifies a version
umber of this License which applies to it and "any later version", you have the option of
se,
ogram into other free programs whose distribution
If
the balance of the section is intended to apply and the section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property righ
claims or to contest validity of any such claims; this section has the sole purpose of protec
the integrity of the free software distribution system, which is implemented by public license
practices. Many people have made generous contributions to the wide range of software
d
the author/donor to decide if he or she is willing to distribute software through any othe
and a licensee cannot impose that choice.
This section is intended to make thoroughly c
re
8. If the distribution and/or use of the Program is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the Program
under this License may add an explicit geographical distribution limitation excluding those
countries, so that distribution is permitted only in or among countries no
s
9. The Free Software Foundation may publish revised and/or new versions of the General
Public License from time to time. Such new versions will be similar in spirit to the present
version, but may differ in detail to address new problems or concerns.
Each version is given a distingu
n
following the terms and conditions either of that version or of any later version published by the
Free Software Foundation. If the Program does not specify a version number of this Licen
you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Pr
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
Appendix B. Licensing information
AirLive GW-300NAS User’s Manual 71
O WARRANTY
O THE EXTENT PERMITTED BY APPLICABLE LAW.
XCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
UTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU
OR DAMAGES,
S
ES
Y
AS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
N
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, T
E
OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS
WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF
ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
1
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIB
F
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGE
ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSS
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO
OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PART
H
END OF TERMS AND CONDITIONS
܅פ෷ሽंᘿ୴ࢤሽᖲጥ෻ᙄऄ
ʳ
รԼԲයʳ
ীڤᎁᢞٽ௑հ܅פ෷୴᙮ሽᖲΔॺᆖ๺ױΔֆ׹Ε೸ᇆࢨ
ࠌشृ݁լ൓ᖐ۞᧢ޓ᙮෷ΕףՕפ෷ࢨ᧢ޓ଺๻ૠհ௽ࢤ
֗פ౨Ζ
รԼ؄යʳ
܅פ෷୴᙮ሽᖲհࠌشլ൓ᐙ᥼ଆ౰ڜ٤֗եឫٽऄຏ
ॾΙᆖ࿇෼ڶեឫ෼ွழΔᚨمܛೖشΔࠀޏ࿳۟ྤեឫழ
ֱ൓ᤉᥛࠌشΖ
ছႈٽऄຏॾΔਐࠉሽॾऄ๵ࡳ܂ᄐհྤᒵሽຏॾΖ
܅פ෷୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽं
ᘿ୴ࢤሽᖲ๻ໂհեឫΖ
ʳုѾΚᐗ೸ڇנᐗழΔᄎܓشຌ᧯᠙ࡳ᙮ሐΔᨃึጤࠌشृʳʳ
ྤऄٚრᙇᖗ᙮ሐΖ
ုѿΚڼข঴᙮ሐᙇᖗΔ׽༼ࠎ˔̈̇̂Ε˄Ε˅ˁˁˁˁ˄˄࿛˄˄ଡ᙮ሐΖʳ

Navigation menu
