3. Making Configuration
AirLive GW-300R User’s Manual 17
Step 3:
Setup the LAN IP and
WAN Type.
Step 4:
Please fill in PPPoE
service information which
is provided by your ISP.
Example:

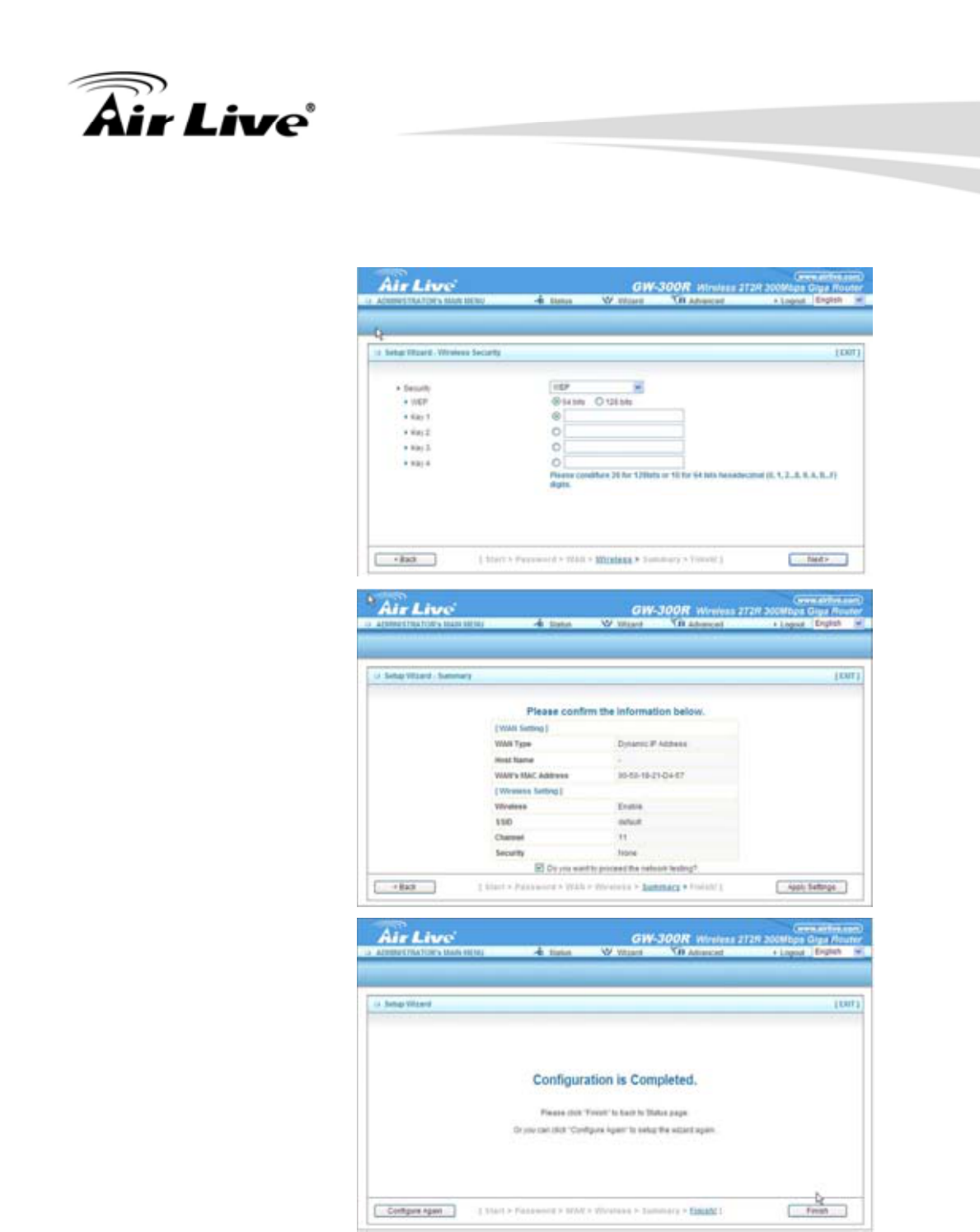

Step 5:
Set up your Wireless.
3. Making Configuration
AirLive GW-300R User’s Manual
18
Set up your Authentication
and Encryption.
Step 6:
Then click Apply Setting.
And then the device will
reboot.
Step 7:
Click Finish to complete it.
3. Making Configuration
AirLive GW-300R User’s Manual 19
3.2 System Status
This option provides the function for observing this product’s working status:
WAN Port Status.
If the WAN port is assigned a dynamic IP, there may appear a “Renew” or “Release” button
on the Sidenote column. You can click this button to renew or release IP manually.
Statistics of WAN: enables you to monitor inbound and outbound packets
3. Making Configuration
AirLive GW-300R User’s Manual
20
3.3 Advanced

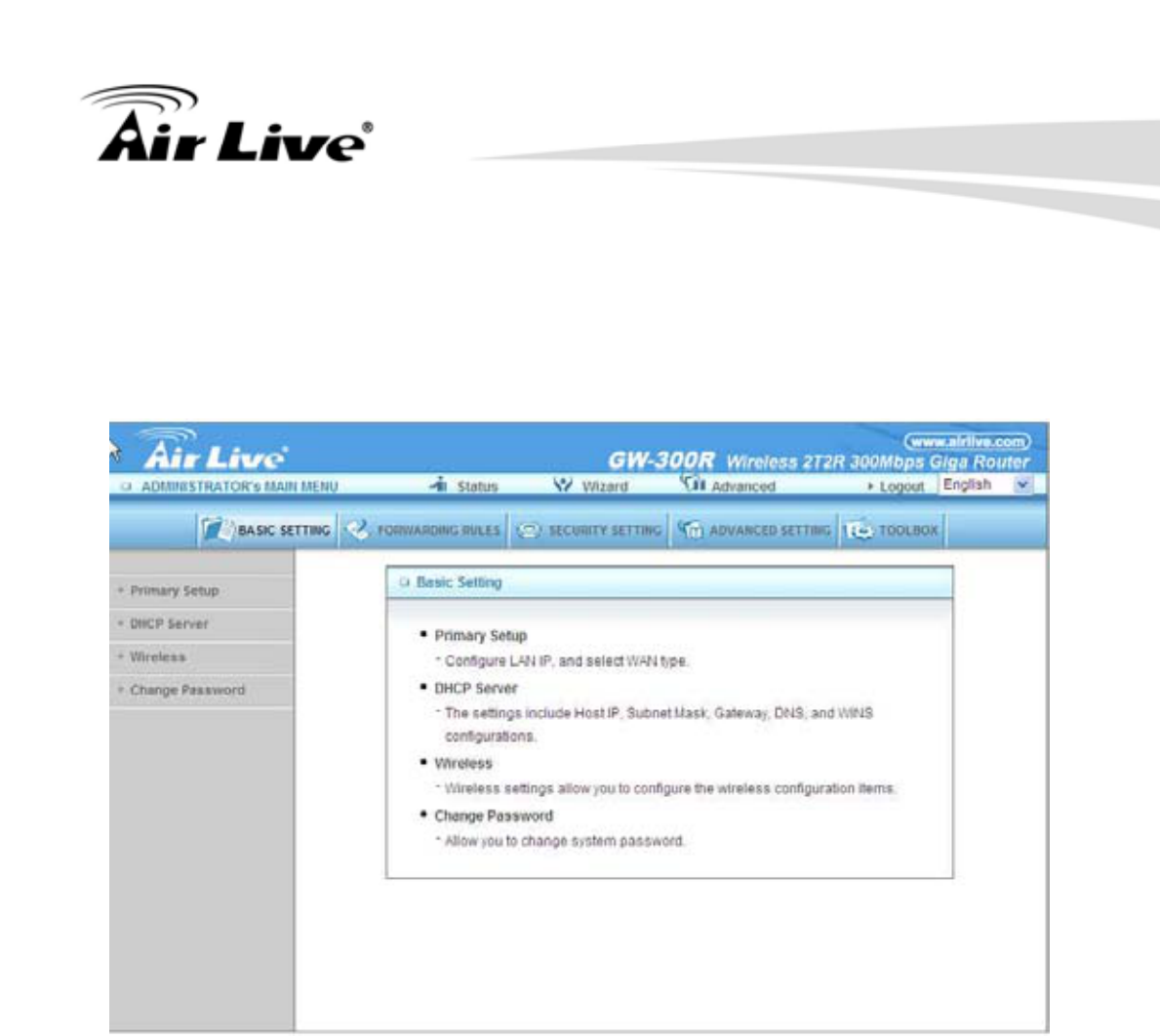

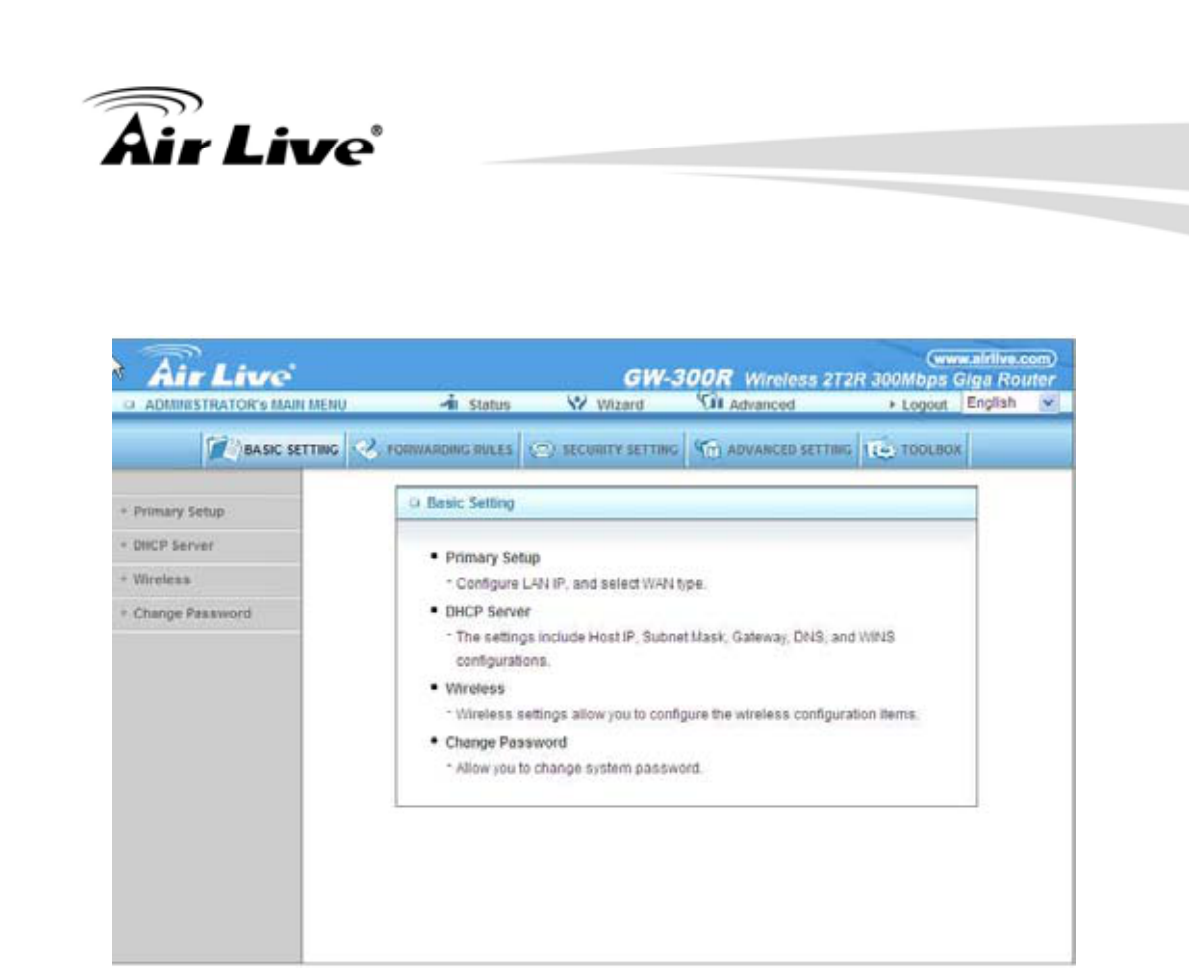

3.3.1 Basic Setting
Please Select “Advanced Setup” to Setup
3. Making Configuration
AirLive GW-300R User’s Manual 21

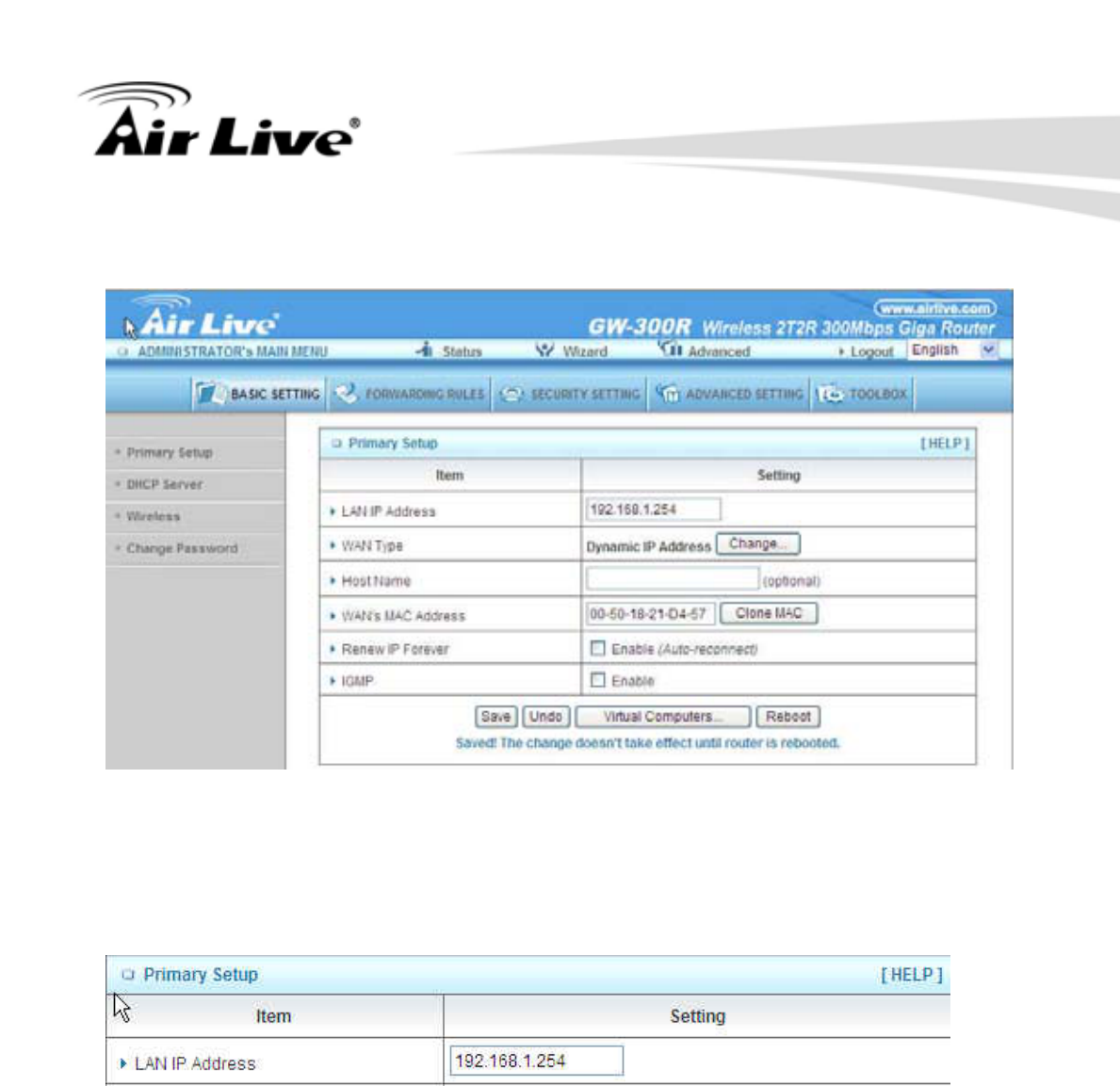

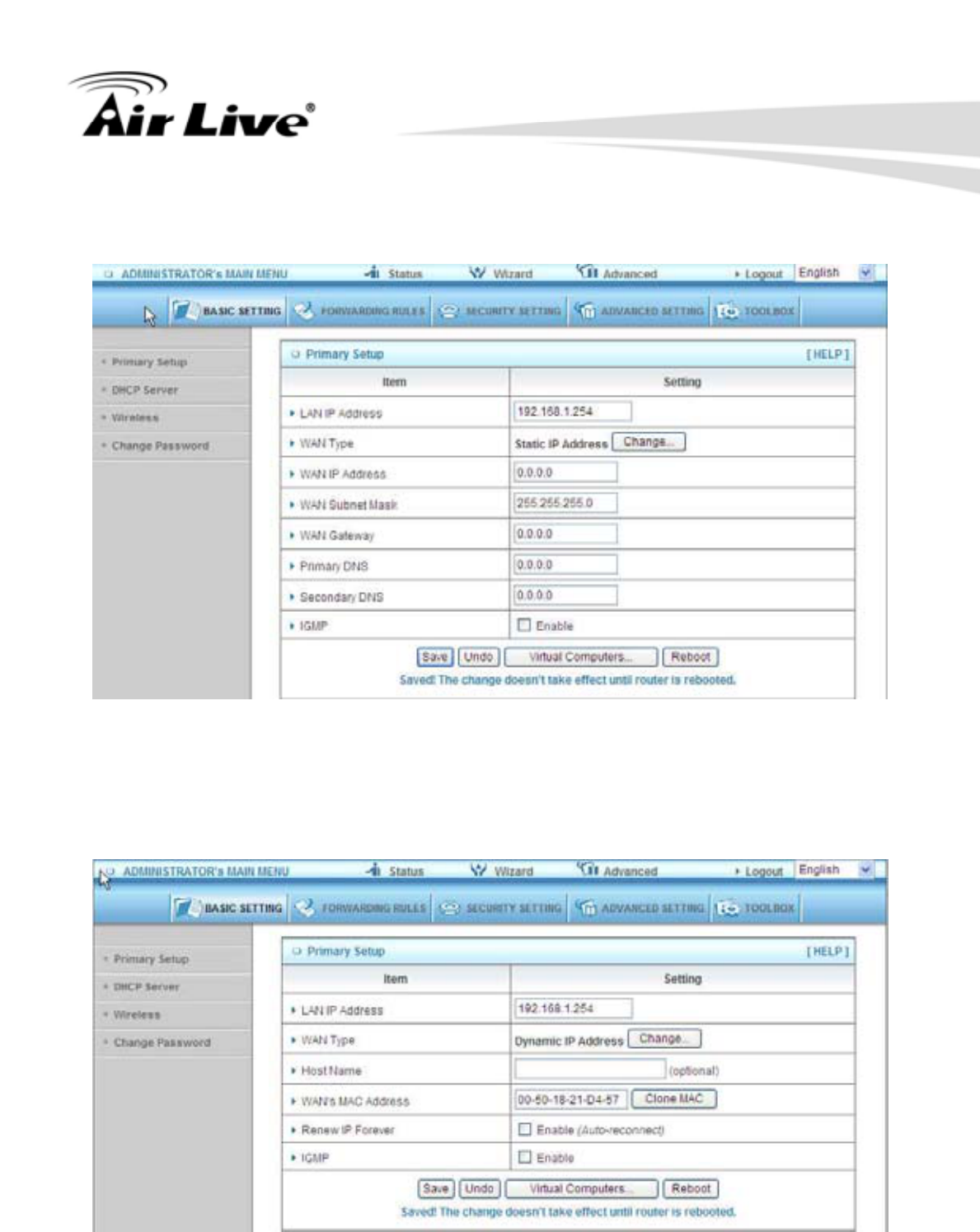

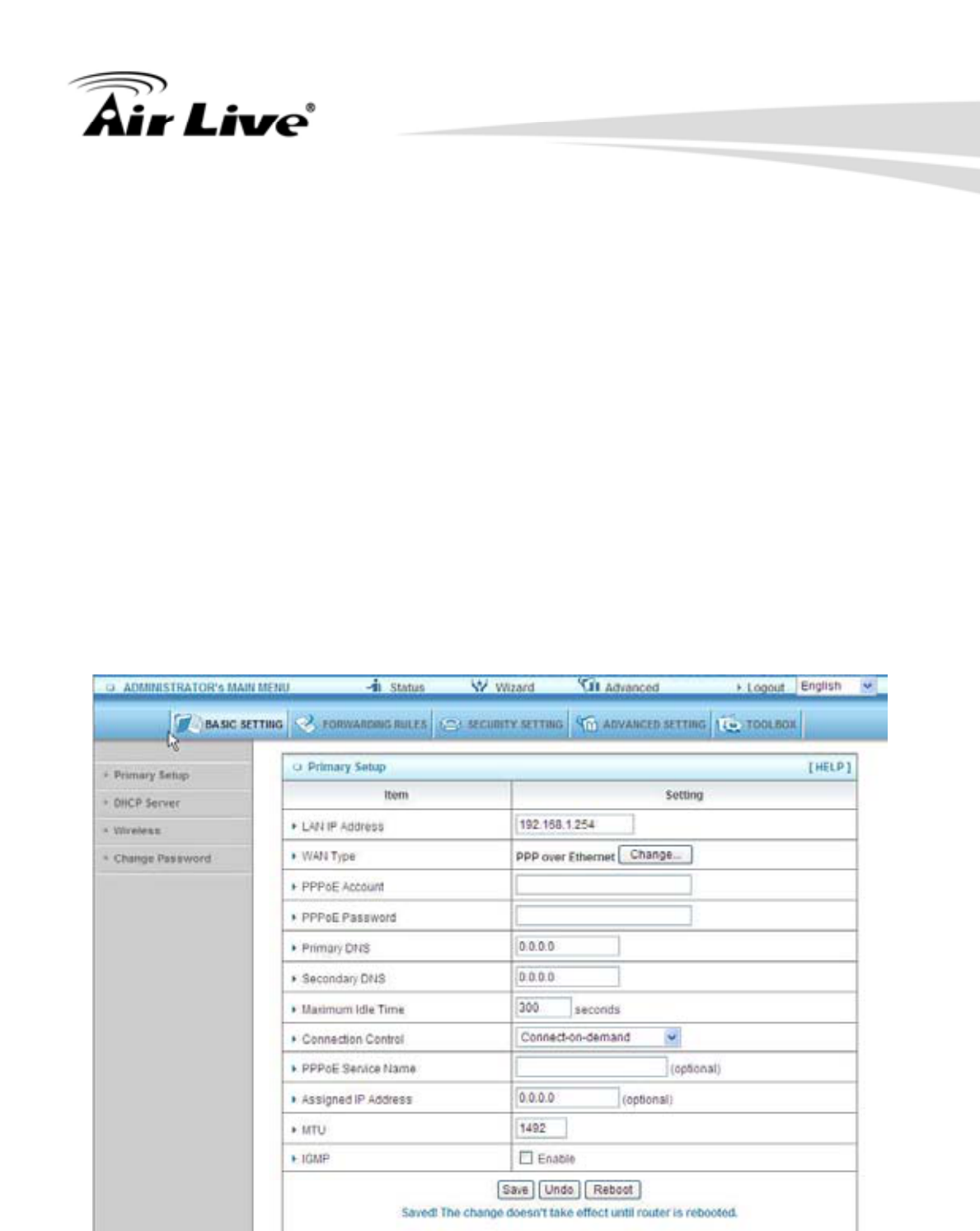

3.3.1.1 Primary Setup – WAN Type, Virtual Computers
Press “Change”
This option is primary to enable this product to work properly. The setting items and the
web appearance depend on the WAN type. Choose correct WAN type before you start.
LAN IP Address: the local IP address of this device. The computers on your network must
use the LAN IP address of your product as their Default Gateway. You can change it if
necessary.
WAN Type: WAN connection type of your ISP. You can click Change button to choose a
correct one from the following four options:
Static IP Address: ISP assigns you a static IP address.
Dynamic IP Address: Obtain an IP address from ISP automatically.
PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.
PPTP: Some ISPs require the use of PPTP to connect to their services.
F. L2TP: Some ISPs require the use of L2TP to connect to their services
3. Making Configuration
AirLive GW-300R User’s Manual
22

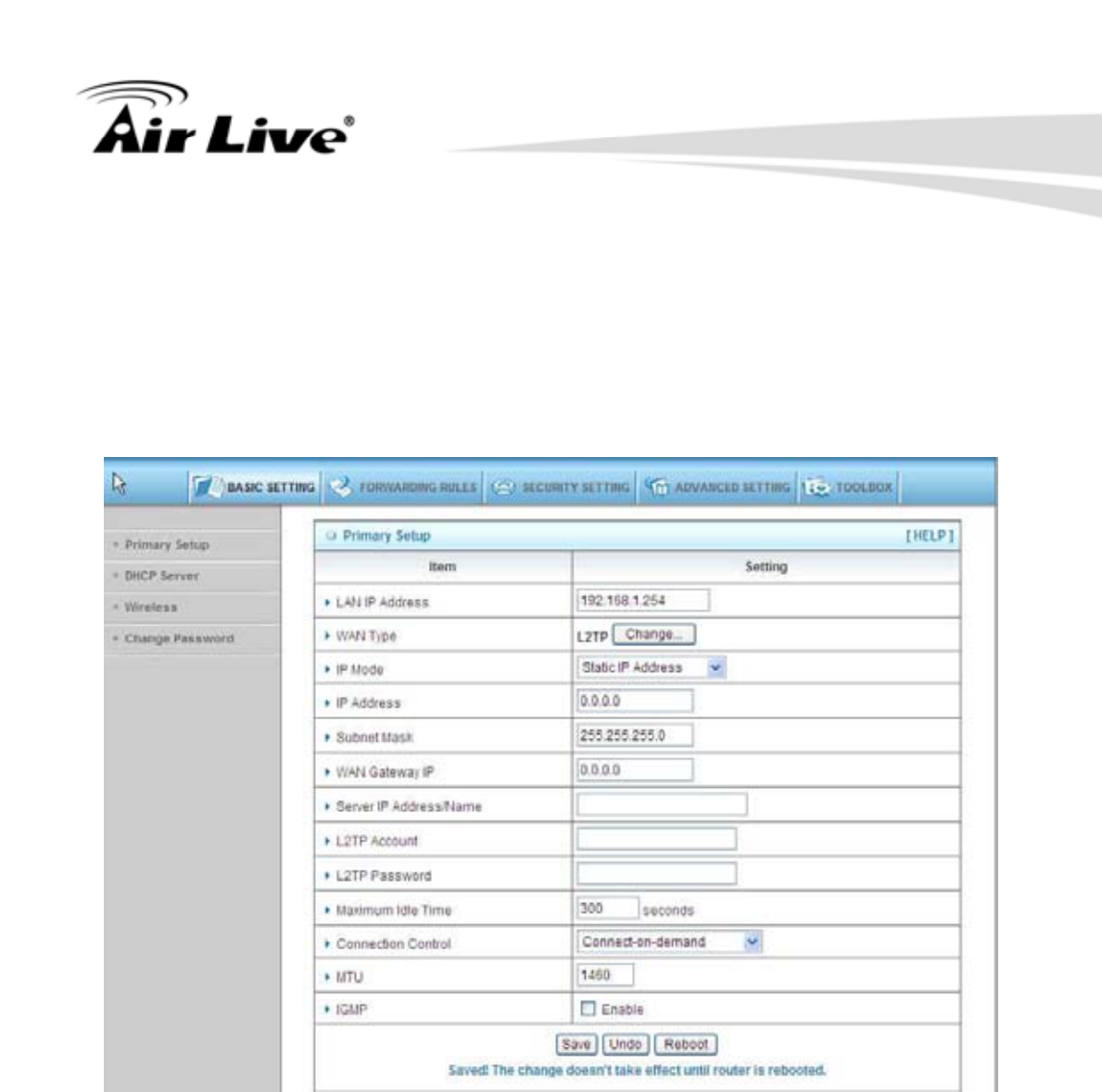

Static IP Address: ISP assigns you a static IP address:
WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper
setting provided by your ISP.
Dynamic IP Address: Obtain an IP address from ISP automatically.
Host Name: optional. Required by some ISPs, for example, @Home.
Renew IP Forever: this feature enables this product to renew your IP address automatically
when the lease time is expiring-- even when the system is idle.
3. Making Configuration
AirLive GW-300R User’s Manual 23
PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their
services. PPPoE Account and Password: the account and password your ISP assigned to
you. For security, this field appears blank. If you don't want to change the password, leave
it empty. PPPoE Service Name: optional. Input the service name if your ISP requires it.
Otherwise, leave it blank.
Maximum Idle Time: the amount of time of inactivity before disconnecting your PPPoE
session.
Set it to zero or enable Auto-reconnect to disable this feature.
Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The most
common MTU value is 1492.
Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send outgoing
packets.
Auto-Reconnect(Always-on):The device will link with ISP until the connection is
established.
Manually : The device will not make the link until someone clicks the connect-button in the
Staus-page.
3. Making Configuration
AirLive GW-300R User’s Manual
24

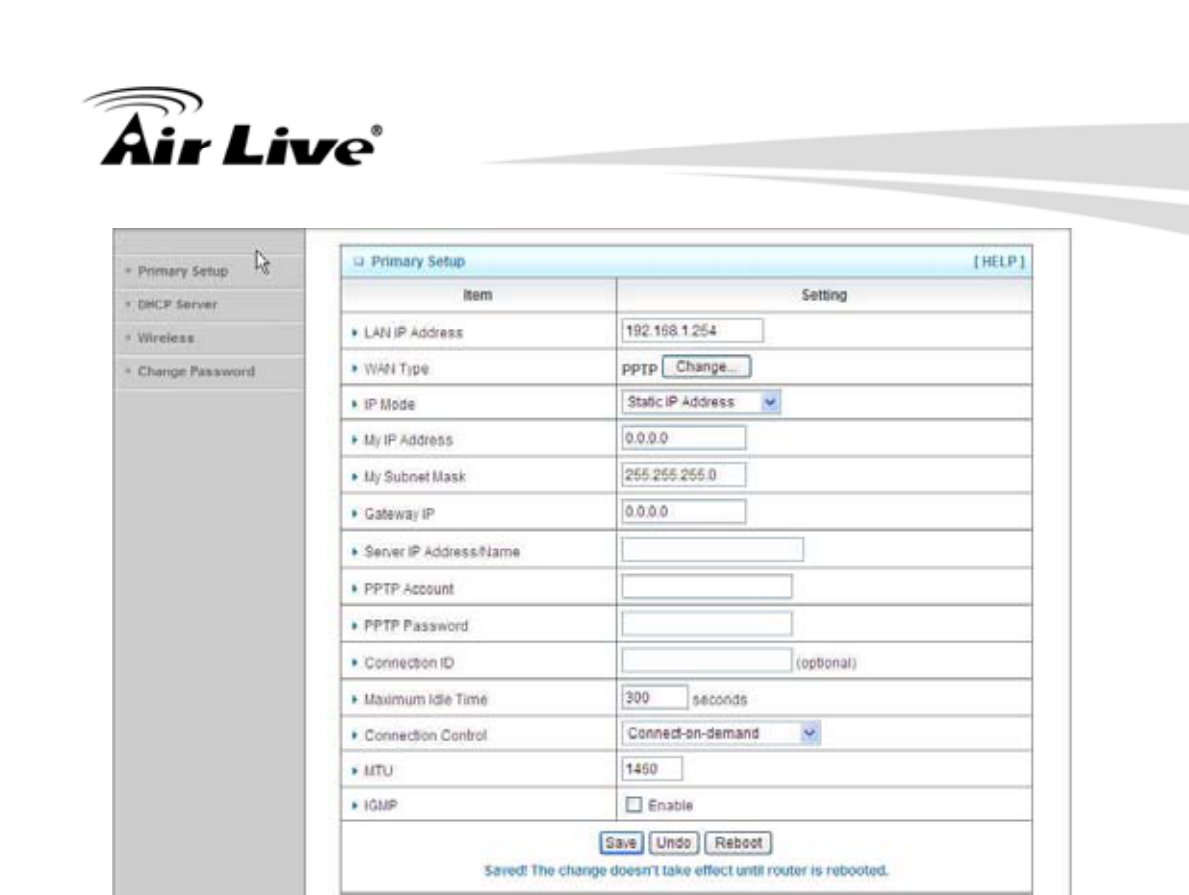

PPTP: Some ISPs require the use of PPTP to connect to their services
First, Please check your ISP assigned and Select Static IP Address or Dynamic IP
Address.
1. My IP Address and My Subnet Mask: the private IP address and subnet mask your
ISP assigned to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you. If
you don't
want to change the password, keep it empty.
4. Connection ID: optional. Input the connection ID if your ISP requires it.
5. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to
zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this
product will connect to ISP automatically, after system is restarted or connection is
dropped.
Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send outgoing
packets.
Auto-Reconnect(Always-on):The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the connect-button in the
Staus-page.
3. Making Configuration
AirLive GW-300R User’s Manual 25
L2TP: Some ISPs require the use of L2TP to connect to their services
First, Please check your ISP assigned and Select Static IP Address or Dynamic IP
Address.
For example: Use Static
1. My IP Address and My Subnet Mask: the private IP address and subnet mask your
ISP assigned
to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you. If
you don't
want to change the password, keep it empty.
3. Connection ID: optional. Input the connection ID if your ISP requires it.
4. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to
zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this
product will connect to ISP automatically, after system is restarted or connection is
dropped.
3. Making Configuration
AirLive GW-300R User’s Manual
26
Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send outgoing
packets.
Auto-Reconnect(Always-on):The device will link with ISP until the connection is
established.
Manually :The device will not make the link until someone clicks the connect-button in the
Staus-page.
3. Making Configuration
AirLive GW-300R User’s Manual 27

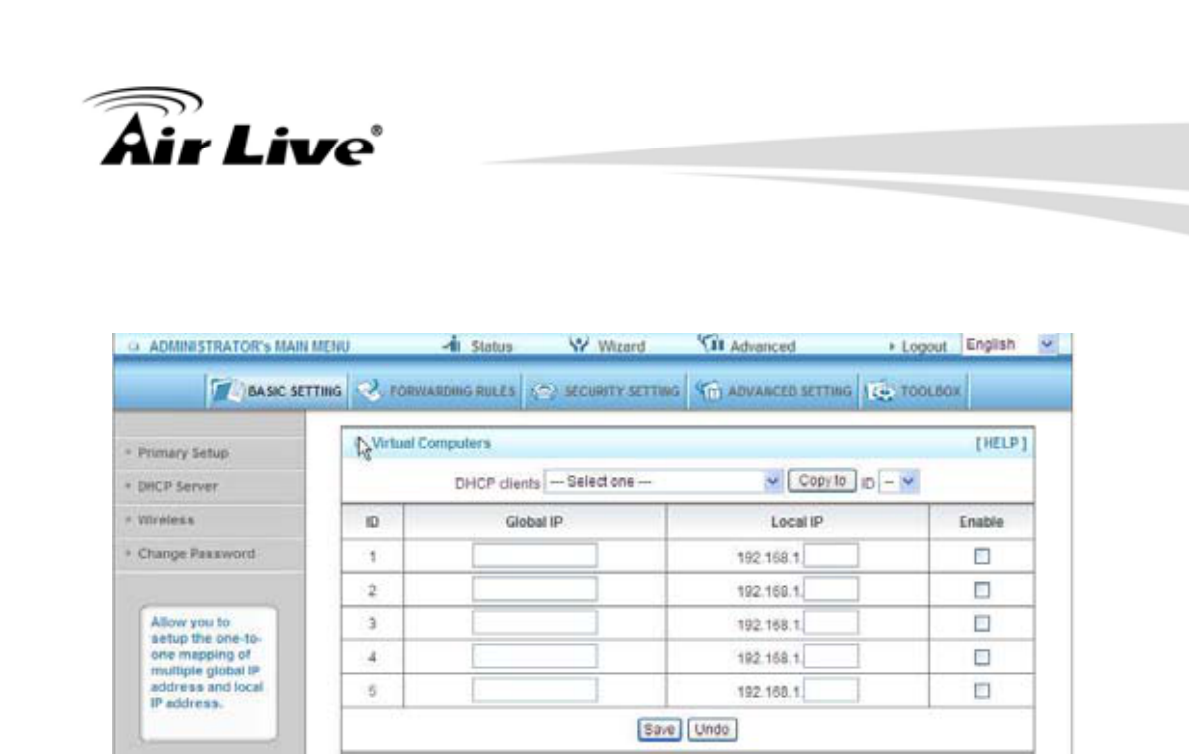

Virtual Computers(Only for Static and dynamic IP address Wan type)
Virtual Computer enables you to use the original NAT feature, and allows you to setup the
one-to-one mapping of multiple global IP address and local IP address.
Global IP: Enter the global IP address assigned by your ISP.
Local IP: Enter the local IP address of your LAN PC corresponding to the global IP
address.
Enable: Check this item to enable the Virtual Computer feature.
3. Making Configuration
AirLive GW-300R User’s Manual
28

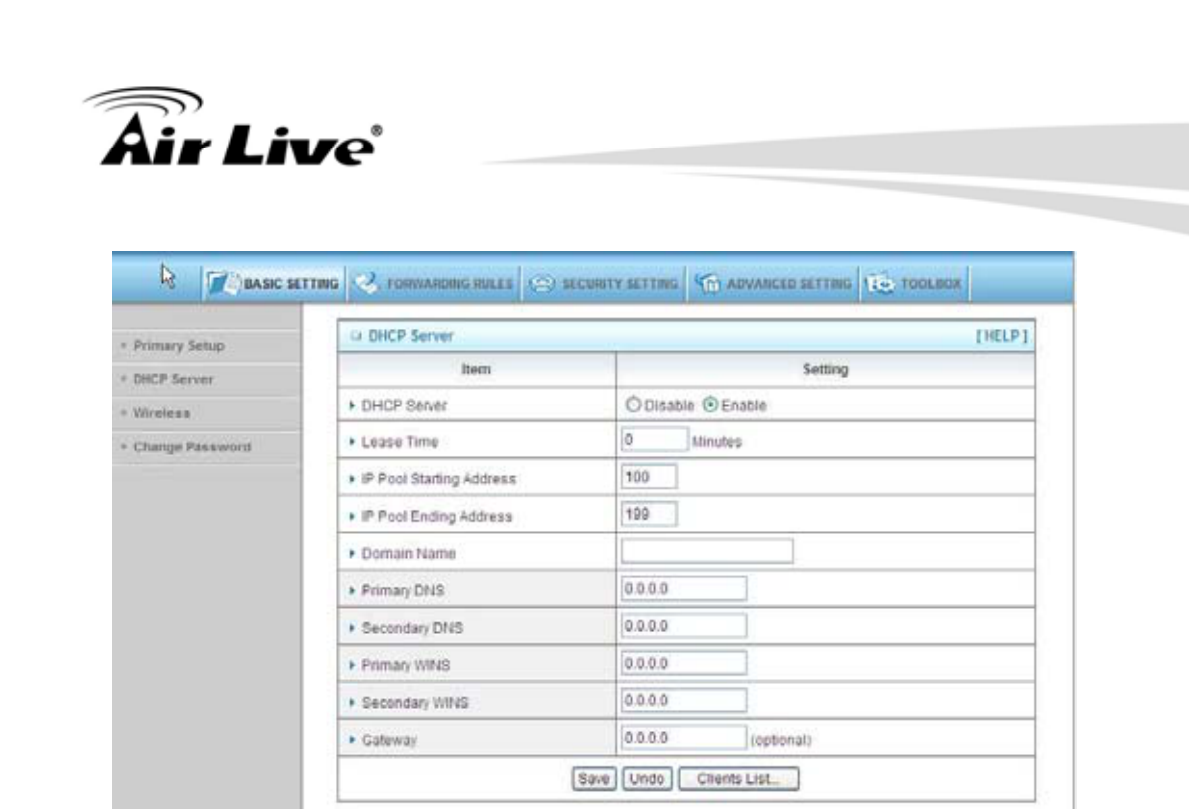

3.3.1.2 DHCP Server
Press “More>>”
DHCP Server: Choose “Disable” or “Enable.”
Lease time: This is the length of time that the client may use the IP address it has been
Assigned by dhcp server.
IP pool starting Address/ IP pool starting Address: Whenever there is a request, the DHCP
server will automatically allocate an unused IP address from the IP address pool to the
requesting computer. You must specify the starting and ending address of the IP address
pool.
Domain Name: Optional, this information will be passed to the client.
Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers
Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers
Gateway: The Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when DHCP server offers
an IP to your PC.
3. Making Configuration
AirLive GW-300R User’s Manual 29

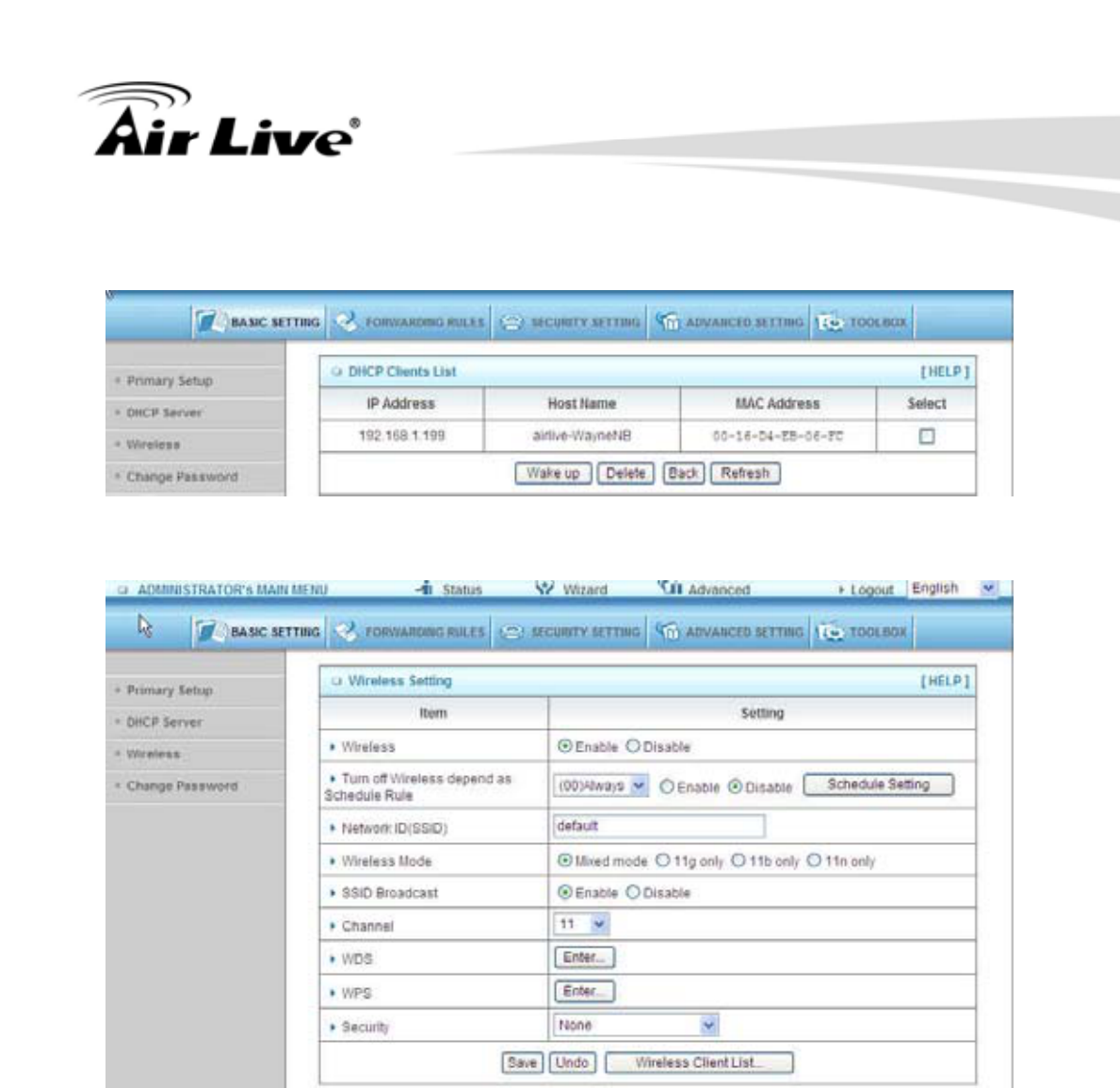

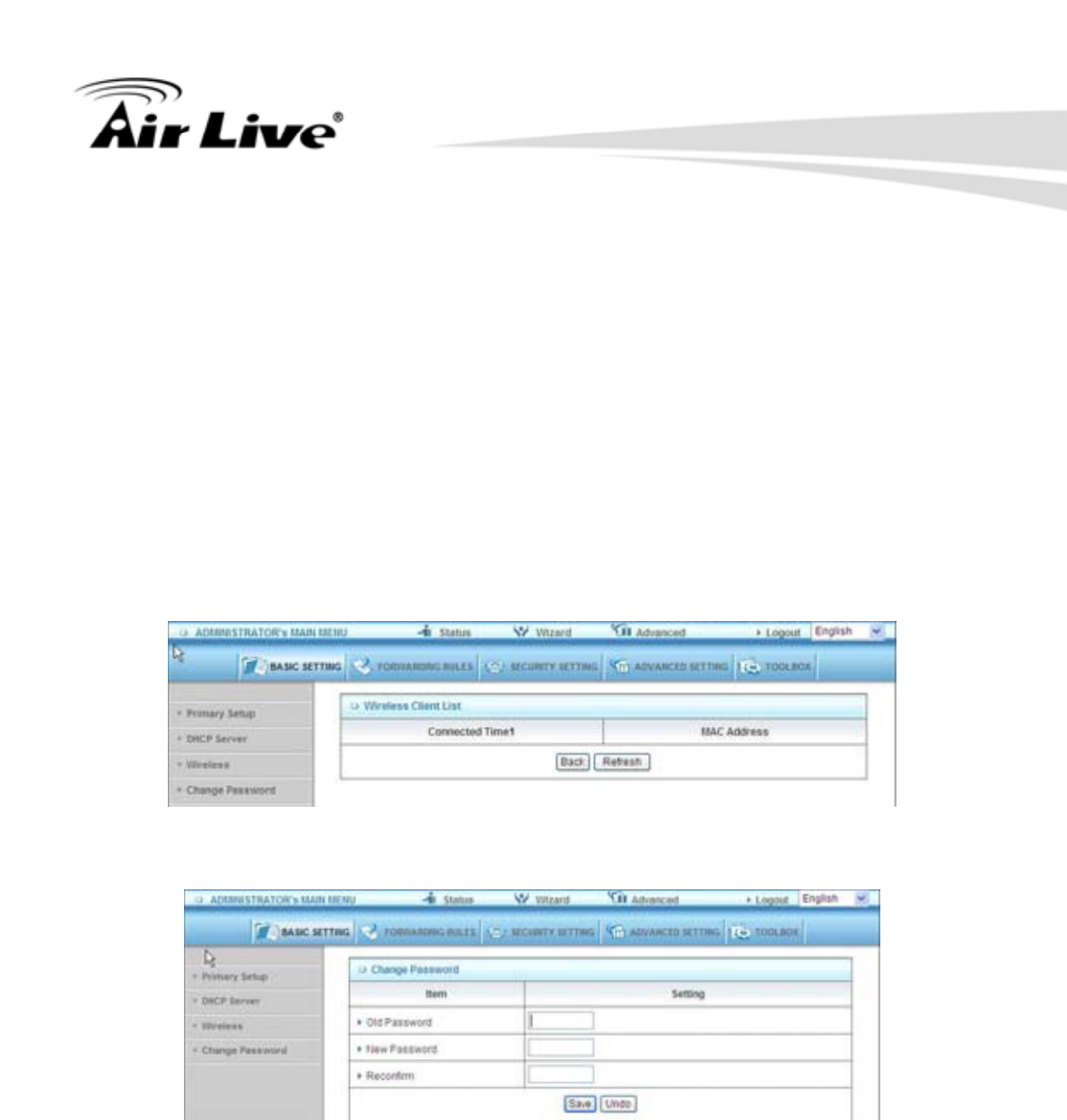

DHCP Client List:
3.3.1.3 Wireless

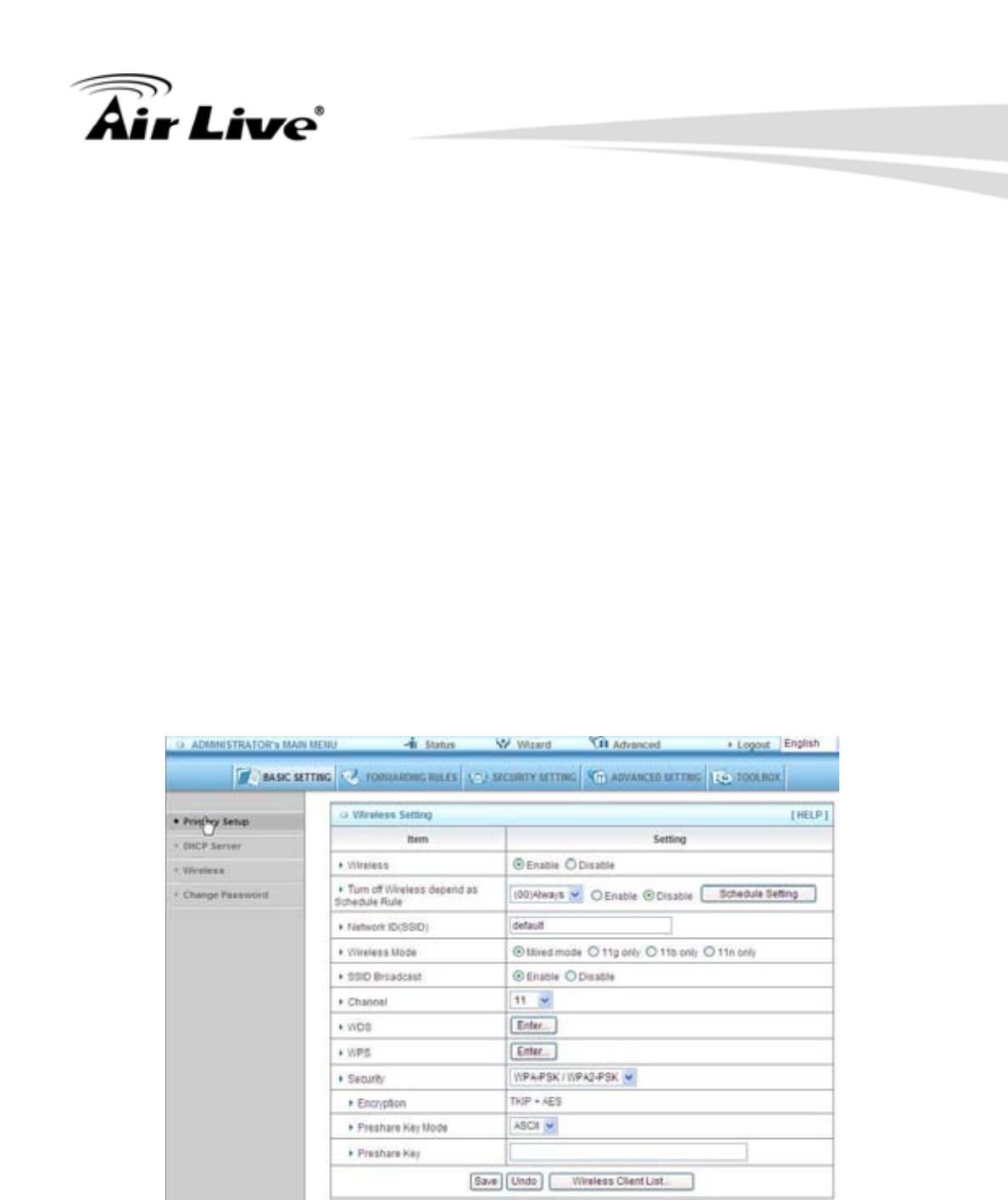

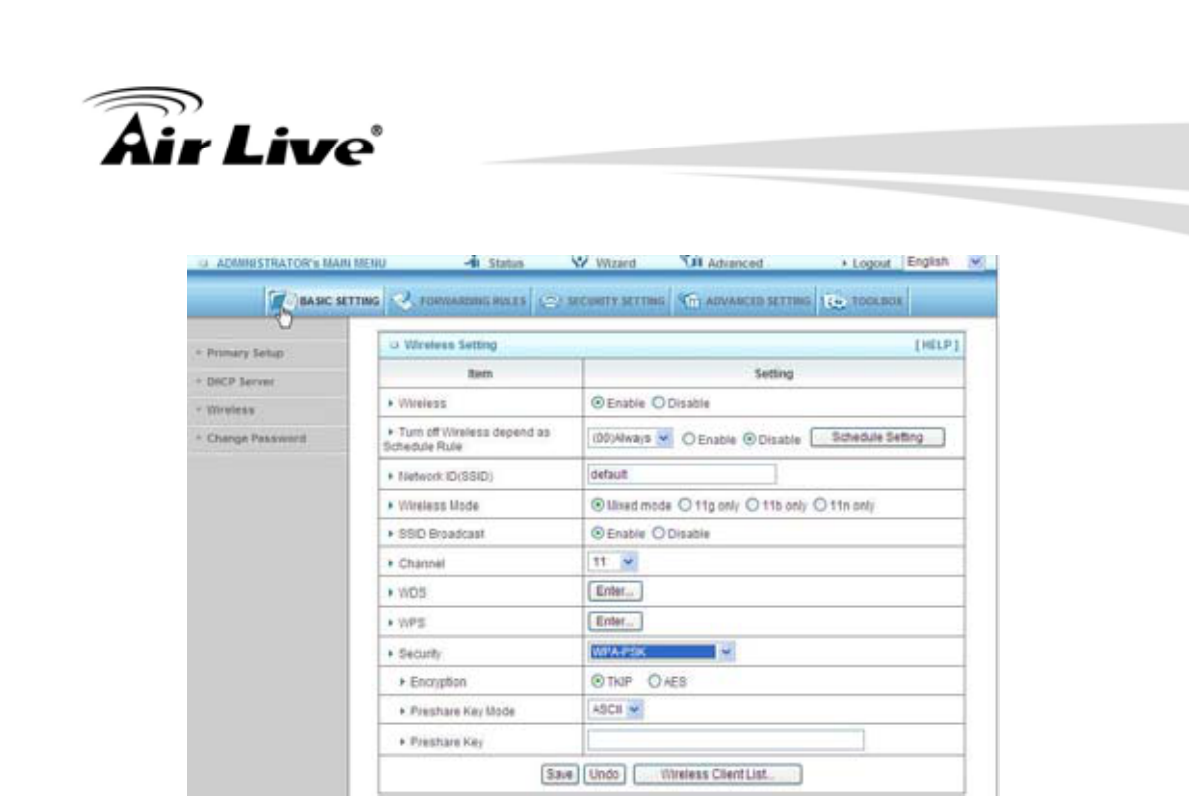

Wireless settings allow you to set the wireless configuration items.
Wireless : The user can enable or disalbe wireless function.
Wireless On/Off by time Schedule: The device can turn off Wireless depend as Schedule.
Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client
stations can roam freely over this product and other Access Points that have the same
Network ID. (The factory setting is “default”)
3. Making Configuration
AirLive GW-300R User’s Manual
30
SSID Broadcast: The router will Broadcast beacons that have some information, including
ssid so that the wireless clients can know how many ap devices by scanning function in
the network. Therefore, this function is disabled, the wireless clients can not find the device
from beacons.
Channel: The radio channel number. The permissible channels depend on the Regulatory
Domain.

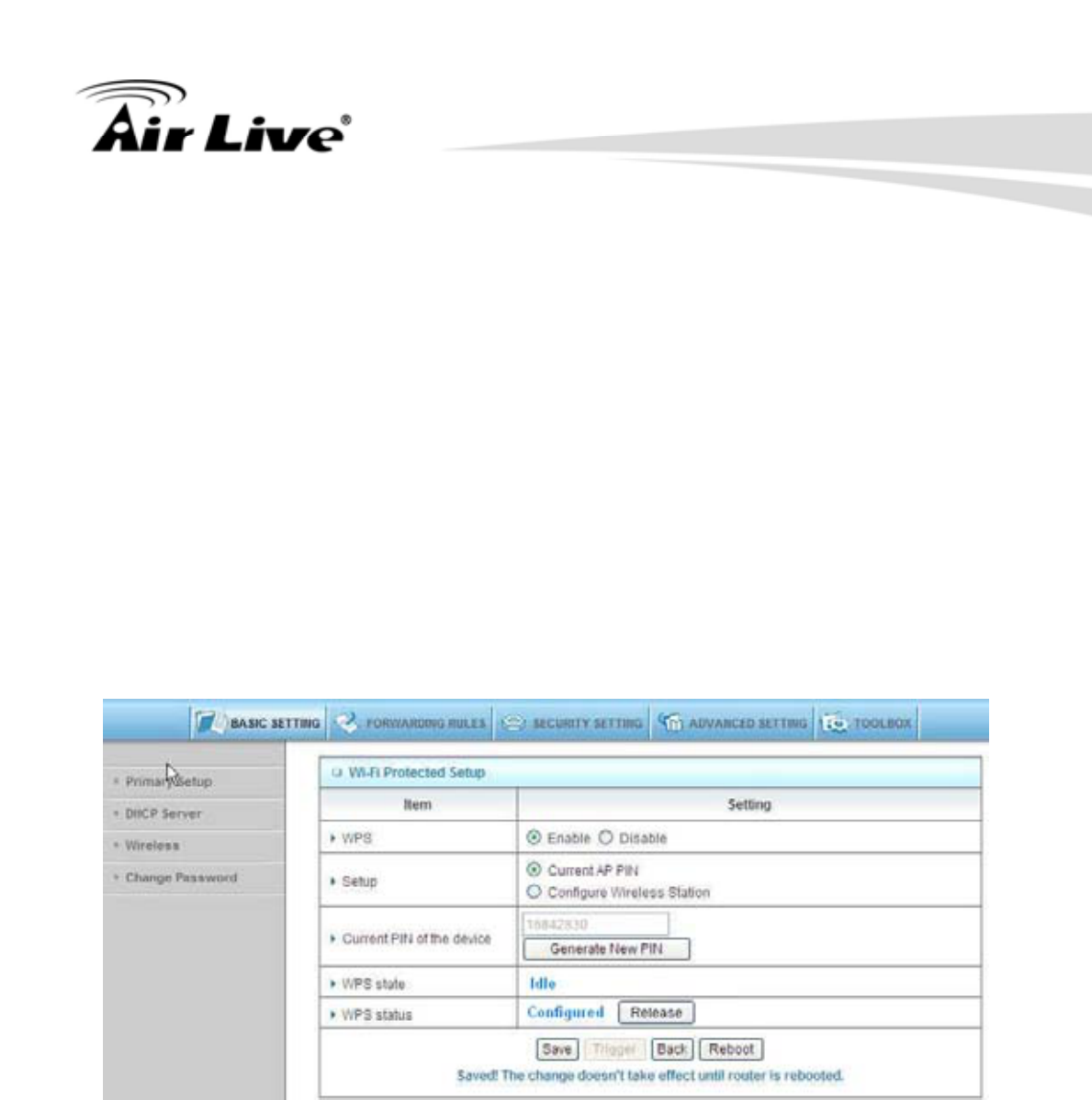

WPS (WiFi Protection Setup)
WPS is WiFi Protection Setup which is similar to WCN-NET and offers safe and
easy way in Wireless Connection.

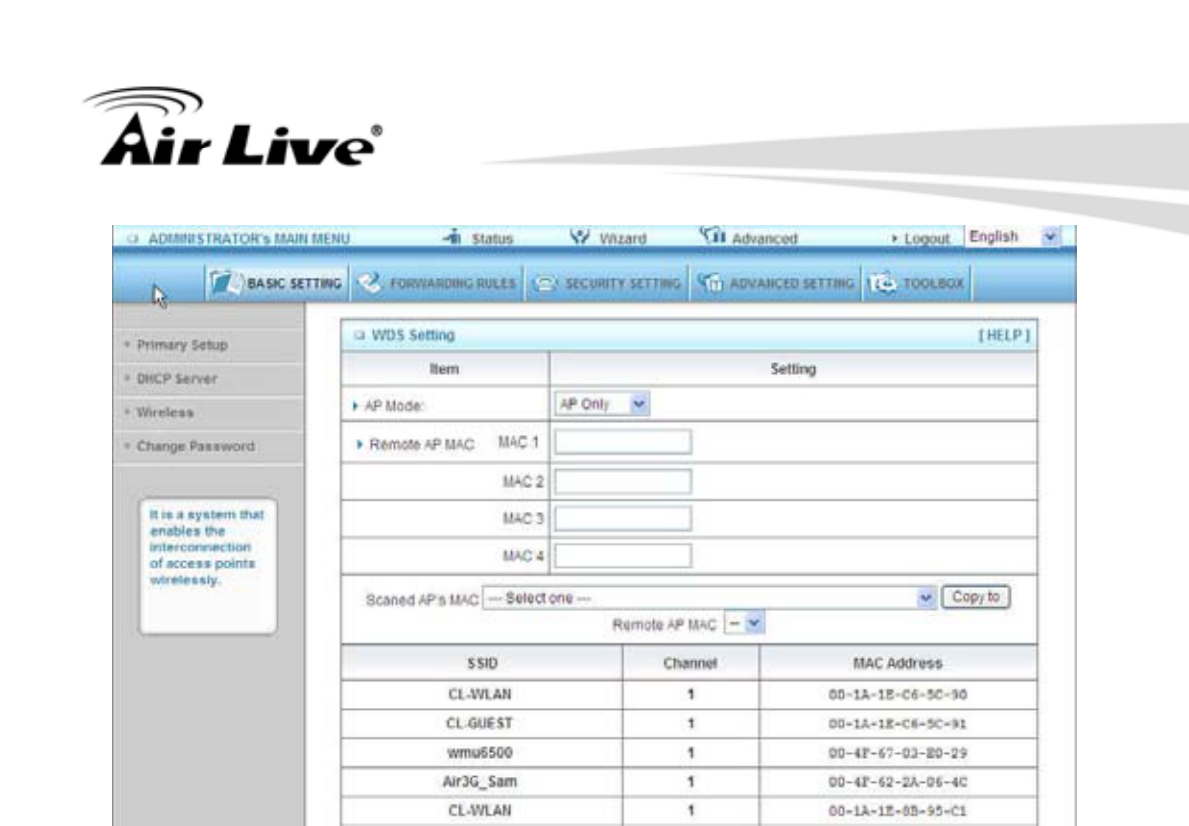

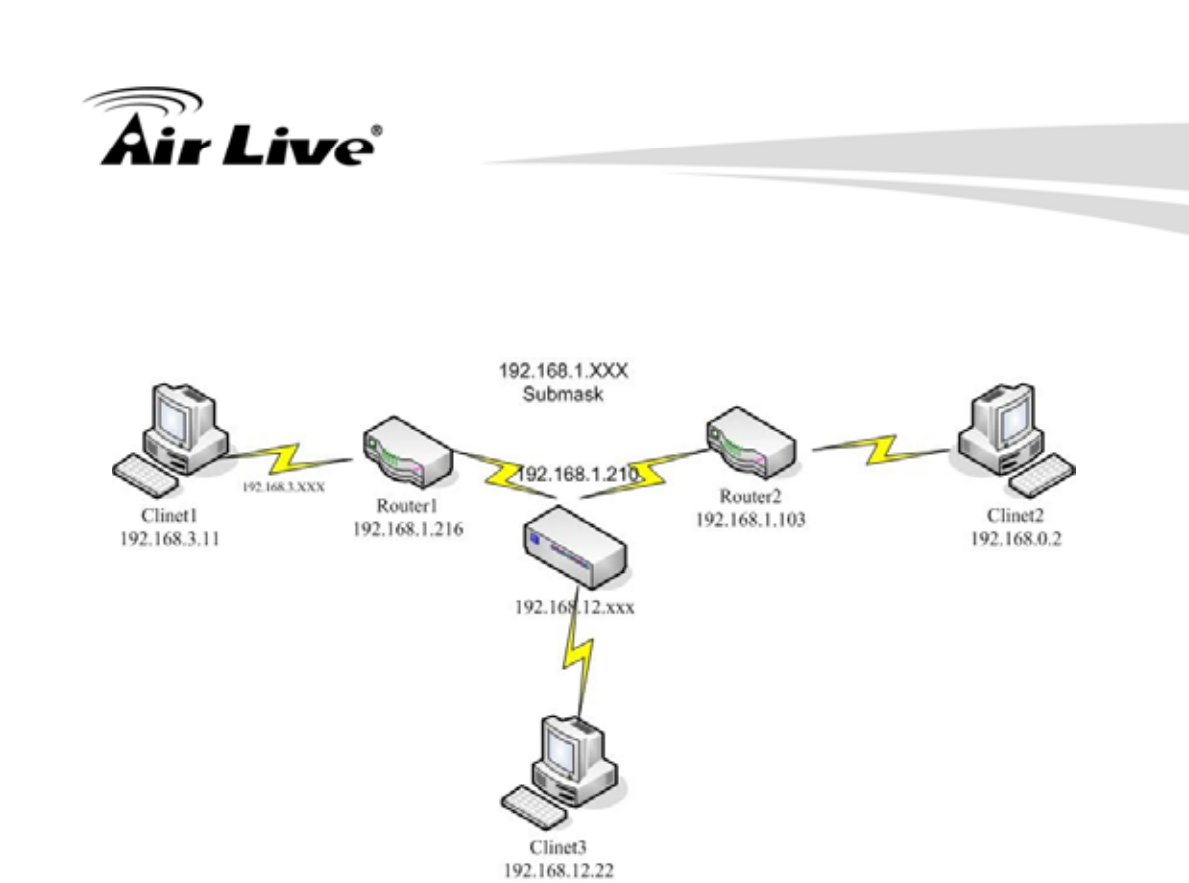

WDS(Wireless Distribution System)
WDS operation as defined by the IEEE802.11 standard has been made available. Using
WDS it is possible to wirelessly connect Access Points, and in doing so extend a wired
infrastructure to locations where cabling is not possible or inefficient to implement.
Hybrid Mode
It means the device can support WDS and AP Mode simultaneously.
3. Making Configuration
AirLive GW-300R User’s Manual 31
Security: Select the data privacy algorithm you want. Enabling the security can protect your
data while it is transferred from one station to another.
There are several security types to use:
WEP :
When you enable the 128 or 64 bit WEP key security, please select one WEP key to be
used and input 26 or 10 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.
802.1X
Check Box was used to switch the function of the 802.1X. When the 802.1X function is
enabled, the Wireless user must authenticate to this router first to use the Network service.
RADIUS Server
IP address or the 802.1X server’s domain-name.
RADIUS Shared Key
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
3. Making Configuration
AirLive GW-300R User’s Manual
32
WPA-PSK
1. Select Encryption and Pre-share Key Mode
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of pre-share key is from 8 to 63.
3. Making Configuration
AirLive GW-300R User’s Manual 33
2. Fill in the key, Ex 12345678
WPA
Check Box was used to switch the function of the WPA. When the WPA function is enabled,
the Wireless user must authenticate to this router first to use the Network service. RADIUS
Server IP address or the 802.1X server’s domain-name.
Select Encryption and RADIUS Shared Key
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of pre-share key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
WPA2-PSK(AES)
1. Select Pre-share Key Mode
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of Pre-share key is from 8 to 63.
2. Fill in the key, Ex 12345678
3. Making Configuration
AirLive GW-300R User’s Manual
34
WPA2(AES)
Check Box was used to switch the function of the WPA. When the WPA function is enabled,
the Wireless user must authenticate to this router first to use the Network service. RADIUS
Server
IP address or the 802.1X server’s domain-name.
Select RADIUS Shared Key
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of Pre-share key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
WPA-PSK /WPA2-PSK
The router will detect automatically which Security type the client
uses to encrypt.
1. Select Pre-share Key Mode
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of Pre-share key is from 8 to 63.
2. Fill in the key, Ex 12345678
3. Making Configuration
AirLive GW-300R User’s Manual 35
WPA/WPA2
Check Box was used to switch the function of the WPA. When the WPA function is enabled,
the Wireless user must authenticate to this router first to use the Network service. RADIUS
Server
The router will detect automatically which Security type(Wpa-psk version 1 or 2) the client
uses to encrypt.
IP address or the 802.1X server’s domain-name.
Select RADIUS Shared Key
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of Pre-share key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
Wireless Client List
3.3.1.4 Change Password
You can change Password here. We strongly recommend you to change the system
password for security reason.
3. Making Configuration
AirLive GW-300R User’s Manual
36
3.3.2 Forwarding Rules

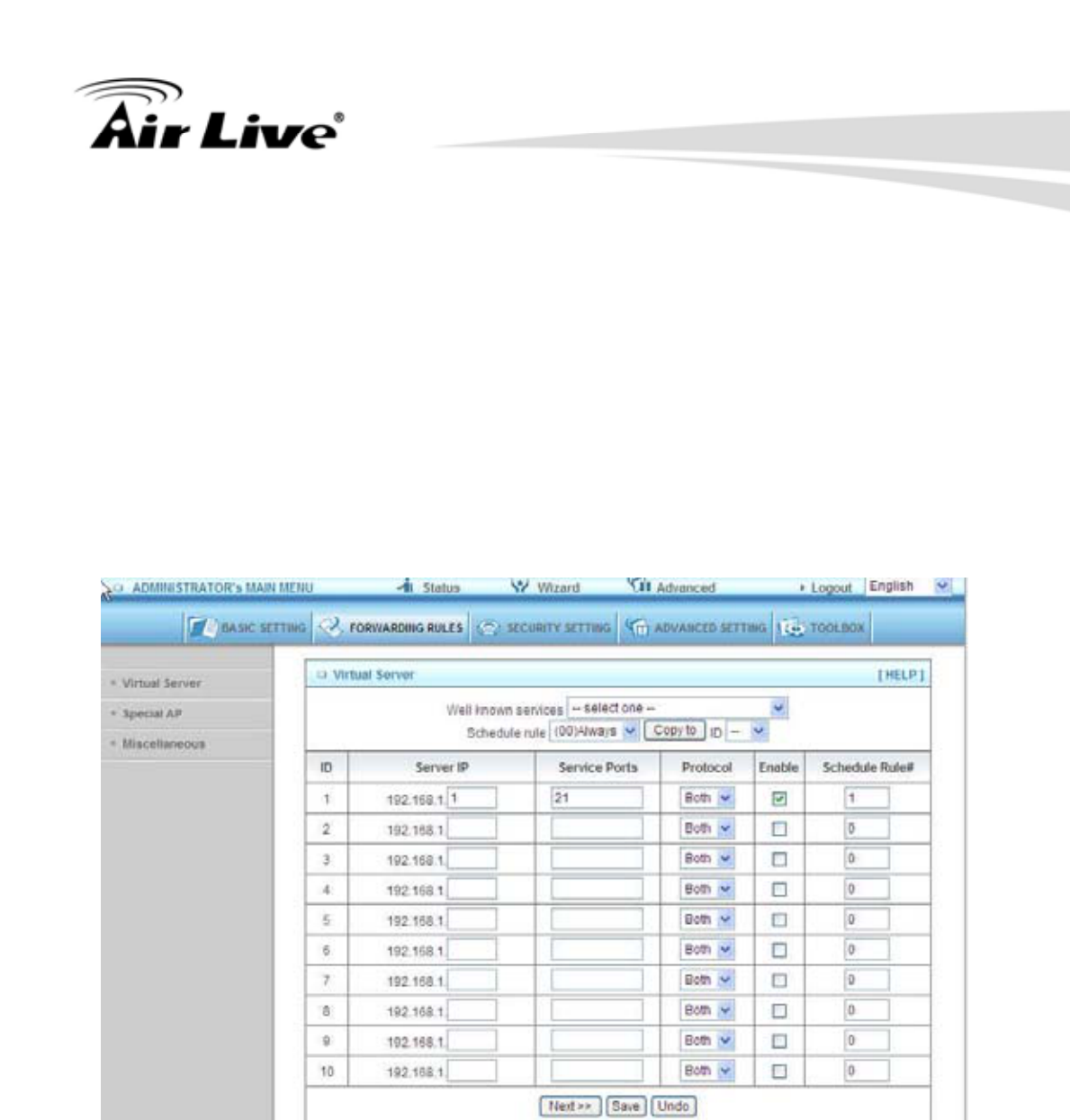

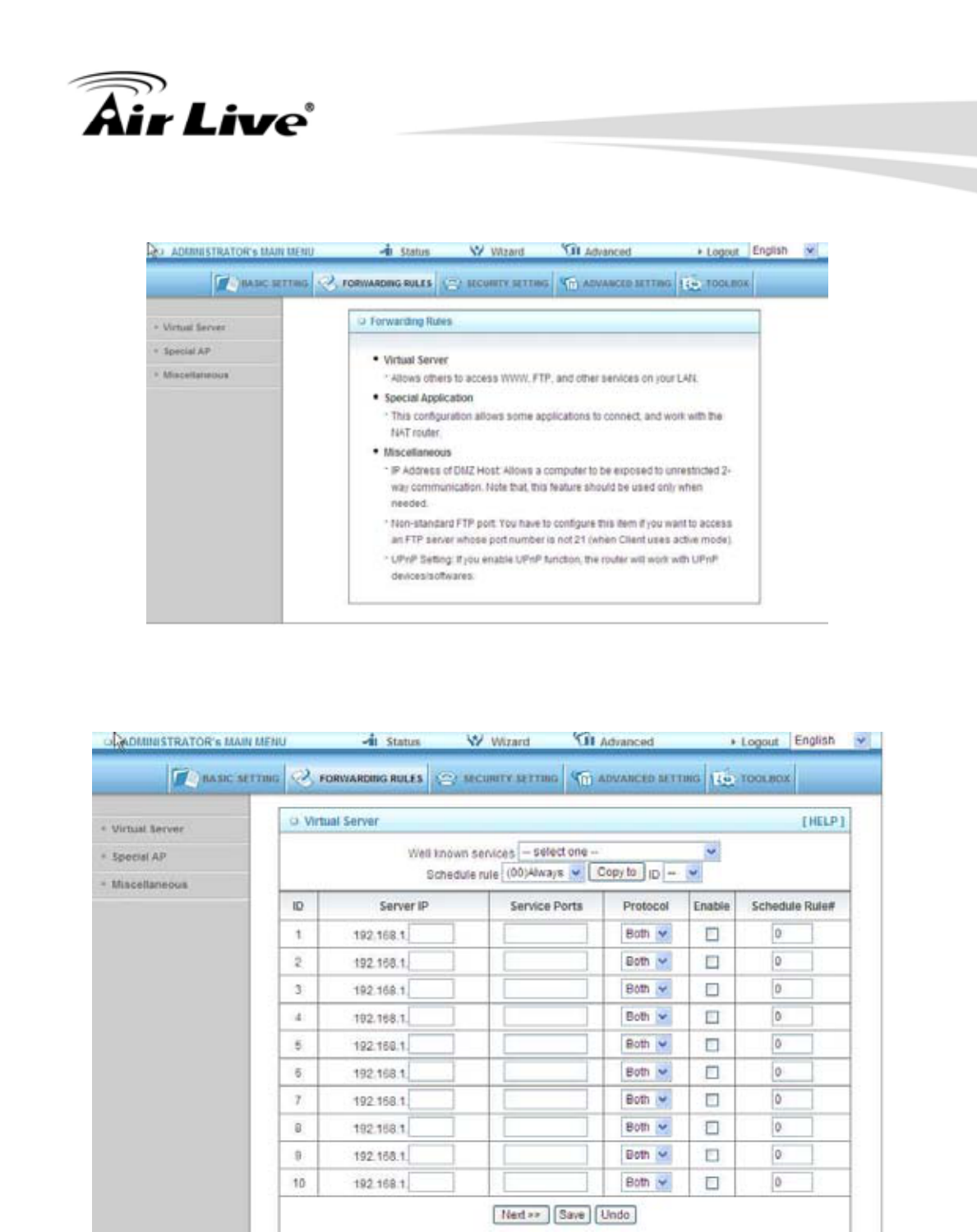

3.3.2.1 Virtual Server
3. Making Configuration
AirLive GW-300R User’s Manual 37
This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all
hosts behind this product are invisible to the outside world. If you wish, you can make some
of them accessible by enabling the Virtual Server Mapping.
A virtual server is defined as a Service Port, and all requests to this port will be redirected
to the computer specified by the Server IP. Virtual Server can work with Scheduling Rules,
and give user more flexibility on Access control. For Detail, please refer to Scheduling
Rule.

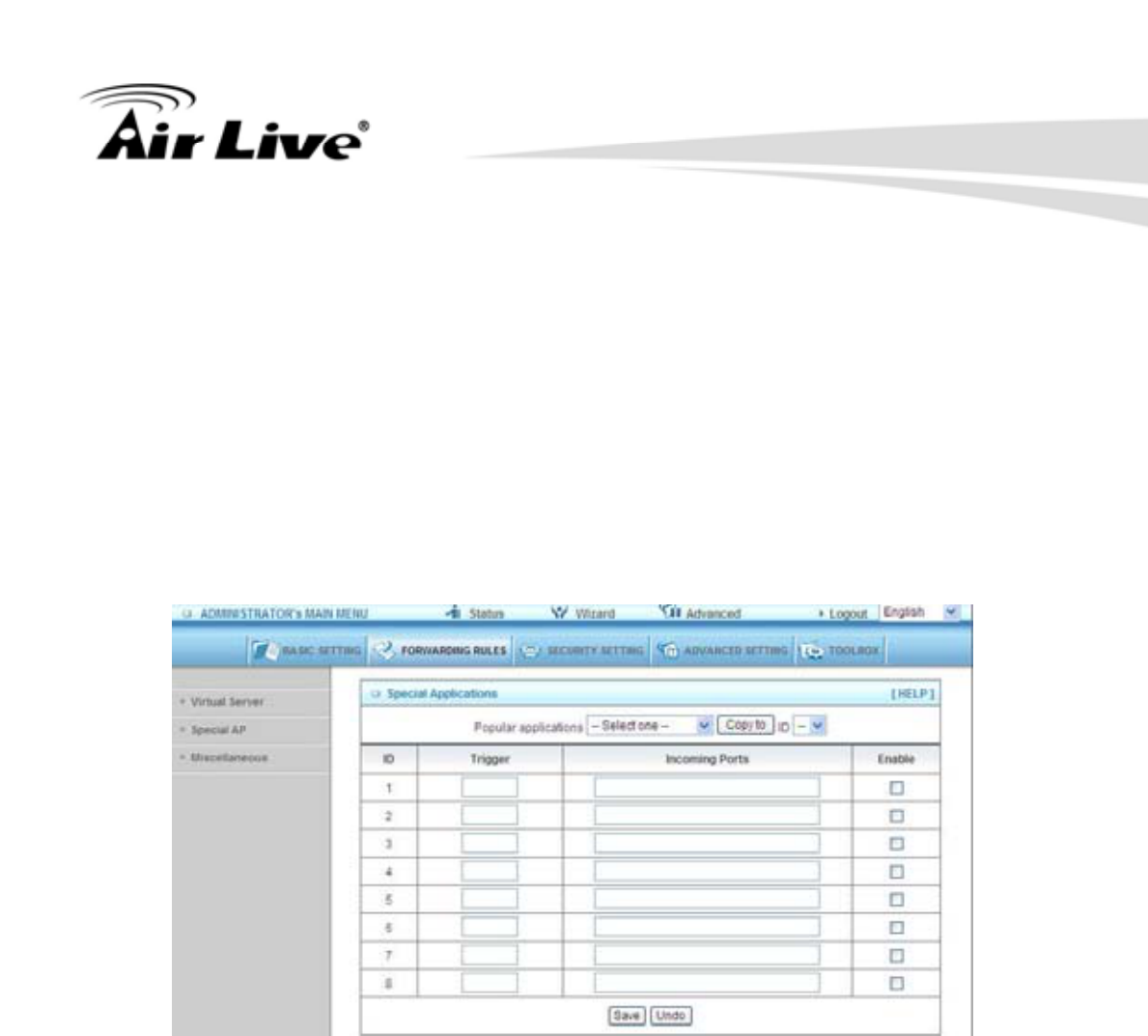

3.3.2.2 Special AP
Some applications require multiple connections, like Internet games, Video conferencing,
Internet telephony, etc. Because of the firewall function, these applications cannot work
with a pure NAT router. The Special Applications feature allows some of these applications
to work with this product. If the mechanism of Special Applications fails to make an
application work, try setting your computer as the DMZ host instead.
Trigger: the outbound port number issued by the application..
Incoming Ports: when the trigger packet is detected, the inbound packets sent to the
specified port numbers are allowed to pass through the firewall.
This product provides some predefined settings Select your application and click Copy to to
add the predefined setting to your list.
Note! At any given time, only one PC can use each Special Application tunnel.
3. Making Configuration
AirLive GW-300R User’s Manual
38
3.3.2.3 Miscellaneous Items

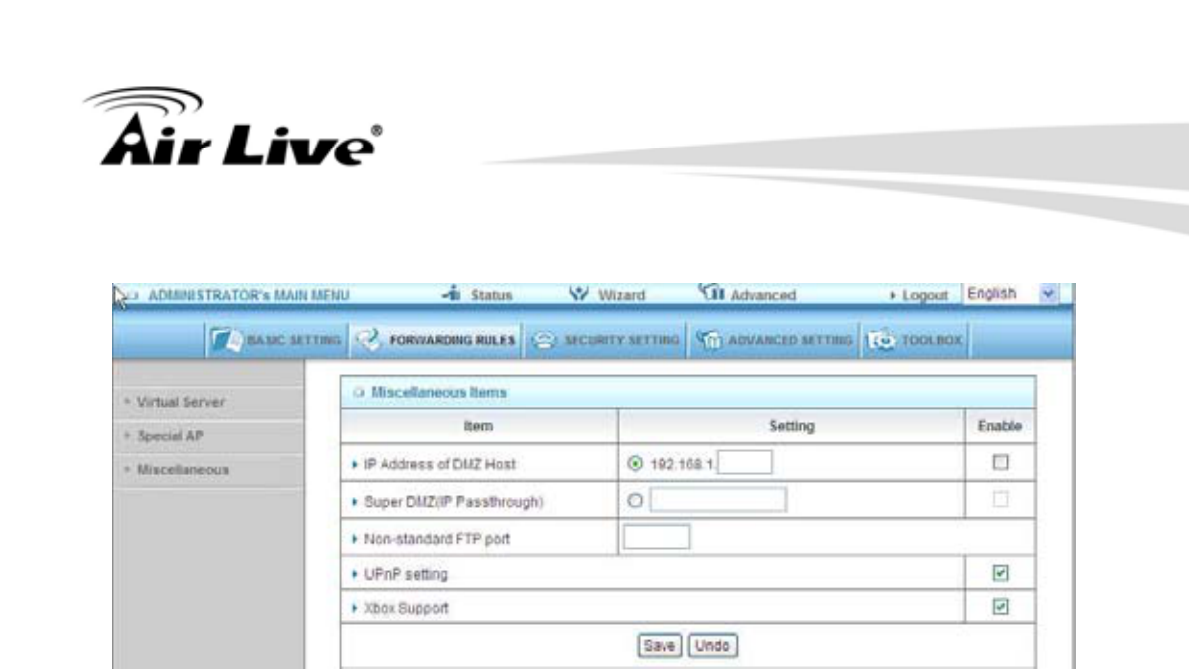

IP Address of DMZ Host
DMZ ( DeMilitarized Zone) Host is a host without the protection of firewall. It allows a
computer to be exposed to unrestricted 2-way communication for Internet games, Video
conferencing, Internet telephony and other special applications.
NOTE: This feature should be used only when needed.
Super DMZ (IP Passthrough)
Super DMZ (IP Passthrough) is a useful feature if a host computer or server on the Local
Area Network needs to have access into it from the internet with a real public IP address.
With IP Passthrough configured, all IP traffic, not just TCP/UDP, is forwarded back to the
host computer. This can be necessary with certain types of software that do not function
reliably through Network Address Translation.
Non-standard FTP port
You have to configure this item if you want to access an FTP server whose port number is
not 21. This setting will be lost after rebooting.
Xbox Support
The Xbox is a video game console produced by Microsoft Corporation. Please enable this
function when you play games.
3. Making Configuration
AirLive GW-300R User’s Manual 39
UpnP Setting

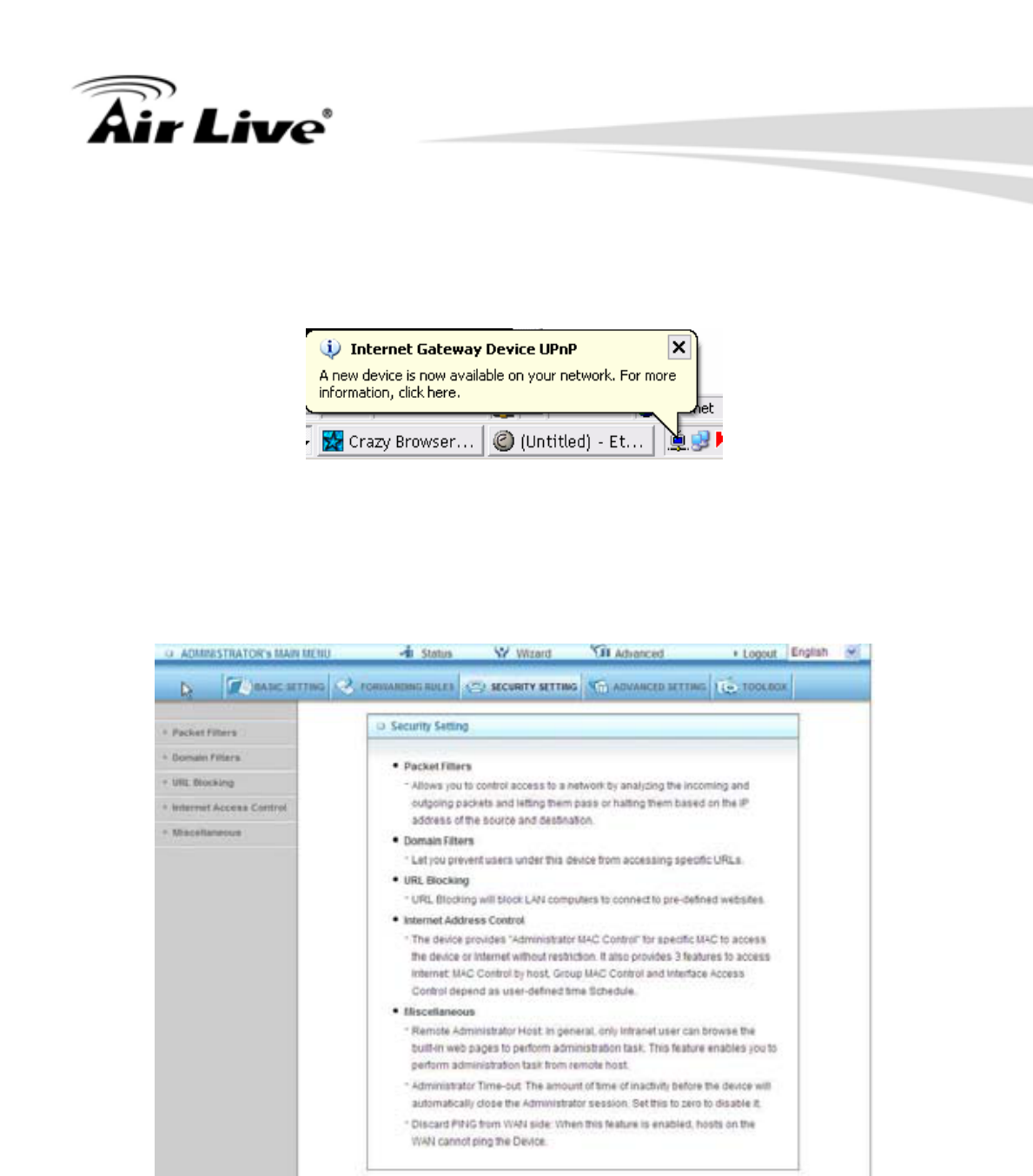

The device also supports this function.If the OS supports this function enable it,like
Windows Xp.When the user get ip from Device and will see icon as below:
3.3.3
ʳ
Security Settings
3. Making Configuration
AirLive GW-300R User’s Manual
40
3.3.3.1 Packet Filters
Packet Filter enables you to control what packets are allowed to pass the router. Outbound
filter applies on all outbound packets. However, Inbound filter applies on packets that
destined to Virtual Servers or DMZ host only. You can select one of the two filtering
policies:
Allow all to pass except those match the specified rules
Deny all to pass except those match the specified rules
You can specify 8 rules for each direction: inbound or outbound. For each rule, you can
define the following:
Source IP address
Source port address
Destination IP address
Destination port address
Protocol: TCP or UDP or both.
Use Rule#
3. Making Configuration
AirLive GW-300R User’s Manual 41
For source or destination IP address, you can define a single IP address (4.3.2.1) or a
range of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.
For source or destination port, you can define a single port (80) or a range of ports
(1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53,
U2000-2999. No prefix indicates both TCP and UDP are defined. An empty implies all port
addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on
Access control. For Detail, please refer to Scheduling Rule.
Each rule can be enabled or disabled individually.
Inbound Filter:
To enable Inbound Packet Filter click the check box next to Enable in the Inbound Packet
Filter field.
Suppose you have SMTP Server (25), POP Server (110), Web Server (80), FTP Server
(21), and News Server (119) defined in Virtual Server or DMZ Host.

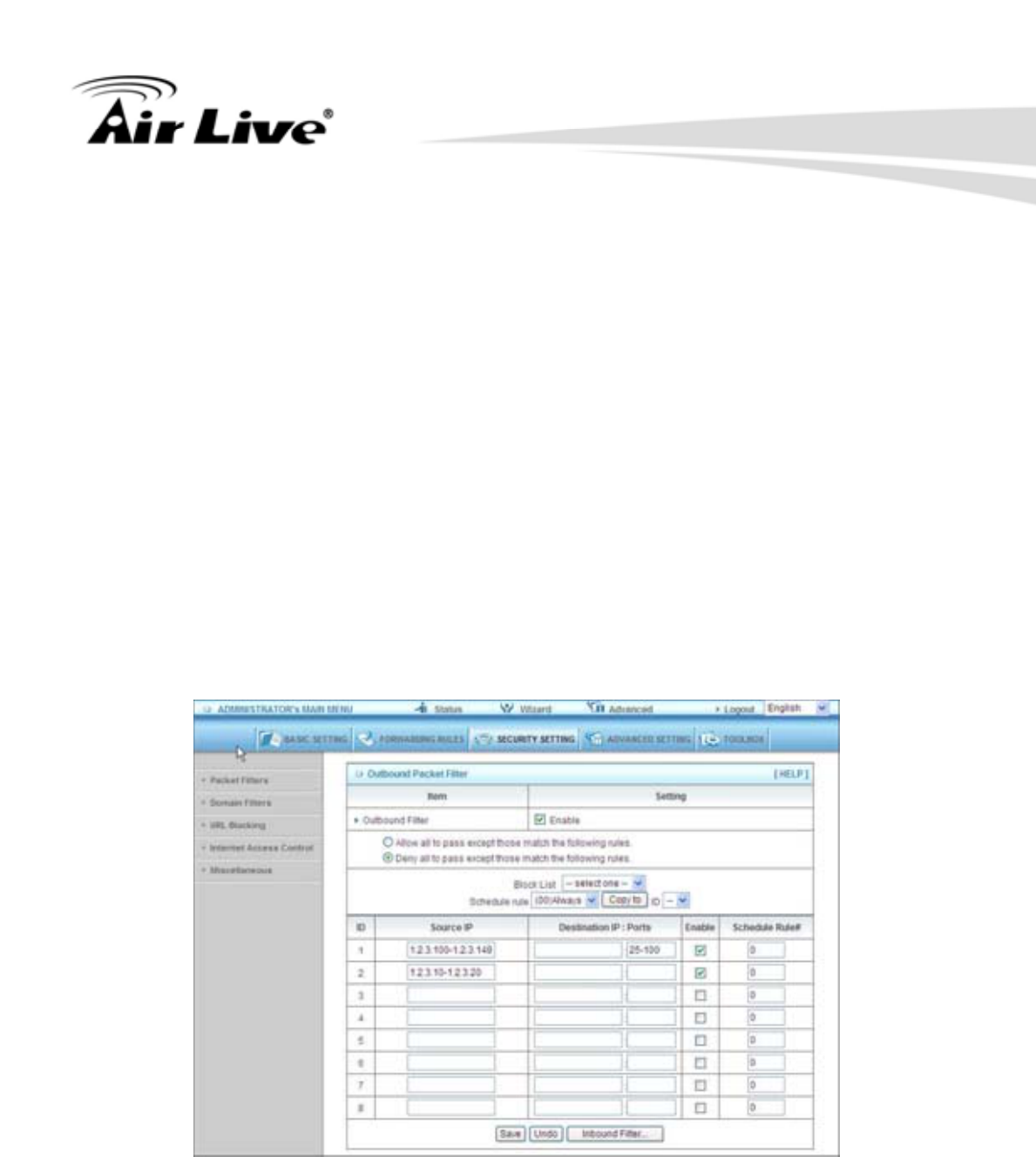

Example 1:
(1.2.3.100-1.2.3.149) Remote hosts are allow to send mail (port 25), and browse the
Internet (port 80)
(1.2.3.10-1.2.3.20) Remote hosts can do everything (block nothing)
Others are all blocked.
3. Making Configuration
AirLive GW-300R User’s Manual
42
Example 2:
(1.2.3.100-1.2.3.119) Remote hosts can do everything except read net news (port 119) and
transfer files via FTP (port 21) behind Router Server.
Others are all allowed.
After Inbound Packet Filter setting is configured, click the save button.

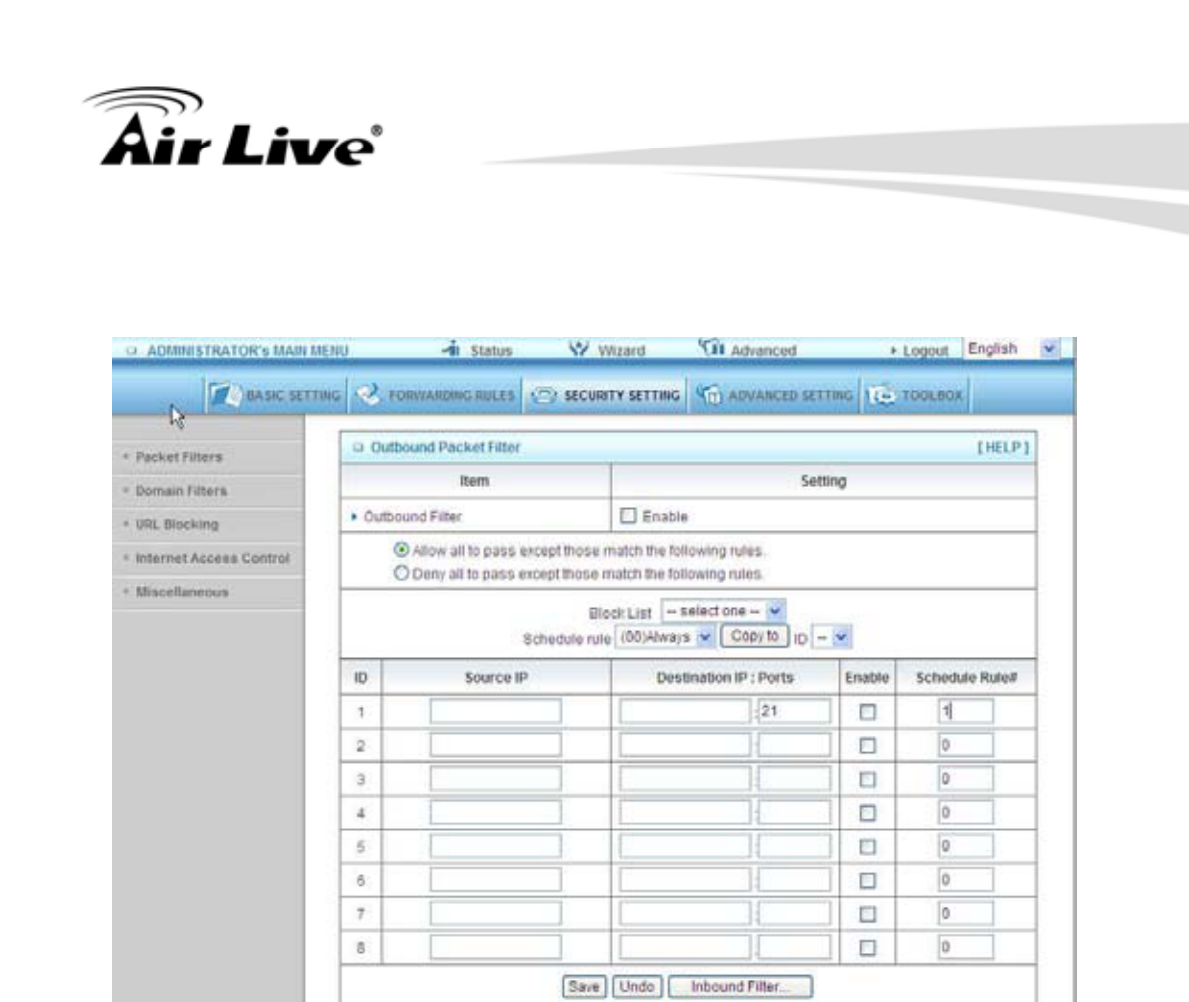

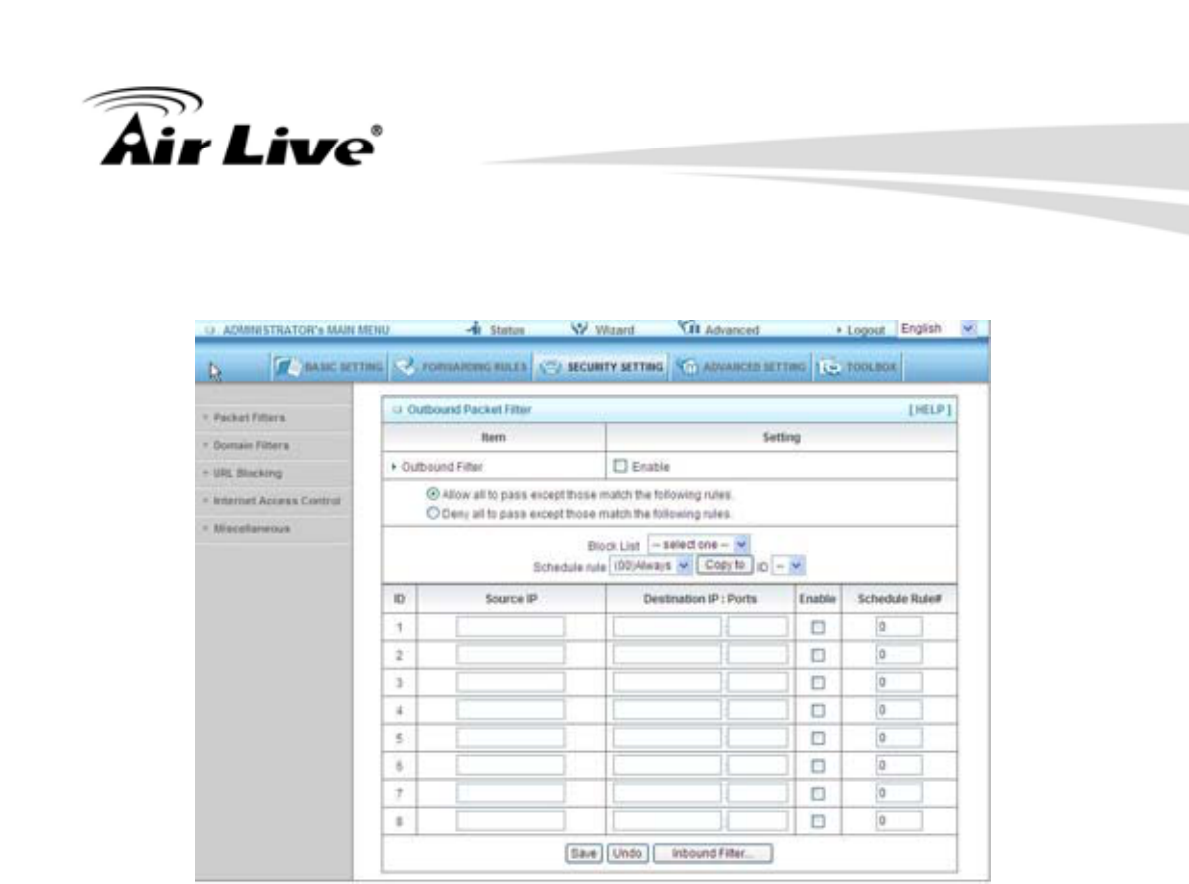

Outbound Filter:
To enable Outbound Packet Filter click the check box next to Enable in the Outbound
Packet Filter field.
3. Making Configuration
AirLive GW-300R User’s Manual 43

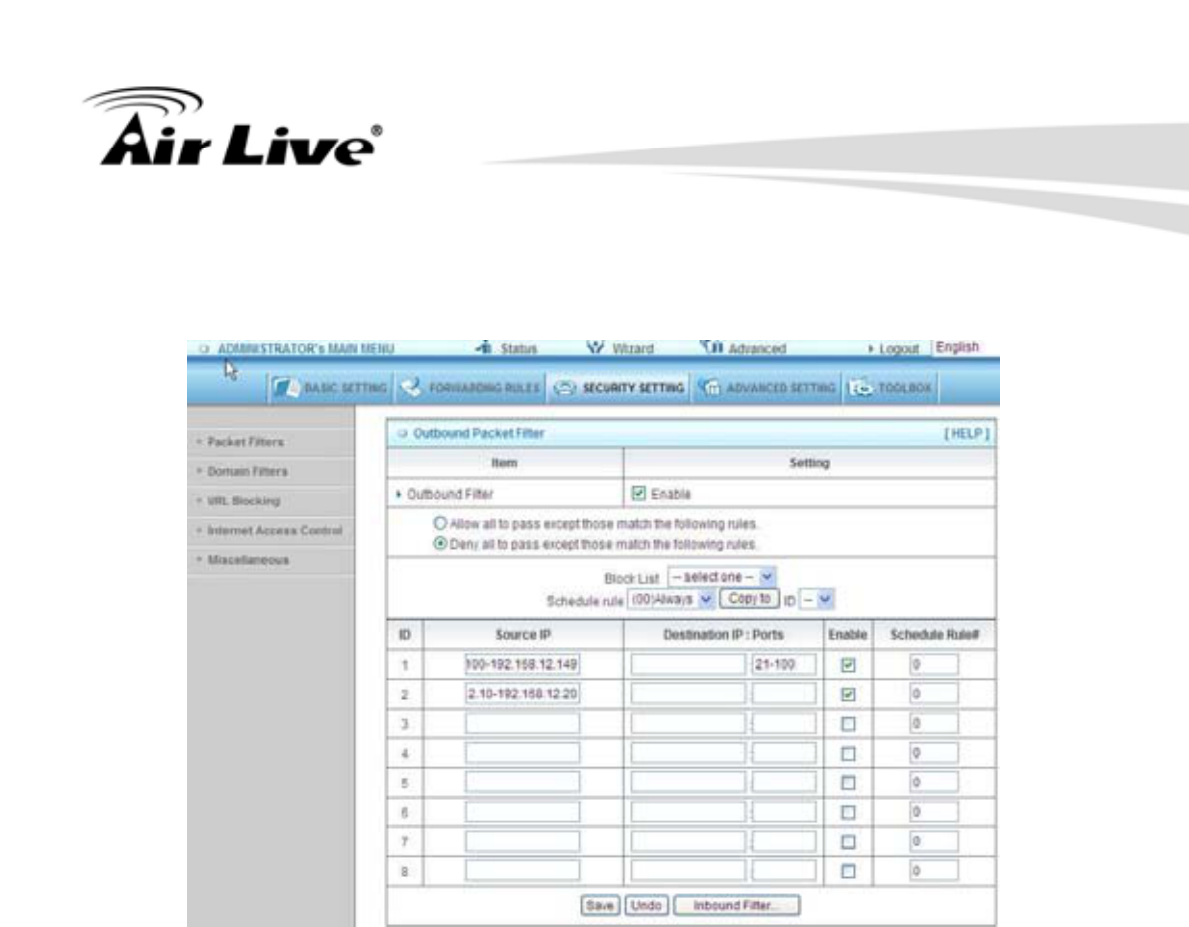

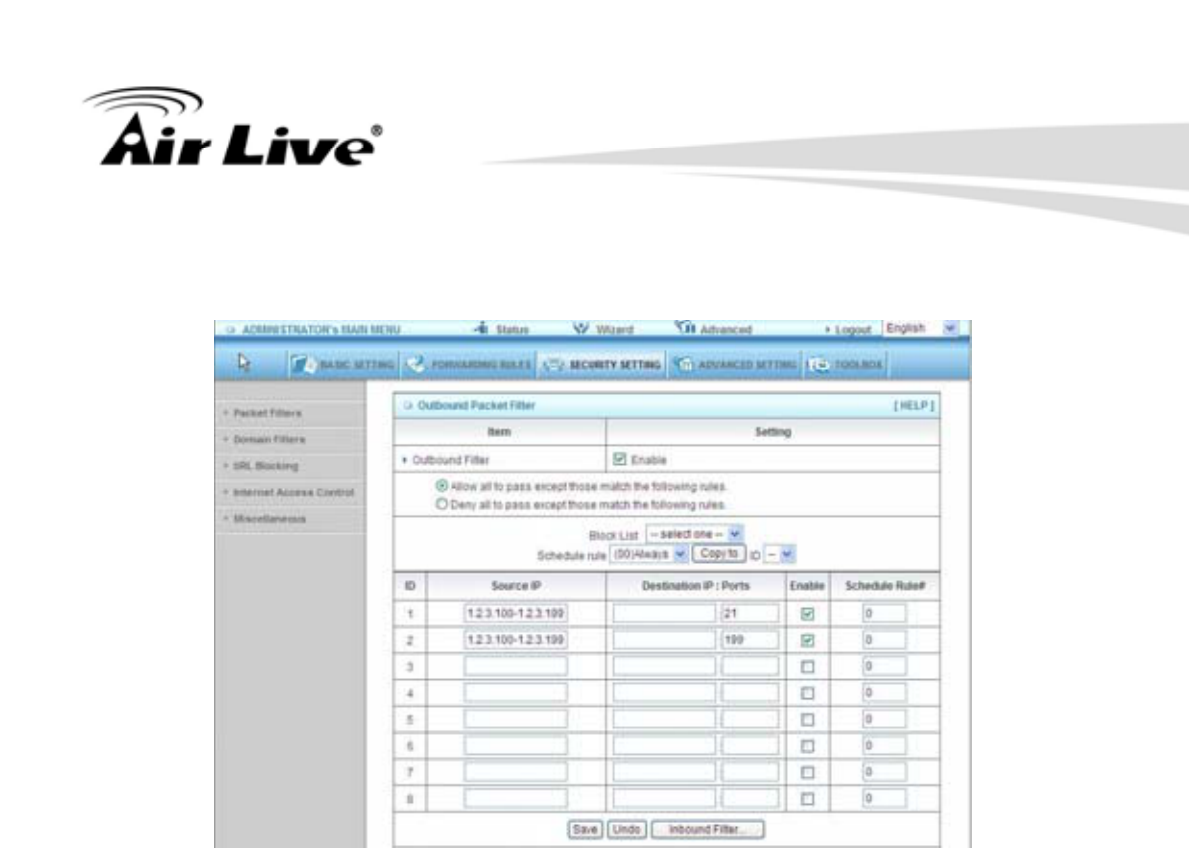

Example 1:
Router LAN IP is 192.168.12.254
(192.168.12.100-192.168.12.149) Located hosts are only allowed to send mail (port 25),
receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to
resolve the domain name.
(192.168.12.10-192.168.12.20) Located hosts can do everything (block nothing)
Others are all blocked.
3. Making Configuration
AirLive GW-300R User’s Manual
44

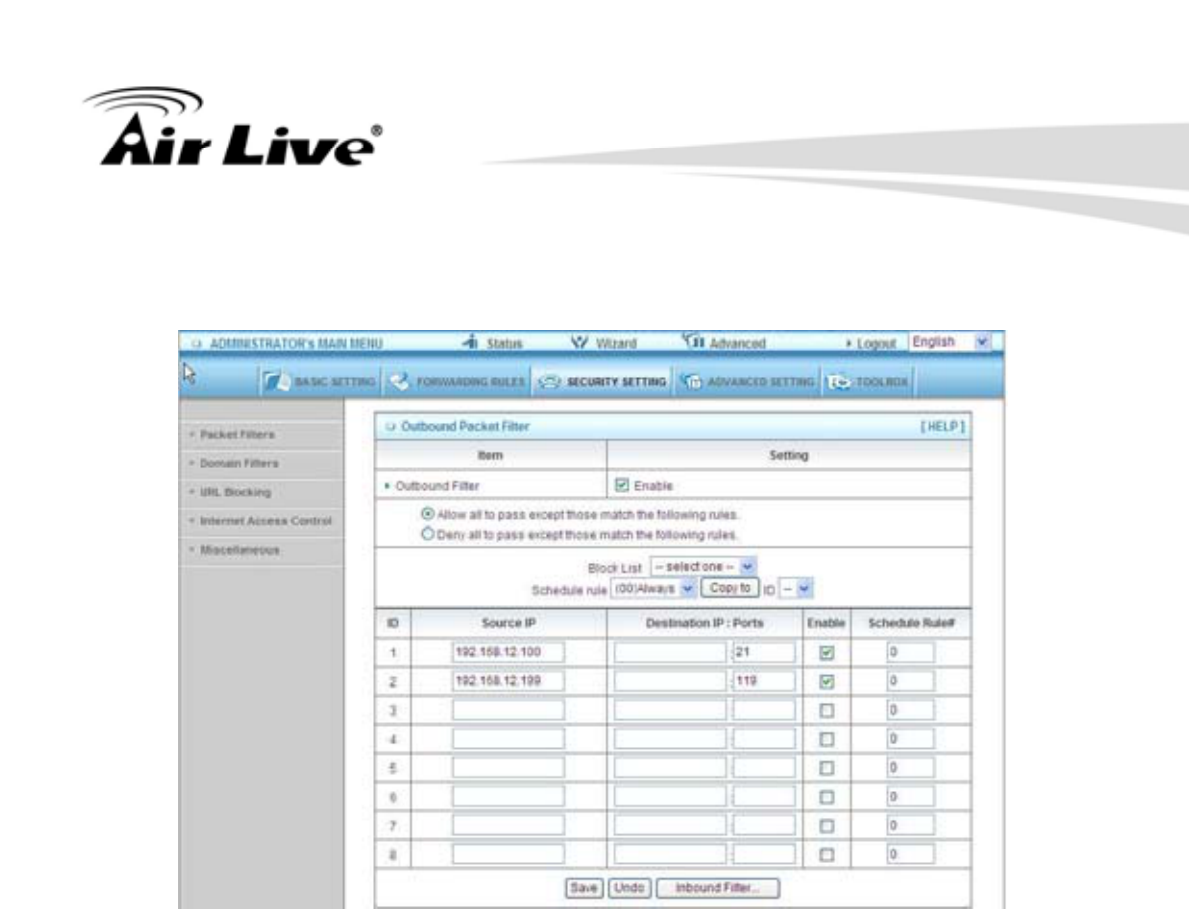

Example 2:
Router LAN IP is 192.168.12.254
(192.168.12.100 and 192.168.12.119) Located Hosts can do everything except read net
news (port 119) and transfer files via FTP (port 21)
Others are allowed
After Outbound Packet Filter setting is configured, click the save button.
3. Making Configuration
AirLive GW-300R User’s Manual 45
3.3.3.2 Domain filters
Domain Filter
Let you prevent users under this device from accessing specific URLs.
Domain Filter Enable
Check if you want to enable Domain Filter.
Log DNS Query
Check if you want to log the action when someone accesses the specific URLs.
Privilege IP Addresses Range
Setting a group of hosts and privilege these hosts to access network without restriction.
Domain Suffix
A suffix of URL to be restricted. For example, ".com", "xxx.com".
Action
When someone is accessing the URL met the domain-suffix, what kind of action you want.
Check drop to block the access. Check log to log these access.
Enable
Check to enable each rule.
3. Making Configuration
AirLive GW-300R User’s Manual
46

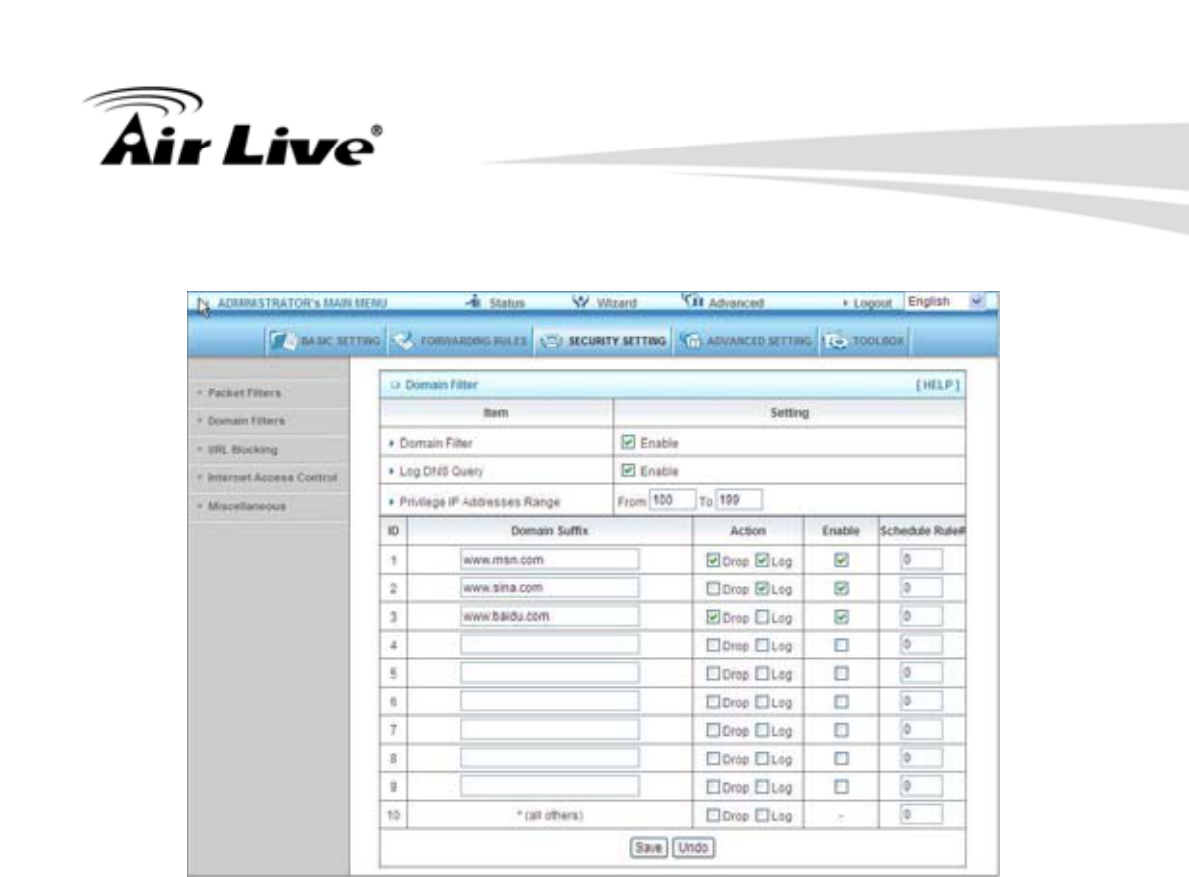

Example:
In this example:
URL include “www.msn.com” will be blocked, and the action will be record in log-file.
URL include “www.sina.com” will not be blocked, but the action will be record in log-file.
URL include “www.baidu.com” will be blocked, but the action will not be record in log-file.
IP address x.x.x.1~x.x.x.99 can access Internet without restriction.
3. Making Configuration
AirLive GW-300R User’s Manual 47

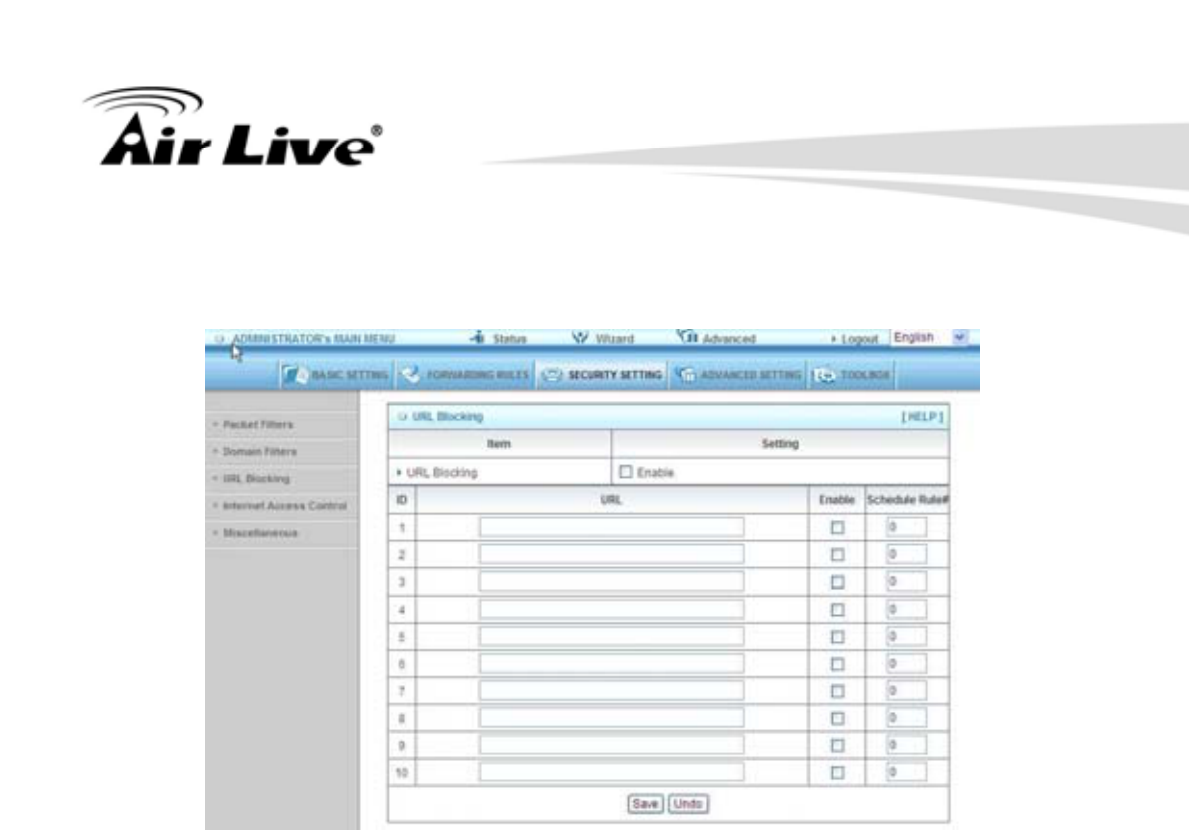

3.3.3.3 URL Blocking
URL Blocking will block LAN computers to connect to pre-defined Websites.
The major difference between “Domain filter” and “URL Blocking” is Domain filter require
user to input suffix (like .com or .org, etc), while URL Blocking require user to input a
keyword only. In other words, Domain filter can block specific website, while URL Blocking
can block hundreds of websites by simply a keyword.
URL Blocking Enable
Checked if you want to enable URL Blocking.
URL
If any part of the Website's URL matches the pre-defined word, the connection will be
blocked.
For example, you can use pre-defined word "sex" to block all websites if their URLs contain
pre-defined word "sex".
Enable
Checked to enable each rule.
3. Making Configuration
AirLive GW-300R User’s Manual
48

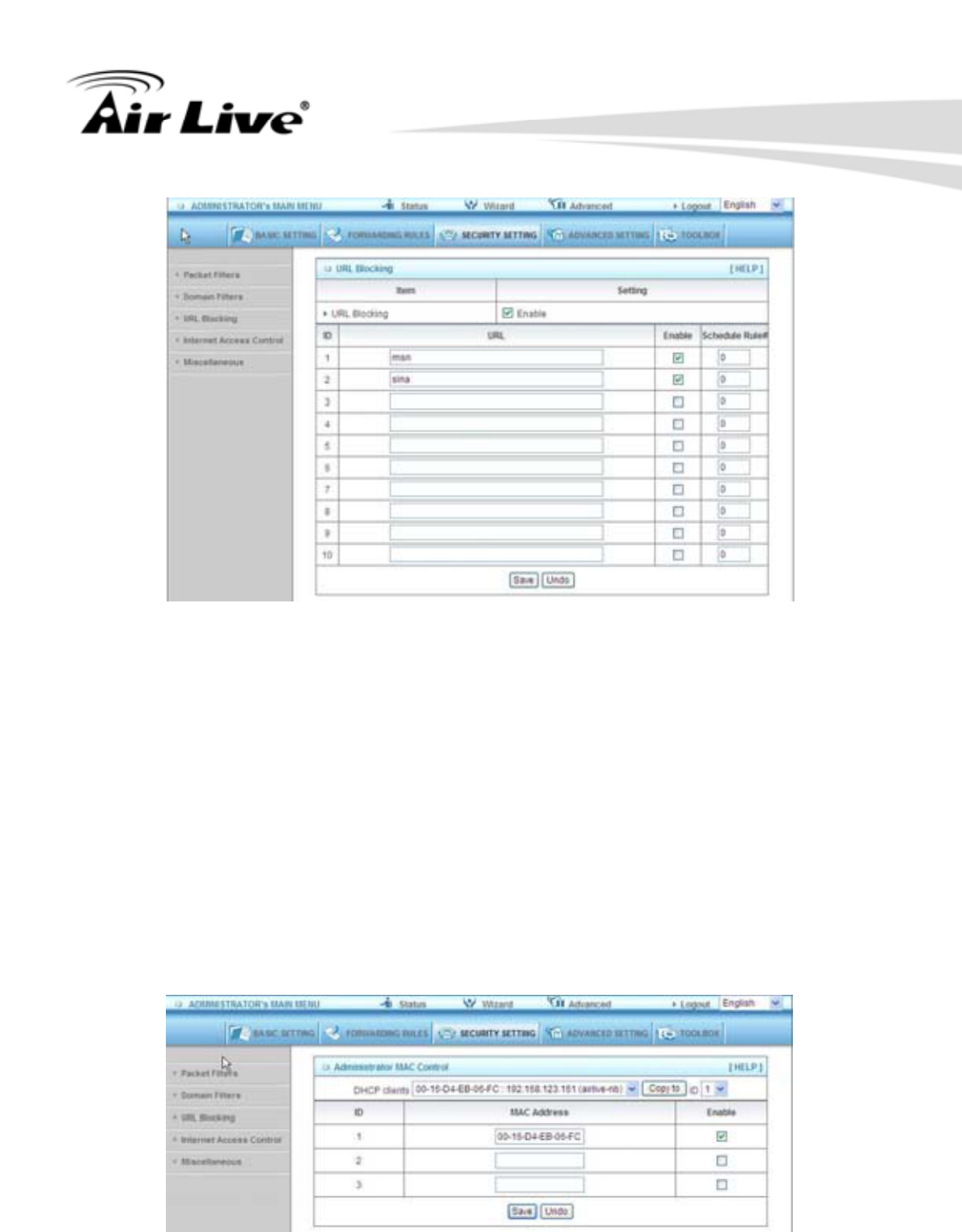

In this example:
1. URL include “msn” will be blocked, and the action will be record in log-file.
2. URL include “sina” will be blocked, but the action will be record in log-file
3.3.3.4 Internet Access Control

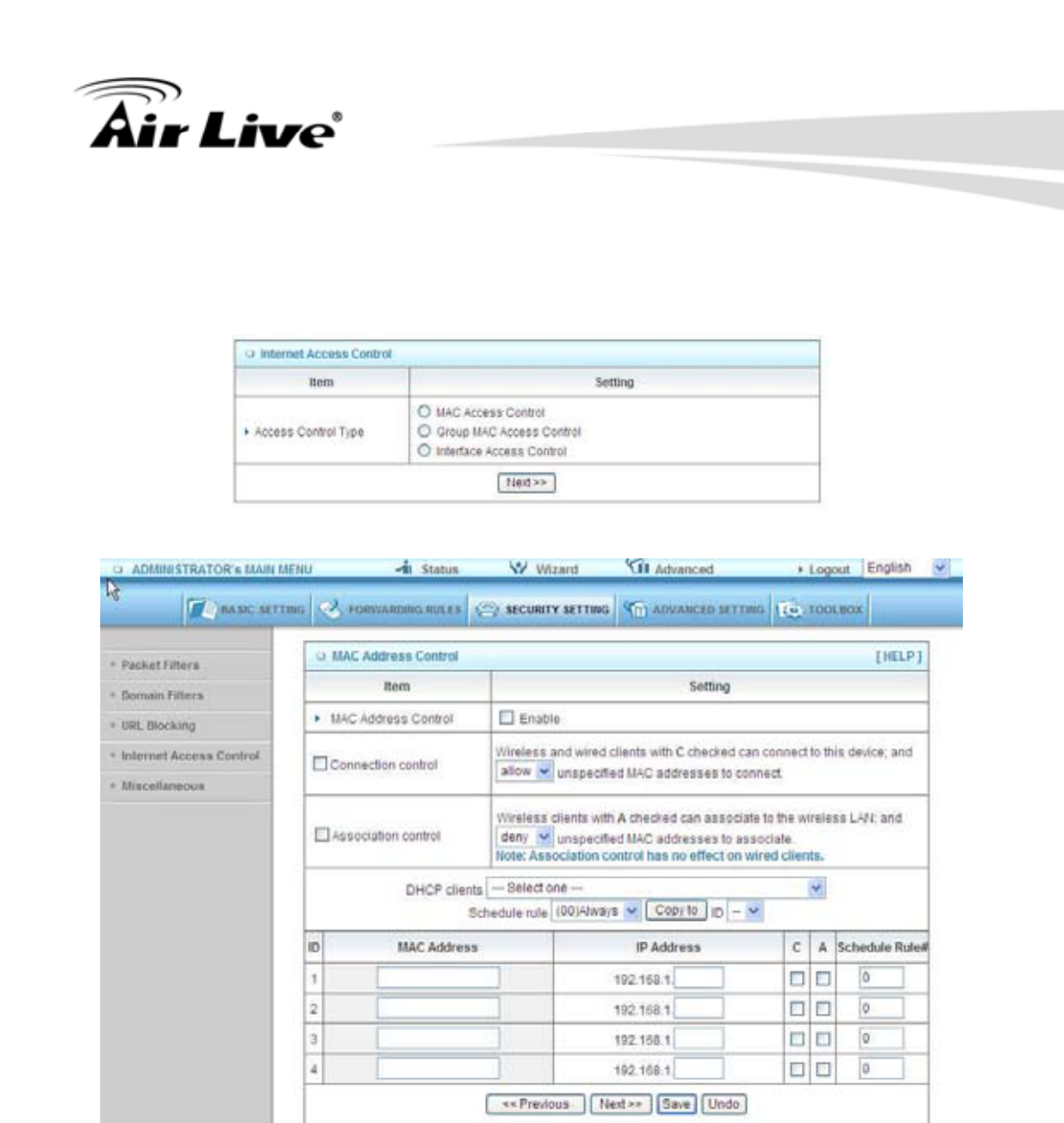

The device provides "Administrator MAC Control" for specific MAC to access the device or
Internet without restriction. It also provides 3 features to access Internet: MAC Control by
host, Group MAC Control and Interface Access Control depend as user-defined time
Schedule.
Administrator MAC Control
Regardless the MAC access configuration of administrator, specific MAC can access the
device.
3. Making Configuration
AirLive GW-300R User’s Manual 49
This device can record 3 sets. When the host(should be admin) logins Web management,
the device will record MAC address of this host. Before this host configures Internet Access
Control , Suggest end-user to enable this feature, first.
MAC control
MAC Address Control allows you to assign different access right for different users and to
assign a specific IP address to a certain MAC address.
MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the
settings in this page will take effect only when “Enable” is checked.
Connection control Check "Connection control" to enable the controlling of which wired
and wireless clients can connect to this device. If a client is denied to connect to this device,
it means the client can't access to the Internet either. Choose "allow" or "deny" to allow or
3. Making Configuration
AirLive GW-300R User’s Manual
50
deny the clients, whose MAC addresses are not in the "Control table"
(please see below), to connect to this device.
Association control Check "Association control" to enable the
controlling of which wireless client can
associate to the wireless LAN. If a client is
denied to associate to the wireless LAN, it
means the client can't send or receive any data
via this device. Choose "allow" or "deny" to
allow or deny the clients, whose MAC
addresses are not in the "Control table", to
associate to the wireless LAN.
Control table
"Control table" is the table at the bottom of the "MAC Address Control" page. Each row of
this table indicates the MAC address and the expected IP address mapping of a client.

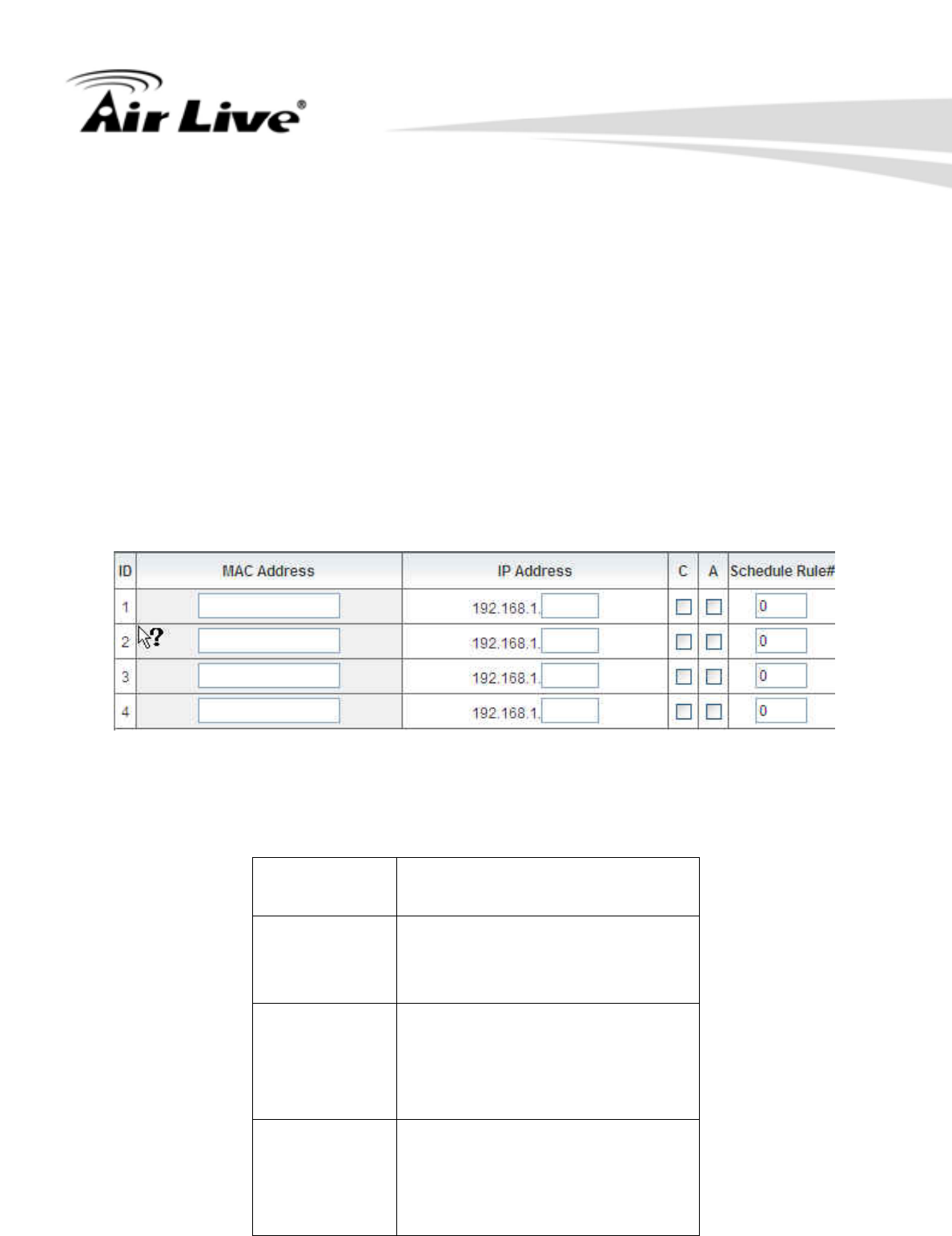

There are four columns in this table:
MAC Address MAC address indicates a specific
client.
IP Address Expected IP address of the
corresponding client. Keep it empty
if you don't care its IP address.
C When "Connection control" is
checked, check "C" will allow the
corresponding client to connect to
this device.
A When "Association control" is
checked, check "A" will allow the
corresponding client to associate
to the wireless LAN.
3. Making Configuration
AirLive GW-300R User’s Manual 51

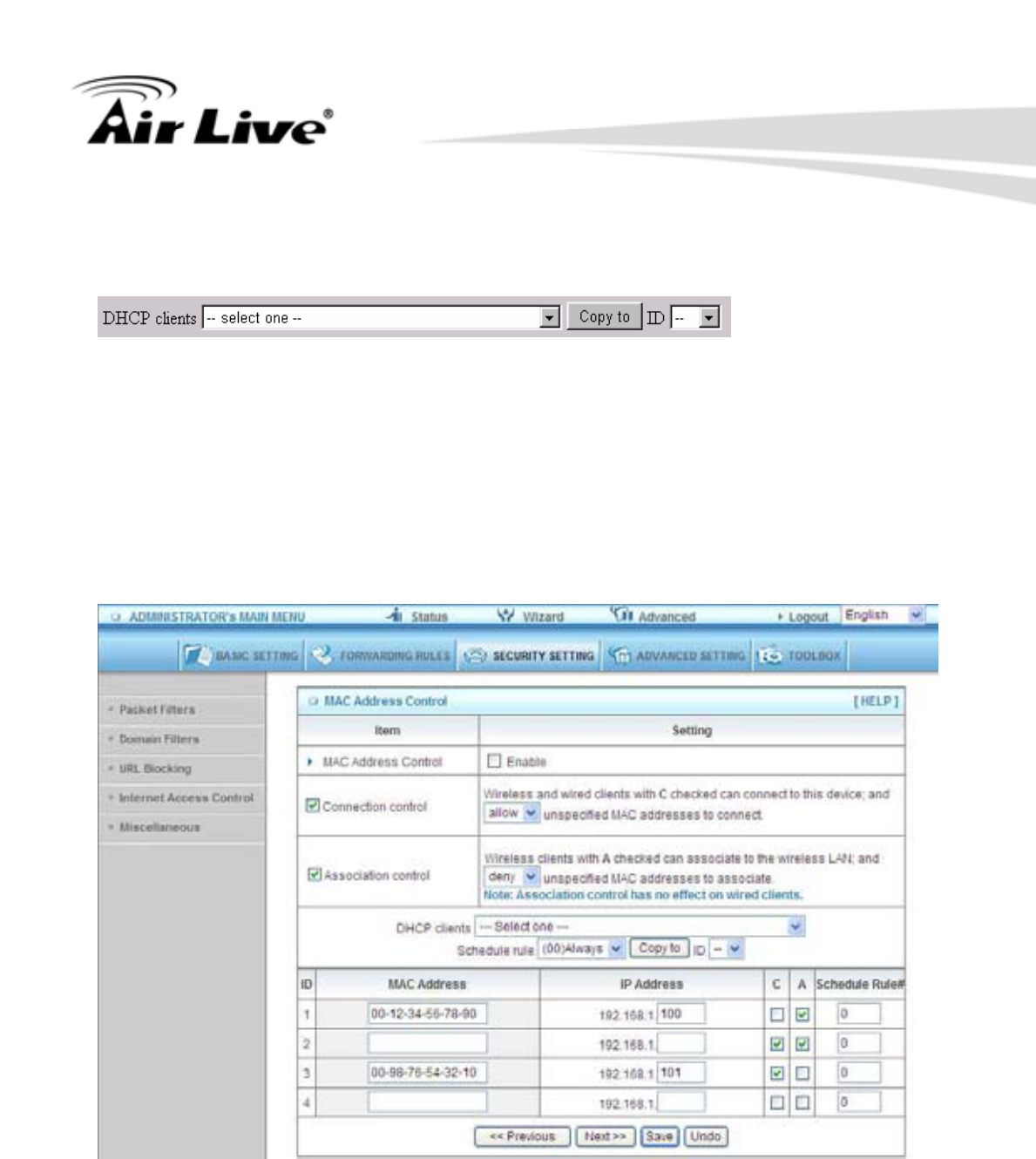

In this page, we provide the following Combobox and button to help you to input the MAC
address.
You can select a specific client in the “DHCP clients” Combobox, and then click on the
“Copy to” button to copy the MAC address of the client you select to the ID selected in the
“ID” Combobox.
Previous page and Next Page To make this setup page simple and clear, we have divided
the “Control table” into several pages. You can use these buttons to navigate to different
pages.
Example:
In this scenario, there are three clients listed in the Control Table. Clients 1 and 2 are
wireless, and client 3 is wired.
1.The "MAC Address Control" function is enabled.
2."Connection control" is enabled, and all of the wired and wireless clients not listed in the
"Control table" are "allowed" to connect to this device.
3. Making Configuration
AirLive GW-300R User’s Manual
52
3."Association control" is enabled, and all of the wireless clients not listed in the "Control
table" are "denied" to associate to the wireless LAN.
4.Clients 1 and 3 have fixed IP addresses either from the DHCP server of this device or
manually assigned:
ID 1 - "00-12-34-56-78-90" --> 192.168.1.100
ID 3 - "00-98-76-54-32-10" --> 192.168.1.101
Client 2 will obtain its IP address from the IP Address pool specified in the "DHCP Server"
page or can use a manually assigned static IP address.
If, for example, client 3 tries to use an IP address different from the address listed in the
Control
table (192.168.12.101), it will be denied to connect to this device.
5.Clients 2 and 3 and other wired clients with a MAC address unspecified in the Control
table are all allowed to connect to this device. But client 1 is denied to connect to this
device.
6.Clients 1 and 2 are allowed to associate to the wireless LAN, but a wireless client with a
MAC address not specified in the Control table is denied to associate to the wireless LAN.
Client 3 is a wired client and so is not affected by Association control.

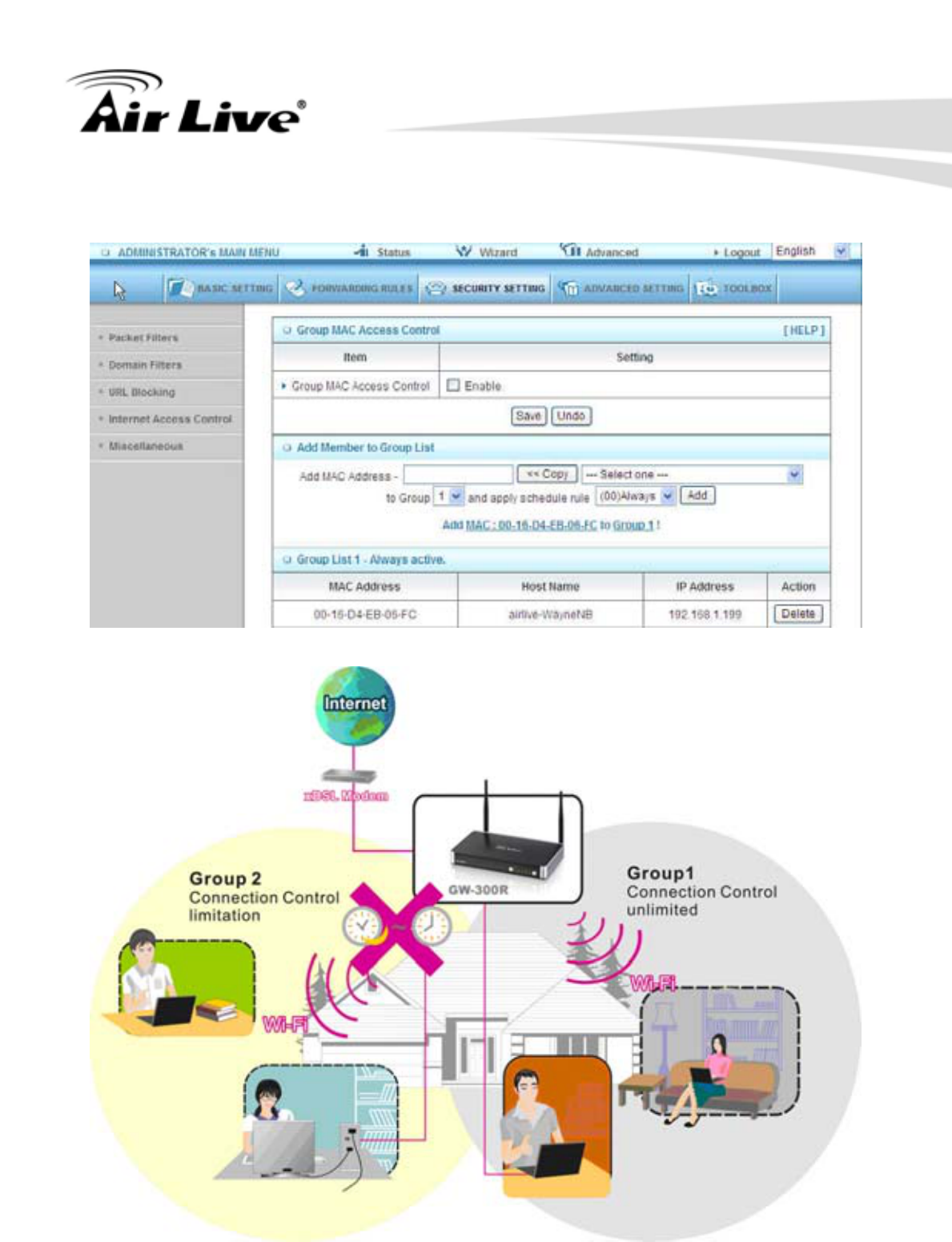

Group MAC Access Control
Administrator can define hosts in which Group to allow Internet. For example, Father and
Mother are in Group1 without limitation and hosts Brother and Sister are in Group2 to
access according as Schedule Rule2.
3. Making Configuration
AirLive GW-300R User’s Manual 53
For example,
Schedule Rule 1 sets “always” everyday with limitation.
3. Making Configuration
AirLive GW-300R User’s Manual
54
Interface Access Control
The device defines 5 Interfaces as Lan1,Lan2, Lan3,Lan4 and WiFi. The device
allows different interface to access Internet by time schedule
For example, Schedule Rule 1 sets “always” everyday with limitation.
Schedule Rule 2 sets 08:00~23:00 Monday ~ Friday.
Administrator can set guests in Lan3 and Lan4 to access Internet according as Schedule
Rule
2. Set Friends in Lan1 ,Lan2 and WiFi according as Schedule Rule 1.
3. Making Configuration
AirLive GW-300R User’s Manual 55
3.3.3.5 Miscellaneous Items
Remote Administrator Host/Port
In general, only Intranet user can browse the built-in web pages to perform administration
task. This feature enables you to perform administration task from remote host. If this
feature is enabled, only the specified IP address can perform remote administration. If the
specified IP address is 0.0.0.0, any host can connect to this product to perform
administration task. You can use subnet mask bits "/nn" notation to specified a group of
trusted IP addresses. For example, "10.1.2.0/24".
NOTE: When Remote Administration is enabled, the web server port will be shifted to 88.
You can change web server port to other port, too.
Administrator Time-out
The time of no activity to logout automatically. Set it to zero to disable this feature.
Discard PING from WAN side
When this feature is enabled, any host on the WAN cannot ping this product.
SPI Mode
When this feature is enabled, the router will record the packet information pass through the
router like IP address, port address, ACK, SEQ number and so on. And the router will
check every incoming packet to detect if this packet is valid.
DoS Attack Detection
When this feature is enabled, the router will detect and log the DoS attack comes from the
Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke,
Port Scan, Ping of Death, Land Attack etc.
3. Making Configuration
AirLive GW-300R User’s Manual
56
VPN IPSec Pass-Through
It is a setting/feature on routers which is required to implement secure exchange of packets
at
the IP layer and allow IPSec tunnels to pass through the router.
VPN PPTP Pass-Through
It is a setting/feature on routers which is required in order to connect to a Remote PPTP
VPN account.

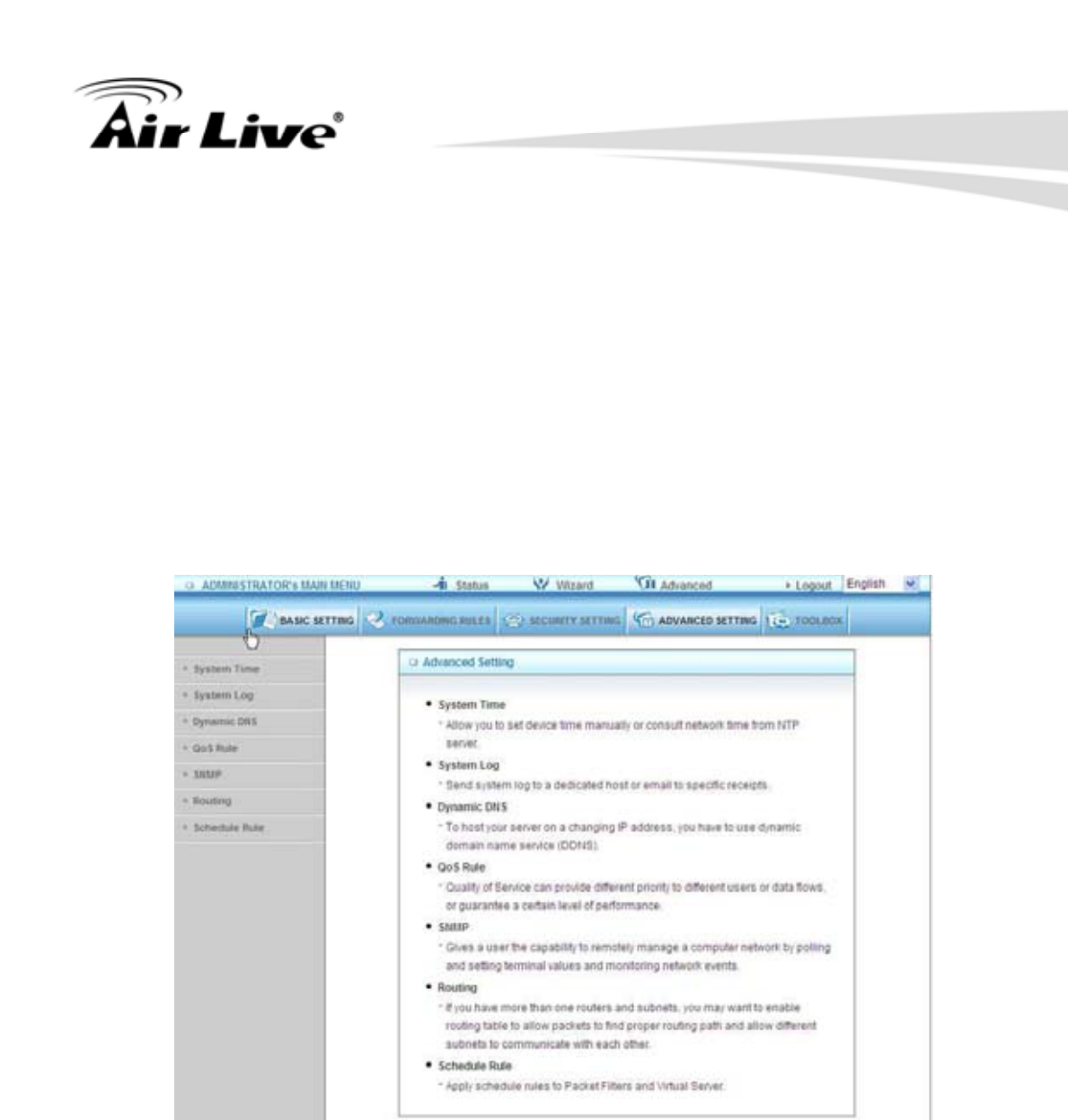

3.3.4 Advanced Settings
3. Making Configuration
AirLive GW-300R User’s Manual 57

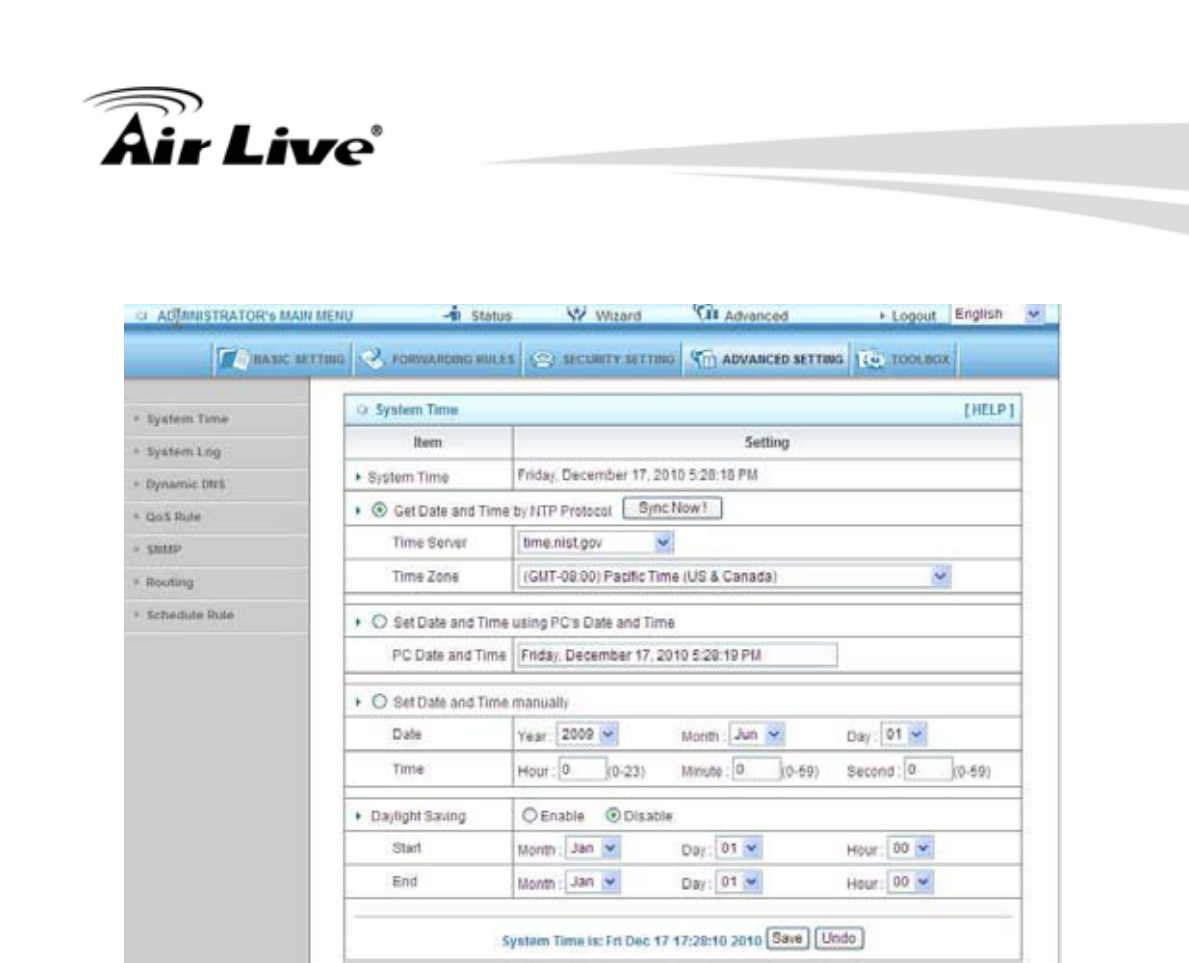

3.3.4.1 System Time
Get Date and Time by NTP Protocol
Selected if you want to Get Date and Time by NTP Protocol.
Time Server
Select a NTP time server to consult UTC time
Time Zone
Select a time zone where this device locates.
Set Date and Time manually
Selected if you want to Set Date and Time manually.
Set Date and Time manually
Selected if you want to Set Date and Time manually.
Function of Buttons
Sync Now: Synchronize system time with network time server
Daylight Saving:Set up where the location is.
3. Making Configuration
AirLive GW-300R User’s Manual
58

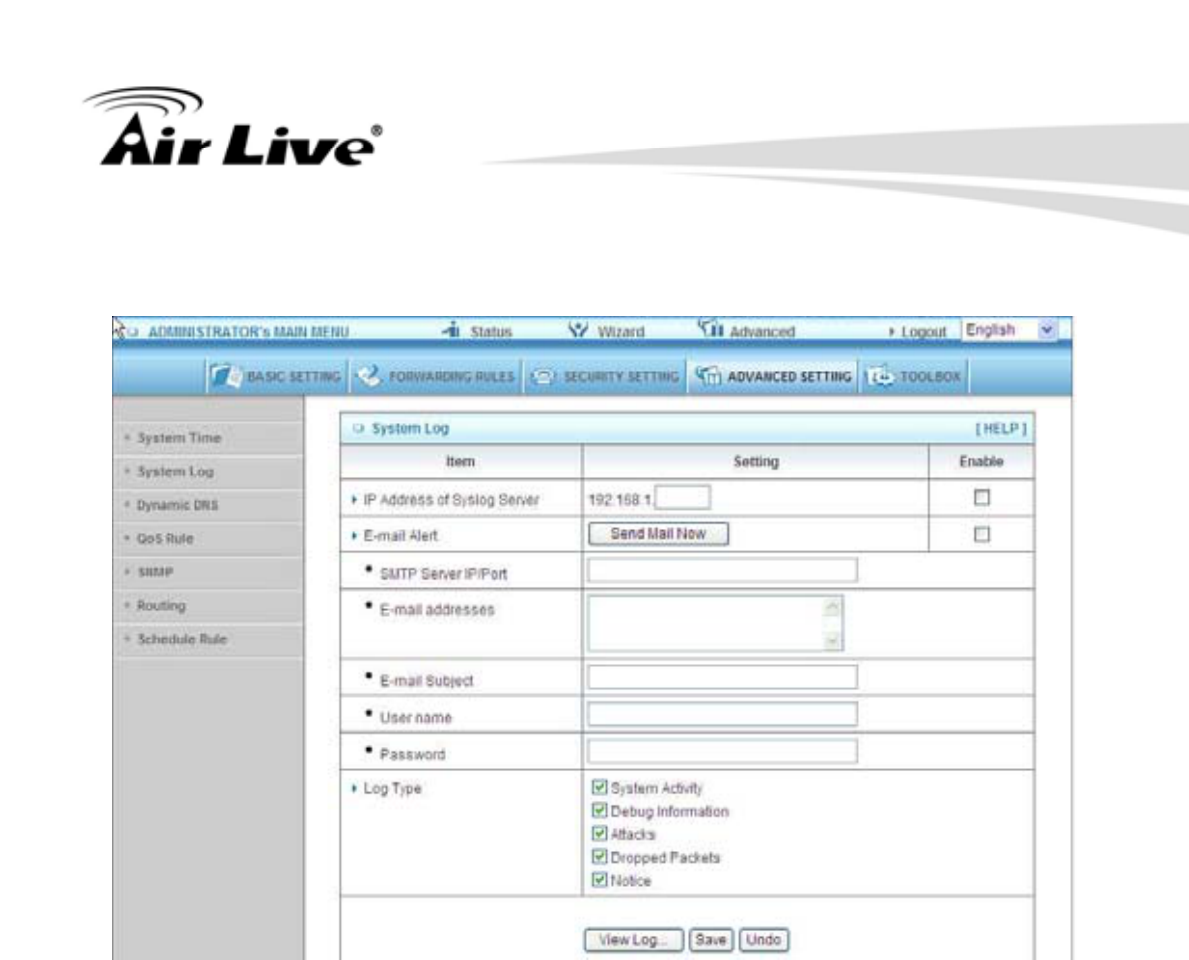

3.3.4.2 System Log
This page support two methods to export system logs to specific destination by means of
syslog(UDP) and SMTP(TCP). The items you have to setup including:
IP Address for Syslog
Host IP of destination where syslogs will be sent to.
Check Enable to enable this function.
E-mail Alert Enable
Check if you want to enable Email alert (send syslog via email).
SMTP Server IP and Port
Input the SMTP server IP and port, which are concated with ':'. If you do not specify port
number, the default value is 25.
For example, "mail.your_url.com" or "192.168.1.100:26".
Send E-mail alert to
The recipients who will receive these logs. You can assign more than 1 recipient, using ';' or
',' to separate these email addresses.
3. Making Configuration
AirLive GW-300R User’s Manual 59

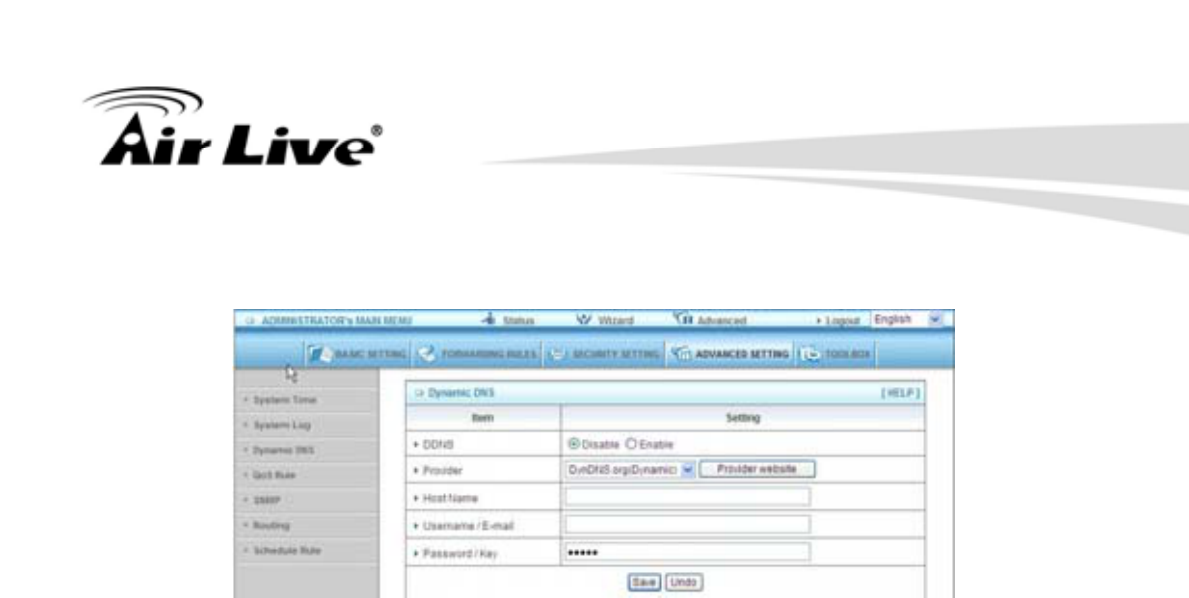

3.3.4.3 DDNS Service
To host your server on a changing IP address, you have to use dynamic domain name
service (DDNS).
So that anyone wishing to reach your host only needs to know the name of it. Dynamic
DNS will map the name of your host to your current IP address, which changes each time
you connect your Internet service provider.
Before you enable Dynamic DNS, you need to register an account on one of these
Dynamic DNS servers that we list in provider field.
To enable Dynamic DNS click the check box next to Enable in the DDNS field.
Next you can enter the appropriate information about your Dynamic DNS Server.
You have to define:
Provider
Host Name
Username/E-mail
Password/Key
You will get this information when you register an account on a Dynamic DNS server.
3. Making Configuration
AirLive GW-300R User’s Manual
60

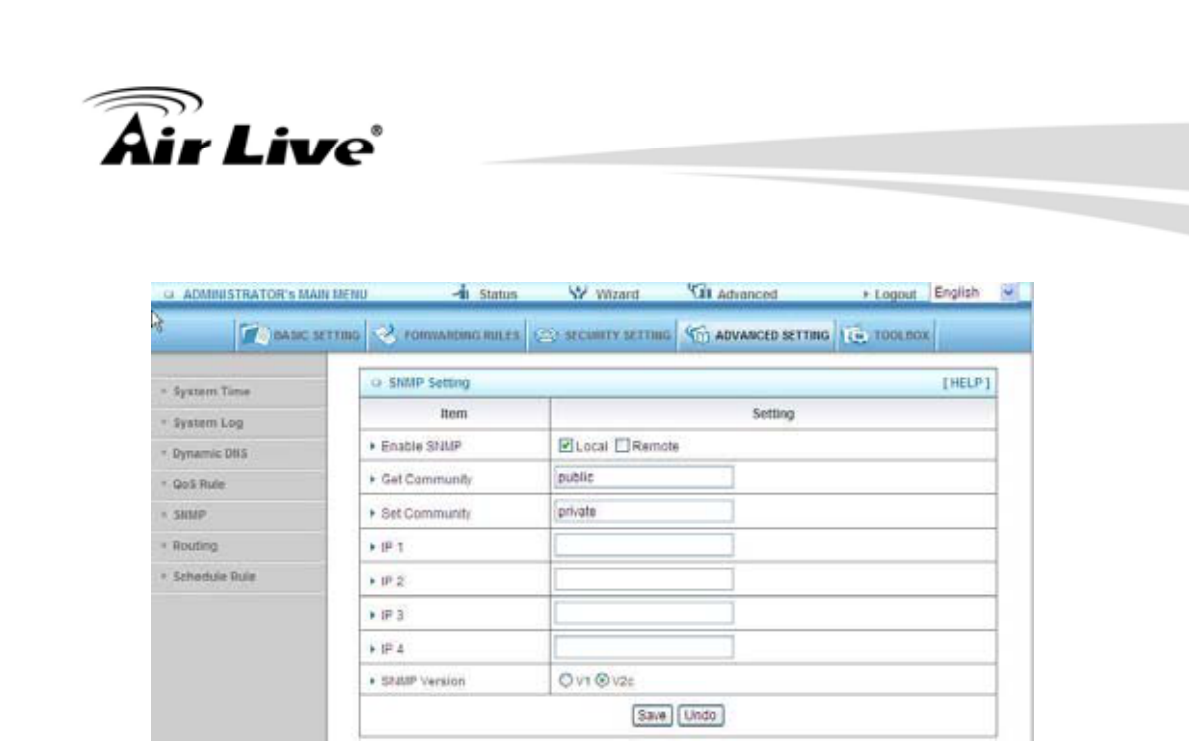

3.3.4.4 SNMP
In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a
user the capability to remotely manage a computer network by polling and setting terminal
values and monitoring network events.
Enable SNMP
You must check Local, Remote or both to enable SNMP function. If Local is checked, this
device will response request from LAN. If Remote is checked, this device will response
request from WAN.
Get Community
Setting the community of GetRequest your device will response.
Set Community
Setting the community of SetRequest your device will accept.
IP 1, IP 2, IP 3, IP 4
Input your SNMP Management PC’s IP here. User has to configure to where this device
should send SNMP Trap message.
SNMP Version
Please select proper SNMP Version that your SNMP Management software supports.
3. Making Configuration
AirLive GW-300R User’s Manual 61
3.3.4.5 Routing
Routing Tables allow you to determine which physical interface address to use for outgoing
IP data grams. If you have more than one routers and subnets, you will need to enable
routing table to allow packets to find proper routing path and allow different subnets to
communicate with each other.
Routing Table settings are settings used to setup the functions of static.
Dynamic Routing
Routing Information Protocol (RIP) will exchange information about destinations for
computing routes throughout the network. Please select RIPv2 only if you have different
subnet in your network.
Otherwise, please select RIPv1 if you need this protocol.
Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the
destination IP address, subnet mask, gateway, hop for each routing rule, and then enable
or disable the rule by checking or unchecking the Enable checkbox.
3. Making Configuration
AirLive GW-300R User’s Manual
62
Example:
Configuration on NAT Router
Destination SubnetMask Gateway Hop Enabled
192.168.3.0 255.255.255.0 192.168.1.216 1 ˇ
192.168.0.0 255.255.255.0 192.168.1.103 1 ˇ
So if, for example, the client3 wanted to send an IP data gram to 192.168.0.2, it would use
the above table to determine that it had to go via 192.168.1.103 (a gateway),
And if it sends Packets to 192.168.3.11 will go via 192.168.1.216
Each rule can be enabled or disabled individually.
After routing table setting is configured, click the save button.
3. Making Configuration
AirLive GW-300R User’s Manual 63
3.3.4.6 Schedule Rule
You can set the schedule time to decide which service will be turned on or off. Select the
“enable” item.
Press “Add New Rule”
You can write a rule name and set which day and what time to schedule from “Start Time”
to “End Time”. The following example configure “ftp time” as everyday 14:10 to 16:20
3. Making Configuration
AirLive GW-300R User’s Manual
64
Schedule Enable
Selected if you want to Enable the Scheduler.
Edit
To edit the schedule rule.
Delete
To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease
one automatically.
Schedule Rule can be apply to Virtual server and Packet Filter, for example:
Exanple1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:20 to 16:30)
3. Making Configuration
AirLive GW-300R User’s Manual 65
Exanple2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:20 to 16:30).
3. Making Configuration
AirLive GW-300R User’s Manual
66

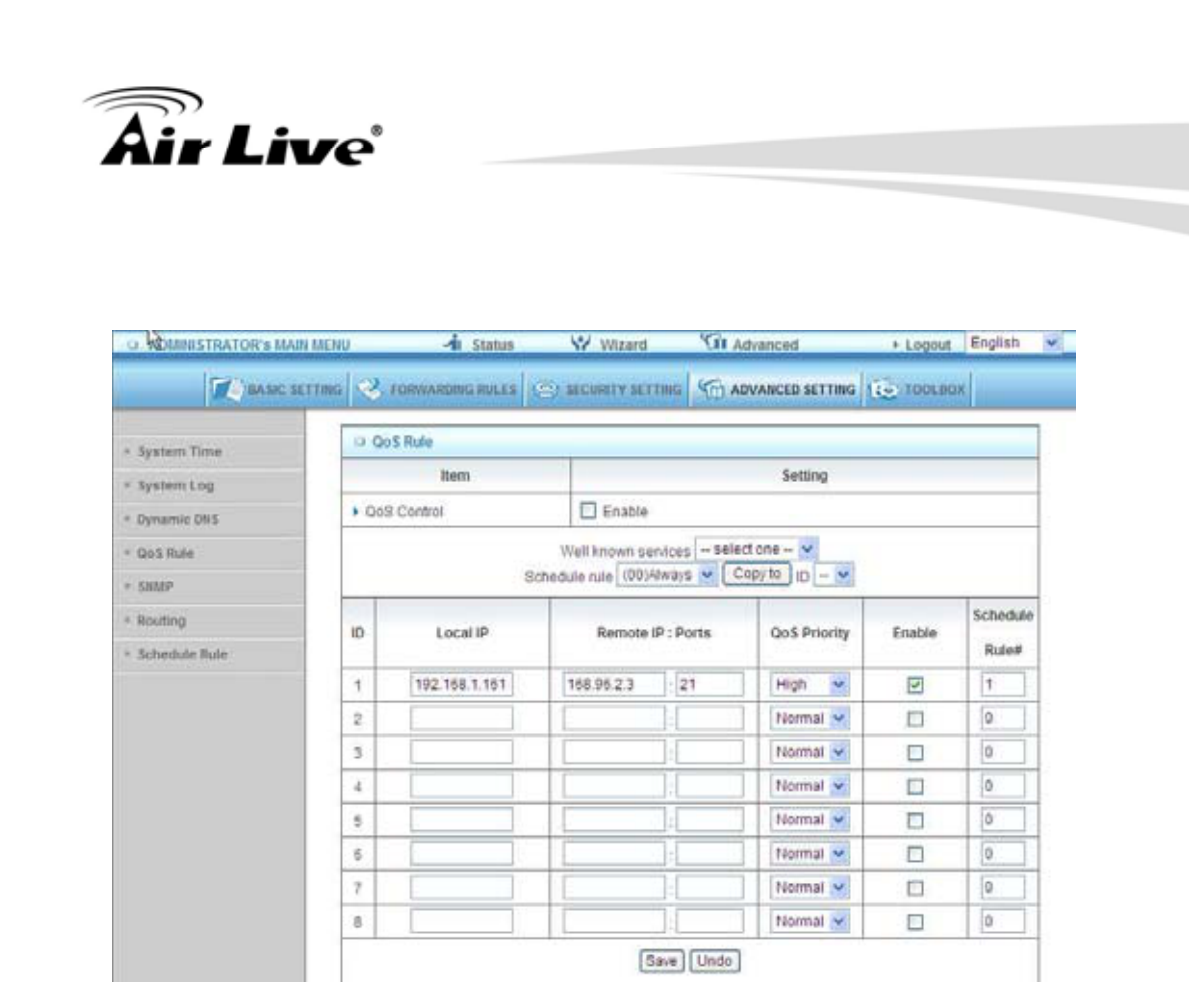

3.3.4.7 QoS Rule
Local IP:
Please input Client IP,ex192.168.1.161.
Remote Priority:
Please input Global IP and port,ex:168.96.2.3 and port 21

Navigation menu
