3.3.5 Toolbox

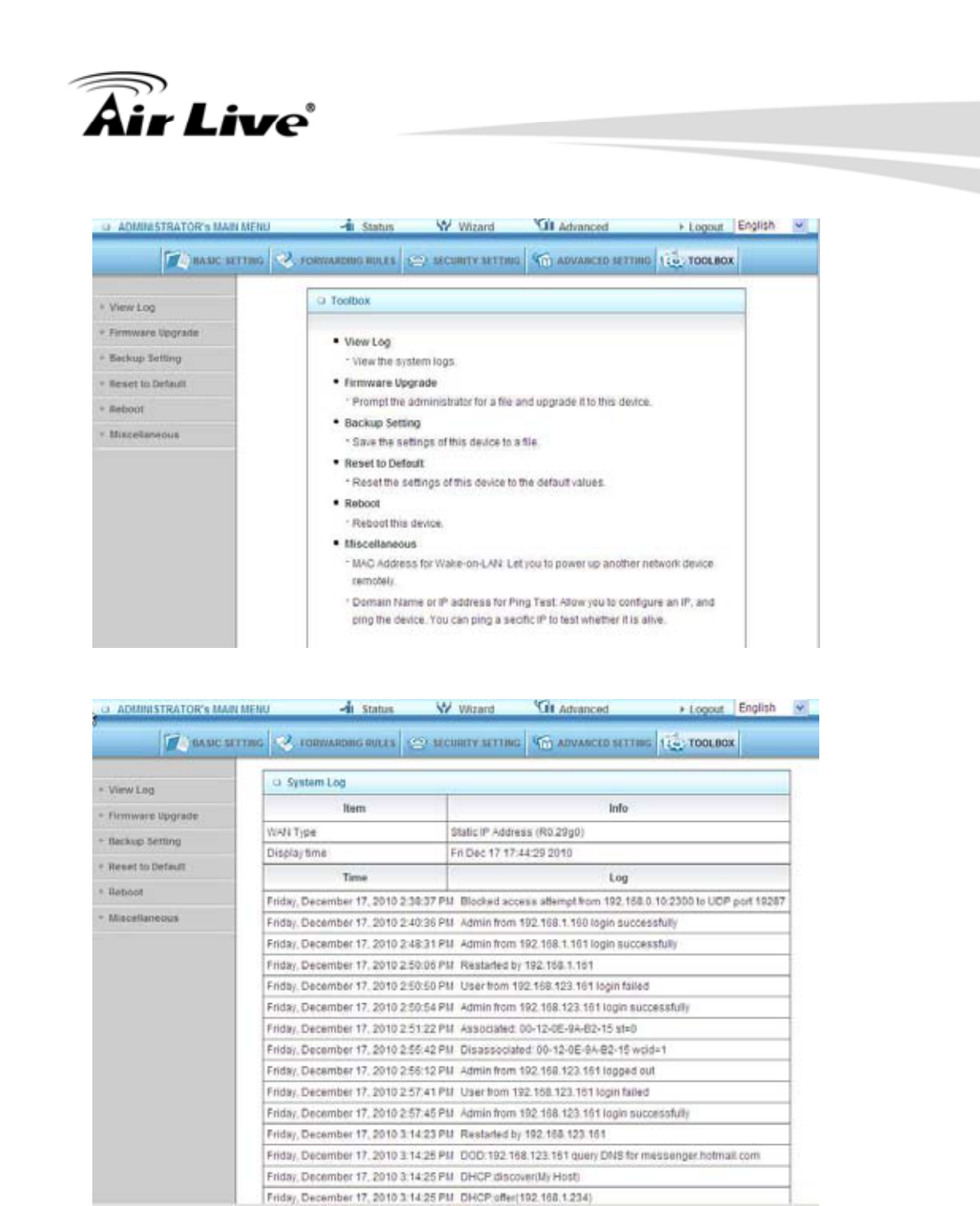

3.3.5.1 View Log
You can View system log by clicking the View Log button
3. Making Configuration
AirLive GW-300R User’s Manual
68
3.3.5.2 Firmware Upgrade
You can upgrade firmware by clicking Firmware Upgrade button.
3.3.5.3 Backup Setting
You can backup your settings by clicking the Backup Setting button and save it as a bin file.
Once you want to restore these settings, please click Firmware Upgrade button and use
the bin file you saved.
3.3.5.4 Reset to default
You can also reset this product to factory default by clicking the Reset to default button.
3. Making Configuration
AirLive GW-300R User’s Manual 69

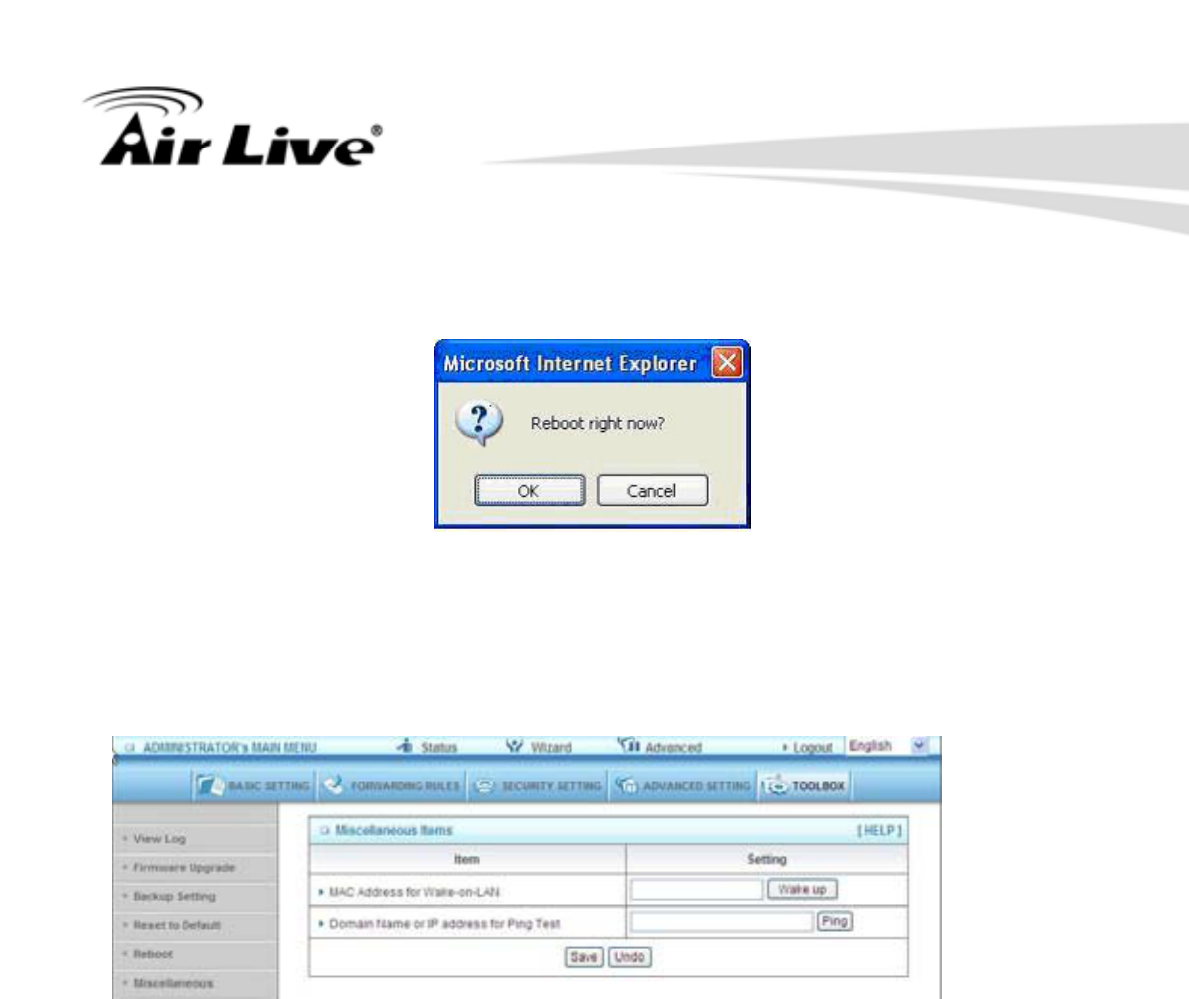

3.3.5.5 Reboot
You can also reboot this product by clicking the Reboot button.
3.3.5.6 Miscellaneous Items
MAC Address for Wake-on-LAN
Wake-on-LAN is a technology that enables you to power up a networked device remotely.
In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you
have to know the MAC address of this device, say 00-11-22-33-44-55. Clicking "Wake up"
button will make the router to send the wake-up frame to the target device immediately.
Domain Name or IP Address for Test
Allow you to configure an IP, and ping the device. You can ping a secific IP to test whether it
is alive.
Appendices and Index
AirLive GW-300R User’s Manual
70
Appendices and Index
802.1x Setting
1 Equipment Details

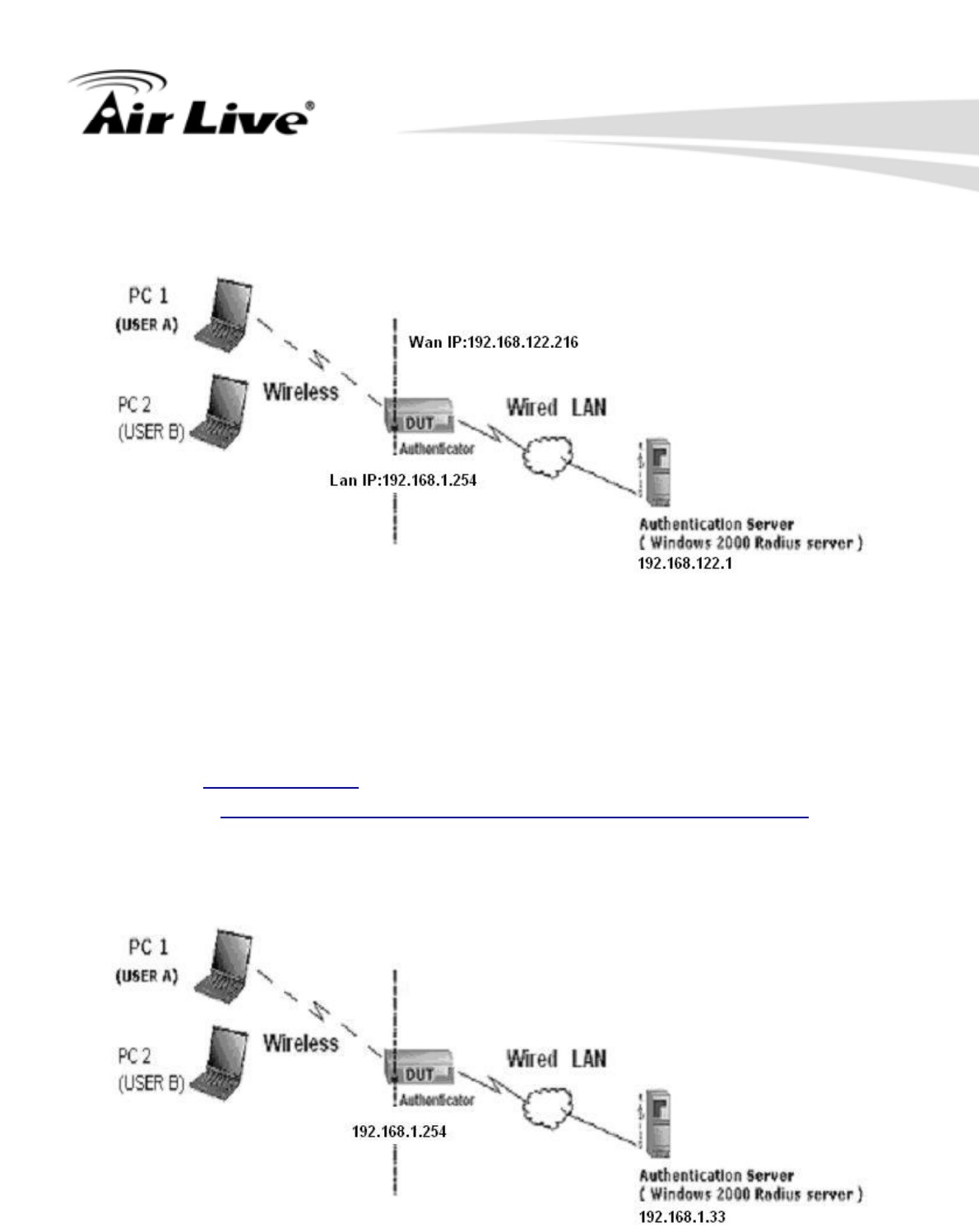

Figure 1: Testing Environment (Use Windows 2000 Radius Server)
PC1:
Microsoft Windows XP Professional without Service Pack 1.
AirLive WN-200USB
Driver version:
PC2:
Microsoft Windows XP Professional with Service Pack 1a or latter.
AirLive WN-200USB
Driver version: 1.7.29.0 (Driver date: 10.20.2001)
Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix
Q313664.
Note. Windows 2000 RADIUS server only supports PEAP after upgrade to service pack
3 and
HotFix Q313664 (You can get more information from
HHHhttp://support.microsoft.com/default.aspx?scid=kb; en-us;313664UHH)
Appendices and Index
AirLive GW-300R User’s Manual 71
2 DUT
Configuration:
Enable DHCP server.
WAN setting: static IP address.
LAN IP address: 192.168.1.254/24.
Set RADIUS server IP.
Set RADIUS server shared key.
Configure WEP key and 802.1X setting.
The following test will use the inbuilt 802.1X authentication method such as ,EAP_TLS,
PEAP_CHAPv2(Windows XP with SP1 only), and PEAP_TLS(Windows XP with SP1 only)
using the Smart Card or other Certificate of the Windows XP Professional.
3. DUT and Windows 2000 Radius Server Setup
Setup Windows 2000 RADIUS Server
We have to change authentication method to MD5_Challenge or using smart
card or other certificate on RADIUS server according to the test condition.
Setup DUT
Enable the 802.1X (check the “Enable checkbox“).
Enter the RADIUS server IP.
Enter the shared key. (The key shared by the RADIUS server and DUT).
We will change 802.1X encryption key length to fit the variable test
condition.
Setup Network adapter on PC
1.Choose the IEEE802.1X as the authentication method. (Fig 2)
Note.
Figure 2 is a setting picture of Windows XP without service pack 1. If users upgrade to
service pack 1, then they can’t see MD5-Challenge from EAP type list any more, but they
will get a new Protected EAP (PEAP) option.
Choose MD5-Challenge or Smart Card or other Certificate as the EAP
type.
3.If choosing use smart card or the certificate as the EAP type, we select to
use a certificate on this computer. (Fig 3)
Appendices and Index
AirLive GW-300R User’s Manual
72
4. We will change EAP type to fit the variable test condition.

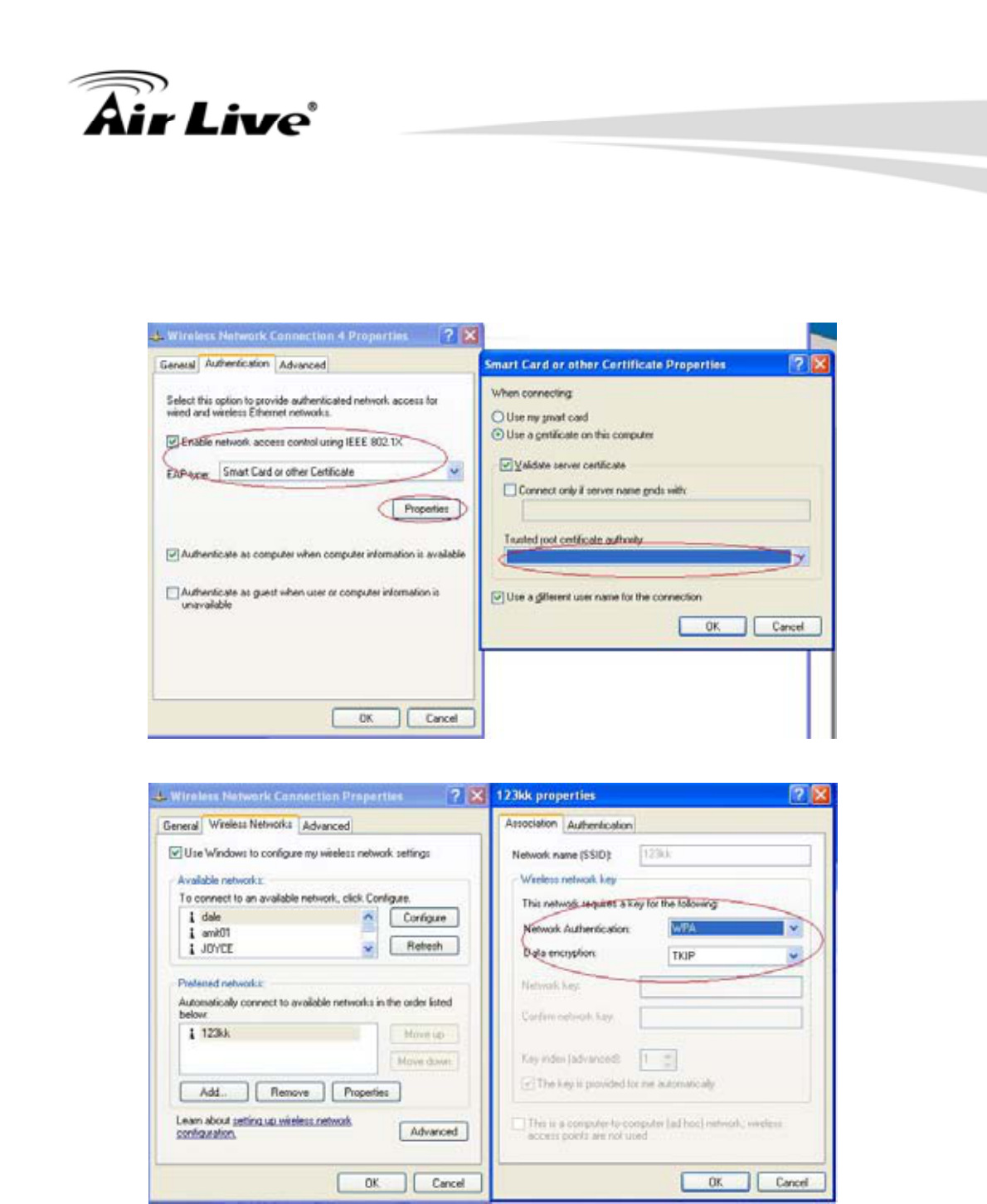

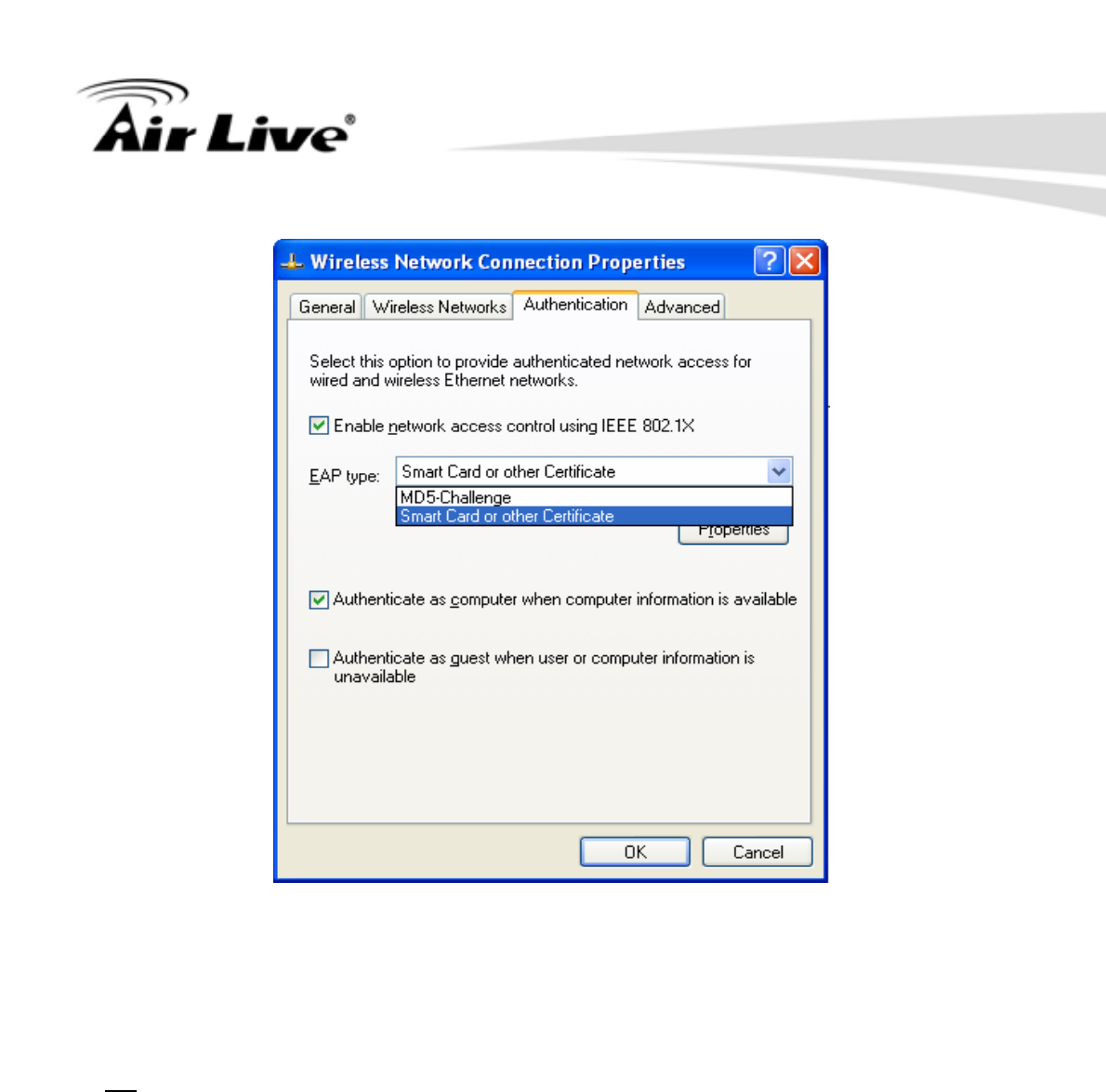

Figure 2: Enable IEEE 802.1X access control
Figure 3: Smart card or certificate properties
4. Windows 2000 RADIUS server Authentication testing:
4.1 DUT authenticate PC1 using certificate. (PC2 follows the same test procedures.)

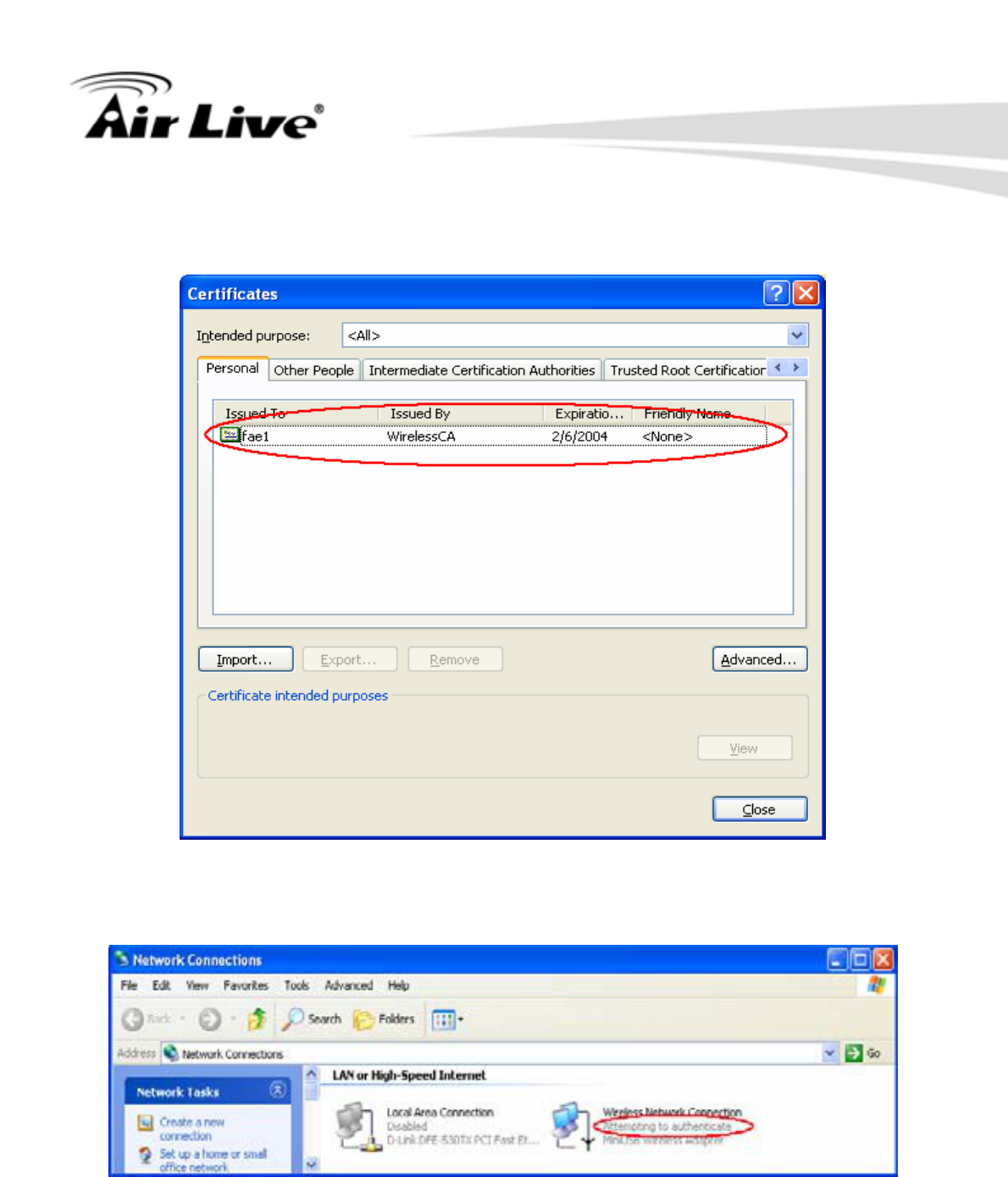

Download and install the certificate on PC1. (Fig 4)
PC1 choose the SSID of DUT as the Access Point.
Set authentication type of wireless client and RADIUS server both to EAP_TLS.
Disable the wireless connection and enable again.
The DUT will send the user's certificate to the RADIUS server, and then
send the message of authentication result to PC1. (Fig 5)
Windows XP will prompt that the authentication process is success or fail
and end the authentication procedure. ( Fig 6)
Appendices and Index
AirLive GW-300R User’s Manual 73
Terminate the test steps when PC1 get dynamic IP and PING remote host
successfully.
Figure 4: Certificate information on PC1
Appendices and Index
AirLive GW-300R User’s Manual
74

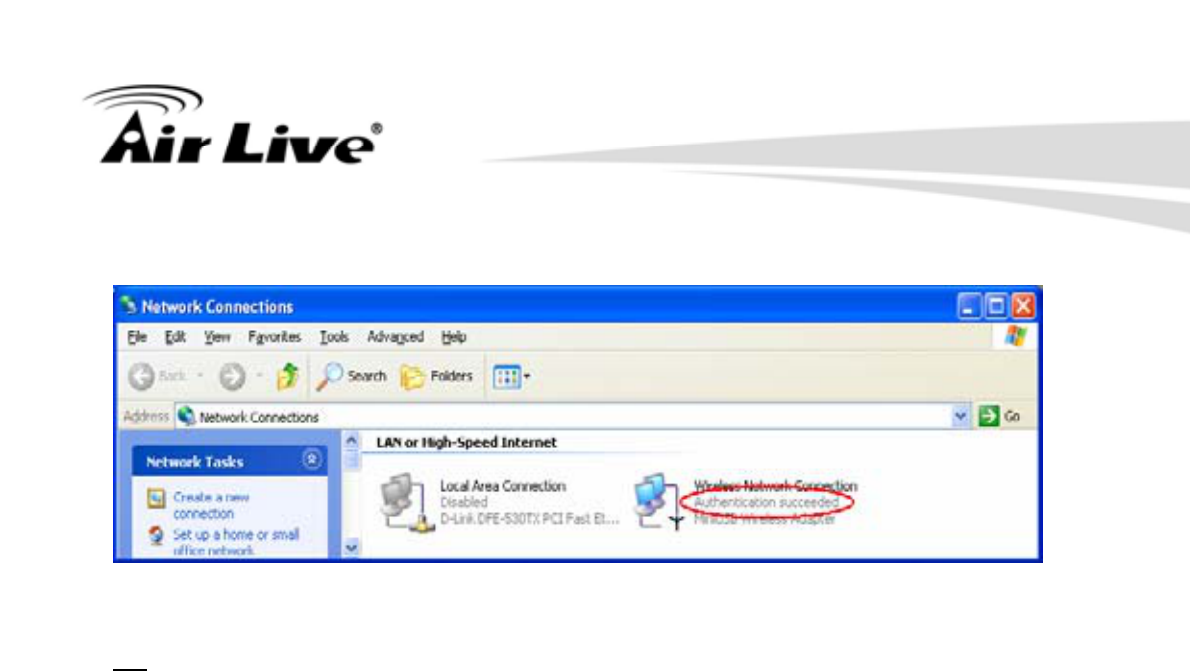

Figure 5: Authenticating
Figure 6: Authentication success
4.2 DUT authenticate PC2 using PEAP-TLS.
PC2 choose the SSID of DUT as the Access Point.
Set authentication type of wireless client and RADIUS server both to PEAP_TLS.
Disable the wireless connection and enable again.
The DUT will send the user's certificate to the RADIUS server, and then
send the message of authentication result to PC2.
Windows XP will prompt that the authentication process is success or fail and end the
authentication procedure.
Terminate the test steps when PC2 get dynamic IP and PING remote host
successfully.
Support Type: The router supports the types of 802.1x Authentication:
PEAP-CHAPv2 and PEAP-TLS.
Note.
PC1 is on Windows XP platform without Service Pack 1.
PC2 is on Windows XP platform with Service Pack 1a.
PEAP is supported on Windows XP with Service Pack 1 only.
Windows XP with Service Pack 1 allows 802.1x authentication only when data encryption
function is enable.
Appendices and Index
AirLive GW-300R User’s Manual 75
WPA Settings

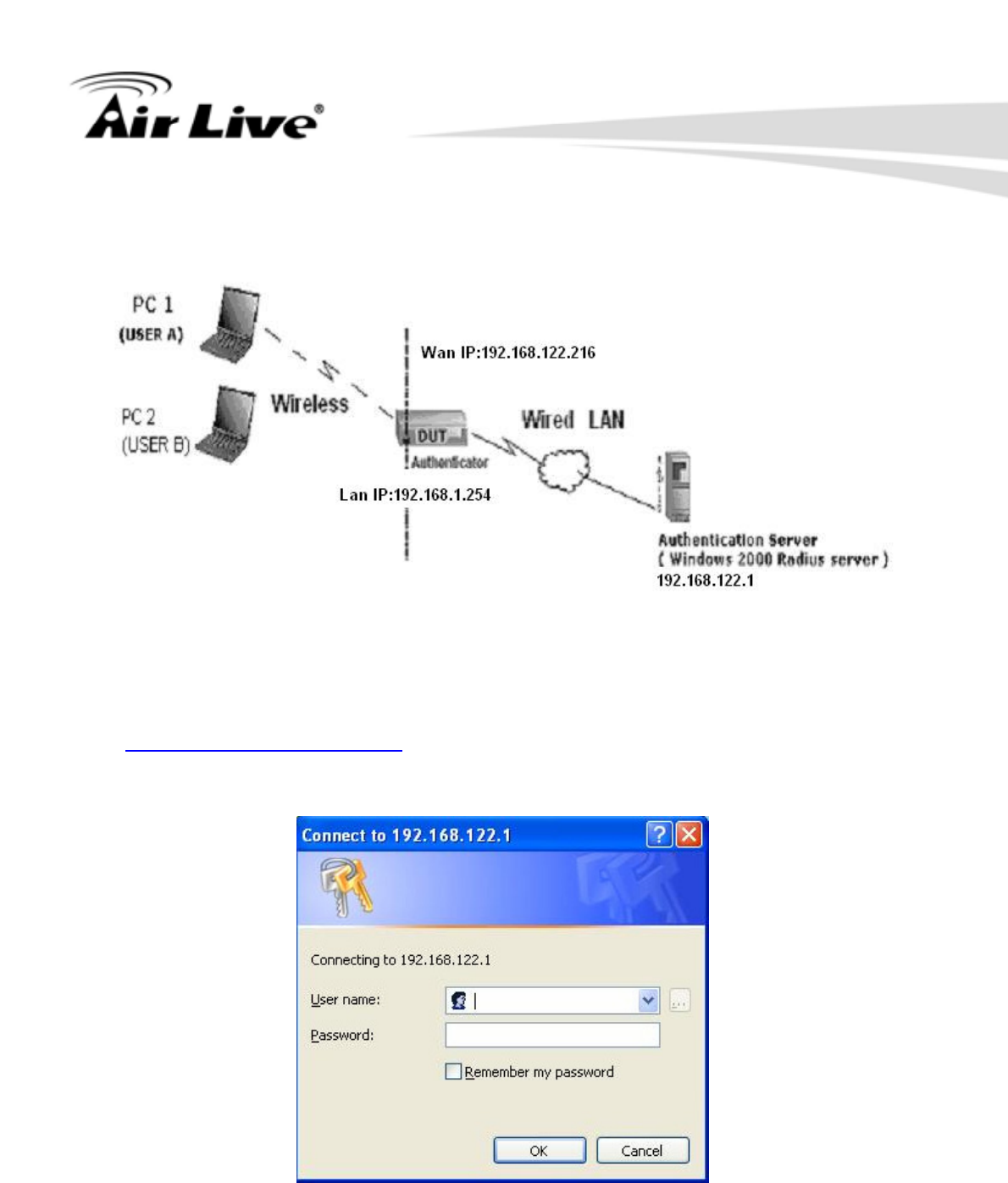

Wireless Router: LAN IP: 192.168.1.254
WAN IP: 192.168.122.216
Radius Server: 192.168.122.1
UserA : XP Wireless Card:Ti-11g
Tool: Odyssey Client Manager
Refer to: HHHUwww.funk.comUHH
Download: HHUhttp://www.funk.com/News&Events/ody_c_wpa_preview_pn.aspU
Or Another Configuration:
Appendices and Index
AirLive GW-300R User’s Manual
76
WPA:
For this function, we need the server to authenticate. This function is like 802.1x.
The above is our environment:
Method 1:
1. The UserA or UserB have to get certificate from Radius, first.
HHUhttp://192.168.122.1/certsrvU
account : fae1
passwd : fae1
2. Then, Install this certificate and finish.

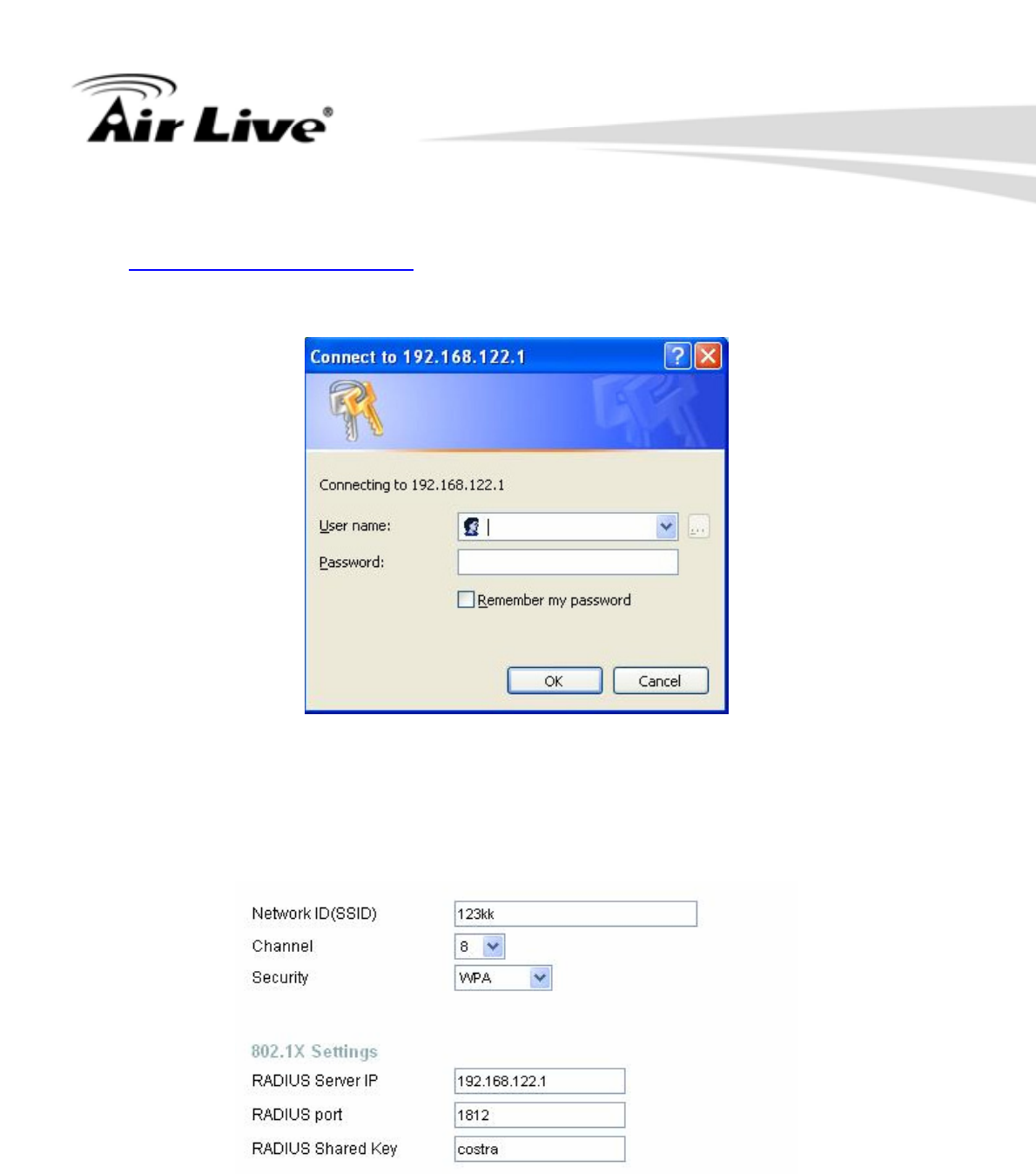

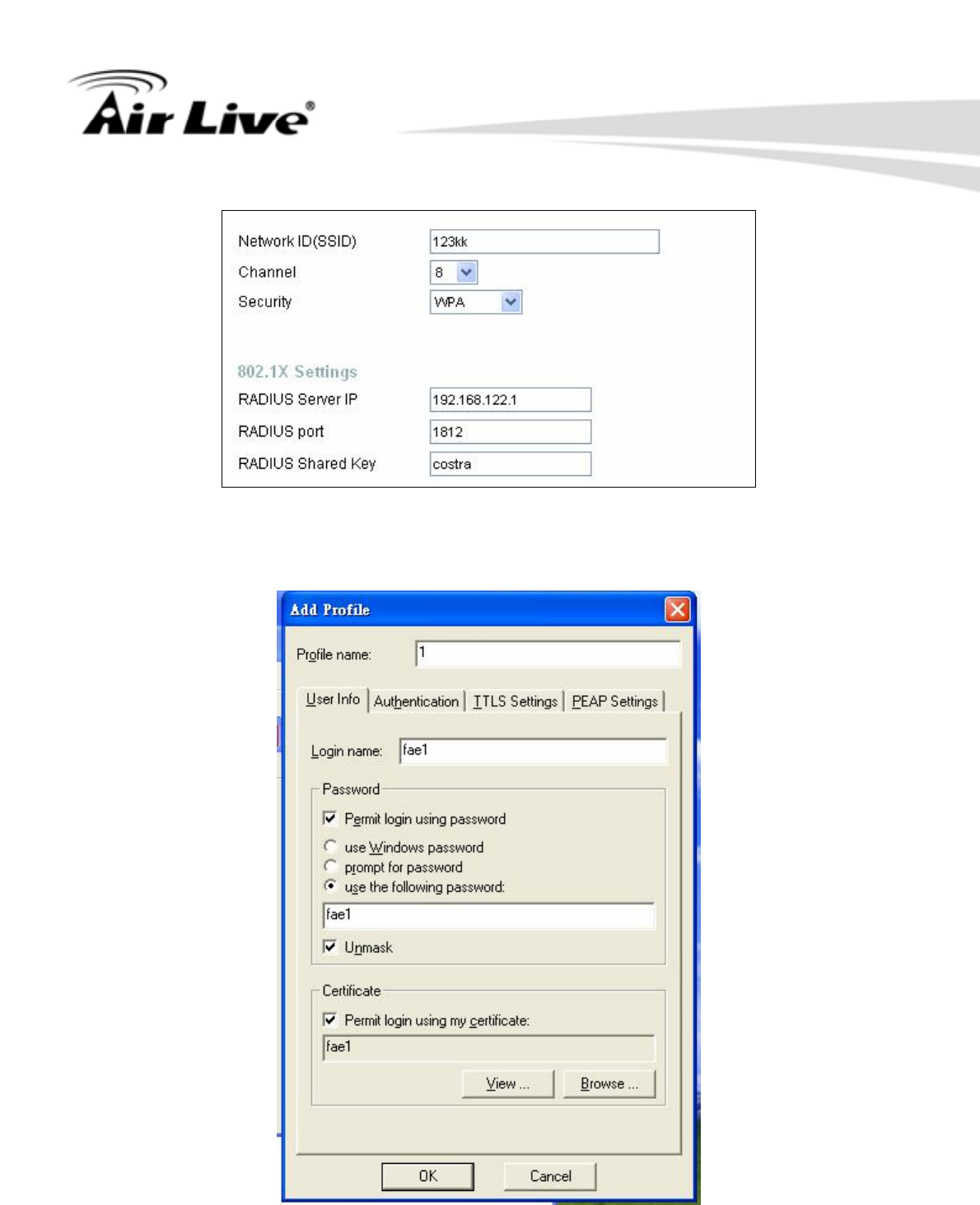

3. Go to the Web manager of Wireless Router to configure, like below:
Appendices and Index
AirLive GW-300R User’s Manual 77
4. Go to Odyssey Client Manager, choose “Profiles” and Setup Profile name as “1”
Appendices and Index
AirLive GW-300R User’s Manual
78
Login name and passwd are fae1 and fae1.
Remember that you get certificate from Radius in Step1.

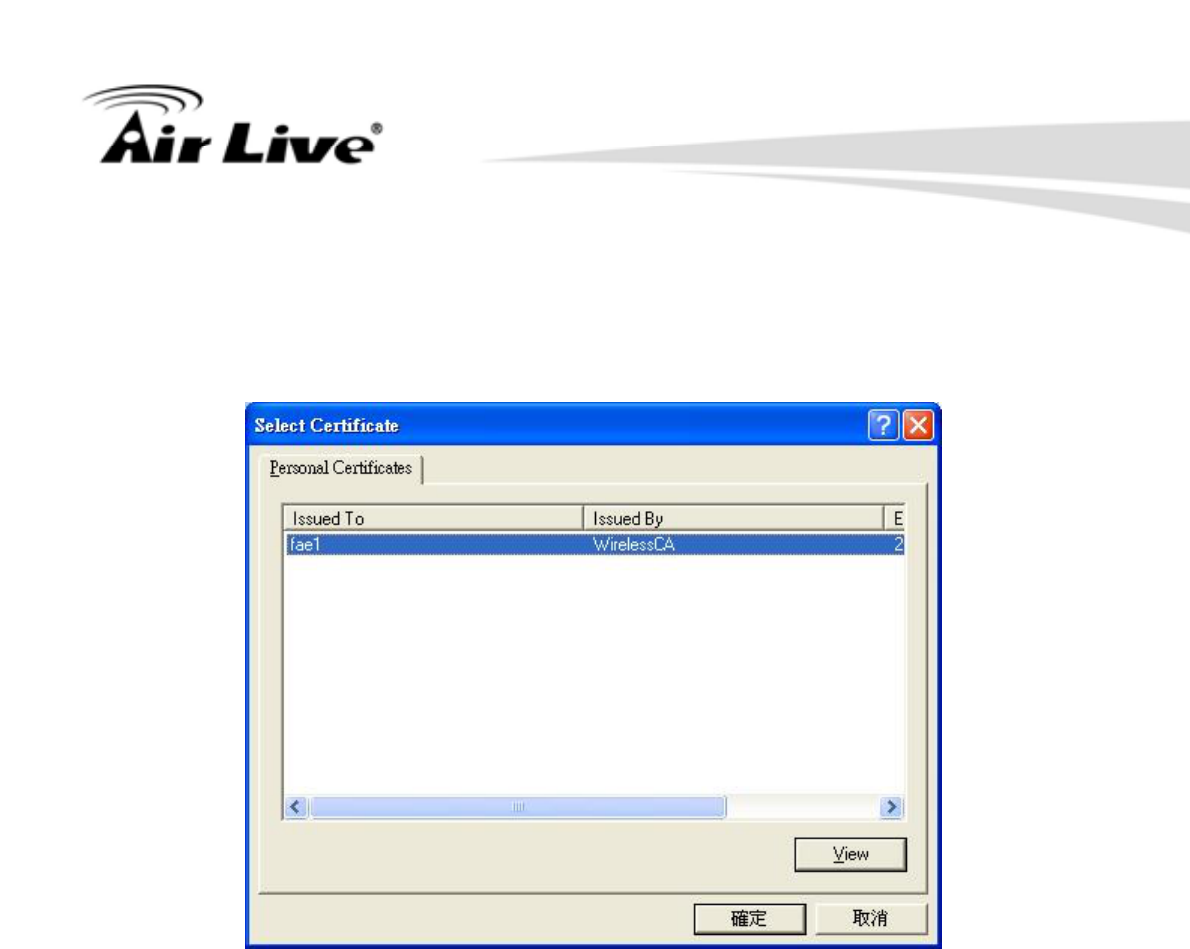

5. Then Choose “certificate” like above.
Appendices and Index
AirLive GW-300R User’s Manual 79

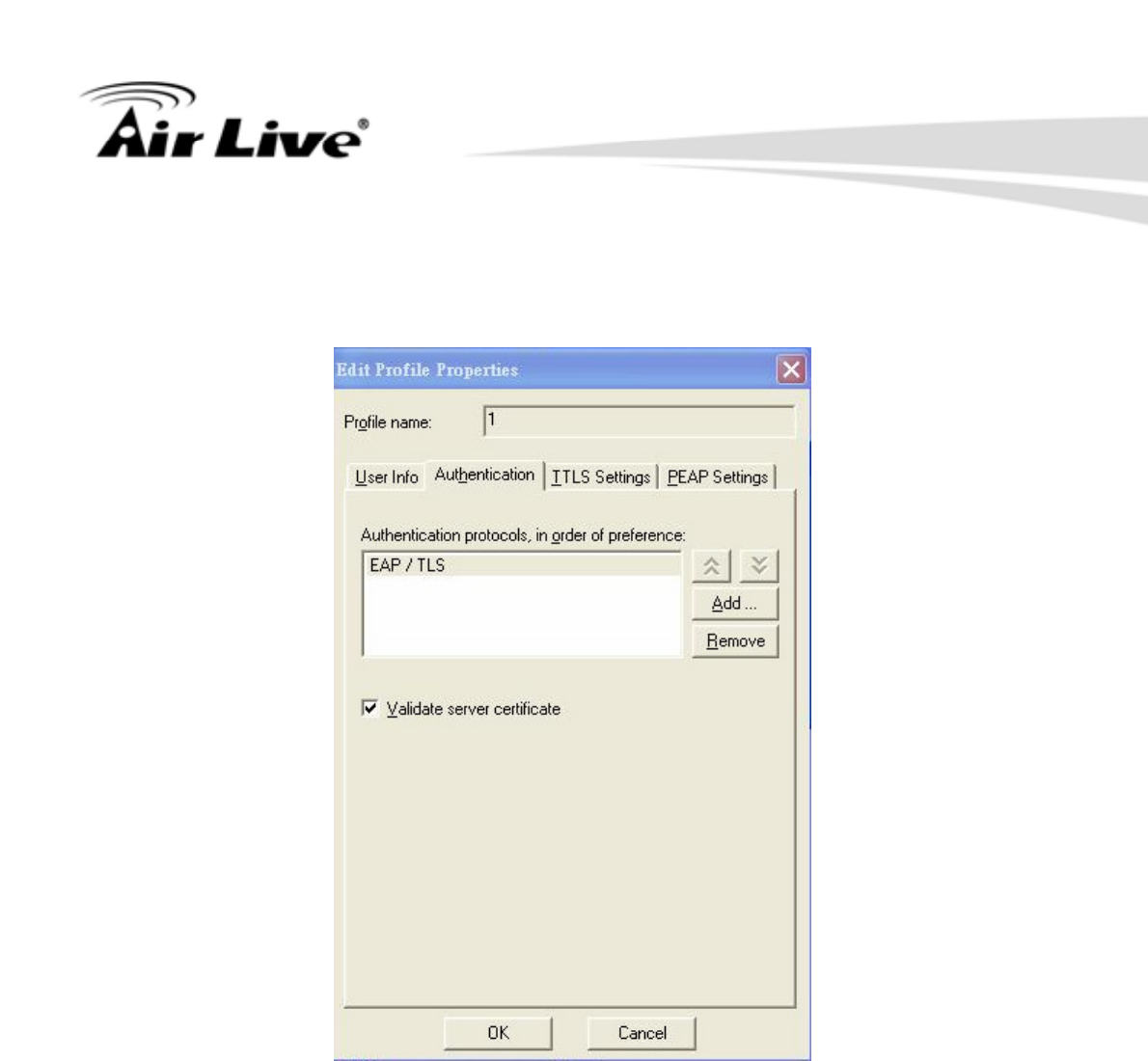

6. Then go to Authentication and first Remove EAP/ TLS and Add EAP/TLS again.
Appendices and Index
AirLive GW-300R User’s Manual
80
7. Go “Network” and Select “1” and ok
Appendices and Index
AirLive GW-300R User’s Manual 81

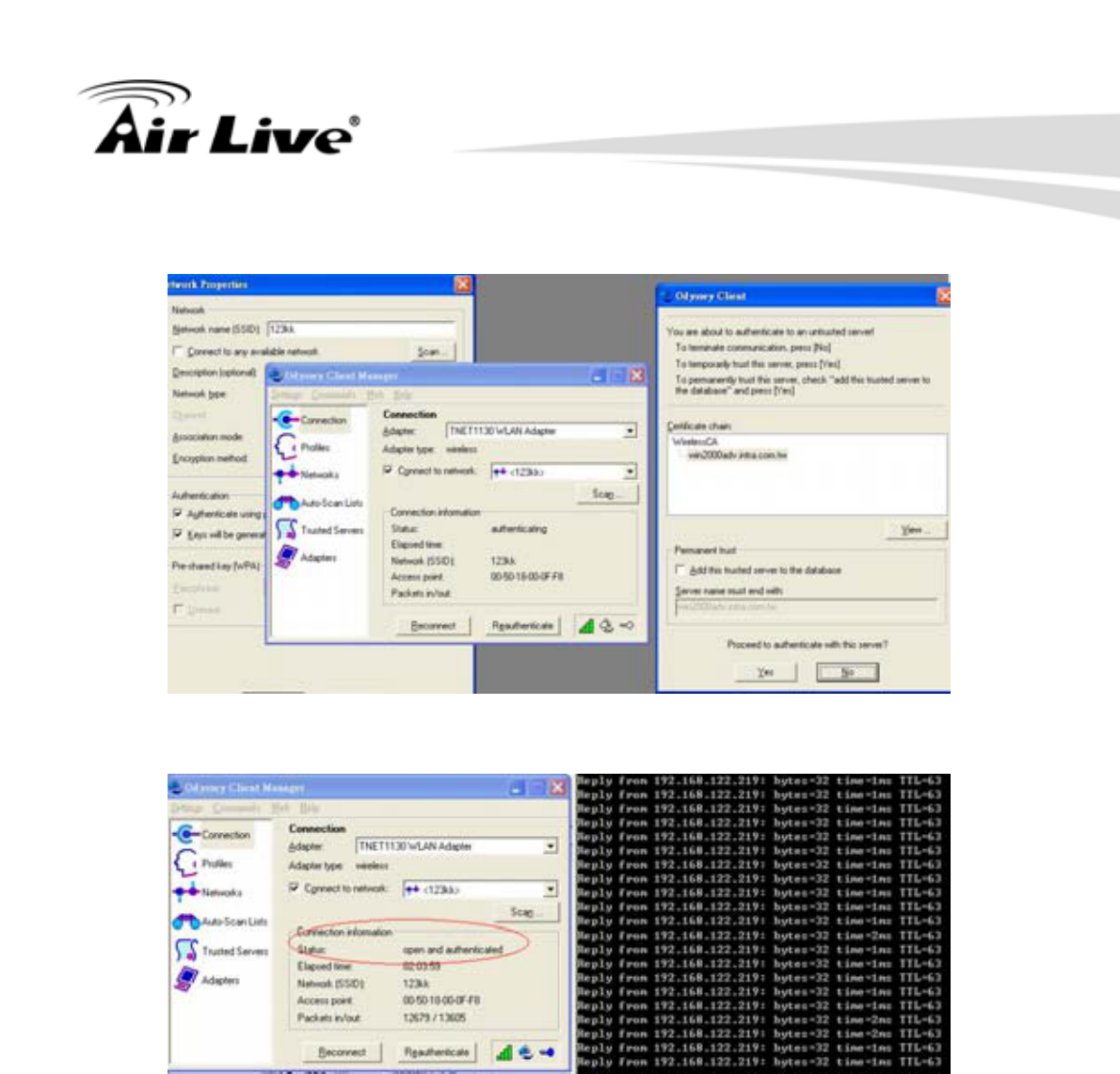

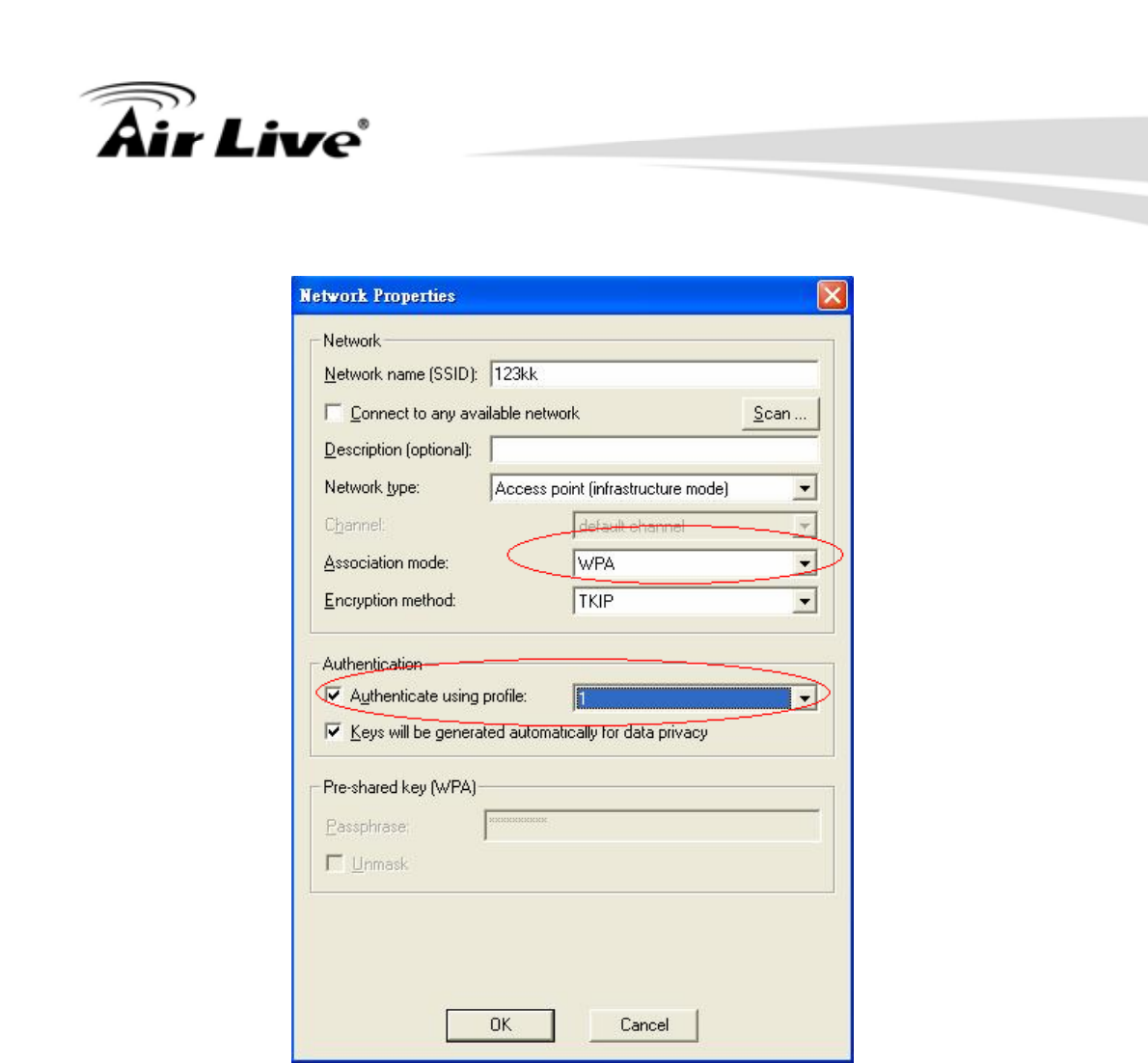

8. Back to Connection and Select “123kk.
If successfully, the wireless client has to authenticate with Radius Server, like below:
9.Result:
Appendices and Index
AirLive GW-300R User’s Manual
82
Method 2:
1. The UserA or UserB have to get certificate from Radius,first.
HHUhttp://192.168.122.1/certsrvU
account:fae1
passwd:fae1
2. Then Install this certificate and finish.
3. Setting on the router and client:
Router:
Appendices and Index
AirLive GW-300R User’s Manual 83
Client:
Go to “Network Connection” and select wireless adapter.
Choose “View available Wireless Networks” like below:
AdvancedÆ choose “123kk”
Select “WirelessCA and Enable” in Trusted root certificate authority:
Then, if the wireless client wants to associate, it has to request to authenticate.
FAQ and Troubleshooting
AirLive GW-300R User’s Manual
84
FAQ and Troubleshooting
What can I do when I have some trouble at the first time?
1. Why can I not configure the router even if the cable is plugged in the ports of Router and
the led is also light?

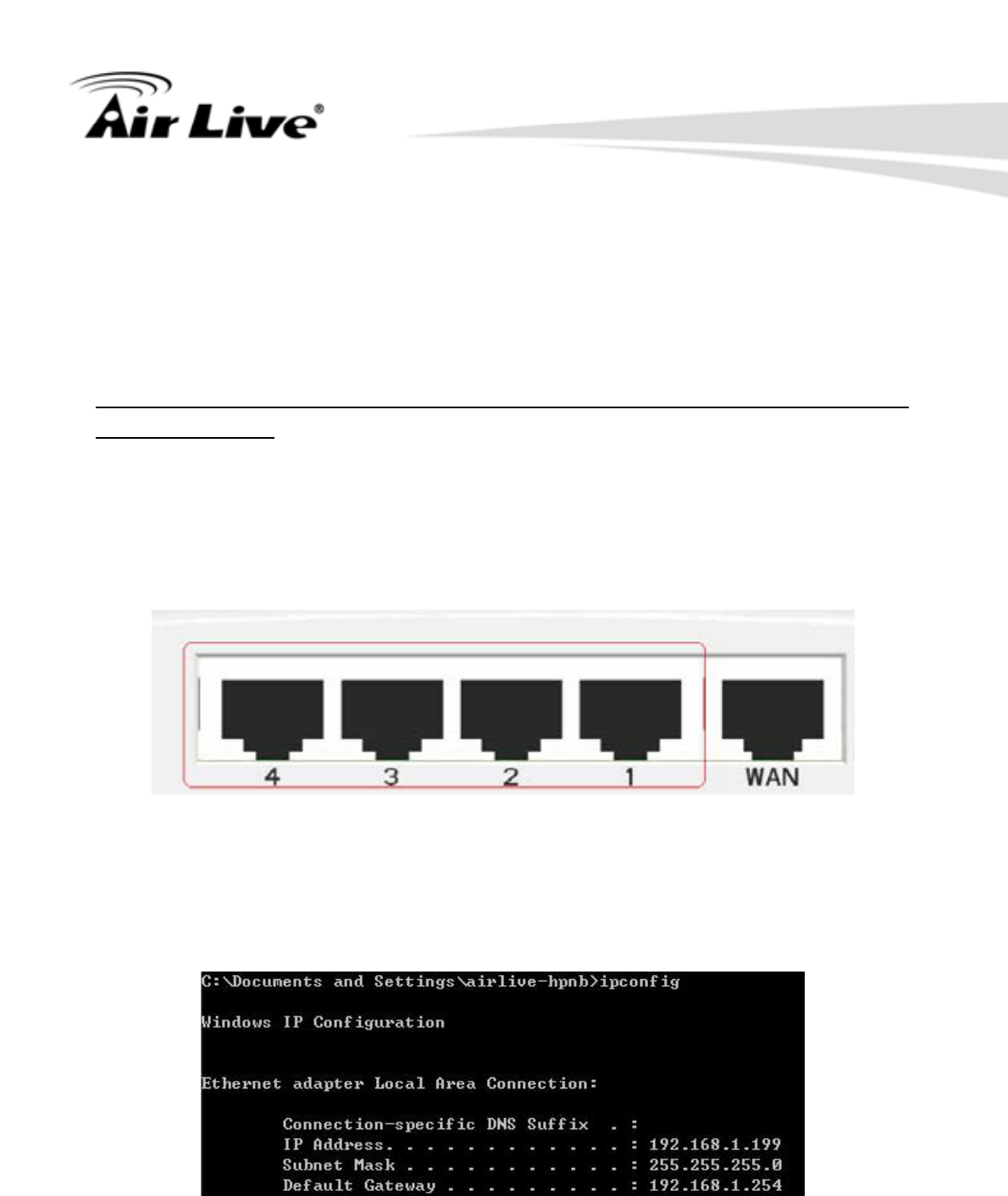

A: First, make sure that which port is plugged. If the cable is in the Wan port, please
change to plug in Lan port 1 or Lan port 4:

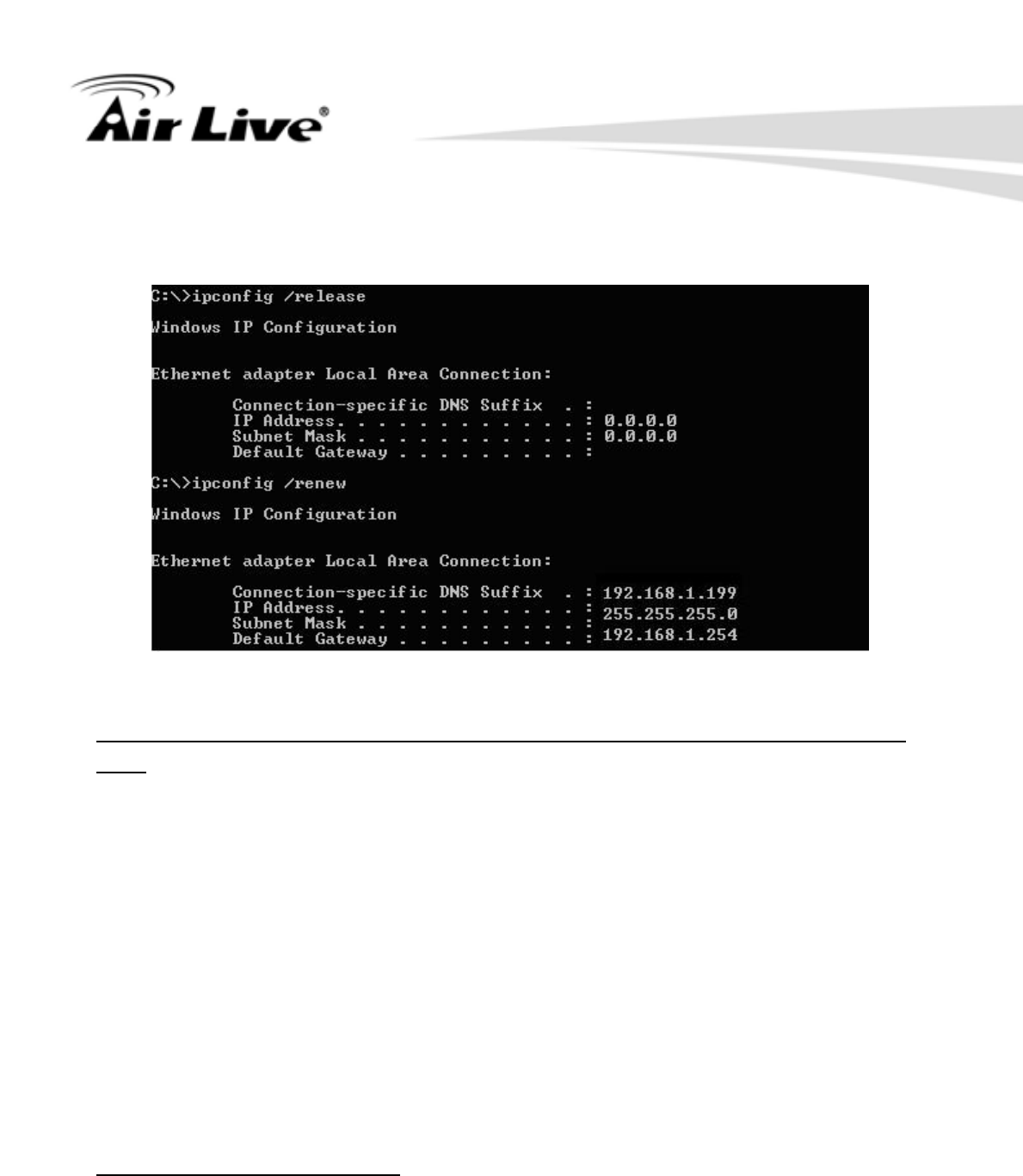

Then, please check if the Pc gets ip address from Router. Use command mode as below:
FAQ and Troubleshooting
AirLive GW-300R User’s Manual 85
If yes, please execute Browser, like Mozilla and key 192.168.1.254 in address.
If not, please ipconfig /release, then ipconfig /renew.
Whatever I setup, the pc can not get ip. Please check Status Led and refer to the Q2:
2.Why can I not connect the router even if the cable is plugged in Lan port and the led is
light?
A: First, please check Status Led. If the device is normal, the led will blink per second.
If not, please check How blinking Status led shows.
There are many abnormal symptoms as below:
Status Led is bright or dark in work: The system hanged up .Suggest powering off and on
the router. But this symptom often occurs, please reset to default or upgrade latest fw to
try again.
Status led flashes irregularly: Maybe the root cause is Flash rom and please press reset
Button to reset to default or try to use Recovery mode.(Refer to Q3 and Q4)
Status flashes very fast while powering on: Maybe the router is the recovery mode and
please refer to Q4.
3.How to reset to factory default?
A: Press Wireless on /off and WPS button simultaneously about 5 sec
Status will start flashing about 5 times, remove the finger. The RESTORE process is
completed.
FAQ and Troubleshooting
AirLive GW-300R User’s Manual
86
4.Why can I not connect Internet even though the cables are plugged in Wan port and Lan
port and the leds are blink. In addition, Status led is also normal and I can configure web
management?
A: Make sure that the network cable from DSL or Cable modem is plugged in Wan port of
Router and
that the network cable from Lan port of router is plugged in Ethernet adapter. Then, please
check which wan type you use. If you are not sure, please call the isp. Then please go to

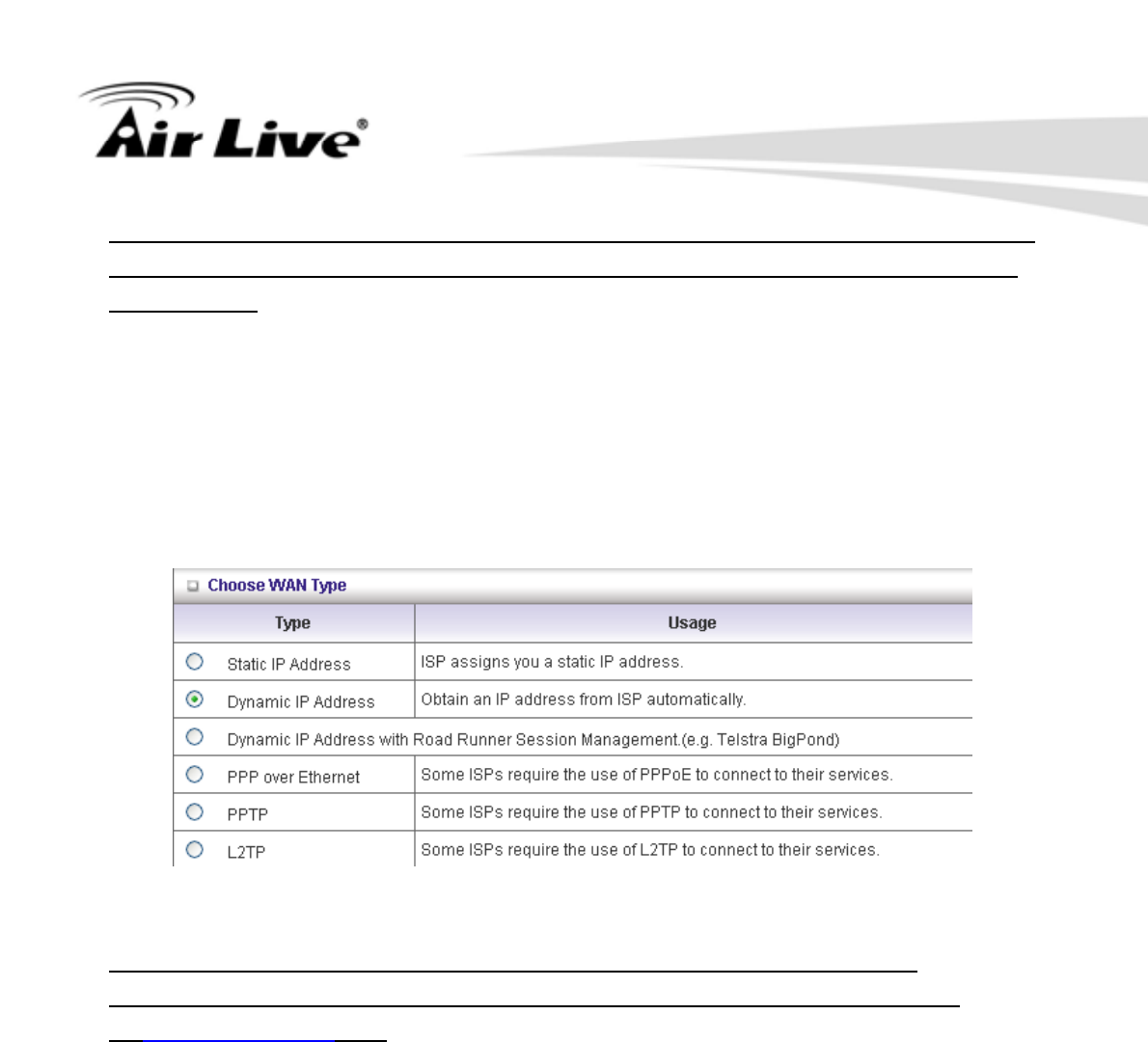

this page to input the
information isp is assigned.
5.When I use Static IP Address to roam Internet, I can access or ping global IP
202.93.91.218, But I can not access the site that inputs domain name, for example
HHUhttp://espn.comUHH ?
A: Please check the dns configuration of Static IP Address. Please refer to the information
of ISP and assign one or two in dns item.
FAQ and Troubleshooting
AirLive GW-300R User’s Manual 87

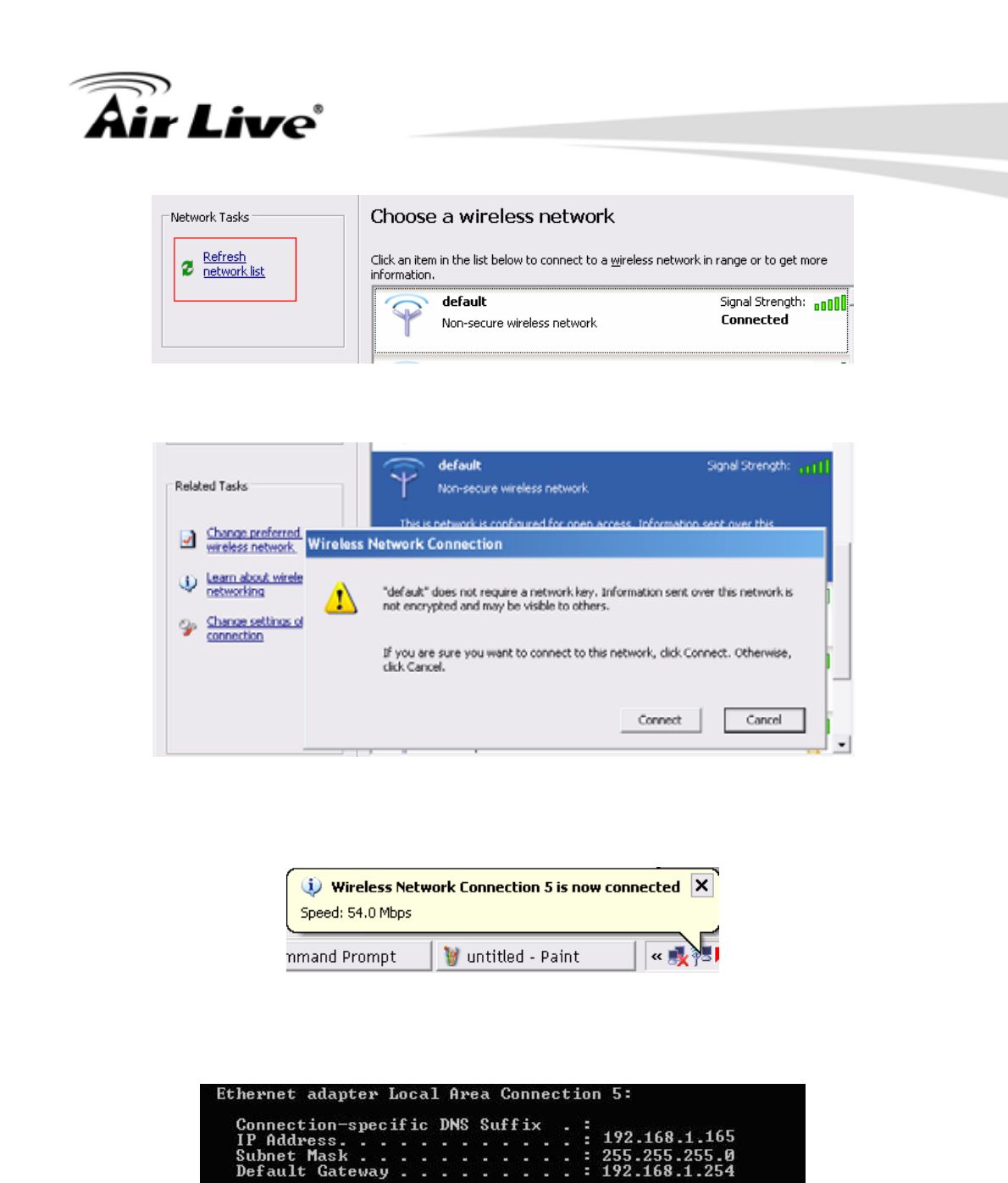

How do I connect router by using wireless?
1.How to start to use wireless?
A: First, make sure that you already installed wireless client device in your computer. Then

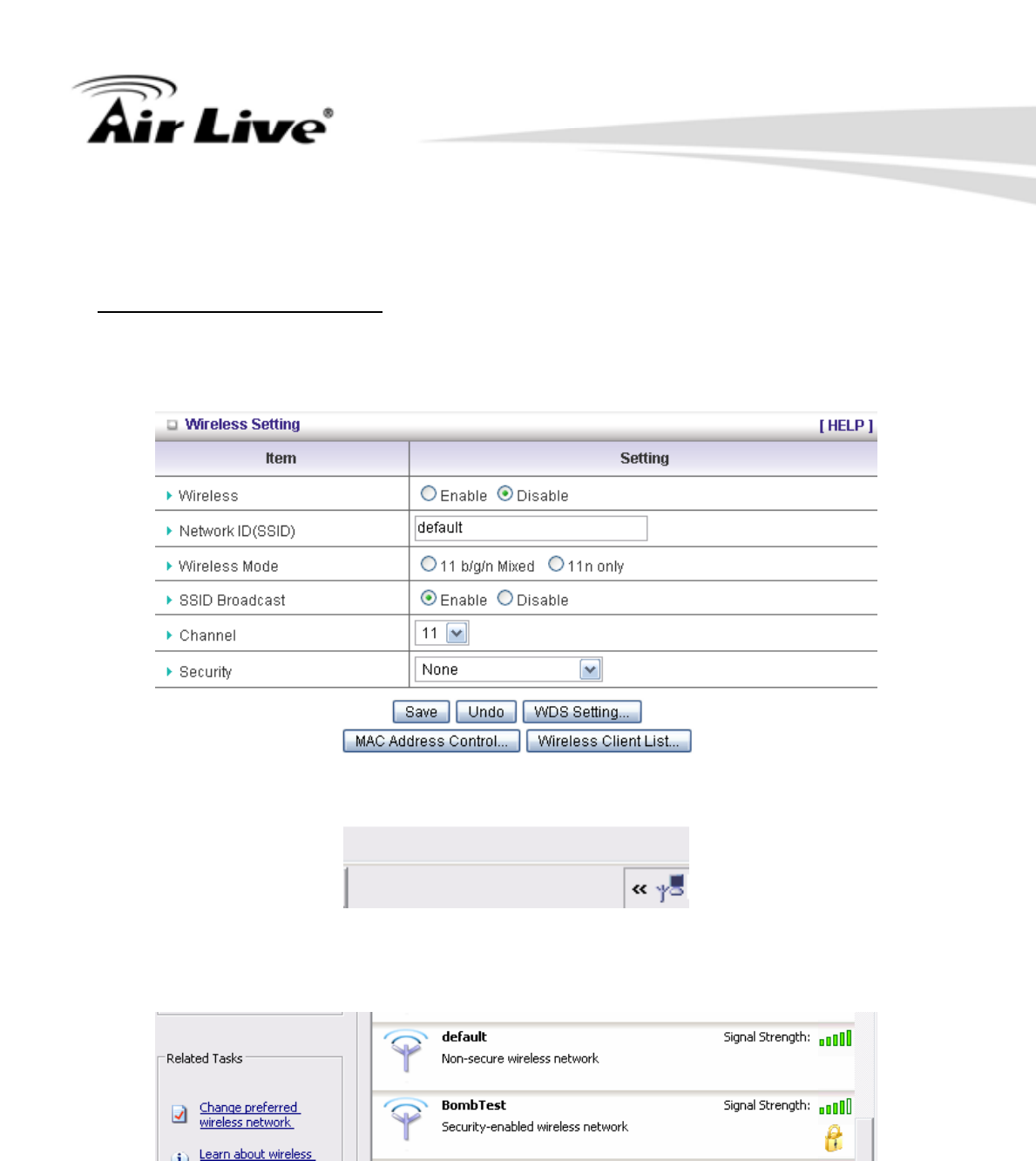

check the Configuration of wireless router. The default is as below:
About wireless client, you will see wireless icon:
Then click and will see the ap list that wireless client can be accessed:
If the client can not access your wireless router, please refresh network list again. However,
I still can not fine the device which ssid is “default”, please refer to Q3.
FAQ and Troubleshooting
AirLive GW-300R User’s Manual
88
Choose the one that you will want to connect and Connect:
If successfully, the computer will show
and get ip from router:
FAQ and Troubleshooting
AirLive GW-300R User’s Manual 89

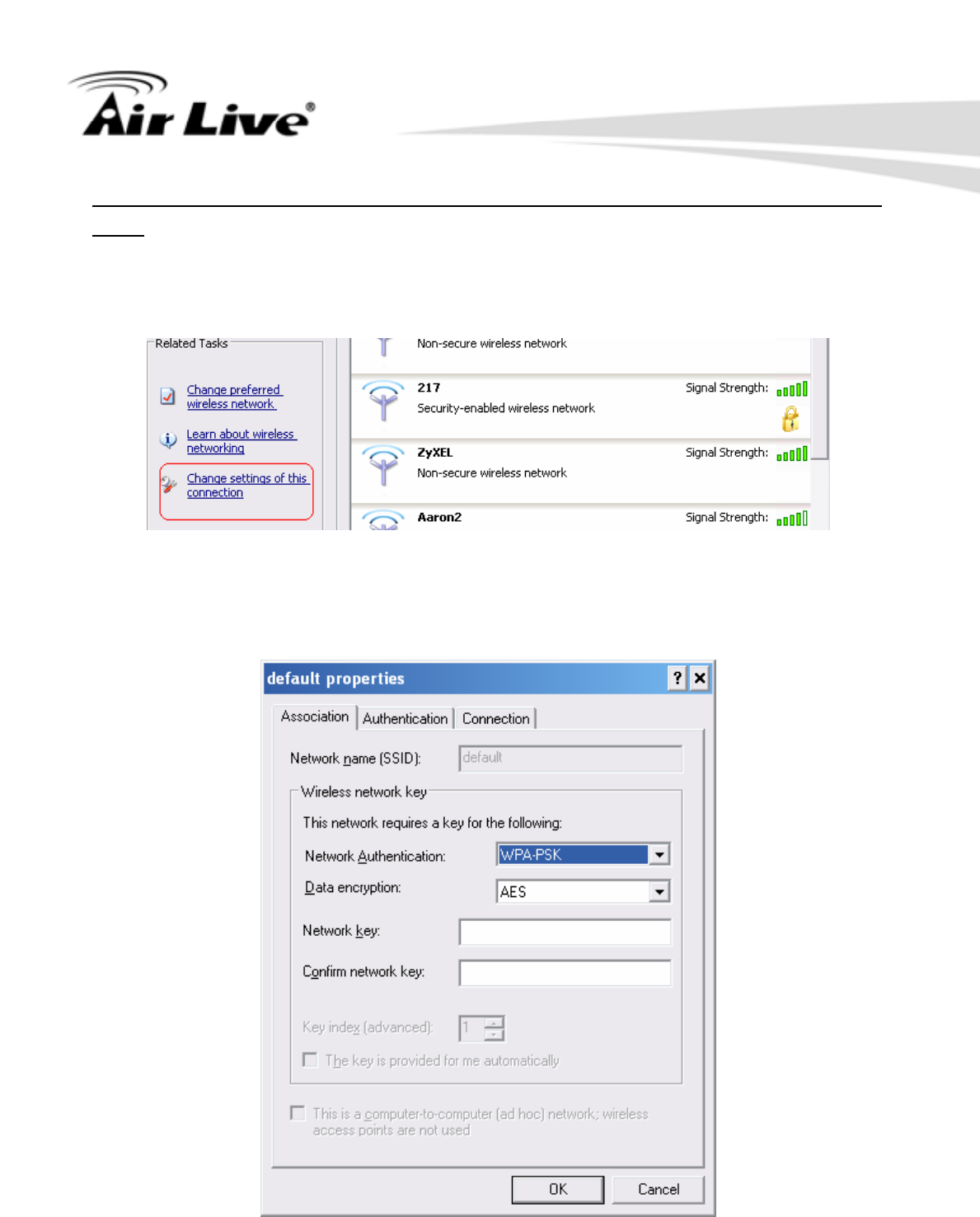

2.When I use AES encryption of WPA-PSK to connect even if I input the correct pre-share
key?
A: First, you must check if the driver of wireless client supports AES encryption. Please
refer to the below:
If SSID is default and click “Properties” to check if the driver of wireless client supports AES
encryption.
FAQ and Troubleshooting
AirLive GW-300R User’s Manual
90
3. When I use wireless to connect the router, but I find the signal is very low even if I am
close to the router?
A: Please check if the wireless client is normal, first. If yes, please send the unit to the
seller and verify what the problem is.

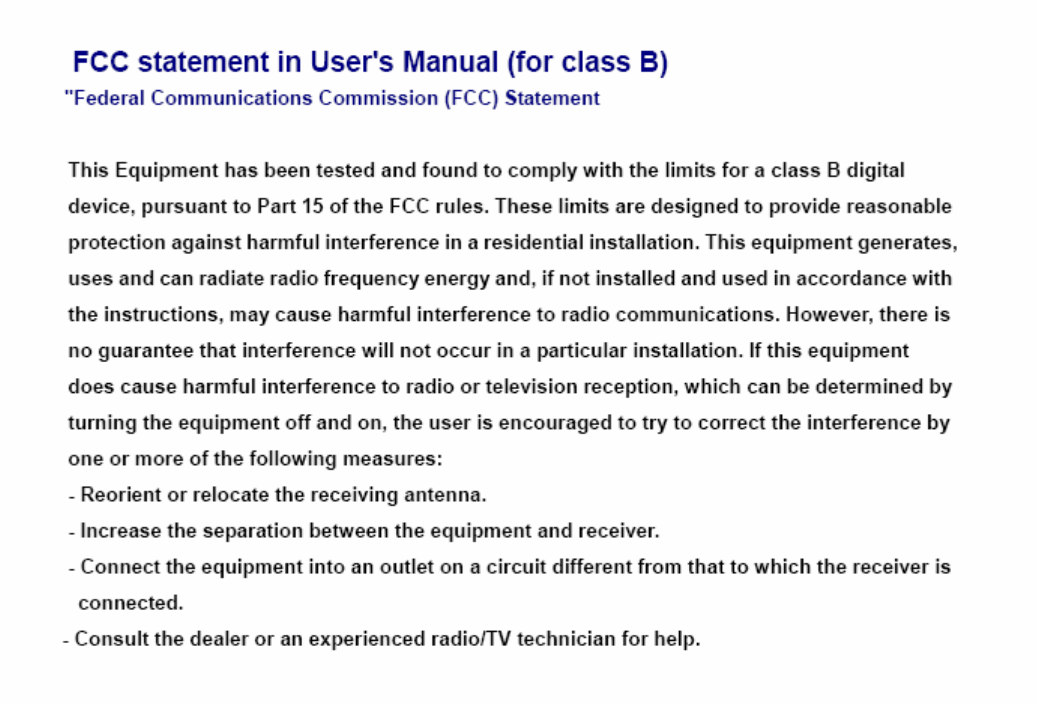

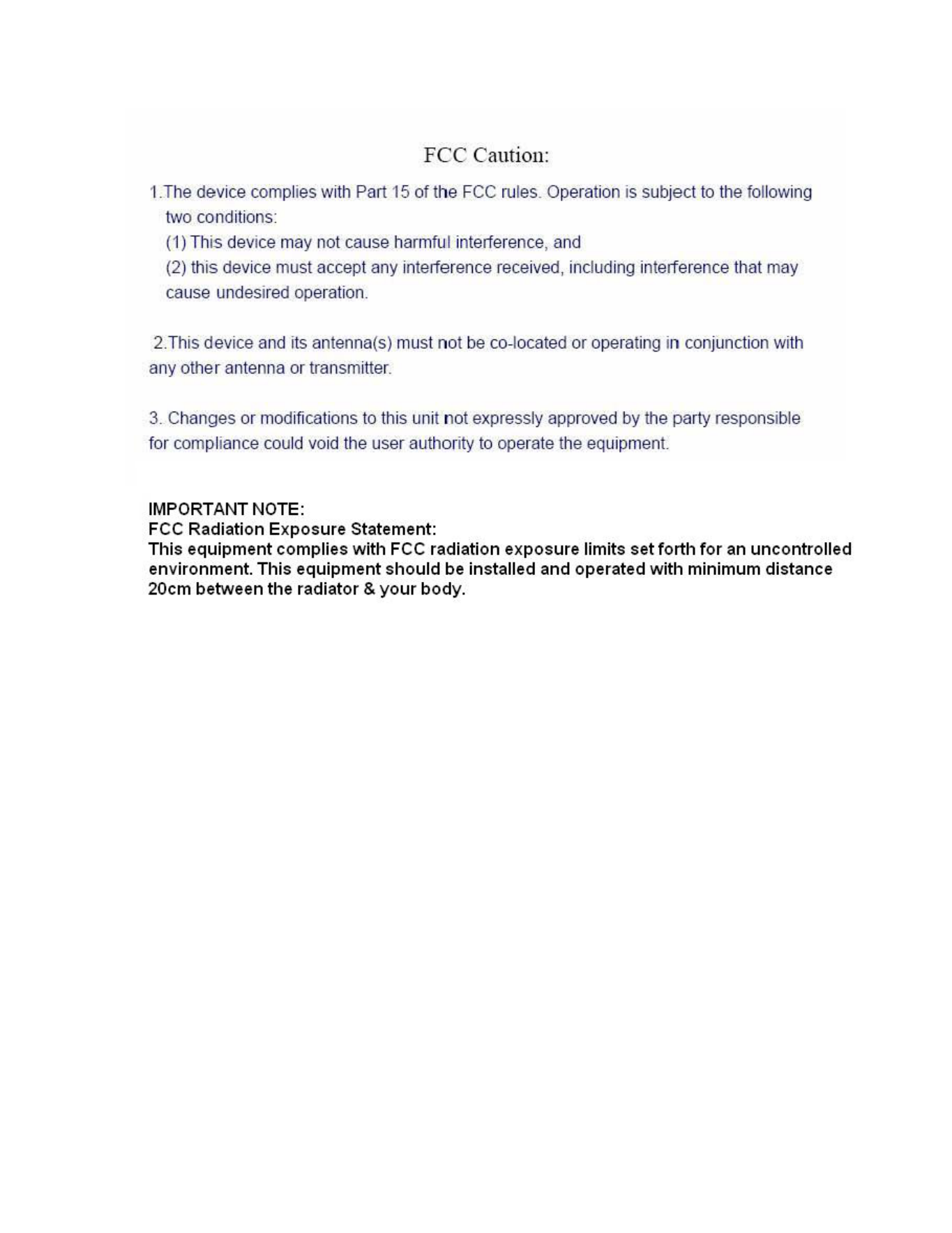

܅פ෷ሽंᘿ୴ࢤሽᖲጥ෻ᙄऄ
ʳ
รԼԲයʳ
ীڤᎁᢞٽ௑հ܅פ෷୴᙮ሽᖲΔॺᆖ๺ױΔֆ׹Ε೸ᇆࢨ
ࠌشृ݁լ൓ᖐ۞᧢ޓ᙮෷ΕףՕפ෷ࢨ᧢ޓ଺๻ૠհ௽ࢤ
֗פ౨Ζ
รԼ؄යʳ
܅פ෷୴᙮ሽᖲհࠌشլ൓ᐙ᥼ଆ౰ڜ٤֗եឫٽऄຏ
ॾΙᆖ࿇෼ڶեឫ෼ွழΔᚨمܛೖشΔࠀޏ࿳۟ྤեឫழ
ֱ൓ᤉᥛࠌشΖ
ছႈٽऄຏॾΔਐࠉሽॾऄ๵ࡳ܂ᄐհྤᒵሽຏॾΖ
܅פ෷୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽं
ᘿ୴ࢤሽᖲ๻ໂհեឫΖ
ʳုѾΚᐗ೸ڇנᐗழΔᄎܓشຌ᧯᠙ࡳ᙮ሐΔᨃึጤࠌشृʳʳ
ྤऄٚრᙇᖗ᙮ሐΖ
ုѿΚڼข঴᙮ሐᙇᖗΔ׽༼ࠎ˔̈̇̂Ε˄Ε˅ˁ˄˄࿛˄˄ଡ᙮ሐΖʳ

Navigation menu
