User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 34
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
T
he modem will not register until it has a clear line of sight to the satellite.
For modems utilizing the Direct IP gateway, the user’s IP gateway and port number must
be added to the Iridium firewall. This may require an extra day or two to be provisioned.
4.3.2 Provisioning
There are several ways the modem can be provisioned with Iridium. It can be provisioned:
• with one to five email/ID addresses. Each modem-originated message is sent to all the
email addresses with which the modem is provisioned.
• to work with Iridium’s Direct IP gateway. Messages are sent directly to and from the
server(s) of the customer backend over a TCP connection.
• to send messages to another Short Burst Data modem with an IMEI number or to itself
(for testing purposes).
• to receive Geodata and Ring Alerts.
o Geodata is an estimate of the latitude and longitude of the modem.
o Ring Alerts provide notification when there are mobile terminated messages
waiting for the modem.
The above mechanisms can also be combined so that a modem can do both DirectIP and email-
based message sending. Provisioning of the modem can also be edited from Iridium’s SPNET
portal. Contact Iridium or an Iridium Airtime Reseller for provisioning.
4.4 Inmarsat
4.4.1 Activation
In order to send or receive any message the Inmarsat modem must be activated on the
IsatData Pro network. To do this:
1) Send an email to support@skywave.com to request an account and mobile device
activation. If you already have an account, you can login at https://support.skywave.com,
and select Manage Mobiles from the menu after logging in.
2) Under Batch Device Actions, select IsatData Pro Mobile Device Activations.
3) Under Solution Provider and Gateway Account:
a. select QUAKE Global for the Gateway Account;
b. add the Mobile ID of your modem in the box on the right;
c. provide the mobile identification (mobile ID) number from the modem.
d. Keep a copy of the mobile ID along with the server access ID and password you
receive in the email from SkyWave Customer Support. You need these to
communicate remotely with the modem.
4) Enter a notification email address at the bottom of the page, and press Submit.
Once power is applied to the modem, it goes into satellite search mode to acquire the SkyWave
IsatData Pro network. This activity may take a few minutes to complete. Once the modem
synchronizes itself with the network, it sends a registration message to the SkyWave IsatData Pro
network.
Note:
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 35
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The SkyWave IsatData Pro network records the registration message and forwards it to the
user’s application. The network then sends an acknowledgement message over the satellite to
the modem. The modem is now ready to send and receive messages.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 36
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)

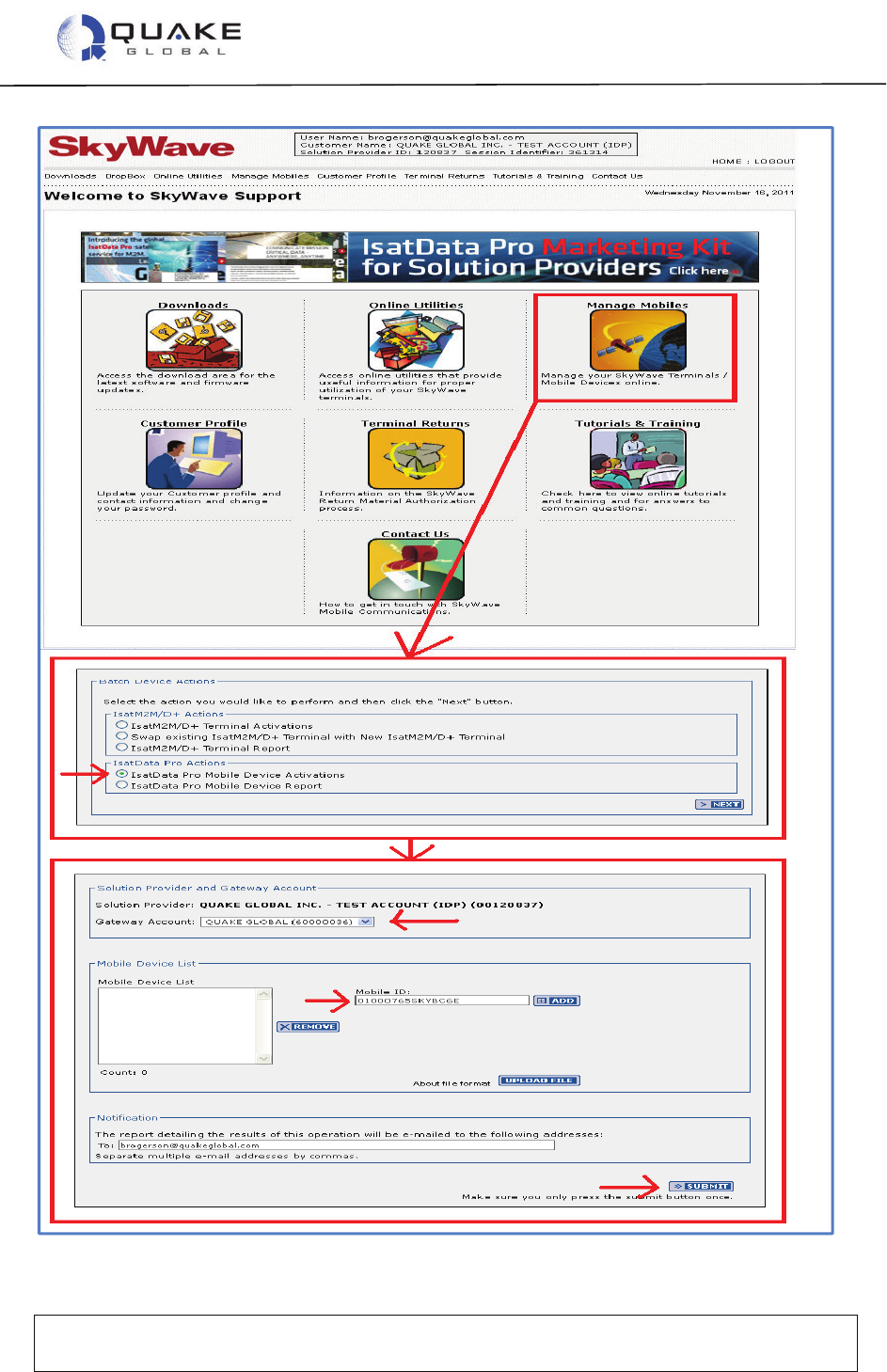

Figure 4-1: Inmarsat activation process
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 37
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
5 Logger messages
Log messages are continuously printed to the Logger port on the modem. The level of detail of
the log messages may be adjusted with the QCFG_debug_level_parameter (0x39). The
default level is set to 4. This parameter may be changed via the Logger port by typing ‘d’ ‘e’ and
a number between 1 and 6. The higher the number, the more detailed the log messages.
5.1 ORBCOMM
The receiver is normally in one of two modes: Acquire or Receive. When in Acquire mode, the
modem is looking for a satellite downlink. When in Receive, the modem is receiving a satellite
downlink. When in Receive mode, there are many different messages that are sent to the
Logger. Most of these messages are unimportant to the user, containing information such as
satellite ephemeris data, downlink packet information, uplink packet information, etc.
Below are two examples of log information displayed when using the ORBCOMM network.
5.1.1 Acquire mode
Aq[26Jun02 22:29:48] chan 265 (WB Search) estDplr -2300 Pwr -115 Ebno 11.1
where:
• Aq: Indicates receiver is in acquire mode searching for a satellite.
• 26Jun02 22:29:48: Greenwich Mean Time (GMT) according to the modem’s internal
RTC (Real-Time Clock).
• chan 265: Satellite downlink channel.
• (WB Search): Indicates a Wide-Band search is being performed.
• estDplr -2300: Estimated Doppler frequency in Hz. This is the relative position of the
satellite to the modem. A positive number means the satellite is moving towards the
modem; a negative number means the satellite is moving away from the modem.
• Pwr -115: Estimated Power level in dBm. When the satellite is in view this is the
satellite’s signal strength; when the satellite is not in view this is the amount of noise on
this frequency.
• Ebno 11.1: Estimated Signal/Noise ratio in dB. The larger this number is, the better the
connection.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 38
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
5.1.2 Receive mode
If the modem is in Receive mode, the receiver has acquired a satellite. When in this mode, a
typical message sent to the Logger would be:
Rx[26Jun02 22:30:06|11.00] Sync(23* 285 04): Dplr -2448 Pwr -103 Ebno 15.8 0/50
where:
• Rx: Indicates a satellite signal is being received.
• 26Jun02 22:30:06: GMT according to the satellite.
• 11.00: Indicates how many seconds the modem has been receiving from the current
satellite.
• Sync: Indicates a Synchronization Segment.
• (23* 285 04): Indicates that satellite number 23 is currently being received, on downlink
channel 285. The asterisk indicates that the satellite is currently usable for
communications. The 04 is the downlink frame number.
• Dplr -2448: Estimated Doppler frequency in Hz. This is the relative position of the
satellite to the modem. A positive number means the satellite is moving towards the
modem; a negative number means the satellite is moving away from the modem.
• Pwr -103: Estimated Power level in dBm. When the satellite is in view this is the
satellite’s signal strength; when the satellite is not in view this is the amount of noise on
this frequency.
• Ebno 15.8: Estimated Signal/Noise ratio in dB. The larger this number is, the better the
connection.
• 0/50: Bad/Total Segment Count. 0/50 indicates 50 Downlink Segments were received in
the previous frame, with 0 checksum errors.
5.2 Iridium
Iridium messages are displayed like modem commands with the label “[IRI]” at the beginning. Tx
stands for Transmit; Rx stands for Receive. Below are some common Iridium messages:
5.2.1 Request signal strength
Tx[IRI]T+CSQ: Request signal strength reading (performed every 10 seconds)
Rx[IRI]+CSQ:1: A signal strength of 1 is barely readable. Maximum is 5.
Rx[IRI]OK
5.2.2 Check modem status
Tx[IRI]+SBDSX: Request modem status (performed every 20 seconds). If a message is
available for the modem, generate Ring Alert.
5.2.3 Ring Alert sequence
Received MSG_ALERT!!! The modem has received a Ring Alert from the satellite.
Tx[IRI]AT+SBDRB: Short Burst Data Read Byte is an attempt to see if the message is
already in the modem’s message queue.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 39
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
5.2.4 Mailbox check
Rx[IRI]+SBDIX: 32, 415, 2, 0, 0, 0: This is a mailbox check and the network response
(32) indicates that an invalid response from the network was received.
Rx[IRI]+SBDIX: 0, 415, 1, 44, 156, 3: This mailbox check with a network response of (0)
indicates that a valid response from the network was received.
5.3 GSM/GPRS
GSM/GPRS messages are displayed like modem commands with the label “[TERR]” at the
beginning. Tx stands for Transmit; Rx stands for Receive. Below are some common GSM/GPRS
messages:
Turning on TERR modem
Tx[TERR]ATE0
Rx[TERR]ATE0
Rx[TERR]OK
Tx[TERR]AT&K0
Rx[TERR]OK
CELL_NET_IN_VIEW: TERR_NET_IN_VIEW //Modem is registering with GSM/GPRS network
Rx[TERR]OK
CELL_NET_IN_VIEW: TERR_CONNECTED //Modem is connected to GSM/GPRS network
Tx[TERR]AT+CSQ //Modem is requesting signal strength
Rx[TERR]+CSQ: 9,0 //Signal strength is 9 (very good)
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 40
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
6 QUAKE Communication Protocol (QCP)
QCP mode is used to send data via AT commands or SLIP/RPC packets to the modem. API
commands can be used in ‘C’ programs. There is a subset of APIs called QCP commands that
are used in both ‘C’ programs and the QUAKE version of AT commands. QCP commands can
be used to control the Q4000/QPRO externally with a DTE Processor. QCP can:
1) turn on/off individual modules (Satellite Communication, GSM/GPRS/GPS)
2) set and read Digital IOs, Analog IOs and Relays
3) send messages over GSM/GPRS or Satellite Communication
4) load files and set configuration parameters
6.1 Examples of QCP
QCP is initiated via an AT Command Shell or as a SLIP/RPC packet. In order to use QCP,
configure the MTS port to:
Baud rate: 4800 bps
Data bits: 8
Parity: None
Stop bits: 1.
The following is an example of an AT command shell:
AT
The modem should respond with:
OK
If there is no response, check the serial connection and that the modem is powered on.
There is a full set of commands available to use via QCP. A description of these commands is
contained in the “Application Files” link on the QUAKE website, www.Quakeglobal.com under

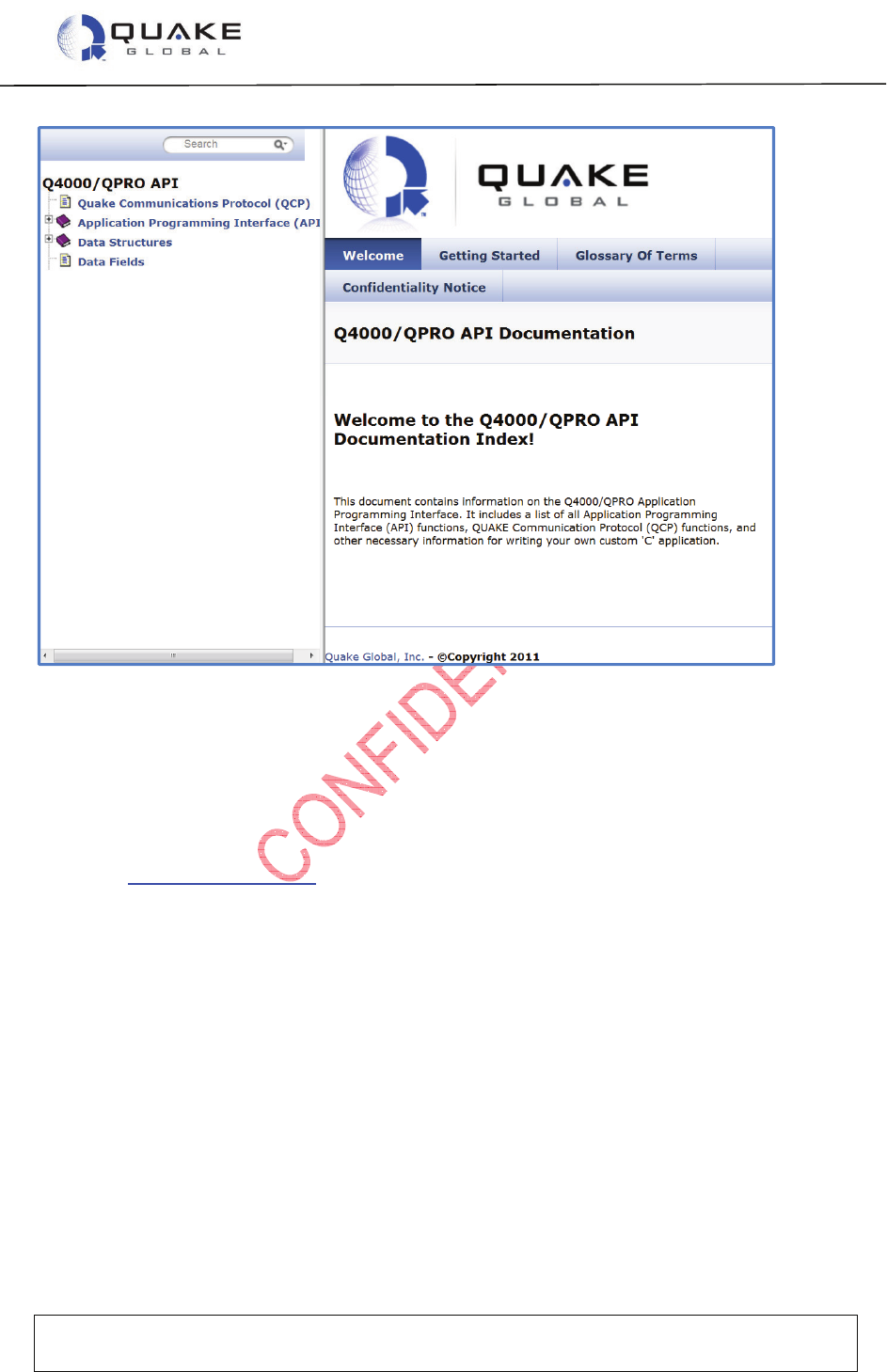

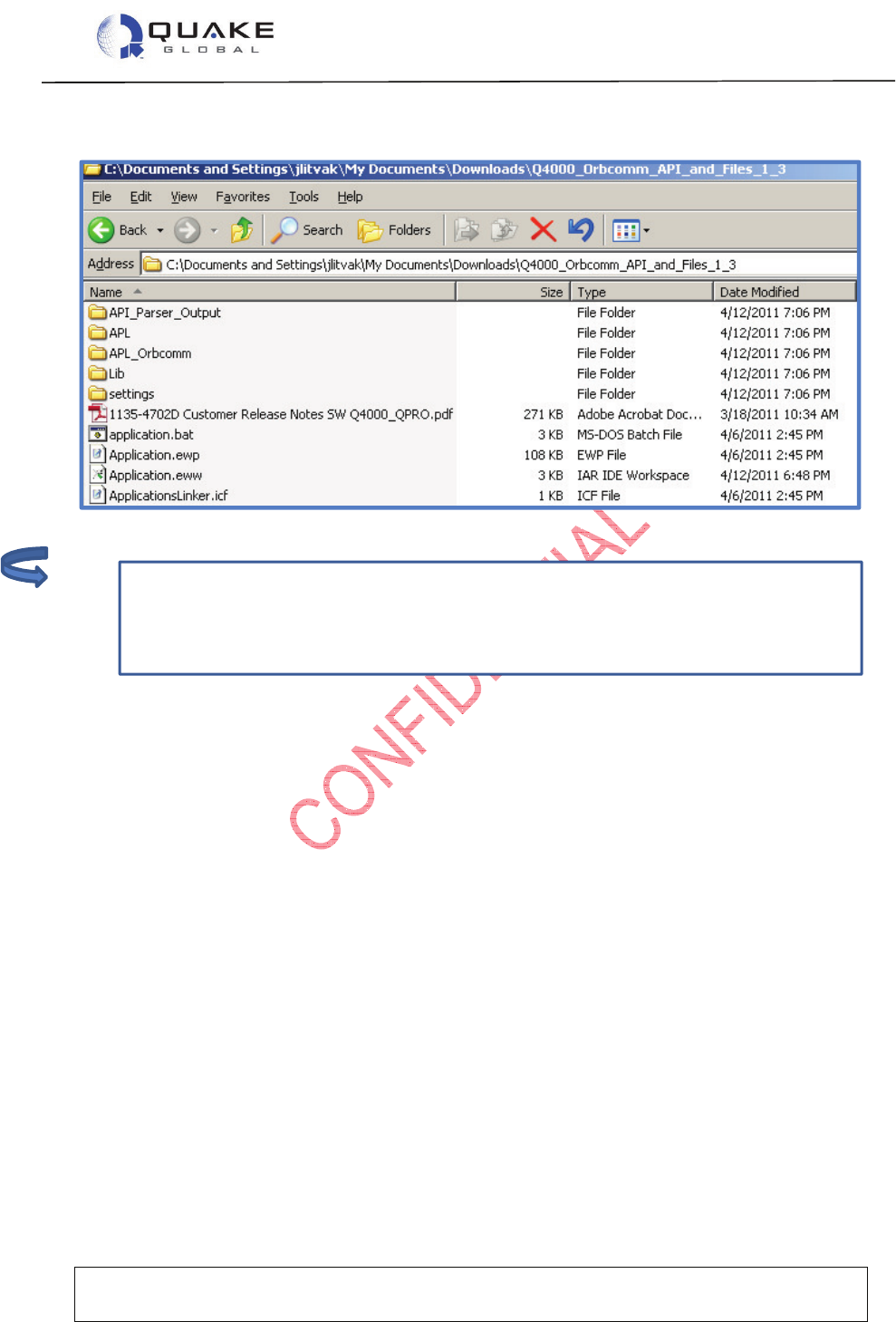

Downloads. Once you extract this zip file, click on the “API_Parser_Output” folder, and then open
the index.html file. This will give you a list of all the available QCP and SLIP/RPC commands
that are supported on the Q4000/QPRO modem.
Also available on the QUAKE Downloads page is the QUAKE Communication Protocol (QCP)
manual, containing more detailed information on this subject.
PUT EXAMPLE HERE
6.2 Passthrough and Direct mode
Customers who have their own processor and the necessary I/O for their specific application may
also communicate directly with the Q4000/QPRO’s satellite or GSM/GPRS modules. The
communication is implemented in either Passthrough mode or Direct mode. Both of these modes
allow the user to send native commands to the modules, bypassing the Q4000/QPRO’s
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 41
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
foundation code. Passthrough mode is implemented with QCP commands and Direct mode is
implemented with API commands.
¾ Passthrough mode connects the modem’s MTS serial port directly to either the satellite
or GSM/GPRS modules in the modem. The QCP commands:
• IRI_passThrough
• INMR_passThrough, and
• TERR_passThrough
can be used to turn on Passthrough mode.
¾ Direct mode connects the user’s application to the satellite modules. The API
commands:
• IRI_directMode()
• INMR_directMode()
• MSG_queueOsiPkt()
can be used to turn on Direct mode.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 42
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
7 Configuration parameters
There are a number of parameters that may be configured as part of the modem’s foundation
code. These parameters control logging, auto-roaming, baud rates, satellite network operations,
SMTP and POP addressing, and other modem functions.
Configuration parameters in the Q4000/QPRO are associated with numbers 0x00 through 0xFF.
ORBCOMM has reserved numbers 0x00 through 0x7F for their network parameters, leaving the
remainder (0x80 – 0xFF) for QUAKE-specific parameters.
In general, the foundation configuration parameters should be left at their default values, as these
are appropriate for the majority of applications. If, however, it is necessary to modify them, this
can be done by using any of the methods described in Section 7.2.1. Once you have completed
your application development and testing, you may opt to have any non-default settings pre-
programmed by QUAKE into any future modems you purchase.
7.1 Orbcomm-specific parameters
There are a number of ORBCOMM-specific parameters between 0x00 through 0x7F. For
example, the ORBCOMM
ob_route
parameter
0x0A)
determines whether outbound (OB)
messages and commands are routed to:
• the application – set to 0
• the MTS serial port - set to 1
• both – set to 2.
By setting
ob_route
to 1, the modem acts as a standard ORBCOMM modem, i.e. with no built-
in application. By setting
ob_route
to 0, the application will receive all outbound messages,
commands, and message acknowledgements. By leaving
ob_route
set at the default value of
2, both the application and the MTS port will receive any outbound messages.
The complete list of ORBCOMM parameters is shown in Appendix A. There are several ways to
modify the ORBCOMM configuration parameters. They can be modified via:
1. the MTS port using the ORBCOMM Serial Interface (OSI) protocol. See the ORBCOMM
Serial Interface Specification for more information.
2. a user application using the functions:
• CFG_setValOrb()
• CFG_getValOrb().
See the Q4000/QPRO API for more information on these functions.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 43
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
7.2 QUAKE Configuration Parameters (QCFG)
QUAKE uses parameters 0x80 – 0xFF. All these parameters have “QCFG_” as a prefix. For a
complete list of the QCFG parameters, see Appendix B - QUAKE’s ORBCOMM configuration
parms (QCFG) and Appendix C - QUAKE’s Iridium & Inmarsat config parms (QCFG). There are
several ways to modify QCFG parameters. They can be modified via:
• debug menus on the Logger port
• QCP protocol on the MTS port
• API calls made by a user’s application.
To view the current values of the QCFG parameters from the Logger port, connect a Terminal
Emulation program to the Logger port with the following settings:
Baud rate: 115200 bps
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 44
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
Type the following to obtain the output below:
“U” “C” “v”

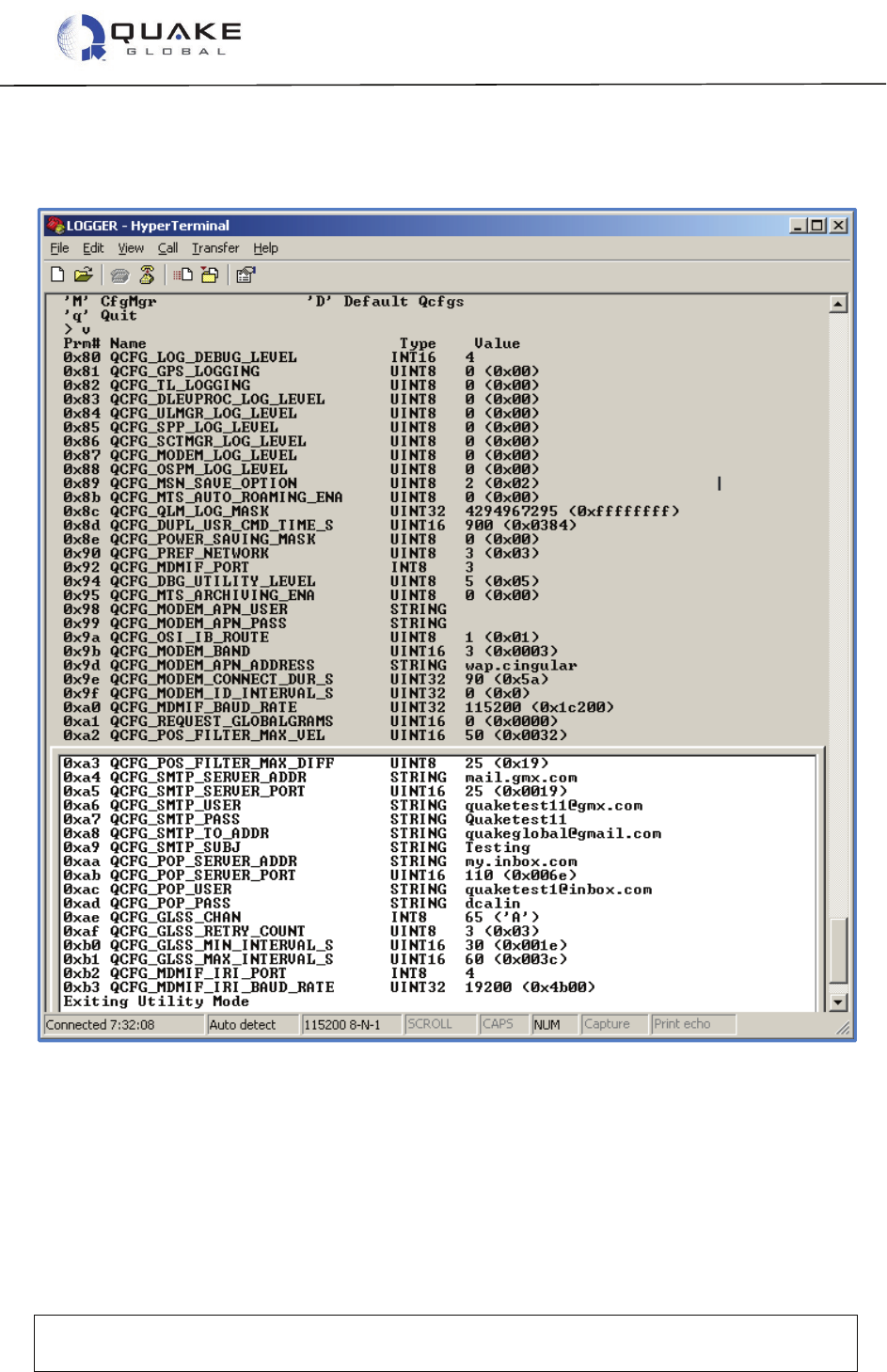

Figure 7-1: QCFG parameter list
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 45
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
After changing any parameters, it is necessary to type
‘d’ ‘R’
on the Logger port to
perform a controlled power down/reboot, which includes saving the configuration
parameters to non-volatile memory (NVM).
Without the controlled reboot, the new values of the parameters are lost after a power
cycle on the modem.
See Appendix D - Debug and utility menus for more information on the debug (d) and
utility (U) commands.
7.2.1 Changing QCFG parameters
7.2.1.1 Change via the Logger port
To change QCFG parameters via the Logger port, type ‘U’ ‘C’ ’s’. You will be prompted for the
parameter’s number in hex, which you can see from viewing the parameter list above in Figure
7-1. You will then be prompted for the parameter’s new value as either a text or a numeric value.
See the example below:
U
***Utility Mode enabled*** (will expire in 20 Secs)
C
NOTE: Please conduct a controlled power down to ensure changes to
configuration parameters are committed to flash memory.
CHOOSE FROM THE FOLLOWING:
'g' Get Param 's' Set Param
'd' Default Orbcomm Cfgs 'v' View Qcfgs
'M' CfgMgr 'D' Default Qcfgs
'q' Quit
> s
ENTER PARAMETER NUMBER> 0xa2
ENTER QCFG VALUE> 50
Exiting Utility Mode
7.2.1.2 Change via QCP on the MTS port
QUAKE Communication Protocol (QCP) mode is used on the MTS port. It has a number of uses
besides configuring parameters. See Chapter 6 for more information on QCP. To change the
value of a numeric QCFG parameter, connect a Terminal Emulation program to the MTS port with
the following settings:
Baud rate: 4800 bps
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None.
Note:
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 46
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
Now type:
AT+QKEFCN CFG_setNumericQCP, parmName, parmValue
This will change the parameter and save it to memory. See the example in the screen below,
where the parameter QCFG_SMTP_SERVER_PORT is given the value 25:
Figure 7-2: Using QCP to change a numeric parameter
To change the value of a string parameter, type:
AT+QKEFCN CFG_setStringQCP, parmName, parmValue
This will change the parameter and save it to memory. See the example in the screen below,
where the parameter QCFG_SMTP_SERVER_ADDR is given the value “mail.gmx.com”:
Figure 7-3: Using QCP to change a string parameter
7.2.1.3 Change via API calls from a user application
QCFG parameters can also be modified from a user application using the functions:
• CFG_write()
• CFG_read().
See the Q4000/QPRO API for more information on these functions.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 47
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
www.google.com email does NOT use standard SMTP protocol and will not work with
the Q4000/QPRO.
For T-Mobile/ORBCOMM QCFGs, these settings are pre-set to ensure proper network
connection.
7.2.2 GPRS network parameters
GPRS uses the following QCFG parameters:
Table 7-1: GSM parameters
Par
m
#
Name
Description
Default Value
Min
Max
0x9d
QCFG_MODEM
_APN_ADDRESS
Network provider name ORBCOMM.t-
mobile.com
0x98
QCFG_MODEM
_APN_USER
User login name (if required) [None]
0x99
QCFG_MODEM
_APN_PASS
User password (if required) [None]
0x9e
QCFG_MODEM
_CONNECT_DUR_S
If there is no data exchange
within this timeout period
(seconds), the connection is
closed. 0 for no timeout.
90 0 65535
7.2.3 SMTP and POP (email) server parameters
A valid email account is required on an SMTP server that supports standard SMTP protocol
without SSL or SMPTA. This includes webmail sites such as www.inbox.com and
www.gmx.com. Email attachments are not supported via SMTP and POP. It is possible to send
binary data using MIME-encoding. Table 7-2 lists the SMTP parameters.
Table 7-2: SMTP parameters
Parm
#
Name
Description
Default
Value
Min
Max
0xa4 QCFG_SMTP_SERVER_ADDR
Address of SMTP mail server [None]
0xa5 QCFG_SMTP_SERVER_PORT
SMTP port (usually 25) 25 0 65535
0xa6 QCFG_SMTP_USER
SMTP account user name [None]
0xa7 QCFG_SMTP_PASS
SMTP account password [None]
0xa8 QCFG_SMTP_TO_ADDR
Default email address to which
to send messages
[None]
0xa9 QCFG_SMTP_SUBJ Default subject of email [None]
Note:
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 48
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
In order to receive unsolicited GSM/GPRS messages on the modem, such as parameter updates,
the following QCFG parameters must have valid values:
Table 7-3: POP parameters
Parm
#
Name
Description
Default
Value
Min
Max
0xaa QCFG_POP_SERVER_ADDR Address of POP server [None]
0xab QCFG_POP_SERVER_PORT POP server port (usually 25) 25 0 65535
0xac QCFG_POP_USER POP account user name [None]
0xad QCFG_POP_PASS POP account password [None]
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 49
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)

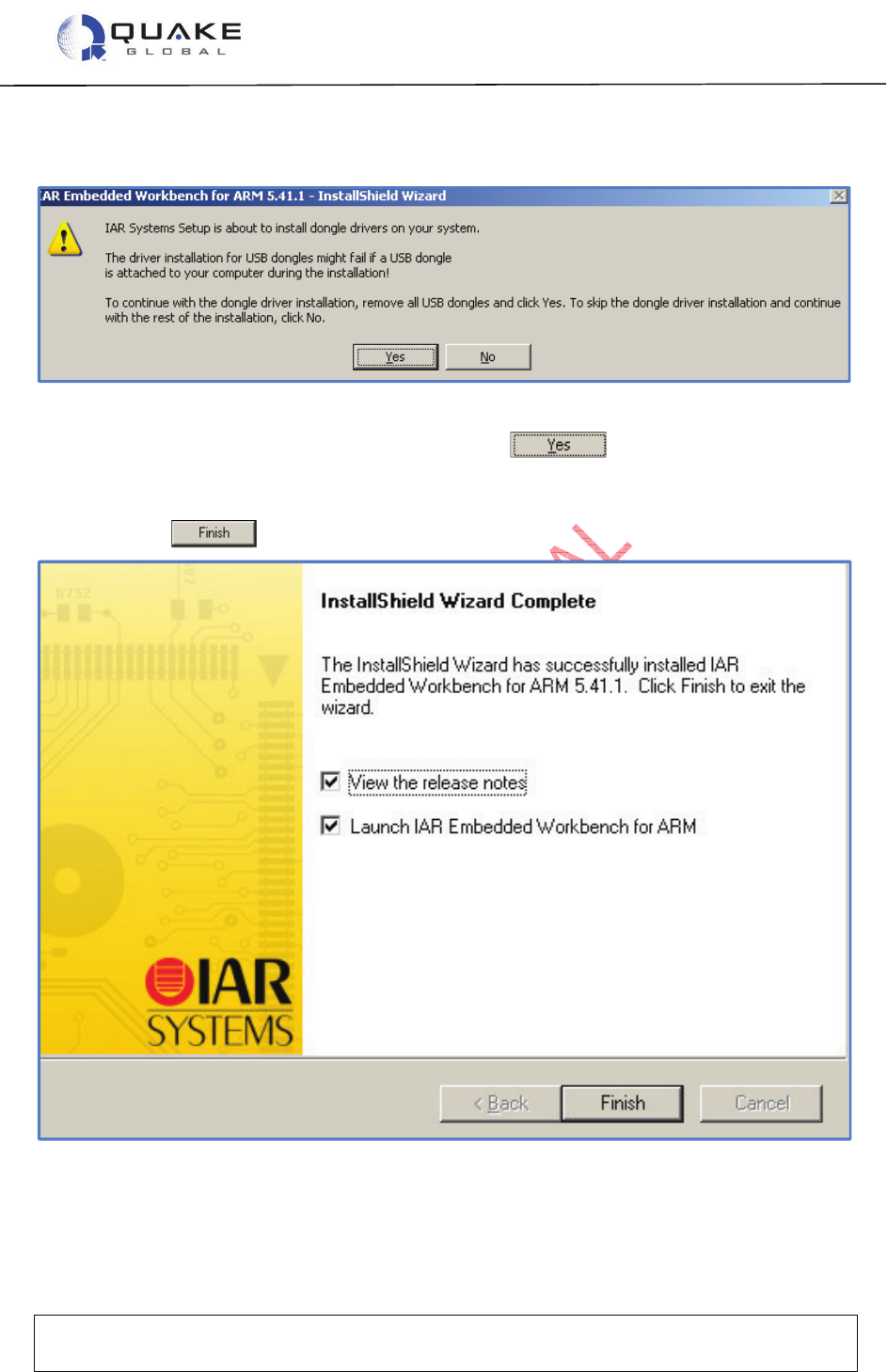

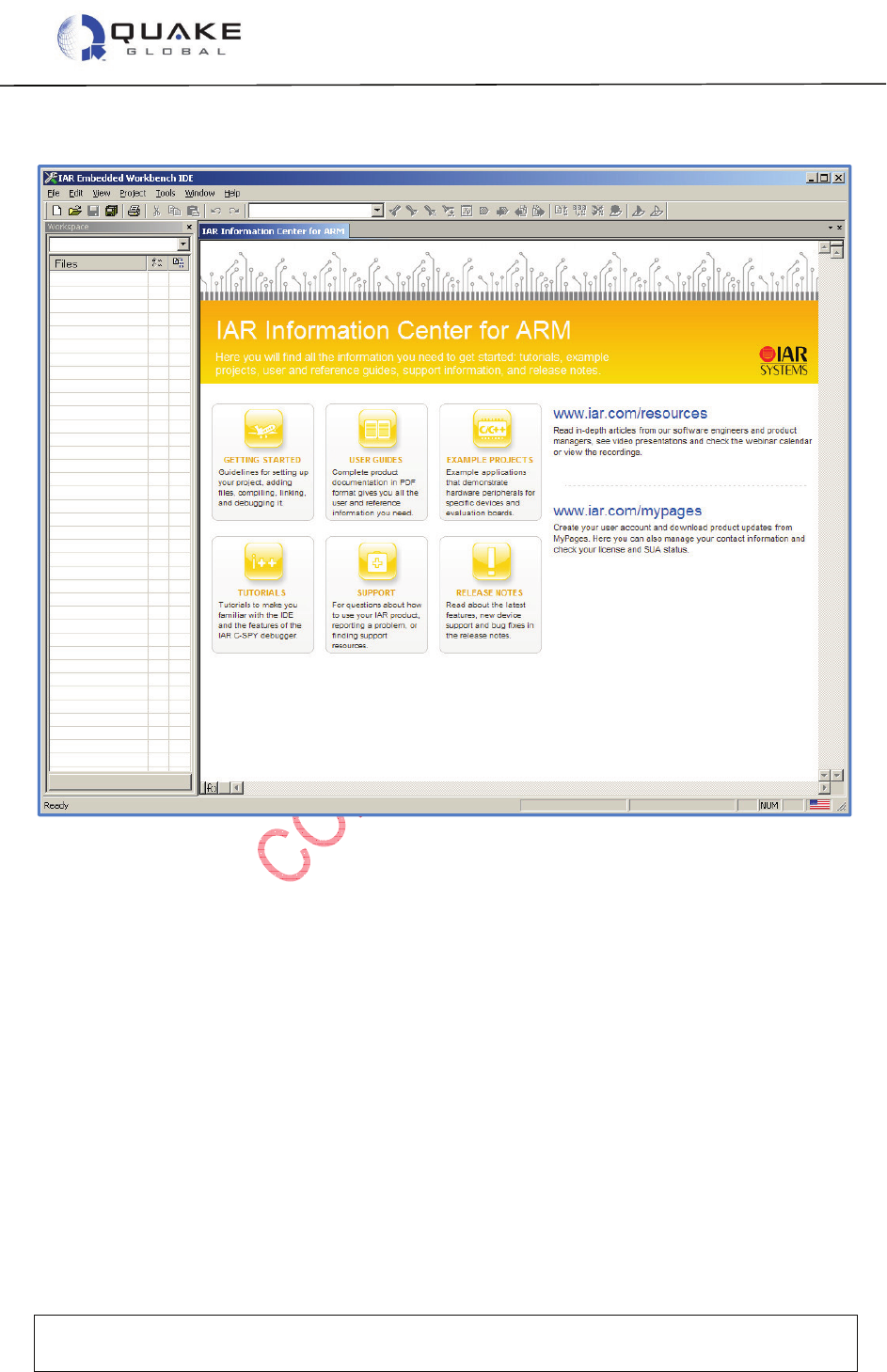

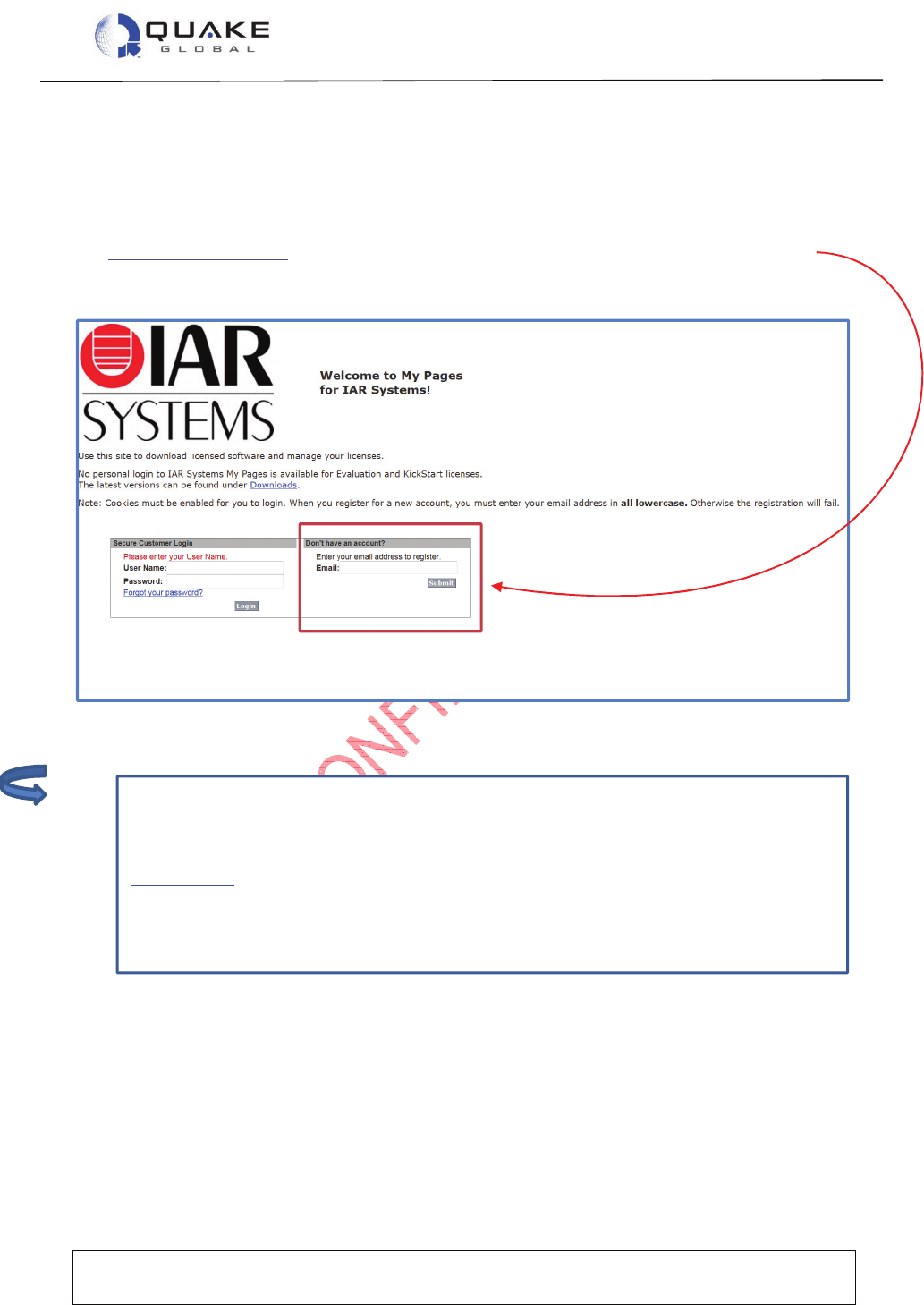

8 Installing the IAR Integrated Development Environment
Code for the Q4000/QPRO modem is developed on the IAR Systems Embedded Workbench.
This is a fully Integrated Development Environment (IDE) containing an optimized C compiler,
assembler, linker, text editor and associated tools. QUAKE software follows open industry
standards whenever possible to allow existing ‘C’ code to port over easily.
If you have purchased a Development Kit from QUAKE you will be provided with a temporary
license key for the IAR IDE. Included with the installation material is the IAR dongle shown
below. It is not necessary to have this plugged in during the following installation.

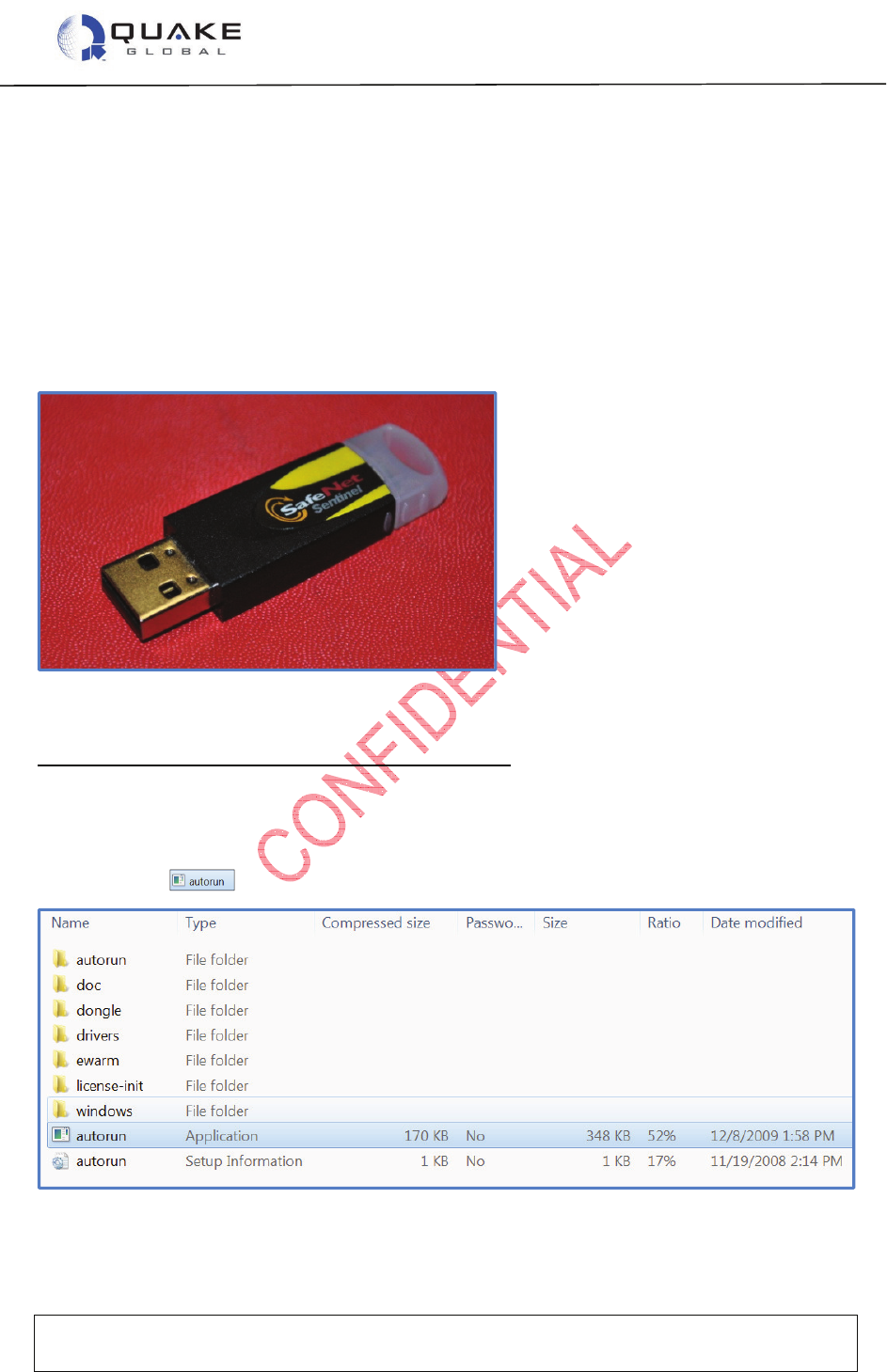

Figure 8-1: IAR dongle
Follow these steps to install the IAR workbench
:
Install the software using the CD that was provided. IAR provided a “welcome letter” with the
package. On that “welcome letter” there is a license number and a quickstart key. Both of these
are needed in order to complete the initial installation.
1. Select the application, and then unzip the files.
Figure 8-2: IAR zip file contents screen
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 50
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
2. Select the (unzipped) application.

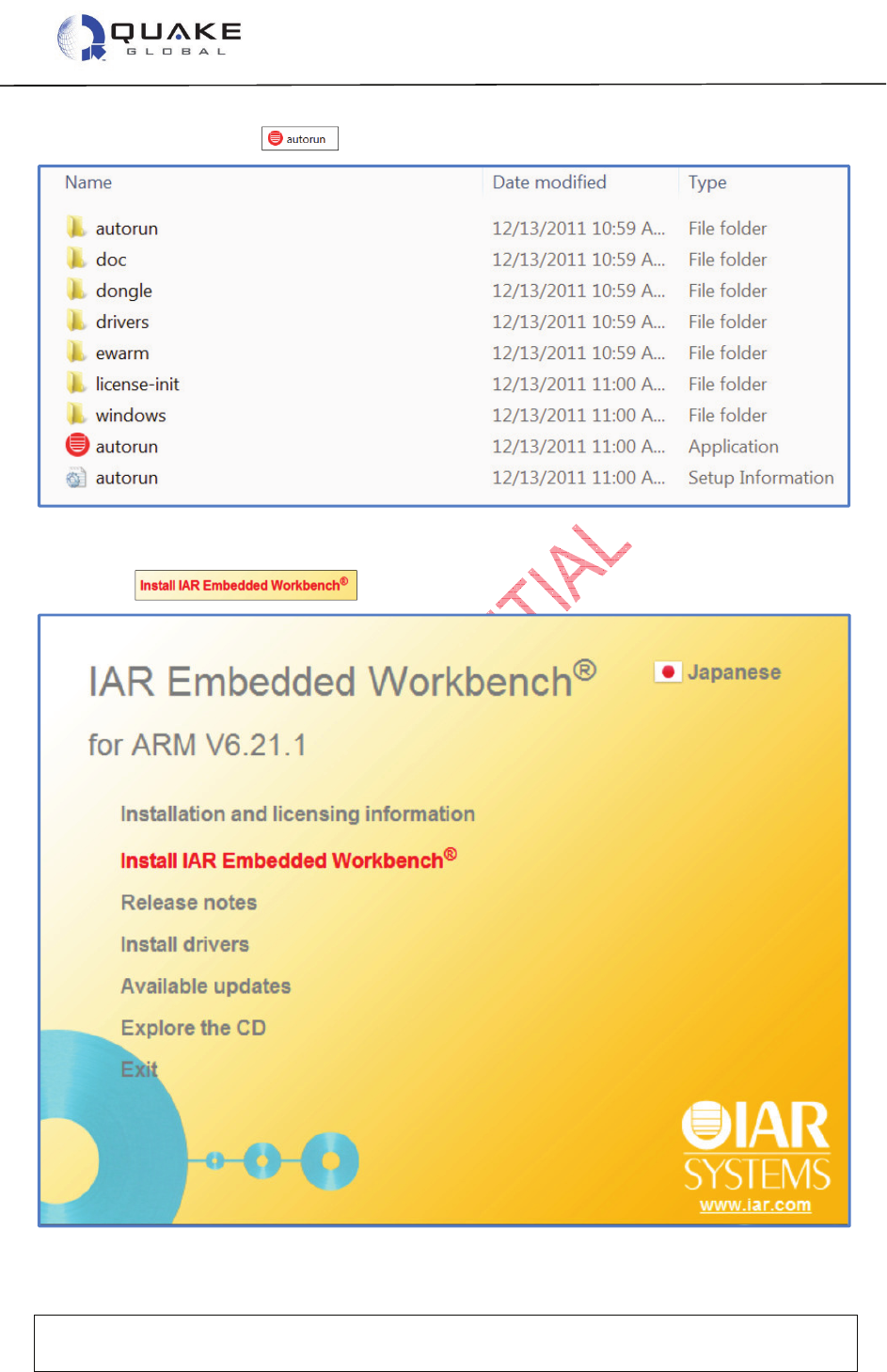

Figure 8-3: IAR unzipped files screen
3. Select and follow the installation wizard.
Figure 8-4: IAR Workbench Welcome menu
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 51
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The installer opens a window asking you to remove the IAR dongle from your computer if it has
been plugged in at the time of installation.
Figure 8-5: IAR dongle driver installation
4. Remove the IAR dongle if it is plugged in, then click . .
5. When the installation is complete:
• plug in the dongle
• click . .
Figure 8-6: IAR Workbench installation complete
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 52
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
6. The IAR Workbench will start.

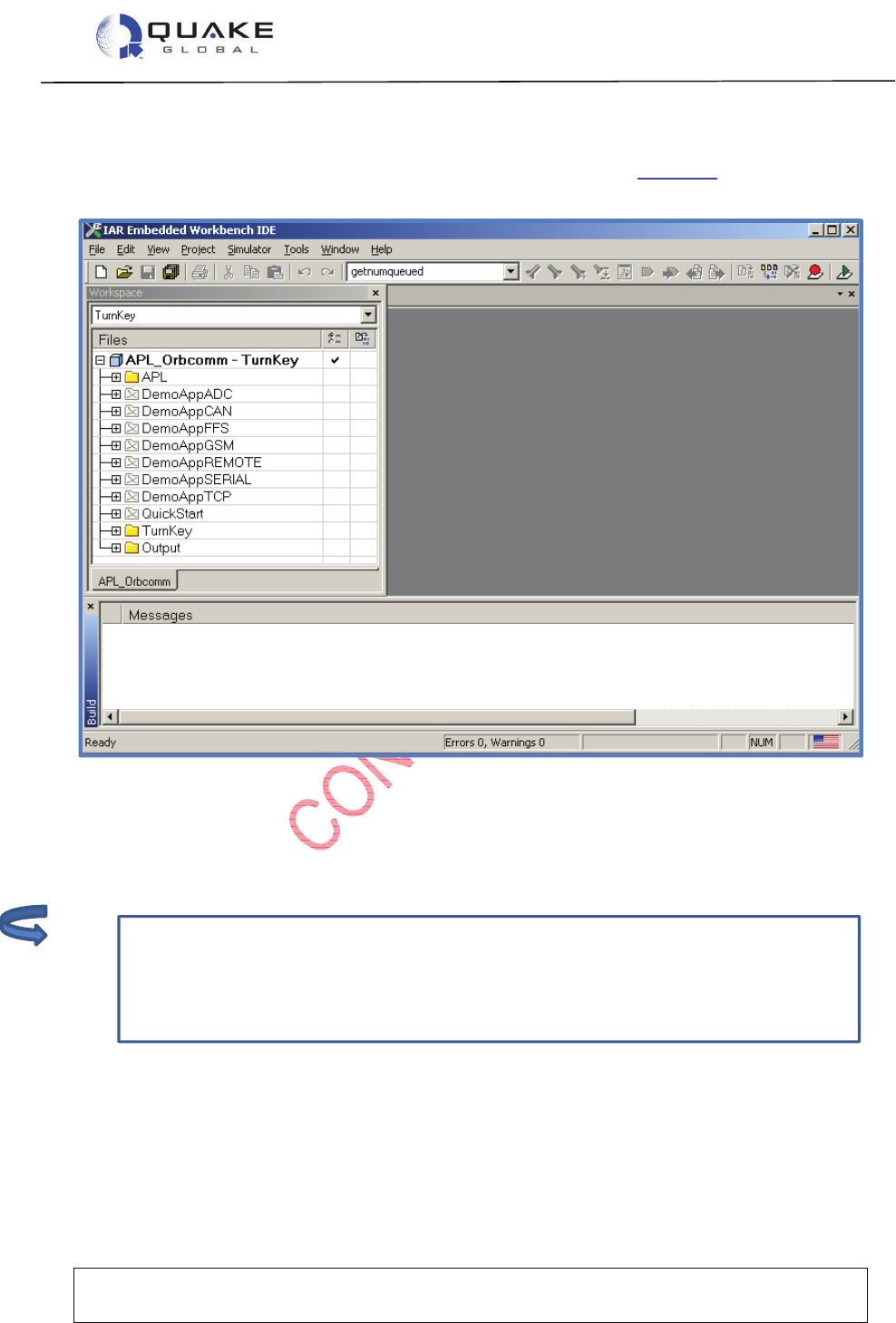

Figure 8-7: IAR Information screen
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 53
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The MyPages page at www.iar.com can be used to download different versions of the
IAR IDE.
Once the installation is finished you need to complete the registration. The registration can be
done at: www.iar.com/register. The information that you provide in the registration is needed in
order to have IAR generate a permanent license key for the software and a MyPages account for
you.

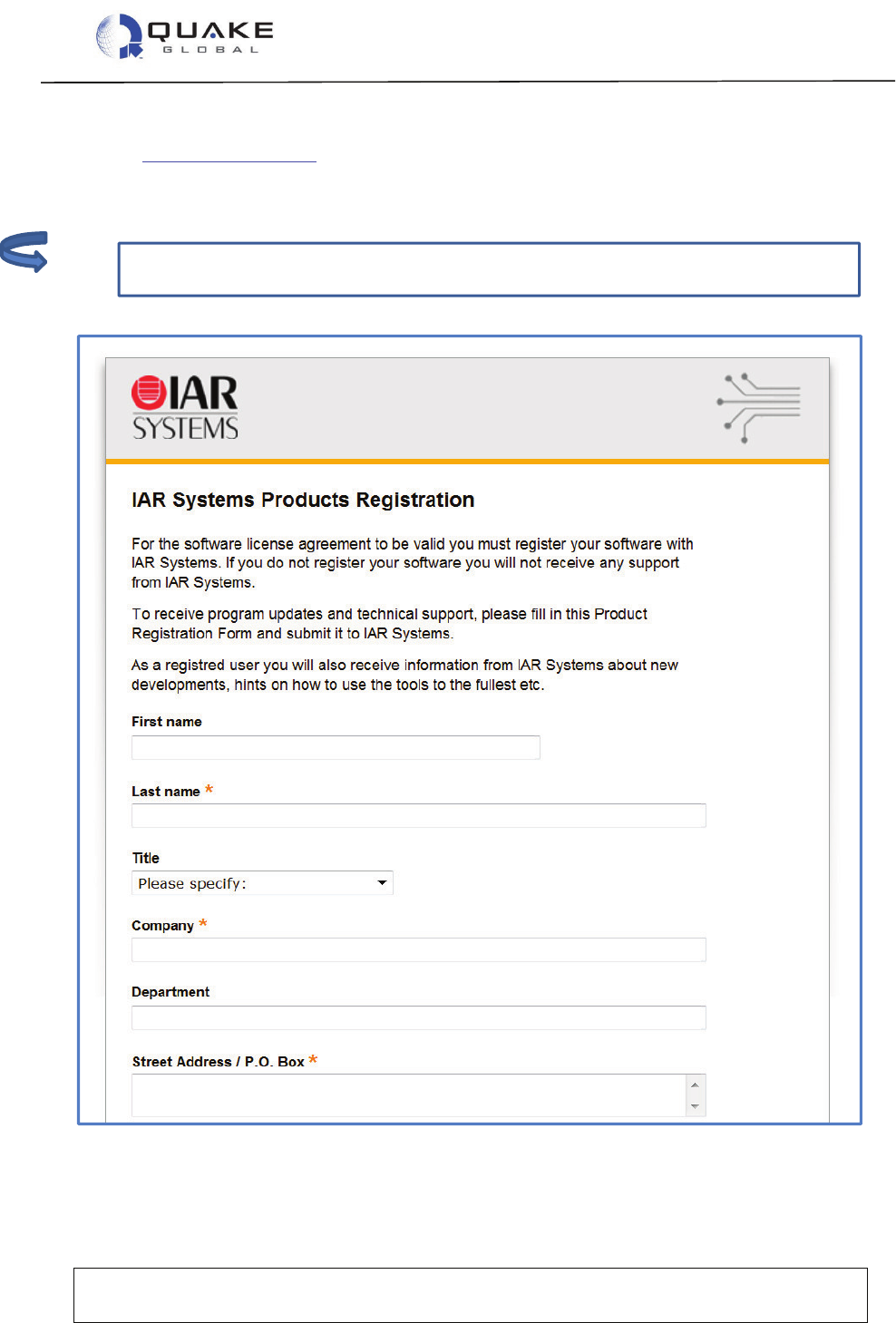

Figure 8-8: IAR registration screen
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 54
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The version of the IAR Workbench used by QUAKE Global is
5.41.2
.
It is important to update to 5.41.2 if your IAR installation CD is another version. Once
you have access to MyPages this can be downloaded from the IAR website at
www.iar.com. Be sure to:
•first - modify your version to 5.41 from the initial version that IAR approved in
your license
•then - download the 5.41.2 patch.
• After the registration is submitted, IAR will need to process it before you can have access to
MyPages. This process generally takes 1-2 business days. Once IAR completes the
registration you will receive an email with the permanent license key.
• With the permanent license key, go directly to the MyPages login screen:
www.iar.com/mypages and enter your email address into the “Don’t have an account?”
box. The system will automatically email your login and password information to you. Using
that, you will be able to log in and have access to download any available version.
Figure 8-9: IAR MyPages screen
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 55
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The maximum email buffer size is 48K bytes
. If a message is larger than that, the
modem deletes it from the server to avoid the infinite loop that would result from trying to
retrieve a message that is too large. It then displays the following message on the
Logger port:
Can’t allocate enough memory for messa
ge, deleting
9 Communicating with the modem
9.1 Sending email to the modem
Email messages may be sent to the modem from any of the configured networks. Satellite
networks have mechanisms to pass messages to the modem without being polled, but to receive
unsolicited messages over GSM/GPRS requires that the user application have some sort of
polling mechanism.
The modem can detect some special emails to download new foundation software or reboot (see
Chapter 10 Over the Air (OTA) software update). The user application has access to
configuration parameters for SMTP and POP addresses, usernames and passwords. The
Internet Service Provider (ISP) should provide information on setting up accounts for SMTP and
POP, similar to personal email.
9.1.1 ORBCOMM
To send an email to a modem using the Orbcomm network, address the email to
ModemNx1@orbcomm.net, where ModemN is the serial number of the modem shown on the
modem’s white label, and x1@orbcomm.net is the format of an Orbcomm email using
Gateway 1, within the western hemisphere. For emails using Gateway 120 or within the eastern
hemisphere, the address would be built using x1@orbcomm2.net.
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 56
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
Figure 9-1Error! Reference source not found. is an example of an email to modem
“qwaketest029.”

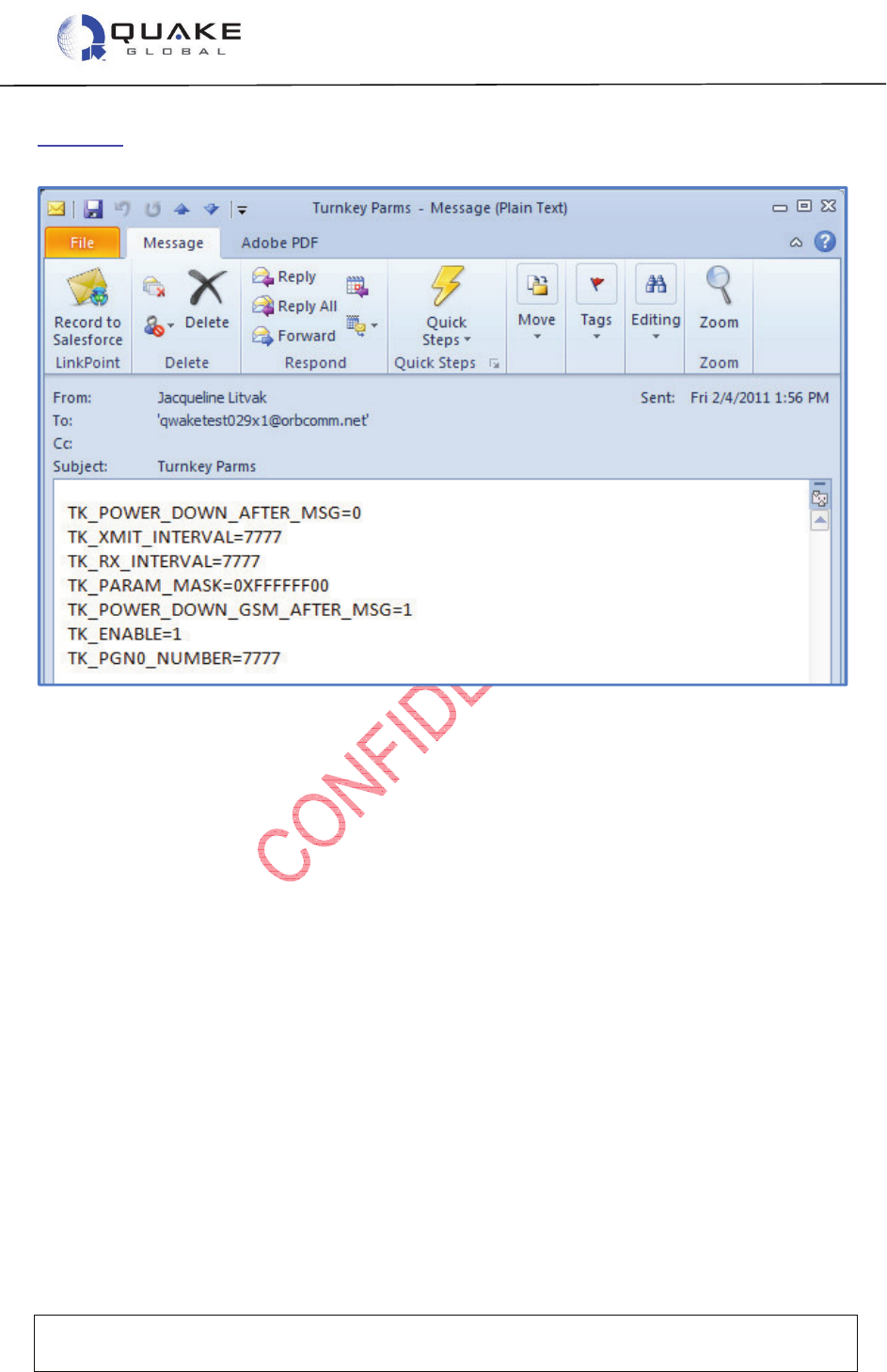

Figure 9-1: Orbcomm email to a modem
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 57
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
9.1.2 Iridium
Iridium emails to a modem are always sent to the same address: data@sbd.iridium.com. The
subject of the email MUST be the modem’s IMEI number, which is printed on the modem’s white
label. Data to the modem are sent as a file attachment to the message. Figure 9-2 is an
example of the email.

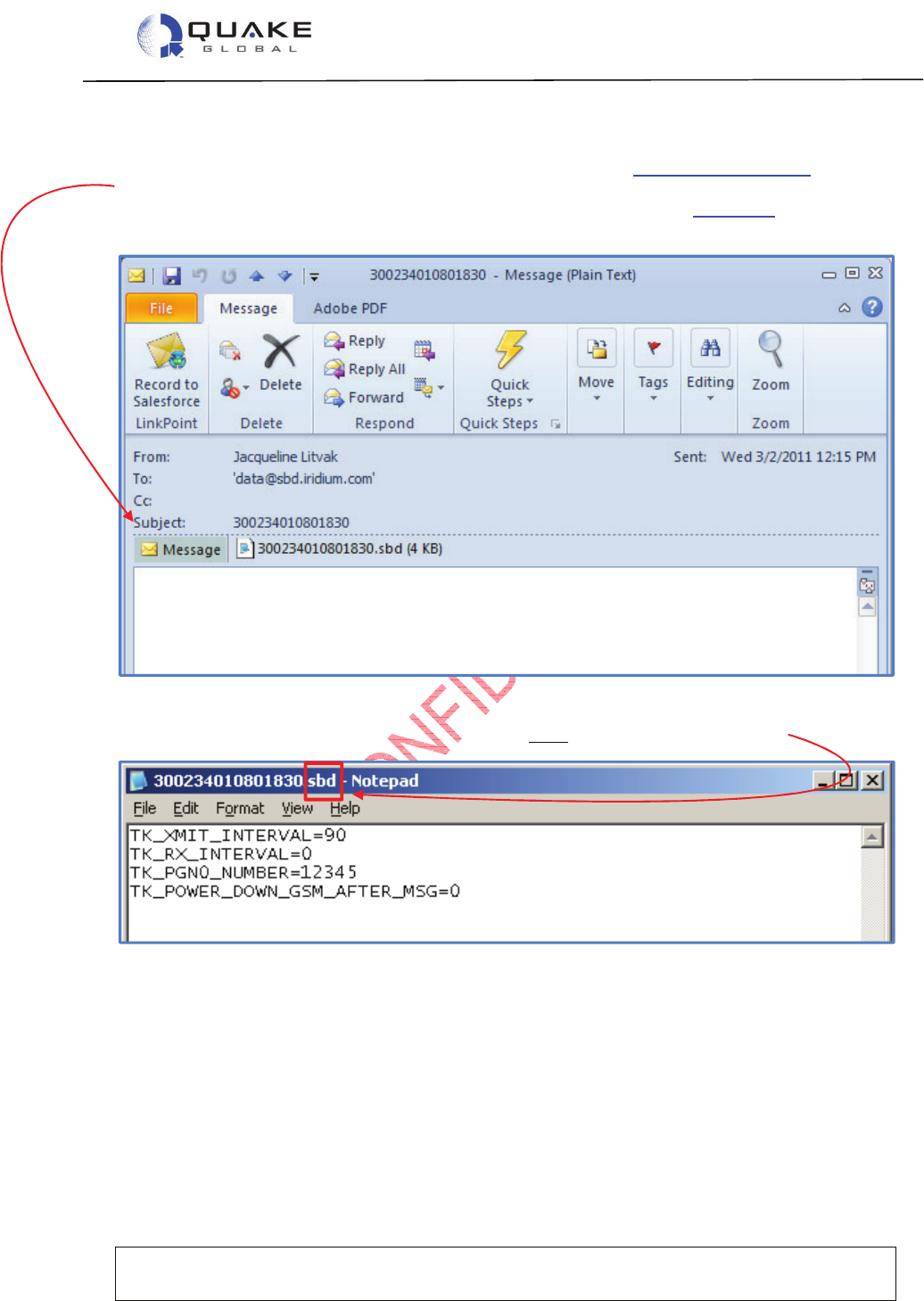

Figure 9-2: Iridium email to a modem
The data file attachment may have any name, but it must have a .sbd file extension.
Figure 9-3: Data file attachment for a modem-terminated message
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 58
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
It is important to put the modem’s SMS number on a DO NOT CALL list to avoid
receiving spam mails.
9.1.3 GSM/GPRS
Email to a modem using GSM/GPRS has an address specified by the configuration parameters
and the network being used. For example, with the configuration parameters shown below, an
email from the gmx.com server to a modem would have the format username@gmx.com.
Table 9-1: SMTP and POP configuration parameters
Name
Value (Hex)
Sample Values
QCFG_MODEM_APN_ADDRESS 0x9D orbcomm.t-mobile.com
QCFG_SMTP_USER 0xA6 username@gmx.com
QCFG_SMTP_PASS 0xA7 Password
QCFG_POP_USER 0xAC username@gmx.com
QCFG_POP_PASS 0xAD Password
QCFG_SMTP_SERVER_ADDR 0xA4 mail.gmx.com
QCFG_POP_SERVER_ADDR 0xAA pop.gmx.com
QCFG_SMTP_TO_ADDR 0xA8 username@quakeglobal.com
QCFG_SMTP_SUBJ 0xA9 This is a test subject…
9.2 Sending SMS messages to the modem
SMS messages may be sent to the modem from the GPRS/GSM network. To determine the
SMS number of a modem, it is necessary to send the command TERR_getInfo () after the
GPRS/GSM module has been powered on. The format of the TERR_getInfo command is
described in the Application Programming Interface (API). The parameter to the command must
be REQ_INFO_TERR_SMS_NUMBER
.
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 59
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
10 Over the Air (OTA) software update
10.1 Introduction
The Q4000/QPRO can update its foundation, application or configuration parameters over a
GSM/GPRS network without the need to physically connect the modem to a terminal. The
firmware update request is initiated by sending an unsolicited POP email or satellite message to
the modem. With the correct subject line in the message, it will bypass the application and direct
the foundation to begin an FTP transfer via GSM/GPRS.
To update the application software running in the modem requires specialized user application
code to process the request and possibly download the software via FTP. This process is
demonstrated in sample application DemoAppREMOTE in Section 12.4.3.
Note that the update requests may be made via satellite or GSM/GPRS, but FTP is used to
transfer software over GSM/GPRS. When the modem is rebooted, it runs the new code. The
reboot command may also be sent to the modem via satellite or GSM/GPRS.
10.1.1 Requirements
• A mechanism to initiate the update by using one of the following:
o An email account that can be used to send emails over its SMTP server.and an email
account to receive email over the POP server.
o Sending A satellite message.to the modem.
o Sending an SMS message.to the modem.
• An FTP server with write access. Information for the server, username, password and port
are needed.
10.1.2 Process details
When the QUAKE modem receives an email message, it examines the subject line of the
message for a special string that instructs it to begin a foundation update. The modem then
parses the body of the email to extract information such as:
• remote location to connect
• file name
• file size, etc.
Upon extraction of the necessary information, the modem initiates an FTP connection to a remote
server via GSM/GPRS, and downloads the requested software.
Assuming the downloaded image is correctly compressed and encrypted, the QUAKE foundation
decompresses and decrypts it the next time it powers on.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 60
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The email to initiate the foundation update:
• must be Plain Text (not HTML or Rich Text).
• must have the subject line: FIRMWARE UPDATE.
• should contain the following tokens in the email body:
o Server: name of the FTP server
o Port: port of the FTP server
o Username: used to access the FTP server
o Password: used to login to the FTP server, or valid text for anonymous access
o File: full path and file name of the file that is to be downloaded
o Retry: number of times to retry download if it fails. If 0, no retries are attempted.
The configuration parameters in Table 10-1 must be configured for foundation update OTA to
work.
Table 10-1: QCFG OTA parameters
Name
Number
(Hex)
Value
QCFG_MODEM_APN_ADDRESS 0x9d ORBCOMM.t-mobile.com
QCFG_MODEM_CONNECT_DUR_S
0x9e 90
QCFG_MODEM_ID_INTERVAL_S 0x9f 0
QCFG_MDMIF_BAUD_RATE 0xa0 115200
QCFG_REQUEST_GLOBALGRAMS 0xa1 0
QCFG_POS_FILTER_MAX_VEL 0xa2 50
QCFG_POS_FILTER_MAX_DIFF 0xa3 25
QCFG_SMTP_SERVER_ADDR 0xa4 <your smtp server>
QCFG_SMTP_SERVER_PORT 0xa5 25
QCFG_SMTP_USER 0xa6 <user name>
QCFG_SMTP_PASS 0xa7 <password>
QCFG_SMTP_TO_ADDR 0xa8 <default TO address>
QCFG_SMTP_SUBJ 0xa9 FIRMWARE UPDATE
QCFG_POP_SERVER_ADDR 0xaa <your pop server>
QCFG_POP_SERVER_PORT 0xab 110
QCFG_POP_USER 0xac <user name>
QCFG_POP_PASS 0xad <password>
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 61
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
10.1.3 Steps
1. Place the new firmware image on the FTP server.
2. Send an email similar to the following. The email type must be Plain Text.
TO: (SMTP/POP account) test11@server.com
SUBJECT: FIRMWARE UPDATE (this is case-sensitive!)
BODY:
Server:yourftpserver.net
Port:21
Username:user@yourftpserver.net
File:/firmware.bin
Password: password
Retry:2 <hit enter twice>
3. The modem receives the update email by receiving a modem-terminated satellite message or
by checking the POP account. There must be an application running if POP email is used to
update the foundation. For debugging purposes iIt is possible to check the POP email
account by executing a command from the Logger port. Make sure that the GSM/GPRS
module is powered up before receiving a message from the POP email server.
4. Once the firmware file has been downloaded to the modem, the modem must be rebooted to
install the firmware. To cause a modem reboot:
• place “RESTART MODEM” in the subject line of a POP email
• place “RSTR” in the subject line of an ORBCOMM message.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 62
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
10.1.4 Output
Table 10-2 lists the common status emails sent by the modem after completing the firmware
update process.
Table 10-2: Common OTA status emails
Email Content
Explanation
OK (No error) Firmware has been successfully downloaded and
stored in modem. However, if the downloaded
firmware is incorrectly compressed and encrypted,
it will not be started by boot loader.
Modem is busy serving previous request Another firmware update process is ongoing.
FTP is currently busy Modem’s FTP module is being used by another
module.
FTP request timeout Timeout value expired before firmware update
completed.
FTP request failed Firmware download failed
Invalid file size or file not found Requested firmware not found in remote FTP
server
Setting parameter on FTP server failed Generic error for configuring FTP server failure
Connection to FTP server failed Could not connect to FTP server
GSM context activation failed GSM context could not be activated
FTP server address or credentials error FTP server address, port, username or password
is invalid.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 63
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
If parsing of the entire network configuration file fails, or the file is not present, all
networks and protocols are used with GPRS as the default protocol.
For in-depth information on the Network Independent Message Manager (NIMM), please
refer to the 1135-3003 Q4000 Programmer Guide.
11 Network Independent Message Manager (NIMM)
The Q4000 supports the ability to send messages independent of a specific network and
independent of any particular protocol. This Network Independent Message Manager (NIMM)
system consists of a single API to send messages for any configured network, and a mechanism
to update the configuration file at any time.
11.1.1 Network configuration file
The network configuration file is an ASCII-based, comma separated text file containing network
configuration data. It defines the order in which networks are attempted, including the protocol for
that network. This file is stored at "/tffs0/etc/NIMM.cfg" in NVM. If the user wishes to override
the built-in configuration, a custom configuration file may be created.
NIMM reads this file once
at startup.
The file contains the following information:
• network on which the data will be sent
• protocol to use for this network
• maximum size of a message for this network
• boolean value indicating that this network/protocol accepts binary content
• timeout value to indicate how long this network/protocol can hold a message before being
forced to return it for other processing.
Some sample configuration data would be:
Network, Protocol, Max, Bool, Timeout
NETWORK_ORB, ORB_REPORT, 18, TRUE, 20000
NETWORK_TERR, TERR_SMTP, 20000, FALSE, 0
Lines starting with a double slash (//) are treated as comment lines and ignored.
Some networks support the concept of a timeout for a message. In particular, Iridium and
Orbcomm may take longer than expected for message delivery if the network drops out of view
during message transmission. In this case, NIMM tells the network delivery mechanism to drop
the message and informs the application in order to allow it to reschedule the message.
11.1.1.1 Default network configuration file
The default configuration built into the modem uses the following entries:
Note:
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 64
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
The default timeout for all networks is infinite.
Network Protocol Max Size Accept Timeout
Binary
(0 == Infinite)
NETWORK_TERR, TERR_UDP, UNLIMITED, TRUE, 0
NETWORK_TERR, TERR_TCP, UNLIMITED, TRUE, 0
NETWORK_TERR, TERR_SMTP, UNLIMITED, FALSE, 0
NETWORK_TERR, TERR_SMS, 168, FALSE, 0
NETWORK_ORB, ORB_REPORT, 6, TRUE, 0
NETWORK_ORB, ORB_DEFAULT_MESSAGE, 8192, TRUE, 0
NETWORK_ORB, ORB_MESSAGE, 8192, TRUE, 0
NETWORK_ORB, ORB_DEFAULT_REPORT, 6, TRUE, 0
NETWORK_ORB, ORB_GLOBAL_GRAM, 229, TRUE, 0
NETWORK_IRI, IRIDIUM_TEXT, IRI_MAX_MO_BUF_LEN, FALSE, 0
NETWORK_IRI, IRIDIUM_BINARY, IRI_MAX_MO_BUF_LEN, TRUE, 0
NETWORK_INMR, INMARSAT_TEXT, INMR_MAX_MO_BUF_LEN, FALSE, 0
NETWORK_INMR, INMARSAT_BINARY, INMR_MAX_MO_BUF_LEN, TRUE, 0

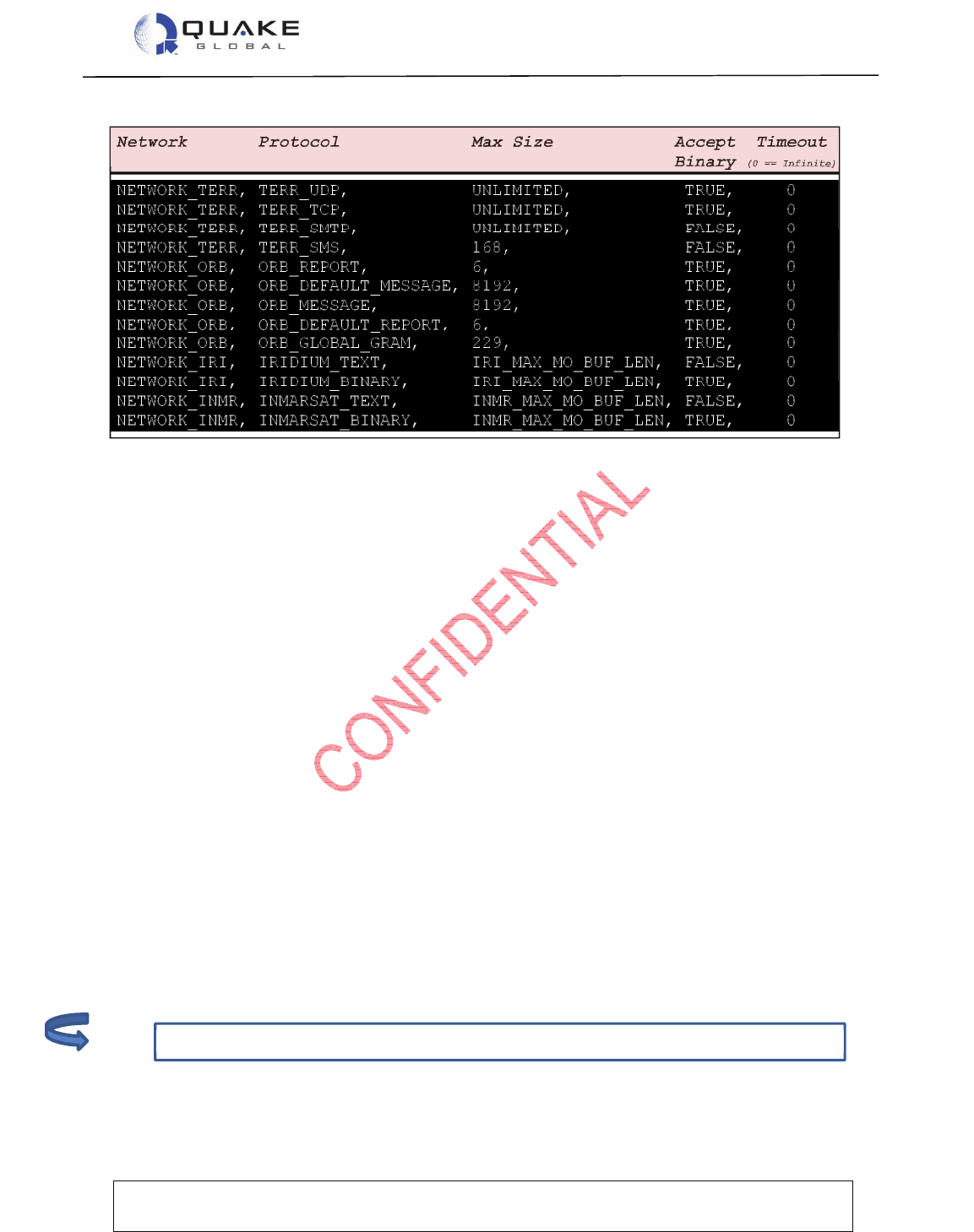

Figure 11-1: Default network configuration file
If no configuration file is present, NIMM attempts to send messages in the following order:
NETWORK_TERR, TERR_UDP
NETWORK_TERR, TERR_TCP
NETWORK_TERR, TERR_SMTP
NETWORK_TERR, TERR_SMS
If the
ORBCOMM
modem is present in the modem, the next network tried is:
NETWORK_ORB, ORB_REPORT
NETWORK_ORB, ORB_DEFAULT_MESSAGE
NETWORK_ORB, ORB_MESSAGE
NETWORK_ORB, ORB_DEFAULT_REPORT
NETWORK_ORB, ORB_GLOBAL_GRAM
If the Iridium modem is present in the modem, the next network tried is:
NETWORK_IRI, IRIDIUM_TEXT
NETWORK_IRI, IRIDIUM_BINARY
If the Inmarsat modem is present in the modem, the next network tried is:
NETWORK_INMR, INMARSAT_TEXT
NETWORK_INMR, INMARSAT_BINARY
ORBCOMM and Iridium modems are exclusive to each other. Networks that are not available for
a specific modem are not used. For example, on an Iridium modem, messages will not be sent to
the ORBCOMM network.
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 65
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
12 Sample applications
The simplest approach to programming Q4000/QPRO modems is to use the sample ‘C’ code
applications supplied at www.quakeglobal.com under Downloads/Application Files. These
include the following:
• Turnkey - demonstrates the event-driven architecture of the Q4000/QPRO. This
application can be used to send a message which can be modified by changing various
configuration parameters.
• QuickStart – is a basic, minimal template for developing software embedded on the
Q4000/QPRO.
• DemoAppXXX - highlights different aspects of the Q4000/QPRO’s feature set.
These sample applications provide a starting point for building more complex custom
applications. All the examples use QUAKE’s event-driven architecture which is discussed in
more detail in Chapter 14. When various events such as a POWER_ON or GPS POSITION_FIX
occur, the foundation code detects the change and posts the event to the application. The
application determines its response based on the type of event.
12.1 Accessing the QUAKE Application Programming Interface (API)
The QUAKE API gives information on all the function calls used in the sample applications.
These are the building blocks for any user application. It is accessible from the API tab on the
website. The downloadable version of the API is available by following these steps: go onto the
QUAKE website: www.quakeglobal.com
• log in to your account
• select the Downloads tab
• select the “Application Files” link for your modem
• save, and then extract the zip file
• open the “API_Parser_Output” folder
• open the index.html file.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 66
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
Figure 12-1: The QUAKE API documentation webpage
The API Function Reference lists all of the different types of calls, including those dealing with
tasks, message transfers, GPS, serial interfaces and system time. The API_Parser_Output folder
included in the Application Files download contains the same information that is on the website.
12.2 Turnkey application
The sample applications and associated documentation are available on the QUAKE Global
website at www.quakeglobal.com:
1. Log in to the secure portion of the site using the user name and password provided to
you.
2. Go to the DOWNLOADS page and select your satellite network’s Application Files.
3. In the pop-up window, select the Save Button, and click OK to download the compressed
file to your computer.
4. Unzip the files using a standard Zip program such as WinZip or 7-Zip.
5. Click Open to display the uncompressed downloaded files in the directory.
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 67
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
You will see a folder for either APL_Iridium, APL_Orbcomm, APL_Inmarsat or
APL_Globalstar, depending on your choice of satellite network. The following pages
show examples using APL_ORBCOMM, but they also apply to the other satellite
networks.
In the following examples, ORBCOMM application files were extracted.
Figure 12-2: API_Files_and_Manual.zip
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 68
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
It is not possible to create a new project environment in IAR and download a binary file
from it. You must use the provided IAR project which contains the necessary
parameters to load the Q4000/QPRO. Creating a new project and attempting to load the
resulting binary file into the modem may cause unexpected behavior and may damage
the modem.
12.2.1 Compiling Turnkey
(If you have not yet installed the IAR Embedded Workbench IDE, see Chapter 8.) Double-click
on the Application.eww file to open the IAR Embedded Workbench IDE.
Figure 12-3: Turnkey application workspace in the IAR IDE
The files in this directory comprise an IAR compiled project that consists of a number of
applications (Turnkey, DemoAppCAN, DemoAppFFS, etc.). Each of these applications
demonstrates some capacity of the Q4000/QPRO product. The applications are supplied as
templates for building custom applications in this project environment.
We recommend that new customers begin with the Turnkey project. Before making any changes,
build the project without modifying any of the code. This verifies that the IAR Workbench has
been installed correctly.
Note:
User Guide to Q4000/QPRO
Document Number 1135-4713 Rev G
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF QUAKE GLOBAL CORPORATION. IT MAY BE USED BY
RECIPIENT ONLY FOR THE PURPOSE FOR WHICH IT WAS TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER NEEDED
BY RECIPIENT. DISCLOSURE TO UNAUTHORIZED THIRD PARTIES OR DUPLICATION WITHOUT THE EXPRESS WRITTEN PERMISSION OF QUAKE
GLOBAL IS PROHIBITED.
Page 69
CONFIDENTIAL
Information classified Confidential
-
Do not copy (See last page for obligations)
To build the Turnkey project:
1. Select the Project drop-down menu and select Make, or use the F7 key as a shortcut to build
the project.

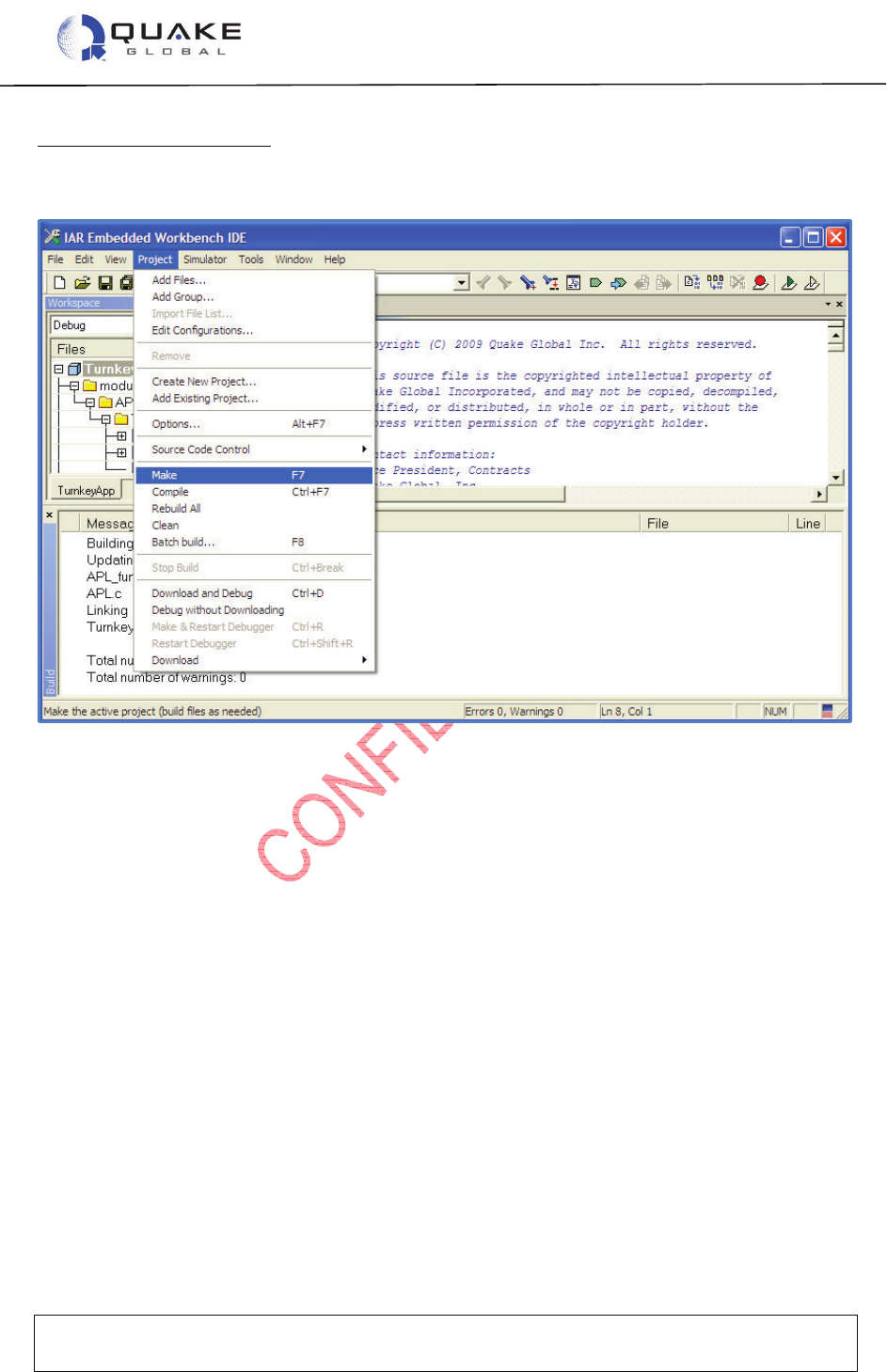

Figure 12-4: Project menu
