Quake Global 96XXCS Q4000 / QPRO Satellite Module User Manual Datasheet Q4000

Q4000 Technical Data Sheet

Document 1135-0902, REV K 1

Q4000 Family Technical Data Sheet

1135-0902

Revision K

Information classified Confidential

-

Do not copy (See last page for obligations)

SENSITIVITY LEVEL:

YELLOW

Q4000 Technical Data Sheet

Document 1135-0902, REV K 2

Revision History

REV

ECO#

REASON

DATE

Rev. A 00236 Initial Production Release 8/30/2010

Rev. B 00260 Moved info to Q4000/QPRO User’s Guide 11/4/2010

Rev. C 00288

Update Iridium Configuration Info, Canadian

certification 3/10/2011

Rev. D 00413

Fix incorrect RS-232 values, fix incorrect table values

for power and connectors 4/26/2011

Rev. E 00434

Change MTS_DCD_RS232 to Output; fix power

calculations.

Rev. F 00464

Change GPS TTFF to 60 seconds

6/20/2011

Rev. G 00487

Add warning about accessing serial ports for different

networks.

7/18/2011

Rev. H 00536

Add additional Iridium part numbers, additional DIO info,

new cable drawing and pinout to include ECO 526

9/26/2011

Rev. J 00584

Fix AUX port speed parameters and add info about

losing data at high speeds.

Update memory availability chart and GPS antenna

information. Add low processor mode info.

12/7/2011

Rev. K 00XXX Updated to meet Certification requirements 1/4/2011

Information classified Confidential

-

Do

not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 3

Table of Contents

1 Introduction .................................................................................................................... 6

O

VERVIEW

........................................................................................................................ 6

1.1

C

ONTROL

O

PTIONS

........................................................................................................... 6

1.2

R

EFERENCE

M

ANUALS

...................................................................................................... 6

1.3

D

EVELOPMENT

K

ITS

.......................................................................................................... 6

1.4

C

ONTACTING

QUAKE ....................................................................................................... 7

1.5

2 Q4000 Hardware ........................................................................................................... 8

Q4000

A

VAILABLE

C

ONFIGURATIONS

................................................................................. 8

2.1

S

TANDARD

M

ODEM

C

ONFIGURATIONS

................................................................................ 9

2.2

S

YSTEM

O

VERVIEW

......................................................................................................... 10

2.3

I

NPUT

P

OWER

................................................................................................................. 10

2.4

Internal Power Supply Description .............................................................................................. 10

2.4.1

External Power Supply Requirements ........................................................................................ 10

2.4.2

Load Dump Protection ................................................................................................................ 11

2.4.3

Typical Power Consumption ....................................................................................................... 11

2.4.4

Power Calculation ....................................................................................................................... 12

2.4.5

C

ONNECTOR

I

NFORMATION

............................................................................................. 13

2.5

3 Modem Wireless Communication ................................................................................ 15

G

LOBAL

P

OSITIONING

S

YSTEM

(GPS) .............................................................................. 15

3.1

G

LOBAL

S

YSTEM FOR

M

OBILE

C

OMMUNICATIONS

(GSM) .................................................. 15

3.2

O

RBCOMM

...................................................................................................................... 16

3.3

I

RIDIUM

S

HORT

B

URST

D

ATA

(SBD) ................................................................................. 17

3.4

G

LOBALSTAR

(S

IMPLEX

) .................................................................................................. 17

3.5

C

ABLE

L

OSS

G

UIDELINES

................................................................................................ 17

3.6

4 Customer Input/Output Interfaces ............................................................................... 18

E

XTERNAL

I

NTERFACES

................................................................................................... 18

4.1

Analog Inputs .............................................................................................................................. 18

4.1.1

Digital Inputs/Outputs .................................................................................................................. 20

4.1.2

J1939 .......................................................................................................................................... 22

4.1.3

3.5V Power .................................................................................................................................. 23

4.1.4

RS-232 Ports ............................................................................................................................... 23

4.1.5

Interface Connector Electrical Specifications ............................................................................. 24

4.1.6

I

NTERNAL

I

NTERFACES

.................................................................................................... 26

4.2

Memory ....................................................................................................................................... 26

4.2.1

Real-Time Clock (RTC) ............................................................................................................... 26

4.2.2

5 Q4000 Data Interface Specifications ........................................................................... 27

D

ATA

I

NTERFACES

.......................................................................................................... 27

5.1

E

NVIRONMENTAL

C

ONSIDERATIONS

................................................................................. 27

5.2

C

ERTIFICATIONS

............................................................................................................. 28

5.3

FCC IDs ...................................................................................................................................... 28

5.3.1

GSM/GPRS

M

ODULE

-

Q

UAD

B

AND

................................................................................. 29

5.4

GSM

C

OMMUNICATIONS

................................................................................................. 29

5.5

I

NTEGRATED

GPS

C

HIP

S

ET

............................................................................................ 29

5.6

A

PPLICATION

I

NTERFACE

................................................................................................. 29

5.7

P

OWER

.......................................................................................................................... 30

5.8

O

PERATION

M

ODES

........................................................................................................ 30

5.9

P

HYSICAL

S

PECIFICATIONS

.............................................................................................. 30

5.10

6 Q4000 Drawings .......................................................................................................... 31

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 4

7 Q4000 Recommended Installation Guidelines ............................................................ 36

8 Frequently Asked Questions ....................................................................................... 37

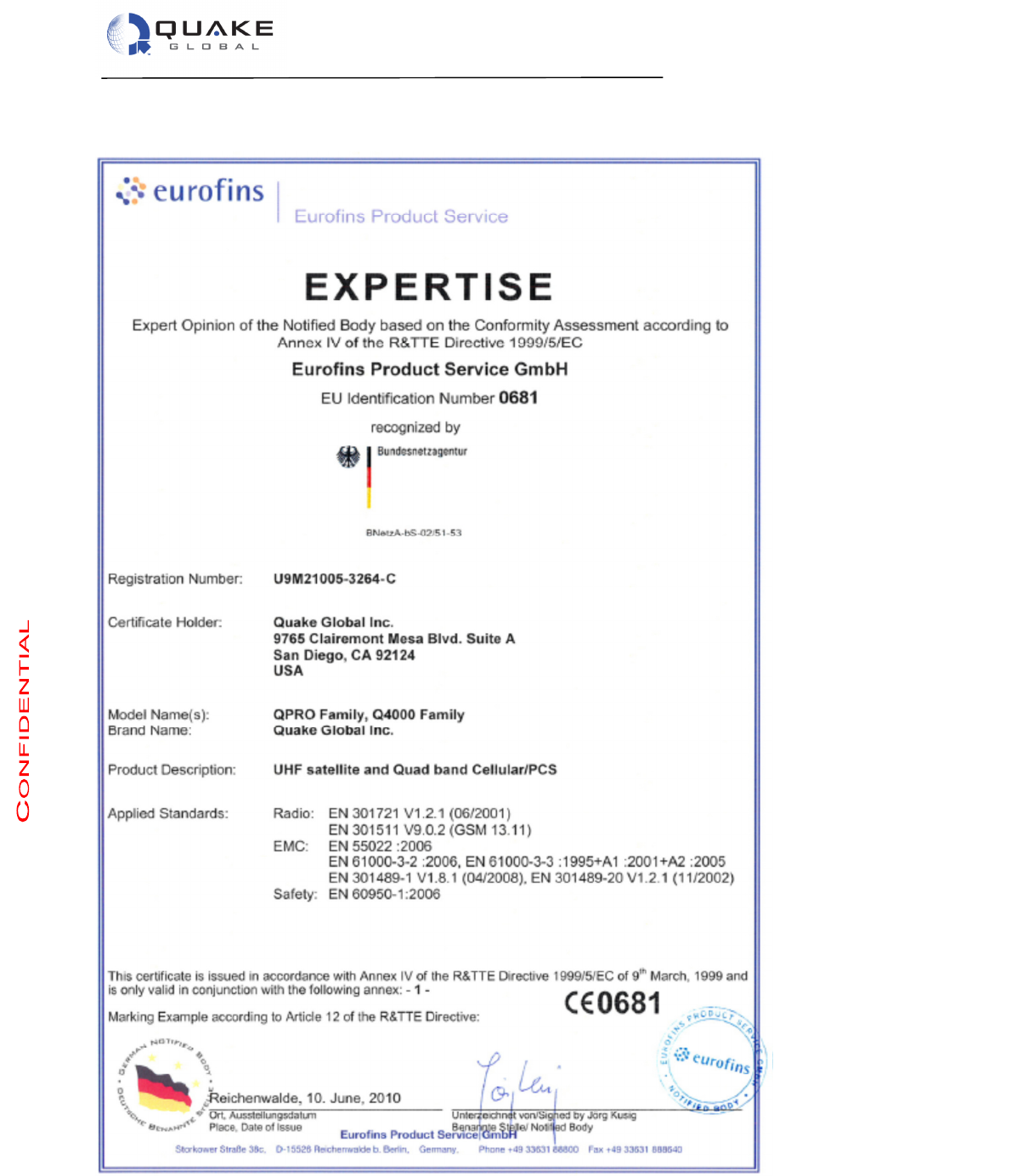

9 Declaration of Conformity ............................................................................................ 38

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 5

List of Figures

Figure 2-1, Q4000 Product Ordering Guide ....................................................................................................... 8

Figure 2-2, Standard Modem Configurations ..................................................................................................... 9

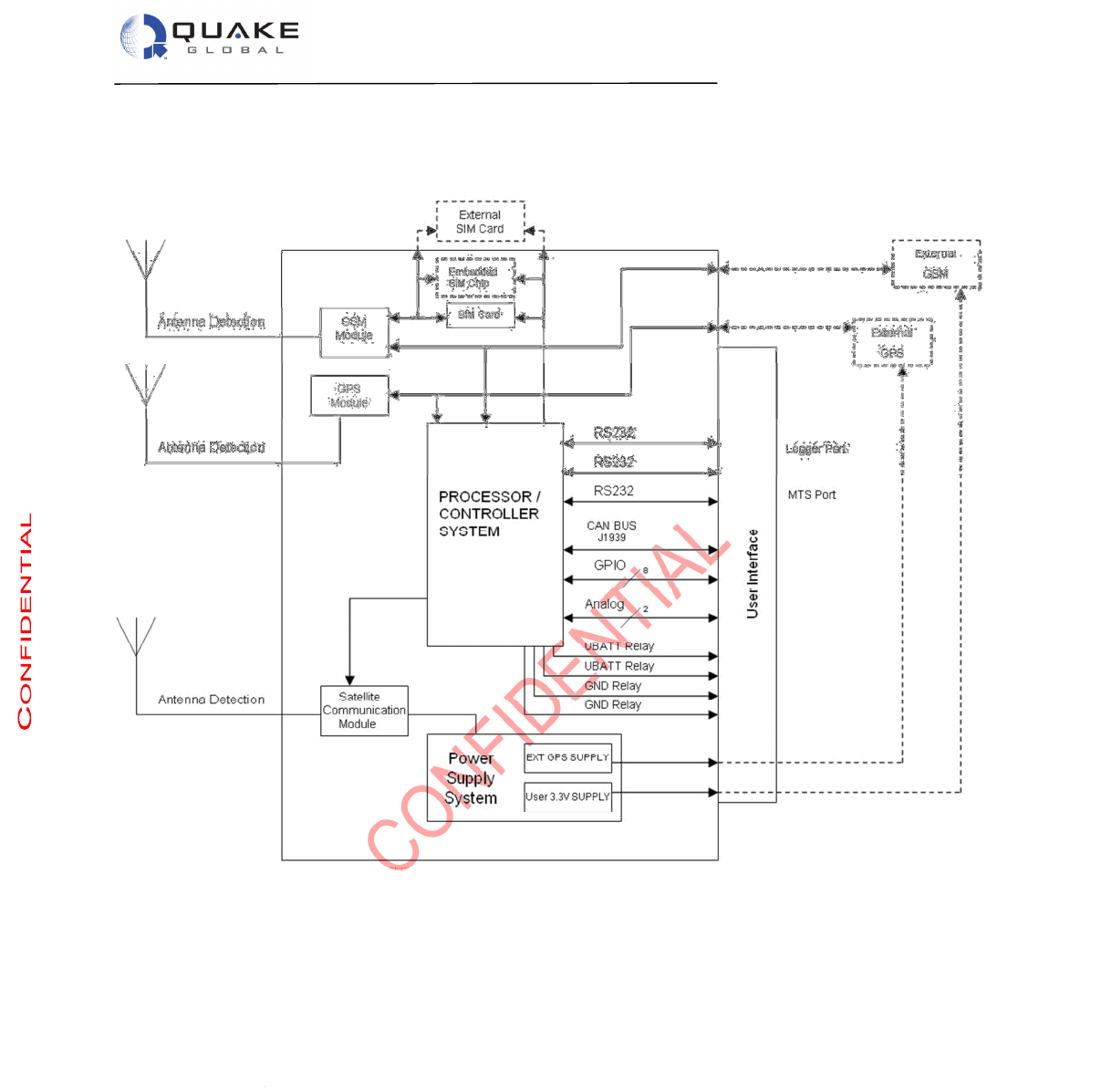

Figure 2-3, Q4000 System Block Diagram for Fully Loaded Configuration ..................................................... 10

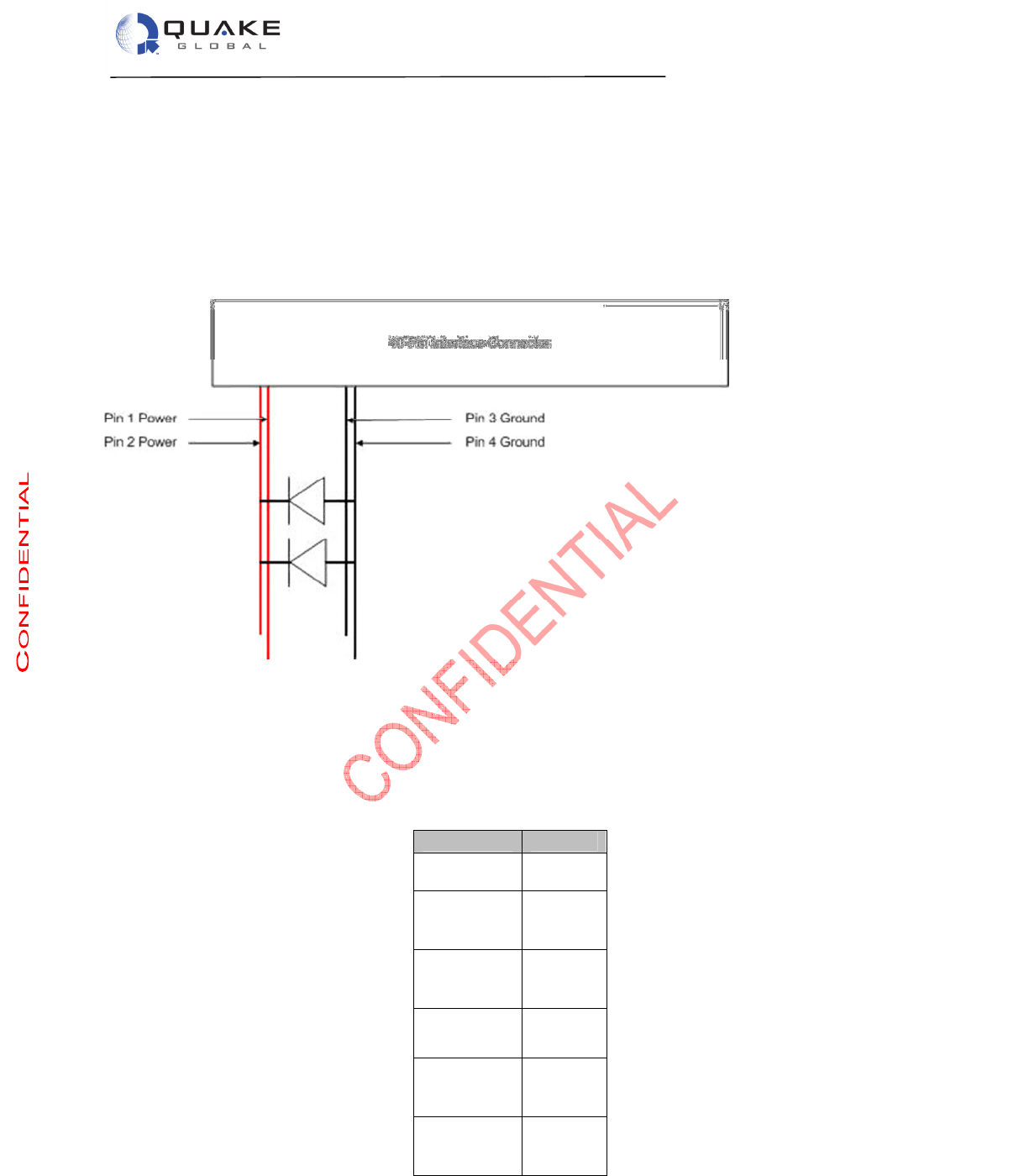

Figure 2-4, Load Dump Protection Circuit ........................................................................................................ 11

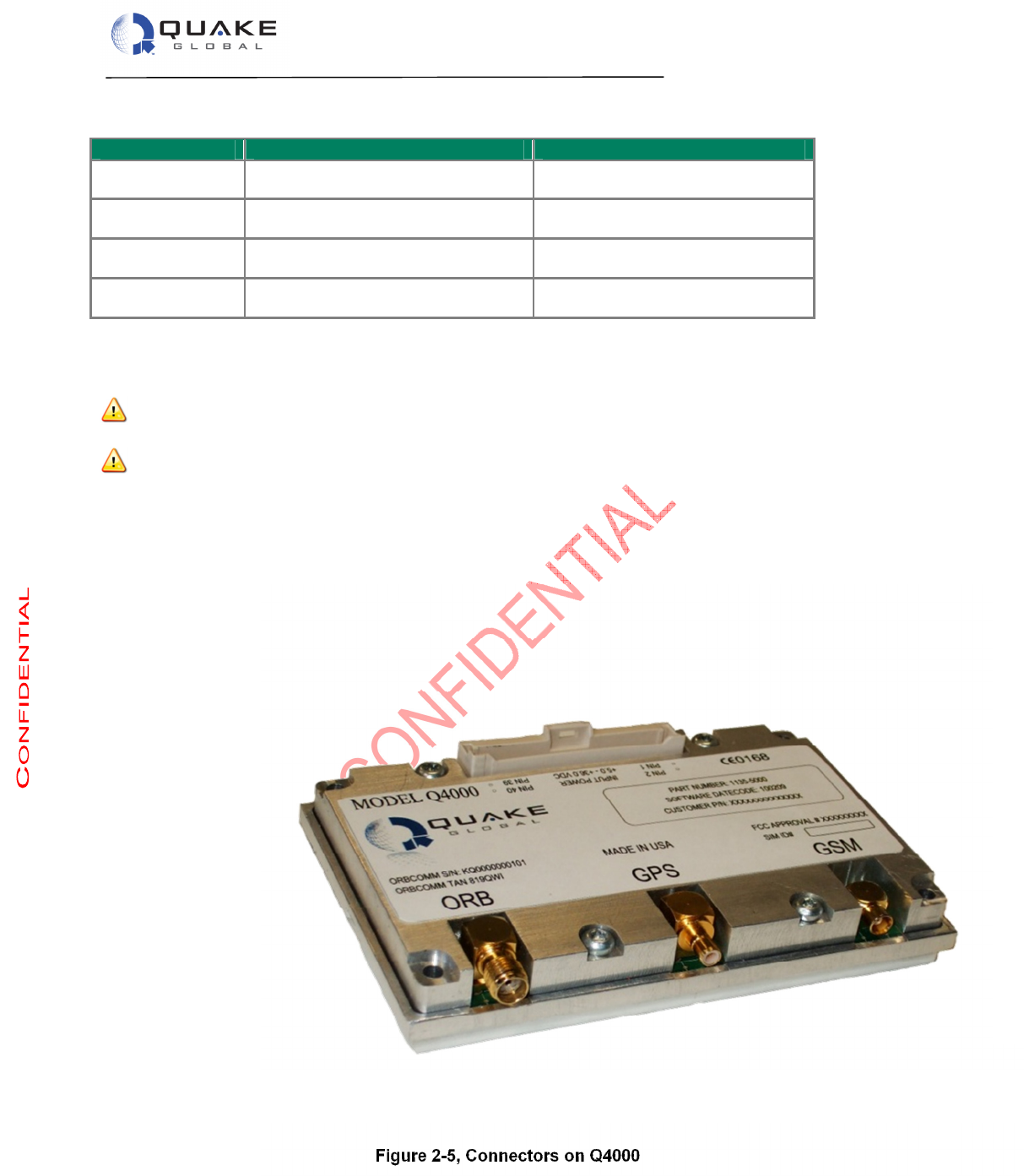

Figure 2-5, Connectors on Q4000 .................................................................................................................... 14

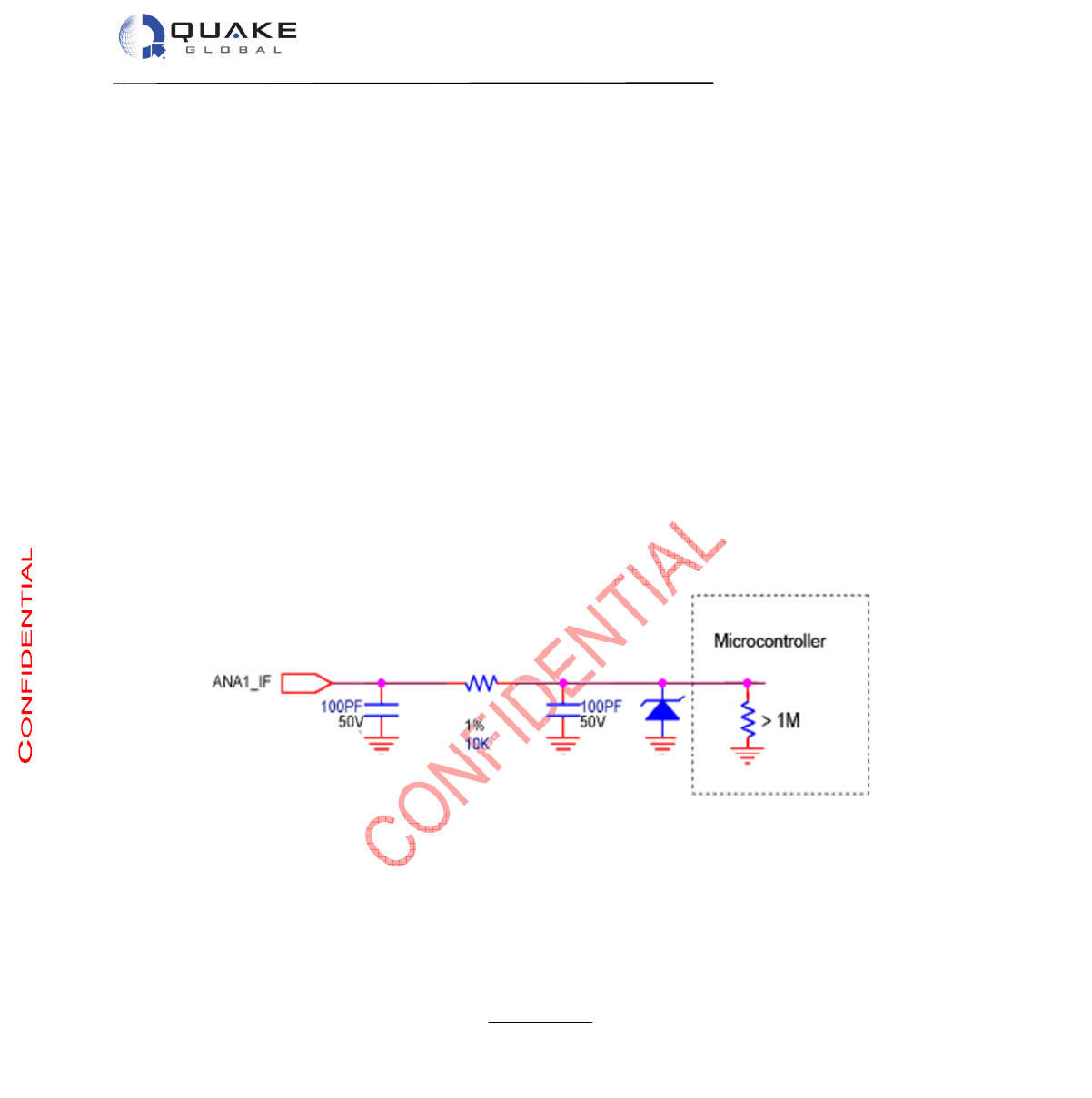

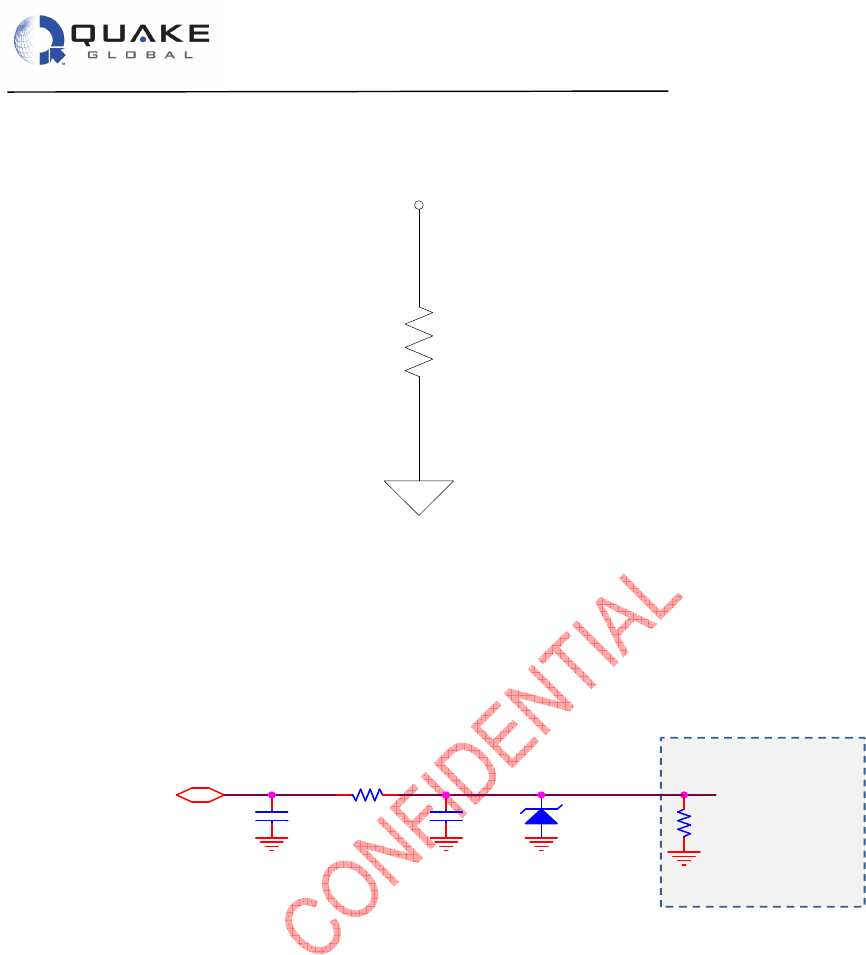

Figure 4-1, Analog Input Circuit ........................................................................................................................ 18

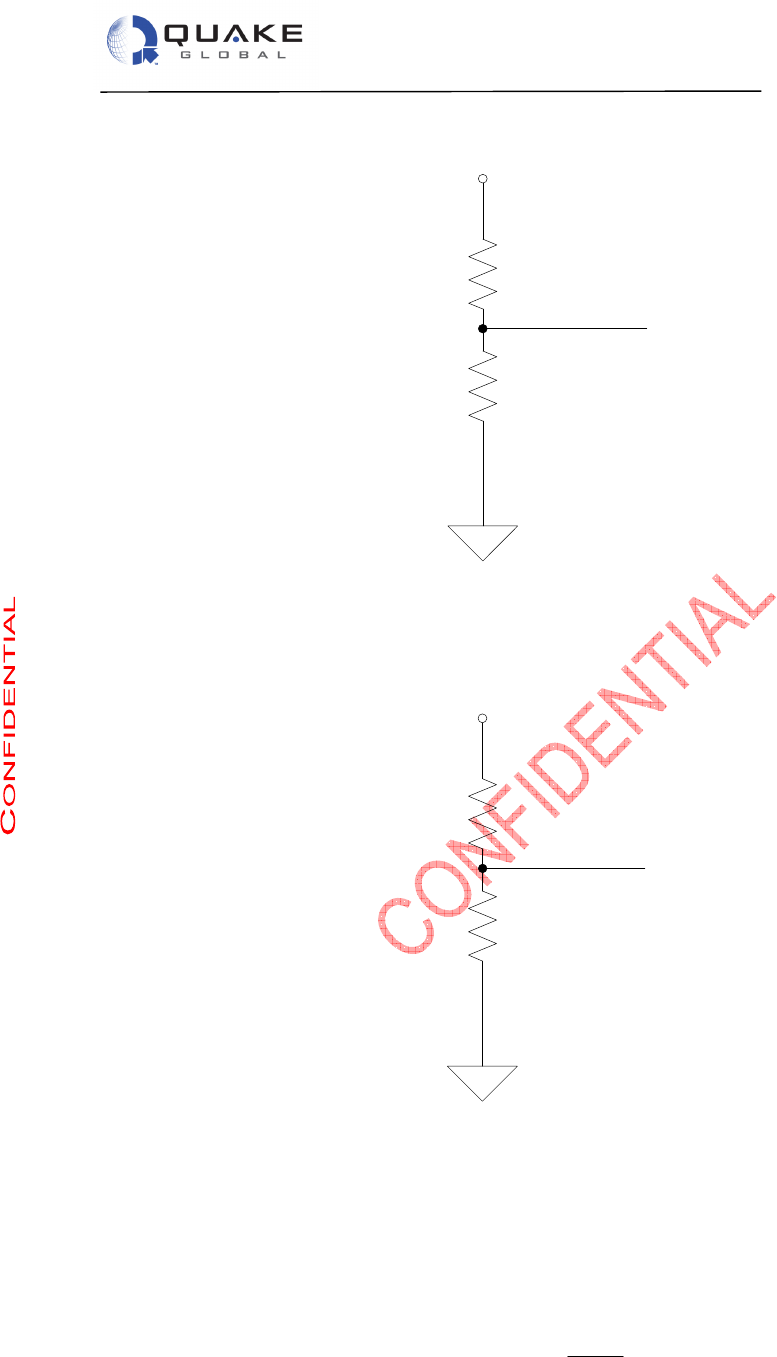

Figure 4-2, Sample 12V Sensor ....................................................................................................................... 19

Figure 4-3, Sample 24V Sensor ....................................................................................................................... 19

Figure 4-4, Sample 24V Sensor ....................................................................................................................... 20

Figure 4-5, Digital Input Circuit ......................................................................................................................... 20

Figure 4-6, Buffer for DIO as Output ................................................................................................................ 21

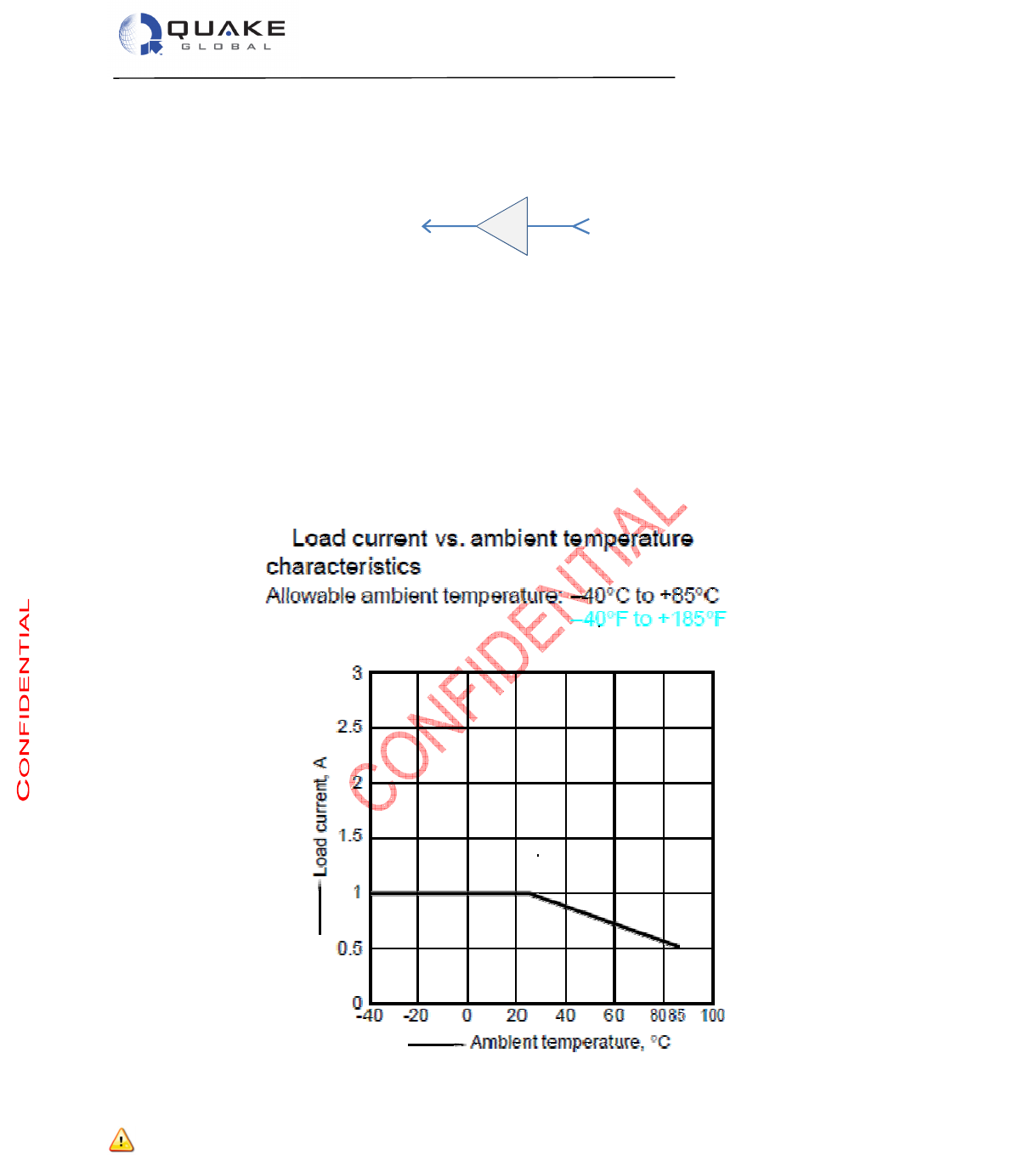

Figure 4-7, Switched Relay Characteristics ...................................................................................................... 21

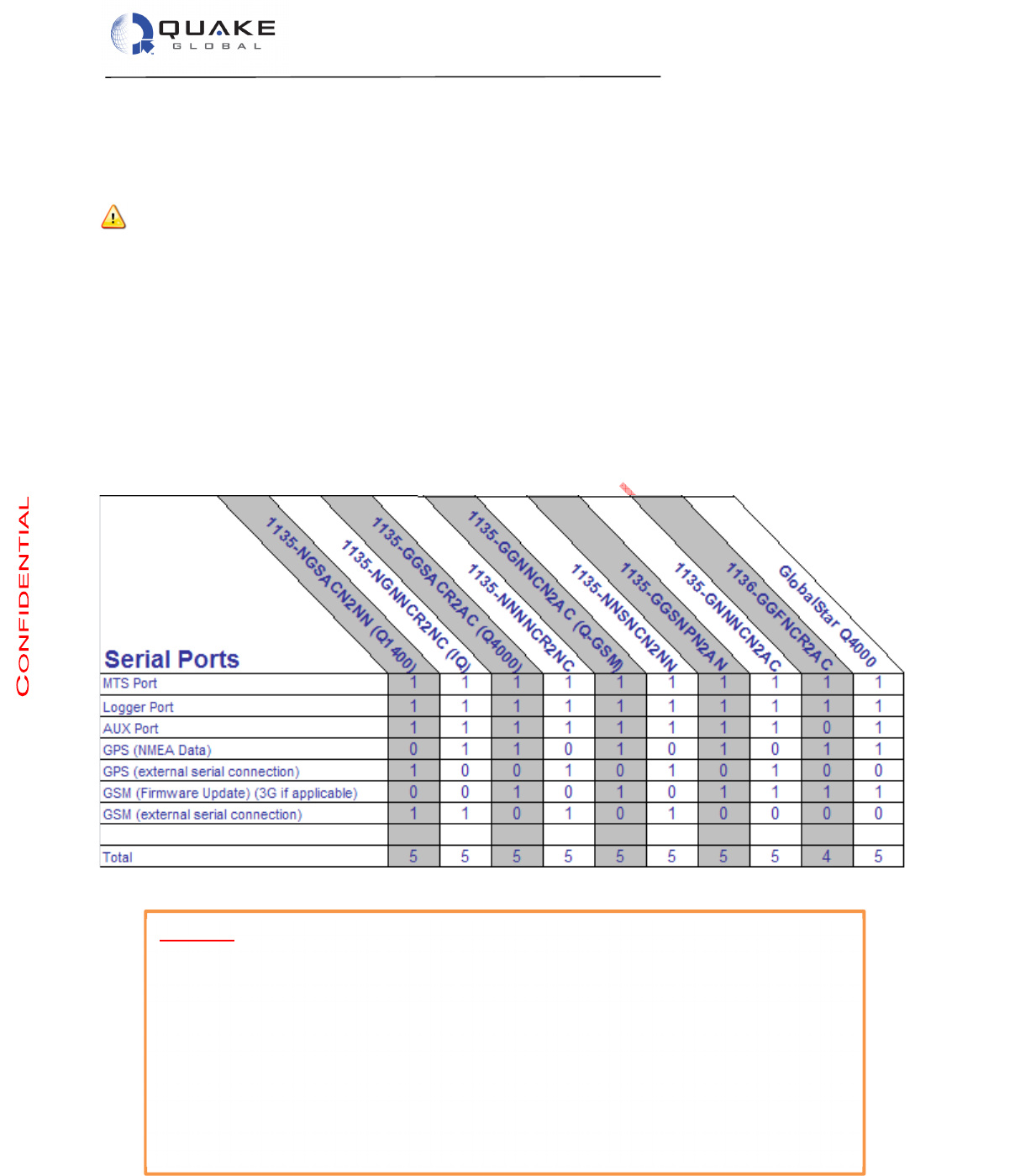

Figure 4-8, Serial Port Availability .................................................................................................................... 23

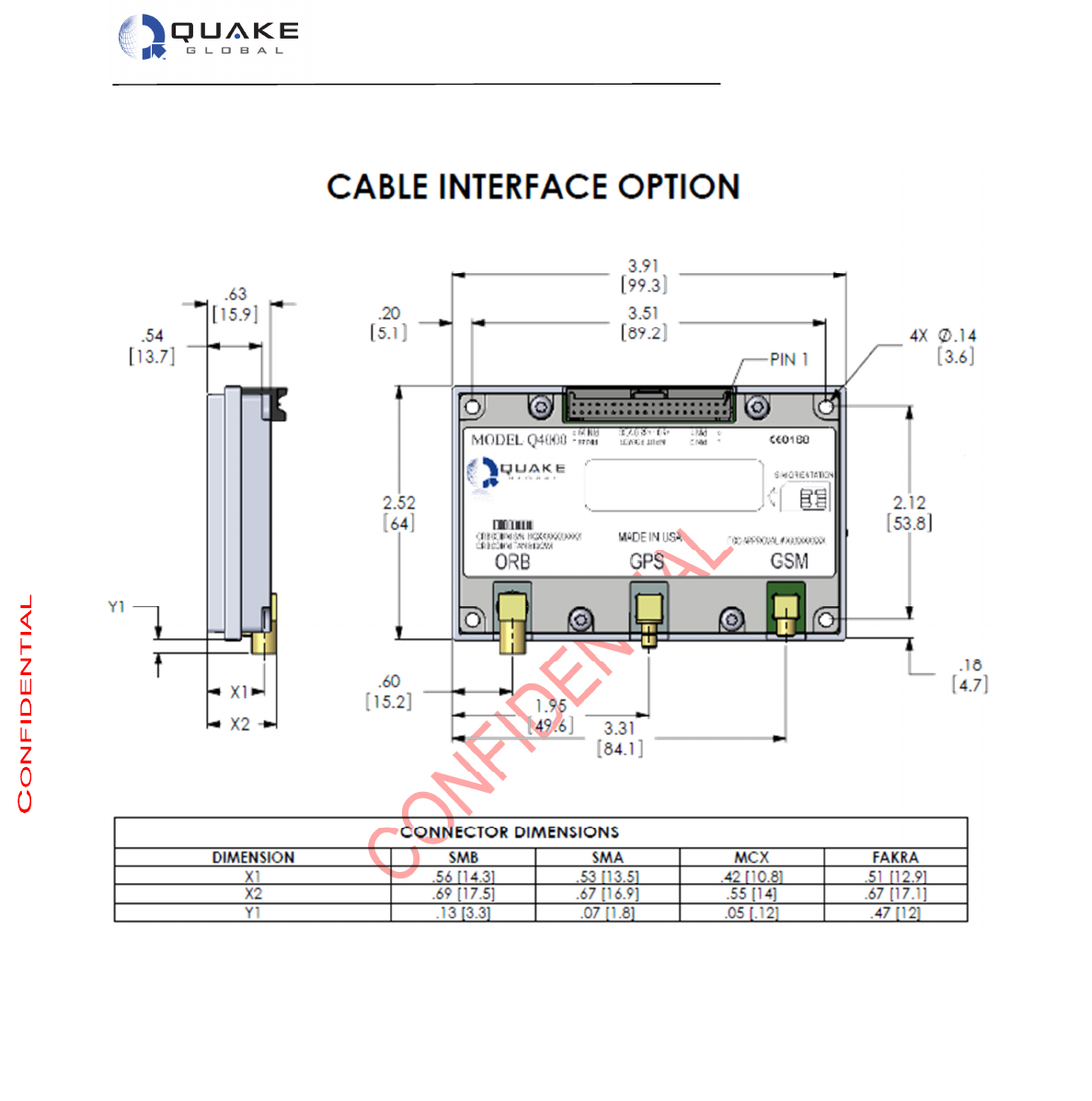

Figure 6-1, Dimensions for Q4000 ................................................................................................................... 31

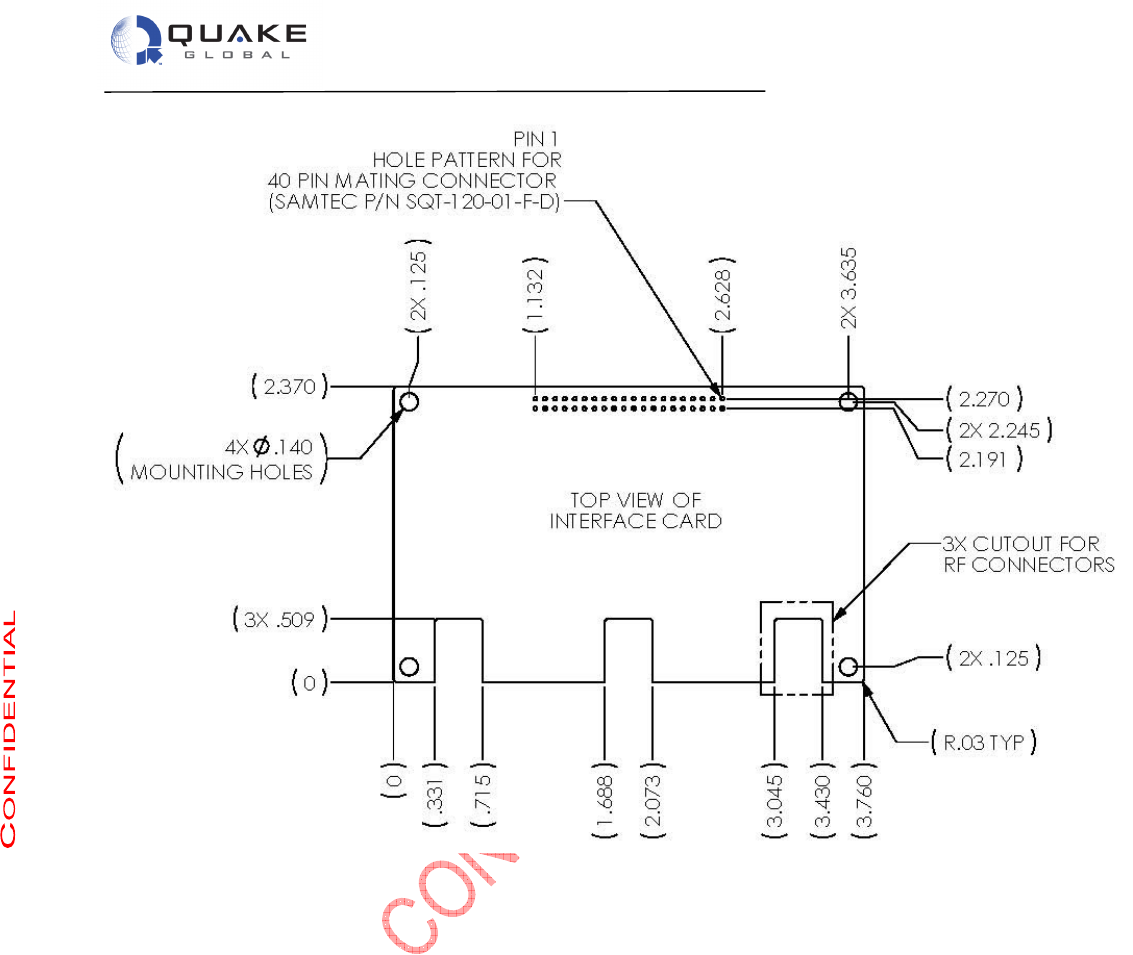

Figure 6-2, Interface Card Constraints ............................................................................................................. 32

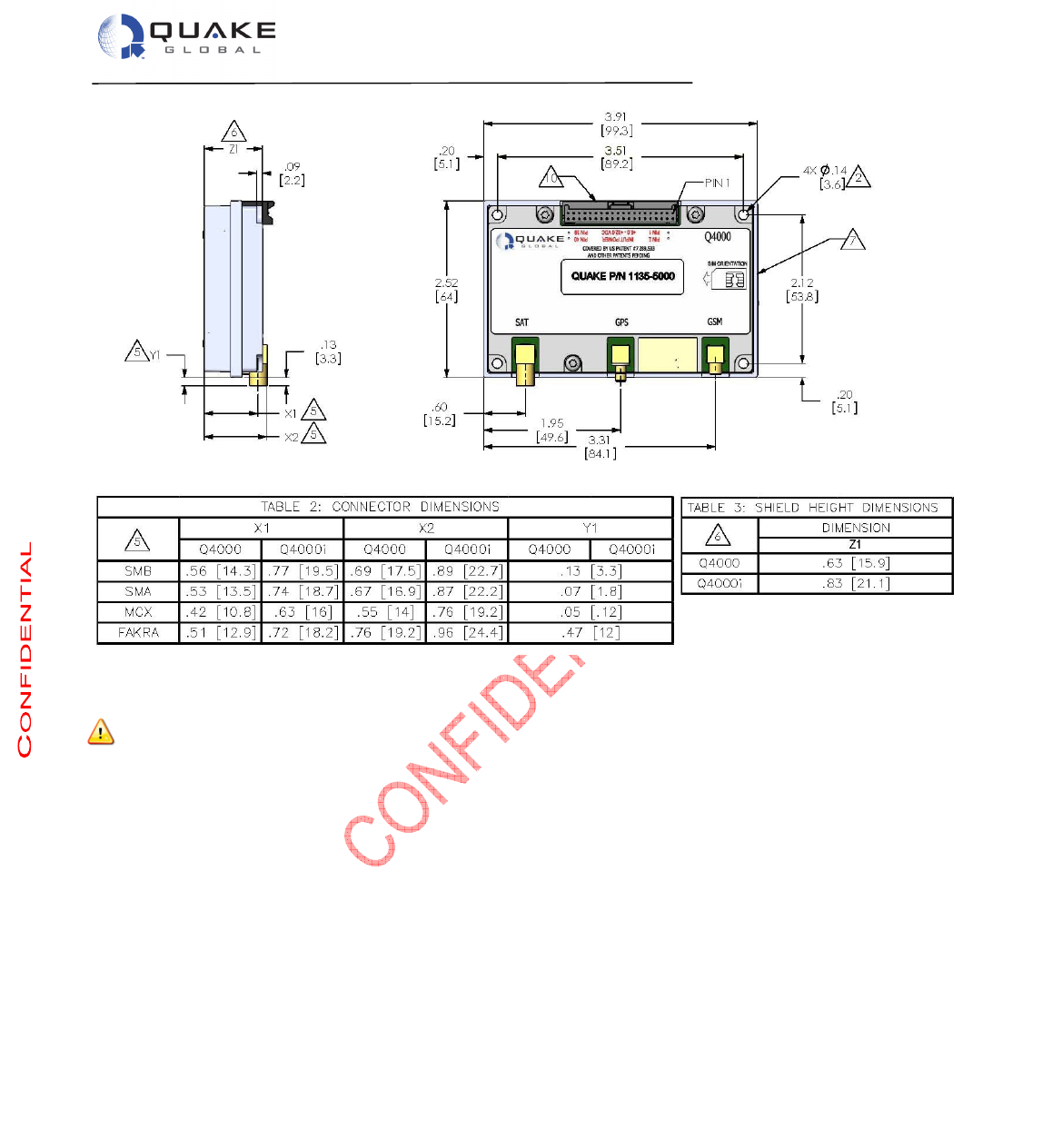

Figure 6-3, Q4000 Dimensions with Iridium ..................................................................................................... 33

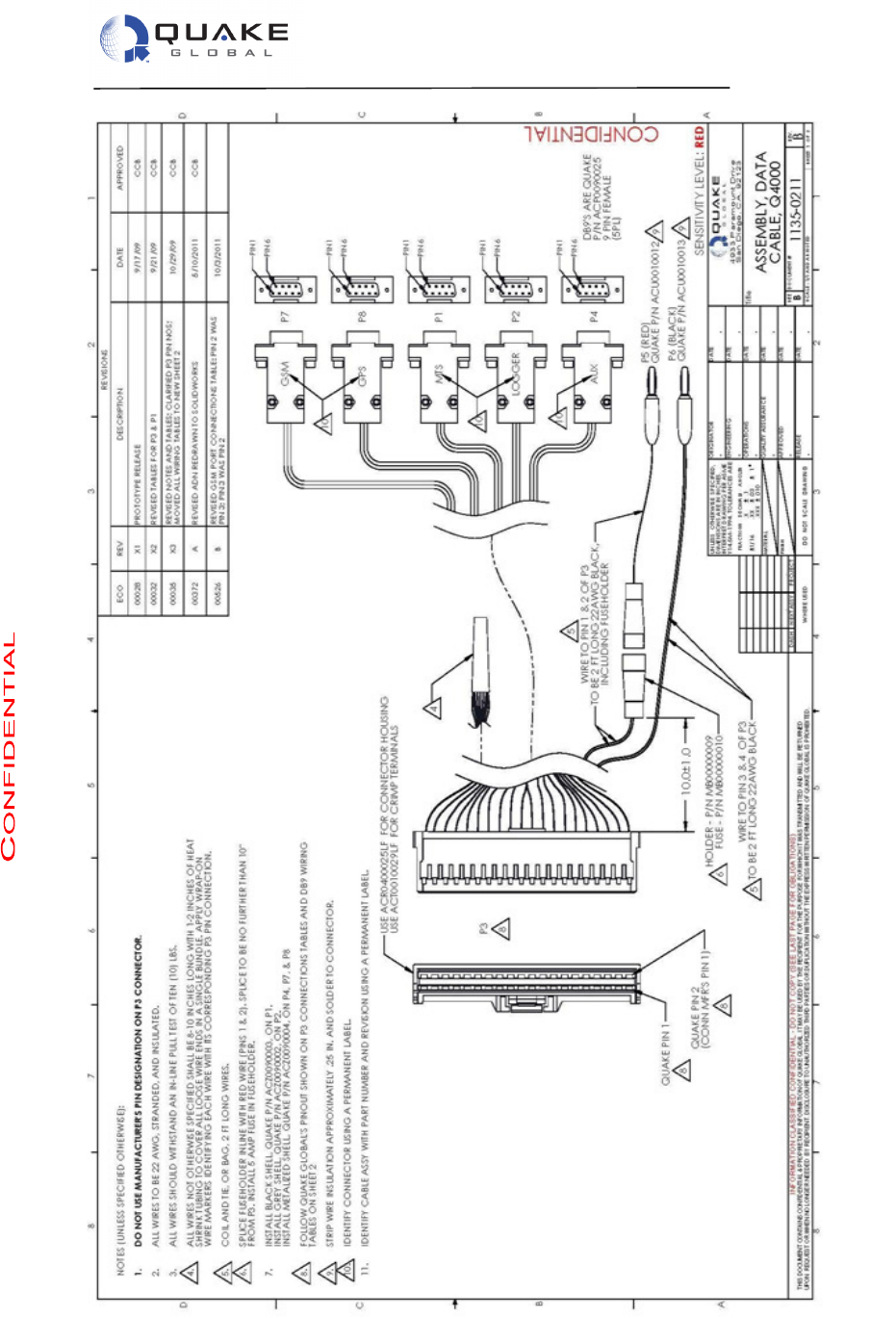

Figure 6-4, Development Kit Cable Drawing .................................................................................................... 34

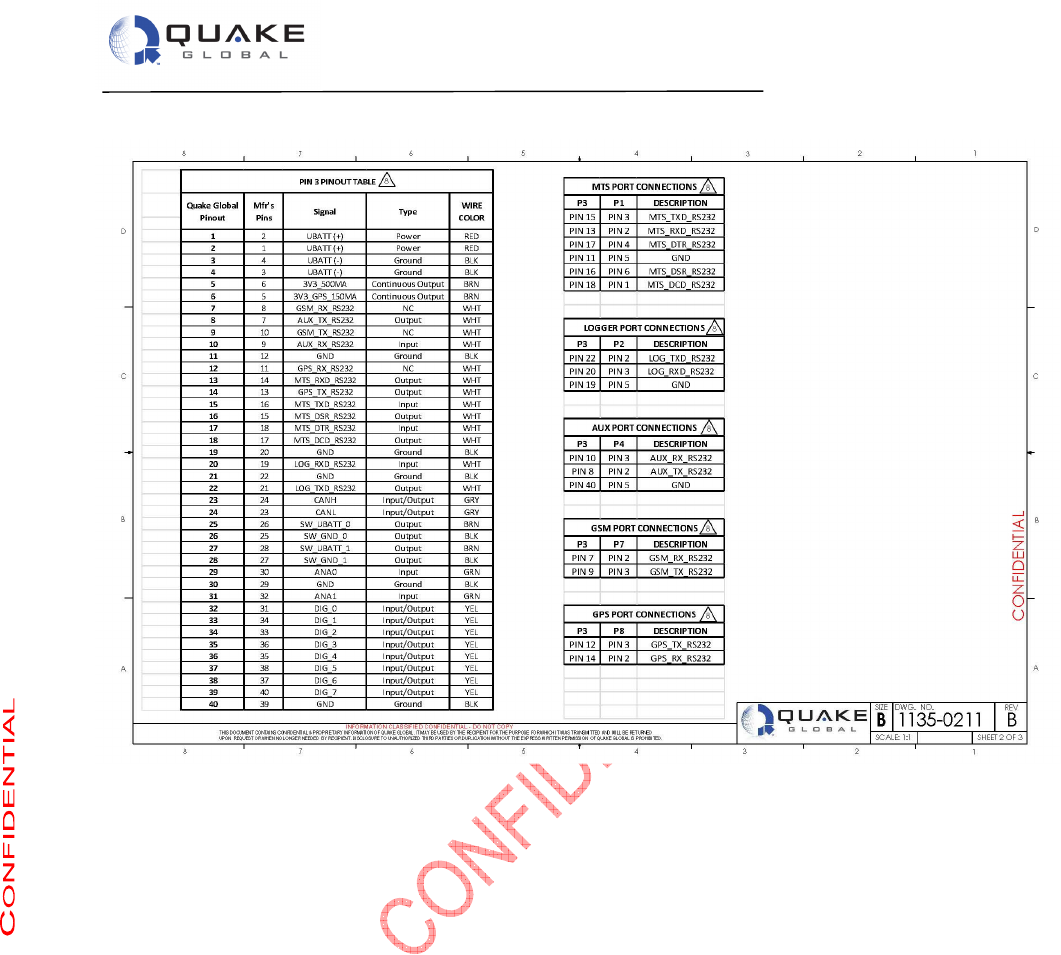

Figure 6-5, Q4000 Pinout ................................................................................................................................. 35

List of Tables

Table 2-1, Input Power Limits ........................................................................................................................... 11

Table 2-2, Q4000 Power Consumption ............................................................................................................ 12

Table 2-3, Q4000 Connector Types ................................................................................................................. 13

Table 2-4, Connector Information ..................................................................................................................... 14

Table 3-1, Cable Loss Guidelines .................................................................................................................... 17

Table 4-1, Interface Connector Electrical Specifications/RF Connections ....................................................... 24

Table 4-3, User Flash and RAM Availability ..................................................................................................... 26

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 6

1 Introduction

Overview

1.1

The QUAKE Q4000 is a dual mode solution that is ready for global use. The Q4000 is designed to

communicate with terrestrial cellular network systems when a cell signal is available, and to slide seamlessly

into its back-up mode and communicate with a satellite system when a cell signal is not available. Besides

this advanced modem functionality, the Q4000 has additional processing power, memory, and I/Os that allow

sophisticated customer applications to run within the modem. Using an integrated power regulator, the

Q4000 is designed to operate over a 6-32 volt input range. It has been specifically designed to meet the

requirements of vehicular environments and supports communication over a vehicle bus using SAE J1939

standards. These features make the Q4000 an ideal stand-alone solution for a large variety of applications

including transportation, oil and gas and heavy equipment markets.

The Q4000 can be purchased in many different configurations, ranging from a simple controller that operates

with external communication devices, all the way to very complex integrated dual mode solutions.

This Data Sheet presents an overview of the Q4000 technology, device specifications, integration guidelines,

and basic information on configuring and programming. Additional QUAKE manuals, including the User’s

Guide to Q4000/QPRO, P/N 1135-4713, can be accessed on our website or by contacting QUAKE Customer

Support at http://QUAKEglobal.com/support/.

Control Options

1.2

The Q4000 has the option of running in standalone mode or QUAKE Communications Protocol (QCP)

mode.

In standalone mode, the user’s application resides directly on the modem. QUAKE provides sample

applications as part of the Development Kit to help users create, build and run their own custom applications.

QCP mode is used to send data via GSM/GPRS, or a single satellite system such as Orbcomm, Iridium,

Globalstar or Inmarsat. Customers who use the Q4000 in this mode typically have a processor and the

necessary I/O for their specific applications, and use the Q4000 as a modem only, or to add functionality

such as additional I/O’s, GPS, etc. QUAKE Communication Protocol (QCP) is used to communicate between

the Q4000 and the application.

Reference Manuals

1.3

Ref Doc Number

Part Number

Recommended Reference Manuals (Name)

1 Orbcomm E80050015 Orbcomm Serial Interface Specification

2 Orbcomm A80TD0008 Orbcomm System Overview

3 Orbcomm A80MK0019 Orbcomm Messaging Services Description

4 QUAKE 1135-4713 User’s Guide to Q4000/QPRO

5 QUAKE 1135-3001 QUAKE API Reference Manual

6 QUAKE 4000-3000 Iridium SBD AT Command Set Manual

7 Iridium SBD, Developer’s Guide

8 QUAKE 1135-4715 QCP, QUAKE Communication Protocol, Manual

9 QUAKE 1135-4711 QUAKE Configuration Tool Manual

10 ORBCOMM E25050102 ORBCOMM SC Standards & Specs

11 MIL-STD-810E DoD Test Method Standard for Environmental Engineering Considerations and

Laboratory Tests

Development Kits

1.4

Q4000 Development Kits are available from QUAKE. They include: Development Environment (IAR)

Information cla

ssified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 7

Compiler, QUAKE libraries and header files, sample application programs, Q4000 modem, necessary

cables, antennas, and all documentation. Contact your QUAKE sales personnel for more details.

Contacting QUAKE

1.5

If you need to contact QUAKE Global regarding the Q4000 Development Kit or other issues, please refer to

the following information:

QUAKE Global Inc.

4933 Paramount Dr

San Diego CA 92123

Phone Number: (858)-277-7290 Fax Number: (858) 277-7259

Website: www.QUAKEglobal.com

Submit a Customer Support Ticket: http://QUAKEglobal.com/support/

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 8

2 Q4000 Hardware

Q4000 Available Configurations

2.1

As an “off the shelf” product, the Q4000 is available in various standard configurations. For volume

applications, the Q4000 may be ordered in an almost unlimited number of configurations. QUAKE prides

itself on the flexibility of the products we provide to our customers. If you need a customized configuration,

please contact your QUAKE Global Sales Representative for details.

QUAKE Global Inc.

Q4000 P/N SYSTEM

11XX-

1: GSM MODULE

G: YES

N: NO

__ __ __ __ __ __ __ __

3: SATELLITE TRANSCEIVER

S: ORBCOMM

F: IRIDIUM (SBD)

G: GLOBALSTAR (SIMPLEX)

N: NONE

2: GPS MODULE

G: YES

N: NONE

__

4: ORBCOMM ANTENNA DETECTION

A: YES

N: NO

6: RELAYS

R: YES

N: NO

7: MEMORY SIZE

2: 2 MB

4: 4 MB

8: 8 MB

8: SIMM OPTION

A: SIMM CARD

B: SIMM CHIP

(NOT YET AVAIL)

N: NONE

C

5: CONNECTOR OPTIONS

Q4000 Family

9: CAN BUS

C: YES

N: NO

G S A

G C R 2 A

SELECT

ONE

LETTER

C:

F:

P:

B:

40 -PIN I/F PORT

LOCKING CABLE TYPE

PCB-PCB INTERFACE

PCB-PCB INTERFACE FAKRA RED

(CODE L)

FAKRA BLU

(CODE L)

FAKRA VIO

(CODE L)

FAKRA RED

(CODE L)

FAKRA BLU

(CODE L)

FAKRA VIO

(CODE L)

SMA FEMALE SMB JACK MCX JACK

SATELLITE

PORT GPS PORT GSM PORT

Figure 2-1, Q4000 Product Ordering Guide

Note: 11XX = 1135 is for Q4000, 1136 is for Q4000 with Iridium.

Information classified Confidential

-

Do not copy (See last page

for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 9

Standard Modem Configurations

2.2

Below is a description of commonly configured Q4000 devices and their part numbers.

1135-GGSACR2AC

GSM: Yes

4

GPS: Yes

Satellite Transceiver: Orbcomm

3

Antenna Detection: Yes

Interface Connector: Locking Cable Type

Relays: Yes

Memory Size: 2MB

Sim Option: Card

CAN Bus: Yes

1135-NGSACN2NN

GSM: No

GPS: Yes

Satellite Transceiver: Orbcomm

3

Antenna Detection: Yes

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: None

CAN Bus: No

1135-NNNNCR2NC

GSM: No

GPS: No

Satellite Transceiver: None

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: Yes

Memory Size: 2MB

Sim Option: None

CAN Bus: Yes

1135-GGNNCN2AC

GSM: Yes

4

GPS: Yes

Satellite Transceiver: None

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: Card

CAN Bus: Yes

1135-NNSNCN2NN

GSM: No

GPS: No

Satellite Transceiver: Orbcomm

3

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: None

CAN Bus: No

1135-GGSNPN2AN

GSM: Yes

4

GPS: Yes

Satellite Transceiver: Orbcomm

3

Antenna Detection: No

Interface Connector: PCB-PCB

Relays: No

Memory Size: 2MB

Sim Option: Card

CAN Bus: No

1135-NGNNCR2NC

GSM: No

GPS: Yes

Satellite Transceiver: None

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: Yes

Memory Size: 2MB

Sim Option: None

CAN Bus: Yes

1135-GNNNCN2AC

GSM: Yes

4

GPS: No

Satellite Transceiver: None

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: Card

CAN Bus: Yes

1140-GGFNCR2AC

GSM: Yes

4

GPS: Yes

Satellite Transceiver: Iridium

2

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: Yes

Memory Size: 2MB

Sim Option: Yes

CAN Bus: Yes

1140-NNFNCN2NC

GSM: No

GPS: No

Satellite Transceiver: Iridium

2

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: None

CAN Bus: Yes

1140-NGFNCN2NC

GSM: No

GPS: Yes

Satellite Transceiver: Iridium

2

Antenna Detection: No

Interface Connector: Locking Cable Type

Relays: No

Memory Size: 2MB

Sim Option: None

CAN Bus: Yes

Notes

1) iSatData Pro/INMARSAT Approval (TBD)

2) Module contains Iridium FCC ID: PB596XXCS

3) Module contains Orbcomm TAT ID: 819QWI

4) Module contains GSM FCC ID: RI7GE865.

Figure 2-2, Standard Modem Configurations

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 10

System Overview

2.3

The following System Block Diagram describes the fully loaded functional blocks of the Q4000:

Figure 2-3, Q4000 System Block Diagram for Fully Loaded Configuration

Input Power

2.4

Internal Power Supply Description

2.4.1

The Q4000 contains the required internal regulation and reverse bias/overvoltage protection to meet J1455

specifications for 12VDC and 24VDC systems. DC power of +6VDC to +32VDC is supplied through pins 1

and 2 (BATT+) and pins 3 and 4 (BATT-) of the multi-pin connector. The ground pins are connected directly

to the chassis of the Q4000. It is recommended that the power supply feeding the Q4000 be protected with a

fast-blow fuse sized appropriately for the expected current draw. Current draw is dependent on the features

and options that are installed and operating. See Table 2-2, Q4000 Power Consumption, for typical power

consumption.

External Power Supply Requirements

2.4.2

In order for the modem to boot properly:

1) The supply voltage must be below 1.4 volts for 4 seconds before re-applying the 6 to 32 V.

2) The rise time on the supply voltage must be 10ms maximum, from 0 to 6Vdc.

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 11

Load Dump Protection

2.4.3

To pass the load dump testing requirement of the J1455 specification, there must be a minimum of

two 33V diodes placed in parallel between power and ground of the input power supply. Load dump

protection is necessary to protect the modem from possible high voltage at startup. With some heavy

machinery at startup, the alternator voltage can jump quite high until it is pulled down into regulation.

The diodes shown here, placed in parallel between power and ground of the input power supply, act

to absorb this energy before it reaches the modem. In Figure 2-4 showing this Load Dump Protection

Circuit, we are using two “Littlefuse, Inc.” 5KP33A diodes.

Figure 2-4, Load Dump Protection Circuit

Typical Power Consumption

2.4.4

This section describes the typical power consumptions of each component of the Q4000 modem. Table 2-1,

Input Power Limits, is a listing of the required input voltage limits.

Table 2-1, Input Power Limits

Network Volts

ORBCOMM 10.5 - 32

Iridium

9 - 32

GlobalStar

6 - 32

Inmarsat 9 - 32

GSM/GPRS

6 - 32

GPS

6 - 32

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 12

Power Calculation

2.4.5

Depending on the configuration of the modem, add the appropriate power. For example:

Q4000 with GSM, GPS and Orbcomm with no messages being sent:

Current Calculation:

0.045A (Processor Only) + 0.032A (GSM RX) + 0.013A (GPS) + 0.035A (Orbcomm RX) = 0.125A or 12.5mA

Power Calculation:

0.544W (Processor Only) + 0.340W (GSM RX) + 0.155W (GPS) + 0.460W (Orbcomm RX) = 1.499W

Table 2-2, Q4000 Power Consumption, gives a breakdown of the different components of the Q4000.

Table 2-2, Q4000 Power Consumption

Function

Activated

Typical

Current

@6V

(Amps)

Typical

Current

@12V

(Amps)

Typical

Current

@24V

(Amps)

Typical

Current

@32V

(Amps)

Typical

Power

@6 - 32V

(Watts)

Notes

PROCESSOR

ONLY

.093 .045 .023 .017 .544

Processor

Low Power

Mode

.080 .040 .020 .015 .480

UARTs and

CAN bus ON

0.035 0.018 0.009 0.004 0.128 iQ + Bus ON

UBATT

Relays ON

2.000 2.000 2.000 2.000 64.000 Maximum rating on

relays

GND Relays

ON

2.000 2.000 2.000 2.000 64.000 Maximum rating on

relays but not part of

system power.

External 3.

5

V

(Pins 3 and 4)

0.475 0.235 0.120 0.090 2.850 Maximum rating

GPS

0.025 0.013 0.007 0.005 0.155

GSM RX

0.065 0.032 0.015 0.008 0.340 4 Slot DL

GSM TX pwr

range

0.33-

1.35

0.160-

0.650

0.080-

0.325

0.060-

0.245

1.920-

7.840

GPRS 4 slots (Class 10)

ORBCOMM

SLEEP

.000050

0.000025

0.000012

0.000009

.000029

ORBCOMM

RX

.N/A 0.035 .0185 .0145 .46

ORBCOMM

TX

N/A 1.900 0.950 0.700 22.400 ~3 mS ACQ, 38 mS

COM and 800mS RSV

Bursts

IRIDIUM RX

N/A 0.085 0.042 0.031 0.992

Information classified Confidential

-

Do not copy (See las

t page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 13

IRIDIUM TX

N/A 0.950 0.470 0.350 11.200 8.33 mS burst

GlobalStar

Idle

N/A 1.5E-06 7.5E-07 5.6E-07 N/A Between TX burst

GlobalStar TX

0.198 0.095 0.038 0.028 0.896 1.44 S Burst

Note that these are average values. Maximum values may be as much as 15% more. All currents shown

above are individual contributions and at 25°C ambient. Items with burst or slot in the notes are the peak

values.

The power consumed by a GPS device remains constant. It will save power to turn off the GPS during

power down sequence. It takes about a minute after power on to get a GPS fix.

There are no software controllable lines gating power to these devices. The MTS has full flow control for

RS-232. You must ensure that whatever it is connected to is not drawing power from it

.

The use of Orbcomm and Iridium satellite network is not available when modem’s voltage drops below

10.5/7.5 VDC respectively.

Relay current is 1A MAX at 25C, .5A MAX at 85C. Power usage depends on customer application.

DC Input power to QUAKE Q4000 modems is +6.0V to +32.0VDC. Supplied input voltages outside this

range will result in damage to the modem and void the warranty.

Connector Information

2.5

Table 2-3, Q4000 Connector Types

Product Q4000 Sat

Connect

Sat

Antenna

Connect

Q4000

GPS

Connect

GPS

Antenna

Connect

Q4000

GSM

Connect

GSM

Antenna

Connect

Q4000

Sat/GPS/Cellular SMA-Female SMA-Male GPS SMB

Jack

GPS SMB-

Plug

GSM

MCX-

Female

GSM

MCX-

Male

Q4000 Technical Data Sheet

Document 1135-0902, REV K 14

Table 2-4, Connector Information

Interface

OEM Module

Customer Interface

Locking Molex p/n 501645-4020 Molex p/n 501646-4000

Pins - Molex p/n 501647-1000

Crimping Tool - Molex p/n 0638192300

PCB-PCB* Samtec p/n TMM-120-02-L-D Samtec p/n SQT-120-01-F-D

* This pair creates a board-to-board interface that places the interface board directly on top of the modem

(distance 0.313”).

Due to variances in connector designations, refer to provided Interface Control Drawing (ICD) in Chapter

0 for Pin 1 location on the Q4000.

If the 3.3 V Continuous Output Power pins are not being used, do not lead wires out of connector.

Connecting these pins to an external supply will damage the modem and void the warranty. The 3.3 volts are

supplied for external GPS modules. These voltages are fed from the same supply inside the Q4000 for the

digital section. If they are not used, they should be left out of the connector for the safety of the unit. If you

hook either of these supplies to, for example, VBATT by accident, the unit would be damaged.

Figure 2-5, Connectors on Q4000

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 15

3 Modem Wireless Communication

Global Positioning System (GPS)

3.1

• Internal GPS

o Performance

 22-channel GPS chipset.

 Rapid Time-To-First-Fix (TTFF) 60 seconds from a Cold Start, 25 seconds from

warmstart, 2 seconds from hotstart (Depending on antenna and signal strength)

 Accuracy within 2.5 meters

 Updates raw location data every 1 second

 Sensitivity: -160 dBm for tracking and -146 dBm for acquisition

o Features

 Antenna detection - The GPS detection is a current measurement based result. The

typical detection threshold is 3mA for an OPEN/OK and greater than 130mA for a

SHORT. A measured current of less than 3mA will result in an OPEN. A measured

current greater than 6mA but less than 130mA will result in an OK. A measurement

greater than 130mA will result in a SHORT. Note that the thresholds are typical and

will vary +/- 2mA low end and +/- 5mA high end.

 GPS Antenna Current: 6mA to 30mA.

 Utilizes a passive or active 3.0V to 3.5V GPS antenna (Active recommended).

 Active antenna with 20-50 dB gain @ 3.3 VDC. Max noise figure 1.5 dB

o GPS Serial Port - RS-232 Tx signal line contains NMEA data that can be used externally if

desired.

 Pins: 14 (Tx), and GND (Pin 11, 19, 21, 30 or 40).

 Pin 12 (GPS_RX_RS232) is not connected for an internal GPS module

 NMEA 0183 data available externally on Pin 14, GPS_TX_RS232

• 9600 Baud, 8 bits, no parity bit, 1 stop bit

• Updates location data every 1 second

• External GPS

o GPS Serial Port - If there is no internal GPS, the GPS RS-232 serial port can be used to

interface to an external GPS module or for other application needs.

 Pins: 12 (Rx), 14 (Tx), and GND (Pin 11, 19, 21, 30 or 40).

The GPS connector has a white circular area and a small hole at the center. This hole has small

metal fingers in it that make conntact with the pin in the antenna connector on the GPS patch. This is

the center conductor.

Do not feed voltage into or short the GPS port to ground. The Q4000 supplies DC bias voltage

on the antenna center conductor. Violating this warning may cause damage to the unit and void the

warranty.

Global System for Mobile Communications (GSM)

3.2

• Internal GSM

o Performance

 Transmit Output Power 2W (Class 4) for 850/900 bands

 1W (Class 1) for 1800/1900 bands

 Sensitivity -107 dBm @ 850/900 MHz

 -106 dBm @1800/1900 MHz

Information

classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 16

o Features

 Band (Quad Dual Band)

• GSM850 (TX: 824.2~ 848.8 MHz/ RX: 869.2 ~ 893.8 MHz)

• EGSM900 (TX:890.0 ~ 914.8 MHz/Rx: 935.0 ~ 959.8 MHz)

o (TX:880.2 ~ 889.8 MHz/Rx: 925.2 ~ 934.8 MHz)

• DCS-1800 (TX:1710.2 ~ 1784.8 MHz/Rx: 1805.2 ~ 1879.8 MHz)

• PCS-1900 (TX:1850.2 ~ 1909.8 MHz/Rx: 1930.2 ~ 1989.8 MHz)

 TCP/IP stack

• IP, TCP, SMTP, FTP, UDP, SMS protocols.

 92 kbps maximum continuous throughput

 Antenna detection (see note below)

In order for the antenna detection circuitry to work properly, the GSM/GPRS antenna that is

selected must have a 10Kohm DC resistance to ground from the center of the coax antenna cable.

The user must purchase an antenna with this feature or our GSM detection will not work. This type

of antenna can be obtained through the following antenna manufacturers: Taoglas, Hirschmann Car

Communications, and Tyco Electronics.

o GSM Serial Port - RS-232 serial port used to upgrade the GSM module’s firmware.

 Pins: 7(Rx), 9 (Tx), and GND (Pin 11, 19, 21, 30, or 40).

• External GSM

o GSM Serial Port – A Q4000 that DOES NOT include an internal GSM module has the option

to use one of the RS-232 serial ports to communicate with an external GSM module, or it

can be used as an additional serial port with the use of a custom application. For example,

the following pins could be used:

 Pins: 8 (Rx), 10 (Tx), and GND (Pin 11, 19, 21, 30, or 40).

Use only approved GSM antennas

Orbcomm

3.3

• Internal

o Performance

 Transmit Output Power: 5 watts minimum, 10 watts maximum

 Sensitivity: -123 dBm with typical BER 1x10

-5

o Features

 Uplink (Tx)

• 148-150.05 MHz

• 2400 baud

 Downlink (Rx)

• 137-138 MHz

• 4800 baud

 Optional antenna detection

• External

o

MTS Serial Port-

The Main Transport Socket port; known as the MTS port, is an RS-232

port which implements the QUAKE Communications Protocol (QCP). For Q4000 models that

support Orbcomm this port also supports the Orbcomm Serial Interface.

 Pins: 13 (Rx), 15 (TX), 16 (DSR), 17 (DTR), 18 (DCD, and GND (Pin 11, 19, 21, 30

and 40)

Exceeding an RF input power level of +10dBm may result in damage to the receiver and will void the

warranty.

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 17

Do not place Orbcomm antennas within six feet of each other.

For best results use only approved Orbcomm antennas

Iridium Short Burst Data (SBD)

3.4

• Performance

o Transmit Output Power: 2 Watts

• Features

o Uplink (Tx)

 1616-1626.5 MHz

 50 ksps

o Downlink (Rx)

 1616-1626.5 MHz

 50 ksps

• Message Size

o Tx 340 bytes/Rx 270 bytes

If the antenna VSWR exceeds 3:1 the PA will be turned off to protect the modem from damage.

Iridium requires Iridium approved antennas

Antenna cables greater than 3 dB will degrade network performance. See Table 3-1, Cable Loss, for

more information.

Globalstar (Simplex)

3.5

• Performance

o Transmit Output Power: 18 dBm +/- 2 dBm

• Features

o Frequency of Operation

 1611.25-1618.75 MHz

o 9 to 144 byte messages

Antenna cables greater than 3 dB will degrade network performance. See Table 3-1, Cable Loss, for

more information.

Cable Loss Guidelines

3.6

The table below shows the amount of loss for different cable types.

Table 3-1, Cable Loss Guidelines

Cable P/N

Cable

type

Loss at 150

MHz dB/m

Loss at 1600

MHz dB/m

Belden 8216

RG-174 0.38 dB/m 1.59 dB/m

Belden 9201

RG-58 0.181dB/m 0.792 dB/m

Belden 9913

RG 8 0.56 dB/m 0.208 dB/m

TMS LMR-

400 LMR-400 0.54 dB/m 0.188 dB/m

TMS LMR-

600 LMR-600 0.034 dB/m 0.122 dB/m

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 18

4

Customer Input/Output Interfaces

External Interfaces

4.1

Analog Inputs

4.1.1

Two available: Pins 29 and 31:

• 0 – 3.5 Volts.

• 12 bit resolution

• Greater than1MΩ input impedance

• 3dB bandwidth and 160 kHz if driven with low impedance. The “greater than 1 M Ω” is at DC only. If

you try to sample a frequency (not DC) of 160KHz at the input, it will be down in amplitude by half

power at the internal ADC input. If you go higher in frequency, the amplitude will be reduced more.

This would give a false amplitude reading. This translates to a maximum sample rate of 7 to 8

microseconds.

There is a capacitor on the input of the Q4000 for the ADCs. If you place a series resistance in the

line with the ADC input, the reduction mentioned above is made worse. If you make that resistance 0

ohms the spec remains at 160KHz.

Figure 4-1, Analog Input Circuit

4.1.1.1 Sample Circuits for Appropriate Scaling to 0-3.5V

Analog inputs are 12 bits and have a Full Scale (F

scale

) reading of 4095. The equation below can be used to

determine the resistor values for varying maximum sensor voltage readings.

( )

2

21

5.3

R

RR

VoltageScaleFullV

s

F

+

=

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 19

12V = VFs

(SENSOR)

8.66K, 10mW

3.57K, 10mW

ANA 0 OR ANA 1

R1

3.5V

R2

Figure 4-2, Sample 12V Sensor

24V

(SENSOR)

21K, 10mW

3.57K, 10mW

ANA 0 OR ANA 1

R1

3.5V

R2

Figure 4-3, Sample 24V Sensor

The equation below can be used to determine the appropriate resistor value for sensors that are current

scaled.

=mAF

s

Full Scale Milliamp Reading

mAF

V

R

s

5.3

=

Information classified Confidential

-

Do

not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 20

The example below scales a 0-20mA sensor to 0-3.5 VDC at the input to the modem.

(SENSOR / ANA 0 OR ANA 1)

174 OHMS, 1%, 100mWR

Figure 4-4, Sample 24V Sensor

Digital Inputs/Outputs

4.1.2

The Q4000 has eight general purpose digital CMOS (3.3VDC) level inputs/outputs. The DIO’s are located on

pins 33 - 39 of the 40-pin interface connector. The DIO’s may be configured as inputs or outputs, set and

cleared and read by software. As seen below in Figure 4-5, Digital Input Circuit, there are no internal pull up

or pull down resistors.

Figure 4-5, Digital Input Circuit

4.1.2.1 DIO as Input

When utilized as an input, a logic level “high” is obtained when the input voltage is greater than 2.2 VDC. It

remains in this asserted state until the voltage on the pin falls below .8 Volts where a valid logic level “low” is

read. This hysteresis prevents noise on the input pin from causing the input to jitter.

4.1.2.2 DIO as Output

When used as an output, the voltage/current provided is dependent on the impedance or load presented on

the line.

• For voltage use the 10K ohm resistor works against the line impedence (R

LINE

) and VOUT is as

follows:

VOUT = 3.5 * R

LINE

/ (10,000+R

LINE

)

• For Current usage the 10K ohm drops voltage across it as the current is increased. The output

voltage follows the current draw (

I

LOAD

) as follows:

VOUT

= 3.5 – (I

LOAD

* 10,000)

10K

1%

100PF

50V 100PF

50V 3.9V ZENER

DIGX_IF

> 1M

Microcontroller

Q4000 Technical Data Sheet

Document 1135-0902, REV K 21

To increase current drive, insert a buffer with high input impedence between the DIGX_IF configured as an

output and the load as shown below. A typical buffer might be a 74 series 126 with a part number of

74LVC1G126DBV. This will increase the drive to > +/- 20 milliamps.

Figure 4-6, Buffer for DIO as Output

4.1.2.3 Switched Digital Relays

There are four digital relays available on Pins 26/28 and 25/27:

• Two pins provide switch closure to ground Pins 26 and 28

• Two pins route the supplied input voltage Pins 25 and 27.

Two of the inputs can source (pulls to input voltage) and two sink (pulls to ground) at 1A continuous current

at ambient temperatures and are de-rated as seen in the chart below.

Figure 4-7, Switched Relay Characteristics

Warning: Connecting SW_UBATT1 or SW_UBATT2 (pin 27 and 25) directly to ground while the switch

is turned “ON” will damage the unit. If SW_GND1 or SW_GND2 (pin 26 and 28) is tied directly to VBATT (Pin

1 and 2) while the switches are turned “ON,” the unit will be damaged.

DIGX_IF

Buffered

Output

BUFFER

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 22

Inductive Load Use Warning: If an inductive load such as a relay is used, it can generate a spike

voltage across it. If that exceeds 60 volts peak, the spike must be limited. Check if the external inductive load

is internally limited. If not, a clamp diode across the inductive load with the cathode towards the positive input

lead must be used.

J1939

4.1.3

The J1939 bus connection is used on Heavy Truck Engine Computers to obtain engine and other subsystem

parameters such as Oil Pressure and Fuel Level. See the SAE J1850/1939 specification for additional

information on this engine bus.

• CAN Bus with J1939 stack interface

• This bus is connected on pins 23 (CAN_H) and 24 (CAN_L)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 23

3.5V Power

4.1.4

There are two pins that provide 3.5 VDC continuous power: Pin 5 and Pin 6. The total current added up

between these two pins cannot exceed 650 mA. Do not include these pins on the connector if they are not

being used.

Warning: Connecting these pins incorrectly could damage the unit and void the warranty.

RS-232 Ports

4.1.5

The Q4000 has up to five RS-232 serial ports.

1) The Main Transport Socket (MTS) Port implements QUAKE’s Communication Protocol (QCP).

2) The Logger Port provides diagnostic data for the user and the ability to debug and configure the

custom application.

3) The third, fourth and fifth serial ports are only available depending on the specific Q4000 model.

All serial ports support baud rates up to 115.2 Kbps. All ports are protected against shorts to both the BATT+

and BATT- lines. The serial ports meet the standard voltage level for RS-232 operation. The chart below

shows the relationship between modem type and serial port availability.

Figure 4-8, Serial Port Availability

Information classified Confidential

-

Do not copy (See last page for obligations)

Warning: There are important hardware differences between various

Q4000/QPRO models depending on the part number/network. Developers

who plan to use multiple network configurations with Q4000/QPRO hardware

should ensure that their application will run across all platforms.

For example, the AUX port is not available in Iridium and Inmarsat networks.

Developers planning to use serial ports must be aware that the AUX port is

not available on all configurations of the Q4000/QPRO. Note that the AUX

port may lose bytes at speeds over 57600 bps. Information on the

availability of serial ports is contained in 2.1Error! Reference source not

found.

,

Q4000 Available Configurations.

Q4000 Technical Data Sheet

Document 1135-0902, REV K 24

• MTS Serial Port – RS-232 port which implements the QUAKE Communications Protocol (QCP). For

Q4000 models that support Orbcomm this port also supports the Orbcomm Serial Interface.

• Logger Serial Port – RS-232 3-wire used for debugging and logging of system data/performance and

programming firmware and custom applications.

• AUX Serial Port – RS-232 3-wire can be used by application developers on Q4000 models that do

not include the Iridium satellite feature. Note that the AUX maximum speed is 57600 bps.

• GSM Serial Port- RS-232 3-wire can be used on Q4000 models which include the GSM feature for

firmware updates. For Q4000 models that do not include the GSM feature this port can be used by

the application directly.

• GPS Serial Port- RS-232 3-wire can be used on Q4000 models which include the GPS feature to

externally monitor NMEA strings. For Q4000 models that do not include the GPS feature this port

can be used by the application directly.

4.1.5.1 MTS

The following RS-232 lines are available for the MTS port: RX, TX, DTR, CD, and DSR. The signal names

are from the perspective of the DTE. The interface protocol for this port complies with the RS-232 standard

serial specification.

4.1.5.2 DTR

The DTR line is an RS-232 input that is used in the power supply wake-up circuitry to wake up the Q4000

from sleep mode. In order to wake the Q4000 via DTR, a 1.8 Volt rise on the DTR line with a rise time of less

than 100µs is required. MTS_DTR is a software readable digital input. The low and high thresholds are 0.8

volts and 2.0 volts respectively.

NOTE: If DTR is de-asserted, you must wait at least 3.5 seconds before re-asserting the DTR to allow

enough time for a controlled power down sequence to occur.

4.1.5.3 Logger

This port is typically used for logging and debugging activities. See the Q4000/QPRO User’s Manual for

details of the Logger port operations.

Interface Connector Electrical Specifications

4.1.6

Note: All lines are protected against over-voltage and transients; the Max (Min) Nominal Voltage column is

intended to provide information about the voltage limits for normal operation. See the following table for

pinout information.

Table 4-1, Interface Connector Electrical Specifications/RF Connections

Signal

Type

Voltage

(Min/Max/

Nominal)

VDC

Max Output

Current

Notes

1

U

BATT (+)

Power 6/32/12 See table 1, 5

2

U

BATT (+)

Power 6/32/12 See table 1

3

UBATT (

-

)

Ground

4

UBATT (

-

)

Ground

5

3V

5

_

500MA

Continuous Output +/- 1% 650mA 4

6

3V

5

_

500MA

Continuous Output +/- 1% 650mA 4

7

GSM_RX_RS232

Input +/- 15 -

8

AUX_

TX_RS232

/

DPL_

T

X_RS232

Output 5

9

GSM_TX_RS232

Output

10

AUX_

RX_RS232

/

DPL_

R

X_RS232

Input 5

11

GND

Ground

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 25

12

GPS_RX_RS232

Input 6

13

MTS_RXD_RS232

Output

14

GPS_TX_RS232

Output

15

MTS_

TXD

_RS232

Input

16

MTS_DSR_RS232

Output

17

MTS_DTR_RS232

Input 6/32 2

18

MTS_

DC

D_RS232

Output

19

GND

Ground

20

LOG_RXD_RS232

Input

21

GND

Ground

22

LOG_TXD_RS232

Output

23

CANH

Input/Output

24

CANL

Input/Output

25

SW_UBATT_0

Output UBATT(+) 1A@25C 1

26

SW_GND_0

Output GND 1A@25C 1

27

SW_UBATT_1

Output UBATT(+) 1A@25C 1

28

SW_GND_1

Output GND 1A@25C 1

29

ANA0

Input 0-3.5 - 3

30

GND

Ground

31

ANA1

Input 0-3.5 - 3

32

DIG_0

Input/Output 3.5V

CMOS/TTL

3

33

DIG_1

Input/Output 3.5V

CMOS/TTL

3

34

DIG_2

Input/Output 3.5V

CMOS/TTL

3

35

DIG_3

Input/Output 3.5V

CMOS/TTL

3

36

DIG_4

Input/Output 3.5V

CMOS/TTL

3

37

DIG_5

Input/Output 3.5V

CMOS/TTL

3

38

DIG_6

Input/Output 3.5V

CMOS/TTL

3

39

DIG_7

Input/Output 3.5V

CMOS/TTL

3

40

GND

Ground

1. See Table 2-2, Q4000 Power Consumption, for complete operating current consumption

specifications.

2. DTR asserted can wake the modem from sleep mode.

3. Input resistance high impedance >1M ohms

4. Pins 5 and 6 provide a continuous output that cannot be disabled. The total current added up

between Pin 5 and 6 cannot exceed 650 mA. If any external voltages are applied to these pins it may

cause permanent damage and will void the warranty.

5. Pin 8 (AUX_TX_RS232) and Pin 10 (AUX_RX_RS232) are the DPL ports in the Q4000 with Iridium

version of the modem.

6. If the Q4000 contains an internal GPS, then Pin 12 (GPS_RX_RS232) is not connected. Otherwise

it’s part of the serial port.

Due to variances in connector designations, refer to provided ICD for Pin 1 location on the Q4000.

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 26

Internal Interfaces

4.2

Memory

4.2.1

• 2 Mbytes standard of Flash and RAM.

• 8 Mbytes optional

The Q4000 can have 2 different memory configurations: 2MB and 8 MB. Note that the User Space is limited

to 640KB in both configurations.

Table 4-2, User Flash and RAM Availability

2 MB

8 MB

Available Flash ~1 MB 7 MB

Available RAM 0.5MB 6 MB

A minimum of 100,000 raw program erase cycles are expected from the flash manufacturer before possible

failure. For Raw Flash, there are 64K Flash Sectors and each Flash File System Block is 512 Bytes. It is

recommended to write files that are 64K or larger to ensure that a whole Flash File System Block is written.

Real-Time Clock (RTC)

4.2.2

• Programmable

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 27

5 Q4000 Data Interface Specifications

Data Interfaces

5.1

·

4 Digital Controlled Output Switches (2 Switched GND/2 Switched Input Voltage)

·

8 Digital General Purpose Inputs/Outputs (CMOS level 3.5VDC)

·

3 Serial Ports (External) with up to 5 RS-232 serial ports depending on Q4000 configuration

·

1 CAN BUS 2.0: J1850/1939

·

2 Analog Inputs (0 – 3.5 V)

Environmental Considerations

5.2

As an OEM product, the Q4000 is designed to be housed in a sealed enclosure or in an environmentally

benign area, since it is not sealed against moisture ingress.

• Operating Temperature

o –40C to 85C

• Storage Temperature

o –40C to 85C.

• Low Pressure

o Up to 4 hours at 15000 ft elevation pressure

• Humidity

o Relative humidity range of 0% to 95% non-condensing at 65C

o Humidity Test in Orbcomm Spec E25050102 REV D is per MIL SPEC 810E, Method

507.3 with test conditions.

o Procedure I, Cycle 2 - Procedure 1 simulates natural environmental cycles and is

conducted on test items which are open to a frequently ventilated environment. Cycle 2

sets the temperature at a 24C constant with humidity maintained at 95% minimum. The

Test Duration is 15 Cycles (15 days).

• Cyclic Humidity

o Temperature/Cyclic Humidity Test is 5 days at -10C to 65C at 85% relative humidity

• Thermal Shock

o -40C to 85C (30 minutes at each temp, 10 cycles)

• Shock

o Mechanical shock of a 20G, sawtooth profile, over an 11 msec period. (Three positive

and three negative shocks in each of three mutually perpendicular axes)

o SAEJ1455 shock requirements and those in MIL-STD-810E [11].

• Vibration

o 20 Hz to 2 KHz, 8

G

rms vibration profile in each of three mutually perpendicular axes, 1

hour per axis,

o 10 Hz to 150 HZ, 0.5 g square/Hz vibration profile in each of three mutually

perpendicular axes, 1 hour per axis.

o 10 Hz to 150 HZ, 0.05 g^2/Hz vibration, 16 hours on each of three orthogonal axis

o 5 Hz to 20 Hz , 0.05 g^2/hz, and from 20 to 150 Hz, -3 dB/octave, 1 hour each axes

o Vibration requirements in Orbcomm Rev D spec [10] and MIL-STD-810E [11]

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 28

o SAEJ1455 vibration requirements.

Certifications

5.3

• Orbcomm Type Approval Pending

• Iridium Certification pending

• FCC

• CE

• J1455 – Note: Please see environmental considerations for Cyclic Humidity

• J1939 compliance

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts

de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire

de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

Including interference that may cause undesired

operation.

Note: Any changes or modifications to the QPRO product could avoid the final operation of equipment and

will void Quake Global’s warranty.

FCC IDs

5.3.1

One of the following FCC ID’s will apply, depending on the modem network type (see standard modem

configurations for details on which part numbers contain which approvals):

• iSatData Pro/Inmarsat Approval (TBD)

• Iridium FCC ID: PB596XXCS

• Orbcomm TAT ID: 819QWI

• GSM FCC ID: RI7GE865.

FCC Part 15 Class B - Radio Frequency Interference (RFI) (FCC 15.105)

5.3.2

This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to

Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential environment. This equipment generates, uses, and can radiate radio

frequency energy, and if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try and correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

Information classified Confidential

-

Do not

copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 29

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Labeling

5.3.3

1135-GGSACR2AC Label must have: "This equipment contains FCC ID: 819QWI (Orbcomm) and FCC ID: RI7GE865 (GSM)".

1135-NGSACN2NN Label must have: "This equipment contains FCC ID: 819QWI (Orbcomm)".

1135-NNNNCR2NC No internal FCC ID.

1135-GGNNCN2AC Label must have: "This equipment contains FCC ID: RI7GE865 (GSM)".

1135-NNSNCN2NN Label must have: "This equipment contains FCC ID: 819QWI (Orbcomm)".

1135-GGSNPN2AN Label must have: "This equipment contains FCC ID: 819QWI (Orbcomm) and FCC ID: RI7GE865 (GSM)".

1135-NGNNCR2NC No internal FCC ID.

1135-GNNNCN2AC Label must have: "This equipment contains FCC ID: RI7GE865 (GSM)".

1140-GGFNCR2AC Label must have: "This equipment contains FCC ID: PB596XXCS (Iridium) and FCC ID: RI7GE865 (GSM)".

1140-NNFNCN2NC Label must have: "This equipment contains FCC ID: PB596XXCS (Iridium)".

1140-NGFNCN2NC Label must have: "This equipment contains FCC ID: PB596XXCS (Iridium)".

GSM/GPRS Module- Quad Band

5.4

PTCRB, FCC, CE, AT&T and T-Mobile Certifications Pending.

GSM Communications

5.5

• Operating Temperature: -40°C ~ +85°C

• Band (Quad Dual Band)

• GSM850 (TX: 824.2~ 848.8 MHz/ RX: 869.2 ~ 893.8 MHz)

• EGSM900 (TX:890.0 ~ 914.8 MHz/Rx: 935.0 ~ 959.8 MHz)

(TX:880.2 ~ 889.8 MHz/Rx: 925.2 ~ 934.8 MHz)

• DCS-1800 (TX:1710.2 ~ 1784.8 MHz/Rx: 1805.2 ~ 1879.8 MHz)

• PCS-1900 (TX:1850.2 ~ 1909.8 MHz/Rx: 1930.2 ~ 1989.8 MHz)

• Transmit Output Power 2W (Class 4) for 850/900 bands

1W (Class 1) for 1800/1900 bands

Integrated GPS Chip Set

5.6

• 22 Channel Module

• Rapid Time-To-First-Fix (TTFF) 60 seconds from a Cold Start.

• Accuracy within 2.5 meters

Application Interface

5.7

• Orbcomm Serial Protocol

• QUAKE Application Programmer’s Interface API (C Code)

• Iridium Developers guide

• AT Command Set

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 30

Power

5.8

External Power Source:

 6 – 32V* (*No Orbcomm Tx from 6-10.5 VDC)

 10.5 – 32V (All features supported)

Typical Power Consumption at 12V (not including other modem features):

 Transmit - Orbcomm 22.26 Watts

 Transmit - GSM 7.80 Watts

 Transmit – Iridium 11.4 Watts

 Standby - Orbcomm 0.42 Watts

 Standby - GSM 0.24 Watts

 Standby – Iridium 1.02 Watts

 Sleep Mode 25µA (max)

Note: The Q4000 uses a switching mode DC-DC converter power supply. This means that the current draw

of the Q4000 drops with an increase in the input voltage. QUAKE Global recommends that the Q4000 be

connected to a power supply through a 5 Amp fast-blow fuse.

DC Input power to QUAKE Q4000 modems is +6.0V to +32.0VDC. Input voltage outside this range will

result in damage to the modem and void the warranty.

Operation Modes

5.9

Transmit: In this mode the unit is sending an outgoing message. It could be from any programmed condition

including an alarm, an application event, a scheduled report, or in response to an over-the-air inquiry. The

Q4000 may also query the satellite or GPRS network looking for incoming messages.

Standby

:

In this mode the Q4000 is in a constant receive mode. (Depending on the availability of the

satellite, the unit will be receiving satellite downlink information or searching for a downlink.) The RF, digital

signal processor, and control processor portion of the modem are active in this mode.

Data Collection: In this mode the control processor (CP) is active. The Q4000 may be sampling data inputs

through the serial port or interacting with other Q4000 subsystems. The CP is used to power on, control and

collect data from the RF Subsystem. The CP is active during its interaction with these subsystems, but does

not need to stay active while the other subsystems run their tasks

Sleep: In this mode the Q4000 is completely shut down. The processors and memories are off. Only the

real-time clock (RTC) is running, maintaining GPS time. The Q4000 can be configured to shut down when

DTR goes low, or it can be programmed to shut down with software. A normal shutdown sequence includes

a data save to Flash consisting of unsent messages, and configuration parameters. A power cycle, external

DTR pulse, or RTC alarm will wake up the unit.

Physical Specifications

5.10

Size: 3.91”x 2.52”x .63” (99.3mm x 64mm x 15.9mm)

Weight: .375 lbs (.170 kg)

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 31

6 Q4000 Drawings

Figure 6-1, Dimensions for Q4000

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 32

Figure 6-2, Interface Card Constraints

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 33

Figure 6-3, Q4000 Dimensions with Iridium

Iridium specifications are preliminary and subject to change.

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 34

Figure 6-4, Development Kit Cable Drawing

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 35

Figure 6-5, Q4000 Pinout

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 36

7 Q4000 Recommended Installation Guidelines

QPRO Mounting Recommendations

7.1

·

Remember that it is best to connect the UBATT (-) to chassis ground rather than the (-) battery terminal.

·

Remember that the input voltage range is 6-32 VDC.

·

On the 40-pin connector positive power UBATT (+) is located on pins 1 and 2 and negative UBATT (-) is

Pins 3 and 4.

·

In order to protect wires installed within the engine compartment or along the undercarriage make sure

all wires are wrapped with wire loom.

Antenna Recommendations

7.2

ORBCOMM

When selecting an ORBCOMM antenna, make sure it is a 50 ohm 137-150.05 MHz antenna. Due to the

fairly wide frequency range used by ORBCOMM (137 - 150 MHz), and the variety of installation factors and

tradeoffs between antenna size, cost, and performance, it is often not practical to achieve a VSWR of below

1.5:1 throughout the 137 - 150 MHz frequency range. See the User’s Guide User’s Guide to Q4000/QPRO,

Document #1135-4713 for more details on antennas.

GSM/GPRS

• Gain must be less than 3dBi.

• Must be placed greater than 20cm from a person. If antenna is placed within 20cm of a person, the

system integrator needs to assess the final product against SAR regulation.

• If the antenna is co-located and transmitting simultaneously with another antenna, additional FCC/IC

testing may be required.

• Antenna cannot be placed within a metal shield and must be installed with care to avoid any

interference with other electronic devices.

IRIDIUM

Iridium Antennas must be approved by Iridium before being used on the Iridium network. A list of approved

antennas can be found on Iridium’s home page at www.iridium.com.

When selecting an Iridium antenna, make sure it is a 50 ohm, Gain 3dBi maximum, polarization Right Hand

Circular Polarized (RHCP) and VSWR 1.5:1 or better (in both receive and transmit bands) for optimal

messaging. Make sure that the Iridium antenna is located so it has an unobstructed view of the sky.

The antenna must be placed greater than 20cm from a person. If antenna is placed within 20cm of a person,

the system integrator needs to assess the final product against SAR regulation.

for obligations)

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 37

8 Frequently Asked Questions

Q:

How do I contact service or a help desk?

A: Email customersupport@QUAKEglobal.com

Q:

What type of PC do I need to program the

Q4000?

A: To configure the sample applications you can use any computer that runs a terminal

emulation program such as HyperTerminal, and at least one available serial port.

For users of QUAKE’s API any Windows computer can be used to set up the API and

Development Environment.

Q:

Can I use any

Orbcomm

antenna with the Q4000?

A: Yes. Any Orbcomm antenna with 50-ohm impedance can be used with the Q4000.

However, there are great differences in the performance of various antennas and testing

should occur to ensure proper operation for your application needs.

Q:

Can I use any GPS antenna with the Q4000?

A: QUAKE recommends that the antenna shipped with the Development Kit be used with

the Q4000. This is a 3.3V active antenna with 26-dB gain. The Q4000 can utilize a

passive or active 3.3VDC GPS antenna (Active recommended). Active antenna with 20-

50 dB gain @ 3.3 VDC. Max noise figure 1.5 dB. A 5V active antenna will not work with

the Q4000.

Q:

Does QUAKE provide any other products?

A: Yes. QUAKE offers a variety of products ranging from OEM modules to “Off the Shelf”

and ready to go turn-key products.

Q:

How do I load firmware into the Q4000?

A: Loading new code is extremely easy with the use of the PC based QUAKE Configuration

Tool (QCT). See the User’s Guide to Q4000/QPRO, P/N 1135-4713, for more

information.

Q:

Can I connect the Q4000 directly to a vehicle power supply?

A: Yes. The Q4000 is designed to work in most 12 and 24V based vehicles.

Q:

The sensors I want to attach to my modem send out data as an ASCII string over a

serial line. Will the Q4000 accept this?

A: With the use of QUAKE’s Application Programmer’s Interface, the receiving serial data

can be received and used as needed.

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 38

9 Declaration of Conformity

Information classified Confidential

-

Do not copy (See last page for obligations)

Q4000 Technical Data Sheet

Document 1135-0902, REV K 39

PLEASE READ CAREFULLY:

CONFIDENTIALITY OBLIGATIONS

This document contains sensitive information and is classified “CONFIDENTIAL”.

Its distribution is subject to the recipient’s signature of a Non-Disclosure Agreement (NDA).

At all times you should comply with the following security rules (Refer to the NDA for detailed obligations):

This document may not be altered in any way that removes or obscures the Confidentiality notices.

Keep this document locked away.

Additional copies can be provided on a “need to know basis”, please contact your QUAKE account manager.

Please read carefully:

Information in this document is provided solely in connection with QUAKE Global, Inc. (“QUAKE”) products.

QUAKE™ reserves the right to make changes, corrections, modifications or improvements to this document

and the products and services described herein at any time, without notice.

All QUAKE products are sold pursuant to QUAKE’s terms and conditions of sale. Purchasers are solely

responsible for the choice, selection and use of QUAKE products and services described herein, and

QUAKE assumes no liability whatsoever relating to the choice, selection or use of QUAKE products and

services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual

property rights is granted under this document. If any part of this document refers to any third party products

or services, it shall not be deemed a license grant by QUAKE for the use of such third party products or

services, or any intellectual property contained therein or considered as a warranty covering the use in any

manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN QUAKE’S TERMS AND CONDITIONS OF SALE, QUAKE

DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF

QUAKE PRODUCTS INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER

THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER

INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN

AUTHORIZED QUAKE REPRESENTATIVE, QUAKE PRODUCTS ARE NOT RECOMMENDED,

AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIRCRAFT, SPACE, LIFE SAVING, OR LIFE

SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR

MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH OR SEVERE PROPERTY OR

ENVIRONMENTAL DAMAGE.

Resale of QUAKE products with provisions different from the statements and/or technical features set forth in

this document shall immediately void any warranty granted by QUAKE for the QUAKE product or service

described herein and shall not create or extend in any manner whatsoever, any liability to QUAKE.

QUAKE™ and the QUAKE logo are trademarks or registered trademarks of QUAKE Global. Information in

this document supersedes and replaces all information previously supplied.

www.QUAKEglobal.com
