Realtek Semiconductor RTL8191SE NOTEBOOK User Manual U10IL1 English
Realtek Semiconductor Corp. NOTEBOOK U10IL1 English
Contents
USERS MANUAL
i
i
Preface
©
©Copyright 2009
All Rights Reserved.
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising out of the
use or inability to use the product or documentation, even if
advised of the possibility of such damages.
This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic, or other means in any
form without prior written permission of the manufacturer.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy
of this manual, the manufacturer and distributor assume no liability
resulting from errors or omissions in this manual, or from the use of
the information contained herein.
Notices
Federal Communications Commission Radio Frequency
Interference Statement
This equipment has been tested and
found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and
if not installed and used in accordance with the instruction
manual may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
ii
¾ Reorient or relocate the receiving antenna
¾ Increase the separation between the equipment and receiver
¾ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
Consult the dealer or an experienced radio TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
Notice:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment. Shielded interface cables and a non-
shielded AC power cord must be used in order to comply with
emission limits.
This equipment is to be used with power supply:
30/40W
There is no internal power supply.
FCC RF Radiation Exposure Statement:
1.This Transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
2.This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment.
Max. SAR Measured(1g):0.901W/Kg
iii
Table of Content
BEFORE YOU START ...............................................................................2
LET YOUR COMPUTER ACCLIMATE ITSELF ..............................................8
HEAT, COLD, HUMIDITY, AND GLARE ....................................................9
SUITABLE PLACE TO WORK...................................................................9
INTRODUCTION......................................................................................11
FRONT VIEW .....................................................................................12
LEFT VIEWS ......................................................................................14

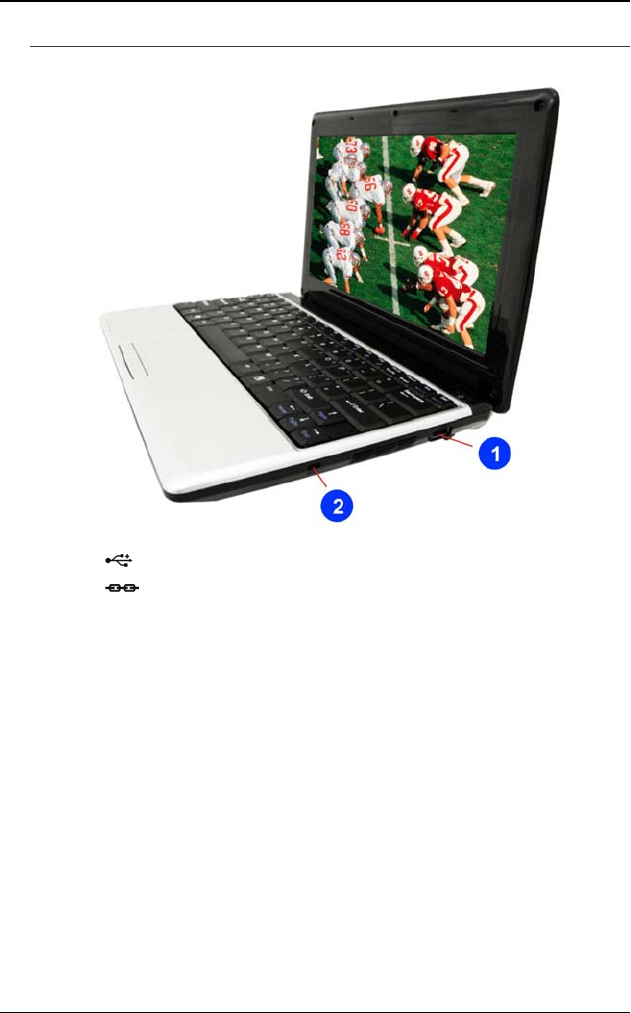

RIGHT VIEW ......................................................................................16

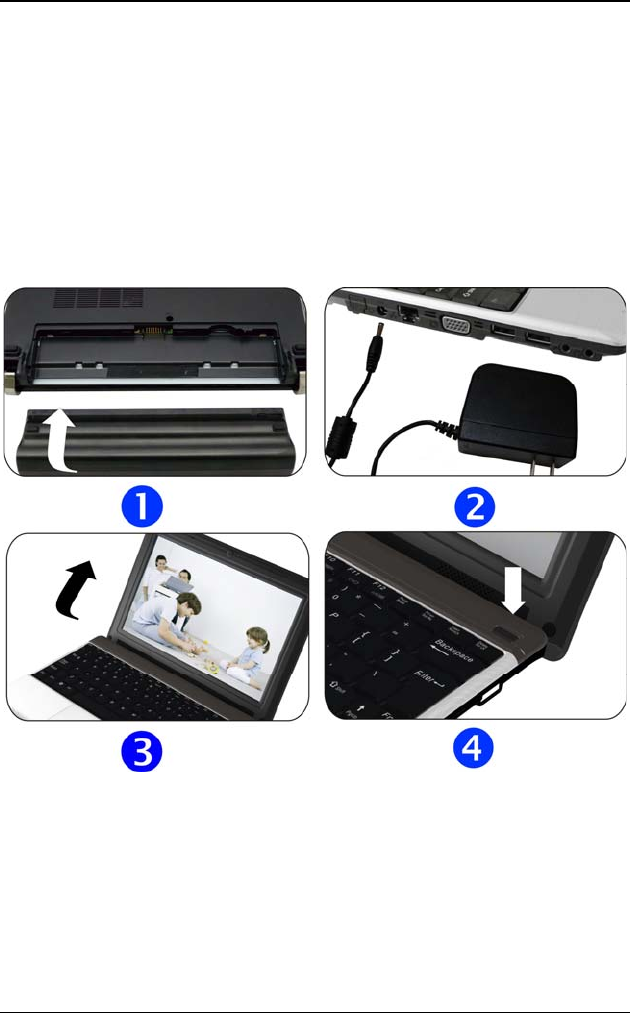

GETTING STARTED ...............................................................................19

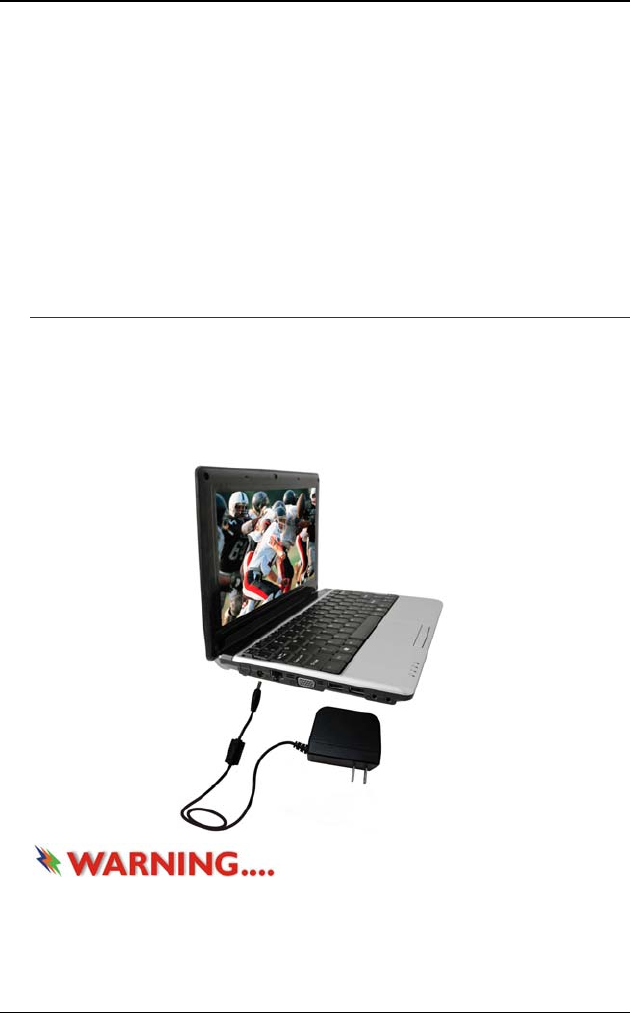

CONNECTING THE AC ADAPTER.........................................................19

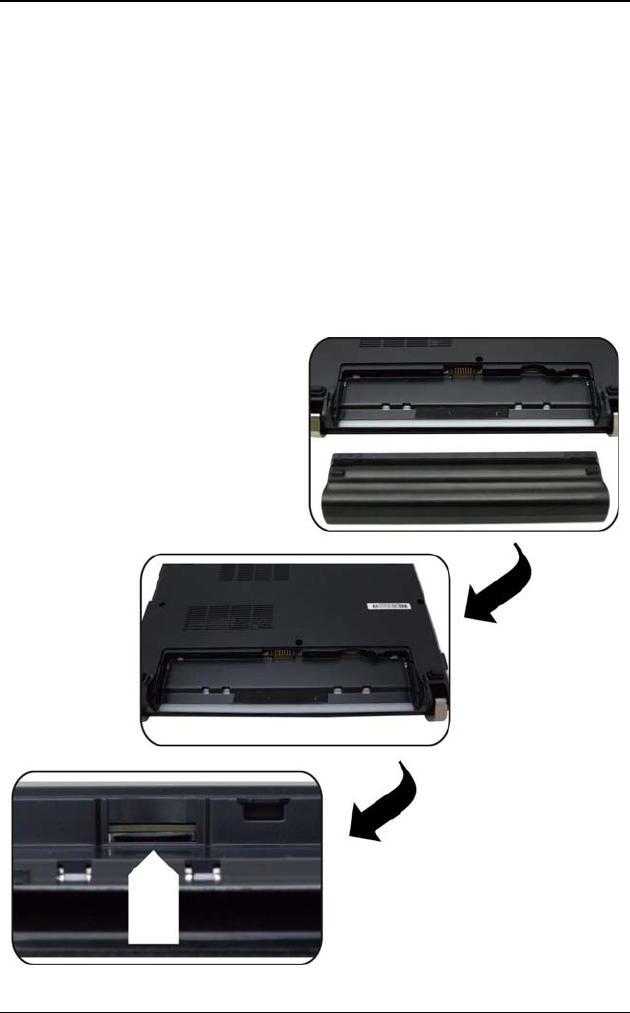

TO INSTALL THE BATTERY PACK:........................................................21

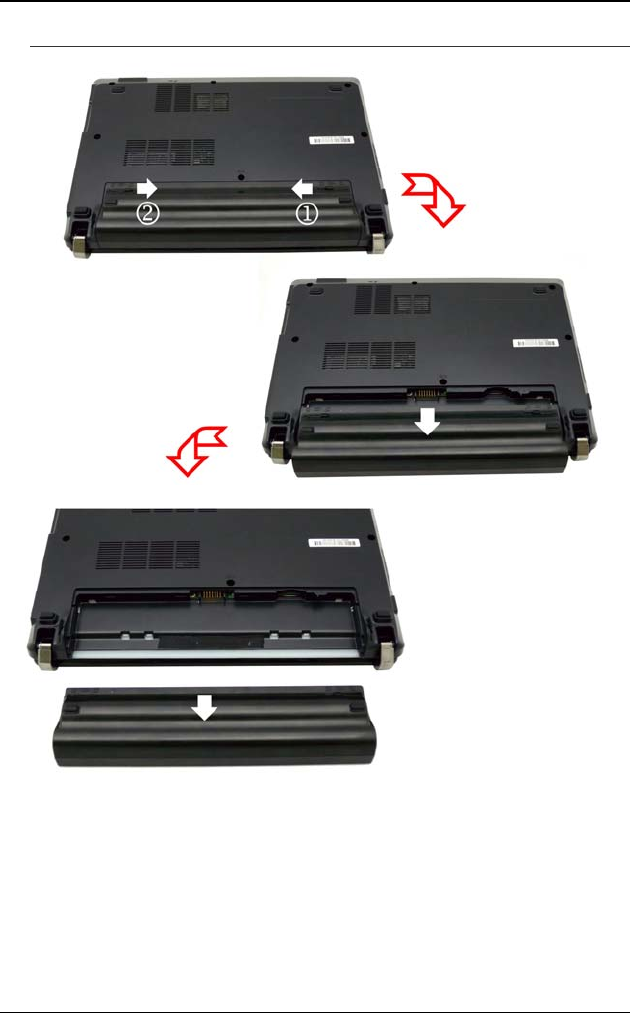

TO REMOVE THE BATTERY PACK: ......................................................22
USING THE NOTEBOOK COMPUTER.......................................................24
LCD CARE........................................................................................24

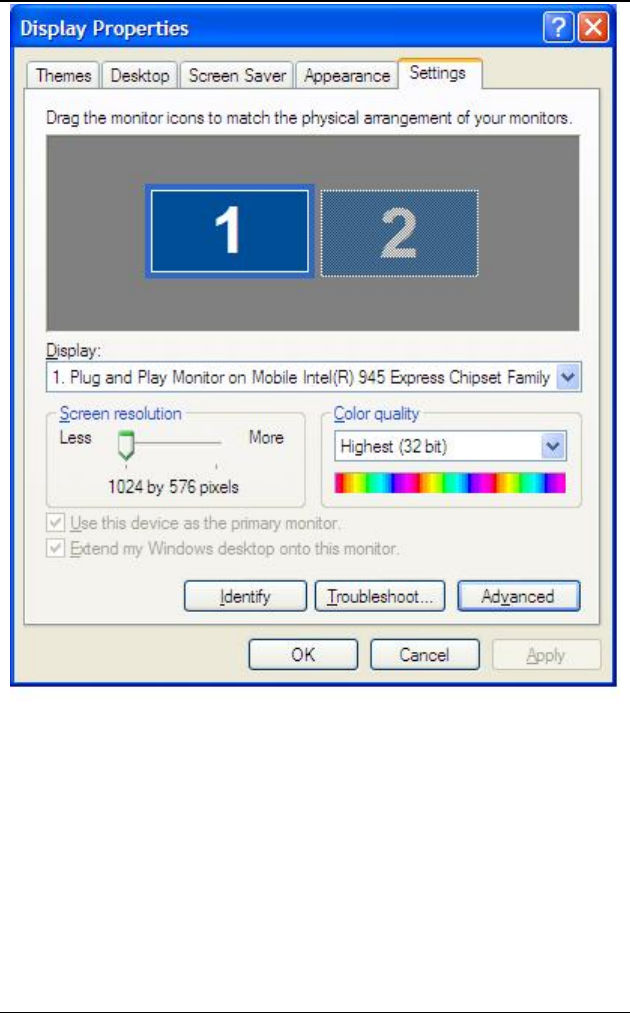

EXTERNAL CRT DISPLAY...................................................................25

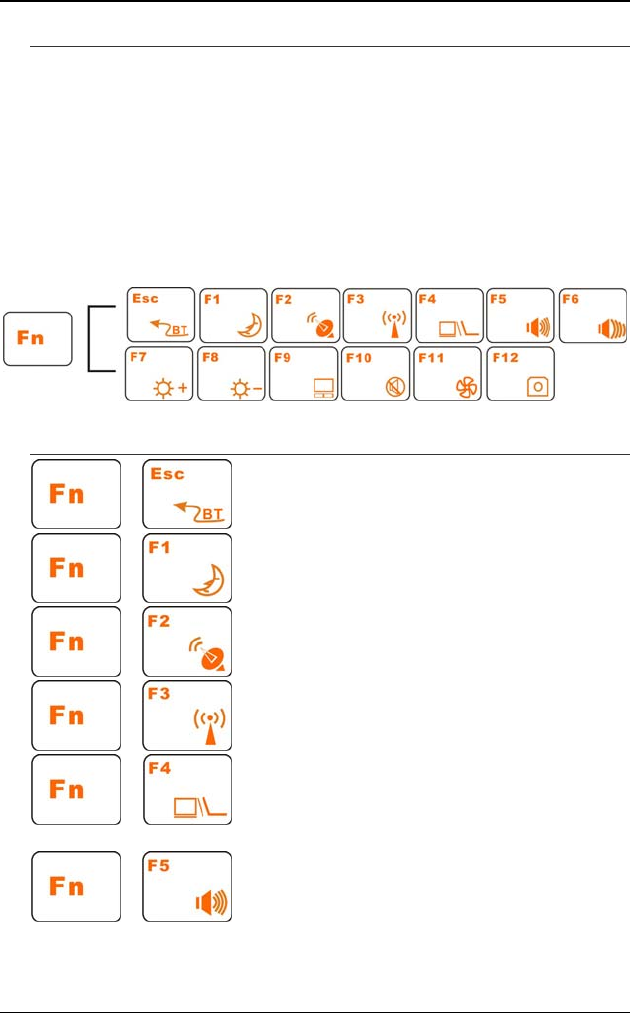

FUNCTION KEYS (QUICK KEYS)..........................................................25

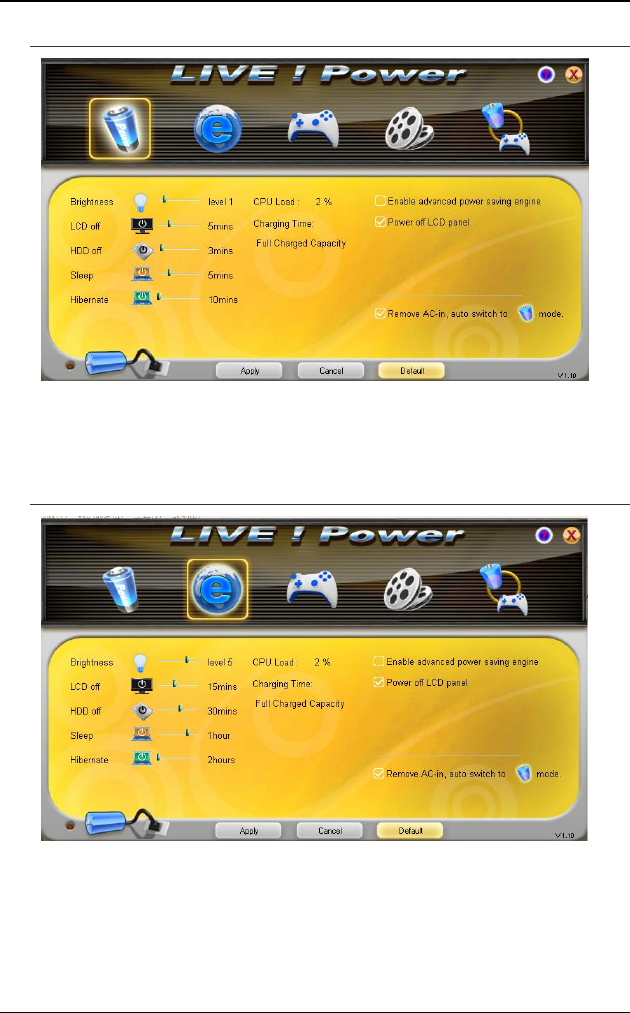

OSD-BAR ICON.................................................................................28
POWER SAVING MODE.......................................................................30
NORMAL MODE .................................................................................30
HIGH PERFORMANCE MODE...............................................................31
DVD PLAY MODE..............................................................................31
DYNAMIC SWITCH MODE....................................................................32

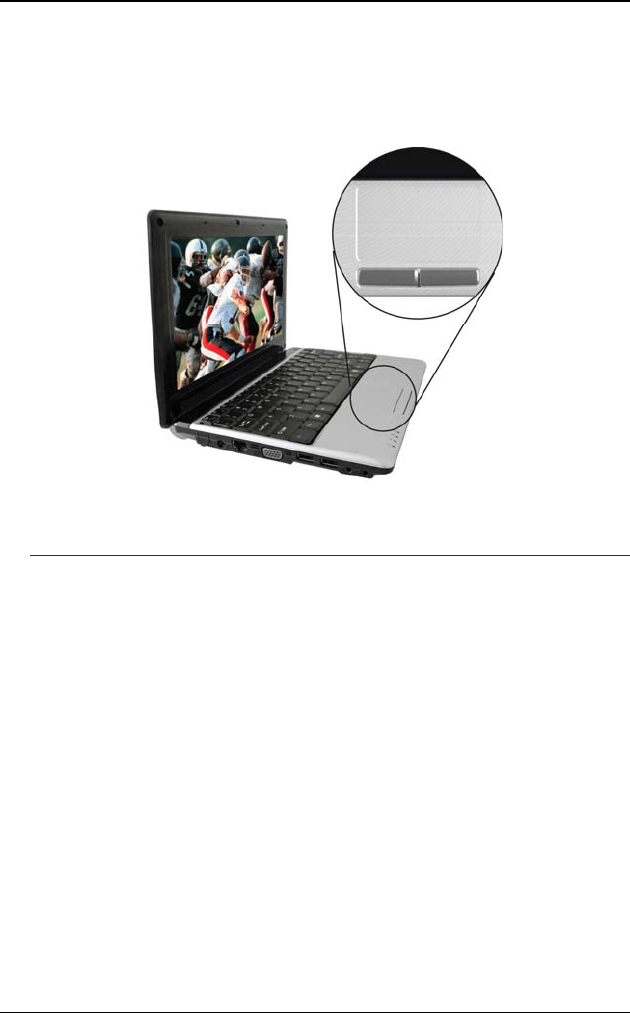

TOUCHPAD PRECAUTIONS .................................................................33
THE BATTERY POWER SYSTEM ..........................................................34
PREPARING THE BATTERY PACK FOR USE (BATTERY CALIBRATION) ....34
AUTOMATIC BATTERY PACK CHARGING FUNCTION..............................35
BATTERY STATUS..............................................................................35
BATTERY LOW WARNING ...................................................................35
SMALL BATTERY FOR THE REAL TIME CLOCK......................................36
HELP WINDOWS ................................................................................37

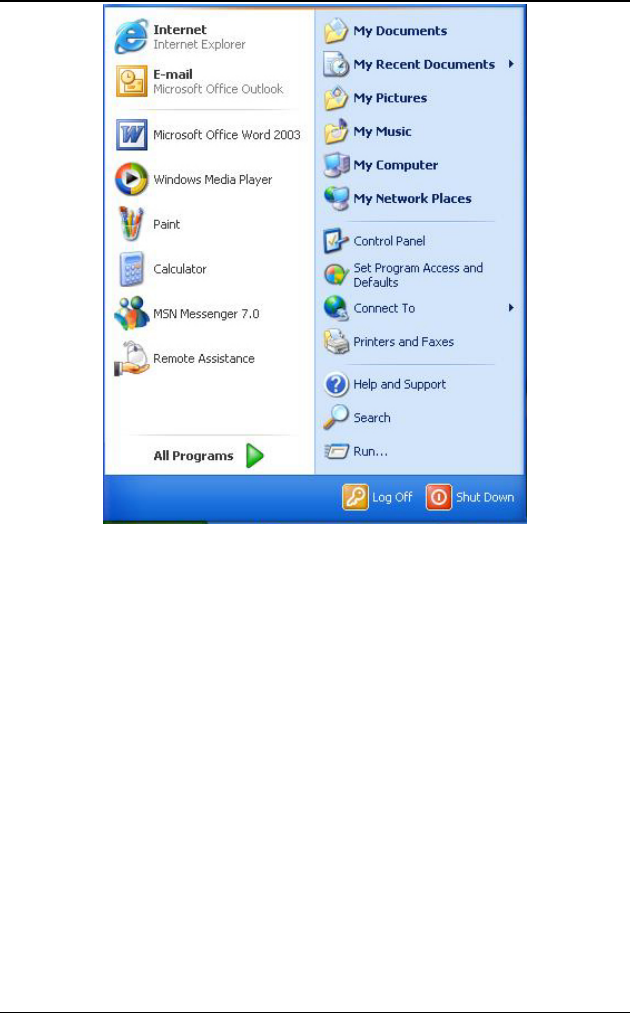

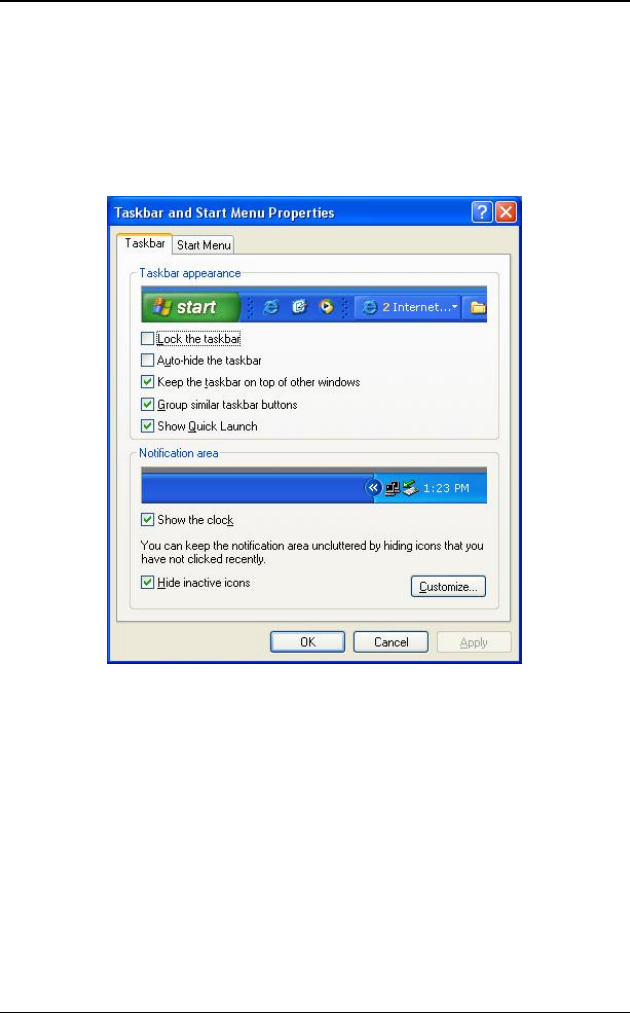

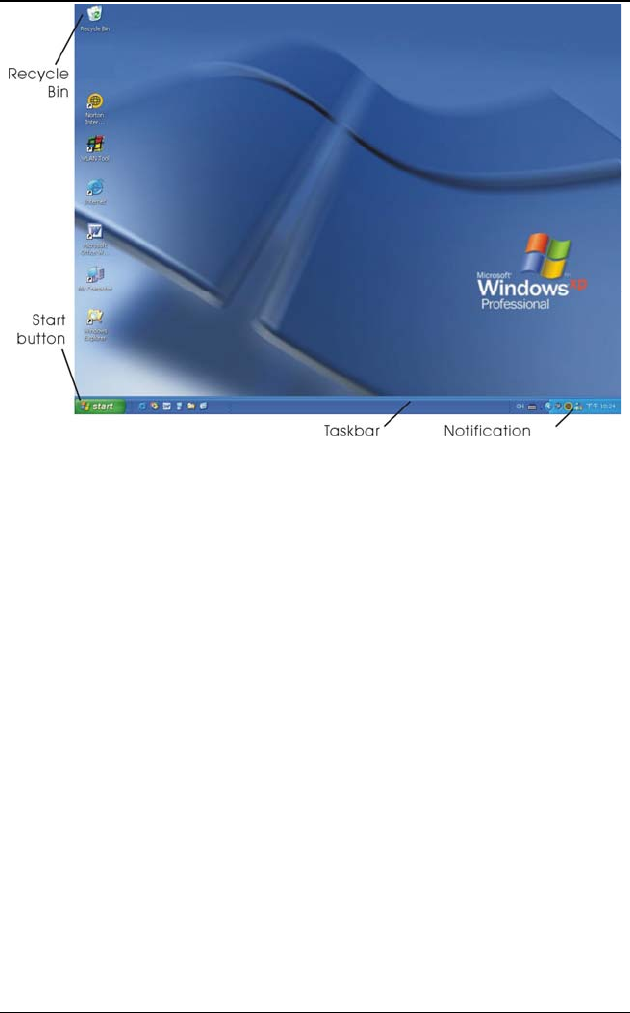

DESKTOP ..........................................................................................37

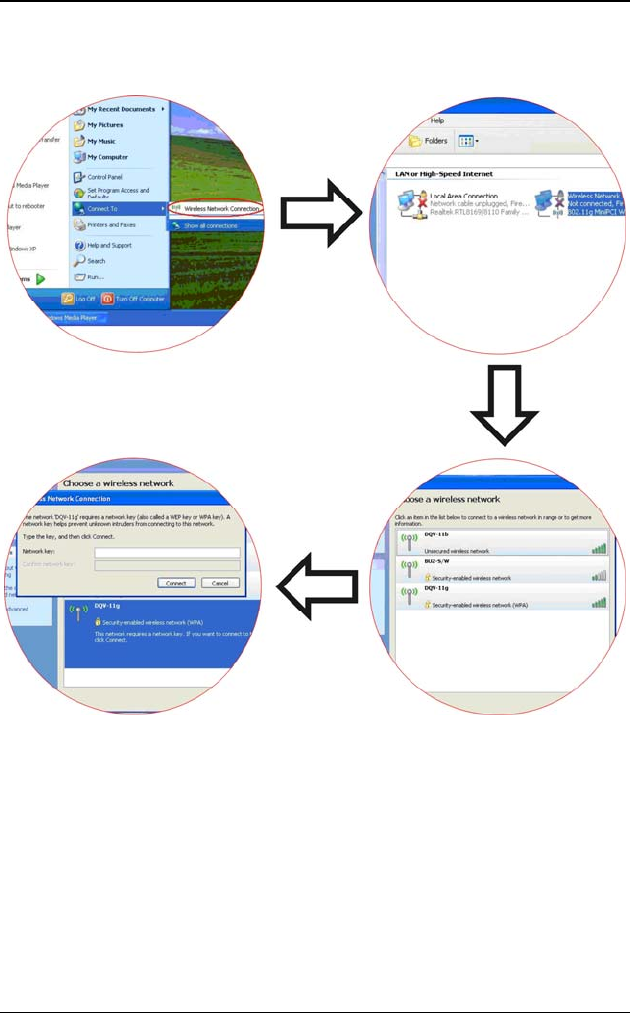

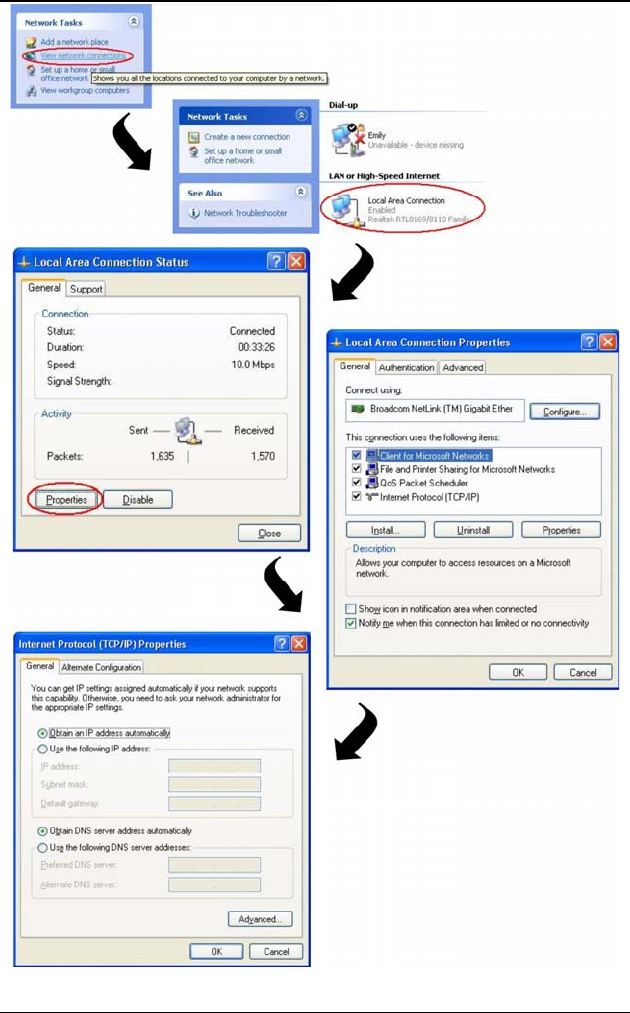

INTERNET CONNECTION ........................................................................43

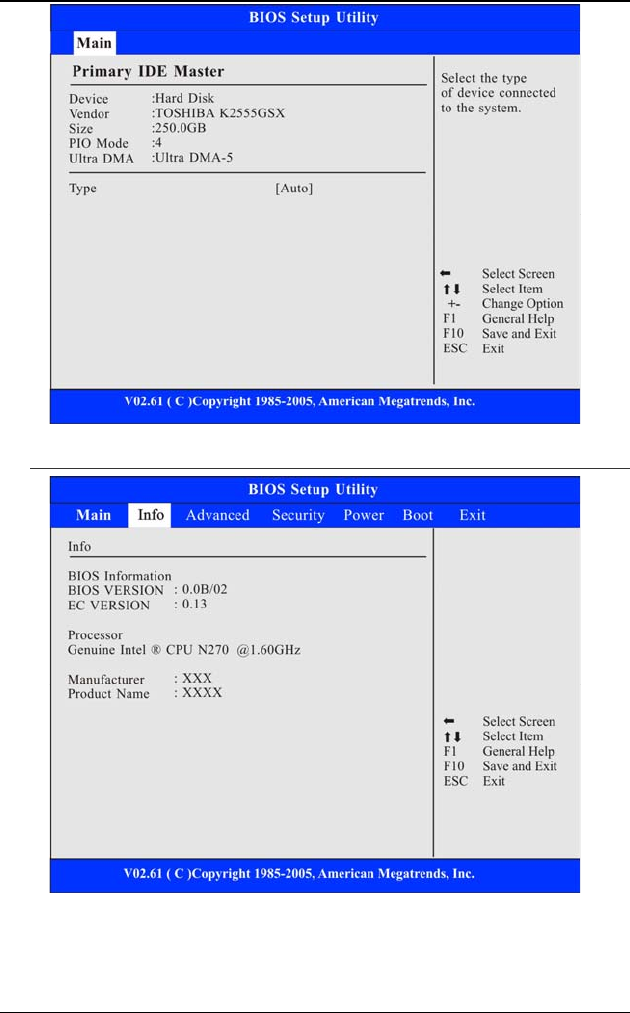

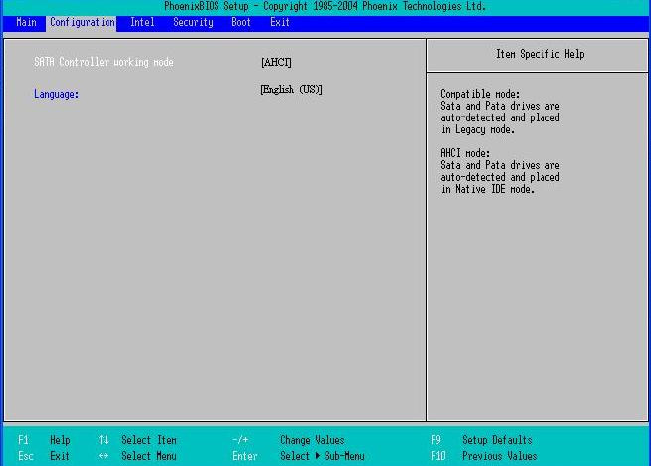

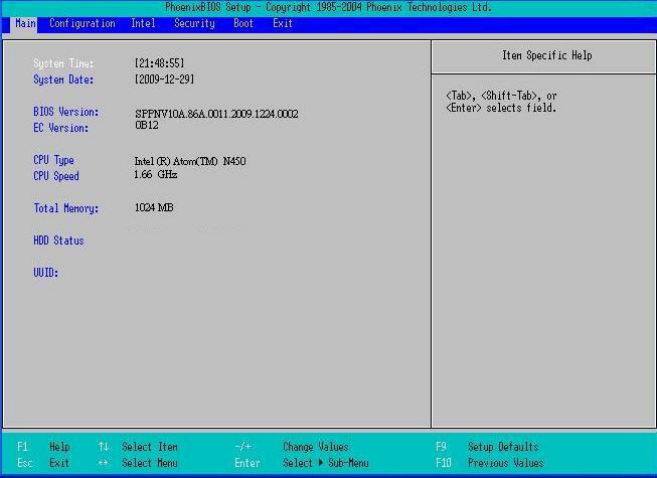

RUNNING BIOS SETUP .........................................................................48
MAIN SETUP .....................................................................................49
INFO SETUP ......................................................................................50
ADVANCED SETUP.............................................................................51
SECURITY .........................................................................................51
POWER SETUP..................................................................................52
BOOT SETUP.....................................................................................52
iv

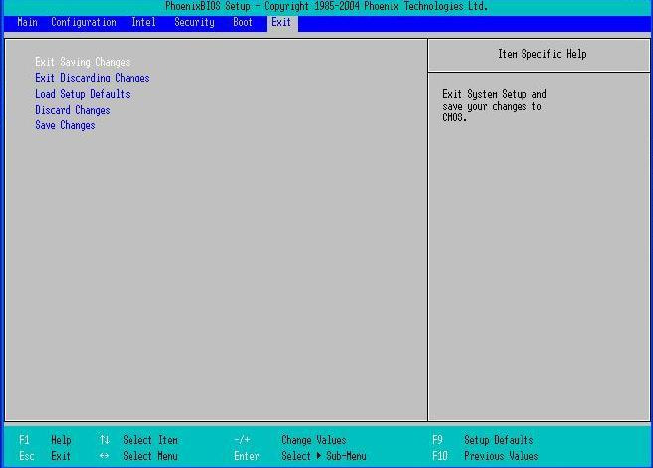

EXIT SETUP ......................................................................................53

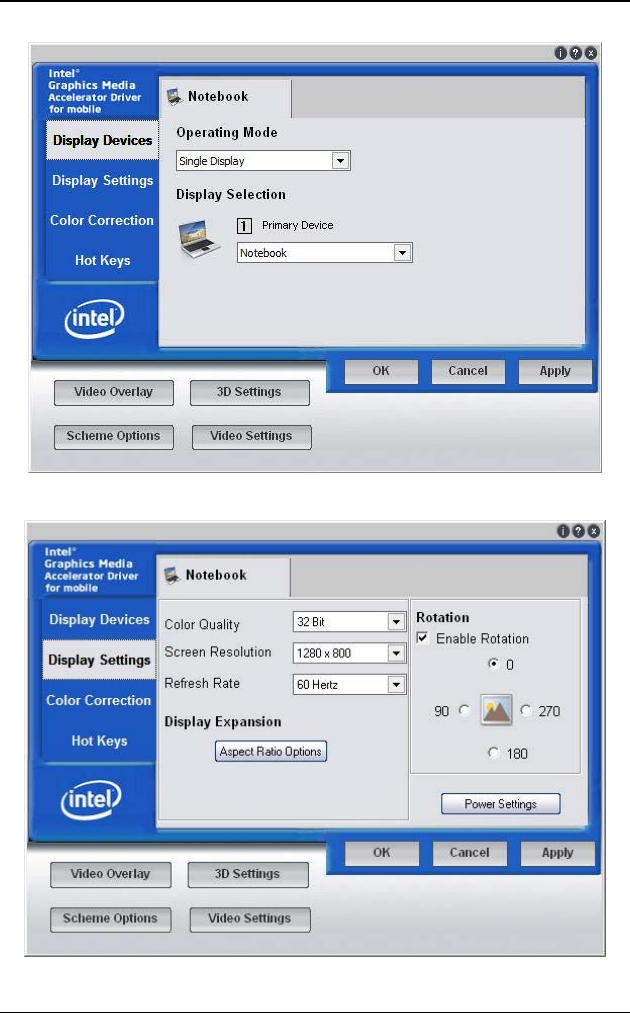

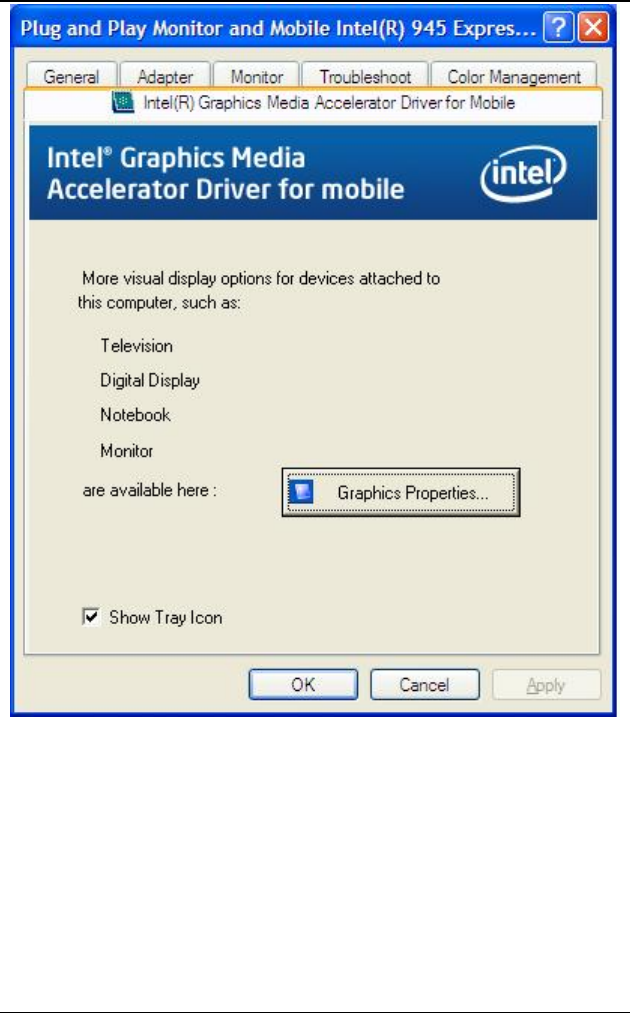

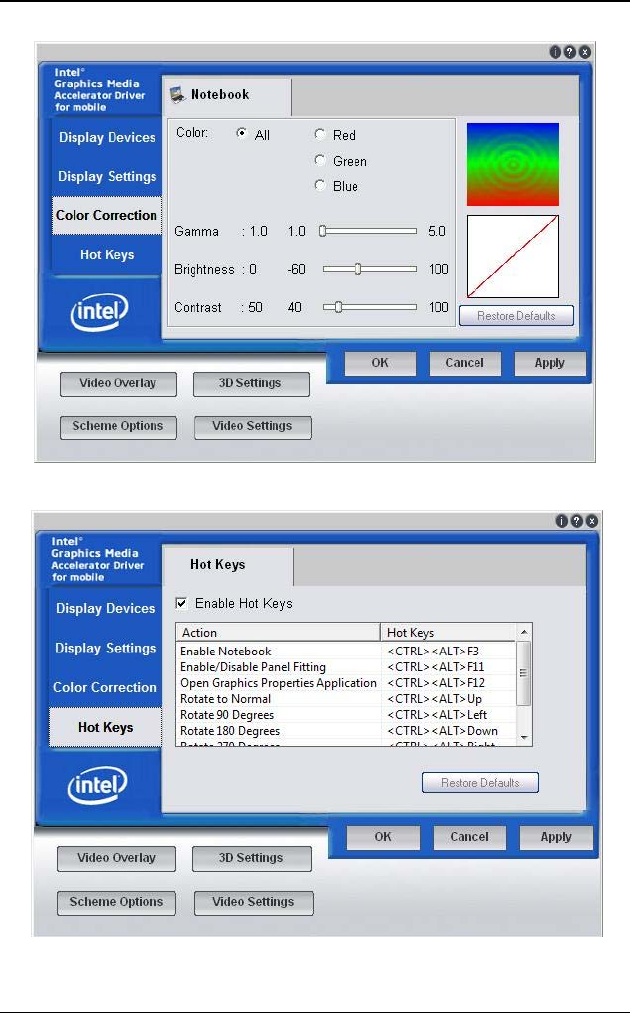

VGA UTILITIES .....................................................................................58

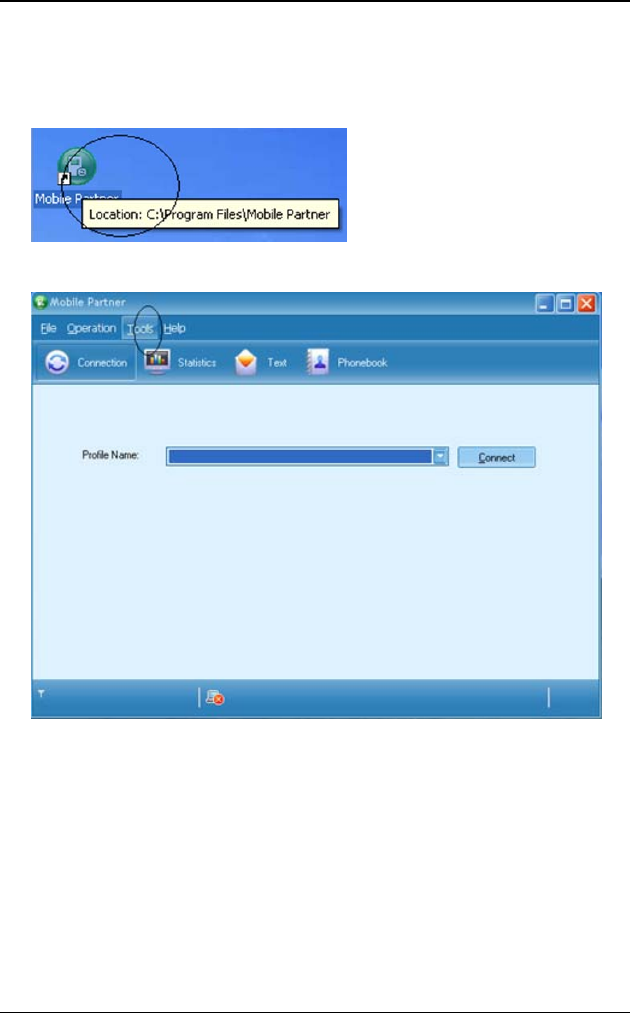

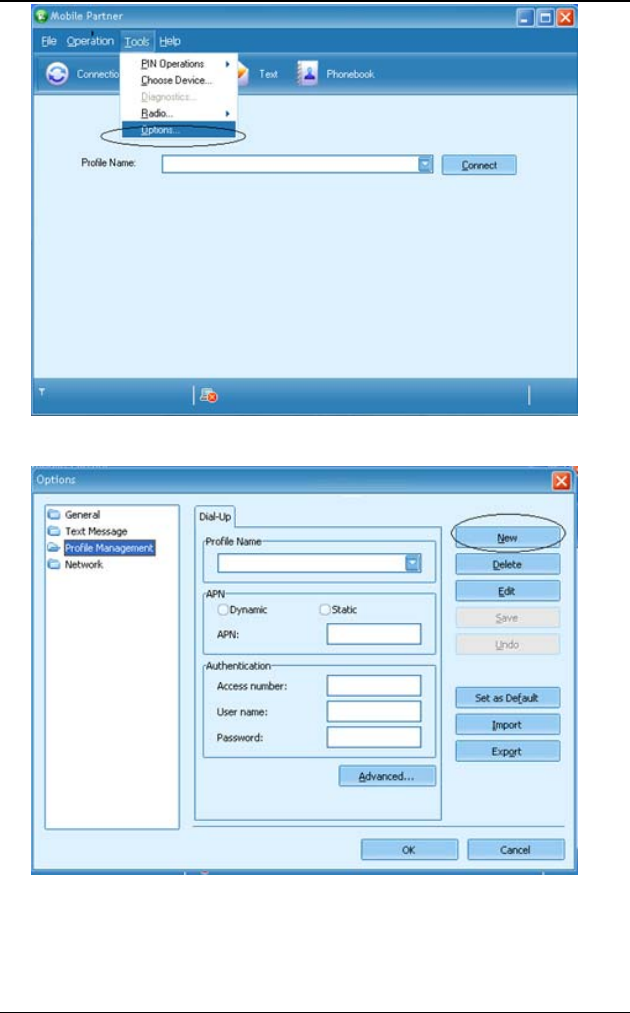

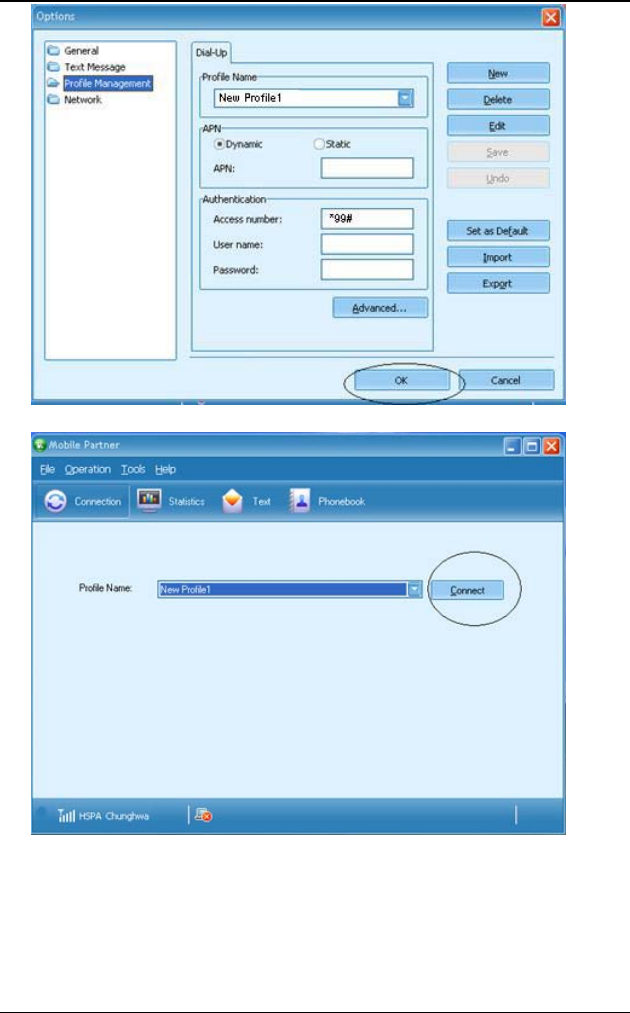

3G CONNECTION ..................................................................................64
TROUBLESHOOTING ..............................................................................69
NO SPEAKER OUTPUT ........................................................................70
SOUND CANNOT BE RECORDED ..........................................................70
THE HARD DISK DRIVE DOES NOT WORK OR IS NOT RECOGNIZABLE .......71
THE HARD DRIVE IS MAKING ABNORMAL WHINING NOISES .....................71
THE HARD DISK DRIVE HAS REACHED ITS CAPACITY .............................71
THE HARD DISK TAKES LONGER TO READ A FILE...................................72
THE FILES ARE CORRUPTED ...............................................................72
THE DISPLAY PANEL IS BLANK WHEN THE SYSTEM IS TURNED ON ..........72
THE SCREEN IS DIFFICULT TO READ ....................................................72
THE SCREEN FLICKERS ......................................................................72
THE BUILT-IN TOUCH PAD PERFORMS ERRATICALLY .............................72
THE BUILT-IN KEYBOARD ACCEPTS NO INPUT .......................................73
THE CHARACTERS ON THE SCREEN REPEAT WHILE I TYPE ....................73
A MESSAGE “CMOS CHECKSUM FAILURE” DISPLAYS DURING THE
BOOTING PROCESS OR THE TIME (CLOCK) RESETS WHEN BOOTING .......73
THE POST DOES NOT SHOW AN INCREASED MEMORY CAPACITY WHEN
YOU HAVE ALREADY INSTALLED ADDITIONAL MEMORY ..........................73
THE O/S ISSUES AN INSUFFICIENT MEMORY ERROR MESSAGE DURING
OPERATION .......................................................................................74
PC CARDS DO NOT FUNCTION ............................................................74
THE PC CARD CANNOT BE RECOGNIZED .............................................74
WINDOWS CRASHES OR FREEZES WHEN YOU REMOVE THE PC CARD ...74
THE COMPUTER BECOMES HOT ..........................................................75
THE PROGRAM APPEARS STOPPED OR RUNS VERY SLOWLY .................75
THE USB DEVICE DOES NOT WORK ....................................................75
SPECIFICATION .....................................................................................77
1
2
B
Be
ef
fo
or
re
e
y
yo
ou
u
S
St
ta
ar
rt
t
Conventions of This Manual
Use this manual will help you get the most from your notebook
computer.
¾ If you are an experienced user of computers and/or
Microsoft’s Windows operating systems, you might find it
useful to read the Quick Start Guide that comes along with
your accessories.
¾ If you are a less experienced user, you should through the
manual carefully before using your system.
Whether or not you are an experienced user, you should consult
on the Troubleshooting Chapter if you encounter any problems
with your notebook.
Safety Precautions
This section is designed to assist you in identifying potentially
unsafe conditions while working with this product. Required safety
features have been installed in the computer to protect you from
injury. However, you should use good judgment to identify potential
safety hazards:
1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from AC outlet before
cleaning. Don't use liquid or sprayed detergent for cleaning.
Use moisture sheet or cloth for cleaning.
4. For pluggable equipment, that the socket-outlet shall be
installed near the equipment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when installed. A
drop or fall could cause injury.
3
7. Make sure to use the right voltage for the power source when
connecting the equipment to the power outlet.
8. Place the power cord in such a way that people can not step
on it. Do not place anything on top of the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not use for a long time, disconnect the
equipment from the main power outlet to avoid being damaged
by transient overvoltage.
11. Never pour any liquid into the opening, this could cause fire or
electrical shock.
12. Never open the equipment. For safety reason, the equipment
should only be opened by a qualified service personnel.
13. If on the following situations arises, get the equipment
checked by a service personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not worked well or you cannot get it
work according to the user's manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage.
14. Do not leave this equipment in an environment unconditioned,
storage temperature above 60°C (140°f), it may damage the
equipment.
15. The unit can be operated at an ambient temperature of max.
35°C.
16. The sound pressure level at the operators position according
to IEC 704-1: 1982 is equal or less than 70 dB(A).
17. Power Cord Requirements
The power cord set used with the AC adaptor must meet the
requirements of the country where you use the AC adaptor,
whether it is 100-120 or 200-240 Vac. The following
information explains the requirements for power cord set
selection.
The cord set must be approved for the country in
which it is used.
The appliance coupler must have a configuration for
mating with a CEE7/EN60320/IEC 320/NEMA/ JIS C
8303 appliance inlet.
A. For U.S. and Canada:
The cord set must be UL Listed and CSA Certified.
4
The minimum specifications for the flexible cord are
No. 18 AWG, (2) Type SPT-2, and (3) 2-conductor.
B. For Japan:
All components of the cord set must bear a “PSE”
mark and in accordance with the Japanese Dentori
Law.
The minimum specifications for the flexible cord
are .75m ㎡ conductors, (2) Type VCTR or VCTFK,
and (3) 2-conductor.
The cord set must have minimum rated current
capacity of 7 A.
The attachment plug must be a two-pole, grounded
type with a Japanese Industrial Standard C8303 (15
A, 125 VAC) configuration.
C. For Other Countries:
The cord set fittings must bear the certification mark
of the agency responsible for evaluation in a specific
country.
The flexible cord must be of a HAR (harmonized)
type H03VVH2-F.
The cord set must have a current capacity of a least
2.5 Amperes and voltage rating of 125 or 250 Vac.
CAUTION: MODEL U10IL1(x=0~9) IS DESIGNED TO USE WITH
THE FLLOWING AC ADAPTER MODEL ONLY
Manufacture: Dee Van Enterprise Co., Ltd.
Model: DSA-30PFA-19US (30W)
Model: DSA-30PFA-19UK (30W)
Model: DSA-30PFA-19EU (30W)
Model: DSA-30PFA-19CH (30W)
Manufacture: Delta Electronics, Inc.
Model: ADP-40PH AB (40W)
Manufacture: Lite-on International Enterprise Corp.
Model: PA-1400-11 (40W)
18. When using your telephone equipment, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons. These precautions
includes the following:
¾ Do not use this product near water, for example, near a
bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
5
¾ Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
¾ Do not use the telephone to report a gas leak in the
vicinity of the leak.
¾ Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special
instructions.
19. Do not use the AC adapter near open water or other liquids.
Never spill liquid into the AC adapter.
20. Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer's instructions. Never remove the battery pack
while the power is on as this may result in data loss when the
system loses power.
21. The input receptacle is used as the main disconnecting device.
This part is hot. Be careful.
Wichtige Sicherheitshinweise
1. Bitte lesen Sie diese Hinweis sorgfältig durch.
2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen.
Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am
besten eignet sich ein angefeuchtetes Tuch zur Reinigung.
4. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht
und leicht zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu
achten. Ein Kippen oder Fallen könnte Beschädigungen
hervorrufen.
7. Beachten Sie beim Anschluß an das Stromnet die
Anschlußwerte.
8. Verlegen Sie die Netzanschlußleitung so, daß niemand
darüber fallen kann. Es sollte auch nichts auf der Leitun
abgestellt werden.
9. Alle Hinweise und Warnungen, die sich am Gerät befinden,
sind zu beachten.
10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt,
sollten Sie es vom Stromnetz trennen. Somit wird im Falle
6
einer Überspannung eine Beschädigung vermieden.
11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände
oder Flüssigkeien in das Gerät gelangen. Dies könne einen
Brand bzw. Elektrischen Schlag auslösen.
12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen
der elektrischen Sicherheit nur von authorisiertem
Servicepersonal geöffnet werden.
13. Wenn folgende Situationen auftreten ist das Gerät vom
Stromnetz zu trennen und von einer qualifizierten Servicestelle
zu Überprüfung.:
a. Netzlabel oder Netzstecker sind beschädigt.
b. Flüssigkeit ist in das Gerät eingedrungen.
c. Das Gerät war Feuchtigkeit ausgesetzt.
d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend
funktioniert oder Sie mit Hilfe dieser Anleitung keine
Verbesserung erzielen.
e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
14. VORSICHT: Explosiongsgetahr bei unsachgemäßen
Austausch der Batterie. Ersatz nur durch denselben oder
einem vom Hersteller empfohlenem ähnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von
maximal 35ºC.
16. Die Ausgangswerte dürfen nicht die auf dem Label
angegebenen Werte überschreiten.
17. Anforderungen an das Stromkabel
Das Kabel-Set, das an das Netzteil angeschlossen wird, muss
den Anforderungen des Landes, in dem Sie das Netzteil
einsetzen, genügen, je nachdem, ob die Netzspannung 100-
120 oder 200-240V Wechselspannung beträgt.
Das Kabel-Set muss für das Land, in dem es
eingesetzt wird, zugelassen sein.
Der Gerätestecker des Kabels muss in eine
CEE7/EN60320/IEC 320/NEMA/ JIS C 8303 Buchse
passen.
A. Für die USA und Kanada:
Das Kabel-Set muss UL-gelistet und CSA zertifiziert
sein.
7
Die Minimalanforderungen für das Kabel
entsprechen No. 18 AWG. (2) Type SPT-2, und (3)
2-conductor.
B. Für Japan:
Alle Teile des Kabel-Sets müssen entsprechend
dem japanischen Dentori Law mit einem
„PSE“ markiert sein
Die Minimalanforderungen für das Kabel sind .75m
㎡ Leiter. (2) Type VCTF oder VCTFK, und (3) 2-
conductor.
Der Kabelsatz muss mindestens für eine
Stromstärke von 7A geeignet sein.
Der Wandstecker muss ein zweipoliger geerdeter
Steckertyp gemäß dem Japanese Industrial
Standard C8303 (15A, 125 VAC) sein.
C. Für andere Länder:
Die Zubehörteile des Kabel-Sets müssen das
Prüfsiegel derjenigen Stelle, die in dem jeweiligen
Land für die Sicherheitsprüfung zuständig ist, tragen.
Das Kabel muss vom HAR (harmonisierten) Typ
H03VVH2-F sein.
Das Kabel-Set muss eine Stromkapazität von
mindestens 2,5 Ampere haben und Spannungen von
125 oder 250 V Wechselstrom gestatten.
ACHTUNG: Mit dem U10IL1(x=0~9) muss ein AC-Adapter
folgenden Modells verwendet werden
Hersteller: Dee Van Enterprise Co., Ltd.
Modell: DSA-30PFA-19US (30W)
Modell: DSA-30PFA-19UK (30W)
Modell: DSA-30PFA-19EU (30W)
Modell: DSA-30PFA-19CH (30W)
Hersteller: Delta Electronics, Inc.
Modell: ADP-40PH AB (40W)
Hersteller: Lite-on International Enterprise Corp.
Model: PA-1400-11 (40W)
18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die
grundlegenden Sicherheitsmaßnahmen beachten, um das
Risiko von Feuer, Stromschlägen und Verletzungen zu
minimieren. Zu beachten sind u.a. folgende Punkte:
8
¾ Benutzen Sie das Gerät nicht in der Nähe von Wasser,
wie zum Beispiel Badewanne, Waschbecken,
Spülbecken, Waschbottich, in feuchten Kellerräumen
oder in der Nähe von Schwimmbecken.
¾ Benutzen Sie kein Telefon (ausgenommen schnurlose
Modelle) während eines Gewitters. Es besteht das
geringe Restrisiko eines Blitzschlages.
¾ Benutzen Sie das Telefon nicht um ein Gasleck zu
melden, falls es sich in der Nähe des Lecks befindet.
¾ Verwenden Sie nur die in diesem Benutzerhandbuch
angegebenen Stromkabel und Batterien. Werfen Sie die
Batterien nicht ins Feuer, sie könnten explodieren.
Informieren Sie sich über die örtlichen Bestimmungen
bezüglich der Entsorgung.
19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu
Wasser oder anderen Flüssigkeiten. Gießen Sie nie
Flüssigkeiten über das Netzteil.
20. Es besteht Explosionsgefahr, wenn der Akku nicht
ordnungsgemäß ersetzt wird. Ersetzen Sie den Akku nur
durch einen Akku gleichen oder äquivalenten Typs, der vom
Hersteller empfohlen wird. Entsorgen Sie Akkus entsprechend
den Anweisungen des Herstellers. Entfernen Sie den Akku auf
keinen Fall bei eingeschaltetem notebook, da hierdurch Daten
verloren gehen könnten.
21. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.
Things you must remember before working on
your computer
Let your computer acclimate itself
Your notebook can easily stand temperature extremes but it
doesn’t like rapid changes in temperature, like going from the cold
outdoors to a warm office.
Rapid changes in temperature can cause water droplets to
condense inside your case, threatening to damage the electronic
parts inside.
After receiving your notebook when it’s hot or cold outside, try not
to power up the computer immediately, let the computer adjust to
the room temperature gradually at least for three to four hours.
If your system arrives in cold
9
weather, do not apply power to the computer or monitor until
they have been allowed to come to room temperature.
Heat, Cold, Humidity, and Glare
Find a suitable place for your computer that’s not too hot, too cold,
too dark, or too bright. Glare can make it hard to read the screen.
¾ Try to avoid the computer components from being destroyed
if it is over heated, so try to allow plenty of room for air to
circulate around the case.
¾ Do not block the ventilation opening.
¾ Do not place your computer in direct sunlight.
Suitable place to work
Your computer will run well wherever you’re comfortable but
extremes of temperature and humidity can be challenging to your
system’s parts.
There are some things you can tolerate that the computer can’t –
things like static electricity, dust, water, steam and oil. In case you
decide to pull over for roadside computing, try to choose a clean,
comfortable work area for your system.
A lithium-ion battery pack will be available when you are traveling.
If you are running your system for the first time on battery power,
remove the battery from the package, install it into the system and
recharge the battery to fully prepare for service.
10
11
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Preparing your Computer
1. Install the battery pack
2. Connecting the AC adapter
3. Opening the display panel
4. Turning on your computer
Knowing your Computer
With the LCD screen open, you will see several features important
for operating your notebook computer.
12
To avoid damage to the display
panel:
1. Try not to slam the display upon closing it.
2. Try not to place any object on top when it is closed or open.
3. Be sure the system is turned off or in suspend mode before
you close the display panel.
Front View
13
1. Camera
2. LCD Display
This LCD panel can only support up to
a maximum opening of 130-135 degrees, please do not push it
forcibly.
3. Built-in Speaker
4. Keyboard
The keyboard differs for each territory
5. Power / Suspend Button
¾ Press for 1~1.5 seconds to turn on the system.
¾ Press and hold for at least 4 seconds to turn off the
system.
¾ Press the power / suspend button again to return from
the suspend mode.
¾ Persistent blue light indicates the Power is ON
6. Touchpad
7. Touchpad Buttons
8. LED Status Indicator
System & Power Status Indicators
14
LED Graphic
Symbol Indication
Green light indicates the system is ON. Blinking blue light
indicates the notebook is in suspend mode.
Green light indicates the WLAN/Bluetooth/HSPA is active.
Battery status
Charging – Orange
Full – Green
Low – Red
Blue light indicates the hard drive and/or optical drive is
being accessed.
Left Views
15
1. Modem Port (Optional)
Always disconnect all telephone lines
from the wall outlet before servicing or disassembling this
equipment. To reduce the risk of fire use only No. 26 AWG or
larger telecommunication line cord.
2. DC In
3. Ethernet / LAN Port
When using a LAN, please use an EMI
Shielding Cable to minimize an inteference when transmitting.
4. CRT Port
5. Enhanced USB 2.0 Port
This strengthen USB power sourse for
the USB port, the function lets users when using any other
major big power consumption USB device in avoiding
creating any harm to the USB port.
When using any External USB
Device, only use the approve cable provided by the
manufacturer. Using other cable where it affect the current
flow will cause undetermined damage. Not suitable to use any
3.5” or 5.25” USB ODD or HDD
6. USB 2.0 Port
7. Microphone/Audio Line-in Jack
8. Stereo Headphone Jack
16
Right View
1. USB 2.0 Port
2. Kensington Lock
17
Bottom View
1. Battery Release Latch
2. Internal Microphone
3. Battery Compartment
4. Battery Lock
18
19
G
Ge
et
tt
ti
in
ng
g
S
St
ta
ar
rt
te
ed
d
Connecting to a Power Source
Connecting the AC Adapter
A universal AC adapter is provided to supply your computer with
power and also charge the computer’s battery pack. The adapter’s
AC input voltage can range anywhere from 100 to 240 volts,
covering the standard voltages available in almost every country.
To connect the computer to an external power source:
Do not use inferior extension
cords as this may result in damage to your notebook. The
notebook comes with its own AC adapter. Do not use a
different adapter to power the computer and other electrical
devices.
20
Whenever possible, keep the AC adapter plugged into the
notebook and an electrical outlet to recharge the battery.
Never turn off or reset your
notebook while the hard disk is in use status icon is lit; doing
so can result in loss or destruction of your data. Always wait
at least 5 seconds after turning off your notebook before
turning it back on; turning the power on and off in rapid
succession can damage the notebook’s electrical circuitry.
Turning On Your Notebook Computer
Hold the button down for a second or two and release. The Power-
On Self Test (POST) runs automatically.
After the POST is completed, the computer reads the operating
system from the hard disk drive into computer memory (this is
commonly referred to as “booting” a computer). If your OS
(Operating System such as Windows XP…. etc) is installed, it
should start automatically.
To turn the notebook off, save your work and close all open
applications, click on Start, then Shut Down and select Shut
down the computer and click "Yes" or press the power button for
4-6 seconds.
Operating on Battery Power
Your computer comes with a rechargeable battery pack that lets
you operate the computer without an external power source.
When the battery pack is fully charged, you can operate the
computer under the following conditions:
¾ The battery pack initially has a full charge.
¾ No peripheral devices are installed.
Only use batteries that are
approved by an authorized dealer. All batteries are not the
same and therefore should not be treated as such. Using the
wrong battery could cause serious damage to your computer
and yourself through toxic emissions.
Danger of explosion if battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used
21
batteries according to the manufacturer’s instructions or local
laws.
Explisionsgefahr bei unsachgernazen
Austausch der Batterie. Ersatz nur durch denselben oder
einem vom Hersteller empfohlenem ahnlichen Typ.
Entsorgung gebrauchter Batterien navh Angaben des
Herstellers.
Installing and Removing the Battery Pack
To Install the Battery Pack:
22
To Remove the Battery Pack:
Charging the Battery Pack
The installed battery pack charges automatically any time the
computer is connected to the AC adapter and an external power
source. It is a good idea to occasionally discharge the battery
pack fully to preserve its operating performance.
23
24
U
Us
si
in
ng
g
t
th
he
e
N
No
ot
te
eb
bo
oo
ok
k
C
Co
om
mp
pu
ut
te
er
r
Adjusting the LCD Screen Display
The LCD screen display can be adjusted by the following key
combinations.
+ - Changes Display Mode: LCD-only, CRT-
only, LCD/CRT simultaneously
+ - Increases the brightness level.
+ - Decreases the brightness level.
LCD Care
LCD screens are delicate devices that need careful handling.
Please pay attention to the following precautions:
¾ When you are not using the computer, keep the LCD screen
closed to protect it from dust.
¾ If you need to clean your LCD screen, use a soft tissue to
gently wipe the LCD surface.
¾ Do not put your fingers or sharp objects directly on the
surface and never spray cleaner directly onto the display.
¾ Do not press on, or store any objects on the cover when it is
closed. Doing so may cause the LCD to break.
25
External CRT Display
You can hook up an external monitor through the 15-pin CRT
connector. Three configurations are available:
¾ LCD only
¾ CRT only
¾ LCD and CRT simultaneously
You can switch between these display configurations by pressing
the key combination [Fn] + [F4].
The Notebook’s Hot Key Controls
Function Keys (Quick Keys)
+ - Bluetooth on/off.
+ - Enters the Suspend Mode.
+ - HSPA on/off
+ - WLAN on/off
+ - Changes Display Mode: LCD-only, CRT-
only, LCD/CRT simultaneously
+ - Increases the speaker volume.
26
+ - Decreases the speaker volume.
+ - Increases the brightness level.
+ - Decreases the brightness level.
+ - Enable/Disable the Touchpad
+ - Mute the system volume
+ - Enable/Disable the silent mode
+ - Enable/Disable the camera application
On Screen Display (OSD)
OSD (On Screen Display) provides you an easy access to the
function key you normally use in executing some of the application
you would like to perform.
Other alternative is by executing the hot key combination we
provide which is imprinted on the upper portion of the keyboard.
After you activate the function key, the icon will be shown at the
upper right hand corner of your window screen.
Screen Display Icon
T/P On/Off or Fn + F9
WebCam On/Off or Fn + F12
Silent Mode On/Off
27
Caps Locks
Num Locks
Scroll Locks
WLAN On/Off or Fn + F3
BlueTooth On/Off or Fn + Esc
3G On/Off or Fn + F2
Brightness or Fn + F7/Fn + F8
Mute On/Off or Fn + F10
Volume or Fn + F5/Fn + F6
Previous
Play/Pause
Next
Stop
Fast Forward
Rewind
Web Browser
28
OSD-Bar Icon
Caps Locks On
Num Locks On
Scroll Locks On
Silent Mode ON
Touchpad Off
WLAN On
Web Cam On
Bluetooth On
Mobile Broadband On
The OSD bar can be shown on the side bar or you can drag it
anywhere either on top (horizontally) or on the sides (vertically) of
your screen.
Horizontally
Top or Bottom
Vertically
Right or Left
Live Power (Optional)
Live Power is a saving scheme technique that provides saving your
battery consumption by disabling some devices thus extending the
battery life.
Click on the Live Power icon
from the lower right bar
of your screen to open up the
Live Power Display.
The Live Power provides five modes according to the application
that you are executing:
¾ Power saving mode: Provides the low consumption
function, suitable for low utilization ratio and suspend mode.
29
¾ Normal mode: Provides for general work status.
¾ High Performance mode: For highest efficiency condition.
¾ DVD player mode: Provide for watching movie playback.
¾ Dynamic mode: For system power utilization mode,
switching the CPU loading and battery life to appropriate
mode.
This Live Power application provides a super saving options if the
following items are selected:
Enable advance power saving engine
The system will take over and switch to an appropriate power
mode automatically. How the system manages with the switching
will depend on the models that you are using.
Power Off LCD panel
When the system is powered by the battery and the CPU loading is
low, the LCD panel will be powered off to save the battery
consumption after a 10-minutes interval with no operation from
your system and USB-attached keyboards, mouse, touchpad,
Webcam, and any DVD player software like Media player.
30
Power Saving Mode
LCD Brightness: Level 1
LCD Off: Idle after 5 minutes
HDD Off: Idle after 3 minutes
Sleep: Idle after 5 minutes
Hibernate: Idle after 10 minutes
Normal Mode
LCD Brightness: Level 5
LCD Off: Idle after 15 minutes
HDD Off: Idle after 30 minutes
Sleep: Idle after 1 hour
Hibernate: Idle after 2 hours
31
High Performance Mode
LCD Brightness: Level 5
LCD Off: Never
HDD Off: Never
Sleep: Never
Hibernate: Never
DVD Play Mode
LCD Brightness: Level 5
LCD Off: Idle 4 hours
HDD Off: Idle after 4 hours
Sleep: Idle after 1 hour
Hibernate: Idle after 2 hours
32
Dynamic Switch Mode
CPU Loading
High Middle plus Middle Low
Battery
life% 50% up 30% up 4%up <4%
level
5
90%
up
High Performance
mode
High Performance
mode
High Performance
mode
Normal
mode
level
4
50%
up
High Performance
mode
High Performance
mode Normal mode Normal
mode
level
3
30%
up
High Performance
mode Normal mode Normal mode Power
Saving mode
level
2
15%
up Normal mode Normal mode Power Saving
mode
Power
Saving mode
level
1
6%
up Normal mode Power Saving
mode
Power Saving
mode
Power
Saving mode
level
0
less
than
5%
Power Saving
mode
Power Saving
mode
Power Saving
mode
Power
Saving mode
The CPU load is automatically shown on
the application display indicating the power saving mode.
33
The TouchPad
The touchpad is a rectangular electronic panel located just below
your keyboard. You can use the static-sensitive panel of the
touchpad and slit it to move the cursor. You can use the buttons
below the touchpad as left and right mouse buttons.
TouchPad Precautions
The TouchPad is a pressure sensitive device. Please take note of
the following precautions.
¾ Make sure the TouchPad does not come into contact with dirt,
liquids or grease.
¾ Do not touch the TouchPad if your fingers are dirty.
¾ Do not rest heavy objects on the TouchPad or the TouchPad
buttons.
You can use the TouchPad with Microsoft Windows as well as non-
Windows applications.
Power Saving Modes
This section contains information on the notebook’s power system,
including the AC Adapter, the battery system, recharging the
battery, and tips for conserving battery power.
The power system is comprised of two parts, the AC Adapter and
the battery system. The AC Adapter converts AC power from a wall
outlet to the DC power required by the computer.
34
The Battery Power System
Before using the computer on battery power for the first time,
check the battery status icon on the Windows Toolbar to make
sure the battery is fully charged.
See Battery Status later in this section for a description and
explanation of the Windows Battery icon.
Charging the battery takes about 2.5 hours to charge when the
system is in off state. If possible, always charge the battery
completely.
If you use the battery so frequently that it
exceed more than 20 times by fully discharging/charging in a
single month alone, we recommend you to perform the
“Battery Calibration” process every 3 months to maintain the
battery life.
Please refer to the topic on “Battery Calibration” describing
how to calibrate your system battery discussed on the latter
part of this chapter.
If you discover the battery life is getting shorter, please
perform the “Battery Calibration” process immediately.
Removing the Battery Pack
To remove the battery pack from its compartment, please refer to
Chapter 3, Inserting and Removing the Battery Pack.
Preparing the Battery Pack for Use (Battery
Calibration)
Before using the battery pack for the first time, the Smart Battery
IC within the battery pack should be calibrated in order to get
accurate reporting of remaining battery life status.
To calibrate the battery pack follows the instructions below:
1. Insert the battery into the battery compartment and turn on the
notebook. If the battery is completely without power go to the
next step. Otherwise, let the battery run down until the
battery low-low warning beeps are heard. The system will
automatically enter Suspend mode.
2. Turn the notebook off. Connect the AC adapter and let the
battery fully recharge. When the battery charge indicator
turns off, the battery is fully charged.
35
3. Turn On the notebook, let the battery run down until the
battery is in low-low state and you hear a warning beeps.
The system will automatically enter the Suspend mode. You
can now connect the AC adapter.
4. The battery pack is now calibrated properly.
In general, using the battery until the low-low battery-warning
indicator appears and fully recharges the battery each time (full
discharge/charge cycle) will ensure the accurate reporting of the
battery gauge status.
Automatic Battery Pack Charging Function
To charge the battery, while the battery pack is in the notebook,
plug the AC adapter into the notebook and an electrical outlet.
The charging time is approximately 2.5 hours when the notebook is
turned off and approximately 3.5 hours when the notebook is
turned on.
When the battery is fully charged, the battery charge indicator
becomes off.
If system runs at heavy loading or in a
high temperature environment, the battery may not be fully
charged. You need to continue to charge it with the AC
adapter plugged in until the charging LED turns off.
Battery Status
Windows XP has an applet in the Control Panel that will display an
icon in the Windows taskbar indicating when the notebook is
running on battery power or is attached to the AC adapter. This
applet also displays a meter that indicates how much charge is
remaining in the battery.
Battery Low Warning
When the pack initially reaches the “Battery Low” state
approximately 7 ~ 10 minutes of the usable battery life is left.
You will hear an audible beep signal every 15 seconds alerting you
to the “Battery Low” status. When the battery power reaches the
“Battery Low Low” status the beeping sound will accelerate. Your
battery now has 1 ~ 2 minutes of battery charge remaining. You
must save your data or connect AC power immediately; otherwise,
you may lose your data.
36
Sound Meaning
Continuous
beeping every 5
seconds
Battery Low: Indicates that there is 7 to 10 minutes
charge remaining.
Beeping
accelerates
Battery Low Low: Indicates that there is 1 to 2
minutes of battery charge remaining. Save your
work and turn off the notebook, or connect the AC
adapter.
When there is only one minute of battery charge remaining, the
notebook will suspend to the HDD and power off. You should
connect AC power and resume to save your work.
Small Battery for the Real Time Clock
There is a small built-in battery pack that supplies power to the
system in order to maintain certain system information while the
power is off.
If the notebook is left without a power source for long period of
time, this battery will be exhausted and system information will be
lost.
Danger of explosion if battery is
incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions. Never remove the battery pack while the power
is on as this may result in data loss when the system loses
power.
Resetting the System
After installing a software application package, you may be
prompted to reset the system to load the changed operating
environment.
To reset the system, or “reboot,” press the [Ctrl]+[Alt]+[Delete]
keys simultaneously. This is known as “warm boot.” This key
combination acts as “software” reset switch when you encounter
hardware or software problems, which lock up the notebook.
If this key combination does not shut down the notebook, you can
reset the notebook by using the notebook’s power button. Should
the notebook lock up for some reason, pressing this button powers
the notebook off.
37
Adjusting the Brightness
To adjust the brightness on the LCD screen, press and hold down
the [Fn] key in the lower left hand corner of the keyboard and
press the [F8] key to reduce the brightness or [F7] to increase the
brightness.
Using the Windows
Help Windows
For Windows XP help, click Start ÎHelp and Support icon will
open the dialog box.
Desktop
Desktop may vary differently on the software installed in your
notebook with different or additional shortcuts.
38
Recycle Bin
Used for storing deleted files in case you want to recover and save
it in your system. The files will only be deleted from the Recycle
Bin permanently only if you empty it by right clicking your mouse
and select the “Empty Recycle Bin”.
Start Button
Allows easy access to all Windows programs.
39
The Start menu allows you to adapt and show the programs used
most frequently. If you wish to keep an item, right click the item and
click Pin to Start menu.
Log Off will enable the current user to log off and allows a new
user to log on.
Turn Off Computer allows you to shut down, restart, and Stand by
modes for power saving purposes.
Taskbar
When you open a program, its icon is displayed at the taskbar for
you to conveniently move between programs by clicking the
relevant button.
To add or remove toolbars from the taskbar: right click an empty
spot on the taskbar, select Toolbars Î choose the toolbar you
want to add.
40
Notification
The icons that appear here are for quick access to some programs
and computer functions that you frequently used. To prevent
Windows XP from hiding icons:
From an empty spot on the Taskbar, right click your mouse and
select the Properties, remove the checked mark on the Auto-hide
the taskbar.
Control Panel
It is in this area that you can change how Windows looks and
works. Click Start Î Control Panel dialog box. There are two
interfaces – Classic View.
41
42
43
I
In
nt
te
er
rn
ne
et
t
C
Co
on
nn
ne
ec
ct
ti
io
on
n
There are numerous ways to connect to the Internet. This may vary
from the user’s working environment as well as system
specifications.
¾ Using a modem and a telephone line (optional)
¾ Using a wired LAN
¾ Using a wireless LAN
¾ Bluetooth Connection
Using a modem for Connection to Internet
(optional)
¾ Use a telephone line to connect to the modem port of your
computer. Do not use a digital telephone line.
¾ Please apply to an Internet Service Provider (ISP) for Internet
service in order for you to connect the modem to the Internet
and use e-mail.
For more detail on the Network key,
please refer to your local ISP provider and follow the
procedures describe in the “ISP Installation Guide” to
proceed with the installation.
Using a wired LAN for Connection to Internet
For you connect to the Internet, a wired LAN environment normally
uses the company’s LAN or a broadband modem.
44
45
Using Wireless LAN Network for Connection
to Internet
Bluetooth Connection
Bluetooth is a developing, world wide, open, short-range radio
specification focused on communication between the Internet and
Net devices, plus it defines communication protocols between
devices and computers.
It connect wirelessly to your world: In home, at work, in motion and
at play.
Access the internet or your e-mail account from anywhere, anytime.
46
Press on the Bluetooth icon to connect other devices that have
this application.
This will be the display that will appear on your screen.
If the system detects any other devices, it will be shown as
illustrated in the Bluetooth setting window:
47
48
R
Ru
un
nn
ni
in
ng
g
B
BI
IO
OS
S
S
Se
et
tu
up
p
The Setup Utility is a hardware configuration program built into
your computer’s BIOS (Basic Input/Output System). It runs and
maintains a variety of hardware functions. It is menu-driven
software, which allows you to easily configure and change the
settings.
The BIOS contains manufacture’s default settings for the
computer’s standard operations. However, there are occasions
when you may be required to modify the default settings in the
BIOS.
The BIOS allows you to set up passwords to limit access to users.
This is an important feature because a great deal of vital
information is carried within the computer nowadays. Unauthorized
access can be prevented. Later in this chapter, you will learn how
to use this security feature.
Entering the BIOS Setup Screen
First turn on the power. When the BIOS performs the POST
(Power-On Self Test), press DEL key quickly to activate the BIOS
Setup Utility.
You may need to press DEL key fairly
quickly. Once the system begins to load Windows, you may
have to retry by cycle-power on again
Leaving the BIOS Setup Screen
When you have finished modifying the BIOS settings, exit the
BIOS. It takes a few seconds to record changes in the CMOS.
49
BIOS Action Keys
Function
Key Command Description
ESC Exit
Leaves a sub-menu to return to the
previous menu OR exits the BIOS setup
while saving changes.
F1 General Help Shows the Help Screen
F10 Save and Exit Saves changes and reboots the
computer.
<Tab> Select a field Selects the next field.
↑ Select an item Selects the next upper item.
↓ Select an item Selects the next lower item.
- Lower value Selects the next value within a field.
+ Higher value Selects the next value within a field.
Modifying the BIOS Settings
The BIOS setup main menu is subdivided into sub-menus. Each
menu item is described in this section.
Main Setup
Under this menu, you may change time/date and view basic
processor and system memory information.
50
Info Setup
51
Advanced Setup
Security
52
Power Setup
Boot Setup
53
Exit Setup
System Recovery
When you start to use this notebook,
kindly make a rescue disk by “System Recovery AP” to back
up your disk.” This application can be activated by: From
“Start”, click on the “System Recovery
This process enables you to restore your system whether your
system is damaged or for some other reason that you can not
operate your computer.
First turn on the power. When the BIOS performs the POST
(Power-On Self Test)
¾ Press F9 key quickly to activate the System Recovery
Program.
54
¾ Or click the “Quit” if you want to discontinue with the
application.
¾ Click the “Recover your computer” if you want to proceed.
55
¾ You will be asked whether you would like to proceed with the
recovery procedures.
¾ Click “OK” if you want to proceed or “Cancel” if you want to
discontinue with the recovery procedures.
This illustration will be shown twice after
you made the first decision in case you change your mind to
discontinue with the recovery procedures.
¾ The system will start with the recovery procedures.
56
¾ This illustration indicates the system has finished with the
recovery procedures.
57
58
V
VG
GA
A
U
Ut
ti
il
li
it
ti
ie
es
s
You can click the touchpad or mouse right button and select the
“Properties” item.
Select the “Display Settings” option to enter its window display.
Click on the “Advanced Settings” tab to enter “Plug and Play
Monitor on Mobile Intel ® 945 Express Chipset Family” window
display.
59
60
61
Display Devices
Display Settings
62
Color Correction
Hot Keys
63
64
3
3G
G
C
Co
on
nn
ne
ec
ct
ti
io
on
n
3G is the third generation of mobile phone standards and
technology. 3G enable users a wide range of more advanced
service while achieving greater network capacity through improved
spectral efficiency.
65
Press the hot key combination of Fn + F2 to start executing the
application.
Procedures in installing the application
¾ Insert the SIM card into the SIM slot.
¾ Execute the application by pressing the Mobile Partner icon
¾ From the Mobile Partner display window, click on the “Tools”
item
¾ Select the “Options”.
66
¾ Double click on the “Profile Management” and click on the
“New” tab
¾ Click on the “OK” tab.
67
¾ On the next window, click on the “Connect” tab.
¾ The HSPA is successfully connected
68
69
T
Tr
ro
ou
ub
bl
le
es
sh
ho
oo
ot
ti
in
ng
g
Your computer has been fully tested and complies with the system
specifications before shipping. However, incorrect operations
and/or mishandling may cause problems.
This chapter provides a reference for identifying and correcting
common hardware and software problems that you may encounter.
When you encounter a problem, you should first try to go through
the recommendations in this chapter. Instead of returning the
computer and waiting for repair, you may easily solve the problems
by considering the following scenarios and possible solutions. If
the error continues, contact your reseller for service information.
Before taking further actions, consider the following suggestions:
¾ Check to see if the problem persists when all the external
devices are removed.
¾ Check to see that the green light indicator on the AC adapter
is lit.
¾ Check to see the power cord is properly plugged to the wall
outlet and to the computer.
¾ Check to see the power indicator of the computer is on.
¾ Check to see if your keyboard is operational by pressing and
holding any key.
¾ Check for any incorrect or loose cable connections. Make
sure the latches on the connectors latch securely on to the
receptor end.
¾ Be sure you have not performed an incorrect setting on the
hardware devices in the BIOS Setup utility. A faulty setting
may cause the system to misbehave. If you are not sure of
the changes you made, try to restore all the settings to
factory defaults.
70
¾ Be sure all the device drivers are installed properly. For
example, without the audio driver properly installed, the
speakers and microphone will not work.
¾ If external devices such as USB camera, scanner, printer do
not function correctly when connected to the system, it is
usually the device’s own problem. Consult the device’s
manufacturer first.
¾ Some software programs, which have not gone through
rigorous coding and testing, may cause problems during your
routine use. Consult the software vendor for problem solving.
¾ Legacy peripheral are not plug-and-play capable. You need
to restart the system with these devices powered up and
connected first.
¾ Be sure to go to BIOS SETUP and load DEFAULT SETTING
after BIOS re-flash.
¾ Be sure the Quick Key Lockout Switch on the bottom of the
computer is not engaged; otherwise the quick keys will not
work.
Audio Problems
No speaker output
¾ Software volume control is turned down in Microsoft Sound
System or is muted. Double-click the speaker icon on the
lower right corner of the taskbar to see if the speaker has
been muted or turned down all the way.
¾ Most audio problems are software-related. If your computer
worked before, chances are software may have been set
incorrectly.
¾ Go to [Start > Settings > Control Panel] and double-click the
Sounds and Audio Devices icon. In the Audio page, make
sure that the audio codec mentioned in the spec is the
default playback device.
Sound cannot be recorded
¾ You will need to plug-in an external microphone to the
microphone connector to record sound.
¾ Double-click the speaker icon on the lower right corner of the
taskbar to see if the microphone has been muted.
¾ Click Options and select Properties.
¾ Select Recording and click the OK button.
71
¾ After Click OK button, the recording volume control
panel will appear.
¾ Go to [Start > Settings > Control Panel] and double-click the
Multimedia icon (or Sounds and Audio Devices icon). In the
Volume or Audio page, make sure that the audio codec
mentioned in the spec is the default recording device.
Hard Disk Problems
The hard disk drive does not work or is not
recognizable
¾ If you had just performed a hard disk upgrade, make sure the
hard drive connector is not loose and the hard disk drive is
also correctly seated. Remove it and reinsert it firmly, and
restart your PC.
¾ The new HDD may need to be partitioned and reformatted.
O/S and drivers will need to be re-installed as well.
¾ Check the hard disk indicator LED. When you access a file,
the LED lamp should light up momentarily.
¾ The new HDD may be defective or is not compatible.
¾ If your computer has been subjected to static electricity or
physical shock, you may have damaged the disk drive.
The hard drive is making abnormal whining noises
¾ You should back up your files as soon as possible.
¾ Make sure the source of noise is indeed from the hard drive
and not the fan or other devices.
The hard disk drive has reached its capacity
¾ Run Disk Cleanup utility in Windows. [Start > All Programs >
Accessories > System Tools > Disk Cleanup] The system will
prompt you for what to do.
¾ Archive files or programs that you had no longer used by
moving them to an alternative storage medium (floppy disk,
optical record-able disk, etc.) or uninstall programs that no
longer use.
¾ Many browsers store files in the hard drive as a cache to
speed up the performance. Check the program’s Online Help
for instructions on decreasing the cache size or on removing
temporary Internet files.
¾ Empty the Recycle Bin to create more disk space. When you
delete files, Windows saves them to the Recycle Bin.
72
The hard disk takes longer to read a file
¾ If you have been using the drive for a period, the files may be
fragmented. Go to [Start > Programs > Accessories > System
Tools > Disk Defragmenter] to perform a disk
defragmentation. This operation may take a while.
¾ Interrupt requests or problems with other hardware devices
may have occupied the CPU and therefore slows down the
system performance.
The files are corrupted
¾ Run the Error-checking utility in Windows to check the HDD.
Double-click My Computer. Right-click C: and select
Properties. Click Check Now in Error-checking in Tools.
Display Problems
The display panel is blank when the system is
turned on
¾ Make sure the computer is not in the Standby or Hibernate
suspend modes. The display is turned off to conserve energy
in these modes.
The screen is difficult to read
¾ The display resolution should at least be set to at least
1024x600 for optimal viewing.
¾ Go to [Start > Settings > Control Panel] and double-click
the Display icon.
¾ Under the Settings page, set screen resolution to at
least 1024x600.
The screen flickers
¾ It is normal if the display flickers a few times during shutting
down or powering up.
Keyboard and Mouse Problems
The built-in touch pad performs erratically
¾ Make sure there is no excess perspiration or humidity on
your hand when using the touch pad. Keep the surface of the
touch pad clean and dry.
73
¾ Do not rest your palm or wrist on the surface of the touchpad
while typing or using the touch pad.
The built-in keyboard accepts no input
¾ Please try to make sure the system doesn’t hang up and is
still working.
The characters on the screen repeat while I type
¾ You may be holding the keys down too long while you’re
typing.
¾ Keep the keyboard clean. Dust and dirt under the keys could
cause them to stick.
¾ Configure the keyboard to wait longer before the auto repeat
feature starts. To adjust this feature, Go to [Start > Settings >
Control Panel], and double-click the Keyboard icon.
A dialogue box shows up with the adjustable settings for the
keyboard.
CMOS Battery Problem
A message “CMOS Checksum Failure” displays
during the booting process or the time (clock)
resets when booting
¾ Try to reboot the system.
¾ If the message “CMOS Checksum Failure” appears during
the booting procedure even after rebooting, it may indicate
failure of the CMOS battery. If so, you need to replace the
battery. This battery normally lasts two to five years. The
battery is of type CR2032 (3V). Send the battery to the dealer
for replacement.
Memory Problems
The POST does not show an increased memory
capacity when you have already installed additional
memory
¾ Certain brands of memory module may not be compatible
with your system. You should ask your vendor for a list of
compatible DIMM.
¾ The memory module may be defective.
74
The O/S issues an insufficient memory error
message during operation
¾ This is often a software or Windows-related problem. A
program is draining the memory resources.
¾ Close the application programs you’re not using and restart
the system.
PC Card Problems
Some system may not have the PC Card
Slot option.
PC Cards do not function
¾ Make sure you have properly installed the driver for the card.
¾ Consult the card’s manual or contact the vendor for trouble-
shooting.
The PC card cannot be recognized
¾ Make sure the card is fully inserted; the outer end of the card
should be even with the edge of the computer.
¾ Remove and insert the PC card again.
¾ Make sure there is no IRQ conflict with the card. See
Windows on-line help for solving IRQ conflicts.
¾ Reboot the computer and see if the problem persists.
¾ The card may be defective. Try the card on another system, if
possible.
Windows crashes or freezes when you remove the
PC card
¾ Make sure you have <Stop> the PC card before removing it.
Double-click the Safely Remove Hardware icon at the lower
right corner of the task bar and select the card you wish to
stop. When you click <Close>, in few seconds Windows will
prompt you to remove the card.
75
Performance Problems
The computer becomes hot
¾ In a 35oC environment, the certain areas of the computer’s
back case are expected to reach 50 degrees.
¾ Make sure the air vents are not blocked.
¾ If the fan does not seem to be working at high temperature
(50 degrees Celsius and up), contact the service center.
¾ Certain programs that are processor-intensive may increase
the computer temperature to a degree where the computer
automatically slows down its CPU clock to protect itself from
thermal damage.
The program appears stopped or runs very slowly
¾ Press CTRL+ALT+DEL to see if an application is still
responding.
¾ Restart the computer.
¾ This may be normal for Windows when it is processing other
CPU-intensive programs in the background or when the
system is accessing slow-speed devices such the floppy disk
drive.
¾ You may be running too many applications. Try to close
some applications or increase system memory for higher
performance.
¾ The processor may have been overheated due to the
system’s inability to regulate its internal heat. Make sure the
computer’s ventilation grills are not blocked.
USB2.0 Problems
The USB device does not work
¾ Check the settings in the Windows Control Panel.
¾ Make sure you have installed the necessary device drivers.
¾ Contact the device vendor for additional support.
76
77
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
O.S.
¾ Supports Windows XP OS with SATA HDD
¾ Supports Windows Vista Home Basic OS (option)
CPU
¾ Atom N270 CPU single core,45 nm, up to 1.6GHz, 512KB L2
Cache, 533MHz FSB, TDP 2.5W
¾ Atom N280 CPU single core,45 nm, up to 1.66GHz, 512KB
L2 Cache, 667MHz FSB, TDP 2.5W
Memory
¾ DDRII 533/667 support or 667MHz downgrade to 533MHz
¾ RAM socket * 1
¾ System DDRII up to 1 GB total (2GB option)
Core Logic
¾ Intel Calistoga 945GSE+ICH7M
VGA
¾ Intel 945GSE
Audio Codec
¾ Realtek ALC269
Card reader (4 in 1)
¾ Support SD/SDHC/MMC/MS/MS Pro Memory Card (supports
SHDC)
¾ USB2.0 interface
78
LAN Controller
¾ Supports 10/100 Mb/Sec.
¾ MII interface
Wireless LAN
¾ Mini Card w/ PCI-E interface
¾ IEEE 802.11b/g w/ single antenna
¾ IEEE 802.11n compatible (W/O WiFi logo)
Keyboard
¾ 82 keys KB support
Pointing Device
¾ PS2 Touch Pad with 2 buttons
LCD
¾ 10.1" SWVGA, resolution 1024x576
¾ 10.1" SWVGA, resolution 1024x600
¾ LED panels support
HDD
¾ HDD for 2.5" 9.5mm SATA support
Battery Pack
¾ 3 cells, 11.1V/2200 (3S1P)
¾ 6 cells, 11.1V/4400 (3S2P)
AC-Adapter
¾ Automatics Voltage adjustment between 100 and 240VAC
50/60Hz, 30 Watts (Small size adapter plug/ w/Energy Star
level 5 compliance)
¾ Automatics Voltage adjustment between 100 and 240VAC
50/60Hz, 40 Watts (w/Energy Star level 5 compliance)
Speaker/MIC
¾ Build-in 2 speakers
¾ Internal Microphone support
BIOS
¾ Supports PnP, ACPI 3.0
¾ Support external USB flash memory card boot up.
79
¾ With AMI BIOS and 1MB flash ROM
Power Management (default: Silent mode)
¾ “Smart Power II” Power Management
Physical Outline
¾ Dimension:
¾ 267 x 192 x 31.1 ~ 35.8mm (w/ rubber foot, 3 cell
battery)
¾ 267 x 192 x 29.2 ~ 32.3mm (w/o rubber foot, 3 cell
battery)
¾ 267 x 192 x 31.1 ~ 40.1mm (w/ rubber foot, 6 cell
battery)
¾ 267 x 192 x 29.2 ~ 39.1mm (w/o rubber foot, 6 cell
battery)
¾ Weight –
¾ 1.1Kg w/ 3 cell battery
¾ 1.2Kg w/ 6 cell battery
EMI
¾ CE/FCC
RF
¾ CE, R&TTE report/document, FCC
Safety
¾ CB report/CCC
