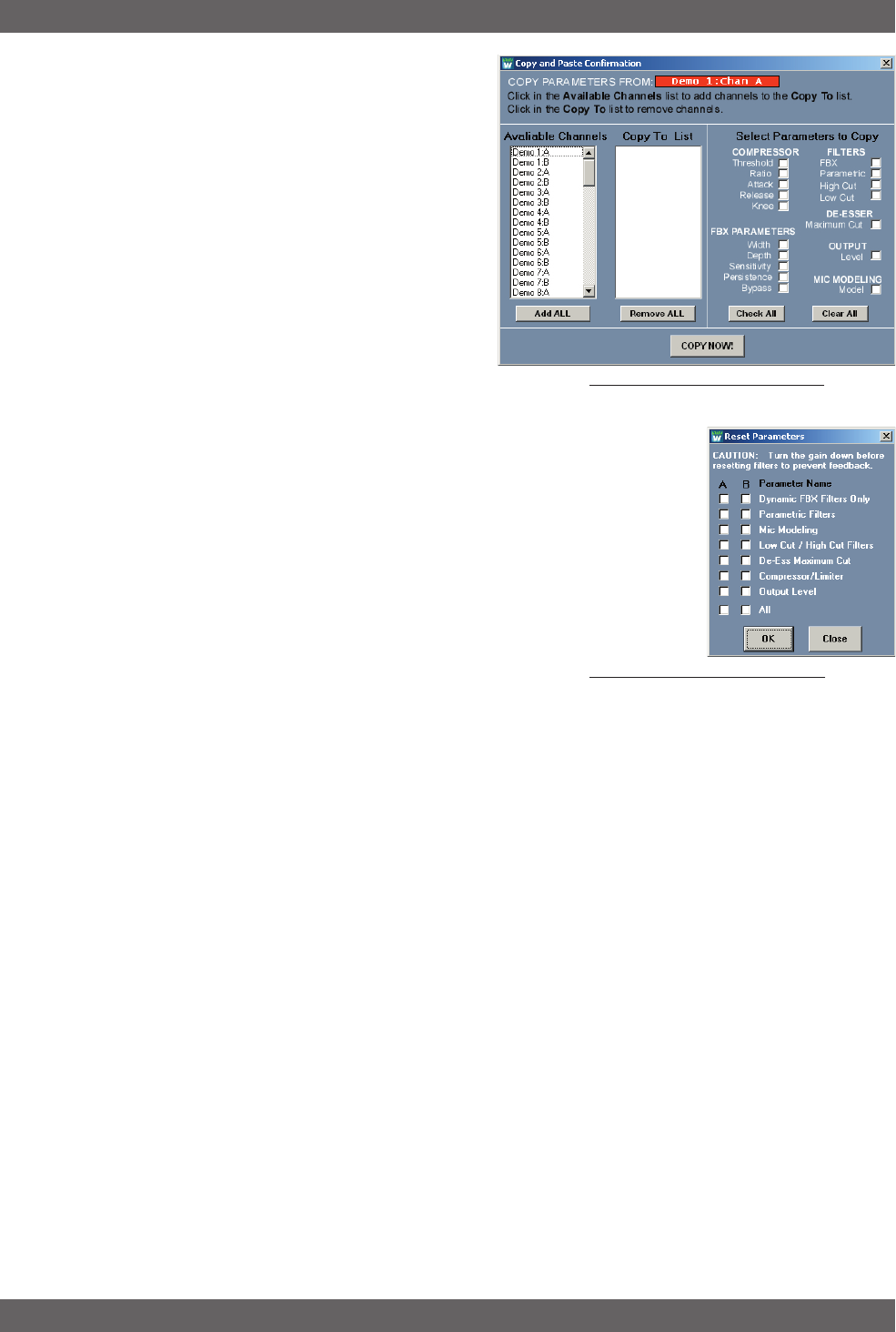

Copy Parameters. This window allows you to copy your
settings for all functions to any number of other channels.
Select the channel you want to copy from by first selecting
the receiver, then the channel. From the Options Menu,
choose Copy Parameters. You will see your selected chan-
nel displayed in a red field labeled “Copy Parameters From.”
Select the channels you want to copy to from the Available
Channels list, then check the boxes of the parameters you
wish to copy. Once you are sure of your selections, hit
Copy Now and your settings will be pasted to the selected
channels. Note that RF channel selections cannot be cop-
ied.
Reset Parameters. This window allows you to selectively
reset any of the functions in your receiver. Choose Reset
Parameters from the Options Menu, then check the boxes of the func-
tions you would like to reset to their default settings. In order to reset
FBX filters, use the dedicated button on the Command View. If you
wish to load the factory default for the entire receiver, choose Preset 00
from the Program drop-down on the Command View and select the
Load button.
46
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
14.1. Introduction to FBX®
WHY FBX? Feedback is certainly the most perva-
sive challenge to the audio industry. The potential
appearance of sudden, loud, out-of-control feedback
is every sound engineer’s and musician’s nightmare.
Unlike more subtle audio quality problems or short-
comings, feedback is embarrassingly obvious — it
disturbs the performer, the audience, and the techni-
cian, and can damage equipment and just generally
ruin your day.
Feedback is a potential problem in any amplified sound
system that places a microphone or pickup in prox-
imity to a loudspeaker. Poor acoustical conditions or
misguided use by unsophisticated sound system op-
erators only aggravate the situation. To make mat-
ters still worse, a non-Sabine variety of wireless mi-
crophone adds yet another level of feedback danger
to the picture. Since feedback erupts whenever the
distance, location, and gain relationships between a
speaker and a microphone reach a critical combina-
tion, a mic that can move anywhere results in an
ever changing potential for feedback. A step in the
wrong direction may change a clear sound to a pierc-
ing shriek in less than a second.
This enhanced potential for feedback with a wireless
system gets worse if lavalier microphones are used.
Such microphones are usually placed farther from
the mouth than handheld or head set microphones,
thus requiring more gain. Also, the polar pattern of a
lavalier microphone is frequently omni-directional.
Thus, the likelihood of feedback increases, due to
the microphone’s increased off-axis sensitivity to the
sound emanating from the loudspeakers.
The Sabine True Mobility™ SWM7000 wireless sys-
tems solve feedback problems by precise attenua-
tion of very narrow bands of feedback-prone frequen-
cies. The process is automatic, simple to use, adapt-
able to changing acoustical conditions and relation-
ships, powerful in its application, and has minimal
consequences to the audio fidelity of the signal. We
call this automatic filter a Feedback Exterminator®
filter, or FBX filter for short.
-10 dB cut at 500, 630, 1K, 1.25K, 1.6K & 2K Hz
If the graphic EQ really had 1/3 octave
filter widths, the frequency response curve
would vary 6 dB between sliders. This
would ruin the sound.
Graphic EQs usually use one-octave-wide
overlapping filters that provide much
smoother frequency response curves. No-
tice that the overlapping filters add to-
gether to cut -16 dB when the sliders are
only pulled down -10 dB.
FBX Feedback Exterminator® Theory & Practice
14. FEEDBACK CONTROL THEORY & PRACTICE

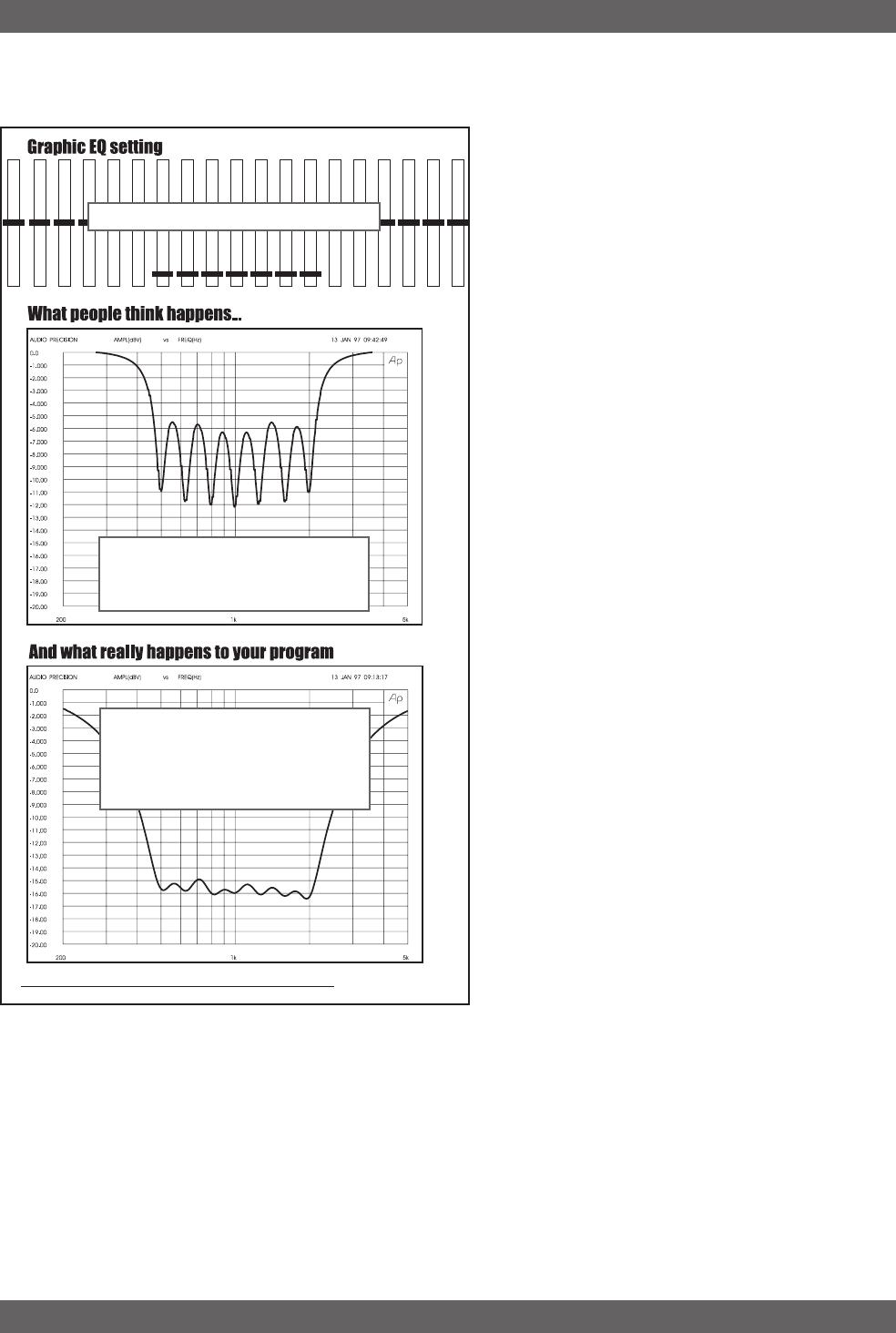

Fig. 14a What a Graphi-Q does to your Program
47 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
14.2. The Advantages of FBX Filters
Before the invention of FBX, the most common device for controlling
feedback was the 31-band graphic EQ. However, an FBX filter offers
three distinct advantages over graphic filters.
1. First and most obvious is the automatic nature of FBX filters. When
feedback occurs, FBX responds more quickly than even the most
experienced engineer. Automatic FBX placement works even in the
presence of audio program material, intelligently distinguishing feed-
back from music or speech.
2. A second advantage is that FBX micro-filters are
precisely placed anywhere feedback occurs (with 1
Hz resolution), while graphic EQ filters are limited
to 31 fixed center points. An FBX filter represents a
direct hit on feedback! In contrast, a graphic EQ
filter can only approximate the exact frequency of
the feedback, and the filter (or filters) with the clos-
est center frequency must be pulled down. Such
filters are deepest at their centers, and such impre-
cise attenuation takes a big (and unnecessary)
chunk out of your sound (see figure 14b).
3. Increased clarity and gain-before-feedback are
further accomplished by the third and most impor-
tant advantage of FBX: Sabine’s micro-filters are ten
times narrower than 31-band EQ filters. Using FBX
micro-filters will return up to 90 percent of the power
removed by EQ filters.
Here’s a good place to make a very important dis-
tinction. Graphic EQ filters are typically called “1/
3-octave,” but it’s important to understand that this
term refers to the
spacing
of the filter centers (1/3-
octave apart), and not the
width
of the filter (usually
a full octave). Graphic filters thus overlap one an-
other, and affect frequencies well above and below
the center point frequency, including frequencies of
adjacent bands. This makes graphic equalizers very
practical tools for shaping sound “with broad
strokes,” such as dialing in overall system EQ, but
results in destructive audio quality overkill when they
are used to eliminate feedback. A graphic equalizer
would need more than 10,000 narrow-band sliders
to be as precise and powerful as your FBX.
As an example of the power of FBX, figure 14c shows
test results measured with a PA set up consisting
of a microphone, mixer, FBX Feedback Extermina-
tor®, power amp and two speakers. The system’s
gain was first raised until the FBX removed nine feed-
back points. Next, the FBX was replaced with a graphic EQ. The EQ
was adjusted while the system gain was raised to the same level
achieved with the FBX. The frequency response curves of each device
were then plotted and are compared in figure 14c. Note how much
more of the program (the “good audio”) is eliminated using an EQ —
whereas only feedback is eliminated using FBX filters.
FBX Feedback Exterminator® Theory & Practice
The gray
areas show
how much of
your program you
would lose using a 1/
3-octave filter to
control feedback
You get back this
much sound & power
with the FBX!
FBX Filter
Feedback!

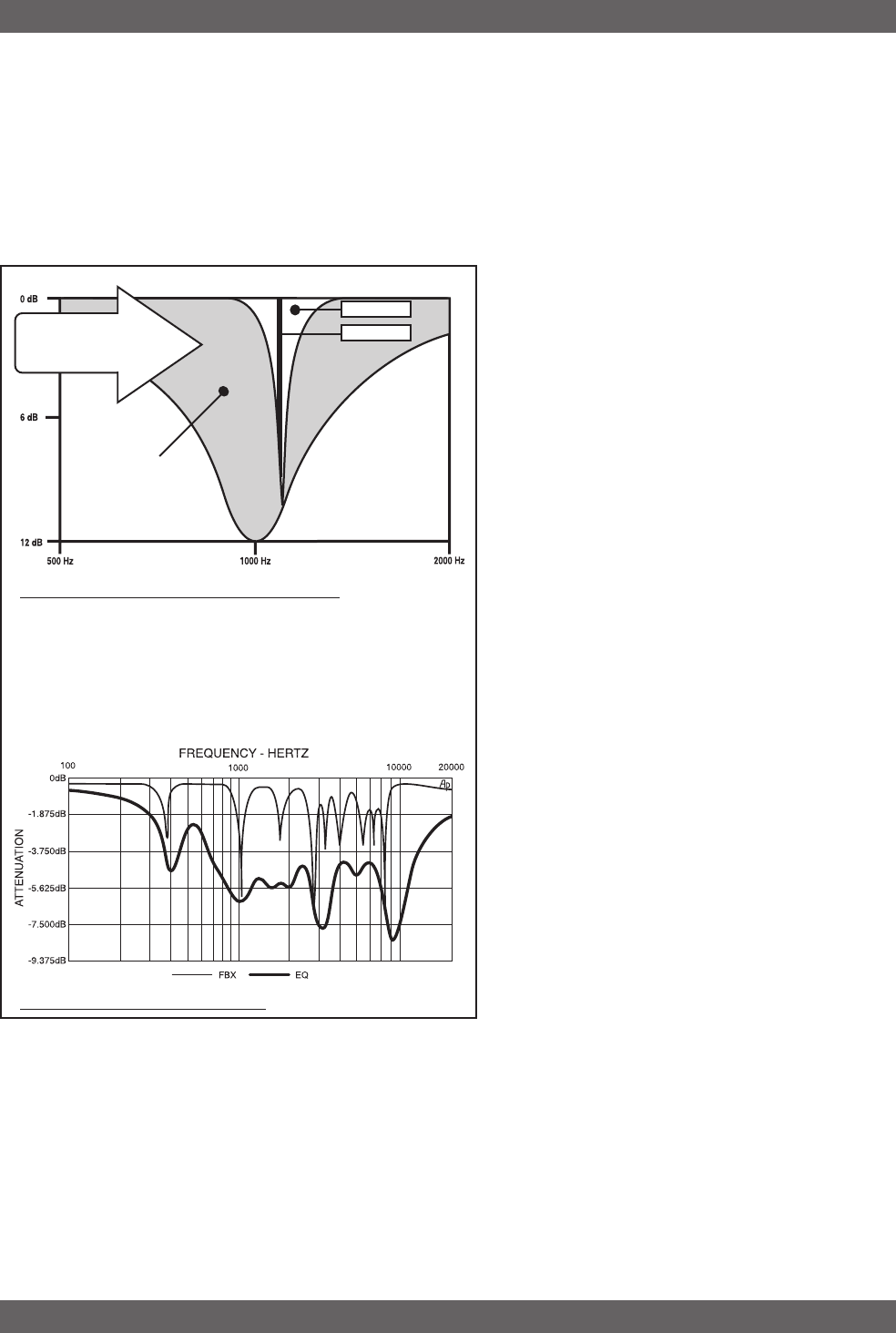

Fig. 14b - What FBX Gives Back to your Program
Fig. 14c - An Example of FBX at Work
48
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
14.3. Parametric Filters and FBX
Of course, many savvy sound engineers, realizing the limitations of
graphic equalizers in removing problem feedback, prefer to use a differ-
ent type of equalizer, called a parametric EQ, for such applications. If
you’re one such audio engineer, you’ll be comforted to know that FBX
filters share much in common with parametrics.
Compared to graphic filters, parametrics allow more precise adjust-
ments — specifically, control of filter width, the amount of boost or cut,
and the mid-band frequency of the filter. This greater precision, how-
ever, comes at a price, as parametric filters are not nearly as intuitive or
simple to use as graphic equalizers.
Nothing, however, is easier to use than an FBX filter, which enjoys the
precision of a parametric filter, yet deploys instantly and automatically
whenever feedback is detected. Effectively, an FBX filter is a parametric
filter set to a tenth-octave width, restricted to cut-only activity, and au-
tomatic in its choice of frequency band. If you want hands-on control,
use the Sabine True MobilityTM Remote Software to change FBX filters
to parametrics, and tweak frequency, width, and depth to your liking.
14.3.1. The FBX & True MobilityTM Advantage
After inventing FBX technology and refining it for over a decade, Sabine
has brought our patented automatic feedback control to its fullest real-
ization with the Sabine SWM7000 True MobilityTM wireless systems.
Our latest advance in maintaining the highest quality audio signal is
due to the placement of the signal processing in the input chain of the
microphone signal. Many times signal processing (compression and
equalization) is placed after the output stage of a mixer, meaning it is
applied to a combination of inputs mixed together into one output and
passed through the processor. Particularly in the case of equalization
and feedback control, one consequence of such placement is that fil-
tering appropriate to only one microphone may be applied to all mics in
the same mix bus. In other words, unnecessary filtering may be ap-
plied to microphones that, due to variations in position and microphone

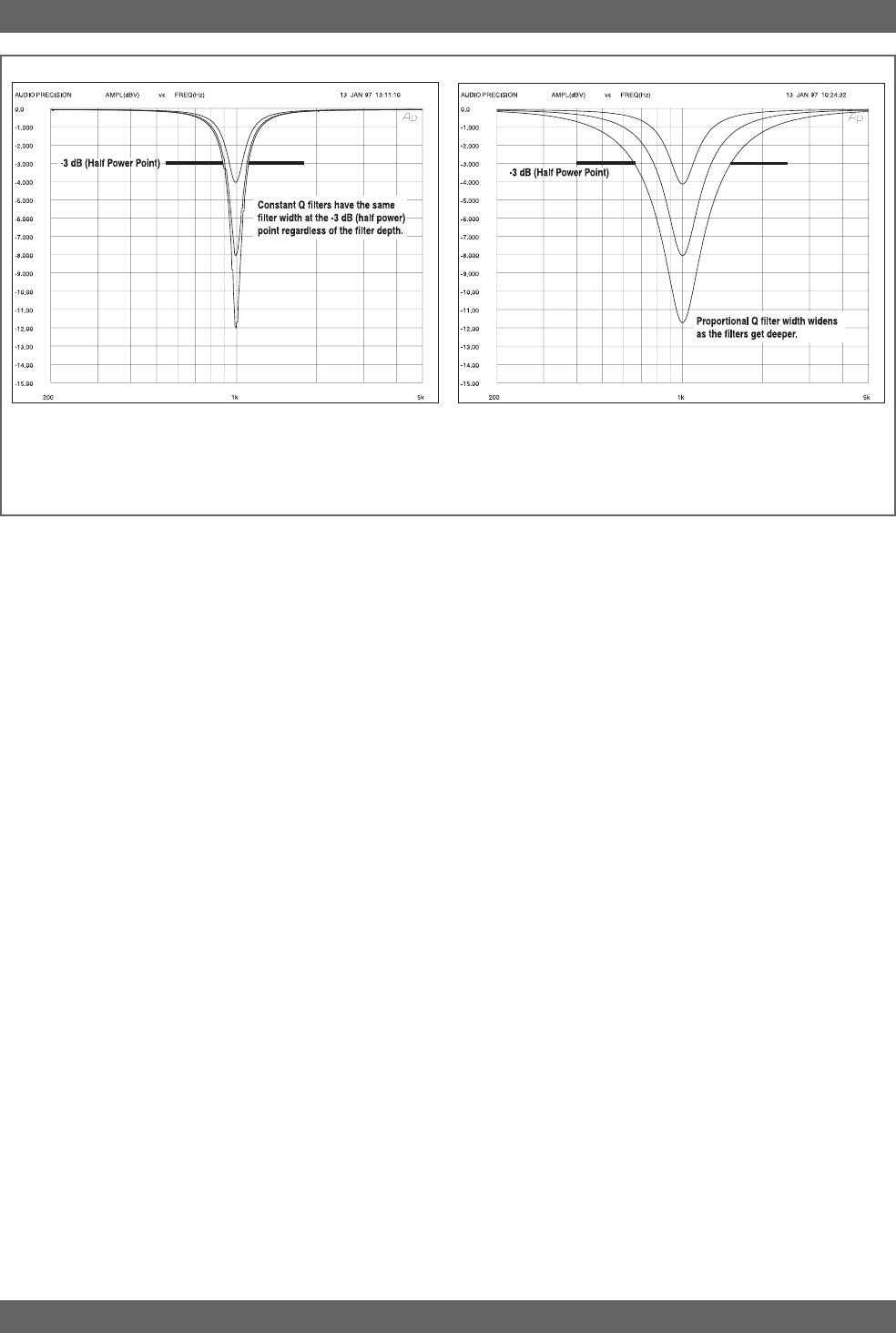

It is common to describe a filter’s quality factor, or “Q,” as the center frequency of the filter divided by the filter width (in Hertz) measured at
the -3dB point. Filters that have the same Q, or width, at the -3dB point regardless of the filter’s cut or boost are called Constant Q filters (see
p.14, Figure 6a). Filters that get wider as the filter gets deeper are called Proportional Q filters (see p.14, Figure 6b). Lately, however, the
definition of Constant Q is becoming less distinct. Many equalizer manufacturers claim their equalizers have Constant Q filters, when in fact
they get substantially wider as they get deeper. The only way to know for sure if the filters are truly Constant Q is to inspect their frequency
response curves. Sabine FBX Filters are true Constant Q filters.
FBX Feedback Exterminator® Theory & Practice
Sabine Constant Q Filters
49 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
characteristics, will feedback at a different set of frequencies. Although
the filters are very transparent, why add filtering if you can avoid it? And
why divide your processing power among multiple signals?
Placing the filtering and other signal processing in the input signal path
is a concept called Targeted Input Processing. It means each micro-
phone so equipped will have customized, unique signal processing
applied — and no unnecessary processing.
With FBX technology, your microphone will finally sound loud enough,
everyone in the audience will understand each word, and feedback will
be far less likely to make an unwelcome and unexpected visit—and
you’ll be comfortable knowing that protection is extended to anywhere
a wireless microphone might be taken.
14.3.2. FBX Fixed & Dynamic Filters
FBX filters come in two flavors, fixed and dynamic. Both operate auto-
matically. There is no audible difference between fixed and dynamic fil-
ters in terms of sonic purity; the difference arises in their application.
14.3.2.1. Fixed FBX Filters
Once they set automatically (see Section 7 for information on set-
ting filters), fixed FBX filters will NOT change frequency. You can
think of fixed filters as cures for problem frequencies (the “first-to-
feedback” frequencies encountered during normal system operation),
common to most locations in the room.
14.3.2.2. Dynamic FBX Filters
Dynamic FBX filters also set automatically, but can change frequency,
on a rotating basis, as the need arises. To help distinguish dynamic
from fixed filters, consider the example of a speaker using a wireless
lavalier microphone, who walks under a ceiling speaker for the first
time. In so doing, he enters a location-specific feedback zone, where
it’s possible that a problem frequency may have escaped detection
and notching by a fixed filter. If all fixed filters have been deployed, a
dynamic filter will be set automatically as soon as feedback ap-
pears, solving the problem. Great! But what happens when the
speaker then moves away from the ceiling speaker, and close to a
floor monitor? Feedback from the ceiling speaker is no longer a
problem, but a new frequency starts to squeal. If all fixed and dy-
namic FBX filters are already set, a dynamic filter will change, to
adjust to the new location. An FBX dynamic filter thus stands guard
if new problem feedback arises after all available filters have been
set, providing a deeper and more flexible level of protection against
the dreaded surprise of feedback.
Other than the ability to change frequency, a dynamic filter is equiva-
lent to a fixed filter.
14.3.2.3. Balancing Fixed & Dynamic Filters
Each channel of your SWM7000 wireless receiver offers a total of 10
FBX filters (combined fixed and dynamic), which can be used as
needed to exterminate feedback. After years of experience and ex-
perimentation, Sabine has settled upon a default balance of 7 fixed
and 3 dynamic filters, set at the factory. This default condition can
be changed to 8 fixed and 2 dynamic, by changing a DIP switch on
the back of your receiver (see Appendix D FBX Configuration DIP
Switch), or to any configuration using the Remote Control software
(see Section 13).
FBX Feedback Exterminator® Theory & Practice
50
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
If you follow setup instructions for setting FBX filters (see Section 7),
your receiver will automatically exit SETUP mode (enter READY
status) after all fixed filters, and the first dynamic filter, have set. In
the default condition, this means you will have set eight filters (seven
fixed and one dynamic), with two dynamic filters still unset and
remaining on standby alert. If you wish to set fewer filters, press the
READY button before SETUP automatically exits, after you have
set enough filters to safely achieve your desired gain level. In that
case, in the factory default condition, you will reserve three unset
dynamic filters for standby.
14.4.3. FBX Filter Width
Sabine’s experience and testing with filters and sound quality along led
us to decide upon a default FBX filter width of .10 (one-tenth) octave as
the optimal notch width, able to eliminate feedback without affecting
music programs. If, with all filters properly set, feedback is still a
problem, FBX filters may be set to .20 (one-fifth) octave width. This
wider filter setting will help to better eliminate feedback trouble areas,
but may also affect music programs slightly. Therefore, the wider set-
ting is generally considered to be appropriate where speech (less de-
manding than music) is the primary application of the Sabine Wireless
system. You can globally change FBX filter width by repositioning a
rear panel DIP switch, to change from .10 to .20 octave (see Appendix
QQQ FBX Configuration DIP Switch), or by adjusting filter width using
the True MobilityTM Remote Software (which allows a range of widths
from .01 to 1.0 octave). You may also mix filter widths, either by ad-
justing individual filter widths using the Remote Software, or by chang-
ing the DIP switch position during setup. The width of any set filter will
always be determined by the position of the switch at the time the filter
is created.
14.4.4. Who Benefits from FBX?
Virtually every sound system will be improved with the Sabine True
Mobility™ Wireless System. Singers and speakers who do not have
sound technicians can now increase their monitor or house system
volume so they can hear themselves clearly and with full fidelity, with-
out worrying if their microphones will suddenly squeal if they move to
the wrong place.
Auditoriums and churches of all sizes will enjoy reliable feedback con-
trol. Hotels and conference centers around the world can offer meeting
rooms with microphones that won’t howl during programs. The Sabine
True Mobility™ Wireless System can be installed in theaters, schools,
sports arenas, courtrooms, teleconferencing, intercoms or interactive
remote classrooms — anywhere one or multiple microphones are used.
FBX Feedback Exterminator® Theory & Practice
51 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
15. TIPS & TROUBLESHOOTING
15.1. Tips for Maximum Performance
•Keep a clear and unobstructed path between transmitter and re-
ceiver.
•Position receiver antennas at least one meter off the performance
floor level.
•Avoid placing receiver antennas near large metallic or other dense
materials.
•Keep receiver antennas away from RF signal generating equip-
ment (computers, high-voltage equipment, etc.).
•Position antennas perpendicular to each other. (QQQ same as
UHF/VHF?)
•Use a Sabine Antenna Distribution System (SWA6SS) for mul-
tiple system installation.
•Return transmitters to a charger when not in use.
•Use a Sabine SWASS-EXT Extension Antenna t extend range and/
or improve reception.
15.2. Troubleshooting
Problem: True Mobility receiver and transmitter power are on, receiver
RF Signal meters and Input Level meters are lighting up, but
there is no sound from system.
Solution: Check connection between receiver and mixer/amp. Adjust
receiver Output Level control.
Problem: True Mobility receiver and transmitter power are on, but re-
ceiver RF Signal meters and Input Level meters are not lighting
up.
Solution: Check transmitter On/Battery Indicator. Recharge transmitter
if necessary. Check transmitter and receiver frequency Chan-
nel settings (make sure they match). Check receiver squelch
setting. Check receiver antenna connections. Check distance
between transmitter and receiver antennas and possible ob-
structions in path.
Problem: Transmitter is on, but sound is noisy.
Solution: Check transmitter On/Battery Indicator. Replace weak battery
with fresh battery from charger unit if necessary. Check for
other sources of RF interference (high voltage equipment, lighting
equipment, etc.). Check distance between transmitters and
receiver antennas.
Problem: Transmitter is off, but noise still coming from receiver.
Solution: Adjust receiver squelch control. Check for other sources of RF
interference (high voltage equipment, lighting equipment, trol-
ley cars, etc.). Select another frequency. Check connection
and position of the receiver antennas. Utilize a Sabine Exten-
sion Antenna.
Tips & Troubleshooting
52
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
15.3. Common Sources of RF Interference
Since Marconi and others pioneered the first radio broadcasts, the ra-
dio spectrum has become increasingly crowded with a huge diversity
and variety of RF sources. The strength, frequency, location, and tim-
ing cycles of these RF sources create a shifting pattern of interfering
and overlapping frequencies and coverage patterns, which can render
the use of radio microphones a difficult and unpredictable business.
The typical sources of interference for conventional wireless mics can
be high-powered broadcasters such as radio stations and TV transmit-
ters, or other short-range wireless devices, including multiple radio
microphones operating at the same location (either by design, or by
coincidence), that operate in proximate (or harmonically related) band-
widths. Less commonly, interference may arise from spurious outputs
emitted by electronic equipment (notably computers, printers, or simi-
lar devices with digital clocks), faulty electrical equipment, neon signs,
dimmers and lighting controllers, and so forth.
UHF and VHF mics are especially vulnerable because they share the
RF spectrum with the very high-powered transmitters for television. The
coming conversion to digital and high-definition broadcast will increase
the problems for UHF and VHF.
The 2.4 to 2.4835 GHz frequency band is not only well above the funda-
mental (nominal) transmission frequencies of such strong analog and
digital broadcasts, but also high enough to escape interference prob-
lems occurring at the strong first harmonic of even the highest digital
television broadcast. The band is approved worldwide for a variety of
uses, including such diverse transmitters as baby monitors, garage
door openers, wireless LANs, amateur satellite, cordless telephones,
etc. Compared to RF broadcast sources like television and radio sta-
tions, these low power devices produce very localized, short range in-
terference; furthermore, many of the devices working in the 2.4 GHz
range use spread spectrum transmission and reception. Both of these
facts mean such uses of the RF spectrum are less likely to cause
interference with, or suffer from interference from the use of, Sabine’s
systems.
15.3.1 RF sources and bandwidths
Your first step in checking for interference should be utilizing the Scan
function in the SWM7000 Remote Control Software. See section QQQ
for a complete discussion of the benefits of scanning, which will reveal
any potential RF sources in your location and allow you to make an
informed choice of channels to use. The scanner can scan for long
periods of time and will give you a report of RF activity over time for
each of the 70 channels available on your Smart Spectrum system.
1. Microwave ovens: 2.450 - 24.60 GHz, SWM7000 channels 26
through 37
In the vast majority of situations, interference from microwave ov-
ens will not affect performance of your SWM7000 series micro-
phone systems, for several reasons. First, since barriers such as
walls work to block interference, a microwave oven will likely present
a problem only when located in fairly close proximity within the
same room as the wireless receiver (or reception antenna). Sec-
ond, microwave ovens emit RF only when in use — and even then,
consumer microwave ovens are actively emitting RF for only about
8 msec during each AC power cycle, allowing the balance of the
Tips & Troubleshooting
53 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
Tips & Troubleshooting
cycle (50% - 60%) for signal recovery. Consumer-quality micro-
wave ovens emit RF restricted to a narrow band (2450 - 2460 MHz).
This targeted band affects less than 12% of the bandwidth avail-
able for operation with Sabine systems, and can be avoided by
changing RF channels for transmitters and receivers, with at worst
a 12% reduction in the number of clear, available channels.
Commercial quality microwave ovens present a bigger potential
problem. They sweep over a wider band of frequencies than the
limited band affected by consumer units, and use two magnetron
tubes which alternate to avoid inactivity during a power cycle.
Fortunately, Sabine systems are only affected by such ovens in
close proximity to receiver antennas. That protection, plus the
availability of 70 different RF channels to choose from, makes seri-
ous interference problems arising from microwaves unlikely and
avoidable.
2. WLANS (wireless local area networks): QQQ – QQQ GHz,
SWM7000 channels QQQ through QQQ
These computer network devices allow computers to connect via
wireless devices that act as both receivers and transmitters. These
low-powered transceivers often have selectable channels and can
utilize the entire 2.4 GHz band. In general Sabine microphones
will not be affected by these WLANS because their spread spec-
trum technology does not present a problem for the Smart Spec-
trum system.
You can, however, experience interference if the Sabine receiver is
closer than 2 meters to the WLAN device, and the Sabine trans-
mitter is greater than 20 meters away from the receiver. Addition-
ally, the Sabine wireless system will not interfere with the WLAN
unless the converse situation arises. Placing the Sabine transmit-
ter closer than 2 meters to the WLAN device and placing the Sabine
receiver greater than 20 meters away could cause interference in
your WLAN from the Sabine wireless. Both these situations are
easy to avoid, and we recommend you observe these limitations.
For a true picture of the RF imprint of your WLAN, perform a Scan
with the SWM7000 Remote Software.
3. Cordless phones: QQQ – QQQ GHz, SWM7000 channels QQQ
through QQQ
These home telephones broadcast at very low power in general will
not present any interference problems with your Sabine wireless.
This is especially true if the telephone uses spread spectrum tech-
nology. Again, the only potential for interference comes when the
cordless phone transmitter is extremely close to the Sabine re-
ceiver and the Sabine transmitter is very far away. For best results
avoid these conditions.
4. Wireless Video Cameras: QQQ - QQQ GHz, SWM7000 channels
QQQ through QQQ
Certain wireless video cameras (X10, for example) use the 2.4 GHz
band. These devices are also very low power and will not present a
problem when using the SWM7000 system.
In the event problems still arise, see Section 5 Receiver Operation for
methods of optimizing clear reception and minimizing interference.
54
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
Appendices
16. APPENDICES

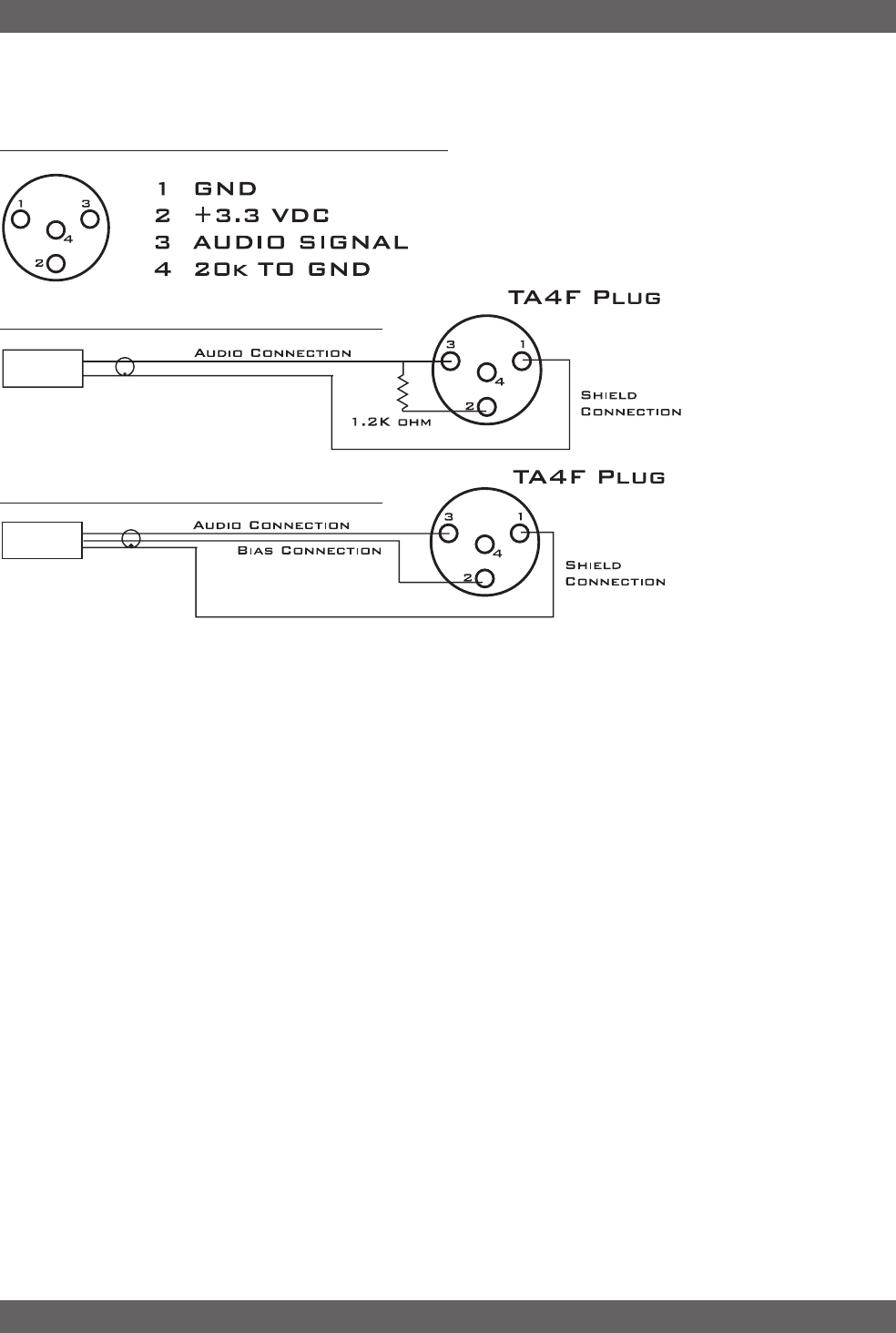

Appendix A: Beltpack Connector Wiring Diagrams
Fig. A1 - Transmitter Input Connector Wiring Diagram
Fig. A2 - 2-conductor Electret Wiring Diagram
Fig. A3 - 3-conductor Electret Wiring Diagram
55 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
Appendices
Appendix B: Specifications
SW70 Series Receivers, 1- or 2-channel
Carrier Frequency Range: ISM Band 2400 - 2483.5 MHz
Frequencies: 70 pre-programmed
Oscillation Mode: PLL synthesized
Receiving Mode: True diversity
Sensitivity: 6 dBV at S/N over 70 dB
Image Rejection: >63 dB
Spurious Rejection: >76 dB
Stability: 50 ppm
Maximum Deviation: +/- 150 KHz
Dynamic Range: > 100 dB
S/N Ratio: 95 dB (Typical)
THD: <0.1%
Frequency Response: 20 Hz - 20 KHz +/- 1 dB
Antennas: 2, 1/4 wavelength
Power Supply: 100-240 VAC 50-60 Hz
Rack-Mount case
Working Range: >100 meters
Outputs: Balanced XLR and TRS, mic or line level
RS232 & RS485** Serial Interface
Digital Audio Output with Sync Input**
SW70 Series Handheld Microphones
Dynamic Mic Capsule: Audix OM3 (Optional OM5)
Condenser Mic Capsule: Sabine
Antenna: Internal Fixed
Maximum FM Deviation: +/- 100 KHz
RF Frequency Stability: 10 ppm
RF Output: 1.0 mW
Spurious output: < -50 dB of rated output
Telemetry: Battery Voltage, Mute Status, Capsule Type
Programmable LCD
Programmable On/Off switch
Battery: Sabine Rechargeable or one 1.5V Alkaline C cell
Rechargeable Battery Life: 8 hours per charge,
500 charge cycles (typical)
Alkaline Battery Life: 14 hours (typical)
SW70 Series BeltPack Transmitter
Maximum FM Deviation: +/- 150 KHz
RF Frequency Stability: 10 ppm
Spurious output: < -50 dB of rated output
RF Output: 1.0 mW
Telemetry: Battery Voltage, Mute Status
Programmable LCD
Programmable On/Off switch
Mic input impedance: 47 K Ohms
Mic bias: 3.3V
Mic connector: TA4
Antenna type: Internal Fixed
Battery: Sabine Rechargeable or two 1.5V Alkaline AA cells
Rechargeable Battery Life: 10 hours per charge,
500 charge cycles (typical)
Alkaline Battery Life: 14 hours (typical)
SWA6SS Antenna Distribution Amplifier (SWA6SS)
Two antenna inputs
Six outputs per antenna to receivers
Filter Bandwidth: 2350 - 2500 MHz +/- 3 dB
1 dB Compression Input Level: -20 dBm
Noise Figure: < 3.7 dB (Center Band)
Input/Output Gain: (+)1.6dB (Center Band)
Output Port Isolation: 30 dB minimum
Connector: TNC type
Power Supply: 100-130 VAC or 200-240 VAC 50/60 Hz
Digital Signal Processing
FBX Filters
Ten independent digital filters per channel, controlled
automatically from 20 Hz to 20 KHz
Filter depth: 3 dB steps from 0 dB to -40 dB
Filter width: .1 or .2 octave*
Resolution: 1 Hz from 20 Hz to 20 KHz
Time required to find and eliminate feedback: typically
0.3 seconds @ 1 KHz
Digital Compressor/Limiter
Threshold: -30 dB to 0 dB
Ratio: 1:1 through infinity
Knee: soft
Attack: 1-99 msec
Release: 400 msec
Automatic De-Esser
Cut range: 0 to -30 dB
Microphone SuperModeling
Dynamic Capsules***
Shure SM-58
Shure Beta 58A
Audio Technica ATM 41a
Condenser Capsules***
Shure Beta 87A
AKG C535 EB
Audio Technica ATM 89R
Presets
15 User Presets – Saves all configurations
Mechanical
Dimensions: 1-U rack-mount, 19 x 1.75 x 9 in.
(48.3 x 4.5 x 21.6 cm)
Weight: 5.3 lb. (2.4 kg)
*Below approximately 200 Hz the feedback filters become slightly
wider to increase the feedback and rumble capture speed at these
low frequencies.
**ND Series Receivers Only
***Company names, product names, and trademarks listed here
are the property of their respective owners and are used only to
identify evaluated microphones used to develop digital process-
ing; they in no way imply association, endorsement, or approval by
any named manufacturer.
(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
Appendix C: Typical System Diagram
Appendix D: Dip Switch Settings
56
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
Warning! This equipment must be earthed.
Caution! Risk of electric shock. Do not open.
Caution! Shock hazard. Do not remove covers. No user serviceable parts
inside. Refer servicing to qualified service personnel.
Warning! To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Attention! Cet appareil doit être relié à la terre.
Attention! Risque de choc électrique; ne pas ouvrir.
Attention! Risque de choc; ne pas oter les capots. Aucune pièce acces-
sible à l’intérieur. S’addresser à un technicien qualifié.
Attention! Pour réduire le risque d’incendie ou de choc électrique, ne
pas laisser l’appareil sous la plouie ou à l’humidité.
Achtung! Dieses Gerät muss schutzgeerdet sein.
Achtung! Gefar eines elektrischen Stormschlags. Gehause nicht öffnen.
Achtung! Gefar eines elektrischen Stormschlags. Gehäuse nicht öffnen.
Keine con Benutzer zu bedienenden Teile im Geräteinneren.
Überlassen Sie das Gerät zu Servicezwecken nur geschultem
Fachpersonal.
Um Brandgefar oder das Risiko eines elektrischen Schlags
auszuschließen, das Gerät vor Nässe und Feuchtigkeit schützen.
Advertencia! Este equipo debe estar conectado a tierra.
Precaución! Reisgo de descarga eléctrica. No abrir.
Precaución! Riesgo de descarga eléctrica. No desmontar las tapas.
Piezas interiores no reparables por el usuario. Reparable sólo por per-
sonal cualificado.
Advertencia! Para reducir el riesgo de incendio o de descarga eléctrica
no exponga este producto a la lluvia o humedad.
FCC Statement:
This device complies with Part 15, Class B, of the FCC Rules. Operation
is subject to the following conditions: (1) This device may not cause
harmful interference; and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio TV technician for help.
Canadian Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le present appareil numerique n’emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class
B prescrites dans le Reglement sur le brouillage radioelectrique edicte
par le ministere des Communications du Canada.
Japanese EMI Compliance Statement
The True Mobility is designed to operate from standard AC
power. Please be sure the power in your area is compatible
with the power requirements marked on the rear of the unit.
Using the wrong input voltage may cause permanent damage
to the unit and will void the warranty.
The True Mobility Wireless Microphone system is supplied with one of
the following AC power cords:
Japan 100 VAC
U.S./North America 120 VAC
Continental Europe 230 VAC
United Kingdom 240 VAC
Australia 240 VAC
WARNING!
Battery Caution
DO NOT BURN OR PUNCTURE
BATTERY. DOING SO COULD
RELEASE TOXIC MATERIALS
WHICH COULD CAUSE INJURY.
DO NOT SHORT CIRCUIT
MUST BE RECYLED OR DIS-
POSED OF PROPERLY.
1. Read all safety and operating instructions before using this prod-
uct.
2. All safety and operating instructions should be retained for future
reference.
3. Obey all cautions in the operating instructions and on the unit.
4. All operating instructions should be followed.
5. Use only shielded audio and data cables.
6. This product should not be used in the presence of moisture or
rain, or near any water, i.e., a bathtub, sink, swimming pool, wet
basement, etc.
7. This product should be located so that its position does not inter-
fere with proper ventilation. Do not use in direct sunlight. Do not
place flat against a wall or in a built-in enclosure that will impede
the flow of cooling air.
8. This product should not be placed near a source of heat such as
a stove or radiator.
9. Connect only to a power supply of the type marked on the unit
adjacent to the power entry module.
10. Never break off the ground pin on the power supply cord.
11. Power supply cords should always be handled carefully. Never
walk or place equipment on power supply cords. Periodically
check cords for cuts or signs of stress, especially at the plug and
the point where the cord exits the unit.
12. The power supply cord should be unplugged when the unit is to
be unused for long periods of time.
13. Care should be taken so that objects do not fall and liquids are not
spilled into the unit through the ventilation holes or any other
openings.
14. This unit should be checked by a qualified service technician if:
A. The power supply cord or plug has been damaged.
B. Anything has fallen or been spilled into the unit.
C. The unit does not operate correctly.
D. The unit has been dropped or the enclosure damaged.
15. The user should not attempt to service this equipment. All service
work should be done by a qualified service technician.
17. CAUTIONS & WARRANTY
Cautions & Warranty
CAUTION - Implanted cardiac pacemakers or AICD devices:
Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have
Iow-power transmitters (less than 0.05 watts output) that are unlikely to cause difficulty, especially if they are at least a few inches away.
However, since a beltpack transmitter typically is placed against the body, Sabine suggests attaching it at the belt, rather than in a shirt
pocket where it may be immediately adjacent to an implanted medical device. Note also that any medical-device disruption will cease
when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or
experience any problems with the use of this or any other RF equipment.
57 Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
B4-SWM7000-OpGuide.pmd - 021022 - hto
EXPOSURE TO EXTREMELY HIGH NOISE LEVELS MAY CAUSE A PERMANENT
HEARING LOSS. INDIVIDUALS VARY CONSIDERABLY IN SUSCEPTIBILITY TO
NOISE INDUCED HEARING LOSS, BUT NEARLY EVERYONE WILL LOSE SOME
HEARING IF EXPOSED TO SUFFICIENTLY INTENSE NOISE FOR A SUFFICIENT
TIME. THE U.S. GOVERNMENT’S OCCUPATIONAL SAFETY AND HEALTH ADMIN-
ISTRATION (OSHA) HAS SPECIFIED THE FOLLOWING PERMISSIBLE NOISE LEVEL
EXPOSURES:
to you by the AUTHORIZED SABINE DEALER in connection with
your purchase from him of this product. If the DEALER is unable
to provide the necessary warranty service, you will be directed
to the nearest other SABINE AUTHORIZED DEALER which can
provide such service. OR:
b. Ship the defective item, prepaid, to:
SABINE, INC.
13301 NW US HIGHWAY 441
ALACHUA, FL 32615-8544
Include therewith a complete, detailed description of the problem,
together with a legible copy of the original PROOF OF PURCHASE and
a complete return address. Upon Sabine’s receipt of these items:
If the defect is remedial under the limited warranties and the other terms
and conditions expressed have been complied with, Sabine will pro-
vide the necessary warranty service to repair or replace the product and
will return it, FREIGHT COLLECT, to you, the purchaser.
Sabine’s liability to the purchaser for damages from any cause whatso-
ever and regardless of the form of action, including negligence, is
limited to the actual damages up to the greater of $500.00 or an
amount equal to the purchase price of the product that caused the
damage or that is the subject of or is directly related to the cause of
action. Such purchase price will be that in effect for the specific product
when the cause of action arose. This limitation of liability will not apply
to claims for personal injury or damage to real property or tangible
personal property allegedly caused by Sabine’s negligence. Sabine
does not assume liability for personal injury or property damage arising
out of or caused by a non-Sabine alteration or attachment, nor does
Sabine assume any responsibility for damage to interconnected non-
Sabine equipment that may result from the normal functioning and
maintenance of the Sabine equipment.
UNDER NO CIRCUMSTANCES WILL SABINE BE LIABLE FOR ANY LOST PROFITS, LOST
SAVINGS, ANY INCIDENTAL DAMAGES OR ANY CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF SABINE HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF
THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EX-
PRESS LIMITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH,
IMPLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR
PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT.
SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM-
AGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE
LIMITED WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
THESE LIMITED WARRANTIES ARE THE ONLY EXPRESS WARRANTIES ON THIS PROD-
UCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY OR AGREEMENT BY
ANY PERSON SHALL BE VALID OR BINDING UPON SABINE.
In the event of any modification or disclaimer of express or im-
plied warranties, or any limitation of remedies, contained herein con-
flicts with applicable law, then such modification, disclaimer or limita-
tion, as the case may be, shall be deemed to be modified to the extent
necessary to comply with such law.
Your remedies for breach of these warranties are limited to those
remedies provided herein, and Sabine gives this limited warranty only
with respect to equipment purchased in the United States of America.
INSTRUCTIONS-WARRANTY REGISTRATION CARD
1. Mail the completed WARRANTY REGISTRATION CARD to:
SABINE, INC.
13301 NW US HIGHWAY 441
ALACHUA, FL 32615-8544
a. Keep the PROOF OF PURCHASE. In the event warranty service is
required during the warranty period, you will need this document. There
will be no identification card issued by Sabine, Inc.
2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTI-
FICATION OF CHANGES OF ADDRESS:
a. Completion and mailing of WARRANTY REGISTRATION CARDS -
Should notification become necessary for any condition that may re-
quire correction, the REGISTRATION CARD will help ensure that you
are contacted and properly notified.
b. Notice of address changes - If you move from the address shown on
the WARRANTY REGISTRATION CARD, you should notify Sabine of
the change of address so as to facilitate your receipt of any bulletins or
other forms of notification which may become necessary in connection
with any condition that may require dissemination of information or
correction.
3. You may contact Sabine directly by telephoning (386) 418-2000.
4. Please have the Sabine product name and serial number available
when communicating with Sabine Customer Service.
Manufactured by: Sabine, Inc.
13301 NW US Highway 441
Alachua, Florida 32615-8544 USA
Phone: (386) 418-2000 • Fax: (386) 418-2001 www.Sabine.com
ACCORDING TO OSHA, ANY EXPOSURE IN EXCESS OF THE ABOVE PERMIS-
SIBLE LIMITS COULD RESULT IN HEARING LOSS. EAR PLUGS OR PROTECTORS
IN THE EAR CANALS OR OVER THE EARS MUST BE WORN WHEN OPERATING
THIS DEVICE IN ORDER TO PREVENT A PERMANENT HEARING LOSS, IF EXPO-
SURE IS IN EXCESS OF THE LIMITS AS SET FORTH ABOVE. TO ENSURE AGAINST
POTENTIALLY DANGEROUS EXPOSURE TO HIGH SOUND PRESSURE LEVELS,
IT IS RECOMMENDED THAT ALL PERSONS EXPOSED TO EQUIPMENT CAPABLE
OF PRODUCING HIGH SOUND PRESSURE LEVELS SUCH AS THIS DEVICE BE
PROTECTED BY HEARING PROTECTORS WHILE THIS UNIT IS IN OPERATION.
8 90
6 92
4 95
3 97
2 100
SOUND
LEVEL
IN dBA
DURATION/DAY
IN HOURS SLOW
RESPONSE
1-1½102
1 105
½110
¼ or less 115
SOUND
LEVEL
IN dBA
DURATION/DAY
IN HOURS SLOW
RESPONSE
CAUTION!
FBX and FBX Feedback Exterminator are registered trade-
marks of Sabine, Inc., and are the brand names of its line of
automatic feedback controllers. Covered by U.S. Patent No.
5,245,665, Australian Patent No. 653,736, Canadian Patent
No. 2,066,624-2, German Patent No. 69118486.0, and U.K.
Patent No. 0486679. Other patents pending.
True Mobility, Graphi-Q, Power-Q, Real-Q, and Real-Q2 are
trademarks of Sabine, Inc.
Copyright 2002. All rights reserved.
THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND REGISTERED IN THE
UNITED STATES OR CANADA. ALL EXPORTED PRODUCTS ARE SUBJECT TO WARRANTY
AND SERVICES TO BE SPECIFIED AND PROVIDED BY THE AUTHORIZED DISTRIBUTOR
FOR EACH COUNTRY.
Ces clauses de garantie ne sont vaiables qu’aux Etats-Unis et au Canada.
Dans tous les autres pays, les clauses de garantie et de maintenance
sont fixees par le distributeur national et assuree par lui selon la legisla-
tion en vigueur.
Diese Garantie ist nur in den USA and Kanada gultig. Alle Export-
Produkte sind der Garantie und dem Service des Importeurs des jewelligen
Landes untervorfen.
Esta garantia es valida solamente cuando el producto es comprado en
E.U. continentales o en Canada. Todos los productos que sean comprados
en el extranjero, estan sujetos a las garantias y servicio que cada
distribuidor autorizado determine y otrezca en los diferentes paises.
ONE-YEAR LIMITED WARRANTY/REMEDY
SABINE, INC. (“SABINE”) warrants this product to be free from defects in
material and workmanship for a period of one (1) year from date of
purchase PROVIDED, however, that this limited warranty is extended
only to the original retail purchaser and is subject to the conditions,
exclusions and limitations hereinafter set forth:
CONDITIONS, EXCLUSIONS AND LIMITATIONS
OF LIMITED WARRANTIES
These limited warranties shall be void and of no effect if:
a. The first purchase of the product is for the purpose of resale; or
b. The original retail purchase is not made from an AUTHORIZED
SABINE DEALER; or
c. The product has been damaged by accident or unreasonable
use, neglect, improper service or maintenance, or other causes
not arising out of defects in material or workmanship; or
d. The serial number affixed to the product is altered, defaced or
removed; or
e. The power supply grounding pin is removed or otherwise de-
feated. In the event of a defect in material and/or workmanship
covered by this limited warranty, Sabine will repair the defect in
material or workmanship or replace the product, at Sabine’s op-
tion; and provided, however, that, in any case, all costs of ship-
ping, if necessary, are paid by you, the purchaser.
THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY
COMPLETED, MAILED TO AND RECEIVED BY SABINE WITHIN FOUR-
TEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE.
In order to obtain service under these warranties, you must:
a. Bring the defective item to any Authorized SABINE DEALER and
present therewith the ORIGINAL PROOF OF PURCHASE supplied
Cautions & Warranty
MADE IN USA
58
Sabine 2.4 GHz Smart Spectrum Wireless (BETA)
SWM7000 Series 2.4 GHz Smart Spectrum Wireless Systems Operating Guide
Sabine, Inc.
13301 NW US Highway 441
Alachua, Florida 32615-8544 USA
Phone: (386) 418-2000
Fax: (386) 418-2001
www.Sabine.com
© 2002 Sabine, Inc.
INDEX
Index

Navigation menu
