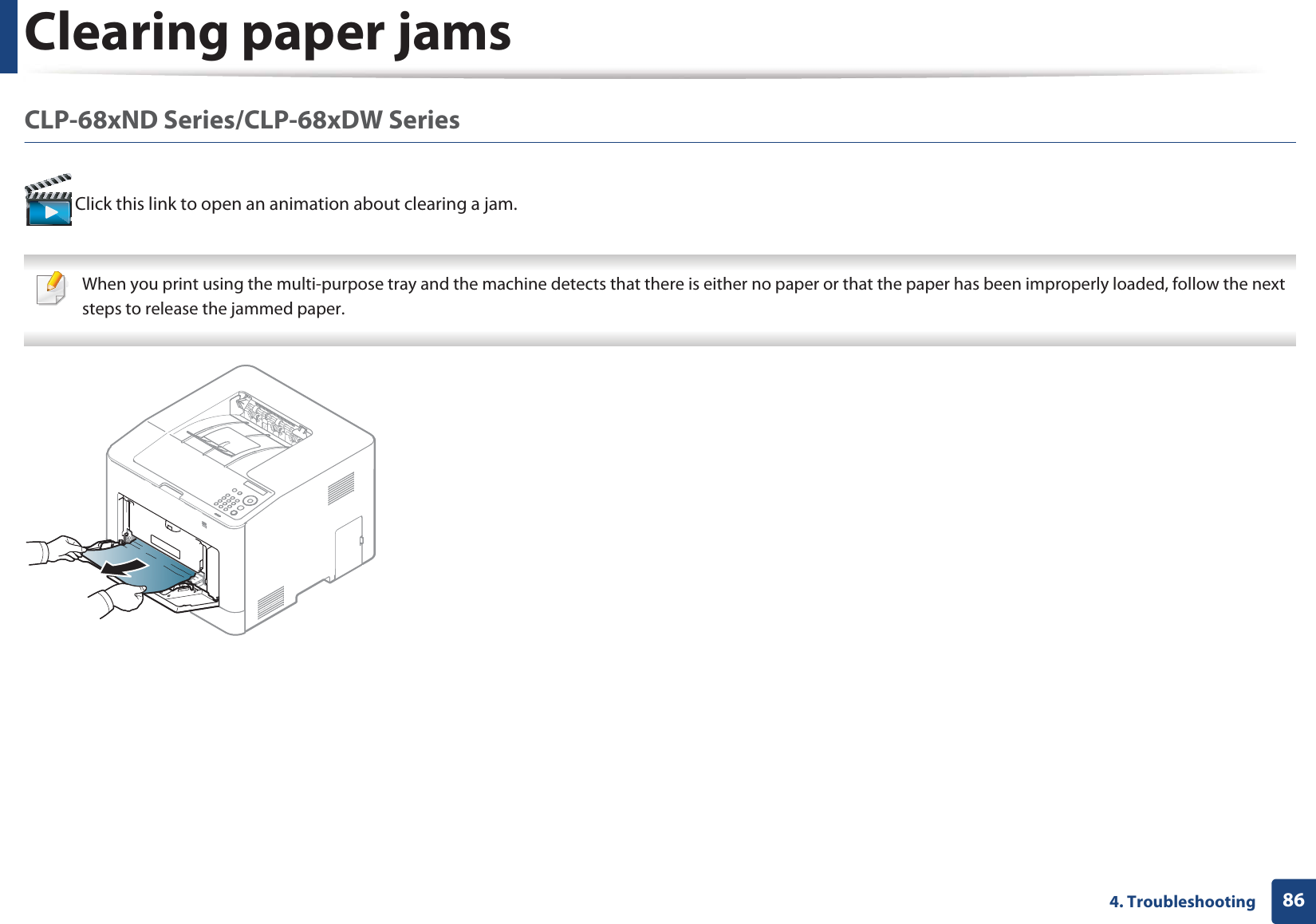

Clearing paper jams864. TroubleshootingCLP-68xND Series/CLP-68xDW Series Click this link to open an animation about clearing a jam. When you print using the multi-purpose tray and the machine detects that there is either no paper or that the paper has been improperly loaded, follow the next steps to release the jammed paper.

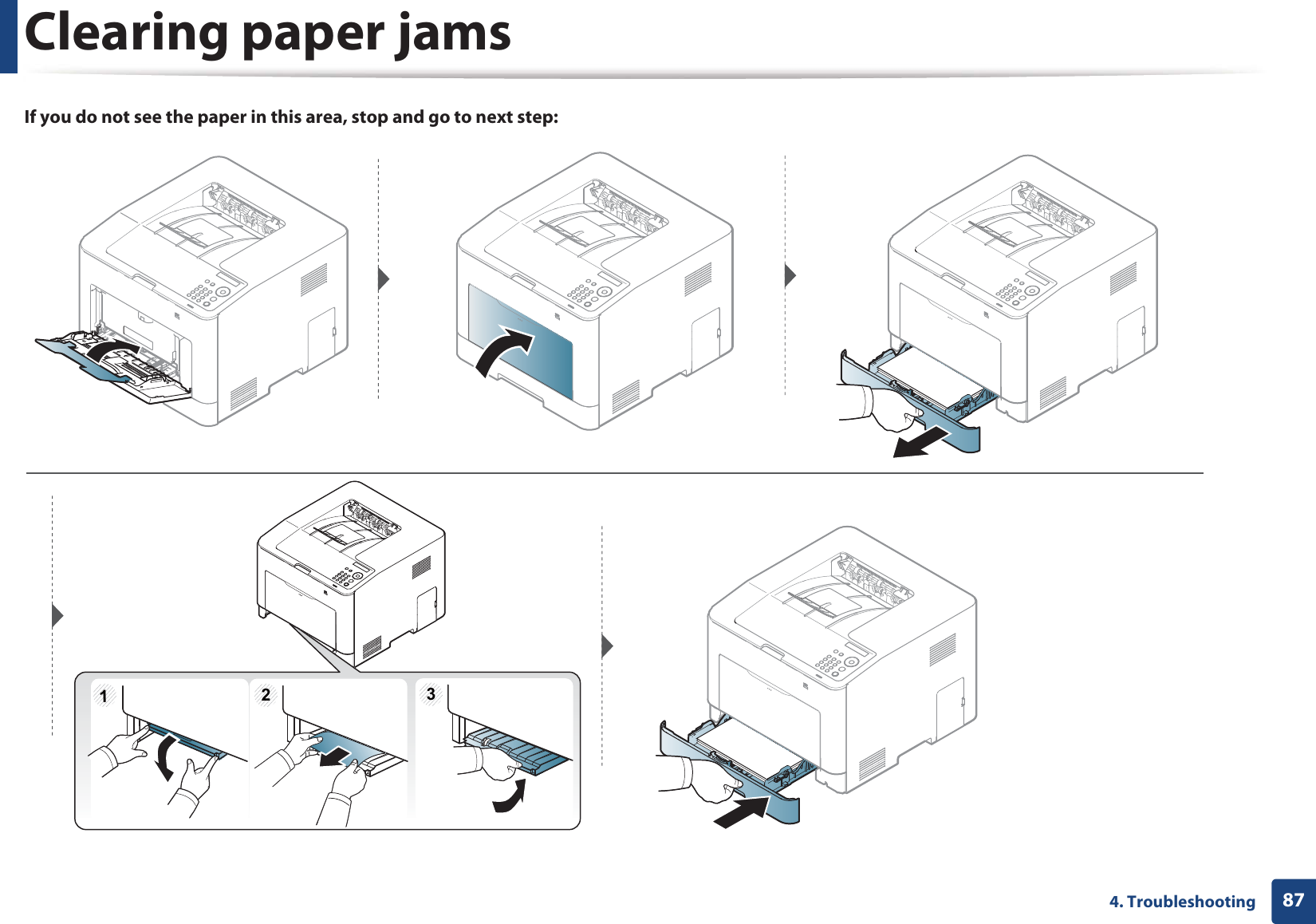

Clearing paper jams874. TroubleshootingIf you do not see the paper in this area, stop and go to next step:123

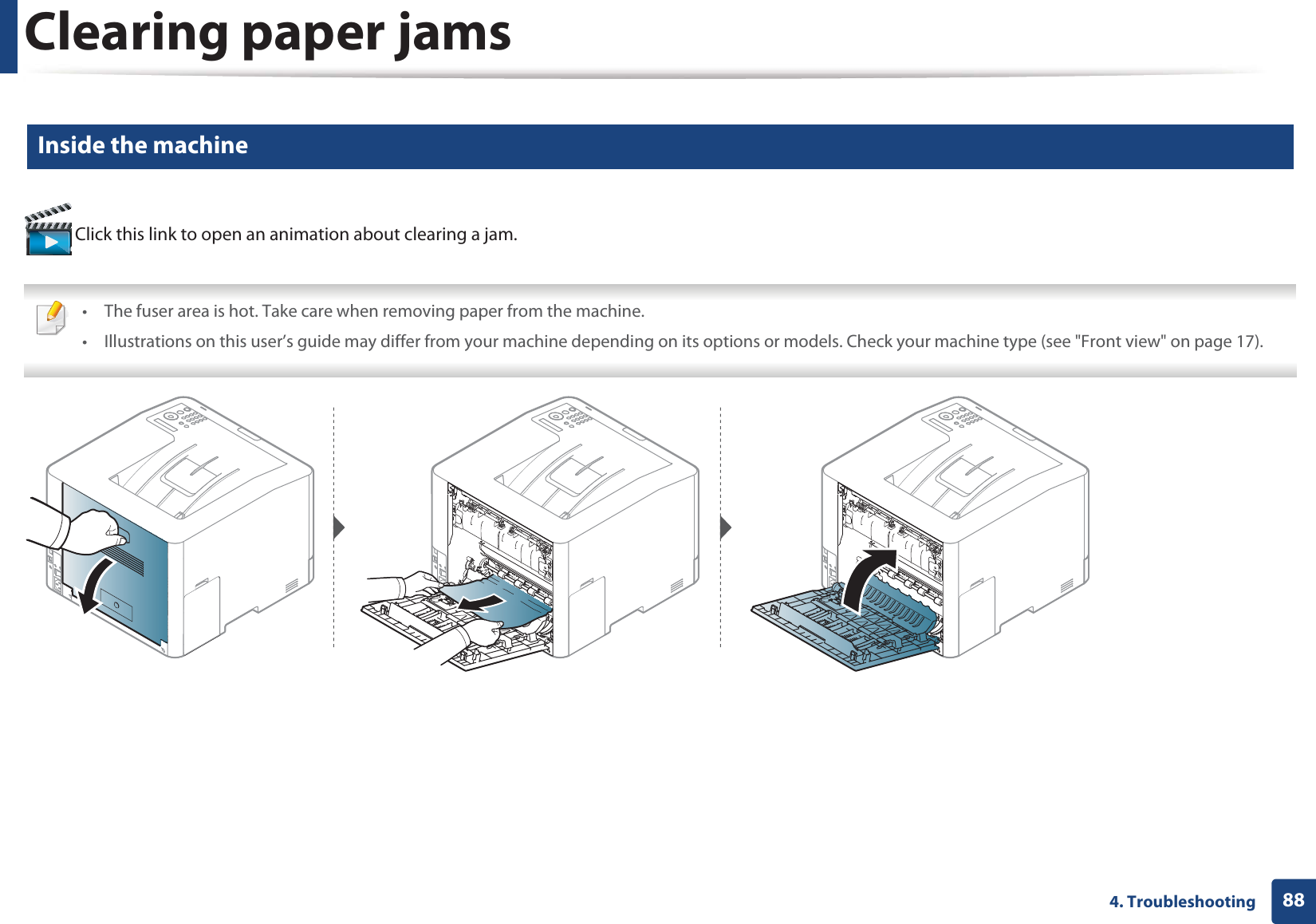

Clearing paper jams884. Troubleshooting4 Inside the machine Click this link to open an animation about clearing a jam. • The fuser area is hot. Take care when removing paper from the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).

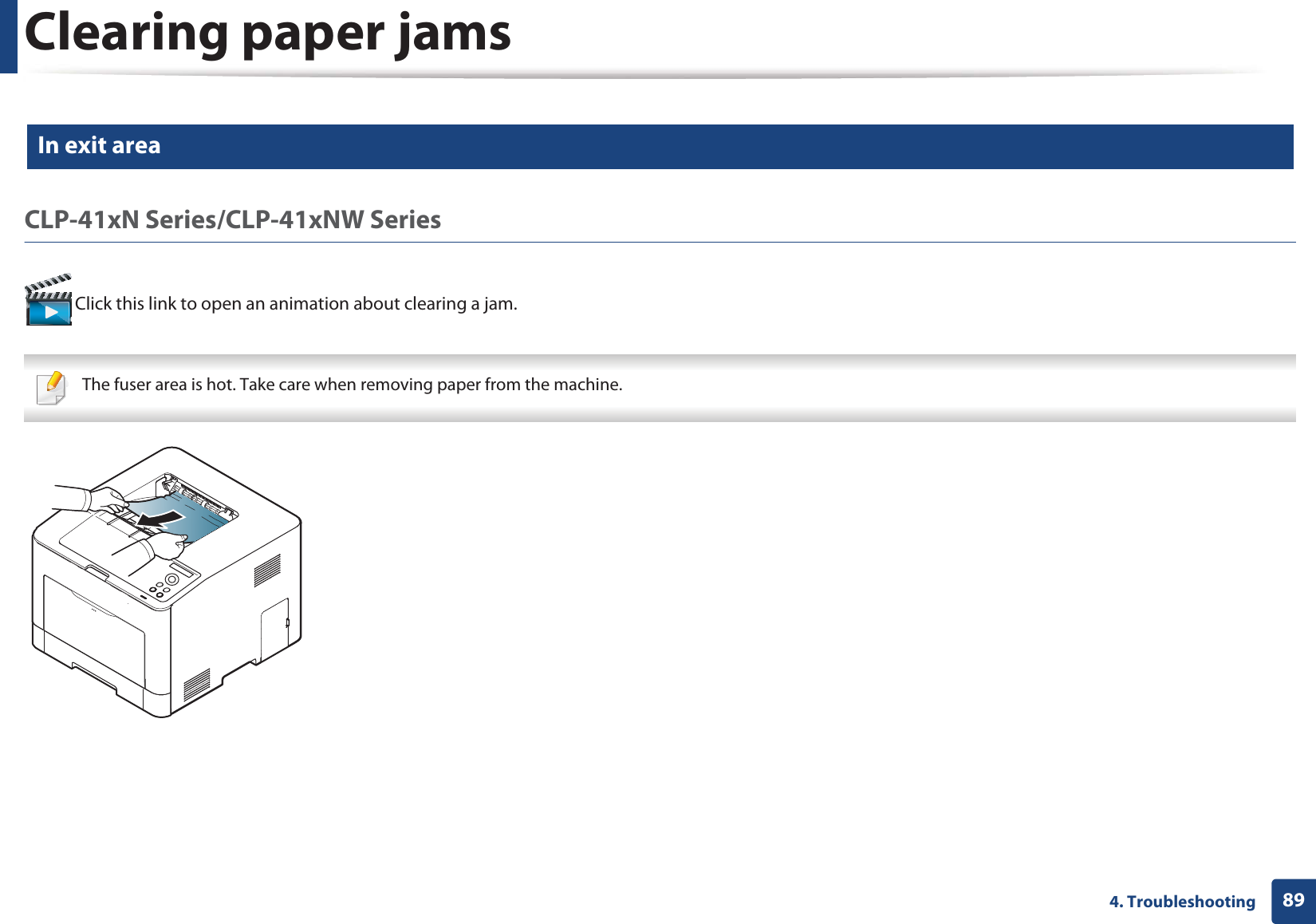

Clearing paper jams894. Troubleshooting5 In exit areaCLP-41xN Series/CLP-41xNW Series Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine.

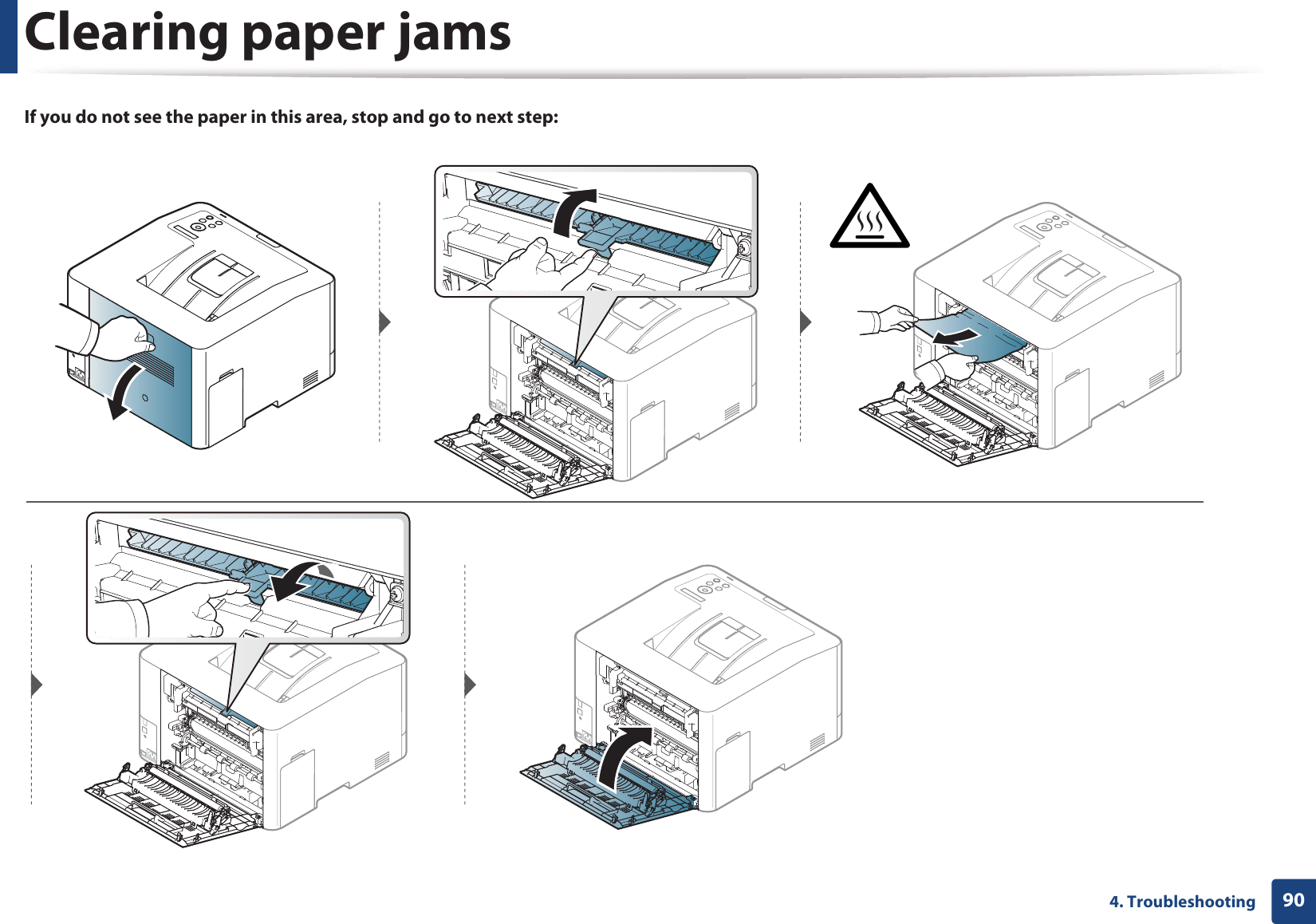

Clearing paper jams904. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

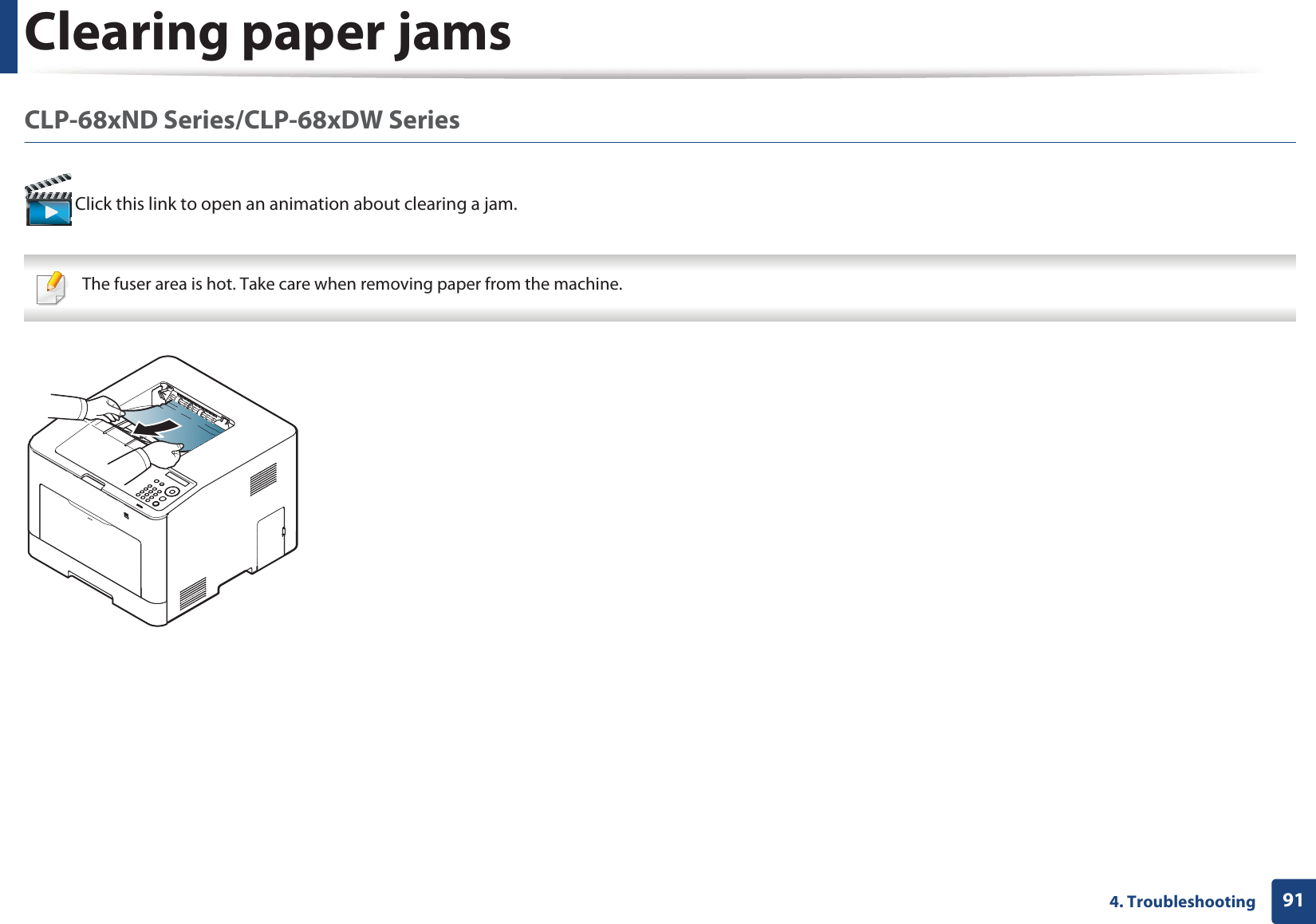

Clearing paper jams914. TroubleshootingCLP-68xND Series/CLP-68xDW Series Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine.

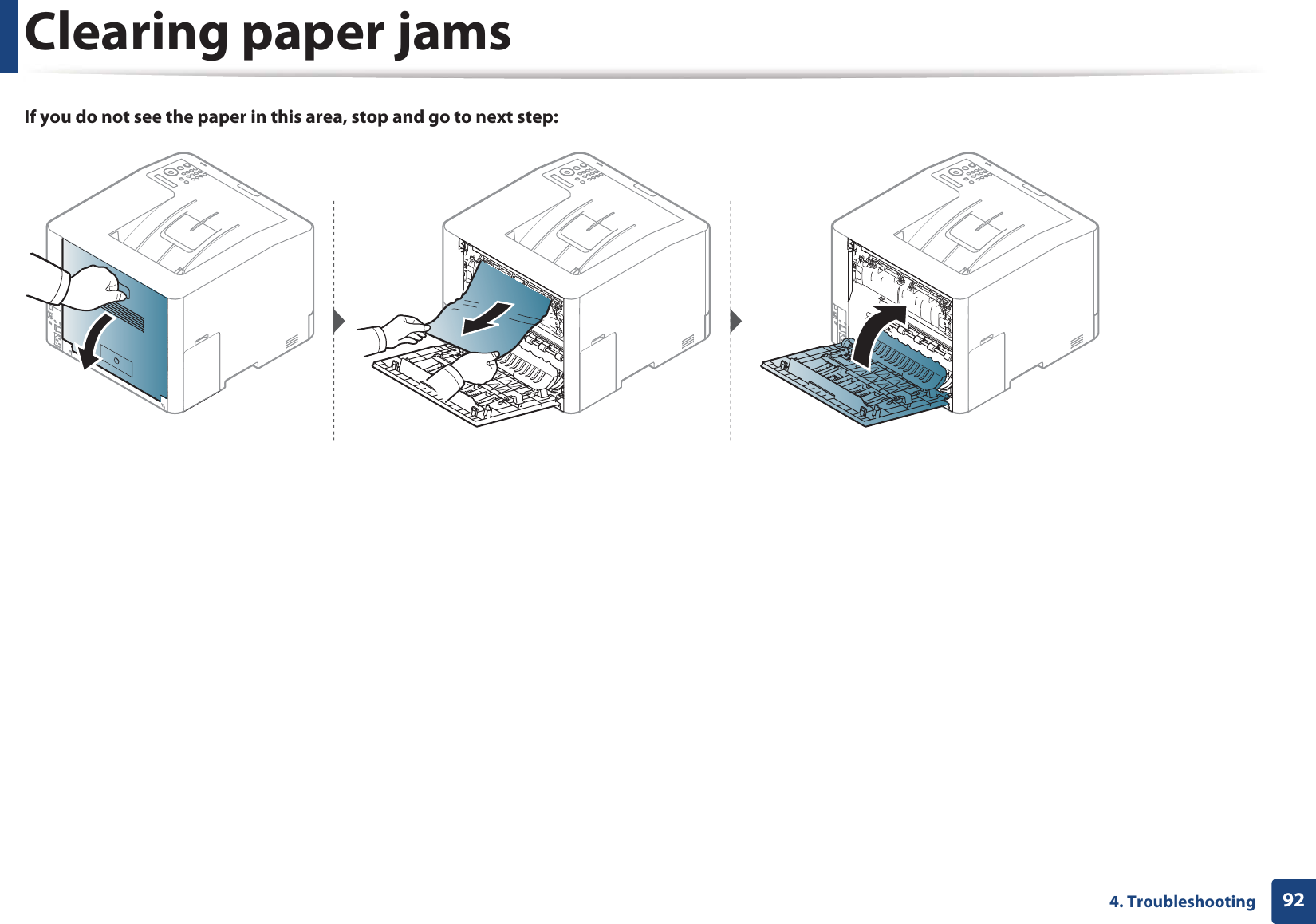

Clearing paper jams924. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

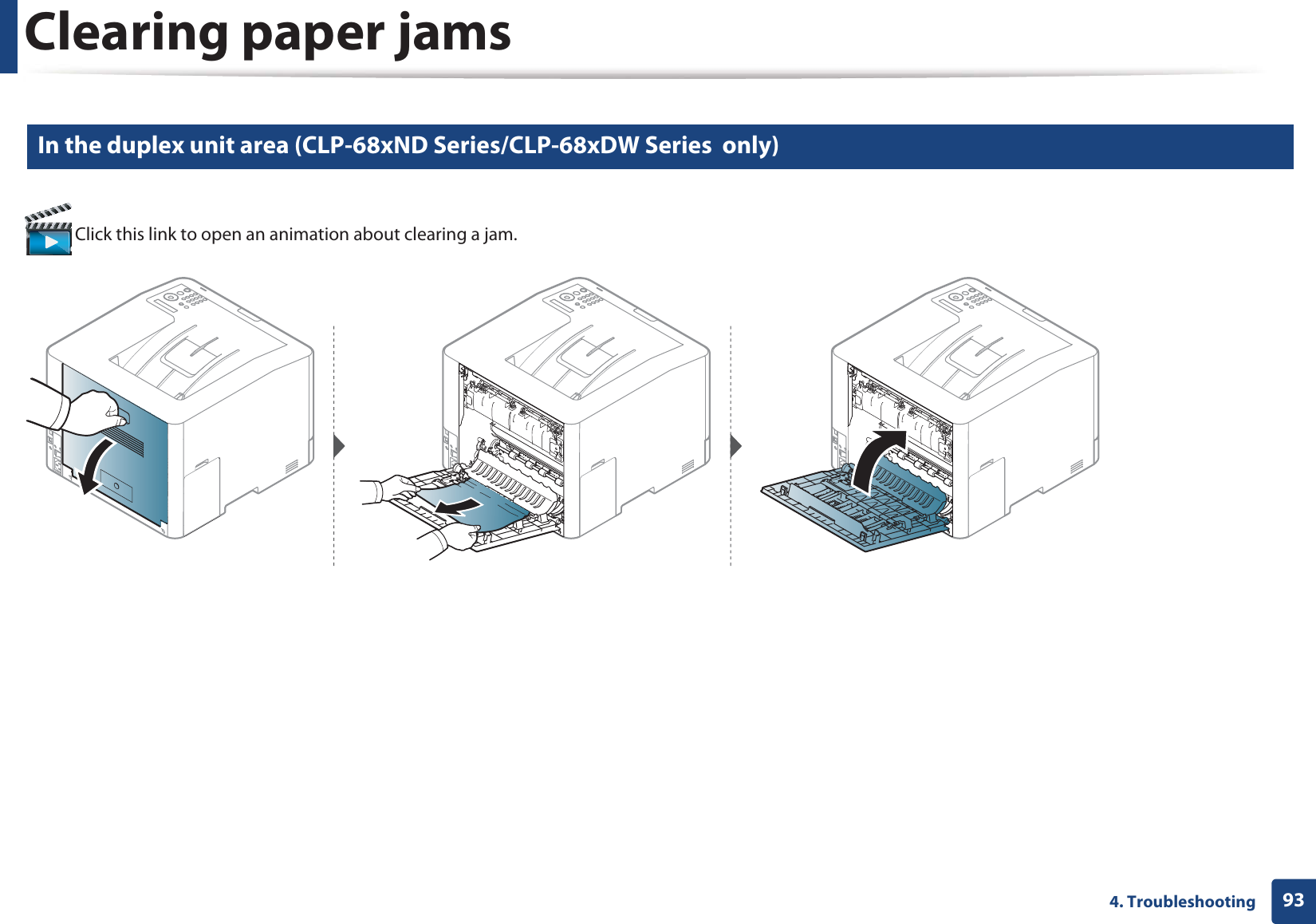

Clearing paper jams934. Troubleshooting6 In the duplex unit area (CLP-68xND Series/CLP-68xDW Series only) Click this link to open an animation about clearing a jam.

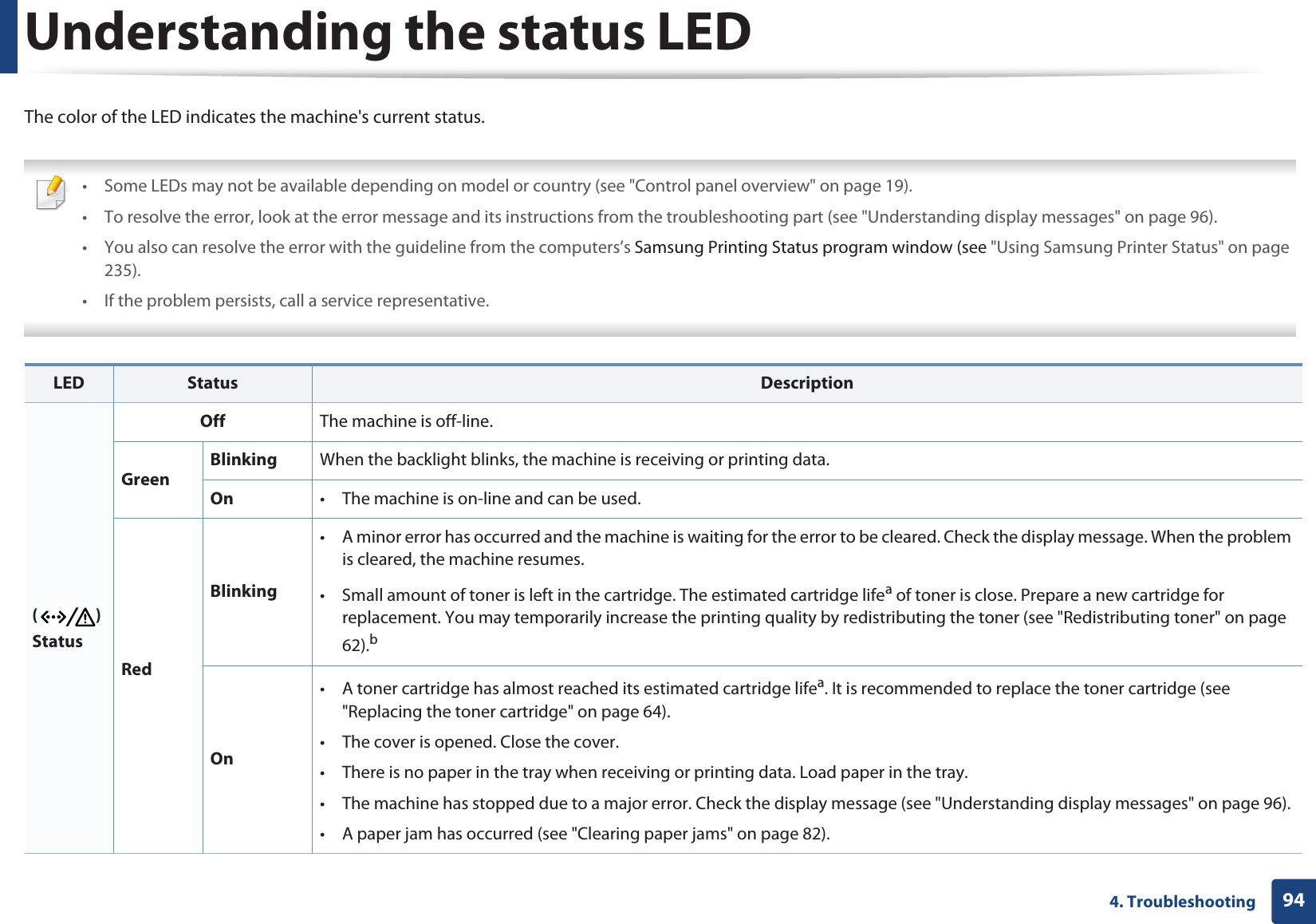

944. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 96).• You also can resolve the error with the guideline from the computers’s Samsung Printing Status program window (see "Using Samsung Printer Status" on page 235).• If the problem persists, call a service representative. LED Status Description() StatusOff The machine is off-line.GreenBlinking When the backlight blinks, the machine is receiving or printing data.On • The machine is on-line and can be used.RedBlinking• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 62).bOn• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 64).• The cover is opened. Close the cover.• There is no paper in the tray when receiving or printing data. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 96). • A paper jam has occurred (see "Clearing paper jams" on page 82).

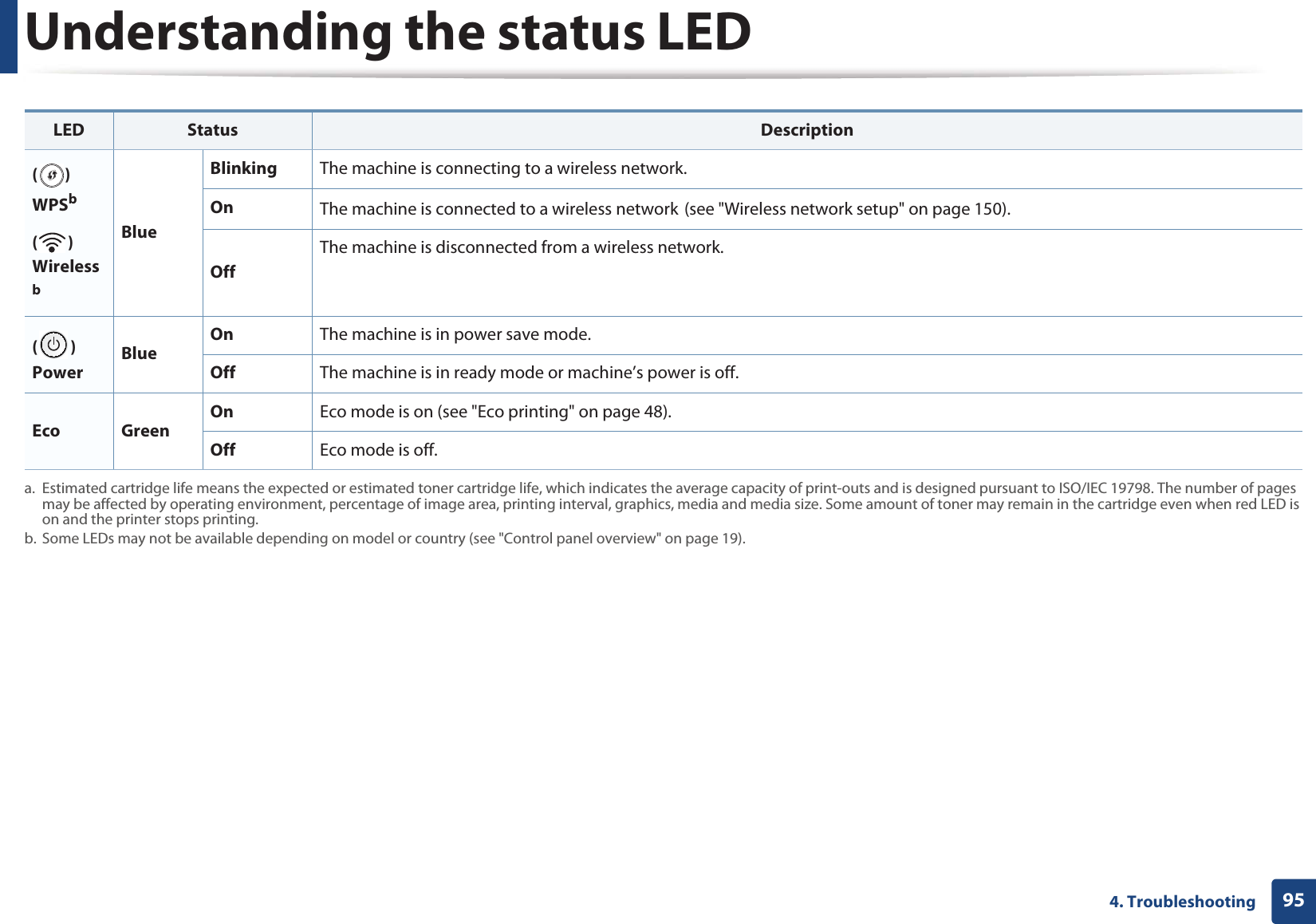

Understanding the status LED954. Troubleshooting () WPSb() WirelessbBlueBlinking The machine is connecting to a wireless network.On The machine is connected to a wireless networkG(see "Wireless network setup" on page 150).OffThe machine is disconnected from a wireless network.() Power BlueOn The machine is in power save mode.Off The machine is in ready mode or machine’s power is off.Eco GreenOn Eco mode is on (see "Eco printing" on page 48).Off Eco mode is off. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).LED Status Description

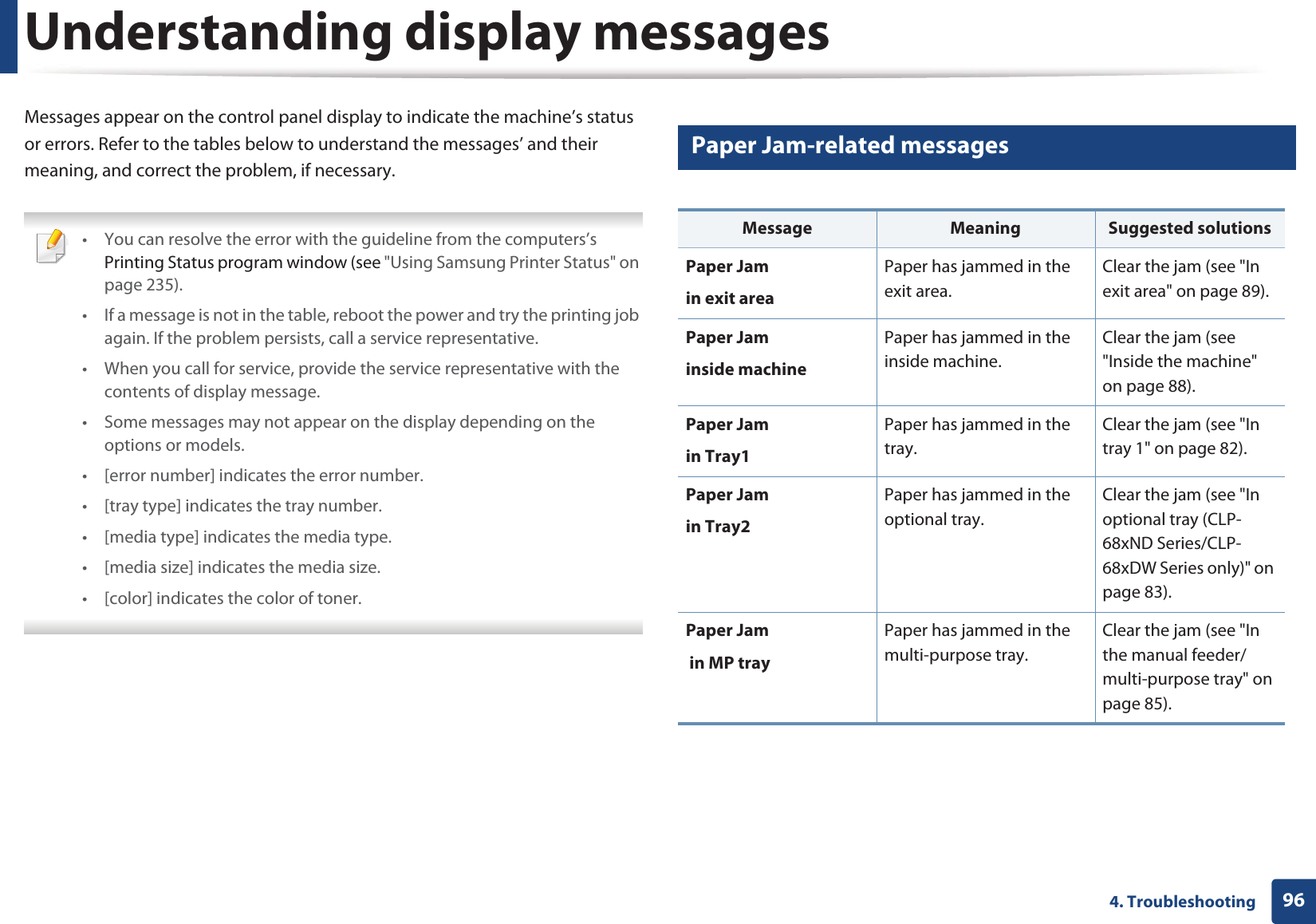

964. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • You can resolve the error with the guideline from the computers’s Printing Status program window (see "Using Samsung Printer Status" on page 235).• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number. • [tray type] indicates the tray number. • [media type] indicates the media type.• [media size] indicates the media size.• [color] indicates the color of toner. 7 Paper Jam-related messagesMessage Meaning Suggested solutionsPaper Jam in exit areaPaper has jammed in the exit area.Clear the jam (see "In exit area" on page 89).Paper Jaminside machinePaper has jammed in the inside machine.Clear the jam (see "Inside the machine" on page 88).Paper Jamin Tray1Paper has jammed in the tray.Clear the jam (see "In tray 1" on page 82).Paper Jamin Tray2Paper has jammed in the optional tray.Clear the jam (see "In optional tray (CLP-68xND Series/CLP-68xDW Series only)" on page 83).Paper Jam in MP trayPaper has jammed in the multi-purpose tray.Clear the jam (see "In the manual feeder/multi-purpose tray" on page 85).

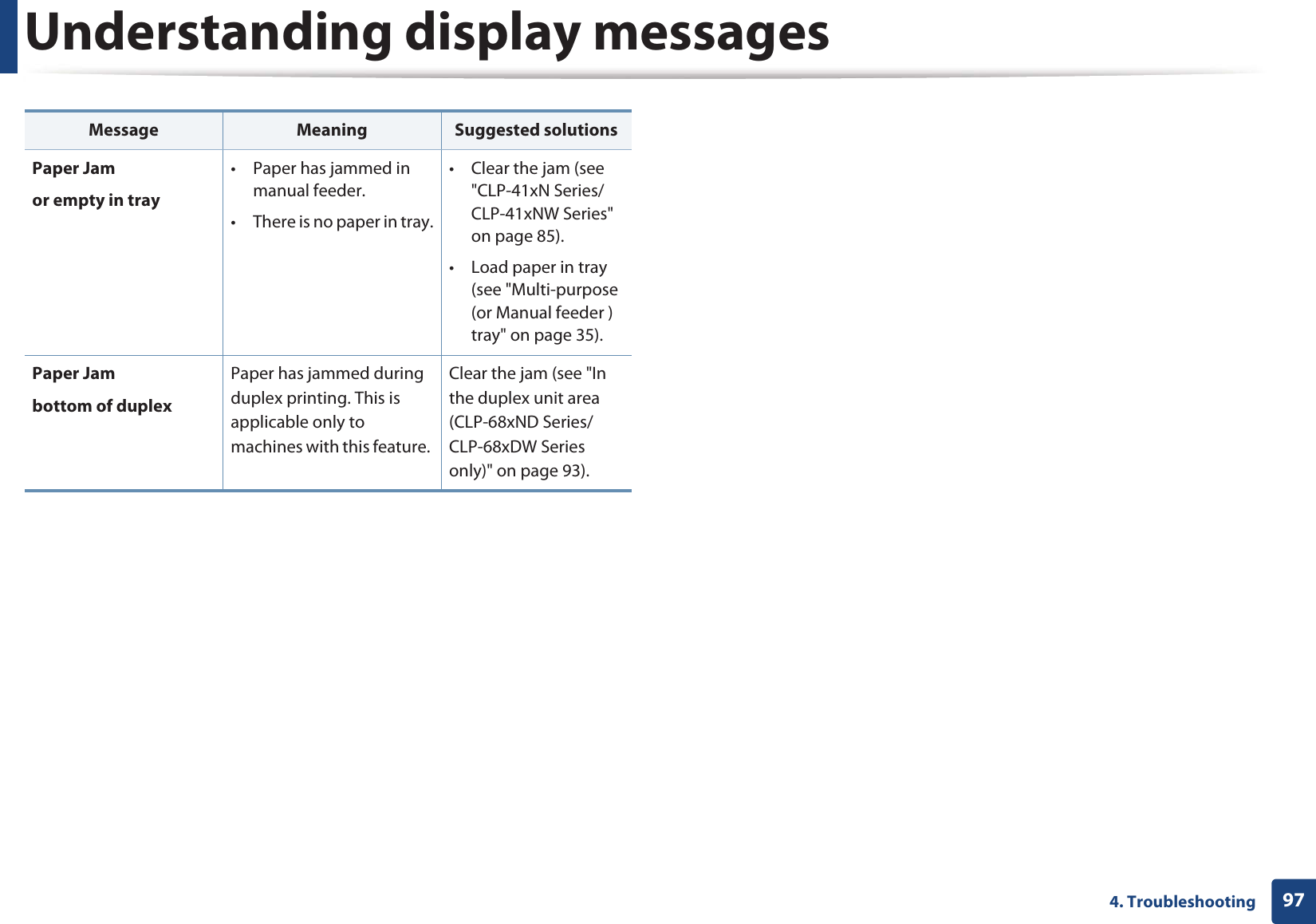

Understanding display messages974. TroubleshootingPaper Jamor empty in tray• Paper has jammed in manual feeder.• There is no paper in tray.• Clear the jam (see "CLP-41xN Series/CLP-41xNW Series" on page 85).• Load paper in tray (see "Multi-purpose (or Manual feeder ) tray" on page 35).Paper Jam bottom of duplexPaper has jammed during duplex printing. This is applicable only to machines with this feature. Clear the jam (see "In the duplex unit area (CLP-68xND Series/CLP-68xDW Series only)" on page 93).Message Meaning Suggested solutions

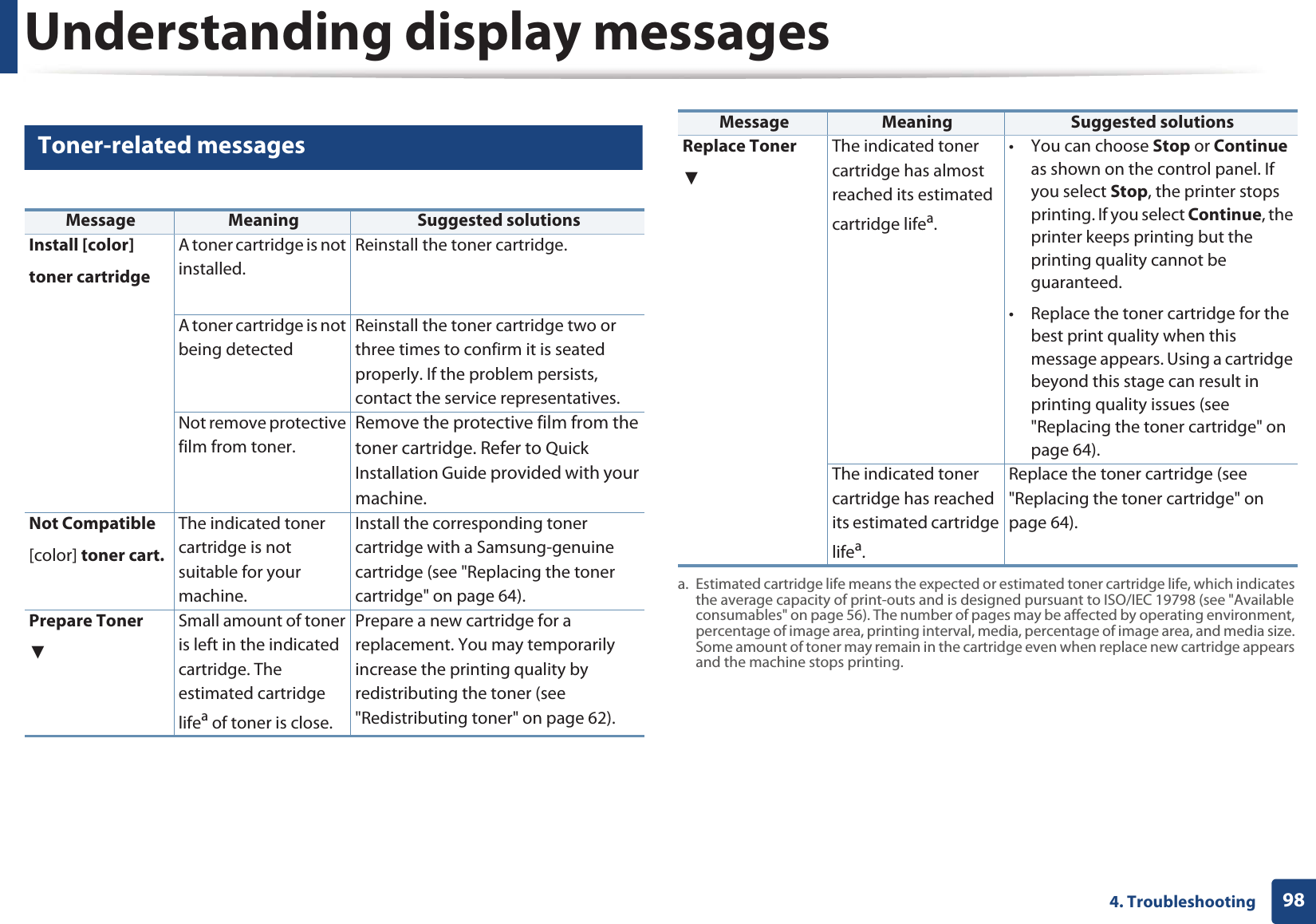

Understanding display messages984. Troubleshooting8 Toner-related messagesMessage Meaning Suggested solutionsInstall [color] toner cartridgeA toner cartridge is not installed.Reinstall the toner cartridge.A toner cartridge is not being detectedReinstall the toner cartridge two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.Not remove protective film from toner.Remove the protective film from the toner cartridge. Refer to Quick Installation Guide provided with your machine.Not Compatible[color] toner cart.The indicated toner cartridge is not suitable for your machine.Install the corresponding toner cartridge with a Samsung-genuine cartridge (see "Replacing the toner cartridge" on page 64).Prepare TonerźSmall amount of toner is left in the indicated cartridge. The estimated cartridge lifea of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 62).Replace TonerźThe indicated toner cartridge has almost reached its estimated cartridge lifea. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 64).The indicated toner cartridge has reached its estimated cartridge lifea. Replace the toner cartridge (see "Replacing the toner cartridge" on page 64).a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available consumables" on page 56). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing.Message Meaning Suggested solutions

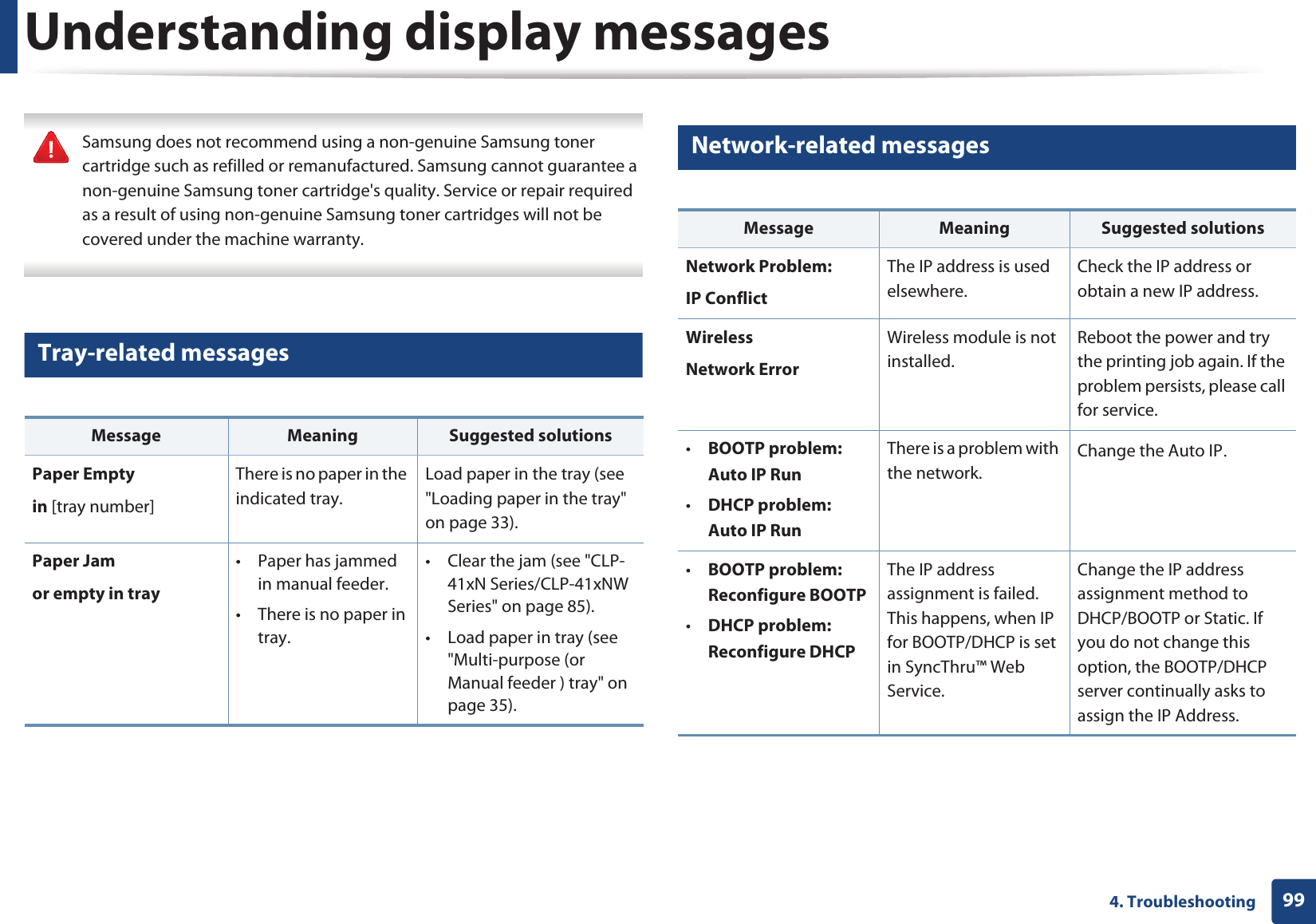

Understanding display messages994. Troubleshooting Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. 9 Tray-related messages10 Network-related messagesMessage Meaning Suggested solutionsPaper Emptyin [tray number] There is no paper in the indicated tray.Load paper in the tray (see "Loading paper in the tray" on page 33).Paper Jamor empty in tray• Paper has jammed in manual feeder.• There is no paper in tray.• Clear the jam (see "CLP-41xN Series/CLP-41xNW Series" on page 85).• Load paper in tray (see "Multi-purpose (or Manual feeder ) tray" on page 35).Message Meaning Suggested solutionsNetwork Problem:IP ConflictThe IP address is used elsewhere. Check the IP address or obtain a new IP address.Wireless Network ErrorWireless module is not installed.Reboot the power and try the printing job again. If the problem persists, please call for service. •BOOTP problem:Auto IP Run•DHCP problem:Auto IP RunThere is a problem with the network.Change the Auto IPU•BOOTP problem:Reconfigure BOOTP•DHCP problem:Reconfigure DHCPThe IP address assignment is failed. This happens, when IP for BOOTP/DHCP is set in SyncThru™ Web Service.Change the IP address assignment method to DHCP/BOOTP or Static. If you do not change this option, the BOOTP/DHCP server continually asks to assign the IP Address.

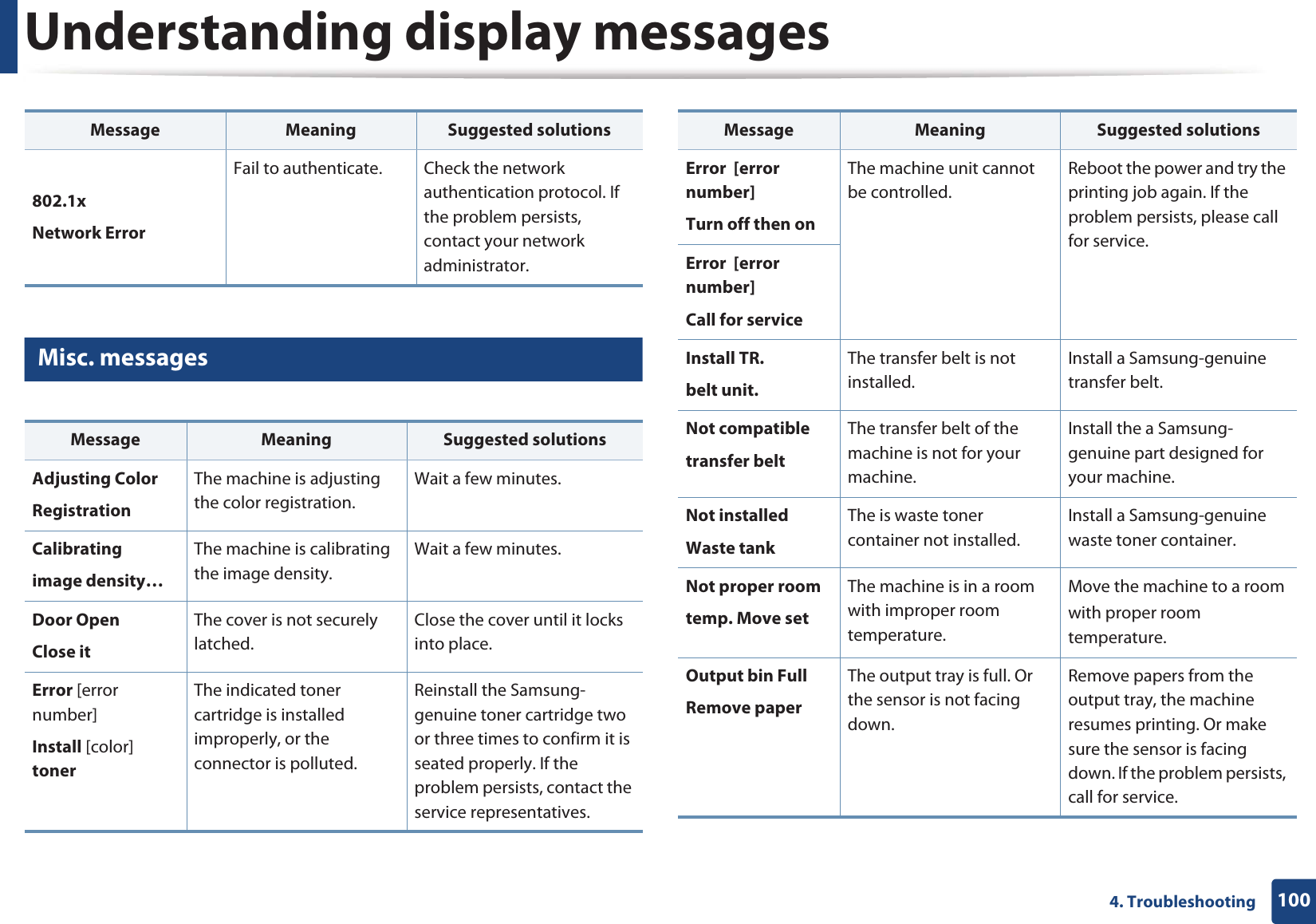

Understanding display messages1004. Troubleshooting11 Misc. messages802.1x Network ErrorFail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutionsAdjusting ColorRegistrationThe machine is adjusting the color registration.Wait a few minutes.Calibratingimage density…The machine is calibrating the image density. Wait a few minutes.Door OpenClose itThe cover is not securely latched.Close the cover until it locks into place. Error [error number]Install [color] tonerThe indicated toner cartridge is installed improperly, or the connector is polluted.Reinstall the Samsung-genuine toner cartridge two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.Message Meaning Suggested solutionsError [error number]Turn off then onThe machine unit cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service. Error [error number]Call for serviceInstall TR.belt unit.The transfer belt is not installed.Install a Samsung-genuine transfer belt.Not compatibletransfer beltThe transfer belt of the machine is not for your machine.Install the a Samsung-genuine part designed for your machine.Not installedWaste tankThe is waste toner container not installed.Install a Samsung-genuine waste toner container.Not proper roomtemp. Move setThe machine is in a room with improper room temperature. Move the machine to a room with proper roomGtemperature.Output bin FullRemove paperThe output tray is full. Or the sensor is not facing down.Remove papers from the output tray, the machine resumes printing. Or make sure the sensor is facing down. If the problem persists, call for service.Message Meaning Suggested solutions

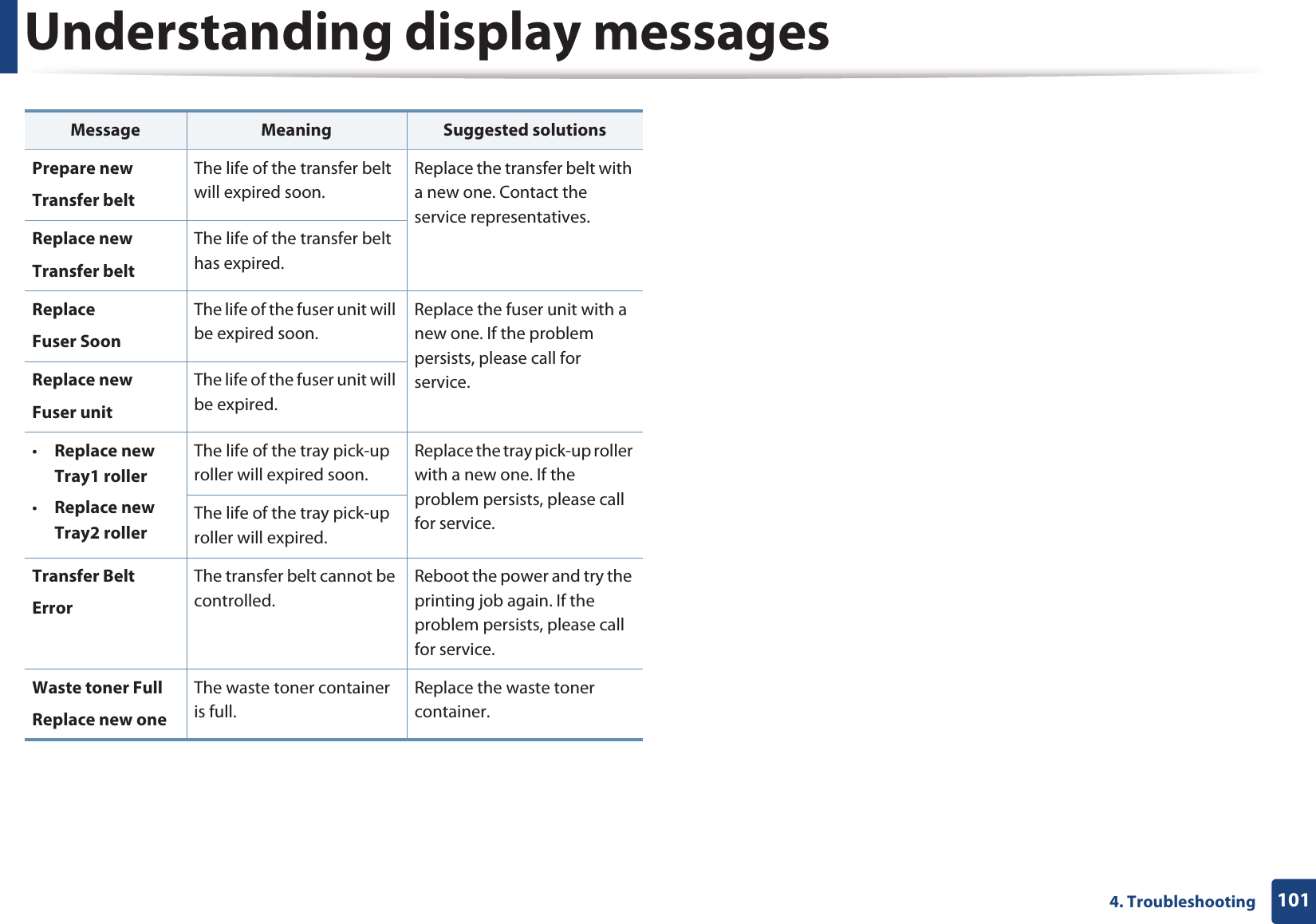

Understanding display messages1014. TroubleshootingPrepare newTransfer beltThe life of the transfer belt will expired soon.Replace the transfer belt with a new one. Contact the service representatives.Replace newTransfer beltThe life of the transfer belt has expired.Replace Fuser SoonThe life of the fuser unit will be expired soon.Replace the fuser unit with a new one. If the problem persists, please call for service. Replace newFuser unitThe life of the fuser unit will be expired.•Replace newTray1 roller•Replace newTray2 rollerThe life of the tray pick-up roller will expired soon.Replace the tray pick-up roller with a new one. If the problem persists, please call for service. The life of the tray pick-up roller will expired.Transfer BeltErrorThe transfer belt cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service. Waste toner FullReplace new oneThe waste toner container is full.Replace the waste toner container.Message Meaning Suggested solutions

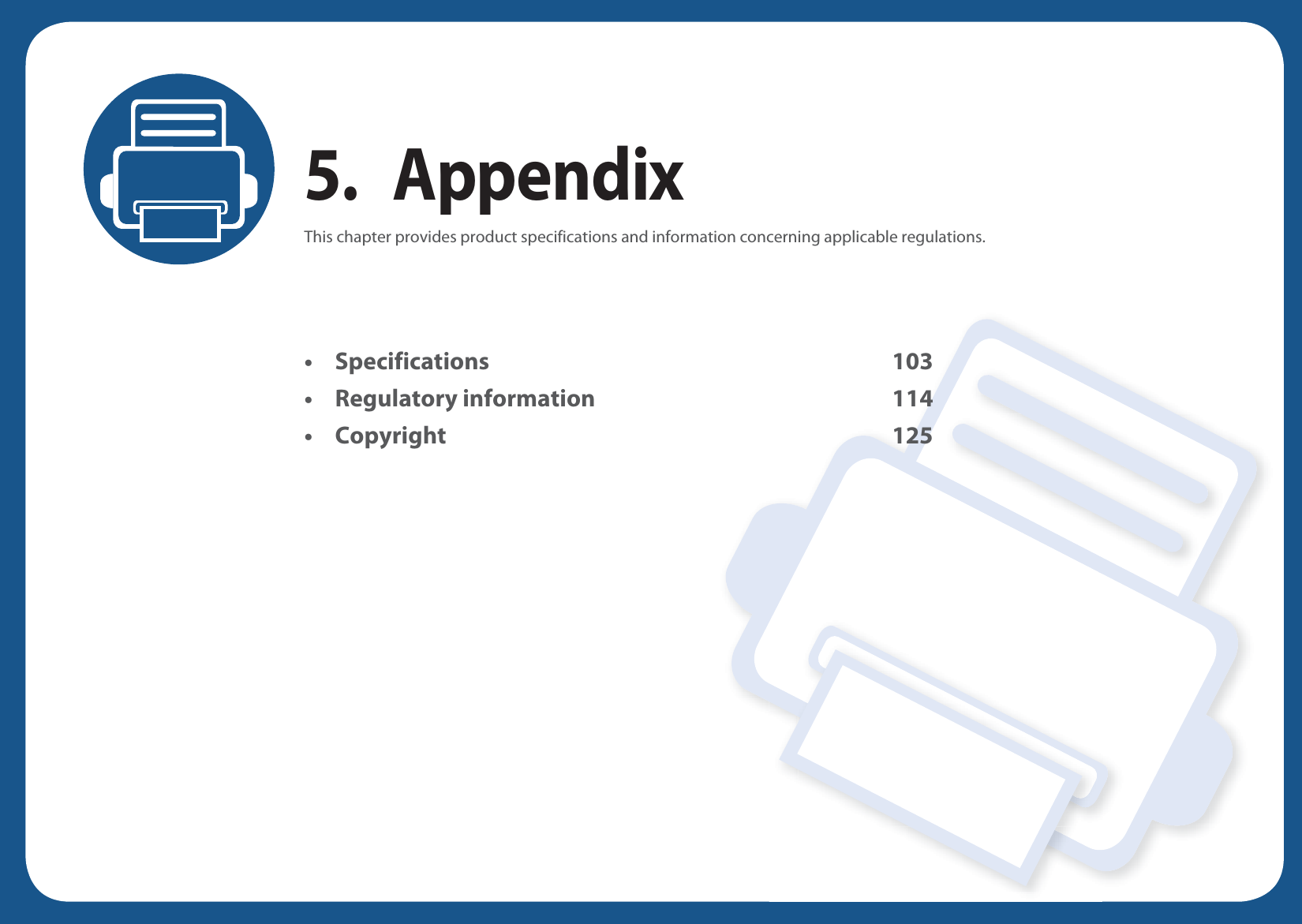

5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 103• Regulatory information 114• Copyright 125

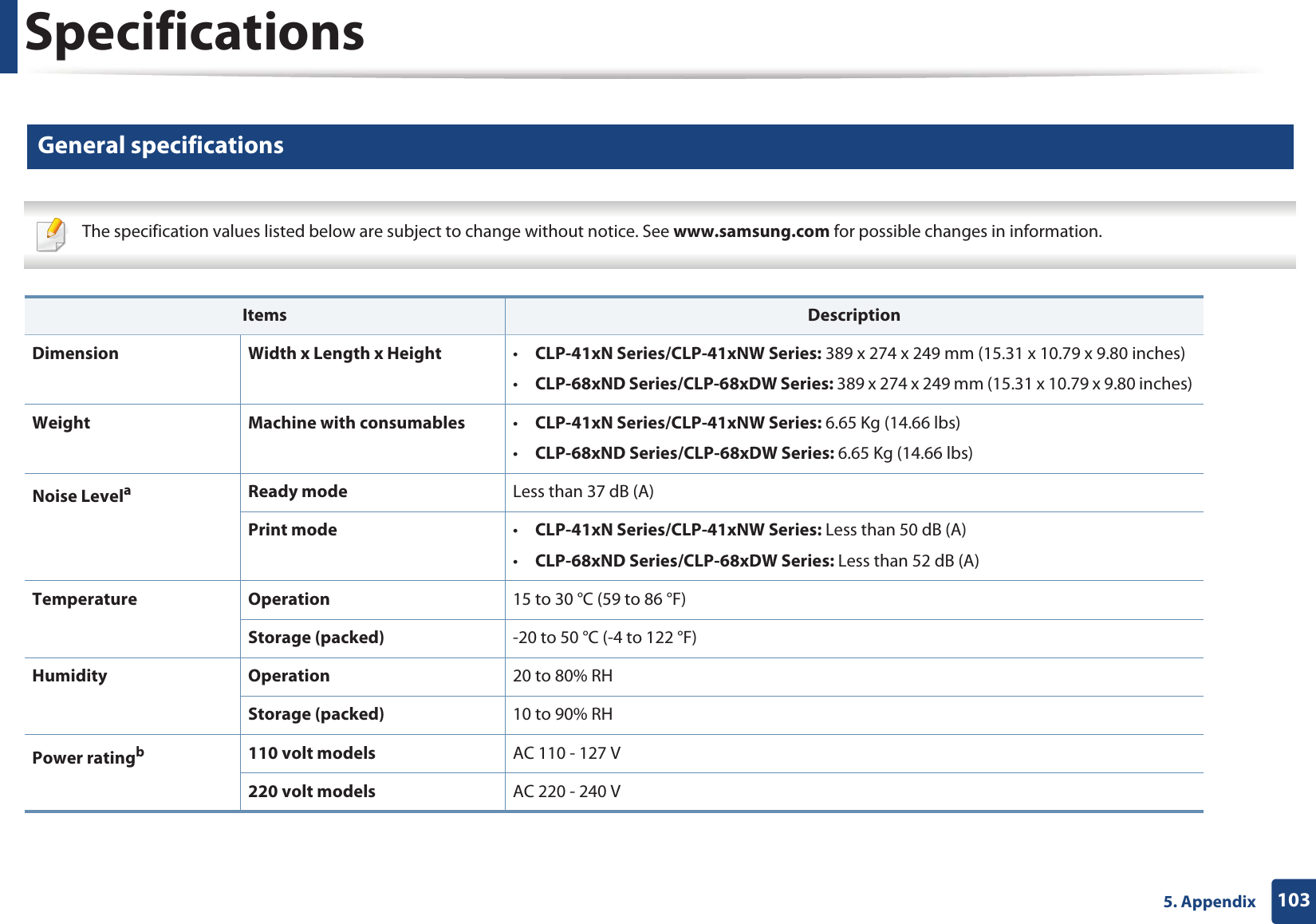

1035. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimension Width x Length x Height •CLP-41xN Series/CLP-41xNW Series: 389 x 274 x 249 mm (15.31 x 10.79 x 9.80 inches) •CLP-68xND Series/CLP-68xDW Series: 389 x 274 x 249 mm (15.31 x 10.79 x 9.80 inches) Weight Machine with consumables •CLP-41xN Series/CLP-41xNW Series: 6.65 Kg (14.66 lbs)•CLP-68xND Series/CLP-68xDW Series: 6.65 Kg (14.66 lbs)Noise LevelaReady mode Less than 37 dB (A)Print mode •CLP-41xN Series/CLP-41xNW Series: Less than 50 dB (A)•CLP-68xND Series/CLP-68xDW Series: Less than 52 dB (A)Temperature Operation 15 to 30 °C (59 to 86 °F)Storage (packed) -20 to 50 °C (-4 to 122 °F)Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingb110 volt models AC 110 - 127 V220 volt models AC 220 - 240 V

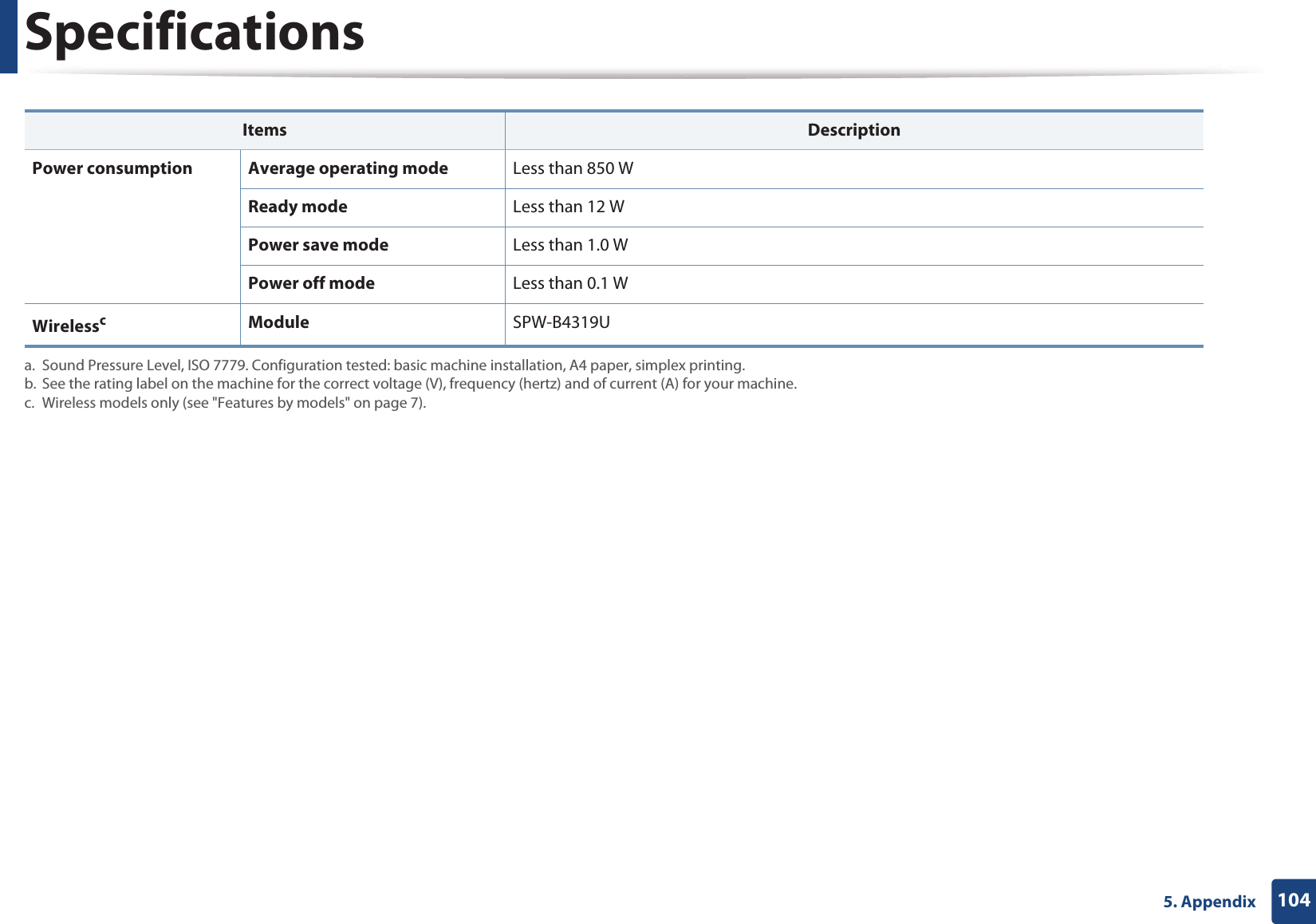

Specifications1045. Appendix Power consumption Average operating mode Less than 850 WReady mode Less than 12 WPower save mode Less than 1.0 WPower off mode Less than 0.1 WWirelesscModule SPW-B4319Ua. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.c. Wireless models only (see "Features by models" on page 7).Items Description

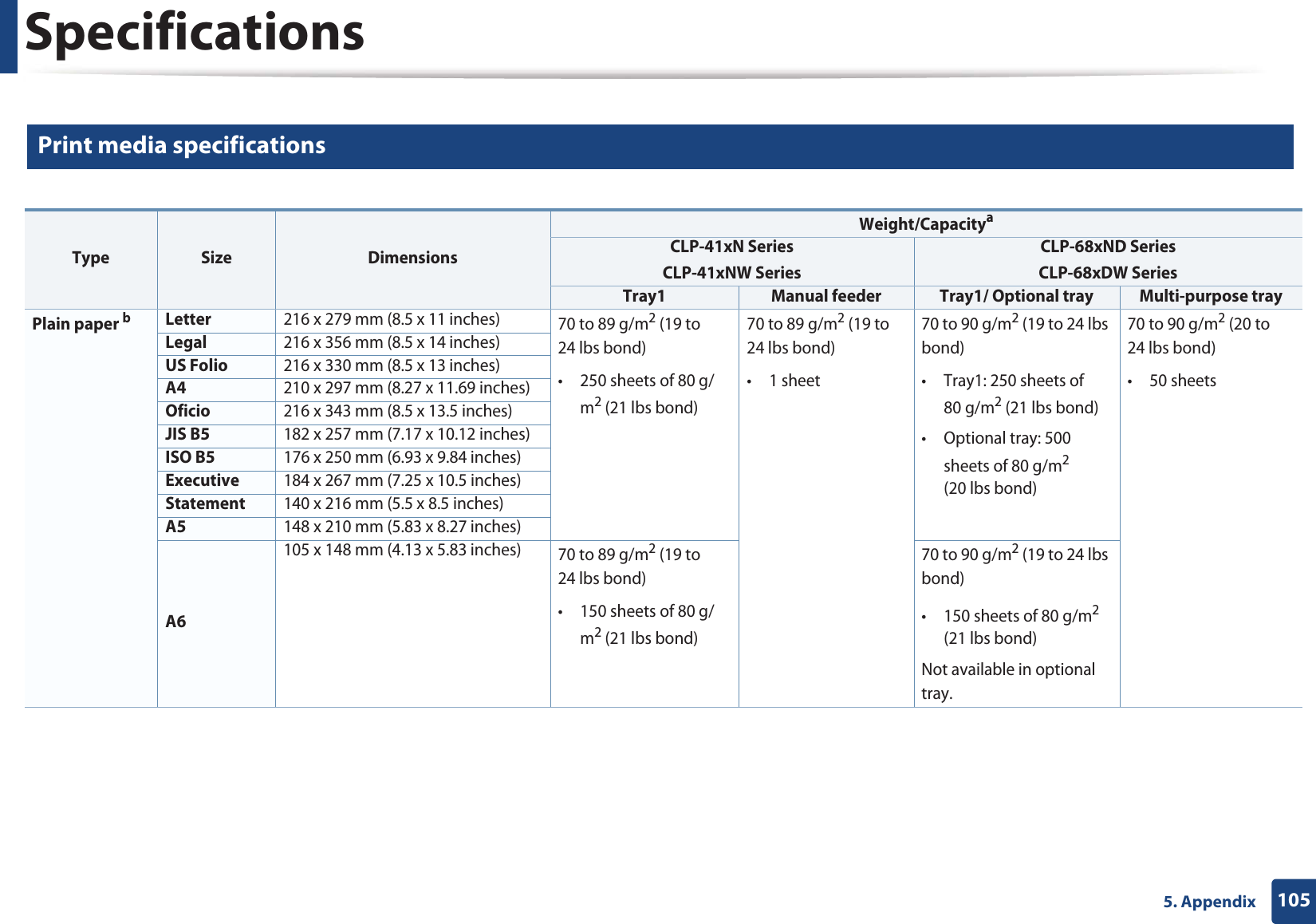

Specifications1055. Appendix2 Print media specifications Type Size DimensionsWeight/CapacityaCLP-41xN SeriesCLP-41xNW Series CLP-68xND SeriesCLP-68xDW SeriesTray1 Manual feeder Tray1/ Optional tray Multi-purpose trayPlain paper bLetter216 x 279 mm (8.5 x 11 inches) 70 to 89 g/m2 (19 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)70 to 89 g/m2 (19 to 24 lbs bond)• 1 sheet 70 to 90 g/m2 (19 to 24 lbs bond)• Tray1: 250 sheets of 80 g/m2 (21 lbs bond)• Optional tray: 500 sheets of 80 g/m2 (20 lbs bond)70 to 90 g/m2 (20 to 24 lbs bond)• 50 sheetsLegal216 x 356 mm (8.5 x 14 inches)US Folio216 x 330 mm (8.5 x 13 inches)A4210 x 297 mm (8.27 x 11.69 inches)Oficio216 x 343 mm (8.5 x 13.5 inches)JIS B5182 x 257 mm (7.17 x 10.12 inches)ISO B5176 x 250 mm (6.93 x 9.84 inches) Executive184 x 267 mm (7.25 x 10.5 inches)Statement140 x 216 mm (5.5 x 8.5 inches)A5148 x 210 mm (5.83 x 8.27 inches)A6105 x 148 mm (4.13 x 5.83 inches) 70 to 89 g/m2 (19 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)Not available in optional tray.

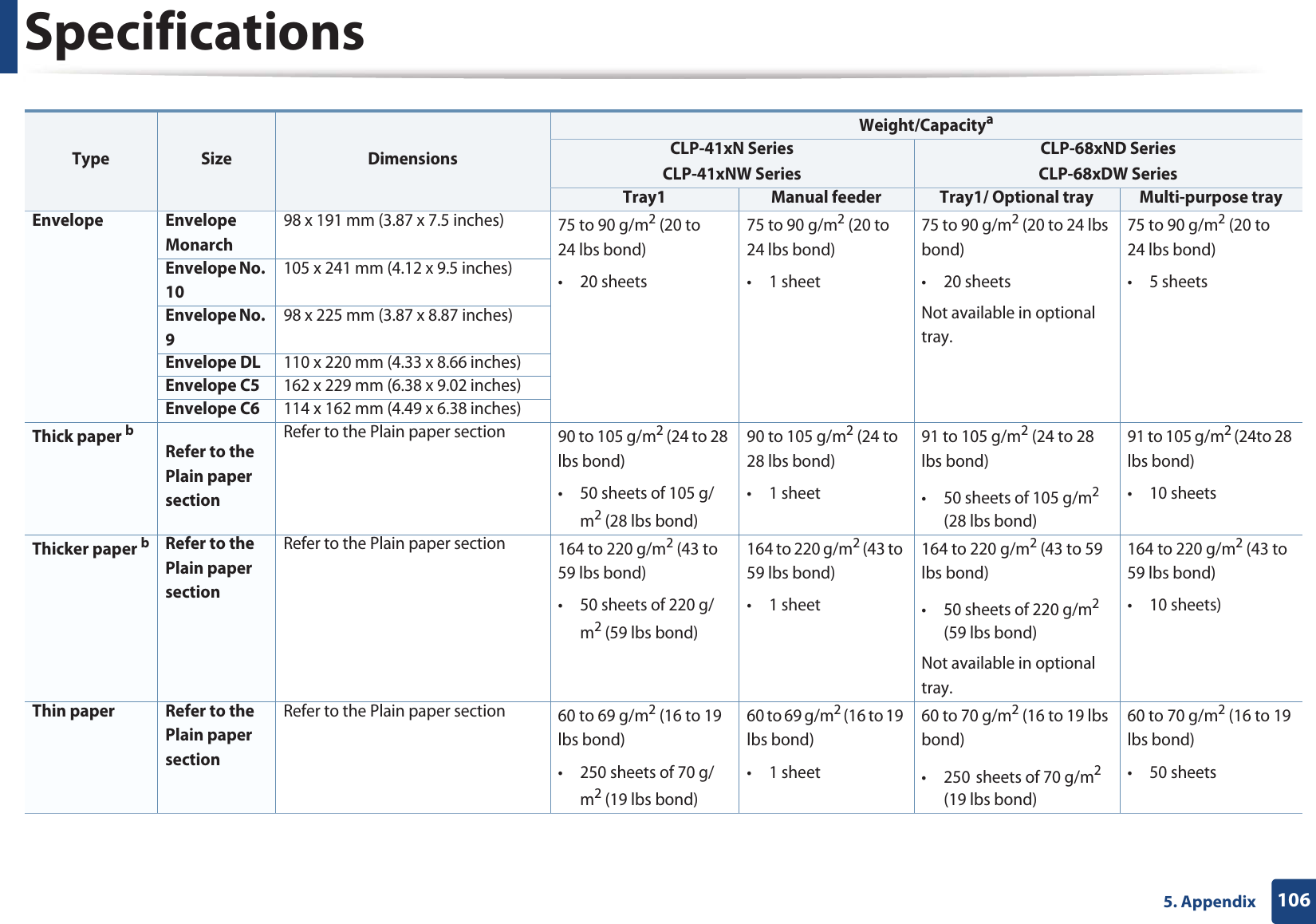

Specifications1065. AppendixEnvelope Envelope Monarch98 x 191 mm (3.87 x 7.5 inches) 75 to 90 g/m2 (20 to 24 lbs bond)• 20 sheets75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheet75 to 90 g/m2 (20 to 24 lbs bond)• 20 sheetsNot available in optional tray.75 to 90 g/m2 (20 to 24 lbs bond)• 5 sheetsEnvelope No. 10105 x 241 mm (4.12 x 9.5 inches)Envelope No. 998 x 225 mm (3.87 x 8.87 inches)Envelope DL110 x 220 mm (4.33 x 8.66 inches)Envelope C5162 x 229 mm (6.38 x 9.02 inches)Envelope C6114 x 162 mm (4.49 x 6.38 inches)Thick paper bRefer to the Plain paper section Refer to the Plain paper section 90 to 105 g/m2 (24 to 28 lbs bond)• 50 sheets of 105 g/m2 (28 lbs bond)90 to 105 g/m2 (24 to 28 lbs bond)• 1 sheet91 to 105 g/m2 (24 to 28 lbs bond)• 50 sheets of 105 g/m2 (28 lbs bond)91 to 105 g/m2 (24to 28 lbs bond)• 10 sheetsThicker paper bRefer to the Plain paper section Refer to the Plain paper section 164 to 220 g/m2 (43 to 59 lbs bond)• 50 sheets of 220 g/m2 (59 lbs bond)164 to 220 g/m2 (43 to 59 lbs bond)• 1 sheet164 to 220 g/m2 (43 to 59 lbs bond)• 50 sheets of 220 g/m2 (59 lbs bond)Not available in optional tray.164 to 220 g/m2 (43 to 59 lbs bond)• 10 sheets)Thin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 69 g/m2 (16 to 19 lbs bond)• 250 sheets of 70 g/m2 (19 lbs bond)60 to 69 g/m2 (16 to 19 lbs bond)• 1 sheet60 to 70 g/m2 (16 to 19 lbs bond)•250Gsheets of 70 g/m2 (19 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)• 50 sheetsType Size DimensionsWeight/CapacityaCLP-41xN SeriesCLP-41xNW Series CLP-68xND SeriesCLP-68xDW SeriesTray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Specifications1075. AppendixCotton, Color, Pre-printedRefer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheet75 to 90 g/m2 (20 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)Not available in optional tray.75 to 90 g/m2 (20 to 24 lbs bond)• 50 sheetsRecycled Refer to the Plain paper section Refer to the Plain paper section 70 to 90 g/m2 (19 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 1 sheet70 to 90 g/m2 (19 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 50 sheetsTransparency Letter, Legal, A4Refer to the Plain paper section 138 to 146 g/m2 (35 to 39 lbs bond)• 50 sheets138 to 146 g/m2 (35 to 39 lbs bond)• 1 sheet138 to 146 g/m2 (35 to 39 lbs bond)• 50 sheetsNot available in optional tray.138 to 146 g/m2 (35 to 39 lbs bond)• 10 sheetsLabels cLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 50 sheets120 to 150 g/m2 (32 to 40 lbs bond)• 1 sheet120 to 150 g/m2 (32 to 40 lbs bond)• 50 sheetsNot available in optional tray.120 to 150 g/m2 (32 to 40 lbs bond)• 10 sheetsType Size DimensionsWeight/CapacityaCLP-41xN SeriesCLP-41xNW Series CLP-68xND SeriesCLP-68xDW SeriesTray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

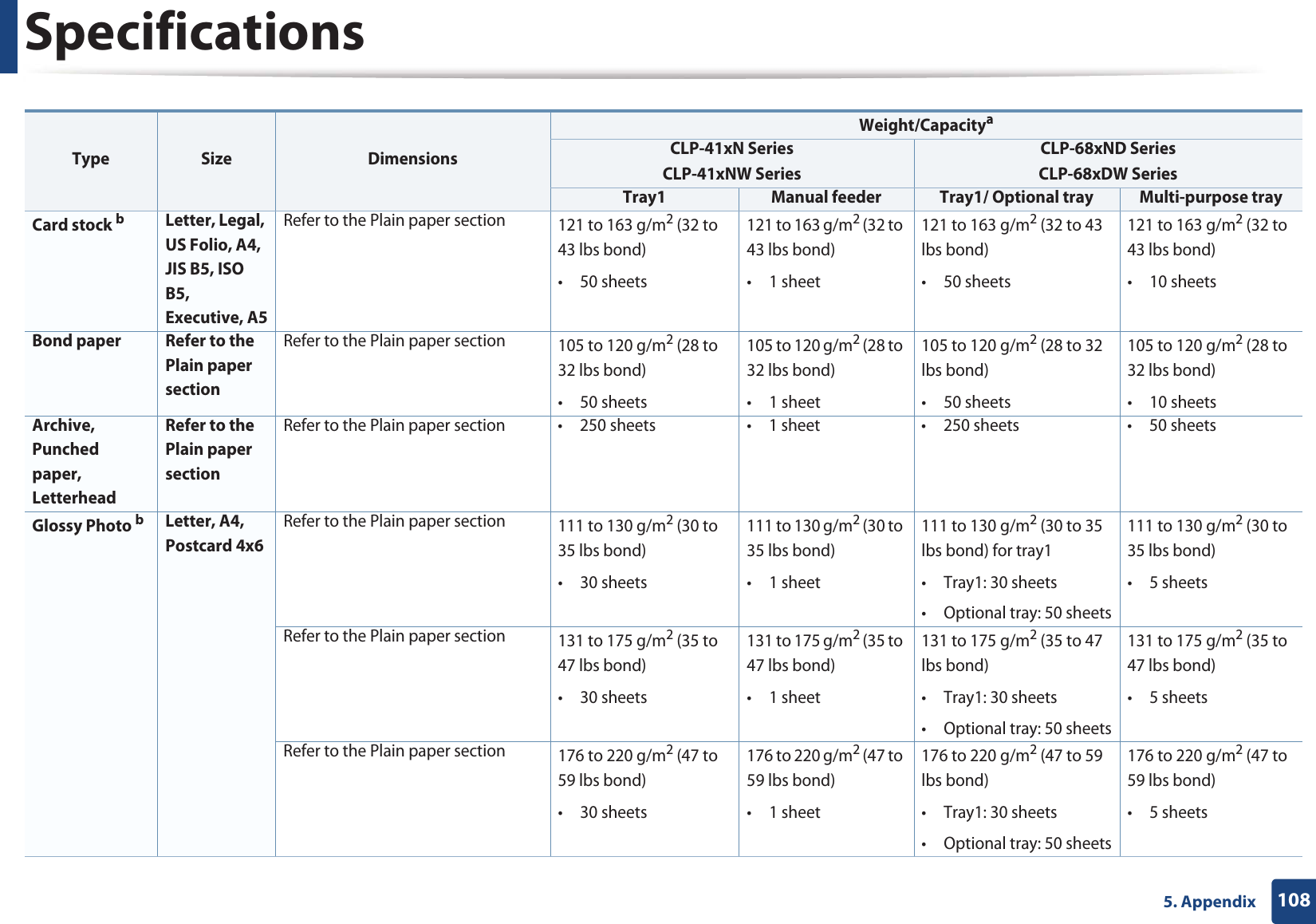

Specifications1085. AppendixCard stock bLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)• 50 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 1 sheet121 to 163 g/m2 (32 to 43 lbs bond)• 50 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 10 sheetsBond paper Refer to the Plain paper section Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs bond)• 50 sheets105 to 120 g/m2 (28 to 32 lbs bond)• 1 sheet105 to 120 g/m2 (28 to 32 lbs bond)• 50 sheets105 to 120 g/m2 (28 to 32 lbs bond)• 10 sheetsArchive, Punched paper, LetterheadRefer to the Plain paper section Refer to the Plain paper section • 250 sheets • 1 sheet • 250 sheets • 50 sheetsGlossy Photo bLetter, A4, Postcard 4x6Refer to the Plain paper section 111 to 130 g/m2 (30 to 35 lbs bond)• 30 sheets111 to 130 g/m2 (30 to 35 lbs bond)• 1 sheet111 to 130 g/m2 (30 to 35 lbs bond) for tray1• Tray1: 30 sheets• Optional tray: 50 sheets111 to 130 g/m2 (30 to 35 lbs bond)• 5 sheetsRefer to the Plain paper section 131 to 175 g/m2 (35 to 47 lbs bond)• 30 sheets131 to 175 g/m2 (35 to 47 lbs bond)• 1 sheet131 to 175 g/m2 (35 to 47 lbs bond)• Tray1: 30 sheets• Optional tray: 50 sheets131 to 175 g/m2 (35 to 47 lbs bond)• 5 sheetsRefer to the Plain paper section 176 to 220 g/m2 (47 to 59 lbs bond)• 30 sheets176 to 220 g/m2 (47 to 59 lbs bond)• 1 sheet176 to 220 g/m2 (47 to 59 lbs bond)• Tray1: 30 sheets• Optional tray: 50 sheets176 to 220 g/m2 (47 to 59 lbs bond)• 5 sheetsType Size DimensionsWeight/CapacityaCLP-41xN SeriesCLP-41xNW Series CLP-68xND SeriesCLP-68xDW SeriesTray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

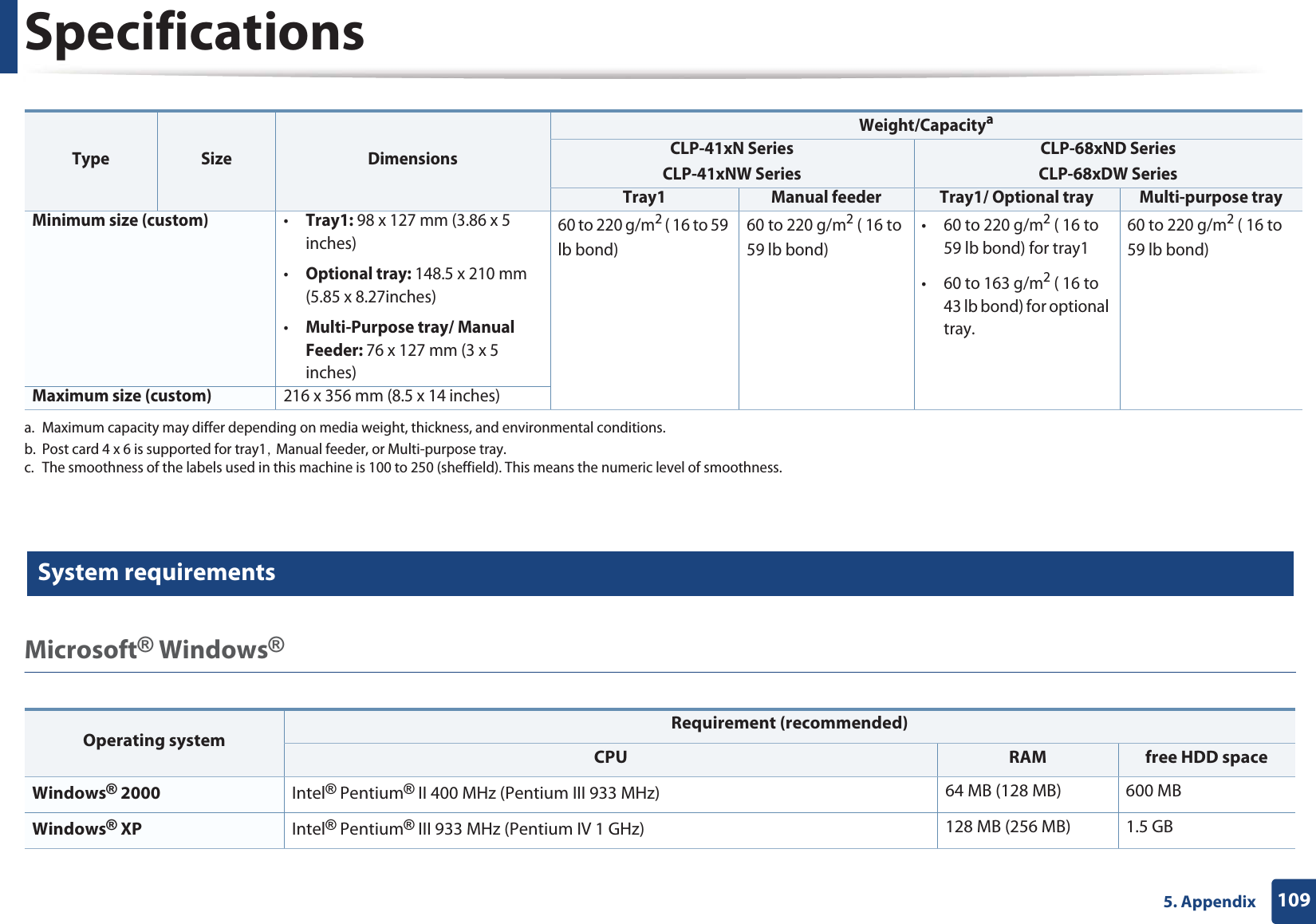

Specifications1095. Appendix 3 System requirementsMicrosoft® Windows® Minimum size (custom)•Tray1: 98 x 127 mm (3.86 x 5 inches)•Optional tray: 148.5 x 210 mm (5.85 x 8.27inches)•Multi-Purpose tray/ Manual Feeder: 76 x 127 mm (3 x 5 inches)60 to 220 g/m2 ( 16 to 59 lb bond)60 to 220 g/m2 ( 16 to 59 lb bond)• 60 to 220 g/m2 ( 16 to 59 lb bond) for tray1• 60 to 163 g/m2 ( 16 to 43 lb bond) for optional tray.60 to 220 g/m2 ( 16 to 59 lb bond)Maximum size (custom)216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. Post card 4 x 6 is supported for tray1SGManual feeder, or Multi-purpose tray.c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.Operating system Requirement (recommended)CPU RAM free HDD spaceWindows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBType Size DimensionsWeight/CapacityaCLP-41xN SeriesCLP-41xNW Series CLP-68xND SeriesCLP-68xDW SeriesTray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

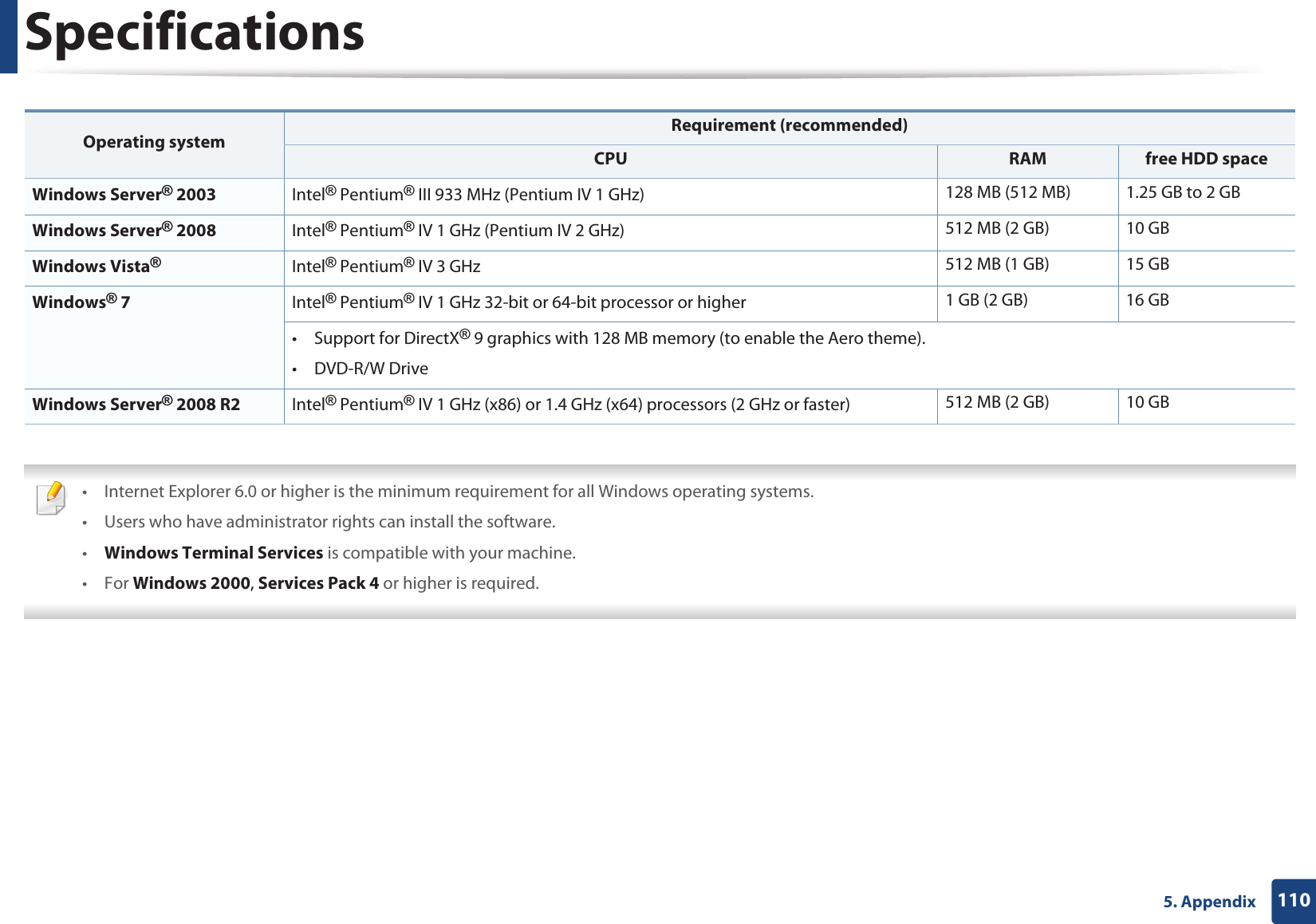

Specifications1105. Appendix • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine.•For Windows 2000, Services Pack 4 or higher is required. Windows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).• DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GBOperating system Requirement (recommended)CPU RAM free HDD space

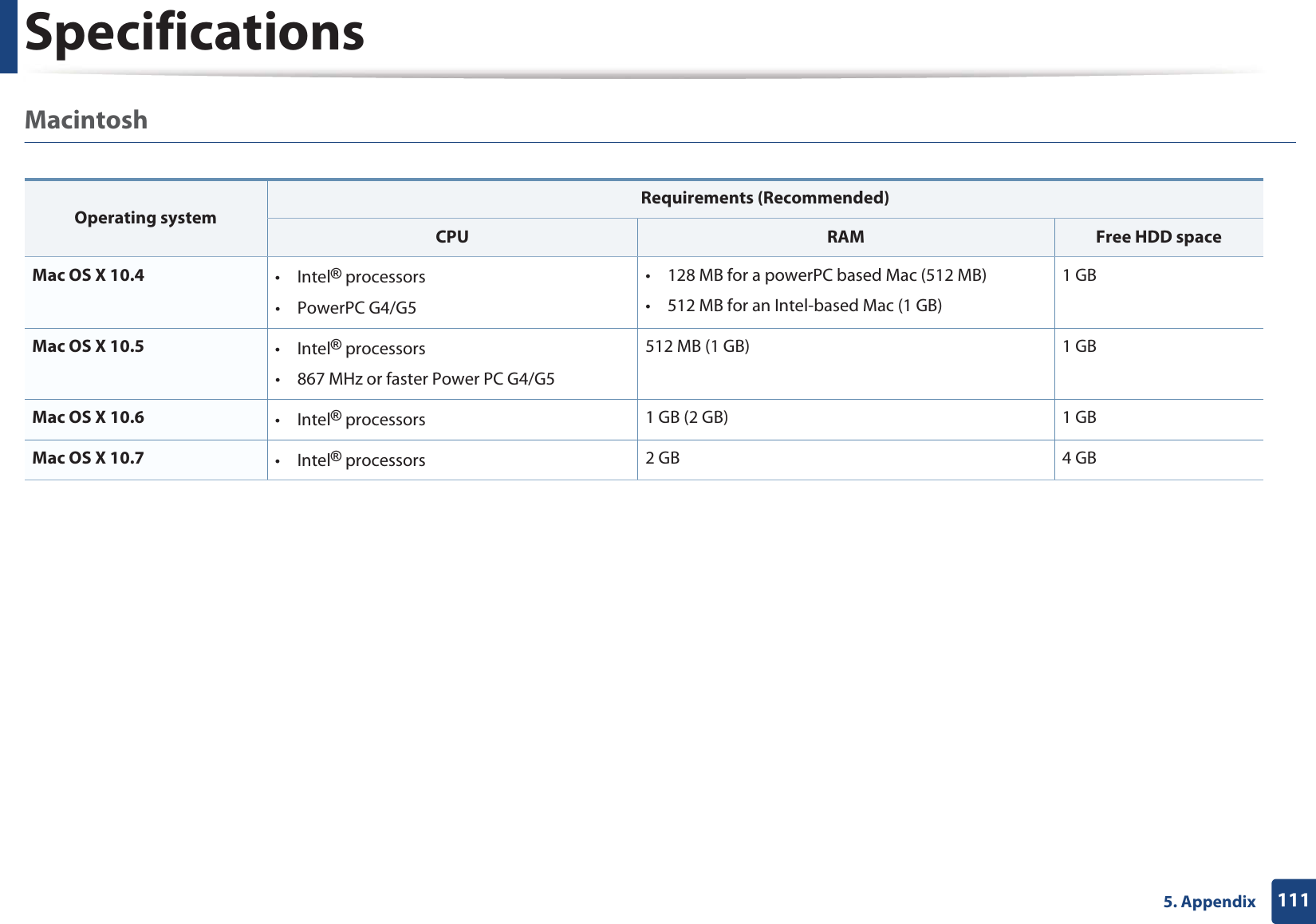

Specifications1115. AppendixMacintosh Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.4 •Intel® processors• PowerPC G4/G5• 128 MB for a powerPC based Mac (512 MB)• 512 MB for an Intel-based Mac (1 GB)1 GBMac OS X 10.5 •Intel® processors• 867 MHz or faster Power PC G4/G5512 MB (1 GB) 1 GBMac OS X 10.6 •Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7 •Intel® processors 2 GB 4 GB

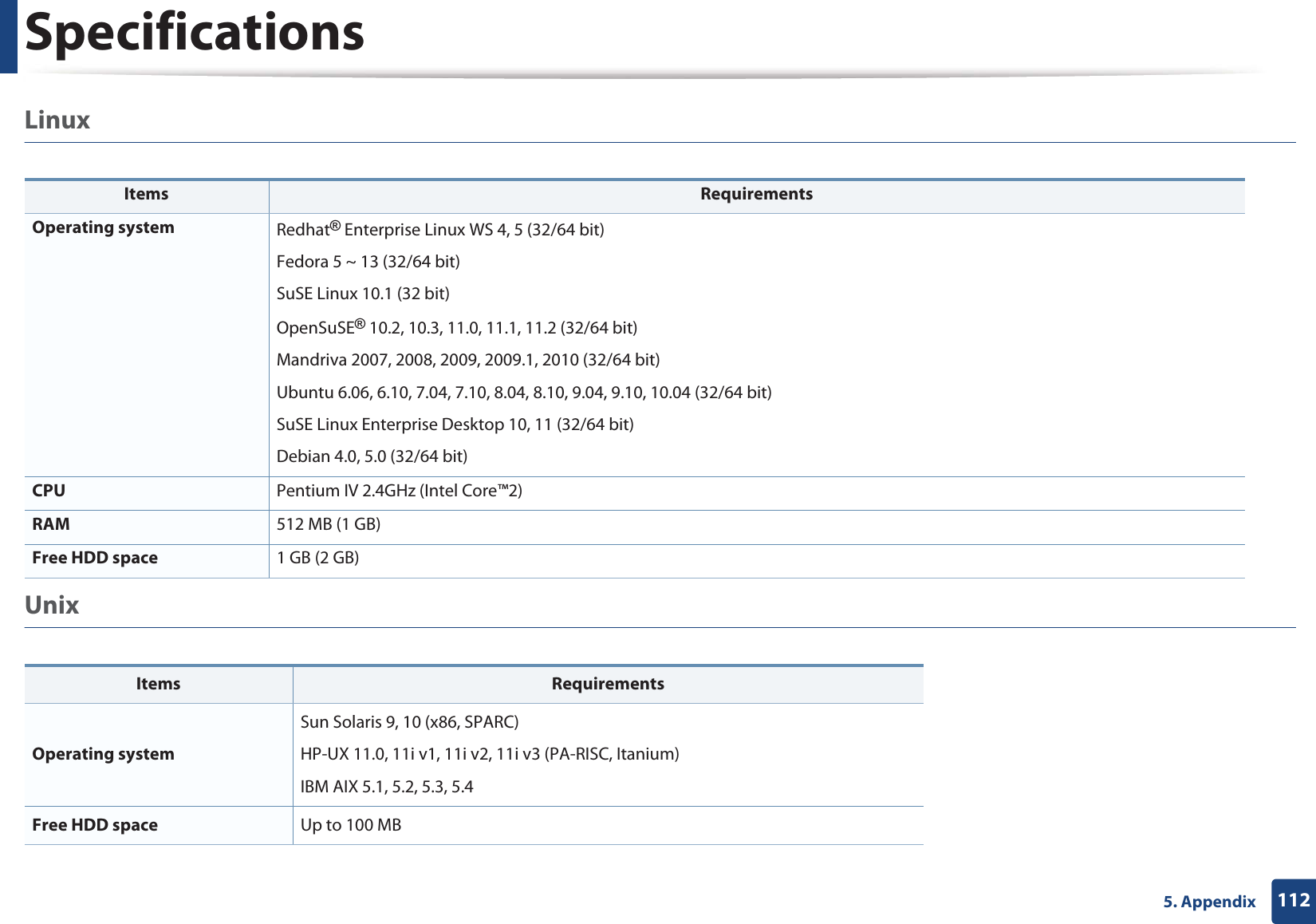

Specifications1125. AppendixLinux UnixItems RequirementsOperating system Redhat® Enterprise Linux WS 4, 5 (32/64 bit)Fedora 5 ~ 13 (32/64 bit)SuSE Linux 10.1 (32 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)Items RequirementsOperating systemSun Solaris 9, 10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4Free HDD space Up to 100 MB

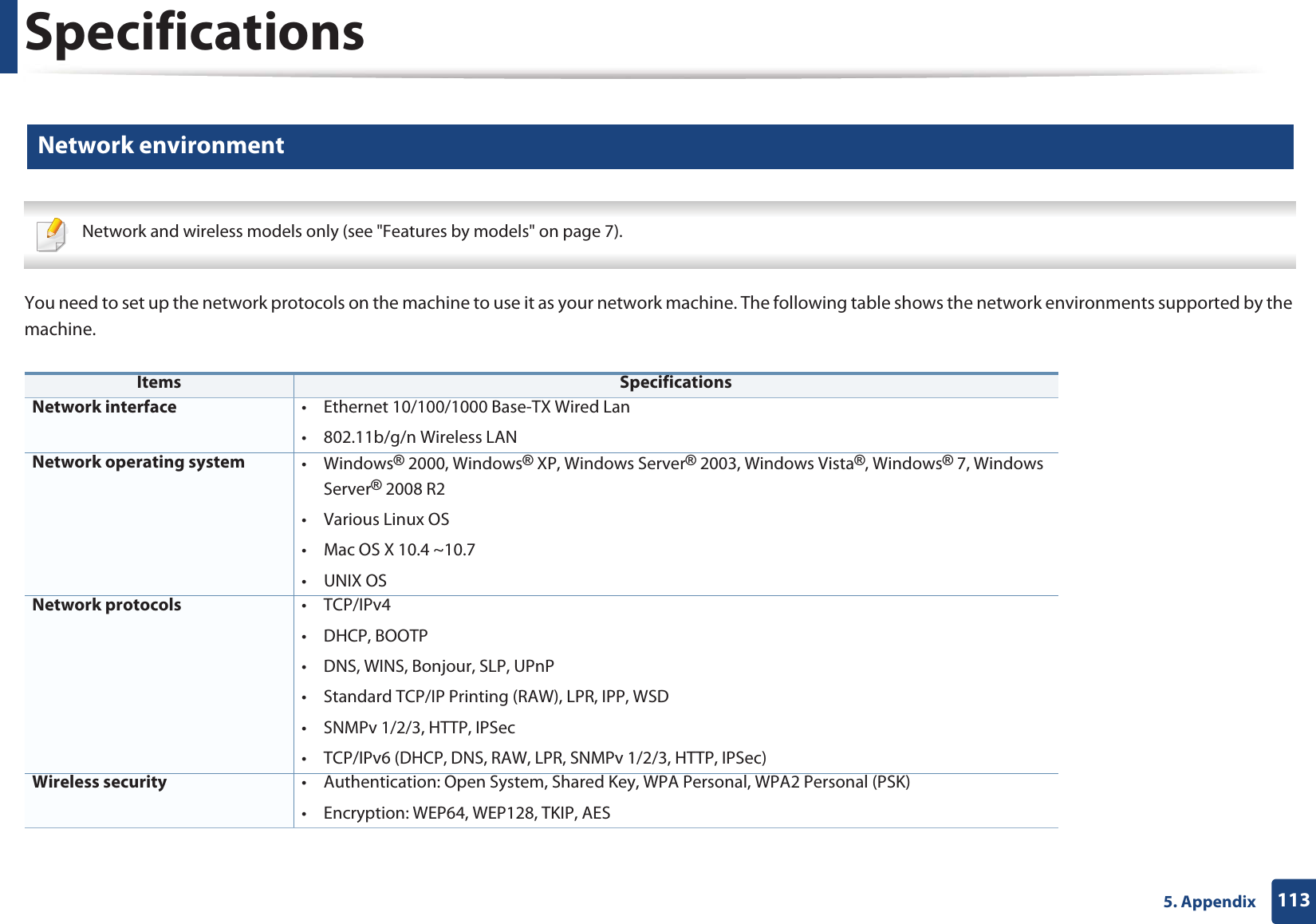

Specifications1135. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 7). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100/1000 Base-TX Wired Lan• 802.11b/g/n Wireless LANNetwork operating system • Windows® 2000, Windows® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows Server® 2008 R2• Various Linux OS• Mac OS X 10.4 ~10.7• UNIX OSNetwork protocols • TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP, IPSec• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES

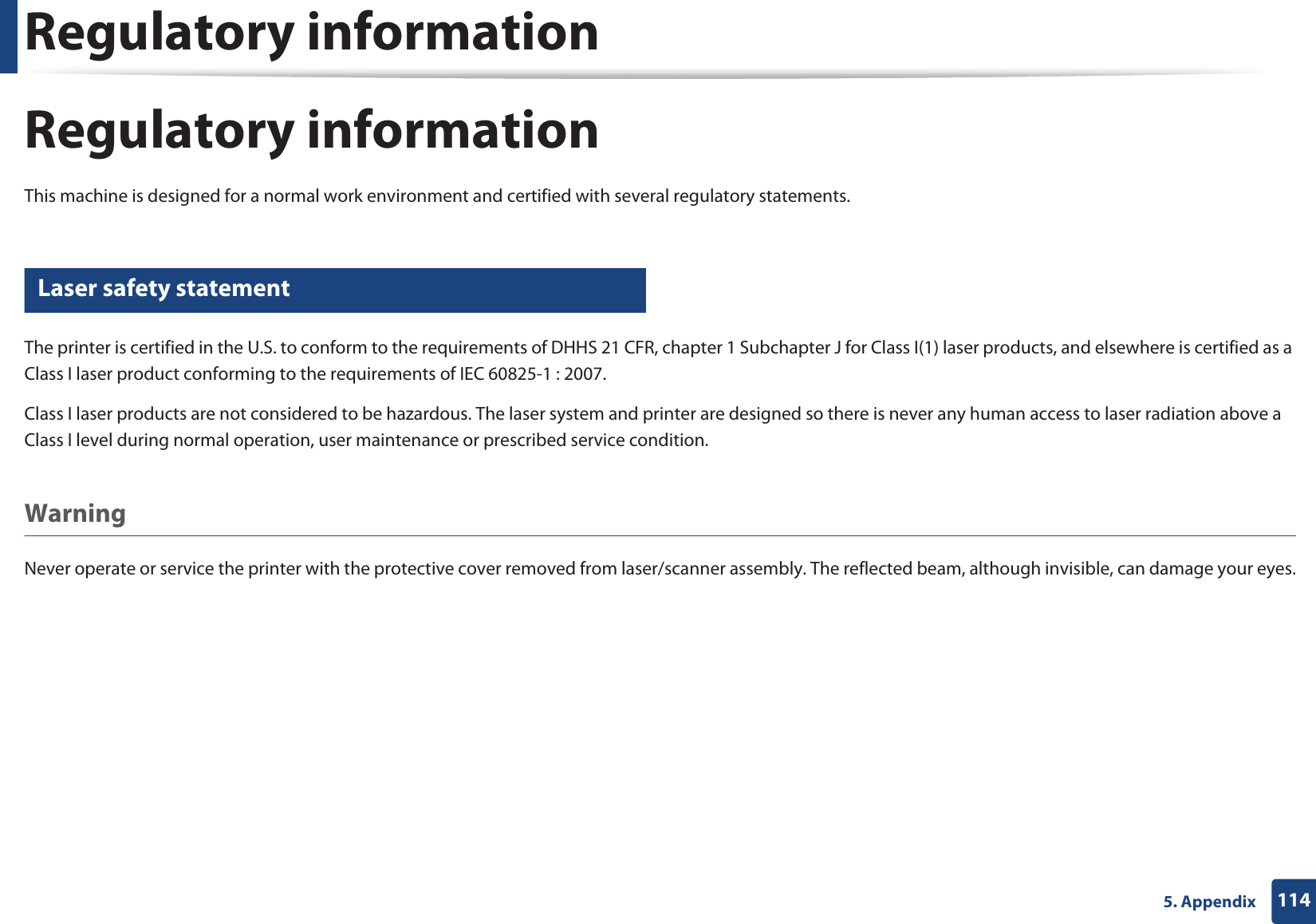

Regulatory information1145. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.

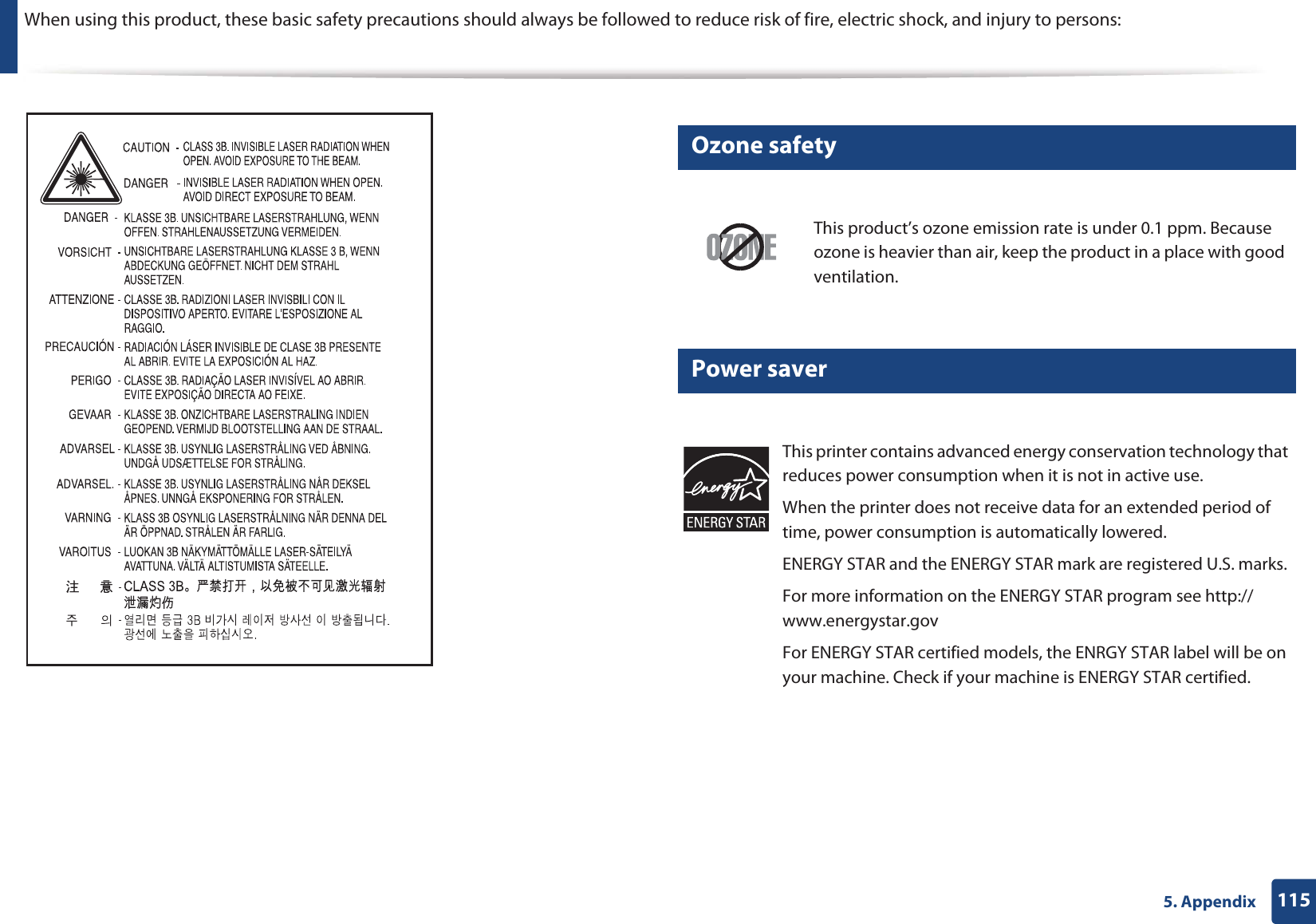

1155. AppendixWhen using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:6 Ozone safety7 Power saverThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.

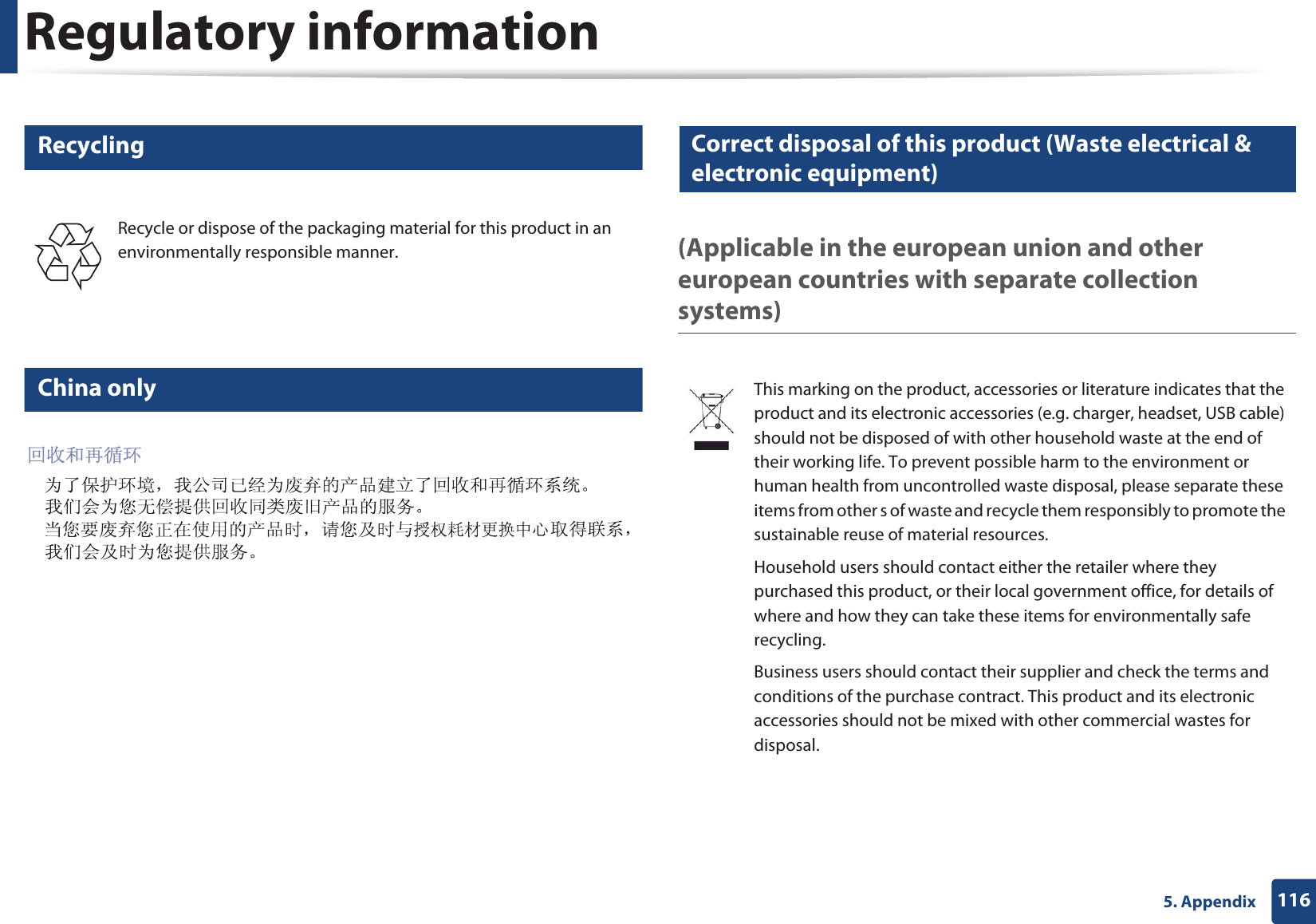

Regulatory information1165. Appendix8 Recycling9 China only10 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in the european union and other european countries with separate collection systems)Recycle or dispose of the packaging material for this product in an environmentally responsible manner.This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

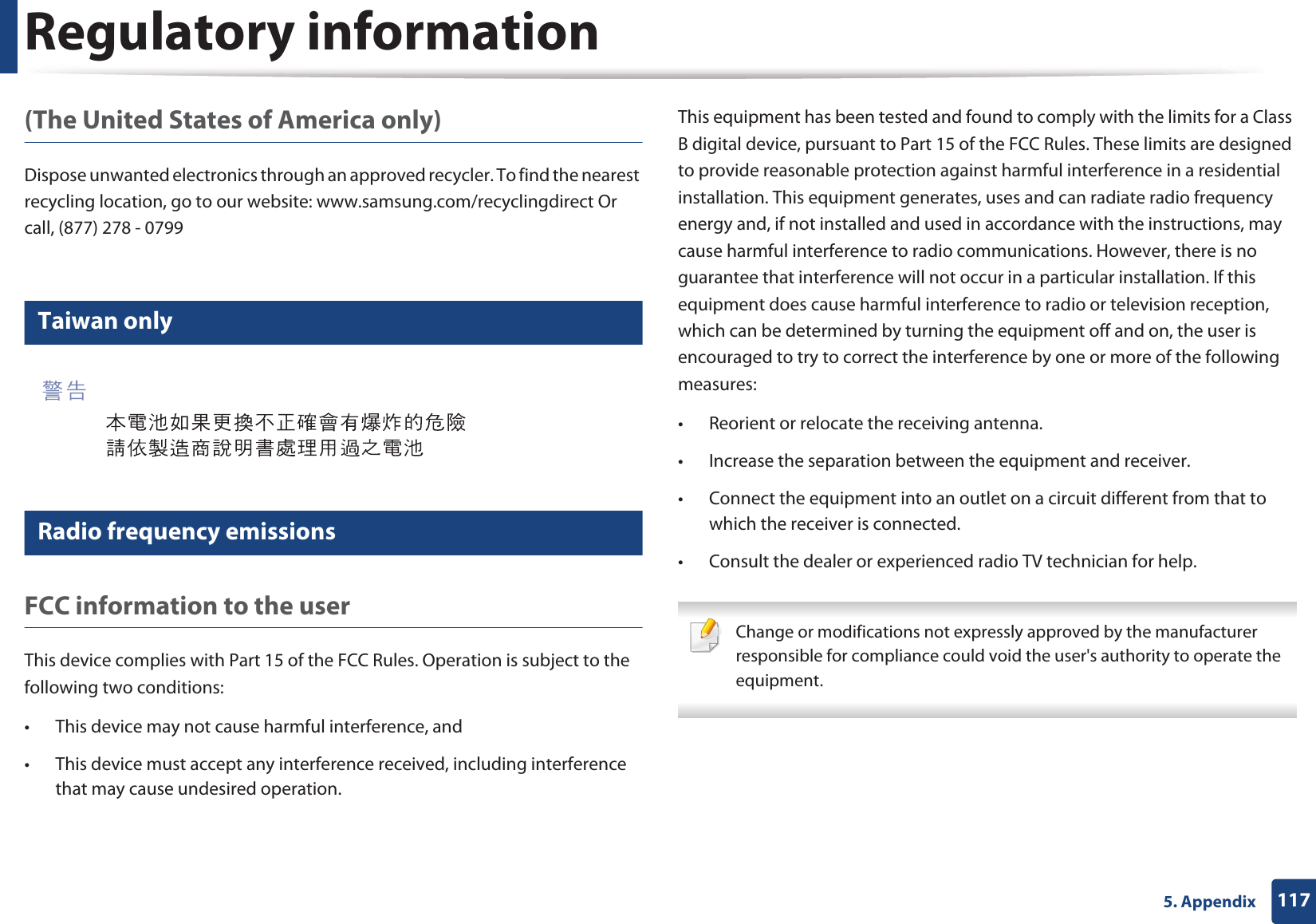

Regulatory information1175. Appendix(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079911 Taiwan only12 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

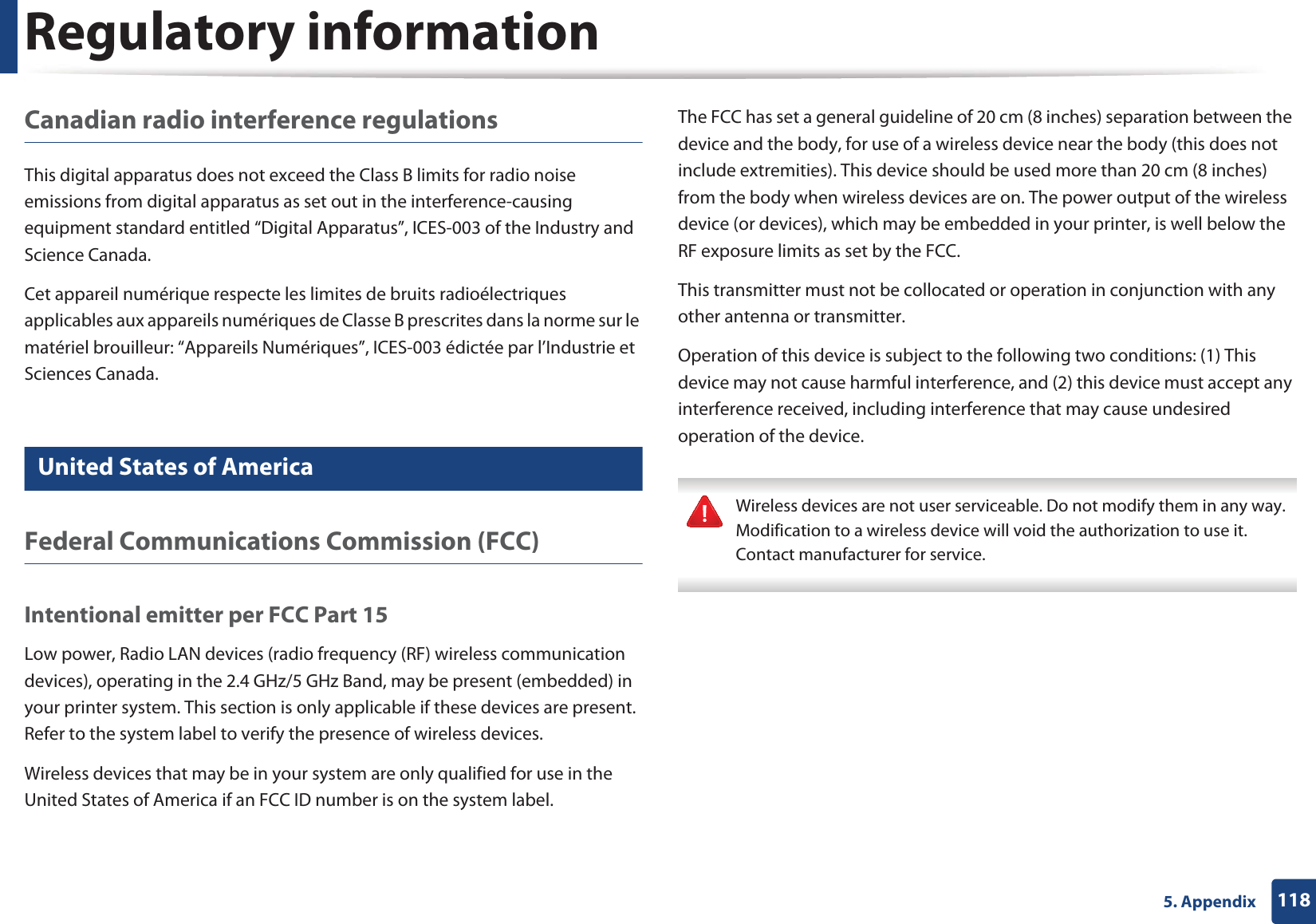

Regulatory information1185. AppendixCanadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.13 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

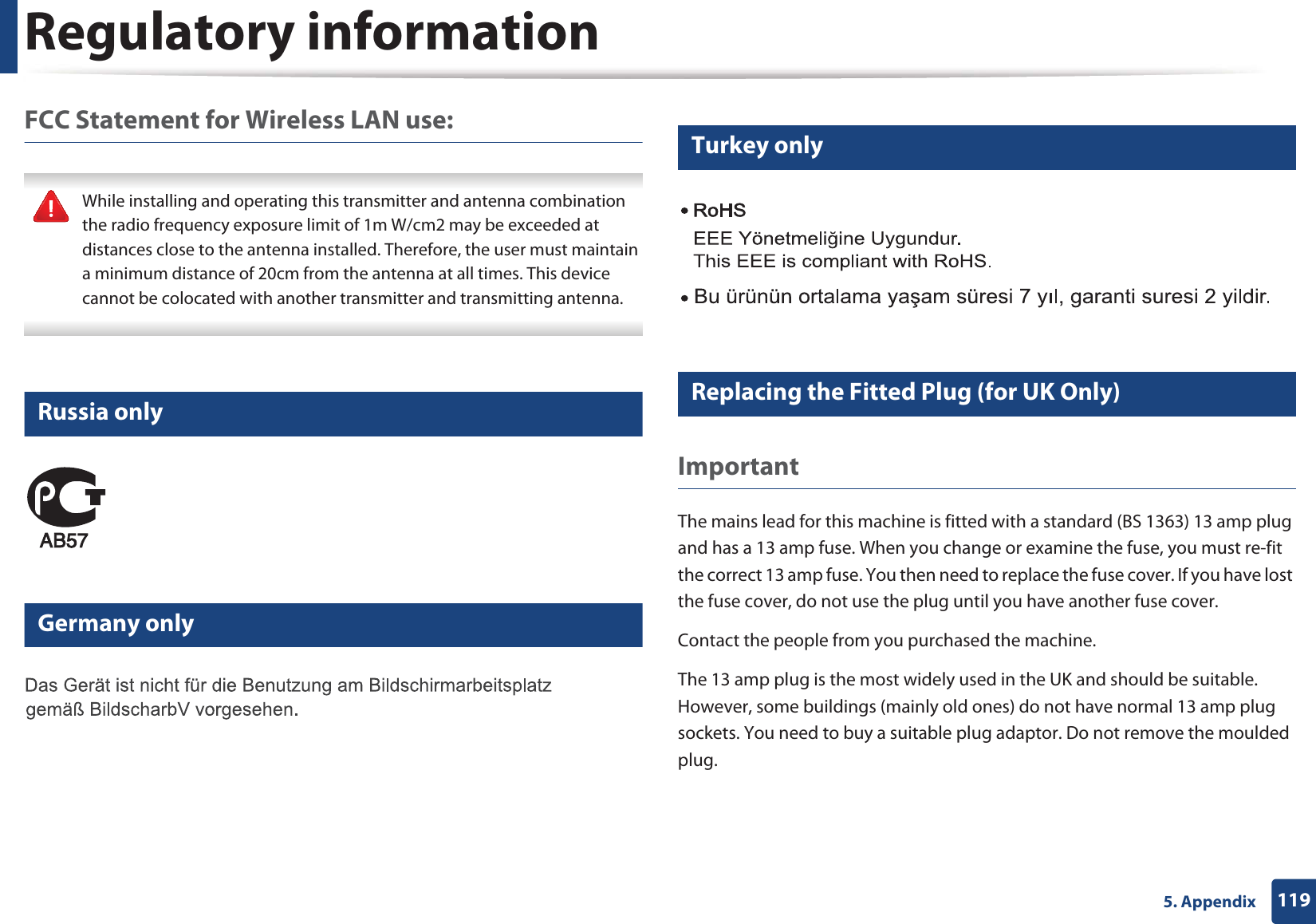

Regulatory information1195. AppendixFCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 14 Russia only15 Germany only16 Turkey only17 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.The 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

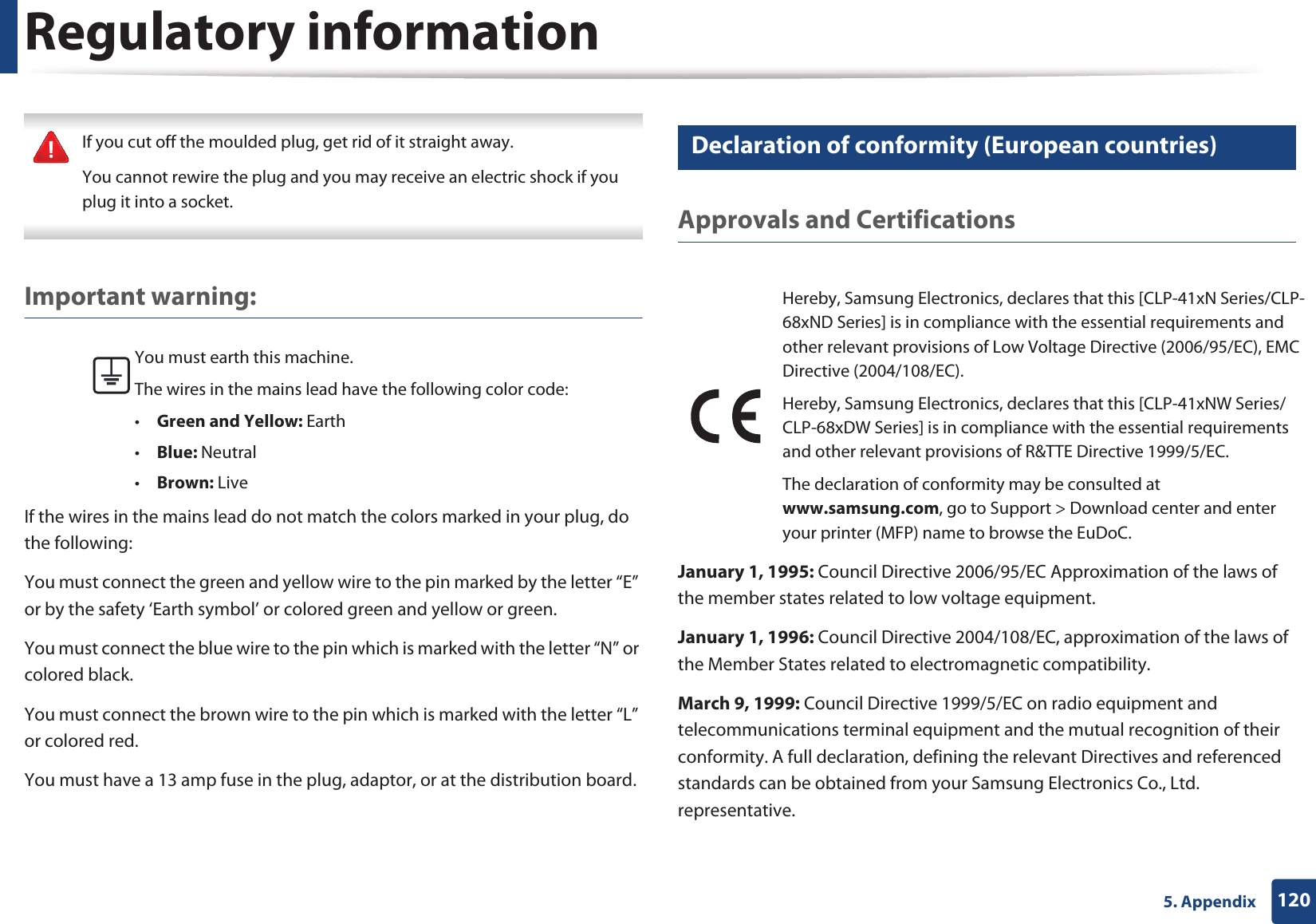

Regulatory information1205. Appendix If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.18 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: LiveHereby, Samsung Electronics, declares that this [CLP-41xN Series/CLP-68xND Series] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).Hereby, Samsung Electronics, declares that this [CLP-41xNW Series/CLP-68xDW Series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

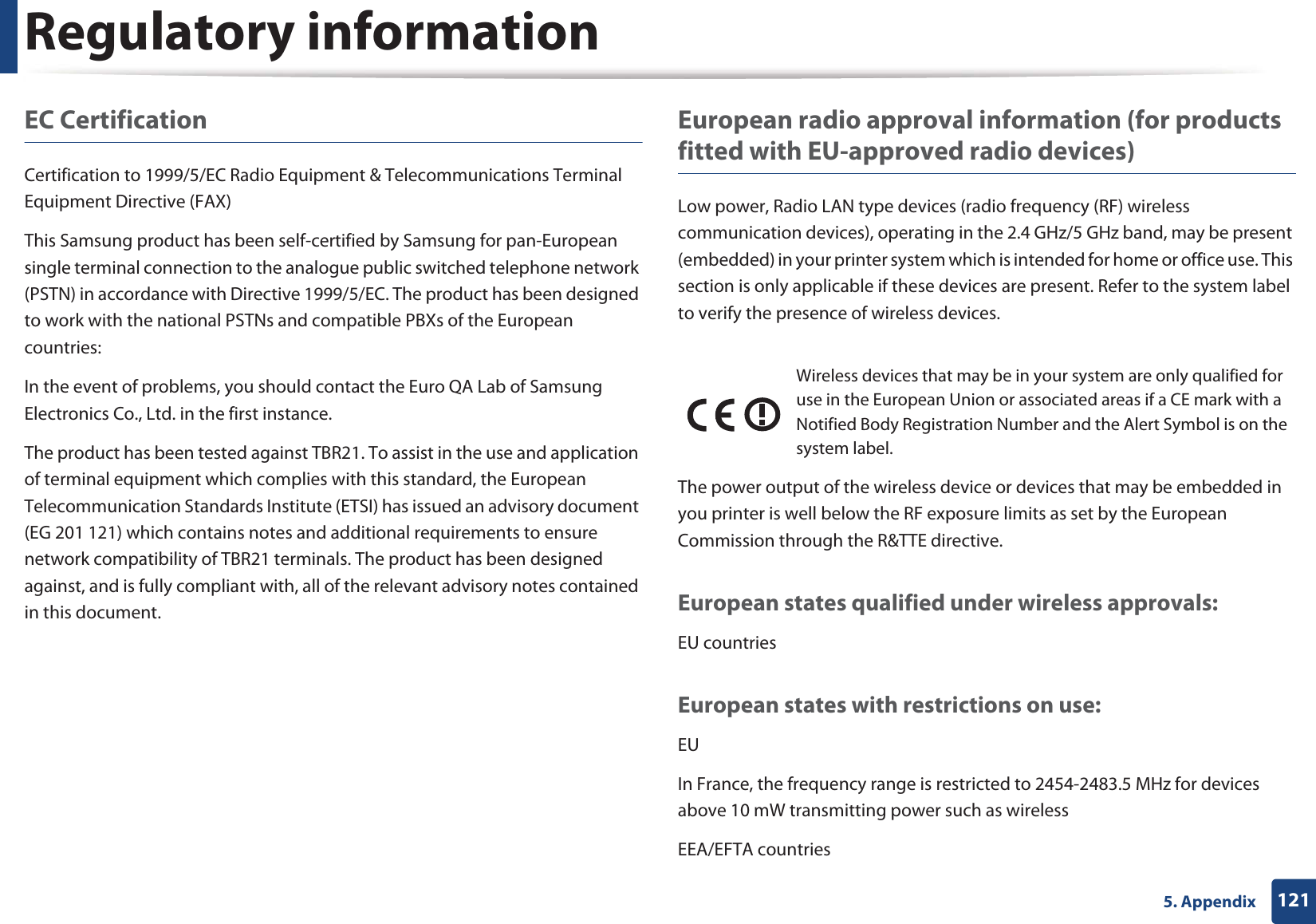

Regulatory information1215. AppendixEC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUIn France, the frequency range is restricted to 2454-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

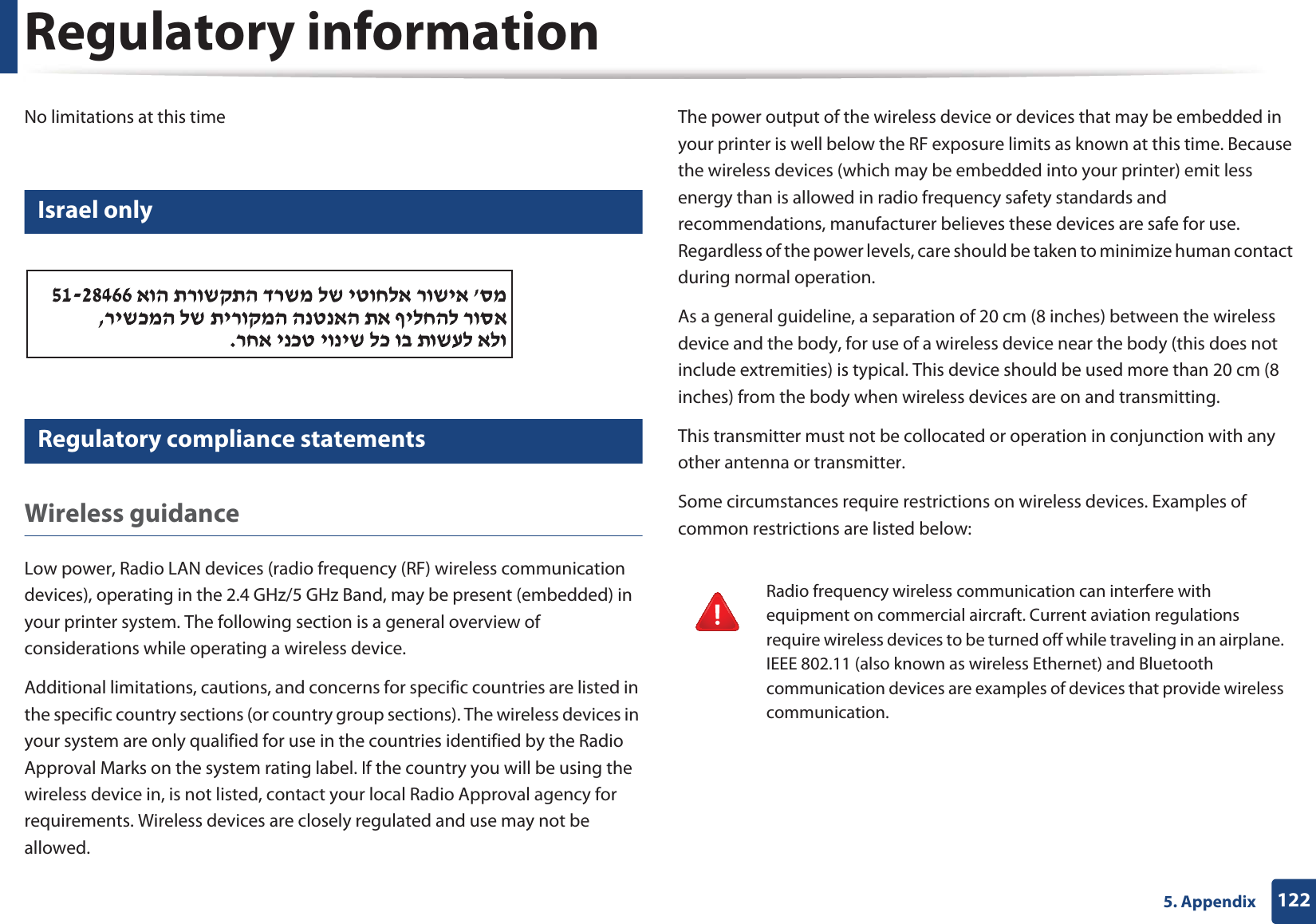

Regulatory information1225. AppendixNo limitations at this time19 Israel only20 Regulatory compliance statementsWireless guidanceLow power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

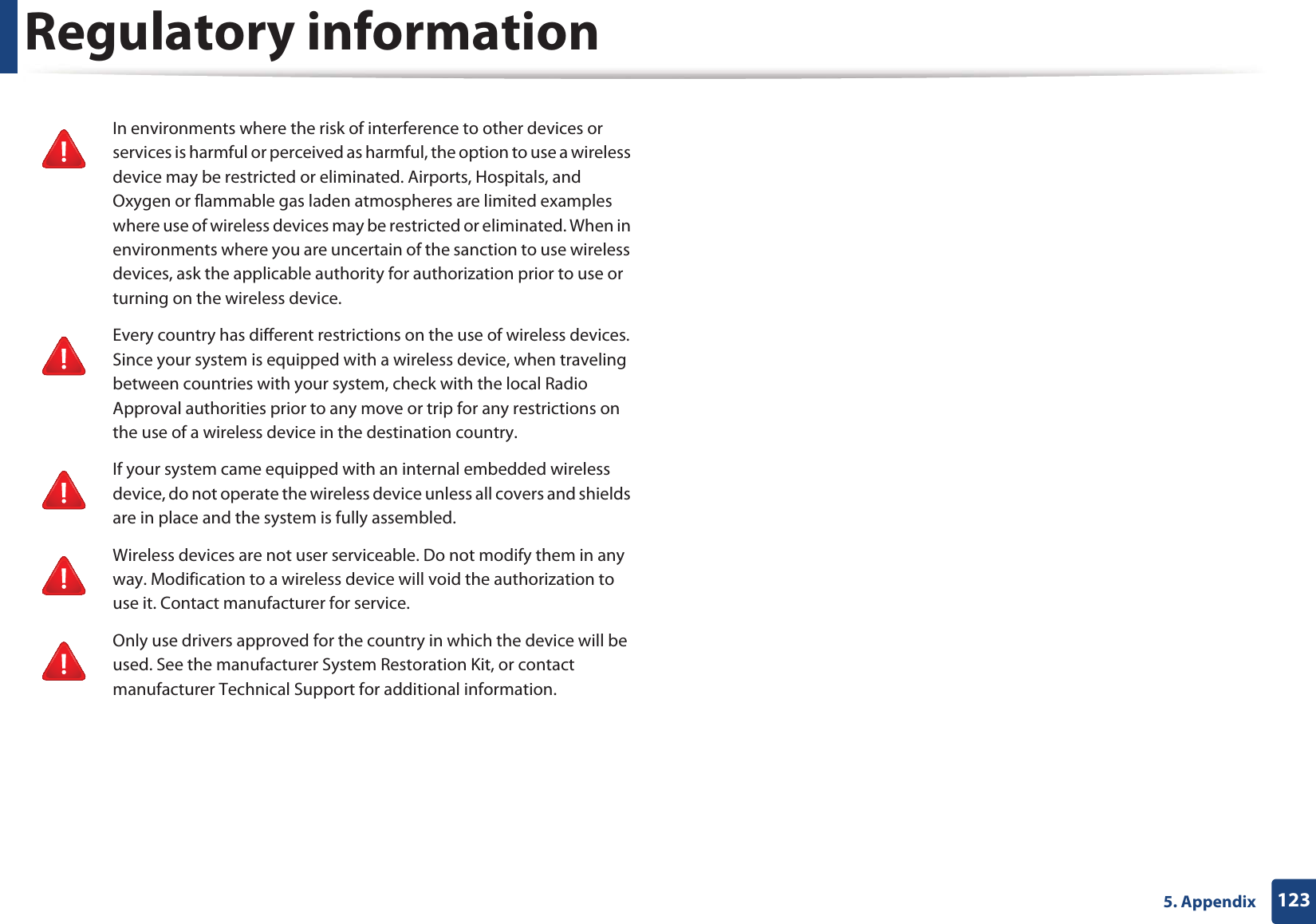

Regulatory information1235. AppendixIn environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

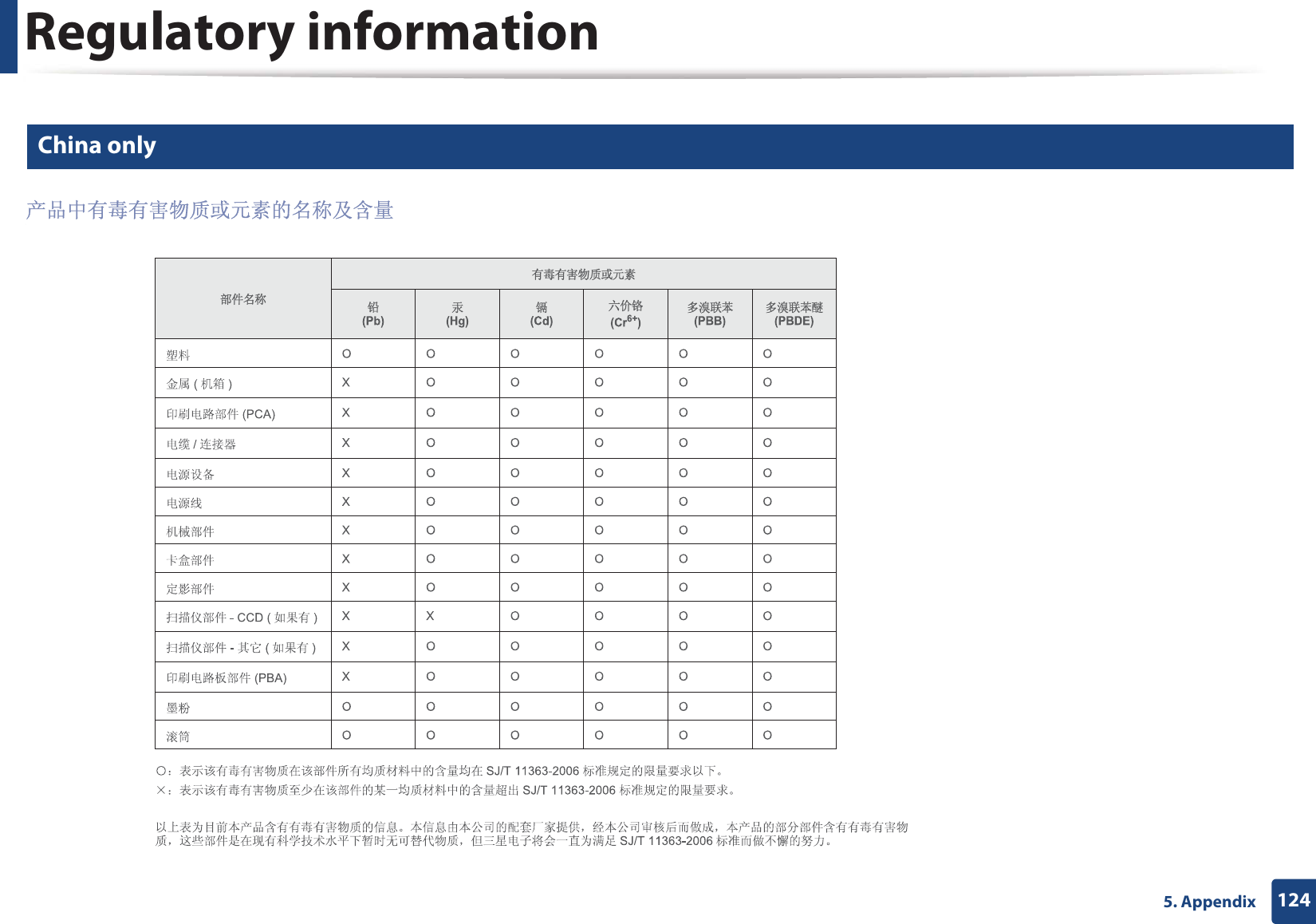

Regulatory information1245. Appendix21 China only

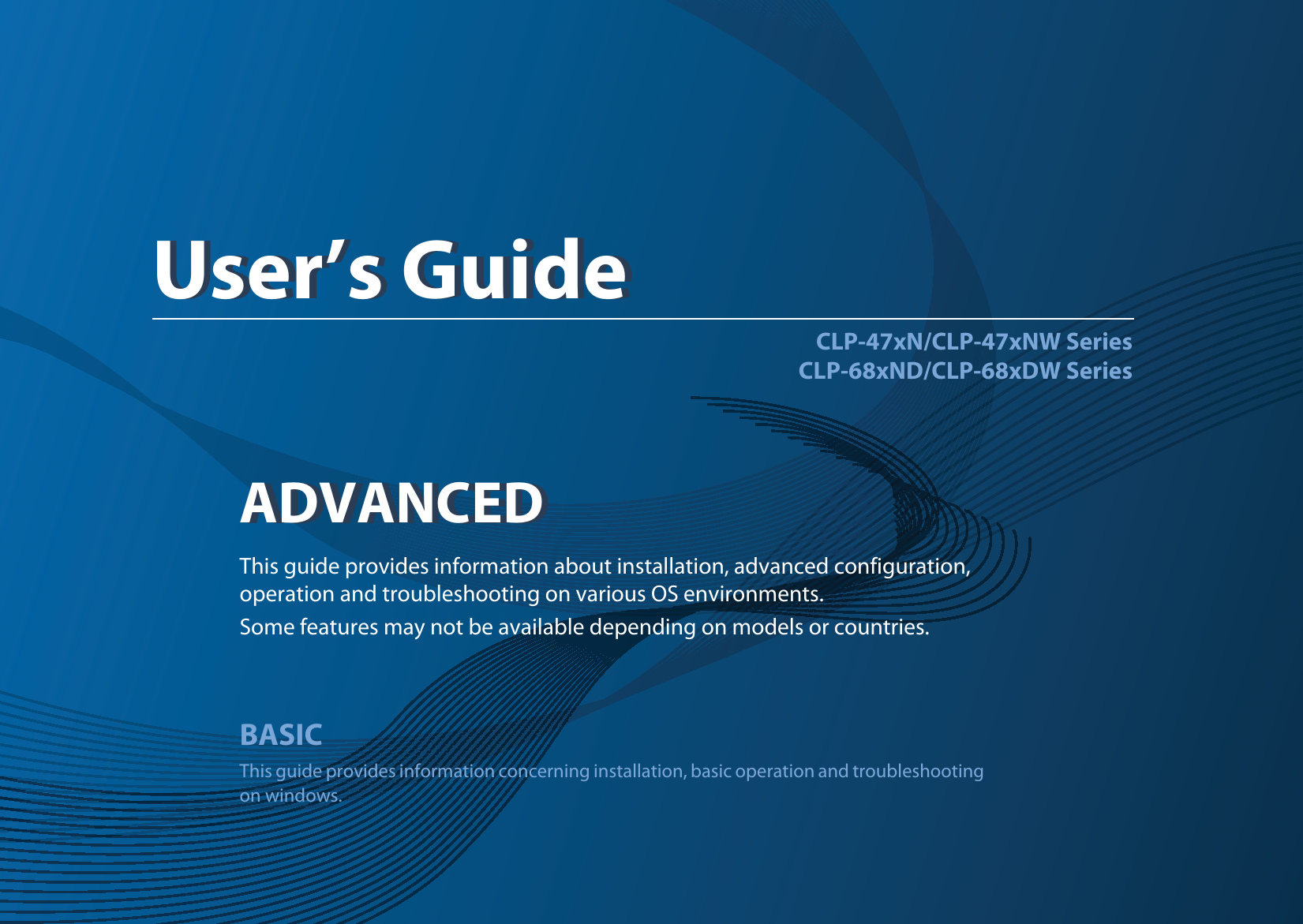

ADVANCEDUser’s GuideCLP-47xN/CLP-47xNW SeriesCLP-68xND/CLP-68xDW SeriesADVANCEDUser’s GuideThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning installation, basic operation and troubleshooting on windows.

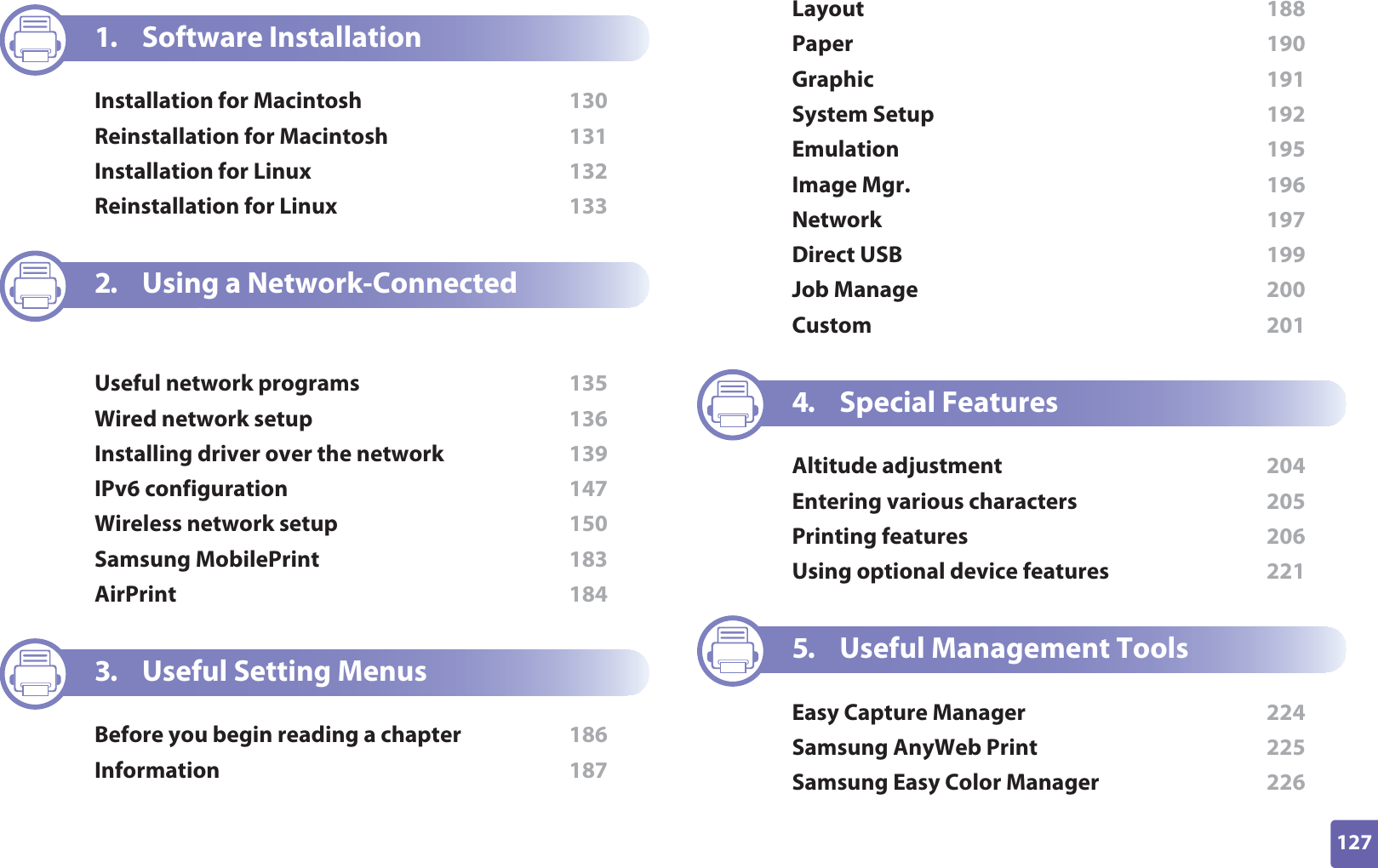

127ADVANCED1. Software InstallationInstallation for Macintosh 130Reinstallation for Macintosh 131Installation for Linux 132Reinstallation for Linux 1332. Using a Network-Connected MachineUseful network programs 135Wired network setup 136Installing driver over the network 139IPv6 configuration 147Wireless network setup 150Samsung MobilePrint 183AirPrint 1843. Useful Setting MenusBefore you begin reading a chapter 186Information 187Layout 188Paper 190Graphic 191System Setup 192Emulation 195Image Mgr. 196Network 197Direct USB 199Job Manage 200Custom 2014. Special FeaturesAltitude adjustment 204Entering various characters 205Printing features 206Using optional device features 2215. Useful Management ToolsEasy Capture Manager 224Samsung AnyWeb Print 225Samsung Easy Color Manager 226

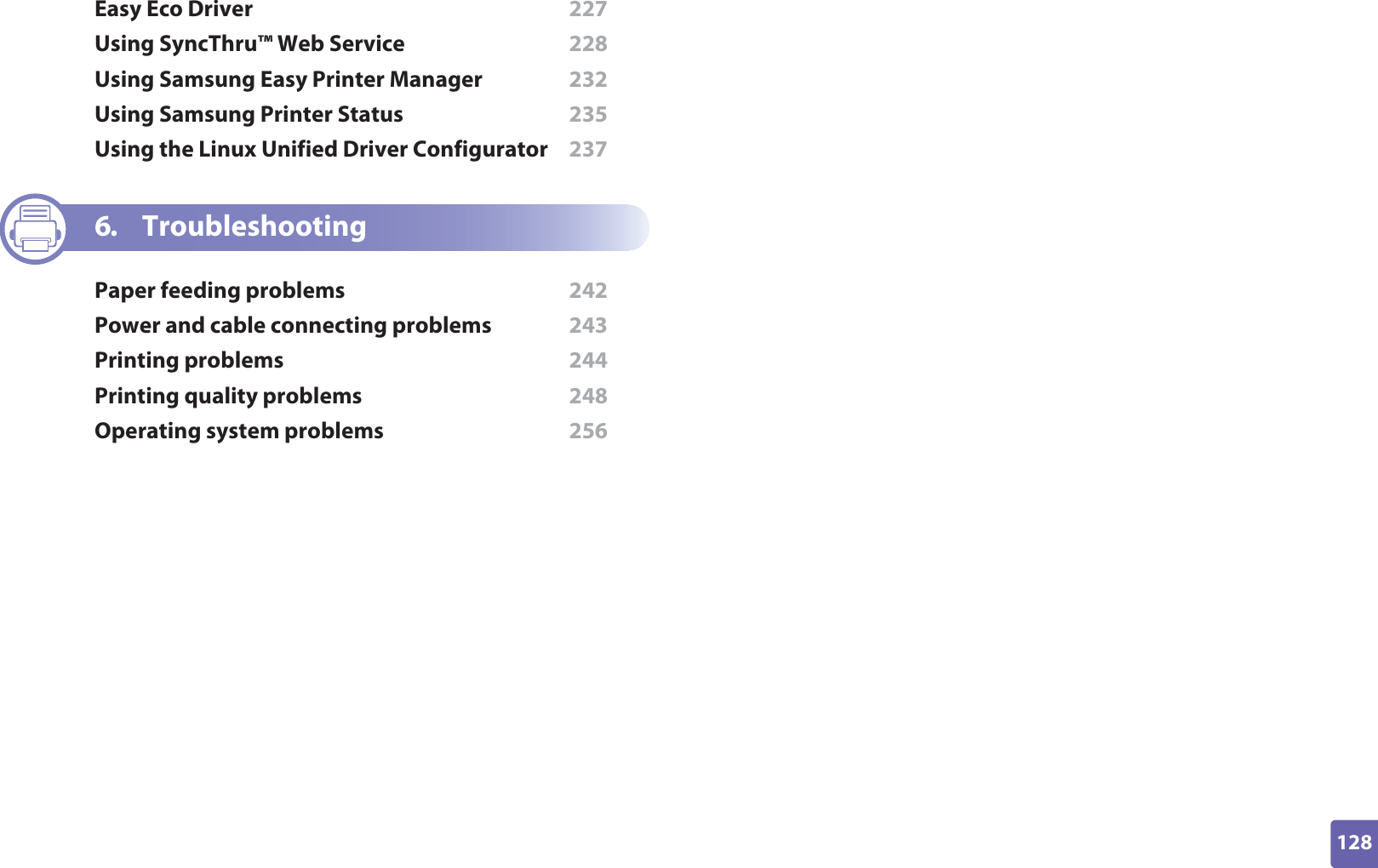

128ADVANCEDEasy Eco Driver 227Using SyncThru™ Web Service 228Using Samsung Easy Printer Manager 232Using Samsung Printer Status 235Using the Linux Unified Driver Configurator 2376. TroubleshootingPaper feeding problems 242Power and cable connecting problems 243Printing problems 244Printing quality problems 248Operating system problems 256

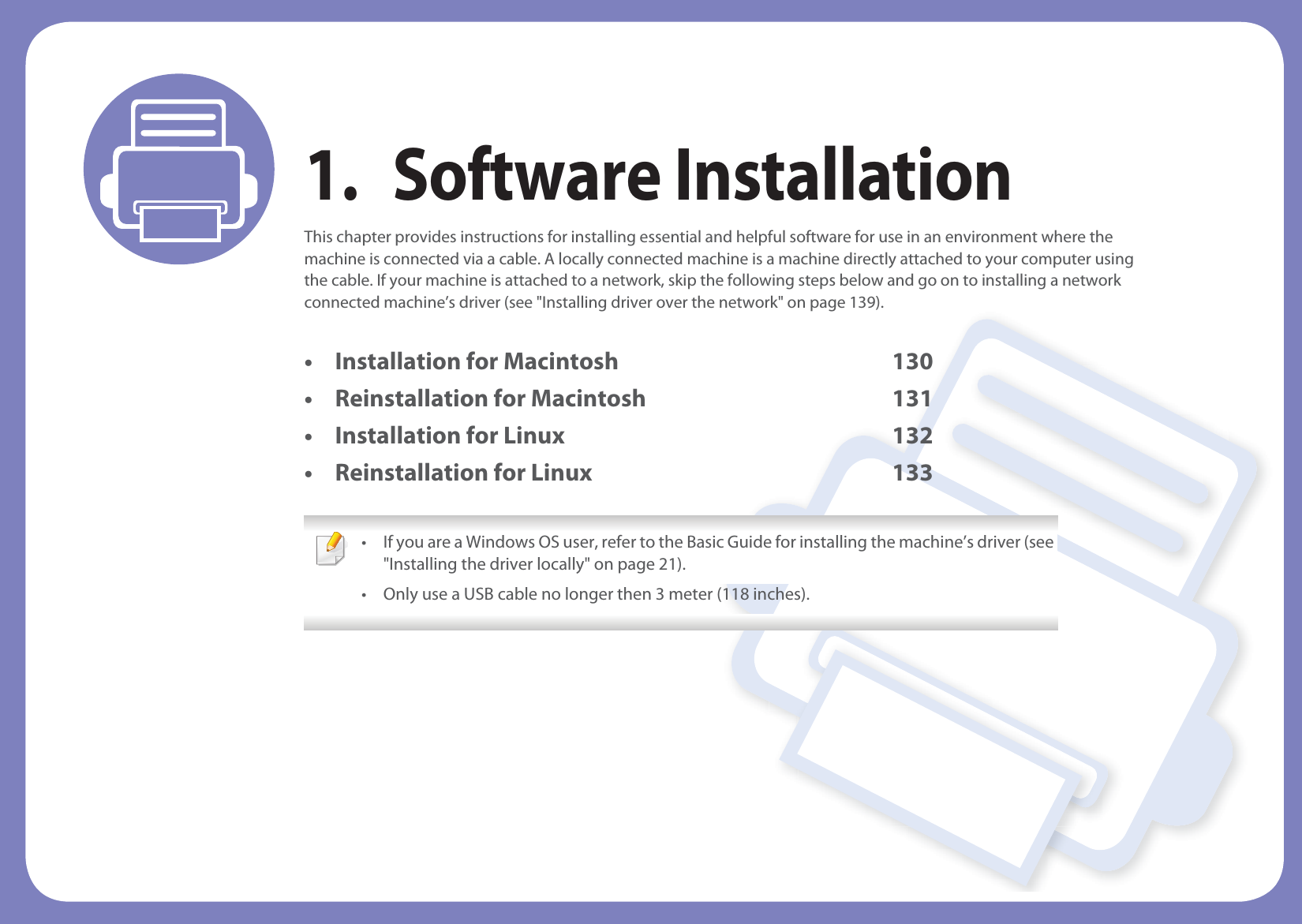

1. Software InstallationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 139).• Installation for Macintosh 130• Reinstallation for Macintosh 131• Installation for Linux 132• Reinstallation for Linux 133 • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver locally" on page 21).• Only use a USB cable no longer then 3 meter (118 inches).

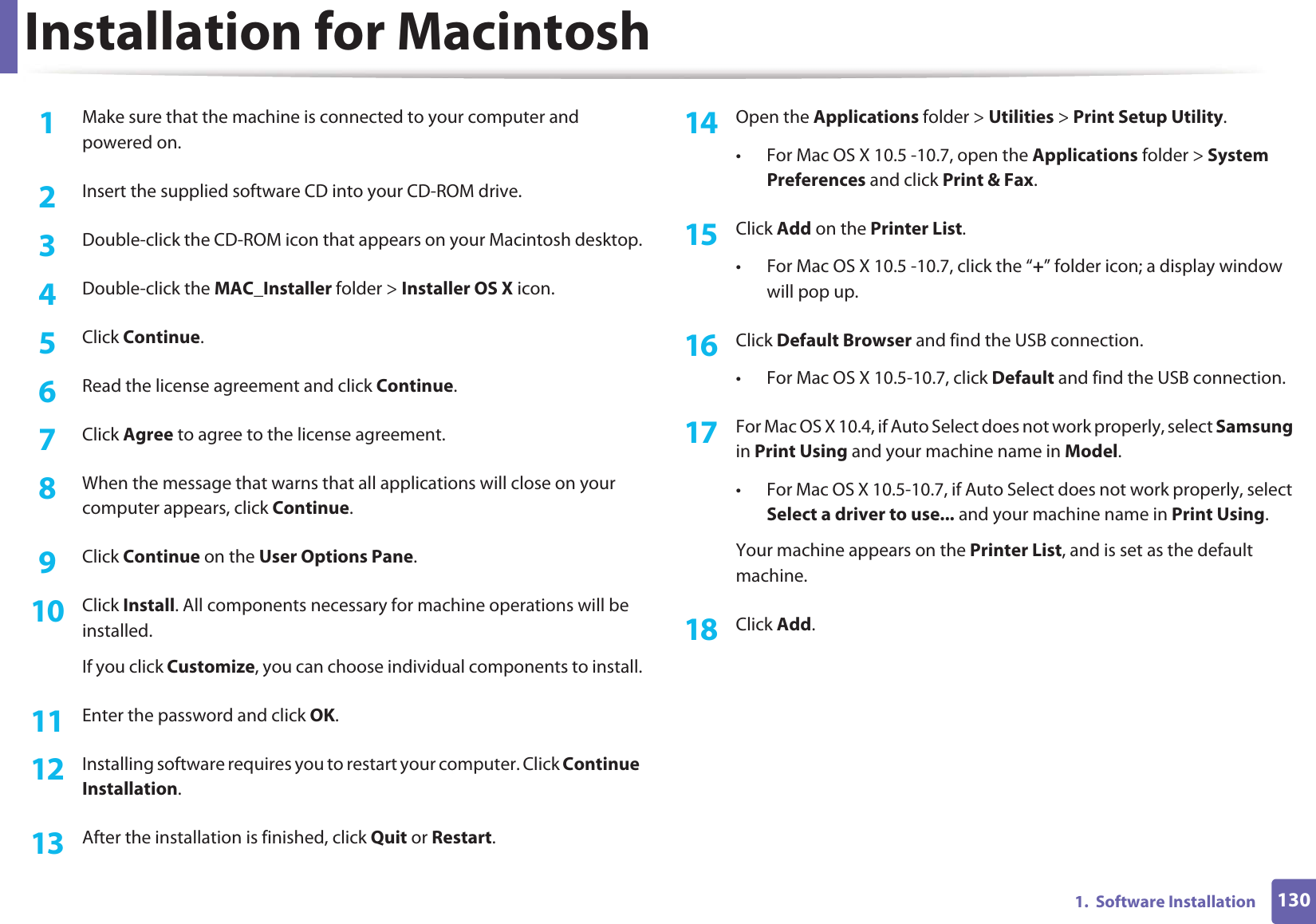

1301. Software InstallationInstallation for Macintosh1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message that warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane.10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Quit or Restart.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5 -10.7, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5 -10.7, click the “+” folder icon; a display window will pop up.16 Click Default Browser and find the USB connection.• For Mac OS X 10.5-10.7, click Default and find the USB connection.17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.• For Mac OS X 10.5-10.7, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using. Your machine appears on the Printer List, and is set as the default machine.18 Click Add.

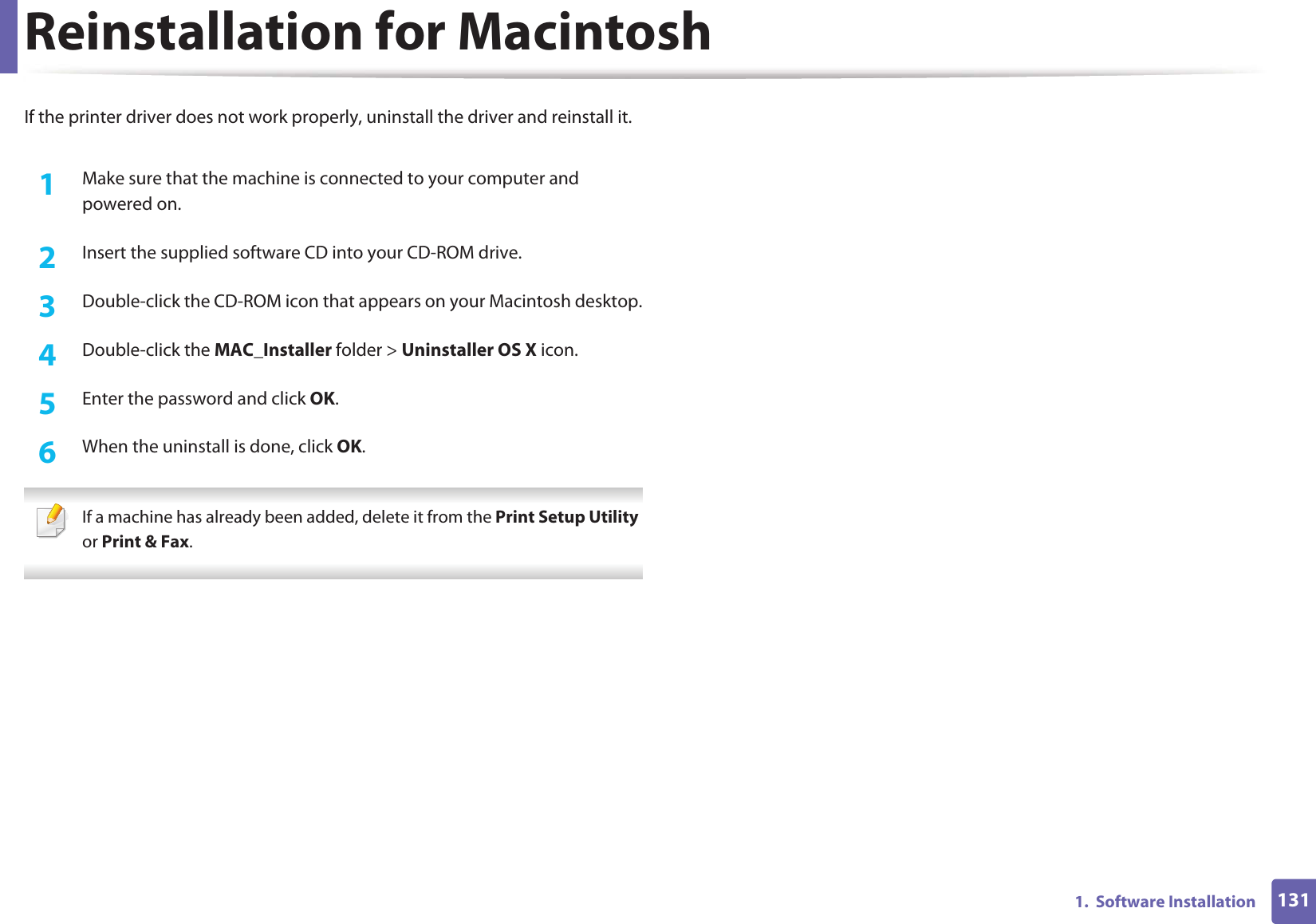

1311. Software InstallationReinstallation for MacintoshIf the printer driver does not work properly, uninstall the driver and reinstall it.1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Uninstaller OS X icon.5 Enter the password and click OK.6 When the uninstall is done, click OK. If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

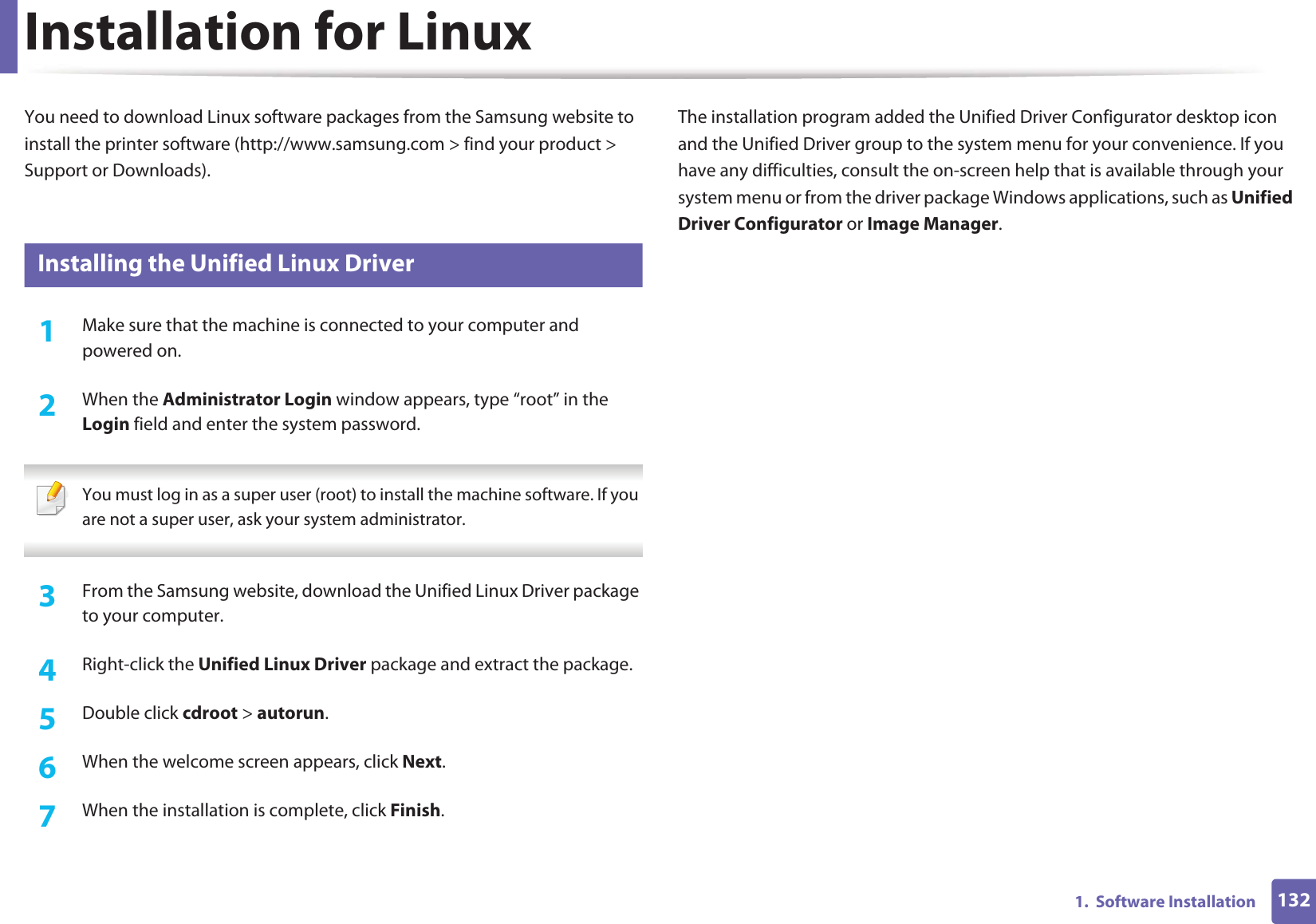

1321. Software InstallationInstallation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer.4 Right-click the Unified Linux Driver package and extract the package. 5 Double click cdroot > autorun.6 When the welcome screen appears, click Next.7 When the installation is complete, click Finish.The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.

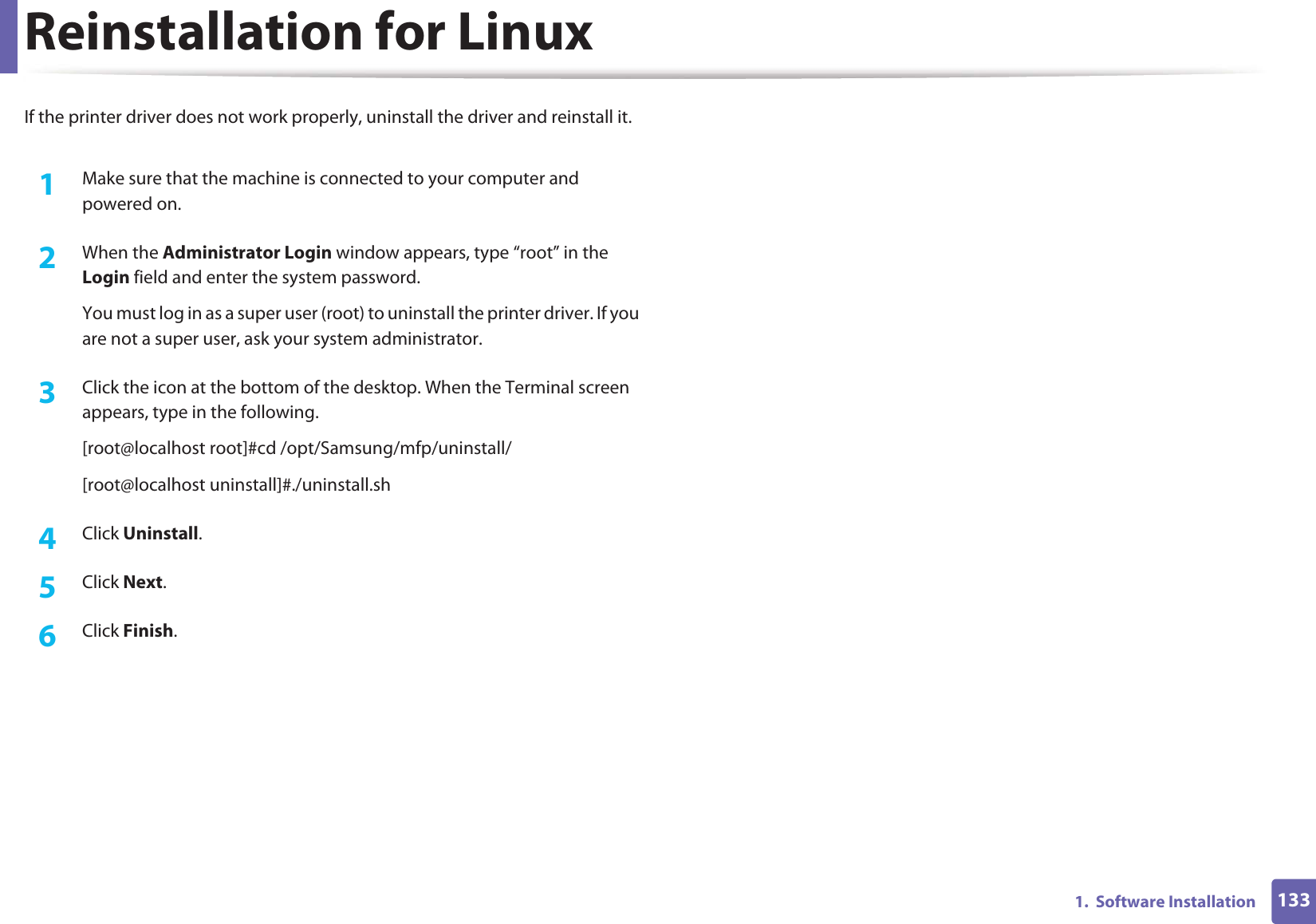

1331. Software InstallationReinstallation for LinuxIf the printer driver does not work properly, uninstall the driver and reinstall it. 1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password.You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.3 Click the icon at the bottom of the desktop. When the Terminal screen appears, type in the following.[root@localhost root]#cd /opt/Samsung/mfp/uninstall/[root@localhost uninstall]#./uninstall.sh4 Click Uninstall.5 Click Next. 6 Click Finish.

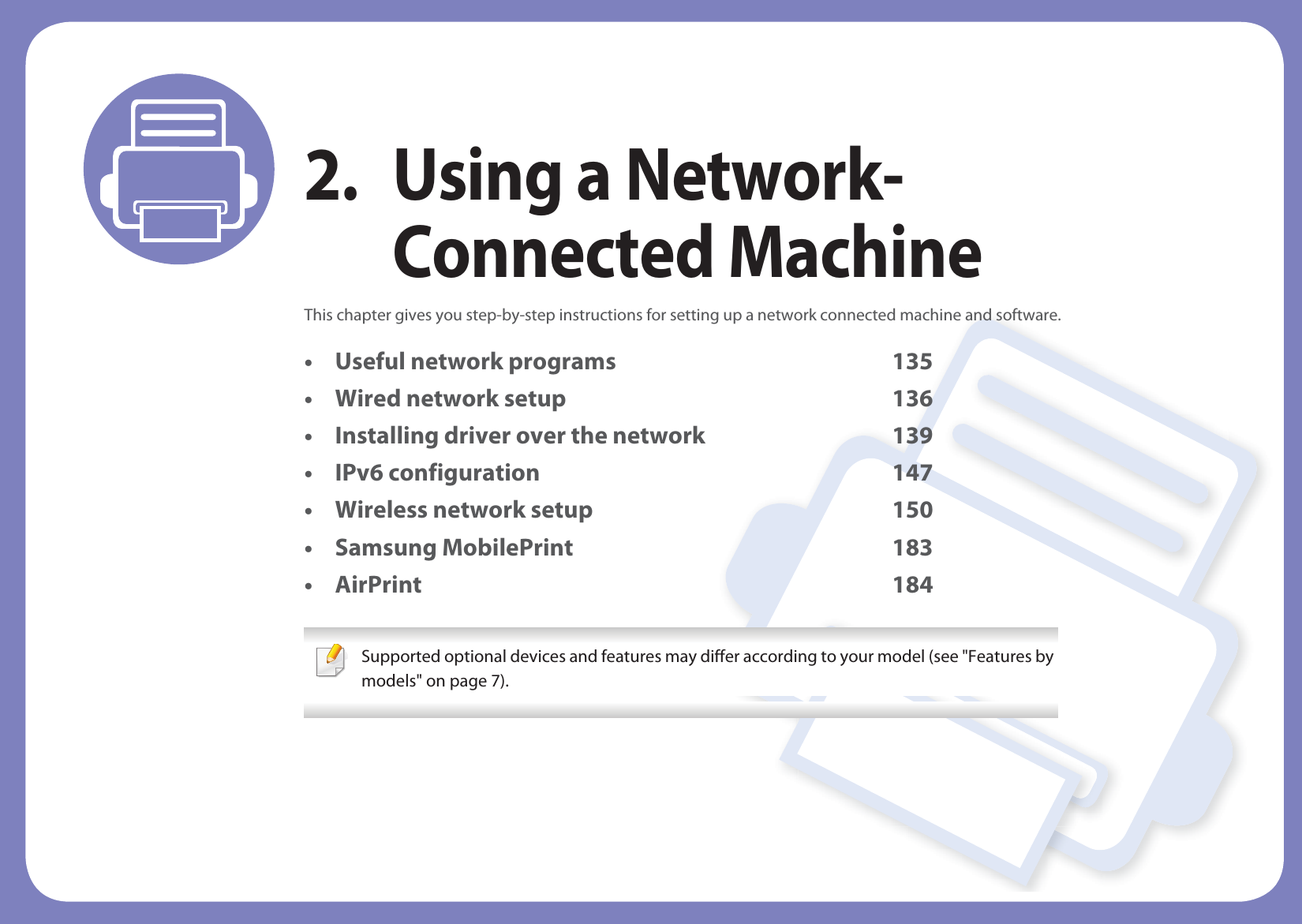

2. Using a Network-Connected MachineThis chapter gives you step-by-step instructions for setting up a network connected machine and software.• Useful network programs 135• Wired network setup 136• Installing driver over the network 139• IPv6 configuration 147• Wireless network setup 150• Samsung MobilePrint 183• AirPrint 184 Supported optional devices and features may differ according to your model (see "Features by models" on page 7).

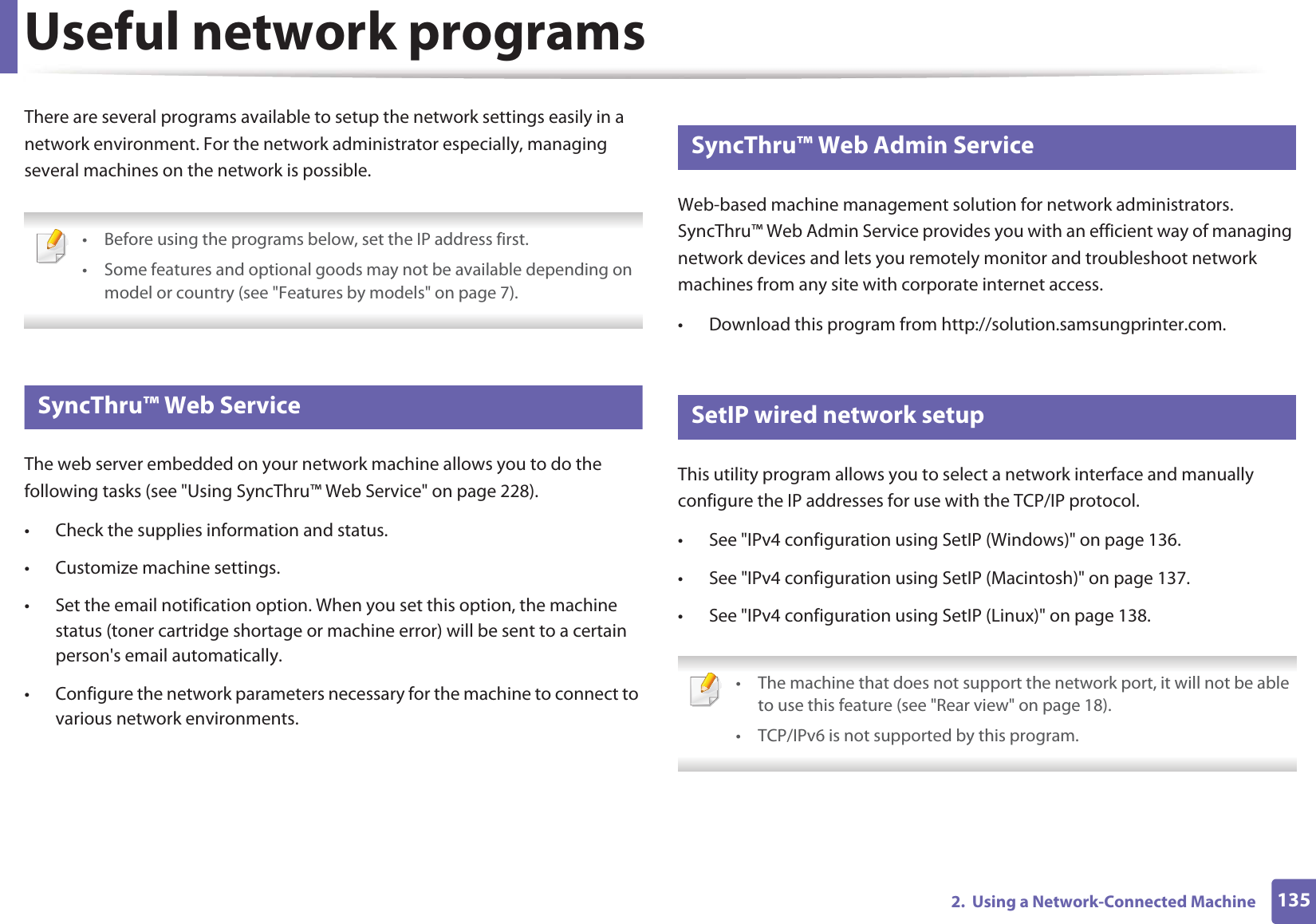

1352. Using a Network-Connected MachineUseful network programsThere are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible. • Before using the programs below, set the IP address first. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). 1 SyncThru™ Web ServiceThe web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 228).• Check the supplies information and status.• Customize machine settings.• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.• Configure the network parameters necessary for the machine to connect to various network environments.2 SyncThru™ Web Admin ServiceWeb-based machine management solution for network administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access. • Download this program from http://solution.samsungprinter.com.3 SetIP wired network setupThis utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.• See "IPv4 configuration using SetIP (Windows)" on page 136.• See "IPv4 configuration using SetIP (Macintosh)" on page 137.• See "IPv4 configuration using SetIP (Linux)" on page 138. • The machine that does not support the network port, it will not be able to use this feature (see "Rear view" on page 18).• TCP/IPv6 is not supported by this program.

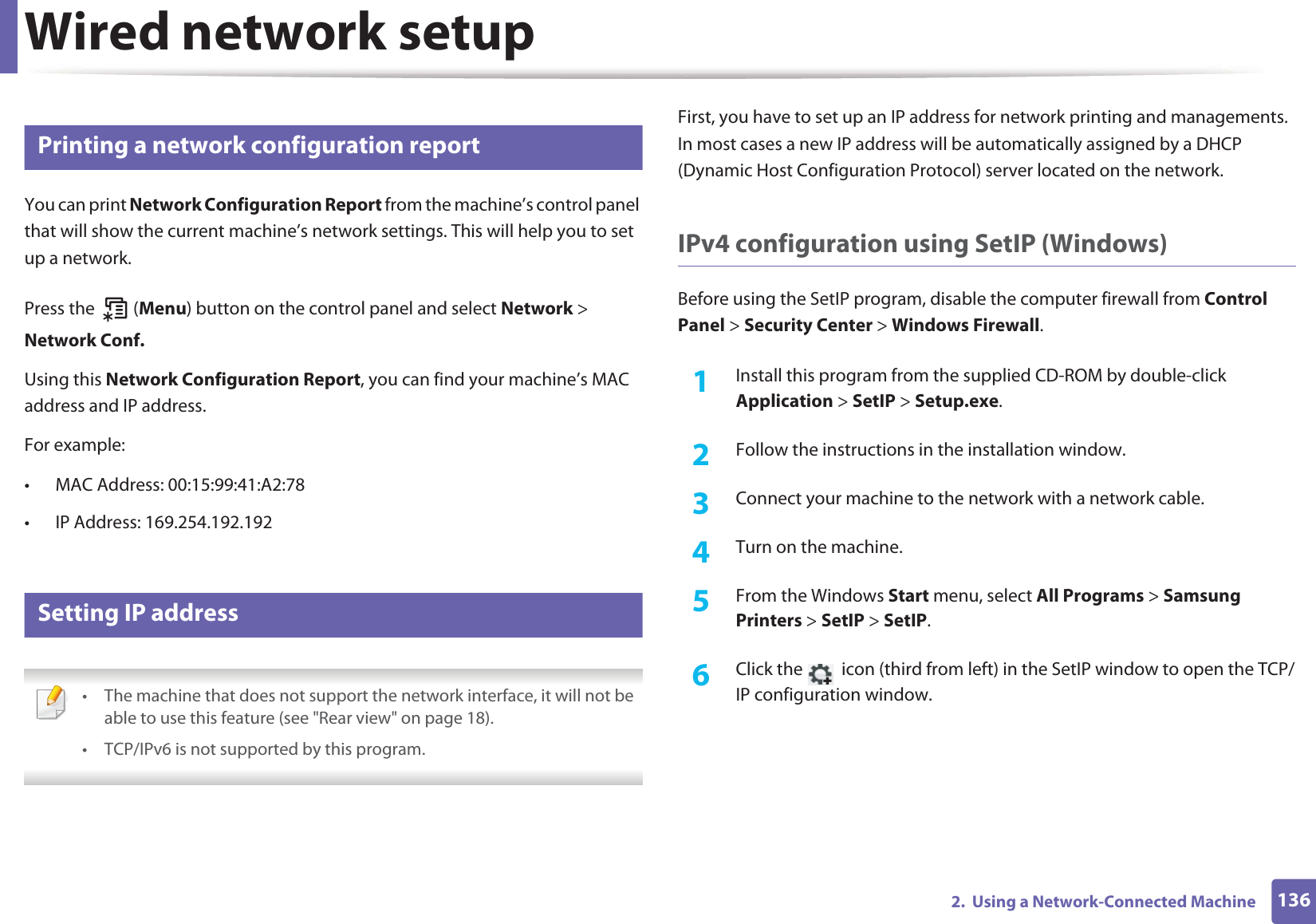

1362. Using a Network-Connected MachineWired network setup4 Printing a network configuration reportYou can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network.Press the (Menu) button on the control panel and select Network > Network Conf.Using this Network Configuration Report, you can find your machine’s MAC address and IP address.For example:• MAC Address: 00:15:99:41:A2:78• IP Address: 169.254.192.1925 Setting IP address • The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 18).• TCP/IPv6 is not supported by this program. First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.IPv4 configuration using SetIP (Windows)Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall.1Install this program from the supplied CD-ROM by double-click Application > SetIP > Setup.exe.2 Follow the instructions in the installation window.3 Connect your machine to the network with a network cable.4 Turn on the machine.5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.6 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.

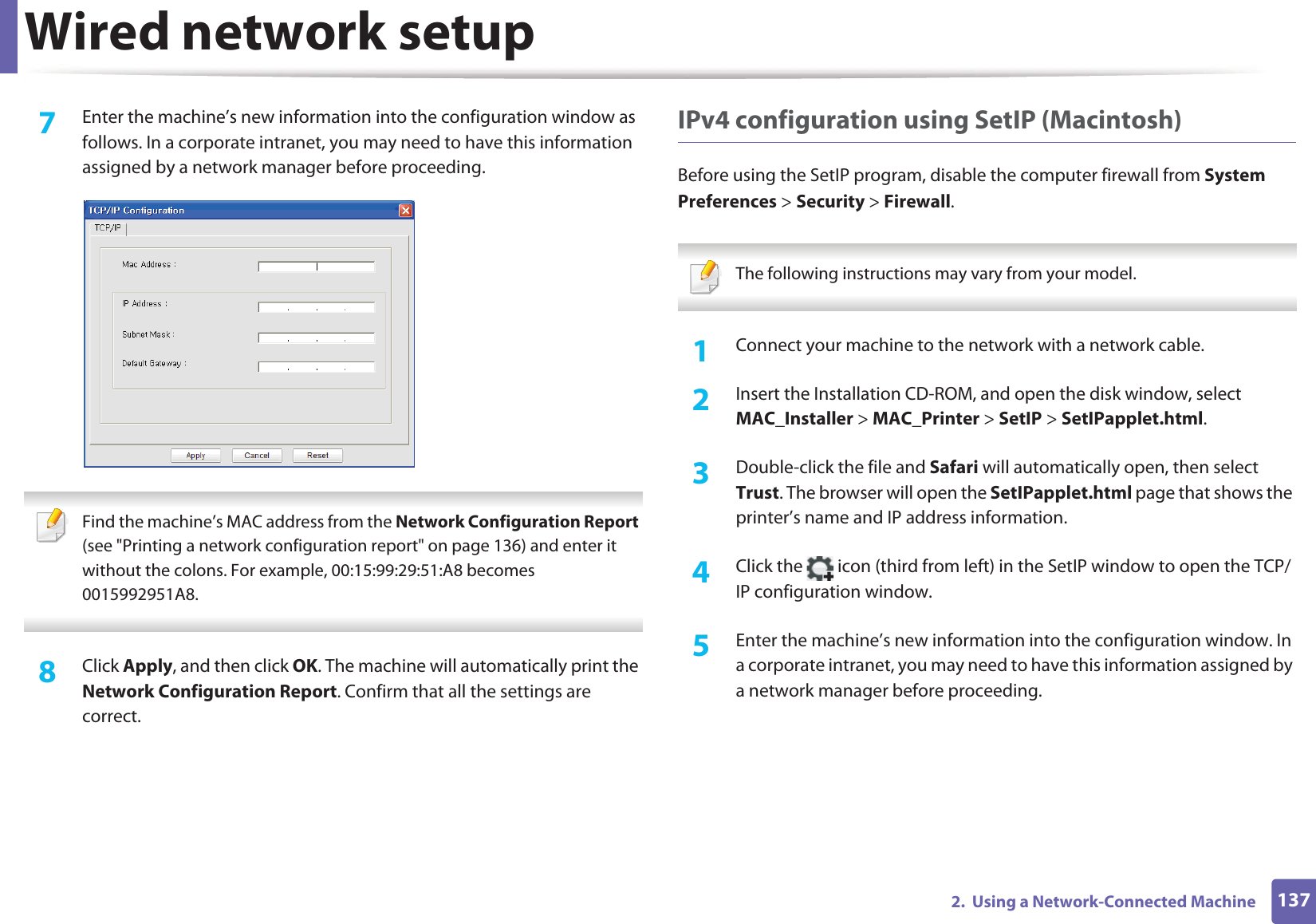

Wired network setup1372. Using a Network-Connected Machine7 Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.IPv4 configuration using SetIP (Macintosh)Before using the SetIP program, disable the computer firewall from System Preferences > Security > Firewall. The following instructions may vary from your model. 1Connect your machine to the network with a network cable.2 Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.3 Double-click the file and Safari will automatically open, then select Trust. The browser will open the SetIPapplet.html page that shows the printer’s name and IP address information. 4 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

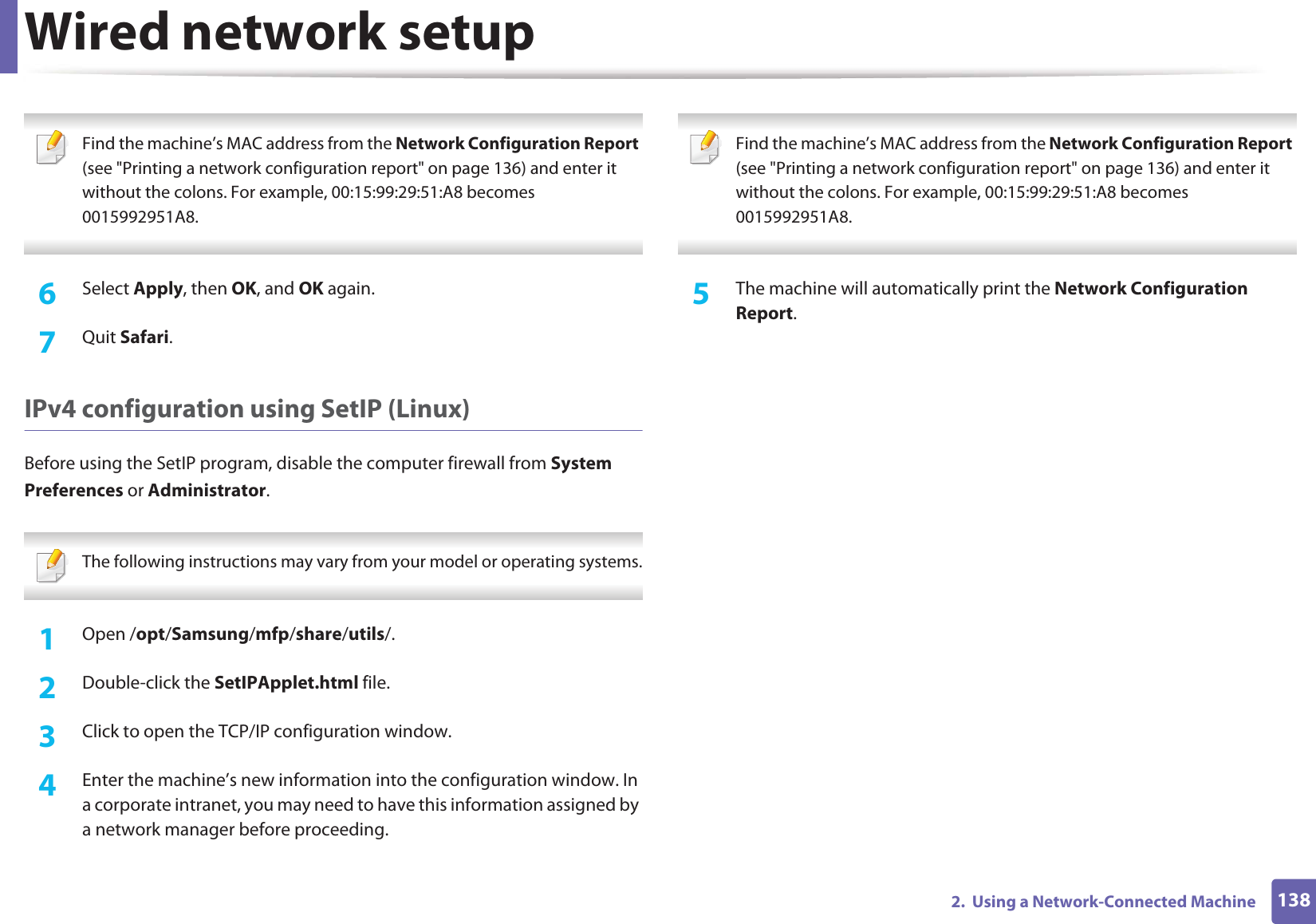

Wired network setup1382. Using a Network-Connected Machine Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 6 Select Apply, then OK, and OK again.7 Quit Safari.IPv4 configuration using SetIP (Linux)Before using the SetIP program, disable the computer firewall from System Preferences or Administrator. The following instructions may vary from your model or operating systems. 1Open /opt/Samsung/mfp/share/utils/.2 Double-click the SetIPApplet.html file. 3 Click to open the TCP/IP configuration window. 4 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 5 The machine will automatically print the Network Configuration Report.

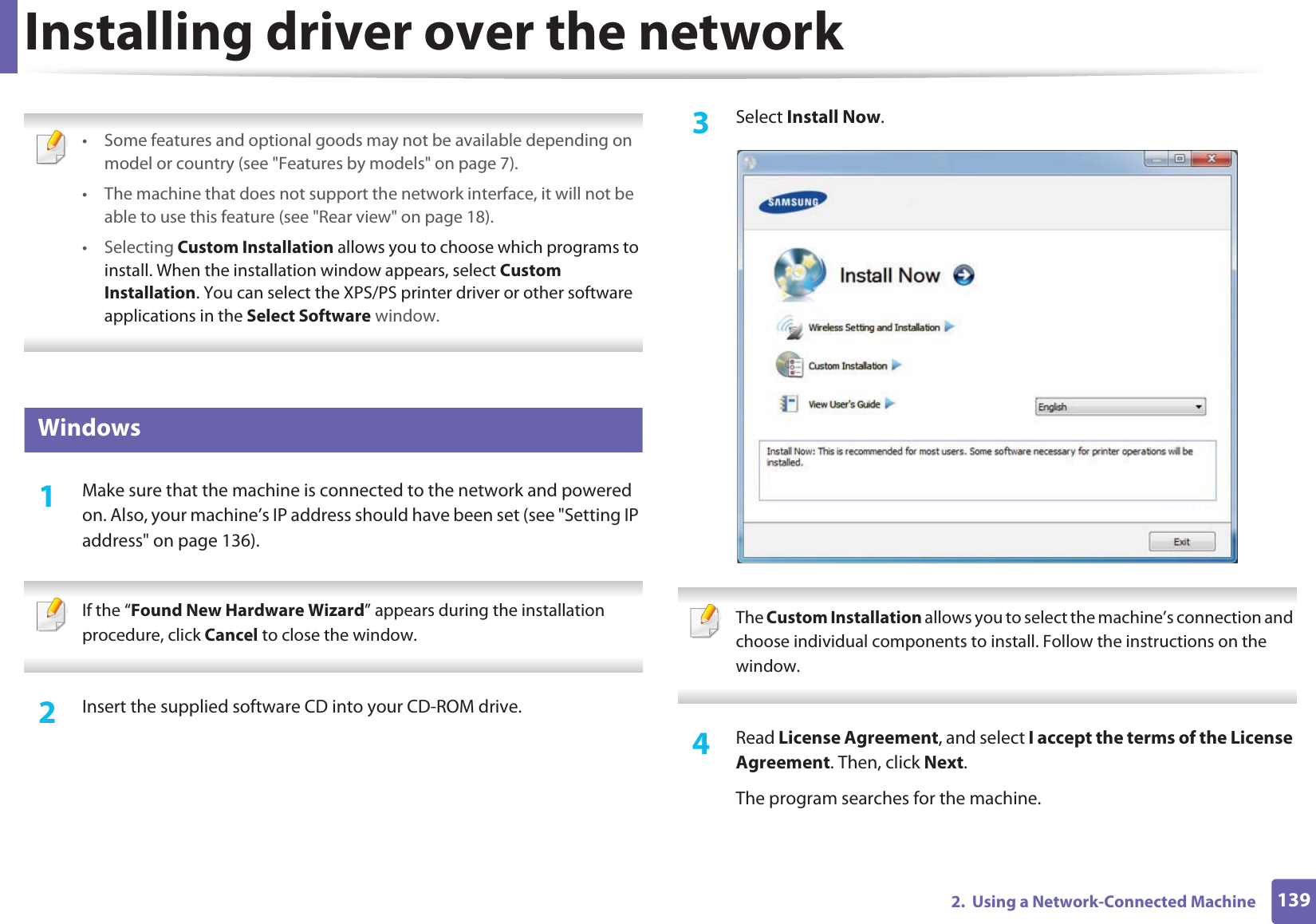

1392. Using a Network-Connected MachineInstalling driver over the network • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7).• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 18).• Selecting Custom Installation allows you to choose which programs to install. When the installation window appears, select Custom Installation. You can select the XPS/PS printer driver or other software applications in the Select Software window. 6 Windows1Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set (see "Setting IP address" on page 136). If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.3 Select Install Now. The Custom Installation allows you to select the machine’s connection and choose individual components to install. Follow the instructions on the window. 4 Read License Agreement, and select I accept the terms of the License Agreement. Then, click Next.The program searches for the machine.

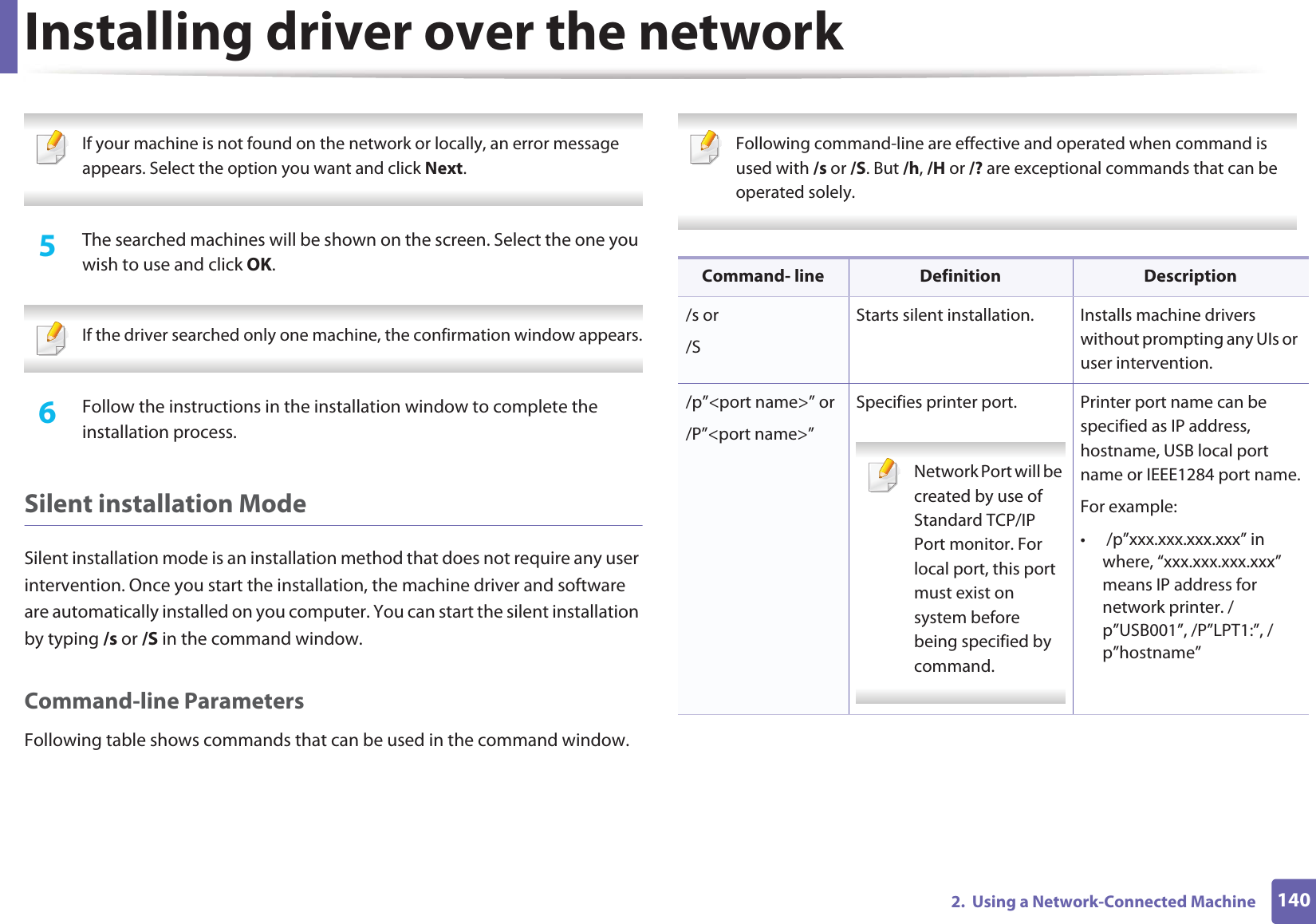

Installing driver over the network1402. Using a Network-Connected Machine If your machine is not found on the network or locally, an error message appears. Select the option you want and click Next. 5 The searched machines will be shown on the screen. Select the one you wish to use and click OK. If the driver searched only one machine, the confirmation window appears. 6 Follow the instructions in the installation window to complete the installation process.Silent installation ModeSilent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.Command-line ParametersFollowing table shows commands that can be used in the command window. Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely. Command- line Definition Description/s or/SStarts silent installation. Installs machine drivers without prompting any UIs or user intervention./p”<port name>” or/P”<port name>”Specifies printer port. Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command. Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name.For example:• /p”xxx.xxx.xxx.xxx” in where, “xxx.xxx.xxx.xxx” means IP address for network printer. /p”USB001”, /P”LPT1:”, /p”hostname”

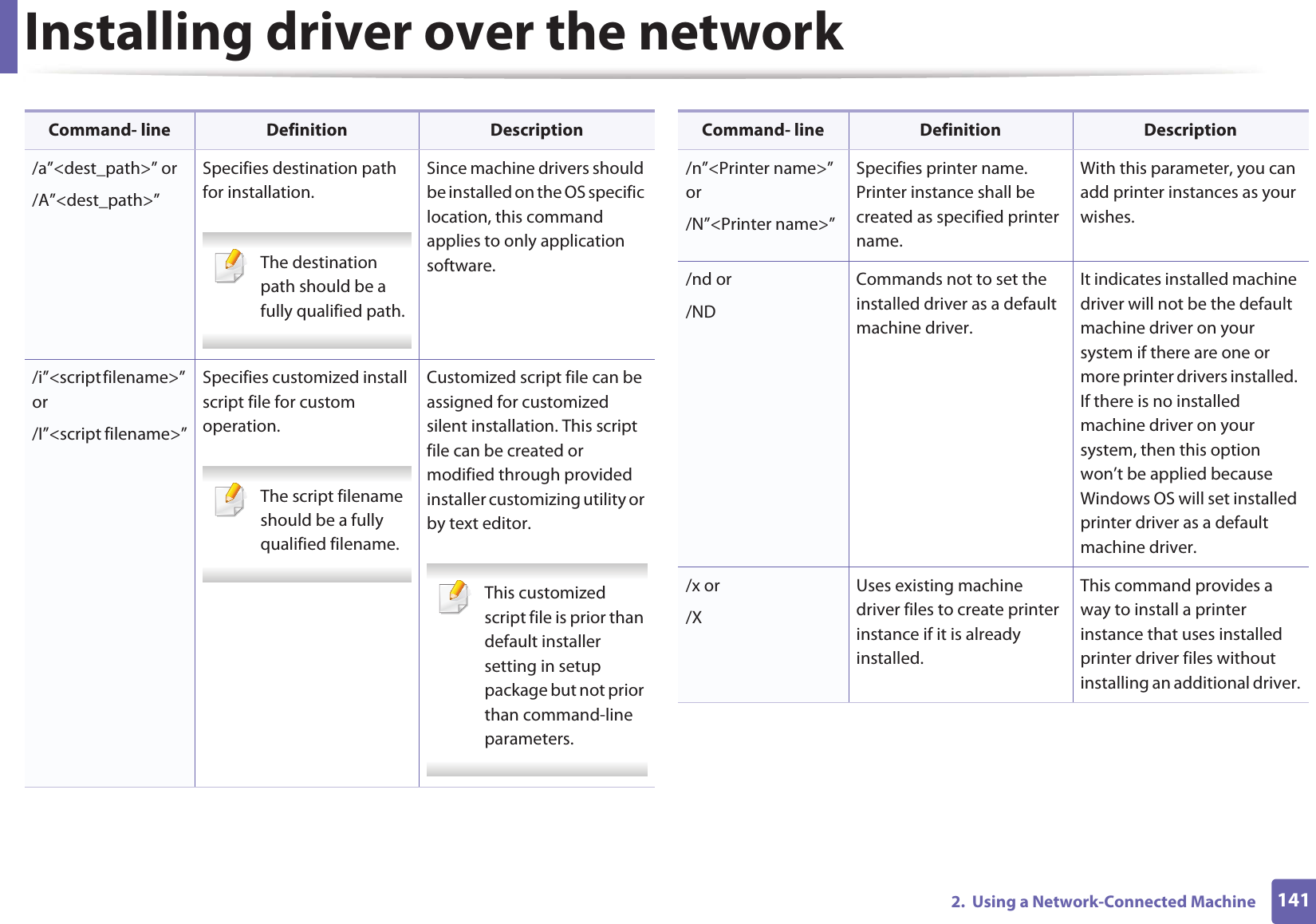

Installing driver over the network1412. Using a Network-Connected Machine/a”<dest_path>” or/A”<dest_path>”Specifies destination path for installation. The destination path should be a fully qualified path. Since machine drivers should be installed on the OS specific location, this command applies to only application software./i”<script filename>” or/I”<script filename>”Specifies customized install script file for custom operation. The script filename should be a fully qualified filename. Customized script file can be assigned for customized silent installation. This script file can be created or modified through provided installer customizing utility or by text editor. This customized script file is prior than default installer setting in setup package but not prior than command-line parameters. Command- line Definition Description/n”<Printer name>” or/N”<Printer name>”Specifies printer name. Printer instance shall be created as specified printer name.With this parameter, you can add printer instances as your wishes./nd or/NDCommands not to set the installed driver as a default machine driver.It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won’t be applied because Windows OS will set installed printer driver as a default machine driver./x or/XUses existing machine driver files to create printer instance if it is already installed.This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver.Command- line Definition Description

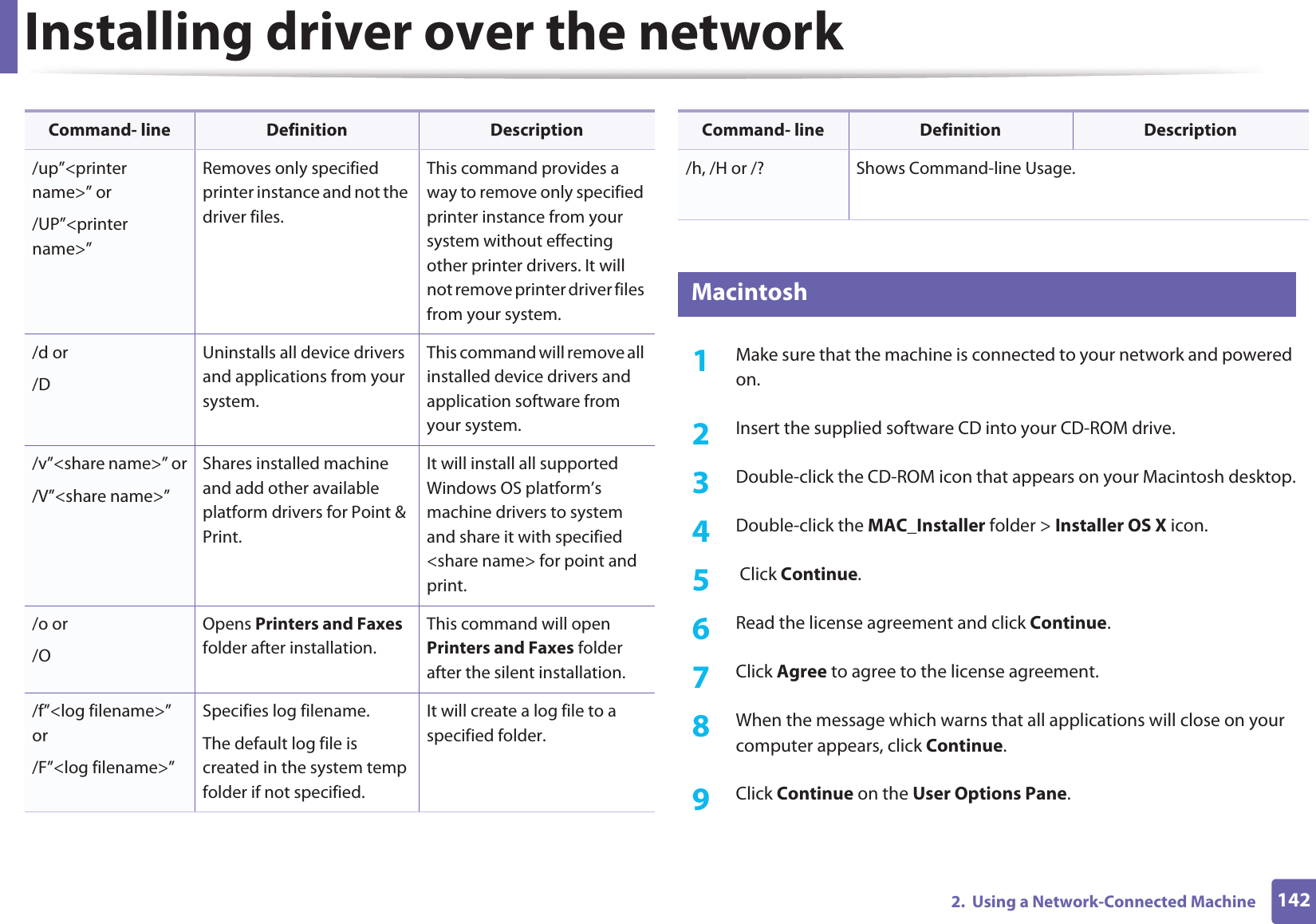

Installing driver over the network1422. Using a Network-Connected Machine7 Macintosh1Make sure that the machine is connected to your network and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message which warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane./up”<printer name>” or/UP”<printer name>”Removes only specified printer instance and not the driver files.This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system./d or/DUninstalls all device drivers and applications from your system.This command will remove all installed device drivers and application software from your system./v”<share name>” or/V”<share name>”Shares installed machine and add other available platform drivers for Point & Print.It will install all supported Windows OS platform’s machine drivers to system and share it with specified <share name> for point and print./o or /OOpens Printers and Faxes folder after installation.This command will open Printers and Faxes folder after the silent installation./f”<log filename>” or/F”<log filename>”Specifies log filename.The default log file is created in the system temp folder if not specified.It will create a log file to a specified folder.Command- line Definition Description/h, /H or /? Shows Command-line Usage.Command- line Definition Description

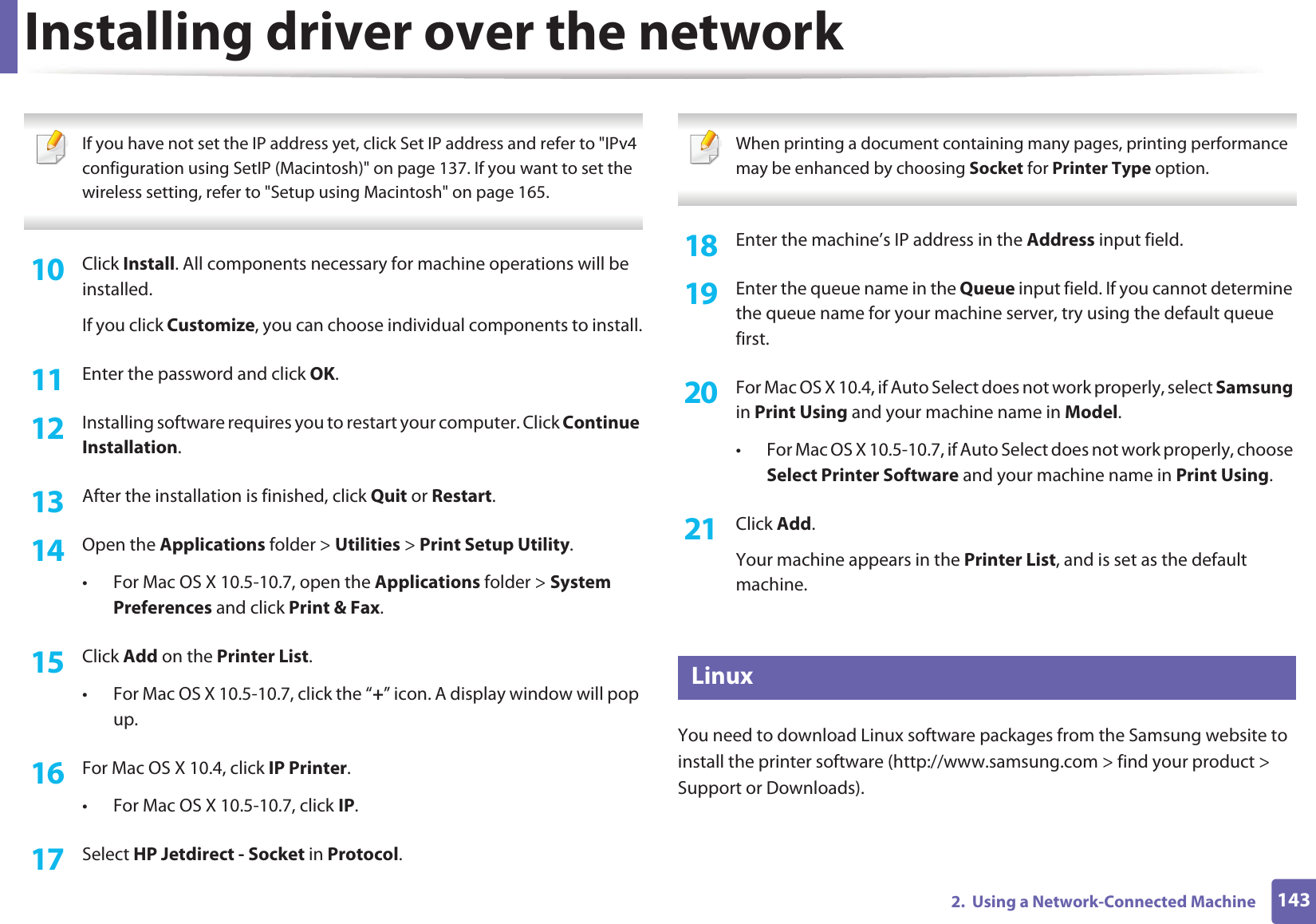

Installing driver over the network1432. Using a Network-Connected Machine If you have not set the IP address yet, click Set IP address and refer to "IPv4 configuration using SetIP (Macintosh)" on page 137. If you want to set the wireless setting, refer to "Setup using Macintosh" on page 165. 10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Quit or Restart.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5-10.7, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5-10.7, click the “+” icon. A display window will pop up. 16 For Mac OS X 10.4, click IP Printer.• For Mac OS X 10.5-10.7, click IP.17 Select HP Jetdirect - Socket in Protocol. When printing a document containing many pages, printing performance may be enhanced by choosing Socket for Printer Type option. 18 Enter the machine’s IP address in the Address input field.19 Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.20 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model. • For Mac OS X 10.5-10.7, if Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.21 Click Add.Your machine appears in the Printer List, and is set as the default machine.8 LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

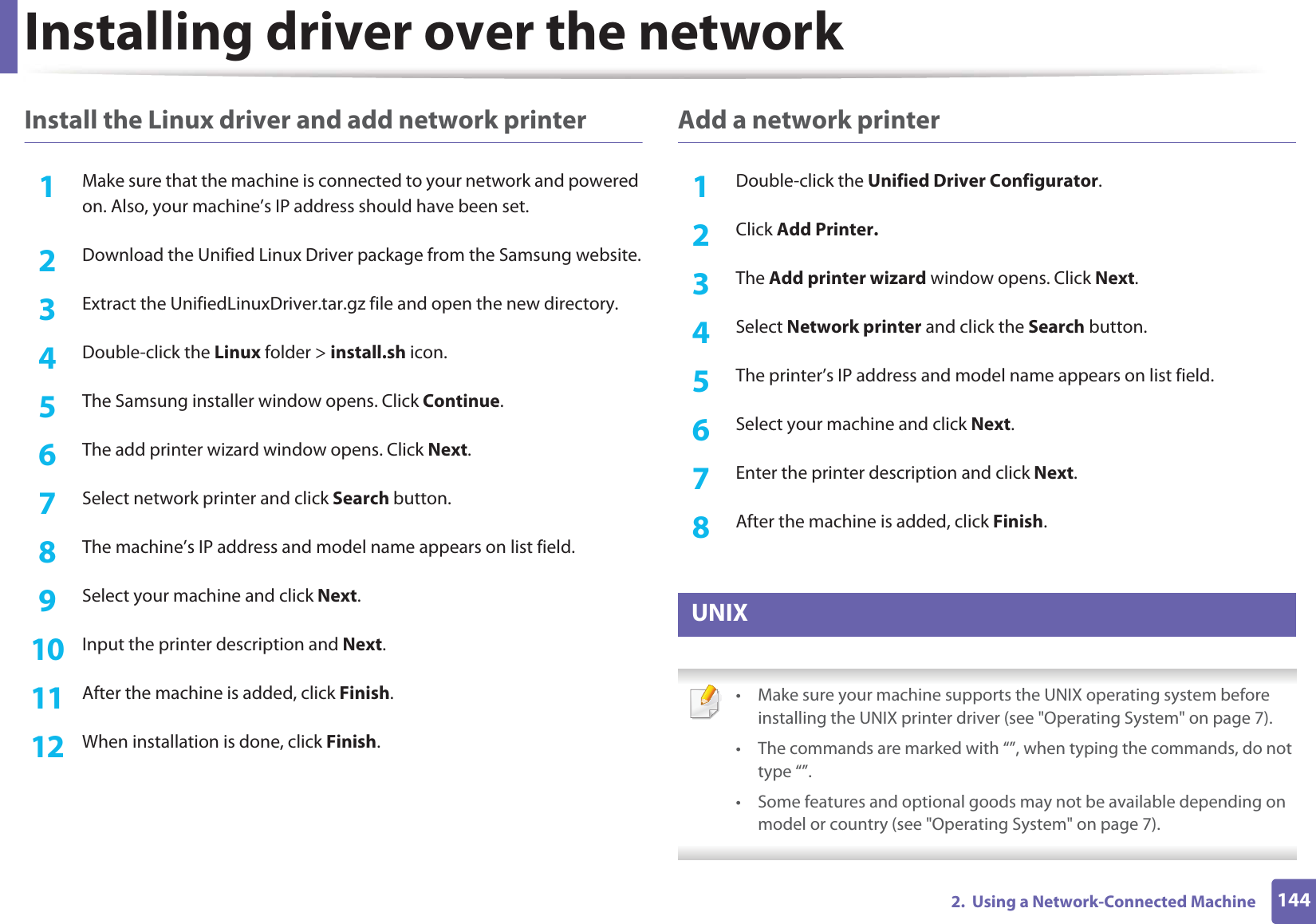

Installing driver over the network1442. Using a Network-Connected MachineInstall the Linux driver and add network printer1Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set. 2 Download the Unified Linux Driver package from the Samsung website.3 Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.4 Double-click the Linux folder > install.sh icon.5 The Samsung installer window opens. Click Continue.6 The add printer wizard window opens. Click Next.7 Select network printer and click Search button.8 The machine’s IP address and model name appears on list field.9 Select your machine and click Next.10 Input the printer description and Next.11 After the machine is added, click Finish.12 When installation is done, click Finish.Add a network printer1Double-click the Unified Driver Configurator.2 Click Add Printer.3 The Add printer wizard window opens. Click Next.4 Select Network printer and click the Search button.5 The printer’s IP address and model name appears on list field.6 Select your machine and click Next.7 Enter the printer description and click Next.8 After the machine is added, click Finish.9 UNIX • Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Operating System" on page 7).• The commands are marked with “”, when typing the commands, do not type “”.• Some features and optional goods may not be available depending on model or country (see "Operating System" on page 7).

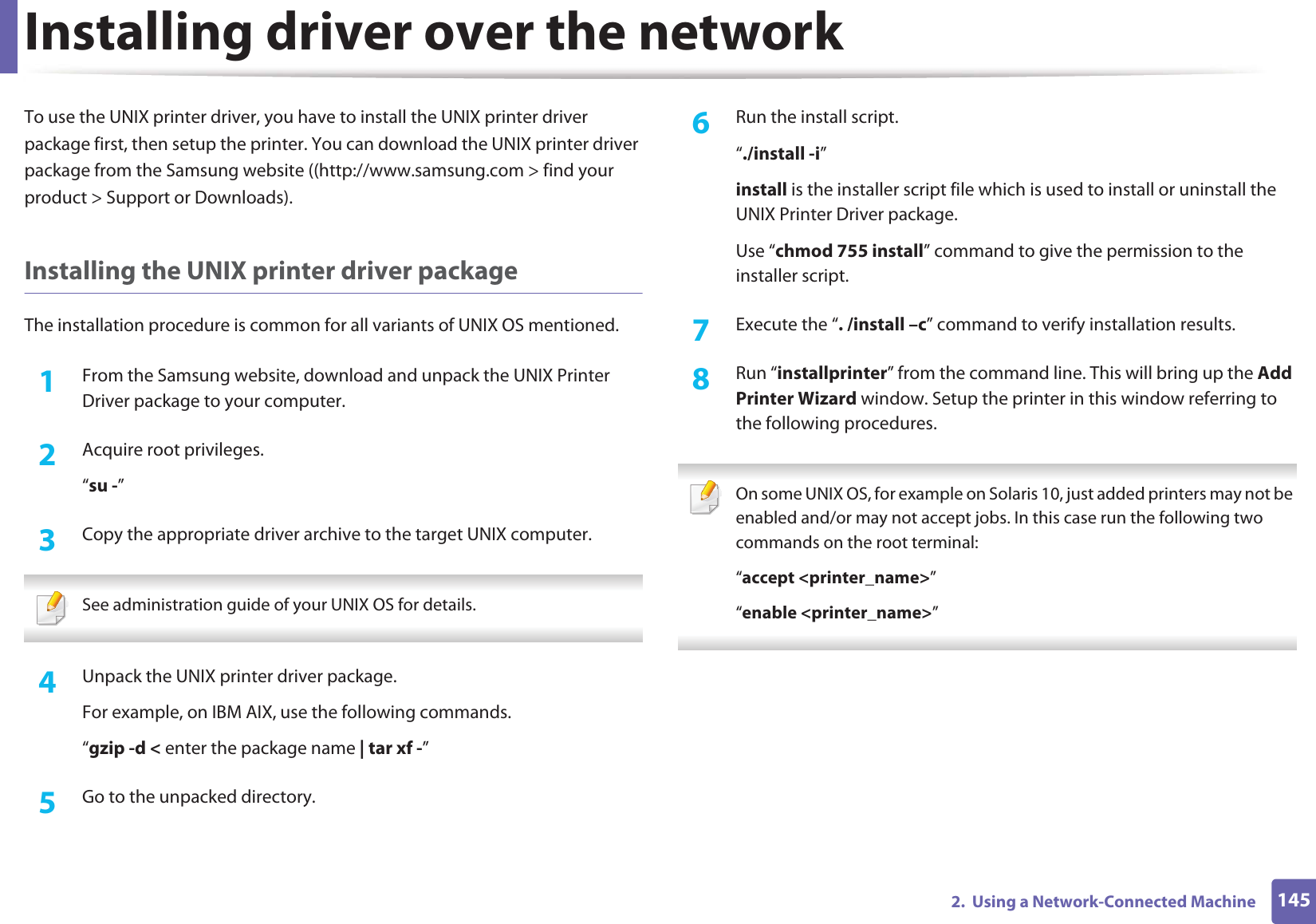

Installing driver over the network1452. Using a Network-Connected MachineTo use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website ((http://www.samsung.com > find your product > Support or Downloads).Installing the UNIX printer driver packageThe installation procedure is common for all variants of UNIX OS mentioned.1From the Samsung website, download and unpack the UNIX Printer Driver package to your computer. 2 Acquire root privileges.“su -”3 Copy the appropriate driver archive to the target UNIX computer. See administration guide of your UNIX OS for details. 4 Unpack the UNIX printer driver package.For example, on IBM AIX, use the following commands.“gzip -d < enter the package name | tar xf -”5 Go to the unpacked directory.6 Run the install script.“./install -i”install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.Use “chmod 755 install” command to give the permission to the installer script.7 Execute the “. /install –c” command to verify installation results.8 Run “installprinter” from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures. On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:“accept <printer_name>”“enable <printer_name>”

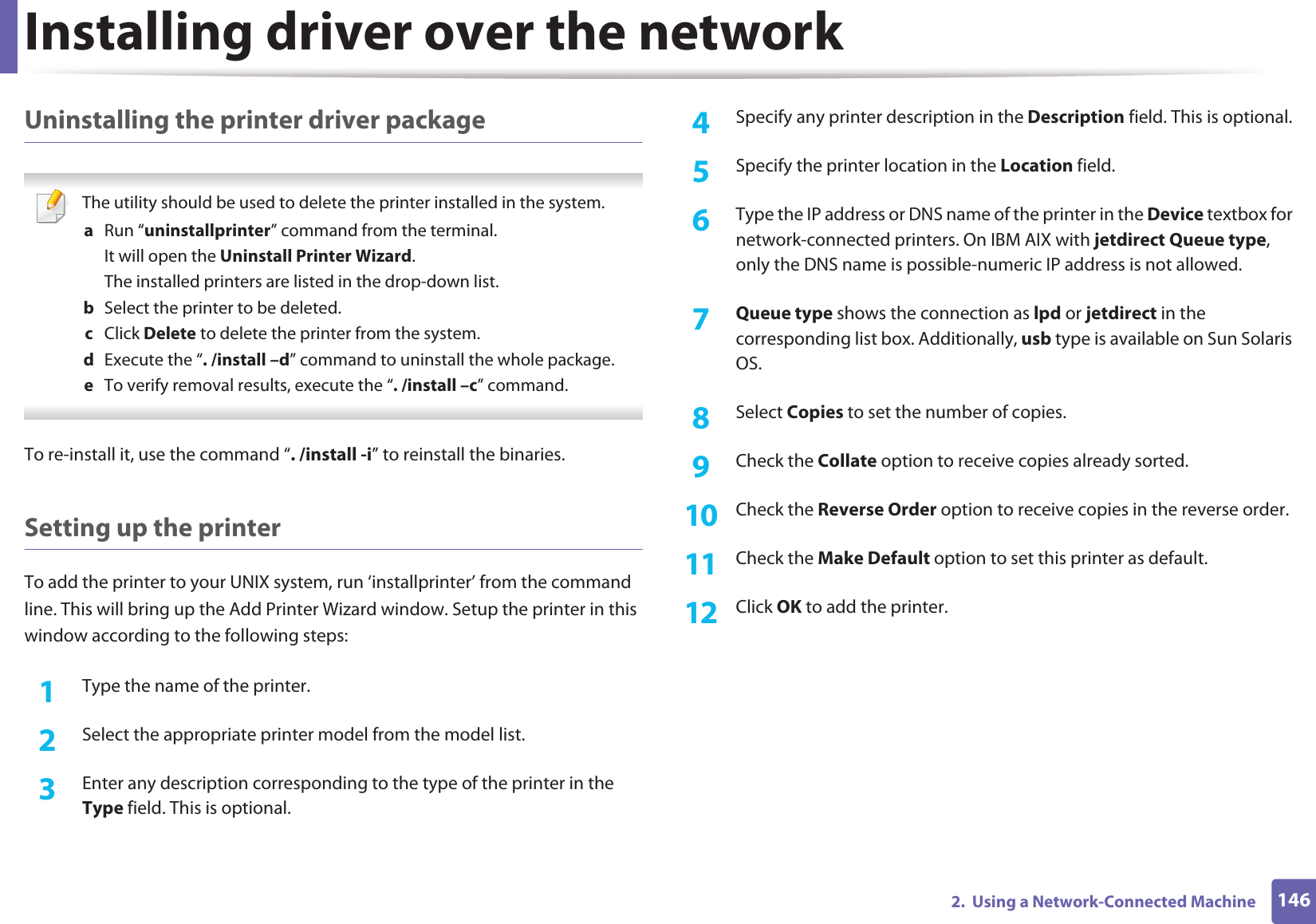

Installing driver over the network1462. Using a Network-Connected MachineUninstalling the printer driver package The utility should be used to delete the printer installed in the system.a Run “uninstallprinter” command from the terminal.It will open the Uninstall Printer Wizard.The installed printers are listed in the drop-down list.b Select the printer to be deleted.c Click Delete to delete the printer from the system.d Execute the “. /install –d” command to uninstall the whole package.e To verify removal results, execute the “. /install –c” command. To re-install it, use the command “. /install -i” to reinstall the binaries.Setting up the printerTo add the printer to your UNIX system, run ‘installprinter’ from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:1Type the name of the printer.2 Select the appropriate printer model from the model list.3 Enter any description corresponding to the type of the printer in the Type field. This is optional.4 Specify any printer description in the Description field. This is optional.5 Specify the printer location in the Location field.6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.8 Select Copies to set the number of copies.9 Check the Collate option to receive copies already sorted.10 Check the Reverse Order option to receive copies in the reverse order.11 Check the Make Default option to set this printer as default.12 Click OK to add the printer.

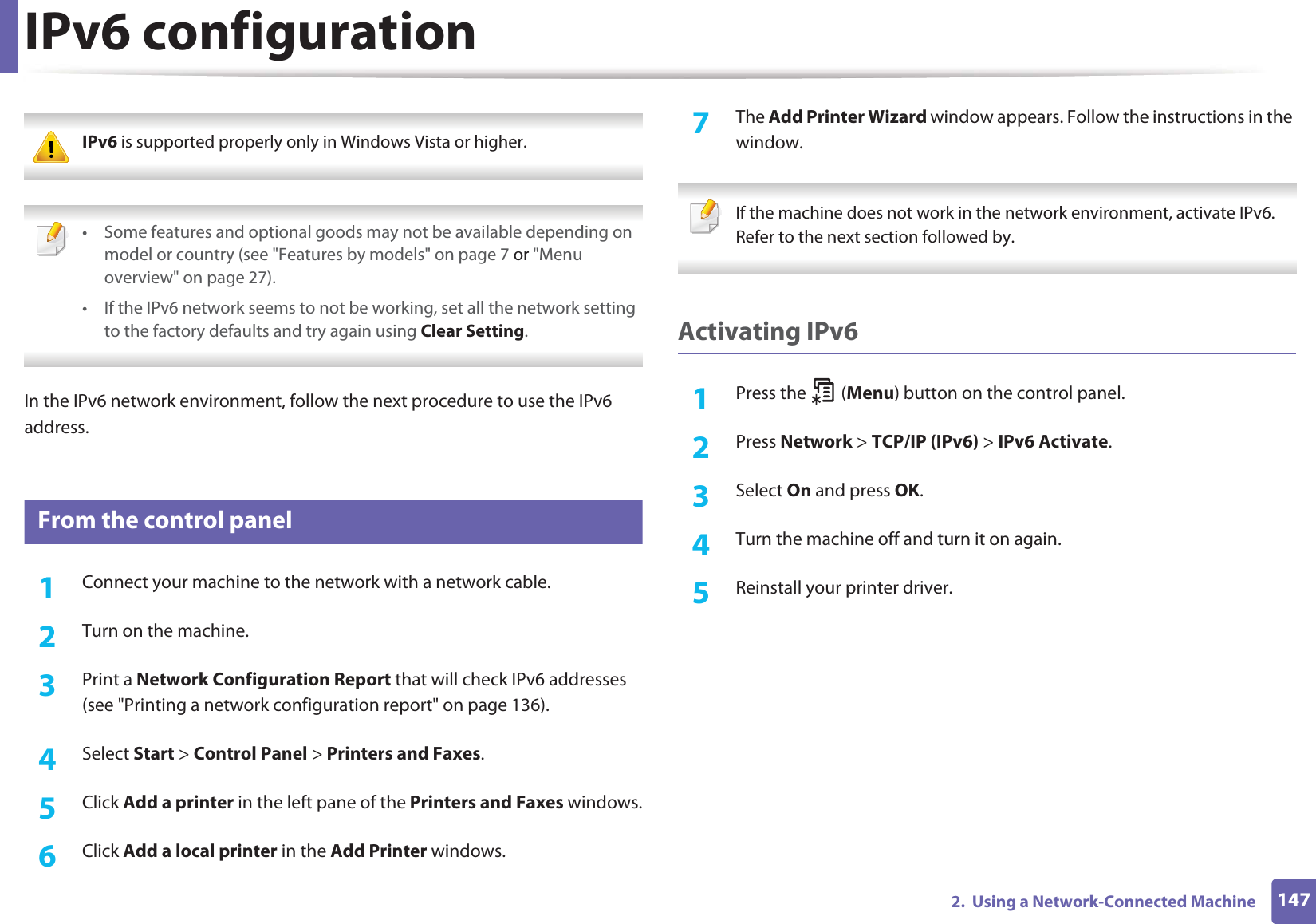

1472. Using a Network-Connected MachineIPv6 configuration IPv6 is supported properly only in Windows Vista or higher. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7 or "Menu overview" on page 27).• If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again using Clear Setting. In the IPv6 network environment, follow the next procedure to use the IPv6 address.10 From the control panel1Connect your machine to the network with a network cable.2 Turn on the machine.3 Print a Network Configuration Report that will check IPv6 addresses (see "Printing a network configuration report" on page 136).4 Select Start > Control Panel > Printers and Faxes.5 Click Add a printer in the left pane of the Printers and Faxes windows.6 Click Add a local printer in the Add Printer windows.7 The Add Printer Wizard window appears. Follow the instructions in the window. If the machine does not work in the network environment, activate IPv6. Refer to the next section followed by. Activating IPv61Press the (Menu) button on the control panel.2 Press Network > TCP/IP (IPv6) > IPv6 Activate.3 Select On and press OK.4 Turn the machine off and turn it on again.5 Reinstall your printer driver.

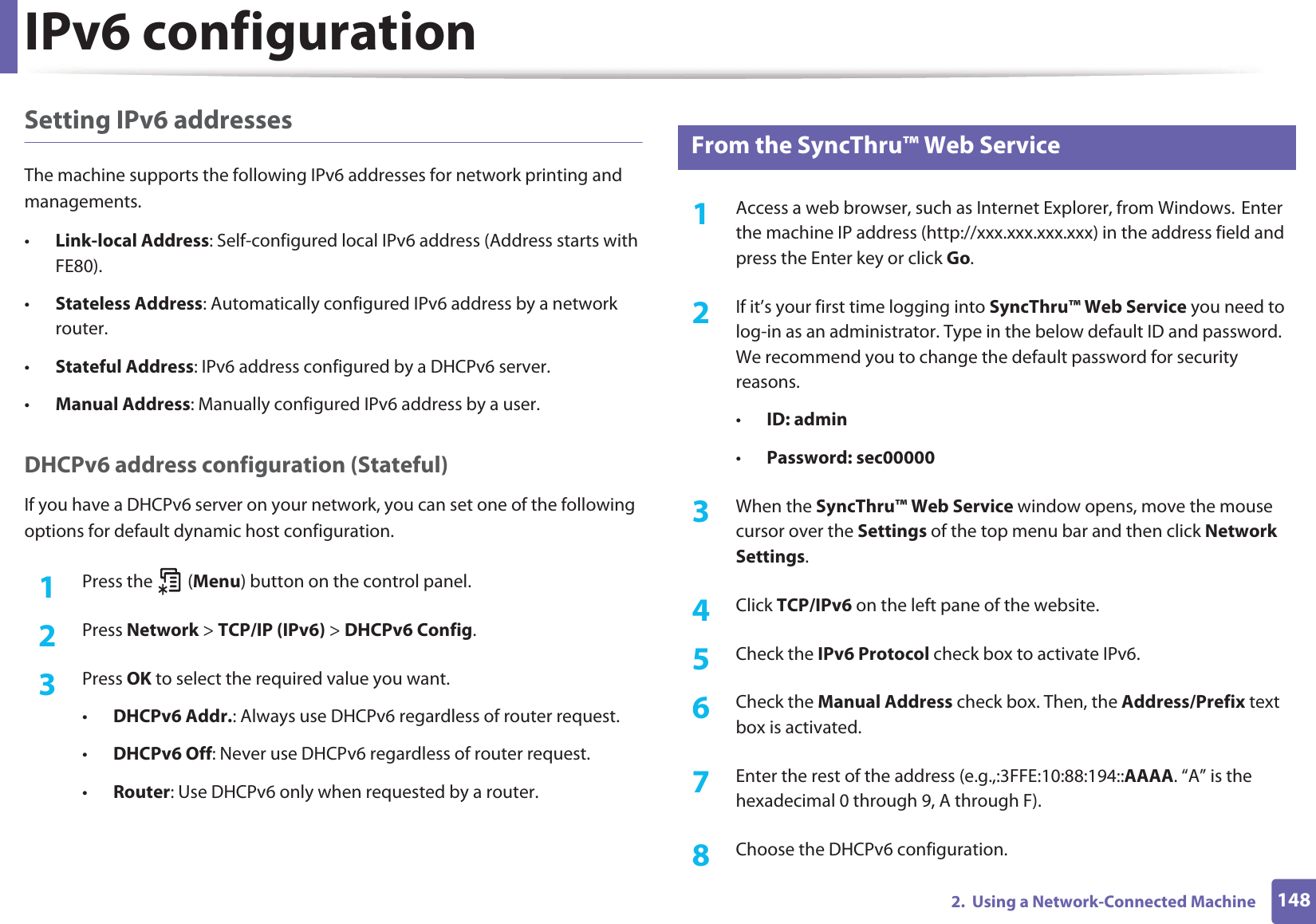

IPv6 configuration1482. Using a Network-Connected MachineSetting IPv6 addressesThe machine supports the following IPv6 addresses for network printing and managements.•Link-local Address: Self-configured local IPv6 address (Address starts with FE80).•Stateless Address: Automatically configured IPv6 address by a network router.•Stateful Address: IPv6 address configured by a DHCPv6 server.•Manual Address: Manually configured IPv6 address by a user.DHCPv6 address configuration (Stateful)If you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration.1Press the (Menu) button on the control panel.2 Press Network > TCP/IP (IPv6) > DHCPv6 Config.3 Press OK to select the required value you want.•DHCPv6 Addr.: Always use DHCPv6 regardless of router request.•DHCPv6 Off: Never use DHCPv6 regardless of router request.•Router: Use DHCPv6 only when requested by a router.11 From the SyncThru™ Web Service1Access a web browser, such as Internet Explorer, from Windows.GEnter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 If it’s your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin•Password: sec00000 3 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings.4 Click TCP/IPv6 on the left pane of the website.5 Check the IPv6 Protocol check box to activate IPv6.6 Check the Manual Address check box. Then, the Address/Prefix text box is activated.7 Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the hexadecimal 0 through 9, A through F).8 Choose the DHCPv6 configuration.

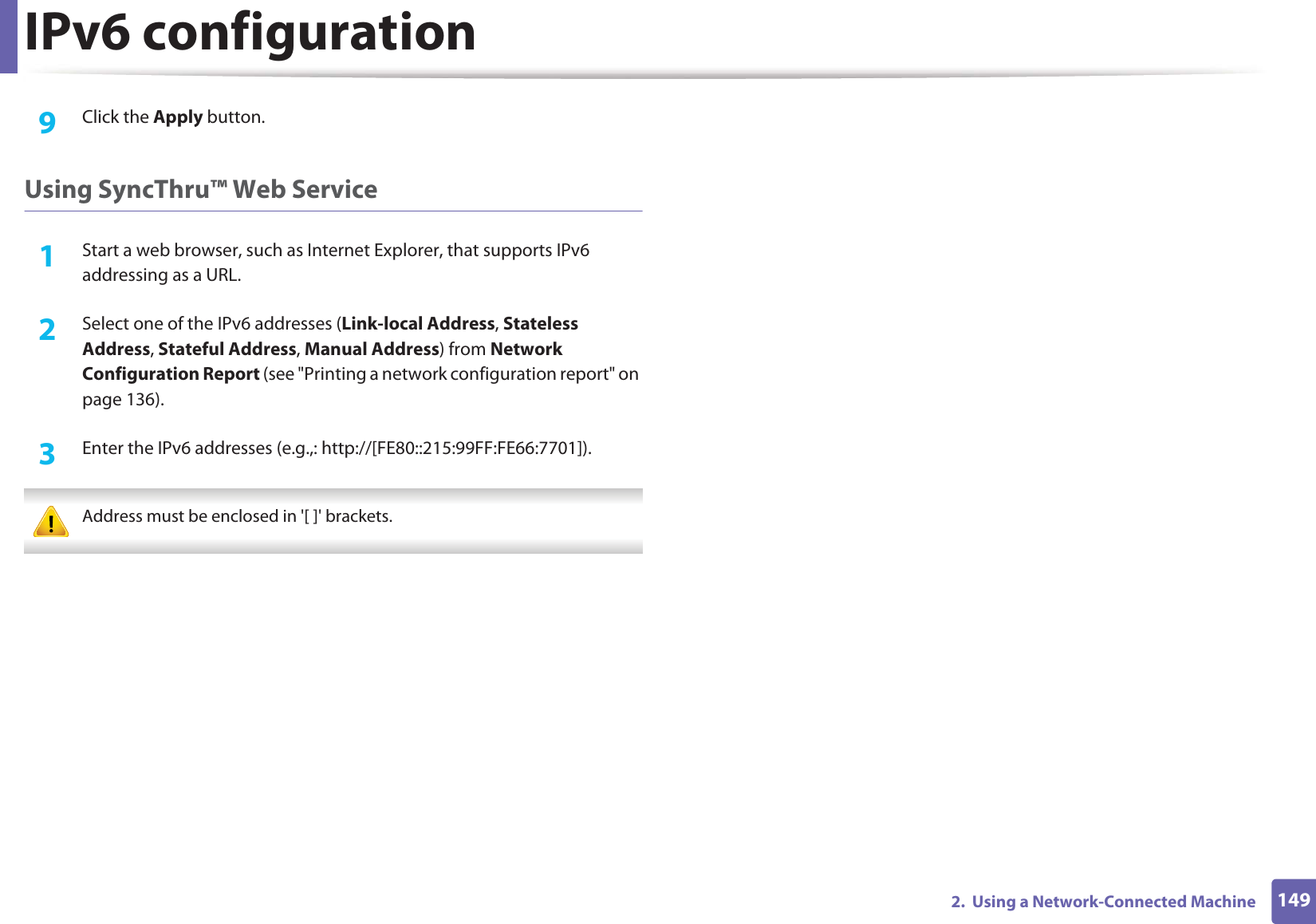

IPv6 configuration1492. Using a Network-Connected Machine9 Click the Apply button.Using SyncThru™ Web Service1Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL.2 Select one of the IPv6 addresses (Link-local Address, Stateless Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on page 136).3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]). Address must be enclosed in '[ ]' brackets.

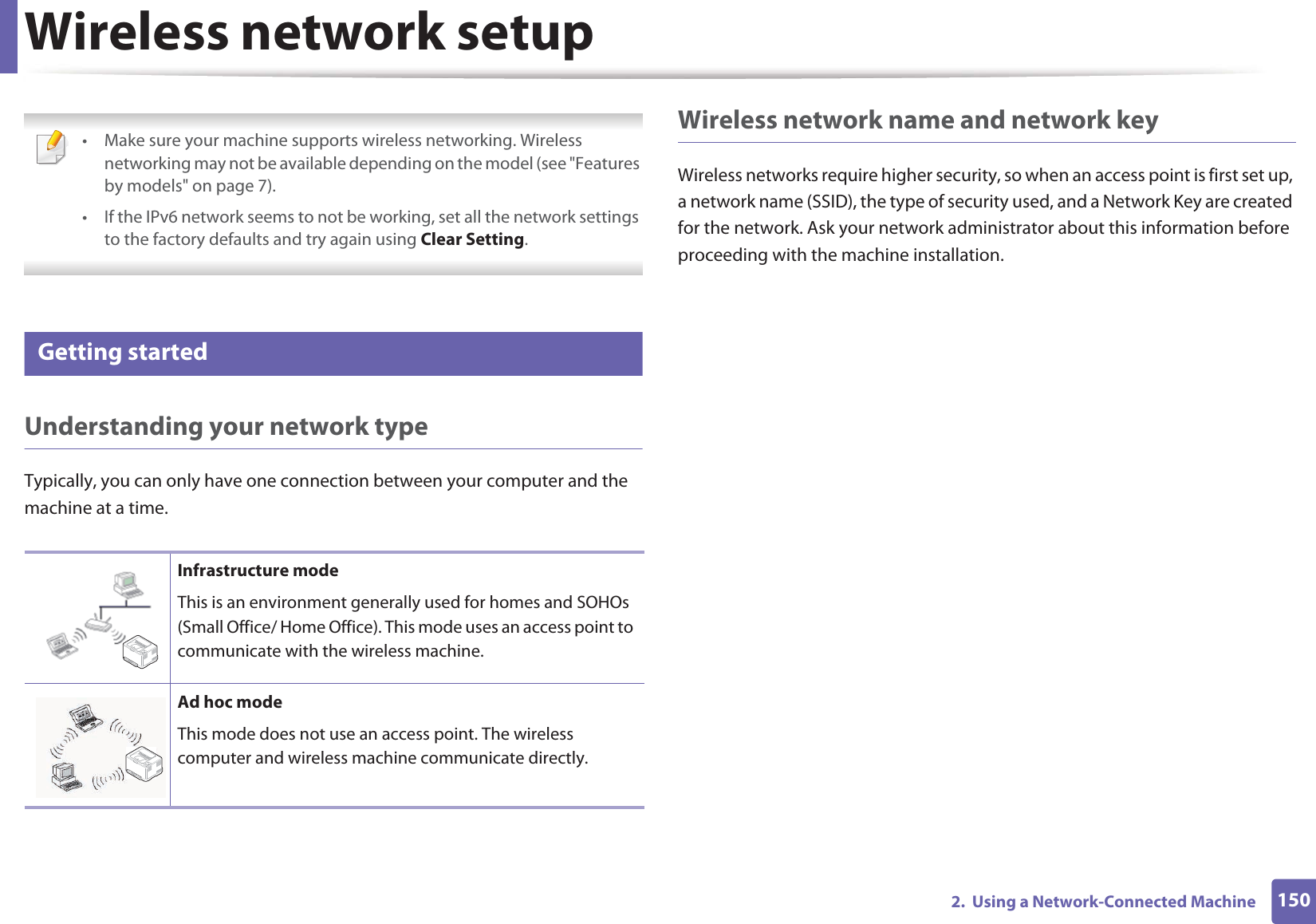

1502. Using a Network-Connected MachineWireless network setup • Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by models" on page 7).• If the IPv6 network seems to not be working, set all the network settings to the factory defaults and try again using Clear Setting. 12 Getting startedUnderstanding your network typeTypically, you can only have one connection between your computer and the machine at a time.Wireless network name and network keyWireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Key are created for the network. Ask your network administrator about this information before proceeding with the machine installation.Infrastructure modeThis is an environment generally used for homes and SOHOs (Small Office/ Home Office). This mode uses an access point to communicate with the wireless machine.Ad hoc modeThis mode does not use an access point. The wireless computer and wireless machine communicate directly.

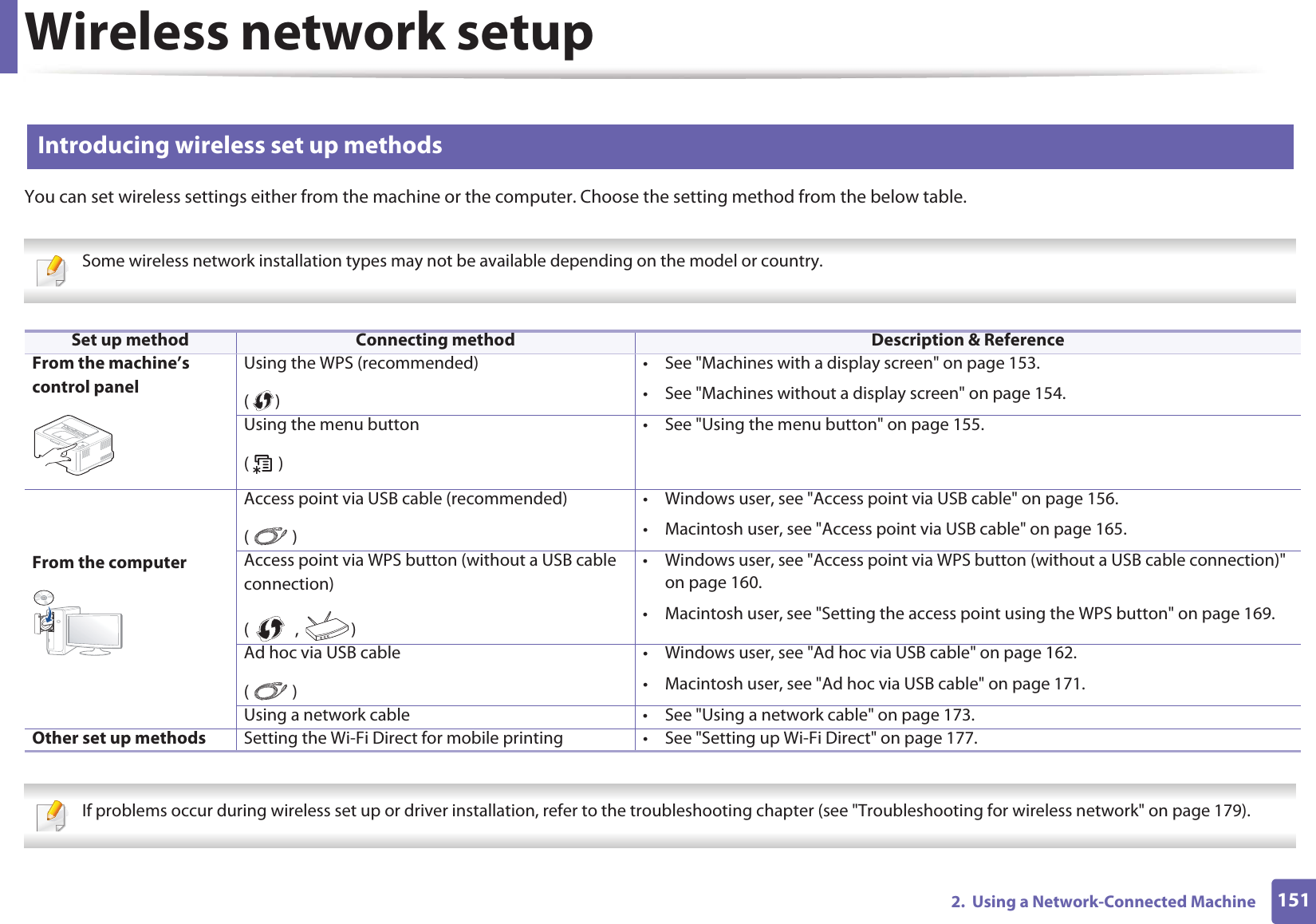

Wireless network setup1512. Using a Network-Connected Machine13 Introducing wireless set up methodsYou can set wireless settings either from the machine or the computer. Choose the setting method from the below table. Some wireless network installation types may not be available depending on the model or country. If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting for wireless network" on page 179). Set up method Connecting method Description & ReferenceFrom the machine’s control panelUsing the WPS (recommended)()• See "Machines with a display screen" on page 153.• See "Machines without a display screen" on page 154.Using the menu button()• See "Using the menu button" on page 155.From the computerAccess point via USB cable (recommended)()• Windows user, see "Access point via USB cable" on page 156.• Macintosh user, see "Access point via USB cable" on page 165.Access point via WPS button (without a USB cable connection)( , )• Windows user, see "Access point via WPS button (without a USB cable connection)" on page 160.• Macintosh user, see "Setting the access point using the WPS button" on page 169.Ad hoc via USB cable()• Windows user, see "Ad hoc via USB cable" on page 162.• Macintosh user, see "Ad hoc via USB cable" on page 171.Using a network cable • See "Using a network cable" on page 173.Other set up methods Setting the Wi-Fi Direct for mobile printing • See "Setting up Wi-Fi Direct" on page 177.

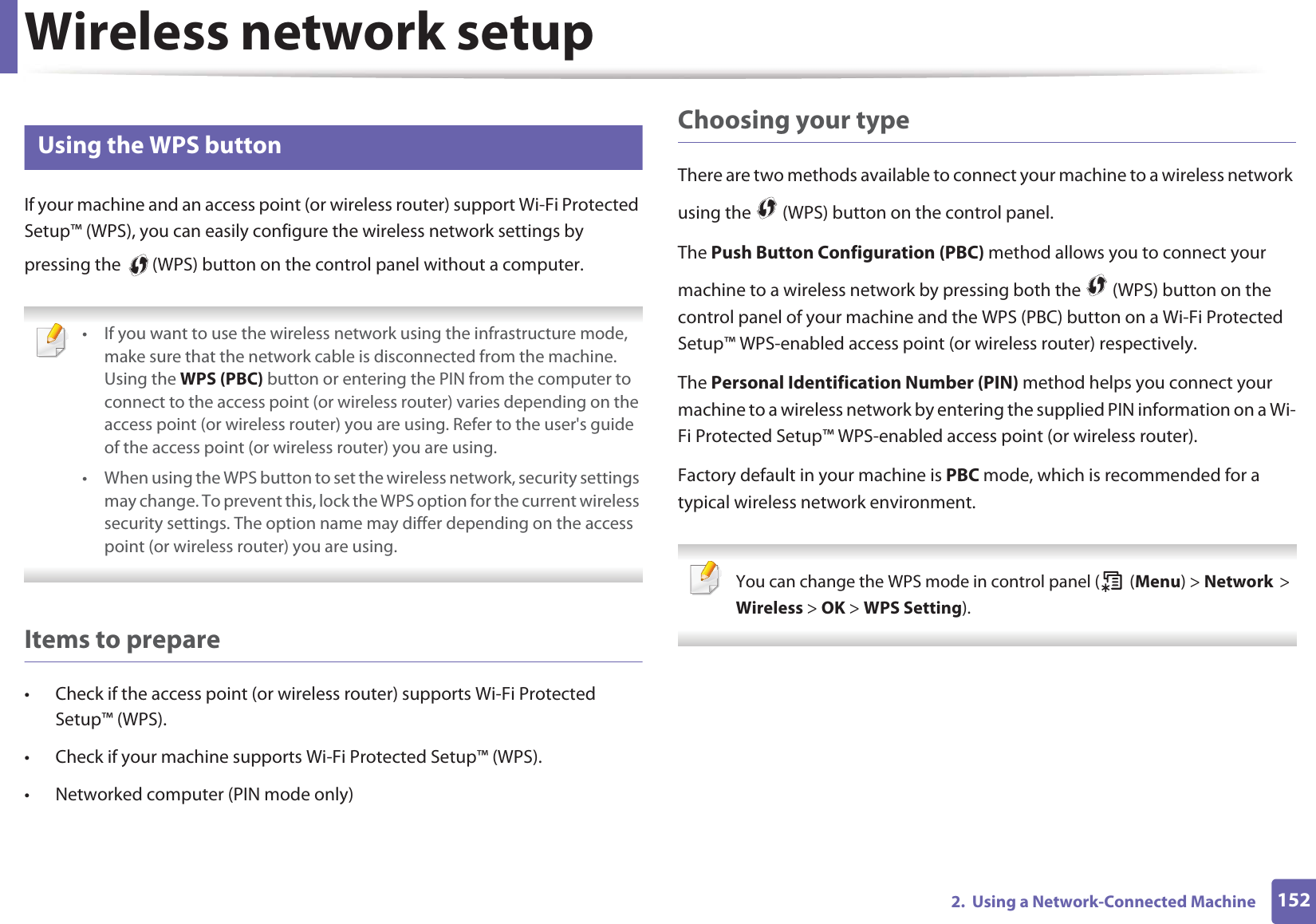

Wireless network setup1522. Using a Network-Connected Machine14 Using the WPS button If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily configure the wireless network settings by pressing the (WPS) button on the control panel without a computer. • If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) button or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.• When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using. Items to prepare• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).• Check if your machine supports Wi-Fi Protected Setup™ (WPS).• Networked computer (PIN mode only)Choosing your typeThere are two methods available to connect your machine to a wireless network using the (WPS) button on the control panel.The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing both the (WPS) button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment. You can change the WPS mode in control panel ( (Menu) > NetworkG>GWireless > OK > WPS Setting).

Wireless network setup1532. Using a Network-Connected MachineMachines with a display screenConnecting in PBC mode1Press and hold the (WPS) button on the control panel for more than 2 seconds.The machine starts waiting for up to two minutes until you press the WPS (PBC) button on the access point (or wireless router).2 Press the WPS (PBC) button on the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the access point (or wireless router).b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display.Connecting in PIN mode1Press and hold the (WPS) button on the control panel for more than 2 seconds.2 The eight-digit PIN appears on the display. You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the wireless network.b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c SSID: After completing the wireless network connection process, the AP’s SSID information is displayed on the LCD display.

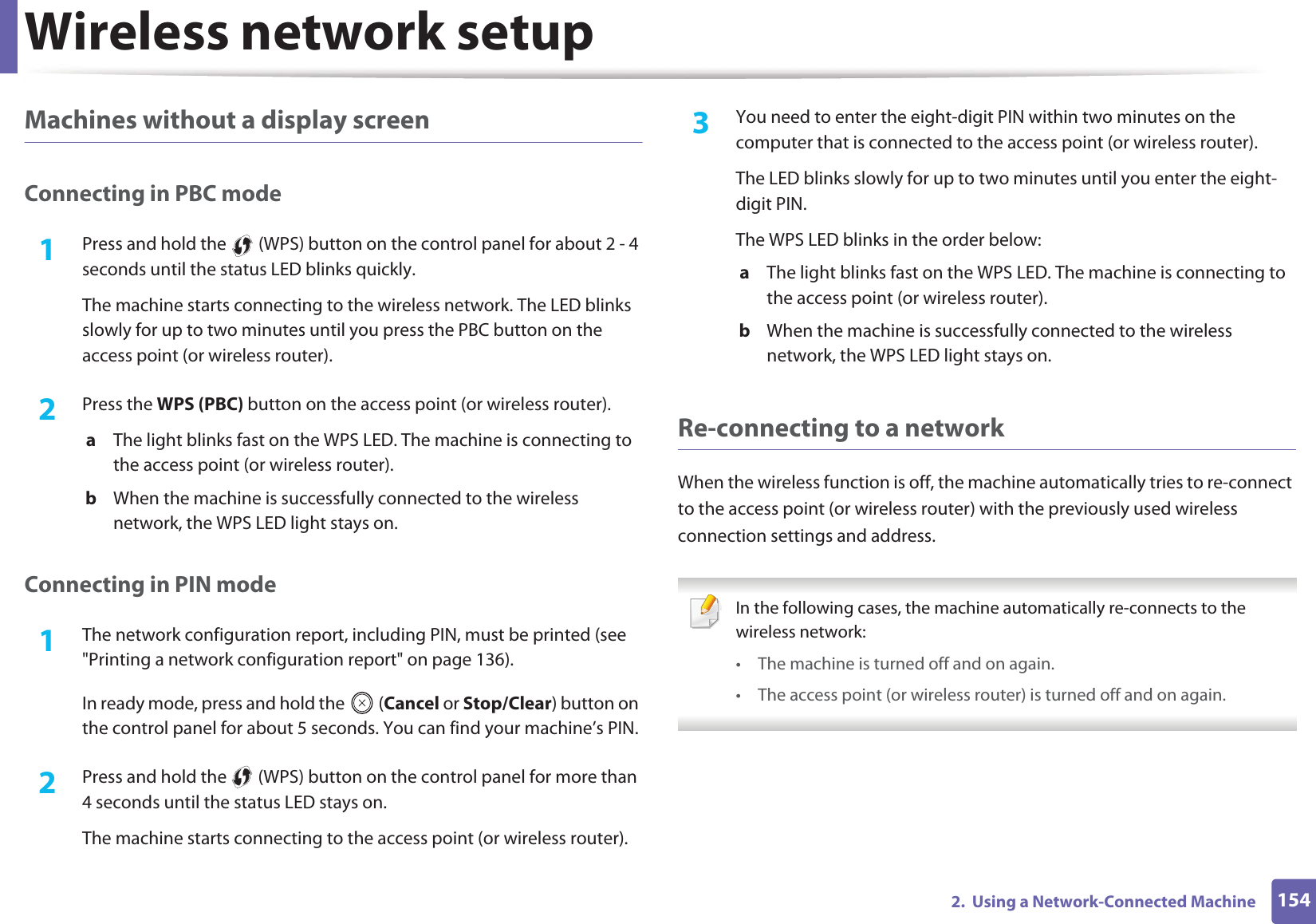

Wireless network setup1542. Using a Network-Connected MachineMachines without a display screenConnecting in PBC mode1Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).2 Press the WPS (PBC) button on the access point (or wireless router).a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on.Connecting in PIN mode1The network configuration report, including PIN, must be printed (see "Printing a network configuration report" on page 136).In ready mode, press and hold the (Cancel or Stop/Clear) button on the control panel for about 5 seconds. You can find your machine’s PIN.2 Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.The machine starts connecting to the access point (or wireless router).3 You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.The WPS LED blinks in the order below:a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).b When the machine is successfully connected to the wireless network, the WPS LED light stays on.Re-connecting to a networkWhen the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address. In the following cases, the machine automatically re-connects to the wireless network:• The machine is turned off and on again.• The access point (or wireless router) is turned off and on again.

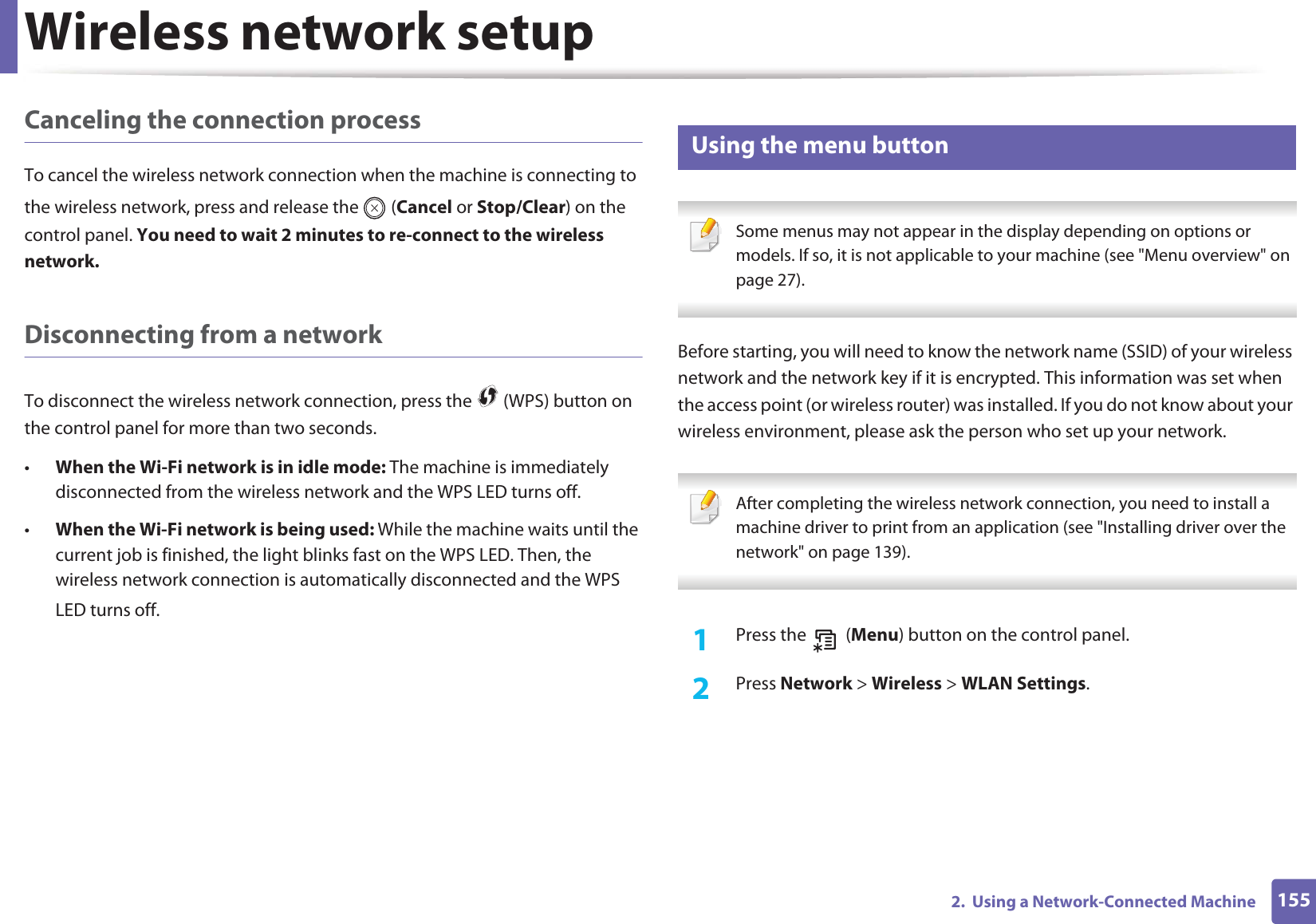

Wireless network setup1552. Using a Network-Connected MachineCanceling the connection processTo cancel the wireless network connection when the machine is connecting to the wireless network, press and release the (Cancel or Stop/Clear) on the control panel. You need to wait 2 minutes to re-connect to the wireless network.Disconnecting from a networkTo disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.•When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off.•When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off.15 Using the menu button Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 27). Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 139). 1Press the (Menu) button on the control panel.2 Press Network > Wireless > WLAN Settings.

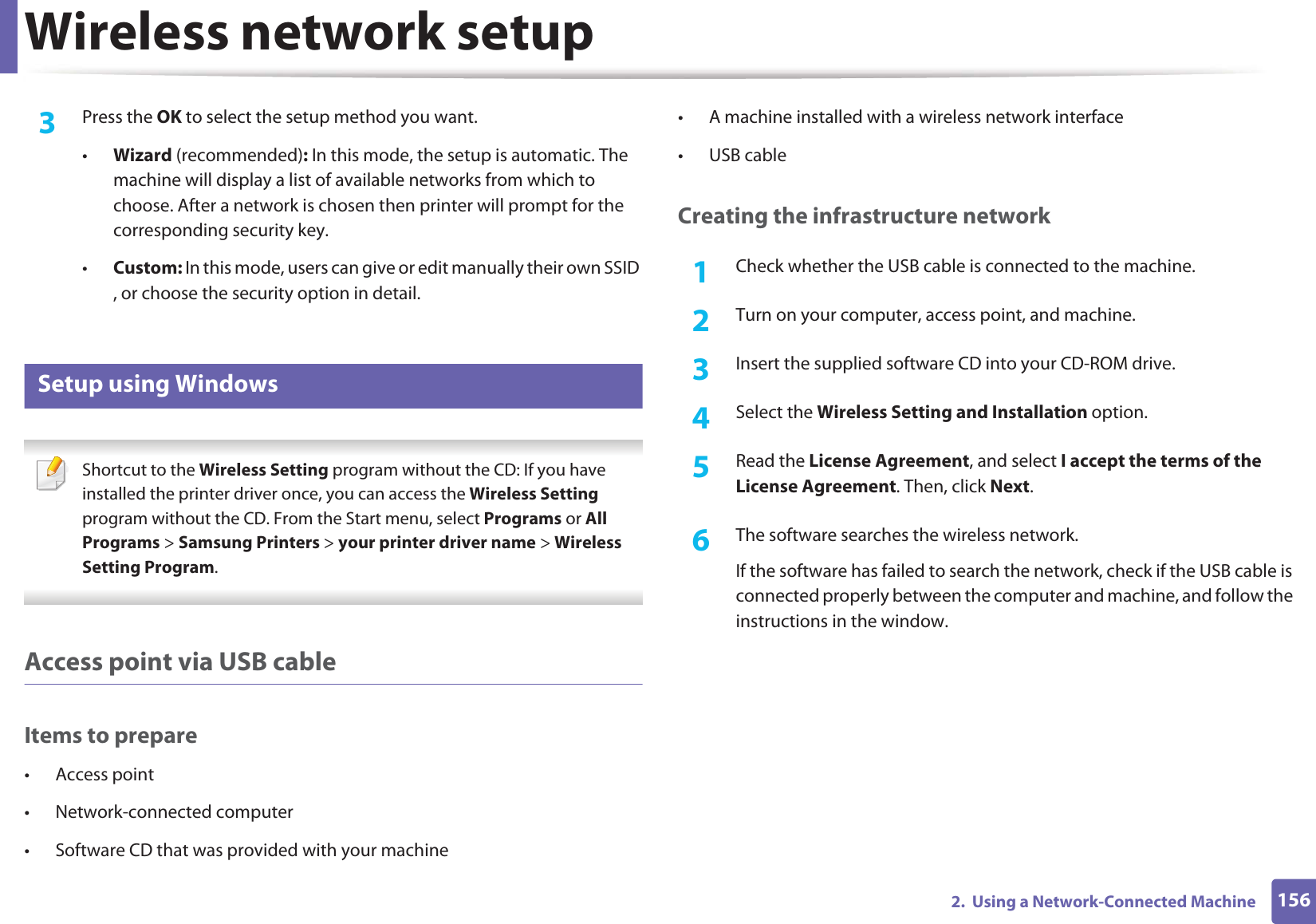

Wireless network setup1562. Using a Network-Connected Machine3 Press the OK to select the setup method you want.•Wizard (recommended): In this mode, the setup is automatic. The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.•Custom: In this mode, users can give or edit manually their own SSID , or choose the security option in detail. 16 Setup using Windows Shortcut to the Wireless Setting program without the CD: If you have installed the printer driver once, you can access the Wireless Setting program without the CD. From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Wireless Setting Program. Access point via USB cableItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableCreating the infrastructure network1Check whether the USB cable is connected to the machine.2 Turn on your computer, access point, and machine.3 Insert the supplied software CD into your CD-ROM drive.4 Select the Wireless Setting and Installation option.5 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.6 The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window.

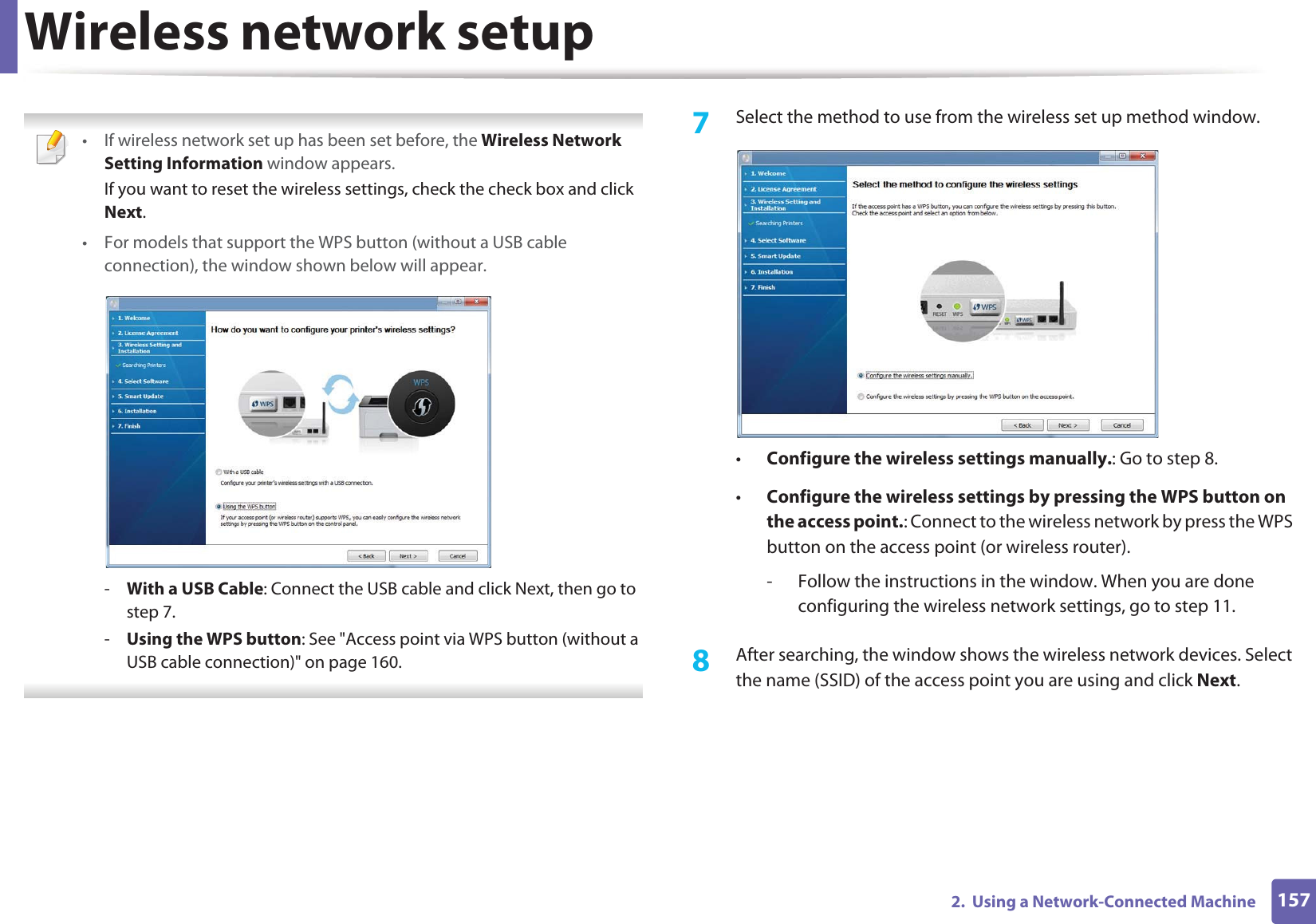

Wireless network setup1572. Using a Network-Connected Machine • If wireless network set up has been set before, the Wireless Network Setting Information window appears.If you want to reset the wireless settings, check the check box and click Next.• For models that support the WPS button (without a USB cable connection), the window shown below will appear.-With a USB Cable: Connect the USB cable and click Next, then go to step 7.-Using the WPS button: See "Access point via WPS button (without a USB cable connection)" on page 160. 7 Select the method to use from the wireless set up method window.•Configure the wireless settings manually.: Go to step 8.•Configure the wireless settings by pressing the WPS button on the access point.: Connect to the wireless network by press the WPS button on the access point (or wireless router).- Follow the instructions in the window. When you are done configuring the wireless network settings, go to step 11. 8 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you are using and click Next.

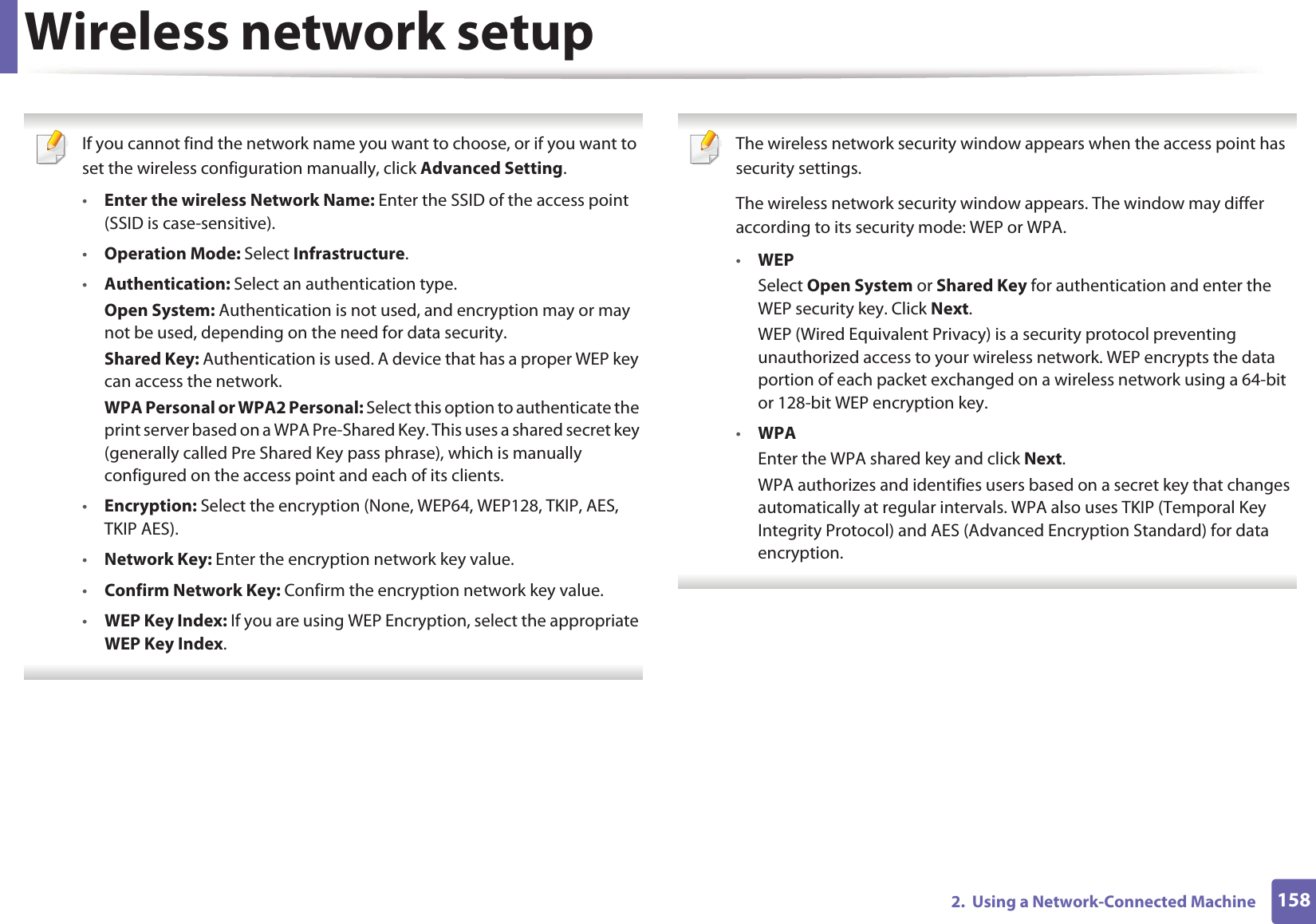

Wireless network setup1582. Using a Network-Connected Machine If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES, TKIP AES).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index. The wireless network security window appears when the access point has security settings.The wireless network security window appears. The window may differ according to its security mode: WEP or WPA.•WEPSelect Open System or Shared Key for authentication and enter the WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.

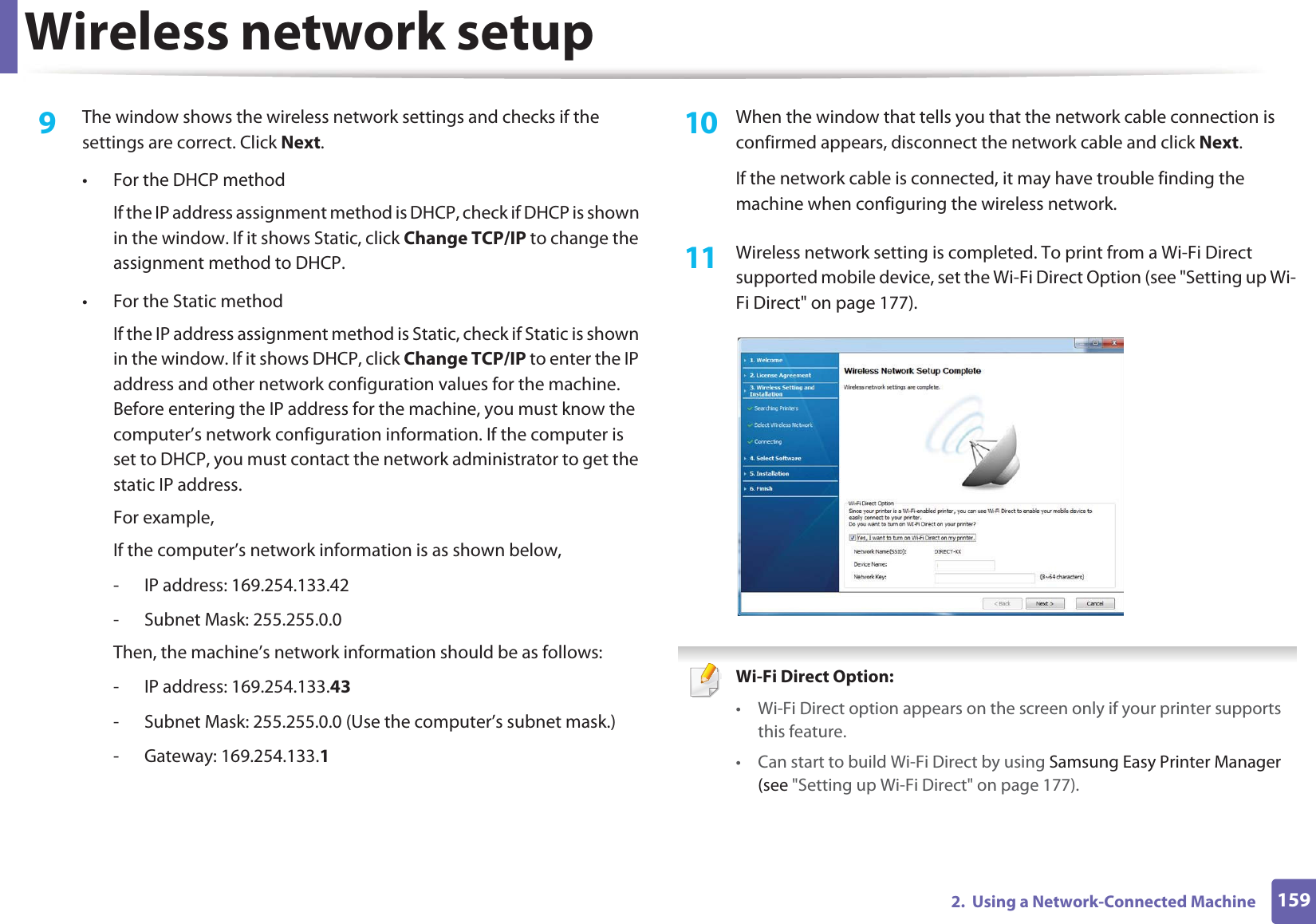

Wireless network setup1592. Using a Network-Connected Machine9 The window shows the wireless network settings and checks if the settings are correct. Click Next.• For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.• For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.For example,If the computer’s network information is as shown below,- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as follows:- IP address: 169.254.133.43 - Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.110 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.11 Wireless network setting is completed. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-Fi Direct" on page 177). Wi-Fi Direct Option: • Wi-Fi Direct option appears on the screen only if your printer supports this feature.• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 177).

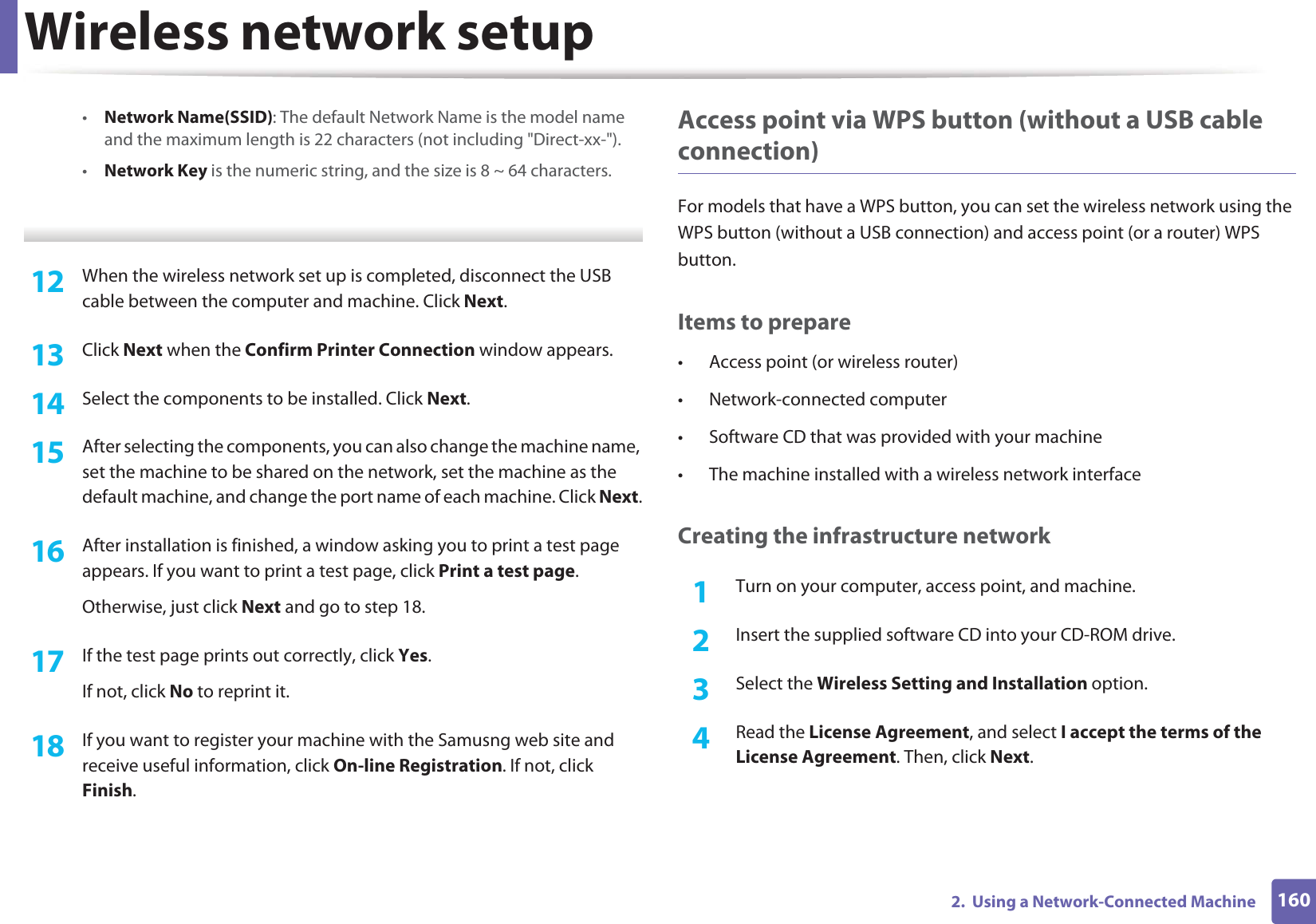

Wireless network setup1602. Using a Network-Connected Machine•Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").•Network Key is the numeric string, and the size is 8 ~ 64 characters. 12 When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.13 Click Next when the Confirm Printer Connection window appears.14 Select the components to be installed. Click Next.15 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.16 After installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 18.17 If the test page prints out correctly, click Yes.If not, click No to reprint it.18 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.Access point via WPS button (without a USB cable connection)For models that have a WPS button, you can set the wireless network using the WPS button (without a USB connection) and access point (or a router) WPS button.Items to prepare• Access point (or wireless router)• Network-connected computer• Software CD that was provided with your machine• The machine installed with a wireless network interfaceCreating the infrastructure network1Turn on your computer, access point, and machine.2 Insert the supplied software CD into your CD-ROM drive.3 Select the Wireless Setting and Installation option.4 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.

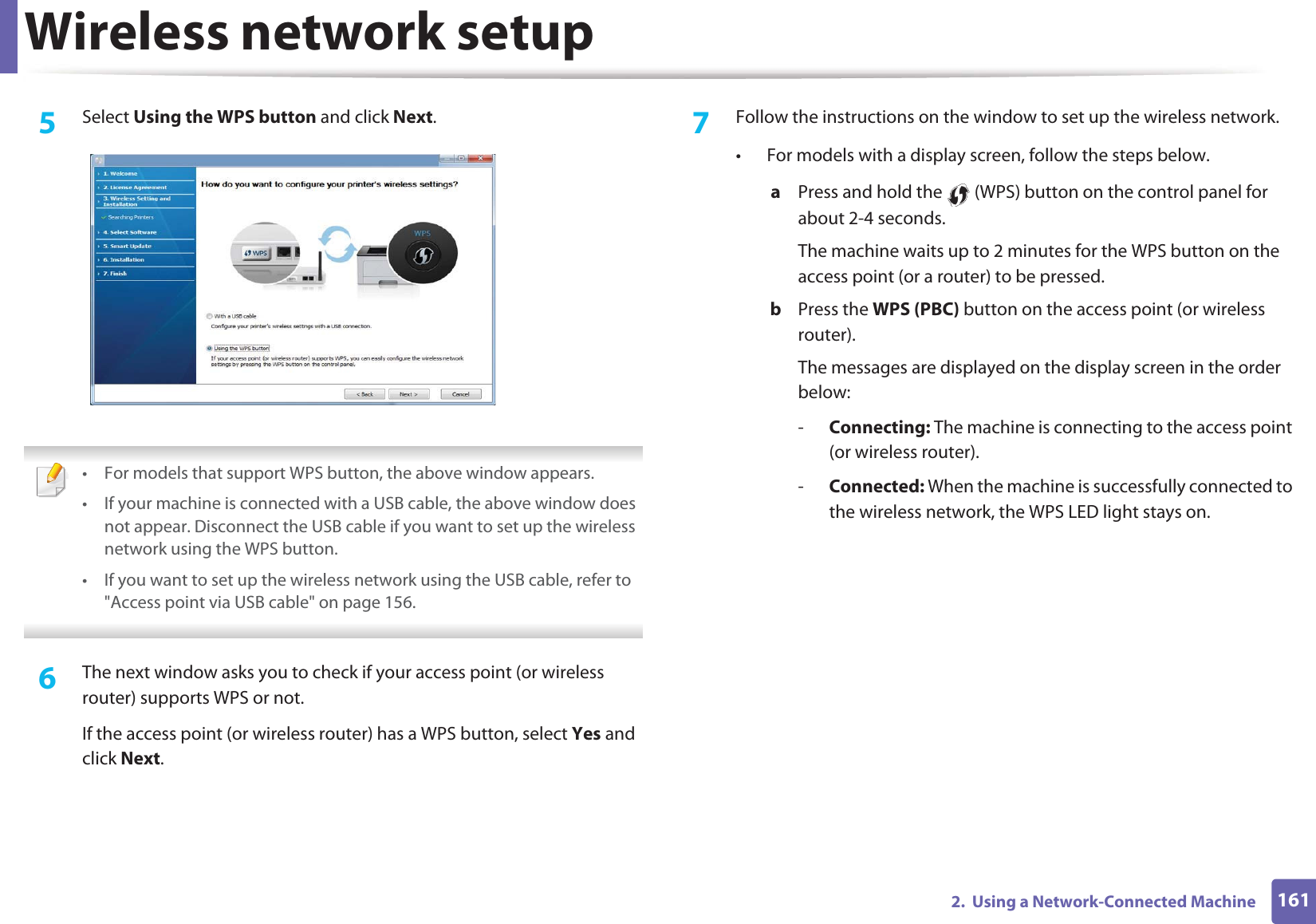

Wireless network setup1612. Using a Network-Connected Machine5 Select Using the WPS button and click Next. • For models that support WPS button, the above window appears.• If your machine is connected with a USB cable, the above window does not appear. Disconnect the USB cable if you want to set up the wireless network using the WPS button. • If you want to set up the wireless network using the USB cable, refer to "Access point via USB cable" on page 156. 6 The next window asks you to check if your access point (or wireless router) supports WPS or not.If the access point (or wireless router) has a WPS button, select Yes and click Next.7 Follow the instructions on the window to set up the wireless network.• For models with a display screen, follow the steps below.a Press and hold the (WPS) button on the control panel for about 2-4 seconds.The machine waits up to 2 minutes for the WPS button on the access point (or a router) to be pressed.b Press the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:-Connecting: The machine is connecting to the access point (or wireless router).-Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.

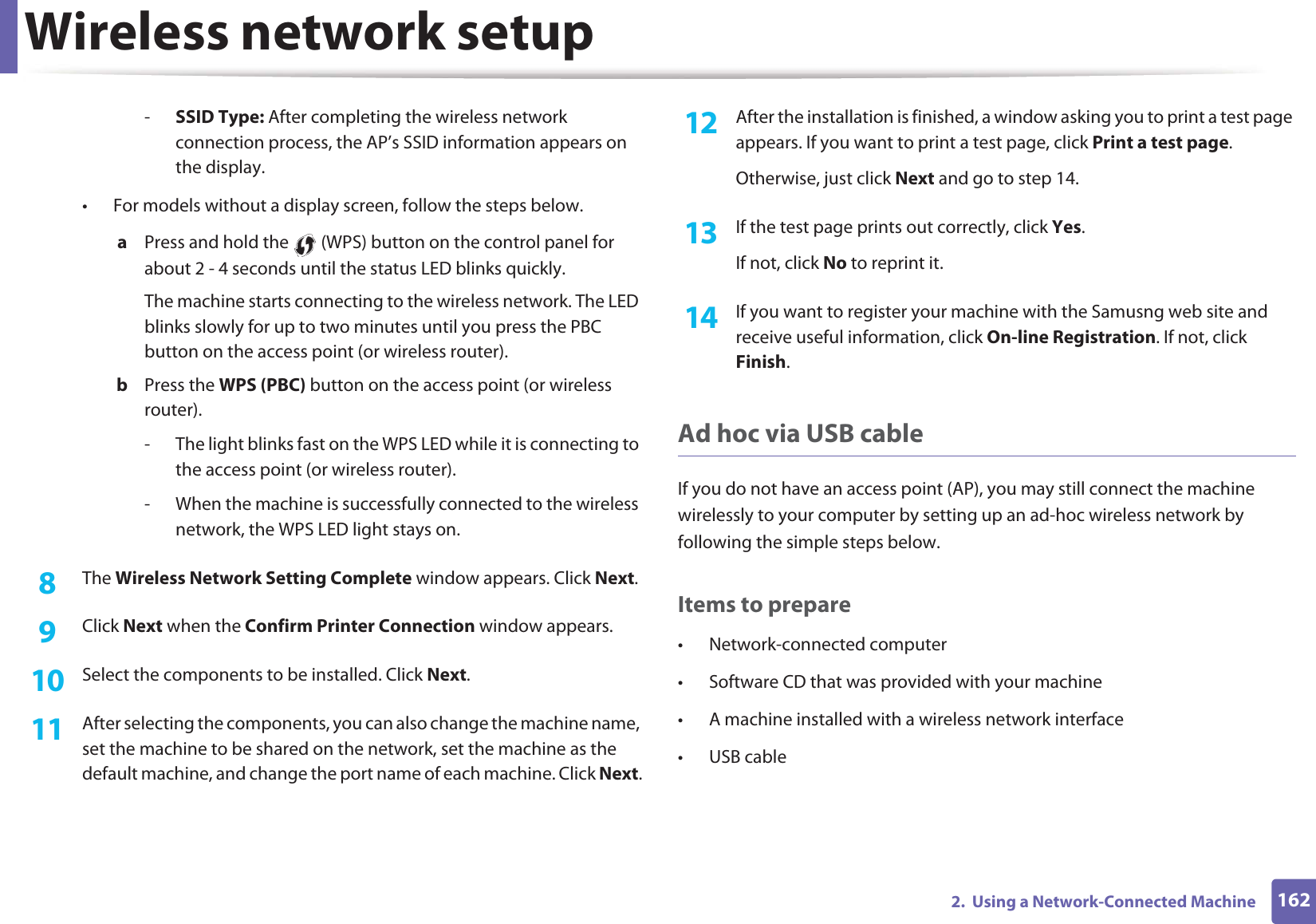

Wireless network setup1622. Using a Network-Connected Machine-SSID Type: After completing the wireless network connection process, the AP’s SSID information appears on the display.• For models without a display screen, follow the steps below.a Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).b Press the WPS (PBC) button on the access point (or wireless router).- The light blinks fast on the WPS LED while it is connecting to the access point (or wireless router).- When the machine is successfully connected to the wireless network, the WPS LED light stays on.8 The Wireless Network Setting Complete window appears. Click Next.9 Click Next when the Confirm Printer Connection window appears.10 Select the components to be installed. Click Next.11 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.12 After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 14.13 If the test page prints out correctly, click Yes.If not, click No to reprint it.14 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.Ad hoc via USB cableIf you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad-hoc wireless network by following the simple steps below.Items to prepare• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cable

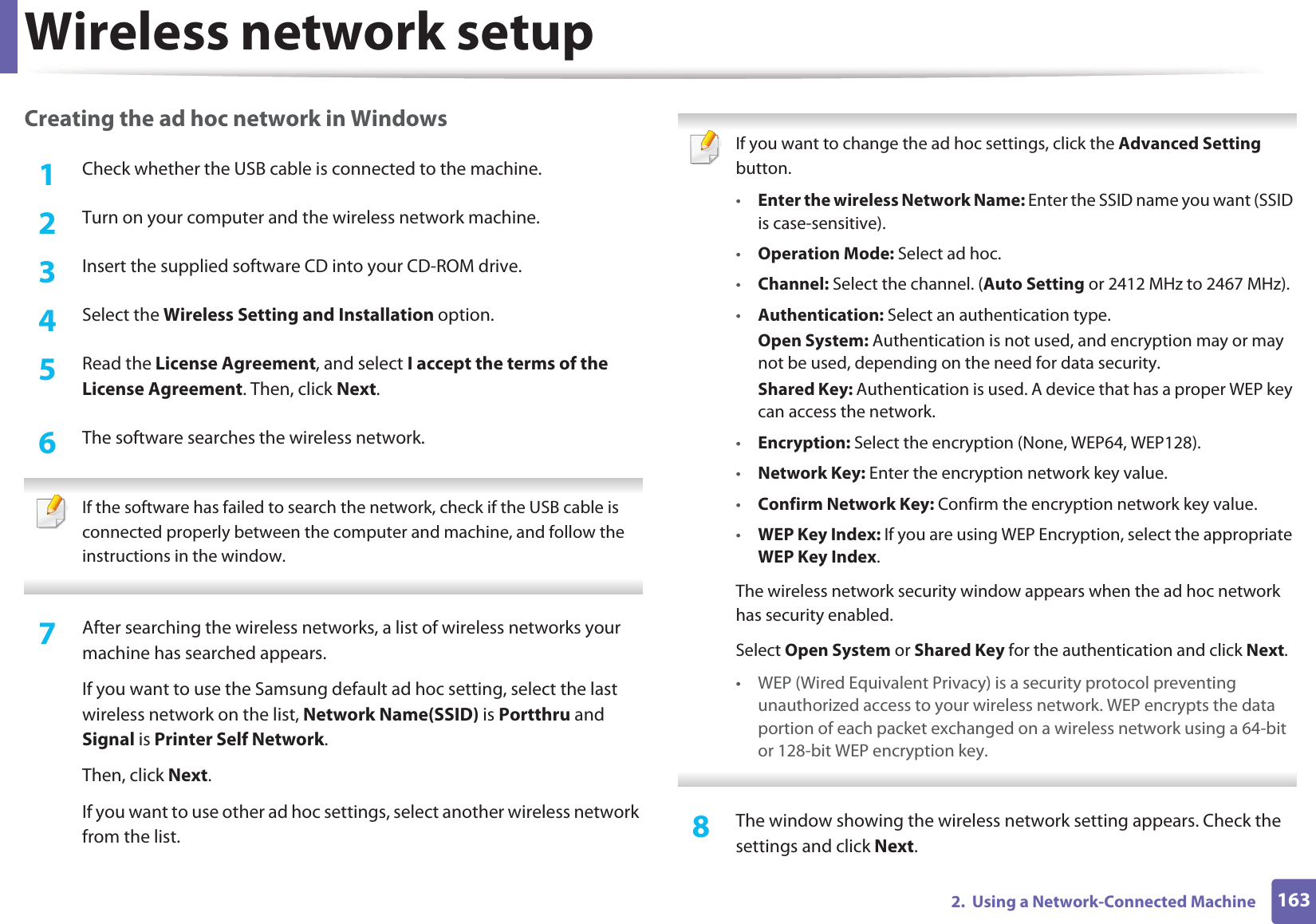

Wireless network setup1632. Using a Network-Connected MachineCreating the ad hoc network in Windows1Check whether the USB cable is connected to the machine.2 Turn on your computer and the wireless network machine.3 Insert the supplied software CD into your CD-ROM drive.4 Select the Wireless Setting and Installation option.5 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.6 The software searches the wireless network. If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window. 7 After searching the wireless networks, a list of wireless networks your machine has searched appears.If you want to use the Samsung default ad hoc setting, select the last wireless network on the list, Network Name(SSID) is Portthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad hoc settings, select another wireless network from the list. If you want to change the ad hoc settings, click the Advanced Setting button.•Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).•Operation Mode: Select ad hoc.•Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.•Encryption: Select the encryption (None, WEP64, WEP128).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad hoc network has security enabled.Select Open System or Shared Key for the authentication and click Next.• WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key. 8 The window showing the wireless network setting appears. Check the settings and click Next.

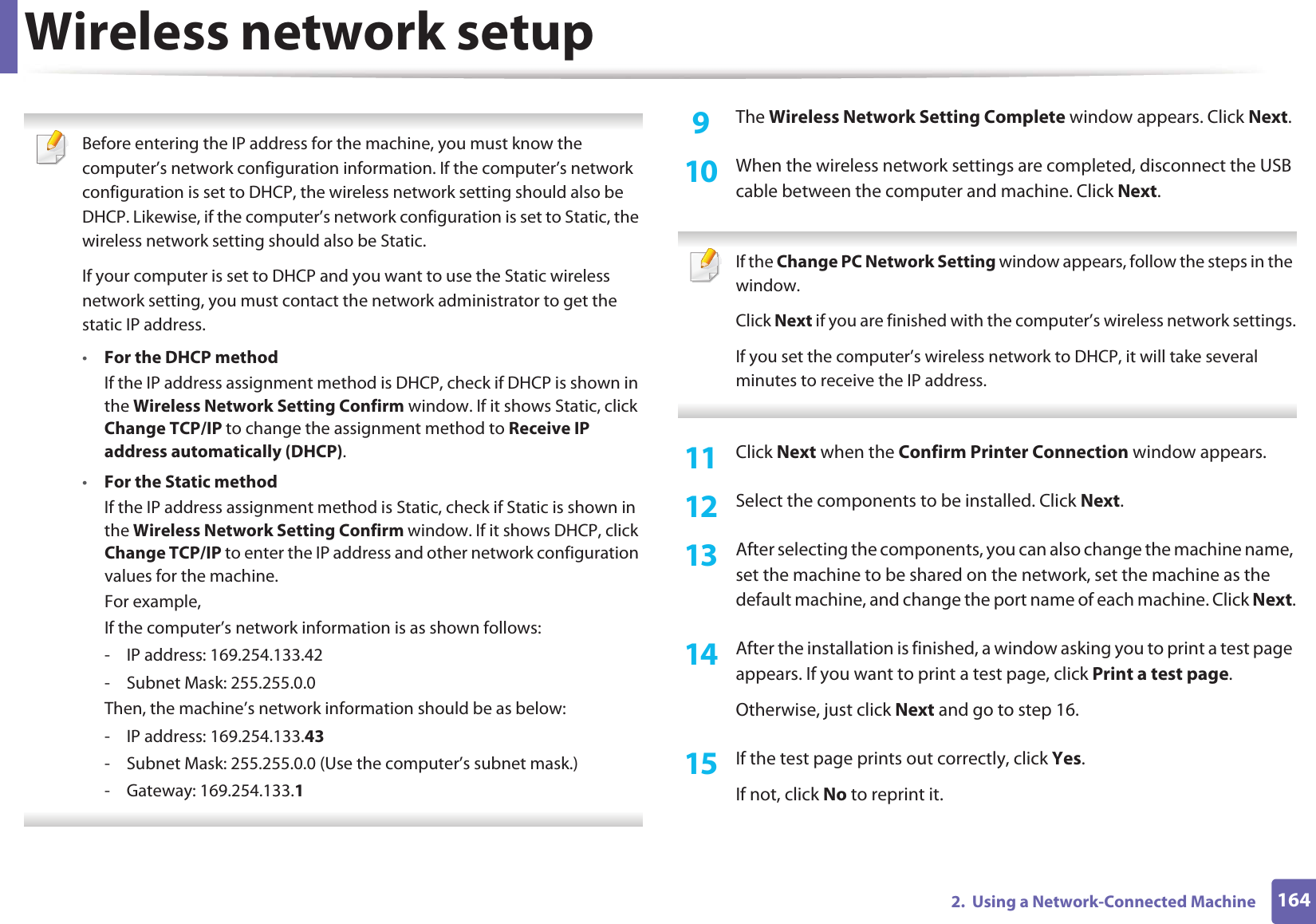

Wireless network setup1642. Using a Network-Connected Machine Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.If your computer is set to DHCP and you want to use the Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.For example,If the computer’s network information is as shown follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.1 9 The Wireless Network Setting Complete window appears. Click Next.10 When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next. If the Change PC Network Setting window appears, follow the steps in the window.Click Next if you are finished with the computer’s wireless network settings.If you set the computer’s wireless network to DHCP, it will take several minutes to receive the IP address. 11 Click Next when the Confirm Printer Connection window appears.12 Select the components to be installed. Click Next.13 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.14 After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 16.15 If the test page prints out correctly, click Yes.If not, click No to reprint it.

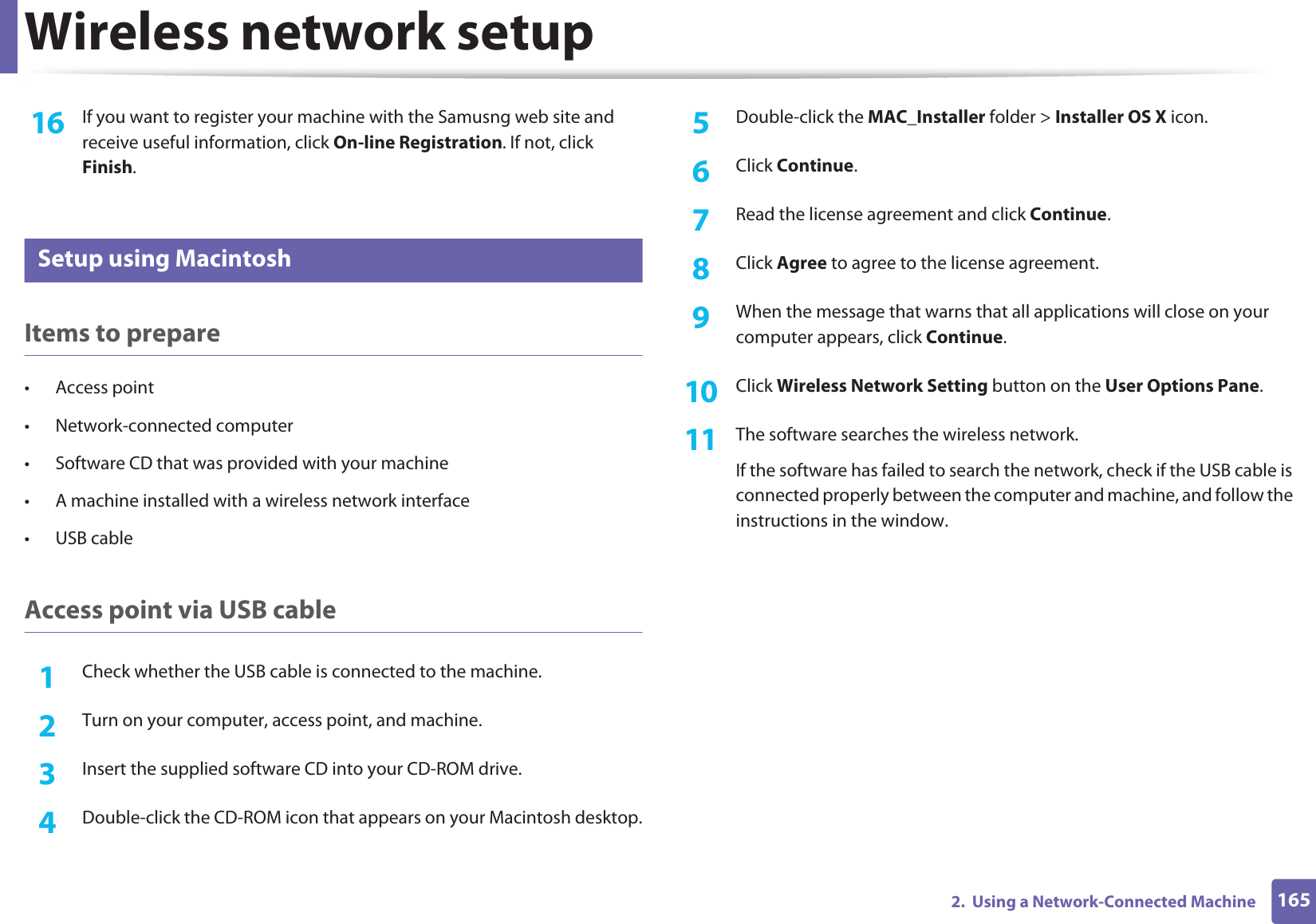

Wireless network setup1652. Using a Network-Connected Machine16 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.17 Setup using MacintoshItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableAccess point via USB cable1Check whether the USB cable is connected to the machine.2 Turn on your computer, access point, and machine.3 Insert the supplied software CD into your CD-ROM drive.4 Double-click the CD-ROM icon that appears on your Macintosh desktop.5 Double-click the MAC_Installer folder > Installer OS X icon.6 Click Continue.7 Read the license agreement and click Continue.8 Click Agree to agree to the license agreement.9 When the message that warns that all applications will close on your computer appears, click Continue.10 Click Wireless Network Setting button on the User Options Pane.11 The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window.

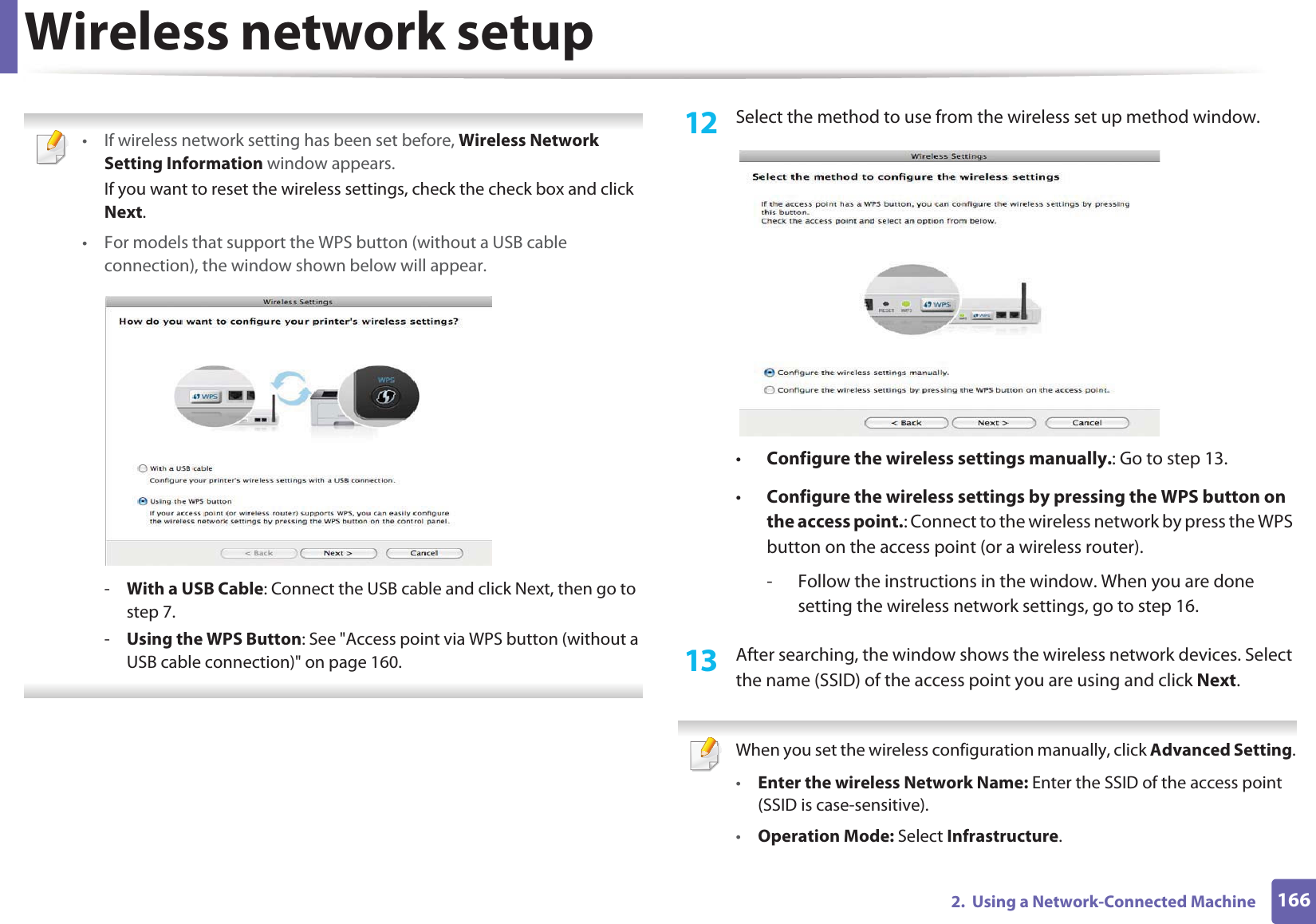

Wireless network setup1662. Using a Network-Connected Machine • If wireless network setting has been set before, Wireless Network Setting Information window appears.If you want to reset the wireless settings, check the check box and click Next.• For models that support the WPS button (without a USB cable connection), the window shown below will appear.-With a USB Cable: Connect the USB cable and click Next, then go to step 7.-Using the WPS Button: See "Access point via WPS button (without a USB cable connection)" on page 160. 12 Select the method to use from the wireless set up method window.•Configure the wireless settings manually.: Go to step 13.•Configure the wireless settings by pressing the WPS button on the access point.: Connect to the wireless network by press the WPS button on the access point (or a wireless router).- Follow the instructions in the window. When you are done setting the wireless network settings, go to step 16. 13 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you are using and click Next. When you set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.

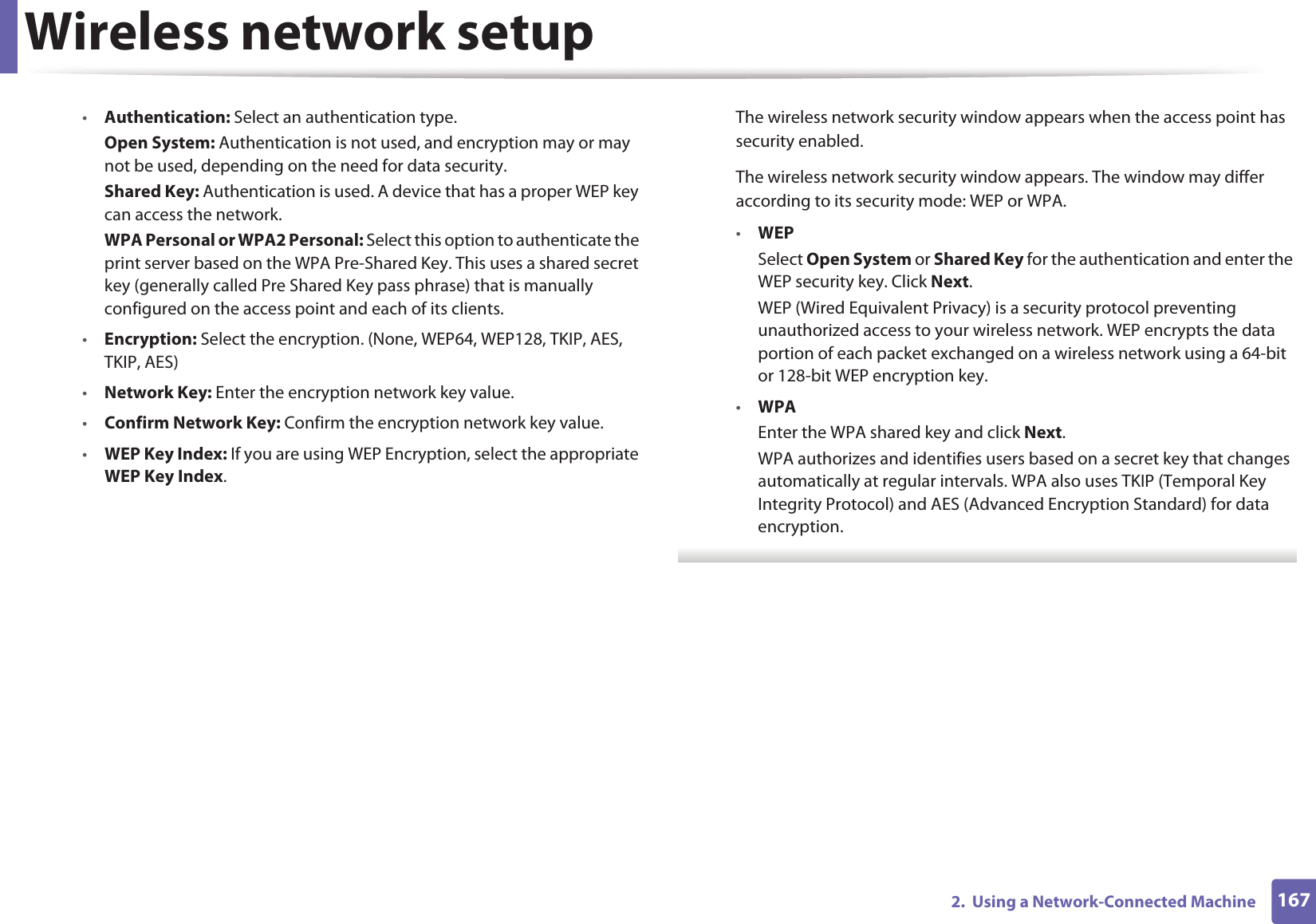

Wireless network setup1672. Using a Network-Connected Machine•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP, AES)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the access point has security enabled.The wireless network security window appears. The window may differ according to its security mode: WEP or WPA.•WEPSelect Open System or Shared Key for the authentication and enter the WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.

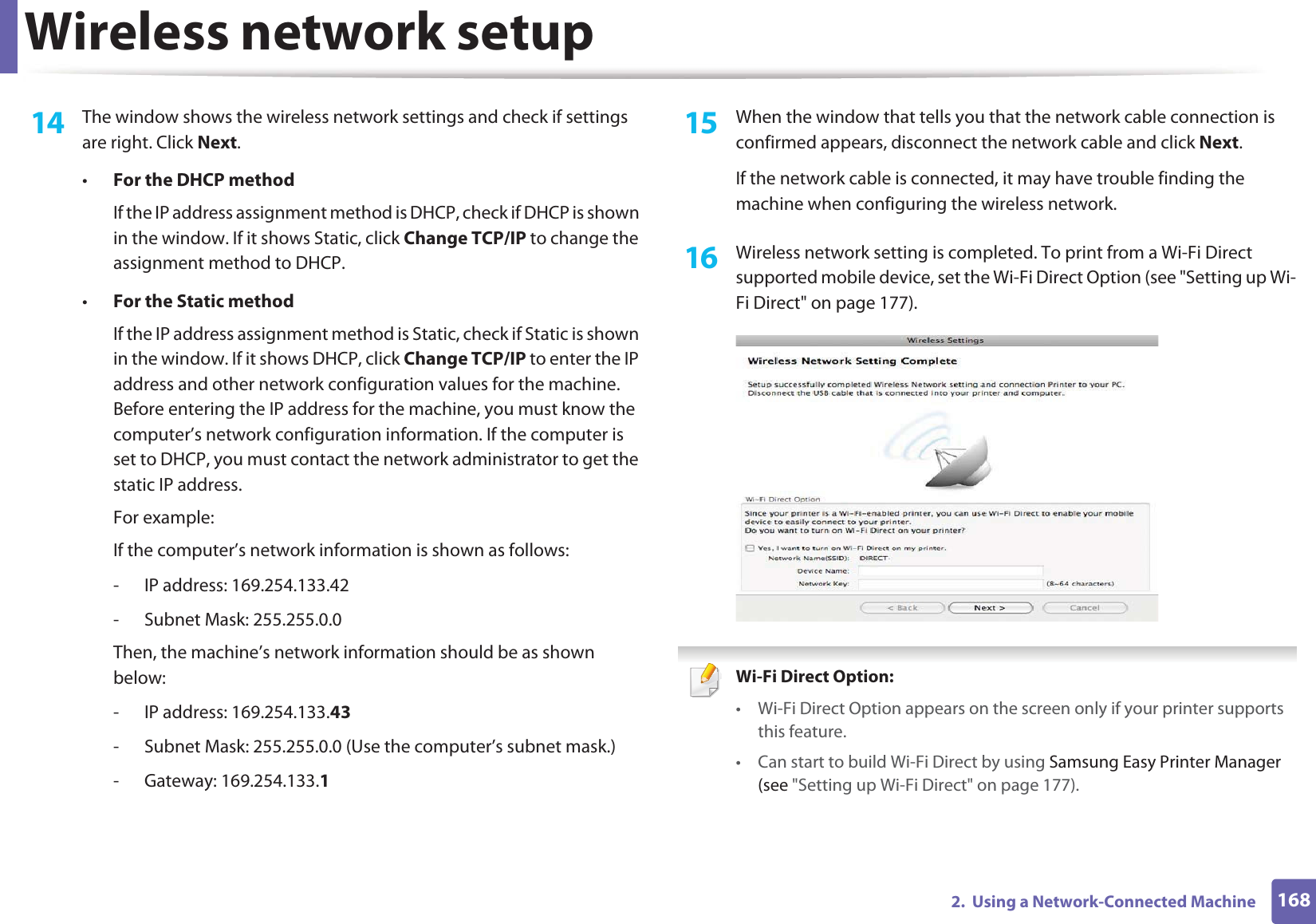

Wireless network setup1682. Using a Network-Connected Machine14 The window shows the wireless network settings and check if settings are right. Click Next.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.For example:If the computer’s network information is shown as follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as shown below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.115 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.16 Wireless network setting is completed. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-Fi Direct" on page 177). Wi-Fi Direct Option: • Wi-Fi Direct Option appears on the screen only if your printer supports this feature.• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 177).

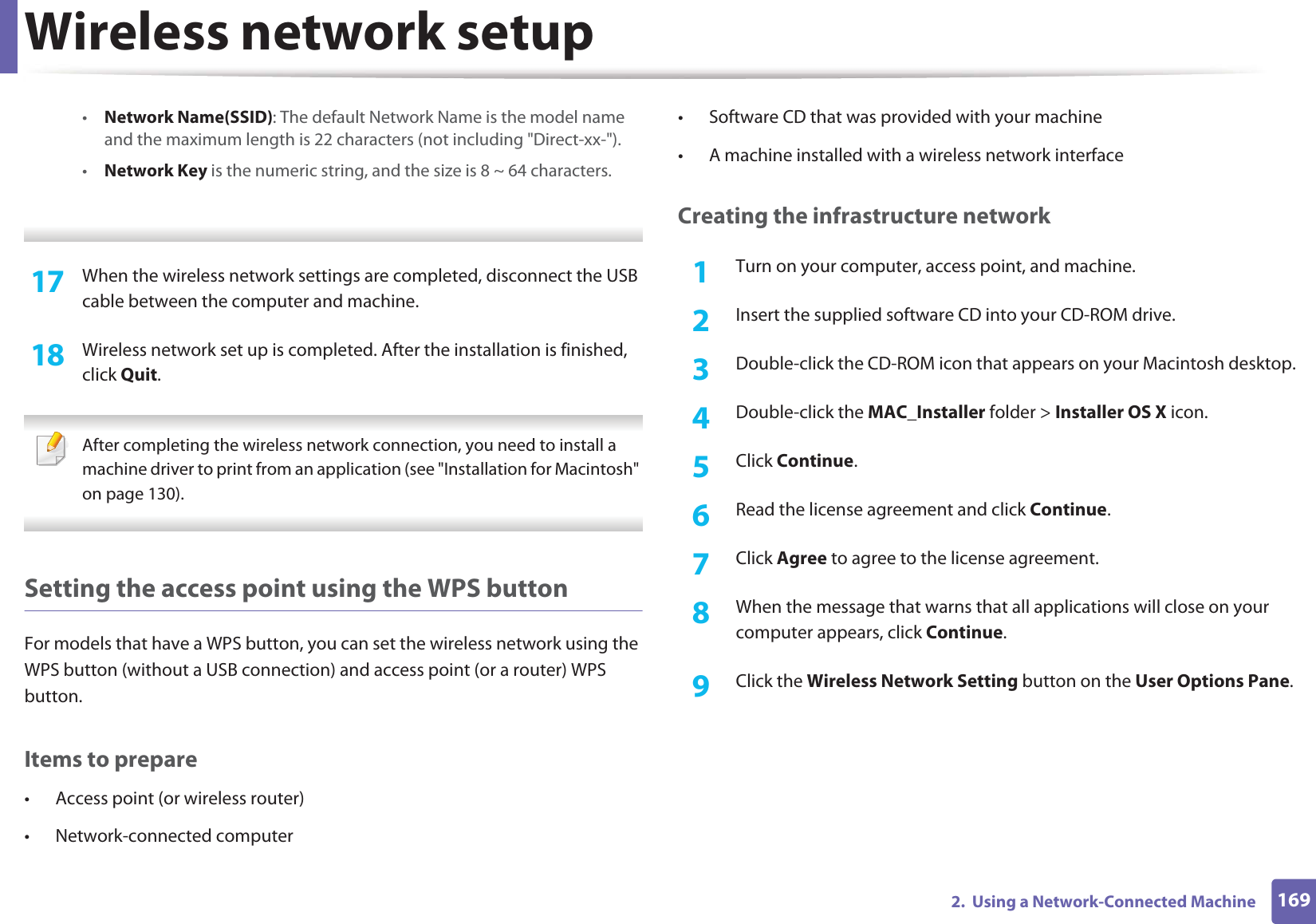

Wireless network setup1692. Using a Network-Connected Machine•Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").•Network Key is the numeric string, and the size is 8 ~ 64 characters. 17 When the wireless network settings are completed, disconnect the USB cable between the computer and machine.18 Wireless network set up is completed. After the installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Macintosh" on page 130). Setting the access point using the WPS buttonFor models that have a WPS button, you can set the wireless network using the WPS button (without a USB connection) and access point (or a router) WPS button.Items to prepare• Access point (or wireless router)• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interfaceCreating the infrastructure network1Turn on your computer, access point, and machine.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message that warns that all applications will close on your computer appears, click Continue.9 Click the Wireless Network Setting button on the User Options Pane.

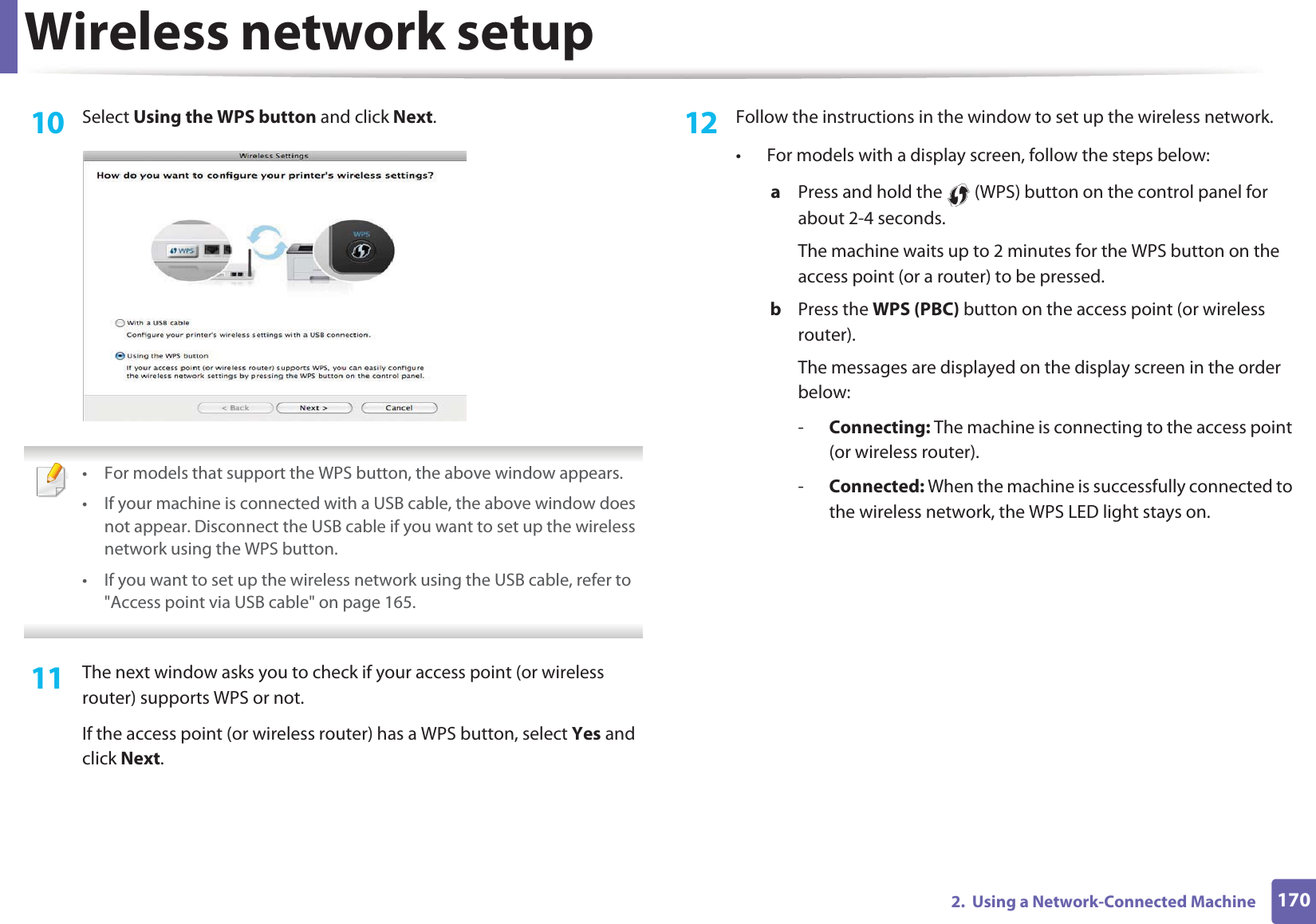

Wireless network setup1702. Using a Network-Connected Machine10 Select Using the WPS button and click Next. • For models that support the WPS button, the above window appears.• If your machine is connected with a USB cable, the above window does not appear. Disconnect the USB cable if you want to set up the wireless network using the WPS button. • If you want to set up the wireless network using the USB cable, refer to "Access point via USB cable" on page 165. 11 The next window asks you to check if your access point (or wireless router) supports WPS or not.If the access point (or wireless router) has a WPS button, select Yes and click Next.12 Follow the instructions in the window to set up the wireless network.• For models with a display screen, follow the steps below:a Press and hold the (WPS) button on the control panel for about 2-4 seconds.The machine waits up to 2 minutes for the WPS button on the access point (or a router) to be pressed.b Press the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:-Connecting: The machine is connecting to the access point (or wireless router).-Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.

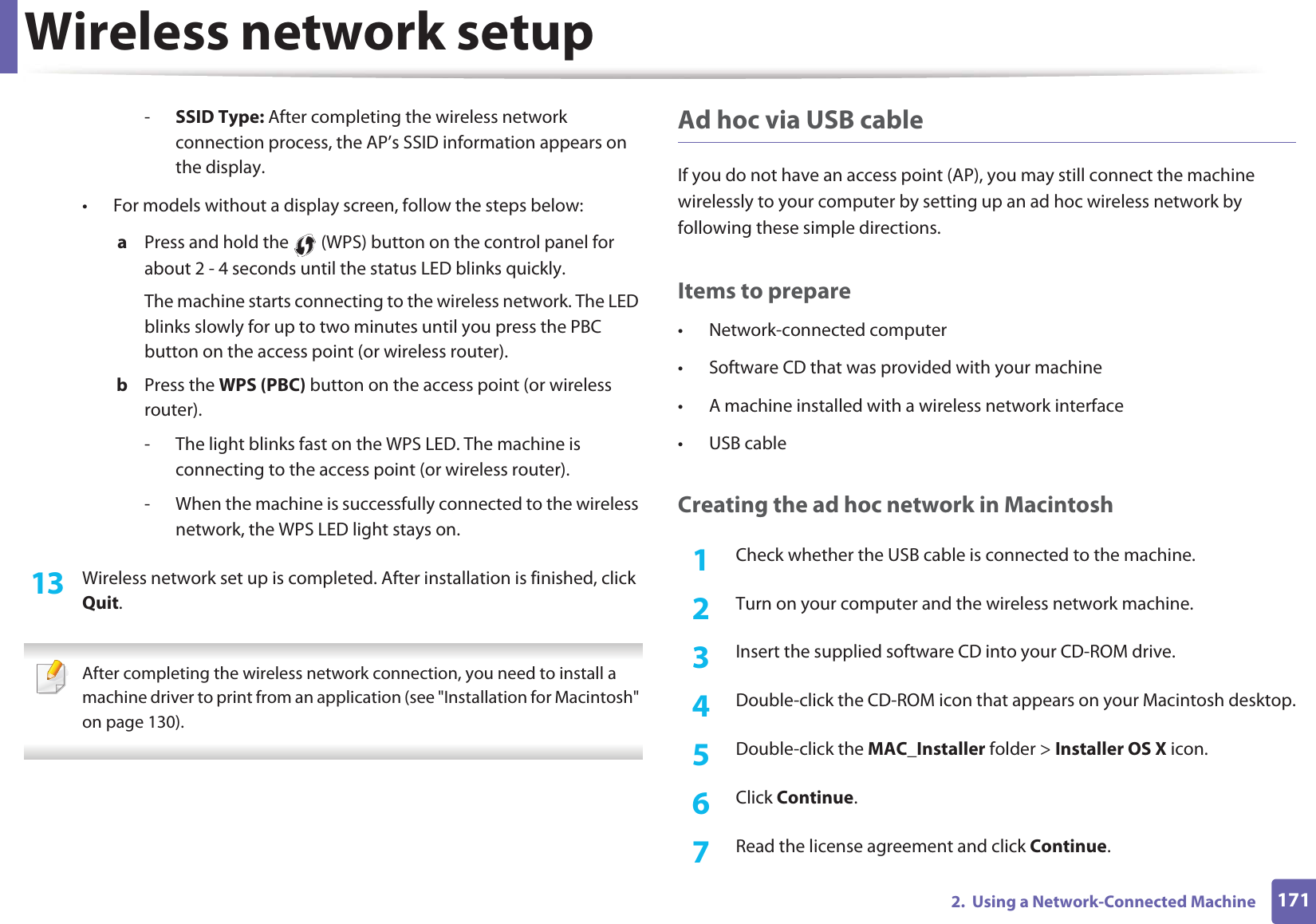

Wireless network setup1712. Using a Network-Connected Machine-SSID Type: After completing the wireless network connection process, the AP’s SSID information appears on the display.• For models without a display screen, follow the steps below:a Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).b Press the WPS (PBC) button on the access point (or wireless router).- The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).- When the machine is successfully connected to the wireless network, the WPS LED light stays on.13 Wireless network set up is completed. After installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Macintosh" on page 130). Ad hoc via USB cableIf you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad hoc wireless network by following these simple directions.Items to prepare• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableCreating the ad hoc network in Macintosh1Check whether the USB cable is connected to the machine.2 Turn on your computer and the wireless network machine.3 Insert the supplied software CD into your CD-ROM drive.4 Double-click the CD-ROM icon that appears on your Macintosh desktop.5 Double-click the MAC_Installer folder > Installer OS X icon.6 Click Continue.7 Read the license agreement and click Continue.

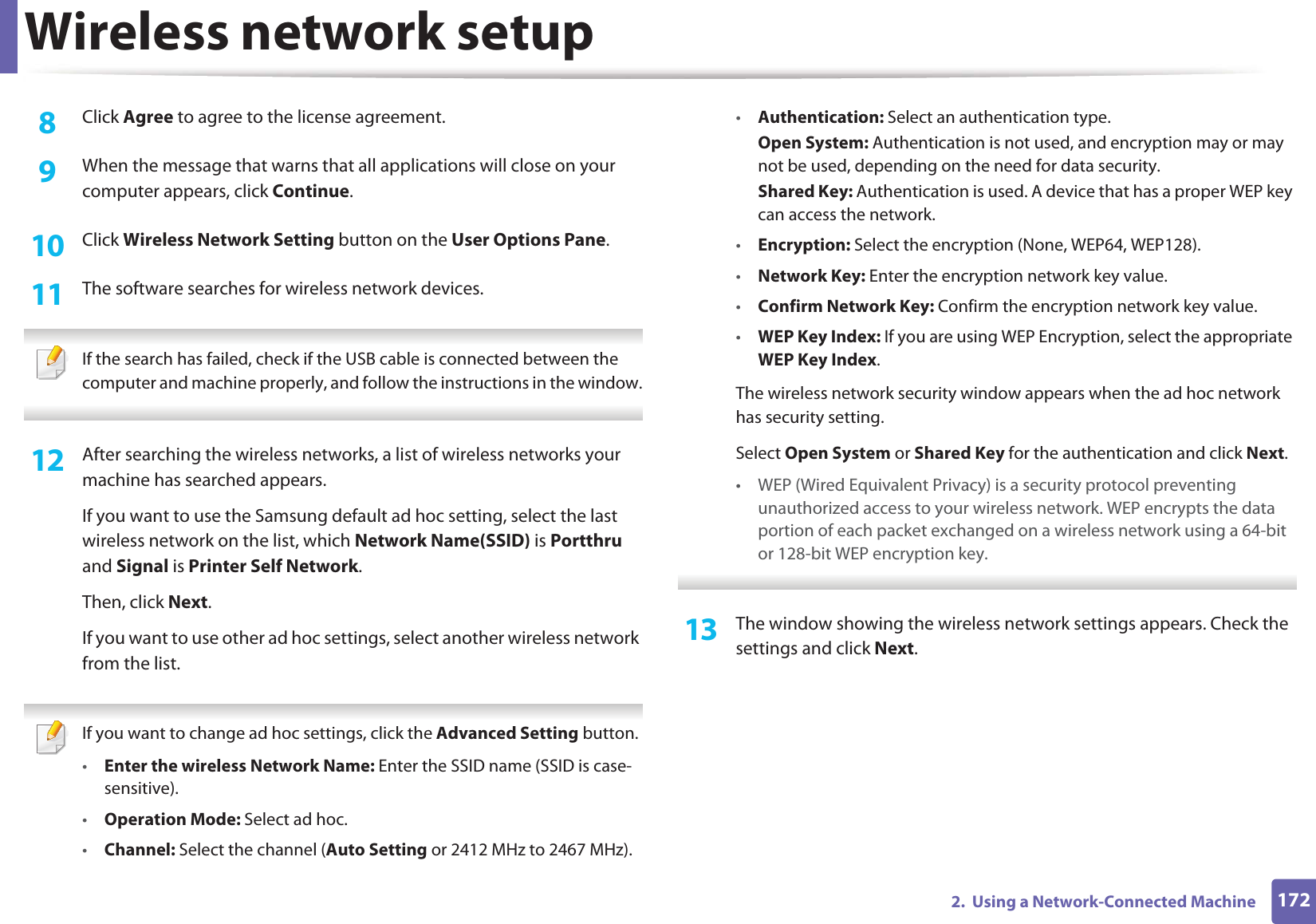

Wireless network setup1722. Using a Network-Connected Machine8 Click Agree to agree to the license agreement.9 When the message that warns that all applications will close on your computer appears, click Continue.10 Click Wireless Network Setting button on the User Options Pane.11 The software searches for wireless network devices. If the search has failed, check if the USB cable is connected between the computer and machine properly, and follow the instructions in the window. 12 After searching the wireless networks, a list of wireless networks your machine has searched appears.If you want to use the Samsung default ad hoc setting, select the last wireless network on the list, which Network Name(SSID) is Portthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad hoc settings, select another wireless network from the list. If you want to change ad hoc settings, click the Advanced Setting button.•Enter the wireless Network Name: Enter the SSID name (SSID is case-sensitive).•Operation Mode: Select ad hoc.•Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.•Encryption: Select the encryption (None, WEP64, WEP128).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad hoc network has security setting.Select Open System or Shared Key for the authentication and click Next.• WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key. 13 The window showing the wireless network settings appears. Check the settings and click Next.

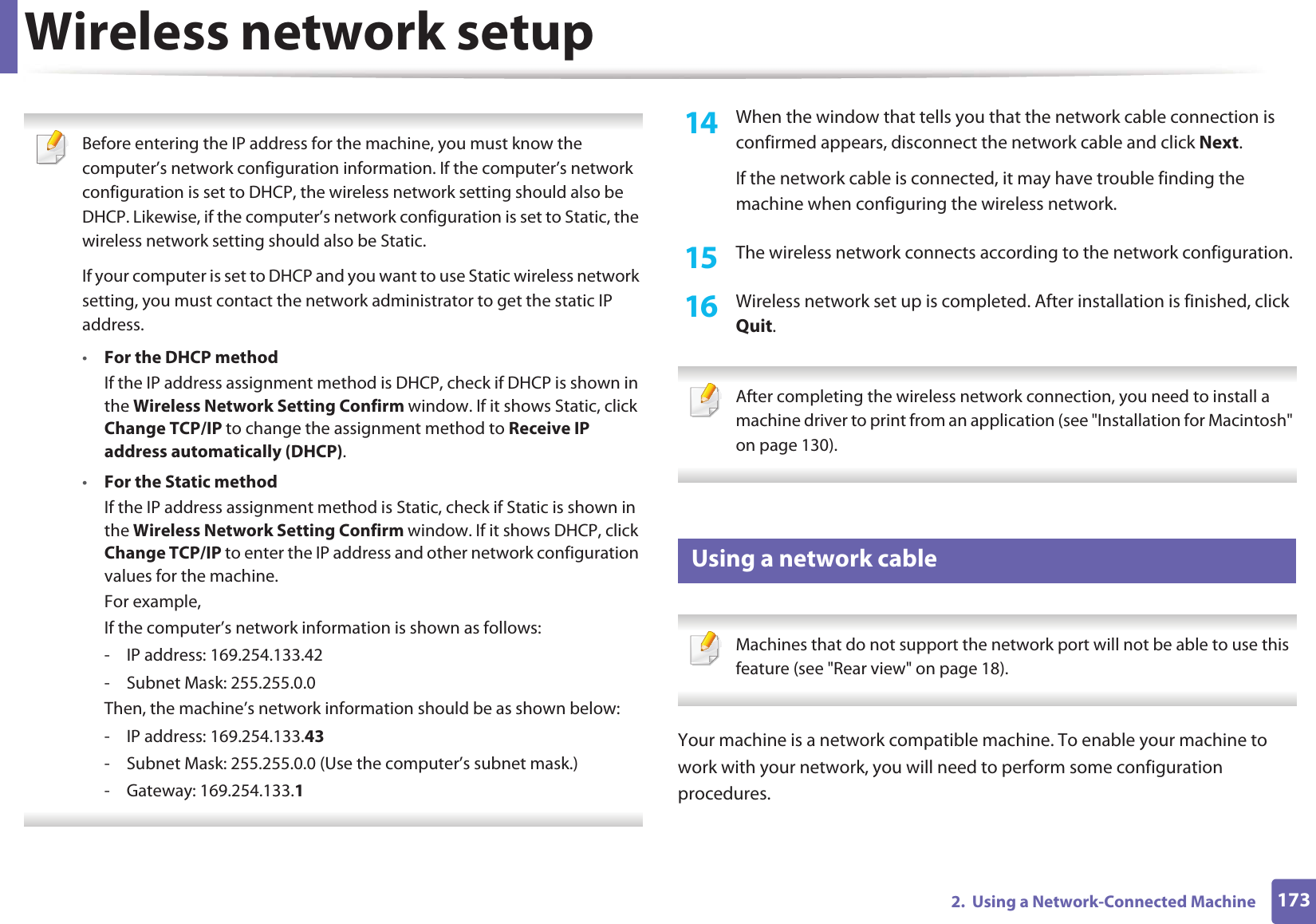

Wireless network setup1732. Using a Network-Connected Machine Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.For example,If the computer’s network information is shown as follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as shown below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.1 14 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.15 The wireless network connects according to the network configuration.16 Wireless network set up is completed. After installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Macintosh" on page 130). 18 Using a network cable Machines that do not support the network port will not be able to use this feature (see "Rear view" on page 18). Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

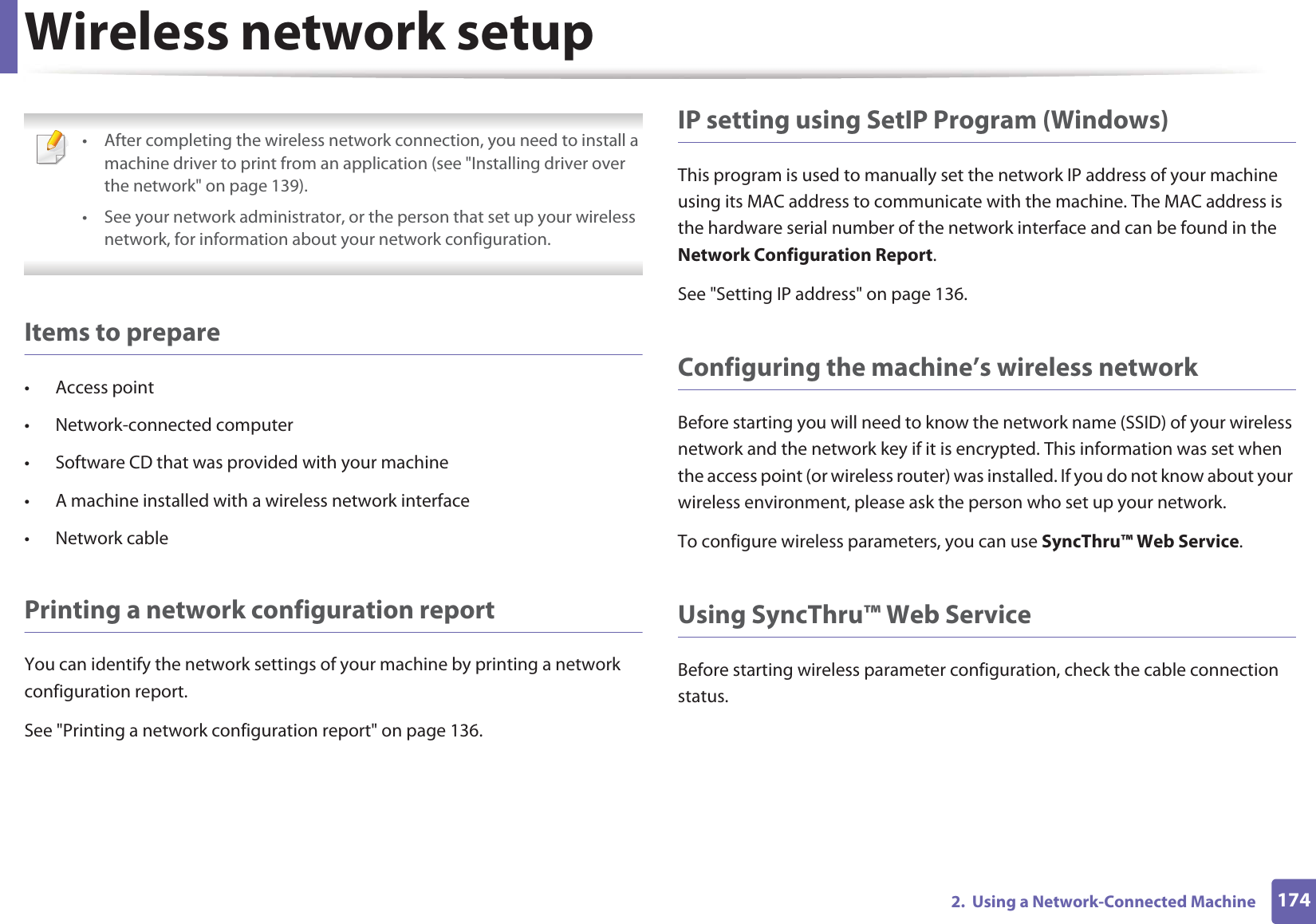

Wireless network setup1742. Using a Network-Connected Machine • After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 139).• See your network administrator, or the person that set up your wireless network, for information about your network configuration. Items to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• Network cablePrinting a network configuration reportYou can identify the network settings of your machine by printing a network configuration report.See "Printing a network configuration report" on page 136.IP setting using SetIP Program (Windows)This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report. See "Setting IP address" on page 136.Configuring the machine’s wireless networkBefore starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.To configure wireless parameters, you can use SyncThru™ Web Service.Using SyncThru™ Web ServiceBefore starting wireless parameter configuration, check the cable connection status.

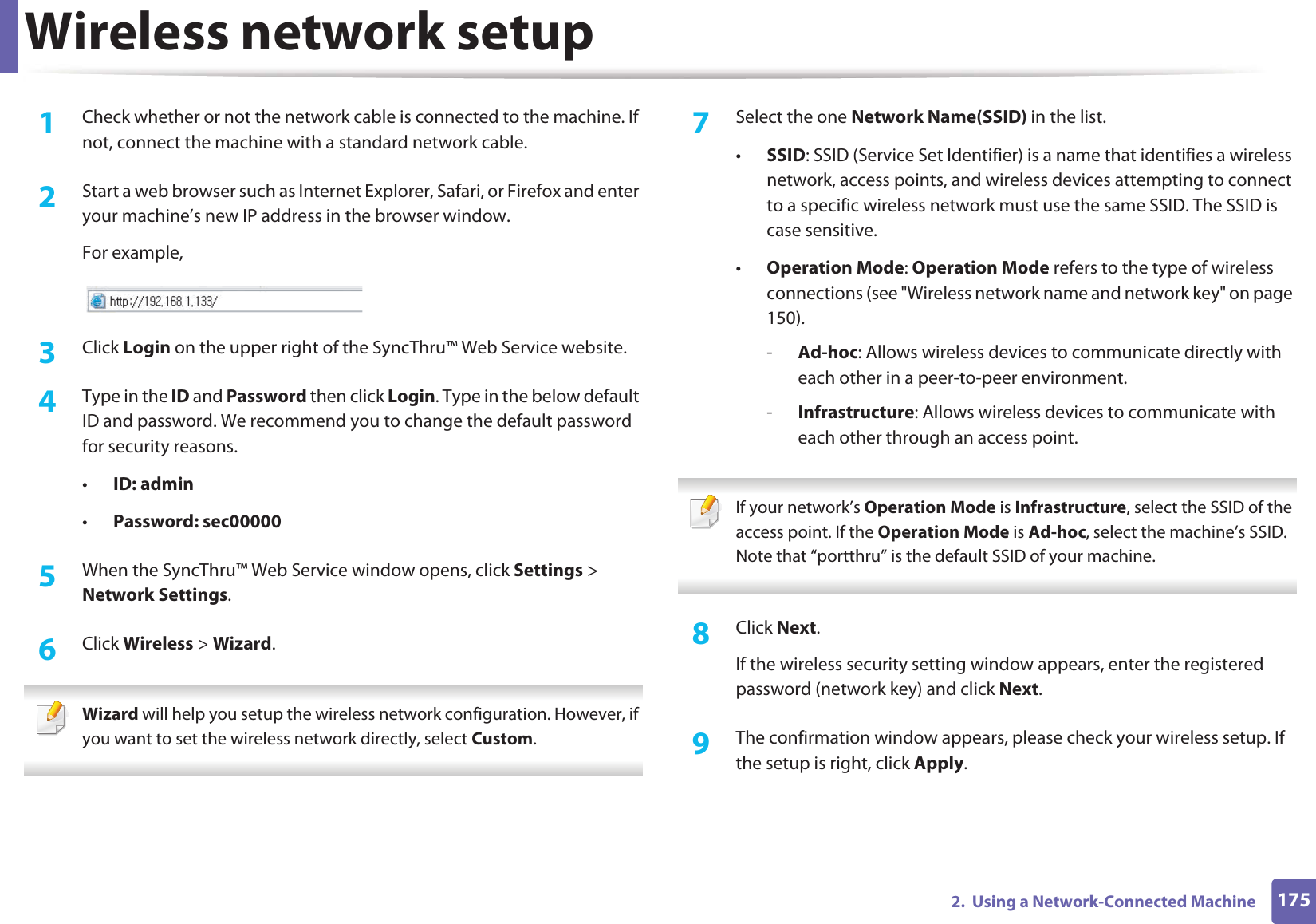

Wireless network setup1752. Using a Network-Connected Machine1Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin •Password: sec000005 When the SyncThru™ Web Service window opens, click Settings > Network Settings.6 Click Wireless > Wizard. Wizard will help you setup the wireless network configuration. However, if you want to set the wireless network directly, select Custom. 7 Select the one Network Name(SSID) in the list.•SSID: SSID (Service Set Identifier) is a name that identifies a wireless network, access points, and wireless devices attempting to connect to a specific wireless network must use the same SSID. The SSID is case sensitive.•Operation Mode: Operation Mode refers to the type of wireless connections (see "Wireless network name and network key" on page 150).-Ad-hoc: Allows wireless devices to communicate directly with each other in a peer-to-peer environment.-Infrastructure: Allows wireless devices to communicate with each other through an access point. If your network’s Operation Mode is Infrastructure, select the SSID of the access point. If the Operation Mode is Ad-hoc, select the machine’s SSID. Note that “portthru” is the default SSID of your machine. 8 Click Next.If the wireless security setting window appears, enter the registered password (network key) and click Next.9 The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.

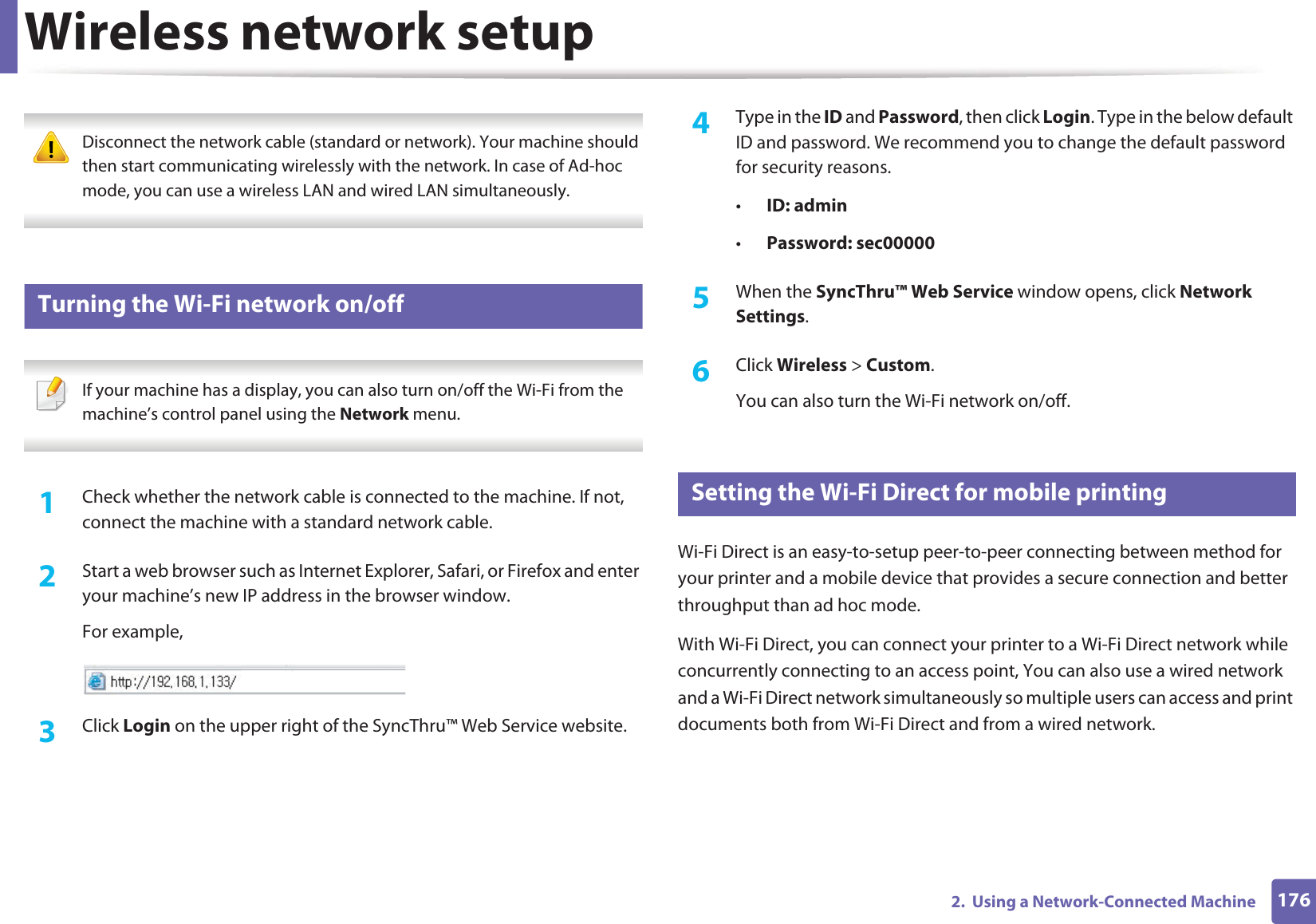

Wireless network setup1762. Using a Network-Connected Machine Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network. In case of Ad-hoc mode, you can use a wireless LAN and wired LAN simultaneously. 19 Turning the Wi-Fi network on/off If your machine has a display, you can also turn on/off the Wi-Fi from the machine’s control panel using the Network menu. 1Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password, then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin •Password: sec00000 5 When the SyncThru™ Web Service window opens, click Network Settings.6 Click Wireless > Custom.You can also turn the Wi-Fi network on/off.20 Setting the Wi-Fi Direct for mobile printingWi-Fi Direct is an easy-to-setup peer-to-peer connecting between method for your printer and a mobile device that provides a secure connection and better throughput than ad hoc mode.With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point, You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.

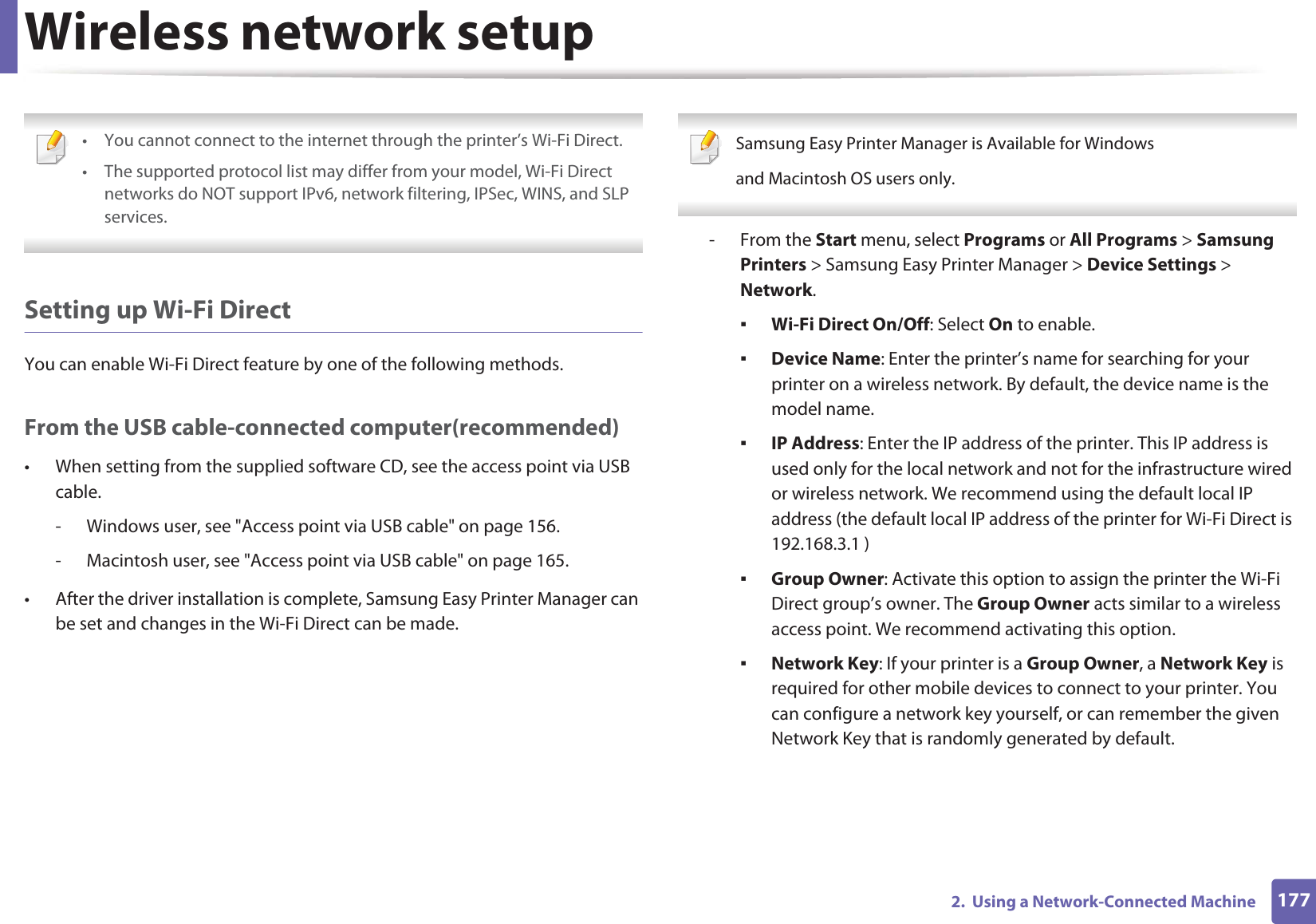

Wireless network setup1772. Using a Network-Connected Machine • You cannot connect to the internet through the printer’s Wi-Fi Direct.• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services. Setting up Wi-Fi DirectYou can enable Wi-Fi Direct feature by one of the following methods.From the USB cable-connected computer(recommended)• When setting from the supplied software CD, see the access point via USB cable.- Windows user, see "Access point via USB cable" on page 156.- Macintosh user, see "Access point via USB cable" on page 165.• After the driver installation is complete, Samsung Easy Printer Manager can be set and changes in the Wi-Fi Direct can be made. Samsung Easy Printer Manager is Available for Windowsand Macintosh OS users only. - From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.ƒWi-Fi Direct On/Off: Select On to enable.ƒDevice Name: Enter the printer’s name for searching for your printer on a wireless network. By default, the device name is the model name.ƒIP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1 )ƒGroup Owner: Activate this option to assign the printer the Wi-Fi Direct group’s owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.ƒNetwork Key: If your printer is a Group Owner, a Network Key is required for other mobile devices to connect to your printer. You can configure a network key yourself, or can remember the given Network Key that is randomly generated by default.

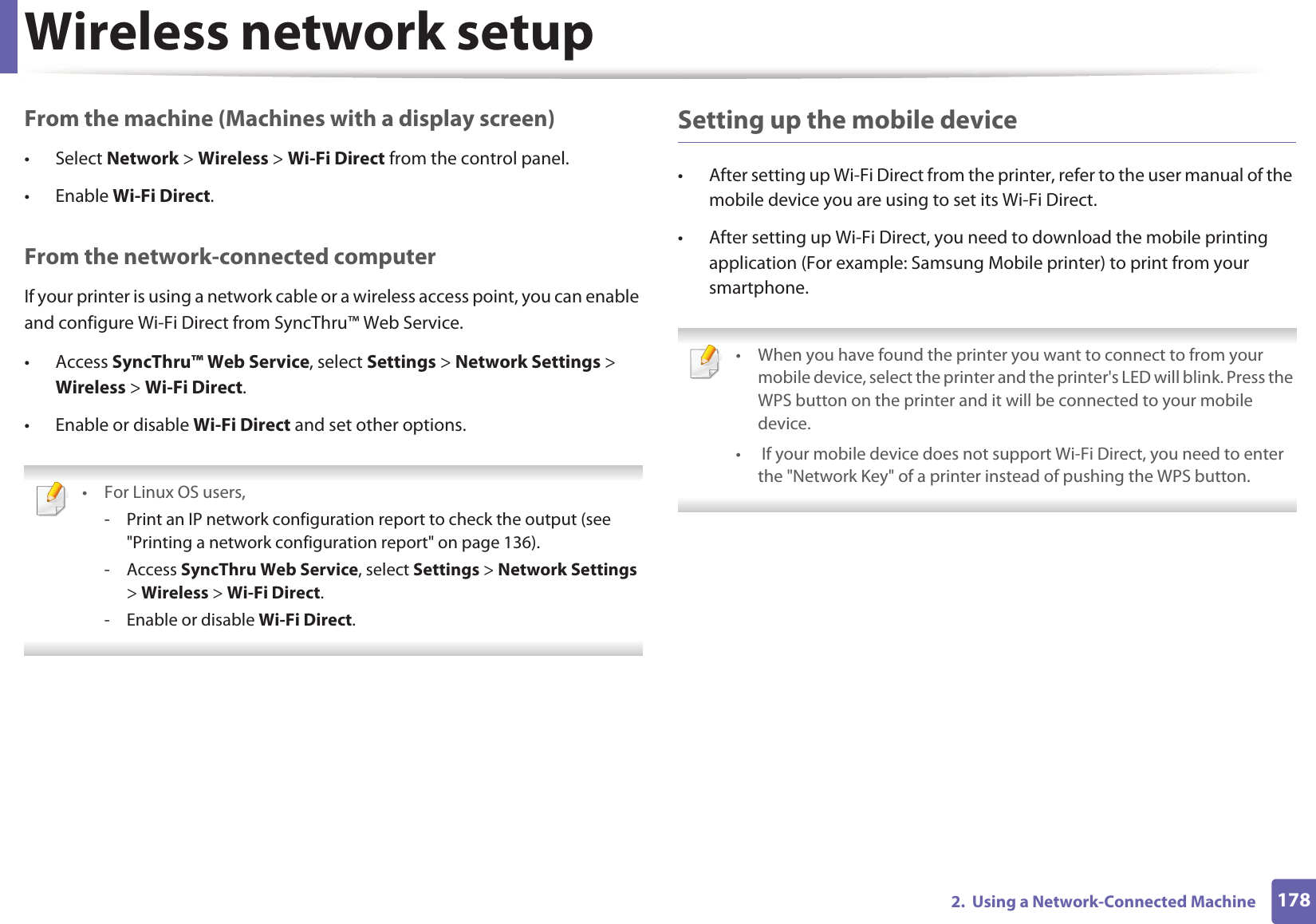

Wireless network setup1782. Using a Network-Connected MachineFrom the machine (Machines with a display screen)• Select Network > Wireless > Wi-Fi Direct from the control panel.• Enable Wi-Fi Direct.From the network-connected computerIf your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.• Access SyncThru™ Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.• Enable or disable Wi-Fi Direct and set other options. • For Linux OS users,- Print an IP network configuration report to check the output (see "Printing a network configuration report" on page 136).- Access SyncThru Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.- Enable or disable Wi-Fi Direct. Setting up the mobile device• After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.• After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile printer) to print from your smartphone. • When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the WPS button on the printer and it will be connected to your mobile device.• If your mobile device does not support Wi-Fi Direct, you need to enter the "Network Key" of a printer instead of pushing the WPS button.

Wireless network setup1792. Using a Network-Connected Machine21 Troubleshooting for wireless networkProblems during setup or driver installationPrinters Not Found• Your machine may not be turned on. Turn on your computer and the machine.• USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.• The machine does not support wireless networking. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.Connecting Failure - SSID Not Found• The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again. • Your access point is not turned on. Turn on your access point.

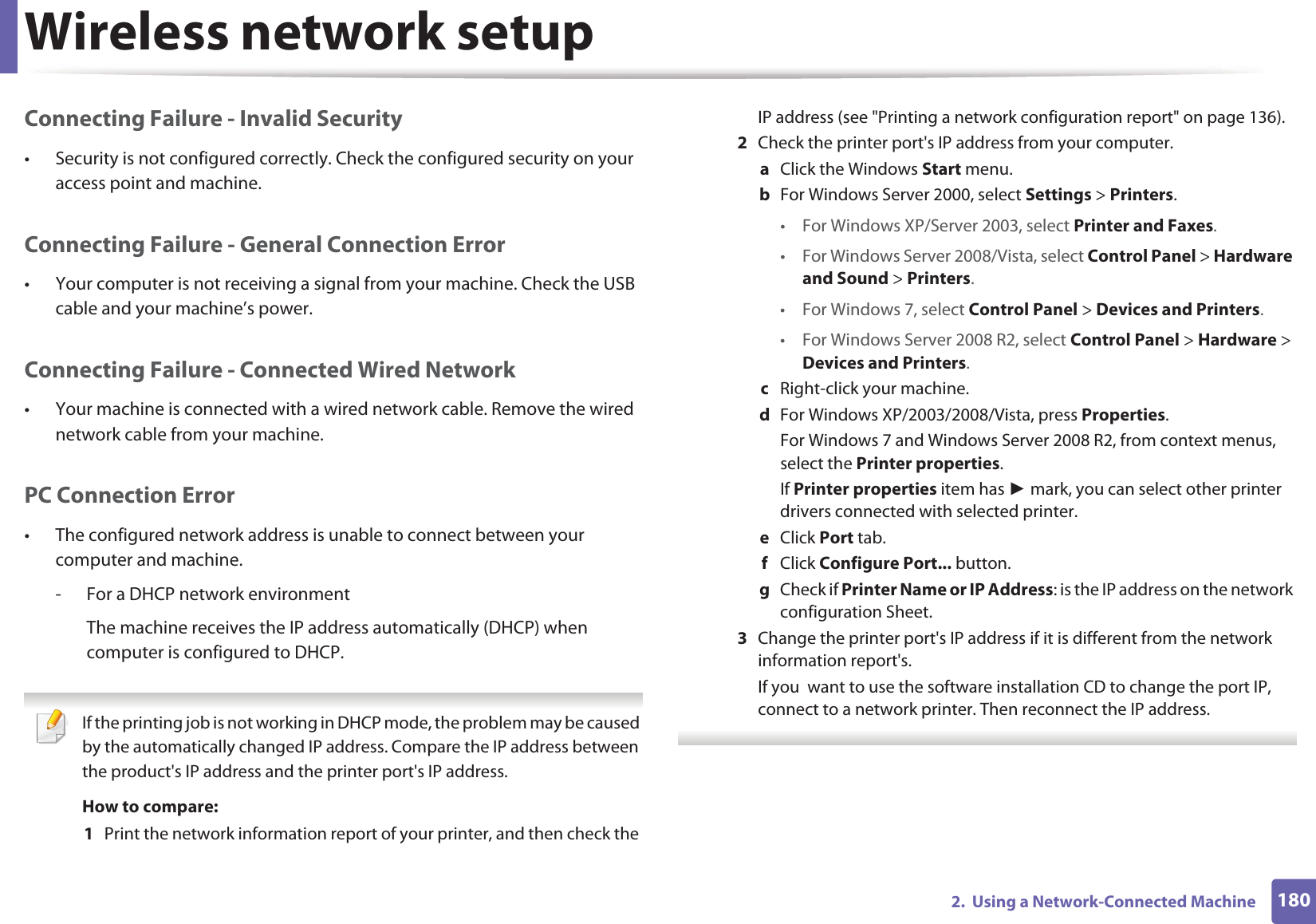

Wireless network setup1802. Using a Network-Connected MachineConnecting Failure - Invalid Security• Security is not configured correctly. Check the configured security on your access point and machine.Connecting Failure - General Connection Error• Your computer is not receiving a signal from your machine. Check the USB cable and your machine’s power.Connecting Failure - Connected Wired Network• Your machine is connected with a wired network cable. Remove the wired network cable from your machine.PC Connection Error• The configured network address is unable to connect between your computer and machine.- For a DHCP network environmentThe machine receives the IP address automatically (DHCP) when computer is configured to DHCP. If the printing job is not working in DHCP mode, the problem may be caused by the automatically changed IP address. Compare the IP address between the product's IP address and the printer port's IP address.How to compare:1 Print the network information report of your printer, and then check the IP address (see "Printing a network configuration report" on page 136).2 Check the printer port's IP address from your computer.a Click the Windows Start menu. b For Windows Server 2000, select Settings > Printers.• For Windows XP/Server 2003, select Printer and Faxes. • For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers. • For Windows 7, select Control Panel > Devices and Printers. • For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers. c Right-click your machine.d For Windows XP/2003/2008/Vista, press Properties.For Windows 7 and Windows Server 2008 R2, from context menus, select the Printer properties.If Printer properties item has Ź mark, you can select other printer drivers connected with selected printer.e Click Port tab.f Click Configure Port... button.g Check if Printer Name or IP Address: is the IP address on the network configuration Sheet.3 Change the printer port's IP address if it is different from the network information report's.If you want to use the software installation CD to change the port IP, connect to a network printer. Then reconnect the IP address.

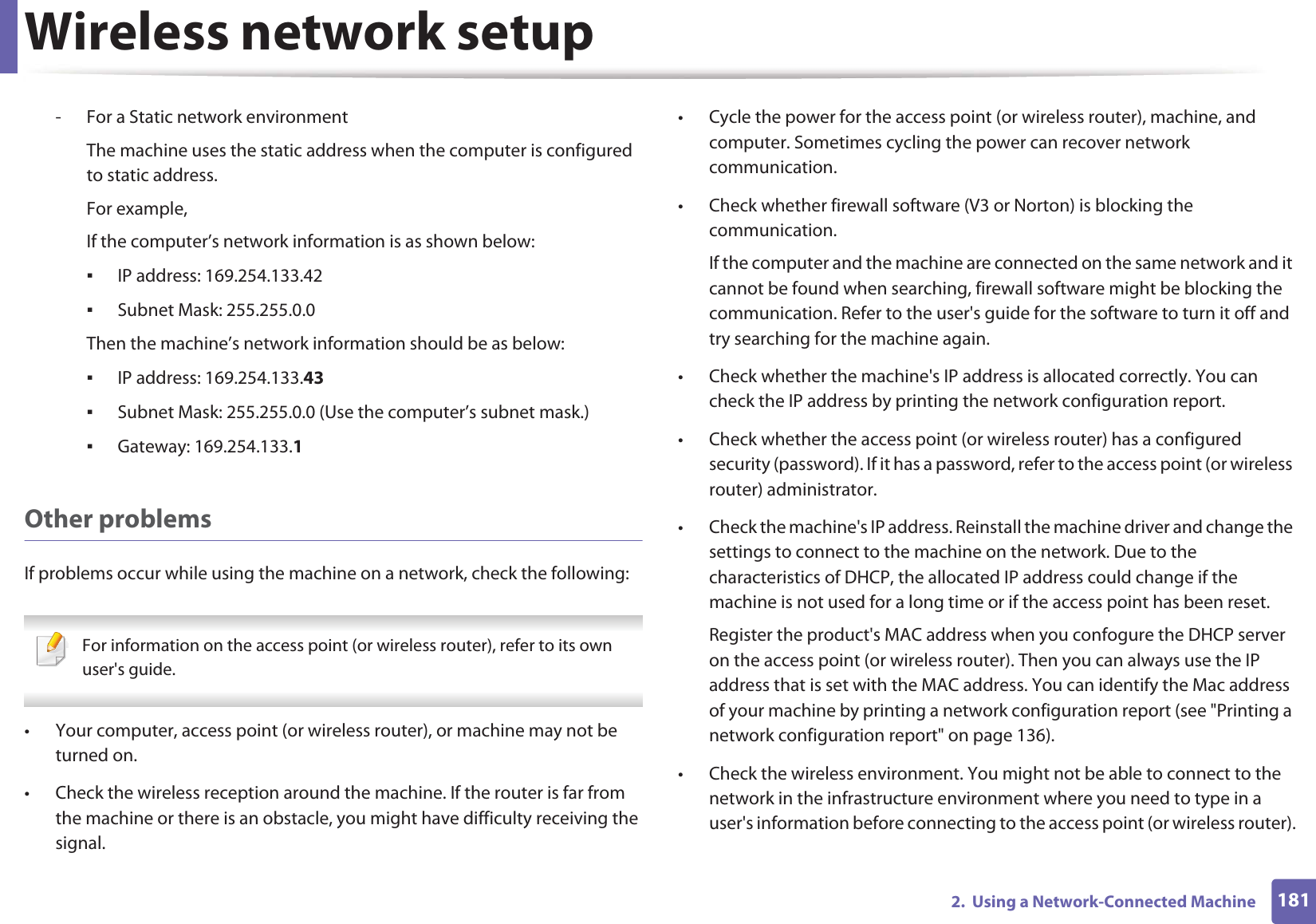

Wireless network setup1812. Using a Network-Connected Machine- For a Static network environmentThe machine uses the static address when the computer is configured to static address.For example,If the computer’s network information is as shown below:ƒIP address: 169.254.133.42ƒSubnet Mask: 255.255.0.0Then the machine’s network information should be as below:ƒIP address: 169.254.133.43ƒSubnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)ƒGateway: 169.254.133.1Other problemsIf problems occur while using the machine on a network, check the following: For information on the access point (or wireless router), refer to its own user's guide. • Your computer, access point (or wireless router), or machine may not be turned on.• Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal. • Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.• Check whether firewall software (V3 or Norton) is blocking the communication. If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.• Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.• Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.• Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.Register the product's MAC address when you confogure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report (see "Printing a network configuration report" on page 136).• Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).

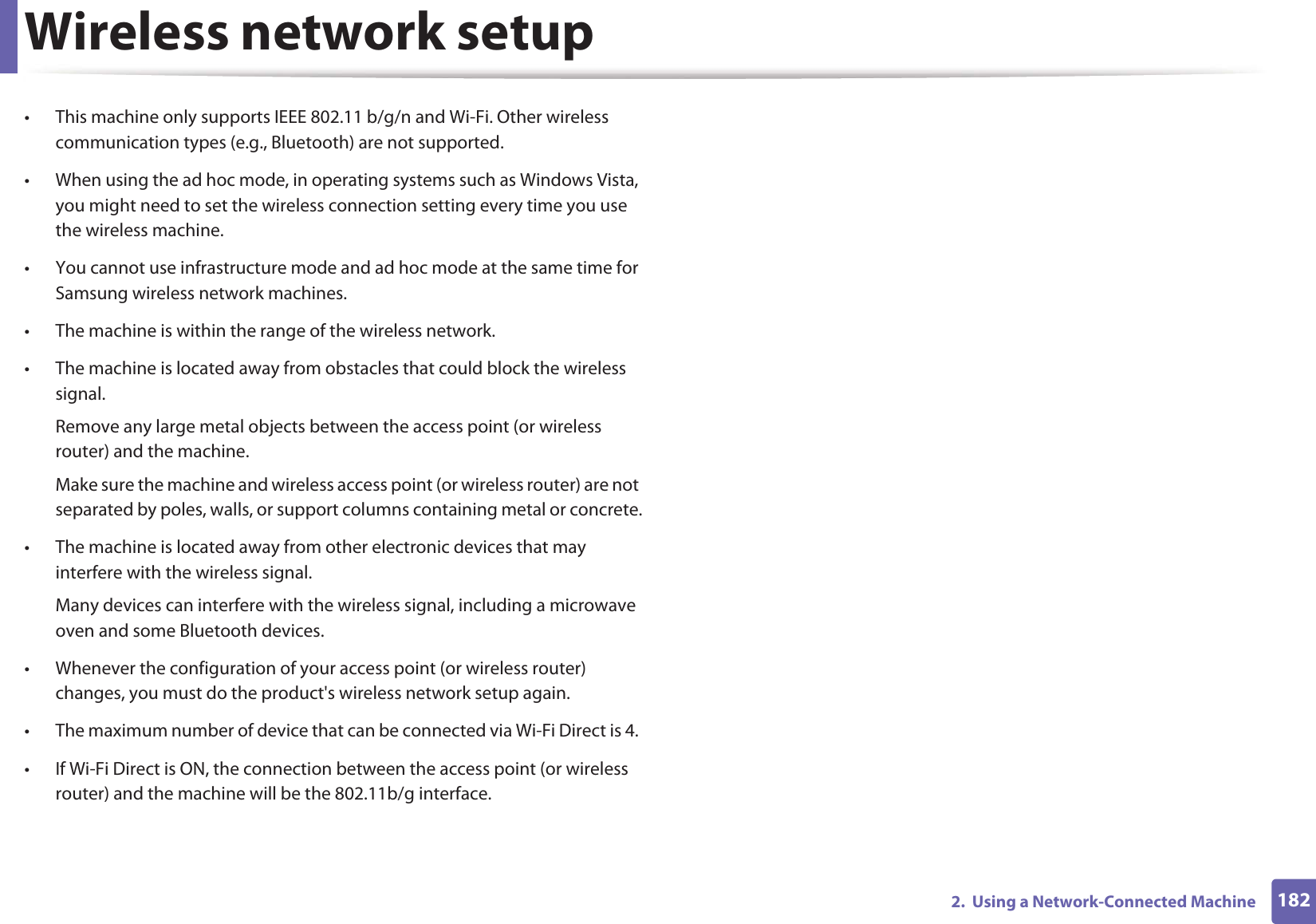

Wireless network setup1822. Using a Network-Connected Machine• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.• When using the ad hoc mode, in operating systems such as Windows Vista, you might need to set the wireless connection setting every time you use the wireless machine. • You cannot use infrastructure mode and ad hoc mode at the same time for Samsung wireless network machines.• The machine is within the range of the wireless network.• The machine is located away from obstacles that could block the wireless signal.Remove any large metal objects between the access point (or wireless router) and the machine.Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.• The machine is located away from other electronic devices that may interfere with the wireless signal.Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.• Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.• The maximum number of device that can be connected via Wi-Fi Direct is 4. • If Wi-Fi Direct is ON, the connection between the access point (or wireless router) and the machine will be the 802.11b/g interface.

1832. Using a Network-Connected MachineSamsung MobilePrint22 What is Samsung MobilePrint?Samsung MobilePrint is a free application that enables users to print photos, documents, and web pages directly from your smartphone or tablet. Samsung MobilePrint is not only compatible with your Android, Windows and iOS smart phones but also with your iPod Touch and tablet PC. It connects your mobile device to a network connected Samsung printer or to a wireless printer through a Wi-Fi access point. Installing a new driver or configuring network settings isn’t necessary – just simply install the Samsung MobilePrint application, and it will automatically detect compatible Samsung printers. Besides printing photos, web pages, and PDFs, scanning is also supported. If you have Samsung multfunction printer, scan any document into a JPG, PDF, or PNG format for quick and easy viewing on your mobile device. 23 Downloading Samsung MobilePrintTo download Samsung MobilePrint, go to the application store (Samsung Apps, Android Market, App Store, Marketplace) on your mobile device, and just search for “Samsung MobilePrint.” You can also visit iTunes for Apple devices or Marketplace for Windows devices on your computer.24 Supported Mobile OS • Android OS 2.1 or higher • iOS 4.0 or higher• Windows Phone 7 or higher25 Supported devices•iOS 4.0 or higher: iPod Touch, iPhone, iPad•Android 2.1 or higher: Galxy S, Galaxy S2, Galaxy Tab, and Android mobile devices•Windows Phone 7 or higher: Samsung Focus, Omnia7, and OmniaW, and Windows mobile devices

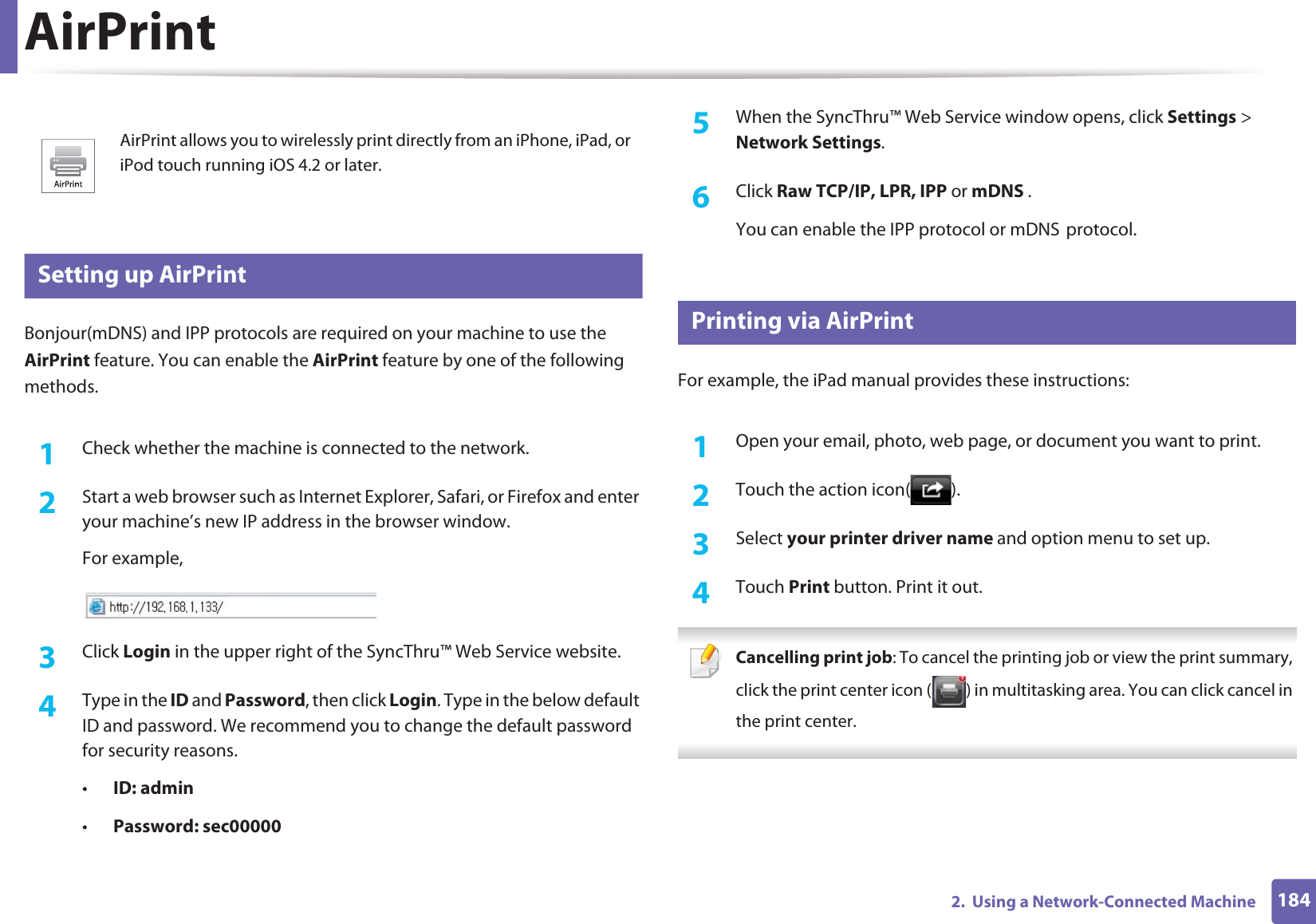

1842. Using a Network-Connected MachineAirPrint26 Setting up AirPrintBonjour(mDNS) and IPP protocols are required on your machine to use the AirPrint feature. You can enable the AirPrint feature by one of the following methods.1Check whether the machine is connected to the network.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login in the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password, then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin•Password: sec00000 5 When the SyncThru™ Web Service window opens, click Settings > Network Settings.6 Click Raw TCP/IP, LPR, IPP or mDNS .You can enable the IPP protocol or mDNSGprotocol.27 Printing via AirPrintFor example, the iPad manual provides these instructions:1Open your email, photo, web page, or document you want to print.2 Touch the action icon( ).3 Select your printer driver name and option menu to set up.4 Touch Print button. Print it out. Cancelling print job: To cancel the printing job or view the print summary, click the print center icon ( ) in multitasking area. You can click cancel in the print center. AirPrint allows you to wirelessly print directly from an iPhone, iPad, or iPod touch running iOS 4.2 or later.

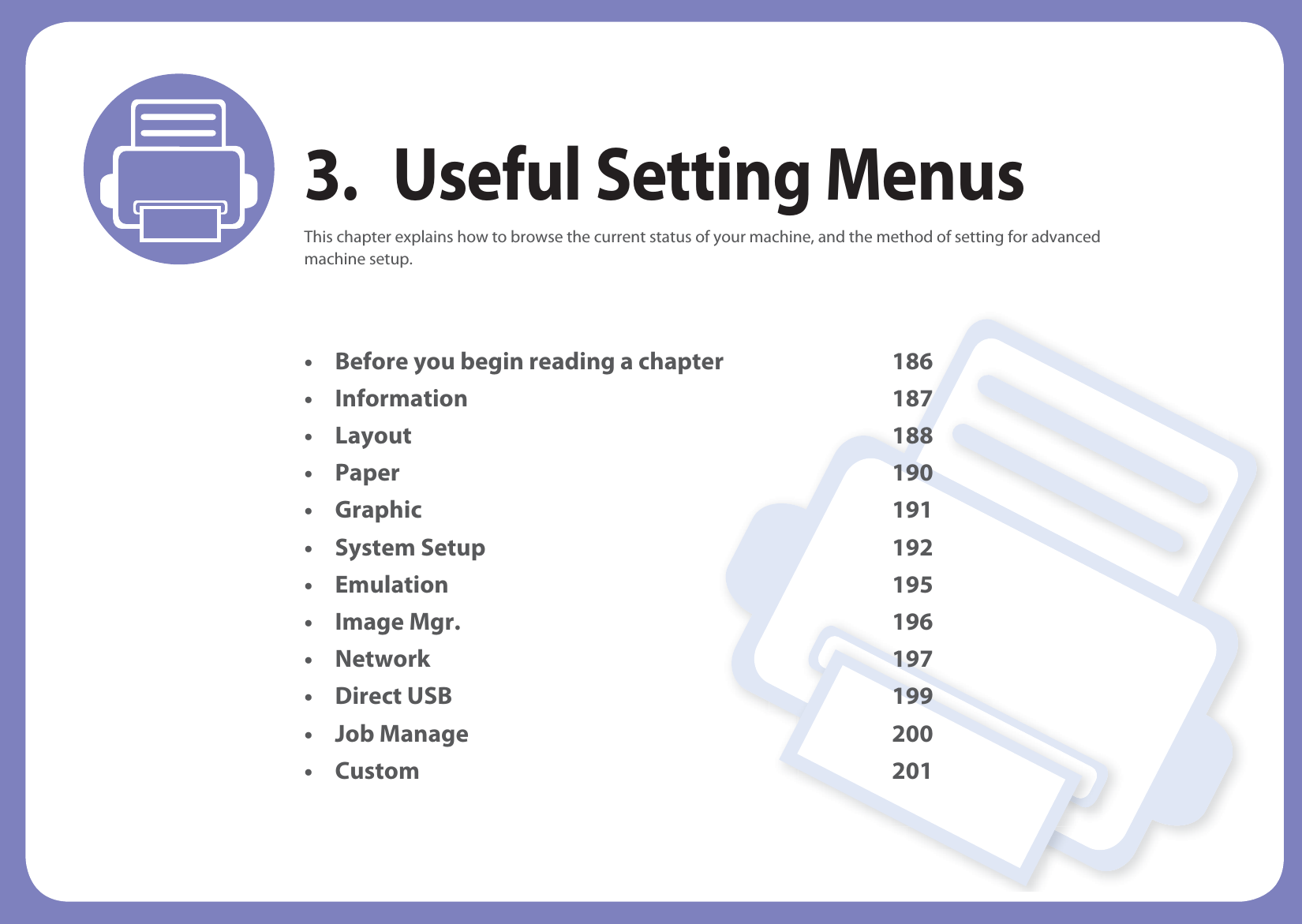

3. Useful Setting MenusThis chapter explains how to browse the current status of your machine, and the method of setting for advanced machine setup. • Before you begin reading a chapter 186• Information 187• Layout 188 • Paper 190• Graphic 191• System Setup 192• Emulation 195• Image Mgr. 196• Network 197• Direct USB 199• Job Manage 200• Custom 201
