Users Manual 4 HTML Version

Users Manual 4

Clearing paper jams

4. Troubleshooting

CLP-68xND Series/CLP-68xDW Series

Click this link to open an animation about clearing a jam.

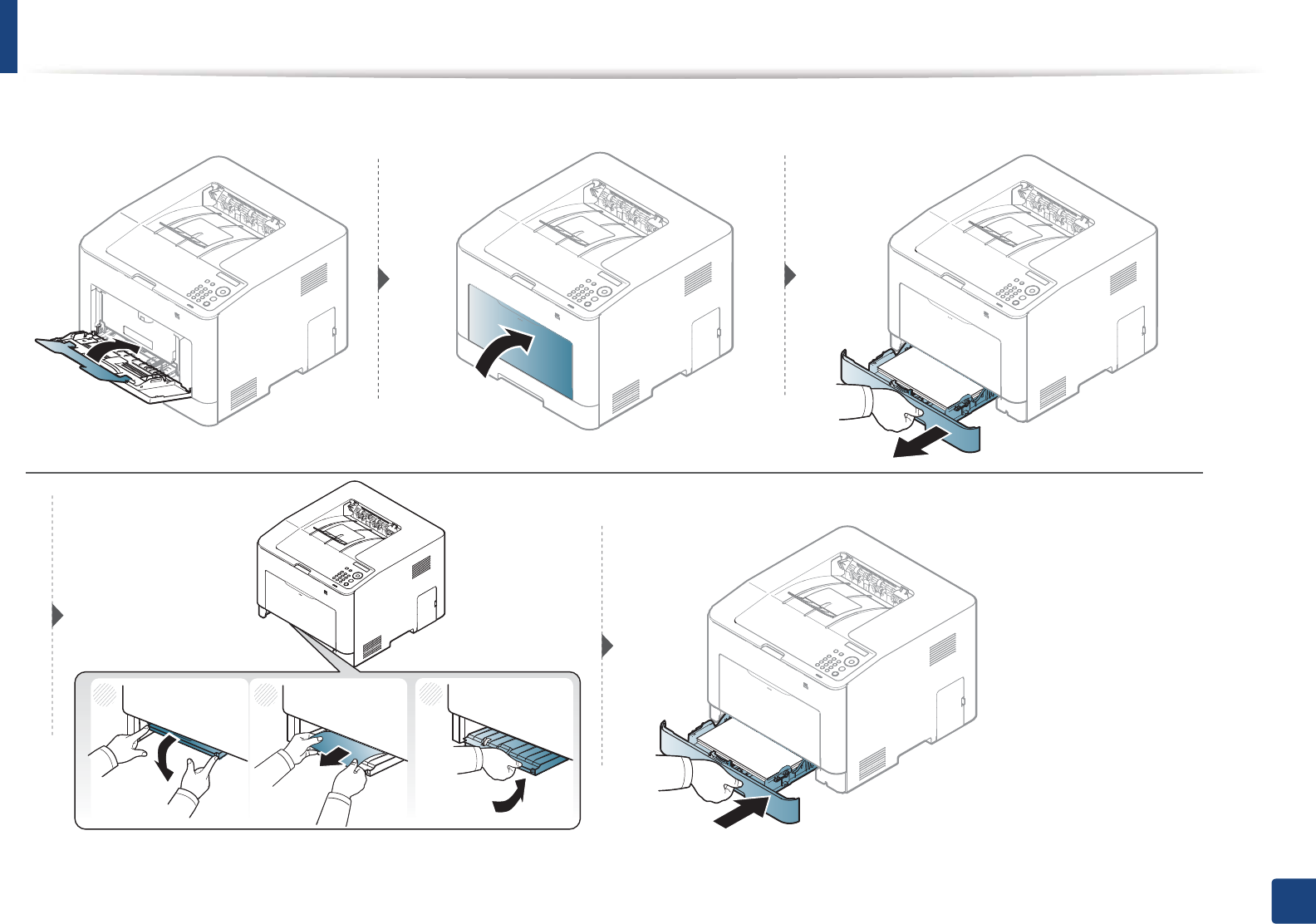

When you print using the multi-purpose tray and the machine detects that there is either no paper or that the paper has been improperly loaded, follow the next

steps to release the jammed paper.

Clearing paper jams

4. Troubleshooting

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

4. Troubleshooting

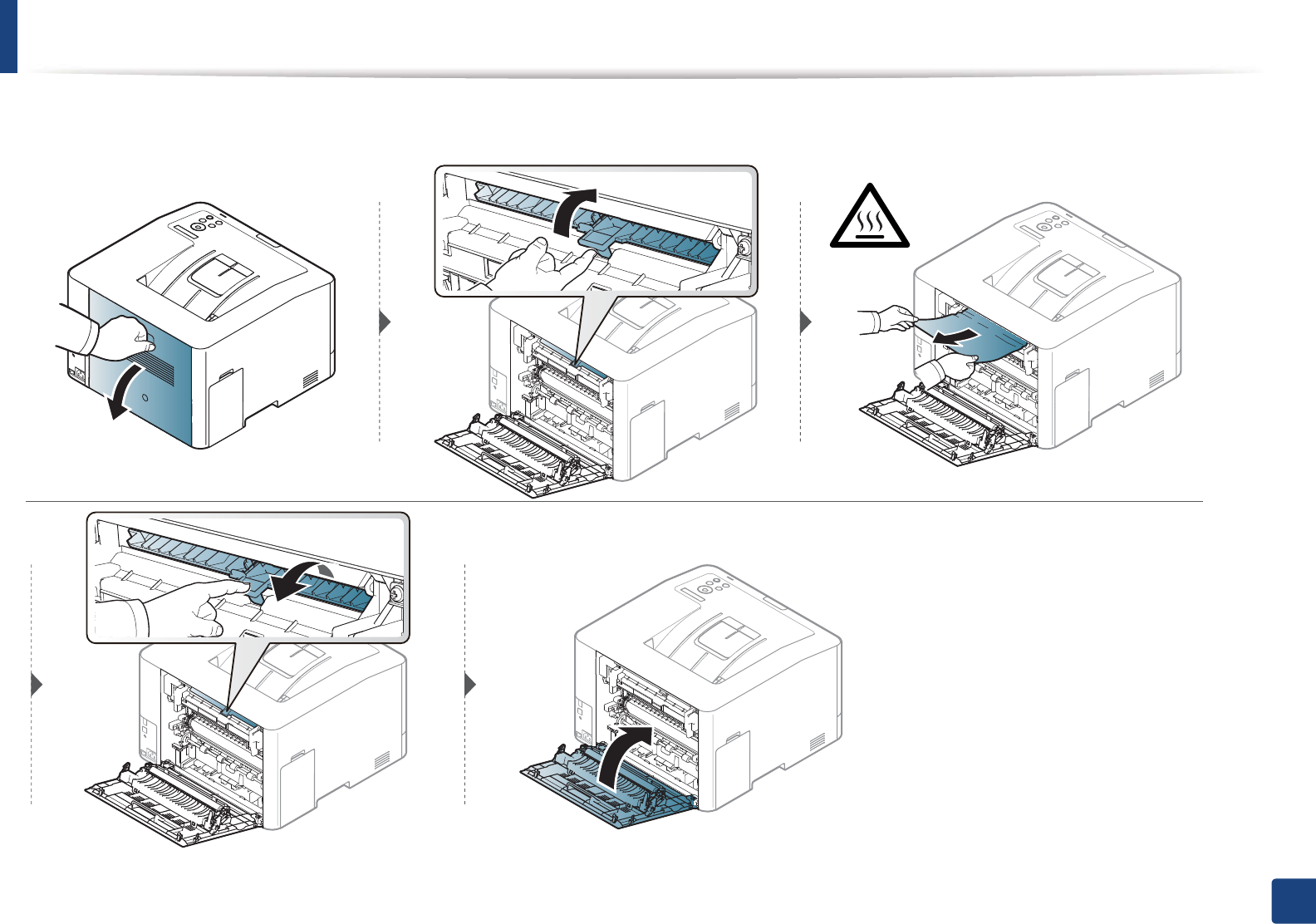

Inside the machine

Click this link to open an animation about clearing a jam.

• The fuser area is hot. Take care when removing paper from the machine.

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).

Clearing paper jams

4. Troubleshooting

In exit area

CLP-41xN Series/CLP-41xNW Series

Click this link to open an animation about clearing a jam.

The fuser area is hot. Take care when removing paper from the machine.

Clearing paper jams

4. Troubleshooting

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

4. Troubleshooting

CLP-68xND Series/CLP-68xDW Series

Click this link to open an animation about clearing a jam.

The fuser area is hot. Take care when removing paper from the machine.

Clearing paper jams

4. Troubleshooting

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

4. Troubleshooting

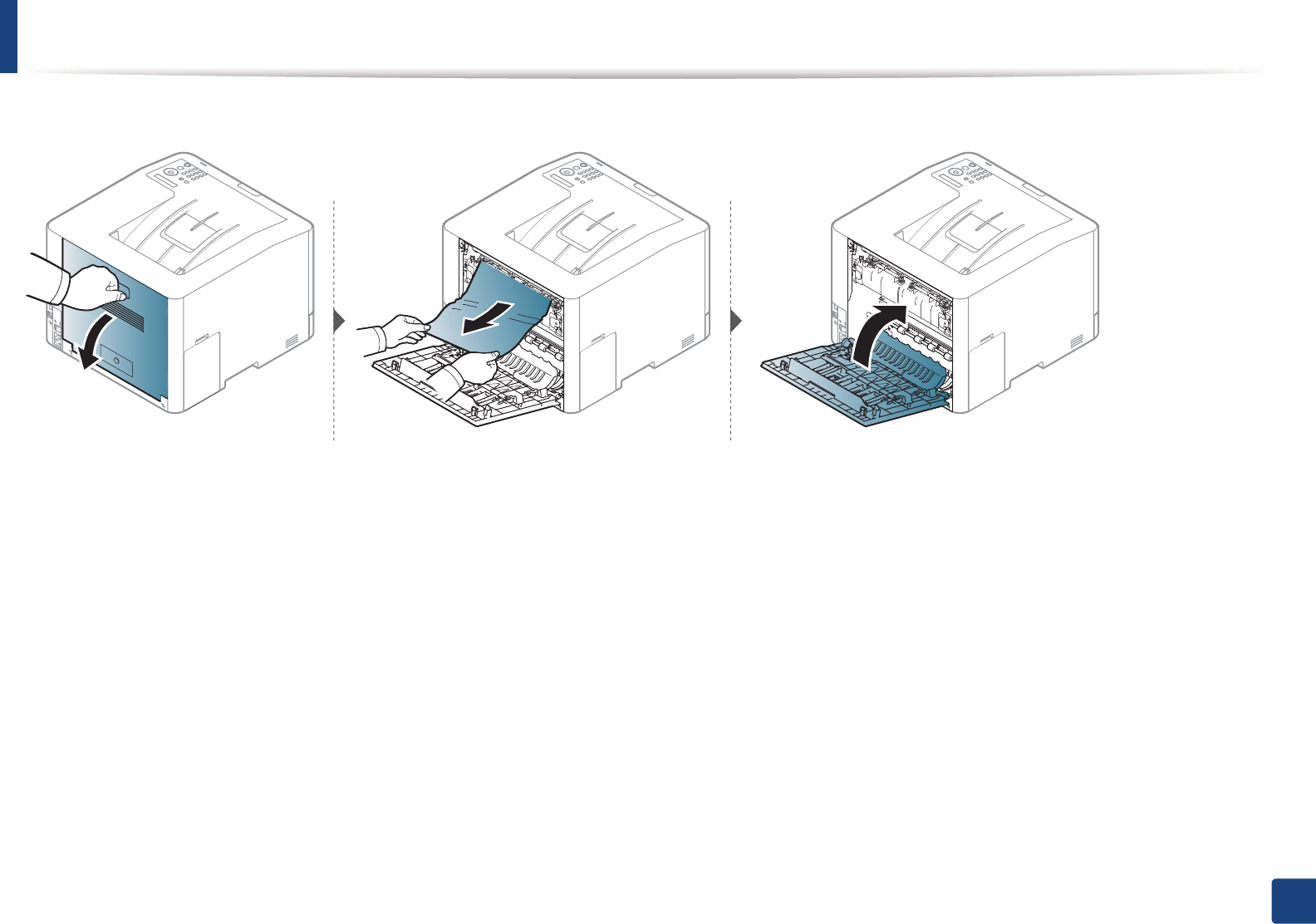

In the duplex unit area (CLP-68xND Series/CLP-68xDW Series only)

Click this link to open an animation about clearing a jam.

4. Troubleshooting

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).

• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 96).

• You also can resolve the error with the guideline from the computers’s Samsung Printing Status program window (see "Using Samsung Printer Status" on page

235).

• If the problem persists, call a service representative.

LED Status Description

()

Status

Off The machine is off-line.

Green

Blinking When the backlight blinks, the machine is receiving or printing data.

On • The machine is on-line and can be used.

Red

Blinking

• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem

is cleared, the machine resumes.

• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for

replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page

62).b

• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see

"Replacing the toner cartridge" on page 64).

• The cover is opened. Close the cover.

• There is no paper in the tray when receiving or printing data. Load paper in the tray.

• The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 96).

• A paper jam has occurred (see "Clearing paper jams" on page 82).

Understanding the status LED

4. Troubleshooting

()

WPSb

()

Wireless

Blue

Blinking The machine is connecting to a wireless network.

On The machine is connected to a wireless networkG(see "Wireless network setup" on page 150).

Off

The machine is disconnected from a wireless network.

()

Power

Blue

On The machine is in power save mode.

Off The machine is in ready mode or machine’s power is off.

Eco Green

On Eco mode is on (see "Eco printing" on page 48).

Off Eco mode is off.

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages

may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is

on and the printer stops printing.

b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).

LED Status Description

4. Troubleshooting

Understanding display messages

Messages appear on the control panel display to indicate the machine’s status

or errors. Refer to the tables below to understand the messages’ and their

meaning, and correct the problem, if necessary.

• You can resolve the error with the guideline from the computers’s

Printing Status program window (see "Using Samsung Printer Status" on

page 235).

• If a message is not in the table, reboot the power and try the printing job

again. If the problem persists, call a service representative.

• When you call for service, provide the service representative with the

contents of display message.

• Some messages may not appear on the display depending on the

options or models.

• [error number] indicates the error number.

• [tray type] indicates the tray number.

• [media type] indicates the media type.

• [media size] indicates the media size.

• [color] indicates the color of toner.

Paper Jam-related messages

Message Meaning Suggested solutions

Paper Jam

in exit area

Paper has jammed in the

exit area.

Clear the jam (see "In

exit area" on page 89).

Paper Jam

inside machine

Paper has jammed in the

inside machine.

Clear the jam (see

"Inside the machine"

on page 88).

Paper Jam

in Tray1

Paper has jammed in the

tray.

Clear the jam (see "In

tray 1" on page 82).

Paper Jam

in Tray2

Paper has jammed in the

optional tray.

Clear the jam (see "In

optional tray (CLP-

68xND Series/CLP-

68xDW Series only)" on

page 83).

Paper Jam

in MP tray

Paper has jammed in the

multi-purpose tray.

Clear the jam (see "In

the manual feeder/

multi-purpose tray" on

page 85).

Understanding display messages

4. Troubleshooting

Paper Jam

or empty in tray

• Paper has jammed in

manual feeder.

• There is no paper in tray.

• Clear the jam (see

"CLP-41xN Series/

CLP-41xNW Series"

on page 85).

• Load paper in tray

(see "Multi-purpose

(or Manual feeder )

tray" on page 35).

Paper Jam

bottom of duplex

Paper has jammed during

duplex printing. This is

applicable only to

machines with this feature.

Clear the jam (see "In

the duplex unit area

(CLP-68xND Series/

CLP-68xDW Series

only)" on page 93).

Message Meaning Suggested solutions

Understanding display messages

4. Troubleshooting

Toner-related messages

Message Meaning Suggested solutions

Install [color]

toner cartridge

A toner cartridge is not

installed.

Reinstall the toner cartridge.

A toner cartridge is not

being detected

Reinstall the toner cartridge two or

three times to confirm it is seated

properly. If the problem persists,

contact the service representatives.

Not remove protective

film from toner.

Remove the protective film from the

toner cartridge. Refer to Quick

Installation Guide provided with your

machine.

Not Compatible

[color] toner cart.

The indicated toner

cartridge is not

suitable for your

machine.

Install the corresponding toner

cartridge with a Samsung-genuine

cartridge (see "Replacing the toner

cartridge" on page 64).

Prepare Toner

Small amount of toner

is left in the indicated

cartridge. The

estimated cartridge

lifea of toner is close.

Prepare a new cartridge for a

replacement. You may temporarily

increase the printing quality by

redistributing the toner (see

"Redistributing toner" on page 62).

Replace Toner

The indicated toner

cartridge has almost

reached its estimated

cartridge lifea.

• You can choose Stop or Continue

as shown on the control panel. If

you select Stop, the printer stops

printing. If you select Continue, the

printer keeps printing but the

printing quality cannot be

guaranteed.

• Replace the toner cartridge for the

best print quality when this

message appears. Using a cartridge

beyond this stage can result in

printing quality issues (see

"Replacing the toner cartridge" on

page 64).

The indicated toner

cartridge has reached

its estimated cartridge

lifea.

Replace the toner cartridge (see

"Replacing the toner cartridge" on

page 64).

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates

the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available

consumables" on page 56). The number of pages may be affected by operating environment,

percentage of image area, printing interval, media, percentage of image area, and media size.

Some amount of toner may remain in the cartridge even when replace new cartridge appears

and the machine stops printing.

Message Meaning Suggested solutions

Understanding display messages

4. Troubleshooting

Samsung does not recommend using a non-genuine Samsung toner

cartridge such as refilled or remanufactured. Samsung cannot guarantee a

non-genuine Samsung toner cartridge's quality. Service or repair required

as a result of using non-genuine Samsung toner cartridges will not be

covered under the machine warranty.

Tray-related messages

Network-related messages

Message Meaning Suggested solutions

Paper Empty

in [tray number]

There is no paper in the

indicated tray.

Load paper in the tray (see

"Loading paper in the tray"

on page 33).

Paper Jam

or empty in tray

• Paper has jammed

in manual feeder.

• There is no paper in

tray.

• Clear the jam (see "CLP-

41xN Series/CLP-41xNW

Series" on page 85).

• Load paper in tray (see

"Multi-purpose (or

Manual feeder ) tray" on

page 35).

Message Meaning Suggested solutions

Network Problem:

IP Conflict

The IP address is used

elsewhere.

Check the IP address or

obtain a new IP address.

Wireless

Network Error

Wireless module is not

installed.

Reboot the power and try

the printing job again. If the

problem persists, please call

for service.

•BOOTP problem:

Auto IP Run

•DHCP problem:

Auto IP Run

There is a problem with

the network.

Change the Auto IPU

•BOOTP problem:

Reconfigure BOOTP

•DHCP problem:

Reconfigure DHCP

The IP address

assignment is failed.

This happens, when IP

for BOOTP/DHCP is set

in SyncThru™ Web

Service.

Change the IP address

assignment method to

DHCP/BOOTP or Static. If

you do not change this

option, the BOOTP/DHCP

server continually asks to

assign the IP Address.

Understanding display messages

100

4. Troubleshooting

Misc. messages

802.1x

Network Error

Fail to authenticate. Check the network

authentication protocol. If

the problem persists,

contact your network

administrator.

Message Meaning Suggested solutions

Adjusting Color

Registration

The machine is adjusting

the color registration.

Wait a few minutes.

Calibrating

image density…

The machine is calibrating

the image density.

Wait a few minutes.

Door Open

Close it

The cover is not securely

latched.

Close the cover until it locks

into place.

Error [error

number]

Install [color]

toner

The indicated toner

cartridge is installed

improperly, or the

connector is polluted.

Reinstall the Samsung-

genuine toner cartridge two

or three times to confirm it is

seated properly. If the

problem persists, contact the

service representatives.

Message Meaning Suggested solutions

Error [error

number]

Turn off then on

The machine unit cannot

be controlled.

Reboot the power and try the

printing job again. If the

problem persists, please call

for service.

Error [error

number]

Call for service

Install TR.

belt unit.

The transfer belt is not

installed.

Install a Samsung-genuine

transfer belt.

Not compatible

transfer belt

The transfer belt of the

machine is not for your

machine.

Install the a Samsung-

genuine part designed for

your machine.

Not installed

Waste tank

The is waste toner

container not installed.

Install a Samsung-genuine

waste toner container.

Not proper room

temp. Move set

The machine is in a room

with improper room

temperature.

Move the machine to a room

with proper roomG

temperature.

Output bin Full

Remove paper

The output tray is full. Or

the sensor is not facing

down.

Remove papers from the

output tray, the machine

resumes printing. Or make

sure the sensor is facing

down. If the problem persists,

call for service.

Message Meaning Suggested solutions

Understanding display messages

101

4. Troubleshooting

Prepare new

Transfer belt

The life of the transfer belt

will expired soon.

Replace the transfer belt with

a new one. Contact the

service representatives.

Replace new

Transfer belt

The life of the transfer belt

has expired.

Replace

Fuser Soon

The life of the fuser unit will

be expired soon.

Replace the fuser unit with a

new one. If the problem

persists, please call for

service.

Replace new

Fuser unit

The life of the fuser unit will

be expired.

•Replace new

Tray1 roller

•Replace new

Tray2 roller

The life of the tray pick-up

roller will expired soon.

Replace the tray pick-up roller

with a new one. If the

problem persists, please call

for service.

The life of the tray pick-up

roller will expired.

Transfer Belt

Error

The transfer belt cannot be

controlled.

Reboot the power and try the

printing job again. If the

problem persists, please call

for service.

Waste toner Full

Replace new one

The waste toner container

is full.

Replace the waste toner

container.

Message Meaning Suggested solutions

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

• Specifications 103

• Regulatory information 114

• Copyright 125

103

5. Appendix

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information.

Items Description

Dimension Width x Length x Height •CLP-41xN Series/CLP-41xNW Series: 389 x 274 x 249 mm (15.31 x 10.79 x 9.80 inches)

•CLP-68xND Series/CLP-68xDW Series: 389 x 274 x 249 mm (15.31 x 10.79 x 9.80 inches)

Weight Machine with consumables •CLP-41xN Series/CLP-41xNW Series: 6.65 Kg (14.66 lbs)

•CLP-68xND Series/CLP-68xDW Series: 6.65 Kg (14.66 lbs)

Noise LevelaReady mode Less than 37 dB (A)

Print mode •CLP-41xN Series/CLP-41xNW Series: Less than 50 dB (A)

•CLP-68xND Series/CLP-68xDW Series: Less than 52 dB (A)

Temperature Operation 15 to 30 °C (59 to 86 °F)

Storage (packed) -20 to 50 °C (-4 to 122 °F)

Humidity Operation 20 to 80% RH

Storage (packed) 10 to 90% RH

Power ratingb110 volt models AC 110 - 127 V

220 volt models AC 220 - 240 V

Specifications

104

5. Appendix

Power consumption Average operating mode Less than 850 W

Ready mode Less than 12 W

Power save mode Less than 1.0 W

Power off mode Less than 0.1 W

WirelesscModule SPW-B4319U

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.

b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.

c. Wireless models only (see "Features by models" on page 7).

Items Description

Specifications

105

5. Appendix

Print media specifications

Type Size Dimensions

Weight/Capacity

CLP-41xN Series

CLP-41xNW Series

CLP-68xND Series

CLP-68xDW Series

Tray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Plain paper

Letter

216 x 279 mm (8.5 x 11 inches) 70 to 89 g/m

(19 to

24 lbs bond)

• 250 sheets of 80 g/

(21 lbs bond)

70 to 89 g/m

(19 to

24 lbs bond)

• 1 sheet

70 to 90 g/m

(19 to 24 lbs

bond)

• Tray1: 250 sheets of

80 g/m

(21 lbs bond)

• Optional tray: 500

sheets of 80 g/m

(20 lbs bond)

70 to 90 g/m

(20 to

24 lbs bond)

• 50 sheets

Legal

216 x 356 mm (8.5 x 14 inches)

US Folio

216 x 330 mm (8.5 x 13 inches)

210 x 297 mm (8.27 x 11.69 inches)

Oficio

216 x 343 mm (8.5 x 13.5 inches)

JIS B5

182 x 257 mm (7.17 x 10.12 inches)

ISO B5

176 x 250 mm (6.93 x 9.84 inches)

Executive

184 x 267 mm (7.25 x 10.5 inches)

Statement

140 x 216 mm (5.5 x 8.5 inches)

148 x 210 mm (5.83 x 8.27 inches)

105 x 148 mm (4.13 x 5.83 inches) 70 to 89 g/m

(19 to

24 lbs bond)

• 150 sheets of 80 g/

(21 lbs bond)

70 to 90 g/m

(19 to 24 lbs

bond)

• 150 sheets of 80 g/m

(21 lbs bond)

Not available in optional

tray.

Specifications

106

5. Appendix

Envelope Envelope

Monarch

98 x 191 mm (3.87 x 7.5 inches) 75 to 90 g/m

(20 to

24 lbs bond)

• 20 sheets

75 to 90 g/m

(20 to

24 lbs bond)

• 1 sheet

75 to 90 g/m

(20 to 24 lbs

bond)

• 20 sheets

Not available in optional

tray.

75 to 90 g/m

(20 to

24 lbs bond)

• 5 sheets

Envelope No.

105 x 241 mm (4.12 x 9.5 inches)

Envelope No.

98 x 225 mm (3.87 x 8.87 inches)

Envelope DL

110 x 220 mm (4.33 x 8.66 inches)

Envelope C5

162 x 229 mm (6.38 x 9.02 inches)

Envelope C6

114 x 162 mm (4.49 x 6.38 inches)

Thick paper

Refer to the

Plain paper

section

Refer to the Plain paper section 90 to 105 g/m

(24 to 28

lbs bond)

• 50 sheets of 105 g/

(28 lbs bond)

90 to 105 g/m

(24 to

28 lbs bond)

• 1 sheet

91 to 105 g/m

(24 to 28

lbs bond)

• 50 sheets of 105 g/m

(28 lbs bond)

91 to 105 g/m

(24to 28

lbs bond)

• 10 sheets

Thicker paper

Refer to the

Plain paper

section

Refer to the Plain paper section 164 to 220 g/m

(43 to

59 lbs bond)

• 50 sheets of 220 g/

(59 lbs bond)

164 to 220 g/m

(43 to

59 lbs bond)

• 1 sheet

164 to 220 g/m

(43 to 59

lbs bond)

• 50 sheets of 220 g/m

(59 lbs bond)

Not available in optional

tray.

164 to 220 g/m

(43 to

59 lbs bond)

• 10 sheets)

Thin paper Refer to the

Plain paper

section

Refer to the Plain paper section 60 to 69 g/m

(16 to 19

lbs bond)

• 250 sheets of 70 g/

(19 lbs bond)

60 to 69 g/m

(16 to 19

lbs bond)

• 1 sheet

60 to 70 g/m

(16 to 19 lbs

bond)

•250

sheets of 70 g/m

(19 lbs bond)

60 to 70 g/m

(16 to 19

lbs bond)

• 50 sheets

Type Size Dimensions

Weight/Capacity

CLP-41xN Series

CLP-41xNW Series

CLP-68xND Series

CLP-68xDW Series

Tray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Specifications

107

5. Appendix

Cotton, Color,

Pre-printed

Refer to the

Plain paper

section

Refer to the Plain paper section 75 to 90 g/m

(20 to 24

lbs bond)

• 250 sheets of 80 g/

(21 lbs bond)

75 to 90 g/m

(20 to 24

lbs bond)

• 1 sheet

75 to 90 g/m

(20 to 24 lbs

bond)

• 250 sheets of 80 g/m

(21 lbs bond)

Not available in optional

tray.

75 to 90 g/m

(20 to 24

lbs bond)

• 50 sheets

Recycled Refer to the

Plain paper

section

Refer to the Plain paper section 70 to 90 g/m

(19 to 24

lbs bond)

• 250 sheets of 80 g/

(21 lbs bond)

70 to 90 g/m

(19 to 24

lbs bond)

• 1 sheet

70 to 90 g/m

(19 to 24 lbs

bond)

• 250 sheets of 80 g/m

(21 lbs bond)

70 to 90 g/m

(19 to 24

lbs bond)

• 50 sheets

Transparency Letter, Legal,

Refer to the Plain paper section 138 to 146 g/m

(35 to

39 lbs bond)

• 50 sheets

138 to 146 g/m

(35 to

39 lbs bond)

• 1 sheet

138 to 146 g/m

(35 to 39

lbs bond)

• 50 sheets

Not available in optional

tray.

138 to 146 g/m

(35 to

39 lbs bond)

• 10 sheets

Labels

Letter, Legal,

US Folio, A4,

JIS B5, ISO

B5,

Executive, A5

Refer to the Plain paper section 120 to 150 g/m

(32 to

40 lbs bond)

• 50 sheets

120 to 150 g/m

(32 to

40 lbs bond)

• 1 sheet

120 to 150 g/m

(32 to 40

lbs bond)

• 50 sheets

Not available in optional

tray.

120 to 150 g/m

(32 to

40 lbs bond)

• 10 sheets

Type Size Dimensions

Weight/Capacity

CLP-41xN Series

CLP-41xNW Series

CLP-68xND Series

CLP-68xDW Series

Tray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Specifications

108

5. Appendix

Card stock

Letter, Legal,

US Folio, A4,

JIS B5, ISO

B5,

Executive, A5

Refer to the Plain paper section 121 to 163 g/m

(32 to

43 lbs bond)

• 50 sheets

121 to 163 g/m

(32 to

43 lbs bond)

• 1 sheet

121 to 163 g/m

(32 to 43

lbs bond)

• 50 sheets

121 to 163 g/m

(32 to

43 lbs bond)

• 10 sheets

Bond paper Refer to the

Plain paper

section

Refer to the Plain paper section 105 to 120 g/m

(28 to

32 lbs bond)

• 50 sheets

105 to 120 g/m

(28 to

32 lbs bond)

• 1 sheet

105 to 120 g/m

(28 to 32

lbs bond)

• 50 sheets

105 to 120 g/m

(28 to

32 lbs bond)

• 10 sheets

Archive,

Punched

paper,

Letterhead

Refer to the

Plain paper

section

Refer to the Plain paper section • 250 sheets • 1 sheet • 250 sheets • 50 sheets

Glossy Photo

Letter, A4,

Postcard 4x6

Refer to the Plain paper section 111 to 130 g/m

(30 to

35 lbs bond)

• 30 sheets

111 to 130 g/m

(30 to

35 lbs bond)

• 1 sheet

111 to 130 g/m

(30 to 35

lbs bond) for tray1

• Tray1: 30 sheets

• Optional tray: 50 sheets

111 to 130 g/m

(30 to

35 lbs bond)

• 5 sheets

Refer to the Plain paper section 131 to 175 g/m

(35 to

47 lbs bond)

• 30 sheets

131 to 175 g/m

(35 to

47 lbs bond)

• 1 sheet

131 to 175 g/m

(35 to 47

lbs bond)

• Tray1: 30 sheets

• Optional tray: 50 sheets

131 to 175 g/m

(35 to

47 lbs bond)

• 5 sheets

Refer to the Plain paper section 176 to 220 g/m

(47 to

59 lbs bond)

• 30 sheets

176 to 220 g/m

(47 to

59 lbs bond)

• 1 sheet

176 to 220 g/m

(47 to 59

lbs bond)

• Tray1: 30 sheets

• Optional tray: 50 sheets

176 to 220 g/m

(47 to

59 lbs bond)

• 5 sheets

Type Size Dimensions

Weight/Capacity

CLP-41xN Series

CLP-41xNW Series

CLP-68xND Series

CLP-68xDW Series

Tray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Specifications

109

5. Appendix

System requirements

Microsoft® Windows®

Minimum size (custom)

•

Tray1:

98 x 127 mm (3.86 x 5

inches)

•

Optional tray:

148.5 x 210 mm

(5.85 x 8.27inches)

•

Multi-Purpose tray/ Manual

Feeder:

76 x 127 mm (3 x 5

inches)

60 to 220 g/m

( 16 to 59

lb bond)

60 to 220 g/m

( 16 to

59 lb bond)

• 60 to 220 g/m

( 16 to

59 lb bond) for tray1

• 60 to 163 g/m

( 16 to

43 lb bond) for optional

tray.

60 to 220 g/m

( 16 to

59 lb bond)

Maximum size (custom)

216 x 356 mm (8.5 x 14 inches)

a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.

b. Post card 4 x 6 is supported for tray1

Manual feeder, or Multi-purpose tray.

c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.

Operating system Requirement (recommended)

CPU RAM free HDD space

Windows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MB

Windows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GB

Type Size Dimensions

Weight/Capacity

CLP-41xN Series

CLP-41xNW Series

CLP-68xND Series

CLP-68xDW Series

Tray1 Manual feeder Tray1/ Optional tray Multi-purpose tray

Specifications

110

5. Appendix

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.

• Users who have administrator rights can install the software.

•Windows Terminal Services is compatible with your machine.

•For

Windows 2000, Services Pack 4 or higher is required.

Windows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GB

Windows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GB

Windows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GB

Windows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB

• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).

• DVD-R/W Drive

Windows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB

Operating system Requirement (recommended)

CPU RAM free HDD space

Specifications

111

5. Appendix

Macintosh

Operating system

Requirements (Recommended)

CPU RAM Free HDD space

Mac OS X 10.4 •Intel

® processors

• PowerPC G4/G5

• 128 MB for a powerPC based Mac (512 MB)

• 512 MB for an Intel-based Mac (1 GB)

1 GB

Mac OS X 10.5 •Intel

® processors

• 867 MHz or faster Power PC G4/G5

512 MB (1 GB) 1 GB

Mac OS X 10.6 •Intel

® processors 1 GB (2 GB) 1 GB

Mac OS X 10.7 •Intel

® processors 2 GB 4 GB

Specifications

112

5. Appendix

Linux

Unix

Items Requirements

Operating system Redhat® Enterprise Linux WS 4, 5 (32/64 bit)

Fedora 5 ~ 13 (32/64 bit)

SuSE Linux 10.1 (32 bit)

OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)

Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)

Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)

SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)

Debian 4.0, 5.0 (32/64 bit)

CPU Pentium IV 2.4GHz (Intel Core™2)

RAM 512 MB (1 GB)

Free HDD space 1 GB (2 GB)

Items Requirements

Operating system

Sun Solaris 9, 10 (x86, SPARC)

HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)

IBM AIX 5.1, 5.2, 5.3, 5.4

Free HDD space Up to 100 MB

Specifications

113

5. Appendix

Network environment

Network and wireless models only (see "Features by models" on page 7).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the

machine.

Items Specifications

Network interface • Ethernet 10/100/1000 Base-TX Wired Lan

• 802.11b/g/n Wireless LAN

Network operating system • Windows® 2000, Windows® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows

Server® 2008 R2

• Various Linux OS

• Mac OS X 10.4 ~10.7

• UNIX OS

Network protocols • TCP/IPv4

• DHCP, BOOTP

• DNS, WINS, Bonjour, SLP, UPnP

• Standard TCP/IP Printing (RAW), LPR, IPP, WSD

• SNMPv 1/2/3, HTTP, IPSec

• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)

Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)

• Encryption: WEP64, WEP128, TKIP, AES

Regulatory information

114

5. Appendix

Regulatory information

This machine is designed for a normal work environment and certified with several regulatory statements.

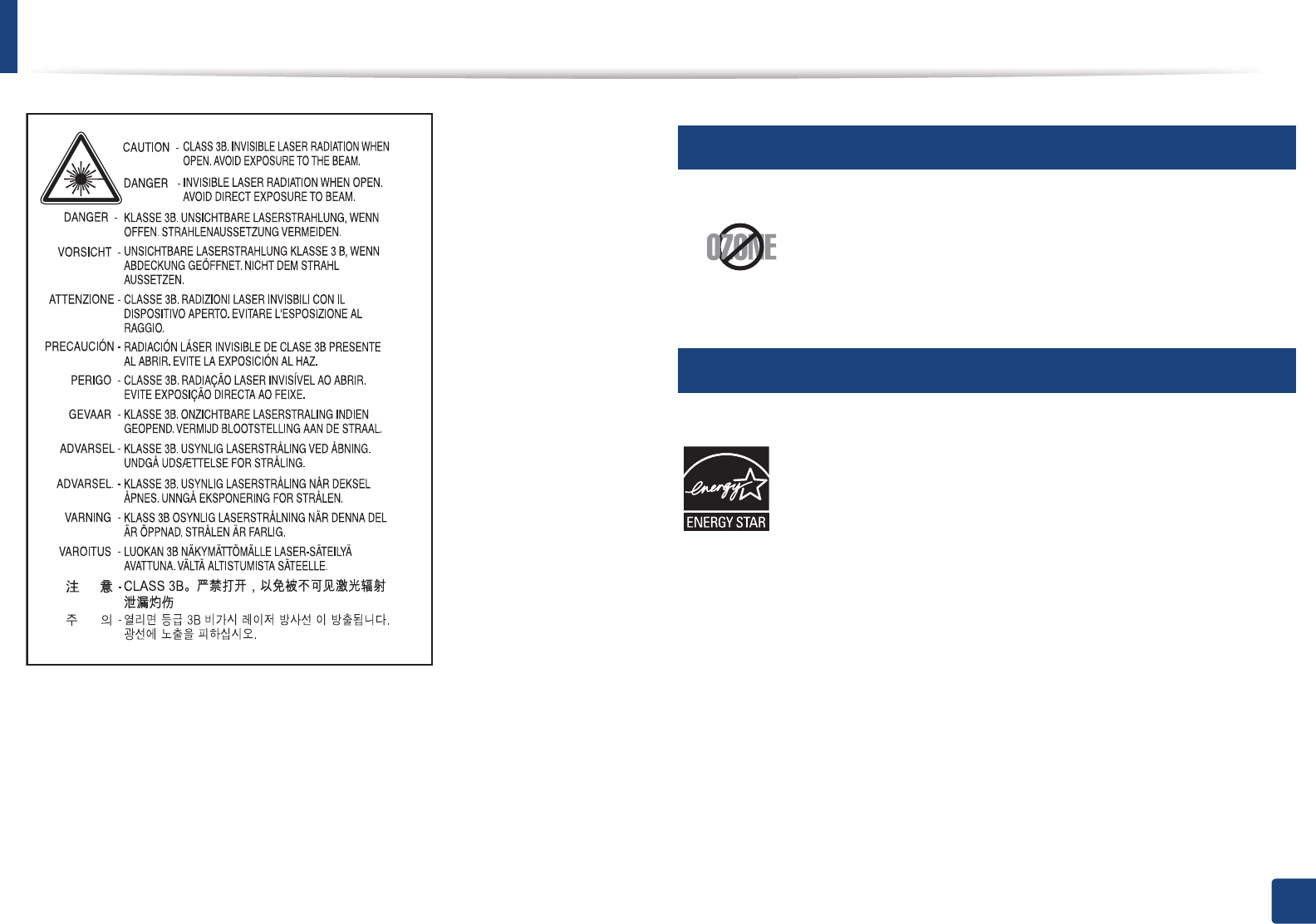

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a

Class I laser product conforming to the requirements of IEC 60825-1 : 2007.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a

Class I level during normal operation, user maintenance or prescribed service condition.

Warning

Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.

115

5. Appendix

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

Ozone safety

Power saver

This product’s ozone emission rate is under 0.1 ppm. Because

ozone is heavier than air, keep the product in a place with good

ventilation.

This printer contains advanced energy conservation technology that

reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of

time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

For more information on the ENERGY STAR program see http://

www.energystar.gov

For ENERGY STAR certified models, the ENRGY STAR label will be on

your machine. Check if your machine is ENERGY STAR certified.

Regulatory information

116

5. Appendix

Recycling

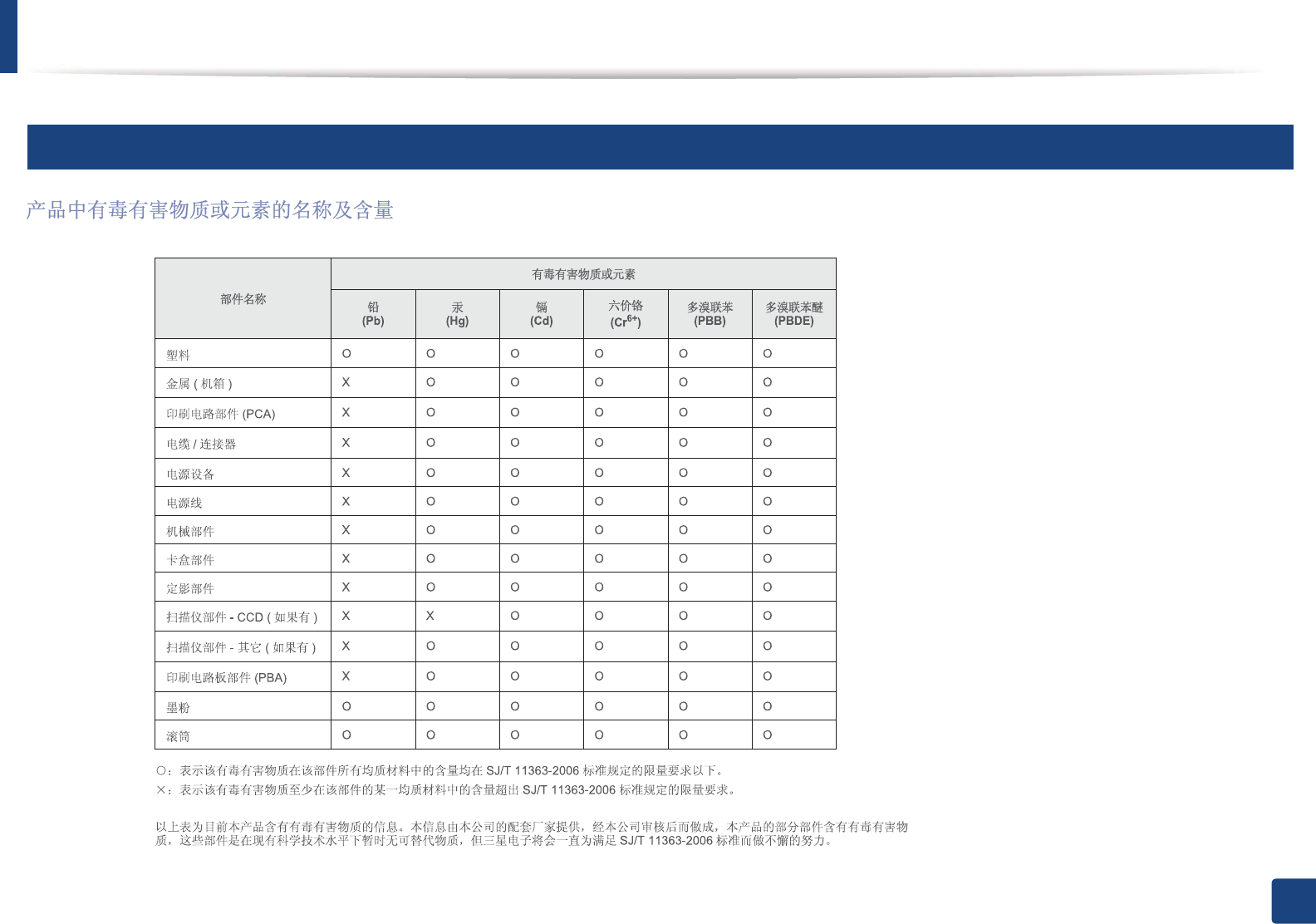

China only

Correct disposal of this product (Waste electrical &

electronic equipment)

(Applicable in the european union and other

european countries with separate collection

systems)

Recycle or dispose of the packaging material for this product in an

environmentally responsible manner.

This marking on the product, accessories or literature indicates that the

product and its electronic accessories (e.g. charger, headset, USB cable)

should not be disposed of with other household waste at the end of

their working life. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please separate these

items from other s of waste and recycle them responsibly to promote the

sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government office, for details of

where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

disposal.

Regulatory information

117

5. Appendix

(The United States of America only)

Dispose unwanted electronics through an approved recycler. To find the nearest

recycling location, go to our website: www.samsung.com/recyclingdirect Or

call, (877) 278 - 0799

Taiwan only

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer

responsible for compliance could void the user's authority to operate the

equipment.

Regulatory information

118

5. Appendix

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the interference-causing

equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and

Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques

applicables aux appareils numériques de Classe B prescrites dans la norme sur le

matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et

Sciences Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in

your printer system. This section is only applicable if these devices are present.

Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the

United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the

device and the body, for use of a wireless device near the body (this does not

include extremities). This device should be used more than 20 cm (8 inches)

from the body when wireless devices are on. The power output of the wireless

device (or devices), which may be embedded in your printer, is well below the

RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it.

Contact manufacturer for service.

Regulatory information

119

5. Appendix

FCC Statement for Wireless LAN use:

While installing and operating this transmitter and antenna combination

the radio frequency exposure limit of 1m W/cm2 may be exceeded at

distances close to the antenna installed. Therefore, the user must maintain

a minimum distance of 20cm from the antenna at all times. This device

cannot be colocated with another transmitter and transmitting antenna.

Russia only

Germany only

Turkey only

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug

and has a 13 amp fuse. When you change or examine the fuse, you must re-fit

the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost

the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used in the UK and should be suitable.

However, some buildings (mainly old ones) do not have normal 13 amp plug

sockets. You need to buy a suitable plug adaptor. Do not remove the moulded

plug.

Regulatory information

120

5. Appendix

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you

plug it into a socket.

Important warning:

If the wires in the mains lead do not match the colors marked in your plug, do

the following:

You must connect the green and yellow wire to the pin marked by the letter “E”

or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or

colored black.

You must connect the brown wire to the pin which is marked with the letter “L”

or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Declaration of conformity (European countries)

Approvals and Certifications

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of

the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of

the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity. A full declaration, defining the relevant Directives and referenced

standards can be obtained from your Samsung Electronics Co., Ltd.

representative.

You must earth this machine.

The wires in the mains lead have the following color code:

•Green and Yellow: Earth

•Blue: Neutral

•Brown: Live

Hereby, Samsung Electronics, declares that this [CLP-41xN Series/CLP-

68xND Series] is in compliance with the essential requirements and

other relevant provisions of Low Voltage Directive (2006/95/EC), EMC

Directive (2004/108/EC).

Hereby, Samsung Electronics, declares that this [CLP-41xNW Series/

CLP-68xDW Series] is in compliance with the essential requirements

and other relevant provisions of R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at

www.samsung.com, go to Support > Download center and enter

your printer (MFP) name to browse the EuDoC.

Regulatory information

121

5. Appendix

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal

Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European

single terminal connection to the analogue public switched telephone network

(PSTN) in accordance with Directive 1999/5/EC. The product has been designed

to work with the national PSTNs and compatible PBXs of the European

countries:

In the event of problems, you should contact the Euro QA Lab of Samsung

Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application

of terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document

(EG 201 121) which contains notes and additional requirements to ensure

network compatibility of TBR21 terminals. The product has been designed

against, and is fully compliant with, all of the relevant advisory notes contained

in this document.

European radio approval information (for products

fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz band, may be present

(embedded) in your printer system which is intended for home or office use. This

section is only applicable if these devices are present. Refer to the system label

to verify the presence of wireless devices.

The power output of the wireless device or devices that may be embedded in

you printer is well below the RF exposure limits as set by the European

Commission through the R&TTE directive.

European states qualified under wireless approvals:

EU countries

European states with restrictions on use:

In France, the frequency range is restricted to 2454-2483.5 MHz for devices

above 10 mW transmitting power such as wireless

EEA/EFTA countries

Wireless devices that may be in your system are only qualified for

use in the European Union or associated areas if a CE mark with a

Notified Body Registration Number and the Alert Symbol is on the

system label.

Regulatory information

122

5. Appendix

No limitations at this time

Israel only

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in

your printer system. The following section is a general overview of

considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in

the specific country sections (or country group sections). The wireless devices in

your system are only qualified for use in the countries identified by the Radio

Approval Marks on the system rating label. If the country you will be using the

wireless device in, is not listed, contact your local Radio Approval agency for

requirements. Wireless devices are closely regulated and use may not be

allowed.

The power output of the wireless device or devices that may be embedded in

your printer is well below the RF exposure limits as known at this time. Because

the wireless devices (which may be embedded into your printer) emit less

energy than is allowed in radio frequency safety standards and

recommendations, manufacturer believes these devices are safe for use.

Regardless of the power levels, care should be taken to minimize human contact

during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless

device and the body, for use of a wireless device near the body (this does not

include extremities) is typical. This device should be used more than 20 cm (8

inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of

common restrictions are listed below:

Radio frequency wireless communication can interfere with

equipment on commercial aircraft. Current aviation regulations

require wireless devices to be turned off while traveling in an airplane.

IEEE 802.11 (also known as wireless Ethernet) and Bluetooth

communication devices are examples of devices that provide wireless

communication.

Regulatory information

123

5. Appendix

In environments where the risk of interference to other devices or

services is harmful or perceived as harmful, the option to use a wireless

device may be restricted or eliminated. Airports, Hospitals, and

Oxygen or flammable gas laden atmospheres are limited examples

where use of wireless devices may be restricted or eliminated. When in

environments where you are uncertain of the sanction to use wireless

devices, ask the applicable authority for authorization prior to use or

turning on the wireless device.

Every country has different restrictions on the use of wireless devices.

Since your system is equipped with a wireless device, when traveling

between countries with your system, check with the local Radio

Approval authorities prior to any move or trip for any restrictions on

the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless

device, do not operate the wireless device unless all covers and shields

are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any

way. Modification to a wireless device will void the authorization to

use it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be

used. See the manufacturer System Restoration Kit, or contact

manufacturer Technical Support for additional information.

Regulatory information

124

5. Appendix

China only

125

5. Appendix

This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.

• iPad, iPhone, iPod touch, TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries.

• AirPrint and the AirPrint logo are trademarks of Apple Inc.

• True, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

REV.0.98

ADVANCED

User’s Guide

CLP-47xN/CLP-47xNW Series

CLP-68xND/CLP-68xDW Series

ADVANCED

User’s Guide

This guide provides information about installation, advanced configuration,

operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning installation, basic operation and troubleshooting

on windows.

127

ADVANCED

1. Software Installation

Installation for Macintosh 130

Reinstallation for Macintosh 131

Installation for Linux 132

Reinstallation for Linux 133

2. Using a Network-Connected

Machine

Useful network programs 135

Wired network setup 136

Installing driver over the network 139

IPv6 configuration 147

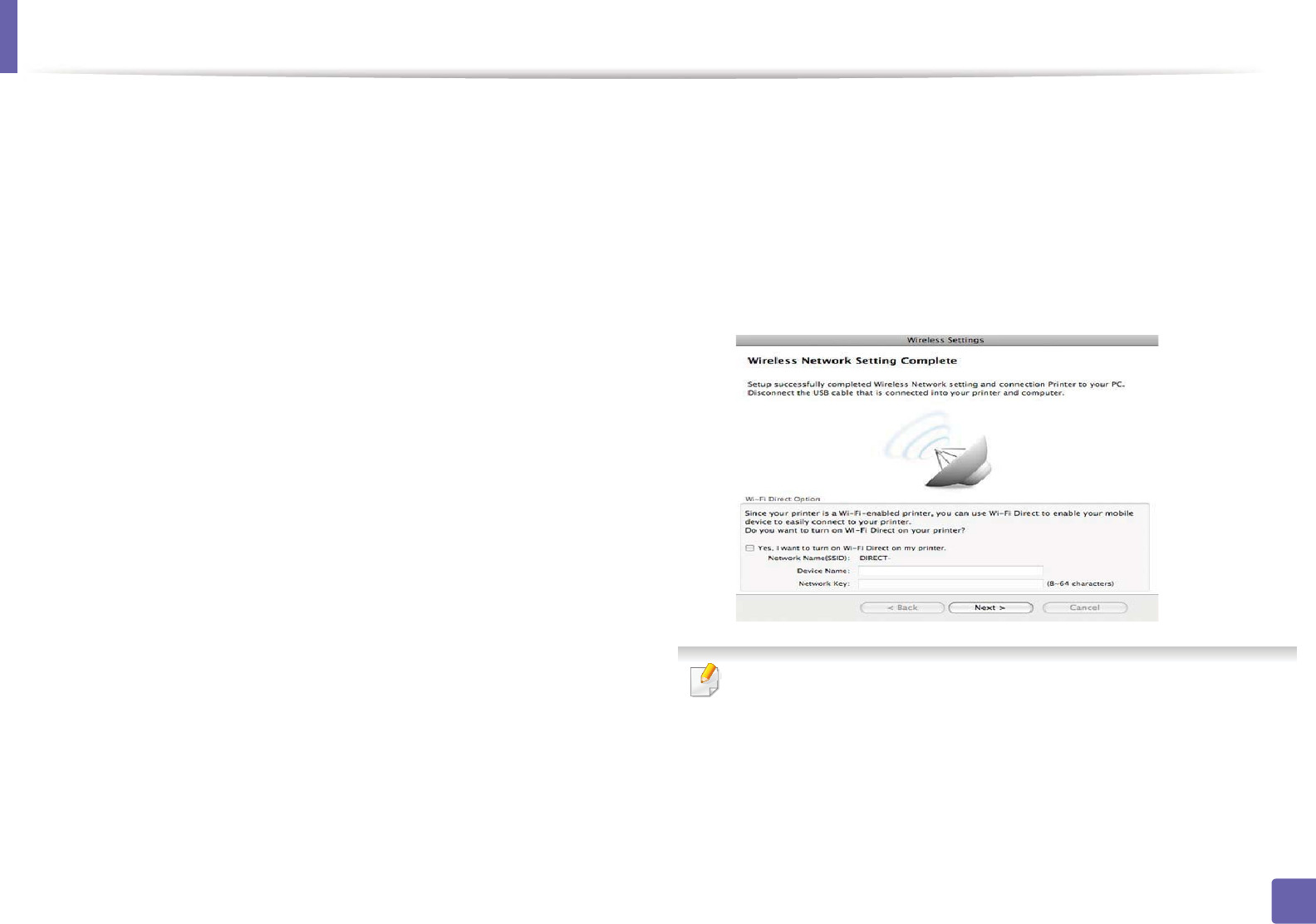

Wireless network setup 150

Samsung MobilePrint 183

AirPrint 184

3. Useful Setting Menus

Before you begin reading a chapter 186

Information 187

Layout 188

Paper 190

Graphic 191

System Setup 192

Emulation 195

Image Mgr. 196

Network 197

Direct USB 199

Job Manage 200

Custom 201

4. Special Features

Altitude adjustment 204

Entering various characters 205

Printing features 206

Using optional device features 221

5. Useful Management Tools

Easy Capture Manager 224

Samsung AnyWeb Print 225

Samsung Easy Color Manager 226

128

ADVANCED

Easy Eco Driver 227

Using SyncThru™ Web Service 228

Using Samsung Easy Printer Manager 232

Using Samsung Printer Status 235

Using the Linux Unified Driver Configurator 237

6. Troubleshooting

Paper feeding problems 242

Power and cable connecting problems 243

Printing problems 244

Printing quality problems 248

Operating system problems 256

1. Software Installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the

machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using

the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network

connected machine’s driver (see "Installing driver over the network" on page 139).

• Installation for Macintosh 130

• Reinstallation for Macintosh 131

• Installation for Linux 132

• Reinstallation for Linux 133

• If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see

"Installing the driver locally" on page 21).

• Only use a USB cable no longer then 3 meter (118 inches).

130

1. Software Installation

Installation for Macintosh

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 When the message that warns that all applications will close on your

computer appears, click Continue.

9 Click Continue on the User Options Pane.

10 Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

11 Enter the password and click OK.

12 Installing software requires you to restart your computer. Click Continue

Installation.

13 After the installation is finished, click Quit or Restart.

14 Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5 -10.7, open the Applications folder > System

Preferences and click Print & Fax.

15 Click Add on the Printer List.

• For Mac OS X 10.5 -10.7, click the “+” folder icon; a display window

will pop up.

16 Click Default Browser and find the USB connection.

• For Mac OS X 10.5-10.7, click Default and find the USB connection.

17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung

in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, select

Select a driver to use... and your machine name in Print Using.

Your machine appears on the Printer List, and is set as the default

machine.

18 Click Add.

131

1. Software Installation

Reinstallation for Macintosh

If the printer driver does not work properly, uninstall the driver and reinstall it.

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Uninstaller OS X icon.

5 Enter the password and click OK.

6 When the uninstall is done, click OK.

If a machine has already been added, delete it from the Print Setup Utility

or Print & Fax.

132

1. Software Installation

Installation for Linux

You need to download Linux software packages from the Samsung website to

install the printer software (http://www.samsung.com > find your product >

Support or Downloads).

Installing the Unified Linux Driver

1Make sure that the machine is connected to your computer and

powered on.

2 When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to install the machine software. If you

are not a super user, ask your system administrator.

3 From the Samsung website, download the Unified Linux Driver package

to your computer.

4 Right-click the Unified Linux Driver package and extract the package.

5 Double click cdroot > autorun.

6 When the welcome screen appears, click Next.

7 When the installation is complete, click Finish.

The installation program added the Unified Driver Configurator desktop icon

and the Unified Driver group to the system menu for your convenience. If you

have any difficulties, consult the on-screen help that is available through your

system menu or from the driver package Windows applications, such as Unified

Driver Configurator or Image Manager.

133

1. Software Installation

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

1Make sure that the machine is connected to your computer and

powered on.

2 When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to uninstall the printer driver. If you

are not a super user, ask your system administrator.

3 Click the icon at the bottom of the desktop. When the Terminal screen

appears, type in the following.

[root@localhost root]#cd /opt/Samsung/mfp/uninstall/

[root@localhost uninstall]#./uninstall.sh

4 Click Uninstall.

5 Click Next.

6 Click Finish.

2. Using a Network-

Connected Machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 135

• Wired network setup 136

• Installing driver over the network 139

• IPv6 configuration 147

• Wireless network setup 150

• Samsung MobilePrint 183

• AirPrint 184

Supported optional devices and features may differ according to your model (see "Features by

models" on page 7).

135

2. Using a Network-Connected Machine

Useful network programs

There are several programs available to setup the network settings easily in a

network environment. For the network administrator especially, managing

several machines on the network is possible.

• Before using the programs below, set the IP address first.

• Some features and optional goods may not be available depending on

model or country (see "Features by models" on page 7).

SyncThru™ Web Service

The web server embedded on your network machine allows you to do the

following tasks (see "Using SyncThru™ Web Service" on page 228).

• Check the supplies information and status.

• Customize machine settings.

• Set the email notification option. When you set this option, the machine

status (toner cartridge shortage or machine error) will be sent to a certain

person's email automatically.

• Configure the network parameters necessary for the machine to connect to

various network environments.

SyncThru™ Web Admin Service

Web-based machine management solution for network administrators.

SyncThru™ Web Admin Service provides you with an efficient way of managing

network devices and lets you remotely monitor and troubleshoot network

machines from any site with corporate internet access.

• Download this program from http://solution.samsungprinter.com.

SetIP wired network setup

This utility program allows you to select a network interface and manually

configure the IP addresses for use with the TCP/IP protocol.

• See "IPv4 configuration using SetIP (Windows)" on page 136.

• See "IPv4 configuration using SetIP (Macintosh)" on page 137.

• See "IPv4 configuration using SetIP (Linux)" on page 138.

• The machine that does not support the network port, it will not be able

to use this feature (see "Rear view" on page 18).

• TCP/IPv6 is not supported by this program.

136

2. Using a Network-Connected Machine

Wired network setup

Printing a network configuration report

You can print Network Configuration Report from the machine’s control panel

that will show the current machine’s network settings. This will help you to set

up a network.

Press the (Menu) button on the control panel and select Network >

Network Conf.

Using this Network Configuration Report, you can find your machine’s MAC

address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78

• IP Address: 169.254.192.192

Setting IP address

• The machine that does not support the network interface, it will not be

able to use this feature (see "Rear view" on page 18).

• TCP/IPv6 is not supported by this program.

First, you have to set up an IP address for network printing and managements.

In most cases a new IP address will be automatically assigned by a DHCP

(Dynamic Host Configuration Protocol) server located on the network.

IPv4 configuration using SetIP (Windows)

Before using the SetIP program, disable the computer firewall from Control

Panel > Security Center > Windows Firewall.

1Install this program from the supplied CD-ROM by double-click

Application > SetIP > Setup.exe.

2 Follow the instructions in the installation window.

3 Connect your machine to the network with a network cable.

4 Turn on the machine.

5 From the Windows Start menu, select All Programs > Samsung

Printers > SetIP > SetIP.

6 Click the icon (third from left) in the SetIP window to open the TCP/

IP configuration window.

Wired network setup

137

2. Using a Network-Connected Machine

7 Enter the machine’s new information into the configuration window as

follows. In a corporate intranet, you may need to have this information

assigned by a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 136) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

8 Click Apply, and then click OK. The machine will automatically print the

Network Configuration Report. Confirm that all the settings are

correct.

IPv4 configuration using SetIP (Macintosh)

Before using the SetIP program, disable the computer firewall from System

Preferences > Security > Firewall.

The following instructions may vary from your model.

1Connect your machine to the network with a network cable.

2 Insert the Installation CD-ROM, and open the disk window, select

MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.

3 Double-click the file and Safari will automatically open, then select

Trust. The browser will open the SetIPapplet.html page that shows the

printer’s name and IP address information.

4 Click the icon (third from left) in the SetIP window to open the TCP/

IP configuration window.

5 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Wired network setup

138

2. Using a Network-Connected Machine

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 136) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

6 Select Apply, then OK, and OK again.

7 Quit Safari.

IPv4 configuration using SetIP (Linux)

Before using the SetIP program, disable the computer firewall from System

Preferences or Administrator.

The following instructions may vary from your model or operating systems.

1Open /opt/Samsung/mfp/share/utils/.

2 Double-click the SetIPApplet.html file.

3 Click to open the TCP/IP configuration window.

4 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 136) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

5 The machine will automatically print the Network Configuration

Report.

139

2. Using a Network-Connected Machine

Installing driver over the network

• Some features and optional goods may not be available depending on

model or country (see "Features by models" on page 7).

• The machine that does not support the network interface, it will not be

able to use this feature (see "Rear view" on page 18).

• Selecting Custom Installation allows you to choose which programs to

install. When the installation window appears, select Custom

Installation. You can select the XPS/PS printer driver or other software

applications in the Select Software window.

Windows

1Make sure that the machine is connected to the network and powered

on. Also, your machine’s IP address should have been set (see "Setting IP

address" on page 136).

If the “Found New Hardware Wizard” appears during the installation

procedure, click Cancel to close the window.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select Install Now.

The Custom Installation allows you to select the machine’s connection and

choose individual components to install. Follow the instructions on the

window.

4 Read License Agreement, and select I accept the terms of the License

Agreement. Then, click Next.

The program searches for the machine.

Installing driver over the network

140

2. Using a Network-Connected Machine

If your machine is not found on the network or locally, an error message

appears. Select the option you want and click Next.

5 The searched machines will be shown on the screen. Select the one you

wish to use and click OK.

If the driver searched only one machine, the confirmation window appears.

6 Follow the instructions in the installation window to complete the

installation process.

Silent installation Mode

Silent installation mode is an installation method that does not require any user

intervention. Once you start the installation, the machine driver and software

are automatically installed on you computer. You can start the silent installation

by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

Following command-line are effective and operated when command is

used with /s or /S. But /h, /H or /? are exceptional commands that can be

operated solely.

Command- line Definition Description

/s or

Starts silent installation. Installs machine drivers

without prompting any UIs or

user intervention.

/p”<port name>” or

/P”<port name>”

Specifies printer port.

Network Port will be

created by use of

Standard TCP/IP

Port monitor. For

local port, this port

must exist on

system before

being specified by

command.

Printer port name can be

specified as IP address,

hostname, USB local port

name or IEEE1284 port name.

For example:

• /p”xxx.xxx.xxx.xxx” in

where, “xxx.xxx.xxx.xxx”

means IP address for

network printer. /

p”USB001”, /P”LPT1:”, /

p”hostname”

Installing driver over the network

141

2. Using a Network-Connected Machine

/a”<dest_path>” or

/A”<dest_path>”

Specifies destination path

for installation.

The destination

path should be a

fully qualified path.

Since machine drivers should

be installed on the OS specific

location, this command

applies to only application

software.

/i”<script filename>”

/I”<script filename>”

Specifies customized install

script file for custom

operation.

The script filename

should be a fully

qualified filename.

Customized script file can be

assigned for customized

silent installation. This script

file can be created or

modified through provided

installer customizing utility or

by text editor.

This customized

script file is prior than

default installer

setting in setup

package but not prior

than command-line

parameters.

Command- line Definition Description

/n”<Printer name>”

/N”<Printer name>”

Specifies printer name.

Printer instance shall be

created as specified printer

name.

With this parameter, you can

add printer instances as your

wishes.

/nd or

/ND

Commands not to set the

installed driver as a default

machine driver.

It indicates installed machine

driver will not be the default

machine driver on your

system if there are one or

more printer drivers installed.

If there is no installed

machine driver on your

system, then this option

won’t be applied because

Windows OS will set installed

printer driver as a default

machine driver.

/x or

Uses existing machine

driver files to create printer

instance if it is already

installed.

This command provides a

way to install a printer

instance that uses installed

printer driver files without

installing an additional driver.

Command- line Definition Description

Installing driver over the network

142

2. Using a Network-Connected Machine

Macintosh

1Make sure that the machine is connected to your network and powered

on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 When the message which warns that all applications will close on your

computer appears, click Continue.

9 Click Continue on the User Options Pane.

/up”<printer

name>” or

/UP”<printer

name>”

Removes only specified

printer instance and not the

driver files.

This command provides a

way to remove only specified

printer instance from your

system without effecting

other printer drivers. It will

not remove printer driver files

from your system.

/d or

Uninstalls all device drivers

and applications from your

system.

This command will remove all

installed device drivers and

application software from

your system.

/v”<share name>” or

/V”<share name>”

Shares installed machine

and add other available

platform drivers for Point &

Print.

It will install all supported

Windows OS platform’s

machine drivers to system

and share it with specified

<share name> for point and

print.

/o or

Opens Printers and Faxes

folder after installation.

This command will open

Printers and Faxes folder

after the silent installation.

/f”<log filename>”

/F”<log filename>”

Specifies log filename.

The default log file is

created in the system temp

folder if not specified.

It will create a log file to a

specified folder.

Command- line Definition Description

/h, /H or /? Shows Command-line Usage.

Command- line Definition Description

Installing driver over the network

143

2. Using a Network-Connected Machine

If you have not set the IP address yet, click Set IP address and refer to "IPv4

configuration using SetIP (Macintosh)" on page 137. If you want to set the

wireless setting, refer to "Setup using Macintosh" on page 165.

10 Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

11 Enter the password and click OK.

12 Installing software requires you to restart your computer. Click Continue

Installation.

13 After the installation is finished, click Quit or Restart.

14 Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5-10.7, open the Applications folder > System

Preferences and click Print & Fax.

15 Click Add on the Printer List.

• For Mac OS X 10.5-10.7, click the “+” icon. A display window will pop

up.

16 For Mac OS X 10.4, click IP Printer.

• For Mac OS X 10.5-10.7, click IP.

17 Select HP Jetdirect - Socket in Protocol.

When printing a document containing many pages, printing performance

may be enhanced by choosing Socket for Printer Type option.

18 Enter the machine’s IP address in the Address input field.

19 Enter the queue name in the Queue input field. If you cannot determine

the queue name for your machine server, try using the default queue

first.

20 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung

in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, choose

Select Printer Software and your machine name in Print Using.

21 Click Add.

Your machine appears in the Printer List, and is set as the default

machine.

Linux

You need to download Linux software packages from the Samsung website to

install the printer software (http://www.samsung.com > find your product >

Support or Downloads).

Installing driver over the network

144

2. Using a Network-Connected Machine

Install the Linux driver and add network printer

1Make sure that the machine is connected to your network and powered

on. Also, your machine’s IP address should have been set.

2 Download the Unified Linux Driver package from the Samsung website.

3 Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.

4 Double-click the Linux folder > install.sh icon.

5 The Samsung installer window opens. Click Continue.

6 The add printer wizard window opens. Click Next.

7 Select network printer and click Search button.

8 The machine’s IP address and model name appears on list field.

9 Select your machine and click Next.

10 Input the printer description and Next.

11 After the machine is added, click Finish.

12 When installation is done, click Finish.

Add a network printer

1Double-click the Unified Driver Configurator.

2 Click Add Printer.

3 The Add printer wizard window opens. Click Next.

4 Select Network printer and click the Search button.

5 The printer’s IP address and model name appears on list field.

6 Select your machine and click Next.

7 Enter the printer description and click Next.

8 After the machine is added, click Finish.

UNIX

• Make sure your machine supports the UNIX operating system before

installing the UNIX printer driver (see "Operating System" on page 7).

• The commands are marked with “”, when typing the commands, do not

type “”.

• Some features and optional goods may not be available depending on

model or country (see "Operating System" on page 7).

Installing driver over the network

145

2. Using a Network-Connected Machine

To use the UNIX printer driver, you have to install the UNIX printer driver

package first, then setup the printer. You can download the UNIX printer driver

package from the Samsung website ((http://www.samsung.com > find your

product > Support or Downloads).

Installing the UNIX printer driver package

The installation procedure is common for all variants of UNIX OS mentioned.

1From the Samsung website, download and unpack the UNIX Printer

Driver package to your computer.

2 Acquire root privileges.

“su -”

3 Copy the appropriate driver archive to the target UNIX computer.

See administration guide of your UNIX OS for details.

4 Unpack the UNIX printer driver package.

For example, on IBM AIX, use the following commands.

“gzip -d < enter the package name | tar xf -”

5 Go to the unpacked directory.

6 Run the install script.

“./install -i”

install is the installer script file which is used to install or uninstall the

UNIX Printer Driver package.

Use “chmod 755 install” command to give the permission to the

installer script.

7 Execute the “. /install –c” command to verify installation results.

8 Run “installprinter” from the command line. This will bring up the Add

Printer Wizard window. Setup the printer in this window referring to

the following procedures.

On some UNIX OS, for example on Solaris 10, just added printers may not be

enabled and/or may not accept jobs. In this case run the following two

commands on the root terminal:

“accept <printer_name>”

“enable <printer_name>”

Installing driver over the network

146

2. Using a Network-Connected Machine

Uninstalling the printer driver package

The utility should be used to delete the printer installed in the system.

a Run “uninstallprinter” command from the terminal.

It will open the Uninstall Printer Wizard.

The installed printers are listed in the drop-down list.

b Select the printer to be deleted.

c Click Delete to delete the printer from the system.

d Execute the “. /install –d” command to uninstall the whole package.

e To verify removal results, execute the “. /install –c” command.

To re-install it, use the command “. /install -i” to reinstall the binaries.

Setting up the printer

To add the printer to your UNIX system, run ‘installprinter’ from the command

line. This will bring up the Add Printer Wizard window. Setup the printer in this

window according to the following steps:

1Type the name of the printer.

2 Select the appropriate printer model from the model list.

3 Enter any description corresponding to the type of the printer in the

Type field. This is optional.

4 Specify any printer description in the Description field. This is optional.

5 Specify the printer location in the Location field.

6 Type the IP address or DNS name of the printer in the Device textbox for

network-connected printers. On IBM AIX with jetdirect Queue type,

only the DNS name is possible-numeric IP address is not allowed.

7 Queue type shows the connection as lpd or jetdirect in the

corresponding list box. Additionally, usb type is available on Sun Solaris

OS.

8 Select Copies to set the number of copies.

9 Check the Collate option to receive copies already sorted.

10 Check the Reverse Order option to receive copies in the reverse order.

11 Check the Make Default option to set this printer as default.

12 Click OK to add the printer.

147

2. Using a Network-Connected Machine

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

• Some features and optional goods may not be available depending on

model or country (see "Features by models" on page 7 or "Menu

overview" on page 27).

• If the IPv6 network seems to not be working, set all the network setting

to the factory defaults and try again using Clear Setting.

In the IPv6 network environment, follow the next procedure to use the IPv6

address.

From the control panel

1Connect your machine to the network with a network cable.

2 Turn on the machine.

3 Print a Network Configuration Report that will check IPv6 addresses

(see "Printing a network configuration report" on page 136).

4 Select Start > Control Panel > Printers and Faxes.

5 Click Add a printer in the left pane of the Printers and Faxes windows.

6 Click Add a local printer in the Add Printer windows.

7 The Add Printer Wizard window appears. Follow the instructions in the

window.

If the machine does not work in the network environment, activate IPv6.

Refer to the next section followed by.

Activating IPv6

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > IPv6 Activate.

3 Select On and press OK.

4 Turn the machine off and turn it on again.

5 Reinstall your printer driver.

IPv6 configuration

148

2. Using a Network-Connected Machine

Setting IPv6 addresses

The machine supports the following IPv6 addresses for network printing and

managements.

•Link-local Address: Self-configured local IPv6 address (Address starts with

FE80).

•Stateless Address: Automatically configured IPv6 address by a network

router.

•Stateful Address: IPv6 address configured by a DHCPv6 server.

•Manual Address: Manually configured IPv6 address by a user.

DHCPv6 address configuration (Stateful)

If you have a DHCPv6 server on your network, you can set one of the following

options for default dynamic host configuration.

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > DHCPv6 Config.

3 Press OK to select the required value you want.

•DHCPv6 Addr.: Always use DHCPv6 regardless of router request.

•DHCPv6 Off: Never use DHCPv6 regardless of router request.

•Router: Use DHCPv6 only when requested by a router.

From the SyncThru™ Web Service

1Access a web browser, such as Internet Explorer, from Windows.GEnter

the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and

press the Enter key or click Go.

2 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

3 When the SyncThru™ Web Service window opens, move the mouse

cursor over the Settings of the top menu bar and then click Network

Settings.

4 Click TCP/IPv6 on the left pane of the website.

5 Check the IPv6 Protocol check box to activate IPv6.

6 Check the Manual Address check box. Then, the Address/Prefix text

box is activated.

7 Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the

hexadecimal 0 through 9, A through F).

8 Choose the DHCPv6 configuration.

IPv6 configuration

149

2. Using a Network-Connected Machine

9 Click the Apply button.

Using SyncThru™ Web Service

1Start a web browser, such as Internet Explorer, that supports IPv6

addressing as a URL.

2 Select one of the IPv6 addresses (Link-local Address, Stateless

Address, Stateful Address, Manual Address) from Network

Configuration Report (see "Printing a network configuration report" on

page 136).

3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[ ]' brackets.

150

2. Using a Network-Connected Machine

Wireless network setup

• Make sure your machine supports wireless networking. Wireless

networking may not be available depending on the model (see "Features

by models" on page 7).

• If the IPv6 network seems to not be working, set all the network settings

to the factory defaults and try again using Clear Setting.

Getting started

Understanding your network type

Typically, you can only have one connection between your computer and the

machine at a time.

Wireless network name and network key

Wireless networks require higher security, so when an access point is first set up,

a network name (SSID), the type of security used, and a Network Key are created

for the network. Ask your network administrator about this information before

proceeding with the machine installation.

Infrastructure mode

This is an environment generally used for homes and SOHOs

(Small Office/ Home Office). This mode uses an access point to

communicate with the wireless machine.

Ad hoc mode

This mode does not use an access point. The wireless

computer and wireless machine communicate directly.

Wireless network setup

151

2. Using a Network-Connected Machine

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

Some wireless network installation types may not be available depending on the model or country.

If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting for wireless network" on page 179).

Set up method Connecting method Description & Reference

From the machine’s

control panel

Using the WPS (recommended)

()

• See "Machines with a display screen" on page 153.

• See "Machines without a display screen" on page 154.

Using the menu button

()

• See "Using the menu button" on page 155.

From the computer

Access point via USB cable (recommended)

()

• Windows user, see "Access point via USB cable" on page 156.

• Macintosh user, see "Access point via USB cable" on page 165.

Access point via WPS button (without a USB cable

connection)

( , )

• Windows user, see "Access point via WPS button (without a USB cable connection)"

on page 160.

• Macintosh user, see "Setting the access point using the WPS button" on page 169.

Ad hoc via USB cable

()

• Windows user, see "Ad hoc via USB cable" on page 162.

• Macintosh user, see "Ad hoc via USB cable" on page 171.

Using a network cable • See "Using a network cable" on page 173.

Other set up methods Setting the Wi-Fi Direct for mobile printing • See "Setting up Wi-Fi Direct" on page 177.

Wireless network setup

152

2. Using a Network-Connected Machine

Using the WPS button

If your machine and an access point (or wireless router) support Wi-Fi Protected

Setup™ (WPS), you can easily configure the wireless network settings by

pressing the (WPS) button on the control panel without a computer.

• If you want to use the wireless network using the infrastructure mode,

make sure that the network cable is disconnected from the machine.

Using the WPS (PBC) button or entering the PIN from the computer to

connect to the access point (or wireless router) varies depending on the

access point (or wireless router) you are using. Refer to the user's guide

of the access point (or wireless router) you are using.

• When using the WPS button to set the wireless network, security settings

may change. To prevent this, lock the WPS option for the current wireless

security settings. The option name may differ depending on the access

point (or wireless router) you are using.

Items to prepare

• Check if the access point (or wireless router) supports Wi-Fi Protected

Setup™ (WPS).

• Check if your machine supports Wi-Fi Protected Setup™ (WPS).

• Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network

using the (WPS) button on the control panel.

The Push Button Configuration (PBC) method allows you to connect your

machine to a wireless network by pressing both the (WPS) button on the

control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected

Setup™ WPS-enabled access point (or wireless router) respectively.

The Personal Identification Number (PIN) method helps you connect your

machine to a wireless network by entering the supplied PIN information on a Wi-

Fi Protected Setup™ WPS-enabled access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a

typical wireless network environment.

You can change the WPS mode in control panel ( (Menu) > NetworkG>G

Wireless > OK > WPS Setting).

Wireless network setup

153

2. Using a Network-Connected Machine

Machines with a display screen

Connecting in PBC mode

1Press and hold the (WPS) button on the control panel for more than

2 seconds.

The machine starts waiting for up to two minutes until you press the WPS

(PBC) button on the access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the access point (or

wireless router).

b Connected: When the machine is successfully connected to the

wireless network, the WPS LED light stays on.

c AP SSID: After completing the wireless network connection process,

the AP’s SSID information appears on the display.

Connecting in PIN mode

1Press and hold the (WPS) button on the control panel for more than

2 seconds.

2 The eight-digit PIN appears on the display.

You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the wireless network.

b Connected: When the machine is successfully connected to the

wireless network, the WPS LED light stays on.

c SSID: After completing the wireless network connection process,

the AP’s SSID information is displayed on the LCD display.

Wireless network setup

154

2. Using a Network-Connected Machine

Machines without a display screen

Connecting in PBC mode

1Press and hold the (WPS) button on the control panel for about 2 - 4

seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED blinks

slowly for up to two minutes until you press the PBC button on the

access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

Connecting in PIN mode

1The network configuration report, including PIN, must be printed (see

"Printing a network configuration report" on page 136).

In ready mode, press and hold the (Cancel or Stop/Clear) button on

the control panel for about 5 seconds. You can find your machine’s PIN.

2 Press and hold the (WPS) button on the control panel for more than

4 seconds until the status LED stays on.

The machine starts connecting to the access point (or wireless router).

3 You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

The LED blinks slowly for up to two minutes until you enter the eight-

digit PIN.

The WPS LED blinks in the order below:

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

Re-connecting to a network

When the wireless function is off, the machine automatically tries to re-connect

to the access point (or wireless router) with the previously used wireless

connection settings and address.

In the following cases, the machine automatically re-connects to the

wireless network:

• The machine is turned off and on again.

• The access point (or wireless router) is turned off and on again.

Wireless network setup

155

2. Using a Network-Connected Machine

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to

the wireless network, press and release the (Cancel or Stop/Clear) on the

control panel. You need to wait 2 minutes to re-connect to the wireless

network.

Disconnecting from a network

To disconnect the wireless network connection, press the (WPS) button on

the control panel for more than two seconds.

•When the Wi-Fi network is in idle mode: The machine is immediately

disconnected from the wireless network and the WPS LED turns off.

•When the Wi-Fi network is being used: While the machine waits until the

current job is finished, the light blinks fast on the WPS LED. Then, the

wireless network connection is automatically disconnected and the WPS

LED turns off.

Using the menu button

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 27).

Before starting, you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installing driver over the

network" on page 139).

1Press the (Menu) button on the control panel.

2 Press Network > Wireless > WLAN Settings.

Wireless network setup

156

2. Using a Network-Connected Machine

3 Press the OK to select the setup method you want.

•Wizard (recommended): In this mode, the setup is automatic. The

machine will display a list of available networks from which to

choose. After a network is chosen then printer will prompt for the

corresponding security key.

•Custom: In this mode, users can give or edit manually their own SSID

, or choose the security option in detail.

Setup using Windows

Shortcut to the Wireless Setting program without the CD: If you have

installed the printer driver once, you can access the Wireless Setting

program without the CD. From the Start menu, select Programs or All

Programs > Samsung Printers > your printer driver name > Wireless

Setting Program.

Access point via USB cable

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Creating the infrastructure network

1Check whether the USB cable is connected to the machine.

2 Turn on your computer, access point, and machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Select the Wireless Setting and Installation option.

5 Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next.

6 The software searches the wireless network.

If the software has failed to search the network, check if the USB cable is

connected properly between the computer and machine, and follow the

instructions in the window.

Wireless network setup

157

2. Using a Network-Connected Machine

• If wireless network set up has been set before, the Wireless Network

Setting Information window appears.

If you want to reset the wireless settings, check the check box and click

Next.

• For models that support the WPS button (without a USB cable

connection), the window shown below will appear.

-With a USB Cable: Connect the USB cable and click Next, then go to

step 7.

-Using the WPS button: See "Access point via WPS button (without a

USB cable connection)" on page 160.

7 Select the method to use from the wireless set up method window.

•Configure the wireless settings manually.: Go to step 8.

•Configure the wireless settings by pressing the WPS button on

the access point.: Connect to the wireless network by press the WPS

button on the access point (or wireless router).

- Follow the instructions in the window. When you are done

configuring the wireless network settings, go to step 11.

8 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you are using and click Next.

Wireless network setup

158

2. Using a Network-Connected Machine

If you cannot find the network name you want to choose, or if you want to

set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on a WPA Pre-Shared Key. This uses a shared secret key

(generally called Pre Shared Key pass phrase), which is manually

configured on the access point and each of its clients.

•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES,

TKIP AES).

•Network Key: Enter the encryption network key value.

•Confirm Network Key: Confirm the encryption network key value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the access point has

security settings.

The wireless network security window appears. The window may differ

according to its security mode: WEP or WPA.

•WEP

Select Open System or Shared Key for authentication and enter the

WEP security key. Click Next.

WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

•WPA

Enter the WPA shared key and click Next.

WPA authorizes and identifies users based on a secret key that changes

automatically at regular intervals. WPA also uses TKIP (Temporal Key

Integrity Protocol) and AES (Advanced Encryption Standard) for data

encryption.

Wireless network setup

159

2. Using a Network-Connected Machine

9 The window shows the wireless network settings and checks if the

settings are correct. Click Next.

• For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown

in the window. If it shows Static, click Change TCP/IP to change the

assignment method to DHCP.

• For the Static method

If the IP address assignment method is Static, check if Static is shown

in the window. If it shows DHCP, click Change TCP/IP to enter the IP

address and other network configuration values for the machine.

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer is

set to DHCP, you must contact the network administrator to get the

static IP address.

For example,

If the computer’s network information is as shown below,

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as follows:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

10 When the window that tells you that the network cable connection is

confirmed appears, disconnect the network cable and click Next.

If the network cable is connected, it may have trouble finding the

machine when configuring the wireless network.

11 Wireless network setting is completed. To print from a Wi-Fi Direct

supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-

Fi Direct" on page 177).

Wi-Fi Direct Option:

• Wi-Fi Direct option appears on the screen only if your printer supports

this feature.

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager

(see "Setting up Wi-Fi Direct" on page 177).

Wireless network setup

160

2. Using a Network-Connected Machine

•Network Name(SSID): The default Network Name is the model name

and the maximum length is 22 characters (not including "Direct-xx-").

•Network Key is the numeric string, and the size is 8 ~ 64 characters.

12 When the wireless network set up is completed, disconnect the USB

cable between the computer and machine. Click Next.

13 Click Next when the Confirm Printer Connection window appears.

14 Select the components to be installed. Click Next.

15 After selecting the components, you can also change the machine name,

set the machine to be shared on the network, set the machine as the

default machine, and change the port name of each machine. Click Next.

16 After installation is finished, a window asking you to print a test page

appears. If you want to print a test page, click Print a test page.

Otherwise, just click Next and go to step 18.

17 If the test page prints out correctly, click Yes.

If not, click No to reprint it.

18 If you want to register your machine with the Samusng web site and

receive useful information, click On-line Registration. If not, click

Finish.

Access point via WPS button (without a USB cable

connection)

For models that have a WPS button, you can set the wireless network using the

WPS button (without a USB connection) and access point (or a router) WPS

button.

Items to prepare

• Access point (or wireless router)

• Network-connected computer

• Software CD that was provided with your machine

• The machine installed with a wireless network interface

Creating the infrastructure network

1Turn on your computer, access point, and machine.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select the Wireless Setting and Installation option.

4 Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next.

Wireless network setup

161

2. Using a Network-Connected Machine

5 Select Using the WPS button and click Next.

• For models that support WPS button, the above window appears.

• If your machine is connected with a USB cable, the above window does

not appear. Disconnect the USB cable if you want to set up the wireless

network using the WPS button.

• If you want to set up the wireless network using the USB cable, refer to

"Access point via USB cable" on page 156.

6 The next window asks you to check if your access point (or wireless

router) supports WPS or not.

If the access point (or wireless router) has a WPS button, select Yes and

click Next.

7 Follow the instructions on the window to set up the wireless network.

• For models with a display screen, follow the steps below.

a Press and hold the (WPS) button on the control panel for

about 2-4 seconds.

The machine waits up to 2 minutes for the WPS button on the

access point (or a router) to be pressed.

b Press the WPS (PBC) button on the access point (or wireless

router).

The messages are displayed on the display screen in the order

below:

-Connecting: The machine is connecting to the access point

(or wireless router).

-Connected: When the machine is successfully connected to

the wireless network, the WPS LED light stays on.

Wireless network setup

162

2. Using a Network-Connected Machine

-SSID Type: After completing the wireless network

connection process, the AP’s SSID information appears on

the display.

• For models without a display screen, follow the steps below.

a Press and hold the (WPS) button on the control panel for

about 2 - 4 seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED

blinks slowly for up to two minutes until you press the PBC

button on the access point (or wireless router).

b Press the WPS (PBC) button on the access point (or wireless

router).

- The light blinks fast on the WPS LED while it is connecting to

the access point (or wireless router).

- When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

8 The Wireless Network Setting Complete window appears. Click Next.

9 Click Next when the Confirm Printer Connection window appears.

10 Select the components to be installed. Click Next.

11 After selecting the components, you can also change the machine name,

set the machine to be shared on the network, set the machine as the

default machine, and change the port name of each machine. Click Next.

12 After the installation is finished, a window asking you to print a test page

appears. If you want to print a test page, click Print a test page.

Otherwise, just click Next and go to step 14.

13 If the test page prints out correctly, click Yes.

If not, click No to reprint it.

14 If you want to register your machine with the Samusng web site and

receive useful information, click On-line Registration. If not, click

Finish.

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine

wirelessly to your computer by setting up an ad-hoc wireless network by

following the simple steps below.

Items to prepare

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Wireless network setup

163

2. Using a Network-Connected Machine

Creating the ad hoc network in Windows

1Check whether the USB cable is connected to the machine.

2 Turn on your computer and the wireless network machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Select the Wireless Setting and Installation option.

5 Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next.

6 The software searches the wireless network.

If the software has failed to search the network, check if the USB cable is

connected properly between the computer and machine, and follow the

instructions in the window.

7 After searching the wireless networks, a list of wireless networks your

machine has searched appears.

If you want to use the Samsung default ad hoc setting, select the last

wireless network on the list, Network Name(SSID) is Portthru and

Signal is Printer Self Network.

Then, click Next.

If you want to use other ad hoc settings, select another wireless network

from the list.

If you want to change the ad hoc settings, click the Advanced Setting

button.

•Enter the wireless Network Name: Enter the SSID name you want (SSID

is case-sensitive).

•Operation Mode: Select ad hoc.

•Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

•Encryption: Select the encryption (None, WEP64, WEP128).

•Network Key: Enter the encryption network key value.

•Confirm Network Key: Confirm the encryption network key value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the ad hoc network

has security enabled.

Select Open System or Shared Key for the authentication and click Next.

• WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

8 The window showing the wireless network setting appears. Check the

settings and click Next.

Wireless network setup

164

2. Using a Network-Connected Machine

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer’s network

configuration is set to DHCP, the wireless network setting should also be

DHCP. Likewise, if the computer’s network configuration is set to Static, the

wireless network setting should also be Static.

If your computer is set to DHCP and you want to use the Static wireless

network setting, you must contact the network administrator to get the

static IP address.

•For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in

the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP

address automatically (DHCP).

•For the Static method

If the IP address assignment method is Static, check if Static is shown in

the Wireless Network Setting Confirm window. If it shows DHCP, click

Change TCP/IP to enter the IP address and other network configuration

values for the machine.

For example,

If the computer’s network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

9 The Wireless Network Setting Complete window appears. Click Next.

10 When the wireless network settings are completed, disconnect the USB

cable between the computer and machine. Click Next.

If the Change PC Network Setting window appears, follow the steps in the

window.

Click Next if you are finished with the computer’s wireless network settings.

If you set the computer’s wireless network to DHCP, it will take several

minutes to receive the IP address.

11 Click Next when the Confirm Printer Connection window appears.

12 Select the components to be installed. Click Next.

13 After selecting the components, you can also change the machine name,

set the machine to be shared on the network, set the machine as the

default machine, and change the port name of each machine. Click Next.

14 After the installation is finished, a window asking you to print a test page

appears. If you want to print a test page, click Print a test page.

Otherwise, just click Next and go to step 16.

15 If the test page prints out correctly, click Yes.

If not, click No to reprint it.

Wireless network setup

165

2. Using a Network-Connected Machine

16 If you want to register your machine with the Samusng web site and

receive useful information, click On-line Registration. If not, click

Finish.

Setup using Macintosh

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Access point via USB cable

1Check whether the USB cable is connected to the machine.

2 Turn on your computer, access point, and machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Double-click the CD-ROM icon that appears on your Macintosh desktop.

5 Double-click the MAC_Installer folder > Installer OS X icon.

6 Click Continue.

7 Read the license agreement and click Continue.

8 Click Agree to agree to the license agreement.

9 When the message that warns that all applications will close on your

computer appears, click Continue.

10 Click Wireless Network Setting button on the User Options Pane.

11 The software searches the wireless network.

If the software has failed to search the network, check if the USB cable is

connected properly between the computer and machine, and follow the

instructions in the window.

Wireless network setup

166

2. Using a Network-Connected Machine

• If wireless network setting has been set before, Wireless Network

Setting Information window appears.

If you want to reset the wireless settings, check the check box and click

Next.

• For models that support the WPS button (without a USB cable

connection), the window shown below will appear.

-With a USB Cable: Connect the USB cable and click Next, then go to

step 7.

-Using the WPS Button: See "Access point via WPS button (without a

USB cable connection)" on page 160.

12 Select the method to use from the wireless set up method window.

•Configure the wireless settings manually.: Go to step 13.

•Configure the wireless settings by pressing the WPS button on

the access point.: Connect to the wireless network by press the WPS

button on the access point (or a wireless router).

- Follow the instructions in the window. When you are done

setting the wireless network settings, go to step 16.

13 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you are using and click Next.

When you set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

Wireless network setup

167

2. Using a Network-Connected Machine

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on the WPA Pre-Shared Key. This uses a shared secret

key (generally called Pre Shared Key pass phrase) that is manually

configured on the access point and each of its clients.

•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES,

TKIP, AES)

•Network Key: Enter the encryption network key value.

•Confirm Network Key: Confirm the encryption network key value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the access point has

security enabled.

The wireless network security window appears. The window may differ

according to its security mode: WEP or WPA.

•WEP

Select Open System or Shared Key for the authentication and enter the

WEP security key. Click Next.

WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

•WPA

Enter the WPA shared key and click Next.

WPA authorizes and identifies users based on a secret key that changes

automatically at regular intervals. WPA also uses TKIP (Temporal Key

Integrity Protocol) and AES (Advanced Encryption Standard) for data

encryption.

Wireless network setup

168

2. Using a Network-Connected Machine

14 The window shows the wireless network settings and check if settings

are right. Click Next.

•For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown

in the window. If it shows Static, click Change TCP/IP to change the

assignment method to DHCP.

•For the Static method

If the IP address assignment method is Static, check if Static is shown

in the window. If it shows DHCP, click Change TCP/IP to enter the IP

address and other network configuration values for the machine.

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer is

set to DHCP, you must contact the network administrator to get the

static IP address.

For example:

If the computer’s network information is shown as follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as shown

below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

15 When the window that tells you that the network cable connection is

confirmed appears, disconnect the network cable and click Next.

If the network cable is connected, it may have trouble finding the

machine when configuring the wireless network.

16 Wireless network setting is completed. To print from a Wi-Fi Direct

supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-

Fi Direct" on page 177).

Wi-Fi Direct Option:

• Wi-Fi Direct Option appears on the screen only if your printer supports

this feature.

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager

(see "Setting up Wi-Fi Direct" on page 177).

Wireless network setup

169

2. Using a Network-Connected Machine

•Network Name(SSID): The default Network Name is the model name

and the maximum length is 22 characters (not including "Direct-xx-").

•Network Key is the numeric string, and the size is 8 ~ 64 characters.

17 When the wireless network settings are completed, disconnect the USB

cable between the computer and machine.

18 Wireless network set up is completed. After the installation is finished,

click Quit.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installation for Macintosh"

on page 130).

Setting the access point using the WPS button

For models that have a WPS button, you can set the wireless network using the

WPS button (without a USB connection) and access point (or a router) WPS

button.

Items to prepare

• Access point (or wireless router)

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

Creating the infrastructure network

1Turn on your computer, access point, and machine.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 When the message that warns that all applications will close on your

computer appears, click Continue.

9 Click the Wireless Network Setting button on the User Options Pane.

Wireless network setup

170

2. Using a Network-Connected Machine

10 Select Using the WPS button and click Next.

• For models that support the WPS button, the above window appears.

• If your machine is connected with a USB cable, the above window does

not appear. Disconnect the USB cable if you want to set up the wireless

network using the WPS button.

• If you want to set up the wireless network using the USB cable, refer to

"Access point via USB cable" on page 165.

11 The next window asks you to check if your access point (or wireless

router) supports WPS or not.

If the access point (or wireless router) has a WPS button, select Yes and

click Next.

12 Follow the instructions in the window to set up the wireless network.

• For models with a display screen, follow the steps below:

a Press and hold the (WPS) button on the control panel for

about 2-4 seconds.

The machine waits up to 2 minutes for the WPS button on the

access point (or a router) to be pressed.

b Press the WPS (PBC) button on the access point (or wireless

router).

The messages are displayed on the display screen in the order

below:

-Connecting: The machine is connecting to the access point

(or wireless router).

-Connected: When the machine is successfully connected to

the wireless network, the WPS LED light stays on.

Wireless network setup

171

2. Using a Network-Connected Machine

-SSID Type: After completing the wireless network

connection process, the AP’s SSID information appears on

the display.

• For models without a display screen, follow the steps below:

a Press and hold the (WPS) button on the control panel for

about 2 - 4 seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED

blinks slowly for up to two minutes until you press the PBC

button on the access point (or wireless router).

b Press the WPS (PBC) button on the access point (or wireless

router).

- The light blinks fast on the WPS LED. The machine is

connecting to the access point (or wireless router).

- When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

13 Wireless network set up is completed. After installation is finished, click

Quit.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installation for Macintosh"

on page 130).

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine

wirelessly to your computer by setting up an ad hoc wireless network by

following these simple directions.

Items to prepare

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Creating the ad hoc network in Macintosh

1Check whether the USB cable is connected to the machine.

2 Turn on your computer and the wireless network machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Double-click the CD-ROM icon that appears on your Macintosh desktop.

5 Double-click the MAC_Installer folder > Installer OS X icon.

6 Click Continue.

7 Read the license agreement and click Continue.

Wireless network setup

172

2. Using a Network-Connected Machine

8 Click Agree to agree to the license agreement.

9 When the message that warns that all applications will close on your

computer appears, click Continue.

10 Click Wireless Network Setting button on the User Options Pane.

11 The software searches for wireless network devices.

If the search has failed, check if the USB cable is connected between the

computer and machine properly, and follow the instructions in the window.

12 After searching the wireless networks, a list of wireless networks your

machine has searched appears.

If you want to use the Samsung default ad hoc setting, select the last

wireless network on the list, which Network Name(SSID) is Portthru

and Signal is Printer Self Network.

Then, click Next.

If you want to use other ad hoc settings, select another wireless network

from the list.

If you want to change ad hoc settings, click the Advanced Setting button.

•Enter the wireless Network Name: Enter the SSID name (SSID is case-

sensitive).

•Operation Mode: Select ad hoc.

•Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

•Encryption: Select the encryption (None, WEP64, WEP128).

•Network Key: Enter the encryption network key value.

•Confirm Network Key: Confirm the encryption network key value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the ad hoc network

has security setting.

Select Open System or Shared Key for the authentication and click Next.

• WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

13 The window showing the wireless network settings appears. Check the

settings and click Next.

Wireless network setup

173

2. Using a Network-Connected Machine

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer’s network

configuration is set to DHCP, the wireless network setting should also be

DHCP. Likewise, if the computer’s network configuration is set to Static, the

wireless network setting should also be Static.

If your computer is set to DHCP and you want to use Static wireless network

setting, you must contact the network administrator to get the static IP

address.

•For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in

the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP

address automatically (DHCP).

•For the Static method

If the IP address assignment method is Static, check if Static is shown in

the Wireless Network Setting Confirm window. If it shows DHCP, click

Change TCP/IP to enter the IP address and other network configuration

values for the machine.

For example,

If the computer’s network information is shown as follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as shown below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

14 When the window that tells you that the network cable connection is

confirmed appears, disconnect the network cable and click Next.

If the network cable is connected, it may have trouble finding the

machine when configuring the wireless network.

15 The wireless network connects according to the network configuration.

16 Wireless network set up is completed. After installation is finished, click

Quit.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installation for Macintosh"

on page 130).

Using a network cable

Machines that do not support the network port will not be able to use this

feature (see "Rear view" on page 18).

Your machine is a network compatible machine. To enable your machine to

work with your network, you will need to perform some configuration

procedures.

Wireless network setup

174

2. Using a Network-Connected Machine

• After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installing driver over

the network" on page 139).

• See your network administrator, or the person that set up your wireless

network, for information about your network configuration.

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network

configuration report.

See "Printing a network configuration report" on page 136.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine

using its MAC address to communicate with the machine. The MAC address is

the hardware serial number of the network interface and can be found in the

Network Configuration Report.

See "Setting IP address" on page 136.

Configuring the machine’s wireless network

Before starting you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection

status.

Wireless network setup

175

2. Using a Network-Connected Machine

1Check whether or not the network cable is connected to the machine. If

not, connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password then click Login. Type in the below default

ID and password. We recommend you to change the default password

for security reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Settings >

Network Settings.

6 Click Wireless > Wizard.

Wizard will help you setup the wireless network configuration. However, if

you want to set the wireless network directly, select Custom.

7 Select the one Network Name(SSID) in the list.

•SSID: SSID (Service Set Identifier) is a name that identifies a wireless

network, access points, and wireless devices attempting to connect

to a specific wireless network must use the same SSID. The SSID is

case sensitive.

•Operation Mode: Operation Mode refers to the type of wireless

connections (see "Wireless network name and network key" on page

150).

-Ad-hoc: Allows wireless devices to communicate directly with

each other in a peer-to-peer environment.

-Infrastructure: Allows wireless devices to communicate with

each other through an access point.

If your network’s Operation Mode is Infrastructure, select the SSID of the

access point. If the Operation Mode is Ad-hoc, select the machine’s SSID.

Note that “portthru” is the default SSID of your machine.

8 Click Next.

If the wireless security setting window appears, enter the registered

password (network key) and click Next.

9 The confirmation window appears, please check your wireless setup. If

the setup is right, click Apply.

Wireless network setup

176

2. Using a Network-Connected Machine

Disconnect the network cable (standard or network). Your machine should

then start communicating wirelessly with the network. In case of Ad-hoc

mode, you can use a wireless LAN and wired LAN simultaneously.

Turning the Wi-Fi network on/off

If your machine has a display, you can also turn on/off the Wi-Fi from the

machine’s control panel using the Network menu.

1Check whether the network cable is connected to the machine. If not,

connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password, then click Login. Type in the below default

ID and password. We recommend you to change the default password

for security reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network

Settings.

6 Click Wireless > Custom.

You can also turn the Wi-Fi network on/off.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connecting between method for

your printer and a mobile device that provides a secure connection and better

throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while

concurrently connecting to an access point, You can also use a wired network

and a Wi-Fi Direct network simultaneously so multiple users can access and print

documents both from Wi-Fi Direct and from a wired network.

Wireless network setup

177

2. Using a Network-Connected Machine

• You cannot connect to the internet through the printer’s Wi-Fi Direct.

• The supported protocol list may differ from your model, Wi-Fi Direct

networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP

services.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the USB cable-connected computer(recommended)

• When setting from the supplied software CD, see the access point via USB

cable.

- Windows user, see "Access point via USB cable" on page 156.

- Macintosh user, see "Access point via USB cable" on page 165.

• After the driver installation is complete, Samsung Easy Printer Manager can

be set and changes in the Wi-Fi Direct can be made.

Samsung Easy Printer Manager is Available for Windows

and Macintosh OS users only.

- From the Start menu, select Programs or All Programs > Samsung

Printers > Samsung Easy Printer Manager > Device Settings >

Network.

ƒWi-Fi Direct On/Off: Select On to enable.

ƒDevice Name: Enter the printer’s name for searching for your

printer on a wireless network. By default, the device name is the

model name.

ƒIP Address: Enter the IP address of the printer. This IP address is

used only for the local network and not for the infrastructure wired

or wireless network. We recommend using the default local IP

address (the default local IP address of the printer for Wi-Fi Direct is

192.168.3.1 )

ƒGroup Owner: Activate this option to assign the printer the Wi-Fi

Direct group’s owner. The Group Owner acts similar to a wireless

access point. We recommend activating this option.

ƒNetwork Key: If your printer is a Group Owner, a Network Key is

required for other mobile devices to connect to your printer. You

can configure a network key yourself, or can remember the given

Network Key that is randomly generated by default.

Wireless network setup

178

2. Using a Network-Connected Machine

From the machine (Machines with a display screen)

• Select Network > Wireless > Wi-Fi Direct from the control panel.

• Enable Wi-Fi Direct.

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable

and configure Wi-Fi Direct from SyncThru™ Web Service.

• Access SyncThru™ Web Service, select Settings > Network Settings >

Wireless > Wi-Fi Direct.

• Enable or disable Wi-Fi Direct and set other options.

• For Linux OS users,

- Print an IP network configuration report to check the output (see

"Printing a network configuration report" on page 136).

- Access SyncThru Web Service, select Settings > Network Settings

> Wireless > Wi-Fi Direct.

- Enable or disable Wi-Fi Direct.

Setting up the mobile device

• After setting up Wi-Fi Direct from the printer, refer to the user manual of the

mobile device you are using to set its Wi-Fi Direct.

• After setting up Wi-Fi Direct, you need to download the mobile printing

application (For example: Samsung Mobile printer) to print from your

smartphone.

• When you have found the printer you want to connect to from your

mobile device, select the printer and the printer's LED will blink. Press the

WPS button on the printer and it will be connected to your mobile

device.

• If your mobile device does not support Wi-Fi Direct, you need to enter

the "Network Key" of a printer instead of pushing the WPS button.

Wireless network setup

179

2. Using a Network-Connected Machine

Troubleshooting for wireless network

Problems during setup or driver installation

Printers Not Found

• Your machine may not be turned on. Turn on your computer and the

machine.

• USB cable is not connected between your computer and machine. Connect

the machine to your computer using the USB cable.

• The machine does not support wireless networking. Check the machine's

user's guide included on the software CD supplied with your machine and

prepare a wireless network machine.

Connecting Failure - SSID Not Found

• The machine is unable to find the network name (SSID) you have selected or

entered. Check the network name (SSID) on your access point and try

connecting again.

• Your access point is not turned on. Turn on your access point.

Wireless network setup

180

2. Using a Network-Connected Machine

Connecting Failure - Invalid Security

• Security is not configured correctly. Check the configured security on your

access point and machine.

Connecting Failure - General Connection Error

• Your computer is not receiving a signal from your machine. Check the USB

cable and your machine’s power.

Connecting Failure - Connected Wired Network

• Your machine is connected with a wired network cable. Remove the wired

network cable from your machine.

PC Connection Error

• The configured network address is unable to connect between your

computer and machine.

- For a DHCP network environment

The machine receives the IP address automatically (DHCP) when

computer is configured to DHCP.

If the printing job is not working in DHCP mode, the problem may be caused

by the automatically changed IP address. Compare the IP address between

the product's IP address and the printer port's IP address.

How to compare:

1 Print the network information report of your printer, and then check the

IP address (see "Printing a network configuration report" on page 136).

2 Check the printer port's IP address from your computer.

a Click the Windows Start menu.

b For Windows Server 2000, select Settings > Printers.

• For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

c Right-click your machine.

d For Windows XP/2003/2008/Vista, press Properties.

For Windows 7 and Windows Server 2008 R2, from context menus,

select the Printer properties.

If Printer properties item has Ź mark, you can select other printer

drivers connected with selected printer.

e Click Port tab.

f Click Configure Port... button.

g Check if Printer Name or IP Address: is the IP address on the network

configuration Sheet.

3 Change the printer port's IP address if it is different from the network

information report's.

If you want to use the software installation CD to change the port IP,

connect to a network printer. Then reconnect the IP address.

Wireless network setup

181

2. Using a Network-Connected Machine

- For a Static network environment

The machine uses the static address when the computer is configured

to static address.

For example,

If the computer’s network information is as shown below:

ƒIP address: 169.254.133.42

ƒSubnet Mask: 255.255.0.0

Then the machine’s network information should be as below:

ƒIP address: 169.254.133.43

ƒSubnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

ƒGateway: 169.254.133.1

Samsung Electronics Co CLP415NW Laser Multi-funtion Printer User Manual Rousseau Klimt english1

Samsung Electronics Co Ltd Laser Multi-funtion Printer Rousseau Klimt english1

Contents

Users Manual 4

Navigation menu

Namespaces

Views

Navigation
