Users Manual 2

Media and tray
38
2. Menu Overview and Basic Setup
(Ɣ: Supported, Blank: Not supported)
Envelope
Printing successfully on envelopes depends upon the quality of the envelopes.
To print an envelope, place it as shown in the following figure.
• When selecting envelopes, consider the following factors:
-Weight: should not exceed 90 g/m2 otherwise; jams may occur.
-Construction: should lie flat with less than 6 mm curl and should not
contain air.
-Condition: should not be wrinkled, nicked, nor damaged.
-Temperature: should resist the heat and pressure of the machine
during operation.
• Use only well-constructed envelopes with sharp and well-creased folds.
• Do not use stamped envelopes.
Thin ƔƔ Ɣ
Cotton ƔƔ
Color ƔƔ
Preprinted ƔƔ
Recycled ƔƔ Ɣ
Envelope ƔƔ
Transparency ƔƔ
Labels ƔƔ
CardStock ƔƔ Ɣ
Bond ƔƔ Ɣ
Archive ƔƔ Ɣ
Letterhead ƔƔ Ɣ
Punched ƔƔ Ɣ
Glossy Photo ƔƔ Ɣ
a. CLP-68xND Series/CLP-68xDW Series only.
Types Tray 1 Optional trayaManual feeder/ Multi-
purpose tray
CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series
Media and tray
39
2. Menu Overview and Basic Setup
• Do not use envelopes with clasps, snaps, windows, coated lining, self-
adhesive seals, or other synthetic materials.
• Do not use damaged or poorly made envelopes.
• Be sure the seam at both ends of the envelope extends all the way to the
corner of the envelope.
1 Acceptable
2 Unacceptable
• Envelopes with a peel-off adhesive strip or with more than one flap that
folds over to seal must use adhesives compatible with the machine’s fusing
temperature for 0.1 second about 170°C (338 °F). The extra flaps and strips
might cause wrinkling, creasing, or jams, and may even damage the fuser.
• For the best print quality, position margins no closer than 15 mm from the
edges of the envelope.
• Avoid printing over the area where the envelope’s seams meet.
Transparency
In case of color printing using transparencies, the picture quality would be
lower than mono printing when the printouts are used on the overhead
projector.
To avoid damaging the machine, use only transparencies designed for use in
laser printers.
• Must withstand the machine’s fusing temperature.
• Place them on a flat surface after removing them from the machine.
• Do not leave unused transparencies in the paper tray for long. Dust and dirt
may accumulate on them, resulting in spotty printing.
• To avoid smudging caused by fingerprints, handle them carefully.
CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series
Media and tray
40
2. Menu Overview and Basic Setup
• To avoid fading, do not expose printed transparencies to prolonged
sunlight.
• Ensure that transparencies are not wrinkled, curled, or have any torn edges.
• Do not use transparencies that separate from the backing sheet.
• To prevent transparencies from sticking to each other, do not let the printed
sheets stack up as they are being printed out.
• Recommended media: Transparency for a color laser printer by Xerox, such
as 3R 91331(A4), 3R 2780 (Letter).
Labels
To avoid damaging the machine, use only labels designed for use in laser
printers.
• When selecting labels, consider the following factors:
-Adhesives: Should be stable at your machine’s fusing temperature
about 170°C (338°F).
-Arrangement: Only use labels with no exposed backing between them.
Labels can peel off sheets that have spaces between the labels, causing
serious jams.
-Curl: Must lie flat with no more than 13 mm of curl in any direction.
-Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series
Media and tray
41
2. Menu Overview and Basic Setup
• Make sure that there is no exposed adhesive material between labels.
Exposed areas can cause labels to peel off during printing, which can cause
paper jams. Exposed adhesive can also cause damage to machine
components.
• Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the machine.
• Do not use labels that are separating from the backing sheet or are wrinkled,
bubbled, or otherwise damaged.
Card stock/ Custom-sized paper
• In the software application, set the margins to at least 6.4 mm (0.25 inches)
away from the edges of the material.
Preprinted paper
When loading preprinted paper, the printed side should be facing up with an
uncurled edge at the front. If you experience problems with paper feeding, turn
the paper around. Note that print quality is not guaranteed.
• Must be printed with heat-resistant ink that will not melt, vaporize, or
release hazardous emissions when subjected to the machine’s fusing
temperature for 0.1 second (about 170°C (338°F)).
• Preprinted paper ink must be non-flammable and should not adversely
affect machine rollers.
• Before you load preprinted paper, verify that the ink on the paper is dry.
During the fusing process, wet ink can come off preprinted paper, reducing
print quality.
CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series
AAAAA
CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series
Media and tray
42
2. Menu Overview and Basic Setup
Glossy Photo
• Recommended media: Glossy paper (Letter) for this machine by HP
Brochure Paper (Product: Q6611A) only.
• Recommended media: Glossy paper (A4) for this machine by HP Superior
Paper 160 glossy (Product: Q6616A).
5
Setting the paper size and type
After loading paper in the paper tray, set the paper size and type using the
control panel buttons.
• You can set the machine’s settings by using the Device Settings in
6DPVXQJ(DV\3ULQWHU0DQDJHUprogram.
- For Windows and Macintosh users, you set from Samsung Easy
Printer Manager! (Switch to advanced mode)!Device
Settings, see "Device Settings" on page 234.
• It may be necessary to press OK to navigate to lower-level menus for
some models.
1Select (Menu) button on the control panel.
2 Press Paper and select the tray you want.
3 Press Paper Size or Paper Type.
4 Select the option you want.
5 Press OK to save the selection.
6 Press (Cancel) to return to ready mode.
• The settings set from the machine driver override the settings on the
control panel.
a To print from an application, open an application and start the print
menu.
b Open Printing Preferences (see "Opening printing preferences" on
page 46).
c Press the Paper tabGand select an appropriate paper.
• If you want to use special-sized paper such as billing paper, select the
Paper tab > Size > Edit... and set Custom
G
Paper Size Settings in the
Printing Preferences (see "Opening printing preferences" on page 46).
Media and tray
43
2. Menu Overview and Basic Setup
6
Using the output support
The surface of the output tray may become hot if you print a large number
of pages at once. Make sure that you do not touch the surface, and do not
allow children near it.
The printed pages stack on the output support, and the output support will help
the printed pages to align. Unfold the output support.
Illustrations on this user’s guide may differ from your machine depending
on its options or models. Check your machine type (see "Front view" on
page 17).
44
2. Menu Overview and Basic Setup
Basic printing
For special printing features, refer to the Advanced Guide (see "Using
advanced print features" on page 207).
7
Printing
If you are a Macintosh, Linux, or Unix operating systems user, refer to the
Advanced Guide (see "Macintosh printing" on page 216, "Linux printing" on
page 217, or "Unix printing" on page 219).
The following Printing Preferences window is for Notepad in Windows 7.
1Open the document you want to print.
2 Select Print from the File menu.
3 Select your machine from the Select Printer list.
4 The basic print settings including the number of copies and print range
are selected within the Print window.
To take advantage of the advanced printing features, click Properties or
Preferences from the Print window (see "Opening printing preferences" on
page 46).
5 To start the print job, click OK or Print in the Print window.
Basic printing
45
2. Menu Overview and Basic Setup
8
Canceling a print job
If the print job is waiting in the print queue or print spooler, cancel the job as
follows:
• You can access this window by simply double-clicking the machine icon
( ) in the Windows task bar.
• You can also cancel the current job by pressing (Cancel) on the control
panel.
Basic printing
46
2. Menu Overview and Basic Setup
9
Opening printing preferences
• The Printing Preferences window that appears in this user’s guide may
differ depending on the machine in use.
• When you select an option in Printing Preferences, you may see a
warning mark or . An mark means you can select that certain
option but it is not recommended, and an mark means you cannot
select that option due to the machine’s setting or environment.
1Open the document you want to print.
2 Select Print from the file menu. The Print window appears.
3 Select your machine from the Select Printer.
4 Click Properties or Preferences.
The screenshot may differ depending on model.
• You can apply Eco features to save paper and toner before printing (see
"Easy Eco Driver" on page 227).
• You can check the machine’s current status pressing the Printer Status
button (see "Using Samsung Printer Status" on page 235).
Basic printing
47
2. Menu Overview and Basic Setup
Using a favorite setting
The Favorites option, which is visible on each preferences tab except for the
Samsung tab, allows you to save the current preferences for future use.
To save a Favorites item, follow these steps:
1Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.
3 Click Save.
4 Enter name and description, and then select the desired icon.
5 Click OK. When you save Favorites, all current driver settings are saved.
To use a saved setting, select it in the Favorites tab. The machine is now set
to print according to the settings you have selected.
To delete saved settings, select it in the Favorites tab and click Delete.
10
Using help
Click the option you want to know on the Printing Preferences window and
press F1 on your keyboard.
Basic printing
48
2. Menu Overview and Basic Setup
11
Eco printing
The Eco function cuts toner consumption and paper usage. The Eco function
allows you to save print resources and lead you to eco-friendly printing.
If you press the Eco button from the control panel, eco mode is enabled. The
default setting of Eco mode is duplex (CLP-68xND Series/CLP-68xDW Series
only), Multiple Pages per Side (2-up), skip blank pages.
You can set the machine’s settings by using the Device Settings in
6DPVXQJ(DV\3ULQWHU0DQDJHUprogram.
• For Windows and Macintosh users, you set from Samsung Easy Printer
Manager! (Switch to advanced mode)!Device Settings, see
"Device Settings" on page 234.
Setting Eco mode on the control panel
• The settings set from the machine’s driver override the settings on the
control panel.
• It may be necessary to press OK to navigate to lower-level menus for
some models.
1Select (Menu) > System Setup > Eco Setup on the control panel.
2 Select the option you want and press OK.
•Default Mode: Select this to turn on or off the eco mode.
-Off: Set the eco mode off.
-On: Set the eco mode on.
If you set the eco mode on with a password from the SyncThru™ Web
Service (Settings tab > Machine Settings > System > Eco > Settings) or
6DPVXQJ(DV\3ULQWHU0DQDJHU(Device Settings > Eco), the On force
message appears. You have to enter the password to change the eco mode
status.
•Change Temp.: Follow the settings from Syncthru™ Web Service or
6DPVXQJ(DV\3ULQWHU0DQDJHU. Before you select this item, you
must set the eco function in SyncThru™ Web Service (Settings tab >
Machine Settings > System > Eco > Settings) or 6DPVXQJ(DV\
3ULQWHU0DQDJHU(Device Settings > Eco).
-Default Eco: The machine is set to Default Eco mode.
-Custom Eco: Change any necessary values.
3 Press OK to save the selection.
Basic printing
49
2. Menu Overview and Basic Setup
Setting eco mode on the driver
Open the Eco tab to set Eco mode. When you see the eco image ( ), that
means the eco mode is currently enabled.
Eco options
•Printer Default: Follows the settings from the machine's control panel.
•None: Disables Eco mode.
•Eco Printing: Enables eco mode. Activate the various Eco items you want to
use.
•Password: If the administrator fixed to enable the Eco mode, you have to
enter the password to change the status.
Result simulator
Result Simulator shows the results of reduced emission of carbon dioxide, used
electricity, and the amount of saved paper in accordance with the settings you
selected.
• The results are calculated on the basis that the total number of printed
paper is one hundred without a blank page when the Eco mode is disabled.
• Refers to the calculation coefficient about CO2, energy, and paper from IEA,
the index of Ministry of Internal Affairs and Communication of Japan and
www.remanufacturing.org.uk. Each model has a different index.
• The power consumption in printing mode refers to the average printing
power consumption of this machine.
• The actual amount displayed is only an estimate as the actual amount may
differ depending on the operating system used, computing performance,
application software, connection method, media type [thickness], media
size, job complexity, etc.
50
2. Menu Overview and Basic Setup
Using USB memory device
CLP-68xND Series/ CLP-68xDW Series only.
12
About USB memory device
USB memory devices are available with a variety of memory capacities to give
you more room for storing documents, presentations, music and videos, high
resolution photographs, or whatever other files you want to store or move.
Your machine supports USB memory devices with FAT16/FAT32 and sector size
of 512 bytes.
Check your USB memory device’s file system from your dealer.
You must use only an authorized USB memory device with an A plug type
connector.
Use only a USB memory device with metal-shielded connector.
Insert a USB memory device into the USB memory port on your machine.
• Do not remove the USB memory device while it is in use. The machine
warranty does not cover damage caused by user’s misuse.
• If your USB memory device has certain features such as security settings
and password settings, your machine may not automatically detect it.
For details about these features, see the user’s guide of the USB memory
device.
A B
Using USB memory device
51
2. Menu Overview and Basic Setup
13
Printing from a USB memory device
You can directly print files stored on a USB memory device.
Direct Print option supported file types:
•PRN: Only files created by provided driver with your machine are
compatible.
If you print PRN files created from other machine, the printout would be
different.
•BMP: BMP Uncompressed
•TIFF: TIFF 6.0 Baseline
•JPEG: JPEG Baseline
•PDF: PDF 1.4 and below
•XPS
To print a document from a USB memory device:
1Insert a USB memory device into the USB memory port on your machine.
2 Select (Menu) button on the control panel.
3 Press Direct USB > USB Print.
4 Press the arrow until the folder or file you want and press OK.
If you see [+] or [D] in the front of a folder name, there are one or more files
or folders in the selected folder.
5 Press the number of copies to be printed or enter the number.
6 Press OK.
14
Managing USB memory
You can delete image files stored on a USB memory device one by one or all at
once by reformatting the device.
1Insert a USB memory device into the USB memory port on your machine.
2 Select (Menu) button on the control panel.
3 Press Direct USB > File Manage.
4 Press the arrow until Delete or Format you want and press OK.
5 Press the folder or file you want and press OK.
Using USB memory device
52
2. Menu Overview and Basic Setup
If you see [+] or [D] in the front of a folder name, there are one or more files
or folders in the selected folder.
6 To delete or format, press Yes > OK.
After deleting files or reformatting a USB memory device, files cannot be
restored. Therefore, confirm that you no longer need the data before
deleting it.
15
Viewing the USB Memory Status
You can check the amount of memory space available for saving documents.
1Insert a USB memory device into the USB memory port on your machine.
2 Select (Menu) button on the control panel.
3 Press Direct USB > Check Space.
The available memory space appears on the display.
16
Backing up data
Data in the machine’s memory can be accidentally erased due to power failure
or storage failureUGBackup helps you protect your the system settings by storing
them as backup files on a USB memory device.
Backing up data
1Insert a USB memory device into the USB memory port on your machine.
2 Select (Menu) button on the control panel.
3 Press System Setup.
4 Press the arrow until Export Setting you want and press OK.
5 Press Setup Data > OK.
The data is backed up to the USB memory device.
Restoring data
1Insert a USB memory device into the USB memory port on your machine.
2 Select (Menu) button on the control panel.
Using USB memory device
53
2. Menu Overview and Basic Setup
3 Press System Setup.
4 Press the arrow until Import Setting you want and press OK.
5 Press Setup Data > OK.
6 To restore the backup file to the machine, press Yes > OK.
3. Maintenance
This chapter provides information about purchasing supplies, accessories and maintenance parts available for your
machine.
• Ordering supplies and accessories 55
• Available consumables 56
• Available maintenance parts 59
• Storing the toner cartridge 60
• Redistributing toner 62
• Replacing the toner cartridge 64
• Replacing the waste toner container 68
• Installing accessories 69
• Monitoring the supplies life 73
• Setting the toner low alert 74
• Cleaning the machine 75
• Tips for moving & storing your machine 79
55
3. Maintenance
Ordering supplies and accessories
Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts.
To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine.
You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.
56
3. Maintenance
Available consumables
When supplies reach the end of their life spans, you can order the followings of consumables for your machine:
Type Model Average yielda
a. Declared yield value in accordance with ISO/IEC 19798. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.
Part name
Toner cartridge •CLP-41xN Series
•CLP-41xNW Series
• Average continuous black cartridge yield: Approx.G2,500 standard pages (Black)
• Average continuous color cartridge yield: Approx.G1,800 standard pages
(Yellow/Magenta/Cyan)
• CLT-K504S: Black
• CLT-Y504S: Yellow
• CLT-M504S: Magenta
• CLT-C504S: Cyan
•CLP-68xND Series
•CLP-68xDW Series
• Average continuous black cartridge yield: Approx.G2,000 standard pages (Black)
• Average continuous color cartridge yield: Approx.G1,500 standard pages
(Yellow/Magenta/Cyan)
• CLT-K506S: Black
• CLT-Y506S: Yellow
• CLT-M506S: Magenta
• CLT-C506S: Cyan
• Average continuous black cartridge yield: Approx.G6,000 standard pages (Black)
• Average continuous color cartridge yield: Approx.G3,500 standard pages
(Yellow/Magenta/Cyan)
• CLT-K506L: Black
• CLT-Y506L: Yellow
• CLT-M506L: Magenta
• CLT-C506L: Cyan
Waste toner container •CLP-41xN Series
•CLP-41xNW Series
Approx. 12,000 imagesb
b. Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta, Yellow, Black), the life of this item will be reduced by 25%.
CLT-W504
•CLP-68xND Series
•CLP-68xDW Series
CLT-W506
Available consumables
57
3. Maintenance
Depending on the options, percentage of image area and job mode used,
the toner cartridge’s lifespan may differ.
When purchasing new toner cartridges or other consumables, these must
be purchased in the same country as the machine you are using. Otherwise,
new toner cartridges or other consumables will be incompatible with your
machine due to different configurations of toner cartridges and other
consumables according to the specific country conditions.
Samsung does not recommend using non-genuine Samsung toner
cartridge such as refilled or remanufactured toner. Samsung cannot
guarantee non-genuine Samsung toner cartridge's quality. Service or repair
required as a result of using non-genuine Samsung toner cartridges will not
be covered under the machine’s warranty.
58
3. Maintenance
Available accessories
You can purchase and install accessories to enhance your machine’s performance and capacity.
Some features and optional goods may not be available depending on models or countries (see "Features by models" on page 7).
Accessory Function Part name
Memory module Extends your machine’s memory capacity. ML-MEM370: 512 MB
IEEE 1284 parallel
connectora
a. CLP-68xND Series/CLP-68xDW Series only.
Allows you to use various interface.
• When installing the printer driver with an IEEE1284 parallel
connector, the machine might not be found and after
installing the printer driver, only basic printing features are
available.
• If you want to check the machine's status or set the settings,
connect the machine to a computer with a USB cable or a
network.
• If you use the IEEE 1284 parallel connector, you can not use
the USB cable.
ML-PAR100
Optional trayaIf you are experiencing frequent paper supply problems, you can
attach an additional 500 bsheets tray.
b. Plain paper 80 g/m2 (20 lb bond).
CLP-S680A
59
3. Maintenance
Available maintenance parts
To purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service
provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its
“Average yield”.
Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which
is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.
Parts
Average yielda
a. It will be affected by the operating system used, computing performance, application software, connecting method, media, media size and
job complexity.
•CLP-41xN Series
•CLP-41xNW Series
•CLP-68xND Series
•CLP-68xDW Series
Transfer roller Approx. 100,000 pages Approx. 100,000 pages
Fuser Unit Approx. 50,000 pages Approx. 100,000 pages
Pick-Up roller Approx. 200,000 pages Approx. 300,000 pages
Retard roller Approx. 100,000 pages Approx. 100,000 pages
Intermediate Transfer Belt (ITB) Approx. 100,000 pages Approx. 100,000 pages
60
3. Maintenance
Storing the toner cartridge
Toner cartridges contain components that are sensitive to light, temperature
and humidity. Samsung suggests users follow these recommendations to
ensure optimal performance, highest quality, and longest life from your new
Samsung toner cartridge.
Store this cartridge in the same environment in which the printer will be used.
This should be in controlled temperature and humidity conditions. The toner
cartridge should remain in its original and unopened package until installation
– if original packaging is not available, cover the top opening of the cartridge
with paper and store in a dark cabinet.
Opening the cartridge package prior to use dramatically shortens its useful shelf
and operating life. Do not store on the floor. If the toner cartridge is removed
from the printer, follow the instructions below to store the toner cartridge
properly.
• Store the cartridge inside the protective bag from the original package.
• Store lying flat (not standing on end) with the same side facing up as if it
were installed in the machine.
• Do not store consumables in any of the following conditions:
- Temperature greater than 40°C (104°F).
- Humidity range less than 20% or greater than 80%.
- An environment with extreme changes in humidity or temperature.
- Direct sunlight or room light.
- Dusty places.
- A car for a long period of time.
- An environment where corrosive gases are present.
- An environment with salty air.
1
Handling instructions
• Do not touch the surface of the photoconductive drum in the cartridge.
• Do not expose the cartridge to unnecessary vibrations or shock.
• Never manually rotate the drum, especially in the reverse direction; this can
cause internal damage and toner spillage.
2
Toner cartridge usage
Samsung Electronics does not recommend or approve the use of non-Samsung
brand toner cartridges in your printer including generic, store brand, refilled, or
remanufactured toner cartridges.
Samsung’s printer warranty does not cover damage to the machine caused
by the use of a refilled, remanufactured, or non-Samsung brand toner
cartridges.
Storing the toner cartridge
61
3. Maintenance
3
Estimated cartridge life
Estimated cartridge life (the life of the toner cartridge yield) depends on the
amount of toner that print jobs require. The actual print yield may vary
depending on the print density of the pages you print on, operating
environment, percentage of image area, printing interval, media type and/or
media size. For example, if you print a lot of graphics, the consumption of the
toner is higher and you may need to change the cartridge more often.
62
3. Maintenance

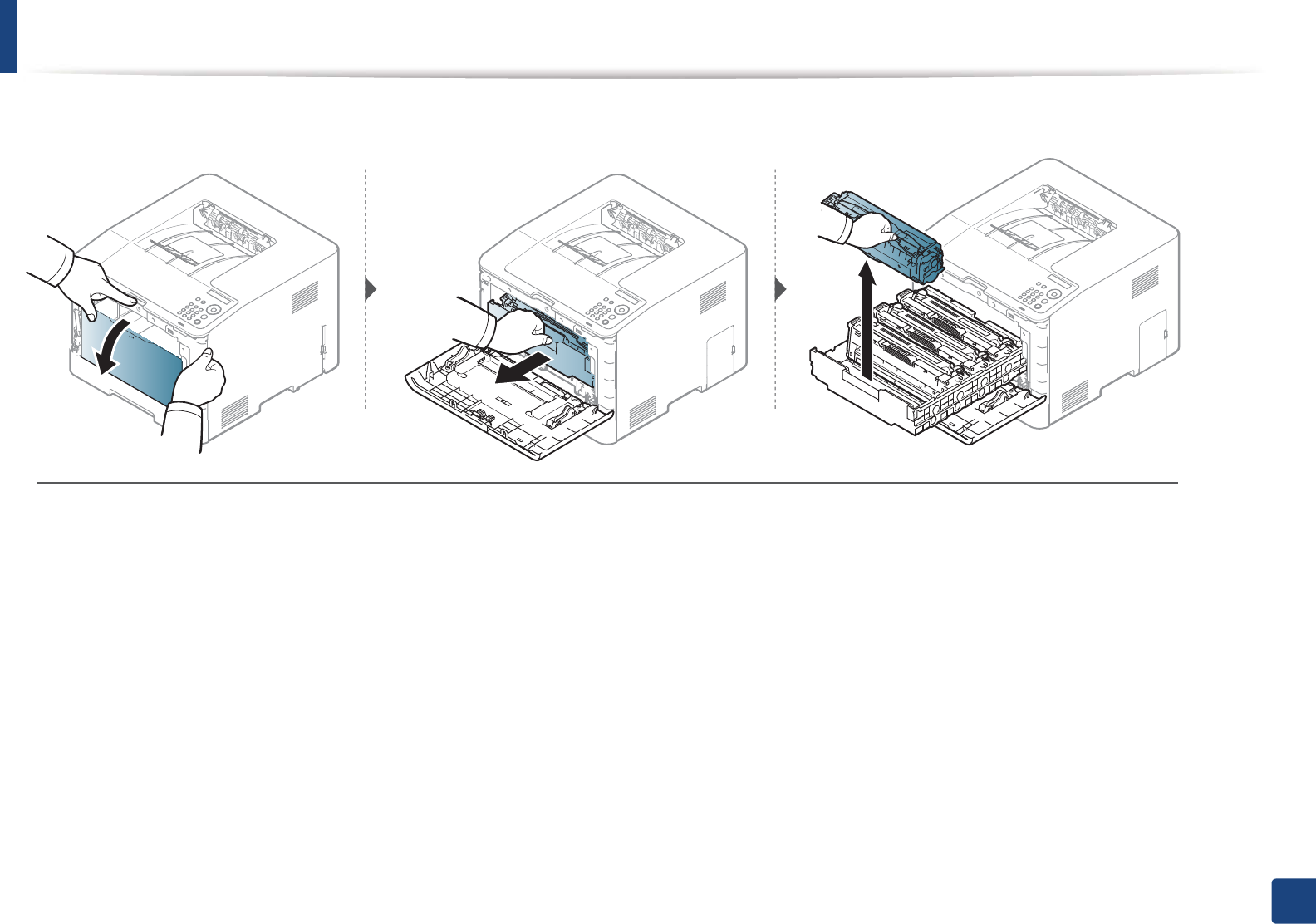

Redistributing toner
When the toner cartridge is near the end of its life:
• White streaks or light printing occurs and/or density variation side to side.
• The Status LED blinks red. The toner-related message saying that the toner is low may appear on the display.
• The computers’s Samsung Printing Status program window appears on the computer telling you which color cartridge is low on tonerG(see "Using Samsung
Printer Status" on page 235).
If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still
occur even after you have redistributed the toner. Check the type of the toner cartridge for your machineG(see "Available consumables" on page 56).
Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).
• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
• Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.
Redistributing toner
63
3. Maintenance
5~6
64
3. Maintenance

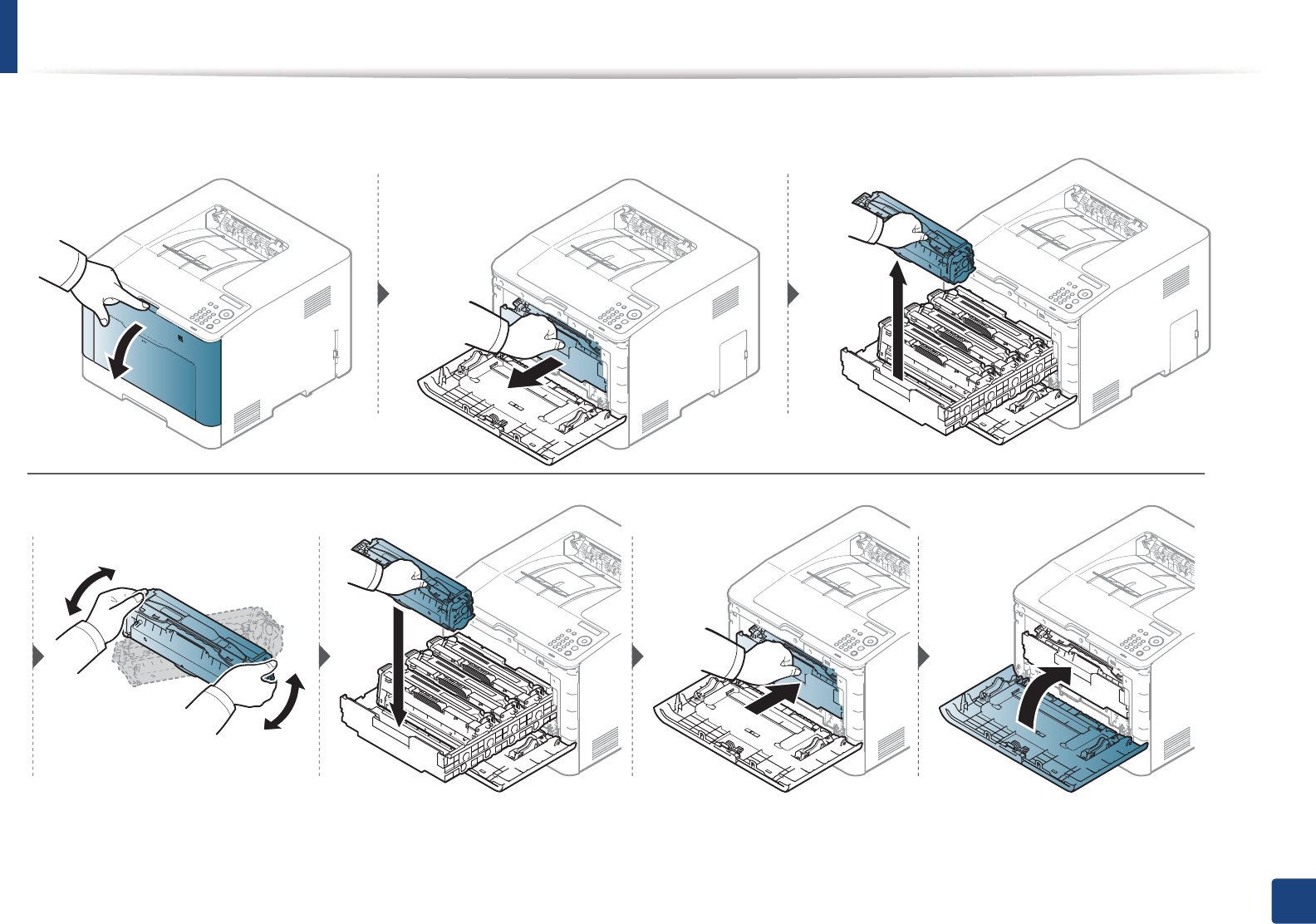

Replacing the toner cartridge
For CLP-41xN Series/CLP-41xNW Series:
Click this link to open an animation about replacing a toner cartridge.
For CLP-68xND Series/CLP-68xDW Series:
Click this link to open an animation about replacing a toner cartridge.
The machine uses four colors and has a different toner cartridge for each one: yellow (Y), magenta (M), cyan (C), and black (K).
• The status LED and the toner-related message on the display indicate when each individual toner cartridges should be replaced.
• The computers’s Samsung Printing Status program window appears on the computer telling you which color cartridge is empty on tonerG(see "Using Samsung
Printer Status" on page 235).
Check the type of the toner cartridge for your machineG(see "Available consumables" on page 56).
• Shake the toner cartridge thoroughly, it will increase the initial print quality.
• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).
• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
• Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.
Replacing the toner cartridge
65
3. Maintenance

Navigation menu
