User manual 2 of 5

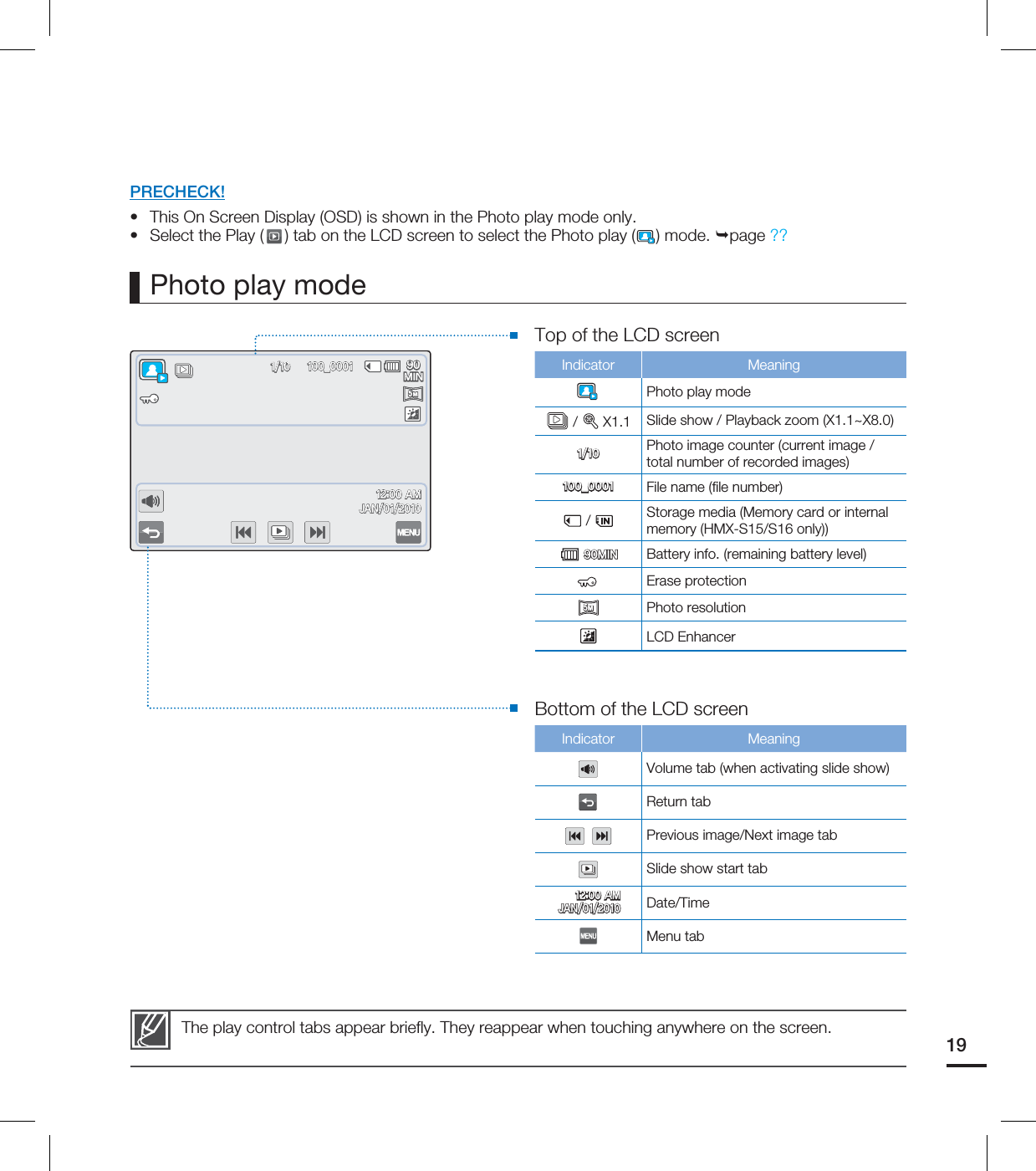

19Photo play modePRECHECK!This On Screen Display (OSD) is shown in the Photo play mode only.Select the Play ( ) tab on the LCD screen to select the Photo play ( ) mode. page ??••Top of the LCD screenIndicator MeaningPhoto play mode / X1.1 Slide show / Playback zoom (X1.1~X8.0) Photo image counter (current image / total number of recorded images)@ File name (fi le number) / Storage media (Memory card or internal memory (HMX-S15/S16 only)) .*/ Battery info. (remaining battery level)Erase protection5M5MPhoto resolutionLCD EnhancerBottom of the LCD screenIndicator Meaning Volume tab (when activating slide show)Return tabPrevious image/Next image tabSlide show start tab".+"/Date/TimeMenu tabThe play control tabs appear briefl y. They reappear when touching anywhere on the screen..*/ @".+"/5M5M.*/.*/@@555MMM".".+"/+"/

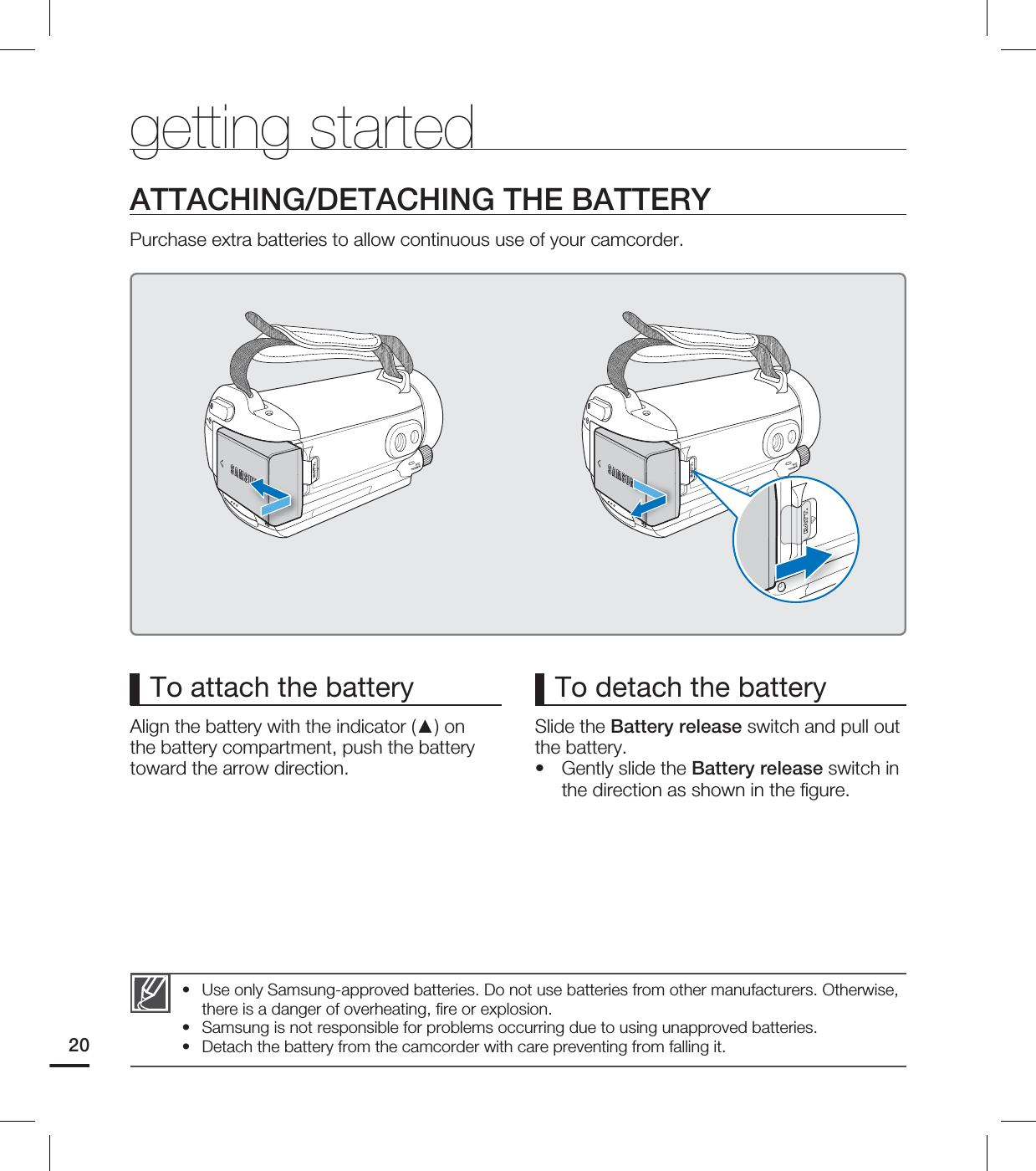

20To attach the batteryAlign the battery with the indicator (▲) on the battery compartment, push the battery toward the arrow direction.To detach the batterySlide the Battery release switch and pull out the battery.Gently slide the Battery release switch in the direction as shown in the fi gure.•ATTACHING/DETACHING THE BATTERYPurchase extra batteries to allow continuous use of your camcorder.Use only Samsung-approved batteries. Do not use batteries from other manufacturers. Otherwise, there is a danger of overheating, fi re or explosion.Samsung is not responsible for problems occurring due to using unapproved batteries.Detach the battery from the camcorder with care preventing from falling it. •••getting started

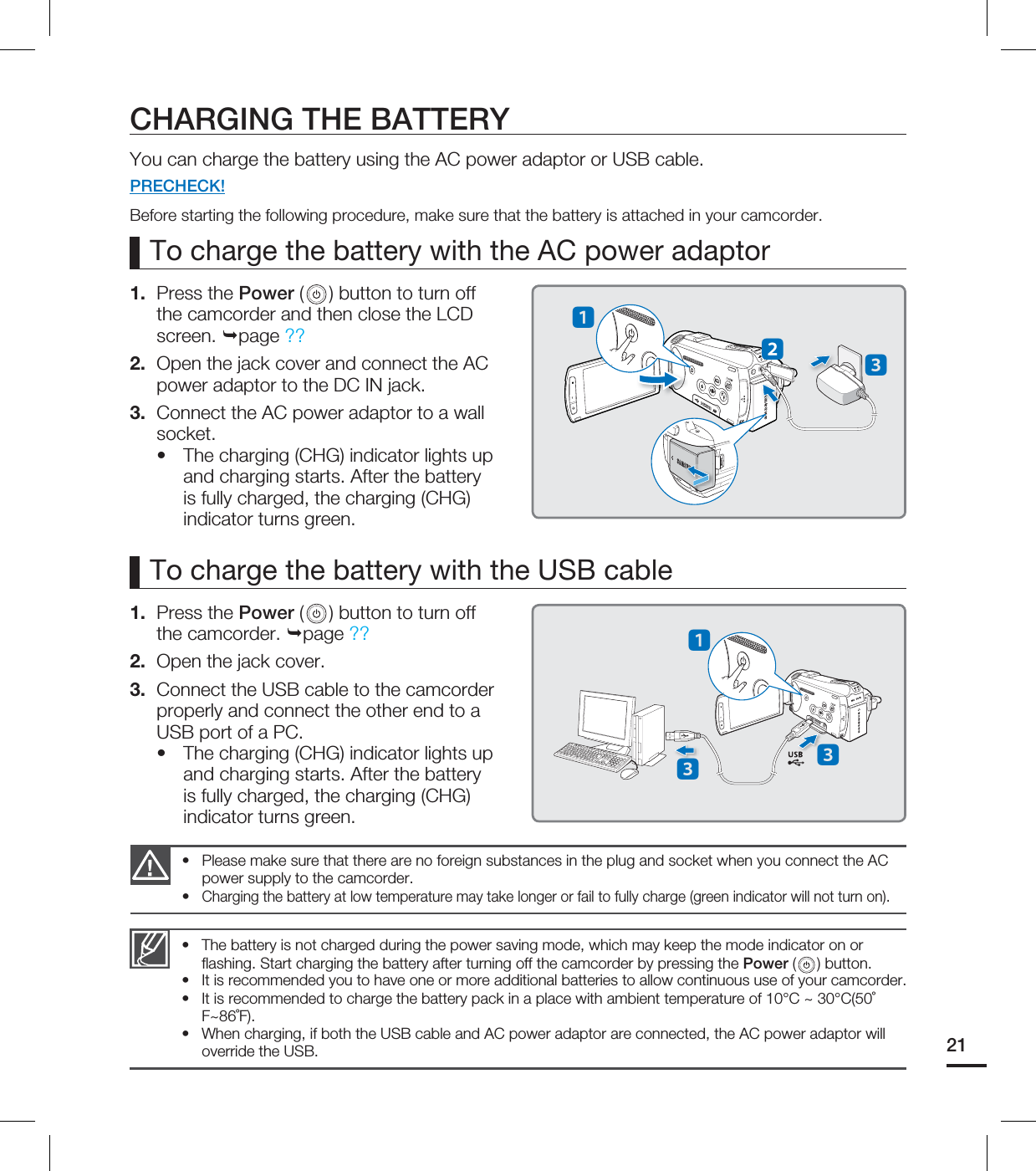

21To charge the battery with the AC power adaptorThe battery is not charged during the power saving mode, which may keep the mode indicator on or fl ashing. Start charging the battery after turning off the camcorder by pressing the Power ( ) button.It is recommended you to have one or more additional batteries to allow continuous use of your camcorder.It is recommended to charge the battery pack in a place with ambient temperature of 10°C ~ 30°C(50˚F~86˚F).When charging, if both the USB cable and AC power adaptor are connected, the AC power adaptor will override the USB.••••1. Press the Power ( ) button to turn off the camcorder and then close the LCD screen. page ??2. Open the jack cover and connect the AC power adaptor to the DC IN jack.3. Connect the AC power adaptor to a wall socket.The charging (CHG) indicator lights up and charging starts. After the battery is fully charged, the charging (CHG) indicator turns green.•Please make sure that there are no foreign substances in the plug and socket when you connect the AC power supply to the camcorder.Charging the battery at low temperature may take longer or fail to fully charge (green indicator will not turn on).••CHARGING THE BATTERYYou can charge the battery using the AC power adaptor or USB cable.PRECHECK!Before starting the following procedure, make sure that the battery is attached in your camcorder.To charge the battery with the USB cable1. Press the Power ( ) button to turn off the camcorder. page ??2. Open the jack cover.3. Connect the USB cable to the camcorder properly and connect the other end to a USB port of a PC.The charging (CHG) indicator lights up and charging starts. After the battery is fully charged, the charging (CHG) indicator turns green.•󱐻󱐿󱐽󱐻󱐿󱐿

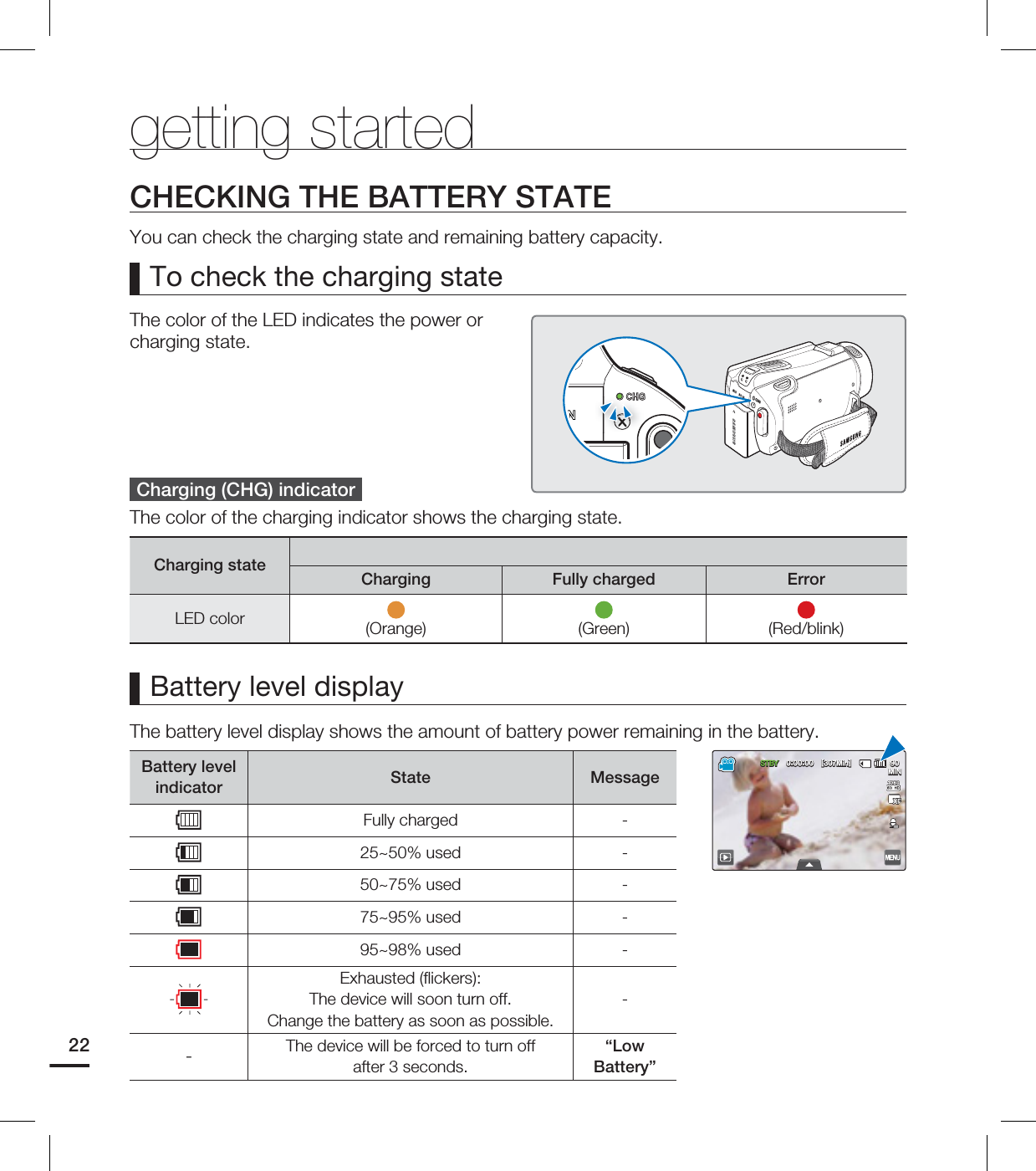

22getting startedThe battery level display shows the amount of battery power remaining in the battery.Battery level indicator State MessageFully charged -25~50% used -50~75% used -75~95% used -95~98% used -Exhausted (fl ickers): The device will soon turn off.Change the battery as soon as possible.--The device will be forced to turn off after 3 seconds. “LowBattery”CHECKING THE BATTERY STATEYou can check the charging state and remaining battery capacity.The color of the LED indicates the power or charging state.Charging (CHG) indicatorThe color of the charging indicator shows the charging state.Charging state Charging Fully charged ErrorLED color (Orange) (Green) (Red/blink)To check the charging stateBattery level display45#:  <.JO> .*/

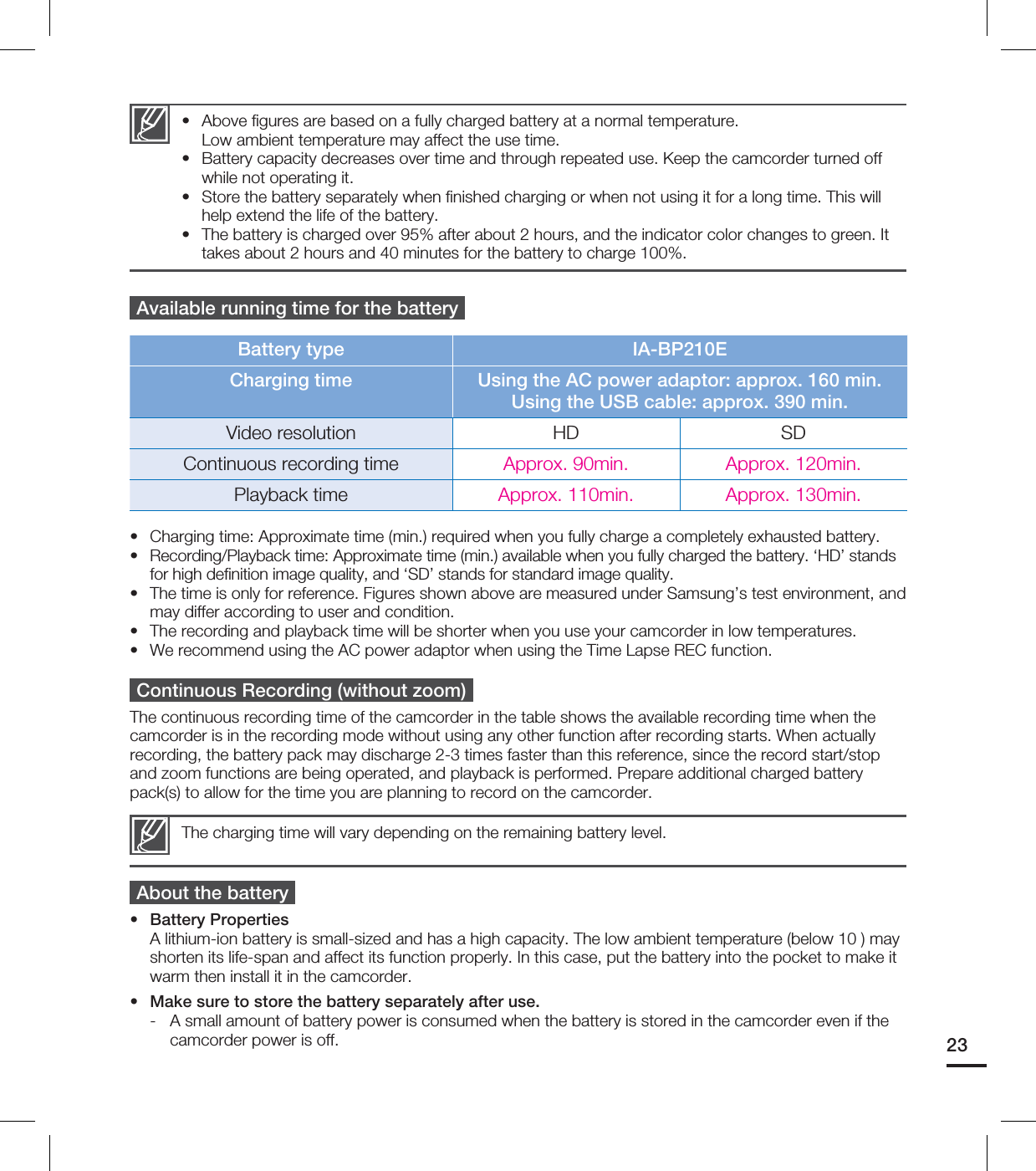

23Above figures are based on a fully charged battery at a normal temperature. Low ambient temperature may affect the use time.Battery capacity decreases over time and through repeated use. Keep the camcorder turned off while not operating it.Store the battery separately when finished charging or when not using it for a long time. This will help extend the life of the battery.The battery is charged over 95% after about 2 hours, and the indicator color changes to green. It takes about 2 hours and 40 minutes for the battery to charge 100%.••••Available running time for the battery Battery type IA-BP210ECharging time Using the AC power adaptor: approx. 160 min.Using the USB cable: approx. 390 min.Video resolution HD SDContinuous recording time Approx. 90min. Approx. 120min.Playback time Approx. 110min. Approx. 130min.Charging time: Approximate time (min.) required when you fully charge a completely exhausted battery.Recording/Playback time: Approximate time (min.) available when you fully charged the battery. ‘HD’ stands for high definition image quality, and ‘SD’ stands for standard image quality.The time is only for reference. Figures shown above are measured under Samsung’s test environment, and may differ according to user and condition.The recording and playback time will be shorter when you use your camcorder in low temperatures.We recommend using the AC power adaptor when using the Time Lapse REC function.Continuous Recording (without zoom)The continuous recording time of the camcorder in the table shows the available recording time when the camcorder is in the recording mode without using any other function after recording starts. When actually recording, the battery pack may discharge 2-3 times faster than this reference, since the record start/stop and zoom functions are being operated, and playback is performed. Prepare additional charged battery pack(s) to allow for the time you are planning to record on the camcorder.About the batteryBattery Properties A lithium-ion battery is small-sized and has a high capacity. The low ambient temperature (below 10 ) may shorten its life-span and affect its function properly. In this case, put the battery into the pocket to make it warm then install it in the camcorder.Make sure to store the battery separately after use. - A small amount of battery power is consumed when the battery is stored in the camcorder even if the camcorder power is off. •••••••The charging time will vary depending on the remaining battery level.

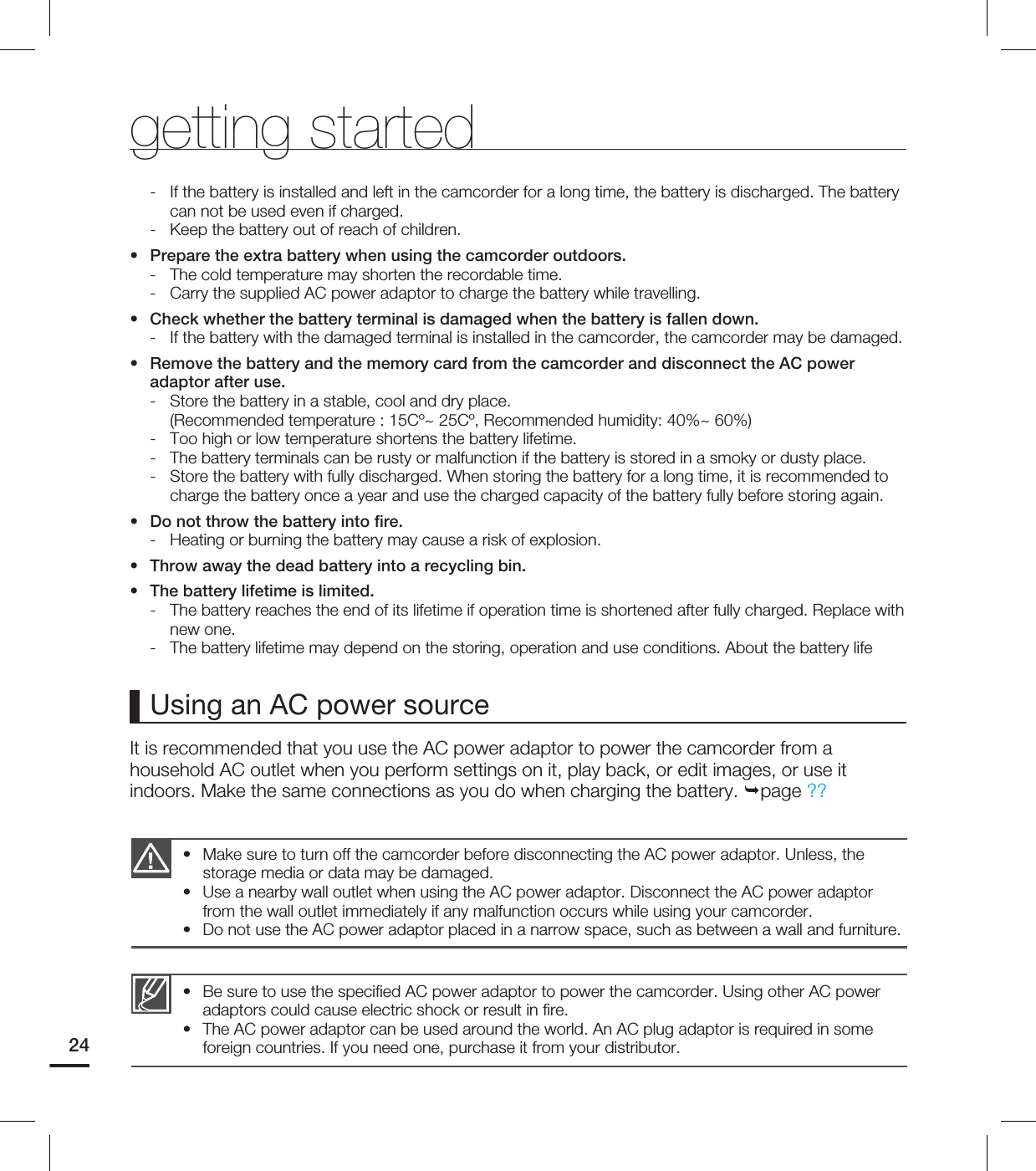

24- If the battery is installed and left in the camcorder for a long time, the battery is discharged. The battery can not be used even if charged. - Keep the battery out of reach of children.Prepare the extra battery when using the camcorder outdoors. - The cold temperature may shorten the recordable time. - Carry the supplied AC power adaptor to charge the battery while travelling. Check whether the battery terminal is damaged when the battery is fallen down. - If the battery with the damaged terminal is installed in the camcorder, the camcorder may be damaged. Remove the battery and the memory card from the camcorder and disconnect the AC power adaptor after use.- Store the battery in a stable, cool and dry place. (Recommended temperature : 15Cº~ 25Cº, Recommended humidity: 40%~ 60%)- Too high or low temperature shortens the battery lifetime. - The battery terminals can be rusty or malfunction if the battery is stored in a smoky or dusty place. - Store the battery with fully discharged. When storing the battery for a long time, it is recommended to charge the battery once a year and use the charged capacity of the battery fully before storing again.Do not throw the battery into fire. - Heating or burning the battery may cause a risk of explosion.Throw away the dead battery into a recycling bin. The battery lifetime is limited. - The battery reaches the end of its lifetime if operation time is shortened after fully charged. Replace with new one. - The battery lifetime may depend on the storing, operation and use conditions. About the battery lifeIt is recommended that you use the AC power adaptor to power the camcorder from a household AC outlet when you perform settings on it, play back, or edit images, or use it indoors. Make the same connections as you do when charging the battery. page ??••••••getting startedUsing an AC power sourceBe sure to use the specified AC power adaptor to power the camcorder. Using other AC power adaptors could cause electric shock or result in fire.The AC power adaptor can be used around the world. An AC plug adaptor is required in some foreign countries. If you need one, purchase it from your distributor.••Make sure to turn off the camcorder before disconnecting the AC power adaptor. Unless, the storage media or data may be damaged. Use a nearby wall outlet when using the AC power adaptor. Disconnect the AC power adaptor from the wall outlet immediately if any malfunction occurs while using your camcorder.Do not use the AC power adaptor placed in a narrow space, such as between a wall and furniture.•••

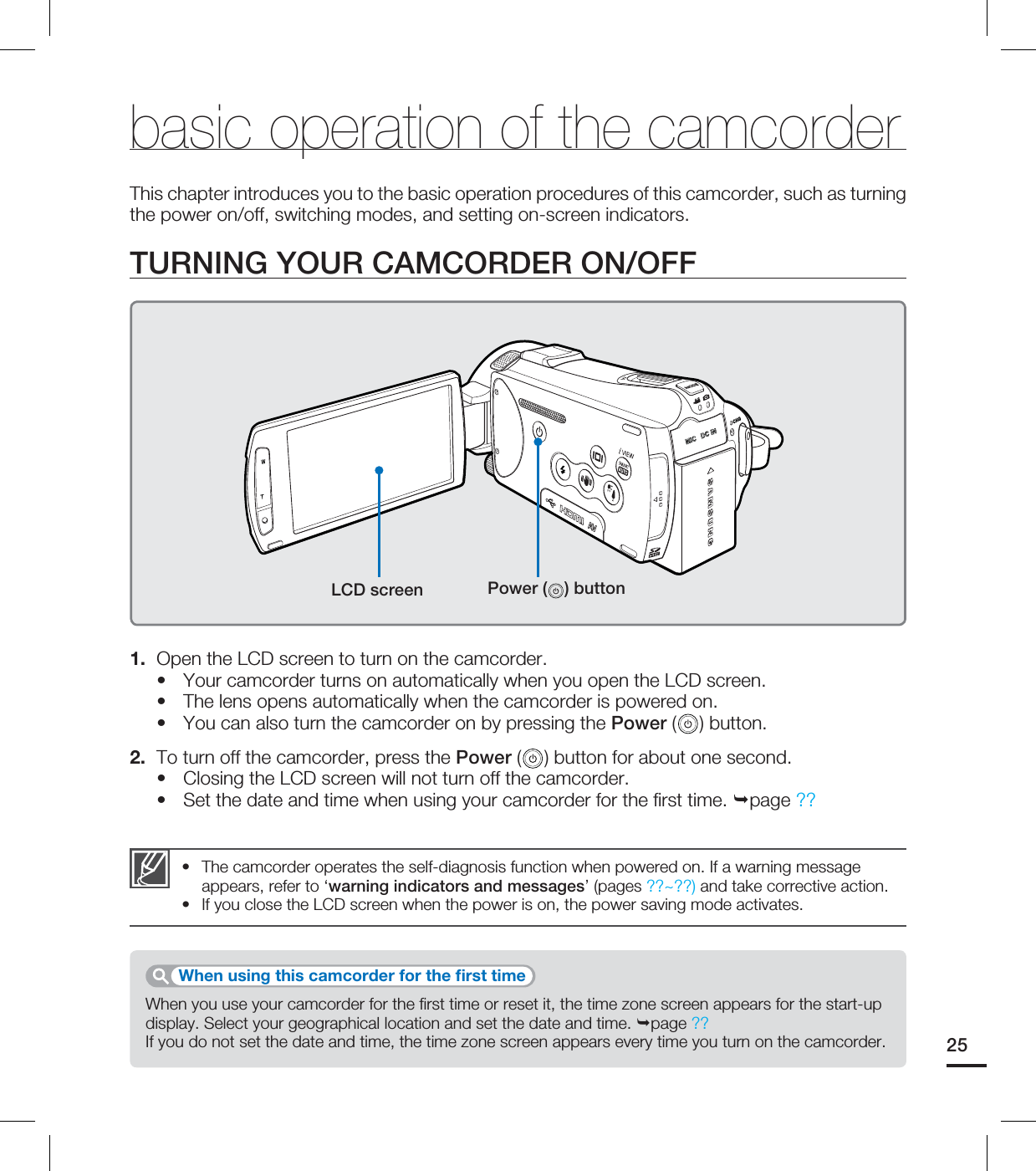

25The camcorder operates the self-diagnosis function when powered on. If a warning message appears, refer to ‘warning indicators and messages’ (pages ??~??) and take corrective action.If you close the LCD screen when the power is on, the power saving mode activates.••basic operation of the camcorderThis chapter introduces you to the basic operation procedures of this camcorder, such as turning the power on/off, switching modes, and setting on-screen indicators.TURNING YOUR CAMCORDER ON/OFF1. Open the LCD screen to turn on the camcorder.Your camcorder turns on automatically when you open the LCD screen.The lens opens automatically when the camcorder is powered on.You can also turn the camcorder on by pressing the Power ( ) button.2. To turn off the camcorder, press the Power ( ) button for about one second.Closing the LCD screen will not turn off the camcorder.Set the date and time when using your camcorder for the first time. page ??•••••When you use your camcorder for the first time or reset it, the time zone screen appears for the start-up display. Select your geographical location and set the date and time. page ??If you do not set the date and time, the time zone screen appears every time you turn on the camcorder.When using this camcorder for the first timeLCD screen Power ( ) button

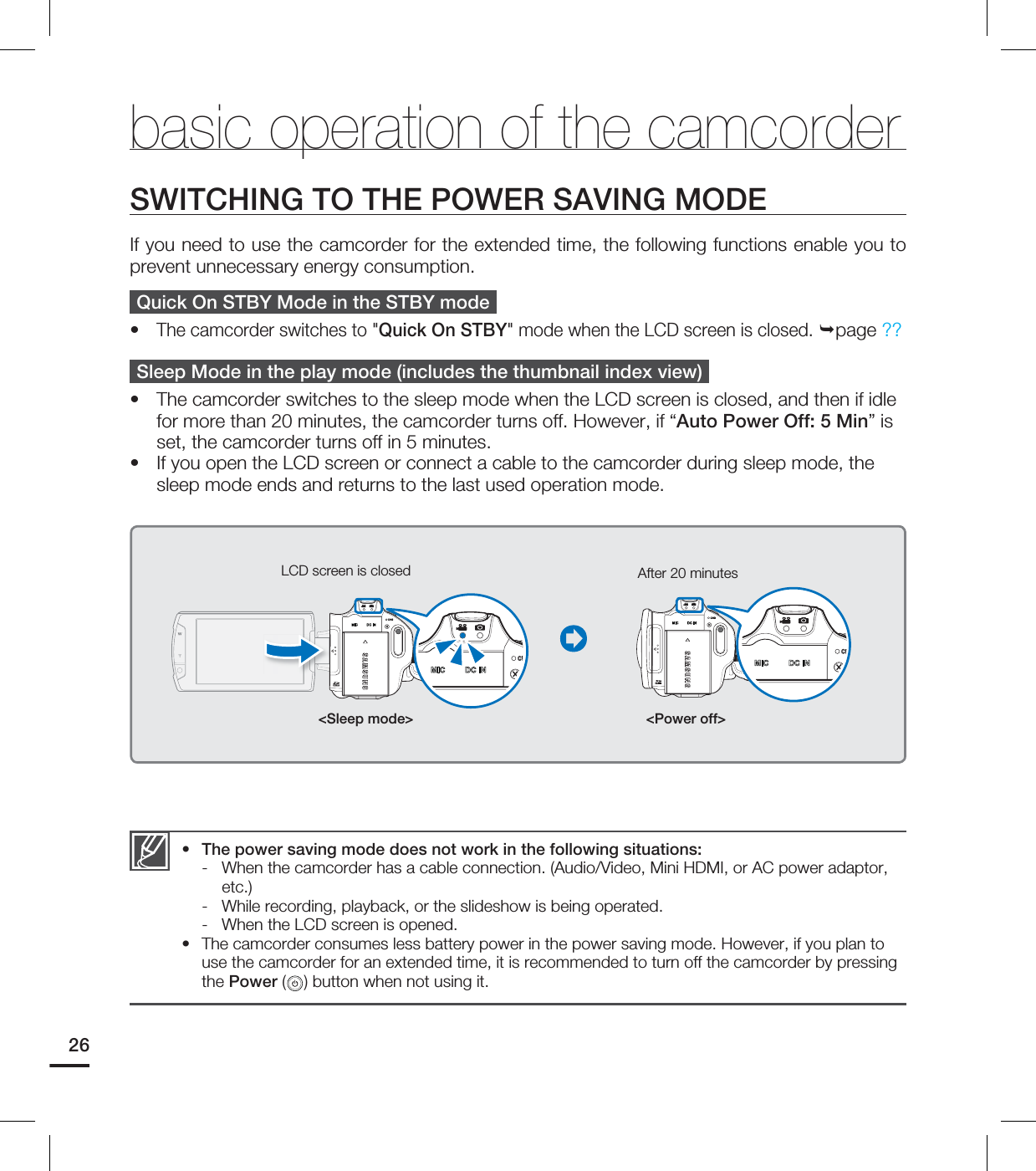

26SWITCHING TO THE POWER SAVING MODEIf you need to use the camcorder for the extended time, the following functions enable you to prevent unnecessary energy consumption.Quick On STBY Mode in the STBY modeThe camcorder switches to "Quick On STBY" mode when the LCD screen is closed. page ??Sleep Mode in the play mode (includes the thumbnail index view)The camcorder switches to the sleep mode when the LCD screen is closed, and then if idle for more than 20 minutes, the camcorder turns off. However, if “Auto Power Off: 5 Min” is set, the camcorder turns off in 5 minutes.If you open the LCD screen or connect a cable to the camcorder during sleep mode, the sleep mode ends and returns to the last used operation mode.•••The power saving mode does not work in the following situations:- When the camcorder has a cable connection. (Audio/Video, Mini HDMI, or AC power adaptor, etc.)- While recording, playback, or the slideshow is being operated.- When the LCD screen is opened.The camcorder consumes less battery power in the power saving mode. However, if you plan to use the camcorder for an extended time, it is recommended to turn off the camcorder by pressing the Power () button when not using it.••basic operation of the camcorder<Sleep mode>LCD screen is closed<Power off>After 20 minutes

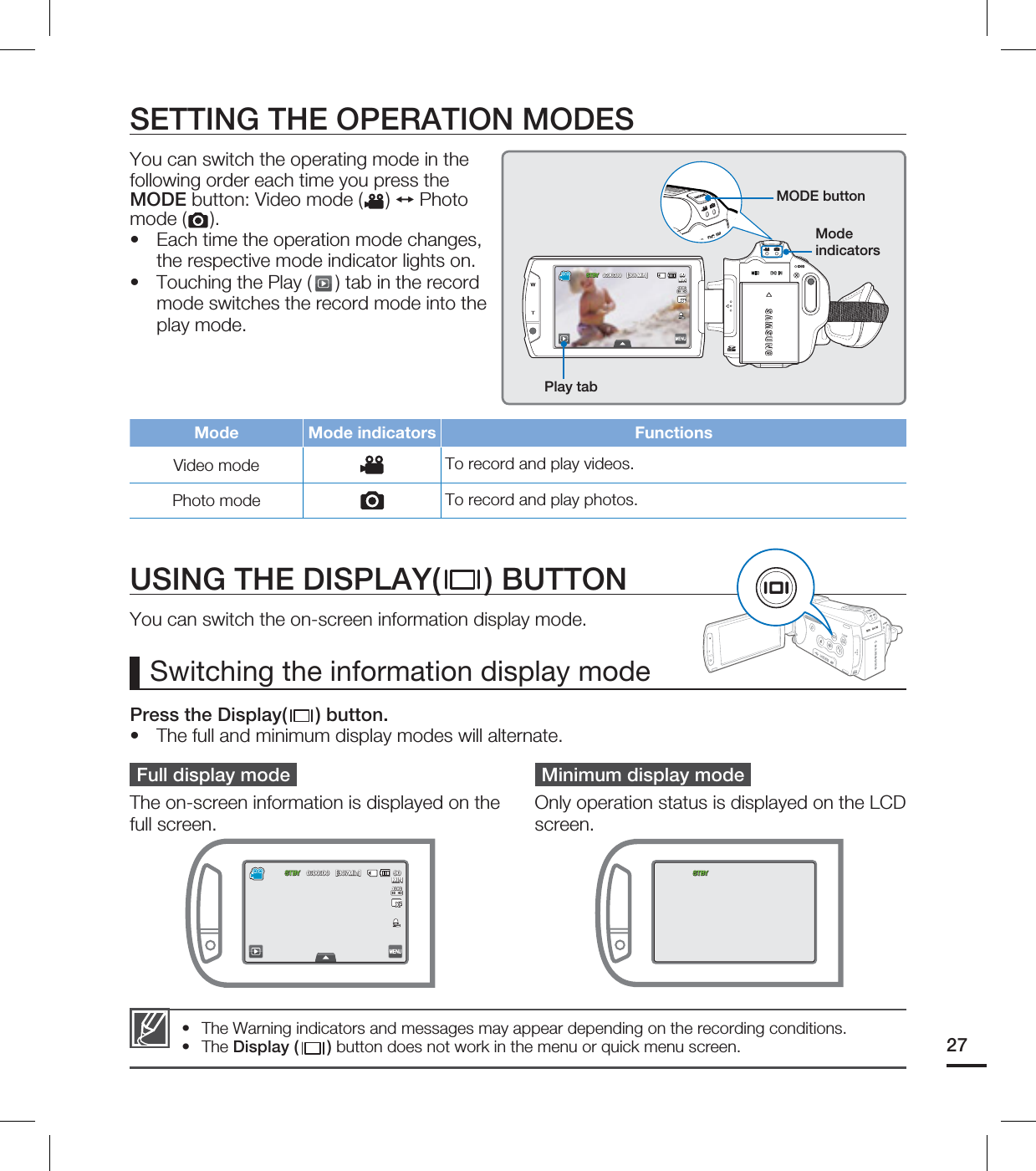

27SETTING THE OPERATION MODESYou can switch the operating mode in the following order each time you press the MODE button: Video mode ( ) ↕ Photomode ( ).Each time the operation mode changes, the respective mode indicator lights on.Touching the Play ( ) tab in the record mode switches the record mode into the play mode.••Mode Mode indicators FunctionsVideo mode To record and play videos.Photo mode To record and play photos.USING THE DISPLAY( ) BUTTONYou can switch the on-screen information display mode.Press the Display( ) button.• The full and minimum display modes will alternate. Switching the information display modeFull display modeThe on-screen information is displayed on the full screen.Minimum display modeOnly operation status is displayed on the LCD screen.The Warning indicators and messages may appear depending on the recording conditions.The Display ( ) button does not work in the menu or quick menu screen.••MODE buttonMode indicators45#: <.JO> .*/Play tab45#:  <.JO> .*/45#:

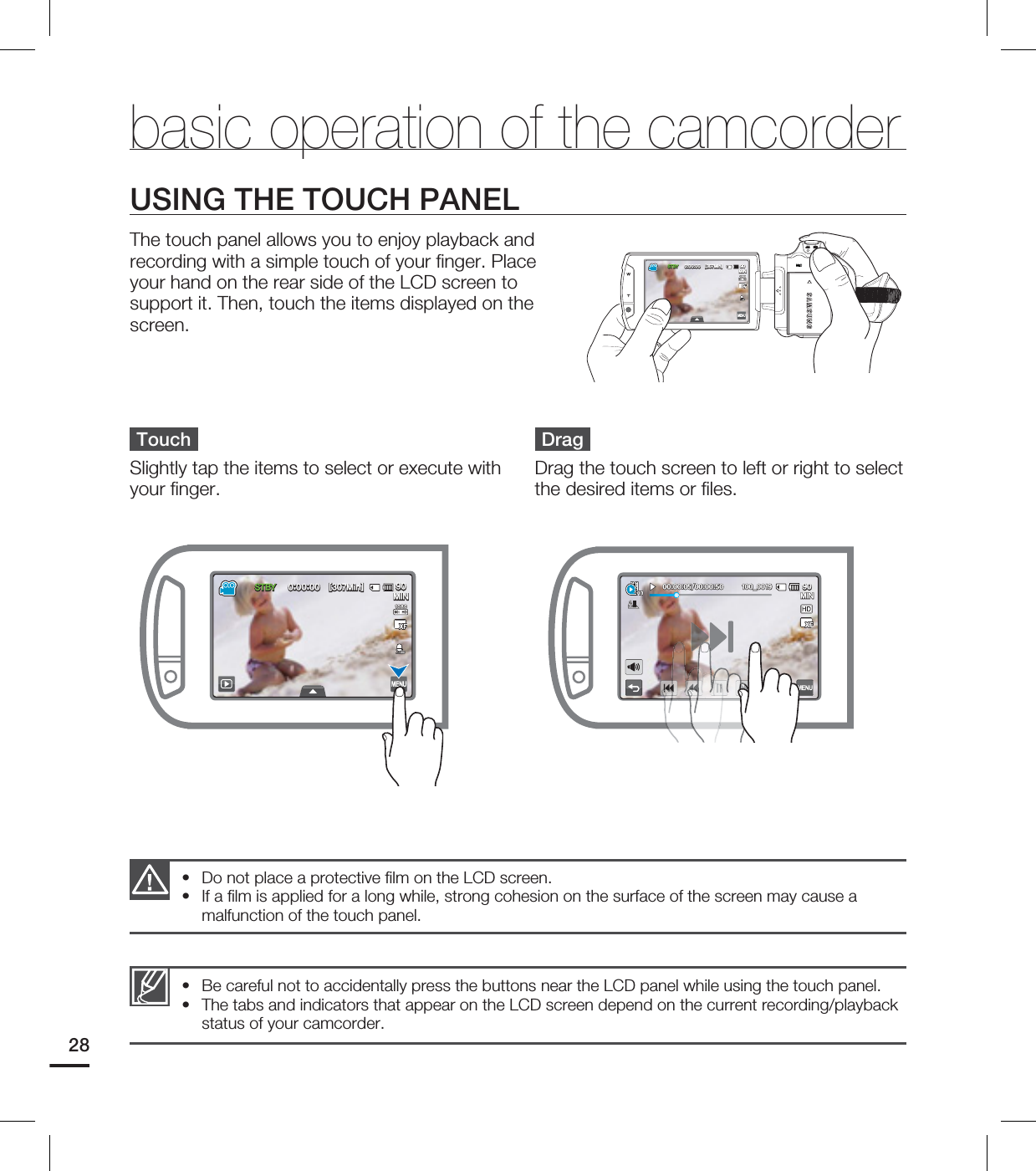

28USING THE TOUCH PANELThe touch panel allows you to enjoy playback and recording with a simple touch of your fi nger. Place your hand on the rear side of the LCD screen to support it. Then, touch the items displayed on the screen.Do not place a protective fi lm on the LCD screen.If a fi lm is applied for a long while, strong cohesion on the surface of the screen may cause a malfunction of the touch panel.••Be careful not to accidentally press the buttons near the LCD panel while using the touch panel.The tabs and indicators that appear on the LCD screen depend on the current recording/playback status of your camcorder.••TouchSlightly tap the items to select or execute with your fi nger. DragDrag the touch screen to left or right to select the desired items or fi les. basic operation of the camcorder45#:  <.JO> .*/45#:  <.JO> .*/ .*/@

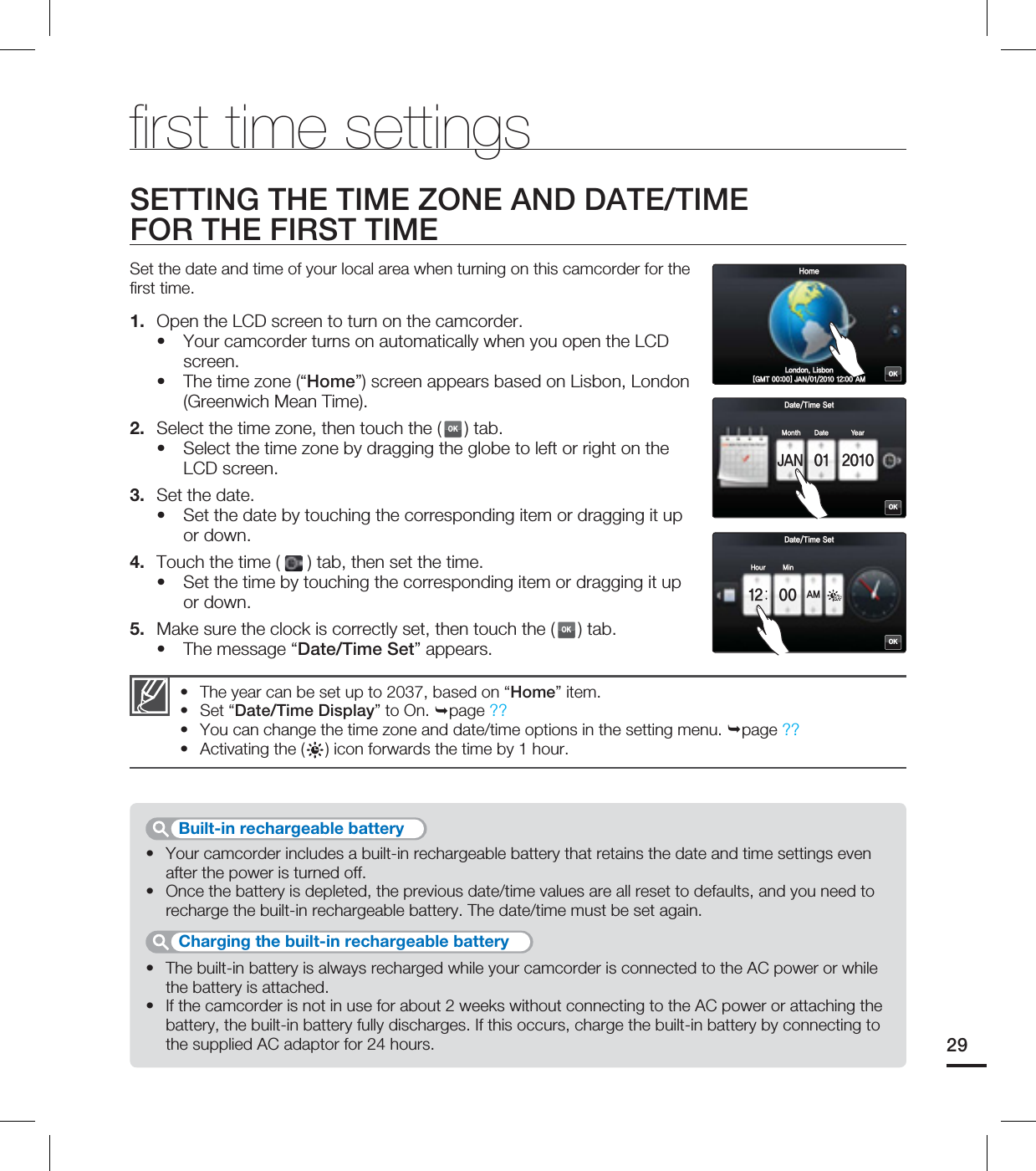

29fi rst time settingsSETTING THE TIME ZONE AND DATE/TIMEFOR THE FIRST TIMESet the date and time of your local area when turning on this camcorder for the fi rst time.1. Open the LCD screen to turn on the camcorder.Your camcorder turns on automatically when you open the LCD screen.The time zone (“Home”) screen appears based on Lisbon, London (Greenwich Mean Time).2. Select the time zone, then touch the (OK) tab. Select the time zone by dragging the globe to left or right on the LCD screen. 3. Set the date.Set the date by touching the corresponding item or dragging it up or down.4. Touch the time ( ) tab, then set the time. Set the time by touching the corresponding item or dragging it up or down.5. Make sure the clock is correctly set, then touch the (OK) tab.The message “Date/Time Set” appears.••••••The year can be set up to 2037, based on “Home” item.Set “Date/Time Display” to On. page ??You can change the time zone and date/time options in the setting menu. page ??Activating the ( ) icon forwards the time by 1 hour. ••••Your camcorder includes a built-in rechargeable battery that retains the date and time settings even after the power is turned off.Once the battery is depleted, the previous date/time values are all reset to defaults, and you need to recharge the built-in rechargeable battery. The date/time must be set again.The built-in battery is always recharged while your camcorder is connected to the AC power or while the battery is attached.If the camcorder is not in use for about 2 weeks without connecting to the AC power or attaching the battery, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting to the supplied AC adaptor for 24 hours.••••Built-in rechargeable batteryCharging the built-in rechargeable batteryOK-POEPO-JTCPO<(.5>+"/".)PNFOK.POUI%BUF5JNF4FU%BUF :FBS+"/ OK)PVS%BUF5JNF4FU.JO".OFFOFF

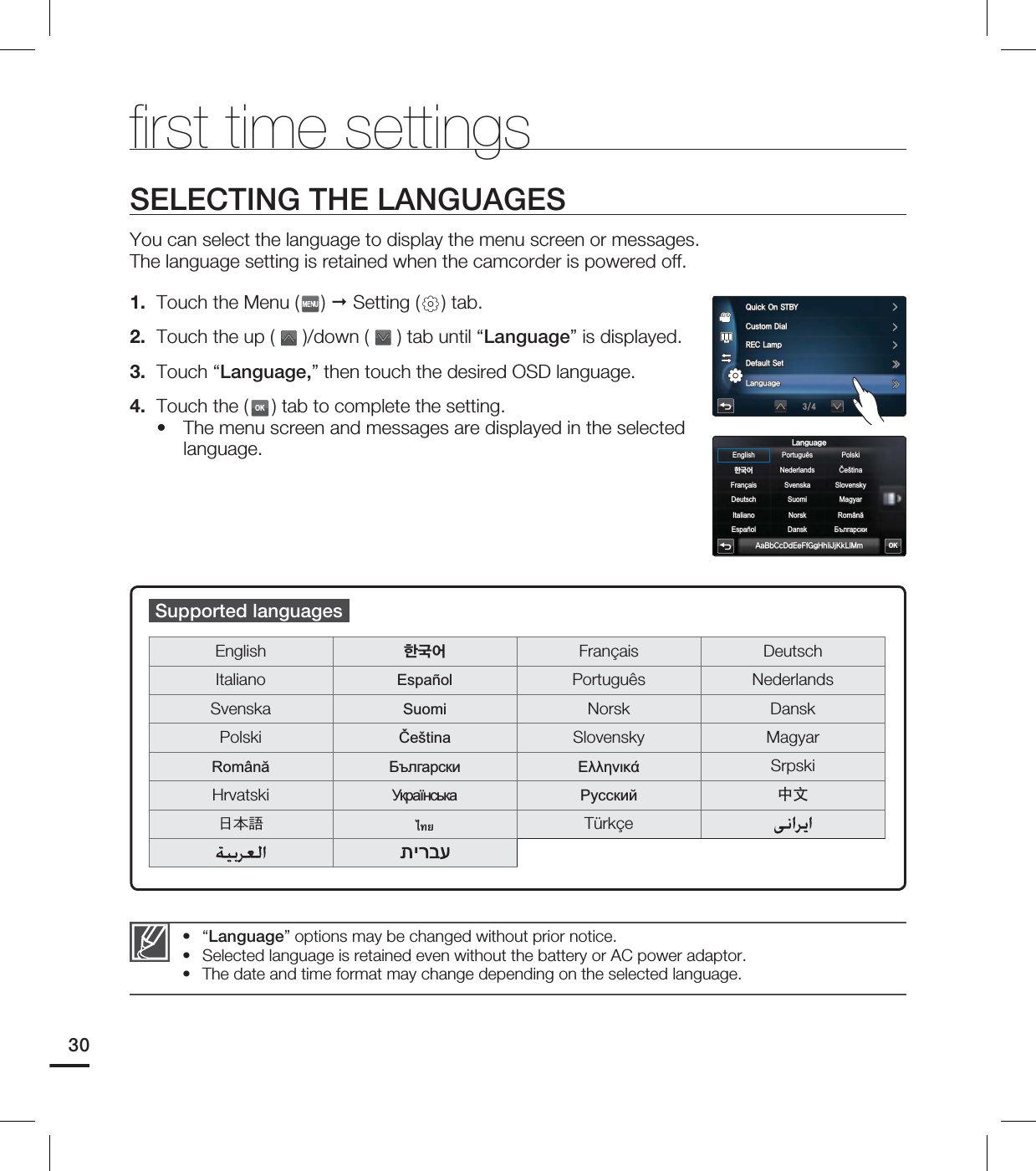

30Supported languagesEnglish ⦽ǎᨕ Français DeutschItaliano Español Português NederlandsSvenska Suomi Norsk DanskPolski Čeština Slovensky MagyarRomână Български Ελληνικά SrpskiHrvatski Українська Русский ፩ၭ瀌煓铅ไทยTürkçeSELECTING THE LANGUAGESYou can select the language to display the menu screen or messages. The language setting is retained when the camcorder is powered off.1. Touch the Menu ( )  Setting ( ) tab.2. Touch the up ( )/down ( ) tab until “Language” is displayed.3. Touch “Language,” then touch the desired OSD language.4. Touch the (OK) tab to complete the setting.The menu screen and messages are displayed in the selected language.•“Language” options may be changed without prior notice.Selected language is retained even without the battery or AC power adaptor.The date and time format may change depending on the selected language.•••fi rst time settingsOKEnglish-BOHVBHF"B#C$D%E&F'G(H)IMJ+K,L-M.NPortuguês Polski⦽ǎᨕ Nederlands ČeštinaFrançais Svenska SlovenskyDeutsch Suomi MagyarItaliano Norsk RomânăEspañol Dansk Български$VTUPN%JBM3&$-BNQ%FGBVMU4FU-BOHVBHF2VJDL0O45#:

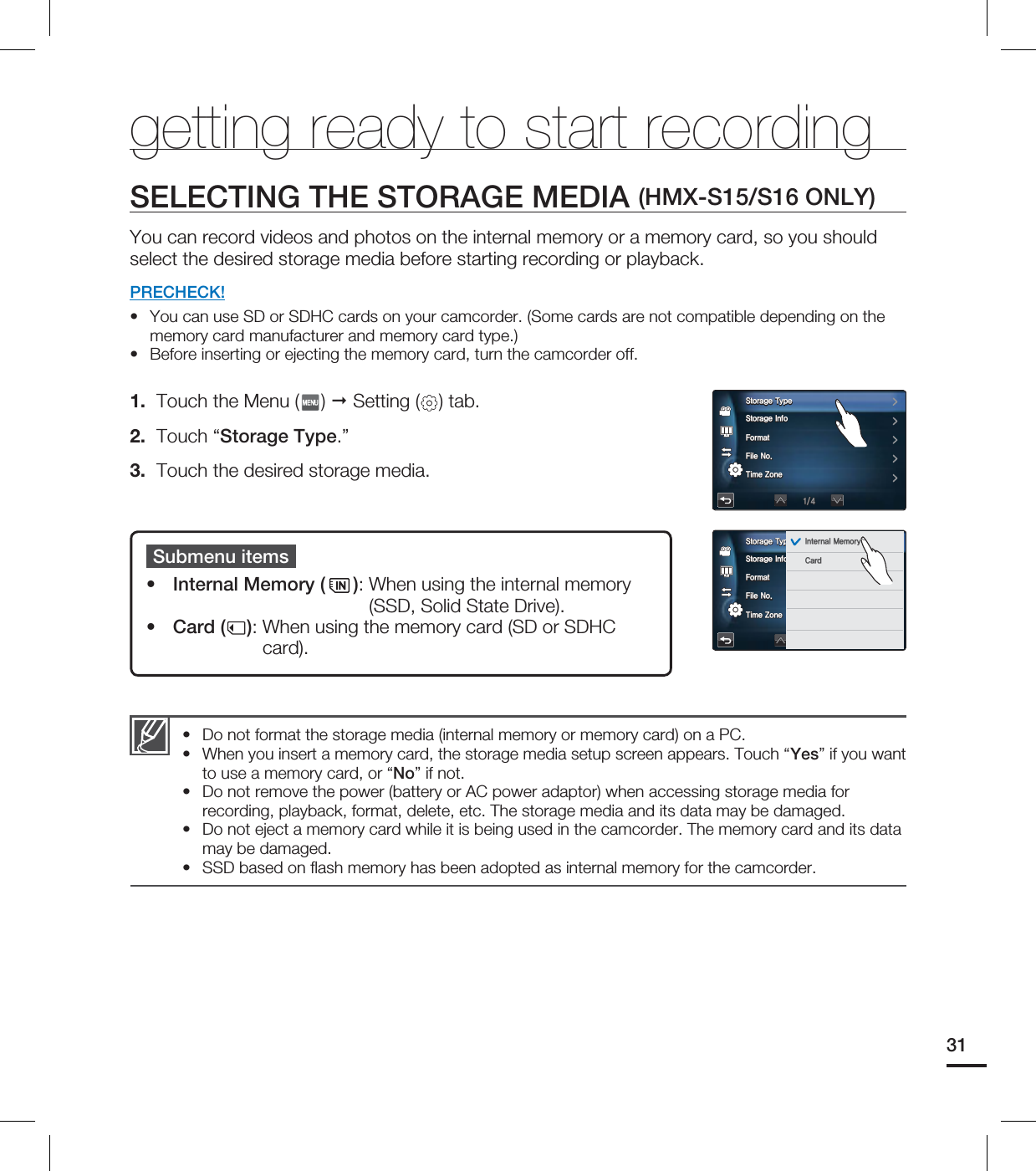

31SELECTING THE STORAGE MEDIA (HMX-S15/S16 ONLY)You can record videos and photos on the internal memory or a memory card, so you should select the desired storage media before starting recording or playback.PRECHECK!You can use SD or SDHC cards on your camcorder. (Some cards are not compatible depending on the memory card manufacturer and memory card type.)Before inserting or ejecting the memory card, turn the camcorder off.1. Touch the Menu ( )  Setting ( ) tab.2. Touch “Storage Type.”3. Touch the desired storage media.••getting ready to start recordingDo not format the storage media (internal memory or memory card) on a PC.When you insert a memory card, the storage media setup screen appears. Touch “Yes” if you want to use a memory card, or “No” if not.Do not remove the power (battery or AC power adaptor) when accessing storage media for recording, playback, format, delete, etc. The storage media and its data may be damaged.Do not eject a memory card while it is being used in the camcorder. The memory card and its data may be damaged.SSD based on fl ash memory has been adopted as internal memory for the camcorder.•••••Submenu itemsInternal Memory ( ): When using the internal memory (SSD, Solid State Drive).Card ( ): When using the memory card (SD or SDHC card).••4UPSBHF*OGP'PSNBU'JMF/P5JNF;POF4UPSBHF5ZQF4UPSBHF*OGP'PSNBU'JMF/P5JNF;POF4UPSBHF5ZQF *OUFSOBM.FNPSZ$BSE

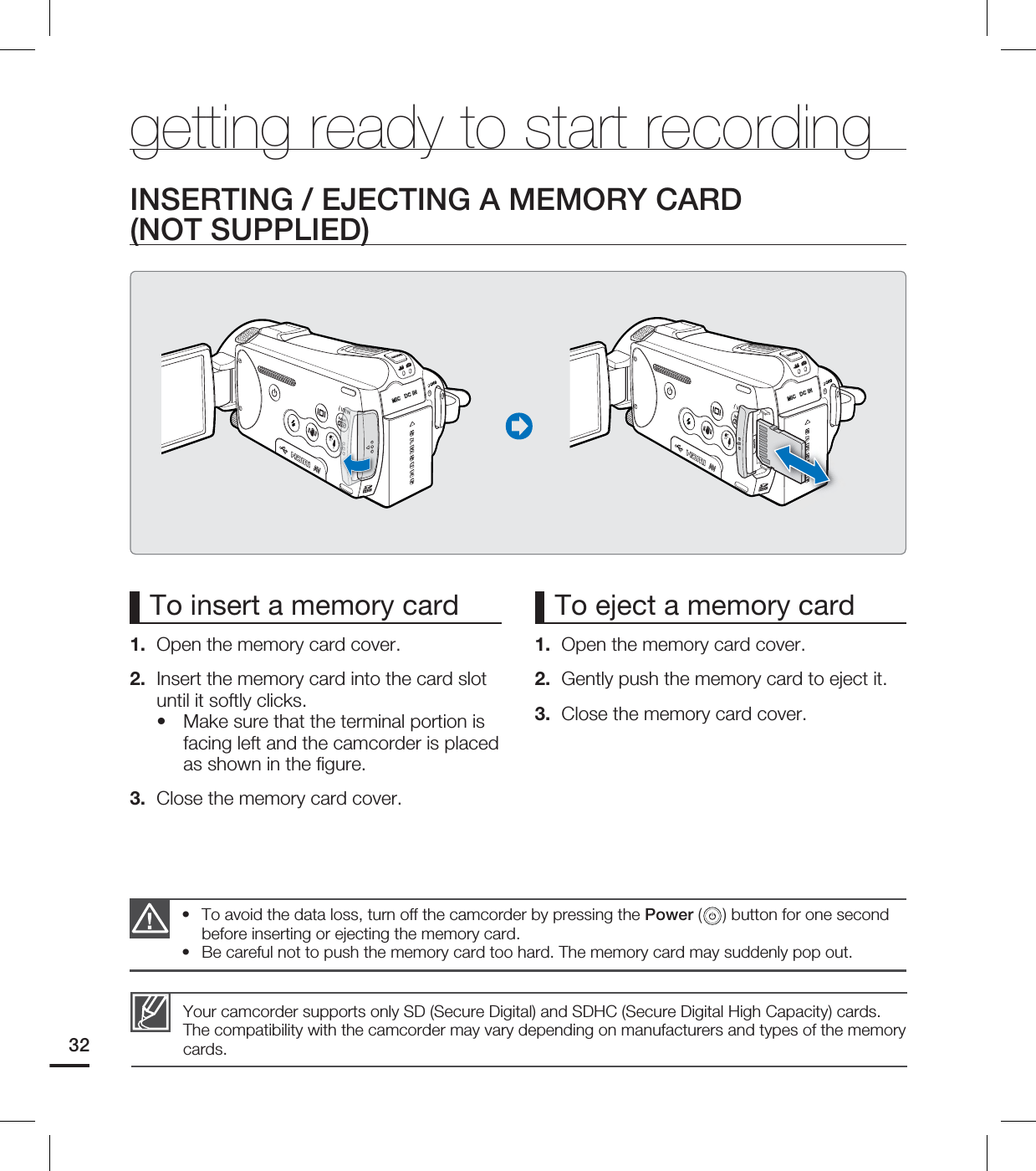

32To insert a memory card 1. Open the memory card cover.2. Insert the memory card into the card slot until it softly clicks.Make sure that the terminal portion is facing left and the camcorder is placed as shown in the fi gure.3. Close the memory card cover.•To eject a memory card1. Open the memory card cover.2. Gently push the memory card to eject it.3. Close the memory card cover.INSERTING / EJECTING A MEMORY CARD (NOT SUPPLIED)To avoid the data loss, turn off the camcorder by pressing the Power ( ) button for one second before inserting or ejecting the memory card.Be careful not to push the memory card too hard. The memory card may suddenly pop out.••Your camcorder supports only SD (Secure Digital) and SDHC (Secure Digital High Capacity) cards. The compatibility with the camcorder may vary depending on manufacturers and types of the memory cards.getting ready to start recording
