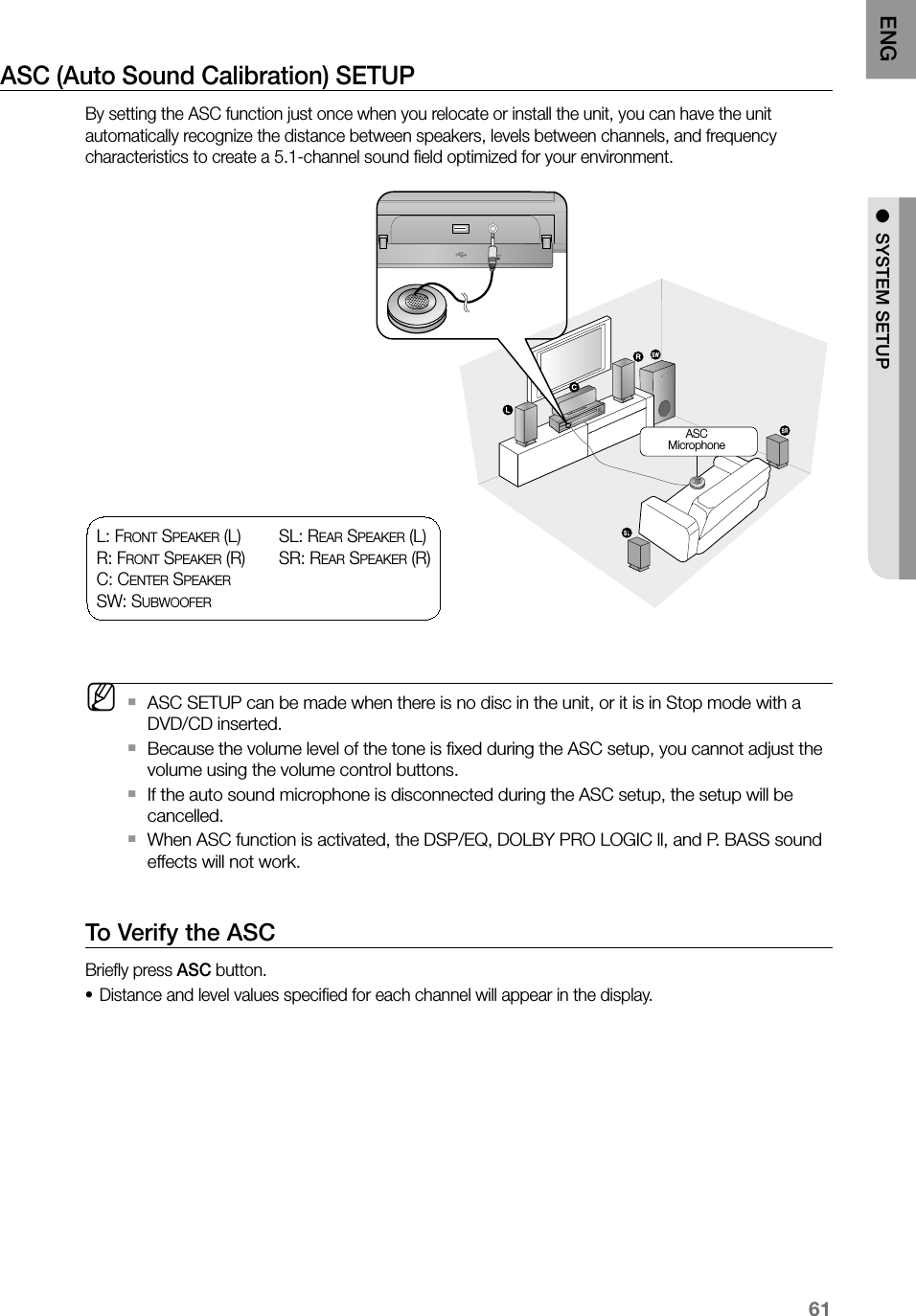

61ENG ● SYSTEM SETUP● SYSTEM SETUPASC (Auto Sound Calibration) SETUPBy setting the ASC function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound field optimized for your environment. M ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a `DVD/CD inserted.Because the volume level of the tone is fixed during the ASC setup, you cannot adjust the `volume using the volume control buttons.If the auto sound microphone is disconnected during the ASC setup, the setup will be `cancelled.When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll, and P. BASS sound `effects will not work.To Verify the ASCBriefly press ASC button.Distance and level values specified for each channel will appear in the display.•L: FR o N T SP E A K E R (L) R: FR o N T SP E A K E R (R)C: CE N T E R SP E A K E R SW: Su B W o o F E RSL: RE A R SP E A K E R (L) SR: RE A R SP E A K E R (R)AUX IN 1ASCMicrophone

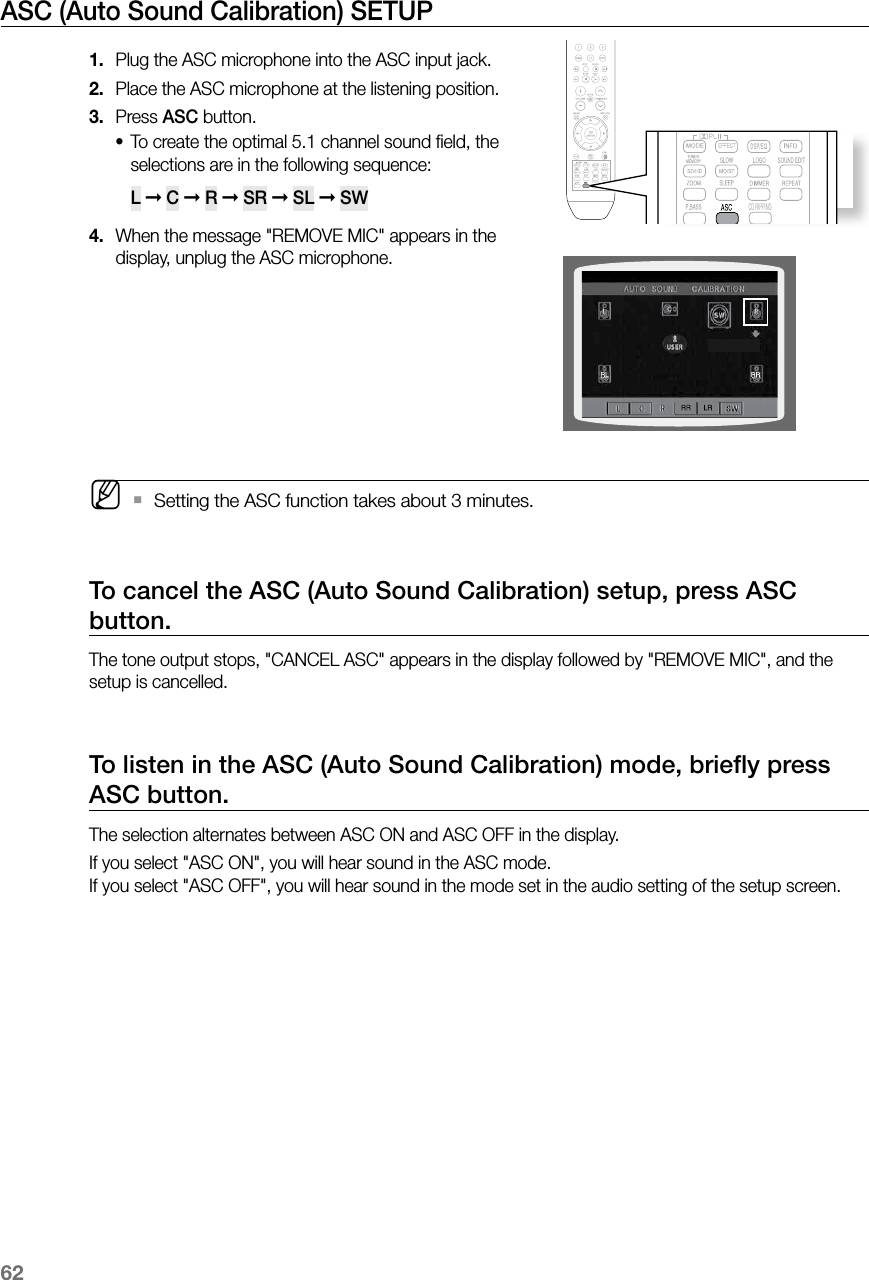

62ASC (Auto Sound Calibration) SETUP Plug the ASC microphone into the ASC input jack.1. Place the ASC microphone at the listening position.2. Press 3. ASC button.To create the optimal 5.1 channel sound field, the •selections are in the following sequence: L ➞ C ➞ R ➞ SR ➞ SL ➞ SW When the message "REMOVE MIC" appears in the 4. display, unplug the ASC microphone. M Setting the ASC function takes about 3 minutes. `To cancel the ASC (Auto Sound Calibration) setup, press ASC button.The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup is cancelled.To listen in the ASC (Auto Sound Calibration) mode, briefly press ASC button.The selection alternates between ASC ON and ASC OFF in the display.If you select "ASC ON", you will hear sound in the ASC mode. If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.CD RIPPINGCD RIPPING

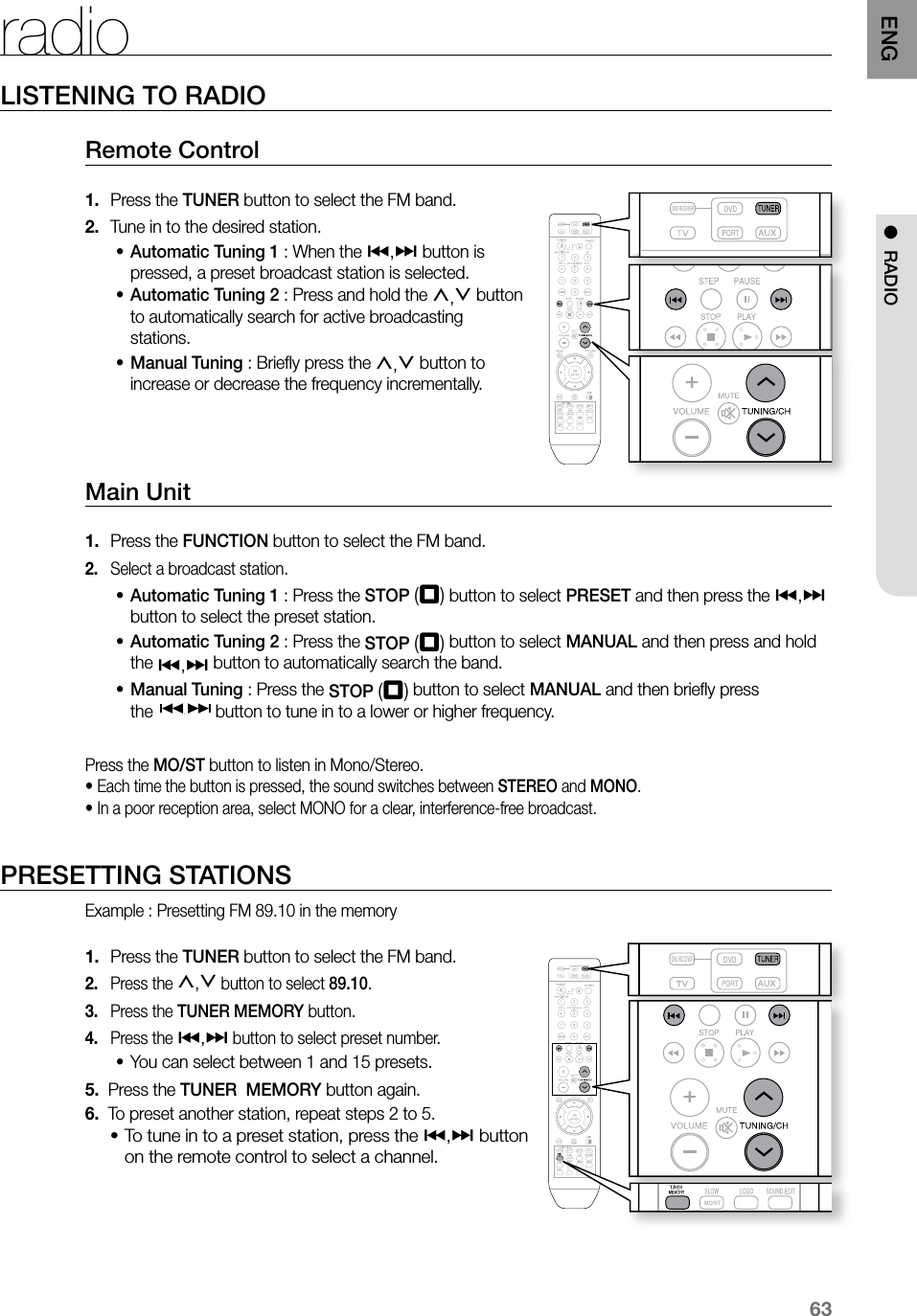

63ENGLISTENING TO RADIORemote Control Press the1. TUNER button to select the FM band.Tune in to the desired station.2. Automatic Tuning 1• : When the [,] button is pressed, a preset broadcast station is selected.Automatic Tuning 2• : Press and hold the ,,. button to automatically search for active broadcasting stations.Manual Tuning• : Briefly press the ,,. button to increase or decrease the frequency incrementally. Main Unit Press the 1. FUNCTION button to select the FM band.Select a broadcast station2. .Automatic Tuning 1• : Press the STOP (T) button to select PRESET and then press the [,] button to select the preset station. Automatic Tuning 2• : Press the STOP (T) button to select MANUAL and then press and hold the [,] button to automatically search the band.Manual Tuning• : Press the STOP (T) button to select MANUAL and then briefly press the button to tune in to a lower or higher frequency.Press the MO/ST button to listen in Mono/Stereo.• Each time the button is pressed, the sound switches between STEREO and MONO.• In a poor reception area, select MONO for a clear, interference-free broadcast.PRESETTING STATIONSExample : Presetting FM 89.10 in the memory Press the 1. TUNER button to select the FM band.Press the 2. ,,. button to select 89.10. Press the 3. TUNER MEMORY button.Press the 4. [,] button to select preset number.You can select between 1 and 15 presets.•5. Press the TUNER MEMORY button again.6. To preset another station, repeat steps 2 to 5.To tune in to a preset station, press the •[,] button on the remote control to select a channel.radio ASCCD RIPPING ASCCD RIPPING● RADIO

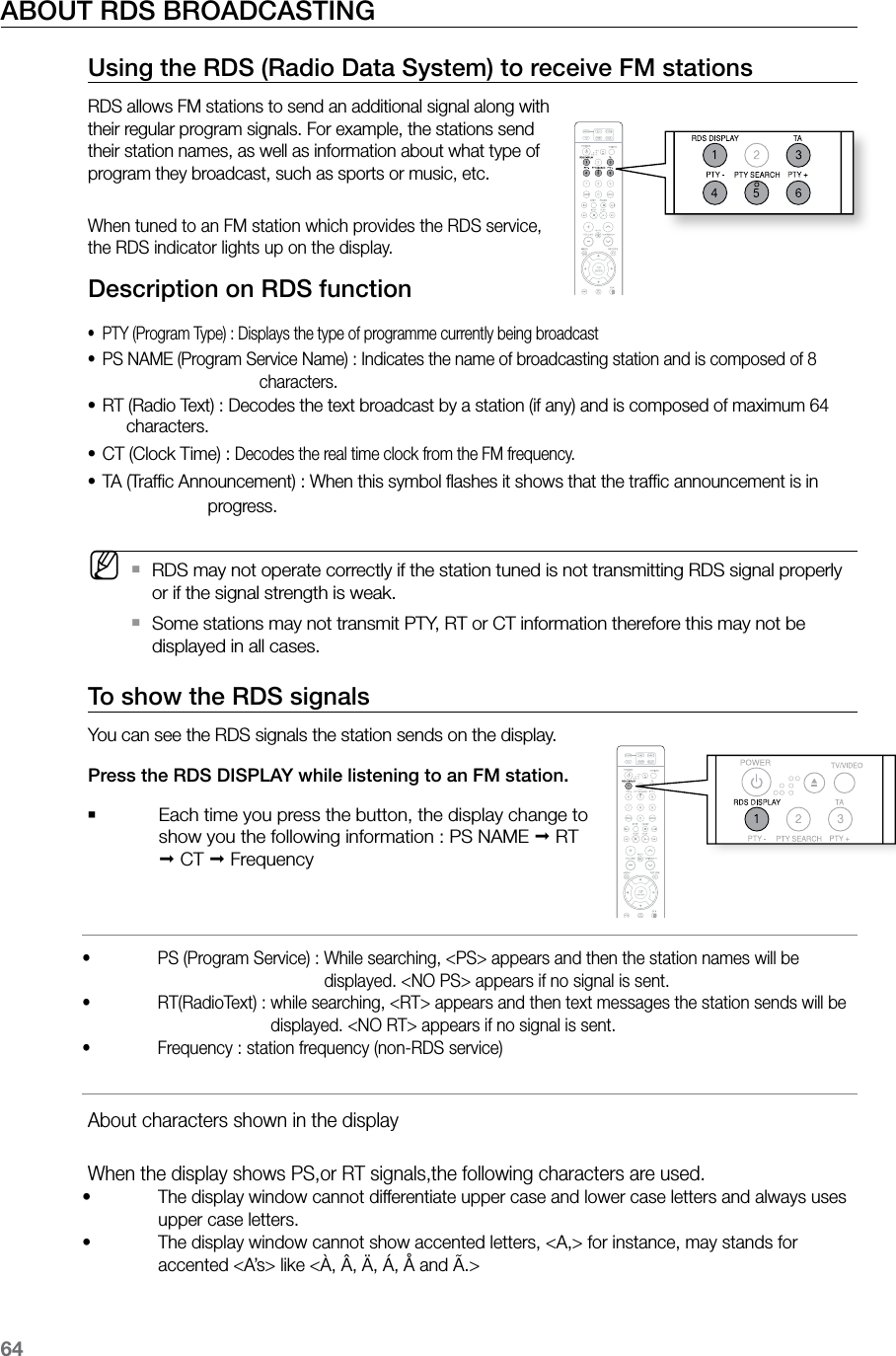

64ABOUT RDS BROADCASTING Using the RDS (Radio Data System) to receive FM stations RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.Description on RDS functionPTY (Program Type) : Displays the type of programme currently being broadcast•PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 •characters.RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 •characters.CT (Clock Time) : •Decodes the real time clock from the FM frequency.TA (Traffic Announcement) : When this symbol flashes it shows that the traffic announcement is in •progress. MRDS may not operate correctly if the station tuned is not transmitting RDS signal properly `or if the signal strength is weak.Some stations may not transmit PTY, RT or CT information therefore this may not be `displayed in all cases.To show the RDS signalsYou can see the RDS signals the station sends on the display.Press the RDS DISPLAY while listening to an FM station. ` Each time you press the button, the display change to show you the following information : PS NAME ; RT ; CT ; Frequency PS (Program Service) : While searching, <PS> appears and then the station names will be • displayed. <NO PS> appears if no signal is sent. RT(RadioText) : while searching, <RT> appears and then text messages the station sends will be • displayed. <NO RT> appears if no signal is sent. Frequency : station frequency (non-RDS service)• About characters shown in the display When the display shows PS,or RT signals,the following characters are used. The display window cannot differentiate upper case and lower case letters and always uses • upper case letters. The display window cannot show accented letters, <A,> for instance, may stands for • accented <A’s> like <À, Â, Ä, Á, Å and Ã.> ASCCD RIPPING

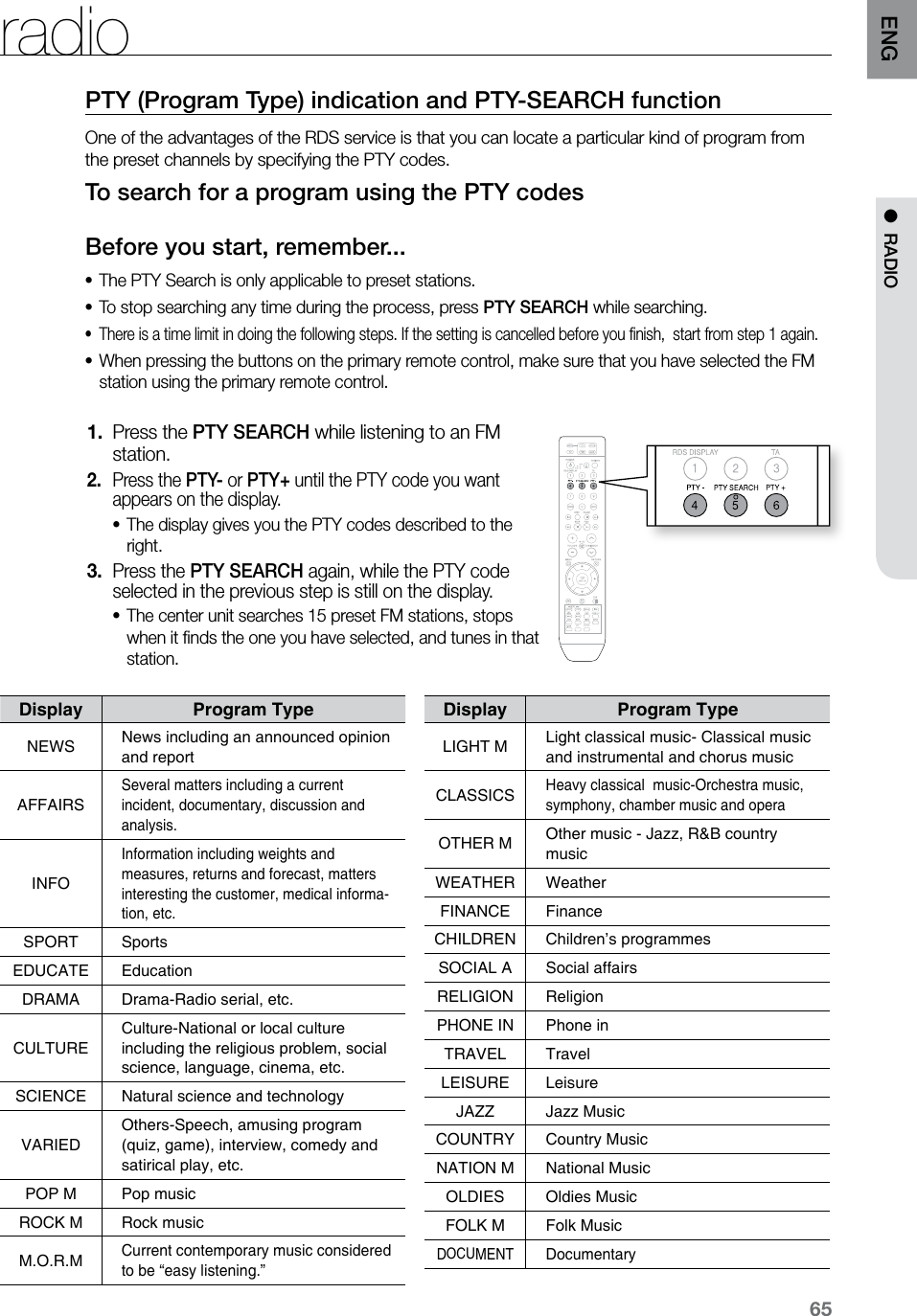

65ENG ● RADIOPTY (Program Type) indication and PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.To search for a program using the PTY codesBefore you start, remember...The PTY Search is only applicable to preset stations.•To stop searching any time during the process, press • PTY SEARCH while searching.There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.•When pressing the buttons on the primary remote control, make sure that you have selected the FM •station using the primary remote control.Press the 1. PTY SEARCH while listening to an FM station.Press the 2. PTY- or PTY+ until the PTY code you want appears on the display.The display gives you the PTY codes described to the •right.Press the 3. PTY SEARCH again, while the PTY code selected in the previous step is still on the display.The center unit searches 15 preset FM stations, stops •when it finds the one you have selected, and tunes in that station.Display Program TypeNEWS News including an announced opinion and reportAFFAIRSSeveral matters including a current incident, documentary, discussion and analysis.INFOInformation including weights and measures, returns and forecast, matters interesting the customer, medical informa-tion, etc.SPORT SportsEDUCATE EducationDRAMA Drama-Radio serial, etc.CULTURECulture-National or local culture including the religious problem, social science, language, cinema, etc.SCIENCE Natural science and technologyVARIEDOthers-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.POP M Pop musicROCK M Rock musicM.O.R.MCurrent contemporary music considered to be “easy listening.”Display Program TypeLIGHT M Light classical music- Classical music and instrumental and chorus musicCLASSICSHeavy classical music-Orchestra music, symphony, chamber music and operaOTHER M Other music - Jazz, R&B country musicWEATHER WeatherFINANCE FinanceCHILDREN Children’s programmesSOCIAL A Social affairsRELIGION ReligionPHONE IN Phone inTRAVEL TravelLEISURE LeisureJAZZ Jazz MusicCOUNTRY Country MusicNATION M National MusicOLDIES Oldies MusicFOLK M Folk MusicDOCUMENTDocumentary ASCCD RIPPINGradio

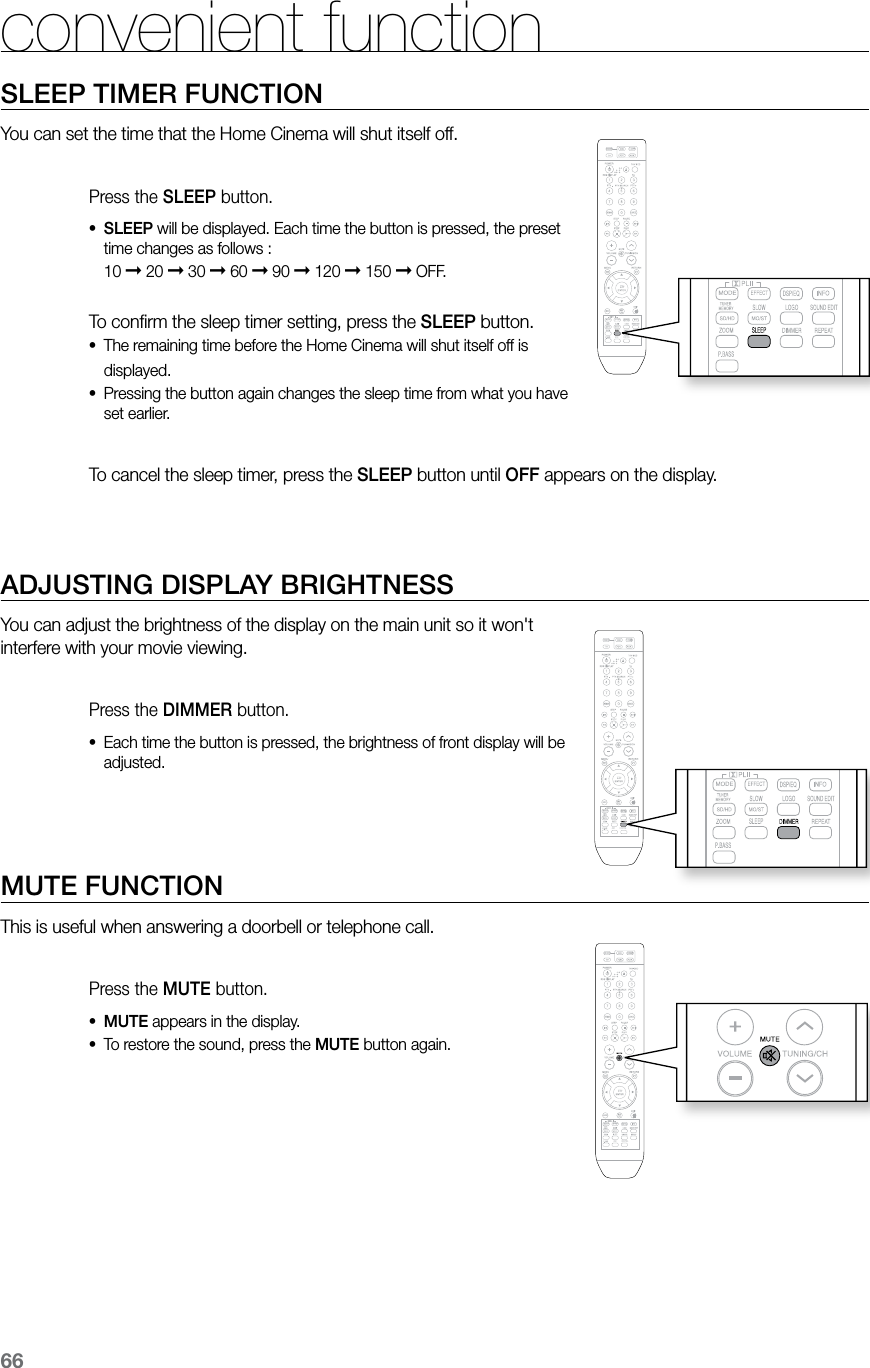

66SLEEP TIMER FUNCTIONYou can set the time that the Home Cinema will shut itself off.Press the SLEEP button.SLEEP• will be displayed. Each time the button is pressed, the preset time changes as follows : 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF. To confirm the sleep timer setting, press the SLEEP button.The remaining time before the Home Cinema will shut itself off is •displayed.Pressing the button again changes the sleep time from what you have •set earlier. To cancel the sleep timer, press the SLEEP button until OFF appears on the display. ADJUSTING DISPLAY BRIGHTNESSYou can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.Press the DIMMER button.Each time the button is pressed, the brightness of front display will be •adjusted. MUTE FUNCTIONThis is useful when answering a doorbell or telephone call.Press the MUTE button.MUTE• appears in the display.To restore the sound, press the • MUTE button again.convenient function ASCCD RIPPING ASCCD RIPPING ASCCD RIPPING

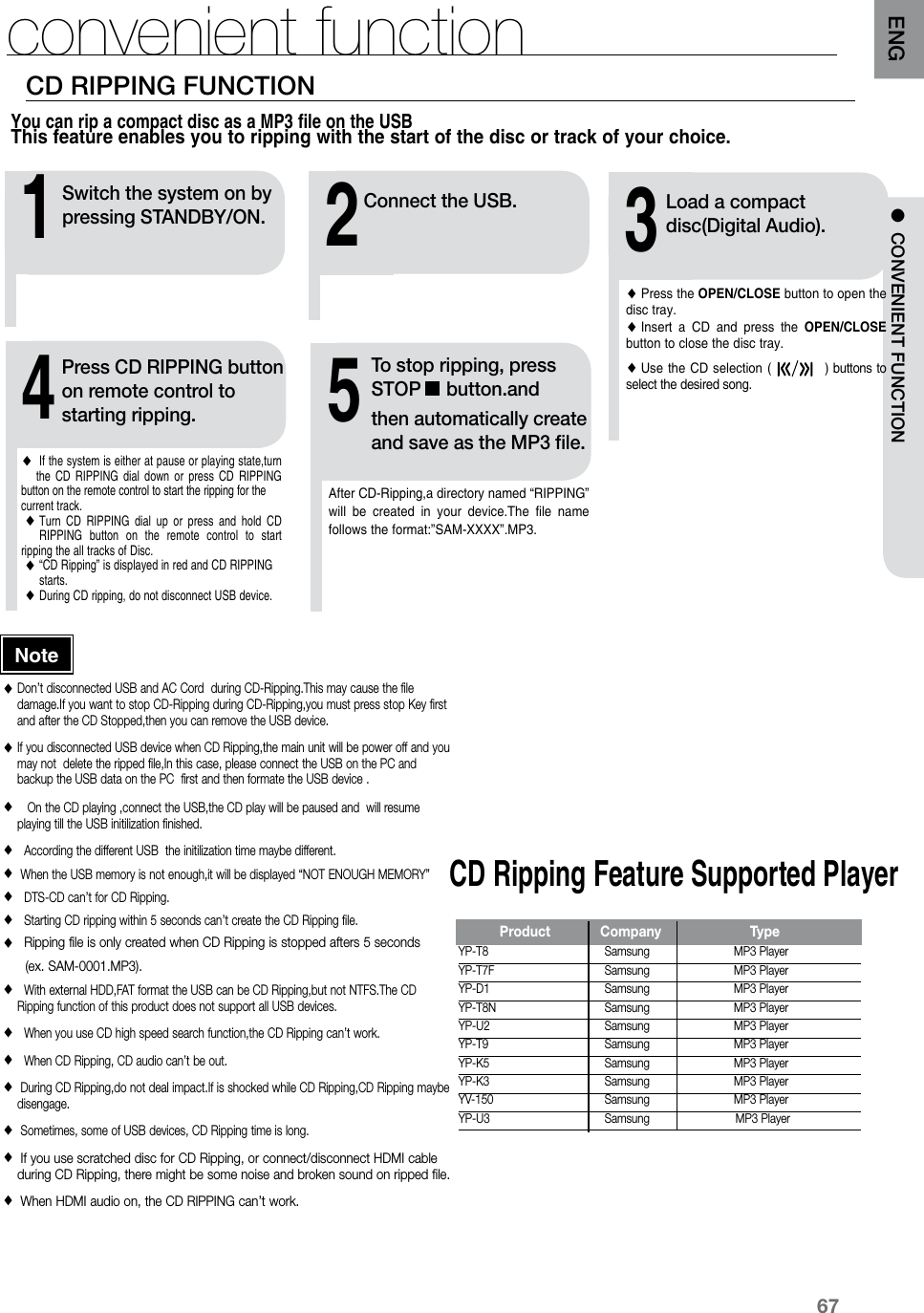

67ENG ● CONVENIENT FUNCTIONYou can rip a compact disc as a MP3 file on the USB This feature enables you to ripping with the start of the disc or track of your choice. Don’t disconnected USB and AC Cord during CD-Ripping.This may cause the file damage.If you want to stop CD-Ripping during CD-Ripping,you must press stop Key first and after the CD Stopped,then you can remove the USB device. If you disconnected USB device when CD Ripping,the main unit will be power off and you may not delete the ripped file,In this case, please connect the USB on the PC and backup the USB data on the PC first and then formate the USB device . On the CD playing ,connect the USB,the CD play will be paused and will resume playing till the USB initilization finished. According the different USB the initilization time maybe different. When the USB memory is not enough,it will be displayed “NOT ENOUGH MEMORY” DTS-CD can’t for CD Ripping. Starting CD ripping within 5 seconds can’t create the CD Ripping file. Ripping file is only created when CD Ripping is stopped afters 5 seconds (ex. SAM-0001.MP3). With external HDD,FAT format the USB can be CD Ripping,but not NTFS.The CD Ripping function of this product does not support all USB devices. When you use CD high speed search function,the CD Ripping can’t work. When CD Ripping, CD audio can’t be out. During CD Ripping,do not deal impact.If is shocked while CD Ripping,CD Ripping maybe disengage. Sometimes, some of USB devices, CD Ripping time is long. If you use scratched disc for CD Ripping, or connect/disconnect HDMI cable during CD Ripping, there might be some noise and broken sound on ripped file. When HDMI audio on, the CD RIPPING can’t work.213Connect the USB. Switch the system on by pressing STANDBY/ON. Load a compact disc(Digital Audio).4Press CD RIPPING button on remote control to starting ripping. Press the OPEN/CLOSE button to open the disc tray. Insert a CD and press the OPEN/CLOSE button to close the disc tray.Use the CD selection ( ) buttons to select the desired song. If the system is either at pause or playing state,turn the CD RIPPING dial down or press CD RIPPING button on the remote control to start the ripping for the current track. Turn CD RIPPING dial up or press and hold CD RIPPING button on the remote control to start ripping the all tracks of Disc. “CD Ripping” is displayed in red and CD RIPPING starts. During CD ripping, do not disconnect USB device.5To stop ripping, press STOP button.andthen automatically create and save as the MP3 file.After CD-Ripping,a directory named “RIPPING” will be created in your device.The file name follows the format:”SAM-XXXX”.MP3.CD Ripping Feature Supported PlayerYP-T8 Samsung MP3 Player YP-T7F Samsung MP3 Player YP-D1 Samsung MP3 Player YP-T8N Samsung MP3 Player YP-U2 Samsung MP3 Player YP-T9 Samsung MP3 Player YP-K5 Samsung MP3 Player YP-K3 Samsung MP3 Player YV-150 Samsung MP3 PlayerYP-U3 Samsung MP3 Player Product Company TypeNoteCD RIPPING FUNCTIONconvenient function

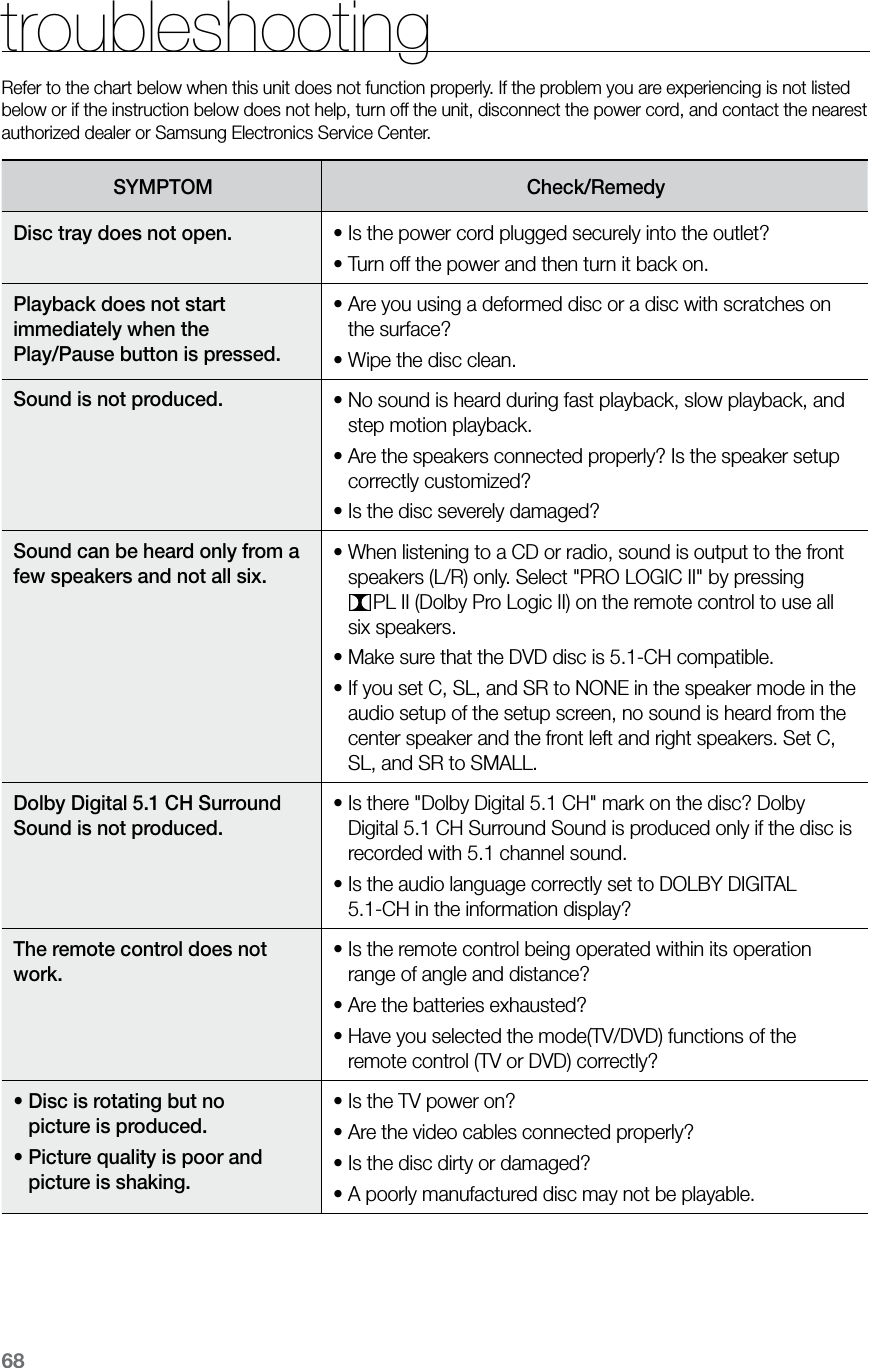

68troubleshootingRefer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.SYMPTOM Check/RemedyDisc tray does not open. • Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.Playback does not start immediately when the Play/Pause button is pressed.• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.Sound is not produced. • No sound is heard during fast playback, slow playback, and step motion playback.• Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?Sound can be heard only from a few speakers and not all six.• When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers.• Make sure that the DVD disc is 5.1-CH compatible.• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.Dolby Digital 5.1 CH Surround Sound is not produced.• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?The remote control does not work.• Is the remote control being operated within its operation range of angle and distance?• Are the batteries exhausted?• Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly?• Disc is rotating but no picture is produced.• Picture quality is poor and picture is shaking.• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.

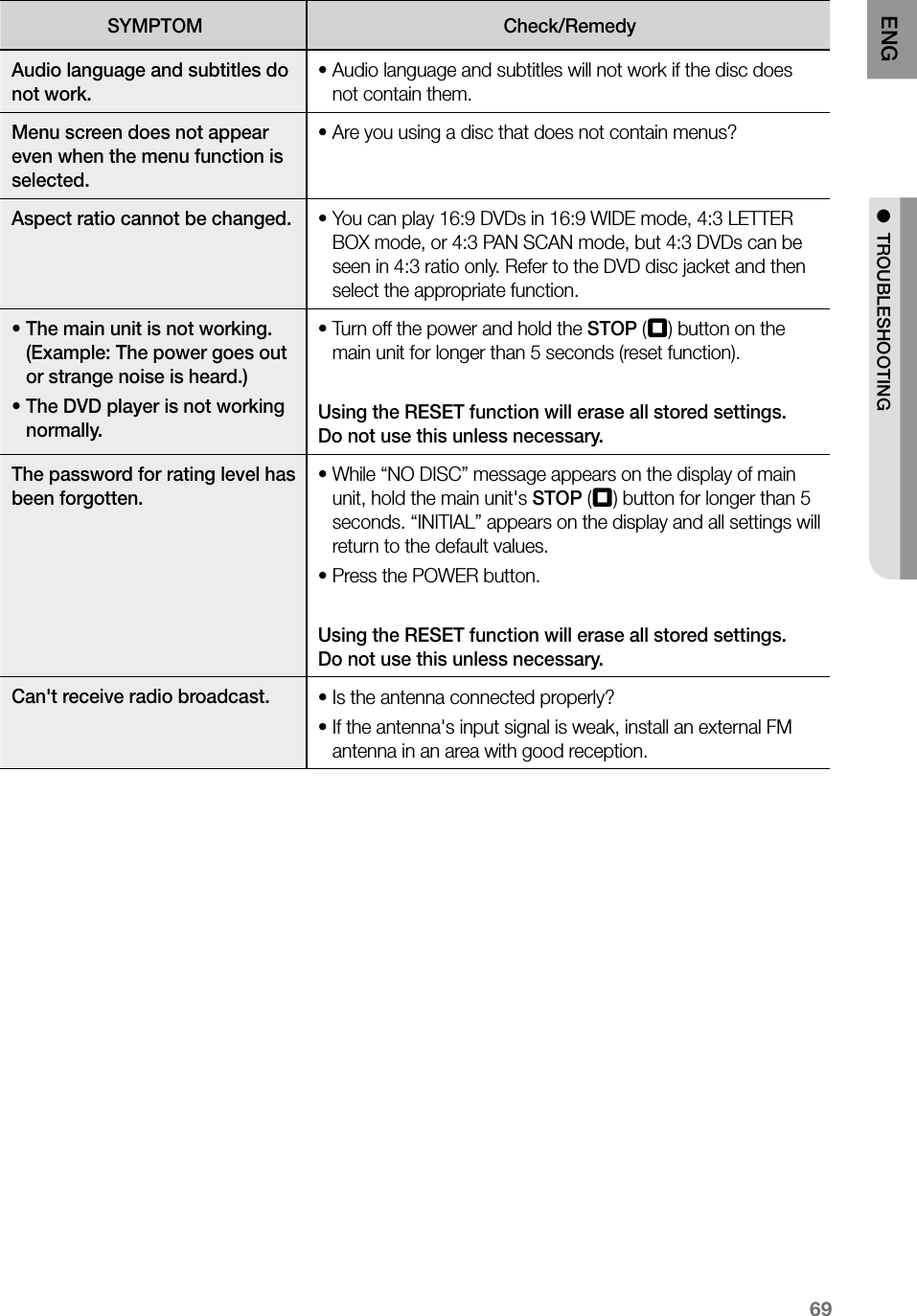

69ENG ● TROUBLESHOOTINGSYMPTOM Check/RemedyAudio language and subtitles do not work.• Audio language and subtitles will not work if the disc does not contain them.Menu screen does not appear even when the menu function is selected.• Are you using a disc that does not contain menus?Aspect ratio cannot be changed. • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.• The main unit is not working. (Example: The power goes out or strange noise is heard.)• The DVD player is not working normally.• Turn off the power and hold the STOP (T) button on the main unit for longer than 5 seconds (reset function).Using the RESET function will erase all stored settings. Do not use this unless necessary.The password for rating level has been forgotten.• While “NO DISC” message appears on the display of main unit, hold the main unit's STOP (T) button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.• Press the POWER button.Using the RESET function will erase all stored settings. Do not use this unless necessary.Can't receive radio broadcast. • Is the antenna connected properly?• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

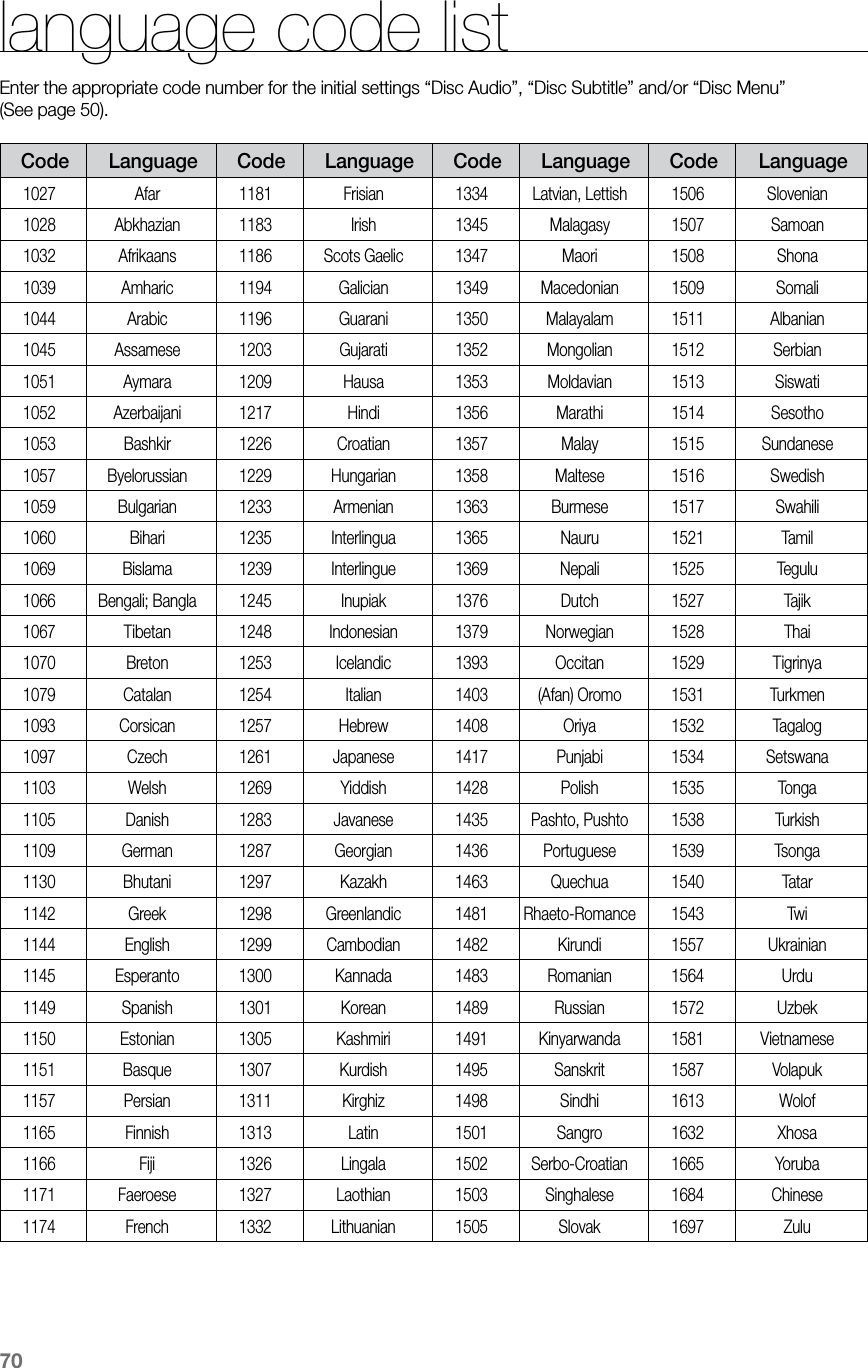

70language code listEnter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 50).Code Language Code Language Code Language Code Language1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

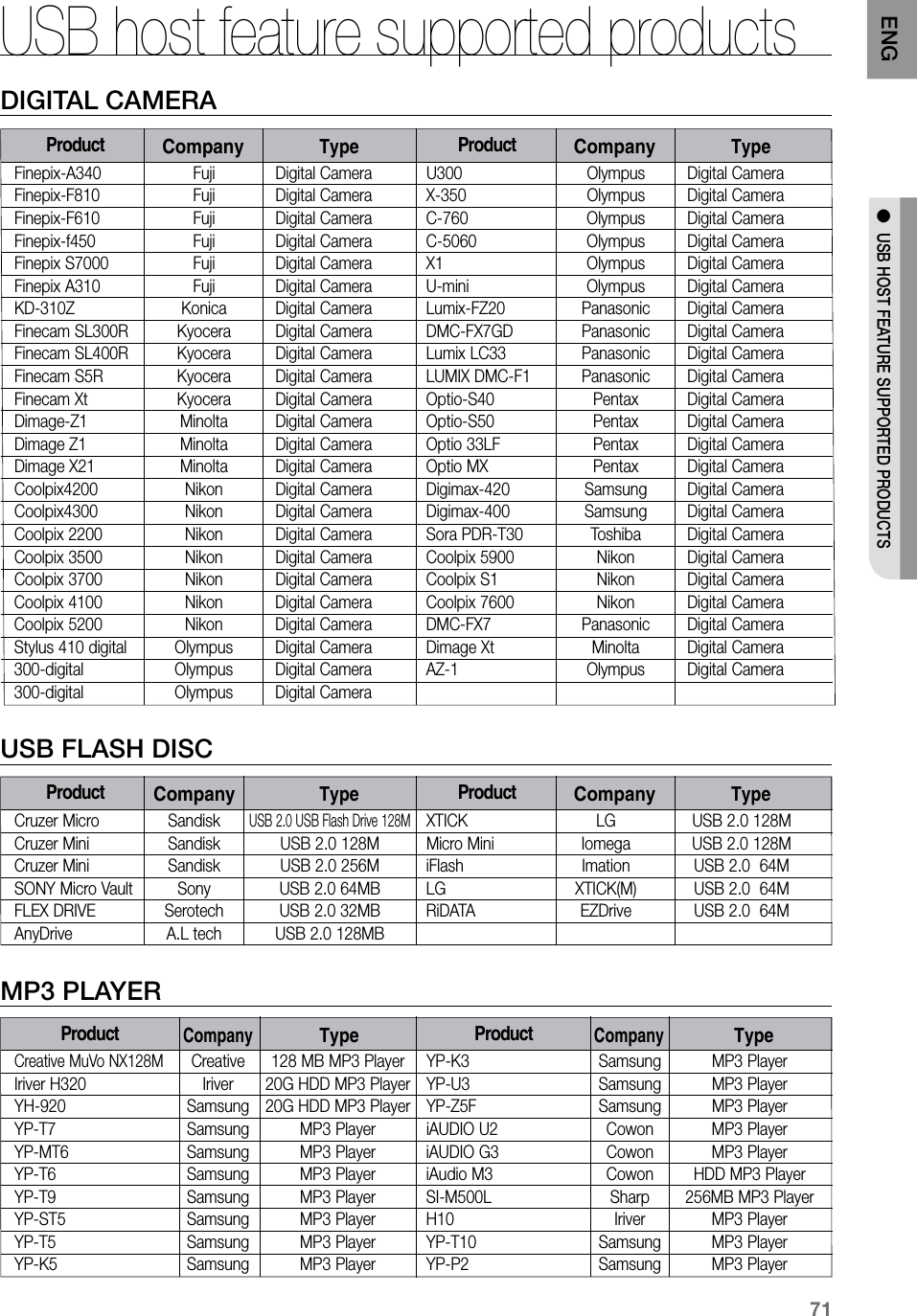

71ENGDIGITAL CAMERAProductCompanyTypeFinepix-A340 Fuji Digital CameraFinepix-F810 Fuji Digital CameraFinepix-F610 Fuji Digital Camera Finepix-f450 Fuji Digital CameraFinepix S7000 Fuji Digital CameraFinepix A310 Fuji Digital CameraKD-310Z Konica Digital CameraFinecam SL300R Kyocera Digital CameraFinecam SL400R Kyocera Digital CameraFinecam S5R Kyocera Digital CameraFinecam Xt Kyocera Digital CameraDimage-Z1 Minolta Digital Camera Dimage Z1 Minolta Digital CameraDimage X21 Minolta Digital CameraCoolpix4200 Nikon Digital CameraCoolpix4300 Nikon Digital CameraCoolpix 2200 Nikon Digital CameraCoolpix 3500 Nikon Digital CameraCoolpix 3700 Nikon Digital CameraCoolpix 4100 Nikon Digital CameraCoolpix 5200 Nikon Digital Camera Stylus 410 digital Olympus Digital Camera300-digital Olympus Digital Camera300-digital Olympus Digital CameraU300 Olympus Digital CameraX-350 Olympus Digital CameraC-760 Olympus Digital CameraC-5060 Olympus Digital CameraX1 Olympus Digital CameraU-mini Olympus Digital Camera Lumix-FZ20 Panasonic Digital CameraDMC-FX7GD Panasonic Digital Camera Lumix LC33 Panasonic Digital CameraLUMIX DMC-F1 Panasonic Digital CameraOptio-S40 Pentax Digital CameraOptio-S50 Pentax Digital CameraOptio 33LF Pentax Digital CameraOptio MX Pentax Digital CameraDigimax-420 Samsung Digital CameraDigimax-400 Samsung Digital Camera Sora PDR-T30 Toshiba Digital Camera Coolpix 5900 Nikon Digital CameraCoolpix S1 Nikon Digital CameraCoolpix 7600 Nikon Digital CameraDMC-FX7 Panasonic Digital Camera Dimage Xt Minolta Digital CameraAZ-1 Olympus Digital Camera ProductCompanyTypeProductCompanyTypeCruzer Micro Sandisk USB 2.0 USB Flash Drive 128MCruzer Mini Sandisk USB 2.0 128MCruzer Mini Sandisk USB 2.0 256MSONY Micro Vault Sony USB 2.0 64MBFLEX DRIVE Serotech USB 2.0 32MBAnyDrive A.L tech USB 2.0 128MBXTICK LG USB 2.0 128MMicro Mini Iomega USB 2.0 128MiFlash Imation USB 2.0 64MLG XTICK(M) USB 2.0 64MRiDATA EZDrive USB 2.0 64MProductCompanyTypeUSB host feature supported productsUSB FLASH DISCMP3 PLAYERProductCompanyTypeCreative MuVo NX128M Creative 128 MB MP3 Player Iriver H320 Iriver 20G HDD MP3 Player YH-920 Samsung 20G HDD MP3 Player YP-T7 Samsung MP3 Player YP-MT6 Samsung MP3 Player YP-T6 Samsung MP3 Player YP-T9 Samsung MP3 Player YP-ST5 Samsung MP3 Player YP-T5 Samsung MP3 Player YP-K5 Samsung MP3 PlayerYP-K3 Samsung MP3 Player YP-U3 Samsung MP3 Player YP-Z5F Samsung MP3 Player iAUDIO U2 Cowon MP3 Player iAUDIO G3 Cowon MP3 Player iAudio M3 Cowon HDD MP3 Player SI-M500L Sharp 256MB MP3 Player H10 Iriver MP3 Player YP-T10 Samsung MP3 Player YP-P2 Samsung MP3 PlayerProductCompanyType● USB HOST FEATURE SUPPORTED PRODUCTS

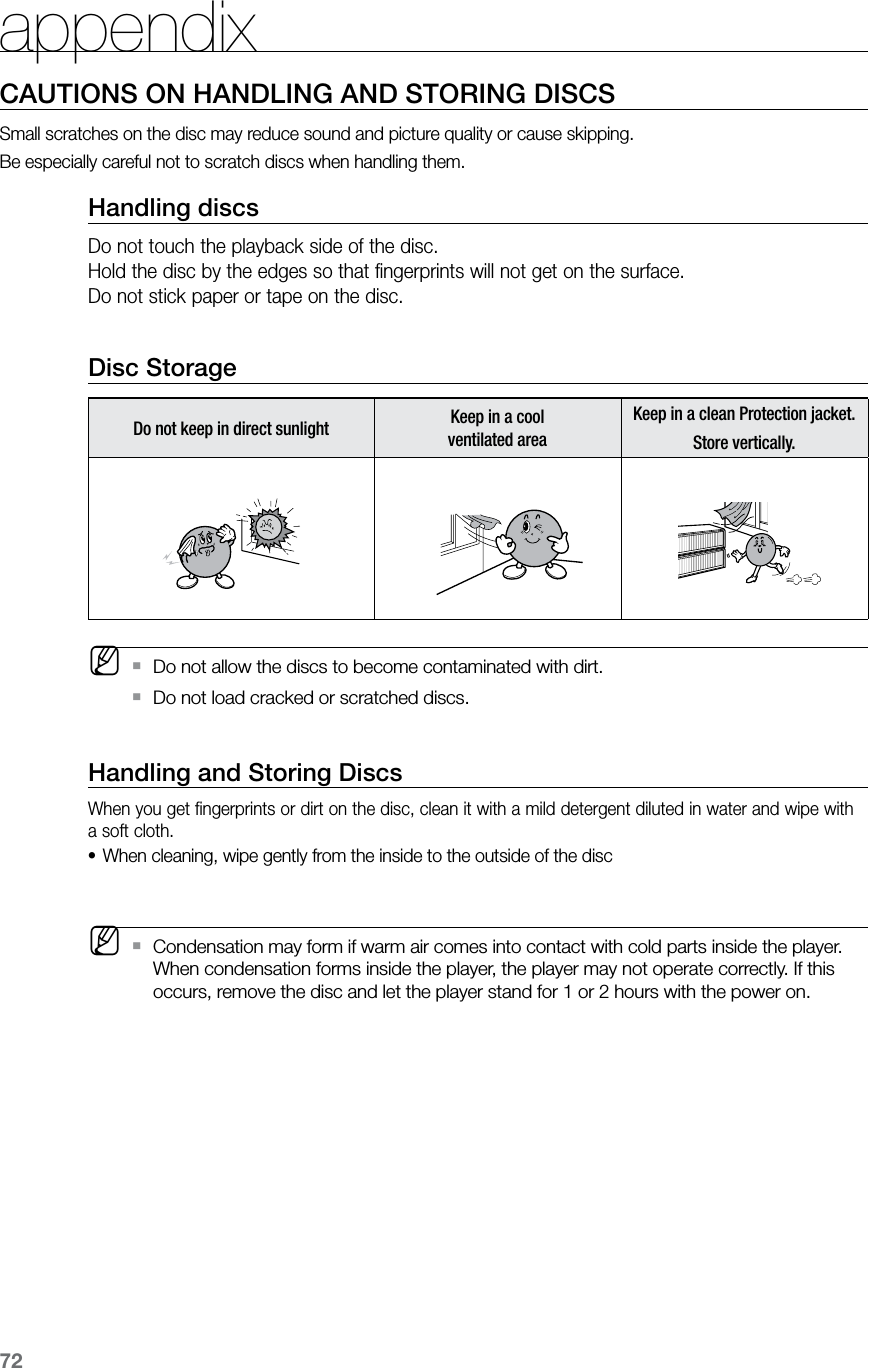

72appendixCAUTIONS ON HANDLING AND STORING DISCSSmall scratches on the disc may reduce sound and picture quality or cause skipping.Be especially careful not to scratch discs when handling them.Handling discsDo not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface.Do not stick paper or tape on the disc. Disc StorageDo not keep in direct sunlight Keep in a cool ventilated areaKeep in a clean Protection jacket.Store vertically. MDo not allow the discs to become contaminated with dirt. `Do not load cracked or scratched discs. `Handling and Storing DiscsWhen you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.When cleaning, wipe gently from the inside to the outside of the disc• MCondensation may form if warm air comes into contact with cold parts inside the player. `When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

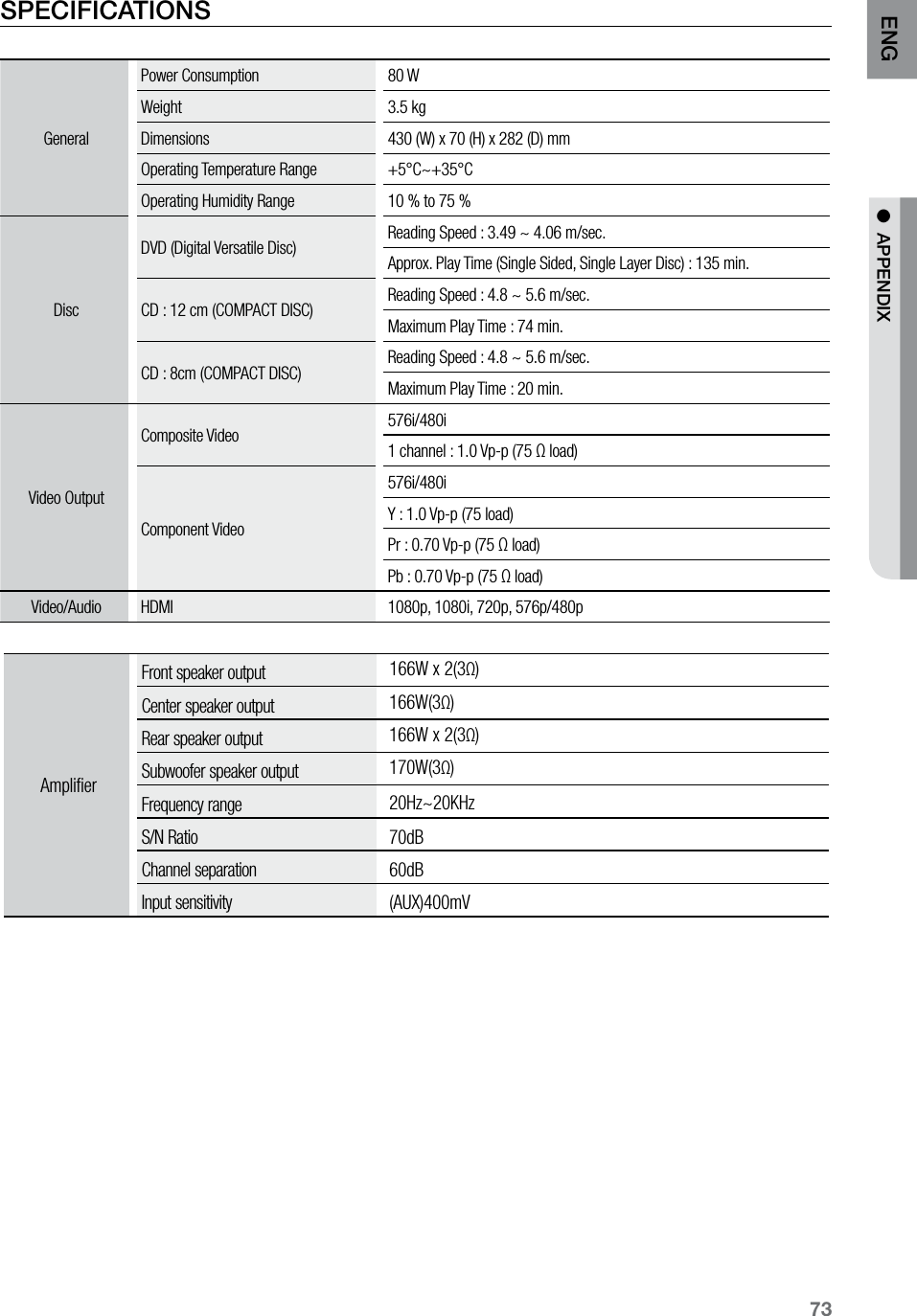

73ENG ● APPENDIXSPECIFICATIONSGeneralPower Consumption 80 WWeight 3.5 kgDimensions 430 (W) x 70 (H) x 282 (D) mmOperating Temperature Range +5°C~+35°COperating Humidity Range 10 % to 75 %DiscDVD (Digital Versatile Disc) Reading Speed : 3.49 ~ 4.06 m/sec.Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.CD : 12 cm (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 74 min.CD : 8cm (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 20 min.Video OutputComposite Video 576i/480i1 channel : 1.0 Vp-p (75 Ω load)Component Video576i/480iY : 1.0 Vp-p (75 load)Pr : 0.70 Vp-p (75 Ω load)Pb : 0.70 Vp-p (75 Ω load)Video/Audio HDMI 1080p, 1080i, 720p, 576p/480pAmplifierFront speaker output 166W x 2(3Ω)Center speaker output 166W(3Ω)Rear speaker output 166W x 2(3Ω)Subwoofer speaker output 170W(3Ω)Frequency range 20Hz~20KHzS/N Ratio 70dBChannel separation 60dBInput sensitivity (AUX)400mV

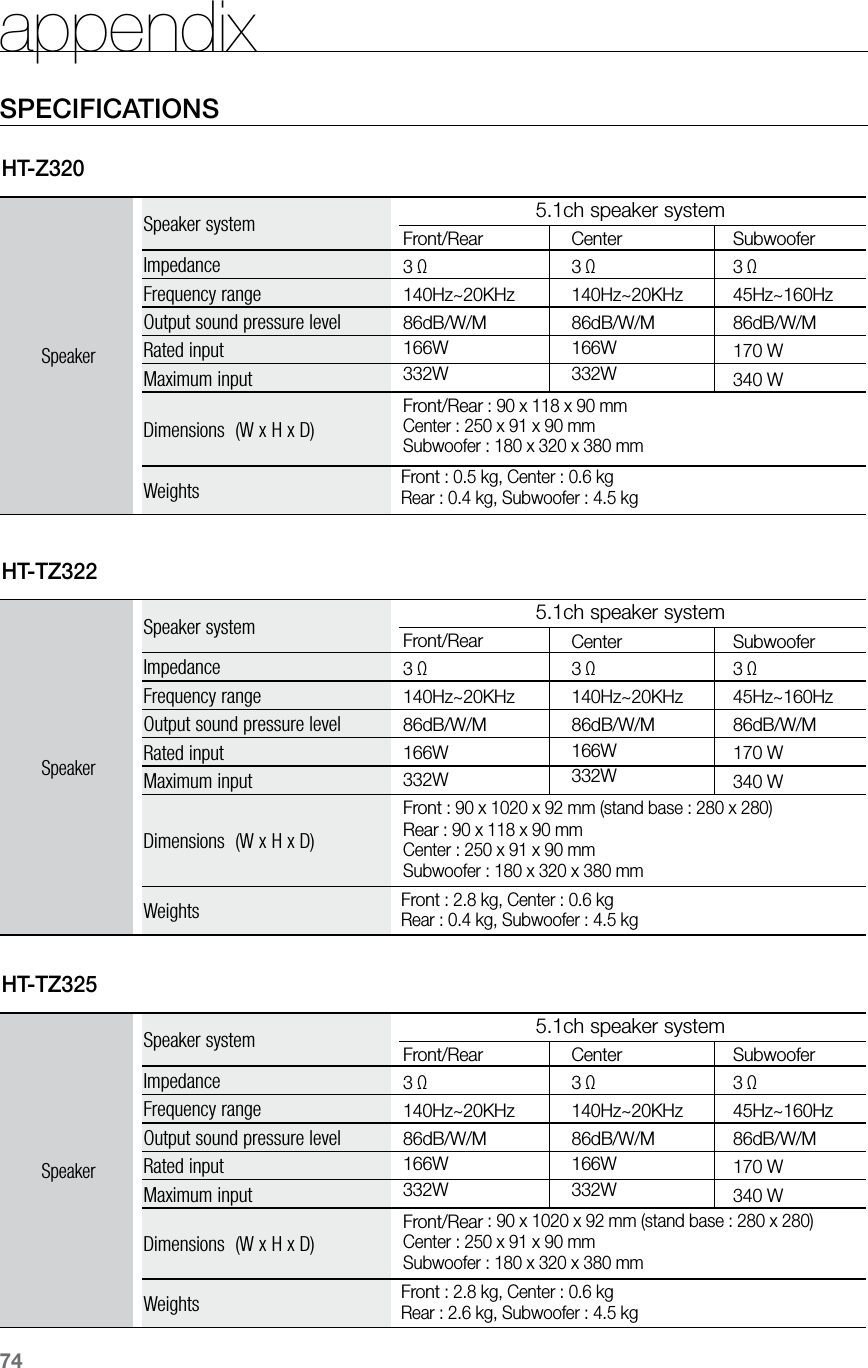

74HT-Z320SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)WeightsFront/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170 W340 WFront/Rear : 90 x 118 x 90 mmCenter : 250 x 91 x 90 mmSubwoofer : 180 x 320 x 380 mmFront : 0.5 kg, Center : 0.6 kg Rear : 0.4 kg, Subwoofer : 4.5 kgHT-TZ322SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)WeightsFront/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170 W340 WFront : 90 x 1020 x 92 mm (stand base : 280 x 280) Rear : 90 x 118 x 90 mmCenter : 250 x 91 x 90 mmSubwoofer : 180 x 320 x 380 mmFront : 2.8 kg, Center : 0.6 kg Rear : 0.4 kg, Subwoofer : 4.5 kgHT-TZ325SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)WeightsFront/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170 W340 WFront/Rear : 90 x 1020 x 92 mm (stand base : 280 x 280) Center : 250 x 91 x 90 mm Subwoofer : 180 x 320 x 380 mmFront : 2.8 kg, Center : 0.6 kg Rear : 2.6 kg, Subwoofer : 4.5 kgappendixSPECIFICATIONS

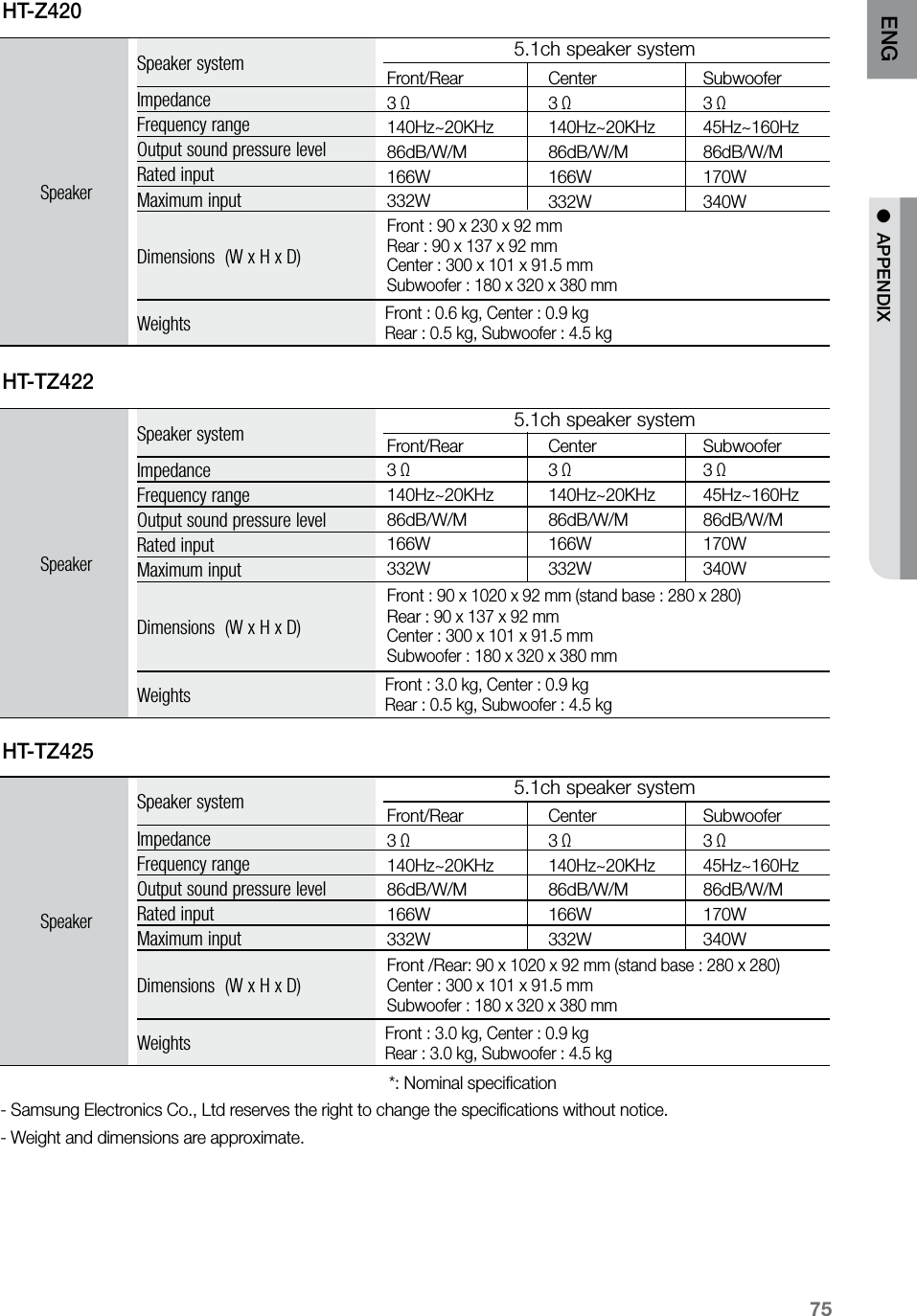

75ENG ● APPENDIXHT-Z420SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)WeightsFront/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170W340WFront : 90 x 230 x 92 mmRear : 90 x 137 x 92 mmCenter : 300 x 101 x 91.5 mmSubwoofer : 180 x 320 x 380 mmFront : 0.6 kg, Center : 0.9 kg Rear : 0.5 kg, Subwoofer : 4.5 kgHT-TZ422SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)WeightsFront/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170W340WFront : 90 x 1020 x 92 mm (stand base : 280 x 280) Rear : 90 x 137 x 92 mmCenter : 300 x 101 x 91.5 mmSubwoofer : 180 x 320 x 380 mmFront : 3.0 kg, Center : 0.9 kg Rear : 0.5 kg, Subwoofer : 4.5 kgHT-TZ425SpeakerSpeaker system 5.1ch speaker systemImpedanceFrequency rangeOutput sound pressure levelRated inputMaximum inputDimensions (W x H x D)Weights *: Nominal specification- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.- Weight and dimensions are approximate.Front/Rear3 Ω140Hz~20KHz86dB/W/M166W332WCenter3 Ω140Hz~20KHz86dB/W/M166W332WSubwoofer3 Ω45Hz~160Hz86dB/W/M170W340WFront /Rear: 90 x 1020 x 92 mm (stand base : 280 x 280) Center : 300 x 101 x 91.5 mm Subwoofer : 180 x 320 x 380 mmFront : 3.0 kg, Center : 0.9 kg Rear : 3.0 kg, Subwoofer : 4.5 kg

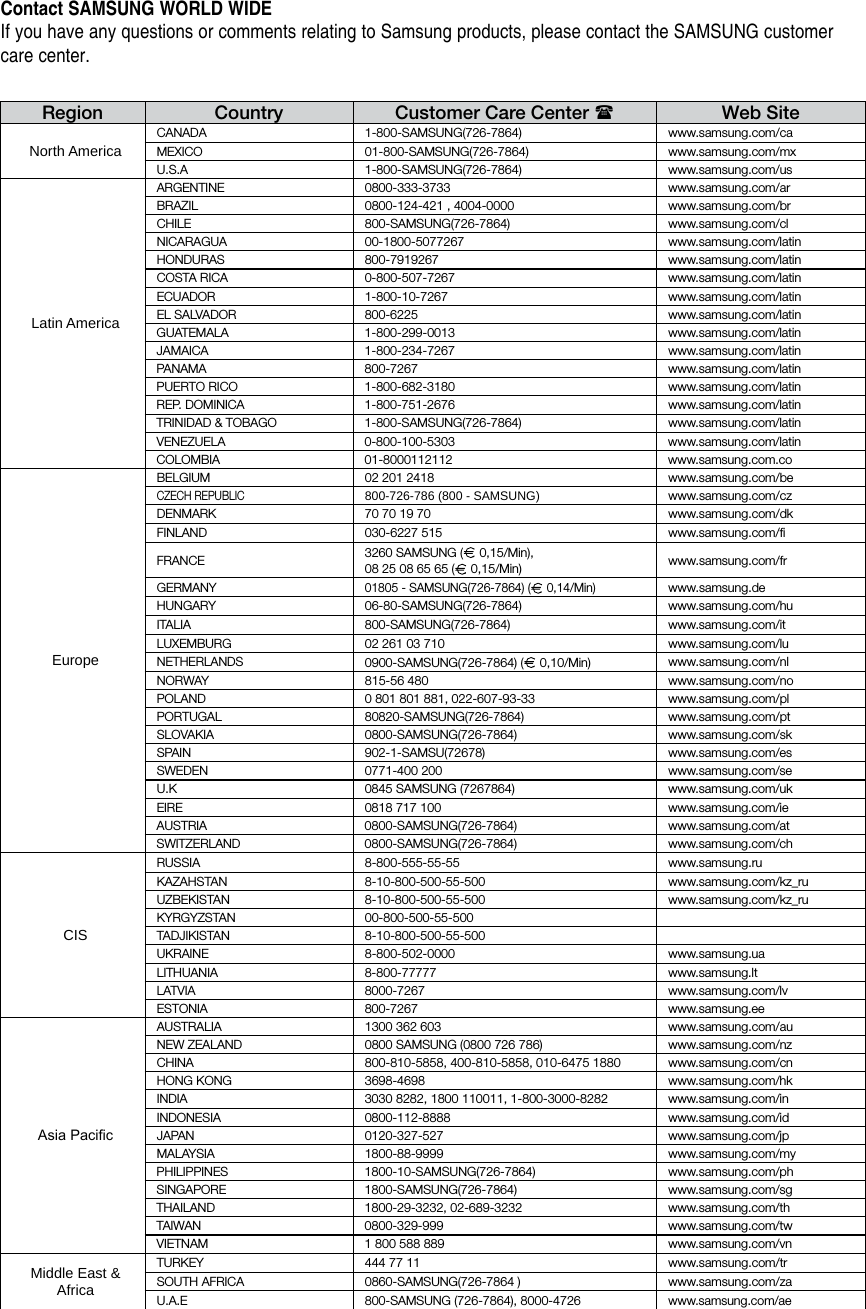

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.Region Country Customer Care Center Web SiteNorth AmericaCANADA 1-800-SAMSUNG(726-7864) www.samsung.com/caMEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mxU.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/usLatin AmericaARGENTINE 0800-333-3733 www.samsung.com/arBRAZIL 0800-124-421 , 4004-0000 www.samsung.com/brCHILE 800-SAMSUNG(726-7864) www.samsung.com/clNICARAGUA 00-1800-5077267 www.samsung.com/latinHONDURAS 800-7919267 www.samsung.com/latinCOSTA RICA 0-800-507-7267 www.samsung.com/latinECUADOR 1-800-10-7267 www.samsung.com/latinEL SALVADOR 800-6225 www.samsung.com/latinGUATEMALA 1-800-299-0013 www.samsung.com/latinJAMAICA 1-800-234-7267 www.samsung.com/latinPANAMA 800-7267 www.samsung.com/latinPUERTO RICO 1-800-682-3180 www.samsung.com/latinREP. DOMINICA 1-800-751-2676 www.samsung.com/latinTRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latinVENEZUELA 0-800-100-5303 www.samsung.com/latinCOLOMBIA 01-8000112112 www.samsung.com.coEuropeBELGIUM 02 201 2418 www.samsung.com/beCZECH REPUBLIC800-726-786 (800 - SAMSUNG)www.samsung.com/czDENMARK 70 70 19 70 www.samsung.com/dkFINLAND 030-6227 515 www.samsung.com/fiFRANCE 3260 SAMSUNG ( 0,15/Min), 08 25 08 65 65 ( 0,15/Min) www.samsung.com/frGERMANY01805 - SAMSUNG(726-7864) ( 0,14/Min)www.samsung.deHUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/huITALIA 800-SAMSUNG(726-7864) www.samsung.com/itLUXEMBURG 02 261 03 710 www.samsung.com/luNETHERLANDS0900-SAMSUNG(726-7864) ( 0,10/Min) www.samsung.com/nlNORWAY 815-56 480 www.samsung.com/noPOLAND 0 801 801 881, 022-607-93-33 www.samsung.com/plPORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/ptSLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/skSPAIN 902-1-SAMSU(72678) www.samsung.com/esSWEDEN 0771-400 200 www.samsung.com/seU.K 0845 SAMSUNG (7267864) www.samsung.com/ukEIRE 0818 717 100 www.samsung.com/ieAUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/atSWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/chCISRUSSIA 8-800-555-55-55 www.samsung.ruKAZAHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ruUZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ruKYRGYZSTAN 00-800-500-55-500TADJIKISTAN 8-10-800-500-55-500UKRAINE 8-800-502-0000 www.samsung.uaLITHUANIA 8-800-77777 www.samsung.ltLATVIA 8000-7267 www.samsung.com/lvESTONIA 800-7267 www.samsung.eeAsia PacicAUSTRALIA 1300 362 603 www.samsung.com/auNEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nzCHINA 800-810-5858, 400-810-5858, 010-6475 1880 www.samsung.com/cnHONG KONG 3698-4698 www.samsung.com/hkINDIA 3030 8282, 1800 110011, 1-800-3000-8282 www.samsung.com/inINDONESIA 0800-112-8888 www.samsung.com/idJAPAN 0120-327-527 www.samsung.com/jpMALAYSIA 1800-88-9999 www.samsung.com/myPHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/phSINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sgTHAILAND 1800-29-3232, 02-689-3232 www.samsung.com/thTAIWAN 0800-329-999 www.samsung.com/twVIETNAM 1 800 588 889 www.samsung.com/vnMiddle East & AfricaTURKEY 444 77 11 www.samsung.com/trSOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/zaU.A.E 800-SAMSUNG (726-7864), 8000-4726www.samsung.com/ae
Code No. AH68-02166B(0.0)
