61
ENG ● SYSTEM SETUP● SYSTEM SETUP
ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for your environment.
M
ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a `
DVD/CD inserted.
Because the volume level of the tone is fixed during the ASC setup, you cannot adjust the
`
volume using the volume control buttons.
If the auto sound microphone is disconnected during the ASC setup, the setup will be
`
cancelled.
When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll, and P. BASS sound
`
effects will not work.
To Verify the ASC
Briefly press ASC button.
Distance and level values specified for each channel will appear in the display.•
L: FR o N T SP E A K E R (L)
R: FR o N T SP E A K E R (R)
C: CE N T E R SP E A K E R
SW: Su B W o o F E R
SL: RE A R SP E A K E R (L)
SR: RE A R SP E A K E R (R)
AUX IN 1
ASC
Microphone
62

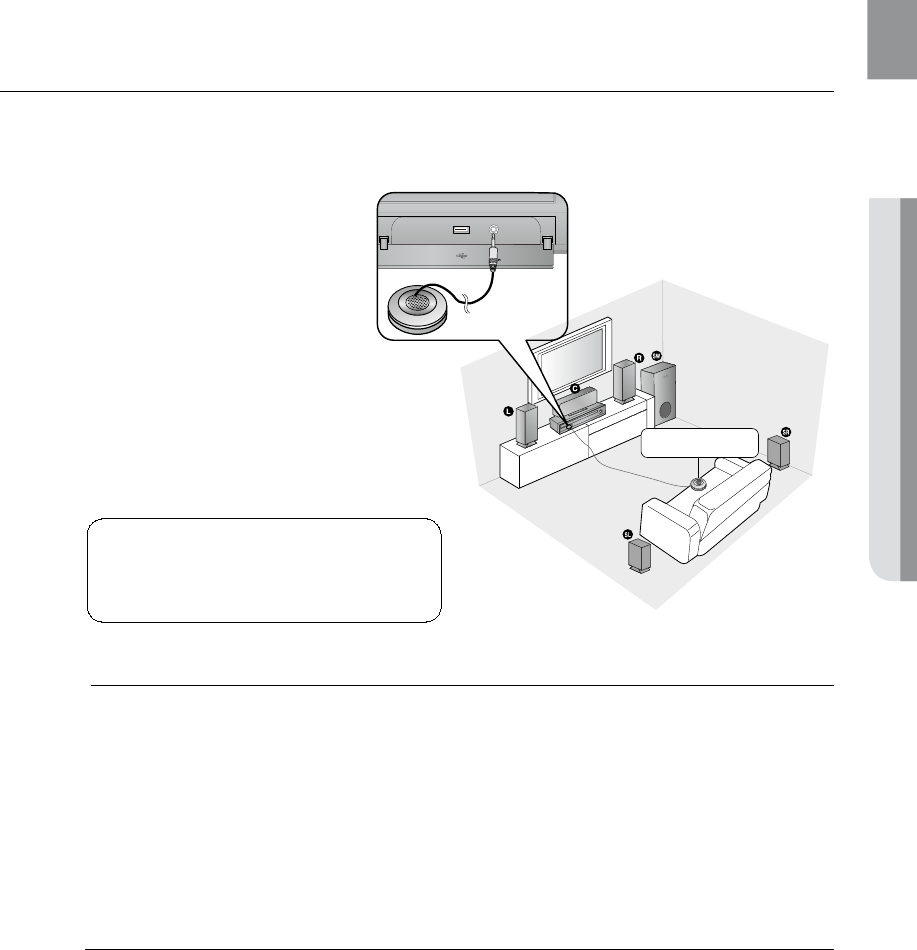

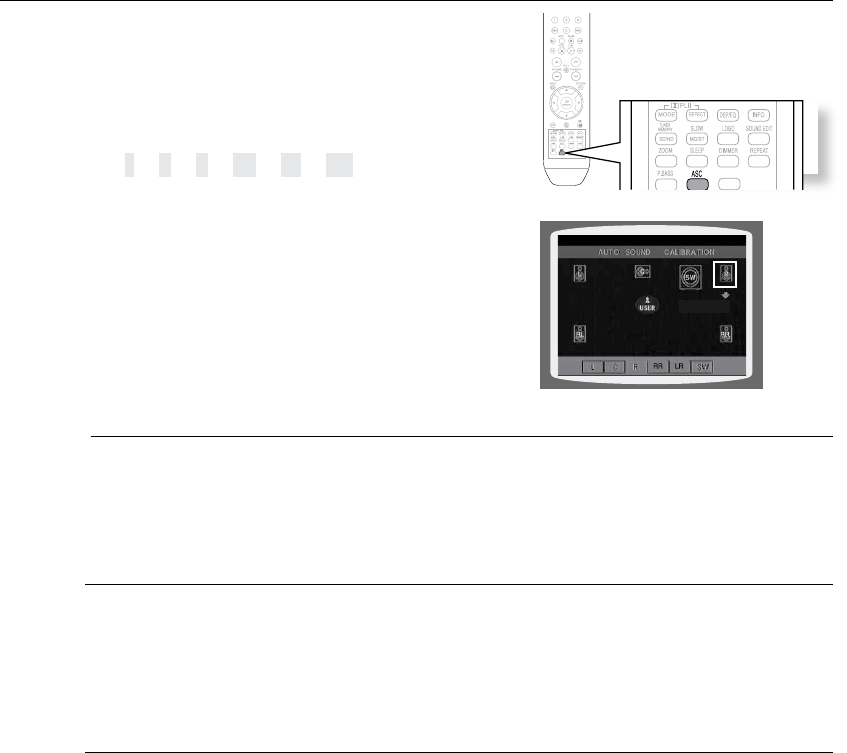

ASC (Auto Sound Calibration) SETUP
Plug the ASC microphone into the ASC input jack.1.
Place the ASC microphone at the listening position.2.
Press 3. ASC button.
To create the optimal 5.1 channel sound field, the •
selections are in the following sequence:
L ➞ C ➞ R ➞ SR ➞ SL ➞ SW
When the message "REMOVE MIC" appears in the 4.
display, unplug the ASC microphone.
M
Setting the ASC function takes about 3 minutes. `
To cancel the ASC (Auto Sound Calibration) setup, press ASC
button.
The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the
setup is cancelled.
To listen in the ASC (Auto Sound Calibration) mode, briefly press
ASC button.
The selection alternates between ASC ON and ASC OFF in the display.
If you select "ASC ON", you will hear sound in the ASC mode.
If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.
CD RIPPING
CD RIPPING
63
ENG
LISTENING TO RADIO
Remote Control
Press the1. TUNER button to select the FM band.
Tune in to the desired station.2.
Automatic Tuning 1• : When the [,] button is
pressed, a preset broadcast station is selected.
Automatic Tuning 2• : Press and hold the ,,. button
to automatically search for active broadcasting
stations.
Manual Tuning• : Briefly press the ,,. button to
increase or decrease the frequency incrementally.
Main Unit
Press the 1. FUNCTION button to select the FM band.
Select a broadcast station2.
.
Automatic Tuning 1• : Press the STOP (T) button to select PRESET and then press the [,]
button to select the preset station.
Automatic Tuning 2• : Press the STOP (T) button to select MANUAL and then press and hold
the [,] button to automatically search the band.
Manual Tuning• : Press the STOP (T) button to select MANUAL and then briefly press
the button to tune in to a lower or higher frequency.
Press the MO/ST button to listen in Mono/Stereo.
•
Each time the button is pressed, the sound switches between STEREO and MONO.
•
In a poor reception area, select MONO for a clear, interference-free broadcast.
PRESETTING STATIONS
Example : Presetting FM 89.10 in the memory
Press the 1. TUNER button to select the FM band.
Press the 2.
,,.
button to select 89.10.
Press the 3. TUNER MEMORY button.
Press the 4.
[,]
button to select preset number.
You can select between 1 and 15 presets.•
5. Press the TUNER MEMORY button again.
6. To preset another station, repeat steps 2 to 5.
To tune in to a preset station, press the •
[,]
button
on the remote control to select a channel.
radio
ASC
CD RIPPING
ASC
CD RIPPING
● RADIO
64
ABOUT RDS BROADCASTING
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with
their regular program signals. For example, the stations send
their station names, as well as information about what type of
program they broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS service,
the RDS indicator lights up on the display.
Description on RDS function
PTY (Program Type) : Displays the type of programme currently being broadcast•
PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 •
characters.
RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 •
characters.
CT (Clock Time) : •
Decodes the real time clock from the FM frequency.
TA (Traffic Announcement) : When this symbol flashes it shows that the traffic announcement is in •
progress.
M
RDS may not operate correctly if the station tuned is not transmitting RDS signal properly `
or if the signal strength is weak.
Some stations may not transmit PTY, RT or CT information therefore this may not be
`
displayed in all cases.

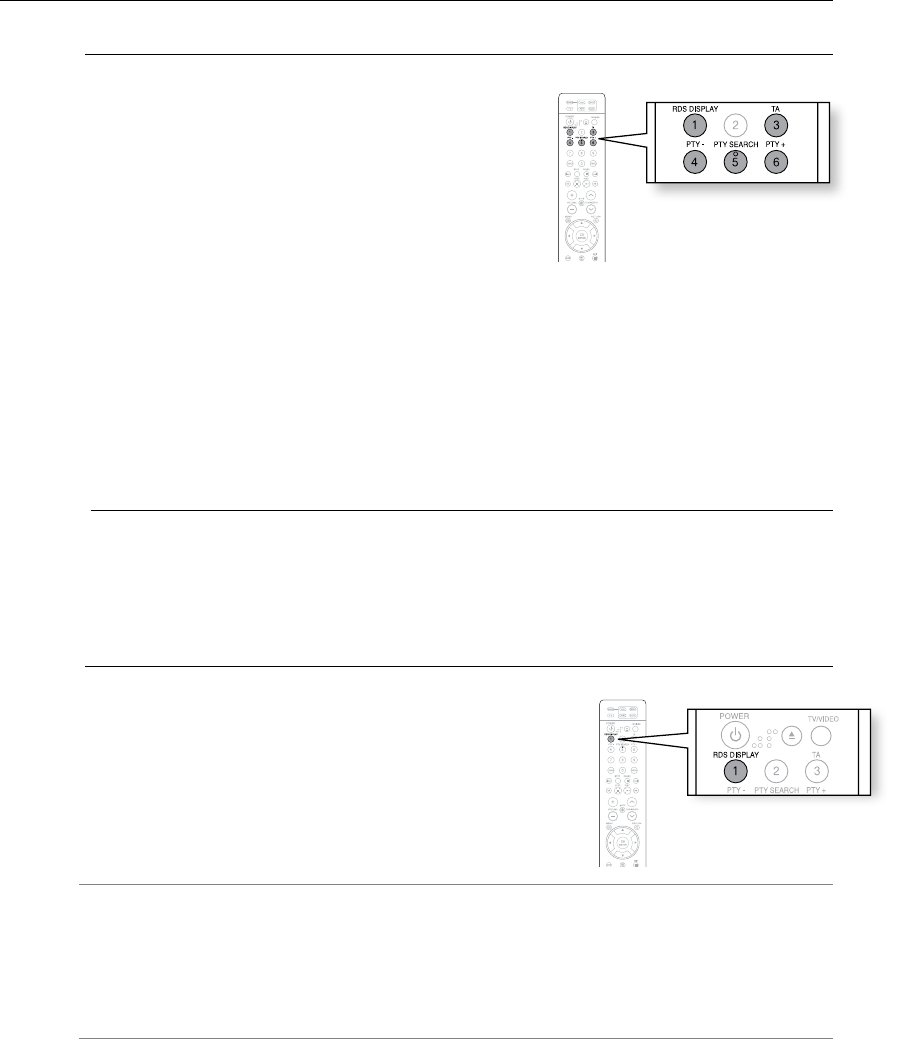

To show the RDS signals
You can see the RDS signals the station sends on the display.
Press the RDS DISPLAY while listening to an FM station.
` Each time you press the button, the display change to
show you the following information : PS NAME ; RT
; CT ; Frequency
PS (Program Service) : While searching, <PS> appears and then the station names will be •
displayed. <NO PS> appears if no signal is sent.
RT(RadioText) : while searching, <RT> appears and then text messages the station sends will be •
displayed. <NO RT> appears if no signal is sent.
Frequency : station frequency (non-RDS service)•
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
The display window cannot differentiate upper case and lower case letters and always uses •
upper case letters.
The display window cannot show accented letters, <A,> for instance, may stands for •
accented <A’s> like <À, Â, Ä, Á, Å and Ã.>
ASC
CD RIPPING
65
ENG ● RADIO

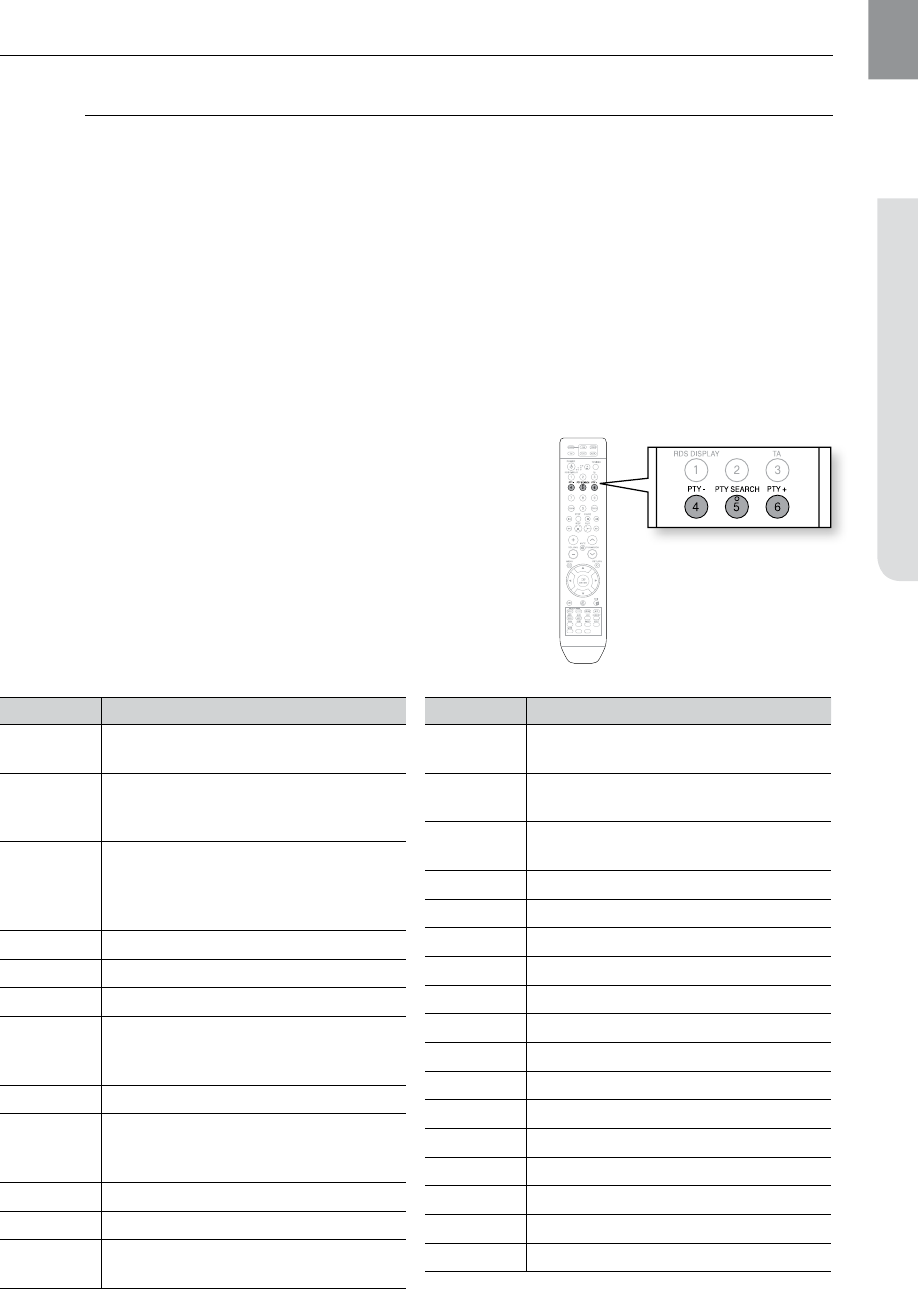

PTY (Program Type) indication and PTY-SEARCH function
One of the advantages of the RDS service is that you can locate a particular kind of program from
the preset channels by specifying the PTY codes.
To search for a program using the PTY codes
Before you start, remember...
The PTY Search is only applicable to preset stations.•
To stop searching any time during the process, press • PTY SEARCH while searching.
There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.•
When pressing the buttons on the primary remote control, make sure that you have selected the FM •
station using the primary remote control.
Press the 1. PTY SEARCH while listening to an FM
station.
Press the 2. PTY- or PTY+ until the PTY code you want
appears on the display.
The display gives you the PTY codes described to the •
right.
Press the 3. PTY SEARCH again, while the PTY code
selected in the previous step is still on the display.
The center unit searches 15 preset FM stations, stops •
when it finds the one you have selected, and tunes in that
station.
Display Program Type
NEWS News including an announced opinion
and report
AFFAIRS
Several matters including a current
incident, documentary, discussion and
analysis.
INFO
Information including weights and
measures, returns and forecast, matters
interesting the customer, medical informa-
tion, etc.
SPORT Sports
EDUCATE Education
DRAMA Drama-Radio serial, etc.
CULTURE
Culture-National or local culture
including the religious problem, social
science, language, cinema, etc.
SCIENCE Natural science and technology
VARIED
Others-Speech, amusing program
(quiz, game), interview, comedy and
satirical play, etc.
POP M Pop music
ROCK M Rock music
M.O.R.M
Current contemporary music considered
to be “easy listening.”
Display Program Type
LIGHT M Light classical music- Classical music
and instrumental and chorus music
CLASSICS
Heavy classical music-Orchestra music,
symphony, chamber music and opera
OTHER M Other music - Jazz, R&B country
music
WEATHER Weather
FINANCE Finance
CHILDREN Children’s programmes
SOCIAL A Social affairs
RELIGION Religion
PHONE IN Phone in
TRAVEL Travel
LEISURE Leisure
JAZZ Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES Oldies Music
FOLK M Folk Music
DOCUMENT
Documentary
radio
66

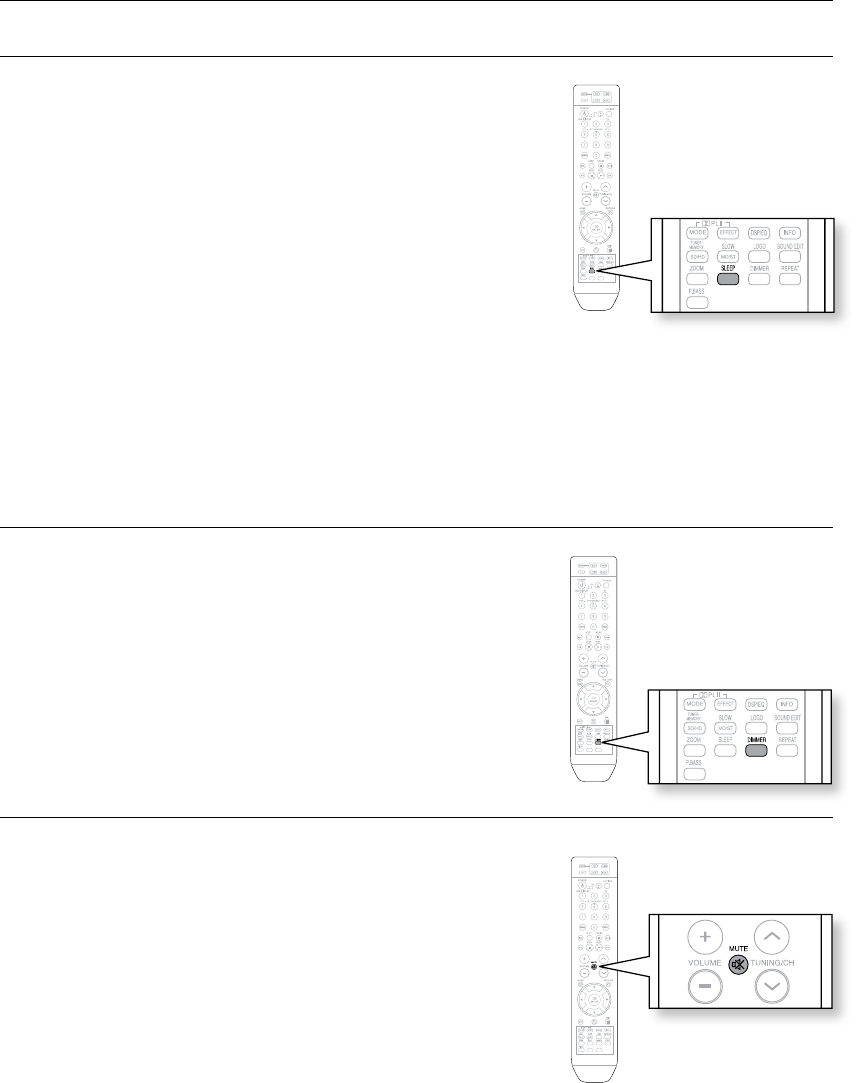

SLEEP TIMER FUNCTION
You can set the time that the Home Cinema will shut itself off.
Press the SLEEP button.
SLEEP• will be displayed. Each time the button is pressed, the preset
time changes as follows :
10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF.
To confirm the sleep timer setting, press the SLEEP button.
The remaining time before the Home Cinema will shut itself off is •
displayed.
Pressing the button again changes the sleep time from what you have •
set earlier.
To cancel the sleep timer, press the SLEEP button until OFF appears on the display.
ADJUSTING DISPLAY BRIGHTNESS
You can adjust the brightness of the display on the main unit so it won't
interfere with your movie viewing.
Press the DIMMER button.
Each time the button is pressed, the brightness of front display will be •
adjusted.
MUTE FUNCTION
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
MUTE• appears in the display.
To restore the sound, press the • MUTE button again.
convenient function
ASC
CD RIPPING
ASC
CD RIPPING
ASC
CD RIPPING
67
ENG ● CONVENIENT FUNCTION
You can rip a compact disc as a MP3 file on the USB
This feature enables you to ripping with the start of the disc or track of your choice.
Don’t disconnected USB and AC Cord during CD-Ripping.This may cause the file
damage.If you want to stop CD-Ripping during CD-Ripping,you must press stop Key first
and after the CD Stopped,then you can remove the USB device.
If you disconnected USB device when CD Ripping,the main unit will be power off and you
may not delete the ripped file,In this case, please connect the USB on the PC and
backup the USB data on the PC first and then formate the USB device .
On the CD playing ,connect the USB,the CD play will be paused and will resume
playing till the USB initilization finished.
According the different USB the initilization time maybe different.
When the USB memory is not enough,it will be displayed “NOT ENOUGH MEMORY”
DTS-CD can’t for CD Ripping.
Starting CD ripping within 5 seconds can’t create the CD Ripping file.
Ripping file is only created when CD Ripping is stopped afters 5 seconds
(ex. SAM-0001.MP3).
With external HDD,FAT format the USB can be CD Ripping,but not NTFS.The CD
Ripping function of this product does not support all USB devices.
When you use CD high speed search function,the CD Ripping can’t work.
When CD Ripping, CD audio can’t be out.
During CD Ripping,do not deal impact.If is shocked while CD Ripping,CD Ripping maybe
disengage.
Sometimes, some of USB devices, CD Ripping time is long.
If you use scratched disc for CD Ripping, or connect/disconnect HDMI cable
during CD Ripping, there might be some noise and broken sound on ripped file.
When HDMI audio on, the CD RIPPING can’t work.
2
13
Connect the USB.
Switch the system on by
pressing STANDBY/ON. Load a compact
disc(Digital Audio).
4
Press CD RIPPING button
on remote control to
starting ripping.
Press the OPEN/CLOSE button to open the
disc tray.
Insert a CD and press the OPEN/CLOSE
button to close the disc tray.
Use the CD selection ( ) buttons to
select the desired song.
If the system is either at pause or playing state,turn
the CD RIPPING dial down or press CD RIPPING
button on the remote control to start the ripping for the
current track.
Turn CD RIPPING dial up or press and hold CD
RIPPING button on the remote control to start
ripping the all tracks of Disc.
“CD Ripping” is displayed in red and CD RIPPING
starts.
During CD ripping, do not disconnect USB device.
5
To stop ripping, press
STOP button.and
then automatically create
and save as the MP3 file.
After CD-Ripping,a directory named “RIPPING”
will be created in your device.The file name
follows the format:”SAM-XXXX”.MP3.
CD Ripping Feature Supported Player
YP-T8 Samsung MP3 Player
YP-T7F Samsung MP3 Player
YP-D1 Samsung MP3 Player
YP-T8N Samsung MP3 Player
YP-U2 Samsung MP3 Player
YP-T9 Samsung MP3 Player
YP-K5 Samsung MP3 Player
YP-K3 Samsung MP3 Player
YV-150 Samsung MP3 Player
YP-U3 Samsung MP3 Player
Product Company Type
Note
CD RIPPING FUNCTION
convenient function
68
troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Electronics Service Center.
SYMPTOM Check/Remedy
Disc tray does not open. • Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on
the surface?
• Wipe the disc clean.
Sound is not produced. • No sound is heard during fast playback, slow playback, and
step motion playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
Sound can be heard only from a
few speakers and not all six.
• When listening to a CD or radio, sound is output to the front
speakers (L/R) only. Select "PRO LOGIC II" by pressing
PL II (Dolby Pro Logic II) on the remote control to use all
six speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C,
SL, and SR to SMALL.
Dolby Digital 5.1 CH Surround
Sound is not produced.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby
Digital 5.1 CH Surround Sound is produced only if the disc is
recorded with 5.1 channel sound.
• Is the audio language correctly set to DOLBY DIGITAL
5.1-CH in the information display?
The remote control does not
work.
• Is the remote control being operated within its operation
range of angle and distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the
remote control (TV or DVD) correctly?
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
69
ENG ● TROUBLESHOOTING
SYMPTOM Check/Remedy
Audio language and subtitles do
not work.
• Audio language and subtitles will not work if the disc does
not contain them.
Menu screen does not appear
even when the menu function is
selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed. • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER
BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be
seen in 4:3 ratio only. Refer to the DVD disc jacket and then
select the appropriate function.
• The main unit is not working.
(Example: The power goes out
or strange noise is heard.)
• The DVD player is not working
normally.
• Turn off the power and hold the STOP (T) button on the
main unit for longer than 5 seconds (reset function).
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
The password for rating level has
been forgotten.
• While “NO DISC” message appears on the display of main
unit, hold the main unit's STOP (T) button for longer than 5
seconds. “INITIAL” appears on the display and all settings will
return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcast. • Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
70
language code list
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 50).
Code Language Code Language Code Language Code Language
1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan
1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona
1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali
1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian
1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian
1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati
1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho
1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese
1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish
1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili
1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil
1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu
1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik
1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai
1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya
1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen
1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog
1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana
1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga
1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish
1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga
1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar
1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi
1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian
1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu
1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek
1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese
1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk
1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof
1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa
1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba
1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese
1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu
71
ENG
DIGITAL CAMERA
Product
Company
Type
Finepix-A340 Fuji Digital Camera
Finepix-F810 Fuji Digital Camera
Finepix-F610 Fuji Digital Camera
Finepix-f450 Fuji Digital Camera
Finepix S7000 Fuji Digital Camera
Finepix A310 Fuji Digital Camera
KD-310Z Konica Digital Camera
Finecam SL300R Kyocera Digital Camera
Finecam SL400R Kyocera Digital Camera
Finecam S5R Kyocera Digital Camera
Finecam Xt Kyocera Digital Camera
Dimage-Z1 Minolta Digital Camera
Dimage Z1 Minolta Digital Camera
Dimage X21 Minolta Digital Camera
Coolpix4200 Nikon Digital Camera
Coolpix4300 Nikon Digital Camera
Coolpix 2200 Nikon Digital Camera
Coolpix 3500 Nikon Digital Camera
Coolpix 3700 Nikon Digital Camera
Coolpix 4100 Nikon Digital Camera
Coolpix 5200 Nikon Digital Camera
Stylus 410 digital Olympus Digital Camera
300-digital Olympus Digital Camera
300-digital Olympus Digital Camera
U300 Olympus Digital Camera
X-350 Olympus Digital Camera
C-760 Olympus Digital Camera
C-5060 Olympus Digital Camera
X1 Olympus Digital Camera
U-mini Olympus Digital Camera
Lumix-FZ20 Panasonic Digital Camera
DMC-FX7GD Panasonic Digital Camera
Lumix LC33 Panasonic Digital Camera
LUMIX DMC-F1 Panasonic Digital Camera
Optio-S40 Pentax Digital Camera
Optio-S50 Pentax Digital Camera
Optio 33LF Pentax Digital Camera
Optio MX Pentax Digital Camera
Digimax-420 Samsung Digital Camera
Digimax-400 Samsung Digital Camera
Sora PDR-T30 Toshiba Digital Camera
Coolpix 5900 Nikon Digital Camera
Coolpix S1 Nikon Digital Camera
Coolpix 7600 Nikon Digital Camera
DMC-FX7 Panasonic Digital Camera
Dimage Xt Minolta Digital Camera
AZ-1 Olympus Digital Camera
Product
Company
Type
Product
Company
Type
Cruzer Micro Sandisk
USB 2.0 USB Flash Drive 128M
Cruzer Mini Sandisk USB 2.0 128M
Cruzer Mini Sandisk USB 2.0 256M
SONY Micro Vault Sony USB 2.0 64MB
FLEX DRIVE Serotech USB 2.0 32MB
AnyDrive A.L tech USB 2.0 128MB
XTICK LG USB 2.0 128M
Micro Mini Iomega USB 2.0 128M
iFlash Imation USB 2.0 64M
LG XTICK(M) USB 2.0 64M
RiDATA EZDrive USB 2.0 64M
Product
Company
Type
USB host feature supported products
USB FLASH DISC
MP3 PLAYER
Product
Company
Type
Creative MuVo NX128M
Creative 128 MB MP3 Player
Iriver H320 Iriver 20G HDD MP3 Player
YH-920 Samsung 20G HDD MP3 Player
YP-T7 Samsung MP3 Player
YP-MT6 Samsung MP3 Player
YP-T6 Samsung MP3 Player
YP-T9 Samsung MP3 Player
YP-ST5 Samsung MP3 Player
YP-T5 Samsung MP3 Player
YP-K5 Samsung MP3 Player
YP-K3 Samsung MP3 Player
YP-U3 Samsung MP3 Player
YP-Z5F Samsung MP3 Player
iAUDIO U2 Cowon MP3 Player
iAUDIO G3 Cowon MP3 Player
iAudio M3 Cowon HDD MP3 Player
SI-M500L Sharp 256MB MP3 Player
H10 Iriver MP3 Player
YP-T10 Samsung MP3 Player
YP-P2 Samsung MP3 Player
Product
Company
Type
●
USB HOST FEATURE SUPPORTED PRODUCTS
72
appendix
CAUTIONS ON HANDLING AND STORING DISCS
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
M
Do not allow the discs to become contaminated with dirt. `
Do not load cracked or scratched discs. `
Handling and Storing Discs
When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with
a soft cloth.
When cleaning, wipe gently from the inside to the outside of the disc•
M
Condensation may form if warm air comes into contact with cold parts inside the player. `
When condensation forms inside the player, the player may not operate correctly. If this
occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.
73
ENG ● APPENDIX
SPECIFICATIONS
General
Power Consumption 80 W
Weight 3.5 kg
Dimensions 430 (W) x 70 (H) x 282 (D) mm
Operating Temperature Range +5°C~+35°C
Operating Humidity Range 10 % to 75 %
Disc
DVD (Digital Versatile Disc) Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
CD : 12 cm (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
CD : 8cm (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
Video Output
Composite Video 576i/480i
1 channel : 1.0 Vp-p (75 Ω load)
Component Video
576i/480i
Y : 1.0 Vp-p (75 load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Video/Audio HDMI 1080p, 1080i, 720p, 576p/480p
Amplifier
Front speaker output 166W x 2(3
Ω
)
Center speaker output 166W(3
Ω
)
Rear speaker output 166W x 2(3
Ω
)
Subwoofer speaker output 170W(3
Ω
)
Frequency range 20Hz~20KHz
S/N Ratio 70dB
Channel separation 60dB
Input sensitivity (AUX)400mV
74
HT-Z320
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
Front/Rear
: 90 x 118 x 90 mm
Center : 250 x 91 x 90 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 0.5 kg, Center : 0.6 kg
Rear : 0.4 kg, Subwoofer : 4.5 kg
HT-TZ322
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
Front
: 90 x 1020 x 92 mm (stand base : 280 x 280)
Rear
: 90 x 118 x 90 mm
Center : 250 x 91 x 90 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 2.8 kg, Center : 0.6 kg
Rear : 0.4 kg, Subwoofer : 4.5 kg
HT-TZ325
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
Front/Rear
: 90 x 1020 x 92 mm (stand base : 280 x 280)
Center : 250 x 91 x 90 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 2.8 kg, Center : 0.6 kg
Rear : 2.6 kg, Subwoofer : 4.5 kg
appendix
SPECIFICATIONS
75
ENG ● APPENDIX
HT-Z420
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170W
340W
Front
: 90 x 230 x 92 mm
Rear : 90 x 137 x 92 mm
Center : 300 x 101 x 91.5 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 0.6 kg, Center : 0.9 kg
Rear : 0.5 kg, Subwoofer : 4.5 kg
HT-TZ422
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170W
340W
Front
: 90 x 1020 x 92 mm (stand base : 280 x 280)
Rear
: 90 x 137 x 92 mm
Center : 300 x 101 x 91.5 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 3.0 kg, Center : 0.9 kg
Rear : 0.5 kg, Subwoofer : 4.5 kg
HT-TZ425
Speaker
Speaker system 5.1ch speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
Front/Rear
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Center
3 Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3 Ω
45Hz~160Hz
86dB/W/M
170W
340W
Front
/
Rear
: 90 x 1020 x 92 mm (stand base : 280 x 280)
Center : 300 x 101 x 91.5 mm
Subwoofer : 180 x 320 x 380 mm
Front
: 3.0 kg, Center : 0.9 kg
Rear : 3.0 kg, Subwoofer : 4.5 kg
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care center.
Region Country Customer Care Center Web Site
North America
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us
Latin America
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421 , 4004-0000 www.samsung.com/br
CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl
NICARAGUA 00-1800-5077267 www.samsung.com/latin
HONDURAS 800-7919267 www.samsung.com/latin
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin
VENEZUELA 0-800-100-5303 www.samsung.com/latin
COLOMBIA 01-8000112112 www.samsung.com.co
Europe
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC
800-726-786 (800 - SAMSUNG)
www.samsung.com/cz
DENMARK 70 70 19 70 www.samsung.com/dk
FINLAND 030-6227 515 www.samsung.com/fi
FRANCE 3260 SAMSUNG ( 0,15/Min),
08 25 08 65 65 ( 0,15/Min) www.samsung.com/fr
GERMANY
01805 - SAMSUNG(726-7864) ( 0,14/Min)
www.samsung.de
HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu
ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.com/lu
NETHERLANDS
0900-SAMSUNG(726-7864) ( 0,10/Min) www.samsung.com/nl
NORWAY 815-56 480 www.samsung.com/no
POLAND 0 801 801 881, 022-607-93-33 www.samsung.com/pl
PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt
SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk
SPAIN 902-1-SAMSU(72678) www.samsung.com/es
SWEDEN 0771-400 200 www.samsung.com/se
U.K 0845 SAMSUNG (7267864) www.samsung.com/uk
EIRE 0818 717 100 www.samsung.com/ie
AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at
SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch
CIS
RUSSIA 8-800-555-55-55 www.samsung.ru
KAZAHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
TADJIKISTAN 8-10-800-500-55-500
UKRAINE 8-800-502-0000 www.samsung.ua
LITHUANIA 8-800-77777 www.samsung.lt
LATVIA 8000-7267 www.samsung.com/lv
ESTONIA 800-7267 www.samsung.ee
Asia Pacic
AUSTRALIA 1300 362 603 www.samsung.com/au
NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz
CHINA 800-810-5858, 400-810-5858, 010-6475 1880 www.samsung.com/cn
HONG KONG 3698-4698 www.samsung.com/hk
INDIA 3030 8282, 1800 110011, 1-800-3000-8282 www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
JAPAN 0120-327-527 www.samsung.com/jp
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg
THAILAND 1800-29-3232, 02-689-3232 www.samsung.com/th
TAIWAN 0800-329-999 www.samsung.com/tw
VIETNAM 1 800 588 889 www.samsung.com/vn
Middle East &
Africa
TURKEY 444 77 11 www.samsung.com/tr
SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/za
U.A.E 800-SAMSUNG (726-7864), 8000-4726
www.samsung.com/ae
Code No. AH68-02166B(0.0)

Navigation menu
