Users Manual 3
26
connections
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on.
HDMI (High Definition Multimedia Interface)•
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD Home Cinema transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
HDMI connection description•
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
Why does Samsung use HDMI?•
Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Cinema) or an
analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is
degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A
conversion and is a pure digital signal from the player to your TV.
What is the HDCP?•
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device (TV, projector. etc). Content is encrypted at the source device to prevent
unauthorized copies from being made.
What is Anynet+?•
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the
Anynet+ feature.
- If your Samsung TV has an
logo, then it supports the Anynet+ function.
- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
27
ENG ● CONNECTIONS● CONNECTIONS
HDMI FUNCTION
Resolution Selection
This function allows the user to select the screen resolution for HDMI
output.
In Stop mode, press and hold the SD/HD (Standard Definition/
High Definition) button on the remote control.
Resolutions available for the HDMI output are 576p(480p), •
720p, 1080i/1080p.
SD(Standard Definition) resolution is 576p(480p) and HD •
(High Definition) resolution is 720p, 1080i/1080p.
M
If the TV does not support the configured resolution, `
you will not be able to see the picture properly.
When a HDMI cable is connected, composite and `
component video signals are not output.
See your TV owner's manual for more information on `
how to select the TV's Video Input source.
ASC
CD RIPPING
ASC
CD RIPPING
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without the
process of converting to analog.
You will get sharper digital
pictures when using an HDMI
connection.
BD Wise (only Samsung products)
You can select to use the BD Wise menu only if the BD player is connected to a Samsung TV that
supports BD Wise using the HDMI cable.
What is BD Wise?•
BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them.
This feature is enabled only if BD Wise-compliant Samsung TVs are connected with each other using the
HDMI cable.
To use BD Wise•
Use the HDMI cable to connect the Bdplayer to a BD Wise-compliant Samsung TV.1.
Set each BD Wise menu of the BD player and the Samsung TV to On, respectively.2.
- This will optimize the picture quality according to the content (BD, DVD, etc) that you want to play.
- This will also optimize the picture quality between BD Wise- compliant Samsung TVs.
M
If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance. `
If you set off the BD Wise mode, the resolution of the connected TV will be adjusted to its `
maximum automatically.
BD Wise will be disabled if the player is connected to a device that does not support BD Wise.
`
For a proper operaiotn of BD Wise, set each BD Wise menu of the player and the TV to On, `
respecitively.
28
connections
HDMI FUNCTION
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung
Devices with your Samsung TV's remote control. Anynet + can be
used by connecting this Home Cinema to a SAMSUNG TV using a
HDMI Cable. This is only available with SAMSUNG TVs that
support Anynet+.
Connect the main unit of the Home Cinema to a Samsung 1.
TV with an HDMI cable. (See page 25)
Set the Anynet+ function on your TV. 2.
(See the TV instruction manual for more information.)
You can operate the Home Cinema by using the TV •
remote control. (Available TV buttons : , , , ,
,
and
,
buttons, ~ button)
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+
button on your TV remote control.
•
Receiver : On :
You can listen to audio through the Home Cinema.
•
Receiver : Off : You can listen to audio through the TV.
If you select the THEATER
Select THEATER to
connect
and set the option of each item
below.
• View TV : If anynet+(HDMI CEC) is set to on and you select
View TV, the home cinema will automatically
switch to digital in mode.
• Theater Menu : You can access and control the Home cinema menu.
• Theater Operation : The Home Cinema disc playback information will be displayed.
You can control the Disc operation of the Home Cinema such as title, chapter and subtitle
change.
• Receiver : On : You can listen to audio through the Home Cinema.
• Receiver : Off : You can listen to audio through the TV.
M
In case that you choose 'View TV', if you want to listen to TV sound through Digital In, you `
have to connect the optical cable between the TV and the Home Cinema.
With Anynet+
You can operate this unit, power
on your TV, or watch a movie by
pressing the Play button on your
Samsung TV's remote control.
MoveEnterExit
Setup
Connected to Player
Off
On
View TV
THEATER
THEATER Menu
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MoveEnterExit
Setup
Connected to Player
Off
On
View TV
THEATER
THEATER Menu
MOVE
ENTER
EXIT
29
ENG ● CONNECTIONS● CONNECTIONS
CONNECTING AUDIO FROM EXTERNAL COMPONENTS
AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player.
AUX IN 1
Audio Cable
(not supplied)
Audio OUT
Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/ 1.
MP3 player.
Press the 2. AUX button on the remote control to select AUX1 input.
You can also use the • FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
30
connections
Audio Cable (not supplied)
If the external analog component
has only one Audio Out, connect
either left or right.
Optical Cable
(not supplied)
AUX2 : Rear Panel OPTICAL : Rear Panel
External Analog Component External Digital Component
AUX IN 2
AUX IN 2
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
Connect AUX IN 2 (Audio) on the Home Cinema to the Audio Out of the external analog 1.
component.
Be sure to match connector colors. •
Press the 2. AUX button on the remote control to select AUX 2 input.
You can also use the• FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
M
You can connect the Video Output jack of your VCR to the TV, and connect the Audio `
Output jacks of the VCR to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
Connect the Digital Input (OPTICAL) on the Home Cinema to the Digital Output of the external 1.
digital component.
Press the 2. AUX button on the remote control to select DIGITAL IN.
You can also use the • FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
31
ENG ● CONNECTIONS● CONNECTIONS
CONNECTING THE FM ANTENNA
Connect the FM antenna supplied to the FM 751. Ω COAXIAL Jack.
Slowly move the antenna wire around until you find a location where reception is good, then 2.
fasten it to a wall or other rigid surface.
M
This unit does not receive AM broadcasts. `
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise •
and may damage it.
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a •
newspaper or cloth, heat may build up inside the unit and fire may result.)
AUX IN 2
AUX IN 2
FM Antenna
(supplied)
32
The DVD Home Cinema's remote can be used to control Samsung TVs.
Plug the main unit's power cord into the AC power supply.1.
Press the 2. DVD RECEIVER button to operate the DVD Home
Cinema.
Press the 3. FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
Press the 4. TV button to set the remote to TV mode.
Press the 5. POWER button to turn on your Samsung TV
with this remote.
Press the 6. TV/VIDEO button to select VIDEO mode
on your TV.
before using your home cinema
AUX IN 1
Selecting the Video Format
Press and hold the Number 7 button on the remote controller for over 5 seconds while the
power is turned off.
By default, the video format is set to "PAL".•
"NTSC" or "PAL" will appear in the display. At this time, press the •
Number 7 button shortly to select between "NTSC" and "PAL".
Each country has a different video format standard. •
For normal playback, the video format of the disc must be the same •
as the video format of your TV.
VIDEO
33
ENG ● PLAYBACK
playback
DISC PLAYBACK
dB
Press the 1. OPEN/CLOSE () button to open the disc tray.
Load a disc.2.
Place a disc gently into the tray with the disc’s label •
facing up.
Close the compartment by pressing the 3. OPEN/CLOSE ()
button again.
Playback starts automatically.•
To stop playback, press the STOP ( ) button during playback.
If pressed once, • PRESS PLAY is displayed and the stop position will be stored in memory.
If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
If pressed twice, • STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PAUSE ( ) button during playback.
To resume playback, press the • PLAY ( ) button.
M
Depending on the content of the disc, the initial screen may appear different. `
Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : `
a copy protection system) recommendations.
AUX IN 1
ASC
CD RIPPING
playback
34
MP3/WMA-CD PLAYBACK
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
A
Place the MP3/WMA disc on the disc tray.1.
The MP3/WMA menu screen will appear and •
playback will start.
The appearance of the menu depends on the •
MP3/WMA disc.
WMA-DRM files cannot be played.•
In Stop mode, use the Cursor 2. ,,, button
to select the album, and then press the ENTER button.
Use the Cursor •
,
button to select the track.
To change the album, use the Cursor 3. ,,,
button to select another album in Stop mode, and then press
the ENTER button.
Press the 4. STOP (T) button to stop playback.
M
Depending on the recording mode, some MP3/WMA-CDs may not play. `
Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded `
on the disc.
Press the Cursor • ,,, button when it is in Stop mode and select a desired icon from the
top part of the menu.
Music File Icon : To play music files only, select the Icon.
Image File Icon : To view image files only, select the Icon.
Movie File Icon : To view movie files only, select the Icon.
All File Icon : To view all files select the Icon.
ASC
CD RIPPING
To play a file icon in the screen,
35
ENG ● PLAYBACK
JPEG FILE PLAYBACK
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back
with this Home Cinema.
Slide Mode G
Place the JPEG disc on the disc tray.
Playback starts automatically. •
Each image is displayed for 5 seconds and then the next image is displayed.
Press the [,] button to skip to the next slide.
Each time the button is pressed, the slide moves backward or forward.•
Rotate/Flip Function G
Press the Cursor ,,, button during playback.
M
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for `
standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
If a JPEG file is played when the HDMI output resolution is 720p/1080i/1080p, the mode is
`
automatically converted to 576p/480p mode.
button: Rotate 90°
Clockwise
button: Rotate 90°
Counterclockwise
button: Flip Vertically
button: Flip Horizontally
Original Image
ASC
CD RIPPING
playback
36
DIVX PLAYBACK
The functions on this page apply to DivX disc playback.
Skip Forward/Back D
During playback, press the [,] button.
Goes to the next file whenever you press the •
]
button,
if there are 2 files or more on the disc.
Goes to the previous file whenever you press the •
[
button, if there are 2 files or more on the disc.
Fast Playback D
To play back the disc at a faster speed, press the ( or )
button during playback.
Each time you press either button, the playback speed will •
change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
5 Minute Skip function D
During playback, press the Cursor , button.
Playback skips 5 minutes forward whenever you press the • Cursor button.
Playback skips 5 minutes back whenever you press the • Cursor button.
Audio Display D
Press the AUDIO button.
If there are multiple audio • languages on a disc, you can
toggle between them.
Each time you press the button, your selection will toggle • between AUDIO (1/N, 2/N ...) and .
M
` is displayed when there is one supported language in the disc.
Subtitle Display D
Press the SUBTITLE button.
Each time you press the button, your selection will toggle •
between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.
If the disc has only one subtitle file, it will be played •
automatically.
See number 2 (Caption Function) on the next page for more •
details concerning Subtitle usage with DivX discs.
ASC
CD RIPPING
ASC
CD RIPPING
ASC
CD RIPPING
ASC
CD RIPPING
37
ENG ● PLAYBACK
If the Disc has more than One Subtitle File D
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have
to select your subtitle language as follows:
In Stop mode, press the Cursor 1. , button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
When you select the desired DivX file from the TV 2.
screen, the movie will be played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
Supported Formats1.
This product only supports the following media formats.If both video and audio formats are not
supported, you may experience problems such as broken images or no sound.
Supported Video Formats
Format AVI WMV
Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7
Supported Audio Formats
Format MP3 WMA AC3 DTS
Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps
Sampling Frequency 44.1khz 44.1/48khz 44.1khz
DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.•
Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports •
up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may •
experience shaking on the screen during playback.
Caption Function2.
You must have some experience with video extraction and editing in order to use this feature •
properly.
To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX •
media file (*.avi) within the same folder.
Example. Root Samsung_007CD1.avi
Samsung_007CD1.smi
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean •
and Chinese) for the file name.
ASC
CD RIPPING
playback
38

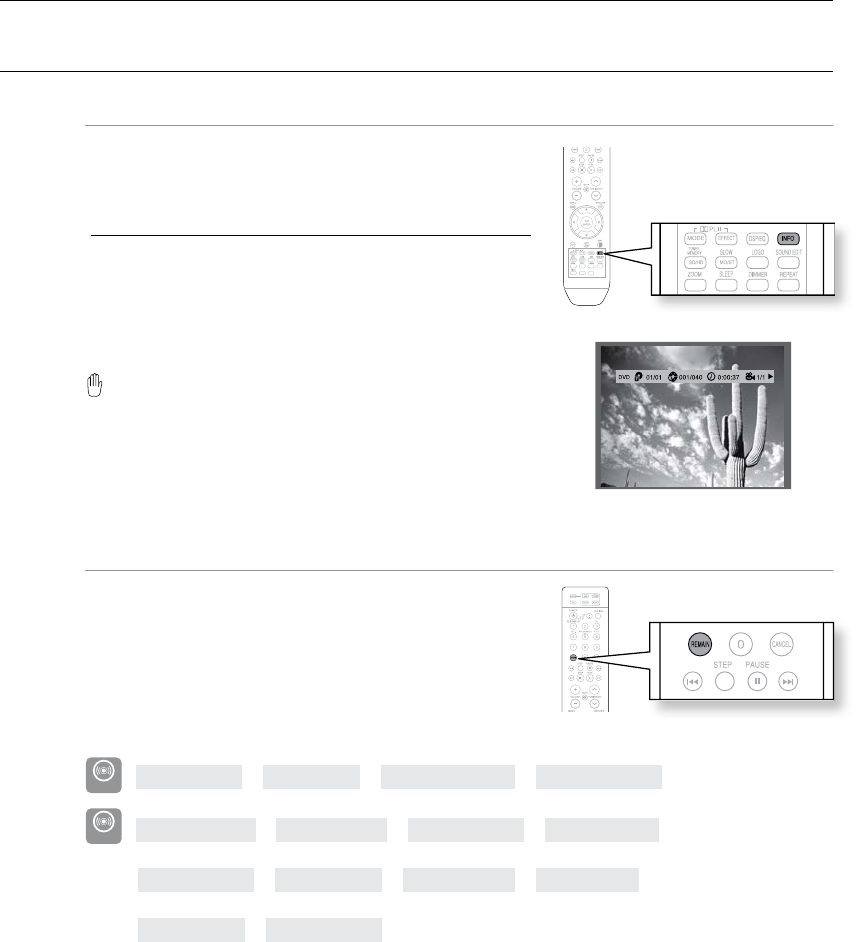

USING THE PLAYBACK FUNCTION
Displaying Disc Information dBAGD
You can view disc playback information on the TV screen.
Press the INFO button.
M
Depending on the disc, the disc information `
display may appear different.
Depending on the disc, you can also select
`
DTS, DOLBY DIGITAL, or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Checking the Remaining Time dBA
Press the REMAIN button.
For checking the total and remaining time of a title or •
chapter being played.
Each time the Remain button is pressed
DVD-VIDEO
TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN
DVD-AUDIO
GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN
(HT-Z310/TZ312/TZ315 Only)
B
TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN
A
TRACK REMAIN ➞ TRACK ELAPSED
ASC
CD RIPPING
39
ENG ● PLAYBACK

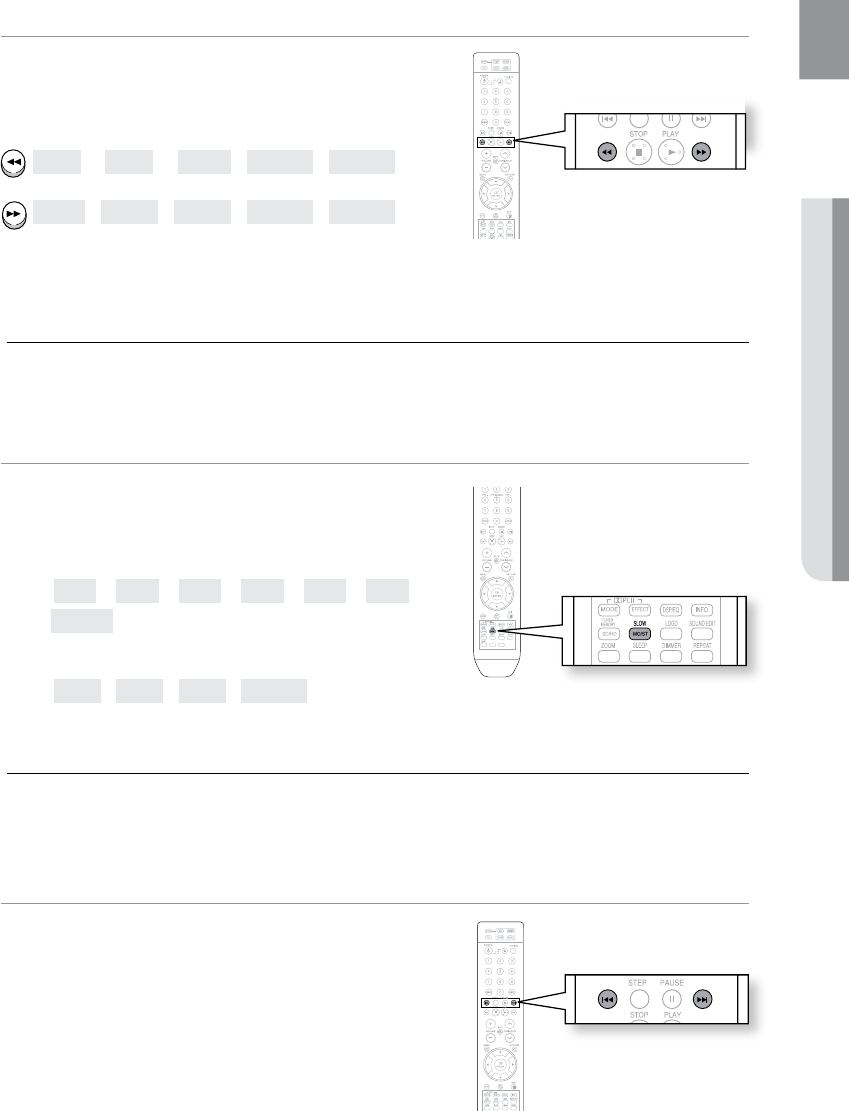

Fast Playback dBAD
Press the (,) button.
Each time the button is pressed during playback, the •
playback speed changes as follows:
( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞ PLAY
) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞ PLAY
M
During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, `
8x, and 32x speeds.
Slow Playback dD
Press the SLOW button.
Each time the button is pressed during playback, the •
playback speed changes as follows:
d
*1/2 ➞*1/4 ➞*1/8 ➞&1/2 ➞&1/4 ➞&1/8 ➞
PLAY
D
*1/2 ➞*1/4 ➞*1/8 ➞ PLAY
M
No sound is heard during slow playback. `
Reverse slow playback does not work with CD. `
Skipping Scenes/Songs dA
Press the [,] button.
Each time the button is pressed during playback, the previous •
or next chapter, track or directory (file) will be played.
You cannot skip chapters consecutively.•
ASC
CD RIPPING
playback
40
USING THE PLAYBACK FUNCTION
Repeat Playback dBAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 file).
Press the REPEAT button.
Each time the button is pressed during playback, the repeat •
playback mode changes as follows:
DVD-VIDEO
REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF
D V D - A U D I O
REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF
(HT-Z310/TZ312/TZ315 Only)
B
REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
AGD
REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR ➞ REPEAT : DISC
➞ REPEAT : OFF
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
GROUP : Repeatedly plays the selected group.
RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen
dB
Press the 1. INFO button twice.
Press the Cursor 2. button to move to REPEAT
PLAYBACK ( ) display.
Press the Cursor 3. button to select the desired Repeat
Playback mode.
To select another album and track, repeat Steps 2 and •
3 above.
Press the 4. ENTER button.
d
OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF
B
OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF
M
For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information `
display screen.
ASC
CD RIPPING
Repeat Playback Options
ASC
CD RIPPING
ASC
CD RIPPING
