Clearing paper jams

101

4. Troubleshooting

Original paper jam in exit area of scanner

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• This troubleshooting may not be available depending on model or optional goods (see "Front view" on page 21).

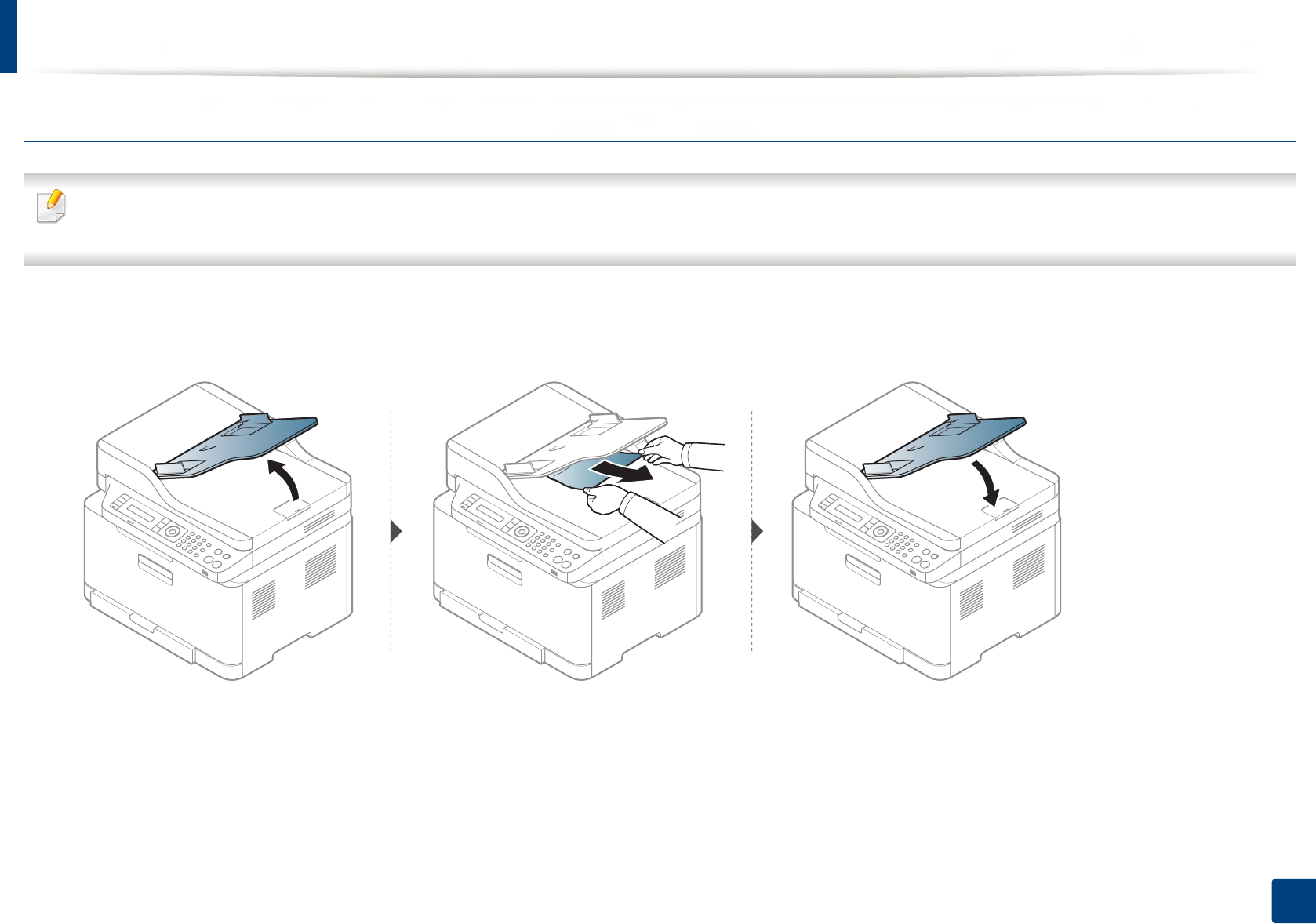

1Remove any remaining pages from the document feeder.

2 Gently remove the jammed paper from the document feeder.

102

4. Troubleshooting

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 24).

• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 104).

• You also can resolve the error with the guideline from the computer’s Samsung Printing Status window (see "Using Samsung Printer Status" on page 255).

• If the problem persists, call a service representative.

LED Status Description

Status

Off The machine is off-line.

Blue

Blinking When the backlight blinks, the machine is receiving or printing data.

On • The machine is on-line and can be used.

Orange

Blinking

• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message.

When the problem is cleared, the machine resumes.

• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new

cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see

"Redistributing toner" on page 78).b

• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner

cartridge (see "Replacing the toner cartridge" on page 80).

• The cover is opened. Close the cover.

• There is no paper in the tray when receiving or printing data. Load paper in the tray.

• The machine has stopped due to a major error. Check the display message (see "Understanding display

messages" on page 104).

• A paper jam has occurred (see "Clearing paper jams" on page 95).

Understanding the status LED

103

4. Troubleshooting

WirelessbBlue

Blinking The machine is connecting to a wireless network.

On The machine is connected to a wireless network (see "Wireless network setup" on page 155).

Off The machine is disconnected from a wireless network.

Power/Wake Up ( ) Blue

On The machine is in power save mode.

Off The machine is in ready mode or machine’s power is off.

Eco Green

On Eco mode is on.

The default setting of Eco mode is 2-up and toner save.

Off Eco mode is off.

Scan tobGreen

On Scan mode is on.

Switches between scan and copy mode. The Scan to LED turns on scan mode and turns off on copy mode.

Off Scan mode is off and copy mode is on.

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages

may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is

on and the printer stops printing.

b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 24).

LED Status Description

104

4. Troubleshooting

Understanding display messages

Messages appear on the control panel display to indicate the machine’s status

or errors. Refer to the tables below to understand the messages’ and their

meaning, and correct the problem, if necessary.

• This function is not supported for the devices which has a control panel

display. You can resolve the error with the guideline from the computer’s

Printing Status window (see "Using Samsung Printer Status" on page

255).

• If a message is not in the table, reboot the power and try the printing job

again. If the problem persists, call a service representative.

• When you call for service, provide the service representative with the

contents of display message.

• Some messages may not appear on the display depending on the

options or models.

• [error number] indicates the error number.

• [tray type] indicates the tray number.

• [media type] indicates the media type.

• [media size] indicates the media size.

• [color] indicates the color of toner.

Paper Jam-related messages

Message Meaning Suggested solutions

Document jam.

Remove jam

The loaded original

document has jammed in

the document feeder.

Clear the jam (see "Original

paper jam" on page 99).

Jam or empty

Door open&close

• Paper has jammed in the

paper feed area.

• There is no paper in tray.

• Clear the jam (see "In tray"

on page 96).

• Load paper in tray (see

"Loading paper in the

tray" on page 40).

Paper Jam

inside machine

Paper has jammed inside the

machine.

Clear the jam (see "Inside the

machine" on page 97).

Paper Jam in tray Paper has jammed in the

paper tray.

Clear the jam (see "Clearing

paper jams" on page 95).

Paper Jam

in exit area

Paper has jammed in the exit

area.

Clear the jam (see "Original

paper jam in exit area of

scanner" on page 101).

Paper Empty in

[tray type]

There is no paper in tray. Load paper in tray (see

"Loading paper in the tray"

on page 40).

Understanding display messages

105

4. Troubleshooting

Toner-related messages

Message Meaning Suggested solutions

•Install Toner

•Install toner

cartridge

A toner cartridge is not

installed.

Install a toner cartridge.

• Not Compatible

[color] toner

• Not Compatible

toner cartridge

The toner cartridge is not

suitable for your machine.

Install the corresponding

toner cartridge with a

Samsung-genuine

cartridge.

Not original

[color] toner

The toner cartridge is not a

Samsung-genuine toner

cartridge.

Install the corresponding

toner cartridge with a

Samsung-genuine

cartridge.

•Prepare toner

•Prepare new

cartridge

Small amount of toner is left in

the indicated cartridge. The

estimated cartridge life of

toner is close.

Prepare a new cartridge

for a replacement. You

may temporarily increase

the printing quality by

redistributing the toner

(see "Redistributing toner"

on page 78).

•Replace toner

•Replace new

cartridge

The indicated toner cartridge

has almost reached its

estimated cartridge life. a

• You can choose Stop or

Continue as shown on

the control panel. If you

select Stop, the printer

stops printing and you

cannot print any more

without changing the

cartridge. If you select

Continue, the printer

keeps printing but the

printing quality cannot

be guaranteed. Besides,

it can cause serious

damage to your

machine.

• Replace the toner

cartridge for the best

print quality when this

message appears.

Using a cartridge

beyond this stage can

result in printing

quality issues (see

"Replacing the toner

cartridge" on page 80).

The indicated toner cartridge

has reached its estimated

cartridge life.a The machine

might stop printing.

Replace the toner

cartridge (see "Replacing

the toner cartridge" on

page 80).

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates

the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available

supplies" on page 75). The number of pages may be affected by operating environment,

percentage of image area, printing interval, media, percentage of image area, and media size.

Some amount of toner may remain in the cartridge even when replace new cartridge appears

and the machine stops printing.

Message Meaning Suggested solutions

Understanding display messages

106

4. Troubleshooting

Samsung does not recommend using a non-genuine Samsung toner

cartridge such as refilled or remanufactured. Samsung cannot guarantee a

non-genuine Samsung toner cartridge's quality. Service or repair required

as a result of using non-genuine Samsung toner cartridges will not be

covered under the machine warranty.

Understanding display messages

107

4. Troubleshooting

Tray-related messages

Network-related messages

Misc. messages

Message Meaning Suggested solutions

Jam or empty

Door open&close

• Paper has jammed in the

paper feed area.

• There is no paper in tray.

• Clear the jam (see "In

tray" on page 96).

• Load paper in tray (see

"Loading paper in the

tray" on page 40).

Message Meaning Suggested solutions

Network Problem:

IP Conflict

The network IP address you

have set is being used by

someone else.

Check the IP address and

reset it if necessary (see

"Printing a network

configuration report" on

page 144).

Wireless

Network Error

Wireless module is not

installed.

Reboot the power and try

the printing job again. If

the problem persists,

please call for service.

•BOOTP problem:

Auto IP Run

•DHCP problem:

Auto IP Run

There is a problem with the

network.

Change the Auto IP.

•BOOTP problem:

Reconfigure

DHCP

•DHCP problem:

Reconfigure

DHCP

The IP address assignment is

failed. This happens, when

Auto IP for BOOTP/DHCP is

set in SyncThru™ Web

Service.

Change the IP address

assignment method to

DHCP/BOOTP or Static. If

you do not change this

option, the BOOTP/DHCP

server continually asks to

assign the IP Address.

802.1x

Network Error

Fail to authenticate. Check the network

authentication protocol.

If the problem persists,

contact your network

administrator.

Message Meaning Suggested solutions

Adjusting Color

Registration

The machine is adjusting the

color registration.

Wait a few minutes.

Message Meaning Suggested solutions

Understanding display messages

108

4. Troubleshooting

Calibrating

image density…

The machine is calibrating

the image density.

Wait a few minutes.

Door Open

Close it

The cover is not securely

latched.

Close the cover until it

locks into place.

Scan Unit Open

or Exit JAM

The scan unit is not securely

latched or paper has

jammed in the scanner area.

• Clear the jam (see

"Original paper jam"

on page 99).

• Close the cover until it

locks into place.

Door of scanner is

open.

The cover of scanner is not

securely latched.

Close the cover until it

locks into place.

Error [error number]

Install [color] toner

The indicated toner

cartridge is installed

improperly, or the connector

is polluted.

Reinstall the Samsung-

genuine toner cartridge

two or three times to

confirm it is seated

properly. Or clean the

connector. If the problem

persists, contact the

service representatives.

Error [error number]

Turn off then on

The machine unit cannot be

controlled.

Reboot the power and try

the printing job again. If

the problem persists,

please call for service.

Error [error number]

Call for service

Message Meaning Suggested solutions

Scanner Locked The scanner is locked. Reboot the power. If the

problem persists, please

call for service.

Install TR.

belt unit.

The transfer belt is not

installed.

Install a Samsung-

genuine transfer belt.

Not compatible

transfer belt

The transfer belt of the

machine is not for your

machine.

Install the a Samsung-

genuine part designed

for your machine.

Not installed

Waste tank

The waste toner container is

not installed.

Install a Samsung-

genuine waste toner

container.

Check Fax Line The fax line is not properly

connected to the LINE port.

Connect the fax line to

the LINE port not to the

EXT port (see "Rear view"

on page 23).

Not proper room

temp. Move set

The machine is in a room

with improper room

temperature.

Move the machine to a

room with proper room

temperature.

Output bin Full

Remove paper

The output tray is full. Or the

sensor is not facing down.

Remove papers from the

output tray, the machine

resumes printing. Or

make sure the sensor is

facing down. If the

problem persists, call for

service.

Message Meaning Suggested solutions

Understanding display messages

109

4. Troubleshooting

Prepare new

Transfer belt

The life of the transfer belt

will expired soon.

Replace the transfer belt

with a new one. Contact

the service

representatives.

Replace new

Transfer belt

The life of the transfer belt

has expired.

Replace the transfer belt

with a new one. Contact

the service

representatives.

Transfer Belt Error The transfer belt cannot be

controlled.

Reboot the power and try

the printing job again. If

the problem persists,

please call for service.

Prepare new

Transfer roller

The life of the transfer belt

will expired soon.

Replace the transfer belt

with a new one. Contact

the service

representatives.

Replace new

Transfer roller

The life of the transfer belt

has expired.

Replace the transfer belt

with a new one. Contact

the service

representatives.

Replace

Fuser Soon

The life of the fuser unit will

be expired soon.

Replace the fuser unit

with a new one. Contact

the service

representatives.

Replace new

Fuser unit

The life of the fuser unit will

be expired.

Message Meaning Suggested solutions

Replace/Install

Waste Toner Tank

The life span of the waste

toner container has expired

and the printer will stop

printing until a new waste

toner container is placed

into the printer.

Replace a waste toner

container with a

Samsung-genuine waste

toner container.

Prepare new

Imaging unit

The life of the imaging unit

will be expired soon.

Replace the imaging unit

with a new one. Contact

the service

representatives.

Replace with

new imaging unit

The life of the imaging unit

will be expired.

Install

imaging unit

The imaging unit is not

installed

Error [error number]

Door open/close

The imaging unit is installed

improperly, or the cover is

not securely latched.

Reinstall the imaging unit

to confirm it is seated

properly. Close the cover

until it locks into place.

Message Meaning Suggested solutions

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

• Specifications 111

• Regulatory information 120

• Copyright 133

111

5. Appendix

Specifications

General specifications

These specifications are subject to change without notice. To see additional specifications and information about changes to the specifications, please visit

www.samsung.com.

Items Description

Dimension Width x Length x Height C48x/C48xW series 406 x 362 x 288.6 mm (16 x 14.3 x 11.4 inches)

C48xFN/C48xFW series 406 x 362 x 333.5 mm (16 x 14.3 x 13.1 inches)

Weight Machine without consumables C48x/C48xW series 12.80 Kg (28.22 lbs)

C48xFN/C48xFW series 13.96 Kg (30.78 lbs)

Noise Levelab Ready mode Background noise level

Print mode Color printing Less than 46 dB (A)

Black and white printing Less than 48 dB (A)

Copy mode Scanner glass Less than 52 dB (A)

Document feeder Less than 53 dB (A)

Scan mode Scanner glass Less than 51 dB (A)

Document feeder Less than 51 dB (A)

Temperature Operation 10 to 30°C (50 to 86°F)

Storage (packed) -20 to 40°C (-4 to 104°F)

Specifications

112

5. Appendix

Humidity Operation 20 to 80% RH

Storage (packed) 10 to 90% RH

Power ratingc110 volt models AC 110 - 127 V

220 volt models AC 220 - 240 V

Power consumption dAverage operating mode Less than 290 W

Ready mode Less than 60 W

Power save mode •C48x: Less than 1.2 W

•C48xW: Less than 1.7 W (Wi-Fi Direct on: Less than 2.5 W)

•C48xFN: Less than 1.7 W

•C48xFW: Less than 2.1 W (Wi-Fi Direct on: Less than 2.9 W)

Power off mode eLess than 0.45 W

Network Standby Mode (All

Port Activation)

•C48xW/C48xFW: Less than 1.15 W

WirelessfModule SPW-B43143S

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.

b. China only: If the equipment's noise is louder than 63 db (A) ,the equipment should be placed in region of relatively independent advice.

c. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.

d. The power consumption may be affected by the machine’s status, setting conditions, operating environment, and measuring equipment and method the country uses.

e. Power consumption can be completely avoided only when the power cable is not connected.

f. Wireless models only (see "Features by model" on page 7).

Items Description

Specifications

113

5. Appendix

Print media specifications

Type Size Dimensions Print media weight/Capacitya

Tray

Plain paper

Letter 216 x 279 mm (8.5 x 11 inches) 60 to 85 g/m2 (16 to 23 lbs bond)

• 150 sheets of 75 g/m2 (20 lbs bond)

• Maximum stack height : 15.5mm (0.6 inches)

Legal 216 x 356 mm (8.5 x 14 inches)

US Folio 216 x 330 mm (8.5 x 13 inches)

A4 210 x 297 mm (8.27 x 11.69 inches)

Oficio 216 x 343 mm (8.5 x 13.5 inches)

JIS B5 182 x 257 mm (7.17 x 10.12 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

Executive 184 x 267 mm (7.25 x 10.5 inches)

A5 148 x 210 mm (5.83 x 8.27 inches)

A6 105 x 148 mm (4.13 x 5.83 inches)

Thick paper Refer to the Plain

paper section

Refer to the Plain paper section 86 to 120 g/m2 (23 to 32lbs bond)

• 5 sheets

Thin paper Refer to the Plain

paper section

Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)

• 150 sheets of 60 g/m2 (16 lbs bond)

• Maximum stack height : 15.5mm (0.6 inches)

Specifications

114

5. Appendix

Cotton Refer to the Plain

paper section

Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)

• 150 sheets of 75 g/m2 (20 lbs bond)

Colored,

Pre-printed,

Refer to the Plain

paper section

Refer to the Plain paper section 60 to 85 g/m2 (16 to 24 lbs bond)

• 150 sheets of 75 g/m2 (20 lbs bond)

• Maximum stack height : 15.5mm (0.6 inches)

Recycled Refer to the Plain

paper section

Refer to the Plain paper section 60 to 85 g/m2 (16 to 24 lbs bond)

• 150 sheets of 75 g/m2 (20 lbs bond)

• Maximum stack height : 15.5mm (0.6 inches)

Labelsb

Letter, Legal, Oficio,

US Folio, A4, JIS B5, ISO

B5, Executive, A5

Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)

• 5 sheets

Card stock

Letter, Legal, Oficio,

US Folio, A4, JIS B5, ISO

B5, Executive, A5,

Postcard 4x6

Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)

• 5 sheets

Bond paper Refer to the Plain

paper section

Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs bond)

• 10 sheets

Type Size Dimensions Print media weight/Capacitya

Tray

Specifications

115

5. Appendix

If media weight is over 120 g/m2 (32 lbs bond), load a paper into the tray one by one.

Archive Refer to the Plain

paper section

Refer to the Plain paper section 70 to 90 g/m2 (18.6 to 24 lbs bond)

• 100 sheets

• Maximum stack height : 15.5mm (0.6 inches)

Glossy Photo,

Matte Photo

Letter, A4,

Postcard 4x6

Refer to the Plain paper section 111 to 220 g/m2 (30 to 58 lbs bond)

• 1 sheets

Minimum size (custom) 105 x 148.5 mm (4.13 x 5.85 inches) 60 to 120 g/m2 (16 to 32 lbs bond)

Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.

b. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.

Type Size Dimensions Print media weight/Capacitya

Tray

Specifications

116

5. Appendix

System requirements

Microsoft® Windows®

Operating system

Requirement (recommended)

CPU RAM free HDD space

Windows® XP Service Pack 3 Intel® Pentium® III 1 GHz (Pentium IV 2 GHz) 512 MB (1 GB) 1.5 GB

Windows Server® 2003 Intel® Pentium® III 1 GHz (Pentium IV 2 GHz) 512 MB (1 GB) 1.5 GB

Windows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GB

Windows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GB

Windows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB

• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).

•DVD-R/W Drive

Windows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB

Windows® 8

Windows® 8.1

Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 2 GB (2 GB) 20 GB

• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).

•DVD-R/W Drive

Windows Server® 2012

Windows Server® 2012 R2

Intel® Pentium® IV 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 32 GB

Specifications

117

5. Appendix

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.

• Users who have administrator rights can install the software.

•Windows Terminal Services is compatible with your machine.

Mac

Operating system

Requirements (Recommended)

CPU RAM Free HDD space

Mac OS X 10.6 •Intel

® processors 1 GB (2 GB) 1 GB

Mac OS X 10.7 - 10.10 •Intel

® processors 2 GB 4 GB

Specifications

118

5. Appendix

Linux

Items Requirements

Operating system Red Hat Enterprise Linux 5, 6, 7

Fedora 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

OpenSUSE 11.2, 11.3, 11.4, 12.1, 12.2, 12.3, 13.1

Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04

SUSE Linux Enterprise Desktop 10, 11

Debian 6.0, 7.0

Mint 13, 14, 15, 16, 17

CPU Pentium IV 2.4GHz (Intel Core™2)

RAM 512 MB (1 GB)

Free HDD space 1 GB (2 GB)

Specifications

119

5. Appendix

Network environment

Network and wireless models only (see "Features by model" on page 7).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the

machine.

Items Specifications

Network interface • Ethernet 10/100 Base-TX Wired Lan

•802.11b/g/n Wireless LAN

Network operating system •Windows

® XP Service Pack 3, Windows Server® 2003, Windows Vista®, Windows® 7/8, Windows Server® 2008 R2

•Various Linux OS

• Mac OS X 10.6 -10.10

Network protocols •TCP/IPv4

• DHCP, BOOTP

• DNS, WINS, Bonjour, SLP, UPnP

• Standard TCP/IP Printing (RAW), LPR, IPP, WSD

• SNMPv 1/2/3, HTTP

• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP)

Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)

• Encryption: WEP64, WEP128, TKIP, AES

120

5. Appendix

Regulatory information

This machine is designed for a normal work environment and certified with

several regulatory statements.

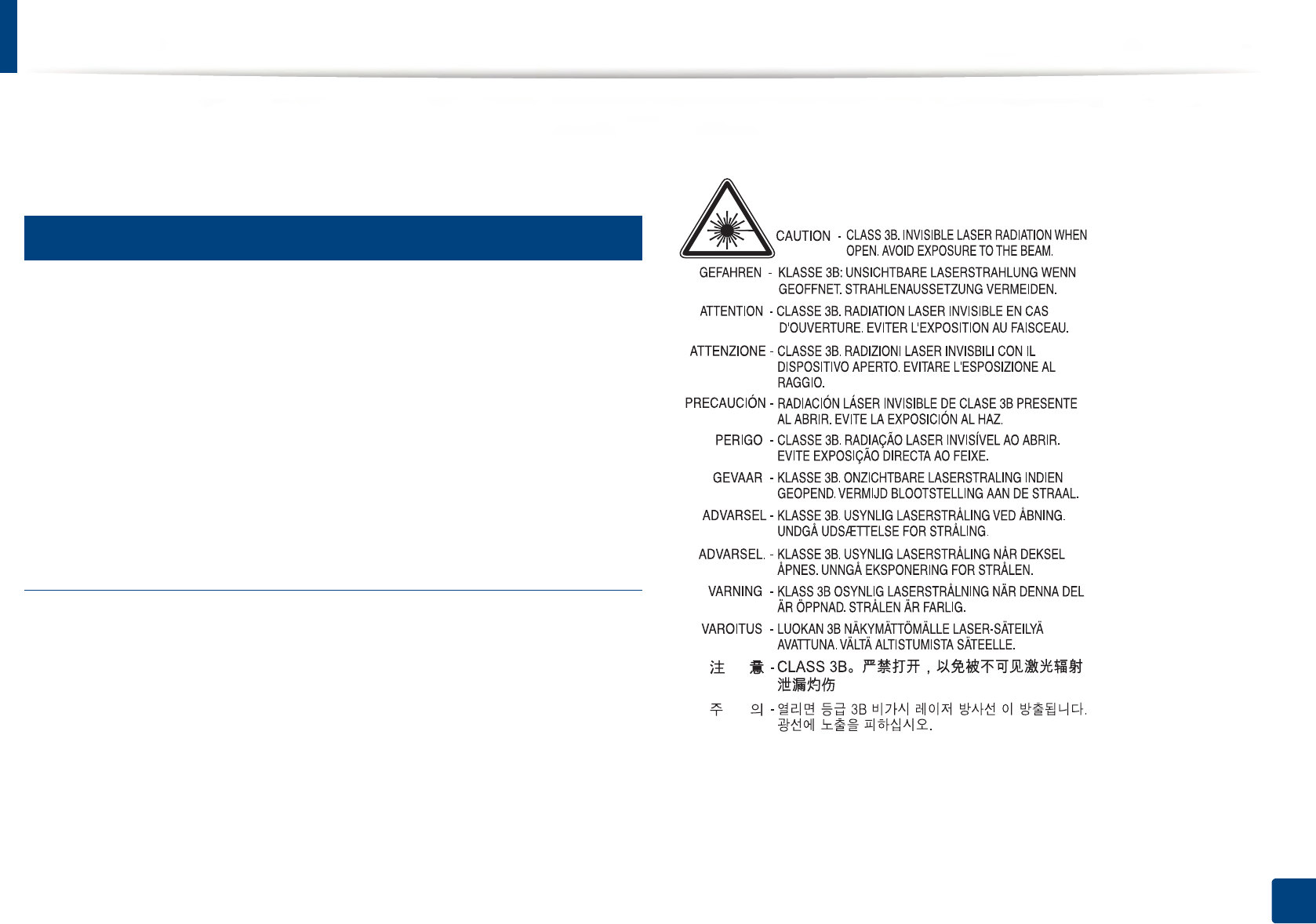

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21

CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is

certified as a Class I laser product conforming to the requirements of IEC 60825-

1 : 2007.

Class I laser products are not considered to be hazardous. The laser system and

printer are designed so there is never any human access to laser radiation above

a Class I level during normal operation, user maintenance or prescribed service

condition.

Warning

Never operate or service the printer with the protective cover removed from

laser/scanner assembly. The reflected beam, although invisible, can damage

your eyes.

When using this product, these basic safety precautions should always be

followed to reduce risk of fire, electric shock, and injury to persons:

Regulatory information

121

5. Appendix

Ozone safety

Perchlorate warning

This Perchlorate warning applies only to primary CR (Manganese Dioxide)

Lithium coin cells in the product sold or distributed ONLY in California USA.

Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate. (U.S.A. only)

Power saver

Recycling

This product’s ozone emission rate is under 0.1 ppm. Because

ozone is heavier than air, keep the product in a place with good

ventilation.

This printer contains advanced energy conservation technology that

reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of

time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

For more information on the ENERGY STAR program see http://

www.energystar.gov

For ENERGY STAR certified models, the ENRGY STAR label will be on

your machine. Check if your machine is ENERGY STAR certified.

Recycle or dispose of the packaging material for this product in an

environmentally responsible manner.

Regulatory information

122

5. Appendix

Correct disposal of this product (Waste electrical &

electronic equipment)

(Applicable in countries with separate collection

systems)

(The United States of America only)

Dispose unwanted electronics through an approved recycler. To find the nearest

recycling location, go to our website: www.samsung.com/recyclingdirect Or

call, (877) 278 - 0799

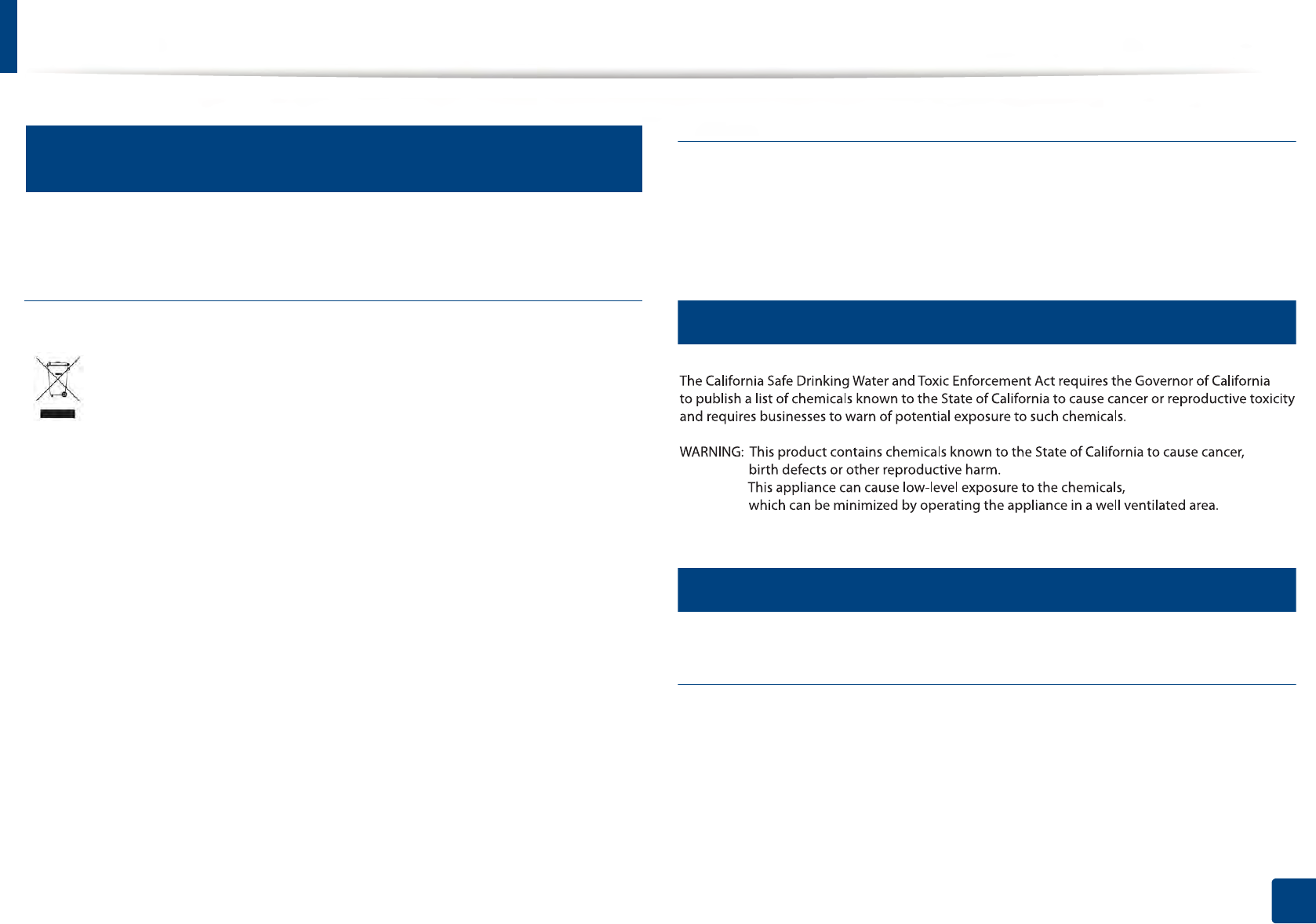

State of California Proposition 65 Warning (US Only)

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation.

This marking on the product, accessories or literature indicates that the

product and its electronic accessories (e.g. charger, headset, USB cable)

should not be disposed of with other household waste at the end of

their working life. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please separate these

items from other s of waste and recycle them responsibly to promote the

sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government office, for details of

where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

disposal.

Regulatory information

123

5. Appendix

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer

responsible for compliance could void the user's authority to operate the

equipment.

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the interference-causing

equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and

Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques

applicables aux appareils numériques de Classe B prescrites dans la norme sur le

matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et

Sciences Canada.

RFID (Radio Frequency Interface Device)

RFID operation is subject to the following two conditions:(1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device. (U.S.A., France,

Taiwan only)

Regulatory information

124

5. Appendix

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in

your printer system. This section is only applicable if these devices are present.

Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the

United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the

device and the body, for use of a wireless device near the body (this does not

include extremities). This device should be used more than 20 cm (8 inches)

from the body when wireless devices are on. The power output of the wireless

device (or devices), which may be embedded in your printer, is well below the

RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it.

Contact manufacturer for service.

FCC Statement for Wireless LAN use:

While installing and operating this transmitter and antenna combination

the radio frequency exposure limit of 1m W/cm2 may be exceeded at

distances close to the antenna installed. Therefore, the user must maintain

a minimum distance of 20cm from the antenna at all times. This device

cannot be colocated with another transmitter and transmitting antenna.

Taiwan only

Regulatory information

125

5. Appendix

Taiwan only

China only

Website: http://www.samsung.com/cn/support/location/

supportServiceLocation.do?page=SERVICE.LOCATION

᳝ᆇ⠽䋼

Regulatory information

126

5. Appendix

Russia / Kazakhstan / Belarus only

Germany only

Turkey only

Thailand only

Canada only

This product meets the applicable Industry Canada technical specifications. / Le

present materiel est conforme aux specifications techniques applicables

d’Industrie Canada.

The Ringer Equivalence Number (REN) is an indication of the maximum number

of devices allowed to be connected to a telephone interface. The termination of

an interface may consist of any combination of devices subject only to the

requirement that the sum of the RENs of all the devices not exceed five. / L’indice

d’equivalence de la sonnerie (IES) sert a indiquer le nombre maximal de

terminaux qui peuvent etre raccordes a une interface telephonique. La

terminaison d’une interface peut consister en une combinaison quelconque de

dispositifs, a la seule condition que la somme d’indices d’equivalence de la

sonnerie de tous les dispositifs n’excede pas cinq.

Regulatory information

127

5. Appendix

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any

person to use a computer or other electronic device to send any message via a

telephone facsimile machine unless such message clearly contains in a margin

at the top or bottom of each transmitted page or on the first page of the

transmission the following information:

1 the date and time of transmission

2 identification of either business, business entity or individual sending the

message; and

3 telephone number of either the sending machine, business, business entity

or individual.

The Telephone Company may make changes in its communications facilities,

equipment operations or procedures where such action is reasonably required

in the operation of its business and is not inconsistent with the rules and

regulations in FCC Part 68. If such changes can be reasonably expected to render

any customer terminal equipment incompatible with telephone company

communications facilities, or require modification or alteration of such terminal

equipment, or otherwise materially affect its use or performance, the customer

shall be given adequate notice in writing, to allow the customer an opportunity

to maintain uninterrupted service

Ringer Equivalence Number

The Ringer Equivalence Number and FCC Registration Number for this machine

may be found on the label located on the bottom or rear of the machine. In some

instances you may need to provide these numbers to the telephone company.

The Ringer Equivalence Number (REN) is a measure of the electrical load placed

on the telephone line, and is useful for determining whether you have

“overloaded” the line. Installing several s of equipment on the same telephone

line may result in problems making and receiving telephone calls, especially

ringing when your line is called. The sum of all Ringer Equivalence Numbers of

the equipment on your telephone line should be less than five in order to assure

proper service from the telephone company. In some cases, a sum of five may

not be usable on your line. If any of your telephone equipment is not operating

properly, you should immediately remove it from your telephone line, as it may

cause harm to the telephone network.

The equipment complies with Part 68 of the FCC rules and the requirements

adopted by the ACTA. On the rear of this equipment is a label that contains,

among other information, a product identifier in the format US:AAAEQ##TXXXX.

If requested, this number must be provided to the telephone company.

Regulatory information

128

5. Appendix

FCC Regulations state that changes or modifications to this equipment not

expressly approved by the manufacturer could void the user’s authority to

operate this equipment. In the event that terminal equipment causes harm

to the telephone network, the telephone company should notify the

customer that service may be stopped. However, where prior notice is

impractical, the company may temporarily cease service, providing that

they:

a promptly notify the customer.

b give the customer an opportunity to correct the equipment problem.

c inform the customer of the right to bring a complaint to the Federal

Communication Commission pursuant to procedures set out in FCC

Rules and Regulations Subpart E of Part 68.

You should also know that:

• Your machine is not designed to be connected to a digital PBX system.

• If you intend to use a computer modem or fax modem on the same phone

line as your machine, you may experience transmission and reception

problems with all the equipment. It is recommended that no other

equipment, except for a regular telephone, share the line with your

machine.

• If your area experiences a high incidence of lightning or power surges, we

recommend that you install surge protectors for both the power and the

telephone lines. Surge protectors can be purchased from your dealer or

telephone and electronic specialty stores.

• When programming emergency numbers and/or making test calls to

emergency numbers, use a non-emergency number to advise the

emergency service dispatcher of your intentions. The dispatcher will give

you further instructions on how to actually test the emergency number.

• This machine may not be used on coin service or party lines.

• This machine provides magnetic coupling to hearing aids.

You may safely connect this equipment to the telephone network by means of

a standard modular jack, USOC RJ-11C.

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug

and has a 13 amp fuse. When you change or examine the fuse, you must re-fit

the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost

the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used in the UK and should be suitable.

However, some buildings (mainly old ones) do not have normal 13 amp plug

sockets. You need to buy a suitable plug adaptor. Do not remove the moulded

plug.

Regulatory information

129

5. Appendix

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you

plug it into a socket.

Important warning:

If the wires in the mains lead do not match the colors marked in your plug, do

the following:

You must connect the green and yellow wire to the pin marked by the letter “E”

or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or

colored black.

You must connect the brown wire to the pin which is marked with the letter “L”

or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Declaration of conformity (European countries)

Approvals and Certifications

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of

the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of

the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity. A full declaration, defining the relevant Directives and referenced

standards can be obtained from your Samsung Electronics Co., Ltd.

representative.

You must earth this machine.

The wires in the mains lead have the following color code:

•Green and Yellow: Earth

•Blue: Neutral

•Brown: Live

Hereby, Samsung Electronics, declares that this [Xpress C48x series]

is in compliance with the essential requirements and other relevant

provisions of Low Voltage Directive (2006/95/EC), EMC Directive

(2004/108/EC).

Hereby, Samsung Electronics, declares that this [Xpress C48xW

series, Xpress C48xFN series, Xpress C48xFW series] is in compliance

with the essential requirements and other relevant provisions of

R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at

www.samsung.com, go to Support > Download center and enter

your printer (MFP) name to browse the EuDoC.

Regulatory information

130

5. Appendix

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal

Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European

single terminal connection to the analogue public switched telephone network

(PSTN) in accordance with Directive 1999/5/EC. The product has been designed

to work with the national PSTNs and compatible PBXs of the European

countries:

In the event of problems, you should contact the Euro QA Lab of Samsung

Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application

of terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document

(EG 201 121) which contains notes and additional requirements to ensure

network compatibility of TBR21 terminals. The product has been designed

against, and is fully compliant with, all of the relevant advisory notes contained

in this document.

European radio approval information (for products

fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz band, may be present

(embedded) in your printer system which is intended for home or office use. This

section is only applicable if these devices are present. Refer to the system label

to verify the presence of wireless devices.

The power output of the wireless device or devices that may be embedded in

you printer is well below the RF exposure limits as set by the European

Commission through the R&TTE directive.

European states qualified under wireless approvals:

EU countries

European states with restrictions on use:

EEA/EFTA countries

No limitations at this time

Wireless devices that may be in your system are only qualified for

use in the European Union or associated areas if a CE mark is on the

system label.

Regulatory information

131

5. Appendix

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in

your printer system. The following section is a general overview of

considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in

the specific country sections (or country group sections). The wireless devices in

your system are only qualified for use in the countries identified by the Radio

Approval Marks on the system rating label. If the country you will be using the

wireless device in, is not listed, contact your local Radio Approval agency for

requirements. Wireless devices are closely regulated and use may not be

allowed.

The power output of the wireless device or devices that may be embedded in

your printer is well below the RF exposure limits as known at this time. Because

the wireless devices (which may be embedded into your printer) emit less

energy than is allowed in radio frequency safety standards and

recommendations, manufacturer believes these devices are safe for use.

Regardless of the power levels, care should be taken to minimize human contact

during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless

device and the body, for use of a wireless device near the body (this does not

include extremities) is typical. This device should be used more than 20 cm (8

inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of

common restrictions are listed below:

Radio frequency wireless communication can interfere with

equipment on commercial aircraft. Current aviation regulations

require wireless devices to be turned off while traveling in an airplane.

IEEE 802.11 (also known as wireless Ethernet) and Bluetooth

communication devices are examples of devices that provide wireless

communication.

In environments where the risk of interference to other devices or

services is harmful or perceived as harmful, the option to use a wireless

device may be restricted or eliminated. Airports, Hospitals, and

Oxygen or flammable gas laden atmospheres are limited examples

where use of wireless devices may be restricted or eliminated. When in

environments where you are uncertain of the sanction to use wireless

devices, ask the applicable authority for authorization prior to use or

turning on the wireless device.

Regulatory information

132

5. Appendix

Every country has different restrictions on the use of wireless devices.

Since your system is equipped with a wireless device, when traveling

between countries with your system, check with the local Radio

Approval authorities prior to any move or trip for any restrictions on

the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless

device, do not operate the wireless device unless all covers and shields

are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any

way. Modification to a wireless device will void the authorization to

use it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be

used. See the manufacturer System Restoration Kit, or contact

manufacturer Technical Support for additional information.

133

5. Appendix

This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Microsoft, Windows, Windows Vista, Windows 7, Windows 8, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft

Corporation.

• Microsoft, Internet Explorer, Excel, Word, PowerPoint, and Outlook are either registered trademarks or trademarks of Microsoft Corporation in the United States

and other countries.

• Google, Picasa, Google Cloud Print, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.

• iPad, iPhone, iPod touch, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries.

• AirPrint and the AirPrint logo are trademarks of Apple Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

REV. 1.00

QR code

The software included in this product contains open source software. You may obtain the complete

corresponding source code for a period of three years after the last shipment of this product by sending an email

to mailto:oss.request@samsung.com. It is also possible to obtain the complete corresponding source code in a

physical medium such as a CD-ROM; a minimal charge will be required.

The following URL https://opensource.samsung.com/opensource/Samsung_C48x_Series/seq/48 leads to

the download page of the source code made available and open source license information as related to

this product. This offer is valid to anyone in receipt of this information.

Samsung Multifunction Xpress

C48x / C48xW series

C48xFN / C48xFW series

ADVANCED

User’s Guide

ADVANCED

User’s Guide

This guide provides information about installation, advanced configuration,

operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning installation, basic operation and troubleshooting

on windows.

135

ADVANCED

1. Software Installation

Installation for Mac 138

Reinstallation for Mac 139

Installation for Linux 140

Reinstallation for Linux 141

2. Using a Network-Connected

Machine

Useful network programs 143

Wired network setup 144

Installing driver over the network 147

IPv6 configuration 152

Wireless network setup 155

Samsung Mobile Print 172

Using the NFC feature 173

Mopria™ 178

AirPrint 180

Samsung Cloud Print 182

Google Cloud Print™ 185

3. Useful Setting Menus

Before you begin reading a chapter 188

Print 189

Copy 190

Fax 193

Scan 197

System setup 199

Network setup 205

4. Special Features

Altitude adjustment 208

Entering various characters 209

Setting up the fax address book 210

Printing features 213

Scan features 225

Fax features 232

5. Useful Management Tools

Accessing management tools 242

136

ADVANCED

Easy Capture Manager 243

Samsung Easy Color Manager 244

Easy Eco Driver 245

Using Samsung Printer Center 246

Using SyncThru™ Web Service 249

Using Samsung Easy Printer Manager 252

Using Samsung Easy Document Creator 254

Using Samsung Printer Status 255

Using Samsung Printer Experience 257

6. Troubleshooting

Paper feeding problems 265

Power and cable connecting problems 266

Printing problems 267

Printing quality problems 271

Copying problems 279

Scanning problems 280

Faxing problems 281

Operating system problems 283

1. Software Installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the

machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using a

USB cable. If your machine is attached to a network, skip the following steps below and go on to installing a network

connected machine’s driver (see "Installing driver over the network" on page 147).

• Installation for Mac 138

• Reinstallation for Mac 139

• Installation for Linux 140

• Reinstallation for Linux 141

• If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see

"Installing the driver locally" on page 29).

• Only use a USB cable no longer then 3 meter (118 inches).

138

1. Software Installation

Installation for Mac

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select the CD-ROM volume that appears on Finder.

4 Double-click the Install Software icon.

5 Read the license agreement and check installation agreement button.

6 Click Next and then follow the instructions in the installation window.

To install the fax driver:

a Open the Applications folder > Samsung > Fax Queue Creator.

b Your machine appears on the Printer List

c Select machine to use and click Create button

139

1. Software Installation

Reinstallation for Mac

If the printer driver does not work properly, uninstall the driver and reinstall it.

1Open the Applications folder > Samsung > Printer Software

Uninstaller.

2 To uninstall printer software, click Continue.

3 Check the program you want to delete and click Uninstall.

4 Enter the password and click OK.

5 After the uninstallation is finished, click Close.

If a machine has already been added, delete it from the Print Setup Utility

or Print & Fax.

140

1. Software Installation

Installation for Linux

You need to download Linux software packages from the Samsung website to

install the printer software (http://www.samsung.com > find your product >

Support or Downloads).

Installing the Unified Linux Driver

You must log in as a super user (root) to install the machine software. If you

are not a super user, ask your system administrator.

1Make sure that the machine is connected to your computer and

powered on.

2 Copy Unified Linux Driver package to your system.

3 Open Terminal program and go to the folder that you copied the

package to.

4 Extract the package.

5 Move to uld folder.

6 Execute "./install.sh" command (If you're not logged in as root, execute

the command with "sudo" as "sudo ./install.sh")

7 Proceed with installation.

8 When installation finished, launch printing utility(Go to System >

Administration > Printing or execute "system-config-printer"

command in Terminal program).

9 Click Add button.

10 Select your printer.

11 Click Forward button and add it to your system.

141

1. Software Installation

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

1 Open Terminal program.

2 Move to uld folder extracted from Unified Linux Driver package.

3 Execute "./uninstall.sh" command (If you're not logged in as root,

execute the command with "sudo" as "sudo ./uninstall.sh")

4 Proceed with uninstallation.

2. Using a Network-

Connected Machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 143

• Wired network setup 144

• Installing driver over the network 147

• IPv6 configuration 152

• Wireless network setup 155

• Samsung Mobile Print 172

• Using the NFC feature 173

• Mopria™ 178

• AirPrint 180

• Samsung Cloud Print 182

• Google Cloud Print™ 185

Supported optional devices and features may differ according to your model (see "Features by

model" on page 7).

143

2. Using a Network-Connected Machine

Useful network programs

There are several programs available to setup the network settings easily in a

network environment. For the network administrator especially, managing

several machines on the network is possible.

• Before using the programs below, set the IP address first.

• Some features and optional goods may not be available depending on

model or country (see "Features by model" on page 7).

SyncThru™ Web Service

The web server embedded on your network machine allows you to do the

following tasks (see "Using SyncThru™ Web Service" on page 249).

• Check the supplies information and status.

• Customize machine settings.

• Set the email notification option. When you set this option, the machine

status (toner cartridge shortage or machine error) will be sent to a certain

person's email automatically.

• Configure the network parameters necessary for the machine to connect to

various network environments.

SetIP wired network setup

This utility program allows you to select a network interface and manually

configure the IP addresses for use with the TCP/IP protocol.

• See "IPv4 configuration using SetIP (Windows)" on page 144.

• See "IPv4 configuration using SetIP (Mac)" on page 145.

• See "IPv4 configuration using SetIP (Linux)" on page 145.

• If your device does not support a network connection, it will not be able

to use this feature (see "Rear view" on page 23).

• TCP/IPv6 is not supported by this program.

144

2. Using a Network-Connected Machine

Wired network setup

Printing a network configuration report

You can print Network Configuration Report from the machine’s control panel

that will show the current machine’s network settings. This will help you to set

up a network.

Press the (Menu) button on the control panel and select Network >

Network Conf. (Network Configuration).

Using this Network Configuration Report, you can find your machine’s MAC

address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78

• IP Address: 169.254.192.192

Setting IP address

• If your device does not support a network connection, it will not be able

to use this feature (see "Rear view" on page 23).

• TCP/IPv6 is not supported by this program.

First, you have to set up an IP address for network printing and managements.

In most cases a new IP address will be automatically assigned by a DHCP

(Dynamic Host Configuration Protocol) server located on the network.

IPv4 configuration using SetIP (Windows)

Before using the SetIP program, disable the computer firewall from Control

Panel > Security Center > Windows Firewall.

The following instructions may differ for your model.

1Download the software from the Samsung website then unpack and

install it: (http://www.samsung.com > find your product > Support or

Downloads).

2 Follow the instructions in the installation window.

3 Connect your machine to the network with a network cable.

4 Turn on the machine.

5 From the Windows Start menu, select All Programs > Samsung

Printers > SetIP > SetIP.

6 Click the icon (third from left) in the SetIP window to open the TCP/

IP configuration window.

Wired network setup

145

2. Using a Network-Connected Machine

7 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 144) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

8 Click Apply, and then click OK. The machine will automatically print the

Network Configuration Report. Confirm that all the settings are

correct.

IPv4 configuration using SetIP (Mac)

Before using the SetIP program, disable the computer firewall from System

Preferences > Security (or Security & Privacy) > Firewall.

1Download the software from the Samsung website then unpack and

install it: (http://www.samsung.com > find your product > Support or

Downloads).

2 Turn on the machine.

3 Run downloaded SetIP application.

4 Click the icon (third from left) in the SetIP window to open the TCP/

IP configuration window.

5 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 144) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

6 Click Apply, and then click OK. The machine will automatically print the

Network Configuration Report. Confirm that all the settings are

correct.

IPv4 configuration using SetIP (Linux)

Before using the SetIP program, disable the computer firewall from System

Preferences or Administrator.

The following instructions may vary from your model or operating systems.

Wired network setup

146

2. Using a Network-Connected Machine

1Download SetIP program from Samsung web site and extract it.

2 Double-click the SetIPApplet.html file in cdroot/Linux/noarch/at_opt/

share/utils folder.

3 Click to open the TCP/IP configuration window.

4 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 144) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

5 The machine will automatically print the Network Configuration

Report.

147

2. Using a Network-Connected Machine

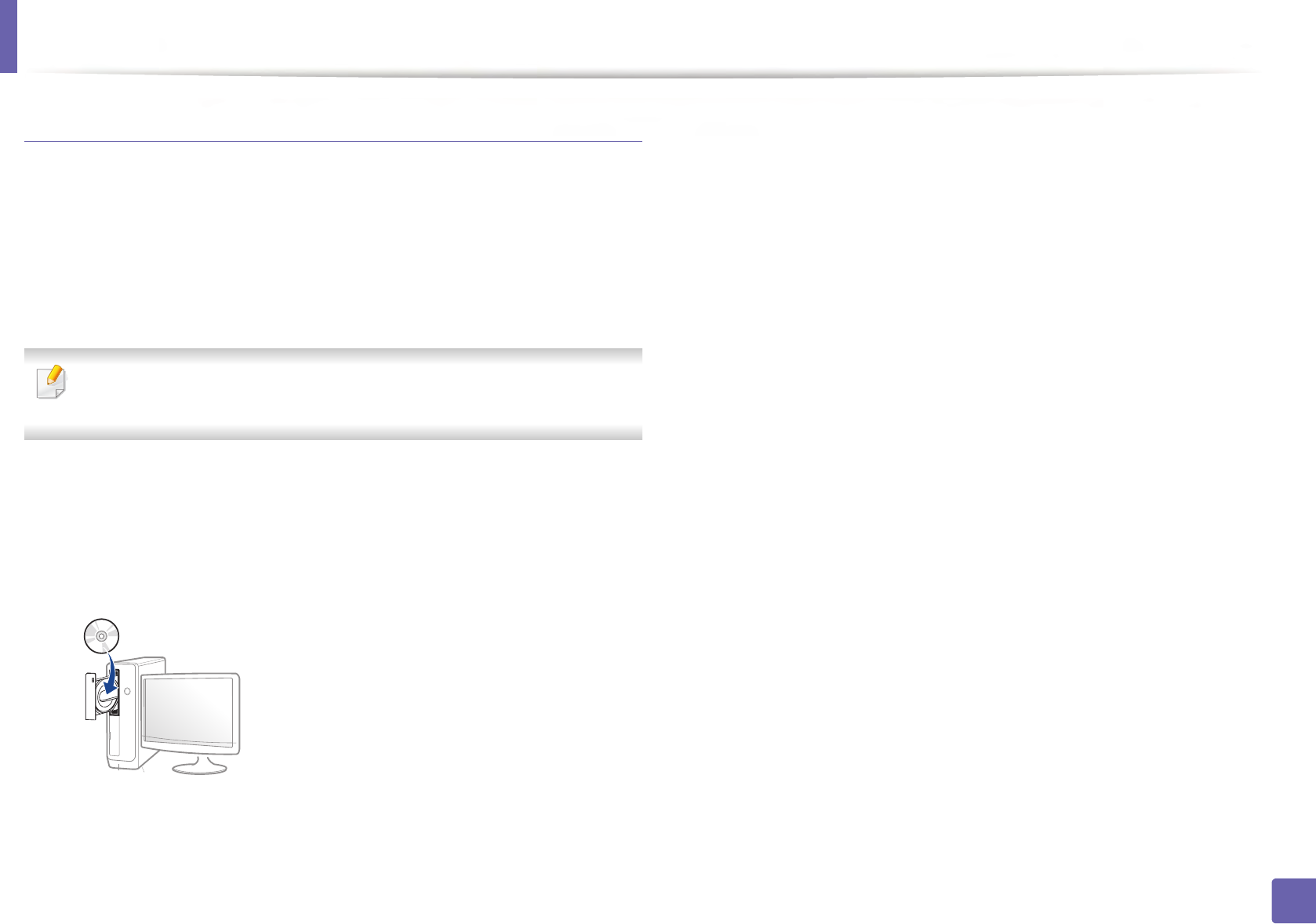

Installing driver over the network

• Some features and optional goods may not be available depending on

model or country (see "Features by model" on page 7).

• The machine that does not support the network interface, it will not be

able to use this feature (see "Rear view" on page 23).

• You can install the printer driver and software when you insert the

software CD into your CD-ROM drive.

For windows, select the printer driver and software in the Select

Software to Install window.

Windows

The firewall software might be blocking network communication. Before

connecting the device to the network, disable the computer’s firewall.

1Make sure that the machine is connected to the network and powered

on. Also, your machine’s IP address should have been set (see "Setting IP

address" on page 144).

2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs >

Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CD-

ROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select

Search > Apps and search for Run. Type in X:\Setup.exe, replacing

“X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window

appears, click the window and select Run Setup.exe.

3 Review and accept the installation agreements in the installation

window. Then, click Next.

4 Select Network on the Printer Connection Type screen Then,

click Next.

5 Follow the instructions in the installation window.

Installing driver over the network

148

2. Using a Network-Connected Machine

From the Windows 8 Start Screen

• The V4 driver is automatically downloaded from the Windows Update if

your computer is connected to the Internet. If not, you can manually

download the V4 driver from Samsung website, http://

www.samsung.com > find your product > Support or downloads.

•You can download Samsung Printer Experience app from the

Windows Store. You need have a Microsoft account to use the Windows

Store.

a From Charms, select Search.

b Click Store.

c Search and click Samsung Printer Experience.

d Click Install.

• If you install the driver using the supplied software CD, V4 driver is not

installed. If you want to use the V4 driver in the Desktop screen, you can

download from the Samsung website, http://www.samsung.com >find

your product > Support or downloads.

• If you want to install Samsung’s printer management tools, you need to

install them using the supplied software CD.

1Make sure that the machine is connected to the network and powered

on. Also, your machine’s IP address should have been set (see "Setting IP

address" on page 144).

2 From Charms, select Settings > Change PC settings > Devices.

3 Click Add a device.

Discovered machines will be shown on the screen.

4 Click the model name or host name you wish to use.

You can print a Network Configuration Report from the machine’s control

panel that will show the current machine’s host name (see "Printing a

network configuration report" on page 165).

5 The driver is automatically installed from the Windows Update.

Silent installation Mode

Silent installation mode is an installation method that does not require any user

intervention. Once you start the installation, the machine driver and software

are automatically installed on you computer. You can start the silent installation

by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

Following command-line are effective and operated when command is

used with /s or /S. But /h, /H or /? are exceptional commands that can be

operated solely.

Installing driver over the network

149

2. Using a Network-Connected Machine

Command- line Definition Description

/s or

Starts silent installation. Installs machine drivers

without prompting any UIs

or user intervention.

/p”<port name>” or

/P”<port name>”

Specifies printer port.

Network Port will be

created by use of

Standard TCP/IP

Port monitor. For

local port, this port

must exist on

system before

being specified by

command.

Printer port name can be

specified as IP address,

hostname, USB local port

name or IEEE1284 port

name.

For example:

• /p”xxx.xxx.xxx.xxx” in

where, “xxx.xxx.xxx.xxx”

means IP address for

network printer. /

p”USB001”, /P”LPT1:”, /

p”hostname”

/a”<dest_path>” or

/A”<dest_path>”

Specifies destination path

for installation.

The destination

path should be a

fully qualified path.

Since machine drivers

should be installed on the

OS specific location, this

command applies to only

application software.

/n”<Printer name>”

/N”<Printer name>”

Specifies printer name.

Printer instance shall be

created as specified printer

name.

With this parameter, you

can add printer instances as

you wish.

/nd or

/ND

Commands not to set the

installed driver as a default

machine driver.

It indicates installed

machine driver will not be

the default machine driver

on your system if there are

one or more printer drivers

installed. If there is no

installed machine driver on

your system, then this

option won’t be applied

because Windows OS will

set installed printer driver as

a default machine driver.

/x or

Uses existing machine

driver files to create printer

instance if it is already

installed.

This command provides a

way to install a printer

instance that uses installed

printer driver files without

installing an additional

driver.

Command- line Definition Description

Installing driver over the network

150

2. Using a Network-Connected Machine

Mac

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select the CD-ROM volume that appears on Finder.

4 Double-click the Install Software icon.

5 Read the license agreement and check installation agreement button.

6 Click Next.

7 Select Network on the printer connection type screen.

8 Click Next.

9 Follow the instructions in the installation window.

Linux

You need to download Linux software packages from the Samsung website to

install the printer software (http://www.samsung.com > find your product >

Support or Downloads).

/up”<printer

name>” or

/UP”<printer

name>”

Removes only specified

printer instance and not the

driver files.

This command provides a

way to remove only

specified printer instance

from your system without

effecting other printer

drivers. It will not remove

printer driver files from your

system.

/d or

Uninstalls all device drivers

and applications from your

system.

This command will remove

all installed device drivers

and application software

from your system.

/v”<share name>” or

/V”<share name>”

Shares installed machine

and add other available

platform drivers for Point &

Print.

It will install all supported

Windows OS platform’s

machine drivers to system

and share it with specified

<share name> for point and

print.

/o or

Opens Printers and Faxes

folder after installation.

This command will open

Printers and Faxes folder

after the silent installation.

/h, /H or /? Shows Command-line Usage.

Command- line Definition Description

Installing driver over the network

151

2. Using a Network-Connected Machine

1Make sure that the machine is connected to your network and powered

on. Also, your machine’s IP address should have been set.

2 Copy Unified Linux Driver package to your system.

3 Open Terminal program and go to the folder that you copied the

package to.

4 Extract the package.

5 Move to uld folder.

6 Execute ” ./install.sh“ command (If you are not logged in as root,

execute the command with “sudo” as “sudo ./install.sh”).

7 Proceed with installation.

8 When installation finished, launch Printing utility (Go to System >

Administration > Printing or execute “system-config-printer“

command in Terminal program).

9 Click Add button.

10 Select AppSocket/HP JetDirect and enter your machine’s IP address.

11 Click Forward button and add it to your system.

Add a network printer

1Double-click the Unified Driver Configurator.

2 Click Add Printer.

3 The Add printer wizard window opens. Click Next.

4 Select Network printer and click the Search button.

5 The printer’s IP address and model name appears on list field.

6 Select your machine and click Next.

7 Enter the printer description and click Next.

8 After the machine is added, click Finish.

152

2. Using a Network-Connected Machine

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

• Some features and optional goods may not be available depending on

model or country (see "Features by model" on page 7 or "Menu

overview" on page 33).

• If the IPv6 network seems to not be working, set all the network setting

to the factory defaults and try again using Clear Setting.

The machine supports the following IPv6 addresses for network printing and

managements.

•Link-local Address: Self-configured local IPv6 address (Address starts with

FE80).

•Stateless Address: Automatically configured IPv6 address by a network

router.

•Stateful Address: IPv6 address configured by a DHCPv6 server.

•Manual Address: Manually configured IPv6 address by a user.

In the IPv6 network environment, follow the next procedure to use the IPv6

address.

From the control panel

Activating IPv6

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > IPv6 Protocol

3 Select On and press OK.

4 Turn the machine off and turn it on again.

When you install the printer driver, do not configure both IPv4 and

IPv6. We recommend to configure either IPv4 or IPv6 (see "Installing

driver over the network" on page 147).

DHCPv6 address configuration

If you have a DHCPv6 server on your network, you can set one of the following

options for default dynamic host configuration.

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > DHCPv6 Config

IPv6 configuration

153

2. Using a Network-Connected Machine

3 Press OK to select the required value you want.

•Router: Use DHCPv6 only when requested by a router.

•Always Use: Always use DHCPv6 regardless of router request.

•Never Use: Never use DHCPv6 regardless of router request.

From the SyncThru™ Web Service

Activating IPv6

1Access a web browser, such as Internet Explorer, from Windows. Enter

the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and

press the Enter key or click Go.

2 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

3 When the SyncThru™ Web Service window opens, move the mouse

cursor over the Settings of the top menu bar and then click Network

Settings.

4 Click TCP/IPv6 on the left pane of the website.

5 Check the IPv6 Protocol check box to activate IPv6.

6 Click the Apply button.

7 Turn the machine off and turn it on again.

• You can also set the DHCPv6.

• To manually set the IPv6 address:

Check the Manual Address check box. Then, the Address/Prefix text

box is activated. Enter the rest of the address

(e.g.,:3FFE:10:88:194::AAAA. “A” is the hexadecimal 0 through 9, A

through F).

IPv6 address configuration

1Start a web browser, such as Internet Explorer, that supports IPv6

addressing as a URL.

2 Select one of the IPv6 addresses (Link-local Address, Stateless

Address, Stateful Address, Manual Address) from Network

Configuration Report (see "Printing a network configuration report" on

page 144).

•Link-local Address: Self-configured local IPv6 address (Address

starts with FE80).

•Stateless Address: Automatically configured IPv6 address by a

network router.

IPv6 configuration

154

2. Using a Network-Connected Machine

•Stateful Address: IPv6 address configured by a DHCPv6 server.

•Manual Address: Manually configured IPv6 address by a user.

3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[ ]' brackets.

155

2. Using a Network-Connected Machine

Wireless network setup

• Wireless networking may not be available depending on the model (see

"Features by model" on page 7).

Wireless networks require higher security, so when an access point is first set up,

a network name (SSID), the type of security used, and a Network Password are

created for the network. Ask your network administrator about this information

before proceeding with the machine installation.

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose

the setting method from the below table.

• Some wireless network installation types may not be available

depending on the model or country.

• It is strongly recommended that you set the password on Access Points.

If you do not set the password on Access Points, they might be exposed

to illegal access from unknown machines including PCs, smart phones

and printers. Refer to the Access Point user' guide for password settings.

Set up method

Connecting method

Description & Reference

With Access

Point

From the computer

See "Setting up via USB cable" on page 158

for Window.

See

"Access point without a USB cable"

on page 161

for Window.

See "Setting up via USB cable" on page

162 for Mac.

See"Access point without a USB cable"

on page 164 for Mac.

See "Using a network cable" on page

164.

From the

machine’s control

panel

See "Using the WPS Settings menu" on

page 156.

See "Using the Wi-Fi Networks" on

page 158.

Wi-Fi Direct setup See "Setting the Wi-Fi Direct for mobile

printing" on page 166.

Wireless network setup

156

2. Using a Network-Connected Machine

Using the WPS Settings menu

If your machine and access point (or wireless router) support Wi-Fi Protected

Setup™ (WPS), then you can easily configure the wireless network settings

through the WPS Settings menu without the need for a computer.

• If you want to use the wireless network using the infrastructure mode,

make sure that the network cable is disconnected from the machine.

Using the WPS (PBC) button or entering the PIN from the computer to

connect to the access point (or wireless router) varies depending on the

access point (or wireless router) you are using. Refer to the user's guide

of the access point (or wireless router) you are using.

• When using the WPS button to set the wireless network, security settings

may change. To prevent this, lock the WPS option for the current wireless

security settings. The option name may differ depending on the access

point (or wireless router) you are using.

Items to prepare

• Check if the access point (or wireless router) supports Wi-Fi Protected

Setup™ (WPS).

• Check if your machine supports Wi-Fi Protected Setup™ (WPS).

• Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network.

• The Push Button Configuration (PBC) method allows you to connect your

machine to a wireless network by pressing both the WPS Settings menu on

the control panel of your machine and the WPS (PBC) button on a Wi-Fi

Protected Setup™ WPS-enabled access point (or wireless router)

respectively.

• The Personal Identification Number (PIN) method helps you connect your

machine to a wireless network by entering the supplied PIN information on

a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).

Wireless network setup

157

2. Using a Network-Connected Machine

Connecting WPS

Factory default in your machine is PBC mode, which is recommended for a

typical wireless network environment.

Connecting in PBC mode

1Press the (Menu) button on the control panel and select Network.

2 Press Wi-Fi.

3 Press WPS > PBC.

4 Press the WPS (PBC) button on the access point (or wireless router).

5 Follow the instruction on the display screen.

The messages are displayed on the display screen.

Connecting in PIN mode

1Press the (Menu) button on the control panel and select Network.

2 Press Wi-Fi.

3 Press WPS > PIN.

4 The eight-digit PIN appears on the display.

You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

You need to enter the PIN from the computer to connect to the access point

(or wireless router) varies depending on the access point (or wireless router)

you are using. Refer to the user's guide of the access point (or wireless

router) you are using.

5 Follow the instruction on the display screen.

The messages are displayed on the display screen.

Wireless network setup

158

2. Using a Network-Connected Machine

Using the Wi-Fi Networks

Before starting, you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

1Press the (Menu) button on the control panel and select Network

from the display screen.

2 Press Wi-Fi On/Off > ON.

3 The machine will display a list of available networks from which to

choose. After a network is chosen then printer will prompt for the

corresponding security key.

4 Select the Wi-Fi network option you want.

Setup using Windows

Shortcut to the Samsung Easy Wireless Setup program without the CD: If

you have installed the printer driver once, you can access the Samsung

Easy Wireless Setup program without the CD.

Setting up via USB cable

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Creating the infrastructure network

1Check whether the USB cable is connected to the machine.

2 Turn on your computer, access point, and machine.

Wireless network setup

159

2. Using a Network-Connected Machine

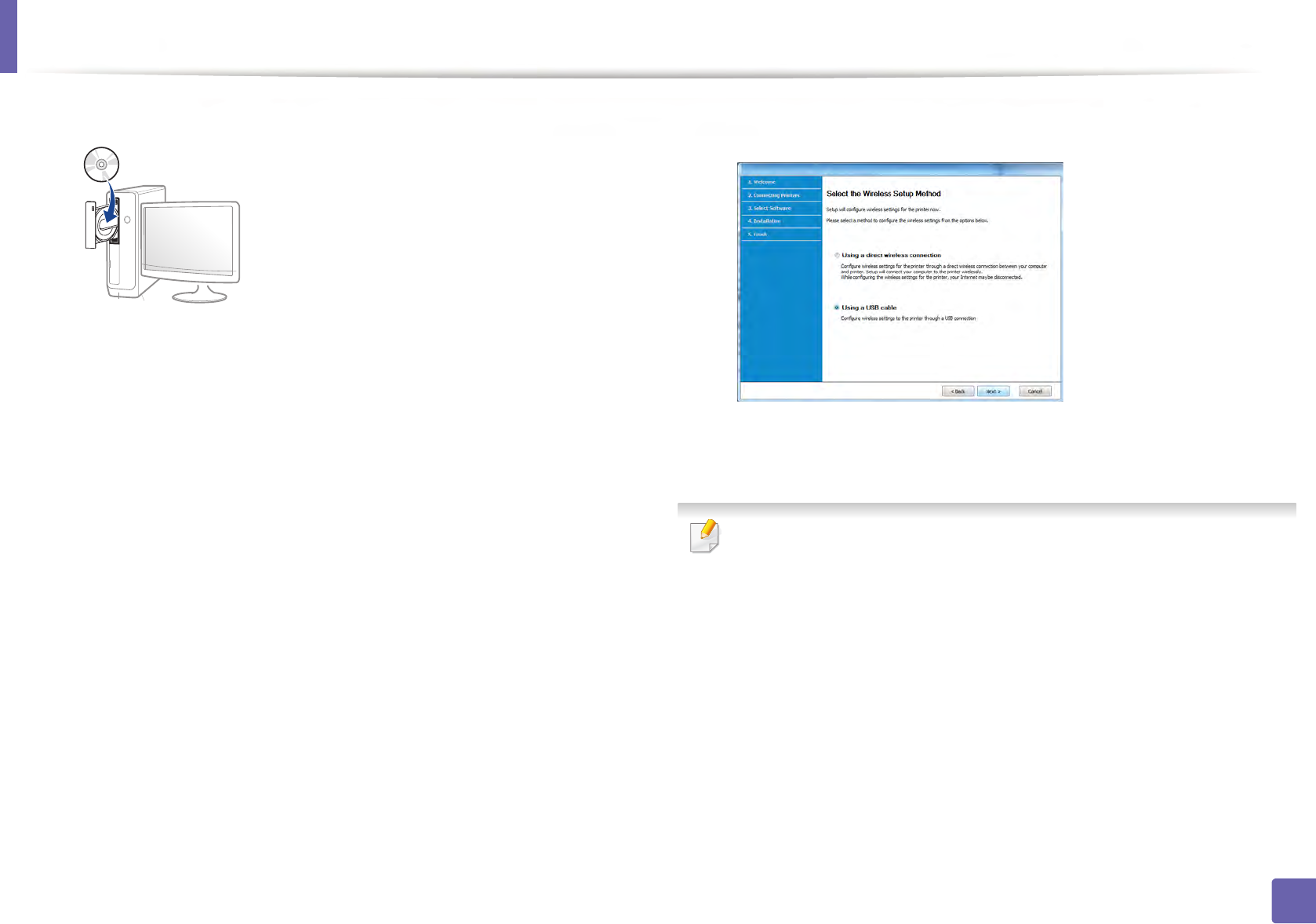

3 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs >

Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CD-

ROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select

Search > Apps and search for Run. Type in X:\Setup.exe, replacing

“X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window

appears, click the window and select Run Setup.exe.

4 Review and accept the installation agreements in the installation

window. Then, click Next.

5 Select Wireless on the Printer Connection Type screen. Then, click

Next.

6 On the Are you setting up your printer for the first time? screen, select

Yes, I will set up my printer's wireless network. Then, click Next.

If your printer is already connected on the network, select No, my

printer is already connected to my network.

7 Select Using a USB cable on the Select the Wireless Setup Method

screen. Then, click Next.

8 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you want to use and click Next.

If you cannot find the network name you want to choose, or if you want to

set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on a WPA Pre-Shared Key. This uses a shared secret key

(generally called Pre Shared Key pass phrase), which is manually

configured on the access point and each of its clients.

Wireless network setup

160

2. Using a Network-Connected Machine

•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES).

•Network Password: Enter the encryption network password value.

•Confirm Network Password: Confirm the encryption network

password value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the access point

has security settings.

Enter the Network Password of the access point (or router).

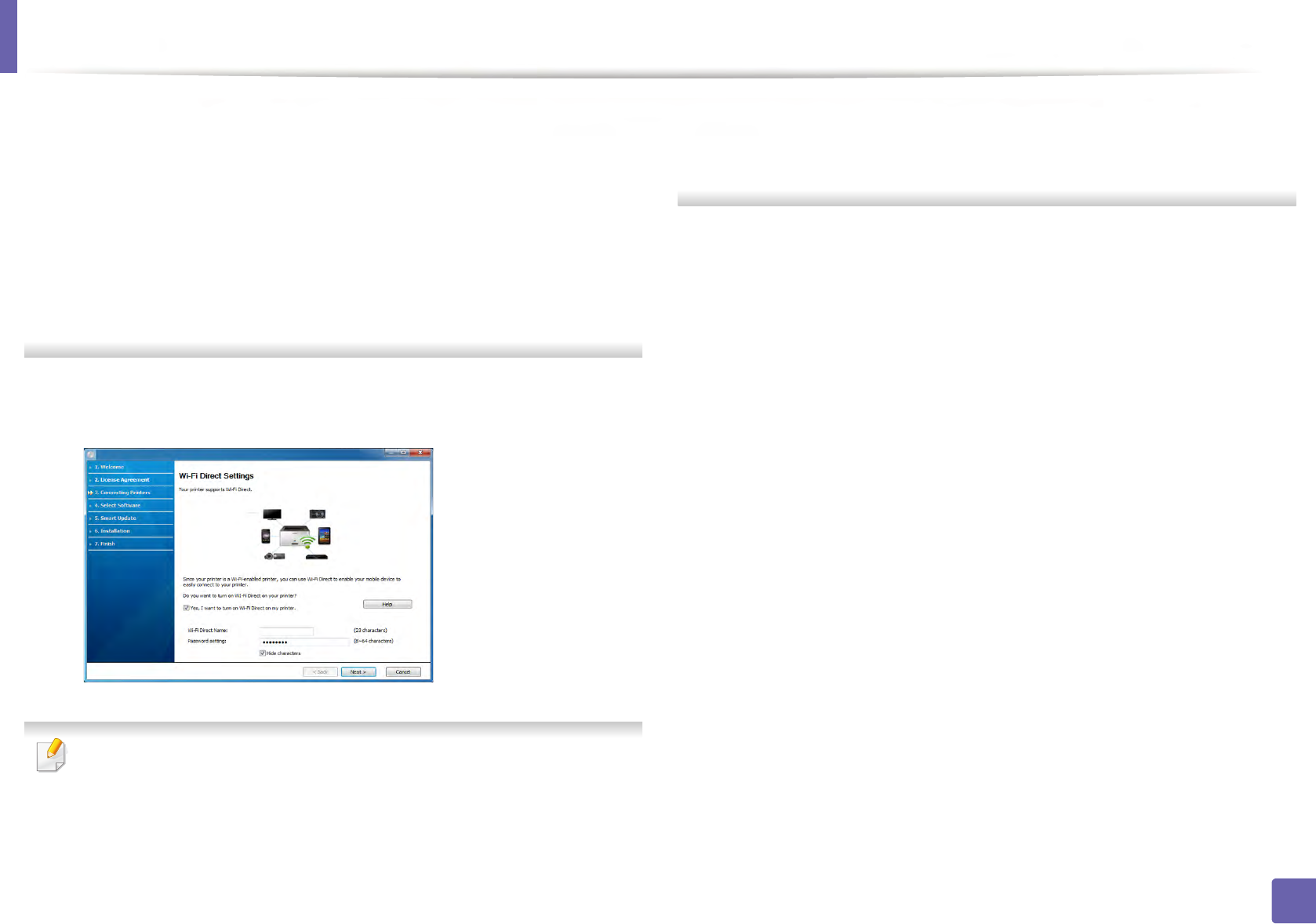

9 If your printer supports Wi-Fi Direct, the following screen appears.

Click Next.

• Wi-Fi Direct option appears on the screen only if your printer supports

this feature.

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager

(see "Setting up Wi-Fi Direct" on page 167).

•Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name

and the maximum length is 22 characters.

•Password setting is the numeric string, and the size is 8 ~ 64 characters.

10 When the wireless network set up is completed, disconnect the USB

cable between the computer and machine. Click Next.

11 Select the components to be installed.

12 Follow the instructions in the installation window.

Wireless network setup

161

2. Using a Network-Connected Machine

Access point without a USB cable

Items to prepare

• WiFi-enabled PC running Windows 7 or higher and an access point (router)

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

While setting the wireless network, the machine uses PC's wireless LAN. You

might not be able to connect to the Internet.

Creating the infrastructure network

1Turn on your computer, access point, and machine.

2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs >

Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CD-

ROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select

Search > Apps and search for Run. Type in X:\Setup.exe, replacing

“X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window

appears, click the window and select Run Setup.exe.

3 Review and accept the installation agreements in the installation

window. Then, click Next.

4 Select Wireless on the Printer Connection Type screen. Then, click

Next.

5 On the Are you setting up your printer for the first time? screen, select

Yes, I will set up my printer's wireless network. Then, click Next.

If your printer is already connected on the network, select No, my

printer is already connected tomy network.

Wireless network setup

162

2. Using a Network-Connected Machine

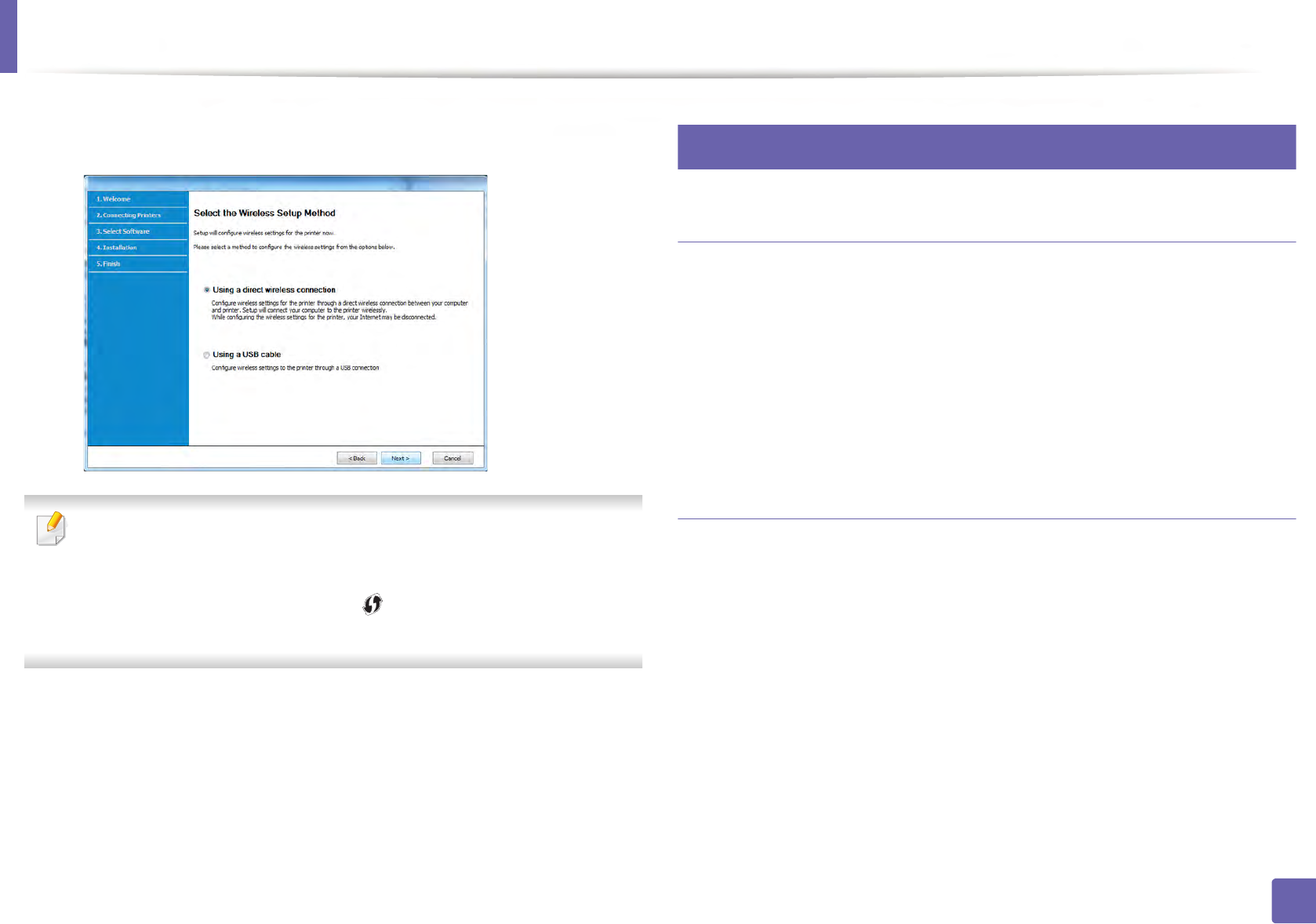

6 Select Using a direct wireless connection on the Select the Wireless

Setup Method screen. Then, click Next.

• Even if your computer is running Windows 7 or higher, you cannot use this

feature if your PC does not support wireless network. Set the wireless

network using a USB cable (see "Setting up via USB cable" on page 158).

• If below screen appears, press the (WPS) button from the control

panel within 2 minutes.

7 When the wireless network set up is completed, click Next.

8 Follow the instructions in the installation window.

Setup using Mac

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Setting up via USB cable

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select the CD-ROM volume that appears on Finder.

4 Double-click Install Software icon.

5 Read the license agreement and check installation agreement button.

6 Click Next.

Wireless network setup

163

2. Using a Network-Connected Machine

7 Select Wireless on the Printer Connection Type.

8 Click Next.

9 If the installer asks you to allow access to the keychain, click Deny.

If you clicked Always Allow in this step, the Select a wireless printer

window appears without asking for access to the keychain. If this occurs,

click Cancel in the Select a wireless printer window.

10 On the Select the Wireless Setup Method screen, select Using a USB

cable, and then click Next.

If the screen dose not appear, go to step 14.

11 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you want to use and click Next.

When you set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on the WPA Pre-Shared Key. This uses a shared secret

key (generally called Pre Shared Key pass phrase) that is manually

configured on the access point and each of its clients.

•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES)

•Network Key: Enter the encryption network key value.

•Confirm Network Key: Confirm the encryption network key value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the access point has

security enabled.

Enter the Network Key of the access point (or router).

12 The window showing the wireless network setting appears. Check the

settings and click Next.

• You can start Wi-Fi Direct by using the control panel (see "Setting up Wi-

Fi Direct" on page 167).

•Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name

and the maximum length is 22 characters.

•Password setting is the numeric string, and the size is 8 ~ 64 characters.

Wireless network setup

164

2. Using a Network-Connected Machine

13 The Wireless Network Setting Complete window appears. Click Next.

14 When the wireless network settings are completed, disconnect the USB

cable between the computer and machine. Click Next.

15 Follow the instructions in the installation window.

Access point without a USB cable

Items to prepare

• WiFi-enabled Mac running Mac OS 10.7 or higher and an access point

(router)

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Select the CD-ROM volume that appears on Finder.

4 Double-click Install Software icon.

5 Read the license agreement and check installation agreement button.

6 Click Next.

7 Select Wireless on the Printer Connection Type screen.

8 Click Next.

9 If the installer asks you to allow access to the keychain, click Allow.

10 If the Select a wireless printer window appears, select the printer

named DIRECT-xxx.

If the Press WPS button on your printer screen appears, press the

(WPS) button from the control panel within 2 minutes.

11 When the wireless network set up is complete, follow the instructions in

the installation window.

Using a network cable

See your network administrator, or the person that set up your wireless

network, for information about your network configuration.

Your machine is a network compatible machine. To enable your machine to work with

your network, you will need to perform some configuration procedures.

Wireless network setup

165

2. Using a Network-Connected Machine

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network

configuration report.

See "Printing a network configuration report" on page 144.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine

using its MAC address to communicate with the machine. The MAC address is

the hardware serial number of the network interface and can be found in the

Network Configuration Report.

See "Printing a network configuration report" on page 144.

Configuring the machine’s wireless network

Before starting you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection

status.

1Check whether or not the network cable is connected to the machine. If

not, connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

Wireless network setup

166

2. Using a Network-Connected Machine

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network

Settings.

6 Click Wi-Fi > Wizard.

7 Select the one Network Name(SSID) in the list.

8 Click Next.

If the wireless security setting window appears, enter the registered

password (network password) and click Next.

9 The confirmation window appears, please check your wireless setup. If

the setup is right, click Apply.

Turning the Wi-Fi network on/off

1Check whether the network cable is connected to the machine. If not,

connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network

Settings.

6 Click Wi-Fi.

7 You can turn the Wi-Fi network on/off.

Wireless network setup

167

2. Using a Network-Connected Machine

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is a secure and easy-to-use peer-to-peer connection between a Wi-

Fi Direct-enabled printer and mobile device.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while

concurrently connecting to an access point. You can also use a wired network

and a Wi-Fi Direct network simultaneously so multiple users can access and print

documents both from Wi-Fi Direct and from a wired network.

• You cannot connect your mobile device to the internet through the

printer’s Wi-Fi Direct.

• The supported protocol list may differ from your model, Wi-Fi Direct networks do

NOT support IPv6, network filtering, IPSec, WINS, and SLP services.

•

The maximum number of devices that can be connected via Wi-Fi Direct is 4.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the machine

1Press the (Menu) button on the control panel and select Network >

Wi-Fi >Wi-Fi Direct from the display screen.

2 Tap Wi-Fi Direct.

3 Enable Wi-Fi Direct.

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable

and configure Wi-Fi Direct from SyncThru™ Web Service.

1Access SyncThru™ Web Service and select Settings > Network

Settings > Wi-Fi > Wi-Fi Direct™.

2 Enable Wi-Fi Direct™ and set other options.

Setting up the mobile device

• After setting up Wi-Fi Direct from the printer, refer to the user manual of the

mobile device you are using to set its Wi-Fi Direct.

• After setting up Wi-Fi Direct, you need to download the mobile printing

application (For example: Samsung Mobile printer) to print from your

smartphone.

Wireless network setup

168

2. Using a Network-Connected Machine

• When you have found the printer you want to connect to from your

mobile device, select the printer and the printer's LED will blink. Press the

WPS button on the printer and it will be connected to your mobile

device. If you don’t have WPS button, press the option you want when

the Wi-Fi connection confirmed window appears from the display screen

and it will be connected to your mobile device.

• If your mobile device does not support Wi-Fi Direct, you need to enter

the "Network Key" of a printer instead of pushing the WPS button.

Troubleshooting for wireless network

Problems during setup or driver installation

Printers Not Found

• Your machine may not be turned on. Turn on your computer and the

machine.

• USB cable is not connected between your computer and machine. Connect

the machine to your computer using the USB cable.

• The machine does not support wireless networking. Check the machine's

user's guide included on the software CD supplied with your machine and

prepare a wireless network machine.

Connecting Failure - SSID Not Found

• The machine is unable to find the network name (SSID) you have selected or

entered. Check the network name (SSID) on your access point and try

connecting again.

• Your access point is not turned on. Turn on your access point.

Wireless network setup

169

2. Using a Network-Connected Machine

Connecting Failure - Invalid Security

• Security is not configured correctly. Check the configured security on your

access point and machine.

Connecting Failure - General Connection Error

• Your computer is not receiving a signal from your machine. Check the USB

cable and your machine’s power.

Connecting Failure - Connected Wired Network

• Your machine is connected with a wired network cable. Remove the wired

network cable from your machine.

Connecting Failure - Assigning the IP address

• Cycle the power for the access point (or wireless router) and machine.

PC Connection Error

• The configured network address is unable to connect between your

computer and machine.

- For a DHCP network environment

The receives the IP address automatically (DHCP) when computer is

configured to DHCP.

If the printing job is not working in DHCP mode, the problem may be caused

by the automatically changed IP address. Compare the IP address between

the product's IP address and the printer port's IP address.

How to compare:

1 Print the network information report of your printer, and then check the

IP address (see "Printing a network configuration report" on page 144).

2 Check the printer port's IP address from your computer.

a Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

b For Windows XP Service Pack 3/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

• For Windows 7/ Windows 8, select Control Panel > Devices and

Printers.

c Right-click your machine.

d For Windows XP Service Pack 3/2003/2008/Vista, press Properties.

For Windows 7/ Windows 8 or Windows Server 2008 R2, from context

menus, select the Printer properties.

If Printer properties item has ► mark, you can select other printer

drivers connected with selected printer.

e Click Port tab.

f Click Configure Port.. button.

g Check if Printer Name or IP Address: is the IP address on the network

configuration Sheet.

3 Change the printer port's IP address if it is different from the network

information report's.

If you want to use the software installation CD to change the port IP,

connect to a network printer. Then reconnect the IP address.

Wireless network setup

170

2. Using a Network-Connected Machine

- For a Static network environment

The machine uses the static address when the computer is configured

to static address.

For example,

If the computer’s network information is as shown below:

▪IP address: 169.254.133.42

▪Subnet Mask: 255.255.0.0

Then the machine’s network information should be as below:

▪IP address: 169.254.133.43

▪Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

▪Gateway: 169.254.133.1

Other problems

If problems occur while using the machine on a network, check the following:

For information on the access point (or wireless router), refer to its own

user's guide.

• You cannot enable wired and wireless networks at the same time.

• Your computer, access point (or wireless router), or machine may not be

turned on.

• Check the wireless reception around the machine. If the router is far from

the machine or there is an obstacle, you might have difficulty receiving the

signal.

• Cycle the power for the access point (or wireless router), machine, and

computer. Sometimes cycling the power can recover network

communication.

• Check whether firewall software (V3 or Norton) is blocking the

communication.

If the computer and the machine are connected on the same network and it

cannot be found when searching, firewall software might be blocking the

communication. Refer to the user's guide for the software to turn it off and

try searching for the machine again.

• Check whether the machine's IP address is allocated correctly. You can

check the IP address by printing the network configuration report.

• Check whether the access point (or wireless router) has a configured

security (password). If it has a password, refer to the access point (or wireless

router) administrator.

• Check the machine's IP address. Reinstall the machine driver and change the

settings to connect to the machine on the network. Due to the

characteristics of DHCP, the allocated IP address could change if the

machine is not used for a long time or if the access point has been reset.

on the access point (or wireless router). Then you can always use the IP

address that is set with the MAC address. You can identify the Mac address

of your machine by printing a network configuration report (see "Printing a

network configuration report" on page 144).

Wireless network setup

171

2. Using a Network-Connected Machine

• Check the wireless environment. You might not be able to connect to the

network in the infrastructure environment where you need to type in a

user's information before connecting to the access point (or wireless router).

• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless

communication types (e.g., Bluetooth) are not supported.

• You cannot use infrastructure mode at the same time for Samsung wireless

network machines.

• The machine is within the range of the wireless network.

• The machine is located away from obstacles that could block the wireless

signal.

Remove any large metal objects between the access point (or wireless

router) and the machine.

Make sure the machine and wireless access point (or wireless router) are not

separated by poles, walls, or support columns containing metal or concrete.

• The machine is located away from other electronic devices that may

interfere with the wireless signal.

Many devices can interfere with the wireless signal, including a microwave

oven and some Bluetooth devices.

• Whenever the configuration of your access point (or wireless router)

changes, you must do the product's wireless network setup again.

• The maximum number of device that can be connected via Wi-Fi Direct is 3.

•If Wi-Fi Direct is ON, this machine only supports IEEE 802.11 b/g.

• If the access point is set to work with the 802.11n standard only, it may not

connect to your machine.

172

2. Using a Network-Connected Machine

Samsung Mobile Print

What is Samsung Mobile Print?

Samsung Mobile Print is a free application that enables users to print photos,

documents, and web pages directly from your smartphone or tablet. Samsung

Mobile Print is not only compatible with your Android and iOS smart phones

but also with your iPod Touch and tablet PC. It connects your mobile device to a

network connected Samsung printer or to a wireless printer through a Wi-Fi

access point. Installing a new driver or configuring network settings isn’t

necessary – just simply install the Samsung Mobile Print application, and it will

automatically detect compatible Samsung printers. Besides printing photos,

web pages, and PDFs, scanning is also supported. If you have a Samsung

multifunction, scan any document into a JPG, PDF, or PNG format for quick and

easy viewing on your mobile device.

Downloading Samsung Mobile Print

To download Samsung Mobile Print, go to the application store (Samsung

Apps, Play Store, App Store) on your mobile device, and just search for

“Samsung Mobile Print.” You can also visit iTunes for Apple devices on your

computer.

Supported Mobile OS

• Android OS 2.3 or higher

• iOS 4.0 or higher

173

2. Using a Network-Connected Machine

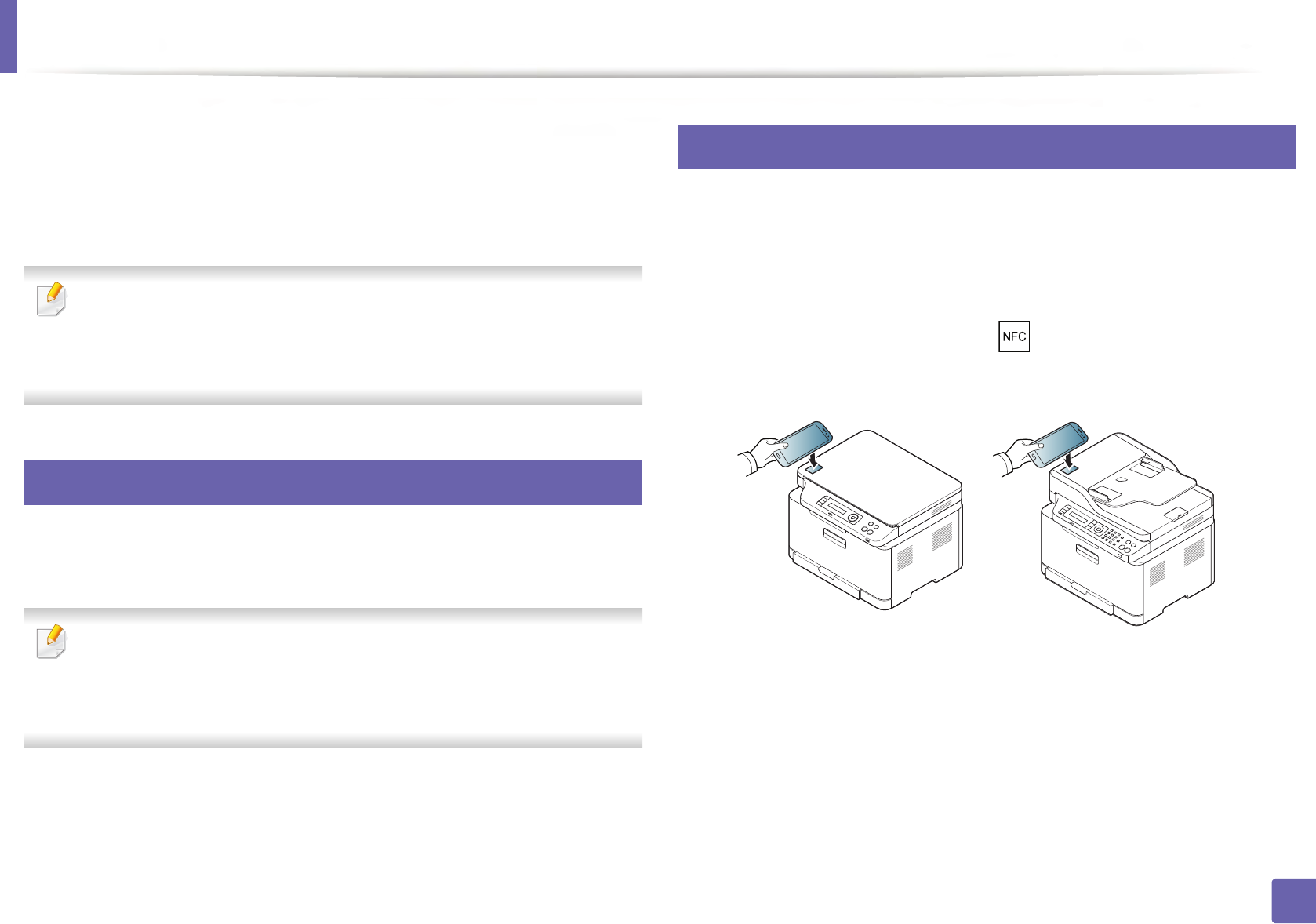

Using the NFC feature

The NFC(Near Field Communication) printer allows you to directly print/scan

from your cell phone just by holding your cell phone over the NFC tag on your

printer. It does not require installing print driver or connecting to an access

point. You just need NFC supported cell phone. In order to use this feature,

Samsung Mobile Print app needs to be installed on your cell phone.

• Depending on the material of the cell phone cover, NFC recognition may

not work properly.

• Depending on the cell phone you are using, the transmission speed may

differ.

Requirements

• NFC and Wi-Fi Direct enabled, Mobile Print app installed cell phone with

Android OS 4.0 or higher.

Only Android OS 4.1 or higher will automatically enable the Wi-Fi Direct

feature on your cell phone when you enable the NFC feature. We

recommend you to upgrade your cell phone to Android OS 4.1 or higher to

use the NFC feature.

• Wi-Fi Direct feature enabled printer. Wi-Fi Direct feature is enabled by

default.

Printing

1Check that NFC and Wi-Fi Direct features are enabled on your cell phone

and Wi-Fi Direct feature is enabled on your printer (see "Setting the Wi-

Fi Direct for mobile printing" on page 166).

2 Tag the NFC antenna on your cell phone (usually located on the back of

the cell phone) over the NFC tag( ) on your printer.

Wait few seconds for Samsung Mobile Print app to start.

Using the NFC feature

174

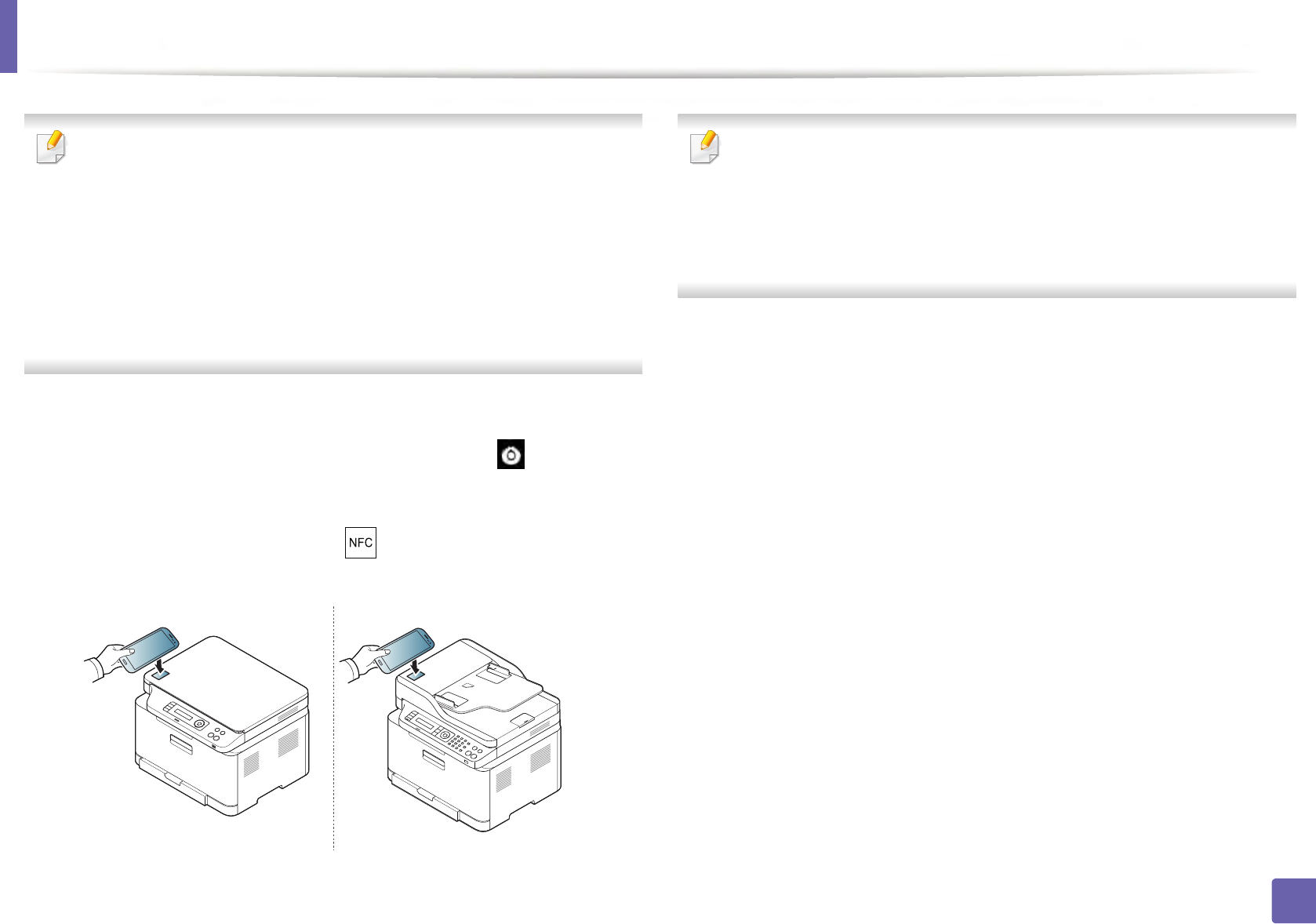

2. Using a Network-Connected Machine

• For some cell phones, NFC antenna might not be located at the back of

the cell phone. Check the location of the NFC antenna on your cell phone

before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

• If you do not have Samsung Mobile Print app installed on your cell

phone, it automatically connects to Samsung Mobile Print app

download page. Download the app and try again.

3 Select the content you want to print.

If necessary, change the print option by pressing the .

4 Tag the NFC antenna on your cell phone(usually located on the back of

the cell phone) over the NFC tag( ) on your printer.

Wait few seconds for the cell phone to connect to the printer.

• For some cell phones, NFC antenna might not be located at the back of

the cell phone. Check the location of the NFC antenna on your cell phone

before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

5 The printer starts printing.

Using the NFC feature

175

2. Using a Network-Connected Machine

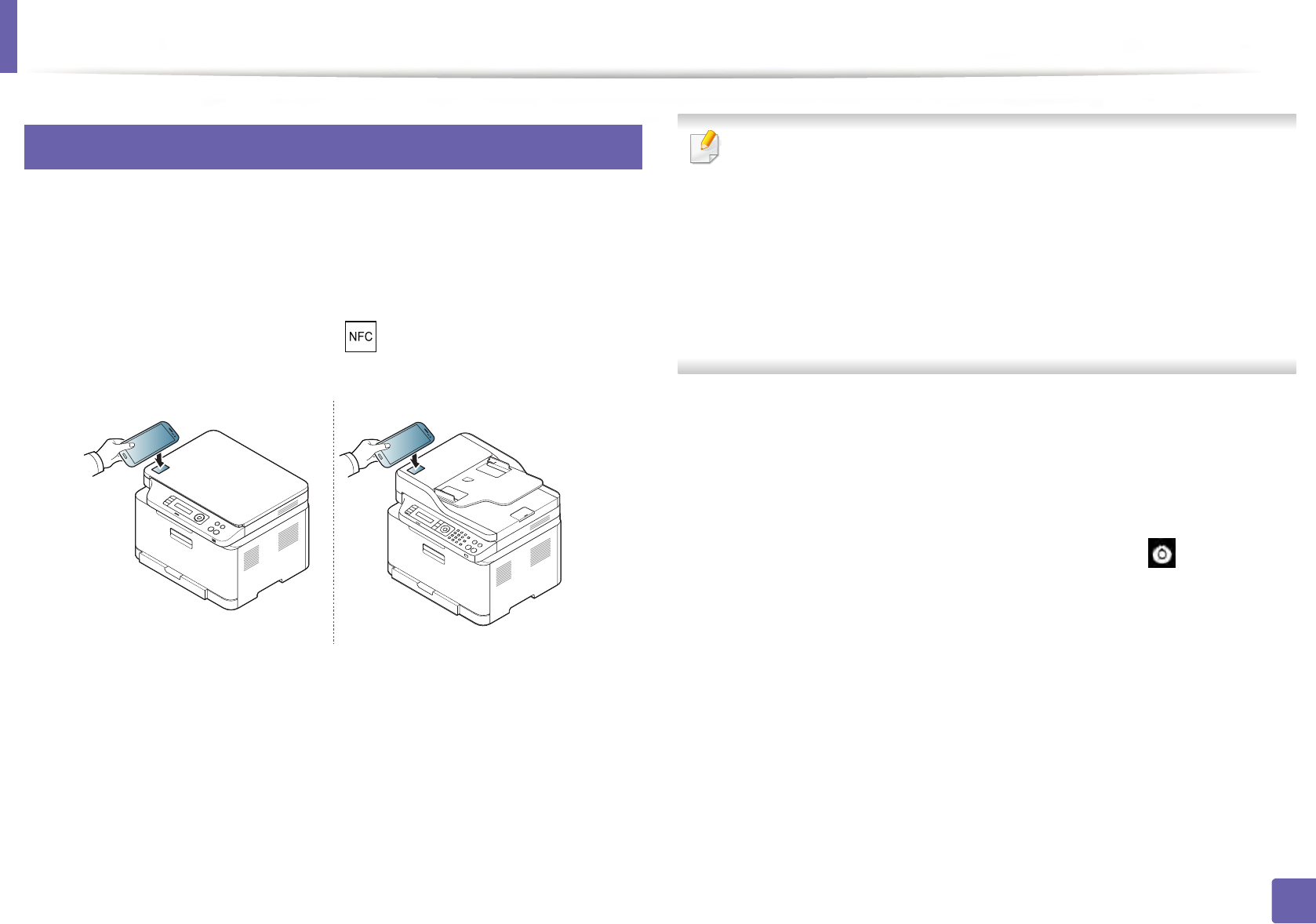

Scanning

1Check that NFC and Wi-Fi Direct enabled features are on your cell phone

and Wi-Fi Direct feature is enabled on your printer (see "Setting the Wi-

Fi Direct for mobile printing" on page 166).

2 Tag the NFC antenna on your cell phone(usually located on the back of

the cell phone) over the NFC tag( ) on your printer.

Wait few seconds for Samsung Mobile Print app to start.

• For some cell phones, NFC antenna might not be located at the back of

the cell phone. Check the location of the NFC antenna on your cell phone

before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

• If you do not have Samsung Mobile Print app installed on your cell

phone, it automatically connects to Samsung Mobile Print app

download page. Download the app and try again.

3 Select scan mode.

4 Place a single document face down on the document glass, or load the

documents face up into the document feeder (see "Loading originals" on

page 48).

If necessary, change the scan option by pressing the .

Using the NFC feature

176

2. Using a Network-Connected Machine

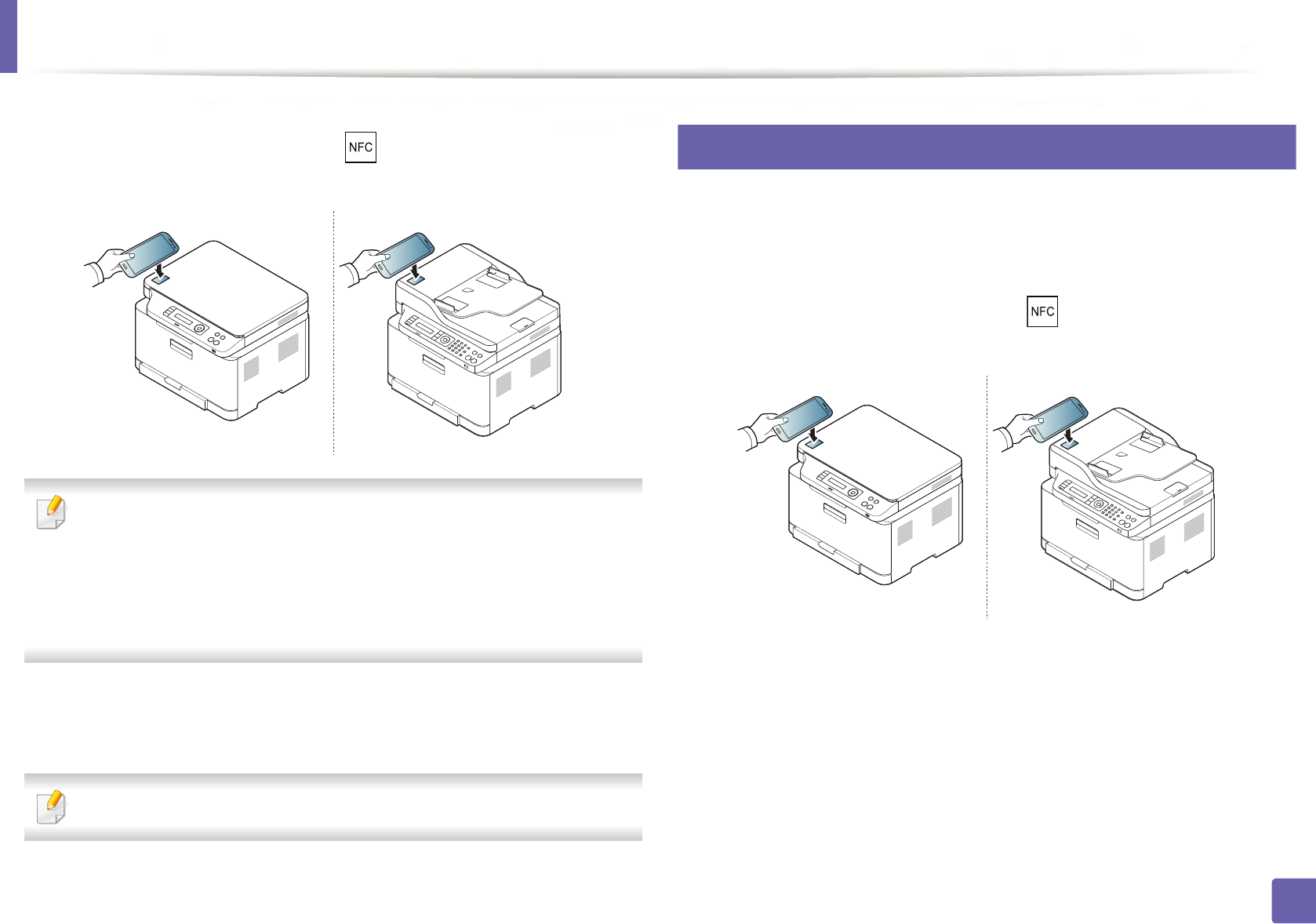

5 Tag the NFC antenna on your cell phone(usually located on the back of

the cell phone) over the NFC tag( ) on your printer.

Wait few seconds for the cell phone to connect to the printer.

• For some cell phones, NFC antenna might not be located at the back of

the cell phone. Check the location of the NFC antenna on your cell phone

before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

6 The printer starts scanning the content.

The scanned data is saved on your cell phone.

If you want to continue scanning, follow the instruction on the app screen.

Registering Google Cloud Printer

1Check that NFC and Wi-Fi Direct features are enabled on your mobile

device and Wi-Fi Direct feature is enabled on your printer.

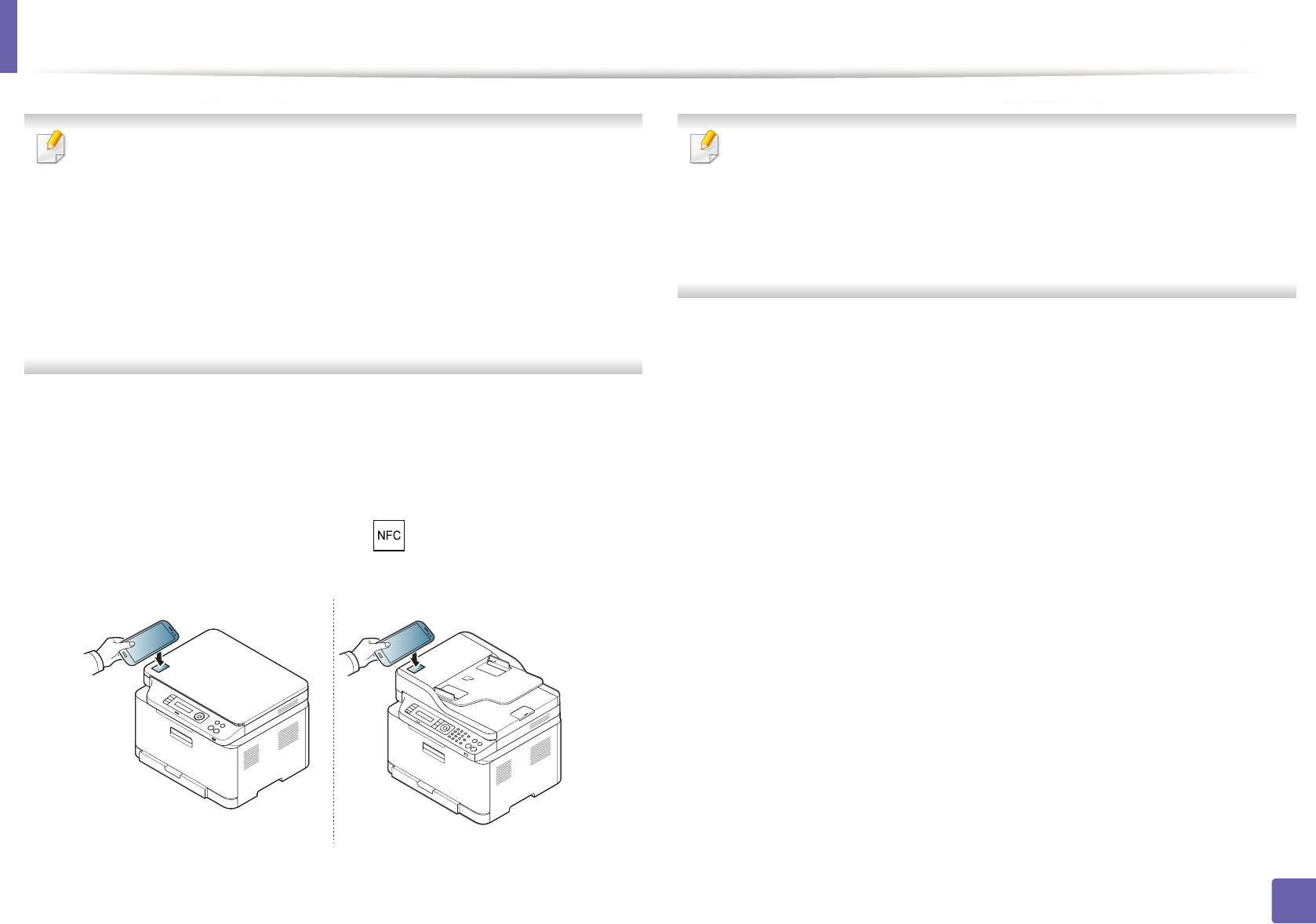

2 Tag the NFC tag on your mobile device (usually located on the back of

the mobile device) over the NFC tag( ) on your printer.

Wait a few seconds for the Samsung Mobile Print app to start.

Using the NFC feature

177

2. Using a Network-Connected Machine

• For some mobile devices, NFC tag might not be located at the back of the

mobile device. Check the location of the NFC antenna on your mobile

device before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

• If your do not have Samsung Mobile Print app installed on your mobile

devices, it automatically connects to Samsung Mobile Print app

download page. Download the app and try again.

3 Select device status icon.

4 Select Google Cloud Print > Register Google Cloud Printer.

5 Tag the NFC tag on your mobile device (usually located on the back of

the mobile device) over the NFC tag( ) on your printer.

Wait a few seconds for the mobile device to connect to the printer.

• For some mobile devices, NFC tag might not be located at the back of the

mobile device. Check the location of the NFC antenna on your mobile

device before tagging.

• If error message about changed PIN number appears, enter a changed

PIN number and press OK. Follow the instruction on the app screen to

update the PIN number.

6 Confirm your printer in pop-up window.

Now your printer is registered with Google Cloud Print™ service

178

2. Using a Network-Connected Machine

Mopria™

Only Mopria-certified machines can use the Mopria feature. Check the box

that your machine came in for the Mopria-certified logo.

Setting up the machine for Mopria printing

Bonjour(mDNS) and IPP protocols are required on your machine to use the

Mopria feature. Perform the following steps to enable the Mopria feature.

1Ensure that the machine is connected to the network.

2 On your computer, open a web browser (Internet Explorer, Safari, or

Firefox) and type the IP address of the machine in the address bar. Then,

press Enter.

For example,

3 Click Login in the upper right corner of the SyncThru™ Web Service

website.

4 Type in the ID and Password.

If you want to create a new user or change the password, see "Using

SyncThru™ Web Service" on page 249.

5 When the SyncThru™ Web Service window opens, click Settings >

Network Settings > Standard TCP/IP, LPR, IPP > IPP. Then, select

Enable.

6 Click Settings > Network Settings > mDNS. Then, select Enable.

7 Click Security > System Security > Feature Management > Mopria.

Then, select Enable.

Setting up Mopria on your mobile device

If you do not have Mopria Print Service app installed on your mobile device,

open to the app store (Play Store, App Store) on your mobile device, search

for,Mopria Print Service, and then download and install the app.

Mopria™ Print Service is a mobile printing solution that enhances

the new print functionality on any Android phone or tablet

(Android version 4.4 or later). With this service, you can connect

and print to any Mopria-certified printer on the same network as

your mobile device without additional set-up. Many native

Android apps support printing, including Chrome, Gmail, Gallery,

Drive and Quickoffice.

Mopria™

179

2. Using a Network-Connected Machine

1In the Settings menu of your Android device, tap Printing.

The location of this option may differ depending on your mobile device. If

you cannot locate the Printing option, refer to the user's manual for your

mobile device.

2 Under Print Services, tap Mopria Print Service.

3 Tap the On/Off slider to enable the Mopria Print Service.

Printing via Mopria

To print via Mopria on an Android device:

1Open the email, photo, web page, or document that you want to print.

2 Tap Print on the menu in the app.

3 Select your printer, and then configure the print options.

4 Touch Print again to print the document.

To cancel a print job: Select and delete the document from the print queue

in the Notification Bar.

180

2. Using a Network-Connected Machine

AirPrint

Only AirPrint certified machines can use the AirPrint feature. Check the box

your machine came in for the AirPrint certified mark.

Setting up AirPrint

Bonjour(mDNS) and IPP protocols are required on your machine to use the

AirPrint feature. You can enable the AirPrint feature by one of the following

methods.

1Check whether the machine is connected to the network.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login in the upper right of the SyncThru™ Web Service website.

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

5 When the Embedded Web Service window opens, click Settings >

Network Settings.

6 Click Raw TCP/IP, LPR, IPP or mDNS.

You can enable the IPP protocol or mDNS protocol.

Printing via AirPrint

For example, the iPad manual provides these instructions:

1Open your email, photo, web page, or document you want to print.

2 Touch the action icon( ).

3 Select your printer driver name and option menu to set up.

4 Touch Print button. Print it out.

AirPrint allows you to wirelessly print directly from iPhone, iPad and

iPod touch running the latest version of iOS.

AirPrint

181

2. Using a Network-Connected Machine

Cancelling print job: To cancel the printing job or view the print summary,

click the print center icon ( ) in multitasking area. You can click cancel in

the print center.

182

2. Using a Network-Connected Machine

Samsung Cloud Print

Samsung Cloud Print is a free cloud service that allows you to print or scan from

your smartphone or tablet to your Samsung printer or MFP. After installing the

Samsung Cloud Print app, you can register with the Samsung Cloud Print service

just using your mobile number for authentication. No other account login is

required, although you can link the app to your Samsung Account if you wish.

If you press the ( ) button from Samsung Cloud Print app, Your mobile

device and printer or MFP can be paired , QR code, or by manually entering

its MAC address. Once paired, you can print or scan from anywhere and

everywhere.

Registering your Printer to Samsung Cloud server

Registering from Web Browser

Make sure the printer machine is turned on and connected to a wired or

wireless network that has access to the Internet.

1Open Web browser.

2 Enter your printer’s IP address in the address field and press the Enter key

or click Go.

3 Click Login in the upper right corner of the SyncThru™ Web Service

website.

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

If you want to create a new user or change the password, see "Security tab"

on page 250.

5 When the SyncThru™ Web Service window opens, click Settings >

Network Settings > Samsung Cloud Print.

6 Enable Samsung Cloud Print Protocol.

7 Now your printer is registered with Samsung Cloud Print service.

Samsung Cloud Print

183

2. Using a Network-Connected Machine

Printing with Samsung Cloud Print

Make sure the printer is turned on and connected to a wired or wireless

network that has access to the Internet.

Registering a printer from an application on mobile

device

The following steps are an example of using the Samsung Cloud Print app from

Android mobile phone.

1Open Samsung Cloud Print app.

If you do not have Samsung Cloud Print app installed on your cellphone,

go to the application store (Samsung Apps, Play Store, App Store) on your

mobile device, and just search for download the app and try again.

2 Press the ( ) button from Samsung Cloud Print app.

3 Your mobile device and printer or MFP can be paired NFC tapping, QR

code or by manually entering its MAC address.

Printing from an application on mobile device

The following steps are an example of using the Samsung Cloud Print app from

Android mobile phone.

1Open Samsung Cloud Print app.

If you do not have Samsung Cloud Print app installed on your cellphone,

go to the application store (Samsung Apps, Play Store, App Store) on your

mobile device, and just search for download the app and try again.

2 Tap the option check button of the document that you want to print.

3 Set the printing options if you want.

4 Tap Send Job.

Samsung Cloud Print

184

2. Using a Network-Connected Machine

Scanning and sending to Samsung Cloud Print

You can scan an image and the scanned data will be stored in the Samsung

Cloud Print.

1Place a single document face down on the document glass, or load the

documents face up into the document feeder (see "Loading originals" on

page 48).

2 Press (scan) on the control panel.

3 Press Samsung Cloud.

4 Enter recipient country code and recipient phone number.

5 Enter sender information.

6 Press the (Start) button to scan and store the file in samsung cloud

server.

When the user is not registered in the Samsung Cloud Print, a confirmation

window will pop up. Select a work in progress or not.

185

2. Using a Network-Connected Machine

Google Cloud Print™

Google Cloud Print™ is a service that allows you to print to a printer using your

smart phone, tablet, or any other web-connected devices. Just register your

Google account with the printer, and you are ready to use the Google Cloud

Print service. You can print your document or email with Chrome OS, Chrome

browser, or a Gmail™/ Google Docs™ application on your mobile device, so you

don’t need to install the printer driver on the mobile device. Refer to the Google

website (http://support.google.com/cloudprint) for more information about

Google Cloud Print.

Registering your Google account to the printer

• Make sure the printer machine is turned on and connected to a wired or

wireless network that has access to the Internet.

•You should create your Google account in the advance.

1Open the Chrome browser.

2 Visit www.google.com.

3 Sign in to the Google website with your Gmail address.

4 Enter your printer’s IP address in the address field and press the Enter key

or click Go.

5 Click Login in the upper right corner of the SyncThru™ Web Service

website.

6 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

If the network environment is using a proxy server, you need to configure

the proxy’s IP and port number from Settings > Network Settings >

Google Cloud Print > Proxy Setting. Contact your network service

provider or network administrator for more information.

7 When the SyncThru™ Web Service window opens, click Settings >

Network Settings > Google Cloud Print.

8 Enter your printer’s name and description.

9 Click Register.

The confirmation pop-up window appears.

If you set the browser to block pop-ups, the confirmation window will not

appear. Allow the site to show pop-ups.

Google Cloud Print™

186

2. Using a Network-Connected Machine

10 Click Finish printer registration.

11 Click Manage your printers.

Now your printer is registered with Google Cloud Print service.

Google Cloud Print-ready devices will appear in the list.

Printing with Google Cloud Print™

The printing procedure varies depending on the application or the device you

are using. You can see the application list that supports Google Cloud Print

service.

Make sure the printer is turned on and connected to a wired or wireless

network that has access to the Internet.

Printing from an application on mobile device

The following steps are an example of using the Google Docs app from Android

mobile phone.

1Install the Cloud Print application on your mobile device.

If you do not have the application, download it from the application store

such as Android Market or App Store.

2 Access the Google Docs application from your mobile device.

3 Tap the option button of the document that you want to print.

4 Tap the send button.

5 Tap the Cloud Print button.

6 Set the printing options if you want.

7 Tap Click here to Print.

Printing from the Chrome browser

The following steps are an example of using the Chrome browser.

1Run Chrome.

2 Open the document or email that you want to print.

3 Click the wrench icon in the browser’s top right corner.

4 Click Print. A new tab for printing appears.

5 Select Print with Google Cloud Print.

6 Click the Print button.

3. Useful Setting Menus

This chapter explains how to browse the current status of your machine, and the method of setting for advanced

machine setup.

• Before you begin reading a chapter 188

• Print 189

• Copy 190

• Fax 193

• Scan 197

• System setup 199

• Network setup 205

188

3. Useful Setting Menus

Before you begin reading a chapter

This chapter explains all the features available for this series' models to help users easily understand the features.

You can check the features available for each model in the Basic Guide (see "Menu overview" on page 33).

The following are tips for using this chapter

• The control panel provides access to various menus to set up the machine or use the machine’s functions. These menus can be accessed by pressing (Menu).

• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.

• For models that do not have the (Menu) on the control panel, this feature is not applicable (see "Control panel overview" on page 24).

• Some menu names may differ from your machine depending on its options or the models.

189

3. Useful Setting Menus

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (Menu) > Print Setup on the control panel.

Item Description

Orientation Selects the direction in which information is printed on a

page.

Copies You can enter the number of copies using the number

keypad.

Resolution

Specifies the number of dots printed per inch (dpi). The

higher the setting, the sharper printed characters and

graphics.

Trapping

Reduces the white gap caused by misalignment of color

channels in color printing mode. Also black text will be

overprinted on other colors.

Screen

Affects the resolution and clarity of your color output.

•Enhanced: This mode will generate printouts with

sharp texts and smooth graphic/photo objects in the

page.

•Detailed: This mode will generate printouts with

sharp details over the entire page.

•Normal: This mode will generate printouts with

smooth tone over the entire page.

Clear Text Selects this option to print texts clearer than on a normal

document.

Auto CR Allows you to append the required carriage return to

each line feed, which is useful for Unix or DOS users.

Emulation Sets the emulation type and option.

Edge Enhance Allows user to enhance sharpness of text and graphics for

improving readability.

Darkness You can adjust the degree of darkness. This feature allows

dark images to be printed into lighter images, or light

images into darker images.

Item Description

190

3. Useful Setting Menus

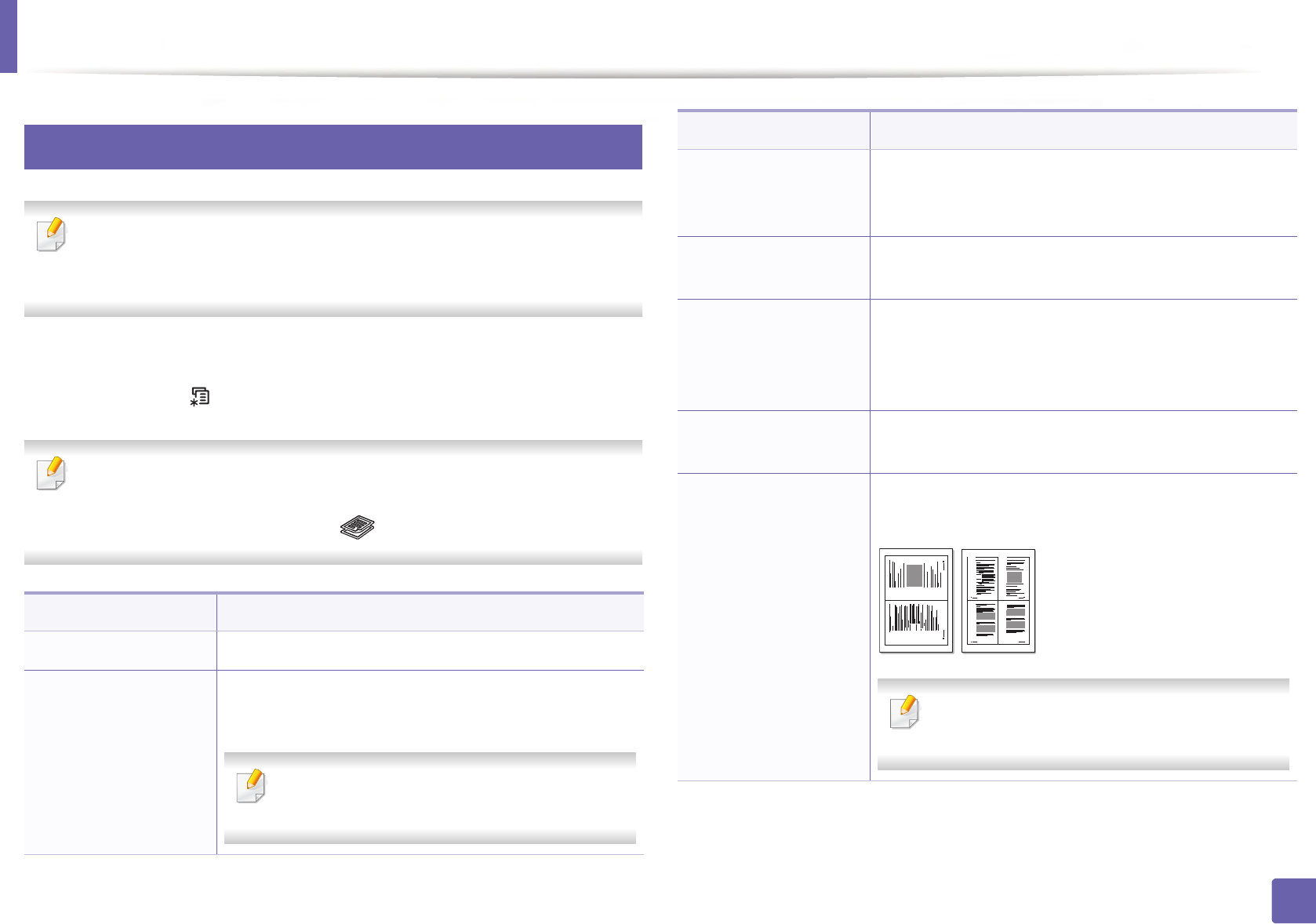

Copy

Copy feature

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

In copy mode, press (Menu) > Copy Feature on the control panel.

•C48xW series: When the Scan to button’s LED is off, the machine is in

copy mode.

•C48xFN/C48xFW series: Press (copy) on the control panel.

Item Description

Original Size Sets the image size.

Reduce/Enlarge

Reduces or enlarges the size of a copied image (see

"Reduced or enlarged copy" on page 59).

If the machine is set to Eco mode, reduce and

enlarge features are not available.

Darkness

Adjusts the brightness level to make a copy that is

easier to read, when the original contains faint

markings and dark images (see "Darkness" on page 59)

Original Type Improves the copy quality by selecting the document

type for the current copy job (see "Original" on page 59)

Collation Set the machine to sort the copy job. For example, if you

make 2 copies of a 3 page original, one complete 3 page

document will print followed by a second complete

document.

Layout Adjusts the layout format such as poster, clone, ID copy,

2/4-up, booklet, etc.

Layout > 2-up or

Layout > 4-up

Reduces the size of the original images and prints 2 or 4

pages onto one sheet of paper.

This copy feature is available only when you

load originals into the document feeder.

Item Description

1 2

3 4

Copy

191

3. Useful Setting Menus

Copy Setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

In copy mode, press (Menu) > Copy Setup on the control panel.

•C48xW series: When the Scan to button’s LED is off, the machine is in

copy mode.

•C48xFN/C48xFW series: Press (copy) on the control panel.

Layout > ID Copy

prints one side of the original on the upper half of the

paper and the other side on the lower half without

reducing the size of the original. This feature is helpful

for copying a small-sized item such as business card.

Adjust Bkgd.

Prints an image without its background. This copy

feature removes the background color and can be

helpful when copying an original containing color in

the background, such as a newspaper or a catalog.

•Off: Does not use this feature.

•Auto: Optimizes the background.

•Enhance Lev.1~2: The higher the number is, the

more vivid the background is.

•Erase Lev.1~4: The higher the number is, the lighter

the background is.

Item Description

Change Default Resets the value or setting to the printer’s out-of-box

state.

Change Default >

Original Size

Improves the copy quality by selecting the document

size for the current copy job.

Change Default >

Copies

You can enter the number of copies using the number

keypad.

Copy

192

3. Useful Setting Menus

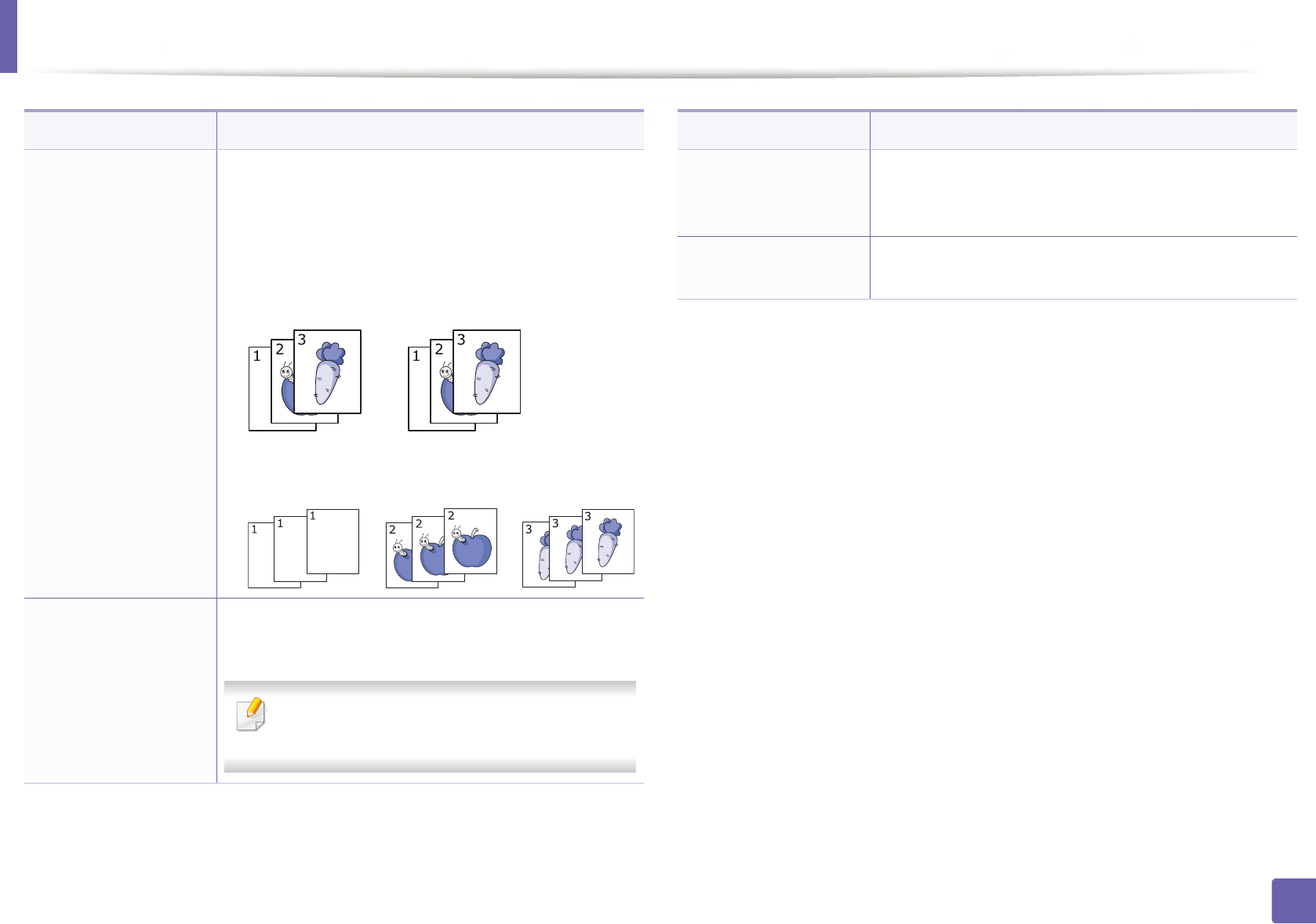

Change Default >

Collation

Set the machine to sort the copy job. For example, if you

make 2 copies of a 3 page original, one complete 3 page

document will print followed by a second complete

document.

•On: Prints output in sets to match the sequence of

originals.

•Off: Prints output sorted into stacks of individual

pages.

Change Default >

Reduce/Enlarge

Reduces or enlarges the size of a copied image (see

"Reduced or enlarged copy" on page 59).

If the machine is set Eco mode, reduce and

enlarge features are not available.

Item Description

Change Default >

Darkness

Adjusts the brightness level to make a copy that is

easier to read, when the original contains faint

markings and dark images (see "Darkness" on page 59)

Change Default >

Original Type

Improves the copy quality by selecting the document

type for the current copy job (see "Original" on page 59)

Item Description

193

3. Useful Setting Menus

Fax

Fax Feature

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (fax) > (Menu)> Fax Feature on the control panel.

Item Description

Darkness

Adjusts the brightness level to scan an original that is

easier to read, when the original contains faint

markings and dark images (see "Darkness" on page 67).

Resolution

The default document settings produce good results

when using typical text-based originals. However, if you

send originals that are of poor quality, or contain

photographs, you can adjust the resolution to produce

a higher quality fax (see "Resolution" on page 66).

Original Size Sets the image size.

Multi Send

Sends a fax to multiple destinations (see "Sending a fax

to multiple destinations" on page 65).

You cannot send a color fax using this feature.

Delay Send

Sets your machine to send a fax at a later time when you

will not be present (see "Delaying a fax transmission" on

page 234).

You cannot send a color fax using this feature.

Priority Send

Scans the original into memory and immediately

transmits it when the current operation is finished.

Priority transmission will interrupt a sending to multiple

destinations between stations (example, when the

transmission to station A ends, before transmission to

station B begins) or between redial attempts (see

"Sending a priority fax" on page 235).

Send Forward

Forwards the sent fax to other destination. See

"Forwarding a sent fax to another destination" on page

235.

Item Description

Fax

194

3. Useful Setting Menus

Sending setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (fax) > (Menu) > Fax Setup > Sending on the control panel.

Rcv. Forward

Forwards the received fax to other destination. If you

are out of office but have to receive the fax, this feature

may be useful. See "Forwarding a received fax" on page

236.

Secure Receive

Stores the received fax in memory without printing out.

To print received documents, you need to enter the

password. You can prevent your received faxes from

being accessed by unauthorized people (see "Receiving

in secure receiving mode" on page 239).

Add Page

Adds additional documents to a reserved delay fax job

(see "Adding documents to a reserved fax" on page

234).

Cancel Job Cancels the delayed fax job which is saved in memory

(see "Canceling a reserved fax job" on page 235).

Item Description

Redial Times Sets the number of redial attempts. If you enter 0, the

machine will not redial.

Redial Term Sets the time interval before automatic redialling.

Prefix Dial

Sets a prefix of up to five digits. This number dials

before any automatic dial number is started. It is useful

for accessing a PABX exchange.

ECM Mode

Sends faxes using error correction mode (ECM) to

makes sure the faxes are sent smoothly without any

error. It may take more time.

Fax Confirm.

Sets the machine to print a report whether a fax

transmission was successfully completed or not. If you

select On-Error, the machine prints a report only when

a transmission is not successful.

Modem speed Select the maximum modem speed you want if the

phone line fails to sustain a higher modem speed.

Image TCR Prints a transmission report with a minimized image of

the first page of the fax sent.

Dial Mode

Sets the dialing mode to either tone or pulse. This

setting may not be available depending on your

country.

Fax

195

3. Useful Setting Menus

Receiving setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (fax) > (Menu) > Fax Setup > Receiving on the control panel.

Item Description

Receive Mode Selects the default fax receiving mode.

Ring To Answer Specifies the number of times the machine rings before

answering an incoming call.

Stamp Rcv Name

Automatically prints the page number, and the date

and time of reception at the bottom of each page of a

received fax.

Rcv Start Code

Initiates fax reception from an extension phone

plugged into the EXT socket on the back of the

machine. If you pick up the extension phone and hear

fax tones, enter the code. It is preset to *9* at the

factory.

Auto Reduction Automatically reduces an incoming fax page to fit the

size of the paper loaded in the machine.

Discard Size Discards a specific length from the end of the received

fax.

Junk Fax Setup

Blocks any unwanted faxes that you stored in the

memory as junk fax numbers. This setting may not be

available depending on your country.

DRPD Mode

Enables a user to use a single telephone line to answer

several different telephone numbers. You can set the

machine to recognize different ring patterns for each

number. This setting may not be available depending

on your country (see "Receiving faxes using DRPD

mode" on page 238).

Item Description

Fax

196

3. Useful Setting Menus

Another setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (fax) > (Menu) > Fax Setup on the control panel.

Item Description

Change Default Resets the value or setting to the printer’s out-of-box

state.

Smart Fax Diag The Smart Fax Diag feature optimizes the settings for

your fax line.

Manual TX/RX

Setting this option to ON provides the ability to send or

receive a fax while the line is busy. You can select to

send or receive a fax by either picking up the extension

phone receiver and pressing the Start button or by

pressing the On Hook Dial button and pressing the

Start button.

197

3. Useful Setting Menus

Scan

Scan feature

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

in scan mode, press (Menu) > Scan Feature on the control panel.

•C48xW series: When the Scan to button’s LED is on, the machine is in

scan mode.

•C48xFN/C48xFW series: Press (scan) on the control panel.

Item Description

USB Feature

Sets scan destination to a USB. You scan

the originals and save the scanned image

to a USB device.

•

USB Feature

Original Size

•

Email Feature

Original Size

•

Samsung Cloud

Original Size

Sets the image size.

•USB Feature > Original Type

•Email Feature > Original Type

•

Samsung Cloud

Original Type

Sets the original document’s type.

•USB Feature > Resolution

•Email Feature > Resolution

•Samsung Cloud > Resolution

Sets the image resolution.

•USB Feature > Color Mode

•Email Feature > Color Mode

•Samsung Cloud > Color Mode

Sets the color mode.

•USB Feature > Darkness

•Email Feature >Darkness

•Samsung Cloud > Darkness

Adjusts the brightness level to scan.

USB Feature > File Format

Sets the file format in which the image is

to be saved. If you select JPEG, TIFF, PDF,

or XPS, you can select to scan multiple

pages.

Item Description

Scan

198

3. Useful Setting Menus

Scan setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

In scan mode, press (Menu) > Scan Setup on the control panel.

•C48xW series: When the Scan to button’s LED is on, the machine is in

scan mode.

•C48xFN/C48xFW series: Press (scan) on the control panel.

Item Description

Change Default Resets the value or setting to the printer’s out-of-box

state.

Change Default >

USB Default

Resets the USB scan setting to the printer’s out-of-box

state.

Change Default >

Email Default

Resets the Email scan setting to the printer’s out-of-box

state.

Change Default >

Samsung Cloud

Resets the Samsung Cloud scan setting to the printer’s

out-of-box state.

Item Description

199

3. Useful Setting Menus

System setup

Machine setup

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine (see "Menu overview" on

page 33).

To change the menu options:

• Press (Menu) > System Setup > Machine Setup on the control panel.

Item Description

Machine ID Sets the machine ID which will be printed at the top of

each fax page that you send.

Fax Number Sets the fax number which will be printed at the top of

each fax page that you send.

Date & Time Sets the date and time.

Clock Mode Selects the format for displaying time between 12 hr. and

24 hr.

Language Sets the language of the text that appears on the control

panel display.

Default Mode Sets the default status.

Power Save

Sets how long the machine waits before going to power

save mode.

When the machine does not receive data for an extended

period of time, power consumption is automatically

lowered.

Auto Power Off Turns power off automatically when the machine has

been in power save mode for the length of time set in

Auto Power Off > On > Timeout.

• This option only appears in the C48x/C48xW

series.

• To turn the machine on again, press the

(Power/Wake Up) button on the control

panel (make sure the main power switch is on).

• If you run the printer driver or Samsung Easy

Printer Manager, the time automatically

extends.

• While the machine is connected to the

network or working on a print job, Auto

Power Off feature doesn't work.

Item Description

System setup

200

3. Useful Setting Menus

Wakeup Event

You can set the condition to wake up from power-save

mode.

•On: The machine wake up from the power save mode

on the following cases:

- Pressing any button

- Opening or closing the paper tray

- Inserting paper in the document feeder

•Off: The machine wake up from the power save mode

only when the Power/Wake Up button is pressed.

System Timeout

Sets the time that the machine remembers previously

used copy settings. After the timeout, the machine

restores the default copy settings.

Job Timeout

Sets the length of time the printer waits before printing

the last page of a print job that does not end with a

command to print the page.

Altitude Adj. Optimize print quality according to the machine’s

altitude.

Humidity Optimizes print quality according to the humidity in the

environment.

Item Description

Auto Continue

Determine whether or not the machine continues

printing when it detects the paper does not match the

paper settings.

•After 30 Sec: If a paper mismatch occurs, an error

message will display. The machine waits for about 30

second, then automatically clear the message and

continue printing.

•After 0 Sec: Even though a paper mismatch occurs,

the machine continues printing.

•Off: If a paper mismatch occurs, the machine waits

until you insert the correct paper.

Paper Substit.

Automatically substitutes the printer driver’s paper size

to prevent the paper mismatch between Letter and A4.

For example, if you have A4 paper in the tray but you set

the paper size to Letter in the printer driver, the machine

prints on A4 paper and vice versa.

Eco Settings

Allows you to save print resources and enables eco-

friendly printing.

•Default Mode: Select whether to turn the Eco mode

on or off.

On force (On-Forced): Sets the Eco mode on with

password. If a user wants to turn the Eco mode

on/off, the user needs to enter the password.

•Select Temp.: Selects the eco template set from the

SyncThru™ Web Service.

Item Description

Samsung Electronics Co SLC480FW Printer User Manual 3

Samsung Electronics Co Ltd Printer 3

Contents

User Manual 3

Navigation menu

Namespaces

Views

Navigation
