Printing problems
201
5. Troubleshooting
Before printing, the
machine emits vapor near
the output tray.
Using damp paper can cause vapor during
printing.
This is not a problem. Just keep printing.
The machine does not
print special-sized paper,
such as billing paper.
Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences.
The printed billing paper
is curled.
The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences , click Paper tab,
and set type to Thick.
Condition Possible cause Suggested solutions
202
5. Troubleshooting
Printing quality problems
If the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem.
Condition Suggested Solutions

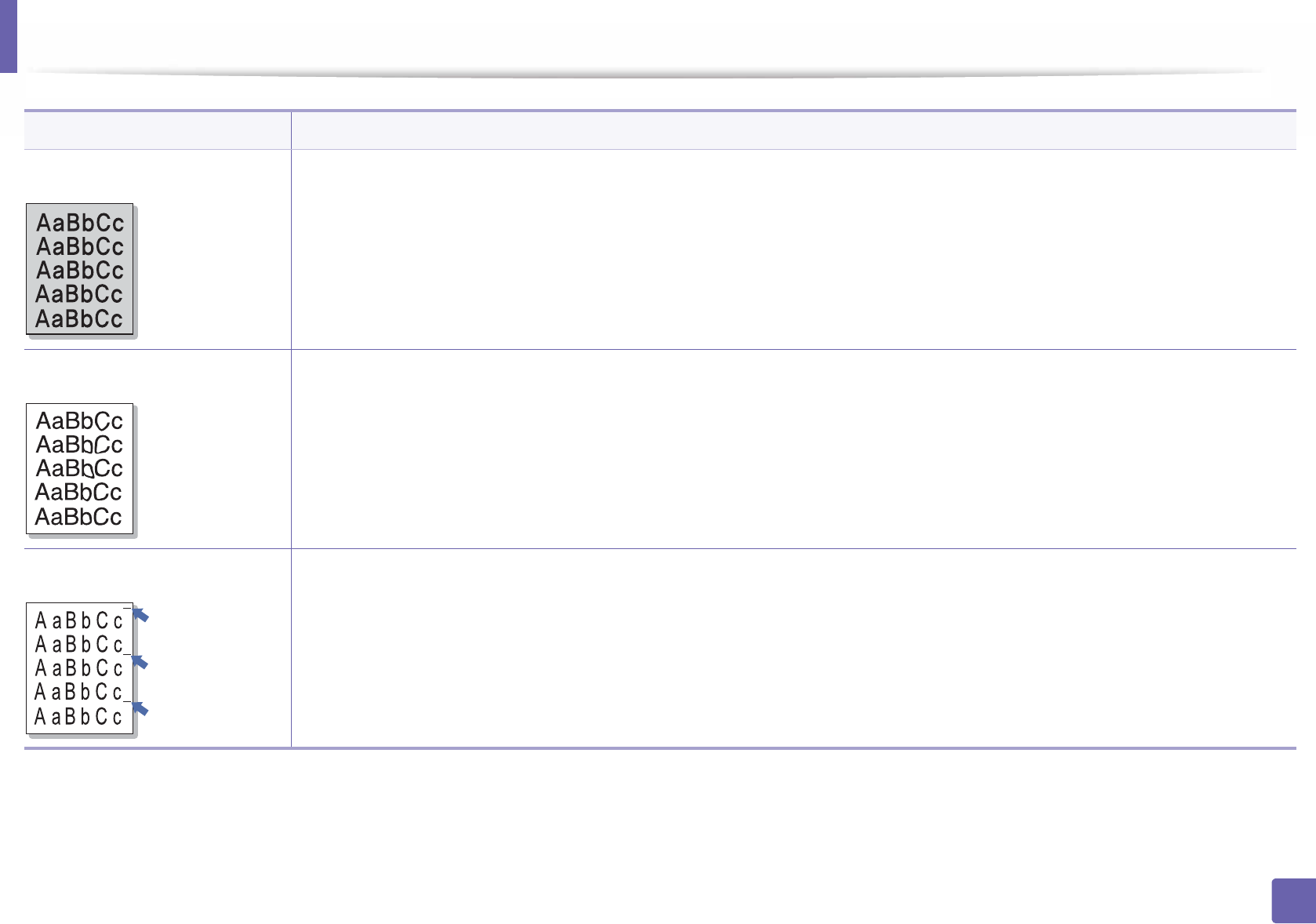

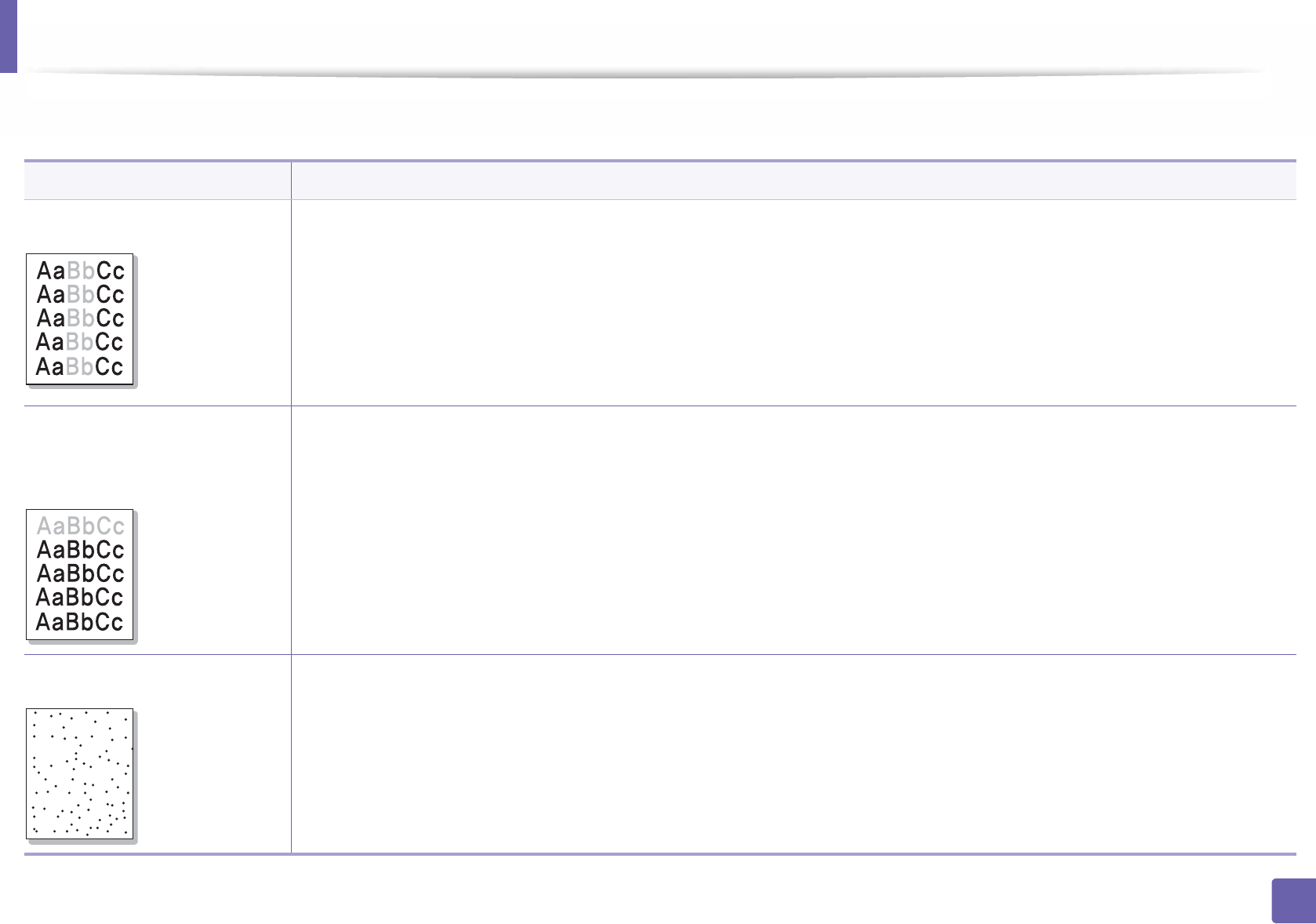

Light or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge.
• The paper may not meet paper specifications; for example, the paper may be too moist or rough.
• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn
the toner save mode off. See the help screen of the printer driver.
• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine.
• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine. If these steps do not correct the
problem, contact a service representative.
The top half of the paper is
printed lighter than the rest of
the paper
The toner might not adhere properly to this type of paper.
• Change the printer option and try again. Go to Printing Preferences , click the Paper tab, and set the paper type to Recycled.
Toner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.
• The transfer roller may be dirty. Clean the inside of your machine.
• The paper path may need cleaning. Contact a service representative.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Printing quality problems
203
5. Troubleshooting
Dropouts If faded areas, generally rounded, occur randomly on the page:
• A single sheet of paper may be defective. Try reprinting the job.
• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.
• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.
• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick.
If these steps do not correct the problem, contact a service representative.
White Spots If white spots appear on the page:
• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be
dirty. Clean the inside of your machine.
• The paper path may need cleaning. Clean the inside of your machine.
If these steps do not correct the problem, contact a service representative.
Vertical lines If black vertical streaks appear on the page:
• The surface (drum part) of the toner cartridge inside the machine has probably been scratched. Remove the toner cartridge and
install a new one.
If white vertical streaks appear on the page:
• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine. If these steps do not correct the
problem, contact a service representative.
Condition Suggested Solutions
AaBbC
AaBbC
AaBbC
AaBbC
AaBbC
Printing quality problems
204
5. Troubleshooting

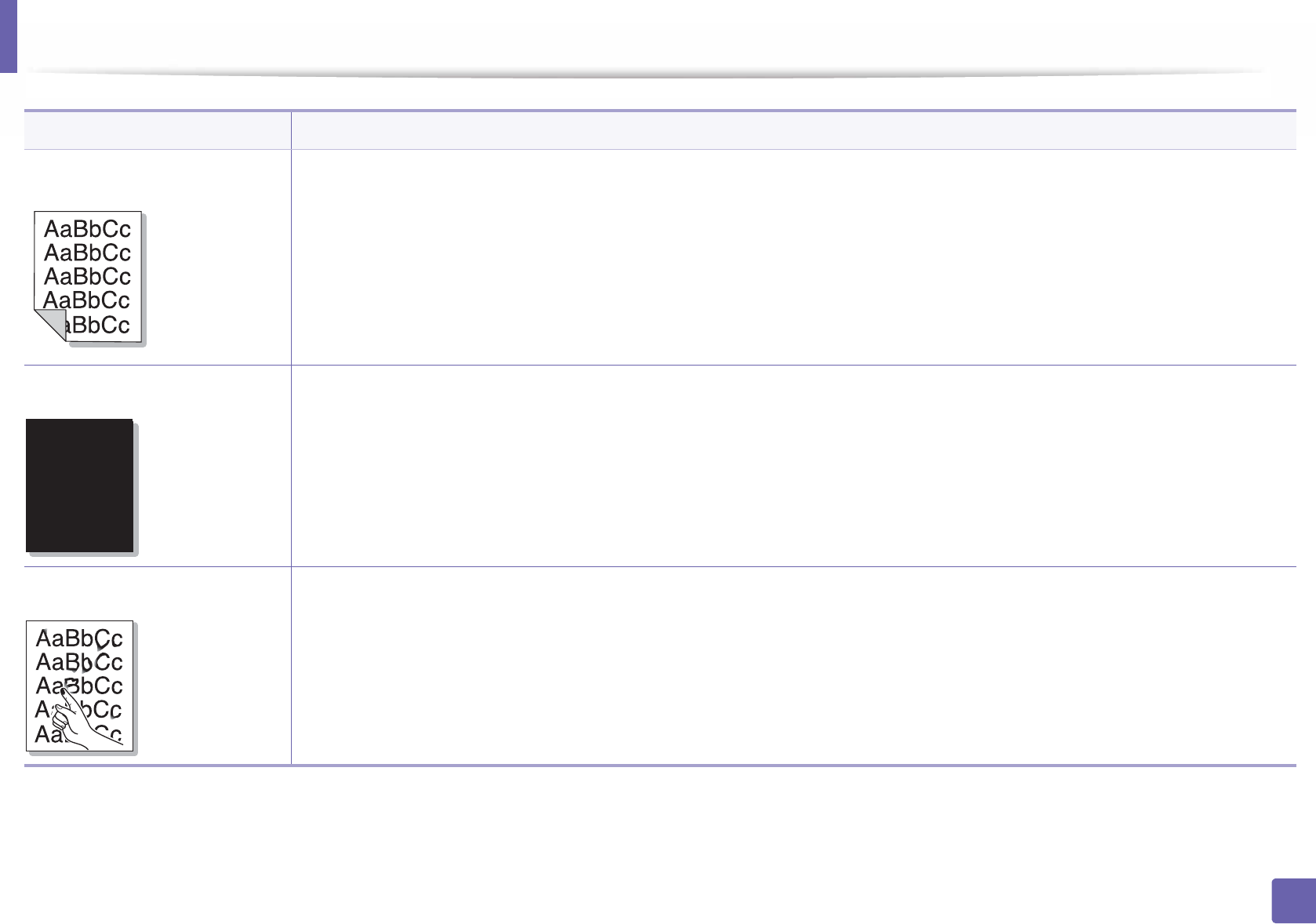

Black background If the amount of background shading becomes unacceptable:
• Change to a lighter weight paper.
• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount
of background shading.
• Remove the old toner cartridge and install a new one.
• Thoroughly redistribute the toner (see "Redistributing toner" on page 49).
Toner smear • Clean the inside of the machine.
• Check the paper type and quality.
• Remove the toner cartridge and install a new one.
Vertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:
• The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one.
• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after
a few more pages.
• The fusing assembly may be damaged. Contact a service representative.
Condition Suggested Solutions
Printing quality problems
205
5. Troubleshooting

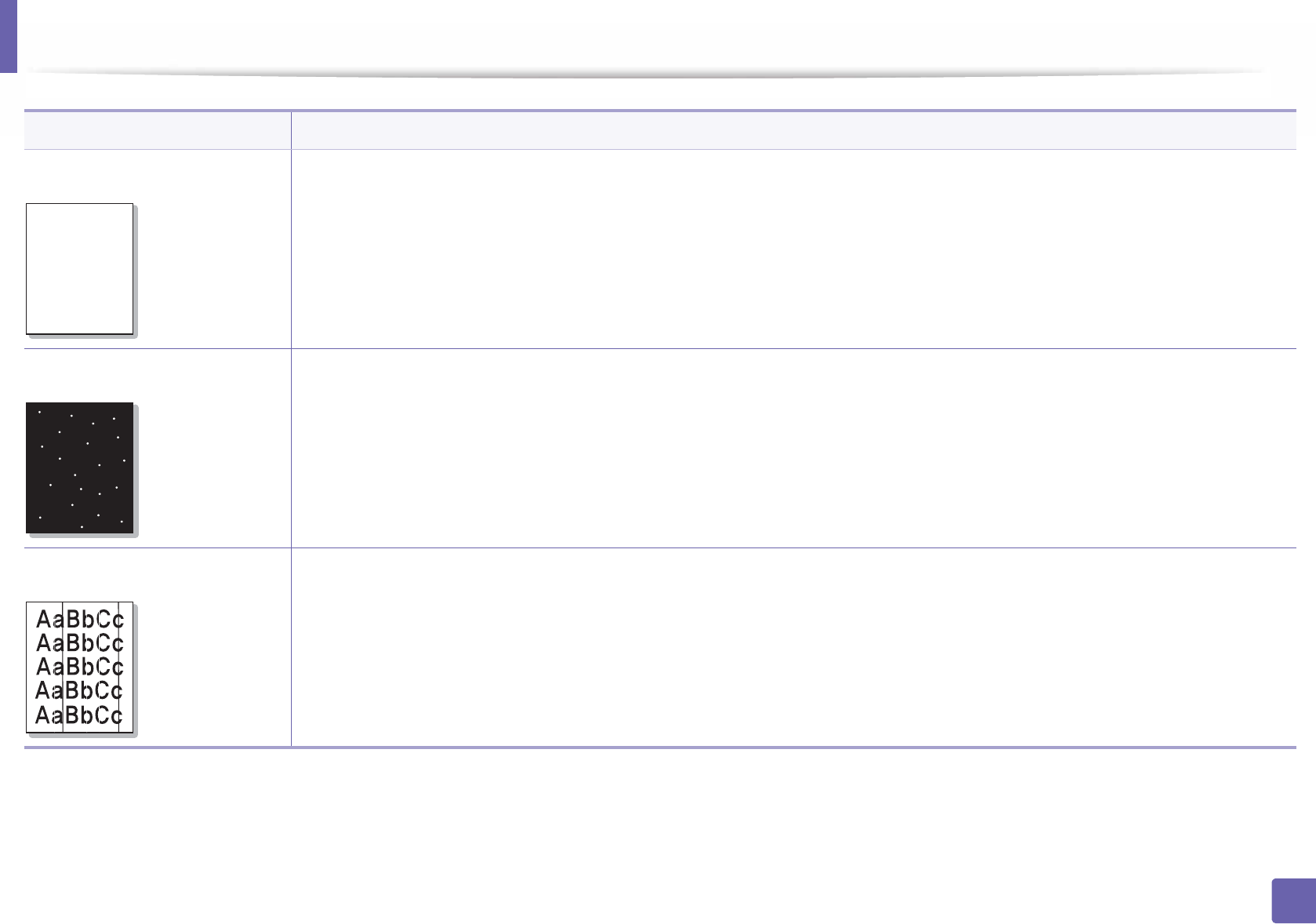

Background scatter Background scatter results from bits of toner randomly distributed on the printed page.
• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that
the paper does not absorb too much moisture.
• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams
on the reverse side. Printing on seams can cause problems.
Or select Thick Envelope from the Printing Preferences window (see "Opening printing preferences" on page 40).
• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application
or in Printing Preferences. Ensure the correct paper type is selected.
• If you are using a new toner cartridge, redistribute the toner first.
Toner particles are around bold
characters or pictures
The toner might not adhere properly to this type of paper.
• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled.
Ensure the correct paper type is selected.
Misformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.
Condition Suggested Solutions
A
Printing quality problems
206
5. Troubleshooting

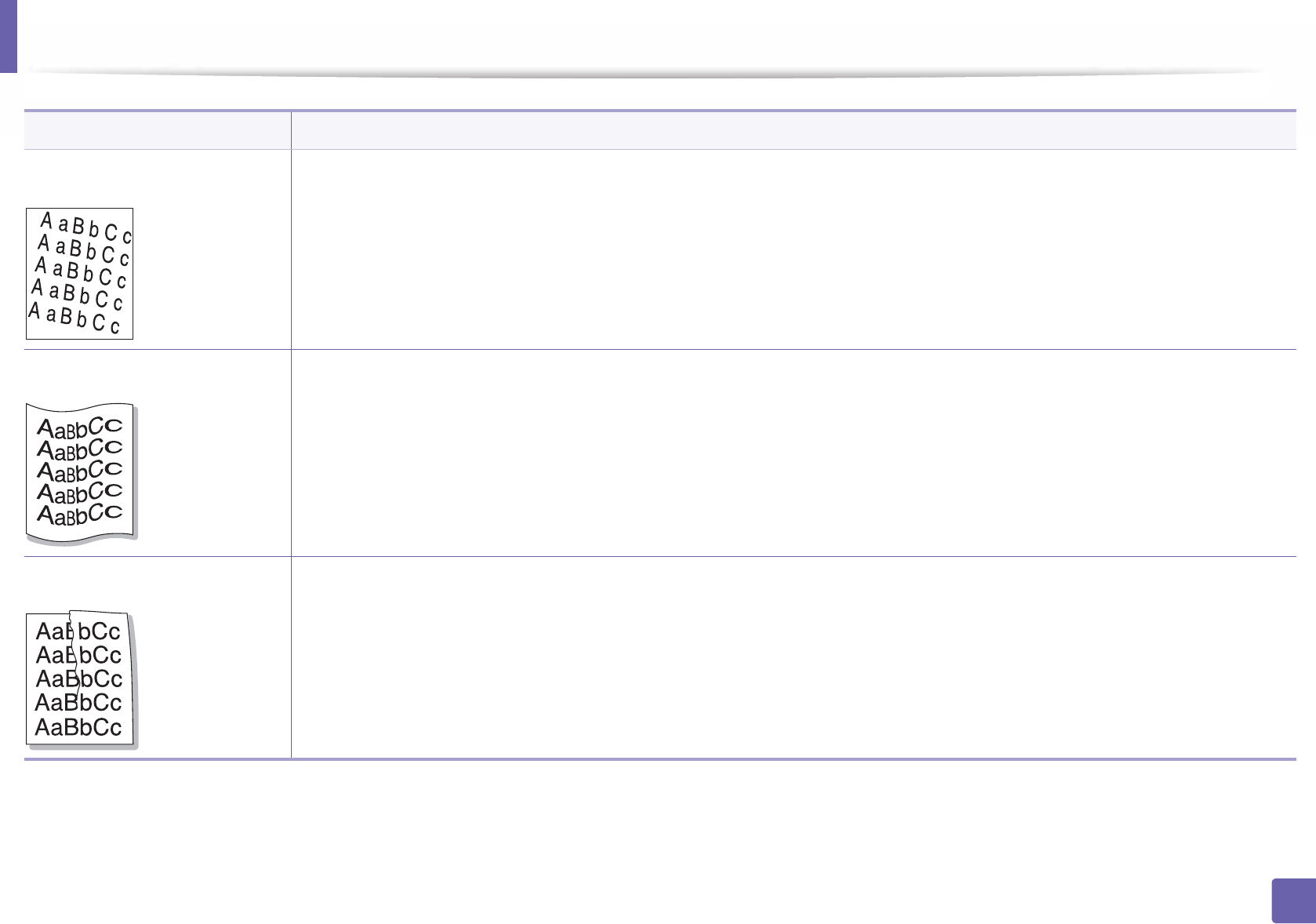

Page skew • Ensure that the paper is loaded properly.
• Check the paper type and quality.
• Ensure that the guides are not too tight or too loose against the paper stack.
Curl or wave • Ensure that the paper is loaded properly.
• Check the paper type and quality. Both high temperature and humidity can cause paper curl.
• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.
Wrinkles or creases • Ensure that the paper is loaded properly.
• Check the paper type and quality.
• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.
Condition Suggested Solutions
Printing quality problems
207
5. Troubleshooting

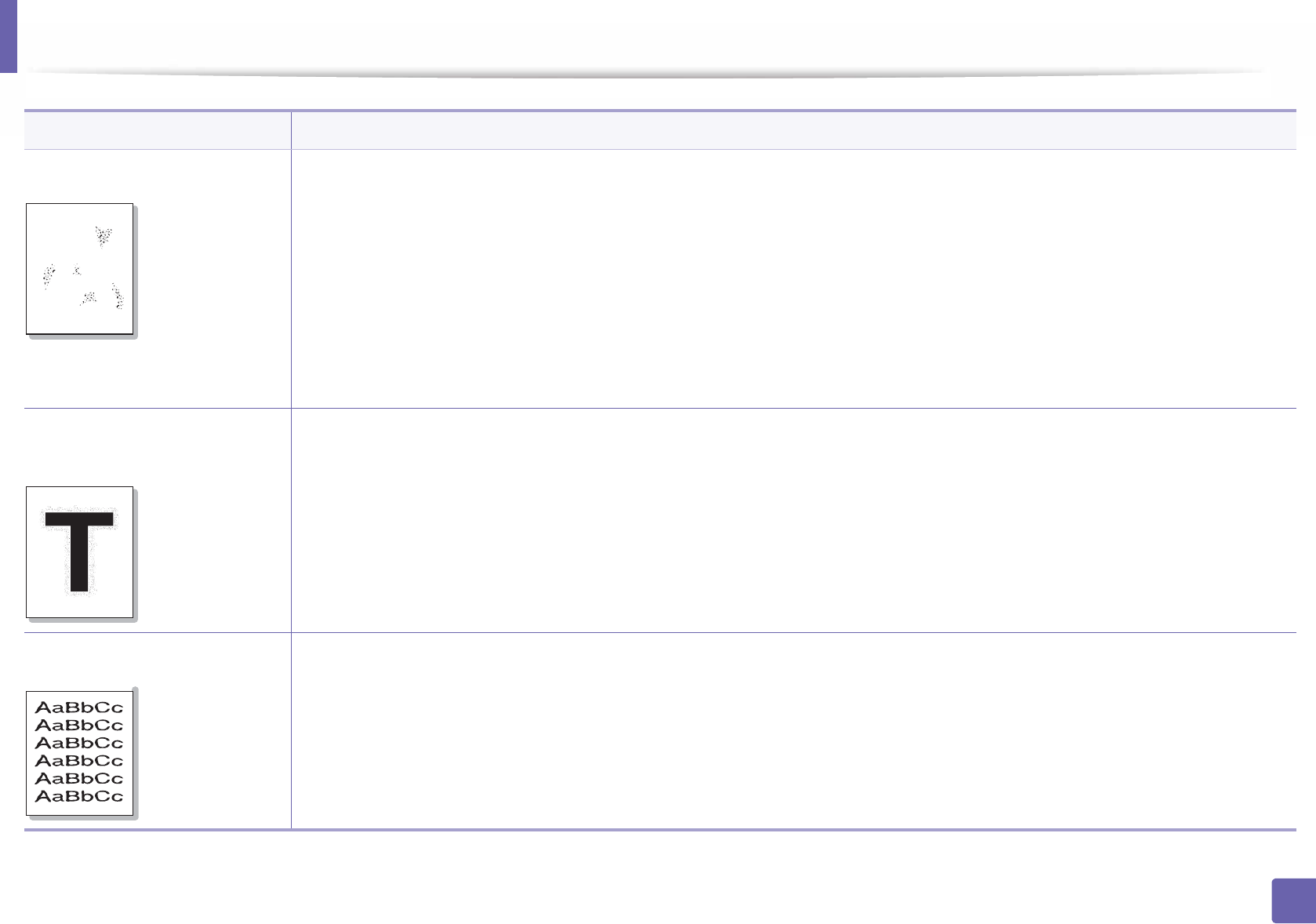

Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine.
Solid color or black pages • The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.
• The toner cartridge may be defective. Remove the toner cartridge and install a new one.
• The machine may require repairing. Contact a service representative.
Loose toner • Clean the inside of the machine.
• Check the paper type and quality.
• Remove the toner cartridge and then, install a new one.
If the problem persists, the machine may require repair. Contact a service representative.
Condition Suggested Solutions
A
Printing quality problems
208
5. Troubleshooting

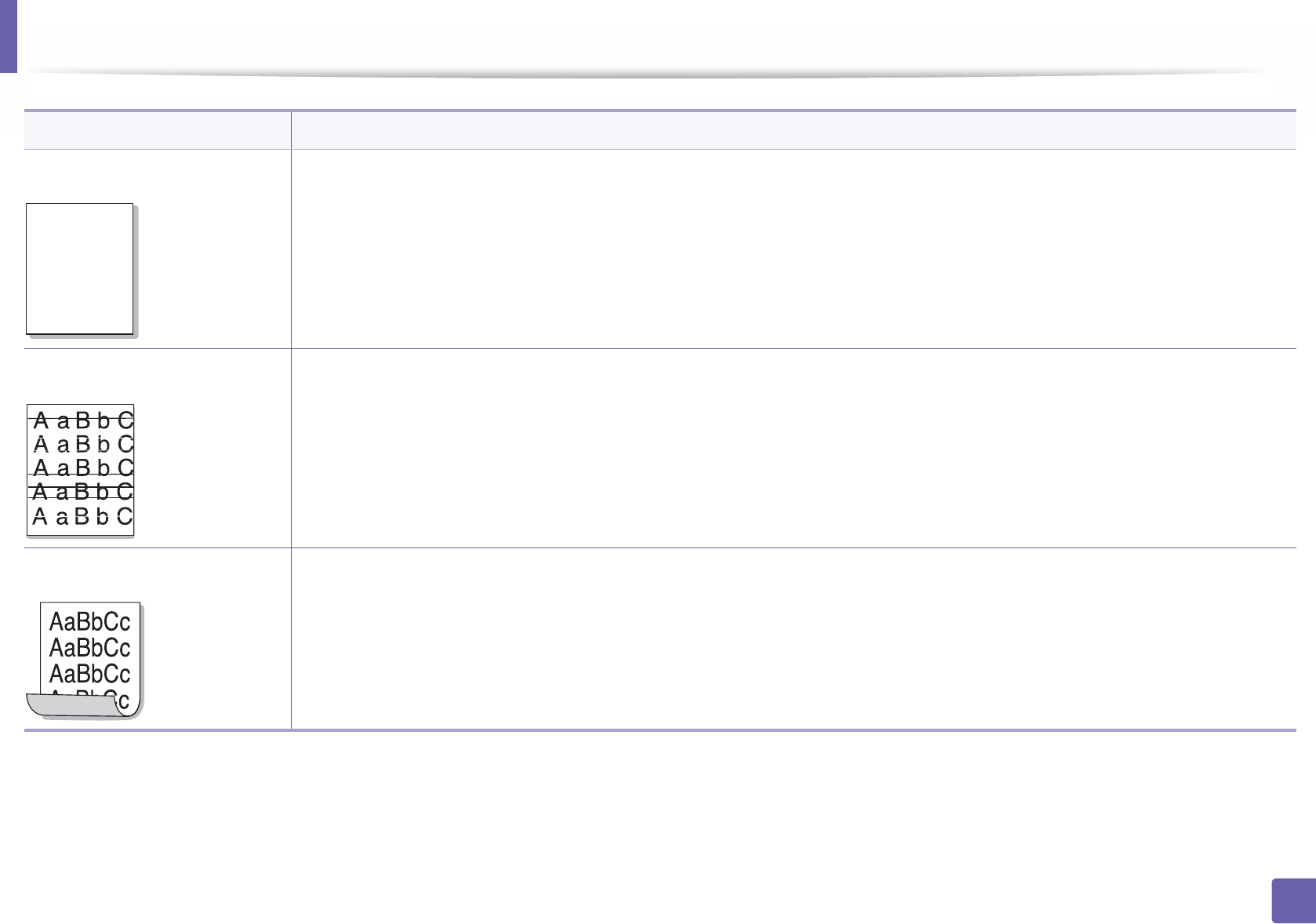

Character voids Character voids are white areas within parts of characters that should be solid black:
• If you are using transparencies, try another type of transparency. Because of the composition of transparencies, some character
voids are normal.
• You may be printing on the wrong surface of the paper. Remove the paper and turn it around.
• The paper may not meet paper specifications.
Horizontal stripes If horizontally aligned black streaks or smears appear:
• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.
• The toner cartridge may be defective. Remove the toner cartridge and install a new one.
If the problem persists, the machine may require repairing. Contact a service representative.
Curl If the printed paper is curled or paper does not feed into the machine:
• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.
• Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin.
Condition Suggested Solutions
A
Printing quality problems
209
5. Troubleshooting
•An unknown image
repetitively appears on a few
sheets
•Loose toner
•Light print or contamination
occurs
Your machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.
The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (See
"Altitude adjustment" on page 157).
Condition Suggested Solutions
210
5. Troubleshooting
Operating system problems
1
Common Windows problems
Refer to the Microsoft Windows User’s Guide that came with your computer for further information on Windows error messages.
Condition Suggested solutions
“File in Use” message appears
during installation.
Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.
“General Protection Fault”,
“Exception OE”, “Spool 32”, or
“Illegal Operation” messages
appear.
Close all other applications, reboot Windows and try printing again.
“Fail To Print”, “A printer
timeout error occurred”
message appear.
These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready
mode or after printing has completed, check the connection and/or whether an error has occurred.
Samsung Printer Experience is
not shown when you click more
settings.
Samsung Printer Experience is not installed. Download the app. from the Windows Store and install it.
Machine information is not
displayed when you click the
device in the Devices and
Printers.
Check the Printer properties. Click the Ports tab.
(Control Panel > Devices and Printers > Right-click on your printer icon and select Printer properties)
If the port is set to File or LPT, uncheck them and select TCP/IP, USB, or WSD.
Operating system problems
211
5. Troubleshooting
2
Common Mac problems
Refer to the Mac User’s Guide that came with your computer for further information on Mac error messages.
Condition Suggested solutions
The machine does not print PDF files
correctly. Some parts of graphics, text, or
illustrations are missing.
Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.
It will take longer to print when you print a PDF file as an image.
Some letters are not displayed normally
during cover page printing.
Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on
the cover page.
When printing a document in Mac with
Acrobat Reader 6.0 or higher, colors
print incorrectly.
Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.
Operating system problems
212
5. Troubleshooting
3
Common Linux problems
Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages.
Condition Suggested solutions
When printing more than one
copy, the second copy does not
print.
The problem occurs on Ubuntu 12.04 due to the problem in standard CUPS filter 'pdftops'. Update 'cups-filters' package to version
1.0.18 to fix the problem ('pdftops' is a part of 'cups-filters' package).
Unchecking the collate option
in the Print Dialog does not
work.
For some distributions, GNOME Print Dialog has an issue handling the collate option. As workaround, set the default value of collate
option to False using the system's printing utility(execute "system-config-printer" in the Terminal program).
Printing always works with
duplex.
This duplex issue was in Ubuntu 9.10 CUPS package. Update CUPS version to 1.4.1-5ubuntu2.2.
Printer is not added through
system's printing utility.
The problem occurs on Debian 7 due to the defect in 'system-config-printer' package of the Debian 7 (http://bugs.debian.org/cgi-bin/
bugreport.cgi?bug=662813 in Debian bug tracking system). Please use another way to add printer (CUPS WebUI for example)
Paper size and orientation are
disabled in the Print Dialog
when opening text files.
The problem occurs on Fedora 19 and it's related to 'leafpad' text editor on Fedora 19. Please use other text editors like 'gedit'.
213
Contact SAMSUNG worldwide
Contact SAMSUNG worldwide
If you have any comments or questions regarding Samsung products, contact
the Samsung customer care center.
Country/Region Customer Care Center WebSite
ALGERIA 021 36 11 00 www.samsung.com/
n_africa/support
ARGENTINE 0800-333-3733 www.samsung.com/
ar/support
ARMENIA 0-800-05-555 www.samsung.com/
support
AUSTRALIA 1300 362 603 www.samsung.com/
au/support
AUSTRIA 0800 - SAMSUNG (0800 -
7267864)
www.samsung.com/
at/support
AZERBAIJAN 0-88-555-55-55 www.samsung.com/
support
BAHRAIN
8000-GSAM (8000-4726) www.samsung.com/
ae/support (English)
www.samsung.com/
ae_ar/support (Arabic)
BELARUS 810-800-500-55-500 www.samsung.com/
support
BANGLADESH 09612300300 www.samsung.com/
in/support
BELGIUM
02-201-24-18 www.samsung.com/
be/support (Dutch)
www.samsung.com/
be_fr/support (French)
BOLIVIA 800-10-7260
[HHP] 4828210
www.samsung.com/
cl/support
BOSNIA 051 331 999 www.samsung.com/
support
BOTSWANA 8007260000 www.samsung.com/
support
BRAZIL
0800-124-421 (Demais cidades e
regiões)
4004-0000 (Capitais e grandes
centros)
www.samsung.com/
br/support
BULGARIA 800 111 31 , Безплатна
телефонна линия
www.samsung.com/
bg/support
BURUNDI 200 www.samsung.com/
support
CAMEROON 7095- 0077 www.samsung.com/
africa_fr/support
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
214
Contact SAMSUNG worldwide
CANADA
1-800-SAMSUNG (726-7864) www.samsung.com/
ca/support(English)
www.samsung.com/
ca_fr/support (French)
CHILE 800-SAMSUNG (726-7864)
[HHP] 02-24828200
www.samsung.com/
cl/support
CHINA 400-810-5858 www.samsung.com/
cn/support
COLOMBIA
Bogotá 600 12 72
Gratis desde cualquier parte del
país 01 8000 112 112 ó desde su
celular #SAM(726)
www.samsung.com/
co/support
COSTA RICA
0-800-507-7267
00-800-1-SAMSUNG (726-7864)
www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
CROATIA 072 726 786 www.samsung.com/
hr/support
Cote D’ Ivoire 8000 0077 www.samsung.com/
africa_fr/support
Country/Region Customer Care Center WebSite
CYPRUS 8009 4000 only from landline, toll
free
www.samsung.com/
gr/support
CZECH 800-SAMSUNG (800-726786) www.samsung.com/
cz/support
DENMARK 70 70 19 70 www.samsung.com/
dk/support
DOMINICA
1-800-751-2676 www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
DRC 499999 www.samsung.com/
support
ECUADOR
1-800-10-72670
1-800-SAMSUNG (72-6786)
www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/
support(English)
EGYPT 08000-726786
16580
www.samsung.com/
eg/support
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
215
Contact SAMSUNG worldwide
EIRE 0818 717100 www.samsung.com/
ie/support
EL SALVADOR
800-6225 www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
ESTONIA 800-7267 www.samsung.com/
ee/support
FINLAND 030-6227 515 www.samsung.com/fi/
support
FRANCE 01 48 63 00 00 www.samsung.com/
fr/support
GERMANY
0180 6 SAMSUNG bzw.
0180 6 7267864*
[HHP] 0180 6 M SAMSUNG bzw.
0180 6 67267864* (*0,20 €/Anruf
aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/Anruf)
www.samsung.com/
de/support
GEORGIA 0-800-555-555 www.samsung.com/
support
Country/Region Customer Care Center WebSite
GHANA 0800-10077
0302-200077
www.samsung.com/
africa_en/support
GREECE
80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
www.samsung.com/
gr/support
GUATEMALA
1-800-299-0013
1-800-299-0033
www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
HONDURAS
800-2791-9267
800-2791-9111
www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
HONG KONG
(852) 3698 4698 www.samsung.com/
hk/support (Chinese)
www.samsung.com/
hk_en/support
(English)
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
216
Contact SAMSUNG worldwide
HUNGARY 0680SAMSUNG (0680-726-786)
0680PREMIUM (0680-773-648)
www.samsung.com/
hu/support
INDIA 1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
www.samsung.com/
in/support
INDONESIA 021-56997777
08001128888
www.samsung.com/
id/support
IRAN 021-8255 www.samsung.com/
iran/support
ITALIA
800-SAMSUNG (800.7267864)
[HHP] 800.Msamsung
(800.67267864)
www.samsung.com/
it/support
JAMAICA
1-800-234-7267
1-800-SAMSUNG (726-7864)
www.samsung.com/
latin_en/support
(English)
JAPAN 0120-363-905 www.samsung.com/
jp/support
JORDAN
0800-22273
06 5777444
www.samsung.com/
levant/support
(English)
KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799,
VIP care 7700)
www.samsung.com/
support
Country/Region Customer Care Center WebSite
KENYA 0800 545 545 www.samsung.com/
support
KUWAIT
183-CALL (183-2255) www.samsung.com/
ae/support (English)
www.samsung.com/
ae_ar/support (Arabic)
KYRGYZSTAN 8-10-800-500-55-500 www.samsung.com/
kz_ru/support
LATVIA 8000-7267 www.samsung.com/
lv/support
LITHUANIA 8-800-77777 www.samsung.com/
lt/support
LUXEMBURG 261 03 710 www.samsung.com/
support
MACAU 0800 333 www.samsung.com/
support
MACEDONIA 023 207 777
MALAYSIA
1800-88-9999
603-77137477 (Overseas
contact)
www.samsung.com/
my/support
MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/
mx/support
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
217
Contact SAMSUNG worldwide
MOLDOVA 0-800-614-40 www.samsung.com/
support
MONGOLIA 7-495-363-17-00 www.samsung.com/
support
MONTENEGRO 020 405 888 www.samsung.com/
support
MOROCCO 080 100 2255 www.samsung.com/
n_africa/support
MOZAMBIQUE 847267864 / 827267864 www.samsung.com/
support
MYANMAR 01-2399888 www.samsung.com/
support
NAMIBIA 08 197 267864 www.samsung.com/
support
NIGERIA 0800-726-7864 www.samsung.com/
africa_en/support
NETHERLANDS 0900-SAMSUNG (0900-7267864)
(€ 0,10/Min)
www.samsung.com/
nl/support
NEW ZEALAND 0800 726 786 www.samsung.com/
nz/support
Country/Region Customer Care Center WebSite
NICARAGUA
001-800-5077267 www.samsung.com/
latin/support(Spanish)
www.samsung.com/
latin_en/support
(English)
NORWAY 815 56480 www.samsung.com/
no/support
OMAN
800-SAMSUNG (800 - 726 7864) www.samsung.com/
ae/support (English)
www.samsung.com/
ae_ar/support (Arabic)
PAKISTAN 0800-Samsung (72678) www.samsung.com/
pk/support
PANAMA
800-7267
800-0101
www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
218
Contact SAMSUNG worldwide
PARAGUAY
009-800-542-0001 www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
PERU 0-800-777-08 www.samsung.com/
pe/support
PHILIPPINES
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline
and Mobile]
02-4222111 [Other landline]
www.samsung.com/
ph/support
POLAND
0 801-172-678* lub +48 22 607-
93-33 *
[HHP] 0 801-672-678* lub +48 22
607-93-33*
* (koszt połączenia według taryfy
operatora)
www.samsung.com/
pl/support
PORTUGAL 808 20 7267 www.samsung.com/
pt/support
Country/Region Customer Care Center WebSite
PUERTO RICO
1-800-682-3180 www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
QATAR
800-CALL (800-2255) www.samsung.com/
ae/support (English)
www.samsung.com/
ae_ar/support (Arabic)
RWANDA 9999 www.samsung.com/
support
ROMANIA
08008 726 78 64 (08008
SAMSUNG )
Apel GRATUIT
www.samsung.com/
ro/support
RUSSIA 8-800-555-55-55 www.samsung.com/
ru/support
SAUDI ARABIA
920021230 www.samsung.com/
sa/support
www.samsung.com/
sa_en/support
(English)/
SENEGAL 800-00-0077 www.samsung.com/
africa_fr/support
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
219
Contact SAMSUNG worldwide
SERBIA 011 321 6899 www.samsung.com/
rs/support
SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/
sg/support
SLOVENIA 080 697 267
090 726 786
www.samsung.com/
rs/si
SLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com/
sk/support
SOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/
support
SPAIN 0034902172678
[HHP] 0034902167267
www.samsung.com/
es/support
SRI LANKA 0094117540540
0094115900000
www.samsung.com/
support
SUDAN 1969 www.samsung.com/
support
SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/
se/support
SWITZERLAND
0800 726 78 64 (0800-SAMSUNG) www.samsung.com/
ch/support (German)
www.samsung.com/
ch_fr/support (French)
Country/Region Customer Care Center WebSite
SYRIA
18252273 www.samsung.com/
levant/support
(English)
TADJIKISTAN 8-10-800-500-55-500 www.samsung.com/
support
TAIWAN 0800-329999 www.samsung.com/
tw/support
TANZANIA 0800 755 755 www.samsung.com/
support
THAILAND 0-2689-3232,
1800-29-3232
www.samsung.com/
th/support
TRINIDAD &
TOBAGO
1-800-SAMSUNG (726-7864) www.samsung.com/
latin/support
(Spanish)
www.samsung.com/
latin_en/support
(English)
TURKEY 444 77 11 www.samsung.com/
tr/support
TUNISIA 80-1000-12 www.samsung.com/
n_africa/support
Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide
220
Contact SAMSUNG worldwide
U.A.E
800-SAMSUNG (800 -726 7864) www.samsung.com/
ae/support (English)
www.samsung.com/
ae_ar/support (Arabic)
UK 0330 SAMSUNG (7267864) www.samsung.com/
uk/support
U.S.A
-Consummer
Electonics
1-800-SAMSUNG (726-7864) www.samsung.com/
us/support
U.S.A
(Mobile Phones)
1-800-SAMSUNG (72-6786)
[HHP] 1-888-987-HELP(4357)
www.samsung.com/
us/support
UGANDA 0800 300 300 www.samsung.com/
support
UKRAINE
0-800-502-000 www.samsung.com/
ua/support (Ukrainian)
www.samsung.com/
ua_ru/support
(Russian)
URUGUAY
000- 405-437-33 www.samsung.com/
latin/support(Spanish)
www.samsung.com/
latin_en/
support(English)
Country/Region Customer Care Center WebSite
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/
support
VENEZUELA 0-800-SAMSUNG (726-7864) www.samsung.com/
ve/support
VIETNAM 1800 588 889 www.samsung.com/
vn/support
ZAMBIA 0211 350370 www.samsung.com/
support
Country/Region Customer Care Center WebSite
221
.
Glossary
The following glossary helps you get familiar with the product by
understanding the terminologies commonly used with printing as well as
mentioned in this user’s guide.
802.11
802.11 is a set of standards for wireless local area network (WLAN)
communication, developed by the IEEE LAN/MAN Standards Committee (IEEE
802).
802.11b/g/n
802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b
supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150
Mbps. 802.11b/g/n devices may occasionally suffer interference from
microwave ovens, cordless telephones, and Bluetooth devices.
Access point
Access Point or Wireless Access Point (AP or WAP) is a device that connects
wireless communication devices together on wireless local area networks
(WLAN), and acts as a central transmitter and receiver of WLAN radio signals.
ADF
An Automatic Document Feeder (ADF) is a scanning unit that will automatically
feed an original sheet of paper so that the machine can scan some amount of the
paper at once.
AppleTalk
AppleTalk is a proprietary suite of protocols developed by Apple, Inc for
computer networking. It was included in the original Mac (1984) and is now
deprecated by Apple in favor of TCP/IP networking.
BIT Depth
A computer graphics term describing the number of bits used to represent the
color of a single pixel in a bitmapped image. Higher color depth gives a broader
range of distinct colors. As the number of bits increases, the number of possible
colors becomes impractically large for a color map. 1-bit color is commonly
called as monochrome or black and white.
BMP
A bitmapped graphics format used internally by the Microsoft Windows
graphics subsystem (GDI), and used commonly as a simple graphics file format
on that platform.
Glossary
222
.
BOOTP
Bootstrap Protocol. A network protocol used by a network client to obtain its IP
address automatically. This is usually done in the bootstrap process of
computers or operating systems running on them. The BOOTP servers assign
the IP address from a pool of addresses to each client. BOOTP enables 'diskless
workstation' computers to obtain an IP address prior to loading any advanced
operating system.
CCD
Charge Coupled Device (CCD) is a hardware which enables the scan job. CCD
Locking mechanism is also used to hold the CCD module to prevent any damage
when you move the machine.
Collation
Collation is a process of printing a multiple-copy job in sets. When collation is
selected, the device prints an entire set before printing additional copies.
Control Panel
A control panel is a flat, typically vertical, area where control or monitoring
instruments are displayed. They are typically found in front of the machine.
Coverage
It is the printing term used for a toner usage measurement on printing. For
example, 5% coverage means that an A4 sided paper has about 5% image or text
on it. So, if the paper or original has complicated images or lots of text on it, the
coverage will be higher and at the same time, a toner usage will be as much as
the coverage.
CSV
Comma Separated Values (CSV). A type of file format, CSV is used to exchange
data between disparate applications. The file format, as it is used in Microsoft
Excel, has become a de facto standard throughout the industry, even among
non-Microsoft platforms.
DADF
A Duplex Automatic Document Feeder (DADF) is a scanning unit that will
automatically feed and turn over an original sheet of paper so that the machine
can scan on both sides of the paper.
Default
The value or setting that is in effect when taking a printer out of its box state,
reset, or initialized.
Glossary
223
.
DHCP
A Dynamic Host Configuration Protocol (DHCP) is a client-server networking
protocol. A DHCP server provides configuration parameters specific to the DHCP
client host requesting, generally, information required by the client host to
participate on an IP network. DHCP also provides a mechanism for allocation of
IP addresses to client hosts.
DIMM
Dual Inline Memory Module (DIMM), a small circuit board that holds memory.
DIMM stores all the data within the machine like printing data, received fax data.
DLNA
The Digital Living Network Alliance (DLNA) is a standard that allows devices on
a home network to share information with each other across the network.
DNS
The Domain Name Server (DNS) is a system that stores information associated
with domain names in a distributed database on networks, such as the Internet.
Dot Matrix Printer
A dot matrix printer refers to a type of computer printer with a print head that
runs back and forth on the page and prints by impact, striking an ink-soaked
cloth ribbon against the paper, much like a typewriter.
DPI
Dots Per Inch (DPI) is a measurement of resolution that is used for scanning and
printing. Generally, higher DPI results in a higher resolution, more visible detail
in the image, and a larger file size.
DRPD
Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company
service which enables a user to use a single telephone line to answer several
different telephone numbers.
Duplex
A mechanism that will automatically turn over a sheet of paper so that the
machine can print (or scan) on both sides of the paper. A printer equipped with
a Duplex Unit can print on both sides of paper during one print cycle.
Duty Cycle
Duty cycle is the page quantity which does not affect printer performance for a
month. Generally the printer has the lifespan limitation such as pages per year.
The lifespan means the average capacity of print-outs, usually within the
warranty period. For example, if the duty cycle is 48,000 pages per month
assuming 20 working days, a printer limits 2,400 pages a day.
Glossary
224
.
ECM
Error Correction Mode (ECM) is an optional transmission mode built into Class 1
fax machines or fax modems. It automatically detects and corrects errors in the
fax transmission process that are sometimes caused by telephone line noise.
Emulation
Emulation is a technique of one machine obtaining the same results as another.
An emulator duplicates the functions of one system with a different system, so
that the second system behaves like the first system. Emulation focuses on exact
reproduction of external behavior, which is in contrast to simulation, which
concerns an abstract model of the system being simulated, often considering its
internal state.
Ethernet
Ethernet is a frame-based computer networking technology for local area
networks (LANs). It defines wiring and signaling for the physical layer, and frame
formats and protocols for the media access control (MAC)/data link layer of the
OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most
widespread LAN technology in use during the 1990s to the present.
EtherTalk
A suite of protocols developed by Apple Computer for computer networking. It
was included in the original Mac (1984) and is now deprecated by Apple in favor
of TCP/IP networking.
FDI
Foreign Device Interface (FDI) is a card installed inside the machine to allow a
third party device such as a coin operated device or a card reader. Those devices
allow the pay-for-print service on your machine.
FTP
A File Transfer Protocol (FTP) is a commonly used protocol for exchanging files
over any network that supports the TCP/IP protocol (such as the Internet or an
intranet).
Fuser Unit
The part of a laser printer that fuses the toner onto the print media. It consists of
a heat roller and a pressure roller. After toner is transferred onto the paper, the
fuser unit applies heat and pressure to ensure that the toner stays on the paper
permanently, which is why paper is warm when it comes out of a laser printer.
Glossary
225
.
Gateway
A connection between computer networks, or between a computer network
and a telephone line. It is very popular, as it is a computer or a network that
allows access to another computer or network.
Grayscale
A shade of gray that represents light and dark portions of an image when color
images are converted to grayscale; colors are represented by various shades of
gray.
Halftone
An image type that simulates grayscale by varying the number of dots. Highly
colored areas consist of a large number of dots, while lighter areas consist of a
smaller number of dots.
Mass storage device
Mass storage device, commonly referred to as a hard drive or hard disk, is a non-
volatile storage device which stores digitally-encoded data on rapidly rotating
platters with magnetic surfaces.
IEEE
The Institute of Electrical and Electronics Engineers (IEEE) is an international
non-profit, professional organization for the advancement of technology
related to electricity.
IEEE 1284
The 1284 parallel port standard was developed by the Institute of Electrical and
Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector
type on the end of the parallel cable that attaches to the peripheral (for example,
a printer).
Intranet
A private network that uses Internet Protocols, network connectivity, and
possibly the public telecommunication system to securely share part of an
organization's information or operations with its employees. Sometimes the
term refers only to the most visible service, the internal website.
IP address
An Internet Protocol (IP) address is a unique number that devices use in order to
identify and communicate with each other on a network utilizing the Internet
Protocol standard.
Glossary
226
.
IPM
The Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM
rate indicates the number of single-sided sheets a printer can complete within
one minute.
IPP
The Internet Printing Protocol (IPP) defines a standard protocol for printing as
well as managing print jobs, media size, resolution, and so forth. IPP can be used
locally or over the Internet to hundreds of printers, and also supports access
control, authentication, and encryption, making it a much more capable and
secure printing solution than older ones.
IPX/SPX
IPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a
networking protocol used by the Novell NetWare operating systems. IPX and
SPX both provide connection services similar to TCP/IP, with the IPX protocol
having similarities to IP, and SPX having similarities to TCP. IPX/SPX was
primarily designed for local area networks (LANs), and is a very efficient protocol
for this purpose (typically its performance exceeds that of TCP/IP on a LAN).
ISO
The International Organization for Standardization (ISO) is an international
standard-setting body composed of representatives from national standards
bodies. It produces world-wide industrial and commercial standards.
ITU-T
The International Telecommunication Union is an international organization
established to standardize and regulate international radio and
telecommunications. Its main tasks include standardization, allocation of the
radio spectrum, and organizing interconnection arrangements between
different countries to allow international phone calls. A -T out of ITU-T indicates
telecommunication.
ITU-T No. 1 chart
Standardized test chart published by ITU-T for document facsimile
transmissions.
JBIG
Joint Bi-level Image Experts Group (JBIG) is an image compression standard with
no loss of accuracy or quality, which was designed for compression of binary
images, particularly for faxes, but can also be used on other images.
JPEG
Joint Photographic Experts Group (JPEG) is a most commonly used standard
method of lossy compression for photographic images. It is the format used for
storing and transmitting photographs on the World Wide Web.
Glossary
227
.
LDAP
The Lightweight Directory Access Protocol (LDAP) is a networking protocol for
querying and modifying directory services running over TCP/IP.
LED
A Light-Emitting Diode (LED) is a semiconductor device that indicates the status
of a machine.
MAC address
Media Access Control (MAC) address is a unique identifier associated with a
network adapter. MAC address is a unique 48-bit identifier usually written as 12
hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address
is usually hard-coded into a Network Interface Card (NIC) by its manufacturer,
and used as an aid for routers trying to locate machines on large networks.
MFP
Multi Function Peripheral (MFP) is an office machine that includes the following
functionality in one physical body, so as to have a printer, a copier, a fax, a
scanner and etc.
MH
Modified Huffman (MH) is a compression method for decreasing the amount of
data that needs to be transmitted between the fax machines to transfer the
image recommended by ITU-T T.4. MH is a codebook-based run-length
encoding scheme optimized to efficiently compress white space. As most faxes
consist mostly of white space, this minimizes the transmission time of most
faxes.
MMR
Modified Modified READ (MMR) is a compression method recommended by ITU-
T T.6.
Modem
A device that modulates a carrier signal to encode digital information, and also
demodulates such a carrier signal to decode transmitted information.
MR
Modified Read (MR) is a compression method recommended by ITU-T T.4. MR
encodes the first scanned line using MH. The next line is compared to the first,
the differences determined, and then the differences are encoded and
transmitted.
Glossary
228
.
NetWare
A network operating system developed by Novell, Inc. It initially used
cooperative multitasking to run various services on a PC, and the network
protocols were based on the archetypal Xerox XNS stack. Today NetWare
supports TCP/IP as well as IPX/SPX.
OPC
Organic Photo Conductor (OPC) is a mechanism that makes a virtual image for
print using a laser beam emitted from a laser printer, and it is usually green or
rust colored and has a cylinder shape.
An imaging unit containing a drum slowly wears the drum surface by its usage
in the printer, and it should be replaced appropriately since it gets worn from
contact with the cartridge development brush, cleaning mechanism, and paper.
Originals
The first example of something, such as a document, photograph or text, etc,
which is copied, reproduced or translated to produce others, but which is not
itself copied or derived from something else.
OSI
Open Systems Interconnection (OSI) is a model developed by the International
Organization for Standardization (ISO) for communications. OSI offers a
standard, modular approach to network design that divides the required set of
complex functions into manageable, self-contained, functional layers. The layers
are, from top to bottom, Application, Presentation, Session, Transport, Network,
Data Link and Physical.
PABX
A private automatic branch exchange (PABX) is an automatic telephone
switching system within a private enterprise.
PCL
Printer Command Language (PCL) is a Page Description Language (PDL)
developed by HP as a printer protocol and has become an industry standard.
Originally developed for early inkjet printers, PCL has been released in varying
levels for thermal, dot matrix printer, and laser printers.
PDF
Portable Document Format (PDF) is a proprietary file format developed by
Adobe Systems for representing two dimensional documents in a device
independent and resolution independent format.
Glossary
229
.
PostScript
PostScript (PS) is a page description language and programming language used
primarily in the electronic and desktop publishing areas. - that is run in an
interpreter to generate an image.
Printer Driver
A program used to send commands and transfer data from the computer to the
printer.
Print Media
The media like paper, envelopes, labels, and transparencies which can be used
in a printer, a scanner, a fax or, a copier.
PPM
Pages Per Minute (PPM) is a method of measurement for determining how fast
a printer works, meaning the number of pages a printer can produce in one
minute.
PRN file
An interface for a device driver, this allows software to interact with the device
driver using standard input/output system calls, which simplifies many tasks.
Protocol
A convention or standard that controls or enables the connection,
communication, and data transfer between two computing endpoints.
PS
See PostScript.
PSTN
The Public-Switched Telephone Network (PSTN) is the network of the world's
public circuit-switched telephone networks which, on industrial premises, is
usually routed through the switchboard.
RADIUS
Remote Authentication Dial In User Service (RADIUS) is a protocol for remote
user authentication and accounting. RADIUS enables centralized management
of authentication data such as usernames and passwords using an AAA
(authentication, authorization, and accounting) concept to manage network
access.
Resolution
The sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi,
the greater the resolution.
Glossary
230
.
SMB
Server Message Block (SMB) is a network protocol mainly applied to share files,
printers, serial ports, and miscellaneous communications between nodes on a
network. It also provides an authenticated Inter-process communication
mechanism.
SMTP
Simple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions
across the Internet. SMTP is a relatively simple, text-based protocol, where one
or more recipients of a message are specified, and then the message text is
transferred. It is a client-server protocol, where the client transmits an email
message to the server.
SSID
Service Set Identifier (SSID) is a name of a wireless local area network (WLAN). All
wireless devices in a WLAN use the same SSID in order to communicate with
each other. The SSIDs are case-sensitive and have a maximum length of 32
characters.
Subnet Mask
The subnet mask is used in conjunction with the network address to determine
which part of the address is the network address and which part is the host
address.
TCP/IP
The Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of
communications protocols that implement the protocol stack on which the
Internet and most commercial networks run.
TCR
Transmission Confirmation Report (TCR) provides details of each transmission
such as job status, transmission result and number of pages sent. This report can
be set to print after each job or only after failed transmissions.
TIFF
Tagged Image File Format (TIFF) is a variable-resolution bitmapped image
format. TIFF describes image data that typically come from scanners. TIFF
images make use of tags, keywords defining the characteristics of the image that
is included in the file. This flexible and platform-independent format can be
used for pictures that have been made by various image processing
applications.
Toner Cartridge
A kind of bottle or container used in a machine like a printer which contains
toner. Toner is a powder used in laser printers and photocopiers, which forms
the text and images on the printed paper. Toner can be fused by a combination
of heat/pressure from the fuser, causing it to bind to the fibers in the paper.
Glossary
231
.
TWAIN
An industry standard for scanners and software. By using a TWAIN-compliant
scanner with a TWAIN-compliant program, a scan can be initiated from within
the program. It is an image capture API for Microsoft Windows and Apple Mac
operating systems.
UNC Path
Uniform Naming Convention (UNC) is a standard way to access network shares
in Window NT and other Microsoft products. The format of a UNC path is:
\\<servername>\<sharename>\<Additional directory>
URL
Uniform Resource Locator (URL) is the global address of documents and
resources on the Internet. The first part of the address indicates what protocol to
use, the second part specifies the IP address or the domain name where the
resource is located.
USB
Universal Serial Bus (USB) is a standard that was developed by the USB
Implementers Forum, Inc., to connect computers and peripherals. Unlike the
parallel port, USB is designed to concurrently connect a single computer USB
port to multiple peripherals.
Watermark
A watermark is a recognizable image or pattern in paper that appears lighter
when viewed by transmitted light. Watermarks were first introduced in Bologna,
Italy in 1282; they have been used by papermakers to identify their product, and
also on postage stamps, currency, and other government documents to
discourage counterfeiting.
WEP
Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to
provide the same level of security as that of a wired LAN. WEP provides security
by encrypting data over radio so that it is protected as it is transmitted from one
end point to another.
WIA
Windows Imaging Architecture (WIA) is an imaging architecture that is originally
introduced in Windows Me and Windows XP. A scan can be initiated from within
these operating systems by using a WIA-compliant scanner.
WPA
Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi)
computer networks, which was created to improve upon the security features of
WEP.
Glossary
232
.
WPA-PSK
WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or
home users. A shared key, or password, is configured in the wireless access point
(WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique
key for each session between a wireless client and the associated WAP for more
advanced security.
WPS
The Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home
network. If your wireless access point supports WPS, you can configure the
wireless network connection easily without a computer.
XPS
XML Paper Specification (XPS) is a specification for a Page Description Language
(PDL) and a new document format, which has benefits for portable document
and electronic document, developed by Microsoft. It is an XML-based
specification, based on a new print path and a vector-based device-
independent document format.
233
Index
Index
A
accessing
management tools 178
AirPrint 149, 151
AnyWeb Print 180
C
cleaning
inside 53
outside 53
pickup roller 55
cleaning a machine 53
control panel 19
convention 9
D
direct printing utility 169
driver installation
Unix 110
E
eco button 19
eco printing 41
F
favorites settings, for printing 41
features 4
print media feature 71
front view 17
G
general icons 9
glossary 221
google cloud printing 154
J
jam
clearing paper 59
tips for avoiding paper jams 58
L
Linux
common Linux problems 212
driver installation for network connected
110
driver installation for USB cable connected
97
driver reinstallation for USB cable connected
98
printer properties 174
printing 173
system requirements 76
using SetIP 103
loading
paper in manual feeder/multi-purpose tray
30
special media 32
local
driver installation 22
driver reinstalling 24
M
Mac
common Mac problems 211
driver installation for network connected
109
driver installation for USB cable connected
95
driver reinstallation for USB cable connected
96
printing 171
system requirements 75
using SetIP 102
Index
234
Index
maintenance parts 46
manual feeder/multi-purpose tray
tips on using 30
using special media 32
N
network
driver installation
Linux 110
Mac 109
UNIX 110
Windows 106
installing environment 78
introducing network programs 100
IPv6 configuration 104
SetIP program 101, 102, 103, 136
wireless network setup 113
n-up printing
Mac 171
O
overlay printing
create 166
delete 167
print 167
P
placing a machine
adjusting the altitude 157
print
mobile OS 144, 148
mobileprint 144, 148
print media
card stock 35
envelope 33
labels 34
output support 71
preprinted paper 36
special media 32
transparency 34
printer preferences
Linux 174
printer status
general information 187
Printing 38
printing
changing the default print settings 158
Linux 173
Mac 171
multiple pages on one sheet of paper
Mac 171
printing a document
Windows 38
printing on both sides of paper
Mac 172
printing to a file 160
UNIX 175
using direct printing utility 169
printing a document
Linux 173
Mac 171
UNIX 175
problems
paper feeding problems 196
power problems 197
printing problems 198
printing quality problems 202
R
rear view 18
regulatory information 79
Index
235
Index
S
safety
information 10
symbols 10
samsung cloud printing 152
samsung printer experience 189
Samsung Printer Status 187
service contact numbers 213
SetIP program 101, 136
special print features 156
specifications 69
print media 71
stop button 20
supplies
available supplies 45
estimated toner cartridge life 48
ordering 45
replacing toner cartridge 50
SyncThru Web Service
general information 182
T
toner button 19
toner cartridge
estimated life 48
handling instructions 47
non-Samsung and refilled 47
redistributing toner 49
replacing the cartridge 50
storing 47
tray
adjusting the width and length 27
changing the tray size 27
loading paper in manual
feeder/multi-purpose tray 30
U
understanding the status LED 65
UNIX
driver installation for network connected
110
printing 175
Unix
system requirements 77
USB cable
driver installation 95, 97
driver reinstallation 96, 98
using help 41, 172
W
watermark
create 165
delete 165
edit 165
Windows
common Windows problems 210
driver installation for network connected
106
driver installation for USB cable connected
22, 24
system requirements 74
using SetIP 101, 136
wireless
ad hoc mode 113
Infrastructure mode 113
USB cable 120, 123
WPS
disconnecting 117
disconnectiong
PBC mode 117
WPS (the machine does not have a display
screen)
Index
236
Index
PBC 118
PIN 118
wireless network
network cable 135
