1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 6• Features by models 9• Useful to know 14• About this user’s guide 15• Safety information 16• Machine overview 21• Control panel overview 24• Turning on the machine 28• Installing the driver locally 29• Reinstalling the driver 31

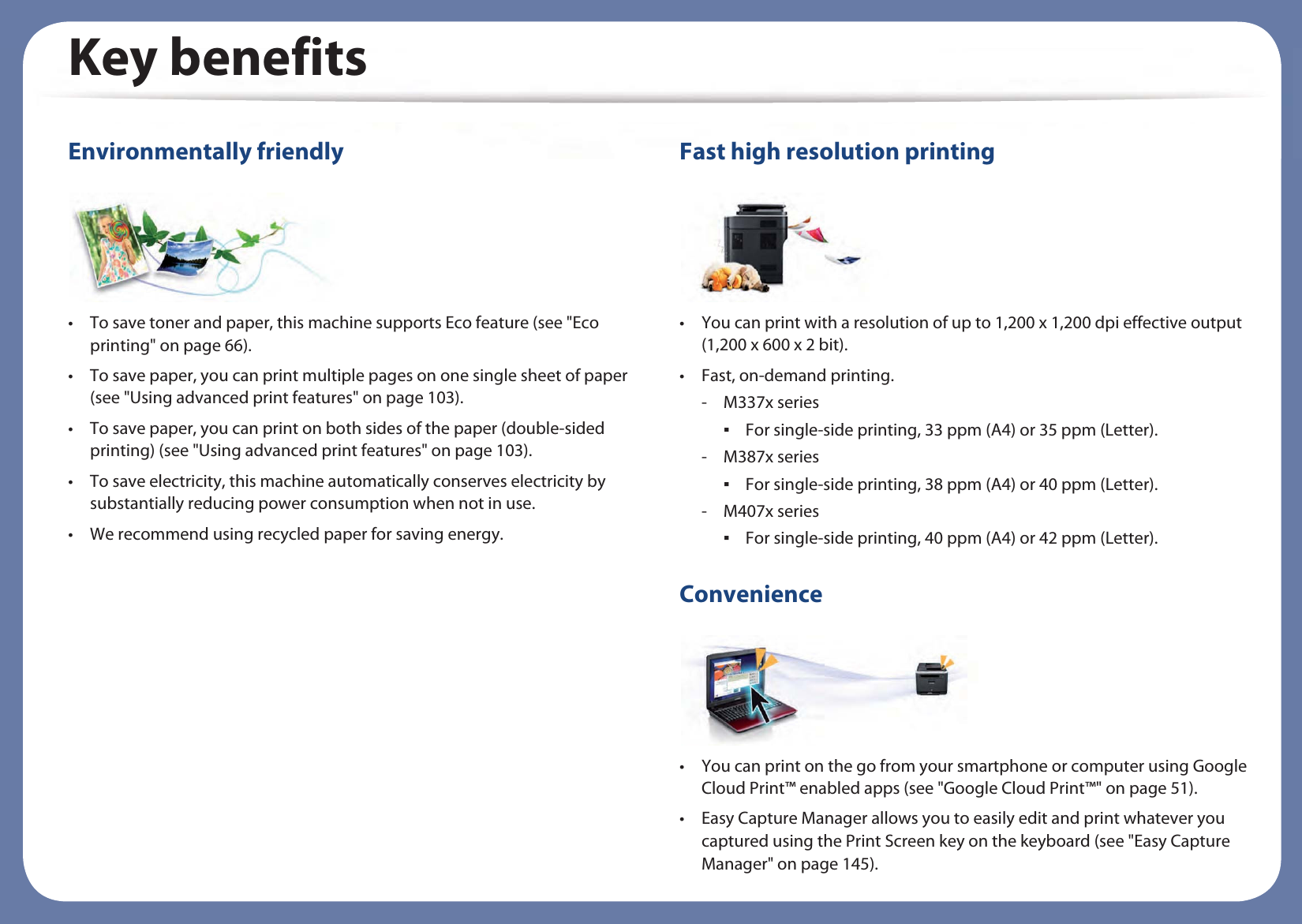

Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 66).• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 103).• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 103).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.• We recommend using recycled paper for saving energy.Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output (1,200 x 600 x 2 bit).• Fast, on-demand printing.- M337x seriesƒFor single-side printing, 33 ppm (A4) or 35 ppm (Letter).- M387x seriesƒFor single-side printing, 38 ppm (A4) or 40 ppm (Letter).- M407x seriesƒFor single-side printing, 40 ppm (A4) or 42 ppm (Letter).Convenience• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps (see "Google Cloud Print™" on page 51).• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 145).
Key benefits• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 155 or "Using Samsung Easy Printer Manager" on page 152).• Samsung Easy Document Creator is an application to help users scan, compile, and save documents in multiple formats, including .epub format. These documents can be shared via social networking sites or fax (see "Using Samsung Easy Document Creator" on page 151).• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 146).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 146).• Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 103).• You can print in various operating systems (see "System requirements" on page 148).• Your machine is equipped with a USB interface and/or a network interface.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 25.
Key benefitsSupport XOA applicationsThe machine supports XOA custom applications.•Regarding the XOA custom applications, please contact your XOA custom application provider.
Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (Ɣ: Included, Blank: Not available) SoftwareYou can install the printer driver and software when you insert the software CD into your CD-ROM drive. For windows, select the printer driver and software in the Select Software to Install window. Operating System M337x series M387x series M407x seriesWindows Ɣ Ɣ ƔMac Ɣ Ɣ ƔLinux Ɣ Ɣ ƔUnix Ɣ Ɣ ƔSoftware M337x series M387x series M407x seriesSPL printer driver Ɣ Ɣ ƔPCL printer driver Ɣ Ɣ ƔPS printer driveraƔ Ɣ ƔXPS printer driveraƔ Ɣ ƔDirect Printing UtilityaƔ Ɣ ƔSamsung Easy Printer ManagerScan to PC Settings Ɣ Ɣ ƔFax to PC Settings Ɣ Ɣ ƔDevice Settings Ɣ Ɣ ƔSamsung Printer Status Ɣ Ɣ ƔSamsung AnyWeb PrintaƔ Ɣ ƔSamsung Easy Document Creator Ɣ Ɣ Ɣ
Features by models (Ɣ: Included, Blank: Not available)Easy Capture Manager Ɣ Ɣ ƔSyncThru™ Web Service Ɣ Ɣ ƔSyncThru Admin Web Service Ɣ Ɣ Ɣ Easy Eco Driver Ɣ Ɣ ƔFax Samsung Network PC Fax Ɣ Ɣ ƔScan Twain scan driver Ɣ Ɣ ƔWIA scan driver Ɣ Ɣ Ɣa. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your computer’s OS support the software.Software M337x series M387x series M407x series
Features by modelsVarious features Features M337x series M387x series M407x seriesHi-Speed USB 2.0 Ɣ Ɣ ƔNetwork Interface Ethernet 10/100 Base TX wired LAN Ɣ Ɣ Network Interface Ethernet 10/100/1000 Base TX wired LAN ƔIEEE 1284B parallel connectoraż ż żNetwork Interface 802.11b/g/n wireless LANbƔ (M387xFW only)Google Cloud Print™ Ɣ Ɣ ƔAirPrint Ɣ Ɣ Ɣ Eco printing Ɣ Ɣ ƔDuplex (2-sided) printing Ɣ Ɣ ƔUSB memory interface Ɣ ƔMemory module ż ż żOptional tray (Tray2) ż ż żMass Storage DeviceDocument FeederReverse Automatic Document Feeder (RADF) Ɣ(M387xFW only)Ɣ(M407xFR/M407xHR/M407xFX only)Automatic Document Feeder (ADF) Ɣ Ɣ(M387xFD/M387xHD only)Ɣ(M4072FD only)Handset Ɣ(M337xHD only)Ɣ(M387xHD only)Ɣ(M407xHR only)
Features by modelsFax Multi-send Ɣ Ɣ ƔDelay send Ɣ Ɣ ƔPriority sendDuplex send Ɣ(M387xFW only)ƔSecure receive Ɣ Ɣ ƔDuplex print Ɣ Ɣ ƔSend/ Receive forward - fax Ɣ Ɣ ƔSend/ Receive forward - email Ɣ Ɣ ƔSend/ Receive forward - server Ɣ Ɣ ƔScan Scanning to email Ɣ Ɣ ƔScanning to SMB server Ɣ Ɣ ƔScanning to FTP server Ɣ Ɣ ƔDuplex scan Ɣ(M387xFW only)Ɣ(M407xFR/M407xHR/M407xFX only)Scan to PC Ɣ Ɣ ƔFeatures M337x series M387x series M407x series
Features by models (Ɣ: Included, ż: Optional, Blank: Not available)Copy ID card copying Ɣ Ɣ ƔReduced or enlarged copying Ɣ Ɣ ƔCollation Ɣ Ɣ ƔPosterCloneAuto Fit Ɣ Ɣ ƔBook Ɣ Ɣ Ɣ2-up/4-up Ɣ Ɣ ƔAdjust background Ɣ Ɣ ƔMargin shiftEdge erase Ɣ Ɣ ƔGray enhanceDuplex copy Ɣ(M387xFW only)Ɣ(M407xFR/M407xHR/M407xFX only)a. If you use the parallel port, you cannot use the USB cable.b. Depending on your country, wireless LAN card may not be available. For some countries, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.Features M337x series M387x series M407x series
Useful to knowThe machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 63).• Remove the driver and install it again (see "Installing the driver locally" on page 29).• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 102).Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 134).A paper jam has occurred.• Open and close the door (see "Front view" on page 22).• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing jams" on page 116).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 94).• Try a different print resolution setting (see "Opening printing preferences" on page 64).• Replace the toner cartridge (see "Replacing the toner cartridge" on page 97).Where can I download the machine’s driver?• You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
151. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this administrator’s guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.
161. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information171. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.Be careful when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.Do not allow too many papers to stack up in the paper output tray.It can damage the machine.
Safety information181. Introduction6 Installation / Moving Warning CautionDo not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays. The place should be well-ventilated and be far from direct light, heat, and humidity. When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a well-ventilated space or open a window to circulate the air periodically.
Safety information191. Introduction7 Maintenance / Checking CautionDo not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing consumables or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning consumables away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.
Safety information201. Introduction8 Supply usage CautionKeep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. • Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the consumables such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing consumables such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.Using recycled consumables, such as toner, can cause damage to the machine.In case of damage due to the use of recycled consumables, a service fee will be charged.For consumables that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.• When disposing of the consumables, follow the instructions for disposal. Refer to the reseller for disposal instructions.• Do not wash the consumables.• For a waste toner bottle, do not reuse it after emptying the bottle.If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.
211. IntroductionMachine overview9 ComponentsThe actual component may differ from the illustration below. Some components may change depending on the circumstances.Machine Power cord Quick installation guideSoftware CDaa. The software CD contains the print drivers, user’s guide, and software applications.Card reader holderbb. M407xFX only.Handsetcc. Handset model only (see "Various features" on page 11).Misc. accessoriesdd. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.
Machine overview221. Introduction10 Front view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 9). 5123678121110491716141518232419202213252021261 Document feeder cover 14 Output support tray2 Document feeder width guide 15 Output tray3 Document feeder input tray 16 Scanner glass4 Document feeder support tray 17 Scanner lid5 Document feeder output tray 18 Front cover handle6Control panel 19 Paper width guides on a multi-purpose trayf7Control board cover 20 Multi-purpose support trayf8Front cover 21 Paper width guides on a manual feeder trayaa. M337x series only.9Paper level indicator 22 Toner cartridgebb. M3370/ M3870/ M4070/ M4072 series10 Tray 2cc. This is an optional feature (see "Various features" on page 11).23 Toner cartridgedd. M3375/ M3875/ M4075 series11 Tray 1 24 Imaging unitd12 Multi-purpose (or manual feeder) tray25 Handsetee. Handset model only (see "Various features" on page 11).13 USB memory portff. M387x/ 407x series only.26 Card reader holdergg. M407xFX only.
Machine overview231. Introduction11 Rear view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 9). EDI1097 81EDI port for card readeraa. M407xFX only.6Power receptacle2 Network port 7 Telephone line socket (LINE)3 USB port 8 Extension telephone socket (EXT.)4 5V output port for IEEE 1284B parallel connectorbcb. This is an optional feature (see "Various features" on page 11).c. To use the optional IEEE 1284B parallel connector, plug it to the UBS port and the 5V output port.9Rear cover handle5 Power-switch 10 Rear cover
241. IntroductionControl panel overview • This control panel may differ from your machine depending on its model. There are various types of control panels.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 9).• Some buttons may not work depending on the mode (copy, fax, or scan). 12 M337xFD/M337xHD/M387xFD/M387xFW/M387xHD/M407xFD/M407xFR/M407xHR 1ID Copy Allows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 73). 2Darkness Adjusts the brightness level to make a copy for easier reading, when the original contains faint markings and dark images.WPSaConfigures the wireless network connection easily without a computer (see "Wireless network setup" on page 24).3Display screen Shows the current status and prompts during an operation.4Copy Switches to Copy mode.1221345 6 78 9 10 1121 20 19 18 17 16 15 14 13
Control panel overview251. Introduction 5Fax Switches to Fax mode.6Arrows Scroll through the options available in the selected menu, and increase or decrease values.7OK Confirms the selection on the screen. 8Numeric keypad Dials a number or enters alphanumeric characters (see "Understanding keypad" on page 94).9Address Book Allows you to store frequently used fax numbers or search for stored fax numbers (see "Storing email address" on page 92 or "Setting up the address book" on page 96).10 Redial/Pause Redials the recently sent fax number or received caller ID in ready mode, or inserts a pause(-) into a fax number in edit mode (see "Redialing the fax number" on page 129).11 Stop/Clear Stops current operation.12Power / Wake UpTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 13 Start Begins a printing job.14 Power Saver Goes into sleep mode.15 On Hook Dial When you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see "Receiving manually in Tel mode" on page 136).16 Back Sends you back to the upper menu level.17 Menu Enters Menu mode and scrolls through the available menus (see "Menu overview" on page 33).18 Scan Switches to Scan mode.19 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 134). 20 Reduce/EnlargebYou can reduce or enlarge the size of a copied image from 25% to 400% when you copy original documents from the scanner glass. (see "Reduced or enlarged copy" on page 72).Direct USBcAllows you to directly print files stored on a USB memory device when it is inserted into the USB port on the front of your machine. 21 Eco Turn on the Eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see "Eco printing" on page 66). a. M387xFW only.b. M337xFD/ M337xHD only.c. M387x/ M407x series only.
Control panel overview261. Introduction13 M407xFX When you use the touch screen, use your finger only. The screen may be damaged with a sharpen pen or anything else. 1Touch screen Shows the current status and displays prompts during an operation (see "Introducing the touch screen" on page 38).2Numeric keypad Dials a number or enters alphanumeric characters (see "Understanding pop-up keyboard" on page 95).3Clear Deletes characters in the edit area.4Stop Stops an operations at any time.5Power / Wake UpTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 21310 678945
Control panel overview271. Introduction 6Start Begins a printing job.7On Hook Dial When you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see "Receiving manually in Tel mode" on page 136).8Help Gives detailed information about this machine’s menus or status.9Reset Resets the current machine’s setup. 10 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 134).
281. IntroductionTurning on the machine Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22). 1Connect the machine to the electricity supply first.2 Turn the power switch on.12
291. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 13). • If you are a Mac, Linux or UNIX operating systems user, refer to the "Installation for Mac" on page 4 or "Installation for Linux" on page 6 or "Installing the UNIX printer driver package" on page 18.• The installation window in this User’s Guide may differ depending on the machine and interface in use.• Only use a USB cable no longer than 3 meters (118 inches). 14 Windows1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run.X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.• For Windows 8,If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.3 Review and accept the installation agreements in the installation window. Then, click Next.
Installing the driver locally301. Introduction4 Select USB connection on the Printer Connection Type screen. Then, click Next.5 Follow the instructions in the installation window. You can select the software applications in the Select Software to Install Window. From the Windows 8 Start Screen •Samsung Printer Experience app can only be used in the Start screen when V4 driver is installed. The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads. • You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.1 From Charms, select Search. 2 Click Store.3 Search and click Samsung Printer Experience.4 Click Install.• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com >find your product > Support or downloads.• If you want to install Samsung’s printer management tools, you need to install them using the supplied software CD. 1Make sure that your computer is connected to the Internet and powered on.2 Make sure that the machine is powered on.3 Connect the computer and the machine with a USB cable.The driver is automatically installed from the Windows Update.
311. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.15 Windows1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs > Samsung Printers > Uninstall Samsung Printer Software.• For Windows 8,1 From Charms, select Search > Apps. 2 Search and click Control Panel.3 Click Programs and Features.4 Right-click the driver you want to uninstall and select Uninstall. 5 Follow the instructions in the window.3 Follow the instructions in the installation window.4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 29).From the Windows 8 Start Screen1Make sure that the machine is connected to your computer and powered on.2 Click on the Uninstall Samsung Printer Software tile in the Start screen.3 Follow the instructions in the window. • If you cannot find a Samsung Printer Software tile, unintstall from the desktop screen mode. • If you want to uninstall Samsung’s printer management tools, from the Start screen, right-click the app > Uninstall > right-click the program you want to delete e Uninstall and follow the instruction in the window.
2. Menu Overview and Basic SetupThis chapter provides information about the overall menu structure and the basic setup options.• Menu overview 33• Machine’s basic settings 45• Media and tray 47• Basic printing 62• Basic copying 70• Basic scanning 75• Basic faxing 76• Using USB memory device 81
332. Menu Overview and Basic SetupMenu overviewThe control panel provides access to various menus to set up the machine or use the machine’s functions.1 M337xFD/M337xHD/M387xFD/M387xFW/M387xHD/M4072FD/M407xFR/M407xHR • An checked (√) appears next to the currently selected menu.• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.• Some menu names may differ from your machine depending on its options or the models.• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 53). Accessing the menu1Select the Fax, Copy, or Scan button on the control panel depending on the feature to be used.2 Select (Menu) until the menu you want appears on the bottom line of the display and press OK.3 Press the arrows until the needed menu item appears and press OK.4 If the setting item has sub menus, repeat step 3.5 Press OK to save the selection.6 Press (Stop or Stop/Clear) button to return to the ready mode.
Menu overview342. Menu Overview and Basic Setup Copy Feature (see "Copy feature" on page 56)Copy Setup (see "Copy Setup" on page 60)Fax Featurea(see "Fax Feature" on page 61)a. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.Original SizeReduce/EnlargeDuplexa1->1 Sided1->2 Sided1->2 Sided, Rotated2->1 Sided2->1 Sided, Rotated2->2 SidedDarknessLight+5- Light+1NormalDark+1- Dark+5Original TypeTextText/PhotoPhotoCollationLayoutNormal2-Up4-UpID CopyBook CopyAdjust BackgroundOffAutoEnhance Lev.1Enhance Lev.2Erase Lev.1- Erase Lev.4Edge EraseOffSmall OriginalbHole PunchBook CentercBorder Eraseb. This option does not appear when the 2-Up, 4-Up, Book copy, Duplex, Auto Fit option is on or the original document is loaded in ADF (RADF).c. This option appears only when the Layout option is Book Copy.StampItemOpacitydPositiondWatermarkMessagePageseText SizeePositioneDarknessed. This option appears only when the Item option is On.e. This option appears only when the Message option is On.Change DefaultOriginal SizeCopiesReduce/EnlargeDuplexa1->1 Sided1->2 Sided1->2 Sided, Rotated2->1 Sided2->1 Sided, Rotated2->2 SidedDarknessLight+5- Light+1NormalDark+1- Dark+5Original TypeTextText/PhotoPhotoCollationDarknessLight+5- Light+1NormalDark+1- Dark+5ResolutionStandardFineSuper FineColor ModeMonoColorOriginal TypeTextText/PhotoPhotoOriginal SizeDuplexa1 Sided2 Sided2 Sided RotatedMulti SendDelay SendSend ForwardForward to FaxForward to EmailForward to ServerReceive ForwardForward to FaxForward to PCForward to EmailForward to ServerForward & PrintSecure ReceiveOffOnPrintCancel Job
Menu overview352. Menu Overview and Basic Setup Fax Setup(see "Sending setup" on page 62,"Receiving setup" on page 64)Scan Feature(see "Scan feature" on page 67)Scan Setup(see "Scan setup" on page 68)SendingRedial TimesRedial TermPrefix DialECM ModeFax ConfirmationImage TCR Dial ModeaToll SaveReceivingReceive ModeFaxTelAns/FaxDRPD Modeaa. This option may not be available depending on your country.Ring to AnswerStamp Rcv NameRcv Start CodeAuto ReductionDiscard SizeJunk Fax SetupDRPD ModeaDuplex PrintbChange DefaultDarkness ResolutionColor ModeOriginal Type Original SizeDuplexbManual TX/RXb. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.USB FeatureOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessEmail FeatureOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessFTP FeatureOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessSMB FeatureOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessShared Folder FeatureOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessChange DefaultUSB DefaultOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessEmail DefaultOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbEmail ConfirmationDarknessFTP/SMB DefaultOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexbDarknessServer ConfirmationShared Folder DefaultOriginal SizeOriginal TypeResolutionColor ModeFile FormatbDuplexb
Menu overview362. Menu Overview and Basic Setup Print Setup(see "Print" on page 55)System Setup(see "System setup" on page 71)OrientationPortraitLandscapeDuplexCopiesResolutionClear TextOffMinimumNormalMaximumAuto CRSkip Blank PagesEmulationEmulation TypeSetupMachine SetupMachine IDFax NumberDate & TimeClock ModeLanguageDefault ModePower SaveWakeup Event System TimeoutJob TimeoutAltitude AdjustmentAuto ContinueAuto Tray SwitchPaper SubstitutionTray ProtectionaToner SavePDF TypeStampImport SettingExport SettingEco SettingsPaper SetupPaper SizeTray 1Tray 2aMP TrayaManual FeederaDefault Paper SizePaper TypeTray 1Tray 2aMP TrayaManual FeederaPaper SourceMarginTray ConfirmationSound/VolumeKey SoundAlarm SoundFax Sounda. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.ReportConfigurationDemo PageNetwork ConfigurationSupplies InformationUsage CounterAccountFax ReceivedFax SentFax Scheduled JobsFax Send ConfirmationJunk FaxEmail SentPCL FontPS FontEPSON FontKSC5843 FontaKSC5895 FontaKSSM FontaAddress BookMaintenanceCLR Empty Msg.bSupplies LifeImage Mgr.Custom ColorToner Low AlertImaging Unit Low AlertaSerial NumberRAM DiskaImage OverwriteaManualOverwrite Method Overwrite Timesb. This option only appears when small amount of toner is in the cartridge.
Menu overview372. Menu Overview and Basic Setup Networka(see "Network setup" on page 80)a. Wired and Wireless model only (see "Features by models" on page 9).Job Managementb(see "Job management" on page 83)b. This option is available when the optional mass storage device, optional memory or RAM Disk is installed.TCP/IP (IPv4)DHCPBOOTPStaticTCP/IP (IPv6)IPv6 ProtocolDHCPv6 ConfigEthernetEthernet PortEthernet Speed802.1xWi-FicWi-Fi On/OffWi-Fi SettingsWPSWi-Fi DirectWi-Fi SignalClear Wi-Fi Settingsc. Wireless model only (see "Features by models" on page 9).Protocol ManagementHTTPWINSSNMPv1/v2SNTPUPnP(SSDP)mDNSSetIPSLPNetwork ConfigurationClear SettingsActive JobSecured JobStored JobShared Folder
Menu overview382. Menu Overview and Basic Setup2 M407xFXYou can set menus easily using the touch screen. • The home screen is shown on the touch screen on the control panel.• Some menus are grayed out depending on your options or models.• Some menu names may differ from your machine depending on its options or the models.• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 53). Introducing the touch screenCopy When you press Copy from the display screen, the Copy screen appears which has several tabs and lots of copying options (see "Copy" on page 56).Scan When you press Scan from the display screen, the Scan screen appears which has several tabs and lots of Scanning options (see "Scan" on page 67).Fax When you press Fax from the display screen, the Fax screen appears which has several tabs and lots of Faxing options (see "Fax" on page 61).Setup You can browse current machine settings or change machine values (see "System setup" on page 71).Job Status Job status shows the jobs currently running, completed job or in queue (see "Job Status" on page 84).Eco You can view the eco settings (see "Eco" on page 85).Direct USB Enters the USB menu when USB memory is inserted into the USB memory port on your machine (see "Direct USB" on page 86).Document BoxYou can store the printing data, print the secure page or shared folder (see "Document box" on page 87).Scan to CloudYou can scan an image and the scanned data will be stored in the cloud service (see "Scanning with cloud service" on page 123).Secure ReleaseDisplays the list of secured jobs. Print or delete all from the selected jobs (see "Secure release" on page 89).Option Settings You want to customize the option settings including darkness, original type, and more.Toner StatusShows the toner status.Arrows Scroll through the options available in the selected menu, and increase or decrease values.Back Go back to previous screen.Selects the LCD brightness, language and you can edit home menu.
Menu overview392. Menu Overview and Basic Setup (Copy)(see "Copy" on page 56)Basic Copy (Option settings)DarknessOriginal TypeCustom Copy (Option settings)DuplexReduce/EnlargeDarknessOriginal SizeOriginal TypeTrayAutoTray1Tray2aMP Traya. This is an optional feature.CollationLayoutNormal2-Up4-UpID CopyBook CopyAdjust BackgroundEdge EraseOffSmall OriginalHole PunchBook CenterbBorder EraseStampItemOpacityPositionWaterMarkb. This option appears only when the Layout option is Book Copy.ID Copy (Option settings)DarknessOriginal TypeAuto Fit Copy (Option settings)DarknessOriginal TypeColor ModeOriginal SizeOriginal TypeN-up Copy (Option settings)N-upOriginal OrientationDuplexDarknessOriginal SizeOriginal Type
Menu overview402. Menu Overview and Basic Setup (Scan)(see "Scan" on page 67) Local PCDestination (Option settings)ResolutionColor ModeFile FormatPDF EncryptionDuplexOriginal SizeOriginal TypeDarknessNetwork PCSelect User (Option settings)ResolutionColor ModeFile FormatPDF Encryptionaa. This option appears only when the File Format option is PDF type.DuplexOriginal SizeOriginal TypeDarknessEmailTo (Option settings)Original SizeOriginal TypeResolutionColor ModeFile FormatPDF EncryptionaDuplexDarknessFile NameSMBDestination (Option settings)Original SizeOriginal TypeResolutionColor ModeFile FormatPDF EncryptionaDuplexDarknessFile NameFTPDestination (Option settings))Original SizeOriginal TypeResolutionColor ModeFile FormatPDF EncryptionaDuplexDarknessFile NameCustom EmailToSubjectFromCCBCC (Option settings)Original TypeOriginal SizeResolutionColor ModeFile FormatPDF EncryptionaDuplexDarknessFile Name USB (Option settings)Original TypeOriginal SizeResolutionColor ModeFile NameFile FormatPDF EncryptionaDuplexDarknessFile Policy Shared Foldera (Option settings)Original SizeResolutionColor ModeFile NameFile FormatPDF EncryptionaDuplexDarknessFile Policy WSD
Menu overview412. Menu Overview and Basic Setup (Fax)(see "Fax" on page 61) Memory Send (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal SizeDuplex On Hook Dial (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal SizeDuplex Delayed Send (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal SizeDuplex Speed Dial Send (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal SizeDuplex Group Dial Send (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal SizeDuplex Redial (Option settings)DarknessResolutionColor ModeOriginal TypeOriginal Size
Menu overview422. Menu Overview and Basic Setup (Setup)(see "System setup" on page 71)Machine SetupDefault SettingCopy DefaultScan DefaultFax DefaultPaper SetupTray1Tray2aMP TrayMarginTray BehaviourAuto Tray SwitchPaper SubstitutionAuto ContinueTray ProtectionAddress BookPhoneBookEmailPrintResetReportsConfigurationDemo PageHelp ListNetwork Configurationa. This is an optional feature.Supplies InformationUsage CounterAccountFax ReceivedFax SentFax Schedule JobsFax Send ConfirmationJunk FaxEmail SentPCL FontPS FontEPSON FontAddress BookFax SetupSend ForwardReceive ForwardToll SaveJunk Fax SetupSecure ReceivePrefix DialStamp Received NameECM ModeModem SpeedRing to AnswerReceive ModeManual TX/RXRedial TermRedial TimesFax ConfirmationImage TCRAuto ReductionDiscard SizeReceive Start CodeDRPD ModeTrayFax Setup WizardNetwork SetupTCP/IP (IPv4)TCP/IP (IPv6)Protocol ManagementHTTPWINSSNMP V1/V2SNTPUPnP(SSDP)MDNSSetIPSLPNetwork ConfigurationClear SettingsPrint SetupOrientationDuplexCopiesResolutionClear TextEdge EnhanceAuto CRSkip Blank PagesEmulationAdim SetupUser Access ControlAuthenticationStampItemOpacityPositionChange Admin PasswordFirmware UpgradeInitial SetupMachine IDDate & TimeClock ModeSelect CountryLanguageDefault ModeSound/VolumePower SaveWakeup EventSystem TimeoutJob TimeoutAltitude AdjustmentToner Status AlertFirmware VersionPDF TypeImport SettingExport SettingImageOverwriteDefault Paper SizeImage ManagementCLR Empty MsgbVapor ModePaper StackingTroubleshootingPaper Jam in MP TrayPaper Jam in Tray 1Paper Jam in Tray 2Jam inside machineJam in exit areaJam inside of duplexOriginal paper jamLanguageb. This option only appears when small amount of toner is left in the cartridge.
Menu overview432. Menu Overview and Basic Setup (Job Status)(see "Job Status" on page 84)(Eco)(see "Eco" on page 85)(Direct USB)(see "Direct USB" on page 86)(Document Box)(see "Document box" on page 87)Current JobComplete JobEco-OnEco-OffSettingsDefault ModeOnOffOn-ForcedaFeature ConfigurationDefaultCustomCopy SettingsPC Dirver Print Settingsa. If you set the eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the On force message appears. You have to enter the password to change the eco mode status.Print From (Option settings)CopiesAuto FitDuplexTray Scan to USB (Option settings)Original SizeOriginal TypeResolutionColor ModeFile FormatFiling PolicyDuplexFile NameFile Manage (Option settings)FormatDeleteShow SpaceIn Use SpaceAvailable SpaceSystem BoxesStored PrintSecured PrintShared Folder (Option settings)CopiesAuto FitDuplexTray
Menu overview442. Menu Overview and Basic Setup (Scan to Cloud)(see "Scan to cloud" on page 88)(Secure Release)(see "Secure release" on page 89)Google DriveDropboxEvernote (Options)DetailPrint AllDelete AllRefresh
452. Menu Overview and Basic SetupMachine’s basic settings You can set the machine’s settings by using the Device Settings in Samsung Easy Printer Manager program.• For Windows and Mac users, you set from Samsung Easy Printer Manager > (Switch to advanced mode) > Device Settings, see "Device Settings" on page 154. After installation is complete, you may want to set the machine's default settings. To change the machine’s default settings, follow these steps: It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Machine Setup on the control panel.ORFor the model with a touch screen, select (Setup) > Machine Setup >Next > Initial Setup on the touch screen.2 Select the option you want, then press OK.For the model with a touch screen, select the option you want, go to step 4.•Language: change the language that is displayed on the control panel.•Date & Time: When you set the time and date, they are used in delay fax and delay print. They are printed on reports. If, however, they are not correct, you need to change it for the correct time being. Enter the correct time and date using arrows or numeric keypad (see "Understanding keypad" on page 94).• Month = 01 to 12• Day = 01 to 31• Year = requires four digits• Hour = 01 to 12• Minute = 00 to 59 •Clock Mode: You can set your machine to display the current time using either a 12-hour or 24-hour format.
Machine’s basic settings462. Menu Overview and Basic Setup•Power Save: When you are not using the machine for a while, use this feature to save power. When you press the (Power / Wake Up) button, start printing, or a fax is received, the product will wake up from the power saving mode. •Altitude Adjustment: Print quality is affected by atmospheric pressure, which atmospheric pressure is determined by the height of the machine above sea level. Before you set the altitude value, determine the altitude where you are (see "Altitude adjustment" on page 91).3 Select the option you want, then press OK.4 Press OK to save the selection.For the model with a touch screen, press (back) to go back to previous screen.5 Press (Stop or Stop/Clear) button or home ( ) icon to return to ready mode. Refer to below links to set other settings useful for using the machine.• See "Entering various characters" on page 94.• See "Understanding keypad" on page 94.• See "Setting the paper size and type" on page 57.• See "Setting up the address book" on page 96.
472. Menu Overview and Basic SetupMedia and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.• Make sure not to use the photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print media (see "Print media specifications" on page 146). The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit and, in rare cases may cause a fire. 3 Tray overviewTo change the size, you need to adjust the paper guides.1 Tray extend lever2 Paper length guide3 Paper width guide If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 321
Media and tray482. Menu Overview and Basic SetupThe duplex unit is preset to Letter/LGL or A4 size, depending on your country. To change the paper size, adjust the guide as shown below. Paper quantity indicator shows the amount of paper in the tray. 1 Full2 Empty If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 21
Media and tray492. Menu Overview and Basic Setup4 Loading paper in the tray Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22). Tray 1 / optional tray1Pull out the paper tray. 2 Squeeze and the paper width guide and paper length lever to locate them in the correct paper size slot marked at the bottom of the tray to adjust to the size (see "Tray overview" on page 47).3 Flex or fan the edge of the paper stack to separate the pages before loading papers.312
Media and tray502. Menu Overview and Basic Setup4 After inserting paper into the tray, squeeze the paper width guides and paper length guide. • Do not push the paper width guide too far causing the media to warp.• If you do not adjust the paper width guide, it may cause paper jams.• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled. 5 Insert the tray back into the machine.6 When you print a document, set the paper type and size for tray (see "Setting the paper size and type" on page 57).Multi-purpose (or manual feeder) tray Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22). The multi-purpose (or manual feeder) tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 146).321
Media and tray512. Menu Overview and Basic SetupTips on using the multi-purpose (or manual feeder) tray• Load only one type, size and weight of print media at a time in the multi-purpose (or manual feeder) tray.• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose (or manual feeder) tray. This also applies to other types of print media.• Always load the specified print media only to avoid paper jams and print quality problems (see "Print media specifications" on page 146).• Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose (or manual feeder) tray.1Press the push-release of multi-purpose (or manual feeder) tray and it down to open.• M337x series• M387x/ M407x series2 Load the paper.21
Media and tray522. Menu Overview and Basic Setup3 Squeeze the multi-purpose (or manual feeder) tray paper width guides and adjust them to the width of the paper. Do not force them too much, or the paper will bent resulting in a paper jam or skew. • When printing the special media, you must follow the loading guideline (See "Printing on special media" on page 52).• When papers overlap when printing using multi-purpose (or manual feeder) tray, open tray 1 and remove overlapping papers then try printing again. 4 When you print a document, set the paper type and size for the multi-purpose (or manual feeder) tray.For information about setting the paper type and size on the control panel (see "Setting the paper size and type" on page 57).5 Printing on special mediaThe table below shows the special media usable in tray. The paper setting in the machine and driver should match to print without a paper mismatch error. To change the paper setting set in the machine, from the Samsung Easy Printer Managerselect (Switch to advanced mode)!Device Settings.Or if your machine supports a display screen or touch screen, you can set it from the control panel.Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 64).For example, if you want to print on labels, select Labels for Paper Type. • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 146).• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22). To see for paper weights for each sheet, refer to "Print media specifications" on page 146.
Media and tray532. Menu Overview and Basic Setup(̻: Supported, Blank: Not supported) EnvelopePrinting successfully on envelopes depends upon the quality of the envelopes. To print an envelope, place it as shown in the following figure.If envelopes are printed out with wrinkles, creases, or black bold lines, open the rear cover and pull down the pressure lever on the right side about 90 degrees and try printing again. Keep the rear cover opened during printing. Types Tray 1 Optional trayaa. This is an optional feature (see "Various features" on page 11).Multi-purpose (or manual feeder) trayPlain ƔƔ ƔThick ƔƔ ƔThicker ƔThin ƔƔ ƔBond ƔƔ ƔColor ƔCardStock ƔƔ ƔLabels ƔTransparency ƔEnvelope ƔPreprinted ƔCotton ƔRecycled ƔƔ ƔArchive ƔƔ Ɣ
Media and tray542. Menu Overview and Basic Setup• When selecting envelopes, consider the following factors:-Weight: should not exceed 90 g/m2 otherwise; jams may occur.-Construction: should lie flat with less than 6 mm curl and should not contain air.-Condition: should not be wrinkled, nicked, nor damaged.-Temperature: should resist the heat and pressure of the machine during operation.• Use only well-constructed envelopes with sharp and well-creased folds.• Do not use stamped envelopes.• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.• Do not use damaged or poorly made envelopes.• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.1Acceptable2Unacceptable• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second about 170°C (338 °F). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.1Pressure lever1
Media and tray552. Menu Overview and Basic SetupTransparencyTo avoid damaging the machine, use only transparencies designed for use in laser printers.• Must withstand the machine’s fusing temperature.• Place them on a flat surface after removing them from the machine.• Do not leave unused transparencies in the paper tray for long. Dust and dirt may accumulate on them, resulting in spotty printing.• To avoid smudging caused by fingerprints, handle them carefully.• To avoid fading, do not expose printed transparencies to prolonged sunlight.• Ensure that transparencies are not wrinkled, curled, or have any torn edges.• Do not use transparencies that separate from the backing sheet.• To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are being printed out.LabelsTo avoid damaging the machine, use only labels designed for use in laser printers.• When selecting labels, consider the following factors:-Adhesives: Should be stable at your machine’s fusing temperature about 170°C (338°F).-Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.-Curl: Must lie flat with no more than 13 mm of curl in any direction.
