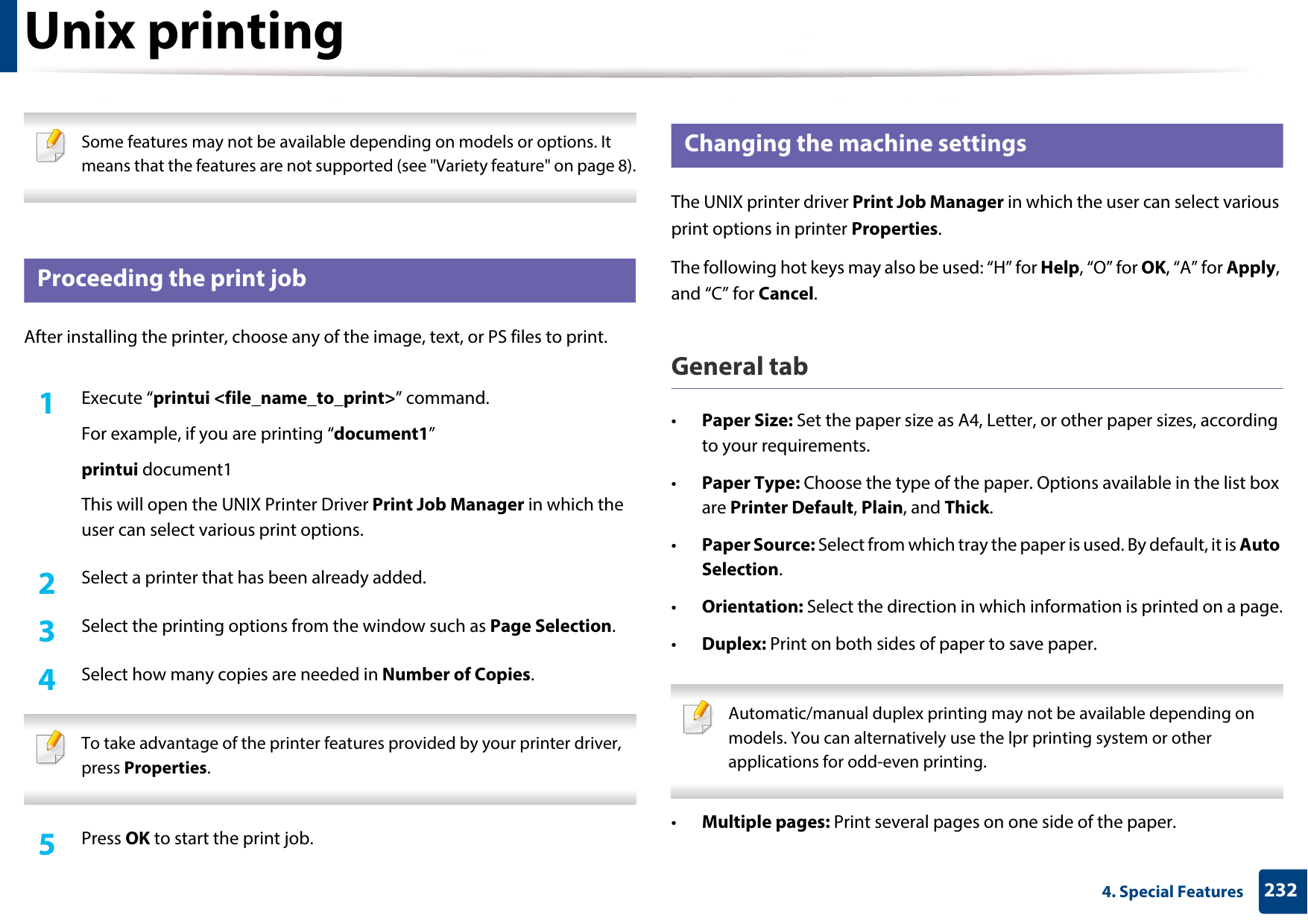

2324. Special FeaturesUnix printing Some features may not be available depending on models or options. It means that the features are not supported (see "Variety feature" on page 8). 17 Proceeding the print jobAfter installing the printer, choose any of the image, text, or PS files to print.1Execute “printui <file_name_to_print>” command.For example, if you are printing “document1”printui document1This will open the UNIX Printer Driver Print Job Manager in which the user can select various print options.2 Select a printer that has been already added.3 Select the printing options from the window such as Page Selection.4 Select how many copies are needed in Number of Copies. To take advantage of the printer features provided by your printer driver, press Properties. 5 Press OK to start the print job.18 Changing the machine settingsThe UNIX printer driver Print Job Manager in which the user can select various print options in printer Properties.The following hot keys may also be used: “H” for Help, “O” for OK, “A” for Apply, and “C” for Cancel.General tab•Paper Size: Set the paper size as A4, Letter, or other paper sizes, according to your requirements.•Paper Type: Choose the type of the paper. Options available in the list box are Printer Default, Plain, and Thick.•Paper Source: Select from which tray the paper is used. By default, it is Auto Selection.•Orientation: Select the direction in which information is printed on a page.•Duplex: Print on both sides of paper to save paper. Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing. •Multiple pages: Print several pages on one side of the paper.

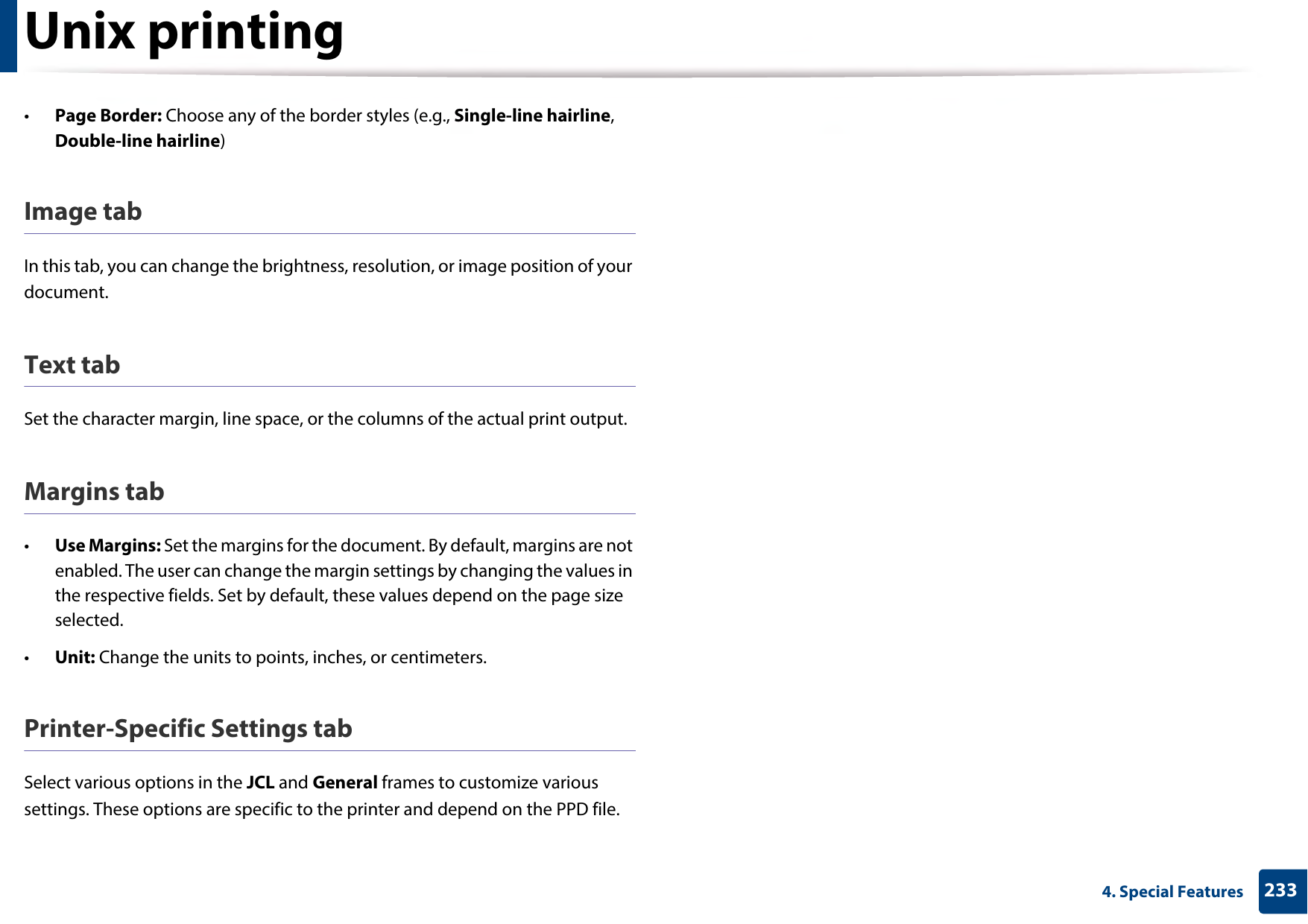

Unix printing2334. Special Features•Page Border: Choose any of the border styles (e.g., Single-line hairline, Double-line hairline)Image tabIn this tab, you can change the brightness, resolution, or image position of your document.Text tabSet the character margin, line space, or the columns of the actual print output.Margins tab•Use Margins: Set the margins for the document. By default, margins are not enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.•Unit: Change the units to points, inches, or centimeters.Printer-Specific Settings tabSelect various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.

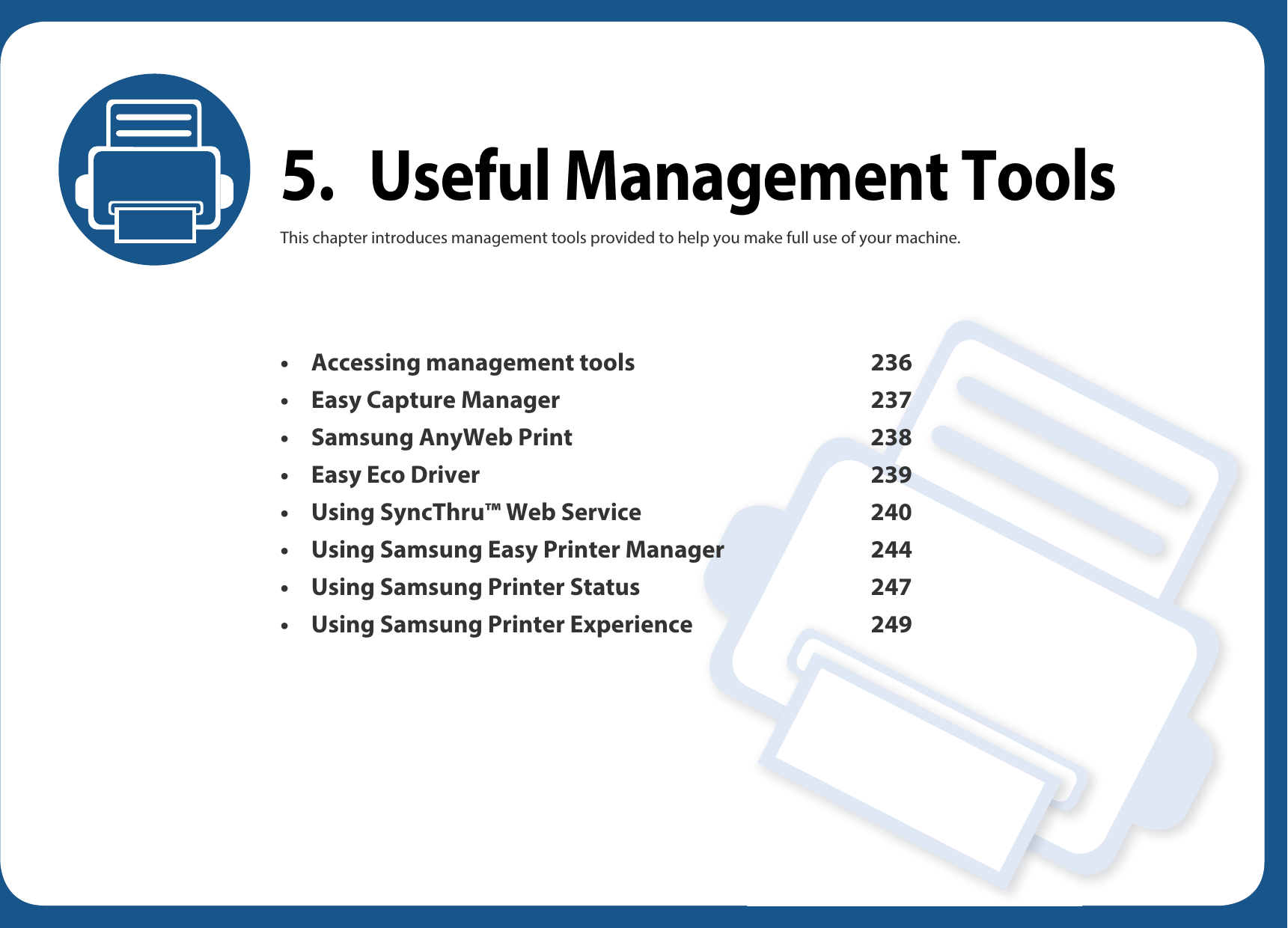

5.Useful Management ToolsThis chapter introduces management tools provided to help you make full use of your machine. • Accessing management tools 236• Easy Capture Manager 237• Samsung AnyWeb Print 238• Easy Eco Driver 239• Using SyncThru™ Web Service 240• Using Samsung Easy Printer Manager 244• Using Samsung Printer Status 247• Using Samsung Printer Experience 249

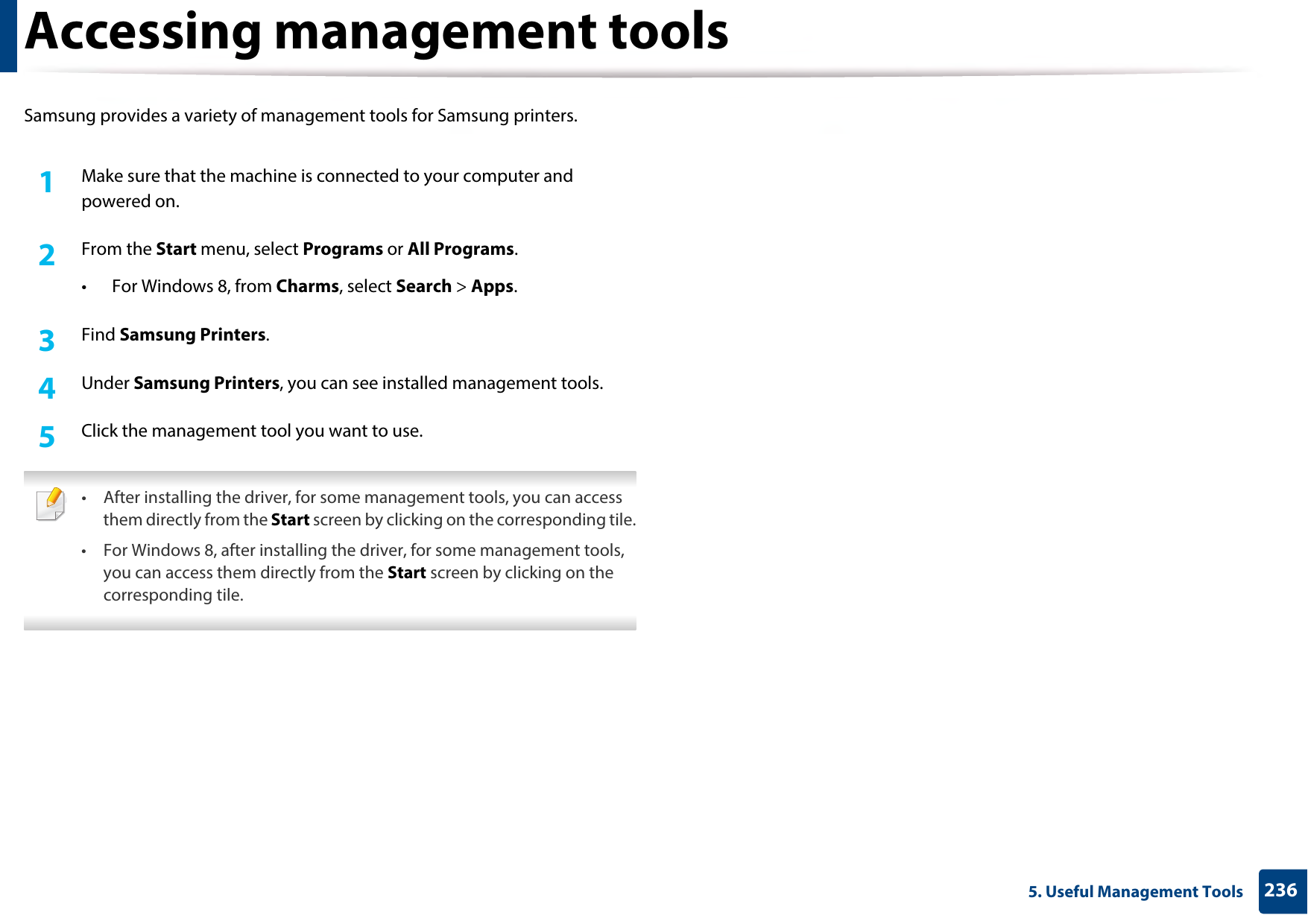

2365. Useful Management ToolsAccessing management toolsSamsung provides a variety of management tools for Samsung printers. 1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs.• For Windows 8, from Charms, select Search > Apps.3 Find Samsung Printers.4 Under Samsung Printers, you can see installed management tools.5 Click the management tool you want to use. • After installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.• For Windows 8, after installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.

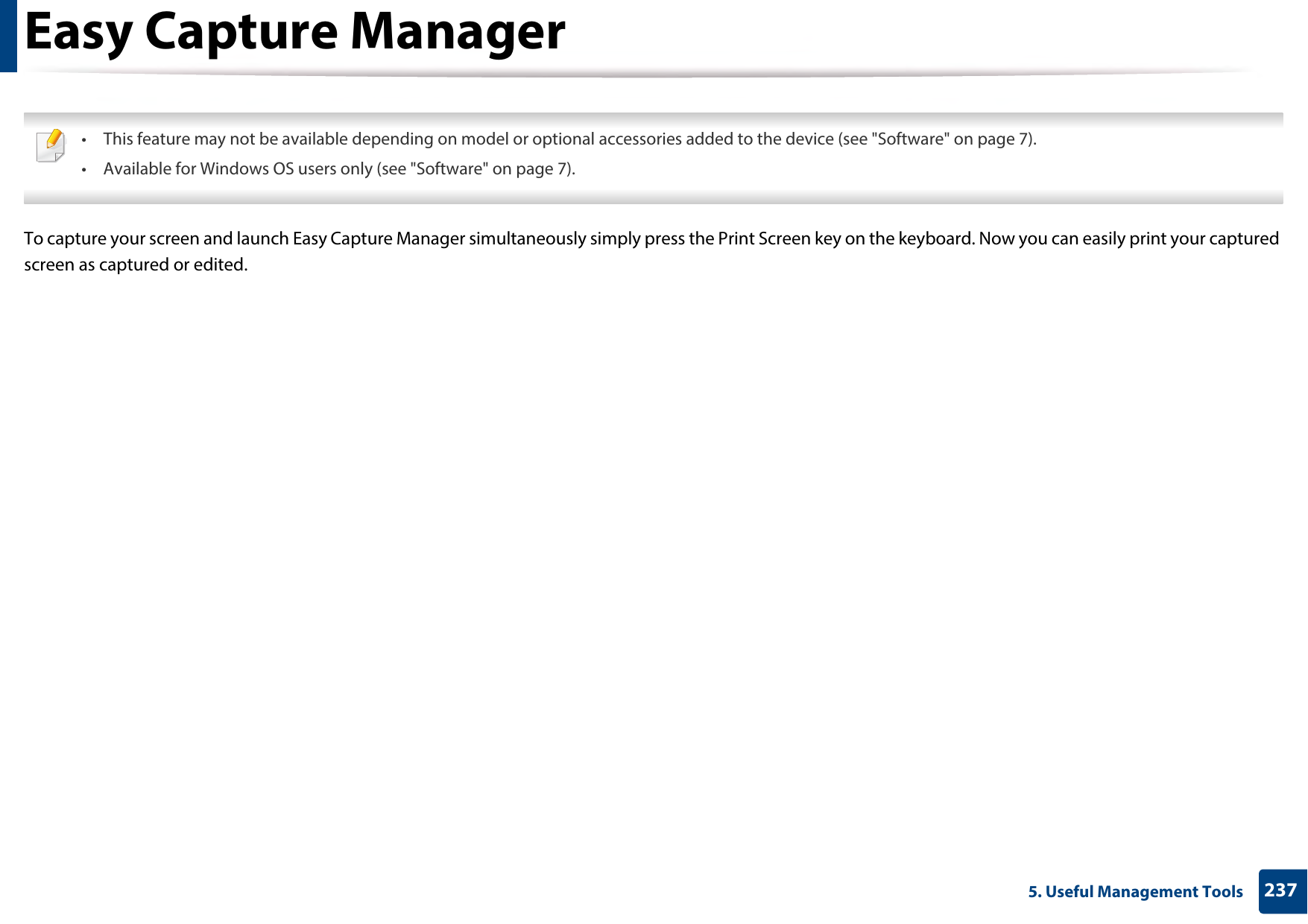

2375. Useful Management ToolsEasy Capture Manager • This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).• Available for Windows OS users only (see "Software" on page 7). To capture your screen and launch Easy Capture Manager simultaneously simply press the Print Screen key on the keyboard. Now you can easily print your captured screen as captured or edited.

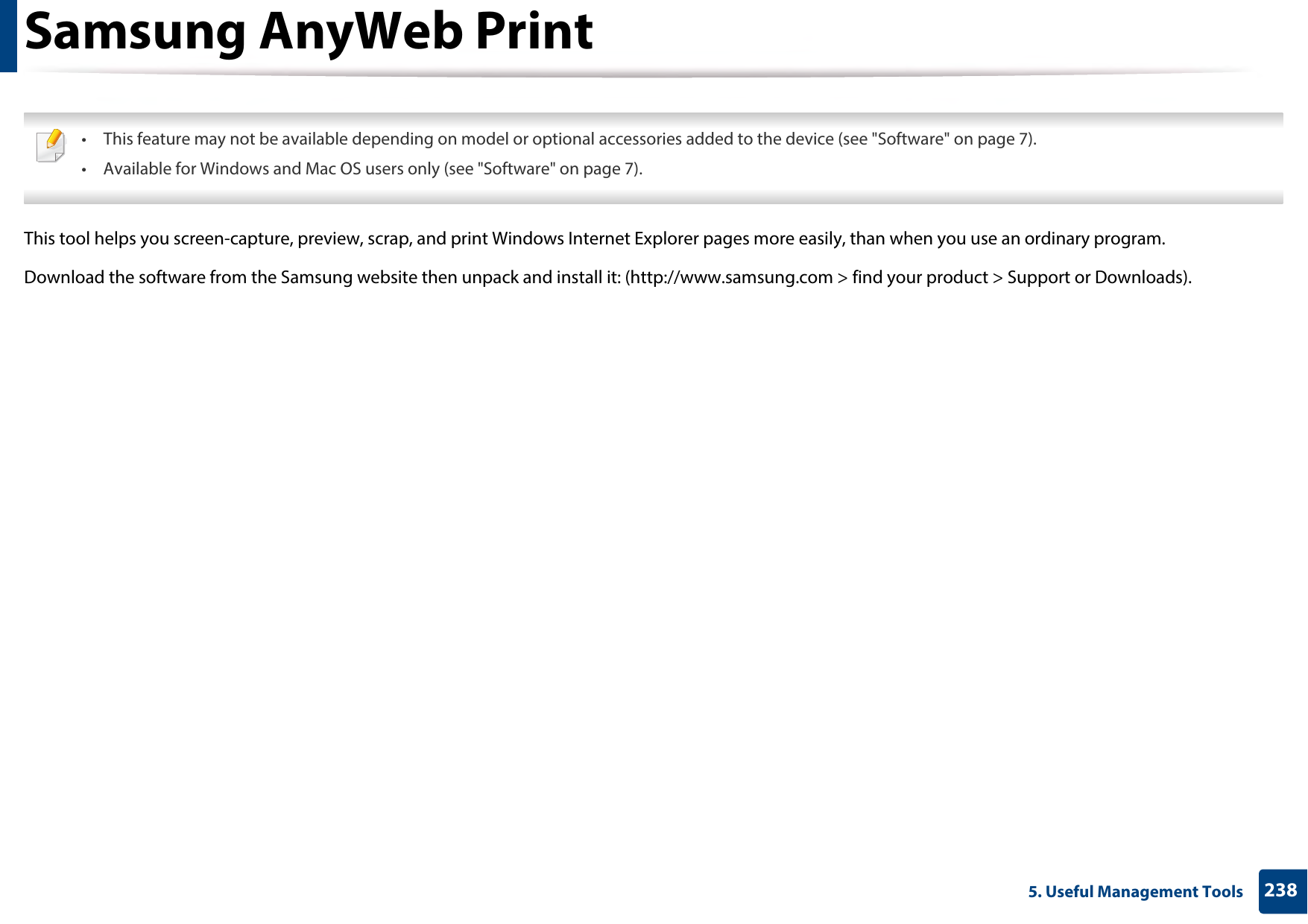

2385. Useful Management ToolsSamsung AnyWeb Print • This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).• Available for Windows and Mac OS users only (see "Software" on page 7). This tool helps you screen-capture, preview, scrap, and print Windows Internet Explorer pages more easily, than when you use an ordinary program. Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

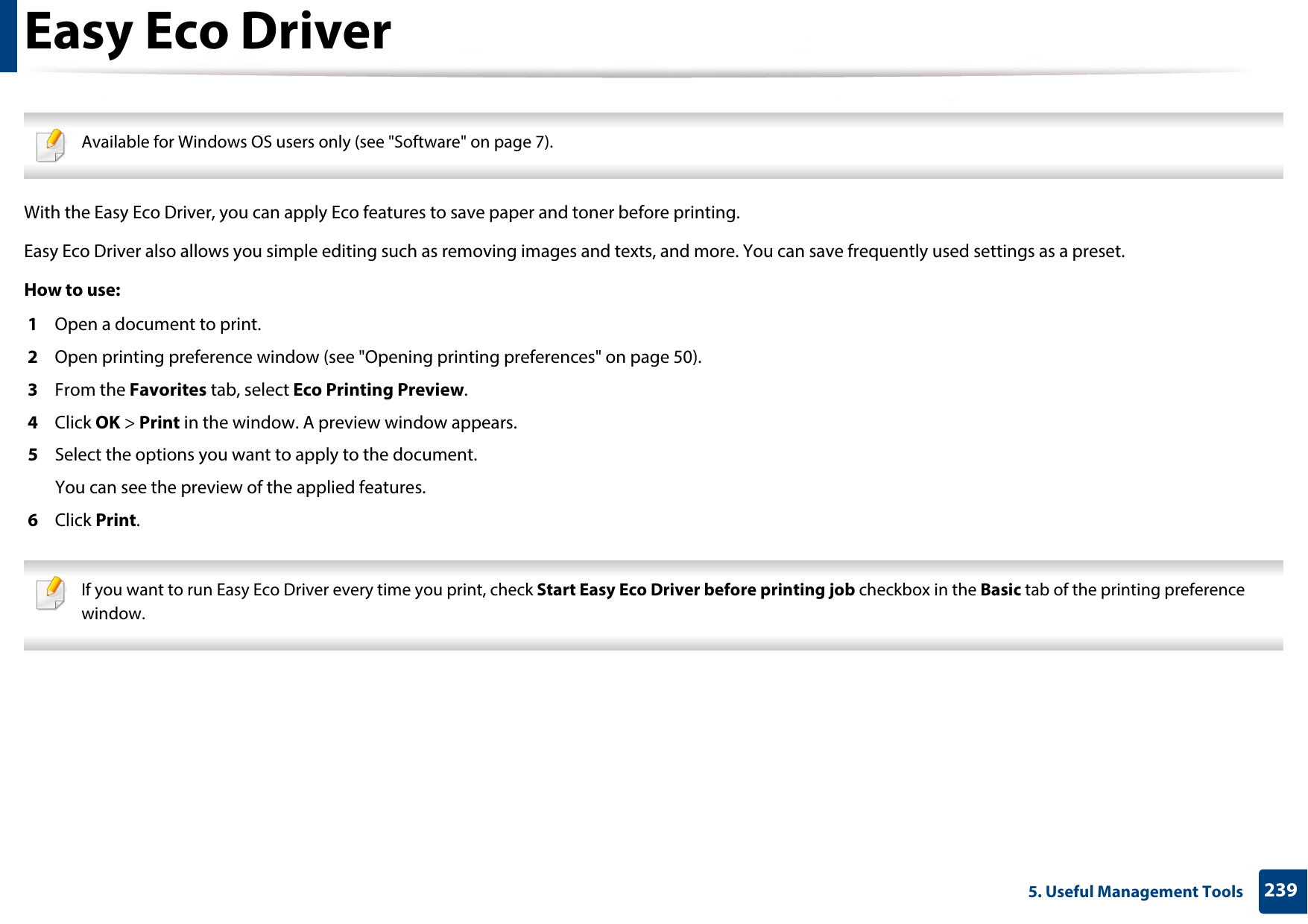

2395. Useful Management ToolsEasy Eco Driver Available for Windows OS users only (see "Software" on page 7). With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing. Easy Eco Driver also allows you simple editing such as removing images and texts, and more. You can save frequently used settings as a preset.How to use: 1 Open a document to print.2 Open printing preference window (see "Opening printing preferences" on page 50).3 From the Favorites tab, select Eco Printing Preview.4 Click OK > Print in the window. A preview window appears.5 Select the options you want to apply to the document.You can see the preview of the applied features.6 Click Print. If you want to run Easy Eco Driver every time you print, check Start Easy Eco Driver before printing job checkbox in the Basic tab of the printing preference window.

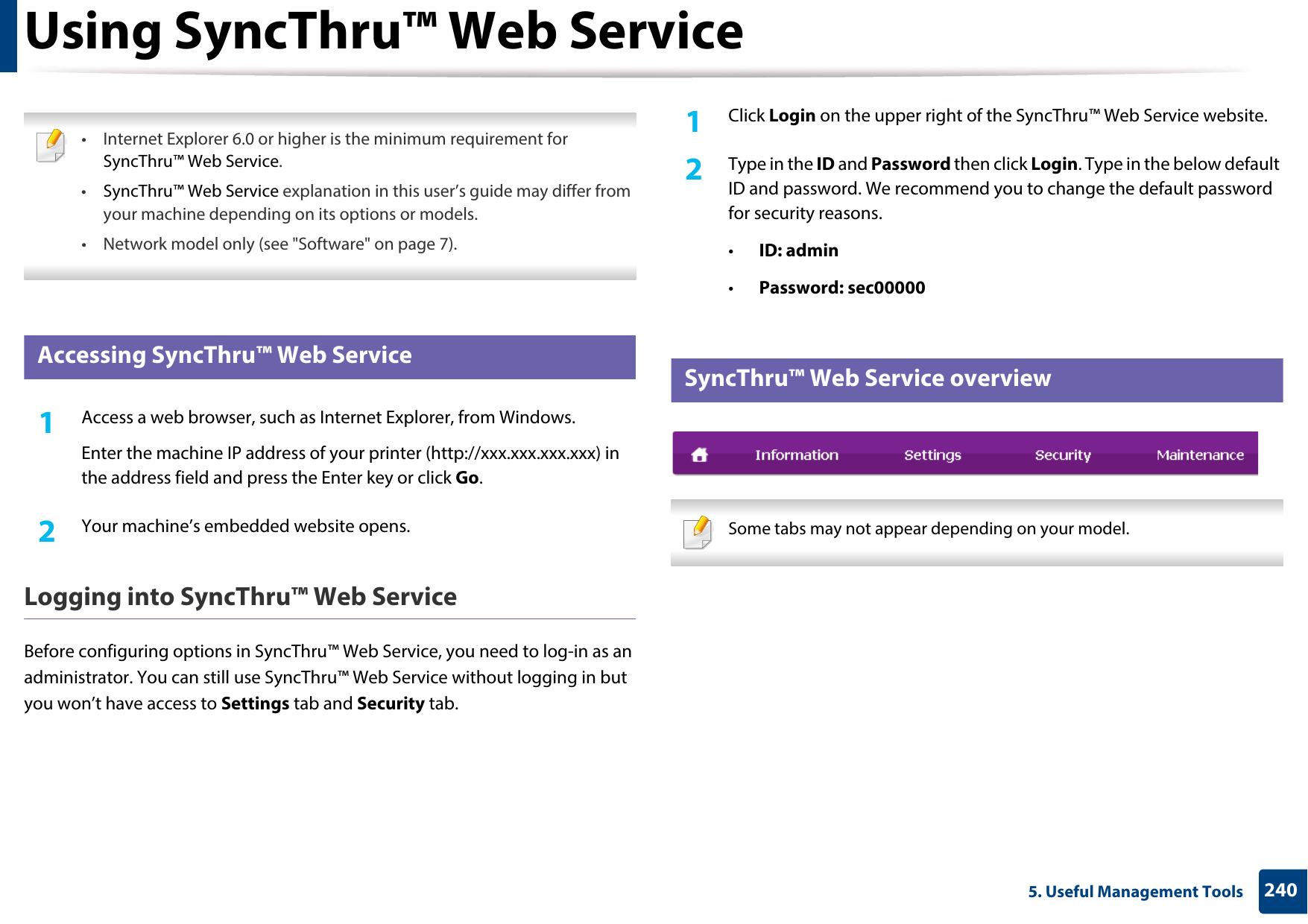

2405. Useful Management ToolsUsing SyncThru™ Web Service • Internet Explorer 6.0 or higher is the minimum requirement for SyncThru™ Web Service.•SyncThru™ Web Service explanation in this user’s guide may differ from your machine depending on its options or models.• Network model only (see "Software" on page 7). 1 Accessing SyncThru™ Web Service1Access a web browser, such as Internet Explorer, from Windows.Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.Logging into SyncThru™ Web ServiceBefore configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won’t have access to Settings tab and Security tab. 1Click Login on the upper right of the SyncThru™ Web Service website.2 Type in the ID and Password then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin •Password: sec00000 2 SyncThru™ Web Service overview Some tabs may not appear depending on your model.

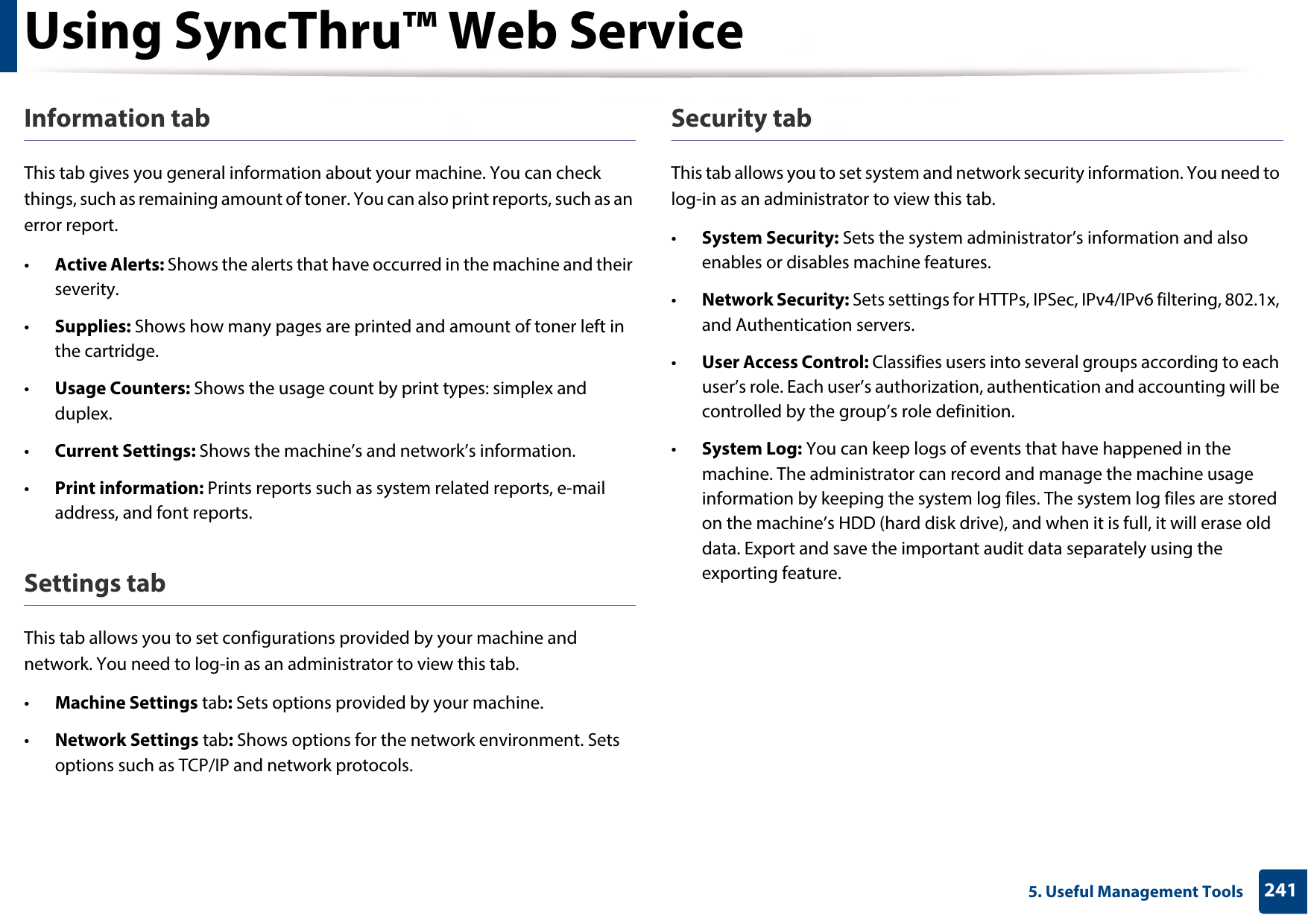

Using SyncThru™ Web Service2415. Useful Management ToolsInformation tabThis tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports, such as an error report.•Active Alerts: Shows the alerts that have occurred in the machine and their severity.•Supplies: Shows how many pages are printed and amount of toner left in the cartridge.•Usage Counters: Shows the usage count by print types: simplex and duplex.•Current Settings: Shows the machine’s and network’s information. •Print information: Prints reports such as system related reports, e-mail address, and font reports.Settings tabThis tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab. •Machine Settings tab: Sets options provided by your machine. •Network Settings tab: Shows options for the network environment. Sets options such as TCP/IP and network protocols. Security tabThis tab allows you to set system and network security information. You need to log-in as an administrator to view this tab.•System Security: Sets the system administrator’s information and also enables or disables machine features.•Network Security: Sets settings for HTTPs, IPSec, IPv4/IPv6 filtering, 802.1x, and Authentication servers.•User Access Control: Classifies users into several groups according to each user’s role. Each user’s authorization, authentication and accounting will be controlled by the group’s role definition.•System Log: You can keep logs of events that have happened in the machine. The administrator can record and manage the machine usage information by keeping the system log files. The system log files are stored on the machine’s HDD (hard disk drive), and when it is full, it will erase old data. Export and save the important audit data separately using the exporting feature.

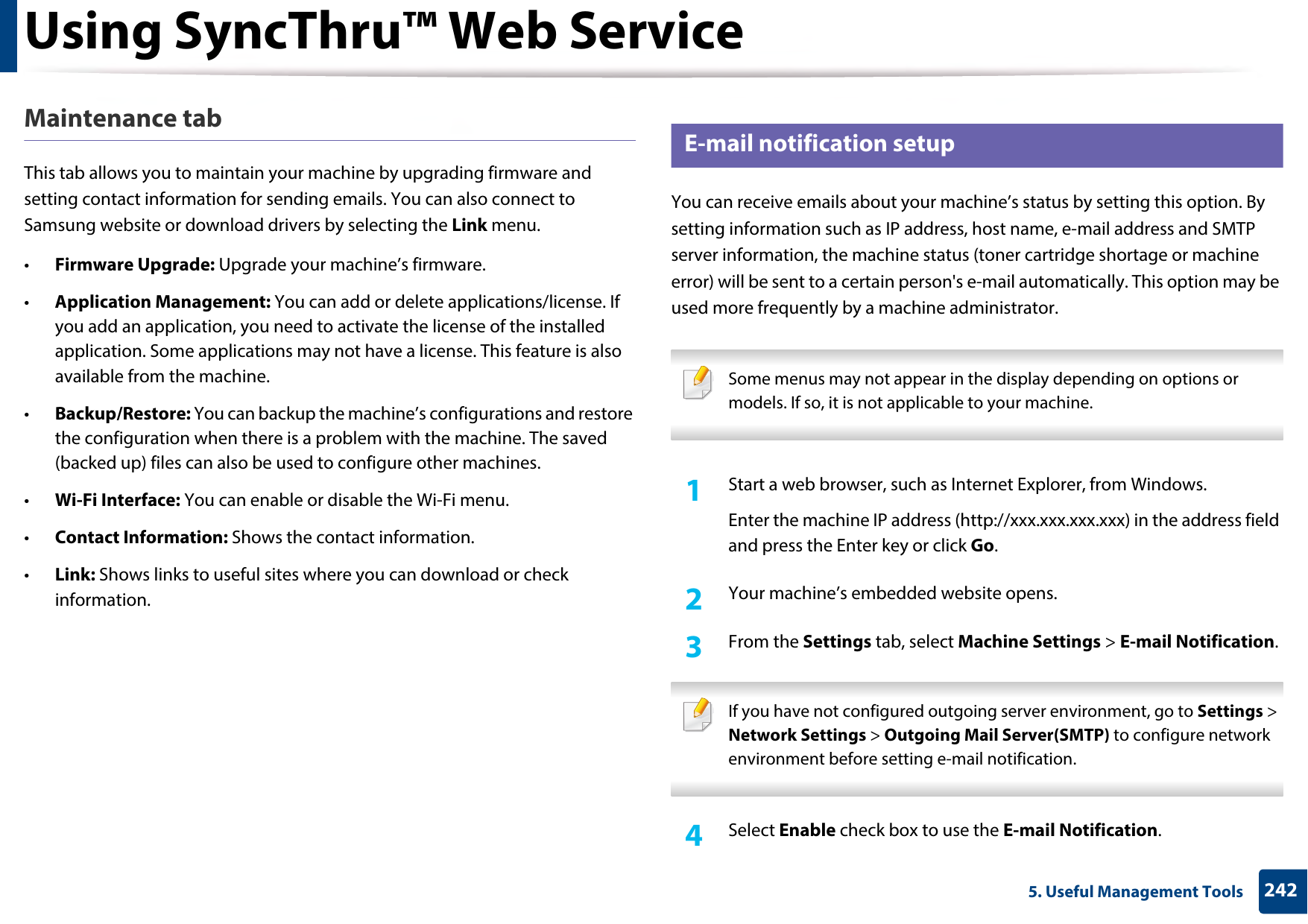

Using SyncThru™ Web Service2425. Useful Management ToolsMaintenance tabThis tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu.•Firmware Upgrade: Upgrade your machine’s firmware.•Application Management: You can add or delete applications/license. If you add an application, you need to activate the license of the installed application. Some applications may not have a license. This feature is also available from the machine.•Backup/Restore: You can backup the machine’s configurations and restore the configuration when there is a problem with the machine. The saved (backed up) files can also be used to configure other machines.•Wi-Fi Interface: You can enable or disable the Wi-Fi menu.•Contact Information: Shows the contact information.•Link: Shows links to useful sites where you can download or check information.3 E-mail notification setupYou can receive emails about your machine’s status by setting this option. By setting information such as IP address, host name, e-mail address and SMTP server information, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's e-mail automatically. This option may be used more frequently by a machine administrator. Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. 1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Settings tab, select Machine Settings > E-mail Notification. If you have not configured outgoing server environment, go to Settings > Network Settings > Outgoing Mail Server(SMTP) to configure network environment before setting e-mail notification. 4 Select Enable check box to use the E-mail Notification.

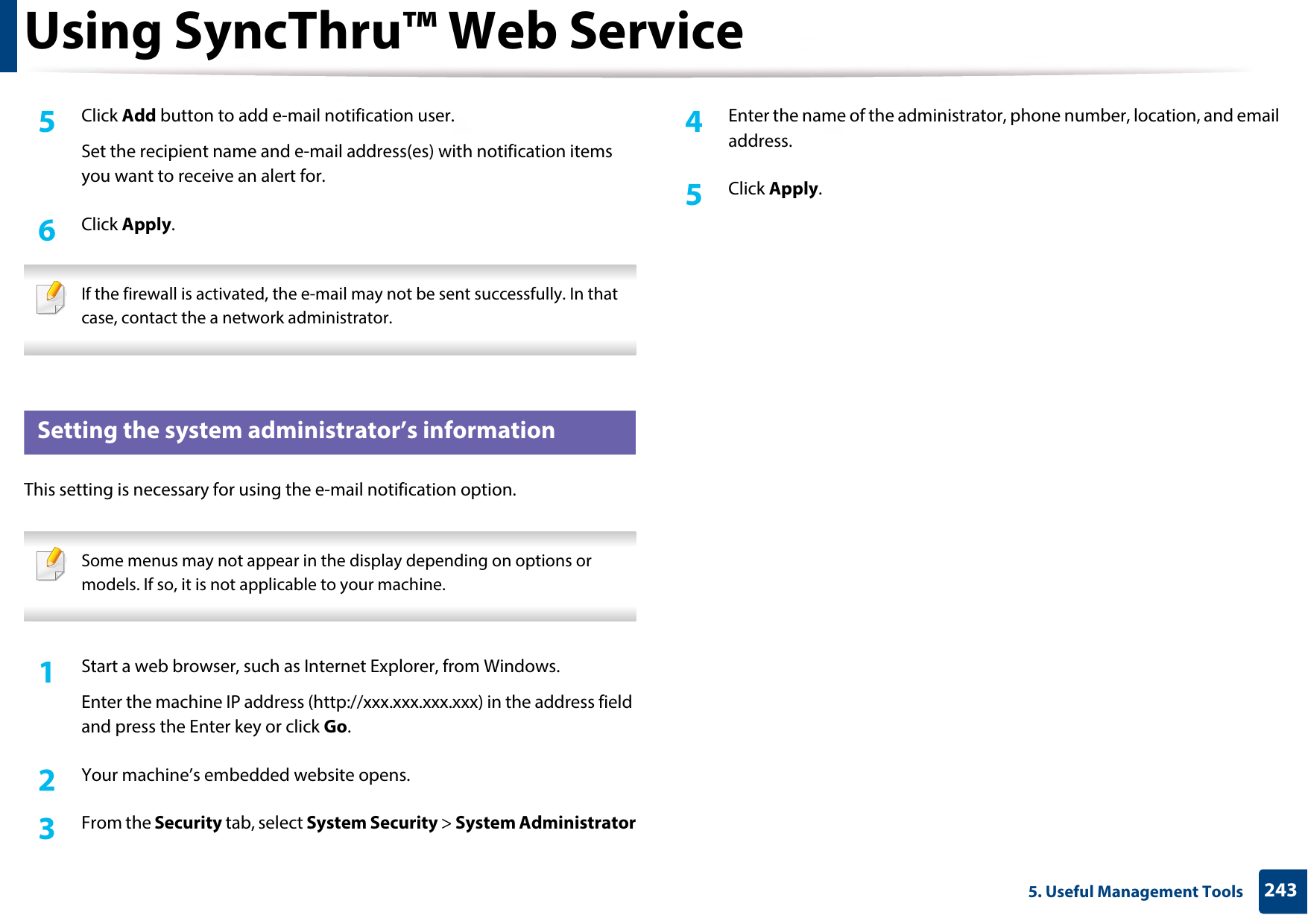

Using SyncThru™ Web Service2435. Useful Management Tools5 Click Add button to add e-mail notification user. Set the recipient name and e-mail address(es) with notification items you want to receive an alert for.6 Click Apply. If the firewall is activated, the e-mail may not be sent successfully. In that case, contact the a network administrator. 4 Setting the system administrator’s informationThis setting is necessary for using the e-mail notification option. Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. 1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Security tab, select System Security > System Administrator4 Enter the name of the administrator, phone number, location, and email address. 5 Click Apply.

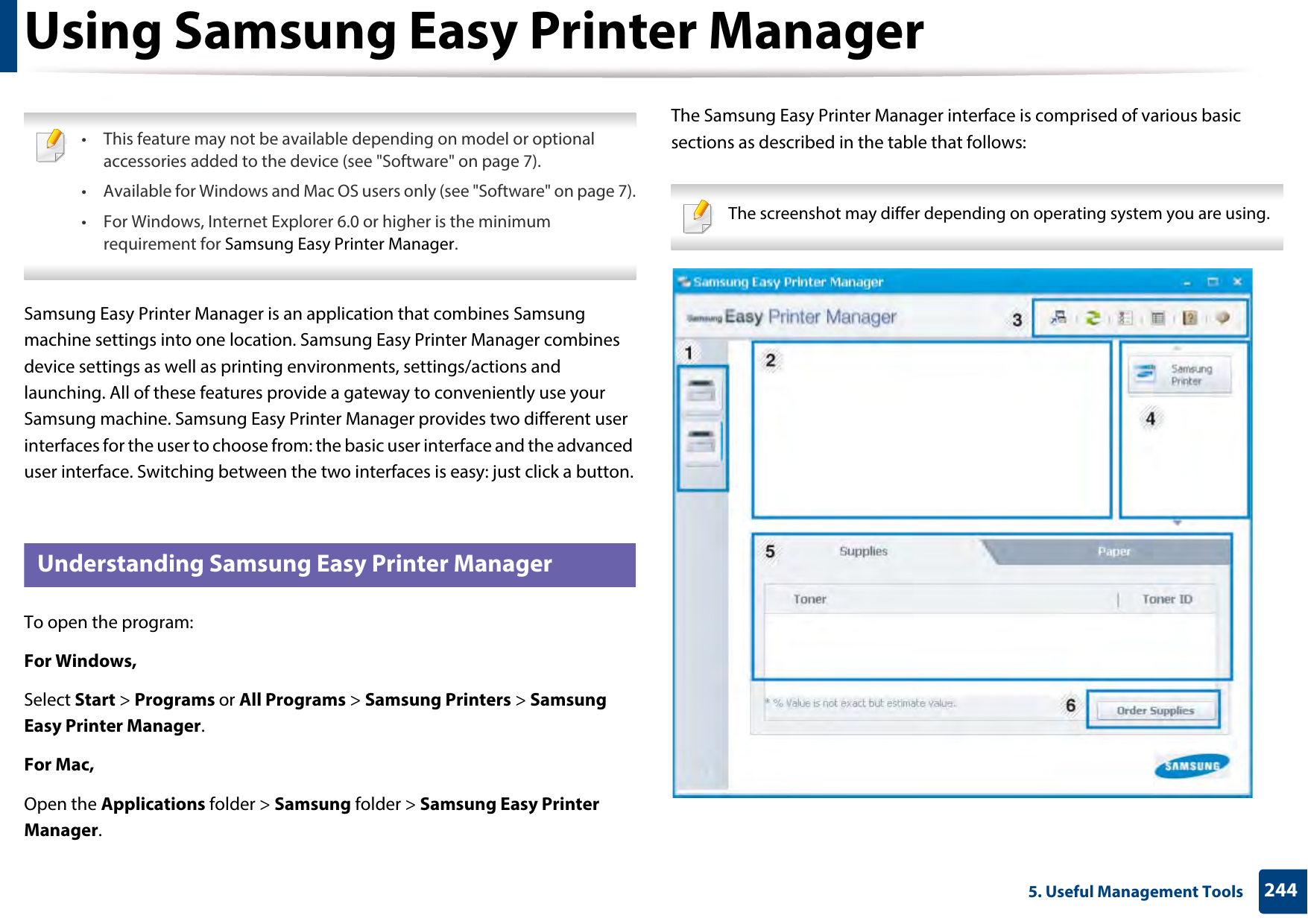

2445. Useful Management ToolsUsing Samsung Easy Printer Manager • This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).• Available for Windows and Mac OS users only (see "Software" on page 7).• For Windows, Internet Explorer 6.0 or higher is the minimum requirement for Samsung Easy Printer Manager. Samsung Easy Printer Manager is an application that combines Samsung machine settings into one location. Samsung Easy Printer Manager combines device settings as well as printing environments, settings/actions and launching. All of these features provide a gateway to conveniently use your Samsung machine. Samsung Easy Printer Manager provides two different user interfaces for the user to choose from: the basic user interface and the advanced user interface. Switching between the two interfaces is easy: just click a button.5 Understanding Samsung Easy Printer ManagerTo open the program: For Windows,Select Start > Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager.For Mac,Open the Applications folder > Samsung folder > Samsung Easy Printer Manager.The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows: The screenshot may differ depending on operating system you are using.

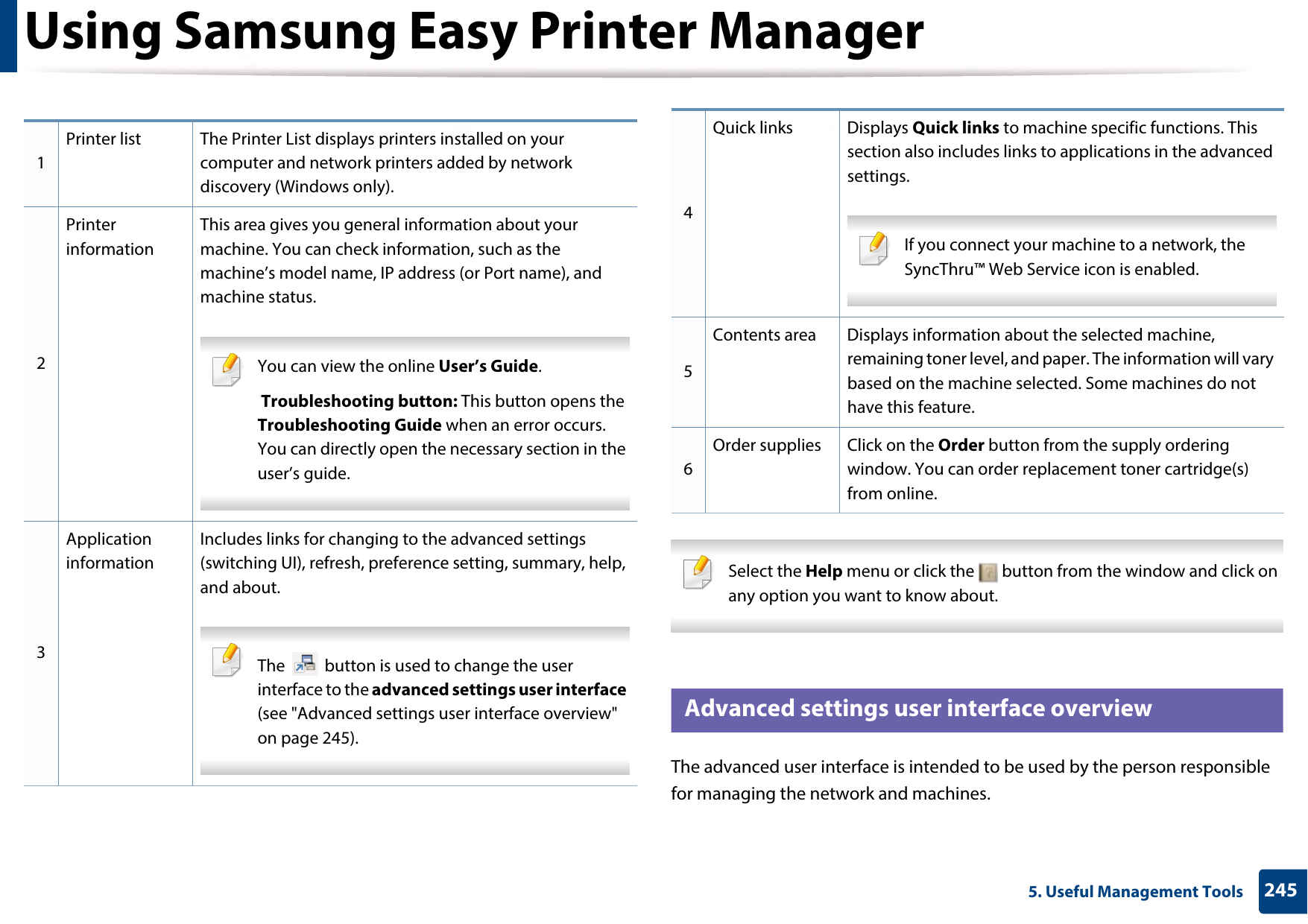

Using Samsung Easy Printer Manager2455. Useful Management Tools Select the Help menu or click the button from the window and click on any option you want to know about. 6 Advanced settings user interface overviewThe advanced user interface is intended to be used by the person responsible for managing the network and machines.1Printer list The Printer List displays printers installed on your computer and network printers added by network discovery (Windows only).2Printer informationThis area gives you general information about your machine. You can check information, such as the machine’s model name, IP address (or Port name), and machine status. You can view the online User’s Guide. Troubleshooting button: This button opens the Troubleshooting Guide when an error occurs. You can directly open the necessary section in the user’s guide. 3Application informationIncludes links for changing to the advanced settings (switching UI), refresh, preference setting, summary, help, and about. The button is used to change the user interface to the advanced settings user interface (see "Advanced settings user interface overview" on page 245). 4Quick links Displays Quick links to machine specific functions. This section also includes links to applications in the advanced settings. If you connect your machine to a network, the SyncThru™ Web Service icon is enabled. 5Contents area Displays information about the selected machine, remaining toner level, and paper. The information will vary based on the machine selected. Some machines do not have this feature.6Order supplies Click on the Order button from the supply ordering window. You can order replacement toner cartridge(s) from online.

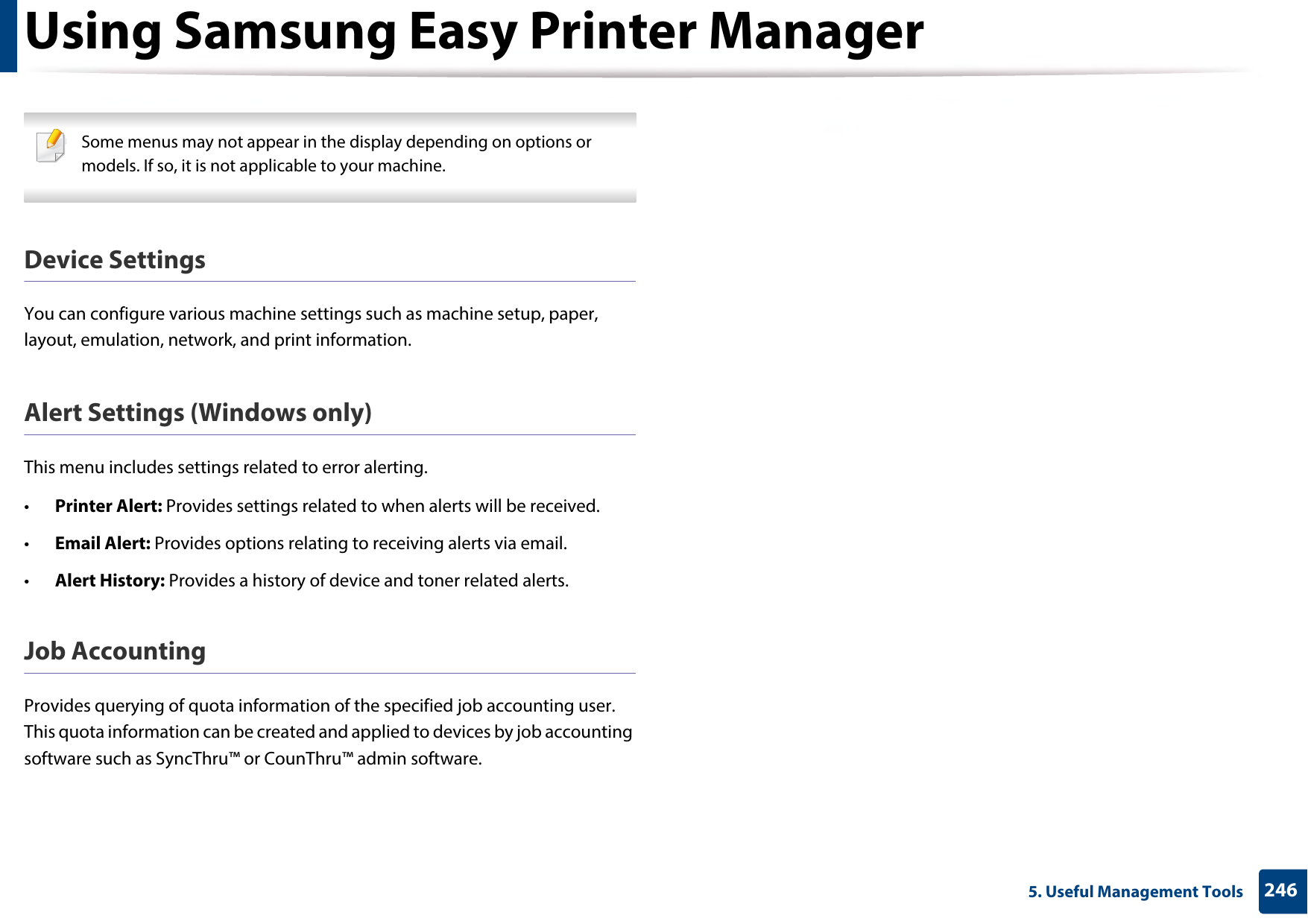

Using Samsung Easy Printer Manager2465. Useful Management Tools Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. Device SettingsYou can configure various machine settings such as machine setup, paper, layout, emulation, network, and print information.Alert Settings (Windows only)This menu includes settings related to error alerting. •Printer Alert: Provides settings related to when alerts will be received.•Email Alert: Provides options relating to receiving alerts via email.•Alert History: Provides a history of device and toner related alerts.Job AccountingProvides querying of quota information of the specified job accounting user. This quota information can be created and applied to devices by job accounting software such as SyncThru™ or CounThru™ admin software.

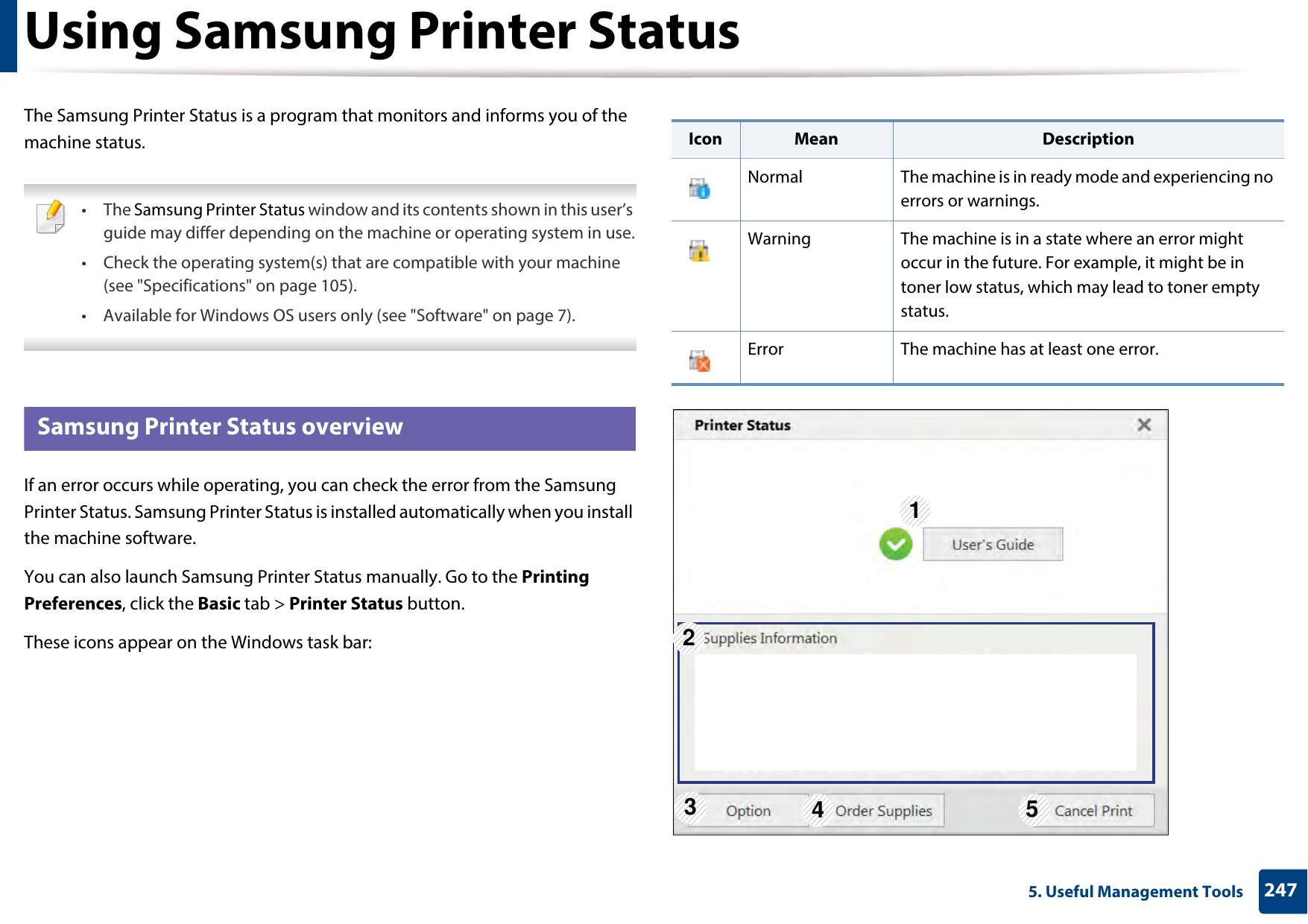

2475. Useful Management ToolsUsing Samsung Printer Status The Samsung Printer Status is a program that monitors and informs you of the machine status. • The Samsung Printer Status window and its contents shown in this user’s guide may differ depending on the machine or operating system in use.• Check the operating system(s) that are compatible with your machine (see "Specifications" on page 105).• Available for Windows OS users only (see "Software" on page 7). 7 Samsung Printer Status overviewIf an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software. You can also launch Samsung Printer Status manually. Go to the Printing Preferences, click the Basic tab > Printer Status button.These icons appear on the Windows task bar:Icon Mean DescriptionNormal The machine is in ready mode and experiencing no errors or warnings.Warning The machine is in a state where an error might occur in the future. For example, it might be in toner low status, which may lead to toner empty status.Error The machine has at least one error.12345

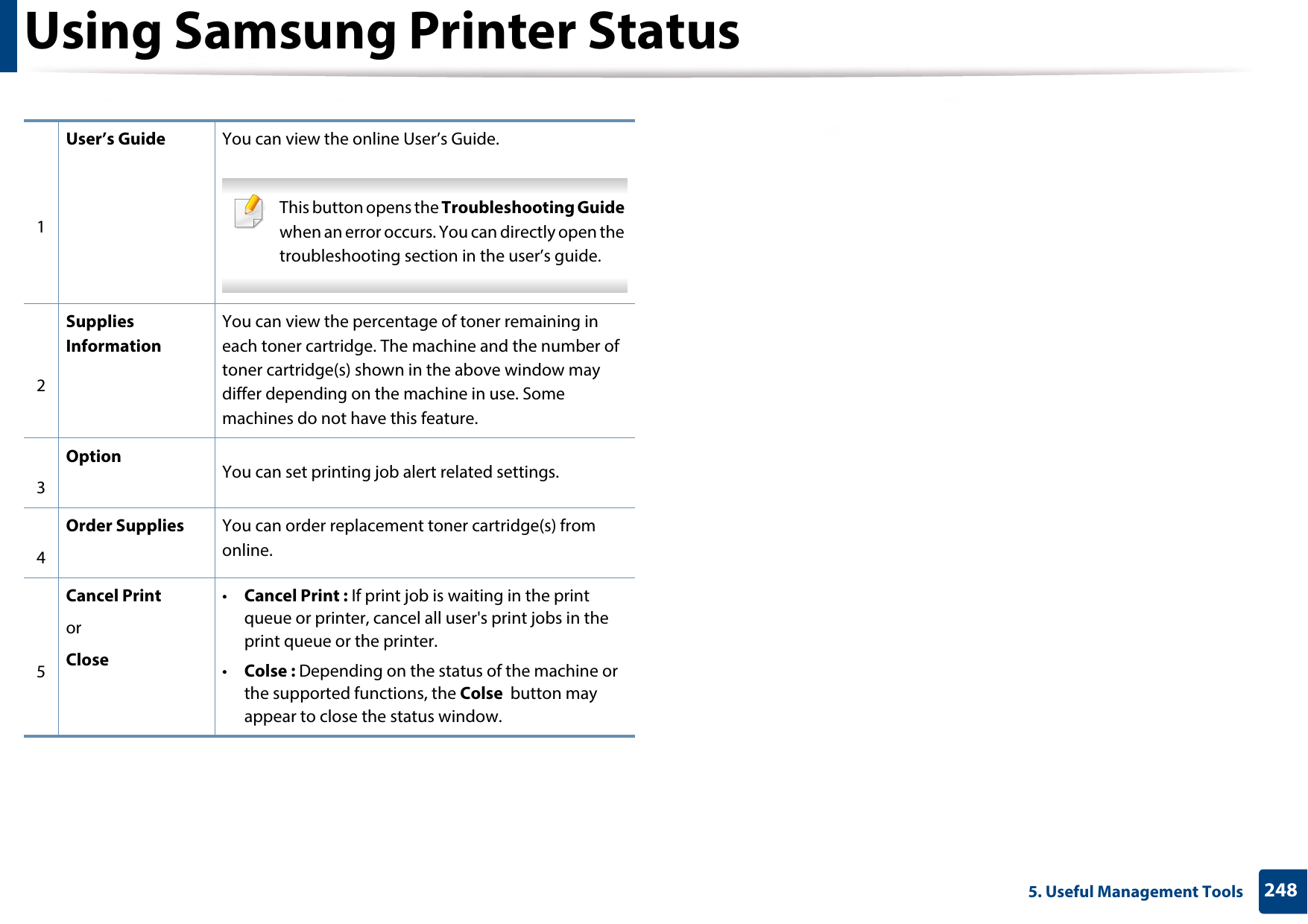

Using Samsung Printer Status2485. Useful Management Tools1User’s Guide You can view the online User’s Guide. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 2Supplies InformationYou can view the percentage of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature.3Option You can set printing job alert related settings. 4Order Supplies You can order replacement toner cartridge(s) from online.5Cancel Print or Close•Cancel Print : If print job is waiting in the print queue or printer, cancel all user's print jobs in the print queue or the printer.•Colse : Depending on the status of the machine or the supported functions, the Colse button may appear to close the status window.

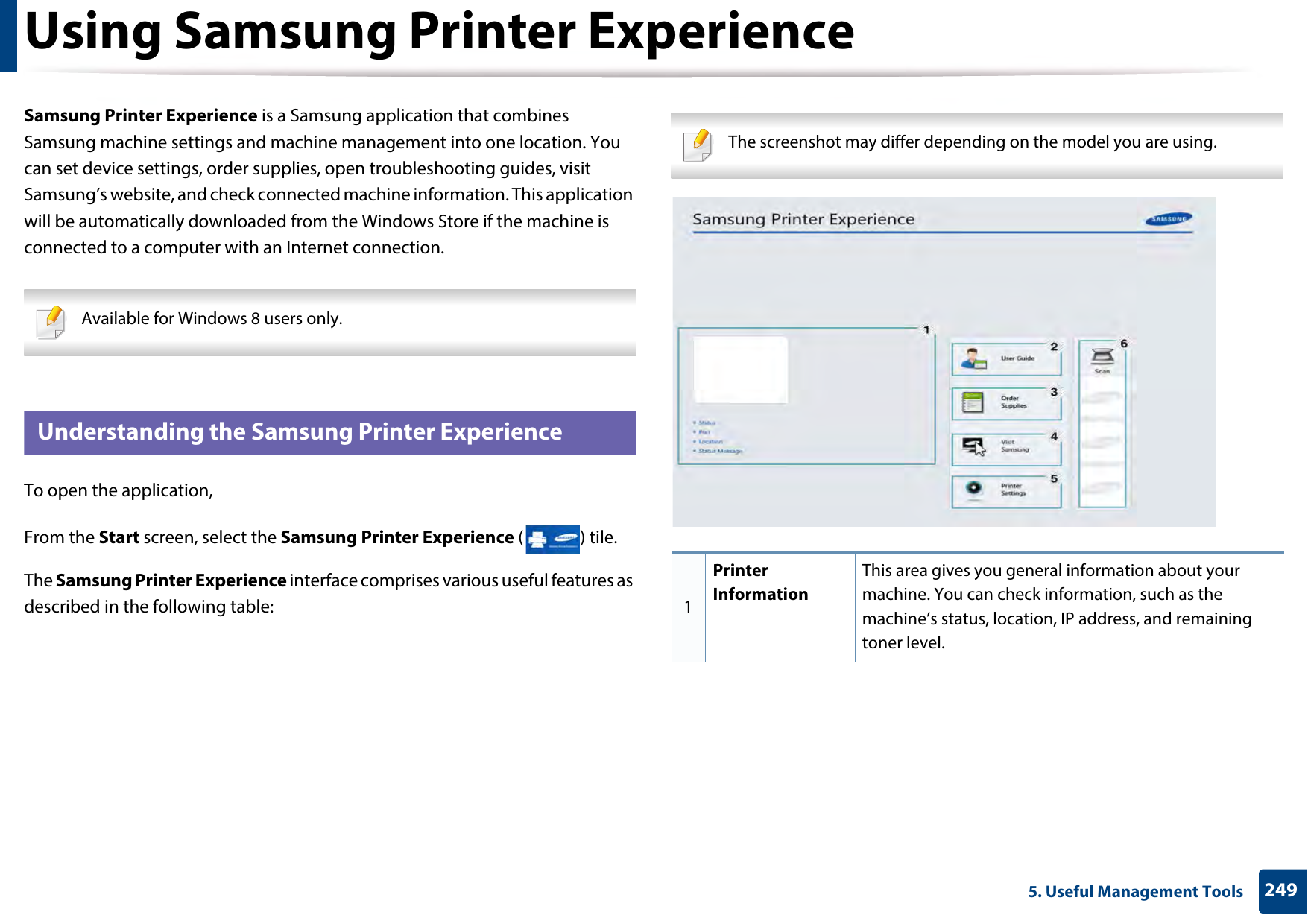

2495. Useful Management ToolsUsing Samsung Printer Experience Samsung Printer Experience is a Samsung application that combines Samsung machine settings and machine management into one location. You can set device settings, order supplies, open troubleshooting guides, visit Samsung’s website, and check connected machine information. This application will be automatically downloaded from the Windows Store if the machine is connected to a computer with an Internet connection. Available for Windows 8 users only. 8 Understanding the Samsung Printer ExperienceTo open the application, From the Start screen, select the Samsung Printer Experience ( ) tile. The Samsung Printer Experience interface comprises various useful features as described in the following table: The screenshot may differ depending on the model you are using. 1Printer InformationThis area gives you general information about your machine. You can check information, such as the machine’s status, location, IP address, and remaining toner level.

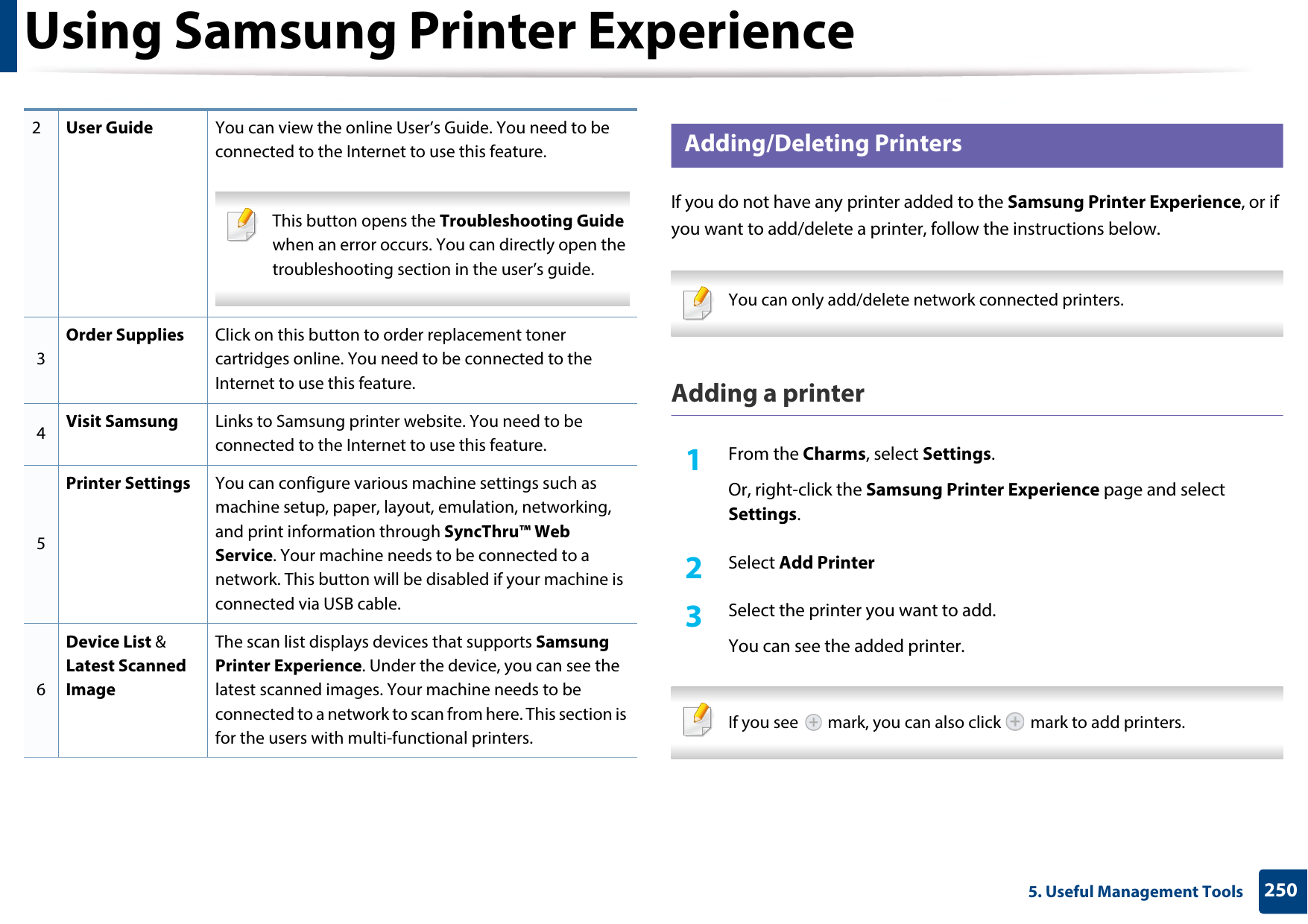

Using Samsung Printer Experience2505. Useful Management Tools9 Adding/Deleting PrintersIf you do not have any printer added to the Samsung Printer Experience, or if you want to add/delete a printer, follow the instructions below. You can only add/delete network connected printers. Adding a printer1From the Charms, select Settings.Or, right-click the Samsung Printer Experience page and select Settings.2 Select Add Printer3 Select the printer you want to add.You can see the added printer. If you see mark, you can also click mark to add printers. 2User Guide You can view the online User’s Guide. You need to be connected to the Internet to use this feature. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 3Order Supplies Click on this button to order replacement toner cartridges online. You need to be connected to the Internet to use this feature. 4Visit Samsung Links to Samsung printer website. You need to be connected to the Internet to use this feature.5Printer Settings You can configure various machine settings such as machine setup, paper, layout, emulation, networking, and print information through SyncThru™ Web Service. Your machine needs to be connected to a network. This button will be disabled if your machine is connected via USB cable.6Device List & Latest Scanned ImageThe scan list displays devices that supports Samsung Printer Experience. Under the device, you can see the latest scanned images. Your machine needs to be connected to a network to scan from here. This section is for the users with multi-functional printers.

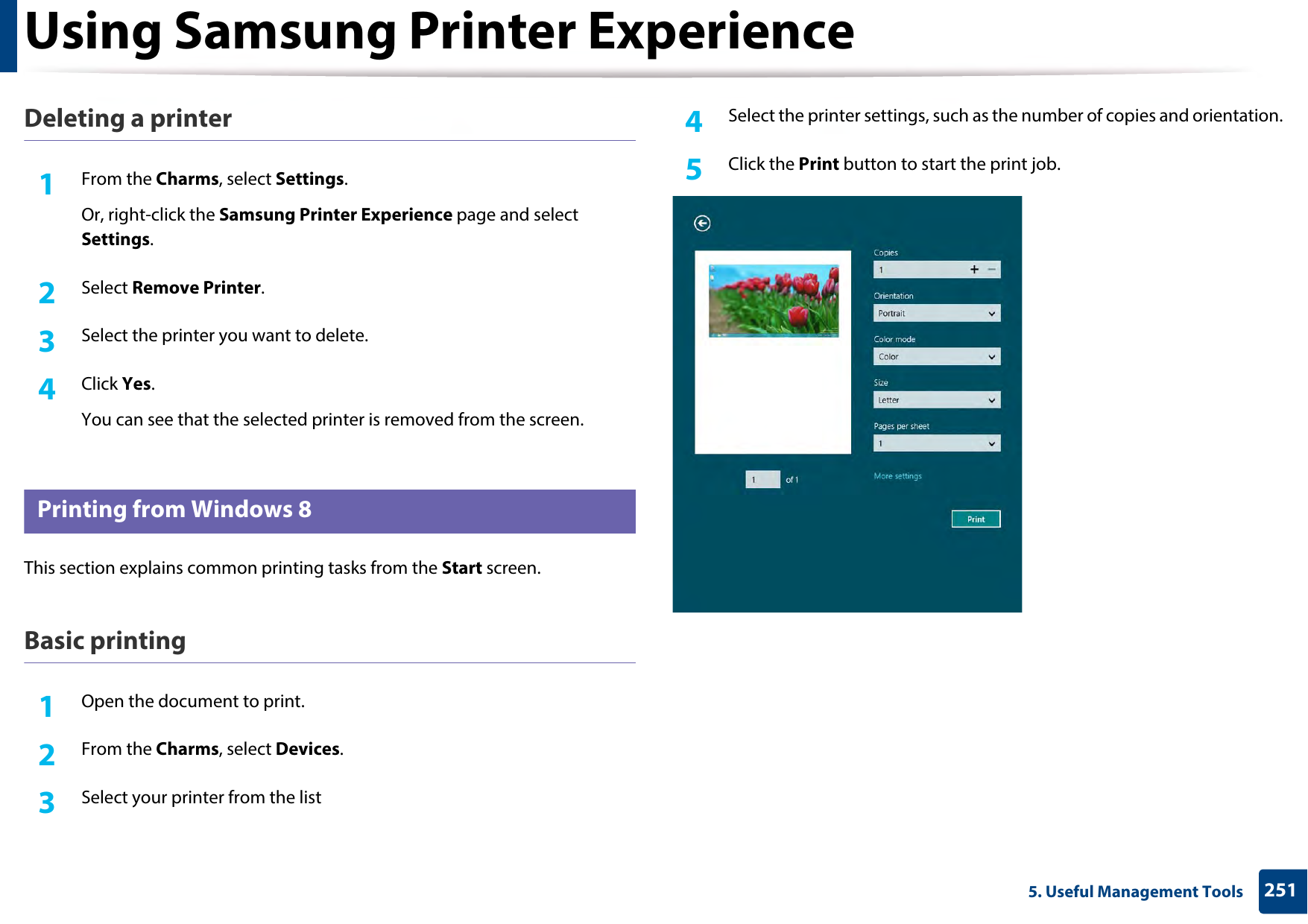

Using Samsung Printer Experience2515. Useful Management ToolsDeleting a printer1From the Charms, select Settings.Or, right-click the Samsung Printer Experience page and select Settings.2 Select Remove Printer.3 Select the printer you want to delete.4 Click Yes.You can see that the selected printer is removed from the screen.10 Printing from Windows 8This section explains common printing tasks from the Start screen.Basic printing1Open the document to print.2 From the Charms, select Devices.3 Select your printer from the list4 Select the printer settings, such as the number of copies and orientation.5 Click the Print button to start the print job.

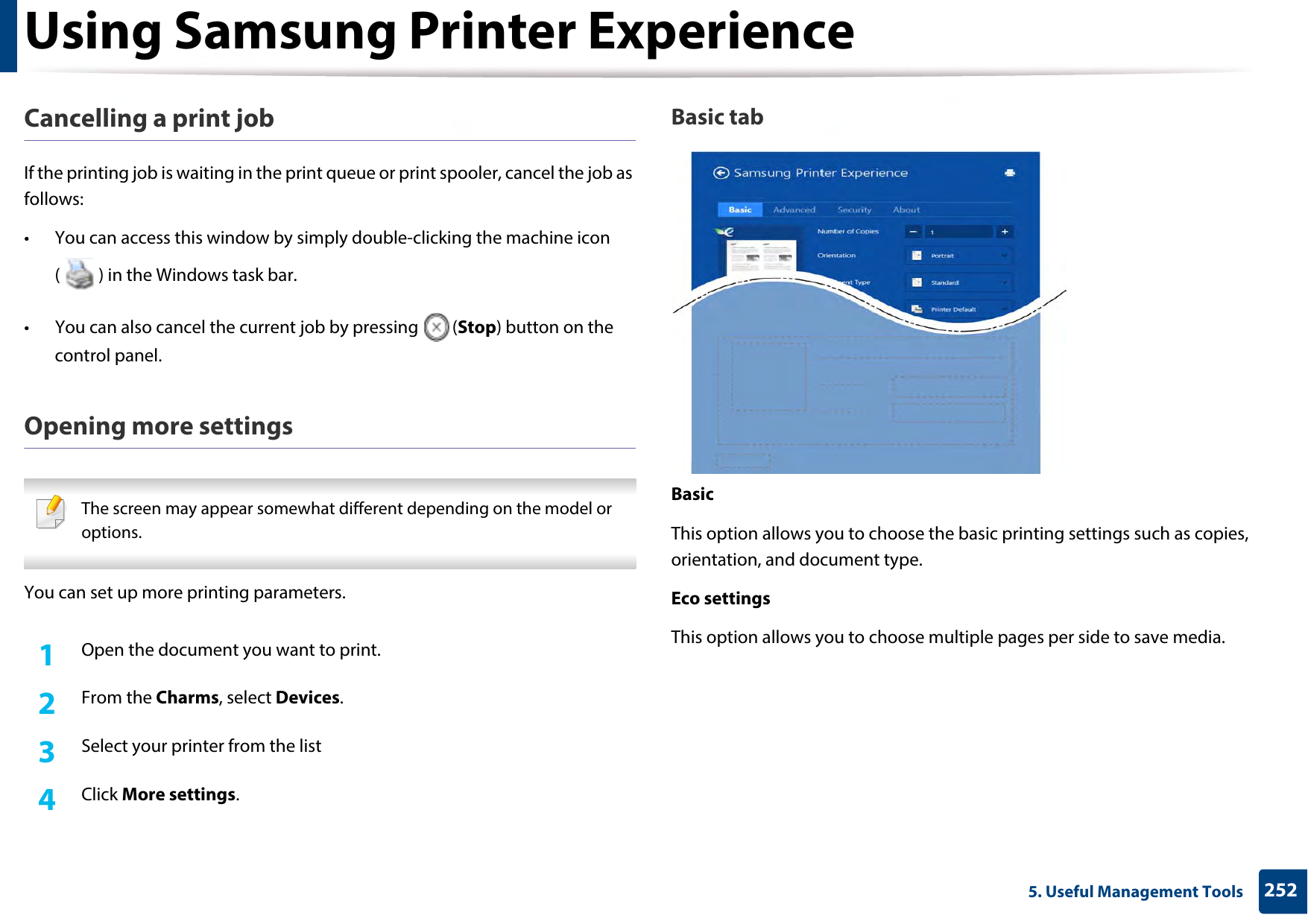

Using Samsung Printer Experience2525. Useful Management ToolsCancelling a print jobIf the printing job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing (Stop) button on the control panel.Opening more settings The screen may appear somewhat different depending on the model or options. You can set up more printing parameters.1Open the document you want to print.2 From the Charms, select Devices.3 Select your printer from the list4 Click More settings.Basic tabBasicThis option allows you to choose the basic printing settings such as copies, orientation, and document type.Eco settingsThis option allows you to choose multiple pages per side to save media.

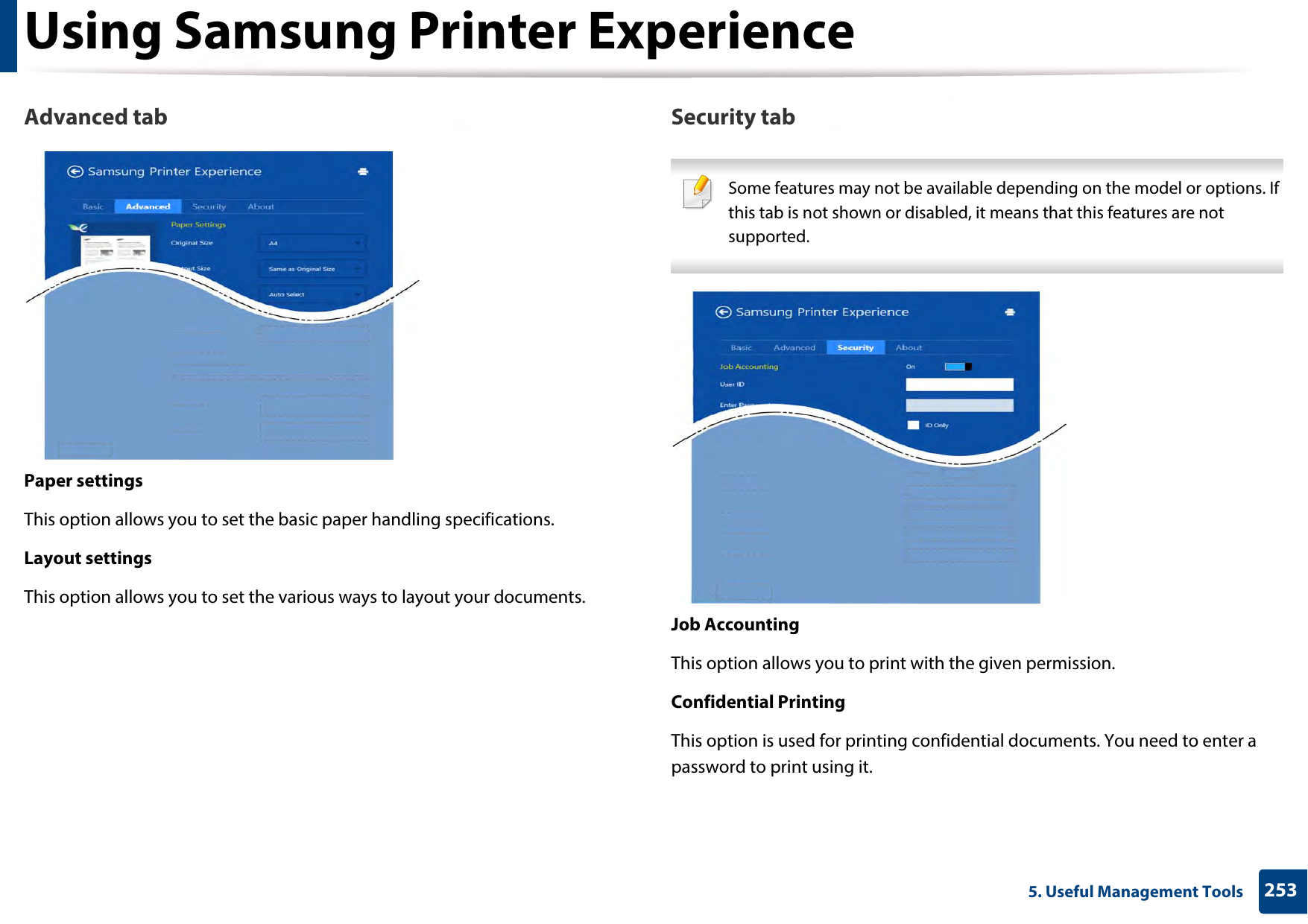

Using Samsung Printer Experience2535. Useful Management ToolsAdvanced tabPaper settingsThis option allows you to set the basic paper handling specifications.Layout settingsThis option allows you to set the various ways to layout your documents.Security tab Some features may not be available depending on the model or options. If this tab is not shown or disabled, it means that this features are not supported. Job AccountingThis option allows you to print with the given permission.Confidential PrintingThis option is used for printing confidential documents. You need to enter a password to print using it.
Using Samsung Printer Experience2545. Useful Management ToolsUsing the sharing featureSamsung Printer Experience allows you to print from other applications installed on the computer using the sharing feature. This feature is only available for printing jpeg, bmp, tiff, gif, and png file formats. 1Select the content you want to print from other application.2 From the Charms, select Share > Samsung Printer Experience.3 Select the printer settings, such as the number of copies and orientation.4 Click the Print button to start the print job.

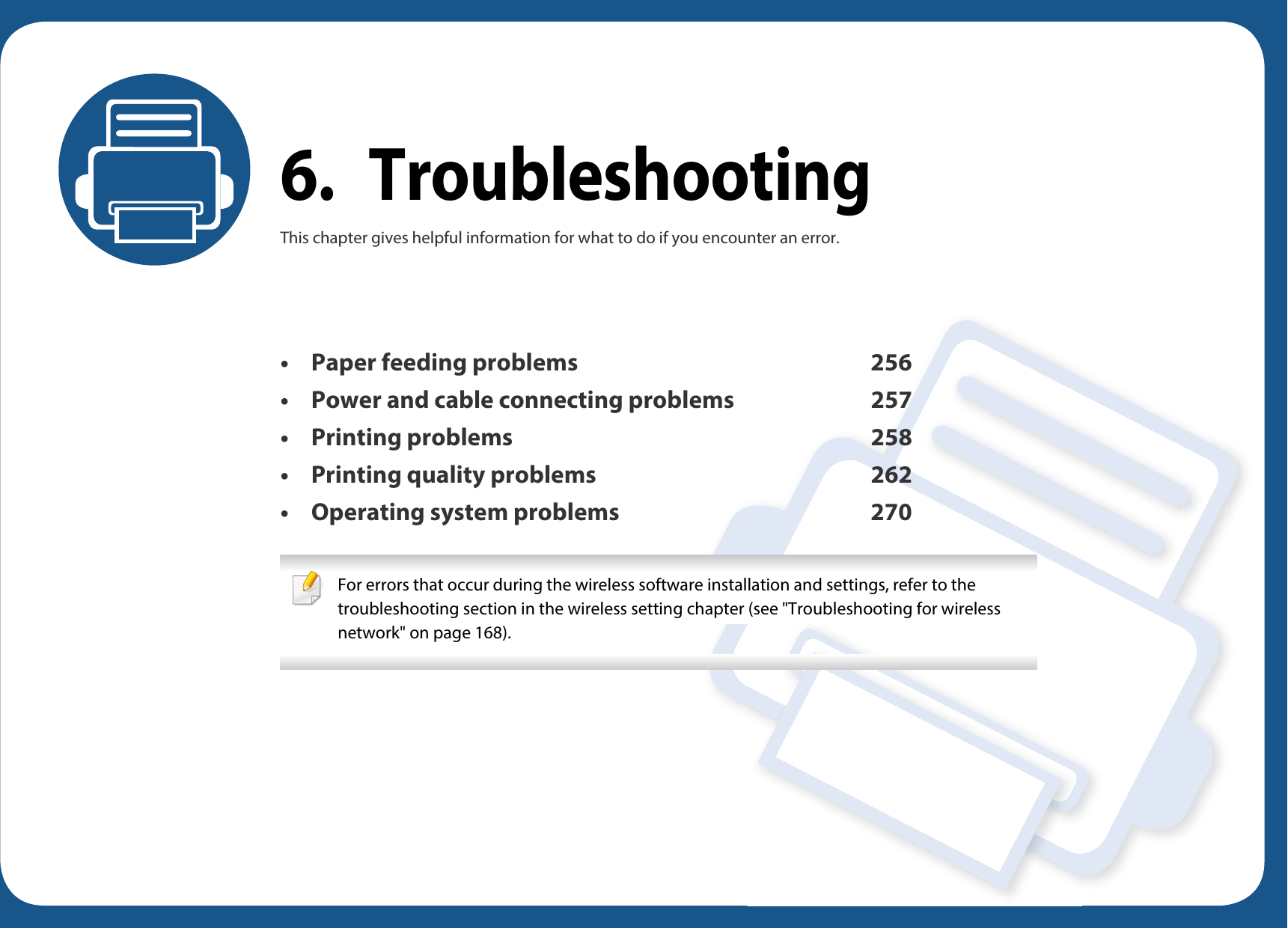

6. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Paper feeding problems 256• Power and cable connecting problems 257• Printing problems 258• Printing quality problems 262• Operating system problems 270 For errors that occur during the wireless software installation and settings, refer to the troubleshooting section in the wireless setting chapter (see "Troubleshooting for wireless network" on page 168).

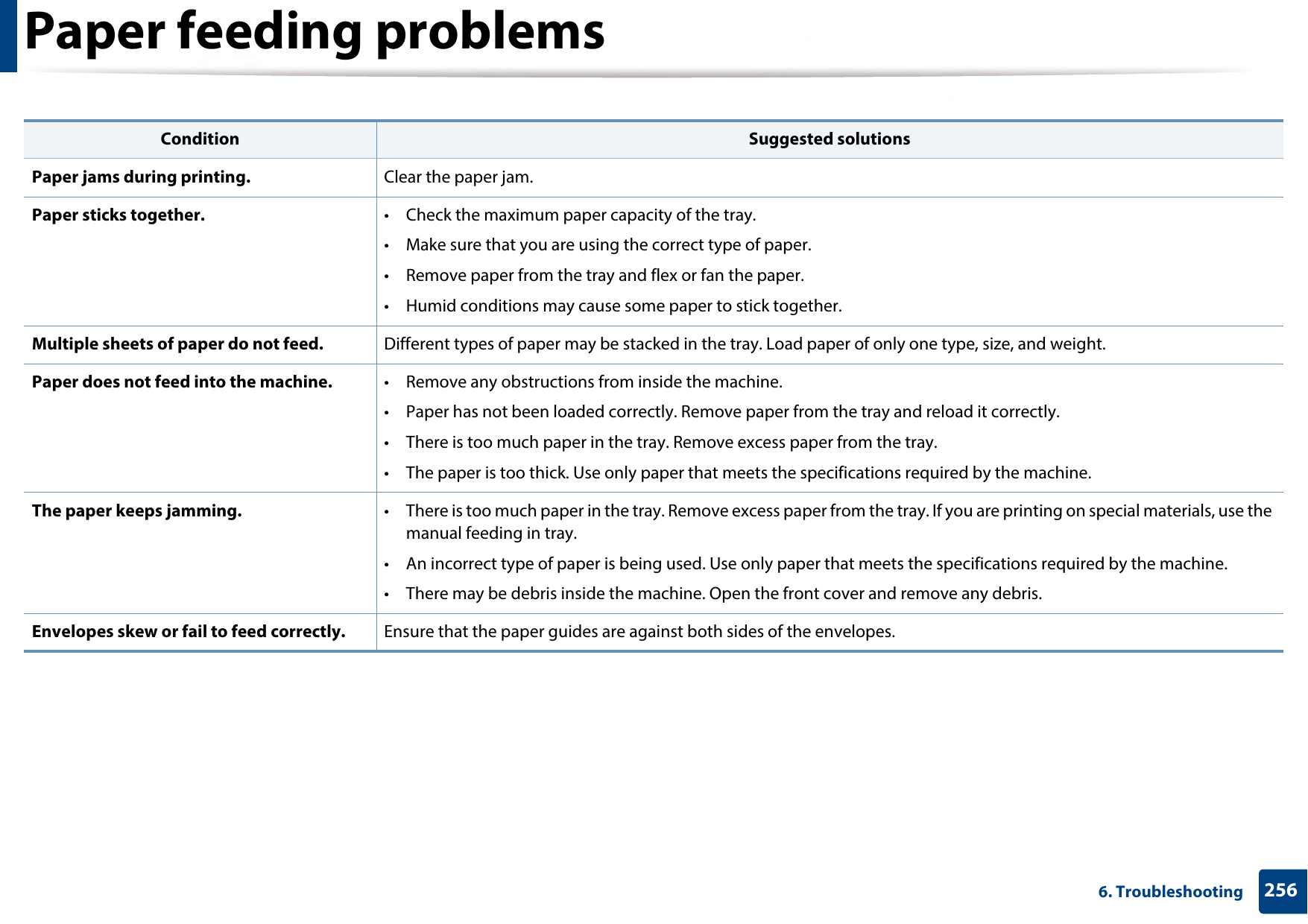

2566. TroubleshootingPaper feeding problemsCondition Suggested solutionsPaper jams during printing. Clear the paper jam.Paper sticks together. • Check the maximum paper capacity of the tray.• Make sure that you are using the correct type of paper.• Remove paper from the tray and flex or fan the paper.• Humid conditions may cause some paper to stick together.Multiple sheets of paper do not feed. Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.Paper does not feed into the machine. • Remove any obstructions from inside the machine.• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.• There is too much paper in the tray. Remove excess paper from the tray.• The paper is too thick. Use only paper that meets the specifications required by the machine.The paper keeps jamming. • There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the manual feeding in tray.• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine.• There may be debris inside the machine. Open the front cover and remove any debris.Envelopes skew or fail to feed correctly. Ensure that the paper guides are against both sides of the envelopes.

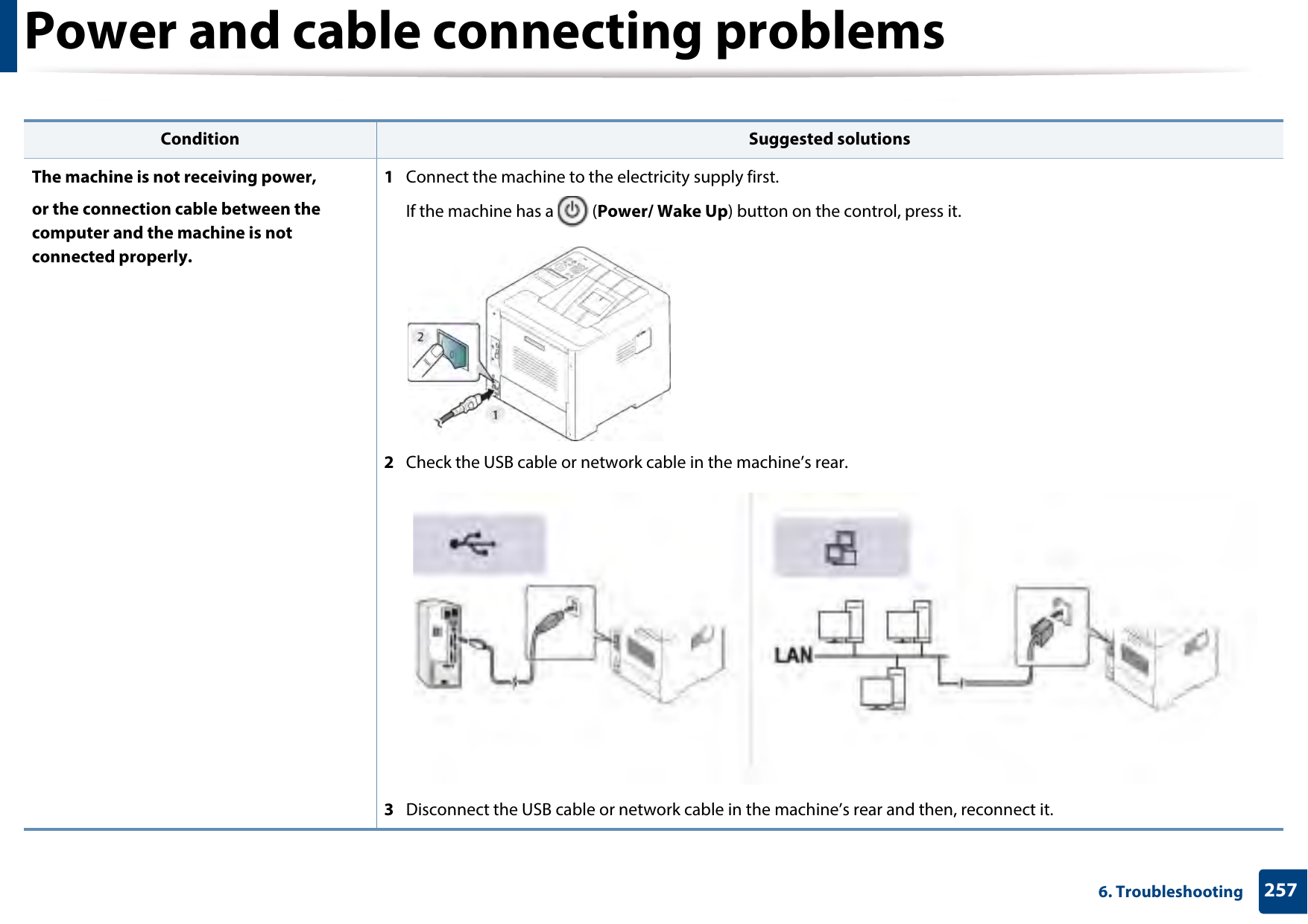

2576. TroubleshootingPower and cable connecting problems Condition Suggested solutionsThe machine is not receiving power, or the connection cable between the computer and the machine is not connected properly.1 Connect the machine to the electricity supply first. If the machine has a (Power/ Wake Up) button on the control, press it. 2 Check the USB cable or network cable in the machine’s rear.3 Disconnect the USB cable or network cable in the machine’s rear and then, reconnect it.

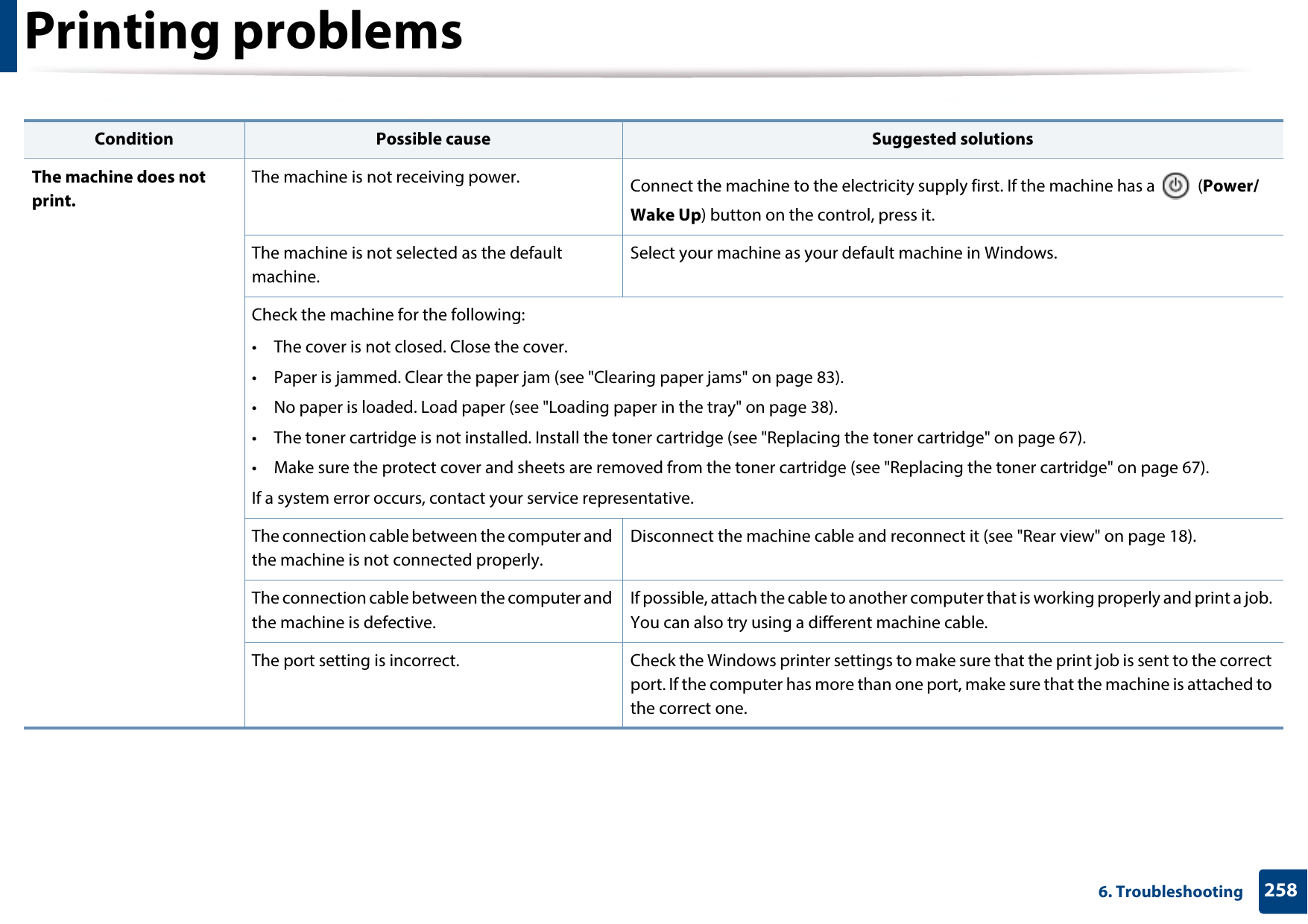

2586. TroubleshootingPrinting problemsCondition Possible cause Suggested solutionsThe machine does not print.The machine is not receiving power. Connect the machine to the electricity supply first. If the machine has a (Power/ Wake Up) button on the control, press it. The machine is not selected as the default machine.Select your machine as your default machine in Windows.Check the machine for the following:• The cover is not closed. Close the cover.• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 83).• No paper is loaded. Load paper (see "Loading paper in the tray" on page 38).• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 67).• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 67).If a system error occurs, contact your service representative.The connection cable between the computer and the machine is not connected properly.Disconnect the machine cable and reconnect it (see "Rear view" on page 18).The connection cable between the computer and the machine is defective.If possible, attach the cable to another computer that is working properly and print a job. You can also try using a different machine cable.The port setting is incorrect. Check the Windows printer settings to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.

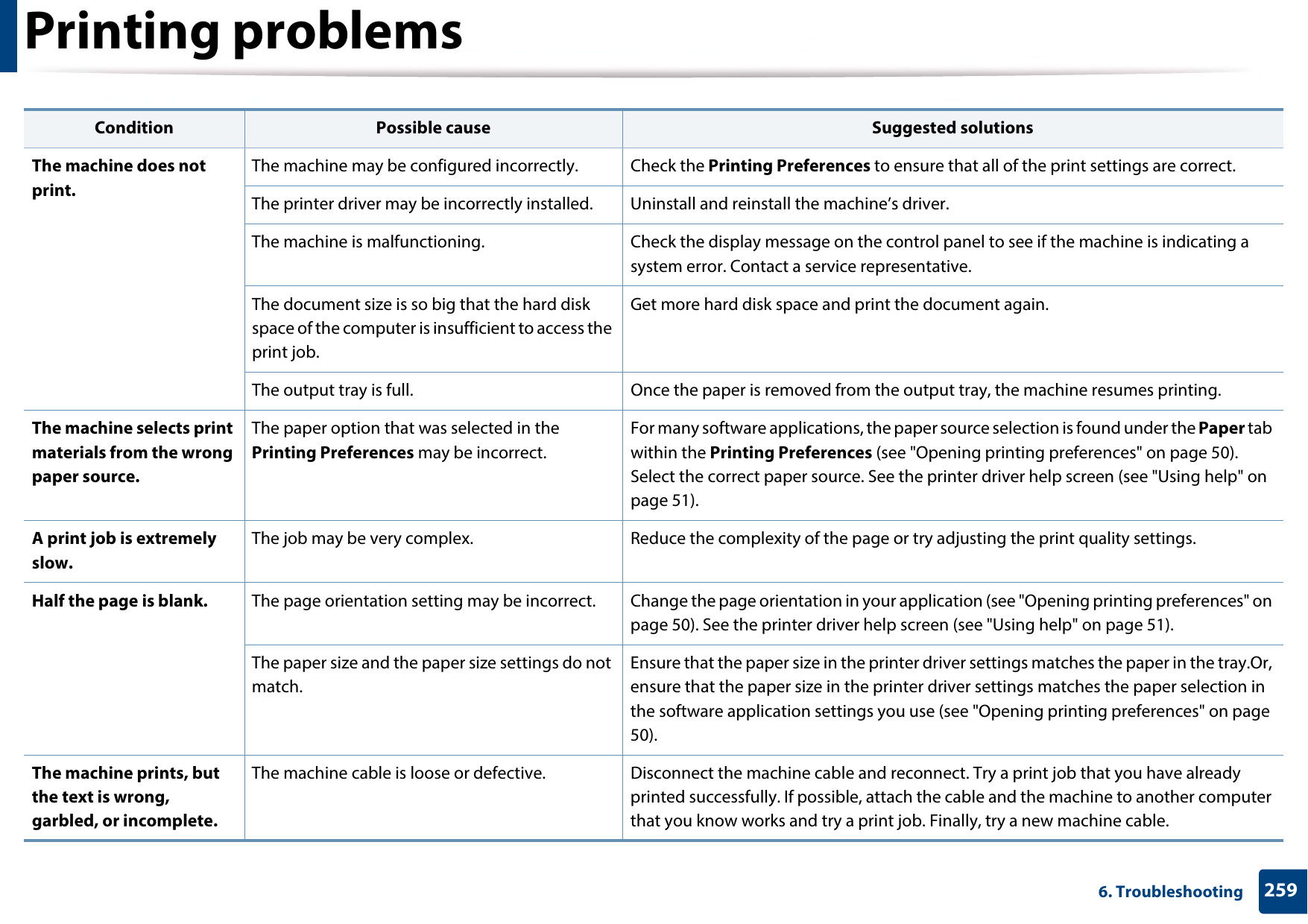

Printing problems2596. TroubleshootingThe machine does not print.The machine may be configured incorrectly. Check the Printing Preferences to ensure that all of the print settings are correct.The printer driver may be incorrectly installed. Uninstall and reinstall the machine’s driver.The machine is malfunctioning. Check the display message on the control panel to see if the machine is indicating a system error. Contact a service representative.The document size is so big that the hard disk space of the computer is insufficient to access the print job.Get more hard disk space and print the document again.The output tray is full. Once the paper is removed from the output tray, the machine resumes printing.The machine selects print materials from the wrong paper source.The paper option that was selected in the Printing Preferences may be incorrect.For many software applications, the paper source selection is found under the Paper tab within the Printing Preferences (see "Opening printing preferences" on page 50). Select the correct paper source. See the printer driver help screen (see "Using help" on page 51).A print job is extremely slow.The job may be very complex. Reduce the complexity of the page or try adjusting the print quality settings.Half the page is blank. The page orientation setting may be incorrect. Change the page orientation in your application (see "Opening printing preferences" on page 50). See the printer driver help screen (see "Using help" on page 51).The paper size and the paper size settings do not match.Ensure that the paper size in the printer driver settings matches the paper in the tray.Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use (see "Opening printing preferences" on page 50).The machine prints, but the text is wrong, garbled, or incomplete.The machine cable is loose or defective. Disconnect the machine cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer that you know works and try a print job. Finally, try a new machine cable.Condition Possible cause Suggested solutions

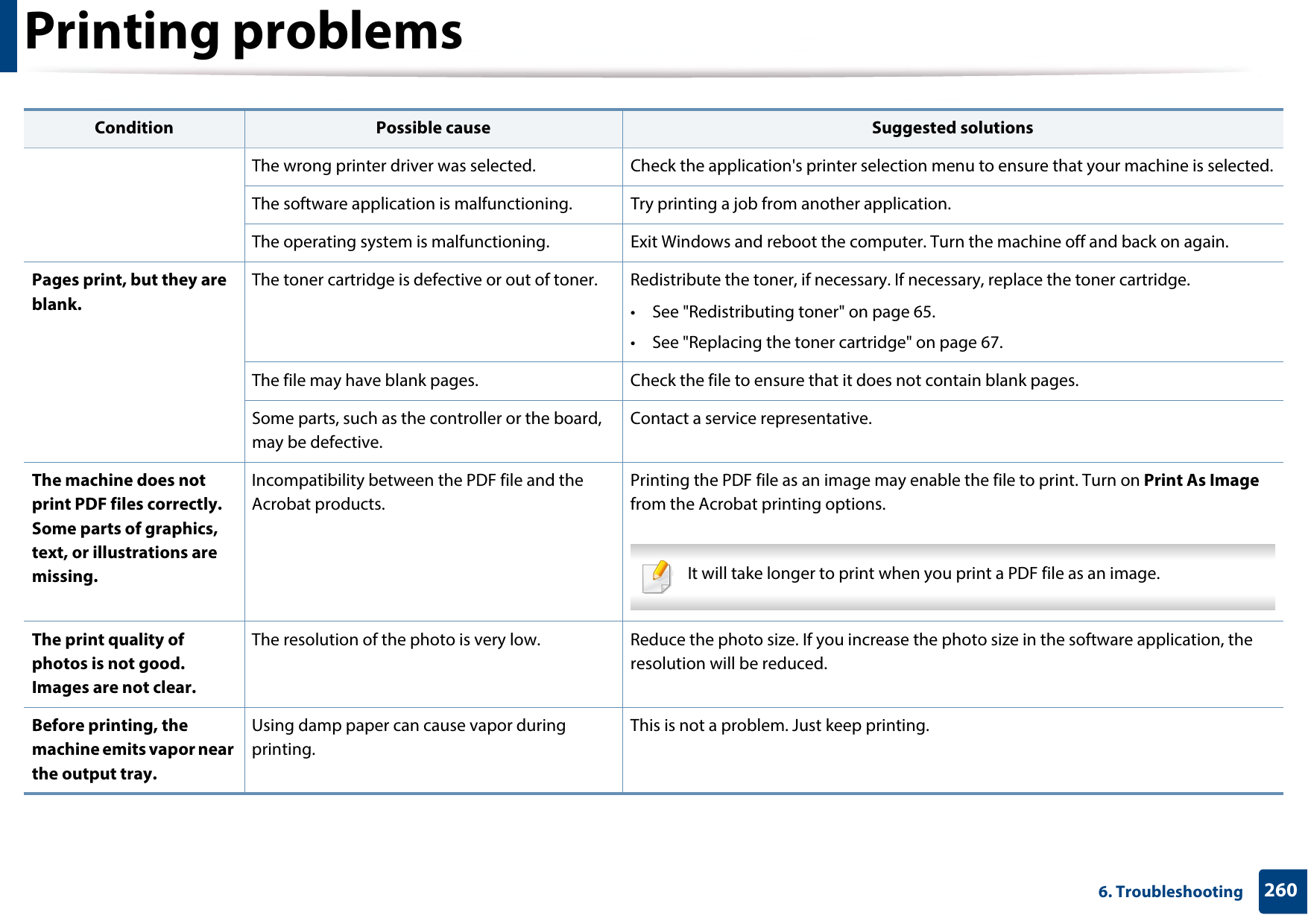

Printing problems2606. TroubleshootingThe wrong printer driver was selected. Check the application's printer selection menu to ensure that your machine is selected.The software application is malfunctioning. Try printing a job from another application.The operating system is malfunctioning. Exit Windows and reboot the computer. Turn the machine off and back on again.Pages print, but they are blank.The toner cartridge is defective or out of toner. Redistribute the toner, if necessary. If necessary, replace the toner cartridge.• See "Redistributing toner" on page 65.• See "Replacing the toner cartridge" on page 67.The file may have blank pages. Check the file to ensure that it does not contain blank pages.Some parts, such as the controller or the board, may be defective.Contact a service representative.The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. The print quality of photos is not good. Images are not clear.The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced. Before printing, the machine emits vapor near the output tray.Using damp paper can cause vapor during printing.This is not a problem. Just keep printing.Condition Possible cause Suggested solutions

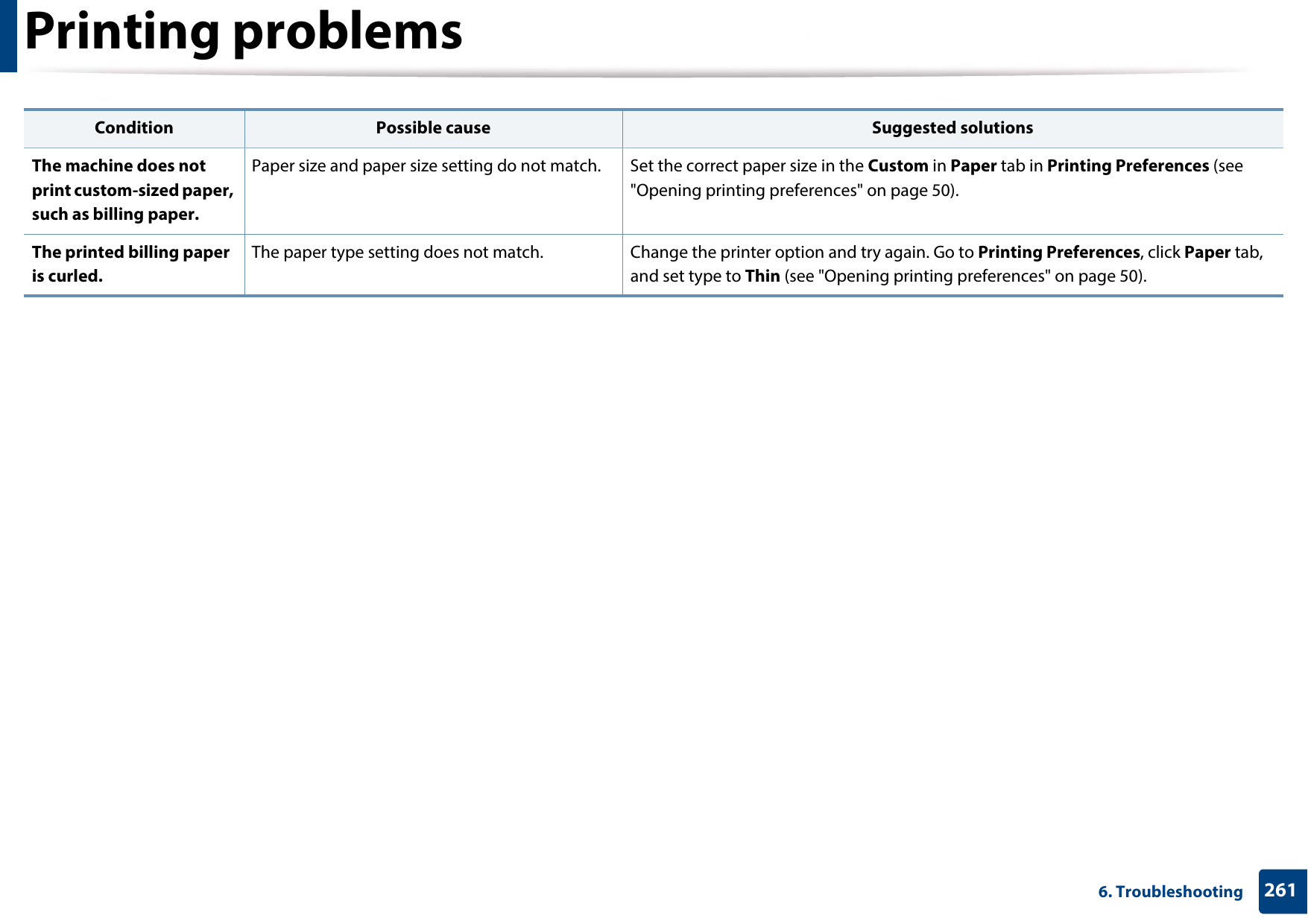

Printing problems2616. TroubleshootingThe machine does not print custom-sized paper, such as billing paper.Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences (see "Opening printing preferences" on page 50).The printed billing paper is curled.The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences, click Paper tab, and set type to Thin (see "Opening printing preferences" on page 50).Condition Possible cause Suggested solutions

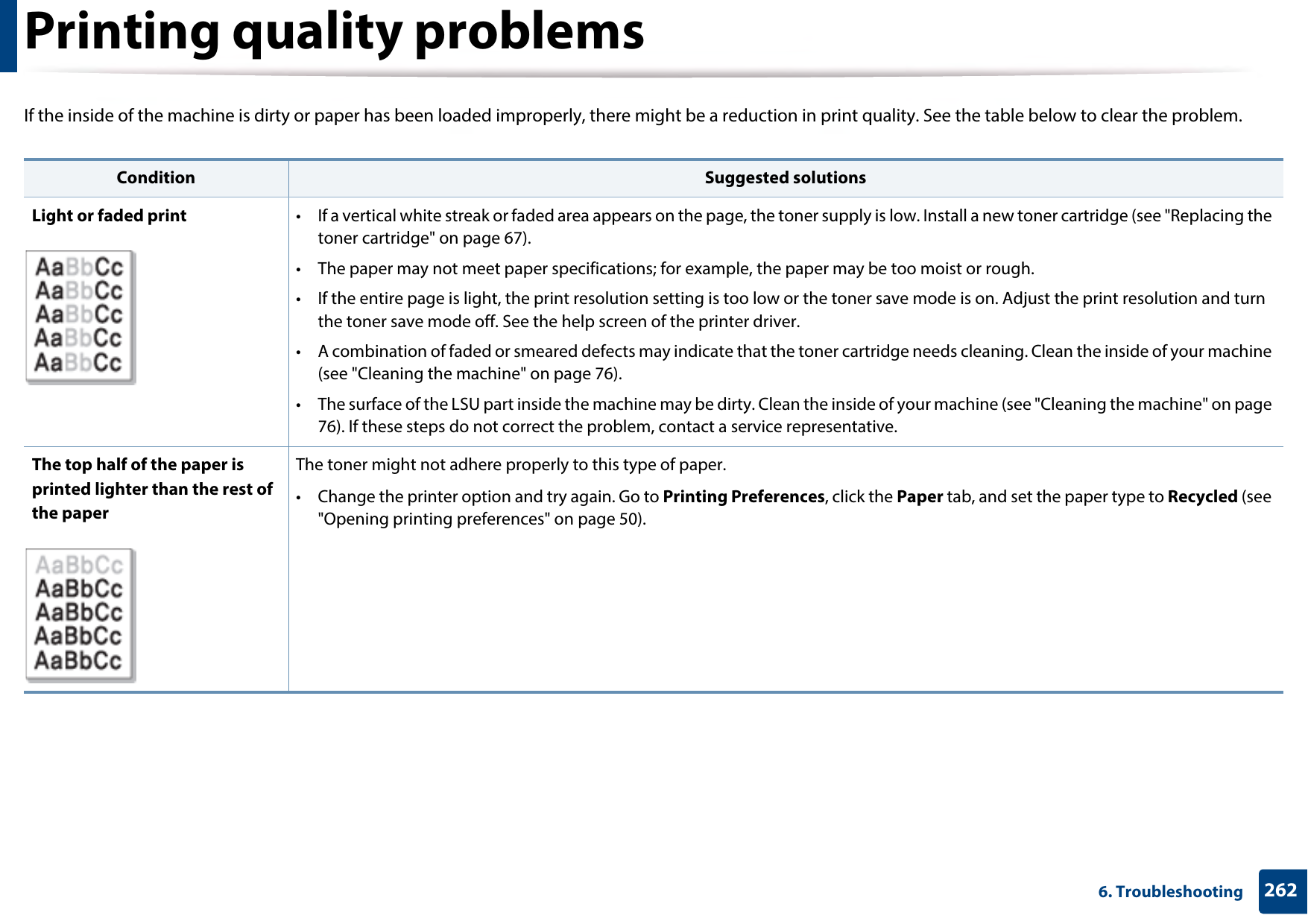

2626. TroubleshootingPrinting quality problemsIf the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem. Condition Suggested solutionsLight or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the toner cartridge" on page 67).• The paper may not meet paper specifications; for example, the paper may be too moist or rough.• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver.• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 76).• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 76). If these steps do not correct the problem, contact a service representative.The top half of the paper is printed lighter than the rest of the paperThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 50).

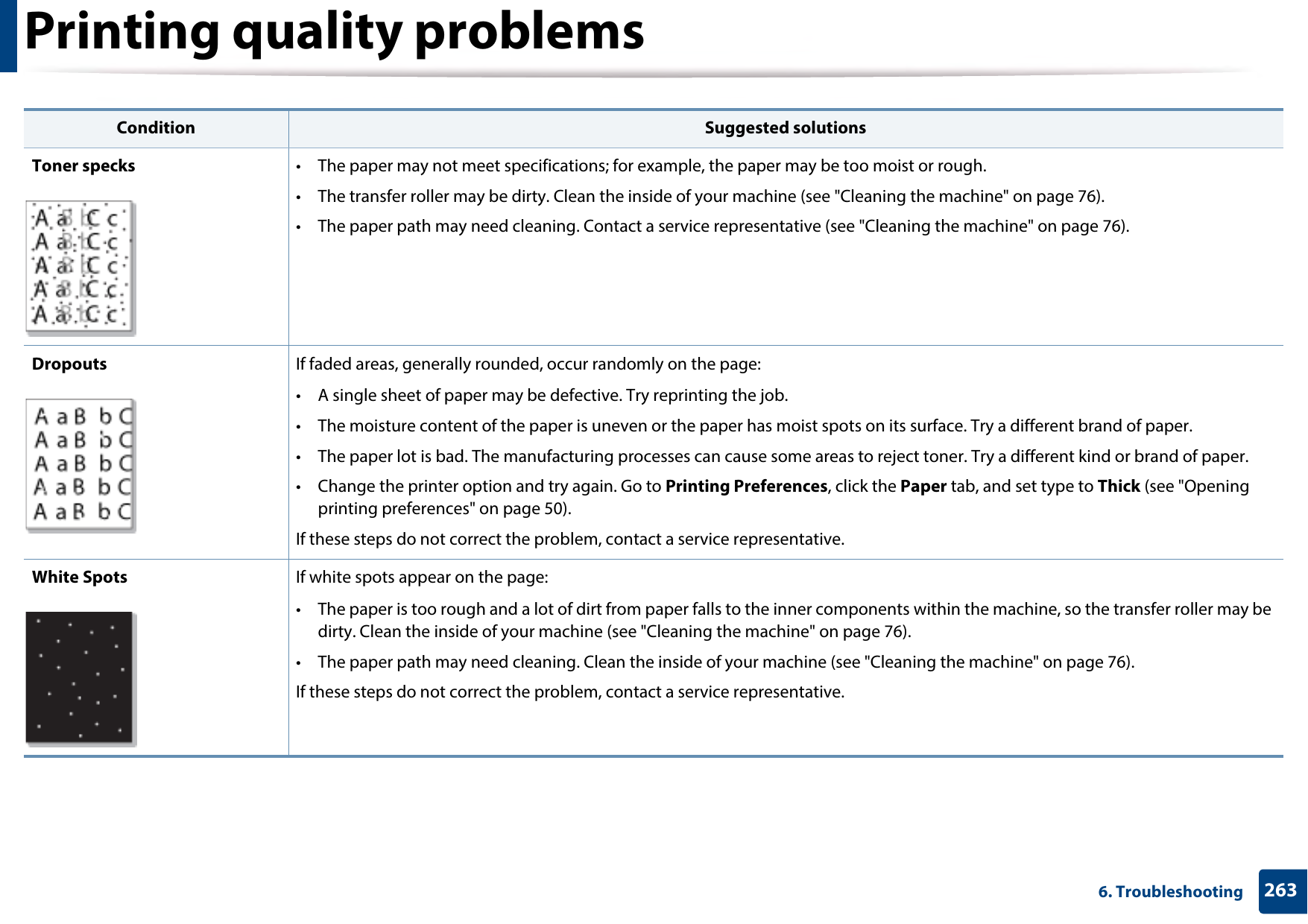

Printing quality problems2636. TroubleshootingToner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.• The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 76).• The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 76).Dropouts If faded areas, generally rounded, occur randomly on the page:• A single sheet of paper may be defective. Try reprinting the job.• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick (see "Opening printing preferences" on page 50).If these steps do not correct the problem, contact a service representative.White Spots If white spots appear on the page:• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 76).• The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 76).If these steps do not correct the problem, contact a service representative.Condition Suggested solutions

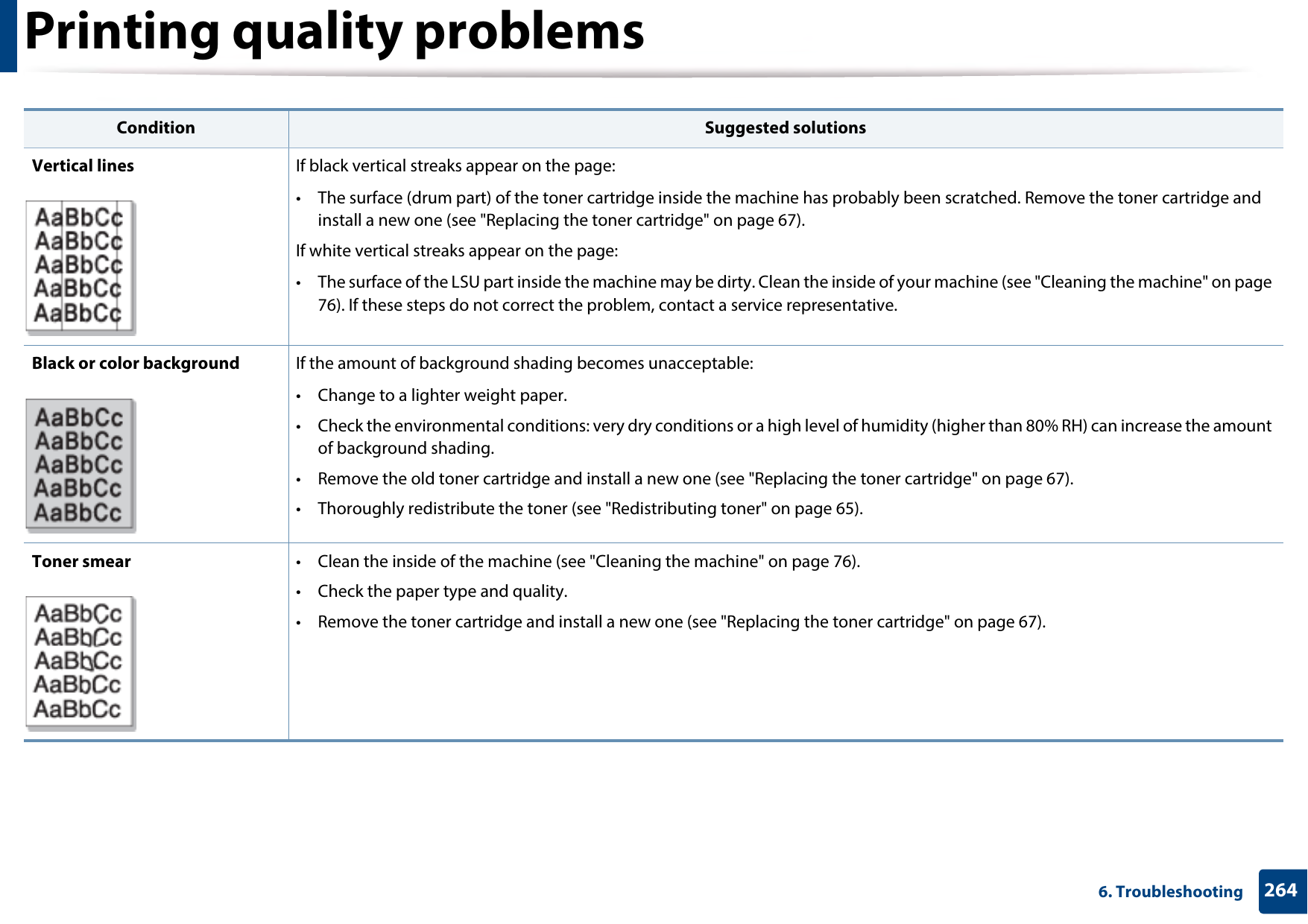

Printing quality problems2646. TroubleshootingVertical lines If black vertical streaks appear on the page:• The surface (drum part) of the toner cartridge inside the machine has probably been scratched. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 67).If white vertical streaks appear on the page:• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 76). If these steps do not correct the problem, contact a service representative.Black or color background If the amount of background shading becomes unacceptable:• Change to a lighter weight paper.• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading.• Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 67).• Thoroughly redistribute the toner (see "Redistributing toner" on page 65).Toner smear • Clean the inside of the machine (see "Cleaning the machine" on page 76).• Check the paper type and quality.• Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 67).Condition Suggested solutions

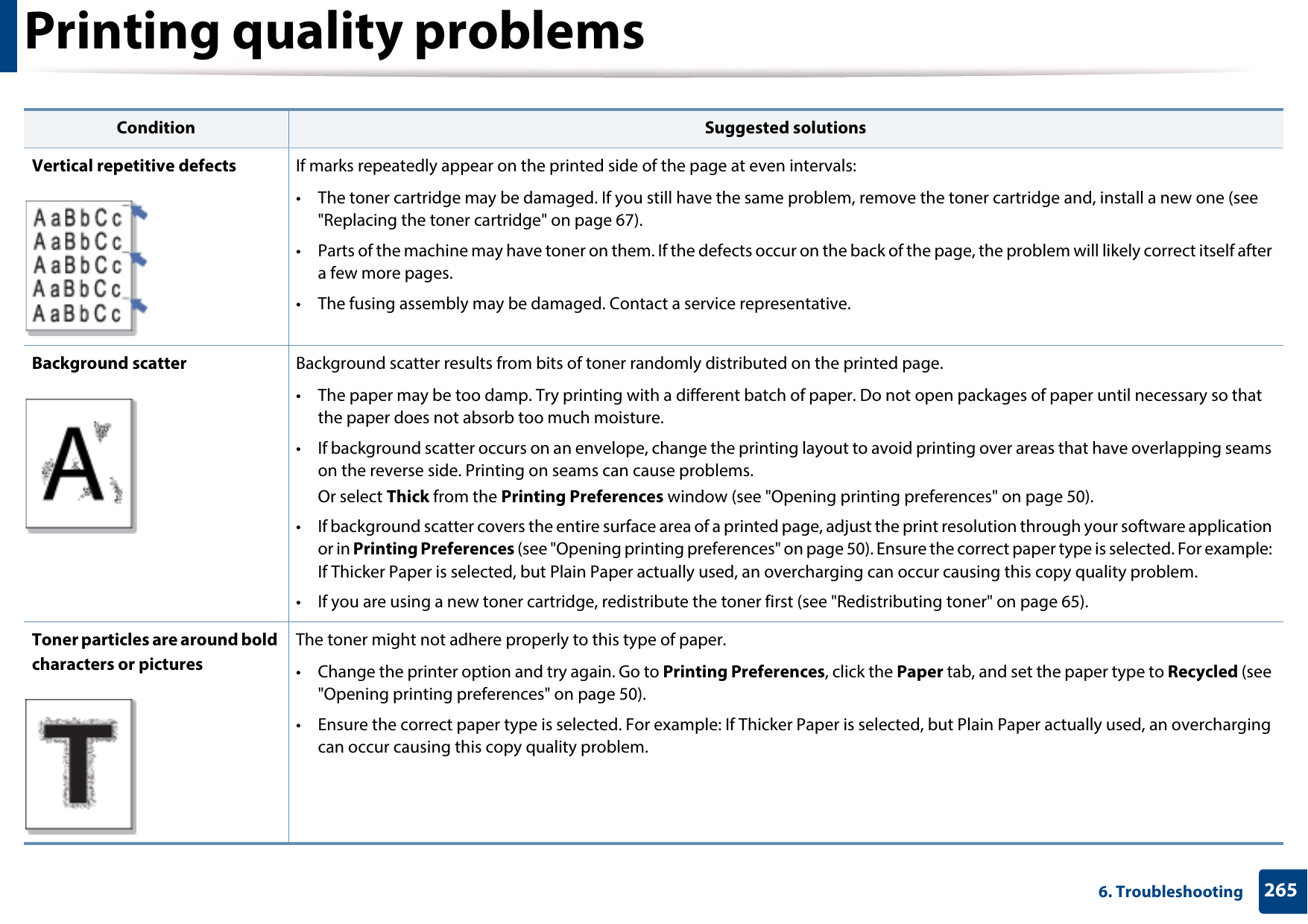

Printing quality problems2656. TroubleshootingVertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:• The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see "Replacing the toner cartridge" on page 67).• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.• The fusing assembly may be damaged. Contact a service representative.Background scatter Background scatter results from bits of toner randomly distributed on the printed page. • The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.Or select Thick from the Printing Preferences window (see "Opening printing preferences" on page 50).• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or in Printing Preferences (see "Opening printing preferences" on page 50). Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.• If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 65).Toner particles are around bold characters or picturesThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 50).• Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.Condition Suggested solutions

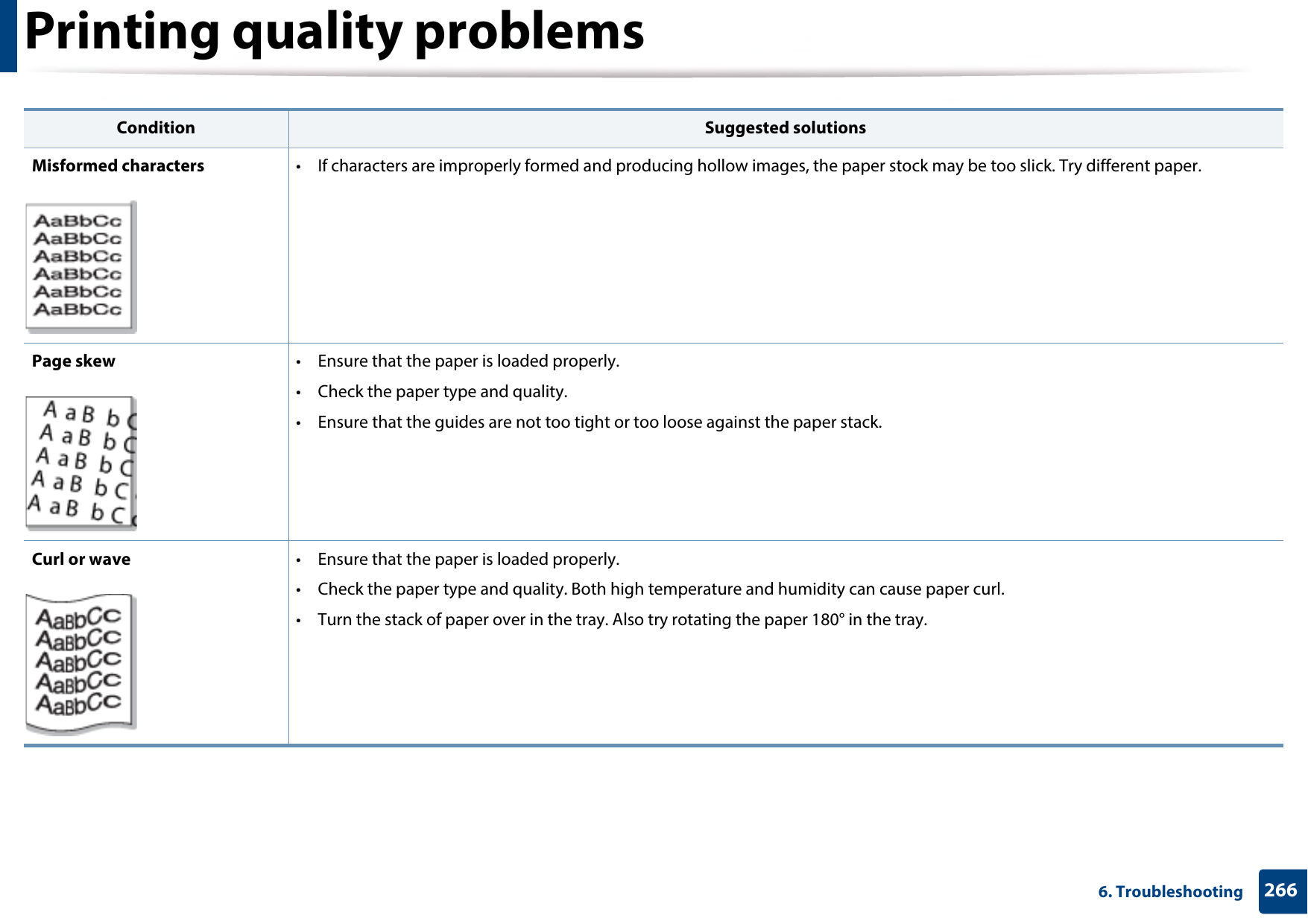

Printing quality problems2666. TroubleshootingMisformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.Page skew • Ensure that the paper is loaded properly.• Check the paper type and quality.• Ensure that the guides are not too tight or too loose against the paper stack.Curl or wave • Ensure that the paper is loaded properly.• Check the paper type and quality. Both high temperature and humidity can cause paper curl.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Condition Suggested solutions

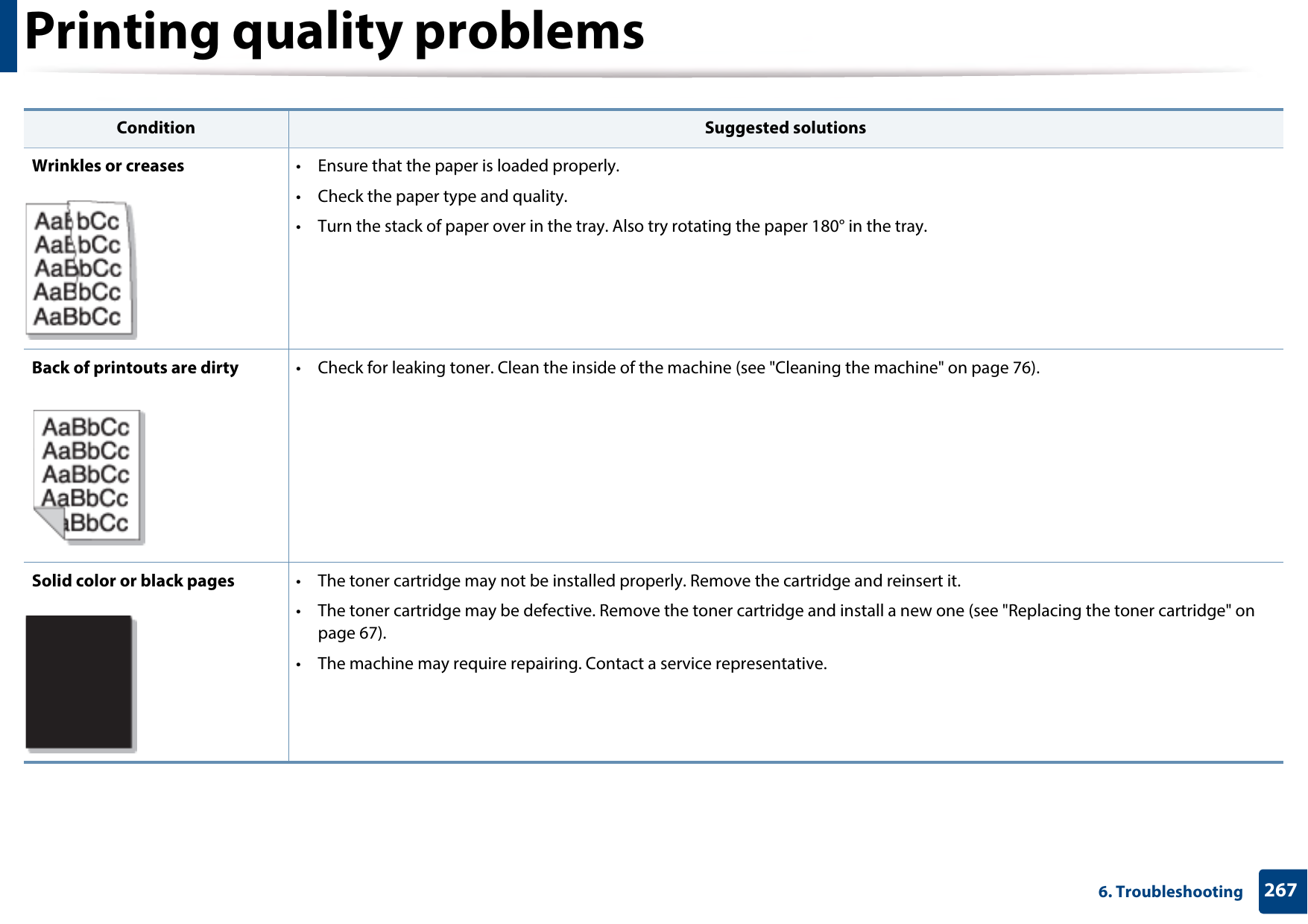

Printing quality problems2676. TroubleshootingWrinkles or creases • Ensure that the paper is loaded properly.• Check the paper type and quality.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 76).Solid color or black pages • The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 67).• The machine may require repairing. Contact a service representative.Condition Suggested solutions

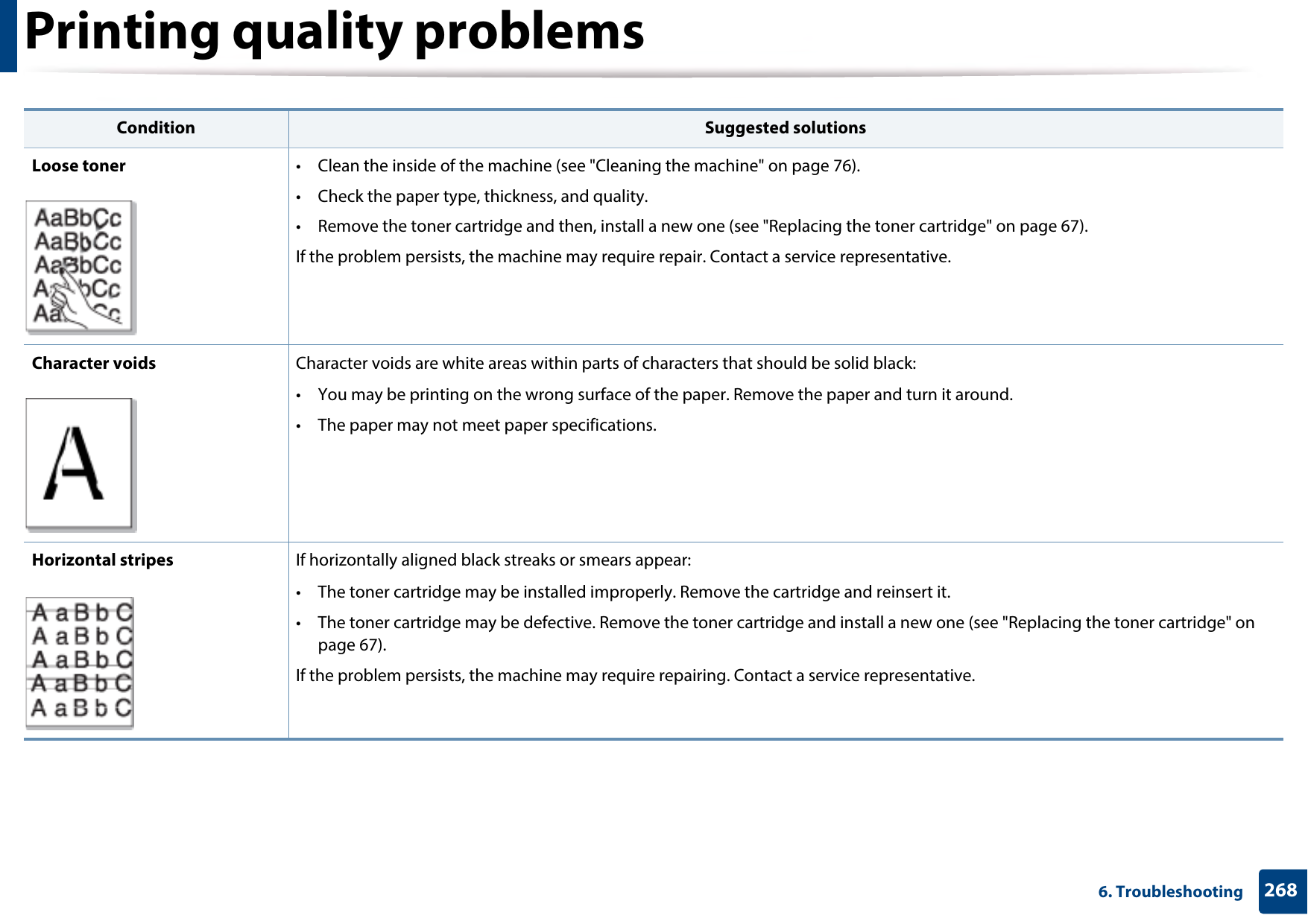

Printing quality problems2686. TroubleshootingLoose toner • Clean the inside of the machine (see "Cleaning the machine" on page 76).• Check the paper type, thickness, and quality.• Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 67).If the problem persists, the machine may require repair. Contact a service representative.Character voids Character voids are white areas within parts of characters that should be solid black:• You may be printing on the wrong surface of the paper. Remove the paper and turn it around. • The paper may not meet paper specifications.Horizontal stripes If horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 67).If the problem persists, the machine may require repairing. Contact a service representative.Condition Suggested solutions

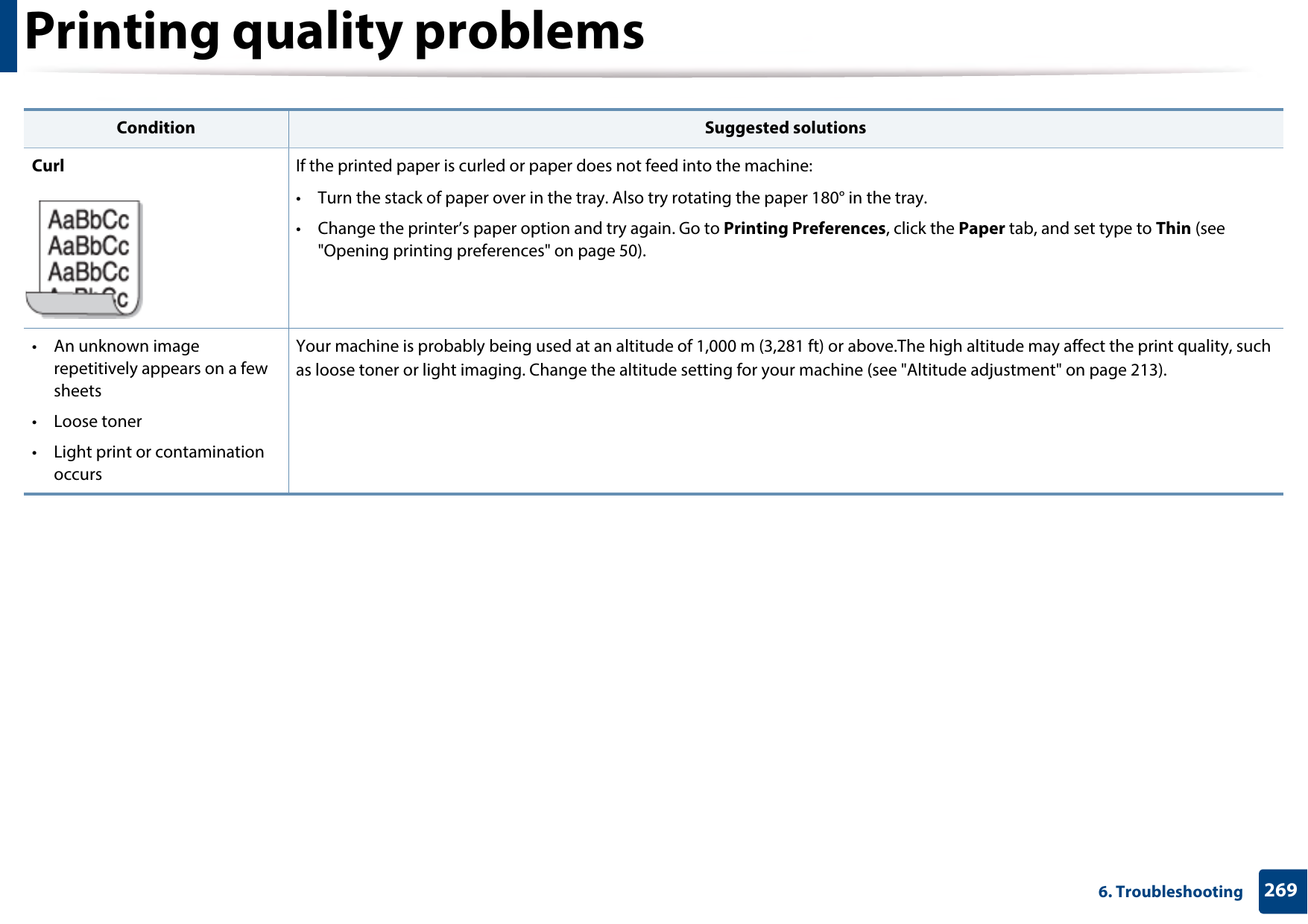

Printing quality problems2696. Troubleshooting Curl If the printed paper is curled or paper does not feed into the machine:• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray. • Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see "Opening printing preferences" on page 50).• An unknown image repetitively appears on a few sheets• Loose toner• Light print or contamination occursYour machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (see "Altitude adjustment" on page 213).Condition Suggested solutions

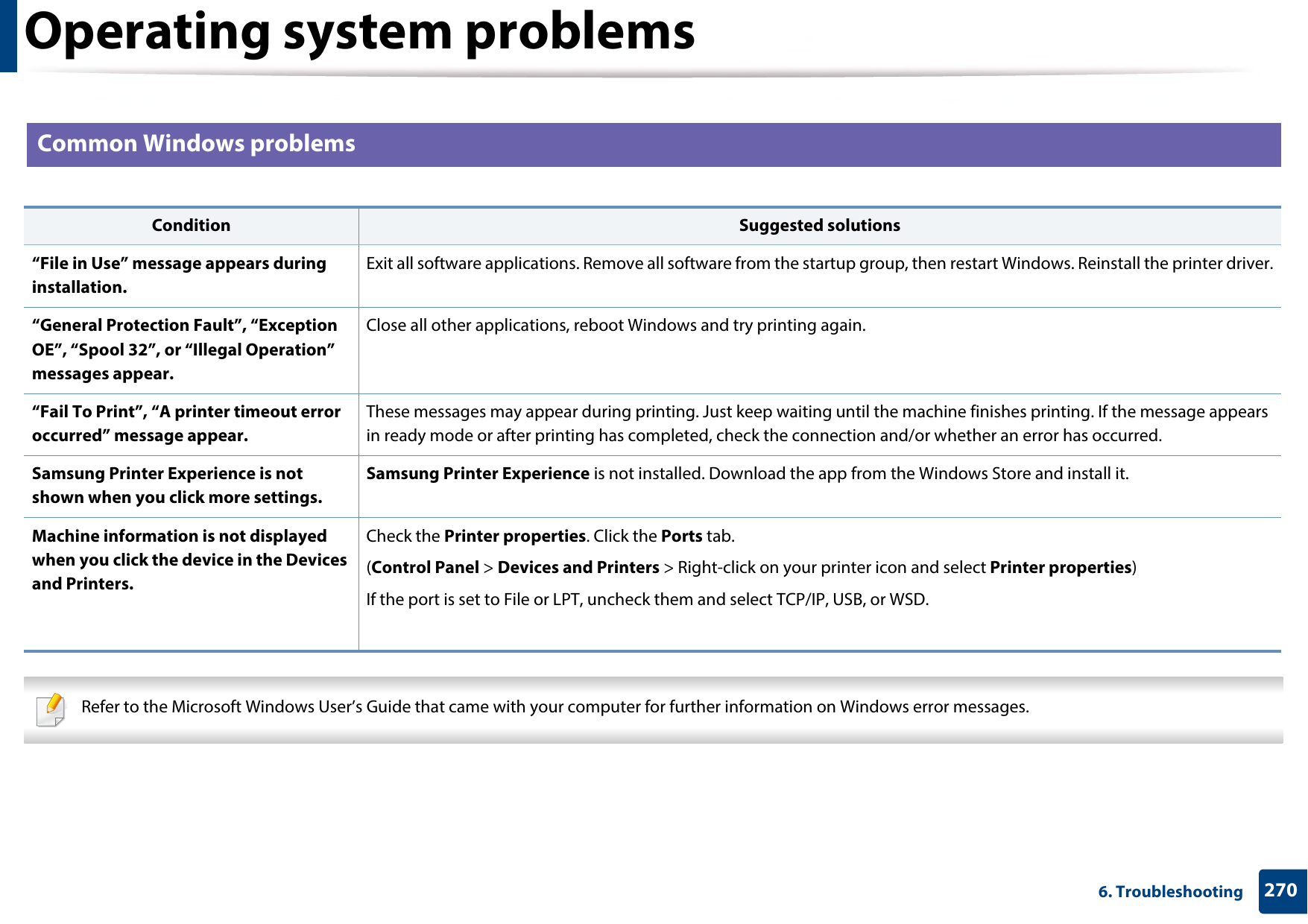

2706. TroubleshootingOperating system problems1 Common Windows problems Refer to the Microsoft Windows User’s Guide that came with your computer for further information on Windows error messages. Condition Suggested solutions“File in Use” message appears during installation.Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.“General Protection Fault”, “Exception OE”, “Spool 32”, or “Illegal Operation” messages appear.Close all other applications, reboot Windows and try printing again.“Fail To Print”, “A printer timeout error occurred” message appear.These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready mode or after printing has completed, check the connection and/or whether an error has occurred.Samsung Printer Experience is not shown when you click more settings.Samsung Printer Experience is not installed. Download the app from the Windows Store and install it.Machine information is not displayed when you click the device in the Devices and Printers.Check the Printer properties. Click the Ports tab.(Control Panel > Devices and Printers > Right-click on your printer icon and select Printer properties)If the port is set to File or LPT, uncheck them and select TCP/IP, USB, or WSD.

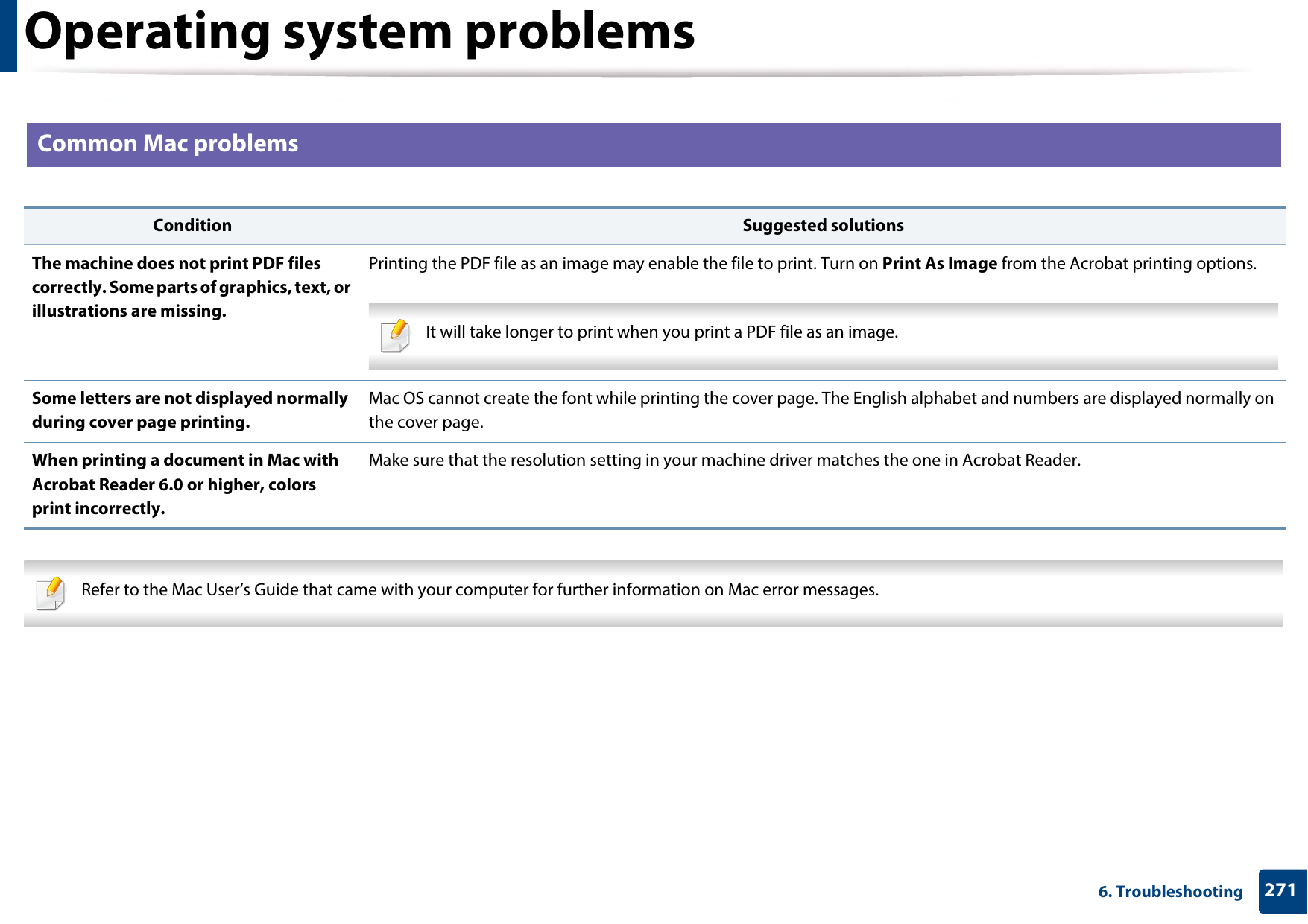

Operating system problems2716. Troubleshooting2 Common Mac problems Refer to the Mac User’s Guide that came with your computer for further information on Mac error messages. Condition Suggested solutionsThe machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. Some letters are not displayed normally during cover page printing.Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on the cover page.When printing a document in Mac with Acrobat Reader 6.0 or higher, colors print incorrectly.Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.

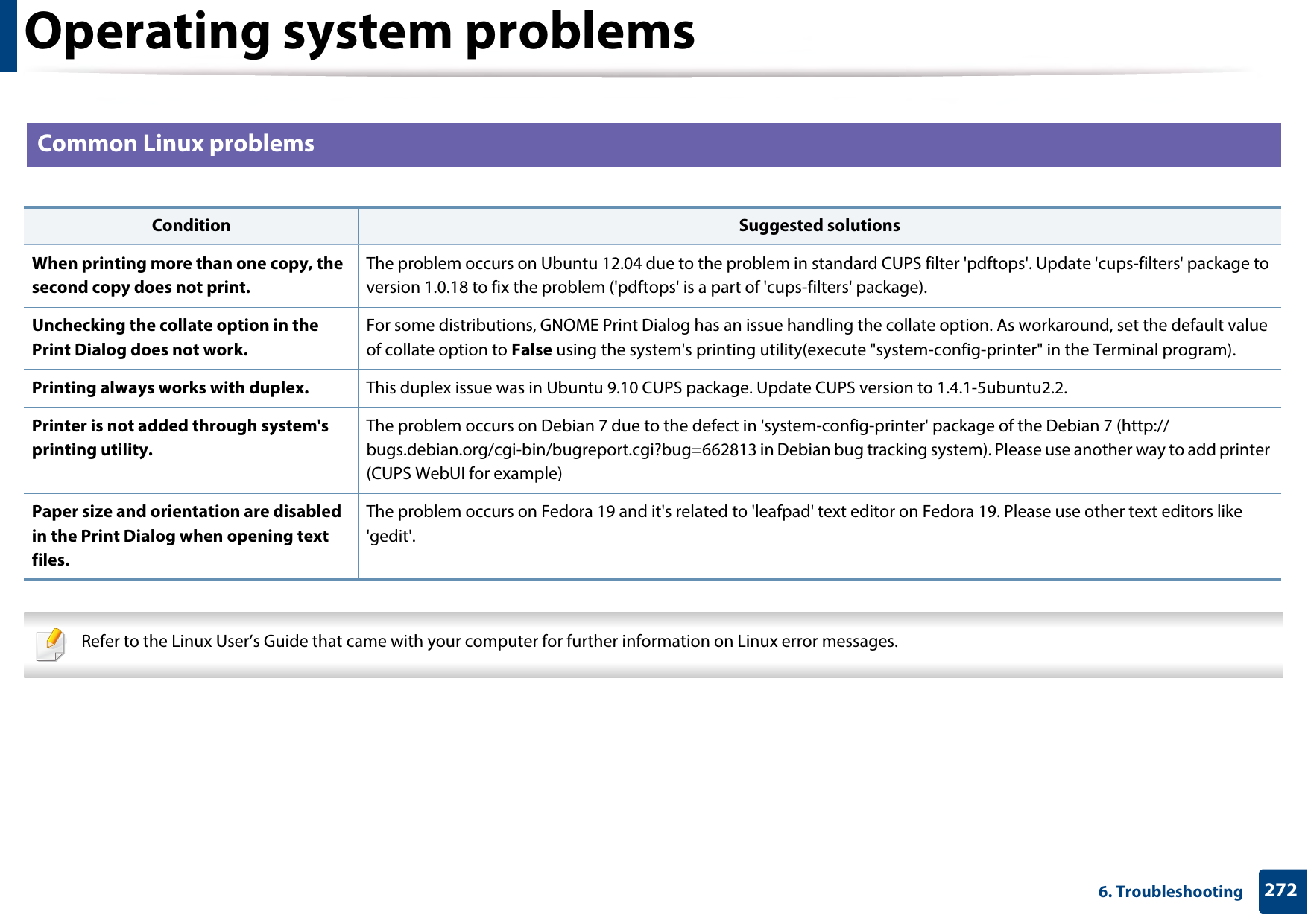

Operating system problems2726. Troubleshooting3 Common Linux problems Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages. Condition Suggested solutionsWhen printing more than one copy, the second copy does not print. The problem occurs on Ubuntu 12.04 due to the problem in standard CUPS filter 'pdftops'. Update 'cups-filters' package to version 1.0.18 to fix the problem ('pdftops' is a part of 'cups-filters' package).Unchecking the collate option in the Print Dialog does not work.For some distributions, GNOME Print Dialog has an issue handling the collate option. As workaround, set the default value of collate option to False using the system's printing utility(execute "system-config-printer" in the Terminal program).Printing always works with duplex. This duplex issue was in Ubuntu 9.10 CUPS package. Update CUPS version to 1.4.1-5ubuntu2.2.Printer is not added through system's printing utility.The problem occurs on Debian 7 due to the defect in 'system-config-printer' package of the Debian 7 (http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=662813 in Debian bug tracking system). Please use another way to add printer (CUPS WebUI for example)Paper size and orientation are disabled in the Print Dialog when opening text files.The problem occurs on Fedora 19 and it's related to 'leafpad' text editor on Fedora 19. Please use other text editors like 'gedit'.
Operating system problems2736. Troubleshooting4 Common PostScript problemsThe following situations are PS language specific and may occur when several printer languages are used. Problem Possible cause SolutionThe PostScript file cannot be printedThe PostScript driver may not be installed correctly.• Install the PostScript driver (see "Software Installation" on page 132).• Print a configuration page and verify that the PS version is available for printing.• If the problem persists, contact a service representative.Limit Check Error report prints The print job was too complex. You might need to reduce the complexity of the page or install more memory.A PostScript error page prints The print job may not be PostScript. Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.The optional tray is not selected in the driverThe printer driver has not been configured to recognize the optional tray.Open the driver properties, select the Device Options tab, and set the tray option (see "Setting Device Options" on page 71).When printing a document in Mac with Acrobat Reader 6.0 or higher, colors print incorrectlyThe resolution setting in the printer driver may not be matched with the one in Acrobat Reader.Make sure that the resolution setting in your printer driver matches the one in Acrobat Reader.

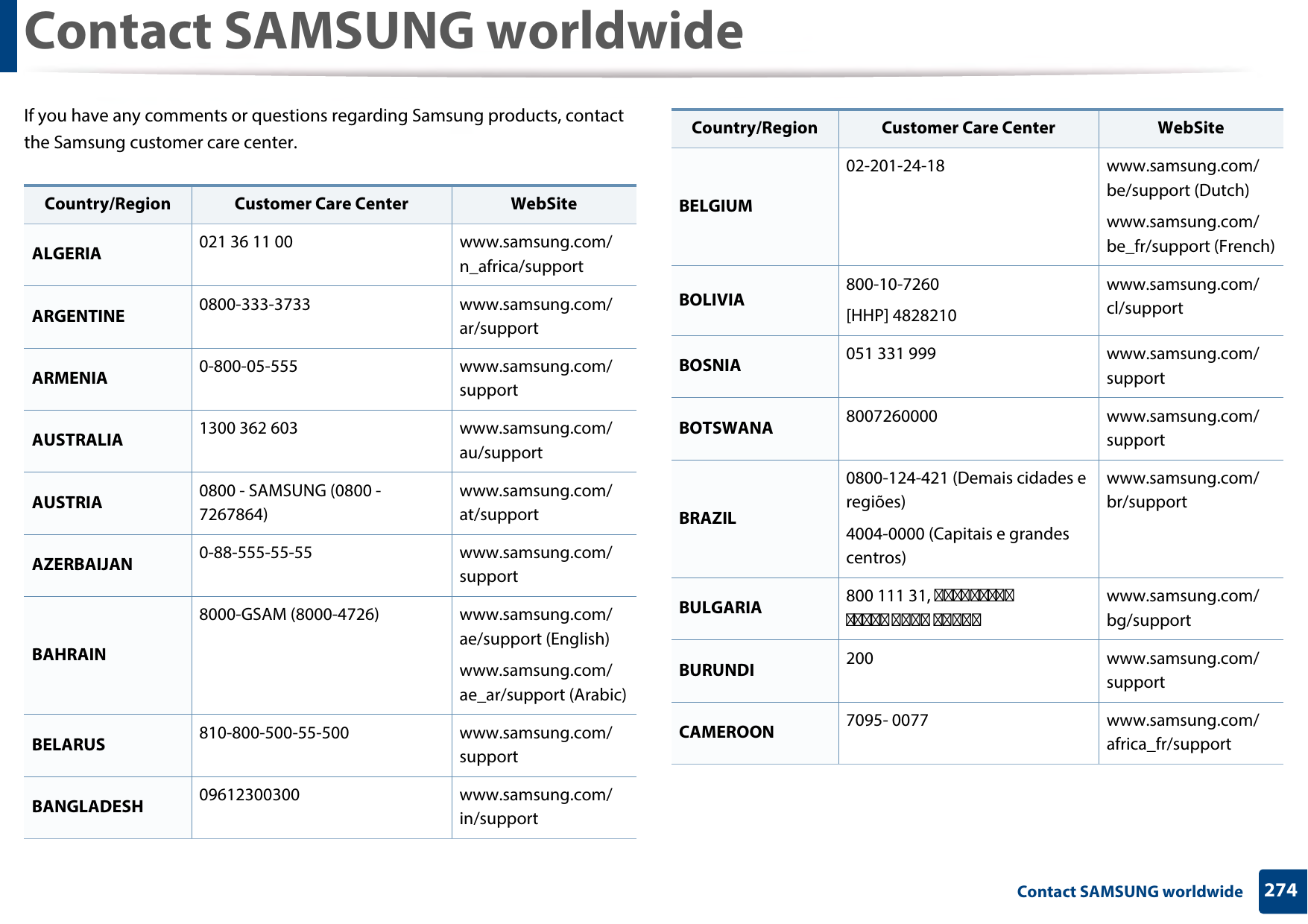

274 Contact SAMSUNG worldwideContact SAMSUNG worldwideIf you have any comments or questions regarding Samsung products, contact the Samsung customer care center.Country/Region Customer Care Center WebSiteALGERIA 021 36 11 00 www.samsung.com/n_africa/supportARGENTINE 0800-333-3733 www.samsung.com/ar/supportARMENIA 0-800-05-555 www.samsung.com/supportAUSTRALIA 1300 362 603 www.samsung.com/au/supportAUSTRIA 0800 - SAMSUNG (0800 - 7267864)www.samsung.com/at/supportAZERBAIJAN 0-88-555-55-55 www.samsung.com/supportBAHRAIN8000-GSAM (8000-4726) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)BELARUS 810-800-500-55-500 www.samsung.com/supportBANGLADESH 09612300300 www.samsung.com/in/supportBELGIUM02-201-24-18 www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)BOLIVIA 800-10-7260[HHP] 4828210www.samsung.com/cl/supportBOSNIA 051 331 999 www.samsung.com/supportBOTSWANA 8007260000 www.samsung.com/supportBRAZIL0800-124-421 (Demais cidades e regiões)4004-0000 (Capitais e grandes centros)www.samsung.com/br/supportBULGARIA 800 111 31, БББББББББ БББББББББ БББББwww.samsung.com/bg/supportBURUNDI 200 www.samsung.com/supportCAMEROON 7095- 0077 www.samsung.com/africa_fr/supportCountry/Region Customer Care Center WebSite
Contact SAMSUNG worldwide275 Contact SAMSUNG worldwideCANADA1-800-SAMSUNG (726-7864) www.samsung.com/ca/support(English)www.samsung.com/ca_fr/support (French)CHILE 800-SAMSUNG (726-7864)[HHP] 02-24828200www.samsung.com/cl/supportCHINA 400-810-5858 www.samsung.com/cn/supportCOLOMBIABogotá 600 12 72Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular #SAM(726)www.samsung.com/co/supportCOSTA RICA0-800-507-726700-800-1-SAMSUNG (726-7864)www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)CROATIA 072 726 786 www.samsung.com/hr/supportCote D’ Ivoire 8000 0077 www.samsung.com/africa_fr/supportCountry/Region Customer Care Center WebSiteCYPRUS 8009 4000 only from landline, toll freewww.samsung.com/gr/supportCZECH 800-SAMSUNG (800-726786) www.samsung.com/cz/supportDENMARK 70 70 19 70 www.samsung.com/dk/supportDOMINICA1-800-751-2676 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)DRC 499999 www.samsung.com/supportECUADOR1-800-10-726701-800-SAMSUNG (72-6786)www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support(English)EGYPT 08000-72678616580www.samsung.com/eg/supportCountry/Region Customer Care Center WebSite

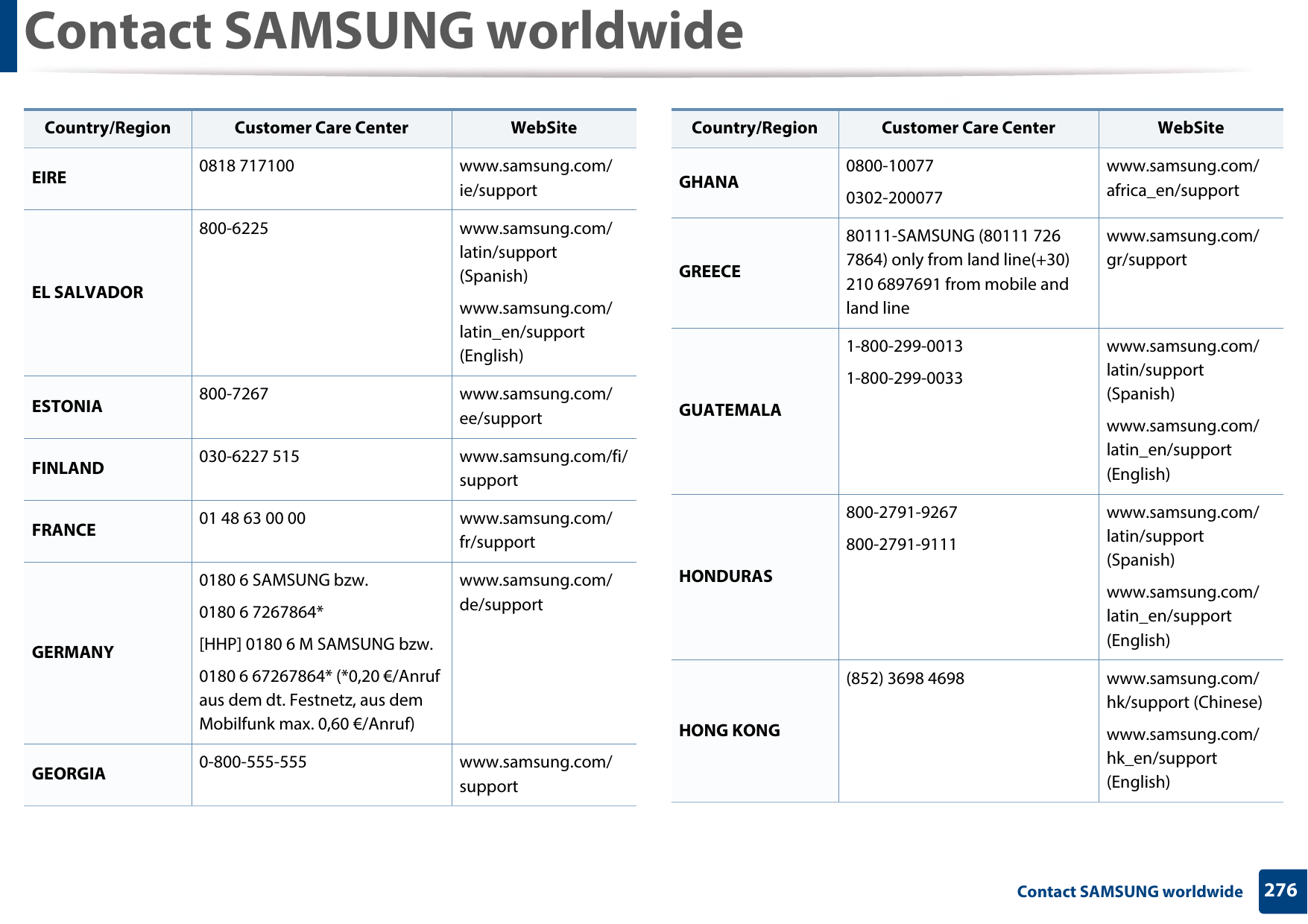

Contact SAMSUNG worldwide276 Contact SAMSUNG worldwideEIRE 0818 717100 www.samsung.com/ie/supportEL SALVADOR800-6225 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)ESTONIA 800-7267 www.samsung.com/ee/supportFINLAND 030-6227 515 www.samsung.com/fi/supportFRANCE 01 48 63 00 00 www.samsung.com/fr/supportGERMANY0180 6 SAMSUNG bzw. 0180 6 7267864*[HHP] 0180 6 M SAMSUNG bzw.0180 6 67267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)www.samsung.com/de/supportGEORGIA 0-800-555-555 www.samsung.com/supportCountry/Region Customer Care Center WebSiteGHANA 0800-100770302-200077www.samsung.com/africa_en/supportGREECE80111-SAMSUNG (80111 726 7864) only from land line(+30) 210 6897691 from mobile and land linewww.samsung.com/gr/supportGUATEMALA1-800-299-00131-800-299-0033www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)HONDURAS800-2791-9267 800-2791-9111www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)HONG KONG(852) 3698 4698 www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide277 Contact SAMSUNG worldwideHUNGARY0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)www.samsung.com/hu/supportINDIA 1800 3000 8282 - Toll Free1800 266 8282 - Toll Freewww.samsung.com/in/supportINDONESIA 021-5699777708001128888www.samsung.com/id/supportIRAN 021-8255 www.samsung.com/iran/supportITALIA800-SAMSUNG (800.7267864)[HHP] 800.Msamsung (800.67267864)www.samsung.com/it/supportJAMAICA1-800-234-72671-800-SAMSUNG (726-7864)www.samsung.com/latin_en/support (English)JAPAN 0120-363-905 www.samsung.com/jp/supportJORDAN0800-2227306 5777444www.samsung.com/levant/support (English)KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799, VIP care 7700)www.samsung.com/supportCountry/Region Customer Care Center WebSiteKENYA 0800 545 545 www.samsung.com/supportKUWAIT183-CALL (183-2255) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)KYRGYZSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru/supportLATVIA 8000-7267 www.samsung.com/lv/supportLITHUANIA 8-800-77777 www.samsung.com/lt/supportLUXEMBURG 261 03 710 www.samsung.com/supportMACAU 0800 333 www.samsung.com/supportMACEDONIA 023 207 777MALAYSIA1800-88-9999603-77137477 (Overseas contact)www.samsung.com/my/supportMEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/mx/supportCountry/Region Customer Care Center WebSite

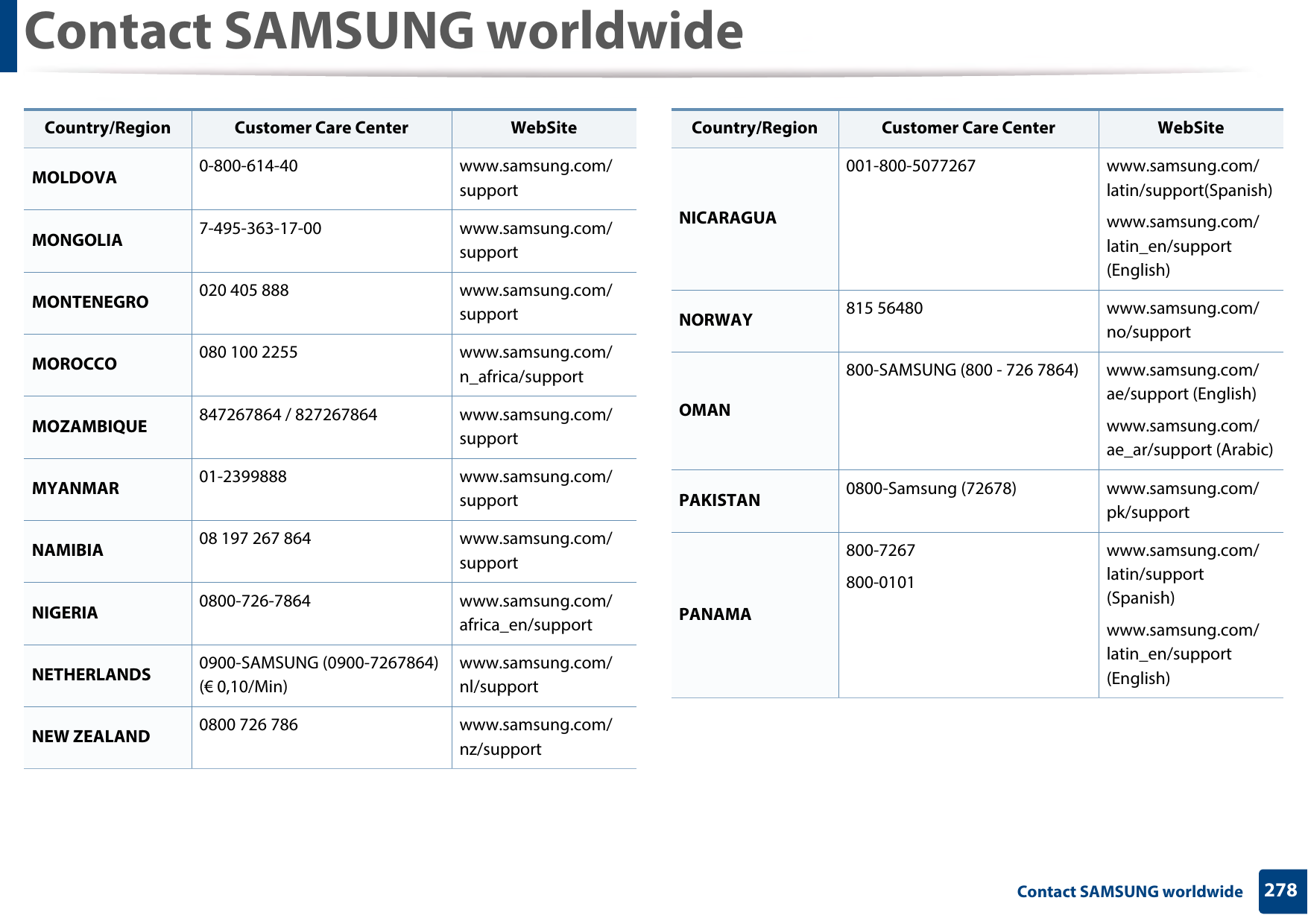

Contact SAMSUNG worldwide278 Contact SAMSUNG worldwideMOLDOVA 0-800-614-40 www.samsung.com/supportMONGOLIA 7-495-363-17-00 www.samsung.com/supportMONTENEGRO 020 405 888 www.samsung.com/supportMOROCCO 080 100 2255 www.samsung.com/n_africa/supportMOZAMBIQUE 847267864 / 827267864 www.samsung.com/supportMYANMAR 01-2399888 www.samsung.com/supportNAMIBIA 08 197 267864 www.samsung.com/supportNIGERIA 0800-726-7864 www.samsung.com/africa_en/supportNETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)www.samsung.com/nl/supportNEW ZEALAND 0800 726 786 www.samsung.com/nz/supportCountry/Region Customer Care Center WebSiteNICARAGUA001-800-5077267 www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support (English)NORWAY 815 56480 www.samsung.com/no/supportOMAN800-SAMSUNG (800 - 726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/supportPANAMA800-7267800-0101www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)Country/Region Customer Care Center WebSite
Contact SAMSUNG worldwide279 Contact SAMSUNG worldwidePARAGUAY009-800-542-0001 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)PERU 0-800-777-08 www.samsung.com/pe/supportPHILIPPINES1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landline and Mobile]02-4222111 [Other landline]www.samsung.com/ph/supportPOLAND0 801-172-678* lub +48 22 607-93-33 *[HHP] 0 801-672-678* lub +48 22 607-93-33** (koszt połączenia według taryfy operatora)www.samsung.com/pl/supportPORTUGAL 808 20 7267 www.samsung.com/pt/supportPUERTO RICO1-800-682-3180 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)Country/Region Customer Care Center WebSiteQATAR800-CALL (800-2255) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)RWANDA 9999 www.samsung.com/supportROMANIA 08008 726 78 64 (08008 SAMSUNG )Apel GRATUITwww.samsung.com/ro/supportRUSSIA 8-800-555-55-55 www.samsung.com/ru/supportSAUDI ARABIA920021230 www.samsung.com/sa/supportwww.samsung.com/sa_en/support (English)/SENEGAL 800-00-0077 www.samsung.com/africa_fr/supportSERBIA 011 321 6899 www.samsung.com/rs/supportSINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg/supportSLOVENIA 080 697 267090 726 786 www.samsung.com/rs/siCountry/Region Customer Care Center WebSite

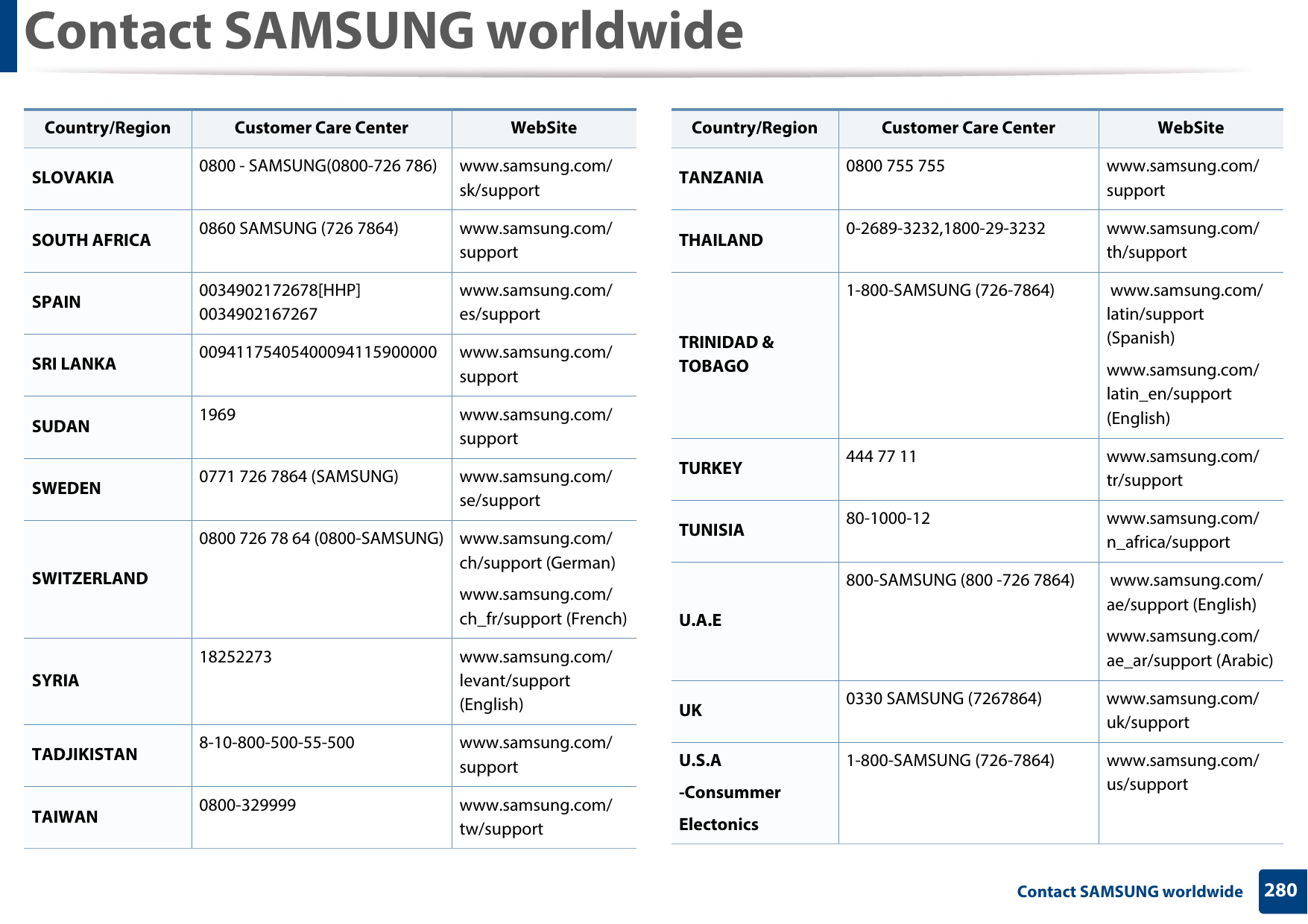

Contact SAMSUNG worldwide280 Contact SAMSUNG worldwideSLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com/sk/supportSOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/supportSPAIN 0034902172678[HHP] 0034902167267www.samsung.com/es/supportSRI LANKA 00941175405400094115900000 www.samsung.com/supportSUDAN 1969 www.samsung.com/supportSWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/se/supportSWITZERLAND0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)SYRIA18252273 www.samsung.com/levant/support (English)TADJIKISTAN 8-10-800-500-55-500 www.samsung.com/supportTAIWAN 0800-329999 www.samsung.com/tw/supportCountry/Region Customer Care Center WebSiteTANZANIA 0800 755 755 www.samsung.com/supportTHAILAND 0-2689-3232,1800-29-3232 www.samsung.com/th/supportTRINIDAD & TOBAGO1-800-SAMSUNG (726-7864) www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)TURKEY 444 77 11 www.samsung.com/tr/supportTUNISIA 80-1000-12 www.samsung.com/n_africa/supportU.A.E800-SAMSUNG (800 -726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)UK 0330 SAMSUNG (7267864) www.samsung.com/uk/supportU.S.A-ConsummerElectonics1-800-SAMSUNG (726-7864) www.samsung.com/us/supportCountry/Region Customer Care Center WebSite

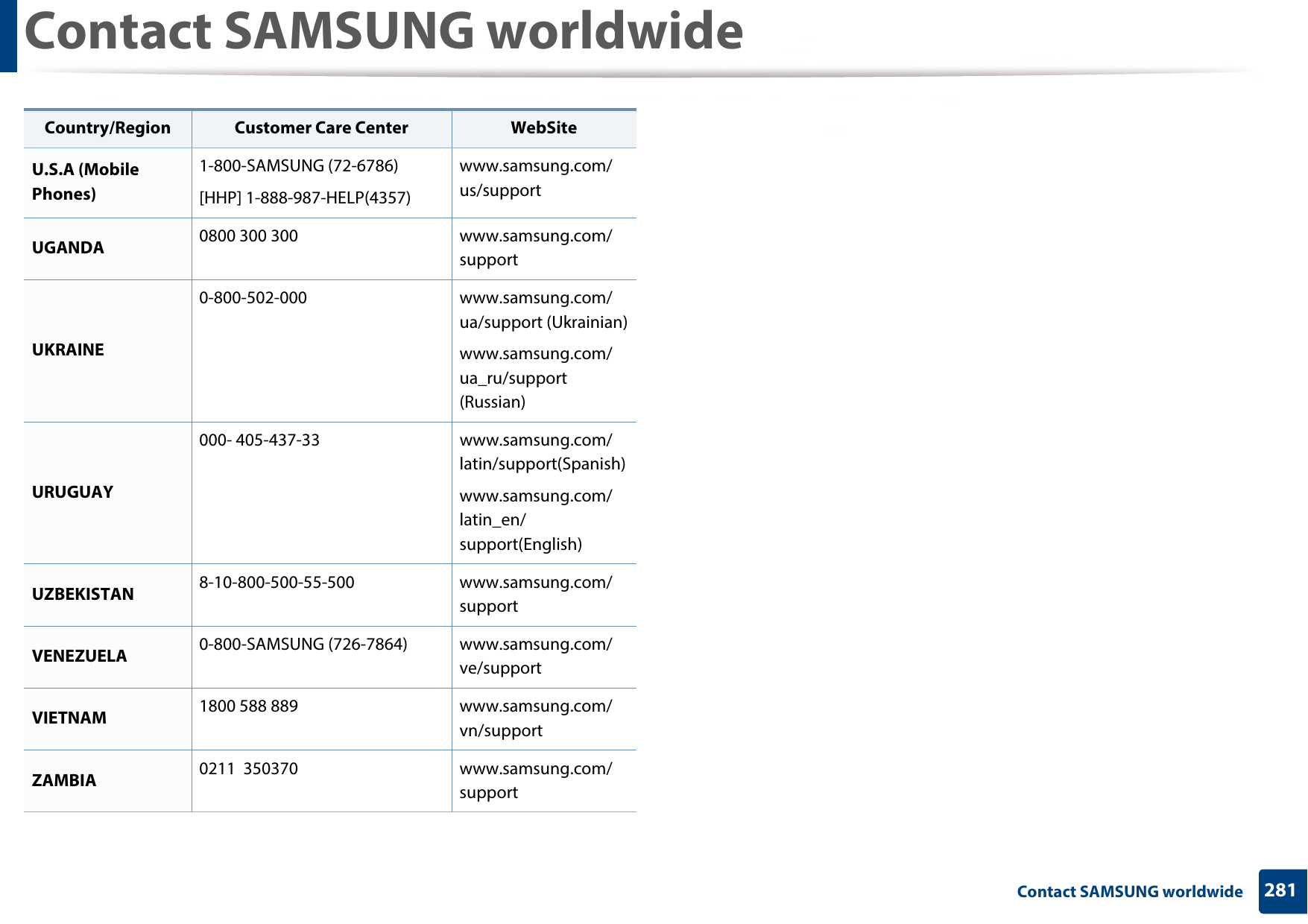

Contact SAMSUNG worldwide281 Contact SAMSUNG worldwideU.S.A (Mobile Phones)1-800-SAMSUNG (72-6786)[HHP] 1-888-987-HELP(4357)www.samsung.com/us/supportUGANDA 0800 300 300 www.samsung.com/supportUKRAINE0-800-502-000 www.samsung.com/ua/support (Ukrainian)www.samsung.com/ua_ru/support (Russian)URUGUAY000- 405-437-33 www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/supportVENEZUELA 0-800-SAMSUNG (726-7864) www.samsung.com/ve/supportVIETNAM 1800 588 889 www.samsung.com/vn/supportZAMBIA 0211 350370 www.samsung.com/supportCountry/Region Customer Care Center WebSite

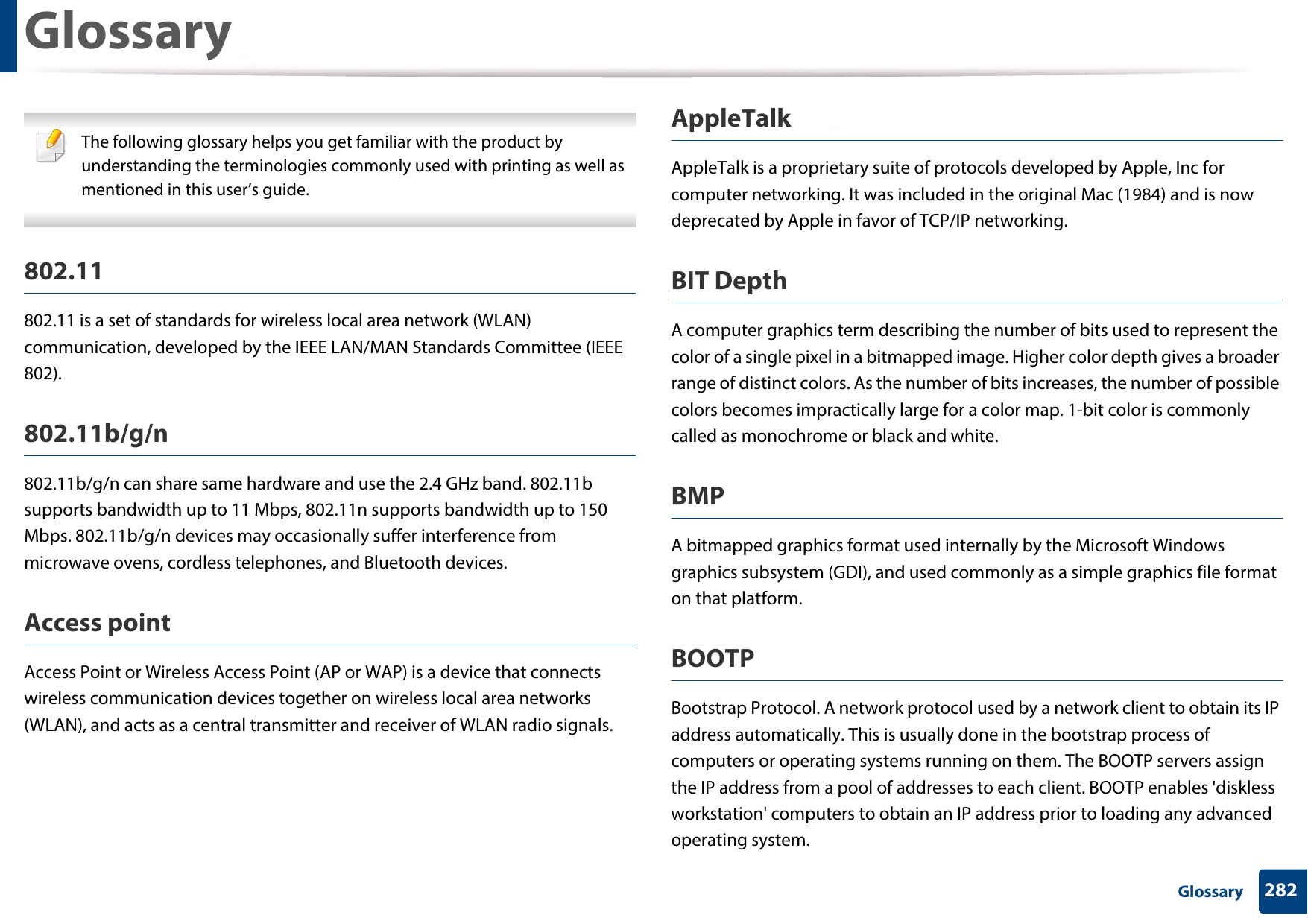

282 GlossaryGlossary The following glossary helps you get familiar with the product by understanding the terminologies commonly used with printing as well as mentioned in this user’s guide. 802.11802.11 is a set of standards for wireless local area network (WLAN) communication, developed by the IEEE LAN/MAN Standards Committee (IEEE 802). 802.11b/g/n802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer interference from microwave ovens, cordless telephones, and Bluetooth devices.Access pointAccess Point or Wireless Access Point (AP or WAP) is a device that connects wireless communication devices together on wireless local area networks (WLAN), and acts as a central transmitter and receiver of WLAN radio signals. AppleTalkAppleTalk is a proprietary suite of protocols developed by Apple, Inc for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.BIT DepthA computer graphics term describing the number of bits used to represent the color of a single pixel in a bitmapped image. Higher color depth gives a broader range of distinct colors. As the number of bits increases, the number of possible colors becomes impractically large for a color map. 1-bit color is commonly called as monochrome or black and white.BMPA bitmapped graphics format used internally by the Microsoft Windows graphics subsystem (GDI), and used commonly as a simple graphics file format on that platform.BOOTPBootstrap Protocol. A network protocol used by a network client to obtain its IP address automatically. This is usually done in the bootstrap process of computers or operating systems running on them. The BOOTP servers assign the IP address from a pool of addresses to each client. BOOTP enables 'diskless workstation' computers to obtain an IP address prior to loading any advanced operating system.

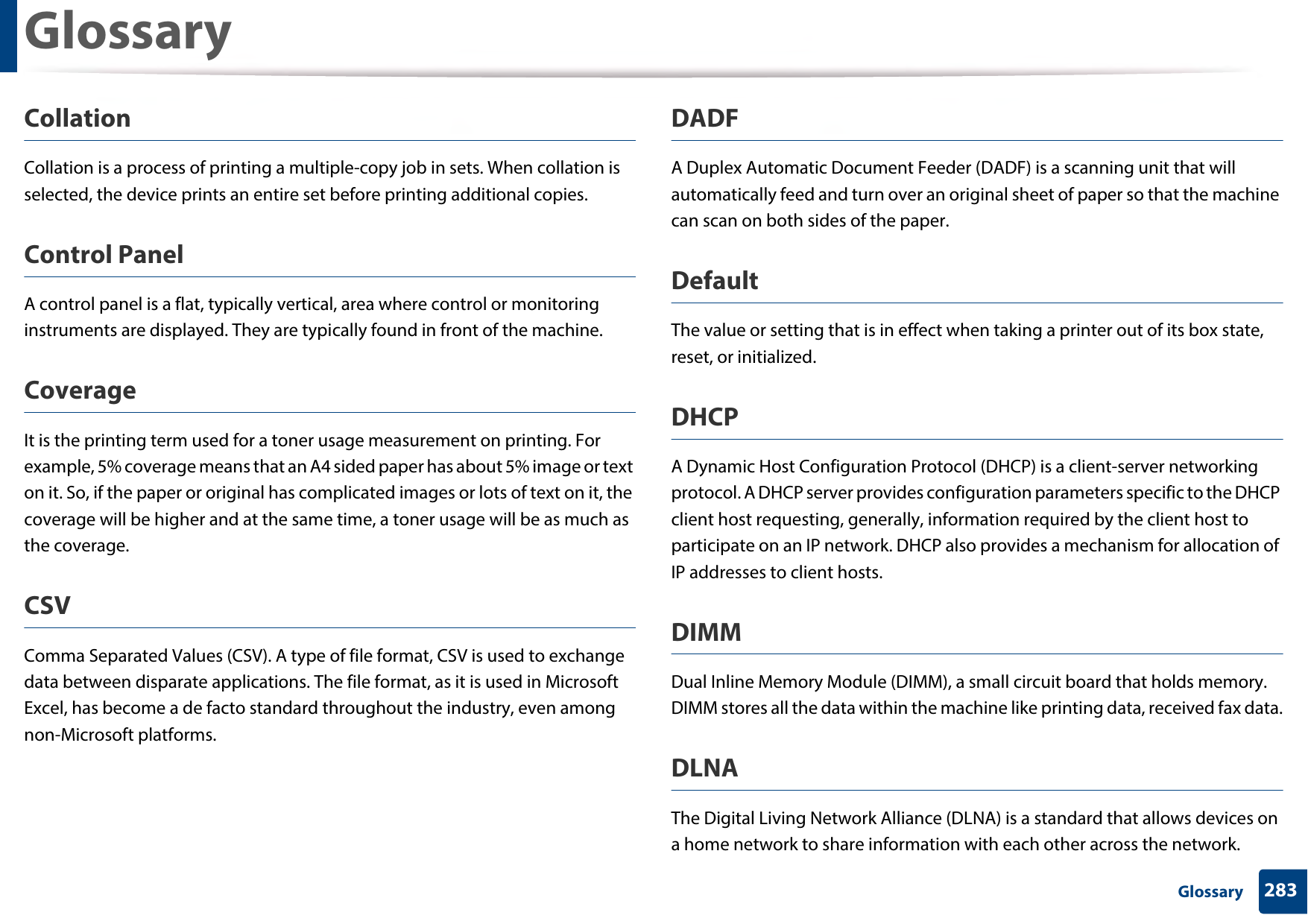

Glossary283 GlossaryCollationCollation is a process of printing a multiple-copy job in sets. When collation is selected, the device prints an entire set before printing additional copies.Control PanelA control panel is a flat, typically vertical, area where control or monitoring instruments are displayed. They are typically found in front of the machine. CoverageIt is the printing term used for a toner usage measurement on printing. For example, 5% coverage means that an A4 sided paper has about 5% image or text on it. So, if the paper or original has complicated images or lots of text on it, the coverage will be higher and at the same time, a toner usage will be as much as the coverage.CSVComma Separated Values (CSV). A type of file format, CSV is used to exchange data between disparate applications. The file format, as it is used in Microsoft Excel, has become a de facto standard throughout the industry, even among non-Microsoft platforms.DADFA Duplex Automatic Document Feeder (DADF) is a scanning unit that will automatically feed and turn over an original sheet of paper so that the machine can scan on both sides of the paper.DefaultThe value or setting that is in effect when taking a printer out of its box state, reset, or initialized.DHCPA Dynamic Host Configuration Protocol (DHCP) is a client-server networking protocol. A DHCP server provides configuration parameters specific to the DHCP client host requesting, generally, information required by the client host to participate on an IP network. DHCP also provides a mechanism for allocation of IP addresses to client hosts.DIMMDual Inline Memory Module (DIMM), a small circuit board that holds memory. DIMM stores all the data within the machine like printing data, received fax data.DLNAThe Digital Living Network Alliance (DLNA) is a standard that allows devices on a home network to share information with each other across the network.
Glossary284 GlossaryDNSThe Domain Name Server (DNS) is a system that stores information associated with domain names in a distributed database on networks, such as the Internet.Dot Matrix PrinterA dot matrix printer refers to a type of computer printer with a print head that runs back and forth on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like a typewriter.DPIDots Per Inch (DPI) is a measurement of resolution that is used for scanning and printing. Generally, higher DPI results in a higher resolution, more visible detail in the image, and a larger file size.DuplexA mechanism that will automatically turn over a sheet of paper so that the machine can print (or scan) on both sides of the paper. A printer equipped with a Duplex Unit can print on both sides of paper during one print cycle.Duty CycleDuty cycle is the page quantity which does not affect printer performance for a month. Generally the printer has the lifespan limitation such as pages per year. The lifespan means the average capacity of print-outs, usually within the warranty period. For example, if the duty cycle is 48,000 pages per month assuming 20 working days, a printer limits 2,400 pages a day.ECMError Correction Mode (ECM) is an optional transmission mode built into Class 1 fax machines or fax modems. It automatically detects and corrects errors in the fax transmission process that are sometimes caused by telephone line noise.EmulationEmulation is a technique of one machine obtaining the same results as another.An emulator duplicates the functions of one system with a different system, so that the second system behaves like the first system. Emulation focuses on exact reproduction of external behavior, which is in contrast to simulation, which concerns an abstract model of the system being simulated, often considering its internal state.

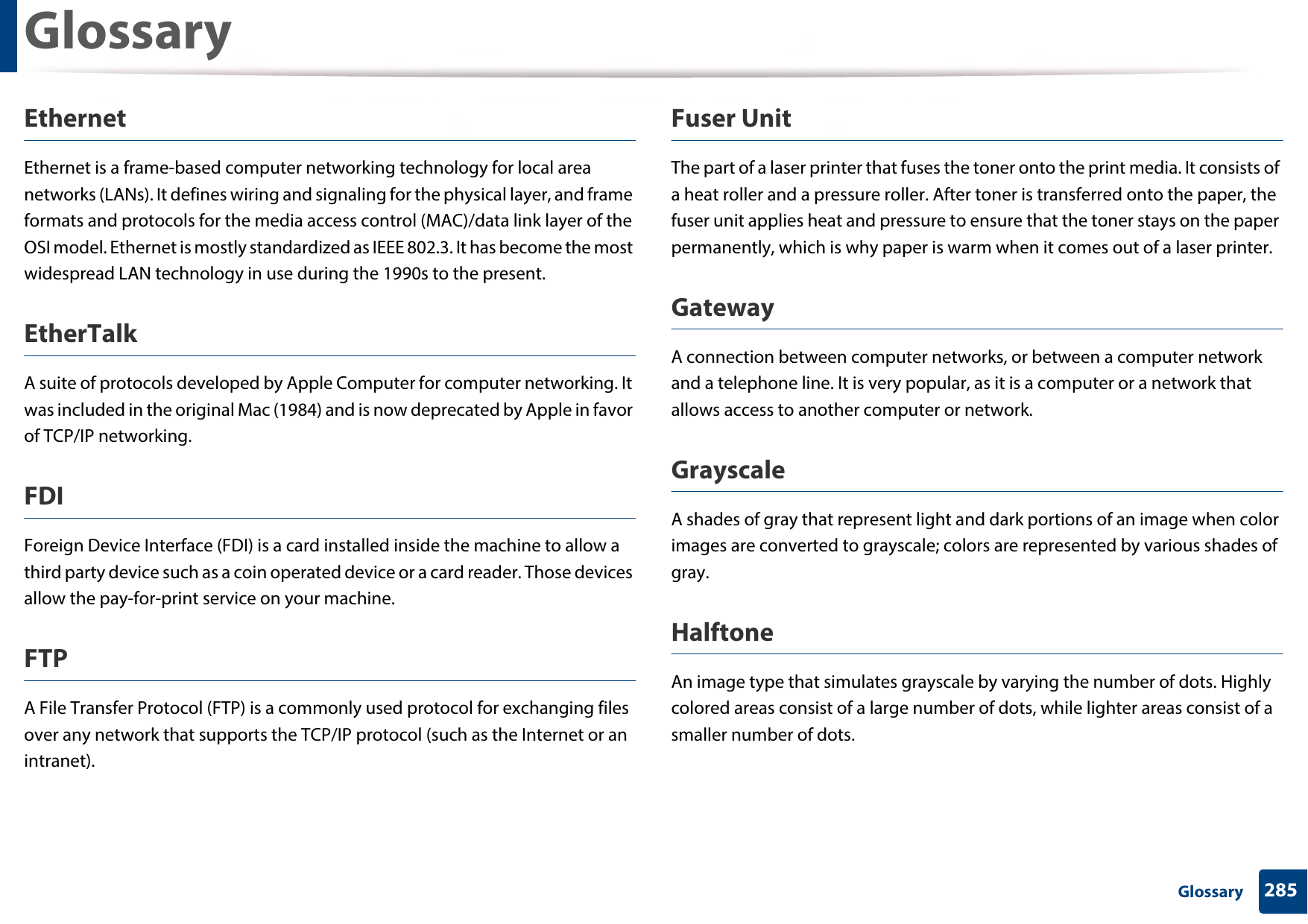

Glossary285 GlossaryEthernetEthernet is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, and frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most widespread LAN technology in use during the 1990s to the present.EtherTalkA suite of protocols developed by Apple Computer for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking. FDIForeign Device Interface (FDI) is a card installed inside the machine to allow a third party device such as a coin operated device or a card reader. Those devices allow the pay-for-print service on your machine.FTPA File Transfer Protocol (FTP) is a commonly used protocol for exchanging files over any network that supports the TCP/IP protocol (such as the Internet or an intranet).Fuser Unit The part of a laser printer that fuses the toner onto the print media. It consists of a heat roller and a pressure roller. After toner is transferred onto the paper, the fuser unit applies heat and pressure to ensure that the toner stays on the paper permanently, which is why paper is warm when it comes out of a laser printer.GatewayA connection between computer networks, or between a computer network and a telephone line. It is very popular, as it is a computer or a network that allows access to another computer or network.GrayscaleA shades of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.HalftoneAn image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.

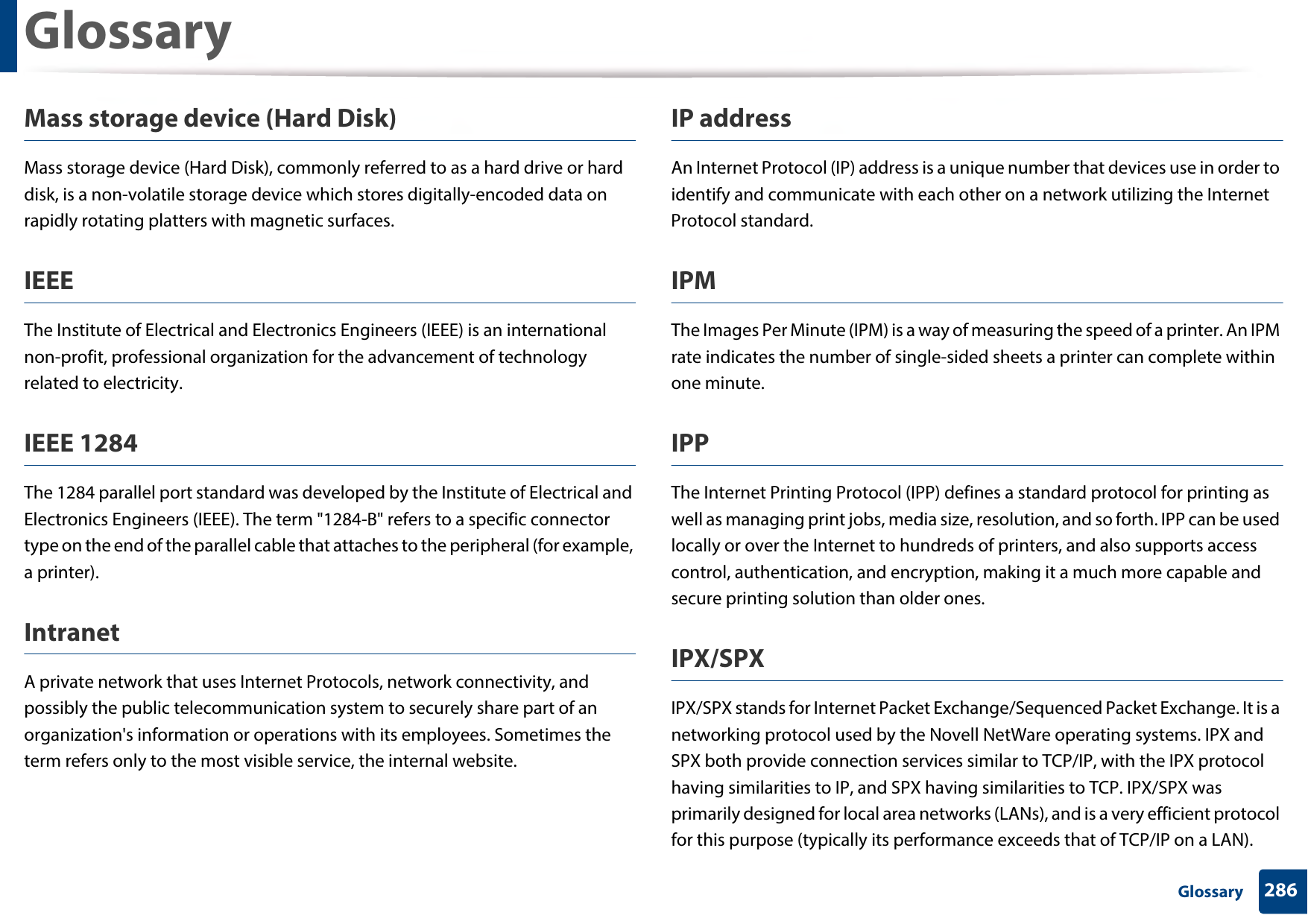

Glossary286 GlossaryMass storage device (Hard Disk)Mass storage device (Hard Disk), commonly referred to as a hard drive or hard disk, is a non-volatile storage device which stores digitally-encoded data on rapidly rotating platters with magnetic surfaces.IEEEThe Institute of Electrical and Electronics Engineers (IEEE) is an international non-profit, professional organization for the advancement of technology related to electricity.IEEE 1284The 1284 parallel port standard was developed by the Institute of Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector type on the end of the parallel cable that attaches to the peripheral (for example, a printer). IntranetA private network that uses Internet Protocols, network connectivity, and possibly the public telecommunication system to securely share part of an organization's information or operations with its employees. Sometimes the term refers only to the most visible service, the internal website.IP addressAn Internet Protocol (IP) address is a unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard.IPMThe Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM rate indicates the number of single-sided sheets a printer can complete within one minute.IPPThe Internet Printing Protocol (IPP) defines a standard protocol for printing as well as managing print jobs, media size, resolution, and so forth. IPP can be used locally or over the Internet to hundreds of printers, and also supports access control, authentication, and encryption, making it a much more capable and secure printing solution than older ones.IPX/SPXIPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a networking protocol used by the Novell NetWare operating systems. IPX and SPX both provide connection services similar to TCP/IP, with the IPX protocol having similarities to IP, and SPX having similarities to TCP. IPX/SPX was primarily designed for local area networks (LANs), and is a very efficient protocol for this purpose (typically its performance exceeds that of TCP/IP on a LAN).

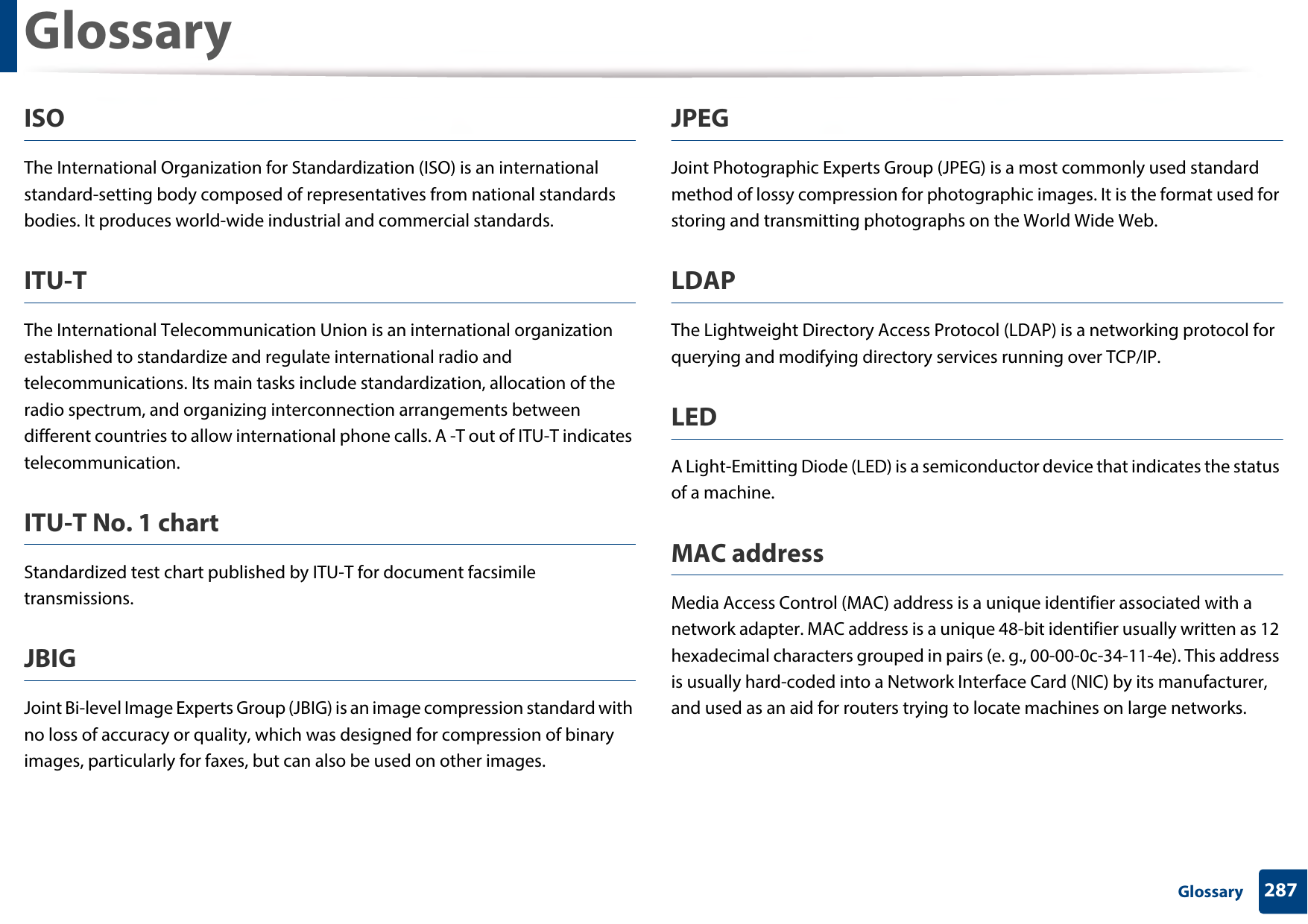

Glossary287 GlossaryISOThe International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from national standards bodies. It produces world-wide industrial and commercial standards.ITU-TThe International Telecommunication Union is an international organization established to standardize and regulate international radio and telecommunications. Its main tasks include standardization, allocation of the radio spectrum, and organizing interconnection arrangements between different countries to allow international phone calls. A -T out of ITU-T indicates telecommunication.ITU-T No. 1 chartStandardized test chart published by ITU-T for document facsimile transmissions.JBIGJoint Bi-level Image Experts Group (JBIG) is an image compression standard with no loss of accuracy or quality, which was designed for compression of binary images, particularly for faxes, but can also be used on other images.JPEGJoint Photographic Experts Group (JPEG) is a most commonly used standard method of lossy compression for photographic images. It is the format used for storing and transmitting photographs on the World Wide Web.LDAPThe Lightweight Directory Access Protocol (LDAP) is a networking protocol for querying and modifying directory services running over TCP/IP.LEDA Light-Emitting Diode (LED) is a semiconductor device that indicates the status of a machine.MAC addressMedia Access Control (MAC) address is a unique identifier associated with a network adapter. MAC address is a unique 48-bit identifier usually written as 12 hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address is usually hard-coded into a Network Interface Card (NIC) by its manufacturer, and used as an aid for routers trying to locate machines on large networks.

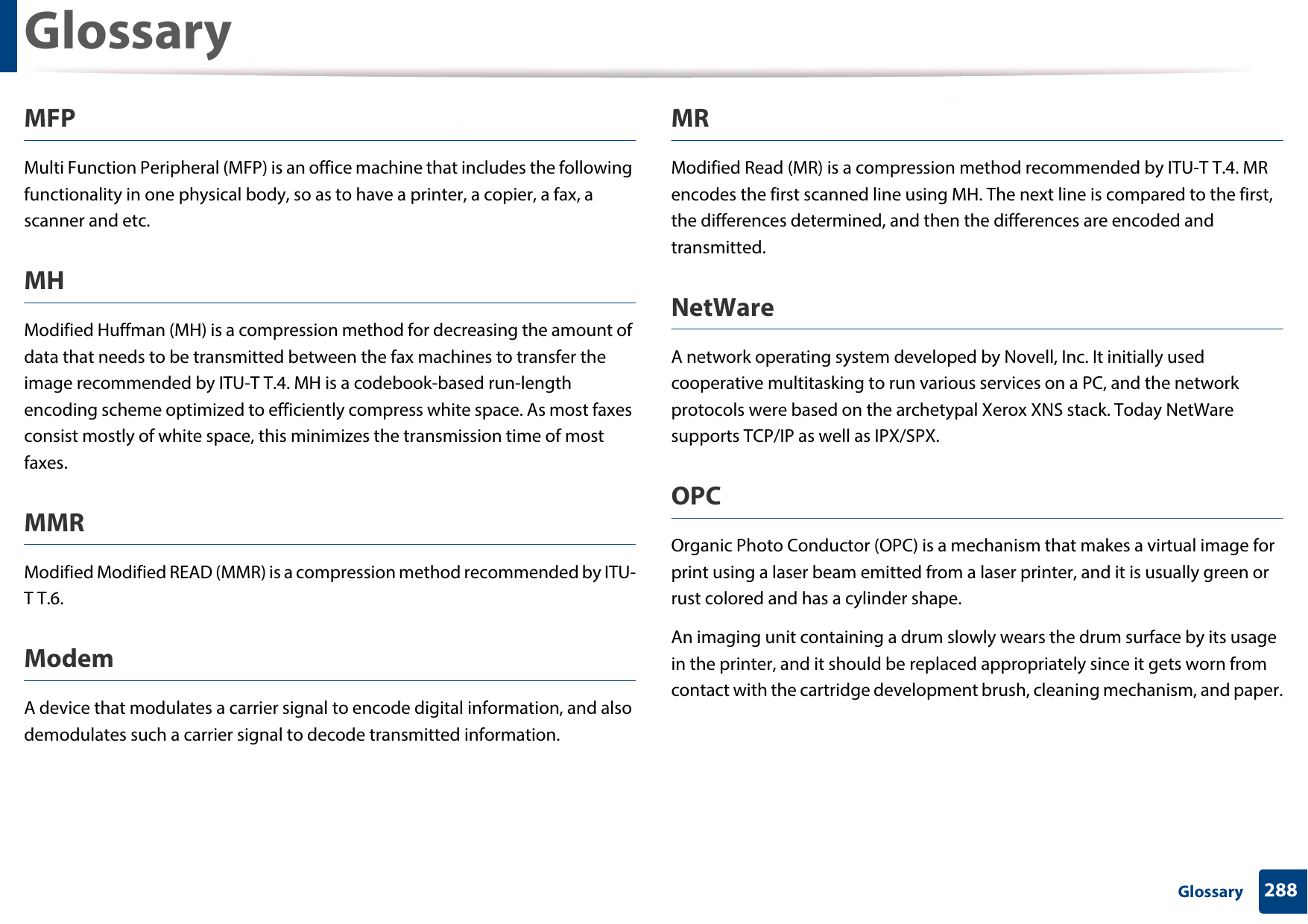

Glossary288 GlossaryMFPMulti Function Peripheral (MFP) is an office machine that includes the following functionality in one physical body, so as to have a printer, a copier, a fax, a scanner and etc.MHModified Huffman (MH) is a compression method for decreasing the amount of data that needs to be transmitted between the fax machines to transfer the image recommended by ITU-T T.4. MH is a codebook-based run-length encoding scheme optimized to efficiently compress white space. As most faxes consist mostly of white space, this minimizes the transmission time of most faxes. MMRModified Modified READ (MMR) is a compression method recommended by ITU-T T.6.ModemA device that modulates a carrier signal to encode digital information, and also demodulates such a carrier signal to decode transmitted information.MRModified Read (MR) is a compression method recommended by ITU-T T.4. MR encodes the first scanned line using MH. The next line is compared to the first, the differences determined, and then the differences are encoded and transmitted.NetWareA network operating system developed by Novell, Inc. It initially used cooperative multitasking to run various services on a PC, and the network protocols were based on the archetypal Xerox XNS stack. Today NetWare supports TCP/IP as well as IPX/SPX.OPCOrganic Photo Conductor (OPC) is a mechanism that makes a virtual image for print using a laser beam emitted from a laser printer, and it is usually green or rust colored and has a cylinder shape. An imaging unit containing a drum slowly wears the drum surface by its usage in the printer, and it should be replaced appropriately since it gets worn from contact with the cartridge development brush, cleaning mechanism, and paper.

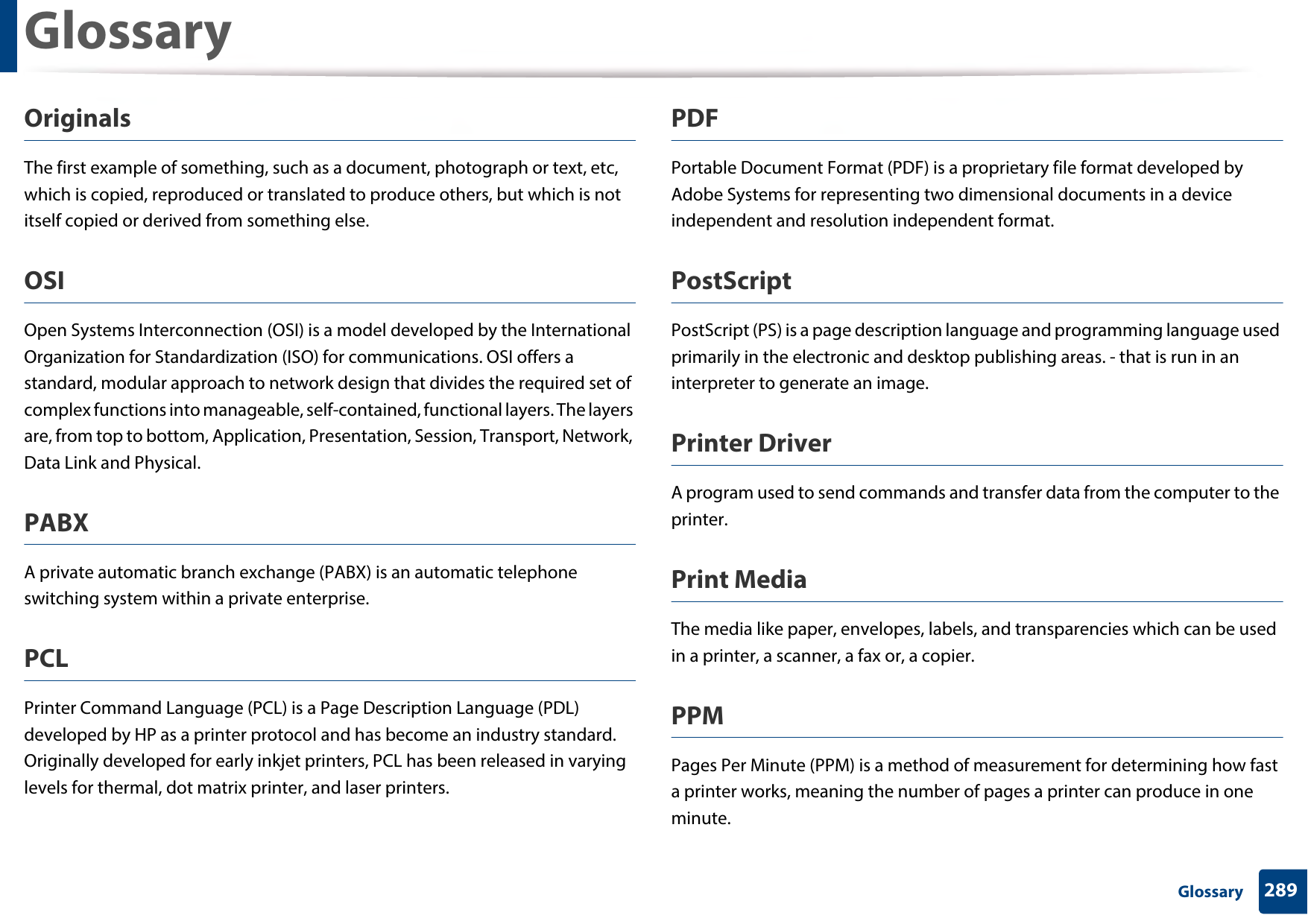

Glossary289 GlossaryOriginalsThe first example of something, such as a document, photograph or text, etc, which is copied, reproduced or translated to produce others, but which is not itself copied or derived from something else.OSIOpen Systems Interconnection (OSI) is a model developed by the International Organization for Standardization (ISO) for communications. OSI offers a standard, modular approach to network design that divides the required set of complex functions into manageable, self-contained, functional layers. The layers are, from top to bottom, Application, Presentation, Session, Transport, Network, Data Link and Physical.PABX A private automatic branch exchange (PABX) is an automatic telephone switching system within a private enterprise.PCLPrinter Command Language (PCL) is a Page Description Language (PDL) developed by HP as a printer protocol and has become an industry standard. Originally developed for early inkjet printers, PCL has been released in varying levels for thermal, dot matrix printer, and laser printers.PDFPortable Document Format (PDF) is a proprietary file format developed by Adobe Systems for representing two dimensional documents in a device independent and resolution independent format.PostScriptPostScript (PS) is a page description language and programming language used primarily in the electronic and desktop publishing areas. - that is run in an interpreter to generate an image.Printer DriverA program used to send commands and transfer data from the computer to the printer.Print MediaThe media like paper, envelopes, labels, and transparencies which can be used in a printer, a scanner, a fax or, a copier.PPMPages Per Minute (PPM) is a method of measurement for determining how fast a printer works, meaning the number of pages a printer can produce in one minute.

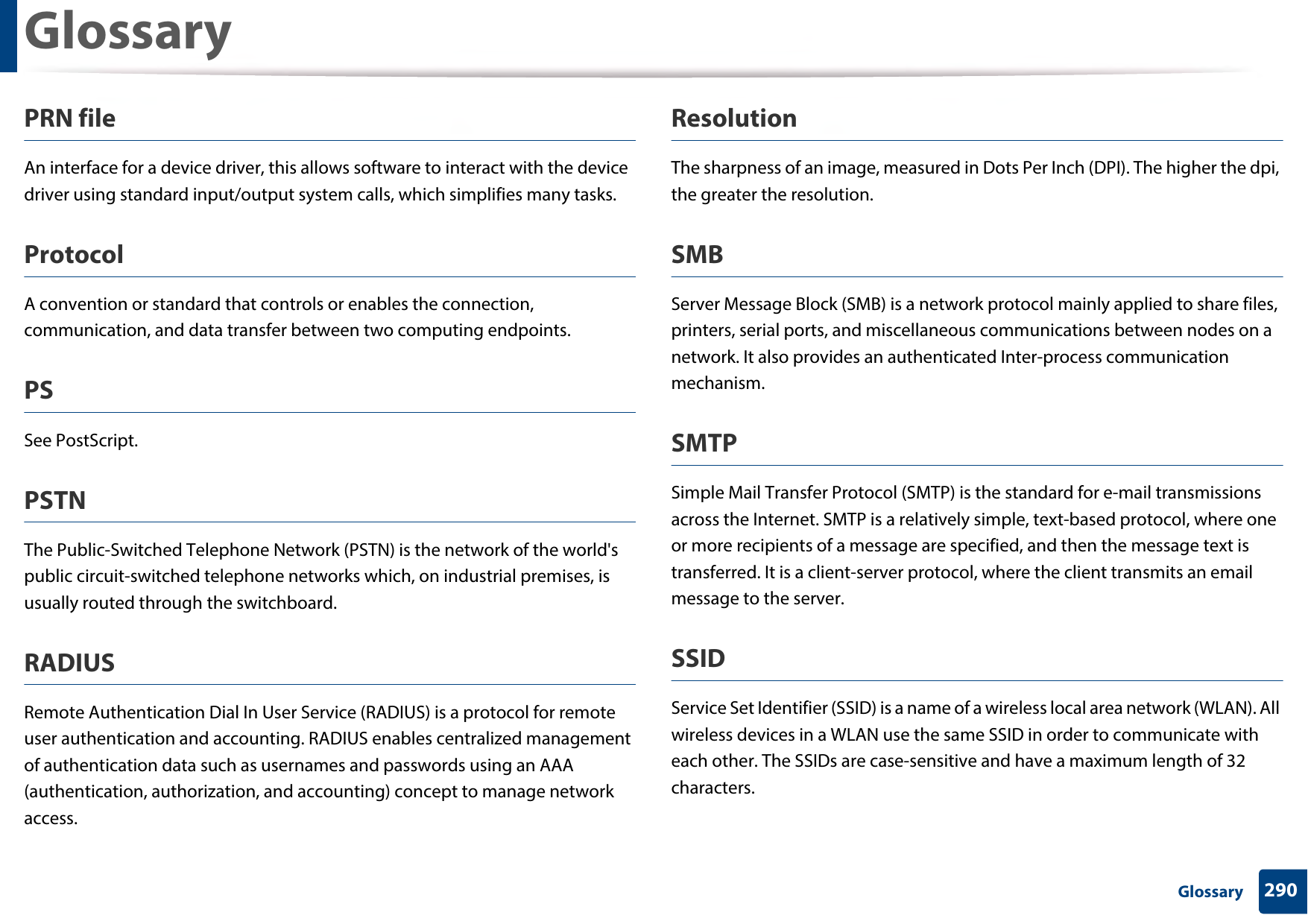

Glossary290 GlossaryPRN fileAn interface for a device driver, this allows software to interact with the device driver using standard input/output system calls, which simplifies many tasks. ProtocolA convention or standard that controls or enables the connection, communication, and data transfer between two computing endpoints.PSSee PostScript.PSTNThe Public-Switched Telephone Network (PSTN) is the network of the world's public circuit-switched telephone networks which, on industrial premises, is usually routed through the switchboard.RADIUSRemote Authentication Dial In User Service (RADIUS) is a protocol for remote user authentication and accounting. RADIUS enables centralized management of authentication data such as usernames and passwords using an AAA (authentication, authorization, and accounting) concept to manage network access.ResolutionThe sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi, the greater the resolution.SMBServer Message Block (SMB) is a network protocol mainly applied to share files, printers, serial ports, and miscellaneous communications between nodes on a network. It also provides an authenticated Inter-process communication mechanism.SMTPSimple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions across the Internet. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified, and then the message text is transferred. It is a client-server protocol, where the client transmits an email message to the server.SSIDService Set Identifier (SSID) is a name of a wireless local area network (WLAN). All wireless devices in a WLAN use the same SSID in order to communicate with each other. The SSIDs are case-sensitive and have a maximum length of 32 characters.

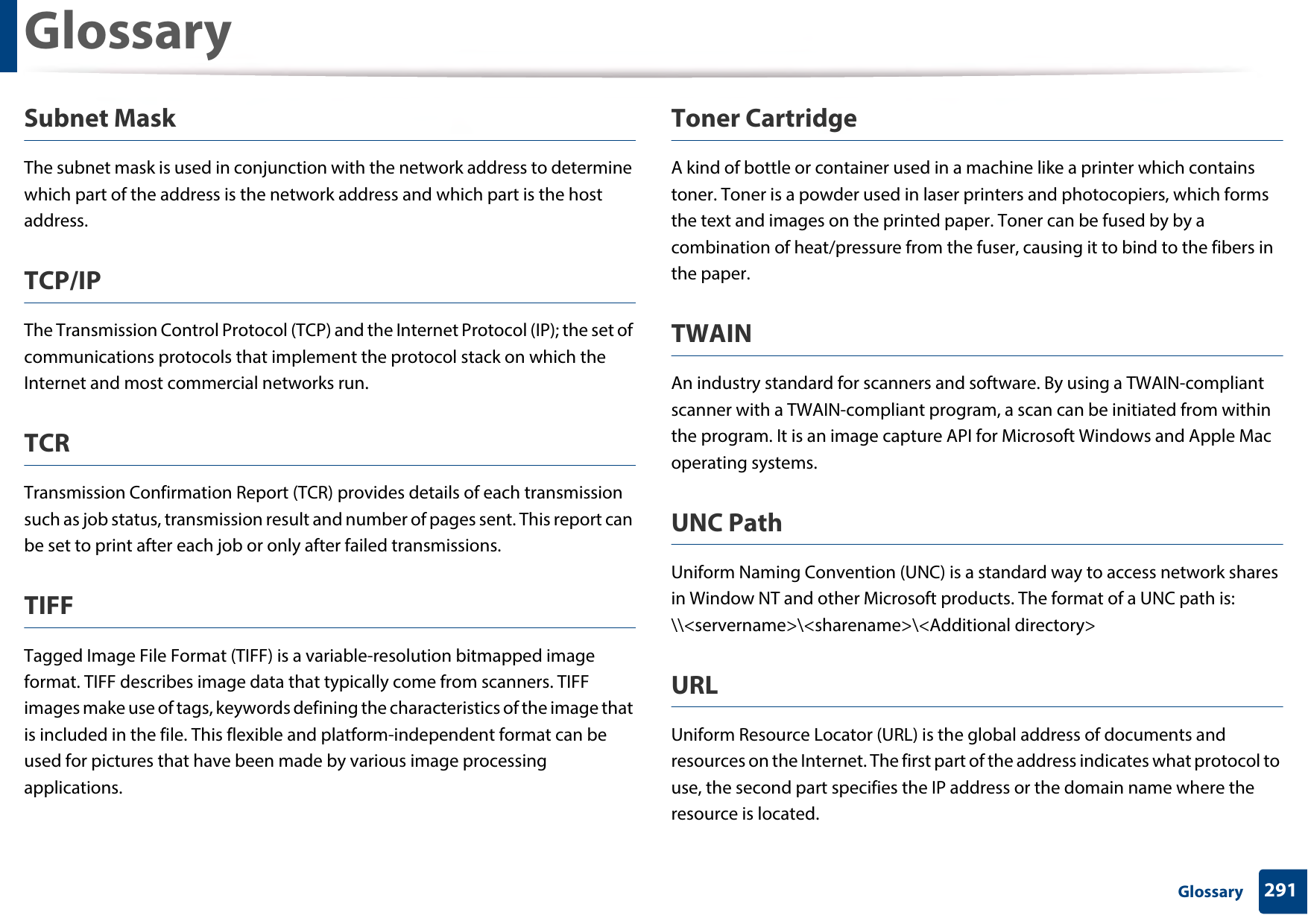

Glossary291 GlossarySubnet Mask The subnet mask is used in conjunction with the network address to determine which part of the address is the network address and which part is the host address.TCP/IPThe Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of communications protocols that implement the protocol stack on which the Internet and most commercial networks run.TCRTransmission Confirmation Report (TCR) provides details of each transmission such as job status, transmission result and number of pages sent. This report can be set to print after each job or only after failed transmissions.TIFFTagged Image File Format (TIFF) is a variable-resolution bitmapped image format. TIFF describes image data that typically come from scanners. TIFF images make use of tags, keywords defining the characteristics of the image that is included in the file. This flexible and platform-independent format can be used for pictures that have been made by various image processing applications.Toner CartridgeA kind of bottle or container used in a machine like a printer which contains toner. Toner is a powder used in laser printers and photocopiers, which forms the text and images on the printed paper. Toner can be fused by by a combination of heat/pressure from the fuser, causing it to bind to the fibers in the paper.TWAINAn industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAIN-compliant program, a scan can be initiated from within the program. It is an image capture API for Microsoft Windows and Apple Mac operating systems.UNC PathUniform Naming Convention (UNC) is a standard way to access network shares in Window NT and other Microsoft products. The format of a UNC path is: \\<servername>\<sharename>\<Additional directory>URLUniform Resource Locator (URL) is the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.

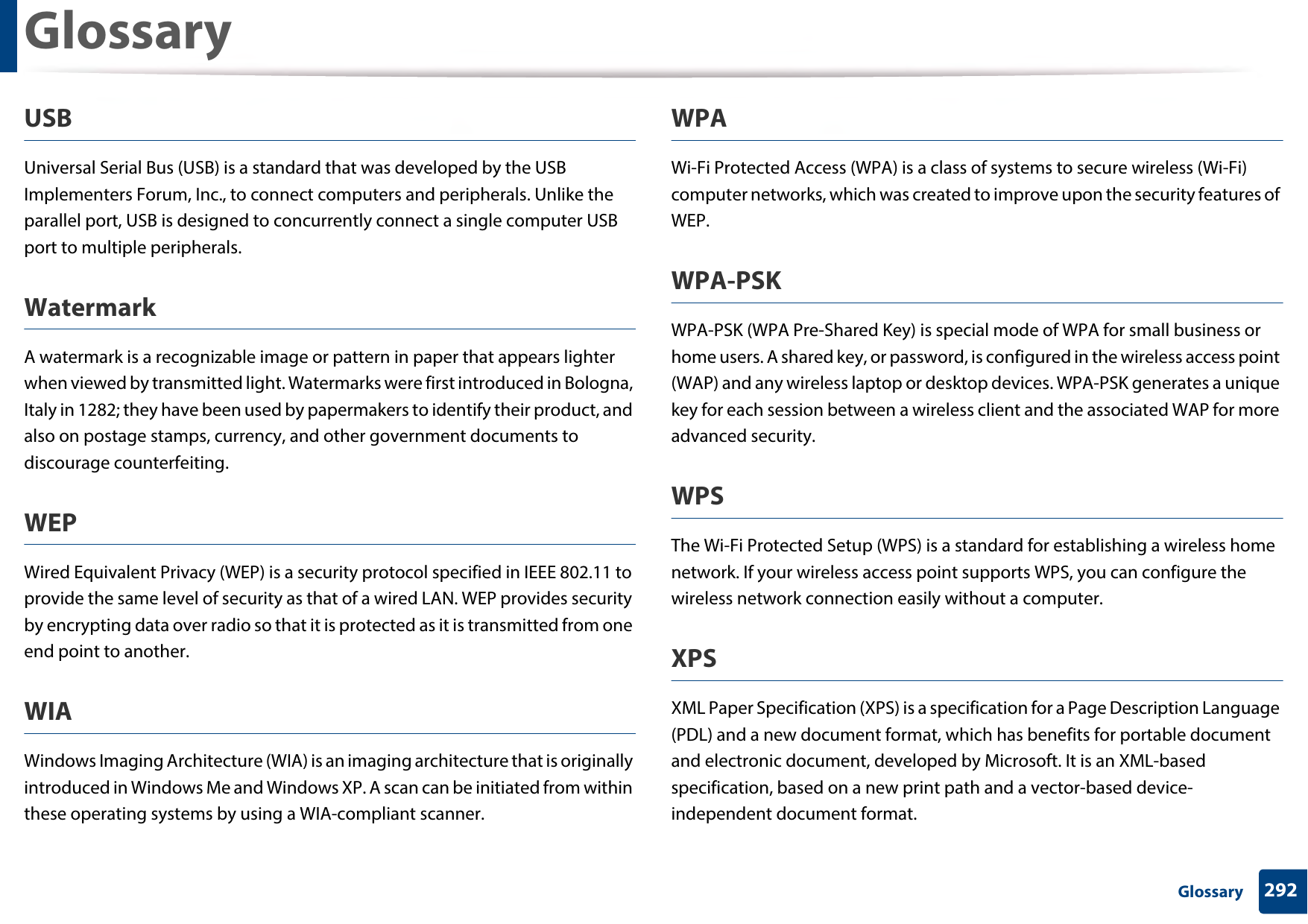

Glossary292 GlossaryUSBUniversal Serial Bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. Unlike the parallel port, USB is designed to concurrently connect a single computer USB port to multiple peripherals.WatermarkA watermark is a recognizable image or pattern in paper that appears lighter when viewed by transmitted light. Watermarks were first introduced in Bologna, Italy in 1282; they have been used by papermakers to identify their product, and also on postage stamps, currency, and other government documents to discourage counterfeiting.WEPWired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to provide the same level of security as that of a wired LAN. WEP provides security by encrypting data over radio so that it is protected as it is transmitted from one end point to another.WIAWindows Imaging Architecture (WIA) is an imaging architecture that is originally introduced in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.WPAWi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks, which was created to improve upon the security features of WEP.WPA-PSKWPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or home users. A shared key, or password, is configured in the wireless access point (WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique key for each session between a wireless client and the associated WAP for more advanced security.WPSThe Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home network. If your wireless access point supports WPS, you can configure the wireless network connection easily without a computer.XPSXML Paper Specification (XPS) is a specification for a Page Description Language (PDL) and a new document format, which has benefits for portable document and electronic document, developed by Microsoft. It is an XML-based specification, based on a new print path and a vector-based device-independent document format.
293IndexIndexAaccessingmanagement tools 2accessoriesinstalling 14ordering 4AirPrint 46AnyWeb Print 4Bbuttonseco 16print screen 16Ccleaninginside 19outside 19pickup roller 22cleaning a machine 19control panel 16touch screen 6convention 7Ddefault settingstray setting 23device options 14direct printing utility 16driver installationUnix 12Eeco printing 28entering character 3error message 16Ffavorites settings, for printing 27features 2machine features 1print media feature 4Ggeneral icons 7general settings 8glossary 1google cloud printing 48Jjamclearing paper 3tips for avoiding paper jams 2Llayout 5Linuxcommon Linux problems 18driver installation for network connected 11driver installation for USB cable connected 4driver reinstallation for USB cable connected 5printer properties 20printing 20system requirements 9using SetIP 5loadingpaper in multi-purpose tray 17paper in the tray1 14special media 19
Index294IndexMMaccommon Mac problems 17driver installation for network connected 10driver installation for USB cable connected 2driver reinstallation for USB cable connected 3printing 18system requirements 8using SetIP 4machine overviewfront view 14rear view 15maintenance parts 5managingapplication 8memorymemory upgrading 16menuadmin setup 17counter 22direct usb 20eco 19emulation 12information 4job management 16job status 21menu map 4menu overview 2multi-purpose (or manual feeder) trayusing special media 19multi-purpose trayloading 17tips on using 17Nnetworkdriver installationLinux 11Mac 10UNIX 12Windows 6general setup 14installing environment 11introducing network programs 2IPv6 configuration 15SetIP program 3, 4, 5, 28wired network setup 3wireless network setup 18numeric keypad 16n-up printingMac 18Ooptional tray 4ordering 4output support 24overlay printingcreate 12delete 13print 12Ppaper 6placing a machineadjusting the altitude 2postScript drivertroubleshooting 19printmobile OS 44mobileprint 44
Index295Indexprint mediacard stock 22envelope 20guidelines 12labels 21output support 4preprinted paper 22setting the paper size 23setting the paper type 23special media 19printer preferencesLinux 20printer statusgeneral information 13printingchanging the default print settings 5Linux 20Mac 18multiple pages on one sheet of paperMac 18printing a documentWindows 25printing on both sides of paperMac 19printing to a file 6setting as a default machine 5special printer features 7UNIX 22using direct printing utility 16printing a documentLinux 20Mac 18UNIX 22printing feature 5problemoperating system problems 16problemspaper feeding problems 2power problems 3printing problems 4printing quality problems 8Rregulatory information 13Ssafetyinformation 8symbols 8samsung printer experience 15Samsung Printer Status 13service contact numbers 1SetIP program 3, 28Special features 1specifications 2print media 4status 16, 17suppliesavailable supplies 3estimated toner cartridge life 7monitoring the supplies life 17ordering 3replacing toner cartridge 10SyncThru Web Servicegeneral information 6SyncThru™ Web Service 6SyncThruTM Web Serviceapplication management 8Ttoner cartridgeestimated life 7
Index296Indexhandling instructions 6non-Samsung and refilled 6redistributing toner 8replacing the cartridge 10storing 6touch screenkeyboard 3trayadjusting the width and length 13changing the tray size 13loading paper in multi-purpose tray 17ordering an optional tray 4setting the paper size and type 23Uunderstanding the status LED 14UNIXdriver installation for network connected 12printing 22Unixsystem requirements 10USB cabledriver installation 19, 21, 2, 4driver reinstallation 3, 5USB flash memorydata backup 31managing 32USB memory deviceprinting 31usingkeyboard 3using help 27, 19Wwatermarkcreate 10delete 11edit 11Windowscommon Windows problems 16driver installation for network connected 6driver installation for USB cable connected 19, 21system requirements 7using SetIP 3, 28wirelessWPSdisconnecting 21, 22wireless networknetwork cable 28
