Samsung Electronics Co ST10WLR Notebook Computer with Integral Wireless LAN User Manual CERTIFICATE OF COMPLIANCE
Samsung Electronics Co Ltd Notebook Computer with Integral Wireless LAN CERTIFICATE OF COMPLIANCE
Part 3
6 Users Manual
Using Your Computer for the First Time
This section gives you detailed information on using your computer for the first time.

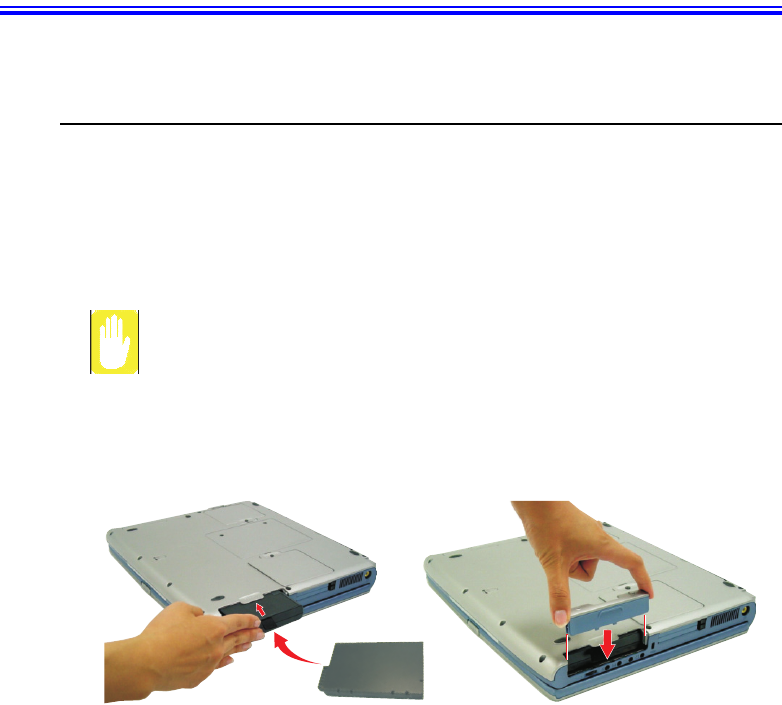

Installing the Battery
To install the battery pack:
1. With the computer’s power off, close the LCD panel and turn the computer over
so the bottom of the unit faces up.
2. Slide the battery compartment cover straight up and off the computer. See
”Installing the Battery” on page 42.
Insert the battery into the battery compartment, ensuring the correct
orientation so that the battery fits in its slot properly.
3. Slide the battery pack into the compartment. Make sure the battery is fully inserted
into the compartment.
4. Align the tabs on the battery compartment cover with the slots on the battery
compartment.
5. Push the cover straight down until it snaps into place.
Matrix 3 Plus (Windows 2000) - English.fm Page 6 Thursday, April 18, 2002 10:35 AM
Using Your Computer for the First Time 7

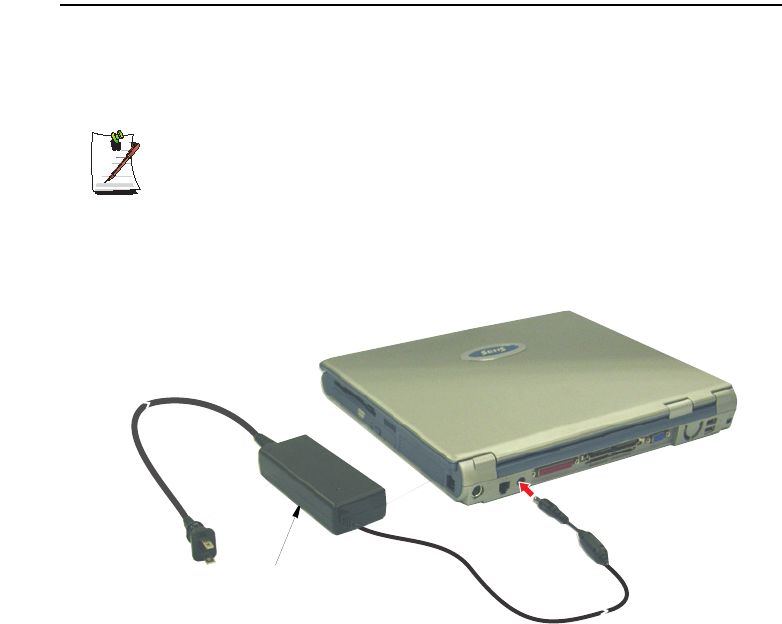

Attaching the AC Adapter
Your computer runs on power from the battery in the computer or from an electrical
outlet. The first time that you use your computer, fully charge the battery by attaching
the power cord to the computer and to an electrical outlet.
All batteries lose their charge if they sit unused for an extended time period.
When not used, battery can discharge fully in 2 to 3 months. The battery may
have discharged in the time it took for the computer to go from the factory to
you.
To attach the power cord:
1. Plug the AC adapter into the power connector on the back side of the computer.
2. Connect the power cord to the AC adapter and then to an electrical outlet.
The battery starts charging as soon as you plug the power cord into an electrical outlet.
The battery charges faster if the computer is turned off during charging.
If the battery is fully depleted and the computer is turned off, the battery charges in
about 3 hours. If the computer is turned on, the battery charges in about 6 hours. When
the battery is charging, the battery charge light is red. When the battery is fully charged,
the light turns green.
See ”Using Power Management Options” on page 52 for more information on using
your computer’s battery.
AC Adapter
Matrix 3 Plus (Windows 2000) - English.fm Page 7 Thursday, April 18, 2002 10:35 AM
8 Users Manual

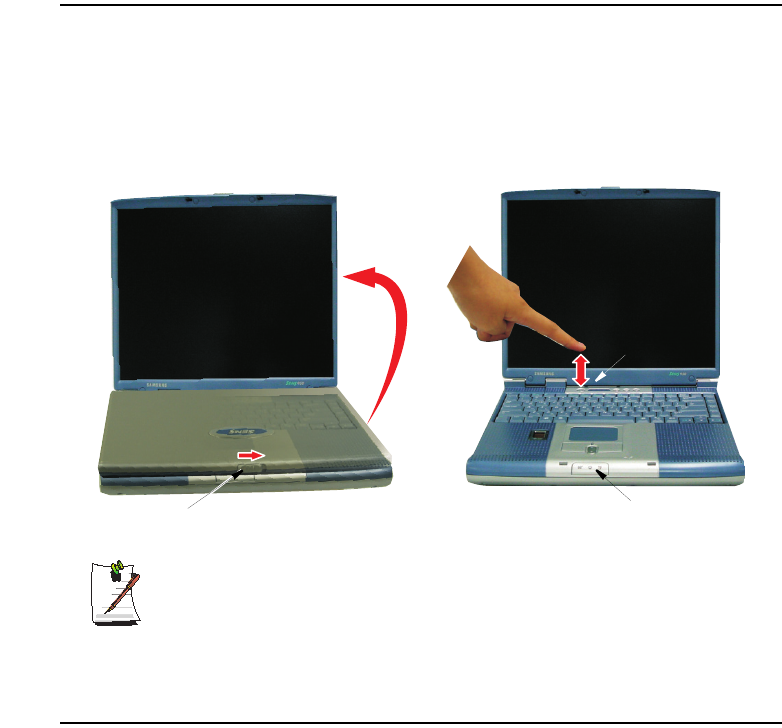

Turning On the Computer
To turn on the computer’s power for the first time:
1. Slide the LCD latch, located on the front of the cover to the right.
2. Lift up the cover.
3. Press and then release the power button.
The power light is on when the computer’s power is on.
Initial Computer Startup:
The first time you start your computer you will see the operating system
registration screens. Simply read each screen and follow the simple directions.
You must complete this process in order to use your computer. A tutorial is
provided if you require it.
Adjusting the LCD Display
You may wish to adjust the LCD (Liquid-Crystal Display) when you begin using your
computer. A TFT (Thin-Film Transistor) LCD does not require adjustment for contrast
because the contrast is set to remain at maximum.
To adjust the LCD:
•Press <Fn+Right Arrow> to increase the display brightness.
•Press <Fn+Left Arrow> to decrease the display brightness.
Power Light
Power button
Cover Latch
Matrix 3 Plus (Windows 2000) - English.fm Page 8 Thursday, April 18, 2002 10:35 AM
Using Your Computer for the First Time 9
Turning Off Your Computer
Prior to shutting down your computer ensure all of your data and current work are
saved. The system will ask if you wish to save any unsaved work, saving your work
first will speed the shutdown process.
To turn off the computer, complete the following steps:
1. Click on the taskbar.
If you need to restart your computer after software (re)installation or because it is not
responding select the Restart option in step 3 below.

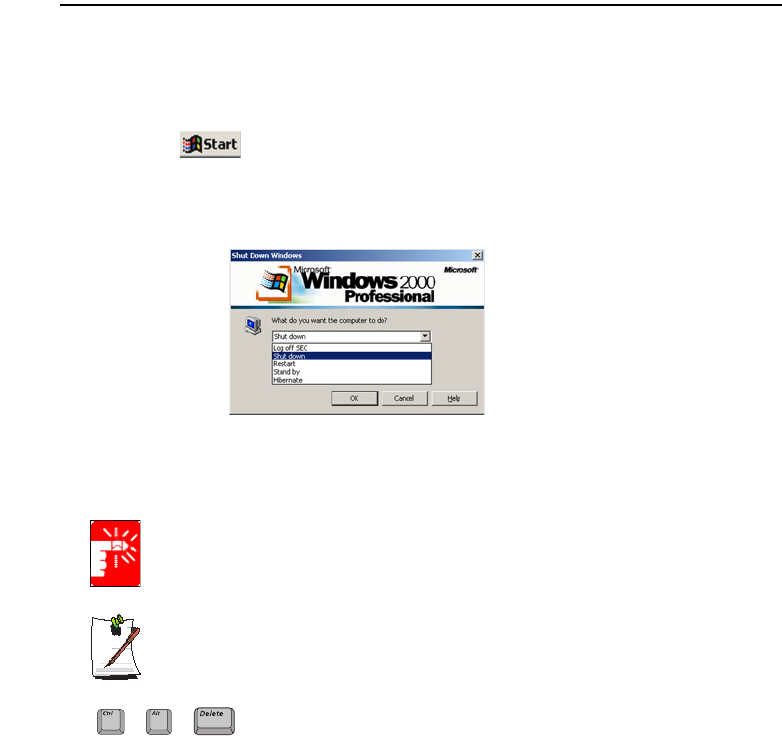

2. Click Shut Down to display the shutdown popup window shown below.
3. Select Shut down.
4. Click OK.
Power Off:
If the system does not power off, then press and hold the power button for over
5 seconds. See ”Using Power Management Options” on page 52.
Power Button Functions:
The power button has several functions other than just turning on and off your
computer, see “Using Power Management Options” on page 52.
You can also perform a soft boot by saving your files and pressing
<Ctrl+Alt+Del> to pop-up the “Windows Task Manager” window.
Click Shut Down > Restart.
You can perform a cold boot by pressing the power button for more than 4 seconds to
turn the computer off, waiting more than five seconds, and then pressing the power
button to turn the computer on. The system may perform some extra checks during the
restart.
+ +
Matrix 3 Plus (Windows 2000) - English.fm Page 9 Thursday, April 18, 2002 10:35 AM
10 Users Manual
Tips for Using Your Computer
The following information helps you avoid potential problems as you use your
computer:
Do not try to disassemble your computer. Opening the system chassis voids
your warranty. Only an authorised manufacturer service center can replace or
add any parts inside the chassis.
•Follow all the instructions and cautions in your computer user documentation.
•The LCD has a polarized surface and can be damaged easily. To prevent
damage, avoid touching the screen.
•Use only approved AC adapters, auto adapters, memory modules and other
options.
•Because a notebook computer is small and has restricted air flow around
components, it is more likely to overheat than a desktop computer. A fan inside
your computer runs when needed to help eliminate heat. Make sure the fan vent
on the left side of your computer is not blocked when you use the computer.
Occasionally check the vents and remove any accumulated dust on the outside.
•Avoid using or storing the computer in extremely hot or cold areas, such as a
car on a hot day. Keep the computer away from heaters and out of direct
sunlight. Exposure to excessive heat may damage computer components. If you
have left your computer in a hot place, let it cool down slowly to room
temperature (with the LCD panel open) before using it.
•Do not remove the memory-module compartment door, or try to install a
memory module when the computer is on. (For information on installing
memory modules, see “Installing a Memory Module” on page 64.)
•Set up your computer work area to avoid physical strain. Sit with your back
straight and supported by your chair. Adjust your chair or work table so that
your arms and wrists can remain in a relaxed position, parallel with the floor.
Avoid bending or twisting your wrists as you work. Your hands should “float”
slightly above the keyboard. Refer to a book on office ergonomics for more
information on setting up your work area.
•Take frequent breaks from working at the computer to rest your eyes and
stretch your muscles.
•Remember to save your data files frequently and to make backup copies of your
files.
Matrix 3 Plus (Windows 2000) - English.fm Page 10 Thursday, April 18, 2002 10:35 AM
Using Your Computer for the First Time 11
Travelling with Your Computer
Air Travel
If you are travelling by air, follow these tips:
•Take the computer with you as carry-on luggage. Do not check the computer
with your baggage.
•Allow the computer and disks to go through the X-ray security devices. Do not
hand-carry disks through the walk-through metal detectors, which can cause
loss of data.
•Make sure that the battery is charged or the power cord is easily accessible.
You may be required to turn on the computer for airport security personnel.
•Be prepared to turn off the computer during take off and landing.

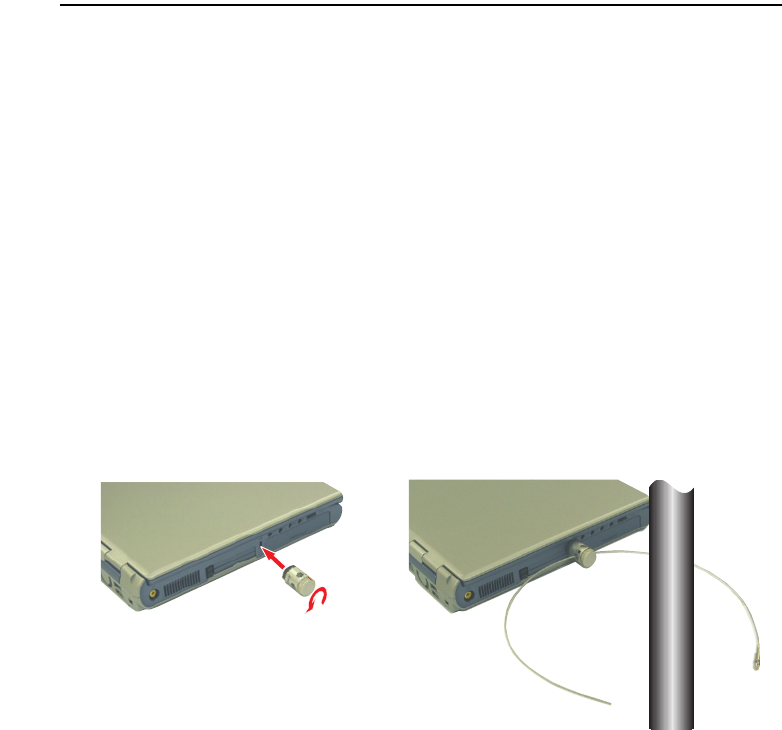

Locking your Computer
As a precaution when you are travelling or using your computer in an unsecured area,
you should keep your computer as safe as possible. An option to do this is the Security
Lock System. Follow the Security Lock System manufacturers instructions for specific
installation and use. The following figure shows generally how to use the lock.
To Lock
From Lock
Matrix 3 Plus (Windows 2000) - English.fm Page 11 Thursday, April 18, 2002 10:35 AM
12 Users Manual
Handling Spills
Do not spill anything on your computer. The best way to avoid spills is to avoid eating
and drinking around your computer. If you do spill something on your computer, turn
off your computer, unplug it immediately, and do the following:
•If you spill liquid on the keyboard, drain as much of the liquid from the
keyboard as possible. Be careful not to let the liquid drip onto the LCD panel.
Allow the system to dry for several days before trying to use it.
•If you spill liquid on an external keyboard or keypad, unplug it and drain as
much of the liquid as possible. Allow the keyboard to sit at room temperature
for a full day before trying to use it.
Sweet liquids leave a sticky residue that may jam the keyboard despite your
efforts to dry it.
•If you spill liquid on the LCD panel, clean it immediately with a soft cloth and
denatured alcohol or a proprietary LCD screen cleaner. Do not use water,
window cleaner, acetone, aromatic solvent, or dry, rough towels to clean it.
Some liquids damage the polarized LCD screen. If your screen is damaged,
contact your authorized manufacturer’s service center for a replacement.
Storing the Computer for Long Periods
If possible, leave the power cord connected to the computer and an electrical outlet
when the computer is not in use. This extends the life of the battery and keeps the
battery fully charged.
If you will not be using the computer for a long period of time (a month or more), you
should charge the battery until it is completely full. After you have done so, remove the
battery from the unit.
Matrix 3 Plus (Windows 2000) - English.fm Page 12 Thursday, April 18, 2002 10:35 AM
Using the Keyboard 13

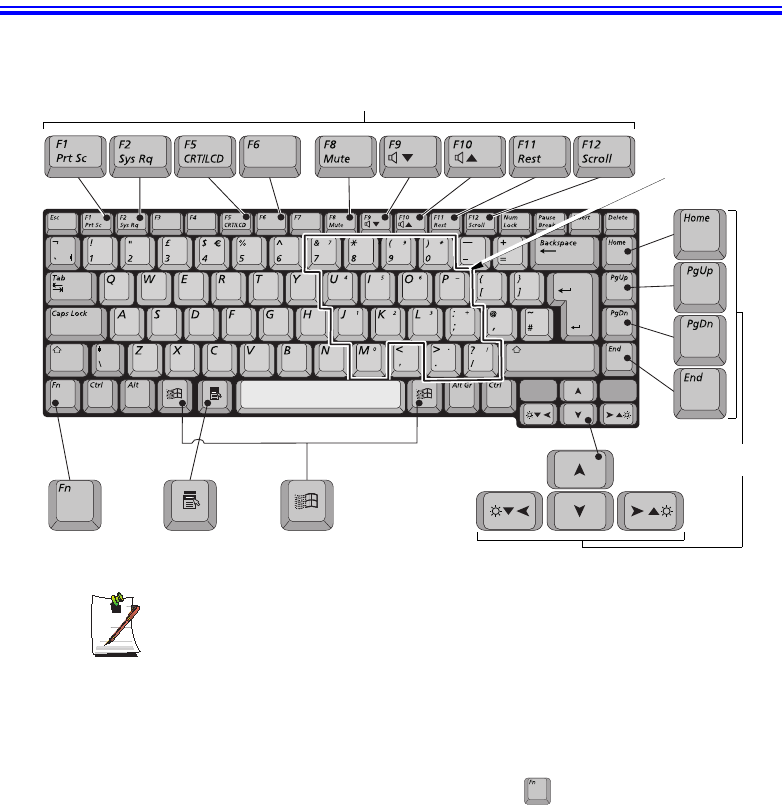

Using the Keyboard
Your computer has an 87/88-key keyboard. By pressing designated key combinations,
you can have access to all the key functions of a full-sized keyboard.
Although the layout of the keys on your computer’s keyboard is different from
that on a desktop computer’s keyboard, the keyboard feels like a full-sized
keyboard when you use it.
The keys on the keyboard can be grouped into the following categories:
•Full-sized Alphanumeric typewriter keys are arranged like a standard
typewriter keyboard and are used for text entry. The Windows keys on either
side of the spacebar open Windows menus and perform other special functions.
•Function keys, when pressed together with the <Fn> key, enable special
functions.
•Cursor and Screen control keys move the cursor. They may perform other
functions, depending on your software.
To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and
the surface around the keys.
Gauge
Gauge
Function & Special Purpose Keys
Embedded
Numeric Keypad
Application Key
Cursor/Screen
Control Keys
Windows KeyFunction Key
Matrix 3 Plus (Windows 2000) - English.fm Page 13 Thursday, April 18, 2002 10:35 AM
14 Users Manual
Do not allow liquid to drip into the keyboard or you may damage the keyboard.

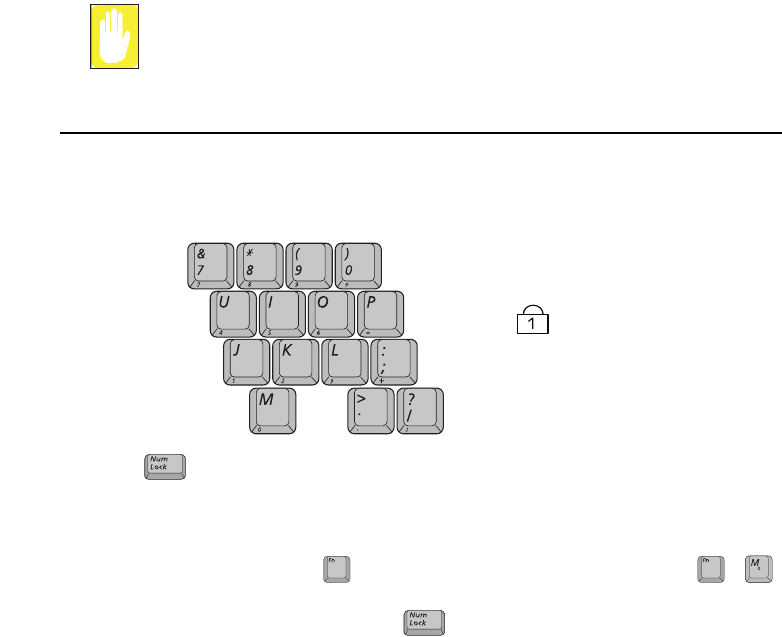

Using the Numeric Keypad
Your keyboard includes a numeric keypad, which is a group of keys that you can set to
type numbers and mathematical symbols, such as the plus sign. A number or symbol
on the right corner of each keypad key shows its numeric function.
Press to turn on the embedded numeric keypad. The numeric functions of the

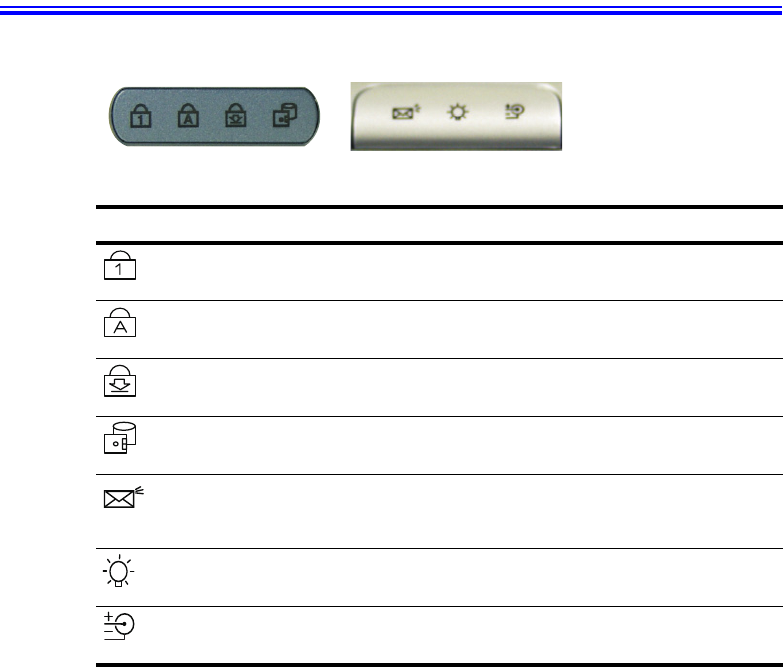

keypad are enabled and the Num Lock LED turns on. (See ”Reading the System Status
Lights” on page 20 for the location of the Num Lock LED.)
While the numeric functions are enabled, you can temporarily return a key to its normal
function by pressing and the key. For example to type the letter m, press + ,
this operation displays the letter m.
To turn the numeric keypad off, press again. The Num Lock LED turns off.
Num Lock LED
Matrix 3 Plus (Windows 2000) - English.fm Page 14 Thursday, April 18, 2002 10:35 AM
Using the Keyboard 15
Using Special Function Keys
The function key activates special functions when it is pressed in combination with
another keys. Table 2 shows the special key combinations.
Table 2. Description of Special Function Key Combinations
When you press a function key combination, the system sound may be
temporarily muted.
Key
Combinations
Key
Name Key Function
F1
Prt Sc
Print screen: Takes a picture of the open screen, which you can paste into
many graphics programs.
F2
Sys Rq
System
request:
Reserved for use in software programs.
F5
CRT/LCD
CRT/LCD: Switches the display between the LCD, the external monitor,
and simultaneous display on both the LCD and the external
monitor.
F6
Gauge
Gauge Displays the battery gauge in the upper-right corner of your
screen.
The gauge closes in a few seconds, or you can press <Esc>
to close the gauge. (See ”Monitoring the Battery Charge” on
page 43 for more information on the battery gauge.)
F8
Mute
Mute: Increases the audio volume.
F9
Volume
down:
Volume
down:
Decreases the audio volume.
F10
Volume
up:
Volume up: Increases the audio volume.
F11
Rest:
Rest: Puts the computer into Suspend mode. To resume normal
operation from rest, press the power button. (See ”Using
Power Management Options” on page 52 for more
information about the rest mode.)
F12
Scroll
Scroll: In some applications, sets the cursor-control keys to scroll
the page up or down while the cursor position does not
change. Pressing key combination again turns off the
scrolling function.
Left
Arrow
Brightness
Down:
Decreases the LCD brightness.
Right
Arrow
Brightness
Up:
Increases the LCD brightness.
+
+
+
+
Gauge
+
+
+
+
+
+
+
Matrix 3 Plus (Windows 2000) - English.fm Page 15 Thursday, April 18, 2002 10:35 AM
16 Users Manual

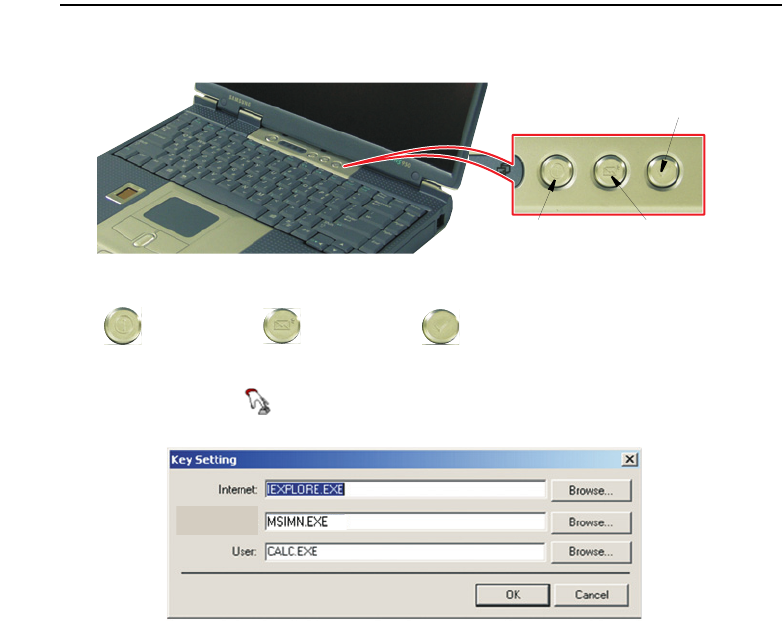

User Defined Buttons (SENS Keyboard)
You may program the three buttons to the right of the power button to start any
program you have installed on your computer.
The default settings for these buttons are:
To reprogram the Sens Keyboard, follow the steps below:
1. Double-Click icon on the Windows taskbar, the Key Setting window is
displayed.
2. Select Button you wish to reprogram from the drop down menus in the Key
Setting window.
3. Use the Browse button to locate the program you wish to assign to the SENS
Keyboard button selected.
4. Click on your program choice to select it.
5. Click Open.
6. Click OK to close window and complete programming the Sens Keyboard.
Internet E-Mail - Outlook Windows Calculator
Internet Explorer Outlook Express
User defined program
E-Mail:
Matrix 3 Plus (Windows 2000) - English.fm Page 16 Thursday, April 18, 2002 10:35 AM
Using the Touchpad 17

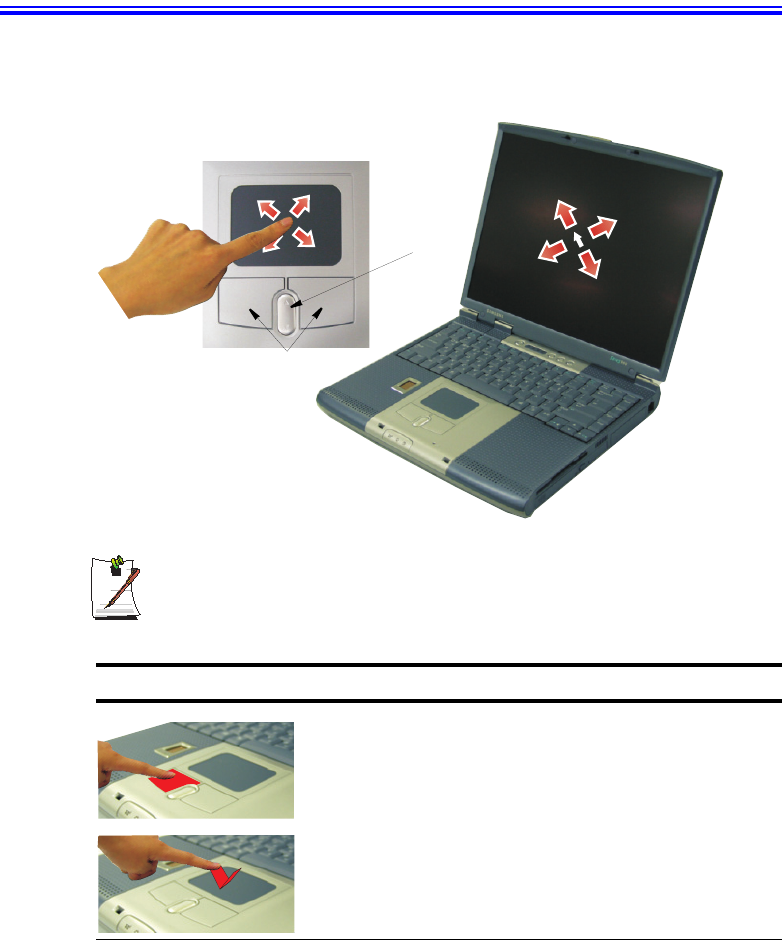

Using the Touchpad
Your computer is equipped with a touchpad, which is an integrated-pointing device
that is used to perform standard mouse functions. The touchpad is an advanced and
reliable pointing device that works with a touch of your finger.
Press on the touchpad gently. The touchpad responds to light pressure.

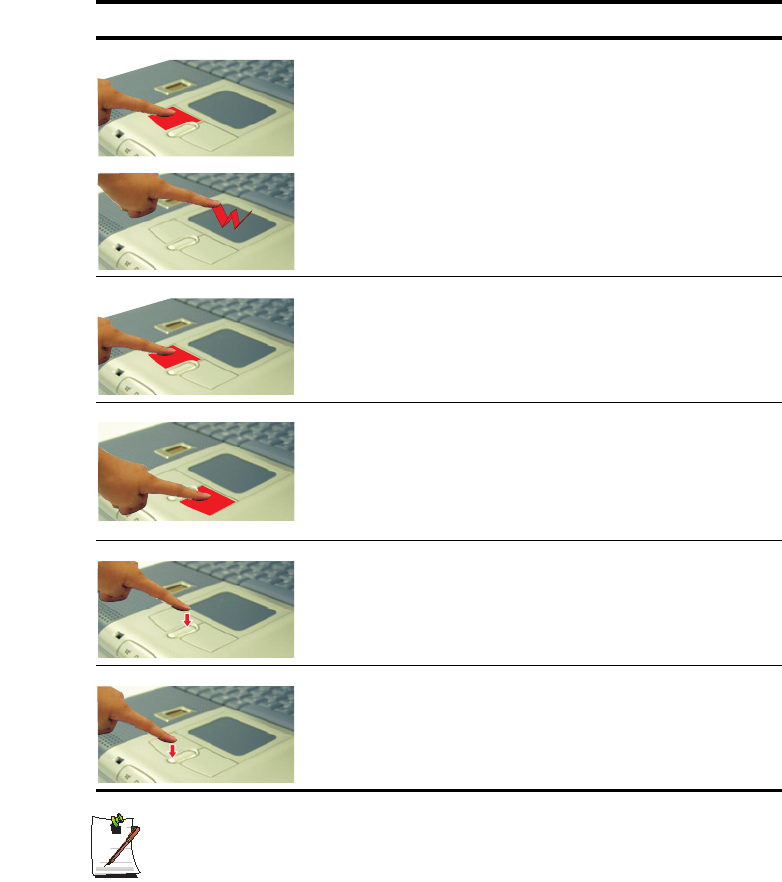

Table 3. Using the Touchpad
Action Process and Comment
Click/Tap Process
Depress the touchpad left button and release or position the pointer
over the object and Quickly tap the touchpad once with your finger.
This action is called clicking.
Comment
This will cause a process to begin or select an object on the screen.
Touchpad
Mouse Buttons
Scroll Button
Matrix 3 Plus (Windows 2000) - English.fm Page 17 Thursday, April 18, 2002 10:35 AM
18 Users Manual
PS/2 Mouse:
You may change the setup in Setup > Advanced Menu
Disabled prevents both the touchpad and external PS/2 port from functioning.
Single mouse (default) enables the external PS/2 port or the touchpad, and
external PS/2 port has priority. Dual Mouse allows the use of both the
touchpad and PS/2 port.
Double-Click/Tap Process
Quickly click the left touchpad button two times or position the pointer
over the object and Quickly tap the touchpad twice with your finger.
This action is called Double-clicking.
Comment
This will cause a process to begin or open a file folder.
Click-Hold Process
Depress the left touchpad button and do not release.
Comment
This is used to move/drag objects to new locations. See ”Drag (Move)”
on page 19.
Right-Click Process
Position the pointer over the object. Quickly press and release the right
button once.
This action is called Right-clicking.
Comment
This is usually used to obtain information about an object or access a
short cut menu.
Scroll Up Process
Place your finger on the top half of the button to scroll up the current
window.
Comment
Moves the current window down.
Scroll Down Process
Place your finger on the bottom half of the button to scroll up the current
window.
Comment
Moves the current window up.
Action Process and Comment
Matrix 3 Plus (Windows 2000) - English.fm Page 18 Thursday, April 18, 2002 10:35 AM
Using the Touchpad 19

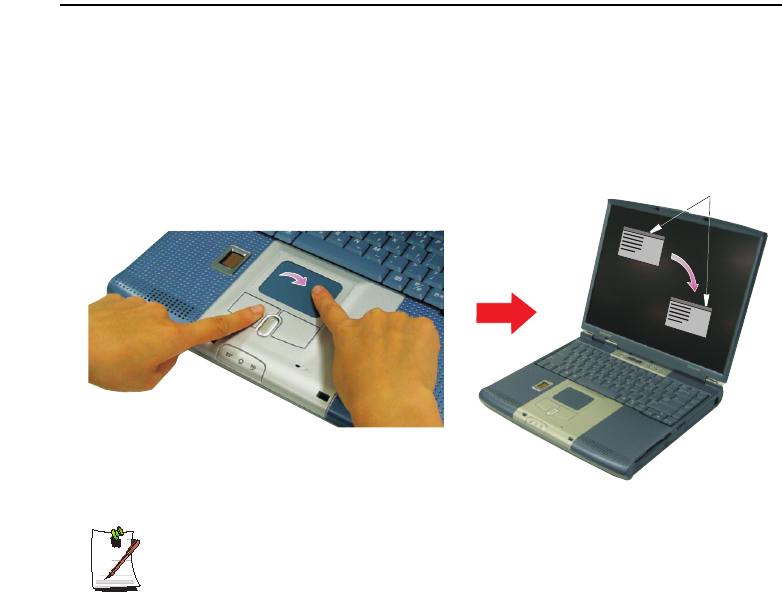

Drag (Move)
To move a window on the desktop, complete the following:
1. Click the window title bar or icon in the bottom of the window which you want
to drag using the touchpad.
2. Press the left touchpad button and hold it.
3. Drag the window using the touchpad.
Area or Multiple item selection:
The drag function may be used to select an area or multiple items in an area
by clicking in one area and then dragging to create a selection window. The
items inside the window will be selected.
Cursor in Windows
Title Bar
1 Click the Window
Title Bar and Hold
1
2 Drag your finger to
move the window
2
Matrix 3 Plus (Windows 2000) - English.fm Page 19 Thursday, April 18, 2002 10:35 AM
20 Users Manual
Reading the System Status Lights
System Status lights show the status of computer functions.
Table 4. System Status Lights
LED Name Function
Num Lock Changes a portion of the keyboard to a numeric keypad.
See ”Using the Numeric Keypad” on page 14.
Caps Lock Changes all alpha or letter input into capital letters.
No changes occur to numeric and special keys.
Scroll Lock Scroll lock in certain software.
Drive Access Using the Disk Drives.
Blinking Green - HDD is being accessed
Blinking Amber - FDD or CD-ROM is being accessed
E-mail Alert The Light comes on when e-mail arrives.
To use this function, you must register an E-mail Account in the Register E-mail
Account window. To register an E-mail account Select:
Start > Programs > StartUp > Internet Launcher.
Power Green - System power on.
Blinking - Standby mode.
Battery
Status
Green - No battery pack installed/battery fully charged.
Red - Charging.
Matrix 3 Plus (Windows 2000) - English.fm Page 20 Thursday, April 18, 2002 10:35 AM
Connecting to the Internet 21
Connecting to the Internet
This section explains how to connect you to the internet. For details on how to establish
the connection contact the Internet Service Provider [ISP] or system administrator
[SysAdmin].
Using the Modem
Install the Modem cable by simply plugging the cable into the slot in the back of the
computer.
1. Contact your Internet Service Provider to obtain information or CD required to
make the connection in your area.
2. After the cable is connected create a “Dialup” connection by clicking Start >
Settings > Network and Dial-Up Connections.
3. Double-Click icon to pop up the connection wizard.
4. Follow the instructions in provided in the Make New Connection wizard.
Modem Cable
(Minimum 26 AWG)
Matrix 3 Plus (Windows 2000) - English.fm Page 21 Thursday, April 18, 2002 10:35 AM
22 Users Manual
Precautions Before Use
Country Selection
Country Selection:
Because your computer is very mobile you must ensure you select the
country you are calling from is selected correctly, otherwise you may
experience connection problems.
To change the country selection proceed as follows:
1. Click Start > Settings > Control Panel.
2. Click Phone and Modem Options.
3. Click on the connection you wish to edit in the Locations: box.
4. Click Edit
5. Select the Country/region you are calling from in the General tab.
6. Click OK to close the “Edit Locations” box.
7. Click OK to close “Phone and Modem Options” box.
Digital Phone Lines:
If you connect the modem to a digital phone line
(such as a company 4-wire system),
the modem may be damaged.
DOS support
•Windows 2000: Does not support pure DOS mode and the modem does not
support a DOS box in Windows. So you cannot use a
communication application which runs under DOS.
Using the Modem on a PBX system
If you use a Windows Communication Program:
1. Click Start > Settings > Control Panel.
2. Click Phone and Modem Options.
3. Click Properties in the Modems tab section.
4. Check off “Wait for dial tone before dialing” check box in the Modem tab section.
5. Click OK to close the dialog box.
6. Click OK to close “Modem Properties” dialog box.
Matrix 3 Plus (Windows 2000) - English.fm Page 22 Thursday, April 18, 2002 10:35 AM
Connecting to the Internet 23
If you use a simple terminal program (i.e. hyper terminal):
Type the “ATX3&W” or “ATX3” command as an initialization command.
MODEM Notes:
1. In order to use the 56K feature, be sure to check if the standards supported
by the on-line service provider and the modem are identical.
2. If you use a PBX phone system, you can not connect using the 56K mode.
3. Internationally connected calls will be limited to 33.6K (Max.)
Using the LAN
You may connect to the network using either a LAN cable or by establishing a wireless
connection if factory option is installed.

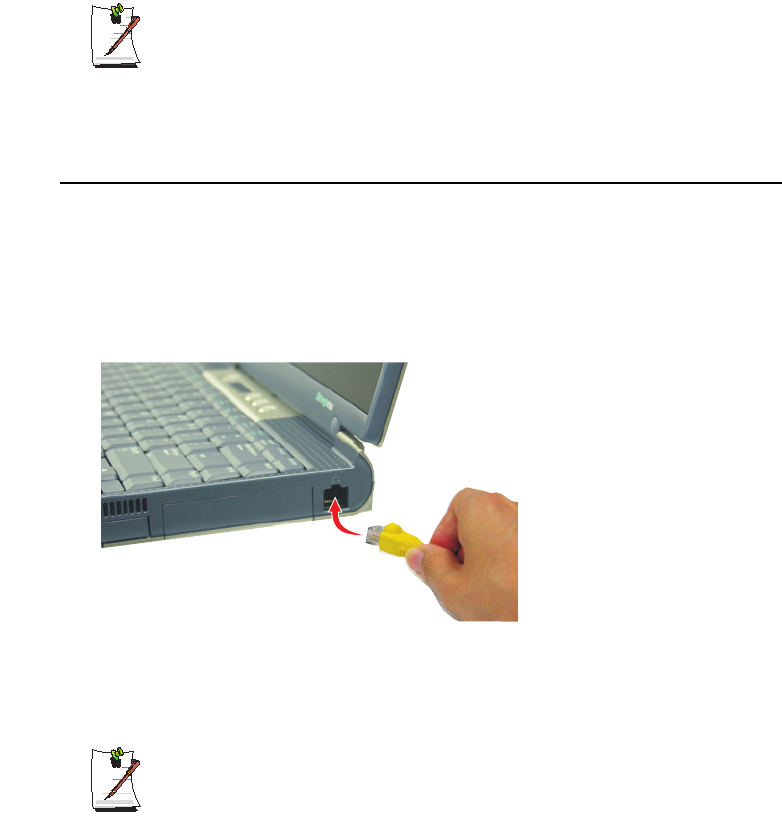

Cable Connection
Install the LAN cable by simply plugging the cable into the slot in the right side of the
computer.
Your computer’s LAN adapter is ready to use for most situations, however if your
system does not have a DHCP server or you wish to personally configure your LAN
connection, proceed as outlined in “Configuring Network Environment” below.
Network Protocols:
You may need to consult your SysAdmin if their network protocols and settings
are required for your LAN environment.
Matrix 3 Plus (Windows 2000) - English.fm Page 23 Thursday, April 18, 2002 10:35 AM
24 Users Manual

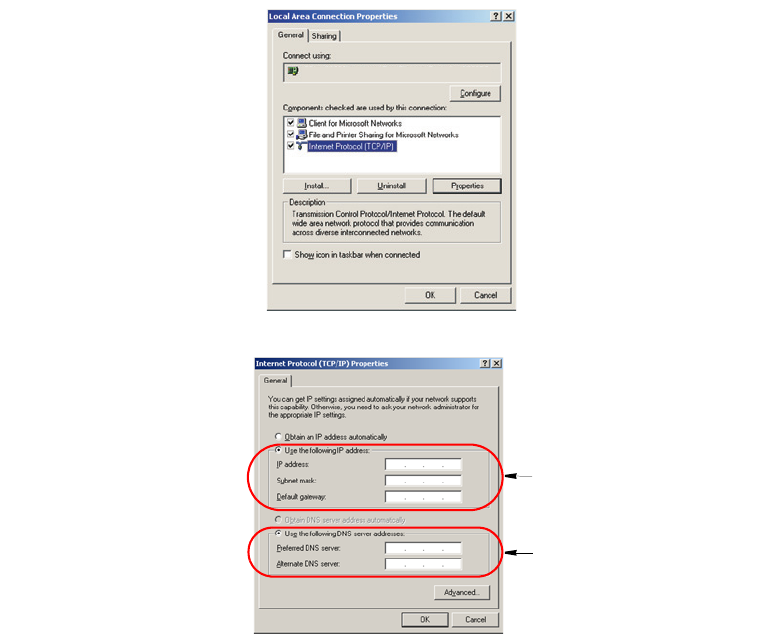

Configuring Network Environment
Configure the Network Adapter as follows:
1. Click Start > Settings > Control Panel.
2. Double-Click Network and Dial-up Connections.
3. Right Click Local Area Connection > Properties.
4. Select Internet Protocol (TCP/IP) and click properties.
5. Select Use the following IP Address: then enter your IP address, Subnet mask
and Default gateway. If you use DHCP server, select Obtain an IP address
automatically.
6. Select Use the following DNS server address: and enter the address in the
Preferred DNS server and Alternate DNS server. If you use DHCP server,
select Obtain DNS server address automatically.
7. Click OK when you finish the TCP/IP setup.
Intel(R) Pro/100 VE Network Connection
Step 6
Step 5
Matrix 3 Plus (Windows 2000) - English.fm Page 24 Thursday, April 18, 2002 10:35 AM
Connecting to the Internet 25

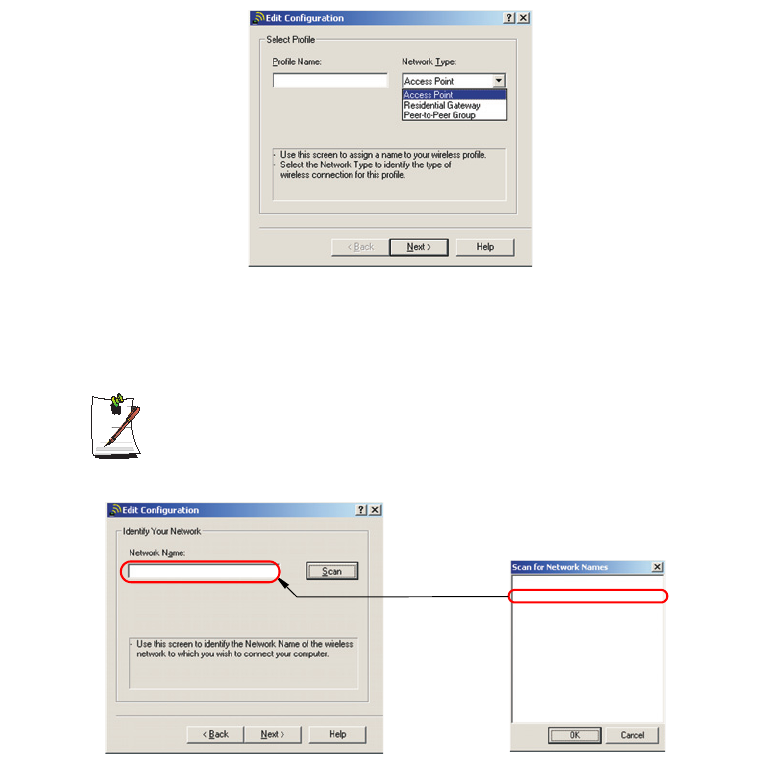

Wireless Connection (Factory Option)
Your computer’s wireless LAN adapter is ready to use for most situations, however if
your system does not have a DHCP server or you wish to personally configure your
wireless LAN connection, proceed as outlined in “Configuring Network Environment”
below.
Regulatory Notice for Channel Use in France
The number of channels that can be used for wireless LAN differs from country
to country.
In France however, use only 2 channels (2457~2462MHz) when using
wireless networks.
•Channel Allocation: Channel 10, 11

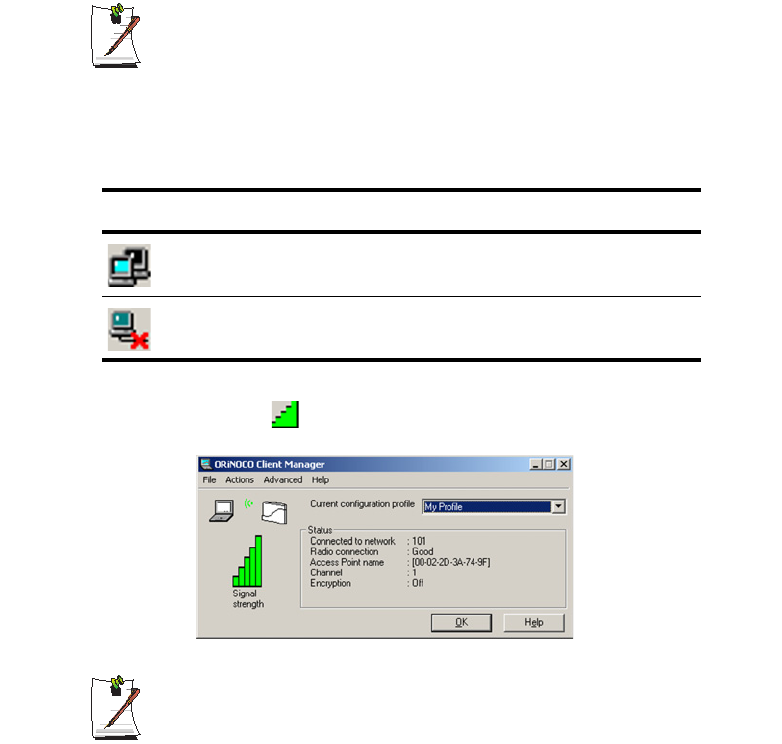

The table below shows the Windows taskbar icons for the wireless LAN.

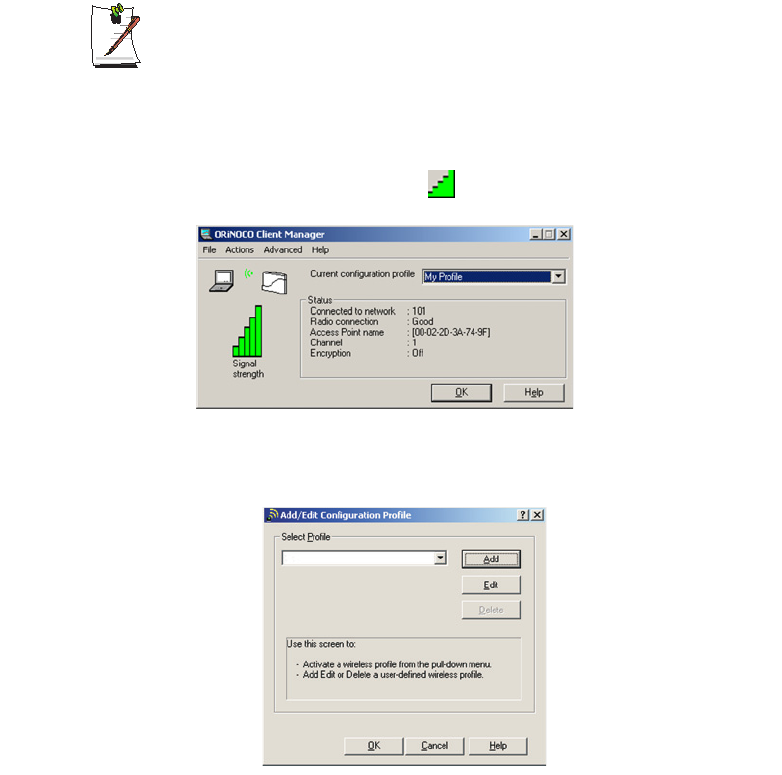

To display relative Signal Strength:
1. Double Click the icon in the taskbar to display the Wireless Network
Connection Status window.
Network Protocols:
You may need to consult your System Administrator if their network protocols
and settings are required for your wireless LAN environment.
Icon Name Description
Connection
Established
Displays if connection is available.
Connection
Unavailable
Displays if connection is unavailable.
Matrix 3 Plus (Windows 2000) - English.fm Page 25 Thursday, April 18, 2002 10:35 AM
26 Users Manual
Understanding Local Area Connection Designations:
When Your computer has a cable and wireless LAN connections, the first one
is the cable LAN (Local Area Connection) and the other one (Local Area
Connection 2) is the wireless connection.

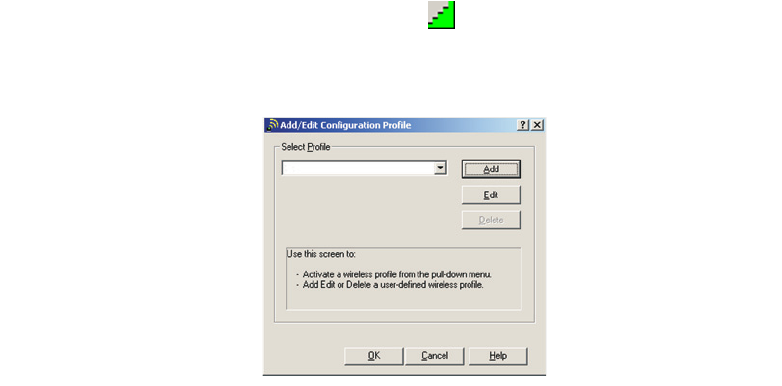

Configuring Network Environment
Configure the Wireless Network Adapter as follows:
1. Double Click the Wireless Network icon in the taskbar. The Client Manager
window appears.
2. Click Actions > Add/Edit Configuration Profile
3. Type your “Profile Name” in the select profile box. (A Profile Name is any name
you choose to identify your Wireless Configuration)
4. Click the Add Button to make a new profile.
My Profile
Matrix 3 Plus (Windows 2000) - English.fm Page 26 Thursday, April 18, 2002 10:35 AM
Connecting to the Internet 27
5. Select the Network Type from the Network Type drop down window. Click HELP
button for more information about Network Type.
6. Click Next
7. Type Network Name or Click Scan, to display available networks. If you do not
know Network Name type any to find any available AP nearby.
No networks are displayed
Office - Consult your system administrator.
Home - Verify your access point is working properly.
8. Select one of the available networks.
9. Click OK, Next
10. Select Enable Data Security to set up the Encryption. (Please consult your Wireless
Network advisor for the Encryption setting). Click Next.
11. Select the appropriate Power Management radio button to suit your requirements.
12. Click Next, Click Finish.
My Profile
General Office Network
101
General Office Network
Supervisor Office Network
The selected Network will be displayed in the Network
Name box in the future until you select another Network
Matrix 3 Plus (Windows 2000) - English.fm Page 27 Thursday, April 18, 2002 10:35 AM
28 Users Manual
Change Wireless Network Access Point as follows:
1. Double Click the Wireless Network icon in the taskbar. The Client Manager
window appears.
2. Click Action > Add/Edit Configuration Profile
3. Select the “Profile Name” to change in the select profile box.
4. Click the Edit Button.
5. Refer to steps 5~12 above.
My Profile
Matrix 3 Plus (Windows 2000) - English.fm Page 28 Thursday, April 18, 2002 10:35 AM

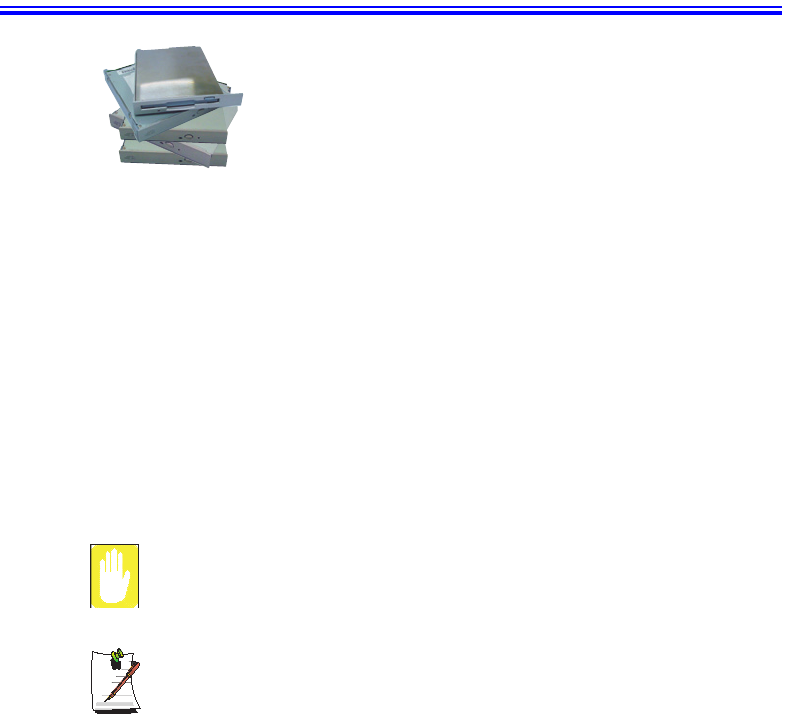

Using the Flex-Bay 29
Using the Flex-Bay
If your operating system is Windows, you must install the Softex Bay Manager
software on the software CD in order to use the Bay Manager Utility to hot-
swap the devices.
If you do not use Windows, make sure that the computer’s power is off before
you remove or install any devices.
The Flex-Bay provides an impressive array of secondary
storage devices listed below:
CD-ROM drive:
Shipped with some computers is also an available option.
CD-ROM R/W drive:
Shipped with some computers is also an available option.
DVD-ROM drive:
Shipped with some computers is also an available option.
DVD/CD-RW Combo drive:
Shipped with some computers is also an available option.
Optional secondary hard drive:
Available as an option for your computer.
Superdisk LS-120:
Available as an option for your computer.
Matrix 3 Plus (Windows 2000) - English.fm Page 29 Thursday, April 18, 2002 10:35 AM
30 Users Manual

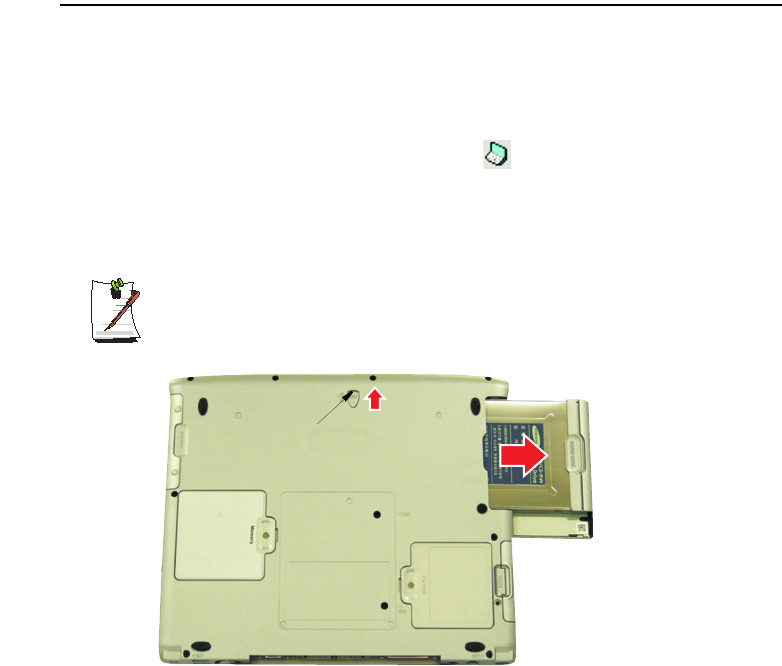

Remove/Install a Flex-Bay Device - Power On
You can use the Softex Bay Manager utility to hot-swap your devices in the flex-bay.
To start the Softex Bay Manager utility:
1. Click Start > Settings > Control Panel > Softex Bay Manager.
- or -
2. Double-Click the Softex Bay Manager icon in the windows taskbar.
To remove a device:
1. 1. Start the Softex Bay Manager Utility.
You do not have to turn the computer over or tip it on its side to change
devices. Simply tilt the computer up at the front about 10 cm and locate the
Flex-Bay latch. See Figure below for the location of the Flex-Bay latch. The
computer in the figure is tilted on its side for clarity.
2. Click Remove / Swap. A Device Change popup window stating, “Please wait until
the system processes the device change” appears then another popup window
appears and says, “Please remove or swap your bay device(s) now and press OK.”
3. Tilt the computer up & locate the smart bay latch.
4. Slide and hold the device latch toward the front of the computer.
5. Slide the device out.
6. Click OK. The message “Please wait until the system processes the device
change” appears again.
7. Click OK to close the Softex Bay Manager Utility.
Flex-Bay Latch
Matrix 3 Plus (Windows 2000) - English.fm Page 30 Thursday, April 18, 2002 10:35 AM
Using the Flex-Bay 31
To insert a device:
1. Open the Softex Bay Manager Utility.
You do not have to turn the computer over to change devices. Simply tilt the
computer up and locate the Flex-Bay latch. See ”Bottom” on page 5 for the
location of the Flex-Bay latch.
2. Click Device Insert. A popup window appears stating “Please insert your
device(s) into the bay now and click OK.”
3. Insert the device.
4. Click OK to allow your computer to detect the device. The message “Please wait
until the system processes the device change” appears.
5. Click OK to close the Softex Bay Manager Utility.
Remove/Install a Flex-Bay Device - Power Off
Remove a Device:
1. Turn the computer’s power off.
2. Close the LCD panel, and turn the computer over so that the bottom of the unit
faces up.
3. Tilt the computer up & locate the smart bay latch.
4. Slide and hold the device latch toward the front of the computer.
5. Slide the device out.
Install a Device:
1. Turn the computer’s power off.
2. Carefully slide the device into the bay.
3. Push the device in until it is flush with the chassis and the Flex-Bay latch snaps
into place. Your computer’s operating system automatically recognizes the device
in the Flex-Bay and configures your computer accordingly when power is restored.
Matrix 3 Plus (Windows 2000) - English.fm Page 31 Thursday, April 18, 2002 10:35 AM
32 Users Manual
Using the Disk Drives
Using the Floppy Disk Drive
Your computer comes with a 1.44 MB, 3.5-inch, floppy drive.
To use a floppy disk in your computer, insert it into the floppy drive.
To remove a floppy disk, press the floppy disk eject button on the front of the floppy
drive.
To protect the data on your floppy disks, follow the manufacturers guidelines.
Floppy Disk Eject Button
Matrix 3 Plus (Windows 2000) - English.fm Page 32 Thursday, April 18, 2002 10:35 AM
Using the Disk Drives 33

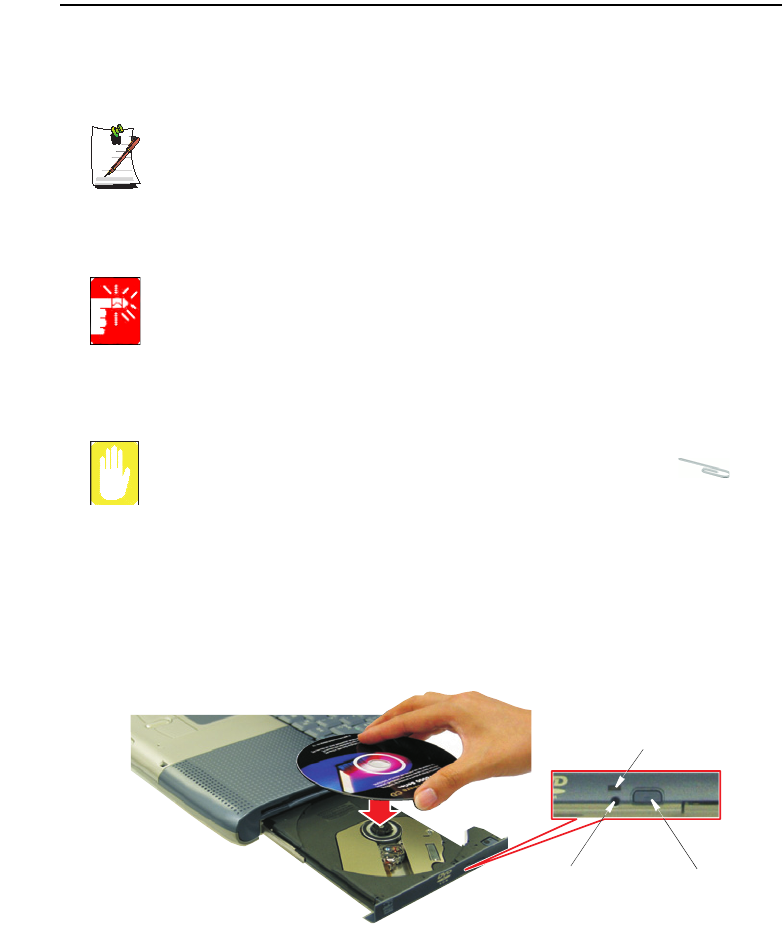

Using the CD/DVD-ROM Drive
Compact discs are designed so that you can easily insert one into the computer when
you need it, and then remove it. See ”Using the Flex-Bay” on page 29 for information
on installing the DVD-ROM drive into the computer.
DVD Notes:
A DVD player is a factory option and if you ordered this option you will have to
install the provided DVD software to view the DVD Title.
1. Press the button on the CD-ROM or DVD-ROM drive, and the tray slides out.
(Do not lean on the tray; because it will not support much weight.)
CD/DVD Drive Warnings:
Do not place reflective objects other than the CD/DVD disks in the disk slot
because of possible hazardous laser emissions. The laser beam used in this
CD/DVD-ROM drive is harmful to the eyes. Do not attempt to disassemble the
CD/DVD-ROM drive. Refer servicing to your authorized service center.
Do not touch the CD/DVD lens, doing so may damage the device.
CD/DVD Precautions:
The tray may be stuck, in which case straighten out a paper clip, insert
it into the Emergency Eject hole in the front of the CD/DVD-ROM and push it
until the tray ejects.
A LED on the drive tray is on when the computer is reading from a CD. Do not
remove a disc when this LED is on.
To clean a CD/DVD, wipe from the center outwards with clean and dry cloth.
Remove the CD/DVD when the drive activity LED is off.
2. Insert a CD/DVD, label side up (or remove a disc, if you have finished using it).
3. Push the tray in gently to close the drive tray.
Eject Button
CD-ROM Light
Emergency Eject Button
Matrix 3 Plus (Windows 2000) - English.fm Page 33 Thursday, April 18, 2002 10:35 AM
34 Users Manual
Install and/or start a CD-based program as you would run a program on a floppy disk.
Matrix 3 Plus (Windows 2000) - English.fm Page 34 Thursday, April 18, 2002 10:35 AM
