Samsung Electronics Co SWDY3100 Cell/PCS GSM/EDGE/WCDMA Mini PCI Transmitter Card User Manual Springfield N130 XP eng indb

Samsung Electronics Co Ltd Cell/PCS GSM/EDGE/WCDMA Mini PCI Transmitter Card Springfield N130 XP eng indb

Contents

User Manual 1

User GuideSAMSUNG

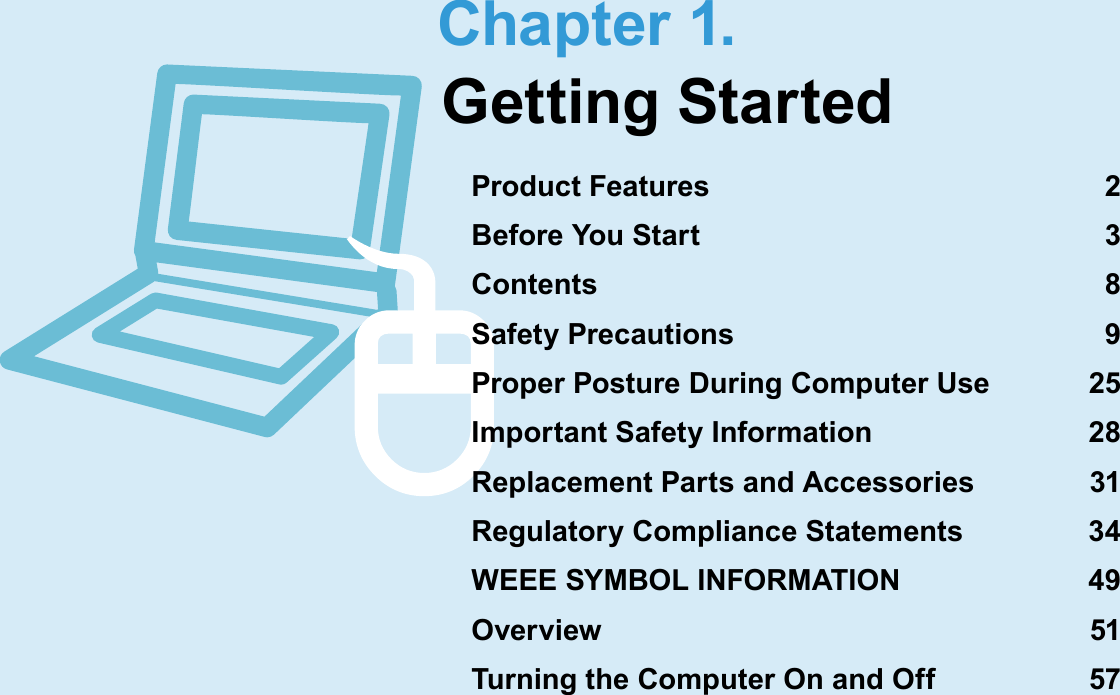

Chapter 1.Getting StartedProduct Features 2Before You Start 3Contents 8Safety Precautions 9Proper Posture During Computer Use 25Important Safety Information 28Replacement Parts and Accessories 31Regulatory Compliance Statements 34WEEE SYMBOL INFORMATION 49Overview 51Turning the Computer On and Off 57

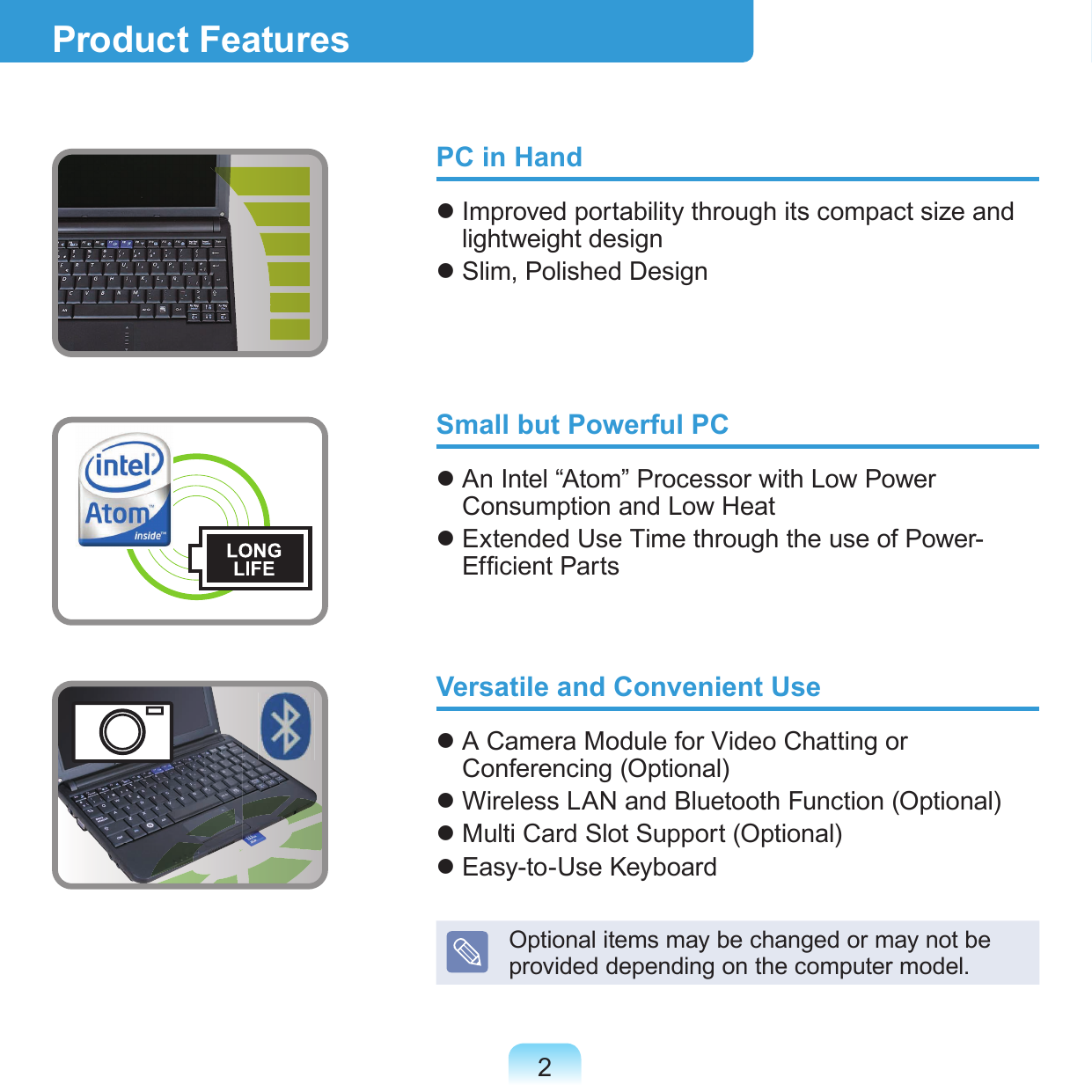

2PC in Hand Improved portability through its compact size and lightweight design Slim, Polished DesignSmall but Powerful PC An Intel “Atom” Processor with Low Power Consumption and Low Heat  Extended Use Time through the use of Power-Efcient PartsVersatile and Convenient Use A Camera Module for Video Chatting or Conferencing (Optional) Wireless LAN and Bluetooth Function (Optional) Multi Card Slot Support (Optional) Easy-to-Use KeyboardOptional items may be changed or may not be provided depending on the computer model.Product Features

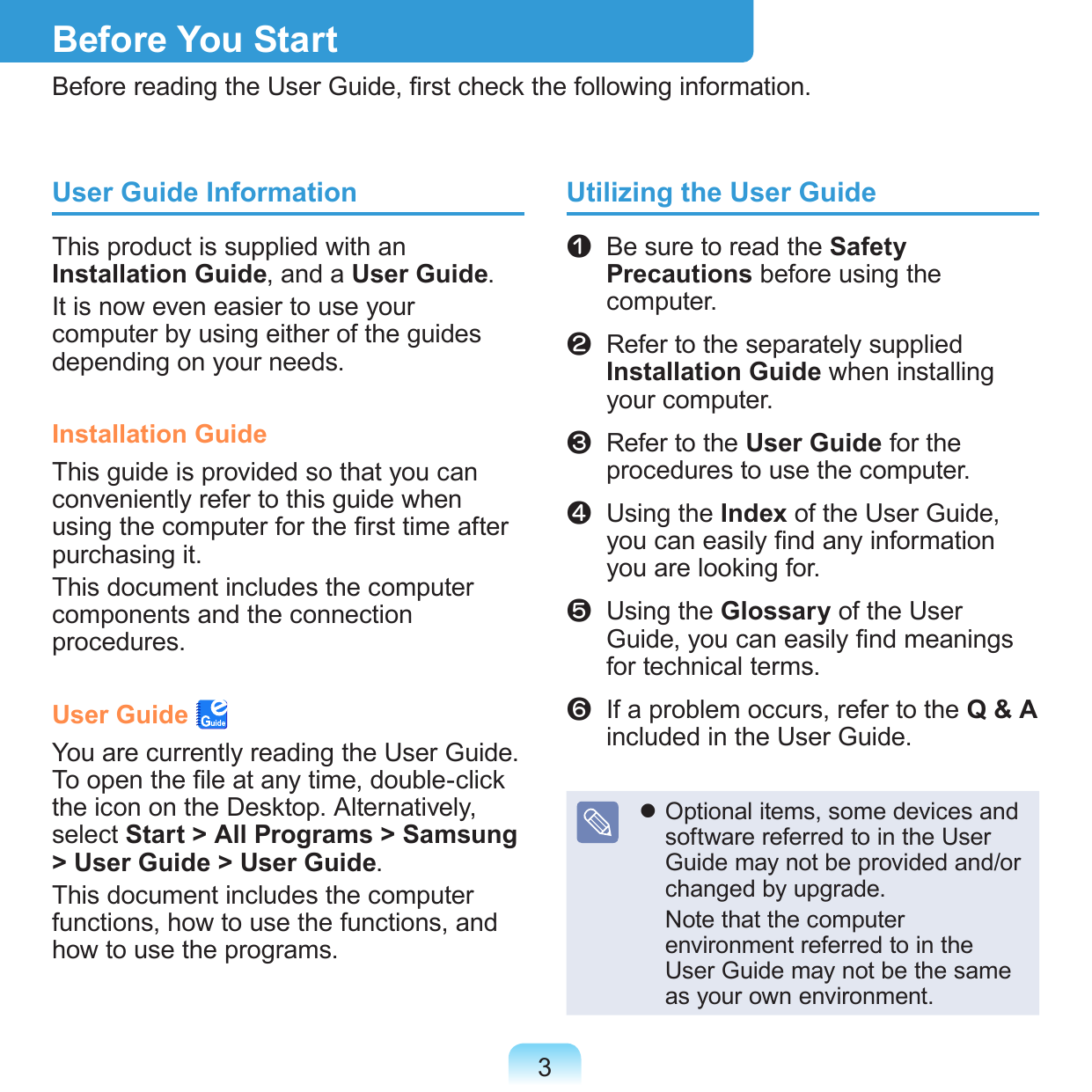

3Before You StartBefore reading the User Guide, rst check the following information.User Guide InformationThis product is supplied with an Installation Guide, and a User Guide.It is now even easier to use your computer by using either of the guides depending on your needs.Installation GuideThis guide is provided so that you can conveniently refer to this guide when using the computer for the rst time after purchasing it.This document includes the computer components and the connection procedures.User Guide You are currently reading the User Guide. To open the le at any time, double-click the icon on the Desktop. Alternatively, select Start > All Programs > Samsung > User Guide > User Guide.This document includes the computer functions, how to use the functions, and how to use the programs.Utilizing the User Guidez Be sure to read the Safety Precautions before using the computer.x Refer to the separately supplied Installation Guide when installing your computer.c Refer to the User Guide for the procedures to use the computer.v Using the Index of the User Guide, you can easily nd any information you are looking for.b Using the Glossary of the User Guide, you can easily nd meanings for technical terms.n If a problem occurs, refer to the Q & A included in the User Guide. Optional items, some devices and software referred to in the User Guide may not be provided and/or changed by upgrade. Note that the computer environment referred to in the User Guide may not be the same as your own environment.

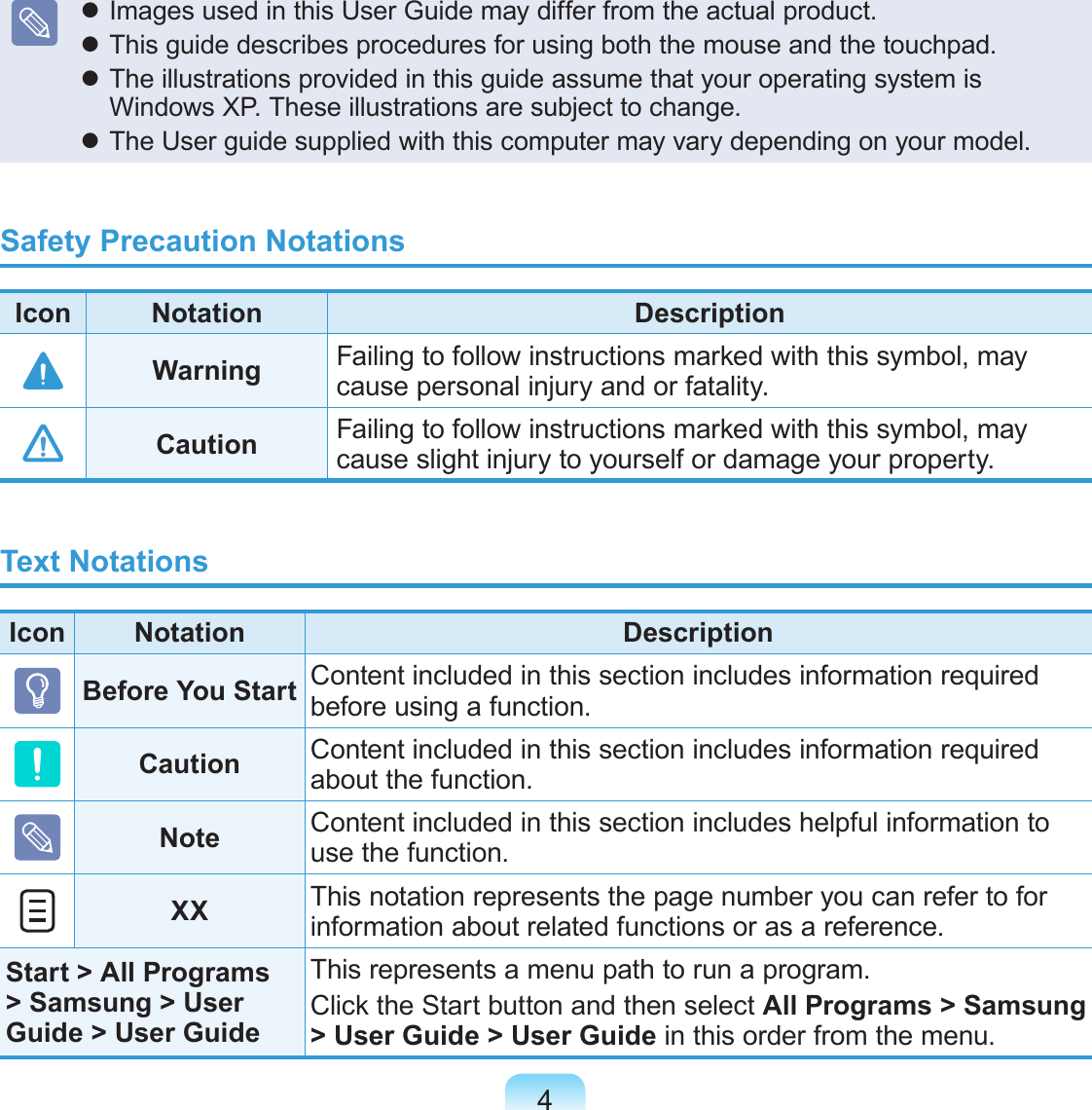

4 Images used in this User Guide may differ from the actual product. This guide describes procedures for using both the mouse and the touchpad. The illustrations provided in this guide assume that your operating system is Windows XP. These illustrations are subject to change. The User guide supplied with this computer may vary depending on your model.Safety Precaution NotationsIcon Notation DescriptionWarning Failing to follow instructions marked with this symbol, may cause personal injury and or fatality.Caution Failing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.Text NotationsIcon Notation DescriptionBefore You Start Content included in this section includes information required before using a function.Caution Content included in this section includes information required about the function.Note Content included in this section includes helpful information to use the function.XX This notation represents the page number you can refer to for information about related functions or as a reference.Start > All Programs > Samsung > User Guide > User GuideThis represents a menu path to run a program.Click the Start button and then select All Programs > Samsung > User Guide > User Guide in this order from the menu.
5Copyright© 2009 Samsung Electronics Co., Ltd.Samsung Electronics Co., Ltd. owns the copyright of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd. The information in this document is subject to change without notice due to improving the performance of the product.Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.Precautions for Operating System SupportIf a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of a OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.Performance Restrictionsz Online games and some games(3D,2D) may not be supported and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer.x There is one memory slot provided on this computer. It supports 2GB memory max. To upgrade to 2GB memory, replace the current memory with a 2GB memory module.

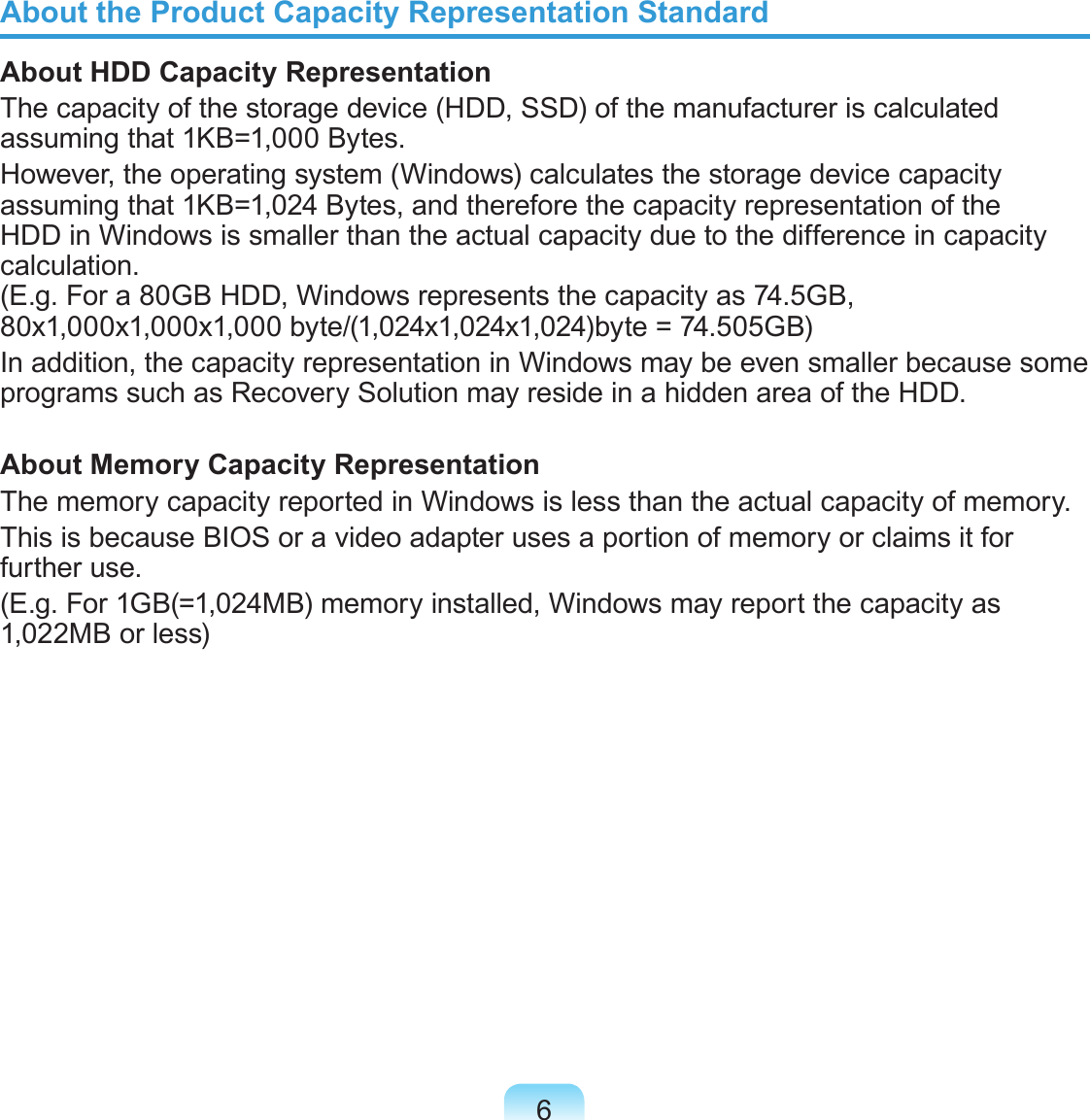

6About the Product Capacity Representation StandardAbout HDD Capacity RepresentationThe capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.About Memory Capacity RepresentationThe memory capacity reported in Windows is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use.(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

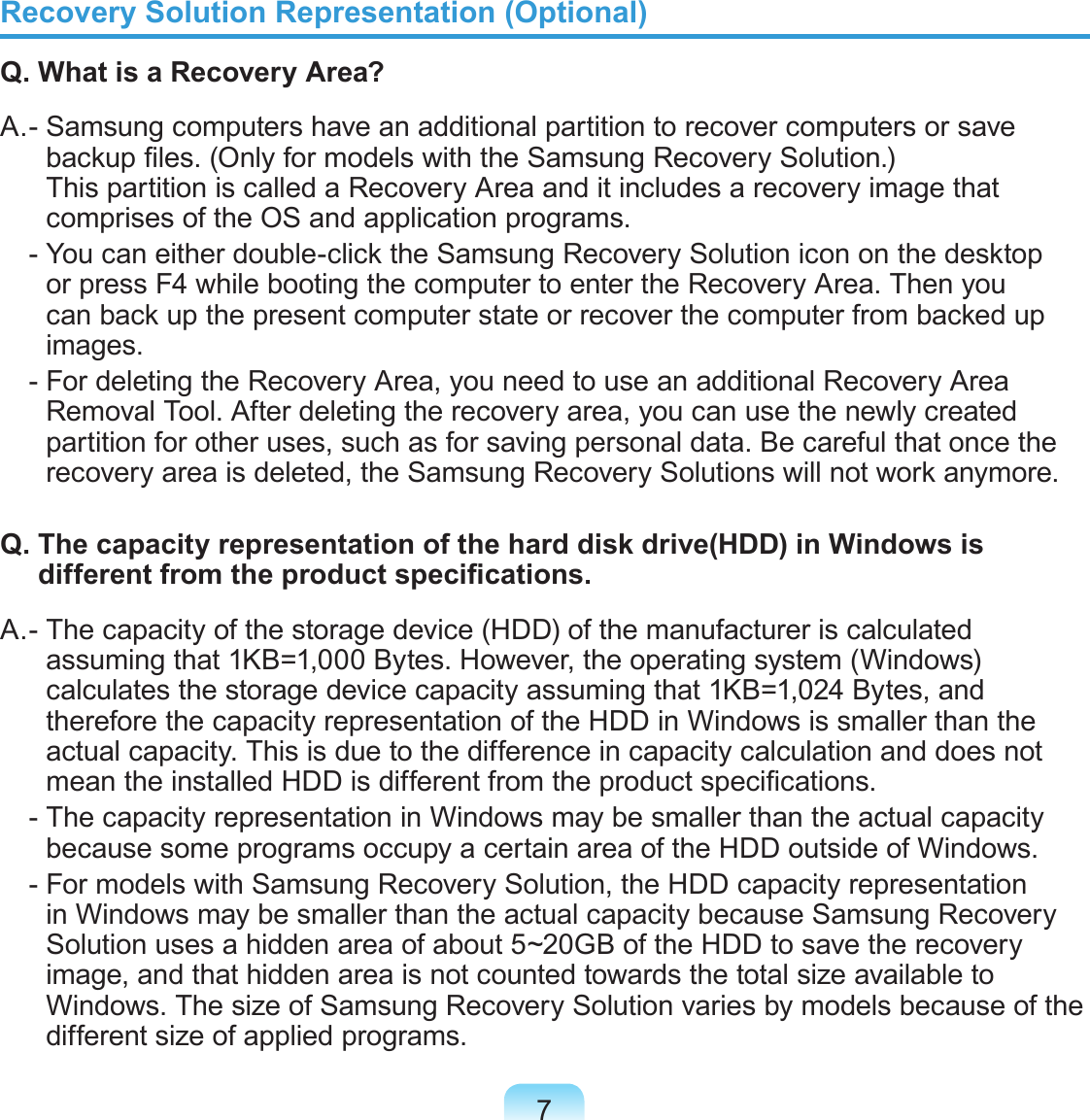

7Recovery Solution Representation (Optional)Q. What is a Recovery Area?A. - Samsung computers have an additional partition to recover computers or save backup les. (Only for models with the Samsung Recovery Solution.) This partition is called a Recovery Area and it includes a recovery image that comprises of the OS and application programs. - You can either double-click the Samsung Recovery Solution icon on the desktop or press F4 while booting the computer to enter the Recovery Area. Then you can back up the present computer state or recover the computer from backed up images. - For deleting the Recovery Area, you need to use an additional Recovery Area Removal Tool. After deleting the recovery area, you can use the newly created partition for other uses, such as for saving personal data. Be careful that once the recovery area is deleted, the Samsung Recovery Solutions will not work anymore.Q. The capacity representation of the hard disk drive(HDD) in Windows is different from the product specications.A. - The capacity of the storage device (HDD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity. This is due to the difference in capacity calculation and does not mean the installed HDD is different from the product specications. - The capacity representation in Windows may be smaller than the actual capacity because some programs occupy a certain area of the HDD outside of Windows. - For models with Samsung Recovery Solution, the HDD capacity representation in Windows may be smaller than the actual capacity because Samsung Recovery Solution uses a hidden area of about 5~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows. The size of Samsung Recovery Solution varies by models because of the different size of applied programs.

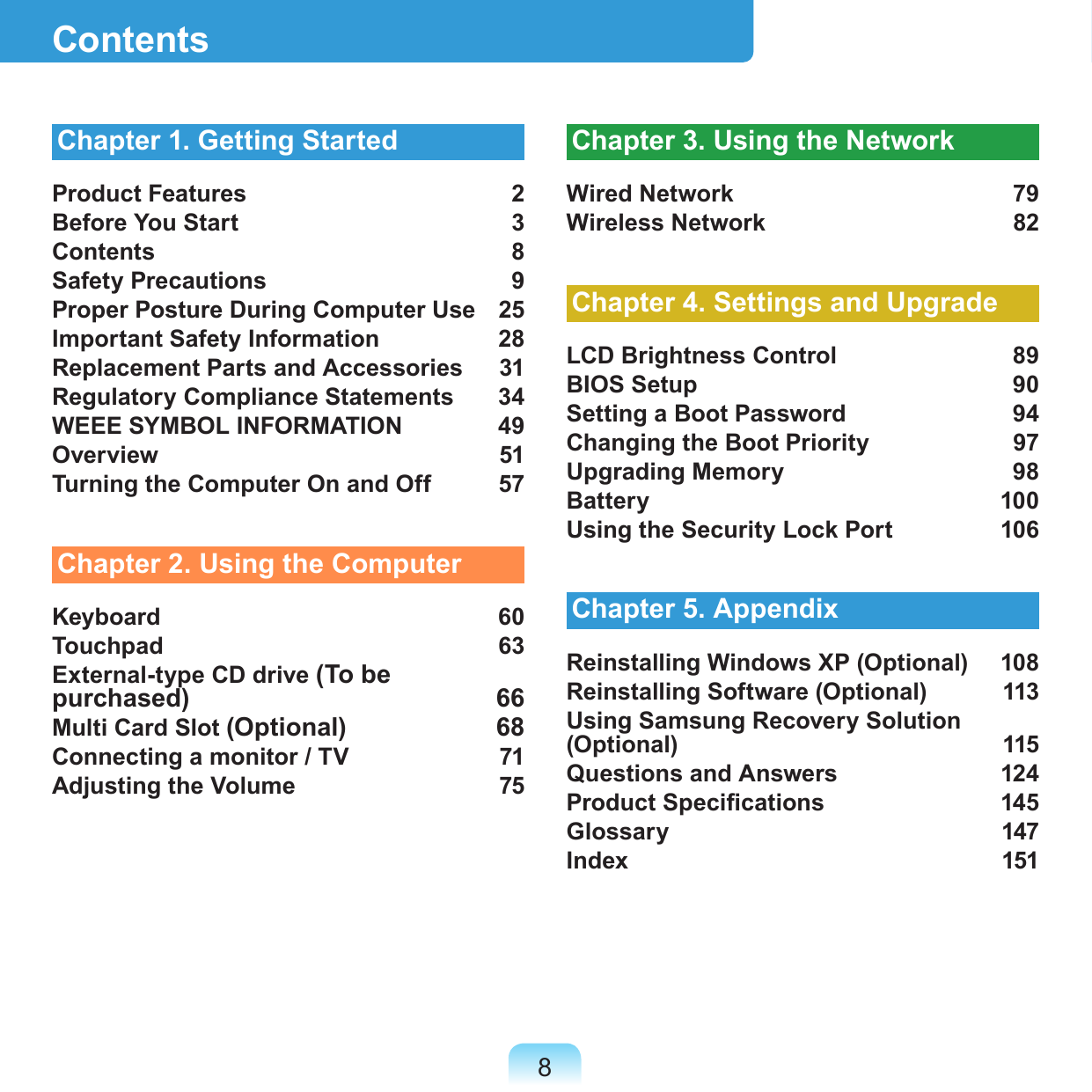

8ContentsChapter 1. Getting StartedProduct Features 2Before You Start 3Contents 8Safety Precautions 9Proper Posture During Computer Use 25Important Safety Information 28Replacement Parts and Accessories 31Regulatory Compliance Statements 34WEEE SYMBOL INFORMATION 49Overview 51Turning the Computer On and Off 57Chapter 2. Using the ComputerKeyboard 60Touchpad 63External-type CD drive (To be purchased) 66Multi Card Slot (Optional) 68Connecting a monitor / TV 71Adjusting the Volume 75Chapter 3. Using the NetworkWired Network 79Wireless Network 82Chapter 4. Settings and UpgradeLCD Brightness Control 89BIOS Setup 90Setting a Boot Password 94Changing the Boot Priority 97Upgrading Memory 98Battery 100Using the Security Lock Port 106Chapter 5. AppendixReinstalling Windows XP (Optional) 108Reinstalling Software (Optional) 113Using Samsung Recovery Solution (Optional) 115Questions and Answers 124Product Specications 145Glossary 147Index 151

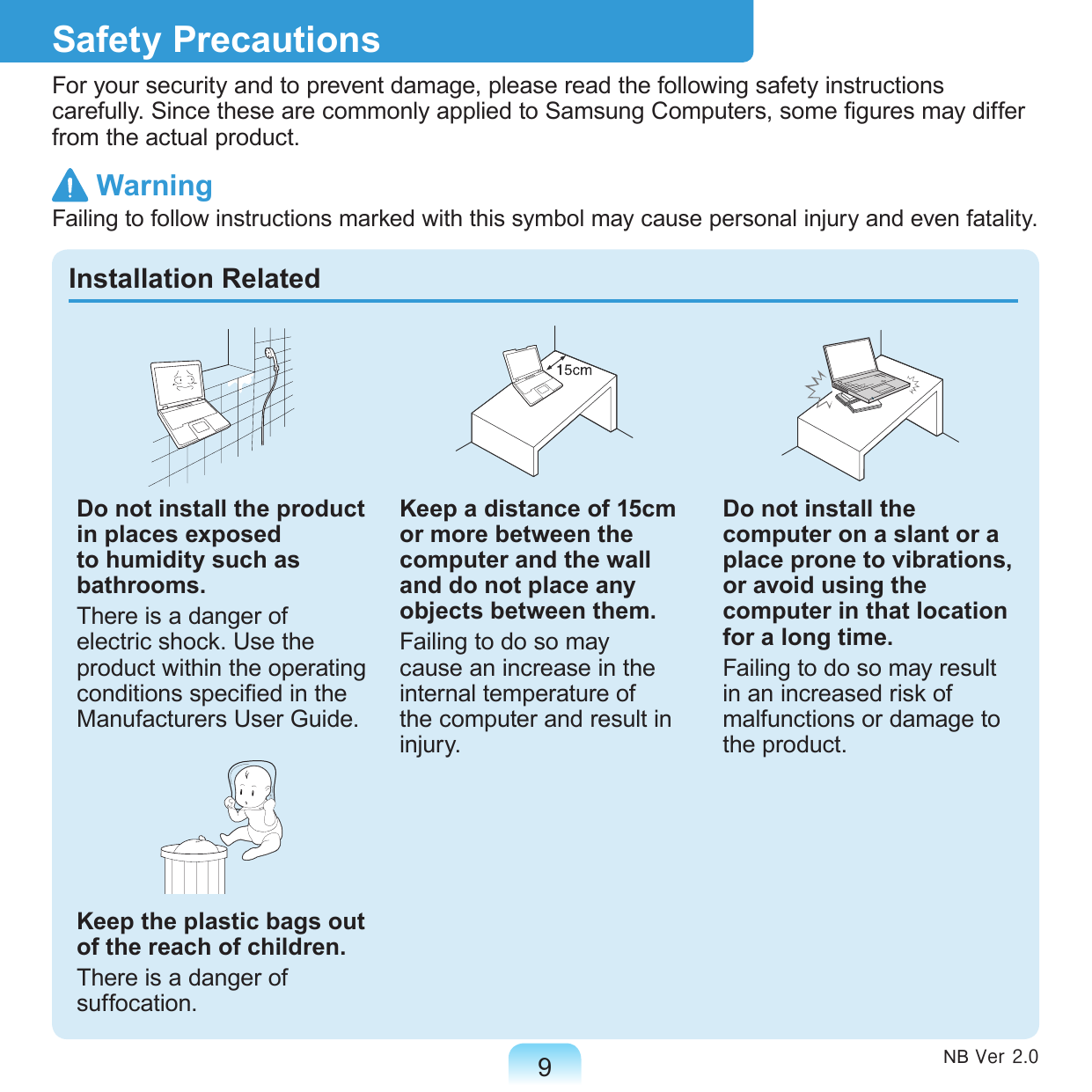

9Safety PrecautionsFor your security and to prevent damage, please read the following safety instructions carefully. Since these are commonly applied to Samsung Computers, some gures may differ from the actual product.Installation RelatedDo not install the product in places exposed to humidity such as bathrooms.There is a danger of electric shock. Use the product within the operating conditions specied in the Manufacturers User Guide.Keep the plastic bags out of the reach of children.There is a danger of suffocation.Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.Failing to do so may cause an increase in the internal temperature of the computer and result in injury.Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.Failing to do so may result in an increased risk of malfunctions or damage to the product.NB Ver 2.0 WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

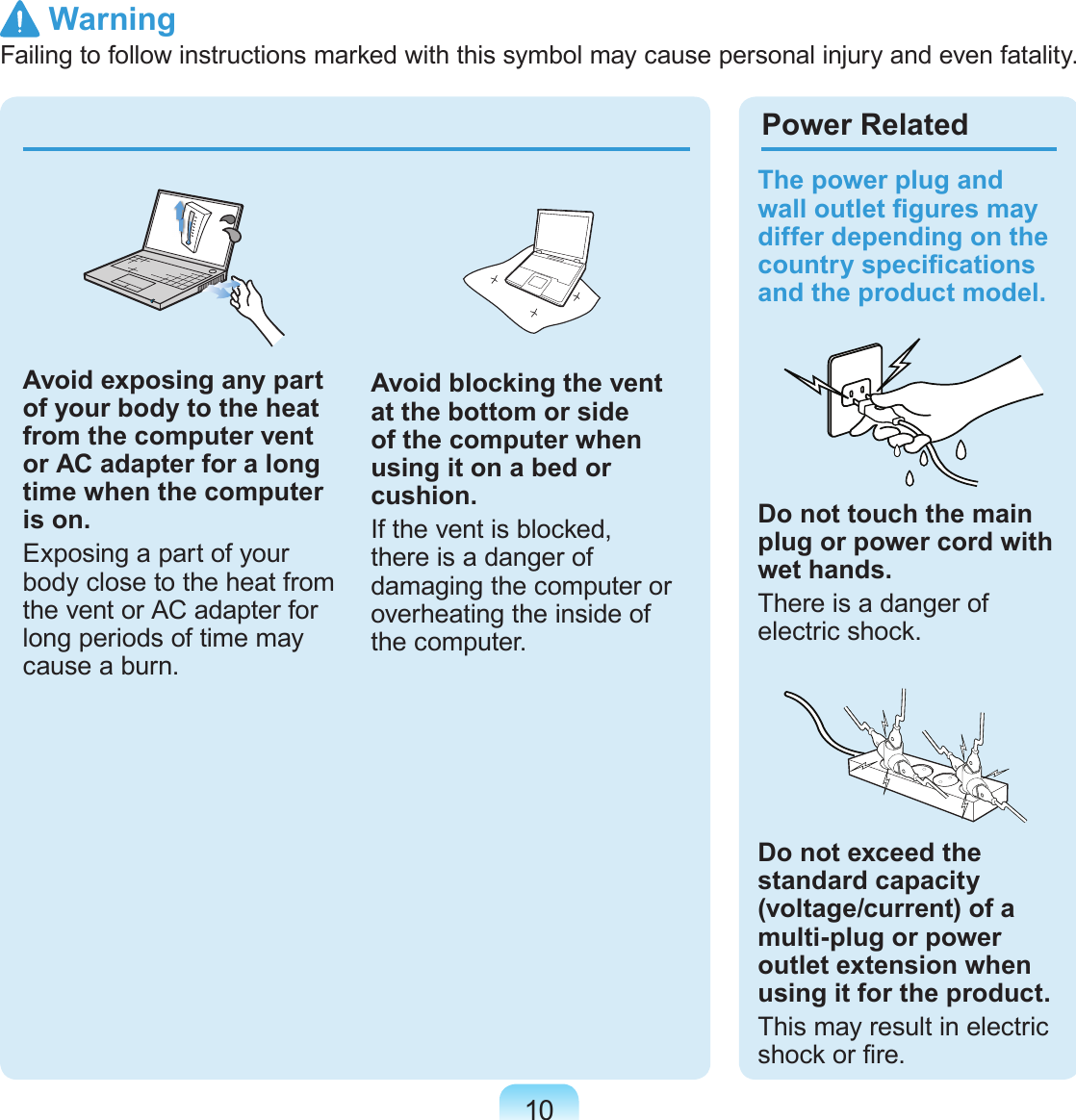

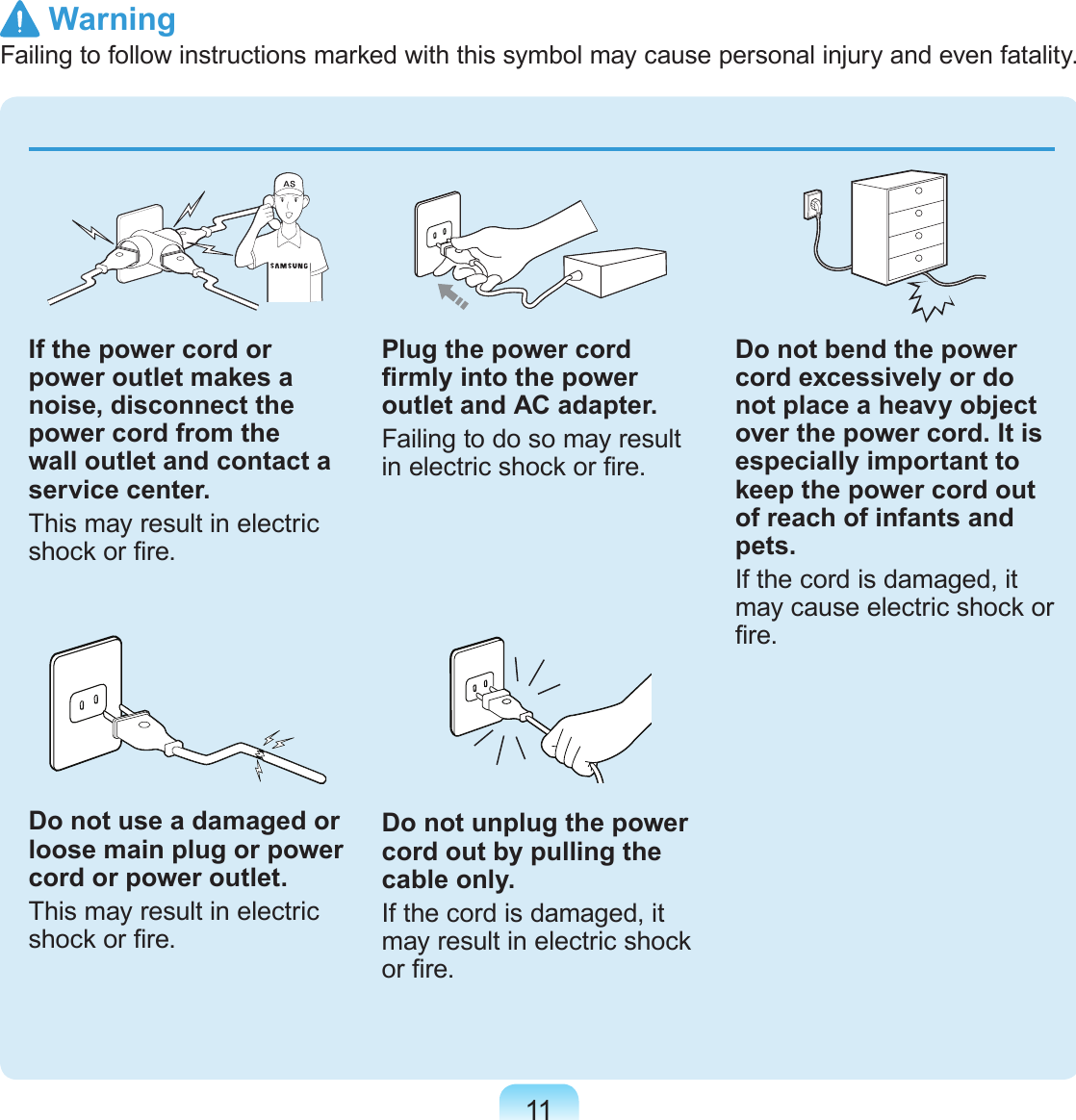

10 WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer. The power plug and wall outlet gures may differ depending on the country specications and the product model.Do not touch the main plug or power cord with wet hands.There is a danger of electric shock.Do not exceed the standard capacity (voltage/current) of a multi-plug or power outlet extension when using it for the product.This may result in electric shock or re.Power Related
11 If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.This may result in electric shock or re.Do not use a damaged or loose main plug or power cord or power outlet.This may result in electric shock or re.Plug the power cord rmly into the power outlet and AC adapter.Failing to do so may result in electric shock or re.Do not unplug the power cord out by pulling the cable only.If the cord is damaged, it may result in electric shock or re.Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.If the cord is damaged, it may cause electric shock or re. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

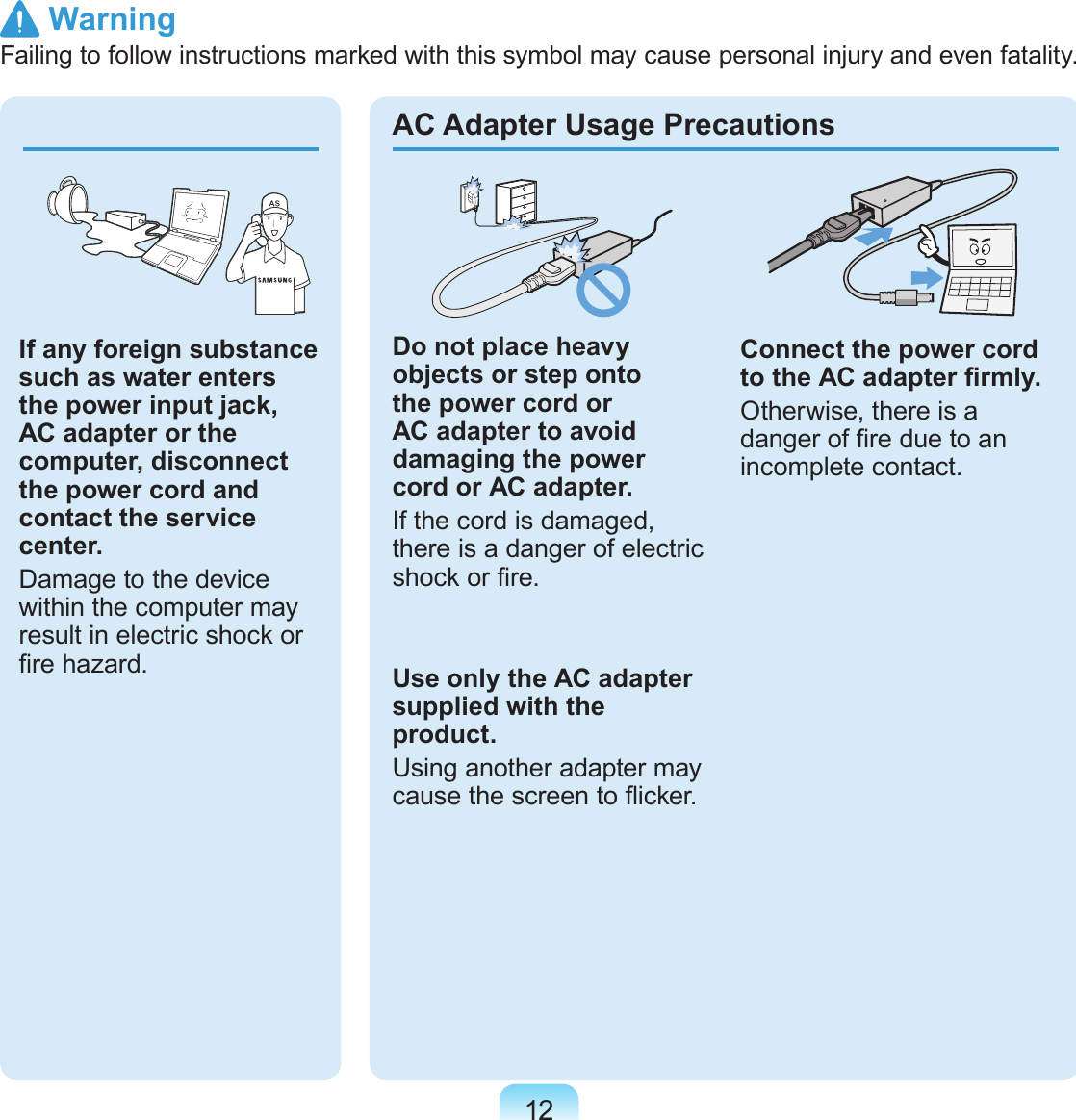

12Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.If the cord is damaged, there is a danger of electric shock or re. Use only the AC adapter supplied with the product.Using another adapter may cause the screen to icker.Connect the power cord to the AC adapter rmly.Otherwise, there is a danger of re due to an incomplete contact.AC Adapter Usage PrecautionsIf any foreign substance such as water enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.Damage to the device within the computer may result in electric shock or re hazard. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

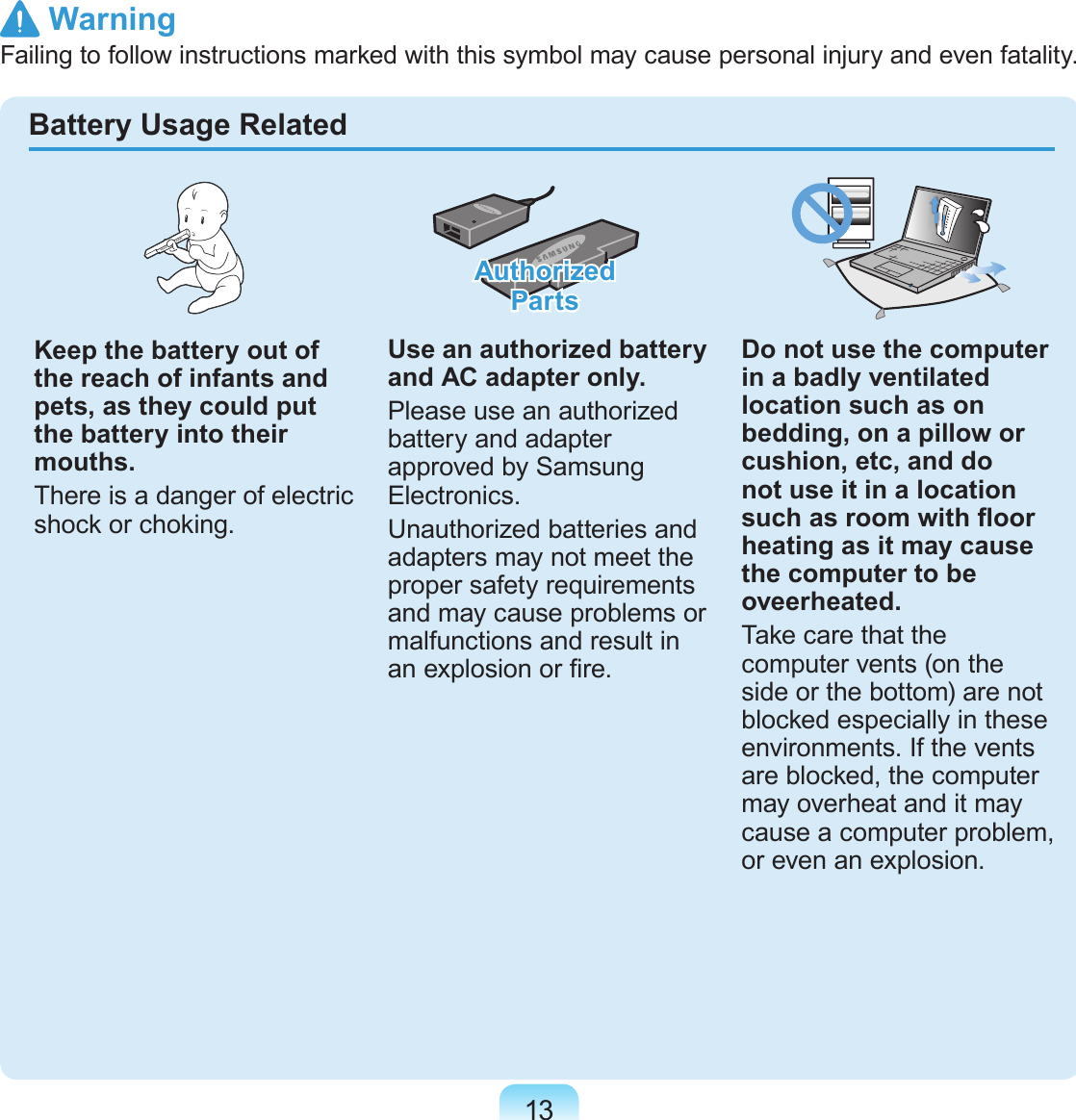

13Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.There is a danger of electric shock or choking.Authorized PartsUse an authorized battery and AC adapter only.Please use an authorized battery and adapter approved by Samsung Electronics.Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re.Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to be oveerheated.Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.Battery Usage Related WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

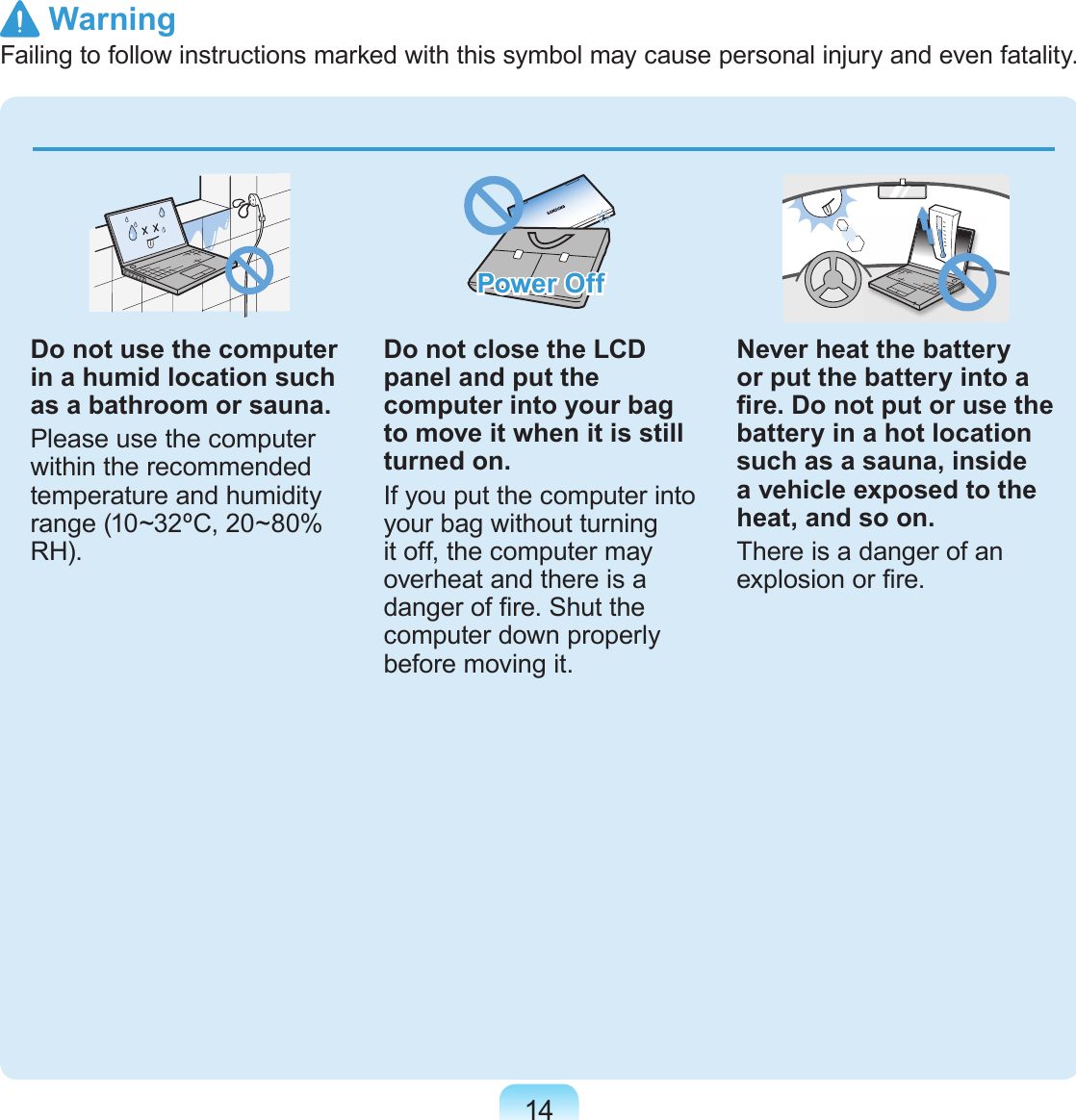

14Do not use the computer in a humid location such as a bathroom or sauna.Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).Power OffDo not close the LCD panel and put the computer into your bag to move it when it is still turned on.If you put the computer into your bag without turning it off, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.Never heat the battery or put the battery into a re. Do not put or use the battery in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.There is a danger of an explosion or re. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

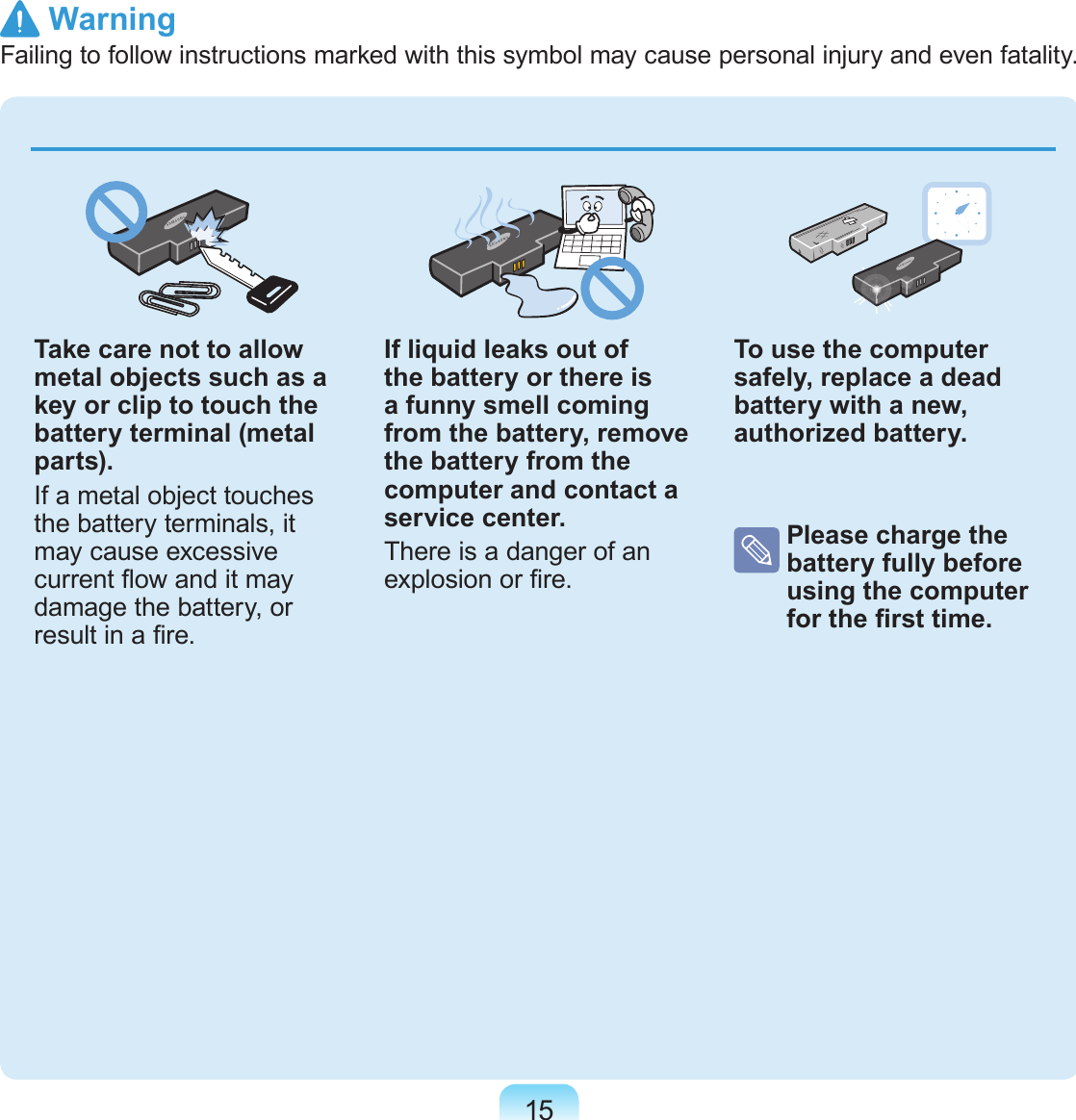

15Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.If liquid leaks out of the battery or there is a funny smell coming from the battery, remove the battery from the computer and contact a service center.There is a danger of an explosion or re.To use the computer safely, replace a dead battery with a new, authorized battery. Please charge the battery fully before using the computer for the rst time. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

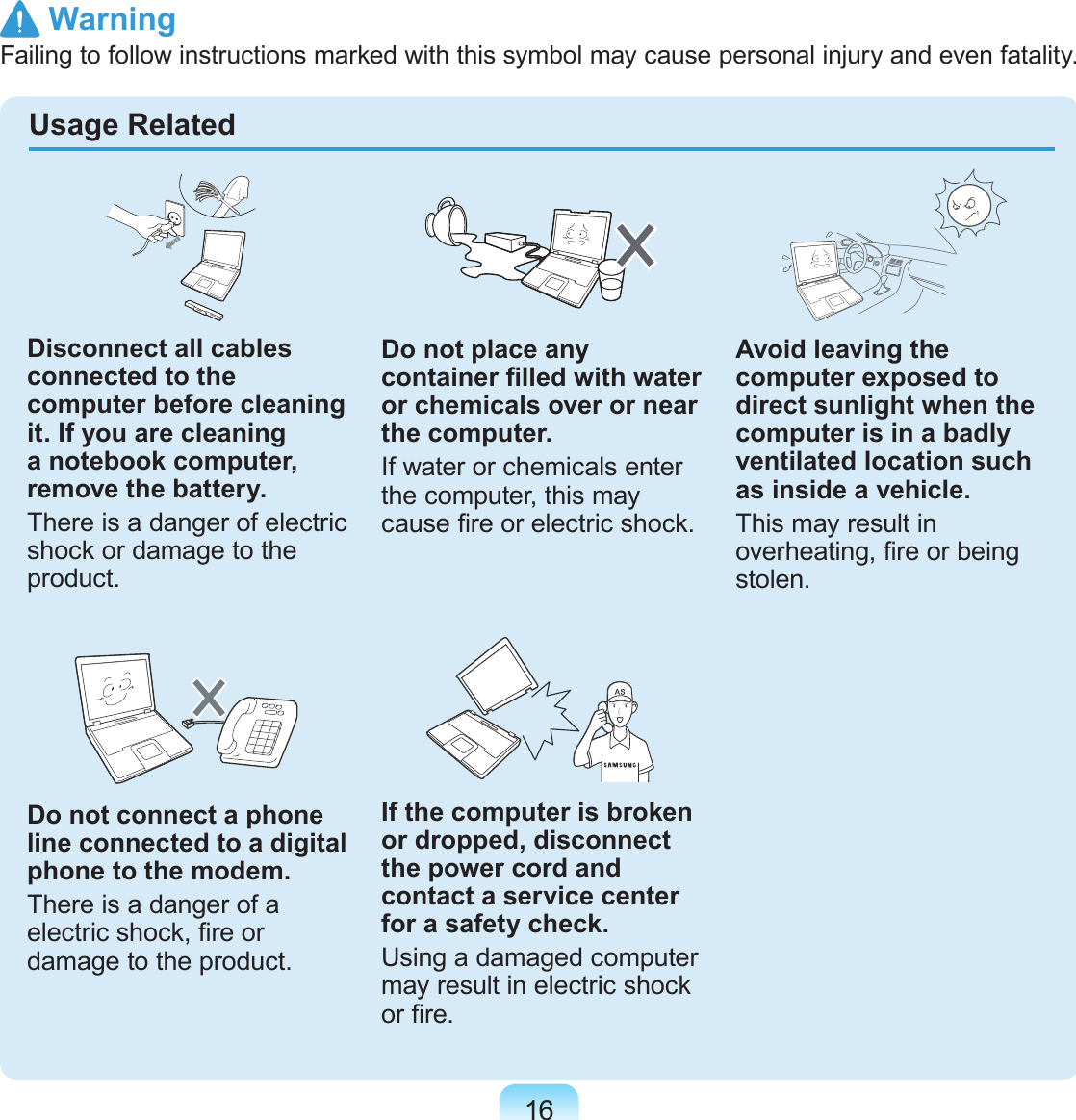

16Disconnect all cables connected to the computer before cleaning it. If you are cleaning a notebook computer, remove the battery.There is a danger of electric shock or damage to the product.Do not connect a phone line connected to a digital phone to the modem.There is a danger of a electric shock, re or damage to the product.Do not place any container lled with water or chemicals over or near the computer.If water or chemicals enter the computer, this may cause re or electric shock.If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.Using a damaged computer may result in electric shock or re. Avoid leaving the computer exposed to direct sunlight when the computer is in a badly ventilated location such as inside a vehicle.This may result in overheating, re or being stolen.Usage Related WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

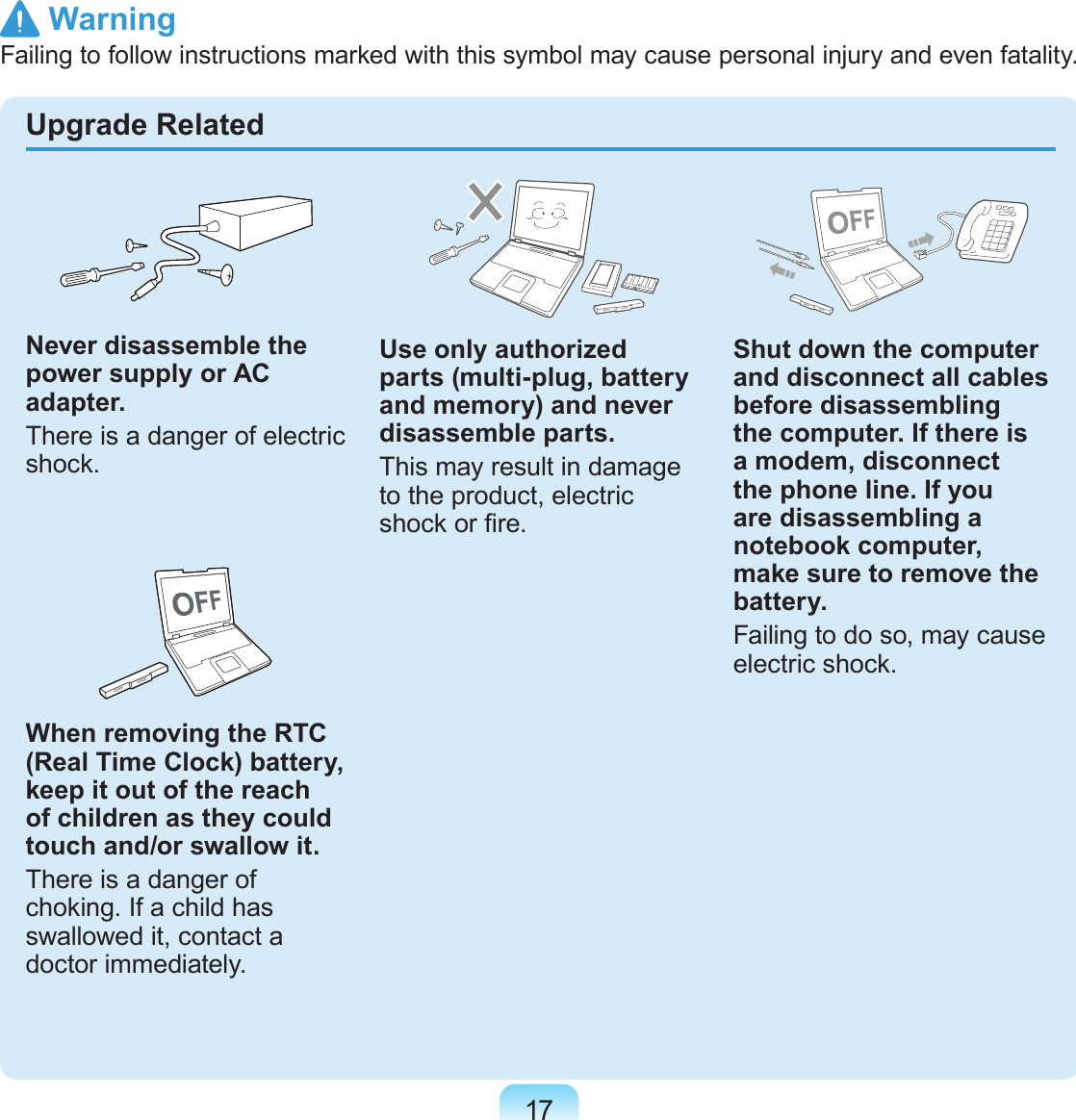

17Upgrade RelatedNever disassemble the power supply or AC adapter.There is a danger of electric shock.When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.There is a danger of choking. If a child has swallowed it, contact a doctor immediately.Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.This may result in damage to the product, electric shock or re.Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If you are disassembling a notebook computer, make sure to remove the battery.Failing to do so, may cause electric shock. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

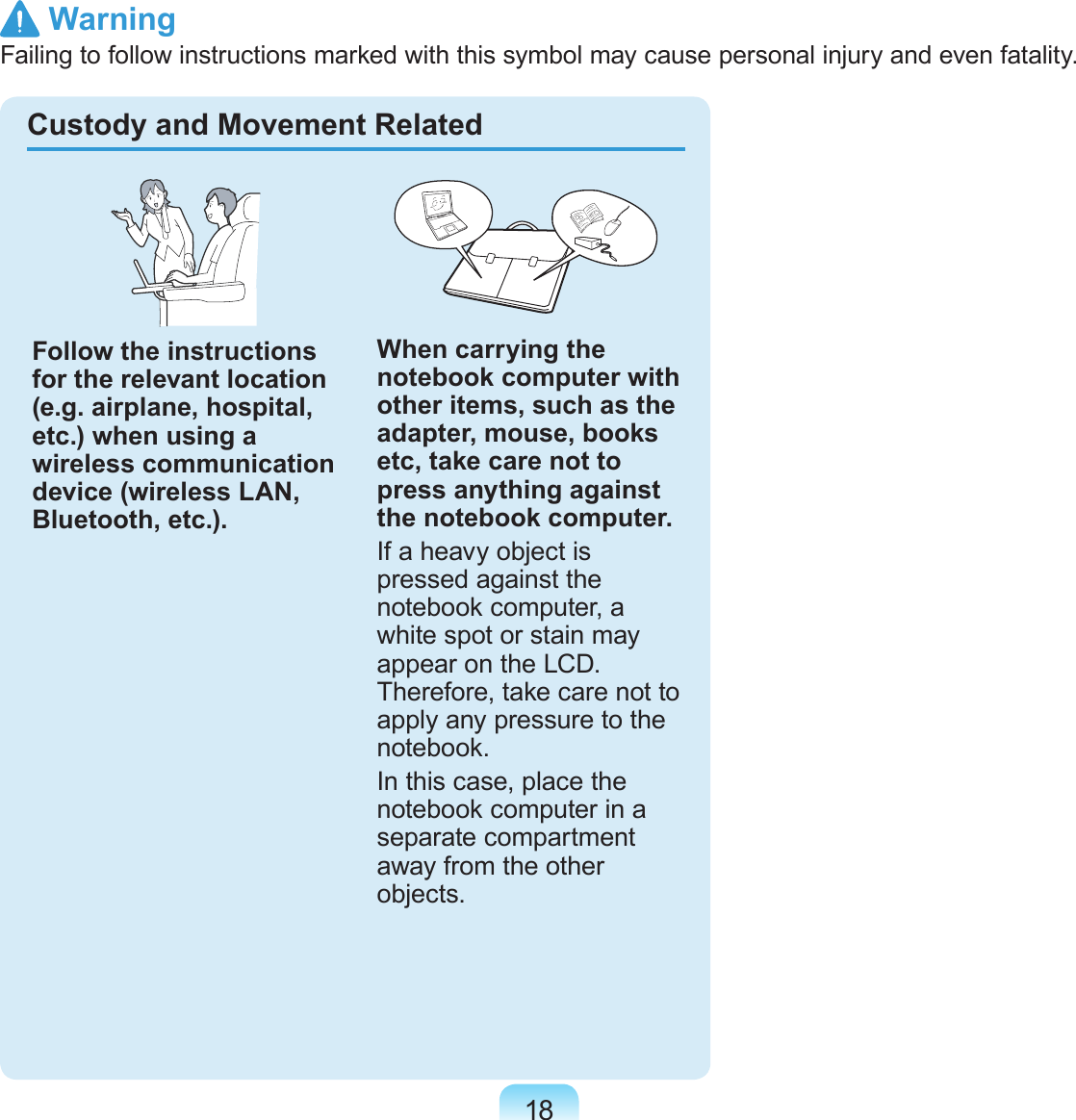

18Custody and Movement RelatedFollow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from the other objects. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.

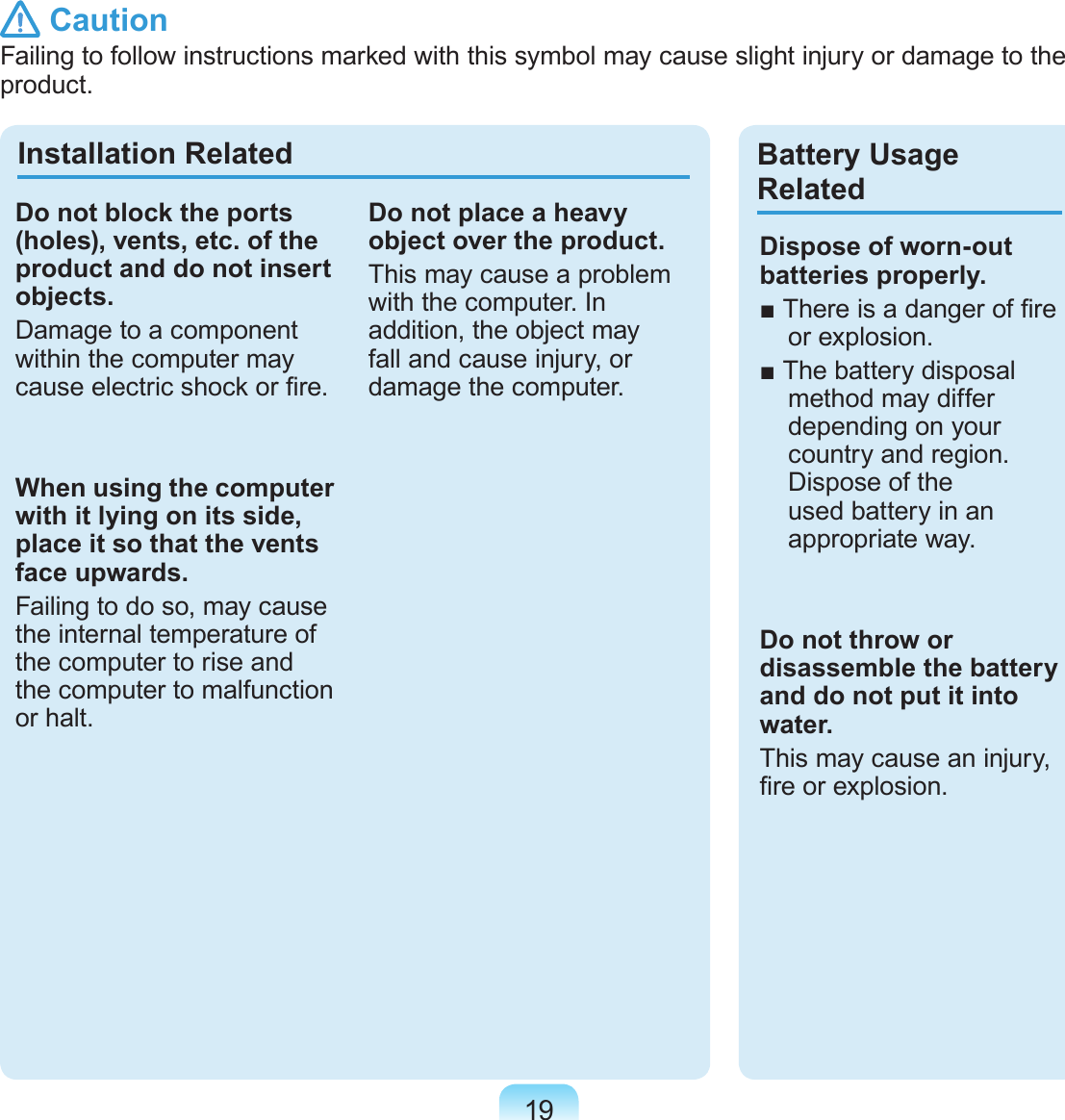

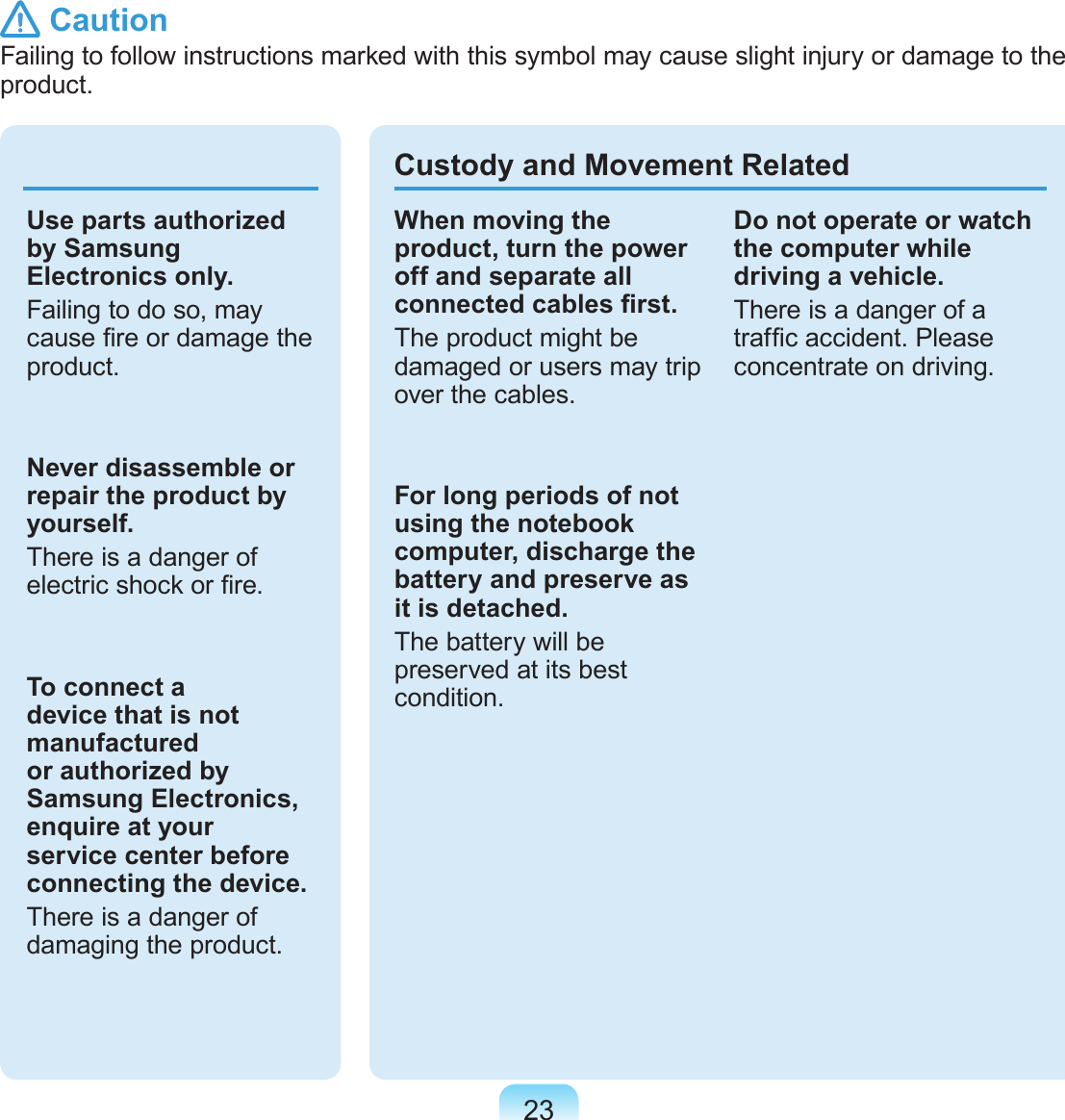

19 CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.Installation Related Battery Usage RelatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or re.When using the computer with it lying on its side, place it so that the vents face upwards.Failing to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.Do not place a heavy object over the product.This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.Dispose of worn-out batteries properly.■ There is a danger of re or explosion.■ The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, re or explosion.

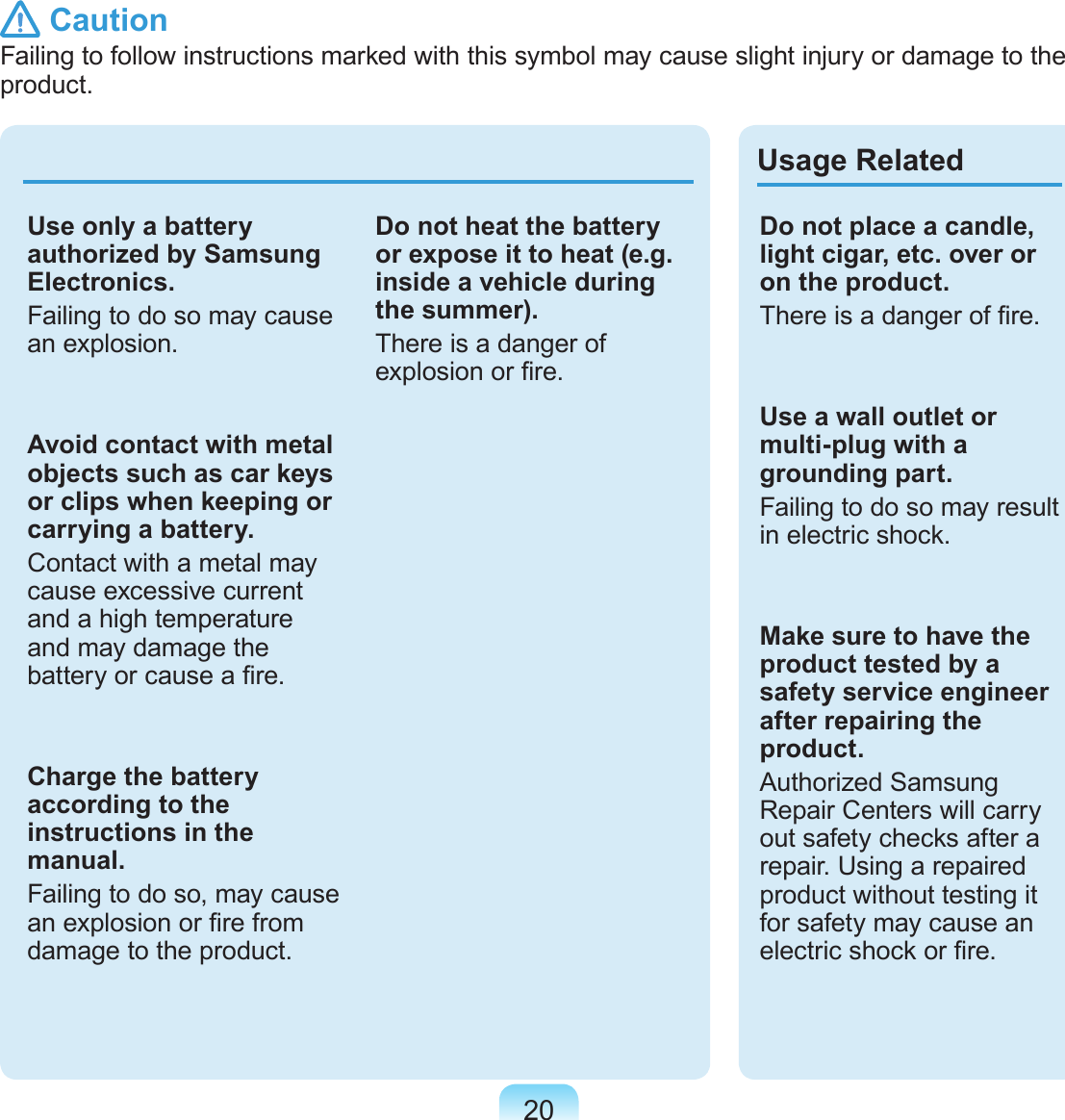

20Use only a battery authorized by Samsung Electronics.Failing to do so may cause an explosion.Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.Charge the battery according to the instructions in the manual.Failing to do so, may cause an explosion or re from damage to the product.Do not heat the battery or expose it to heat (e.g. inside a vehicle during the summer).There is a danger of explosion or re. Usage RelatedDo not place a candle, light cigar, etc. over or on the product.There is a danger of re.Use a wall outlet or multi-plug with a grounding part.Failing to do so may result in electric shock.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.

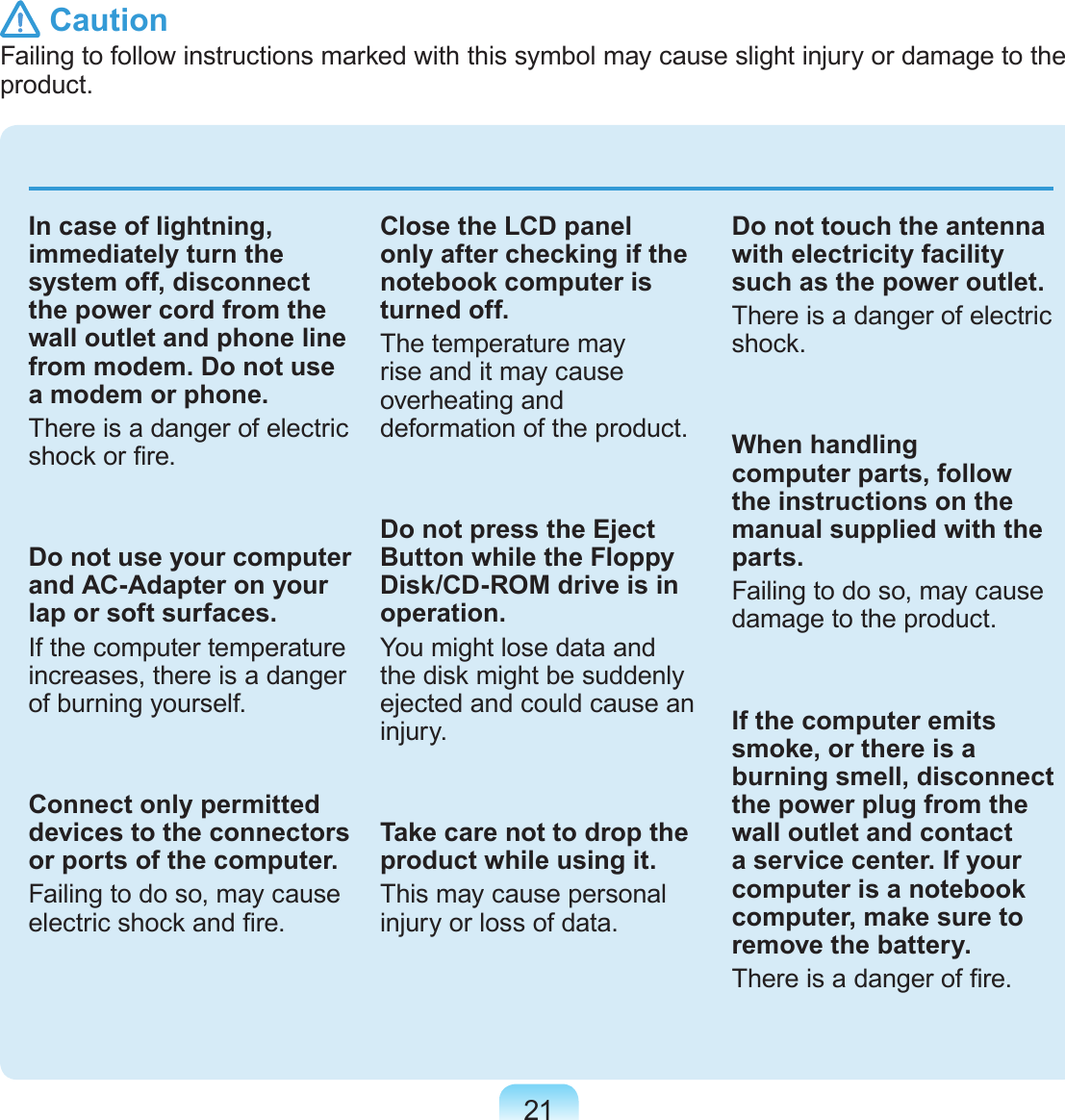

21 In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.There is a danger of electric shock or re.Do not use your computer and AC-Adapter on your lap or soft surfaces.If the computer temperature increases, there is a danger of burning yourself.Connect only permitted devices to the connectors or ports of the computer.Failing to do so, may cause electric shock and re.Close the LCD panel only after checking if the notebook computer is turned off.The temperature may rise and it may cause overheating and deformation of the product.Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.You might lose data and the disk might be suddenly ejected and could cause an injury.Take care not to drop the product while using it.This may cause personal injury or loss of data.Do not touch the antenna with electricity facility such as the power outlet.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failing to do so, may cause damage to the product.If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center. If your computer is a notebook computer, make sure to remove the battery.There is a danger of re. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.

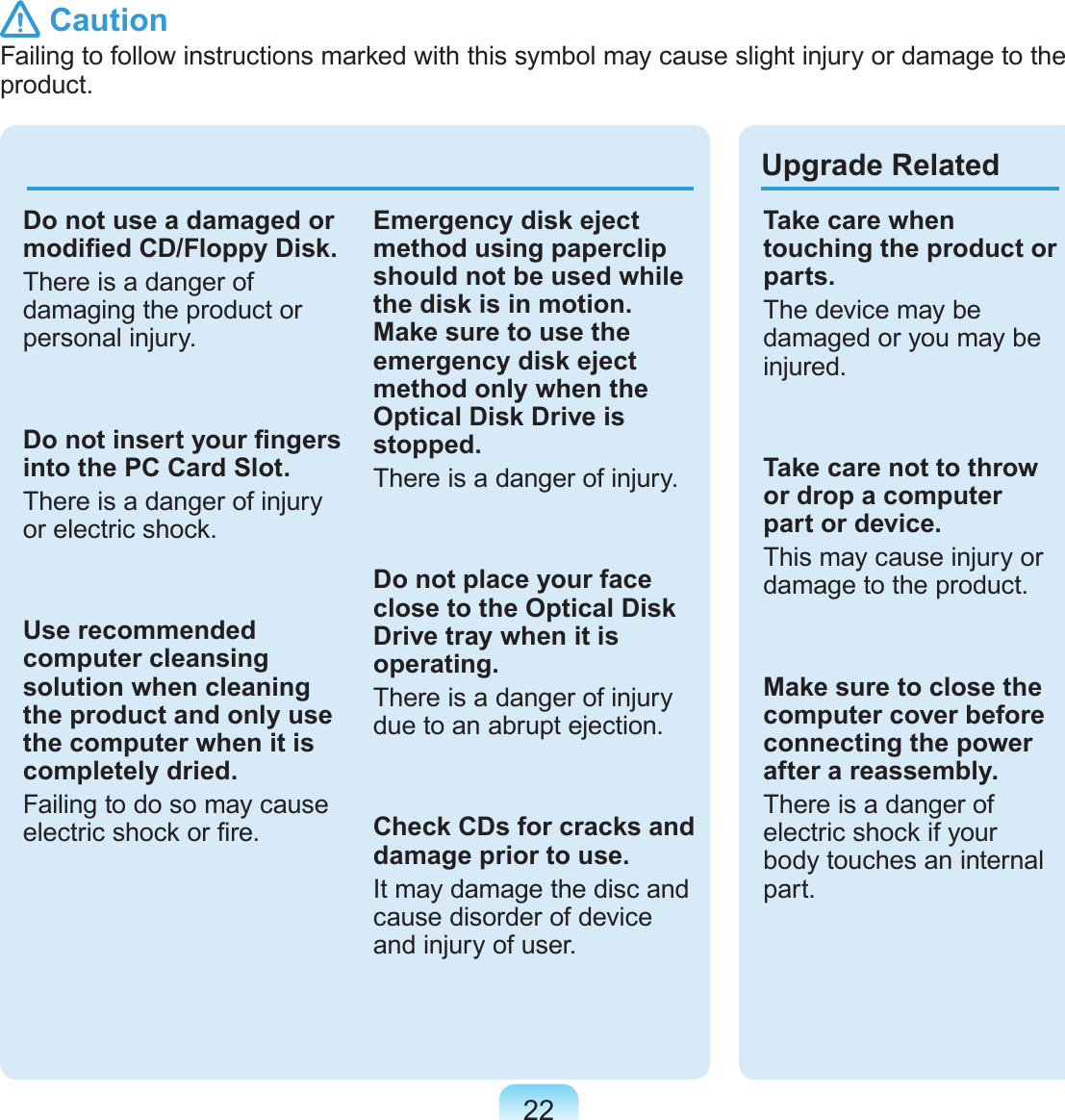

22Upgrade RelatedDo not use a damaged or modied CD/Floppy Disk.There is a danger of damaging the product or personal injury.Do not insert your ngers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.Failing to do so may cause electric shock or re.Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive is stopped.There is a danger of injury.Do not place your face close to the Optical Disk Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Check CDs for cracks and damage prior to use.It may damage the disc and cause disorder of device and injury of user.Take care when touching the product or parts.The device may be damaged or you may be injured.Take care not to throw or drop a computer part or device.This may cause injury or damage to the product.Make sure to close the computer cover before connecting the power after a reassembly.There is a danger of electric shock if your body touches an internal part. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.
23Use parts authorized by Samsung Electronics only.Failing to do so, may cause re or damage the product.Never disassemble or repair the product by yourself.There is a danger of electric shock or re.To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.There is a danger of damaging the product.Custody and Movement RelatedWhen moving the product, turn the power off and separate all connected cables rst.The product might be damaged or users may trip over the cables.For long periods of not using the notebook computer, discharge the battery and preserve as it is detached.The battery will be preserved at its best condition.Do not operate or watch the computer while driving a vehicle.There is a danger of a trafc accident. Please concentrate on driving. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.

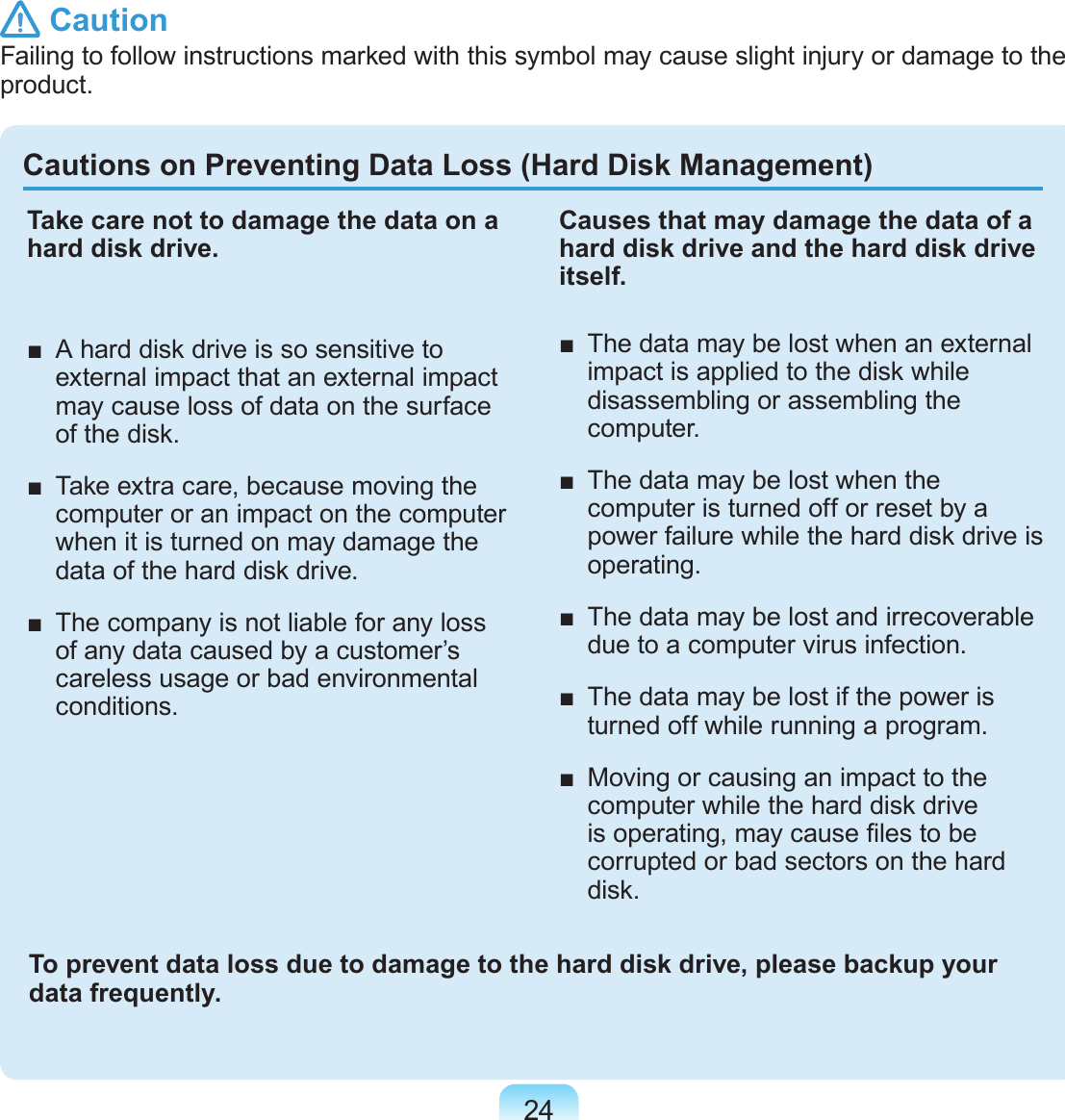

24Cautions on Preventing Data Loss (Hard Disk Management)Take care not to damage the data on a hard disk drive.■ A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.■ Take extra care, because moving the computer or an impact on the computer when it is turned on may damage the data of the hard disk drive.■ The company is not liable for any loss of any data caused by a customer’s careless usage or bad environmental conditions.Causes that may damage the data of a hard disk drive and the hard disk drive itself.■ The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.■ The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.■ The data may be lost and irrecoverable due to a computer virus infection.■ The data may be lost if the power is turned off while running a program.■ Moving or causing an impact to the computer while the hard disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please backup your data frequently. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.

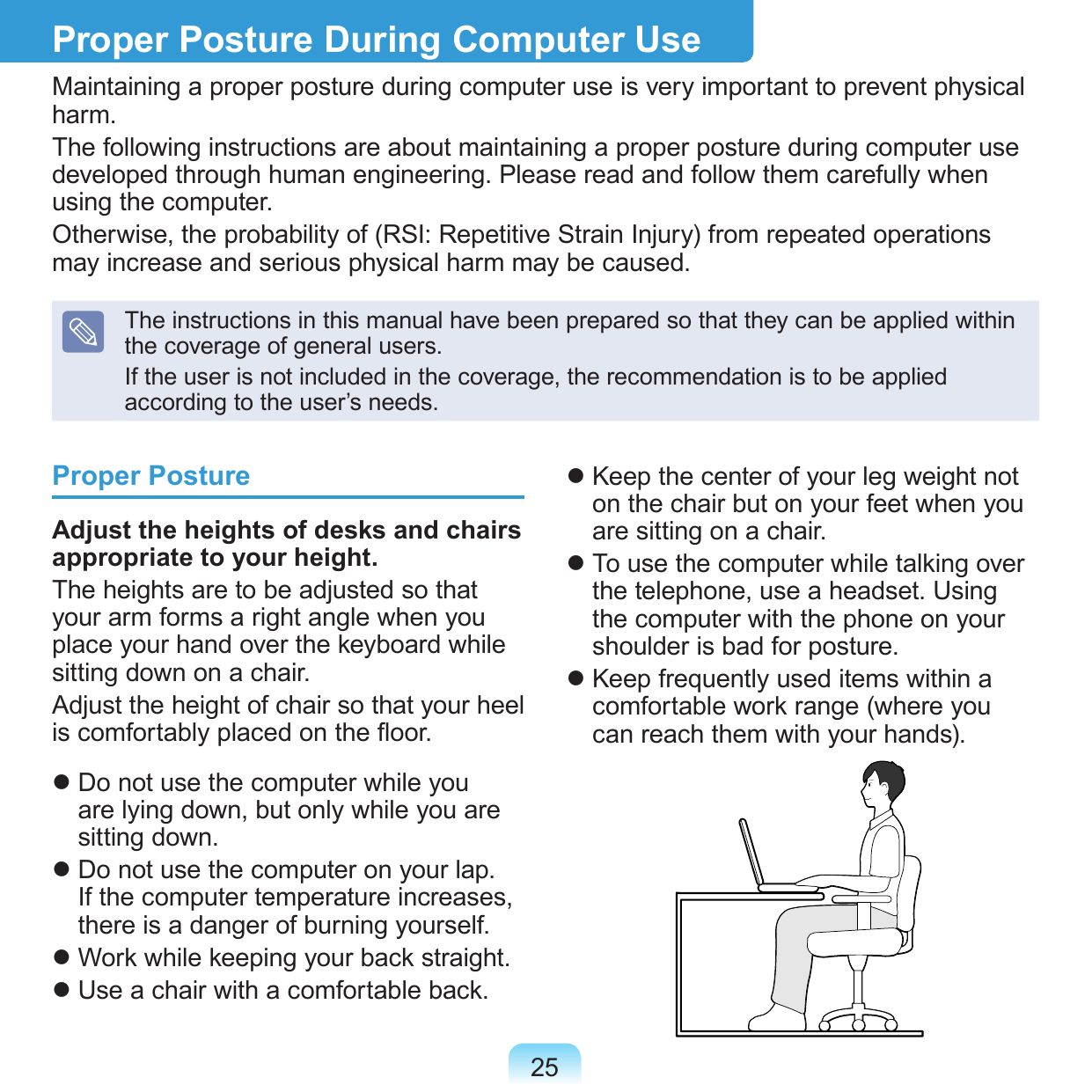

25Proper PostureAdjust the heights of desks and chairs appropriate to your height.The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.Adjust the height of chair so that your heel is comfortably placed on the oor. Do not use the computer while you are lying down, but only while you are sitting down. Do not use the computer on your lap. If the computer temperature increases, there is a danger of burning yourself. Work while keeping your back straight. Use a chair with a comfortable back. Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair. To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture. Keep frequently used items within a comfortable work range (where you can reach them with your hands).Proper Posture During Computer UseMaintaining a proper posture during computer use is very important to prevent physical harm.The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.The instructions in this manual have been prepared so that they can be applied within the coverage of general users. If the user is not included in the coverage, the recommendation is to be applied according to the user’s needs.

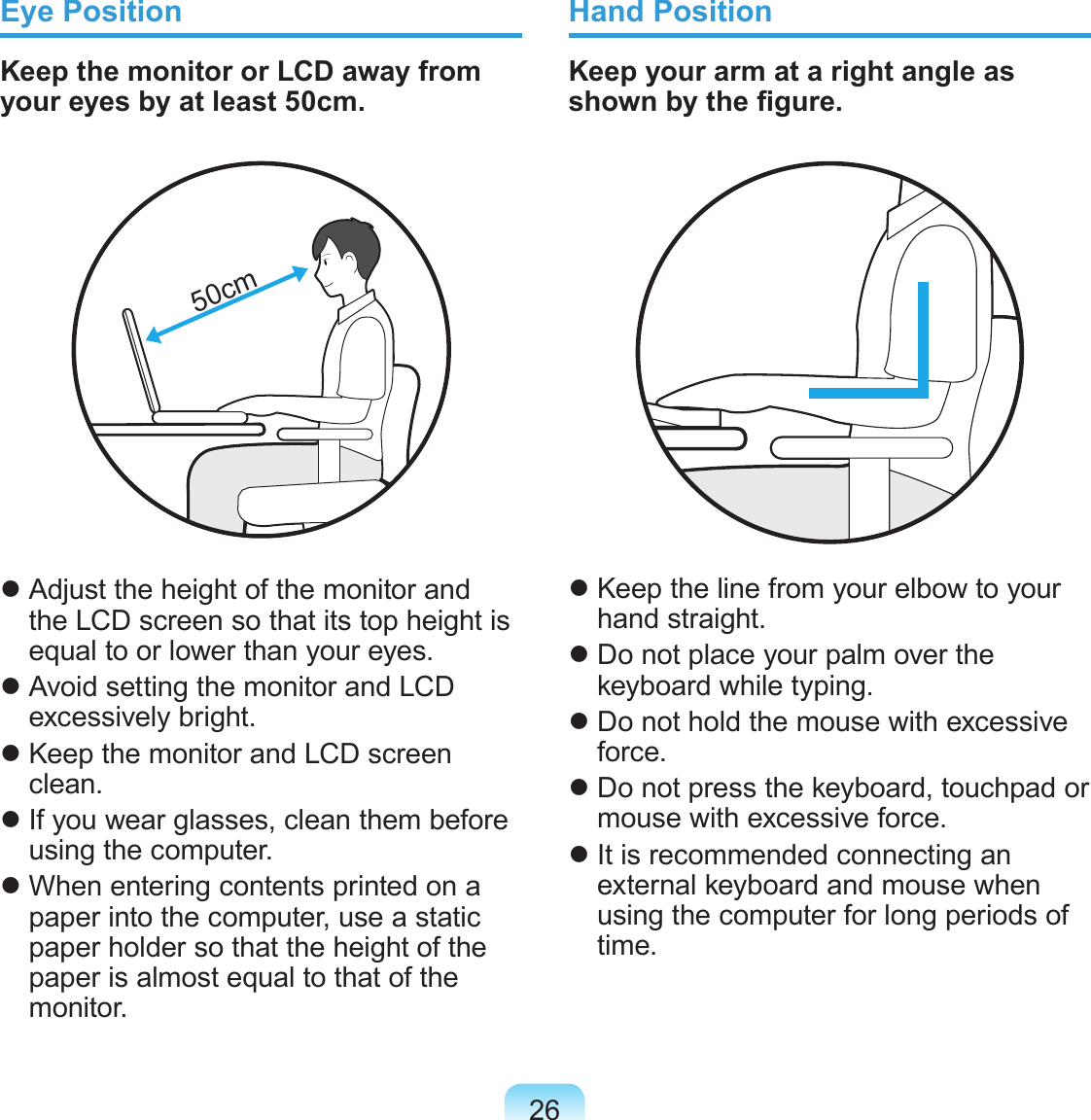

26Eye PositionKeep the monitor or LCD away from your eyes by at least 50cm.50cm Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes. Avoid setting the monitor and LCD excessively bright. Keep the monitor and LCD screen clean. If you wear glasses, clean them before using the computer. When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the gure. Keep the line from your elbow to your hand straight. Do not place your palm over the keyboard while typing. Do not hold the mouse with excessive force. Do not press the keyboard, touchpad or mouse with excessive force. It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

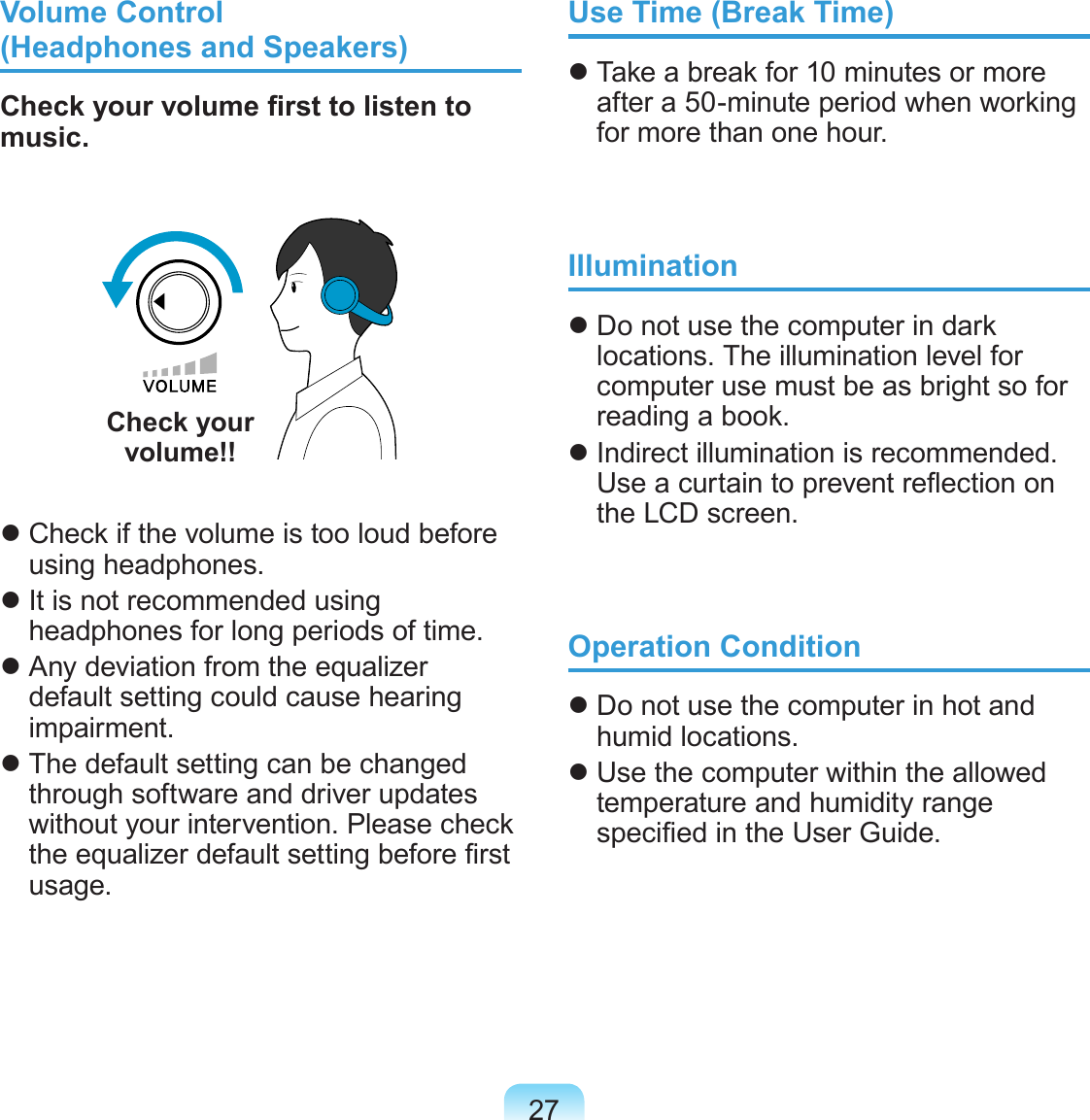

27Volume Control (Headphones and Speakers)Check your volume rst to listen to music.Check your volume!! Check if the volume is too loud before using headphones. It is not recommended using headphones for long periods of time. Any deviation from the equalizer default setting could cause hearing impairment. The default setting can be changed through software and driver updates without your intervention. Please check the equalizer default setting before rst usage.Use Time (Break Time) Take a break for 10 minutes or more after a 50-minute period when working for more than one hour.Illumination Do not use the computer in dark locations. The illumination level for computer use must be as bright so for reading a book. Indirect illumination is recommended. Use a curtain to prevent reection on the LCD screen.Operation Condition Do not use the computer in hot and humid locations. Use the computer within the allowed temperature and humidity range specied in the User Guide.

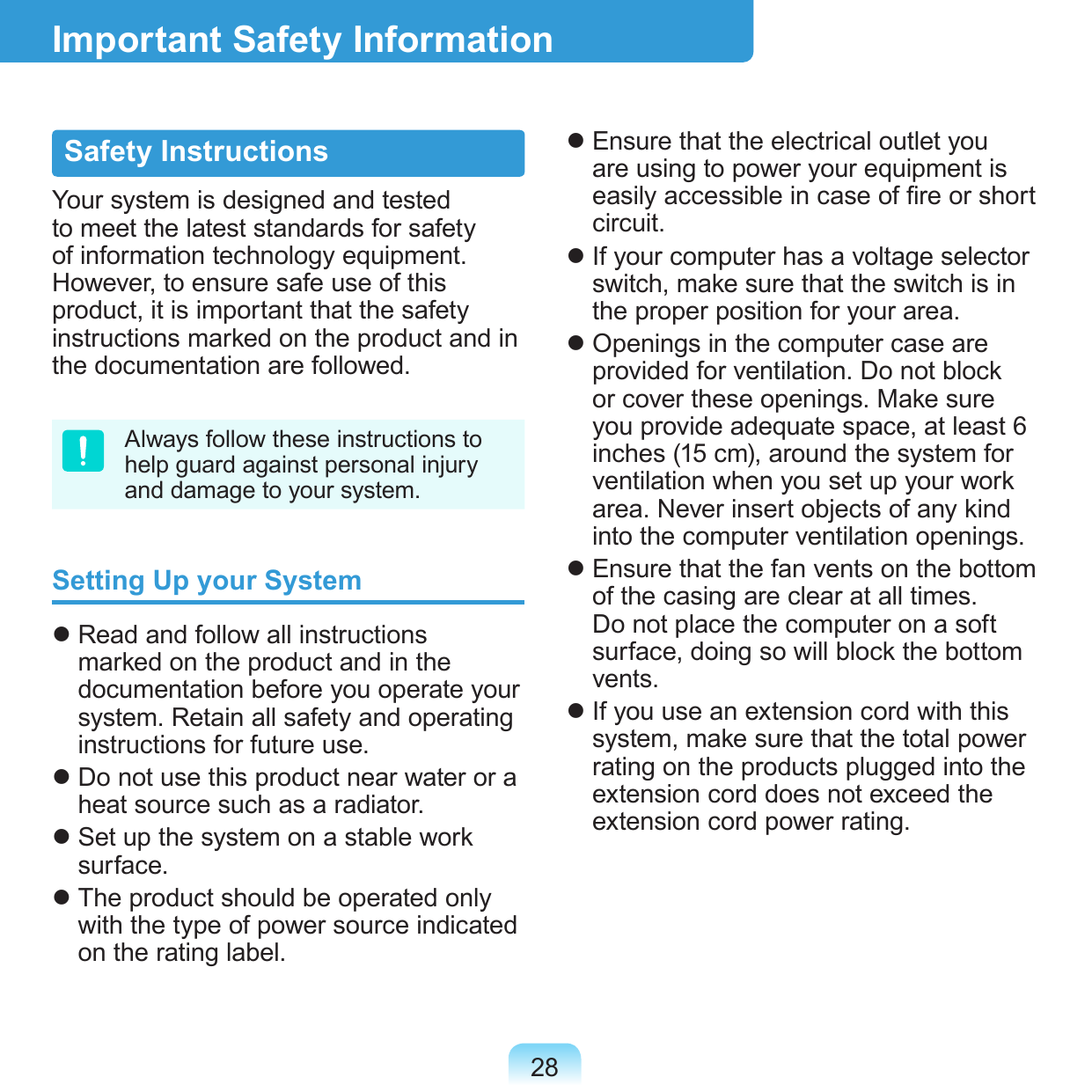

28Safety InstructionsYour system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.Always follow these instructions to help guard against personal injury and damage to your system.Setting Up your System Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. Do not use this product near water or a heat source such as a radiator. Set up the system on a stable work surface. The product should be operated only with the type of power source indicated on the rating label. Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of re or short circuit. If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area. Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings. Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents. If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.Important Safety Information

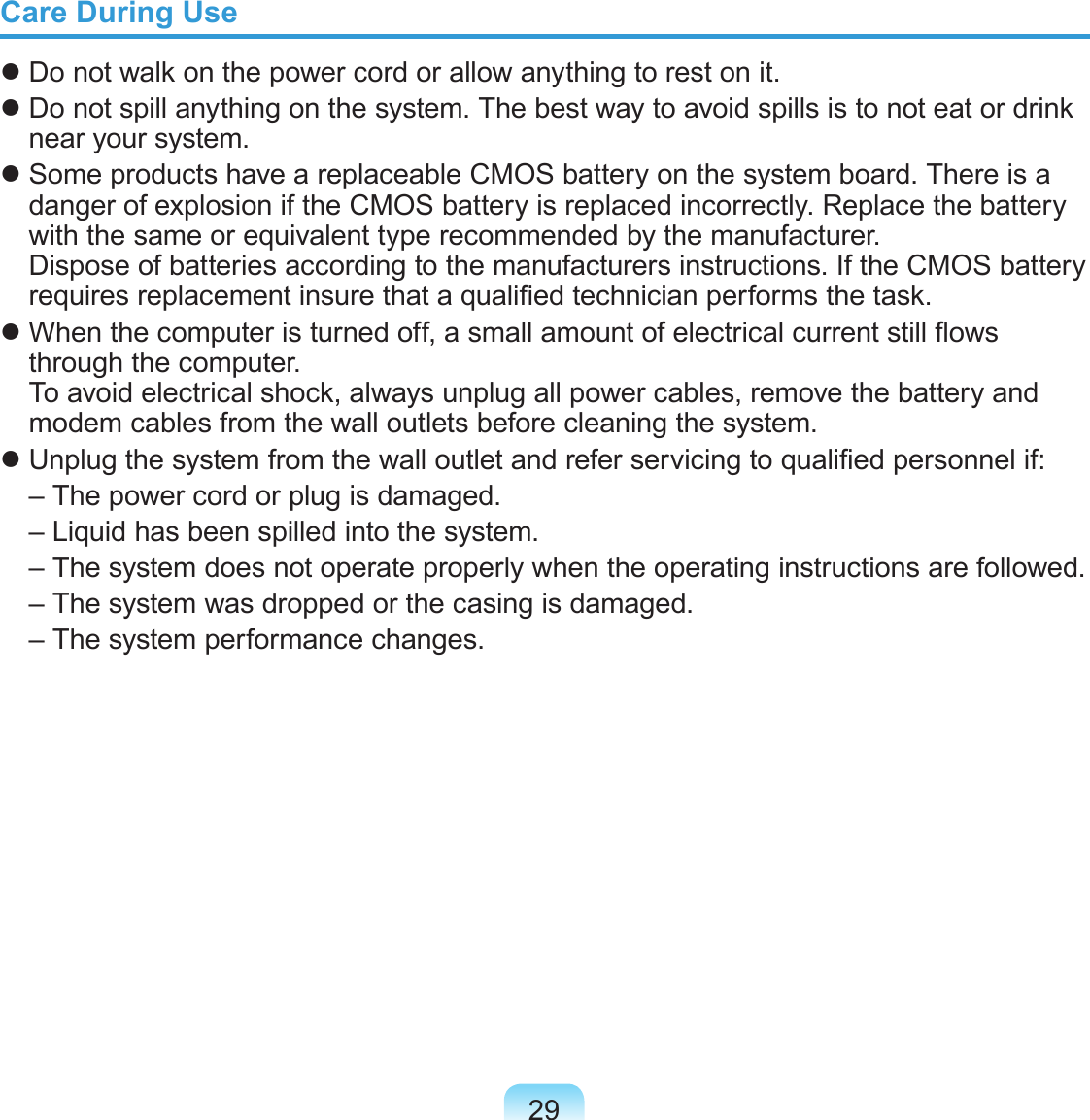

29Care During Use Do not walk on the power cord or allow anything to rest on it. Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system. Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualied technician performs the task. When the computer is turned off, a small amount of electrical current still ows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system. Unplug the system from the wall outlet and refer servicing to qualied personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes.

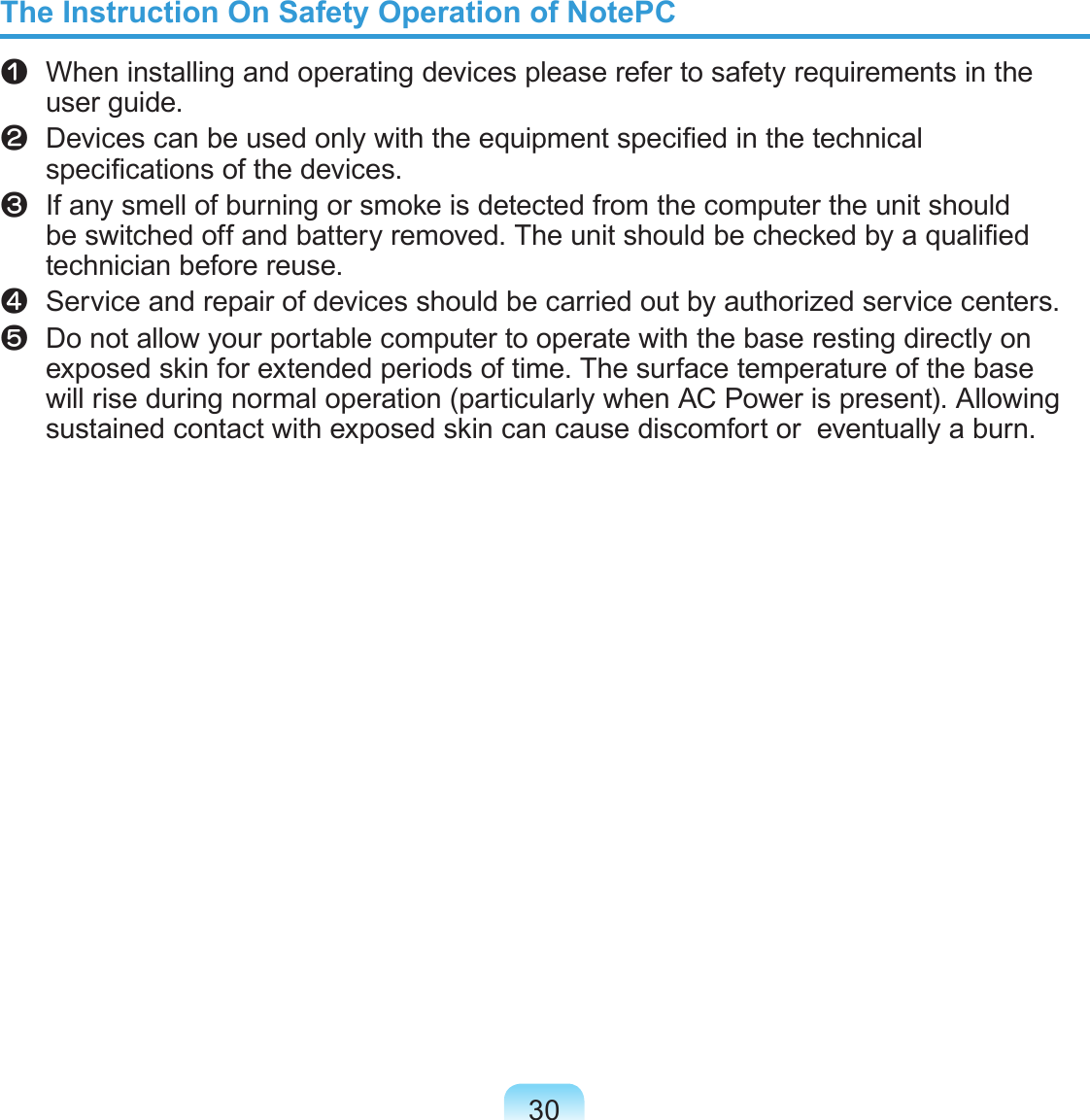

30The Instruction On Safety Operation of NotePCz When installing and operating devices please refer to safety requirements in the user guide.x Devices can be used only with the equipment specied in the technical specications of the devices.c If any smell of burning or smoke is detected from the computer the unit should be switched off and battery removed. The unit should be checked by a qualied technician before reuse.v Service and repair of devices should be carried out by authorized service centers.b Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.

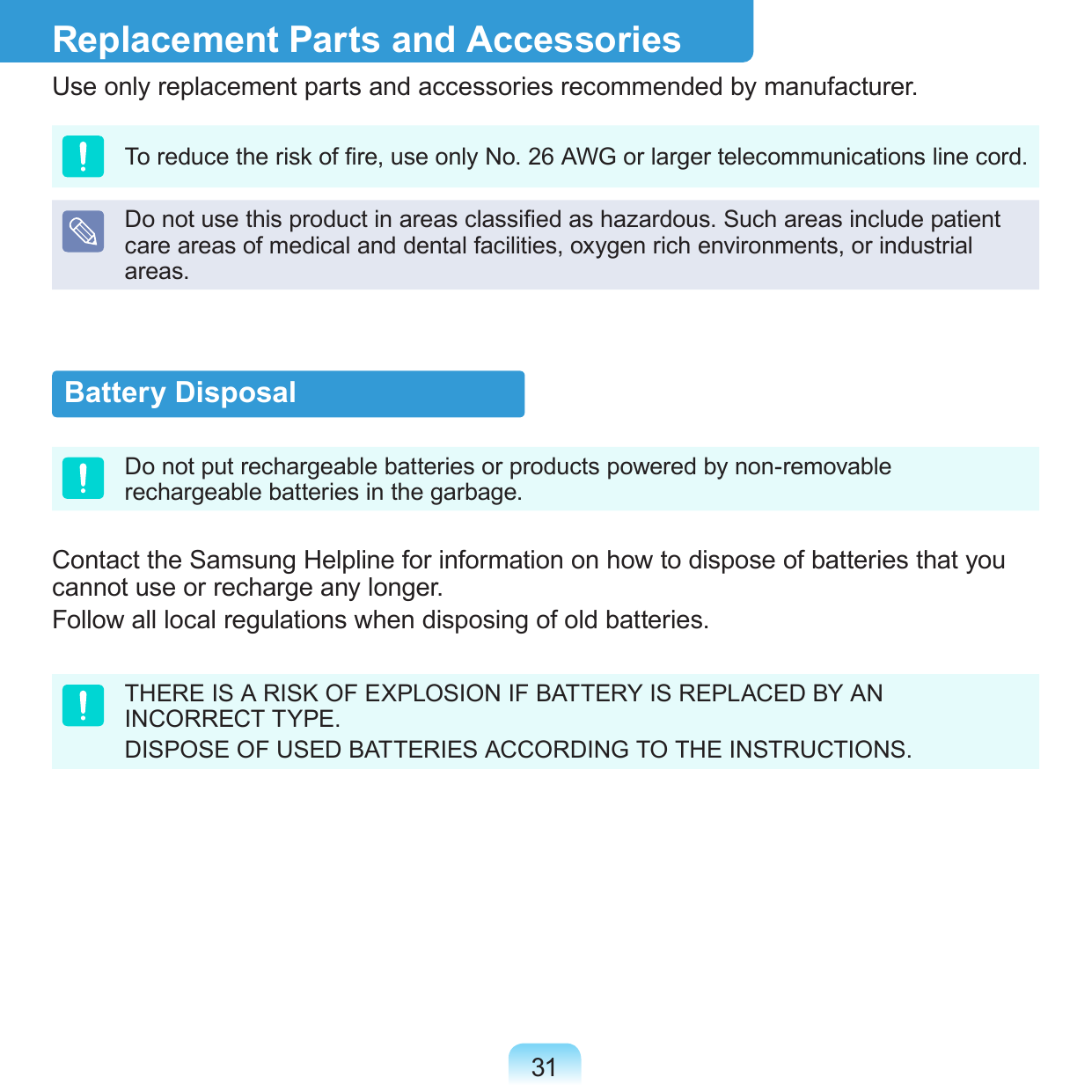

31Battery DisposalDo not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.Follow all local regulations when disposing of old batteries.THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Replacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of re, use only No. 26 AWG or larger telecommunications line cord.Do not use this product in areas classied as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

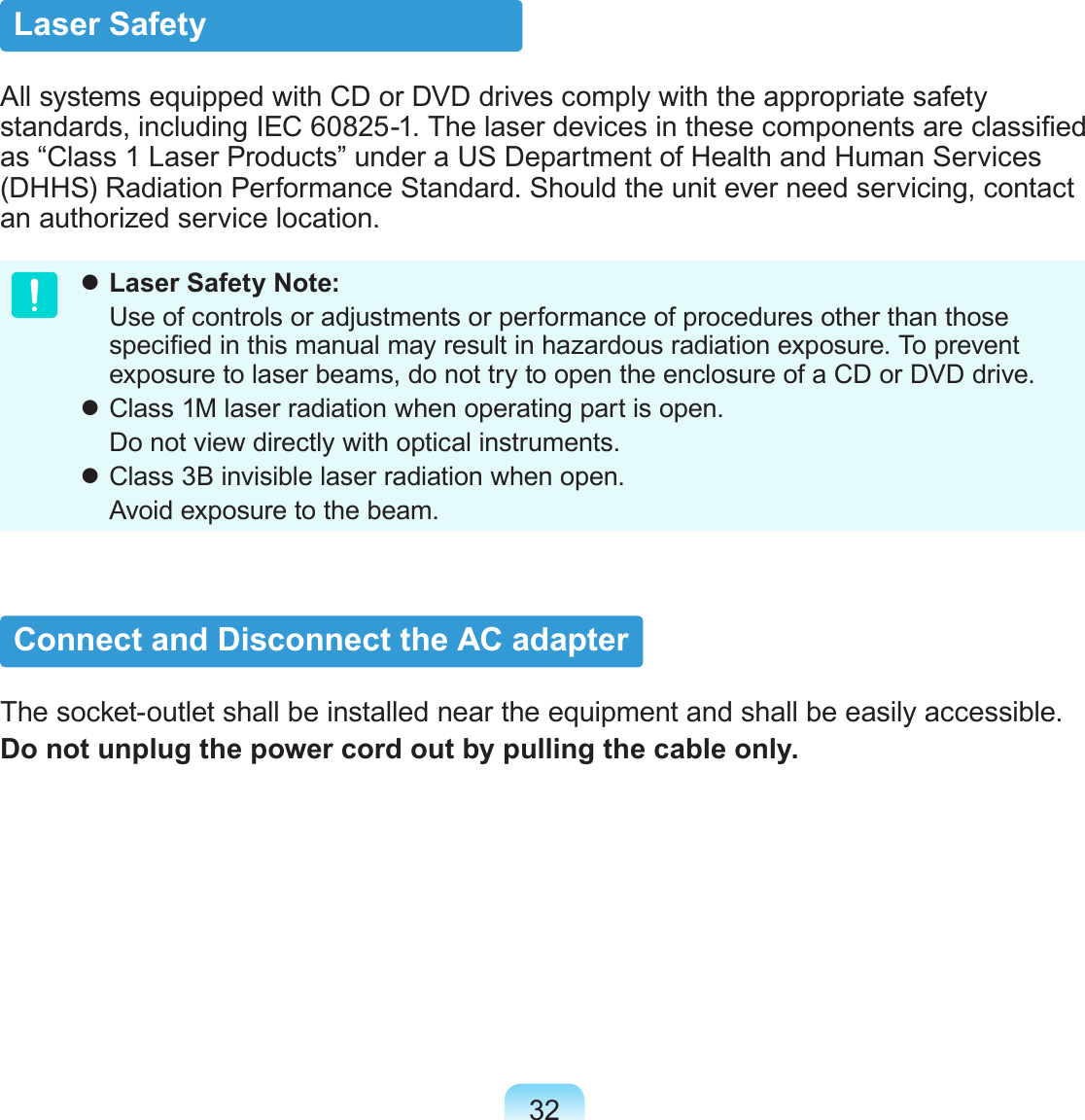

32Laser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classied as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location. Laser Safety Note: Use of controls or adjustments or performance of procedures other than those specied in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive. Class 1M laser radiation when operating part is open. Do not view directly with optical instruments. Class 3B invisible laser radiation when open. Avoid exposure to the beam.Connect and Disconnect the AC adapterThe socket-outlet shall be installed near the equipment and shall be easily accessible.Do not unplug the power cord out by pulling the cable only.

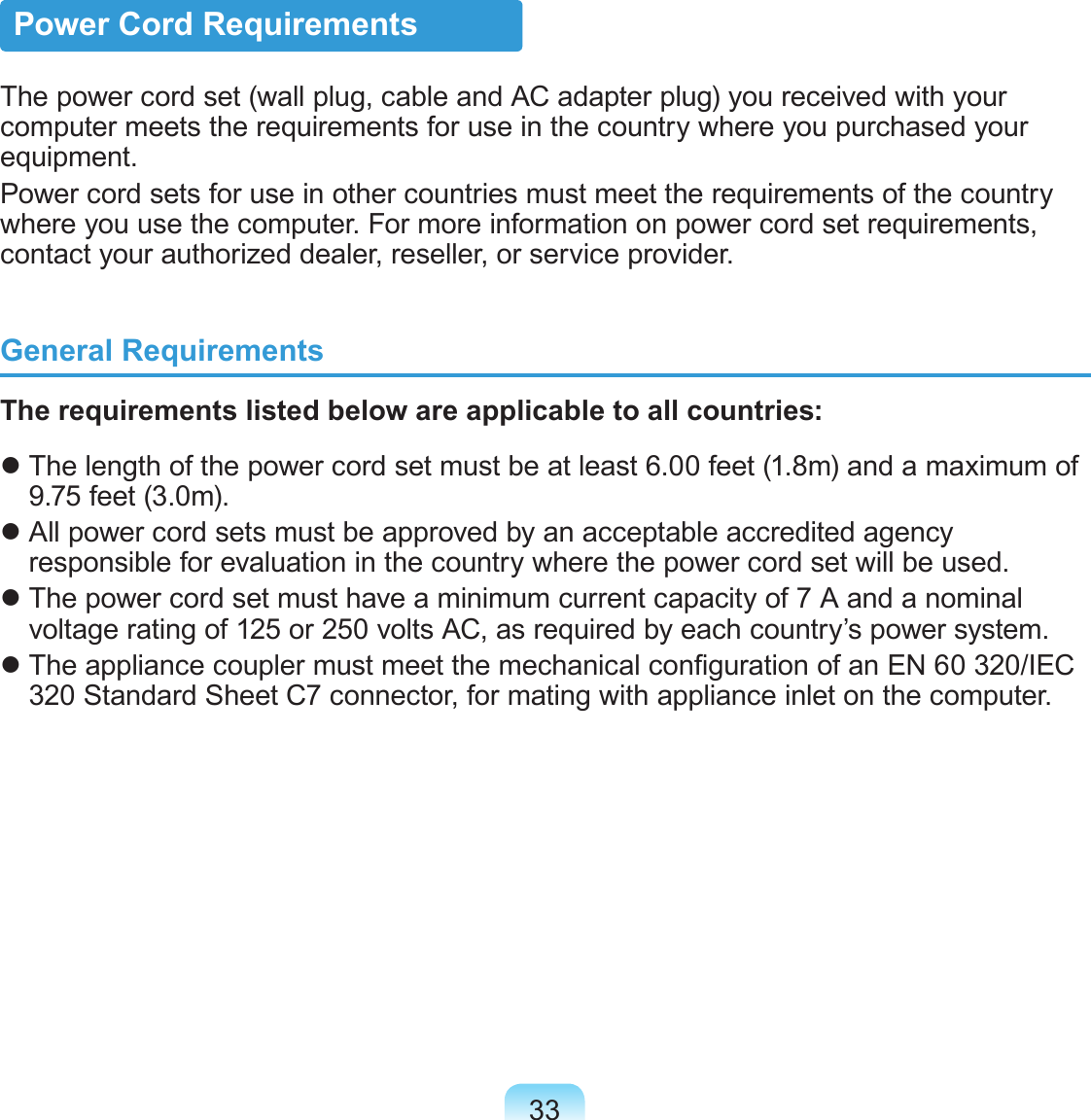

33Power Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries: The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m). All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used. The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system. The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet C7 connector, for mating with appliance inlet on the computer.

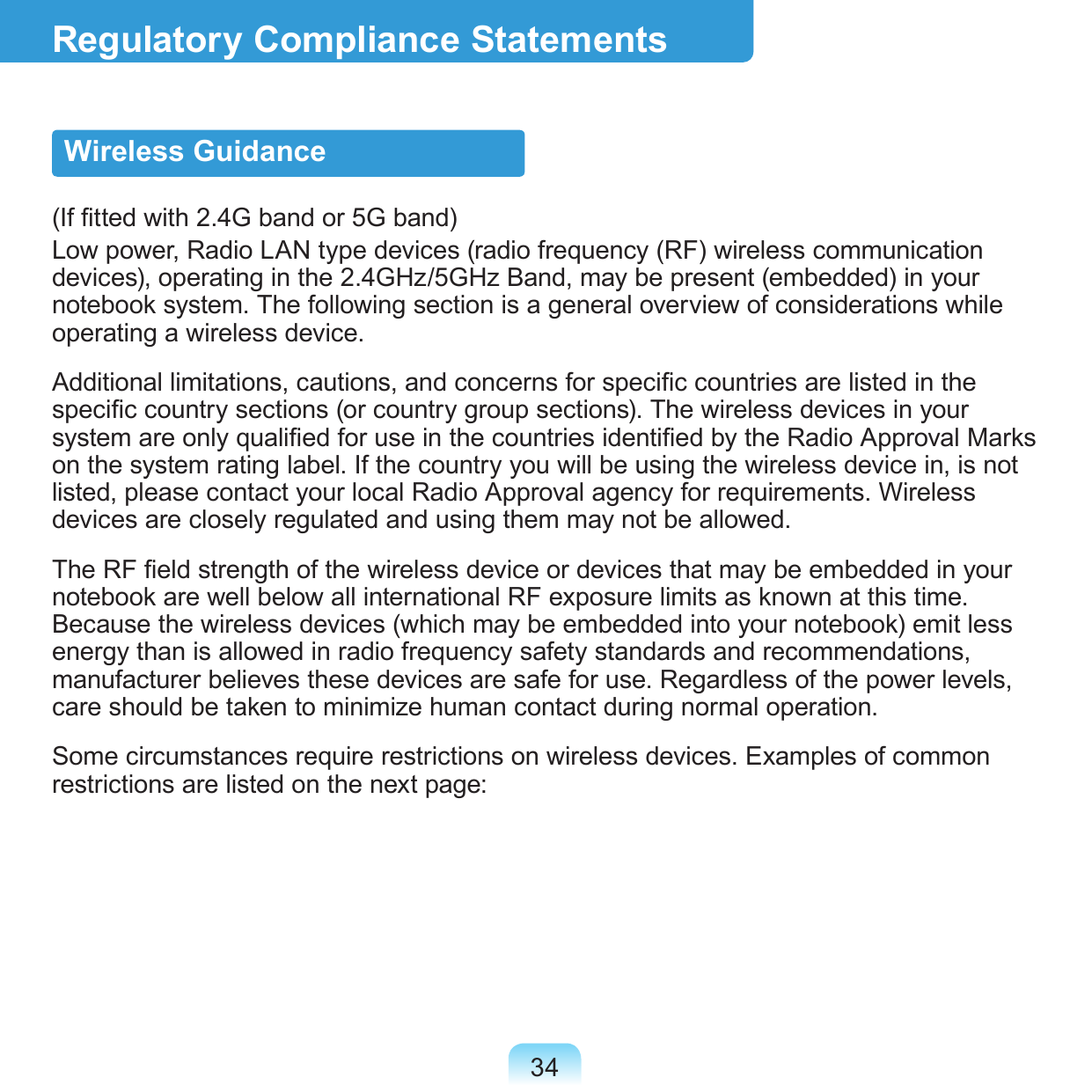

34Regulatory Compliance StatementsWireless Guidance(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specic countries are listed in the specic country sections (or country group sections). The wireless devices in your system are only qualied for use in the countries identied by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and using them may not be allowed.The RF eld strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:

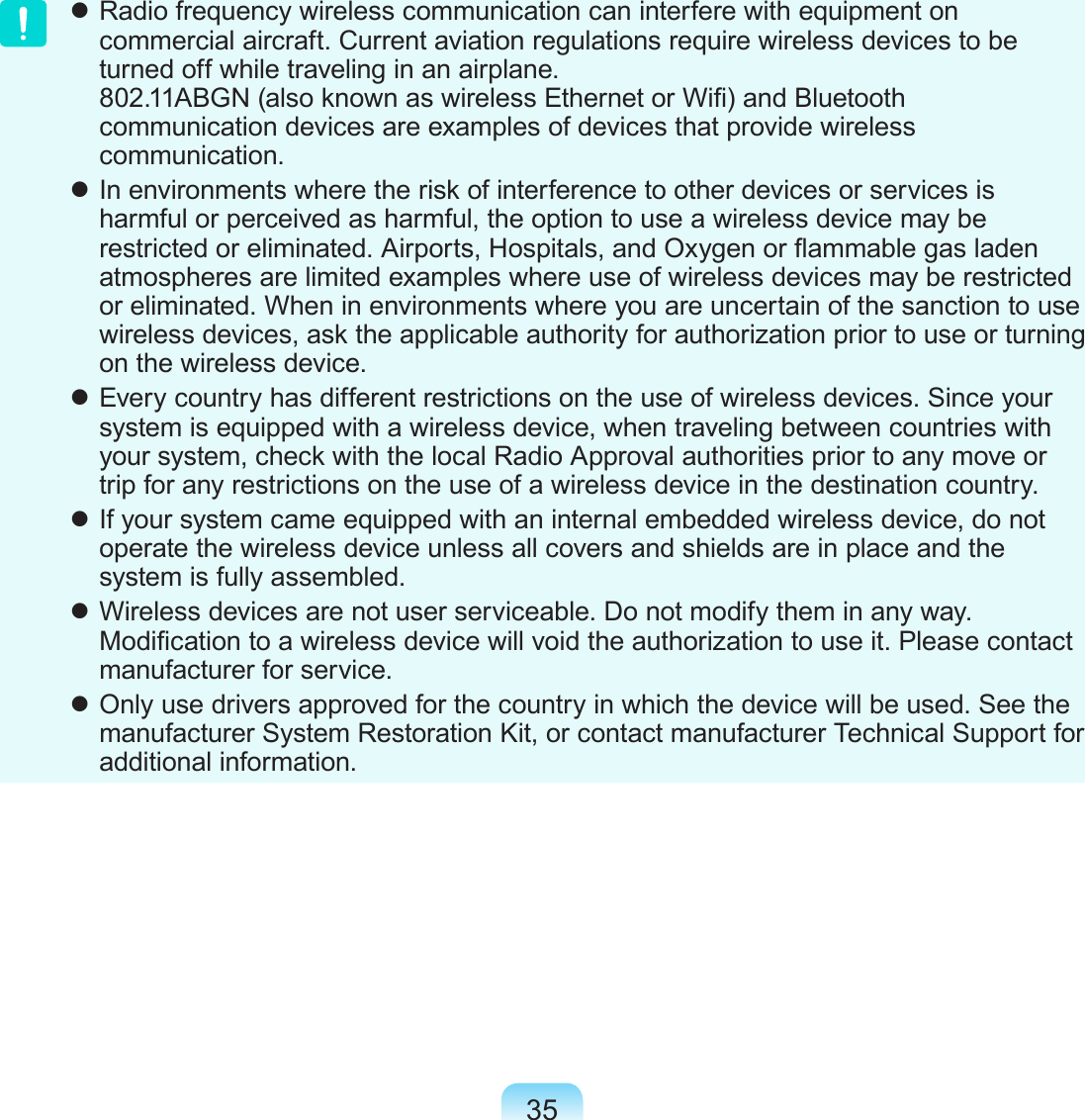

35 Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11ABGN (also known as wireless Ethernet or Wi) and Bluetooth communication devices are examples of devices that provide wireless communication. In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or ammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device. Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country. If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled. Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Please contact manufacturer for service. Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

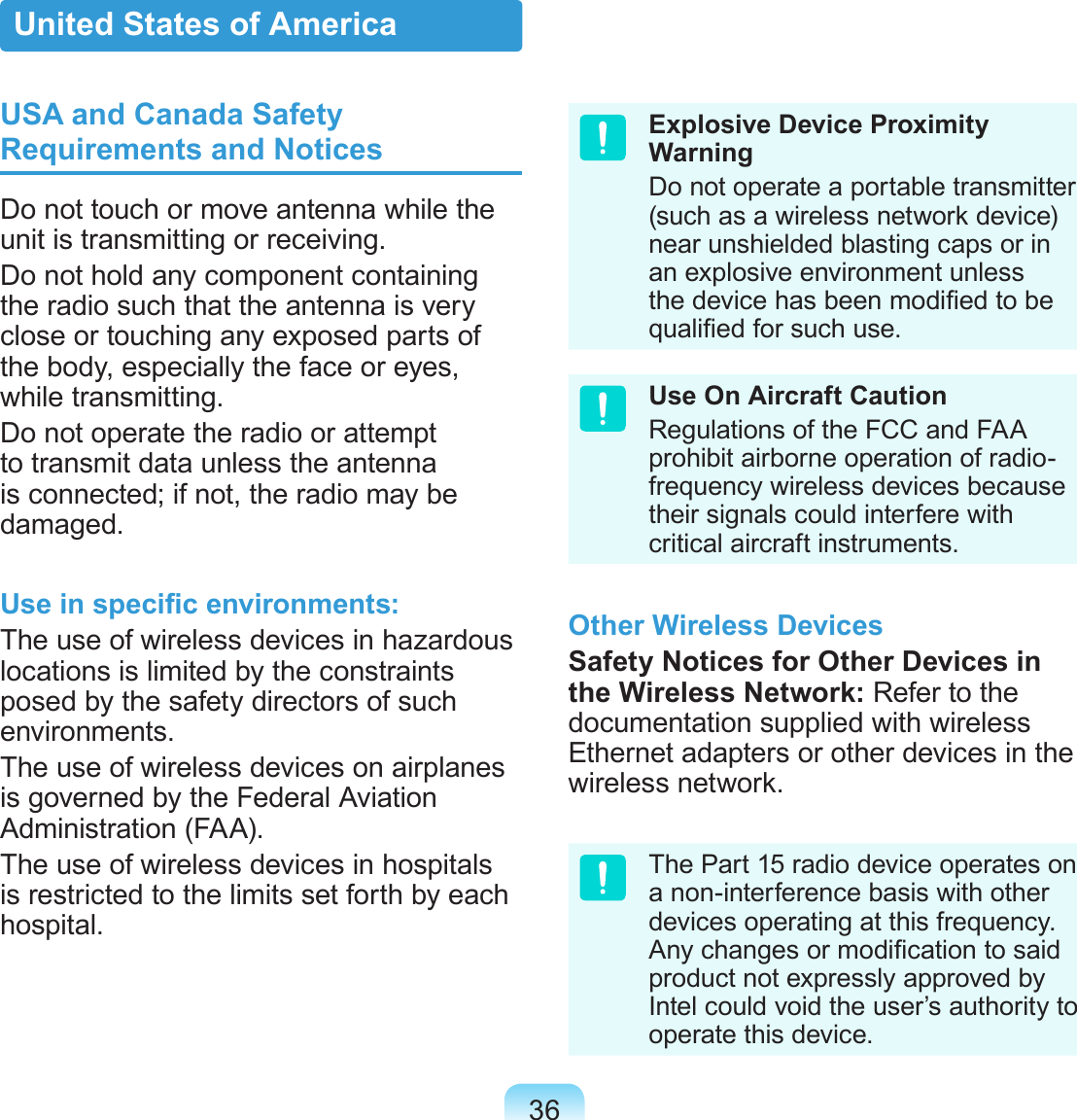

36USA and Canada Safety Requirements and NoticesDo not touch or move antenna while the unit is transmitting or receiving.Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.Use in specic environments:The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.Explosive Device Proximity WarningDo not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modied to be qualied for such use.Use On Aircraft CautionRegulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.Other Wireless DevicesSafety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modication to said product not expressly approved by Intel could void the user’s authority to operate this device.United States of America

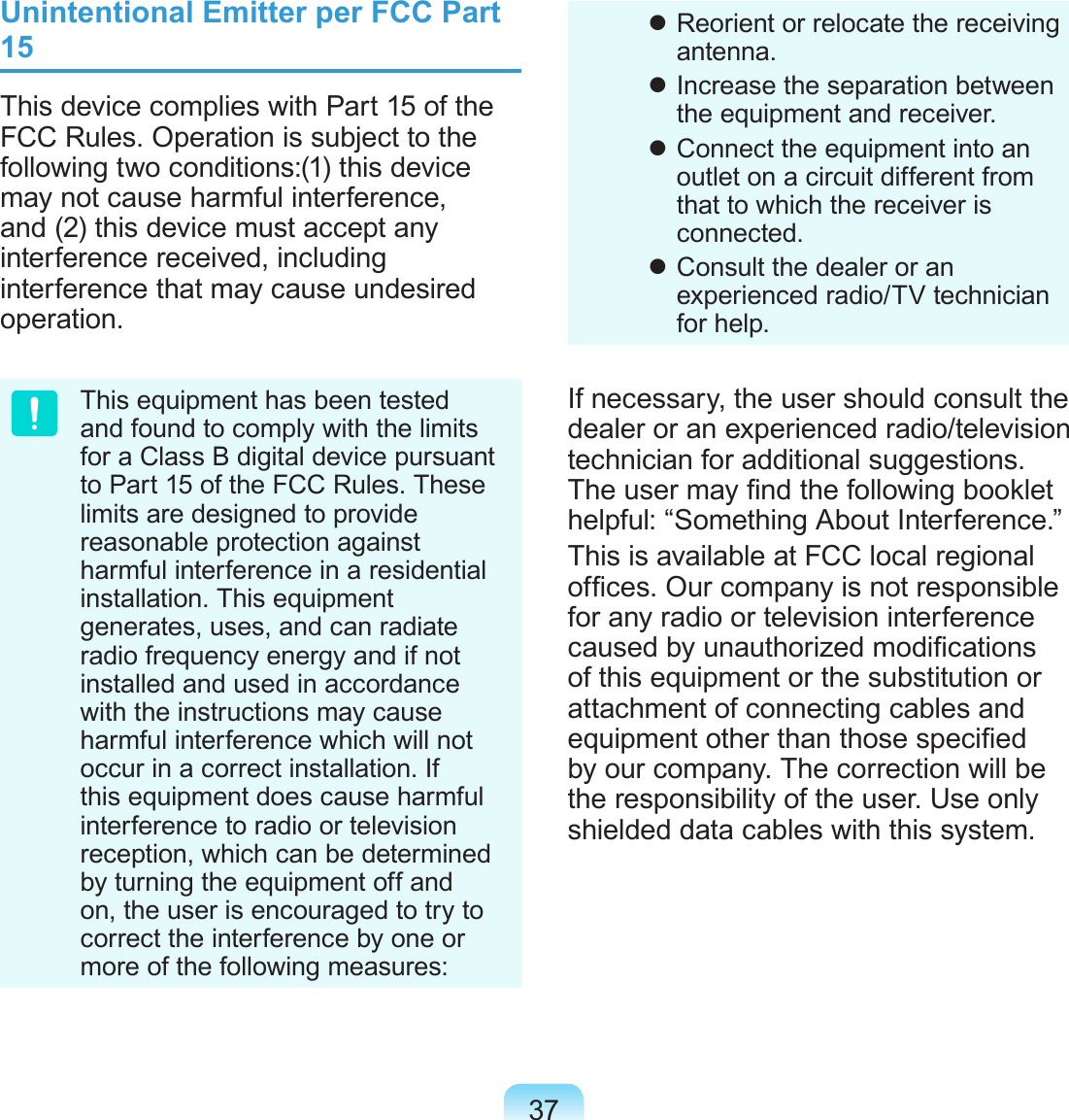

37Unintentional Emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference which will not occur in a correct installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may nd the following booklet helpful: “Something About Interference.”This is available at FCC local regional ofces. Our company is not responsible for any radio or television interference caused by unauthorized modications of this equipment or the substitution or attachment of connecting cables and equipment other than those specied by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

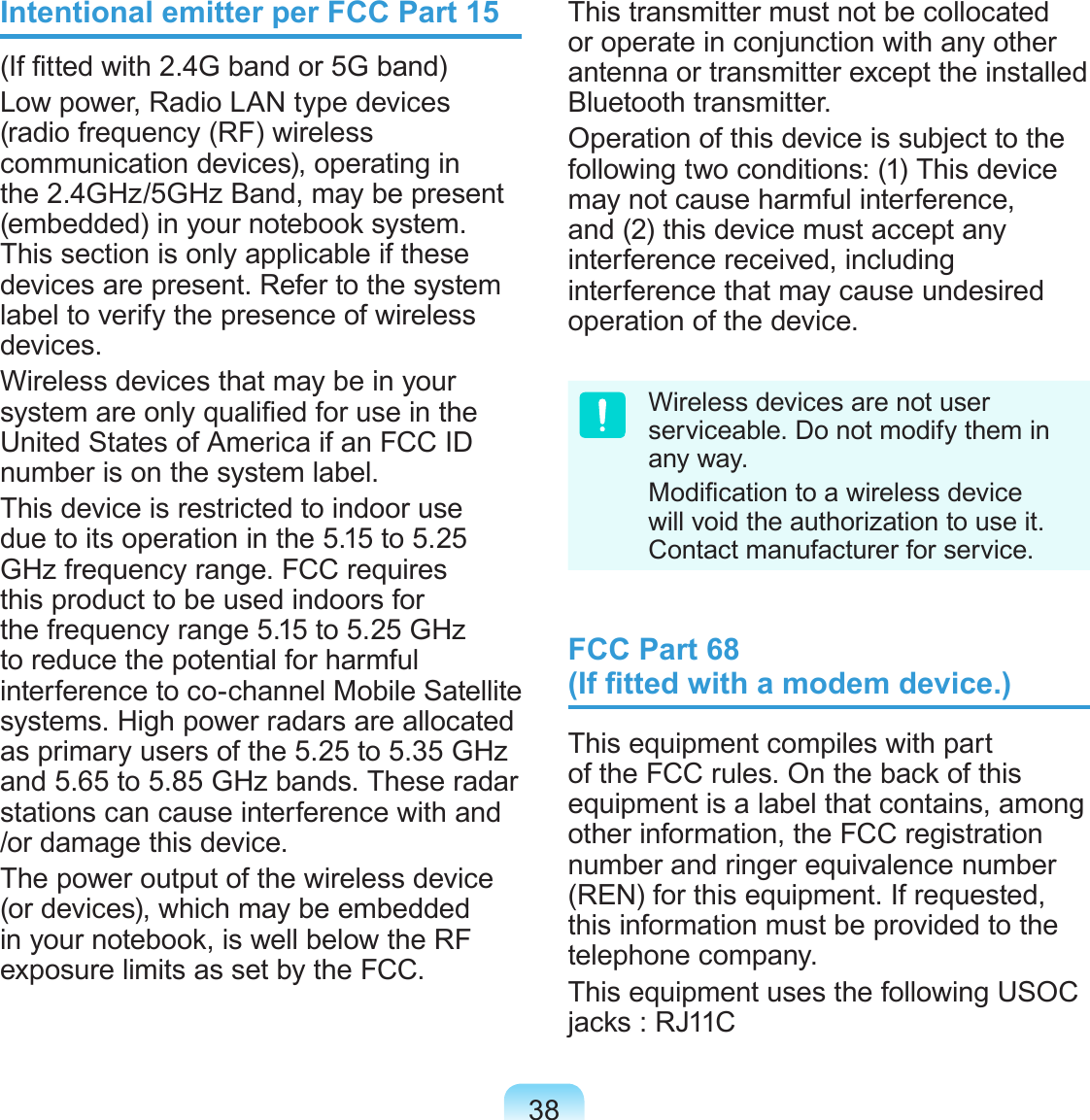

38Intentional emitter per FCC Part 15(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the United States of America if an FCC ID number is on the system label.This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device.The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.FCC Part 68 (If tted with a modem device.)This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.This equipment uses the following USOC jacks : RJ11C

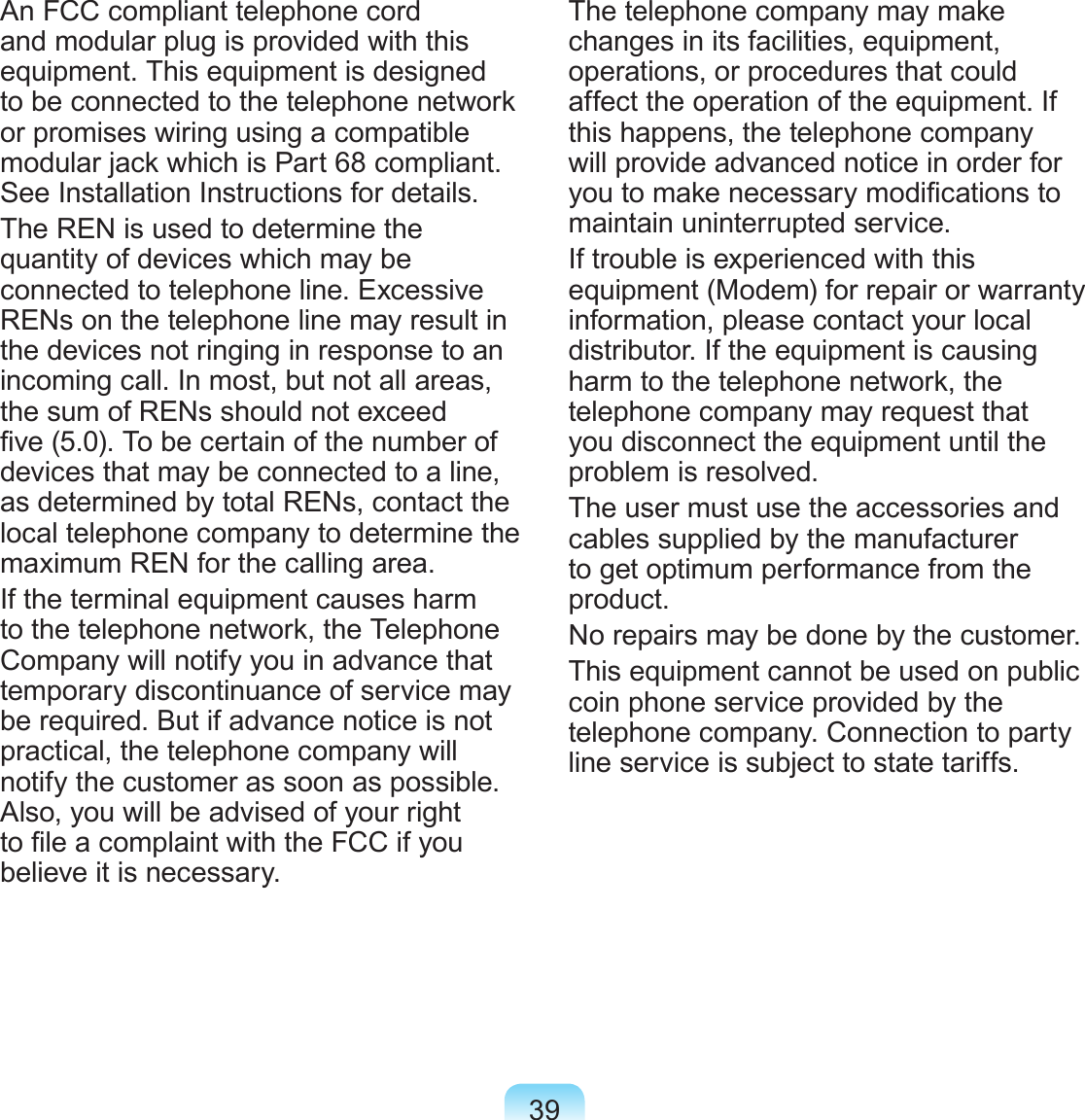

39An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modications to maintain uninterrupted service.If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.No repairs may be done by the customer.This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

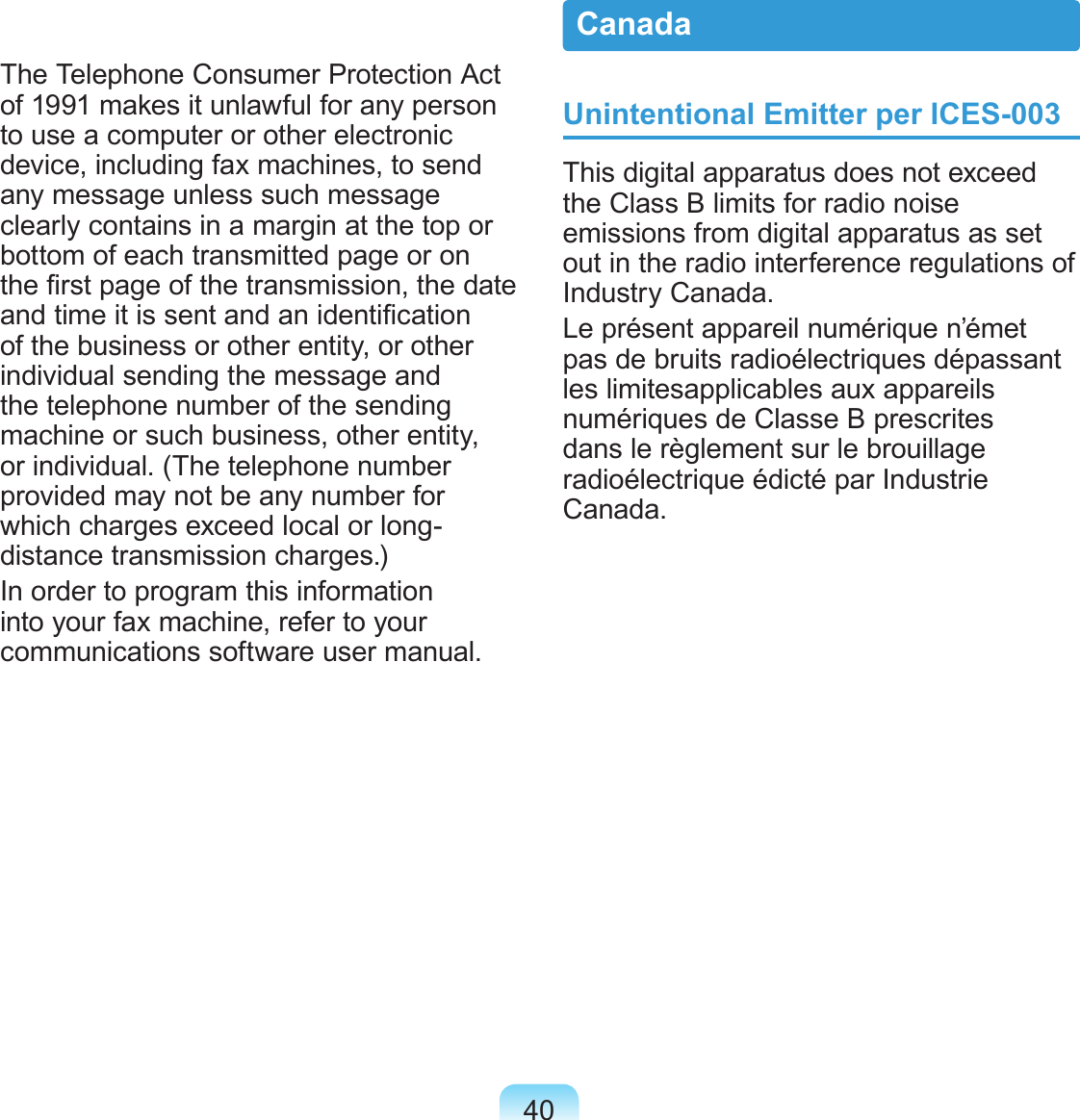

40The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the rst page of the transmission, the date and time it is sent and an identication of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)In order to program this information into your fax machine, refer to your communications software user manual.Unintentional Emitter per ICES-003This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.Canada

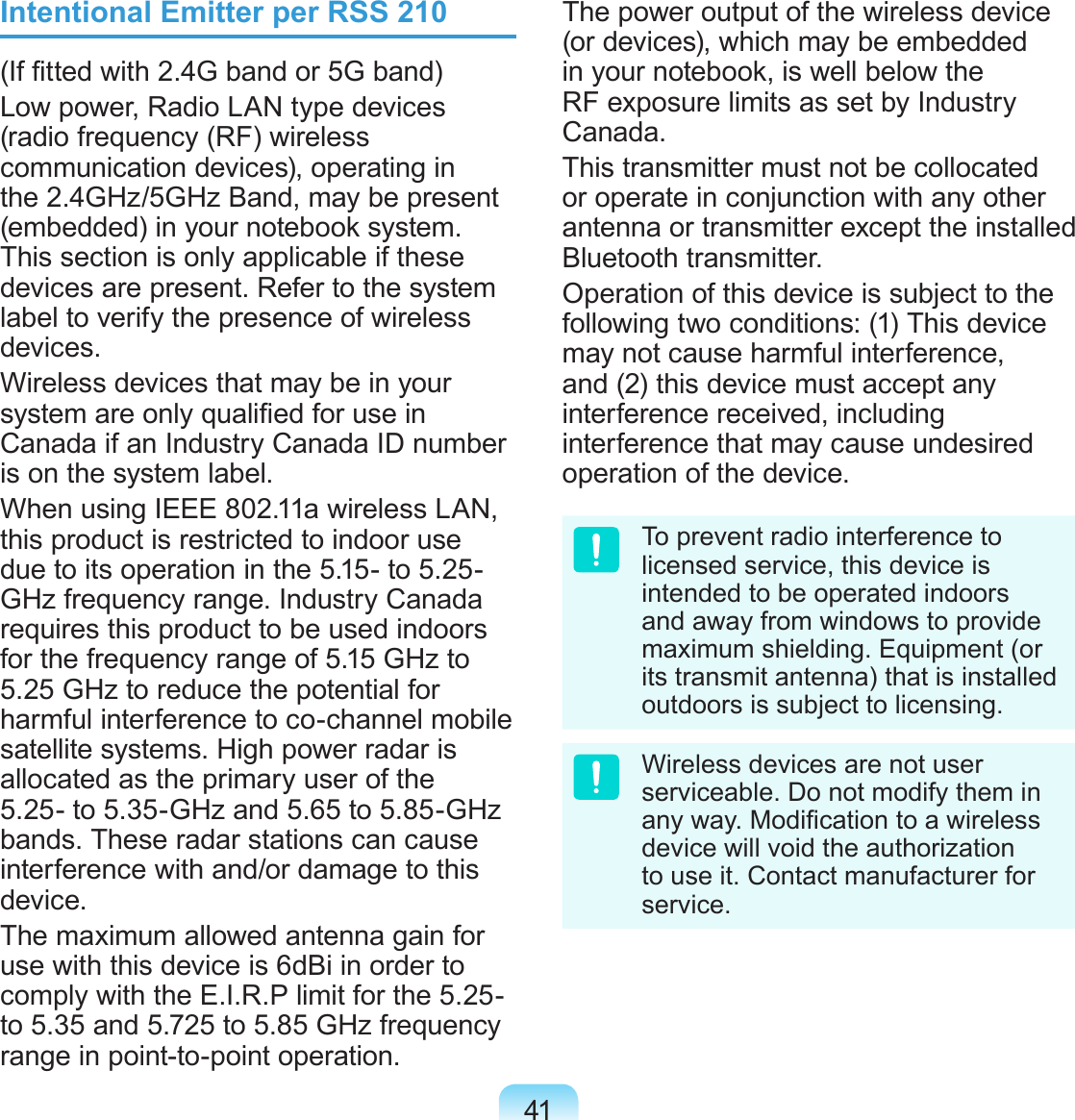

41Intentional Emitter per RSS 210(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in Canada if an Industry Canada ID number is on the system label.When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.

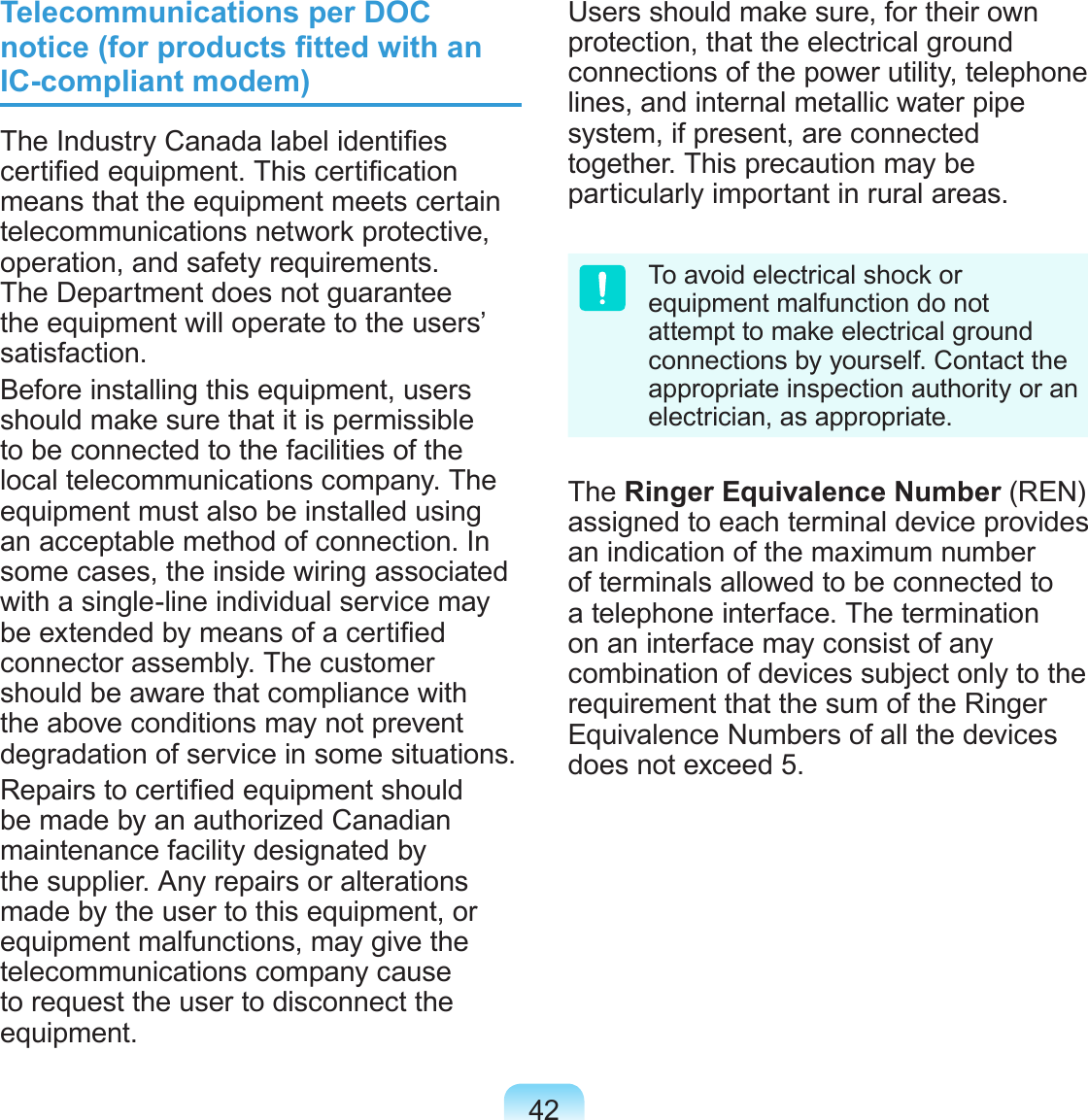

42Telecommunications per DOC notice (for products tted with an IC-compliant modem)The Industry Canada label identies certied equipment. This certication means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certied connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.Repairs to certied equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

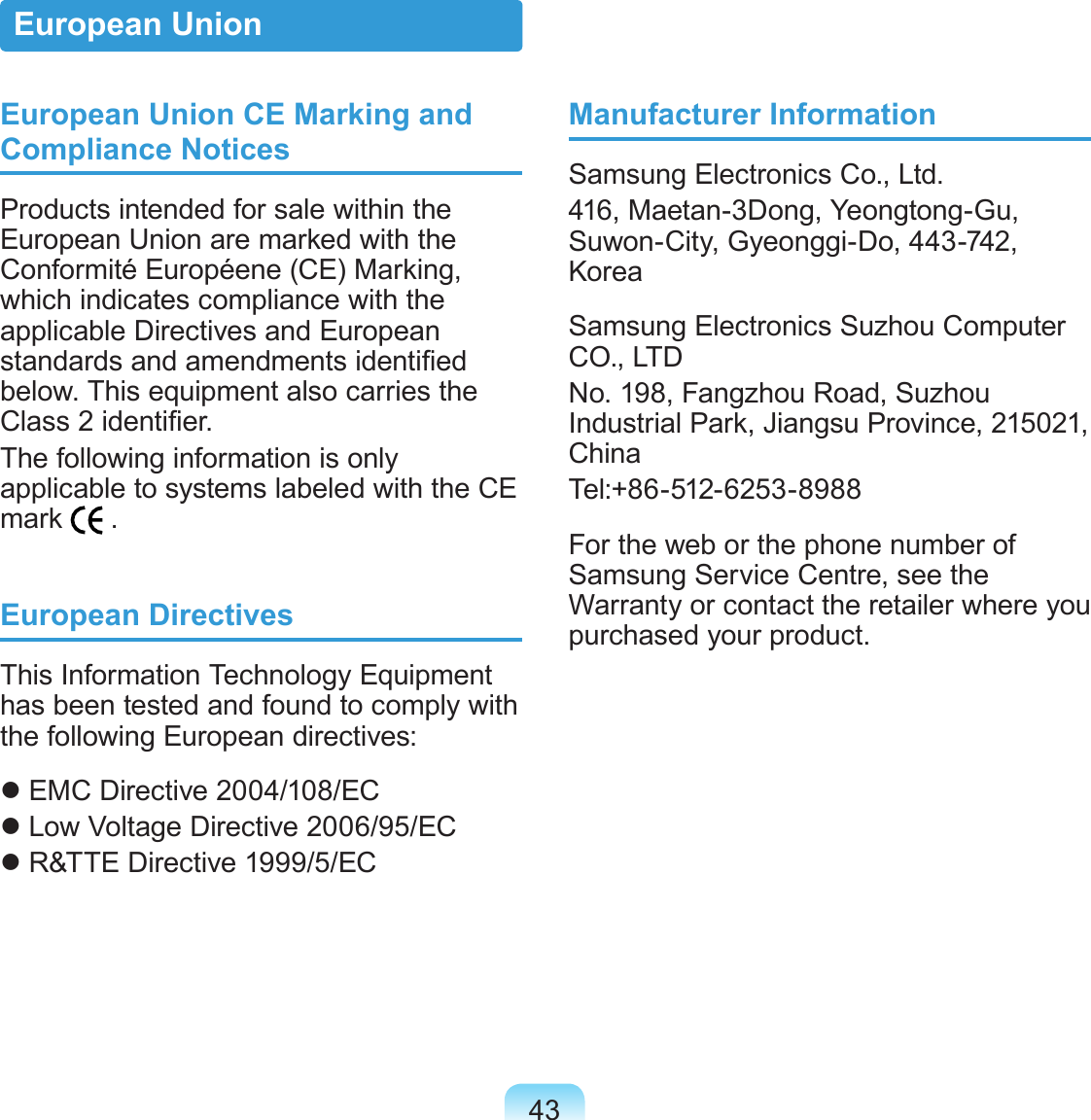

43European Union CE Marking and Compliance NoticesProducts intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identied below. This equipment also carries the Class 2 identier.The following information is only applicable to systems labeled with the CE mark .European DirectivesThis Information Technology Equipment has been tested and found to comply with the following European directives: EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC R&TTE Directive 1999/5/ECManufacturer InformationSamsung Electronics Co., Ltd.416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, KoreaSamsung Electronics Suzhou Computer CO., LTDNo. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, ChinaTel:+86-512-6253-8988For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.European Union

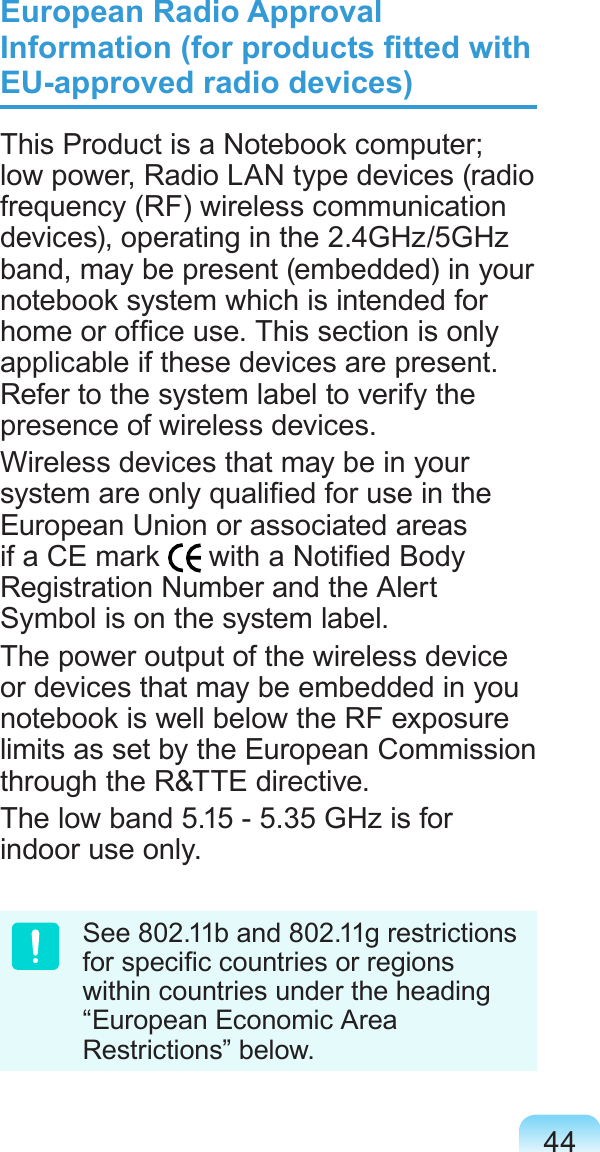

44European Radio Approval Information (for products tted with EU-approved radio devices)This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or ofce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the European Union or associated areas if a CE mark with a Notied Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.The low band 5.15 - 5.35 GHz is for indoor use only.See 802.11b and 802.11g restrictions for specic countries or regions within countries under the heading “European Economic Area Restrictions” below.

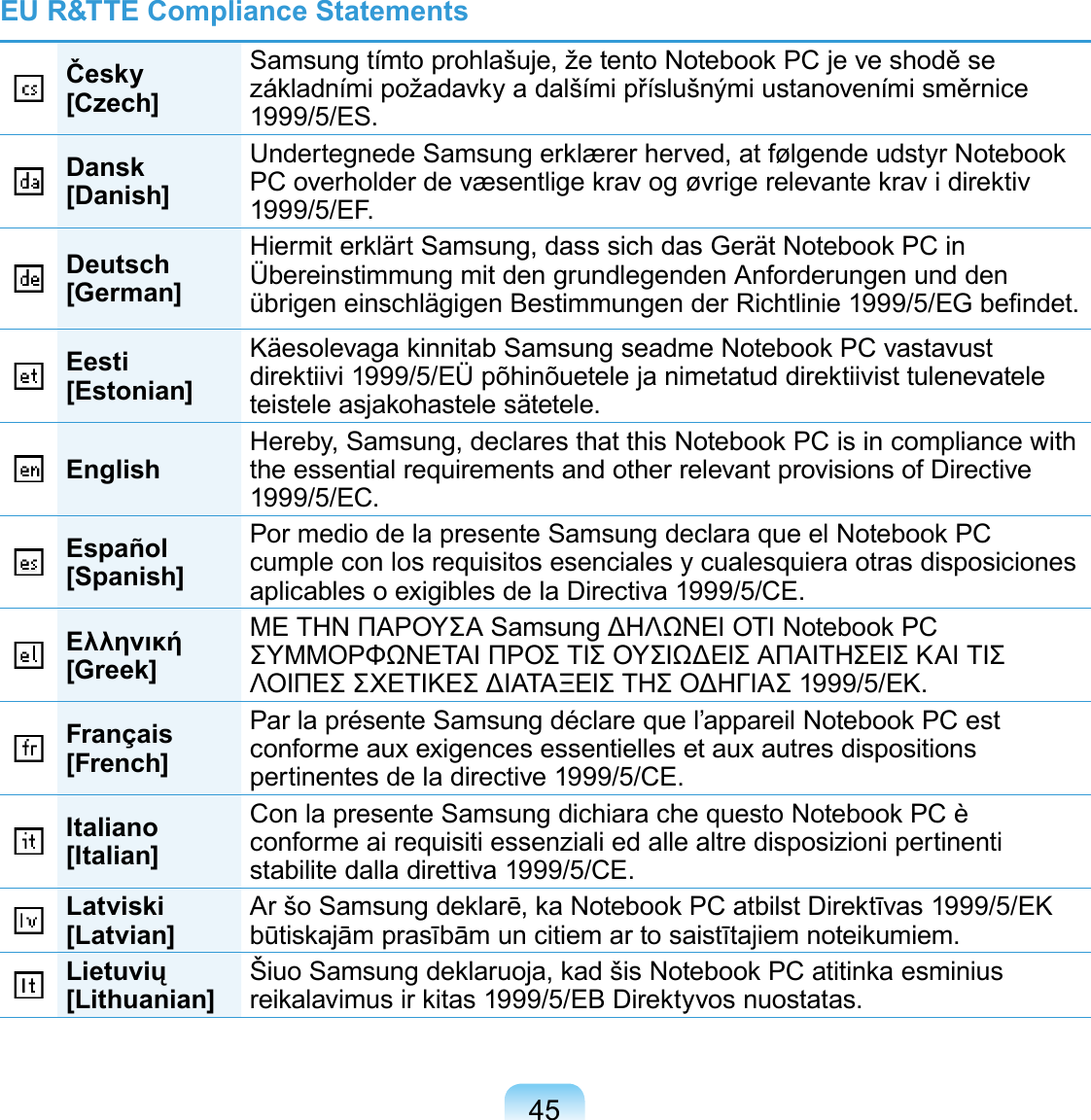

45EU R&TTE Compliance StatementsČesky[Czech]Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk[Danish]Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch[German]Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG be ndet.Eesti[Estonian]Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.English Hereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español[Spanish]Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Ελληνική[Greek]ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français[French]Par la présente Samsung déclare que l’appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano[Italian]Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Latviski[Latvian] Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.Lietuvių[Lithuanian] Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

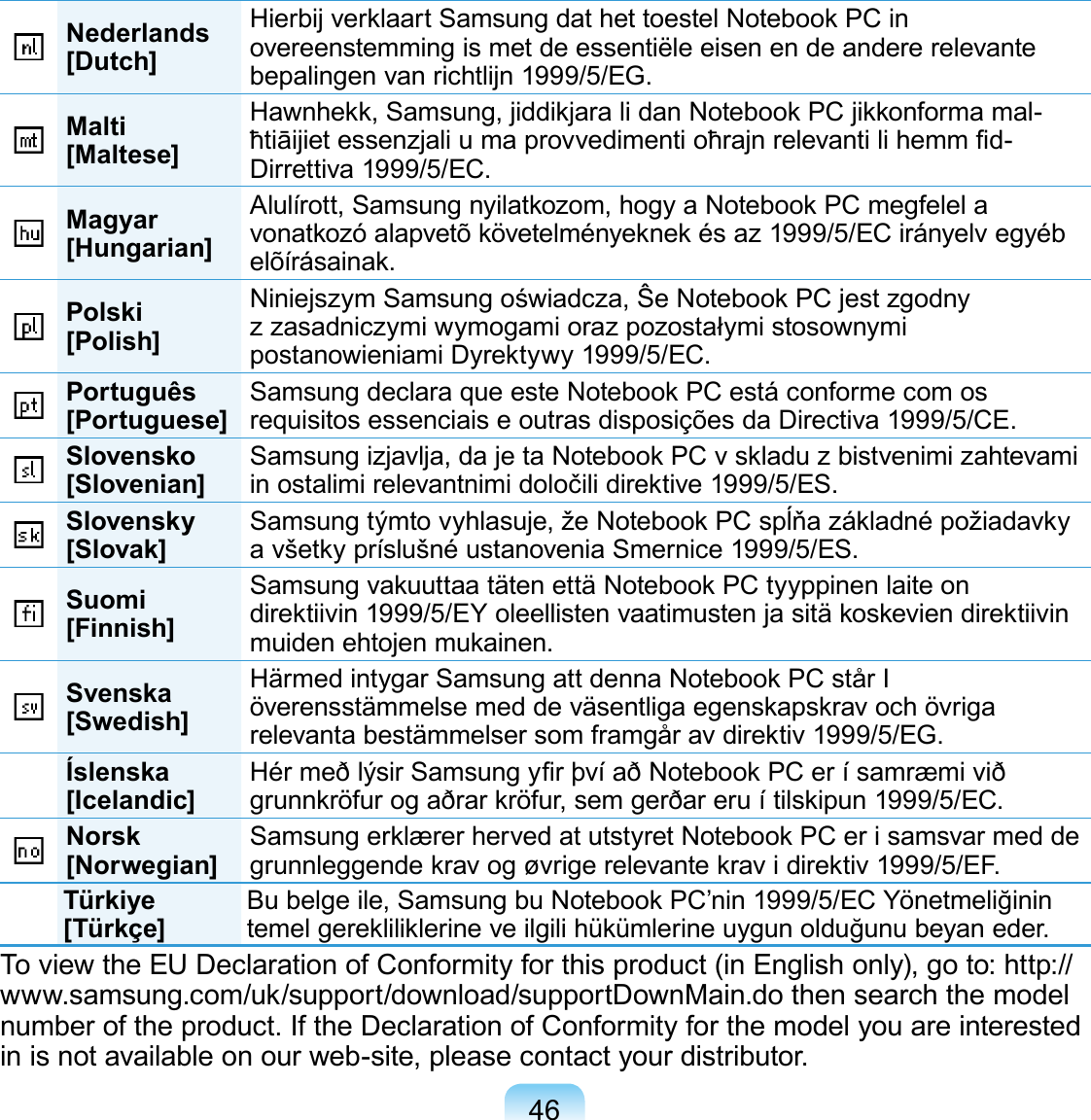

46Nederlands[Dutch]Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Malti[Maltese]Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm  d-Dirrettiva 1999/5/EC.Magyar[Hungarian]Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.Polski[Polish]Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.Português[Portuguese] Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko[Slovenian] Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky[Slovak] Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Suomi[Finnish]Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska[Swedish]Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Íslenska[Icelandic] Hér með lýsir Samsung y r því að Notebook PC er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.Norsk[Norwegian] Samsung erklærer herved at utstyret Notebook PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye[Türkçe] Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product. If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.

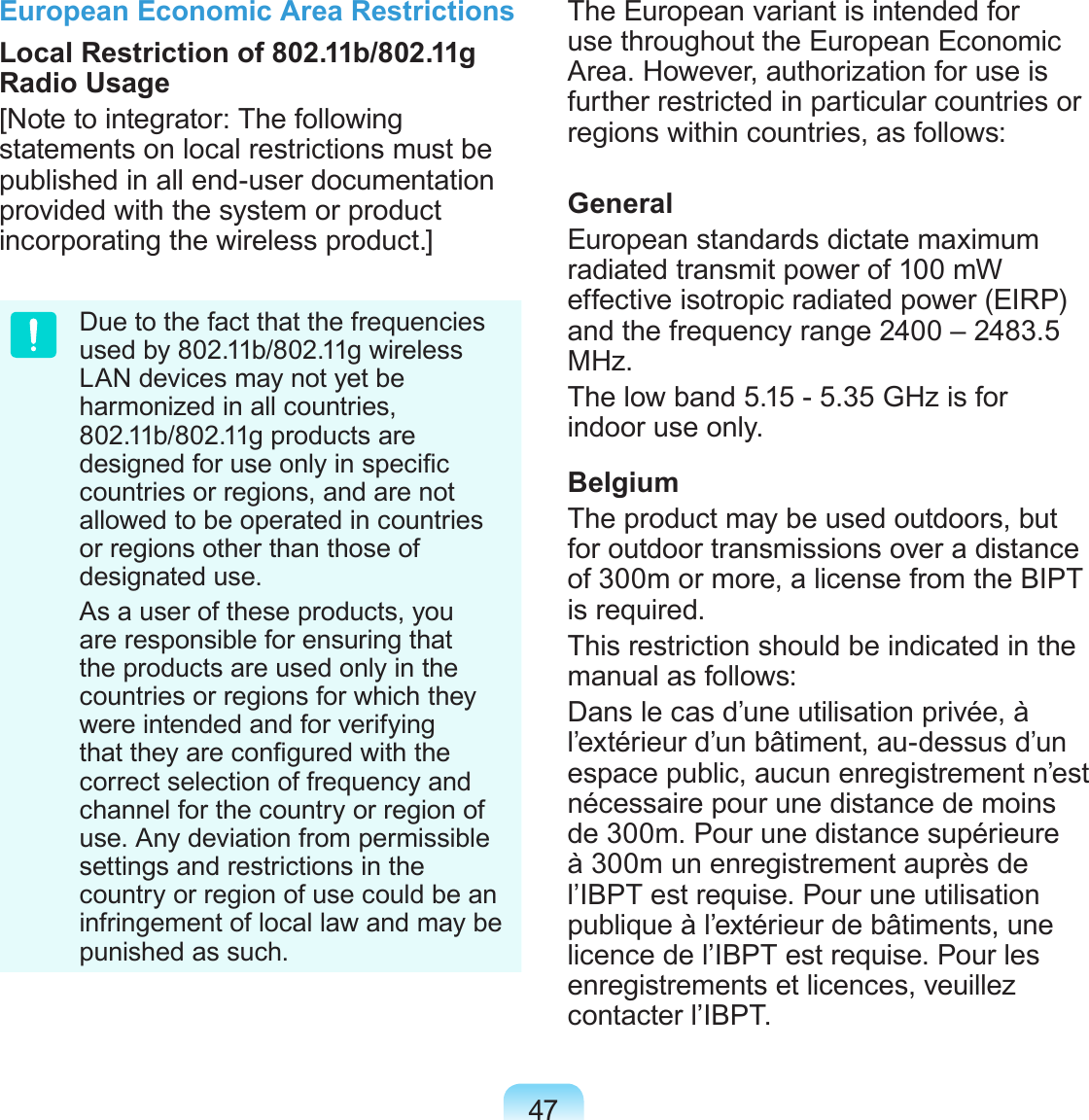

47European Economic Area RestrictionsLocal Restriction of 802.11b/802.11g Radio Usage[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specic countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are congured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows: GeneralEuropean standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.The low band 5.15 - 5.35 GHz is for indoor use only.BelgiumThe product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.This restriction should be indicated in the manual as follows:Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.

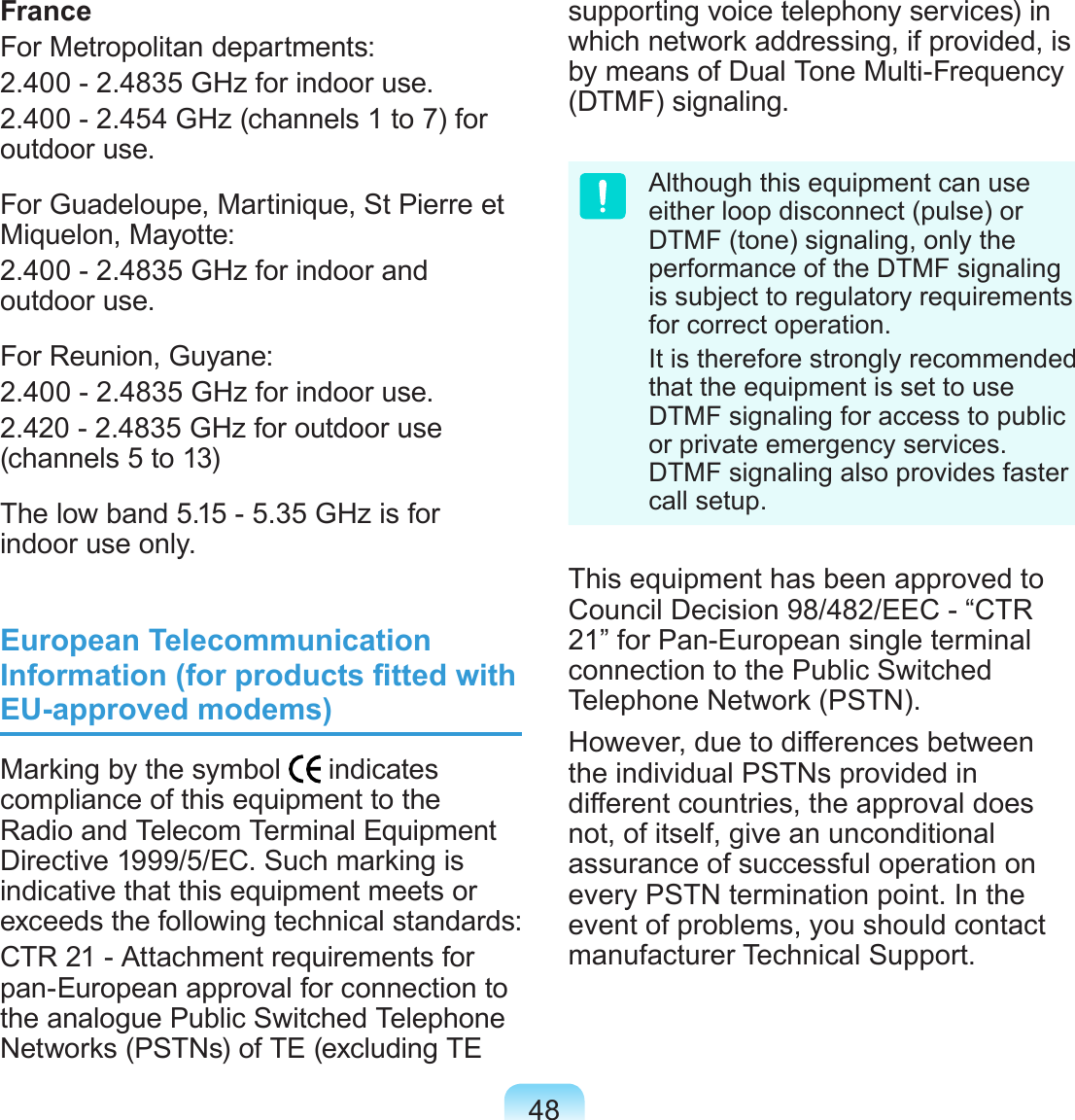

48FranceFor Metropolitan departments:2.400 - 2.4835 GHz for indoor use.2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:2.400 - 2.4835 GHz for indoor and outdoor use.For Reunion, Guyane:2.400 - 2.4835 GHz for indoor use.2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)The low band 5.15 - 5.35 GHz is for indoor use only.European Telecommunication Information (for products tted with EU-approved modems)Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.This equipment has been approved to Council Decision 98/482/EEC - “CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

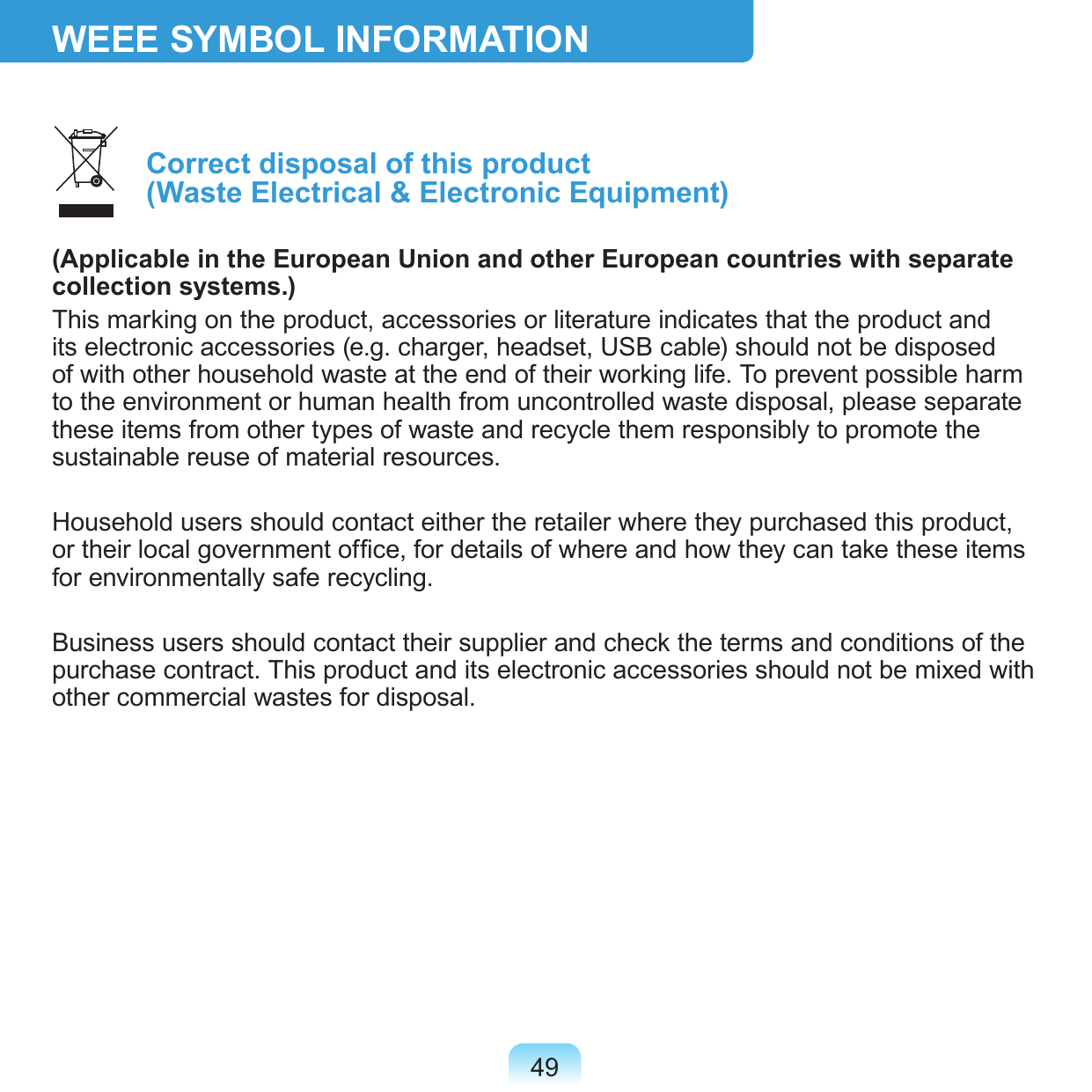

49WEEE SYMBOL INFORMATION Correct disposal of this product (Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems.)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

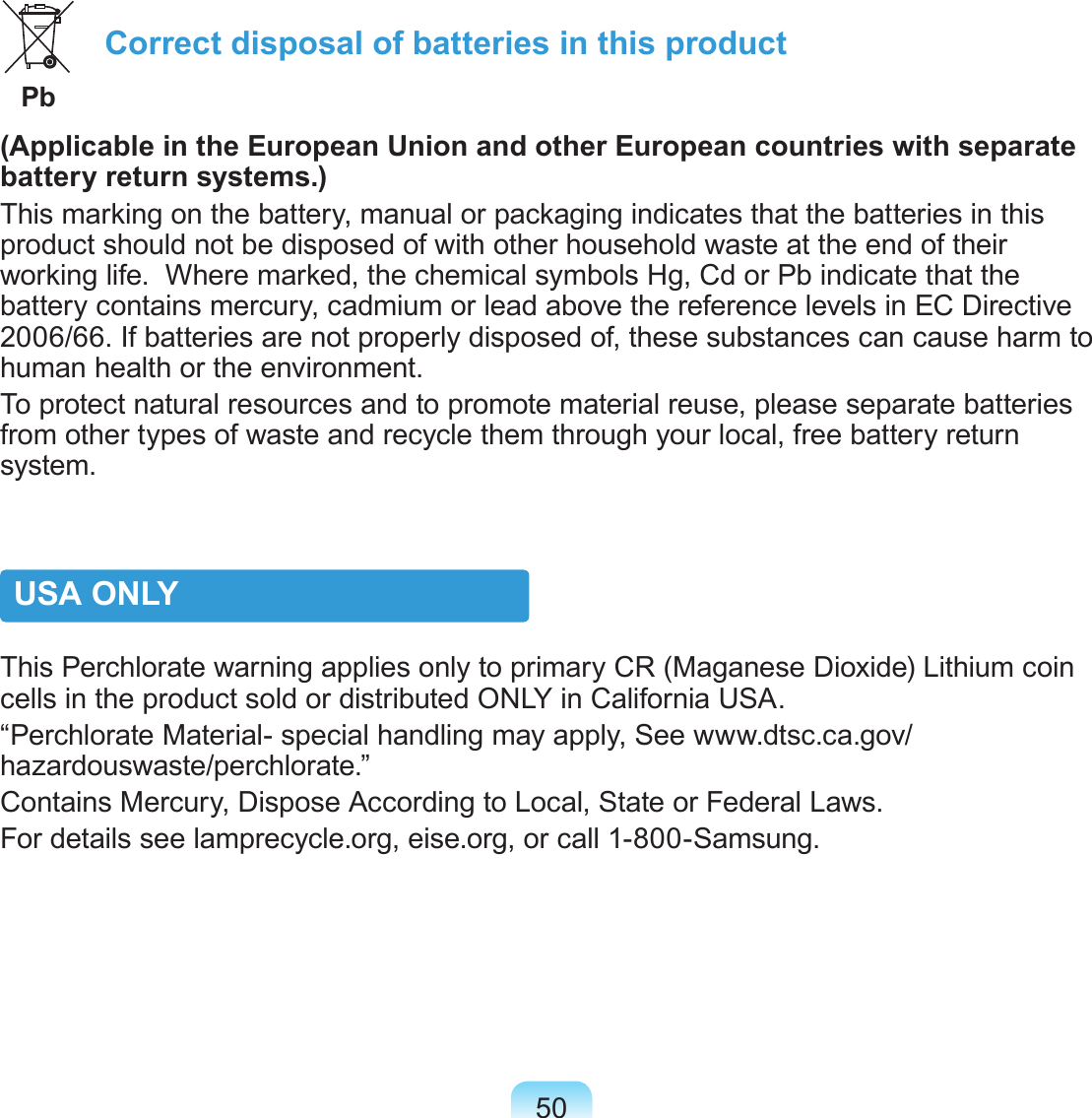

50 Correct disposal of batteries in this product Pb(Applicable in the European Union and other European countries with separate battery return systems.)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.USA ONLYThis Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.“Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”Contains Mercury, Dispose According to Local, State or Federal Laws.For details see lamprecycle.org, eise.org, or call 1-800-Samsung.

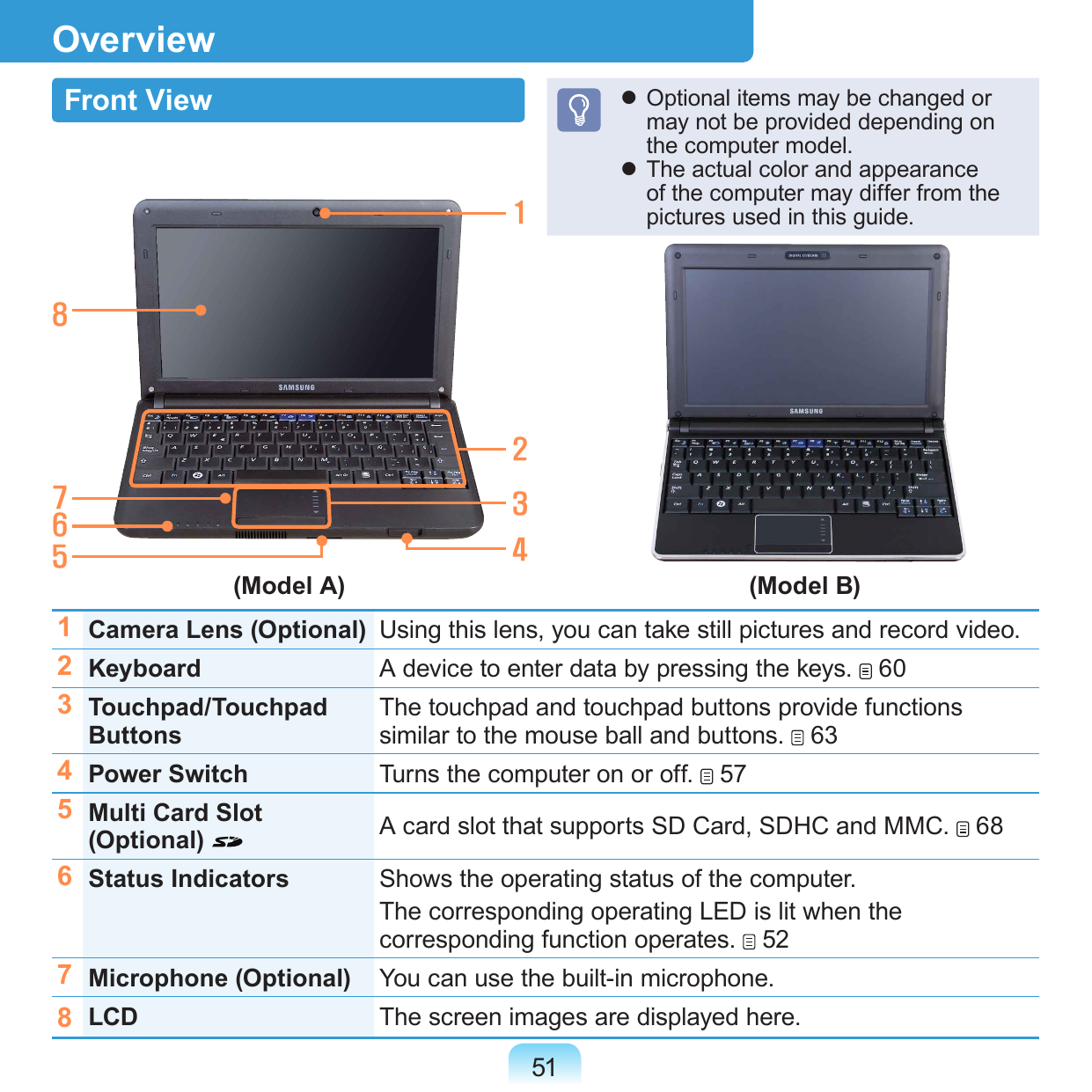

51OverviewFront View1Camera Lens (Optional) Using this lens, you can take still pictures and record video.2Keyboard A device to enter data by pressing the keys. 603Touchpad/Touchpad Buttons The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons. 634Power Switch Turns the computer on or off. 575Multi Card Slot (Optional) A card slot that supports SD Card, SDHC and MMC. 686Status Indicators Shows the operating status of the computer.The corresponding operating LED is lit when the corresponding function operates. 527Microphone (Optional) You can use the built-in microphone.8LCD The screen images are displayed here. Optional items may be changed or may not be provided depending on the computer model. The actual color and appearance of the computer may differ from the pictures used in this guide.18236547(Model A) (Model B)

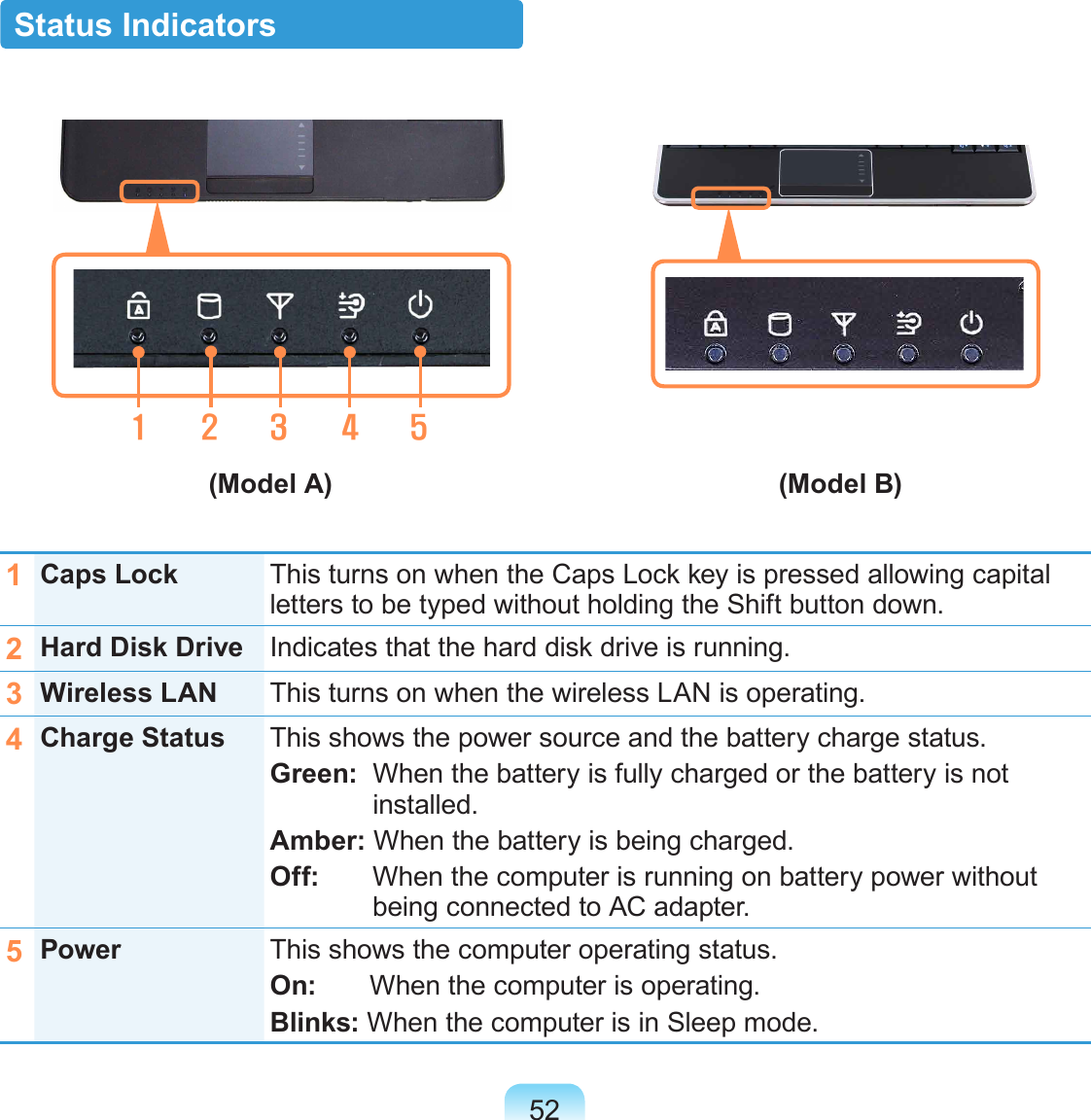

52Status Indicators1Caps Lock This turns on when the Caps Lock key is pressed allowing capital letters to be typed without holding the Shift button down.2Hard Disk Drive Indicates that the hard disk drive is running.3Wireless LAN This turns on when the wireless LAN is operating.4Charge Status This shows the power source and the battery charge status.Green: When the battery is fully charged or the battery is not installed.Amber: When the battery is being charged.Off: When the computer is running on battery power without being connected to AC adapter.5Power This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleep mode.4 51 32(Model A) (Model B)

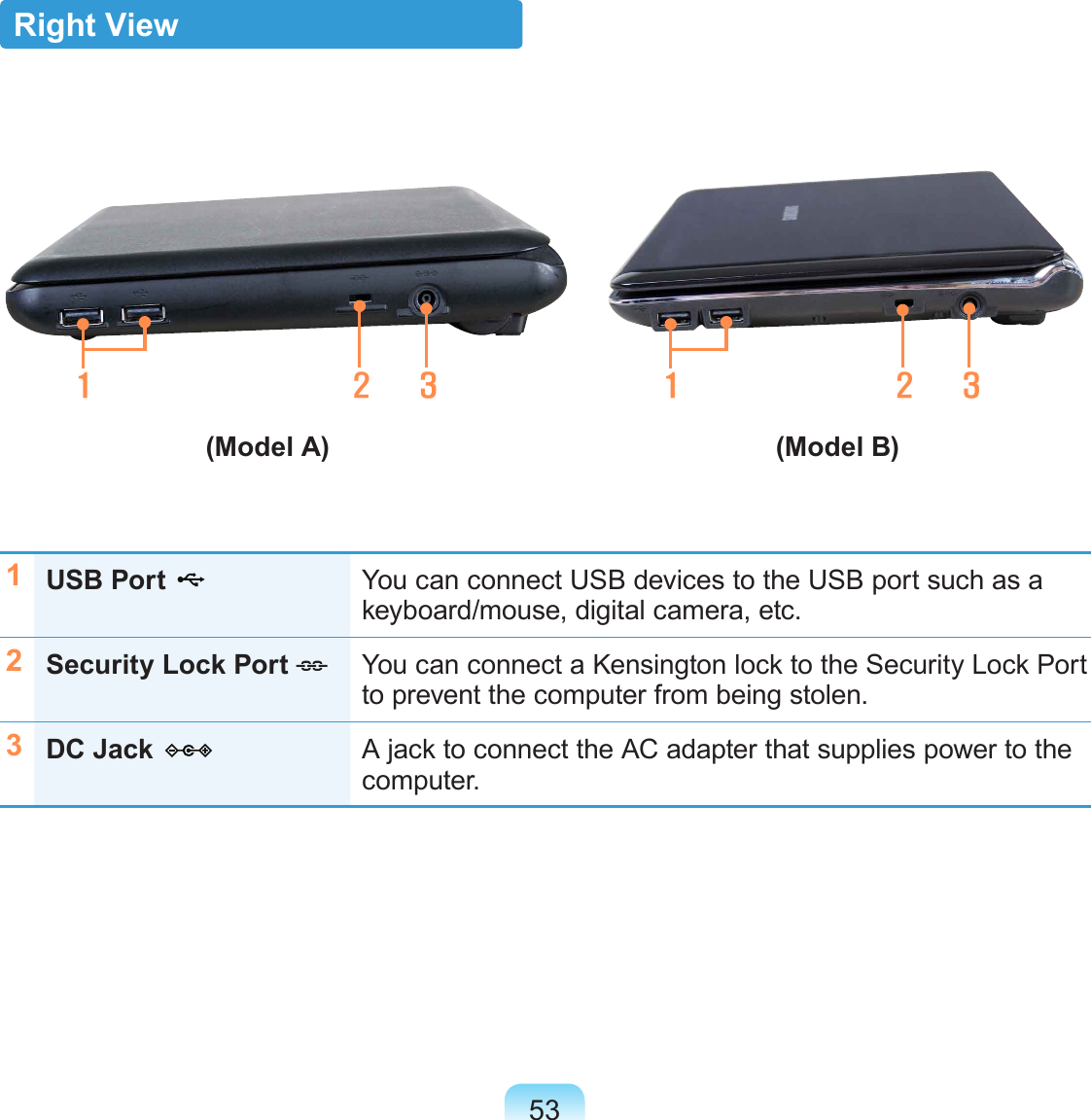

53Right View1USB Port You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.2Security Lock Port You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.3DC Jack A jack to connect the AC adapter that supplies power to the computer.(Model A) (Model B)1 2 3 1 2 3

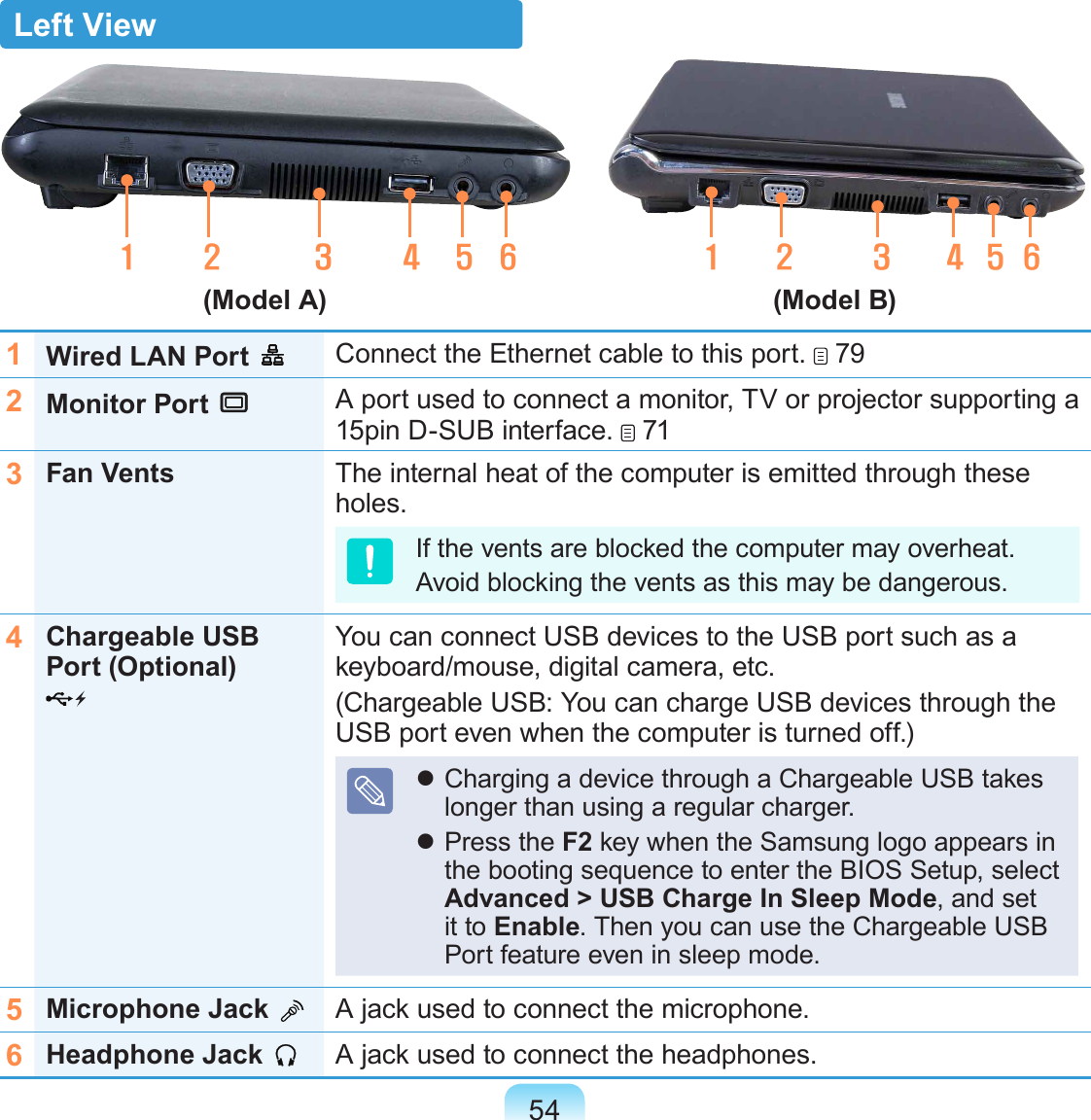

54Left View1Wired LAN Port Connect the Ethernet cable to this port. 792Monitor Port A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface. 713Fan Vents The internal heat of the computer is emitted through these holes.If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.4Chargeable USB Port (Optional) You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.(Chargeable USB: You can charge USB devices through the USB port even when the computer is turned off.) Charging a device through a Chargeable USB takes longer than using a regular charger. Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > USB Charge In Sleep Mode, and set it to Enable. Then you can use the Chargeable USB Port feature even in sleep mode.5Microphone Jack A jack used to connect the microphone.6Headphone Jack A jack used to connect the headphones.(Model A) (Model B)21 3 4 5 6 21 3 4 5 6

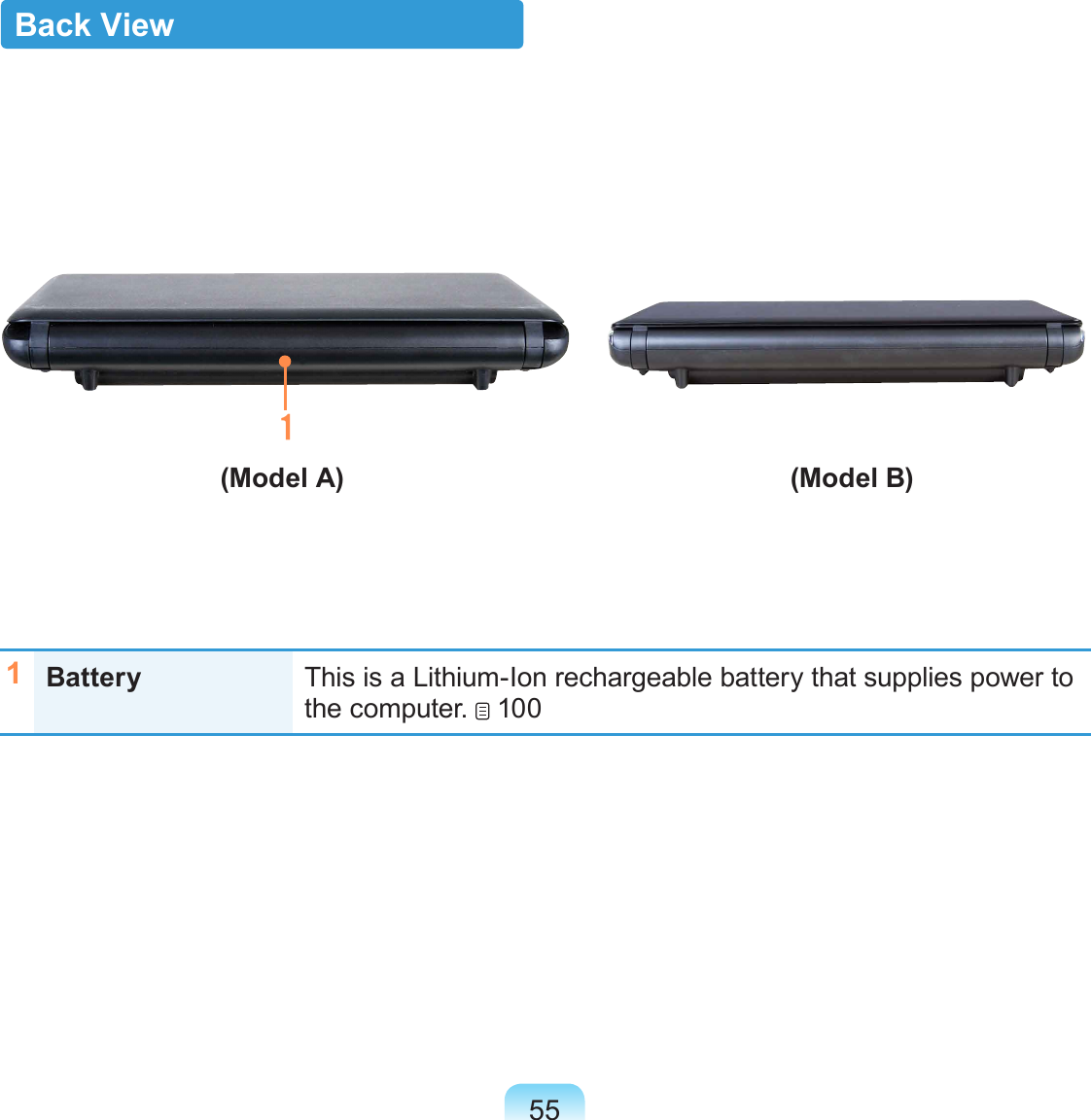

55Back View1Battery This is a Lithium-Ion rechargeable battery that supplies power to the computer. 1001(Model A) (Model B)

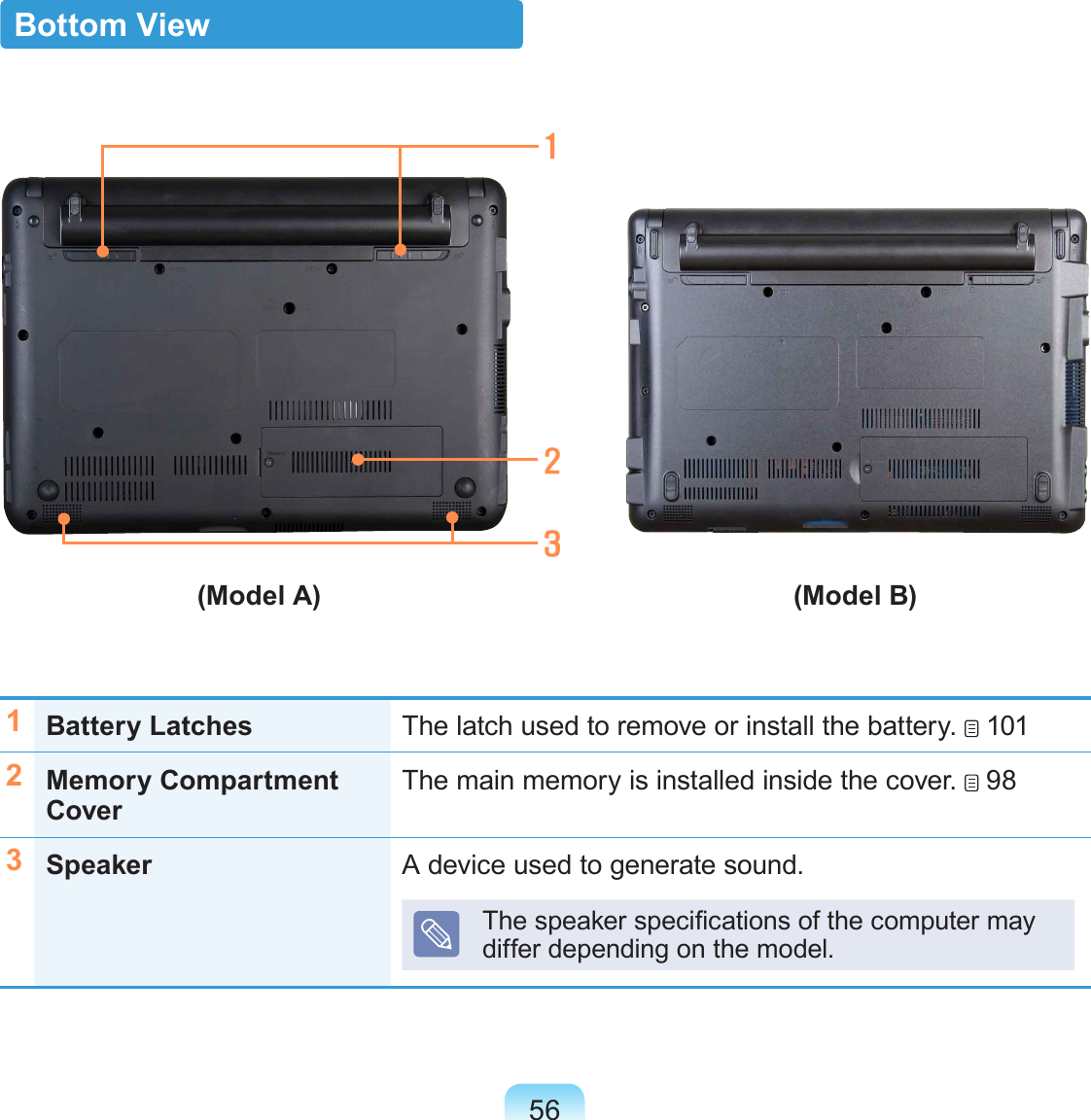

56Bottom View1Battery Latches The latch used to remove or install the battery. 1012Memory Compartment Cover The main memory is installed inside the cover. 983Speaker A device used to generate sound.The speaker specications of the computer may differ depending on the model.123(Model A) (Model B)

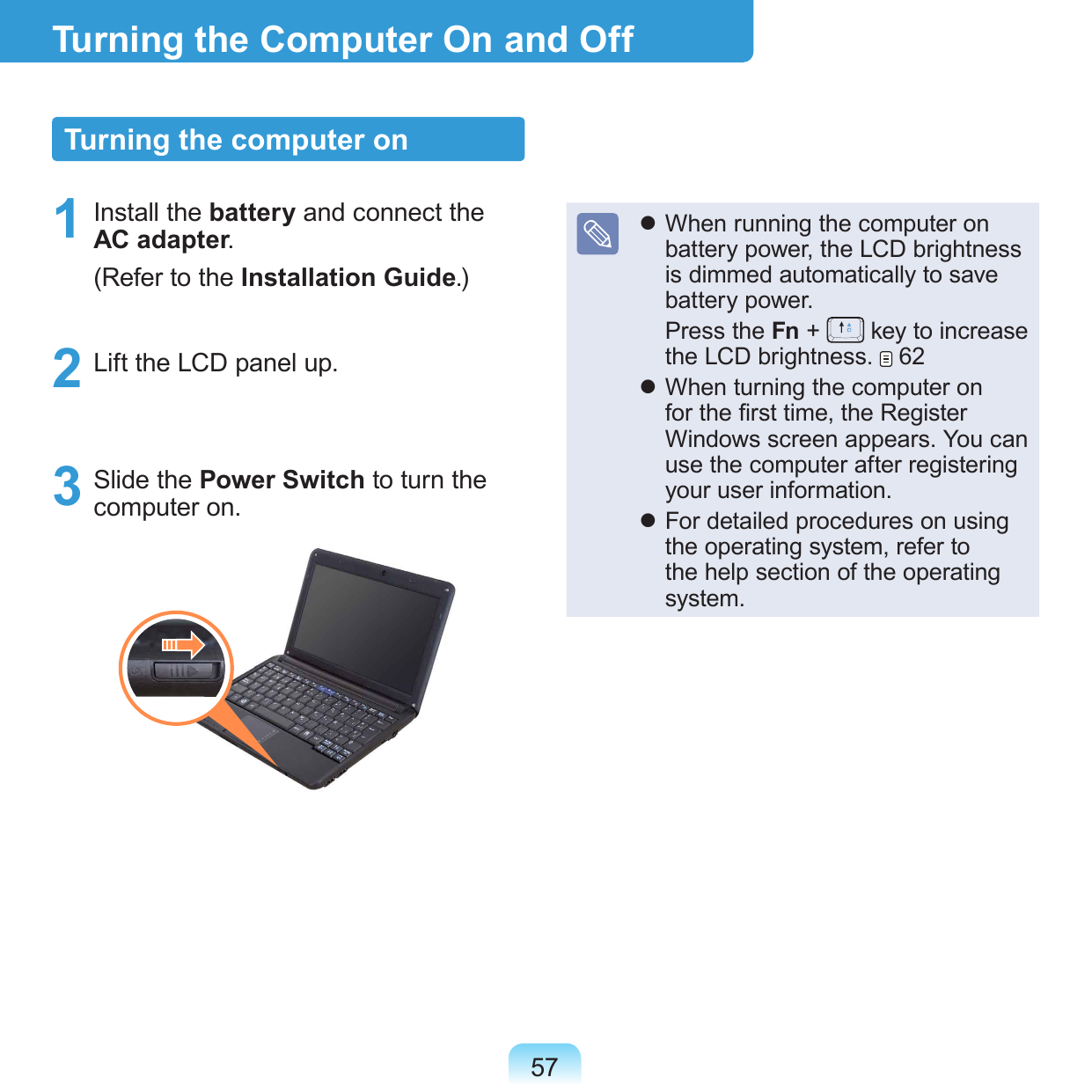

57Turning the Computer On and OffTurning the computer on1 Install the battery and connect the AC adapter. (Refer to the Installation Guide.)2 Lift the LCD panel up.3 Slide the Power Switch to turn the computer on.  When running the computer on battery power, the LCD brightness is dimmed automatically to save battery power. Press the Fn + key to increase the LCD brightness. 62 When turning the computer on for the rst time, the Register Windows screen appears. You can use the computer after registering your user information. For detailed procedures on using the operating system, refer to the help section of the operating system.

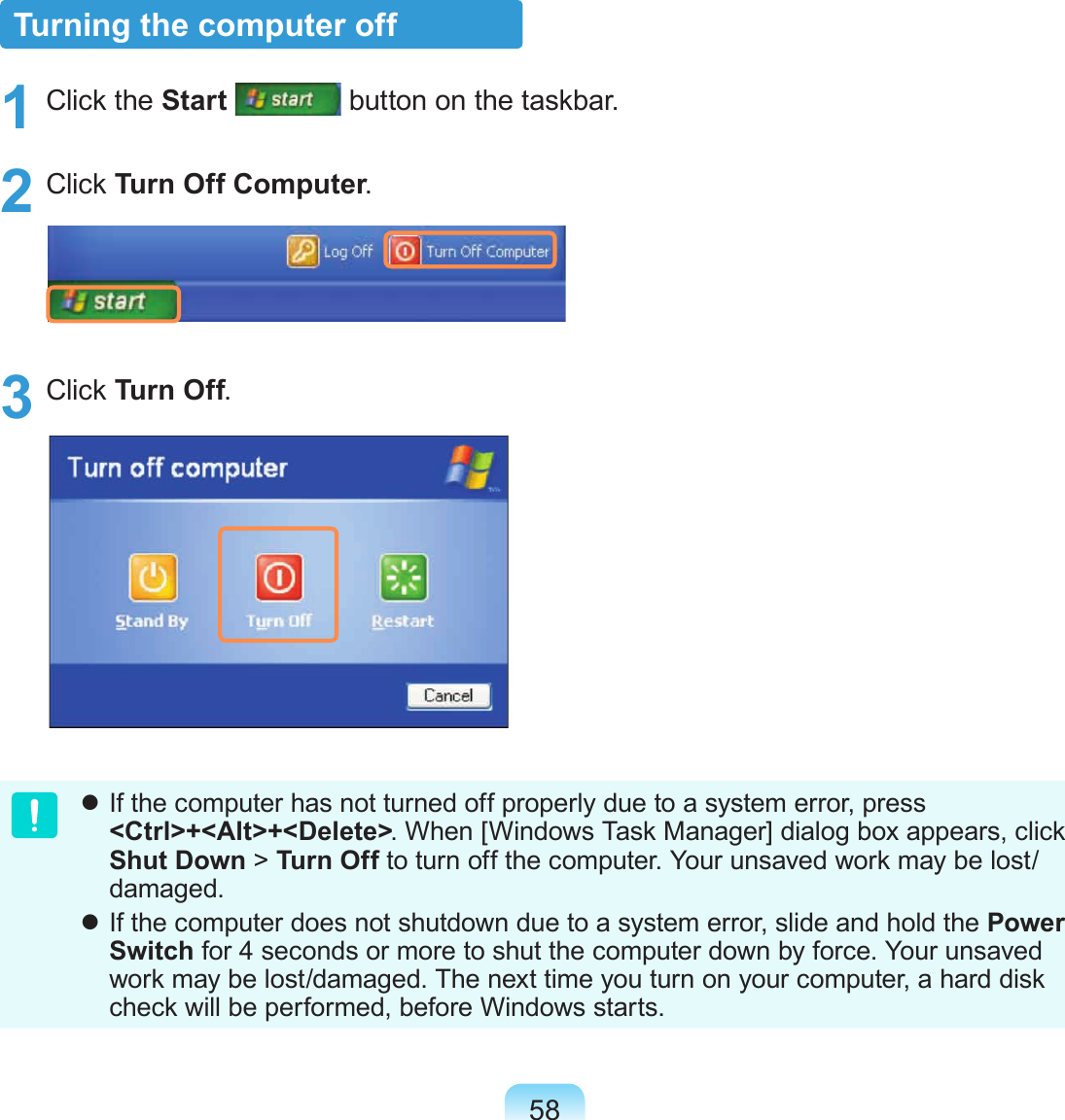

58Turning the computer off1 Click the Start button on the taskbar.2 Click Turn Off Computer.3 Click Turn Off. If the computer has not turned off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged. If the computer does not shutdown due to a system error, slide and hold the Power Switch for 4 seconds or more to shut the computer down by force. Your unsaved work may be lost/damaged. The next time you turn on your computer, a hard disk check will be performed, before Windows starts.

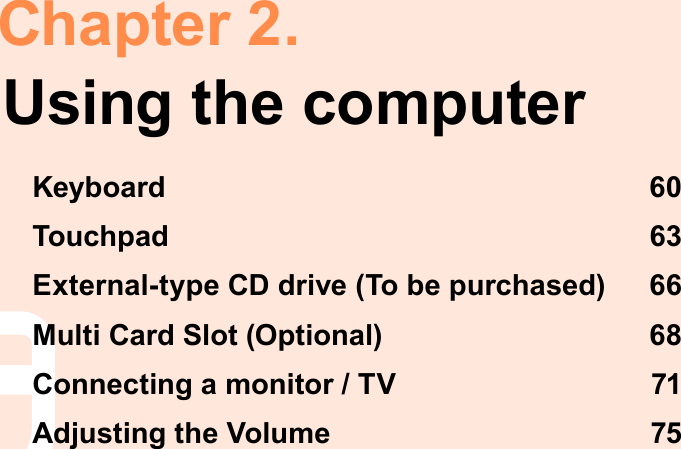

Chapter 2.Using the computerKeyboard 60Touchpad 63External-type CD drive (To be purchased) 66Multi Card Slot (Optional) 68Connecting a monitor / TV 71Adjusting the Volume 75

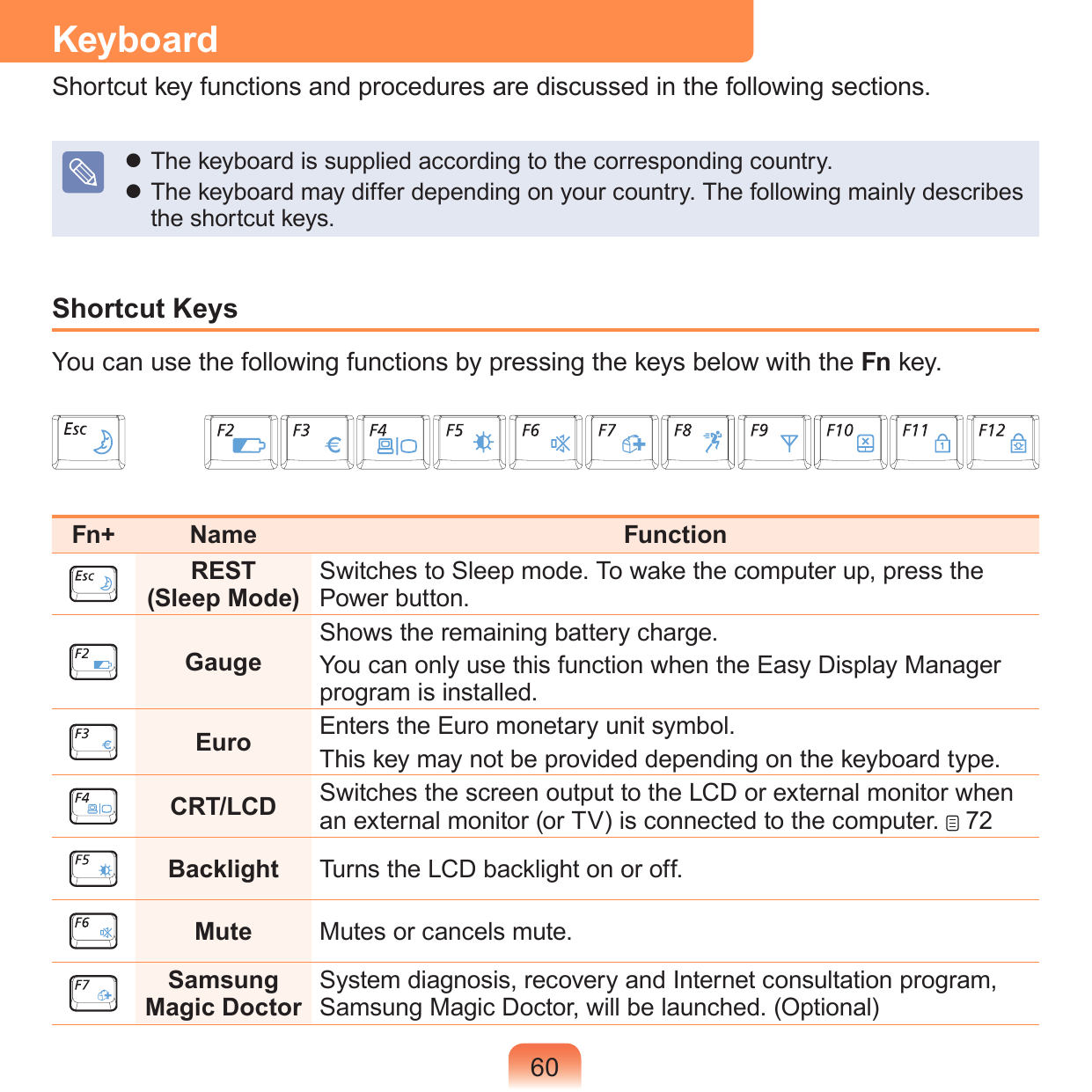

60KeyboardShortcut key functions and procedures are discussed in the following sections. The keyboard is supplied according to the corresponding country. The keyboard may differ depending on your country. The following mainly describes the shortcut keys.Shortcut KeysYou can use the following functions by pressing the keys below with the Fn key.Fn+ Name FunctionREST (Sleep Mode) Switches to Sleep mode. To wake the computer up, press the Power button.GaugeShows the remaining battery charge.You can only use this function when the Easy Display Manager program is installed.Euro Enters the Euro monetary unit symbol.This key may not be provided depending on the keyboard type.CRT/LCD Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer. 72Backlight Turns the LCD backlight on or off. Mute Mutes or cancels mute.Samsung Magic Doctor System diagnosis, recovery and Internet consultation program, Samsung Magic Doctor, will be launched. (Optional)

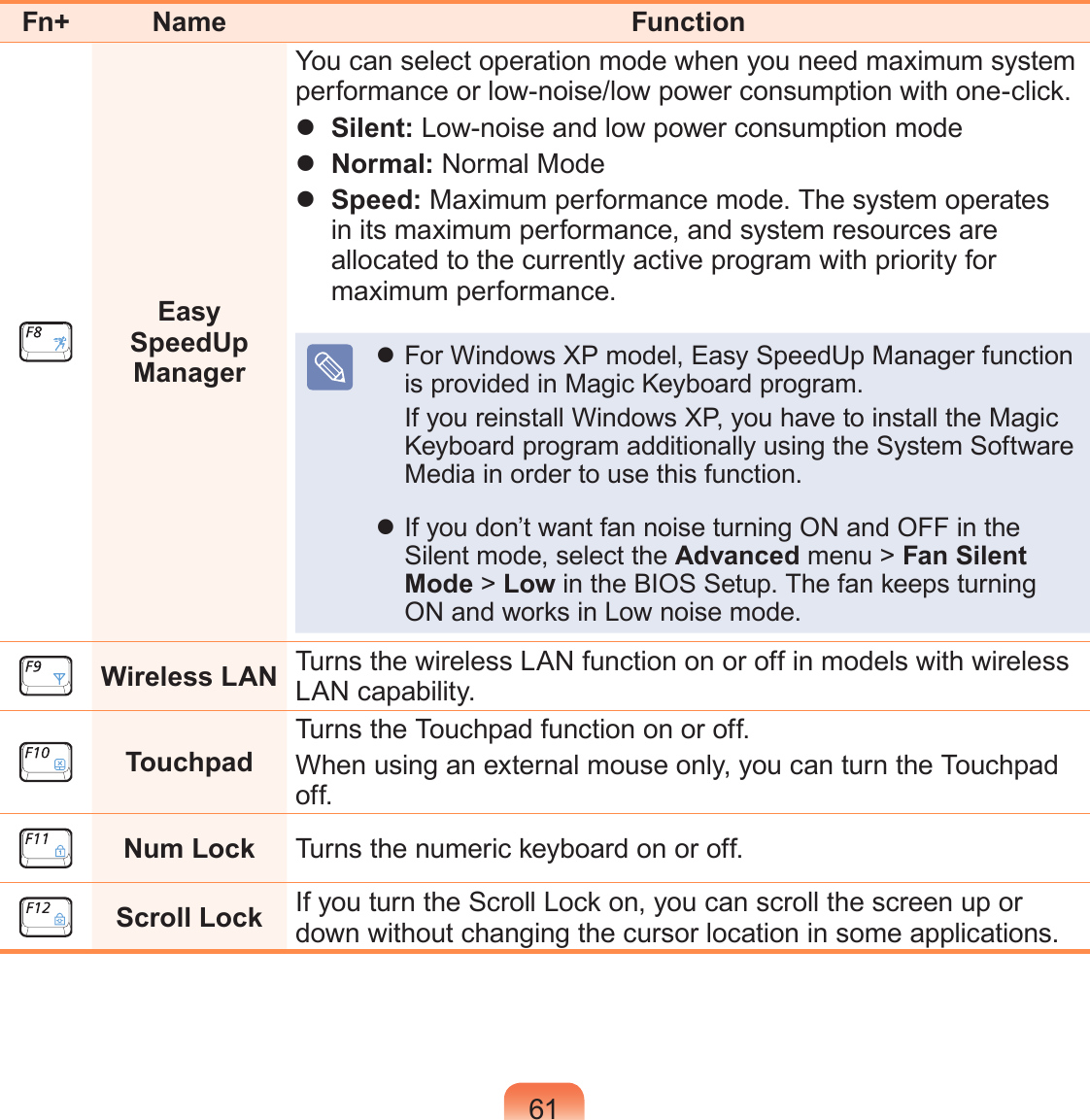

61Fn+ Name FunctionEasy SpeedUp ManagerYou can select operation mode when you need maximum system performance or low-noise/low power consumption with one-click. Silent: Low-noise and low power consumption mode Normal: Normal Mode Speed: Maximum performance mode. The system operates in its maximum performance, and system resources are allocated to the currently active program with priority for maximum performance. For Windows XP model, Easy SpeedUp Manager function is provided in Magic Keyboard program. If you reinstall Windows XP, you have to install the Magic Keyboard program additionally using the System Software Media in order to use this function. If you don’t want fan noise turning ON and OFF in the Silent mode, select the Advanced menu > Fan Silent Mode > Low in the BIOS Setup. The fan keeps turning ON and works in Low noise mode.Wireless LAN Turns the wireless LAN function on or off in models with wireless LAN capability.TouchpadTurns the Touchpad function on or off.When using an external mouse only, you can turn the Touchpad off.Num Lock Turns the numeric keyboard on or off.Scroll Lock If you turn the Scroll Lock on, you can scroll the screen up or down without changing the cursor location in some applications.

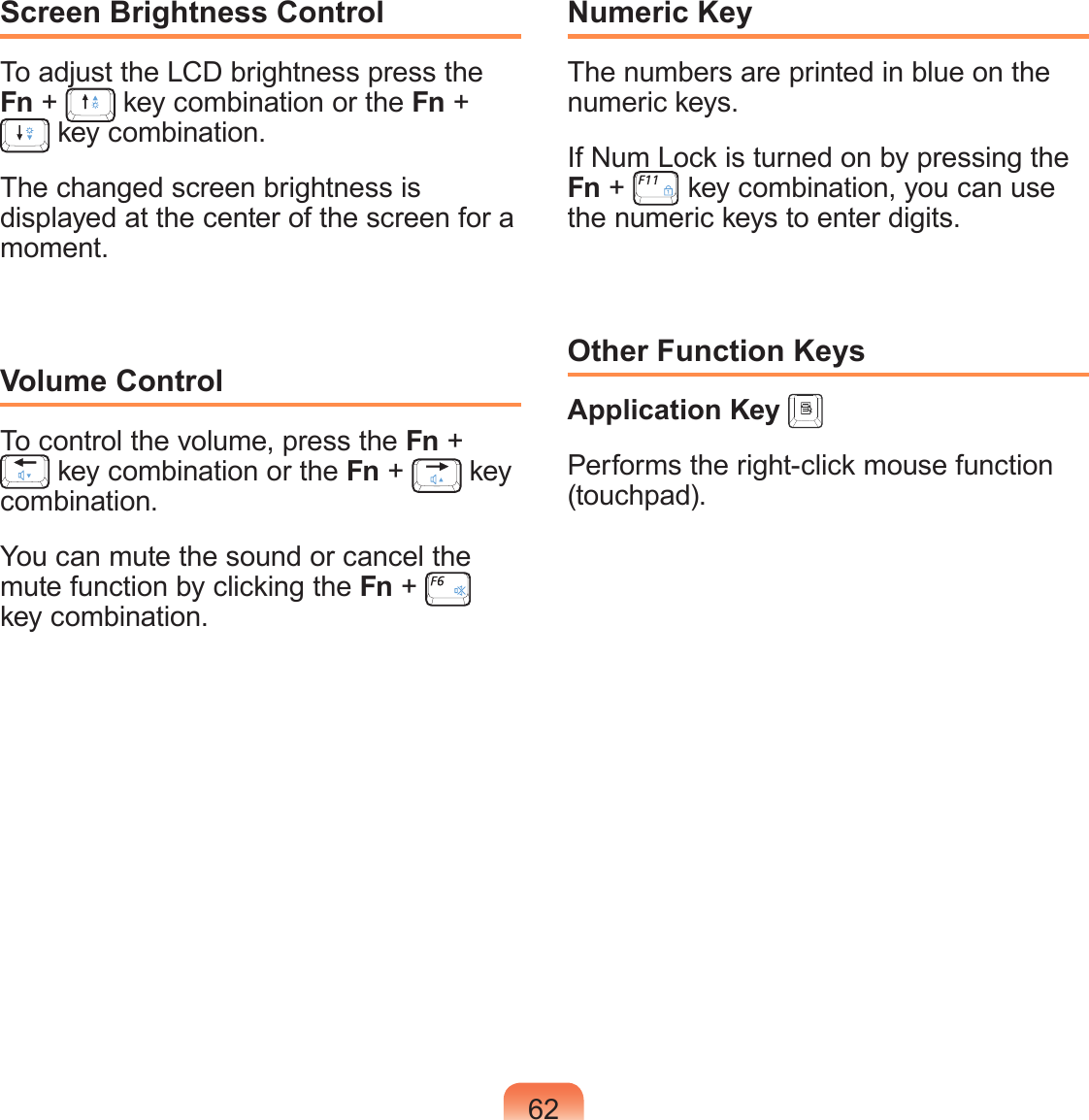

62Screen Brightness ControlTo adjust the LCD brightness press the Fn + key combination or the Fn + key combination.The changed screen brightness is displayed at the center of the screen for a moment.Volume ControlTo control the volume, press the Fn + key combination or the Fn + key combination.You can mute the sound or cancel the mute function by clicking the Fn + key combination.Numeric KeyThe numbers are printed in blue on the numeric keys.If Num Lock is turned on by pressing the Fn + key combination, you can use the numeric keys to enter digits.Other Function KeysApplication Key Performs the right-click mouse function (touchpad).

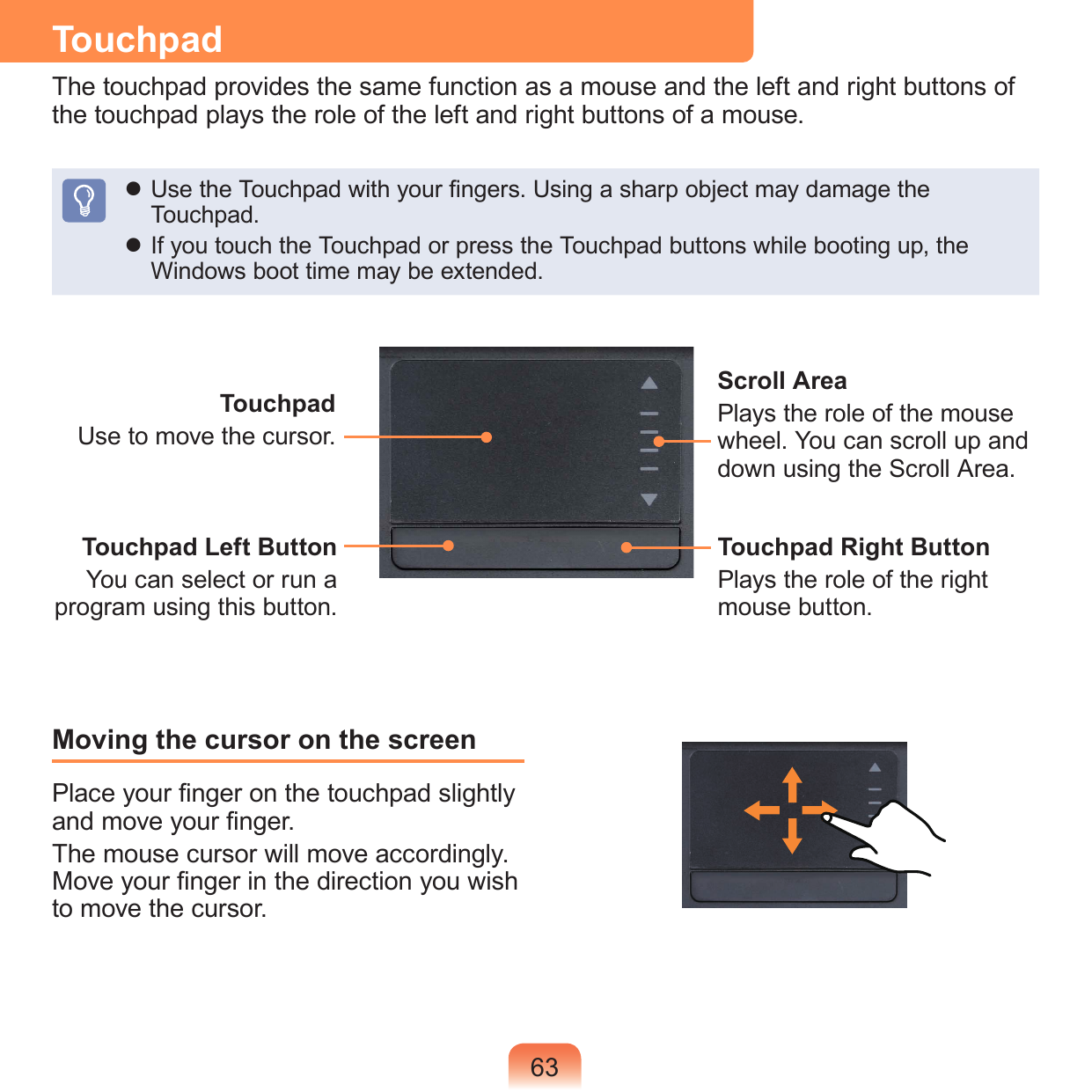

63TouchpadThe touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse. Use the Touchpad with your ngers. Using a sharp object may damage the Touchpad. If you touch the Touchpad or press the Touchpad buttons while booting up, the Windows boot time may be extended.Moving the cursor on the screenPlace your nger on the touchpad slightly and move your nger.The mouse cursor will move accordingly. Move your nger in the direction you wish to move the cursor.TouchpadUse to move the cursor.Scroll AreaPlays the role of the mouse wheel. You can scroll up and down using the Scroll Area.Touchpad Left ButtonYou can select or run a program using this button.Touchpad Right ButtonPlays the role of the right mouse button.

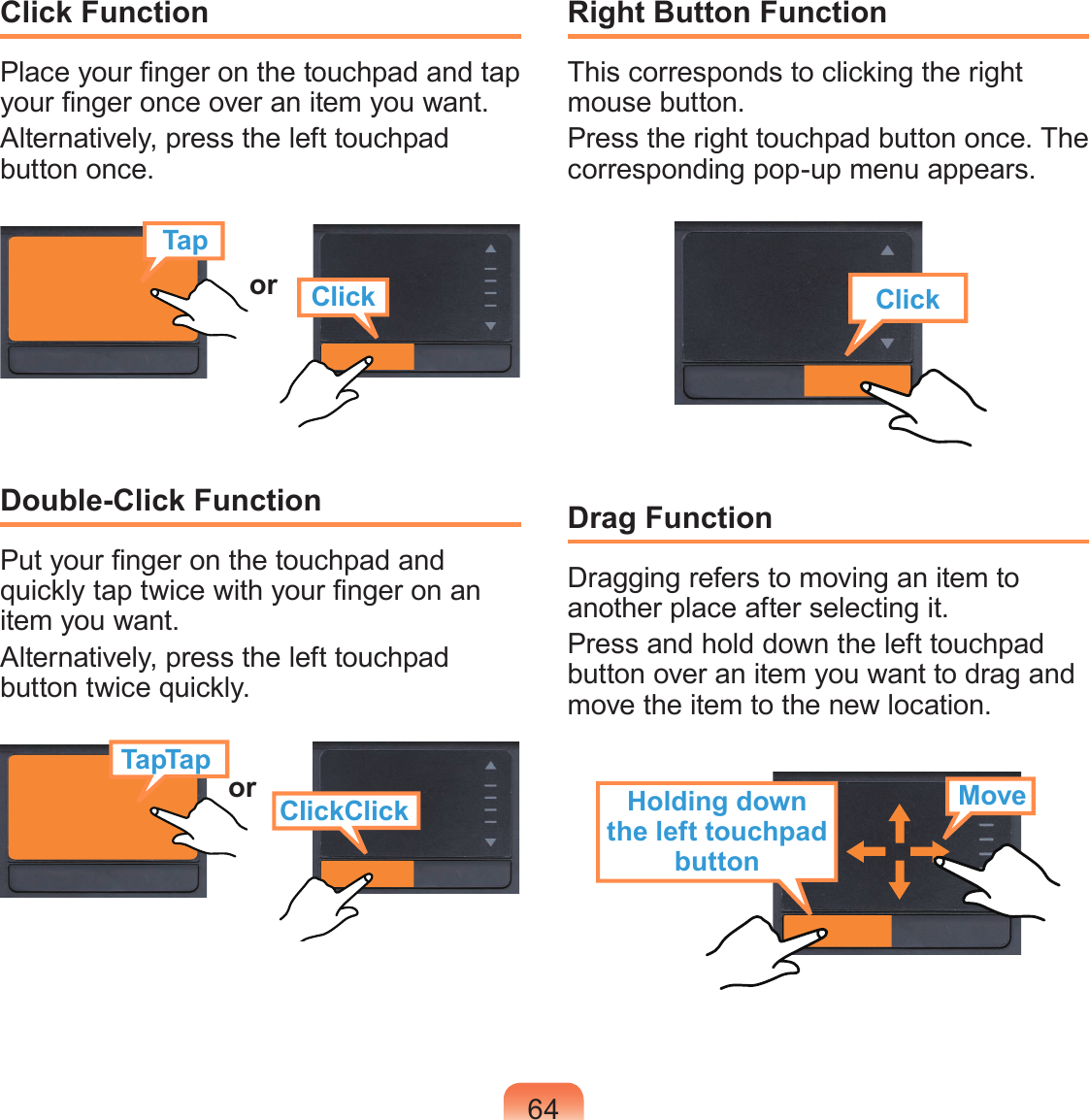

64Click FunctionPlace your nger on the touchpad and tap your nger once over an item you want.Alternatively, press the left touchpad button once.TapClickorDouble-Click FunctionPut your nger on the touchpad and quickly tap twice with your nger on an item you want.Alternatively, press the left touchpad button twice quickly.or ClickClickTapTapRight Button FunctionThis corresponds to clicking the right mouse button.Press the right touchpad button once. The corresponding pop-up menu appears.ClickDrag FunctionDragging refers to moving an item to another place after selecting it.Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.Holding down the left touchpad buttonMove

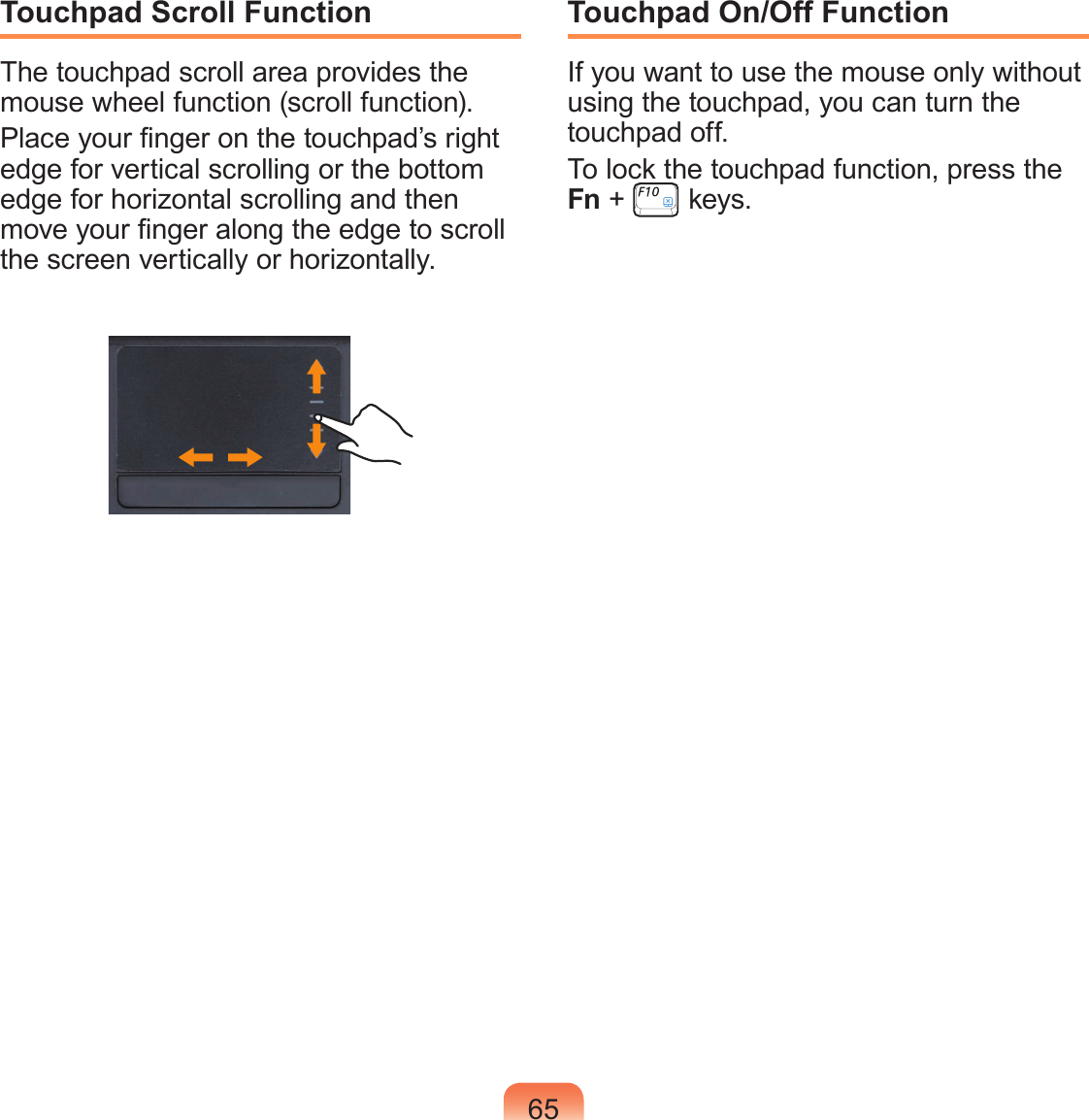

65Touchpad Scroll FunctionThe touchpad scroll area provides the mouse wheel function (scroll function).Place your nger on the touchpad’s right edge for vertical scrolling or the bottom edge for horizontal scrolling and then move your nger along the edge to scroll the screen vertically or horizontally.Touchpad On/Off FunctionIf you want to use the mouse only without using the touchpad, you can turn the touchpad off.To lock the touchpad function, press the Fn + keys.

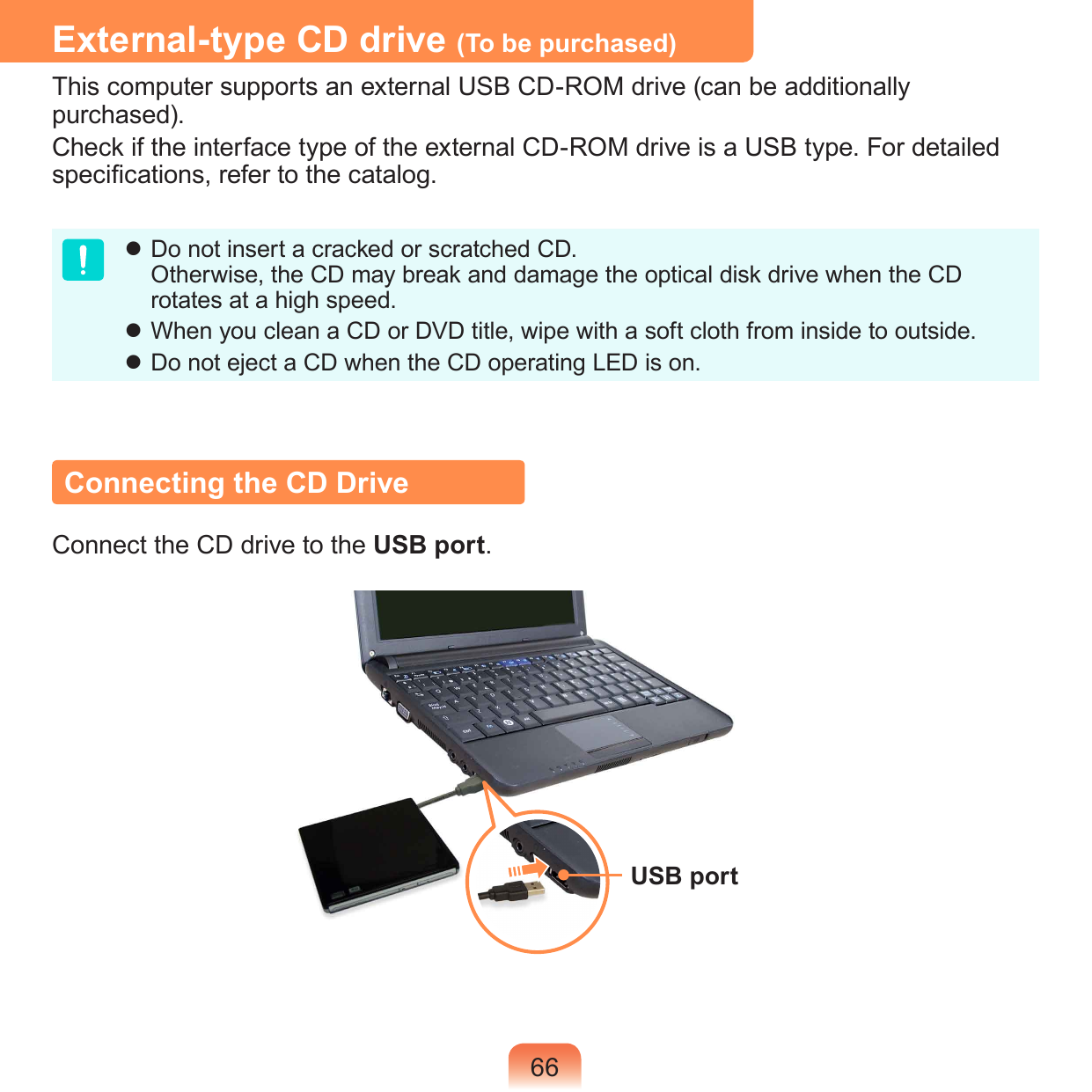

66External-type CD drive (To be purchased)This computer supports an external USB CD-ROM drive (can be additionally purchased).Check if the interface type of the external CD-ROM drive is a USB type. For detailed specications, refer to the catalog. Do not insert a cracked or scratched CD. Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed. When you clean a CD or DVD title, wipe with a soft cloth from inside to outside. Do not eject a CD when the CD operating LED is on.Connecting the CD DriveConnect the CD drive to the USB port.USB port
67Inserting and Ejecting a CD1 Press the Eject button of the CD drive.Status IndicatorEject ButtonEmergency Hole2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.3 Push the CD tray inward until it clicks.The CD drive status indicator is turned on. A CD drive’s reading and writing speed may differ depending on the condition and type of the media. To eject a CD when the CD drive does not work or the computer is off, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

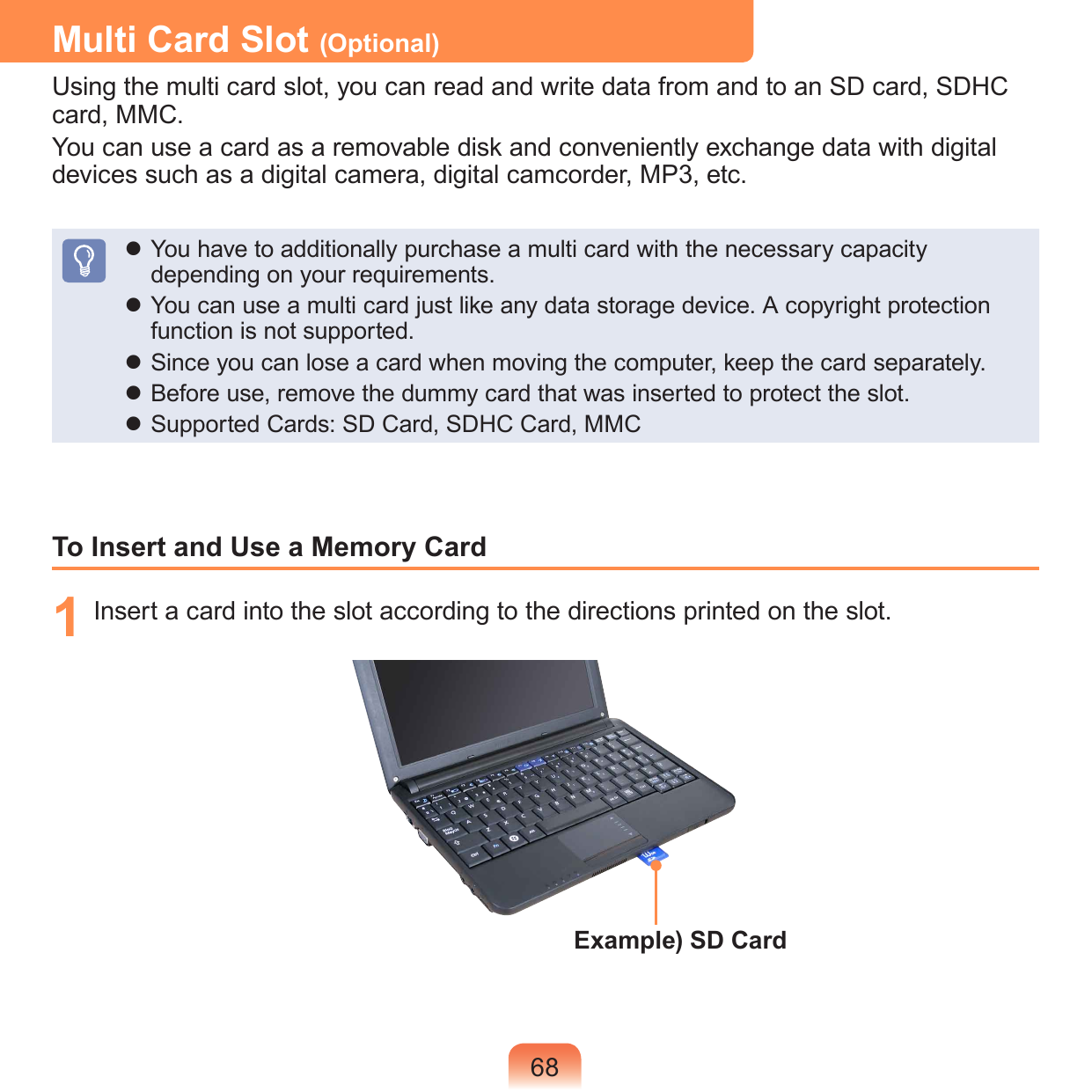

68Multi Card Slot (Optional)Using the multi card slot, you can read and write data from and to an SD card, SDHC card, MMC.You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc. You have to additionally purchase a multi card with the necessary capacity depending on your requirements. You can use a multi card just like any data storage device. A copyright protection function is not supported. Since you can lose a card when moving the computer, keep the card separately. Before use, remove the dummy card that was inserted to protect the slot. Supported Cards: SD Card, SDHC Card, MMCTo Insert and Use a Memory Card1 Insert a card into the slot according to the directions printed on the slot.Example) SD Card

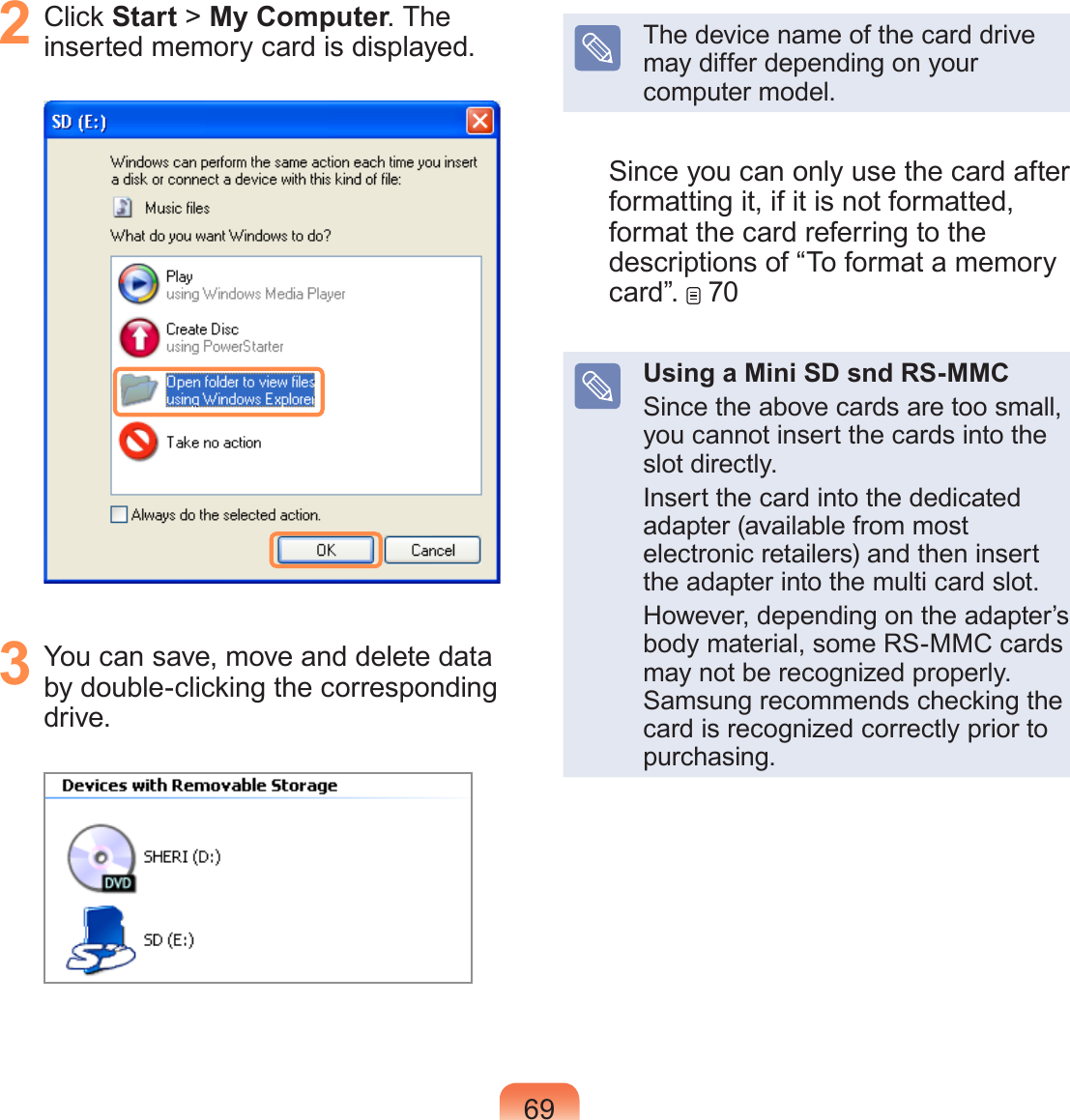

692 Click Start > My Computer. The inserted memory card is displayed.3 You can save, move and delete data by double-clicking the corresponding drive.The device name of the card drive may differ depending on your computer model.Since you can only use the card after formatting it, if it is not formatted, format the card referring to the descriptions of “To format a memory card”. 70Using a Mini SD snd RS-MMCSince the above cards are too small, you cannot insert the cards into the slot directly.Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.However, depending on the adapter’s body material, some RS-MMC cards may not be recognized properly. Samsung recommends checking the card is recognized correctly prior to purchasing.

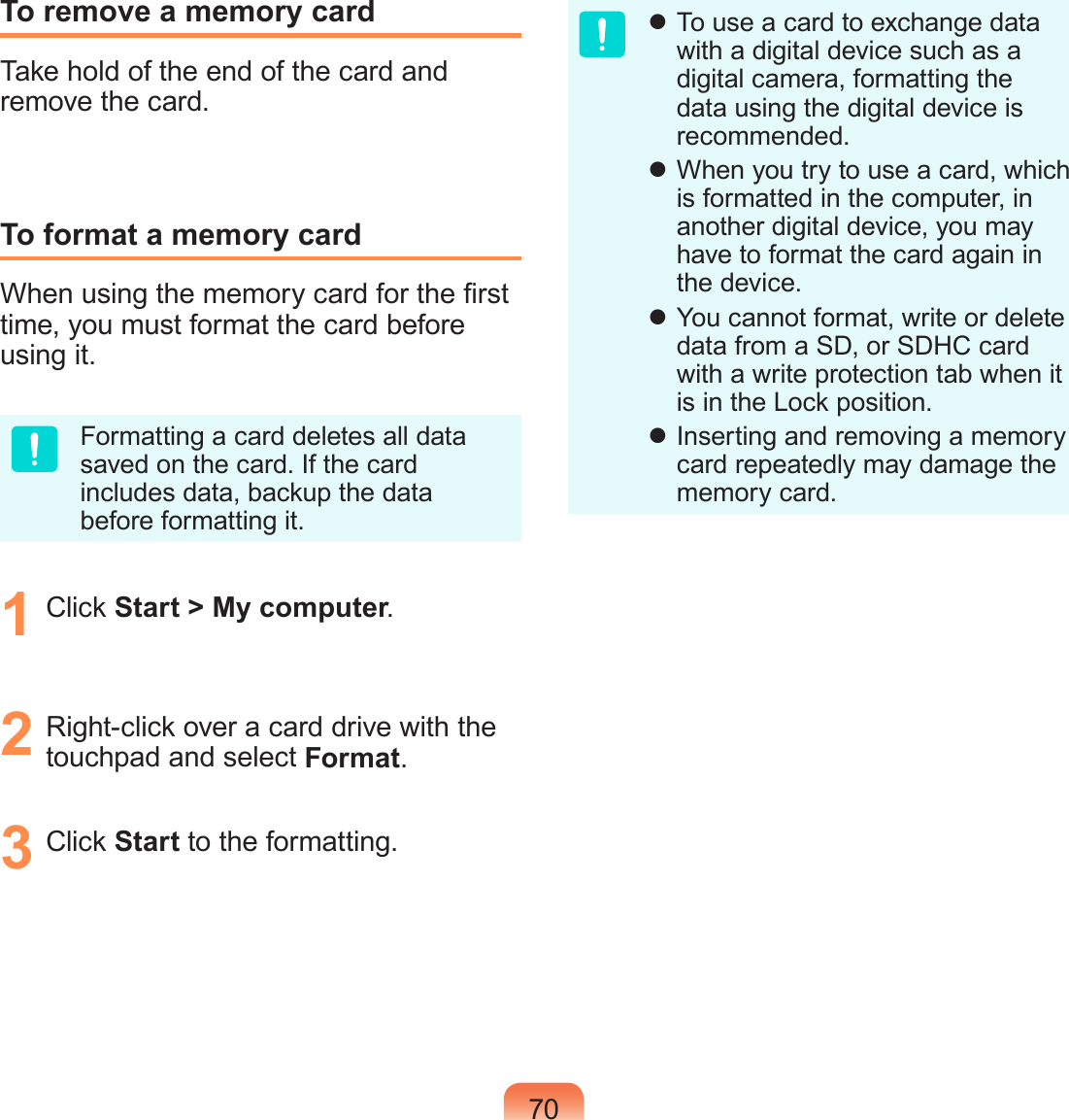

70To remove a memory cardTake hold of the end of the card and remove the card.To format a memory cardWhen using the memory card for the rst time, you must format the card before using it.Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.1 Click Start > My computer.2 Right-click over a card drive with the touchpad and select Format.3 Click Start to the formatting. To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended. When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device. You cannot format, write or delete data from a SD, or SDHC card with a write protection tab when it is in the Lock position. Inserting and removing a memory card repeatedly may damage the memory card.

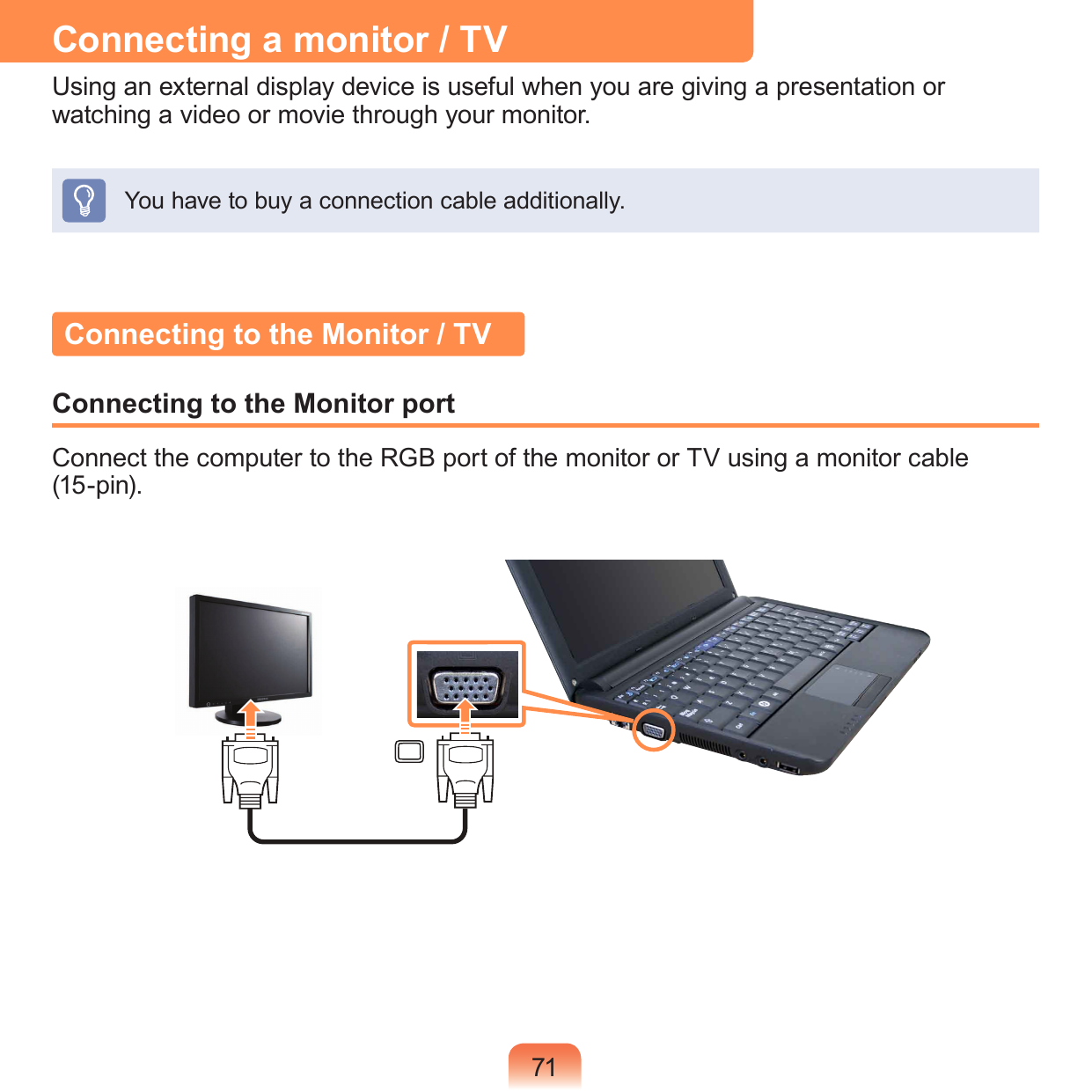

71Connecting a monitor / TVUsing an external display device is useful when you are giving a presentation or watching a video or movie through your monitor.You have to buy a connection cable additionally.Connecting to the Monitor / TVConnecting to the Monitor portConnect the computer to the RGB port of the monitor or TV using a monitor cable (15-pin).

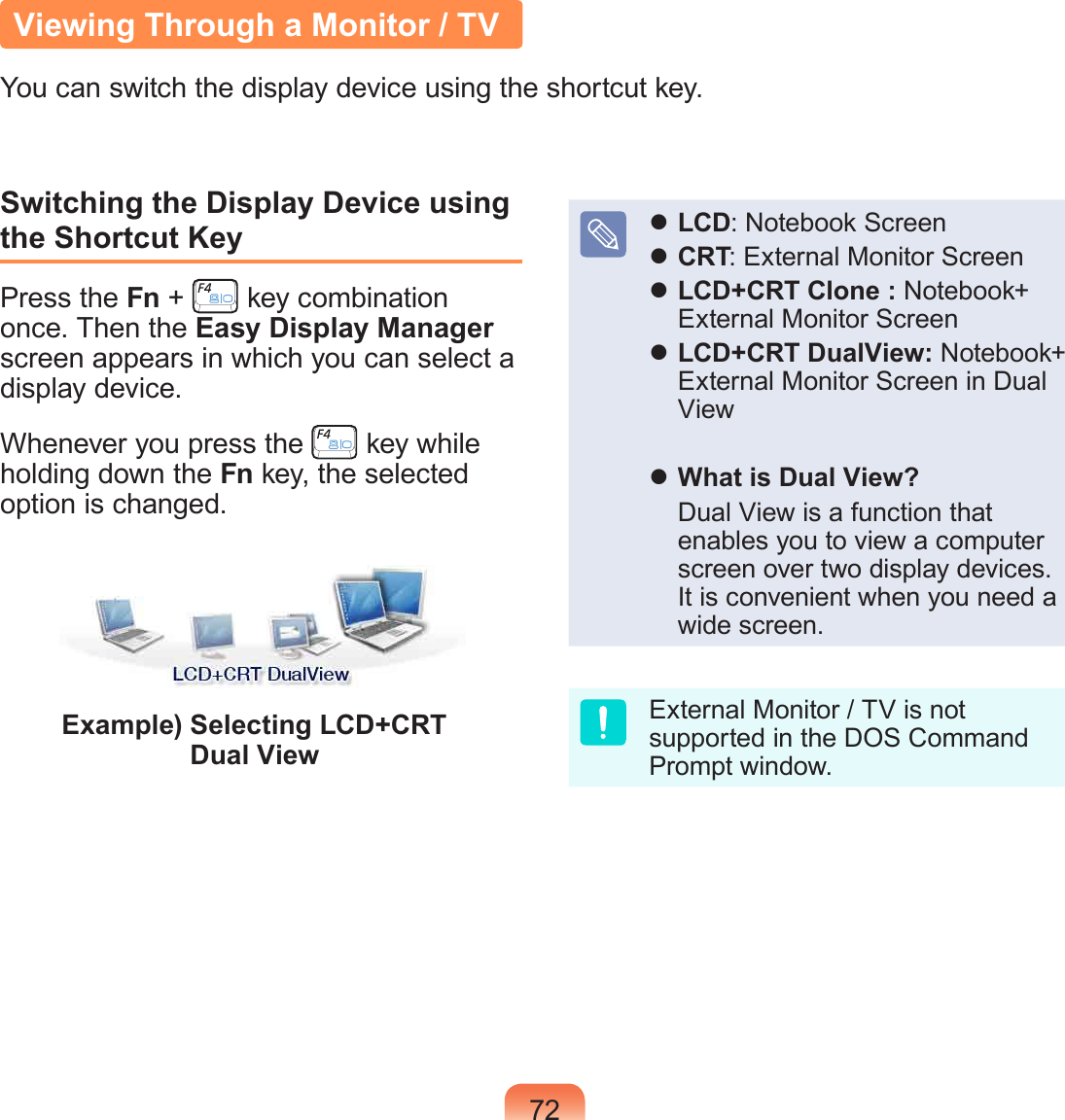

72Switching the Display Device using the Shortcut KeyPress the Fn + key combination once. Then the Easy Display Manager screen appears in which you can select a display device.Whenever you press the key while holding down the Fn key, the selected option is changed.Example) Selecting LCD+CRT Dual View LCD: Notebook Screen CRT: External Monitor Screen LCD+CRT Clone : Notebook+ External Monitor Screen LCD+CRT DualView: Notebook+ External Monitor Screen in Dual View What is Dual View? Dual View is a function that enables you to view a computer screen over two display devices. It is convenient when you need a wide screen.External Monitor / TV is not supported in the DOS Command Prompt window.Viewing Through a Monitor / TVYou can switch the display device using the shortcut key.

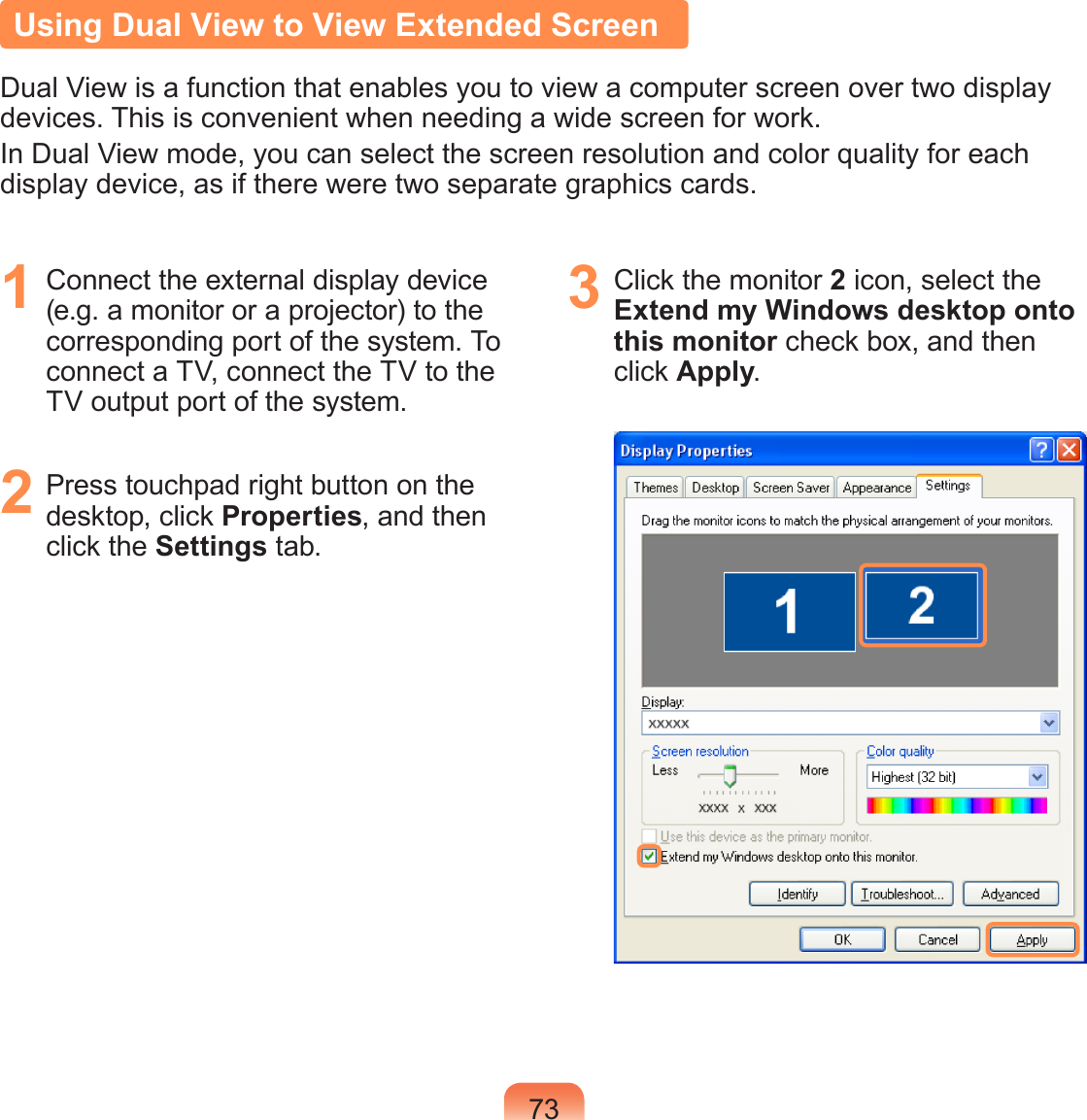

73Using Dual View to View Extended ScreenDual View is a function that enables you to view a computer screen over two display devices. This is convenient when needing a wide screen for work.In Dual View mode, you can select the screen resolution and color quality for each display device, as if there were two separate graphics cards.1 Connect the external display device (e.g. a monitor or a projector) to the corresponding port of the system. To connect a TV, connect the TV to the TV output port of the system.2 Press touchpad right button on the desktop, click Properties, and then click the Settings tab.3 Click the monitor 2 icon, select the Extend my Windows desktop onto this monitor check box, and then click Apply.

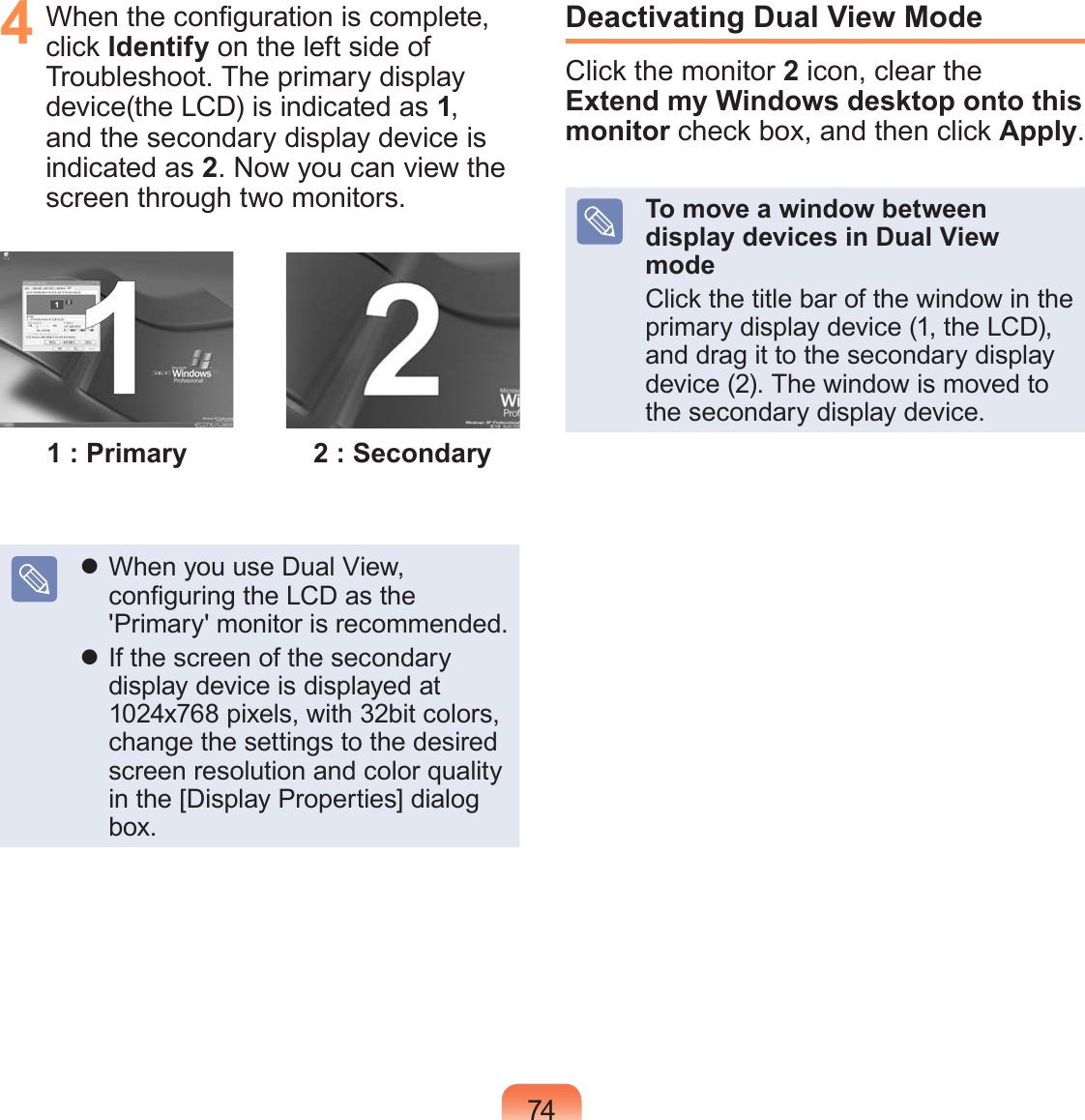

744 When the conguration is complete, click Identify on the left side of Troubleshoot. The primary display device(the LCD) is indicated as 1, and the secondary display device is indicated as 2. Now you can view the screen through two monitors.1 : Primary 2 : Secondary When you use Dual View, conguring the LCD as the 'Primary' monitor is recommended. If the screen of the secondary display device is displayed at 1024x768 pixels, with 32bit colors, change the settings to the desired screen resolution and color quality in the [Display Properties] dialog box.Deactivating Dual View ModeClick the monitor 2 icon, clear the Extend my Windows desktop onto this monitor check box, and then click Apply.To move a window between display devices in Dual View modeClick the title bar of the window in the primary display device (1, the LCD), and drag it to the secondary display device (2). The window is moved to the secondary display device.

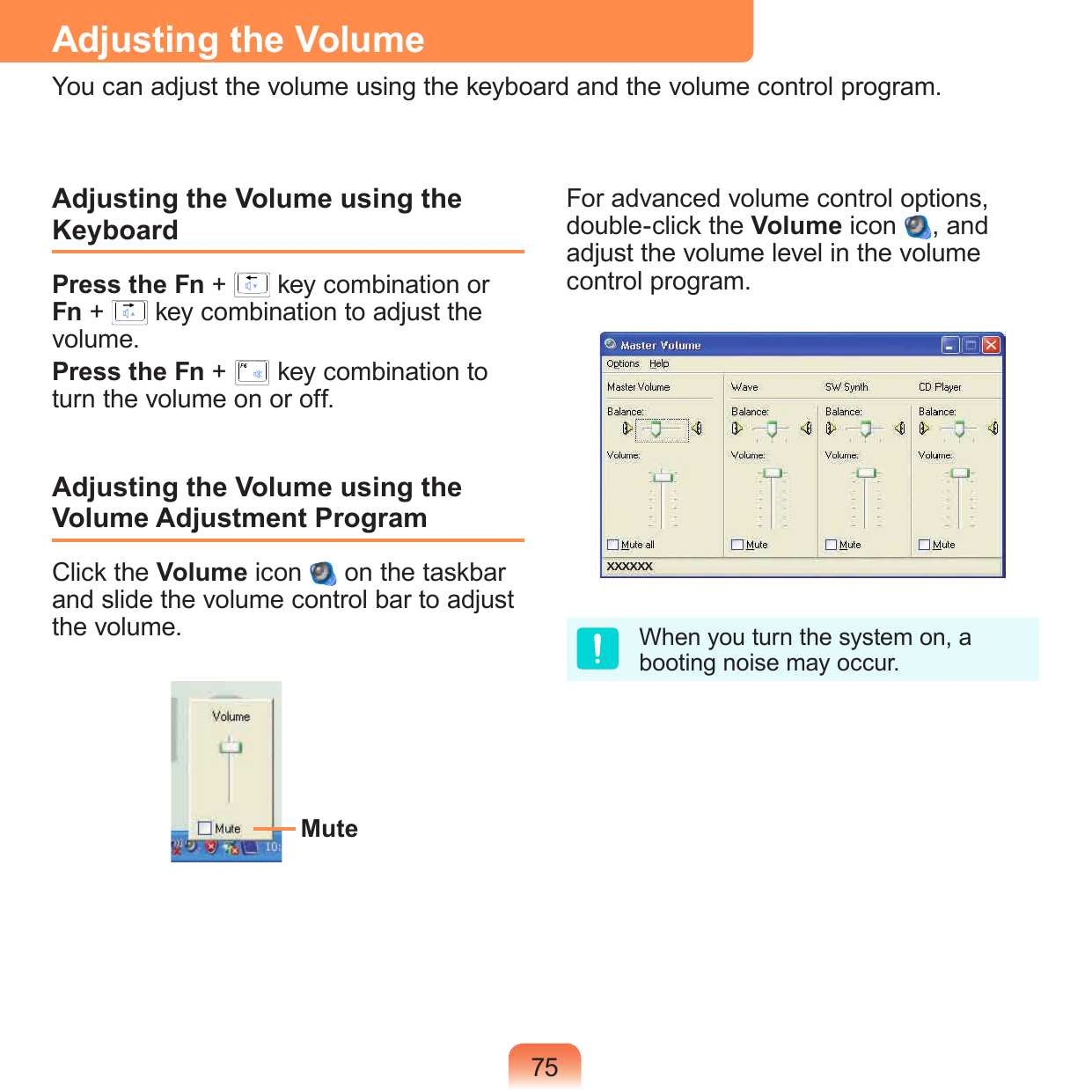

75Adjusting the Volume using the KeyboardPress the Fn + key combination or Fn + key combination to adjust the volume.Press the Fn + key combination to turn the volume on or off.Adjusting the Volume using the Volume Adjustment ProgramClick the Volume icon on the taskbar and slide the volume control bar to adjust the volume.MuteFor advanced volume control options, double-click the Volume icon , and adjust the volume level in the volume control program.When you turn the system on, a booting noise may occur.Adjusting the VolumeYou can adjust the volume using the keyboard and the volume control program.

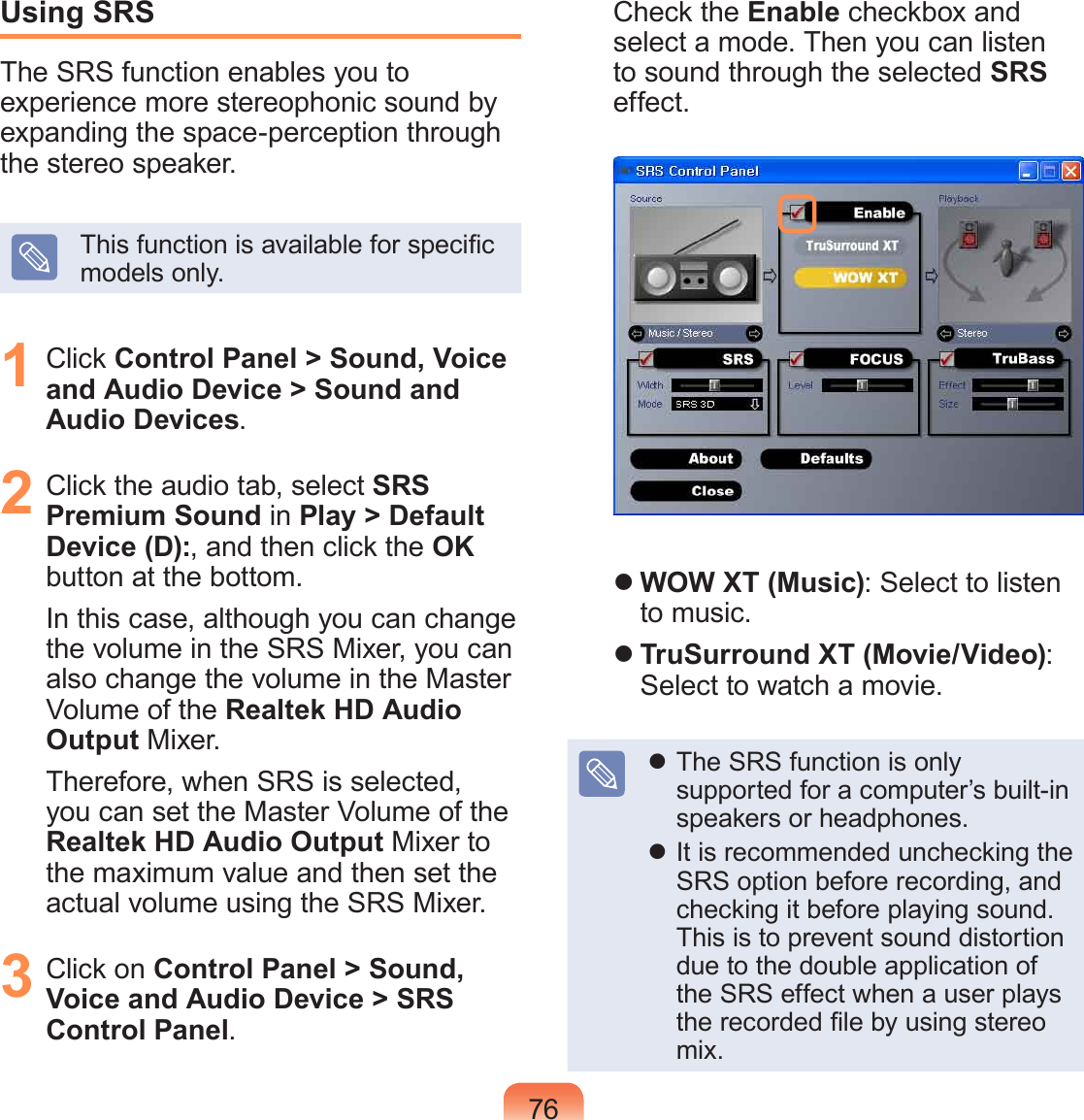

76Using SRSThe SRS function enables you to experience more stereophonic sound by expanding the space-perception through the stereo speaker.This function is available for specic models only.1 Click Control Panel > Sound, Voice and Audio Device > Sound and Audio Devices.2 Click the audio tab, select SRS Premium Sound in Play > Default Device (D):, and then click the OK button at the bottom. In this case, although you can change the volume in the SRS Mixer, you can also change the volume in the Master Volume of the Realtek HD Audio Output Mixer.Therefore, when SRS is selected, you can set the Master Volume of the Realtek HD Audio Output Mixer to the maximum value and then set the actual volume using the SRS Mixer.3 Click on Control Panel > Sound, Voice and Audio Device > SRS Control Panel.Check the Enable checkbox and select a mode. Then you can listen to sound through the selected SRS effect. WOW XT (Music): Select to listen to music. TruSurround XT (Movie/Video): Select to watch a movie. The SRS function is only supported for a computer’s built-in speakers or headphones. It is recommended unchecking the SRS option before recording, and checking it before playing sound. This is to prevent sound distortion due to the double application of the SRS effect when a user plays the recorded le by using stereo mix.

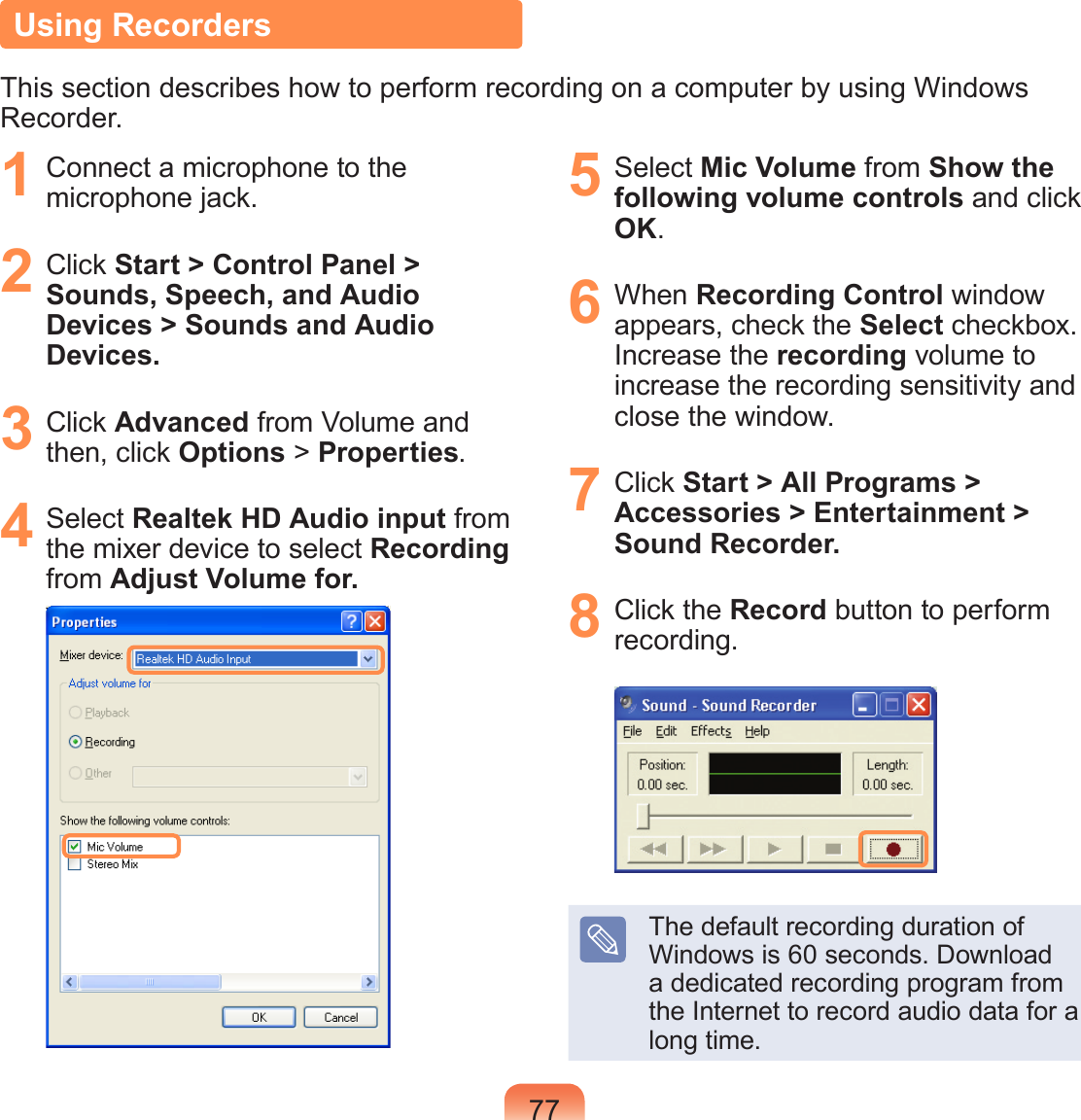

77Using RecordersThis section describes how to perform recording on a computer by using Windows Recorder.1 Connect a microphone to the microphone jack.2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.3 Click Advanced from Volume and then, click Options > Properties.4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.5 Select Mic Volume from Show the following volume controls and click OK.6 When Recording Control window appears, check the Select checkbox. Increase the recording volume to increase the recording sensitivity and close the window.7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.8 Click the Record button to perform recording.The default recording duration of Windows is 60 seconds. Download a dedicated recording program from the Internet to record audio data for a long time.

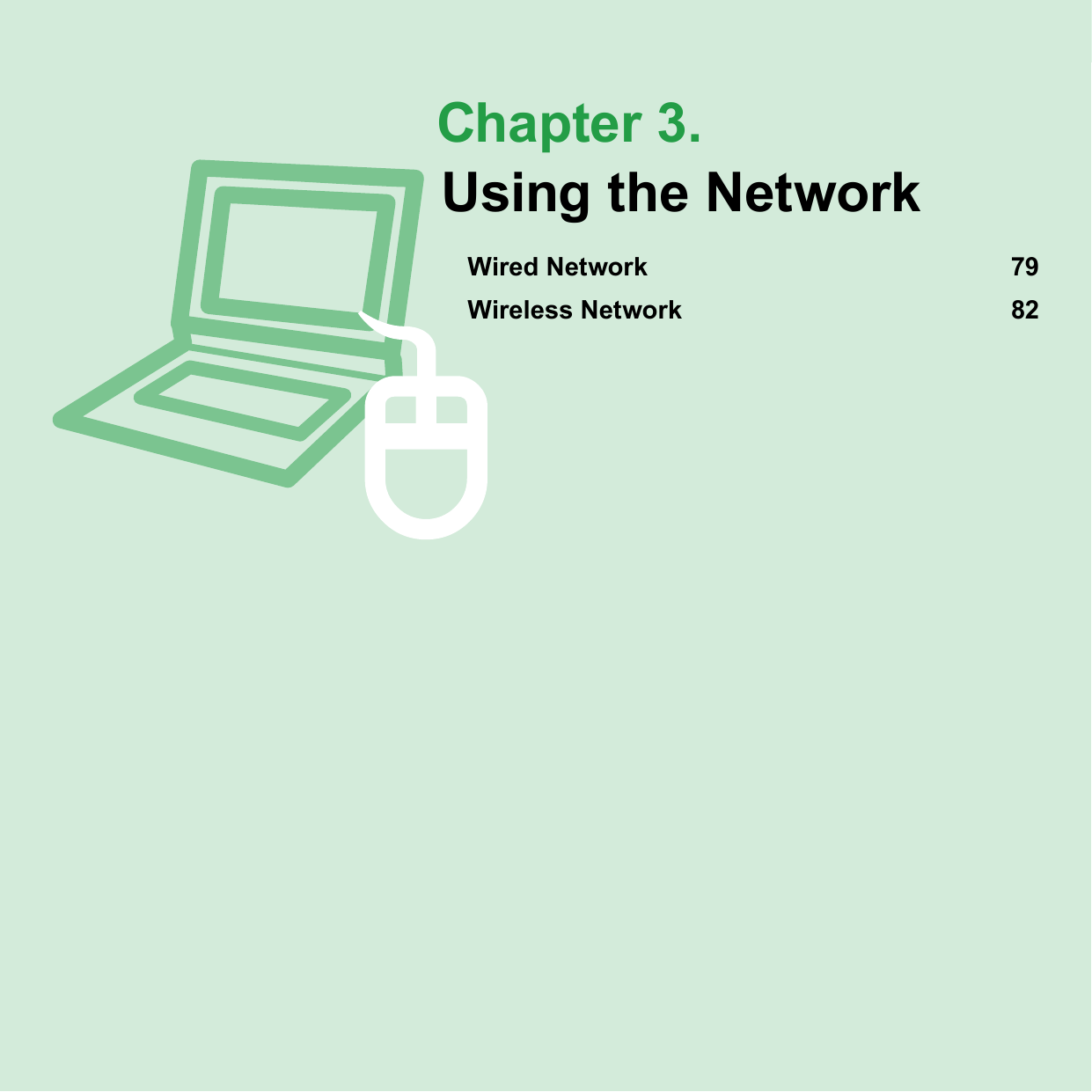

Chapter 3.Using the NetworkWired Network 79Wireless Network 82

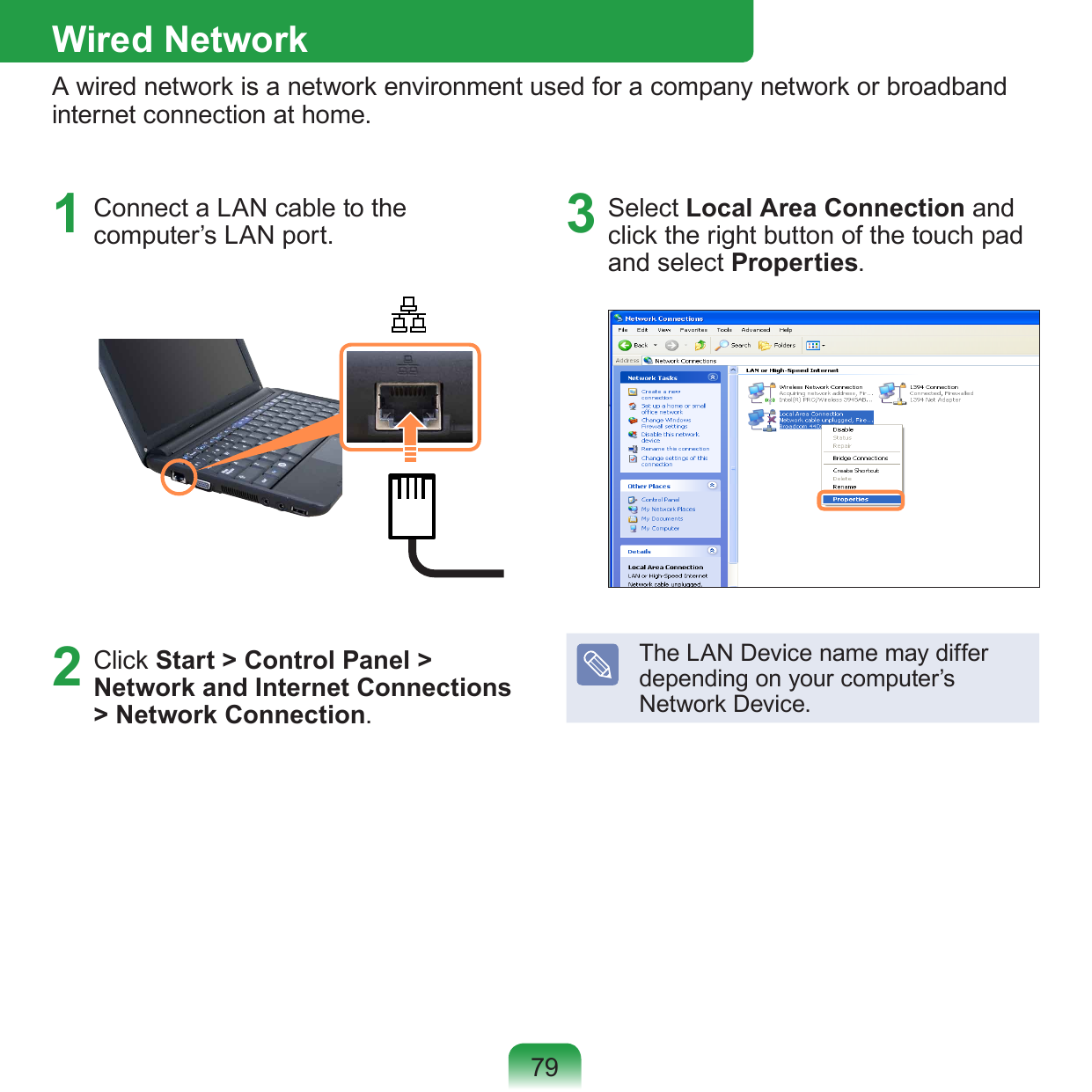

791 Connect a LAN cable to the computer’s LAN port.2 Click Start > Control Panel > Network and Internet Connections > Network Connection.3 Select Local Area Connection and click the right button of the touch pad and select Properties.The LAN Device name may differ depending on your computer’s Network Device.Wired NetworkA wired network is a network environment used for a company network or broadband internet connection at home.

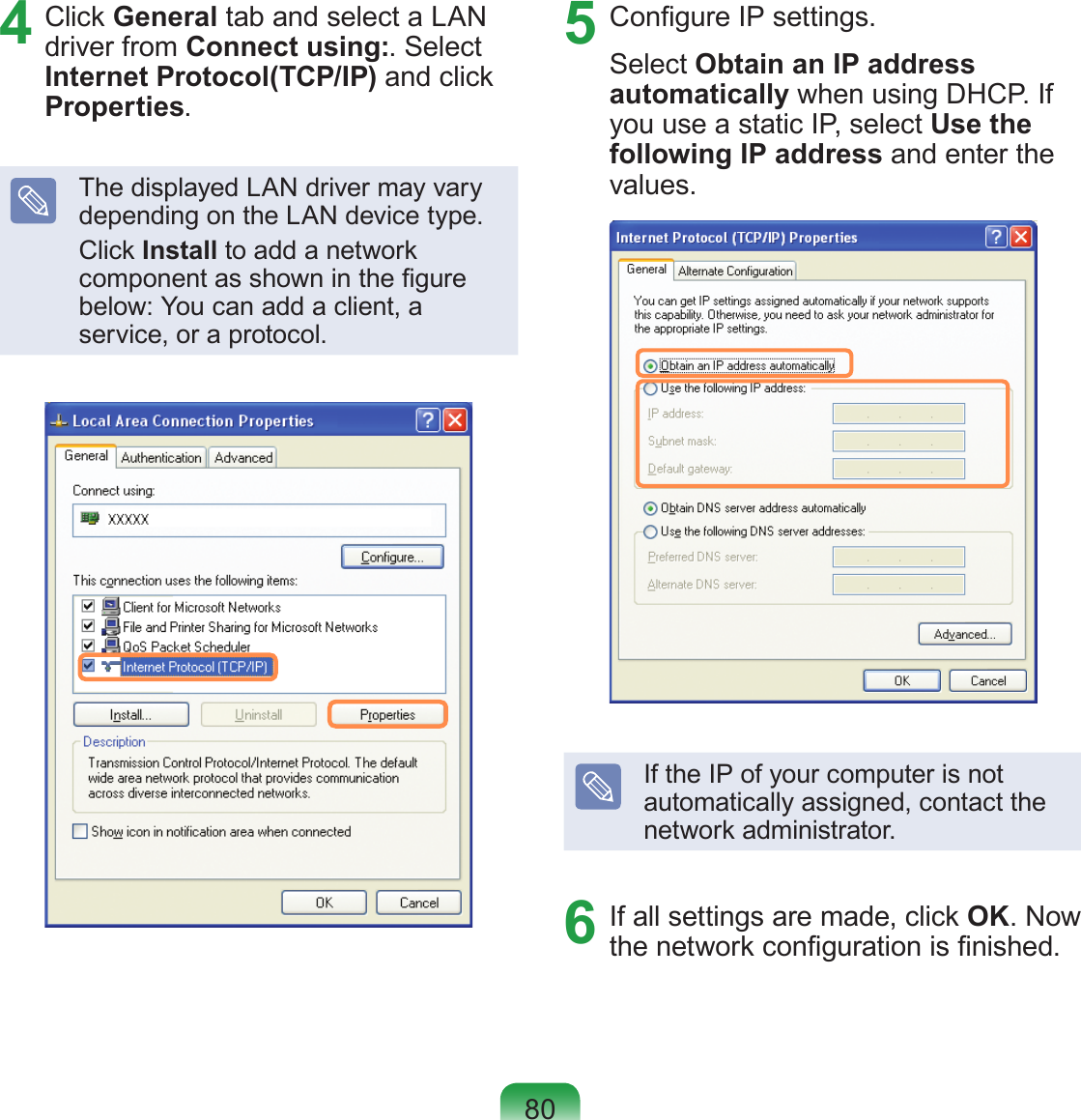

804 Click General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.The displayed LAN driver may vary depending on the LAN device type.Click Install to add a network component as shown in the gure below: You can add a client, a service, or a protocol.5 Congure IP settings.Select Obtain an IP address automatically when using DHCP. If you use a static IP, select Use the following IP address and enter the values.If the IP of your computer is not automatically assigned, contact the network administrator.6 If all settings are made, click OK. Now the network conguration is nished.
