Samsung Electronics Co XE300TZC Tablet PC with 802.11 abgn + BT, GPS User Manual Part 1

Samsung Electronics Co Ltd Tablet PC with 802.11 abgn + BT, GPS Part 1

User Manual Part 1

User Manual
1Chapter 1 Getting StartedContents Chapter 1. Getting Started3 Before You Start6 Safety Precautions21 Proper Posture During Computer Use24 Overview29 Turning the Computer On and O Chapter 2. Using Windows 832 What is Microsoft Windows 8?33 Screen At a Glance35 Using the Charms37 Using Apps41 Windows Hot Key Function Chapter 3. Using the computer43 Using the Touch Screen51 Multi Card Slot (Optional)53 Connecting an External Display Device56 Adjusting the Volume58 LCD Brightness Control60 Wireless Network (Optional)62 Mobile broadband (Wireless WAN, Optional)63 NFC (Near Field Communication) (Optional)65 Book Cover Keyboard (Optional)70 Using the S Note app (S Note, Optional)74 Using the Multimedia App (Optional)78 Using Apps a Samsung Smartphone (Optional)79 Samsung Software Update80 Diagnosing the Computer Status and Troubleshooting81 Battery84 BIOS Setup86 Setting a Boot Password Chapter 4. Troubleshooting90 Recovering the Computer (Optional)93 Q&A Chapter 5. Appendix98 Important Safety Information100 Replacement Parts and Accessories102 Regulatory Compliance Statements117 WEEE Symbol Information118 Samsung Packaging Take-Back Program119 TCO Certied (for corresponding models only)120 Product Specications122 Glossary126 Index
Before You Start 3Safety Precautions 6Proper Posture During Computer Use 21Overview 24Turning the Computer On and O 29Chapter 1. Getting Started
3Chapter 1 Getting StartedBefore You StartBefore reading the user manual, rst check the following information.Optional items, some devices and software referred to in • the user manual may not be provided and/or changed by upgrade. Note that the computer environment referred in the user manual may not be the same as your own environment.The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series and may dier from the actual appearance of the product.This manual decribes procedures for using both the mouse • and the S Pen. In this manual ‘click’ means ‘one press with the S Pen’.The User Guide describes information on the basis of the • touch screen. This manual has been written for the Windows 8 operating • system. The descriptions and gures may dier depending on the installed operating system.The user manual supplied with this computer may vary • depending on your model.Software Usage InstructionsIn the Start screen, slightly drag the top edge of the screen toward the center.Click the corresponding program in the All Apps menu item.
4Chapter 1 Getting StartedBefore You StartSafety Precaution NotationsIcon Notation DescriptionWarningFailure to follow instructions marked with this symbol, may cause personal injury and or fatality.CautionFailure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.Text NotationsIcon Notation DescriptionCaution Content included in this section includes information required about the function.Note Content included in this section includes helpful information to use the function.Copyright© 2013 Samsung Electronics Co., Ltd.Samsung Electronics Co., Ltd. owns the copyright of this manual.No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd. The information in this document is subject to change without notice due to improving the performance of the product.Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.OS and Software Support If you change the product’s factory OS (Operating System) to another OS or if you install software which is not supported by the product’s original factory OS, you will not receive any technical support, product exchange or refund. And a fee will be charged when requesting a service. Please use your computer with the original factory OS. If you install an OS other than the factory OS, data may be deleted or the computer may not start.

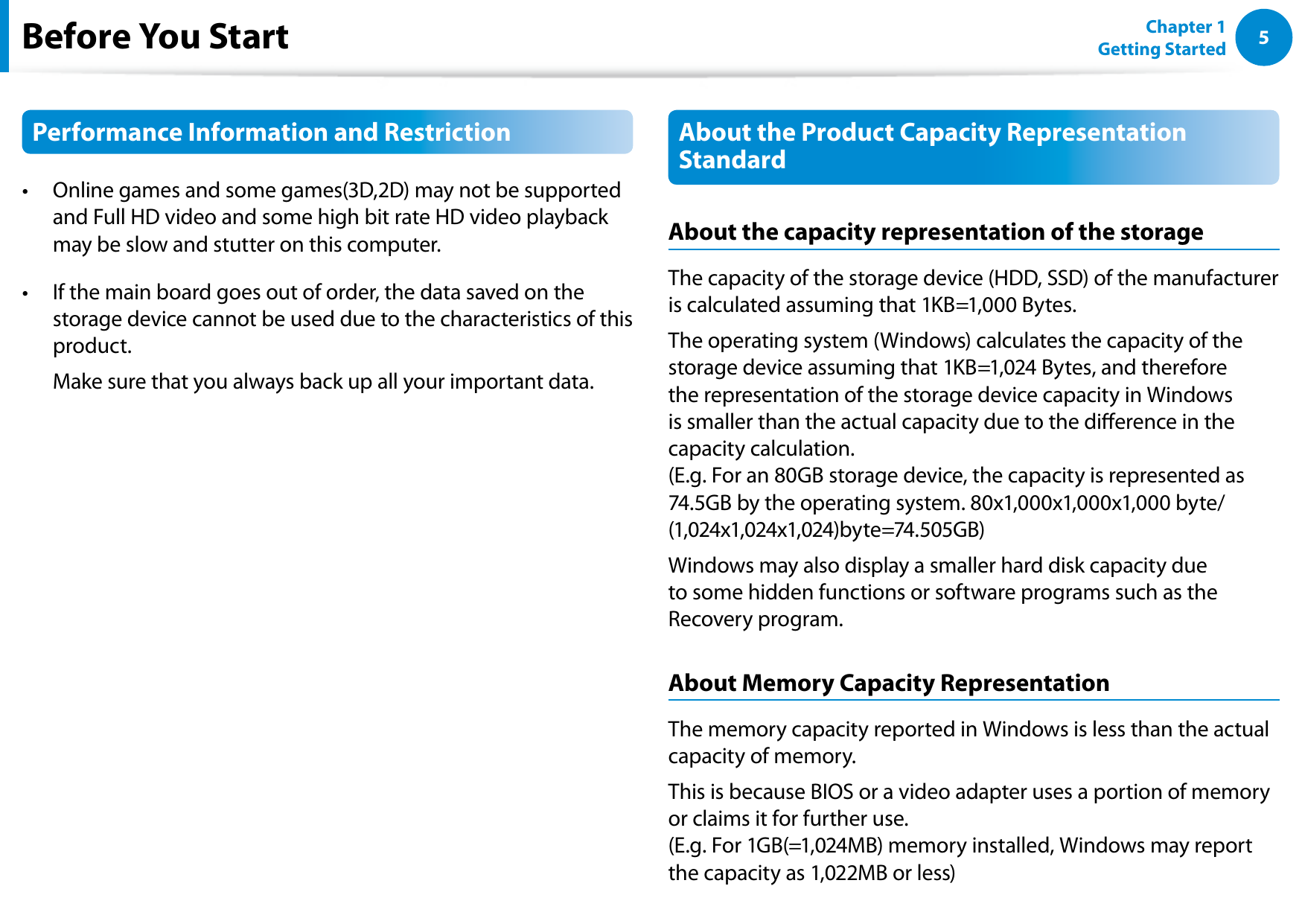

45Chapter 1 Getting StartedPerformance Information and RestrictionOnline games and some games(3D,2D) may not be supported • and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer.If the main board goes out of order, the data saved on the • storage device cannot be used due to the characteristics of this product. Make sure that you always back up all your important data.About the Product Capacity Representation StandardAbout the capacity representation of the storageThe capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.The operating system (Windows) calculates the capacity of the storage device assuming that 1KB=1,024 Bytes, and therefore the representation of the storage device capacity in Windows is smaller than the actual capacity due to the dierence in the capacity calculation. (E.g. For an 80GB storage device, the capacity is represented as 74.5GB by the operating system. 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte=74.505GB)Windows may also display a smaller hard disk capacity due to some hidden functions or software programs such as the Recovery program.About Memory Capacity RepresentationThe memory capacity reported in Windows is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)Before You Start
6Chapter 1 Getting StartedInstallation RelatedDo not install the product in places exposed to humidity such as bathrooms.There is a danger of electric shock. Use the product within the operating conditions specied in the Manufacturers user manual.Keep the plastic bags out of the reach of children.There is a danger of suocation.Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.This may increase the internal temperature of the computer and may cause an injury.Safety PrecautionsDo not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.This increases the risk that a malfunction or damage to the product will occur.Be careful that people are not exposed to the computer’s ventilator, adapter, etc., as they generate heat over a long period of time when your PC is powered on.Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.For your security and to prevent damage, please read the following safety instructions carefully.Since this is commonly applied to Samsung computers, some pictures may dier from actual products. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Ver 3.3
67Chapter 1 Getting StartedGIf the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.There is a danger of electric shock or re hazard.Do not use a damaged or loose main plug or power cord or power outlet.There is a danger of electric shock or re hazard. Plug the power cord rmly into the power outlet and AC adapter.Failure to do so may cause re hazard. Do not unplug the power cord by pulling the cable only.If the cord is damaged, it may cause electric shock.Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.If the cord is damaged, it may cause electric shock or re.Power RelatedThe power plug and wall outlet gures may dier depending on the country specications and the product model. Do not touch the main plug or power cord with wet hands.There is a danger of electric shock.Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.There is a danger of electric shock or re hazard.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
8Chapter 1 Getting StartedConnect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.Failure to do so may result in electric shock. When the power supply is ungrounded, the current may leak resulting in electric shock.If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.If the notebook computer has an external type (removable) battery, separate the battery also.Damage to the device within the computer may cause electric shock or re hazard.Keep the power cord or outlet clean so that they are not covered with dust.Failure to do so may result in re.AC Adapter Usage PrecautionsConnect the power cord to the AC adapter rmly.Otherwise, there is a danger of re due to an incomplete contact.Use only the AC adapter supplied with the product.Using another adapter may cause the screen to icker.Do not place heavy objects on top of or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.If the cord is damaged, there is a danger of electric shock or re.Unplug the wall-mount AC adapter (adapter and plug intergrated type) from the wall outlet while holding the body and pulling it in the direction of the arrow.If you unplug the adapter by holding and pulling the cable, the adapter may be damaged and an electric shock, explosive sound or spark may occur as a result. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety Precautions
89Chapter 1 Getting StartedBattery Usage RelatedPlease charge the battery fully before using the computer for the rst time.Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.There is a danger of electric shock or choking.Use an authorized battery and AC adapter only.Please use an authorized battery and adapter approved by Samsung Electronics.Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety PrecautionsDo not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as a room with oor heating as it may cause the computer to overheat.Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.Do not use the computer in a humid location such as a bathroom or sauna.Please use the computer within the recommended temperature and humidity ranges (10 - 32ºC (50 - 90ºF), 20 - 80% RH)Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.
10Chapter 1 Getting StartedCutting the Power to the Internal Battery (for corresponding models only)For products with built-in batteries, customers cannot remove • the battery. In the case of ooding, lightning or explosions, you can cut • the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer. Disconnect the AC adapter and insert an object such as a • paper clip into the hole at the bottom of the computer to cut the battery power. In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.Never heat the product (or battery) or put the product (or battery) into a re. Do not put or use the product (or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.There is a danger of an explosion or re.Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.If liquid leaks out of the product (or battery) or there is a funny smell coming from the product (or battery), remove the the product (or battery) the computer and contact a service center.There is a danger of an explosion or re.To use the computer safely, replace a dead battery with a new, authorized battery.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

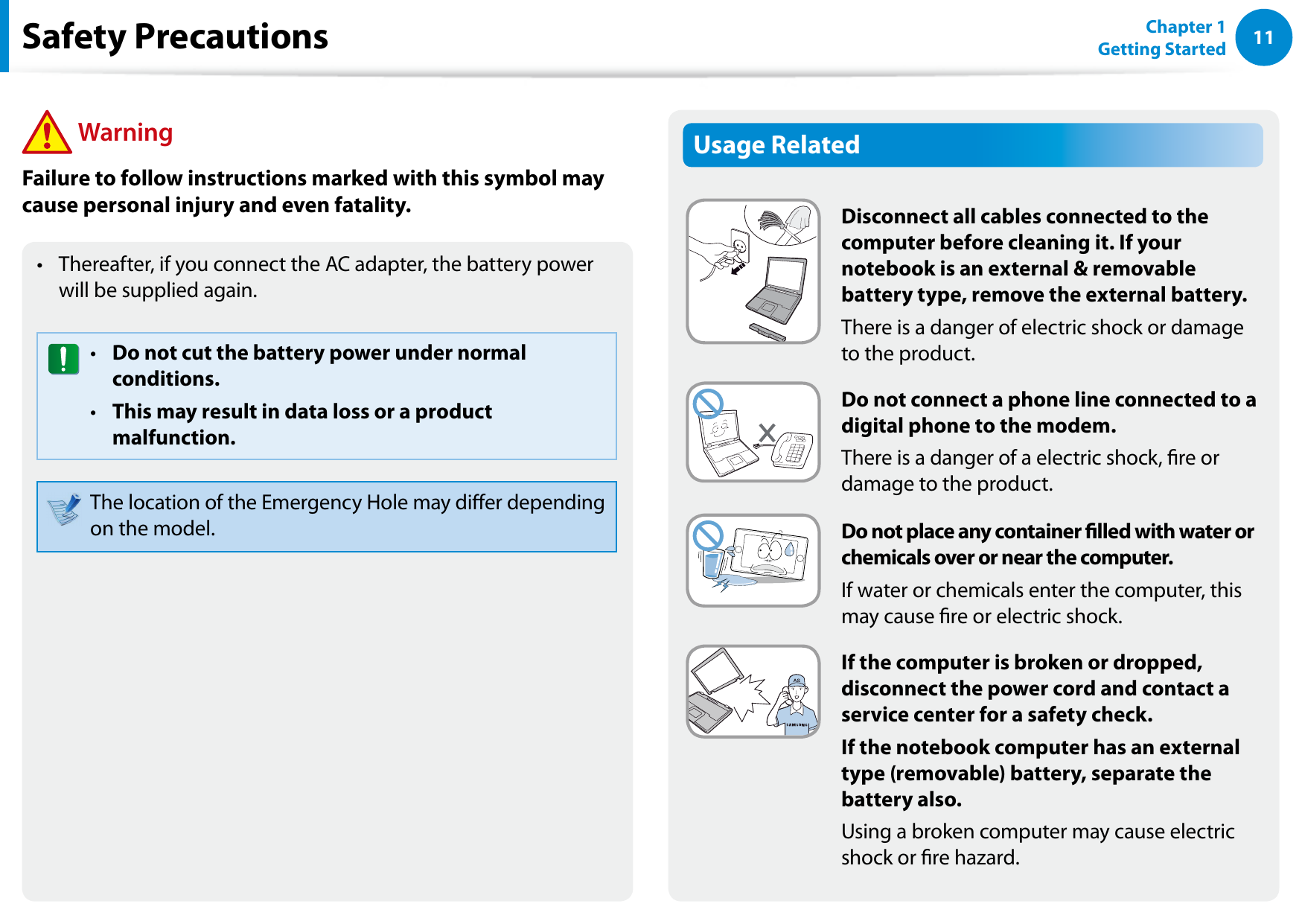

1011Chapter 1 Getting StartedSafety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Thereafter, if you connect the AC adapter, the battery power • will be supplied again.Do not cut the battery power under normal • conditions.This may result in data loss or a product • malfunction.The location of the Emergency Hole may dier depending on the model.Usage RelatedDisconnect all cables connected to the computer before cleaning it. If your notebook is an external & removable battery type, remove the external battery.There is a danger of electric shock or damage to the product.Do not connect a phone line connected to a digital phone to the modem.There is a danger of a electric shock, re or damage to the product.Do not place any container lled with water or chemicals over or near the computer.If water or chemicals enter the computer, this may cause re or electric shock.If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.If the notebook computer has an external type (removable) battery, separate the battery also.Using a broken computer may cause electric shock or re hazard.

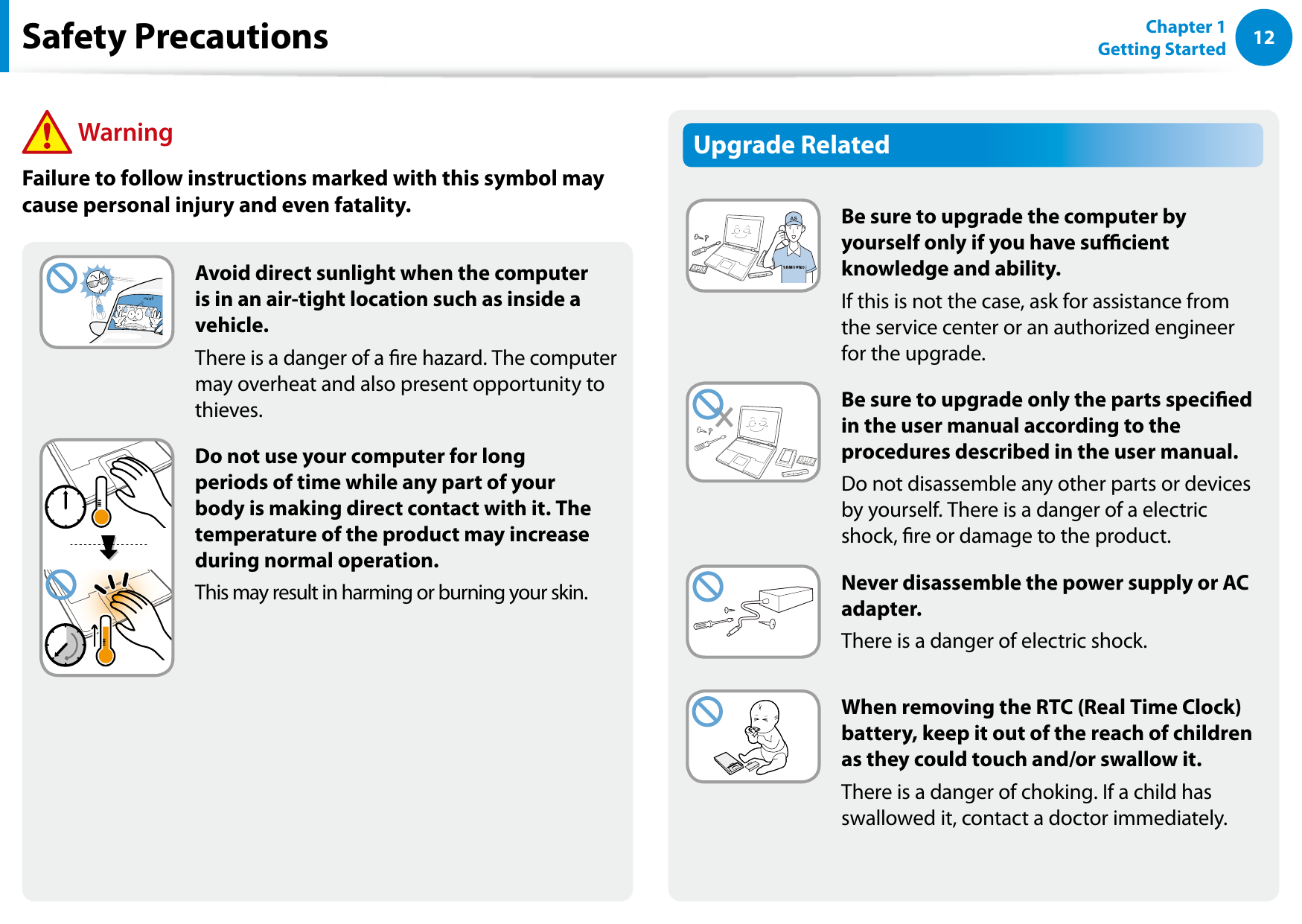

12Chapter 1 Getting StartedUpgrade RelatedBe sure to upgrade the computer by yourself only if you have sucient knowledge and ability.If this is not the case, ask for assistance from the service center or an authorized engineer for the upgrade.Be sure to upgrade only the parts specied in the user manual according to the procedures described in the user manual.Do not disassemble any other parts or devices by yourself. There is a danger of a electric shock, re or damage to the product.Never disassemble the power supply or AC adapter.There is a danger of electric shock.When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.There is a danger of choking. If a child has swallowed it, contact a doctor immediately.Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.Do not use your computer for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.This may result in harming or burning your skin.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

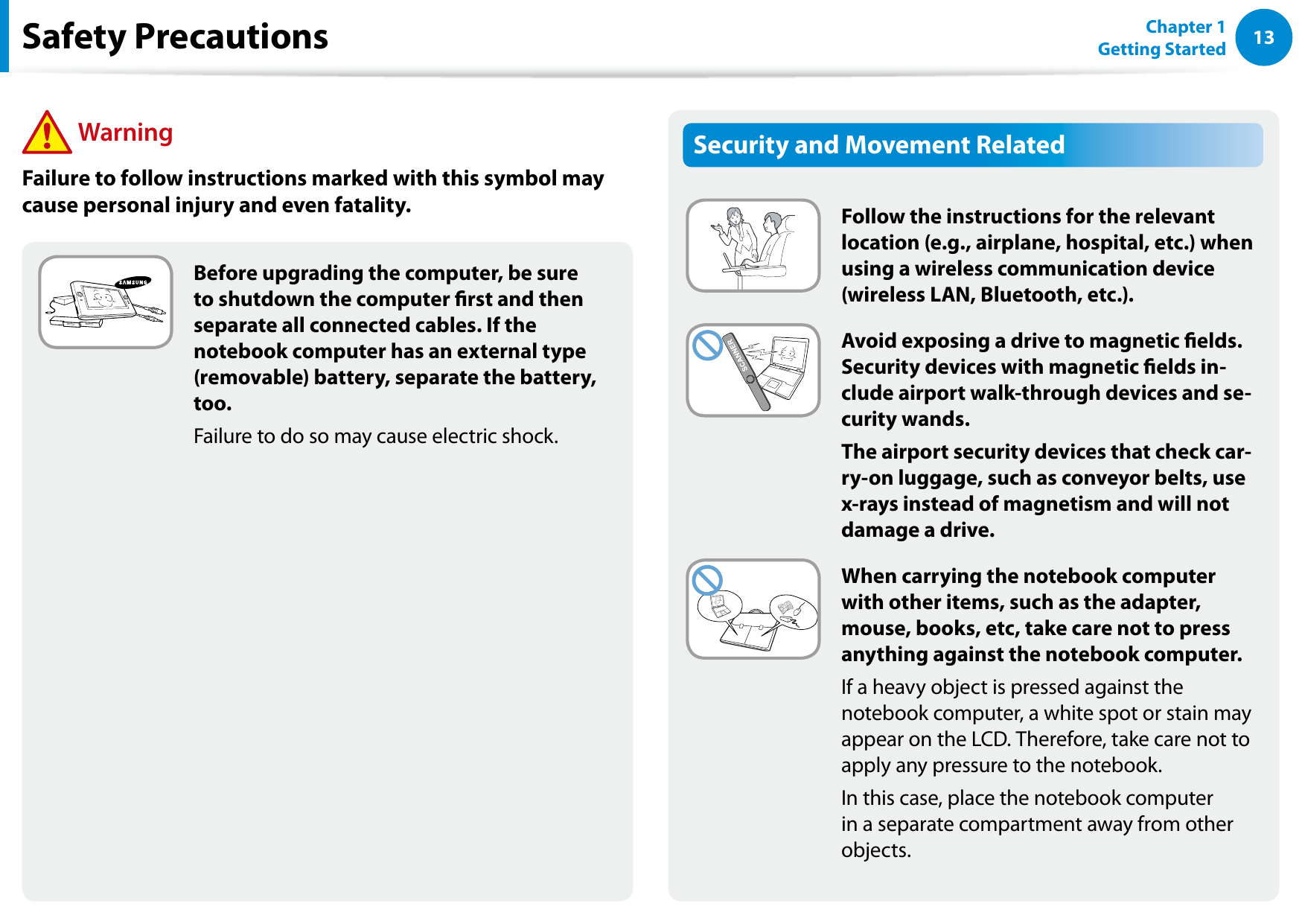

1213Chapter 1 Getting StartedSecurity and Movement RelatedFollow the instructions for the relevant location (e.g., airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).Avoid exposing a drive to magnetic elds. Security devices with magnetic elds in-clude airport walk-through devices and se-curity wands.The airport security devices that check car-ry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.When carrying the notebook computer with other items, such as the adapter, mouse, books, etc, take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from other objects.Before upgrading the computer, be sure to shutdown the computer rst and then separate all connected cables. If the notebook computer has an external type (removable) battery, separate the battery, too.Failure to do so may cause electric shock.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
14Chapter 1 Getting StartedSafety PrecautionsInstallation RelatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or re.When using the computer with it lying on its side, place it so that the vents face upwards.Failure to do so may cause the internal temperature of the computer to rise and the computer to malfunction or halt.Do not place a heavy object over the product.This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.Battery Usage RelatedDispose of worn-out batteries properly.There is a danger of re or explosion.• The battery disposal method may dier depending on • your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, re or explosion.Use only a battery authorized by Samsung Electronics.Failure to do so may cause an explosion.Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.Charge the battery according to the instructions in the manual.Failure to do so may cause an explosion or re from damage to the product.Do not heat the product (or battery) or expose it to heat (e.g., inside a vehicle during the summer).There is a danger of explosion or re. CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
1415Chapter 1 Getting StartedUsage RelatedDo not place a candle, light a cigar, etc. over or on the product.There is a danger of re.Use a wall outlet or multi-plug with a grounding part.Failure to do so may cause electric shock hazard.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from the modem. Do not use a modem or phone.There is a danger of electric shock or re.Do not use your computer and AC-Adapter on your lap or soft surfaces.If the computer temperature increases, there is a danger of burning yourself.Connect only permitted devices to the connectors or ports of the computer.Failure to do so may cause electric shock and re.Close the LCD panel only after checking if the notebook computer is turned o.The temperature may rise and cause overheating and deformation of the product.Do not press the Eject Button while the CD-ROM drive is in operation.You might lose data and the disk might be suddenly ejected and could cause an injury.Do not drop or knock the product.This may result in injury or damage to the data. Do not touch the antenna with an electricity facility such as the power outlet.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failure to do so may cause damage to the product.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
16Chapter 1 Getting StartedIf the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is an external & removable battery type, remove the external battery.There is a danger of re.Do not use a damaged or modied CD.There is a danger of damaging the product or personal injury.Do not insert your ngers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.Failure to do so may cause electric shock or re.Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.There is a danger of injury.Do not place your face close to the Optical Disk Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Check CDs for cracks and damage prior to use.It may damage the disc and cause problems with the device and injury to the user.Do not leave the product in a location exposed to magnetic elds.A magnetic eld may cause the product to work abnormally or • the battery to discharge.The information saved on the magnetic tape of a credit card, • phone card, bankbook, transportation tickets and so on can be damaged by a computer’s electromagnetic eld.Use the pen only for the original purpose. Do not poke in the eye or ear with the pen, and do not put the pen in the mouth.There is a danger of injury.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
1617Chapter 1 Getting StartedUpgrade RelatedCarefully touch a part or device of the product.Failing to do so may result in damage to the product or injury.Take care not to throw or drop a computer part or device.Failing to do so may result in damage to the product or injury.After the disassembly, be sure to close the cover and then connect the power.Failing to do so may result in an electric shock from the exposed circuit.Use parts authorized by Samsung Electronics only.It may damage the product or result in re.Never disassemble or repair the product by yourself.If the product is modied, disassembled or repaired by the user, the warranty is expired, a service fee will be charged and there is a danger of an accident.Be sure to use an authorized Samsung Electronics service center.To connect a device that is not manufactured or authorized by Samsung Electronics, inquire at your service center before connecting the device.There is a danger of damaging the product.Security and Movement RelatedWhen moving the product, turn the power o and separate all connected cables rst.The product might be damaged or users may trip over the cables.For long periods of not using the notebook computer, discharge the battery and separate the battery from the computer (for external & removable battery type).The battery will be preserved at its best condition.Do not operate or watch the computer while driving a vehicle.There is a danger of a trac accident. Please concentrate on driving.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
18Chapter 1 Getting StartedCautions on Preventing Data Loss (Hard Disk Management)Take care not to damage the data on a hard disk drive.A hard disk drive is so sensitive to external impact that an • external impact may cause loss of data on the surface of the disk.Take extra care, because moving the computer or an impact • on the computer when it is turned on may damage the data of the hard disk drive.The company is not liable for any loss of data on the hard disk • drive.Causes that may damage the data of a hard disk drive and the hard disk drive itself.The data may be lost when an external impact is applied to the • disk while disassembling or assembling the computer.The data may be lost when the computer is turned o or reset • by a power failure while the hard disk drive is operating.The data may be lost and irrecoverable due to a computer virus • infection.The data may be lost if the power is turned o while running a • program.Sudden impact or movement to the computer while the hard • disk drive is operating may cause les to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please backup your data frequently.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
1819Chapter 1 Getting StartedSafety PrecautionsUsing the Power Supply in an AirplaneSince the power outlet type diers depending on the type of airplane, connect the power appropriately. Since the representative gures of the power plug and the auto adapter are used, they may dier from the actual parts.When Using the AC Power PlugConnect the power plug pins perpendicular into the center of the power outlet.If the plug pins are not inserted into the center of the holes, the • plug pins are only inserted up to half their length. In this case, reconnect the power plug. You have to insert the power plug into the outlet when the • power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o. In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.Wrong Example Good Example 220V Power Plug 110V Power PlugCenter HolesPower Indicator (LED)

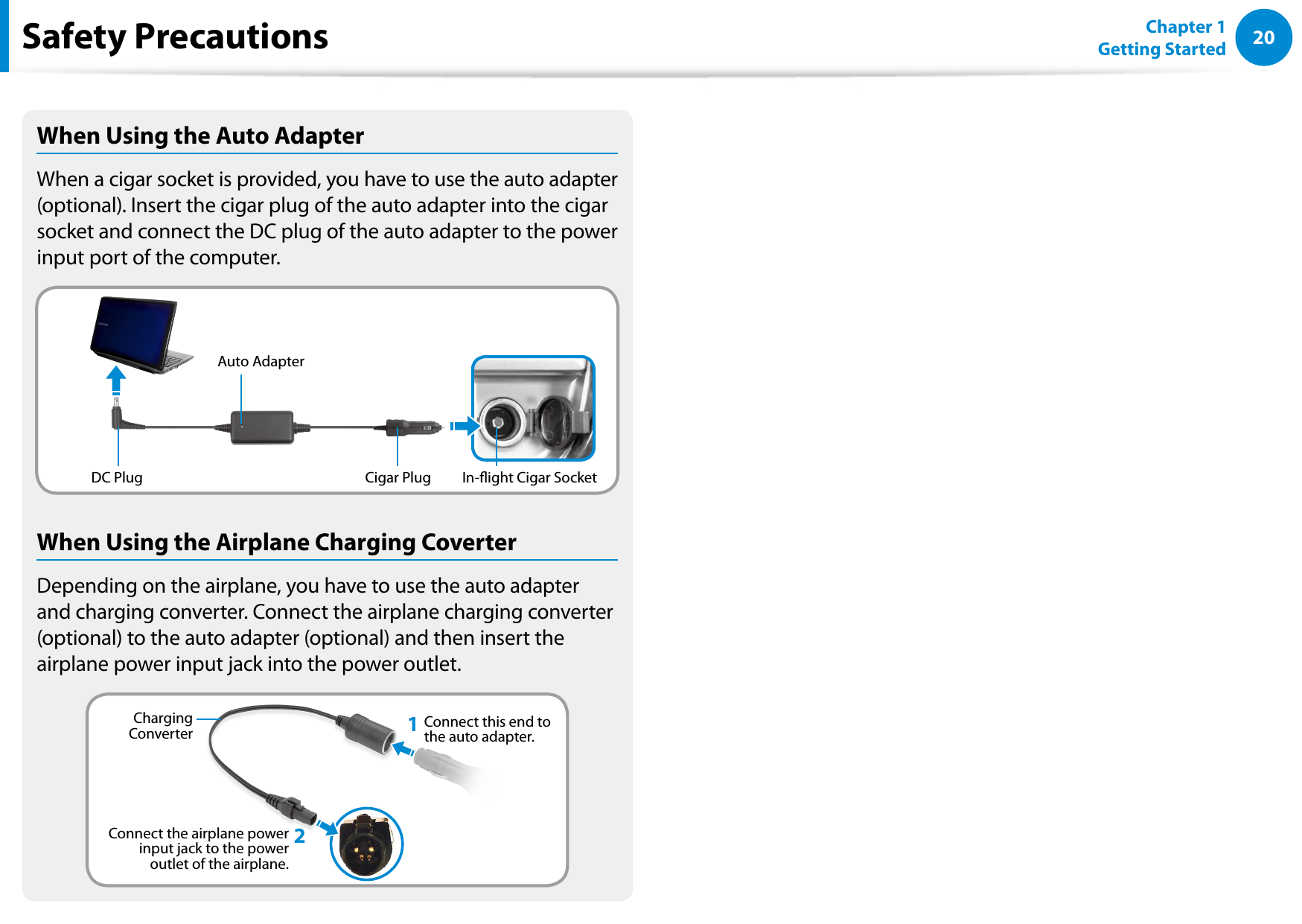

20Chapter 1 Getting StartedSafety PrecautionsWhen Using the Auto AdapterWhen a cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.Auto AdapterIn-ight Cigar SocketCigar PlugDC PlugWhen Using the Airplane Charging CoverterDepending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.Charging Converter 1Connect this end to the auto adapter.Connect the airplane power input jack to the power outlet of the airplane.2
2021Chapter 1 Getting StartedProper Posture During Computer UseMaintaining a proper posture during computer use is very important to prevent physical harm.The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.The instructions in this manual have been prepared so that • they can be applied within the coverage of general users. If the user is not included in the coverage, the • recommendation is to be applied according to the user’s needs.Proper PostureAdjust the heights of desks and chairs appropriate to your height.The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.Adjust the height of chair so that your heel is comfortably placed on the oor.Do not use the computer while you are lying down, but only • while you are sitting down.Do not use the computer on your lap. If the computer • temperature increases, there is a danger of burning yourself.Work while keeping your waist straight.• Use a chair with a comfortable back.• Keep the center of your leg weight not on the chair but on • your feet when you are sitting on a chair.To use the computer while talking over the telephone, use a • headset. Using the computer with the phone on your shoulder is bad for posture.Keep frequently used items within a comfortable work range • (where you can reach them with your hands).
22Chapter 1 Getting StartedProper Posture During Computer UseEye PositionKeep the monitor or LCD away from your eyes by at least 50cm.Adjust the height of the monitor and the LCD screen so that its • top height is equal to or lower than your eyes.Avoid setting the monitor and LCD excessively bright.• Keep the monitor and LCD screen clean.• If you wear glasses, clean them before using the computer.• When entering contents printed on a paper into the computer, • use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the gure.Keep the line from your elbow to your hand straight.• Do not place your palm over the keyboard while typing.• Do not hold the mouse with excessive force.• Do not press the touch screen with excessive force.• It is recommended connecting an external keyboard and • mouse when using the computer for long periods of time.
2223Chapter 1 Getting StartedProper Posture During Computer UseVolume Control (Headphones and Speakers)Check your volume rst to listen to music.Check your volume!Check if the volume is too loud before using headphones.• It is not recommended using headphones for long periods of • time.Any deviation from the equalizer default setting could cause • hearing impairment.The default setting can be changed through software and • driver updates without your intervention. Please check the equalizer default setting before rst usage.To prevent possible hearing damage, do not listen at high volume levels for long periods.Use Time (Break Time)Take a break for 10 minutes or more after a 50-minute period • when working for more than one hour.IlluminationDo not use the computer in dark locations. The illumination • level for computer use must be as bright so for reading a book.Indirect illumination is recommended. Use a curtain to prevent • reection on the LCD screen.Operation ConditionDo not use the computer in hot and humid locations.• Use the computer within the allowed temperature and • humidity range specied in the user manual.
24Chapter 1 Getting StartedOverviewFront ViewThe pictures used for the cover and the main body in the User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may dier from the actual appearance of the product depending on the model.31 2451Camera operating indicator This indicates the camera operating status.2Illumination SensorUsing the illumination sensor, the LCD screen brightness is automatically adjusted depending on the ambient illumination. If you cover the illumination sensor with your hand, the LCD screen will become dimmer. Therefore, please take care that you do not cover the sensor when you use the computer.3CameraUsing this camera, you can take still pictures and record video.You can take a picture or make a movie using the Charms > Start > Camera.4Touch Screen This is a touch screen that shows the output from the computer.5Home button áᔪŖᮁ᜽᯲ᰆ⊹ᖅᱶSwitches the screen between the Start screen and the currently running app/program. If no app/software is currently running, the Desktop is displayed.

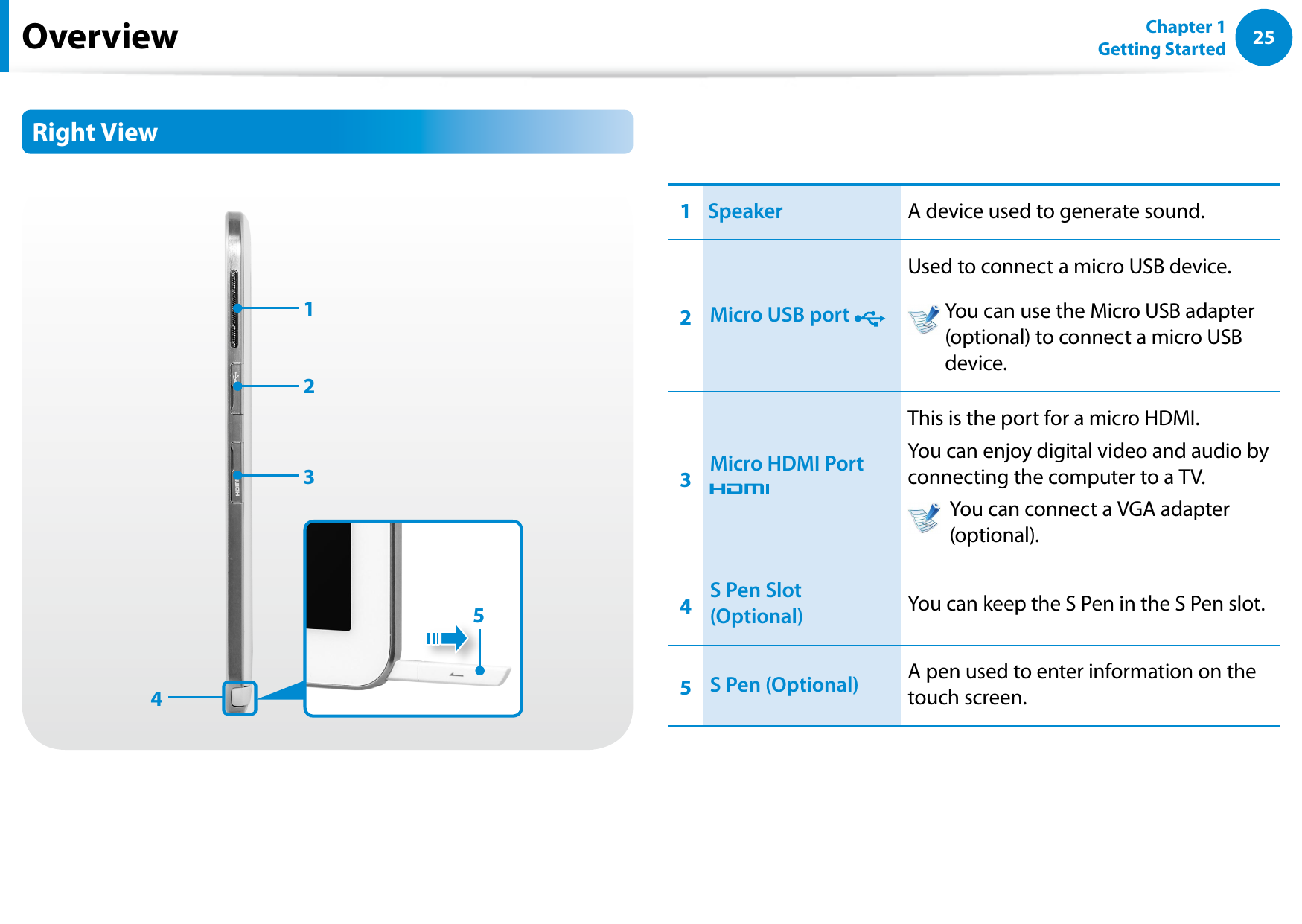

2425Chapter 1 Getting StartedOverviewRight View451231Speaker A device used to generate sound.2Micro USB port Used to connect a micro USB device. You can use the Micro USB adapter (optional) to connect a micro USB device.3Micro HDMI Port This is the port for a micro HDMI.You can enjoy digital video and audio by connecting the computer to a TV. You can connect a VGA adapter (optional).4S Pen Slot (Optional) You can keep the S Pen in the S Pen slot.5S Pen (Optional) A pen used to enter information on the touch screen.

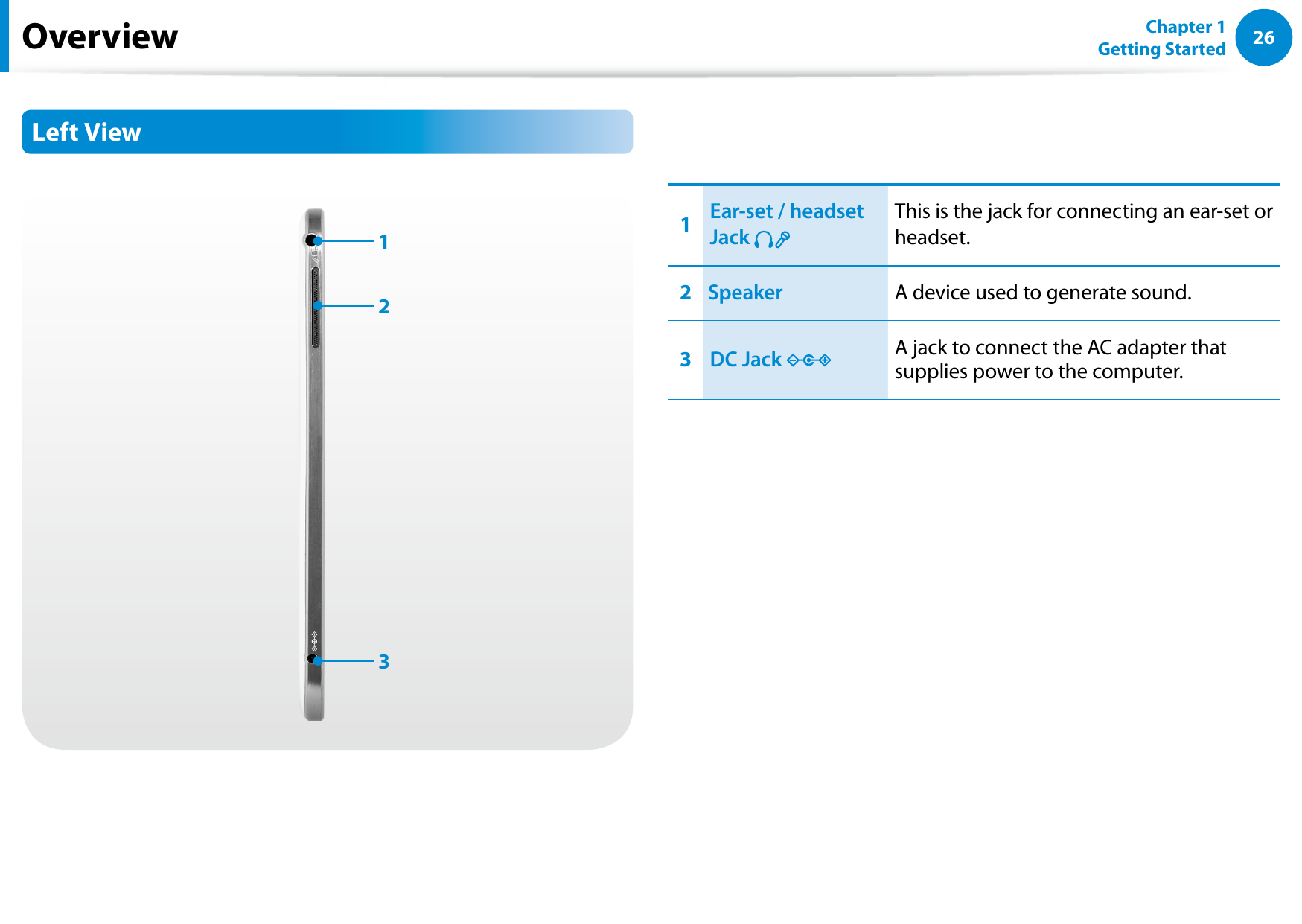

26Chapter 1 Getting StartedOverviewLeft View1231Ear-set / headset Jack This is the jack for connecting an ear-set or headset.2Speaker A device used to generate sound.3DC Jack A jack to connect the AC adapter that supplies power to the computer.
