108Chapter 5 Appendixrange. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.(Si l’appareil est équipé d’une bande 2,4 G ou 5 G)Des dispositifs de basse puissance, de type radio LAN (périphériques de communication sans l par radiofréquence RF) fonctionnant sur une bande de 2.4GHz/5GHz sont peut-être intégrés dans votre appareil. Cette section est applicable uniquement si ces dispositifs sont présents. Consultez l’étiquette du système pour vériez la présence de dispositifs sans l.Les dispositifs sans l qui peuvent être intégrés dans votre système sont uniquement aptes pour une utilisation au Canada si l’étiquette du système présente un nombre d’identication d’Industrie Canada.En cas d’utilisation d’un LAN sans l IEEE 802.11a, ce produit ne peut être utilisé qu’à l’intérieur en raison de son fonctionnement dans une plage des fréquences allant de 5,15 à 5,25 GHz. Industrie Canada exige l’utilisation de ce produit à l’intérieur pour une plage des fréquences allant de 5,15 à 5,25 GHz an de réduire les éventuelles interférences nuisibles avec les systèmes mobiles par satellite du même canal. Le radar de grande puissance est considéré comme l’utilisateur principal des bandes de 5,25 à 5,35 GHz et de 5,65 à 5,85 GHz. Ces stations radar peuvent provoquer des interférences avec ce périphérique et/ou l’endommager.Le gain d’antenne maximum autorisé avec ce périphérique est de 6 dBi an de respecter la limite de P.I.R.E. pour une plage des fréquences de 5,25 à 5,35 GHz et de 5,725 à 5,85 GHz dans un fonctionnement point à point.Regulatory Compliance Statements

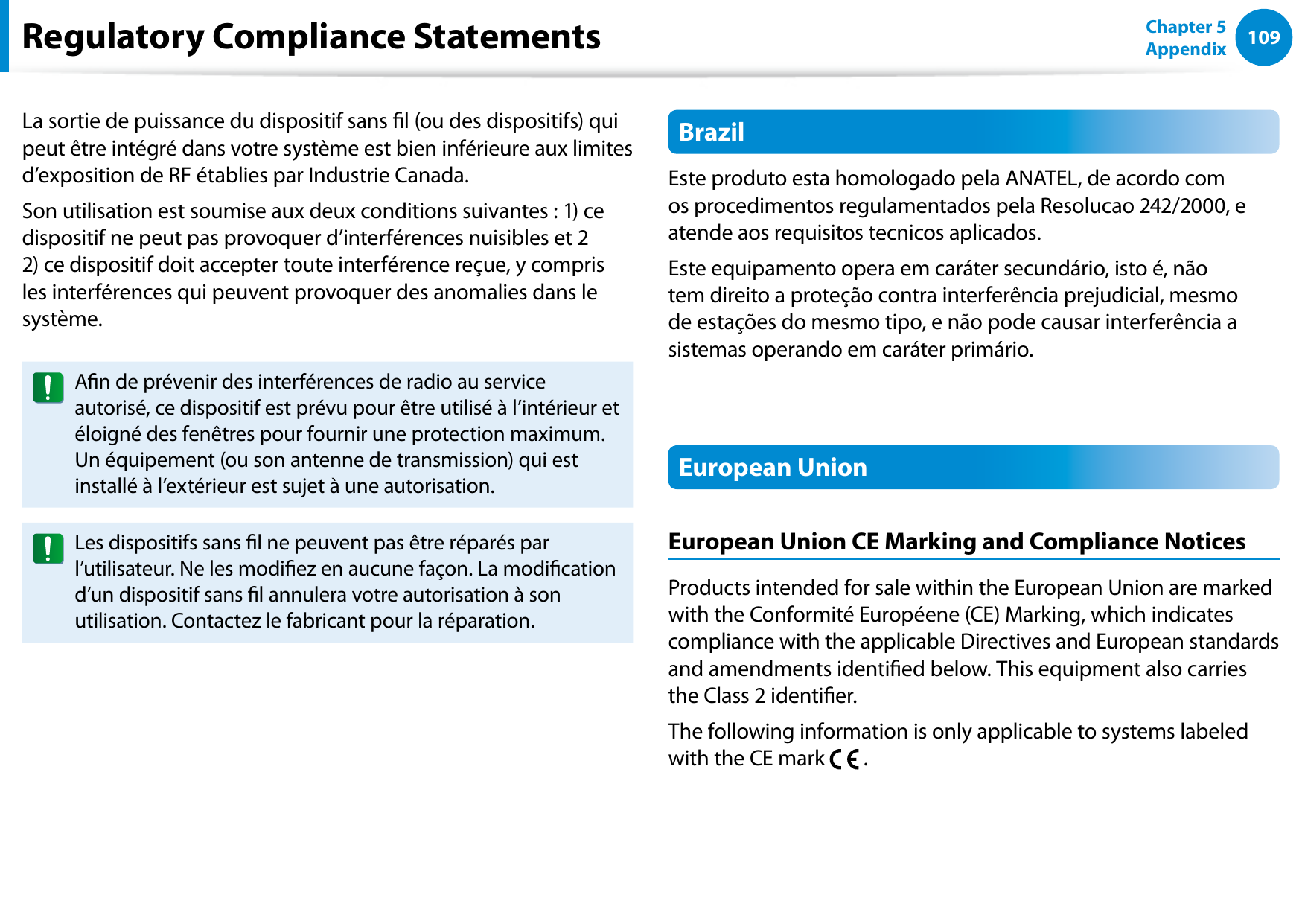

108109Chapter 5 AppendixLa sortie de puissance du dispositif sans l (ou des dispositifs) qui peut être intégré dans votre système est bien inférieure aux limites d’exposition de RF établies par Industrie Canada.Son utilisation est soumise aux deux conditions suivantes : 1) ce dispositif ne peut pas provoquer d’interférences nuisibles et 2 2) ce dispositif doit accepter toute interférence reçue, y compris les interférences qui peuvent provoquer des anomalies dans le système.An de prévenir des interférences de radio au service autorisé, ce dispositif est prévu pour être utilisé à l’intérieur et éloigné des fenêtres pour fournir une protection maximum. Un équipement (ou son antenne de transmission) qui est installé à l’extérieur est sujet à une autorisation.Les dispositifs sans l ne peuvent pas être réparés par l’utilisateur. Ne les modiez en aucune façon. La modication d’un dispositif sans l annulera votre autorisation à son utilisation. Contactez le fabricant pour la réparation.BrazilEste produto esta homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolucao 242/2000, e atende aos requisitos tecnicos aplicados.Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.European UnionEuropean Union CE Marking and Compliance NoticesProducts intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identied below. This equipment also carries the Class 2 identier.The following information is only applicable to systems labeled with the CE mark .Regulatory Compliance Statements

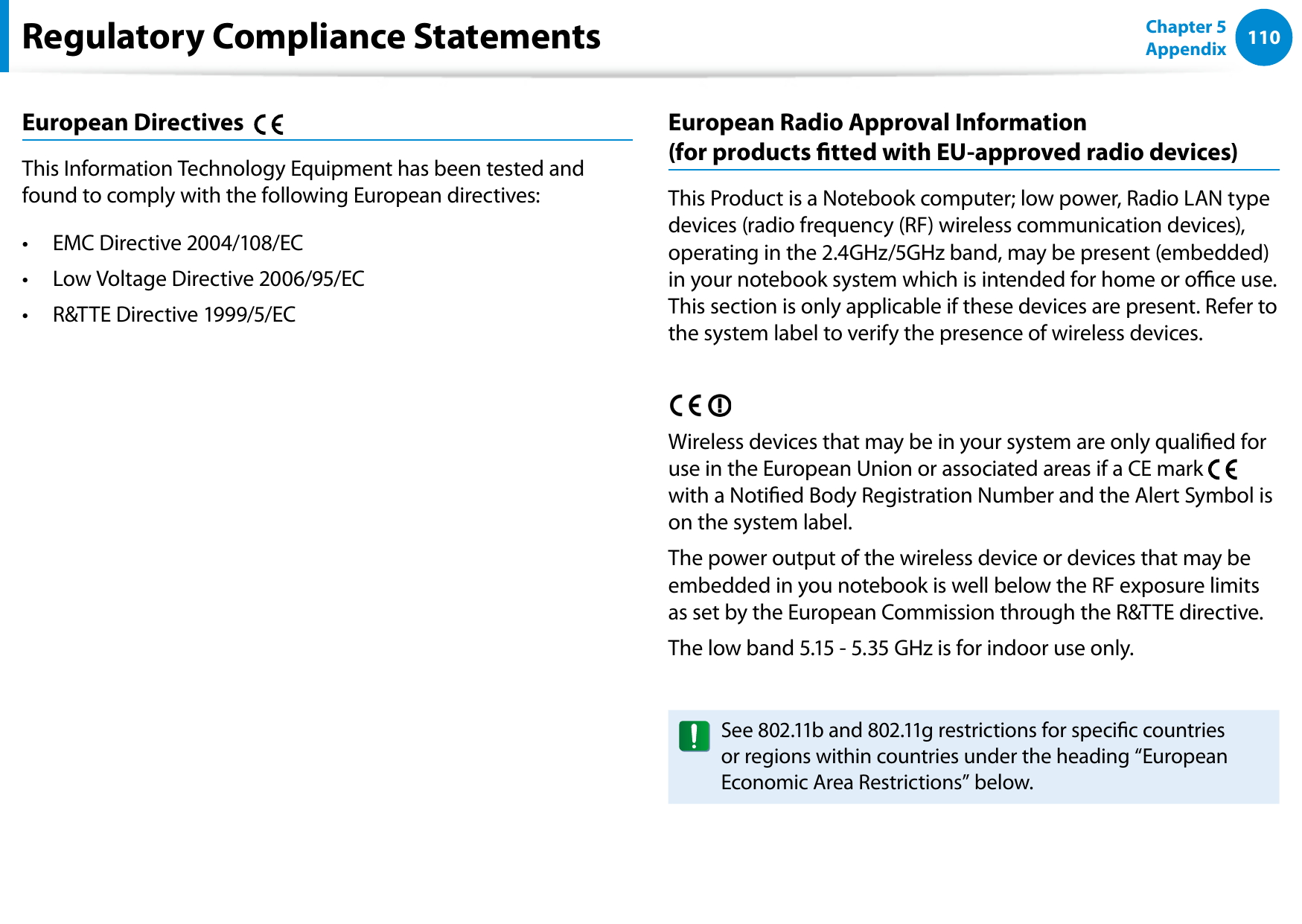

110Chapter 5 AppendixEuropean Directives This Information Technology Equipment has been tested and found to comply with the following European directives:EMC Directive 2004/108/EC• Low Voltage Directive 2006/95/EC• R&TTE Directive 1999/5/EC• European Radio Approval Information (for products tted with EU-approved radio devices)This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or oce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the European Union or associated areas if a CE mark with a Notied Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.The low band 5.15 - 5.35 GHz is for indoor use only.See 802.11b and 802.11g restrictions for specic countries or regions within countries under the heading “European Economic Area Restrictions” below.Regulatory Compliance Statements

110111Chapter 5 AppendixEU R&TTE Compliance StatementsČesky [Czech]Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk [Danish]Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch [German]Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.Eesti [Estonian]Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.EnglishHereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español [Spanish]Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Ελληνική [Greek]ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français [French]Par la présente Samsung déclare que l’appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano [Italian]Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Latviski [Latvian]Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.Lietuvių [Lithuanian]Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Nederlands [Dutch]Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Malti [Maltese]Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.Regulatory Compliance Statements

112Chapter 5 AppendixMagyar [Hungarian]Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.Polski [Polish]Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.Português [Portuguese]Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko [Slovenian]Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky [Slovak]Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Suomi [Finnish]Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska [Swedish]Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Íslenska [Icelandic]Hér með lýsir Samsung yr því að Notebook PC er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.Norsk [Norwegian]Samsung erklærer herved at utstyret Notebook PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye [Türkçe]Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.Regulatory Compliance Statements

112113Chapter 5 AppendixTo view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/main/supportMain.do or http://www.samsung.com/uk/support then search the model number of the product.If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor or below address.doc.eu@samsung.comManufacturer InformationSamsung Electronics Co., Ltd.416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, KoreaSamsung Electronics Suzhou Computer Co., Ltd.No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, ChinaTel: +86-512-6253-8988Samsung Electronics Vietnam Co., Ltd.Yen Phong 1, I.P Yen Trung Commune, Yen Phong Dist., Bac Ninh Province, VietnamFor the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.European Economic Area RestrictionsLocal Restriction of 802.11b/802.11g Radio Usage[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specic countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are congured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.Regulatory Compliance Statements

114Chapter 5 AppendixThe European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows: GeneralEuropean standards dictate maximum radiated transmit power of 100 mW eective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.The low band 5.15 - 5.35 GHz is for indoor use only.BelgiumThe product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.This restriction should be indicated in the manual as follows:Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.FranceThe low band 5.15 - 5.35 GHz is for indoor use only.RTC CAUTIONCAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the Manufacturer’s instruction.Attention: Danger d’explosion si les piles sont mal palcées. Remplacez les piles usagées uniquement par des piles de type identique ou équivalent recommandees par is fabriquant. Otez les piles usagées selon les instructions du fabriquant.Adapter InformationAC/DC adapter information in the user instructionVendor CHICONYCompany Name Chicony Power Technology Co., Ltd.Adapter Model Name A13 - 04 0N1AVendor SamsungCompany Name Samsung Electro-Mechanics Co., Ltd.Adapter Model Name P SC V4 0 0112 *Regulatory Compliance Statements

114115Chapter 5 AppendixRF Exposure (for corresponding 3G models only)General Statement on RF energyYour wireless WAN embedded PC contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your Notebook PC, the system handling your connection controls the power level at which your Notebook PC transmits.Specic Absorption Rate (SAR) certication informationThis wireless WAN embedded PC is included a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientic organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.The guidelines use a unit of measurement known as the Specic Absorption Rate, or SAR. The SAR limit for mobile devices is 2.0 W/kg and the highest SAR value for this device when tested at the body was 0.565 W/kg. (SAR measurement distance is 0 cm from the phantom)As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to reach the network.The World Health Organization has stated that present scientic information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls to keep the mobile devices away from the head and body.Limiting exposure to radio frequency (RF) eldsFor individuals concerned about limiting their exposure to RF elds, the World Health Organisation (WHO) provides the following advice:Precautionary measures: Present scientic information does not indicate the need for any special precautions for the use of the Notebook PC. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of connections.Further information on this subject can be obtained from the WHO home page http://www.who.int/peh-emfWHO Fact sheet 193: June 2000.Regulatory Compliance Statements

116Chapter 5 AppendixRegulatory Compliance StatementsDeclaration of Conformity (for corresponding 3G models only)Product detailsFor the followingProduct : Notebook PC (Tablet PC)Model(s) : XE500T1CDeclaration & Applicable standardsWe hereby declare, that the product above is in compliance with the essential requirements of the R&TTE Directive (1999/5/EC) by application of the standards below.This product also meets the essential requirements and other relevant provisions of the EMC Directive (2004/108/EC) and the LVD Directive (2006/95/EC).EN 60950-1:2006+A11:2009/A1:2010/A12:2011 EN 62311 : 2008EN 55022:2006+A1:2007 EN 55024:1998+A1:2001+A2:2003EN 61000-3-2:2006+A2:2009 EN 61000-3-3:2008EN 301 489-01 V1.9.2 (09-2011) EN 301 489-03 V1.4.1 (2002)EN 301 489-07 V1.3.1 (11-2005) EN 301 489-17 V2.1.1 (05-2009)EN 301 489-24 V1.5.1 (10-2010) EN 300 328 V1.7.1 (10-2006)EN 300 440-1 V1.6.1 (08-2010) EN 301 893 V1.6.1 (11-2011)EN 300 440-2 V1.4.1 (08-2010) EN 301 511 V9.0.2 (03-2003)EN 302 291-1 V1.1.1 EN 301 908-1 V5.2.1 (05-2011)EN 302 291-2 V1.1.1 EN 301 908-2 V5.2.1 (07-2011)and the Eco-Design Directive (2009/125/EC) implemented by Regulations (EC) No 1275/2008 for standby and o mode electric power consumption and (EC) No 278/2009 for external power supplies and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Representative in the EU(YEAR TO BEGIN AFFIXING CE MARKING 2012)Samsung Electronics Euro QA Lab. Blackbushe Business Park Saxony Way, Yateley, Hampshire GU46 6GG, UK02 October 2012(Place and date of issue)Joong-Hoon Choi/Lab. Manager(Name and signature of authorized person)

116117Chapter 5 AppendixWEEE Symbol InformationCorrect disposal of this product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.India OnlyFor more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282.PbCorrect disposal of batteries in this product(Applicable in countries with separate collection systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.USA ONLYThis Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. “Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”Dispose unwanted electronics through an approved recycler.To nd the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278-0799For battery recycling go to call2recycle.org; or call 1-877-723-1297

118Chapter 5 AppendixIn partnering with select recyclers, Samsung oers packaging take-back at no cost to you.Simply call the following number for the locations nearest you.CRT Processing, LLC(877) 278-0799Kathy Severson – Logistics contactDispose unwanted electronics through an approved recycler.To nd the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278-0799Samsung Packaging Take-Back Program

120Chapter 5 AppendixThe system specications may dier depending on the derived models.For detailed system specications, refer to the product catalogue.CPU (Optional) Intel® ATOM™ ProcessorMain Memory Memory type: LPDDR2 SDRAM on boardMain Chipset Intel® ClovertrailStorage Device e.MMC iNAND™ Embedded Flash DriveGraphics Intel® SGX545 (Internal)Operating EnvironmentTemperature: -5~40°C for storage, 10~32°C when operatingHumidity: 5~90% for storage, 20~80% when operatingAC/DC Rating Input: 100-240VAC, 50 ~ 60Hz, Output: 12VDC 3.33APC Rating 12VDC 3.33A (40W)Optional components may not be provided or dierent • components may be provided depending on the computer model.The system specications are subject to change without • notice.The amount of memory that Windows can use may be • smaller than the actual amount of memory available.Replacing or adding a memory module for this product is • not supported due to the product design.Product Specications

122Chapter 5 AppendixGlossaryThe Glossary lists the terminologies used in this user manual. For terminologies other than these, look in Windows Help.BackupA way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.Chargeable USBThis program enables supplying power to a specic USB port when the system is in power saving mode, hibernation mode or o.ClientThis refers to a computer that uses a shared network resource provided by a server.DDR SDRAM (Double Data Rate Synchronous Dynamic Random Access Memory)DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.Device ManagerAn administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.DHCP (Dynamic Host Conguration Protocol)This refers to automatically allocating IP addresses to the users on the network by the network administrators.Direct XAn application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.DriverSoftware that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.D-sub (D-subminiature)This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.

122123Chapter 5 AppendixDVD (Digital Versatile Disk)DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.FirewallA security system used to protect an internal network or intranet from external networks through an authentication procedure.HDMIThis is a digital video / audio interface specication that transmits video and audio signals over a single cable.Hibernation ModeThis is the state where the computer saves all the information in memory to the storage device and shuts down. When canceling Hibernation Mode, all application programs that were running are restored to their last state.IconThis refers to a small image that represents a le that users can use.IEEE802.XXThis is a set fo specications developed by the 802 committee of IEEE for the LAN connection method called XX.LAN (Local Area Network)A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows uses TCP/IP as the default protocol.LCD (Liquid Crystal Display)There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.Glossary

124Chapter 5 AppendixNetworkA group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.Network AdministratorA user who plans, congures and manages network operations. Sometimes, a network administrator is called a system administrator.Notication AreaThis refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.PartitionThis refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.PCMCIA( Personal Computer Memory Card International Association) cardThis is an extended card slot specication for mobile computers such as a notebook computer. Not only a memory, device but also most peripherals such as hard disk drives, LAN cards, etc. can be connected to this card slot.ProtocolA protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It denes the data transmission procedures and the transmission medium for more ecient network functions.Quick LaunchThis refers to a toolbar that can be congured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.ServerIn general, a server refers to a computer that provides shared resources for network users.Glossary

124125Chapter 5 AppendixShareThis refers to setting a resource of a computer such as a folder or printer so that other users can also use it.Shared FolderA folder that can be used by other users on the network.Sleep ModeA power mode that enables computers to save power consumption when they are not being used. While the computer is in sleep mode, the information in the computer memory is not saved on the storage device. If the power is turned o, the data in memory will be lost.System FileSystem Files refer to les that are read and used by the Windows operating system. In general, system les must not be deleted or moved.TCP/IPv4This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.USB (Universal Serial Bus)This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2. The data transmission specications are one of the interface standards used to connect a computer to peripheral devices. These specications include USB 1.0, 1.1, 2.0 and 3.0. It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.Windows Media PlayerA multimedia program included with Windows. Using this program, you can play a media le, create an audio CD, listen to a radio broadcast, search and manage media les, and copy les to a portable device, etc.Glossary

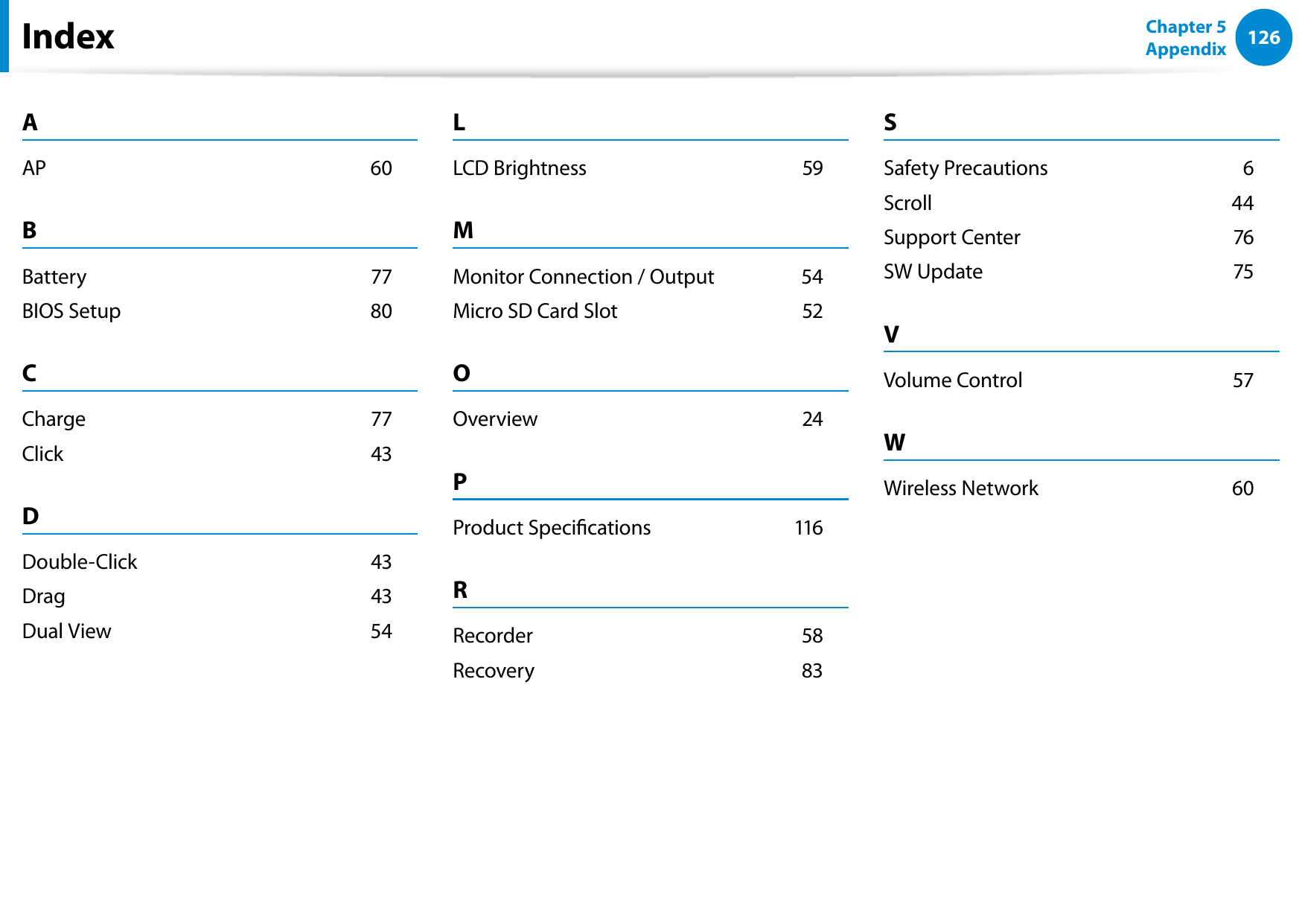

126Chapter 5 AppendixIndexAAP 60BBattery 77BIOS Setup 80CCharge 77Click 43DDouble-Click 43Drag 43Dual View 54LLCD Brightness 59MMonitor Connection / Output 54Micro SD Card Slot 52OOverview 24PProduct Specications 116RRecorder 58Recovery 83SSafety Precautions 6Scroll 44Support Center 76SW Update 75VVolume Control 57WWireless Network 60
