Samsung Electronics Co XE300TZC Tablet PC with 802.11 abgn + BT, GPS User Manual Part 4

Samsung Electronics Co Ltd Tablet PC with 802.11 abgn + BT, GPS Part 4

User Manual Part 4

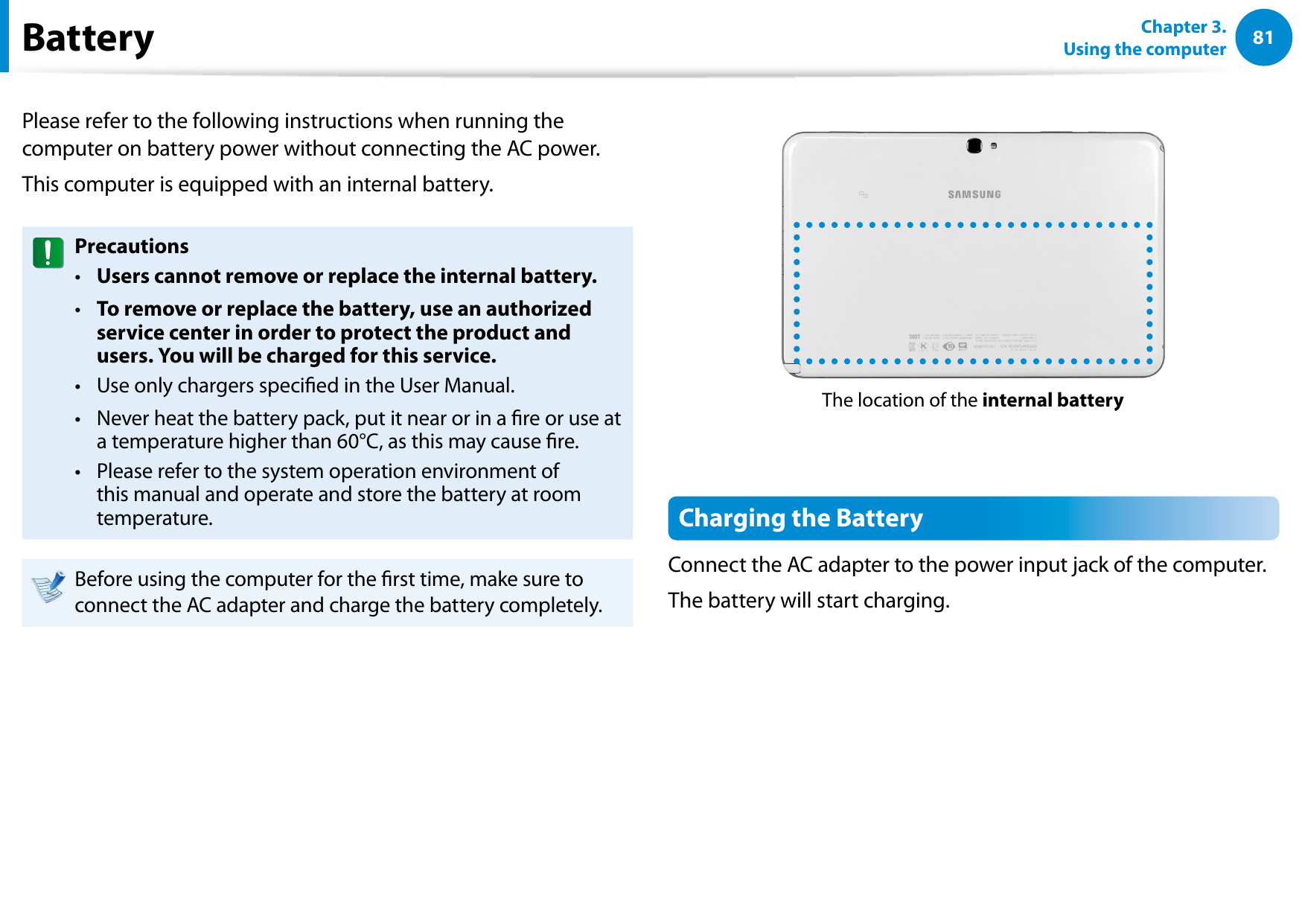

8081Chapter 3. Using the computerBatteryPlease refer to the following instructions when running the computer on battery power without connecting the AC power. This computer is equipped with an internal battery. PrecautionsUsers cannot remove or replace the internal battery. • To remove or replace the battery, use an authorized • service center in order to protect the product and users. You will be charged for this service.Use only chargers specied in the User Manual.• Never heat the battery pack, put it near or in a re or use at • a temperature higher than 60°C, as this may cause re.Please refer to the system operation environment of • this manual and operate and store the battery at room temperature.Before using the computer for the rst time, make sure to connect the AC adapter and charge the battery completely.The location of the internal batteryCharging the BatteryConnect the AC adapter to the power input jack of the computer.The battery will start charging.The Support Center program, which is Samsung’s computer’s troubleshooting guide, supports diagnosing the system and has a FAQ for frequently occurring problem(s). Support Center may not be provided or may be a dierent version depending on the model.1 Right-click over the Start screen.Click Support Center in the All Apps menu item.2 Support Center is activated and starts diagnosing your computer. After the diagnosing process is nished, the System Status menu displays a list of the current problems to be solved as shown.FAQ for computer’s major problemsDiagnosing Computer and TroubleshootingSearching for computer’s problems3 You can solve a problem by clicking the Troubleshoot button for the problem.

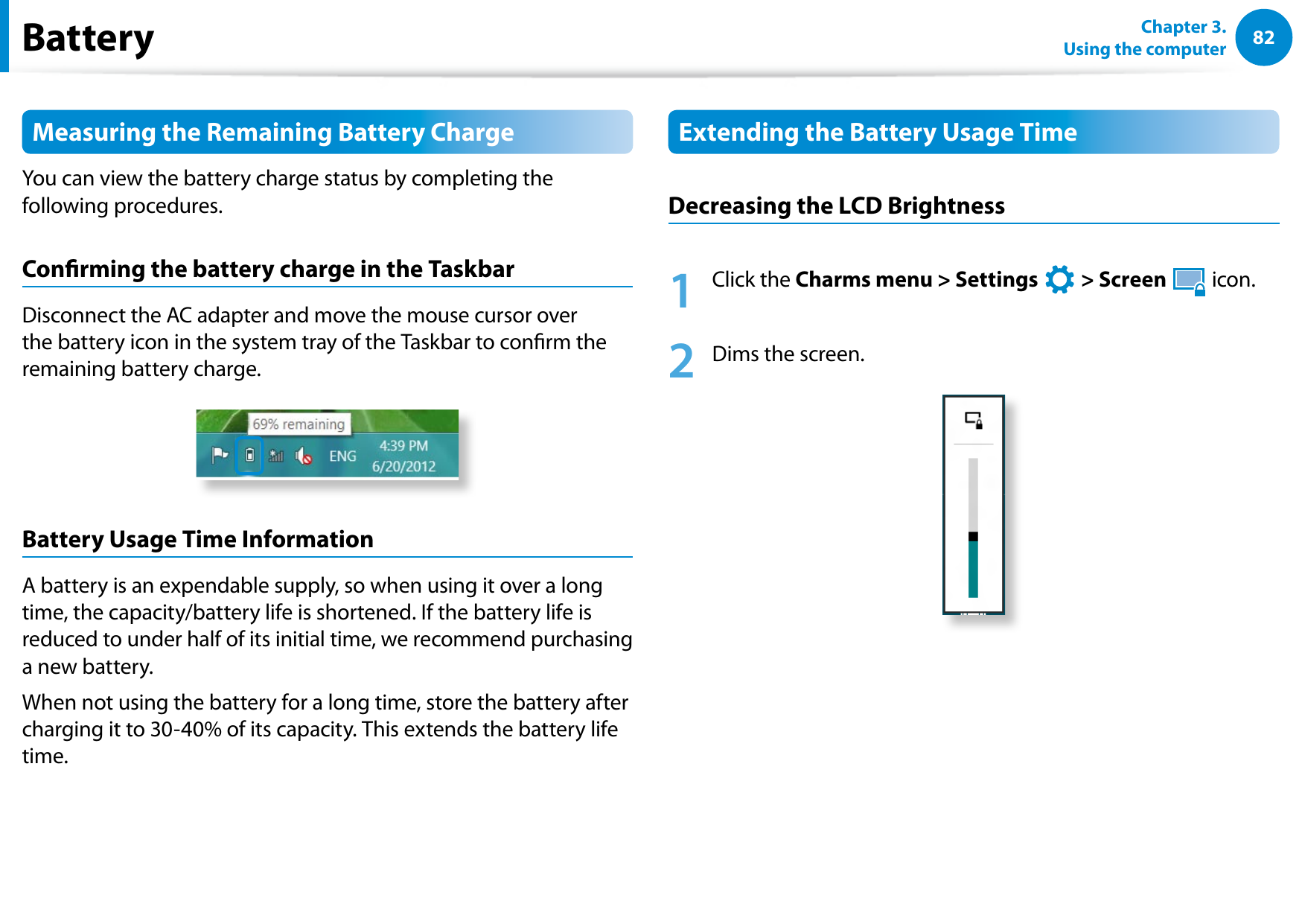

82Chapter 3. Using the computerBatteryMeasuring the Remaining Battery ChargeYou can view the battery charge status by completing the following procedures.Conrming the battery charge in the TaskbarDisconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to conrm the remaining battery charge.Battery Usage Time InformationA battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.Extending the Battery Usage TimeDecreasing the LCD Brightness1 Click the Charms menu > Settings áᔪŖᮁ᜽᯲ᰆ⊹ᖅᱶ > Screen icon.2 Dims the screen.

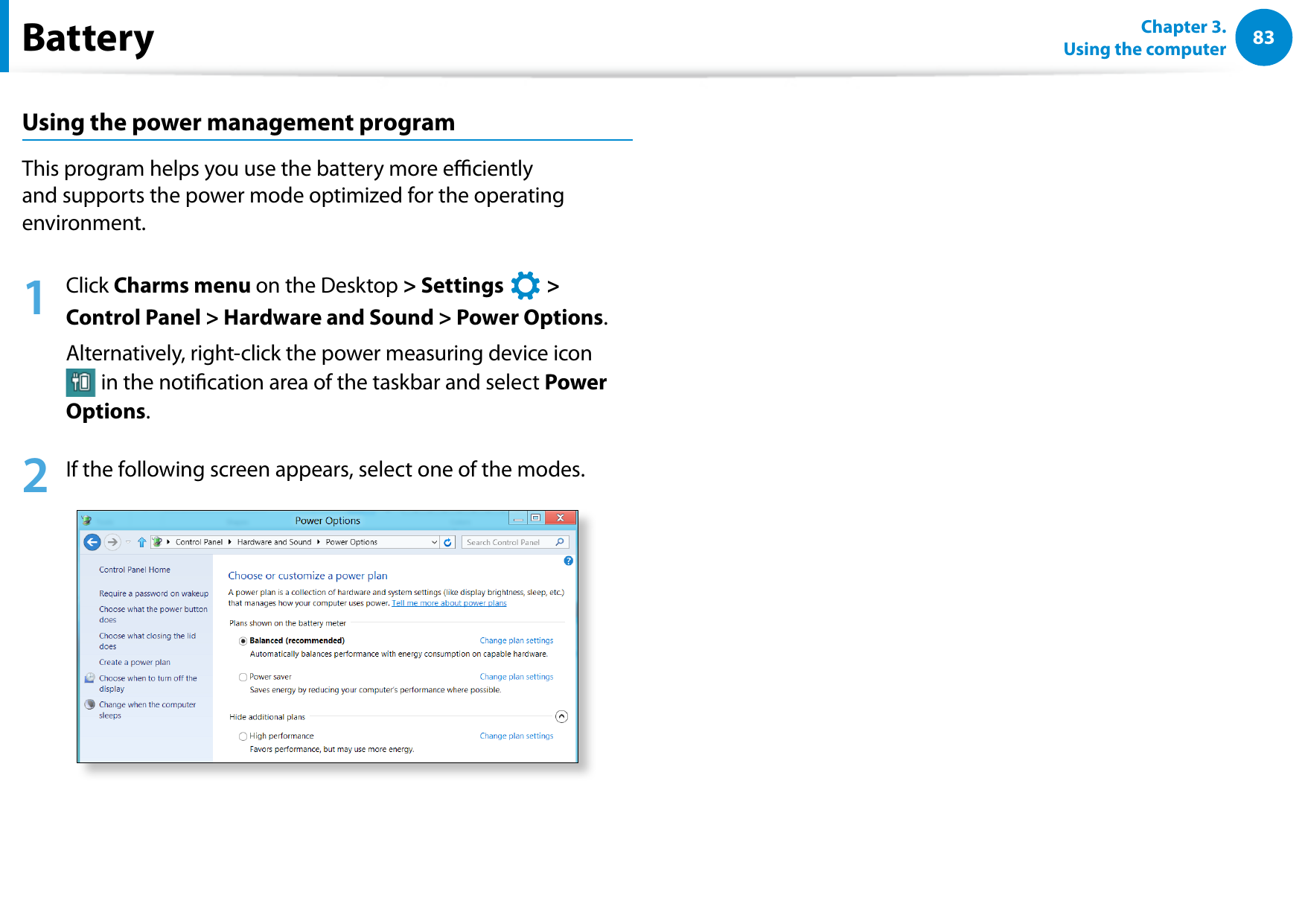

8283Chapter 3. Using the computerBatteryUsing the power management programThis program helps you use the battery more eciently and supports the power mode optimized for the operating environment.1 Click Charms menu on the Desktop > Settings áᔪŖᮁ᜽᯲ᰆ⊹ᖅᱶ > Control Panel > Hardware and Sound > Power Options.Alternatively, right-click the power measuring device icon in the notication area of the taskbar and select Power Options.2 If the following screen appears, select one of the modes.

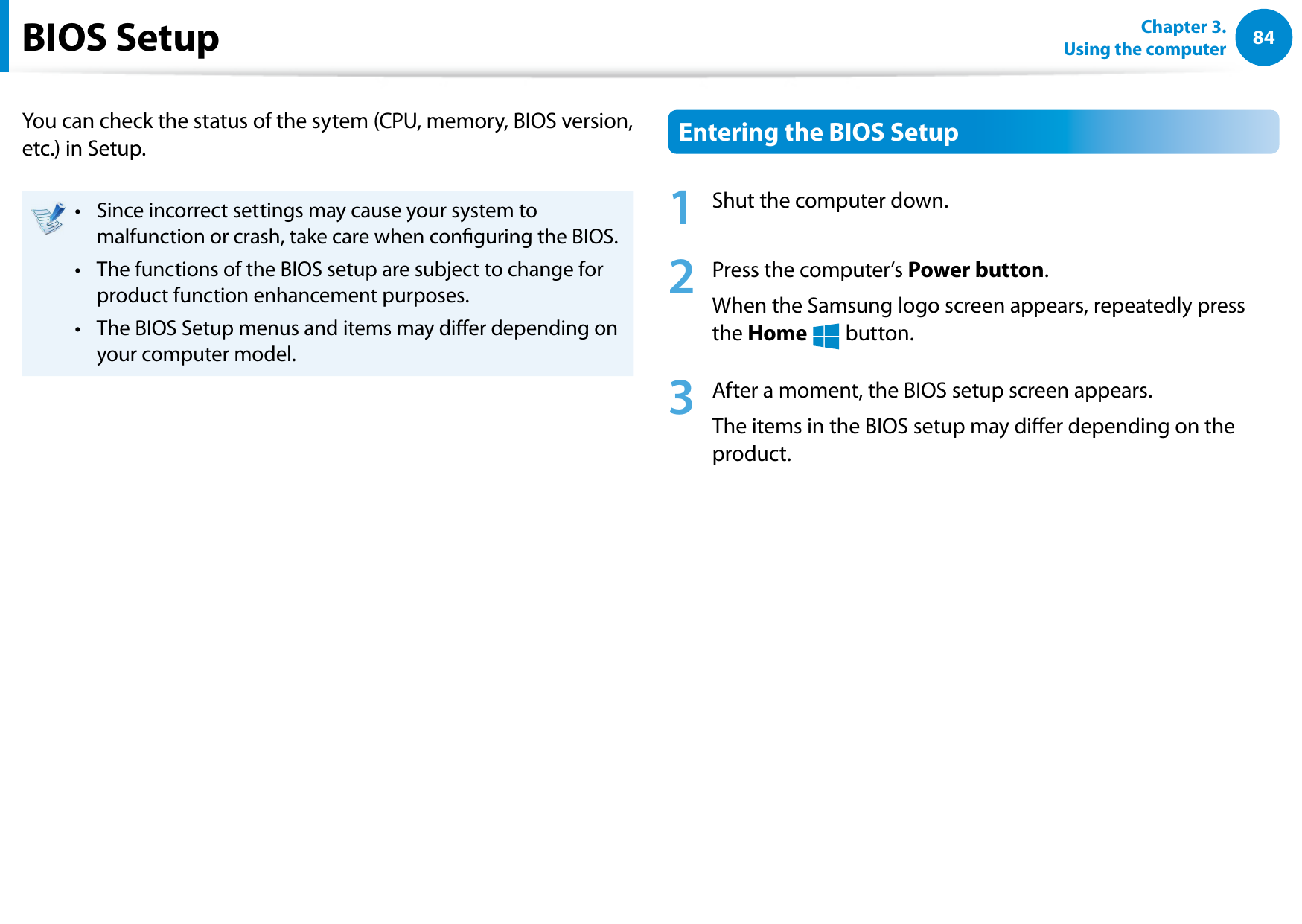

84Chapter 3. Using the computerBIOS SetupYou can check the status of the sytem (CPU, memory, BIOS version, etc.) in Setup.Since incorrect settings may cause your system to • malfunction or crash, take care when conguring the BIOS.The functions of the BIOS setup are subject to change for • product function enhancement purposes.The BIOS Setup menus and items may dier depending on • your computer model.Entering the BIOS Setup1 Shut the computer down.2 Press the computer’s Power button.When the Samsung logo screen appears, repeatedly press the Home áᔪŖᮁ᜽᯲ᰆ⊹ᖅᱶ button.3 After a moment, the BIOS setup screen appears. The items in the BIOS setup may dier depending on the product.

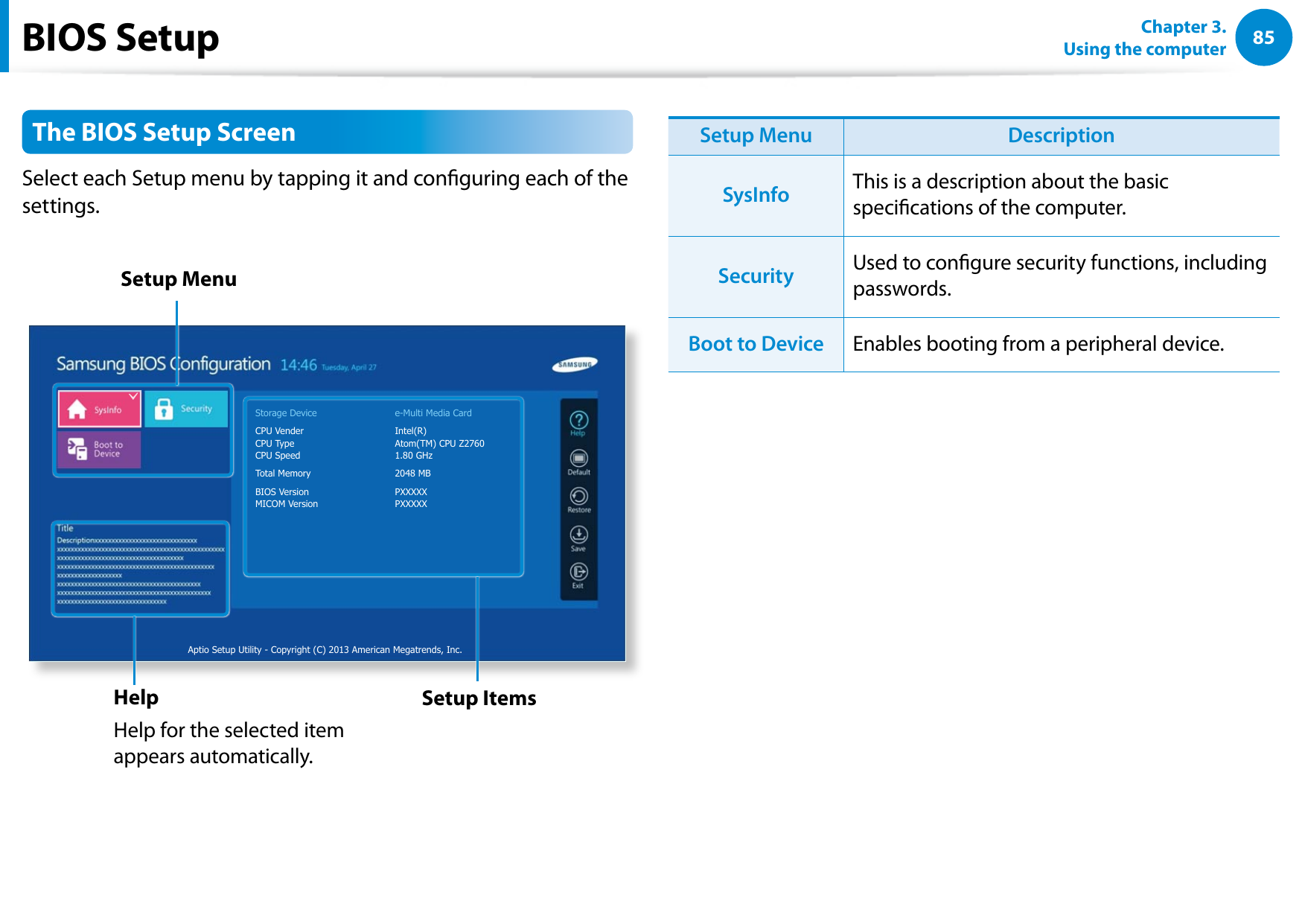

8485Chapter 3. Using the computerThe BIOS Setup ScreenSelect each Setup menu by tapping it and conguring each of the settings.Storage Device e-Multi Media CardCPU Vender Intel(R)CPU Type Atom(TM) CPU Z2760CPU Speed 1.80 GHzTotal Memory 2048 MBBIOS Version PXXXXXMICOM Version PXXXXXAptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.Setup MenuSetup ItemsHelpHelp for the selected item appears automatically.Setup Menu DescriptionSysInfo This is a description about the basic specications of the computer.Security Used to congure security functions, including passwords.Boot to Device Enables booting from a peripheral device.BIOS Setup

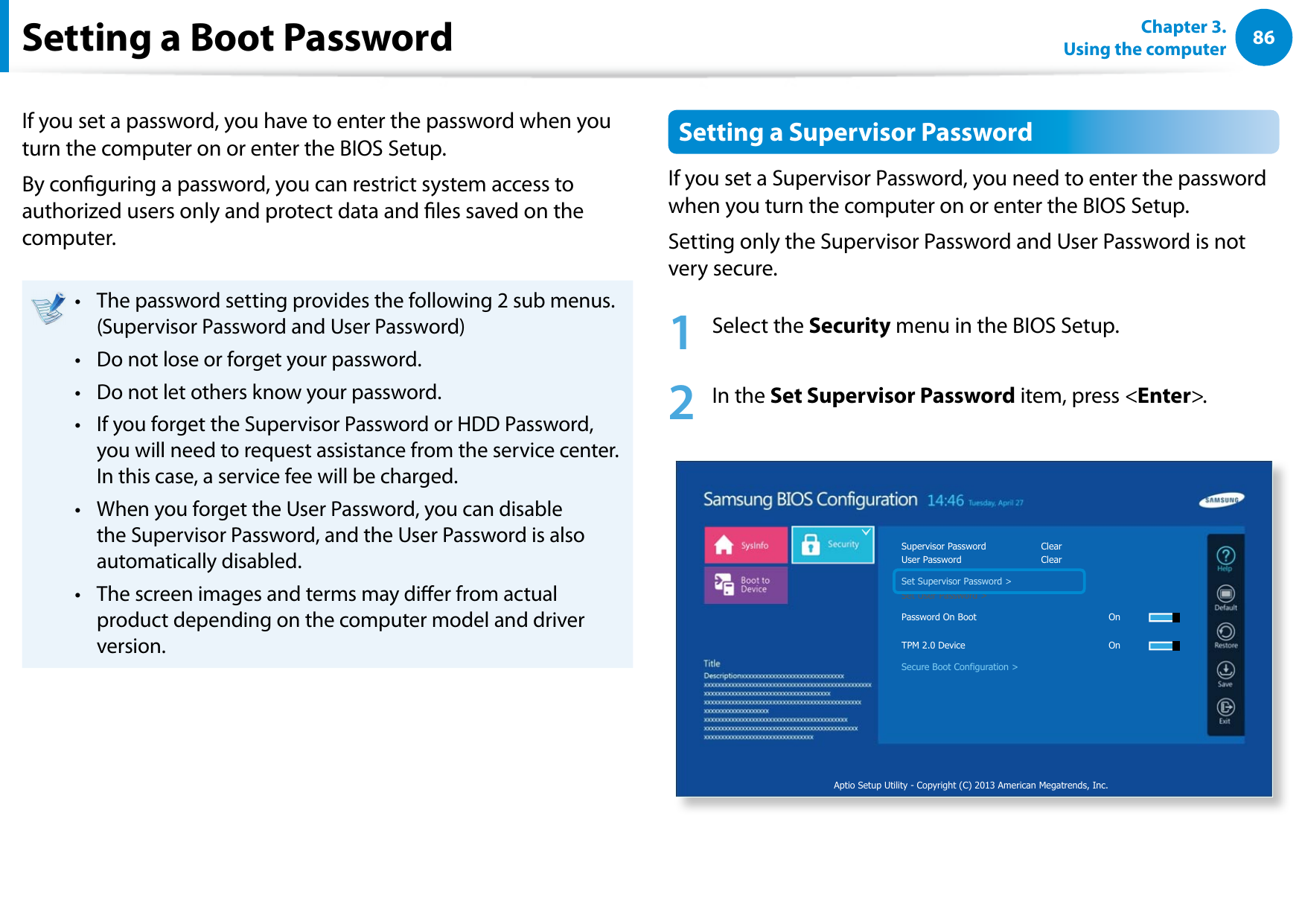

86Chapter 3. Using the computerSetting a Boot PasswordIf you set a password, you have to enter the password when you turn the computer on or enter the BIOS Setup.By conguring a password, you can restrict system access to authorized users only and protect data and les saved on the computer.The password setting provides the following 2 sub menus.• (Supervisor Password and User Password)Do not lose or forget your password. • Do not let others know your password.• If you forget the Supervisor Password or HDD Password, • you will need to request assistance from the service center. In this case, a service fee will be charged.When you forget the User Password, you can disable • the Supervisor Password, and the User Password is also automatically disabled.The screen images and terms may dier from actual • product depending on the computer model and driver version.Setting a Supervisor PasswordIf you set a Supervisor Password, you need to enter the password when you turn the computer on or enter the BIOS Setup.Setting only the Supervisor Password and User Password is not very secure. 1 Select the Security menu in the BIOS Setup.2 In the Set Supervisor Password item, press <Enter>.Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.Supervisor Password ClearUser Password ClearSet Supervisor Password >Set User Password >Password On Boot OnTPM 2.0 Device OnSecure Boot Configuration >

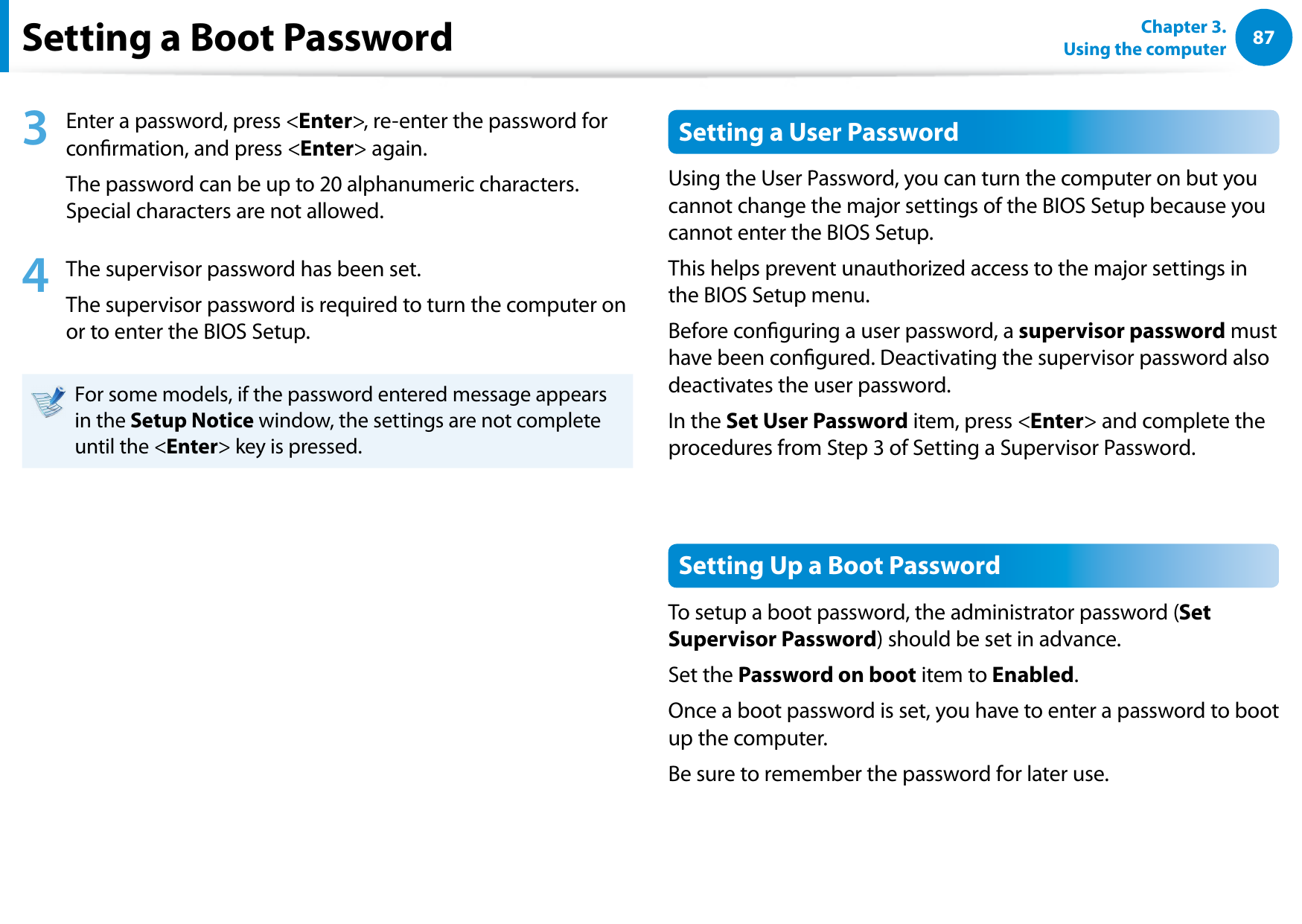

8687Chapter 3. Using the computerSetting a Boot Password3 Enter a password, press <Enter>, re-enter the password for conrmation, and press <Enter> again.The password can be up to 20 alphanumeric characters. Special characters are not allowed.4 The supervisor password has been set. The supervisor password is required to turn the computer on or to enter the BIOS Setup.For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the <Enter> key is pressed.Setting a User PasswordUsing the User Password, you can turn the computer on but you cannot change the major settings of the BIOS Setup because you cannot enter the BIOS Setup. This helps prevent unauthorized access to the major settings in the BIOS Setup menu.Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.Setting Up a Boot PasswordTo setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.Set the Password on boot item to Enabled. Once a boot password is set, you have to enter a password to boot up the computer.Be sure to remember the password for later use.

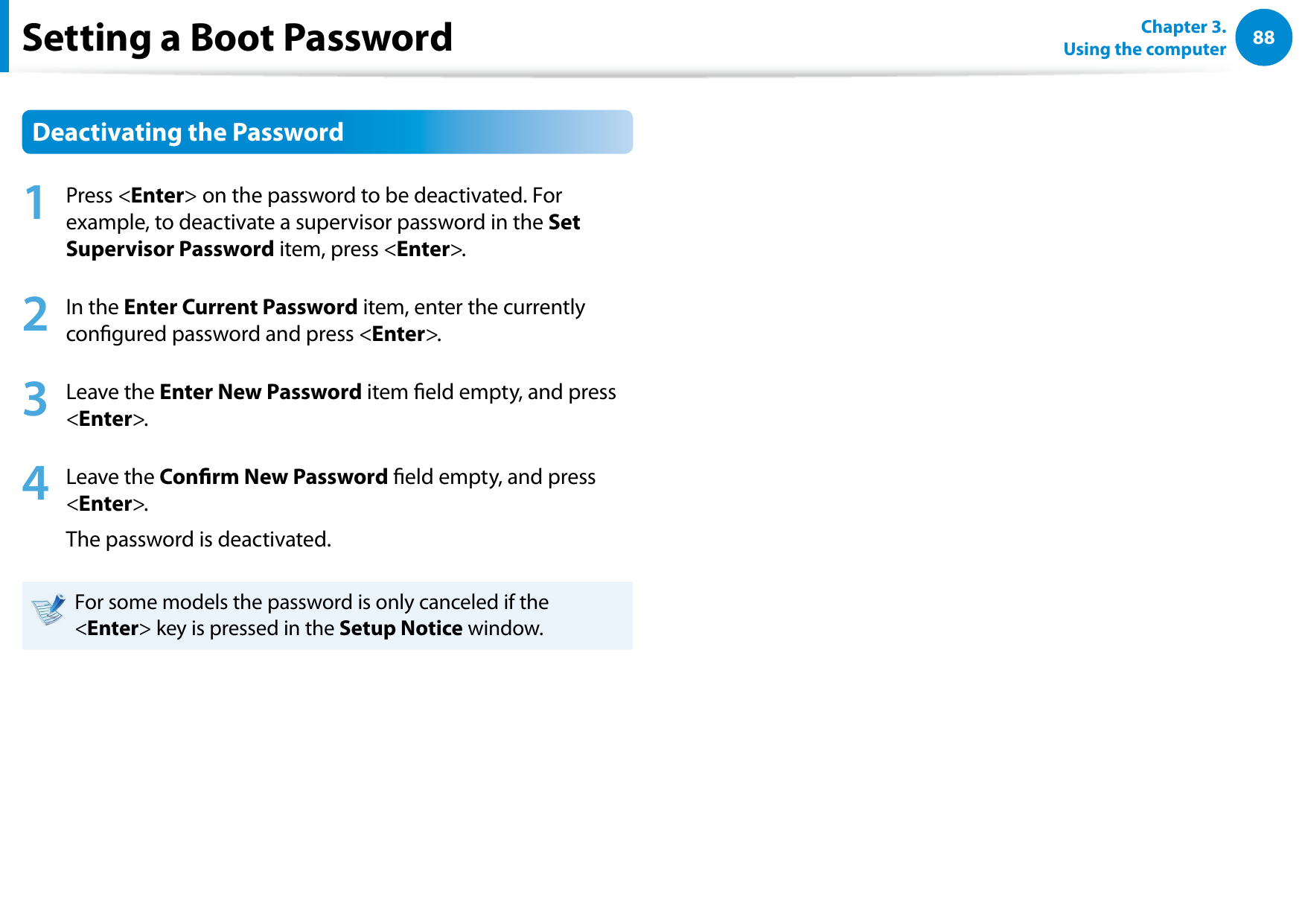

88Chapter 3. Using the computerSetting a Boot PasswordDeactivating the Password1 Press <Enter> on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.2 In the Enter Current Password item, enter the currently congured password and press <Enter>.3 Leave the Enter New Password item eld empty, and press <Enter>.4 Leave the Conrm New Password eld empty, and press <Enter>.The password is deactivated.For some models the password is only canceled if the <Enter> key is pressed in the Setup Notice window.

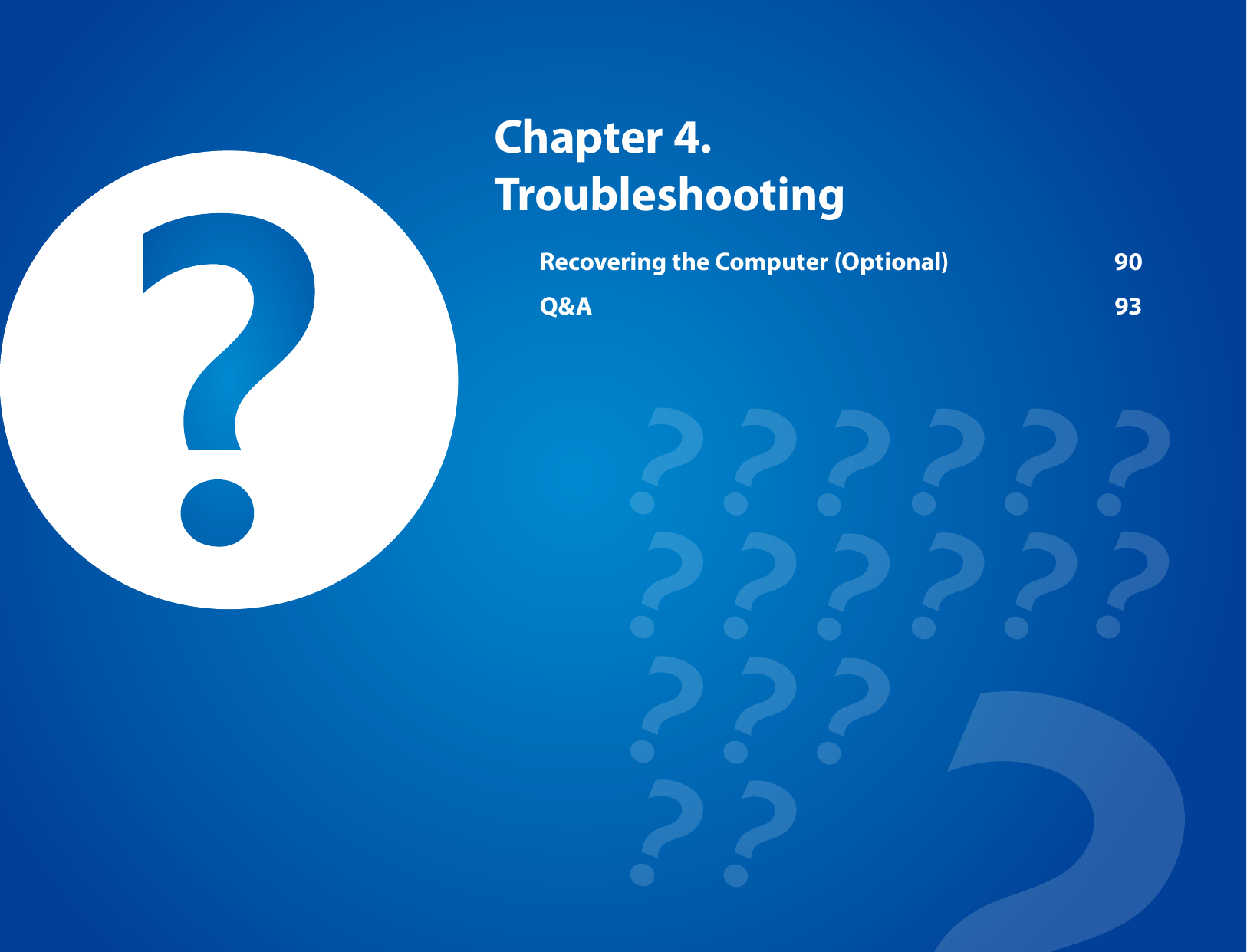

Chapter 4. TroubleshootingRecovering the Computer (Optional) 90Q&A 93

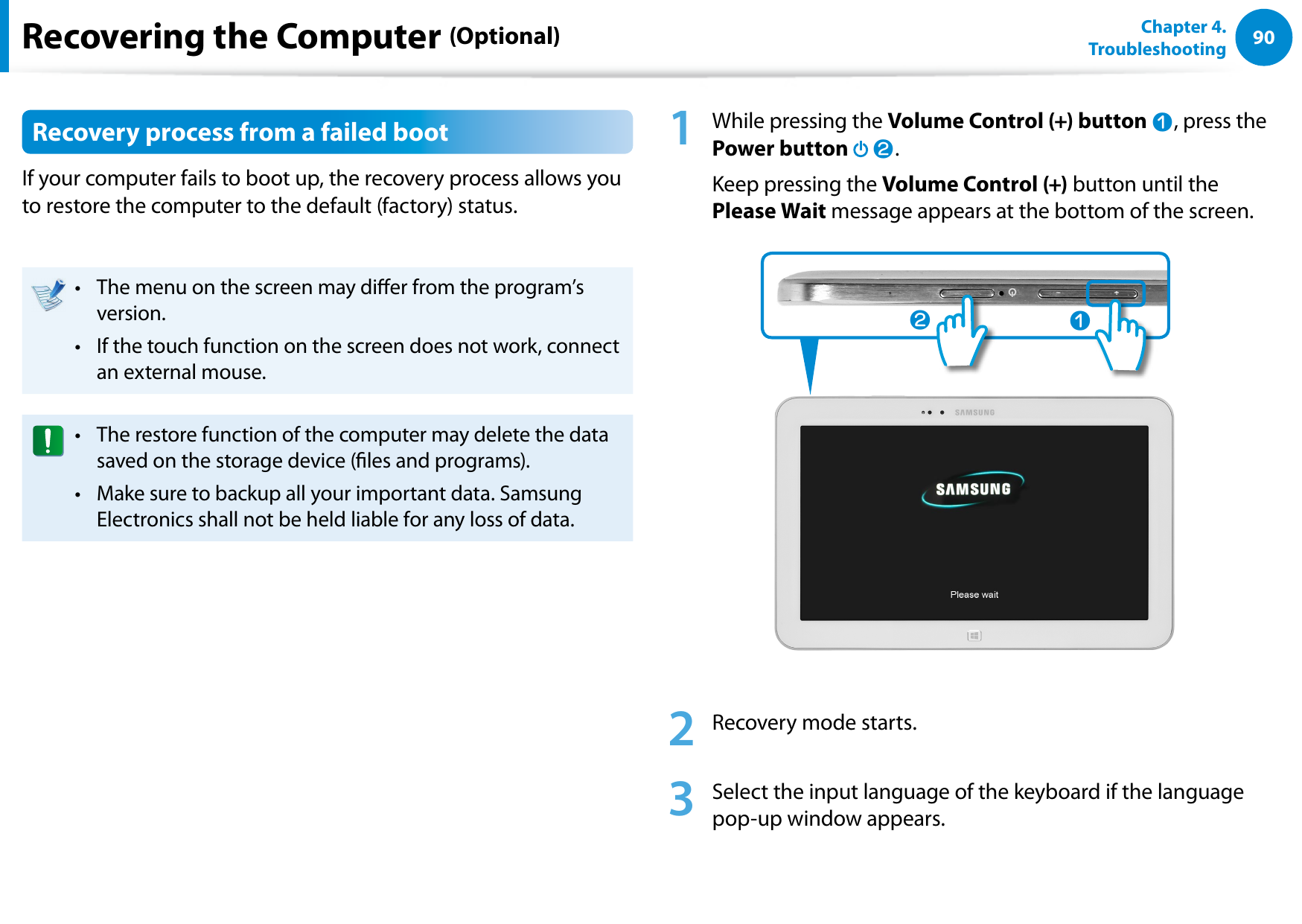

90Chapter 4. TroubleshootingRecovering the Computer (Optional)Recovery process from a failed bootIf your computer fails to boot up, the recovery process allows you to restore the computer to the default (factory) status.The menu on the screen may dier from the program’s • version.If the touch function on the screen does not work, connect • an external mouse.The restore function of the computer may delete the data • saved on the storage device (les and programs).Make sure to backup all your important data. Samsung • Electronics shall not be held liable for any loss of data.1 While pressing the Volume Control (+) button z, press the Power button x. Keep pressing the Volume Control (+) button until the Please Wait message appears at the bottom of the screen.xz2 Recovery mode starts.3 Select the input language of the keyboard if the language pop-up window appears.
9091Chapter 4. TroubleshootingRecovering the Computer (Optional)4 Press Troubleshoot > Refresh your PC or Reset your PC.Follow the instructions on the screen.Refresh your PCThis option restores your PC while keeping your media les such as photos, videos and music les, etc. as well as your personal documents.Reset your PC This option formats your PC and restores the Windows system.You should back up the les in the following folders before using the PC Recovery function since these les are not kept.\Windows, \Program les, \Program les(x86), \ProgramData, OEM Folder (ex) c:\samsung), \User\<user name>\AppData► If you choose Reset your PC, select a format type and follow the instructions on the screen. Refer to the format type below:Just remove my lesFormat your PC quickly and restore the Windows system.Fully clean the driveFully format your PC and restore the Windows system. This may take several hours.5 If the recovery is completed successfully, you can use your computer normally.You can restore required Samsung software programs • through All Apps > SW Update.For more information, refer to the • Samsung Software Updates section.Since only the minimum amount of restoration storage • has been allocated to ensure computer operations, you have to additionally install any required applications after performing a restoration.

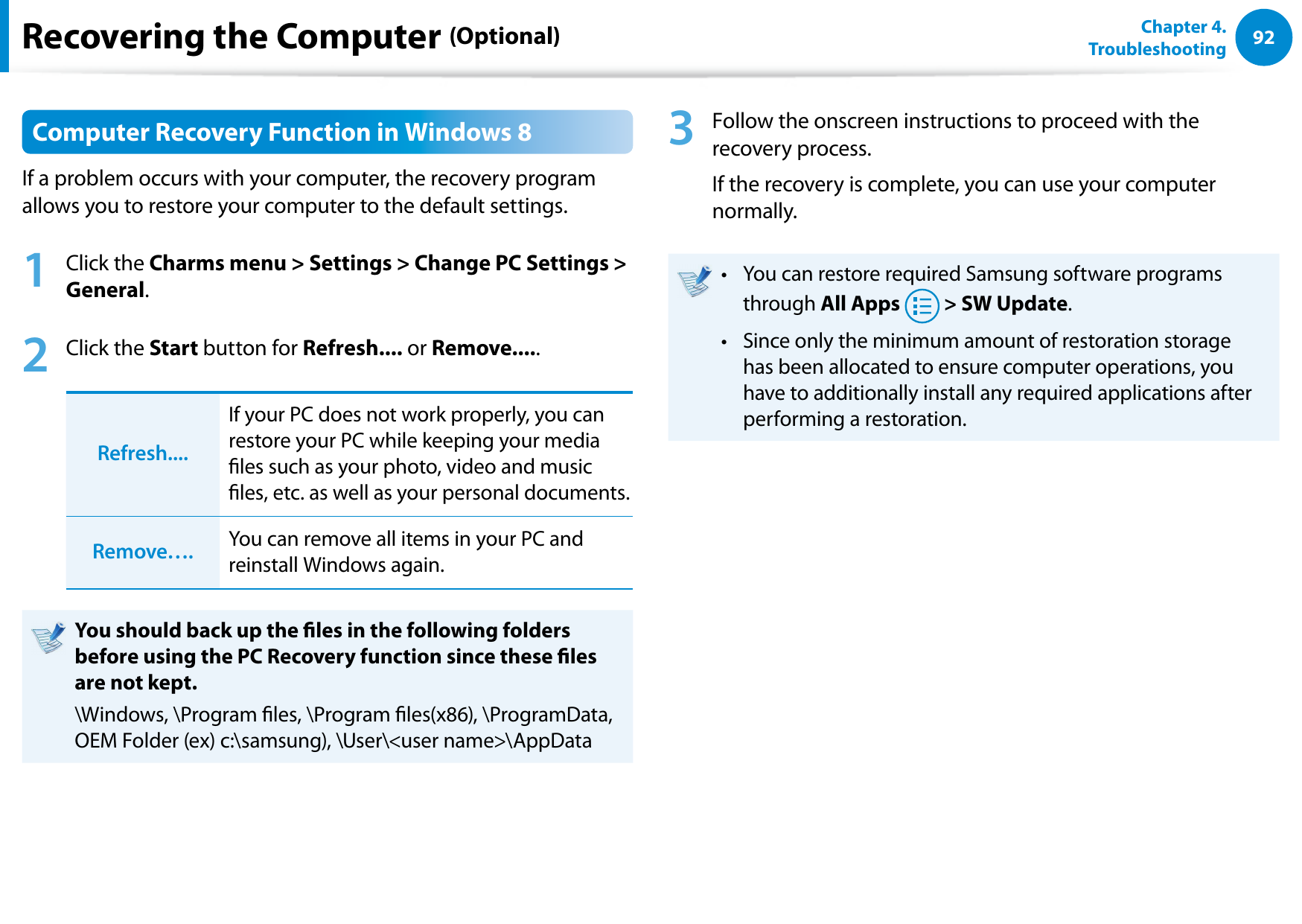

92Chapter 4. TroubleshootingRecovering the Computer (Optional)Computer Recovery Function in Windows 8If a problem occurs with your computer, the recovery program allows you to restore your computer to the default settings.1 Click the Charms menu > Settings > Change PC Settings > General.2 Click the Start button for Refresh.... or Remove.....Refresh....If your PC does not work properly, you can restore your PC while keeping your media les such as your photo, video and music les, etc. as well as your personal documents. Remove…. You can remove all items in your PC and reinstall Windows again.You should back up the les in the following folders before using the PC Recovery function since these les are not kept.\Windows, \Program les, \Program les(x86), \ProgramData, OEM Folder (ex) c:\samsung), \User\<user name>\AppData3 Follow the onscreen instructions to proceed with the recovery process.If the recovery is complete, you can use your computer normally.You can restore required Samsung software programs • through All Apps > SW Update.Since only the minimum amount of restoration storage • has been allocated to ensure computer operations, you have to additionally install any required applications after performing a restoration.

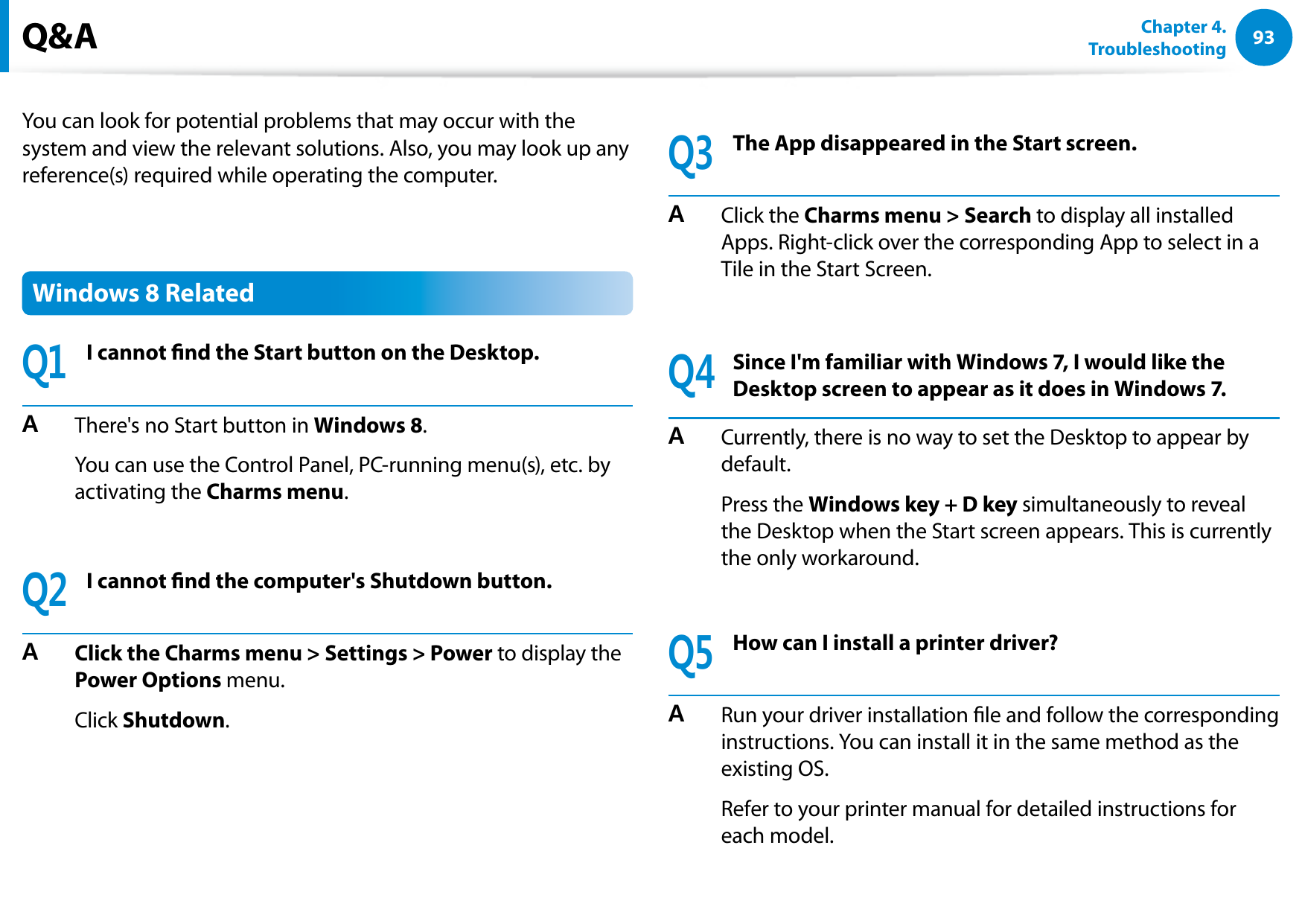

9293Chapter 4. TroubleshootingYou can look for potential problems that may occur with the system and view the relevant solutions. Also, you may look up any reference(s) required while operating the computer.Windows 8 RelatedQ1I cannot nd the Start button on the Desktop.A There's no Start button in Windows 8. You can use the Control Panel, PC-running menu(s), etc. by activating the Charms menu.Q2I cannot nd the computer's Shutdown button.A Click the Charms menu > Settings > Power to display the Power Options menu. Click Shutdown.Q3The App disappeared in the Start screen.A Click the Charms menu > Search to display all installed Apps. Right-click over the corresponding App to select in a Tile in the Start Screen.Q4Since I'm familiar with Windows 7, I would like the Desktop screen to appear as it does in Windows 7.A Currently, there is no way to set the Desktop to appear by default. Press the Windows key + D key simultaneously to reveal the Desktop when the Start screen appears. This is currently the only workaround.Q5How can I install a printer driver?A Run your driver installation le and follow the corresponding instructions. You can install it in the same method as the existing OS. Refer to your printer manual for detailed instructions for each model. Q&A

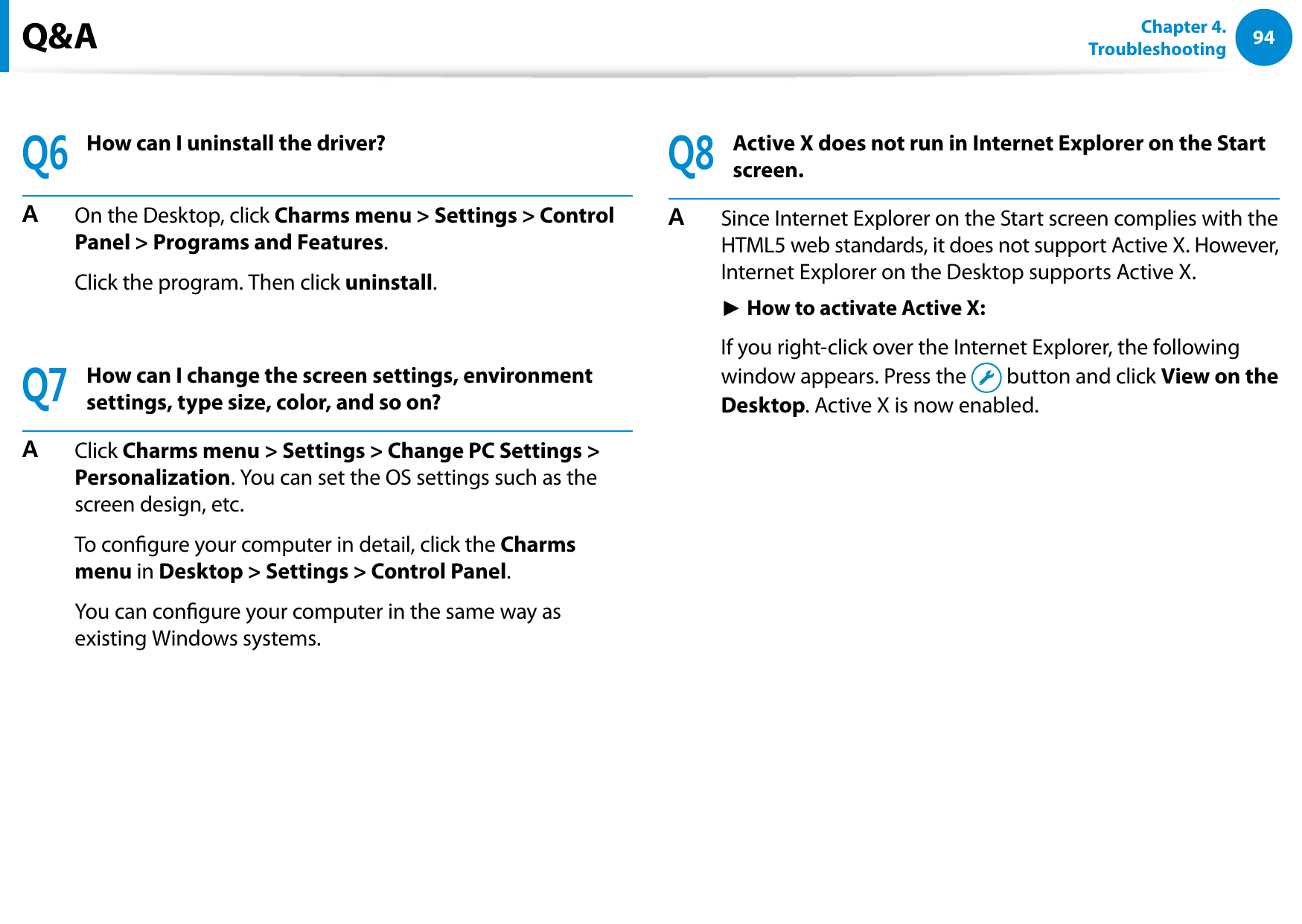

94Chapter 4. TroubleshootingQ6How can I uninstall the driver?A On the Desktop, click Charms menu > Settings > Control Panel > Programs and Features. Click the program. Then click uninstall. Q7How can I change the screen settings, environment settings, type size, color, and so on?A Click Charms menu > Settings > Change PC Settings > Personalization. You can set the OS settings such as the screen design, etc. To congure your computer in detail, click the Charms menu in Desktop > Settings > Control Panel. You can congure your computer in the same way as existing Windows systems.Q8Active X does not run in Internet Explorer on the Start screen.A Since Internet Explorer on the Start screen complies with the HTML5 web standards, it does not support Active X. However, Internet Explorer on the Desktop supports Active X. ► How to activate Active X: If you right-click over the Internet Explorer, the following window appears. Press the button and click View on the Desktop. Active X is now enabled.Q&A

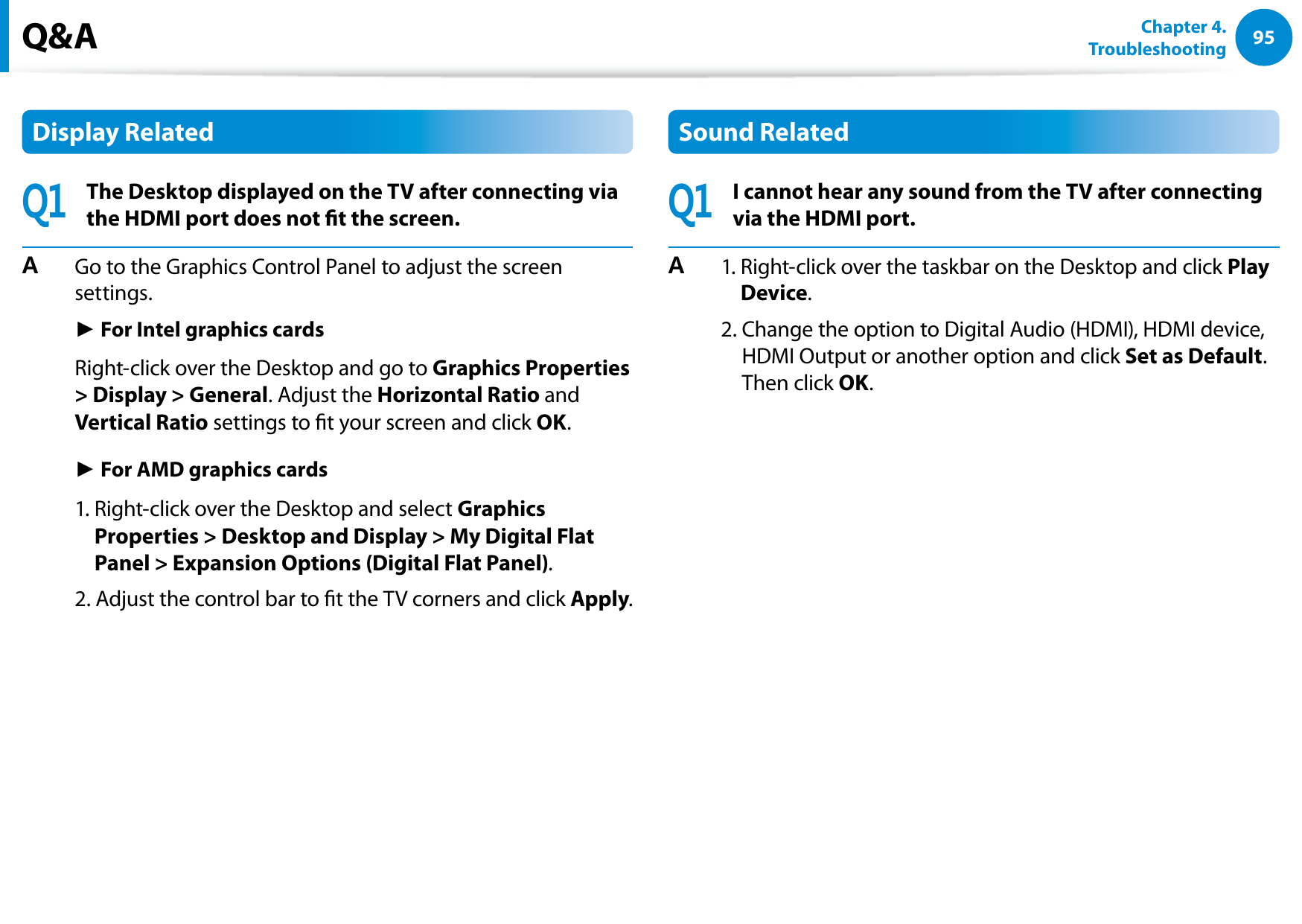

9495Chapter 4. TroubleshootingQ&ADisplay RelatedQ1The Desktop displayed on the TV after connecting via the HDMI port does not t the screen.A Go to the Graphics Control Panel to adjust the screen settings. ► For Intel graphics cards Right-click over the Desktop and go to Graphics Properties > Display > General. Adjust the Horizontal Ratio and Vertical Ratio settings to t your screen and click OK. ► For AMD graphics cards 1. Right-click over the Desktop and select Graphics Properties > Desktop and Display > My Digital Flat Panel > Expansion Options (Digital Flat Panel). 2. Adjust the control bar to t the TV corners and click Apply.Sound RelatedQ1I cannot hear any sound from the TV after connecting via the HDMI port. A 1. Right-click over the taskbar on the Desktop and click Play Device. 2. Change the option to Digital Audio (HDMI), HDMI device, HDMI Output or another option and click Set as Default. Then click OK.

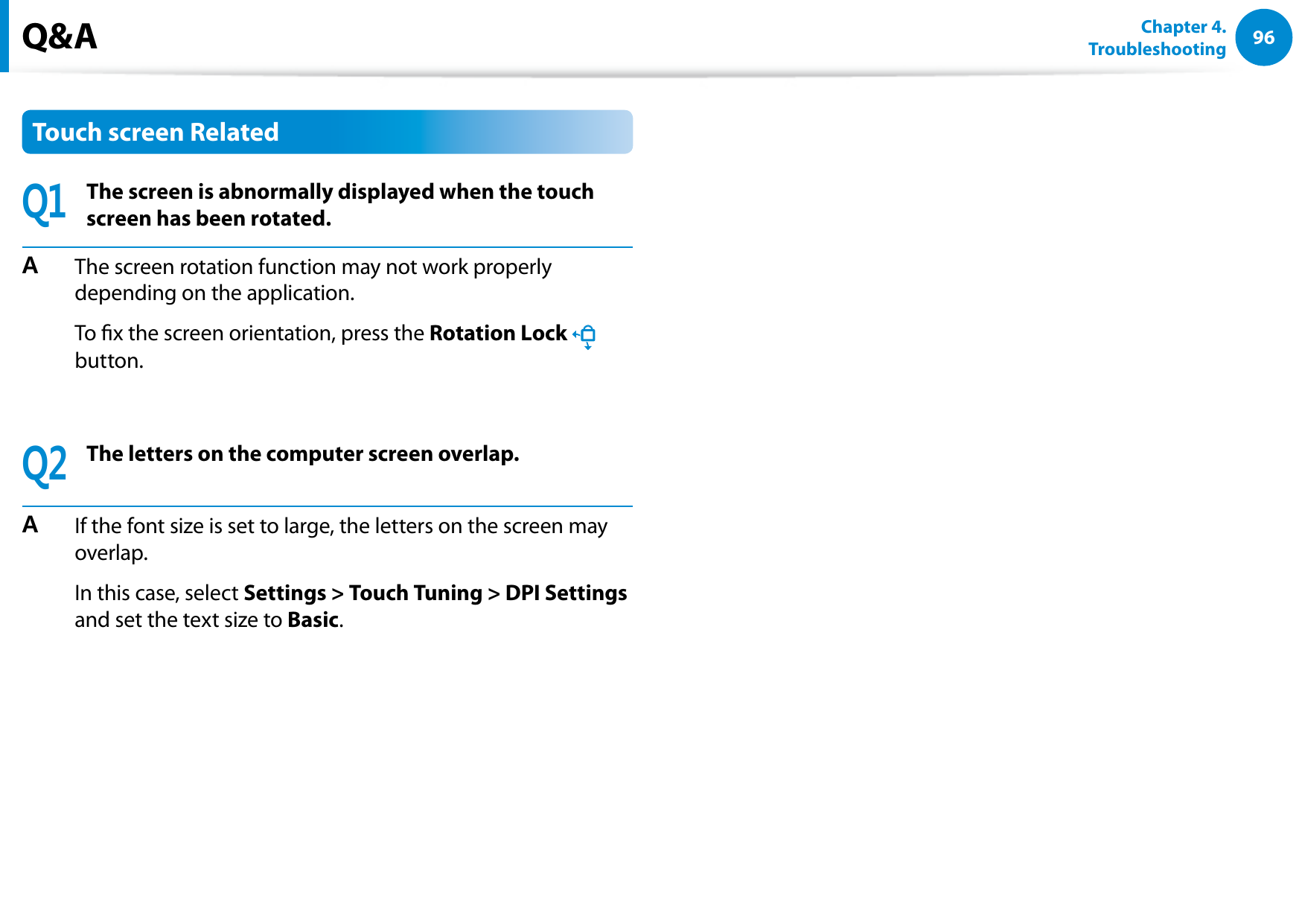

96Chapter 4. TroubleshootingQ&ATouch screen RelatedQ1The screen is abnormally displayed when the touch screen has been rotated.A The screen rotation function may not work properly depending on the application. To x the screen orientation, press the Rotation Lock button.Q2The letters on the computer screen overlap.A If the font size is set to large, the letters on the screen may overlap. In this case, select Settings > Touch Tuning > DPI Settings and set the text size to Basic.

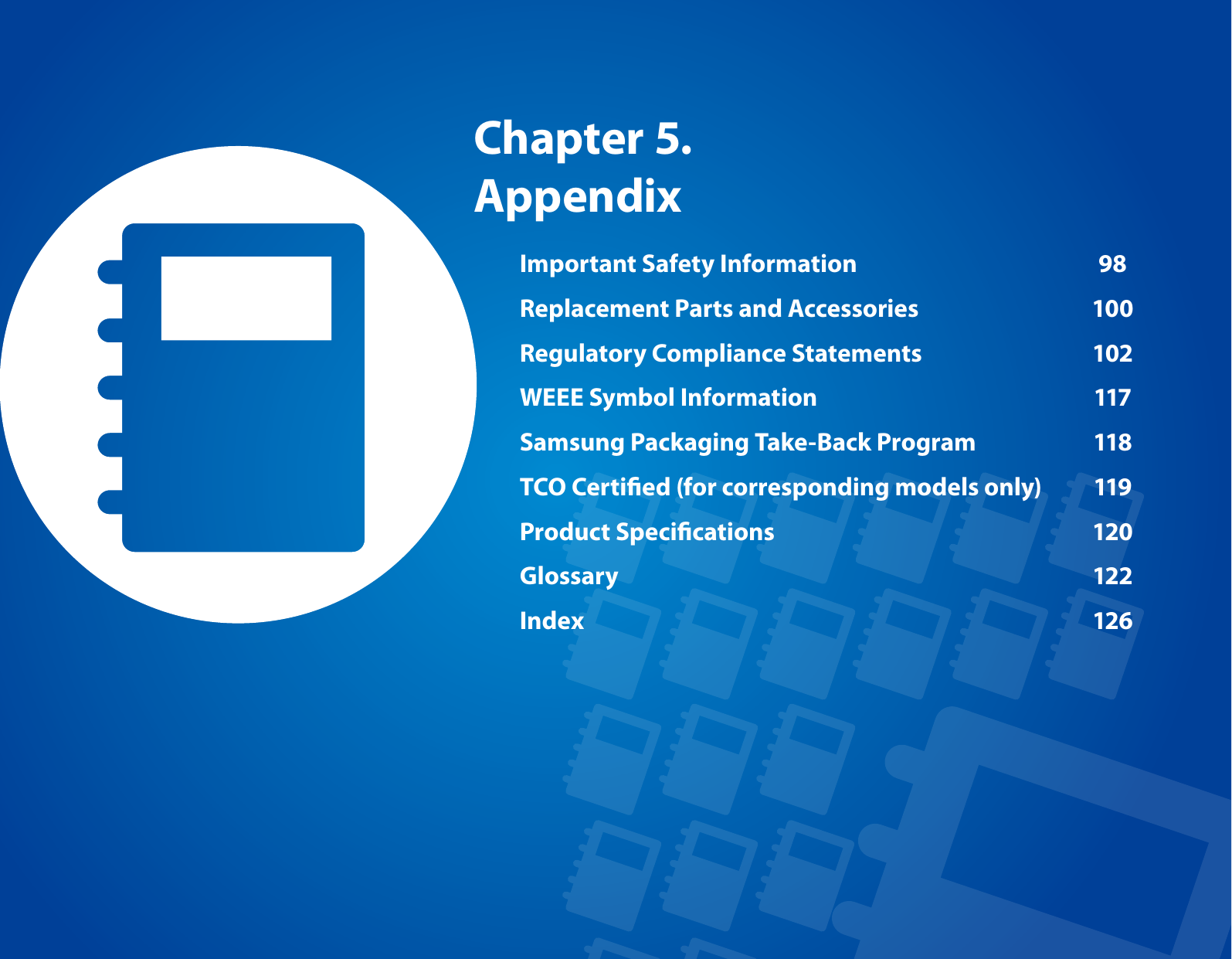

Chapter 5. AppendixImportant Safety Information 98Replacement Parts and Accessories 100Regulatory Compliance Statements 102WEEE Symbol Information 117Samsung Packaging Take-Back Program 118TCO Certied (for corresponding models only) 119Product Specications 120Glossary 122Index 126

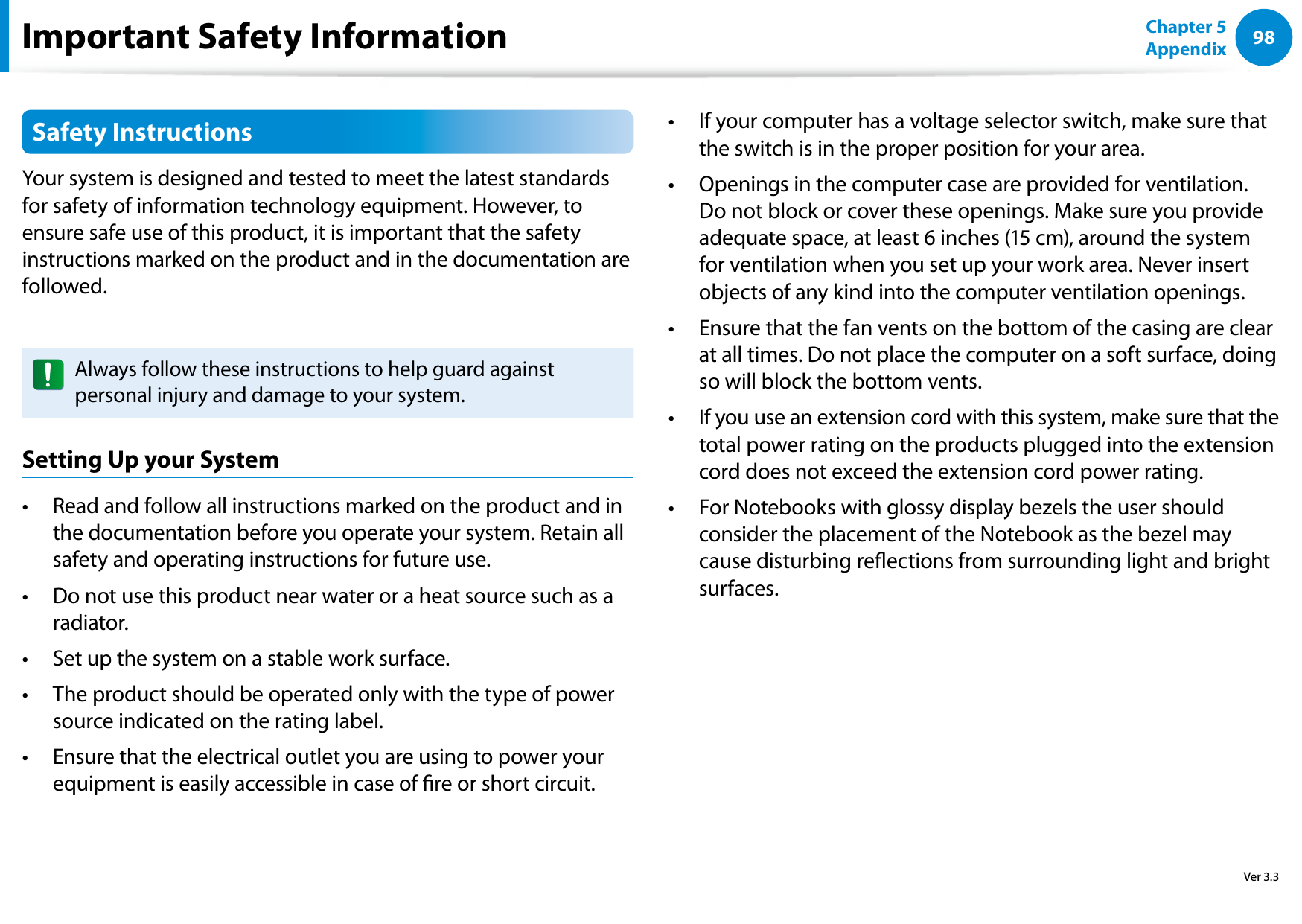

98Chapter 5 AppendixSafety InstructionsYour system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.Always follow these instructions to help guard against personal injury and damage to your system.Setting Up your SystemRead and follow all instructions marked on the product and in • the documentation before you operate your system. Retain all safety and operating instructions for future use.Do not use this product near water or a heat source such as a • radiator.Set up the system on a stable work surface.• The product should be operated only with the type of power • source indicated on the rating label.Ensure that the electrical outlet you are using to power your • equipment is easily accessible in case of re or short circuit.If your computer has a voltage selector switch, make sure that • the switch is in the proper position for your area.Openings in the computer case are provided for ventilation. • Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.Ensure that the fan vents on the bottom of the casing are clear • at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.If you use an extension cord with this system, make sure that the • total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.For Notebooks with glossy display bezels the user should • consider the placement of the Notebook as the bezel may cause disturbing reections from surrounding light and bright surfaces.Important Safety InformationVer 3.3

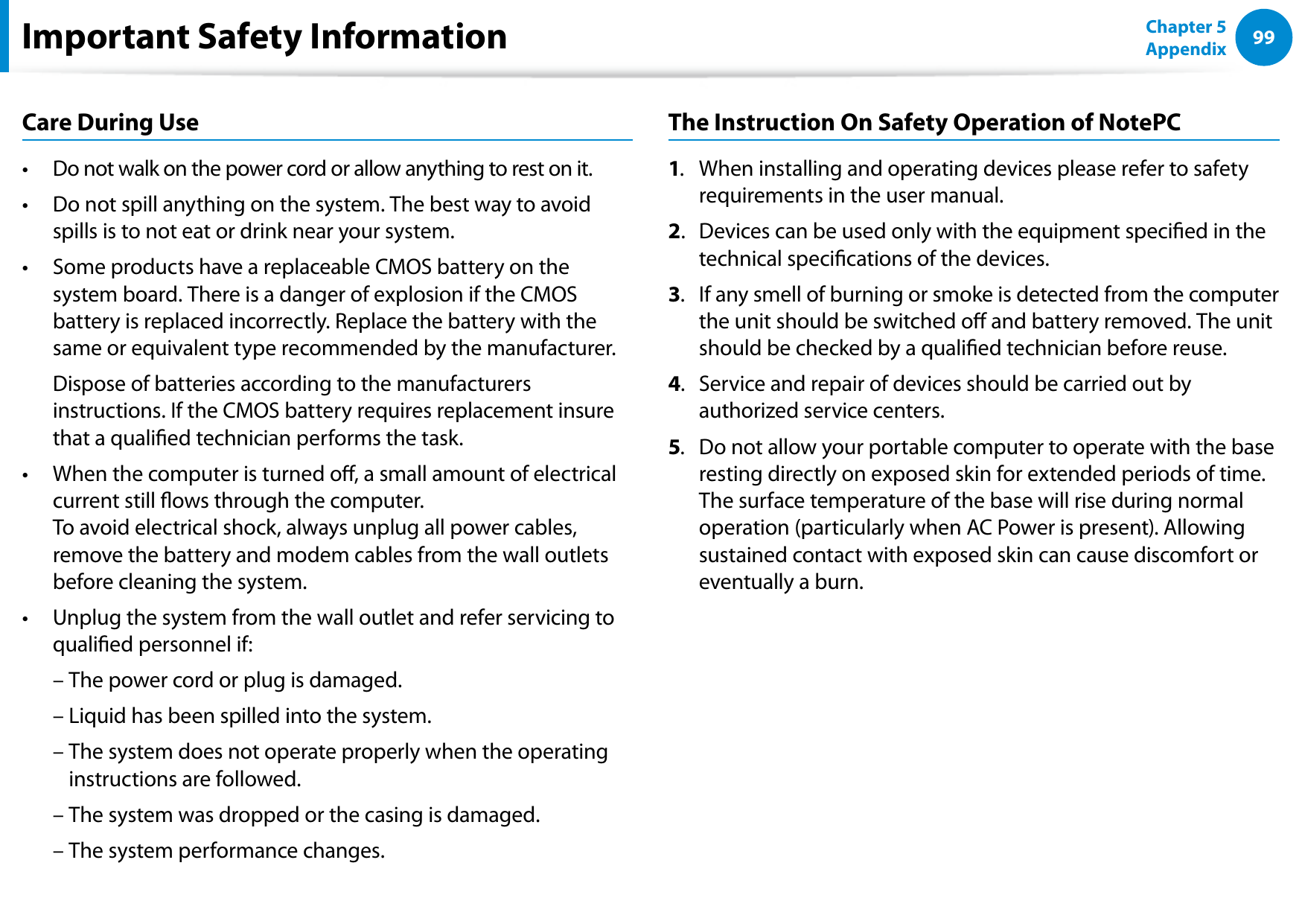

9899Chapter 5 AppendixCare During UseDo not walk on the power cord or allow anything to rest on it.• Do not spill anything on the system. The best way to avoid • spills is to not eat or drink near your system.Some products have a replaceable CMOS battery on the • system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualied technician performs the task.When the computer is turned o, a small amount of electrical • current still ows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.Unplug the system from the wall outlet and refer servicing to • qualied personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes.The Instruction On Safety Operation of NotePC1.When installing and operating devices please refer to safety requirements in the user manual.2.Devices can be used only with the equipment specied in the technical specications of the devices.3. If any smell of burning or smoke is detected from the computer the unit should be switched o and battery removed. The unit should be checked by a qualied technician before reuse.4.Service and repair of devices should be carried out by authorized service centers.5.Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.Important Safety Information

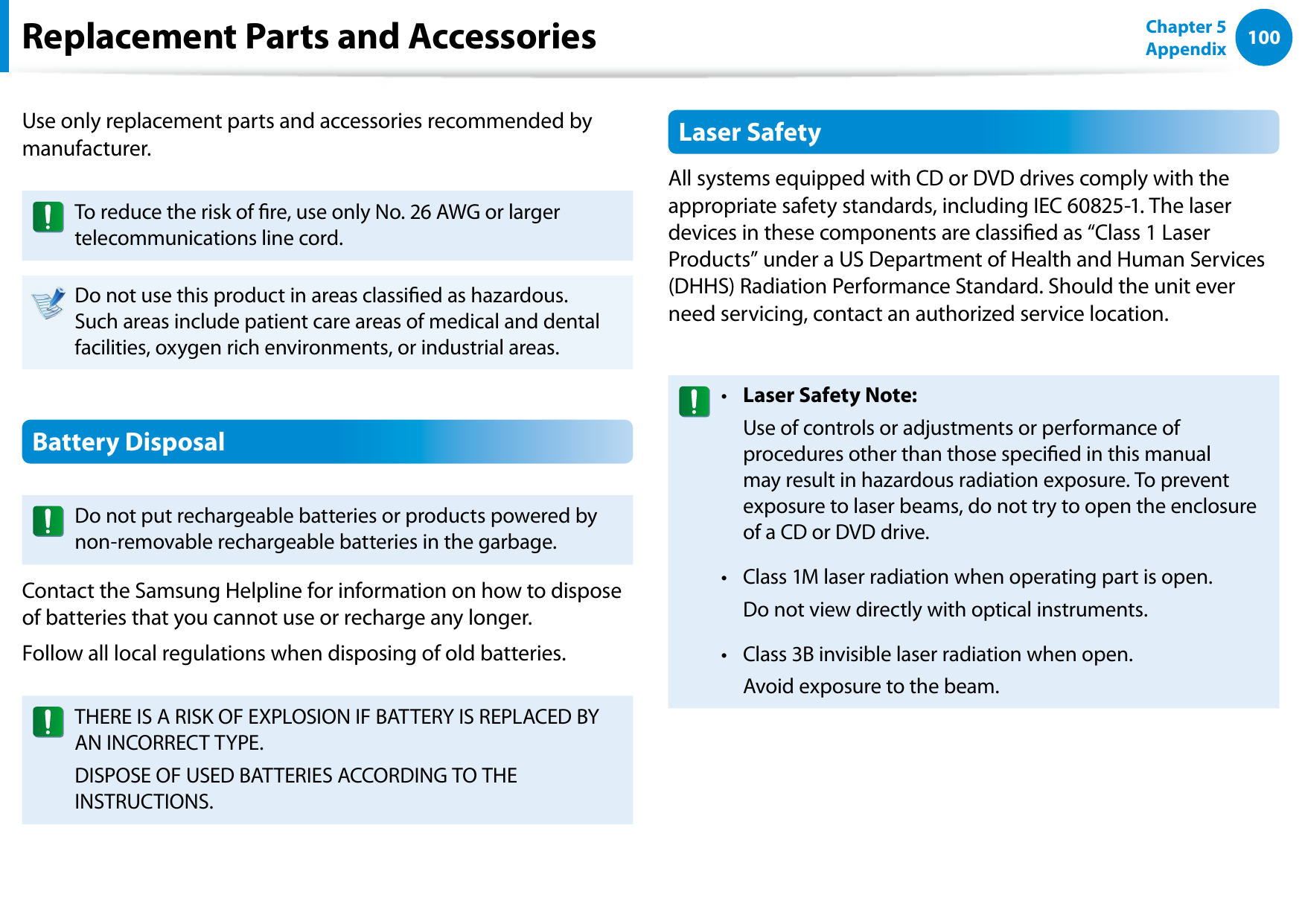

100Chapter 5 AppendixReplacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of re, use only No. 26 AWG or larger telecommunications line cord.Do not use this product in areas classied as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.Battery DisposalDo not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.Follow all local regulations when disposing of old batteries.THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Laser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classied as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.Laser Safety Note:• Use of controls or adjustments or performance of procedures other than those specied in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.Class 1M laser radiation when operating part is open.• Do not view directly with optical instruments.Class 3B invisible laser radiation when open.• Avoid exposure to the beam.

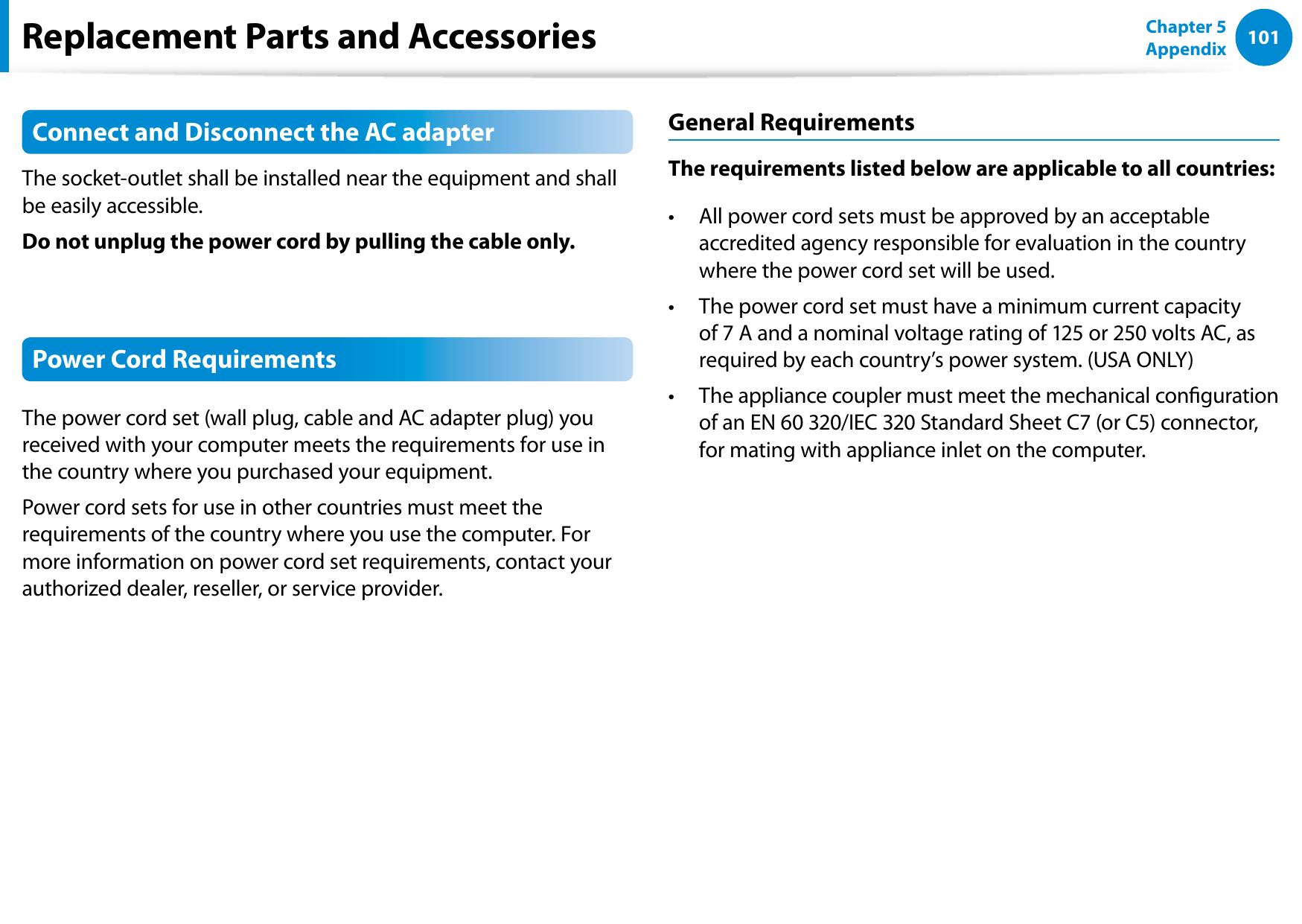

100101Chapter 5 AppendixReplacement Parts and AccessoriesConnect and Disconnect the AC adapterThe socket-outlet shall be installed near the equipment and shall be easily accessible.Do not unplug the power cord by pulling the cable only.Power Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries:All power cord sets must be approved by an acceptable • accredited agency responsible for evaluation in the country where the power cord set will be used.The power cord set must have a minimum current capacity • of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system. (USA ONLY)The appliance coupler must meet the mechanical conguration • of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.

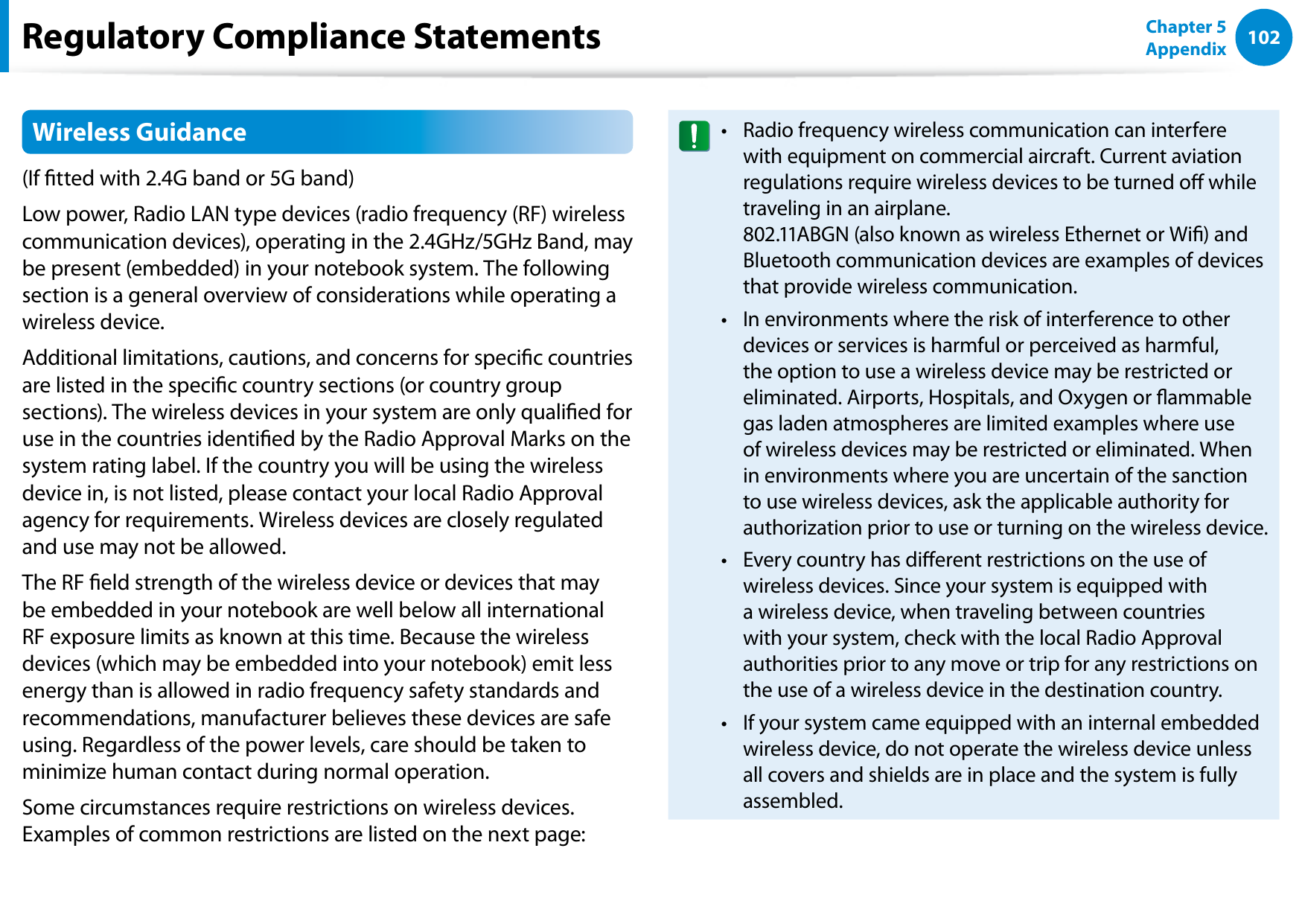

102Chapter 5 AppendixRegulatory Compliance StatementsWireless Guidance(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specic countries are listed in the specic country sections (or country group sections). The wireless devices in your system are only qualied for use in the countries identied by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The RF eld strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe using. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:Radio frequency wireless communication can interfere • with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned o while traveling in an airplane. 802.11ABGN (also known as wireless Ethernet or Wi) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other • devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or ammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has dierent restrictions on the use of • wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded • wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

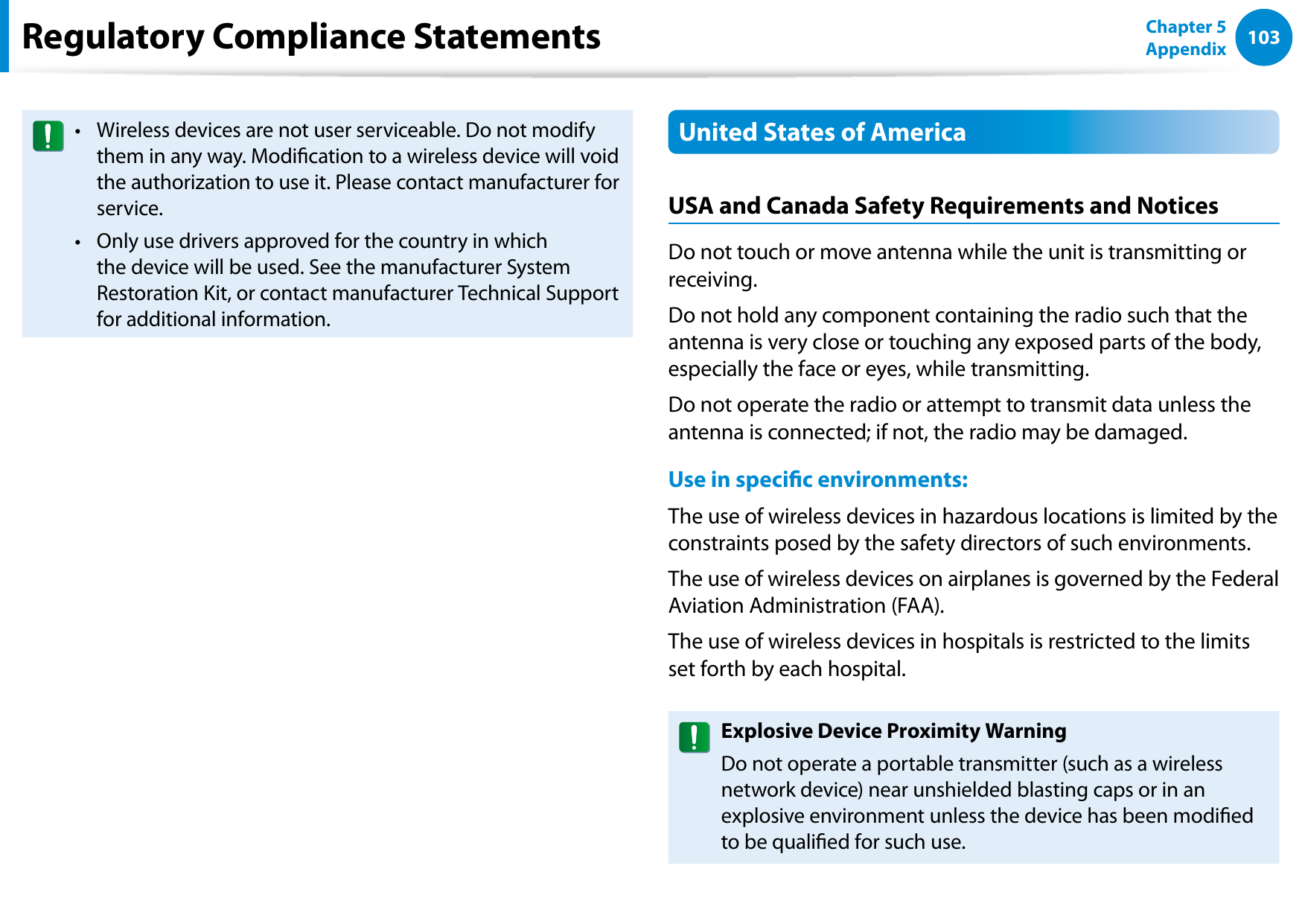

102103Chapter 5 AppendixRegulatory Compliance StatementsWireless devices are not user serviceable. Do not modify • them in any way. Modication to a wireless device will void the authorization to use it. Please contact manufacturer for service.Only use drivers approved for the country in which • the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.United States of AmericaUSA and Canada Safety Requirements and NoticesDo not touch or move antenna while the unit is transmitting or receiving.Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.Use in specic environments:The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.Explosive Device Proximity WarningDo not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modied to be qualied for such use.

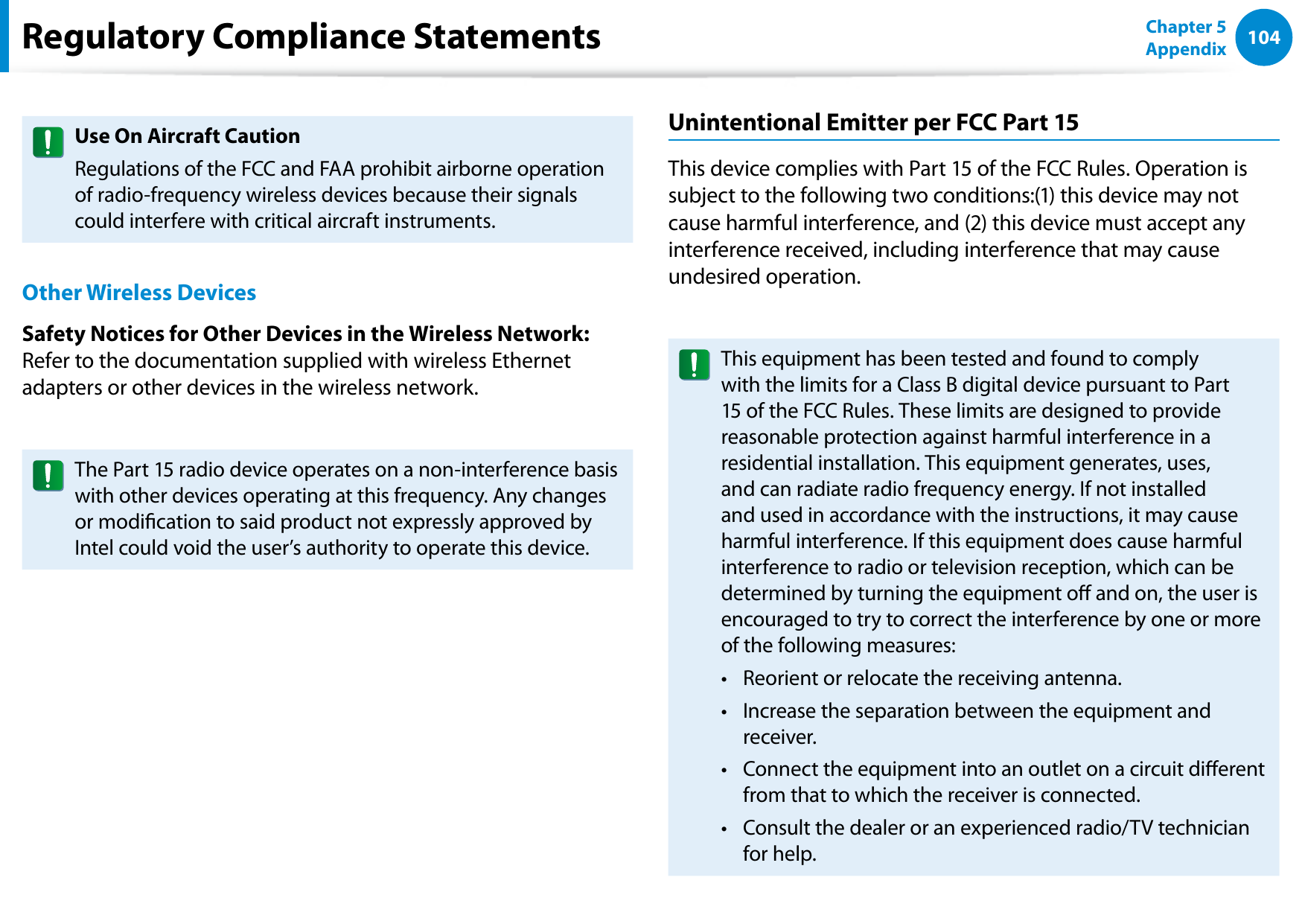

104Chapter 5 AppendixUse On Aircraft CautionRegulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.Other Wireless DevicesSafety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modication to said product not expressly approved by Intel could void the user’s authority to operate this device.Unintentional Emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.• Increase the separation between the equipment and • receiver.Connect the equipment into an outlet on a circuit dierent • from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician • for help.Regulatory Compliance Statements

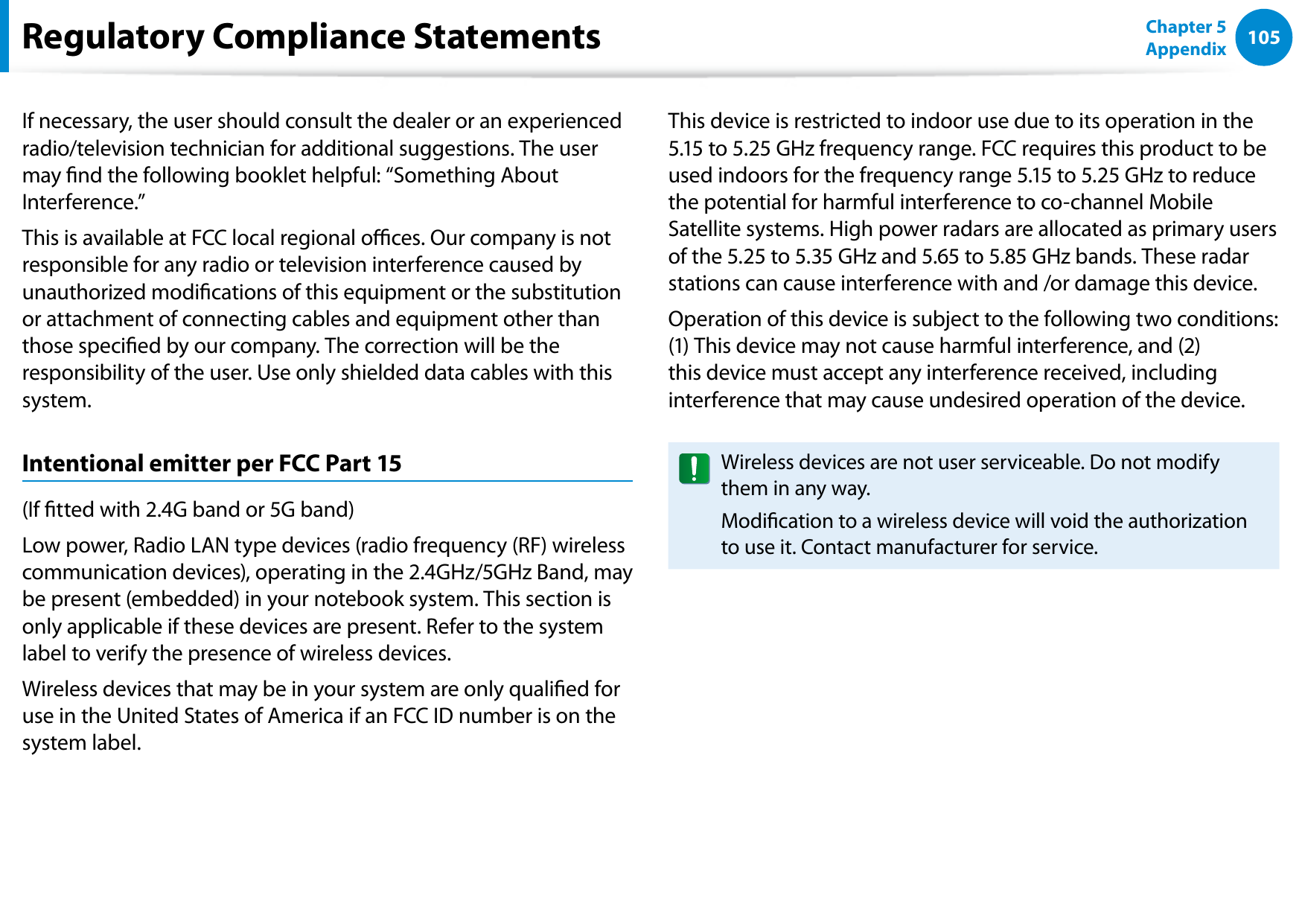

104105Chapter 5 AppendixIf necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may nd the following booklet helpful: “Something About Interference.”This is available at FCC local regional oces. Our company is not responsible for any radio or television interference caused by unauthorized modications of this equipment or the substitution or attachment of connecting cables and equipment other than those specied by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.Intentional emitter per FCC Part 15(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the United States of America if an FCC ID number is on the system label.This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way.Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.Regulatory Compliance Statements

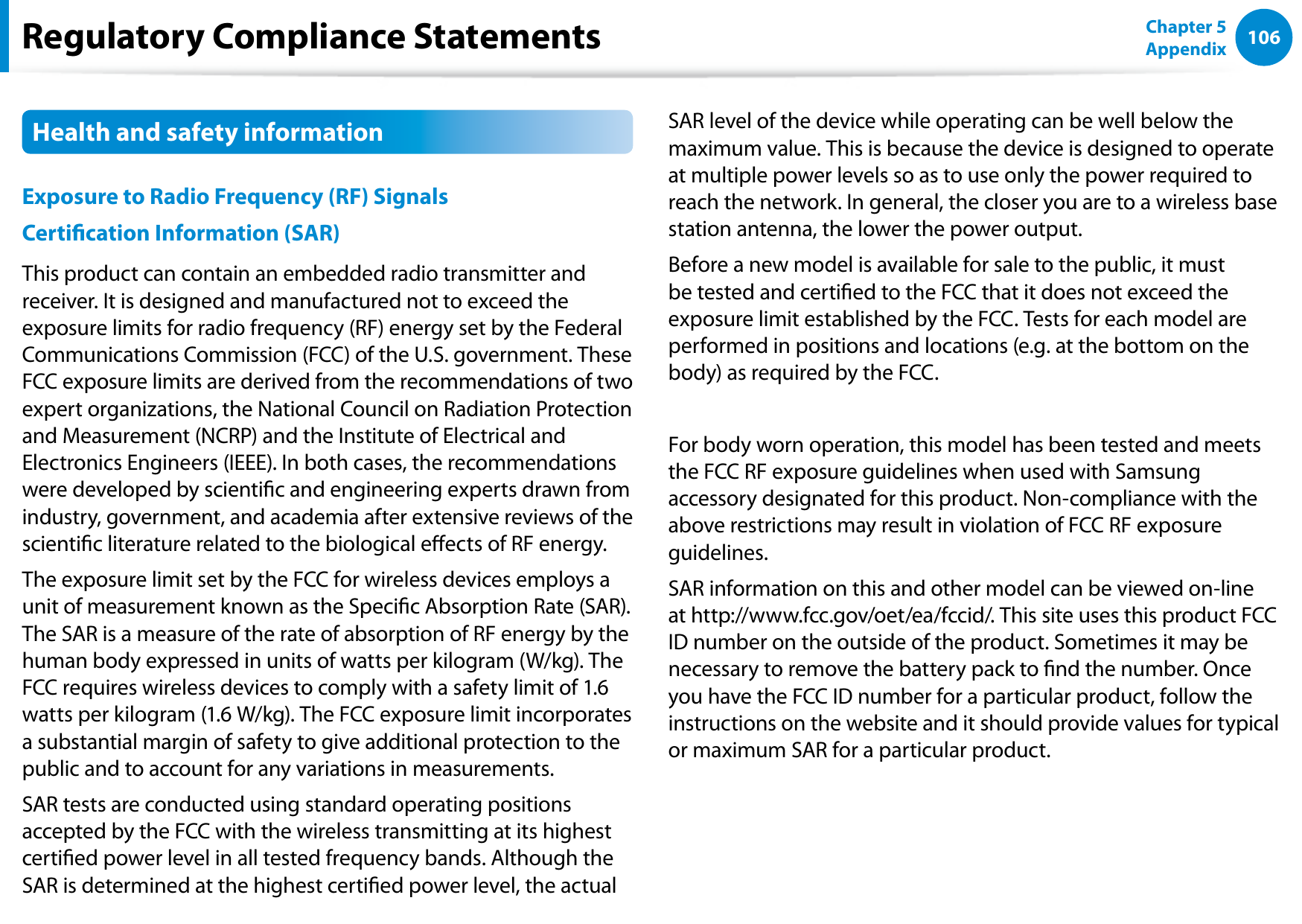

106Chapter 5 AppendixHealth and safety information Exposure to Radio Frequency (RF) Signals Certication Information (SAR) This product can contain an embedded radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientic and engineering experts drawn from industry, government, and academia after extensive reviews of the scientic literature related to the biological eects of RF energy. The exposure limit set by the FCC for wireless devices employs a unit of measurement known as the Specic Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the wireless transmitting at its highest certied power level in all tested frequency bands. Although the SAR is determined at the highest certied power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model is available for sale to the public, it must be tested and certied to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model are performed in positions and locations (e.g. at the bottom on the body) as required by the FCC.For body worn operation, this model has been tested and meets the FCC RF exposure guidelines when used with Samsung accessory designated for this product. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines. SAR information on this and other model can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID number on the outside of the product. Sometimes it may be necessary to remove the battery pack to nd the number. Once you have the FCC ID number for a particular product, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular product.Regulatory Compliance Statements

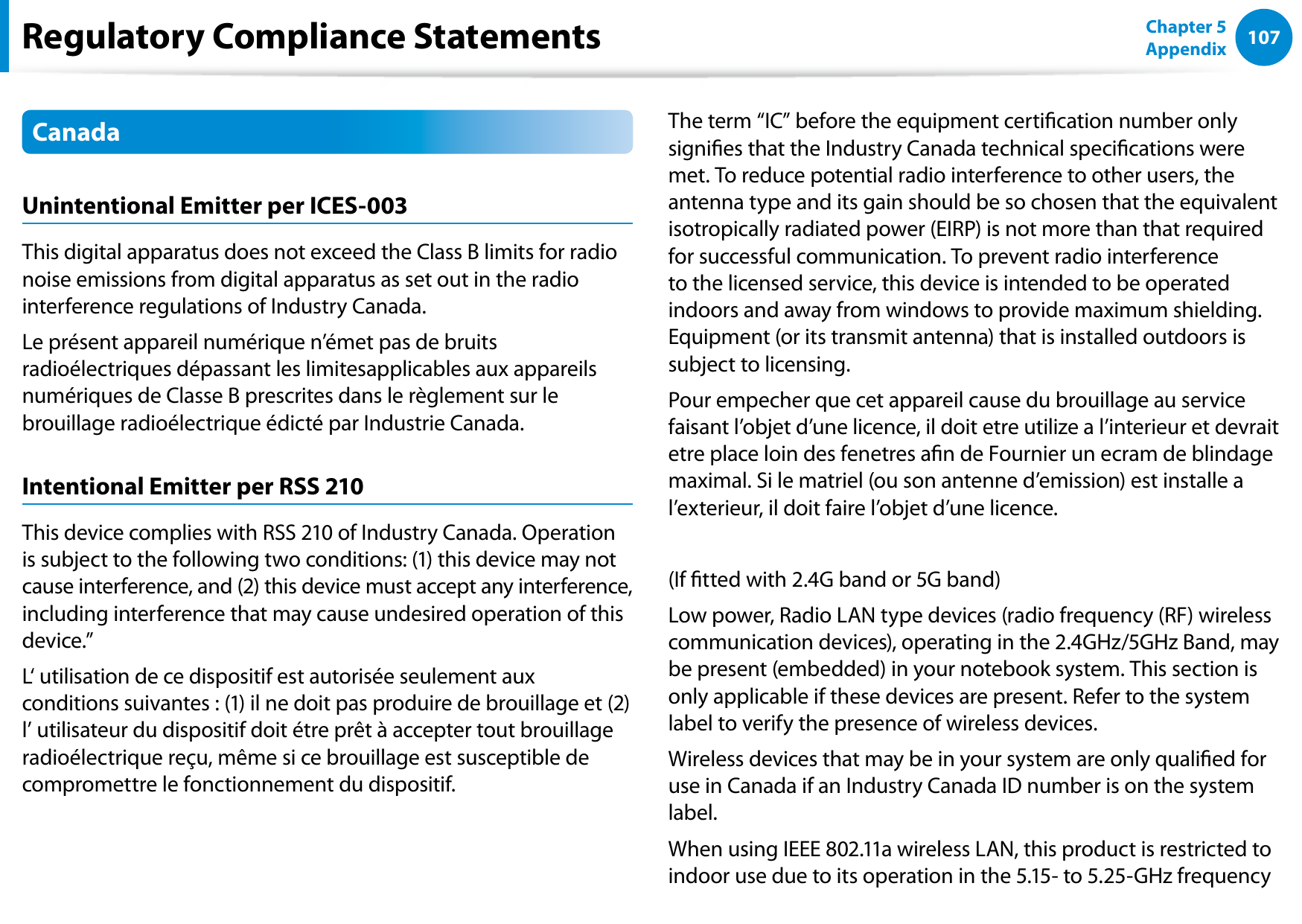

106107Chapter 5 AppendixCanadaUnintentional Emitter per ICES-003This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.Intentional Emitter per RSS 210This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.”L‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.The term “IC” before the equipment certication number only signies that the Industry Canada technical specications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres an de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence.(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in Canada if an Industry Canada ID number is on the system label.When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency Regulatory Compliance Statements
