3.2.1.4 BarCode Setup
A. First select barcode type then select barcode to setting.
B. Press “Default” button to reset all configuration setting of this barcode into default
values.
C. Press “Apply” button to be decided setting of this barcode.
Please see 3.2.2 Symbologies List for more detail information of each Barcode.
Figure 3-5 BarCode Setup
![](/img.php?id=731693&img=bg2.png)
3-8
3.2.2 Symbologies List
A Type -- Numeric-only Barcodes
3.2.2.1 UPC-E

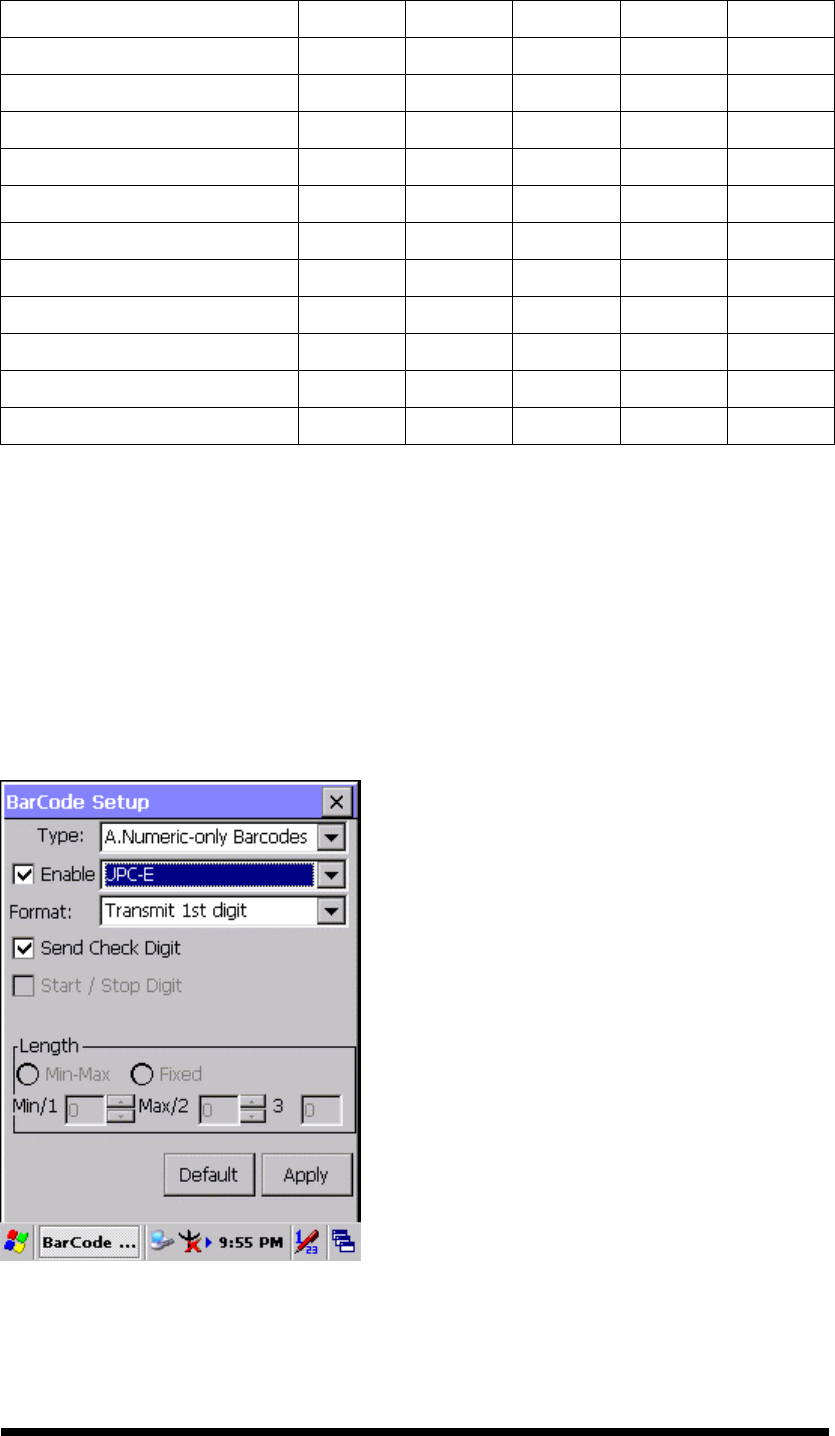

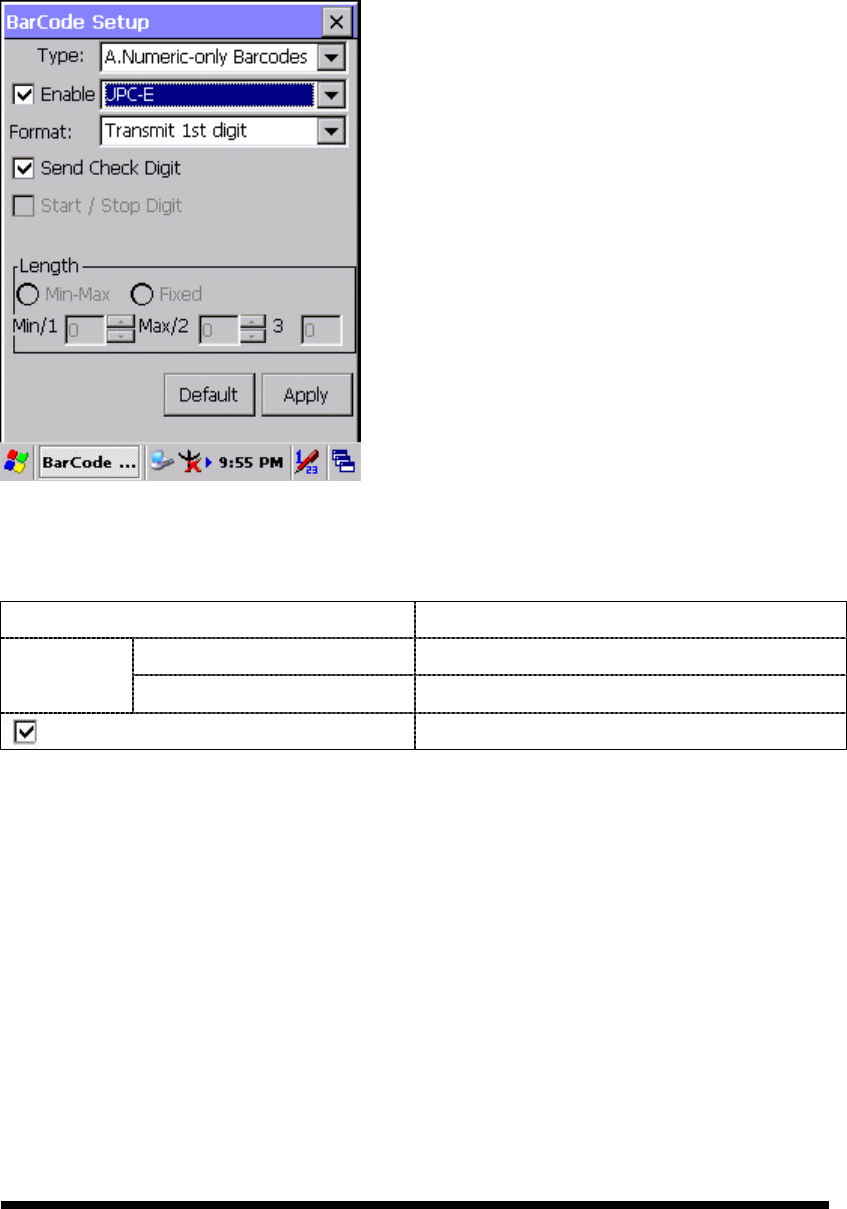

Figure 3-6 UPC-E
Table 3-5 UPC-E Explaining
Item Explaining
Ignore 1st digit Do not transmit 1st digit by barcode.
Format Transmit 1st digit Transmit 1st digit by barcode.
Send Check Digit Whether send check digit by barcode.
![](/img.php?id=731693&img=bg3.png)
3-9
3.2.2.2 UPC-A
UPC-A movements together with EAN-13, so only Enable EAN-13 then UPC-A will
be Enable, too.

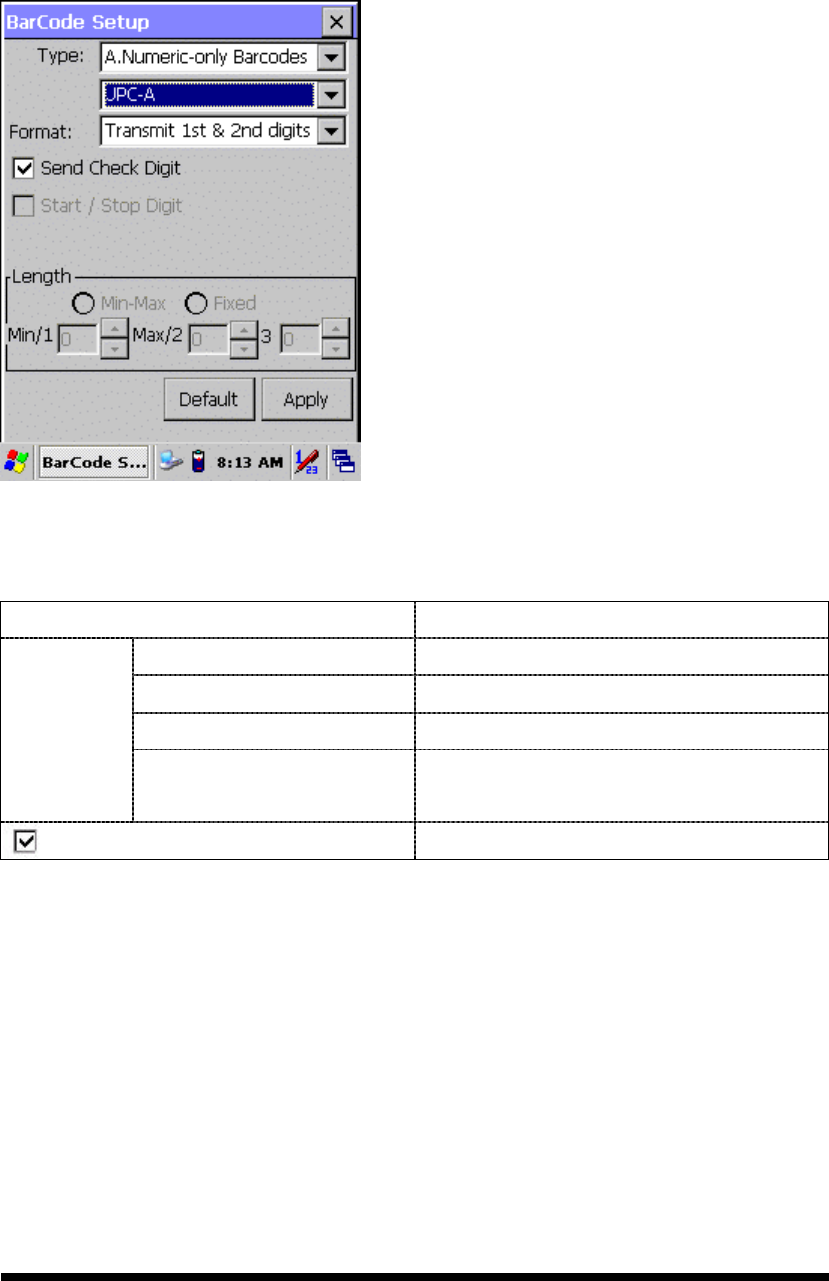

Figure 3-7 UPC-A
Table 3-6 UPC-A Explaining
Item Explaining
Ignore 1st & 2nd digits Do not transmit 1st digit by barcode.
Transmit 1st digit Transmit 1st digit by barcode.
Transmit 2nd digit Transmit 2nd digit by barcode.
Format
Transmit 1st & 2nd
digits Transmit 1st & 2nd digits by barcode.
Send Check Digit Whether send check digit by barcode.
![](/img.php?id=731693&img=bg4.png)
3-10
3.2.2.3 EAN-13 / ISBN

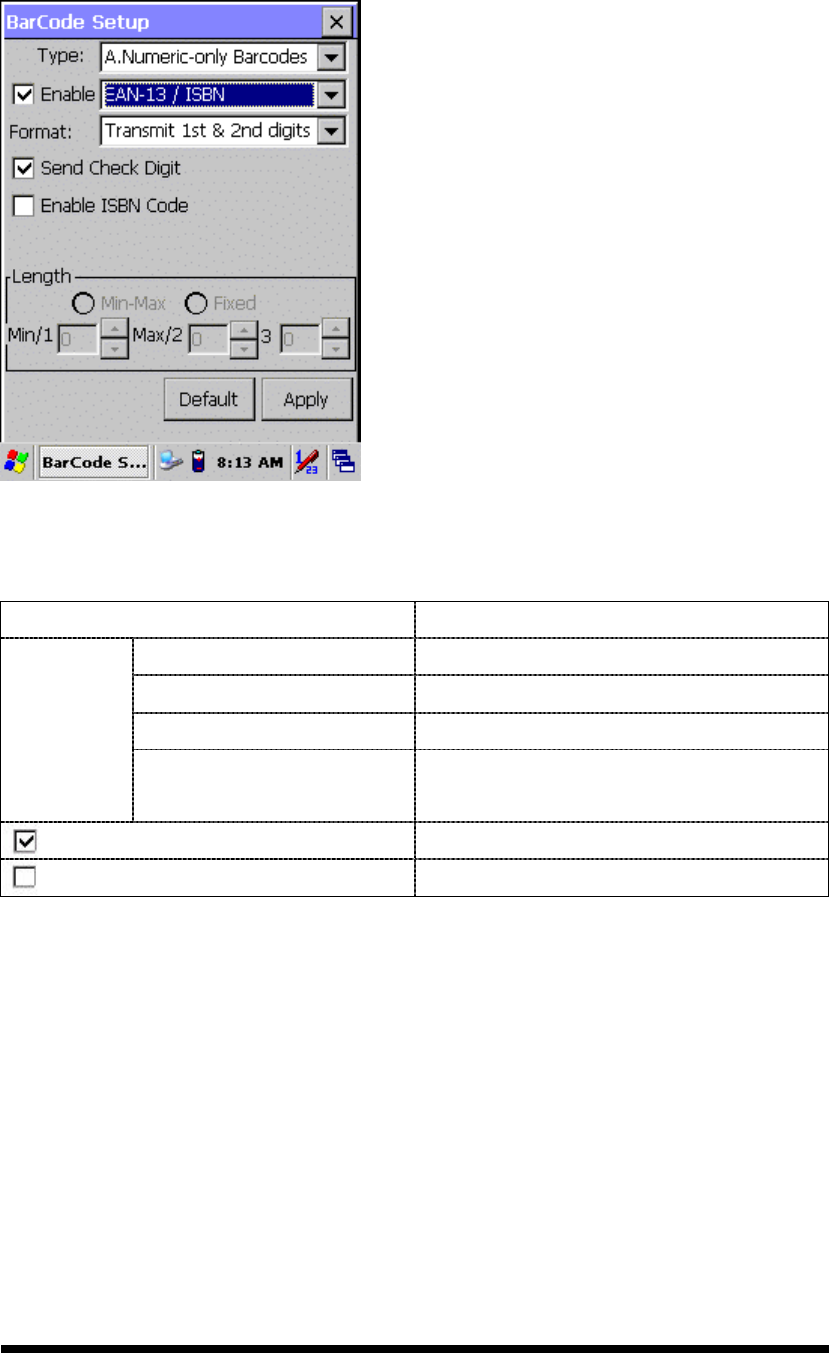

Figure 3-8 EAN-13 / ISBN
Table 3-7 EAN-13 / ISBN Explaining
Item Explaining
Ignore 1st & 2nd digits Do not transmit 1st digit by barcode.
Transmit 1st digit Transmit 1st digit by barcode.
Transmit 2nd digit Transmit 2nd digit by barcode.
Format
Transmit 1st & 2nd
digits Transmit 1st & 2nd digits by barcode.
Send Check Digit Whether send check digit by barcode.
Enable ISBN Code Whether use this ISBN Code.
![](/img.php?id=731693&img=bg5.png)
3-11
3.2.2.4 EAN-8/JAN-8

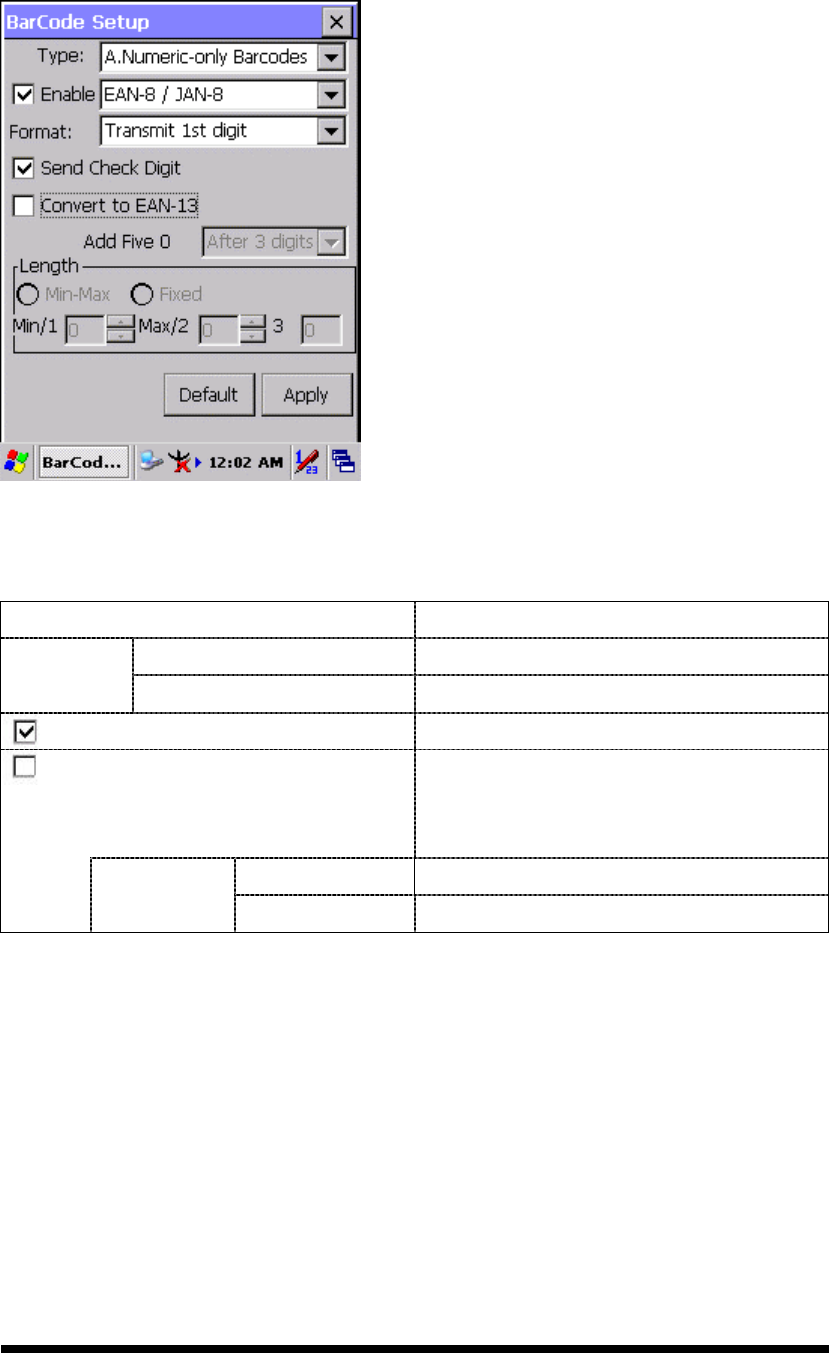

Figure 3-9 EAN-8/JAN-8
Table 3-8 EAN-8/JAN-8 Explaining
Item Explaining
Ignore 1st digit Do not transmit 1st digit by barcode.
Format Transmit 1st digit Transmit 1st digit by barcode.
Send Check Digit Whether send check digit by barcode.
Convert to EAN-13 When this option is selected the scanner
will convert UPC-E to UPC-A by
transmitting five zeroes …
Ahead of code Add five zeroes at prefix of the barcode.
Add five 0
After 3 digits Add five zeroes from 4th digits.
