3.2.2.10 Codabar / NW7

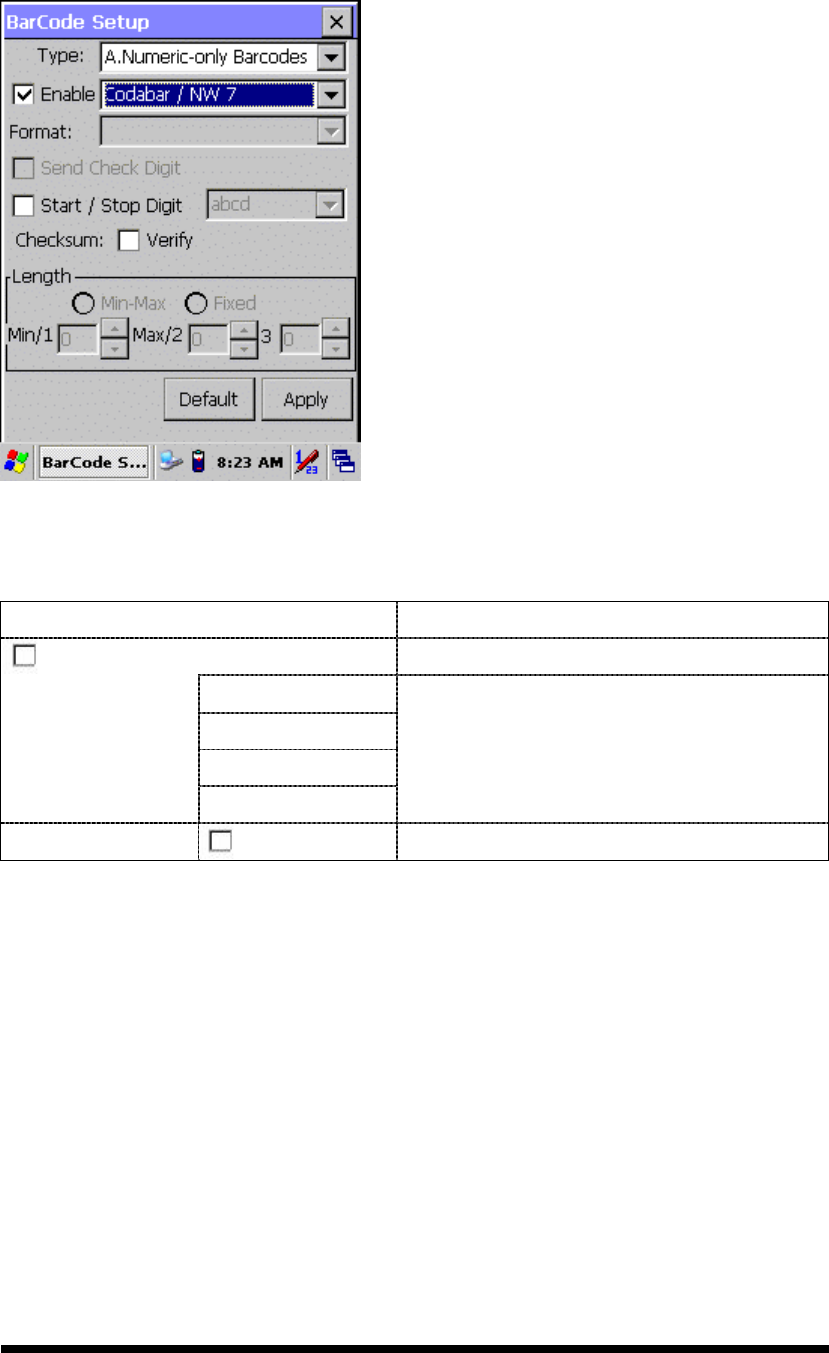

Figure 3-15 Codabar / NW7
Table 3-14 Codabar / NW7 Explaining
Item Explaining
Start / Stop Digit Whether transmit Start & Stop Digit.
ABCD
abcd
TN*E
tn*e
Start / Stop transmit type
Checksum Verify Whether verify checksum by barcode.
3-18
3.2.2.11 Matrix 2 of 5

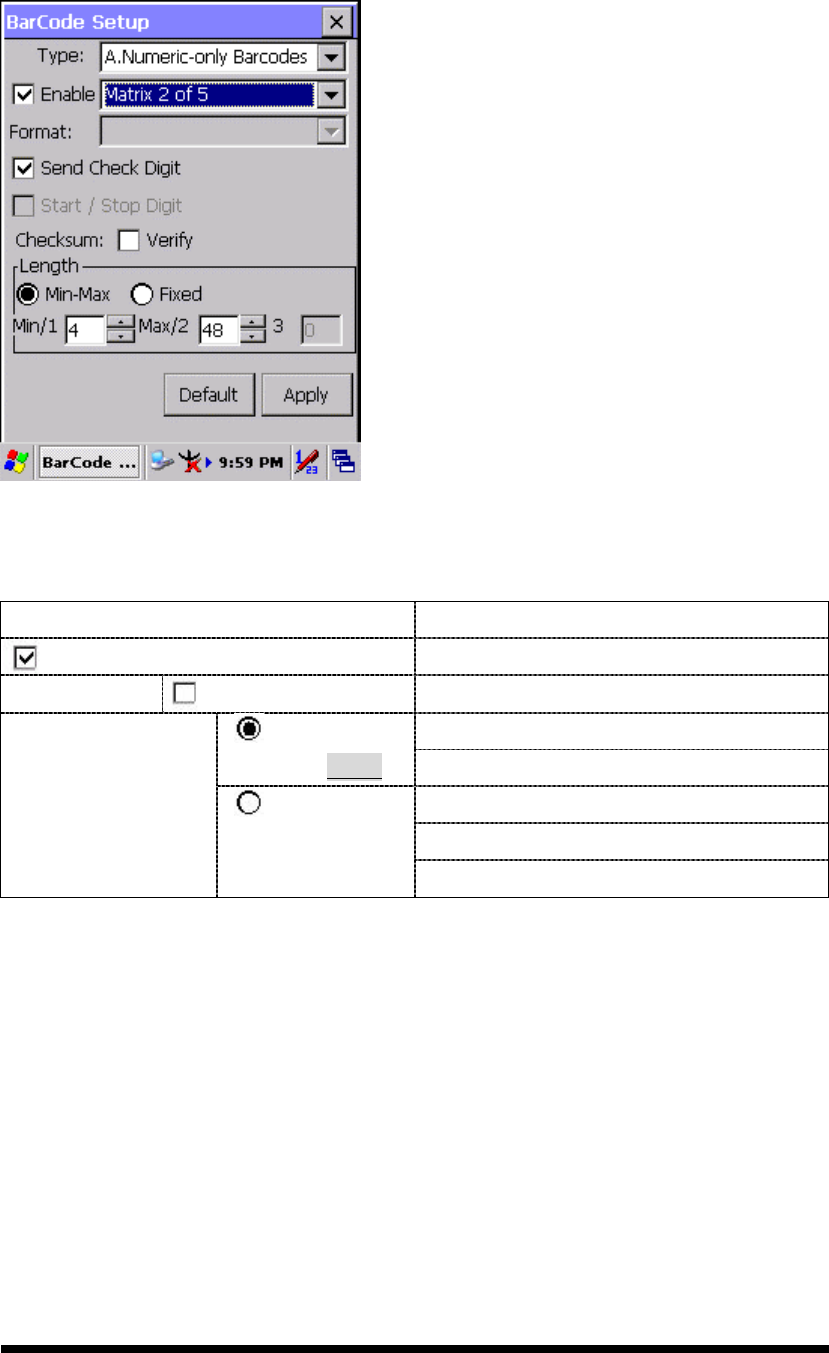

Figure 3-16 Matrix 2 of 5
Table 3-15 Matrix 2 of 5 Explaining
Item Explaining
Send Check Digit Whether send check digit by barcode.
Checksum Verify Whether verify checksum by barcode.
Min Length can be set from 4 to 48
Min-Max
(Default: 4 / 48) Max Length can be set from 4 to 48
Length 1 can be set from 4 to 48
Length 2 can be set from 4 to 48
Length
Fixed
Length 3 can be set from 4 to 48
3-19
B Type -- Alphanumeric Barcodes
3.2.2.12 Code39 / Code32

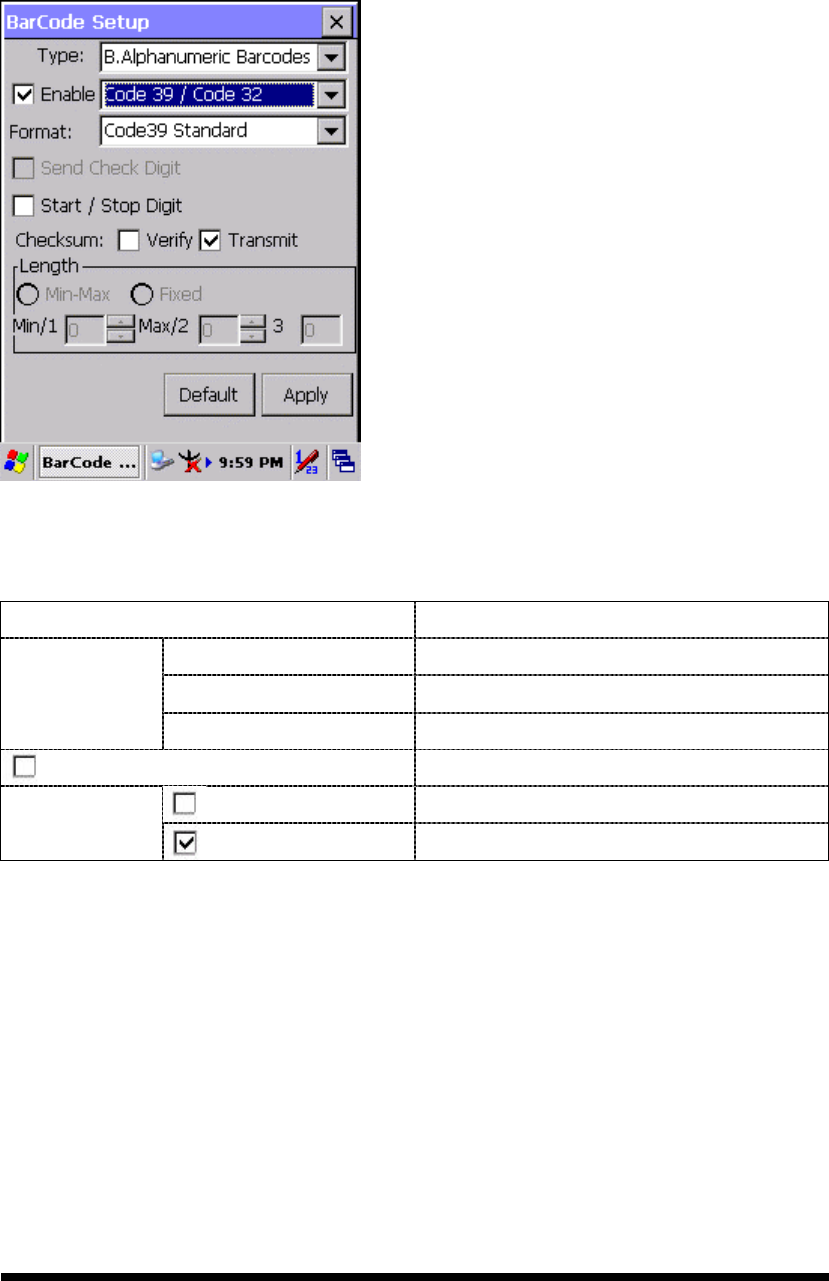

Figure 3-17 Code39 / Code32
Table 3-16 Code39 / Code32 Explaining
Item Explaining
Code39 Standard Enable Code 39 Standard characters
Code39 Full ASCII Enable Code 39 Full ASCII character
Format
Code32 Enable Code 32
Start / Stop Digit Whether transmit Start & Stop Digit.
Verify Whether verify checksum by barcode.
Checksum Transmit Whether transmit checksum by barcode.
3-20
3.2.2.13 Code93
The barcode do not have setting.

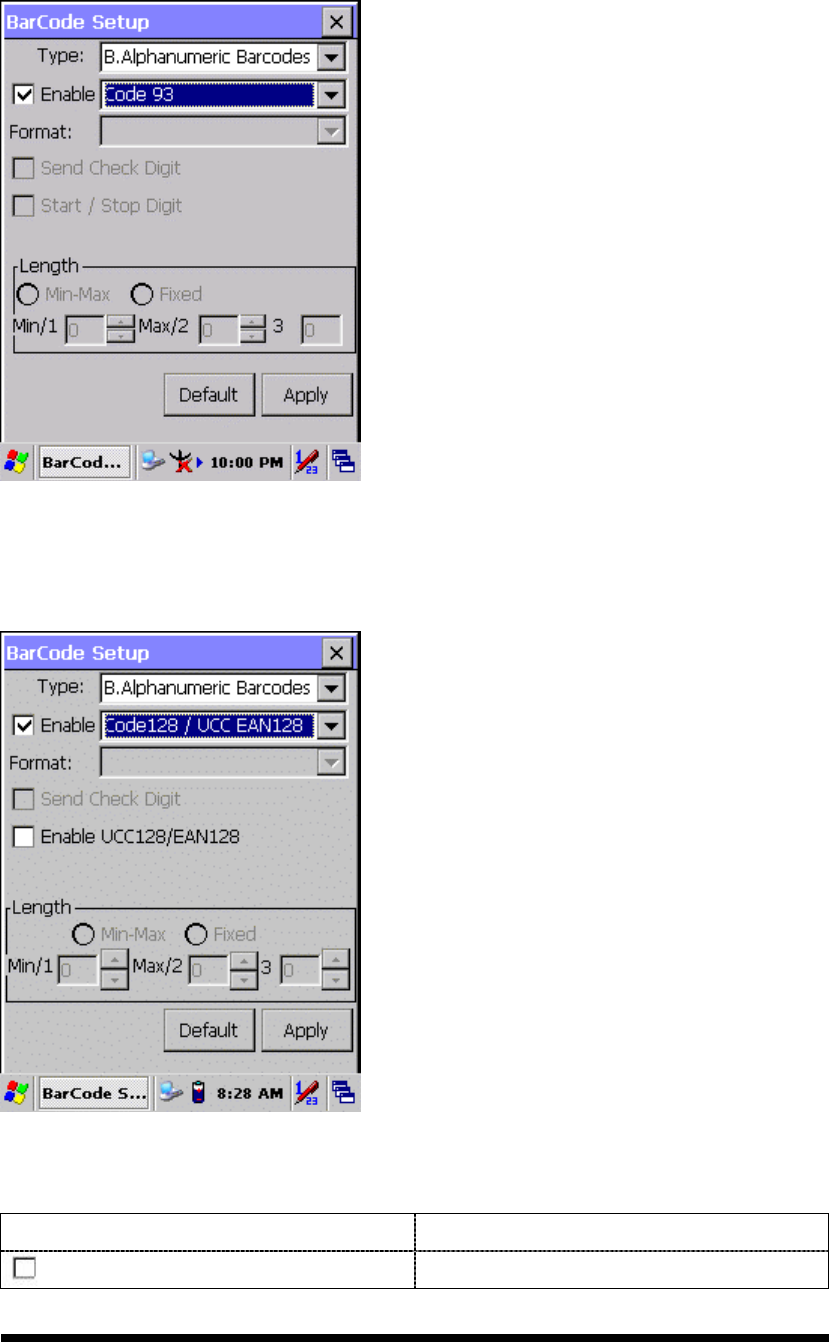

Figure 3-18 Code93
3.2.2.14 Code128 / UCC EAN128
Figure 3-19 Code 128 / UCC EAN128
Table 3-17 Code128 / UCC EAN128 Explaining
Item Explaining
Enable UCC128/EAN128 Enable UCC128/EAN128.
3-21
C Type -- Others Barcodes
3.2.2.15 China Post

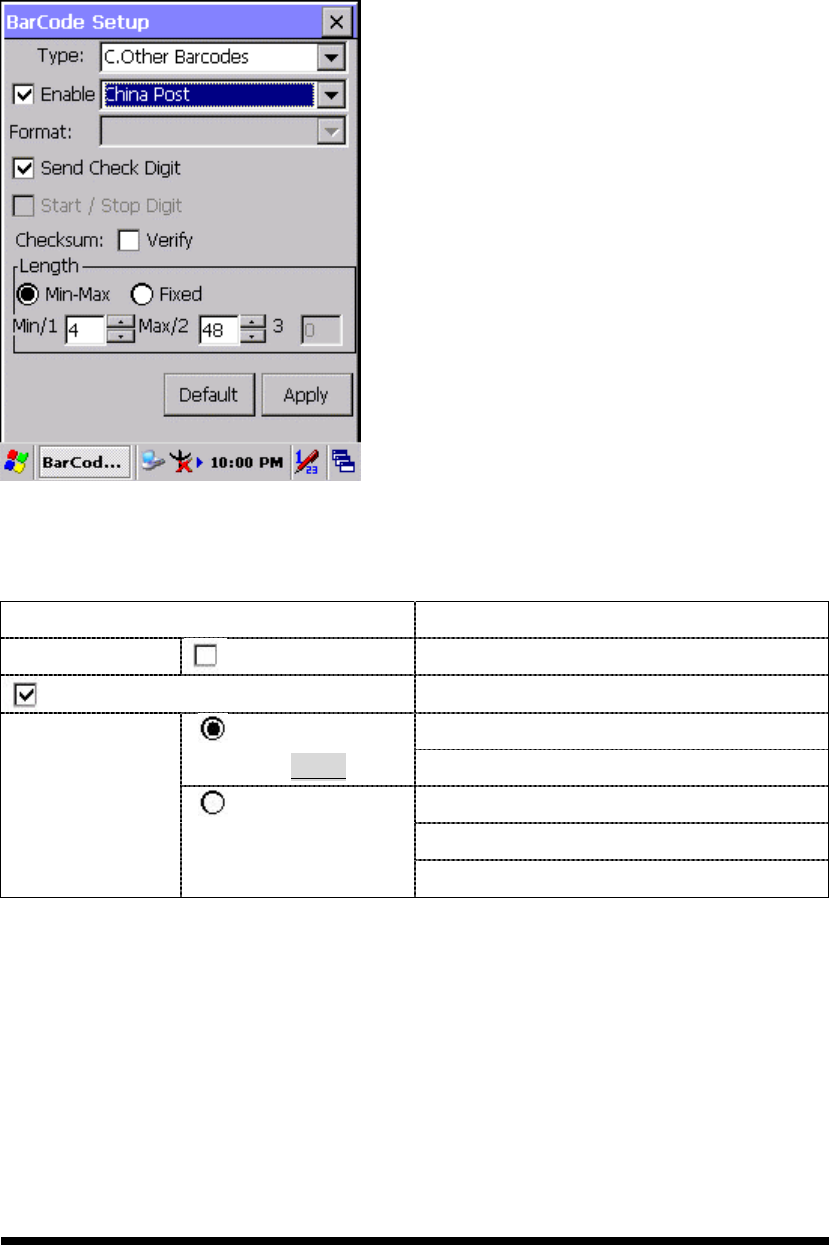

Figure 3-20 China Post
Table 3-18 China Post Explaining
Item Explaining
Checksum Verify Whether verify checksum by barcode.
Send Check Digit Whether send check digit by barcode.
Min Length can be set from 4 to 48
Min-Max
(Default: 4 / 48) Max Length can be set from 4 to 48
Length 1 can be set from 4 to 48
Length 2 can be set from 4 to 48
Length
Fixed
Length 3 can be set from 4 to 48
