Operator’s Guide21
G. Diagnostic Tools
The BSU contains a number of embedded network tools to assist with the debug and verication of
network operation.
These tools include:
Ping y
TraceRt y
ARP Table y
Bridge Table y

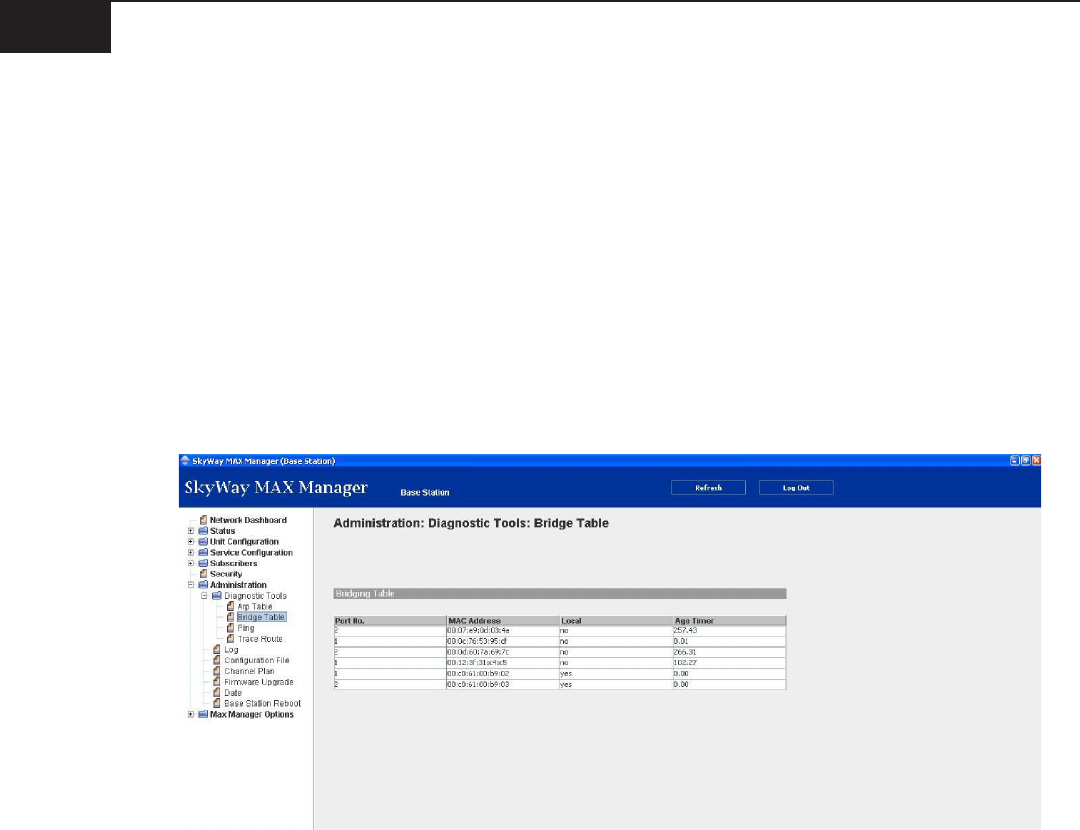

Usage and syntax of these tools is similar to those of standard networking appliances. Access to these tools
on the Manager Application is via Administration : Diagnostic Tools.
Operator’s Guide22
SkyWay-MAX
VII. Appendix A – System Defaults
A. Default Configuration
BSU
Login admin
Password admin
IP Address 192.168.0.1
Netmask 255.255.255.0
Default Gateway 192.168.0.10
FTP Address <blank>
FTP User <blank>
FTP Password <blank>
RF Channel Plan Default.cc
RF Power 36 dBm
Optimal RSSI -70 dBm
Uplink Modulation Auto
Downlink Modulation Auto
BSID 00000B:xxxxxx,
where x is last 3 octets of RF MAC
Security
X.509 Certicates yDisabled
Access Control List yDisabled
Encryption yClear
Administrative Services None
User Services None
Name <blank>
Location <blank>
GPS Coordinates <blank>
Antenna Bearing <blank>
Antenna Beamwidth <blank>
SS
Login admin
Password admin
SkyWay-MAX
Operator’s Guide23
SS (cont’d)
IP Address 192.168.0.2
Netmask 255.255.255.0
Default Gateway 192.168.0.10
FTP Address <blank>
FTP User <blank>
FTP Password <blank>
BSID Verication Disabled
BSID table <none>
RF Channel Plan Default.cc
SS Name <blank>
SS Location <blank>
GPS Coordinates <blank>
Operator’s Guide24
SkyWay-MAX
B. Default Channel Plan File (3.4 – 3.6 GHz operation)
For coverage of the 3.4-3.6 GHz frequency range, the SkyWay MAX system uses a default channel plan
which is a subset of the CEPT/ERC/REC 14-03E channel plan.
Operators may use the default channel plan le, as-is, or may use it as template to create custom .cc les.
These les can be uploaded to the same directory in the BSU and SS and activated in the system through
the management system.
Filename: default.cc
Path: /etc/umac/cc.d
#/etc/umac/cc.d/default.cc------------------------------
#
# Contains default channel centers for 3.4-3.6 GHz operation
#
# Valid Entries are:
#
# name CHANNEL_PLAN_NAME
# CHANNEL_PLAN_NAME is a string for name of the plan
#
# abbrev ABBREVIATION
# ABBREVIATION of plan name up to 4 symbols
#
# channel FREQ BW
# FREQ - channel frequency in kHz
# BW - channel bandwidth in MHz
#-------------------------------------------------------
#
# This section is for common channel plan properties
#
name Default
abbrev DB
cyclic_prex 32
#-------------------------------------------------------
# Channels are listed below this line.
#
#----------- Freq ----- BW -----------------------------
channel 3411750 3500
channel 3418750 3500
channel 3411750 3500
channel 3418750 3500
channel 3425750 3500
channel 3432750 3500
channel 3439750 3500
channel 3461750 3500
channel 3468750 3500
channel 3475750 3500
channel 3482750 3500
channel 3489750 3500
SkyWay-MAX
Operator’s Guide25
channel 3501750 3500
channel 3508750 3500
channel 3515750 3500
channel 3522750 3500
channel 3529750 3500
channel 3536750 3500
channel 3543750 3500
channel 3551750 3500
channel 3558750 3500
channel 3565750 3500
channel 3572750 3500
channel 3579750 3500
channel 3586750 3500
channel 3593750 3500
# 7 MHz channels
channel 3420500 7000
channel 3434500 7000
channel 3463500 7000
channel 3477500 7000
channel 3491500 7000
channel 3510500 7000
channel 3524500 7000
channel 3538500 7000
channel 3553500 7000
channel 3567500 7000
channel 3581500 7000
channel 3595500 7000
#end
Operator’s Guide26
SkyWay-MAX
VIII. Appendix B Management Systems

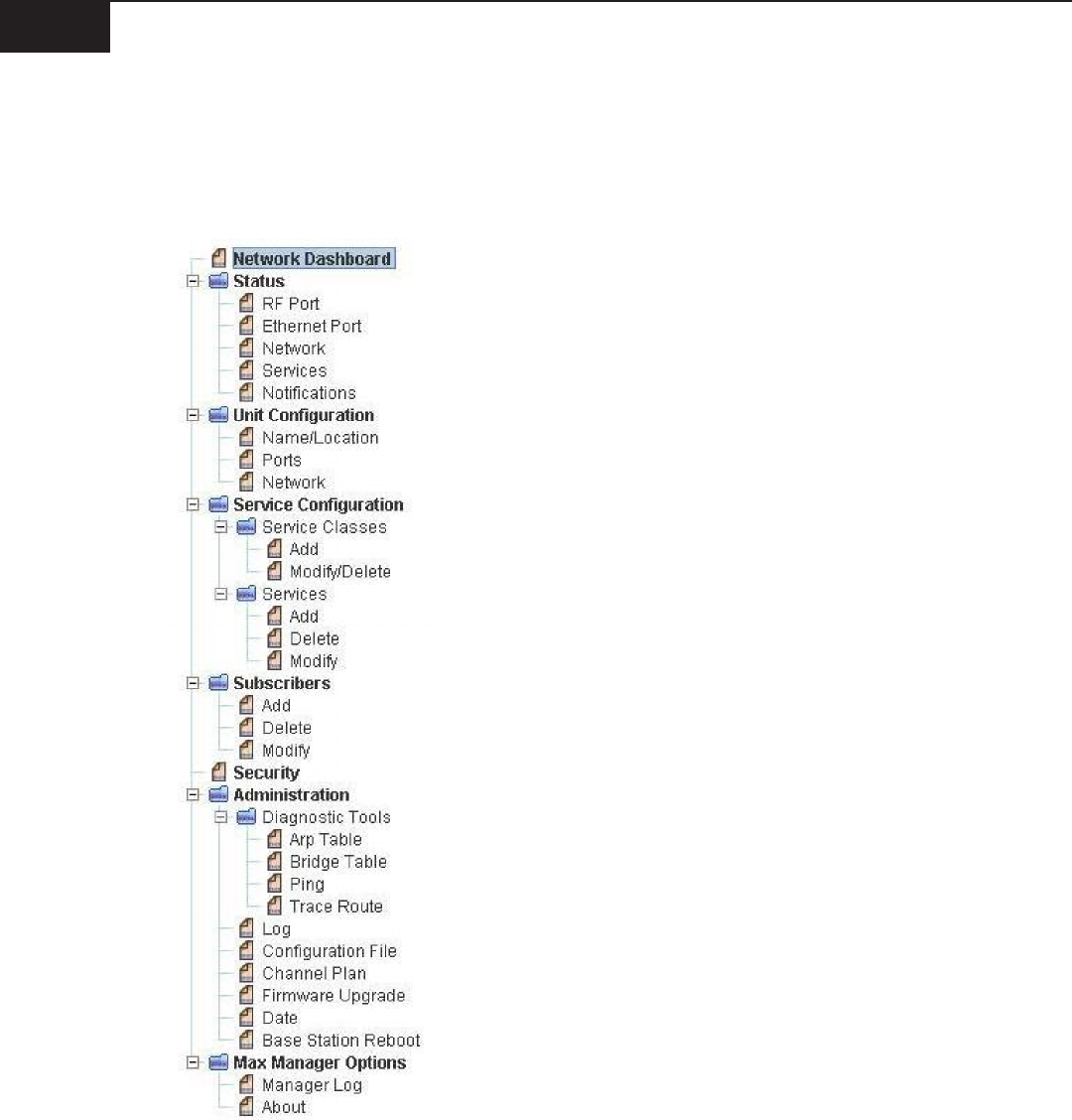

A. Manager Application – Expanded Navigation Bar
B. Telnet / Console Commands
SkyWay-MAX
Operator’s Guide27
IX. Appendix C Services - Advanced
A. Available Classifiers
The following Classier Types are supported on the SkyWay MAX system
802.3
Source MAC Address
Destination MAC Address
Ethertype
802.1p/q
VLAN ID
VLAN Priority Range
Ipv4
Protocol + Port Range
Source Address, with bit mask
Destination Address, with bit mask
ToS Value, with bit mask
B. QoS Scheduling Parameters
Available Parameters, by Scheduling Type
Scheduling Type Supported Parameters
UGS Grant Size
Grant Interval
Maximum Sustained Trac Rate
Minimum Reserved Trac Rate
Maximum Latency
Trac Priority
rtPS Grant Interval
Maximum Sustained Trac Rate
Minimum Reserved Trac Rate
Maximum Latency
Trac Priority
nrtPS Maximum Sustained Trac Rate
Minimum Reserved Trac Rate
Trac Priority
BE Maximum Sustained Trac Rate
Trac Priority
Operator’s Guide28
SkyWay-MAX
Parameter Definitions
Parameter Description Default Value
1. Grant Size: The size of each UGS grant in bytes. --
2. Grant Interval. The period between UGS grants, or rtPS polls, in mS 20
3. Max Sustained Trac Rate Upper limit, or ceiling, of trac rate, in bits/second
A setting of zero means unlimited.
0
4. Min Reserved Trac Rate Lower limit of trac rate reserved per Service, in bits/
sec
250
5. Max Latency Upper latency limit per Service, in mS. Only applies
when actual trac rate is < Min Reserved Rate (ie -
the Service is not overloading the reservation.
1200
6.Trac Priority
Denes priority when packet matches 0 (Administrative and Open IP Services)
classication on multiple Services. 7 (User Services)
Range is 0-7, with 7 as the highest priority.
C. Recommended Service Class configurations
Open IP1.
Internet Data2.
Voice3.
IPTV4.
