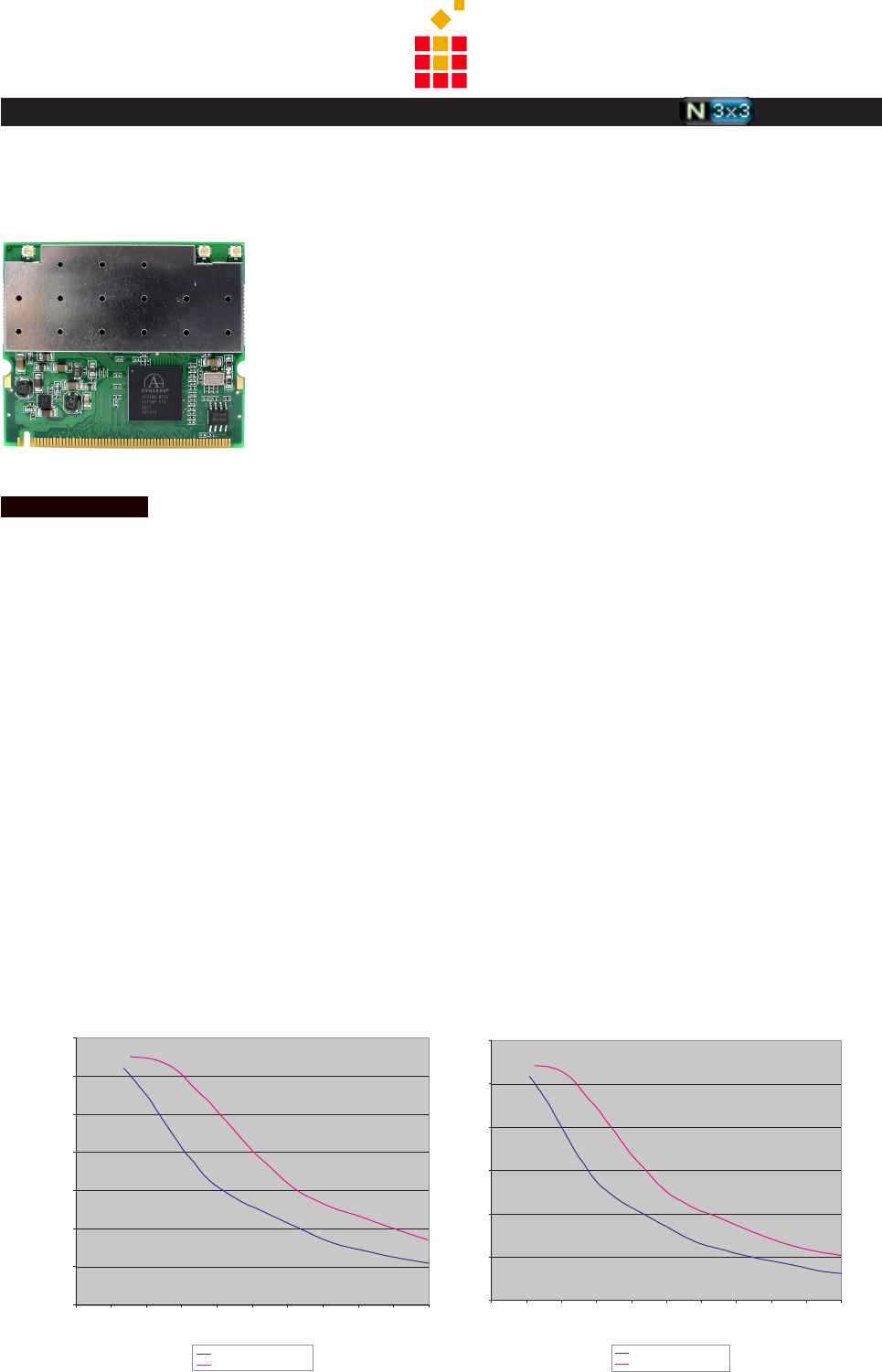

DNMA-83 is a 802.11n a/b/g wifi 3x3 mini-PCI module designed specifically to
enable high-performance 3x3 MIMO access point (AP) and router solutions for
dual-band (2.4/5GHz) applications that demand robust link quality and maximum
throughput and range. Setting new standards in throughput, range, reliability, and
power consumption, DNMA-83 delivers the ultimate wireless triple play experience
for video, voice, and data transmission in the home, for the business, and on the
road.
Atheros AR9160+AR9106 solution and 3 antennas design supports 2 simultaneous
traffic MIMO streams using up to 3 integrated Tx and Rx for high throughput and
range performance.
▪ Dual band 802.11 a/b/g/n support 3Tx/3Rx to enable data rate up to 300Mbps link rate for 40MHz channel, six
times the throughput of 802.11a and 802.11g.
▪ Same EVM on both light and heavy loading maintain lower packet error to increase channel efficiency.
▪ Heat sink design provides reliable high power RF performance.
▪ Mini-PCI Type IIIA form factor with screw hole is ideal for solid mounting onto motherboard.
▪ Supported by ath9k providing Linux kernel AP/Station/IBSS/Monitor/Mesh/WDS-mode drivers for industrial,
academic, or personal projects at highest flexibility and lowest cost.
▪ Atheros Linux SDK for AP and client-mode sub-license available by project.
▪ 802.11n compliance effectively interoperates with other chipsets.
▪ Supports IEEE 802.11a/802.11b/802.11g backward compatibility allowing inter-operability among multiple wifi
networks.
▪ Supports 64/128/152-bit WEP encryption, 802.1x authentication, WPA, and AES-CCM & TKIP encryption enabling
advanced LAN security.
▪ Three Hirose U.FL antenna connectors support MIMO functionality.
▪ Capable to be operated within FCC DFS2 or ETSI/EC DFS mid-5GHz band subjected to the regulatory approval
done with the resided devices.
▪ RoHS compliance meets environment-friendly requirement.
Key Features:
802.11n a/b/g wifi 3x3 mini-PCI module, MB82/AR9160+AR9106
Model: DNMA-83
What’s the benefits to use 3x3 2-stream instead of other standard 2x2 2-stream?
DNMA-83 3x3 2-stream outperforms other standard 2x2, 2-stream by better than 40% in the 20-100 ft range at 20MHz
mode and 50% better in the critical 50-80 ft range at 40MHz mode.
Simulations of downlink throughput: 2x2 and 3x3 both with 2 streams
PHY Rate vs. Distance, Typical Home/Small Office
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
0 20 40 60 80 100 120 140 160 180 200
Feet
2x2 20 MHz Downlink
3x3 20MHz Downlink
Simulation results for 40MHz mode: 2x2 and 3x3 downlink direction, both with 2 streams
PHY Rate vs. Distance, Typical Home/Small Office
0
50
100
150
200
250
300
0 20 40 60 80 100 120 140 160 180 200
Feet
2x2 40 MHz Downlink
3x3 40 MHz Downlink
PHY Date Rate(Mb/s)
PHY Date Rate(Mb/s)
[Unex] - Ver 1.5 20110527 P. 2
Mechanical Outline
Unit: mm

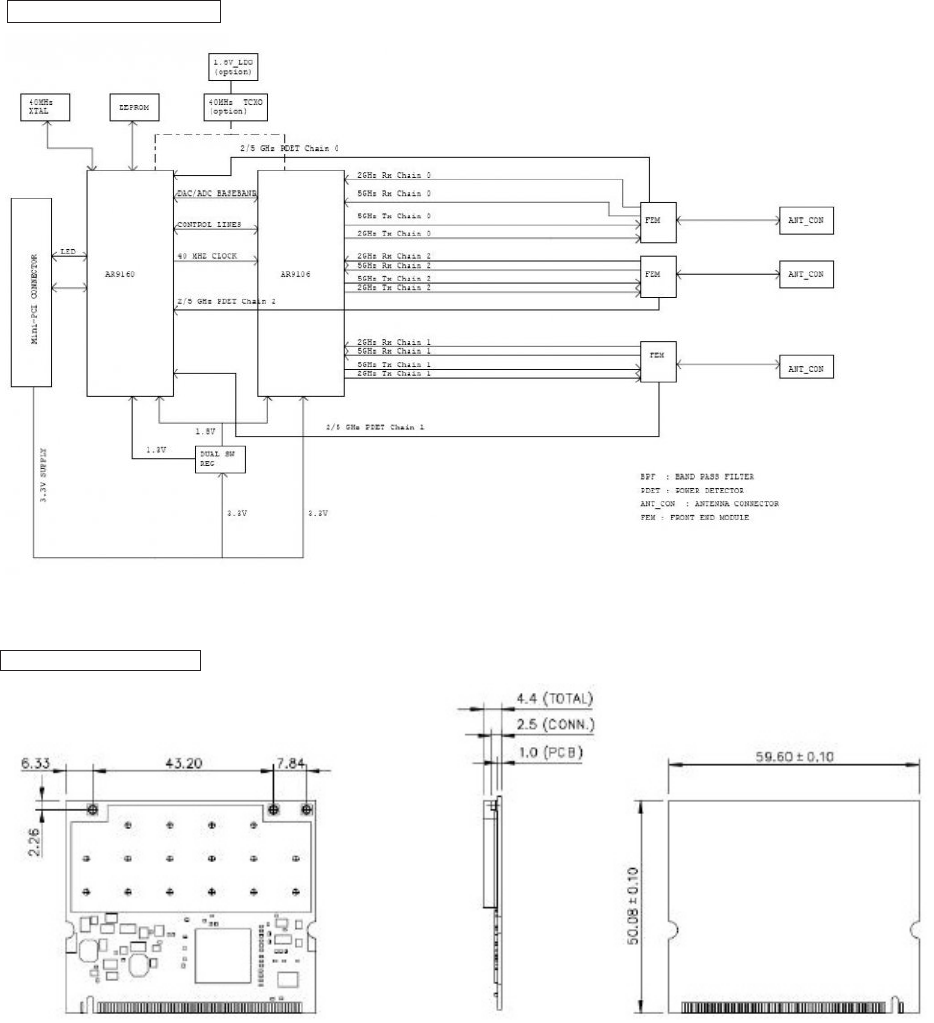

Hardware Block Diagram
[Unex] - Ver 1.5 20110527 P. 3

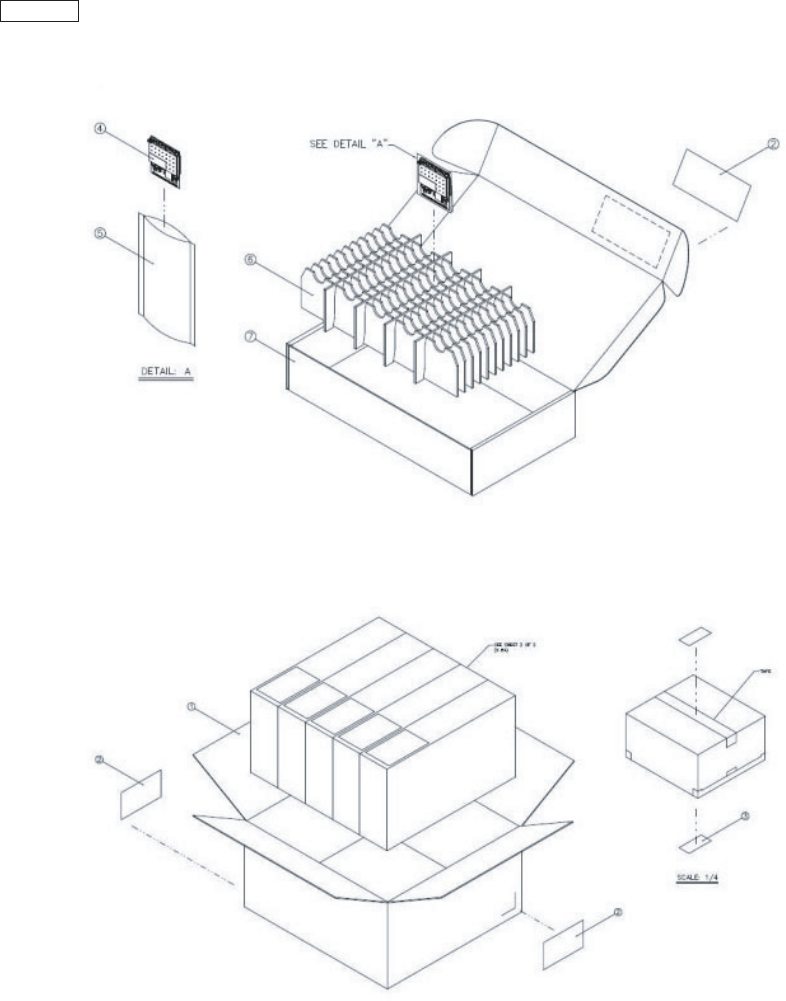

Packing
Packing box: 100 pcs/box
Carton: 5 packing box/carton = 500 pcs/carton
[Unex] - Ver 1.5 20110527 P. 4
Pin Assignment:
Pin Number Pin Name Pin I/O Type Description
1TIP NC No use
2RING NC No use
38PMJ-3 NC No use
48PMJ-1 NC No use
58PMJ-6 NC No use
68PMJ-2 NC No use
78PMJ-7 NC No use
88PMJ-4 NC No use
98PMJ-8 NC No use
10 8PMJ-5 NC No use
11 LED1_GRNP General purpose GPIO pin Connect to AR9160 GPIO0
12 LED2_YELP General purpose GPIO pin Connect to AR9160 GPIO1
13 LED1_GRNN NC No use
14 LED2_YELN NC No use
15 CHSGND GROUND Digital Ground
16 RESERVED NC Reserved
17 INTB# NC No use
18 5V NC 5V, no use
19 3.3V Power 3.3V±5%
20 INTA# CMOS, Output PCI bus Interrupt A
21 RESERVED NC Reserved
22 RESERVED NC Reserved
23 GROUND GROUND Digital ground
24 3.3VAUX NC No use
25 CLK Input, Weak pull down Providing timing for all transactions on the PCI
bus
26 RST# Input, Weak pull up PCI reset
27 GROUND GROUND Digital ground
28 3.3V Power 3.3V±5%
29 REQ# Output PCI bus request
30 GNT# Input, Weak pull high PCI bus grant
31 3.3V Power 3.3V±5%
32 GROUND GROUND Digital ground
33 AD[31] BiDir,, Weak pull down PCI address/data bus bit 31
34 PME# Output PCI bus power management
35 AD[29] BiDir,, Weak pull down PCI address/data bus bit 29
36 RESERVED General purpose GPIO pin Connect to AR9160 GPIO7
37 GROUND GROUND Digital ground
38 AD[30] BiDir,, Weak pull down PCI address/data bus bit 30
39 AD[27] BiDir,, Weak pull down PCI address/data bus bit 27
40 3.3V Power 3.3V±5%
41 AD[25] BiDir,, Weak pull down PCI address/data bus bit 25
42 AD[28] BiDir,, Weak pull down PCI address/data bus bit 28
43 RESERVED NC Reserved
44 AD[26] BiDir,, Weak pull down PCI address/data bus bit 26
45 C/BE[3]# BiDir,, Weak pull up PCI bus commands and byte 3 enables
46 AD[24] BiDir,, Weak pull down PCI address/data bus bit 24
47 AD[23] BiDir,, Weak pull down PCI address/data bus bit 23
48 IDSEL BiDir,, Weak pull down Initialization device select
49 GROUND GROUND Digital ground
50 GROUND GROUND Digital ground
51 AD[21] BiDir,, Weak pull down PCI address/data bus bit 21
52 AD[22] BiDir,, Weak pull down PCI address/data bus bit 22
53 AD[19] BiDir,, Weak pull down PCI address/data bus bit 19
54 AD[20] BiDir,, Weak pull down PCI address/data bus bit 20
55 GROUND GROUND Digital ground
[Unex] - Ver 1.5 20110527 P. 5
Pin Assignment:
56 PAR BiDir, Weak pull up PCI bus parity
57 AD[17] BiDir,, Weak pull down PCI address/data bus bit 17
58 AD[18] BiDir,, Weak pull down PCI address/data bus bit 18
59 C/BE[2]# BiDir,, Weak pull up PCI bus commands and byte 2 enables
60 AD[16] BiDir,, Weak pull down PCI address/data bus bit 16
61 IRDY# BiDir,, Weak pull up PCI initiator ready
62 GROUND GROUND Digital ground
63 3.3V Power 3.3V±5%
64 FRAME# BiDir,, Weak pull down PCI frame.
65 CLKRUN# Input, Weak pull up Control signal for PCI clock
66 TRDY# BiDir,, Weak pull up PCI target ready
67 SERR# BiDir,, Weak pull up PCI system error
68 STOP# BiDir,, Weak pull up PCI cycle stop signal
69 GROUND GROUND Digital ground
70 3.3V Power 3.3V±5%
71 PERR# BiDir, Weak pull up PCI parity error
72 DEVSEL# BiDir, Weak pull up PCI device select
73 C/BE[1]# BiDir, Weak pull down PCI bus commands and byte 1 enables
74 GROUND GROUND Digital ground
75 AD[14] BiDir, Weak pull down PCI address/data bus bit 14
76 AD[15] BiDir, Weak pull down PCI address/data bus bit 15
77 GROUND GROUND Digital ground
78 AD[13] BiDir, Weak pull down PCI address/data bus bit 13
79 AD[12] BiDir, Weak pull down PCI address/data bus bit 12
80 AD[11] BiDir, Weak pull down PCI address/data bus bit 11
81 AD[10] BiDir, Weak pull down PCI address/data bus bit 10
82 GROUND GROUND Digital ground
83 GROUND GROUND Digital ground
84 AD[09] BiDir, Weak pull down PCI address/data bus bit 9
85 AD[08] BiDir, Weak pull down PCI address/data bus bit 8
86 C/BE[0]# BiDir, Weak pull up PCI bus commands and byte 0 enables
87 AD[07] BiDir, Weak pull down PCI address/data bus bit 7
88 3.3V Power 3.3V±5%
89 3.3V Power 3.3V±5%
90 AD[06] BiDir, Weak pull down PCI address/data bus bit 6
91 AD[05] BiDir, Weak pull down PCI address/data bus bit 5
92 AD[04] BiDir, Weak pull down PCI address/data bus bit 4
93 RESERVED General purpose GPIO pin Connect to AR9160 GPIO6
94 AD[02] BiDir, Weak pull down PCI address/data bus bit 2
95 AD[03] BiDir, Weak pull down PCI address/data bus bit 3
96 AD[00] BiDir, Weak pull down PCI address/data bus bit 0
97 5V NC No use
98 RESERVED_WIP4 NC Reserved
99 AD[01] BiDir, Weak pull down PCI address/data bus bit
100 RESERVED_WIP4 NC Reserved
101 GROUND GROUND Digital ground
102 GROUND GROUND Digital ground
103 AC_SYNC NC No use
104 M66EN Power 3.3V±5%
105 AC_SDATA_IN NC No use
106 AC_SDATA_OUT NC No use
107 AC_BIT_CLK NC No use
108 AC_CODEC_ID0# NC No use
109 AC_CODEC_ID1# NC No use
110 AC_RESET# NC No use
111 MOD_AUDIO_MON NC No use
[Unex] - Ver 1.5 20110527 P. 6
Pin Assignment:
112 RESERVED General purpose GPIO pin Connect to AR9160 GPIO8
113 AUDIO_GND GROUND Analog ground
114 GROUND GROUND Digital ground
115 SYS_AUDIO_OUT NC No use
116 SYS_AUDIO_IN NC No use
117 SYS_AUDIO_OUT GND NC No use
118 SYS_AUDIO_IN GND NC No use
119 AUDIO_GND NC No use
120 AUDIO_GND GROUND Analog ground
121 RESERVED NC Reserved
122 MPCIACT# NC Mini PCI function active, no support
123 VCC5VA NC No use
124 3.3VAUX NC No use
Specifications:
Main Chipset Atheros® AR9160, AR9106
Standard Conformance 802.11a, 802.11b, 802.11g, and 802.11n
Frequency Range ▪ USA: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.5 ~ 5.7GHz, 5.725 ~ 5.825GHz
▪ Europe: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz
▪ Japan: 2.400 ~ 2.497GHz, 5.15 ~ 5.351GHz, 5.47 ~ 5.725GHz
▪ China: 2.400 ~ 2.483GHz, 5.725 ~ 5.85GHz
Interface 32-bit mini-PCI Type IIIA
Operation Voltage 3.3V ±5%
Modulation Technique ▪ DSSS with CCK, DQPSK, DBPSK
▪ OFDM with BPSK, QPSK, 16QAM, 64QAM
Data Rate ▪ 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
▪ 802.11b: 1, 2, 5.5 and 11Mbps
▪ 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
▪ 802.11n:
▫ 20MHz channel:
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
▫ 40MHz channel:
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Operating Channels ▪ 802.11a/n▪
▫ USA/Canada: 23 non-overlapping channels
▫ Major Europe Countries: 19 non-overlapping channels
▫ Japan: 19 non-overlapping channels
▫ China: 5 non-overlapping channels
▪ 802.11b/g/n▪
▫ USA/Canada: 11 (1~11)
▫ Major Europe Countries: 13 (1~13)
▫ France: 4 (10~13)
▫ Japan: 14 for 802.11b (1~13 or 14th), 13 for 802.11g (1~13)
▫ China: 13 (1~13)
Power Consumption of
3T3R 802.11a 802.11b 802.11g 802.11n(2.4GHz) 802.11n(5GHz)
Avg./Max. (mA) Avg./Max. (mA) Avg./Max. (mA) Avg./Max. (mA) Avg./Max. (mA)
Continue Tx 833/909 787/862 744/856 803/884 836/910
FTP Tx 514/851 451/679 425/694 419/676 480/800
FTP Rx 427/855 378/681 398/701 408/678 444/800
Standby mode 417/796 379/644 377/646 381/635 418/787
Antenna three SMT Hirose U.FL ultra-miniature coaxial antenna connectors
[Unex] - Ver 1.5 20110527 P. 7
Specifications:
Transmit Power Settings 802.11a:
▪ +18dBm @ 6, 9, 12, 18, 24Mbps
▪ +17dBm @ 36Mbps
▪ +16dBm @ 48Mbps
▪ +15dBm @ 54Mbps
802.11b:
▪ +19dBm
802.11g:
▪ +18dBm @ 6, 9, 12,18,24Mbps
▪ +18dBm @ 36Mbps
▪ +17dBm @ 48Mbps
▪ +16dBm @ 54Mbps
802.11n 2.4GHz/HT20:
▪ +19dBm @ MCS 0/8
▪ +19dBm @ MCS 1/9
▪ +19dBm @ MCS 2/10
▪ +19dBm @ MCS 3/11
▪ +18dBm @ MCS 4/12
▪ +16dBm @ MCS 5/13
▪ +13dBm @ MCS 6/14
▪ +10dBm @ MCS 7/15
802.11n 2.4GHz/HT40:
▪ +17dBm @ MCS 0/8
▪ +17dBm @ MCS 1/9
▪ +17dBm @ MCS 2/10
▪ +17dBm @ MCS 3/11
▪ +17dBm @ MCS 4/12
▪ +16dBm @ MCS 5/13
▪ +13dBm @ MCS 6/14
▪ +10dBm @ MCS 7/15
802.11n 5GHz/HT20:
▪ +18dBm @ MCS 0/8
▪ +18dBm @ MCS 1/9
▪ +18dBm @ MCS 2/10
▪ +17dBm @ MCS 3/11
▪ +17dBm @ MCS 4/12
▪ +16dBm @ MCS 5/13
▪ +12dBm @ MCS 6/14
▪ +10dBm @ MCS 7/15
802.11n 5GHz/HT40:
▪ +17dBm @ MCS 0/8
▪ +17dBm @ MCS 1/9
▪ +17dBm @ MCS 2/10
▪ +17dBm @ MCS 3/11
▪ +17dBm @ MCS 4/12
▪ +16dBm @ MCS 5/13
▪ +12dBm @ MCS 6/14
▪ +10dBm @ MCS 7/15
Receiver Sensitivity Data Rate IEEE Spec (1 Rx dBm) Typical/Maximum (3Rx dBm)
802.11a 6M -82 -95/-91
9M -81 -95/-91
12M -79 -95/-91
18M -77 -94/-90
24M -74 -90/-86
36M -70 -87/-83
48M -66 -83/-79
54M -65 -82/-78
[Unex] - Ver 1.5 20110527 P. 8
Specifications:
Receiver Sensitivity Data Rate IEEE Spec (1 Rx dBm) Typical/Maximum (3Rx dBm)
802.11b 1M -82 -96/-92
5.5M -80 -94/-90
11M -76 -91/-87
802.11g 6M -82 -96/-92
9M -81 -96/-92
12M -79 -96/-92
18M -77 -95/-91
24M -74 -92/-88
36M -70 -89/-85
48M -66 -85/-81
54M -65 -83/-78
802.11a/n
HT20
MCS0 -82 -95/-91
MCS1 -79 -94/-90
MCS2 -77 -92/-87
MCS3 -74 -88/-84
MCS4 -70 -85/-81
MCS5 -66 -81/-77
MCS6 -65 -80/-76
MCS7 -64 -77/-73
MCS8 -82 -93/-89
MCS9 -79 -90/-86
MCS10 -77 -88/-84
MCS11 -74 -85/-81
MCS12 -70 -82/-78
MCS13 -66 -78/-74
MCS14 -65 -76/-72
MCS15 -64 -75/-71
802.11a/n
HT40
MCS0 -79 -91/-87
MCS1 -76 -90/-86
MCS2 -74 -88/-84
MCS3 -71 -85/-81
MCS4 -67 -82/-78
MCS5 -63 -79/-75
MCS6 -62 -77/-73
MCS7 -61 -75/-71
MCS8 -79 -90/-86
MCS9 -76 -87/-83
MCS10 -74 -85/-81
MCS11 -71 -82/-78
MCS12 -67 -79/-75
MCS13 -63 -75/-71
MCS14 -62 -73/-69
MCS15 -61 -71/-67
[Unex] - Ver 1.5 20110527 P. 9
Specifications:
Receiver Sensitivity Data Rate IEEE Spec (1 Rx dBm) Typical/Maximum (3Rx dBm)
802.11b/g/n
HT20
MCS0 -82 -96/-92
MCS1 -79 -95/-91
MCS2 -77 -93/-89
MCS3 -74 -90/-86
MCS4 -70 -87/-83
MCS5 -66 -83/-79
MCS6 -65 -81/-77
MCS7 -64 -79/-75
MCS8 -82 -95/-91
MCS9 -79 -93/-89
MCS10 -77 -90/-85
MCS11 -74 -87/-83
MCS12 -70 -84/-80
MCS13 -66 -80/-76
MCS14 -65 -78/-74
MCS15 -64 -77/-73
802.11b/g/n
HT40
MCS0 -79 -90/-86
MCS1 -76 -90/-86
MCS2 -74 -89/-85
MCS3 -71 -87/-83
MCS4 -67 -84/-80
MCS5 -63 -80/-76
MCS6 -62 -78/-74
MCS7 -61 -75/-70
MCS8 -79 -90/-86
MCS9 -76 -89/-85
MCS10 -74 -87/-83
MCS11 -71 -84/-80
MCS12 -67 -81/-77
MCS13 -63 -76/-72
MCS14 -62 -75/-71
MCS15 -61 -73/-69
Operation Distance Outdoor Indoor
802.11a ▪ 50m @ 54Mbps
▪ 300m @ 6Mbps
▪ 30m @ 54Mbps
▪ 100m @ 6Mbps
802.11b ▪ 150m @ 11Mbps
▪ 300m @ 1Mbps
▪ 30m @ 11Mbps
▪ 100m @ 1Mbps
802.11g ▪ 50m @ 54Mbps
▪ 300m @ 6Mbps
▪ 30m @ 54Mbps
▪ 100m @ 6Mbps
802.11n ▪ 30m @ 300Mbps
▪ 30m @ 130Mbps
▪ 300m @ 6.5Mbps
▪ 20m @ 300Mbps
▪ 20m @ 130Mbps
▪ 100m @ 6.5Mbps
Frequency Tolerance the transmitted center frequency tolerance shall be +/- 20 ppm max.
MAC Protocol CSMA/CA with ACK architecture 32-bit MAC
Security ▪ 64-bit, 128-bit and 152-bit WEP encryption
▪ 802.1x authentication, WPA
▪ AES-CCM & TKIP
Remark: For the system integrator adopting DNMA-83 with resided devices, the security
features are subject to the compile of Atheros Communication
[Unex] - Ver 1.5 20110527 P. 10
Unex Technology Corp.
- Durable Bridge to Wireless
Sales-a@unex.com.tw
http://www.unex.com.tw
Note:
If DNMA-83 used to design 802.11n dual-concurrent 2.4 plus 5GHz access point (AP)/Router, Unex recommends a 50dB
antenna isolation between any two-2.4GHz-and-5GHz antenna or having an external band-path-filtering design to avoid
deteriorating DNMA-83 performance.
Specifications:
Operation System
Supported
▪ Linux
▪ Atheros Linux SDK for AP and client-mode sub-license available by project.
Dimension 59.6 x 50.08 x 1.0mm
Operation Temperature
Range
0˚C ~ +60˚C
Storage Temperature Range -20˚C ~ +80˚C
Operating Humidity 15% ~ 95%, non-condensing
Storage Humidity max. 95%, non-condensing
Radio & EMC Certificate FCC Part 15.401 ~ Part 15.407 (5.150 ~ 5.350GHz & 5.725 ~ 5.825GHz), Part 15.247
(5.725 ~ 5.850GHz), FCC Part 15.247 (2.400 ~ 2.4835GHz), FCC Class-B, FCC Part
15.107 & Part 15.109; limited module level approval.
IC RSS210, RSS139-1, ICES-003, limited module level approval.
ETSI, EN301893, EN60950, EN 300328, EN 301489- 1/17, EN 55022, EN 55024
Environment-Friendly
Compliance
RoHS
Ordering Information:
DNMA-83 802.11n a/b/g wifi 3x3 mini-PCI module, MB82/AR9160+AR9106
