Welch Allyn WAM2500 Wireless Acquisition Module User Manual 2 Section 1

Mortara Instrument Inc Wireless Acquisition Module 2 Section 1

2 Section Manual

INTRODUCTION
SECTION 1
1
Manual Purpose
The WAM (Wireless Patient Cable) user manual explains how to:
· Acquire and transmit 12-lead ECG signals to a receiving device
· Acquire and transmit 12-lead Rhythm strip to a receiving device
· Power the WAM On and Off
· LED Messages / Buzzer Beep Tone
o Power On/Off
o RF communication link status
o Low Battery Warning
o Lead check
Audience
This manual is written for clinical professionals who are expected to have a working knowledge of medical
procedures and terminology as required for monitoring and/or acquiring clinical data from cardiac patients.
Indications for Use
The WAM cable is a non-invasive prescription device:
· Indicated for use as a radiofrequency physiological signal transmitter that acquires and delivers RF
transmission of real-time electrocardiographic data obtained during resting/physiologic electrocardiographic
testing.
· Indicated for use in a clinical setting, by qualified medical professionals, properly trained for acquiring ECG
data and use of the system. The personnel must be experienced in cardiovascular problematic situations and
emergency procedures or pathologies related to cardiac involvements. It is not intended as a sole means of
diagnosis.
· Indicated for use in hospital and physicians office, patients of any age where ECG acquisition is done (e.g.,
patients in Coronary Care Units, Step-Down Units, Emergency Departments, clinics, physicians offices, sports
medicine facilities or rehabilitation departments).
· It is not designed for use in highly invasive environments, such as an operating theatre.
The cardiac data and analysis provided is reviewed, confirmed, and used by trained medical personnel in the
diagnosis of patients with various cardiac rhythm patterns.
System Description
The WAM incorporates wireless electrocardiographic technology to achieve the real-time acquisition and RF
transmission of simultaneous 12-lead ECG data with diagnostic quality. Transmission to a Mortara receiver module
allows the cardiac signals to be displayed on a monitoring device such as an electrocardiograph without the need for a
direct connection to an electrocardiograph.
The WAM uses a single AA battery.
SECTION 1
2
The following equipment is necessary to use the WAM:
· One AA battery, 1.5V
· Mortara receiver module in the electrocardiograph
· ECG cable

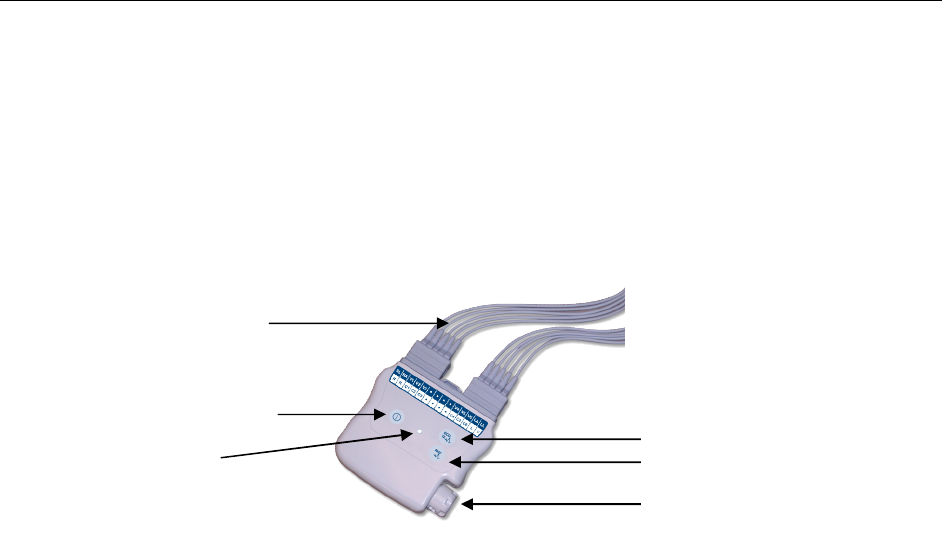

WAM with ECG Cable
Figure 1-1, Front View
ECG Patient Cable
Power On/Off
LED Indicator
12 Lead ECG Acquisition
Rhythm Print
Battery Compartment
SECTION 1
3
Part Numbers
Description Part Numbers
Wireless Patient Cable WAM-XXX-XXXXX
WAM Battery Cap Assembly 8356-008-51
WAM Carrying Pouch with Belt 8485-025-50
COMBINER REPLACEMENT WAM LEADS 5 POSITION
Plastic part “combines” 5 leads into a groups for plugging into the
WAM 9293-046-01
LEAD SET WAM 10 WIRE BANANA AHA
Full set of 10 wires, grouped into two sets of 5, with “combiners” 9293-046-50
LEAD SET WAM 10 WIRE BANANA IEC
ll set of 10 wires, grouped into two sets of 5, with “combiners” 9293-046-51
REPLACEMENT LEAD SET WAM LIMBS BANANA AHA
Indicated leads, no combiners 9293-046-52
REPLACEMENT LEAD SET WAM LIMBS BANANA IEC
Indicated leads, no combiners 9293-046-53
REPLACEMENT LEAD SET WAM V1-V3 BANANA AHA
Indicated leads, no combiners 9293-046-54
REPLACEMENT LEAD SET WAM C1-C3 BANANA IEC
Indicated leads, no combiners 9293-046-55
REPLACEMENT LEAD SET WAM V4-V6 BANANA AHA
Indicated leads, no combiners 9293-046-56
REPLACEMENT LEAD SET WAM C4-C6 BANANA IEC
Indicated leads, no combiners 9293-046-57
LEAD SET WAM 10 WIRE CLIPS AHA
Full set of 10 wires, grouped into two sets of 5, with “combiners” 9293-047-50
LEAD SET WAM 10 WIRE CLIPS IEC
Full set of 10 wires, grouped into two sets of 5, with “combiners” 9293-047-51
REPLACEMENT LEAD SET WAM LIMBS CLIPS AHA
Indicated leads, no combiners 9293-047-52
REPLACEMENT LEAD SET WAM LIMBS CLIPS IEC
Indicated leads, no combiners 9293-047-53
REPLACEMENT LEAD SET WAM V1-V3 CLIPS AHA
Indicated leads, no combiners 9293-047-54
REPLACEMENT LEAD SET WAM C1-C3 CLIPS IEC
Indicated leads, no combiners 9293-047-55
REPLACEMENT LEAD SET WAM V4-V6 CLIPS AHA
Indicated leads, no combiners 9293-047-56
REPLACEMENT LEAD SET WAM C4-C6 CLIPS IEC
Indicated leads, no combiners 9293-047-57
WAM User Manual (XXX=language) 9515-XXX-XX-XXX
WAM Short-Form Instruction Card (XXX=language) 9503-XXX-XX-XXX
Case of 24 Monitoring Hookup Kits:
· 10 monitoring electrodes
· 1 abrasive pad
· 1 gauze wipe
· 1 razor
· 2 alcohol prep pads
9294-009-51
SECTION 1
4
Approved Battery Models
Description Manufacturer Part Numbers
Alkaline, AA-type, 1.5V Various Various
Lithium, AA-type, 1.5V Energizer L91
NOTE: Replace cells with only those listed above. Use of other cells may present a risk of fire or explosion.
To order additional supplies, contact a Mortara Instrument customer service representative at:
Mortara Instrument, Inc.
7865 N. 86th Street
Milwaukee, WI 53224
Tel: 1.888.MORTARA (667.8272)
Fax: 414.354.4760
Internet: http://www.mortara.com
Specifications
Feature Specifications
Instrument Type 12-lead ECG digital transmitter cable
Input Channels Continuous 12-lead signal acquisition and transmission
ECG Leads Transmitted I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5 and V6
Special Functions Power On/Off, Lead impedance check, during hookup,
lead fail, and battery notification
RF Protocol 2400-2483 MHz interference immune proprietary
frequency hopping scheme
Water Resistance Electronics protected from water damage; meets EN
60529 rating IPX1
Defibrillator Protection Complies with AAMI standards and IEC 60601-2-25
Function Keys On/Off, 12-Lead ECG acquisition, Rhythm acquisition
Device Classification Type CF (ECG), battery operated
Weight 6.7 oz. (190 g) with battery
Dimensions 4.45” x 4.25” x 1.1” (11.3 cm x 10.8 cm x 2.79 cm)
Battery 1 AA alkaline, 24-hour typical life
NOTE: Operating range performance is 3 meters or 10 feet with.
