ZTE R8882S8500 ZXSDR R8882 S8500 is Macro Radio Remote Unit User Manual VI
ZTE Corporation ZXSDR R8882 S8500 is Macro Radio Remote Unit VI
ZTE >
Contents
User Manual VI
![](/img.php?id=1687508&img=bg1.png)
ZXSDRR8882
MacroRemoteRadioUnit
ProductDescription
HardwareVersion:HV2.0
ZTECORPORATION
NO.55,Hi-techRoadSouth,ShenZhen,P .R.China
Postcode:518057
Tel:+86-755-26771900
Fax:+86-755-26770801
URL:http://ensupport.zte.com.cn
E-mail:support@zte.com.cn
![](/img.php?id=1687508&img=bg2.png)
LEGALINFORMATION
Copyright©2011ZTECORPORATION.
Thecontentsofthisdocumentareprotectedbycopyrightlawsandinternationaltreaties.Anyreproductionor
distributionofthisdocumentoranyportionofthisdocument,inanyformbyanymeans,withoutthepriorwritten
consentofZTECORPORATIONisprohibited.Additionally,thecontentsofthisdocumentareprotectedby
contractualcondentialityobligations.
Allcompany,brandandproductnamesaretradeorservicemarks,orregisteredtradeorservicemarks,ofZTE
CORPORATIONoroftheirrespectiveowners.
Thisdocumentisprovided“asis”,andallexpress,implied,orstatutorywarranties,representationsorconditions
aredisclaimed,includingwithoutlimitationanyimpliedwarrantyofmerchantability,tnessforaparticularpurpose,
titleornon-infringement.ZTECORPORATIONanditslicensorsshallnotbeliablefordamagesresultingfromthe
useoforrelianceontheinformationcontainedherein.
ZTECORPORATIONoritslicensorsmayhavecurrentorpendingintellectualpropertyrightsorapplications
coveringthesubjectmatterofthisdocument.ExceptasexpresslyprovidedinanywrittenlicensebetweenZTE
CORPORATIONanditslicensee,theuserofthisdocumentshallnotacquireanylicensetothesubjectmatter
herein.
ZTECORPORATIONreservestherighttoupgradeormaketechnicalchangetothisproductwithoutfurthernotice.
UsersmayvisitZTEtechnicalsupportwebsitehttp://ensupport.zte.com.cntoinquirerelatedinformation.
TheultimaterighttointerpretthisproductresidesinZTECORPORATION.
RevisionHistory
SerialNo.PublishingDatePublishingReason
R1.12011–12–30Modiedthefollowingsections:
l1.3ServicesandFunctions
l1.4ProductSpecications
l2.1.1HardwareArchitecture
R1.02011–10–30FirstEdition
SerialNumber:SJ-20111021104623-002
PublishingDate:2011–12–30(R1.1)
![](/img.php?id=1687508&img=bg3.png)
Contents
AboutThisManual.........................................................................................I
Chapter1ProductOverview.....................................................................1-1
1.1PositionoftheZXSDRR8882intheRadioNetwork.............................................1-1
1.2ProductFeatures................................................................................................1-1
1.3ServicesandFunctions......................................................................................1-3
1.4ProductSpecications........................................................................................1-6
1.5InstallationScenarios.........................................................................................1-7
Chapter2SystemStructure......................................................................2-1
2.1HardwareSubsystem.........................................................................................2-1
2.1.1HardwareArchitecture..............................................................................2-1
2.1.2ModuleFunctions.....................................................................................2-2
2.2SoftwareSubsystem...........................................................................................2-3
2.2.1SoftwareArchitecture...............................................................................2-3
2.2.2SoftwareFunctions...................................................................................2-4
Chapter3OperationandMaintenance.....................................................3-1
3.1OperationandMaintenanceModes.....................................................................3-1
3.2OperationandMaintenanceFunctions.................................................................3-2
Chapter4Networking................................................................................4-1
4.1StarNetworking.................................................................................................4-1
4.2CascadeNetworking..........................................................................................4-1
4.3RingNetworking.................................................................................................4-2
Chapter5TechnicalSpecications..........................................................5-1
5.1PhysicalSpecications.......................................................................................5-1
5.2RadioPerformance............................................................................................5-2
5.3Interfaces..........................................................................................................5-3
Chapter6FCC&ICSTATEMENT..............................................................6-1
Figures.............................................................................................................I
Tables............................................................................................................III
Index...............................................................................................................V
Glossary.......................................................................................................VII
I
![](/img.php?id=1687508&img=bg4.png)
II
![](/img.php?id=1687508&img=bg5.png)
AboutThisManual
Purpose
TheZXSDRR8882isamulti-moderemoteRFunitthatsupports2T4RFDD.Itsupports
GSM,UMTS,CDMA,andLTEcommunicationssystemsandfeaturescompactstructure,
largecapacity,andeasyinstallation.
TheZXSDRR8882workswithaBBUtoconstitutethedistributedSDRBTS,thatis,
ZXSDRofZTE.
ThismanualprovidesageneraldescriptionoftheZXSDRR8882,coveringtheproduct
features,servicesandfunctions,systemarchitecture,operationandmaintenance,
networking,andtechnicalspecications.
IntendedAudience
Thismanualisintendedfor
lEngineeringpersonnelandtechnicians
lInstallationengineers
lMaintenanceengineers
WhatisinThisManual
Thismanualcontainsthefollowingchapters:
ChapterSummary
Chapter1,Product
Overview
DescribesthepositionoftheZXSDRR8882intheradionetwork,product
features,servicesandfunctions,andinstallationscenarios.
Chapter2,System
Structure
DescribesthehardwareandsoftwarestructuresoftheZXSDRR8882
andthefunctions.
Chapter3,Operationand
Maintenance
DescribestheoperationandmaintenancemodesoftheZXSDRR8882.
Chapter4,NetworkingDescribesthenetworkingmodessupportedbytheZXSDRR8882.
Chapter5,Technical
Specications
DescribesthetechnicalspecicationsoftheZXSDRR8882.
Conventions
ZTEdocumentsemploythefollowingtypographicalconventions.
TypefaceMeaning
ItalicsReferencestootherManualsanddocuments.
“Quotes”Linksonscreens.
I
![](/img.php?id=1687508&img=bg6.png)
TypefaceMeaning
BoldMenus,menuoptions,functionnames,inputelds,radiobuttonnames,
checkboxes,drop-downlists,dialogboxnames,windownames.
CAPSKeysonthekeyboardandbuttonsonscreensandcompanyname.
Note:Providesadditionalinformationaboutacertaintopic.
Checkpoint:Indicatesthataparticularstepneedstobecheckedbefore
proceedingfurther.
Tip:Indicatesasuggestionorhinttomakethingseasierormoreproductive
forthereader.
II
![](/img.php?id=1687508&img=bg7.png)
Chapter1
ProductOverview
TableofContents
PositionoftheZXSDRR8882intheRadioNetwork...................................................1-1
ProductFeatures........................................................................................................1-1
ServicesandFunctions..............................................................................................1-3
ProductSpecications................................................................................................1-6
InstallationScenarios.................................................................................................1-7
1.1PositionoftheZXSDRR8882intheRadioNetwork
TheZXSDRR8882istheoutdoorremoteRadioFrequency(RF)unitoftheZTEBase
TransceiverStation(BTS).TheZXSDRR8882andaBaseBandUnit(BBU)forma
completeBTS/NodeB/eNodeB,implementingradiotransmissioninthecoveredarea,
controllingradiochannelsandrealizingthecommunicationwiththeBaseStation
Controller(BSC)/RadioNetworkController(RNC)/LongT ermEvolution(LTE).
Figure1-1showsthepositionoftheZXSDRR8882(RRU)intheradionetwork.
Figure1-1PositionoftheZXSDRR8882intheRadioNetwork
1.2ProductFeatures
TheZXSDRR8882isanoutdoorRemoteRadioUnit(RRU)withdualtransmitters.The
ZXSDRR8882workswithaBasebandUnit(BBU)toprovidealllogicalfunctionsofaBTS.
Basedonthedigitalintermediatefrequencyandmulti-carriertechnologies,theZXSDR
R8882iscapableoftransmittingdualchannelsofradiosignalsandreceivingfourchannels
ofradiosignals.TheZXSDRR8882canactasanindependentremoteRFunitforGlobal
1-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg8.png)
ZXSDRR8882ProductDescription
SystemforMobileCommunication(GSM)/UniversalMobileTelecommunicationSystem
(UMTS)/CodeDivisionMultipleAccess(CDMA),anditsupportsevolutiontoLTE.
ThefeaturesoftheZXSDRR8882areasfollows:
lMultipleradioaccessmodes
TheZXSDRR8882supportssinglemode,dualmode,orhybridmode,includingGSM,
UMTS,CDMA,andLTE.
lDistributedarchitecture
BBUsandRRUsconstitutedistributedBTSsystems,providingexibleofce
deployment.
lSmoothevolution
Throughsoftwareupgrade,theZXSDRR8882canbesmoothlyevolvedtoHSPAor
LTE,savingtheinvestmentofthetelecomoperatortothemaximum.
lFlexiblecongurationandnetworking
àBecausethedual-densitymulti-carriertechnologiesareused,whentheZXSDR
R8882worksinGSMmode,itsupports2x6carriersthroughsoftware
conguration.(Asinglechannelsupports6carriers.)
àWhentheZXSDRR8882worksinUMTSmode,itsupportsupto2x4carriers.
(Asinglechannelsupports4carriers.)
àWhentheZXSDRR8882worksinCDMAmode,itsupportsupto2x8carriers.
(Asinglechannelsupports8carriers.)
àWhentheZXSDRR8882worksinGSM/UMTSdualmode,theZXSDRR8882
supports4GSMcarriers+1UMTScarrieror2GSMcarriers+2UMTScarriers,
anditsupportsupto8GSMcarriers+2UMTScarriers.
àWhentheZXSDRR8882worksinLTEmode,theZXSDRR8882supportsone
carrier.
àThebaseband-RFinterfaceofZXSDRR8882supportsstarandchain
networking.
lAdvancedinternalstructure
Betweeninternalboardsandmodules,blindinterconnectionandhardlink
interconnectionareused.
lEnergysavingandenvironment-friendlydesign
Energy-savingandenvironment-friendlyduetomulti-carrierpowerampliers,and
advancedDohertyandDigitalPre-Distortion(DPD)linearpoweramplication
technologies.
lEasyinstallationandmaintenance
Easyinstallationandmaintenanceduetocompactsizeandlightweight.
1-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg9.png)
Chapter1ProductOverview
1.3ServicesandFunctions
Services
TheZXSDRR8882workswithBBUstoprovidethefollowingservices:
lGSM
àFullRate(FR)voiceservice.
àEnhancedFullRate(EFR)voiceservice.
àHalfRate(HR)voiceservice.
àAdaptiveMultipleRate(AMR)voiceservice.
à9.6KbpsCircuitSwitched(CS)domaindataservice.
àGeneralPacketRadioService(GPRS).
lUMTS
àR99services.
àHighSpeedDownlinkPacketAccess(HSDPA)services.
àHighSpeedUplinkPacketAccess(HSUPA)services.
àEvolvedHigh-SpeedPacketAccess(HSPA+)services.
lCDMA
à1Xservice
àEvolution-DataOptimized(EVDO)service
àPush-To-T alk(PTT)service
lLTE
àThecapacityanddatatransmissionspeedofmobilenetworkaregreatly
improved,andtheservicelatencyislessenedtoo.Thepeakdatatransmission
rateare50Mbps(UL)and100Mpbs(DL).
àLTEisbasedonwholeIPnetwork,anditsupportsbothIPv4andIPv6.
àLTEsupportsthecongurationof5MHz,10MHz,15MHzand20MHzscalable
bandwidth.
lPositioningservices
CellID,CellID+RoundTripTime(RTT),andAssistedGlobalPositioningSystem
(AGPS)positioning
lMultimediaBroadcast/MulticastService(MBMS)services
àSupportsbroadcastandmulticastfunctions,andsupportsthePoint-T o-Point
(PTP)andPoint-T o-Multipoint(PTM)multicastmodes.
àSupportsmobilitymanagement.
àSupportsthestreamingandbackgroundMBMSservices.
1-3
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bga.png)
ZXSDRR8882ProductDescription
Functions
lGSM/UMTSMode
TheZXSDRR8882workswithBBUstoconstitutethedistributedBTSsystem.The
ZXSDRR8882forwardssignalsthatarereceivedortobetransmittedtotheBBU
forfurtherprocessing.ByconnectingtotheBBU,theZXSDRR8882providesthe
followingfunctions:
àThroughtheUm/Uuinterface,theZXSDRR8882providesaccesstoterminals
andprovidesRFlinktransmissionfunctions,includingchannelmultiplexing
andde-multiplexing,measurementandreport,powercontrol,receivediversity,
calibration,andsynchronization.
àTheZXSDRR8882isconnectedtotheBBUthroughtheopticalinterface.
Theopticalinterfaceimplementsthefollowingfunctions:IQdatatransmit,
measurementinformationreport,RFfunctionconguration,andclock
synchronization.
àThroughtheoperationandmaintenanceinterface,theZXSDRR8882provides
thesystemmanagementfunctions,includingcongurationmanagement,alarm
management,statuscheckandmonitoring.
àTheZXSDRR8882alsoprovidesotherbasicfunctions:
tSupportsGSMPhaseI/PhaseII/PhaseII+.
tSupportsGSM900MandGSM1800M.
tSupportsUMTSR99,R4,R5,R6,R7,andR8.
tSupportsUMTS850M,900M,1900M,and2100M.Supportshybrid
networkingofdifferentmodesanddifferentfrequencybands.
tSupportsGPRSCS1toCS4encodingmodes.
tSupportsspacediversity,frequencydiversity,timediversity,andpolarization
diversity.
tThereceiveendsupportstheViterbidecodingalgorithm,improvingthe
systemreceivesensibilityandchanneldecodingcapability.
tSupportsfrequencyhopping.
tSupportsDiscontinuousTransmission(DTX).
tSupportTimingAdvance(TA)calculationandsuper-distancecoverage.The
maximumcoveragedistanceis120km.
tSupportsCo-BroadcastControlCHannel(BCCH).
lCDMAMode
WhentheZXSDRR8882worksinCDMAmode,itprovidesthefollowingfunctions:
àBasicRFfunctions
tFrequencybandrange:850MHz/1900MHz
1-4
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bgb.png)
Chapter1ProductOverview
tRFmodulationanddemodulation
tDuplexRFtransmittingandreceiving
tLow-noiseamplicationofreceivedRFsignals
tAmplicationoftransmittedRFsignals
tRFtransceiver
àInterface
tTheCommonPublicRadioInterface(CPRI)interfacecomplieswiththeCPRI
protocol,supportingtransmissionthroughbersandhigh-speedcables.
tTheairinterfacecomplieswiththeIS-2000ReleaseAseriesstandardsand
IS-856-Astandard.
àDevicemaintenanceandtest
tFrontmaintenance
tRemoteversionupgradeofthesoftwaresuchasFPGA,BOOT ,DSP ,and
CPU
tRemoteresetofserviceboards
tElectroniclabel
tPowerquery:basebandpower,RFpower
tAutocalibration
tReceivedSignalStrengthIndicator(RSSI)query
tReversespectrumquery.Supportsqueryofthespectrumofthesignals
receivedbyeachcarrierinthereversedirection.
tProvidespowerampliercontrolandprotectionfunctions,including
over-power-amplicationalarms,over-temperaturealarms,andStanding
WaveRatio(SWR)alarms.
àReliability
Supportsprotectionagainstreversepowerconnection.
àApplicationscenario
tSupportsindoorandoutdoorapplications.
lLTEMode
WhentheZXSDRR8882worksinLTEmode,itprovidesthefollowingfunctions:
àBasicRFfunctions
tFrequencybandrange:1800MHz
tSupportsQPSK,16-QAM,64-QAMondownlink.
tSupportsQPSK,16-QAM,64-QAMonuplink.
tSupportsRFchannelgrid.
1-5
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bgc.png)
ZXSDRR8882ProductDescription
tSupportsMIMO.
àInterface
tCPRIinterfaceapplytoCPRIprotocol,whichsupportsbothopticalberand
SFPcable.
tSupportsmeasurementofpropagationdelayandcompensationof
propagationdelay.
àDevicemaintenanceandtest
tSupportsFPGA/BOOT/DSP/CPUsoftwareversionupgraderemotely.
tSupportsboardresettingremotely.
tSupportsbothbasebandpowerinquiryandRFpowerinquiry.
tSupportsalarminquiry.
tSupportsreal-timereportwhenalarmoccurs.
tSupportsAISGantennamanagementbothremotelyandlocally.
tSupportshardwareversionandsoftwareversioninquiry.
àReliability
Supportsanti-misplugforpowersocketconnection
àApplicationscenario
Supportsindoorandoutdoordeployment.
1.4ProductSpecications
Table1-1showsthespecicationsoftheZXSDRR8882.
Table1-1ProductSpecications
ProductSpecicationsDescription
ZXSDRR8882S9000(C)Threeopticalports;amaximumof6Gbps;GSMsingle
mode;900MHzfrequencyband;2x60W
ZXSDRR8882S1800(C)Threeopticalports;amaximumof6Gbps;GSMsingle
mode,1800MHzfrequencyband;2x60W
ZXSDRR8882S9000(B)Twoopticalports;amaximumof3Gbps;GSMsinglemode,
UMTSsinglemode,orGSM/UMTSdualmode;900MHz
frequencyband;2x60W
ZXSDRR8882S8500(B)Twoopticalports;amaximumof3Gbps;CDMAsinglemode,
GSM/UMTSdualmode,orCDMA/LTEdualmode;850MHz
frequencyband;2x60W
ZXSDRR8882S8000(B)Twoopticalports;amaximumof3Gbps;LTEsinglemode;
DDfrequencyband;2x40W
1-6
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bgd.png)
Chapter1ProductOverview
ProductSpecicationsDescription
ZXSDRR8882S2600(B)Twoopticalports;amaximumof3Gbps;LTEsinglemode;
2.6Gbpsfrequencyband;2x30W
ZXSDRR8882S2100(B)Twoopticalports;amaximumof3Gbps;UMTSsinglemode;
2T4R;2100MHzfrequencyband;2x60W
ZXSDRR8882S1900(B)Twoopticalports;amaximumof3Gbps;CDMAsinglemode,
GSM/UMTSdualmode,orCDMA/LTEdualmode;2T4R;
1900MHzfrequencyband;2x50W
ZXSDRR8882S1800(B)Twoopticalports;amaximumof3Gbps;GSMsinglemode,
orGSM/LTEdualmode;2T4R;1800MHzfrequencyband;
2x60W
ZXSDRR8882S1700(B)Twoopticalports;amaximumof3Gbps;LTEsinglemode;
AWSfrequencyband;2x40W
1.5InstallationScenarios
TheZXSDRR8882supportsthefollowinginstallationmodes:wall-mounting,
pole-mounting,andL-shapegantry-mounting.
lWall-mounting
TheZXSDRR8882canbewall-mountedindoororoutdoor.
lPole-mounting
Inpole-mountinginstallation,youcaninstallone,two,three,orfourZXSDRR8882
devicesononepole.
lL-shapegantrymounting
1-7
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bge.png)
ZXSDRR8882ProductDescription

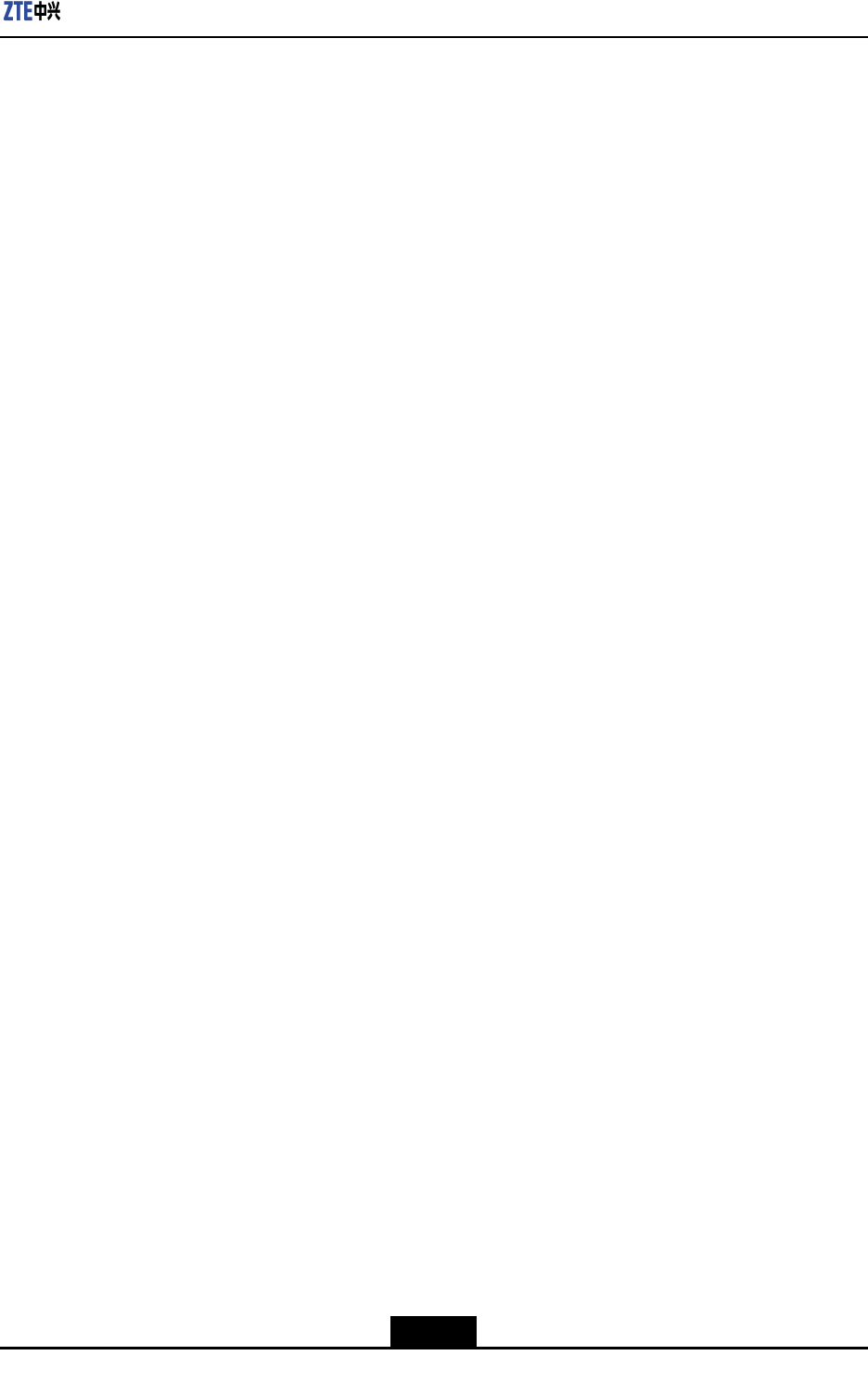

Thispageintentionallyleftblank.
1-8
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bgf.png)
Chapter2
SystemStructure
TableofContents
HardwareSubsystem.................................................................................................2-1
SoftwareSubsystem..................................................................................................2-3
2.1HardwareSubsystem
2.1.1HardwareArchitecture
Figure2-1takesthree-portZXSDRR8882forexampletoshowthegeneralhardware
architectureofZXSDRR8882.
Figure2-1HardwareSystemThreeopticalports
Note:
TheZXSDRR8882withtwoopticalportshasnoOPT3interface.
2-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg10.png)
ZXSDRR8882ProductDescription
ZXSDRR8882containsfourmodules:TRM,PAD,FLD,andEPB,asintroducedinT able
2-1.
Table2-1HardwareModules
CodeModuleFunction
TRMMulti-modeTRXmoduleProvidestwotransmittersandfourreceiversfortransmitting
andreceivingradiosignals.
PADPoweramplicationmoduleImplementstheamplicationoftwoRFsignalstobetrans-
mitted,andtheLNAamplicationoffourreceivedRFsignals.
FLDDuplexerandlter
Providesadual-channelduplexerandafour-channellter,
implementingtheforwardandbackwardcouplingofTx
power.
EPBEMCprotectionmoduleProvidesEMCprotectionforthepowerinterface,monitoring
interface,andtheAISGinterface.
2.1.2ModuleFunctions
ThefollowingdescribesthefunctionsofeachhardwaremoduleinZXSDRR8882.
TRM
lOpticalinterfaceprocessing
lClockprocessing
lUplinkanddownlinkprocessing
lFrequencyhopping
lAdaptivemodulationrate
lMonitoring
lIndication
lPowersupplyandon-offswitch
lResetswitch
lInterfacesforconnectingexternaldevices
PAD
lAmpliesdownlinkradiosignalsreceivedfromtheTRM,andoutputstheamplied
signalstotheFLD.
lAmpliesfoursignalsreceivedfromtheFLDwiththeLNA,andthensendsthe
ampliedsignalstotheTRM.
lProvidesapre-distortionfeedbackinterfacetotheTRM.
lProvidesaninterfacetotheTRMforVoltageStandingWaveRatio(VSWR)detection
(forwardpowerdetection).
lSupportsseparateswitch-off.
lSupportsInner-moduletemperaturedetection.
lProvidesreadandwriteinterfacesformoduleinventorymanagement.
2-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg11.png)
Chapter2SystemStructure
FLD
lTransmitsandreceivesuplinkanddownlinksignalsinduplexmode.
lSuppressesspuriousemissiononthedownlinktogetacceptableout-bandTx
spuriousemissionrequiredbythesystemandrelatedprotocol.
lSuppressesinterferencesignalsontheuplinktoachieveasatisednoisecoefcient.
EPB
lProvidesthelightningprotectionfor-48Vpowersupply.
lProvides-48Vpowerlter.
lProtectsAISGsignals(14V,half-duplex485signal).
lProtectsthreepairsofdrycontacts.
lProtectstheRS485monitoringsignals.
lProvidesadaptationforexternalMONinterface,AISGinterface,andpowerinterface.
lProvidesthehardwareversionidentiersofboards.
2.2SoftwareSubsystem
2.2.1SoftwareArchitecture
ThesoftwaresubsystemofZXSDRR8882containslower-layersoftwareofboards,and
L2software,L3softwareandapplicationsoperatingonaLinuxoperatingsystem.Forthe
softwarearchitectureofZXSDRR8882,seeFigure2-2.
Figure2-2SoftwareArchitecture
•OAM:Operation,
Administrationand
Maintenance
•SCS:SystemControl
Subsystem
•DBS:DatabaseSubsystem
•OSS:OperationSupport
Subsystem
•BSP:BoardSupport
Package
•DSP:DigitalSignal
Processing
•FPGA:FieldProgrammable
GateArray
2-3
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg12.png)
ZXSDRR8882ProductDescription
•SDR:SoftwareDefined
Radio
2.2.2SoftwareFunctions
lThelower-layersoftwaremodulesofboardsincludeBoardSupportPackage(BSP),
DigitalSignalProcessing(DSP),andFieldProgrammableGateArray(FPGA).
àTheBSPmoduleinitializesthesystemhardwareandprovidesdriverinterface
functions.
àTheDSPmoduleexchangesinformationwiththeCPU,andexchangescontrol
signalsanddatawiththeFPGAmodule.Inaddition,itimplementsmaintenance
andmeasurementfunctionssuchasextractingandupdatingpre-distortion
parameters,anddetectingerrorsandalarms.
àTheFPGAmoduleexchangescontrolsignalsanddatawiththeDSPmodule.
lTheOperationSupportSubsystem(OSS)isasupportlayerfortheentiresoftware.
Itprovidesahardwareirrelevantplatformonwhichthesystemsoftwareoperatesto
providebasicsoftwarefunction,suchasscheduling,timing,memorymanagement,
inter-modulecommunication,queuingcontrolling,monitoring,alarmmanagement,
andlogmanagement.
lTheL3softwareontheLayer–3platformcontainsthreeparts:Operation,
AdministrationandMaintenance(OAM),SystemControlSubsystem(SCS),and
DatabaseSubsystem(DBS).
àTheOAMprovidesthefunctionsofversionmanagement,diagnosistest,
congurationmanagement,toolmanagement,performancemanagement,
systemmanagement,dynamicdatamanagement,andcommunication
management.
àTheSCScontrolsthepower-onsequence,active/standbyswitchover,and
IntelligentPlatformManagementInterface(IPMI).
àTheDBSmanagesthesystemdatabase.
2-4
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg13.png)
Chapter3
OperationandMaintenance
TableofContents
OperationandMaintenanceModes............................................................................3-1
OperationandMaintenanceFunctions.......................................................................3-2
3.1OperationandMaintenanceModes
RemoteMaintenanceMode
Inremotemaintenance,theNetNumen™M3OMCofZTEisconnectedtothe
BSC/RNC/BBU,andthenconnectedtotheZXSDRR8882throughtheAbis/Iub/CPRI
interface.Inthisway,youcanoperateandmaintaintheZXSDRR8882throughtheOMC.
Figure3-1showsthenetworking.

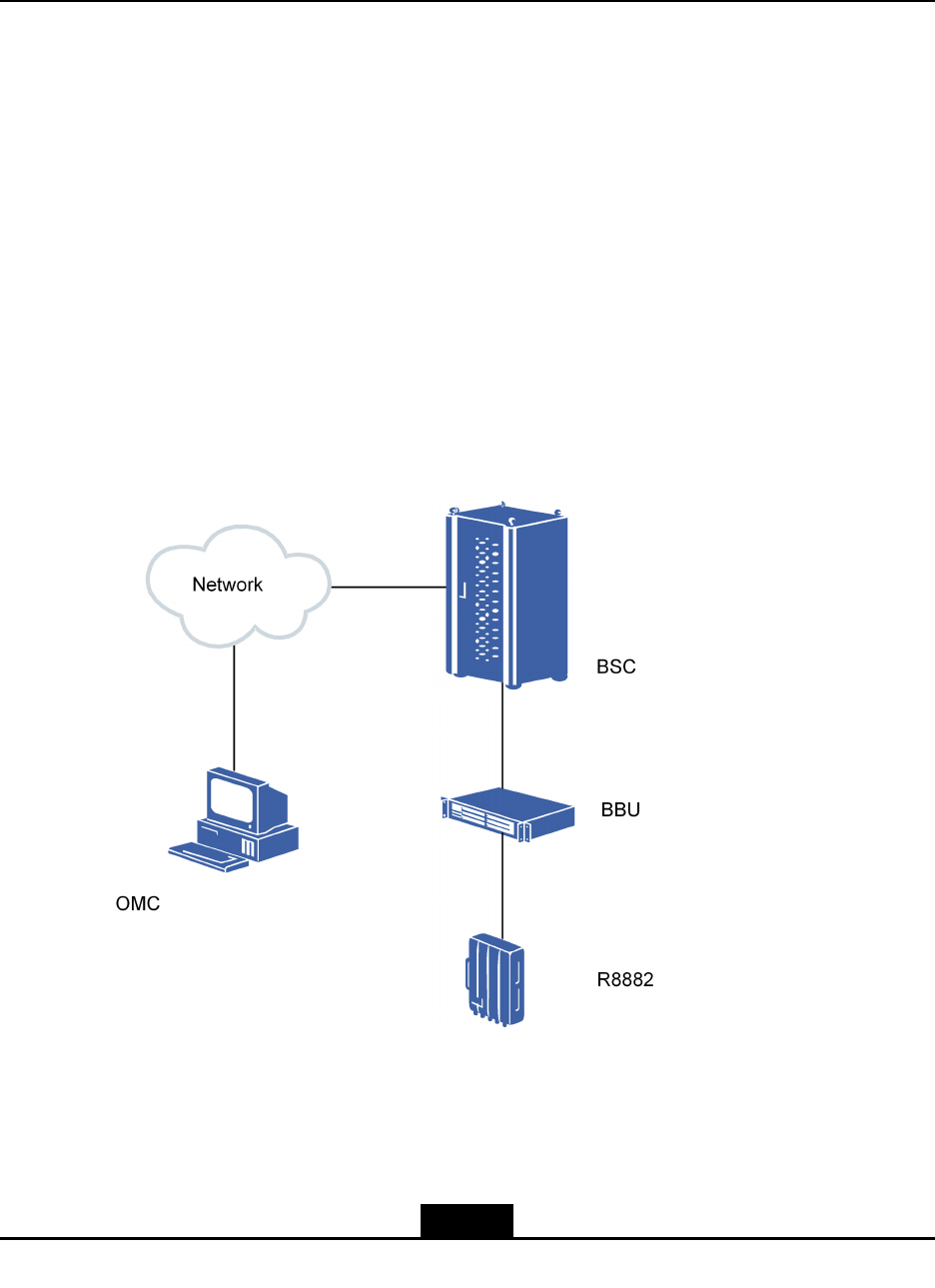

Figure3-1RemoteMaintenanceMode(TakingCDMAandGSMforExample)
Inremotemaintenancemode,theOMCandNEsareconnectedthroughtheTCP/IP
protocol.OneOMCcanmaintainmultipleBTSs.
3-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg14.png)
ZXSDRR8882ProductDescription
LocalMaintenanceMode
Inlocalmaintenancemode,theLocalMaintenanceT erminal(LMT),usuallyaPC,is
connectedtotheZXSDRR8882throughanEthernetcable.Figure3-2showsthe
networking.

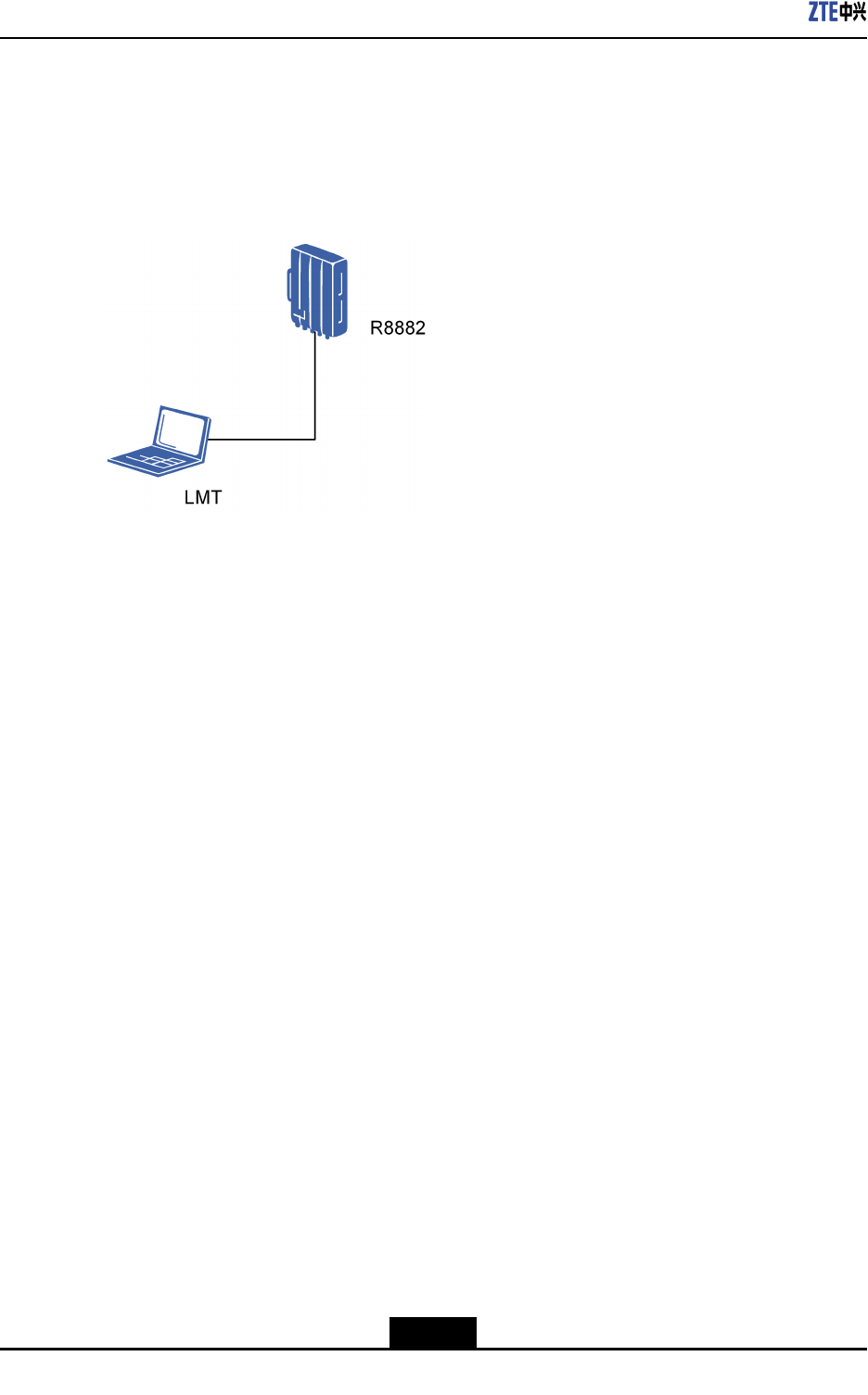

Figure3-2LocalMaintenanceMode
ThroughtheLMT,youcanquerythepower,increaseordecreasethepower,andperform
calibrationontheZXSDRR8882.ThroughtheLMT,youcanmaintaintheentireBTS.
3.2OperationandMaintenanceFunctions
TheNetNumen™M3OMCprovidesatopologicalviewontheGUIinterface.Throughthe
GUIinterface,userscanviewtheinformationaboutalltheNEsintheentirenetwork.The
userscanselectarequiredNEandviewitsdetailedperformancedata,alarminformation,
andcongurationdata.TheycanalsooperateandmaintainonetypeofNEsthroughthe
topologicalview.TheOMCprovidesthefollowingfunctions:
lCongurationmanagement
Adds,queries,deletes,modiesphysicalandradioresourcedataofBTSs.Performs
dataconsistencycheck;andsupportsdynamicandstaticdatacongurationmodes.
lSecuritymanagement
Ensuresthatonlyauthorizeduserscanperformthespeciedgroupsofcommands.
lPerformancemanagement
Supportsperformanceanalysis,invocationtracing,andsignalingtracing.
lVersionmanagement
ThroughtheOMC,userscanquerythesoftwareandhardwareversionsthatarein
use.TheOMCprovidesthesoftwaredownloadmechanism,supportingsoftware
upgradeofNEs.
lFaultmanagement
Supportsalarmmanagementanddiagnosistest.MonitorstheBTSoperatingstatusin
acentralizedmanner;Collectsabnormalinformationofboardsandlinksinrealtime,
3-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg15.png)
Chapter3OperationandMaintenance
whichhelpstheoperationandmaintenancepersonneltodeterminetheequipment
faultsandmaintaintheequipment.
3-3
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg16.png)
ZXSDRR8882ProductDescription
Thispageintentionallyleftblank.
3-4
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg17.png)
Chapter4
Networking
TableofContents
StarNetworking..........................................................................................................4-1
CascadeNetworking..................................................................................................4-1
RingNetworking.........................................................................................................4-2
4.1StarNetworking
Figure4-1showsthestarnetworkingofaBBUandmultipleRRUs(ZXSDRR8882).
Figure4-1StarNetworking
4.2CascadeNetworking
Figure4-2showsthecascadenetworkingofaBBUandmultipleRRUs(ZXSDRR8882).
Figure4-2CascadeNetworking
4-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg18.png)
ZXSDRR8882ProductDescription
4.3RingNetworking
Figure4-3showstheringnetworkingofaBBUandmultipleRRUs(ZXSDRR8882).
Figure4-3RingNetworking
WhenZXSDRR8882providesthreeopticalports,chain(cascading)networkingcanbe
addedtotheringnetworking,asshowninFigure4-4.
Figure4-4RingandChainNetworking(withThreeOpticalPorts)
4-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg19.png)
Chapter5
TechnicalSpecications
TableofContents
PhysicalSpecications...............................................................................................5-1
RadioPerformance....................................................................................................5-2
Interfaces...................................................................................................................5-3
5.1PhysicalSpecications
Appearance
ItemSpecications
Dimensions480mm×320mm×150mm(Height×Width×Depth)
Weight27kg
ColorWhite
PowerSupplyRequirementsandPowerConsumption
ItemSpecications
Averagepowerconsumptionin
GSMsinglemode
l310W(850M/900M)
l320W(1800M/1900M)
Averagepowerconsumptionin
UMTSsinglemode
l310W(850M/900M)
l320W(1900M/2100M)
Averagepowerconsumptionin
CDMAsinglemode
l310W(850M)
l320W(1900M)
Averagepowerconsumptionin
LTEsinglemode320W(1800M)
Ratedinputvoltage-48V(-60VDCto-37VDC)
EnvironmentalRequirements
ItemRequirement
Ambient
temperature-40℃to+55℃
Operation
Relativehumidity10%to100%
5-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1a.png)
ZXSDRR8882ProductDescription
ItemRequirement
Ambient
temperature-60℃to+70℃
Storage
Relativehumidity5%to100%
TransportationconditionInconditionof4K2,4Z5,4Z7,4B1,4C2,4S3,or4M3,the
transportationmustbecompletedwithin180days.
Reliability
ItemSpecications
Availability99.9995%
MeanTimeBetweenCriticalFail-
ures(MTBF)≥100,000hours
MeanTimeT oRecovery(MTTR)0.5hour
SystemserviceinterruptiontimeTheserviceinterruptiontimeoftheentiresystemisnomore
than1.632minutesperyear.
WindLoad
WindSpeedFrontSideRear
150km/h422N197N422N
240km/h1092N510N1092N
5.2RadioPerformance
CapacitySpecications
ItemSpecications
GSMsinglemodeMaximum:2x6carriers
UMTSsinglemodeMaximum:2x4carriers
CDMAsinglemodeMaximum:2x8carriers
GSM/UMTSdualmode2x4GSMcarriers+2x1UMTScarriers,or2x2GSMcarriers
+2x2UMTScarriers
LTEsinglemode1carrier
5-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1b.png)
Chapter5TechnicalSpecications
RFSpecications
ItemSpecications
Workingfrequencyband
lGSM:850MHz/900MHz/1800MHz/1900MHz
lUMTS:850MHz/900MHz/1900MHz/2100MHz
lCDMA:850MHz/1900MHz
lLTE:1800MHz
Maximumtransmitpower2x60W
Staticreceiversensibility
lGSM:-113dBm(TCH/FS)
lUMTSsingleantenna:-125.5dBm
lUMTSdualantennas:-128.2dbm
lCDMA:-115dBm
5.3Interfaces
TheZXSDRR8882providesthefollowinginterfaces:
ItemSpecications
Baseband-RFinterface(optical
port)
ZXSDRR8882S9000(C)
Providesthreeopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
lOPT3:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoabranchRRU
ZXSDRR8882S1800(C)
Providesthreeopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
lOPT3:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoabranchRRU
ZXSDRR8882S9000(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S8500(B)
Providestwoopticalports:
5-3
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1c.png)
ZXSDRR8882ProductDescription
ItemSpecications
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S8000(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S2600(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S2100(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S1900(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S1800(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
ZXSDRR8882S1700(B)
Providestwoopticalports:
lOPT1:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoaBBU
lOPT2:theinterfacethroughwhichtheZXSDRR8882is
cascadedtoanRRU
MONinterface
OneMONinterface,throughwhichtheexternalmonitoringde-
vicesareconnected,providinginputofRS485signalsandtwo
pairsofdrycontacts.
5-4
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1d.png)
Chapter5TechnicalSpecications
ItemSpecications
EthernetinterfaceOneEthernetinterface,whichisusedforlocalmaintenance.
AntennaandfeederinterfaceFourantennaandfeederinterfacesthroughwhichantennasand
feedersareconnected.
AISGinterfaceOneAISGinterface,whichisusedfortheelectricaltilttunable
antenna.
PowerinterfaceOnepowerinterface,whichprovidesexternalpowerinput.
ProtectiveEarth(PE)interfaceOnePEinterface,throughwhichtheZXSDRR8882isconnected
tothePE.
5-5
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1e.png)
ZXSDRR8882ProductDescription
Thispageintentionallyleftblank.
5-6
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg1f.png)
Chapter6
FCC&ICSTATEMENT
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:
1.Thisdevicemaynotcauseharmfulinterference.
2.Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
Note:
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedin
acommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,
maycauseharmfulinterferencetoradiocommunications.
Warning!
Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferencein
whichcasetheuserwillberequiredtocorrecttheinterferenceathisownexpense.
6-1
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg20.png)
ZXSDRR8882ProductDescription
Thispageintentionallyleftblank.
6-2
SJ-20111021104623-002|2011–12–30(R1.1)ZTEProprietaryandCondential
![](/img.php?id=1687508&img=bg21.png)
Figures
Figure1-1PositionoftheZXSDRR8882intheRadioNetwork................................1-1
Figure2-1HardwareSystemThreeopticalports..................................................2-1
Figure2-2SoftwareArchitecture...............................................................................2-3
Figure3-1RemoteMaintenanceMode(TakingCDMAandGSMforExample)...........3-1
Figure3-2LocalMaintenanceMode.........................................................................3-2
Figure4-1StarNetworking.......................................................................................4-1
Figure4-2CascadeNetworking................................................................................4-1
Figure4-3RingNetworking......................................................................................4-2
Figure4-4RingandChainNetworking(withThreeOpticalPorts).............................4-2
I
![](/img.php?id=1687508&img=bg22.png)
Figures
Thispageintentionallyleftblank.
![](/img.php?id=1687508&img=bg24.png)
Tables
Thispageintentionallyleftblank.
![](/img.php?id=1687508&img=bg25.png)
Index
F
feature..................................................1-1
I
installationscenario..............................1-7
N
networking
cascade............................................4-1
ring...................................................4-2
ringandchain...................................4-2
star...................................................4-1
O
operationandmaintenance
function..............................................3-2
operationandmaintenancemode
local..................................................3-2
remote..............................................3-1
P
positioninnetwork................................1-1
R
radioaccessmode...............................1-2
S
ServicesandFunctions........................1-3
specications
interface............................................5-3
physical............................................5-1
product.............................................1-6
radioperformance.............................5-2
structure
hardware..........................................2-1
software............................................2-3
V
![](/img.php?id=1687508&img=bg26.png)
Index
Thispageintentionallyleftblank.
![](/img.php?id=1687508&img=bg27.png)
Glossary
AGPS
-AssistedGlobalPositioningSystem
AMR
-AdaptiveMultipleRate
BBU
-BaseBandUnit
BCCH
-BroadcastControlCHannel
BSC
-BaseStationController
BSP
-BoardSupportPackage
BTS
-BaseTransceiverStation
CDMA
-CodeDivisionMultipleAccess
CPRI
-CommonPublicRadioInterface
CS
-CircuitSwitched
DBS
-DatabaseSubsystem
DPD
-DigitalPre-Distortion
DSP
-DigitalSignalProcessing
DTX
-DiscontinuousTransmission
EFR
-EnhancedFullRate
EMC
-ElectromagneticCompatibility
EVDO
-Evolution-DataOptimized
VII
![](/img.php?id=1687508&img=bg28.png)
ZXSDRR8882ProductDescription
FDD
-FrequencyDivisionDuplex
FPGA
-FieldProgrammableGateArray
FR
-FullRate
GPRS
-GeneralPacketRadioService
GSM
-GlobalSystemforMobileCommunication
HR
-HalfRate
HSDPA
-HighSpeedDownlinkPacketAccess
HSPA
-HighSpeedPacketAccess
HSUPA
-HighSpeedUplinkPacketAccess
IPMI
-IntelligentPlatformManagementInterface
LMT
-LocalMaintenanceTerminal
LNA
-LowNoiseAmplier
LTE
-LongTermEvolution
MBMS
-MultimediaBroadcast/MulticastService
MTBF
-MeanTimeBetweenFailures
MTTR
-MeanTimeT oRecovery
OAM
-Operation,AdministrationandMaintenance
OSS
-OperationSupportSubsystem
PE
-ProtectiveEarth
VIII
![](/img.php?id=1687508&img=bg29.png)
Glossary
PTM
-PointToMultipoint
PTP
-Point-T o-Point
PTT
-Push-T o-T alk
RF
-RadioFrequency
RNC
-RadioNetworkController
RRU
-RemoteRadioUnit
RSSI
-ReceivedSignalStrengthIndicator
RTT
-RoundTripTime
SCS
-SystemControlSubsystem
SDR
-SoftwareDenedRadio
SWR
-StandingWaveRatio
TA
-TimingAdvance
UMTS
-UniversalMobileTelecommunicationSystem
VSWR
-VoltageStandingWaveRatio
IX
