ZyXEL MAX-200M1 Series User’s Guide
Chapter 15 Static Route 151

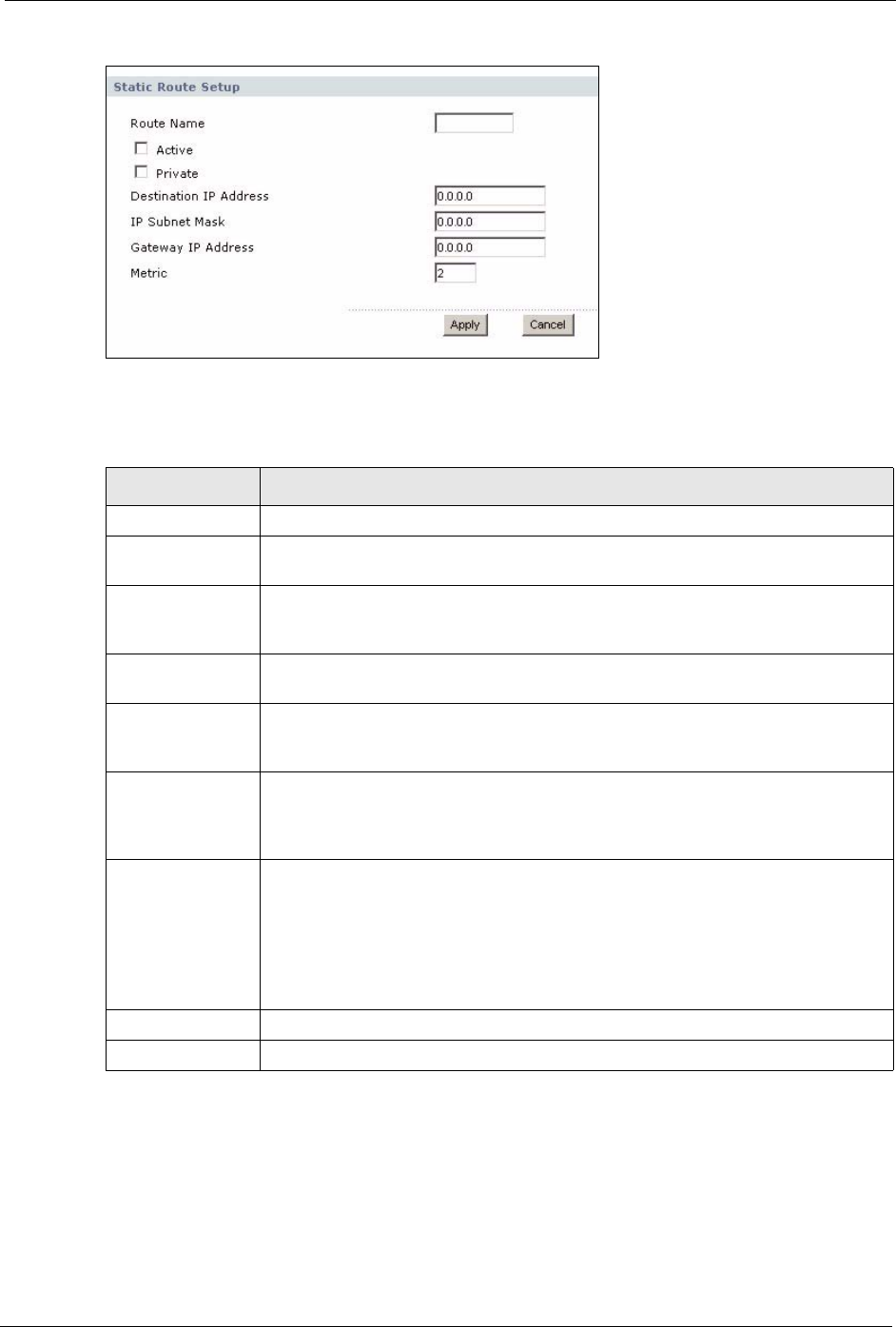

Figure 84 Management > Static Route > IP Static Route > Edit
Each field is described in the following table.
Table 49 Management > Static Route > IP Static Route > Edit
LABEL DESCRIPTION
Route Name Enter the name of the static route.
Active Select this if you want the static route to be used. Clear this if you do not want the
static route to be used.
Private Select this if you do not want the ZyXEL Device to tell other routers about this
static route. For example, you might select this if the static route is in your LAN.
Clear this if you want the ZyXEL Device to tell other routers about this static route.
Destination IP
Address
Enter one of the destination IP addresses that this static route affects.
IP Subnet Mask Enter the subnet mask that defines the range of destination IP addresses that this
static route affects. If this static route affects only one IP address, enter
255.255.255.255.
Gateway IP
Address
Enter the IP address of the gateway to which the ZyXEL Device should send
packets for the specified Destination. The gateway is a router or a switch on the
same network segment as the device's LAN or WAN port. The gateway helps
forward packets to their destinations.
Metric Usually, you should keep the default value. This field is related to RIP. See Chapter
8 on page 83 for more information.
The metric represents the "cost of transmission". A router determines the best
route for transmission by choosing a path with the lowest "cost". The smaller the
metric, the lower the "cost". RIP uses hop count as the measurement of cost,
where 1 is for a directly-connected network. The metric must be 1-15; if you use a
value higher than 15, the routers assume the link is down.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to return to the previous screen without saving your changes.
ZyXEL MAX-200M1 Series User’s Guide
152 Chapter 15 Static Route
ZyXEL MAX-200M1 Series User’s Guide
Chapter 16 Remote MGMT 153
CHAPTER 16
Remote MGMT
Use these screens to control which computers can use which services to access the ZyXEL
Device on each interface.
16.1 Remote Management Overview
Remote management allows you to determine which services/protocols can access which
ZyXEL Device interface (if any) from which computers.
You may manage your ZyXEL Device from a remote location via:
To disable remote management of a service, select Disable in the corresponding Server
Access field.
You may only have one remote management session running at a time. The ZyXEL Device
automatically disconnects a remote management session of lower priority when another
remote management session of higher priority starts. The priorities for the different types of
remote management sessions are as follows.
1Telnet
2HTTP
16.1.1 Remote Management Limitations
Remote management over LAN or WAN will not work when:
1A filter in SMT menu 3.1 (LAN) or in menu 11.5 (WAN) is applied to block a Telnet,
FTP or Web service.
2You have disabled that service in one of the remote management screens.
3The IP address in the Secured Client IP field does not match the client IP address. If it
does not match, the ZyXEL Device will disconnect the session immediately.
4There is already another remote management session with an equal or higher priority
running. You may only have one remote management session running at one time.
• Internet (WAN only) • ALL (LAN and WAN)
• LAN only • Neither (Disable).
ZyXEL MAX-200M1 Series User’s Guide
154 Chapter 16 Remote MGMT
16.1.2 Remote Management and NAT
When NAT is enabled:
• Use the ZyXEL Device’s WAN IP address when configuring from the WAN.
• Use the ZyXEL Device’s LAN IP address when configuring from the LAN.
16.1.3 System Timeout
There is a default system management idle timeout of five minutes (three hundred seconds).
The ZyXEL Device automatically logs you out if the management session remains idle for
longer than this timeout period. The management session does not time out when a statistics
screen is polling. You can change the timeout period in the Maintenance > System > General
screen.
16.2 Remote Management Screens
16.2.1 WWW Screen
Use this screen to control HTTP access to your ZyXEL Device. To access this screen, click
Management > Remote MGMT > WWW.

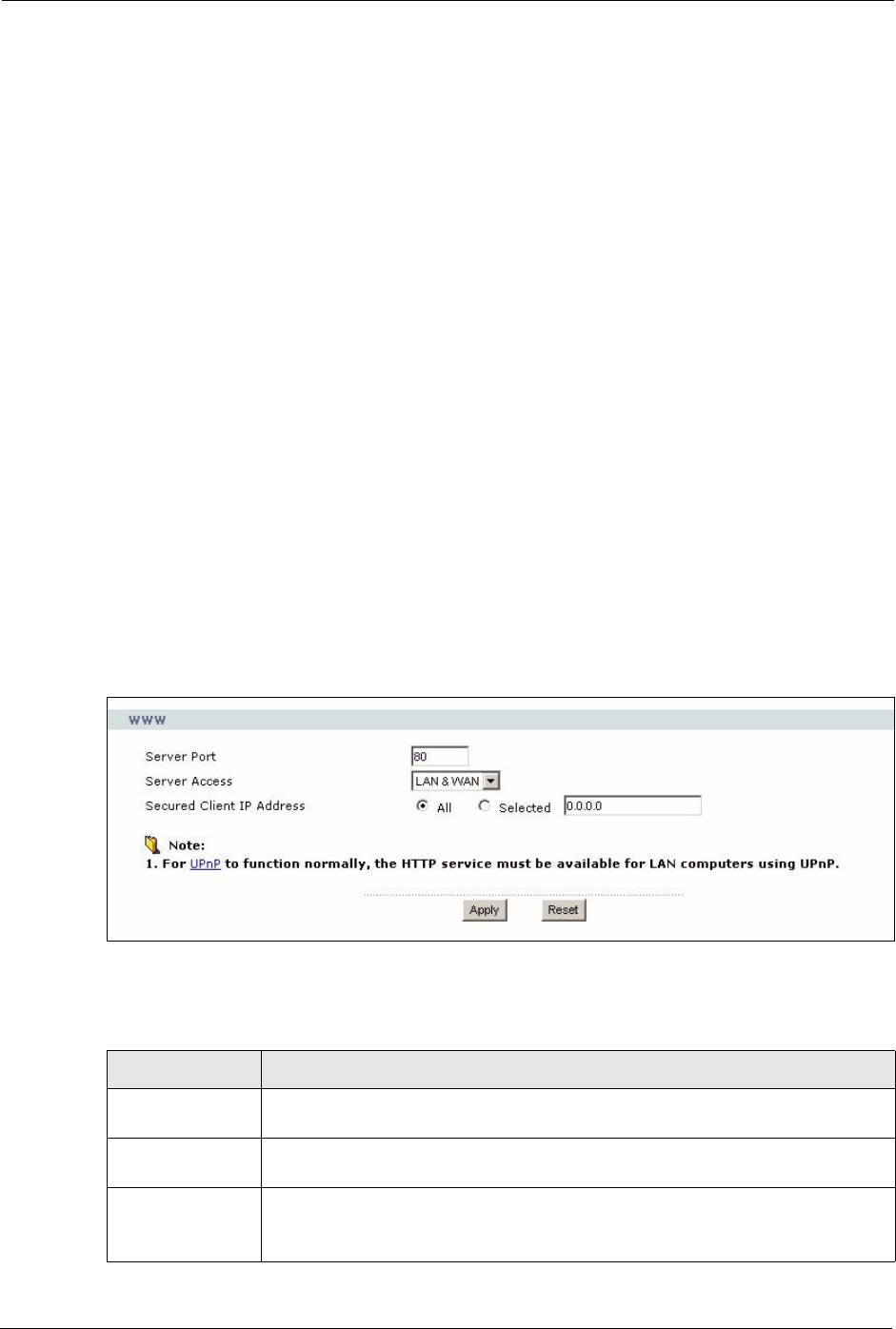

Figure 85 Management > Remote MGMT > WWW
Each field is described in the following table.
Table 50 Management > Remote MGMT > WWW
LABEL DESCRIPTION
Server Port Enter the port number this service can use to access the ZyXEL Device. The
computer must use the same port number.
Server Access Select the interface(s) through which a computer may access the ZyXEL Device
using this service.
Secured Client IP
Address
Select All to allow any computer to access the ZyXEL Device using this service.
Select Selected to only allow the computer with the IP address that you specify to
access the ZyXEL Device using this service.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 16 Remote MGMT 155

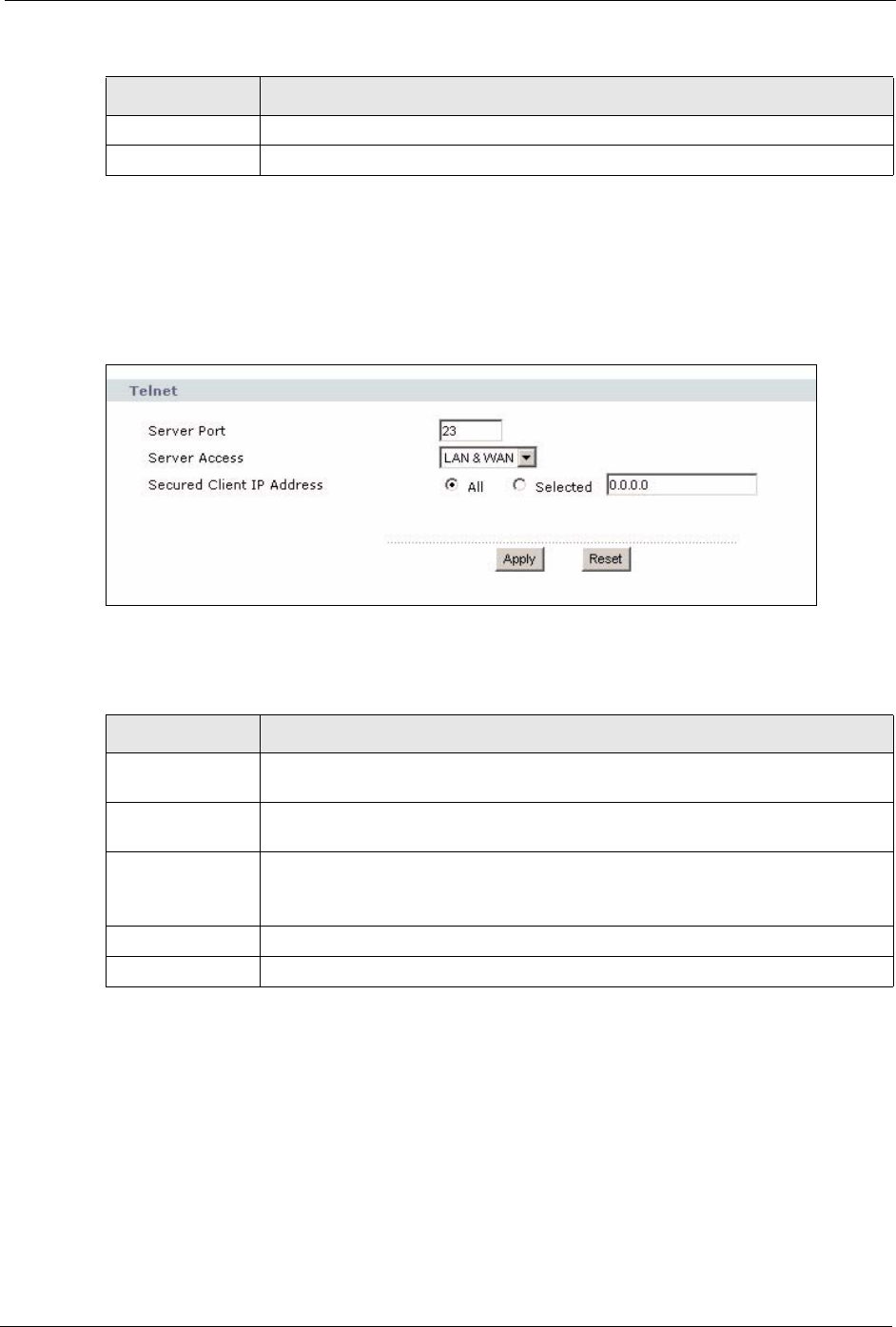

16.2.2 Telnet Screen
Use this screen to control Telnet access to your ZyXEL Device. To access this screen, click
Management > Remote MGMT > Telnet.
Figure 86 Management > Remote MGMT > Telnet
Each field is described in the following table.
16.2.3 FTP Screen
Use this screen to control FTP access to your ZyXEL Device. To access this screen, click
Management > Remote MGMT > FTP.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
Table 50 Management > Remote MGMT > WWW
LABEL DESCRIPTION
Table 51 Management > Remote MGMT > Telnet
LABEL DESCRIPTION
Server Port Enter the port number this service can use to access the ZyXEL Device. The
computer must use the same port number.
Server Access Select the interface(s) through which a computer may access the ZyXEL Device
using this service.
Secured Client IP
Address
Select All to allow any computer to access the ZyXEL Device using this service.
Select Selected to only allow the computer with the IP address that you specify to
access the ZyXEL Device using this service.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
156 Chapter 16 Remote MGMT

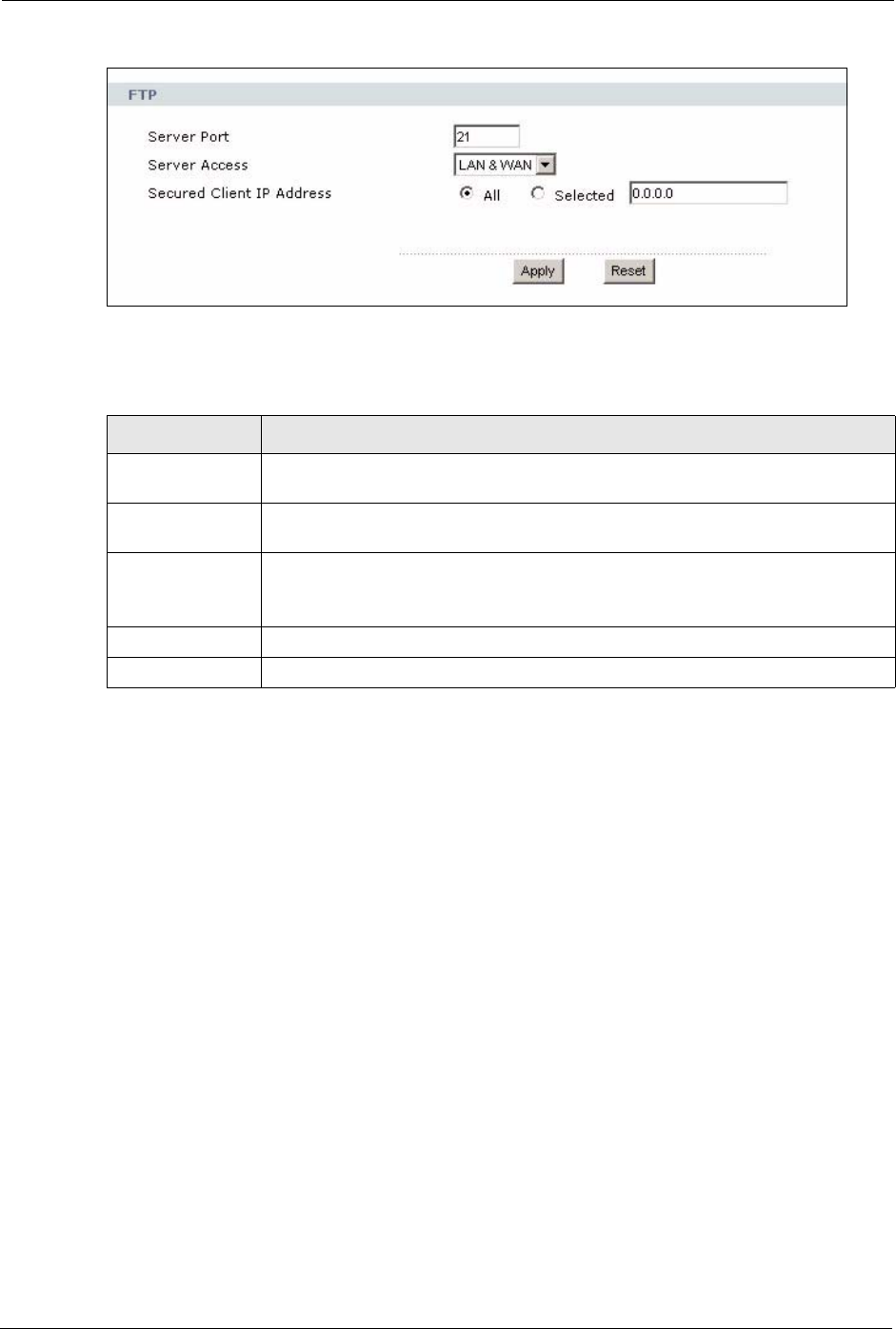

Figure 87 Management > Remote MGMT > FTP
Each field is described in the following table.
16.3 SNMP
Simple Network Management Protocol (SNMP) is a protocol used for exchanging
management information between network devices. SNMP is a member of the TCP/IP
protocol suite. Your ZyXEL Device supports SNMP agent functionality, which allows a
manager station to manage and monitor the ZyXEL Device through the network. The ZyXEL
Device supports SNMP version one (SNMPv1) and version two (SNMPv2). The next figure
illustrates an SNMP management operation.
Note: SNMP is only available if TCP/IP is configured.
Table 52 Management > Remote MGMT > FTP
LABEL DESCRIPTION
Server Port Enter the port number this service can use to access the ZyXEL Device. The
computer must use the same port number.
Server Access Select the interface(s) through which a computer may access the ZyXEL Device
using this service.
Secured Client IP
Address
Select All to allow any computer to access the ZyXEL Device using this service.
Select Selected to only allow the computer with the IP address that you specify to
access the ZyXEL Device using this service.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 16 Remote MGMT 157

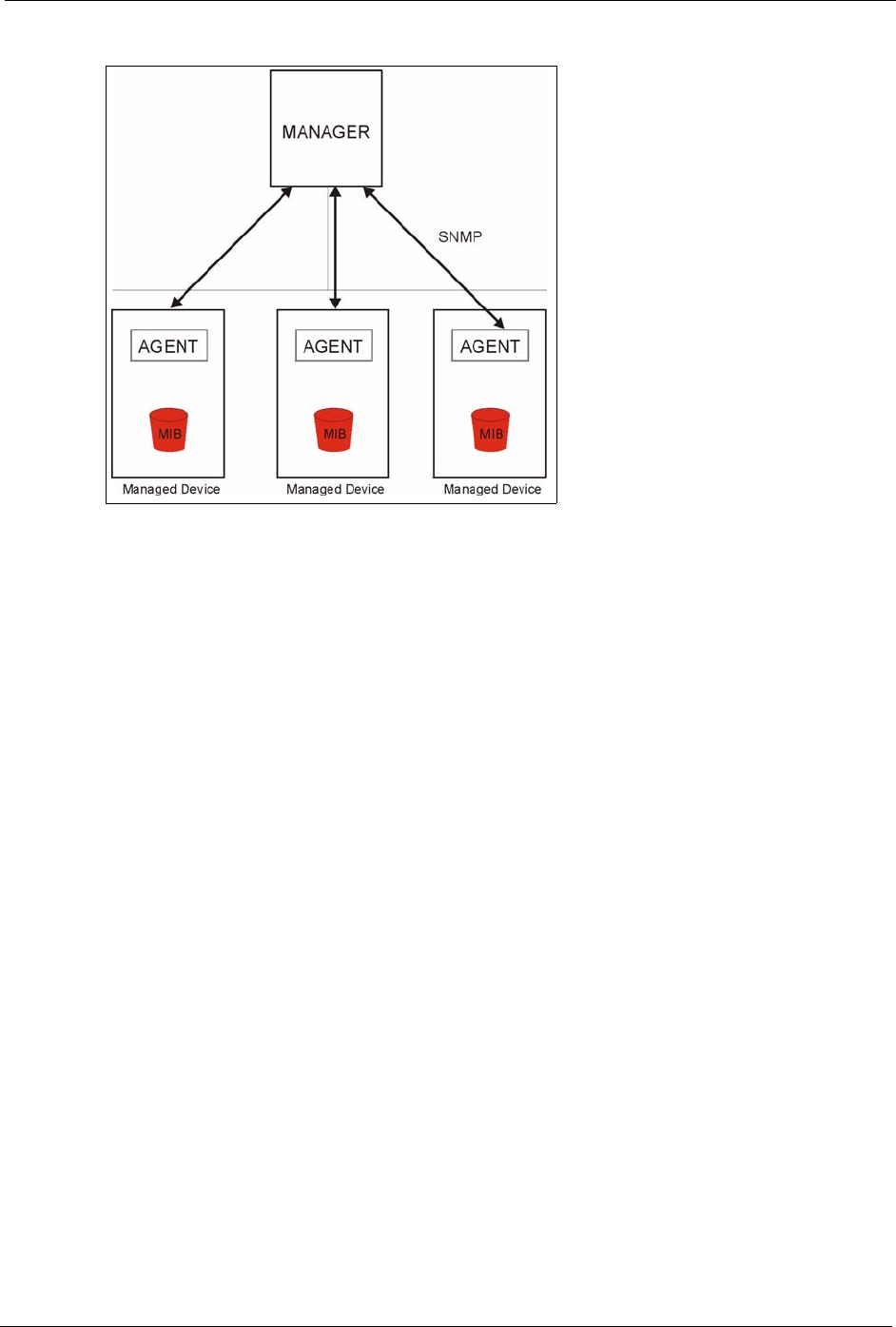

Figure 88 SNMP Management Model
An SNMP managed network consists of two main types of component: agents and a manager.
An agent is a management software module that resides in a managed device (the ZyXEL
Device). An agent translates the local management information from the managed device into
a form compatible with SNMP. The manager is the console through which network
administrators perform network management functions. It executes applications that control
and monitor managed devices.
The managed devices contain object variables/managed objects that define each piece of
information to be collected about a device. Examples of variables include such as number of
packets received, node port status etc. A Management Information Base (MIB) is a collection
of managed objects. SNMP allows a manager and agents to communicate for the purpose of
accessing these objects.
SNMP itself is a simple request/response protocol based on the manager/agent model. The
manager issues a request and the agent returns responses using the following protocol
operations:
• Get - Allows the manager to retrieve an object variable from the agent.
• GetNext - Allows the manager to retrieve the next object variable from a table or list
within an agent. In SNMPv1, when a manager wants to retrieve all elements of a table
from an agent, it initiates a Get operation, followed by a series of GetNext operations.
• Set - Allows the manager to set values for object variables within an agent.
• Trap - Used by the agent to inform the manager of some events.
16.3.1 Supported MIBs
The ZyXEL Device supports MIB II that is defined in RFC-1213 and RFC-1215. The focus of
the MIBs is to let administrators collect statistical data and monitor status and performance.
ZyXEL MAX-200M1 Series User’s Guide
158 Chapter 16 Remote MGMT
16.3.2 SNMP Traps
The ZyXEL Device will send traps to the SNMP manager when any one of the following
events occurs:
16.3.3 Configuring SNMP
To change your ZyXEL Device’s SNMP settings, click Advanced > Remote MGMT >
SNMP. The screen appears as shown.
Use this screen to control FTP access to your ZyXEL Device. To access this screen, click
Management > Remote MGMT > SNMP.
Table 53 SNMP Traps
TRAP # TRAP NAME DESCRIPTION
0coldStart (defined in RFC-1215)A trap is sent after booting (power on).
1warmStart (defined in RFC-1215)A trap is sent after booting (software reboot).
4authenticationFailure (defined in
RFC-1215)
A trap is sent to the manager when receiving any
SNMP get or set requirements with the wrong
community (password).
6whyReboot (defined in ZYXEL-
MIB)
A trap is sent with the reason of restart before
rebooting when the system is going to restart (warm
start).
6a For intentional reboot: A trap is sent with the message "System reboot by
user!" if reboot is done intentionally, (for example,
download new files, CI command "sys reboot", etc.).
6b For fatal error: A trap is sent with the message of the fatal code if the
system reboots because of fatal errors.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 16 Remote MGMT 159

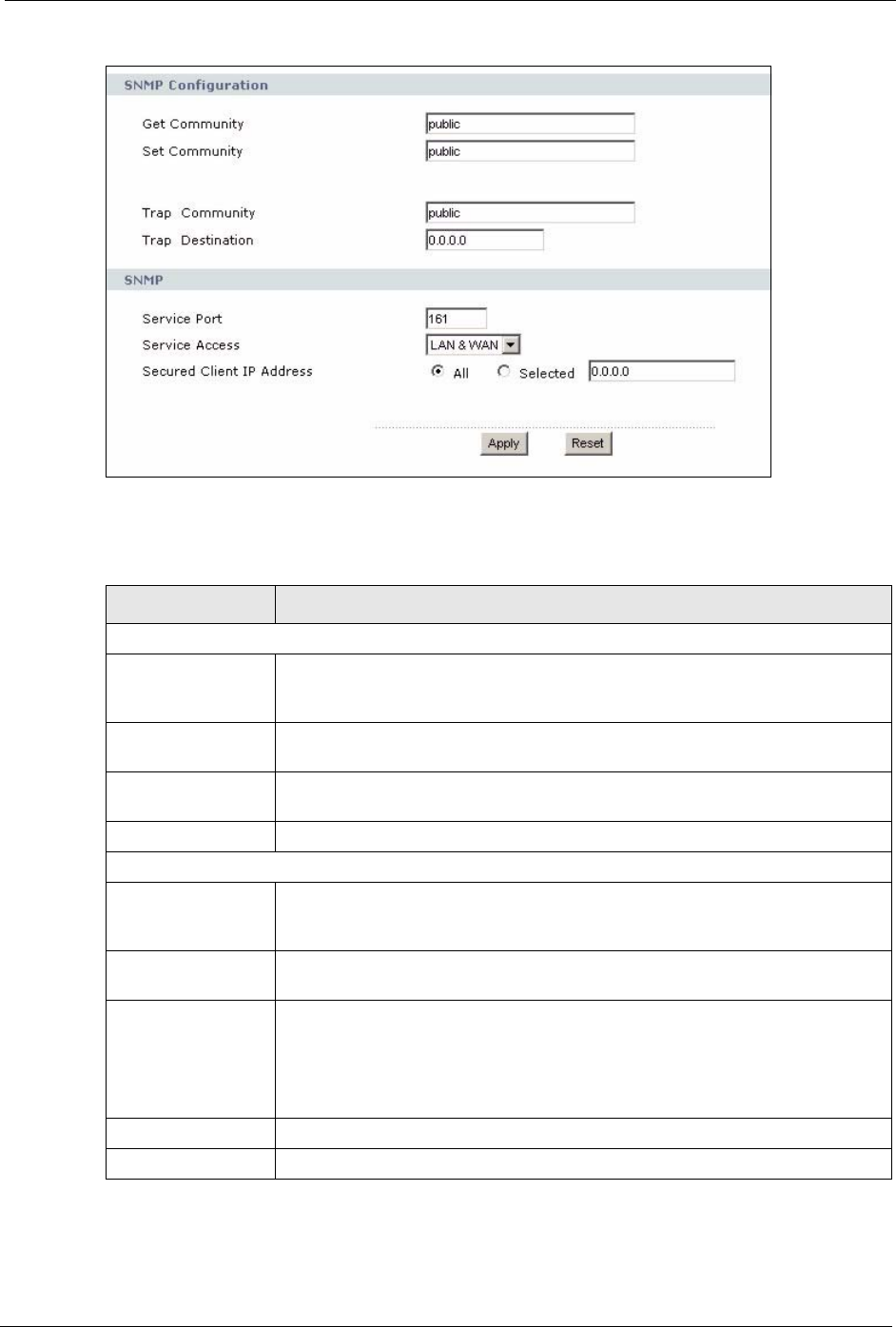

Figure 89 Management > Remote MGMT > SNMP
The following table describes the labels in this screen.
Table 54 Remote Management: SNMP
LABEL DESCRIPTION
SNMP Configuration
Get Community Enter the Get Community, which is the password for the incoming Get and
GetNext requests from the management station. The default is public and allows
all requests.
Set Community Enter the Set community, which is the password for incoming Set requests from
the management station. The default is public and allows all requests.
Trap Community Enter the trap community, which is the password sent with each trap to the
SNMP manager. The default is public and allows all requests.
Trap Destination Enter the IP address of the station to send your SNMP traps to.
SNMP
Port You may change the server port number for a service if needed, however you
must use the same port number in order to use that service for remote
management.
Access Status Select the interface(s) through which a computer may access the ZyXEL Device
using this service.
Secured Client IP A secured client is a “trusted” computer that is allowed to communicate with the
ZyXEL Device using this service.
Select All to allow any computer to access the ZyXEL Device using this service.
Choose Selected to just allow the computer with the IP address that you specify
to access the ZyXEL Device using this service.
Apply Click this button to save your customized settings and exit this screen.
Reset Click this button to set each field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
160 Chapter 16 Remote MGMT

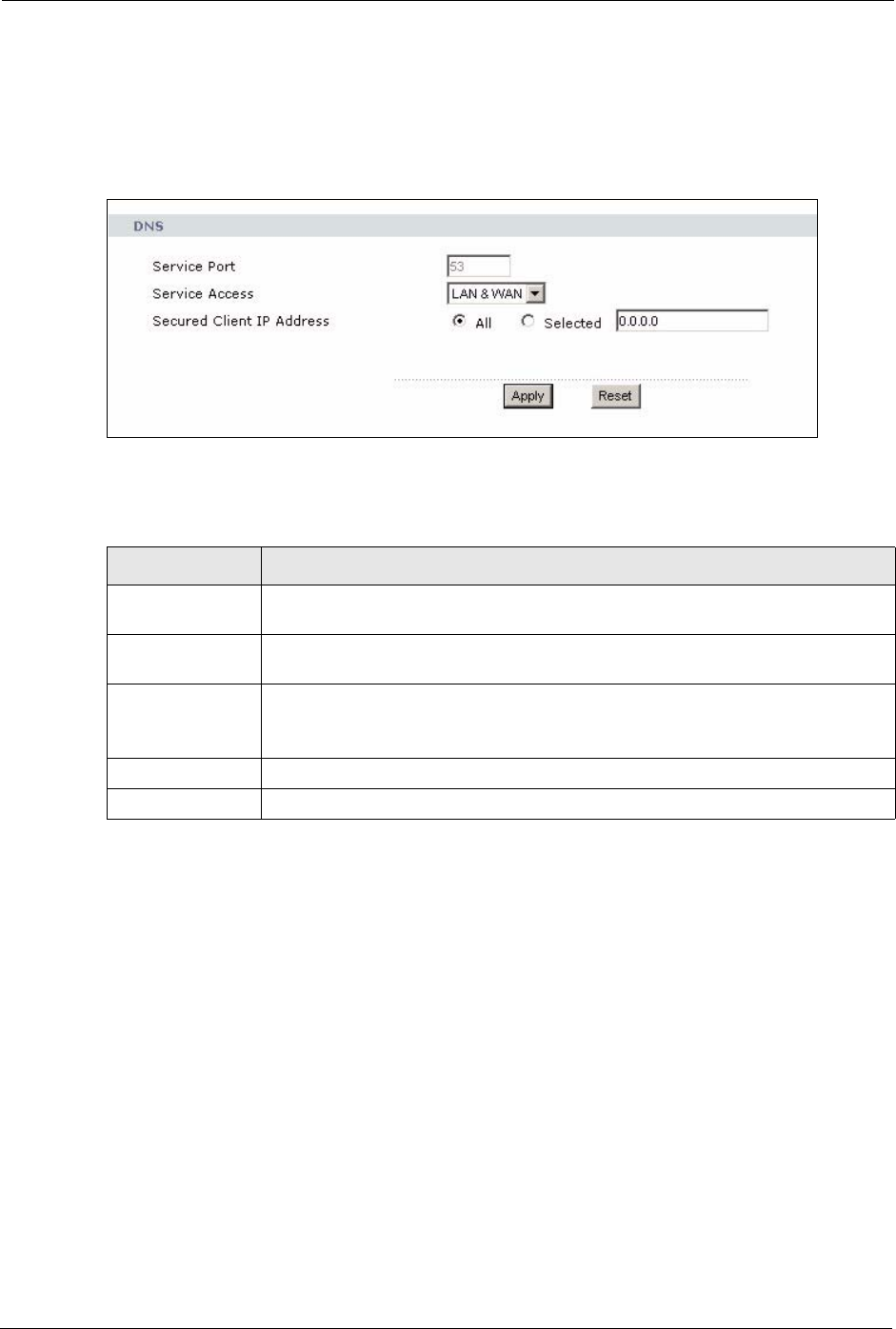

16.3.4 DNS Screen
Use this screen to control DNS access to your ZyXEL Device. To access this screen, click
Management > Remote MGMT > DNS.
Figure 90 Management > Remote MGMT > DNS
Each field is described in the following table.
16.3.5 Security Screen
Use this screen to control how your ZyXEL Device responds to other types of requests. To
access this screen, click Management > Remote MGMT > Security.
Table 55 Management > Remote MGMT > DNS
LABEL DESCRIPTION
Server Port This field is read-only. This field displays the port number this service uses to
access the ZyXEL Device. The computer must use the same port number.
Server Access Select the interface(s) through which a computer may access the ZyXEL Device
using this service.
Secured Client IP
Address
Select All to allow any computer to access the ZyXEL Device using this service.
Select Selected to only allow the computer with the IP address that you specify to
access the ZyXEL Device using this service.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its last-saved value.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 16 Remote MGMT 161
Figure 91 Management > Remote MGMT > Security
Each field is described in the following table.
Table 56 Management > Remote MGMT > Security
LABEL DESCRIPTION
Respond to Ping
on
Select the interface(s) on which the ZyXEL Device should respond to incoming
ping requests.
Disable - the ZyXEL Device does not respond to any ping requests.
LAN - the ZyXEL Device only responds to ping requests received from the LAN.
WAN - the ZyXEL Device only responds to ping requests received from the WAN.
LAN & WAN - the ZyXEL Device responds to ping requests received from the LAN
or the WAN.
Do not respond to
requests for
unauthorized
services
Select this to prevent outsiders from discovering your ZyXEL Device by sending
requests to unsupported port numbers. If an outside user attempts to probe an
unsupported port on your ZyXEL Device, an ICMP response packet is
automatically returned. This allows the outside user to know the ZyXEL Device
exists. Your ZyXEL Device supports anti-probing, which prevents the ICMP
response packet from being sent. This keeps outsiders from discovering your
ZyXEL Device when unsupported ports are probed.
If you clear this, your ZyXEL Device replies with an ICMP Port Unreachable packet
for a port probe on unused UDP ports and with a TCP Reset packet for a port
probe on unused TCP ports.
Apply Click this to save your changes.
Cancel Click this to set every field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
162 Chapter 16 Remote MGMT
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 163
CHAPTER 17
UPnP
Use this screen to set up UPnP.
17.1 Introducing Universal Plug and Play
Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP
for simple peer-to-peer network connectivity between devices. A UPnP device can
dynamically join a network, obtain an IP address, convey its capabilities and learn about other
devices on the network. In turn, a device can leave a network smoothly and automatically
when it is no longer in use.
17.1.1 How do I know if I'm using UPnP?
UPnP hardware is identified as an icon in the Network Connections folder (Windows XP).
Each UPnP compatible device installed on your network will appear as a separate icon.
Selecting the icon of a UPnP device will allow you to access the information and properties of
that device.
17.1.2 NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate through NAT.
UPnP network devices can automatically configure network addressing, announce their
presence in the network to other UPnP devices and enable exchange of simple product and
service descriptions. NAT traversal allows the following:
• Dynamic port mapping
• Learning public IP addresses
• Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal and UPnP.
See Chapter 9 on page 97 for further information about NAT.
17.1.3 Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own services and
opening firewall ports may present network security issues. Network information and
configuration may also be obtained and modified by users in some network environments.
ZyXEL MAX-200M1 Series User’s Guide
164 Chapter 17 UPnP
All UPnP-enabled devices may communicate freely with each other without additional
configuration. Disable UPnP if this is not your intention.
17.1.4 UPnP and ZyXEL
ZyXEL has achieved UPnP certification from the Universal Plug and Play Forum Creates
UPnP™ Implementors Corp. (UIC). ZyXEL's UPnP implementation supports IGD 1.0
(Internet Gateway Device). At the time of writing ZyXEL's UPnP implementation supports
Windows Messenger 4.6 and 4.7 while Windows Messenger 5.0 and Xbox are still being
tested.
The ZyXEL Device only sends UPnP multicasts to the LAN.
See later sections for examples of installing UPnP in Windows XP and Windows Me as well as
an example of using UPnP in Windows.
17.2 UPnP Examples
17.2.1 Installing UPnP in Windows Example
This section shows how to install UPnP in Windows Me and Windows XP.
17.2.1.1 Installing UPnP in Windows Me
Follow the steps below to install the UPnP in Windows Me.
1Click Start and Control Panel. Double-click Add/Remove Programs.
2Click on the Windows Setup tab and select Communication in the Components
selection box. Click Details.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 165

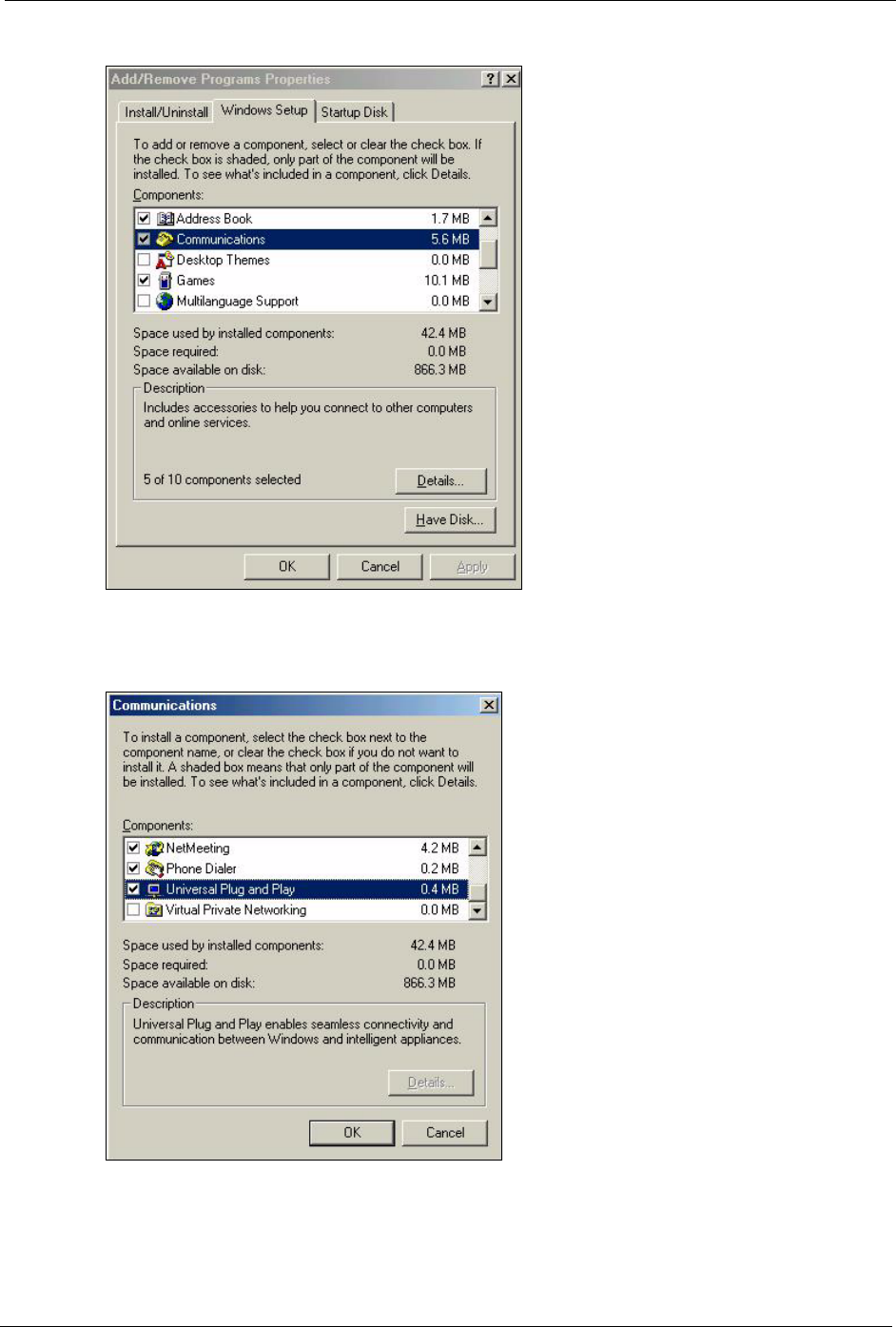

Figure 92 Add/Remove Programs: Windows Setup: Communication
3In the Communications window, select the Universal Plug and Play check box in the
Components selection box.
Figure 93 Add/Remove Programs: Windows Setup: Communication Components
4Click OK to go back to the Add/Remove Programs Properties window and click Next.
5Restart the computer when prompted.
ZyXEL MAX-200M1 Series User’s Guide
166 Chapter 17 UPnP
17.2.1.2 Installing UPnP in Windows XP
Follow the steps below to install the UPnP in Windows XP.
1Click Start and Control Panel.
2Double-click Network Connections.

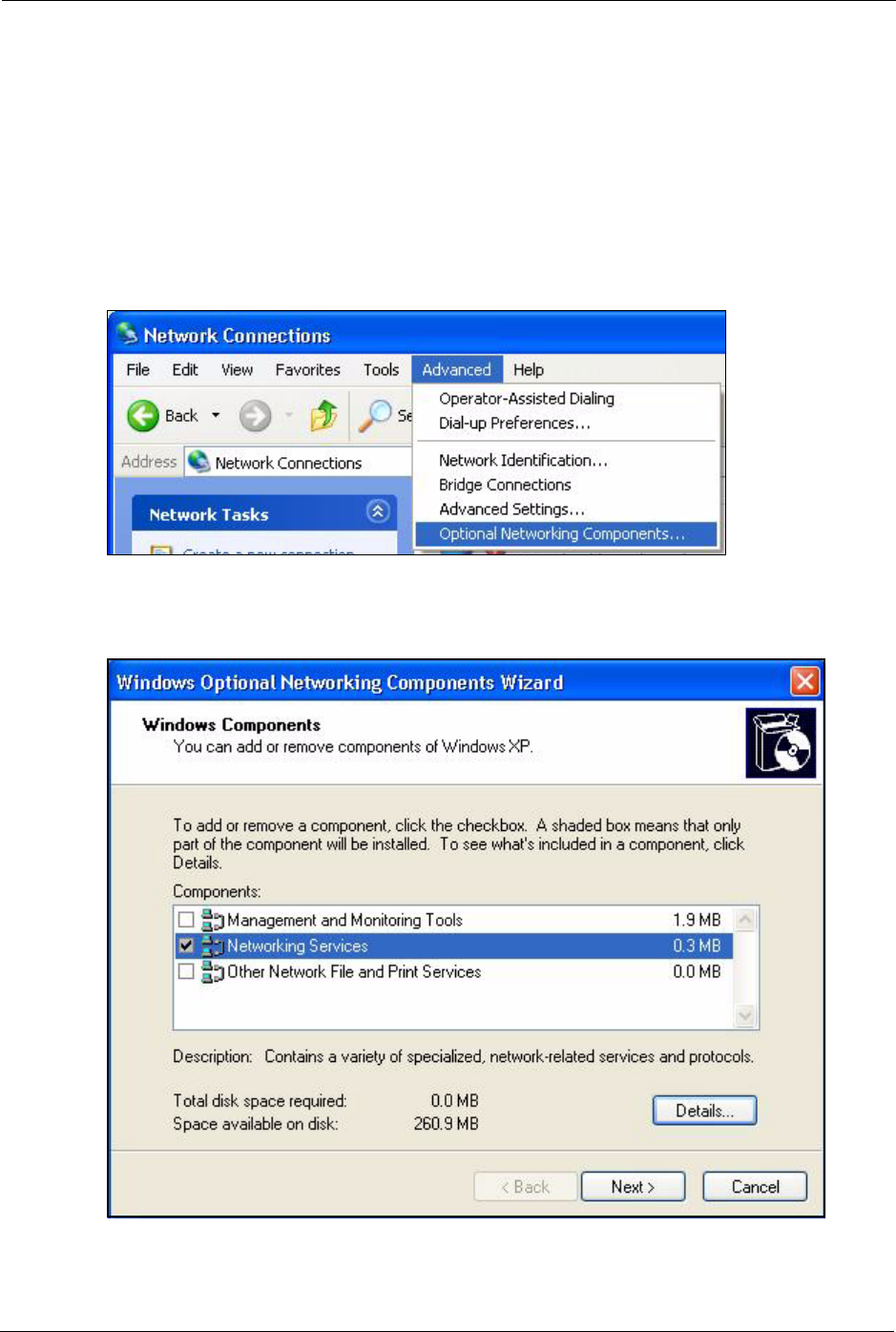

3In the Network Connections window, click Advanced in the main menu and select
Optional Networking Components ….
Figure 94 Network Connections
4The Windows Optional Networking Components Wizard window displays. Select
Networking Service in the Components selection box and click Details.
Figure 95 Windows Optional Networking Components Wizard
5In the Networking Services window, select the Universal Plug and Play check box.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 167

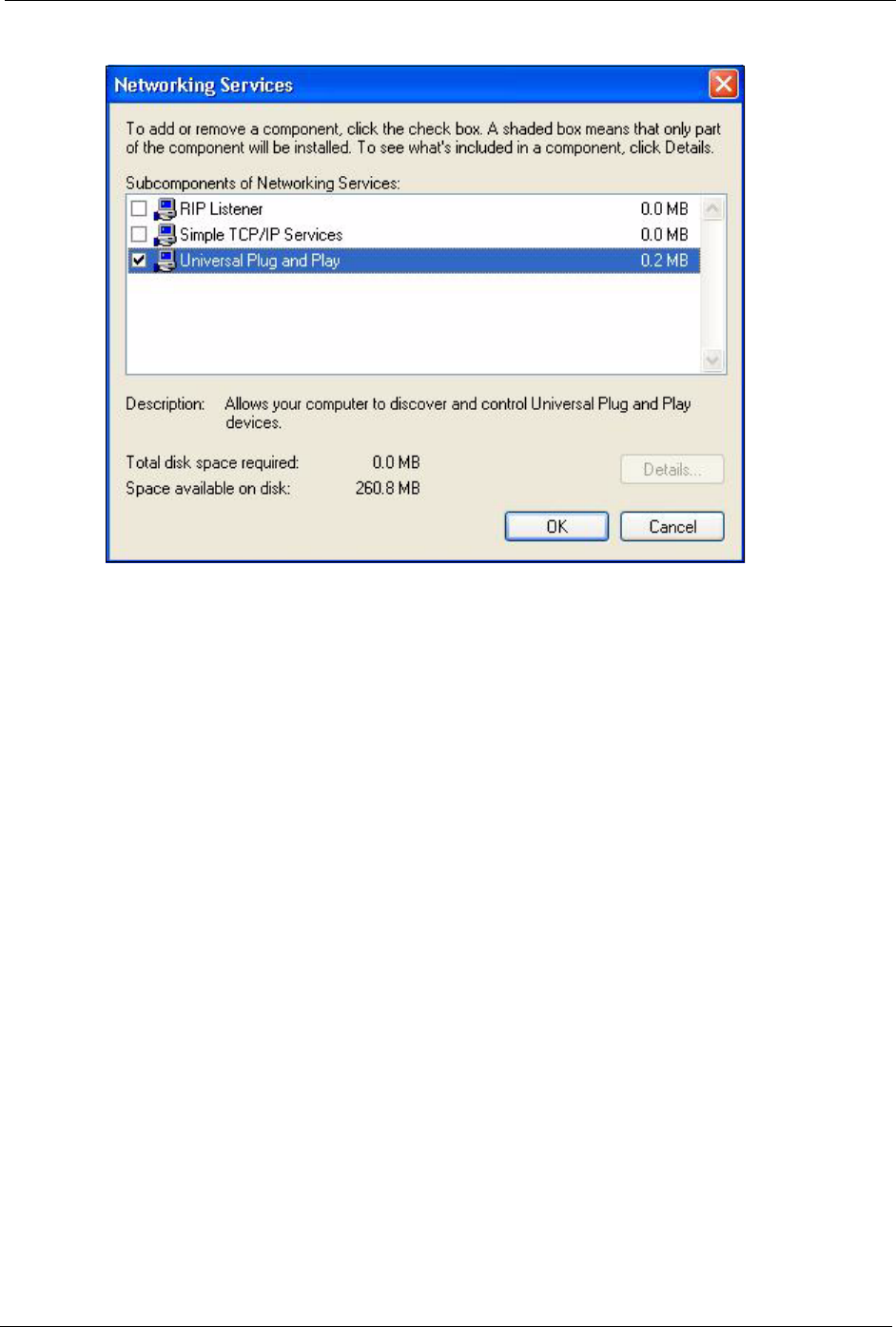

Figure 96 Networking Services
6Click OK to go back to the Windows Optional Networking Component Wizard
window and click Next.
17.2.2 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have
UPnP installed in Windows XP and UPnP activated on the ZyXEL Device.
Make sure the computer is connected to a LAN port of the ZyXEL Device. Turn on your
computer and the ZyXEL Device.
17.2.2.1 Auto-discover Your UPnP-enabled Network Device
1Click Start and Control Panel. Double-click Network Connections. An icon displays
under Internet Gateway.
2Right-click the icon and select Properties.
ZyXEL MAX-200M1 Series User’s Guide
168 Chapter 17 UPnP

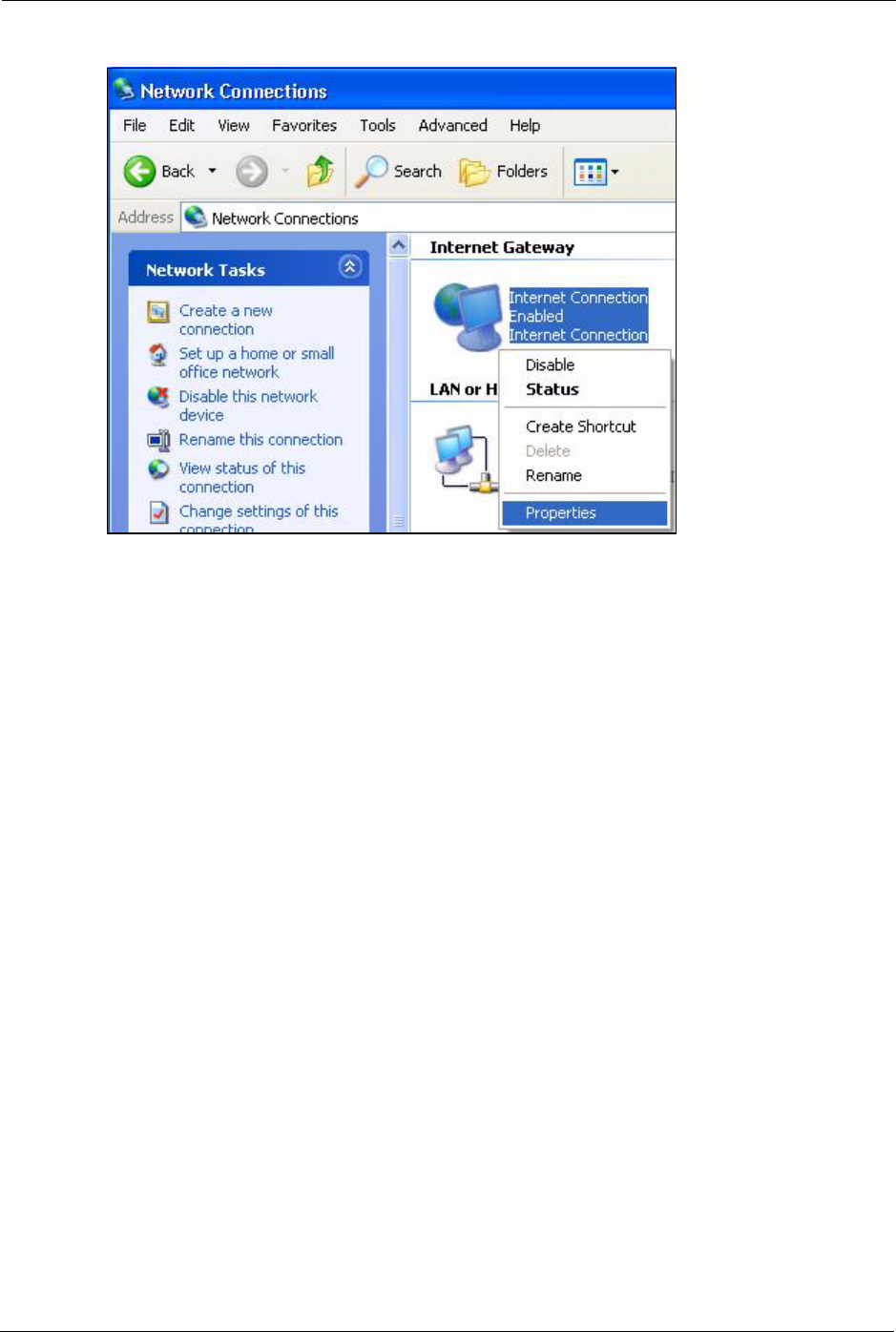

Figure 97 Network Connections
3In the Internet Connection Properties window, click Settings to see the port mappings
there were automatically created.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 169

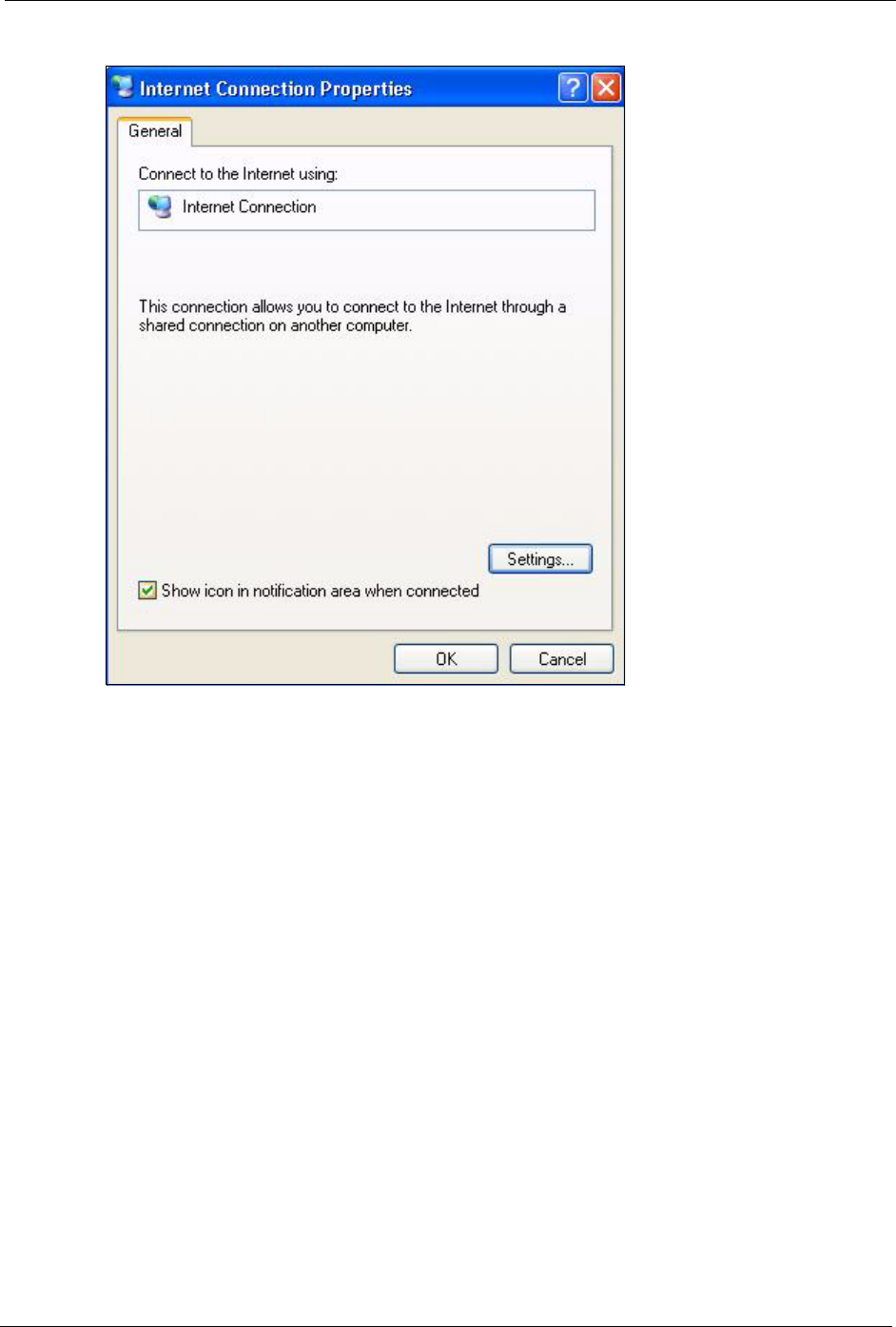

Figure 98 Internet Connection Properties
4You may edit or delete the port mappings or click Add to manually add port mappings.
ZyXEL MAX-200M1 Series User’s Guide
170 Chapter 17 UPnP

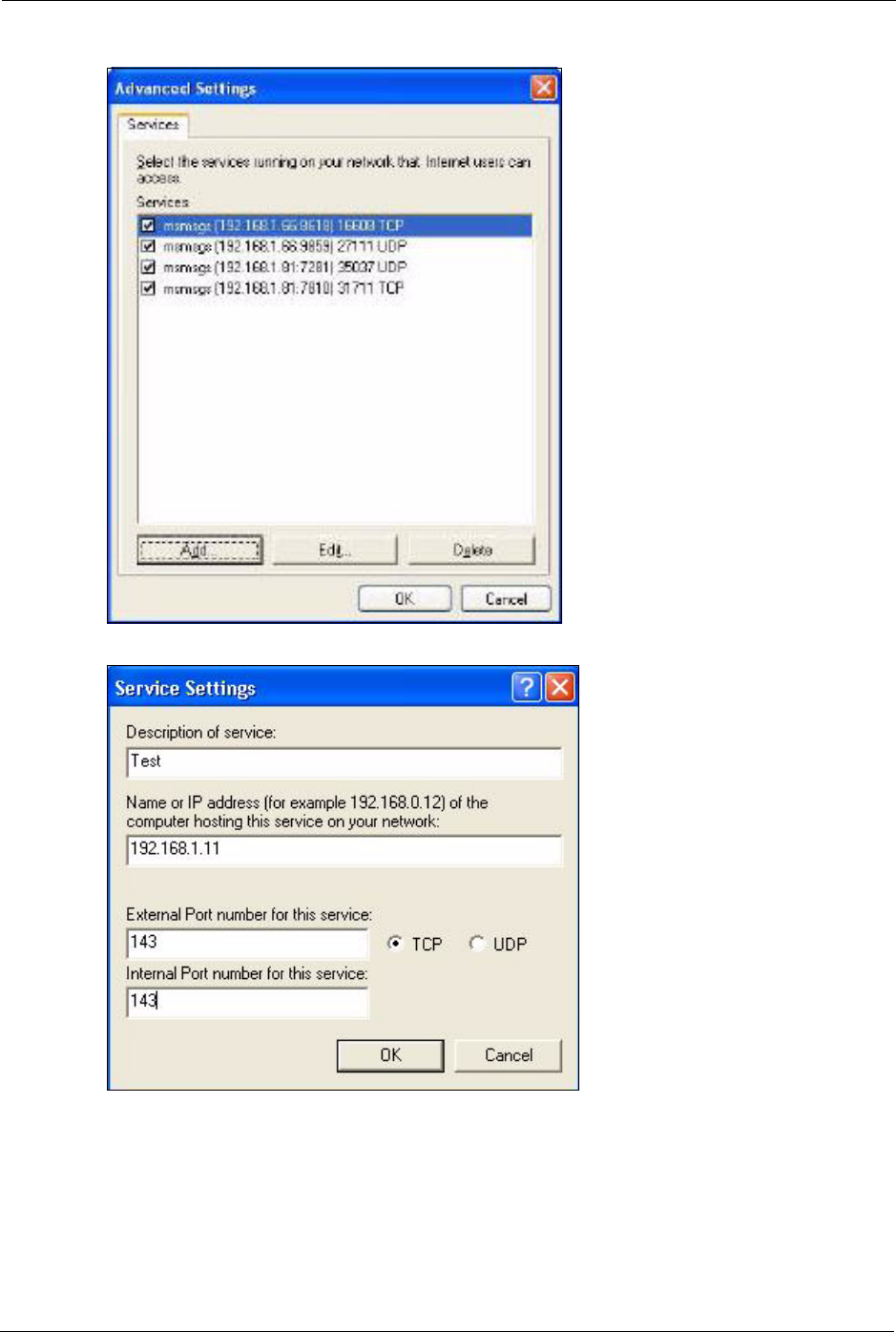

Figure 99 Internet Connection Properties: Advanced Settings
Figure 100 Internet Connection Properties: Advanced Settings: Add
5When the UPnP-enabled device is disconnected from your computer, all port mappings
will be deleted automatically.
6Select Show icon in notification area when connected option and click OK. An icon
displays in the system tray.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 171

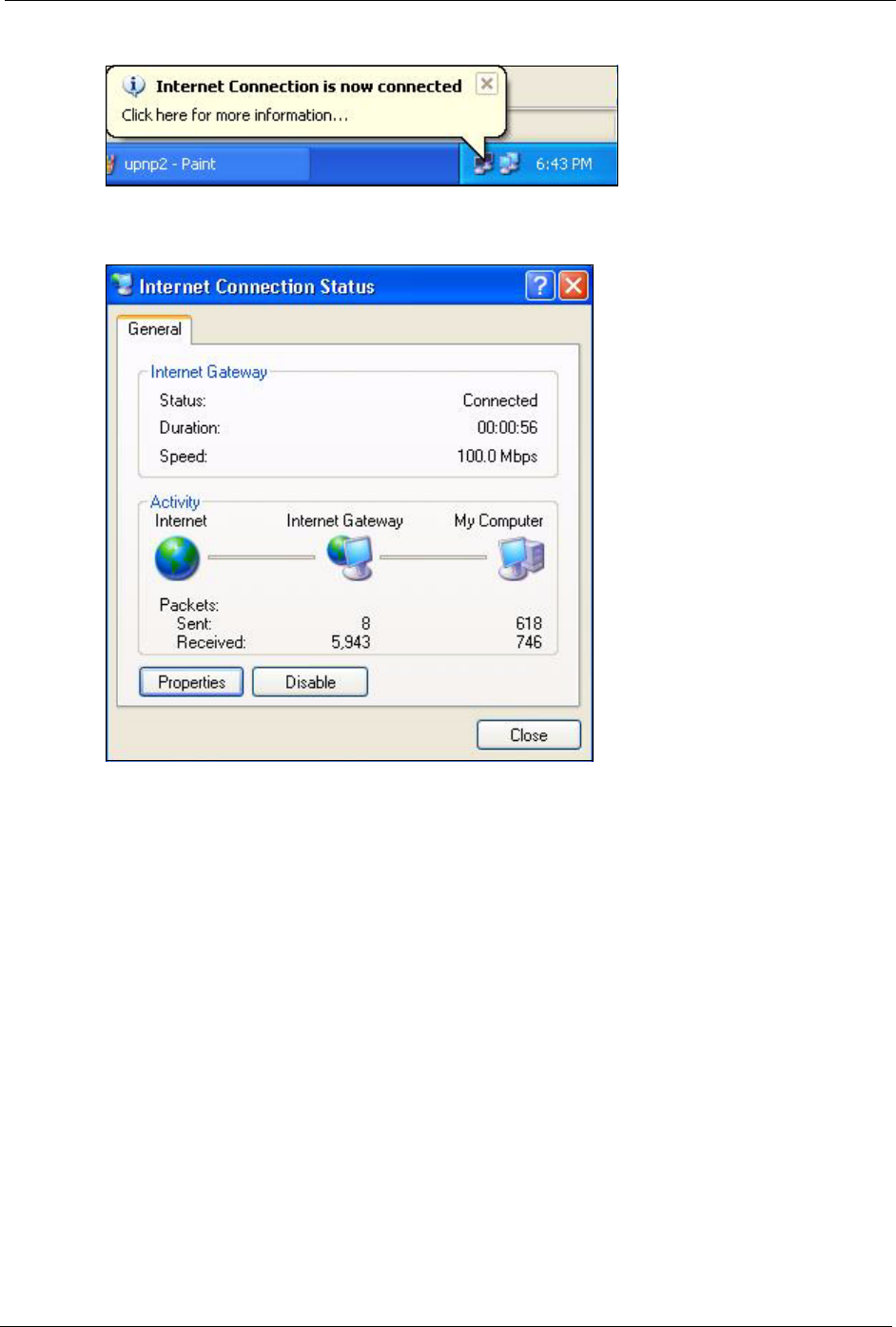

Figure 101 System Tray Icon
7Double-click on the icon to display your current Internet connection status.
Figure 102 Internet Connection Status
17.2.2.2 Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the ZyXEL Device without finding
out the IP address of the ZyXEL Device first. This becomes helpful if you do not know the IP
address of the ZyXEL Device.
Follow the steps below to access the web configurator.
1Click Start and then Control Panel.
2Double-click Network Connections.

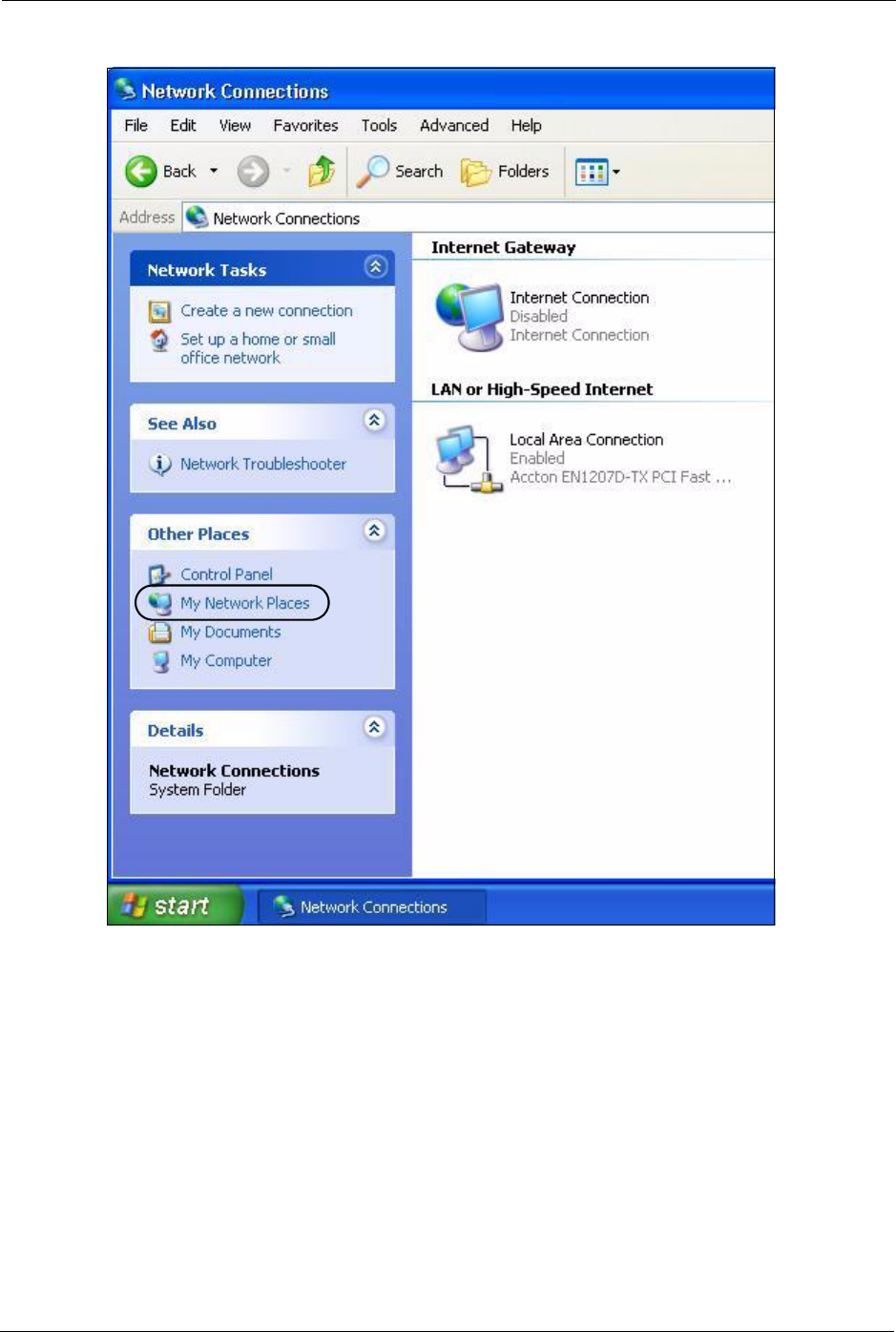

3Select My Network Places under Other Places.
ZyXEL MAX-200M1 Series User’s Guide
172 Chapter 17 UPnP
Figure 103 Network Connections
4An icon with the description for each UPnP-enabled device displays under Local
Network.
5Right-click on the icon for your ZyXEL Device and select Invoke. The web configurator
login screen displays.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 173

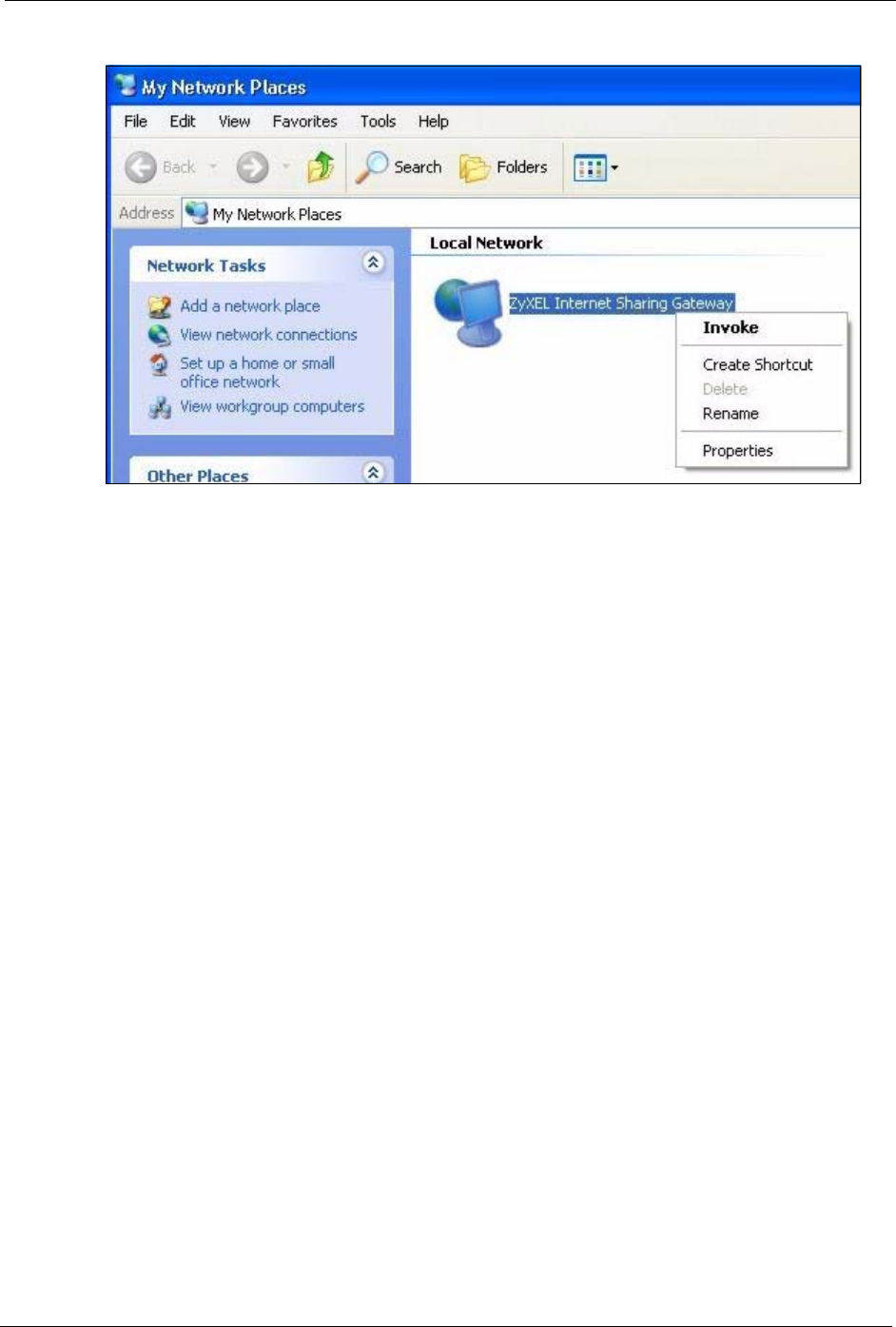

Figure 104 Network Connections: My Network Places
6Right-click on the icon for your ZyXEL Device and select Properties. A properties
window displays with basic information about the ZyXEL Device.
ZyXEL MAX-200M1 Series User’s Guide
174 Chapter 17 UPnP

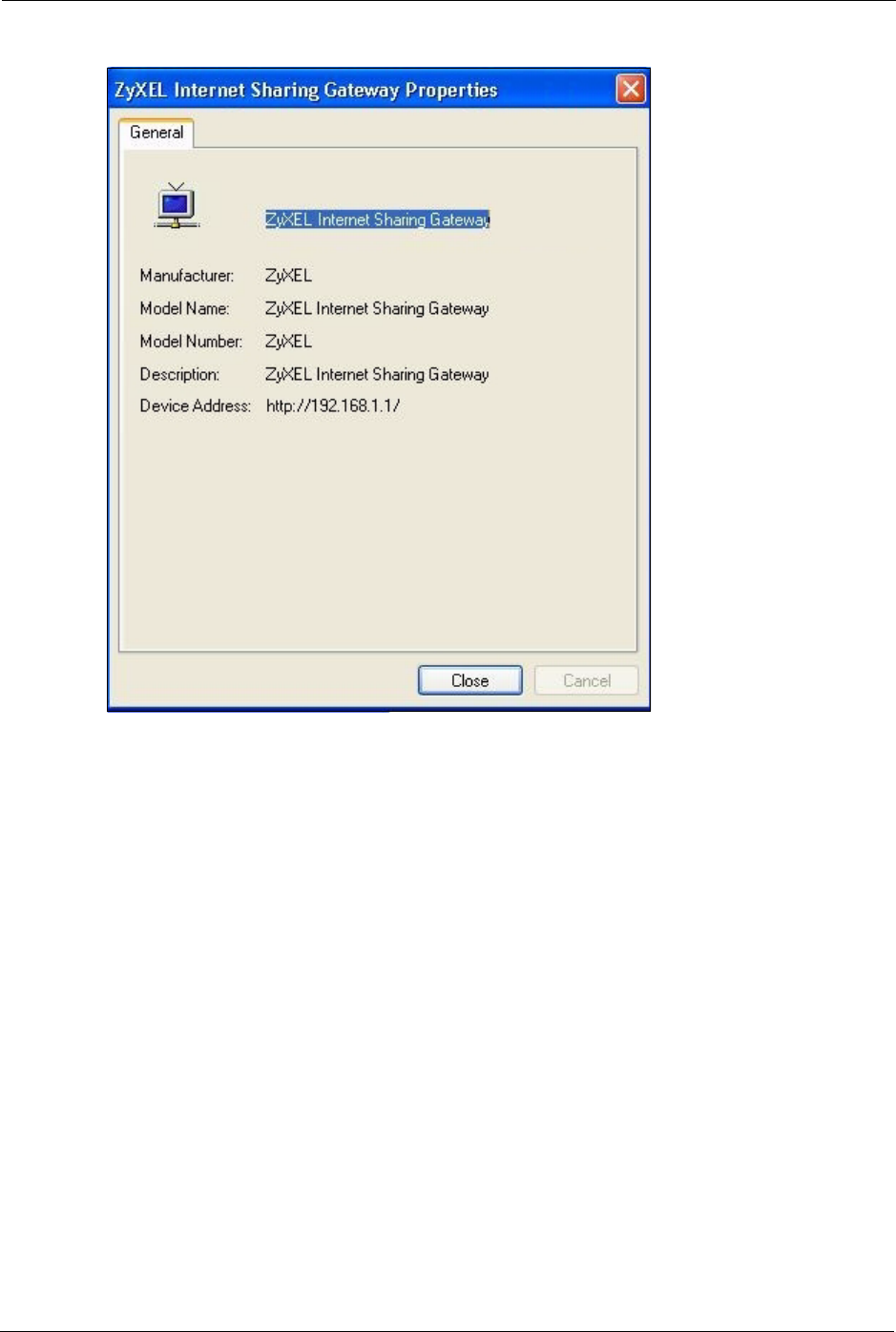

Figure 105 Network Connections: My Network Places: Properties: Example
17.3 UPnP Screen
Use this screen to set up UPnP in your ZyXEL Device. To access this screen, click
Management > UPnP.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 17 UPnP 175

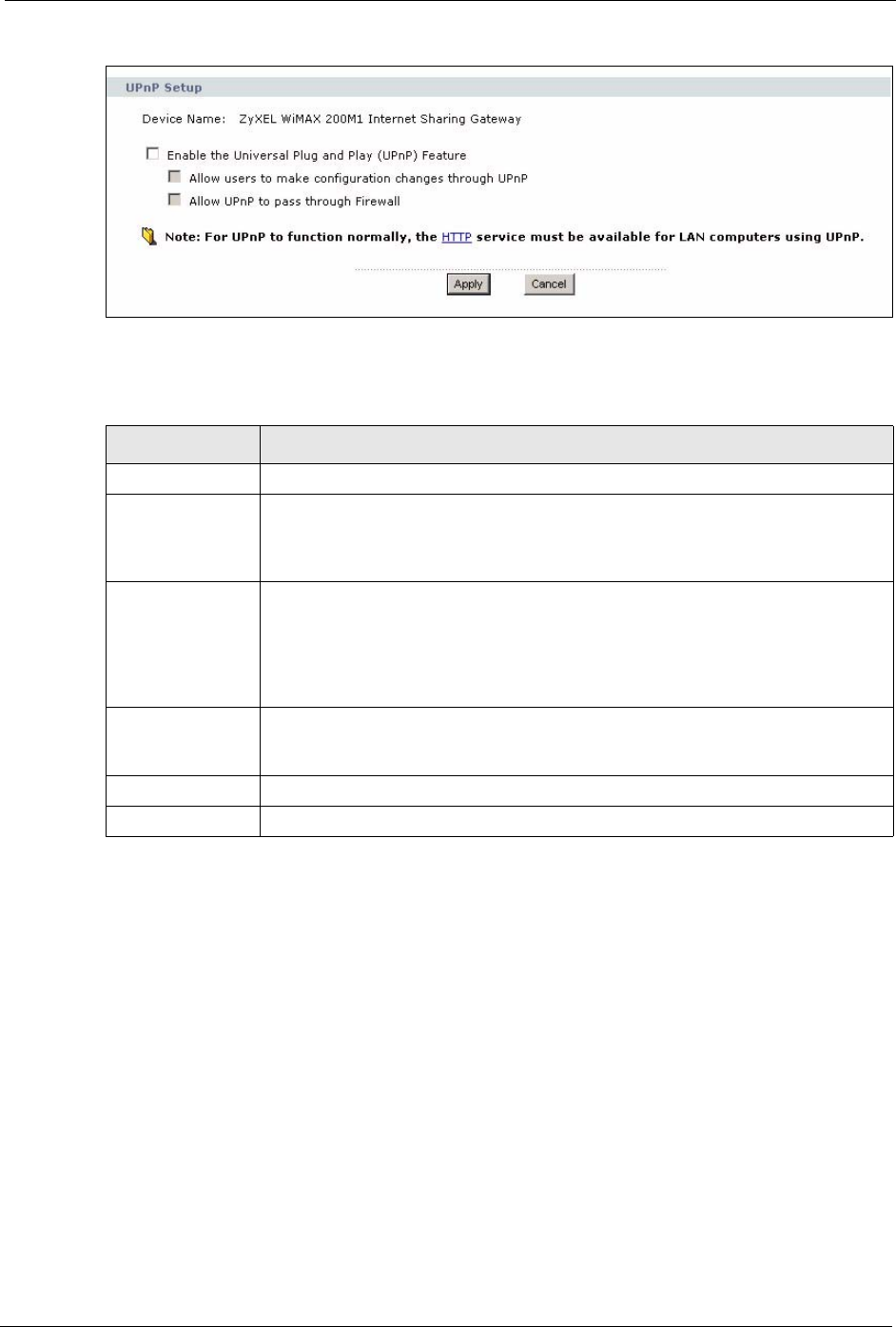

Figure 106 Management > UPnP
Each field is described in the following table.
Table 57 Management > UPnP
LABEL DESCRIPTION
Device Name This field identifies your device in UPnP applications.
Enable the
Universal Plug and
Play (UPnP)
Feature
Select this to activate UPnP. Be aware that anyone could use a UPnP application
to open the web configurator's login screen without entering the ZyXEL Device's IP
address. You still have to enter the password, however.
Allow users to
make
configuration
changes through
UPnP
Select this to allow UPnP-enabled applications to automatically configure the
ZyXEL Device so that they can communicate through the ZyXEL Device. For
example, using NAT traversal, UPnP applications automatically reserve a NAT
forwarding port in order to communicate with another UPnP enabled device; this
eliminates the need to manually configure port forwarding for the UPnP enabled
application.
Allow UPnP to
pass through
Firewall
Select this to allow traffic from UPnP-enabled applications to bypass the firewall.
Clear this if you want the firewall to check UPnP application packets (for example,
MSN packets).
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to set every field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
176 Chapter 17 UPnP
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 177
CHAPTER 18
Logs
Use these screens to look at log entries and alerts and to configure the ZyXEL Device’s log
and alert settings.
18.1 Logs Overview
For a list of log messages, see Section 18.3 on page 182.
18.1.1 Alerts
An alert is a type of log that warrants more serious attention. Some categories such as System
Errors consist of both logs and alerts.
18.1.2 Syslog Logs
There are two types of syslog: event logs and traffic logs. The device generates an event log
when a system event occurs, for example, when a user logs in or the device is under attack.
The device generates a traffic log when a "session" is terminated. A traffic log summarizes the
session's type, when it started and stopped the amount of traffic that was sent and received and
so on. An external log analyzer can reconstruct and analyze the traffic flowing through the
device after collecting the traffic logs.
ZyXEL MAX-200M1 Series User’s Guide
178 Chapter 18 Logs
The following table shows RFC-2408 ISAKMP payload types that the log displays. Please
refer to the RFC for detailed information on each type.
Table 58 Syslog Logs
LOG MESSAGE DESCRIPTION
Event Log: <Facility*8 + Severity>Mon dd
hr:mm:ss hostname
src="<srcIP:srcPort>"
dst="<dstIP:dstPort>" msg="<msg>"
note="<note>" devID="<mac address>"
cat="<category>"
This message is sent by the system ("RAS" displays as the
system name if you haven’t configured one) when the router
generates a syslog. The facility is defined in the Log
Settings screen. The severity is the log’s syslog class. The
definition of messages and notes are defined in the various
log charts throughout this appendix. The “devID” is the MAC
address of the router’s LAN port. The “cat” is the same as
the category in the router’s logs.
Traffic Log: <Facility*8 + Severity>Mon
dd hr:mm:ss hostname
src="<srcIP:srcPort>"
dst="<dstIP:dstPort>" msg="Traffic Log"
note="Traffic Log" devID="<mac
address>" cat="Traffic Log"
duration=seconds sent=sentBytes
rcvd=receiveBytes dir="<from:to>"
protoID=IPProtocolID
proto="serviceName" trans="IPSec/
Normal"
This message is sent by the device when the connection
(session) is closed. The facility is defined in the Log
Settings screen. The severity is the traffic log type. The
message and note always display "Traffic Log". The "proto"
field lists the service name. The "dir" field lists the incoming
and outgoing interfaces ("LAN:LAN", "LAN:WAN",
"LAN:DEV" for example).
Table 59 RFC-2408 ISAKMP Payload Types
LOG DISPLAY PAYLOAD TYPE
SA Security Association
PROP Proposal
TRANS Transform
KE Key Exchange
ID Identification
CER Certificate
CER_REQ Certificate Request
HASH Hash
SIG Signature
NONCE Nonce
NOTFY Notification
DEL Delete
VID Vendor ID
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 179
18.2 Logs Screens

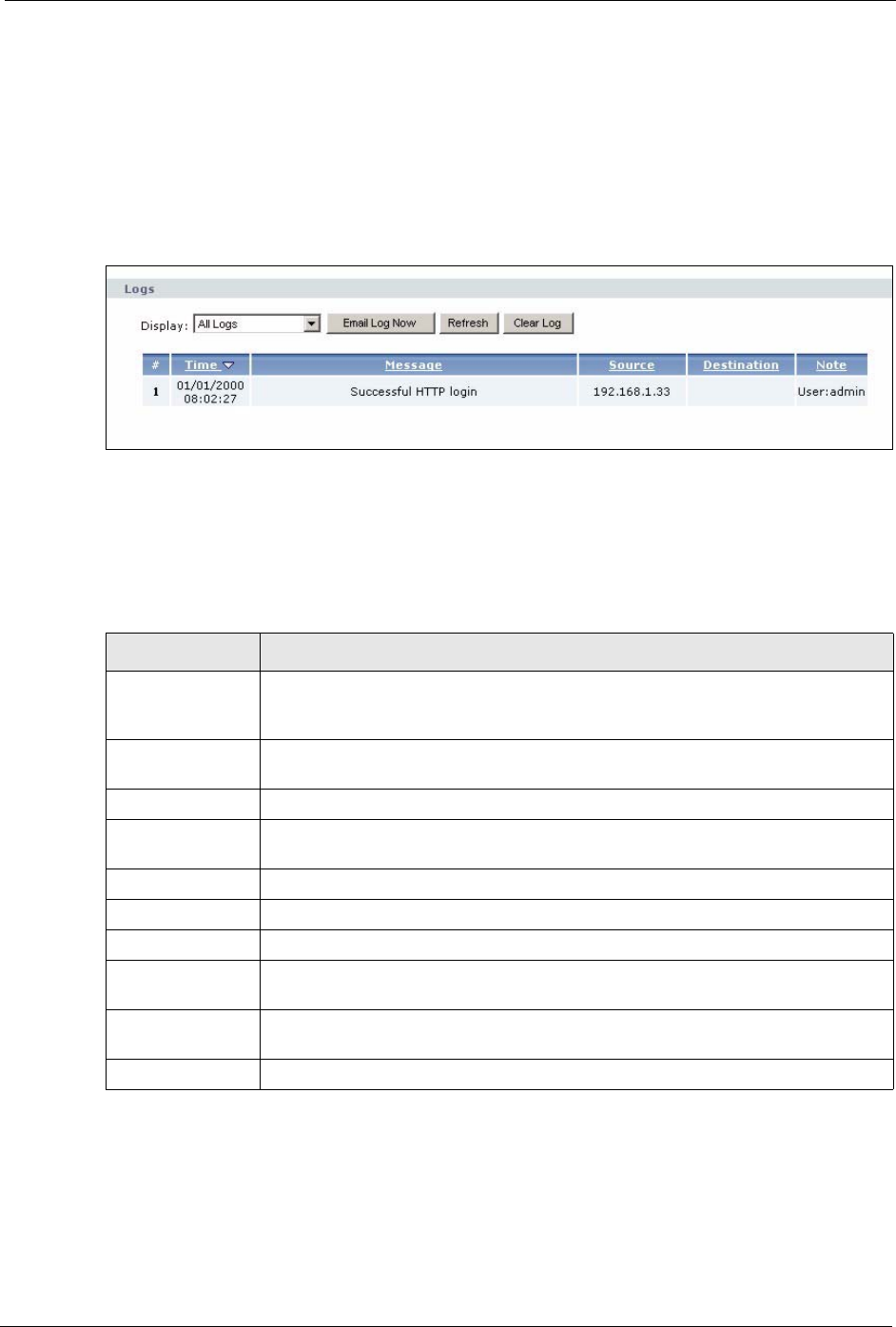

18.2.1 Log Viewer Screen
Use this screen to look at log entries and alerts. Alerts are written in red. To access this screen,
click Maintenance > Logs > View Log.
Figure 107 Maintenance > Logs > View Log
Click a column header to sort log entries in descending (later-to-earlier) order. Click again to
sort in ascending order. The small triangle next to a column header indicates how the table is
currently sorted (pointing downward is descending; pointing upward is ascending). Each field
is described in the following table.
18.2.2 Log Settings Screen
Use this screen to configure where the ZyXEL Device sends logs and alerts, the schedule for
sending logs, and which logs and alerts are sent or recorded.
Table 60 Maintenance > Logs > View Log
LABEL DESCRIPTION
Display Select a category whose log entries you want to view. To view all logs, select All
Logs. The list of categories depends on what log categories are selected in the
Log Settings page.
Email Log Now Click this to send the log screen to the e-mail address specified in the Log
Settings page.
Refresh Click Refresh to renew the log screen.
Clear Log Click Clear Log to clear all the log entries, regardless of what is shown on the log
screen.
#This field is a sequential value, and it is not associated with a specific log entry.
Time This field displays the time the log entry was recorded.
Message This field displays the reason for the log entry. See Section 18.3 on page 182.
Source This field displays the source IP address and the port number of the incoming
packet. In many cases, some or all of this information may not be available.
Destination This field lists the destination IP address and the port number of the incoming
packet. In many cases, some or all of this information may not be available.
Note This field displays additional information about the log entry.
ZyXEL MAX-200M1 Series User’s Guide
180 Chapter 18 Logs
To access this screen, click Maintenance > Logs > Log Settings.
Figure 108 Maintenance > Logs > Log Settings
Each field is described in the following table.
Table 61 Maintenance > Logs > Log Settings
LABEL DESCRIPTION
E-mail Log
Settings
Mail Server Enter the server name or the IP address of the mail server the ZyXEL Device
should use to e-mail logs and alerts. Leave this field blank if you do not want to
send logs or alerts by e-mail.
Mail Subject Enter the subject line used in e-mail messages the ZyXEL Device sends.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 181
Send Log to Enter the e-mail address to which log entries are sent by e-mail. Leave this field
blank if you do not want to send logs by e-mail.
Send Alerts to Enter the e-mail address to which alerts are sent by e-mail. Leave this field blank if
you do not want to send alerts by e-mail.
Log Schedule Select the frequency with which the ZyXEL Device should send log messages by
e-mail.
•Daily
• Weekly
•Hourly
• When Log is Full
• None.
If the Weekly or the Daily option is selected, specify a time of day when the E-mail
should be sent. If the Weekly option is selected, then also specify which day of the
week the E-mail should be sent. If the When Log is Full option is selected, an
alert is sent when the log fills up. If you select None, no log messages are sent.
Day for Sending
Log
This field is only available when you select Weekly in the Log Schedule field.
Select which day of the week to send the logs.
Time for Sending
Log
This field is only available when you select Daily or Weekly in the Log Schedule
field.
Enter the time of day in 24-hour format (for example 23:00 equals 11:00 pm) to
send the logs.
Clear log after
sending mail
Select this to clear all logs and alert messages after logs are sent by e-mail.
Syslog Logging Syslog logging sends a log to an external syslog server used to store logs.
Active Select this to enable syslog logging.
Syslog Server IP
Address
Enter the server name or IP address of the syslog server that logs the selected
categories of logs.
Log Facility Select a location. The log facility allows you to log the messages in different files in
the syslog server. See the documentation of your syslog for more details.
Active Log and
Alert
Log Select the categories of logs that you want to record.
Send immediate
alert
Select the categories of alerts that you want the ZyXEL Device to send
immediately.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to set every field in this screen to its last-saved value.
Table 61 Maintenance > Logs > Log Settings
LABEL DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
182 Chapter 18 Logs
18.3 Log Message Descriptions
The following tables provide descriptions of example log messages.
Table 62 System Error Logs
LOG MESSAGE DESCRIPTION
WAN connection is down. The WAN connection is down. You cannot access the network
through this interface.
%s exceeds the max.
number of session per
host!
This attempt to create a NAT session exceeds the maximum
number of NAT session table entries allowed to be created per
host.
Table 63 System Maintenance Logs
LOG MESSAGE DESCRIPTION
Time calibration is
successful
The device has adjusted its time based on information from
the time server.
Time calibration failed The device failed to get information from the time server.
WAN interface gets IP: %s The WAN interface got a new IP address from the DHCP or
PPPoE server.
DHCP client gets %s A DHCP client got a new IP address from the DHCP server.
DHCP client IP expired A DHCP client's IP address has expired.
DHCP server assigns %s The DHCP server assigned an IP address to a client.
Successful WEB login Someone has logged on to the device's web configurator
interface.
WEB login failed Someone has failed to log on to the device's web configurator
interface.
TELNET Login Successfully Someone has logged on to the router via telnet.
TELNET Login Fail Someone has failed to log on to the router via telnet.
Successful FTP login Someone has logged on to the device via ftp.
FTP login failed Someone has failed to log on to the device via ftp.
NAT Session Table is Full! The maximum number of NAT session table entries has been
exceeded and the table is full.
Time initialized by Daytime
Server
The device got the time and date from the Daytime server.
Time initialized by Time
server
The device got the time and date from the time server.
Time initialized by NTP
server
The device got the time and date from the NTP server.
Connect to Daytime server
fail
The device was not able to connect to the Daytime server.
Connect to Time server fail The device was not able to connect to the Time server.
Connect to NTP server fail The device was not able to connect to the NTP server.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 183
Too large ICMP packet has
been dropped
The device dropped an ICMP packet that was too large.
Configuration Change: PC =
0x%x, Task ID = 0x%x
The device is saving configuration changes.
Table 64 Access Control Logs
LOG MESSAGE DESCRIPTION
Firewall default policy: [ TCP |
UDP | IGMP | ESP | GRE | OSPF ]
<Packet Direction>
Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access
matched the default policy and was blocked or forwarded
according to the default policy’s setting.
Firewall rule [NOT] match:[ TCP
| UDP | IGMP | ESP | GRE | OSPF ]
<Packet Direction>, <rule:%d>
Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access
matched (or did not match) a configured firewall rule
(denoted by its number) and was blocked or forwarded
according to the rule.
Triangle route packet forwarded:
[ TCP | UDP | IGMP | ESP | GRE |
OSPF ]
The firewall allowed a triangle route session to pass
through.
Packet without a NAT table entry
blocked: [ TCP | UDP | IGMP | ESP
| GRE | OSPF ]
The router blocked a packet that didn't have a
corresponding NAT table entry.
Router sent blocked web site
message: TCP
The router sent a message to notify a user that the router
blocked access to a web site that the user requested.
Exceed maximum sessions per host (%d). The device blocked a session because the host's
connections exceeded the maximum sessions per host.
Firewall allowed a packet that matched a
NAT session: [ TCP | UDP ]
A packet from the WAN (TCP or UDP) matched a cone
NAT session and the device forwarded it to the LAN.
Table 65 TCP Reset Logs
LOG MESSAGE DESCRIPTION
Under SYN flood attack,
sent TCP RST
The router sent a TCP reset packet when a host was under a SYN
flood attack (the TCP incomplete count is per destination host.)
Exceed TCP MAX
incomplete, sent TCP RST
The router sent a TCP reset packet when the number of TCP
incomplete connections exceeded the user configured threshold.
(the TCP incomplete count is per destination host.)
Peer TCP state out of
order, sent TCP RST
The router sent a TCP reset packet when a TCP connection state
was out of order.Note: The firewall refers to RFC793 Figure 6 to
check the TCP state.
Table 63 System Maintenance Logs (continued)
LOG MESSAGE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
184 Chapter 18 Logs
For type and code details, see Table 74 on page 188.
Firewall session time
out, sent TCP RST
The router sent a TCP reset packet when a dynamic firewall
session timed out.
The default timeout values are as follows:
ICMP idle timeout: 3 minutes
UDP idle timeout: 3 minutes
TCP connection (three way handshaking) timeout: 270 seconds
TCP FIN-wait timeout: 2 MSL (Maximum Segment Lifetime set in
the TCP header).
TCP idle (established) timeout (s): 150 minutes
TCP reset timeout: 10 seconds
Exceed MAX incomplete,
sent TCP RST
The router sent a TCP reset packet when the number of
incomplete connections (TCP and UDP) exceeded the user-
configured threshold. (Incomplete count is for all TCP and UDP
connections through the firewall.)Note: When the number of
incomplete connections (TCP + UDP) > “Maximum Incomplete
High”, the router sends TCP RST packets for TCP connections
and destroys TOS (firewall dynamic sessions) until incomplete
connections < “Maximum Incomplete Low”.
Access block, sent TCP
RST
The router sends a TCP RST packet and generates this log if you
turn on the firewall TCP reset mechanism (via CI command: sys
firewall tcprst).
Table 66 Packet Filter Logs
LOG MESSAGE DESCRIPTION
[ TCP | UDP | ICMP | IGMP |
Generic ] packet filter
matched (set: %d, rule: %d)
Attempted access matched a configured filter rule (denoted by
its set and rule number) and was blocked or forwarded
according to the rule.
Table 67 ICMP Logs
LOG MESSAGE DESCRIPTION
Firewall default policy: ICMP
<Packet Direction>, <type:%d>,
<code:%d>
ICMP access matched the default policy and was blocked
or forwarded according to the user's setting.
Firewall rule [NOT] match: ICMP
<Packet Direction>, <rule:%d>,
<type:%d>, <code:%d>
ICMP access matched (or didn’t match) a firewall rule
(denoted by its number) and was blocked or forwarded
according to the rule.
Triangle route packet forwarded:
ICMP
The firewall allowed a triangle route session to pass
through.
Packet without a NAT table entry
blocked: ICMP
The router blocked a packet that didn’t have a
corresponding NAT table entry.
Table 65 TCP Reset Logs (continued)
LOG MESSAGE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 185
Unsupported/out-of-order ICMP:
ICMP
The firewall does not support this kind of ICMP packets or
the ICMP packets are out of order.
Router reply ICMP packet: ICMP The router sent an ICMP reply packet to the sender.
Table 68 CDR Logs
LOG MESSAGE DESCRIPTION
board %d line %d channel %d,
call %d, %s C01 Outgoing Call
dev=%x ch=%x %s
The router received the setup requirements for a call. “call” is
the reference (count) number of the call. “dev” is the device
type (3 is for dial-up, 6 is for PPPoE). "channel" or “ch” is the
call channel ID.For example, "board 0 line 0 channel 0, call 3,
C01 Outgoing Call dev=6 ch=0 "Means the router has dialed
to the PPPoE server 3 times.
board %d line %d channel %d,
call %d, %s C02 OutCall
Connected %d %s
The PPPoE or dial-up call is connected.
board %d line %d channel %d,
call %d, %s C02 Call
Terminated
The PPPoE or dial-up call was disconnected.
Table 69 PPP Logs
LOG MESSAGE DESCRIPTION
ppp:LCP Starting The PPP connection’s Link Control Protocol stage has started.
ppp:LCP Opening The PPP connection’s Link Control Protocol stage is opening.
ppp:CHAP Opening The PPP connection’s Challenge Handshake Authentication Protocol stage is
opening.
ppp:IPCP Starting The PPP connection’s Internet Protocol Control Protocol stage is starting.
ppp:IPCP Opening The PPP connection’s Internet Protocol Control Protocol stage is opening.
ppp:LCP Closing The PPP connection’s Link Control Protocol stage is closing.
ppp:IPCP Closing The PPP connection’s Internet Protocol Control Protocol stage is closing.
Table 70 UPnP Logs
LOG MESSAGE DESCRIPTION
UPnP pass through Firewall UPnP packets can pass through the firewall.
Table 67 ICMP Logs (continued)
LOG MESSAGE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
186 Chapter 18 Logs
For type and code details, see Table 74 on page 188.
Table 71 Content Filtering Logs
LOG MESSAGE DESCRIPTION
%s: Keyword blocking The content of a requested web page matched a user defined keyword.
%s: Not in trusted web
list
The web site is not in a trusted domain, and the router blocks all traffic
except trusted domain sites.
%s: Forbidden Web site The web site is in the forbidden web site list.
%s: Contains ActiveX The web site contains ActiveX.
%s: Contains Java
applet
The web site contains a Java applet.
%s: Contains cookie The web site contains a cookie.
%s: Proxy mode
detected
The router detected proxy mode in the packet.
%s: Trusted Web site The web site is in a trusted domain.
%s When the content filter is not on according to the time schedule.
Waiting content filter
server timeout
The external content filtering server did not respond within the timeout
period.
DNS resolving failed The ZyXEL Device cannot get the IP address of the external content
filtering via DNS query.
Creating socket failed The ZyXEL Device cannot issue a query because TCP/IP socket
creation failed, port:port number.
Connecting to content
filter server fail
The connection to the external content filtering server failed.
License key is invalid The external content filtering license key is invalid.
Table 72 Attack Logs
LOG MESSAGE DESCRIPTION
attack [ TCP | UDP | IGMP
| ESP | GRE | OSPF ]
The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF attack.
attack ICMP (type:%d,
code:%d)
The firewall detected an ICMP attack.
land [ TCP | UDP | IGMP |
ESP | GRE | OSPF ]
The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF land
attack.
land ICMP (type:%d,
code:%d)
The firewall detected an ICMP land attack.
ip spoofing - WAN [ TCP |
UDP | IGMP | ESP | GRE |
OSPF ]
The firewall detected an IP spoofing attack on the WAN port.
ip spoofing - WAN ICMP
(type:%d, code:%d)
The firewall detected an ICMP IP spoofing attack on the WAN port.
icmp echo : ICMP
(type:%d, code:%d)
The firewall detected an ICMP echo attack.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 187
syn flood TCP The firewall detected a TCP syn flood attack.
ports scan TCP The firewall detected a TCP port scan attack.
teardrop TCP The firewall detected a TCP teardrop attack.
teardrop UDP The firewall detected an UDP teardrop attack.
teardrop ICMP (type:%d,
code:%d)
The firewall detected an ICMP teardrop attack.
illegal command TCP The firewall detected a TCP illegal command attack.
NetBIOS TCP The firewall detected a TCP NetBIOS attack.
ip spoofing - no routing
entry [ TCP | UDP | IGMP |
ESP | GRE | OSPF ]
The firewall classified a packet with no source routing entry as an
IP spoofing attack.
ip spoofing - no routing
entry ICMP (type:%d,
code:%d)
The firewall classified an ICMP packet with no source routing entry
as an IP spoofing attack.
vulnerability ICMP
(type:%d, code:%d)
The firewall detected an ICMP vulnerability attack.
traceroute ICMP (type:%d,
code:%d)
The firewall detected an ICMP traceroute attack.
ports scan UDP The firewall detected a UDP port scan attack.
Firewall sent TCP packet in
response to DoS attack TCP
The firewall sent TCP packet in response to a DoS attack
ICMP Source Quench ICMP The firewall detected an ICMP Source Quench attack.
ICMP Time Exceed ICMP The firewall detected an ICMP Time Exceed attack.
ICMP Destination Unreachable
ICMP
The firewall detected an ICMP Destination Unreachable attack.
ping of death. ICMP The firewall detected an ICMP ping of death attack.
smurf ICMP The firewall detected an ICMP smurf attack.
Table 73 Remote Management Logs
LOG MESSAGE DESCRIPTION
Remote Management: FTP denied Attempted use of FTP service was blocked according to
remote management settings.
Remote Management: TELNET denied Attempted use of TELNET service was blocked according
to remote management settings.
Remote Management: HTTP or UPnP
denied
Attempted use of HTTP or UPnP service was blocked
according to remote management settings.
Remote Management: WWW denied Attempted use of WWW service was blocked according to
remote management settings.
Remote Management: HTTPS denied Attempted use of HTTPS service was blocked according to
remote management settings.
Table 72 Attack Logs (continued)
LOG MESSAGE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
188 Chapter 18 Logs
Remote Management: SSH denied Attempted use of SSH service was blocked according to
remote management settings.
Remote Management: ICMP Ping
response denied
Attempted use of ICMP service was blocked according to
remote management settings.
Remote Management: DNS denied Attempted use of DNS service was blocked according to
remote management settings.
Table 74 ICMP Notes
TYPE CODE DESCRIPTION
0Echo Reply
0Echo reply message
3Destination Unreachable
0Net unreachable
1Host unreachable
2Protocol unreachable
3Port unreachable
4A packet that needed fragmentation was dropped because it was set to Don't
Fragment (DF)
5Source route failed
4Source Quench
0A gateway may discard internet datagrams if it does not have the buffer space
needed to queue the datagrams for output to the next network on the route to the
destination network.
5Redirect
0Redirect datagrams for the Network
1Redirect datagrams for the Host
2Redirect datagrams for the Type of Service and Network
3Redirect datagrams for the Type of Service and Host
8Echo
0Echo message
11 Time Exceeded
0Time to live exceeded in transit
1Fragment reassembly time exceeded
12 Parameter Problem
0Pointer indicates the error
13 Timestamp
0Timestamp request message
14 Timestamp Reply
Table 73 Remote Management Logs
LOG MESSAGE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
Chapter 18 Logs 189
0Timestamp reply message
15 Information Request
0Information request message
16 Information Reply
0Information reply message
Table 75 SIP Logs
LOG MESSAGE DESCRIPTION
SIP Registration Success
by SIP:SIP Phone Number
The listed SIP account was successfully registered with a SIP
register server.
SIP Registration Fail by
SIP:SIP Phone Number
An attempt to register the listed SIP account with a SIP register
server was not successful.
SIP UnRegistration
Success by SIP:SIP Phone
Number
The listed SIP account’s registration was deleted from the SIP
register server.
SIP UnRegistration Fail by
SIP:SIP Phone Number
An attempt to delete the listed SIP account’s registration from the
SIP register server failed.
Table 76 RTP Logs
LOG MESSAGE DESCRIPTION
Error, RTP init fail The initialization of an RTP session failed.
Error, Call fail: RTP
connect fail
A VoIP phone call failed because the RTP session could not be
established.
Error, RTP connection
cannot close
The termination of an RTP session failed.
Table 74 ICMP Notes (continued)
TYPE CODE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
190 Chapter 18 Logs
Table 77 FSM Logs: Caller Side
LOG MESSAGE DESCRIPTION
VoIP Call Start Ph[Phone
Port Number] <- Outgoing
Call Number
Someone used a phone connected to the listed phone port to
initiate a VoIP call to the listed destination.
VoIP Call Established
Ph[Phone Port] -> Outgoing
Call Number
Someone used a phone connected to the listed phone port to
make a VoIP call to the listed destination.
VoIP Call End Phone[Phone
Port]
A VoIP phone call made from a phone connected to the listed
phone port has terminated.
Table 78 FSM Logs: Callee Side
LOG MESSAGE DESCRIPTION
VoIP Call Start from
SIP[SIP Port Number]
A VoIP phone call came to the ZyXEL Device from the listed SIP
number.
VoIP Call Established
Ph[Phone Port] <-
Outgoing Call Number
A VoIP phone call was set up from the listed SIP number to the
ZyXEL Device.
VoIP Call End
Phone[Phone Port]
A VoIP phone call that came into the ZyXEL Device has terminated.
Table 79 Lifeline Logs
LOG MESSAGE DESCRIPTION
PSTN Call Start A PSTN call has been initiated.
PSTN Call End A PSTN call has terminated.
PSTN Call Established A PSTN call has been set up.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 19 Tools 191
CHAPTER 19
Tools
Use these screens to upload new firmware, back up and restore the configuration, and restart
the ZyXEL Device.
19.1 Tools Overview
19.1.1 ZyXEL Firmware
Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a
"*.bin" extension, e.g., "ZyXEL Device.bin". The upload process uses HTTP (Hypertext
Transfer Protocol) and may take up to two minutes. After a successful upload, the system will
reboot.
Note: Only use firmware for your ZyXEL Device’s specific model. Refer to the label on
the back of your ZyXEL Device.
19.2 Tools Screens
19.2.1 Firmware Screen
Use this screen to upload new firmware to the ZyXEL Device. To access this screen, click
Maintenance > Tools > Firmware.
Note: Only use firmware for your ZyXEL Device’s specific model. Refer to the label on
the bottom of your ZyXEL Device.
ZyXEL MAX-200M1 Series User’s Guide
192 Chapter 19 Tools
Figure 109 Maintenance > Tools > Firmware
Each field is described in the following table.
19.2.2 Firmware Upload Screens
Note: Do not turn off the device while firmware upload is in progress!
When the ZyXEL Device starts to upload firmware, the Firmware Upload in Process screen
appears.
Figure 110 Firmware Upload In Process
The process usually takes about two minutes. The device automatically restarts in this time.
This causes a temporary network disconnect. In some operating systems, you may see the
following icon on your desktop.
Table 80 Maintenance > Tools > Firmware
LABEL DESCRIPTION
File Path Enter the location of the .bin file you want to upload, or click Browse... to find it.
You must decompress compressed (.zip) files before you can upload them.
Browse... Click this to find the .bin file you want to upload.
Upload Click this to begin uploading the selected file. This may take up to two minutes.
See Section 19.2.2 on page 192 for more information about this process.
Note: Do not turn off the device while firmware upload is in
progress!
ZyXEL MAX-200M1 Series User’s Guide
Chapter 19 Tools 193

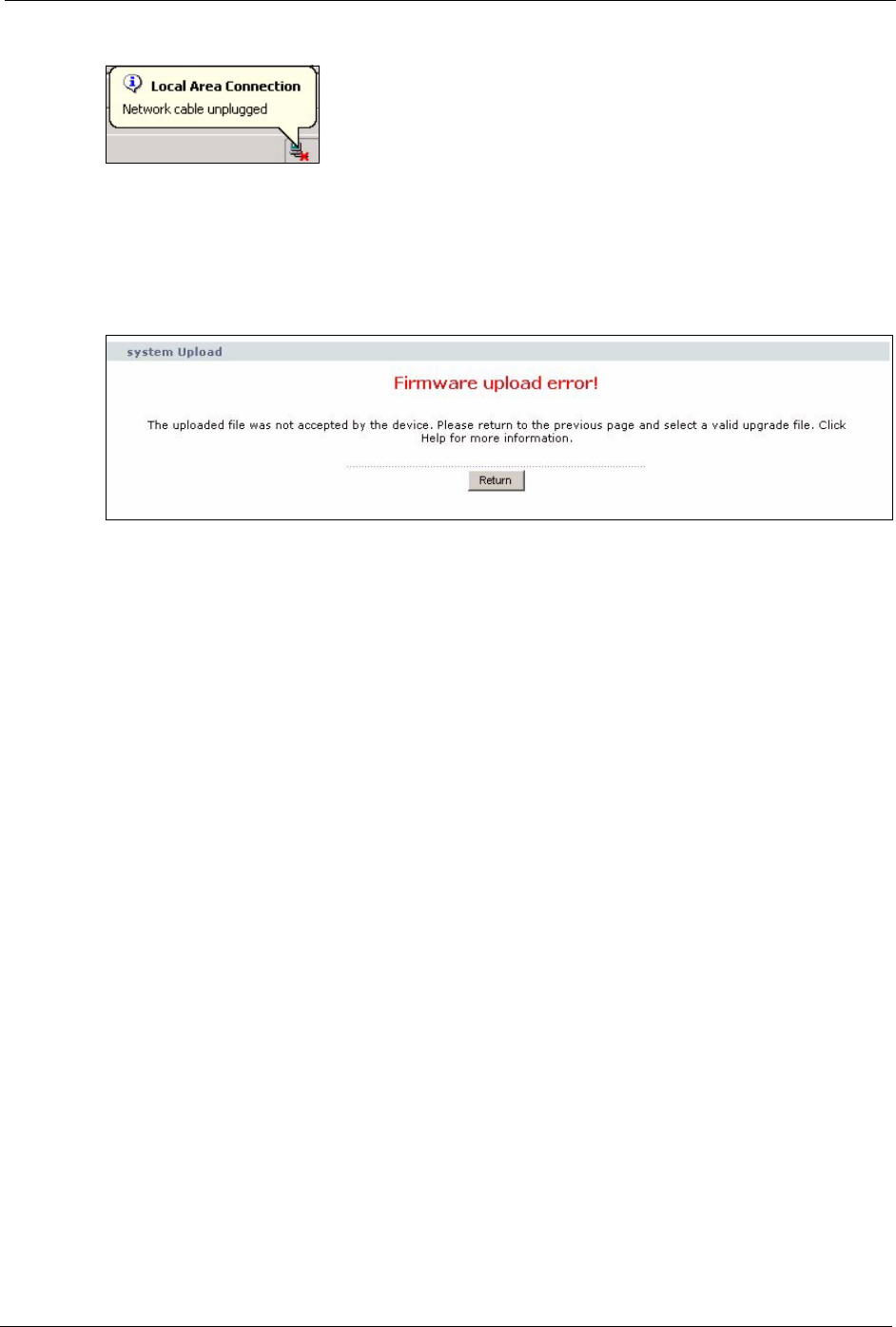

Figure 111 Network Temporarily Disconnected
After two minutes, log in again, and check your new firmware version in the Status screen.
You might have to open a new browser to log in.
If the upload is not successful, the following screen appears.
Figure 112 Firmware Upload Error
Click Return to go back to the Firmware screen.
19.2.3 Configuration Screen
Use this screen to back up or restore the configuration of the ZyXEL Device. You can also use
this screen to reset the ZyXEL Device to the factory default settings. To access this screen,
click Maintenance > Tools > Configuration.
ZyXEL MAX-200M1 Series User’s Guide
194 Chapter 19 Tools

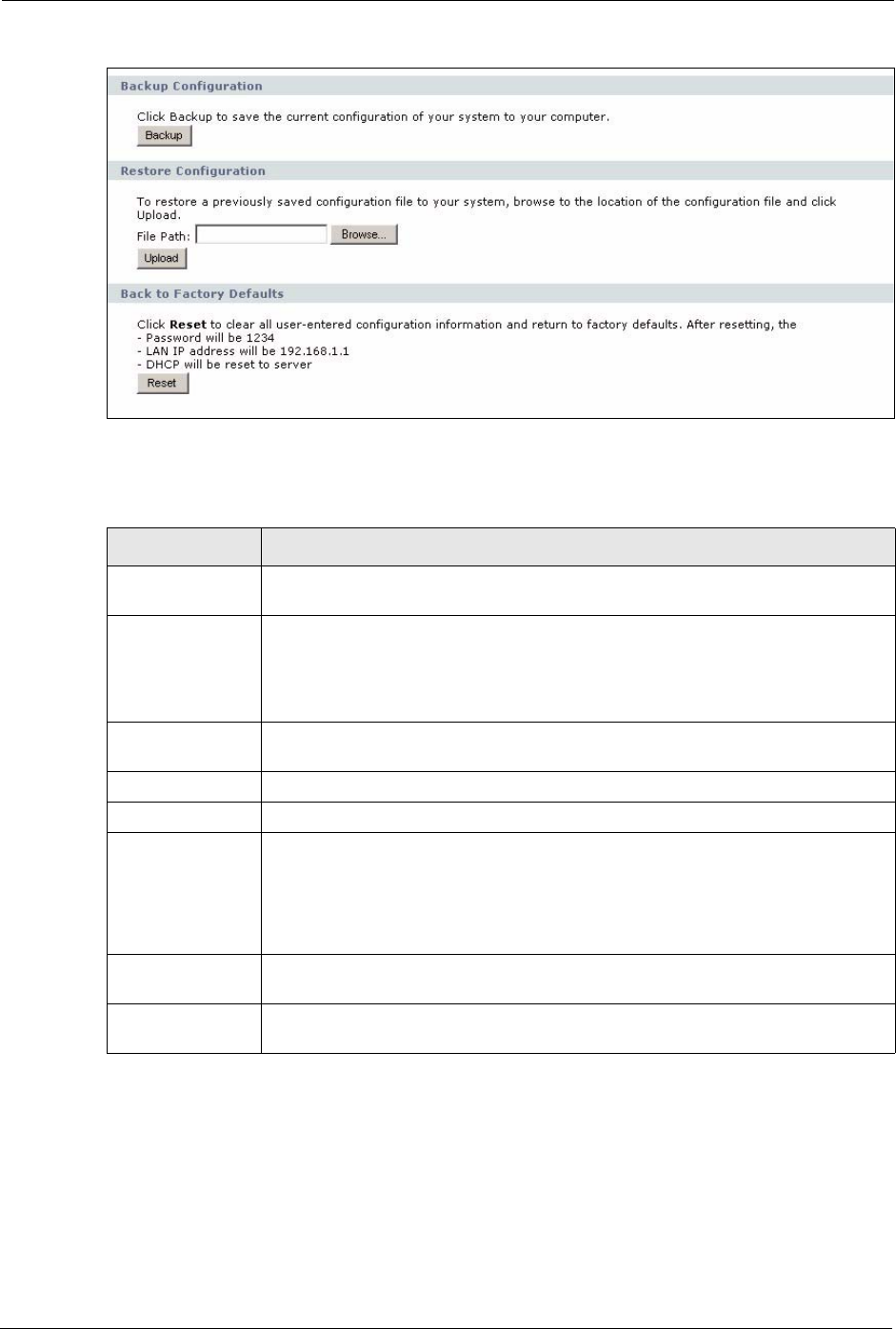

Figure 113 Maintenance > Tools > Configuration
Each field is described in the following table.
19.2.4 Restore Configuration Screens
Note: Do not turn off the device while configuration file upload is in progress.
When the ZyXEL Device has finished restoring the selected configuration file, the following
screen appears.
Table 81 Maintenance > Tools > Configuration
LABEL DESCRIPTION
Backup
Configuration
Backup Click this to save the ZyXEL Device’s current configuration to a file on your
computer. Once your device is configured and functioning properly, it is highly
recommended that you back up your configuration file before making configuration
changes. The backup configuration file is useful if you need to return to your
previous settings.
Restore
Configuration
File Path Enter the location of the file you want to upload, or click Browse... to find it.
Browse Click this to find the file you want to upload.
Upload Click this to restore the selected configuration file. See Section 19.2.4 on page 194
for more information about this.
Note: Do not turn off the device while configuration file upload is in
progress.
Back to Factory
Defaults
Reset Click this to clear all user-entered configuration information and return the ZyXEL
Device to its factory defaults. There is no warning screen.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 19 Tools 195

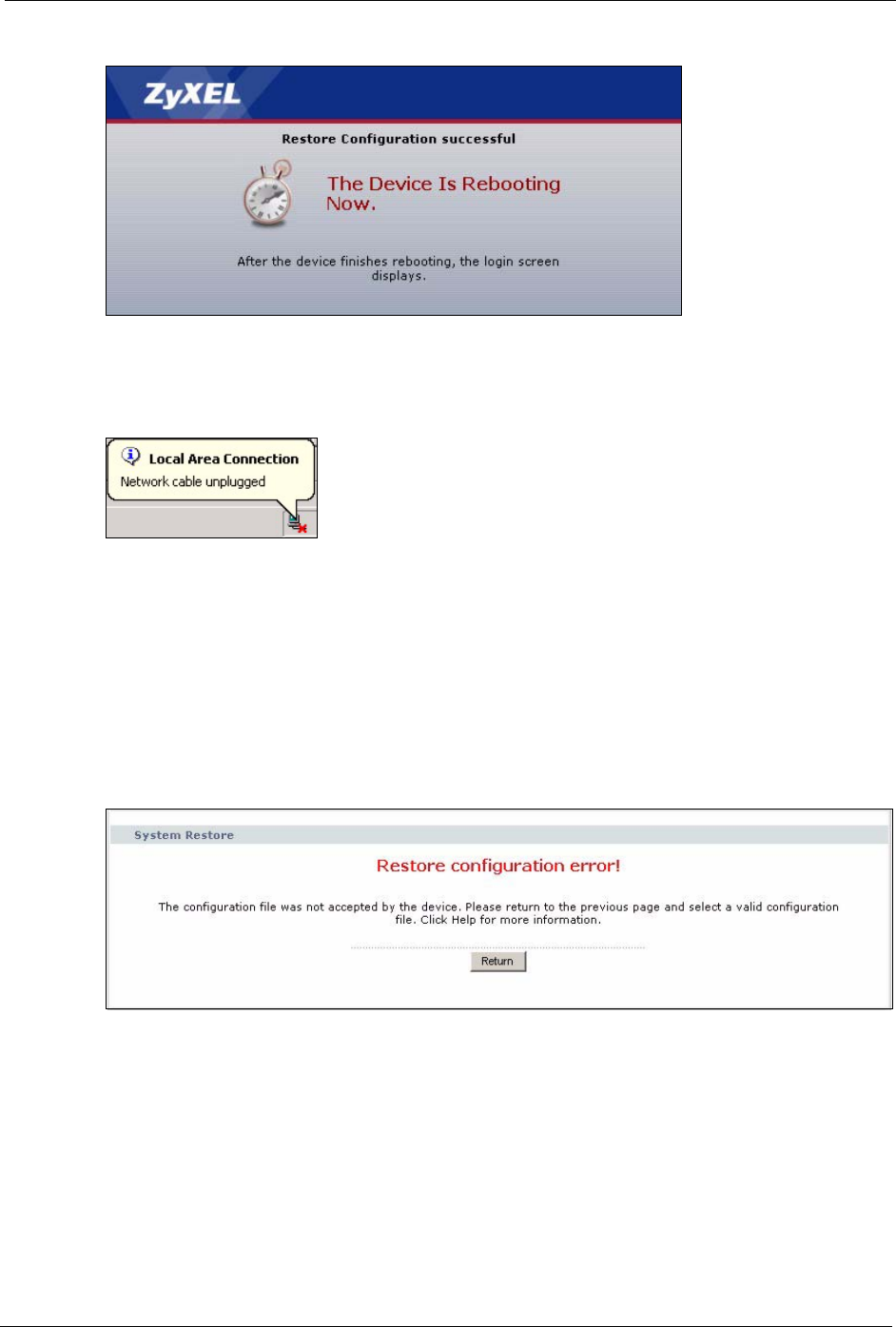

Figure 114 Configuration Upload Successful
The device now automatically restarts. This causes a temporary network disconnect. In some
operating systems, you may see the following icon on your desktop.
Figure 115 Network Temporarily Disconnected
If the ZyXEL Device’s IP address is different in the configuration file you selected, you may
need to change the IP address of your computer to be in the same subnet as that of the default
management IP address (192.168.5.1). See your Quick Start Guide or the appendices for
details on how to set up your computer’s IP address.
You might have to open a new browser to log in again.
If the upload was not successful, a Configuration Upload Error screen appears.
Figure 116 Configuration Upload Error
Click Return to go back to the Configuration screen.
19.2.5 Restart Screen
Use this screen to reboot the ZyXEL Device without turning the power off. To access this
screen, click Maintenance > Tools > Restart.
ZyXEL MAX-200M1 Series User’s Guide
196 Chapter 19 Tools

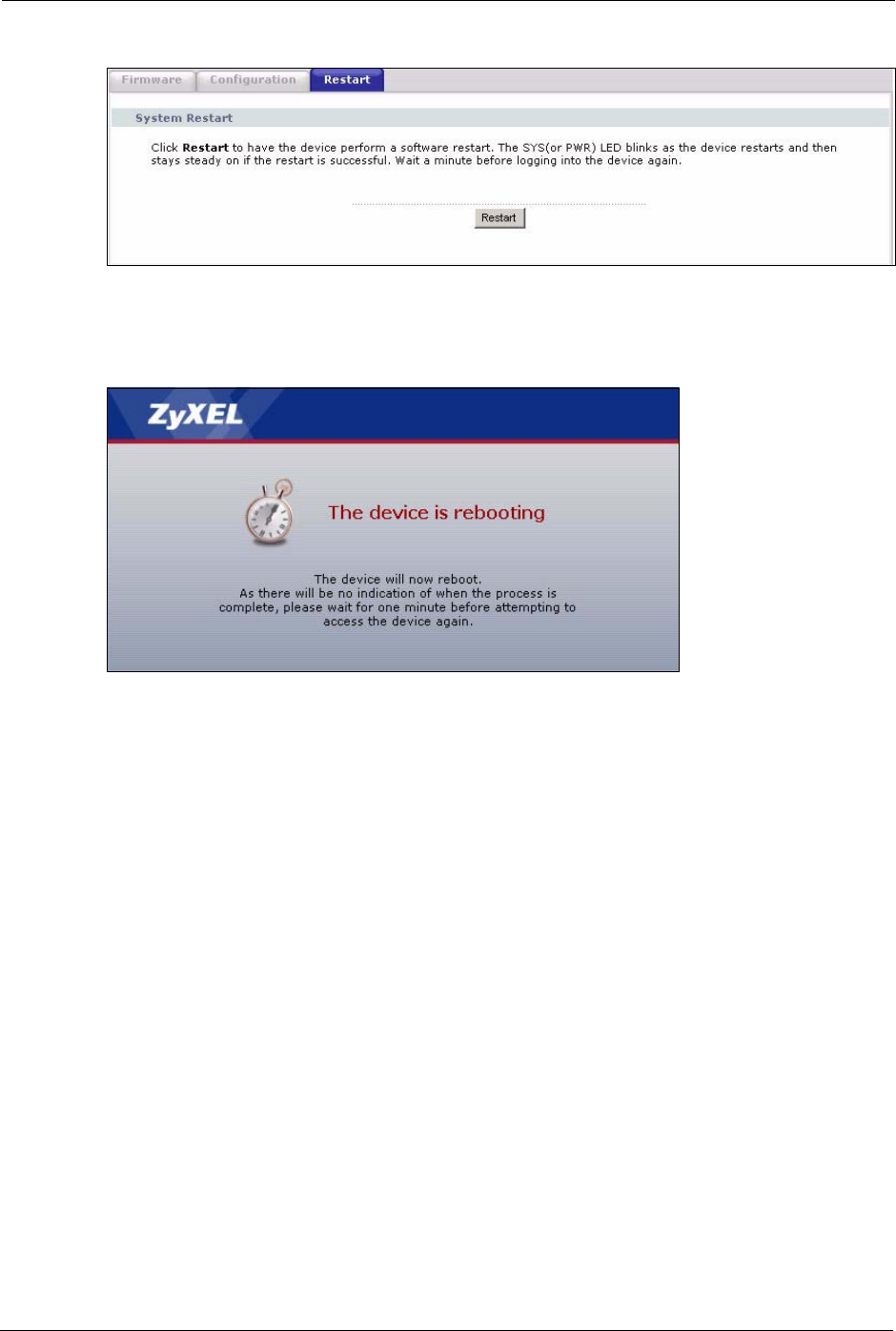

Figure 117 Maintenance > Tools > Restart
This does not affect the ZyXEL Device’s configuration. When you click Restart, the
following screen appears.
Figure 118 Maintenance > Tools > Restart > In Progress
Wait one minute for the device to finish restarting. Then, you can log in again.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 20 System 197
CHAPTER 20
System
Use this screen to set up general system settings, change the system mode, change the
password, configure the DDNS server settings, and set the current date and time.
20.1 System Features Overview
20.1.1 System Name
System Name is for identification purposes. However, because some ISPs check this name
you should enter your computer's "Computer Name".
• In Windows 95/98 click Start, Settings, Control Panel, Network. Click the
Identification tab, note the entry for the Computer Name field and enter it as the
System Name.
• In Windows 2000, click Start, Settings and Control Panel and then double-click
System. Click the Network Identification tab and then the Properties button. Note the
entry for the Computer name field and enter it as the System Name.
• In Windows XP, click Start, My Computer, View system information and then click
the Computer Name tab. Note the entry in the Full computer name field and enter it as
the ZyXEL Device System Name.
20.1.2 Domain Name
The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave
this blank, the domain name obtained by DHCP from the ISP is used. While you must enter
the host name (System Name) on each individual computer, the domain name can be assigned
from the ZyXEL Device via DHCP.
20.1.3 DNS Server Address Assignment
Use DNS (Domain Name System) to map a domain name to its corresponding IP address and
vice versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is
extremely important because without it, you must know the IP address of a computer before
you can access it.
The ZyXEL Device can get the DNS server addresses in the following ways.
ZyXEL MAX-200M1 Series User’s Guide
198 Chapter 20 System
1The ISP tells you the DNS server addresses, usually in the form of an information sheet,
when you sign up. If your ISP gives you DNS server addresses, enter them in the DNS
Server fields in the SYSTEM General screen.
2If the ISP did not give you DNS server information, leave the DNS Server fields in the
SYSTEM General screen set to 0.0.0.0 for the ISP to dynamically assign the DNS server
IP addresses.
20.1.4 Dynamic DNS
Dynamic DNS allows you to update your current dynamic IP address with one or many
dynamic DNS services so that anyone can contact you (in NetMeeting, CU-SeeMe, etc.). You
can also access your FTP server or Web site on your own computer using a domain name (for
instance myhost.dhs.org, where myhost is a name of your choice) that will never change
instead of using an IP address that changes each time you reconnect. Your friends or relatives
will always be able to call you even if they don't know your IP address.
First of all, you need to have registered a dynamic DNS account with www.dyndns.org. This is
for people with a dynamic IP from their ISP or DHCP server that would still like to have a
domain name. The Dynamic DNS service provider will give you a password or key.
Enabling the wildcard feature for your host causes *.yourhost.dyndns.org to be aliased to the
same IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use,
for example, www.yourhost.dyndns.org and still reach your hostname.
Note: If you have a private WAN IP address, then you cannot use Dynamic DNS.
20.1.5 Pre-defined NTP Time Servers List
The ZyXEL Device uses the following pre-defined list of NTP time servers if you do not
specify a time server or it cannot synchronize with the time server you specified.
Note: The ZyXEL Device can use this pre-defined list of time servers regardless of
the Time Protocol you select.
When the ZyXEL Device uses the pre-defined list of NTP time servers, it randomly selects
one server and tries to synchronize with it. If the synchronization fails, then the ZyXEL
Device goes through the rest of the list in order from the first one tried until either it is
successful or all the pre-defined NTP time servers have been tried.
Table 82 Pre-defined NTP Time Servers
ntp1.cs.wisc.edu
ntp1.gbg.netnod.se
ntp2.cs.wisc.edu
tock.usno.navy.mil
ntp3.cs.wisc.edu
ntp.cs.strath.ac.uk
ZyXEL MAX-200M1 Series User’s Guide
Chapter 20 System 199
20.1.6 Resetting the Time
The ZyXEL Device resets the time in the following instances:
• When the ZyXEL Device starts up.
• When you click Apply in the Time Setting Screen.
• 24-hour intervals after starting.
20.2 System Screens
20.2.1 General System Screen
Use this screen to change the ZyXEL Device’s mode, set up the ZyXEL Device’s system
name, domain name, idle timeout, and administrator password. To access this screen, click
Maintenance > System > General.
ntp1.sp.se
time1.stupi.se
tick.stdtime.gov.tw
tock.stdtime.gov.tw
time.stdtime.gov.tw
Table 82 Pre-defined NTP Time Servers
ZyXEL MAX-200M1 Series User’s Guide
200 Chapter 20 System

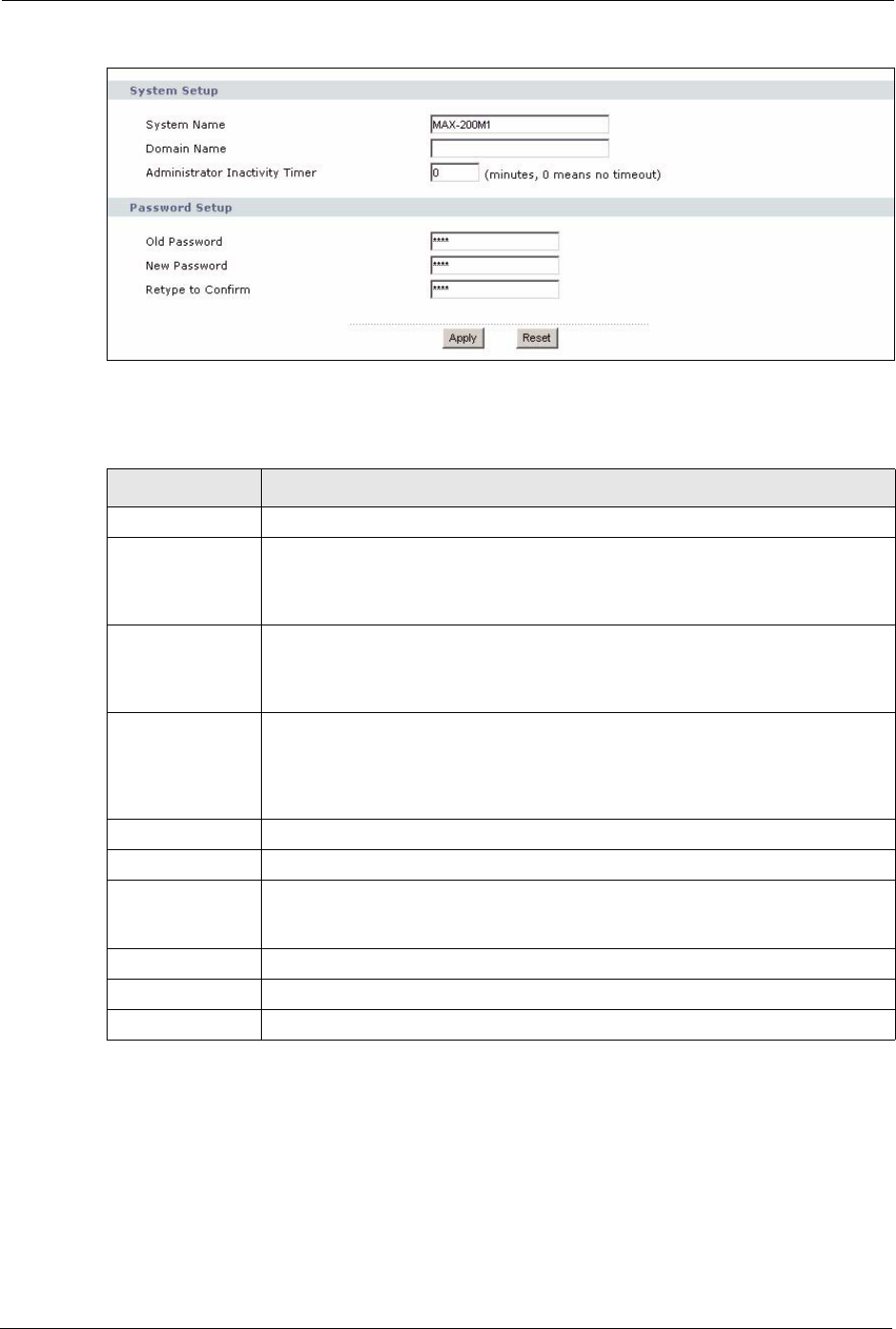

Figure 119 Maintenance > System > General
Each field is described in the following table.
20.2.2 Dynamic DNS Screen
Use this screen to set up the ZyXEL Device as a dynamic DNS client. To access this screen,
click Maintenance > System > Dynamic DNS.
Table 83 Maintenance > System > General
LABEL DESCRIPTION
System Setup
System Name Enter your computer's "Computer Name". This is for identification purposes, but
some ISPs also check this field. This name can be up to 30 alphanumeric
characters long. Spaces are not allowed, but dashes “-” and underscores "_" are
accepted.
Domain Name Enter the domain name entry that is propagated to DHCP clients on the LAN. If you
leave this blank, the domain name obtained from the ISP is used. Use up to 38
alphanumeric characters. Spaces are not allowed, but dashes “-” and periods "."
are accepted.
Administrator
Inactivity Timer
Enter the number of minutes a management session can be left idle before the
session times out. After it times out, you have to log in again. A value of "0" means
a management session never times out, no matter how long it has been left idle.
This is not recommended. Long idle timeouts may have security risks. The default
is five minutes.
Password Setup
Old Password Enter the current password you use to access the ZyXEL Device.
New Password Enter the new password for the ZyXEL Device. You can use up to 30 characters.
As you type the password, the screen displays an asterisk (*) for each character
you type.
Retype to Confirm Enter the new password again.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its default value.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 20 System 201
Figure 120 Maintenance > System > Dynamic DNS
Each field is described in the following table.
Table 84 Maintenance > System > Dynamic DNS
LABEL DESCRIPTION
Dynamic DNS
Setup
Enable Dynamic
DNS
Select this to use dynamic DNS.
Service Provider Select the name of your Dynamic DNS service provider.
Dynamic DNS
Type
Select the type of service that you are registered for from your Dynamic DNS
service provider.
Host Name Enter the host name. You can specify up to two host names, separated by a
comma (",").
User Name Enter your user name.
Password Enter the password assigned to you.
Enable Wildcard
Option
Select this to enable the DynDNS Wildcard feature.
Enable offline
option
This field is available when CustomDNS is selected in the DDNS Type field.
Select this if your Dynamic DNS service provider redirects traffic to a URL that you
can specify while you are off line. Check with your Dynamic DNS service provider.
IP Address Update
Policy
Use WAN IP
Address
Select this if you want the ZyXEL Device to update the domain name with the WAN
port's IP address.
ZyXEL MAX-200M1 Series User’s Guide
202 Chapter 20 System
20.2.3 Time Setting Screen
Use this screen to set the date, time, and time zone in the ZyXEL Device. To access this
screen, click Maintenance > System > Time Setting.
Dynamic DNS
server auto detect
IP address
Select this if you want the DDNS server to update the IP address of the host
name(s) automatically. Select this option when there are one or more NAT routers
between the ZyXEL Device and the DDNS server.
Note: The DDNS server may not be able to detect the proper IP
address if there is an HTTP proxy server between the ZyXEL
Device and the DDNS server.
Use specified IP
address
Select this if you want to use the specified IP address with the host name(s). Then,
specify the IP address. Use this option if you have a static IP address.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its default value.
Table 84 Maintenance > System > Dynamic DNS
LABEL DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
Chapter 20 System 203

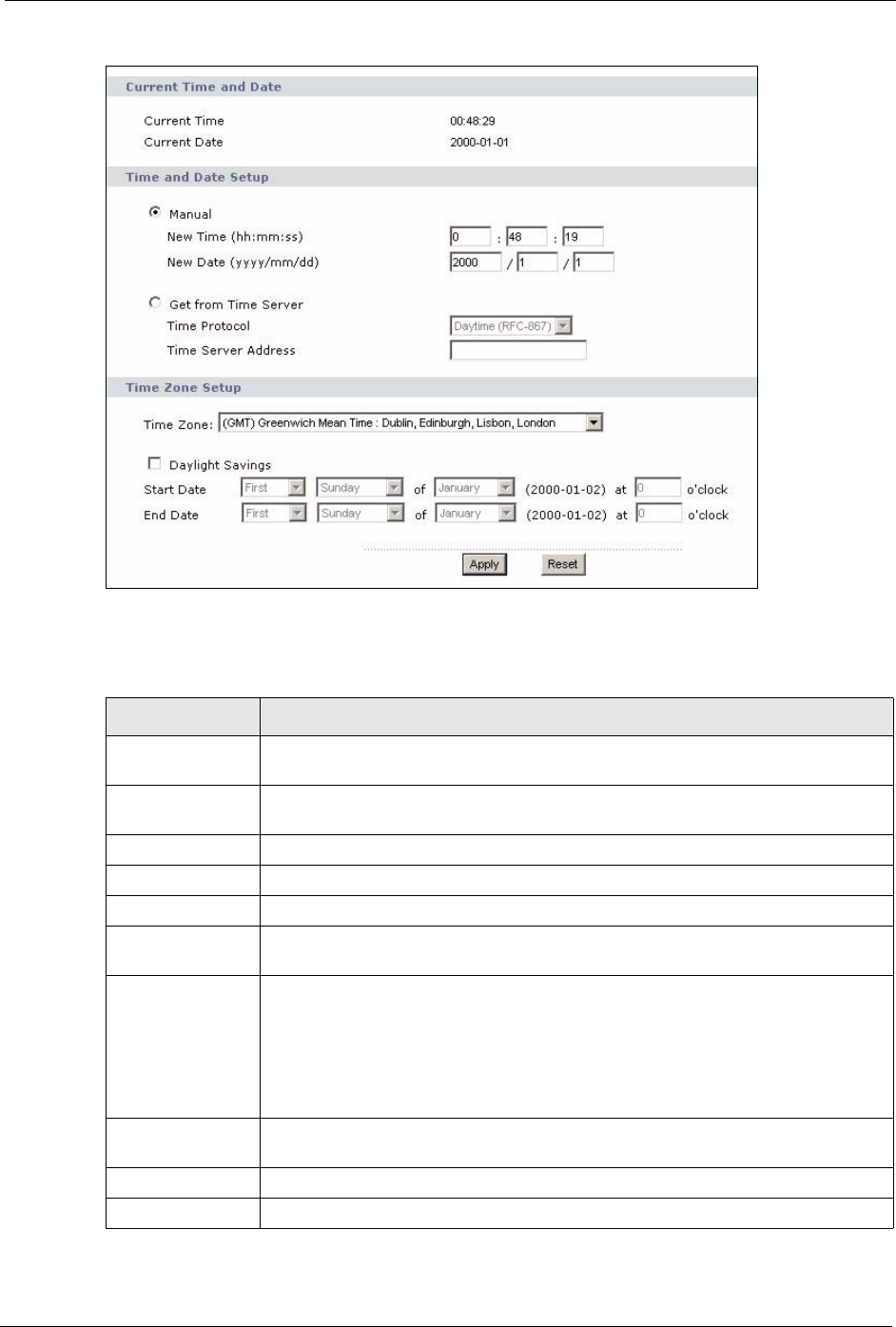

Figure 121 Maintenance > System > Time Setting
Each field is described in the following table.
Table 85 Maintenance > System > Time Setting
LABEL DESCRIPTION
Current Time and
Date
This section displays the current date and time.
Time and Date
Setup
Manual Select this if you want to specify the current date and time in the fields below.
New Time Enter the new time in this field, and click Apply.
New Date Enter the new date in this field, and click Apply.
Get from Time
Server
Select this if you want to use a time server to update the current date and time in
the ZyXEL Device.
Time Protocol Select the time service protocol that your time server uses.Check with your ISP or
network administrator, or use trial-and-error to find a protocol that works.
Daytime (RFC 867) - This format is day/month/year/time zone.
Time (RFC 868) - This format displays a 4-byte integer giving the total number of
seconds since 1970/1/1 at 0:0:0.
NTP (RFC 1305) - This format is similar to Time (RFC 868).
Time Server
Address
Enter the IP address or URL of your time server. Check with your ISP or network
administrator if you are unsure of this information.
Time Zone Setup
Time Zone Select the time zone at your location.
ZyXEL MAX-200M1 Series User’s Guide
204 Chapter 20 System
Daylight Savings Select this if your location uses daylight savings time. Daylight savings is a period
from late spring to early fall when many places set their clocks ahead of normal
local time by one hour to give more daytime light in the evening.
Start Date Enter which hour on which day of which week of which month daylight-savings
time starts.
End Date Enter which hour on the which day of which week of which month daylight-savings
time ends.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its last-saved value.
Table 85 Maintenance > System > Time Setting
LABEL DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
Chapter 21 Troubleshooting 205
CHAPTER 21
Troubleshooting
This chapter covers potential problems and the corresponding remedies.
21.1 Problems Starting Up the ZyXEL Device
21.2 Problems with the LAN
Table 86 Troubleshooting Starting Up Your Device
PROBLEM CORRECTIVE ACTION
None of the
lights turn on
when I turn on
the ZyXEL
Device.
Make sure that the ZyXEL Device’s power adaptor is connected to the ZyXEL Device
and plugged in to an appropriate power source. Make sure that the power source is
turned on.
Remove the power jack, then reinsert it.
If the error persists, you may have a hardware problem. In this case, you should
contact your vendor.
Table 87 Troubleshooting the LAN
PROBLEM CORRECTIVE ACTION
The LAN light
does not turn on.
Check your Ethernet cable connections (refer to the Quick Start Guide for details).
Check for faulty Ethernet cables.
Make sure your computer’s Ethernet Card is working properly.
I cannot access
the ZyXEL
Device from the
LAN.
If Any IP is disabled, make sure that the IP address and the subnet mask of the
ZyXEL Device and your computer(s) are on the same subnet.
ZyXEL MAX-200M1 Series User’s Guide
206 Chapter 21 Troubleshooting
21.3 Problems with the WAN
21.4 Problems with the Link Quality
Table 88 Troubleshooting the WAN
PROBLEM CORRECTIVE ACTION
I cannot connect to
the Internet.
Check your connection. Look at the LINK and SIGNAL LEDs on the front of the
ZyXEL Device. If the ZyXEL Device cannot detect a signal, follow the steps in
Section 21.4 on page 206 to search for a wireless signal.
Check your security settings. In the web configurator, go to the Status screen.
Click Profile in the WiMAX Information box and make sure that you are using the
correct security settings for your Internet account.
Check your WiMAX settings. The ZyXEL Device may have been set to search the
wrong frequencies for a wireless connection. In the web configurator, go to the
Status screen. Click Site Information in the WiMAX Information box and ensure
that the values are correct. If the values are incorrect, enter the correct frequency
settings in the Network > WAN > WiMAX Frequency screen. If you are unsure of
the correct values, contact your service provider.
Check your IP address settings. You may be using IP address settings
incompatible with your Internet account. If you are unsure of the correct settings,
contact your service provider. See Appendix C on page 223 for information on how
to set up your IP address.
The Internet
connection
disconnects.
Check your WiMAX link and signal strength using the LINK and SIGNAL LEDs on
the device. See the following section if signal strength is poor or the ZyXEL Device
has no link to a base station.
Contact your ISP if the problem persists.
Table 89 Troubleshooting Link Quality
PROBLEM CORRECTIVE ACTION
Internet access is
slow or
intermittent.
The quality of the ZyXEL Device’s wireless connection to the base station may be
poor.
Poor signal reception may be improved by moving the ZyXEL Device away from
thick walls and other obstructions, or to a higher floor in your building.
There may be radio interference caused by nearby electrical devices such as
microwave ovens and radio transmitters. Move the ZyXEL Device away or switch
the other devices off.
Weather conditions may also affect signal quality.
As well as having an external antenna connector, the ZyXEL Device is equipped
with an internal directional antenna. If you know the location of the base station,
orient the front of the ZyXEL Device (the side with the LEDs) towards the base
station. If you do not know the location of the base station, experiment by moving
the ZyXEL Device while observing the SIGNAL LEDs for an increase in received
signal strength.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 21 Troubleshooting 207
21.5 Problems Accessing the ZyXEL Device
21.5.1 Pop-up Windows, JavaScripts and Java Permissions
In order to use the web configurator you need to allow:
• Web browser pop-up windows from your device.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).
Note: Internet Explorer 6 screens are used here. Screens for other Internet Explorer
versions may vary.
Table 90 Troubleshooting Accessing Your Device
PROBLEM CORRECTIVE ACTION
I cannot
access the
ZyXEL Device.
The default password is “1234”. The Password field is case-sensitive. Make sure that
you enter the correct password, using the proper casing.
If you have changed the password and have now forgotten it, you will need to upload
the default configuration file. This restores all of the factory defaults including the
password.
I cannot
access the
web
configurator.
Make sure that there is not a telnet session running.
Use the ZyXEL Device’s WAN IP address when configuring from the WAN. Refer to
the instructions on checking your WAN connection.
Use the ZyXEL Device’s LAN IP address when configuring from the LAN. Refer to for
instructions on checking your LAN connection.
Your computer’s and the ZyXEL Device’s IP addresses must be on the same subnet
for LAN access.
If you changed the ZyXEL Device’s LAN IP address, then enter the new one as the
URL.
See the following section to check that pop-up windows, JavaScripts and Java
permissions are allowed.
You may also need to clear your Internet browser’s cache.
In Internet Explorer, click Tools and then Internet Options to open the Internet
Options screen.
In the General tab, click Delete Files. In the pop-up window, select the Delete all
offline content check box and click OK. Click OK in the Internet Options screen to
close it.
If you disconnect your computer from one device and connect it to another device that
has the same IP address, your computer’s ARP (Address Resolution Protocol) table
may contain an entry that maps the management IP address to the previous device’s
MAC address).
In Windows, use arp -d at the command prompt to delete all entries in your computer’s
ARP table.
I cannot
remotely
manage the
ZyXEL Device
from the LAN
or WAN.
Refer to Chapter 21 on page 205 for scenarios when remote management may not be
possible.
Use the ZyXEL Device’s WAN IP address when configuring from the WAN.
Use the ZyXEL Device’s LAN IP address when configuring from the LAN.
ZyXEL MAX-200M1 Series User’s Guide
208 Chapter 21 Troubleshooting
21.5.1.1 Internet Explorer Pop-up Blockers
You may have to disable pop-up blocking to log into your device.
Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or
allow pop-up blocking and create an exception for your device’s IP address.
21.5.1.1.1 Disable pop-up Blockers
1In Internet Explorer, select Tool s , Pop-up Blocker and then select Turn Off Pop-up
Blocker.

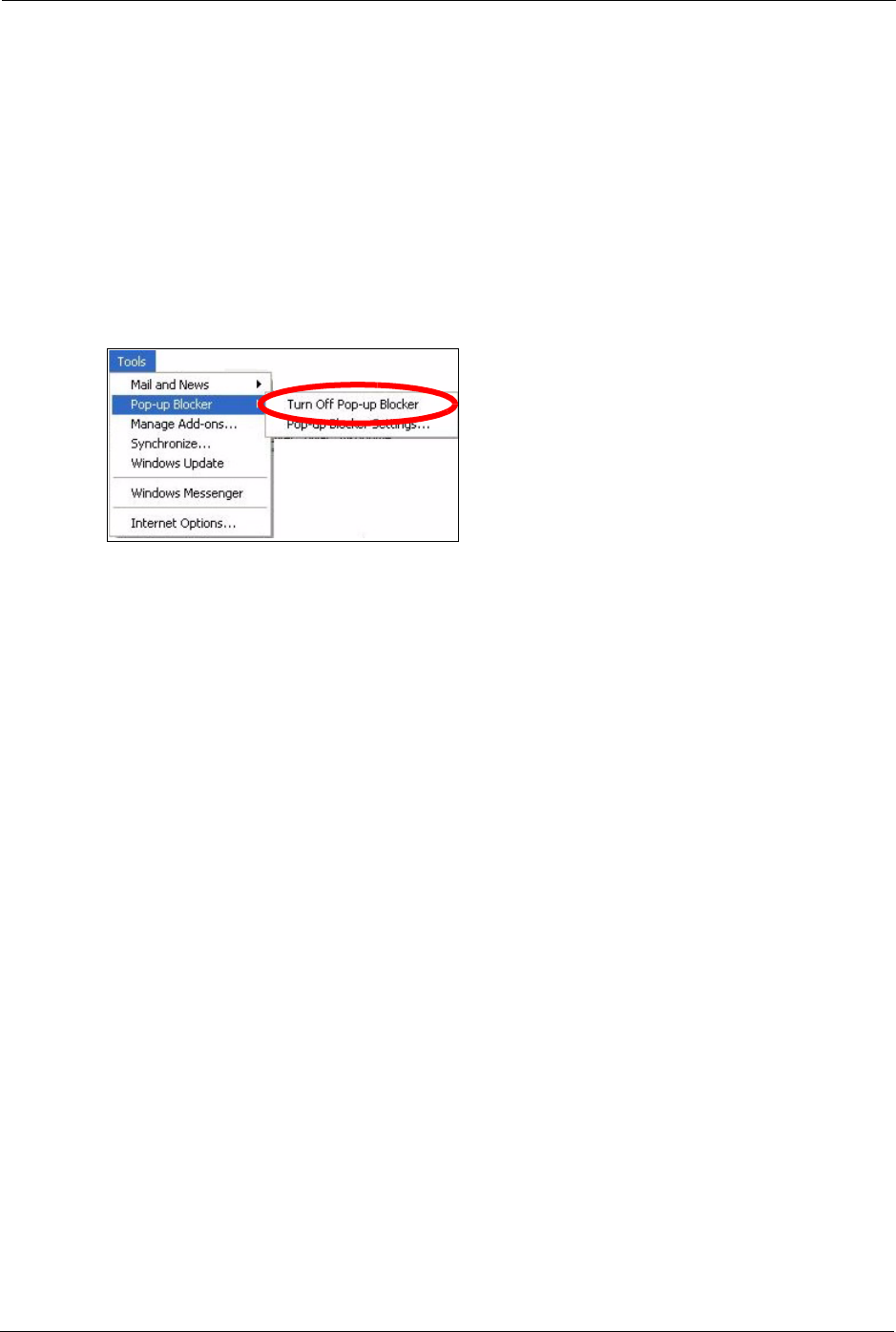

Figure 122 Pop-up Blocker
You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the
Privacy tab.
1In Internet Explorer, select Tool s , Internet Options, Privacy.
2Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This
disables any web pop-up blockers you may have enabled.
ZyXEL MAX-200M1 Series User’s Guide
Chapter 21 Troubleshooting 209

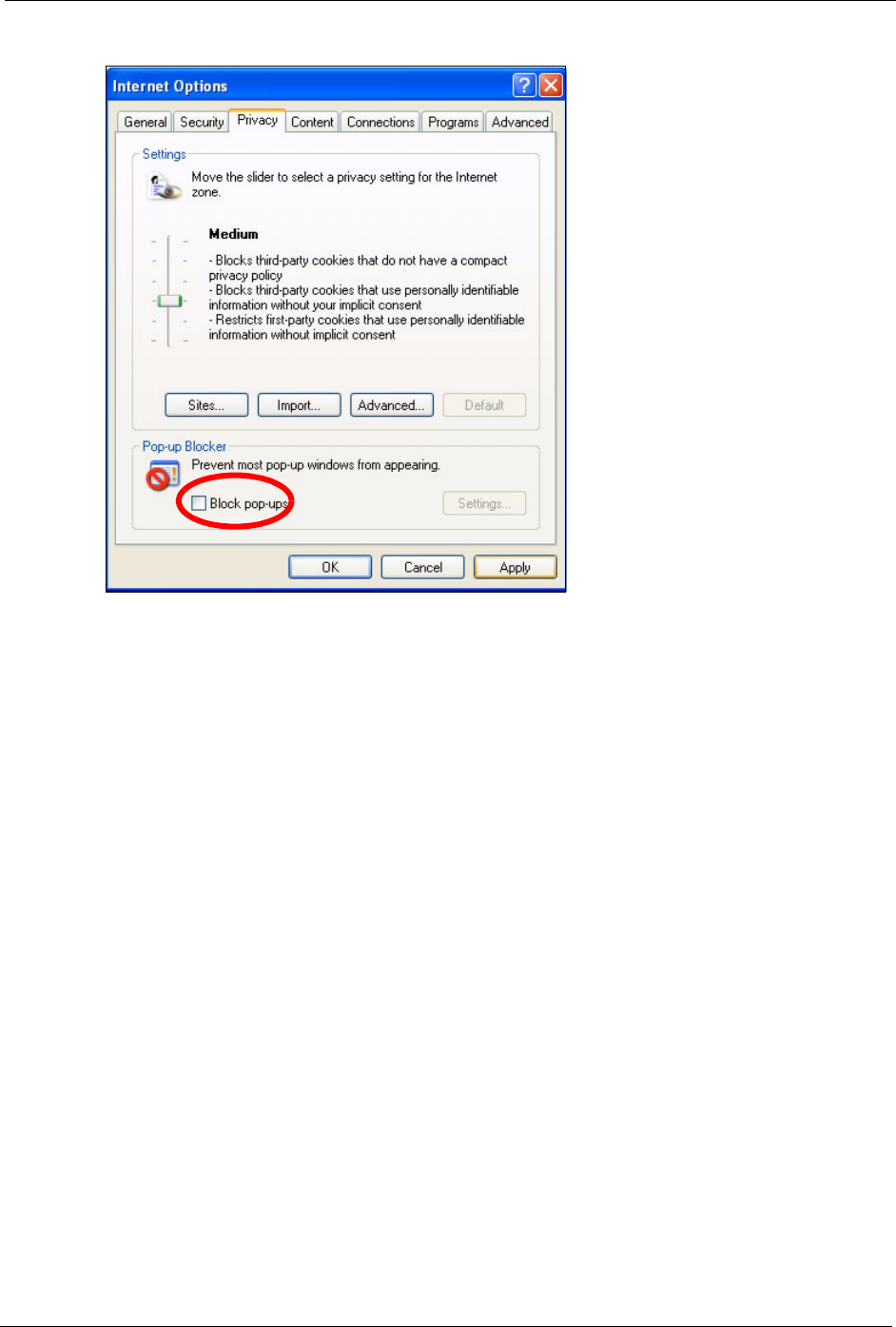

Figure 123 Internet Options
3Click Apply to save this setting.
21.5.1.1.2 Enable pop-up Blockers with Exceptions
Alternatively, if you only want to allow pop-up windows from your device, see the following
steps.
1In Internet Explorer, select Tool s , Internet Options and then the Privacy tab.
2Select Settings…to open the Pop-up Blocker Settings screen.
ZyXEL MAX-200M1 Series User’s Guide
210 Chapter 21 Troubleshooting

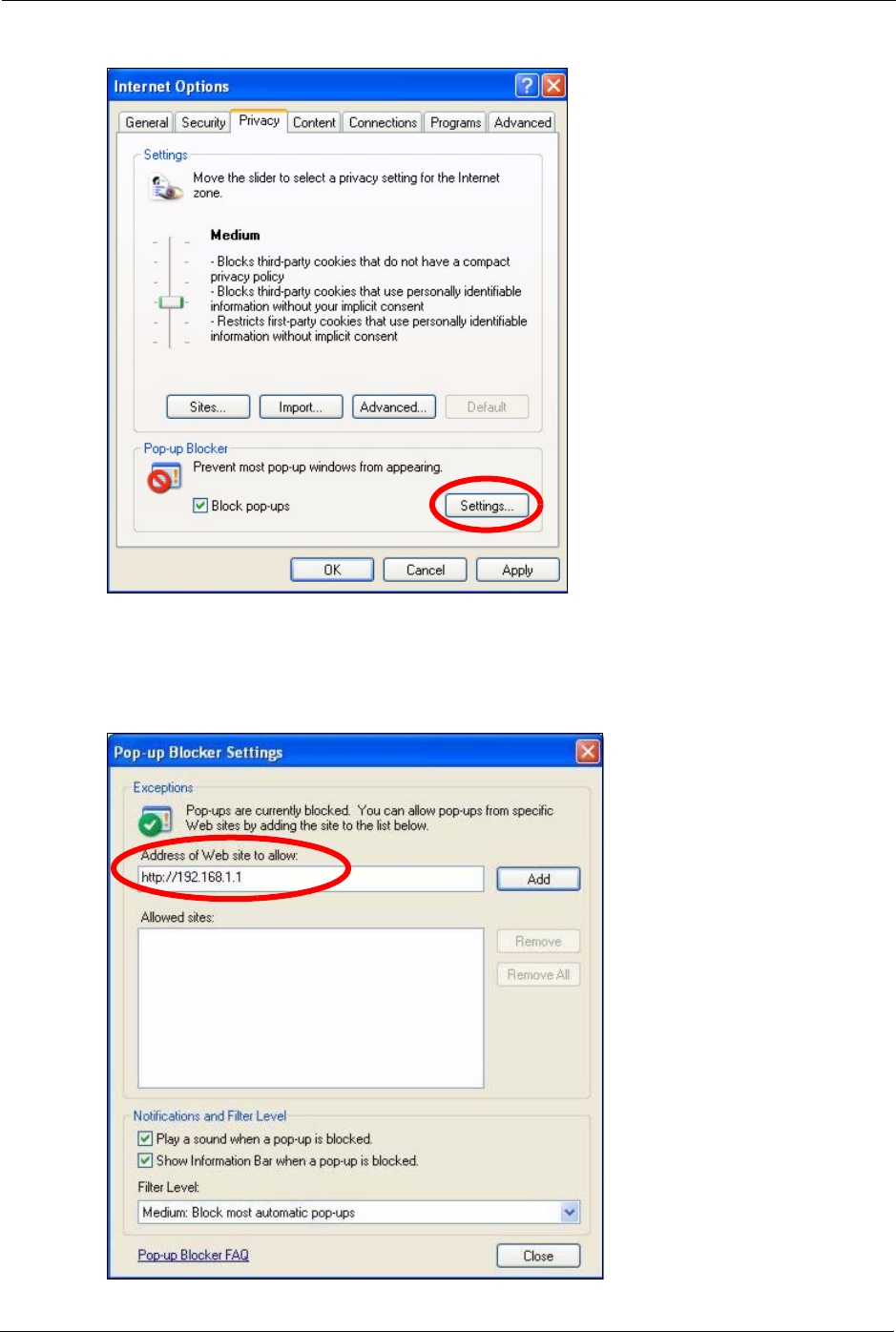

Figure 124 Internet Options
3Type the IP address of your device (the web page that you do not want to have blocked)
with the prefix “http://”. For example, http://192.168.1.1.
4Click Add to move the IP address to the list of Allowed sites.
Figure 125 Pop-up Blocker Settings
ZyXEL MAX-200M1 Series User’s Guide
Chapter 21 Troubleshooting 211
5Click Close to return to the Privacy screen.
6Click Apply to save this setting.
21.5.1.2 JavaScripts
If pages of the web configurator do not display properly in Internet Explorer, check that
JavaScripts are allowed.
1In Internet Explorer, click Tools, Internet Options and then the Security tab.

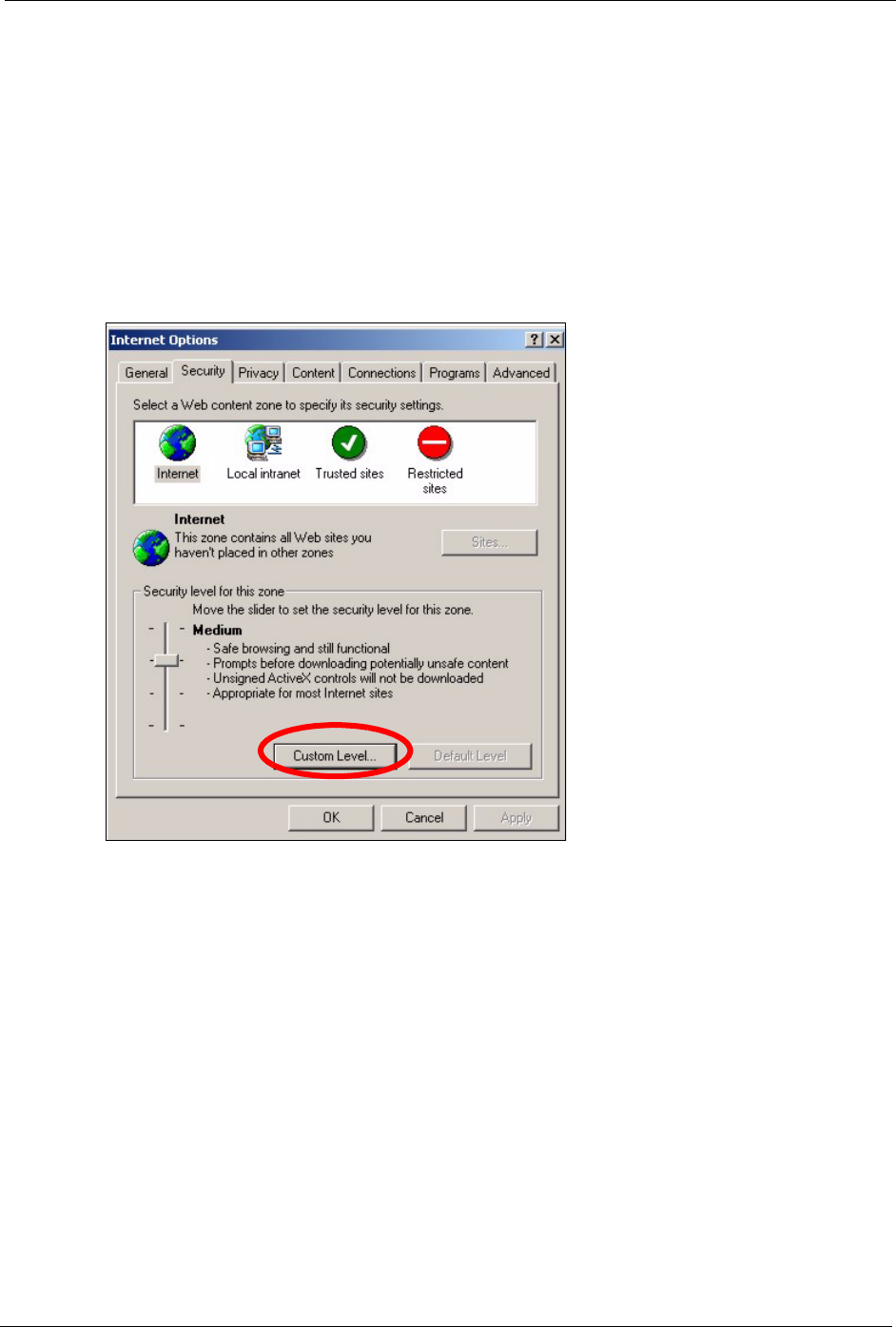

Figure 126 Internet Options
2Click the Custom Level... button.
3Scroll down to Scripting.
4Under Active scripting make sure that Enable is selected (the default).
5Under Scripting of Java applets make sure that Enable is selected (the default).
6Click OK to close the window.
ZyXEL MAX-200M1 Series User’s Guide
212 Chapter 21 Troubleshooting

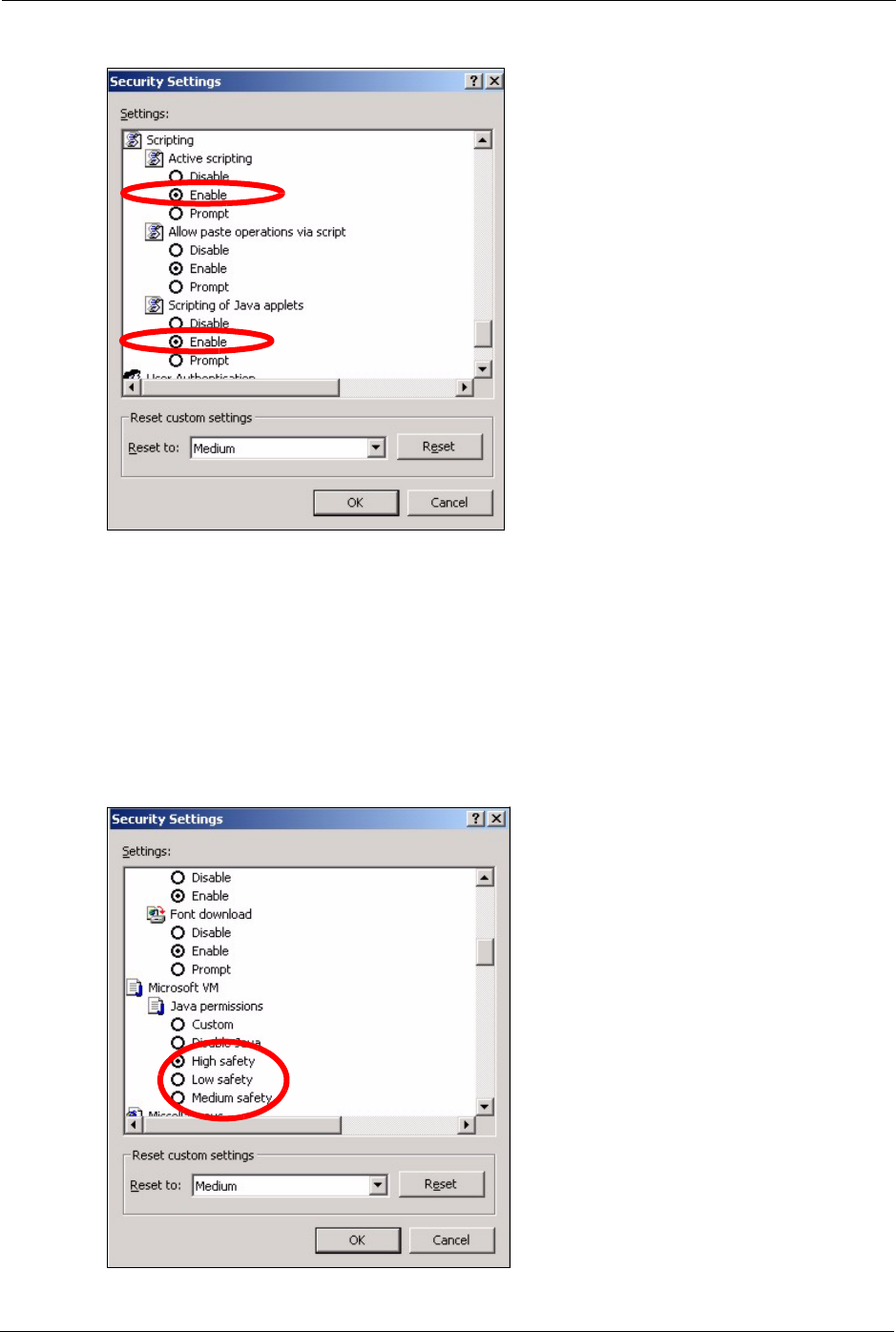

Figure 127 Security Settings - Java Scripting
21.5.1.3 Java Permissions
1From Internet Explorer, click Tools, Internet Options and then the Security tab.
2Click the Custom Level... button.
3Scroll down to Microsoft VM.
4Under Java permissions make sure that a safety level is selected.
5Click OK to close the window.
Figure 128 Security Settings - Java
ZyXEL MAX-200M1 Series User’s Guide
Chapter 21 Troubleshooting 213
21.5.1.3.1 JAVA (Sun)
1From Internet Explorer, click Tools, Internet Options and then the Advanced tab.
2make sure that Use Java 2 for <applet> under Java (Sun) is selected.
3Click OK to close the window.

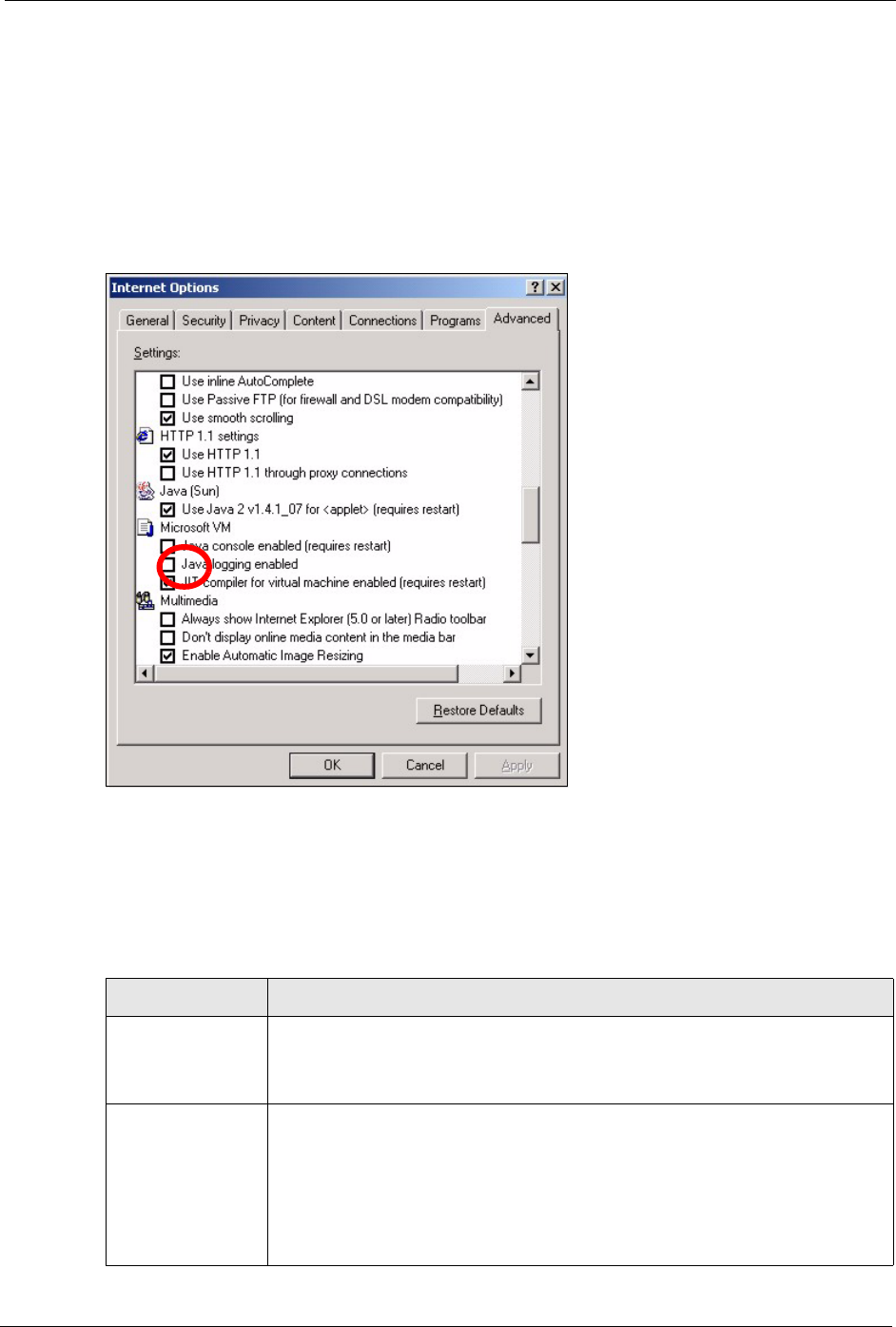

Figure 129 Java (Sun)
21.6 Telephone Problems
Table 91 Troubleshooting Telephone
PROBLEM CORRECTIVE ACTION
The telephone port
won’t work or the
telephone lacks a
dial tone.
Check the telephone connections and telephone wire.
Make sure you have the VoIP SIP Settings screen properly configured.
I can access the
Internet, but
cannot make VoIP
calls.
Make sure you have the VoIP SIP Settings screen properly configured.
The VoIP LED should come on. Make sure that your telephone is connected to
the LINE port.
You can also check the VoIP status in the Status screen.
If the VoIP settings are correct, use speed dial to make peer-to-peer calls. If you
cannot make a call using speed dial, there may be something wrong with the SIP
server. Contact your VoIP service provider.
ZyXEL MAX-200M1 Series User’s Guide
214 Chapter 21 Troubleshooting
21.7 Problems With Multiple SIP Accounts
You can set up two SIP accounts on your ZyXEL Device. By default your ZyXEL Device uses
SIP account 1 for outgoing calls, and it uses SIP accounts 1 and 2 for incoming calls. With this
setting, you always use SIP account 1 for your outgoing calls and you cannot distinguish
which SIP account the calls are coming in through. If you want to control the use of different
dialing plans for accounting purposes or other reasons, you need to configure your phone port
in order to control which SIP account you are using when placing or receiving calls.
ZyXEL MAX-200M1 Series User’s Guide
Appendix A 215
APPENDIX A
Product Specifications
Table 92 Product Specifications
PHYSICAL AND ENVIRONMENTAL
Product Name ZyXEL MAX-200M1 Series IEEE 802.16e Simple Indoor CPE
Interface Auto-negotiating, auto-MDI/MDI-X 10/100 Mbps RJ-45 Ethernet port
Standards IEEE 802.16e-2005
Antenna Built-in patch antenna: 6dBi, 70° azimuth, 30° elevation
SMA antenna connector, equipped by default with 2dBi omni
antenna, 60°
Operating Temperature 0 ~ 45 degrees Centigrade
Storage Temperature -25 ~ 55 degrees Centigrade
Operating Humidity 10% ~ 90% (non-condensing)
Storage Humidity 10% ~ 100%
Power Supply 18 V DC
Power consumption Worst-case-scenario 10W, peak 15W
Weight 389g
Dimensions 120 x 160 x 50mm
RADIO SPECIFICATIONS
Media Access Protocol IEEE 802.16e
WiMAX Bandwidth MAX-200M1: 2.5 - 2.7 GHz
MAX-210M1: 3.4 ~ 3.6 GHz
MAX-230M1: 2.3 ~ 2.4 GHz
Data Rate Downlink:
Maximum 5 Mbps
Uplink:
Maximum 2 Mbps
Modulation QPSK (uplink and downlink)
16-QAM (uplink and downlink)
64-QAM (downlink only)
Output Power 27dBm (+/- 1dB)
Duplex mode Time Division Duplex (TDD)
SOFTWARE SPECIFICATIONS
Security PKMv2
EAP
CCMP, 128-bit AES
ZyXEL MAX-200M1 Series User’s Guide
216 Appendix A
Table 93 Physical Features
FEATURE DESCRIPTION
Auto-crossover 10/100 Mbps
Ethernet Interface
This interface automatically adjusts to either a crossover or straight-
through Ethernet cable.
External Antenna The ZyXEL Device is equipped with an attached antenna to provide a
clear radio connection with the WiMAX base station.
Telephone Port Connect an analog telephone to the ZyXEL Device’s LINE port (RJ-11
connector) to take advantage of its Voice over IP (VoIP) features.
Reset Button The reset button is built into the rear panel. Use this button to restore
the factory default password to 1234; IP address to 192.168.1.1,
subnet mask to 255.255.255.0 and DHCP server enabled with a pool
of 32 IP addresses starting at 192.168.1.33.
Table 94 Non-Physical Features
FEATURE DESCRIPTION
High Speed Wireless Internet
Access
The ZyXEL Device is ideal for high-speed wireless Internet browsing.
WiMAX (Worldwide Interoperability for Microwave Access) is a
wireless networking standard providing high-bandwidth, wide-range
secured wireless service. The ZyXEL Device is a WiMAX mobile
station (MS) compatible with the IEEE 802.16e standard.
Firewall The ZyXEL Device is a stateful inspection firewall with DoS (Denial of
Service) protection. By default, when the firewall is activated, all
incoming traffic from the WAN to the LAN is blocked unless it is
initiated from the LAN. The ZyXEL Device’s firewall supports TCP/UDP
inspection, DoS detection and prevention, real time alerts, reports and
logs.
Content Filtering The ZyXEL Device can block access to web sites containing specified
keywords. You can define time periods and days during which content
filtering is enabled and include or exclude a range of users on the LAN
from content filtering.
Any IP The Any IP feature allows a computer to access the Internet and the
ZyXEL Device without changing the network settings (such as IP
address and subnet mask) of the computer, when the IP addresses of
the computer and the ZyXEL Device are not in the same subnet.
Auto Provisioning Your Internet service provider can automatically update your device’s
configuration via an auto-provisioning server.
Auto Firmware Upgrade Your device gives you the option to upgrade to a newer firmware
version if it finds one during auto-provisioning. Your VoIP service
provider must have an auto-provisioning server and a server set up
with firmware in order for this feature to work.
Network Address Translation
(NAT)
Network Address Translation (NAT) allows the translation of an
Internet protocol address used within one network (for example a
private IP address used in a local network) to a different IP address
known within another network (for example a public IP address used
on the Internet).
Universal Plug and Play
(UPnP)
Your device and other UPnP enabled devices can use the standard
TCP/IP protocol to dynamically join a network, obtain an IP address
and convey their capabilities to each other.
ZyXEL MAX-200M1 Series User’s Guide
Appendix A 217
Dynamic DNS Support With Dynamic DNS support, you can have a static hostname alias for a
dynamic IP address, allowing the host to be more easily accessible
from various locations on the Internet. You must register for this service
with a Dynamic DNS service provider.
DHCP DHCP (Dynamic Host Configuration Protocol) allows the individual
clients (computers) to obtain the TCP/IP configuration at start-up from
a centralized DHCP server. Your device has built-in DHCP server
capability enabled by default. It can assign IP addresses, an IP default
gateway and DNS servers to DHCP clients. Your device can also act
as a surrogate DHCP server (DHCP Relay) where it relays IP address
assignment from the actual real DHCP server to the clients.
Multiple PVC (Permanent
Virtual Circuits) Support
Your device supports up to 8 Permanent Virtual Circuits (PVCs).
IP Alias IP alias allows you to partition a physical network into logical networks
over the same Ethernet interface. Your device supports three logical
LAN interfaces via its single physical Ethernet interface with the your
device itself as the gateway for each LAN network.
IP Policy Routing (IPPR) Traditionally, routing is based on the destination address only and the
router takes the shortest path to forward a packet. IP Policy Routing
(IPPR) provides a mechanism to override the default routing behavior
and alter the packet forwarding based on the policy defined by the
network administrator.
REN A Ringer Equivalence Number (REN) is used to determine the number
of devices (like telephones or fax machines) that may be connected to
the telephone line. Your device has a REN of three, so it can support
three devices per telephone port.
Multiple SIP Accounts You can configure multiple voice (SIP) accounts.
SIP ALG Your device is a SIP Application Layer Gateway (ALG). It allows VoIP
calls to pass through NAT for devices behind it (such as a SIP-based
VoIP software application on a computer).
Dynamic Jitter Buffer The built-in adaptive buffer helps to smooth out the variations in delay
(jitter) for voice traffic. This helps ensure good voice quality for your
conversations.
Voice Activity Detection/
Silence Suppression
Voice Activity Detection (VAD) reduces the bandwidth that a call uses
by not transmitting when you are not speaking.
Comfort Noise Generation Your device generates background noise to fill moments of silence
when the other device in a call stops transmitting because the other
party is not speaking (as total silence could easily be mistaken for a
lost connection).
Echo Cancellation You device supports G.168, an ITU-T standard for eliminating the echo
caused by the sound of your voice reverberating in the telephone
receiver while you talk.
QoS (Quality of Service) Quality of Service (QoS) mechanisms help to provide better service on
a per-flow basis. Your device supports Type of Service (ToS) tagging.
This allows the device to tag voice frames so they can be prioritized
over the network.
Packet Filters Your device’s packet filtering function allows added network security
and management.
Table 94 Non-Physical Features
FEATURE DESCRIPTION
ZyXEL MAX-200M1 Series User’s Guide
218 Appendix A
ZyXEL MAX-200M1 Series User’s Guide
219
APPENDIX B
WiMAX Security
Wireless security is vital to protect your wireless communications. Without it, information
transmitted over the wireless network would be accessible to any networking device within
range.
User Authentication and Data Encryption
The WiMAX (IEEE 802.16) standard employs user authentication and encryption to ensure
secured communication at all times.
User authentication is the process of confirming a user’s identity and level of authorization.
Data encryption is the process of encoding information so that it cannot be read by anyone
who does not know the code.
WiMAX uses PKMv2 (Privacy Key Management version 2) for authentication, and CCMP
(Counter Mode with Cipher Block Chaining Message Authentication Protocol) for data
encryption.
WiMAX supports EAP (Extensible Authentication Protocol, RFC 2486) which allows
additional authentication methods to be deployed with no changes to the base station or the
mobile or subscriber stations.
PKMv2
PKMv2 is a procedure that allows authentication of a mobile or subscriber station and
negotiation of a public key to encrypt traffic between the MS/SS and the base station. PKMv2
uses standard EAP methods such as Transport Layer Security (EAP-TLS) or Tunneled TLS
(EAP-TTLS) for secure communication.
In cryptography, a ‘key’ is a piece of information, typically a string of random numbers and
letters, that can be used to ‘lock’ (encrypt) or ‘unlock’ (decrypt) a message. Public key
encryption uses key pairs, which consist of a public (freely available) key and a private
(secret) key. The public key is used for encryption and the private key is used for decryption.
You can decrypt a message only if you have the private key. Public key certificates (or ‘digital
IDs’) allow users to verify each other’s identity.
ZyXEL MAX-200M1 Series User’s Guide
220
RADIUS
RADIUS is based on a client-server model that supports authentication, authorization and
accounting. The base station is the client and the server is the RADIUS server. The RADIUS
server handles the following tasks:
• Authentication
Determines the identity of the users.
• Authorization
Determines the network services available to authenticated users once they are connected
to the network.
• Accounting
Keeps track of the client’s network activity.
RADIUS is a simple package exchange in which your base station acts as a message relay
between the MS/SS and the network RADIUS server.
Types of RADIUS Messages
The following types of RADIUS messages are exchanged between the base station and the
RADIUS server for user authentication:
• Access-Request
Sent by an base station requesting authentication.
• Access-Reject
Sent by a RADIUS server rejecting access.
• Access-Accept
Sent by a RADIUS server allowing access.
• Access-Challenge
Sent by a RADIUS server requesting more information in order to allow access. The base
station sends a proper response from the user and then sends another Access-Request
message.
The following types of RADIUS messages are exchanged between the base station and the
RADIUS server for user accounting:
• Accounting-Request
Sent by the base station requesting accounting.
• Accounting-Response
Sent by the RADIUS server to indicate that it has started or stopped accounting.

Navigation menu
