manual part 3
![](/img.php?id=1154264&img=bg1.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 301
15.6 Trusted CA Import
Click Security > Certificates > Trusted CAs to open the Trusted CAs screen
and then click Import to open the Trusted CA Import screen. Follow the
instructions in this screen to save a trusted certification authority’s certificate to
the ZyXEL Device.
Subject This field displays identifying information about the certificate’s owner,
such as CN (Common Name), OU (Organizational Unit or department),
O (Organization or company) and C (Country). It is recommended that
each certificate have unique subject information.
Issuer This field displays identifying information about the certificate’s issuing
certification authority, such as a common name, organizational unit or
department, organization or company and country. With self-signed
certificates, this is the same information as in the Subject field.
Valid From This field displays the date that the certificate becomes applicable. The
text displays in red and includes a Not Yet Valid! message if the
certificate has not yet become applicable.
Valid To This field displays the date that the certificate expires. The text displays
in red and includes an Expiring! or Expired! message if the certificate is
about to expire or has already expired.
CRL Issuer This field displays Yes if the certification authority issues Certificate
Revocation Lists for the certificates that it has issued and you have
selected the Issues certificate revocation lists (CRL) check box in
the certificate’s details screen to have the ZyXEL Device check the CRL
before trusting any certificates issued by the certification authority.
Otherwise the field displays “No”.
Modify Click the Edit icon to open a screen with an in-depth list of information
about the certificate.
Click the Remove icon to remove the certificate. A window displays
asking you to confirm that you want to delete the certificates. Note that
subsequent certificates move up by one when you take this action.
Import Click Import to open a screen where you can save the certificate of a
certification authority that you trust, from your computer to the ZyXEL
Device.
Refresh Click this button to display the current validity status of the certificates.
Table 96 Security > Certificates > Trusted CAs (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg2.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
302
Note: You must remove any spaces from the certificate’s filename before you can
import the certificate.
Figure 179 Security > Certificates > Trusted CA > Import
The following table describes the labels in this screen.
15.7 Trusted CA Details
Click Security > Certificates > Trusted CAs to open the Trusted CAs screen.
Click the details icon to open the Trusted CA Details screen. Use this screen to
view in-depth information about the certification authority’s certificate, change the
certificate’s name and set whether or not you want the ZyXEL Device to check a
Table 97 Security > Certificates > Trusted CA > Import
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse
to find it.
Browse Click Browse to find the certificate file you want to upload.
Back Click Back to return to the previous screen.
Apply Click Apply to save the certificate on the ZyXEL Device.
Cancel Click Cancel to quit and return to the Trusted CAs screen.
![](/img.php?id=1154264&img=bg3.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 303
certification authority’s list of revoked certificates before trusting a certificate
issued by the certification authority.

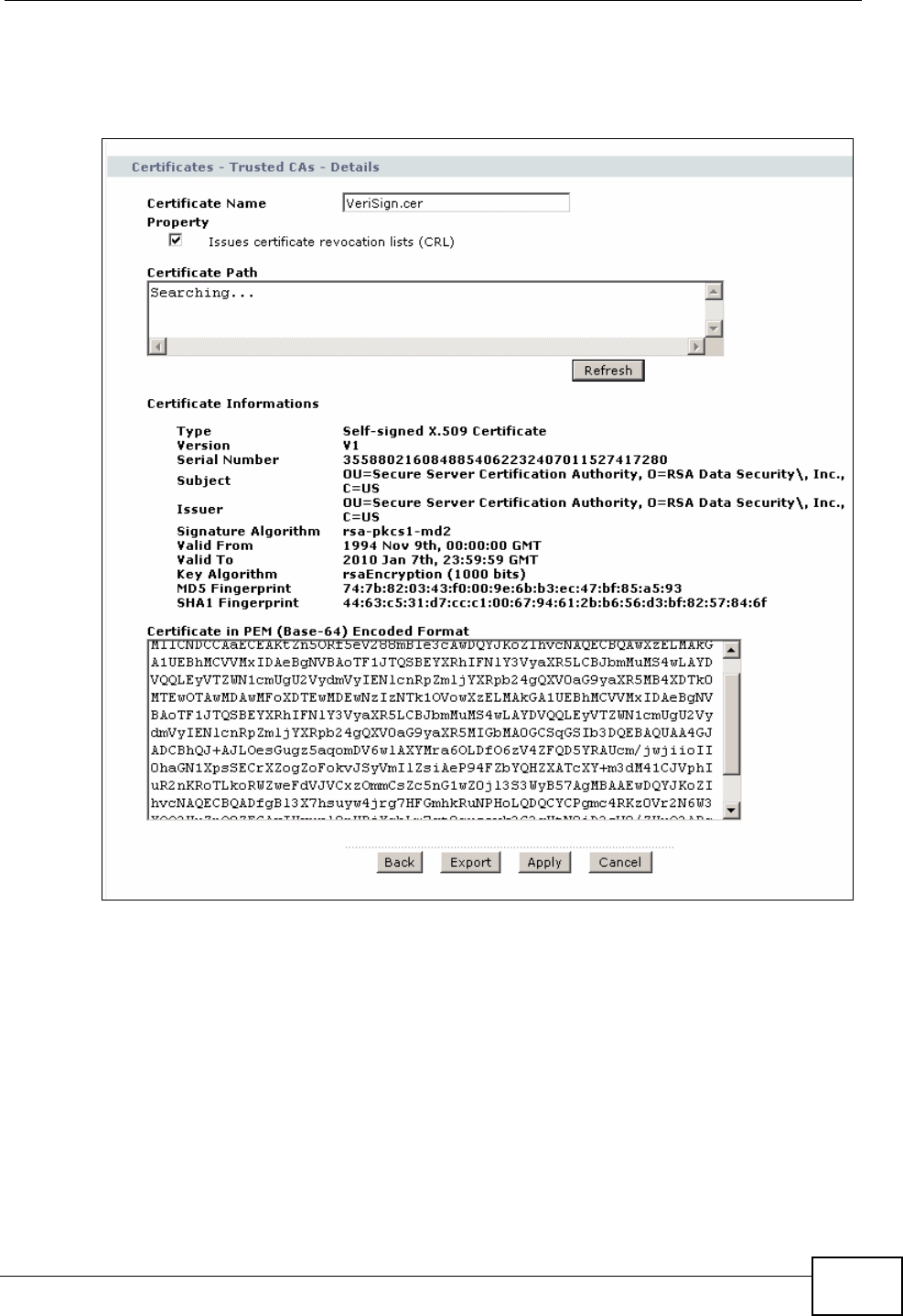

Figure 180 Security > Certificates > Trusted CA > Details
![](/img.php?id=1154264&img=bg4.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
304
The following table describes the labels in this screen.
Table 98 Security > Certificates > Trusted CA > Details
LABEL DESCRIPTION
Certificate Name This field displays the identifying name of this certificate. If you want
to change the name, type up to 31 characters to identify this key
certificate. You may use any character (not including spaces).
Property
Issues certificate
revocation lists
(CRLs)
Select this check box to have the ZyXEL Device check incoming
certificates that are issued by this certification authority against a
Certificate Revocation List (CRL).
Clear this check box to have the ZyXEL Device not check incoming
certificates that are issued by this certification authority against a
Certificate Revocation List (CRL).
Certificate Path Click the Refresh button to have this read-only text box display the
end entity’s certificate and a list of certification authority certificates
that shows the hierarchy of certification authorities that validate the
end entity’s certificate. If the issuing certification authority is one that
you have imported as a trusted certification authority, it may be the
only certification authority in the list (along with the end entity’s own
certificate). The ZyXEL Device does not trust the end entity’s
certificate and displays “Not trusted” in this field if any certificate on
the path has expired or been revoked.
Refresh Click Refresh to display the certification path.
Certificate
Information These read-only fields display detailed information about the
certificate.
Type This field displays general information about the certificate. CA-signed
means that a Certification Authority signed the certificate. Self-signed
means that the certificate’s owner signed the certificate (not a
certification authority). X.509 means that this certificate was created
and signed according to the ITU-T X.509 recommendation that
defines the formats for public-key certificates.
Version This field displays the X.509 version number.
Serial Number This field displays the certificate’s identification number given by the
certification authority.
Subject This field displays information that identifies the owner of the
certificate, such as Common Name (CN), Organizational Unit (OU),
Organization (O) and Country (C).
Issuer This field displays identifying information about the certificate’s
issuing certification authority, such as Common Name, Organizational
Unit, Organization and Country.
With self-signed certificates, this is the same information as in the
Subject Name field.
Signature
Algorithm This field displays the type of algorithm that was used to sign the
certificate. Some certification authorities use rsa-pkcs1-sha1 (RSA
public-private key encryption algorithm and the SHA1 hash
algorithm). Other certification authorities may use rsa-pkcs1-md5
(RSA public-private key encryption algorithm and the MD5 hash
algorithm).
Valid From This field displays the date that the certificate becomes applicable.
The text displays in red and includes a Not Yet Valid! message if the
certificate has not yet become applicable.
![](/img.php?id=1154264&img=bg5.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 305
Valid To This field displays the date that the certificate expires. The text
displays in red and includes an Expiring! or Expired! message if the
certificate is about to expire or has already expired.
Key Algorithm This field displays the type of algorithm that was used to generate the
certificate’s key pair (the ZyXEL Device uses RSA encryption) and the
length of the key set in bits (1024 bits for example).
Subject
Alternative Name This field displays the certificate’s owner‘s IP address (IP), domain
name (DNS) or e-mail address (EMAIL).
Key Usage This field displays for what functions the certificate’s key can be used.
For example, “DigitalSignature” means that the key can be used to
sign certificates and “KeyEncipherment” means that the key can be
used to encrypt text.
Basic Constraint This field displays general information about the certificate. For
example, Subject Type=CA means that this is a certification
authority’s certificate and “Path Length Constraint=1” means that
there can only be one certification authority in the certificate’s path.
CRL Distribution
Points This field displays how many directory servers with Lists of revoked
certificates the issuing certification authority of this certificate makes
available. This field also displays the domain names or IP addresses of
the servers.
MD5 Fingerprint This is the certificate’s message digest that the ZyXEL Device
calculated using the MD5 algorithm. You can use this value to verify
with the certification authority (over the phone for example) that this
is actually their certificate.
SHA1 Fingerprint This is the certificate’s message digest that the ZyXEL Device
calculated using the SHA1 algorithm. You can use this value to verify
with the certification authority (over the phone for example) that this
is actually their certificate.
Certificate in PEM
(Base-64)
Encoded Format
This read-only text box displays the certificate or certification request
in Privacy Enhanced Mail (PEM) format. PEM uses 64 ASCII characters
to convert the binary certificate into a printable form.
You can copy and paste the certificate into an e-mail to send to
friends or colleagues or you can copy and paste the certificate into a
text editor and save the file on a management computer for later
distribution (via floppy disk for example).
Back Click Back to return to the previous screen.
Export Click this button and then Save in the File Download screen. The
Save As screen opens, browse to the location that you want to use
and click Save.
Apply Click Apply to save your changes back to the ZyXEL Device. You can
only change the name and/or set whether or not you want the ZyXEL
Device to check the CRL that the certification authority issues before
trusting a certificate issued by the certification authority.
Cancel Click Cancel to quit and return to the Trusted CAs screen.
Table 98 Security > Certificates > Trusted CA > Details (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg6.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
306
15.8 Trusted Remote Hosts
Click Security > Certificates > Trusted Remote Hosts to open the Trusted
Remote Hosts screen. This screen displays a list of the certificates of peers that
you trust but which are not signed by one of the certification authorities on the
Trusted CAs screen.
You do not need to add any certificate that is signed by one of the certification
authorities on the Trusted CAs screen since the ZyXEL Device automatically
accepts any valid certificate signed by a trusted certification authority as being
trustworthy.

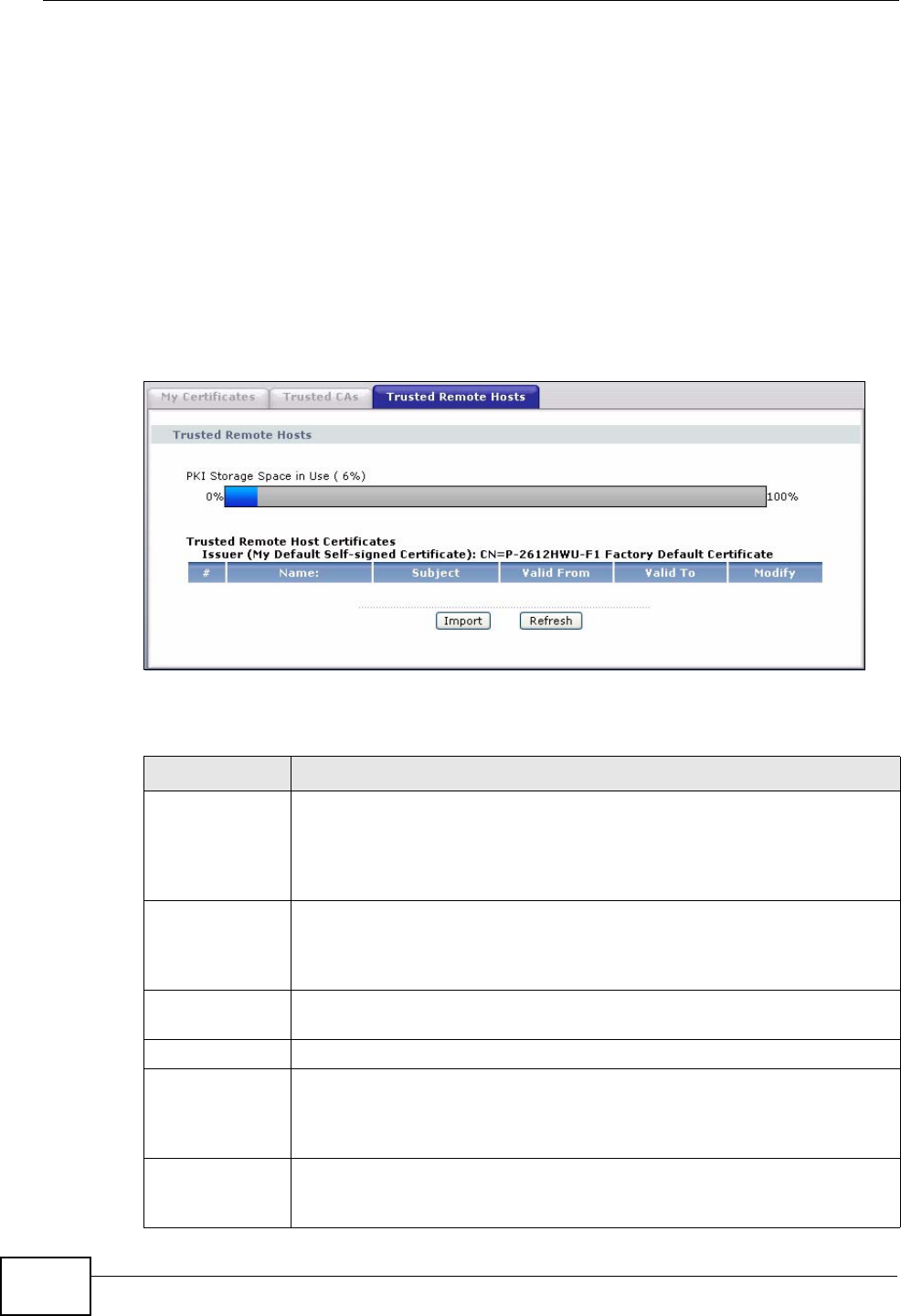

Figure 181 Security > Certificates > Trusted Remote Hosts
The following table describes the labels in this screen.
Table 99 Security > Certificates > Trusted Remote Hosts
LABEL DESCRIPTION
PKI Storage
Space in Use This bar displays the percentage of the ZyXEL Device’s PKI storage
space that is currently in use. The bar turns from green to red when the
maximum is being approached. When the bar is red, you should
consider deleting expired or unnecessary certificates before adding
more certificates.
Issuer (My
Default Self-
signed
Certificate)
This field displays identifying information about the default self-signed
certificate on the ZyXEL Device that the ZyXEL Device uses to sign the
trusted remote host certificates.
# This field displays the certificate index number. The certificates are
listed in alphabetical order.
Name This field displays the name used to identify this certificate.
Subject This field displays identifying information about the certificate’s owner,
such as CN (Common Name), OU (Organizational Unit or department),
O (Organization or company) and C (Country). It is recommended that
each certificate have unique subject information.
Valid From This field displays the date that the certificate becomes applicable. The
text displays in red and includes a Not Yet Valid! message if the
certificate has not yet become applicable.
![](/img.php?id=1154264&img=bg7.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 307
15.9 Trusted Remote Host Certificate Details
Click Security > Certificates > Trusted Remote Hosts to open the Trusted
Remote Hosts screen. Click the details icon to open the Trusted Remote Host
Valid To This field displays the date that the certificate expires. The text displays
in red and includes an Expiring! or Expired! message if the certificate is
about to expire or has already expired.
Modify Click the Edit icon to open a screen with an in-depth list of information
about the certificate.
Click the Remove icon to remove the certificate. A window displays
asking you to confirm that you want to delete the certificate. Note that
subsequent certificates move up by one when you take this action.
Import Click Import to open a screen where you can save the certificate of a
remote host (which you trust) from your computer to the ZyXEL Device.
Refresh Click this button to display the current validity status of the certificates.
Table 99 Security > Certificates > Trusted Remote Hosts (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg8.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
308
Details screen. Use this screen to view in-depth information about the trusted
remote host’s certificate and/or change the certificate’s name.

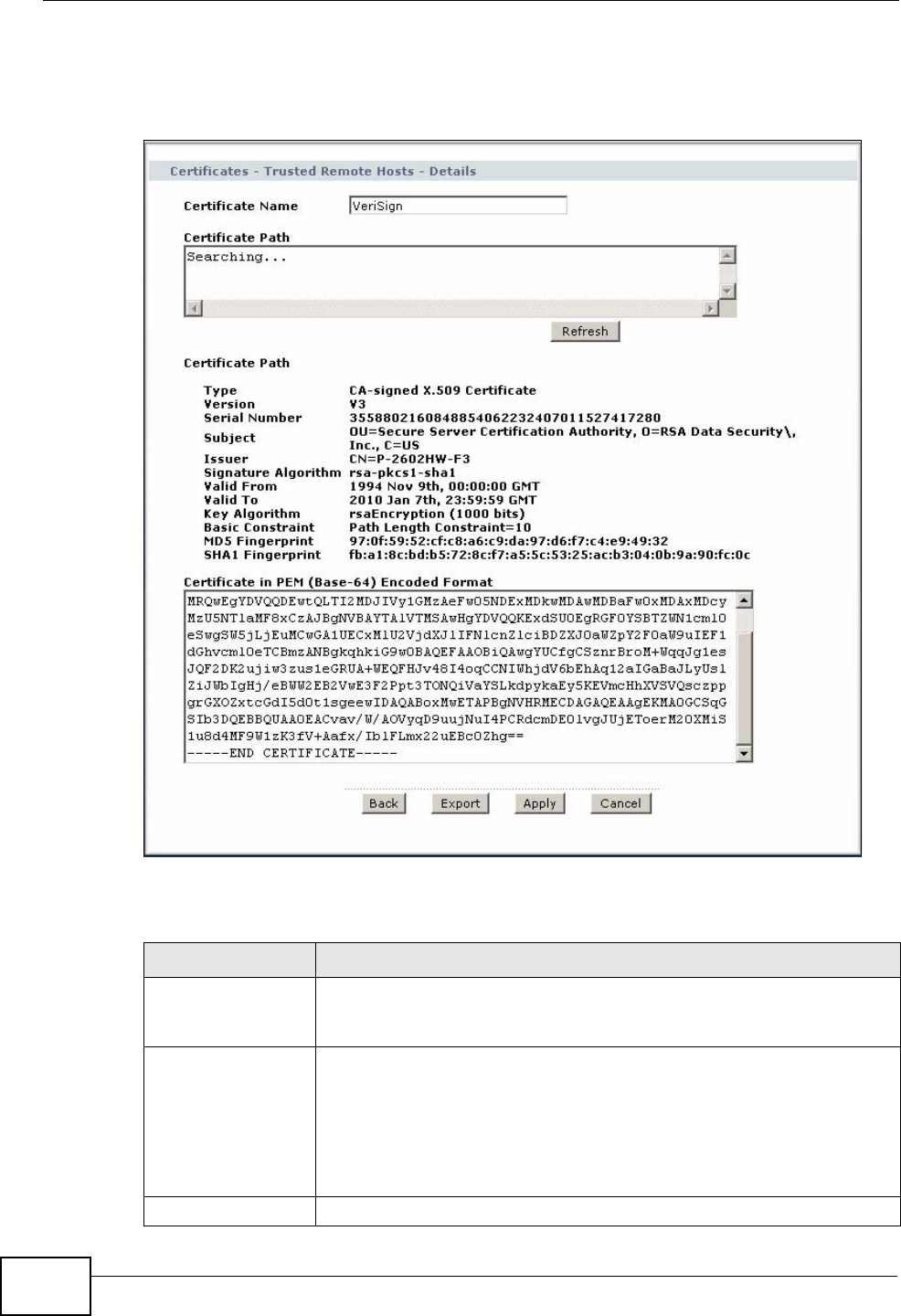

Figure 182 Security > Certificates > Trusted Remote Hosts > Details
The following table describes the labels in this screen.
Table 100 Security > Certificates > Trusted Remote Hosts > Details
LABEL DESCRIPTION
Certificate Name This field displays the identifying name of this certificate. If you want
to change the name, type up to 31 characters to identify this key
certificate. You may use any character (not including spaces).
Certificate Path Click the Refresh button to have this read-only text box display the
end entity’s own certificate and a list of certification authority
certificates in the hierarchy of certification authorities that validate a
certificate’s issuing certification authority. For a trusted host, the list
consists of the end entity’s own certificate and the default self-signed
certificate that the ZyXEL Device uses to sign remote host
certificates.
Refresh Click Refresh to display the certification path.
![](/img.php?id=1154264&img=bg9.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 309
Certificate Path These read-only fields display detailed information about the
certificate.
Type This field displays general information about the certificate. With
trusted remote host certificates, this field always displays CA-signed.
The ZyXEL Device is the Certification Authority that signed the
certificate. X.509 means that this certificate was created and signed
according to the ITU-T X.509 recommendation that defines the
formats for public-key certificates.
Version This field displays the X.509 version number.
Serial Number This field displays the certificate’s identification number given by the
device that created the certificate.
Subject This field displays information that identifies the owner of the
certificate, such as Common Name (CN), Organizational Unit (OU),
Organization (O) and Country (C).
Issuer This field displays identifying information about the default self-
signed certificate on the ZyXEL Device that the ZyXEL Device uses to
sign the trusted remote host certificates.
Signature
Algorithm This field displays the type of algorithm that the ZyXEL Device used
to sign the certificate, which is rsa-pkcs1-sha1 (RSA public-private
key encryption algorithm and the SHA1 hash algorithm).
Valid From This field displays the date that the certificate becomes applicable.
The text displays in red and includes a Not Yet Valid! message if the
certificate has not yet become applicable.
Valid To This field displays the date that the certificate expires. The text
displays in red and includes an Expiring! or Expired! message if the
certificate is about to expire or has already expired.
Key Algorithm This field displays the type of algorithm that was used to generate
the certificate’s key pair (the ZyXEL Device uses RSA encryption) and
the length of the key set in bits (1024 bits for example).
Subject Alternative
Name This field displays the certificate’s owner‘s IP address (IP), domain
name (DNS) or e-mail address (EMAIL).
Key Usage This field displays for what functions the certificate’s key can be
used. For example, “DigitalSignature” means that the key can be
used to sign certificates and “KeyEncipherment” means that the key
can be used to encrypt text.
Basic Constraint This field displays general information about the certificate. For
example, Subject Type=CA means that this is a certification
authority’s certificate and “Path Length Constraint=1” means that
there can only be one certification authority in the certificate’s path.
MD5 Fingerprint This is the certificate’s message digest that the ZyXEL Device
calculated using the MD5 algorithm. You cannot use this value to
verify that this is the remote host’s actual certificate because the
ZyXEL Device has signed the certificate; thus causing this value to
be different from that of the remote hosts actual certificate. See
Section 15.1.3 on page 289 for how to verify a remote host’s
certificate.
Table 100 Security > Certificates > Trusted Remote Hosts > Details (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bga.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
310
15.10 Trusted Remote Hosts Import
Click Security > Certificates > Trusted Remote Hosts to open the Trusted
Remote Hosts screen and then click Import to open the Trusted Remote Host
Import screen. Follow the instructions in this screen to save a trusted host’s
certificate to the ZyXEL Device.
SHA1 Fingerprint This is the certificate’s message digest that the ZyXEL Device
calculated using the SHA1 algorithm. You cannot use this value to
verify that this is the remote host’s actual certificate because the
ZyXEL Device has signed the certificate; thus causing this value to
be different from that of the remote hosts actual certificate. See
Section 15.1.3 on page 289 for how to verify a remote host’s
certificate.
Certificate in PEM
(Base-64) Encoded
Format
This read-only text box displays the certificate or certification
request in Privacy Enhanced Mail (PEM) format. PEM uses 64 ASCII
characters to convert the binary certificate into a printable form.
You can copy and paste the certificate into an e-mail to send to
friends or colleagues or you can copy and paste the certificate into a
text editor and save the file on a management computer for later
distribution (via floppy disk for example).
Back Click Back to return to the previous screen.
Export Click this button and then Save in the File Download screen. The
Save As screen opens, browse to the location that you want to use
and click Save.
Apply Click Apply to save your changes back to the ZyXEL Device. You can
only change the name of the certificate.
Cancel Click Cancel to quit configuring this screen and return to the
Trusted Remote Hosts screen.
Table 100 Security > Certificates > Trusted Remote Hosts > Details (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bgb.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide 311
Note: The trusted remote host certificate must be a self-signed certificate; and you
must remove any spaces from its filename before you can import it.
Figure 183 Security > Certificates > Trusted Remote Hosts > Import
The following table describes the labels in this screen.
Table 101 Security > Certificates > Trusted Remote Hosts > Import
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse
to find it.
Browse Click Browse to find the certificate file you want to upload.
Back Click Back to return to the previous screen.
Apply Click Apply to save the certificate on the ZyXEL Device.
Cancel Click Cancel to quit and return to the Trusted Remote Hosts screen.
![](/img.php?id=1154264&img=bgc.png)
Chapter 15 Certificates
P-2612HWU-F1 User’s Guide
312
![](/img.php?id=1154264&img=bgd.png)
P-2612HWU-F1 User’s Guide 313
CHAPTER 16
Static Route
16.1 Overview
The ZyXEL Device usually uses the default gateway to route outbound traffic from
computers on the LAN to the Internet. To have the ZyXEL Device send data to
devices not reachable through the default gateway, use static routes.

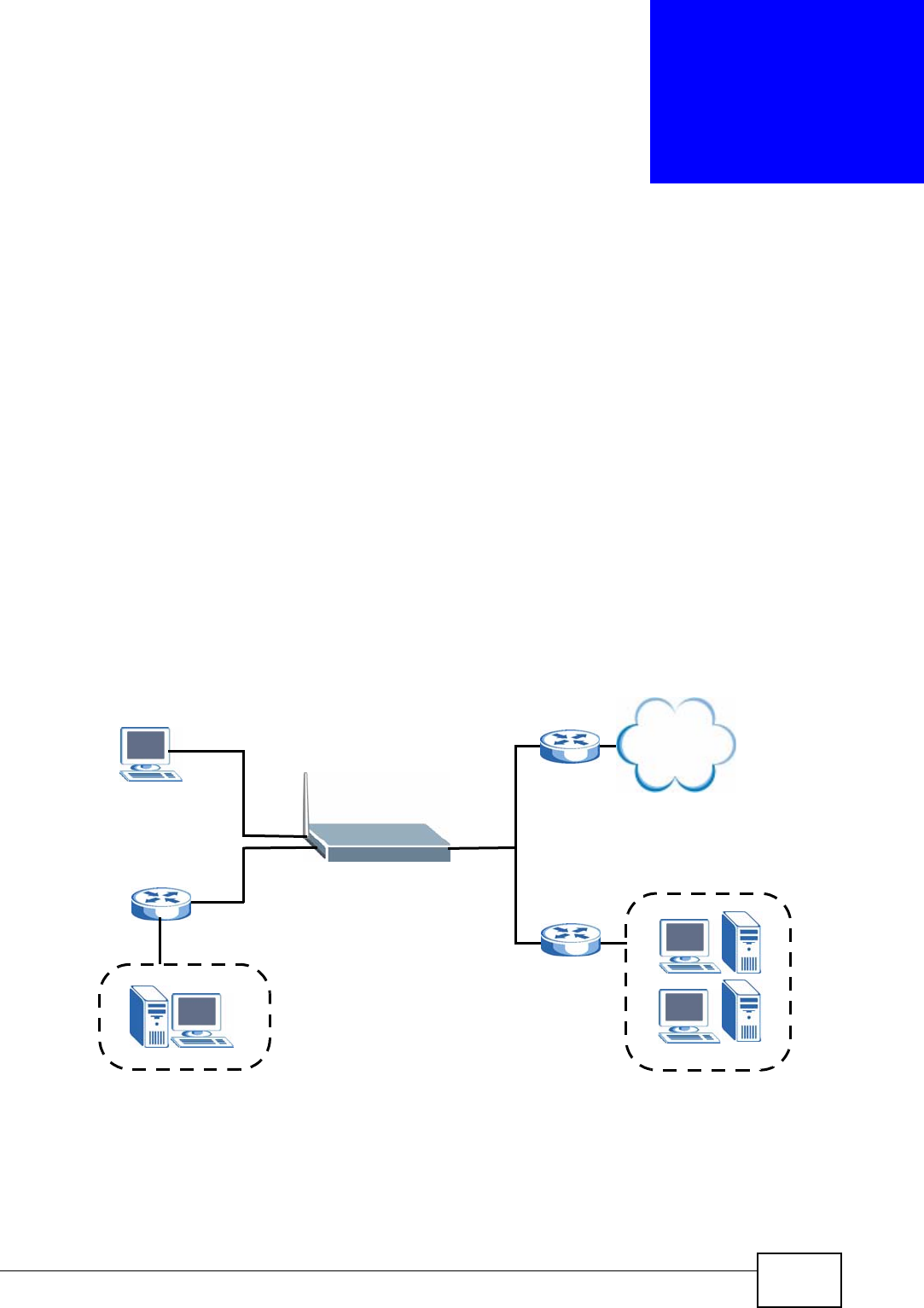

For example, the next figure shows a computer (A) connected to the ZyXEL
Device’s LAN interface. The ZyXEL Device routes most traffic from A to the
Internet through the ZyXEL Device’s default gateway (R1). You create one static
route to connect to services offered by your ISP behind router R2. You create
another static route to communicate with a separate network behind a router R3
connected to the LAN.
Figure 184 Example of Static Routing Topology
16.1.1 What You Can Do in the Static Route Screens
Use the Static Route screens (Section 16.2 on page 314) to view and configure
IP static routes on the ZyXEL Device.
WAN
R1
R2
A
R3
LAN
Internet
![](/img.php?id=1154264&img=bge.png)
Chapter 16 Static Route
P-2612HWU-F1 User’s Guide
314
16.2 Configuring Static Route
Click Advanced > Static Route to open the Static Route screen.

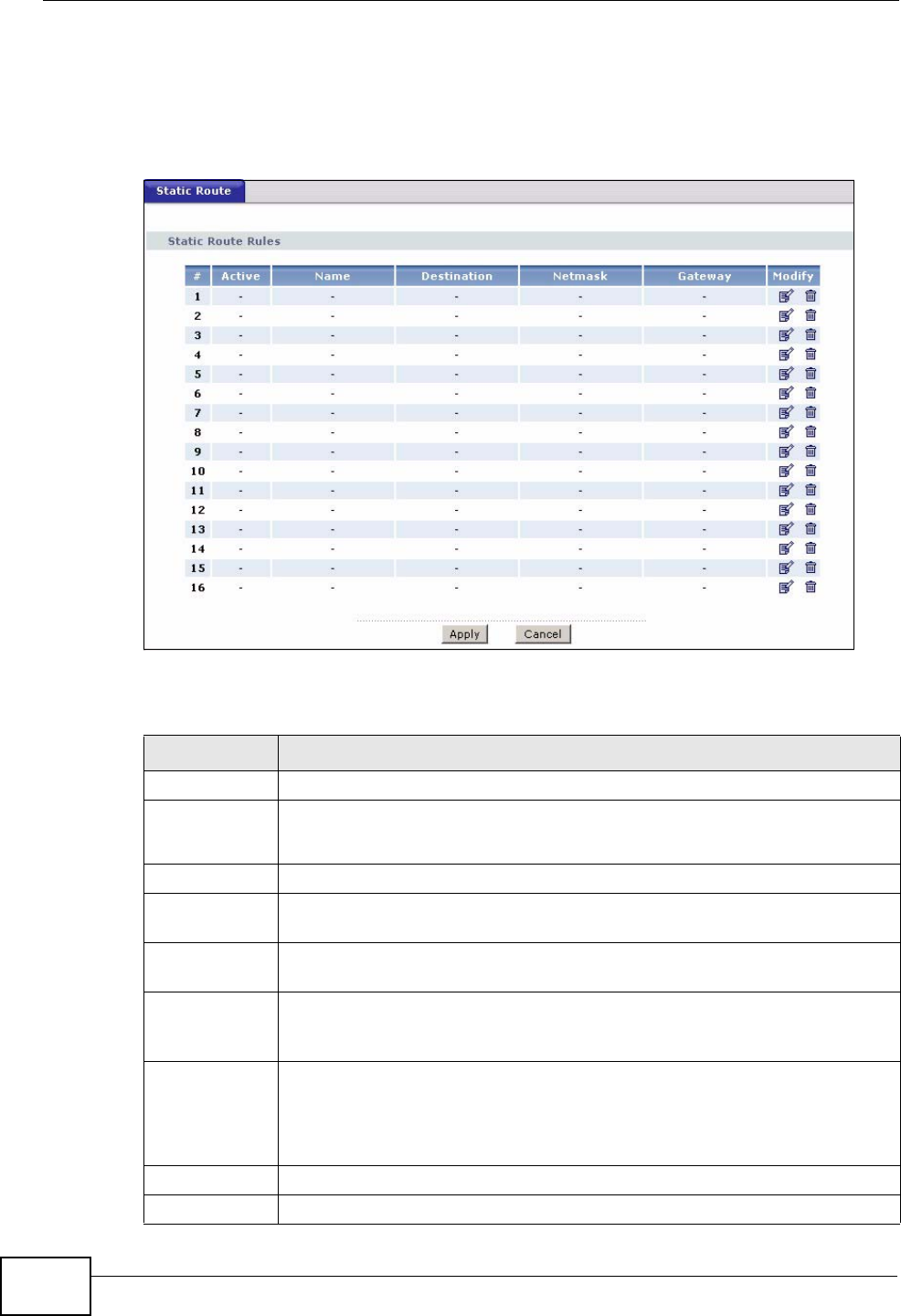

Figure 185 Advanced > Static Route
The following table describes the labels in this screen.
Table 102 Advanced > Static Route
LABEL DESCRIPTION
#This is the number of an individual static route.
Active This field indicates whether the rule is active or not.
Clear the check box to disable the rule. Select the check box to enable it.
Name This is the name that describes or identifies this route.
Destination This parameter specifies the IP network address of the final destination.
Routing is always based on network number.
Netmask This parameter specifies the IP network subnet mask of the final
destination.
Gateway This is the IP address of the gateway. The gateway is a router or switch
on the same network segment as the device's LAN or WAN port. The
gateway helps forward packets to their destinations.
Modify Click the Edit icon to go to the screen where you can set up a static route
on the ZyXEL Device.
Click the Remove icon to remove a static route from the ZyXEL Device. A
window displays asking you to confirm that you want to delete the route.
Apply Click this to apply your changes to the ZyXEL Device.
Cancel Click this to return to the previously saved configuration.
![](/img.php?id=1154264&img=bgf.png)
Chapter 16 Static Route
P-2612HWU-F1 User’s Guide 315

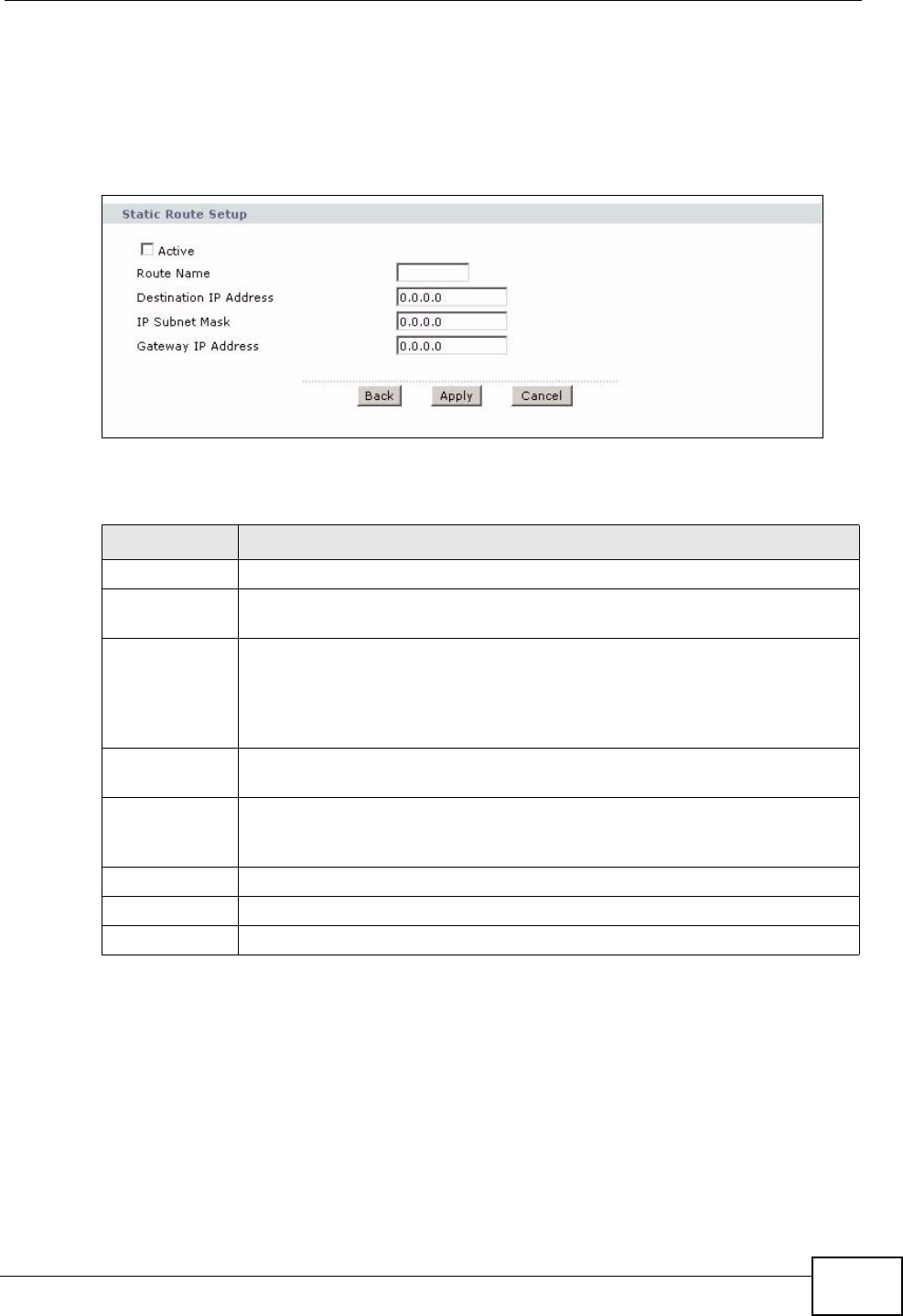

16.2.1 Static Route Edit
Select a static route index number and click Edit. The screen shown next appears.
Use this screen to configure the required information for a static route.
Figure 186 Advanced > Static Route > Edit
The following table describes the labels in this screen.
Table 103 Advanced > Static Route > Edit
LABEL DESCRIPTION
Active This field allows you to activate/deactivate this static route.
Route Name Enter the name of the IP static route. Leave this field blank to delete this
static route.
Destination IP
Address This parameter specifies the IP network address of the final destination.
Routing is always based on network number. If you need to specify a
route to a single host, use a subnet mask of 255.255.255.255 in the
subnet mask field to force the network number to be identical to the host
ID.
IP Subnet
Mask Enter the IP subnet mask here.
Gateway IP
Address Enter the IP address of the gateway. The gateway is a router or switch on
the same network segment as the device's LAN or WAN port. The
gateway helps forward packets to their destinations.
Back Click Back to return to the previous screen without saving.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
![](/img.php?id=1154264&img=bg10.png)
Chapter 16 Static Route
P-2612HWU-F1 User’s Guide
316
![](/img.php?id=1154264&img=bg11.png)
P-2612HWU-F1 User’s Guide 317
CHAPTER 17
802.1Q/1P
17.1 Overview
A Virtual Local Area Network (VLAN) allows a physical network to be partitioned
into multiple logical networks. A VLAN group can be treated as an individual
device. Each group can have its own rules about where and how to forward traffic.
You can assign any ports on the ZyXEL Device to a VLAN group and configure the
settings for the group. You may also set the priority level for traffic transmitted
through the ports.
Figure 187 802.1Q/1P
17.1.1 What You Can Do in the 802.1Q/1P Screens
•Use the Group Setting screen (Section 17.2 on page 324) to activate 802.1Q/
1P, specify the management VLAN group, display the VLAN groups and
configure the settings for each VLAN group.
•Use the Port Setting screen (Section 17.3 on page 327) to configure the PVID
and assign traffic priority for each port.
17.1.2 What You Need to Know About 802.1Q/1P
IEEE 802.1P Priority
IEEE 802.1P specifies the user priority field and defines up to eight separate traffic
types by inserting a tag into a MAC-layer frame that contains bits to define class of
service.
Ports VLAN Groups Priority Levels
802.1Q 802.1P
![](/img.php?id=1154264&img=bg12.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
318
IEEE 802.1Q Tagged VLAN
Tagged VLAN uses an explicit tag (VLAN ID) in the MAC header to identify the
VLAN membership of a frame across bridges - they are not confined to the device
on which they were created. The VLAN ID associates a frame with a specific VLAN
and provides the information that devices need to process the frame across the
network.
PVC
A virtual circuit is a logical point-to-point circuit between customer sites.
Permanent means that the circuit is preprogrammed by the carrier as a path
through the network. It does not need to be set up or torn down for each session.
Forwarding Tagged and Untagged Frames
Each port on the device is capable of passing tagged or untagged frames. To
forward a frame from an 802.1Q VLAN-aware device to an 802.1Q VLAN-unaware
device, the ZyXEL Device first decides where to forward the frame and then strips
off the VLAN tag. To forward a frame from an 802.1Q VLAN-unaware device to an
802.1Q VLAN-aware switch, the ZyXEL Device first decides where to forward the
frame, and then inserts a VLAN tag reflecting the ingress port's default VID. The
default PVID is VLAN 1 for all ports, but this can be changed.
Whether to tag an outgoing frame depends on the setting of the egress port on a
per-VLAN, per-port basis (recall that a port can belong to multiple VLANs). If the
tagging on the egress port is enabled for the VID of a frame, then the frame is
transmitted as a tagged frame; otherwise, it is transmitted as an untagged frame.
![](/img.php?id=1154264&img=bg13.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide 319
17.1.3 802.1Q/1P Example
This example shows how to configure the 802.1Q/1P settings on the ZyXEL
Device.
Figure 188 802.1Q/1P Example
LAN1 and LAN2 are connected to ATAs (Analog Telephone Adapters) and used for
VoIP traffic. You want to set a high priority for this type of traffic, so you will group
these ports into one VLAN (VLAN2) and then set them to use a PVC (PVC1) with a
high priority service level. You would start with the following steps.
1Click Advanced > 802.1Q/1P > Group Setting > Edit to display the following
screen.
2In the Name field type VoIP to identify the group.
3In the VLAN ID field type in 2 to identify the VLAN group.
4Select PVC1 from the Default Gateway drop-down list box.
5In the Control field, select Fixed for LAN1, LAN2 and PVC1 to be permanent
members of the VLAN group.
1
2
3
4
1
2
3
4
5
6
7
8
VoIP Network
Internet - (PPPoE)
Internet - (PPPoE)
ZyXEL Device
![](/img.php?id=1154264&img=bg14.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
320
6Click Apply.

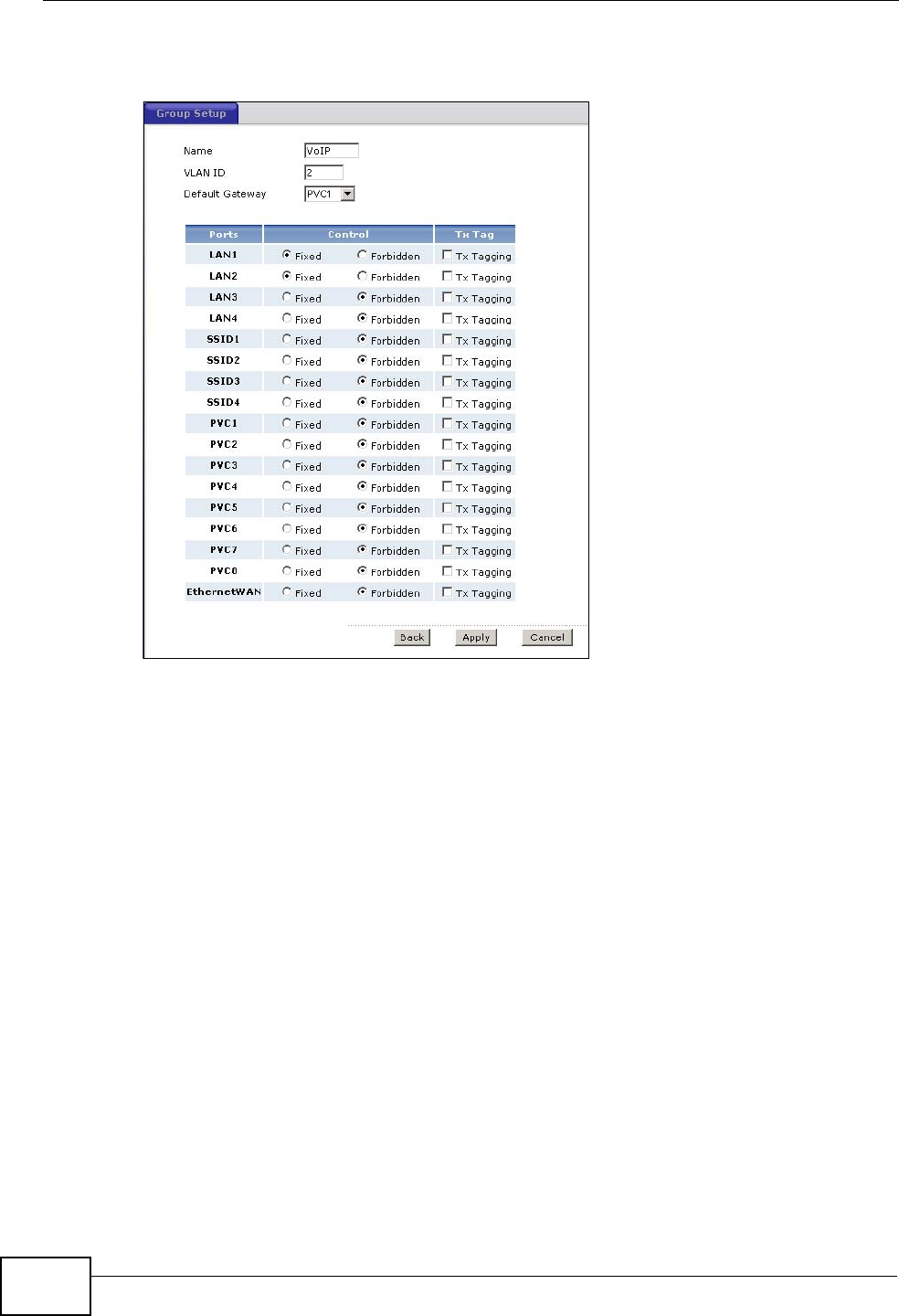

Figure 189 Advanced > 802.1Q/1P > Group Setting > Edit: Example
To set a high priority for VoIP traffic, follow these steps.
1Click Advanced > 802.1Q/1P > Port Setting to display the following screen.
2Type 2 in the 802.1Q PVID column for LAN1, LAN2 and PVC1.
3Select 7 from the 802.1P Priority drop-down list box for LAN1, LAN2 and PVC1.
![](/img.php?id=1154264&img=bg15.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide 321
4Click Apply.

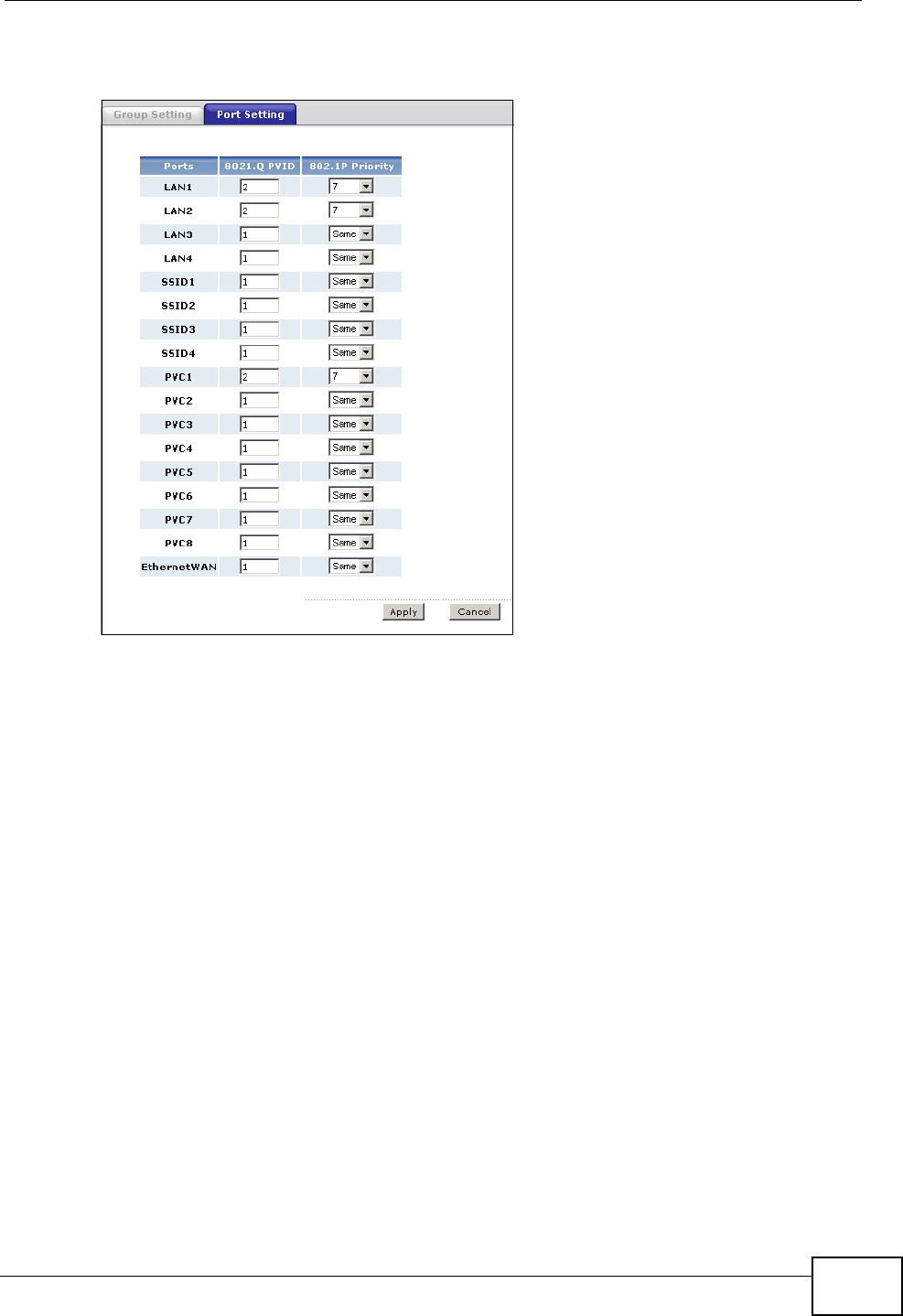

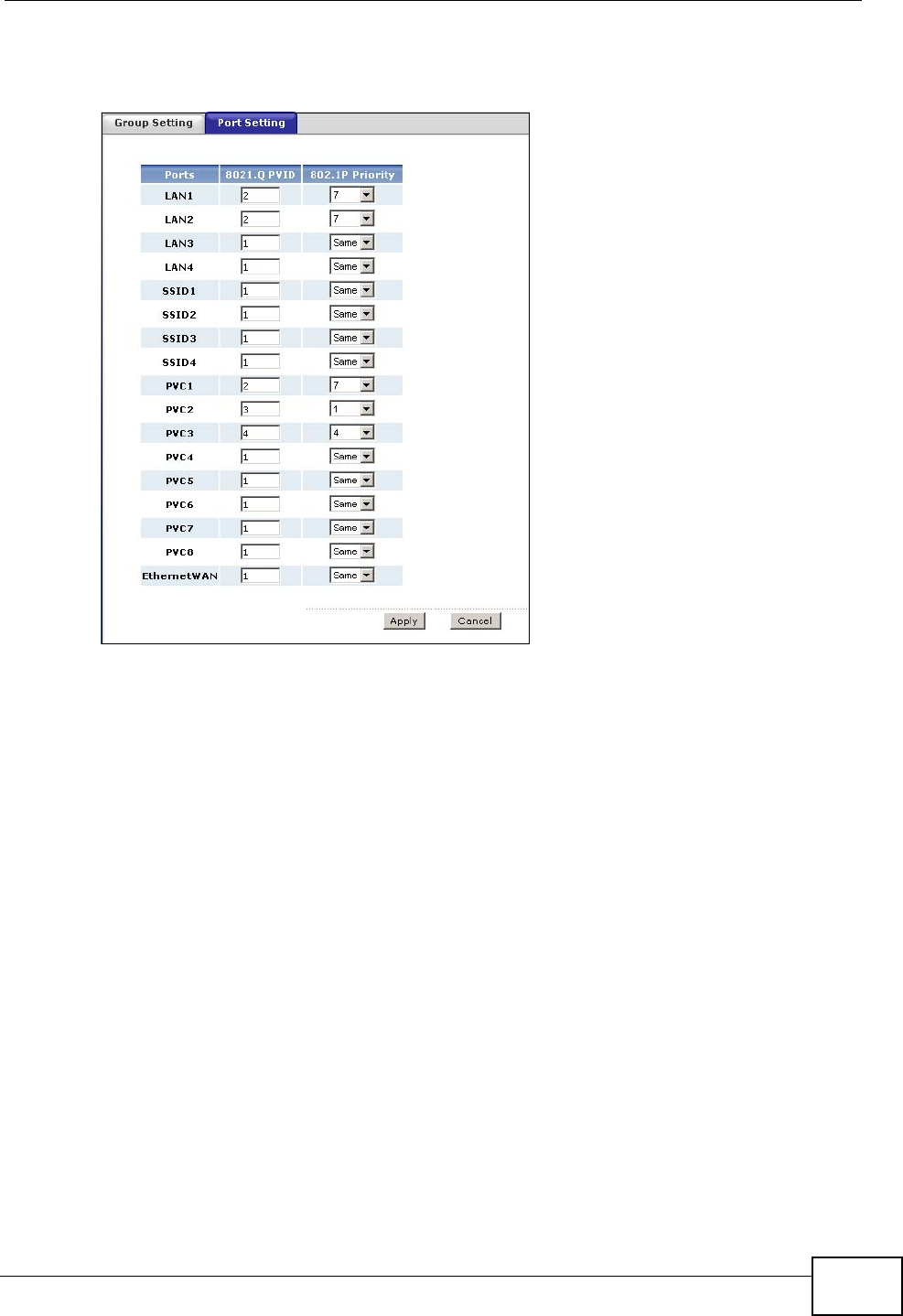

Figure 190 Advanced > 802.1Q/1P > Port Setting: Example
Ports 3 and 4 are connected to desktop computers and are used for Internet
traffic. You want to set a lower priority for this type of traffic, so you want to group
these ports and PVC2 into one VLAN (VLAN3). PVC2 priority is set to low level of
service.
SSID1 and SSID2 are two wireless networks. You want to create medium priority
for this type of traffic, so you want to group these ports and PVC3 into one VLAN
(VLAN4). PVC3 priority is set to medium level of service.
![](/img.php?id=1154264&img=bg16.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
322
Follow the same steps as in VLAN2 to configure the settings for VLAN3 and VLAN4.
The summary screen should display as follows.

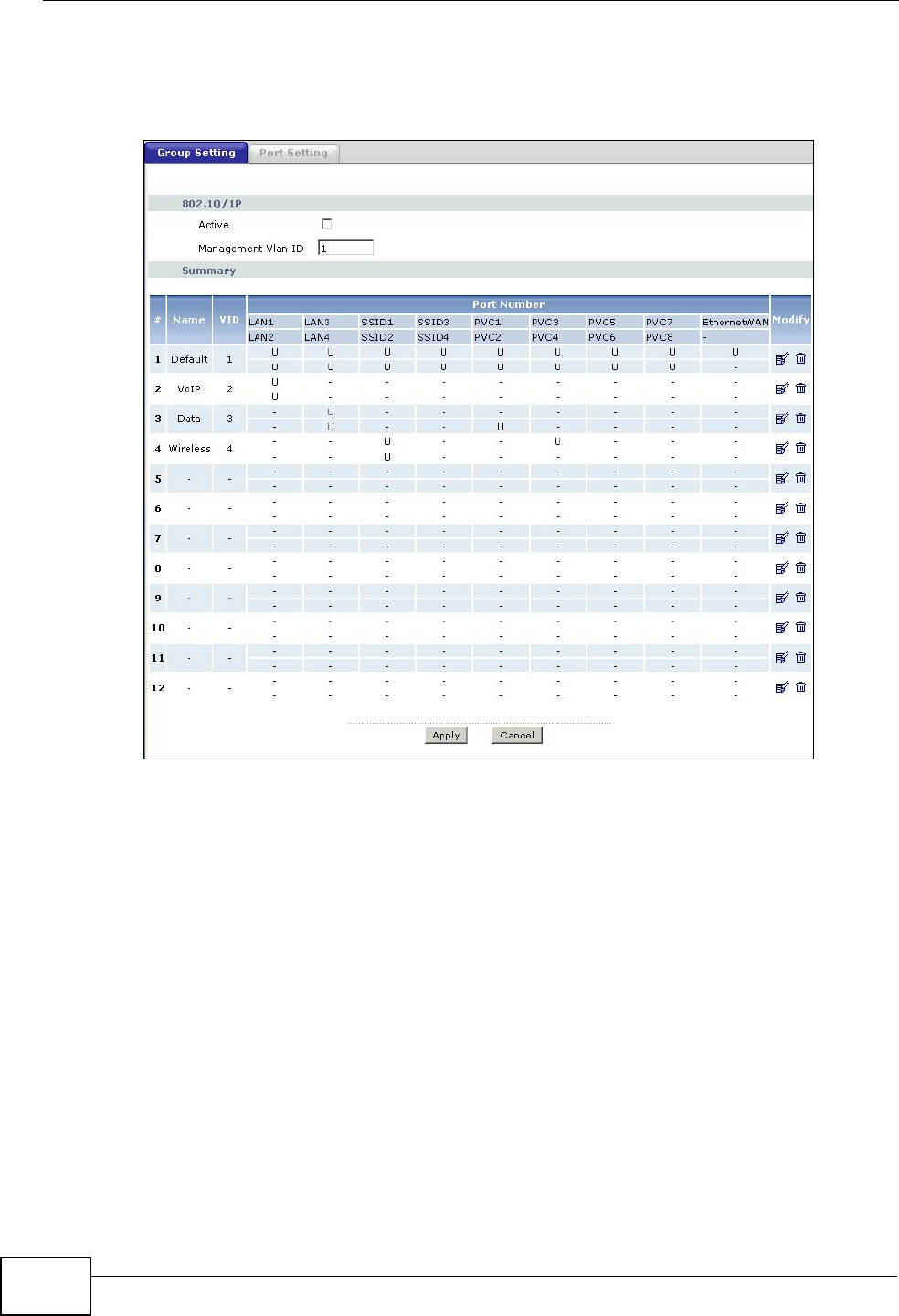

Figure 191 Advanced > 802.1Q/1P > Group Setting: Example
![](/img.php?id=1154264&img=bg17.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide 323
The port screen should look like this.
Figure 192 Advanced > 802.1Q/1P > Port Setting: Example
This completes the 802.1Q/1P setup.
![](/img.php?id=1154264&img=bg18.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
324
17.2 The 802.1Q/1P Group Setting Screen
Use this screen to activate 802.1Q/1P and display the VLAN groups. Click
Advanced > 802.1Q/1P to display the following screen.

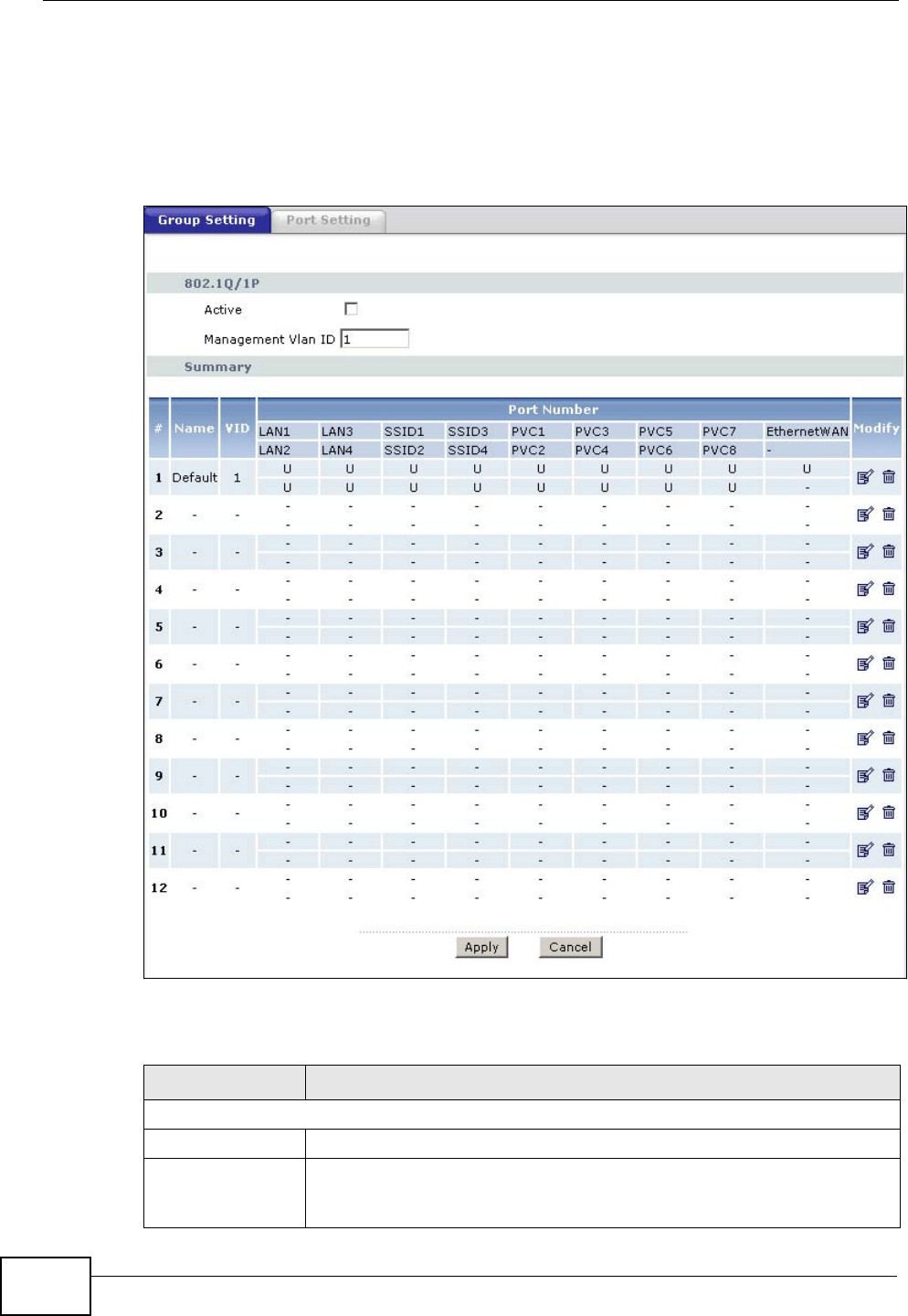

Figure 193 Advanced > 802.1Q/1P > Group Setting
The following table describes the labels in this screen.
Table 104 Advanced > 802.1Q/1P > Group Setting
LABEL DESCRIPTION
802.1P/1Q
Active Select this check box to activate the 802.1P/1Q feature.
Management Vlan
ID Enter the ID number of a VLAN group. All interfaces (ports, SSIDs and
PVCs) are in the management VLAN by default. If you disable the
management VLAN, you will not be able to access the ZyXEL Device.
![](/img.php?id=1154264&img=bg19.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide 325
17.2.1 Editing 802.1Q/1P Group Setting
Use this screen to configure the settings for each VLAN group.
Summary
# This field displays the index number of the VLAN group.
Name This field displays the name of the VLAN group.
VID This field displays the ID number of the VLAN group.
Port Number These columns display the VLAN’s settings for each port. A tagged
port is marked as T, an untagged port is marked as U and ports not
participating in a VLAN are marked as “–“.
Modify Click the Edit button to configure the ports in the VLAN group.
Click the Remove button to delete the VLAN group.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
Table 104 Advanced > 802.1Q/1P > Group Setting (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg1a.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
326
In the 802.1Q/1P screen, click the Edit button from the Modify filed to display
the following screen.

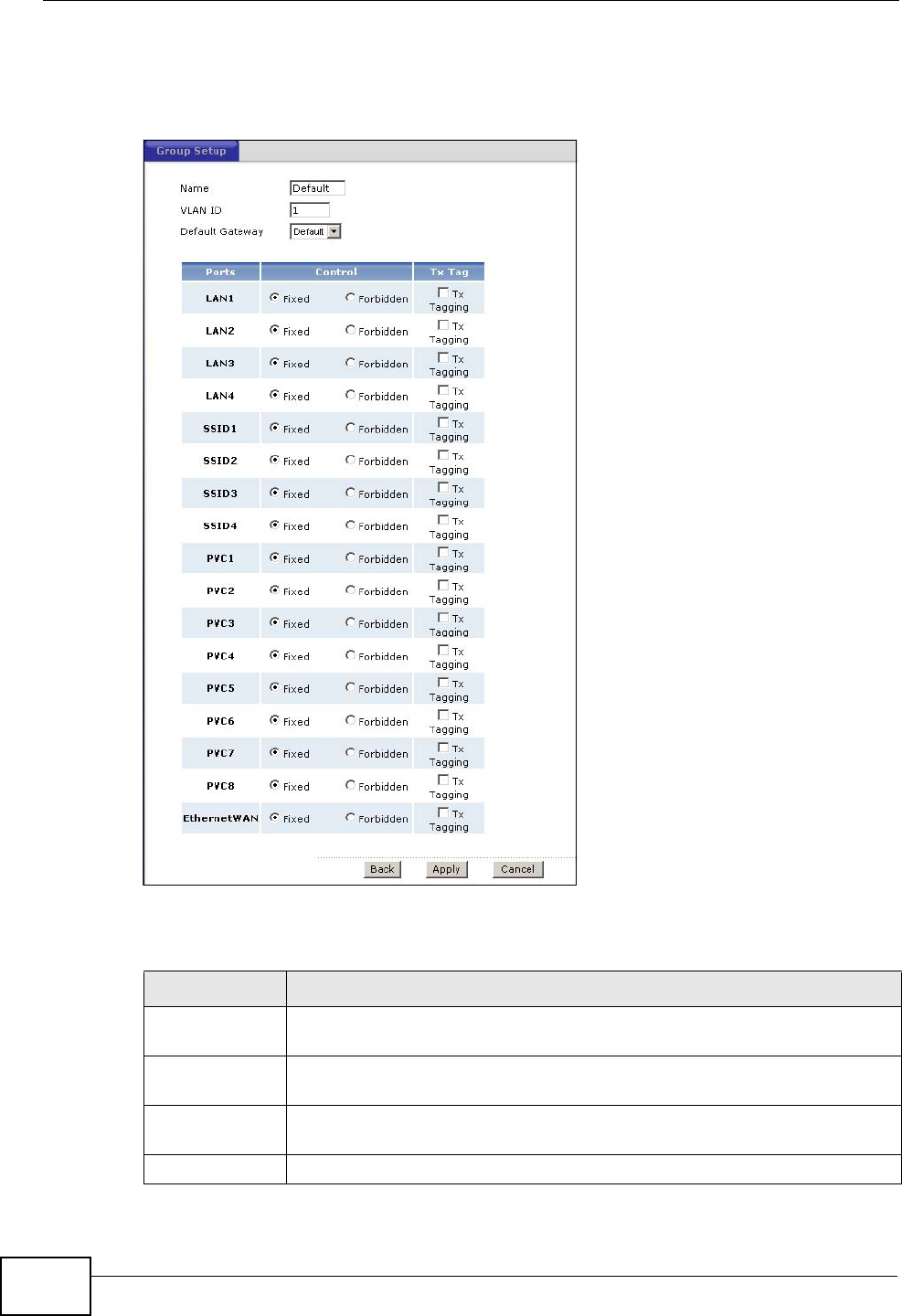

Figure 194 Advanced > 802.1Q/1P > Group Setting > Edit
The following table describes the labels in this screen.
Table 105 Advanced > 802.1Q/1P > Group Setting > Edit
LABEL DESCRIPTION
Name Enter a descriptive name for the VLAN group for identification purposes.
The text may consist of up to 8 letters, numerals, “-”, “_” and “@”.
VLAN ID Assign a VLAN ID for the VLAN group. The valid VID range is between 1
and 4094.
Default
Gateway Select the default gateway for the VLAN group.
Ports This field displays the types of ports available to join the VLAN group.
![](/img.php?id=1154264&img=bg1b.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide 327
17.3 The 802.1Q/1P Port Setting Screen
Use this screen to configure the PVID and assign traffic priority for each port. Click
Advanced > 802.1Q/1P > Port Setting to display the following screen.

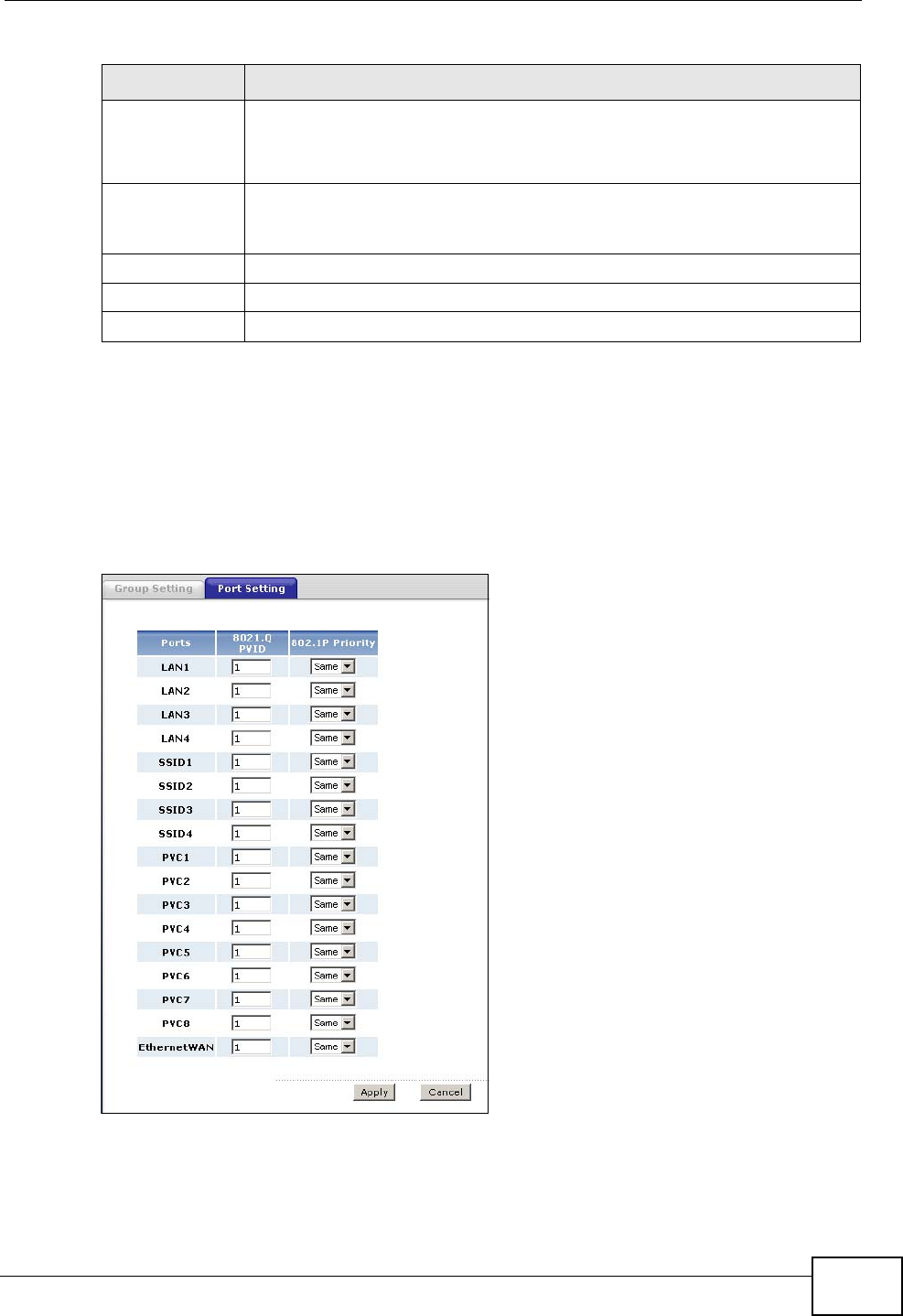

Figure 195 Advanced > 802.1Q/1P > Port Setting
Control Select Fixed for the port to be a permanent member of the VLAN group.
Select Forbidden if you want to prohibit the port from joining the VLAN
group.
Tx Tag Select Tx Tagging if you want the port to tag all outgoing traffic
transmitted through this VLAN. You select this if you want to create
VLANs across different devices and not just the ZyXEL Device.
Back Click this to return to the previous screen without saving.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
Table 105 Advanced > 802.1Q/1P > Group Setting > Edit (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg1c.png)
Chapter 17 802.1Q/1P
P-2612HWU-F1 User’s Guide
328
The following table describes the labels in this screen.
Table 106 Advanced > 802.1Q/1P > Port Setting
LABEL DESCRIPTION
Ports This field displays the types of ports available to join the VLAN group.
802.1Q PVID Assign a VLAN ID for the port. The valid VID range is between 1 and
4094. The ZyXEL Device assigns the PVID to untagged frames or
priority-tagged frames received on this port, SSID, or PVC.
802.1P Priority Assign a priority for the traffic transmitted through the port, SSID, or
PVC. Select Same if you do not want to modify the priority. You may
choose a priority level from 0-7, with 0 being the lowest level and 7
being the highest level.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
![](/img.php?id=1154264&img=bg1d.png)
P-2612HWU-F1 User’s Guide 329
CHAPTER 18
Quality of Service (QoS)
This chapter contains information about configuring QoS, editing classifiers and
viewing the ZyXEL Device’s QoS packet statistics.
18.1 Overview
This chapter discusses the ZyXEL Device’s QoS screens. Use these screens to set
up your ZyXEL Device to use QoS for traffic management.
Quality of Service (QoS) refers to both a network’s ability to deliver data with
minimum delay, and the networking methods used to control the use of
bandwidth. QoS allows the ZyXEL Device to group and prioritize application traffic
and fine-tune network performance.
Without QoS, all traffic data is equally likely to be dropped when the network is
congested. This can cause a reduction in network performance and make the
network inadequate for time-critical application such as video-on-demand.
The ZyXEL Device assigns each packet a priority and then queues the packet
accordingly. Packets assigned a high priority are processed more quickly than
those with low priority if there is congestion, allowing time-sensitive applications
to flow more smoothly. Time-sensitive applications include both those that require
a low level of latency (delay) and a low level of jitter (variations in delay) such as
Voice over IP (VoIP) or Internet gaming, and those for which jitter alone is a
problem such as Internet radio or streaming video.
• See Section 18.5 on page 341 for advanced technical information on SIP.
18.1.1 What You Can Do in the QoS Screens
•Use the General screen (Section 18.2 on page 333) to enable QoS on the
ZyXEL Device, decide allowable bandwidth using QoS and configure priority
mapping settings for traffic that does not match a custom class.
•Use the Class Setup screen (Section 18.3 on page 335) to set up classifiers to
sort traffic into different flows and assign priority and define actions to be
performed for a classified traffic flow.
![](/img.php?id=1154264&img=bg1e.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
330
•Use the Monitor screen (Section 18.4 on page 341) to view the ZyXEL Device’s
QoS-related packet statistics.
18.1.2 What You Need to Know About QoS
QoS versus Cos
QoS is used to prioritize source-to-destination traffic flows. All packets in the same
flow are given the same priority. CoS (class of service) is a way of managing traffic
in a network by grouping similar types of traffic together and treating each type as
a class. You can use CoS to give different priorities to different packet types.
CoS technologies include IEEE 802.1p layer 2 tagging and DiffServ (Differentiated
Services or DS). IEEE 802.1p tagging makes use of three bits in the packet
header, while DiffServ is a new protocol and defines a new DS field, which replaces
the eight-bit ToS (Type of Service) field in the IP header.
Tagging and Marking
In a QoS class, you can configure whether to add or change the DSCP (DiffServ
Code Point) value, IEEE 802.1p priority level and VLAN ID number in a matched
packet. When the packet passes through a compatible network, the networking
device, such as a backbone switch, can provide specific treatment or service
based on the tag or marker.
18.1.3 QoS Class Setup Example
In the following figure, your Internet connection has an upstream transmission
speed of 50 Mbps. You configure a classifier to assign the highest priority queue
(6) to VoIP traffic from the LAN interface, so that voice traffic would not get
delayed when there is network congestion. Traffic from the boss’s IP address
(192.168.1.23 for example) is mapped to queue 5. Traffic that does not match
![](/img.php?id=1154264&img=bg1f.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 331
these two classes are assigned priority queue based on the internal QoS mapping
table on the ZyXEL Device.

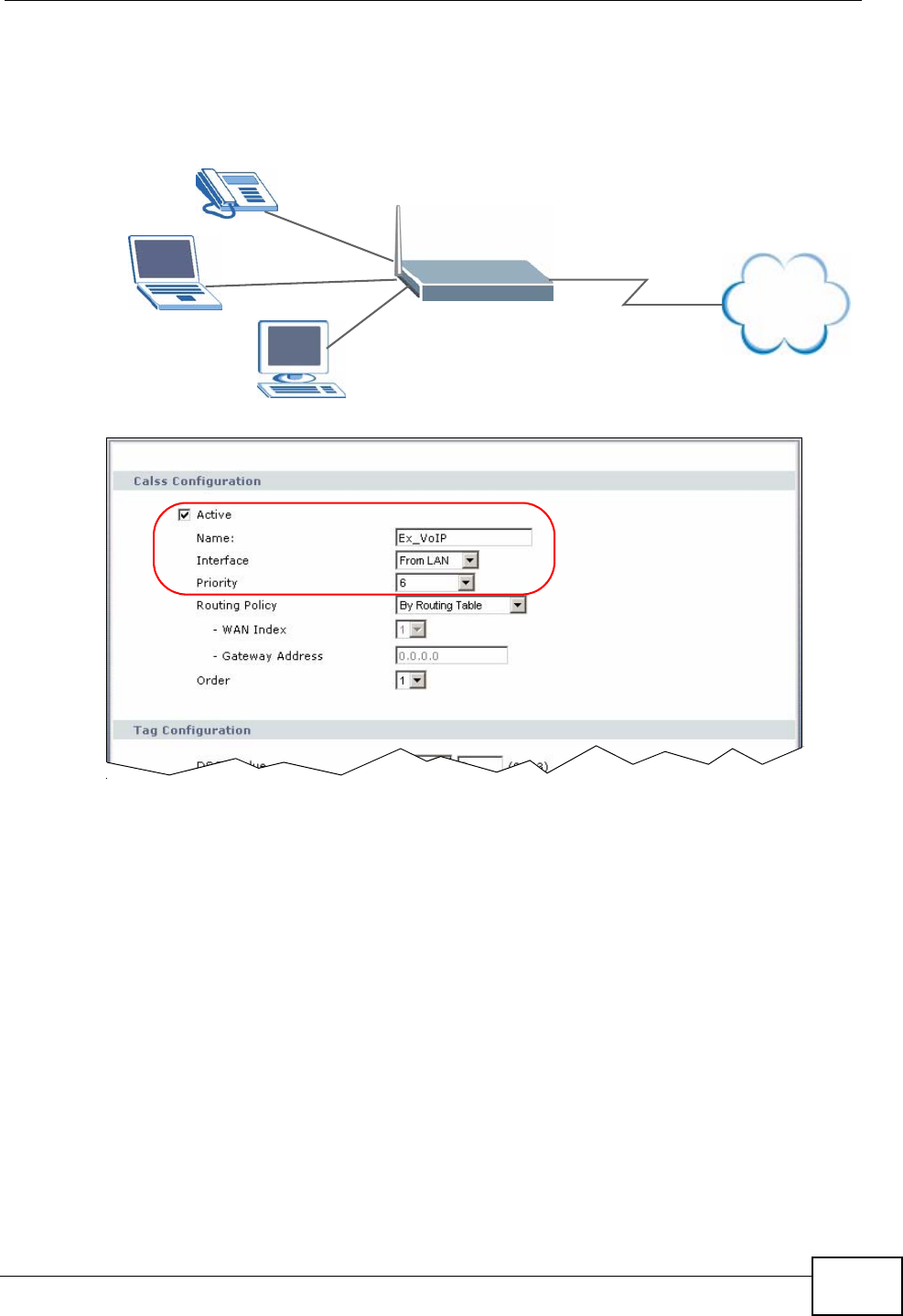

Figure 196 QoS Example
Figure 197 QoS Class Example: VoIP -1
Internet
50 Mbps
DSL
VoIP: Queue 6
Boss: Queue 5
IP=192.168.1.23
![](/img.php?id=1154264&img=bg20.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
332
Figure 198 QoS Class Example: VoIP -2
Figure 199 QoS Class Example: Boss -1
![](/img.php?id=1154264&img=bg21.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 333

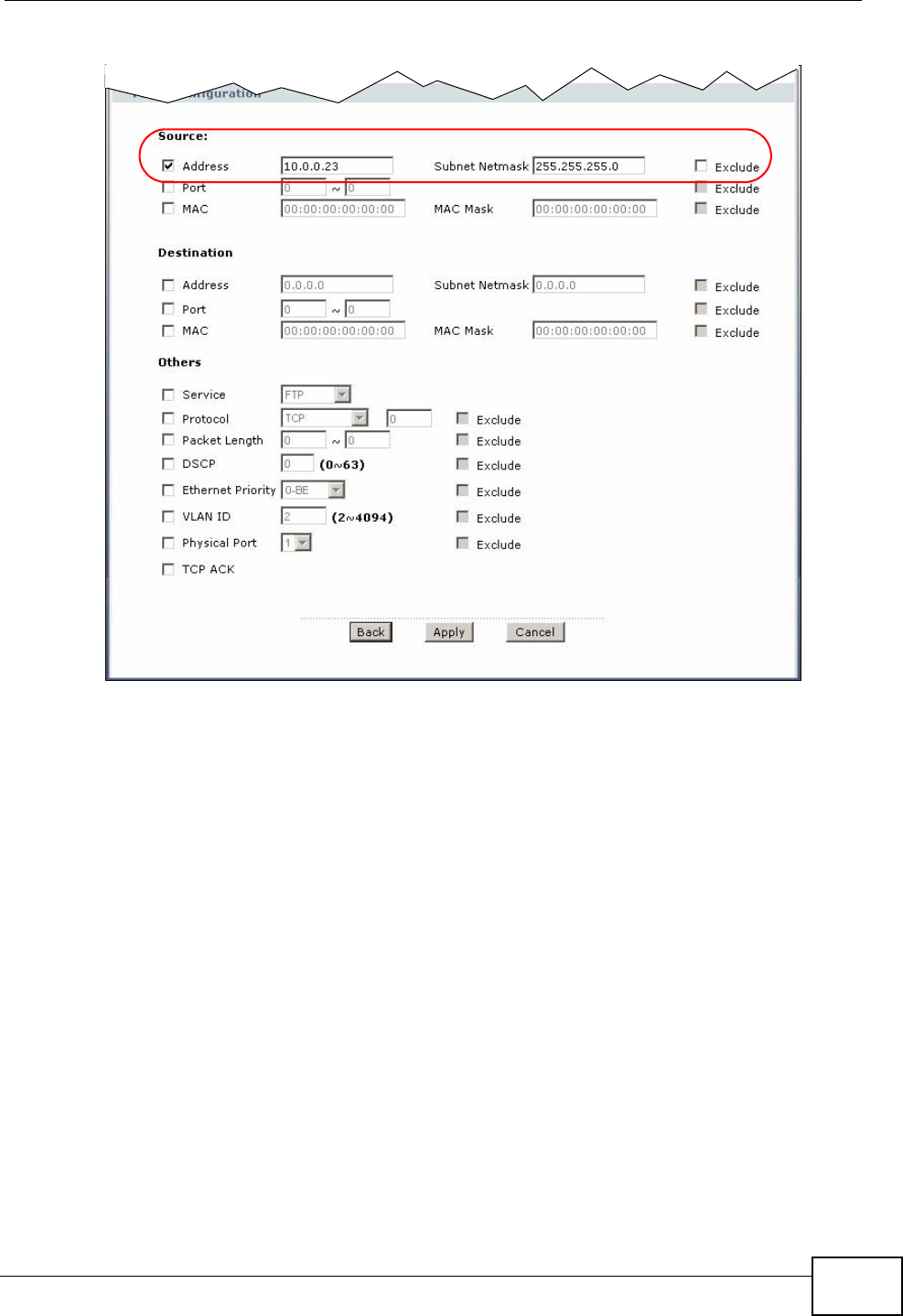

Figure 200 QoS Class Example: Boss -2
18.2 The QoS General Screen
Click Advanced > QoS to open the screen as shown next. Use this screen to
enable or disable QoS, and select to have the ZyXEL Device automatically assign
![](/img.php?id=1154264&img=bg22.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
334
priority to traffic according to the IEEE 802.1p priority level, IP precedence and/or
packet length.

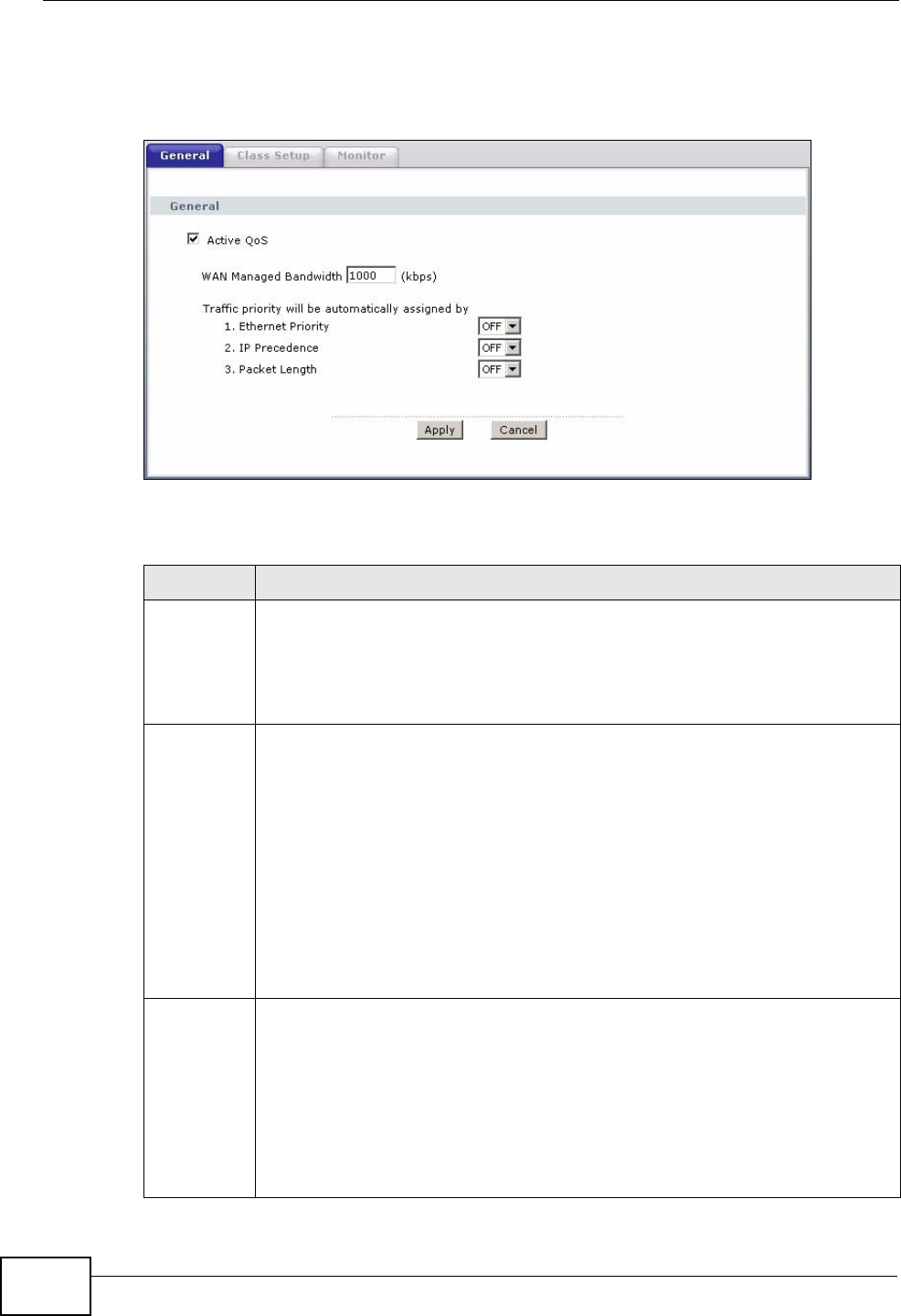

Figure 201 Advanced > QoS > General
The following table describes the labels in this screen.
Table 107 Advanced > QoS > General
LABEL DESCRIPTION
Active QoS Select the check box to turn on QoS to improve your network performance.
You can give priority to traffic that the ZyXEL Device forwards out through
the WAN interface. Give high priority to voice and video to make them run
more smoothly. Similarly, give low priority to many large file downloads so
that they do not reduce the quality of other applications.
WAN
Managed
Bandwidth
Enter the amount of bandwidth for the WAN interface that you want to
allocate using QoS.
The recommendation is to set this speed to match the interface’s actual
transmission speed. For example, set the WAN interface speed to 100000
kbps if your Internet connection has an upstream transmission speed of 100
Mbps.
Setting this number higher than the interface’s actual transmission speed
will stop lower priority traffic from being sent if higher priority traffic uses all
of the actual bandwidth.
If you set this number lower than the interface’s actual transmission speed,
the ZyXEL Device will not use some of the interface’s available bandwidth.
Traffic
priority will
be
automatical
ly assigned
by
These fields are ignored if traffic matches a class you configured in the
Class Setup screen.
If you select ON and traffic does not match a class configured in the Class
Setup screen, the ZyXEL Device assigns priority to unmatched traffic based
on the IEEE 802.1p priority level, IP precedence and/or packet length. See
Section 18.5.4 on page 343 for more information.
If you select OFF, traffic which does not match a class is mapped to queue
two.
![](/img.php?id=1154264&img=bg23.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 335
18.3 The Class Setup Screen
Use this screen to add, edit or delete classifiers. A classifier groups traffic into data
flows according to specific criteria such as the source address, destination
address, source port number, destination port number or incoming interface. For
example, you can configure a classifier to select traffic from the same protocol
port (such as Telnet) to form a flow.
Click Advanced > QoS > Class Setup to open the following screen.

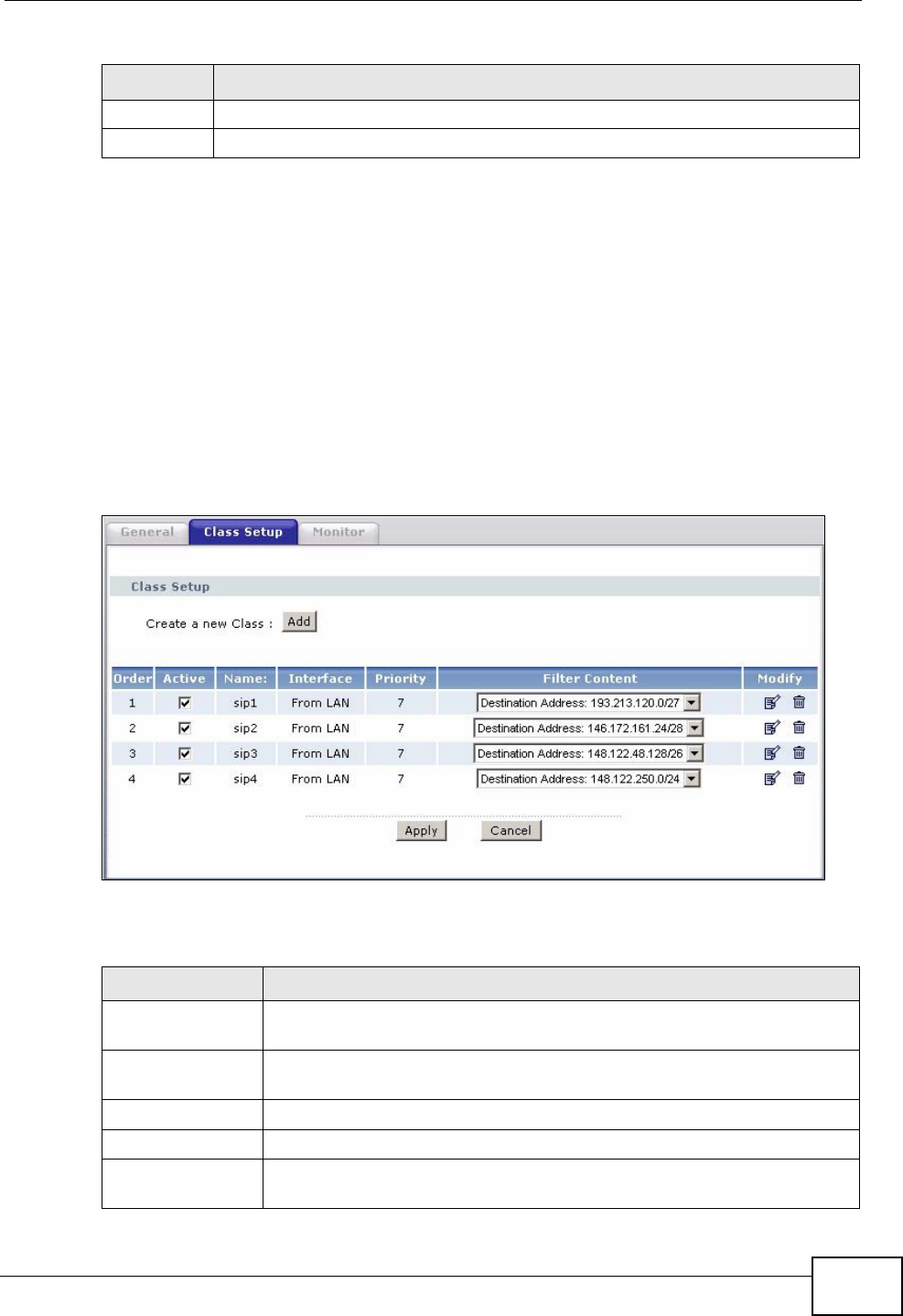

Figure 202 Advanced > QoS > Class Setup
The following table describes the labels in this screen.
Apply Click Apply to save your settings back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 107 Advanced > QoS > General
LABEL DESCRIPTION
Table 108 Advanced > QoS > Class Setup
LABEL DESCRIPTION
Create a new
Class Click Add to create a new classifier.
Order This is the number of each classifier. The ordering of the classifiers is
important as the classifiers are applied in turn.
Active Select the check box to enable this classifier.
Name This is the name of the classifier.
Interface This shows the interface from which traffic of this classifier should
come.
![](/img.php?id=1154264&img=bg24.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
336
Priority This is the priority assigned to traffic of this classifier.
Filter Content This shows criteria specified in this classifier.
Modify Click the Edit icon to go to the screen where you can edit the classifier.
Click the Remove icon to delete an existing classifier.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 108 Advanced > QoS > Class Setup (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg25.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 337
18.3.1 The Class Configuration Screen
Click the Add button or the Edit icon in the Modify field to configure a classifier.

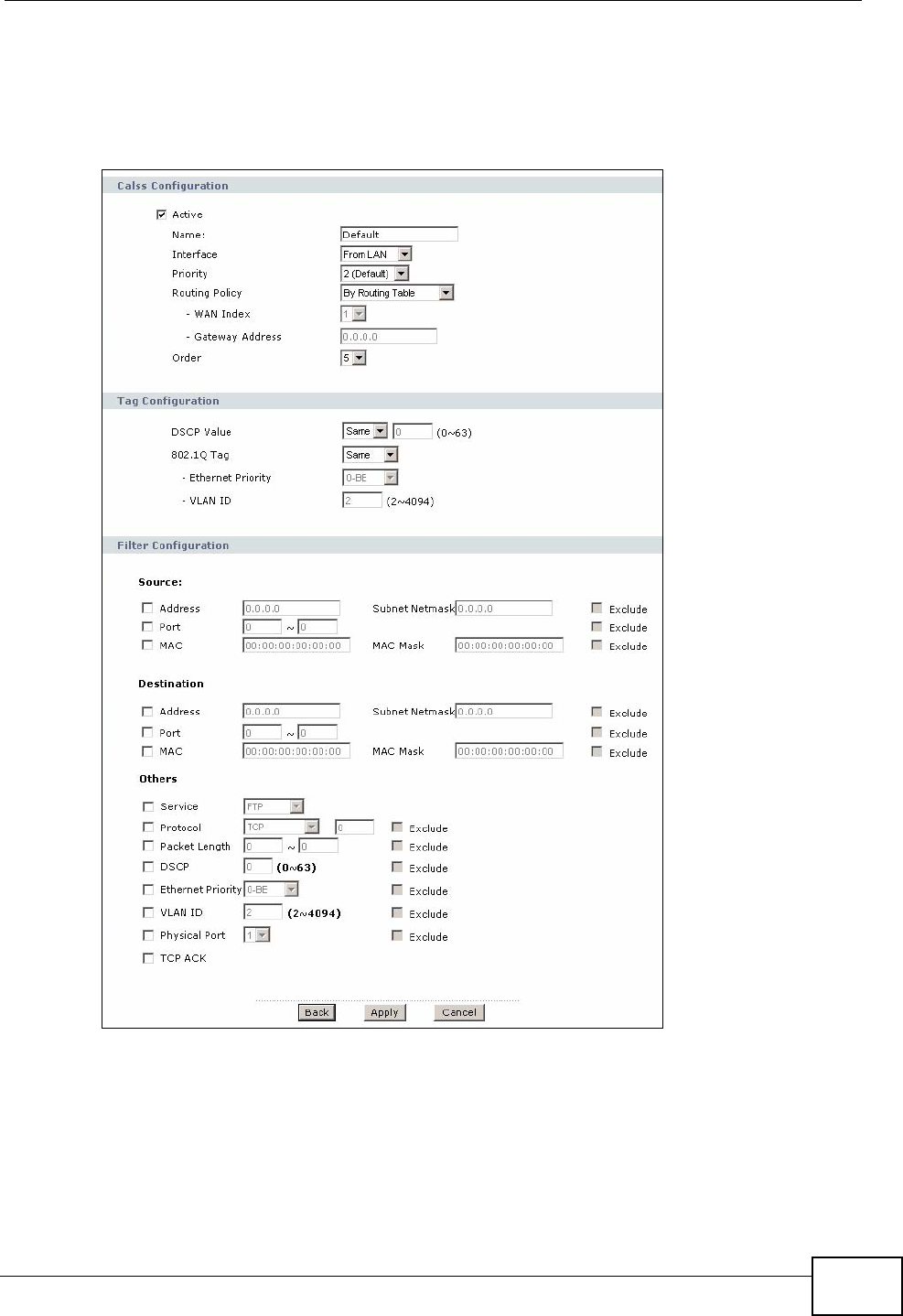

Figure 203 Advanced > QoS > Class Setup > Add
![](/img.php?id=1154264&img=bg26.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
338
See Appendix E on page 557 for a list of commonly-used services. The following
table describes the labels in this screen.
Table 109 Advanced > QoS > Class Setup > Add
LABEL DESCRIPTION
Class
Configuration
Active Select the check box to enable this classifier.
Name Enter a descriptive name of up to 20 printable English keyboard
characters, including spaces.
Interface Select from which interface traffic of this class should come.
Priority Select a priority level (between 0 and 7) or select Auto to have the
ZyXEL Device map the matched traffic to a queue according to the
internal QoS mapping table. See Section 18.5.4 on page 343 for more
information.
"0" is the lowest priority level and "7" is the highest.
Routing Policy Select the next hop to which traffic of this class should be forwarded.
Select By Routing Table to have the ZyXEL Device use the routing
table to find a next hop and forward the matched packets
automatically.
Select To Gateway Address to route the matched packets to the
router or switch you specified in the Gateway Address field.
WAN Index This field in not configurable at the time of writing.
Gateway
Address Enter the IP address of the gateway, which should be a router or
switch on the same segment as the ZyXEL Device’s interface(s), that
can forward the packet to the destination.
Order This shows the ordering number of this classifier. Select an existing
number for where you want to put this classifier and click Apply to
move the classifier to the number you selected. For example, if you
select 2, the classifier you are moving becomes number 2 and the
previous classifier 2 gets pushed down one.
Tag Configuration
DSCP Value Select Same to keep the DSCP fields in the packets.
Select Auto to map the DSCP value to 802.1 priority level
automatically.
Select Mark to set the DSCP field with the value you configure in the
field provided.
![](/img.php?id=1154264&img=bg27.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 339
802.1Q Tag Select Same to keep the priority setting and VLAN ID of the frames.
Select Auto to map the 802.1 priority level to the DSCP value
automatically.
Select Remove to delete the priority queue tag and VLAN ID of the
frames.
Select Mark to replace the 802.1 priority field and VLAN ID with the
value you set in the fields below.
Select Add to treat all matched traffic untagged and add a second
priority queue tag and VLAN.
Ethernet
Priority Select a priority level (between 0 and 7) from the drop down list box.
VLAN ID Specify a VLAN ID number between 2 and 4094.
Filter
Configuration Use the following fields to configure the criteria for traffic
classification.
Source
Address Select the check box and enter the source IP address in dotted
decimal notation. A blank source IP address means any source IP
address.
Subnet
Netmask Enter the source subnet mask. Refer to the appendix for more
information on IP subnetting.
Port Select the check box and enter the port number of the source. 0
means any source port number. See Appendix E on page 557 for some
common services and port numbers.
MAC Select the check box and enter the source MAC address of the packet.
MAC Mask Type the mask for the specified MAC address to determine which bits
a packet’s MAC address should match.
Enter “f” for each bit of the specified source MAC address that the
traffic’s MAC address should match. Enter “0” for the bit(s) of the
matched traffic’s MAC address, which can be of any hexadecimal
character(s). For example, if you set the MAC address to
00:13:49:00:00:00 and the mask to ff:ff:ff:00:00:00, a packet with a
MAC address of 00:13:49:12:34:56 matches this criteria.
Exclude Select this option to exclude the packets that match the specified
criteria from this classifier.
Destination
Address Select the check box and enter the destination IP address in dotted
decimal notation.
Subnet
Netmask Enter the destination subnet mask. Refer to the appendix for more
information on IP subnetting.
Port Select the check box and enter the port number of the destination. 0
means any source port number. See Appendix E on page 557 for some
common services and port numbers.
MAC Select the check box and enter the destination MAC address of the
packet.
Table 109 Advanced > QoS > Class Setup > Add (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg28.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
340
MAC Mask Type the mask for the specified MAC address to determine which bits
a packet’s MAC address should match.
Enter “f” for each bit of the specified destination MAC address that the
traffic’s MAC address should match. Enter “0” for the bit(s) of the
matched traffic’s MAC address, which can be of any hexadecimal
character(s). For example, if you set the MAC address to
00:13:49:00:00:00 and the mask to ff:ff:ff:00:00:00, a packet with a
MAC address of 00:13:49:12:34:56 matches this criteria.
Exclude Select this option to exclude the packets that match the specified
criteria from this classifier.
Others
Service This field simplifies classifier configuration by allowing you to select a
predefined application. When you select a predefined application, you
do not configure the rest of the filter fields.
SIP (Session Initiation Protocol) is a signaling protocol used in
Internet telephony, instant messaging and other VoIP (Voice over IP)
applications. Select the check box and select VoIP(SIP) from the
drop-down list box to configure this classifier for traffic that uses SIP.
File Transfer Protocol (FTP) is an Internet file transfer service that
operates on the Internet and over TCP/IP networks. A system running
the FTP server accepts commands from a system running an FTP
client. The service allows users to send commands to the server for
uploading and downloading files. Select the check box and select FTP
from the drop-down list box to configure this classifier for FTP traffic.
Protocol Select this option and select the protocol (TCP or UDP) or select User
defined and enter the protocol (service type) number. 0 means any
protocol number.
Packet Length Select this option and enter the minimum and maximum packet
length (from 28 to 1500) in the fields provided.
DSCP Select this option and specify a DSCP (DiffServ Code Point) number
between 0 and 63 in the field provided.
Ethernet Priority Select this option and select a priority level (between 0 and 7) from
the drop down list box.
"0" is the lowest priority level and "7" is the highest.
VLAN ID Select this option and specify a VLAN ID number between 2 and 4094.
Physical Port Select this option and select a LAN port.
Exclude Select this option to exclude the packets that match the specified
criteria from this classifier.
TCP ACK Select this option to set this classifier for TCP ACK (acknowledgement)
packets.
Back Click Back to go to the previous screen.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 109 Advanced > QoS > Class Setup > Add (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg29.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 341
18.4 The QoS Monitor Screen
To view the ZyXEL Device’s QoS packet statistics, click Advanced > QoS >
Monitor. The screen appears as shown.
Figure 204 Advanced > QoS > Monitor
The following table describes the labels in this screen.
18.5 QoS Technical Reference
This section provides some technical background information about the topics
covered in this chapter.
Table 110 Advanced > QoS > Monitor
LABEL DESCRIPTION
Priority Queue This shows the priority queue number.
Traffic assigned to higher index queues gets through faster while
traffic in lower index queues is dropped if the network is congested.
Pass This shows how many packets mapped to this priority queue are
transmitted successfully.
Drop This shows how many packets mapped to this priority queue are
dropped.
Poll Interval(s) Enter the time interval for refreshing statistics in this field.
Set Interval Click this button to apply the new poll interval you entered in the Poll
Interval(s) field.
Stop Click Stop to stop refreshing statistics.
![](/img.php?id=1154264&img=bg2a.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
342
18.5.1 IEEE 802.1Q Tag
The IEEE 802.1Q standard defines an explicit VLAN tag in the MAC header to
identify the VLAN membership of a frame across bridges. A VLAN tag includes the
12-bit VLAN ID and 3-bit user priority. The VLAN ID associates a frame with a
specific VLAN and provides the information that devices need to process the frame
across the network.
IEEE 802.1p specifies the user priority field and defines up to eight separate traffic
types. The following table describes the traffic types defined in the IEEE 802.1d
standard (which incorporates the 802.1p).
18.5.2 IP Precedence
Similar to IEEE 802.1p prioritization at layer-2, you can use IP precedence to
prioritize packets in a layer-3 network. IP precedence uses three bits of the eight-
bit ToS (Type of Service) field in the IP header. There are eight classes of services
(ranging from zero to seven) in IP precedence. Zero is the lowest priority level and
seven is the highest.
18.5.3 DiffServ
QoS is used to prioritize source-to-destination traffic flows. All packets in the flow
are given the same priority. You can use CoS (class of service) to give different
priorities to different packet types.
Table 111 IEEE 802.1p Priority Level and Traffic Type
PRIORITY
LEVEL TRAFFIC TYPE
Level 7 Typically used for network control traffic such as router configuration
messages.
Level 6 Typically used for voice traffic that is especially sensitive to jitter (jitter is the
variations in delay).
Level 5 Typically used for video that consumes high bandwidth and is sensitive to
jitter.
Level 4 Typically used for controlled load, latency-sensitive traffic such as SNA
(Systems Network Architecture) transactions.
Level 3 Typically used for “excellent effort” or better than best effort and would
include important business traffic that can tolerate some delay.
Level 2 This is for “spare bandwidth”.
Level 1 This is typically used for non-critical “background” traffic such as bulk
transfers that are allowed but that should not affect other applications and
users.
Level 0 Typically used for best-effort traffic.
![](/img.php?id=1154264&img=bg2b.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide 343
DiffServ (Differentiated Services) is a class of service (CoS) model that marks
packets so that they receive specific per-hop treatment at DiffServ-compliant
network devices along the route based on the application types and traffic flow.
Packets are marked with DiffServ Code Points (DSCPs) indicating the level of
service desired. This allows the intermediary DiffServ-compliant network devices
to handle the packets differently depending on the code points without the need to
negotiate paths or remember state information for every flow. In addition,
applications do not have to request a particular service or give advanced notice of
where the traffic is going.
DSCP and Per-Hop Behavior
DiffServ defines a new DS (Differentiated Services) field to replace the Type of
Service (TOS) field in the IP header. The DS field contains a 2-bit unused field and
a 6-bit DSCP field which can define up to 64 service levels. The following figure
illustrates the DS field.
DSCP is backward compatible with the three precedence bits in the ToS octet so
that non-DiffServ compliant, ToS-enabled network device will not conflict with the
DSCP mapping.
The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior),
that each packet gets across the DiffServ network. Based on the marking rule,
different kinds of traffic can be marked for different kinds of forwarding. Resources
can then be allocated according to the DSCP values and the configured policies.
18.5.4 Automatic Priority Queue Assignment
If you enable QoS on the ZyXEL Device, the ZyXEL Device can automatically base
on the IEEE 802.1p priority level, IP precedence and/or packet length to assign
priority to traffic which does not match a class.
The following table shows you the internal layer-2 and layer-3 QoS mapping on
the ZyXEL Device. On the ZyXEL Device, traffic assigned to higher priority queues
DSCP (6 bits) Unused (2 bits)
![](/img.php?id=1154264&img=bg2c.png)
Chapter 18 Quality of Service (QoS)
P-2612HWU-F1 User’s Guide
344
gets through faster while traffic in lower index queues is dropped if the network is
congested.
Table 112 Internal Layer2 and Layer3 QoS Mapping
PRIORITY
QUEUE
LAYER 2 LAYER 3
IEEE 802.1P
USER PRIORITY
(ETHERNET
PRIORITY)
TOS (IP
PRECEDENCE) DSCP IP PACKET
LENGTH (BYTE)
0 1 0 000000
12
2 0 0 000000 >1100
3 3 1 001110
001100
001010
001000
250~1100
4 4 2 010110
010100
010010
010000
5 5 3 011110
011100
011010
011000
<250
6 6 4 100110
100100
100010
100000
5 101110
101000
7 7 6 110000
111000
7
![](/img.php?id=1154264&img=bg2d.png)
P-2612HWU-F1 User’s Guide 345
CHAPTER 19
Dynamic DNS Setup
This chapter discusses how to configure your ZyXEL Device to use Dynamic DNS.
19.1 Overview
Dynamic DNS allows you to update your current dynamic IP address with one or
many dynamic DNS services so that anyone can contact you (in applications such
as NetMeeting and CU-SeeMe). You can also access your FTP server or Web site on
your own computer using a domain name (for instance myhost.dhs.org, where
myhost is a name of your choice) that will never change instead of using an IP
address that changes each time you reconnect. Your friends or relatives will
always be able to call you even if they don't know your IP address.
First of all, you need to have registered a dynamic DNS account with
www.dyndns.org. This is for people with a dynamic IP from their ISP or DHCP
server that would still like to have a domain name. The Dynamic DNS service
provider will give you a password or key.
19.1.1 What You Can Do in the DDNS Screen
Use the Dynamic DNS screen (Section 19.2 on page 346) to enable DDNS and
configure the DDNS settings on the ZyXEL Device.
19.1.2 What You Need To Know About DDNS
DYNDNS Wildcard
Enabling the wildcard feature for your host causes *.yourhost.dyndns.org to be
aliased to the same IP address as yourhost.dyndns.org. This feature is useful if
you want to be able to use, for example, www.yourhost.dyndns.org and still reach
your hostname.
If you have a private WAN IP address, then you cannot use Dynamic DNS.
![](/img.php?id=1154264&img=bg2e.png)
Chapter 19 Dynamic DNS Setup
P-2612HWU-F1 User’s Guide
346
19.2 Configuring Dynamic DNS
To change your ZyXEL Device’s DDNS, click Advanced > Dynamic DNS. The
screen appears as shown.
See Section 19.1 on page 345 for more information.
Figure 205 Advanced > Dynamic DNS
The following table describes the fields in this screen.
Table 113 Advanced > Dynamic DNS
LABEL DESCRIPTION
Dynamic DNS Setup
Active
Dynamic DNS Select this check box to use dynamic DNS.
Service
Provider This is the name of your Dynamic DNS service provider.
Dynamic DNS
Type Select the type of service that you are registered for from your Dynamic
DNS service provider.
Host Name Type the domain name assigned to your ZyXEL Device by your Dynamic
DNS provider.
You can specify up to two host names in the field separated by a comma
(",").
User Name Type your user name.
Password Type the password assigned to you.
![](/img.php?id=1154264&img=bg2f.png)
Chapter 19 Dynamic DNS Setup
P-2612HWU-F1 User’s Guide 347
Enable
Wildcard
Option
Select the check box to enable DynDNS Wildcard.
Enable off line
option This option is available when CustomDNS is selected in the DDNS Type
field. Check with your Dynamic DNS service provider to have traffic
redirected to a URL (that you can specify) while you are off line.
IP Address Update Policy
Use WAN IP
Address Select this option to update the IP address of the host name(s) to the
WAN IP address.
Dynamic DNS
server auto
detect IP
Address
Select this option only when there are one or more NAT routers between
the ZyXEL Device and the DDNS server. This feature has the DDNS
server automatically detect and use the IP address of the NAT router
that has a public IP address.
Note: The DDNS server may not be able to detect the proper IP
address if there is an HTTP proxy server between the ZyXEL
Device and the DDNS server.
Use specified
IP Address Type the IP address of the host name(s). Use this if you have a static IP
address.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 113 Advanced > Dynamic DNS (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg30.png)
Chapter 19 Dynamic DNS Setup
P-2612HWU-F1 User’s Guide
348
![](/img.php?id=1154264&img=bg31.png)
P-2612HWU-F1 User’s Guide 349
CHAPTER 20
Remote Management
Configuration
20.1 Overview
Remote management allows you to determine which services/protocols can access
which ZyXEL Device interface (if any) from which computers.The following figure
shows remote management of the ZyXEL Device coming in from the WAN.

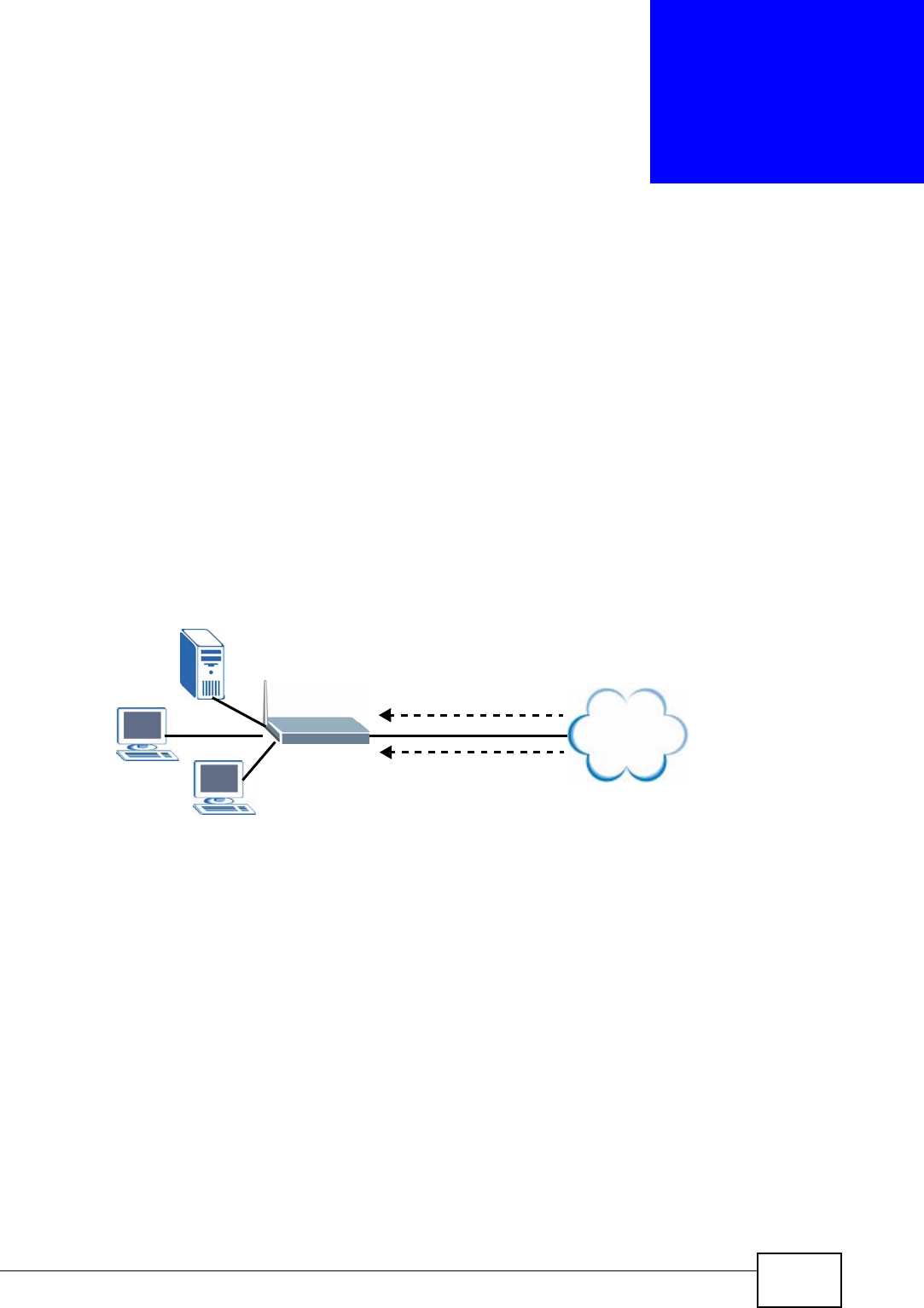

Figure 206 Remote Management From the WAN
Note: When you configure remote management to allow management from the WAN,
you still need to configure a firewall rule to allow access.
You may manage your ZyXEL Device from a remote location via:
•Internet (WAN only)
•ALL (LAN and WAN)
•LAN only,
• Neither (Disable).
Note: When you choose WAN only or LAN & WAN, you still need to configure a
firewall rule to allow access.
To disable remote management of a service, select Disable in the corresponding
Access Status field.
LAN WAN
HTTP
Telnet
Internet
![](/img.php?id=1154264&img=bg32.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
350
You may only have one remote management session running at a time. The ZyXEL
Device automatically disconnects a remote management session of lower priority
when another remote management session of higher priority starts. The priorities
for the different types of remote management sessions are as follows.
1Telnet
2HTTP
20.1.1 What You Can Do in the Remote Management Screens
•Use the WWW screen (Section 20.2 on page 351) to configure through which
interface(s) and from which IP address(es) users can use HTTP to manage the
ZyXEL Device.
•Use the Telnet screen (Section 20.3 on page 352) to configure through which
interface(s) and from which IP address(es) users can use Telnet to manage the
ZyXEL Device.
•Use the FTP screen (Section 20.4 on page 353) to configure through which
interface(s) and from which IP address(es) users can use FTP to access the
ZyXEL Device.
•Use the SNMP screen (Section 20.5 on page 354) to configure your ZyXEL
Device’s settings for Simple Network Management Protocol management.
•Use the DNS screen (Section 20.6 on page 357) to configure through which
interface(s) and from which IP address(es) users can send DNS queries to the
ZyXEL Device.
•Use the ICMP screen (Section 20.7 on page 358) to set whether or not your
ZyXEL Device will respond to pings and probes for services that you have not
made available.
20.1.2 What You Need to Know About Remote Management
Remote Management Limitations
Remote management does not work when:
• You have not enabled that service on the interface in the corresponding remote
management screen.
• You have disabled that service in one of the remote management screens.
• The IP address in the Secured Client IP field does not match the client IP
address. If it does not match, the ZyXEL Device will disconnect the session
immediately.
• There is already another remote management session with an equal or higher
priority running. You may only have one remote management session running
at one time.
• There is a firewall rule that blocks it.
![](/img.php?id=1154264&img=bg33.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide 351
Remote Management and NAT
When NAT is enabled:
• Use the ZyXEL Device’s WAN IP address when configuring from the WAN.
• Use the ZyXEL Device’s LAN IP address when configuring from the LAN.
System Timeout
There is a default system management idle timeout of five minutes (three
hundred seconds). The ZyXEL Device automatically logs you out if the
management session remains idle for longer than this timeout period. The
management session does not time out when a statistics screen is polling.
20.2 The WWW Screen
To change your ZyXEL Device’s World Wide Web settings, click Advanced >
Remote MGMT to display the WWW screen.

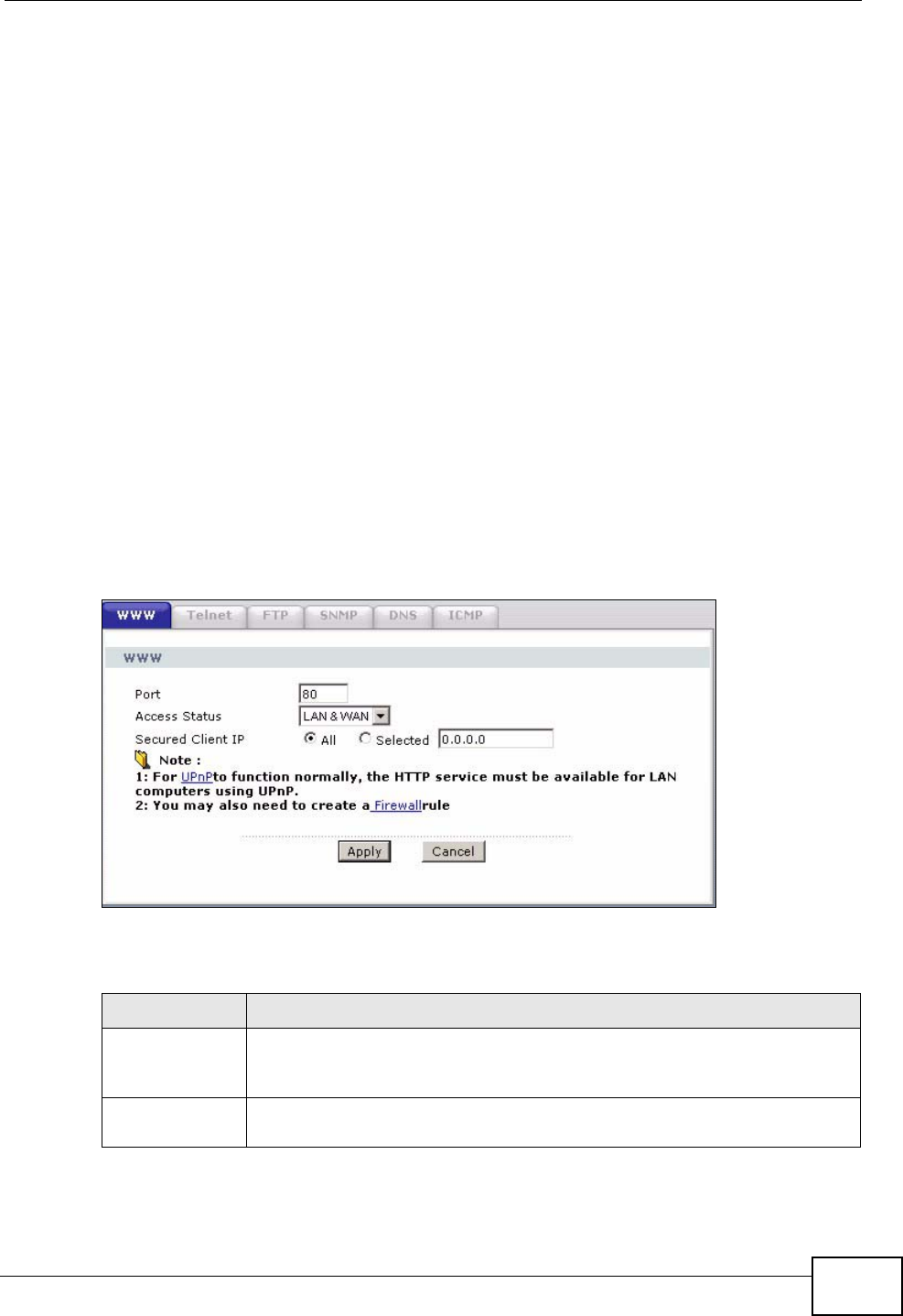

Figure 207 Advanced > Remote Management > WWW
The following table describes the labels in this screen.
Table 114 Advanced > Remote Management > WWW
LABEL DESCRIPTION
Port You may change the server port number for a service if needed,
however you must use the same port number in order to use that
service for remote management.
Access Status Select the interface(s) through which a computer may access the ZyXEL
Device using this service.
![](/img.php?id=1154264&img=bg34.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
352
20.3 The Telnet Screen
You can use Telnet to access the ZyXEL Device’s command line interface. Specify
which interfaces allow Telnet access and from which IP address the access can
come. Click Advanced > Remote MGMT > Telnet tab to display the screen as
shown.

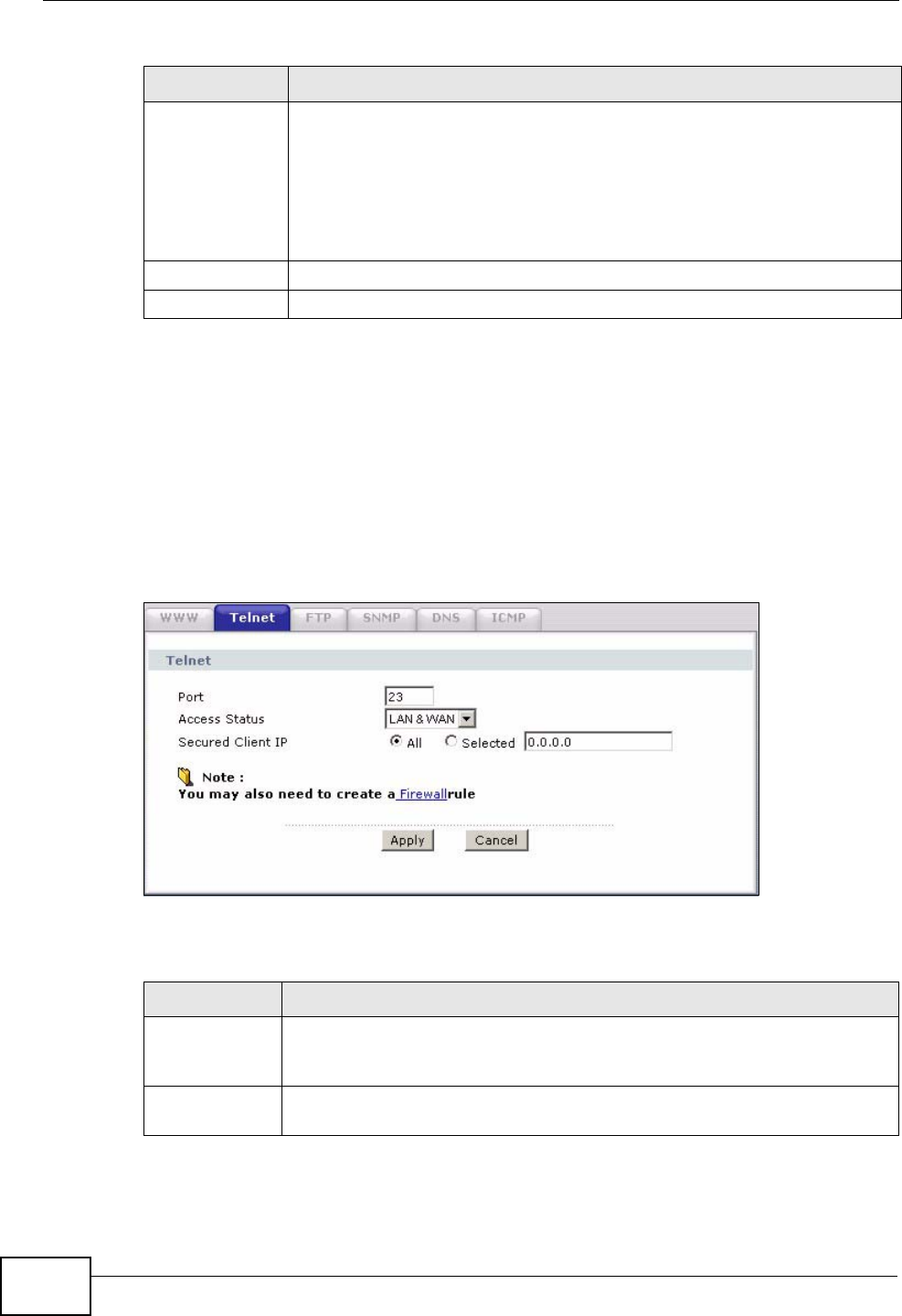

Figure 208 Advanced > Remote Management > Telnet
The following table describes the labels in this screen.
Secured Client
IP A secured client is a “trusted” computer that is allowed to communicate
with the ZyXEL Device using this service.
Select All to allow any computer to access the ZyXEL Device using this
service.
Choose Selected to just allow the computer with the IP address that
you specify to access the ZyXEL Device using this service.
Apply Click Apply to save your settings back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 114 Advanced > Remote Management > WWW
LABEL DESCRIPTION
Table 115 Advanced > Remote Management > Telnet
LABEL DESCRIPTION
Port You may change the server port number for a service if needed, however
you must use the same port number in order to use that service for
remote management.
Access Status Select the interface(s) through which a computer may access the ZyXEL
Device using this service.
![](/img.php?id=1154264&img=bg35.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide 353
20.4 The FTP Screen
You can use FTP (File Transfer Protocol) to upload and download the ZyXEL
Device’s firmware and configuration files, please see the User’s Guide chapter on
firmware and configuration file maintenance for details. To use this feature, your
computer must have an FTP client.
To change your ZyXEL Device’s FTP settings, click Advanced > Remote MGMT >
FTP. The screen appears as shown. Use this screen to specify which interfaces
allow FTP access and from which IP address the access can come.

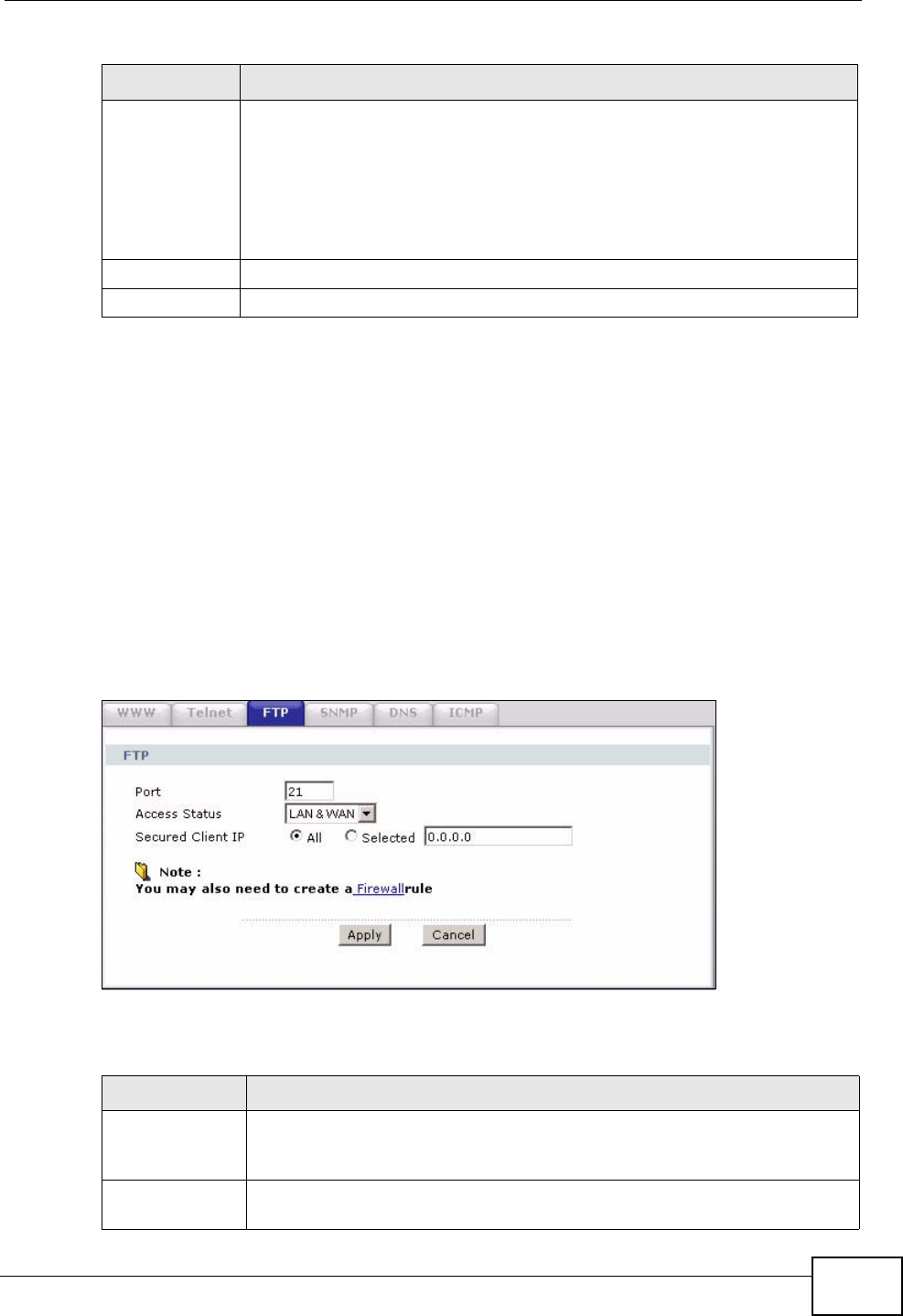

Figure 209 Advanced > Remote Management > FTP
The following table describes the labels in this screen.
Secured Client
IP A secured client is a “trusted” computer that is allowed to communicate
with the ZyXEL Device using this service.
Select All to allow any computer to access the ZyXEL Device using this
service.
Choose Selected to just allow the computer with the IP address that you
specify to access the ZyXEL Device using this service.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to begin configuring this screen afresh.
Table 115 Advanced > Remote Management > Telnet
LABEL DESCRIPTION
Table 116 Advanced > Remote Management > FTP
LABEL DESCRIPTION
Port You may change the server port number for a service if needed,
however you must use the same port number in order to use that
service for remote management.
Access Status Select the interface(s) through which a computer may access the ZyXEL
Device using this service.
![](/img.php?id=1154264&img=bg36.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
354

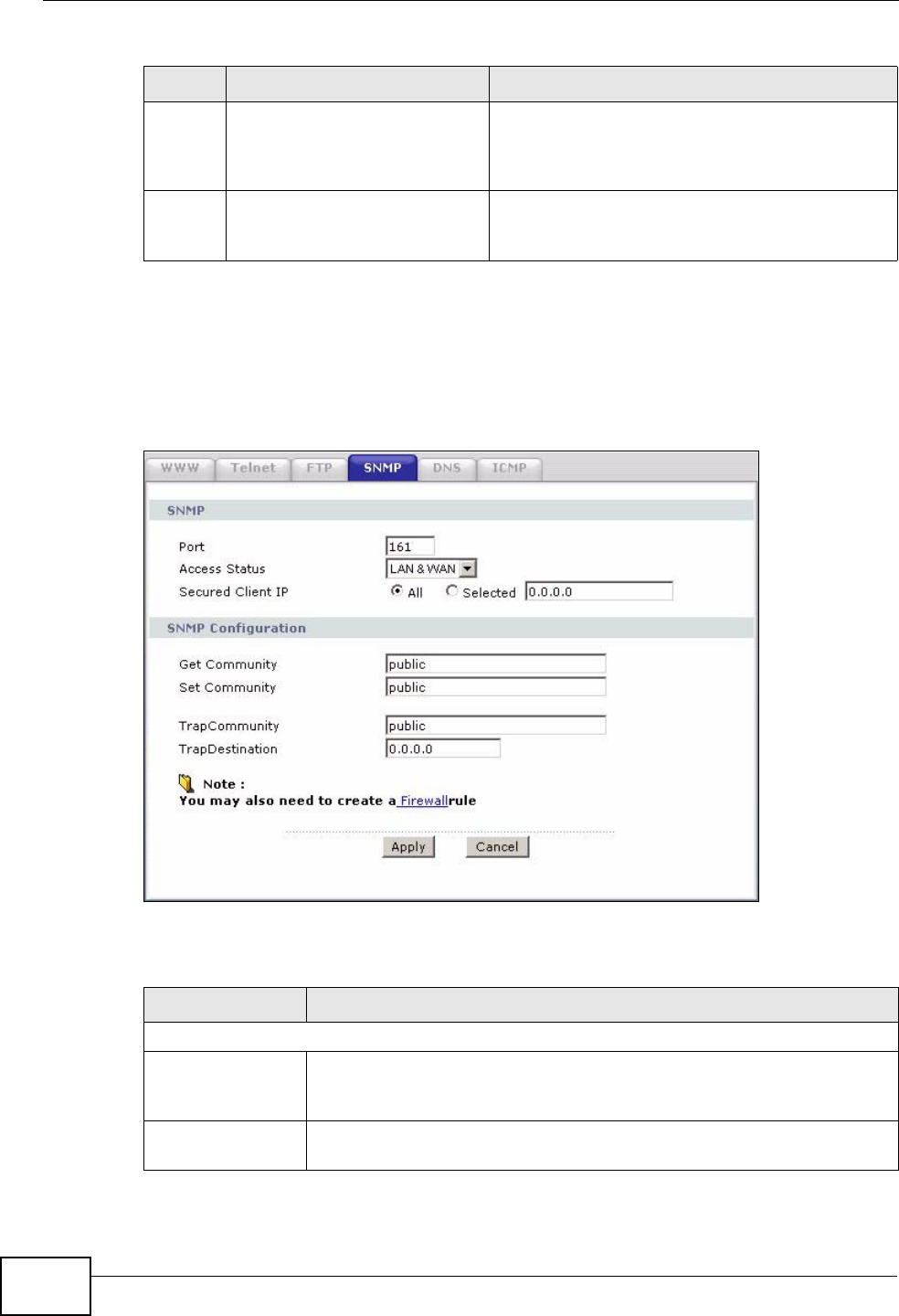

20.5 The SNMP Screen
Simple Network Management Protocol (SNMP) is a protocol used for exchanging
management information between network devices. SNMP is a member of the
TCP/IP protocol suite. Your ZyXEL Device supports SNMP agent functionality,
which allows a manager station to manage and monitor the ZyXEL Device through
the network. The ZyXEL Device supports SNMP version one (SNMPv1) and version
two (SNMPv2). The next figure illustrates an SNMP management operation.
Note: SNMP is only available if TCP/IP is configured.

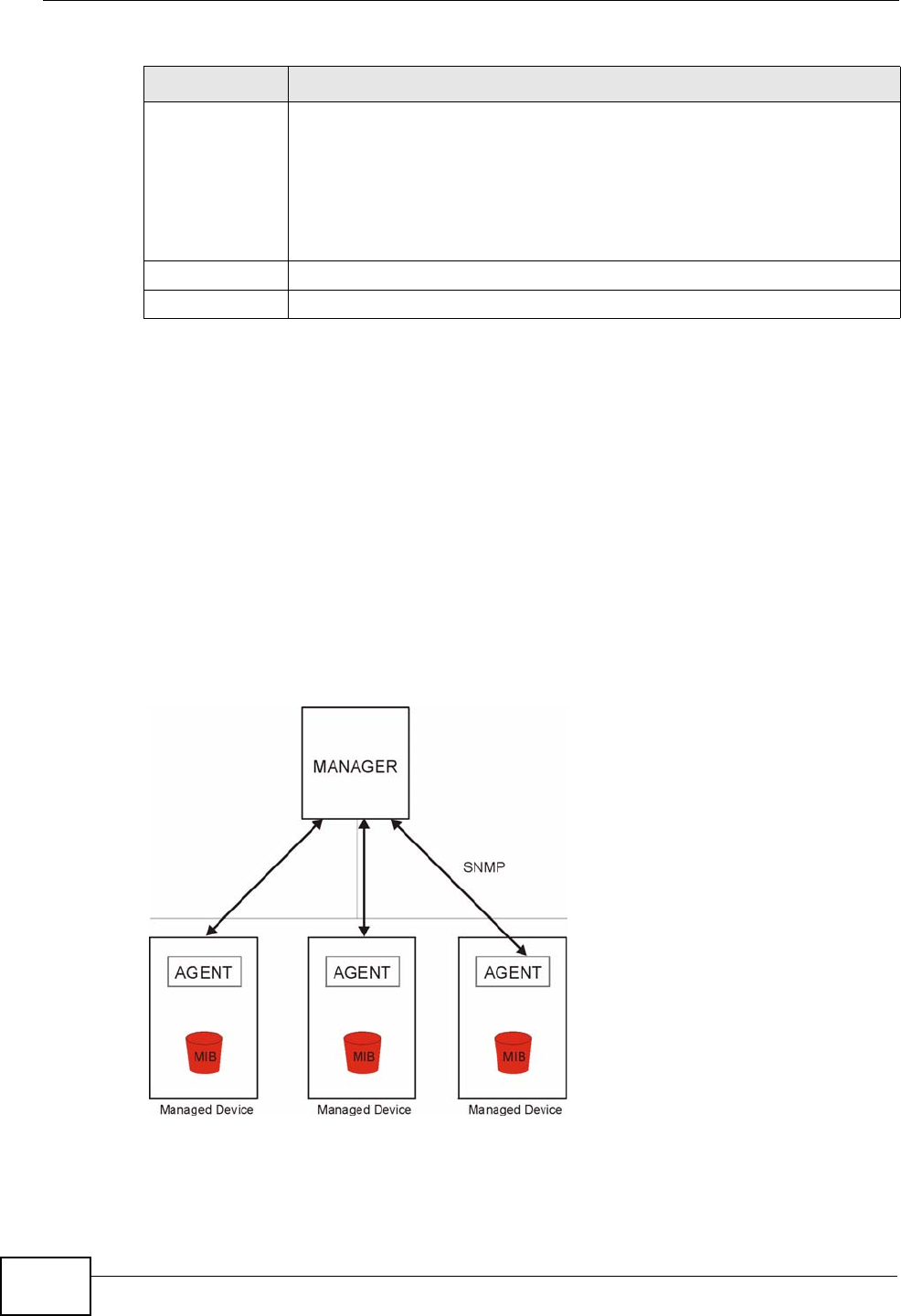

Figure 210 SNMP Management Model
An SNMP managed network consists of two main types of component: agents and
a manager.
Secured Client
IP A secured client is a “trusted” computer that is allowed to communicate
with the ZyXEL Device using this service.
Select All to allow any computer to access the ZyXEL Device using this
service.
Choose Selected to just allow the computer with the IP address that
you specify to access the ZyXEL Device using this service.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to begin configuring this screen afresh.
Table 116 Advanced > Remote Management > FTP
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg37.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide 355
An agent is a management software module that resides in a managed device (the
ZyXEL Device). An agent translates the local management information from the
managed device into a form compatible with SNMP. The manager is the console
through which network administrators perform network management functions. It
executes applications that control and monitor managed devices.
The managed devices contain object variables/managed objects that define each
piece of information to be collected about a device. Examples of variables include
such as number of packets received and node port status. A Management
Information Base (MIB) is a collection of managed objects. SNMP allows a
manager and agents to communicate for the purpose of accessing these objects.
SNMP itself is a simple request/response protocol based on the manager/agent
model. The manager issues a request and the agent returns responses using the
following protocol operations:
• Get - Allows the manager to retrieve an object variable from the agent.
• GetNext - Allows the manager to retrieve the next object variable from a table
or list within an agent. In SNMPv1, when a manager wants to retrieve all
elements of a table from an agent, it initiates a Get operation, followed by a
series of GetNext operations.
• Set - Allows the manager to set values for object variables within an agent.
• Trap - Used by the agent to inform the manager of some events.
Supported MIBs
The ZyXEL Device supports MIB II, which is defined in RFC-1213 and RFC-1215.
The focus of the MIBs is to let administrators collect statistical data and monitor
status and performance.
SNMP Traps
The ZyXEL Device will send traps to the SNMP manager when any one of the
following events occurs:
Table 117 SNMP Traps
TRAP # TRAP NAME DESCRIPTION
0coldStart (defined in RFC-
1215)A trap is sent after booting (power on).
1warmStart (defined in RFC-
1215)A trap is sent after booting (software reboot).
4authenticationFailure (defined
in RFC-1215)A trap is sent to the manager when receiving
any SNMP get or set requirements with the
wrong community (password).
6whyReboot (defined in ZYXEL-
MIB) A trap is sent with the reason of restart before
rebooting when the system is going to restart
(warm start).
![](/img.php?id=1154264&img=bg38.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
356
20.5.1 Configuring SNMP
To change your ZyXEL Device’s SNMP settings, click Advanced > Remote MGMT
> SNMP. The screen appears as shown.
Figure 211 Advanced > Remote Management > SNMP
The following table describes the labels in this screen.
6a For intentional reboot: A trap is sent with the message "System reboot
by user!" if reboot is done intentionally, (for
example, download new files, CI command "sys
reboot").
6b For fatal error: A trap is sent with the message of the fatal
code if the system reboots because of fatal
errors.
Table 117 SNMP Traps
TRAP # TRAP NAME DESCRIPTION
Table 118 Advanced > Remote Management > SNMP
LABEL DESCRIPTION
SNMP
Port You may change the server port number for a service if needed,
however you must use the same port number in order to use that
service for remote management.
Access Status Select the interface(s) through which a computer may access the
ZyXEL Device using this service.
![](/img.php?id=1154264&img=bg39.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide 357
20.6 The DNS Screen
Use DNS (Domain Name System) to map a domain name to its corresponding IP
address and vice versa. Refer to Chapter 7 on page 117 for background
information.
Click Advanced > Remote MGMT > DNS to change your ZyXEL Device’s DNS
settings. Use this screen to set from which IP address the ZyXEL Device will accept
DNS queries and on which interface it can send them your ZyXEL Device’s DNS
Secured Client IP A secured client is a “trusted” computer that is allowed to
communicate with the ZyXEL Device using this service.
Select All to allow any computer to access the ZyXEL Device using
this service.
Choose Selected to just allow the computer with the IP address that
you specify to access the ZyXEL Device using this service.
SNMP Configuration
Get Community Enter the Get Community, which is the password for the incoming
Get and GetNext requests from the management station. The default
is public and allows all requests.
Set Community Enter the Set community, which is the password for incoming Set
requests from the management station. The default is public and
allows all requests.
Trap
Community Type the trap community, which is the password sent with each trap
to the SNMP manager. The default is public and allows all requests.
Destination Type the IP address of the station to send your SNMP traps to.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to begin configuring this screen afresh.
Table 118 Advanced > Remote Management > SNMP
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg3a.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
358
settings. This feature is not available when the ZyXEL Device is set to bridge
mode.

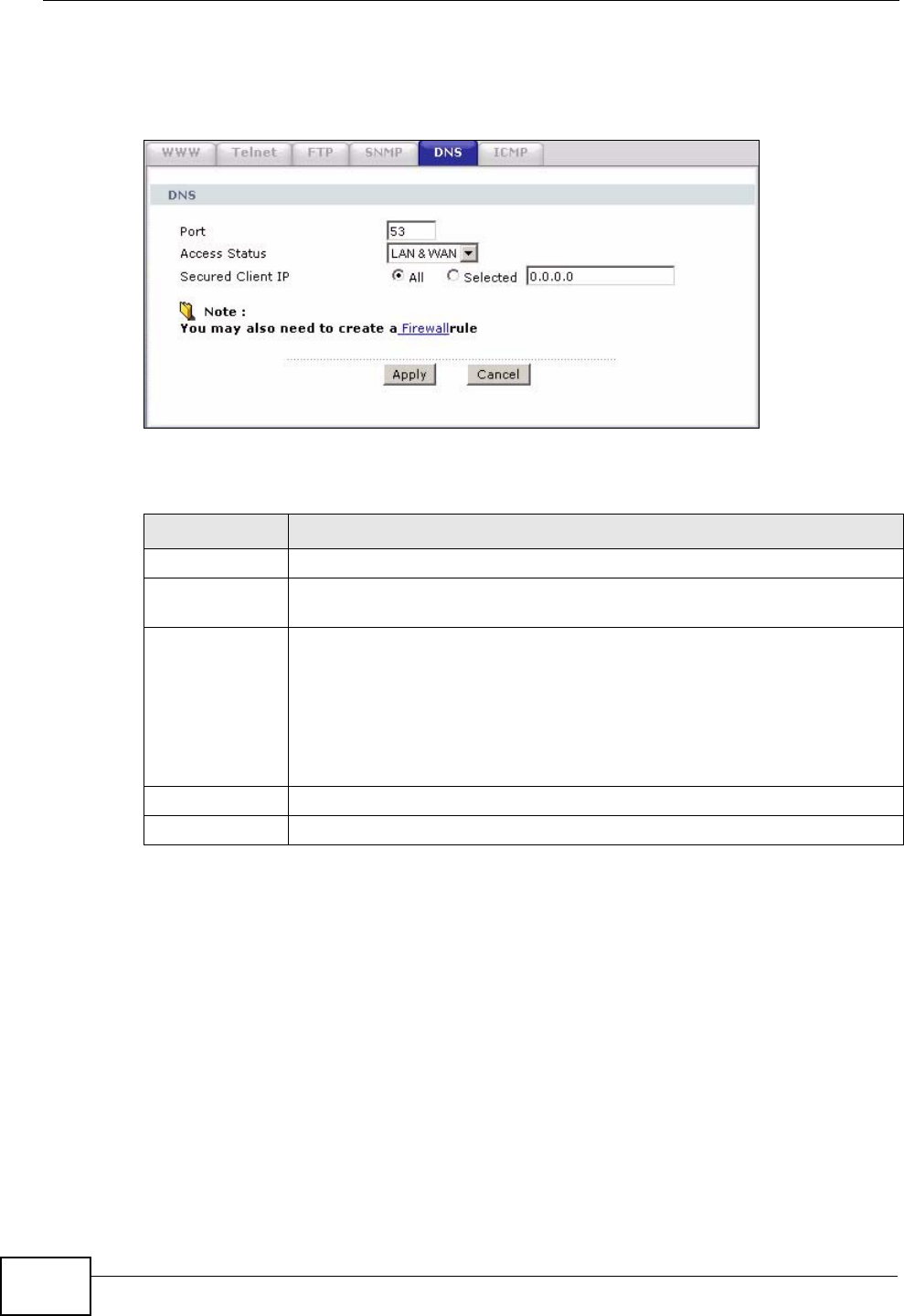

Figure 212 Remote Management: DNS
The following table describes the labels in this screen.
20.7 The ICMP Screen
To change your ZyXEL Device’s security settings, click Advanced > Remote
MGMT > ICMP. The screen appears as shown.
If an outside user attempts to probe an unsupported port on your ZyXEL Device,
an ICMP response packet is automatically returned. This allows the outside user to
know the ZyXEL Device exists. Your ZyXEL Device supports anti-probing, which
prevents the ICMP response packet from being sent. This keeps outsiders from
discovering your ZyXEL Device when unsupported ports are probed.
Table 119 Remote Management: DNS
LABEL DESCRIPTION
Port The DNS service port number is 53 and cannot be changed here.
Access Status Select the interface(s) through which a computer may send DNS queries
to the ZyXEL Device.
Secured Client
IP A secured client is a “trusted” computer that is allowed to send DNS
queries to the ZyXEL Device.
Select All to allow any computer to send DNS queries to the ZyXEL
Device.
Choose Selected to just allow the computer with the IP address that
you specify to send DNS queries to the ZyXEL Device.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to begin configuring this screen afresh.
![](/img.php?id=1154264&img=bg3b.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide 359
Note: If you want your device to respond to pings and requests for unauthorized
services, you may also need to configure the firewall anti probing settings to
match.

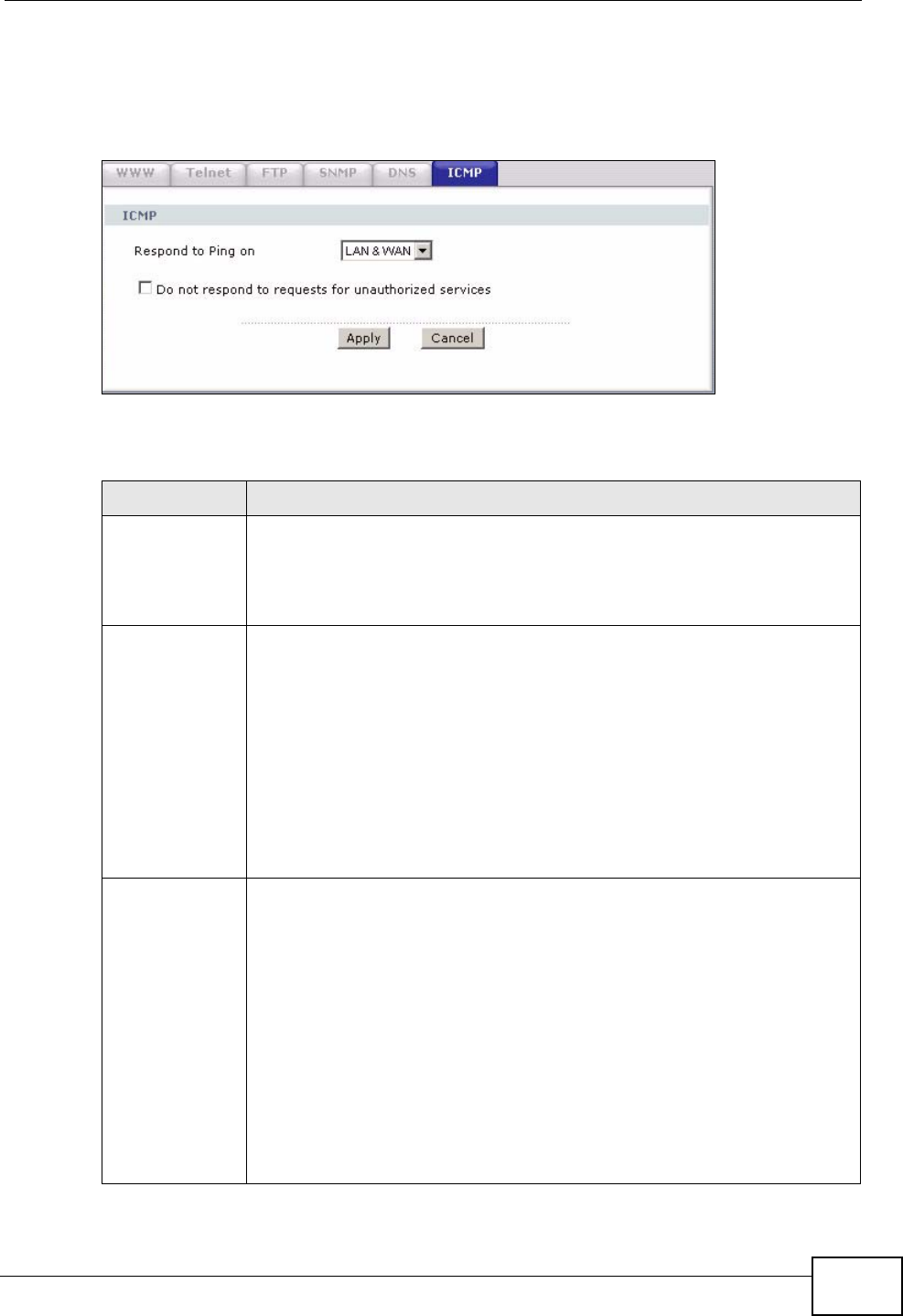

Figure 213 Advanced > Remote Management > ICMP
The following table describes the labels in this screen.
Table 120 Advanced > Remote Management > ICMP
LABEL DESCRIPTION
ICMP Internet Control Message Protocol is a message control and error-
reporting protocol between a host server and a gateway to the Internet.
ICMP uses Internet Protocol (IP) datagrams, but the messages are
processed by the TCP/IP software and directly apparent to the
application user.
Respond to
Ping on The ZyXEL Device will not respond to any incoming Ping requests when
Disable is selected.
•Select LAN to reply to incoming LAN Ping requests.
•Select WAN to reply to incoming WAN Ping requests.
•Select LAN & WAN to reply to both incoming LAN and WAN Ping
requests.
•Select WLAN & WAN to reply to both incoming WLAN and WAN Ping
requests.
•Select WLAN & LAN to reply to both incoming WLAN and LAN Ping
requests.
•Select WLAN to reply to incoming WLAN Ping requests.
Do not respond
to requests for
unauthorized
services
Select this option to prevent hackers from finding the ZyXEL Device by
probing for unused ports. If you select this option, the ZyXEL Device will
not respond to port request(s) for unused ports, thus leaving the unused
ports and the ZyXEL Device unseen. If this option is not selected, the
ZyXEL Device will reply with an ICMP port unreachable packet for a port
probe on its unused UDP ports and a TCP reset packet for a port probe
on its unused TCP ports.
Note that the probing packets must first traverse the ZyXEL Device's
firewall rule checks before reaching this anti-probing mechanism.
Therefore if a firewall rule stops a probing packet, the ZyXEL Device
reacts based on the firewall rule to either send a TCP reset packet for a
blocked TCP packet (or an ICMP port-unreachable packet for a blocked
UDP packets) or just drop the packets without sending a response
packet.
![](/img.php?id=1154264&img=bg3c.png)
Chapter 20 Remote Management Configuration
P-2612HWU-F1 User’s Guide
360
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to begin configuring this screen afresh.
Table 120 Advanced > Remote Management > ICMP
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg3d.png)
P-2612HWU-F1 User’s Guide 361
CHAPTER 21
Universal Plug-and-Play (UPnP)
21.1 Overview
Universal Plug and Play (UPnP) is a distributed, open networking standard that
uses TCP/IP for simple peer-to-peer network connectivity between devices. A
UPnP device can dynamically join a network, obtain an IP address, convey its
capabilities and learn about other devices on the network. In turn, a device can
leave a network smoothly and automatically when it is no longer in use.
21.1.1 What You Can Do in the UPnP Screen
Use the UPnP screen (Section 21.2 on page 363) to enable UPnP on the ZyXEL
Device and allow UPnP-enabled applications to automatically configure the ZyXEL
Device.
21.1.2 What You Need to Know About UPnP
How do I know if I'm using UPnP?
UPnP hardware is identified as an icon in the Network Connections folder
(Windows XP). Each UPnP compatible device installed on your network will appear
as a separate icon. Selecting the icon of a UPnP device will allow you to access the
information and properties of that device.
NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate
through NAT. UPnP network devices can automatically configure network
addressing, announce their presence in the network to other UPnP devices and
enable exchange of simple product and service descriptions. NAT traversal allows
the following:
• Dynamic port mapping
• Learning public IP addresses
• Assigning lease times to mappings
![](/img.php?id=1154264&img=bg3e.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
362
Windows Messenger is an example of an application that supports NAT traversal
and UPnP.
See the NAT chapter for more information on NAT.
Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own
services and opening firewall ports may present network security issues. Network
information and configuration may also be obtained and modified by users in some
network environments.
When a UPnP device joins a network, it announces its presence with a multicast
message. For security reasons, the ZyXEL Device allows multicast messages on
the LAN only.
All UPnP-enabled devices may communicate freely with each other without
additional configuration. Disable UPnP if this is not your intention.
UPnP and ZyXEL
ZyXEL has achieved UPnP certification from the Universal Plug and Play Forum
UPnP™ Implementers Corp. (UIC). ZyXEL's UPnP implementation supports
Internet Gateway Device (IGD) 1.0.
See the following sections for examples of installing and using UPnP.
![](/img.php?id=1154264&img=bg3f.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 363
21.2 The UPnP Screen
Click Advanced > UPnP to display the screen shown next. See Section 21.1 on
page 361 for more information.

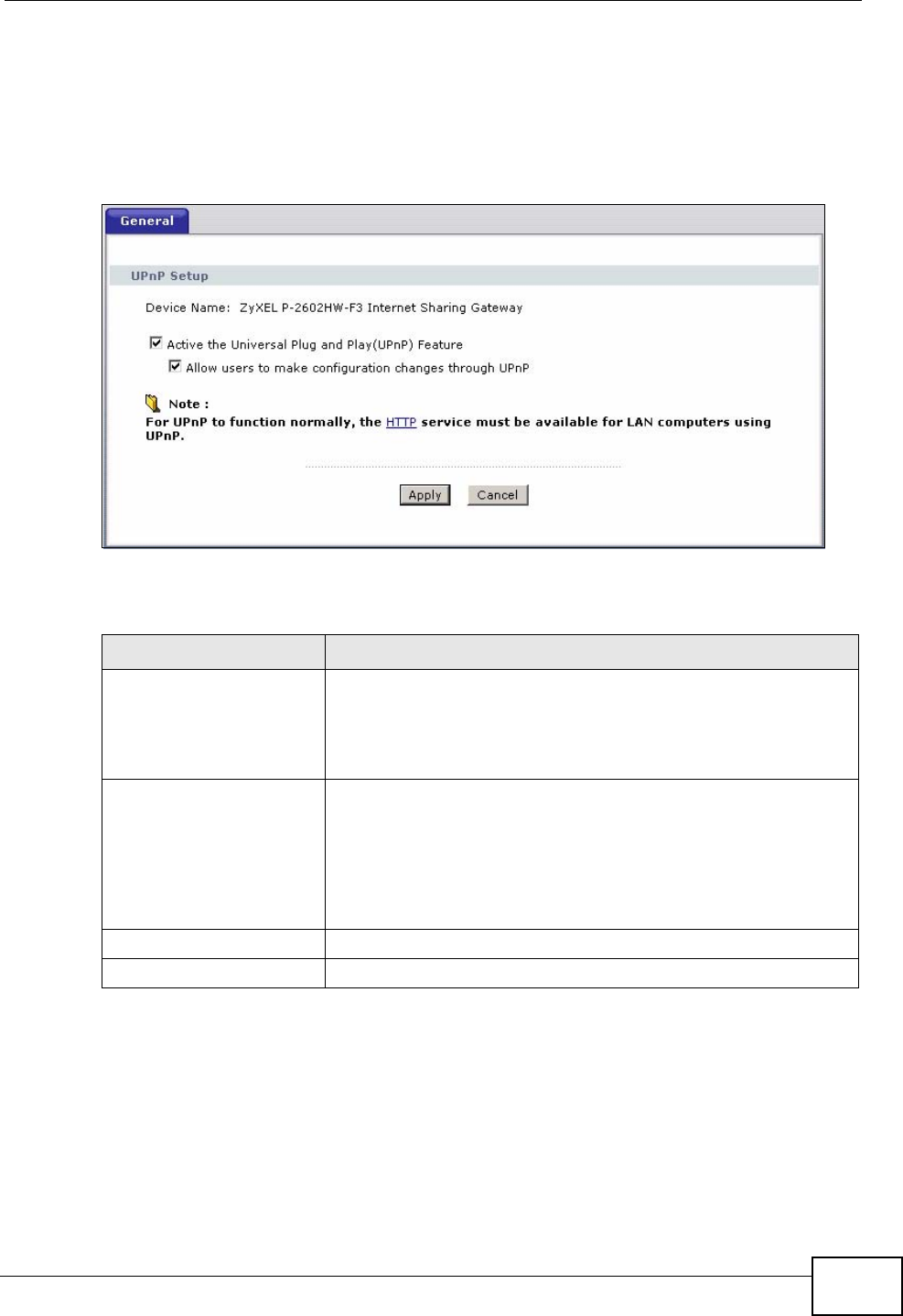

Figure 214 Advanced > UPnP > General
The following table describes the fields in this screen.
21.3 Installing UPnP in Windows Example
This section shows how to install UPnP in Windows Me and Windows XP.
Table 121 Advanced > UPnP > General
LABEL DESCRIPTION
Active the Universal Plug
and Play (UPnP) Feature Select this check box to activate UPnP. Be aware that anyone
could use a UPnP application to open the web configurator's
login screen without entering the ZyXEL Device's IP address
(although you must still enter the password to access the web
configurator).
Allow users to make
configuration changes
through UPnP
Select this check box to allow UPnP-enabled applications to
automatically configure the ZyXEL Device so that they can
communicate through the ZyXEL Device, for example by using
NAT traversal, UPnP applications automatically reserve a NAT
forwarding port in order to communicate with another UPnP
enabled device; this eliminates the need to manually configure
port forwarding for the UPnP enabled application.
Apply Click Apply to save the setting to the ZyXEL Device.
Cancel Click Cancel to return to the previously saved settings.
![](/img.php?id=1154264&img=bg40.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
364
Installing UPnP in Windows Me
Follow the steps below to install the UPnP in Windows Me.
1Click Start and Control Panel. Double-click Add/Remove Programs.
2Click the Windows Setup tab and select Communication in the Components
selection box. Click Details.

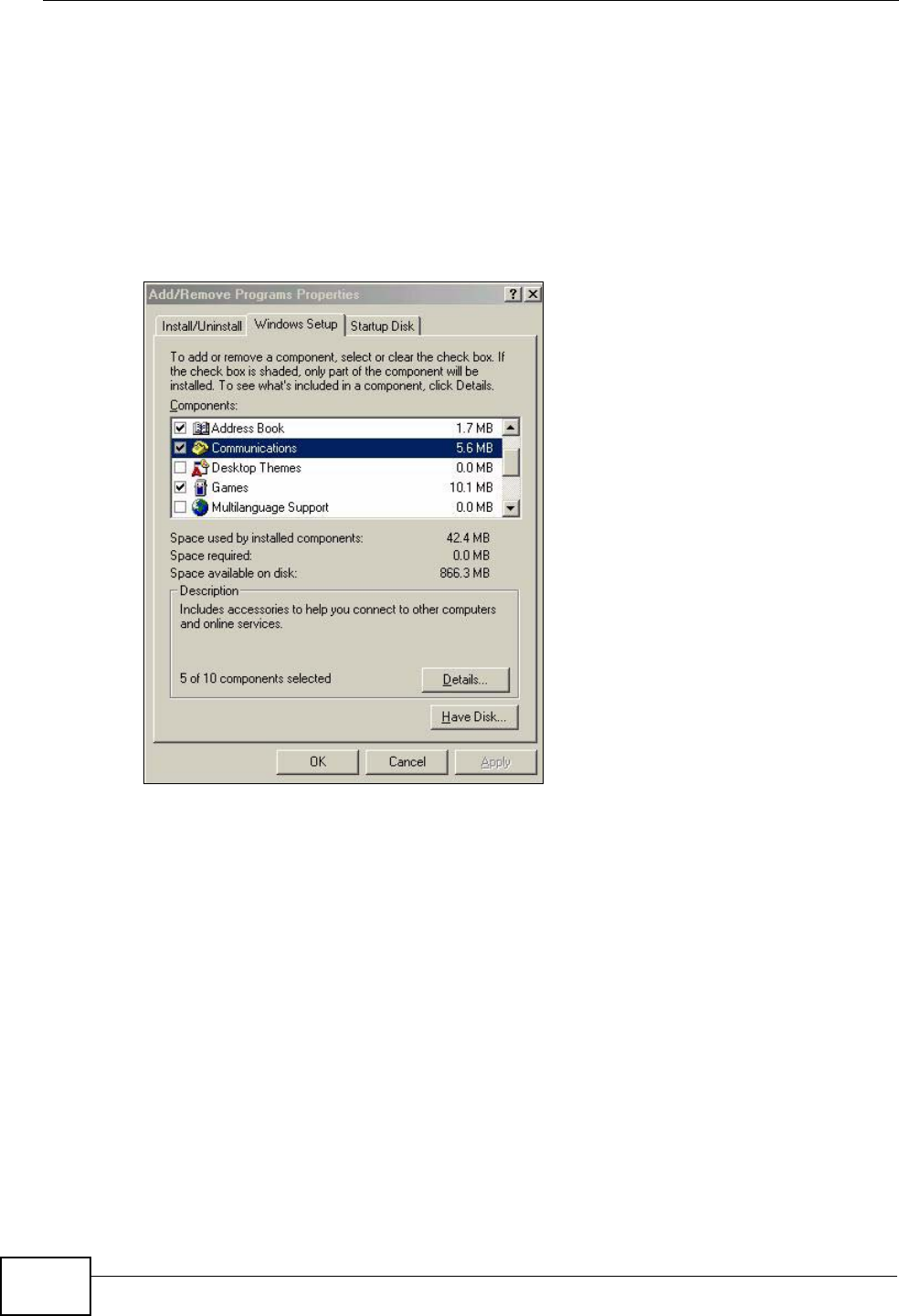

Figure 215 Add/Remove Programs: Windows Setup: Communication
![](/img.php?id=1154264&img=bg41.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 365
3In the Communications window, select the Universal Plug and Play check box
in the Components selection box.

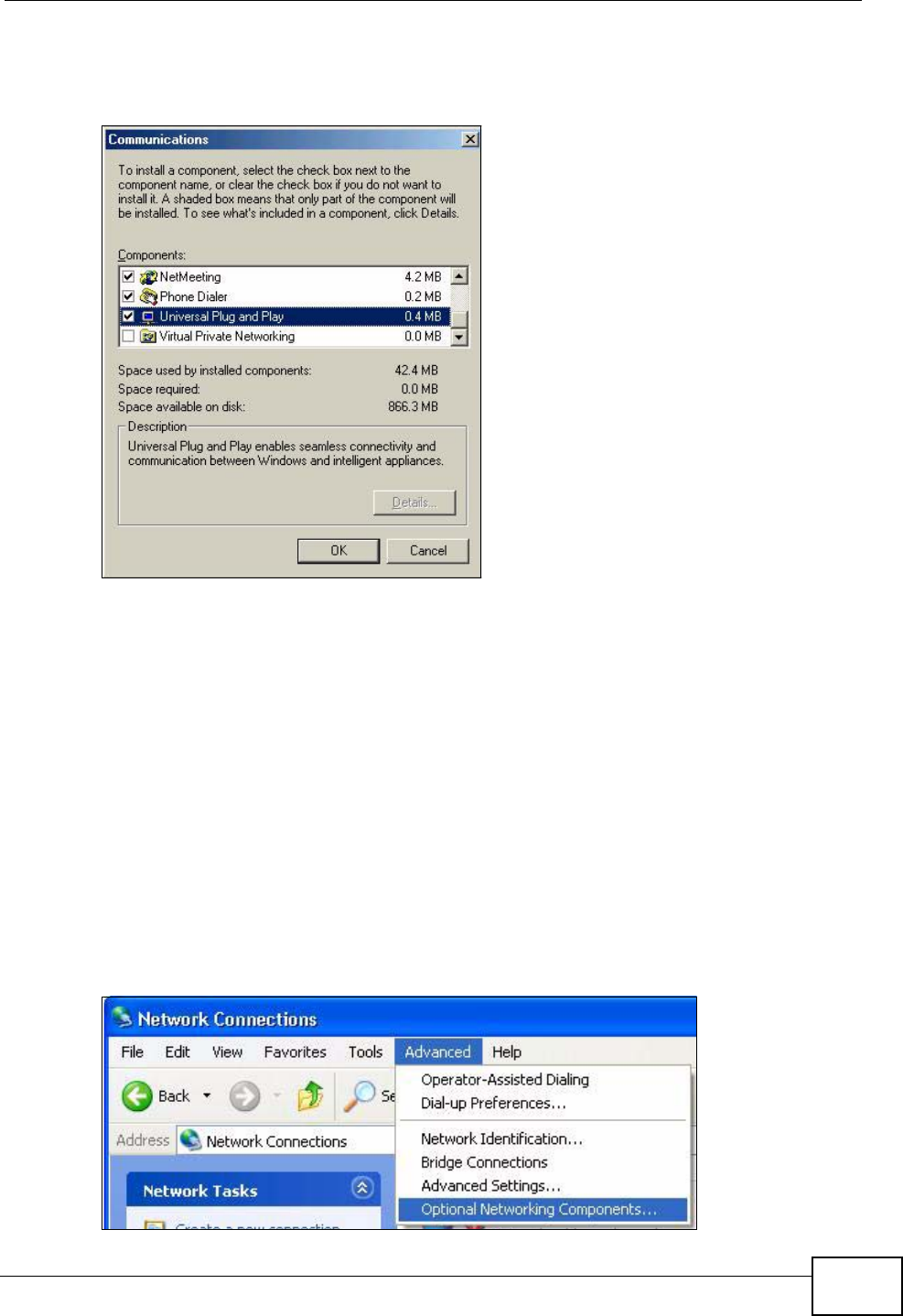

Figure 216 Add/Remove Programs: Windows Setup: Communication: Components
4Click OK to go back to the Add/Remove Programs Properties window and click
Next.
5Restart the computer when prompted.
Installing UPnP in Windows XP
Follow the steps below to install the UPnP in Windows XP.
1Click Start and Control Panel.
2Double-click Network Connections.
3In the Network Connections window, click Advanced in the main menu and
select Optional Networking Components ….
Figure 217 Network Connections
![](/img.php?id=1154264&img=bg42.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
366
4The Windows Optional Networking Components Wizard window displays.
Select Networking Service in the Components selection box and click Details.

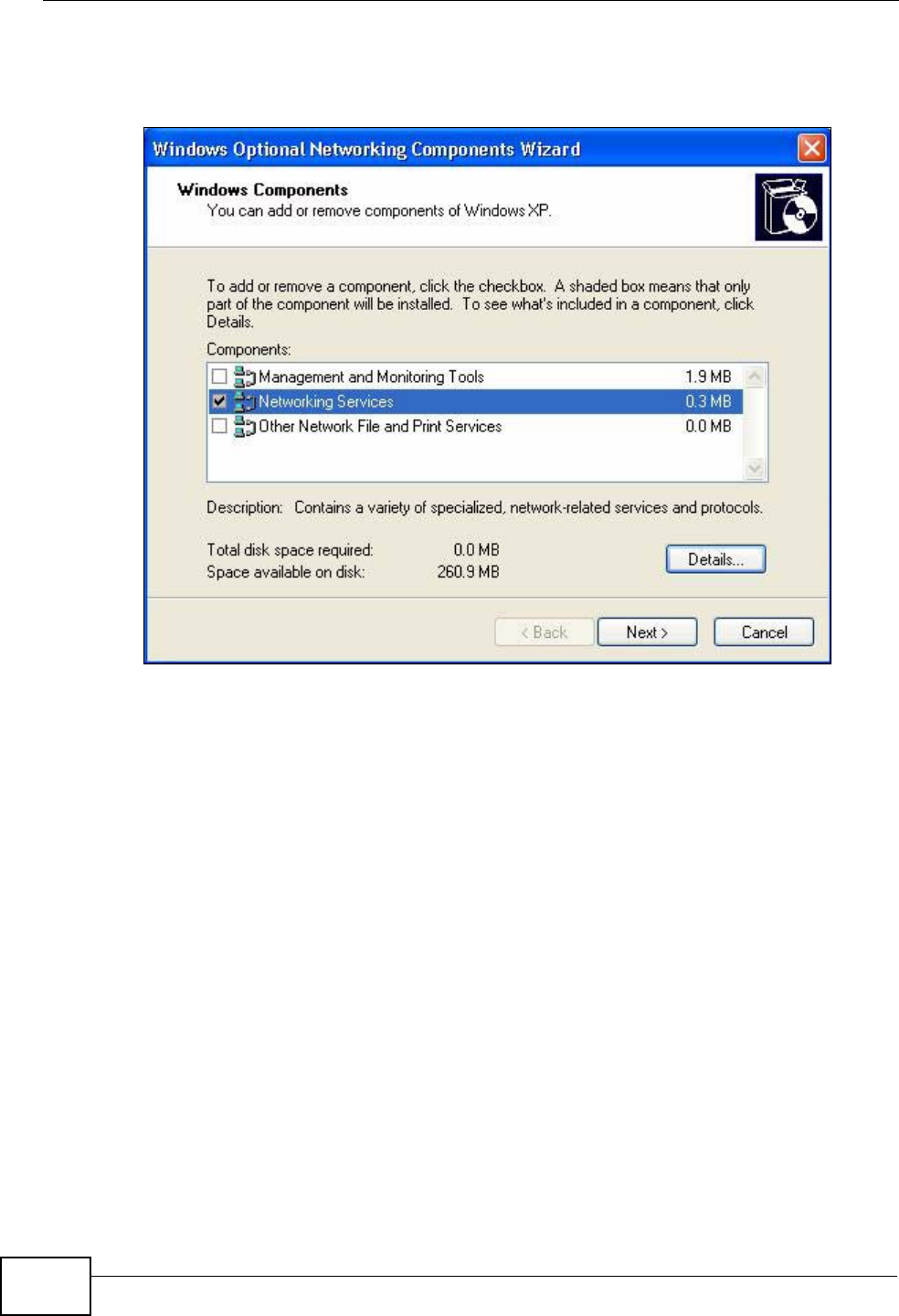

Figure 218 Windows Optional Networking Components Wizard
![](/img.php?id=1154264&img=bg43.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 367
5In the Networking Services window, select the Universal Plug and Play check
box.

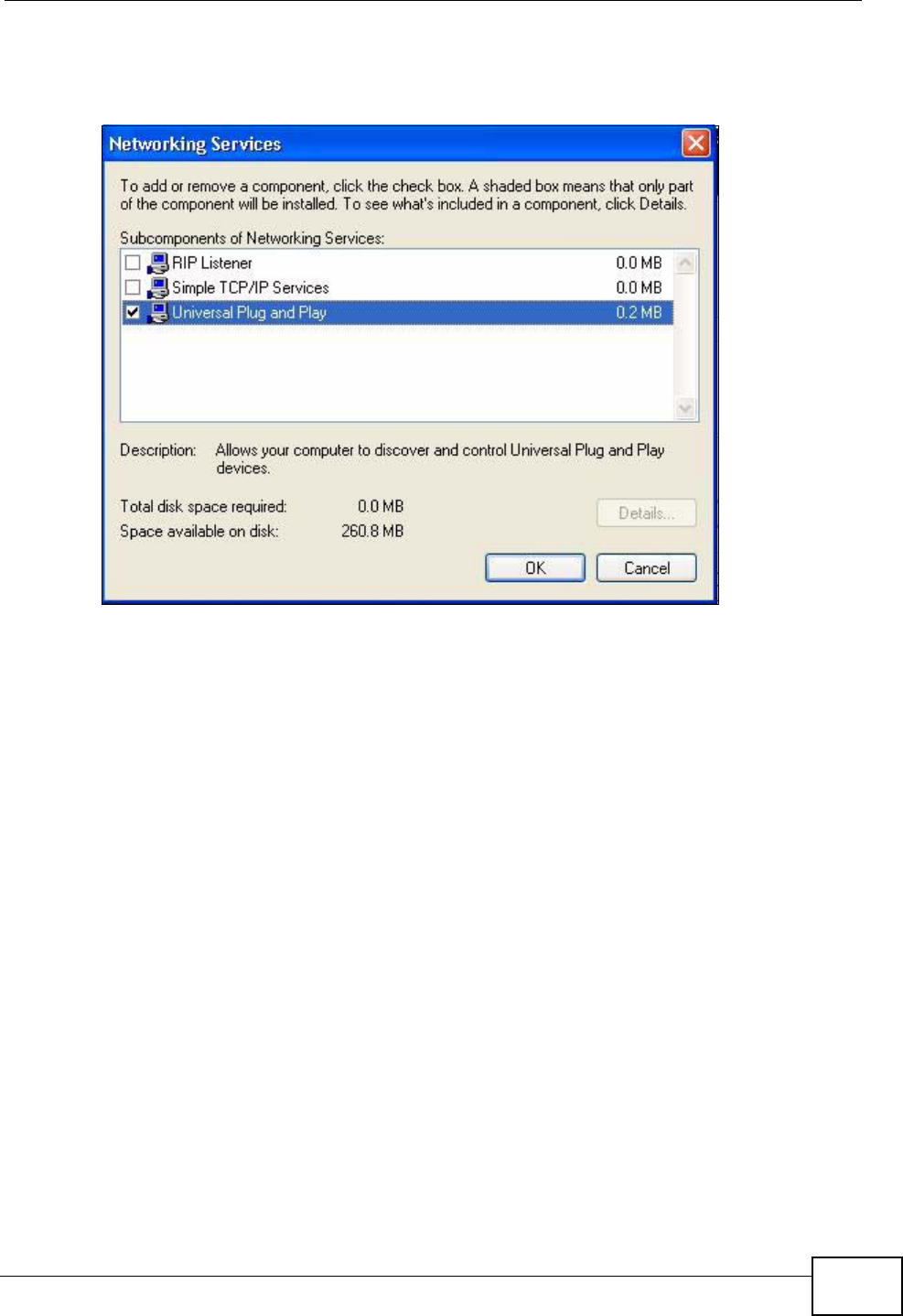

Figure 219 Networking Services
6Click OK to go back to the Windows Optional Networking Component Wizard
window and click Next.
21.4 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must
already have UPnP installed in Windows XP and UPnP activated on the ZyXEL
Device.
Make sure the computer is connected to a LAN port of the ZyXEL Device. Turn on
your computer and the ZyXEL Device.
Auto-discover Your UPnP-enabled Network Device
1Click Start and Control Panel. Double-click Network Connections. An icon
displays under Internet Gateway.
![](/img.php?id=1154264&img=bg44.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
368
2Right-click the icon and select Properties.

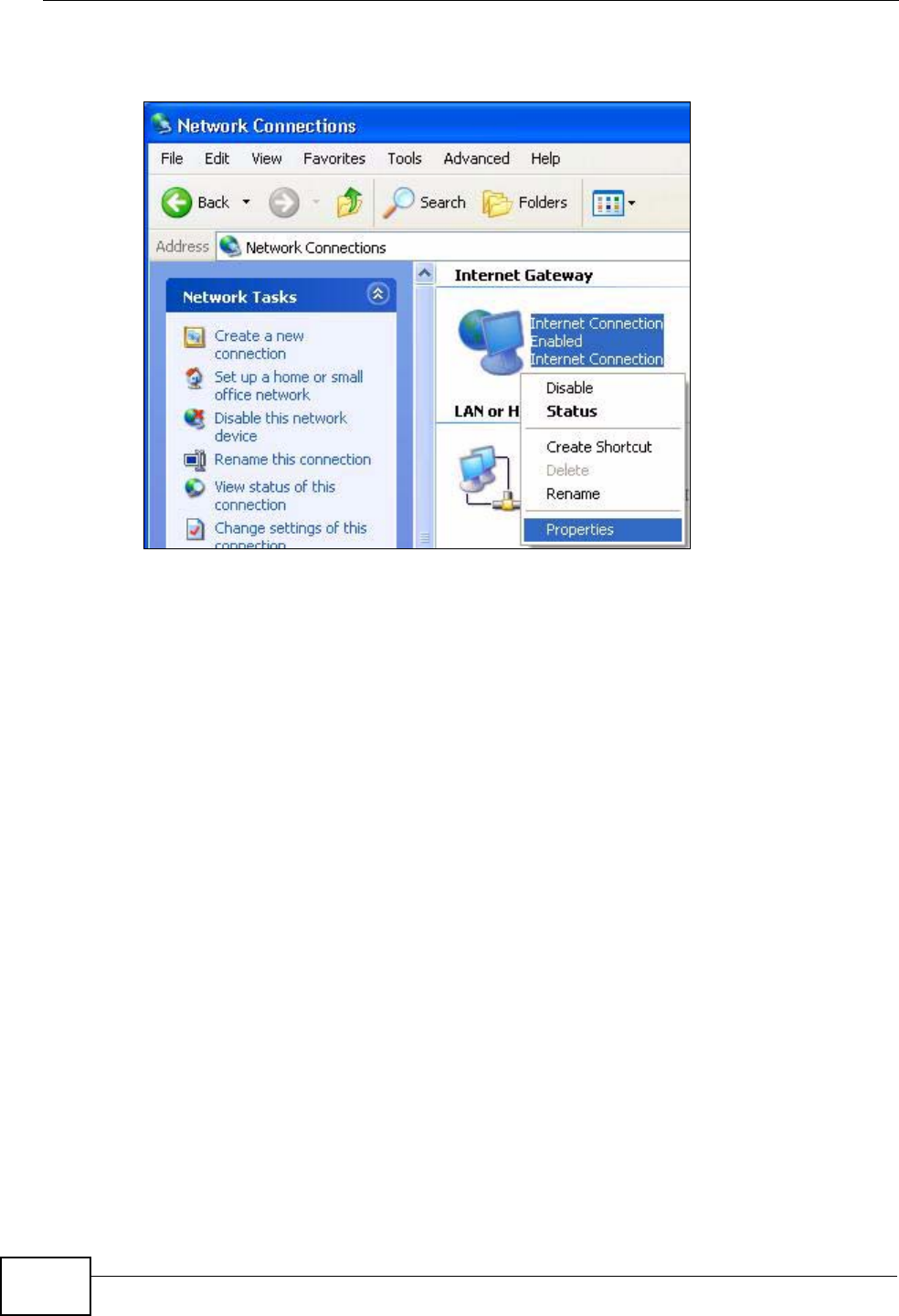

Figure 220 Network Connections
![](/img.php?id=1154264&img=bg45.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 369
3In the Internet Connection Properties window, click Settings to see the port
mappings there were automatically created.

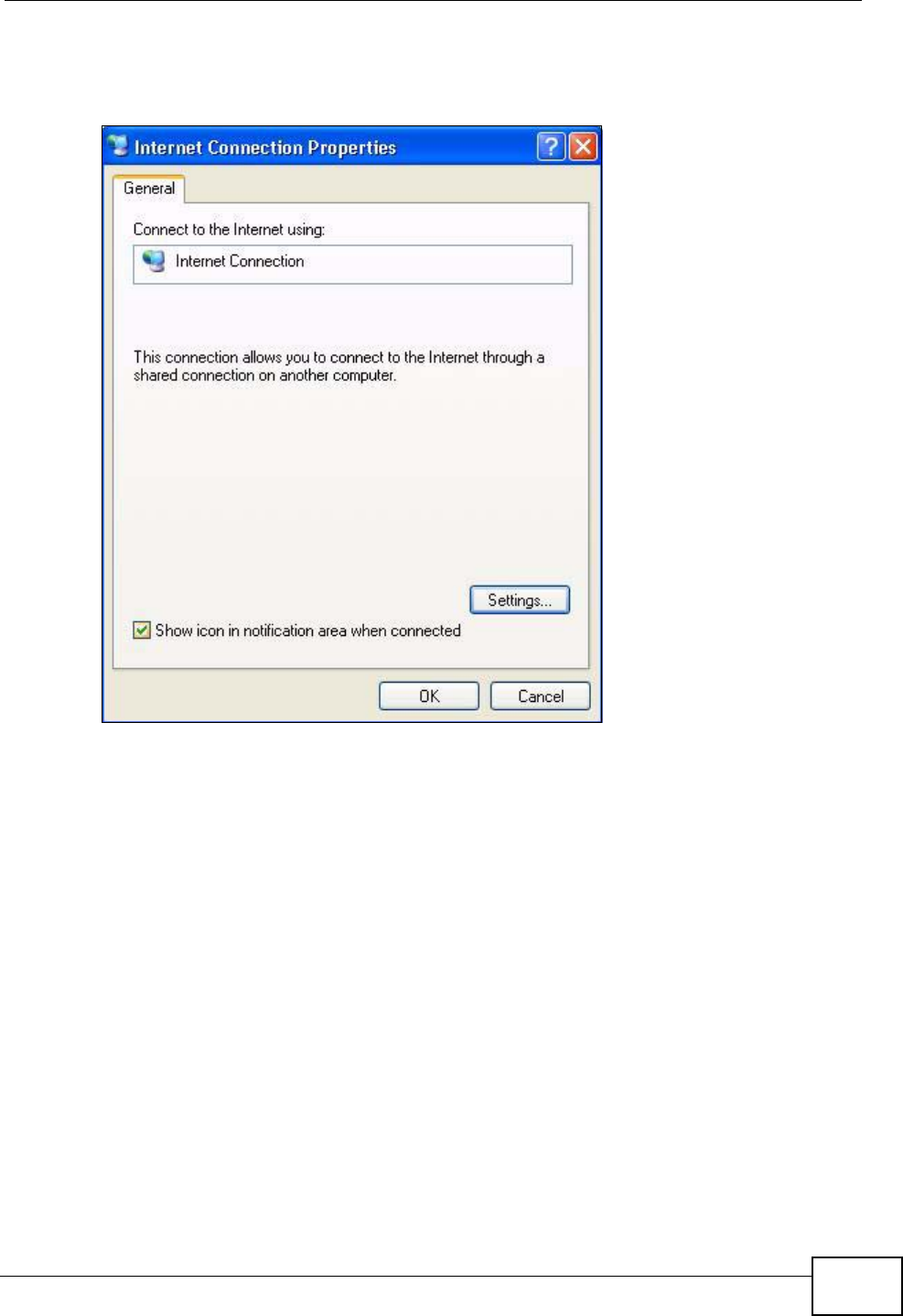

Figure 221 Internet Connection Properties
![](/img.php?id=1154264&img=bg46.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
370
4You may edit or delete the port mappings or click Add to manually add port
mappings.

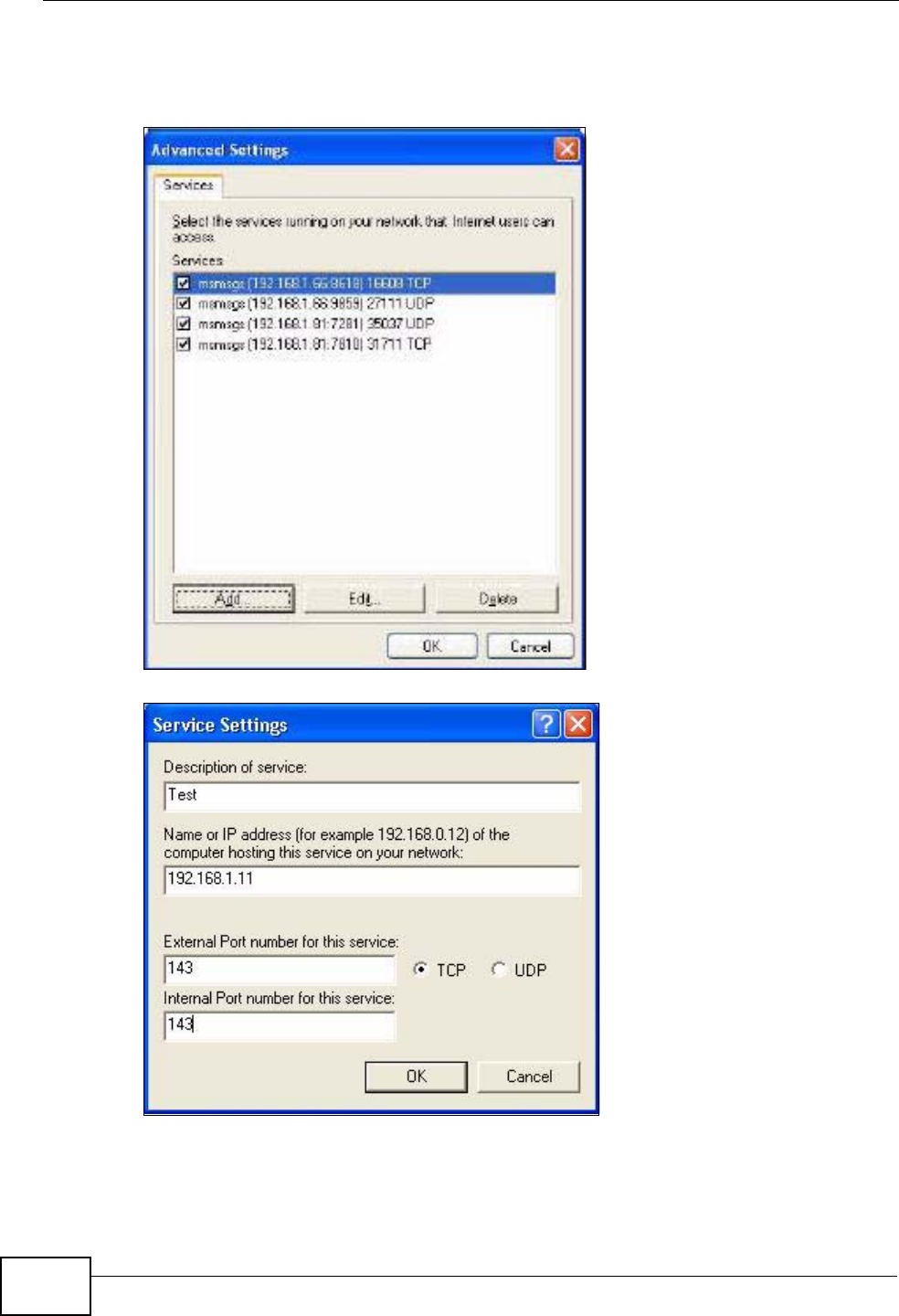

Figure 222 Internet Connection Properties: Advanced Settings
Figure 223 Internet Connection Properties: Advanced Settings: Add
5When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
![](/img.php?id=1154264&img=bg47.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 371
6Select Show icon in notification area when connected option and click OK.
An icon displays in the system tray.

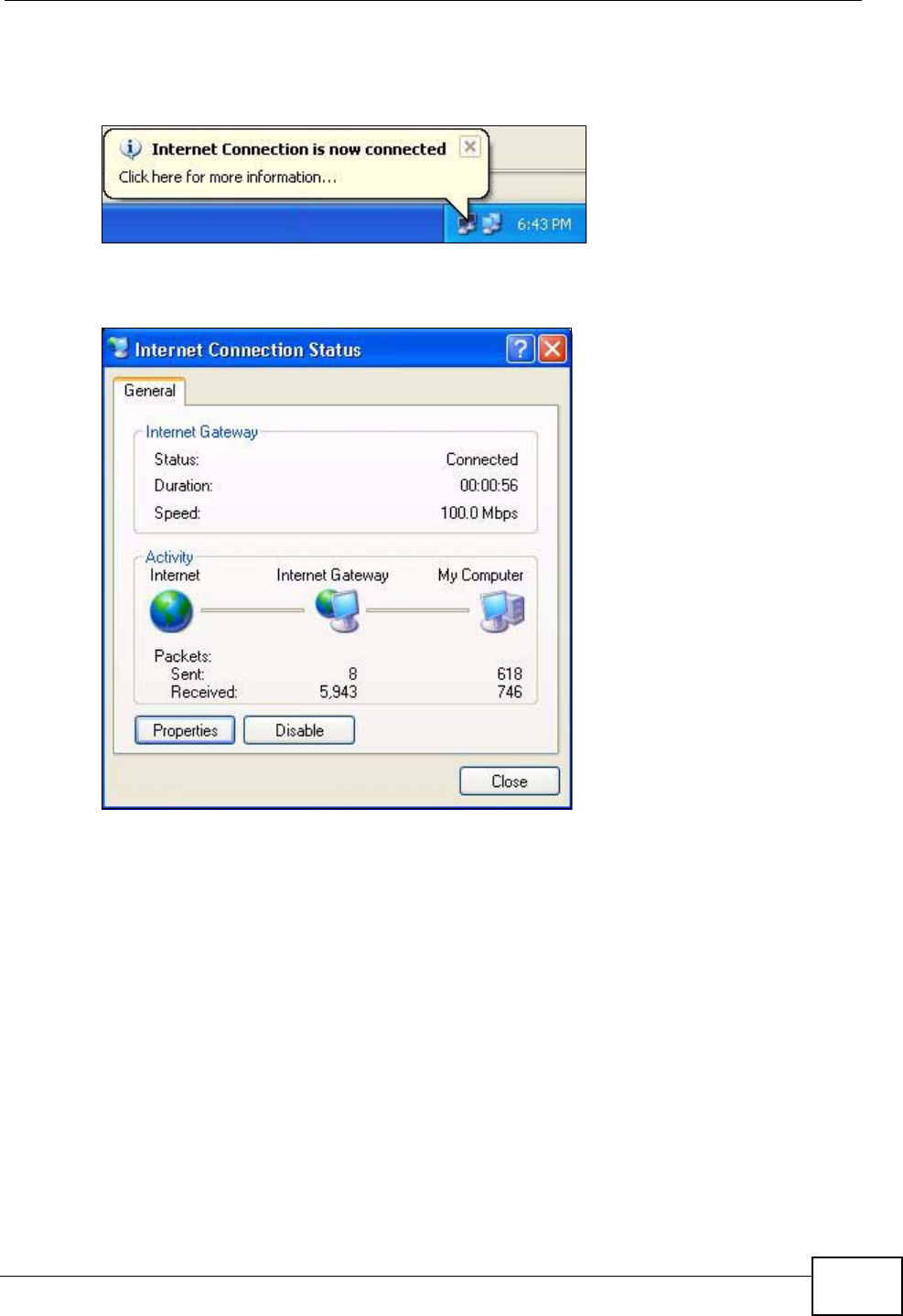

Figure 224 System Tray Icon
7Double-click on the icon to display your current Internet connection status.
Figure 225 Internet Connection Status
Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the ZyXEL Device
without finding out the IP address of the ZyXEL Device first. This comes helpful if
you do not know the IP address of the ZyXEL Device.
Follow the steps below to access the web configurator.
1Click Start and then Control Panel.
2Double-click Network Connections.
![](/img.php?id=1154264&img=bg48.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
372
3Select My Network Places under Other Places.

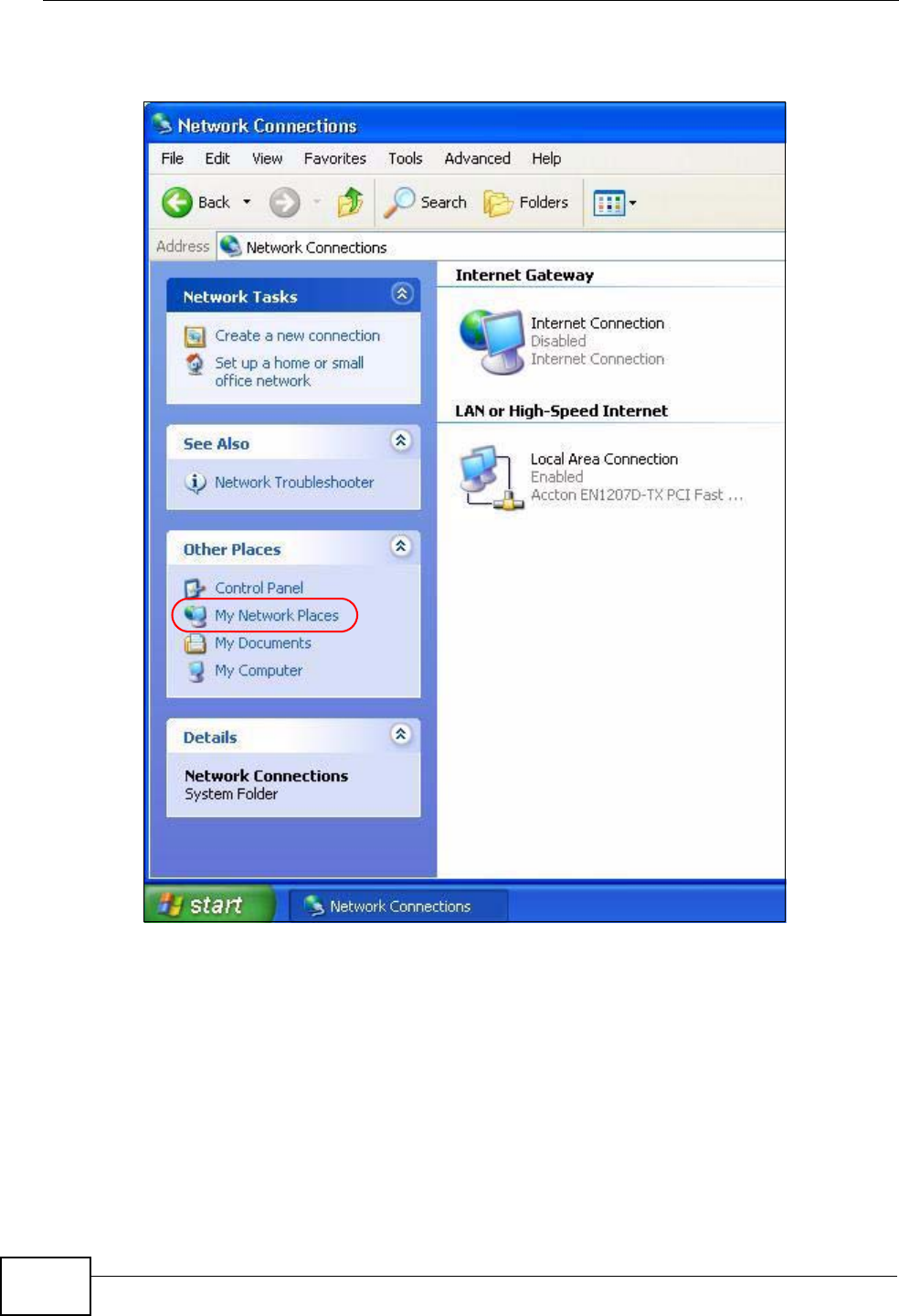

Figure 226 Network Connections
4An icon with the description for each UPnP-enabled device displays under Local
Network.
![](/img.php?id=1154264&img=bg49.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide 373
5Right-click on the icon for your ZyXEL Device and select Invoke. The web
configurator login screen displays.
Figure 227 Network Connections: My Network Places
6Right-click on the icon for your ZyXEL Device and select Properties. A properties
window displays with basic information about the ZyXEL Device.
Figure 228 Network Connections: My Network Places: Properties: Example
![](/img.php?id=1154264&img=bg4a.png)
Chapter 21 Universal Plug-and-Play (UPnP)
P-2612HWU-F1 User’s Guide
374
![](/img.php?id=1154264&img=bg4b.png)
P-2612HWU-F1 User’s Guide 375
CHAPTER 22
File Sharing
22.1 Overview
Share files on a USB memory stick or hard drive connected to your ZyXEL Device
with users on your network.
The following figure is an overview of the ZyXEL Device’s file server feature.
Computers A and B can access files on a USB device (C) which is connected to the
ZyXEL Device.
Figure 229 File Sharing Overview
• See Section 22.1.2 on page 376 for an explanation of file-sharing terms.
• See Section 22.1.4 on page 377 for file-sharing examples.
22.1.1 What You Can Do in the File-Sharing Screens
•Use the Server Settings screen (Section 22.2 on page 381) to configure your
file-sharing server.
•Use the User Name and Password screen (Section 22.3 on page 383) to set
up and edit a file-sharing account.
•Use the Share Configuration screen (Section 22.4 on page 384) to configure
your the file path of your shares.
A
BC
![](/img.php?id=1154264&img=bg4c.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
376
22.1.2 What You Need to Know About File-Sharing
User Account
This gives you access to the file-sharing server. It includes your user name and
password.
Workgroup name
This is the name given to a set of computers that are connected on a network and
share resources such as a printer or files. Windows automatically assigns the
workgroup name when you set up a network.
Shares
When settings are set to default, each USB device connected to the ZyXEL Device
is given a folder, called a “share”. If a USB hard drive connected to the ZyXEL
Device has more than one partition, then each partition will be allocated a share.
You can also configure a “share” to be a sub-folder or file on the USB device.
File Systems
A file system is a way of storing and organizing files on your hard drive and
storage device. Often different operating systems such as Windows or Linux have
different file systems. The file-sharing feature on your ZyXEL Device supports File
Allocation Table (FAT) and FAT32 file systems.
Common Internet File System
The ZyXEL Device uses Common Internet File System (CIFS) protocol for its file
sharing functions. CIFS compatible computers can access the USB file storage
devices connected to the ZyXEL Device. CIFS protocol is supported on Microsoft
Windows, Linux Samba and other operating systems (refer to your systems
specifications for CIFS compatibility).
File Transfer Protocol
This is a method of transferring data from one computer to another over a
network such as the Internet.
22.1.3 Before You Begin
Make sure the ZyXEL Device is connected to your network and turned on.
![](/img.php?id=1154264&img=bg4d.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 377
1Connect the USB device to one of the ZyXEL Device’s USB ports. Make sure the
ZyXEL Device is connected to your network.
2The ZyXEL Device detects the USB device and makes its contents available for
browsing. If you are connecting a USB hard drive that comes with an external
power supply, make sure it is connected to an appropriate power source that is on.
Note: If your USB device cannot be detected by ZyXEL Device, see the
troubleshooting for suggestions.
22.1.4 File-Sharing Examples
In this section you can:
• Set up File-Sharing
• Share Your Files
22.1.4.1 Set Up File-Sharing
To set up file-sharing you need to set up a user account, enable file-sharing and
set up your share(s).
Set up a User Account
Before you can share files you need a user account.
1Click Advanced > File Sharing > User Name and Password to display the
following screen. Click Add to set up a user name and password.

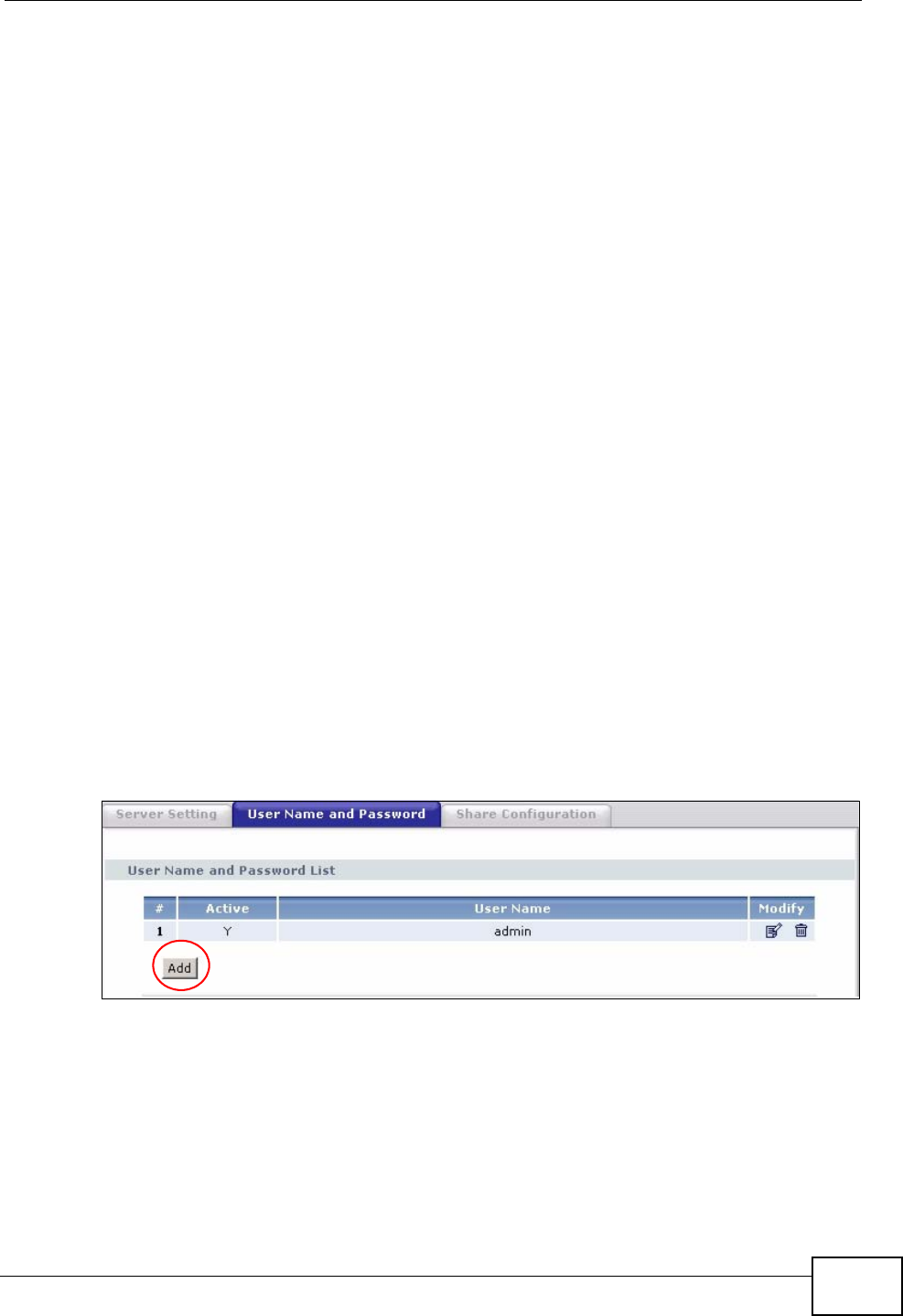

Figure 230 Advanced > File-Sharing > User Name and Password Example
![](/img.php?id=1154264&img=bg4e.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
378
2The following screen appears. Select Active, and enter a user name and password
as shown in the example screen below. Click Apply to save your settings.

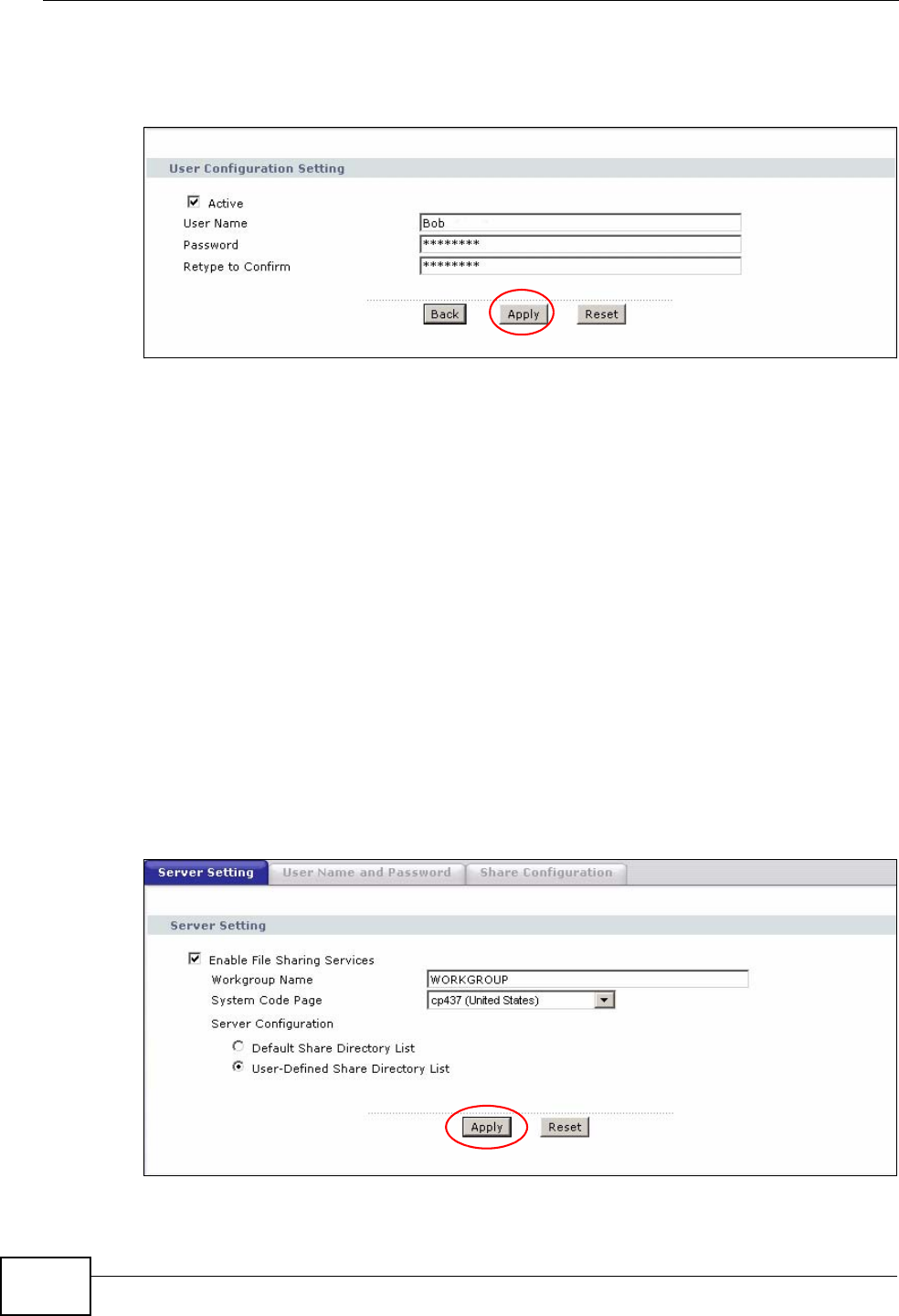

Figure 231 Advanced > File-Sharing > User Name and Password: Add Example
3This sets up your user account, now you are ready to set up file-sharing on your
ZyXEL Device.
Set up File-Sharing on Your ZyXEL Device
You also need to set up file-sharing on your ZyXEL Device in order to share files.
1Go to Advanced > File Sharing > Server Setting to enter a workgroup name
and select the type of characters used in your USB device, as shown in the screen
below.
• If you want to use default share names, select Default Share Directory List in
this screen.
• If you want to use your own share names and add, modify or delete shares,
select User-Defined Share Directory List in this screen, as shown in the
example screen below.
2Click Apply to save your settings.
Figure 232 Advanced > File Sharing > Server Setting Example
3This sets up the file-sharing server.
![](/img.php?id=1154264&img=bg4f.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 379
• If you have selected Default Share Directory List, you are ready to file-share.
Go to Section 22.1.4.2 on page 380 for an example on sharing your files.
• If you have selected User-Defined Share Directory List, go to the next
section to set up your shares.
Set up Your Share(s)
If you have selected User-Defined Share Directory List when you set up your
file-sharing server, you can add, edit or delete your shares.
1Go to Advanced > File Sharing > Share Configuration and click Add as
shown in the following screen.

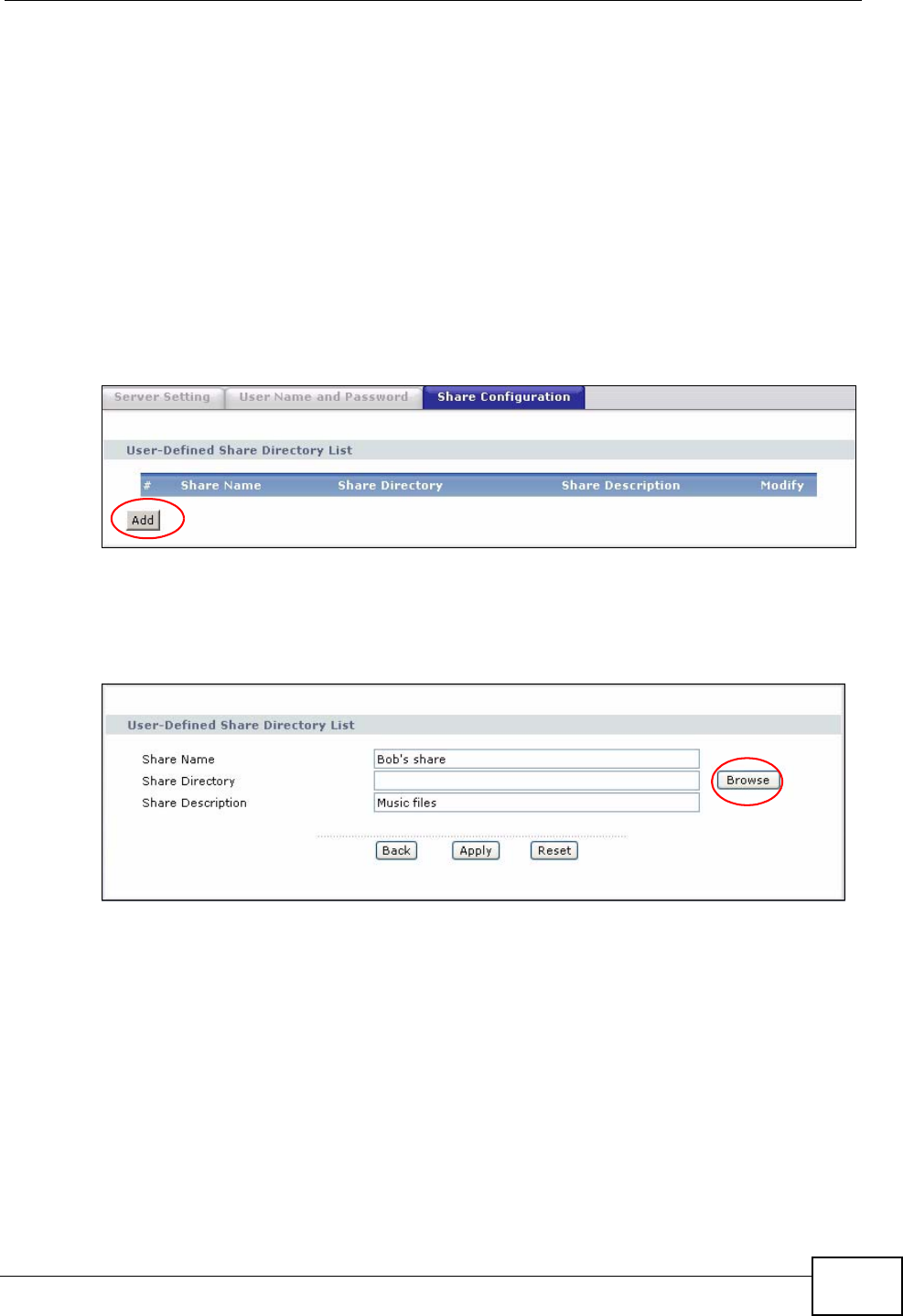

Figure 233 Advanced > File Sharing > Share Configuration Example
2Set up a file path for the server to find your shares. In the screen that appears,
type the name of your share and a description as shown in the following example
screen. Click Browse.
Figure 234 Advanced > File Sharing > Share Configuration: Add Example
![](/img.php?id=1154264&img=bg50.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
380
3Another screen appears, letting you set the file path of your share. Click Apply.
Figure 235 Advanced > File Sharing > Share Configuration: Add: Browse Example
4You are now ready to file-share. Go to Section 22.1.4.2 on page 380 to share your
files.
22.1.4.2 Access Your Shared Files From a Computer
You can use Windows to access the file storage devices connected to the ZyXEL
Device.
Note: The examples in this User’s Guide show you how to use Microsoft’s Windows
XP to browse your shared files. Refer to your operating system’s
documentation for how to browse your file structure.
Use Windows Explorer to Share Files
Open Windows Explorer to access Bob’s Share using Windows Explorer browser.
![](/img.php?id=1154264&img=bg51.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 381
1In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP
address of the ZyXEL Device (the default IP address of the ZyXEL Device is
192.168.1.1) and press [ENTER]. A screen asking for password authentication
appears. Type the user name and password and click OK.
Figure 236 File Sharing via Windows Explorer
Note: Once you login to the file “Bob’s Share” via your ZyXEL Device, you do not have
to relogin unless you restart your computer.
22.2 The Server Settings Screen
In the Server Settings screen you need to configure your ZyXEL Device’s
Workgroup Name.
The ZyXEL Device will not be able to join the workgroup if your local area network
has restrictions set up that do not allow devices to join a workgroup. In this case,
contact your network administrator.
![](/img.php?id=1154264&img=bg52.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
382
Use this screen to set up file sharing via the ZyXEL Device. To access this screen,
click Advanced > File Sharing.
Figure 237 File Sharing > Server Configuration
Each field is described in the following table.
Table 122 File Sharing > Server Configuration
LABEL DESCRIPTION
Enable File
Sharing
Services
Select this to enable file sharing through the ZyXEL Device.
Workgroup
Name You can add the ZyXEL Device to an existing or a new workgroup on
your network. Enter the name of the workgroup which your ZyXEL
Device automatically joins.
You can set the ZyXEL Device’s workgroup name to be exactly the same
as the workgroup name to which your computer belongs to.
System Code
Page Select the character set of the files contained on your storage device.
For example, if your files were created on an operating system which
used the Russian alphabet, select cp866 (Russian).
If the file or folder names on your USB storage device appear as
unrecognizable (or jumbled) characters, you should double check this
setting to make sure it is set correctly.
Server
Configuration Select Default Share Directory List to use the preset share names.
Select User-Defined Share Directory List to use your own share
names and set access levels.
Apply Click this to save your changes to the ZyXEL Device.
Reset Click this to set every field in this screen to its last-saved value.
![](/img.php?id=1154264&img=bg53.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 383
22.3 The User Name and Password Screen
Use this screen to configure a user account. To access this screen, click Advanced
> File Sharing > User Name and Password.

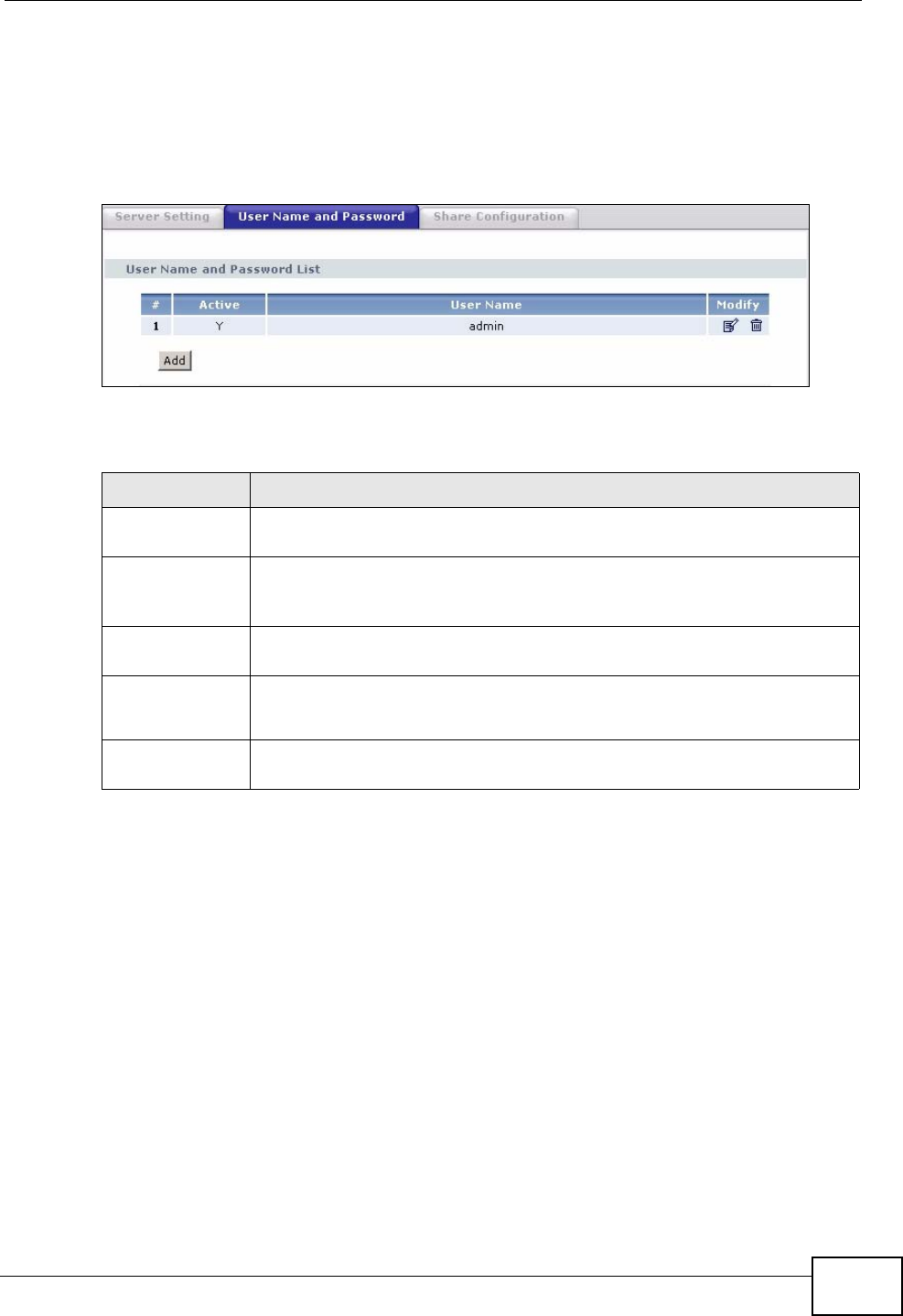

Figure 238 File Sharing > User Name and Password
Each field is described in the following table.
Table 123 File Sharing > User Name and Password
LABEL DESCRIPTION
#This is a read-only index number of the user name on the ZyXEL
Device.
Active This shows whether the user name is active (able to access shares via
the ZyXEL Device) or inactive (unable to access shares via the ZyXEL
Device).
User Name This field shows the list of user names already configured on the ZyXEL
Device.
Modify Click the Edit icon to change the settings of an existing user account.
Click the Remove icon to delete this entry in the list.
Add Click this button to configure another user name and include it in the
list.
![](/img.php?id=1154264&img=bg54.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
384
22.3.1 Add or Edit a User Account
Use this screen to add or edit a user account. To access this screen, click
Advanced > File Sharing > User Configuration and click the Edit icon in the
Modify column or the Add button.

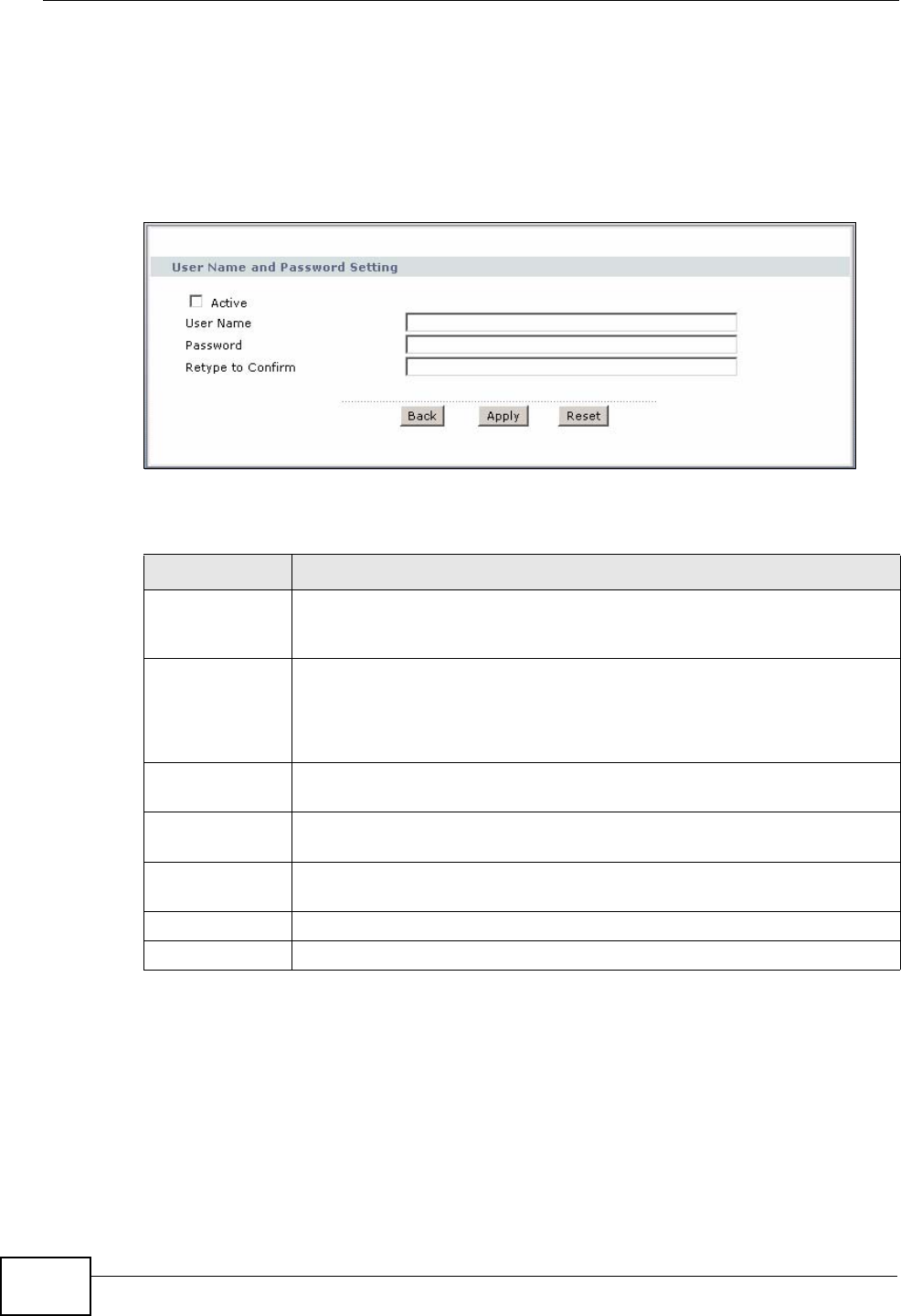

Figure 239 File Sharing > User Configuration > Add/Edit
Each field is described in the following table.
22.4 The Share Configuration Screen
Two possible screens appear depending on your Server Configuration settings in
the Server Setting screen. See Section 22.2 on page 381 for details.
Table 124 File Sharing > User Configuration > Add/Edit
LABEL DESCRIPTION
Active Select this to set whether the user name is active (able to access shares
via the ZyXEL Device) or inactive (unable to access shares via the
ZyXEL Device).
User Name This field is not configurable if you click the Edit icon in the Modify
column to configure an existing user account.
Enter the user name of the account. The user name can be 31 alpha-
numeric characters long.
Password Enter the password for this account. The password can be 31 alpha-
numeric characters long.
Retype to
Confirm Retype the password.
Back Click this button to return to the previous screen without saving your
settings.
Apply Click this to save your changes to the ZyXEL Device.
Reset Click this to set the fields in this screen to their defaults.
![](/img.php?id=1154264&img=bg55.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 385
22.4.1 Default Share Directory List
If you selected Default Share Directory List in the Server Settings screen, the
following screen appears when you click Advanced > File Sharing > Share
Configuration.

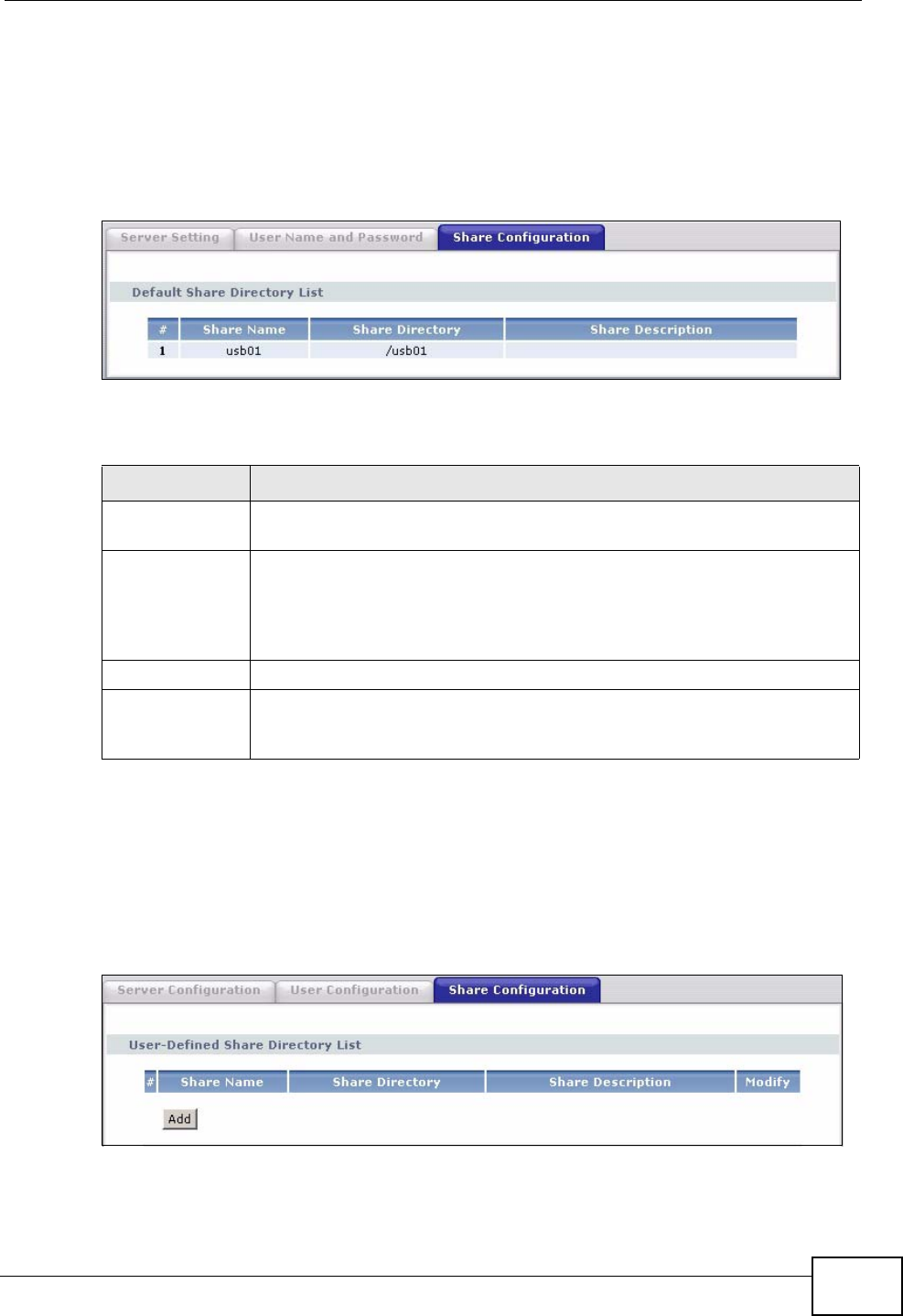

Figure 240 File Sharing > Share Configuration: Default
Each field is described in the following table.
22.4.2 User-Defined Share Directory List
If you selected User-Defined Directory List in the Server Settings screen, the
following screen appears when you click Advanced > File Sharing > Share
Configuration.
Figure 241 File Sharing > Share Configuration: User-Defined
Table 125 File Sharing > Share Configuration: Default
LABEL DESCRIPTION
Default Share
Directory List These fields identify the default shares on the ZyXEL Device.
#This is a read-only index number of the default share on the ZyXEL
Device. When more than one USB disk (or a USB hard drive with
multiple shares) is connected to the ZyXEL Device this index number
identifies the different disks. The first disk connected is 1, the second 2
and so on.
Share Name This field displays the default share names on the ZyXEL Device.
Share Directory This field displays the share directories (folders) on the ZyXEL Device.
These are the directories (folders) you can enter when you browse to
your USB storage device.
![](/img.php?id=1154264&img=bg56.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
386
Each field is described in the following table.
22.4.3 Add or Edit a User-Defined Share

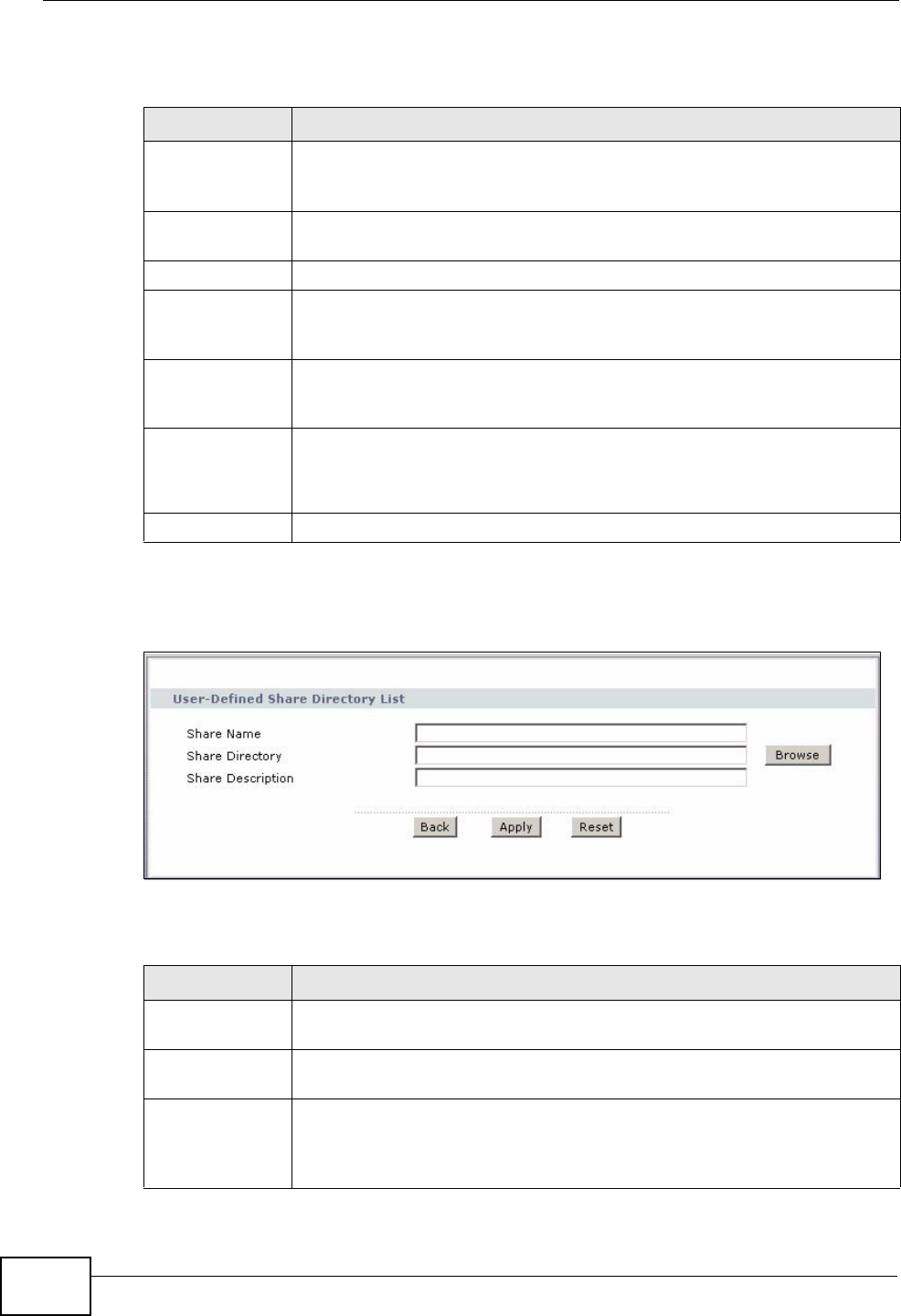

Figure 242 File Sharing > Share Configuration: User-Defined > Add/Edit
Each field is described in the following table.
Table 126 File Sharing > Share Configuration: User-Defined
LABEL DESCRIPTION
User-Defined
Share Directory
List
These fields identify the shares you configured on the ZyXEL Device.
#This is a read-only index number of the user-defined share on the
ZyXEL Device.
Share Name This field displays the user-defined share name on the ZyXEL Device.
Share Directory This field displays the user-defined share directories (folders) on the
ZyXEL Device. These are the directories (folders) you can enter when
you browse to your USB storage device.
Share
Description This field displays information about the share. You can add share
descriptions to user-defined shares in the Share Configuration Add/
Edit screen.
Modify Click the Edit icon to change the settings of an existing user-defined
share.
Click the Remove icon to delete this share in the list.
Add Click this to set up a new user-defined share on the ZyXEL Device.
Table 127 File Sharing > Share Configuration: User-Defined > Add/Edit
LABEL DESCRIPTION
Share Name Enter the name you want the user-defined share to have in the
network.
Share Directory Manually enter the file path for the user-defined share, or click the
Browse button.
Browse Click this button to select the file path for the user-defined share
directory. This is the folder that will be visible to a user browsing to the
USB storage device. A user can access any files and sub-folders in this
folder.
![](/img.php?id=1154264&img=bg57.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide 387
22.4.4 Browse
To select the file path for the user-defined share directory, click Browse in the
Share Configuration Add/Edit screen.

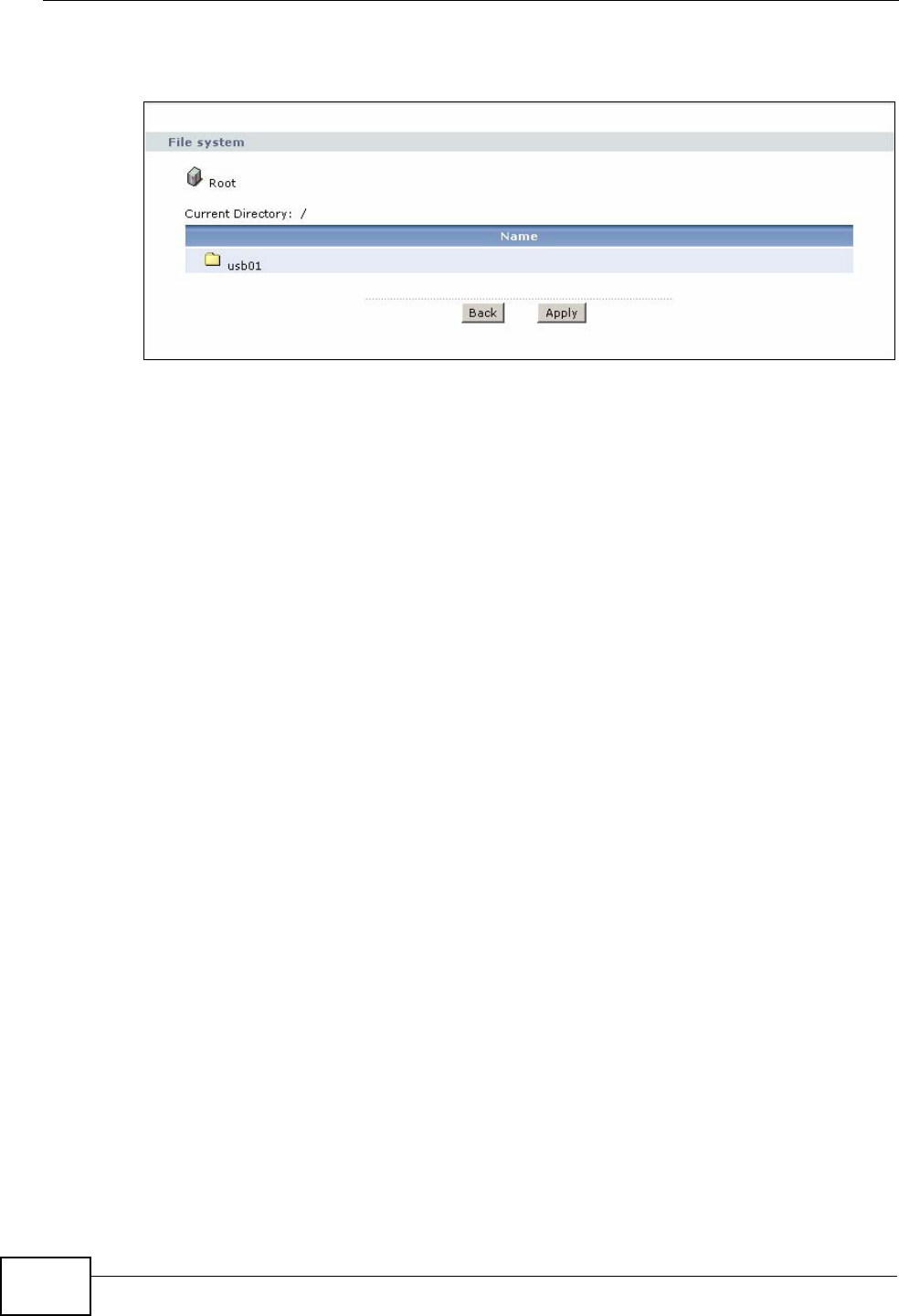

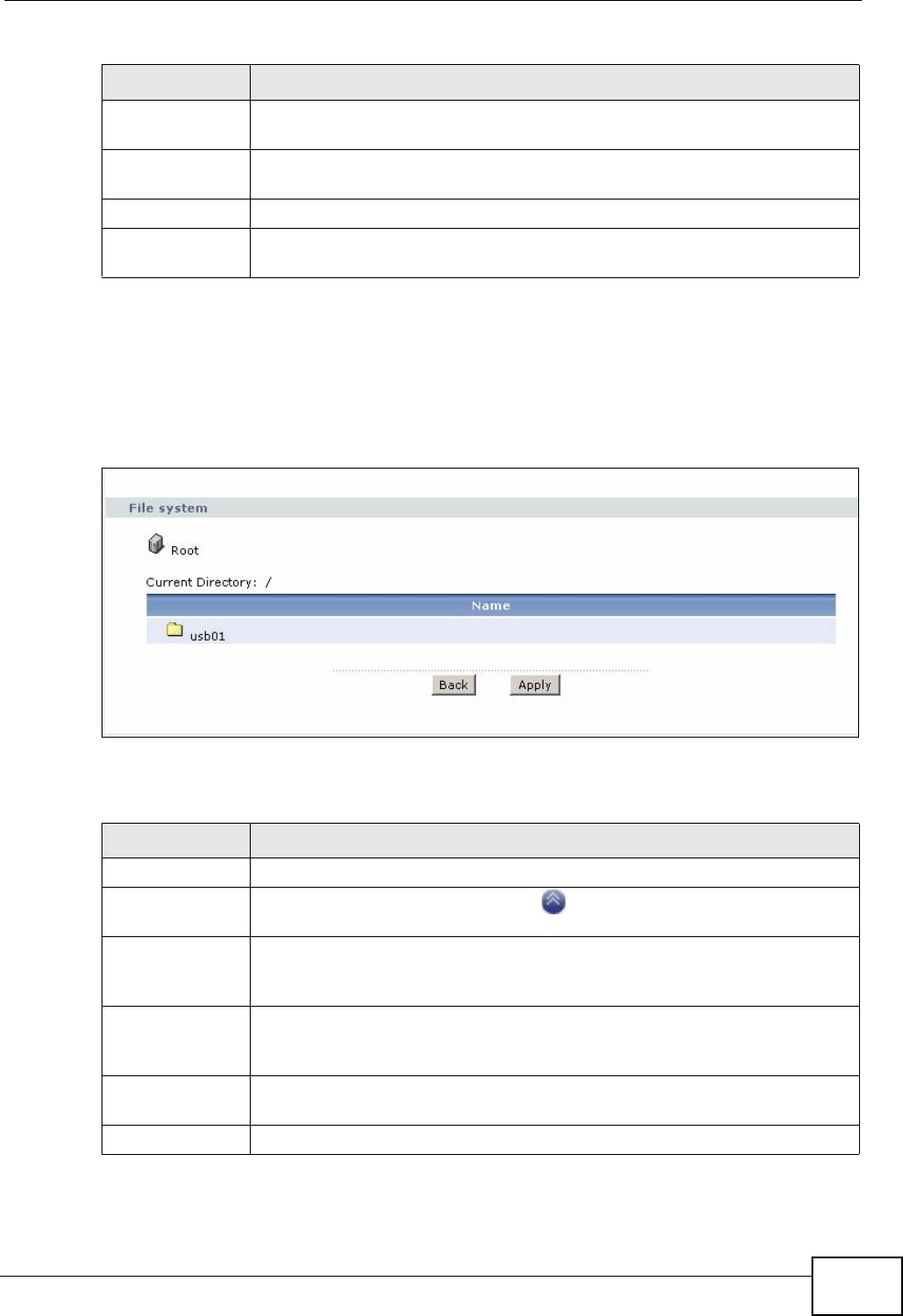

Figure 243 File Sharing > Share Configuration: User-Defined > Browse
Each field is described in the following table.
Share
Description You can either enter a short description of the share, or leave this field
blank.
Back Click this button to return to the previous screen without saving your
settings.
Apply Click this button to save your settings.
Reset Click this button to return all fields in this screen to their previous
values.
Table 127 File Sharing > Share Configuration: User-Defined > Add/Edit
LABEL DESCRIPTION
Table 128 File Sharing > Share Configuration: User-Defined > Browse
LABEL DESCRIPTION
File System Use this section to set up the directory path for the share.
Parent
Directory Click the Parent Directory icon ( ) to go up one level.
Current
Directory This field displays the file path of the share. This is the folder that will
be visible to a user browsing to the USB storage device. A user can
access any files and sub-folders in this folder.
Name This displays the name of the folder in the Current Directory of the
connected USB storage device. Click on a folder name to add that folder
to the directory path for the share
Back Click this button to return to the previous screen without saving your
settings.
Apply Click this button to save your settings.
![](/img.php?id=1154264&img=bg58.png)
Chapter 22 File Sharing
P-2612HWU-F1 User’s Guide
388
![](/img.php?id=1154264&img=bg59.png)
P-2612HWU-F1 User’s Guide 389
CHAPTER 23
Sharing a USB Printer
This chapter describes how you can share a USB printer via your ZyXEL Device.
23.1 Overview
The ZyXEL Device allows you to share a USB printer on your LAN. You can do this
by connecting a USB printer to one of the USB ports on the ZyXEL Device and then
configuring a TCP/IP port on the computers connected to your network.

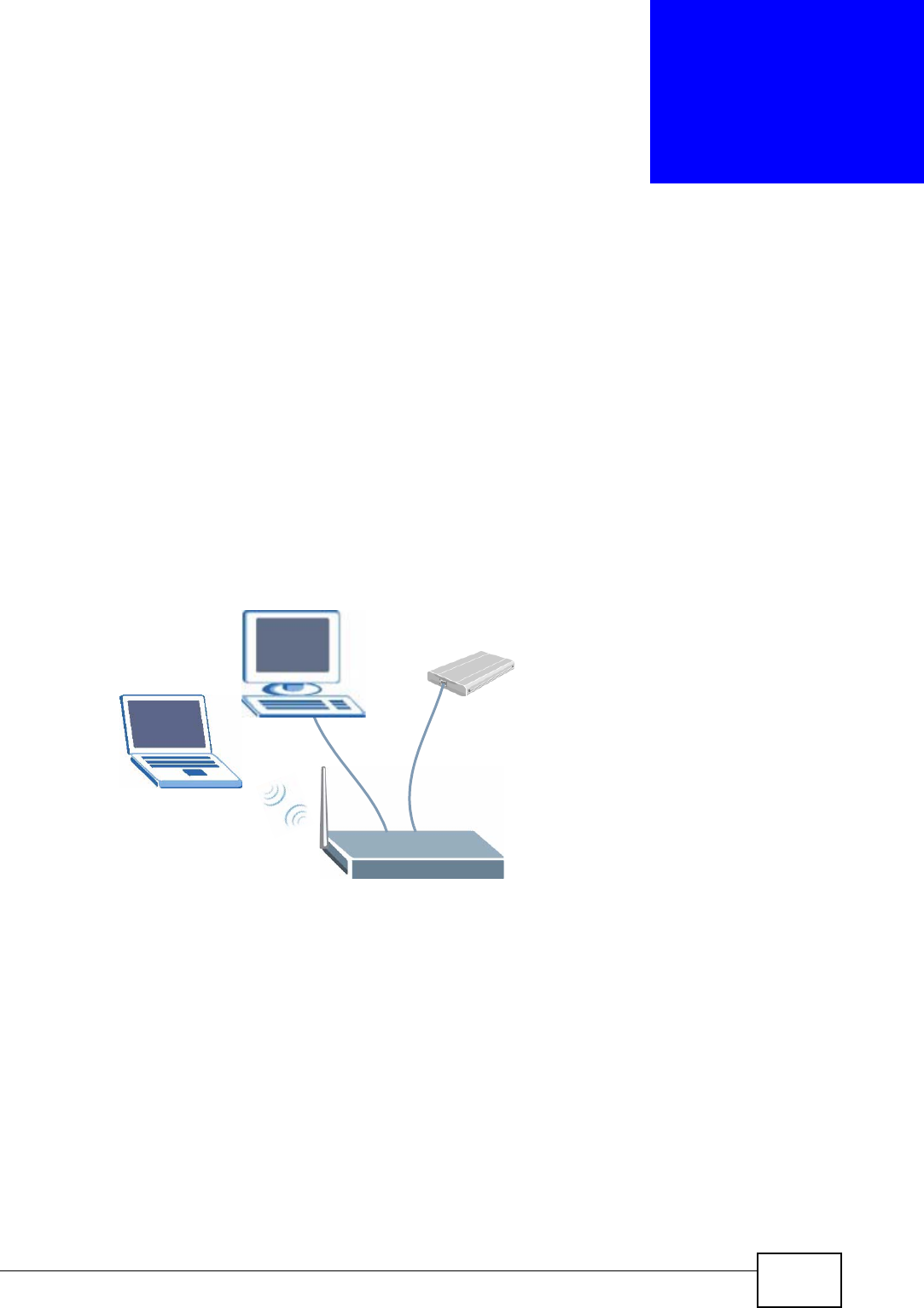

Figure 244 Sharing a USB Printer
23.1.1 What You Need to Know About Printer Sharing
Print Server
This is a computer or other device which manages one or more printers, and
which sends print jobs to each printer from the computer itself or other devices.
Operating System
An operating system (OS) is the interface which helps you manage a computer.
Common examples are Microsoft Windows, Mac OS or Linux.
![](/img.php?id=1154264&img=bg5a.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
390
TCP/IP
TCP/IP (Transmission Control Protocol/ Internet Protocol) is a set of
communications protocols that most of the Internet runs on.
Port
A port maps a network service such as http to a process running on your
computer, such as a process run by your web browser. When traffic from the
Internet is received on your computer, the port number is used to identify which
process running on your computer it is intended for.
Line Printer Remote Protocol
The Line Printer Remote (LPR) Protocol is software that provides printer spooling
and print-server features using TCP/IP to connect printers and computers on a
network.
Supported OSs
Your operating system must support TCP/IP ports for printing and be compatible
with the LPR protocol.
The following OSs support ZyXEL Device’s printer sharing feature.
• Microsoft Windows 95, Windows 98 SE (Second Edition), Windows Me, Windows
NT 4.0, Windows 2000, Windows XP or Macintosh OS X.
23.1.2 Before You Begin
To configure the print server you need the following:
• Your ZyXEL Device must be connected to your computer and any other devices
on your network. The USB printer must be connected to your ZyXEL Device.
• A USB printer with the driver already installed on your computer.
• The computers on your network must have the printer software already installed
before they can create a TCP/IP port for printing via the network. Follow your
printer manufacturers instructions on how to install the printer software on your
computer.
Note: Your printer’s installation instructions may ask that you connect the printer to
your computer. Connect your printer to the ZyXEL Device instead.
23.1.3 What You Can Do with Printer Sharing
In this section you can:
![](/img.php?id=1154264&img=bg5b.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 391
• Configure a TCP/IP Printer Port
• Add a New Printer Using Windows
• Add a New Printer Using Macintosh OS X
Configure a TCP/IP Printer Port
This example shows how you can configure a TCP/IP printer port. This example is
done using the Windows 2000 Professional operating system. Some menu items
may look different on your operating system. The TCP/IP port must be configured
with the IP address of the ZyXEL Device and must use the LPR protocol to
communicate with the printer. Consult your operating systems documentation for
instructions on how to do this or follow the instructions below if you have a
Windows 2000/XP operating system.

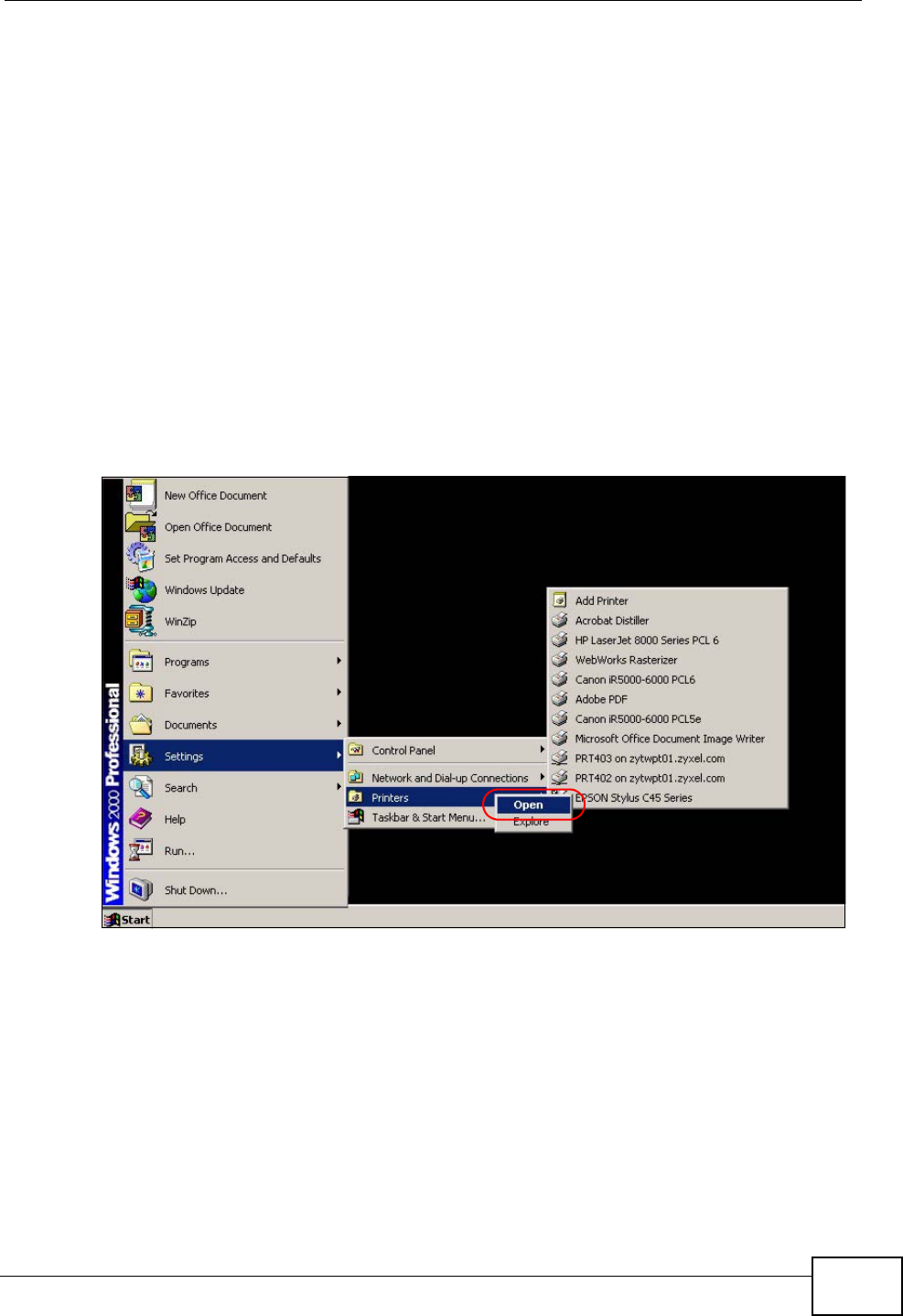

1Click Start > Settings, then right click on Printers and select Open.
Figure 245 Open Printers Window
The Printers folder opens up. First you need to open up the properties windows
for the printer you want to configure a TCP/IP port.
2Locate your printer.
![](/img.php?id=1154264&img=bg5c.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
392

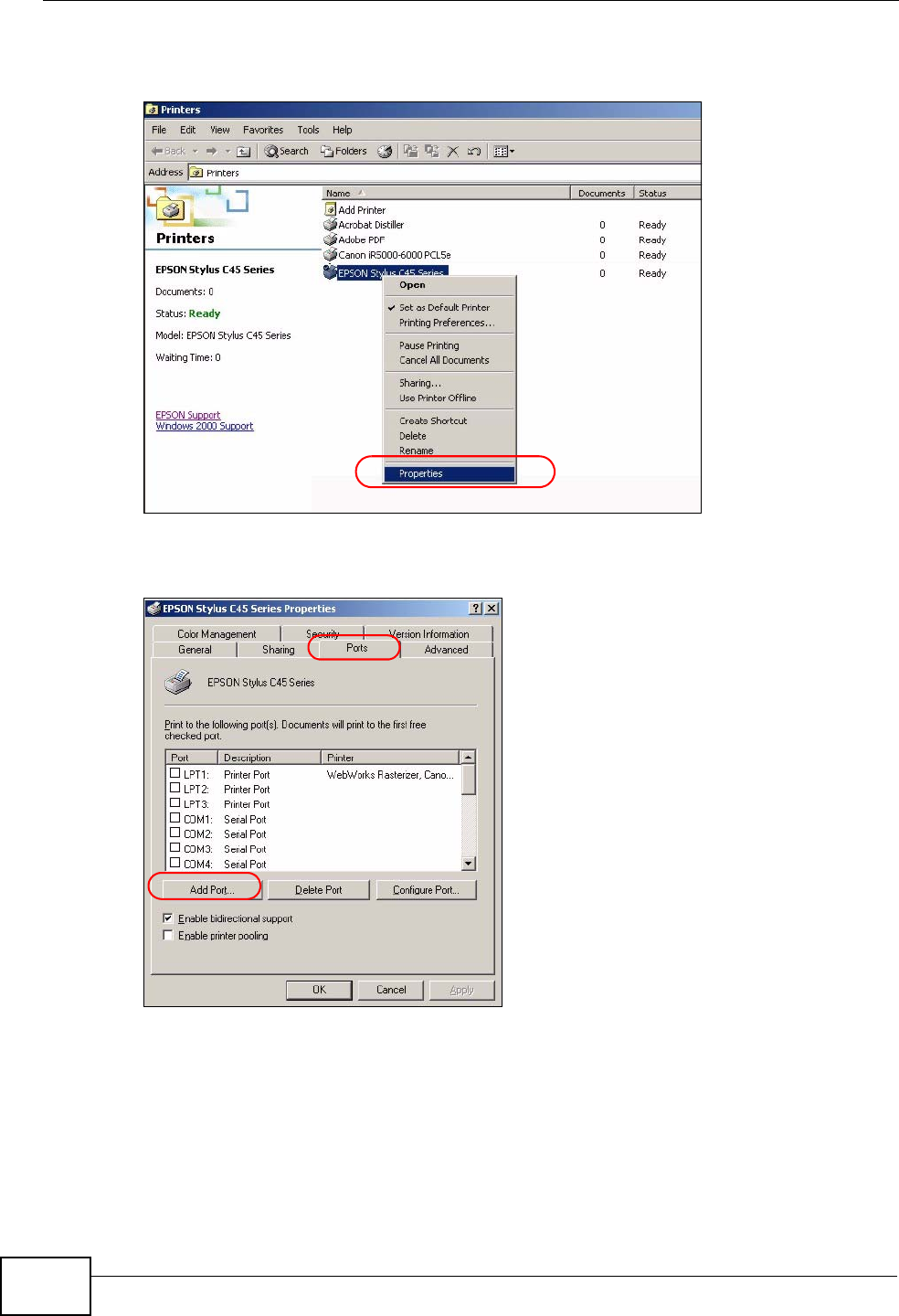

3Right click on your printer and select Properties.
Figure 246 Open Printer Properties
4Select the Ports tab and click Add Port...
Figure 247 Printer Properties Window
![](/img.php?id=1154264&img=bg5d.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 393
5A Printer Ports window appears. Select Standard TCP/IP Port and click New
Port...

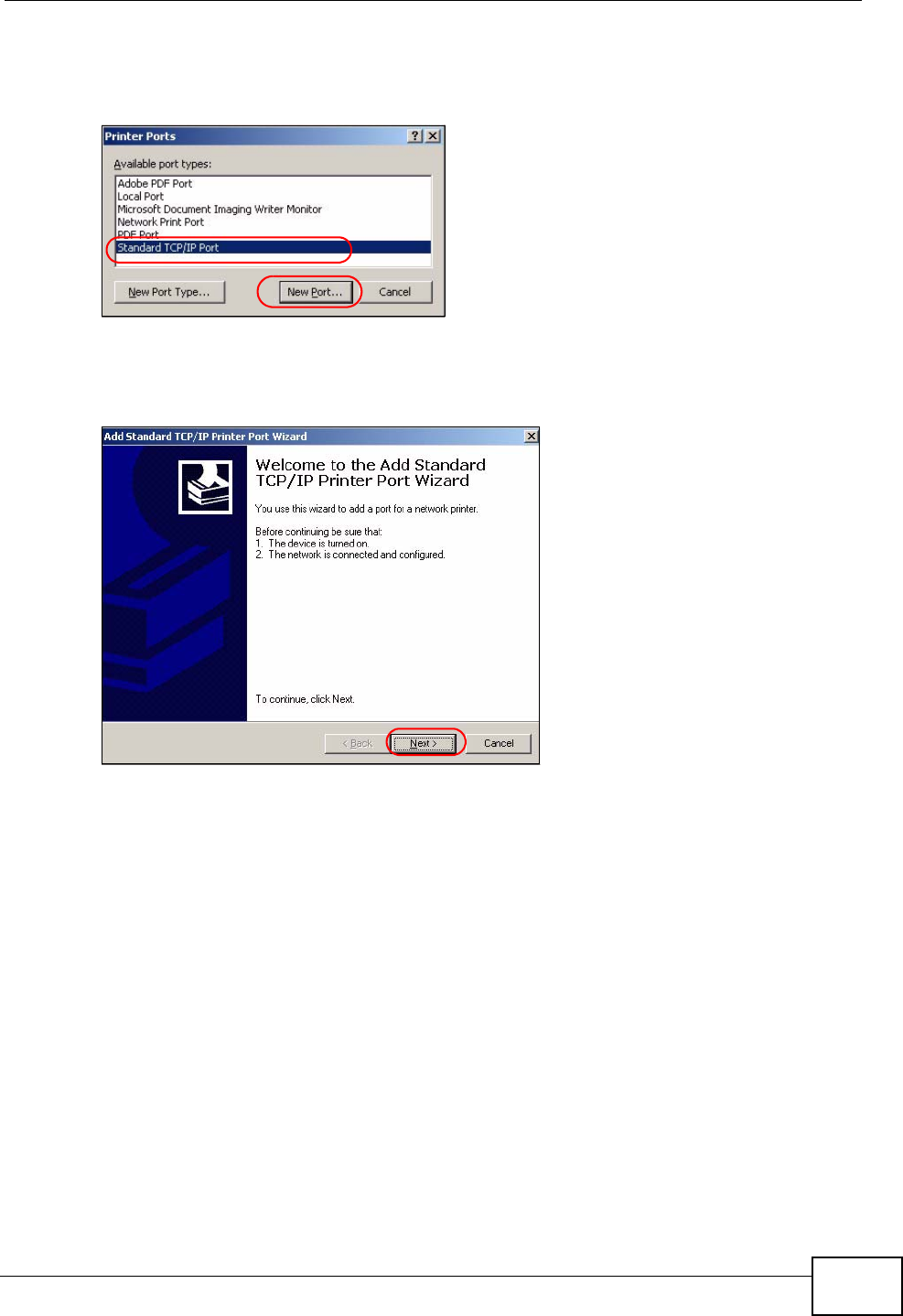

Figure 248 Add a Port Window
6Add Standard TCP/IP Printer Port Wizard window opens up. Click Next to
start configuring the printer port.
Figure 249 Add a Port Wizard
7Enter the IP address of the ZyXEL Device to which the printer is connected in the
Printer Name or IP Address: field. In our example we use the default IP
address of the ZyXEL Device, 192.168.1.1. The Port Name field updates
automatically to reflect the IP address of the port. Click Next.
![](/img.php?id=1154264&img=bg5e.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
394
Note: The computer from which you are configuring the TCP/IP printer port must be
on the same LAN in order to use the printer sharing function.
Figure 250 Enter IP Address of the ZyXEL Device
8Select Custom under Device Type and click Settings.
Figure 251 Custom Port Settings
9Confirm the IP address of the ZyXEL Device in the IP Address field.
10 Select LPR under Protocol.
11 Type the LPR queue name of your printer model in the Queue Name field and
click OK. Refer to your printer documentation for the LPR queue name. Some
![](/img.php?id=1154264&img=bg5f.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 395
printer models accept any name you want to use, in this case you can enter a
short descriptive name for the Queue Name.

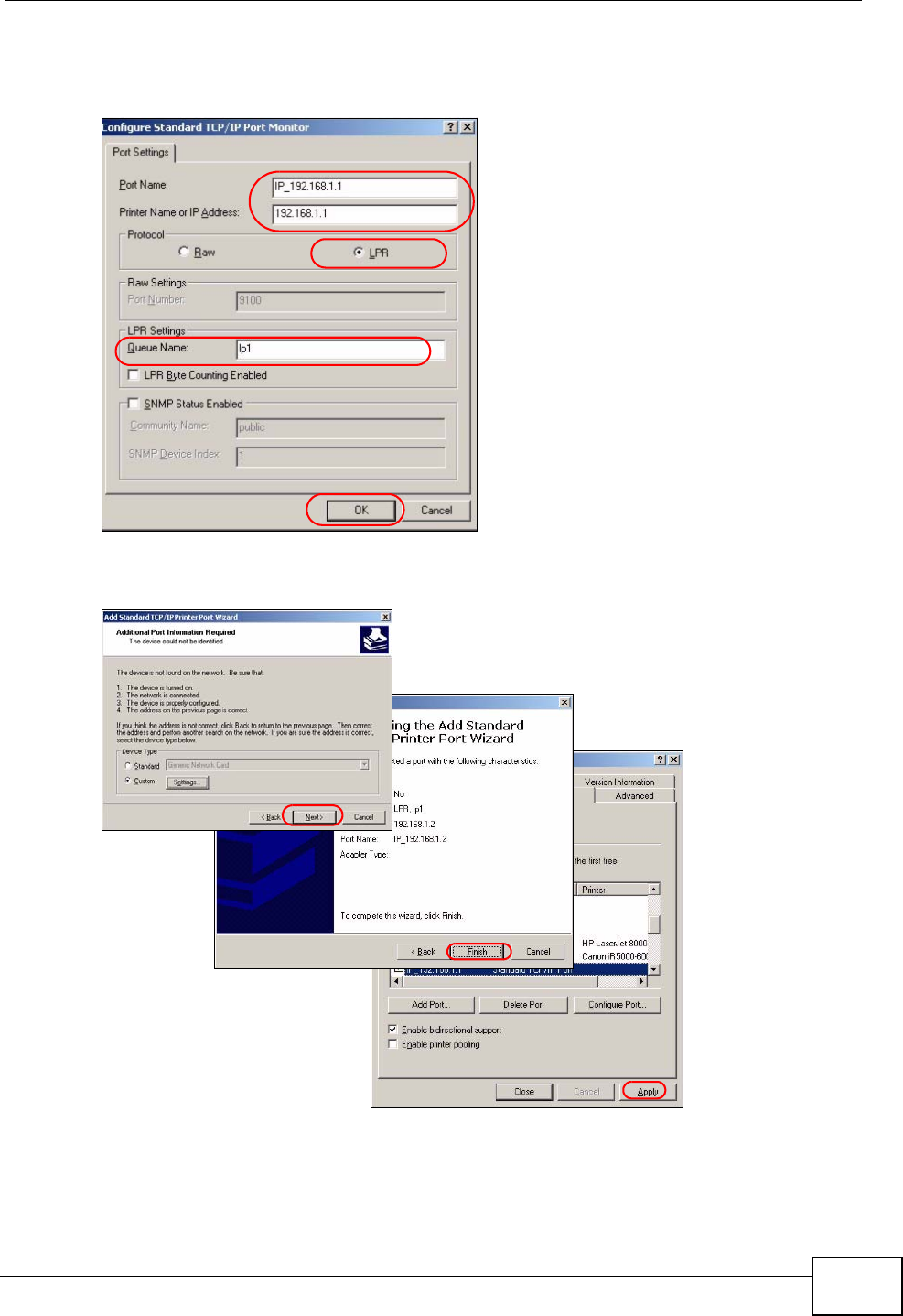

Figure 252 Custom Port Settings
12 Continue through the wizard, apply your settings and close the wizard window.
Figure 253 Finish Adding the TCP/IP Port
13 Repeat steps 1 to 12 to add this printer to other computers on your network.
![](/img.php?id=1154264&img=bg60.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
396
Add a New Printer Using Windows
This example shows how to connect a printer to your ZyXEL Device using the
Windows XP Professional operating system. Some menu items may look different
on your operating system.

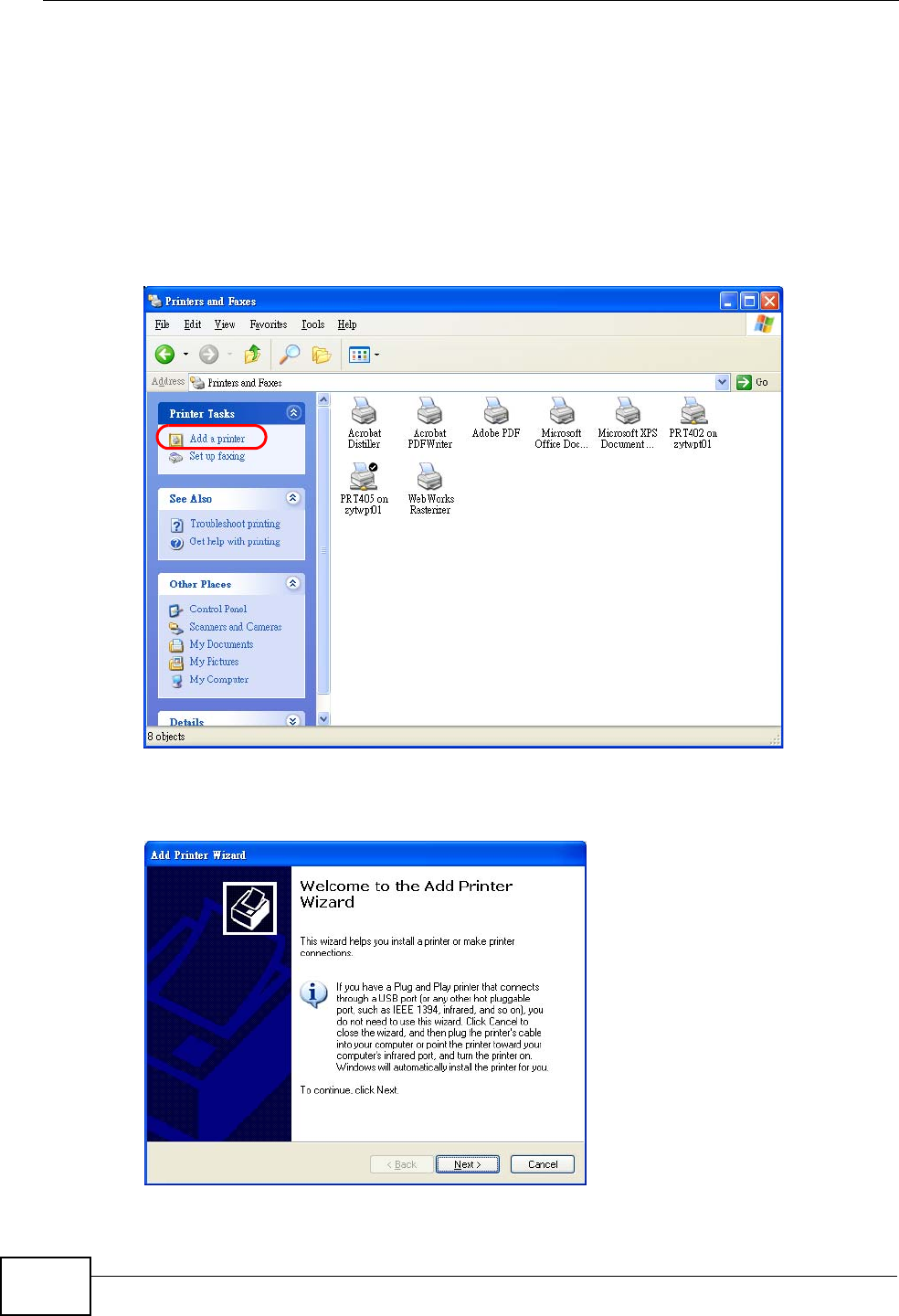

1Click Start > Control Panel > Printers and Faxes to open the Printers and
Faxes screen. Click Add a Printer.
Figure 254 Printers Folder
2The Add Printer Wizard screen displays. Click Next.
Figure 255 Add Printer Wizard: Welcome
![](/img.php?id=1154264&img=bg61.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 397

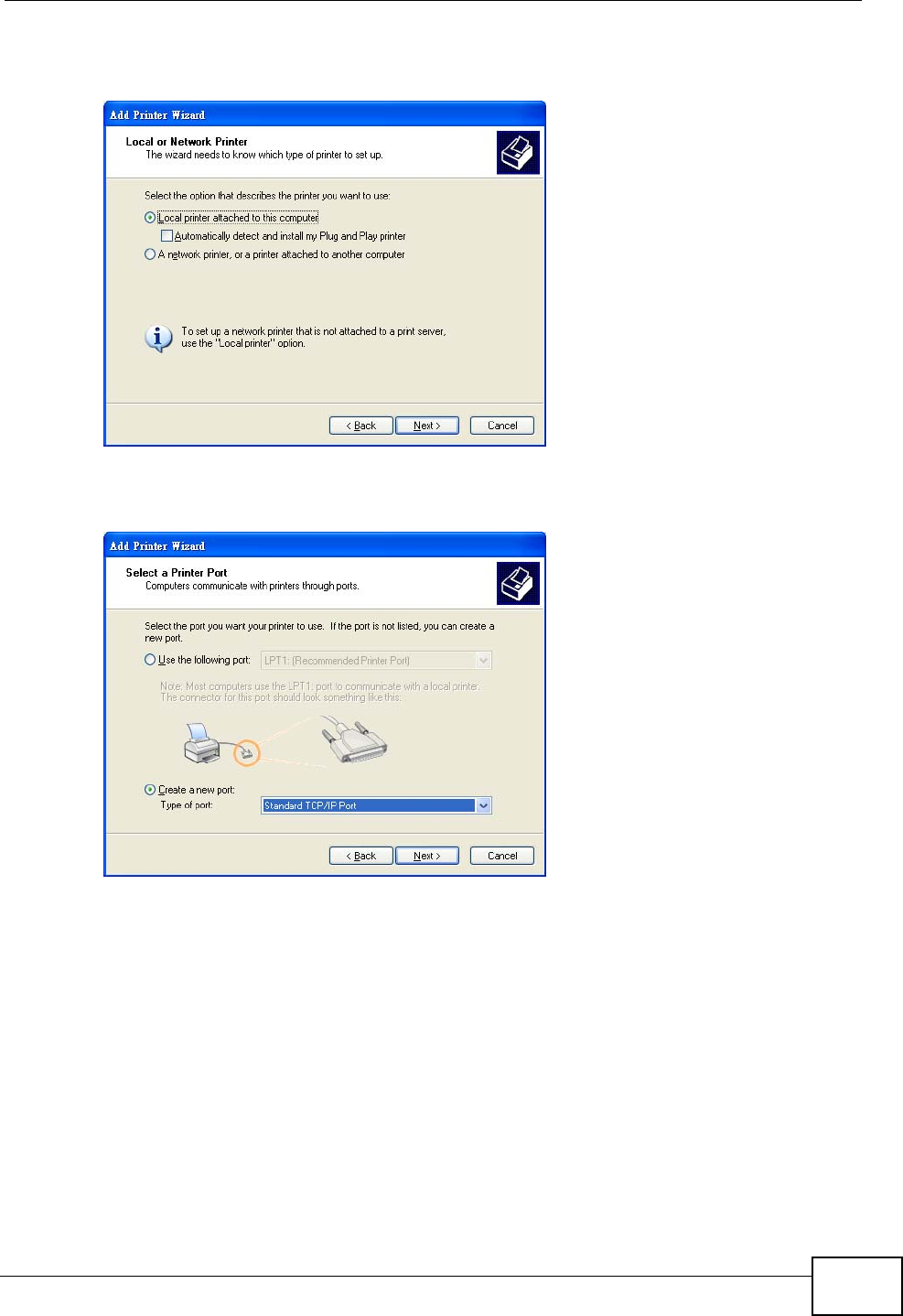

3Select Local printer attached to this computer and click Next.
Figure 256 Add Printer Wizard: Local or Network Printer
4Select Create a new port and Standard TCP/IP Port. Click Next.
Figure 257 Add Printer Wizard: Select the Printer Port
![](/img.php?id=1154264&img=bg62.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
398

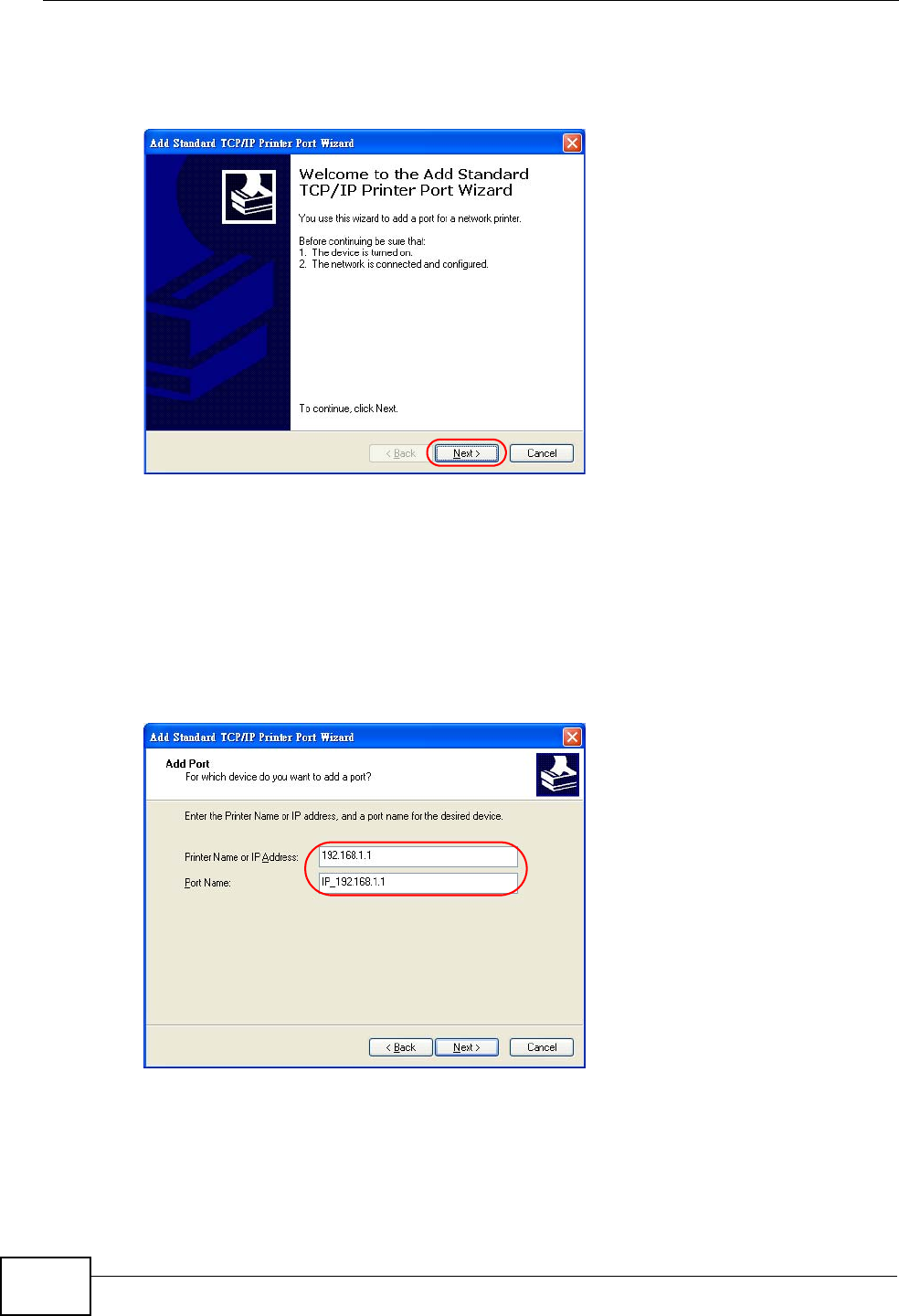

5Add Standard TCP/IP Printer Port Wizard window opens up. Click Next to
start configuring the printer port.
Figure 258 Add a Port Wizard
6Enter the IP address of the ZyXEL Device to which the printer is connected in the
Printer Name or IP Address: field. In our example we use the default IP
address of the ZyXEL Device, 192.168.1.1. The Port Name field updates
automatically to reflect the IP address of the port. Click Next.
Note: The computer from which you are configuring the TCP/IP printer port must be
on the same LAN in order to use the printer sharing function.
Figure 259 Enter IP Address of the ZyXEL Device
![](/img.php?id=1154264&img=bg63.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 399

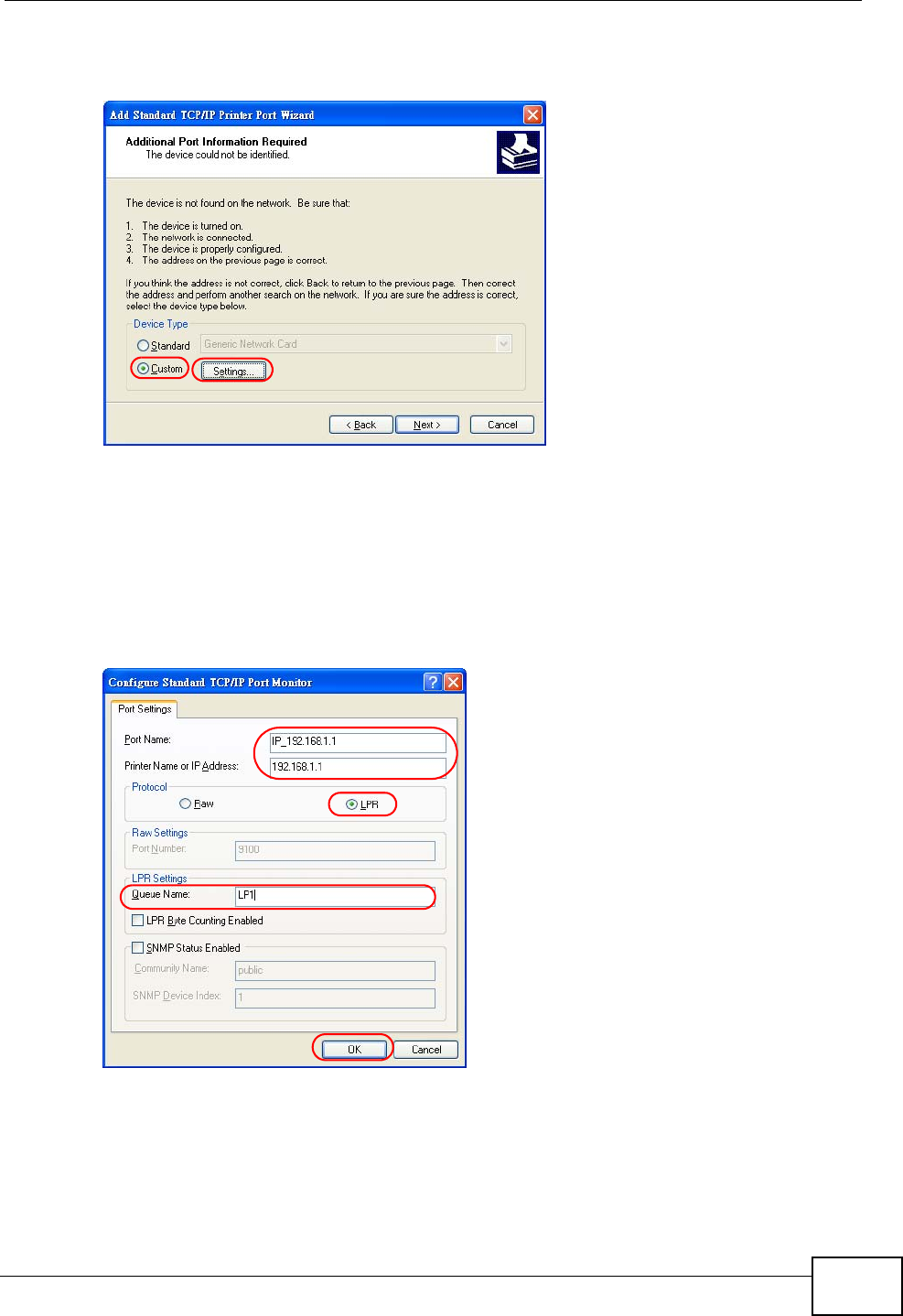

7Select Custom under Device Type and click Settings.
Figure 260 Custom Port Settings
8Confirm the IP address of the ZyXEL Device in the Printer Name or IP Address
field.
9Select LPR under Protocol.
10 Type LP1 in the Queue Name field and click OK to go back to the previous screen
and click Next.
Figure 261 Custom Port Settings
![](/img.php?id=1154264&img=bg64.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
400

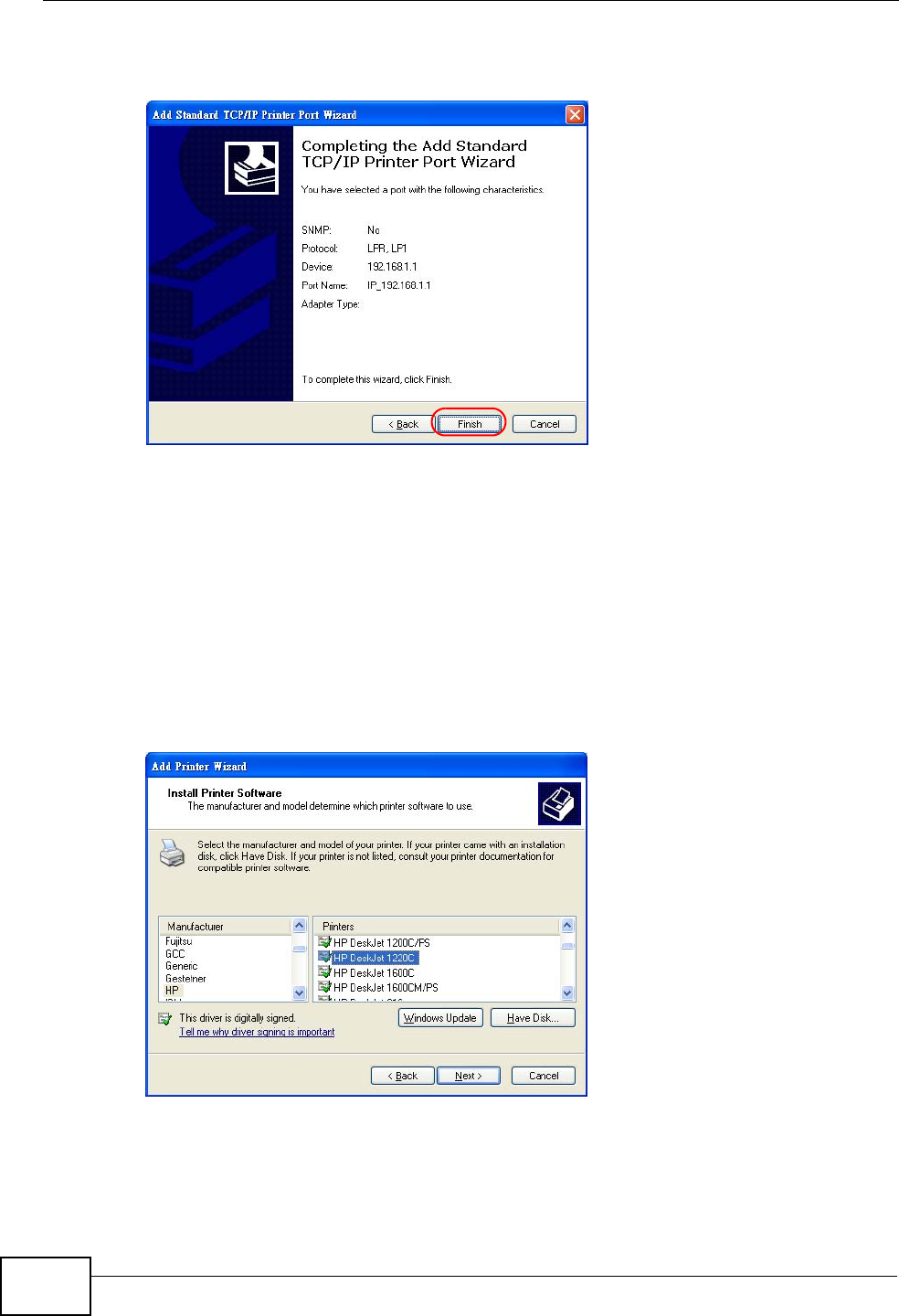

11 Click Finish to close the wizard window.
Figure 262 Finish Adding the TCP/IP Port
12 Select the make of the printer that you want to connect to the print server in the
Manufacturer list of printers.
13 Select the printer model from the list of Printers.
14 If your printer is not displayed in the list of Printers, you can insert the printer
driver installation CD/disk or download the driver file to your computer, click Have
Disk… and install the new printer driver.
15 Click Next to continue.
Figure 263 Add Printer Wizard: Printer Driver
![](/img.php?id=1154264&img=bg65.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 401
16 If the following screen displays, select Keep existing driver radio button and
click Next if you already have a printer driver installed on your computer and you
do not want to change it. Otherwise, select Replace existing driver to replace it
with the new driver you selected in the previous screen and click Next.
Figure 264 Add Printer Wizard: Use Existing Driver
17 Type a name to identify the printer and then click Next to continue.
Figure 265 Add Printer Wizard: Name Your Printer
18 The ZyXEL Device is a print server itself and you do not need to have your
computer act as a print server by sharing the printer with other users in the same
![](/img.php?id=1154264&img=bg66.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
402
network; just select Do not share this printer and click Next to proceed to the
following screen.

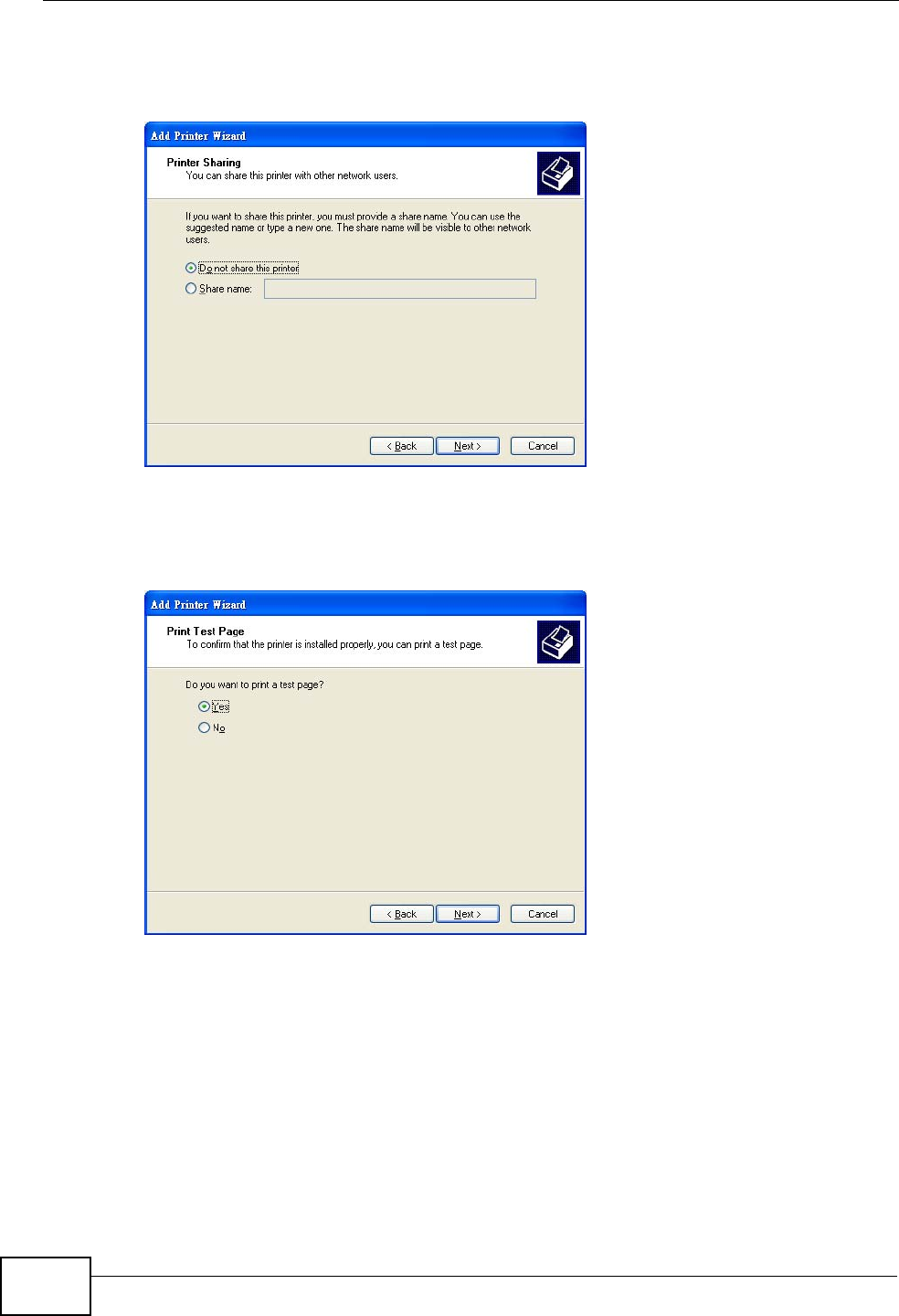

Figure 266 Add Printer Wizard: Printer Sharing
19 Select Yes and then click the Next button if you want to print a test page. A pop-
up screen displays to ask if the test page printed correctly. Otherwise select No
and then click Next to continue.
Figure 267 Add Printer Wizard: Print Test Page
![](/img.php?id=1154264&img=bg67.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 403
20 The following screen shows your current printer settings. Select Finish to
complete adding a new printer.

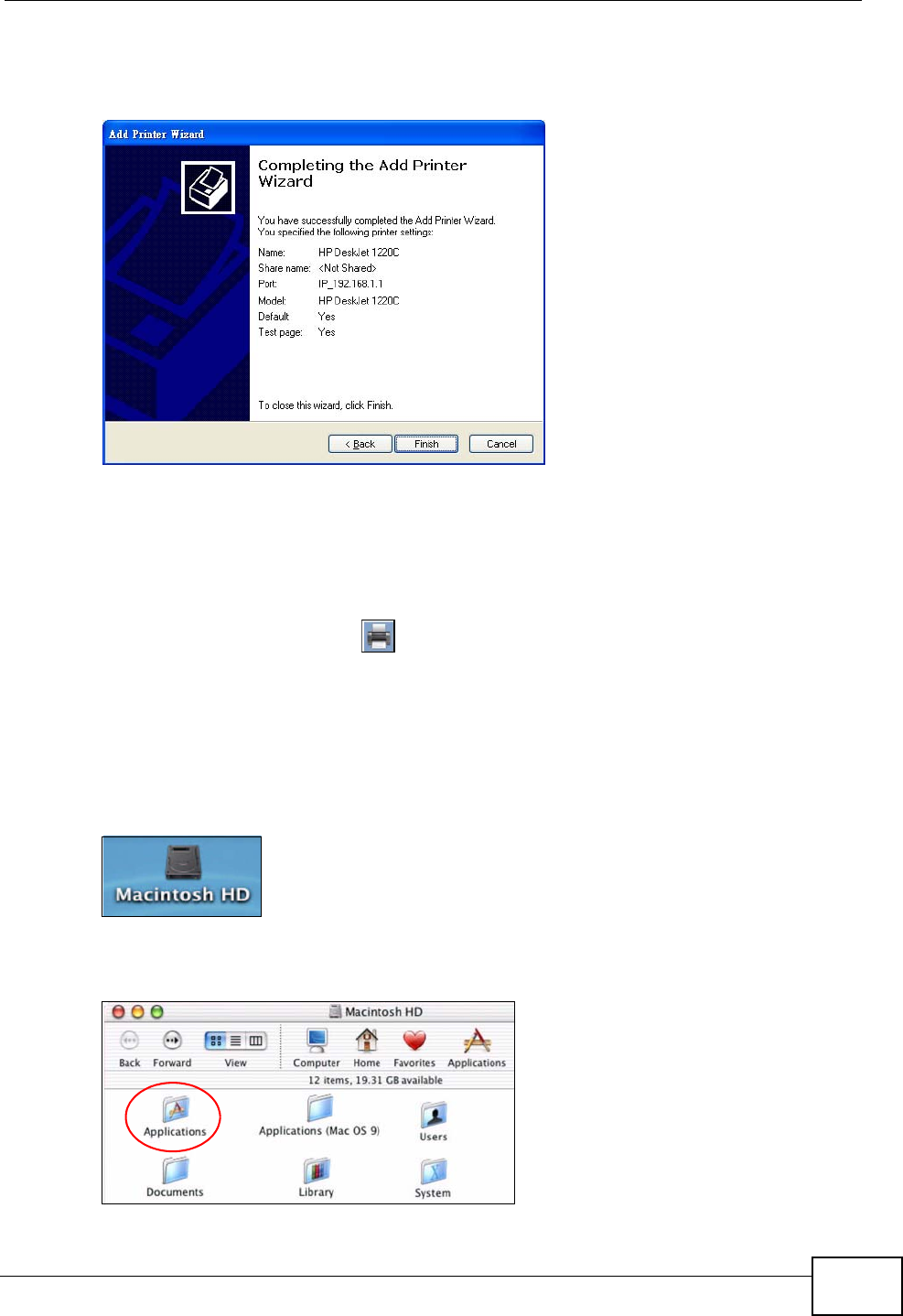

Figure 268 Add Printer Wizard Complete
Add a New Printer Using Macintosh OS X
Complete the following steps to set up a print server driver on your Macintosh
computer.
1Click the Print Center icon located in the Macintosh Dock (a place holding a
series of icons/shortcuts at the bottom of the desktop). Proceed to step 6 to
continue. If the Print Center icon is not in the Macintosh Dock, proceed to the
next step.
2On your desktop, double-click the Macintosh HD icon to open the Macintosh HD
window.
Figure 269 Macintosh HD
3Double-click the Applications folder.
Figure 270 Macintosh HD folder
![](/img.php?id=1154264&img=bg68.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
404
4Double-click the Utilities folder.

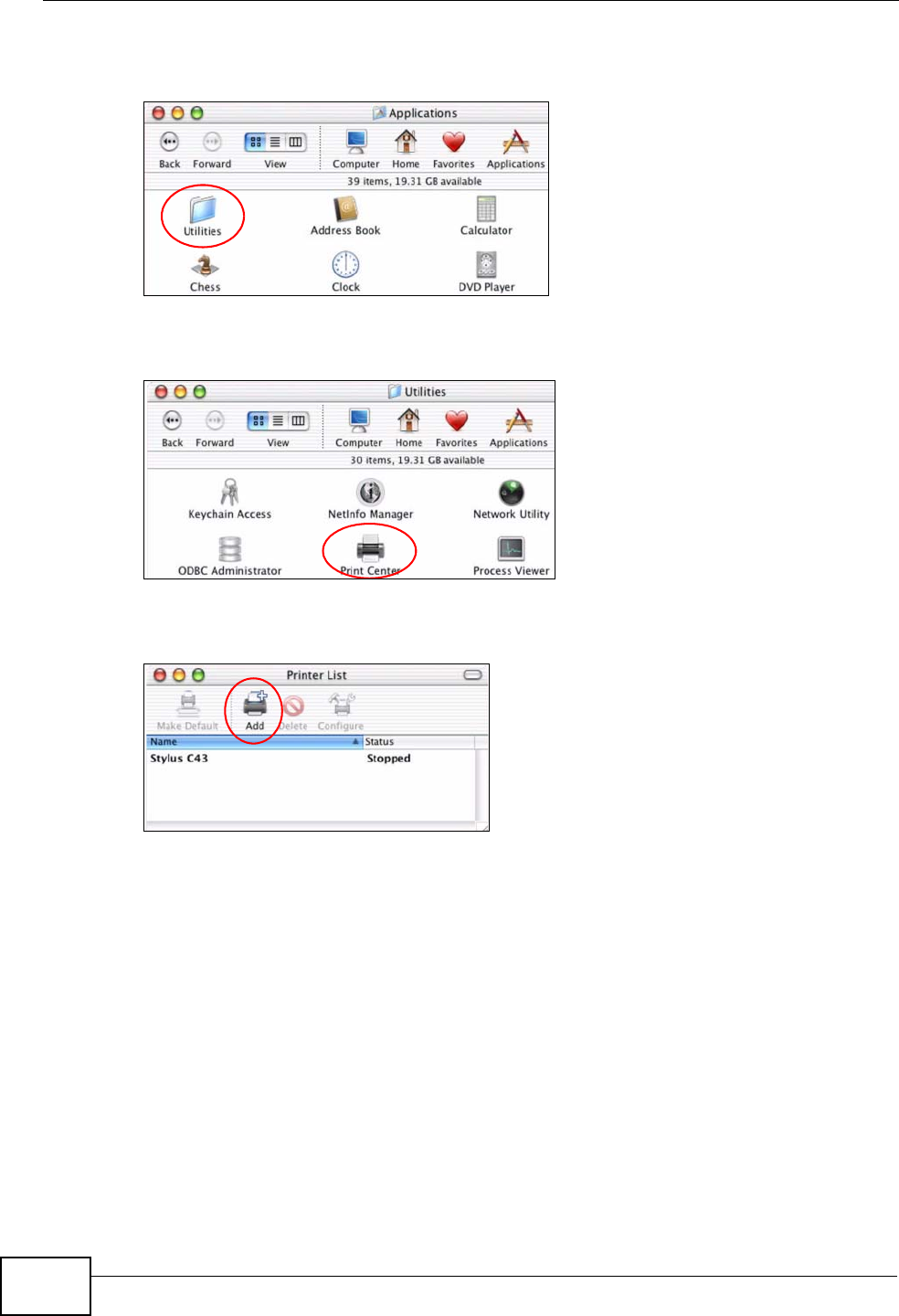

Figure 271 Applications Folder
5Double-click the Print Center icon.
Figure 272 Utilities Folder
6Click the Add icon at the top of the screen.
Figure 273 Printer List Folder
7Set up your printer in the Printer List configuration screen. Select IP Printing
from the drop-down list box.
8In the Printer’s Address field, type the IP address of your ZyXEL Device.
9Deselect the Use default queue on server check box.
10 Type LP1 (a parallel port) in the Queue Name field.
![](/img.php?id=1154264&img=bg69.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 405
11 Select your Printer Model from the drop-down list box. If the printer's model is
not listed, select Generic.

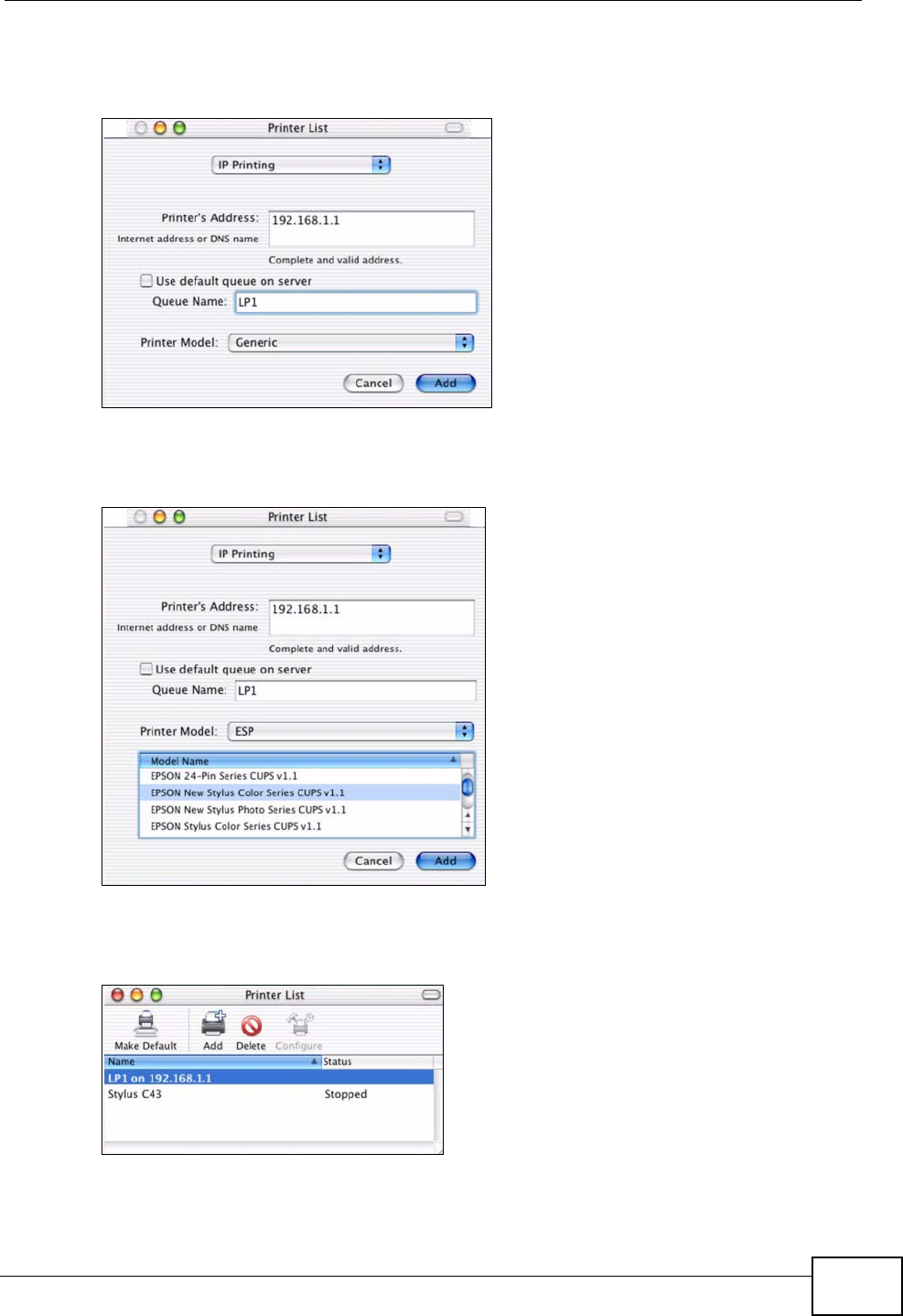

Figure 274 Printer Configuration
12 Click Add to select a printer model, save and close the Printer List configuration
screen.
Figure 275 Printer Model
13 The Name LP1 on 192.168.1.1 displays in the Printer List field. The default
printer Name displays in bold type.
Figure 276 Print Server
14 Your Macintosh print server driver setup is complete. You can now use the ZyXEL
Device’s print server to print from a Macintosh computer.
![](/img.php?id=1154264&img=bg6a.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
406
23.2 ZyXEL Device Print Server Compatible USB
Printers
The following is a list of USB printer models compatible with the ZyXEL Device
print server.
Table 129 Compatible USB Printers
BRAND MODEL
Brother MFC7420
CANON BJ F9000
CANON PIXMA MP450
CANON PIXMA MP730
CANON PIXMA MP780
CANON PIXMA MP830
CANON PIXUS ip2500
CANON PIXMA ip4200
CANON PIXMA ip5000
CANON PIXUS 990i
EPSON CX3500
EPSON CX3900
EPSON EPL-5800
EPSON EPL-6200L
EPSON LP-2500
EPSON LP-8900
EPSON RX 510
EPSON RX 530
EPSON Stylus 830U
EPSON Stylus 1270
EPSON Stylus C43UX
EPSON Stylus C60
EPSON Stylus Color 670
HP Deskjet 5550
HP Deskjet 5652
HP Deskjet 830C
HP Deskjet 845C
![](/img.php?id=1154264&img=bg6b.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide 407
HP Deskjet 1125C
HP Deskjet 1180C
HP Deskjet 1220C
HP Deskjet F4185
HP Laserjet 1200
HP Laserjet 2200D
HP Laserjet 2420
HP Color Laserjet 1500L
HP Laserjet 3015
HP Officejet 4255
HP Officejet 5510
HP Officejet 5610
HP Officejet 7210
HP Officejet Pro L7380
HP Photosmart 2610
HP Photosmart 3110
HP Photosmart 7150
HP Photosmart 7830
HP Photosmart C5280
HP Photosmart D5160
HP PSC 1350
HP PSC 1410
IBM Infoprint 1332
LEXMARK Z55
LEXMARK Z705
OKI B4350
SAMSUNG ML-1710
SAMSUNG SCX-4016
Table 129 Compatible USB Printers (continued)
BRAND MODEL
![](/img.php?id=1154264&img=bg6c.png)
Chapter 23 Sharing a USB Printer
P-2612HWU-F1 User’s Guide
408
![](/img.php?id=1154264&img=bg6d.png)
409
PART III
Maintenance,
Troubleshooting
and Specifications
System (411)
Logs (417)
Tools (439)
Diagnostic (459)
Troubleshooting (461)
Product Specifications (471)
![](/img.php?id=1154264&img=bg6e.png)
410
![](/img.php?id=1154264&img=bg6f.png)
P-2612HWU-F1 User’s Guide 411
CHAPTER 24
System
24.1 Overview
This chapter shows you how to configure system related settings, such as system
time, password, name, the domain name and the inactivity timeout interval.
24.1.1 What You Can Do in the System Settings Screens
•Use the General screen (Section 24.2 on page 412) to configure system
settings.
•Use the Time Setting screen (Section 24.3 on page 414) to set the system
time.
24.1.2 What You Need to Know About System Settings
Domain Name
This is a network address that identifies the owner of a network connection. For
example, in the network address “www.zyxel.com/support/files”, the domain
name is “www.zyxel.com”.
DHCP
DHCP (Dynamic Host Configuration Protocol) is a method of allocating IP
addresses to devices on a network from a DHCP Server. Often your ISP or a router
on your network performs this function.
LAN
A LAN (local area network) is typically a network which covers a small area, made
up of computers and other devices which share resources such as Internet access
and printers.
![](/img.php?id=1154264&img=bg70.png)
Chapter 24 System
P-2612HWU-F1 User’s Guide
412
24.2 The General Screen
Use the General screen to configure system settings such as the system and
domain name, inactivity timeout interval and system password.
The System Name is for identification purposes. However, because some ISPs
check this name you should enter your computer's "Computer Name". Find the
system name of your Windows computer by following one of the steps below.
• In Windows XP, click start, My Computer, View system information and
then click the Computer Name tab. Note the entry in the Full computer
name field and enter it as the ZyXEL Device System Name.
Click Maintenance > System to open the General screen.

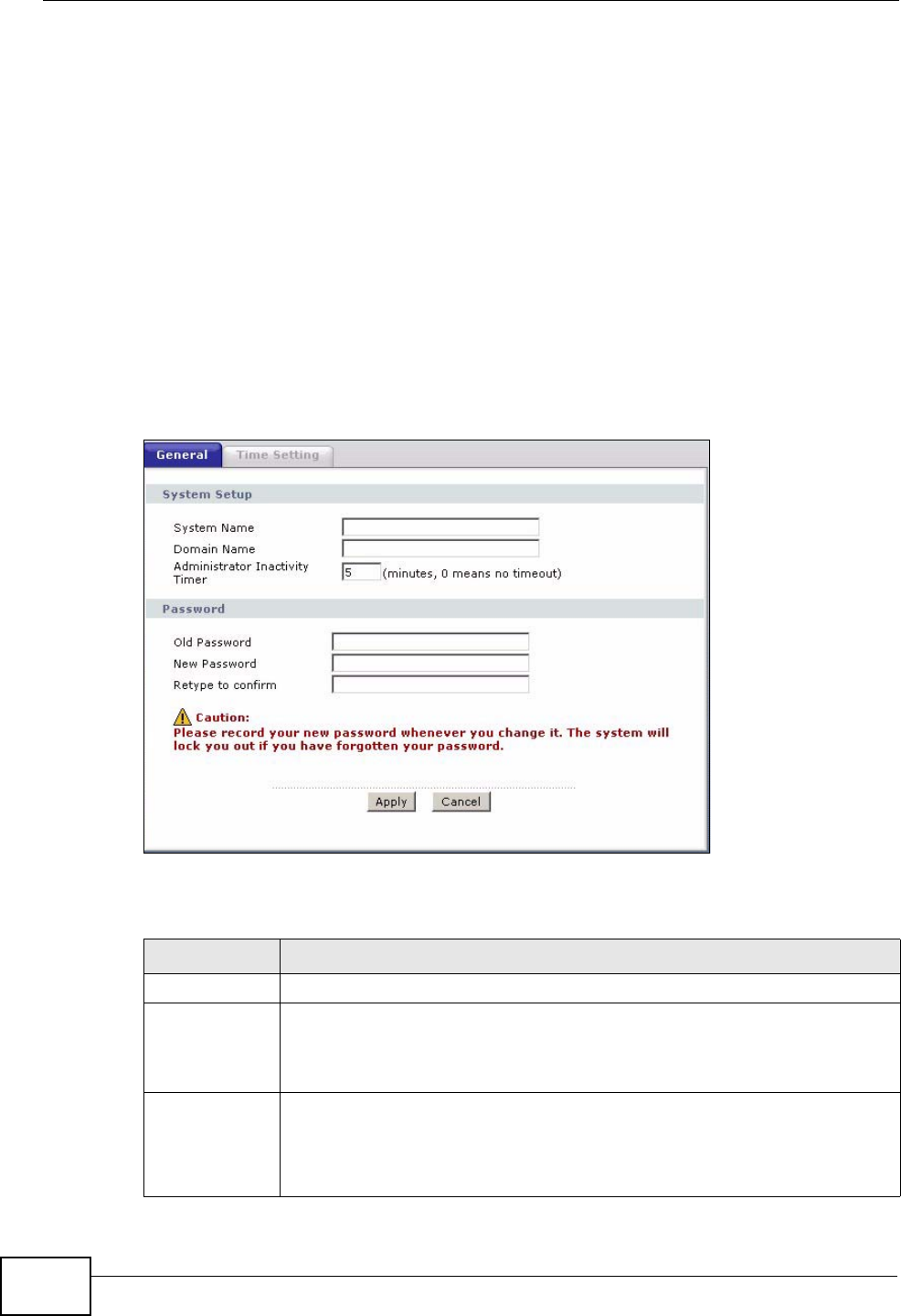

Figure 277 Maintenance > System > General
The following table describes the labels in this screen.
Table 130 Maintenance > System > General
LABEL DESCRIPTION
General Setup
System Name Choose a descriptive name for identification purposes. It is
recommended you enter your computer’s “Computer name” in this field.
This name can be up to 30 alphanumeric characters long. Spaces are not
allowed, but dashes “-” and underscores "_" are accepted.
Domain Name Enter the domain name (if you know it) here. If you leave this field blank,
the ISP may assign a domain name via DHCP.
The domain name entered by you is given priority over the ISP assigned
domain name.
![](/img.php?id=1154264&img=bg71.png)
Chapter 24 System
P-2612HWU-F1 User’s Guide 413
Administrator
Inactivity
Timer
Type how many minutes a management session (either via the web
configurator or telnet) can be left idle before the session times out. The
default is 5 minutes. After it times out you have to log in with your
password again. Very long idle timeouts may have security risks. A value
of "0" means a management session never times out, no matter how
long it has been left idle (not recommended).
Password
Old Password Type the default password or the existing password you use to access the
system in this field.
New Password Type your new system password (up to 30 characters). Note that as you
type a password, the screen displays a (*) for each character you type.
After you change the password, use the new password to access the
ZyXEL Device.
Retype to
Confirm Type the new password again for confirmation.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 130 Maintenance > System > General
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg72.png)
Chapter 24 System
P-2612HWU-F1 User’s Guide
414
24.3 The Time Setting Screen
To change your ZyXEL Device’s time and date, click Maintenance > System >
Time Setting. The screen appears as shown. Use this screen to configure the
ZyXEL Device’s time based on your local time zone.

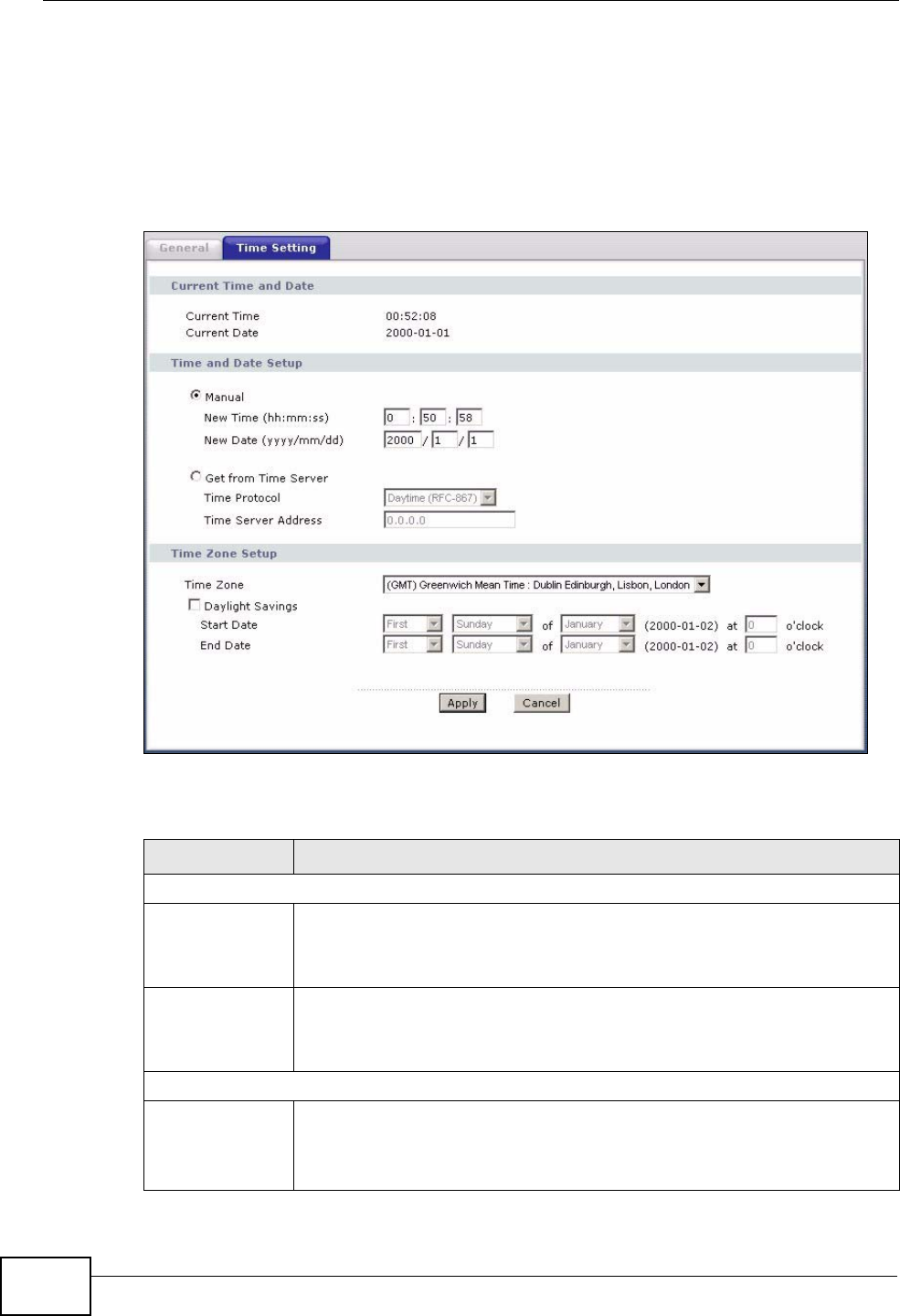

Figure 278 Maintenance > System > Time Setting
The following table describes the fields in this screen.
Table 131 Maintenance > System > Time Setting
LABEL DESCRIPTION
Current Time and Date
Current Time This field displays the time of your ZyXEL Device.
Each time you reload this page, the ZyXEL Device synchronizes the
time with the time server.
Current Date This field displays the date of your ZyXEL Device.
Each time you reload this page, the ZyXEL Device synchronizes the
date with the time server.
Time and Date Setup
Manual Select this radio button to enter the time and date manually. If you
configure a new time and date, Time Zone and Daylight Saving at the
same time, the new time and date you entered has priority and the
Time Zone and Daylight Saving settings do not affect it.
![](/img.php?id=1154264&img=bg73.png)
Chapter 24 System
P-2612HWU-F1 User’s Guide 415
New Time
(hh:mm:ss)
This field displays the last updated time from the time server or the last
time configured manually.
When you set Time and Date Setup to Manual, enter the new time in
this field and then click Apply.
New Date
(yyyy/mm/dd)
This field displays the last updated date from the time server or the last
date configured manually.
When you set Time and Date Setup to Manual, enter the new date in
this field and then click Apply.
Get from Time
Server Select this radio button to have the ZyXEL Device get the time and date
from the time server you specified below.
Time Protocol Select the time service protocol that your time server sends when you
turn on the ZyXEL Device. Not all time servers support all protocols, so
you may have to check with your ISP/network administrator or use trial
and error to find a protocol that works.
The main difference between them is the format.
Daytime (RFC 867) format is day/month/year/time zone of the
server.
Time (RFC 868) format displays a 4-byte integer giving the total
number of seconds since 1970/1/1 at 0:0:0.
The default, NTP (RFC 1305), is similar to Time (RFC 868).
Time Server
Address Enter the IP address or URL (up to 20 extended ASCII characters in
length) of your time server. Check with your ISP/network administrator
if you are unsure of this information.
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time difference
between your time zone and Greenwich Mean Time (GMT).
Daylight
Savings Daylight saving is a period from late spring to early fall when many
countries set their clocks ahead of normal local time by one hour to
give more daytime light in the evening.
Select this option if you use Daylight Saving Time.
Start Date Configure the day and time when Daylight Saving Time starts if you
selected Daylight Savings. The o'clock field uses the 24 hour
format. Here are a couple of examples:
Daylight Saving Time starts in most parts of the United States on the
second Sunday of March. Each time zone in the United States starts
using Daylight Saving Time at 2 A.M. local time. So in the United States
you would select Second, Sunday, March and type 2 in the o'clock
field.
Daylight Saving Time starts in the European Union on the last Sunday
of March. All of the time zones in the European Union start using
Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in
the European Union you would select Last, Sunday, March. The time
you type in the o'clock field depends on your time zone. In Germany
for instance, you would type 2 because Germany's time zone is one
hour ahead of GMT or UTC (GMT+1).
Table 131 Maintenance > System > Time Setting (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg74.png)
Chapter 24 System
P-2612HWU-F1 User’s Guide
416
End Date Configure the day and time when Daylight Saving Time ends if you
selected Daylight Savings. The o'clock field uses the 24 hour format.
Here are a couple of examples:
Daylight Saving Time ends in the United States on the first Sunday of
November. Each time zone in the United States stops using Daylight
Saving Time at 2 A.M. local time. So in the United States you would
select First, Sunday, November and type 2 in the o'clock field.
Daylight Saving Time ends in the European Union on the last Sunday of
October. All of the time zones in the European Union stop using
Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in
the European Union you would select Last, Sunday, October. The
time you type in the o'clock field depends on your time zone. In
Germany for instance, you would type 2 because Germany's time zone
is one hour ahead of GMT or UTC (GMT+1).
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 131 Maintenance > System > Time Setting (continued)
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg75.png)
P-2612HWU-F1 User’s Guide 417
CHAPTER 25
Logs
25.1 Overview
The web configurator allows you to choose which categories of events and/or
alerts to have the ZyXEL Device log and then display the logs or have the ZyXEL
Device send them to an administrator (as e-mail) or to a syslog server.
25.1.1 What You Can Do in the Log Screens
•Use the View Log screen (Section 25.2 on page 417) to see the logs for the
categories that you selected in the Log Settings screen.
•Use The Log Settings screen (Section 25.3 on page 418) to configure to where
the ZyXEL Device is to send logs; the schedule for when the ZyXEL Device is to
send the logs and which logs and/or immediate alerts the ZyXEL Device is to
record.
25.1.2 What You Need To Know About Logs
Alerts and Logs
An alert is a type of log that warrants more serious attention. They include system
errors, attacks (access control) and attempted access to blocked web sites. Some
categories such as System Errors consist of both logs and alerts. You may
differentiate them by their color in the View Log screen. Alerts display in red and
logs display in black.
25.2 The View Log Screen
Click Maintenance > Logs to open the View Log screen. Use the View Log
screen to see the logs for the categories that you selected in the Log Settings
screen (see Section 25.3 on page 418).
![](/img.php?id=1154264&img=bg76.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
418
Log entries in red indicate alerts. The log wraps around and deletes the old entries
after it fills. Click a column heading to sort the entries. A triangle indicates
ascending or descending sort order.
Figure 279 Maintenance > Logs > View Log
The following table describes the fields in this screen.
25.3 The Log Settings Screen
Use the Log Settings screen to configure to where the ZyXEL Device is to send
logs; the schedule for when the ZyXEL Device is to send the logs and which logs
Table 132 Maintenance > Logs > View Log
LABEL DESCRIPTION
Display The categories that you select in the Log Settings screen display in the
drop-down list box.
Select a category of logs to view; select All Logs to view logs from all of
the log categories that you selected in the Log Settings page.
Email Log Now Click Email Log Now to send the log screen to the e-mail address
specified in the Log Settings page (make sure that you have first filled
in the E-mail Log Settings fields in Log Settings).
Refresh Click Refresh to renew the log screen.
Clear Log Click Clear Log to delete all the logs.
#This field is a sequential value and is not associated with a specific entry.
Time This field displays the time the log was recorded.
Message This field states the reason for the log.
Source This field lists the source IP address and the port number of the incoming
packet.
Destination This field lists the destination IP address and the port number of the
incoming packet.
Notes This field displays additional information about the log entry.
![](/img.php?id=1154264&img=bg77.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 419
and/or immediate alerts the ZyXEL Device is to record. See Section 25.1 on page
417 for more information.
To change your ZyXEL Device’s log settings, click Maintenance > Logs > Log
Settings. The screen appears as shown.
Alerts are e-mailed as soon as they happen. Logs may be e-mailed as soon as the
log is full. Selecting many alert and/or log categories (especially Access Control)
may result in many e-mails being sent.

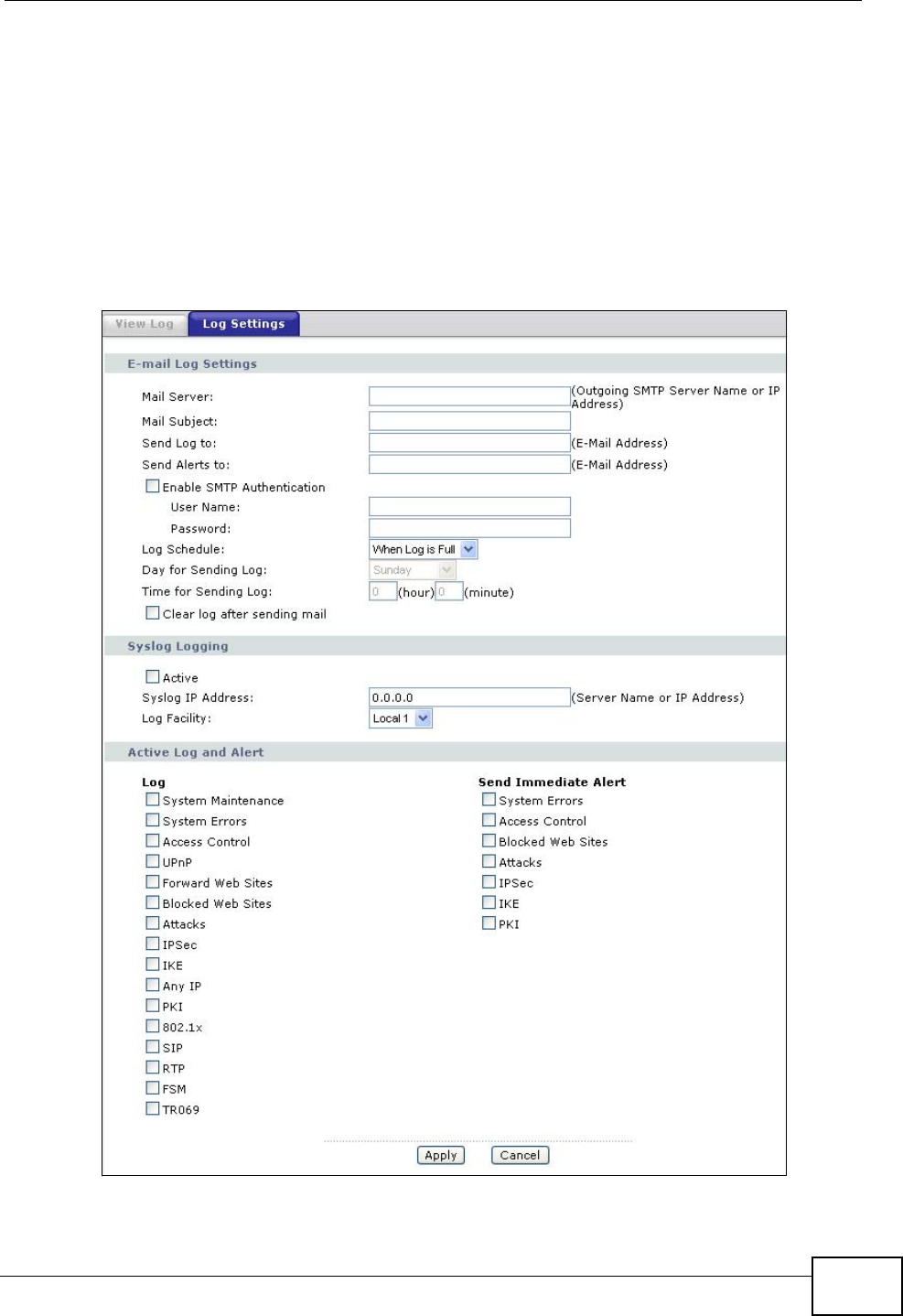

Figure 280 Maintenance > Logs > Log Settings
![](/img.php?id=1154264&img=bg78.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
420
The following table describes the fields in this screen.
Table 133 Maintenance > Logs > Log Settings
LABEL DESCRIPTION
E-mail Log Settings
Mail Server Enter the server name or the IP address of the mail server for the e-mail
addresses specified below. If this field is left blank, logs and alert
messages will not be sent via E-mail.
Mail Subject Type a title that you want to be in the subject line of the log e-mail
message that the ZyXEL Device sends. Not all ZyXEL Device models have
this field.
Send Log to The ZyXEL Device sends logs to the e-mail address specified in this field.
If this field is left blank, the ZyXEL Device does not send logs via e-mail.
Send Alerts to Alerts are real-time notifications that are sent as soon as an event, such
as a DoS attack, system error, or forbidden web access attempt occurs.
Enter the E-mail address where the alert messages will be sent. Alerts
include system errors, attacks and attempted access to blocked web
sites. If this field is left blank, alert messages will not be sent via E-mail.
Enable SMTP
Authentication SMTP (Simple Mail Transfer Protocol) is the message-exchange standard
for the Internet. SMTP enables you to move messages from one e-mail
server to another.
Select the check box to activate SMTP authentication. If mail server
authentication is needed but this feature is disabled, you will not receive
the e-mail logs.
User Name Enter the user name (up to 31 characters) (usually the user name of a
mail account).
Password Enter the password associated with the user name above.
Log Schedule This drop-down menu is used to configure the frequency of log messages
being sent as E-mail:
• Daily
• Weekly
•Hourly
• When Log is Full
•None.
If you select Weekly or Daily, specify a time of day when the E-mail
should be sent. If you select Weekly, then also specify which day of the
week the E-mail should be sent. If you select When Log is Full, an alert
is sent when the log fills up. If you select None, no log messages are
sent.
Day for
Sending Log Use the drop down list box to select which day of the week to send the
logs.
Time for
Sending Log Enter the time of the day in 24-hour format (for example 23:00 equals
11:00 pm) to send the logs.
Clear log after
sending mail Select this to delete all the logs after the ZyXEL Device sends an E-mail of
the logs.
Syslog
Logging The ZyXEL Device sends a log to an external syslog server.
Active Click Active to enable syslog logging.
![](/img.php?id=1154264&img=bg79.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 421
25.4 SMTP Error Messages
If there are difficulties in sending e-mail the following error message appears.
“SMTP action request failed. ret= ??". The “??"are described in the following table.
25.4.1 Example E-mail Log
An "End of Log" message displays for each mail in which a complete log has been
sent. The following is an example of a log sent by e-mail.
• You may edit the subject title.
• The date format here is Day-Month-Year.
• The date format here is Month-Day-Year. The time format is Hour-Minute-
Second.
Syslog IP
Address Enter the server name or IP address of the syslog server that will log the
selected categories of logs.
Log Facility Select a location from the drop down list box. The log facility allows you
to log the messages to different files in the syslog server. Refer to the
syslog server manual for more information.
Active Log and Alert
Log Select the categories of logs that you want to record.
Send
Immediate
Alert
Select log categories for which you want the ZyXEL Device to send E-mail
alerts immediately.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to return to the previously saved settings.
Table 133 Maintenance > Logs > Log Settings
LABEL DESCRIPTION
Table 134 SMTP Error Messages
-1 means ZyXEL Device out of socket
-2 means tcp SYN fail
-3 means smtp server OK fail
-4 means HELO fail
-5 means MAIL FROM fail
-6 means RCPT TO fail
-7 means DATA fail
-8 means mail data send fail
![](/img.php?id=1154264&img=bg7a.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
422
•"End of Log" message shows that a complete log has been sent.
Figure 281 E-mail Log Example
25.5 Log Descriptions
This section provides descriptions of example log messages.
Subject:
Firewall Alert From
Date:
Fri, 07 Apr 2000 10:05:42
From:
user@zyxel.com
To:
user@zyxel.com
1|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |default policy |forward
| 09:54:03 |UDP src port:00520 dest port:00520 |<1,00> |
2|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |default policy |forward
| 09:54:17 |UDP src port:00520 dest port:00520 |<1,00> |
3|Apr 7 00 |From:192.168.1.6 To:10.10.10.10 |match |forward
| 09:54:19 |UDP src port:03516 dest port:00053 |<1,01> |
……………………………..{snip}…………………………………..
……………………………..{snip}…………………………………..
126|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:00 |UDP src port:00520 dest port:00520 |<1,02> |
127|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |match |forward
| 10:05:17 |UDP src port:00520 dest port:00520 |<1,02> |
128|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:30 |UDP src port:00520 dest port:00520 |<1,02> |
End of Firewall Log
Table 135 System Maintenance Logs
LOG MESSAGE DESCRIPTION
Time calibration is
successful The router has adjusted its time based on information
from the time server.
Time calibration failed The router failed to get information from the time
server.
WAN interface gets IP: %s A WAN interface got a new IP address from the DHCP,
PPPoE, or dial-up server.
DHCP client IP expired A DHCP client's IP address has expired.
DHCP server assigns %s The DHCP server assigned an IP address to a client.
Successful WEB login Someone has logged on to the router's web
configurator interface.
WEB login failed Someone has failed to log on to the router's web
configurator interface.
Successful TELNET login Someone has logged on to the router via telnet.
TELNET login failed Someone has failed to log on to the router via telnet.
Successful FTP login Someone has logged on to the router via ftp.
![](/img.php?id=1154264&img=bg7b.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 423
FTP login failed Someone has failed to log on to the router via ftp.
NAT Session Table is Full! The maximum number of NAT session table entries
has been exceeded and the table is full.
Starting Connectivity
Monitor Starting Connectivity Monitor.
Time initialized by Daytime
Server The router got the time and date from the Daytime
server.
Time initialized by Time
server The router got the time and date from the time
server.
Time initialized by NTP
server The router got the time and date from the NTP server.
Connect to Daytime server
fail The router was not able to connect to the Daytime
server.
Connect to Time server fail The router was not able to connect to the Time server.
Connect to NTP server fail The router was not able to connect to the NTP server.
Too large ICMP packet has
been dropped The router dropped an ICMP packet that was too
large.
Configuration Change: PC =
0x%x, Task ID = 0x%x The router is saving configuration changes.
Successful SSH login Someone has logged on to the router’s SSH server.
SSH login failed Someone has failed to log on to the router’s SSH
server.
Successful HTTPS login Someone has logged on to the router's web
configurator interface using HTTPS protocol.
HTTPS login failed Someone has failed to log on to the router's web
configurator interface using HTTPS protocol.
Table 136 System Error Logs
LOG MESSAGE DESCRIPTION
%s exceeds the max.
number of session per
host!
This attempt to create a NAT session exceeds the
maximum number of NAT session table entries allowed to
be created per host.
setNetBIOSFilter: calloc
error The router failed to allocate memory for the NetBIOS
filter settings.
readNetBIOSFilter: calloc
error The router failed to allocate memory for the NetBIOS
filter settings.
WAN connection is down. A WAN connection is down. You cannot access the
network through this interface.
Table 135 System Maintenance Logs (continued)
LOG MESSAGE DESCRIPTION
![](/img.php?id=1154264&img=bg7c.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
424
Table 137 Access Control Logs
LOG MESSAGE DESCRIPTION
Firewall default policy: [ TCP |
UDP | IGMP | ESP | GRE | OSPF ]
<Packet Direction>
Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access
matched the default policy and was blocked or
forwarded according to the default policy’s
setting.
Firewall rule [NOT] match:[ TCP
| UDP | IGMP | ESP | GRE | OSPF
] <Packet Direction>, <rule:%d>
Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access
matched (or did not match) a configured firewall
rule (denoted by its number) and was blocked or
forwarded according to the rule.
Triangle route packet forwarded:
[ TCP | UDP | IGMP | ESP | GRE |
OSPF ]
The firewall allowed a triangle route session to
pass through.
Packet without a NAT table entry
blocked: [ TCP | UDP | IGMP |
ESP | GRE | OSPF ]
The router blocked a packet that didn't have a
corresponding NAT table entry.
Router sent blocked web site
message: TCP The router sent a message to notify a user that
the router blocked access to a web site that the
user requested.
Table 138 TCP Reset Logs
LOG MESSAGE DESCRIPTION
Under SYN flood attack,
sent TCP RST The router sent a TCP reset packet when a host was
under a SYN flood attack (the TCP incomplete count is per
destination host.)
Exceed TCP MAX
incomplete, sent TCP RST The router sent a TCP reset packet when the number of
TCP incomplete connections exceeded the user configured
threshold. (the TCP incomplete count is per destination
host.) Note: Refer to TCP Maximum Incomplete in the
Firewall Attack Alerts screen.
Peer TCP state out of
order, sent TCP RST The router sent a TCP reset packet when a TCP
connection state was out of order.Note: The firewall refers
to RFC793 Figure 6 to check the TCP state.
Firewall session time
out, sent TCP RST The router sent a TCP reset packet when a dynamic
firewall session timed out.Default timeout values:ICMP
idle timeout (s): 60UDP idle timeout (s): 60TCP
connection (three way handshaking) timeout (s): 30TCP
FIN-wait timeout (s): 60TCP idle (established) timeout
(s): 3600
![](/img.php?id=1154264&img=bg7d.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 425
For type and code details, see Table 148 on page 428.
Exceed MAX incomplete,
sent TCP RST The router sent a TCP reset packet when the number of
incomplete connections (TCP and UDP) exceeded the
user-configured threshold. (Incomplete count is for all
TCP and UDP connections through the firewall.)Note:
When the number of incomplete connections (TCP + UDP)
> “Maximum Incomplete High”, the router sends TCP RST
packets for TCP connections and destroys TOS (firewall
dynamic sessions) until incomplete connections <
“Maximum Incomplete Low”.
Access block, sent TCP
RST The router sends a TCP RST packet and generates this log
if you turn on the firewall TCP reset mechanism (via CI
command: "sys firewall tcprst").
Table 139 Packet Filter Logs
LOG MESSAGE DESCRIPTION
[ TCP | UDP | ICMP | IGMP |
Generic ] packet filter
matched (set: %d, rule: %d)
Attempted access matched a configured filter rule
(denoted by its set and rule number) and was blocked
or forwarded according to the rule.
Table 140 ICMP Logs
LOG MESSAGE DESCRIPTION
Firewall default policy: ICMP
<Packet Direction>, <type:%d>,
<code:%d>
ICMP access matched the default policy and was
blocked or forwarded according to the user's
setting.
Firewall rule [NOT] match: ICMP
<Packet Direction>, <rule:%d>,
<type:%d>, <code:%d>
ICMP access matched (or didn’t match) a firewall
rule (denoted by its number) and was blocked or
forwarded according to the rule.
Triangle route packet forwarded:
ICMP The firewall allowed a triangle route session to
pass through.
Packet without a NAT table entry
blocked: ICMP The router blocked a packet that didn’t have a
corresponding NAT table entry.
Unsupported/out-of-order ICMP:
ICMP The firewall does not support this kind of ICMP
packets or the ICMP packets are out of order.
Router reply ICMP packet: ICMP The router sent an ICMP reply packet to the
sender.
Table 138 TCP Reset Logs (continued)
LOG MESSAGE DESCRIPTION
![](/img.php?id=1154264&img=bg7e.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
426
Table 141 CDR Logs
LOG MESSAGE DESCRIPTION
board %d line %d channel %d,
call %d, %s C01 Outgoing Call
dev=%x ch=%x %s
The router received the setup requirements for a call.
“call” is the reference (count) number of the call.
“dev” is the device type (3 is for dial-up, 6 is for
PPPoE, 10 is for PPTP). "channel" or “ch” is the call
channel ID.For example,"board 0 line 0 channel 0, call
3, C01 Outgoing Call dev=6 ch=0 "Means the router
has dialed to the PPPoE server 3 times.
board %d line %d channel %d,
call %d, %s C02 OutCall
Connected %d %s
The PPPoE, PPTP or dial-up call is connected.
board %d line %d channel %d,
call %d, %s C02 Call
Terminated
The PPPoE, PPTP or dial-up call was disconnected.
Table 142 PPP Logs
LOG MESSAGE DESCRIPTION
ppp:LCP Starting The PPP connection’s Link Control Protocol stage has started.
ppp:LCP Opening The PPP connection’s Link Control Protocol stage is opening.
ppp:CHAP Opening The PPP connection’s Challenge Handshake Authentication Protocol
stage is opening.
ppp:IPCP
Starting The PPP connection’s Internet Protocol Control Protocol stage is
starting.
ppp:IPCP Opening The PPP connection’s Internet Protocol Control Protocol stage is
opening.
ppp:LCP Closing The PPP connection’s Link Control Protocol stage is closing.
ppp:IPCP Closing The PPP connection’s Internet Protocol Control Protocol stage is
closing.
Table 143 UPnP Logs
LOG MESSAGE DESCRIPTION
UPnP pass through Firewall UPnP packets can pass through the firewall.
Table 144 Content Filtering Logs
LOG MESSAGE DESCRIPTION
%s: block keyword The content of a requested web page matched a user defined
keyword.
%s The system forwarded web content.
![](/img.php?id=1154264&img=bg7f.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 427
For type and code details, see Table 148 on page 428.
Table 145 Attack Logs
LOG MESSAGE DESCRIPTION
attack [ TCP | UDP | IGMP
| ESP | GRE | OSPF ] The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF
attack.
attack ICMP (type:%d,
code:%d) The firewall detected an ICMP attack.
land [ TCP | UDP | IGMP |
ESP | GRE | OSPF ] The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF
land attack.
land ICMP (type:%d,
code:%d) The firewall detected an ICMP land attack.
ip spoofing - WAN [ TCP |
UDP | IGMP | ESP | GRE |
OSPF ]
The firewall detected an IP spoofing attack on the WAN
port.
ip spoofing - WAN ICMP
(type:%d, code:%d) The firewall detected an ICMP IP spoofing attack on the
WAN port.
icmp echo : ICMP
(type:%d, code:%d) The firewall detected an ICMP echo attack.
syn flood TCP The firewall detected a TCP syn flood attack.
ports scan TCP The firewall detected a TCP port scan attack.
teardrop TCP The firewall detected a TCP teardrop attack.
teardrop UDP The firewall detected an UDP teardrop attack.
teardrop ICMP (type:%d,
code:%d) The firewall detected an ICMP teardrop attack.
illegal command TCP The firewall detected a TCP illegal command attack.
NetBIOS TCP The firewall detected a TCP NetBIOS attack.
ip spoofing - no routing
entry [ TCP | UDP | IGMP
| ESP | GRE | OSPF ]
The firewall classified a packet with no source routing
entry as an IP spoofing attack.
ip spoofing - no routing
entry ICMP (type:%d,
code:%d)
The firewall classified an ICMP packet with no source
routing entry as an IP spoofing attack.
vulnerability ICMP
(type:%d, code:%d) The firewall detected an ICMP vulnerability attack.
traceroute ICMP (type:%d,
code:%d) The firewall detected an ICMP traceroute attack.
Table 146 802.1X Logs
LOG MESSAGE DESCRIPTION
RADIUS accepts user. A user was authenticated by the RADIUS Server.
RADIUS rejects user. Pls check
RADIUS Server. A user was not authenticated by the RADIUS
Server. Please check the RADIUS Server.
User logout because of session
timeout expired. The router logged out a user whose session
expired.
![](/img.php?id=1154264&img=bg80.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
428
User logout because of user
deassociation. The router logged out a user who ended the
session.
User logout because of no
authentication response from
user.
The router logged out a user from which there
was no authentication response.
User logout because of idle
timeout expired. The router logged out a user whose idle timeout
period expired.
User logout because of user
request. A user logged out.
No response from RADIUS. Pls
check RADIUS Server. There is no response message from the RADIUS
server, please check the RADIUS server.
Use RADIUS to authenticate user. The RADIUS server is operating as the
authentication server.
No Server to authenticate user. There is no authentication server to authenticate
a user.
Table 147 ACL Setting Notes
PACKET
DIRECTION DIRECTION DESCRIPTION
(L to W) LAN to WAN ACL set for packets traveling from the LAN to the
WAN.
(W to L) WAN to LAN ACL set for packets traveling from the WAN to the
LAN.
(L to L/ZyXEL
Device) LAN to LAN/
ZyXEL Device ACL set for packets traveling from the LAN to the
LAN or the ZyXEL Device.
(W to W/ZyXEL
Device) WAN to WAN/
ZyXEL Device ACL set for packets traveling from the WAN to the
WAN or the ZyXEL Device.
Table 148 ICMP Notes
TYPE CODE DESCRIPTION
0Echo Reply
0Echo reply message
3Destination Unreachable
0Net unreachable
1Host unreachable
2Protocol unreachable
3Port unreachable
4A packet that needed fragmentation was dropped because it was set
to Don't Fragment (DF)
5Source route failed
Table 146 802.1X Logs (continued)
LOG MESSAGE DESCRIPTION
![](/img.php?id=1154264&img=bg81.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 429
4Source Quench
0A gateway may discard internet datagrams if it does not have the
buffer space needed to queue the datagrams for output to the next
network on the route to the destination network.
5Redirect
0Redirect datagrams for the Network
1Redirect datagrams for the Host
2Redirect datagrams for the Type of Service and Network
3Redirect datagrams for the Type of Service and Host
8Echo
0Echo message
11 Time Exceeded
0Time to live exceeded in transit
1Fragment reassembly time exceeded
12 Parameter Problem
0Pointer indicates the error
13 Timestamp
0Timestamp request message
14 Timestamp Reply
0Timestamp reply message
15 Information Request
0Information request message
16 Information Reply
0Information reply message
Table 149 Syslog Logs
LOG MESSAGE DESCRIPTION
<Facility*8 + Severity>Mon dd
hr:mm:ss hostname
src="<srcIP:srcPort>"
dst="<dstIP:dstPort>"
msg="<msg>" note="<note>"
devID="<mac address last three
numbers>" cat="<category>
"This message is sent by the system ("RAS"
displays as the system name if you haven’t
configured one) when the router generates a
syslog. The facility is defined in the web MAIN
MENU->LOGS->Log Settings page. The severity is
the log’s syslog class. The definition of messages
and notes are defined in the various log charts
throughout this appendix. The “devID” is the last
three characters of the MAC address of the router’s
LAN port. The “cat” is the same as the category in
the router’s logs.
Table 148 ICMP Notes (continued)
TYPE CODE DESCRIPTION
![](/img.php?id=1154264&img=bg82.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
430
Table 150 SIP Logs
LOG MESSAGE DESCRIPTION
SIP Registration Success
by SIP:SIP Phone Number The listed SIP account was successfully registered with a
SIP register server.
SIP Registration Fail by
SIP:SIP Phone Number An attempt to register the listed SIP account with a SIP
register server was not successful.
SIP UnRegistration
Success by SIP:SIP Phone
Number
The listed SIP account’s registration was deleted from the
SIP register server.
SIP UnRegistration Fail
by SIP:SIP Phone Number An attempt to delete the listed SIP account’s registration
from the SIP register server failed.
Table 151 RTP Logs
LOG MESSAGE DESCRIPTION
Error, RTP init fail The initialization of an RTP session failed.
Error, Call fail: RTP
connect fail A VoIP phone call failed because the RTP session could
not be established.
Error, RTP connection
cannot close The termination of an RTP session failed.
Table 152 FSM Logs: Caller Side
LOG MESSAGE DESCRIPTION
VoIP Call Start Ph[Phone
Port Number] <- Outgoing
Call Number
Someone used a phone connected to the listed phone
port to initiate a VoIP call to the listed destination.
VoIP Call Established
Ph[Phone Port] ->
Outgoing Call Number
Someone used a phone connected to the listed phone
port to make a VoIP call to the listed destination.
VoIP Call End Phone[Phone
Port] A VoIP phone call made from a phone connected to the
listed phone port has terminated.
![](/img.php?id=1154264&img=bg83.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide 431
The following table shows RFC-2408 ISAKMP payload types that the log displays.
Please refer to RFC 2408 for detailed information on each type.
Table 153 FSM Logs: Callee Side
LOG MESSAGE DESCRIPTION
VoIP Call Start from
SIP[SIP Port Number] A VoIP phone call came to the ZyXEL Device from the
listed SIP number.
VoIP Call Established
Ph[Phone Port] <-
Outgoing Call Number
A VoIP phone call was set up from the listed SIP number
to the ZyXEL Device.
VoIP Call End Phone[Phone
Port] A VoIP phone call that came into the ZyXEL Device has
terminated.
Table 154 RFC-2408 ISAKMP Payload Types
LOG DISPLAY PAYLOAD TYPE
SA Security Association
PROP Proposal
TRANS Transform
KE Key Exchange
ID Identification
CER Certificate
CER_REQ Certificate Request
HASH Hash
SIG Signature
NONCE Nonce
NOTFY Notification
DEL Delete
VID Vendor ID
![](/img.php?id=1154264&img=bg84.png)
Chapter 25 Logs
P-2612HWU-F1 User’s Guide
432
![](/img.php?id=1154264&img=bg85.png)
P-2612HWU-F1 User’s Guide 433
CHAPTER 26
Call History
26.1 Overview
The ZyXEL Device keeps track of when you use the phone ports for calls.
26.1.1 What You Can Do in the Call History Screens
•Use the Summary screen (Section 26.2 on page 433) to view a summary of the
calls performed via the ZyXEL Device within a certain period.
•Use the Call History screen (Section 26.3 on page 434) to see the details of the
calls performed on the ZyXEL Device.
•Use the Call History Settings screen (Section 26.4 on page 435) to configure
to where the ZyXEL Device is to send call records and the schedule for when the
ZyXEL Device is to send or save the call records.
26.2 Call History Summary Screen
Click Maintenance > Call History to open the Summary screen. Use the
Summary screen to view a summary of the calls performed via the ZyXEL Device
within a certain period.

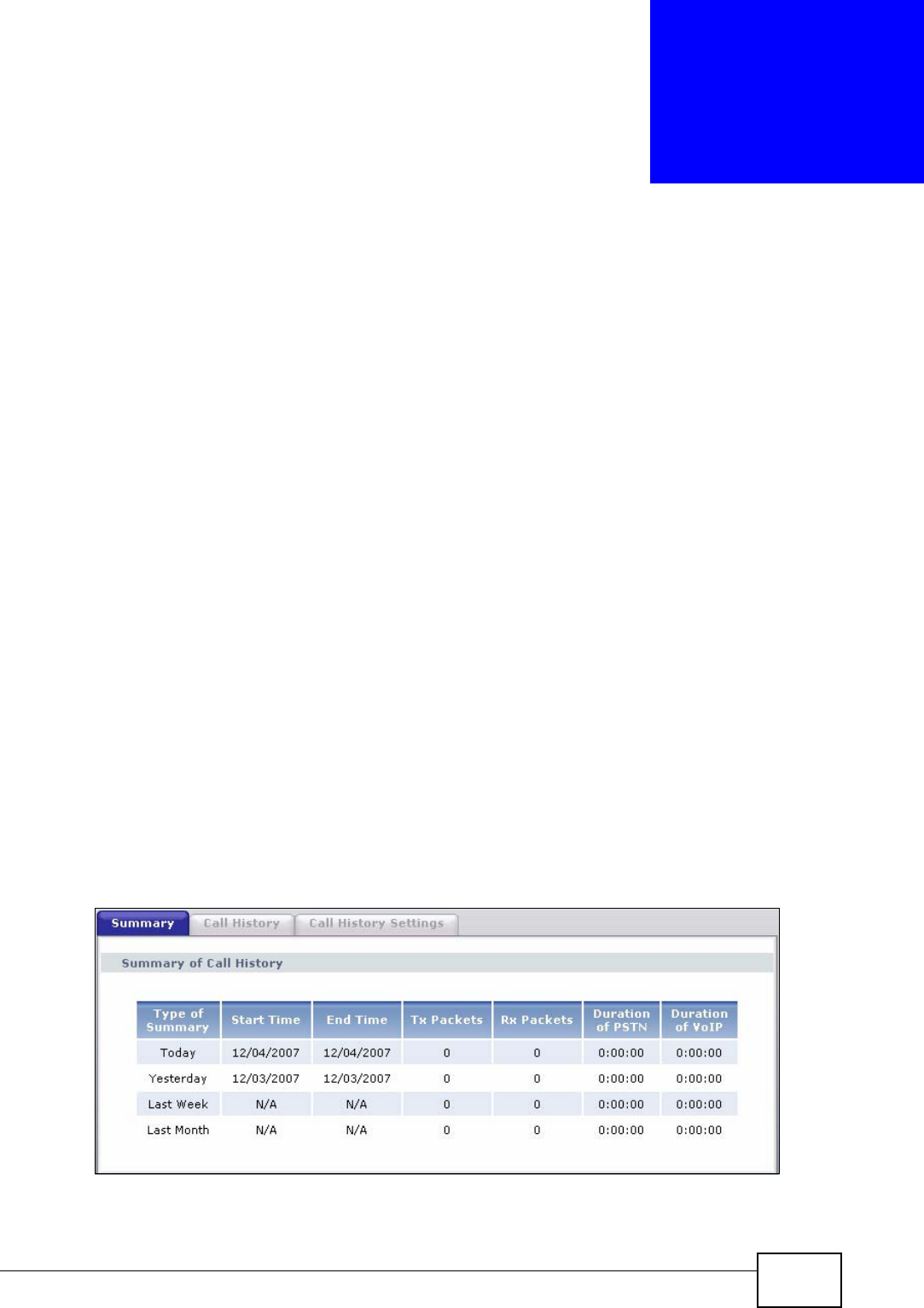

Figure 282 Maintenance > Call History > Summary
![](/img.php?id=1154264&img=bg86.png)
Chapter 26 Call History
P-2612HWU-F1 User’s Guide
434
The following table describes the fields in this screen.
26.3 Viewing the Call History
Click Maintenance > Call History > Call History to open the Call History
screen. Use the Call History screen to see the details of the calls performed on
the ZyXEL Device.
The call history buffer can hold up to 150 entries. When the call history buffer fills,
old records are deleted as new ones are added. Click a column heading to sort the
entries. A triangle indicates ascending or descending sort order.

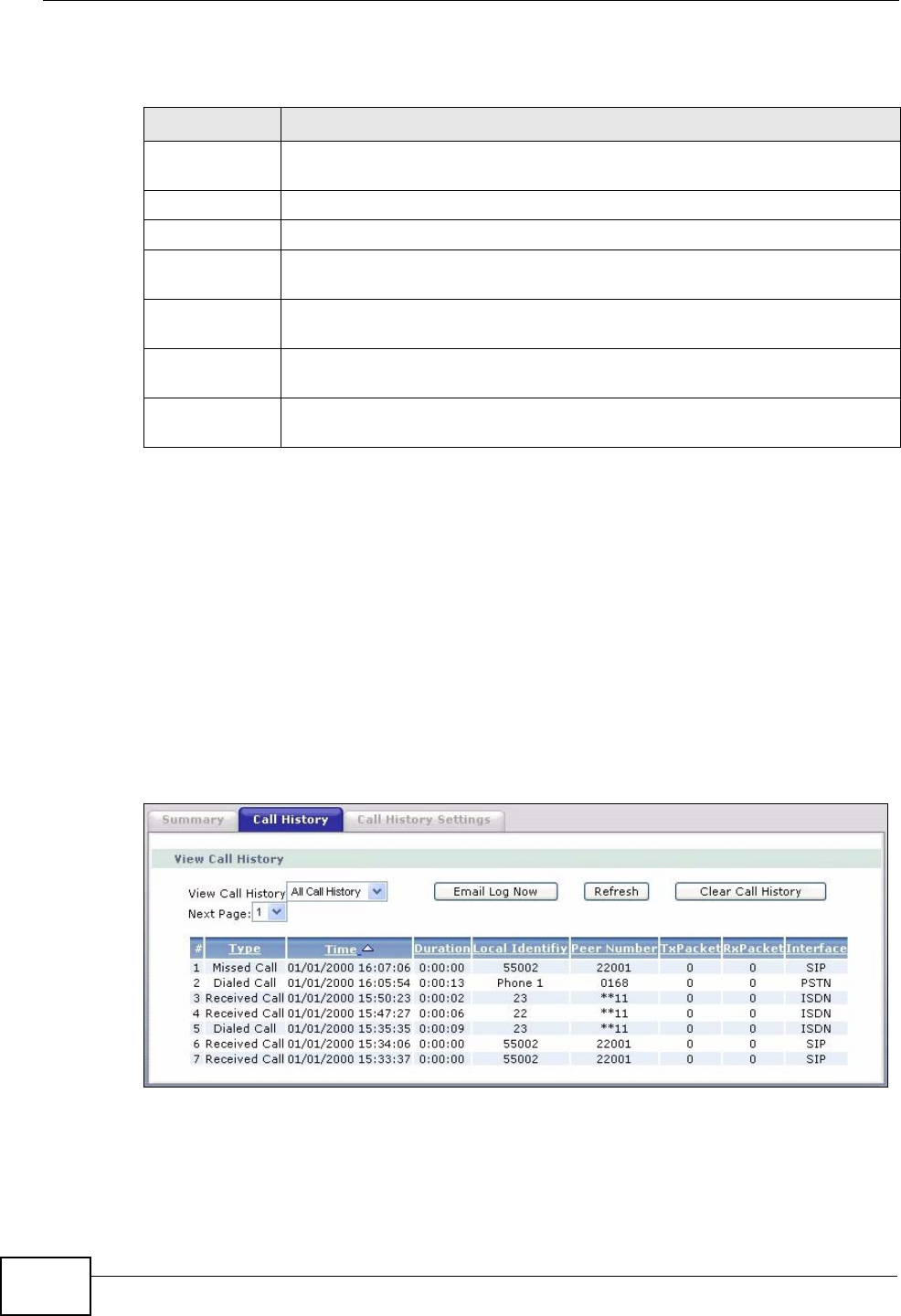

Figure 283 Maintenance > Call History > Call History
Table 155 Maintenance > Call History > Summary
LABEL DESCRIPTION
Type of
Summary This shows the time period.
Start Time This shows the date when the period starts.
End Time This shows the date when the period ends.
Tx Packets This shows the number of voice packets the ZyXEL Device transmitted
within this period.
Rx Packets This shows the number of voice packets the ZyXEL Device received within
this period.
Duration of
PSTN This shows how long the analog calls lasted within this period.
Duration of
VoIP This shows how long the Voice over Internet calls lasted within this
period.
![](/img.php?id=1154264&img=bg87.png)
Chapter 26 Call History
P-2612HWU-F1 User’s Guide 435
The following table describes the fields in this screen.
26.4 Configuring Call History Settings
Use the Call History Settings screen to configure to where the ZyXEL Device is
to send call records and the schedule for when the ZyXEL Device is to send or save
the call records.
Table 156 Maintenance > Call History > Call History
LABEL DESCRIPTION
View Call
History Select a category of call records to view.
Select All Call History to view any call records on the ZyXEL Device.
Select Missed Calls to view only calls which were not answered on the
ZyXEL Device.
Select Dialed Calls to view only calls which were dialed from the ZyXEL
Device.
Select Received Calls to view only calls which were received on the
ZyXEL Device
Email Log Now Click Email Log Now to send the log screen to the e-mail address
specified in the Call History Settings page (make sure that you have
first filled in the E-mail Log Settings fields in Call History Settings).
Refresh Click Refresh to renew the call history screen.
Clear Call
History Click Clear Call History to delete all call records.
Next Page Choose a page from the drop-down list box to display the corresponding
summary page of the call records.
#This field is a sequential value and is not associated with a specific entry.
Type This field displays the category of the call.
Time This field displays the time the call was recorded.
Duration This field displays how long the call lasted.
Local Identity This field displays the phone number you used to make or receive this
call.
Peer Number This field displays the phone number you called or from which this call is
made.
TxPacket This field displays the number of packets the ZyXEL Device has
transmitted for the call.
RxPacket This field displays the number of packets the ZyXEL Device has received
for the call.
Interface This field displays the type of the call.
![](/img.php?id=1154264&img=bg88.png)
Chapter 26 Call History
P-2612HWU-F1 User’s Guide
436
To change your ZyXEL Device’s call history settings, click Maintenance > Call
History > Call History Settings. The screen appears as shown.

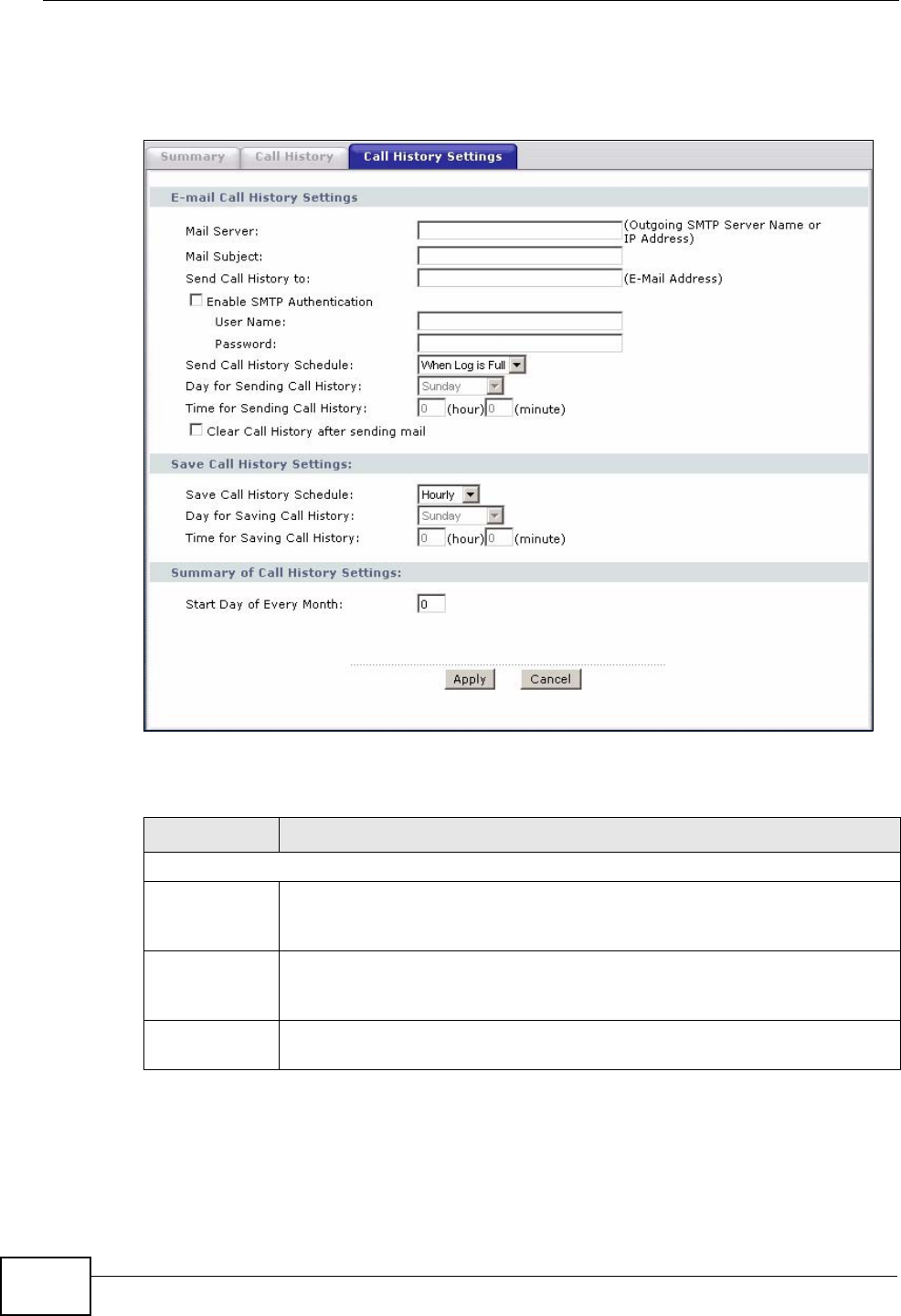

Figure 284 Maintenance > Call History > Call History Settings
The following table describes the fields in this screen.
Table 157 Maintenance > Call History > Call History Settings
LABEL DESCRIPTION
E-mail Call History Settings
Mail Server Enter the server name or the IP address of the mail server for the e-mail
addresses specified below. If this field is left blank, logs and alert
messages will not be sent via E-mail.
Mail Subject Type a title that you want to be in the subject line of the log e-mail
message that the ZyXEL Device sends. Not all ZyXEL Device have this
field.
Send Call
History to The ZyXEL Device sends logs to the e-mail address specified in this field.
If this field is left blank, the ZyXEL Device does not send logs via e-mail.
![](/img.php?id=1154264&img=bg89.png)
Chapter 26 Call History
P-2612HWU-F1 User’s Guide 437
Enable SMTP
Authentication SMTP (Simple Mail Transfer Protocol) is the message-exchange standard
for the Internet. SMTP enables you to move messages from one e-mail
server to another.
Select the check box to activate SMTP authentication if your mail server
requests you to log in to receive or send e-mails. If mail server
authentication is needed but this feature is disabled, you will not receive
the e-mail logs.
User Name Enter the user name (up to 31 characters) that you use to log into your
mail server (usually the user name of a mail account).
Password Enter the password associated with the user name above.
Send Call
History
Schedule
This drop-down menu is used to configure the frequency of log messages
being sent as E-mail:
• Daily
• Weekly
•Hourly
• When Log is Full
•None.
If you select Weekly or Daily, specify a time of day when the E-mail
should be sent. If you select Weekly, then also specify which day of the
week the E-mail should be sent. If you select When Log is Full, an alert
is sent when the log fills up. If you select None, no log messages are
sent.
Day for
Sending Call
History
Use the drop down list box to select which day of the week to send the
logs.
Time for
Sending Call
History
Enter the time of the day in 24-hour format (for example 23:00 equals
11:00 pm) to send the logs.
Clear Call
History after
sending mail
Select this to delete all the logs after the ZyXEL Device sends an E-mail of
the logs.
Save Call History Settings
Save Call
History
Schedule
This drop-down menu is used to configure the frequency of log messages
being saved:
• Daily
• Weekly
•Hourly
If you select Weekly or Daily, specify a time of day when the ZyXEL
Device saves the records. If you select Weekly, then also specify which
day of the week the ZyXEL Device saves the records.
Day for
Saving Call
History
Use the drop down list box to select which day of the week to save the
records.
Time for
Saving Call
History
Enter the time of the day in 24-hour format (for example 23:00 equals
11:00 pm) to save the records.
Table 157 Maintenance > Call History > Call History Settings
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg8a.png)
Chapter 26 Call History
P-2612HWU-F1 User’s Guide
438
ó
Summary of Call History Settings
Start Date of
Every Month Select which day of a month (from 1 to 28) on which the “Last Month”
summary of call history (displays in the Summary screen) starts.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to return to the previously saved settings.
Table 157 Maintenance > Call History > Call History Settings
LABEL DESCRIPTION
![](/img.php?id=1154264&img=bg8b.png)
P-2612HWU-F1 User’s Guide 439
CHAPTER 27
Tools
Do not interrupt the file transfer process as this may
PERMANENTLY DAMAGE your ZyXEL Device.
27.1 Overview
Use the instructions in this chapter to change the device’s configuration file or
upgrade its firmware. After you configure your device, you can backup the
configuration file to a computer. That way if you later misconfigure the device, you
can upload the backed up configuration file to return to your previous settings.
You can alternately upload the factory default configuration file if you want to
return the device to the original default settings. The firmware determines the
device’s available features and functionality. You can download new firmware
releases from your nearest ZyXEL FTP site (or www.zyxel.com) to use to upgrade
your device’s performance.
Only use firmware for your device’s specific model. Refer to the
label on the bottom of your ZyXEL Device.
27.1.1 What You Can Do in the Tool Screens
•Use the Firmware Upgrade screen (Section 27.2 on page 446) to upload
firmware to your device.
•Use the Configuration screen (Section 27.3 on page 449) to backup and
restore device configurations. You can also reset your device settings back to
the factory default.
•Use the Restart screen (Section 27.4 on page 452) to restart your ZyXEL
device.
27.1.2 What You Need To Know About Tools
Filename Conventions
The configuration file (often called the romfile or rom-0) contains the factory
default settings in the menus such as password, DHCP Setup, and TCP/IP Setup. It
![](/img.php?id=1154264&img=bg8c.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
440
arrives from ZyXEL with a “rom” filename extension. Once you have customized
the ZyXEL Device's settings, they can be saved back to your computer under a
filename of your choosing.
ZyNOS (ZyXEL Network Operating System sometimes referred to as the “ras” file)
is the system firmware and has a “bin” filename extension. Find this firmware at
www.zyxel.com.With many FTP and TFTP clients, the filenames are similar to
those seen next.
ftp> put firmware.bin ras
This is a sample FTP session showing the transfer of the computer file
"firmware.bin" to the ZyXEL Device.
ftp> get rom-0 config.cfg
This is a sample FTP session saving the current configuration to the computer file
“config.cfg”.
If your (T)FTP client does not allow you to have a destination filename different
than the source, you will need to rename them as the ZyXEL Device only
recognizes “rom-0” and “ras”. Be sure you keep unaltered copies of both files for
later use.
The following table is a summary. Please note that the internal filename refers to
the filename on the ZyXEL Device and the external filename refers to the filename
not on the ZyXEL Device, that is, on your computer, local network or FTP site and
so the name (but not the extension) may vary. After uploading new firmware, see
the Status screen to confirm that you have uploaded the correct firmware
version.
FTP Restrictions
FTP will not work when:
Table 158 Filename Conventions
FILE TYPE INTERNAL
NAME EXTERNAL NAME DESCRIPTIO
N
Configuration
File Rom-0 This is the configuration filename on the
ZyXEL Device. Uploading the rom-0 file
replaces the entire ROM file system,
including your ZyXEL Device
configurations, system-related data
(including the default password), the error
log and the trace log.
*.rom
Firmware Ras This is the generic name for the ZyNOS
firmware on the ZyXEL Device. *.bin
![](/img.php?id=1154264&img=bg8d.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide 441
1The firewall is active (turn the firewall off or create a firewall rule to allow access
from the WAN).
2You have disabled the FTP service in the Remote Management screen.
3The IP you entered in the Secured Client IP field does not match the client IP. If it
does not match, the device will disallow the FTP session immediately.
27.1.3 Before You Begin
• Ensure you have either created a firewall rule to allow access from the WAN or
turned the firewall off, otherwise the FTP will not function.
• Make sure the FTP service has not been disabled in the Remote Management
screen.
27.1.4 Tool Examples
Using FTP or TFTP to Restore Configuration
This example shows you how to restore a previously saved configuration. Note
that this function erases the current configuration before restoring a previous back
up configuration; please do not attempt to restore unless you have a backup
configuration file stored on disk.
FTP is the preferred method for restoring your current computer configuration to
your device since FTP is faster. Please note that you must wait for the system to
automatically restart after the file transfer is complete.
Do not interrupt the file transfer process as this may
PERMANENTLY DAMAGE your device. When the Restore
Configuration process is complete, the device automatically
restarts.
Restore Using FTP Session Example
Figure 285 Restore Using FTP Session Example
Refer to Section 27.1.2 on page 439 to read about configurations that disallow
TFTP and FTP over WAN.
ftp> put config.rom rom-0
200 Port command okay
150 Opening data connection for STOR rom-0
226 File received OK
221 Goodbye for writing flash
ftp: 16384 bytes sent in 0.06Seconds 273.07Kbytes/sec.
ftp>quit
![](/img.php?id=1154264&img=bg8e.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
442
FTP and TFTP Firmware and Configuration File Uploads
These examples show you how to upload firmware and configuration files.
Do not interrupt the file transfer process as this may
PERMANENTLY DAMAGE your device.
FTP is the preferred method for uploading the firmware and configuration. To use
this feature, your computer must have an FTP client. The following sections give
examples of how to upload the firmware and the configuration files.
FTP File Upload Command from the DOS Prompt Example
1Launch the FTP client on your computer.
2Enter “open”, followed by a space and the IP address of your device.
3Press [ENTER] when prompted for a username.
4Enter your password as requested (the default is “1234”).
5Enter “bin” to set transfer mode to binary.
6Use “put” to transfer files from the computer to the device, for example, “put
firmware.bin ras” transfers the firmware on your computer (firmware.bin) to the
device and renames it “ras”. Similarly, “put config.rom rom-0” transfers the
configuration file on your computer (config.rom) to the device and renames it
“rom-0”. Likewise “get rom-0 config.rom” transfers the configuration file on the
device to your computer and renames it “config.rom.” See earlier in this chapter
for more information on filename conventions.
7Enter “quit” to exit the ftp prompt.
FTP Session Example of Firmware File Upload
Figure 286 FTP Session Example of Firmware File Upload
331 Enter PASS command
Password:
230 Logged in
ftp> bin
200 Type I OK
ftp> put firmware.bin ras
200 Port command okay
150 Opening data connection for STOR ras
226 File received OK
ftp: 1103936 bytes sent in 1.10Seconds 297.89Kbytes/sec.
ftp> quit
![](/img.php?id=1154264&img=bg8f.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide 443
More commands (found in GUI-based FTP clients) are listed in this chapter.
Refer to Section 27.1.2 on page 439 to read about configurations that disallow
TFTP and FTP over WAN.
TFTP File Upload
The device also supports the uploading of firmware files using TFTP (Trivial File
Transfer Protocol) over LAN. Although TFTP should work over WAN as well, it is not
recommended.
To use TFTP, your computer must have both telnet and TFTP clients. To transfer
the firmware and the configuration file, follow the procedure shown next.
1Use telnet from your computer to connect to the device and log in. Because TFTP
does not have any security checks, the device records the IP address of the telnet
client and accepts TFTP requests only from this address.
2Enter the command “sys stdio 0” to disable the management idle timeout, so the
TFTP transfer will not be interrupted. Enter “command sys stdio 5” to restore the
five-minute management idle timeout (default) when the file transfer is complete.
3Launch the TFTP client on your computer and connect to the device. Set the
transfer mode to binary before starting data transfer.
4Use the TFTP client (see the example below) to transfer files between the device
and the computer. The file name for the firmware is “ras”.
Note that the telnet connection must be active and the device in CI mode before
and during the TFTP transfer. For details on TFTP commands (see following
example), please consult the documentation of your TFTP client program. For
UNIX, use “get” to transfer from the device to the computer, “put” the other way
around, and “binary” to set binary transfer mode.
TFTP Upload Command Example
The following is an example TFTP command:
tftp [-i] host put firmware.bin ras
Where “i” specifies binary image transfer mode (use this mode when transferring
binary files), “host” is the device’s IP address, “put” transfers the file source on
the computer (firmware.bin – name of the firmware on the computer) to the file
destination on the remote host (ras - name of the firmware on the device).
Commands that you may see in GUI-based TFTP clients are listed earlier in this
chapter.
![](/img.php?id=1154264&img=bg90.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
444
Using the FTP Commands to Back Up Configuration
1Launch the FTP client on your computer.
2Enter “open”, followed by a space and the IP address of your ZyXEL Device.
3Press [ENTER] when prompted for a username.
4Enter your password as requested (the default is “1234”).
5Enter “bin” to set transfer mode to binary.
6Use “get” to transfer files from the ZyXEL Device to the computer, for example,
“get rom-0 config.rom” transfers the configuration file on the ZyXEL Device to
your computer and renames it “config.rom”. See earlier in this chapter for more
information on filename conventions.
7Enter “quit” to exit the ftp prompt.
FTP Command Configuration Backup Example
This figure gives an example of using FTP commands from the DOS command
prompt to save your device’s configuration onto your computer.
Figure 287 FTP Session Example
331 Enter PASS command
Password:
230 Logged in
ftp> bin
200 Type I OK
ftp> get rom-0 zyxel.rom
200 Port command okay
150 Opening data connection for STOR ras
226 File received OK
ftp: 16384 bytes sent in 1.10Seconds 297.89Kbytes/sec.
ftp> quit
![](/img.php?id=1154264&img=bg91.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide 445
Configuration Backup Using GUI-based FTP Clients
The following table describes some of the commands that you may see in GUI-
based FTP clients.
Backup Configuration Using TFTP
The ZyXEL Device supports the up/downloading of the firmware and the
configuration file using TFTP (Trivial File Transfer Protocol) over LAN. Although
TFTP should work over WAN as well, it is not recommended.
To use TFTP, your computer must have both telnet and TFTP clients. To backup the
configuration file, follow the procedure shown next.
1Use telnet from your computer to connect to the ZyXEL Device and log in. Because
TFTP does not have any security checks, the ZyXEL Device records the IP address
of the telnet client and accepts TFTP requests only from this address.
2Enter command “sys stdio 0” to disable the management idle timeout, so the
TFTP transfer will not be interrupted. Enter command “sys stdio 5” to restore
the five-minute management idle timeout (default) when the file transfer is
complete.
3Launch the TFTP client on your computer and connect to the ZyXEL Device. Set
the transfer mode to binary before starting data transfer.
4Use the TFTP client (see the example below) to transfer files between the ZyXEL
Device and the computer. The file name for the configuration file is “rom-0” (rom-
zero, not capital o).
Table 159 General Commands for GUI-based FTP Clients
COMMAND DESCRIPTION
Host Address Enter the address of the host server.
Login Type Anonymous.
This is when a user I.D. and password is automatically supplied
to the server for anonymous access. Anonymous logins will work
only if your ISP or service administrator has enabled this option.
Normal.
The server requires a unique User ID and Password to login.
Transfer Type Transfer files in either ASCII (plain text format) or in binary
mode.
Initial Remote
Directory Specify the default remote directory (path).
Initial Local Directory Specify the default local directory (path).
![](/img.php?id=1154264&img=bg92.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
446
Note that the telnet connection must be active before and during the TFTP
transfer. For details on TFTP commands (see following example), please consult
the documentation of your TFTP client program. For UNIX, use “get” to transfer
from the ZyXEL Device to the computer and “binary” to set binary transfer mode.
TFTP Command Configuration Backup Example
The following is an example TFTP command:
tftp [-i] host get rom-0 config.rom
where “i” specifies binary image transfer mode (use this mode when transferring
binary files), “host” is the ZyXEL Device IP address, “get” transfers the file source
on the ZyXEL Device (rom-0, name of the configuration file on the ZyXEL Device)
to the file destination on the computer and renames it config.rom.
Configuration Backup Using GUI-based TFTP Clients
The following table describes some of the fields that you may see in GUI-based
TFTP clients.
Refer to Section 27.1.2 on page 439 to read about configurations that disallow
TFTP and FTP over WAN.

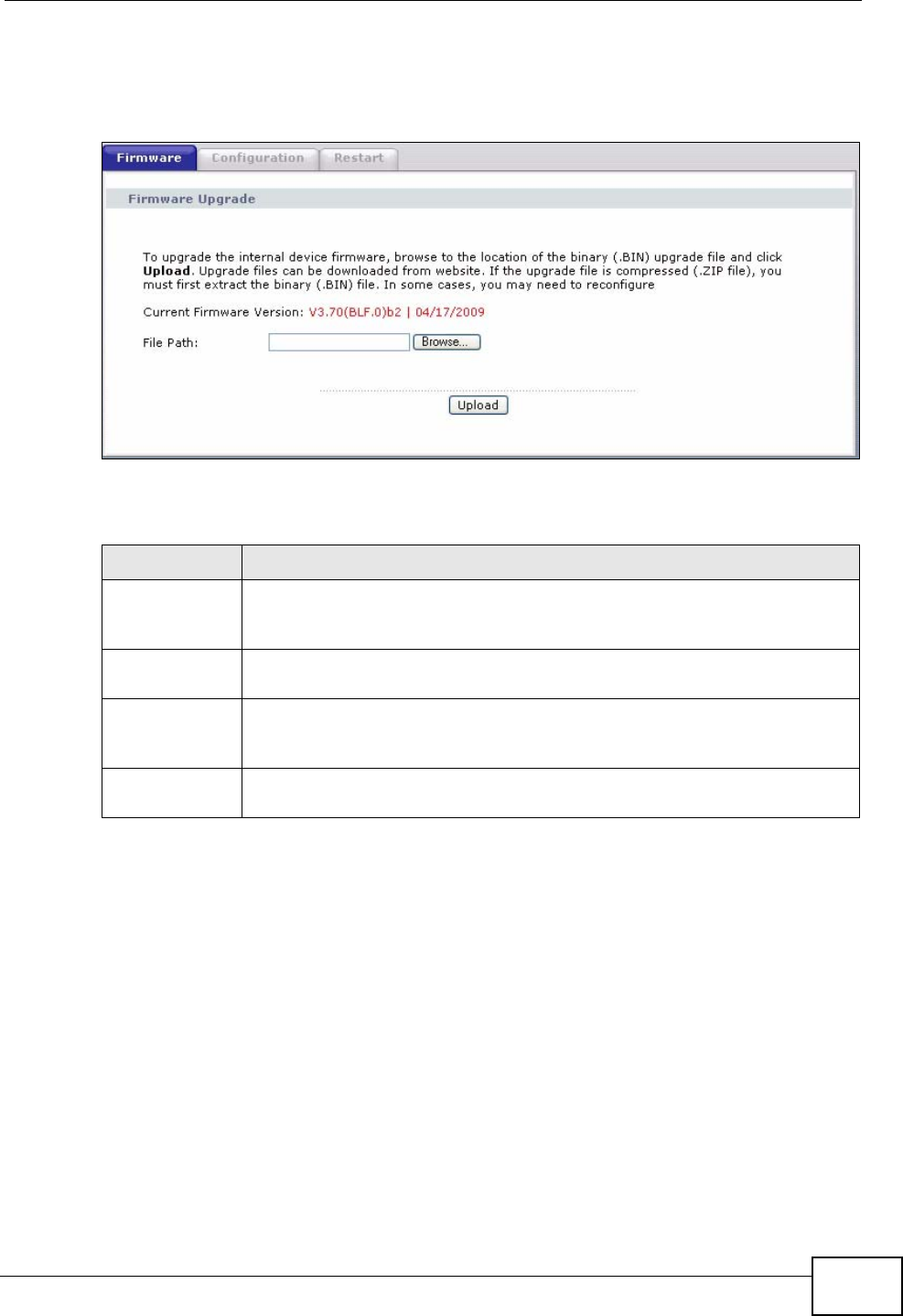

27.2 Firmware Upgrade Screen
Click Maintenance > Tools to open the Firmware screen. Follow the
instructions in this screen to upload firmware to your ZyXEL Device. The upload
process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes.
After a successful upload, the system will reboot. See Section on page 442 for
upgrading firmware using FTP/TFTP commands.
Table 160 General Commands for GUI-based TFTP Clients
COMMAN
DDESCRIPTION
Host Enter the IP address of the ZyXEL Device. 192.168.1.1 is the ZyXEL Device’s
default IP address when shipped.
Send/
Fetch Use “Send” to upload the file to the ZyXEL Device and “Fetch” to back up the
file on your computer.
Local File Enter the path and name of the firmware file (*.bin extension) or
configuration file (*.rom extension) on your computer.
Remote
File This is the filename on the ZyXEL Device. The filename for the firmware is
“ras” and for the configuration file, is “rom-0”.
Binary Transfer the file in binary mode.
Abort Stop transfer of the file.
![](/img.php?id=1154264&img=bg93.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide 447
Do NOT turn off the ZyXEL Device while firmware upload is in
progress!
Figure 288 Maintenance > Tools > Firmware Upgrade
The following table describes the labels in this screen.
Table 161 Maintenance > Tools > Firmware Upgrade
LABEL DESCRIPTION
Current
Firmware
Version
This is the present Firmware version and the date created.
File Path Type in the location of the file you want to upload in this field or click
Browse ... to find it.
Browse... Click Browse... to find the .bin file you want to upload. Remember that
you must decompress compressed (.zip) files before you can upload
them.
Upload Click Upload to begin the upload process. This process may take up to
two minutes.
![](/img.php?id=1154264&img=bg94.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
448

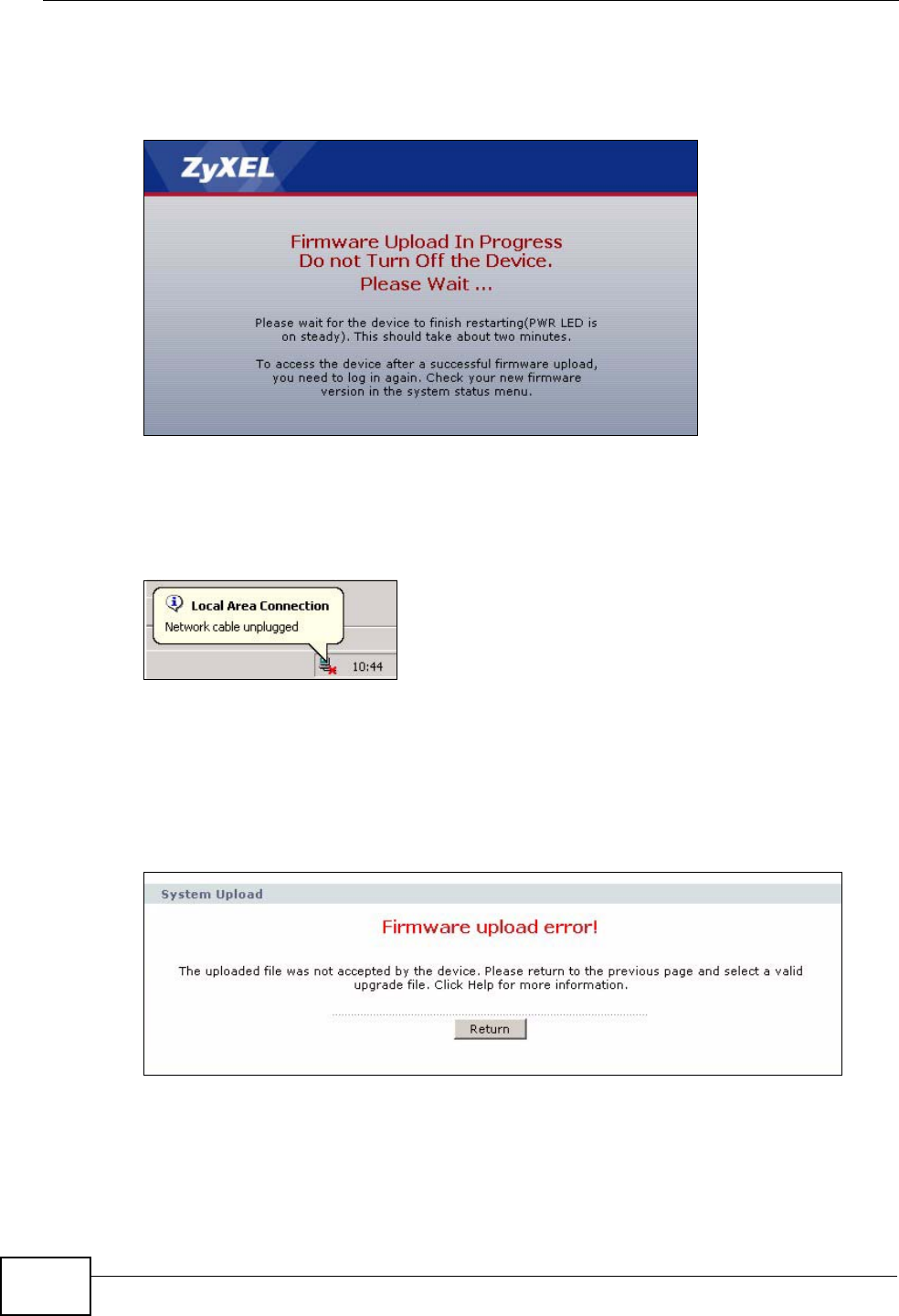

After you see the Firmware Upload in Progress screen, wait two minutes
before logging into the ZyXEL Device again.
Figure 289 Firmware Upload In Progress
The ZyXEL Device automatically restarts in this time causing a temporary network
disconnect. In some operating systems, you may see the following icon on your
desktop.
Figure 290 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the
Status screen.
If the upload was not successful, the following screen will appear. Click Return to
go back to the Firmware screen.
Figure 291 Error Message
![](/img.php?id=1154264&img=bg95.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide 449
27.3 The Configuration Screen
See Section 27.5 on page 452 and Section on page 441 for transferring
configuration files using FTP/TFTP commands.
Click Maintenance > Tools > Configuration. Information related to factory
defaults, backup configuration, and restoring configuration appears in this screen,
as shown next.
Figure 292 Maintenance > Tools > Configuration
Backup Configuration
Backup Configuration allows you to back up (save) the ZyXEL Device’s current
configuration to a file on your computer. Once your ZyXEL Device is configured
and functioning properly, it is highly recommended that you back up your
configuration file before making configuration changes. The backup configuration
file will be useful in case you need to return to your previous settings.
Click Backup to save the ZyXEL Device’s current configuration to your computer.
![](/img.php?id=1154264&img=bg96.png)
Chapter 27 Tools
P-2612HWU-F1 User’s Guide
450

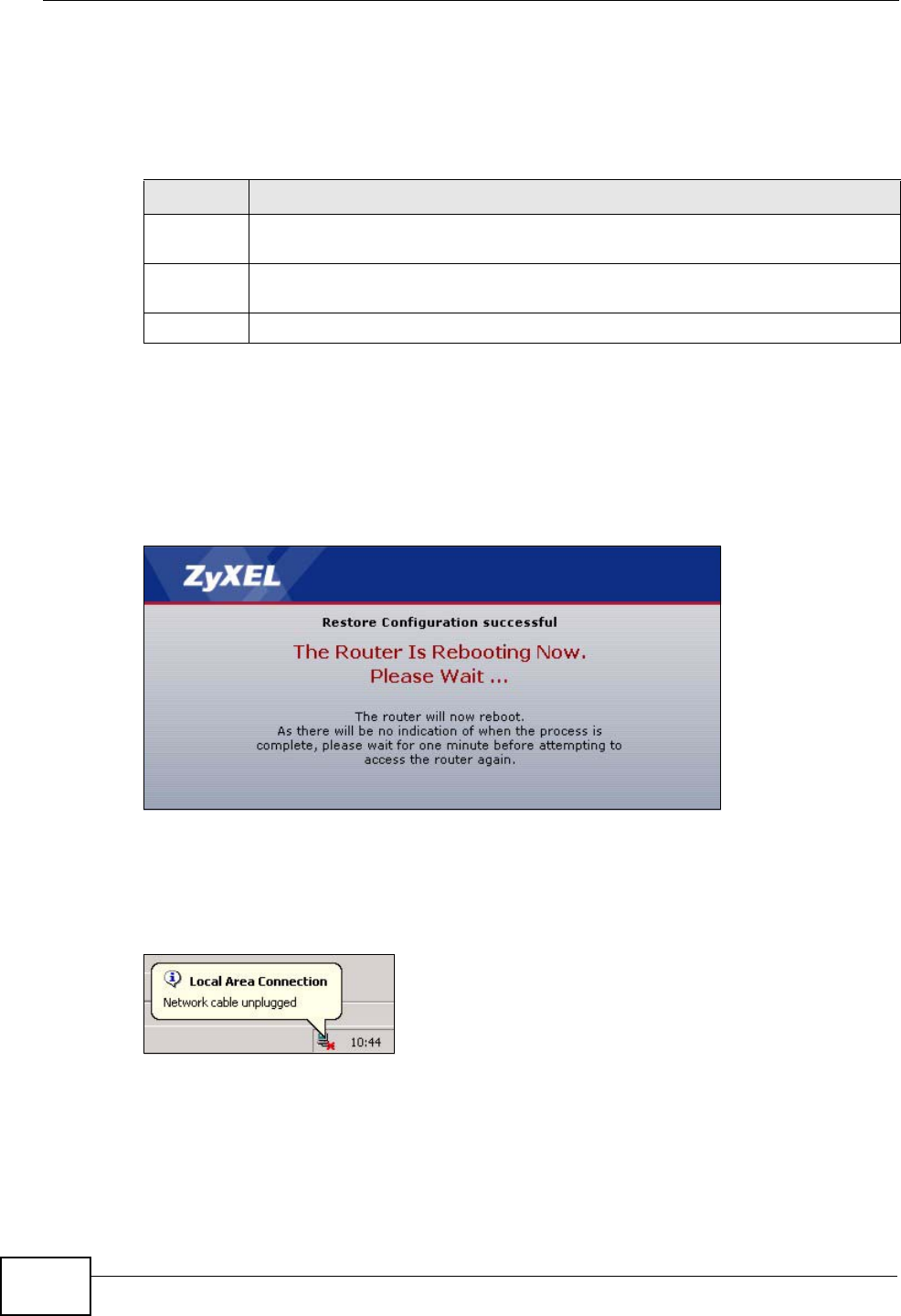

Restore Configuration
Restore Configuration allows you to upload a new or previously saved
configuration file from your computer to your ZyXEL Device.
Do not turn off the ZyXEL Device while configuration file upload is
in progress.
After you see a “restore configuration successful” screen, you must then wait one
minute before logging into the ZyXEL Device again.
Figure 293 Configuration Upload Successful
The ZyXEL Device automatically restarts in this time causing a temporary network
disconnect. In some operating systems, you may see the following icon on your
desktop.
Figure 294 Network Temporarily Disconnected
If you uploaded the default configuration file you may need to change the IP
address of your computer to be in the same subnet as that of the default device IP
address (192.168.1.1). See Appendix A on page 485 for details on how to set up
your computer’s IP address.
Table 162 Restore Configuration
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click
Browse ... to find it.
Browse... Click Browse... to find the file you want to upload. Remember that you must
decompress compressed (.ZIP) files before you can upload them.
Upload Click Upload to begin the upload process.
