171 Chapter 14 Universal Plug-and-Play (UPnP)
Figure 77 Internet Connection Properties: Advanced Settings
Figure 78 Internet Connection Properties: Advanced Settings: Add
5When the UPnP-enabled device is disconnected from your computer, all port mappings
will be deleted automatically.
6Select Show icon in notification area when connected option and click OK. An icon
displays in the system tray.
P-660H/HW/W-T Series User’ Guide
Chapter 14 Universal Plug-and-Play (UPnP) 172

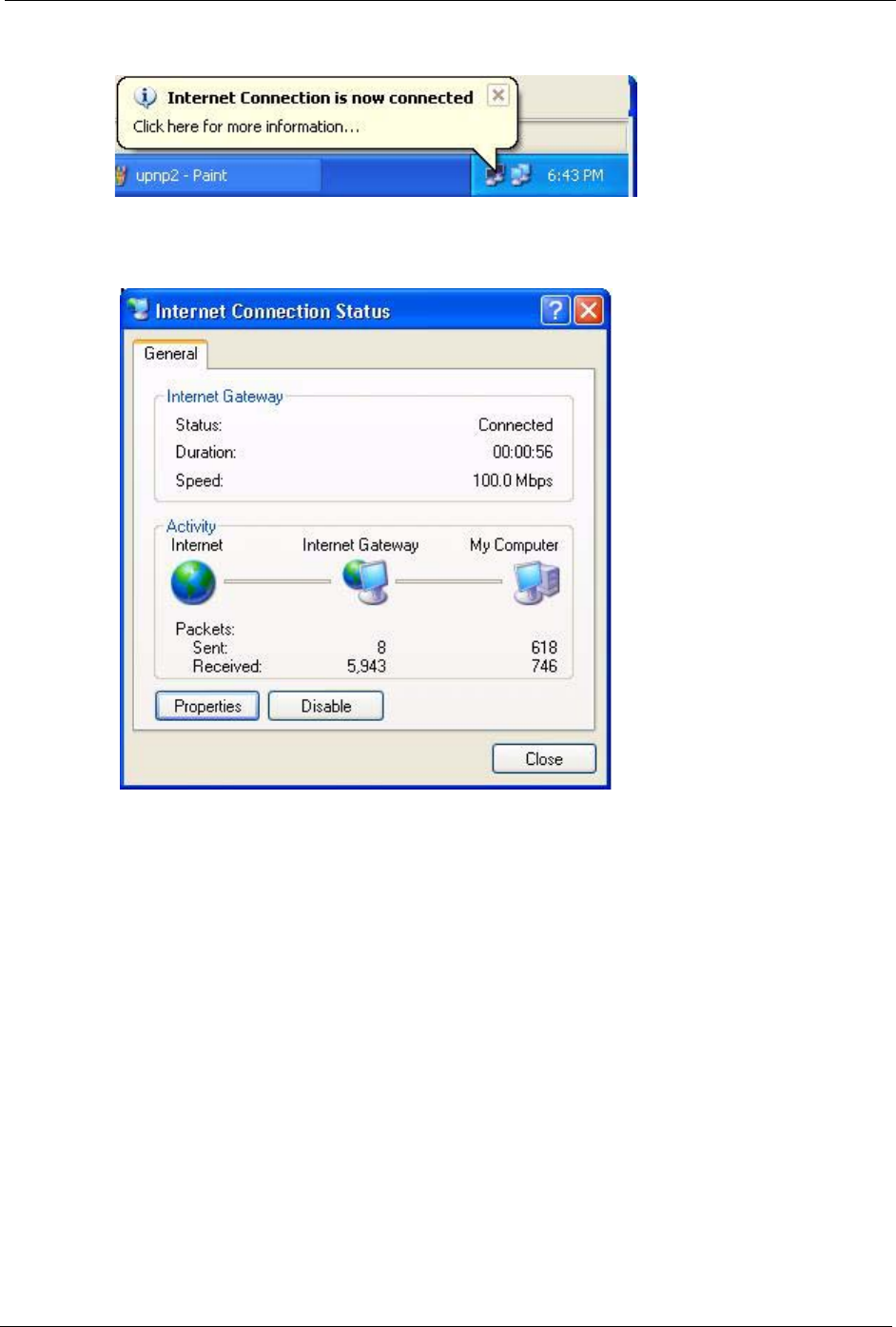

Figure 79 System Tray Icon
7Double-click on the icon to display your current Internet connection status.
Figure 80 Internet Connection Status
Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the Prestige without finding out the
IP address of the Prestige first. This comes helpful if you do not know the IP address of the
Prestige.
Follow the steps below to access the web configurator.
1Click Start and then Control Panel.
2Double-click Network Connections.
3Select My Network Places under Other Places.
P-660H/HW/W-T Series User’ Guide
173 Chapter 14 Universal Plug-and-Play (UPnP)

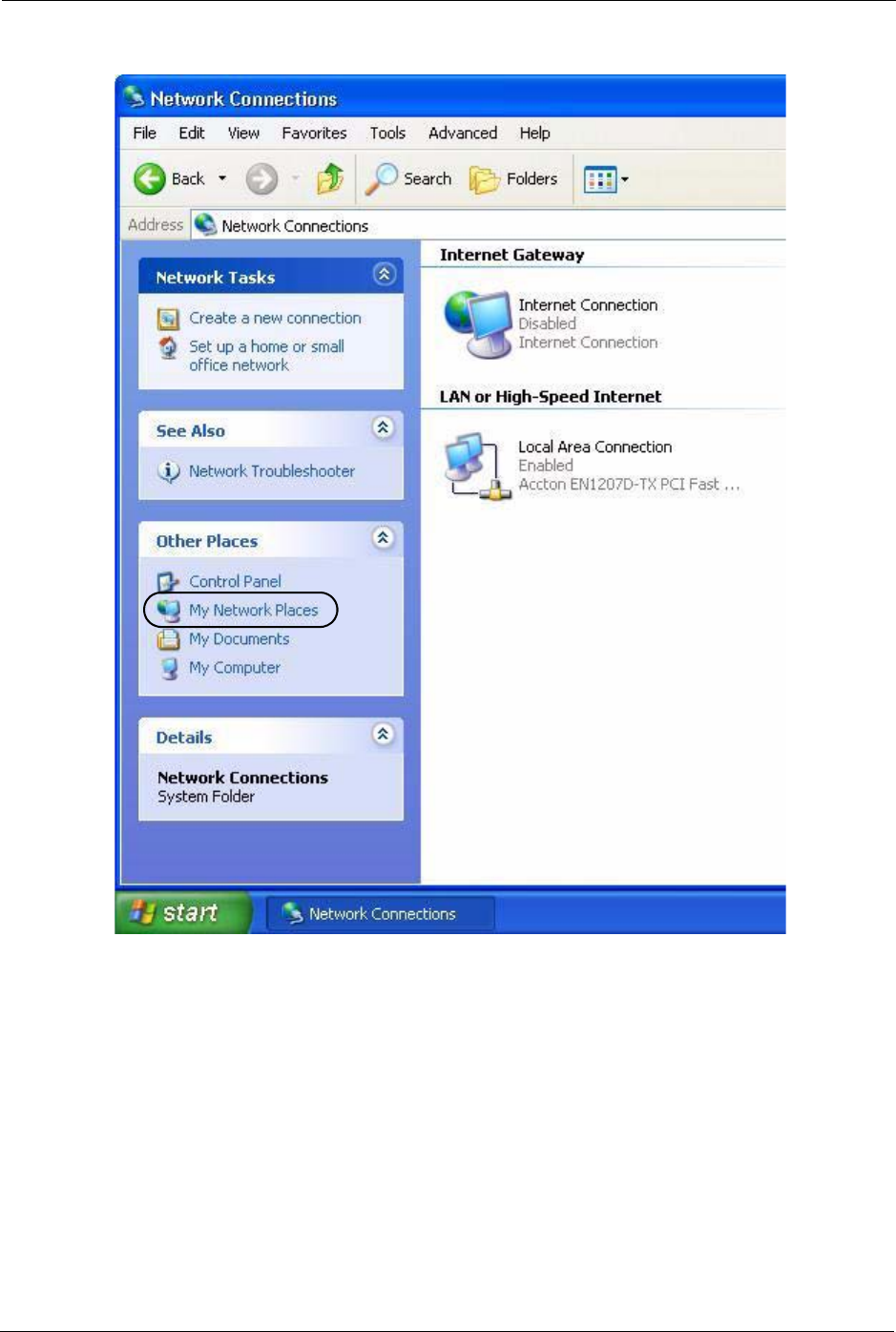

Figure 81 Network Connections
4An icon with the description for each UPnP-enabled device displays under Local
Network.
5Right-click on the icon for your Prestige and select Invoke. The web configurator login
screen displays.
P-660H/HW/W-T Series User’ Guide
Chapter 14 Universal Plug-and-Play (UPnP) 174
Figure 82 Network Connections: My Network Places
6Right-click on the icon for your Prestige and select Properties. A properties window
displays with basic information about the Prestige.
Figure 83 Network Connections: My Network Places: Properties: Example
P-660H/HW/W-T Series User’ Guide
175 Chapter 14 Universal Plug-and-Play (UPnP)
P-660H/HW/W-T Series User’ Guide
Chapter 15 Logs Screens 176
CHAPTER 15
Logs Screens
This chapter contains information about configuring general log settings and viewing the
Prestige’s logs. Refer to the appendix for example log message explanations.
15.1 Logs Overview
The web configurator allows you to choose which categories of events and/or alerts to have
the Prestige log and then display the logs or have the Prestige send them to an administrator
(as e-mail) or to a syslog server.
15.1.1 Alerts and Logs
An alert is a type of log that warrants more serious attention. They include system errors,
attacks (access control) and attempted access to blocked web sites. Some categories such as
System Errors consist of both logs and alerts. You may differentiate them by their color in the
View Log screen. Alerts display in red and logs display in black.
15.2 Configuring Log Settings
Use the Log Settings screen to configure to where the Prestige is to send logs; the schedule for
when the Prestige is to send the logs and which logs and/or immediate alerts the Prestige is to
record. See Section 15.1 on page 176 for more information.
To change your Prestige’s log settings, click Logs, then the Log Settings. The screen appears
as shown.
Alerts are e-mailed as soon as they happen. Logs may be e-mailed as soon as the log is full.
Selecting many alert and/or log categories (especially Access Control) may result in many e-
mails being sent.
P-660H/HW/W-T Series User’ Guide
177 Chapter 15 Logs Screens
Figure 84 Log Settings
The following table describes the fields in this screen.
Table 51 Log Settings
LABEL DESCRIPTION
Address Info
Mail Server Enter the server name or the IP address of the mail server for the e-mail addresses
specified below. If this field is left blank, logs and alert messages will not be sent via
e-mail.
Mail Subject Type a title that you want to be in the subject line of the log e-mail message that the
Prestige sends.
Send log to Logs are sent to the e-mail address specified in this field. If this field is left blank,
logs will not be sent via e-mail.
P-660H/HW/W-T Series User’ Guide
Chapter 15 Logs Screens 178
15.3 Displaying the Logs
Click Logs and then View Log to open the View Logs screen. Use the View Logs screen to
see the logs for the categories that you selected in the Log Settings screen (see Section 15.2 on
page 176).
Log entries in red indicate alerts. The log wraps around and deletes the old entries after it fills.
Click a column heading to sort the entries. A triangle indicates ascending or descending sort
order.
Send alerts to Alerts are sent to the e-mail address specified in this field. If this field is left blank,
alerts will not be sent via e-mail.
UNIX Syslog Syslog logging sends a log to an external syslog server used to store logs.
Active Click Active to enable syslog logging.
Syslog IP
Address
Enter the server name or IP address of the syslog server that will log the selected
categories of logs.
Log Facility Select a location from the drop down list box. The log facility allows you to log the
messages to different files in the syslog server. Refer to the documentation of your
syslog program for more details.
Send Log
Log Schedule This drop-down menu is used to configure the frequency of log messages being
sent as E-mail:
• Daily
• Weekly
• Hourly
• When Log is Full
• None.
If you select Weekly or Daily, specify a time of day when the E-mail should be sent.
If you select Weekly, then also specify which day of the week the E-mail should be
sent. If you select When Log is Full, an alert is sent when the log fills up. If you
select None, no log messages are sent
Day for Sending
Log
Use the drop down list box to select which day of the week to send the logs.
Time for Sending
Log
Enter the time of the day in 24-hour format (for example 23:00 equals 11:00 pm) to
send the logs.
Log Select the categories of logs that you want to record. Logs include alerts.
Send Immediate
Alert
Select the categories of alerts for which you want the Prestige to instantly e-mail
alerts to the e-mail address specified in the Send Alerts To field.
Back Click Back to return to the previous screen.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to return to the previously saved settings.
Table 51 Log Settings
LABEL DESCRIPTION
P-660H/HW/W-T Series User’ Guide
179 Chapter 15 Logs Screens

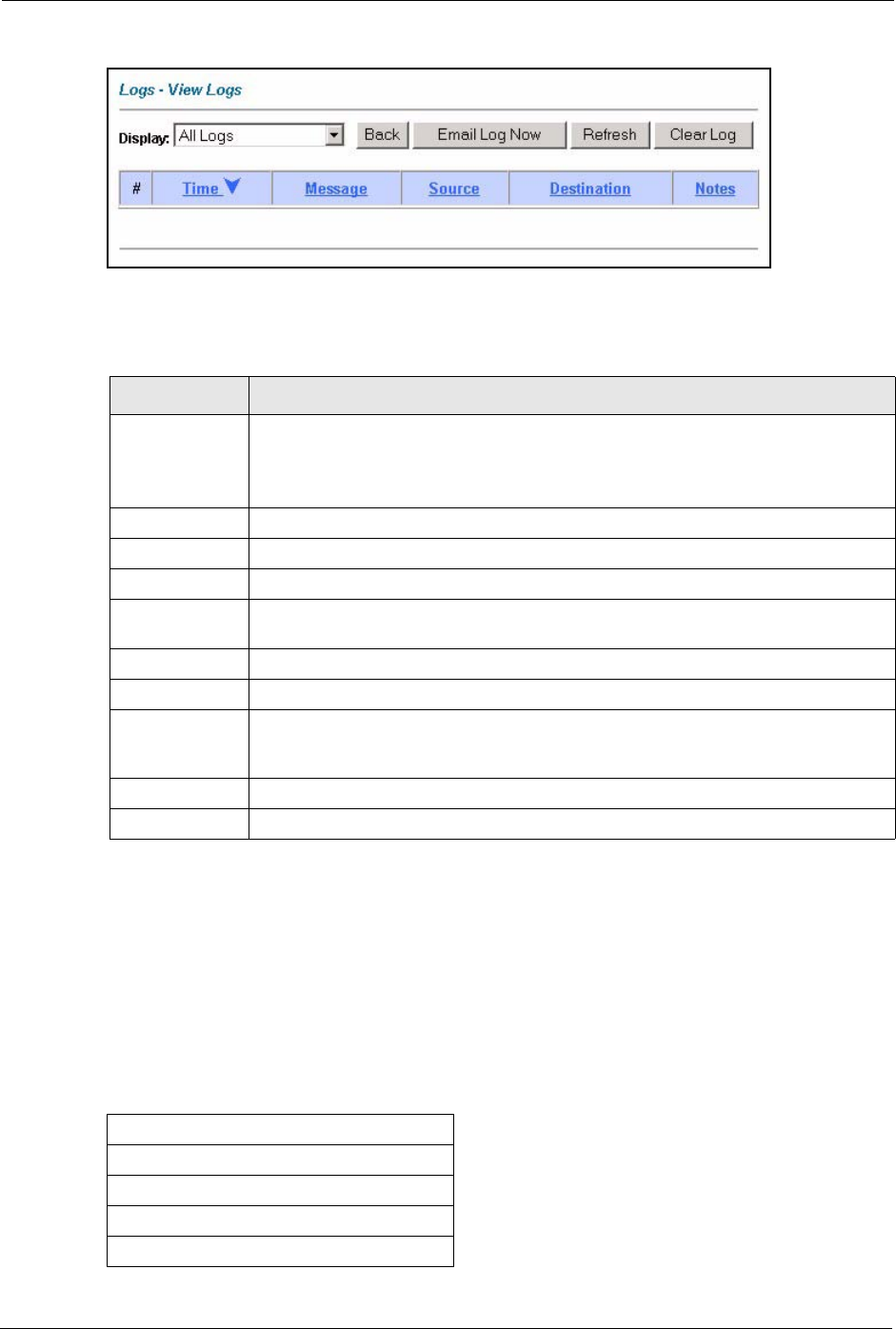

Figure 85 View Logs
The following table describes the fields in this screen.
15.4 SMTP Error Messages
If there are difficulties in sending e-mail the following error messages appear.
E-mail error messages appear in SMT menu 24.3.1 as "SMTP action request failed. ret= ??".
The “??"are described in the following table.
Table 52 View Logs
LABEL DESCRIPTION
Display The categories that you select in the Log Settings screen display in the drop-down
list box.
Select a category of logs to view; select All Logs to view logs from all of the log
categories that you selected in the Log Settings page.
Time This field displays the time the log was recorded.
Message This field states the reason for the log.
Source This field lists the source IP address and the port number of the incoming packet.
Destination This field lists the destination IP address and the port number of the incoming
packet.
Notes This field displays additional information about the log entry.
Back Click Back to return to the previous screen
Email Log Now Click Email Log Now to send the log screen to the e-mail address specified in the
Log Settings page (make sure that you have first filled in the Address Info fields in
Log Settings).
Refresh Click Refresh to renew the log screen.
Clear Log Click Clear Log to delete all the logs.
Table 53 SMTP Error Messages
-1 means Prestige out of socket
-2 means tcp SYN fail
-3 means smtp server OK fail
-4 means HELO fail
-5 means MAIL FROM fail
P-660H/HW/W-T Series User’ Guide
Chapter 15 Logs Screens 180
15.4.1 Example E-mail Log
An "End of Log" message displays for each mail in which a complete log has been sent. The
following is an example of a log sent by e-mail.
• You may edit the subject title.
• The date format here is Day-Month-Year.
• The date format here is Month-Day-Year. The time format is Hour-Minute-Second.
•"
End of Log" message shows that a complete log has been sent.
Figure 86 E-mail Log Example
-6 means RCPT TO fail
-7 means DATA fail
-8 means mail data send fail
Table 53 SMTP Error Messages
Subject:
Firewall Alert From Prestige
Date:
Fri, 07 Apr 2000 10:05:42
From:
user@zyxel.com
To:
user@zyxel.com
1|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |default policy |forward
| 09:54:03 |UDP src port:00520 dest port:00520 |<1,00> |
2|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |default policy |forward
| 09:54:17 |UDP src port:00520 dest port:00520 |<1,00> |
3|Apr 7 00 |From:192.168.1.6 To:10.10.10.10 |match |forward
| 09:54:19 |UDP src port:03516 dest port:00053 |<1,01> |
……………………………..{snip}…………………………………..
……………………………..{snip}…………………………………..
126|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:00 |UDP src port:00520 dest port:00520 |<1,02> |
127|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |match |forward
| 10:05:17 |UDP src port:00520 dest port:00520 |<1,02> |
128|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:30 |UDP src port:00520 dest port:00520 |<1,02> |
End of Firewall Log
P-660H/HW/W-T Series User’ Guide
181 Chapter 15 Logs Screens
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 182
CHAPTER 16
Media Bandwidth Management
Advanced Setup
This chapter describes bandwidth management with one level of child class.
16.1 Media Bandwidth Management Overview
Bandwidth management allows you to allocate an interface’s outgoing capacity to specific
types of traffic. It can also help you make sure that the Prestige forwards certain types of
traffic (especially real-time applications) with minimum delay. With the use of real-time
applications such as Voice-over-IP (VoIP) increasing, the requirement for bandwidth
allocation is also increasing.
Bandwidth management addresses questions such as:
• Who gets how much access to specific applications?
• What priority level should you give to each type of traffic?
• Which traffic must have guaranteed delivery?
• How much bandwidth should be allotted to guarantee delivery?
Bandwidth management also allows you to configure the allowed output for an interface to
match what the network can handle. This helps reduce delays and dropped packets at the next
routing device. For example, you can set the WAN interface speed to 1000kbps if the ADSL
connection has an upstream speed of 1Mbps. All configuration screens display measurements
in kbps (kilobits per second), but this User’s Guide also uses Mbps (megabits per second) for
brevity’s sake.
Refer to Section 16.9 on page 188 to enable and configure bandwidth on the interfaces.
Refer to Section 16.10 on page 190 to configure bandwidth classes.
Refer to Section 16.11 on page 194 to view bandwidth usage information.
16.2 Bandwidth Classes and Filters
Use bandwidth classes and child-classes to allocate specific amounts of bandwidth capacity
(bandwidth budgets). Configure a bandwidth filter to define a bandwidth class (or child-class)
based on a specific application and/or subnet. Use the Class Configuration screen (see
Section 16.10 on page 190) to set up a bandwidth class’s name, bandwidth allotment, and
P-660H/HW/W-T Series User’ Guide
183 Chapter 16 Media Bandwidth Management Advanced Setup
bandwidth filter. You can configure up to one bandwidth filter per bandwidth class. You can
also configure bandwidth classes without bandwidth filters. However, it is recommended that
you configure child-classes with filters for any classes that you configure without filters. The
Prestige leaves the bandwidth budget allocated and unused for a class that does not have a
filter itself or child-classes with filters. View your configured bandwidth classes and child-
classes in the Class Setup screen (see Section 16.10 on page 190 for details).
The total of the configured bandwidth budgets for child-classes cannot exceed the configured
bandwidth budget speed of the parent class.
16.3 Proportional Bandwidth Allocation
Bandwidth management allows you to define how much bandwidth each class gets; however,
the actual bandwidth allotted to each class decreases or increases in proportion to actual
available bandwidth.
16.4 Bandwidth Management Usage Examples

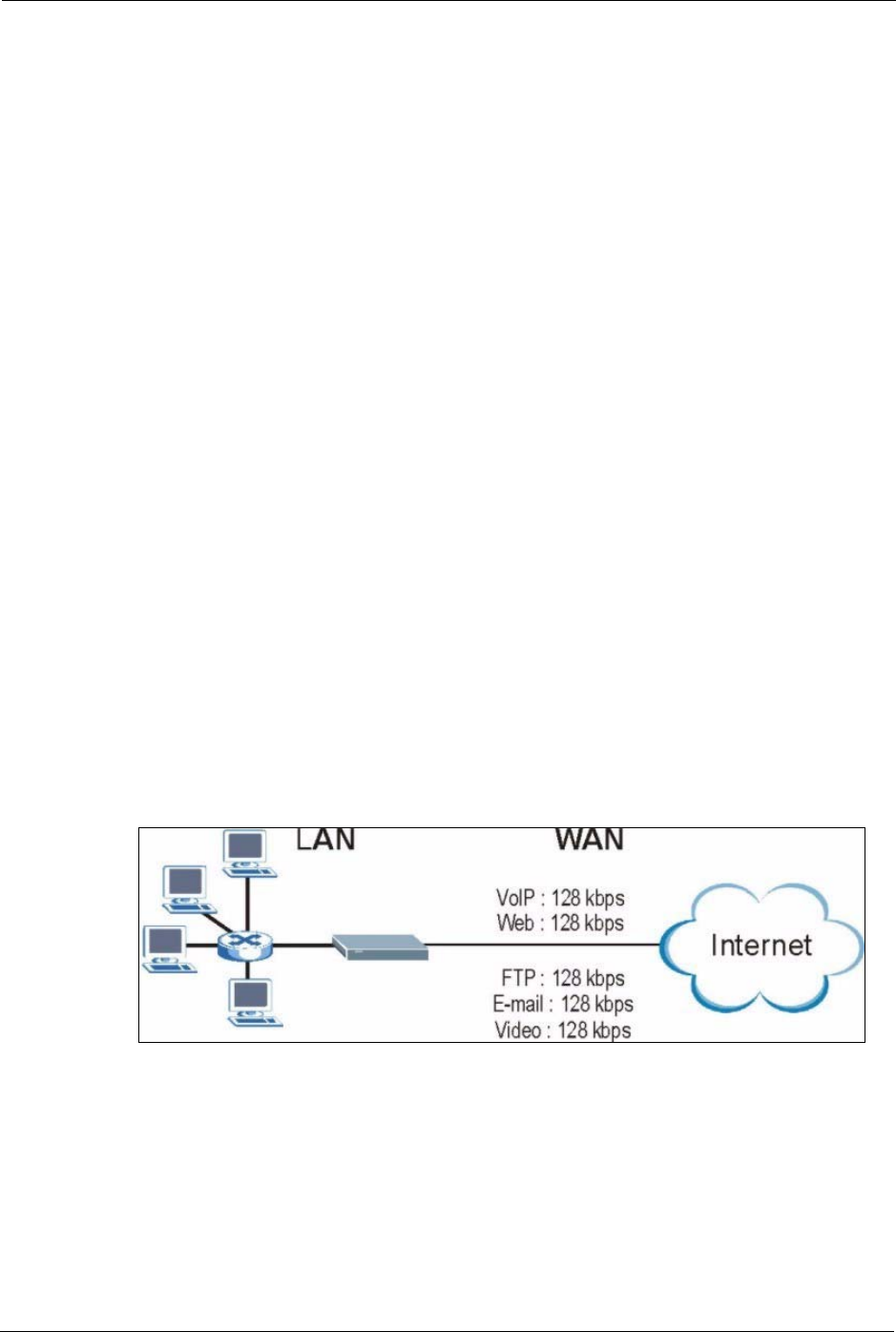

These examples show bandwidth management allotments on a WAN interface that is
configured for 640Kbps.
16.4.1 Application-based Bandwidth Management Example
The bandwidth classes in the following example are based solely on application. Each
bandwidth class (VoIP, Web, FTP, E-mail and Video) is allotted 128kbps.
Figure 87 Application-based Bandwidth Management Example
16.4.2 Subnet-based Bandwidth Management Example
The following example uses bandwidth classes based solely on LAN subnets. Each bandwidth
class (Subnet A and Subnet B) is allotted 320kbps.
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 184

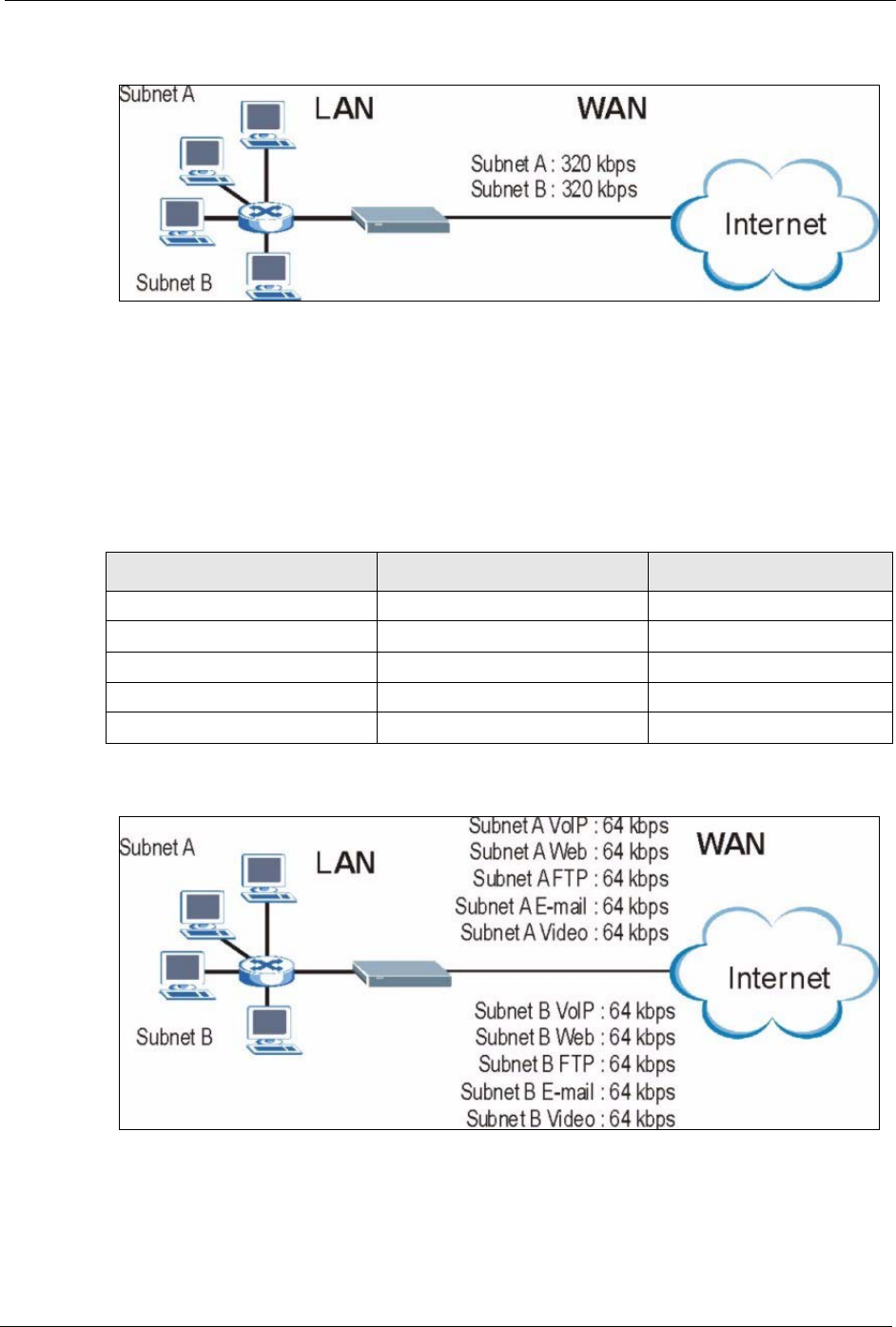

Figure 88 Subnet-based Bandwidth Management Example
16.4.3 Application and Subnet-based Bandwidth Management
Example
The following example uses bandwidth classes based on LAN subnets and applications
(specific applications in each subnet are allotted bandwidth).
Figure 89 Application and Subnet-based Bandwidth Management Example
Table 54 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 kbps 64 kbps
Web 64 kbps 64 kbps
FTP 64 kbps 64 kbps
E-mail 64 kbps 64 kbps
Video 64 kbps 64 kbps
P-660H/HW/W-T Series User’ Guide
185 Chapter 16 Media Bandwidth Management Advanced Setup
16.5 Scheduler
The scheduler divides up an interface’s bandwidth among the bandwidth classes. The Prestige
has two types of scheduler: fairness-based and priority-based.
16.5.1 Priority-based Scheduler
With the priority-based scheduler, the Prestige forwards traffic from bandwidth classes
according to the priorities that you assign to the bandwidth classes. The larger a bandwidth
class’s priority number is, the higher the priority. Assign real-time applications (like those
using audio or video) a higher priority number to provide smoother operation.
16.5.2 Fairness-based Scheduler
The Prestige divides bandwidth equally among bandwidth classes when using the fairness-
based scheduler; thus preventing one bandwidth class from using all of the interface’s
bandwidth.
16.6 Maximize Bandwidth Usage
The maximize bandwidth usage option (see Section 16.7.1 on page 187) allows the Prestige to
divide up any available bandwidth on the interface (including unallocated bandwidth and any
allocated bandwidth that a class is not using) among the bandwidth classes that require more
bandwidth.
When you enable maximize bandwidth usage, the Prestige first makes sure that each
bandwidth class gets up to its bandwidth allotment. Next, the Prestige divides up an interface’s
available bandwidth (bandwidth that is unbudgeted or unused by the classes) depending on
how many bandwidth classes require more bandwidth and on their priority levels. When only
one class requires more bandwidth, the Prestige gives extra bandwidth to that class.
When multiple classes require more bandwidth, the Prestige gives the highest priority classes
the available bandwidth first (as much as they require, if there is enough available bandwidth),
and then to lower priority classes if there is still bandwidth available. The Prestige distributes
the available bandwidth equally among classes with the same priority level.
16.6.1 Reserving Bandwidth for Non-Bandwidth Class Traffic
Do the following three steps to configure the Prestige to allow bandwidth for traffic that is not
defined in a bandwidth filter.
1Leave some of the interface’s bandwidth unbudgeted.
2Do not enable the interface’s Maximize Bandwidth Usage option.
3Do not enable bandwidth borrowing on the child-classes that have the root class as their
parent (see Section 16.7 on page 187).
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 186
16.6.2 Maximize Bandwidth Usage Example
Here is an example of a Prestige that has maximized bandwidth usage enabled on an interface.

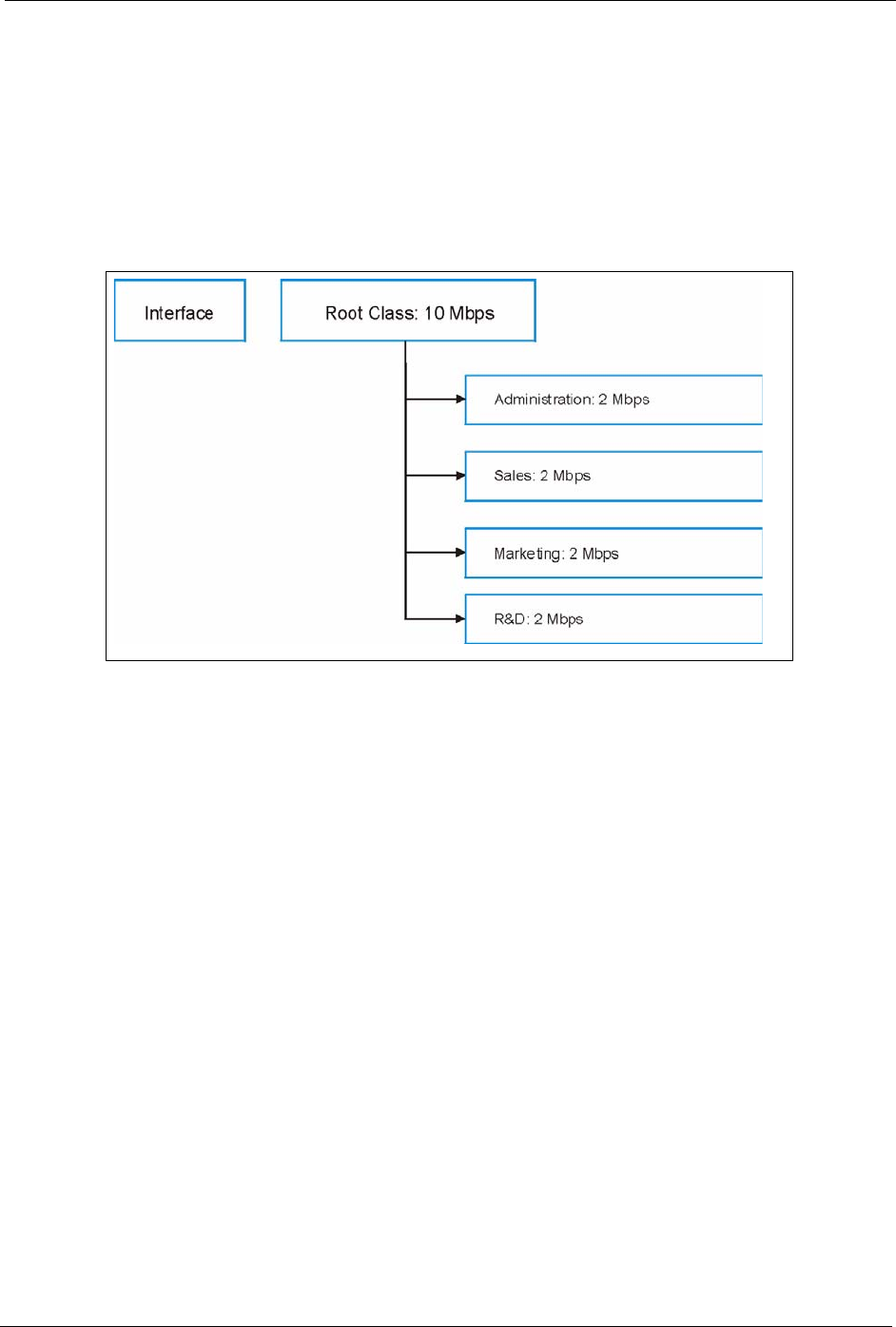

The first figure shows each bandwidth class’s bandwidth budget and priority. The classes are
set up based on subnets. The interface is set to 10 Mbps. Each subnet is allocated 2 Mbps. The
unbudgeted 2 Mbps allows traffic not defined in one of the bandwidth filters to go out when
you do not select the maximize bandwidth option.
Figure 90 Bandwidth Allotment Example
The following figure shows the bandwidth usage with the maximize bandwidth usage option
enabled. The Prestige divides up the unbudgeted 2 Mbps among the classes that require more
bandwidth. If the administration department only uses 1 Mbps of the budgeted 2 Mbps, the
Prestige also divides the remaining 1 Mbps among the classes that require more bandwidth.
Therefore, the Prestige divides a total of 3 Mbps total of unbudgeted and unused bandwidth
among the classes that require more bandwidth.
In this case, suppose that all of the classes except for the administration class need more
bandwidth.
• Each class gets up to its budgeted bandwidth. The administration class only uses 1 Mbps
of its budgeted 2 Mbps.
• Sales and Marketing are first to get extra bandwidth because they have the highest
priority (6). If they each require 1.5 Mbps or more of extra bandwidth, the Prestige
divides the total 3 Mbps total of unbudgeted and unused bandwidth equally between the
sales and marketing departments (1.5 Mbps extra to each for a total of 3.5 Mbps for each)
because they both have the highest priority level.
• R&D requires more bandwidth but only gets its budgeted 2 Mbps because all of the
unbudgeted and unused bandwidth goes to the higher priority sales and marketing
classes.
• The Prestige does not send any traffic that is not defined in the bandwidth filters because
all of the unbudgeted bandwidth goes to the classes that need it.
P-660H/HW/W-T Series User’ Guide
187 Chapter 16 Media Bandwidth Management Advanced Setup
Figure 91 Maximize Bandwidth Usage Example
16.7 Bandwidth Borrowing
Bandwidth borrowing allows a child-class to borrow unused bandwidth from its parent class,
whereas maximize bandwidth usage allows bandwidth classes to borrow any unused or
unbudgeted bandwidth on the whole interface.
Enable bandwidth borrowing on a child-class to allow the child-class to use its parent class’s
unused bandwidth. A parent class’s unused bandwidth is given to the highest-priority child-
class that has bandwidth borrowing configured, first.
The total of the bandwidth allotments for child-classes cannot exceed the bandwidth allotment
of their parent class. The Prestige uses the scheduler to divide a parent class’s unused
bandwidth among the child-classes.
16.7.1 Maximize Bandwidth Usage With Bandwidth Borrowing
If you configure both maximize bandwidth usage (on the interface) and bandwidth borrowing
(on individual child-classes), the Prestige functions as follows.
1The Prestige sends traffic according to each bandwidth class’s bandwidth budget.
2The Prestige assigns a parent class’s unused bandwidth to its child-classes that have more
traffic than their budgets and have bandwidth borrowing enabled. The Prestige gives
priority to bandwidth child-classes of higher priority and treats bandwidth classes of the
same priority equally.
3The Prestige assigns any remaining unused or unbudgeted bandwidth on the interface to
any bandwidth class that requires it. The Prestige gives priority to bandwidth classes of
higher priority and treats bandwidth classes of the same level equally.
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 188
4The Prestige assigns any remaining unbudgeted bandwidth to traffic that does not match
any of the bandwidth classes.
16.8 The Main Media Bandwidth Management Screen

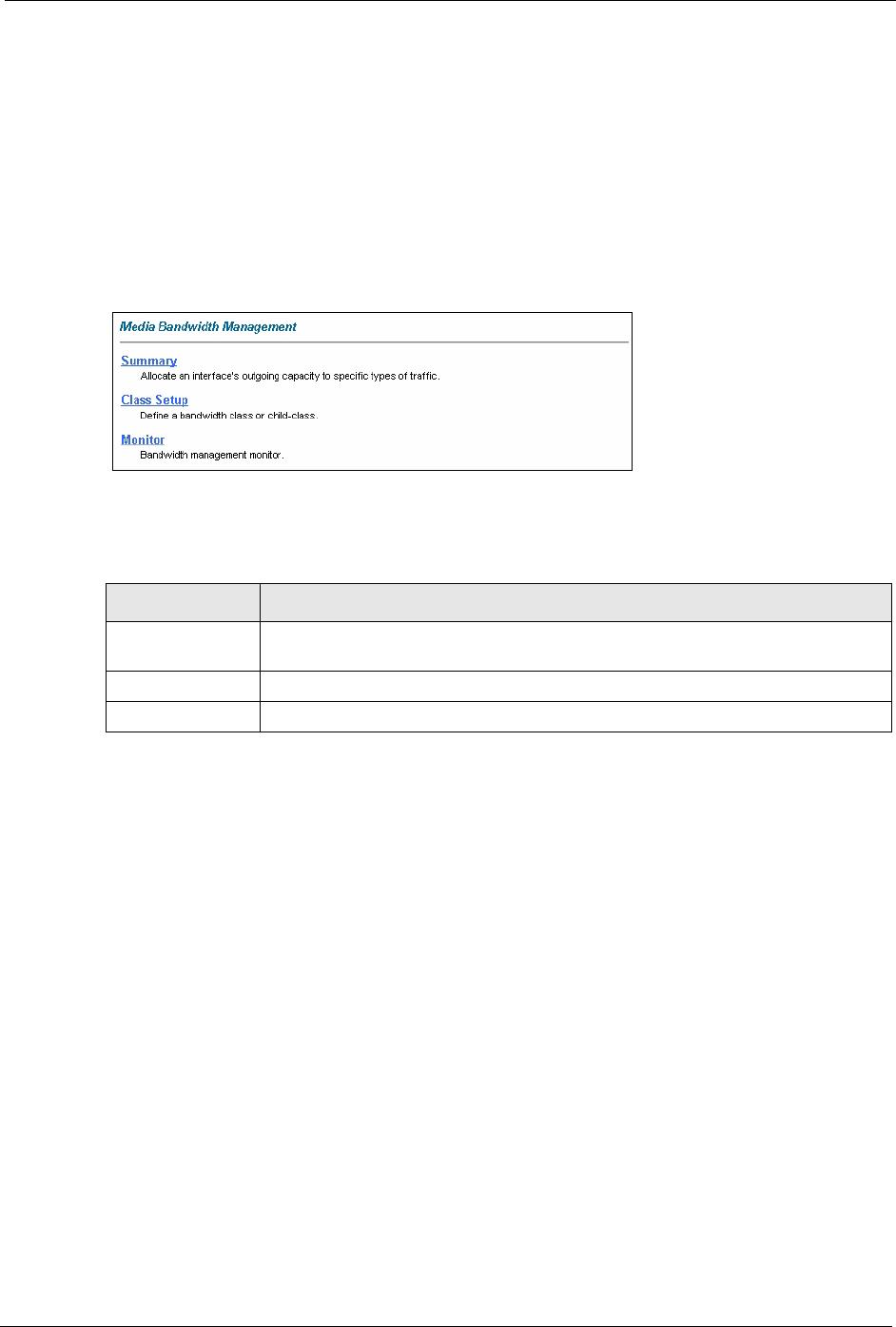

Click Media Bandwidth Mgnt. to display the main Media Bandwidth Management screen
as shown.
Figure 92 Media Bandwidth Mgnt.
The following table describes the links in this screen.
16.9 Configuring Summary
Click Media Bandwidth Management, Summary to open the screen as shown next.
Enable bandwidth management on an interface and set the maximum allowed bandwidth for
that interface.
Refer to Section 16.1 on page 182 for more information.
Table 55 Media Bandwidth Mgnt.
LINK DESCRIPTION
Summary Click this link to display a screen where you can enable bandwidth management
on an interface and set the maximum allowed bandwidth for that interface.
Class Setup Click this link to display a screen thwere you can configure bandwidth classes.
Monitor Click this link to display a screen wehre you can view bandwidth usage.
P-660H/HW/W-T Series User’ Guide
189 Chapter 16 Media Bandwidth Management Advanced Setup

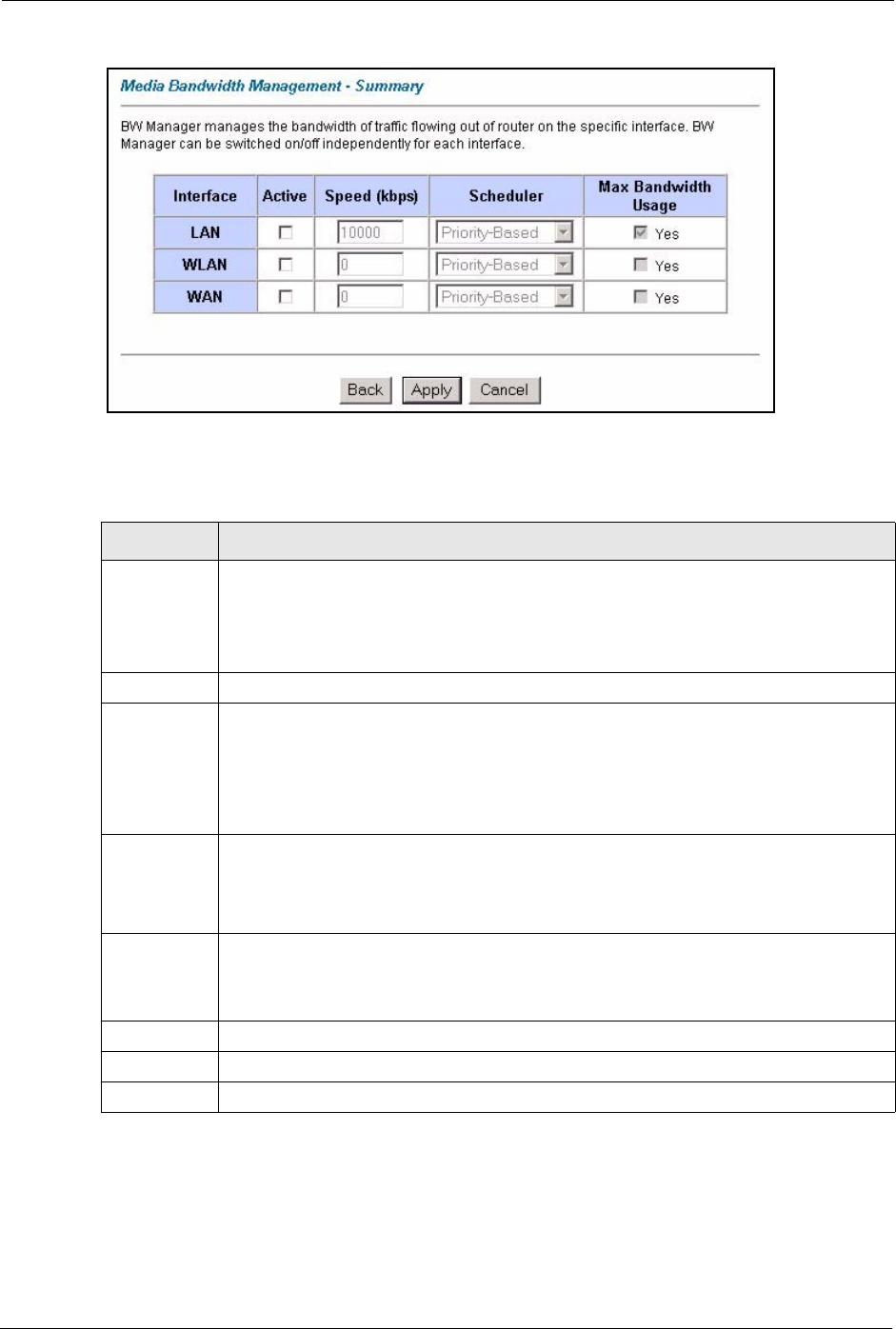

Figure 93 Media Bandwidth Management: Summary
The following table describes the labels in this screen.
Table 56 Media Bandwidth Management: Summary
LABEL DESCRIPTION
LAN
WLAN
WAN
These read-only labels represent the physical interfaces. Select an interface’s check box
to enable bandwidth management on that interface. Bandwidth management applies to
all traffic flowing out of the router through the interface, regardless of the traffic’s source.
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the Prestige
and be managed by bandwidth management.
Active Select an interface’s check box to enable bandwidth management on that interface.
Speed (kbps) Enter the amount of bandwidth for this interface that you want to allocate using
bandwidth management.
This appears as the bandwidth budget of the interface’s root class. The recommendation
is to set this speed to match what the interface’s connection can handle. For example,
set the WAN interface speed to 10000 kbps if the ADSL connection has an upstream
speed of 10Mbps.
Scheduler Select either Priority-Based or Fairness-Based from the drop-down menu to control
the traffic flow.
Select Priority-Based to give preference to bandwidth classes with higher priorities.
Select Fairness-Based to treat all bandwidth classes equally.
Maximize
Bandwidth
Usage
Select this check box to have the Prestige divide up all of the interface’s unallocated
and/or unused bandwidth among the bandwidth classes that require bandwidth. Do not
select this if you want to reserve bandwidth for traffic that does not match a bandwidth
class or you want to limit the speed of this interface (see the Speed field description).
Back Click Back to go to the main Media Bandwidth Management screen.
Apply Click Apply to save your settings back to the Prestige.
Cancel Click Cancel to begin configuring this screen afresh.
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 190
16.10 Configuring Class Setup
The class setup screen displays the configured bandwidth classes by individual interface.
Select an interface and click the buttons to perform the actions described next. Click “+” to
expand the class tree or click “-“to collapse the class tree. Each interface has a permanent root
class. The bandwidth budget of the root class is equal to the speed you configured on the
interface (see Section 16.9 on page 188 to configure the speed of the interface). Configure
child-class layers for the root class.
Refer to Section 16.1 on page 182 for more information.
To add or delete child classes on an interface, click Media Bandwidth Management, then
Class Setup. The screen appears as shown (with example classes).
Figure 94 Media Bandwidth Management: Class Setup
The following table describes the labels in this screen.
16.10.1 Media Bandwidth Management Class Configuration
Configure a bandwidth management class in the Class Configuration screen. You must use
the Media Bandwidth Management - Summary screen to enable bandwidth management on
an interface before you can configure classes for that interface.
Refer to Section 16.1 on page 182 for more information.
Table 57 Media Bandwidth Management: Class Setup
LABEL DESCRIPTION
Interface Select an interface from the drop-down list box for which you wish to set up classes.
Back Click Back to go to the main Media Bandwidth Management screen.
Add Child-Class Click Add Child-class to add a sub-class.
Edit Click Edit to configure the selected class. You cannot edit the root class.
Delete Click Delete to delete the class and all its child-classes. You cannot delete the root
class.
Statistics Click Statistics to display the status of the selected class.
P-660H/HW/W-T Series User’ Guide
191 Chapter 16 Media Bandwidth Management Advanced Setup
To add a child class, click Media Bandwidth Management, then Class Setup. Click the Add
Child-Class button to open the following screen.

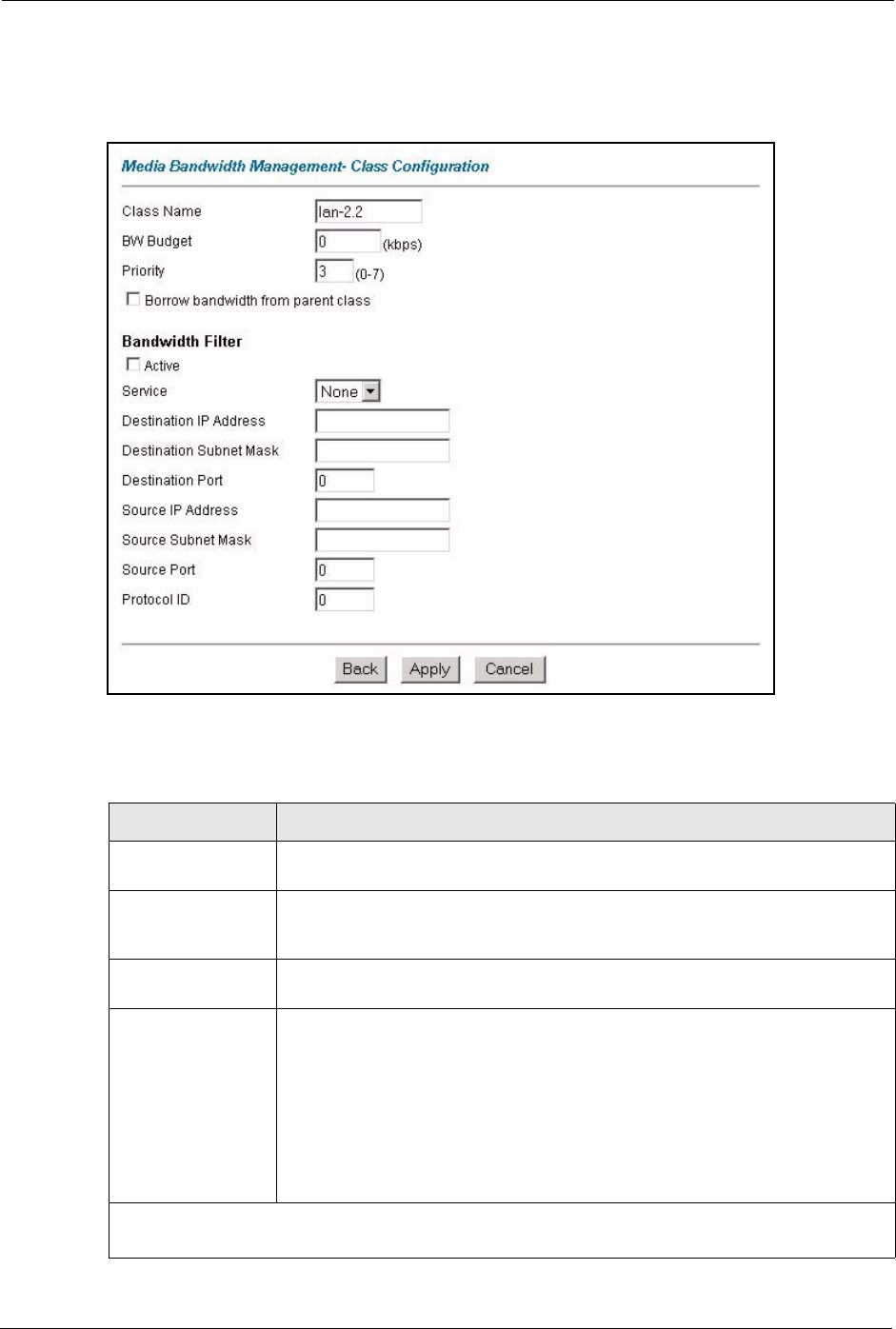

Figure 95 Media Bandwidth Management: Class Configuration
The following table describes the labels in this screen.
Table 58 Media Bandwidth Management: Class Configuration
LABEL DESCRIPTION
Class Name Use the auto-generated name or enter a descriptive name of up to 20
alphanumeric characters, including spaces.
BW Budget (kbps) Specify the maximum bandwidth allowed for the class in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
class.
Priority Enter a number between 0 and 7 to set the priority of this class. The higher the
number, the higher the priority. The default setting is 3.
Borrow bandwidth
from parent class
Select this option to allow a child-class to borrow bandwidth from its parent class
if the parent class is not using up its bandwidth budget.
Bandwidth borrowing is governed by the priority of the child-classes. That is, a
child-class with the highest priority (7) is the first to borrow bandwidth from its
parent class.
Do not select this for the classes directly below the root class if you want to leave
bandwidth available for other traffic types or you want to set the interface’s
speed to match what the next device in network can handle (see the Speed field
description in the Summary screen).
Bandwidth Filter
The Prestige uses a bandwidth filter to identify the traffic that belongs to a bandwidth class.
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 192
Active Select the check box to have the Prestige use this bandwidth filter when it
performs bandwidth management.
Service You can select a predefined service instead of configuring the Destination Port,
Source Port and Protocol ID fields.
SIP (Session Initiation Protocol) is a signaling protocol used in Internet
telephony, instant messaging and other VoIP (Voice over IP) applications. Select
SIP from the drop-down list box to configure this bandwidth filter for traffic that
uses SIP.
File Transfer Protocol (FTP) is an Internet file transfer service that operates on
the Internet and over TCP/IP networks. A system running the FTP server
accepts commands from a system running an FTP client. The service allows
users to send commands to the server for uploading and downloading files.
Select FTP from the drop-down list box to configure this bandwidth filter for FTP
traffic.
H.323 is a standard teleconferencing protocol suite that provides audio, data and
video conferencing. It allows for real-time point-to-point and multipoint
communication between client computers over a packet-based network that
does not provide a guaranteed quality of service. Select H.323 from the drop-
down list box to configure this bandwidth filter for traffic that uses H.323.
When you select None, the bandwidth class applies to all services unless you
specify one by configuring the Destination Port, Source Port and Protocol ID
fields.
Destination IP
Address
Enter the destination IP address in dotted decimal notation. A blank destination
IP address means any destination IP address.
Destination Subnet
Mask
Enter the destination subnet mask. This field is N/A if you do not specify a
Destination IP Address. Refer to the appendix for more information on IP
subnetting.
Destination Port Enter the port number of the destination. A blank destination port means any
destination port.
Source IP Address Enter the source IP address. A blank source IP address means any source IP
address.
Source Subnet
Mask
Enter the source subnet mask. This field is N/A if you do not specify a Source IP
Address. Refer to the appendix for more information on IP subnetting.
Source Port Enter the port number of the source. See the following table for some common
services and port numbers. A blank source port means any source port number.
Protocol ID Enter the protocol ID (service type) number, for example: 1 for ICMP, 6 for TCP
or 17 for UDP. A blank protocol ID means any protocol number.
Back Click Back to go to the main Media Bandwidth Management screen.
Apply Click Apply to save your changes back to the Prestige.
Cancel Click Cancel to begin configuring this screen afresh.
Table 59 Services and Port Numbers
SERVICES PORT NUMBER
ECHO 7
FTP (File Transfer Protocol) 21
Table 58 Media Bandwidth Management: Class Configuration (continued)
LABEL DESCRIPTION
P-660H/HW/W-T Series User’ Guide
193 Chapter 16 Media Bandwidth Management Advanced Setup
16.10.2 Media Bandwidth Management Statistics
Use the Media Bandwidth Management Statistics screen to view network performance
information. Click the Statistics button in the Class Setup screen to open the Statistics
screen.

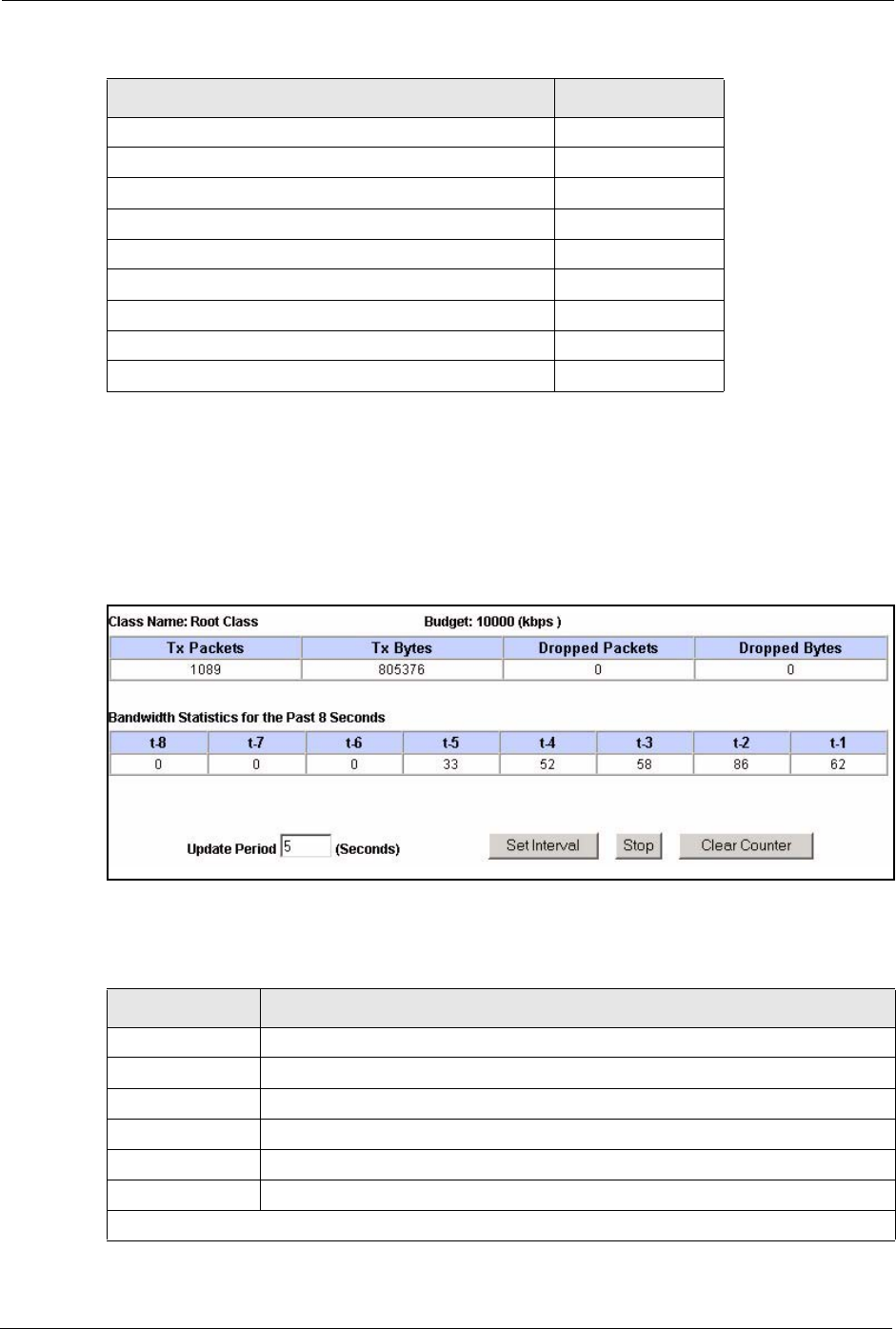

Figure 96 Media Bandwidth Management Statistics
The following table describes the labels in this screen.
SMTP (Simple Mail Transfer Protocol) 25
DNS (Domain Name System) 53
Finger 79
HTTP (Hyper Text Transfer protocol or WWW, Web) 80
POP3 (Post Office Protocol) 110
NNTP (Network News Transport Protocol) 119
SNMP (Simple Network Management Protocol) 161
SNMP trap 162
PPTP (Point-to-Point Tunneling Protocol) 1723
Table 59 Services and Port Numbers
SERVICES PORT NUMBER
Table 60 Media Bandwidth Management Statistics
LABEL DESCRIPTION
Class Name This field displays the name of the class the statistics page is showing.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Tx Packets This field displays the total number of packets transmitted.
Tx Bytes This field displays the total number of bytes transmitted.
Dropped Packets This field displays the total number of packets dropped.
Dropped Bytes This field displays the total number of bytes dropped.
Bandwidth Statistics for the Past 8 Seconds (t-8 to t-1)
P-660H/HW/W-T Series User’ Guide
Chapter 16 Media Bandwidth Management Advanced Setup 194
16.11 Bandwidth Monitor
To view the Prestige’s bandwidth usage and allotments, click Media Bandwidth
Management, then Monitor. The screen appears as shown.

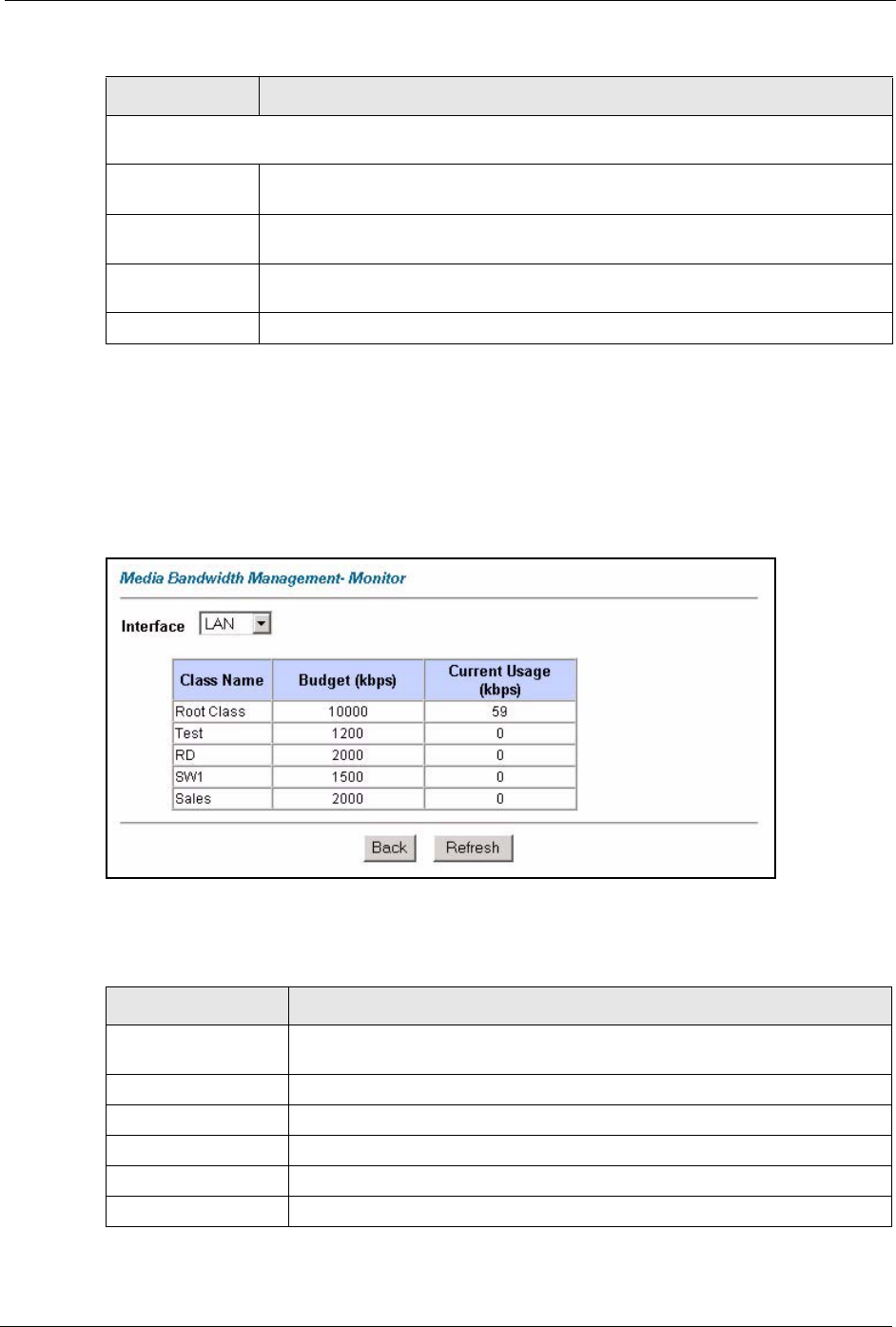

Figure 97 Media Bandwidth Management: Monitor
The following table describes the labels in this screen.
This field displays the bandwidth statistics (in bps) for the past one to eight seconds. For example, t-1
means one second ago.
Update Period
(seconds)
Enter the time interval in seconds to define how often the information should be
refreshed.
Set Interval Click Set Interval to apply the new update period you entered in the Update
Period field above.
Stop Update Click Stop Update to stop the browser from refreshing bandwidth management
statistics.
Clear Counter Click Clear Counter to clear all of the bandwidth management statistics.
Table 60 Media Bandwidth Management Statistics
LABEL DESCRIPTION
Table 61 Media Bandwidth Management: Monitor
LABEL DESCRIPTION
Interface Select an interface from the drop-down list box to view the bandwidth usage of
its bandwidth classes.
Class Name This field displays the name of the class.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Current Usage (kbps) This field displays the amount of bandwidth that each class is using.
Back Click Back to go to the main Media Bandwidth Management screen.
Refresh Click Refresh to update the page.
P-660H/HW/W-T Series User’ Guide
195 Chapter 16 Media Bandwidth Management Advanced Setup
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 196
CHAPTER 17
Maintenance
This chapter displays system information such as ZyNOS firmware, port IP addresses and port
traffic statistics.
17.1 Maintenance Overview
The maintenance screens can help you view system information, upload new firmware,
manage configuration and restart your Prestige.
17.2 System Status Screen
Click System Status under Maintenance to open the following screen, where you can use to
monitor your Prestige. Note that these fields are READ-ONLY and only for diagnostic
purposes.
P-660H/HW/W-T Series User’ Guide
197 Chapter 17 Maintenance
Figure 98 System Status
The following table describes the fields in this screen.
Table 62 System Status
LABEL DESCRIPTION
System Status
System Name This is the name of your Prestige. It is for identification purposes.
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 198
17.2.1 System Statistics
Click Show Statistics in the System Status screen to open the following screen. Read-only
information here includes port status and packet specific statistics. Also provided are "system
up time" and "poll interval(s)". The Poll Interval(s) field is configurable.
ZyNOS Firmware
Version
This is the ZyNOS firmware version and the date created. ZyNOS is ZyXEL's
proprietary Network Operating System design.
DSL FW Version This is the DSL firmware version associated with your Prestige.
Standard This is the standard that your Prestige is using.
WAN Information
IP Address This is the WAN port IP address.
IP Subnet Mask This is the WAN port IP subnet mask.
Default Gateway This is the IP address of the default gateway, if applicable.
VPI/VCI This is the Virtual Path Identifier and Virtual Channel Identifier that you entered in
the first Wizard screen.
LAN Information
MAC Address This is the MAC (Media Access Control) or Ethernet address unique to your
Prestige.
IP Address This is the LAN port IP address.
IP Subnet Mask This is the LAN port IP subnet mask.
DHCP This is the WAN port DHCP role - Server, Relay (not all Prestige models) or
None.
DHCP Start IP This is the first of the contiguous addresses in the IP address pool.
DHCP Pool Size This is the number of IP addresses in the IP address pool.
WLAN Information
ESSID This is the descriptive name used to identify the Prestige in the wireless LAN.
Channel This is the channel number used by the Prestige now.
WEP This displays the status of WEP data encryption.
Show Statistics Click Show Statistics to see the performance statistics such as number of
packets sent and number of packets received for each port.
Table 62 System Status (continued)
LABEL DESCRIPTION
P-660H/HW/W-T Series User’ Guide
199 Chapter 17 Maintenance

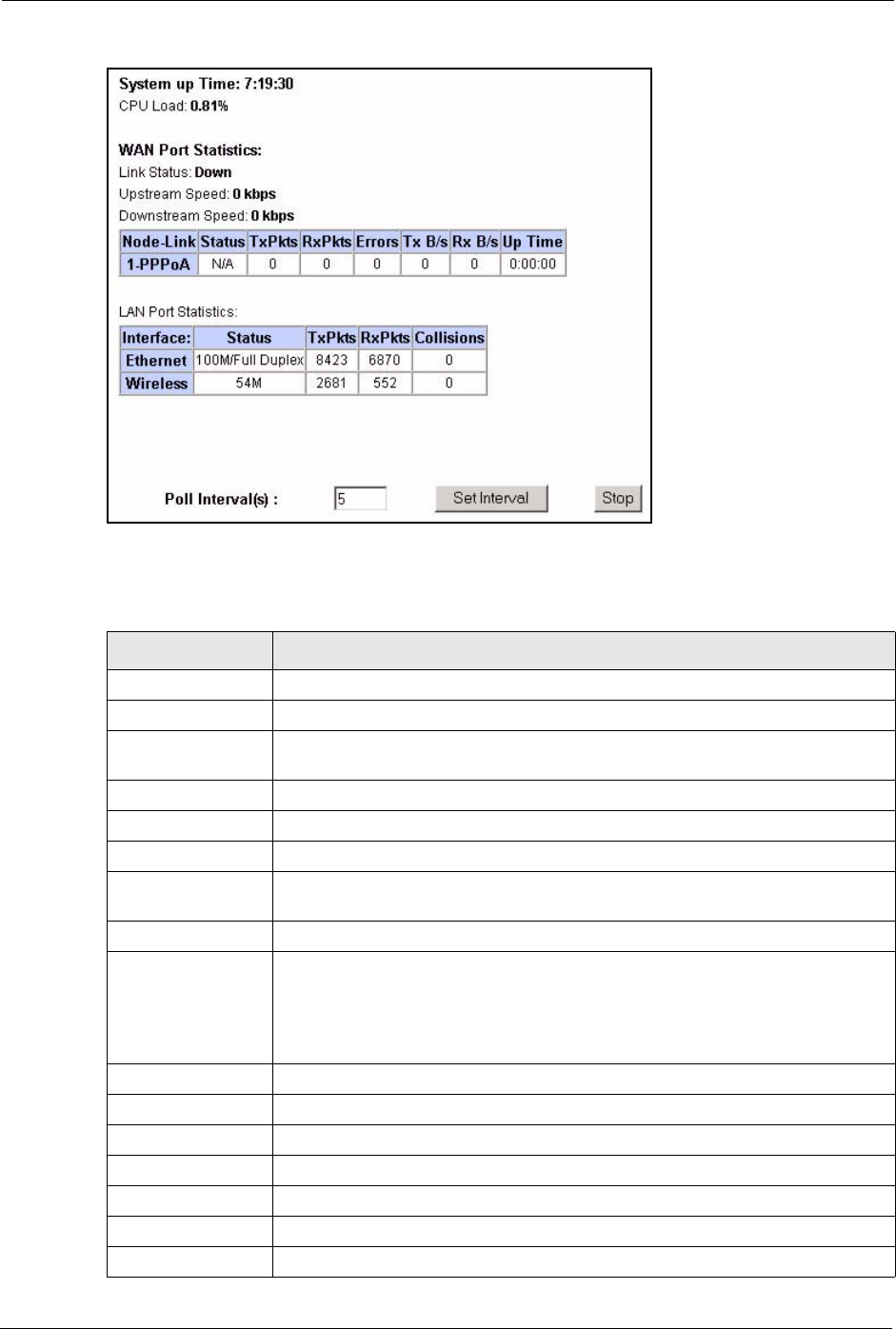

Figure 99 System Status: Show Statistics
The following table describes the fields in this screen.
Table 63 System Status: Show Statistics
LABEL DESCRIPTION
System up Time This is the elapsed time the system has been up.
CPU Load This field specifies the percentage of CPU utilization.
LAN or WAN Port
Statistics
This is the WAN or LAN port.
Link Status This is the status of your WAN link.
Upstream Speed This is the upstream speed of your Prestige.
Downstream Speed This is the downstream speed of your Prestige.
Node-Link This field displays the remote node index number and link type. Link types are
PPPoA, ENET, RFC 1483 and PPPoE.
Interface This field displays the type of port.
Status For the WAN port, this displays the port speed and duplex setting if you're using
Ethernet encapsulation and down (line is down), idle (line (ppp) idle), dial
(starting to trigger a call) and drop (dropping a call) if you're using PPPoE
encapsulation.
For a LAN port, this shows the port speed and duplex setting.
TxPkts This field displays the number of packets transmitted on this port.
RxPkts This field displays the number of packets received on this port.
Errors This field displays the number of error packets on this port.
Tx B/s This field displays the number of bytes transmitted in the last second.
Rx B/s This field displays the number of bytes received in the last second.
Up Time This field displays the elapsed time this port has been up.
Collisions This is the number of collisions on this port.
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 200
17.3 DHCP Table Screen
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual
clients to obtain TCP/IP configuration at start-up from a server. You can configure the Prestige
as a DHCP server or disable it. When configured as a server, the Prestige provides the TCP/IP
configuration for the clients. If set to None, DHCP service will be disabled and you must have
another DHCP server on your LAN, or else the computer must be manually configured.
Click Maintenance, and then the DHCP Table tab. Read-only information here relates to
your DHCP status. The DHCP table shows current DHCP Client information (including IP
Address, Host Name and MAC Address) of all network clients using the DHCP server.

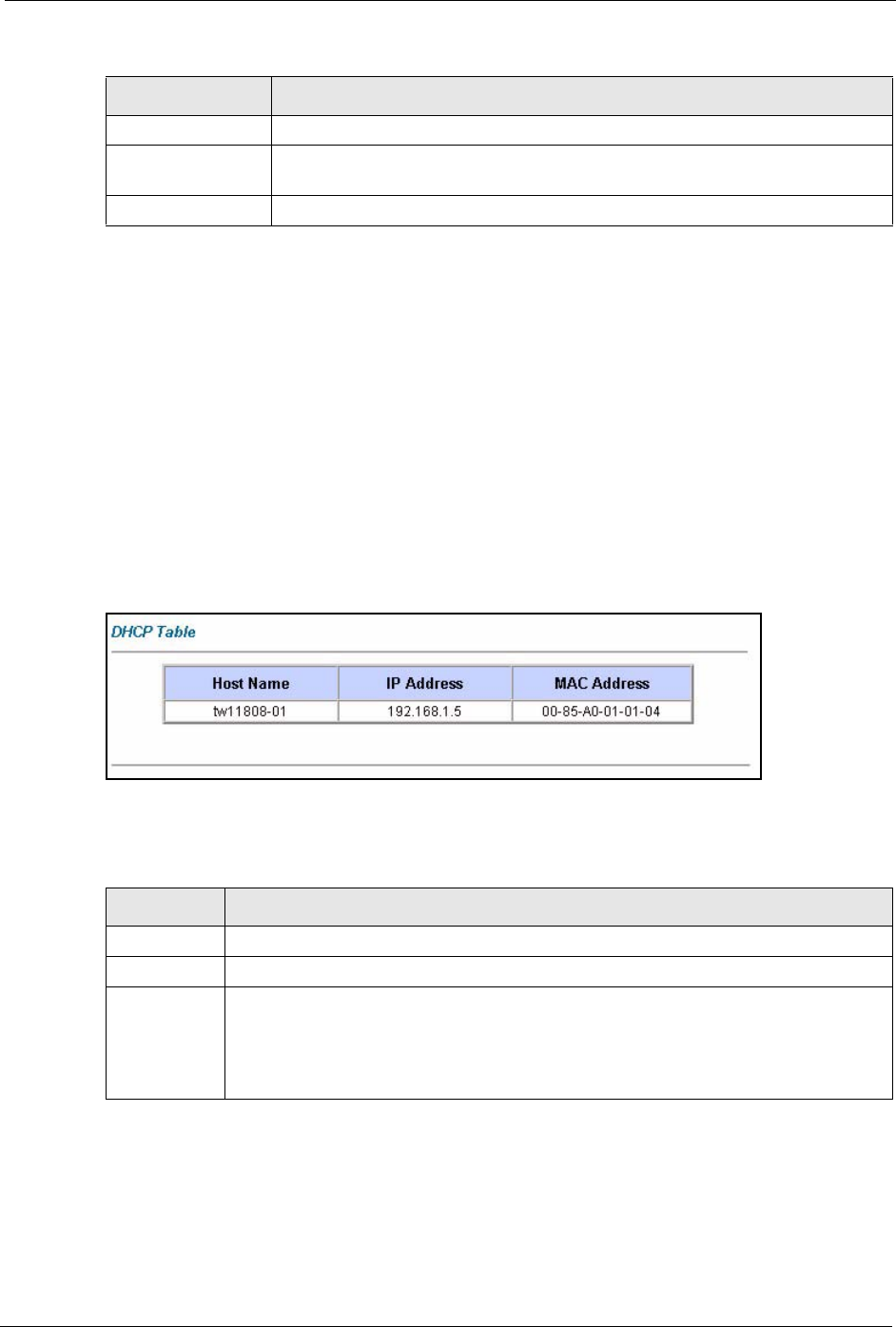

Figure 100 DHCP Table
The following table describes the fields in this screen.
Poll Interval(s) Type the time interval for the browser to refresh system statistics.
Set Interval Click this button to apply the new poll interval you entered in the Poll Interval
field above.
Stop Click this button to halt the refreshing of the system statistics.
Table 63 System Status: Show Statistics (continued)
LABEL DESCRIPTION
Table 64 DHCP Table
LABEL DESCRIPTION
Host Name This is the name of the host computer.
IP Address This field displays the IP address relative to the Host Name field.
MAC Address This field displays the MAC (Media Access Control) address of the computer with the
displayed host name.
Every Ethernet device has a unique MAC address. The MAC address is assigned at
the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
P-660H/HW/W-T Series User’ Guide
201 Chapter 17 Maintenance
17.4 Any IP Table Screen
Click Maintenance, Any IP. The Any IP table shows current read-only information
(including the IP address and the MAC address) of all network devices that use the Any IP
feature to communicate with the Prestige.
Figure 101 Any IP Table
The following table describes the labels in this screen.
17.5 Wireless Screen
The read-only screen displays information about the Prestige’s wireless LAN.
17.5.1 Association List
This screen displays the MAC address(es) of the wireless stations that are currently logged in
to the network. Click Wireless LAN and then Association List to open the screen shown next.
Table 65 Any IP Table
LABEL DESCRIPTION
#This field displays the index number.
IP Address This field displays the IP address of the network device.
MAC Address This field displays the MAC (Media Access Control) address of the computer with the
displayed IP address.
Every Ethernet device has a unique MAC address. The MAC address is assigned at
the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
Refresh Click Refresh to update this screen.
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 202

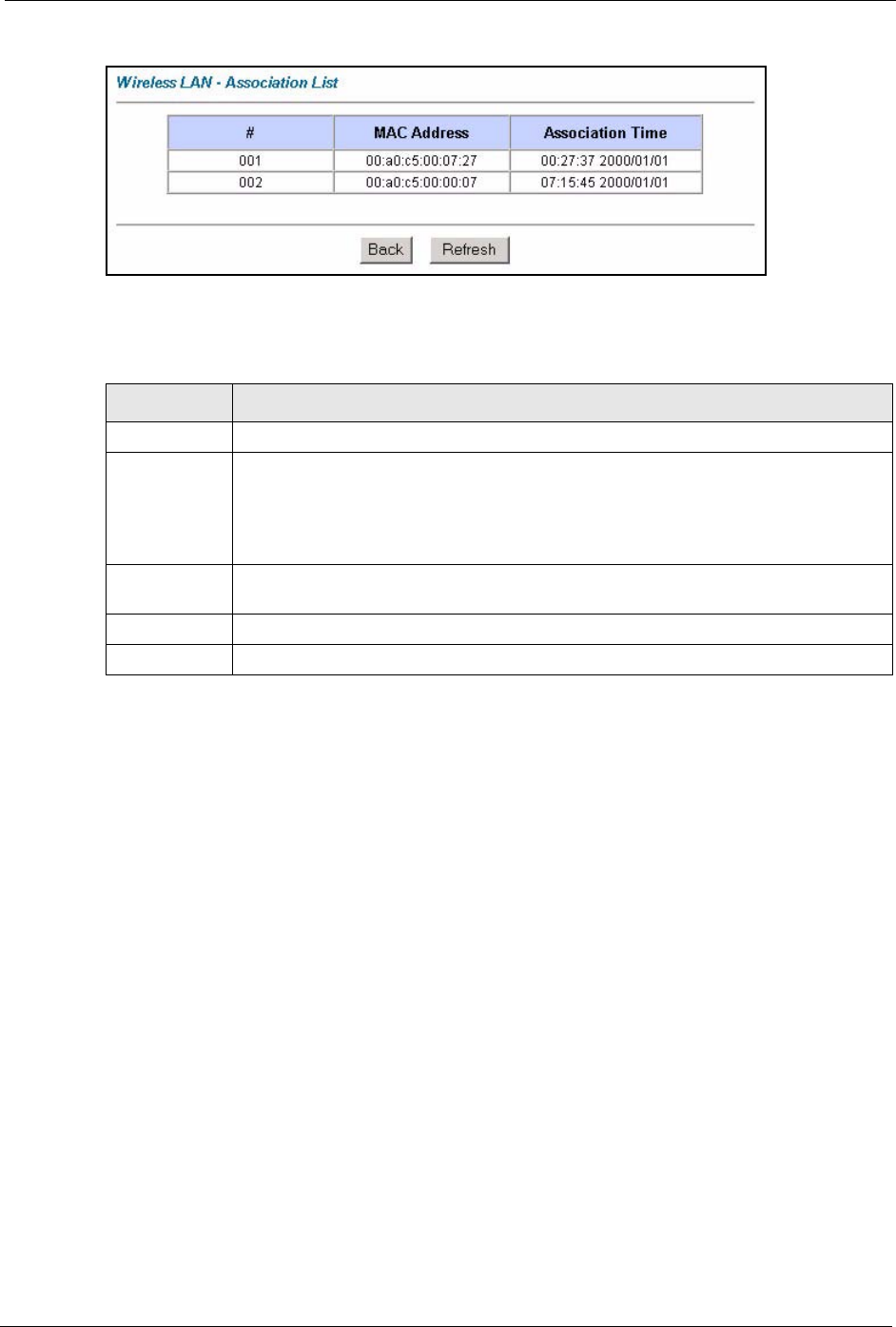

Figure 102 Association List
The following table describes the fields in this screen.
17.6 Diagnostic Screens
These read-only screens display information to help you identify problems with the Prestige.
17.6.1 General Diagnostic
Click Diagnostic and then General to open the screen shown next.
Table 66 Association List
LABEL DESCRIPTION
#This is the index number of an associated wireless station.
MAC Address This field displays the MAC (Media Access Control) address of an associated wireless
station.
Every Ethernet device has a unique MAC address. The MAC address is assigned at
the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
Association
Time
This field displays the time a wireless station is associated to the Prestige.
Back Click Back to return to the previous screen.
Refresh Click Refresh to renew the information in the table.
P-660H/HW/W-T Series User’ Guide
203 Chapter 17 Maintenance

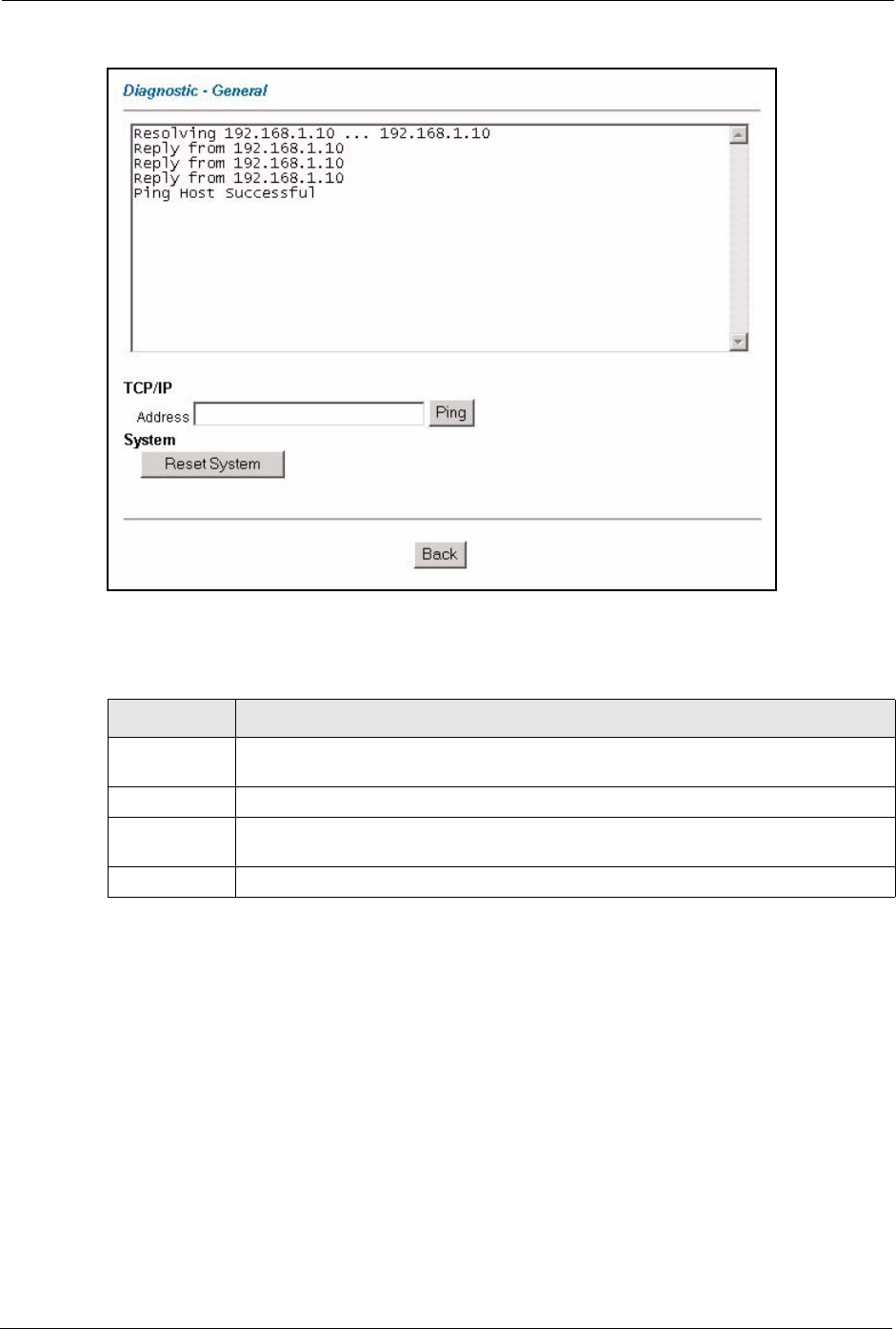

Figure 103 Diagnostic: General
The following table describes the fields in this screen.
17.6.2 DSL Line Diagnostic
Click Diagnostic and then DSL Line to open the screen shown next.
Table 67 Diagnostic: General
LABEL DESCRIPTION
TCP/IP
Address
Type the IP address of a computer that you want to ping in order to test a connection.
Ping Click this button to ping the IP address that you entered.
Reset System Click this button to reboot the Prestige. A warning dialog box is then displayed asking
you if you're sure you want to reboot the system. Click OK to proceed.
Back Click this button to go back to the main Diagnostic screen.
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 204

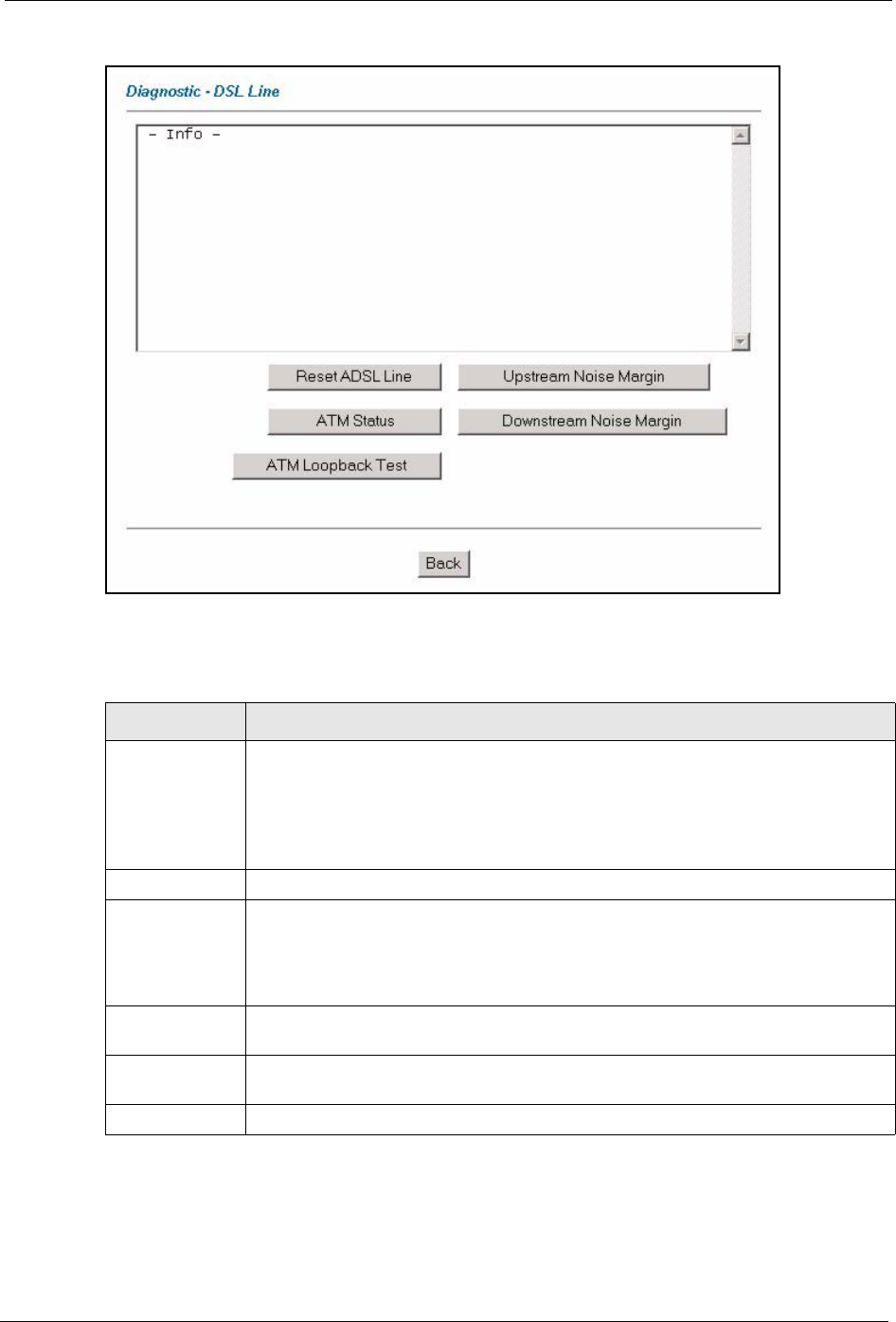

Figure 104 Diagnostic: DSL Line
The following table describes the fields in this screen.
Table 68 Diagnostic: DSL Line
LABEL DESCRIPTION
Reset ADSL
Line
Click this button to reinitialize the ADSL line. The large text box above then displays
the progress and results of this operation, for example:
"Start to reset ADSL
Loading ADSL modem F/W...
Reset ADSL Line Successfully!"
ATM Status Click this button to view ATM status.
ATM Loopback
Tes t
Click this button to start the ATM loopback test. Make sure you have configured at
least one PVC with proper VPIs/VCIs before you begin this test. The Prestige sends
an OAM F5 packet to the DSLAM/ATM switch and then returns it (loops it back) to the
Prestige. The ATM loopback test is useful for troubleshooting problems with the
DSLAM and ATM network.
Upstream Noise
Margin
Click this button to display the upstream noise margin.
Downstream
Noise Margin
Click this button to display the downstream noise margin.
Back Click this button to go back to the main Diagnostic screen.
P-660H/HW/W-T Series User’ Guide
205 Chapter 17 Maintenance
17.7 Firmware Upgrade
Find firmware at www.zyxel.com in a file that (usually) uses the system model name with
a.bin extension, for example, "Prestige.bin". The upload process uses HTTP (Hypertext
Transfer Protocol) and may take up to two minutes. After a successful upload, the system will
reboot. See Chapter 33 on page 306 for upgrading firmware using FTP/TFTP commands.
Only use firmware for your device’s specific model. Refer to the label on the bottom of your
device.
Click Firmware to open the following screen. Follow the instructions in this screen to upload
firmware to your Prestige.

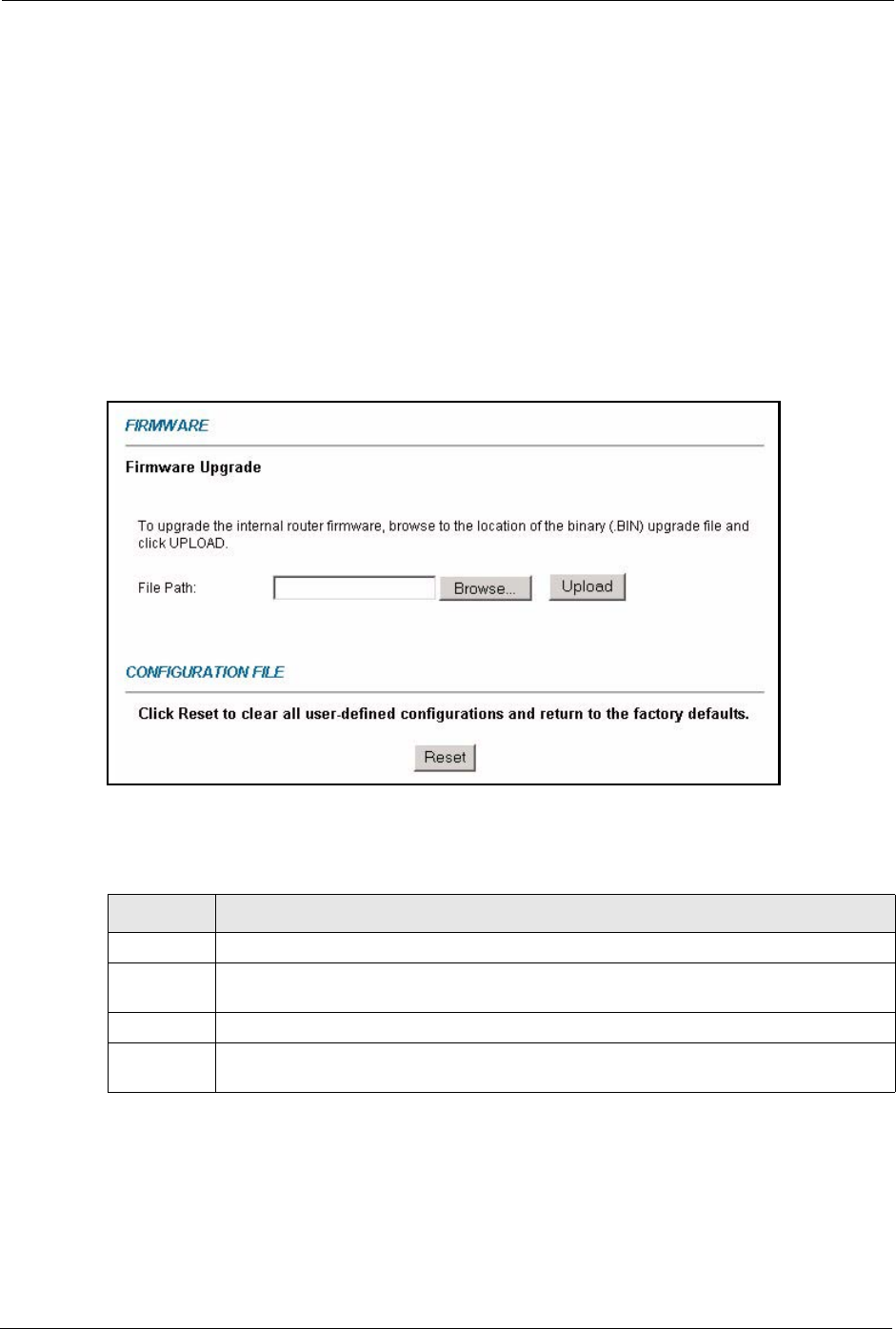

Figure 105 Firmware Upgrade
The following table describes the labels in this screen.
Note: Do NOT turn off the Prestige while firmware upload is in progress!
After you see the Firmware Upload in Process screen, wait two minutes before logging into
the Prestige again.
Table 69 Firmware Upgrade
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse ... to find it.
Browse... Click Browse... to find the .bin file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to two minutes.
Reset Click this button to clear all user-entered configuration information and return the
Prestige to its factory defaults.
P-660H/HW/W-T Series User’ Guide
Chapter 17 Maintenance 206
The Prestige automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.

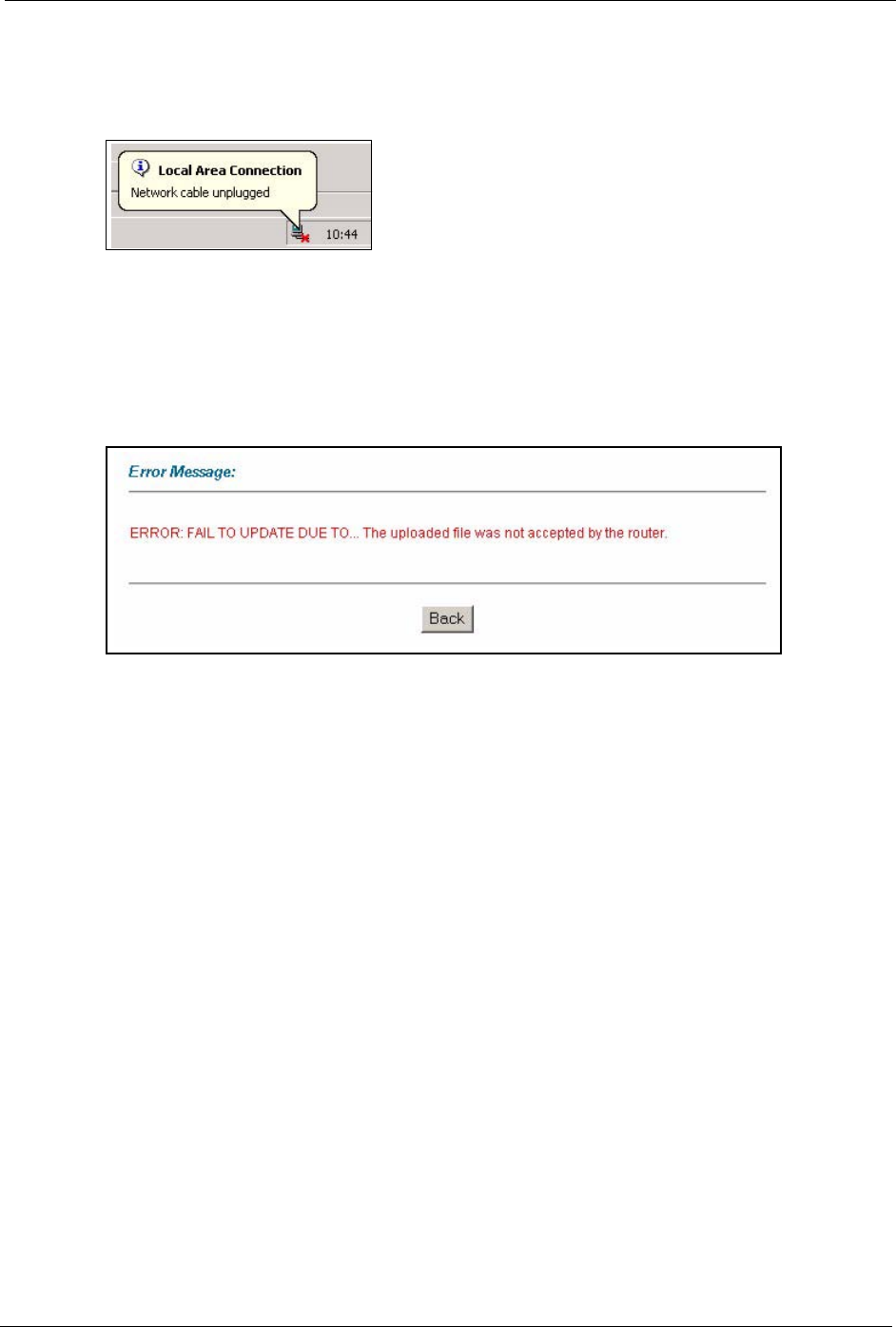

Figure 106 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the System Status
screen.
If the upload was not successful, the following screen will appear. Click Back to go back to
the Firmware screen.
Figure 107 Error Message
P-660H/HW/W-T Series User’ Guide
207 Chapter 17 Maintenance
P-660H/HW/W-T Series User’ Guide
Chapter 18 Introducing the SMT 208
CHAPTER 18
Introducing the SMT
This chapter explains how to access and navigate the System Management Terminal and gives
an overview of its menus.
18.1 SMT Introduction
The Prestige’s SMT (System Management Terminal) is a menu-driven interface that you can
access from a terminal emulator over a telnet connection. This chapter shows you how to
access the SMT (System Management Terminal) menus via Telnet, how to navigate the SMT
and how to configure SMT menus.
18.1.1 Procedure for SMT Configuration via Telnet
The following procedure details how to telnet into your Prestige.
1In Windows, click Start (usually in the bottom left corner), Run and then type "telnet
192.168.1.1" (the default IP address) and click OK.
2Enter “1234” in the Password field.
3After entering the password you will see the main menu.
Please note that if there is no activity for longer than five minutes (default timeout period)
after you log in, your Prestige will automatically log you out. You will then have to telnet into
the Prestige again.
18.1.2 Entering Password
The login screen appears after you press [ENTER], prompting you to enter the password, as
shown next.
For your first login, enter the default password "1234". As you type the password, the screen
displays an asterisk "*" for each character you type.
Please note that if there is no activity for longer than five minutes after you log in, your
Prestige will automatically log you out.
P-660H/HW/W-T Series User’ Guide
209 Chapter 18 Introducing the SMT
Figure 108 Login Screen
18.1.3 Prestige SMT Menus Overview
The following table gives you an overview of your Prestige’s various SMT menus.
Enter Password: ****
Table 70 SMT Menus Overview
MENUS SUB MENUS
1 General Setup 1.1 Configure Dynamic DNS
2 WAN Backup Setup
3 LAN Setup 3.1 LAN Port Filter Setup
3.2 TCP/IP and DHCP Setup 3.2.1 IP Alias Setup
3.5 Wireless LAN Setup 3.5.1 WLAN MAC Address
Filter
4 Internet Access Setup
11 Remote Node Setup 11.1 Remote Node Profile
11.3 Remote Node Network Layer
Options
11.5 Remote Node Filter
11.6 Remote Node ATM Layer
Options
11.8 Advance Setup Options (PPPoE
passthrough)
12 Static Routing Setup 12.1 Edit Static Route Setup 12.1.1 Edit IP Static Route
12.3 Bridge Static Route Setup 12.3.1 Edit Bridge Static Route
14 Dial-in User Setup 14.1 Edit Dial-in User
15 NAT Setup 15.1 Address Mapping Sets 15.1.x Address Mapping Rules 15.1.x.x Address
Mapping Rule
15.2 NAT Server Sets 15.2.x NAT Server Setup
21 Filter and Firewall
Rule Setup
21.1 Filter Setup 21.1 Filter Rules Summary 21.1.x.1 Generic
Filter Rule
21.1.x.1 TCP/IP
Filter Rule
21.2 Firewall Setup
22 SNMP Configuration
23 System Security 23.1 Change Password
23.2 RADIUS Server
23.4 IEEE 802.1X
P-660H/HW/W-T Series User’ Guide
Chapter 18 Introducing the SMT 210
18.2 Navigating the SMT Interface
The SMT (System Management Terminal) is the interface that you use to configure your
Prestige.
Several operations that you should be familiar with before you attempt to modify the
configuration are listed in the table below.
24 System Maintenance 24.1 Status
24.2 System Information and Console
Port Speed
24.2.1 Information
24.2.2 Change Console Port
Speed
24.3 Log and Trace 24.3.1 View Error Log
24.3.2 UNIX Syslog
24.4 Diagnostic
24.5 Backup Configuration
24.6 Restore Configuration
24.7 Upload Firmware 24.7.1 Upload System
Firmware
24.7.2 Upload System
Configuration File
24.8 Command Interpreter Mode
24.9 Call Control 24.9.1 Budget Management
24.10 Time and Date Setting
24.11 Remote Management Control
25 IP Routing Policy
Setup
25.1 IP Routing Policy Setup 25.1.1 IP Routing Policy
26 Schedule Setup 26.1 Schedule Set Setup
Table 70 SMT Menus Overview (continued)
MENUS SUB MENUS
Table 71 Navigating the SMT Interface
OPERATION KEY STROKE DESCRIPTION
Move down to
another menu
[ENTER] To move forward to a submenu, type in the number of the
desired submenu and press [ENTER].
Move up to a
previous menu
[ESC] Press [ESC] to move back to the previous menu.
Move to a hidden
menu
Press [SPACE
BAR] to change
No to Yes then
press [ENTER].
Fields beginning with "Edit" lead to hidden menus and have a
default setting of No. Press [SPACE BAR] once to change No
to Yes, then press [ENTER] to go to the "hidden" menu.
Move the cursor [ENTER] or [UP]/
[DOWN] arrow
keys.
Within a menu, press [ENTER] to move to the next field. You
can also use the [UP]/[DOWN] arrow keys to move to the
previous and the next field, respectively.
P-660H/HW/W-T Series User’ Guide
211 Chapter 18 Introducing the SMT
After you enter the password, the SMT displays the main menu, as shown next.
18.2.1 System Management Terminal Interface Summary
Entering
information
Type in or press
[SPACE BAR],
then press
[ENTER].
You need to fill in two types of fields. The first requires you to
type in the appropriate information. The second allows you to
cycle through the available choices by pressing [SPACE BAR].
Required fields <? > or
ChangeMe
All fields with the symbol <?> must be filled in order to be able
to save the new configuration.
All fields with ChangeMe must not be left blank in order to be
able to save the new configuration.
N/A fields <N/A> Some of the fields in the SMT will show a <N/A>. This symbol
refers to an option that is Not Applicable.
Save your
configuration
[ENTER] Save your configuration by pressing [ENTER] at the message
"Press ENTER to confirm or ESC to cancel". Saving the data on
the screen will take you, in most cases to the previous menu.
Exit the SMT Type 99, then press [ENTER].Type 99 at the main menu prompt
and press [ENTER] to exit the SMT interface.
Table 72 SMT Main Menu
Copyright (c) 1994 - 2004 ZyXEL Communications Corp.
Prestige 660W-T1 Main Menu
Getting Started Advanced Management
1. General Setup 21. Filter and Firewall Setup
2. WAN Backup Setup 22. SNMP Configuration
3. LAN Setup 23. System Security
4. Internet Access Setup 24. System Maintenance
25. IP Routing Policy Setup
Advanced Applications 26. Schedule Setup
11. Remote Node Setup
12. Static Routing Setup
14. Dial-in User Setup 99. Exit
15. NAT Setup
Enter Menu Selection Number:
Table 71 Navigating the SMT Interface
OPERATION KEY STROKE DESCRIPTION
Table 73 Main Menu Summary
#MENU TITLE DESCRIPTION
1 General Setup Use this menu to set up your general information.
2 WAN Backup Setup Use this menu to setup traffic redirect and dial-back up.
P-660H/HW/W-T Series User’ Guide
Chapter 18 Introducing the SMT 212
18.3 Changing the System Password
Change the Prestige default password by following the steps shown next.
1Enter 23 in the main menu to display Menu 23 - System Security.
2Enter 1 to display Menu 23.1 - System Security - Change Password as shown next.
3Type your existing system password in the Old Password field, for example “1234", and
press [ENTER].
Figure 109 Menu 23.1 Change Password
4Type your new system password in the New Password field (up to 30 characters), and
press [ENTER].
5Re-type your new system password in the Retype to confirm field for confirmation and
press [ENTER].
3 LAN Setup Use this menu to set up your wireless LAN and LAN connection.
4 Internet Access Setup A quick and easy way to set up an Internet connection.
11 Remote Node Setup Use this menu to set up the Remote Node for LAN-to-LAN
connection, including Internet connection.
12 Static Routing Setup Use this menu to set up static routes.
14 Dial-in User Setup Use this menu to set up local user profiles on the Prestige.
15 NAT Setup Use this menu to specify inside servers when NAT is enabled.
21 Filter and Firewall Setup Use this menu to configure filters, activate/deactivate the firewall
and view the firewall log.
22 SNMP Configuration Use this menu to set up SNMP related parameters.
23 System Security Use this menu to set up wireless security and change your
password.
24 System Maintenance This menu provides system status, diagnostics, software upload,
etc.
25 IP Routing Policy Setup Use this menu to configure your IP routing policy.
26 Schedule Setup Use this menu to schedule outgoing calls.
99 Exit Use this to exit from SMT and return to a blank screen.
Table 73 Main Menu Summary
#MENU TITLE DESCRIPTION
Menu 23.1 - System Security - Change Password
Old Password= ?
New Password= ?
Retype to confirm=?
Enter here to CONFIRM or ESC to CANCEL:
P-660H/HW/W-T Series User’ Guide
213 Chapter 18 Introducing the SMT
Note: Note that as you type a password, the screen displays an “*” for each character
you type.
P-660H/HW/W-T Series User’ Guide
Chapter 19 Menu 1 General Setup 214
CHAPTER 19
Menu 1 General Setup
Menu 1 - General Setup contains administrative and system-related information.
19.1 General Setup
Menu 1 — General Setup contains administrative and system-related information (shown
next). The System Name field is for identification purposes. However, because some ISPs
check this name you should enter your computer's "Computer Name".
• In Windows 95/98 click Start, Settings, Control Panel, Network. Click the
Identification tab, note the entry for the Computer name field and enter it as the
Prestige System Name.
• In Windows 2000 click Start, Settings, Control Panel and then double-click System.
Click the Network Identification tab and then the Properties button. Note the entry for
the Computer name field and enter it as the Prestige System Name.
• In Windows XP, click start, My Computer, View system information and then click
the Computer Name tab. Note the entry in the Full computer name field and enter it as
the Prestige System Name.
The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave
this blank, the domain name obtained by DHCP from the ISP is used. While you must enter
the host name (System Name) on each individual computer, the domain name can be assigned
from the Prestige via DHCP.
19.2 Procedure To Configure Menu 1
Enter 1 in the Main Menu to open Menu 1 — General Setup (shown next).
P-660H/HW/W-T Series User’ Guide
215 Chapter 19 Menu 1 General Setup
Figure 110 Menu 1 General Setup
Fill in the required fields. Refer to the table shown next for more information about these
fields.
19.2.1 Procedure to Configure Dynamic DNS
Note: If you have a private WAN IP address, then you cannot use dynamic DNS.
To configure dynamic DNS, go to Menu 1 — General Setup and select Yes in the Edit
Dynamic DNS field. Press [ENTER] to display Menu 1.1— Configure Dynamic DNS as
shown next.
Menu 1 General Setup
System Name= ?
Location=
Contact Person's Name=
Domain Name=
Edit Dynamic DNS= No
Route IP= Yes
Bridge= No
Press ENTER to Confirm or ESC to Cancel:
Table 74 Menu 1 General Setup
FIELD DESCRIPTION
System Name Choose a descriptive name for identification purposes. This name can be up to
30 alphanumeric characters long. Spaces are not allowed, but dashes “-” and
underscores "_" are accepted.
Location (optional) Enter the geographic location (up to 31 characters) of your Prestige.
Contact Person's
Name (optional)
Enter the name (up to 30 characters) of the person in charge of this Prestige.
Domain Name Enter the domain name (if you know it) here. If you leave this field blank, the ISP
may assign a domain name via DHCP. You can go to menu 24.8 and type "sys
domainname" to see the current domain name used by your gateway.
If you want to clear this field just press the [SPACE BAR]. The domain name
entered by you is given priority over the ISP assigned domain name.
Edit Dynamic DNS Press the [SPACE BAR] to select Yes or No (default). Select Yes to configure
Menu 1.1 — Configure Dynamic DNS (discussed next).
Route IP Set this field to Yes to enable or No to disable IP routing. You must enable IP
routing for Internet access.
Bridge Turn on/off bridging for protocols not supported (for example, SNA) or not turned
on in the previous Route IP field.
Select Yes to turn bridging on; select No to turn bridging off.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
Chapter 19 Menu 1 General Setup 216
Figure 111 Menu 1.1 Configure Dynamic DNS
Follow the instructions in the next table to configure dynamic DNS parameters.
Menu 1.1 - Configure Dynamic DNS
Service Provider= WWW.DynDNS.ORG
Active= No
Host=
EMAIL=
USER=
Password= ********
Enable Wildcard= No
Press ENTER to Confirm or ESC to Cancel:
Table 75 Menu 1.1 Configure Dynamic DNS
FIELD DESCRIPTION
Service Provider This is the name of your dynamic DNS service provider.
Active Press [SPACE BAR] to select Yes and then press [ENTER] to make dynamic DNS
active.
Host Enter the domain name assigned to your Prestige by your dynamic DNS provider.
EMAIL Enter your e-mail address.
User Enter your user name.
Password Enter the password assigned to you.
Enable Wildcard Your Prestige supports DYNDNS Wildcard. Press [SPACE BAR] and then [ENTER]
to select Yes or No This field is N/A when you choose DDNS client as your service
provider.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
217 Chapter 19 Menu 1 General Setup
P-660H/HW/W-T Series User’ Guide
Chapter 20 Menu 2 WAN Backup Setup 218
CHAPTER 20
Menu 2 WAN Backup Setup
This chapter describes how to configure traffic redirect and dial-backup using menu 2 and 2.1.
20.1 Introduction to WAN Backup Setup
This chapter explains how to configure the Prestige for traffic redirect and dial backup
connections.
20.2 Configuring Dial Backup in Menu 2
From the main menu, enter 2 to open menu 2.
Figure 112 Menu 2 WAN Backup Setup
The following table describes the fields in this menu.
Menu 2 - Wan Backup Setup
Check Mechanism = DSL Link
Check WAN IP Address1 = 0.0.0.0
Check WAN IP Address2 = 0.0.0.0
Check WAN IP Address3 = 0.0.0.0
KeepAlive Fail Tolerance = 0
Recovery Interval(sec) = 0
ICMP Timeout(sec) = 0
Traffic Redirect = No
Press ENTER to Confirm or ESC to Cancel:
Table 76 Menu 2 WAN Backup Setup
FIELD DESCRIPTION
Check Mechanism Press [SPACE BAR] and then press [ENTER] to select the method that the
Prestige uses to check the DSL connection.
Select DSL Link to have the Prestige check the DSL connection’s physical
layer. Select ICMP to have the Prestige periodically ping the IP addresses
configured in the Check WAN IP Address fields.
Check WAN IP
Address1-3
Configure this field to test your Prestige's WAN accessibility. Type the IP
address of a reliable nearby computer (for example, your ISP's DNS server
address). When using a WAN backup connection, the Prestige periodically
pings the addresses configured here and uses the other WAN backup
connection (if configured) if there is no response.
P-660H/HW/W-T Series User’ Guide
219 Chapter 20 Menu 2 WAN Backup Setup
20.2.1 Traffic Redirect Setup
Configure parameters that determine when the Prestige will forward WAN traffic to the
backup gateway using Menu 2.1 — Traffic Redirect Setup.
Figure 113 Menu 2.1Traffic Redirect Setup
The following table describes the fields in this menu.
KeepAlive Fail
Tolerance
Type the number of times (2 recommended) that your Prestige may ping the IP
addresses configured in the Check WAN IP Address field without getting a
response before switching to a WAN backup connection (or a different WAN
backup connection).
Recovery Interval(sec) When the Prestige is using a lower priority connection (usually a WAN backup
connection), it periodically checks to whether or not it can use a higher priority
connection.
Type the number of seconds (30 recommended) for the Prestige to wait
between checks. Allow more time if your destination IP address handles lots of
traffic.
ICMP Timeout Type the number of seconds for an ICMP session to wait for the ICMP
response
Traffic Redirect Press [SPACE BAR] to select Yes or No.
Select Yes and press [ENTER] to configure Menu 2.1 Traffic Redirect Setup.
Select No (default) if you do not want to configure this feature.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 76 Menu 2 WAN Backup Setup (continued)
FIELD DESCRIPTION
Menu 2.1 - Traffic Redirect Setup
Active= No
Configuration:
Backup Gateway IP Address= 0.0.0.0
Metric= 15
Press ENTER to Confirm or ESC to Cancel:
Table 77 Menu 2.1Traffic Redirect Setup
FIELD DESCRIPTION
Active. Press [SPACE BAR] and select Yes (to enable) or No (to disable) traffic redirect
setup. The default is No
Configuration
Backup Gateway
IP Address
Enter the IP address of your backup gateway in dotted decimal notation.
The Prestige automatically forwards traffic to this IP address if the Prestige’s
Internet connection terminates.
P-660H/HW/W-T Series User’ Guide
Chapter 20 Menu 2 WAN Backup Setup 220
Metric This field sets this route's priority among the routes the Prestige uses.
The metric represents the "cost of transmission". A router determines the best route
for transmission by choosing a path with the lowest "cost". RIP routing uses hop
count as the measurement of cost, with a minimum of "1" for directly connected
networks. The number must be between "1" and "15"; a number greater than "15"
means the link is down. The smaller the number, the lower the "cost"
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 77 Menu 2.1Traffic Redirect Setup
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
221 Chapter 20 Menu 2 WAN Backup Setup
P-660H/HW/W-T Series User’ Guide
Chapter 21 Menu 3 LAN Setup 222
CHAPTER 21
Menu 3 LAN Setup
This chapter covers how to configure your wired Local Area Network (LAN) settings.
21.1 LAN Setup
This section describes how to configure the Ethernet using Menu 3 — LAN Setup. From the
main menu, enter 3 to display menu 3.
Figure 114 Menu 3 LAN Setup
21.1.1 General Ethernet Setup
This menu allows you to specify filter set(s) that you wish to apply to the Ethernet traffic. You
seldom need to filter Ethernet traffic; however, the filter sets may be useful to block certain
packets, reduce traffic and prevent security breaches.
Figure 115 Menu 3.1 LAN Port Filter Setup
If you need to define filters, please read Chapter 29 on page 272 first, then return to this menu
to define the filter sets.
Menu 3 - LAN Setup
1. LAN Port Filter Setup
2. TCP/IP and DHCP Setup
5. Wireless LAN Setup
Enter Menu Selection Number:
Menu 3.1 - LAN Port Filter Setup
Input Filter Sets:
protocol filters=
device filters=
Output Filter Sets:
protocol filters=
device filters=
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
223 Chapter 21 Menu 3 LAN Setup
21.2 Protocol Dependent Ethernet Setup
Depending on the protocols for your applications, you need to configure the respective
Ethernet Setup, as outlined below.
• TCP/IP Ethernet setup
• Bridging Ethernet setup
21.3 TCP/IP Ethernet Setup and DHCP
Use menu 3.2 to configure your Prestige for TCP/IP.
To edit menu 3.2, enter 3 from the main menu to display Menu 3 — LAN Setup. When menu
3 appears, press 2 and press [ENTER] to display Menu 3.2 — TCP/IP and DHCP Ethernet
Setup, as shown next:
Figure 116 Menu 3.2 TCP/IP and DHCP Ethernet Setup
Menu 3.2 - TCP/IP and DHCP Setup
DHCP Setup
DHCP= Server
Client IP Pool Starting Address= 192.168.1.33
Size of Client IP Pool= 32
Primary DNS Server= 0.0.0.0
Secondary DNS Server= 0.0.0.0
Remote DHCP Server= N/A
TCP/IP Setup:
IP Address= 192.168.1.1
IP Subnet Mask= 255.255.255.0
RIP Direction= None
Version= N/A
Multicast= None
IP Policies=
Edit IP Alias= No
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 21 Menu 3 LAN Setup 224
Follow the instructions in the following table on how to configure the DHCP fields.
Follow the instructions in the following table to configure TCP/IP parameters for the Ethernet port.
Table 78 DHCP Ethernet Setup
FIELD DESCRIPTION
DHCP Setup
DHCP If set to Server, your Prestige can assign IP addresses, an IP default
gateway and DNS servers to Windows 95, Windows NT and other systems
that support the DHCP client.
If set to None, the DHCP server will be disabled.
If set to Relay, the Prestige acts as a surrogate DHCP server and relays
DHCP requests and responses between the remote server and the clients.
Enter the IP address of the actual, remote DHCP server in the Remote
DHCP Server in this case.
When DHCP server is used, the following items need to be set:
Client IP Pool Starting
Address
This field specifies the first of the contiguous addresses in the IP address
pool.
Size of Client IP Pool This field specifies the size or count of the IP address pool.
Primary DNS Server
Secondary DNS Server
Enter the IP addresses of the DNS servers. The DNS servers are passed to
the DHCP clients along with the IP address and the subnet mask.
Remote DHCP Serve If Relay is selected in the DHCP field above then enter the IP address of the
actual remote DHCP server here.
Table 79 TCP/IP Ethernet Setup
FIELD DESCRIPTION
TCP/IP Setup
IP Address Enter the (LAN) IP address of your Prestige in dotted decimal notation
IP Subnet Mask Your Prestige will automatically calculate the subnet mask based on the IP address
that you assign. Unless you are implementing subnetting, use the subnet mask
computed by the Prestige (refer to the appendices for more information).
RIP Direction Press [SPACE BAR] to select the RIP direction. Choices are Both, In Only, Out
Only or None.
Version Press [SPACE BAR] to select the RIP version. Choices are RIP-1, RIP-2B or RIP-
2M.
Multicast IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to
establish membership in a Multicast group. The Prestige supports both IGMP
version 1 (IGMP-v1) and version 2 (IGMP-v2). Press the [SPACE BAR] to enable
IP Multicasting or select None to disable it.
IP Policies Create policies using SMT menu 25 and apply them on the Prestige LAN interface
here. You can apply up to four IP Policy sets (from twelve) by entering their numbers
separated by commas.
Edit IP Alias The Prestige supports three logical LAN interfaces via its single physical Ethernet
interface with the Prestige itself as the gateway for each LAN network. Press
[SPACE BAR] to change No to Yes and press [ENTER] to display Menu 3.2.1.
P-660H/HW/W-T Series User’ Guide
225 Chapter 21 Menu 3 LAN Setup
P-660H/HW/W-T Series User’ Guide
Chapter 22 Wireless LAN Setup 226
CHAPTER 22
Wireless LAN Setup
This chapter covers how to configure wireless LAN settings in SMT menu 3.5 for P-660HW
and P-660W.
22.1 Wireless LAN Overview
Refer to the chapter on the wireless LAN screens for wireless LAN background information.
22.2 Wireless LAN Setup
Use menu 3.5 to set up your Prestige as the wireless access point. To edit menu 3.5, enter 3
from the main menu to display Menu 3 – LAN Setup. When menu 3 appears, press 5 and then
press [ENTER] to display Menu 3.5 – Wireless LAN Setup as shown next.
Figure 117 Menu 3.5 - Wireless LAN Setup
The following table describes the fields in this menu.
Menu 3.5- Wireless LAN Setup
ESSID= Wireless
Hide ESSID= No
Channel ID= CH06 2437MHz
RTS Threshold= 2432
Frag. Threshold= 2432
WEP= Disable
Default Key= N/A
Key1= N/A
Key2= N/A
Key3= N/A
Key4= N/A
Edit MAC Address Filter= No
Press ENTER to Confirm or ESC to Cancel:
Table 80 Menu 3.5 - Wireless LAN Setup
FIELD DESCRIPTION
ESSID The ESSID (Extended Service Set IDentifier) identifies the AP to which the wireless
stations associate. Wireless stations associating to the Access Point must have the
same ESSID. Enter a descriptive name of up to 32 printable 7-bit ASCII characters.
Hide ESSID Press [SPACE BAR] and select Yes to hide the ESSID in the outgoing beacon frame so
a station cannot obtain the ESSID through passive scanning.
P-660H/HW/W-T Series User’ Guide
227 Chapter 22 Wireless LAN Setup
22.2.1 Wireless LAN MAC Address Filter
The next layer of security is MAC address filter. To allow a wireless station to associate with
the Prestige, enter the MAC address of the wireless LAN adapter on that wireless station in the
MAC address table.
Channel ID Press [SPACE BAR] to select a channel. This allows you to set the operating frequency/
channel depending on your particular region.
RTS
Threshold
RTS(Request To Send) threshold (number of bytes) enables RTS/CTS handshake. Data
with its frame size larger than this value will perform the RTS/CTS handshake. Setting
this attribute to be larger than the maximum MSDU (MAC Service Data Unit) size turns
off the RTS/CTS handshake. Setting this attribute to zero turns on the RTS/CTS
handshake. Enter a value between 0 and 2432.
Frag.
Threshold
The threshold (number of bytes) for the fragmentation boundary for directed messages.
It is the maximum data fragment size that can be sent. Enter a value between 256 and
2432.
WEP WEP (Wired Equivalent Privacy) provides data encryption to prevent wireless stations
from accessing data transmitted over the wireless network.
Select Disable allows wireless stations to communicate with the access points without
any data encryption.
Select 64-bit WEP or 128-bit WEP to for the type of data encryption. WEP causes
performance degradation.
Default Key Enter the number of the key as an active key.
Key 1 to Key
4
If you chose 64-bit WEP in the WEP Encryption field, then enter 5 characters or 10
hexadecimal characters ("0-9", "A-F") preceded by 0x for each key (1-4).
If you chose 128-bit WEP in the WEP Encryption field, then enter 13 characters or 26
hexadecimal characters ("0-9", "A-F") preceded by 0x for each key (1-4).
There are four data encryption keys to secure your data from eavesdropping by
unauthorized wireless users. The values for the keys must be set up exactly the same on
the access points as they are on the wireless stations.
Edit MAC
Address
Filter
To edit MAC address filtering table, press [SPACE BAR] to select Yes and press
[ENTER] to open menu 3.5.1.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 80 Menu 3.5 - Wireless LAN Setup (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
Chapter 22 Wireless LAN Setup 228
Figure 118 Menu 3.5.1 WLAN MAC Address Filtering
The following table describes the fields in this menu.
Menu 3.5.1 - WLAN MAC Address Filter
Active= No
Filter Action= Allowed Association
--------------------------------------------------------------------------
1= 00:00:00:00:00:00 13= 00:00:00:00:00:00 25= 00:00:00:00:00:00
2= 00:00:00:00:00:00 14= 00:00:00:00:00:00 26= 00:00:00:00:00:00
3= 00:00:00:00:00:00 15= 00:00:00:00:00:00 27= 00:00:00:00:00:00
4= 00:00:00:00:00:00 16= 00:00:00:00:00:00 28= 00:00:00:00:00:00
5= 00:00:00:00:00:00 17= 00:00:00:00:00:00 29= 00:00:00:00:00:00
6= 00:00:00:00:00:00 18= 00:00:00:00:00:00 30= 00:00:00:00:00:00
7= 00:00:00:00:00:00 19= 00:00:00:00:00:00 31= 00:00:00:00:00:00
8= 00:00:00:00:00:00 20= 00:00:00:00:00:00 32= 00:00:00:00:00:00
9= 00:00:00:00:00:00 21= 00:00:00:00:00:00
10= 00:00:00:00:00:00 22= 00:00:00:00:00:00
11= 00:00:00:00:00:00 23= 00:00:00:00:00:00
12= 00:00:00:00:00:00 24= 00:00:00:00:00:00
--------------------------------------------------------------------------
Enter here to CONFIRM or ESC to CANCEL:
Table 81 Menu 3.5.1 WLAN MAC Address Filtering
FIELD DESCRIPTION
Active To enable MAC address filtering, press [SPACE BAR] to select Yes and press
[ENTER].
Filter Action Define the filter action for the list of MAC addresses in the MAC address filter table.
To deny access to the Prestige, press [SPACE BAR] to select Deny Association and
press [ENTER]. MAC addresses not listed will be allowed to access the router.
The default action, Allowed Association, permits association with the Prestige. MAC
addresses not listed will be denied access to the router.
MAC Address Filter
Address 1. Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless stations that
are allowed or denied access to the Prestige in these address fields.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
229 Chapter 22 Wireless LAN Setup
P-660H/HW/W-T Series User’ Guide
Chapter 23 Internet Access 230
CHAPTER 23
Internet Access
This chapter shows you how to configure the LAN and WAN of your Prestige for Internet
access.
23.1 Internet Access Overview
Refer to the chapters on the web configurator’s wizard, LAN and WAN screens for more
background information on fields in the SMT screens covered in this chapter.
23.2 IP Policies
Traditionally, routing is based on the destination address only and the router takes the shortest
path to forward a packet. IP Policy Routing (IPPR) provides a mechanism to override the
default routing behavior and alter the packet forwarding based on the policy defined by the
network administrator. Policy-based routing is applied to incoming packets on a per interface
basis, prior to the normal routing. Create policies using SMT menu 25 and apply them on the
Prestige LAN and/or WAN interfaces using menus 3.2 (LAN) and 11.3 (WAN).
23.3 IP Alias
IP alias allows you to partition a physical network into different logical networks over the
same Ethernet interface. The Prestige supports three logical LAN interfaces via its single
physical Ethernet interface with the Prestige itself as the gateway for each LAN network.
When you use IP alias, you can also configure firewall rules to control access between the
LAN's logical networks (subnets).
Note: Make sure that the subnets of the logical networks do not overlap.
The following figure shows a LAN divided into subnets A, B, and C.
P-660H/HW/W-T Series User’ Guide
231 Chapter 23 Internet Access

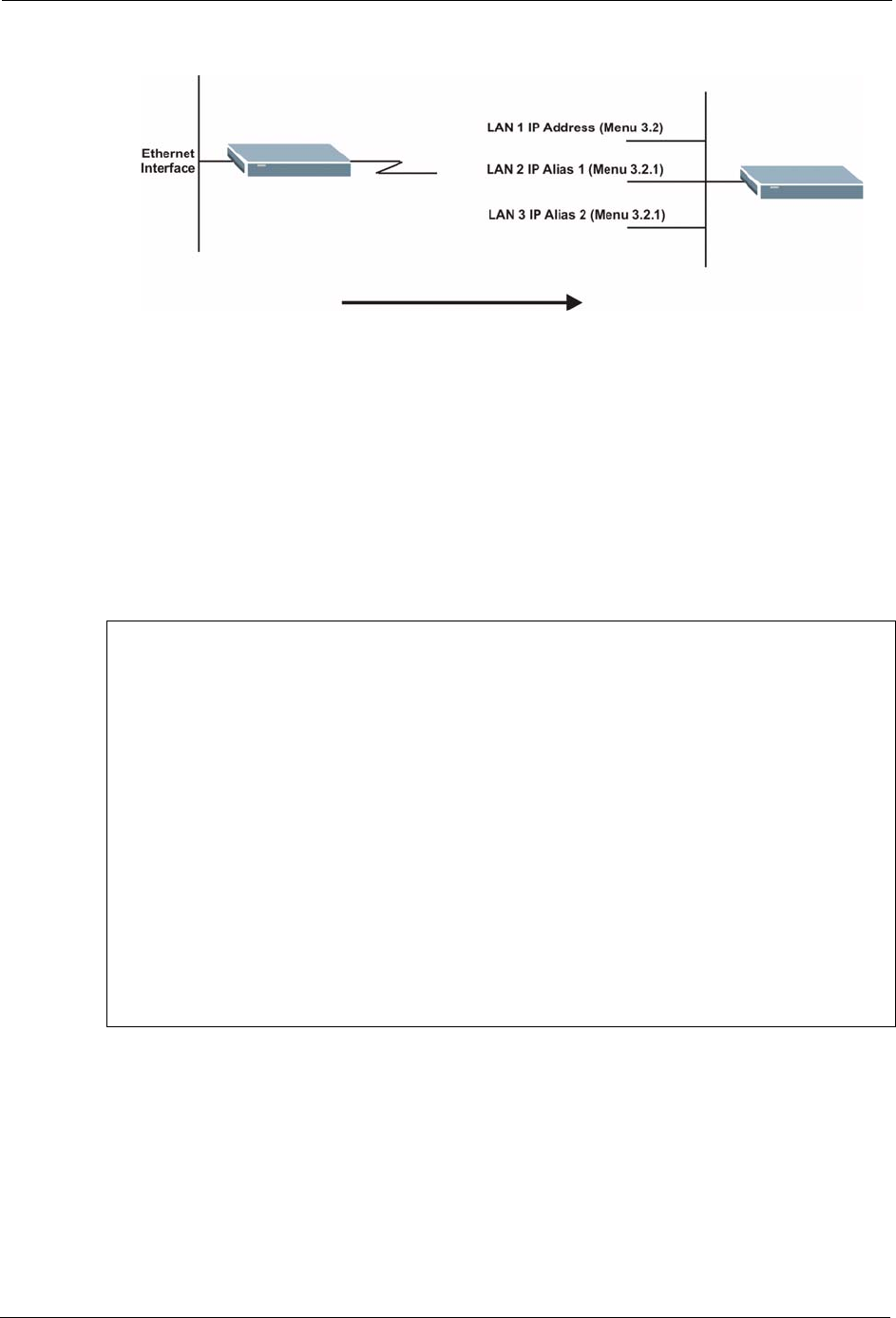

Figure 119 IP Alias Network Example
Use menu 3.2.1 to configure IP Alias on your Prestige.
23.4 IP Alias Setup
Use menu 3.2 to configure the first network. Move the cursor to Edit IP Alias field and press
[SPACEBAR] to choose Ye s and press [ENTER] to configure the second and third network.
Figure 120 Menu 3.2 TCP/IP and DHCP Setup
Pressing [ENTER] displays Menu 3.2.1 — IP Alias Setup, as shown next.
Menu 3.2 - TCP/IP and DHCP Setup
DHCP Setup
DHCP= Server
Client IP Pool Starting Address= 192.168.1.33
Size of Client IP Pool= 32
Primary DNS Server= 0.0.0.0
Secondary DNS Server= 0.0.0.0
Remote DHCP Server= N/A
TCP/IP Setup:
IP Address= 192.168.1.1
IP Subnet Mask= 255.255.255.0
RIP Direction= None
Version= N/A
Multicast= None
IP Policies=
Edit IP Alias= No
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 23 Internet Access 232
Figure 121 Menu 3.2.1 IP Alias Setup
Follow the instructions in the following table to configure IP Alias parameters.
23.5 Route IP Setup
The first step is to enable the IP routing in Menu 1 — General Setup.
To edit menu 1, type 1 in the main menu and press [ENTER]. Set the Route IP field to Yes
by pressing [SPACE BAR].
Menu 3.2.1 - IP Alias Setup
IP Alias 1= No
IP Address= N/A
IP Subnet Mask= N/A
RIP Direction= N/A
Version= N/A
Incoming protocol filters= N/A
Outgoing protocol filters= N/A
IP Alias 2= No
IP Address= N/A
IP Subnet Mask= N/A
RIP Direction= N/A
Version= N/A
Incoming protocol filters= N/A
Outgoing protocol filters= N/A
Enter here to CONFIRM or ESC to CANCEL:
Table 82 Menu 3.2.1 IP Alias Setup
FIELD DESCRIPTION
IP Alias Choose Yes to configure the LAN network for the Prestige.
IP Address Enter the IP address of your Prestige in dotted decimal notation
IP Subnet Mask Your Prestige will automatically calculate the subnet mask based on the IP address
that you assign. Unless you are implementing subnetting, use the subnet mask
computed by the Prestige
RIP Direction Press [SPACE BAR] to select the RIP direction. Choices are None, Both, In Only
or Out Only.
Version Press [SPACE BAR] to select the RIP version. Choices are RIP-1, RIP-2B or RIP-
2M.
Incoming
Protocol Filters
Enter the filter set(s) you wish to apply to the incoming traffic between this node and
the Prestige.
Outgoing
Protocol Filters
Enter the filter set(s) you wish to apply to the outgoing traffic between this node and
the Prestige.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
233 Chapter 23 Internet Access
Figure 122 Menu 1 General Setup
23.6 Internet Access Configuration
Menu 4 allows you to enter the Internet Access information in one screen. Menu 4 is actually
a simplified setup for one of the remote nodes that you can access in menu 11. Before you
configure your Prestige for Internet access, you need to collect your Internet account
information.
Use the Internet Account Information table in the Quick Start Guide to record your. Note that
if you are using PPPoA or PPPoE encapsulation, then the only ISP information you need is a
login name and password. You only need to know the Ethernet Encapsulation Gateway IP
address if you are using ENET ENCAP encapsulation.
From the main menu, type 4 to display Menu 4 - Internet Access Setup, as shown next.
Figure 123 Menu 4 Internet Access Setup
The following table contains instructions on how to configure your Prestige for Internet access
Menu 1 - General Setup
System Name= ?
Location= location
Contact Person's Name=
Domain Name=
Edit Dynamic DNS= No
Route IP= Yes
Bridge= No
Press ENTER to Confirm or ESC to Cancel:
Menu 4 - Internet Access Setup
ISP's Name= MyISP
Encapsulation= RFC 1483
Multiplexing= LLC-based
VPI #= 8
VCI #= 35
ATM QoS Type= CBR
Peak Cell Rate (PCR)= 0
Sustain Cell Rate (SCR)= 0
Maximum Burst Size (MBS)= 0
My Login= N/A
My Password= N/A
ENET ENCAP Gateway= N/A
IP Address Assignment= Static
IP Address= 0.0.0.0
Network Address Translation= SUA Only
Address Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 23 Internet Access 234
.
If all your settings are correct your Prestige should connect automatically to the Internet. If the
connection fails, note the error message that you receive on the screen and take the appropriate
troubleshooting steps.
Table 83 Menu 4 Internet Access Setup
FIELD DESCRIPTION
ISP’s Name Enter the name of your Internet Service Provider (ISP). This information is for
identification purposes only.
Encapsulation Press [SPACE BAR] to select the method of encapsulation used by your ISP.
Choices are PPPoE, PPPoA, RFC 1483 or ENET ENCAP.
Multiplexing Press [SPACE BAR] to select the method of multiplexing used by your ISP.
Choices are VC-based or LLC-based.
VPI # Enter the Virtual Path Identifier (VPI) assigned to you.
VCI # Enter the Virtual Channel Identifier (VCI) assigned to you.
ATM QoS Type Press [SPACE BAR] and select CBR (Continuous Bit Rate) to specify fixed
(always-on) bandwidth. Select UBR (Unspecified Bit Rate) for applications that are
non-time sensitive, such as e-mail. Select VBR (Variable Bit Rate) for bursty traffic
and bandwidth sharing with other applications.
Peak Cell Rate
(PCR)
This is the maximum rate at which the sender can send cells. Type the PCR.
Sustain Cell Rate
(SCR)= 0
Sustained Cell Rate is the mean cell rate of a bursty, on-off traffic source that can
be sent at the peak rate, and a parameter for burst-traffic. Type the SCR; it must
be less than the PCR.
Maximum Burst
Size (MBS)= 0
Refers to the maximum number of cells that can be sent at the peak rate. Type the
MBS. The MBS must be less than 65535.
My Login Configure the My Login and My Password fields for PPPoA and PPPoE
encapsulation only. Enter the login name that your ISP gives you. If you are using
PPPoE encapsulation, then this field must be of the form user@domain where
domain identifies your PPPoE service name.
My Password Enter the password associated with the login name above.
ENET ENCAP
Gateway
Enter the gateway IP address supplied by your ISP when you are using ENET
ENCAP encapsulation.
Idle Timeout This value specifies the number of idle seconds that elapse before the Prestige
automatically disconnects the PPPoE session.
IP Address
Assignment
Press [SPACE BAR] to select Static or Dynamic address assignment.
IP Address Enter the IP address supplied by your ISP if applicable.
Network Address
Translation
Press [SPACE BAR] to select None, SUA Only or Full Feature. Please see the
NAT chapter for more details on the SUA (Single User Account) feature.
Address Mapping
Set
Type the numbers of mapping sets (1-8) to use with NAT.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
235 Chapter 23 Internet Access
P-660H/HW/W-T Series User’ Guide
Chapter 24 Remote Node Configuration 236
CHAPTER 24
Remote Node Configuration
This chapter covers remote node configuration.
24.1 Remote Node Setup Overview
This section describes the protocol-independent parameters for a remote node. A remote node
is required for placing calls to a remote gateway. A remote node represents both the remote
gateway and the network behind it across a WAN connection. When you use menu 4 to set up
Internet access, you are configuring one of the remote nodes.
You first choose a remote node in Menu 11- Remote Node Setup. You can then edit that
node’s profile in menu 11.1, as well as configure specific settings in three submenus: edit IP
and bridge options in menu 11.3; edit ATM options in menu 11.6; and edit filter sets in menu
11.5.
24.2 Remote Node Setup
This section describes the protocol-independent parameters for a remote node.
24.2.1 Remote Node Profile
To configure a remote node, follow these steps:
1From the main menu, enter 11 to display Menu 11 - Remote Node Setup.
2When menu 11 appears, as shown in the following figure, type the number of the remote
node that you want to configure.
P-660H/HW/W-T Series User’ Guide
237 Chapter 24 Remote Node Configuration
Figure 124 Menu 11 Remote Node Setup
24.2.2 Encapsulation and Multiplexing Scenarios
For Internet access you should use the encapsulation and multiplexing methods used by your
ISP. Consult your telephone company for information on encapsulation and multiplexing
methods for LAN-to-LAN applications, for example between a branch office and corporate
headquarters. There must be prior agreement on encapsulation and multiplexing methods
because they cannot be automatically determined. What method(s) you use also depends on
how many VCs you have and how many different network protocols you need. The extra
overhead that ENET ENCAP encapsulation entails makes it a poor choice in a LAN-to-LAN
application. Here are some examples of more suitable combinations in such an application.
24.2.2.1 Scenario 1: One VC, Multiple Protocols
PPPoA (RFC-2364) encapsulation with VC-based multiplexing is the best combination
because no extra protocol identifying headers are needed. The PPP protocol already contains
this information.
24.2.2.2 Scenario 2: One VC, One Protocol (IP)
Selecting RFC-1483 encapsulation with VC-based multiplexing requires the least amount of
overhead (0 octets). However, if there is a potential need for multiple protocol support in the
future, it may be safer to select PPPoA encapsulation instead of RFC-1483, so you do not
need to reconfigure either computer later.
24.2.2.3 Scenario 3: Multiple VCs
If you have an equal number (or more) of VCs than the number of protocols, then select RFC-
1483 encapsulation and VC-based multiplexing.
Menu 11 - Remote Node Setup
1. MyISP (ISP, SUA)
2. ________
3. ________
4. ________
5. ________
6. ________
7. ________
8. ________
Enter Node # to Edit:
P-660H/HW/W-T Series User’ Guide
Chapter 24 Remote Node Configuration 238
Figure 125 Menu 11.1 Remote Node Profile
In Menu 11.1 – Remote Node Profile, fill in the fields as described in the following table.
Menu 11.1 - Remote Node Profile
Rem Node Name= MyISP Route= IP
Active= Yes Bridge= No
Encapsulation= RFC 1483 Edit IP/Bridge= No
Multiplexing= LLC-based Edit ATM Options= No
Service Name= N/A Edit Advance Options= N/A
Incoming: Telco Option:
Rem Login= N/A Allocated Budget(min)= N/A
Rem Password= N/A Period(hr)= N/A
Outgoing: Schedule Sets= N/A
My Login= N/A Nailed-Up Connection= N/A
My Password= N/A Session Options:
Authen= N/A Edit Filter Sets= No
Idle Timeout(sec)= N/A
Press ENTER to Confirm or ESC to Cancel:
Table 84 Menu 11.1 Remote Node Profile
FIELD DESCRIPTION
Rem Node Name Type a unique, descriptive name of up to eight characters for this node.
Active Press [SPACE BAR] and then [ENTER] to select Yes to activate or No to
deactivate this node. Inactive nodes are displayed with a minus sign –“ in SMT
menu 11.
Encapsulation PPPoA refers to RFC-2364 (PPP Encapsulation over ATM Adaptation Layer 5).
If RFC-1483 (Multiprotocol Encapsulation over ATM Adaptation Layer 5) of ENET
ENCAP are selected,
then the Rem Login, Rem Password, My Login, My Password and Authen
fields are not applicable (N/A).
Multiplexing Press [SPACE BAR] and then [ENTER] to select the method of multiplexing that
your ISP uses, either VC-based or LLC-based.
Service Name When using PPPoE encapsulation, type the name of your PPPoE service here.
Incoming:
Rem Login Type the login name that this remote node will use to call your Prestige. The login
name and the Rem Password will be used to authenticate this node.
Rem Password Type the password used when this remote node calls your Prestige.
Outgoing:
My Login Type the login name assigned by your ISP when the Prestige calls this remote
node.
My Password Type the password assigned by your ISP when the Prestige calls this remote
node.
Authen This field sets the authentication protocol used for outgoing calls. Options for this
field are:
CHAP/PAP – Your Prestige will accept either CHAP or PAP when requested by
this remote node.
CHAP – accept CHAP (Challenge Handshake Authentication Protocol) only.
P-660H/HW/W-T Series User’ Guide
239 Chapter 24 Remote Node Configuration
24.2.3 Outgoing Authentication Protocol
For obvious reasons, you should employ the strongest authentication protocol possible.
However, some vendors’ implementation includes specific authentication protocol in the user
profile. It will disconnect if the negotiated protocol is different from that in the user profile,
even when the negotiated protocol is stronger than specified. If the peer disconnects right after
a successful authentication, make sure that you specify the correct authentication protocol
when connecting to such an implementation.
PAP – accept PAP (Password Authentication Protocol) only.
Route This field determines the protocol used in routing. Options are IP and None.
Bridge When bridging is enabled, your Prestige will forward any packet that it does not
route to this remote node; otherwise, the packets are discarded. Select Yes to
enable and No to disable.
Edit IP/Bridge Press [SPACE BAR] to select Yes and press [ENTER] to display Menu 11.3 –
Remote Node Network Layer Options.
Edit ATM Options Press [SPACE BAR] to select Yes and press [ENTER] to display Menu 11.6 –
Remote Node ATM Layer Options.
Edit Advance
Options
This field is only available when you select PPPoE in the Encapsulation field.
Press [SPACE BAR] to select Yes and press [ENTER] to display Menu 11.8 –
Advance Setup Options.
Telco Option
Allocated Budget
(min)
This sets a ceiling for outgoing call time for this remote node. The default for this
field is 0 meaning no budget control.
Period (hr) This field is the time period that the budget should be reset. For example, if we
are allowed to call this remote node for a maximum of 10 minutes every hour,
then the Allocated Budget is (10 minutes) and the Period (hr) is 1 (hour).
Schedule Sets This field is only applicable for PPPoE and PPPoA encapsulation. You can apply
up to four schedule sets here. For more details please refer to Chapter 37 on
page 338.
Nailed up
Connection
This field is only applicable for PPPoE and PPPoA encapsulation. This field
specifies if you want to make the connection to this remote node a nailed-up
connection. More details are given earlier in this section.
Session Options
Edit Filter Sets Use [SPACE BAR] to choose Yes and press [ENTER] to open menu 11.5 to edit
the filter sets. See Chapter 29 on page 272 for more details.
Idle Timeout (sec) Type the number of seconds (0-9999) that can elapse when the Prestige is idle
(there is no traffic going to the remote node), before the Prestige automatically
disconnects the remote node. 0 means that the session will not timeout.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 84 Menu 11.1 Remote Node Profile (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
Chapter 24 Remote Node Configuration 240
24.3 Remote Node Network Layer Options
For the TCP/IP parameters, perform the following steps to edit Menu 11.3 – Remote Node
Network Layer Options as shown next.
1In menu 11.1, make sure IP is among the protocols in the Route field.
2Move the cursor to the Edit IP/Bridge field, press [SPACE BAR] to select Yes, then
press [ENTER] to display Menu 11.3 – Remote Node Network Layer Options.
Figure 126 Menu 11.3 Remote Node Network Layer Options
The next table explains fields in Menu 11.3 – Remote Node Network Layer Options.
Menu 11.3 - Remote Node Network Layer Options
IP Options: Bridge Options:
IP Address Assignment = Static Ethernet Addr Timeout(min)= N/A
Rem IP Addr = 0.0.0.0
Rem Subnet Mask= 0.0.0.0
My WAN Addr= 0.0.0.0
NAT= SUA Only
Address Mapping Set= N/A
Metric= 2
Private= No
RIP Direction= None
Version= RIP-1
Multicast= None
IP Policies=
Enter here to CONFIRM or ESC to CANCEL:
Table 85 Menu 11.3 Remote Node Network Layer Options
FIELD DESCRIPTION
IP Address
Assignment
Press [SPACE BAR] and then [ENTER] to select Dynamic if the remote node is using
a dynamically assigned IP address or Static if it is using a static (fixed) IP address.
You will only be able to configure this in the ISP node (also the one you configure in
menu 4), all other nodes are set to Static.
Rem IP Addr This is the IP address you entered in the previous menu.
Rem Subnet
Mask
Type the subnet mask assigned to the remote node.
My WAN Addr Some implementations, especially UNIX derivatives, require separate IP network
numbers for the WAN and LAN links and each end to have a unique address within
the WAN network number. In that case, type the IP address assigned to the WAN port
of your Prestige.
NOTE: Refers to local Prestige address, not the remote router address.
NAT Press [SPACE BAR] and then [ENTER] to select Full Feature if you have multiple
public WAN IP addresses for your Prestige.
Select SUA Only if you have just one public WAN IP address for your Prestige. The
SMT uses Address Mapping Set 255 (seeFigure 144 on page 257).
Select None to disable NAT.
P-660H/HW/W-T Series User’ Guide
241 Chapter 24 Remote Node Configuration
24.3.1 My WAN Addr Sample IP Addresses
The following figure uses sample IP addresses to help you understand the field of My WAN
Addr in menu 11.3. My WAN Addr indicates the local Prestige WAN IP (172.16.0.1 in the
following figure) while Rem IP Addr indicates the peer WAN IP (172.16.0.2 in the following
figure).
Address
Mapping Set
When Full Feature is selected in the NAT field, configure address mapping sets in
menu 15.1. Select one of the NAT server sets (2-10) in menu 15.2 (see Chapter 27 on
page 254 for details) and type that number here.
When SUA Only is selected in the NAT field, the SMT uses NAT server set 1 in menu
15.2 (see Chapter 27 on page 254 for details).
Metric The metric represents the cost of transmission for routing purposes. IP routing uses
hop count as the cost measurement, with a minimum of 1 for directly connected
networks. Type a number that approximates the cost for this link. The number need
not be precise, but it must be between 1 and 15. In practice, 2 or 3 is usually a good
number.
Private This determines if the Prestige will include the route to this remote node in its RIP
broadcasts. If set to Yes, this route is kept private and not included in RIP broadcast.
If No, the route to this remote node will be propagated to other hosts through RIP
broadcasts.
RIP Direction Press [SPACE BAR] and then [ENTER] to select the RIP Direction. Options are
Both, In Only, Out Only or None.
Version Press [SPACE BAR] and then [ENTER] to select the RIP version. Options are RIP-1,
RIP-2B or RIP-2M.
Multicast IGMP-v1 sets IGMP to version 1, IGMP-v2 sets IGMP to version 2 and None disables
IGMP.
IP Policies You can apply up to four IP Policy sets (from 12) by typing in their numbers separated
by commas. Configure the filter sets in menu 25 first (see Chapter 36 on page 328)
and then apply them here.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 85 Menu 11.3 Remote Node Network Layer Options (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
Chapter 24 Remote Node Configuration 242

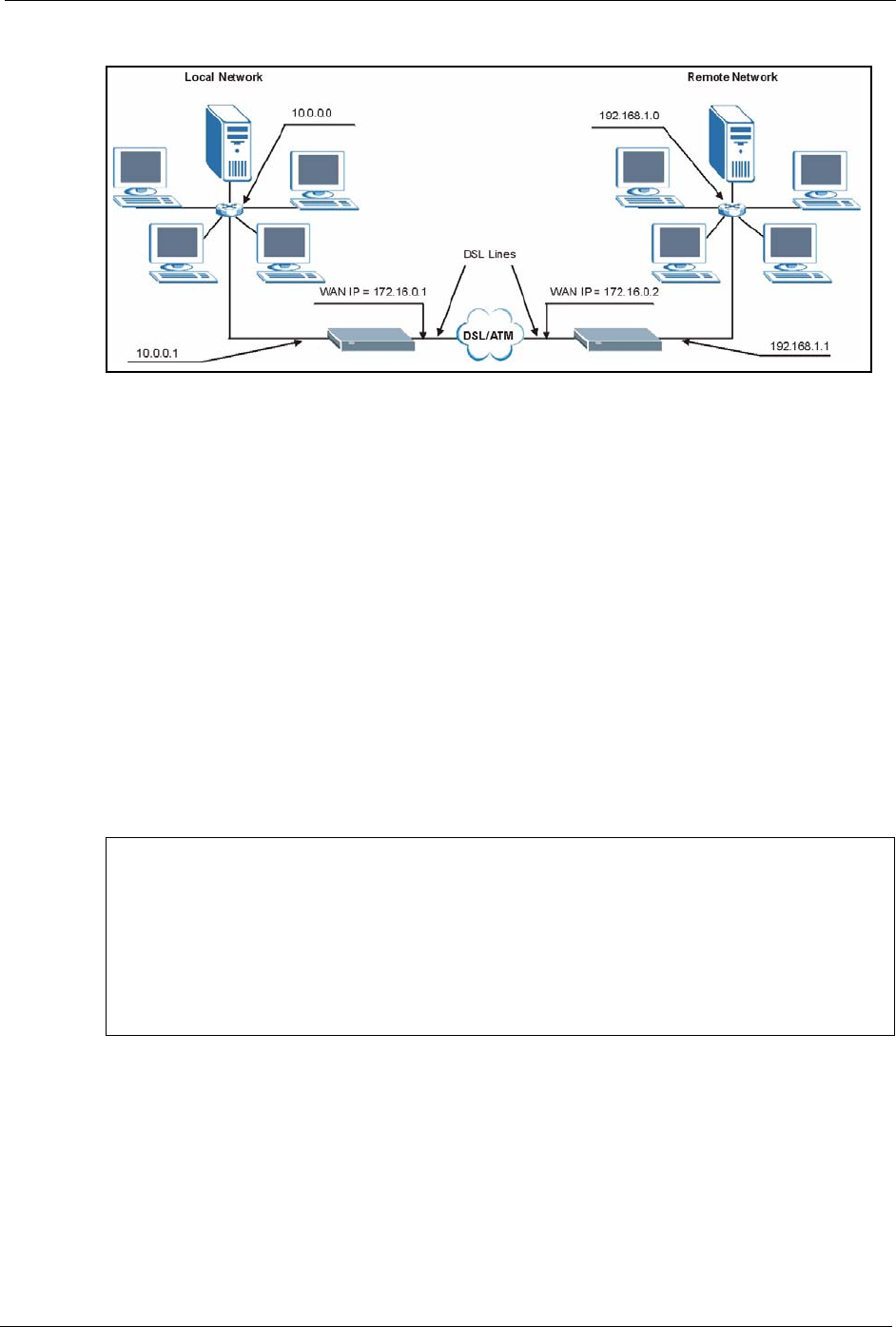

Figure 127 Sample IP Addresses for a TCP/IP LAN-to-LAN Connection
24.4 Remote Node Filter
Move the cursor to the Edit Filter Sets field in menu 11.1, then press [SPACE BAR] to select
Yes. Press [ENTER] to display Menu 11.5 – Remote Node Filter.
Use Menu 11.5 – Remote Node Filter to specify the filter set(s) to apply to the incoming and
outgoing traffic between this remote node and the Prestige and also to prevent certain packets
from triggering calls. You can specify up to 4 filter sets separated by comma, for example, 1,
5, 9, 12, in each filter field.
Note that spaces are accepted in this field. The Prestige has a prepackaged filter set,
NetBIOS_WAN, that blocks NetBIOS packets. Include this in the call filter sets if you want to
prevent NetBIOS packets from triggering calls to a remote node.
Figure 128 Menu 11.5 Remote Node Filter (RFC 1483 or ENET Encapsulation)
Menu 11.5 - Remote Node Filter
Input Filter Sets:
protocol filters=
device filters=
Output Filter Sets:
protocol filters=
device filters=
Enter here to CONFIRM or ESC to CANCEL:
P-660H/HW/W-T Series User’ Guide
243 Chapter 24 Remote Node Configuration
Figure 129 Menu 11.5 Remote Node Filter (PPPoA or PPPoE Encapsulation)
24.5 Editing ATM Layer Options
Follow the steps shown next to edit Menu 11.6 – Remote Node ATM Layer Options.
In menu 11.1, move the cursor to the Edit ATM Options field and then press [SPACE BAR]
to select Yes. Press [ENTER] to display Menu 11.6 – Remote Node ATM Layer Options.
There are two versions of menu 11.6 for the Prestige, depending on whether you chose VC-
based/LLC-based multiplexing and PPP encapsulation in menu 11.1.
24.5.1 VC-based Multiplexing (non-PPP Encapsulation)
For VC-based multiplexing, by prior agreement, a protocol is assigned a specific virtual
circuit, for example, VC1 will carry IP. Separate VPI and VCI numbers must be specified for
each protocol.
Figure 130 Menu 11.6 for VC-based Multiplexing
24.5.2 LLC-based Multiplexing or PPP Encapsulation
For LLC-based multiplexing or PPP encapsulation, one VC carries multiple protocols with
protocol identifying information being contained in each packet header.
Menu 11.5 - Remote Node Filter
Input Filter Sets:
protocol filters=
device filters=
Output Filter Sets:
protocol filters=
device filters=
Call Filter Sets:
protocol filters=
device filters=
Enter here to CONFIRM or ESC to CANCEL:
Menu 11.6 - Remote Node ATM Layer Options
VPI/VCI (VC-Multiplexing)
VC Options for IP:
VPI #= 8
VCI #= 35
ATM QoS Type= UBR
Peak Cell Rate (PCR)= 0
Sustain Cell Rate (SCR)= 0
Maximum Burst Size (MBS)= 0
VC Options for Bridge:
VPI #= 1
VCI #= 36
ATM QoS Type= N/A
Peak Cell Rate (PCR)= N/A
Sustain Cell Rate (SCR)= N/A
Maximum Burst Size (MBR)= N/A
Enter here to CONFIRM or ESC to CANCEL:
P-660H/HW/W-T Series User’ Guide
Chapter 24 Remote Node Configuration 244
Figure 131 Menu 11.6 for LLC-based Multiplexing or PPP Encapsulation
In this case, only one set of VPI and VCI numbers need be specified for all protocols. The
valid range for the VPI is 0 to 255 and for the VCI is 32 to 65535 (1 to 31 is reserved for local
management of ATM traffic).
24.5.3 Advance Setup Options
In menu 11.1, select PPPoE in the Encapsulation field.
Figure 132 Menu 11.1 Remote Node Profile
Move the cursor to the Edit Advance Options field, press [SPACE BAR] to select Yes, then
press [ENTER] to display Menu 11.8 – Advance Setup Options.
Menu 11.6 - Remote Node ATM Layer Options
VPI/VCI (LLC-Multiplexing or PPP-Encapsulation)
VPI #= 0
VCI #= 38
ATM QoS Type= UBR
Peak Cell Rate (PCR)= 0
Sustain Cell Rate (SCR)= 0
Maximum Burst Size (MBS)= 0
ENTER here to CONFIRM or ESC to CANCEL:
Menu 11.1 - Remote Node Profile
Rem Node Name= MyISP Route= IP
Active= Yes Bridge= No
Encapsulation= PPPoE Edit IP/Bridge= No
Multiplexing= LLC-based Edit ATM Options= No
Service Name= Edit Advance Options= Yes
Incoming: Telco Option:
Rem Login= Allocated Budget(min)= 0
Rem Password= ******** Period(hr)= 0
Outgoing: Schedule Sets=
My Login= ? Nailed-Up Connection= No
My Password= ? Session Options:
Authen= CHAP/PAP Edit Filter Sets= No
Idle Timeout(sec)= 0
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
245 Chapter 24 Remote Node Configuration
Figure 133 Menu 11.8 Advance Setup Options
The following table describes the fields in this menu.
Menu 11.8 - Advance Setup Options
PPPoE pass-through= No
Press ENTER to Confirm or ESC to Cancel:
Table 86 Menu 11.8 Advance Setup Options
FIELD DESCRIPTION
PPPoE pass-through Press [SPACE BAR] to select Yes and press [ENTER] to enable PPPoE pass
through. In addition to the Prestige's built-in PPPoE client, you can enable
PPPoE pass through to allow up to ten hosts on the LAN to use PPPoE client
software on their computers to connect to the ISP via the Prestige. Each host
can have a separate account and a public WAN IP address.
PPPoE pass through is an alternative to NAT for applications where NAT is
not appropriate.
Press [SPACE BAR] to select No and press [ENTER] to disable PPPoE pass
through if you do not need to allow hosts on the LAN to use PPPoE client
software on their computers to connect to the ISP.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
Chapter 25 Static Route Setup 246
CHAPTER 25
Static Route Setup
This chapter shows how to setup IP static routes.
25.1 IP Static Route Overview
Static routes tell the Prestige routing information that it cannot learn automatically through
other means. This can arise in cases where RIP is disabled on the LAN or a remote network is
beyond the one that is directly connected to a remote node.
Each remote node specifies only the network to which the gateway is directly connected and
the Prestige has no knowledge of the networks beyond. For instance, the Prestige knows about
network N2 in the following figure through remote node Router 1. However, the Prestige is
unable to route a packet to network N3 because it does not know that there is a route through
remote node Router 1 (via Router 2). The static routes allow you to tell the Prestige about the
networks beyond the remote nodes.

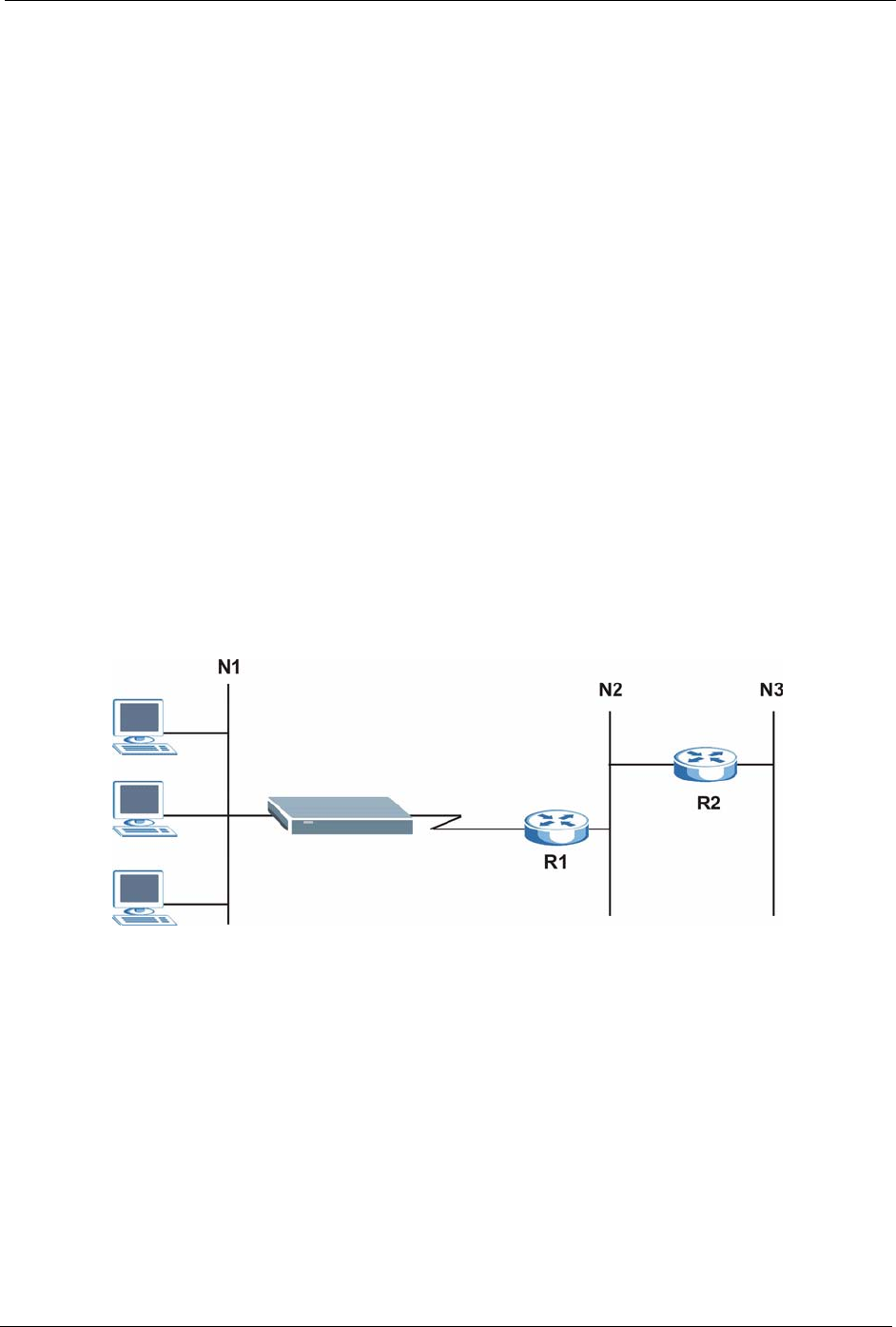

Figure 134 Sample Static Routing Topology
25.2 Configuration
To configure an IP static route, use Menu 12 – Static Route Setup (shown next).
P-660H/HW/W-T Series User’ Guide
247 Chapter 25 Static Route Setup
Figure 135 Menu 12 Static Route Setup
From menu 12, select 1 to open Menu 12.1 — IP Static Route Setup (shown next).
Figure 136 Menu 12.1 IP Static Route Setup
Now, type the route number of a static route you want to configure.
Figure 137 Menu12.1.1 Edit IP Static Route
Menu 12 - Static Route Setup
1. IP Static Route
3. Bridge Static Route
Please enter selection:
Menu 12.1 - IP Static Route Setup
1. ________
2. ________
3. ________
4. ________
5. ________
6. ________
7. ________
8. ________
9. ________
10. ________
11. ________
12. ________
13. ________
14. ________
15. ________
16. ________
Enter selection number:
Menu 12.1.1 - Edit IP Static Route
Route #: 1
Route Name= ?
Active= No
Destination IP Address= ?
IP Subnet Mask= ?
Gateway IP Address= ?
Metric= 2
Private= No
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 25 Static Route Setup 248
The following table describes the fields for Menu 12.1.1 – Edit IP Static Route Setup.
Table 87 Menu12.1.1 Edit IP Static Route
FIELD DESCRIPTION
Route # This is the index number of the static route that you chose in menu 12.1.
Route Name Type a descriptive name for this route. This is for identification purpose only.
Active This field allows you to activate/deactivate this static route.
Destination IP Address This parameter specifies the IP network address of the final destination.
Routing is always based on network number. If you need to specify a route to
a single host, use a subnet mask of 255.255.255.255 in the subnet mask
field to force the network number to be identical to the host ID.
IP Subnet Mask Type the subnet mask for this destination.
Gateway IP Address Type the IP address of the gateway. The gateway is a router or switch on the
same network segment as the device’s LAN or WAN port. The gateway
helps forward packets to their destinations.
Metric Metric represents the cost of transmission for routing purposes. IP routing
uses hop count as the measurement of cost, with a minimum of 1 for directly
connected networks. Type a number that approximates the cost for this link.
The number need not be precise, but it must be between 1 and 15. In
practice, 2 or 3 is usually a good number.
Private This parameter determines if the Prestige will include the route to this remote
node in its RIP broadcasts. If set to Yes, this route is kept private and is not
included in RIP broadcasts. If No, the route to this remote node will be
propagated to other hosts through RIP broadcasts.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
249 Chapter 25 Static Route Setup
P-660H/HW/W-T Series User’ Guide
Chapter 26 Bridging Setup 250
CHAPTER 26
Bridging Setup
This chapter shows you how to configure the bridging parameters of your Prestige.
26.1 Bridging in General
Bridging bases the forwarding decision on the MAC (Media Access Control), or hardware
address, while routing does it on the network layer (IP) address. Bridging allows the Prestige
to transport packets of network layer protocols that it does not route, for example, SNA, from
one network to another. The caveat is that, compared to routing, bridging generates more
traffic for the same network layer protocol, and it also demands more CPU cycles and
memory.
For efficiency reasons, do not turn on bridging unless you need to support protocols other than
IP on your network. For IP, enable the routing if you need it; do not bridge what the Prestige
can route.
26.2 Bridge Ethernet Setup
Basically, all non-local packets are bridged to the WAN. Your Prestige does not support IPX.
26.2.1 Remote Node Bridging Setup
Follow the procedure in another section to configure the protocol-independent parameters in
Menu 11.1 – Remote Node Profile. For bridging-related parameters, you need to configure
Menu 11.3 – Remote Node Network Layer Options.
1To setup Menu 11.3 – Remote Node Network Layer Options shown in the next figure,
follow these steps:
2In menu 11.1, make sure the Bridge field is set to Yes.
P-660H/HW/W-T Series User’ Guide
251 Chapter 26 Bridging Setup
Figure 138 Menu 11.1 Remote Node Profile
3Move the cursor to the Edit IP/Bridge field, then press [SPACE BAR] to set the value to
Yes and press [ENTER] to edit Menu 11.3 – Remote Node Network Layer Options.
Figure 139 Menu 11.3 Remote Node Network Layer Options
The following table describes the fields in this menu.
Menu 11.1 - Remote Node Profile
Rem Node Name= ? Route= IP
Active= Yes Bridge= Yes
Encapsulation= ENET ENCAP Edit IP/Bridge= No
Multiplexing= VC-based Edit ATM Options= No
Service Name= N/A Edit Advance Options= N/A
Incoming: Telco Option:
Rem Login= N/A Allocated Budget(min)= N/A
Rem Password= N/A Period(hr)= N/A
Outgoing: Schedule Sets= N/A
My Login= N/A Nailed-Up Connection= N/A
My Password= N/A Session Options:
Authen= N/A Edit Filter Sets= No
Idle Timeout(sec)= N/A
Press ENTER to Confirm or ESC to Cancel:
Menu 11.3 - Remote Node Network Layer Options
IP Options: Bridge Options:
IP Address Assignment= Static Ethernet Addr Timeout (min)= 0
Rem IP Addr: 0.0.0.0
Rem Subnet Mask= 0.0.0.0
My WAN Addr= 0.0.0.0
NAT= Full Feature
Address Mapping Set=2
Metric= 2
Private= No
RIP Direction= Both
Version= RIP-2B
Multicast= IGMP-v2
IP Policies=
Press ENTER to Confirm or ESC to Cancel:
Table 88 Remote Node Network Layer Options: Bridge Fields
FIELD DESCRIPTION
Bridge (menu 11.1) Make sure this field is set to Yes.
Edit IP/Bridge (menu 11.1) Press [SPACE BAR] to select Yes and press [ENTER] to display menu
11.3.
Ethernet Addr Timeout
(min.) (menu 11.3)
Type the time (in minutes) for the Prestige to retain the Ethernet Address
information in its internal tables while the line is down. If this information is
retained, your Prestige will not have to recompile the tables when the line
comes back up.
P-660H/HW/W-T Series User’ Guide
Chapter 26 Bridging Setup 252
26.2.2 Bridge Static Route Setup
Similar to network layer static routes, a bridging static route tells the Prestige the route to a
node before a connection is established. You configure bridge static routes in menu 12.3.1 (go
to menu 12, choose option 3, then choose a static route to edit) as shown next.
Figure 140 Menu 12.3.1 Edit Bridge Static Route
The following table describes the Edit Bridge Static Route menu.
Menu 12.3.1 - Edit Bridge Static Route
Route #: 1
Route Name=
Active= No
Ether Address= ?
IP Address=
Gateway Node= 1
Press ENTER to Confirm or ESC to Cancel:
Table 89 Menu 12.3.1 Edit Bridge Static Route
FIELD DESCRIPTION
Route # This is the route index number you typed in Menu 12.3 – Bridge Static Route Setup.
Route Name Type a name for the bridge static route for identification purposes.
Active Indicates whether the static route is active (Yes) or not (No).
Ether Address Type the MAC address of the destination computer that you want to bridge the
packets to.
IP Address If available, type the IP address of the destination computer that you want to bridge
the packets to.
Gateway Node Press [SPACE BAR] and then [ENTER] to select the number of the remote node (one
to eight) that is the gateway of this static route.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
253 Chapter 26 Bridging Setup
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 254
CHAPTER 27
Network Address Translation
(NAT)
This chapter discusses how to configure NAT on the Prestige.
27.1 Using NAT
You must create a firewall rule in addition to setting up SUA/NAT, to allow traffic from the
WAN to be forwarded through the Prestige.
27.1.1 SUA (Single User Account) Versus NAT
SUA (Single User Account) is a ZyNOS implementation of a subset of NAT that supports two
types of mapping, Many-to-One and Server. See Section 27.3 on page 256 or a detailed
description of the NAT set for SUA. The Prestige also supports Full Feature NAT to map
multiple global IP addresses to multiple private LAN IP addresses of clients or servers using
mapping types.
• Choose SUA Only if you have just one public WAN IP address for your Prestige.
• Choose Full Feature if you have multiple public WAN IP addresses for your Prestige.
27.2 Applying NAT
You apply NAT via menus 4 or 11.3 as displayed next. The next figure shows you how to
apply NAT for Internet access in menu 4. Enter 4 from the main menu to go to Menu 4 -
Internet Access Setup.
P-660H/HW/W-T Series User’ Guide
255 Chapter 27 Network Address Translation (NAT)
Figure 141 Menu 4 Applying NAT for Internet Access
The following figure shows how you apply NAT to the remote node in menu 11.1.
1Enter 11 from the main menu.
2When menu 11 appears, as shown in the following figure, type the number of the remote
node that you want to configure.
3Move the cursor to the Edit IP/Bridge field, press [SPACE BAR] to select Yes and then
press [ENTER] to bring up Menu 11.3 - Remote Node Network Layer Options.
Figure 142 Applying NAT in Menus 4 & 11.3
The following table describes the options for Network Address Translation.
Menu 4 - Internet Access Setup
ISP's Name= MyISP
Encapsulation= RFC 1483
Multiplexing= LLC-based
VPI #= 8
VCI #= 35
ATM QoS Type= UBR
Peak Cell Rate (PCR)= 0
Sustain Cell Rate (SCR)= 0
Maximum Burst Size (MBS)= 0
My Login= N/A
My Password= N/A
ENET ENCAP Gateway= N/A
IP Address Assignment= Static
IP Address= 0.0.0.0
Network Address Translation= SUA Only
Address Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
Menu 11.3 - Remote Node Network Layer Options
IP Options: Bridge Options:
IP Address Assignment = Static Ethernet Addr Timeout(min)= N/A
Rem IP Addr = 0.0.0.0
Rem Subnet Mask= 0.0.0.0
My WAN Addr= 0.0.0.0
NAT= SUA Only
Address Mapping Set= N/A
Metric= 2
Private= No
RIP Direction= Both
Version= RIP-2B
Multicast= None
IP Policies=
Enter here to CONFIRM or ESC to CANCEL:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 256
27.3 NAT Setup
Use the address mapping sets menus and submenus to create the mapping table used to assign
global addresses to computers on the LAN. Set 255 is used for SUA. When you select Full
Feature in menu 4 or 11.3, the SMT will use Set 1. When you select SUA Only, the SMT
will use the pre-configured Set 255 (read only).
The server set is a list of LAN servers mapped to external ports. To use this set, a server rule
must be set up inside the NAT address mapping set. Please see the web configurator NAT
chapter for further information on these menus. To configure NAT, enter 15 from the main
menu to bring up the following screen.
Figure 143 Menu 15 NAT Setup
27.3.1 Address Mapping Sets
Enter 1 to bring up Menu 15.1 — Address Mapping Sets.
Table 90 Applying NAT in Menus 4 & 11.3
FIELD DESCRIPTION
NAT Press [SPACE BAR] and then [ENTER] to select Full Feature if you have multiple public
WAN IP addresses for your Prestige. The SMT uses the address mapping set that you
configure and enter in the Address Mapping Set field (seeFigure 144 on page 257).
Select None to disable NAT.
When you select SUA Only, the SMT uses Address Mapping Set 255 (seeFigure 145 on
page 257). Choose SUA Only if you have just one public WAN IP address for your
Prestige.
Menu 15 - NAT Setup
1. Address Mapping Sets
2. NAT Server Sets
Enter Menu Selection Number:
P-660H/HW/W-T Series User’ Guide
257 Chapter 27 Network Address Translation (NAT)
Figure 144 Menu 15.1 Address Mapping Sets
27.3.1.1 SUA Address Mapping Set
Enter 255 to display the next screen (see also Section 27.1.1 on page 254). The fields in this
menu cannot be changed.
Figure 145 Menu 15.1.255 SUA Address Mapping Rules
The following table explains the fields in this menu.
Menu 15.1.255 is read-only.
Menu 15.1 - Address Mapping Sets
1.
2.
3.
4.
5.
6.
7.
8.
255. SUA (read only)
Enter Menu Selection Number:
Menu 15.1.255 - Address Mapping Rules
Set Name=
Idx Local Start IP Local End IP Global Start IP Global End IP Type
--- --------------- --------------- --------------- ------------- ----
1. 0.0.0.0 255.255.255.255 0.0.0.0 M-1
2. 0.0.0.0 Server
3.
4.
5.
6.
7.
8.
9.
10.
Press ENTER to Confirm or ESC to Cancel:
Table 91 SUA Address Mapping Rules
FIELD DESCRIPTION
Set Name This is the name of the set you selected in menu 15.1 or enter the name of a new set
you want to create.
Idx This is the index or rule number.
Local Start IP Local Start IP is the starting local IP address (ILA).
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 258
27.3.1.2 User-Defined Address Mapping Sets
Now let’s look at option 1 in menu 15.1. Enter 1 to bring up this menu. We’ll just look at the
differences from the previous menu. Note the extra Action and Select Rule fields mean you
can configure rules in this screen. Note also that the [?] in the Set Name field means that this
is a required field and you must enter a name for the set.
Figure 146 Menu 15.1.1 First Set
If the Set Name field is left blank, the entire set will be deleted.
The Type, Local and Global Start/End IPs are configured in menu 15.1.1.1 (described later)
and the values are displayed here.
Local End IP Local End IP is the ending local IP address (ILA). If the rule is for all local IPs, then
the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.
Global Start IP This is the starting global IP address (IGA). If you have a dynamic IP, enter 0.0.0.0 as
the Global Start IP.
Global End IP This is the ending global IP address (IGA).
Type These are the mapping types. Server allows us to specify multiple servers of different
types behind NAT to this machine. See later for some examples.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 91 SUA Address Mapping Rules (continued)
FIELD DESCRIPTION
Menu 15.1.1 - Address Mapping Rules
Set Name= NAT_SET
Idx Local Start IP Local End IP Global Start IP Global End IP Type
--- --------------- --------------- --------------- --------=----- ---
1.
2
3.
4.
5.
6.
7.
8.
9.
10.
Action= Edit Select Rule=
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
259 Chapter 27 Network Address Translation (NAT)
27.3.1.3 Ordering Your Rules
Ordering your rules is important because the Prestige applies the rules in the order that you
specify. When a rule matches the current packet, the Prestige takes the corresponding action
and the remaining rules are ignored. If there are any empty rules before your new configured
rule, your configured rule will be pushed up by that number of empty rules. For example, if
you have already configured rules 1 to 6 in your current set and now you configure rule
number 9. In the set summary screen, the new rule will be rule 7, not 9.
Now if you delete rule 4, rules 5 to 7 will be pushed up by 1 rule, so as old rule 5 becomes rule
4, old rule 6 becomes rule 5 and old rule 7 becomes rule 6.
You must press [ENTER] at the bottom of the screen to save the whole set. You must do this
again if you make any changes to the set – including deleting a rule. No changes to the set take
place until this action is taken.
Selecting Edit in the Action field and then selecting a rule brings up the following menu,
Menu 15.1.1.1 - Address Mapping Rule in which you can edit an individual rule and
configure the Type, Local and Global Start/End IPs.
An End IP address must be numerically greater than its corresponding IP Start address.
Figure 147 Menu 15.1.1.1 Editing/Configuring an Individual Rule in a Set
Table 92 Menu 15.1.1 First Set
FIELD DESCRIPTION
Set Name Enter a name for this set of rules. This is a required field. If this field is left blank, the
entire set will be deleted.
Action The default is Edit. Edit means you want to edit a selected rule (see following field).
Insert Before means to insert a rule before the rule selected. The rules after the
selected rule will then be moved down by one rule. Delete means to delete the
selected rule and then all the rules after the selected one will be advanced one rule.
None disables the Select Rule item.
Select Rule When you choose Edit, Insert Before or Delete in the previous field the cursor
jumps to this field to allow you to select the rule to apply the action in question.
Menu 15.1.1.1 Address Mapping Rule
Type= One-to-One
Local IP:
Start=
End = N/A
Global IP:
Start=
End = N/A
Server Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 260
The following table explains the fields in this menu.
27.4 Configuring a Server behind NAT
Follow these steps to configure a server behind NAT:
1Enter 15 in the main menu to go to Menu 15 - NAT Setup.
2Enter 2 to display Menu 15.2 - NAT Server Sets as shown next.
Figure 148 Menu 15.2 NAT Server Setup
3Enter 1 to go to Menu 15.2.1 NAT Server Setup as follows.
Table 93 Menu 15.1.1.1 Editing/Configuring an Individual Rule in a Set
FIELD DESCRIPTION
Type Press [SPACE BAR] and then [ENTER] to select from a total of five types. These are
the mapping types discussed in the web configurator NAT chapter. Server allows you
to specify multiple servers of different types behind NAT to this computer.
Local IP Only local IP fields are N/A for server; Global IP fields MUST be set for Server.
Start This is the starting local IP address (ILA).
End This is the ending local IP address (ILA). If the rule is for all local IPs, then put the Start
IP as 0.0.0.0 and the End IP as 255.255.255.255. This field is N/A for One-to-One and
Server types.
Global IP
Start This is the starting inside global IP address (IGA). If you have a dynamic IP, enter
0.0.0.0 as the Global IP Start. Note that Global IP Start can be set to 0.0.0.0 only if
the types are Many-to-One or Server.
End This is the ending inside global IP address (IGA). This field is N/A for One-to-One,
Many-to-One and Server types.
Server
Mapping Set
Only available when Type is set to Server. Type a number from 1 to 10 to choose a
server set from menu 15.2.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Menu 15.2 - NAT Server Sets
1. Server Set 1 (Used for SUA Only)
2. Server Set 2
3. Server Set 3
4. Server Set 4
5. Server Set 5
6. Server Set 6
7. Server Set 7
8. Server Set 8
9. Server Set 9
10. Server Set 10
Enter Set Number to Edit:
P-660H/HW/W-T Series User’ Guide
261 Chapter 27 Network Address Translation (NAT)
Figure 149 Menu 15.2.1 NAT Server Setup
4Enter a port number in an unused Start Port No field. To forward only one port, enter it
again in the End Port No field. To specify a range of ports, enter the last port to be
forwarded in the End Port No field.
5Enter the inside IP address of the server in the IP Address field. In the following figure,
you have a computer acting as an FTP, Telnet and SMTP server (ports 21, 23 and 25) at
192.168.1.33.
6Press [ENTER] at the “Press ENTER to confirm ...” prompt to save your
configuration after you define all the servers or press [ESC] at any time to cancel.

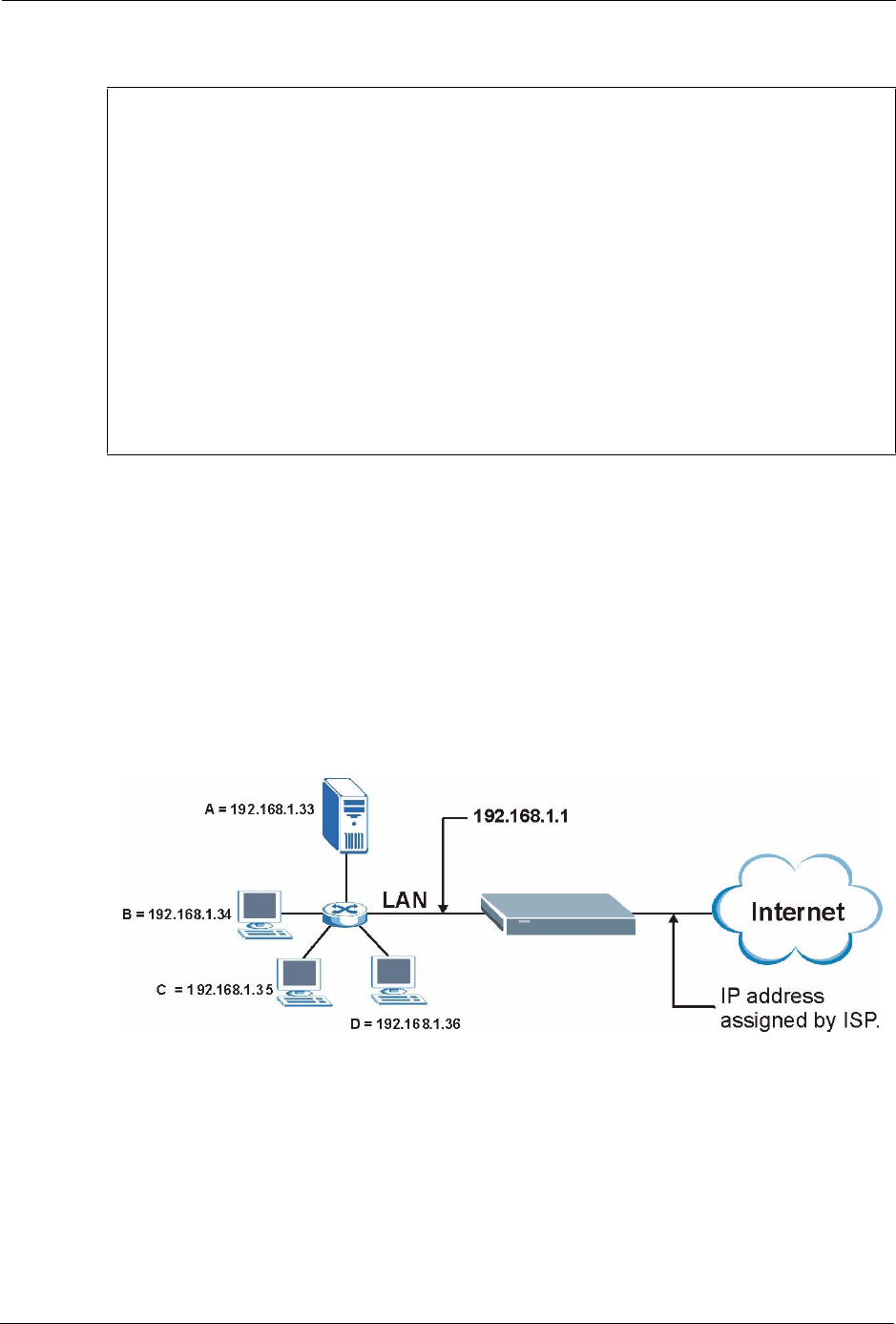

Figure 150 Multiple Servers Behind NAT Example
27.5 General NAT Examples
The following are some examples of NAT configuration.
Menu 15.2 - NAT Server Setup
Rule Start Port No. End Port No. IP Address
---------------------------------------------------
1. Default Default 0.0.0.0
2. 21 21 192.168.1.33
3. 0 0 0.0.0.0
4. 0 0 0.0.0.0
5. 0 0 0.0.0.0
6. 0 0 0.0.0.0
7. 0 0 0.0.0.0
8. 0 0 0.0.0.0
9. 0 0 0.0.0.0
10. 0 0 0.0.0.0
11. 0 0 0.0.0.0
12. 0 0 0.0.0.0
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 262
27.5.1 Example 1: Internet Access Only
In the following Internet access example, you only need one rule where your ILAs (Inside
Local addresses) all map to one dynamic IGA (Inside Global Address) assigned by your ISP.

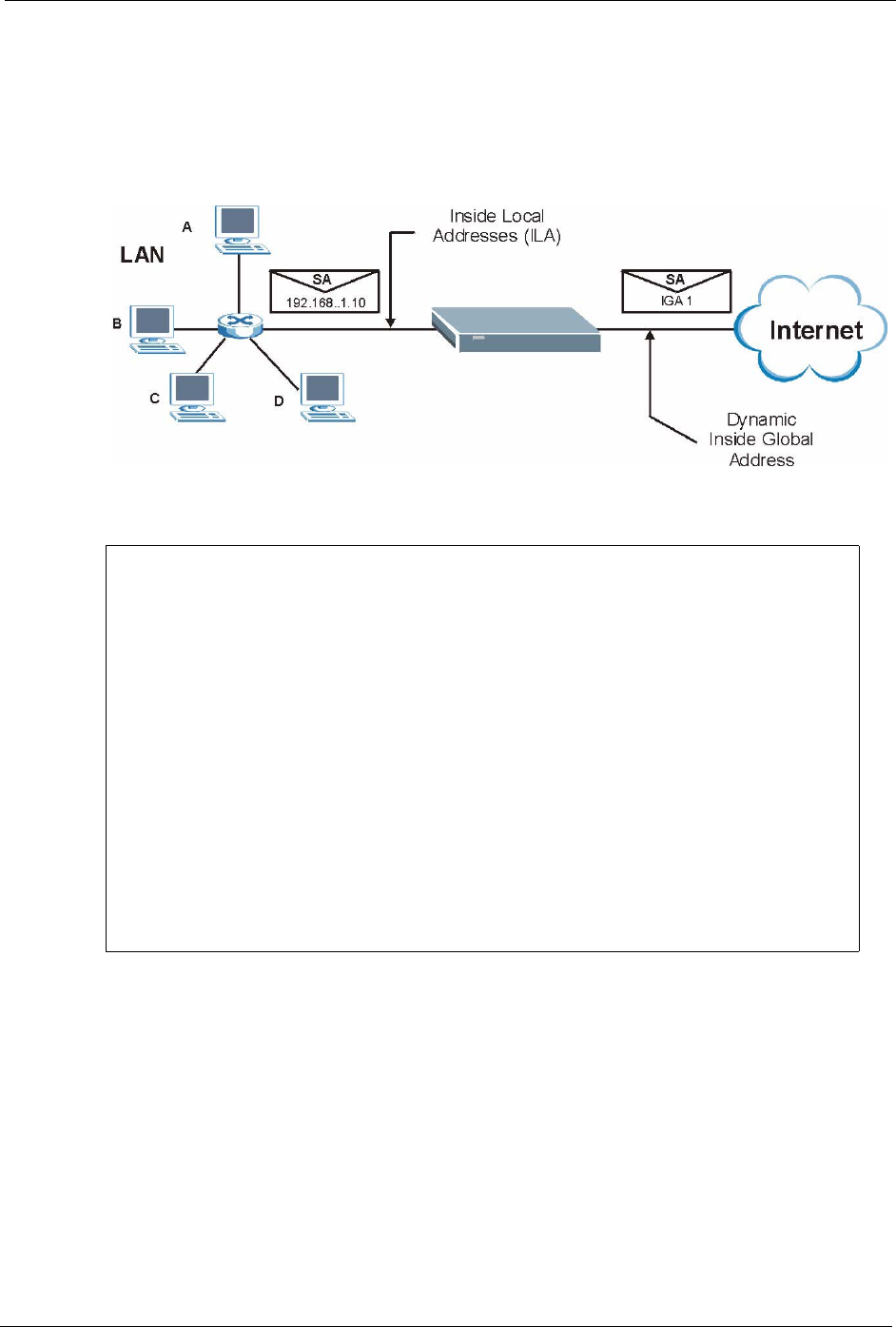

Figure 151 NAT Example 1
Figure 152 Menu 4 Internet Access & NAT Example
From menu 4, choose the SUA Only option from the Network Address Translation field.
This is the Many-to-One mapping discussed in Section 27.5 on page 261. The SUA Only
read-only option from the Network Address Translation field in menus 4 and 11.3 is
specifically pre-configured to handle this case.
27.5.2 Example 2: Internet Access with an Inside Server
Menu 4 - Internet Access Setup
ISP's Name= MyISP
Encapsulation= RFC 1483
Multiplexing= LLC-based
VPI #= 8
VCI #= 35
ATM QoS Type= UBR
Peak Cell Rate (PCR)= 0
Sustain Cell Rate (SCR)= 0
Maximum Burst Size (MBS)= 0
My Login= N/A
My Password= N/A
ENET ENCAP Gateway= N/A
IP Address Assignment= Static
IP Address= 0.0.0.0
Network Address Translation= SUA Only
Address Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
263 Chapter 27 Network Address Translation (NAT)

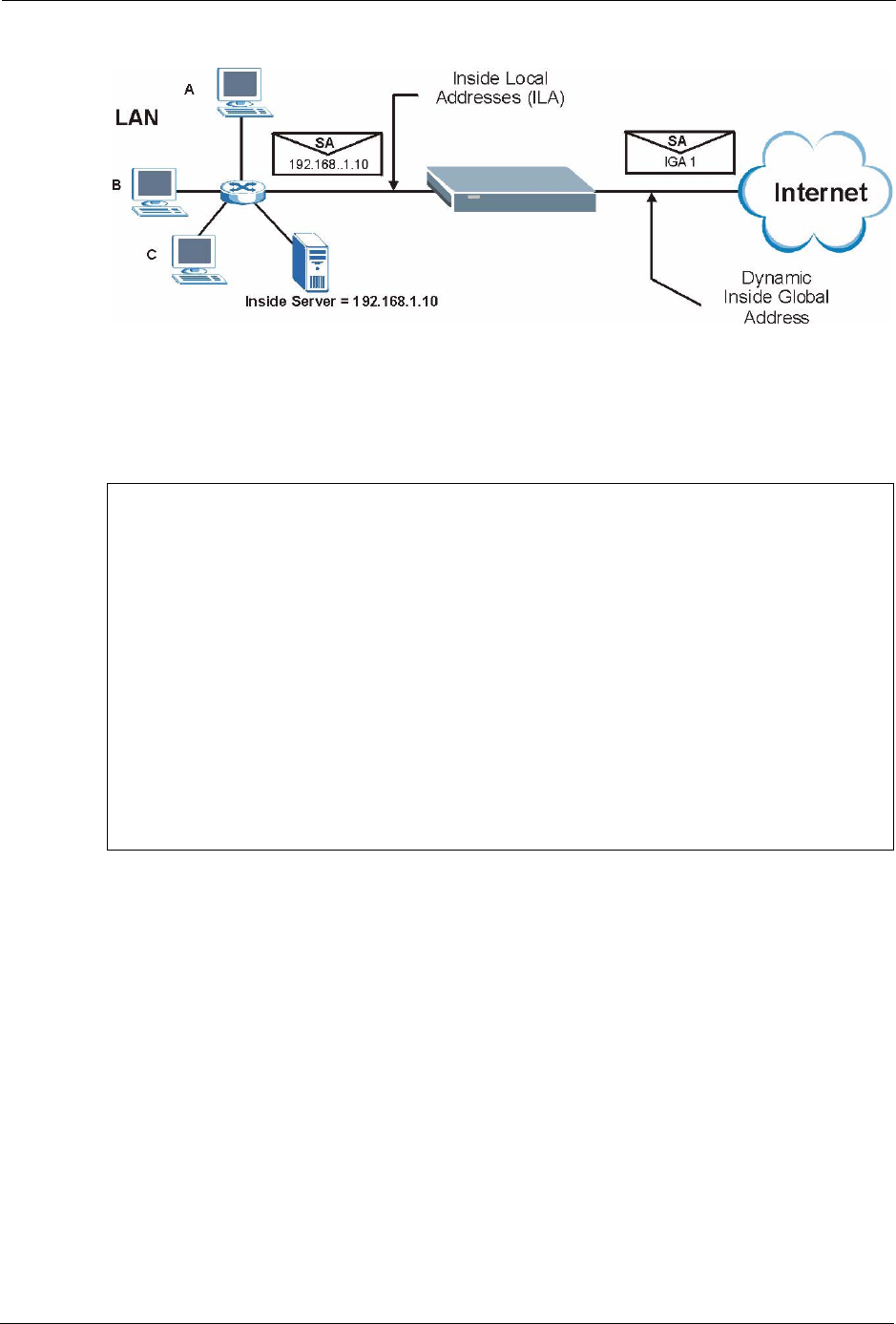

Figure 153 NAT Example 2
In this case, you do exactly as above (use the convenient pre-configured SUA Only set) and
also go to menu 15.2 to specify the Inside Server behind the NAT as shown in the next figure.
Figure 154 Menu 15.2.1 Specifying an Inside Server
27.5.3 Example 3: Multiple Public IP Addresses With Inside Servers
In this example, there are 3 IGAs from our ISP. There are many departments but two have
their own FTP server. All departments share the same router. The example will reserve one
IGA for each department with an FTP server and all departments use the other IGA. Map the
FTP servers to the first two IGAs and the other LAN traffic to the remaining IGA. Map the
third IGA to an inside web server and mail server. Four rules need to be configured, two bi-
directional and two unidirectional as follows.
Map the first IGA to the first inside FTP server for FTP traffic in both directions (1 : 1
mapping, giving both local and global IP addresses).
Map the second IGA to our second inside FTP server for FTP traffic in both directions (1 : 1
mapping, giving both local and global IP addresses).
Menu 15.2.1 - NAT Server Setup (Used for SUA Only)
Rule Start Port No. End Port No. IP Address
---------------------------------------------------
1. Default Default 192.168.1.10
2. 0 0 0.0.0.0
3. 0 0 0.0.0.0
4. 0 0 0.0.0.0
5. 0 0 0.0.0.0
6. 0 0 0.0.0.0
7. 0 0 0.0.0.0
8. 0 0 0.0.0.0
9. 0 0 0.0.0.0
10. 0 0 0.0.0.0
11. 0 0 0.0.0.0
12. 0 0 0.0.0.0
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 264
Map the other outgoing LAN traffic to IGA3 (Many : 1 mapping).
You also map your third IGA to the web server and mail server on the LAN. Type Server
allows you to specify multiple servers, of different types, to other computers behind NAT on
the LAN.
The example situation looks somewhat like this:

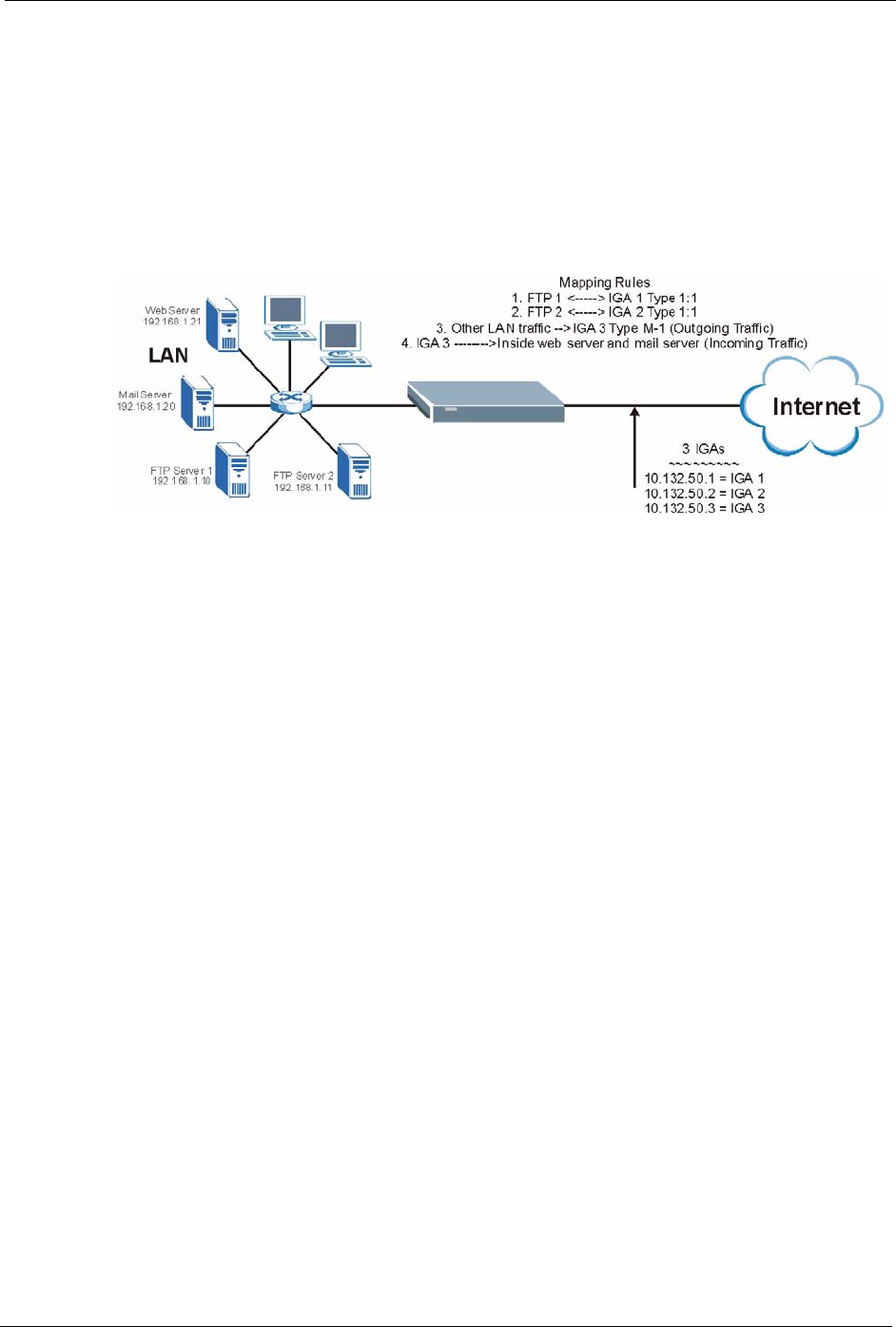

Figure 155 NAT Example 3
In this case you need to configure Address Mapping Set 1 from Menu 15.1 - Address
Mapping Sets. Therefore you must choose the Full Feature option from the Network
Address Translation field (in menu 4 or menu 11.3) inFigure 156 on page 265.
1Enter 15 from the main menu.
2Enter 1 to configure the Address Mapping Sets.
3Enter 1 to begin configuring this new set. Enter a Set Name, choose the Edit Action and
then enter 1 for the Select Rule field. Press [ENTER] to confirm.
4Select Type as One-to-One (direct mapping for packets going both ways), and enter the
local Start IP as 192.168.1.10 (the IP address of FTP Server 1), the global Start IP as
10.132.50.1 (our first IGA). (SeeFigure 157 on page 265).
5Repeat the previous step for rules 2 to 4 as outlined above.
When finished, menu 15.1.1 should look like as shown inFigure 158 on page 266.
P-660H/HW/W-T Series User’ Guide
265 Chapter 27 Network Address Translation (NAT)
Figure 156 Example 3: Menu 11.3
The following figures show how to configure the first rule
Figure 157 Example 3: Menu 15.1.1.1
Menu 11.3 - Remote Node Network Layer Options
IP Options: Bridge Options:
IP Address Assignment= Static Ethernet Addr Timeout (min)= 0
Rem IP Addr: 0.0.0.0
Rem Subnet Mask= 0.0.0.0
My WAN Addr= 0.0.0.0
NAT= Full Feature
Address Mapping Set= 2
Metric= 2
Private= No
RIP Direction= Both
Version= RIP-2B
Multicast= IGMP-v2
IP Policies=
Press ENTER to Confirm or ESC to Cancel:
Menu 15.1.1.1 Address Mapping Rule
Type= One-to-One
Local IP:
Start= 192.168.1.10
End = N/A
Global IP:
Start= 10.132.50.1
End = N/A
Server Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 266
Figure 158 Example 3: Final Menu 15.1.1
Now configure the IGA3 to map to our web server and mail server on the LAN.
1Enter 15 from the main menu.
2Enter 2 in Menu 15 - NAT Setup.
3Enter 1 in Menu 15.2 - NAT Server Sets to see the following menu. Configure it as
shown.
Figure 159 Example 3: Menu 15.2.1
Menu 15.1.1 - Address Mapping Rules
Set Name= Example3
Idx Local Start IP Local End IP Global Start IP Global End IP Type
--- --------------- ------------- --------------- -------------- ----
1. 192.168.1.10 10.132.50.1 1-1
2 192.168.1.11 10.132.50.2 1-1
3. 0.0.0.0 255.255.255.255 10.132.50.3 M-1
4. 10.132.50.3 Server
5.
6.
7.
8.
9.
10.
Action= Edit Select Rule=
Press ENTER to Confirm or ESC to Cancel:
Menu 15.2.1 - NAT Server Setup
Rule Start Port No. End Port No. IP Address
---------------------------------------------------
1. Default Default 0.0.0.0
2. 80 80 192.168.1.21
3. 25 25 192.168.1.20
4. 0 0 0.0.0.0
5. 0 0 0.0.0.0
6. 0 0 0.0.0.0
7. 0 0 0.0.0.0
8. 0 0 0.0.0.0
9. 0 0 0.0.0.0
10. 0 0 0.0.0.0
11. 0 0 0.0.0.0
12. 0 0 0.0.0.0
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
267 Chapter 27 Network Address Translation (NAT)
27.5.4 Example 4: NAT Unfriendly Application Programs
Some applications do not support NAT Mapping using TCP or UDP port address translation.
In this case it is better to use Many-to-Many No Overload mapping as port numbers do not
change for Many-to-Many No Overload (and One-to-One) NAT mapping types. The
following figure illustrates this.

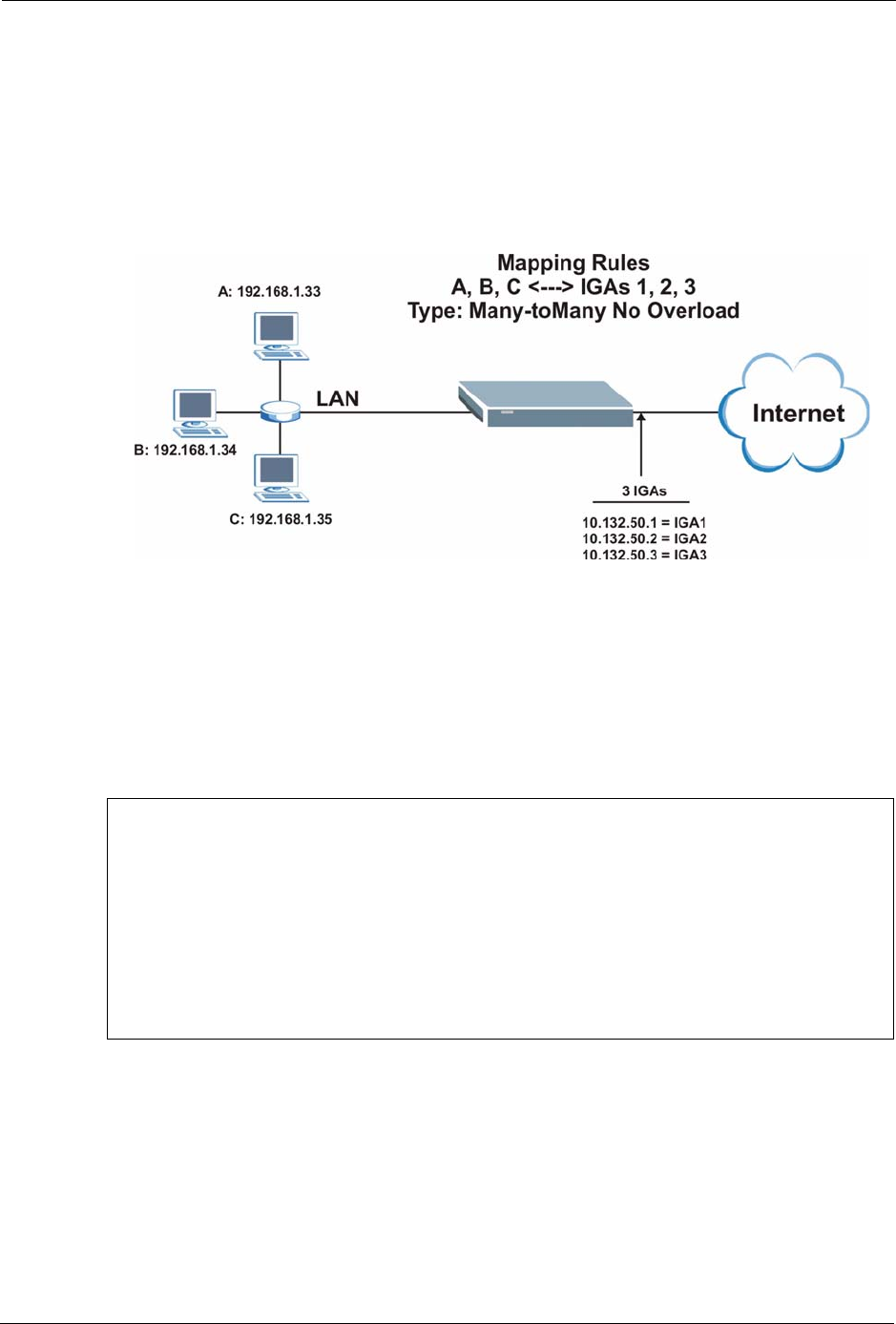

Figure 160 NAT Example 4
Other applications such as some gaming programs are NAT unfriendly because they embed
addressing information in the data stream. These applications won’t work through NAT even
when using One-to-One and Many-to-Many No Overload mapping types.
Follow the steps outlined in example 3 to configure these two menus as follows.
Figure 161 Example 4: Menu 15.1.1.1 Address Mapping Rule
After you’ve configured your rule, you should be able to check the settings in menu 15.1.1 as
shown next.
Menu 15.1.1.1 Address Mapping Rule
Type= Many-to-Many No Overload
Local IP:
Start= 192.168.1.10
End = 192.168.1.12
Global IP:
Start= 10.132.50.1
End = 10.132.50.3
Server Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 27 Network Address Translation (NAT) 268
Figure 162 Example 4: Menu 15.1.1 Address Mapping Rules
Menu 15.1.1 - Address Mapping Rules
Set Name= Example4
Idx Local Start IP Local End IP Global Start IP Global End IP Type
--- --------------- ------------ --------------- --------------- ----
1. 192.168.1.10 192.168.1.12 10.132.50.1 10.132.50.3 M:M
NO OV
2.
3.
4.
5.
6.
7.
8.
9.
10.
Action= Edit Select Rule=
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
269 Chapter 27 Network Address Translation (NAT)
P-660H/HW/W-T Series User’ Guide
Chapter 28 Enabling the Firewall 270
CHAPTER 28
Enabling the Firewall
This chapter shows you how to get started with the Prestige firewall.
28.1 Remote Management and the Firewall
When SMT menu 24.11 is configured to allow management and the firewall is enabled:
• The firewall blocks remote management from the WAN unless you configure a firewall
rule to allow it.
• The firewall allows remote management from the LAN.
28.2 Access Methods
The web configurator is, by far, the most comprehensive firewall configuration tool your
Prestige has to offer. For this reason, it is recommended that you configure your firewall using
the web configurator, see the following chapters for instructions. SMT screens allow you to
activate the firewall and view firewall logs.
28.3 Enabling the Firewall
From the main menu enter 21 to go to Menu 21 - Filter Set and Firewall Configuration to
display the screen shown next.
Enter option 2 in this menu to bring up the following screen. Press [SPACE BAR] and then
[ENTER] to select Yes in the Active field to activate the firewall. The firewall must be active
to protect against Denial of Service (DoS) attacks. Additional rules may be configured using
the web configurator.
P-660H/HW/W-T Series User’ Guide
271 Chapter 28 Enabling the Firewall
Figure 163 Menu 21.2 Firewall Setup
Use the web configurator or the command interpreter to configure the firewall rules
Menu 21.2 - Firewall Setup
The firewall protects against Denial of Service (DOS) attacks when
it is active. The default Policy sets
1. allow all sessions originating from the LAN to the WAN and
2. deny all sessions originating from the WAN to the LAN
You may define additional Policy rules or modify existing ones but
please exercise extreme caution in doing so
Active: Yes
LAN-to-WAN Set Name: ACL Default Set
WAN-to-LAN Set Name: ACL Default Set
Please configure the Firewall function through Web Configurator.
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 272
CHAPTER 29
Filter Configuration
This chapter shows you how to create and apply filters.
29.1 About Filtering
Your Prestige uses filters to decide whether or not to allow passage of a data packet and/or to
make a call. There are two types of filter applications: data filtering and call filtering. Filters
are subdivided into device and protocol filters, which are discussed later.
Data filtering screens data to determine if the packet should be allowed to pass. Data filters are
divided into incoming and outgoing filters, depending on the direction of the packet relative to
a port. Data filtering can be applied on either the WAN side or the Ethernet side. Call filtering
is used to determine if a packet should be allowed to trigger a call.
Outgoing packets must undergo data filtering before they encounter call filtering. Call filters
are divided into two groups, the built-in call filters and user-defined call filters. Your Prestige
has built-in call filters that prevent administrative, for example, RIP packets from triggering
calls. These filters are always enabled and not accessible to you. Your Prestige applies the
built-in filters first and then the user-defined call filters, if applicable, as shown next.
Figure 164 Outgoing Packet Filtering Process
Two sets of factory filter rules have been configured in menu 21 to prevent NetBIOS traffic
from triggering calls. A summary of their filter rules is shown in the figures that follow.
The following figure illustrates the logic flow when executing a filter rule.
P-660H/HW/W-T Series User’ Guide
273 Chapter 29 Filter Configuration
Figure 165 Filter Rule Process
You can apply up to four filter sets to a particular port to block various types of packets.
Because each filter set can have up to six rules, you can have a maximum of 24 rules active for
a single port.
For incoming packets, your Prestige applies data filters only. Packets are processed depending
on whether a match is found. The following sections describe how to configure filter sets.
29.1.1 The Filter Structure of the Prestige
A filter set consists of one or more filter rules. Usually, you would group related rules, for
example, all the rules for NetBIOS, into a single set and give it a descriptive name. You can
configure up to twelve filter sets with six rules in each set, for a total of 72 filter rules in the
system.
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 274
29.2 Configuring a Filter Set for the Prestige
To configure a filter set, follow the steps shown next.
1Enter 21 in the main menu to display Menu 21 – Filter and Firewall Setup.
2Enter 1 to display Menu 21.1 – Filter Set Configuration as shown next.
Figure 166 Menu 21 Filter Set Configuration
3Type the filter set to configure (no. 1 to 12) and press [ENTER].
4Type a descriptive name or comment in the Edit Comments field and press [ENTER].
5Press [ENTER] at the message “Press ENTER to confirm…” to display Menu 21.1.1 –
Filter Rules Summary (that is, if you selected filter set 1 in menu 21.1).
Figure 167 NetBIOS_WAN Filter Rules Summary
Menu 21.1 - Filter Set Configuration
Filter
Set # Comments Set # Comments
------ ----------------- ------ -----------------
1 _______________ 7 _______________
2 _______________ 8 _______________
3 _______________ 9 _______________
4 _______________ 10 _______________
5 _______________ 11 _______________
6 _______________ 12 _______________
Enter Filter Set Number to Configure= 0
Edit Comments= N/A
Press ENTER to Confirm or ESC to Cancel:
Menu 21.1.2 - Filter Rules Summary
# A Type Filter Rules M m n
- - ---- --------------------------------------------------------------- -
- -
1 Y IP Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=137 N D N
2 Y IP Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=138 N D N
3 Y IP Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=139 N D N
4 Y IP Pr=17, SA=0.0.0.0, DA=0.0.0.0, DP=137 N D N
5 Y IP Pr=17, SA=0.0.0.0, DA=0.0.0.0, DP=138 N D N
6 Y IP Pr=17, SA=0.0.0.0, DA=0.0.0.0, DP=139 N D F
Enter Filter Rule Number (1-6) to Configure:
P-660H/HW/W-T Series User’ Guide
275 Chapter 29 Filter Configuration
Figure 168 NetBIOS_LAN Filter Rules Summary
Figure 169 IGMP Filter Rules Summary
29.3 Filter Rules Summary Menus
The following tables briefly describe the abbreviations used in menus 21.1.1 and 21.1.2.
Menu 21.1.3 - Filter Rules Summary
# A Type Filter Rules M m n
- - ---- ------------------------------------------------------------ - - -
1 Y IP Pr=17, SA=0.0.0.0, SP=137, DA=0.0.0.0, DP=53 N D F
2 N
3 N
4 N
5 N
6 N
Enter Filter Rule Number (1-6) to Configure:
Menu 21.1.4 - Filter Rules Summary
# A Type Filter Rules M m n
- - ---- ------------------------------------------------------------ - - -
1 Y Gen Off=0, Len=3, Mask=ffffff, Value=01005e N D F
2 N
3 N
4 N
5 N
6 N
Enter Filter Rule Number (1-6) to Configure:
Table 94 Abbreviations Used in the Filter Rules Summary Menu
FIELD DESCRIPTION
#The filter rule number: 1 to 6.
AActive: “Y” means the rule is active. “N” means the rule is inactive.
Type The type of filter rule: “GEN” for Generic, “IP” for TCP/IP.
Filter Rules These parameters are displayed here.
MMore.
“Y” means there are more rules to check which form a rule chain with the present rule.
An action cannot be taken until the rule chain is complete.
“N” means there are no more rules to check. You can specify an action to be taken for
instance, forward the packet, drop the packet or check the next rule. For the latter, the
next rule is independent of the rule just checked.
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 276
The protocol dependent filter rules abbreviation are listed as follows:
29.4 Configuring a Filter Rule
To configure a filter rule, type its number in Menu 21.1.x – Filter Rules Summary and press
[ENTER] to open menu 21.1.x.1 for the rule.
There are two types of filter rules: TCP/IP and Generic. Depending on the type of rule, the
parameters for each type will be different. Use [SPACE BAR] to select the type of rule that
you want to create in the Filter Type field and press [ENTER] to open the respective menu.
To speed up filtering, all rules in a filter set must be of the same class, for instance, protocol
filters or generic filters. The class of a filter set is determined by the first rule that you create.
When applying the filter sets to a port, separate menu fields are provided for protocol and
device filter sets. If you include a protocol filter set in a device filters field or vice versa, the
Prestige will warn you and will not allow you to save.
mAction Matched.
“F” means to forward the packet immediately and skip checking the remaining rules.
“D” means to drop the packet.
“N“means to check the next rule.
nAction Not Matched.
“F” means to forward the packet immediately and skip checking the remaining rules.
“D” means to drop the packet.
“N” means to check the next rule.
Table 95 Rule Abbreviations Used
FILTER TYPE DESCRIPTION
IP
Pr Protocol
SA Source Address
SP Source Port Number
DA Destination Address
DP Destination Port Number
GEN
Off Offset
Len Length
Table 94 Abbreviations Used in the Filter Rules Summary Menu (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
277 Chapter 29 Filter Configuration
29.4.1 TCP/IP Filter Rule
This section shows you how to configure a TCP/IP filter rule. TCP/IP rules allow you to base
the rule on the fields in the IP and the upper layer protocol, for example, UDP and TCP
headers.
To configure TCP/IP rules, select TCP/IP Filter Rule from the Filter Type field and press
[ENTER] to open Menu 21.1.x.1 – TCP/IP Filter Rule, as shown next.
Figure 170 Menu 21.1.x.1 TCP/IP Filter Rule
The following table describes how to configure your TCP/IP filter rule.
Menu 21.1.1.1 - TCP/IP Filter Rule
Filter #: 1,1
Filter Type= TCP/IP Filter Rule
Active= No
IP Protocol= 0 IP Source Route= No
Destination: IP Addr=
IP Mask=
Port #=
Port # Comp= None
Source: IP Addr=
IP Mask=
Port #=
Port # Comp= None
TCP Estab= N/A
More= No Log= None
Action Matched= Check Next Rule
Action Not Matched= Check Next Rule
Press ENTER to Confirm or ESC to Cancel:
Table 96 Menu 21.1.x.1 TCP/IP Filter Rule
FIELD DESCRIPTION
Filter # This is the filter set, filter rule coordinates, for instance, 2, 3 refers to the second filter
set and the third filter rule of that set.
Filter Type Use [SPACE BAR] and then [ENTER] to choose a rule. Parameters displayed for
each type will be different. Choices are TCP/IP Filter Rule or Generic Filter Rule.
Active Select Yes to activate or No to deactivate the filter rule.
IP Protocol This is the upper layer protocol, for example, TCP is 6, UDP is 17 and ICMP is 1.
The value must be between 0 and 255. A value of 0 matches ANY protocol.
IP Source Route IP Source Route is an optional header that dictates the route an IP packet takes
from its source to its destination. If Yes, the rule applies to any packet with an IP
source route. The majority of IP packets do not have source route.
Destination:
IP Addr Type the destination IP address of the packet you want to filter. This field is ignored
if it is 0.0.0.0.
IP Mask Type the IP mask to apply to the Destination: IP Addr field.
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 278
The following figure illustrates the logic flow of an IP filter.
Port # Type the destination port of the packets you want to filter. The field range is 0 to
65535. A 0 field is ignored.
Port # Comp Select the comparison to apply to the destination port in the packet against the value
given in Destination: Port #. Choices are None, Less, Greater, Equal or Not
Equal.
Source:
IP Addr Type the source IP Address of the packet you want to filter. A 0.0.0.0 field is ignored.
IP Mask Type the IP mask to apply to the Source: IP Addr field.
Port # Type the source port of the packets you want to filter. The range of this field is 0 to
65535. A 0 field is ignored.
Port # Comp Select the comparison to apply to the source port in the packet against the value
given in Source: Port # field. Choices are None, Less, Greater, Equal or Not
Equal.
TCP Estab This applies only when the IP Protocol field is 6, TCP. If Yes, the rule matches
packets that want to establish TCP connection(s) (SYN=1 and ACK=0); else it is
ignored.
More If Yes, a matching packet is passed to the next filter rule before an action is taken or
else the packet is disposed of according to the action fields.
If More is Yes, then Action Matched and Action Not Matched will be N/A.
Log Select the logging option from the following:
None – No packets will be logged.
Action Matched – Only packets that match the rule parameters will be logged.
Action Not Matched – Only packets that do not match the rule parameters will be
logged.
Both – All packets will be logged.
Action Matched Select the action for a matching packet. Choices are Check Next Rule, Forward or
Drop.
Action Not
Matched
Select the action for a packet not matching the rule. Choices are Check Next Rule,
Forward or Drop.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 96 Menu 21.1.x.1 TCP/IP Filter Rule (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
279 Chapter 29 Filter Configuration

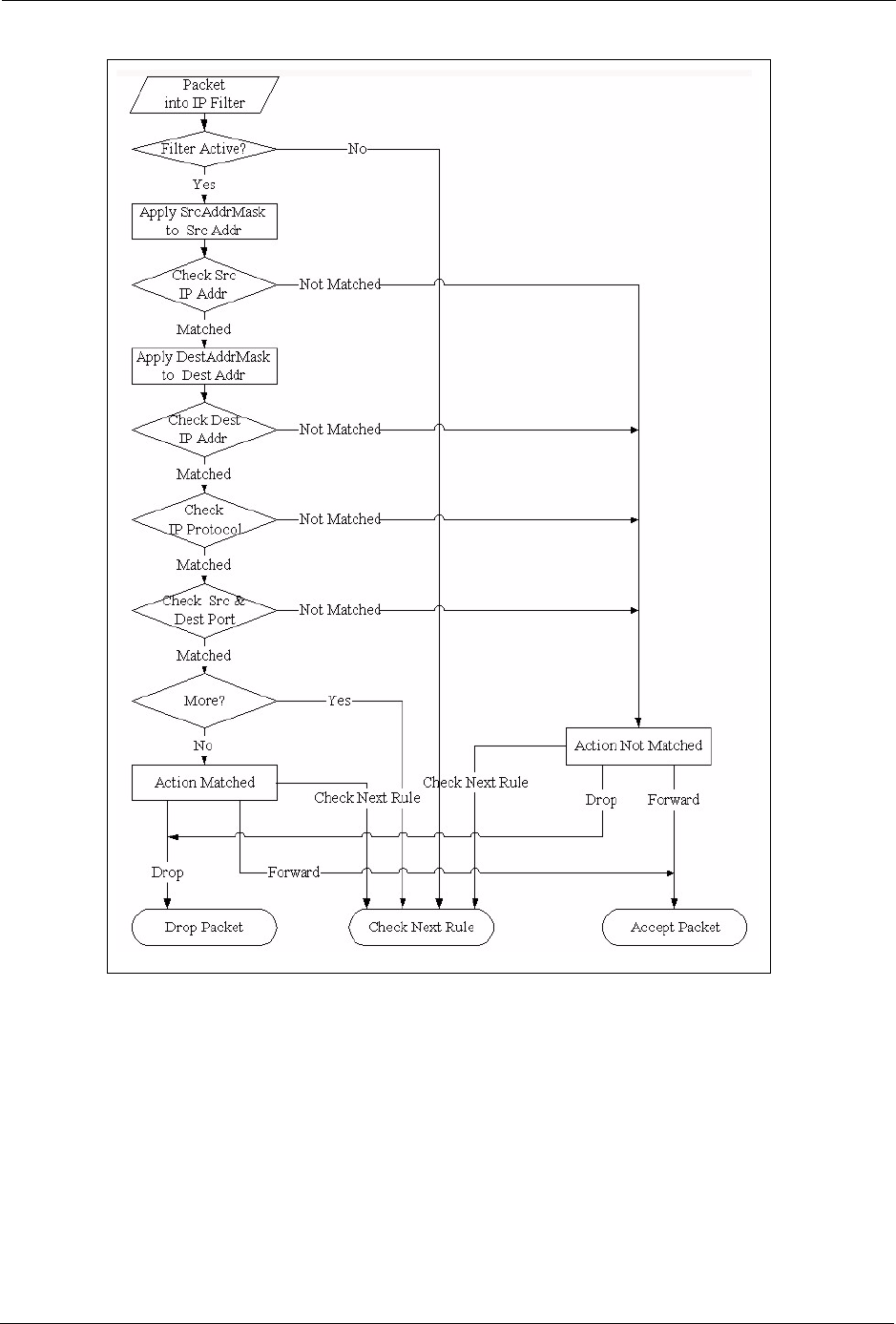

Figure 171 Executing an IP Filter
29.4.2 Generic Filter Rule
This section shows you how to configure a generic filter rule. The purpose of generic rules is
to allow you to filter non-IP packets. For IP, it is generally easier to use the IP rules directly.
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 280
For generic rules, the Prestige treats a packet as a byte stream as opposed to an IP packet. You
specify the portion of the packet to check with the Offset (from 0) and the Length fields, both
in bytes. The Prestige applies the Mask (bit-wise ANDing) to the data portion before
comparing the result against the Value to determine a match. The Mask and Value fields are
specified in hexadecimal numbers. Note that it takes two hexadecimal digits to represent a
byte, so if the length is 4, the value in either field will take 8 digits, for example, FFFFFFFF.
To configure a generic rule select an empty filter set in menu 21, for example 5. Select
Generic Filter Rule in the Filter Type field and press [ENTER] to open Menu 21.1.5.1 –
Generic Filter Rule, as shown in the following figure.
Figure 172 Menu 21.1.5.1 Generic Filter Rule
The next table describes the fields in the Generic Filter Rule menu.
Menu 21.1.5.1 - Generic Filter Rule
Filter #: 5,1
Filter Type= Generic Filter Rule
Active= No
Offset= 0
Length= 0
Mask= N/A
Value= N/A
More= No Log= None
Action Matched= Check Next Rule
Action Not Matched= Check Next Rule
Press ENTER to Confirm or ESC to Cancel:
Table 97 Menu 21.1.5.1 Generic Filter Rule
FIELD DESCRIPTION
Filter # This is the filter set, filter rule coordinates, for instance, 2, 3 refers to the second filter
set and the third rule of that set.
Filter Type Press [SPACE BAR] and then [ENTER] to select a type of rule. Parameters displayed
below each type will be different. Choices are Generic Filter Rule or TCP/IP Filter
Rule.
Active Select Yes to turn on or No to turn off the filter rule.
Offset Type the starting byte of the data portion in the packet that you want to compare. The
range for this field is from 0 to 255.
Length Type the byte count of the data portion in the packet that you want to compare. The
range for this field is 0 to 8.
Mask Type the mask (in Hexadecimal) to apply to the data portion before comparison.
Value Type the value (in Hexadecimal) to compare with the data portion.
More If Yes, a matching packet is passed to the next filter rule before an action is taken or
else the packet is disposed of according to the action fields.
If More is Yes, then Action Matched and Action Not Matched will be N/A.
P-660H/HW/W-T Series User’ Guide
281 Chapter 29 Filter Configuration
29.5 Filter Types and NAT
There are two classes of filter rules, Generic Filter Device rules and Protocol Filter (TCP/IP)
rules. Generic Filter rules act on the raw data from/to LAN and WAN. Protocol Filter rules act
on IP packets.
When NAT (Network Address Translation) is enabled, the inside IP address and port number
are replaced on a connection-by-connection basis, which makes it impossible to know the
exact address and port on the wire. Therefore, the Prestige applies the protocol filters to the
“native” IP address and port number before NAT for outgoing packets and after NAT for
incoming packets. On the other hand, the generic (or device) filters are applied to the raw
packets that appear on the wire. They are applied at the point where the Prestige is receiving
and sending the packets; for instance, the interface. The interface can be an Ethernet, or any
other hardware port. The following figure illustrates this.

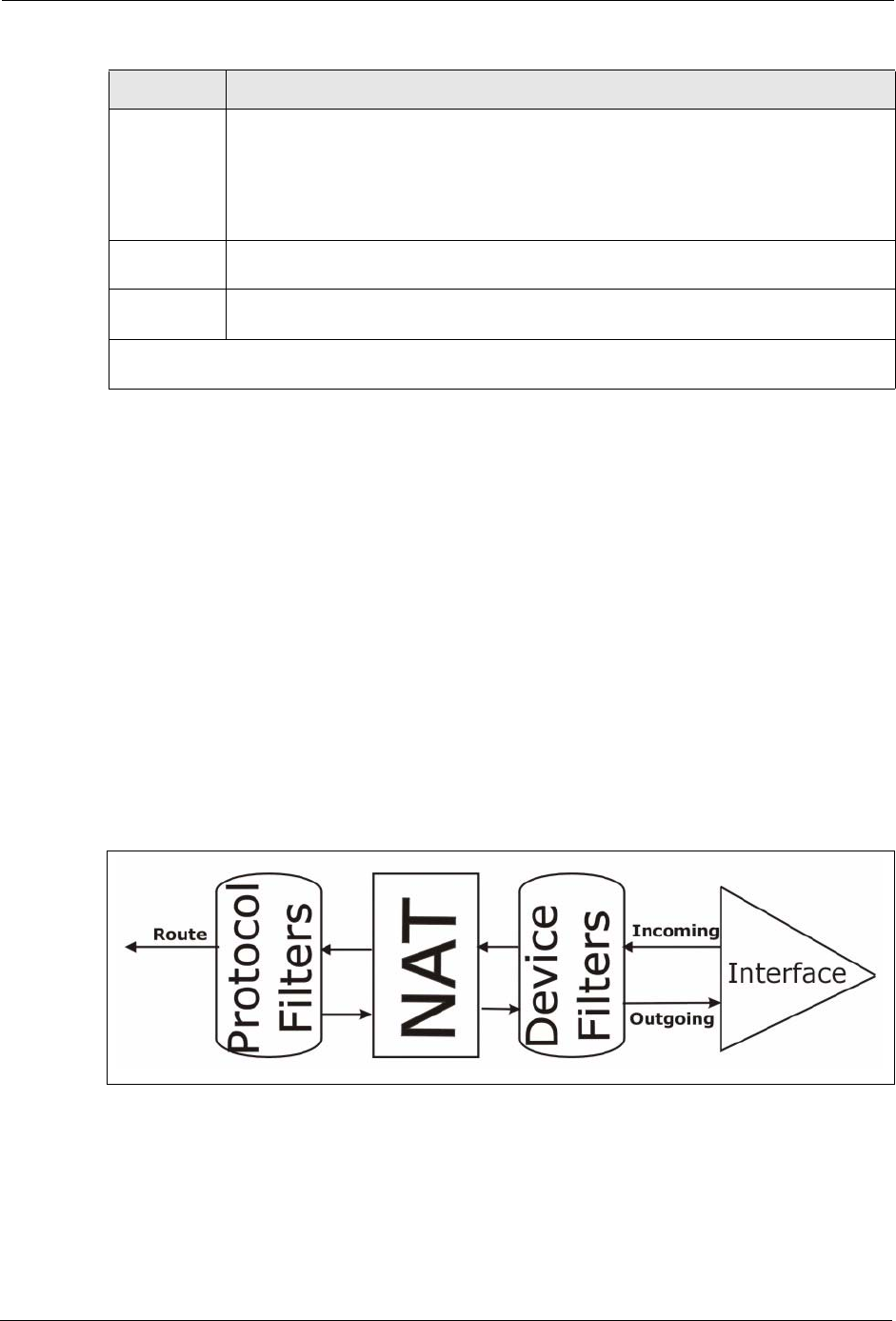

Figure 173 Protocol and Device Filter Sets
29.6 Example Filter
Let’s look at an example to block outside users from telnetting into the Prestige.
Log Select the logging option from the following:
None – No packets will be logged.
Action Matched – Only matching packets and rules will be logged.
Action Not Matched – Only packets that do not match the rule parameters will be
logged.
Both – All packets will be logged.
Action
Matched
Select the action for a matching packet. Choices are Check Next Rule, Forward or
Drop.
Action Not
Matched
Select the action for a packet not matching the rule. Choices are Check Next Rule,
Forward or Drop.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 97 Menu 21.1.5.1 Generic Filter Rule (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 282

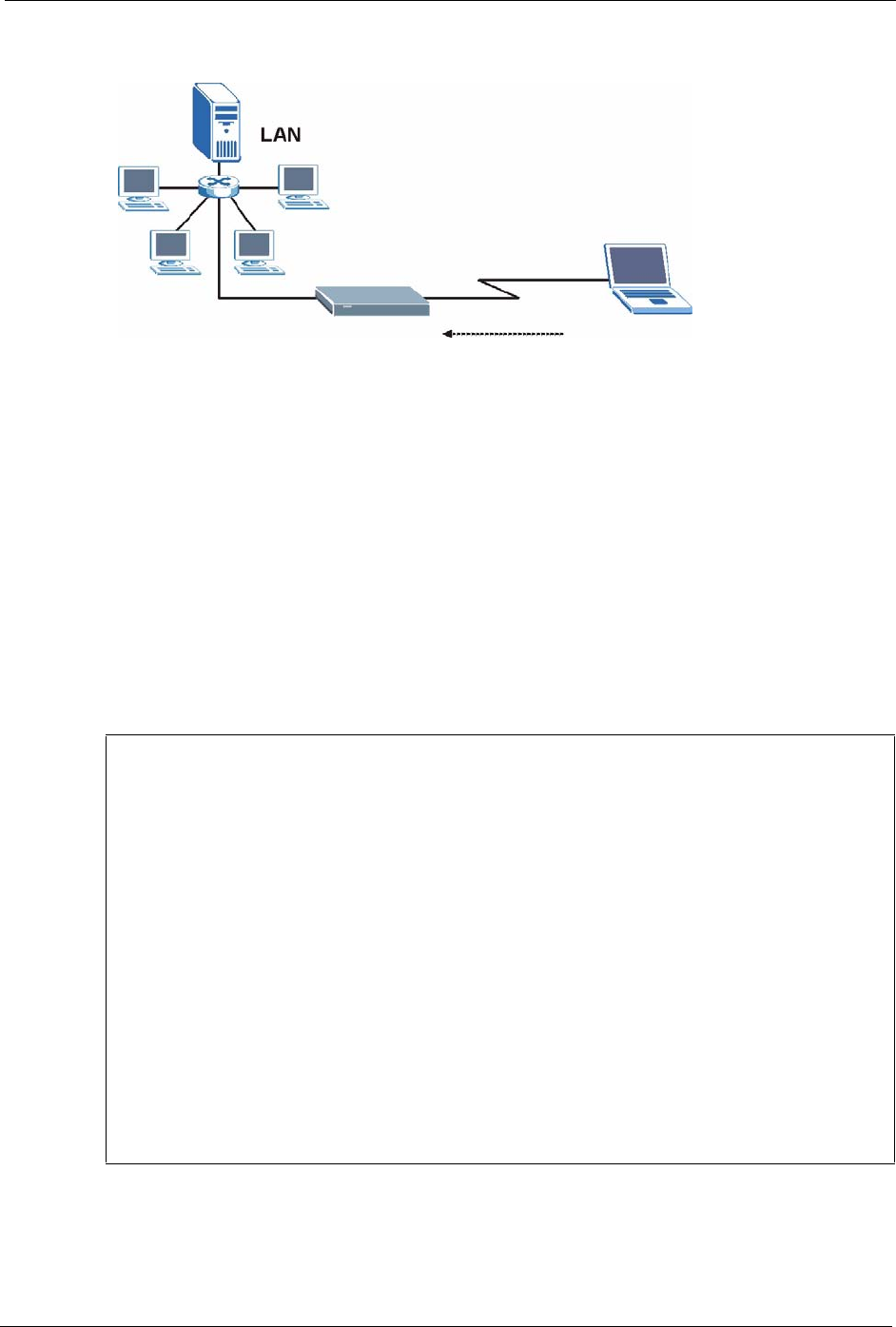

Figure 174 Sample Telnet Filter
1Enter 1 in the menu 21 to display Menu 21.1 — Filter Set Configuration.
2Enter the index number of the filter set you want to configure (in this case 6).
3Type a descriptive name or comment in the Edit Comments field (for example,
TELNET_WAN) and press [ENTER].
4Press [ENTER] at the message “Press [ENTER] to confirm or [ESC] to
cancel...” to open Menu 21.1.6 — Filter Rules Summary.
5Type 1 to configure the first filter rule. Make the entries in this menu as shown next.
When you press [ENTER] to confirm, the following screen appears. Note that there is only
one filter rule in this set.
Figure 175 Menu 21.1.6.1 Sample Filter
After you have created the filter set, you must apply it.
1Enter 11 in the main menu to display menu 11 and type the remote node number to edit.
Menu 21.1.6.1 - TCP/IP Filter Rule
Filter #: 6,1
Filter Type= TCP/IP Filter Rule
Active= Yes
IP Protocol= 6 IP Source Route= No
Destination: IP Addr= 0.0.0.0
IP Mask= 0.0.0.0
Port #= 23
Port # Comp= Equal
Source: IP Addr= 0.0.0.0
IP Mask= 0.0.0.0
Port #=
Port # Comp= Equal
TCP Estab= No
More= No Log= None
Action Matched= Drop
Action Not Matched= Forward
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
283 Chapter 29 Filter Configuration
2Go to the Edit Filter Sets field, press [SPACE BAR] to choose Ye s and press [ENTER].
This brings you to menu 11.5. Apply the example filter set (for example, filter set 3) in this
menu as shown in the next section.
This shows you that you have configured and activated (A = Y) a TCP/IP filter rule (Type =
IP, Pr = 6) for destination telnet ports (DP = 23).
M = N means an action can be taken immediately. The action is to drop the packet (m = D) if
the action is matched and to forward the packet immediately (n = F) if the action is not
matched no matter whether there are more rules to be checked (there aren’t in this example).
Figure 176 Menu 21.1.6.1 Sample Filter Rules Summary
29.7 Applying Filters and Factory Defaults
This section shows you where to apply the filter(s) after you design it (them). Sets of factory
default filter rules have been configured in menu 21 (but have not been applied) to filter
traffic.
Menu 21.1.6 - Filter Rules Summary
# A Type Filter Rules M m n
- - ---- --------------------------------------------------------------- -
- -
1 Y IP Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=23 N D F
2 N
3 N
4 N
5 N
6 N
Enter Filter Rule Number (1-6) to Configure: 1
Table 98 Filter Sets Table
FILTER SETS DESCRIPTION
Input Filter Sets: Apply filters for incoming traffic. You may apply protocol or device filter rules. See
earlier in this chapter for information on filters.
Output Filter Sets: Apply filters for traffic leaving the Prestige. You may apply filter rules for protocol
or device filters. See earlier in this section for information on types of filters.
Call Filter Sets: Apply filters to decide if a packet should be allowed to trigger a call.
P-660H/HW/W-T Series User’ Guide
Chapter 29 Filter Configuration 284
29.7.1 Ethernet Traffic
You seldom need to filter Ethernet traffic; however, the filter sets may be useful to block
certain packets, reduce traffic and prevent security breaches. Go to menu 3.1 (shown next) and
type the number(s) of the filter set(s) that you want to apply as appropriate. You can choose up
to four filter sets (from twelve) by typing their numbers separated by commas, for example, 3,
4, 6, 11. The factory default filter set, NetBIOS_LAN, is inserted in the protocol filters field
under Input Filter Sets in menu 3.1 in order to prevent local NetBIOS messages from
triggering calls to the DNS server.
Figure 177 Filtering Ethernet Traffic
29.7.2 Remote Node Filters
Go to menu 11.5 (shown next) and type the number(s) of the filter set(s) as appropriate. You
can cascade up to four filter sets by typing their numbers separated by commas. The factory
default filter set, NetBIOS_WAN, is inserted in the protocol filters field under Call Filter Sets
in menu 11.5 to block local NetBIOS traffic from triggering calls to the ISP.
Figure 178 Filtering Remote Node Traffic
Note that call filter sets are visible when you select PPPoA or PPPoE encapsulation.
Menu 3.1 – LAN Port Filter Setup
Input Filter Sets:
protocol filters= 3
device filters=
Output Filter Sets:
protocol filters=
device filters=
Press ENTER to Confirm or ESC to Cancel:
Menu 11.5 - Remote Node Filter
Input Filter Sets:
protocol filters= 6
device filters=
Output Filter Sets:
protocol filters= 2
device filters=
Call Filter Sets:
Protocol filters=
Device filters=
Enter here to CONFIRM or ESC to CANCEL:
P-660H/HW/W-T Series User’ Guide
285 Chapter 29 Filter Configuration
P-660H/HW/W-T Series User’ Guide
Chapter 30 SNMP Configuration 286
CHAPTER 30
SNMP Configuration
This chapter explains SNMP Configuration menu 22.
30.1 About SNMP
Simple Network Management Protocol (SNMP) is a protocol used for exchanging
management information between network devices. SNMP is a member of the TCP/IP
protocol suite. Your Prestige supports SNMP agent functionality, which allows a manager
station to manage and monitor the Prestige through the network. The Prestige supports SNMP
version one (SNMPv1) and version two c (SNMPv2c). The next figure illustrates an SNMP
management operation. SNMP is only available if TCP/IP is configured.
Figure 179 SNMP Management Model
An SNMP managed network consists of two main components: agents and a manager.
An agent is a management software module that resides in a managed device (the Prestige).
An agent translates the local management information from the managed device into a form
compatible with SNMP. The manager is the console through which network administrators
perform network management functions. It executes applications that control and monitor
managed devices.
P-660H/HW/W-T Series User’ Guide
287 Chapter 30 SNMP Configuration
The managed devices contain object variables/managed objects that define each piece of
information to be collected about a device. Examples of variables include the number of
packets received, node port status etc. A Management Information Base (MIB) is a collection
of managed objects. SNMP allows a manager and agents to communicate for the purpose of
accessing these objects.
SNMP itself is a simple request/response protocol based on the manager/agent model. The
manager issues a request and the agent returns responses using the following protocol
operations:
• Get - Allows the manager to retrieve an object variable from the agent.
• GetNext - Allows the manager to retrieve the next object variable from a table or list
within an agent. In SNMPv1, when a manager wants to retrieve all elements of a table
from an agent, it initiates a Get operation, followed by a series of GetNext operations.
• Set - Allows the manager to set values for object variables within an agent.
• Trap - Used by the agent to inform the manager of some events.
30.2 Supported MIBs
The Prestige supports RFC-1215 and MIB II as defined in RFC-1213 as well as ZyXEL
private MIBs. The focus of the MIBs is to let administrators collect statistic data and monitor
status and performance.
30.3 SNMP Configuration
To configure SNMP, select option 22 from the main menu to open Menu 22 — SNMP
Configuration as shown next. The “community” for Get, Set and Trap fields is SNMP
terminology for password.
P-660H/HW/W-T Series User’ Guide
Chapter 30 SNMP Configuration 288
Figure 180 Menu 22 SNMP Configuration
The following table describes the SNMP configuration parameters.
30.4 SNMP Traps
The Prestige will send traps to the SNMP manager when any one of the following events
occurs:
Menu 22 - SNMP Configuration
SNMP:
Get Community= public
Set Community= public
Trusted Host= 0.0.0.0
Trap:
Community= public
Destination= 0.0.0.0
Press ENTER to Confirm or ESC to Cancel:
Table 99 Menu 22 SNMP Configuration
FIELD DESCRIPTION
SNMP:
Get Community Type the Get Community, which is the password for the incoming Get- and
GetNext requests from the management station.
Set Community Type the Set community, which is the password for incoming Set requests from
the management station.
Trusted Host If you enter a trusted host, your Prestige will only respond to SNMP messages
from this address. A blank (default) field means your Prestige will respond to all
SNMP messages it receives, regardless of source.
Trap:
Community Type the trap community, which is the password sent with each trap to the
SNMP manager.
Destination Type the IP address of the station to send your SNMP traps to.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 100 SNMP Traps
TRAP # TRAP NAME DESCRIPTION
1coldStart (defined in RFC-1215)A trap is sent after booting (power on).
2warmStart (defined in RFC-1215)A trap is sent after booting (software reboot).
3linkDown (defined in RFC-1215)A trap is sent with the port number when any of the
links are down. See the following table.
4linkUp (defined in RFC-1215)A trap is sent with the port number.
P-660H/HW/W-T Series User’ Guide
289 Chapter 30 SNMP Configuration
The port number is its interface index under the interface group.
5authenticationFailure (defined in
RFC-1215)
A trap is sent to the manager when receiving any
SNMP gets or sets requirements with wrong
community (password).
6whyReboot (defined in ZYXEL-MIB) A trap is sent with the reason of restart before
rebooting when the system is going to restart (warm
start).
6a For intentional reboot : A trap is sent with the message "System reboot by
user!" if reboot is done intentionally, (for example,
download new files, CI command "sys reboot", etc.).
Table 101 Ports and Permanent Virtual Circuits
PORT PVC (PERMANENT VIRTUAL CIRCUIT)
1Ethernet LAN
2 1
3 2
… …
13 12
14 xDSL
Table 100 SNMP Traps (continued)
TRAP # TRAP NAME DESCRIPTION
P-660H/HW/W-T Series User’ Guide
Chapter 31 System Security 290
CHAPTER 31
System Security
This chapter describes how to configure the system security on the Prestige.
31.1 System Security
You can configure the system password.
31.1.1 System Password
Enter 23 in the main menu to display Menu 23 – System Security.
You should change the default password. If you forget your password you have to restore the
default configuration file.
Figure 181 Menu 23 – System Security
31.1.2 Configuring External RADIUS Server
From Menu 23- System Security, enter 2 to display Menu 23.2 - System Security-RADIAS
Server.
Menu 23 - System Security
1. Change Password
2. RADIUS Server
4. IEEE802.1x
Enter Menu Selection Number:
P-660H/HW/W-T Series User’ Guide
291 Chapter 31 System Security
Figure 182 Menu 23.2 System Security: RADIUS Server
The following table describes the fields in this menu.
Menu 23.2 - System Security - RADIUS Server
Authentication Server:
Active= No
Server Address= 10.11.12.13
Port #= 1812
Shared Secret= ********
Accounting Server:
Active= No
Server Address= 10.11.12.13
Port #= 1813
Shared Secret= ********
Press ENTER to Confirm or ESC to Cancel:
Table 102 Menu 23.2 System Security: RADIUS Server
FIELD DESCRIPTION
Authentication Server
Active Press [SPACE BAR] to select Yes and press [ENTER] to enable user
authentication through an external authentication server.
Server Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port The default port of the RADIUS server for authentication is 1812.
You need not change this value unless your network administrator instructs
you to do so with additional information.
Shared Secret Specify a password (up to 31 alphanumeric characters) as the key to be
shared between the external authentication server and the access points.
The key is not sent over the network. This key must be the same on the
external authentication server and Prestige.
Accounting Server
Active Press [SPACE BAR] to select Yes and press [ENTER] to enable user
authentication through an external accounting server.
Server Address Enter the IP address of the external accounting server in dotted decimal
notation.
Port The default port of the RADIUS server for accounting is 1813.
You need not change this value unless your network administrator instructs
you to do so with additional information.
Shared Secret Specify a password (up to 31 alphanumeric characters) as the key to be
shared between the external accounting server and the access points.
The key is not sent over the network. This key must be the same on the
external accounting server and Prestige.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
Chapter 31 System Security 292
31.1.3 IEEE 802.1x
The IEEE 802.1x standards outline enhanced security methods for both the authentication of
wireless stations and encryption key management.
Follow the steps below to enable EAP authentication on your Prestige.
1From the main menu, enter 23 to display Menu23 – System Security.
Figure 183 Menu 23 System Security
2Enter 4 to display Menu 23.4 – System Security – IEEE 802.1x.
Figure 184 Menu 23.4 System Security: IEEE 802.1x
The following table describes the fields in this menu.
Menu 23 - System Security
1. Change Password
2. RADIUS Server
4. IEEE802.1x
Enter Menu Selection Number:
Menu 23.4 - System Security - IEEE 802.1x
Wireless Port Control= No Authentication Required
ReAuthentication Timer (in second)= N/A
Idle Timeout (in second)= N/A
Key Management Protocol= N/A
Dynamic WEP Key Exchange= N/A
PSK= N/A
WPA Mixed Mode= N/A
Data Privacy for Broadcast/Multicast packets= N/A
WPA Broadcast/Multicast Key Update Timer= N/A
Authentication Databases= N/A
Press ENTER to Confirm or ESC to Cancel:
P-660H/HW/W-T Series User’ Guide
293 Chapter 31 System Security
Table 103 Menu 23.4 System Security: IEEE 802.1x
FIELD DESCRIPTION
Wireless Port
Control
Press [SPACE BAR] and select a security mode for the wireless LAN access.
Select No Authentication Required to allow any wireless stations access to your
wired network without entering usernames and passwords. This is the default
setting.
Selecting Authentication Required means wireless stations have to enter
usernames and passwords before access to the wired network is allowed.
Select No Access Allowed to block all wireless stations access to the wired
network.
The following fields are not available when you select No Authentication Required
or No Access Allowed.
ReAuthentica-
tion Timer
(in second)
Specify how often a client has to re-enter username and password to stay
connected to the wired network.
This field is activated only when you select Authentication Required in the
Wireless Port Control field. Enter a time interval between 10 and 9999 (in
seconds). The default time interval is 1800 seconds (or 30 minutes).
Idle Timeout (in
second)
The Prestige automatically disconnects a client from the wired network after a
period of inactivity. The client needs to enter the username and password again
before access to the wired network is allowed.
This field is activated only when you select Authentication Required in the
Wireless Port Control field. The default time interval is 3600 seconds (or 1 hour).
Key Management
Protocol
Press [SPACE BAR] to select 802.1x, WPA or WPA-PSK and press [ENTER].
Dynamic WEP
Key Exchange
This field is activated only when you select Authentication Required in the
Wireless Port Control field. Also set the Authentication Databases field to
RADIUS Only. Local user database may not be used.
Select Disable to allow wireless stations to communicate with the access points
without using Dynamic WEP Key Exchange.
Select 64-bit WEP or 128-bit WEP to enable data encryption.
Up to 32 stations can access the Prestige when you configure Dynamic WEP Key
Exchange. This field is not available when you set Key Management Protocol to
WPA or WPA-PSK.
PSK Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including
spaces and symbols) when you select WPA-PSK in the Key Management
Protocol field.
WPA Mixed
Mode
Select Enable to activate WPA mixed mode. Otherwise, select Disable and
configure Group Data Privacy field.
Data Privacy for
Broadcast/
Multicast packets
This field allows you to choose TKIP (recommended) or WEP for broadcast and
multicast (“group”) traffic if the Key Management Protocol is WPA and WPA
Mixed Mode is disabled. WEP is used automatically if you have enabled WPA
Mixed Mode.
All unicast traffic is automatically encrypted by TKIP when WPA or WPA-PSK Key
Management Protocol is selected.
WPA Broadcast/
Multicast Key
Update Timer
The WPA Broadcast/Multicast Key Update Timer is the rate at which the AP (if
using WPA-PSK key management) or RADIUS server (if using WPA key
management) sends a new group key out to all clients. The re-keying process is the
WPA equivalent of automatically changing the WEP key for an AP and all stations in
a WLAN on a periodic basis. Setting of the WPA Broadcast/Multicast Key Update
Timer is also supported in WPA-PSK mode. The Prestige default is 1800 seconds
(30 minutes).
P-660H/HW/W-T Series User’ Guide
Chapter 31 System Security 294
Once you enable user authentication, you need to specify an external RADIUS server or create
local user accounts on the Prestige for authentication.
31.2 Creating User Accounts on the Prestige
By storing user profiles locally, your Prestige is able to authenticate wireless users without
interacting with a network RADIUS server.
Follow the steps below to set up user profiles on your Prestige.
1From the main menu, enter 14 to display Menu 14 - Dial-in User Setup.
Authentication
Databases
The authentication database contains wireless station login information. The local
user database is the built-in database on the Prestige. The RADIUS is an external
server. Use this field to decide which database the Prestige should use (first) to
authenticate a wireless station.
Before you specify the priority, make sure you have set up the corresponding
database correctly first.
When you configure Key Management Protocol to WPA, the Authentication
Databases must be RADIUS Only. You can only use the Local User Database
with 802.1x Key Management Protocol.
Select Local User Database Only to have the Prestige just check the built-in user
database on the Prestige for a wireless station's username and password.
Select RADIUS Only to have the Prestige just check the user database on the
specified RADIUS server for a wireless station's username and password.
Select Local first, then RADIUS to have the Prestige first check the user database
on the Prestige for a wireless station's username and password. If the user name is
not found, the Prestige then checks the user database on the specified RADIUS
server.
Select RADIUS first, then Local to have the Prestige first check the user database
on the specified RADIUS server for a wireless station's username and password. If
the Prestige cannot reach the RADIUS server, the Prestige then checks the local
user database on the Prestige. When the user name is not found or password does
not match in the RADIUS server, the Prestige will not check the local user database
and the authentication fails.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
Table 103 Menu 23.4 System Security: IEEE 802.1x (continued)
FIELD DESCRIPTION
P-660H/HW/W-T Series User’ Guide
295 Chapter 31 System Security
Figure 185 Menu 14 Dial-in User Setup
2Type a number and press [ENTER] to edit the user profile.
Figure 186 Menu 14.1 Edit Dial-in User
The following table describes the fields in this menu.
Menu 14 - Dial-in User Setup
1. ________ 9. ________ 17. ________ 25. ________
2. ________ 10. ________ 18. ________ 26. ________
3. ________ 11. ________ 19. ________ 27. ________
4. ________ 12. ________ 20. ________ 28. ________
5. ________ 13. ________ 21. ________ 29. ________
6. ________ 14. ________ 22. ________ 30. ________
7. ________ 15. ________ 23. ________ 31. ________
8. ________ 16. ________ 24. ________ 32. ________
Enter Menu Selection Number:
Menu 14.1 - Edit Dial-in User
User Name= test
Active= Yes
Password= ********
Press ENTER to Confirm or ESC to Cancel:
Table 104 Menu 14.1 Edit Dial-in User
FIELD DESCRIPTION
User Name Enter a username up to 31 alphanumeric characters long for this user profile.
This field is case sensitive.
Active Press [SPACE BAR] to select Yes and press [ENTER] to enable the user profile.
Password Enter a password up to 31 characters long for this user profile.
When you have completed this menu, press [ENTER] at the prompt “Press ENTER to Confirm
or ESC to Cancel:” to save your configuration, or press [ESC] at any time to cancel.
P-660H/HW/W-T Series User’ Guide
Chapter 32 System Information and Diagnosis 296
CHAPTER 32
System Information and
Diagnosis
This chapter covers the information and diagnostic tools in SMT menus 24.1 to 24.4.
32.1 Overview
These tools include updates on system status, port status, log and trace capabilities and
upgrades for the system software. This chapter describes how to use these tools in detail.
Type 24 in the main menu to open Menu 24 – System Maintenance, as shown in the
following figure.
Figure 187 Menu 24 System Maintenance
32.2 System Status
The first selection, System Status gives you information on the status and statistics of the
ports, as shown next. System Status is a tool that can be used to monitor your Prestige.
Specifically, it gives you information on your DSL telephone line status, number of packets
sent and received.
To get to System Status, type 24 to go to Menu 24 — System Maintenance. From this menu,
type 1. System Status. There are two commands in Menu 24.1 — System Maintenance —
Status. Entering 1 resets the counters; [ESC] takes you back to the previous screen.
Menu 24 - System Maintenance
1. System Status
2. System Information and Console Port Speed
3. Log and Trace
4. Diagnostic
5. Backup Configuration
6. Restore Configuration
7. Upload Firmware
8. Command Interpreter Mode
9. Call Control
10. Time and Date Setting
11. Remote Management
Enter Menu Selection Number:
P-660H/HW/W-T Series User’ Guide
297 Chapter 32 System Information and Diagnosis
The following table describes the fields present in Menu 24.1 — System Maintenance —
Status which are read-only and meant for diagnostic purposes.
Figure 188 Menu 24.1 System Maintenance : Status
The following table describes the fields present in Menu 24.1 — System Maintenance —
Status.
Menu 24.1 - System Maintenance - Status 23:08:47
Sat. Jan. 01, 2000
Node-Lnk Status TxPkts RxPkts Errors Tx B/s Rx B/s Up
Time
1-ENET N/A 0 0 0 0 0 0:00:00
2 N/A 0 0 0 0 0 0:00:00
3 N/A 0 0 0 0 0 0:00:00
4 N/A 0 0 0 0 0 0:00:00
5 N/A 0 0 0 0 0 0:00:00
6 N/A 0 0 0 0 0 0:00:00
7 N/A 0 0 0 0 0 0:00:00
8 N/A 0 0 0 0 0 0:00:00
My WAN IP (from ISP): 0.0.0.0
Ethernet: WAN:
Status: 100M/Full Duplex Tx Pkts: 5731 Line Status: Down
Collisions: 0 Rx Pkts: 8314 Upstream Speed: 0 kbps
CPU Load = 25.52% Downstream Speed: 0 kbps
Press Command:
COMMANDS: 1-Reset Counters TAB-Next Page ESC-Exit
Table 105 Menu 24.1 System Maintenance: Status
FIELD DESCRIPTION
Node-Lnk This is the node index number and link type. Link types are: PPP, ENET, 1483.
Status This shows the status of the remote node.
TxPkts The number of transmitted packets to this remote node.
RxPkts The number of received packets from this remote node.
Errors The number of error packets on this connection.
Tx B/s This shows the transmission rate in bytes per second.
Rx B/s This shows the receiving rate in bytes per second.
Up Time This is the time this channel has been connected to the current remote node.
My WAN IP
(from ISP)
This is the IP address of the ISP remote node.
Ethernet This shows statistics for the LAN.
Status This shows the current status of the LAN.
Tx Pkts This is the number of transmitted packets to the LAN.
Rx Pkts This is the number of received packets from the LAN.
P-660H/HW/W-T Series User’ Guide
Chapter 32 System Information and Diagnosis 298
32.3 System Information
To get to the System Information:
1Enter 24 to display Menu 24 — System Maintenance.
2Enter 2 to display Menu 24.2 — System Information and Console Port Speed.
From this menu you have two choices as shown in the next figure:
Figure 189 Menu 24.2 System Information and Console Port Speed
32.3.1 System Information
Enter 1 in menu 24.2 to display the screen shown next.
Collision This is the number of collisions.
WAN This shows statistics for the WAN.
Line Status This shows the current status of the xDSL line, which can be Up or Down.
Upstream
Speed
This shows the upstream transfer rate in kbps.
Downstream
Speed
This shows the downstream transfer rate in kbps.
CPU Load This specifies the percentage of CPU utilization.
Table 105 Menu 24.1 System Maintenance: Status (continued)
FIELD DESCRIPTION
Menu 24.2 - System Information and Console Port Speed
1. System Information
2. Console Port Speed
Please enter selection:
P-660H/HW/W-T Series User’ Guide
299 Chapter 32 System Information and Diagnosis
Figure 190 Menu 24.2.1 System Maintenance: Information
The following table describes the fields in this menu.
32.3.2 Console Port Speed
Note: The console port is internal and reserved for technician use only.
You can set up different port speeds for the console port through Menu 24.2.2 – System
Maintenance – Console Port Speed. Your Prestige supports 9600 (default), 19200, 38400,
57600 and 115200 bps. Press [SPACE BAR] and then [ENTER] to select the desired speed in
menu 24.2.2, as shown in the following figure.
Menu 24.2.1 - System Maintenance - Information
Name:
Routing: IP
ZyNOS F/W Version: V3.40(ACC.0)| 04/26/2005
ADSL Chipset Vendor: DMT FwVer: 3.0.11.11_A_TC, HwVer: T14F+
Standard: Multi-Mode
LAN
Ethernet Address: 00:13:49:11:11:35
IP Address: 192.168.1.1
IP Mask: 255.255.255.0
DHCP: Server
Press ESC or RETURN to Exit:
Table 106 Menu 24.2.1 System Maintenance: Information
FIELD DESCRIPTION
Name Displays the system name of your Prestige. This information can be changed in
Menu 1 – General Setup.
Routing Refers to the routing protocol used.
ZyNOS F/W Version Refers to the ZyNOS (ZyXEL Network Operating System) system firmware
version. ZyNOS is a registered trademark of ZyXEL Communications
Corporation.
ADSL Chipset
Vendor
Displays the vendor of the ADSL chipset and DSL version.
Standard This refers to the operational protocol the Prestige and the DSLAM (Digital
Subscriber Line Access Multiplexer) are using.
LAN
Ethernet Address Refers to the Ethernet MAC (Media Access Control) of your Prestige.
IP Address This is the IP address of the Prestige in dotted decimal notation.
IP Mask This shows the subnet mask of the Prestige.
DHCP This field shows the DHCP setting (None, Relay or Server) of the Prestige.
P-660H/HW/W-T Series User’ Guide
Chapter 32 System Information and Diagnosis 300
Figure 191 Menu 24.2.2 System Maintenance : Change Console Port Speed
Once you change the Prestige console port speed, you must also set the speed parameter for
the communication software you are using to connect to the Prestige.
32.4 Log and Trace
There are two logging facilities in the Prestige. The first is the error logs and trace records that
are stored locally. The second is the syslog facility for message logging.
32.4.1 Viewing Error Log
The first place you should look for clues when something goes wrong is the error log. Follow
the procedures to view the local error/trace log:
1Type 24 in the main menu to display Menu 24 – System Maintenance.
2From menu 24, type 3 to display Menu 24.3 – System Maintenance – Log and Trace.
Figure 192 Menu 24.3 System Maintenance: Log and Trace
3Enter 1 from Menu 24.3 — System Maintenance — Log and Trace to display the error
log in the system.
After the Prestige finishes displaying the error log, you will have the option to clear it.
Samples of typical error and information messages are presented in the next figure.
Menu 24.2.2 – System Maintenance – Change Console Port Speed
Console Port Speed: 9600
Press ENTER to Confirm or ESC to Cancel:
Menu 24.3 - System Maintenance - Log and Trace
1. View Error Log
2. UNIX Syslog
Please enter selection

Navigation menu
