Advanced RF Technologies, Inc. Epoch- M1P Repeater M100 QuickStart
Contents
- 1. Users Manual
- 2. QickStart Guide
- 3. Software Setup Guide
- 4. USB Driver Setup Guide
QickStart Guide
CHECK SIGNAL LEVELS
8
5
INSTALL AND RUN SOFTWARE
4
CONNECT USB, POWER CABLES, AND POWER ON
6
SELECT OPERATING BAND(S)
7
MODEM SETUP
Documentation and Software can be found on the CD-ROM
included in the M1P box.
Technical Support
Contact ADRF’s Technical Support Team for assistance with:
-Software Questions
-Setting up the M1P
-M1P Operation
-Troubleshooting Questions
13
CONNECT ANTENNAS/CABLES
DONOR
SERVER
2
REPEATER PLACEMENT
SERVER
DONOR
Advanced RF Technologies M1P Quick Start Guide
USA: 1-323-254-8131
www.adrftech.com
Quick
Install
Guide
FRONT VIEW
TOP VIEW
7 8
*If the M1P does not have a modem inside, proceed to step 8.
Make sure the AUTO CONNECTION box is checked.
Enter the Site ID and Manager IP information provided by the
carrier.
Click SET button and, finally, click “INSTALL” button.
When installation is complete, you will get a confirmation
message.
Go to STATUS menu and verify input/output power, gains, etc.
Please make sure that there are no ALARMS generated.
54 6
Connect the USB cable to your computer and
the M1P.
Plug in the power converter. (110VAC)
Turn on the M1P.
Use the CD-ROM (included in the M1P box)
to install the drivers when the New
Hardware Wizard comes up. This will
ensure that the M1P communicates
properly with the software.
Next, install the software from the CD.
After installation, launch the software.
Go to INSTALL menu on the top of the
GUI. On the top of the window, click the
5/10/15MHz BAND SELECTION button.
Click the center frequency on the pop-up
window and click OKAY. Double check the
SELECTED BAND information.
USB/POWER DRIVER/SOFTWARE BAND SELECTION
MODEM Set-up POST SURVEY
Congratulations! The M1P has been
successfully installed and is ready for use.
It is recommended to do a walk-through
inside of the building and make live phone
calls to verify RF coverage.
132

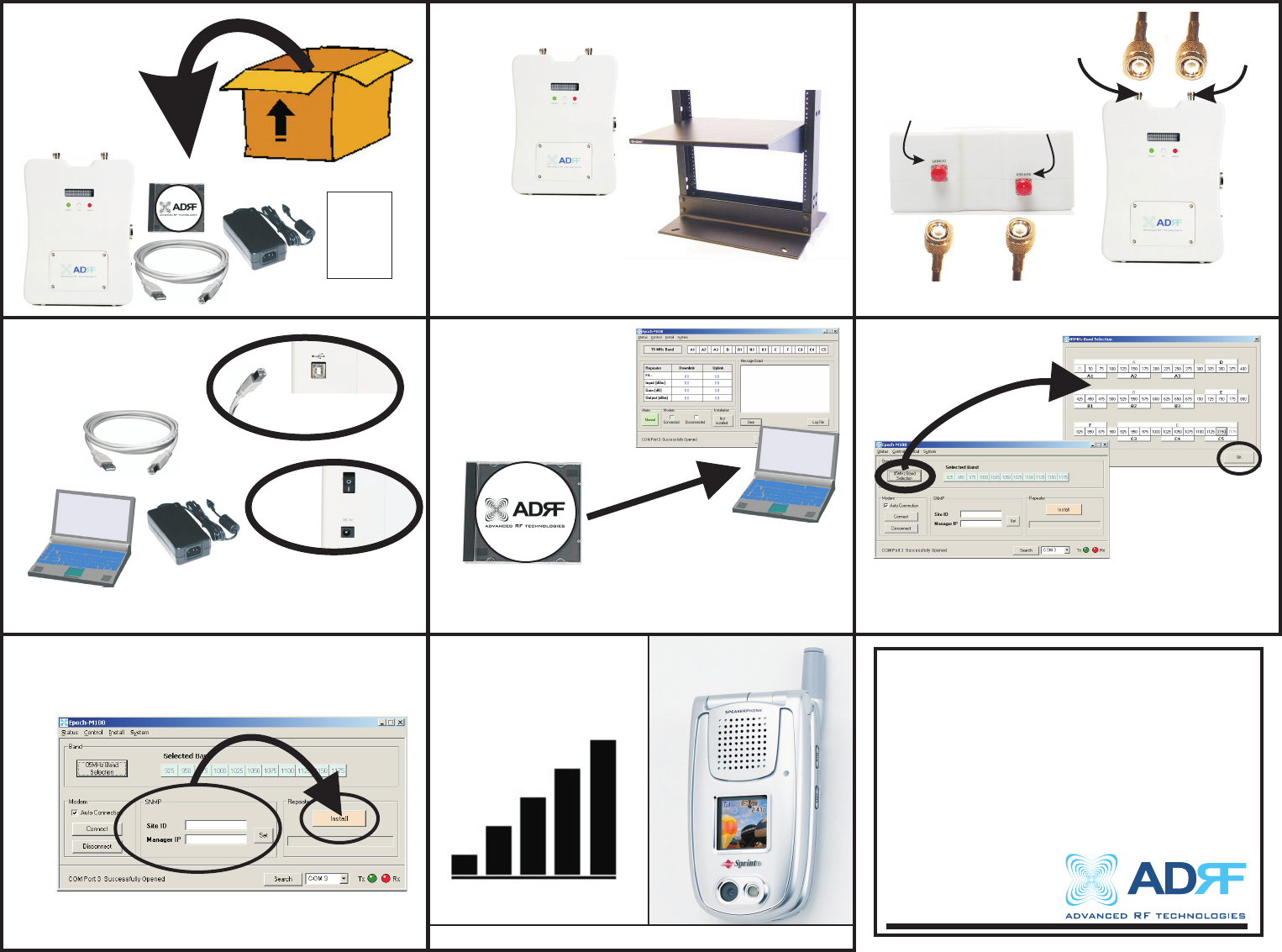

The box should contain:
1 - Epoch-M1P Repeater
1 - CD (Software and User Guide)
1 - USB Cable
1 - AC/DC Power Adapter
1 - Quick Install Guide Sheet
Locate the place where you will put the
M1P. You can hang the M1P or put it on
anything. In any case, make sure the M1P
is securely fastened to a wall or any
structure so that it won’t move.
Connect the donor/server antenna cables to
the M1P’s antenna ports on top as shown in
figure 3.
Adjust antenna positioning to assure
maximum coverage.
REPEATER PLACEMENT ANTENNA CONNECTIONOPEN THE BOX
Documentation and Software can be found on the CD-ROM
included in the M1P box.
Technical Support
Contact ADRF’s Technical Support Team for assistance with:
-Software Questions
-Setting up the M1P
-M1P Operation
-Troubleshooting Questions
Advanced RF Technologies M1P Quick Start Guide
USA: 1-323-254-8131
www.adrftech.com
