Introduction: Company 54g Wireless LAN (WLAN) User Manual
Back to Contents
Introduction: Broadcom 802.11g Mini PCI Card User Manual
Broadcom 802.11g WLAN Solution
Using the Broadcom 802.11g WLAN
Features and Requirements
Broadcom 802.11g WLAN Solution
The Broadcom 802.11g WLAN solution accesses wireless local area networks (LANs), enables the sharing of a local printer
and files with others in the network, accesses the Internet, and enables roaming about the office—wire-free. This wireless
LAN solution is designed for both the home user and small businesses—and it is scalable so that users can be added and
new network features can be enabled as networking needs grow.
WEP is a security protocol for wireless local area networks (defined in IEEE Std 802.11, 1999 Edition) that encrypts data
sent over radio waves. The use of the WEP key is optional and can be enabled or disabled. If the network being
connecting to has enabled WEP, WEP must also be enabled in the network profile and the WEP key must be set to match
the WEP key used by the network. Otherwise, it is impossible to connect to the network.
The Broadcom 802.11g enabled notebook makes a wireless connection to a network, as illustrated on the following figure.

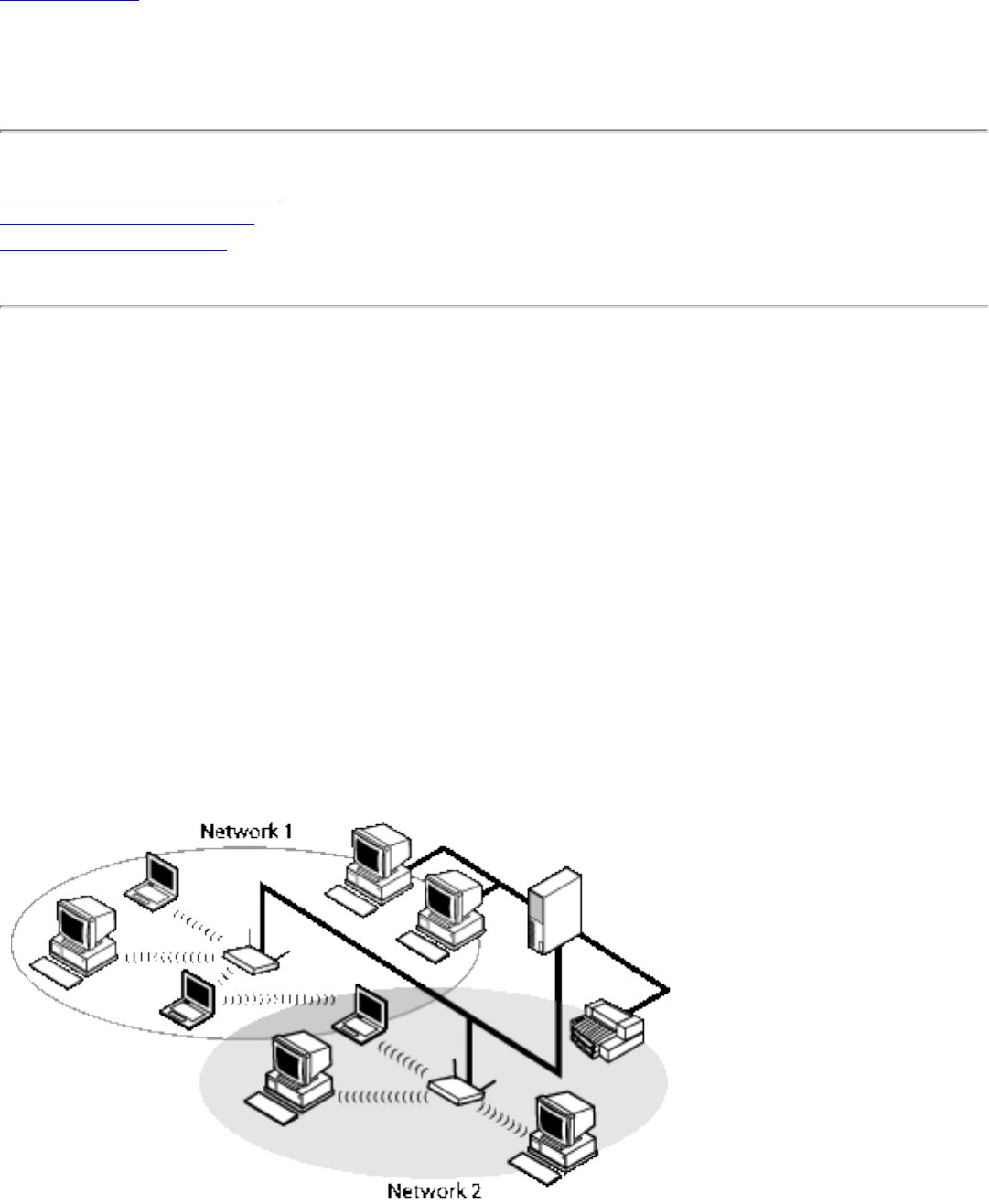

Networks 1 and 2 are infrastructure type of networks. The two notebook computers connected by radio waves form an ad
hoc type of network.
Enterprise Users
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (1 of 3) [1/30/03 10:11:16 PM]
Introduction: Company 54g Wireless LAN (WLAN) User Manual
Obtain the following information from the network administrator:
● Network names (SSID) of the specific wireless networks to connect to
● WEP (Wired Equivalent Privacy) key information (if any) for the networks to connect to
● For Microsoft® Windows® networking, the customer name and workgroup name
● For a network account, a user name and password
● An IP address (if not using a DHCP server)
Home Users
The access point (AP) that communicates with the Broadcom 802.11g enabled notebook has a preassigned network name
(SSID) that the notebook recognizes upon startup. To enable WEP, use any string of numbers for the WEP key.
Upon startup, the Broadcom 802.11g enabled notebook detects certain wireless networks (WLANs) that are within range.
Before connecting to these and other wireless networks, configure a profile for each network.See Completing the setup.
Using the Broadcom 802.11g WLAN
The Broadcom 802.11g enabled notebook is an IEEE 802.11g based wireless LAN device. A LAN is composed of two or more
computers that are connected to each other to share files or common equipment such as a printer or an Internet
connection. A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install
networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for
roaming. For example, when using the WLAN enabled notebook, it is possible to roam from a conference room to
an office without being disconnected from the network.
Features and Requirements
An IEEE 802.11 based wireless LAN includes the following features:
● Support for IEEE 802.11g draft specification
● Support for IEEE 802.11b standard
● 2.4-GHz band operation
● Network data rate of up to 54 Mbit/s
● Wired Equivalent Privacy (WEP) encryption
The following items are needed for participating in a wireless LAN:
● Broadcom 802.11g enabled notebook computer running on a Microsoft® Windows® XP operating system
● Software compact disc containing the drivers, software reference guide, and Help file
The Broadcom 802.11g enabled notebook works with any Wi-Fi CERTIFIED® base station or wireless client adapter.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (2 of 3) [1/30/03 10:11:16 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
Back to Contents
Completing the Setup: Broadcom 802.11g WLAN
User Manual
NOTE—Before starting, obtain the required network information from the network administrator or the wireless access
point installer (see The Broadcom 802.11g WLAN Solution in Introduction).
Modes of Operation
Configuring a Network Profile
Modes of Operation

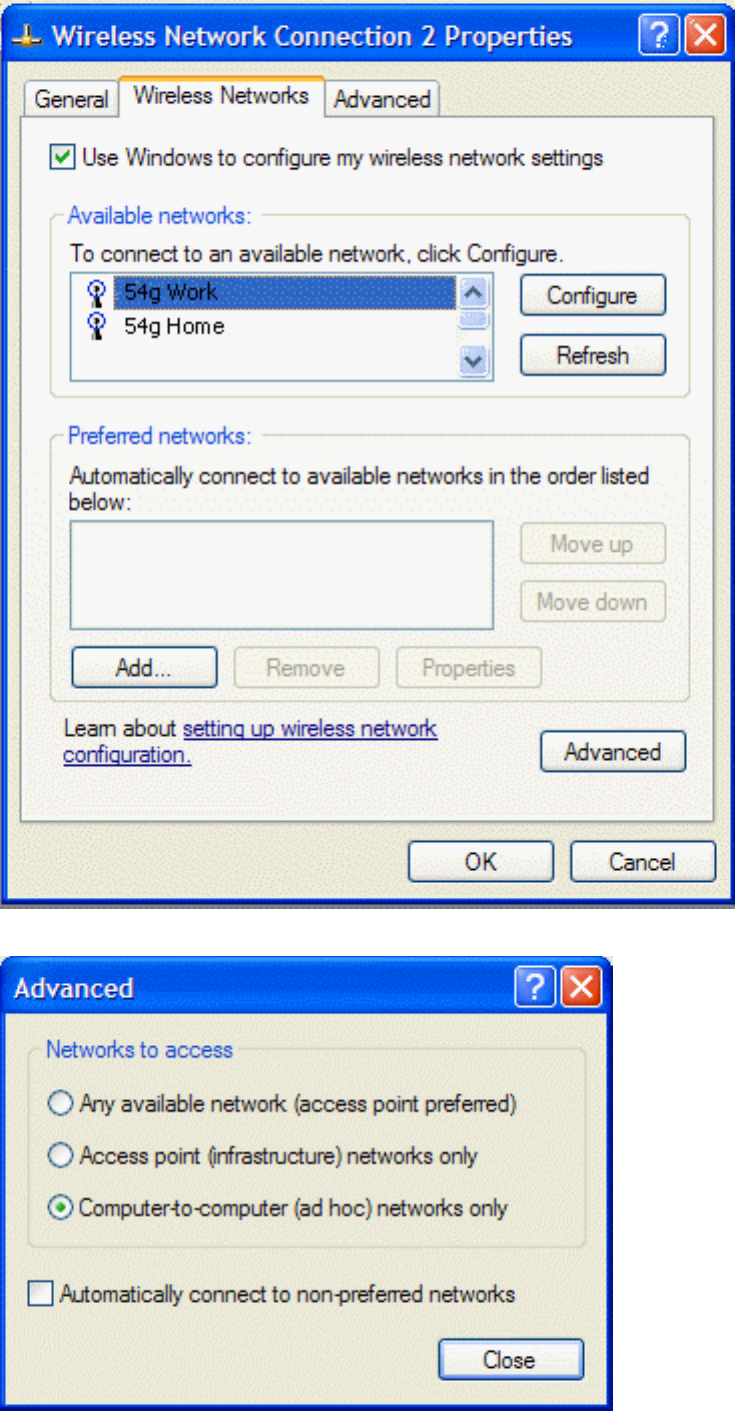

A wireless LAN can be configured for two different modes of operation: infrastructure network and computer-to-computer
(ad hoc) network. Whereas each mode has its advantages, one mode may be more appropriate than the other, depending
on the location and type of network connection.
Infrastructure Mode
The key difference between the infrastructure type of network and an ad hoc network is that the infrastructure network
includes a base station (host) computer that has a built-in wireless network adapter and is connected to a wireless access
point (AP). This functionality allows computers on the infrastructure wireless LAN to access the resources and tools of the
wired LAN, including Internet access, e-mail, file transfers, and printer sharing.
Characteristics
Networked computers communicate with each other through a dedicated AP. All data transmitted between the computers
on this wireless LAN passes through the AP.
Advantages
● Extended range. The access point extends the range of the wireless LAN. Each computer can communicate with
other computers equipped by wireless networks that are within the range of the access point.
● Roaming. As the user moves around the home or office, the Company 54g enabled notebook determines the
best access point to use to ensure continuous communication with the network.
● Network connectivity. An access point can provide wireless LAN access to an existing wired network by bridging
the two networks together. This gives users of the wireless LAN access to all the functions of a wired
network—from file server access to e-mail and the Internet.
Disadvantages
Because the infrastructure mode offers more features, it requires additional components and setup time to deploy.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (1 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
Requirements
A base station computer having a wired connection to the Internet, a wireless network adapter, and a connection to an
AP.
Computer-to-Computer Mode
A peer-to-peer (ad hoc) network is the easiest to deploy and is ideal for home use or in small offices. This mode allows
the sharing of files with other employees, printing to a shared office printer, and access to the Internet through a shared
modem. With ad hoc networking, however, the computer is only able to communicate with other wireless networks that
are within a certain range and are in the same wireless workgroup.
Characteristics
Networked computers send data directly to each other.
Advantages
● Simple setup
● Cost efficiency
Disadvantages
Communication is limited to those who are located within a certain range.
Configuring a Network Profile
To connect to a wireless network, a network profile for that network must be configured on the Company 54g enabled
notebook. If the Company 54g enabled notebook computer came with the Company 54g WLAN card already installed
and set up at the factory, follow the network profile configuration instructions provided below.
NOTE—For more information on how to configure a network profile and IEEE 802.1x authentication, click Learn about
setting up wireless network configuration at the bottom of the Wireless Networks tab of Wireless Network
Connection Properties.

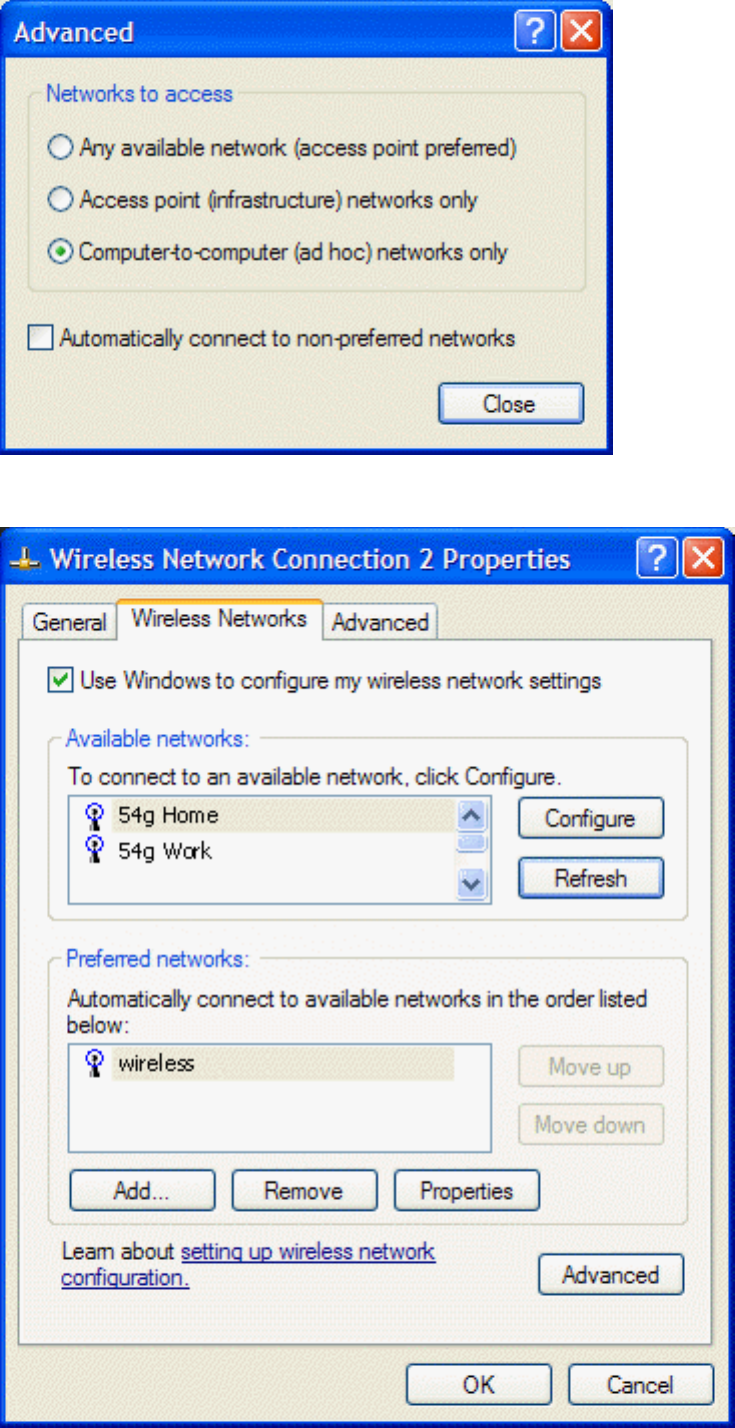

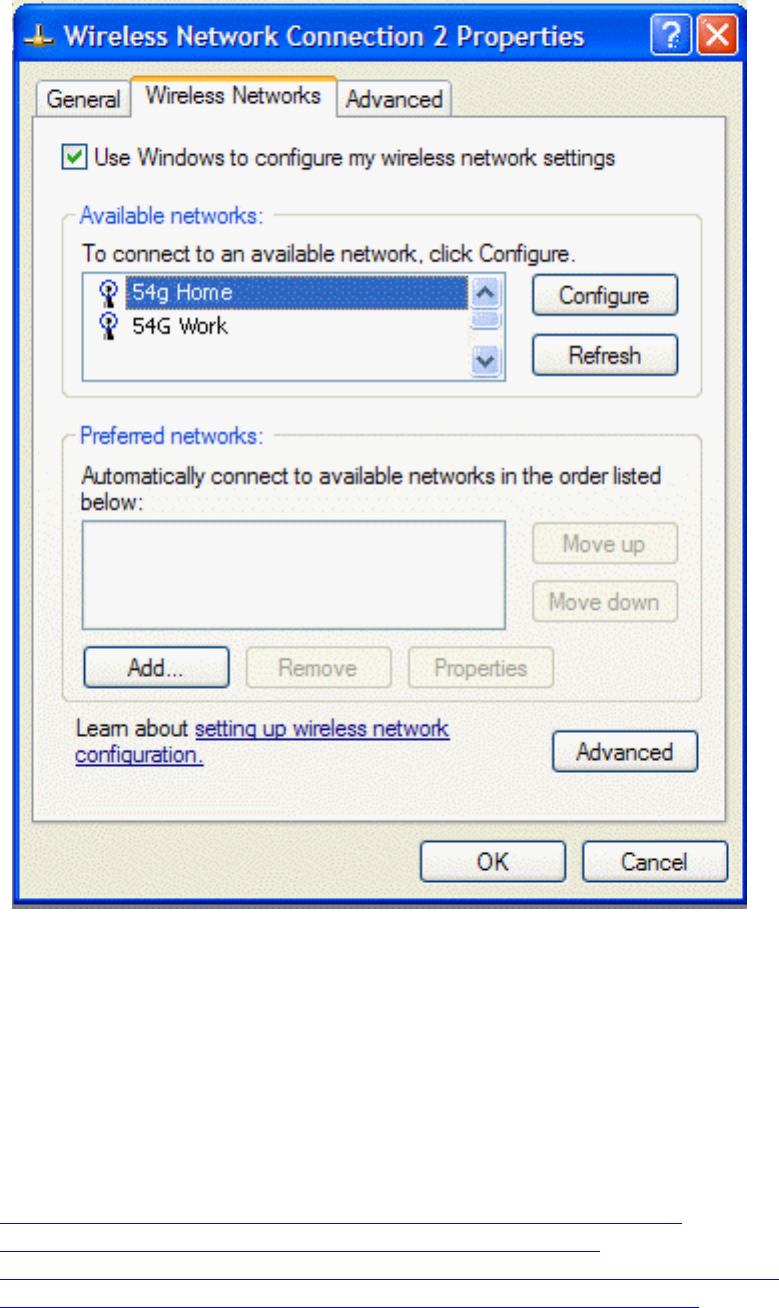

Open Network Connections and then open Properties for the Wireless Network Connection you want to configure by
doing the following.
1. Click Start, and then click Control Panel.
2. Double-click Network Connections.
3. Right-click Wireless Network Connection, and then click Properties.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (2 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual

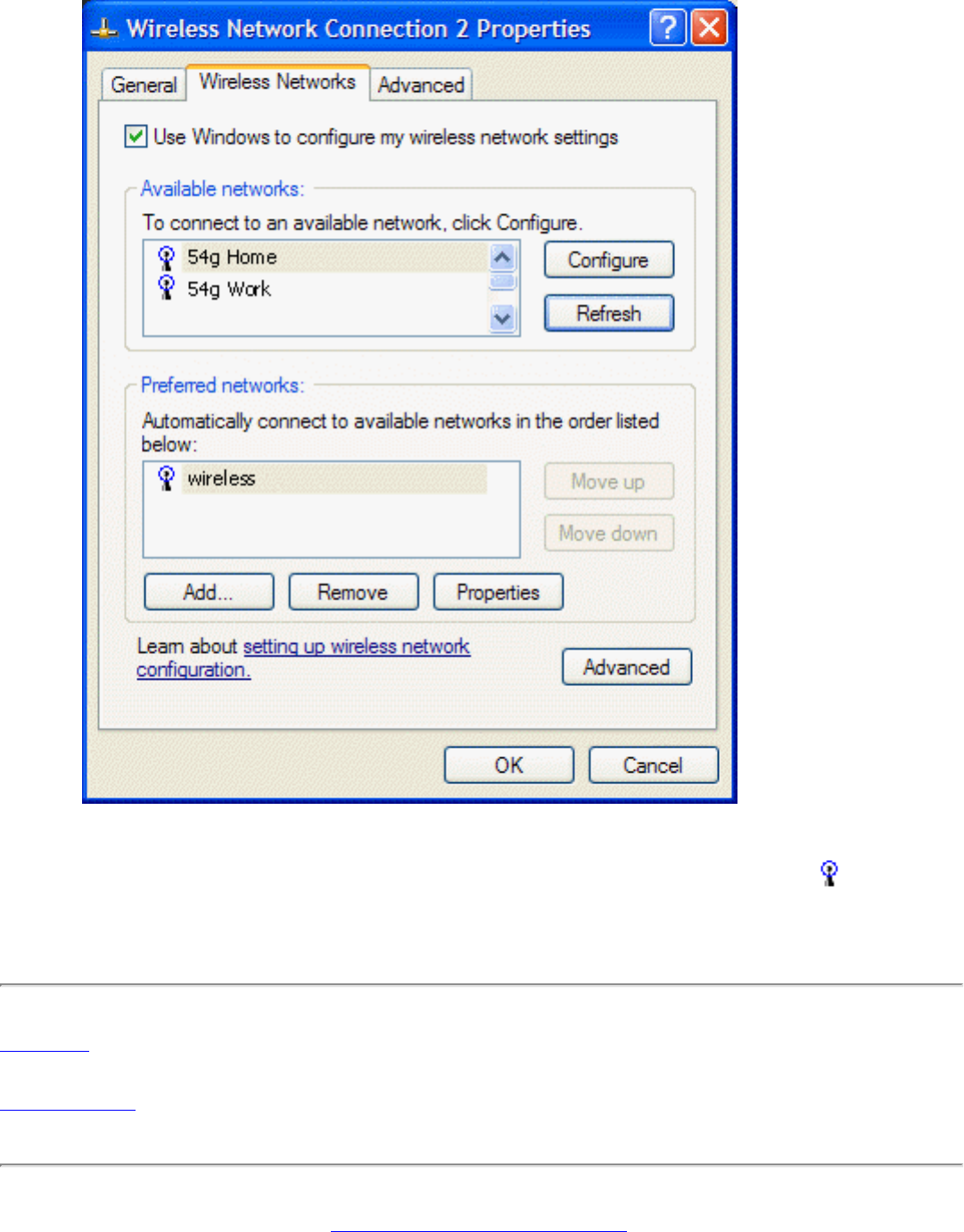

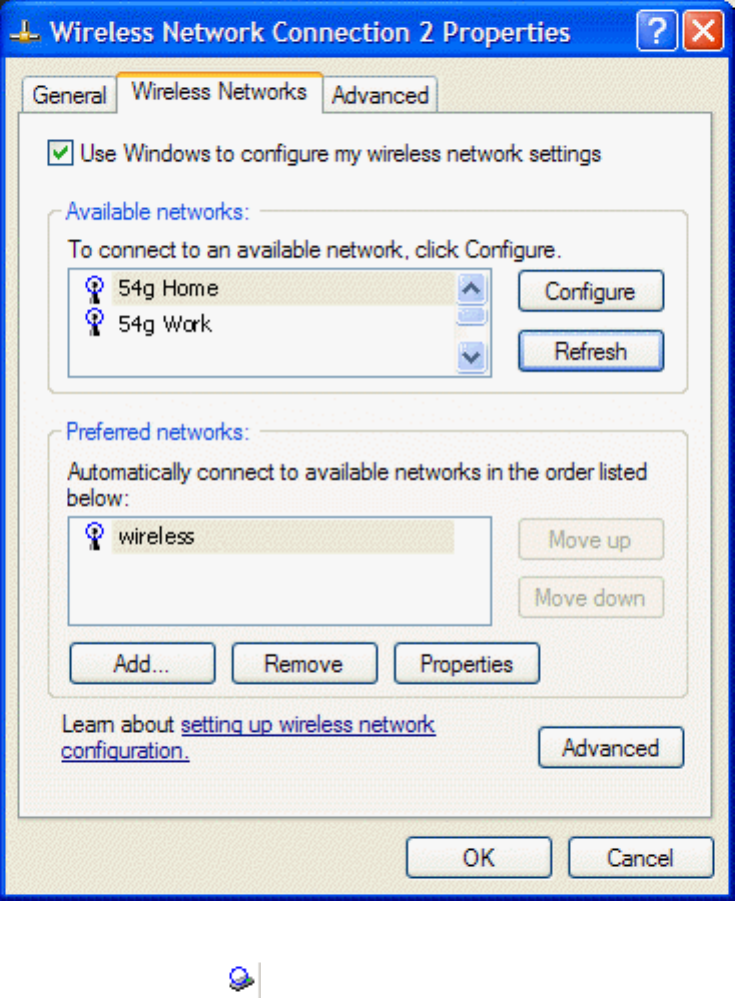

4. Click the Wireless Networks tab.
You can configure a network profile for networks that are listed under Available networks as well as those that are not
listed. When you have completed configuring a network profile, the network name and icon appear at the top of the list
under Preferred networks. The computer automatically connects to the network at the top of the list. Follow the
applicable instruction set below, based on whether or not the network is listed and whether or not the network requires a
WEP key (check with your network administrator to see if a WEP key is required).
NOTE—Both the network name and the network key are case-sensitive.
● Configuring a Profile for a Listed Network That Does Not Require a WEP Key
● Configuring a Profile for a Listed Network That Requires a WEP key
● Configuring a Profile for a Network That Is Not Listed and Does Not Require a WEP Key
● Configuring a Profile for a Network That is Not Listed and Requires a WEP Key
Configuring a Profile for a Listed Network That Does Not Require a WEP Key
1. Open Network Connections and then open Properties for the Wireless Network Connection to configure by
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (3 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
doing the following.
a. Click Start, and then click Control Panel.
2. Double-click Network Connections.
3. Right-click Wireless Network Connection, and then click Properties.
2. Click the Wireless Networks tab.

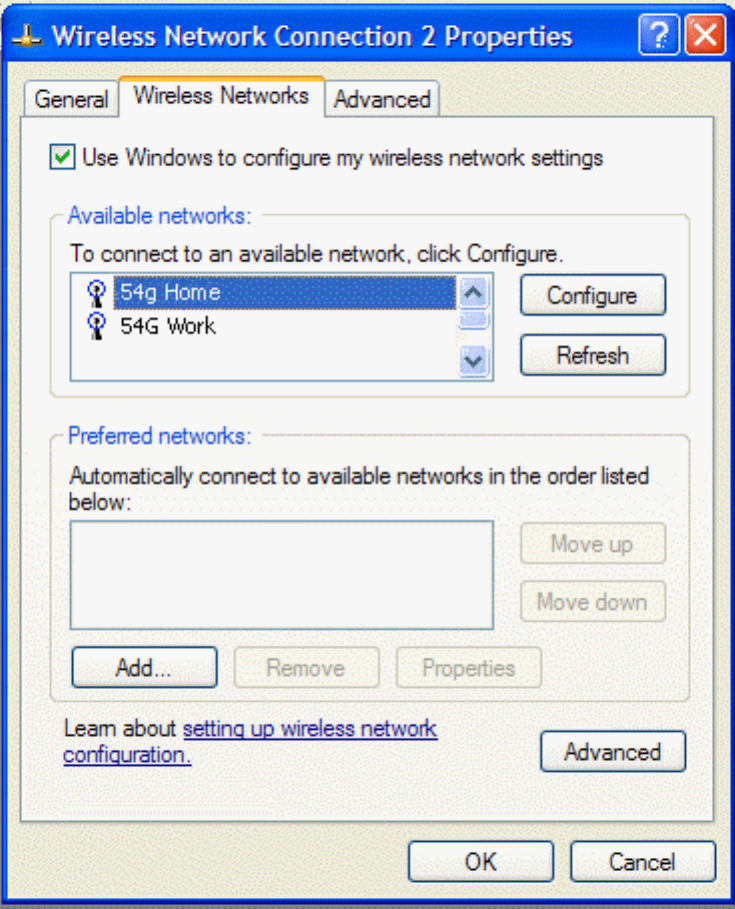

3. Under Available networks, click the network name, and then click Configure.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (4 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
4. Click OK. The network name and icon appear at the top of the list under Preferred networks.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (5 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual

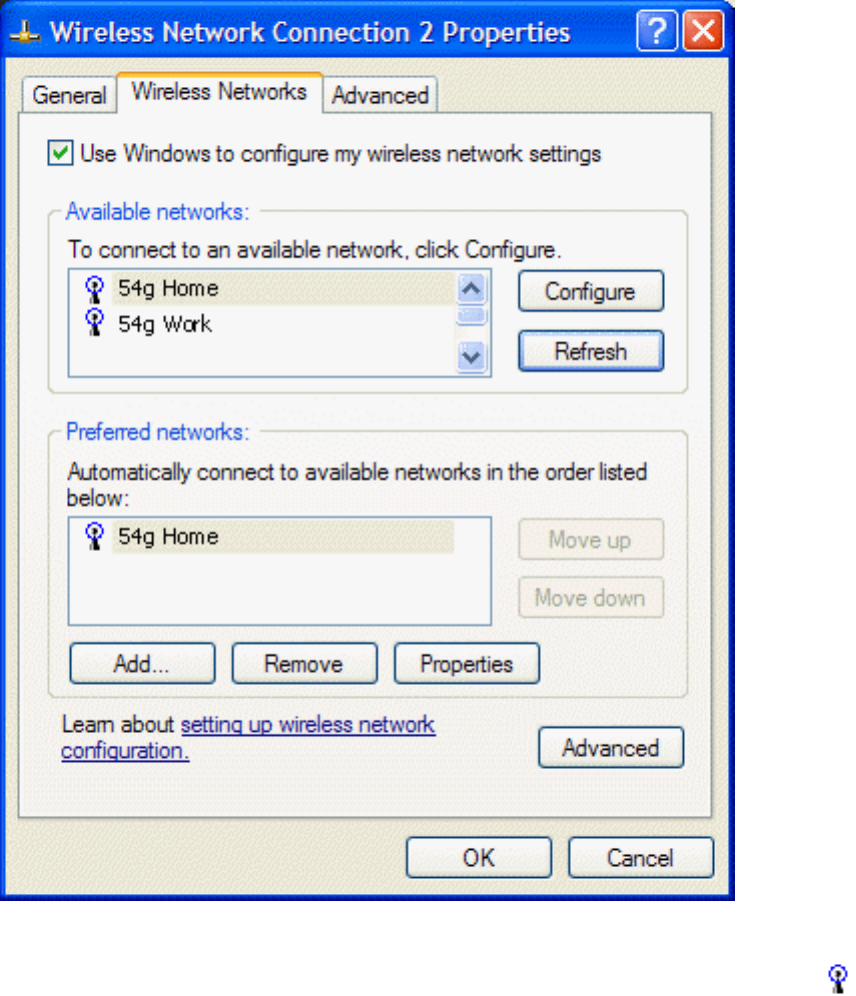

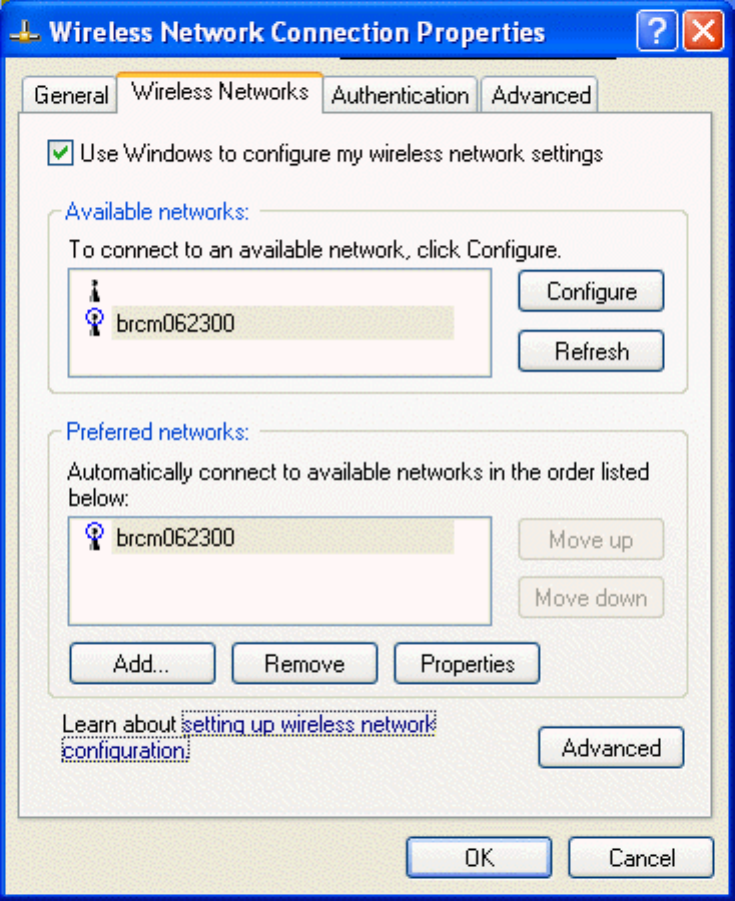

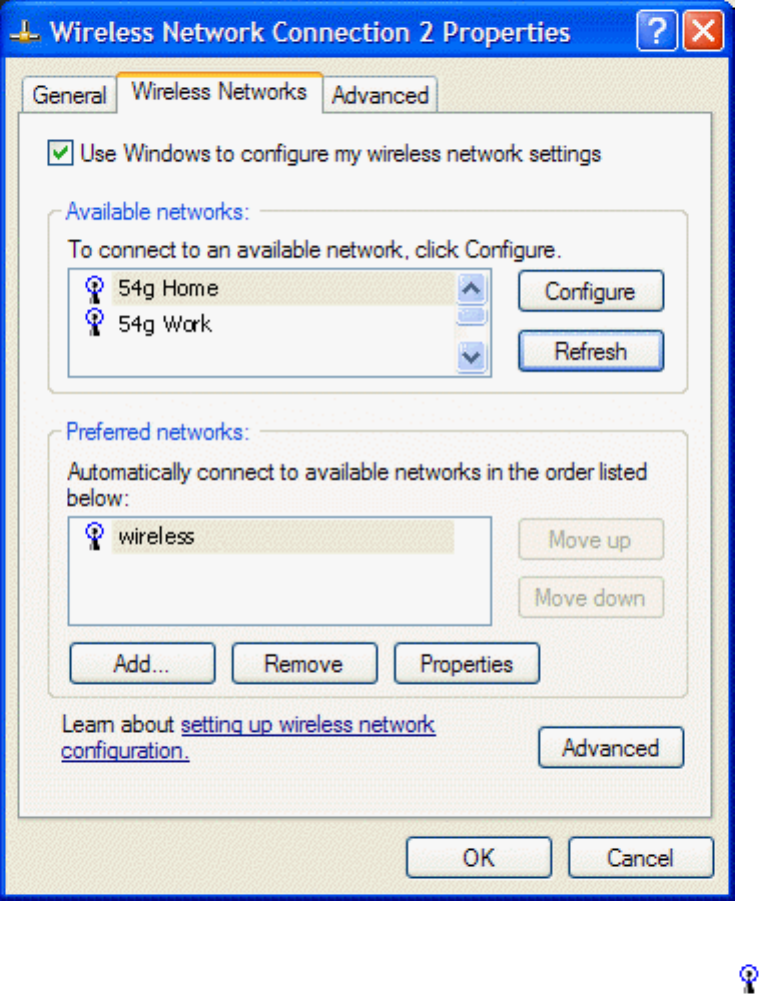

5. Click OK to activate the network connection. To verify that the network connection has been made, reopen
Wireless Network Connection Properties for that wireless network and click the Wireless Networks tab. The
computer is connected to the selected network when a blue bubble appears on top of the icon for that
network. If the bubble does not appear, click Refresh. If it still does not appear, try to access a Web page to
verify that an Internet connection exists.
Configuring a Profile for a Listed Network That Requires a WEP Key
1. Open Network Connections and then open Properties for the Wireless Network Connection to configure by
doing the following.
a. Click Start, and then click Control Panel.
2. Double-click Network Connections.
3. Right-click Wireless Network Connection, and then click Properties.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (6 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
2. Click the Wireless Networks tab.

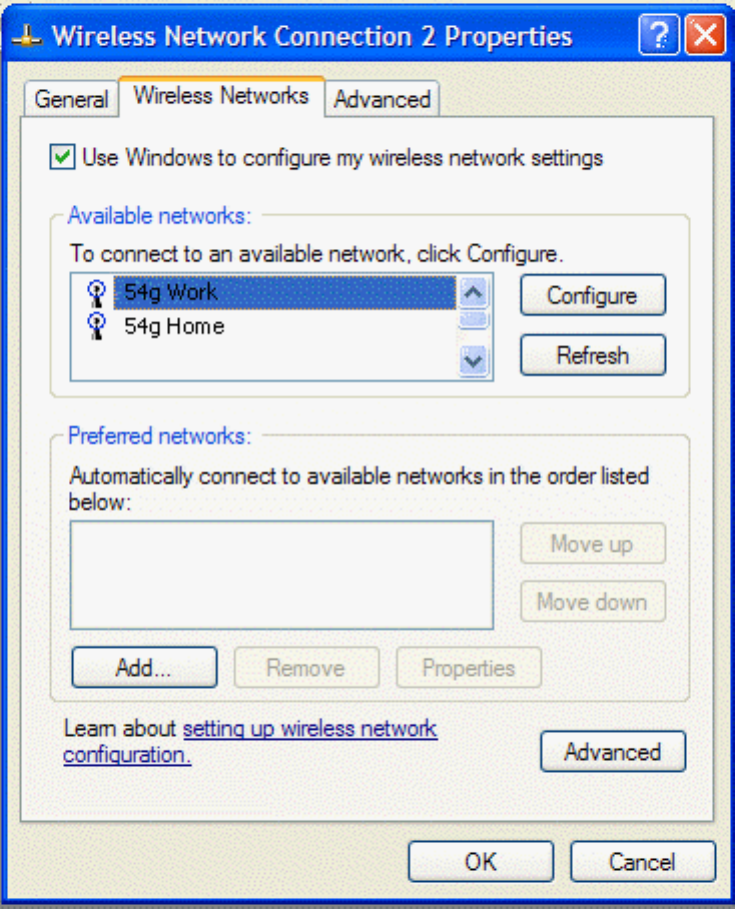

3. Under Available networks, click the network name, and then click Configure.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (7 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual

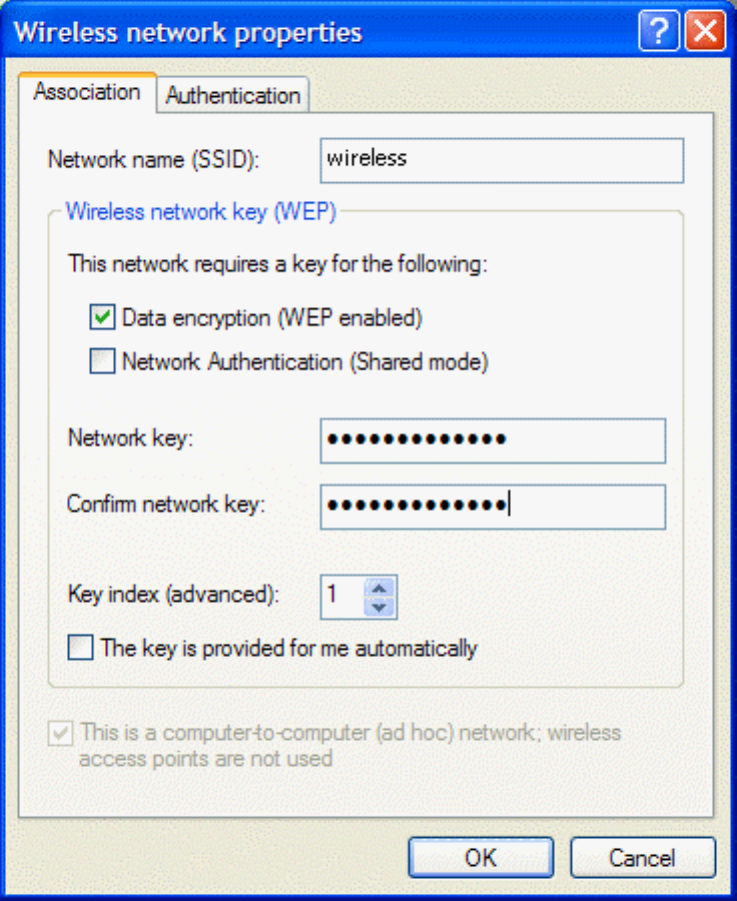

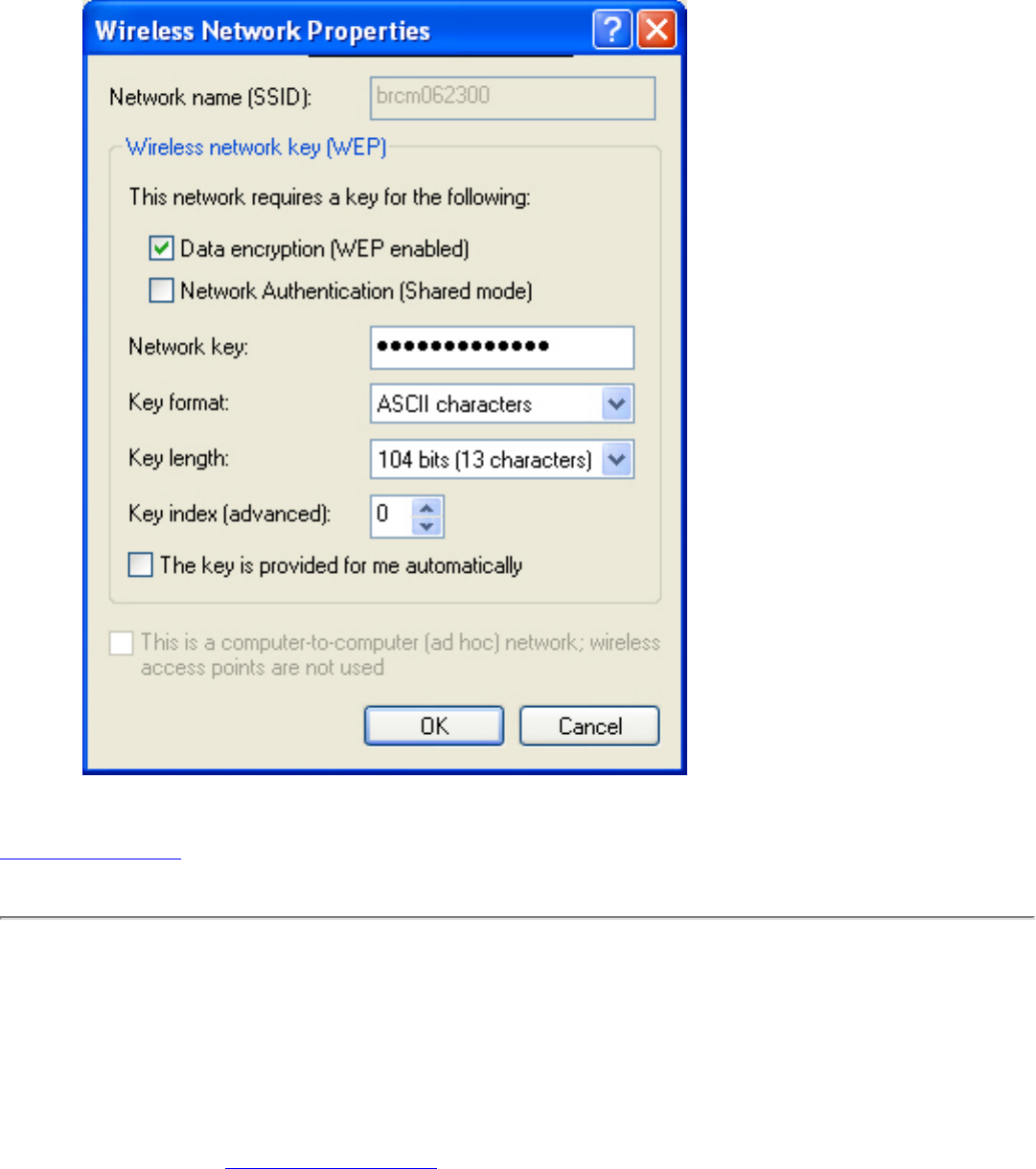

4. Select the Data encryption (WEP enabled) box.
5. Clear the The key is provided for me automatically box.
6. Type the network key in the Network key box and again in the Confirm network key box.
NOTE—It is not necessary to select the Key format or the Key length before typing the network key. These
settings automatically change to the appropriate setting as the network key is typed.
7. Click OK. The network name and icon appear at the top of the list under Preferred networks.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (8 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
8. Click OK to activate the network connection. To verify that the network connection has been made, reopen
Wireless Network Connection Properties for that wireless network and click the Wireless Networks tab. The
computer is connected to the selected network when a blue bubble appears on top of the icon for that
network. If the bubble does not appear, click Refresh. If it still does not appear, try to access a Web page to
verify that an Internet connection exists.
Configuring a Profile for a Network That Is Not Listed and Does Not Require a
WEP Key
1. Open Network Connections and then open Properties for the Wireless Network Connection to configure by
doing the following.
a. Click Start, and then click Control Panel.
2. Double-click Network Connections.
3. Right-click Wireless Network Connection, and then click Properties.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (9 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
2. Click the Wireless Networks tab.
3. Click Add.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (10 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
4. Type the network name in the Network name (SSID) box.
5. Click OK. The network name and icon appear at the top of the list under Preferred networks.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (11 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
6. Click OK to activate the network connection. To verify that the network connection has been made, reopen
Wireless Network Connection Properties for that network and click the Wireless Networks tab. The computer
is connected to the selected network when a blue bubble appears on top of the icon for that network. If the
bubble does not appear, click Refresh. If it still does not appear, try to access a Web page to verify that an
Internet connection exists.
Configuring a Profile for a Network That Is Not Listed and Requires a WEP Key
1. Open Network Connections and then open Properties for the Wireless Network Connection to configure by
doing the following.
a. Click Start, and then click Control Panel.
2. Double-click Network Connections.
3. Right-click Wireless Network Connection, and then click Properties.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (12 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
2. Click the Wireless Networks tab.
3. Click Add.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (13 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual

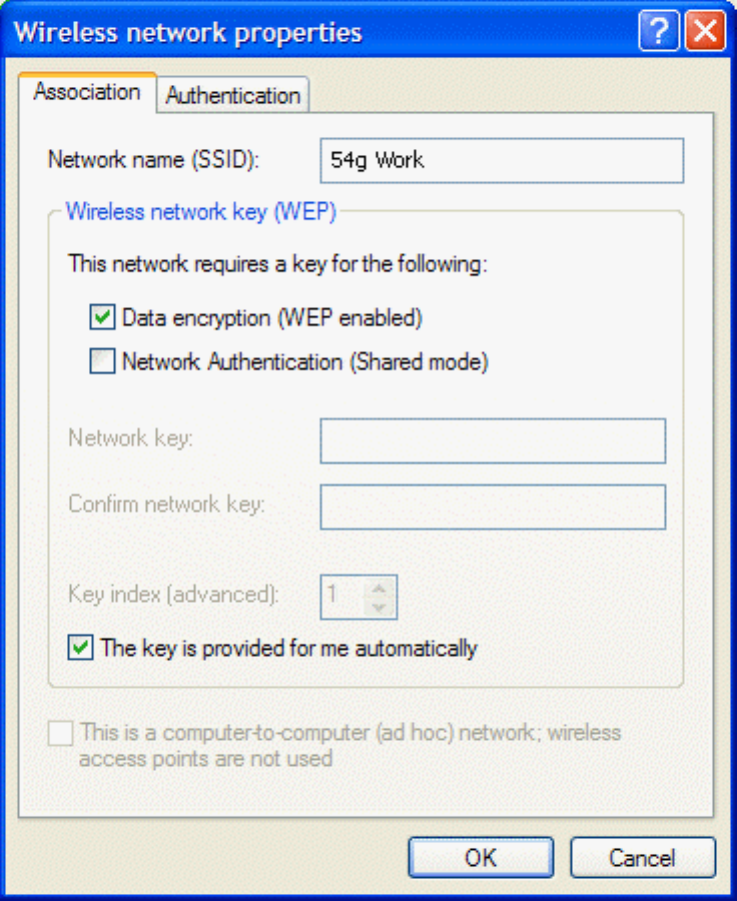

4. Type the network name in the Network name (SSID) box and again in the Confirm network key box.
5. Select the Data encryption (WEP enabled) box.
6. Clear the The key is provided for me automatically box.
7. Type the network key in the Network key box and again in the Confirm network key box.
NOTE—It is not necessary to select the Key format or the Key length before typing the network key. These
settings automatically change to the appropriate setting as the network key is typed.
8. Click OK. The network name and icon appear at the top of the list under Preferred networks.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (14 of 15) [1/30/03 10:11:18 PM]
Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual
9. Click OK to activate the network connection. To verify that the network connection has been made, reopen
Wireless Network Connection Properties for that wireless network and click the Wireless Networks tab. The
computer is connected to the selected network when a blue bubble appears on top of the icon for that
network. If the bubble does not appear, click Refresh. If it still does not appear, try to access a Web page to
verify that an Internet connection exists.
Back to top
Back to Contents
Copyright and Trademark Information.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (15 of 15) [1/30/03 10:11:18 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
Back to Contents
Utility Functions: Company 54g Wireless LAN (WLAN) User
Manual
Running Utility Functions
Adding a New Network to the List of Preferred Networks
Viewing or Modifying the Wireless Network Properties
Setting Up an Ad Hoc (Peer-to-Peer) Group Network for Connecting to the Internet
Adding an Ad Hoc Network
Disabling the Radio
Running Utility Functions
The utility functions and details for the wireless network connection are available in Control Panel. These functions
include Disabling the network device, Renaming the connection, View status of this connection, and Change
settings of this connection.
Changing Settings
1. Click Start, then click Control Panel.
2. Double-click Network Connections.
3. Click Wireless Network Connections, and then click Change settings of this connection.
● Click the Wireless Network tab to configure available networks, add and remove networks, and change network
properties.
● Click the General tab, then click Configure
❍ To change the properties of the network adapter, click the Advanced tab.
❍ To view details about the driver files, update the driver for the device, roll back to the previous driver, or
to uninstall the driver, click the Driver tab.
❍ To view resource settings, click the Resources tab.
❍ To change power management settings, click the Power Management tab.

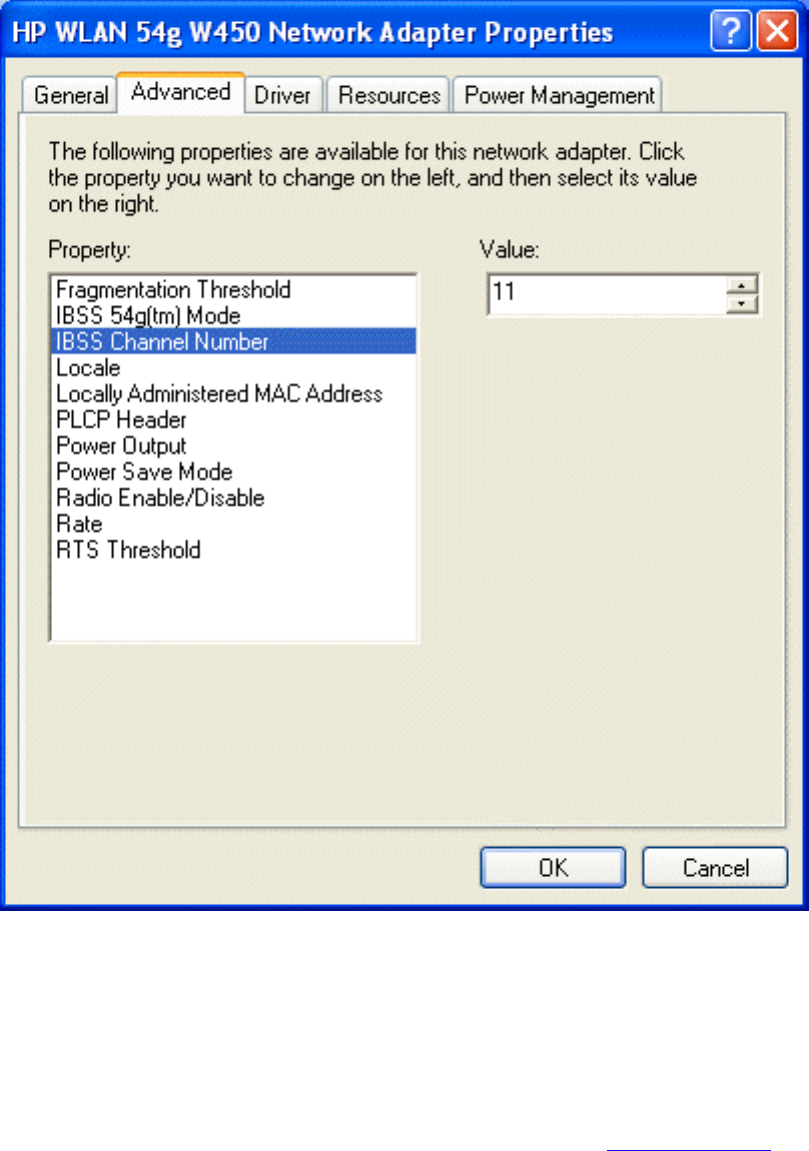

The Advanced tab in Network Adapter Properties lists the properties for the Company 54g Wireless LAN (WLAN)
adapter.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (1 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
● IBSS Channel Number selects the independent basic service set (IBSS) channel number on which to operate.
The Company 54g enabled notebook comes preset for use on channels 1—11. This setting is acceptable in
most countries. Some countries allow use on more channels. If you travel to a country that allows the use of
other channels, change the IBSS Channel Number to that number.
● Locale selects the adapter properties that comply with the operating regulations for that locale. The Locale
settings include USA, Israel, Japan, Jordan, Thailand, and Worldwide. This wireless LAN device is normally
preset by default for the country in which the device is sold. Before operating this WLAN device, verify that the
locale selection is correct by following the steps described in Changing Settings above. On the Advanced tab of
HP WLAN 54g W450 Network Adapter Properties,
❍ Click Locale
❍ In the Value list, select the appropriate regional location
If you travel to other countries with the Company 54g enabled notebook, follow the same steps to change the
locale setting to match the destination country. Reset the locale setting back to the appropriate home setting
after returning. If the destination country is not listed, change the Locale setting to Worldwide.
● Radio Enable/Disable allows you to turn the radio on or off as necessary to comply with restrictions prohibiting
the emission of radio signals, such as during takeoff and landing onboard a commercial aircraft.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (2 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
● Rate sets the transmission rate. The default setting is Use best rate. This automatically adjusts the data rate to
the optimal rate based on the capabilities of the other clients and access points.
The default values for the properties listed below are set for maximum performance. Therefore, It is not recommended for
home users to change the settings for any of these properties. Only network administrators or persons having technical
wireless LAN experience should attempt to change any of the settings.
● Fragmentation Threshold is the threshold at which the IEEE 802.11 adapter break the packet into multiple
frames.
● IBSS 54g (TM) Mode is used to set the connection type in an ad hoc network. The following options are
available:
❍ 54g - 802.11b compatible— links at the best rate with an IEEE 802.11b and an IEEE 802.11g network
(recommended setting).
❍ 54g - Performance— links only with IEEE 802.11g networks at the highest rate. In addition it excludes
IEEE 802.11b networks.
❍ 802.11b Mode— links only with IEEE 802.11b networks at the highest rate. In addition it excludes IEEE
802.11g networks.
● Locally Administered MAC Address is used to override the MAC address of the Company 54g Wireless LAN
adapter.
● PLCP Header is used to set the header type used for CCK rates. Can be long, auto (short/long).
● Power Output is used for putting out a percentage of the maximum output power.
● Power Save Mode is used to put the Company 54g enabled notebook into the IEEE 802.11 Power Save mode.
In Power Save mode, the radio is periodically powered down to conserve power. When in Power Save mode,
packets are stored in the AP until the STA comes on.
Adding a New Network to the List of Preferred Networks
If the Company 54g enabled notebook is running at a location in which a wireless LAN is operating, and it is within range
of the access point, the computer automatically connects to the network at the top of the list under Preferred networks. A
network profile must be configured for each network to add to the list
To add a new network to the list of preferred networks, first check to see if the new network is listed on the Wireless
Networks tab under Available networks. If it is, follow the applicable instructions below according to which operating
system your computer is running and whether or not the network requires a WEP key.
NOTE—See the network administrator or the wireless access point installer to obtain a WEP key, as necessary.
● See Configuring a Profile for a Listed Network That Does Not Require a WEP Key in Completing the Setup
● See Configuring a Profile for a Listed Network That Requires a WEP Key in Completing the Setup.
If the network being added to the Preferred networks list is not listed in the Available networks list, follow the applicable
instructions below according to which operating system the computer is running and whether or not the network requires a
WEP key.
● See Configuring a Profile for a Network That is Not Listed and Does Not Require a WEP Key in Completing the
Setup
● See Configuring a Profile for a Network That is Not Listed and Requires a WEP Key in Completing the Setup.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (3 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
Viewing or Modifying the Wireless Network Properties
1. Click Start, then click Control Panel.
2. Click Wireless Network Connection, then click Change settings of this connection.
3. Click the Wireless Networks tab.
4. Verify that the Use Windows to configure my wireless network settings box is selected. If it is not, select it.
5. Under Preferred networks click the network name and then click Properties.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (4 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
It is possible to enable or disable WEP data encryption and change the network name and the network key (see
Completing the setup for instructions).
Setting Up an Ad Hoc (Peer-to-Peer) Group Network for Connecting to
the Internet
To connect the computers in an ad hoc group network to the Internet, the Windows Internet connection sharing (ICS)
component must be installed. ICS installation is not required, however, for communication among a group of computers
that have a Company 54g Wireless LAN (WLAN) installed in each computer. An ad hoc network must be added under
Preferred networks. See Running Utility Functions.
Select a desktop computer to serve as the host computer; all other computers are called clients. The host computer must
be running the Windows XP operating system. The host computer is the only computer that connects directly to the
Internet. Company recommends using the desktop computer having the fastest microprocessor and the most memory as
the host computer.
NOTE—Internet connection sharing requires that the host computer have either a modem or another network adapter in
addition to a wireless network adapter. The modem or the additional network adapter is used to access the Internet. The
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (5 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
Company 54g enabled notebook is used to share the Internet connections with other clients.
Setting Up Internet Connection Sharing (ICS) on the Host Computer
1. Connect the host computer to the Internet.
2. From the host computer Start menu, select Help and Support.
3. Perform a search on Internet Connection Sharing.
4. From the Pick a task list, select Enable Internet Connection Sharing on a Network Connection.
5. Follow the instructions on the screen to complete setting up ICS
.
Adding an Ad Hoc Network
An ad hoc network (for peer-to-peer communicating) can either require a WEP key or not. Instructions for adding and
configuring an ad hoc network for both types of ad hoc networks are provided below:
● Adding an Ad Hoc Network That Does Not Require a WEP Key
● Adding an Ad Hoc Network That Requires a WEP Key
Adding an Ad Hoc Network That Does Not Require a WEP Key
1. Click Start, then click Control Panel.
2. Click Wireless Network Connection, then click Change settings of this connection.
3. Click the Wireless Networks tab.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (6 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
4. Click Add.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (7 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual

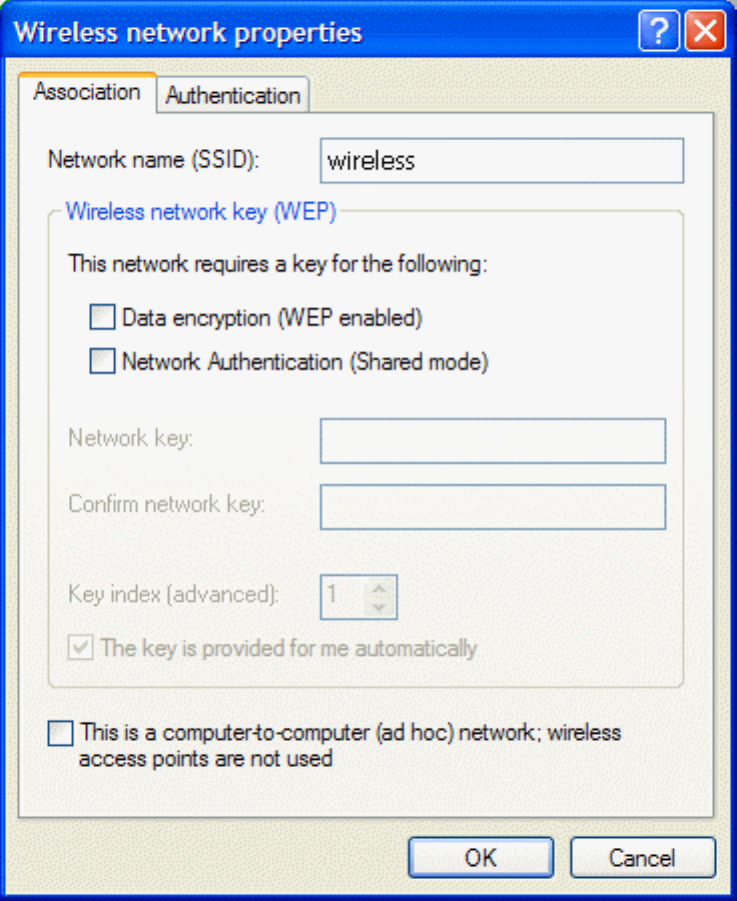

5. Type the network name in the Network name (SSID) box.
6. Select the This is a computer-to-computer (ad hoc) network; wireless access points are not used box.
7. Clear the Data encryption (WEP enabled) and the The Key is provided for me automatically boxes if they
are selected.
8. Click OK.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (8 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
9. Click Advanced.
10. Select Computer-to-computer (ad hoc) networks only, and click Close.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (9 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
11. Click OK. The added ad hoc network appears at the top of the list under Preferred networks.
12. To verify that the computer is connected to the added ad hoc network, reopen the Network Properties window
and click the Wireless Networks tab. The computer is connected to the added network when a blue bubble
appears on top of the icon for the ad hoc network.
Adding an Ad Hoc Network That Requires a WEP Key
1. Click Start, then click Control Panel.
2. Click Wireless Network Connection, then click Change settings of this connection.
3. Click the Wireless Networks tab.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (10 of 14) [1/30/03 10:11:19 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
4. Verify that the Use Windows to configure my wireless network settings box is selected. If it is not, select it.
5. Click Add.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (11 of 14) [1/30/03 10:11:20 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
6. Select the Data encryption (WEP enabled) box.
7. Type the network name in the Network name (SSID) box and again in the Confirm network key box.
8. Clear the The key is provided for me automatically box.
9. Type the network key in the Network key box.
NOTE—It is not necessary to select the Key format or the Key length before typing the network key. These settings
automatically change to the appropriate setting as the network key is typed.
10. Select the This is a computer-to-computer (ad hoc) network; wireless access points are not used box.
11. Click OK.
12. Click Advanced
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (12 of 14) [1/30/03 10:11:20 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
13. Select Computer-to-computer (ad hoc) networks only, and click Close.
14. Click OK. The added ad hoc network appears at the top of the list under Preferred networks.
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (13 of 14) [1/30/03 10:11:20 PM]
Utility Functions: Company 54g Wireless LAN (WLAN) User Manual
15. To verify that the computer is connected to the added ad hoc network, reopen the Network Properties window
and click the Wireless Networks tab. The computer is connected to the added network when a blue bubble
appears on top of the icon for that network.
Disabling the Radio
● To disable the radio on the Company 54g enabled notebook, right-click the wireless network connection icon
in the system tray and click Disable.
Back to top
Back to Contents
Copyright and Trademark Information
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/utility.htm (14 of 14) [1/30/03 10:11:20 PM]
Specifications: Company 54g Wireless LAN (WLAN) User Manual
Back to Contents
Specifications: Broadcom 802.11g WLAN User Manual
Physical Characteristics
Temperature and Humidity Limitations
Power Characteristics
Networking Characteristics
Radio Characteristics
Physical Characteristics
Characteristic Description
Form Factor Mini PCI specification, May 2002. Type IIIA form factor
Dimensions (length, width) 59.6 mm × 50.95 mm
Temperature and Humidity Limitations
Condition Description
Operating Temperature 0 to 70°C
Operating Humidity 95% maximum (no condensation allowed)
Storage Temperature –40 to 90°C
Storage Humidity 95% maximum (no condensation allowed)
Power Characteristics
Characteristic
Values
IEEE 802.11g Operation IEEE 802.11b Operation
Doze Mode 40 mA 40 mA
Receive Mode 400 mA 220 mA
Transmit Mode 600 mA 330 mA
Power Supply 3.3 V 3.3 V
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/specs.htm (1 of 2) [1/30/03 10:11:20 PM]
Specifications: Company 54g Wireless LAN (WLAN) User Manual
Networking Characteristics
Characteristic Description
Compatibility IEEE Std 802.11b and IEEE Draft Std 802.11g for wireless LAN
Network Operating System Microsoft® Windows® Networking
Host Operating System Microsoft Windows XP
Medium Access Protocol CSMA/CA (collision avoidance) with acknowledgment (ACK)
Data rate (Mbps) IEEE Draft Std 802.11g: 1, 2, 5.5, 6, 11, 12, 18, 24, 36, 48, 54
IEEE Std 802.11b: 1, 2, 5.5, 11
NOTE—The Company 54g WLAN solution uses an automatic transmit rate select mechanism
Radio Characteristics
Characteristic Description
Frequency Band 2.4 GHz (IEEE 802.11b, IEEE Draft Std 802.11g)
Modulation Technique Direct sequence spread spectrum (DSSS)
● CCK for high and medium transmit rate
● DQPSK for standard transmit rate
● DBPSK for low transmit rate
Orthogonal frequency division multiplexing (OFDM)
● 52 subcarriers with BPSK, QPSK, 16-QAM or 64-QAM
● Forward error correction convolutional coding rate: 1/2, 2/3, 3/4
Spreading 11-chip Barker sequence
Bit Error Rate (BER) Better than 10(–5) ppm
Nominal Output Power IEEE Std 802.11b: 18dBm; IEEE Std 802.11g: 16.5dBm
NOTE—See Regulatory Information for country-specific performance characteristics and use restrictions.
Back to top
Back to Contents
Copyright and Trademark Information
file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/specs.htm (2 of 2) [1/30/03 10:11:20 PM]
Back to Contents
Regulatory Information
Operational Information
Regulatory Information
Operational Information
Wireless Interoperability
The Integrated 802.11g enabled notebook is designed to be interoperable with any wireless LAN product that is based on direct
sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with
the following standards:
● IEEE Std 802.11b-1999. Standard on 2.4 GHz Wireless LAN
● IEEE Std 802.11g-2002. Draft standard on 2.4 GHz Wireless LAN
Safety
The Integrated 802.11g enabled notebook, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by this devices, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile
phones. The Integrated 802.11g enabled notebook operates within the guidelines found in radio frequency safety standards and
recommendations. These standards and recommendations reflect the consensus of the scientific community and result from
deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some
situations or environments, the use of a Integrated 802.11g enabled notebook may be restricted by the proprietor of the building or
responsible representatives of the applicable organization. Examples of such situations include the following:
● Using the Integrated 802.11g enabled notebook onboard airplanes, or
● Using the Integrated 802.11g enabled notebook in any other environment where the risk of interference with other devices or
services is perceived or identified as being harmful.
If uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airplane, for
example), ask for authorization to use the Integrated 802.11g enabled notebook before turning it on.
Regulatory Statements for BCM94318MPG
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in accordance with the instructions, it
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by tuning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements in normal operating conditions (lap and tablet),
a separation distance of at least 0.5 cm must be maintained between the antenna of this device and all persons.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of this device.”
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas
produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement
du dispositif.
The term "IC" before the equipment certification number only signifies that the Industry Canada
technical specifications were met.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for
successful communication.
To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Pour empecher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit
etre utilize a l'interieur et devrait etre place loin des fenetres afin de Fournier un ecram de
blindage maximal. Si le matriel (ou son antenne d'emission) est installe a l'exterieur, il doit faire
l'objet d'une licence.
Caution: Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or pointed such that
it does not emit RF field in excess of Health Canada limits for the general population; consult
Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb.
Europe—EU Declaration of Conformity and Restrictions
Hereby, Broadcom Corp, declares that this equipment complies with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
This equipment is marked with the 0682 symbol and can be used throughout the European
community.
This indicates compliance with the R&TTE Directive 1999/5/EC and meets the relevant parts of following
technical specifications:
EN 300 328 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission Systems;
Data transmission equipment operating in the 2,4GHz ISM band and using spread spectrum modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the R&TTE directive.
EN 301 489-17 - Electromagnetic Compatibility and Radio Spectrum Matters (ERM); Electromagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17 Specific Conditions for Wideband
Data and HIPERLAN Equipment.
EN 60950 - Safety of Information Technology Equipment.
EN 50385 – Product standard to demonstrate the compliances of radio base stations and fixed terminal
stations for wireless telecommunication systems with the basic restrictions or the reference levels related to
human exposure to radio frequency electromagnetic fields.
Marking by the symbol indicates that usage restrictions apply.
France - 2.4GHz for Metropolitan France :
In all Metropolitan départements, wireless LAN frequencies can be used under the following conditions,
either for public or private use:
· Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5 MHz frequency band
· Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with maximum power
(EIRP*) of 10 mW for the 2454-2483 MHz band
Taiwan DGT warning statement
Translation:
Article 14
Without permission granted, the frequency change, transmitting power enhance or alter of
original design characteristic as well as function by company, enterprise, or user for approved
Low-power radio frequency devices is not allowed.
Article 17
Low-power radio-frequency devices shall not influence aircraft security and interfere legal
communications; If found, shall cease operating immediately until no interference is achieved.
Above mentioned Legal Communications is defined as radio communications operation follows
Telecommunications Act. Low-power radio-frequency devices must susceptible with the
interference from legal communications, ISM radio wave radiated devices.
