Brochure 6100F
Function description
The GAT Access 6100 F reads contact-free data carriers and checks
and grants authorisations. The user holds the data carrier over the round
scan field and selects the required service via the acknowledge key. The
integrated 4-segment LED display, monochrome LCD display and acoustic
signal indicate authorisation.
Via the fingerprint reader GAT FR 055 the identification of the visitors
is verified by comparing their fingerprints with the fingerprint templates
(two templates per visitor) stored on the visitor‘s personal data carriers.
The combination of RFID data carriers and fingerprints allows for optimal
protection against misuse of data carriers.
For capturing the fingerprints and storing them to the data carriers the GAT
Access 6100 F Enrollment Station is used.
Highlights
• Activation of turnstiles, doors etc. via relay output
• Feedback input
• User guidance via monochrome display (LCD), 4-segment LED display,
illuminated round scan field and beeper
• Secure data transmission between reader and data carrier
• Read/write frequency 13.56 MHz
• Reading MIFARETM Standard data carriers
• Expandabilities for verification via fingerprint
• Opening of housing only possible with special tool
• Plug & Play installation

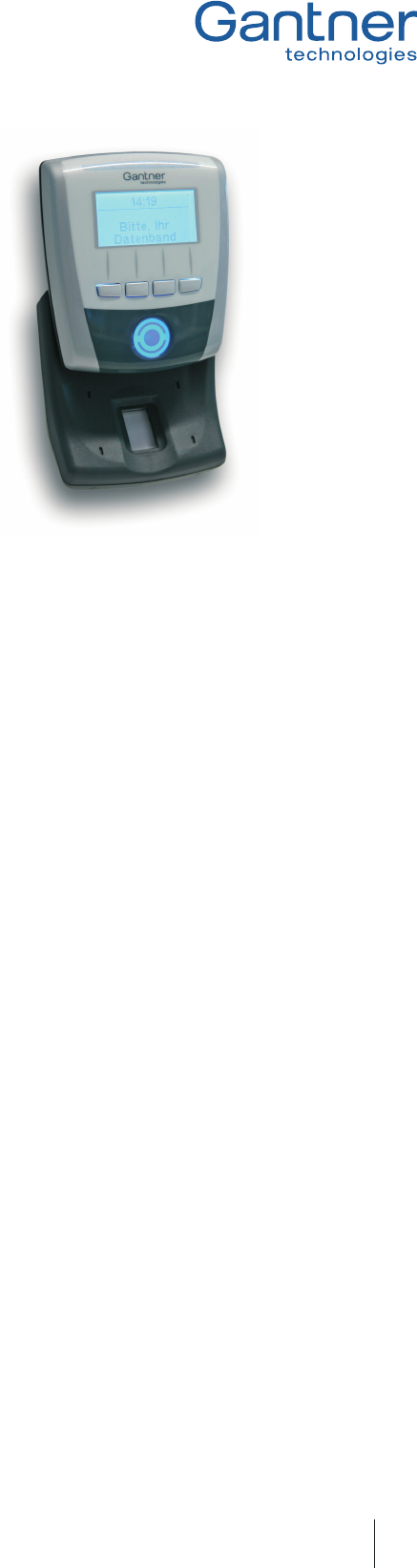

GAT Access 6100 F
Access Control Terminal with Biometry
Application
The GAT Access 6100 F with fingerprint reader GAT FR 055 is a stylish
terminal for access control in leisure facilities such as swimming pools,
spas and gyms. Identification at the terminal is by contact-free RFID data
carrier (Radio Frequency Identification).
With the fingerprint reader GAT FR 055 access control is extended by
verification with biometric data, which enables optimal protection against
misuse of personal data carriers.
Information for user guidance is displayed via a graphical monochrome
display (LCD).
Description PartNo.
GAT Access 6100 F
Terminal for entry control with integrated, contactless
MIFARETM reader, with black-white display (LCD)
776487
GAT FR 055
Fingerprint reader for GAT Access 6100 F, wall mounting
557433
GAT FR 055 Weather Cover
Weather protection cover for GAT FR 055 and
GAT FR 055 FIU 3k
174529
1
www.gantner.com
Order information
Description PartNo.
GAT Access 6100 F Enrollment Station
Table station for capturing fingerprints
174327
GAT Reader WK
Tool to open the reader housing
581683
Accessories
Valid as from July 31
th
2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100F--BIO-EN_11.indd • PartNo.: 243526
GAT Access 6100 F
Fingerprint reader
GAT FR 055
Nominal voltage: 12/24 VDC (SELV - safety extra-low
voltage)
Permitted input voltage: 10 to 28 VDC
Aver. power consumption: - Full operation sensor in: 4.5 W
- Full operation sensor out: 3.5 W
Data storage: Internal EEPROM memory for
configuration and booking memory,
data preservation min. 10 years
Internal clock: Data preservation approx. 12 h
(Gold-Cap)
Reader type: MIFARETM Standard
Frequency reading field: 13.56 MHz
GAT FR 055 sensor: - Scanner type: optical sensor,
500 dpi @ 8-bit per pixel,
active area: 13 x 20 mm
- Verification time: < 0.8 sec.
- Identification time: < 1 sec.
- False acceptance rate 0.01%
(recommended), adjustable over wide
range
Display elements: - Full graphical monochrome display
(LCD) with white LED background
lighting, resolution 128 x 64 pixels,
visible area 50 x 25 mm
- RFID reader (illuminated)
- Acoustic signal
- 4-segment LED display with different
colours
Control elements: - 4 function keys
- RFID reader
Host interface: Ethernet 10/100 MBit/s
Signal inputs: 1 x optocoupler (configurable)
- Input voltage: 0 to 30 VDC
ULow < 2 VDC, UHigh > 6 VDC
- Input current: 4.5 mA
Signal outputs: 1 x relay (configurable NO/NC)
- Switching voltage: max. 30 VAC/DC
- Continuous current: max. 2 A
- Switching power: max. 60 VA
Connection terminals: 0.5 to 1.5 mm2
Housing material: - GAT Access 6100 F: plastic
- GAT FR 055: plastic
Permitted ambient temperature: -10 to +55°C
Storage temperature: -20 to +70°C
Relative humidity: 20 to 80%, non-condensing
Protection type: IP 54
Protection class: III
Weight: 0.2 kg
Environment class
based on VDS 2110: II (conditions in indoor areas)
Certifications of the GAT FR 055
finger scanner: CE and FCC15
2www.gantner.com
Technical data
93 mm (3.66”)
93 mm (3.66”)
33 mm (1.3”)
107 mm (4.21”)
2
3
4
7
79
8
163 mm (6.42”)
56
1
39.4 mm (1.55”)
38 mm (1.5”)
53 mm (2.09”)

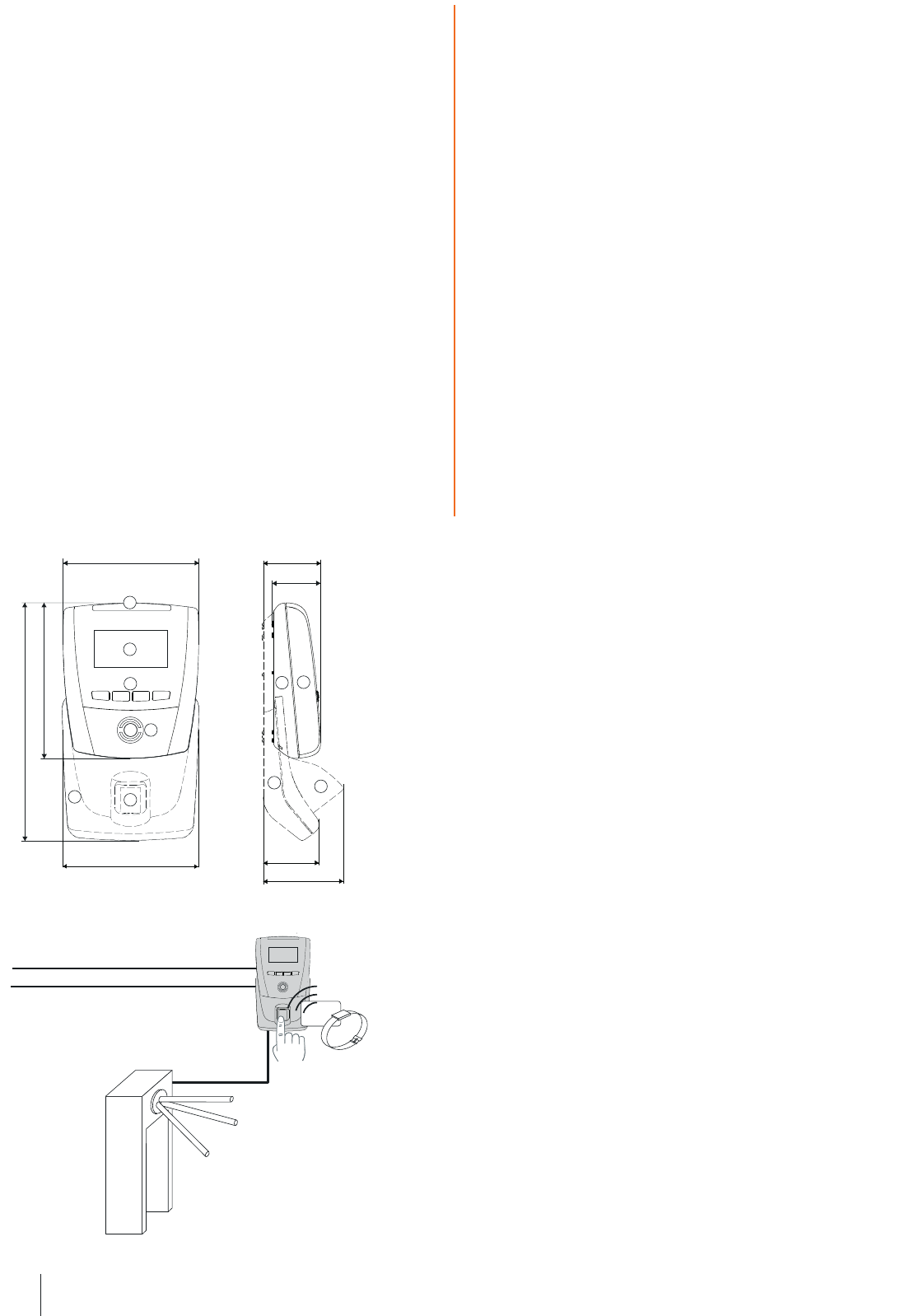

Typical application
Turnstile
GAT Access 6100 F
Power supply
Network
Data carrier
Dimensions
1. 4-segment LED display
2. Monochrome display (LCD)
3. Function keys
4. Illuminated, round scan field
5. Device back part
6. Device upper part
7. Fingerprint reader GAT FR 055 (optional)
8. Fingerprint sensor of the GAT FR 055
9. Weather protection cover (optional)
Valid as from July 31
th
2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100F--BIO-EN_11.indd • PartNo.: 243526
3
www.gantner.com
Valid as from July 31
th
2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100F--BIO-EN_11.indd • PartNo.: 243526

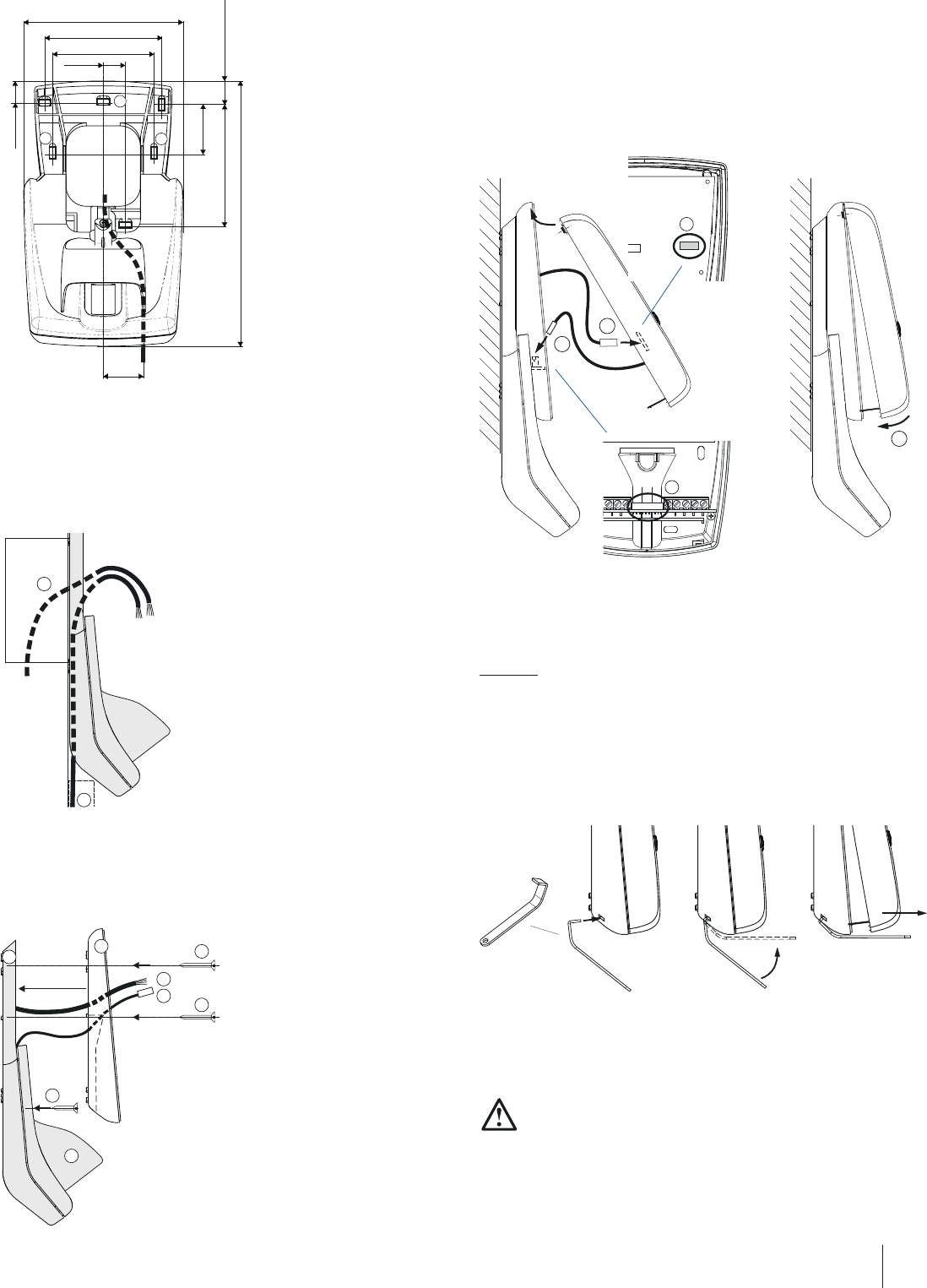

Mounting and installation instructions
1. Mounting holes
Drill mounting holes on a flat background (e.g. concrete wall) according to
the following dimensional drawing. Use the three holes labelled (a).
2. Connection cable
The connection cables (power supply, network etc.) are run through the
cable lead-ins of the GAT FR 055. With concealed/flush wiring (1) the
connection cables are fed from behind via the back box. With surface
wiring (2) the connection cables must lie in the cable duct on the back
part of the GAT FR 055.
3. Wall mounting
Pay attention when fixing to an uneven background that the GAT FR 055
housing and the device back part of the GAT Access 6100 F must not
be distorted. Recommended mounting height: top edge of device 1.3 m.
1. GAT FR 055
2. Device back part of
GAT Access 6100 F
3. Fastening screws
4. Connection cable
5. Connection cable GAT FR 055
to GAT Access 6100 F
6. Weather protection cover
(optional)
7. Fastening screws for weather
protection cover
94.4 mm (3.72”)
60 mm (2.36”)
13 mm
(0.51”)
69 mm (2.72”)
20 mm
(0.79”)
Flush cabling
28.5 mm
(1.12”)
71 mm (2.8”)
157 mm (6.18”)
14.1 mm (0.56”)
12.6 mm (0.5”)
a
a
a
4. Electrical connection
The connection cables (see (4) in previous drawing) are connected at the
device back part of the GAT Access 6100 F (se page 4).
5. Mounting of the GAT Access 6100 F upper part
The connection cable of the GAT FR 055 (1) is fixed into the housing
upper part of the GAT Acces 6100 F and the connection cable of the
upper part (2) is fixed in the back part of the GAT Access 6100 F. After
that the device upper part can be swung down into the back part (3).
Check the sockets (1) and (2)! Dirt, dust and humidity must be removed so
that a good contact of the connection cable is guaranteed. No aggressive
detergent may be used. Please do not damage socket contacts.
Attention: Cleaning only in powerless state!
6. Open the GAT Access 6100 F upper part
The GAT Access 6100 F an only be opened with the supplied special tool!
With this the two catches on the bottom of the device can be unlocked in
succession.
1
2
Back box
Maintenance
The sonsor field of the GAT FR 055 should be cleaned from time to time
so that finger prints can be clearly scanned.
For cleaning the sensor field always use a humid (not wet!) smooth
cloth. No sharp or acrid detergents and no sharp materials must be
used!
1
6
7
3
3
2
5
4
1
2
3
2
1

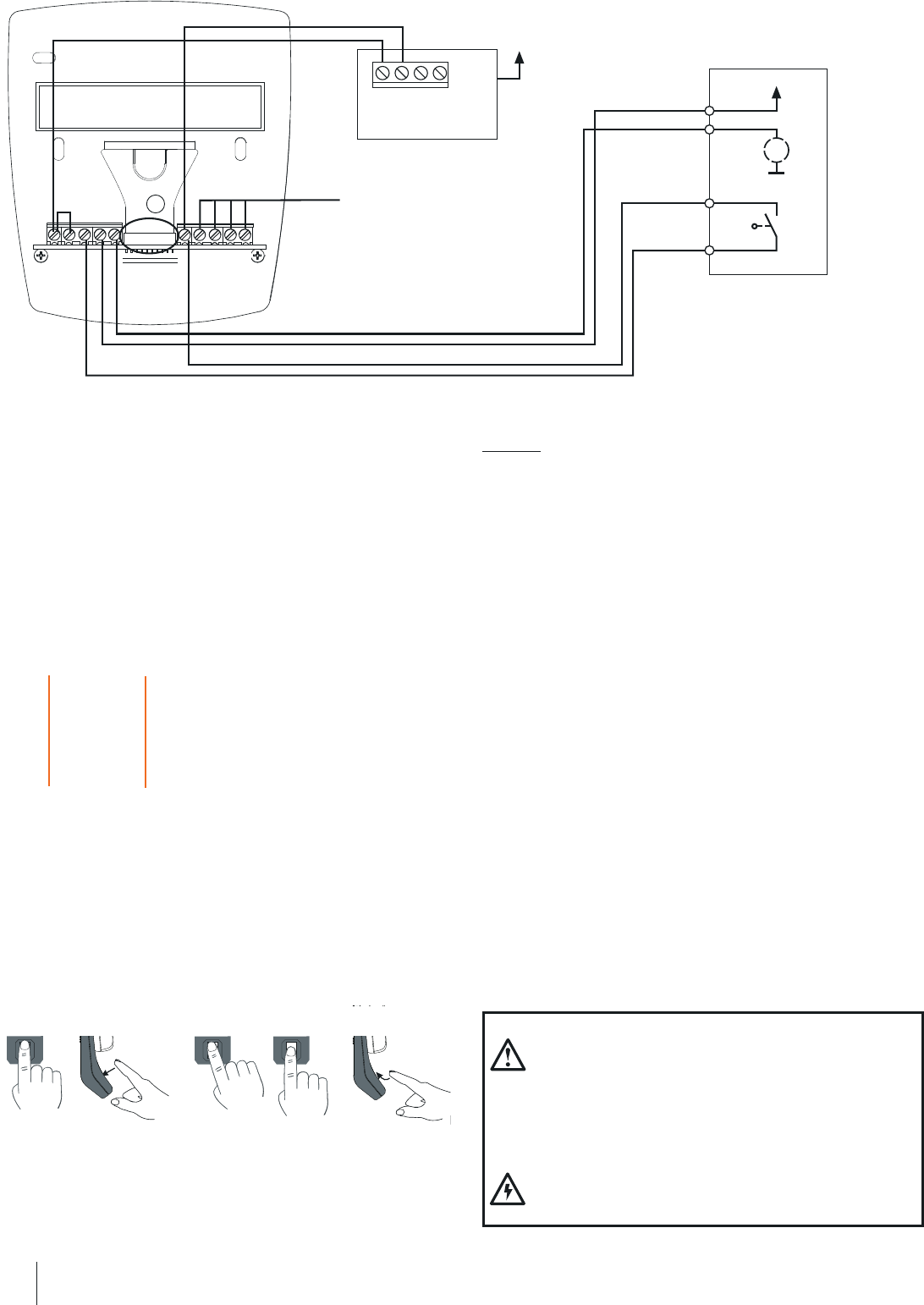

Electrical connections
TCP/IP with external power supply
4www.gantner.com
GAT Access 6100
RX +
TX -
TX +
GND
NO 1
C 1
IN1 -
IN1 +
RX -
VIN +
TCP/IP
Power supply unit
e.g. GAT Power Supply SP014/1
VOut+
GND
A
B
Mains power
Motor control
Feedback control
M
e.g. Turnstile
1
Valid as from July 31
th
2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100F--BIO-EN_11.indd • PartNo.: 243526
Power supply
DC supply (see technical data), e.g. via GANTNER GAT Power Supply
SP014/1. The power input is protected against reverse-polarity.
Network
Ethernet, connection via screw terminals.
Recommended cables
Ethernet: min. CAT 5 (STP) for 100 MBit
Ethernet wire colours
Ethernet 10/100 MBit
Usage of the fingerprint reader GAT FR 055
The sensor field will light-up red if a finger print must be scanned.
Pay attention that the finger is always pressed vertically onto the sensor
field in order to guarantee an optimal scanning of the finger! Furthermore
the finger should be laid rectangular onto the sensor field and touch the
top edge.
See also the operating instructions of the GAT Access 6100 F.
568A 568B
TX + green/white orange/white
TX - green orange
RX + orange/white green/white
RX - orange green
Connection to the device upper part
Attention: The socket for the connection cable between the device back
part and upper part (circle with the lable (1) in the connection figure) must
be clean in order to guarantee a good contact.
Relay output
For activation of devices like turnstiles etc.. the relay contact is of type NO
(maker contact). Please observe the max. permitted switching voltages
and currents (see technical data).
Depending on the connected installation (e.g. turnstile) an additional free-
wheeling diode may be necessary, which is used to limit the switch-on
current. Please read the documentation of the connected installation.
Optocoupler input
Input for status acquisition. For using the input a supply voltage must be
applied. This voltage can be taken from the terminal´s supply or from an
external power source. Please observe the max. permitted input voltages
and currents (see technical data).
Correct:
Incorrect:
Safety instructions
- This device must be installed by qualified personnel only.
- The applicable safety and accident prevention regulations
must be observed.
- Safety devices must not be removed.
- Please observe the technical data of the device specified
on the data sheet.
- The device must be disconnected from the power supply
prior to installation, assembly or dismantling.
