5.5.4.5.3 Changing the content of settings 2 (PRESET2)
Refer to the section, “Changing the content of setting 1(PRESET1)”.
a) Guard Zone Level Guard Zone Detection Level setting
1: High Sensitivity, .. 7: Big Target Only
b) Guard Zone Mode Guard Zone Detection Mode setting
IN: Detect Target in
OUT: Detect Target dissapear
c) Hold Hold the radar picture for 30 seconds after switch to ST'BY
The EBL and VRM can be used in HOLD state.(Note1: )
d) Display Unit Mode Display Unit Operation Mode setting
RDR: Radar mode(normal)
MONI: Monitor mode(for slave display use)
NAV: Navigation mode(for DATA indicator use)
e) External Buzzer External Buzzer control setting
OFF: Buzzer off
CONT: Continuous tone
INT: Intermittent tone
f) Bearing pulse/rot.(IN) Change the setting when connected to the other type of
radar
g) Bearing pulse/rot.(OUT) Change the setting when connected to the other type of
radar
h) Built-in simulator switch for Demonstration
i) Interference Rejection Reject the interference from the other radar
OFF: IR OFF
IR1: ON level 1
IR2: ON level 2
(a)
a
) Guard Zone Level
b) Guard Zone Mode
c
) Hold
d
) Display Unit Mode
e
) External Buzzer
‚†j
Bearing pulse/rot(IN)
g
) Bearing pulse/rot(OUT)
h) Built-in Simulator
i) Interference Rejection
j
) Ship's Speed
k) Indication Language
l) Scan speed
PRESET2
GZ LVL 1 2 3 4 5 6 7
GZ MODE I N OUT
HOLD ON OFF
DISPLAY RDR MONI NAVI
EXT BUZ OFF CONT INT
IN P /R 1080 1024 2048 4096 360
OUT P/R 1080 1024 2048 4096 360
DEMO ON OFF
IR OFF IR1 IR2
SPD SET NMEA MANU 0.0KT
LANGUAGE CHI DAN ENG FRE GER
GRE ITA JPN KOR NOR
POR RUS SPA SWE TUR
SCAN SPEED STD HIGH
PRESS ENTER KEY TO RETURN
![](/img.php?id=111148&img=bg2.png)
74
j) Ship's Speed Own ship's speed setting
NMEA: Data input from NMEA port
MANU: Set ship's speed with manual
Set the Speed with control knob.
k) Indication Language Select the language for MENU and SOFT KEY( Note2: )
l) Scan Speed Scanning speed setting
STD: Standard
HIGH: High speed
( The setting can be changed only on stand-by state.
)
Note1: HOLD function POWER • POWER key to press
HOLD is function which you want to hold the currently displayed radar screen conditions
while standby state. After finished operation such as EBL, VRM about 30 seconds, the screen
return to standby screen.

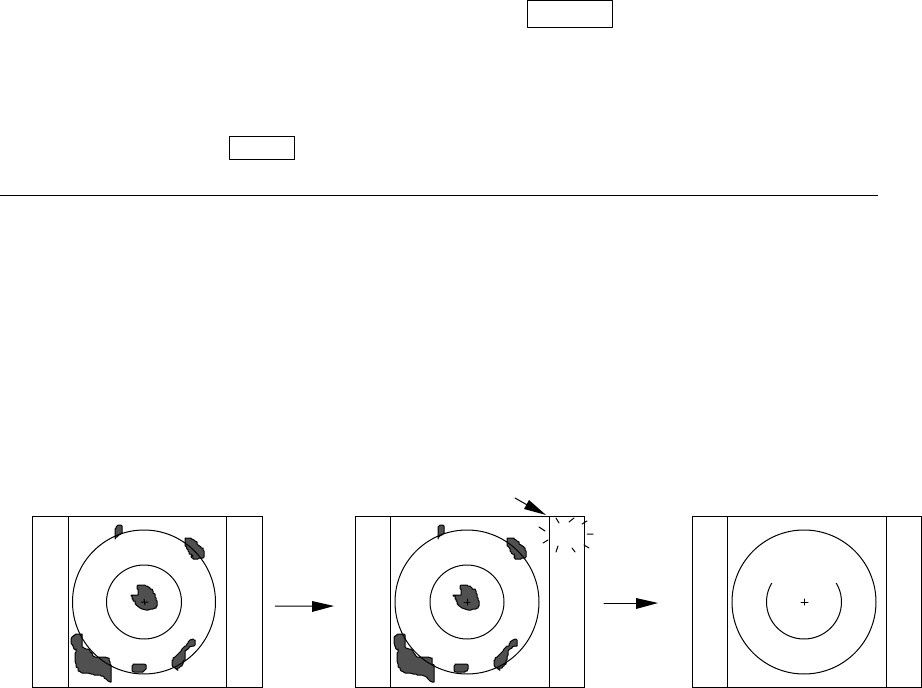

Setting HOLD POWER •Operation•
• •
•Under Tx• -----------------------------------•<-------Under HOLD
mode--->•<-----------ST’BY DISPLAY•••
Turn to transmission off
EBL,VRM operation:• seconds ••30seconds
•Time used•
NOTE) EBL and VRM function is usable in HOLD
state.
Note 2: 15 languages
CHI : Chinese KOR : Korean
DAN : Danish NOR : Norwegian
ENG : English POR : Portuguese
FRE : French RUS : Russian
GER : German SPA : Spanish
GRE : Greek SWE : Swedish
ITA : Italian TUR : Turkish
JPN : Japanese
ST’BY
HOLD
“HOLD” is displayed and blinks.
Tx OFF X•30sec.
Setting
HOLD
EBLs and VRMs can be used
for measuring target data.
