5.5.4.5.2 Changing the content of settings 1(PRESET1)
(1) When PRESET1 is selected from CUSTOM items and the "ENT" key is pressed, the
PRESET1 screen (See chart below) appears.
(2) Select items with up-down keys and contents with left-right keys.
The selected items will be enclosed by square frames and the contents will appear in
reversed display. (a)
Repeat this operation when multiple settings are to be made.
(3) After the setting is completed, exit from the PRESET1 screen with the "ENT" key.
Note) The contents will be displayed in (b) together with the numbers selected in P TABLE.
•• Heading Flash Each revolution of the antenna turns the heading marker
on
and off.
b) Stern Mark Display/non-display of the stern line
c) North Mark Display/non-display of the north mark
•• ST'BY screen Setting the screen display in stand-by
NAVI: Navigation Data screen
NOR: Normal screen
e) Buzzer Volume Setting the volume of the buzzer
a) Heading Flash
b) Stern Mark
c) North Mark
d) ST'BY screen
e) Buzzer Volume
f) VRM Unit
g) Water temperature
h) Depth Unit
i) EBL Mode
j) WayPoint Mode
k) Heading Input
l) Heading Type
m) Cursor position
n) TX Pulse
PRESET1
HM FLASH ON _OFF_
STERN M ON _OFF_
NORTH M ON _OFF_
ST’BY _NAVI_ NOR
BUZ VOL OFF LOW _HIGH_
RM UNIT _NM_ KM SM
TEMP °
°°
°C_ °
°°
°‚e
DEPTH _M_ FT FM
EBL BRG _REL_ TRUE MAG
WP BRG _TRUE_ MAG
HEAD INPUT _NMEA_ SIN/COS 12BIT 10BIT
HEAD TRUE _MAG_
+MK MODE _DIST / BRG_ LAT / LON
P TABLE 0 _1_ 2
.5 .75 1.5 3 6
P TABLE _1_ SHORT 0 0 0 1 1
LONG 0 1 1 2 2
(a)
(b)
72
•• VRM Unit Setting VRM unit
••NM: Nautical mile
••KM: Kilometer
••SM: Statute mile
g) Water temperature Setting water temperature
unit
°C: Celsius
F: Fahrenheit
h) Depth Unit Setting Depth unit
M: Meter
FT: Feet
FM: Fathom
i) EBL Mode Setting Mode of EBL
REL: Relative bearing from HM
TRUE: True bearing
MAG: Magnetic bearing
j) WayPoint Mode Setting WayPoint bearing mode
TRUE: True bearing
MAG: Magnetic bearing
k) Heading Source Setting Heading source;
NMEA
SIN/COS: Compass Data with SIN/COS signal
12BIT: Compass Data with 12bits serial signal
10BIT: Compass Data with 10bits serial signal
l) Heading Type Heading Information Type setting
MAG: Magnetic bearing
TRUE: True bearing
m) Cross cursor position display Mode
DIST/BRG: Range and Bearing indication
LAT/LON: Latitude and Longitude indication
n) Transmitting pulse width Pulse setting for Range (Note: )
Note: P TABLE
PUSLE
TYPE
•0.25
NM
0.5 0.75
NM NM
1.5
NM
3
NM
6
NM
•12
NM
P TABLE 0 SHORT 0 0 0 0 0 1 2
LONG 0 0 0 1 1 2 2
P TABLE 1 SHORT 0 0 • 0 011 2
LONG 0 0 1122 2
P TABLE 2 SHORT 0 0 0 1 1 1 2
LONG 0 1 1222 2
Note• RA40C Pulse width 0 : 0.12 uS, 1 : 0.3 uS, 2 : 0.8 uS
ΡΑ41Χ/42Χ Πυλσε ωιδτη 0 : 0.08 uS, 1 : 0.25 uS, 2 : 0.8 uS

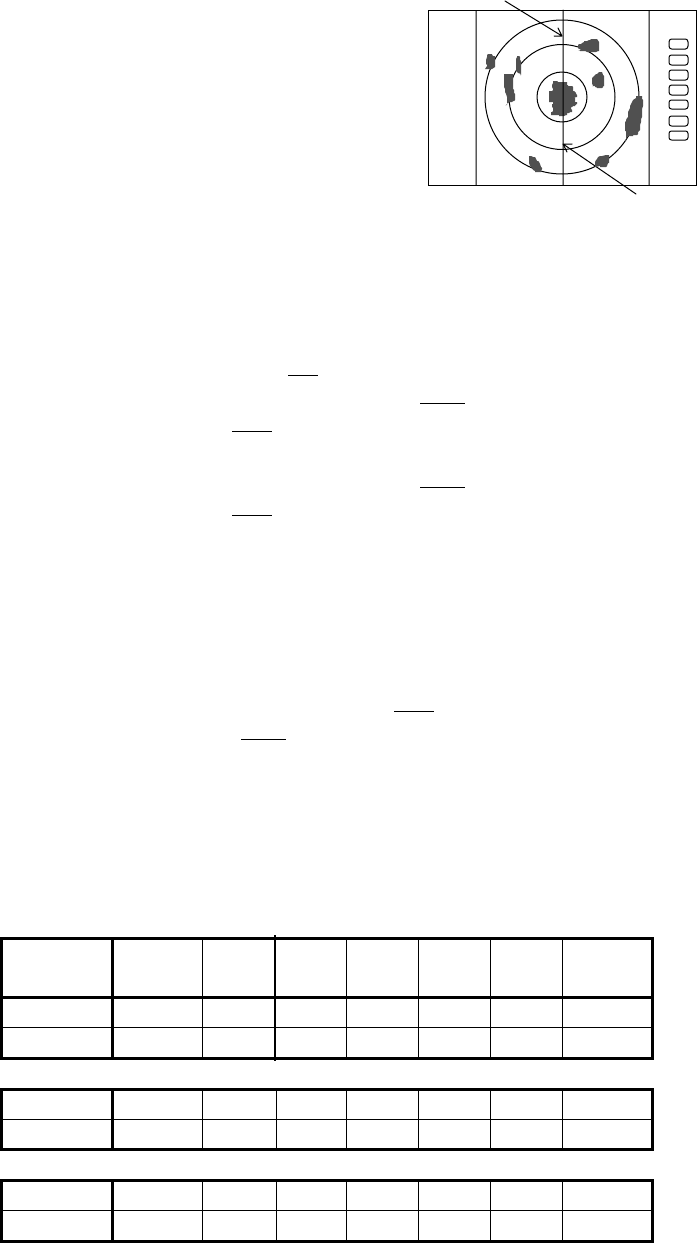

Heading Marker
S
tern Marker
.75
.25
HU
